EN
User manual
Dishwasher
HUI66360XCUS
Contents
4Your dishwasher .....................................................................................................................
5Important safety instructions .................................................................................................
5General ......................................................................................................................................
5Child safety ...............................................................................................................................
6Installation .................................................................................................................................
6Overflow guard function ...........................................................................................................
6Winter storage/transport ...........................................................................................................
6Packing material .......................................................................................................................
6Disposal ....................................................................................................................................
6Symbols ....................................................................................................................................
7Before washing for the first time ...........................................................................................
7Water hardness .........................................................................................................................
7Basic settings ...........................................................................................................................
7Fill up with rinse aid ..................................................................................................................
8Greener dishwashing ..............................................................................................................
8Save energy and water .............................................................................................................
9Loading the dishwasher .........................................................................................................
9Fragile dishes ............................................................................................................................
9Loading affects the results ........................................................................................................

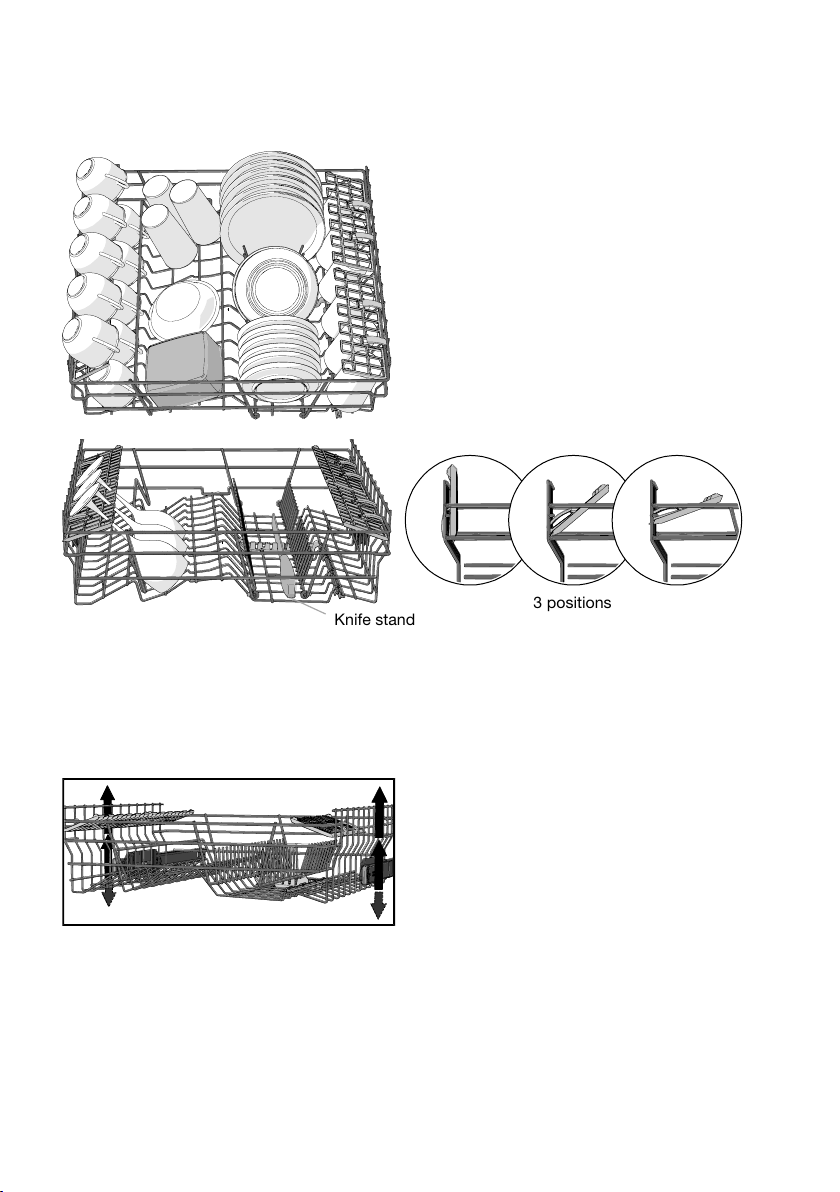

9The baskets ..............................................................................................................................

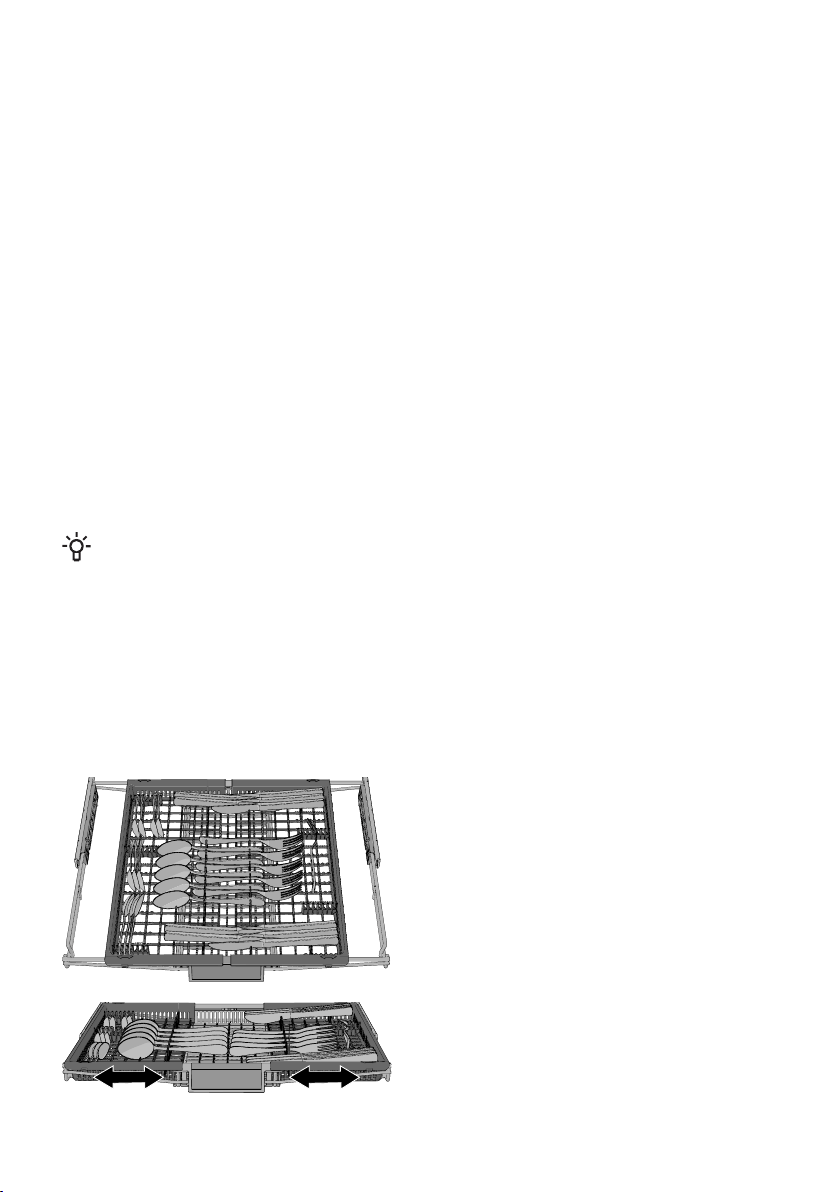

9Top cutlery tray .........................................................................................................................
10Upper basket ............................................................................................................................
11Lower basket ............................................................................................................................
11Cutlery basket ...........................................................................................................................

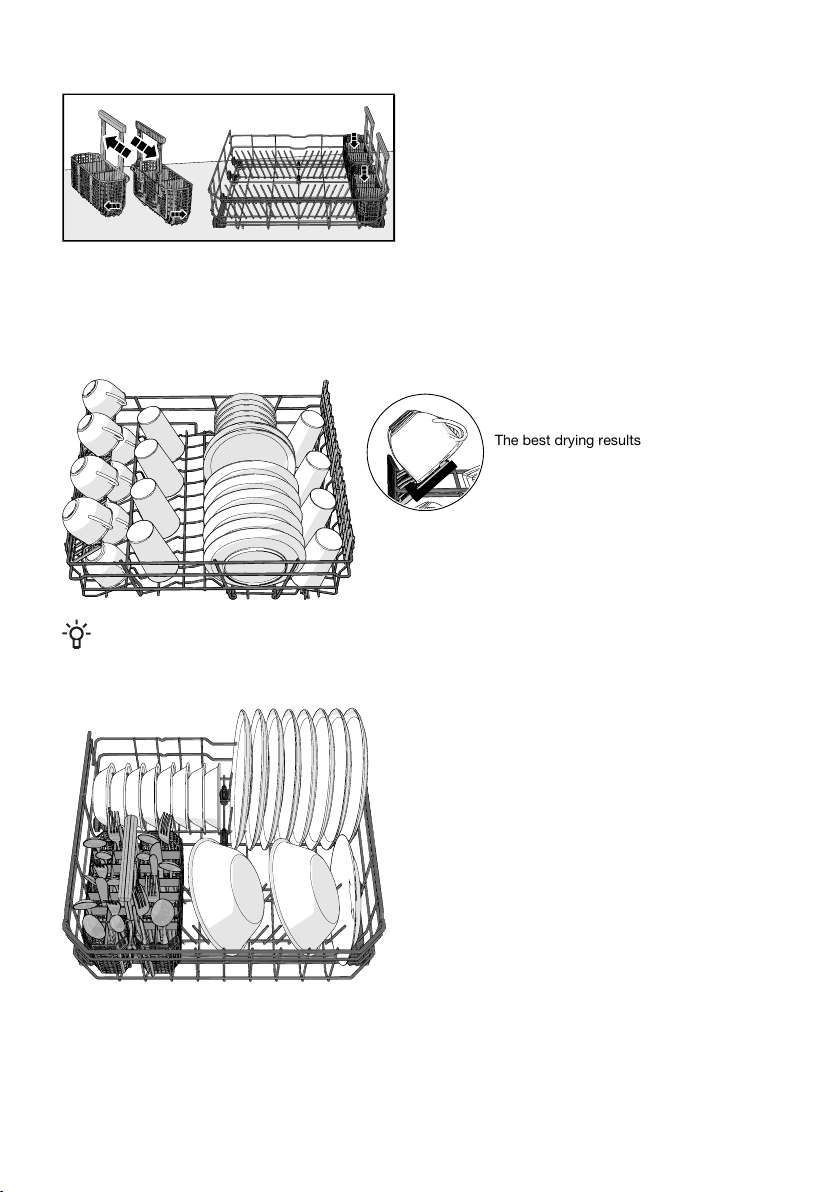

12Typical load ...............................................................................................................................
13Using the dishwasher .............................................................................................................
13Add detergent ...........................................................................................................................
14On/Off .......................................................................................................................................
14Select program .........................................................................................................................
15Select option .............................................................................................................................
16Start/Stop .................................................................................................................................
16Status Light ...............................................................................................................................
16If you want to load more dishes ................................................................................................
16Power failure .............................................................................................................................
17Once the program has finished .................................................................................................
17The best drying results .............................................................................................................
17Unloading the dishwasher ........................................................................................................
18Program chart .........................................................................................................................
19Settings ....................................................................................................................................
21Care and maintenance instructions ......................................................................................
21Fill up with rinse aid ..................................................................................................................
21Clean the filters .........................................................................................................................
22Cleaning the spray arms ...........................................................................................................
23Clean the outside of the dishwasher ........................................................................................
23CLn - Run the Self Clean program ..........................................................................................
2
23Remove blockages ...................................................................................................................
25Troubleshooting ......................................................................................................................
30Installation instructions ..........................................................................................................
30Important safety instructions ....................................................................................................
30Tools .........................................................................................................................................
31Before you start ........................................................................................................................

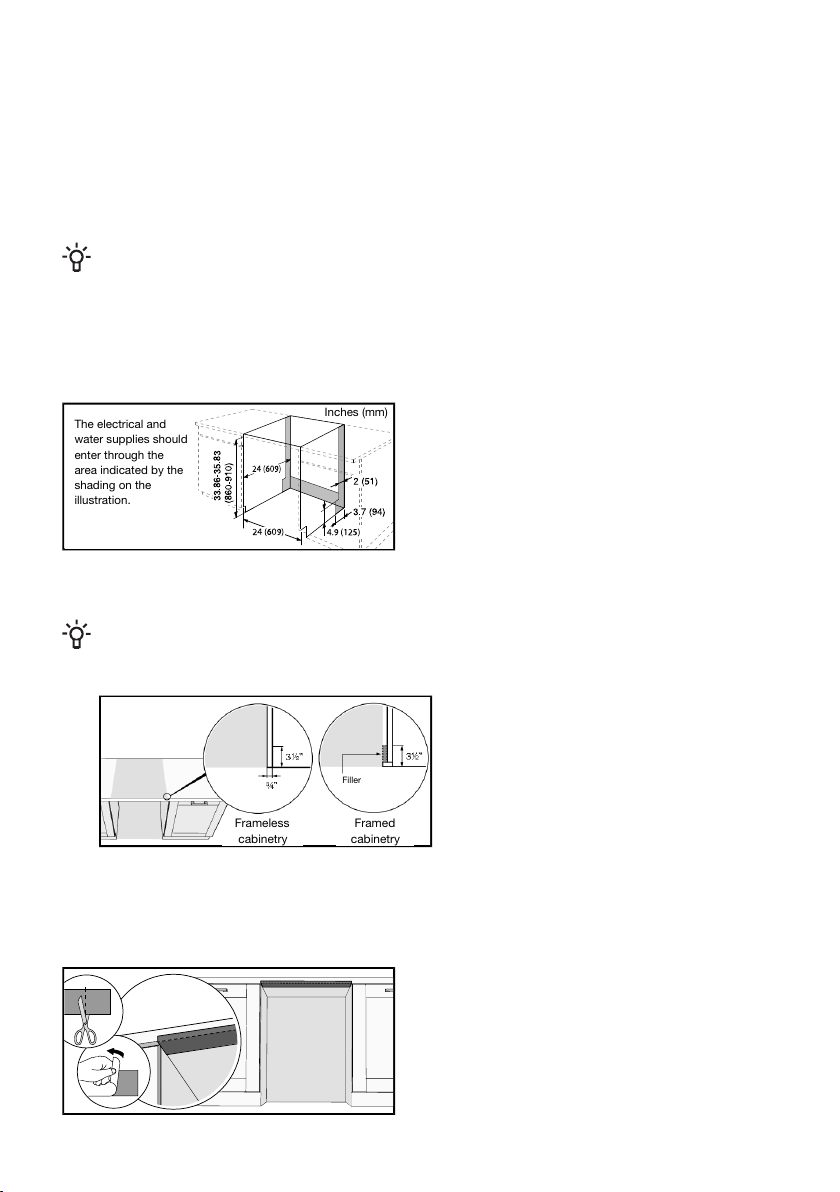

311. Placing the dishwasher ........................................................................................................
312. Fit the protective film ...........................................................................................................
323. Prepare water supply, drainage and electrical connections ................................................
324. Adjust the height and slide the dishwasher into place ........................................................

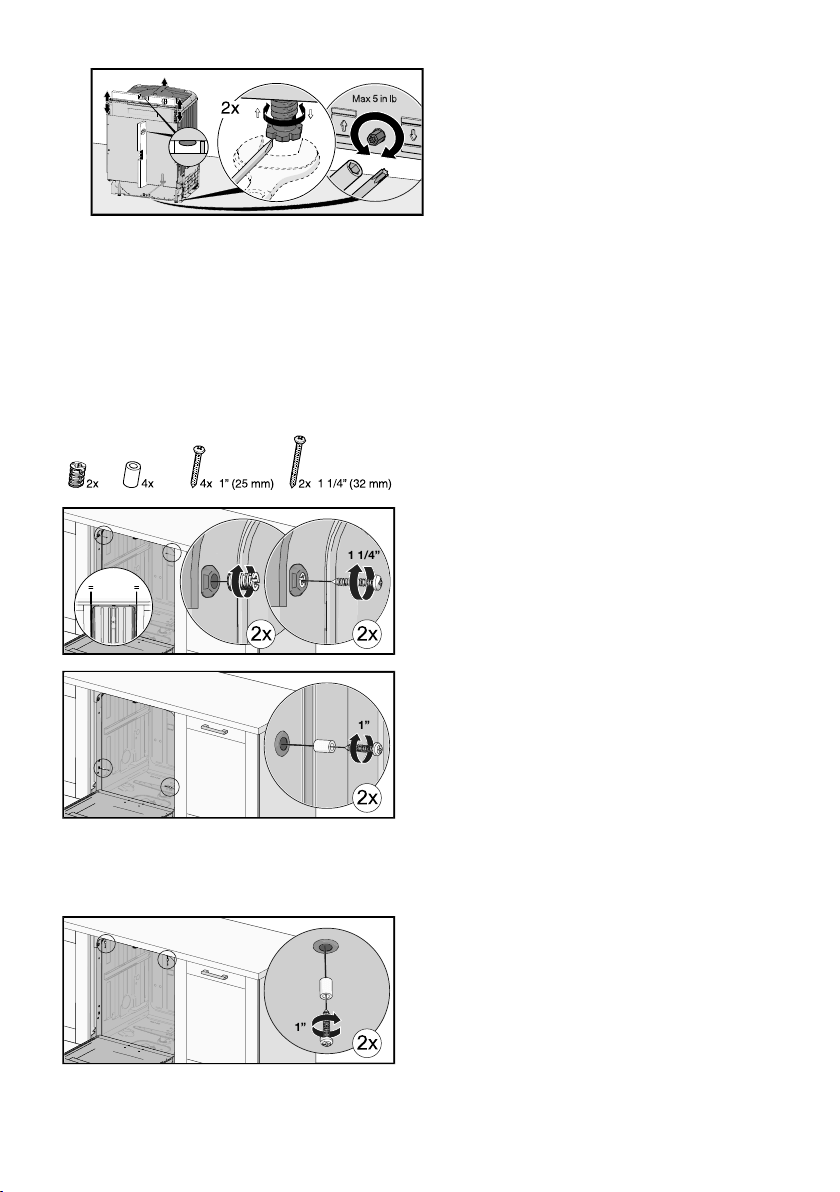

335. Screwing the dishwasher into place ....................................................................................

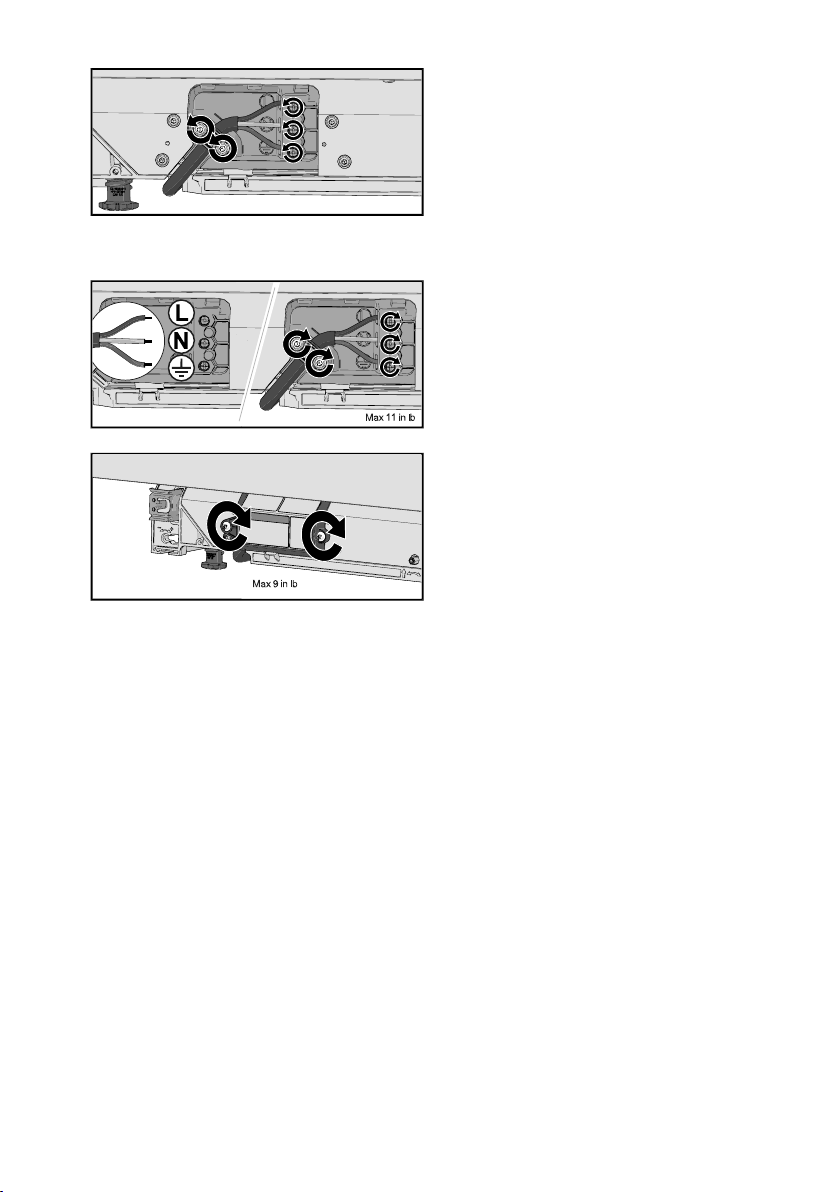

346. Electrical connection ............................................................................................................
357. Connection to water supply .................................................................................................
358. Drain connection ..................................................................................................................
369. Dishwasher toe kick .............................................................................................................
3710. Completing the installation ................................................................................................
38Service and warranty ..............................................................................................................
38Number of program cycles .......................................................................................................
39Technical information .............................................................................................................
39Technical data ...........................................................................................................................
3
Your dishwasher
Install the dishwasher; see the chapter Installation instructions. Then open the door and press Power.
The first time the dishwasher is switched on, it is important that you choose the right settings to ensure
good dishwashing results. See the chapter Before washing for the first time.
Display
Start/StopOn/Off Program Option
Special program
Special programOptionProgram
Self CleanDelayAuto
BoostNormal
Door Open1h
Heavy
Delicate
Sanitize
Quiet
Quick
Information on the display
See the chapter Care and maintenance instructions.
Fill up with rinse aid
CLn Run the Self Clean program
NOTE!
The control panel only reacts to use when the door is open.
For questions about features, operation/performance, parts or service, call: 1-877-465-3566
4
Important safety instructions
SAVE THESE INSTRUCTIONS FOR FUTURE REFERENCE
WARNING!
When using your dishwasher, follow basic precautions, including the following:
• Read all instructions before using the dishwasher.
• Use the dishwasher only for its intended purpose.
• Use only detergents or rinse agents recommended for use in a dishwasher and keep them
out of the reach of children.
• When loading items to be washed:
– position sharp items so that they are not likely to damage the door seal, and
– load sharp knives with the handles up to reduce the risk of cut-type injuries.
• Do not wash plastic items unless they are marked “dishwasher safe” or the equivalent. For
plastic items not so marked, check the manufacturer’s recommendations.
• Do not operate the dishwasher unless all enclosure panels are properly in place.
• Do not tamper with controls.
• Do not abuse, sit on, or stand on the door or dish rack of the dishwasher.
• To reduce the risk of injury, do not allow children to play in or on a dishwasher.
• Under certain conditions, hydrogen gas may be produced in a hot water system that has not
been used for two weeks or more. HYDROGEN GAS IS EXPLOSIVE. If the hot water system
has not been used for two weeks, before using the dishwasher turn on all hot water faucets
and let the water flow from each for several minutes. This will release any accumulated
hydrogen gas. As the gas is flammable, do not smoke or use an open flame during this time.
• Remove the door of the dishwasher when removing the dishwasher from service or discarding
it (so that children cannot become trapped inside).
• Read the grounding instructions in the installation instructions.
General
• Do not store or use combustible materials, gasoline, or other flammable vapors and liquids in the
vicinity of this or any other appliance.
• Disconnect electrical power to dishwasher before servicing.
• Repairs should be done by a qualified technician.
WARNING!
PROPOSITION 65 FOR CALIFORNIA RESIDENTS
Cancer and Reproductive Harm – www.P65Warnings.ca.gov
Child safety
• Always keep small children away from the machine when it is open. There may be some detergent
residue left inside the machine.
• Always close the door and start the dishwasher as soon as you put in the detergent.
• If dishwasher detergent gets in someone’s eyes, rinse them with plenty of water for at least 15
minutes.
• Should a child swallow dishwasher detergent or rinse aid, give plenty to drink immediately, i.e.,
one or two glasses of milk or water. Do not try to induce vomiting. Seek medical advice immediately:
Call the National Poison Control Center at 1-800-222-1222.
5
WARNING!
Dishwasher detergents and rinse aids are corrosive, so always keep them out of reach of children.
Installation
See the chapter Installation instructions.
Overflow guard function
The overflow guard starts pumping out the machine and turns off the water supply if the water level
in the dishwasher exceeds the normal level. If the overflow guard is triggered, F54 (Overfilling water)
appears on the display. Turn off the water tap and contact your nearest service center. (To avoid water
leakage outside the dishwasher, do not unplug the electrical supply until the water tap on the supply
line has been turned off!)
Winter storage/transport
Store the dishwasher above freezing and avoid long transport distances in very cold weather. Transport
the dishwasher upright or laying on its back.
Before transporting a used dishwasher, or before prolonged storage, water must first be drained from
the machine.
Packing material
The outer packaging protects the product during transport. The packaging material is recyclable.
Separate the different packaging materials to help reduce raw material use and waste. Your dealer
can take the packaging for recycling or direct you to the nearest recycling center. The packaging is
comprised of:
• Corrugated cardboard made from up to 100% recycled material.
• Expanded polystyrene (EPS) with no added chlorine or fluorine.
• Supports made from untreated wood.
• Protective plastic made from polyethylene (PE).
Disposal
The dishwasher is manufactured and labeled for recycling. When the machine has reached the end
of its service life and is to be disposed of, it should immediately be made unusable. Pull out the power
cord and cut it as short as possible.
Contact your municipality for information about where and how your dishwasher can be recycled
correctly.
Symbols
Explanation of symbols appearing on the appliance.
Read the user manual.
6
Before washing for the first time
Water hardness
In order to achieve good dishwashing results, the dishwasher needs soft water (water with low mineral
content). Hard water leaves a white coating on dishes and the dishwasher.
Checking water hardness
Contact the local water utility to check the water hardness in your area. This is important to determine
how much detergent and rinse aid to use.
In general, more rinse aid and detergent are needed for hard water.
Basic settings
The first time the dishwasher is switched on, it is important that you choose the right settings to ensure
good dishwashing results. See page 19.
Set up:
• Rinse aid
• TAB (All-in-one detergent)
Fill up with rinse aid
Use rinse aid to improve wash and dry times. Also use rinse aid to achieve clear and spotless results.
Fill up the rinse aid compartment with rinse aid if you have selected Rinse aid 3:01 - 3:05. See page
19.

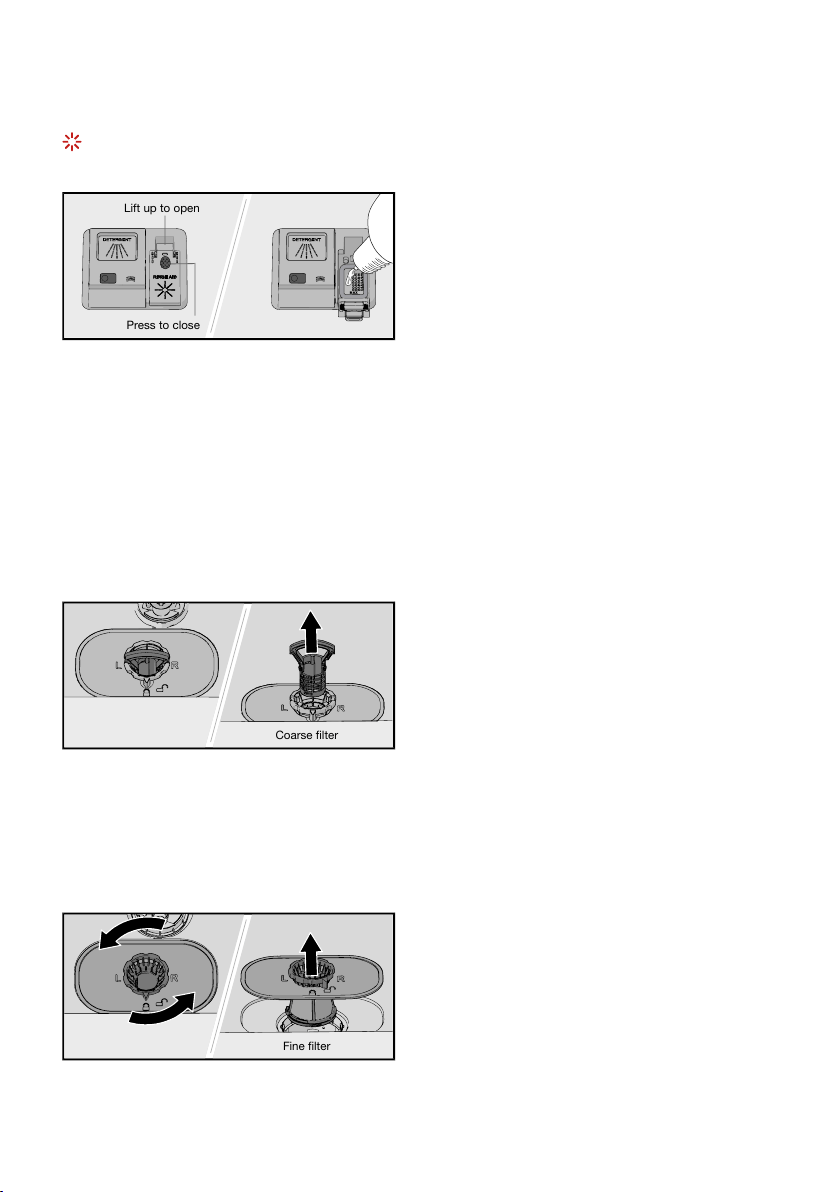

Lift up to open
Press to close
1. Open the rinse aid compartment lid.
2. Carefully fill up with rinse aid to the level marked MAX.
3. Wipe up any spilled rinse aid around the compartment.
4. Close the lid firmly.
7
Greener dishwashing
Save energy and water
When using a dishwasher in a residential setting, less energy and water are generally used compared
to washing the dishes by hand.
Do not rinse under running water
Do not rinse the dishes under running water as this will lead to increased energy and water consumption.
Simply scrape off large food particles before loading the dishwasher.
Choose a green detergent
Read the environmental declaration on the packaging!
Too much detergent and rinse aid can result in less effective dishwashing and lead to a greater
environmental impact.
Run a fully loaded dishwasher
Save energy and water by waiting until the dishwasher is full before running a program. Use the 1h
program with the Boost option to rinse the dishes if there are any unpleasant odors.
Run programs at a lower temperature
If the dishes are only lightly soiled, you can select a program with a lower temperature. See page 18.
Select option – Door Open
A shorter dishwashing program and better drying results are achieved if you use the Door Open option,
which automatically opens the dishwasher door. Wait until the dishwasher indicates that the program
has ended and the dishes have cooled before unloading the dishwasher. (If the dishwasher is built-in,
the surrounding furnishings must be resistant to any condensation from the dishwasher.)
8
Loading the dishwasher
Fragile dishes
Some cookware is not dishwasher safe. This can be for several reasons. Some materials cannot
withstand high temperatures, others can be damaged by dishwasher detergent.
Use caution with, for example, handmade items, China, crystal/glassware, silver, copper, tin, aluminum,
wood, and plastic. Look for the "Dishwasher safe" marking.
Loading affects the results
Load the dishes carefully to ensure the best washing and drying results with the lowest possible energy
and water consumption. Give your dishwasher the best chance to reach and clean all surfaces, as
well as to dry the dishes as thoroughly as possible.
• All dirty surfaces should face in and down.
• Dishes should not be placed in or on each other.
• Angle dishes with hollows, such as cups, so that the rinse water will run off. This is also important
for plastic items.
• Place the upper basket in its highest position when dishwashing very large plates.
• Make sure small items cannot fall through the dishwasher basket; place them in the top cutlery
tray.
NOTE!
Check that the spray arms can rotate freely.
The baskets
The dishwasher is equipped with a top cutlery tray, an upper basket, and a lower basket.
The basket appearance may differ depending on the configuration.
Top cutlery tray
The top cutlery tray accommodates cutlery, ladles, whisks, and other utensils.
The top cutlery tray is comprised of three parts
that can be moved sideways to better
accommodate the dishes.
9
Upper basket
Place glasses, cups, bowls, side plates, and saucers in the upper basket. Place all soiled surfaces
face down. Place wine glasses on the wine glass shelf. Place knives in the knife stand on the right.
Knife stand
3 positions
Raising and lowering the upper basket
1. Pull out the upper basket.
2. Grab the sides of the upper basket with both hands and lift it up.
3. If the upper basket is raised while in the top position, it will drop to the bottom position.
Note that both sides of the basket must always be set to the same height.
10

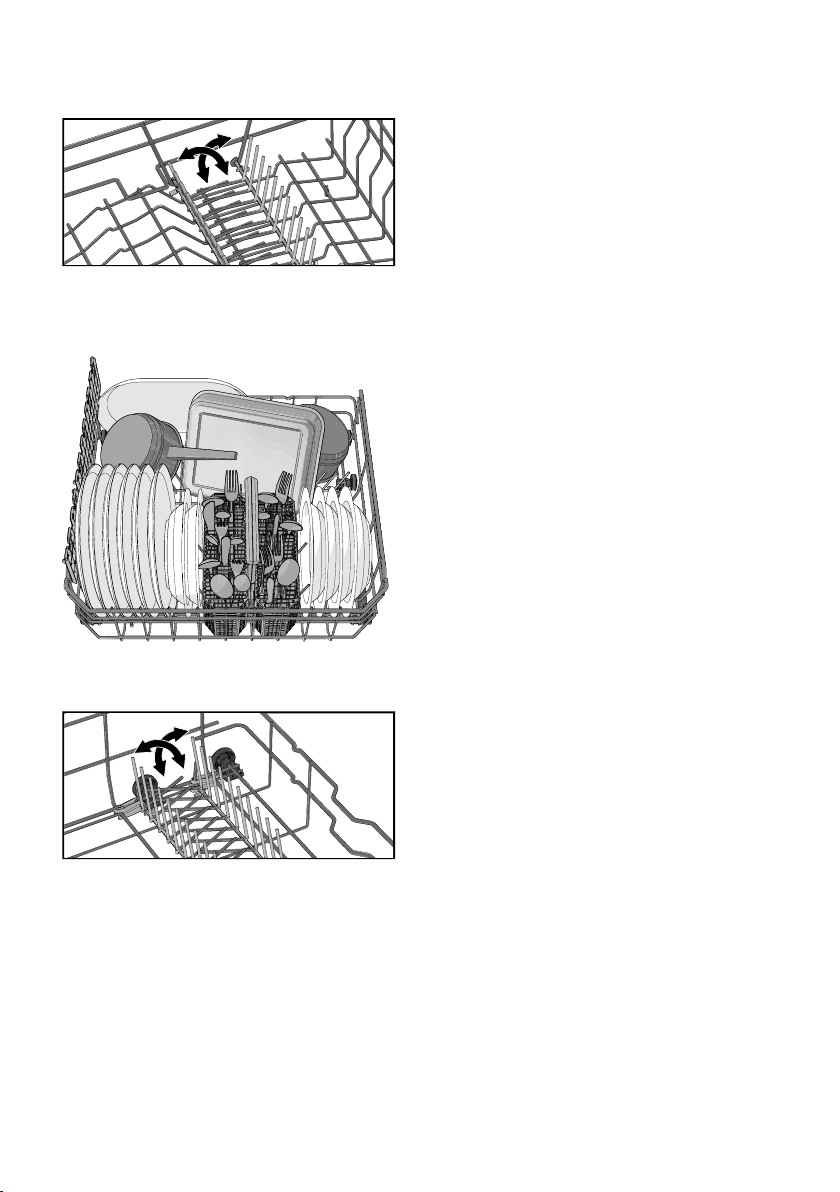

Adjustable plate supports
The adjustable plate supports can be folded down to make it easier to load pots, bowls and glasses.
Lower basket
Place plates, side plates, serving dishes, pots and cutlery (in the cutlery basket) in the lower basket.
Adjustable plate supports
The adjustable plate supports can be folded down to make it easier to load pots and bowls.
Cutlery basket
Place cutlery with the handles facing down, except for knives, and spread them out as much as
possible. Ensure that spoons do not stack inside each other.
Place the cutlery basket in the lower basket.
11
Flexible cutlery basket
The cutlery basket is flexible and can be
separated into two parts, which can then be
attached to the side of the lower basket.
Typical load
Recommended for daily, regular, or typical use.
Upper basket
The best drying results
NOTE!
Ensure the upper basket is set to its lowest position.
Lower basket
12
Using the dishwasher
Add detergent
Follow the instructions on the detergent packaging.
Too much detergent can result in less effective dishwashing and lead to greater environmental impact.
Detergent compartment
The detergent compartment must be dry when adding detergent.
If powder or liquid dishwasher detergent is
used, add a small amount of the detergent to
the compartment for prewash detergent.
Press to open Close the lid
Prewash detergent
Main wash detergent
NOTE!
Use only dishwasher detergent. Liquid hand-washing detergent must not be used as the foam
that forms prevents the dishwasher from operating effectively.
All-in-one detergent
There are many types of all-in-one detergents on the market. Read through the directions for these
products carefully.
Activate the TAB setting when using an all-in-one detergent that contains rinse aid. See page 19.
Dishwasher tablets are not recommended for short programs (less than 75 minutes). Use powder or
liquid dishwasher detergent instead.
NOTE!
Optimal washing and drying results are achieved by using normal dishwasher detergent together
with separately dispensed rinse aid.
Contact the detergent manufacturer if you have questions about the detergent.
13
Display
Start/StopOn/Off Program Option
Special program
NOTE!
The control panel only reacts to use when the door is open.
On/Off
Open the door and press Power. Also turn on the water supply valve if it is turned off.
Select program
Select a program to suit the type of dishes and how dirty they are.
Press the desired program until it is activated, which is indicated by an indicator light.
Auto
The dishwasher can measure how dirty the dishes are and adjust water consumption and temperature
accordingly. When newly installed, the program needs to be run five times before it is fully adapted
and can provide the best results.
Normal
This program is recommended for daily, regular, or typical use to completely wash a full load of normally
soiled dishes, such as plates, serving dishes, cups, and glasses.
1h
A quick program for slightly dried leftovers. (This program is not intended for burnt food, such as on
oven dishes.)
The Door Open option is important for ensuring the best drying results.
Heavy
A program with a high temperature for dissolving grease on heavily soiled dishes, such as pans,
casserole dishes, and oven dishes. If these dishes do not completely fill the dishwasher, you can add
plates and other dishes.
Delicate
A gentle dishwashing program with a low temperature for washing fragile items made of crystal/glass.
Remember to use a small amount of detergent and to place items so that they do not touch each
other during the wash. See also Fragile dishes in the chapter Loading the dishwasher. Porcelain that
has just been used without dried leftovers can also be washed using this program.
Sanitize
This program is recommended for baby bottles and cutting boards when additional sanitation is
required. The temperature is high in the main wash and in the final rinse.
NOTE!
If the program has been run in compliance with the high temperature, the Sanitize program's
indicator light will flash and "End" will appear on the display when the program ends.
Press any button to clear the message.
14
Quiet
A quieter dishwashing program, suitable for running at night. The program time is extended.
Quick
A quick program for dishes that have just been used and have no dried leftovers on them.
Self Clean
Self-cleaning program for the dishwasher tub, spray arms, and spray pipes.
This program should be run (with no dishes in the machine) using regular dishwasher detergent or
citric acid. Special dishwasher cleaners are also available in stores. For the removal of limescale
deposits, see Dishwasher tub in the chapter Care and maintenance instructions.
NOTE!
CLn The dishwasher will indicate at regular intervals that Self Clean needs to be run.
Select option
Press the options to activate them. (The available options vary between programs.)
Delay
When you select Delay, the dishwasher will start 1-24 hours after you have pressed Delay and closed
the door.
1. Press Delay once to activate Delay. Press several times, or hold it in, to set the desired number
of hours. The time for Delay is shown on the display.
2. Press Start. Close the door. The timer counts down and the dishwasher starts after the selected
delay.
If you want to cancel the Delay option, open the door then press and hold Delay for three seconds.
Not available for: Self Clean
Boost
This option shortens the program time, but uses more energy and water.
Press Boost to activate the option. The program time is updated on the display.
Not available for: Delicate, Auto, Quick, Quiet, Sanitize, Self Clean
Door Open
The dishwasher door opens automatically, which shortens the program time and improves the drying
results. Wait until the dishwasher indicates that the program has ended and the dishes have cooled
before unloading the dishwasher. (If the dishwasher is built-in, the surrounding furnishings must be
resistant to any condensation from the dishwasher.)
The drying time of the Door Open option varies (from 5 to 90 minutes) depending on the model,
program, and temperature of the final rinse.
Press to activate the option, which is indicated by an indicator light.
The Door Open option is pre-selected for some programs.
Not available for: Sanitize, Self Clean
NOTE!
For the best drying results, do not close the door before the drying phase has finished and the
machine has automatically switched off. See Once the program has finished on page 17.
15
WARNING!
The dishwasher door must not be blocked or closed when opened automatically. Doing so may
damage the door lock mechanism. Wait at least 5 minutes before closing the door.
Start/Stop
Press Start. The display will start counting down, indicating that the dishwasher is ready to start.
Close the door properly within four seconds, otherwise the dishwasher will not start.
Cancel or changing a program
Open the door. If you want to cancel or change the program after starting the dishwasher, press and
hold Start for three seconds (when "Str" is shown on the display).
Add new detergent if the lid of the detergent dispenser has opened. Then select a new program, press
Start and close the door within four seconds.
Time remaining
Once you have chosen a program and options, the time the program took when last used is displayed.
Status Light
The status light on the bottom of the dishwasher indicates that a program has started.
Flashing light
A flashing light indicates that the door has been opened while a program is in progress. If it flashes
when the door is closed, an error has occurred. See the chapter Troubleshooting.
Status light
If you want to load more dishes
1)
Open the door. The dishwasher stops automatically. Add the dishes. Press Start and close the door
within four seconds.
WARNING!
If the door is open, "Str" is shown on the display. If you want the dishwashing program to continue,
press Start and close the door immediately. If you want to cancel the dishwashing program,
press and hold Start for three seconds.
Power failure
If the dishwasher is turned off due to a power failure when a dishwashing program is running, the
program continues when power is restored. If the power is lost during drying, the program is interrupted.
1)
You should not load more dishes if the lid of the detergent dispenser has been opened.
16
Once the program has finished
The end of the program is indicated by one short signal from the buzzer. The chapter Settings describes
how to change this function.
Moreover, the end of the program is indicated by the status light turning off.
Once the dishwasher door is opened and the program has finished, "End" appears on the display.
The dishwasher switches off automatically after the program ends.
To minimize the risk of leaks, we recommend that you turn off the water supply valve if away from
home for an extended period of time.
The best drying results
• Fully load the dishwasher.
• Angle dishes with hollows, such as cups, so that the rinse water will run off. This is also important
for plastic items.
• Fill up the rinse aid compartment or increase the rinse aid dosage setting.
• Activate the Door Open option.
• Allow the dishes to cool before unloading the dishwasher.
Unloading the dishwasher
Hot porcelain is more fragile. Leave the dishes to cool in the dishwasher before unloading them.
Unload the lower basket first to avoid any water drops from the upper basket falling onto the dishes
in the lower basket.
17
Program chart
Consumption values
1)
Final
rinse
Number
of rinses
Main washNumber
of prewash-
es
OptionDetergent
(ml)
Program
Water
cons. (gal-
lon)
Energy
(approx.
kWh)
2)
Dishwash-
ing time
(approx.
hrs:min)
2)
4.0-5.71.2-1.63:00-3:45
65 °C
149 °F2-3
50-65 °C
122-149 °F2-3Door Open25Auto
3.21.02:10
60 °C
140 °F2
55 °C
131 °F1Door Open25
Normal
3)
3.80.81:00
65 °C
149 °F3
65 °C
149 °F251h
3.31.43:00
60 °C
140 °F2
65 °C
149 °F1Door Open25Heavy
2.80.81:55
50 °C
122 °F2
40 °C
104 °F20Delicate
4.51.83:30
70 °C
158 °F2
70 °C
158 °F225Sanitize
3.81.55:45
65 °C
149 °F2
55 °C
131 °F125Quiet
2.60.40:20
30 °C
86 °F2
35 °C
95 °F10Quick
1)
Consumption values vary depending on the temperature of the incoming water, room temperature, load size, selected additional functions, and
more.
2)
Connection to cold water, approx. 50 °F (10 °C).
3)
The energy label performance figures are based on this program. Dishwasher connected to cold water, approx. 50 °F (10 °C). This program is rec-
ommended for daily, regular or typical use to completely wash a full load of normally soiled dishes, such as plates, serving dishes, cups and glasses.
18
Settings
1. Open the door and press Power.
2. To open the dishwasher's settings menu, press and hold Auto and Delay until SEt is shown on
the display.
3. Press Boost to step through the settings menu.
4. Press Auto to step through the alternatives.
5. Confirm the selected setting by pressing Boost.
6. To exit the menu, step through it or press Power.
Confirm / Next settingSelect alternative
Open the dishwasher's settings menu
AlternativesSettings
A beep confirms that the control panel has been pressed.2:00 (Off)Sounds (volume)
A beep indicates when a dishwashing program has ended.2:01 (Low)
Error messages are always indicated by a loud buzzer.2:02 (Mid)
2:03 (High)
Setting for rinse aid dosage. The rinse aid dispenser can
be adjusted between 3:00 (Off) and 3:05 (High dosage).
3:00 (Off)
3:01
Rinse aid
Increase the rinse aid dosage:3:02
3:03
• If the dishes have water marks.
3:04
3:05 (High)
Reduce the rinse aid dosage:
• If the dishes have a sticky white/blue film.
• If the dishes are streaked.
• Heavy foaming. If you have very soft water, the rinse
aid can be diluted 50:50 with water.
Default: 3:04
Activate this setting when using an all-in-one detergent that
contains rinse aid.
5:00 (Off)
5:01 (On)
TAB
This setting reduces the rinse aid dosage.
Default: 5:00
Any error messages.F--Error readout
When contacting the Customer Care Center, you may be
asked to provide the most recent error messages.
Restores all settings to the factory defaults.rStRestore factory de-
faults Select rSt and confirm by pressing Start.
To exit the dishwasher's settings menu, select End and
press Boost.
EndExit
19
AlternativesSettings
(The menu closes automatically after three seconds.)
20
Care and maintenance instructions
Fill up with rinse aid
When the rinse aid needs filling up, the above symbol lights on the display.
Lift up to open
Press to close
1. Open the rinse aid compartment lid.
2. Carefully fill up with rinse aid to the level marked MAX.
3. Wipe up any spilled rinse aid around the compartment.
4. Close the lid firmly.
After filling up, it may take a while before the symbol goes out.
Clean the filters
Coarse filter
The coarse filter traps larger food particles, which cannot get past the drain pump. Empty the coarse
filter when necessary.
Coarse filter
1. Lift the coarse filter by the handle.
2. Empty the coarse filter.
3. Refit the coarse filter. Press it down until it clicks into place.
Fine filter
Debris that collects on the fine filter is automatically rinsed away during each wash. Clean the fine
filter when necessary.
Fine filter
1. Turn the lock ring counterclockwise and lift the fine filter straight up.
2. Clean the fine filter.
21
3. Refit the fine filter and turn the lock ring clockwise to its stop position. Check that the edges seal
properly.
Remember to refit the coarse filter!
NOTE!
Dishwashing results may be affected if the coarse and fine filters are incorrectly fitted. The
dishwasher must not be used without the filters in place!

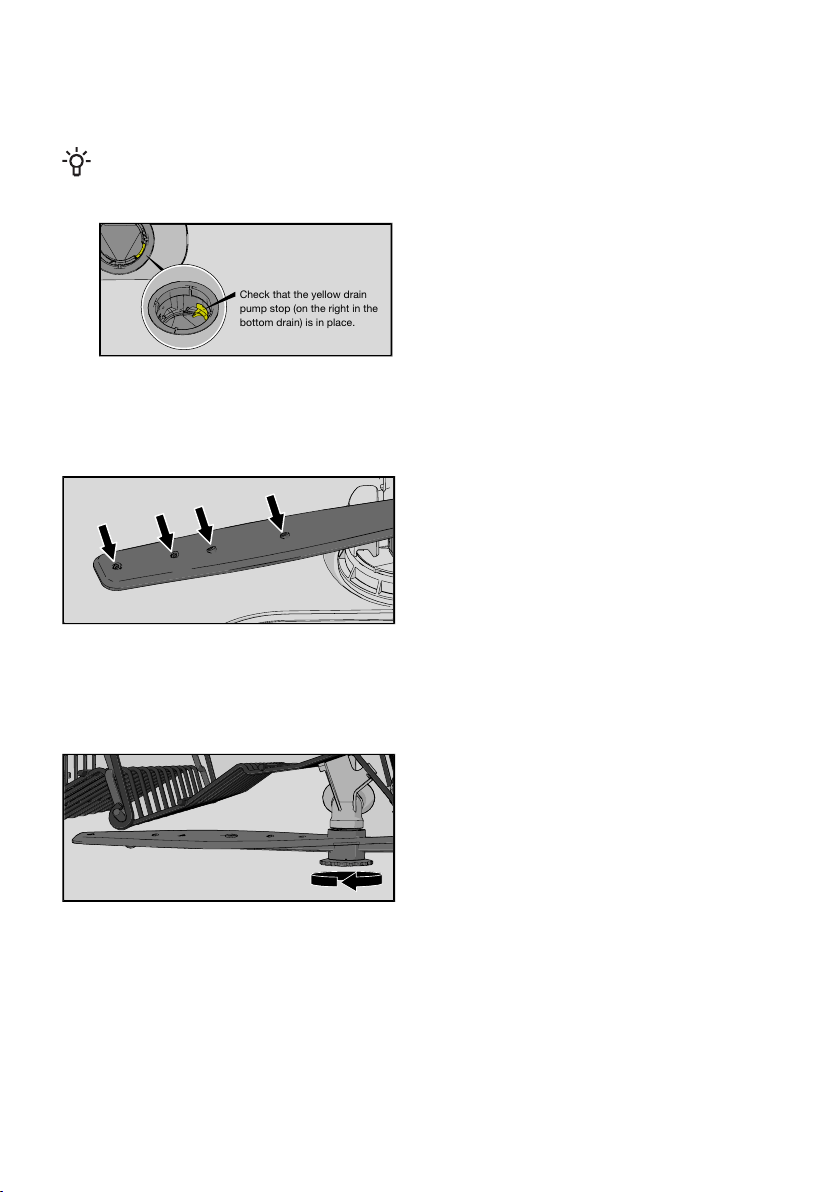

Check that the yellow drain
pump stop (on the right in the
bottom drain) is in place.
Cleaning the spray arms
Holes and bearings can become blocked. Remove debris using a needle or similar item. The spray
arms have holes on the bottom.
Spray arms can be removed for cleaning. Remember to put them firmly back into place afterward.
Upper spray arm
• Pull out the upper basket.
• Unscrew the spray arm bearings counterclockwise to remove the spray arm from the upper basket.
22
Lower spray arm
• Pull the lower spray arm straight up to release it.
Clean the outside of the dishwasher
Door and door seal
Open the door. Clean the sides of the door and the door seal regularly with a slightly damp cloth.
Clean the door seal at the lower front edge of the dishwasher with a cleaning brush.
Control panel
Keep the control panel clean. If necessary, wipe it with a dry or slightly damp cloth. Never use cleaning
products – they may scratch the surface.
CLn - Run the Self Clean program
Dishwasher tub
The dishwasher tub is made of stainless steel and is kept clean through normal use (when used
regularly).
If you have hard water, limescale deposits may build up in the dishwasher. If this happens, run the
Self Clean program with two tablespoons of citric acid in the detergent compartment (with no dishes
in the machine). Special dishwasher cleaners are also available in stores.
Never use anti-freeze, Draino
®
, CLR
®
, or other chemical cleaners.
Remove blockages
Unblocking the drain pump
If the dishwasher still contains water after the program has finished, something may be blocking the
drain pump, which results in the Water outlet fault error message.
1. Turn off the machine using Power and unplug the electrical supply.
2. Remove the coarse filter and the fine filter.
3. Scoop out the water from the dishwasher tub.
4. In order to inspect the drain pump, remove the yellow drain pump stop on the right in the bottom
drain. (Use a pair of pliers if necessary.)
5. Turn the pump wheel located behind the drain pump stop by hand. Carefully remove any sharp
items, such as glass.
6. Reinstall the drain pump stop along with the fine and coarse filters.
23
7. Plug the machine in again.
Drain pump stop
NOTE!
Do not forget to reinstall the drain pump stop.
24
Troubleshooting
ActionError messages
Unblocking the drain pump. See the chapter Care and maintenance
instructions. If the problem persists, contact your nearest Customer
Care Center.
Overfilling waterF10
See "Water remains in the dishwasher above the filters" under
"Problem" in the table below. If the problem persists, contact your
nearest Customer Care Center.
Water outlet faultF11
Check that the water supply valve is on. If the problem persists,
contact your nearest Customer Care Center.
Water inlet faultF12
The water pressure should be 4.2-140 psi.
Turn off the water supply valve and contact your nearest Customer
Care Center.
Inlet valve leakageF40
Turn off the water tap. Unplug the electrical supply and contact
your nearest service center.
Heater fault 1F41
Turn off the water supply valve and contact your nearest Customer
Care Center.
Overfilling waterF54
To avoid water leakage outside the dishwasher, do not unplug
the electrical supply until the water tap on the supply line has been
turned off!
Check that the water supply valve is on. If the problem persists,
contact your nearest Customer Care Center.
Water inlet faultF67
The water pressure should be 4.2-140 psi.
Press any button to clear the error message.
ActionPossible causesProblem
Wait a moment then try again.You have pressed the control
panel too soon after opening the
door.
The control panel does not react
when pressed.
Open the door. The control
panel only reacts to use when
the door is open.
The door is closed.
Clean with a dry or slightly
damp cloth.
Dirt on the control panel.
Check that the baskets are cor-
rectly positioned horizontally.
The baskets are not correctly
positioned.
Cannot close door.
Check that the dishes are not
blocking the baskets from slid-
ing properly into place.
Check the door lock. If it does
not click into place and lock,
open the door.
The door lock does not click in-
to place and lock.
25
ActionPossible causesProblem
Press and hold Door Open until
the display starts counting
down. Wait until the countdown
ends (60 seconds). Close the
door. Check that the door lock
clicks into place and locks.
Press Start. The display starts
counting down.
Start has not been pressed.The dishwasher does not start.
Close the door within four sec-
onds, otherwise the dishwasher
will not start. See Start/Stop in
the chapter Using the dishwash-
er.
The door is not closed properly
or was not closed immediately
after you pressed Start.
If you want the dishwashing
program to continue, press
Start and close the door within
four seconds.
You have opened the dishwash-
er to add more dishes while a
program is in progress.
Check the door lock. If it does
not click into place and lock,
open the door.
The door lock has not clicked
into place and locked.
Press and hold Door Open until
the display starts counting
down. Wait until the countdown
ends (60 seconds). Close the
door. Check that the door lock
clicks into place and locks.
Press and hold Start for three
seconds if you want to cancel
the Delay option.
Check whether the Delay option
has been selected.
Check.The plug is not plugged into the
power outlet.
Check.A fuse/circuit breaker has been
tripped.
Check that the dishes are not
blocking the spray arms.
The spray arms do not rotate.The dishes are not clean.
Clean the spray arms. See the
chapter Care and maintenance
instructions.
Spray arm holes or bearings
blocked.
Select a program with a high
temperature to dissolve grease
on heavily soiled dishes, such
as Heavy.
Unsuitable dishwashing pro-
gram.
Dose according to water hard-
ness. Far too much or far too
little detergent can result in poor
dishwashing results.
Incorrect detergent dosage.
26
ActionPossible causesProblem
Avoid large packages.Detergent is too old. Detergent
is a perishable product.
Do not cover porcelain with
large bowls or the like. Avoid
placing very tall glasses in the
corners of the baskets. See the
chapter Loading the dishwash-
er.
Dishes loaded incorrectly.
Load the dishes securely.Glasses and cups have toppled
over during the program.
Clean the coarse and fine filters.The filters are clogged.
Check that the filters are fitted
correctly. See the chapter Care
and maintenance instructions.
The filters are not fitted correct-
ly.
Check that the yellow drain
pump stop (on the right in the
bottom drain) is in place. See
the chapter Care and mainte-
nance instructions.
Drain pump stop missing.
Rinse off these types of food-
stuffs if not starting the dish-
washer immediately. Consider
using 1h with the Boost option.
Some types of food, such as
mustard, mayonnaise, lemon,
vinegar, salt, and dressings, can
cause spots on stainless steel
if left for too long.
Spots on stainless steel or sil-
ver.
In order to avoid marks and tar-
nishing, separate dishes made
from different metals, such as
silver, stainless steel, and alu-
minum.
All stainless steel can cause
spots on silver if they come into
contact during dishwashing.
Aluminum can also cause spots
on dishes.
See the chapter Settings.Incorrect rinse aid dosage set-
ting.
Spots or films on the dishes.
Switch all-in-one detergents or
deactivate the TAB setting and
fill up with separate rinse aid.
See Rinse aid in the chapter
Settings.
The TAB setting is activated and
all-in-one detergent with insuffi-
cient drying effect is being used.
Wash crystal at a low tempera-
ture and with a conservative
amount of detergent. Contact
the detergent manufacturer.
Too high temperature and/or
too much detergent can cause
etching on crystal. Unfortunate-
ly, this cannot be repaired, only
prevented.
Reduce the dosage. See the
chapter Settings. If you have
very soft water, you may want
to dilute the rinse aid 50:50 with
water.
Rinse aid dosage setting too
high.
The dishes have a sticky
white/blue film.
27
ActionPossible causesProblem
Use a detergent with a bleach-
ing agent.
Lipstick and tea can be difficult
to wash off.
Spots left after washing.
The detergent compartment
must be dry when adding deter-
gent.
The detergent compartment
was damp when adding deter-
gent.
Detergent residue in the deter-
gent compartment after dish-
washing.
Check that the dishes are not
preventing the detergent com-
partment from opening.
The detergent compartment has
been blocked.
Check that the dishes are
placed securely. Spin the spray
arms to make sure they can ro-
tate.
The dishes are not correctly
placed or the spray arms are not
rotating.
Rattling sound when dishwash-
ing.
If you want the dishwashing
program to continue, press
Start and close the door within
four seconds.
The dishwasher door has been
opened while a program is in
progress.
"Str" is shown on the display.
If you want to cancel the dish-
washing program, press and
hold Start for three seconds.
Clean the coarse and fine filters.The filters are clogged.Water remains in the dishwash-
er above the filters.
Check that the filters are fitted
correctly. See the chapter Care
and maintenance instructions.
The filters are not fitted correct-
ly.
Clean the drain pump. See the
chapter Care and maintenance
instructions.
Debris in the drain pump.
Check that the yellow drain
pump stop (on the right in the
bottom drain) is in place. See
the chapter Care and mainte-
nance instructions.
Drain pump stop missing.
Check that the hose is free from
kinks and sharp bends.
Kink in drain hose.
Loosen the drain hose from
where it terminates. Check that
no debris has clogged the hose.
Is the cone-shaped part of the
drain boot cut to the maximum
size of the fitting where it attach-
es?
Blocked drain hose.
Clean with dish brush and low
foaming cleaner.
Dirt around the seals and in
corners.
Bad odor in dishwasher.
Run a program with a high tem-
perature once or twice a month.
Or run a self-cleaning program.
See Self Clean in the chapter
Using the dishwasher.
Low temperature programs
have been selected for a pro-
longed period.
28
ActionPossible causesProblem
Cleaning the garbage disposer
connected to the dishwasher
can eliminate odors. Follow the
disposer manufacturer's clean-
ing instructions.
The dishwasher is connected to
a garbage disposer.
Select a program with a high
temperature to dissolve grease
on heavily soiled dishes, such
as Heavy. Or run a self-cleaning
program. See Self Clean in the
chapter Using the dishwasher.
Low temperature programs
have been selected for a pro-
longed period.
Grease deposits in the dish-
washer.
Or run a self-cleaning program.
See Self Clean in the chapter
Using the dishwasher.
Activate the Door Open option.The Door Open option is not
activated.
The dishes are not dry enough.
Fully load the dishwasher.The dishwasher is not fully
loaded.
Fill up the rinse aid compart-
ment or increase the rinse aid
dosage setting.
Rinse aid needs filling up or
dosage is set too low.
Switch all-in-one detergents or
deactivate the TAB setting and
fill up with separate rinse aid.
See Rinse aid in the chapter
Settings.
The TAB setting is activated and
all-in-one detergent with insuffi-
cient drying effect is being used.
29

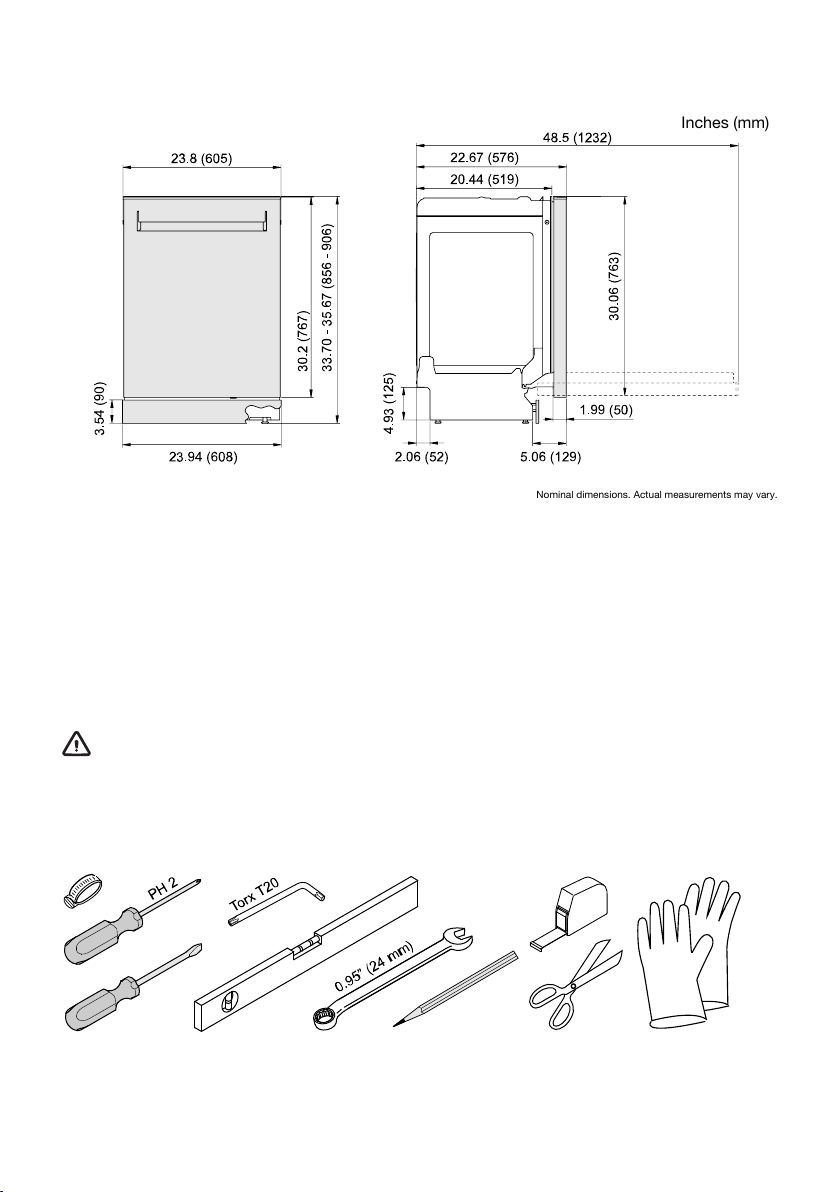

Installation instructions
Nominal dimensions. Actual measurements may vary.
Inches (mm)
Important safety instructions
• Connections to electricity, water, and drainage must be performed by a qualified professional.
• Always follow applicable regulations for water, drainage, and electricity.
• Take care during installation! Wear protective gloves! There must always be two people!
• Place a drip tray on the floor beneath the dishwasher to prevent damage from any water leaks. (If
required by your insurance company.)
• At the end, test the dishwasher by running the 1h program with the Boost option. Check that the
dishwasher fills with water and drains. Check also that none of the connections leak.
WARNING!
Turn off the water supply when installing the dishwasher!
The plug must be disconnected or power to the outlet turned off while installing the dishwasher!
Tools
30
Before you start
• Once your new Hisense dishwasher has been delivered to you, carefully unpack the dishwasher
and check for any damage.
• If the dishwasher has been damaged, do not install the dishwasher, and contact Hisense Customer
Service listed on the warranty card.
• If there is no damage to the product, you can proceed with the installation. Before installation,
make sure to read through the installation guide and follow the directions inside.
NOTE!
Keep packaging out of the reach of children and pets to ensure safety.
1. Placing the dishwasher
The dishwasher is intended for installation under a countertop. The recess dimensions are illustrated.
Make sure the area on which the dishwasher is to be installed is firm.
Inches (mm)
The electrical and
water supplies should
enter through the
area indicated by the
shading on the
illustration.
If the dishwasher is built-in, the surrounding furnishings must be resistant to any condensation from
the dishwasher.
NOTE!
Framed cabinets require additional finished filler material behind the face frame for a proper
installation. A minimum 3½” (89 mm) finished return is required on all sides of the opening.
Frameless
cabinetry
Filler
Framed
cabinetry
2. Fit the protective film
Mount the protective film beneath the countertop and up around the edge. The function of the protective
film is to protect the countertop from moisture. (The protective film is in the enclosed plastic bag.)
31
NOTE!
The surface to which the protective film is fitted must be clean and dry.
WARNING!
Countertop might be damaged by moist if protective film is not properly installed.

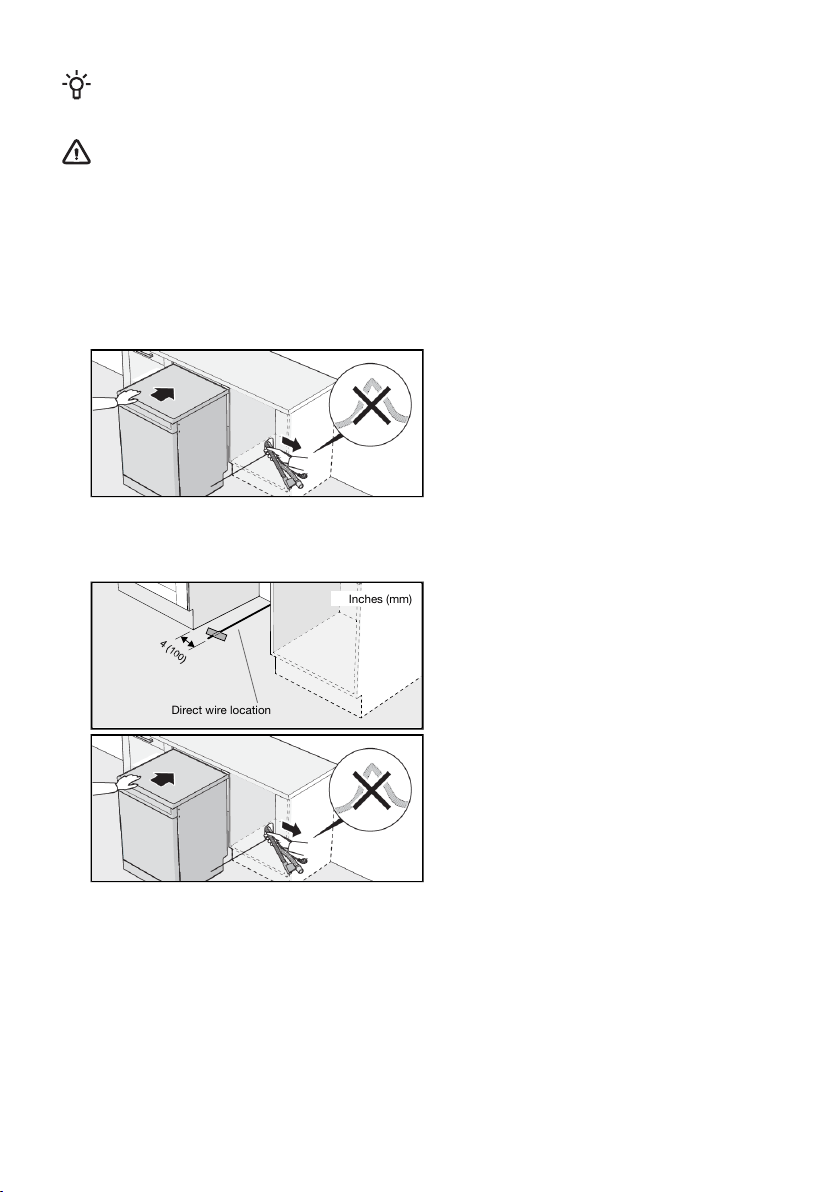

3. Prepare water supply, drainage and electrical
connections
Slide the dishwasher near desired install location.
• If connect to power via plug: Pull the drain, plug cord and supply hoses through the opening as
the dishwasher is slid into place.
• If connect to power via junction box: Prepare the necessary power supply cord for connection
and paste it on the floor where the dishwasher will be installed (to facilitate the step 6 of connecting
the supply cord into the junction box). Then, pull the drain and supply hoses through the opening
as the dishwasher is slid into place.
Inches (mm)
Direct wire location
Check that the hoses have no kinks or sharp bends, and check that there is nothing that can damage
the hoses.
4. Adjust the height and slide the dishwasher into place
1. Start by measuring the height from the floor to the bottom edge of the countertop.
2. Measure the height from the floor to the top edge of the dishwasher.
3. Lean the dishwasher forward a little and adjust the rear foot with the screw at the front of the
dishwasher. Turn clockwise to lower or counterclockwise to raise.
32
4. Adjust the front feet by turning them clockwise to raise and counterclockwise to lower the
dishwasher.
5. Verify there is an air gap of at least 0.1" (3 mm) between the underside of the countertop and the
top edge of the dishwasher.
6. Slide the dishwasher into desired location.
7. Check that the machine is installed such that the door opens freely, otherwise door lock functionality
may be disrupted.
8. Make any final adjustments to the front feet (the dishwasher may lean no more than 0.2" (5 mm)).
5. Screwing the dishwasher into place
1 1/4”
1”
After fastening the machine, check that the front feet still touch the floor.
Screw into the countertop
Alternatively, the dishwasher can be screwed into the underside of the countertop.
1”
33
6. Electrical connection
Information about the electrical connection can be found on the serial number plate. This specification
must match the electricity supply.
Grounding instructions
This appliance must be grounded. In the event of a malfunction or breakdown, grounding will reduce
the risk of electric shock by providing a path of least resistance for electric current. This appliance is
equipped with a power cord fitted with an equipment grounding conductor and a grounding plug. The
plug must be plugged into an appropriate power outlet that is installed and grounded in accordance
with all local codes and ordinances.
WARNING!
Improper connection of the equipment grounding conductor can result in a risk of electric shock.
Check with a qualified electrician or service representative if you are in doubt as to whether the
appliance is properly grounded. Do not modify the plug provided with the appliance. If it does
not fit the power outlet, have an appropriate power outlet installed by a qualified electrician.
The dishwasher is delivered with a supply cord and plug. If the supply cord is not long enough, or if
a wired installation is required, an external supply cord can be connected to the dishwasher’s junction
box (located behind the toe kick panel).
Use caution when the appliance is installed or removed to reduce the likelihood of damage to the
power cord.
Connect via the plug
The power outlet for the appliance shall be installed in a cabinet or on a wall adjacent to the
undercounter space in which the appliance is to be installed. Do not use an extension cord for this
appliance.
The access hole for the electrical supply must be round and smooth and no bigger than 1 1/2'' (38 mm)
in diameter. If the partition is metal, it needs to be covered with an edge protector.
Connect via the junction box
WARNING!
The plug must be disconnected and power to the socket turned off while work is carried out!
1. Remove the protective cover from the front of the junction box by removing the screws.
2. Loosen the strain relief clamp and the screws securing the cable wires to remove the dishwasher’s
supply cord.
34
3. Connect an external supply cord with its three cable wires, and screw them into place.
Also secure the supply cord into place with the strain relief. Tighten the screws to ensure the
supply cord is firmly secured.
4. Replace the protective cover of the junction box.
7. Connection to water supply
Use only the inlet hose supplied with the dishwasher. Do not re-use old or other spare hoses.
The supply pipe must be fitted with a water supply valve. The water supply valve must be easily
accessible, so that the water can be shut off if the dishwasher has to be moved.
Once the installation is complete, turn on the water supply valve and allow the pressure to settle for
a while. Check that all connections are watertight.
Water supply
The machine can be connected to either a cold or a hot (max. 160 °F (70 °C)) water supply. The water
pressure should be 4.2-140 psi (0.03-1.0 MPa).

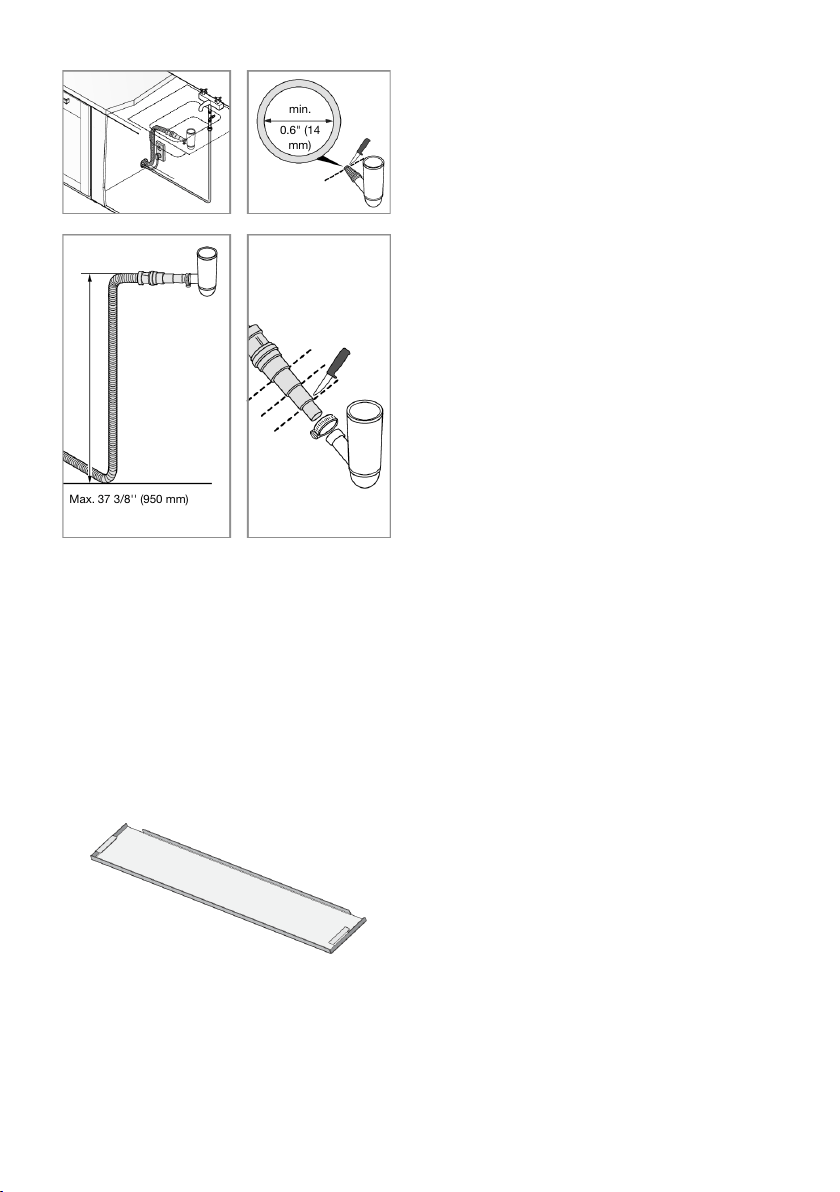

8. Drain connection
This dishwasher is suitable for installing in a raised recess (to attain an ergonomic working height).
This means that the dishwasher can be placed so that the drain hose runs to a lower level than the
bottom of the dishwasher, such as by routing it directly to a floor drain. The dishwasher is fitted with
an integrated anti-siphon device to prevent the machine from being emptied of water during the wash
cycle.
35
min.
0.6" (14
mm)
Max. 373/8'' (950 mm)
The drain hose can also be connected to a connection nipple on the sink unit's water trap. The
connection nipple must have an internal diameter of at least 0.6" (14 mm).
The drain hose may be extended by a maximum of 118" (3 m) (the total length of the drain hose must
not exceed 177" (4.5 m)). Any joints and connecting pipes must have an internal diameter of at least
0.6" (14 mm). However, the drain hose should ideally be replaced with a new hose without joints.
No part of the drain hose may be more than 37.4" (950 mm) above the bottom of the dishwasher.
Attach the drain hose with a hose clamp. Ensure that the drain hose has no kinks.
9. Dishwasher toe kick
The dishwasher is supplied with a toe kick.
36

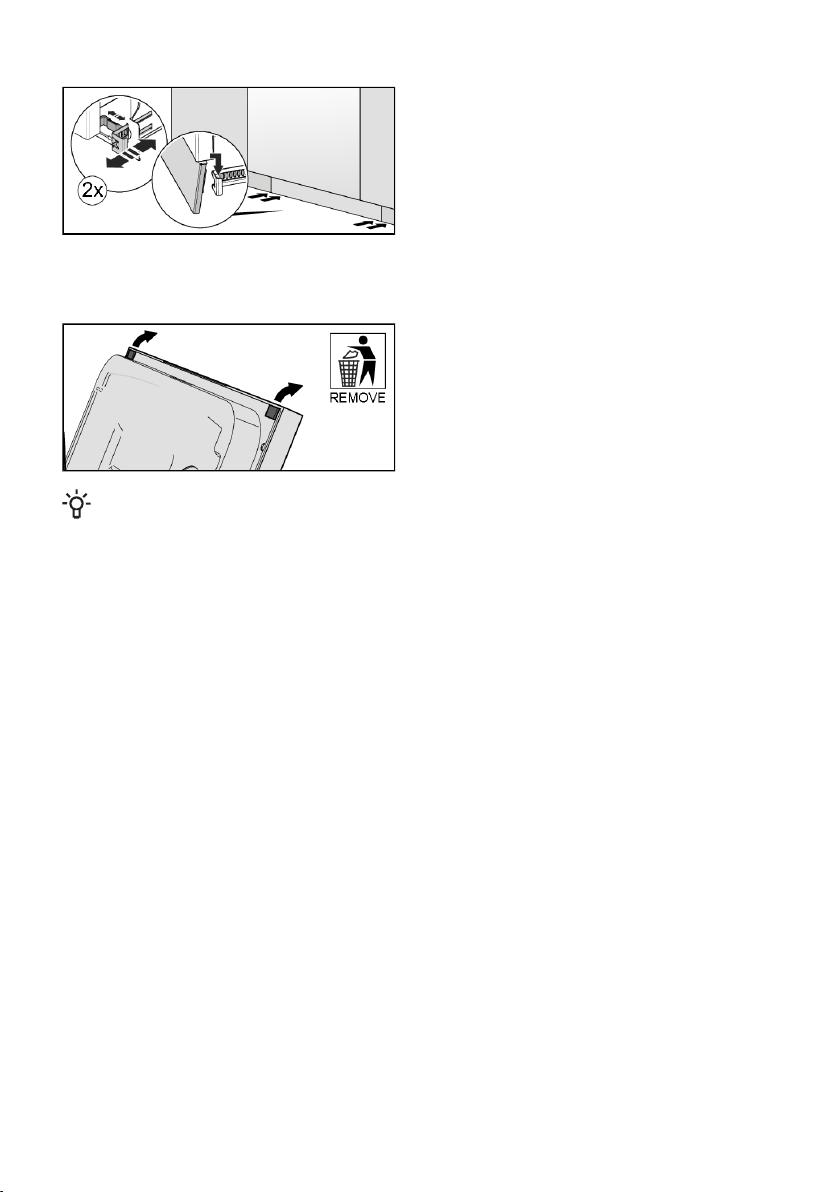

Fit the toe kick
10. Completing the installation
Remove all transport protection on the door and inside the dishwasher.
NOTE!
At the end, test the dishwasher by running the 1h program with the Boost option. Check that the
dishwasher fills with water and drains. Check also that none of the connections leak.
37
Service and warranty
Read the chapter Troubleshooting before contacting the Customer Care Center. If you have encountered
a problem that you cannot resolve, please contact your nearest Customer Care Center for professional
help.
When making contact, provide the details on the serial number plate. Include the article number (1)
and the serial number (2).
Please note that non-professional repairs may risk user safety and affect the warranty.
1
2
Number of program cycles
Press and hold Delay and Boost for 3 seconds to show Number of program cycles on the display.
(If the dishwasher has completed more than 999 cycles, the number of thousands is displayed followed
by the number of cycles up to 999. For example: 1234 cycles is displayed as 001 followed by 234.)
38
Technical information
Technical data
33.70 - 35.67'' (856 - 906 mm)Height:
23.8'' (605 mm)Width:
22.67'' (576 mm)Depth:
77 lb (35 kg)
1)
Weight:
4.2-140 psi (0.03-1.0 MPa)Water pressure:
See serial number plateElectrical connection:
See serial number plateRated power:
1)
Weight can vary due to different specifications.
39
We reserve the right to make changes.
877915-a3
