Futher information and explanations are
available online:
Table of contents
1 Safety ...........................................4
1.1 General information................... 4
1.2 Intended use.............................. 4
1.3 Restriction on user group.......... 4
1.4 Safe installation ......................... 5
1.5 Safe use .................................... 7
1.6 Safe cleaning and mainten-
ance........................................... 9
2 Preventing material damage ....11
3 Environmental protection and
saving energy............................11
3.1 Disposing of packaging .......... 11
3.2 Saving energy.......................... 11
3.3 Energy saving mode ............... 12
4 Installation and connection......12
4.1 Unpacking the appliance ........ 12
4.2 Scope of delivery..................... 12
4.3 Requirements for the install-
ation location ........................... 13
4.4 Water drain hose ..................... 13
4.5 Aligning the appliance............. 16
4.6 Connecting the appliance to
the electricity supply................ 16
5 Familiarising yourself with
your appliance...........................17
5.1 Appliance ................................ 17
5.2 Wool basket ............................ 18
5.3 Control panel........................... 18
6 Display .......................................19
7 Buttons ......................................22
8 Dryness level.............................25
8.1 Changing the dryness level..... 25
8.2 Adjusting the dryness level ..... 25
9 Programmes ..............................26
9.1 Automatic programmes........... 26
9.2 Timed programmes ................. 27
10 Accessories.............................29
11 Laundry....................................30
11.1 Preparing the laundry............ 30
12 Basic operation .......................30
12.1 Switching on the appliance ... 30
12.2 Setting a programme ............ 30
12.3 Loading laundry..................... 30
12.4 Starting the programme ........ 31
12.5 Adding laundry ...................... 31
12.6 Cancelling the programme.... 31
12.7 Unloading the laundry ........... 31
12.8 Switching off the appliance ... 31

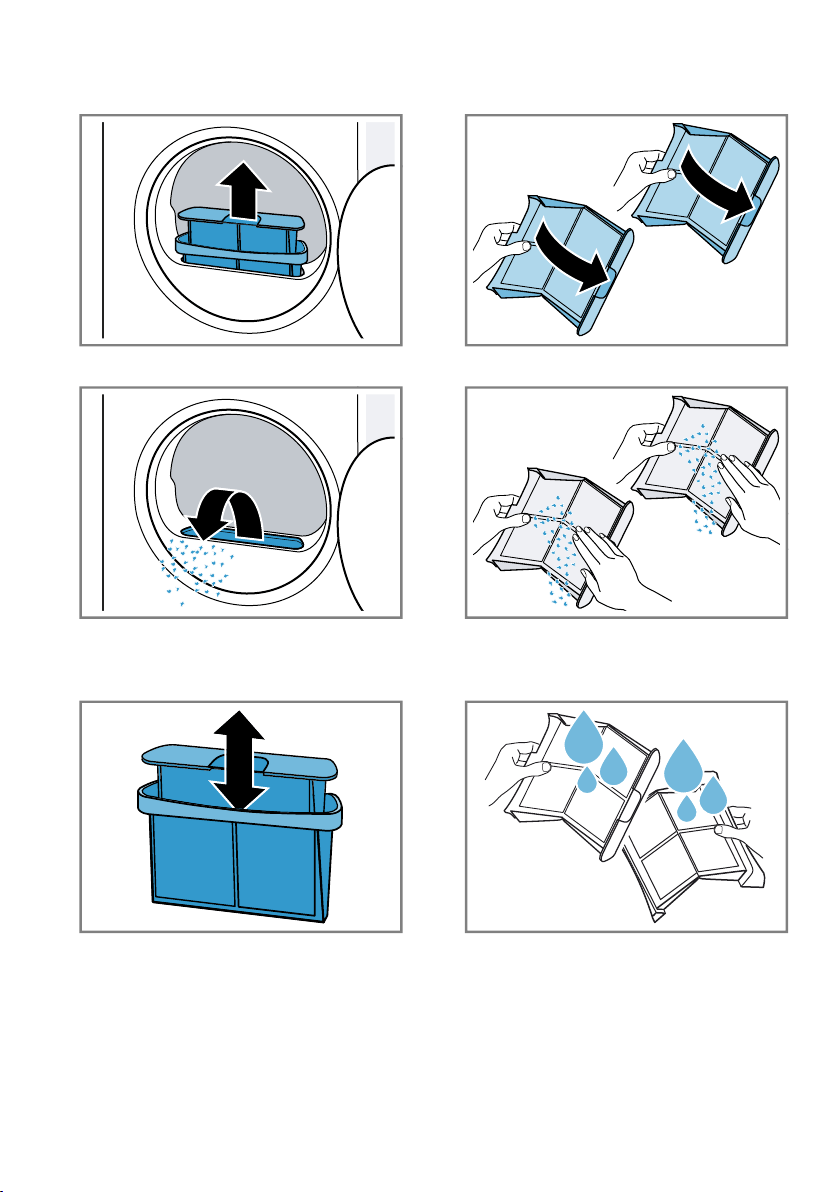

12.9 Fluff filter ................................ 31
12.10 Condensation container ...... 33
13 Childproof lock........................34
13.1 Activating the childproof
lock........................................ 34
13.2 Deactivating the childproof
lock........................................ 34
14 Crease-removal function ........34
14.1 Starting a programme with
the crease-removal function .. 34
14.2 Filling the water tank ............. 35
15 Wool basket.............................35
15.1 Inserting the wool basket ...... 35
en
3
15.2 Starting a programme with
the wool basket ..................... 36
15.3 Examples of how to use the
wool basket ........................... 37
16 Basic settings..........................38
16.1 Overview of the basic set-
tings....................................... 38
16.2 Changing the basic set-
tings....................................... 39
17 Appliance care ........................39
17.1 Preparing for appliance
care ....................................... 39
17.2 Calling up the appliance
care programme.................... 40
17.3 Running the basic appli-
ance care programme .......... 40
17.4 Running the intensive appli-
ance care programme .......... 41
18 Cleaning and servicing...........42
18.1 Tips on cleaning and care .... 42
18.2 Water tank filter ..................... 42
18.3 Moisture sensor..................... 42
18.4 Condensation container fil-
ter .......................................... 43
19 Troubleshooting......................45
20 Transportation, storage and
disposal ...................................50
20.1 Preparing the appliance for
transportation ........................ 50
20.2 Disposing of old appliance ... 50
21 Customer Service....................51
21.1 Product number (E-Nr.) and
production number (FD)........ 51
22 Consumption values...............52
23 Technical data .........................53
en Safety
4
1 Safety
Observe the following safety instructions.
1.1 General information
¡ Read this instruction manual carefully.
¡ Keep the instruction manual and the product information safe
for future reference or for the next owner.
¡ Do not connect the appliance if it has been damaged in transit.
1.2 Intended use
Only use this appliance:
¡ For drying and freshening up fabrics that are washed with water
and suitable for dryers.
¡ In private households and in enclosed spaces in a domestic en-
vironment.
¡ Up to an altitude of max. 4000m above sea level.
1.3 Restriction on user group
This appliance may be used by children aged 8 or over and by
people who have reduced physical, sensory or mental abilities or
inadequate experience and/or knowledge, provided that they are
supervised or have been instructed on how to use the appliance
safely and have understood the resulting dangers.
Do not let children play with the appliance.
Cleaning and user maintenance must not be performed by chil-
dren unless they are being supervised.
Keep children under the age of 3 years and pets away from the
appliance.
Safety en
5
1.4 Safe installation
WARNING‒Risk of electric shock!
Incorrect installation is dangerous.
▶ Connect and operate the appliance only in accordance with the
specifications on the rating plate.
▶ Connect the appliance to a power supply with alternating cur-
rent only via a properly installed socket with earthing.
▶ The protective conductor system of the domestic electrical in-
stallation must be properly installed. The installation must have
a sufficiently large cross section.
▶ When using a residual current circuit breaker, only use a type
with the mark.
▶ Never equip the appliance with an external switching device,
e.g. a timer or remote control.
▶ Never connect the appliance to a circuit that is regularly
switched on and off by the energy supplier.
▶ When the appliance is installed, the mains plug of the power
cord must be freely accessible. If free access is not possible, an
all-pole isolating switch must be installed in the permanent elec-
trical installation according to the installation regulations.
▶ When installing the appliance, check that the power cable is not
trapped or damaged.
If the insulation of the power cord is damaged, this is dangerous.
▶ Never let the power cord come into contact with hot appliance
parts or heat sources.
▶ Never let the power cord come into contact with sharp points or
edges.
▶ Never kink, crush or modify the power cord.
WARNING‒Risk of fire!
It is dangerous to use an extended power cord and non-approved
adapters.
▶ Do not use extension cables or multiple socket strips.
▶ Only use adapters and power cords approved by the manufac-
turer.
en Safety
6
▶ If the power cord is too short and a longer one is not available,
please contact an electrician to have the domestic installation
adapted.
WARNING‒Risk of injury!
The high weight of the appliance may result in injury when lifted.
▶ Do not lift the appliance on your own.
If this appliance is not correctly installed in a washer-dryer stack,
the installed appliance may fall.
▶ Only stack the dryer on a washing machine using the connec-
tion kit from the dryer manufacturer
→"Accessories", Page29. No other installation method is per-
mitted.
▶ Do not install the appliance in a washer-dryer stack if the dryer
manufacturer does not offer a suitable connection kit.
▶ Do not install appliances from different manufacturers and with
varying depths and widths in a washer-dryer stack.
▶ Do not install a washer-dryer stack on a platform; the appli-
ances may tip over.
WARNING‒Risk of suffocation!
Children may put packaging material over their heads or wrap
themselves up in it and suffocate.
▶ Keep packaging material away from children.
▶ Do not let children play with packaging material.
CAUTION‒Risk of injury!
The appliance may vibrate or move when in use.
▶ Place the appliance on a clean, even, solid surface.
▶ Align the appliance using the appliance feet and a spirit level.
If hoses and power cords have been laid incorrectly, this causes a
tripping hazard.
▶ Lay hoses and power cords in such a way that there is no risk
of tripping.
If the appliance is moved by holding onto protruding components,
such as the appliance door, the parts may break off.
▶ Do not move the appliance by holding onto protruding parts.
Safety en
7
CAUTION‒Risk of cutting!
Touching sharp edges on the appliance may lead to cuts.
▶ Do not touch the sharp edges on the appliance.
▶ Wear protective gloves when installing and transporting the ap-
pliance.
1.5 Safe use
WARNING‒Risk of electric shock!
If the appliance or the power cord is damaged, this is dangerous.
▶ Never operate a damaged appliance.
▶ Never pull on the power cord to unplug the appliance. Always
unplug the appliance at the mains.
▶ If the appliance or the power cord is damaged, immediately un-
plug the power cord or switch off the fuse in the fuse box.
▶ Call customer services. →Page51
An ingress of moisture can cause an electric shock.
▶ Only use the appliance in enclosed spaces.
▶ Never expose the appliance to intense heat or humidity.
▶ Do not use steam- or high-pressure cleaners, hoses or sprays
to clean the appliance.
WARNING‒Risk of harm to health!
Children can lock themselves in the appliance, thereby putting
their lives at risk.
▶ Do not install the appliance behind a door as this may obstruct
the appliance door or prevent it from opening.
▶ With redundant appliances, unplug the power cord. Then cut
through the cord and damage the lock on the appliance door
beyond repair so that the appliance door will no longer close.
WARNING‒Risk of suffocation!
Children may breathe in or swallow small parts, causing them to
suffocate.
▶ Keep small parts away from children.
▶ Do not let children play with small parts.
en Safety
8
WARNING‒Risk of explosion!
If there is coal dust or flour in the air around the appliance, this
may cause an explosion.
▶ Keep the area around the appliance clean during operation.
WARNING‒Risk of poisoning!
Condensation water from this appliance is not suitable for drinking
and may be contaminated with fluff.
▶ Do not drink or reuse the condensation water from the appli-
ance.
Detergents and care products may result in poisoning if con-
sumed.
▶ If accidentally swallowed, seek medical advice.
▶ Keep detergents and care products out of the reach of children.
WARNING‒Risk of fire!
The refrigerant R290 in this appliance is environmentally friendly
yet combustible and may ignite if it comes into contact with open
flames or ignition sources.
▶ Keep naked flames and ignition sources away from the appli-
ance.
WARNING‒Risk of explosion!
If there is any residual material left in the fluff filter, this may ignite
during the drying process.
▶ Clean the fluff filter regularly.
Highly flammable objects such as lighters or matches may ignite
during the drying process.
▶ Remove all highly flammable objects from any pockets in your
laundry before the drying process.
Unwashed laundry that has come into contact with solvents, oil,
wax, wax remover, paint, grease or stain remover may ignite when
drying is in progress.
▶ Do not place laundry in this appliance to be dried if the laundry
has not been washed first.
Safety en
9
▶ Rinse the laundry thoroughly with warm water and detergent be-
fore drying it in the machine.
▶ Do not use the appliance if industrial chemicals have been used
to clean the laundry beforehand.
WARNING‒Risk of fire!
If drying is interrupted early, the laundry is not cooled sufficiently
and may ignite.
▶ Do not interrupt the drying programme early.
▶ If drying is interrupted early, remove the laundry immediately
and spread it out.
CAUTION‒Risk of injury!
The covering plate may break if you stand on or climb onto the
appliance.
▶ Do not stand on or climb onto the appliance.
The appliance may tip over if you sit on or lean against the open
door.
▶ Do not sit on or lean against the appliance door.
▶ Do not place any objects on the appliance door.
Reaching into the drum while it is still turning may cause hand in-
juries.
▶ Wait for the drum to come to a complete stop before reaching
inside.
1.6 Safe cleaning and maintenance
WARNING‒Risk of electric shock!
Incorrect repairs are dangerous.
▶ Repairs to the appliance should only be carried out by trained
specialist staff.
▶ Only use genuine spare parts when repairing the appliance.
▶ If the power cord of this appliance is damaged, it must be re-
placed by the manufacturer, the manufacturer's Customer Ser-
vice or a similarly qualified person in order to prevent any risk.
An ingress of moisture can cause an electric shock.
▶ Do not use steam- or high-pressure cleaners, hoses or sprays
to clean the appliance.
en Safety
10
WARNING‒Risk of injury!
The use of non-original spare parts and non-original accessories
is dangerous.
▶ Only use the manufacturer's original spare parts and original ac-
cessories.
WARNING‒Risk of poisoning!
Poisonous fumes may be given off if you use cleaning agents that
contain solvents.
▶ Do not use cleaning agents that contain solvents.
Preventing material damage en
11
2 Preventing material
damage
ATTENTION!
The functionality of the appliance
may be impaired if you use the
wrong quantity of fabric softener, de-
tergent, care product or cleaning
agent.
▶ Follow the dosage recommenda-
tions from the manufacturer.
Exceeding the maximum load capa-
city impairs the function of the appli-
ance.
▶ Observe the maximum load capa-
city for each programme and do
not exceed it.
→"Programmes", Page26
The function of the appliance may be
impaired if the appliance overheats.
▶ Keep the ventilation opening on
the appliance clear during opera-
tion.
▶ Make sure that the area is ad-
equately ventilated.
Light objects such as hair and fluff
may be sucked in from the ventilation
opening on the appliance during op-
eration and impair the function of the
appliance.
▶ Keep the area around the appli-
ance clean during operation.
▶ Keep light objects away from the
appliance.
Foam and foam rubber may deform
or melt during the drying process.
▶ Do not dry laundry that contains
foam or foam rubber.
Unsuitable cleaning products may
damage the surfaces of the appli-
ance.
▶ Do not use harsh or abrasive de-
tergents.
▶ Do not use cleaning products with
a high alcohol content.
▶ Do not use hard scouring pads or
cleaning sponges.
▶ Clean the appliance with nothing
but water and a soft, damp cloth.
▶ Remove all detergent residue,
spray residue or other residues im-
mediately if they come into contact
with the appliance.
3 Environmental protec-
tion and saving energy
3.1 Disposing of packaging
The packaging materials are environ-
mentally compatible and can be re-
cycled.
▶ Sort the individual components by
type and dispose of them separ-
ately.
3.2 Saving energy
If you follow these instructions, your
appliance will use less power.
Operate the appliance in a well-vent-
ilated room and keep the ventilation
opening on the appliance clear.
a
If air exchange is impeded, this ex-
tends the programme duration and
increases energy consumption.
Spin the laundry in the washing ma-
chine before drying.
a
Damper laundry extends the pro-
gramme duration and increases
energy consumption.
Observe the programme's maximum
load capacity.
→"Programmes", Page26
a
If the maximum load is exceeded,
this extends the programme dura-
tion and increases energy con-
sumption.
en Installation and connection
12
After drying, clean the fluff filter
→Page31.
a
If the fluff filter is dirty, this reduces
the air flow in the appliance, ex-
tends the programme duration and
increases energy consumption.
3.3 Energy saving mode
If you do not use the appliance for an
extended period, it automatically
switches to energy-saving mode. All
displays go out and Start/
Pause flashes.
Energy-saving mode ends when you
use the appliance again.
4 Installation and con-
nection
4.1 Unpacking the appliance
ATTENTION!
Objects remaining in the drum that
are not designed for operation with
the appliance may cause material
damage and damage to the appli-
ance.
▶ Remove these objects, along with
all supplied accessories, from the
drum before starting the appliance.
1. Remove any packaging and pro-
tective covers completely from the
appliance.
→"Disposing of packaging",
Page11
2. Check the appliance for visible
damage.
3. Open the door.
4. Remove any accessories from the
drum.
5. Close the door.
4.2 Scope of delivery
After unpacking all parts, check for
any damage in transit and complete-
ness of the delivery.
ATTENTION!
If the appliance is operated with in-
complete or defective accessories,
the appliance may not be able to op-
erate properly, or this may result in
material damage or damage to the
appliance.
▶ Do not operate the appliance with
incomplete or defective accessor-
ies.
▶ Replace the accessories in ques-
tion before operating the appli-
ance.
→"Accessories", Page29
Included with
the appliance
Description
Tumble dryer
Accompanying
documents
Water drain hose
with connection
adapter, fixing
material and el-
bow.
→"Water drain
hose", Page13
Water jug
→"Filling the wa-
ter tank",
Page35
Wool basket with
insert
→"Wool basket",
Page35
Installation and connection en
13
4.3 Requirements for the in-
stallation location
ATTENTION!
If the appliance is tilted at an angle
greater than 40°, residual water may
leak out of the appliance and cause
material damage.
▶ Tilt the appliance carefully.
▶ Transport the appliance in an up-
right position.
If residual water in the appliance
freezes, this may cause damage to
the appliance.
▶ Do not install or operate this appli-
ance anywhere that is liable to ex-
perience frost or outdoors.
If the appliance is operated immedi-
ately after transportation, the refriger-
ant contained in the appliance may
result in damage to the appliance.
▶ Immediately after transporting the
appliance, leave it to rest for two
hours before putting it into opera-
tion.
Installation loca-
tion
Requirements
On the floor Place the appli-
ance on a clean,
level and firm
surface.
Align the appli-
ance
→Page16.
Installation loca-
tion
Requirements
In a washer-dryer
stack
Only use the ori-
ginal connection
set from the
dryer manufac-
turer when set-
ting up this appli-
ance in a
washer-dryer
stack.
¡ Connection kit
with pull-out
worktop
→Page29
¡ Connection kit
→Page29
This appliance
must only be
stacked on a
washing machine
from the same
manufacturer.
The depth and
width of this ap-
pliance must cor-
respond with the
dimensions of
the washing ma-
chine.
Do not place the
washer-dryer
stack on a plat-
form.
Against a wall Do not trap the
hoses and power
cord between the
wall and the ap-
pliance.
4.4 Water drain hose
Condensation forms during drying,
which your appliance uses for auto-
matic cleaning. Use the water drain
en Installation and connection
14
hose to drain away excess condens-
ation directly into the waste water
system.
Notes
¡ Operate this appliance using the
water drain hose provided. If you
connect the water drain hose
→Page14, you do not have to
regularly empty the condensation
container →Page33.
¡ You can order this optional
→"Accessories", Page29 from
our customer service.
Connecting the water drain hose
If you do not want to regularly empty
the appliance's condensation con-
tainer, connect the water outlet hose.
ATTENTION!
When operating the appliance
without the water drain hose being
connected properly, liquid may leak
out of the connecting piece.
▶ Before operating the appliance,
connect the water drain hose prop-
erly to the connecting piece.
Requirements
¡ The appliance and the accessory
have been unpacked.
→"Unpacking the appliance",
Page12
¡ The appliance is installed at the in-
stallation location.
→"Requirements for the installa-
tion location", Page13
1. Pull out the condensation hose
from the connecting piece.
The condensation hose is connec-
ted to the connecting piece at the
factory.
Note:When removing the con-
densation hose, liquid may leak
out of the connecting piece.
2. Push the condensation hose into
the holder.
Installation and connection en
15
3. Push the water drain hose as far
as it will go into the connecting
piece.
4. Empty the condensation container
→Page33.
5. Remove the stopper on the under-
side.
6. Insert the stopper into the recess
in the top.
7. Insert the condensation container
→Page34.
8. Connect the appliance to the water
outlet.
→"Water outlet connection types",
Page15
Tip:To collect condensation in the
condensation container again (e.g. if
you change where the appliance is
located), carry out these steps in re-
verse order.
Water outlet connection types
ATTENTION!
In the event of a blocked or covered
outlet, accumulated wastewater can
flow back into the appliance.
▶ Before operating the appliance, en-
sure that the wastewater drains
away quickly and eliminate any
blockages.
Drainage into a
siphon.
Secure the con-
nection point with
a (12-22 mm)
hose clamp.
Secure the water
drain hose with a
hose guide at a
height of at least
80 cm and no
more than 100
cm.
en Installation and connection
16
Note:You can
use the Y-distrib-
utor →Page29
to connect the
water drain hose
of an additional
appliance, such
as a washing
machine, to the
same siphon out-
let.
Drainage into a
wash basin.
1
2
Push the water
drain hose fully
through the and
secure it using
fixing material.
Secure the elbow
at a height of no
more than 100
cm.
Drainage into a
gully.
Push the water
drain hose fully
through the and
secure it using
fixing material.
Secure the elbow
to the gully.
4.5 Aligning the appliance
In order to reduce vibrations and
noises, align the appliance correctly.
▶ To align the appliance, turn the ap-
pliance feet. Check that the appli-
ance is level using a spirit level.
All appliance feet must stand firmly
on the ground.
4.6 Connecting the appliance
to the electricity supply
1. Insert the mains plug of the appli-
ance's power cable in a socket
nearby.
The connection details of the appli-
ance can be found under Tech-
nical data →Page53.
2. Check the mains plug is inserted
properly.
Familiarising yourself with your appliance en
17
5 Familiarising yourself with your appliance
5.1 Appliance
You can find an overview of the parts of your appliance here.
1
2
3
4
5
On certain models, specific details such as the colour and shape may differ
from those pictured.
1
Ventilation opening
2
Fluff filter →Page31
3
Door
4
Condensation container
→Page33
5
Control panel →Page18
en Familiarising yourself with your appliance
18
5.2 Wool basket
1 2 3 4
1
Securing foot
2
Wool basket
3
Insert
4
Tab for securing in the hook
5.3 Control panel
You can use the control panel to configure all functions of your appliance and
to obtain information about the operating status.
2 3
1 1
4
4
1
Programmes →Page26
2
Programme selector
→Page30
3
Display →Page19
4
Buttons →Page22
Display en
19
6 Display
The display shows the current settings, options or relevant information.
Example: Display
Display Designation Description
0:40
1
Programme dura-
tion/programme
time remaining
Expected programme duration or pro-
gramme time remaining in hours and
minutes.
1:25 Timed programme The timed programme is set.
→"Timed programmes", Page27
9.0
1
Recommended
load
The maximum load capacity for the selec-
ted programme in kg.
0:45
1
Programme end
time
→"Buttons", Page24
Childproof lock ¡ lights up: The childproof lock is activ-
ated.
¡ flashes: The childproof lock is activated
and the appliance has been operated.
→"Deactivating the childproof lock",
Page34
( Start/
Pause)
Start/Pause Start, cancel or pause
¡ Lights up: The programme is running
and can be cancelled or paused.
¡ Flashes: The programme can be star-
ted or continued.
1
Example
en Display
20
Display Designation Description
( Iron
Dry)
Dryness level: Iron
Dry
The dryness level is activated.
→"Buttons", Page23
( Cup-
board Dry)
Dryness level:
Cupboard Dry
The dryness level is activated.
→"Buttons", Page23
( Cup-
board Dry
Plus)
Dryness level:
Cupboard Dry
Plus
The dryness level is activated.
→"Buttons", Page22
+1
+2
+3
Dryness level ad-
justed
The adjusted dryness level is activated.
→"Dryness level", Page25
( Anti
Crease)
Crease-reduction
function
The crease-reduction function is activated.
→"Buttons", Page23
( Gentle
Dry)
Gentle drying Gentle drying is activated for delicate fab-
rics.
→"Buttons", Page23
" 4.5 kg"
( Half Load)
Half load Half load is activated.
→"Buttons", Page24
( Mute) Quiet drying Quiet drying with no audible signals is ac-
tivated.
→"Buttons", Page24
Condensation
container
Empty the condensation container
→Page33.
Insert the condensation container
→Page34.
Fluff filter
Clean the fluff filter →Page31.
CrE Basic appliance
care programme
Run the basic appliance care programme.
→"Appliance care", Page39
Water tank
Fill the water tank →Page35 for the
crease-removal function.
Hot Cooling process The laundry is cooled while the drum is
rotating, in order to avoid damage to the
laundry. The process can be cancelled by
opening the door.
Note:Do not change the programme.
Automatic self-
cleaning
The automatic self-cleaning function rinses
the appliance's heat exchanger.
Note:Do not remove the condensation
container and do not interrupt the pro-
gramme.
Drying Programme status
1
Example
Display en
21
Display Designation Description
Dryness level: Iron
Dry
Programme status
Dryness level:
Cupboard Dry
Programme status
Anti-crease Programme status
Crease-removal
function
Programme status
( Start/
Pause)
Pause Programme status
End End of pro-
gramme
Programme status
1
Example
en Buttons
22
7 Buttons
Below is an overview of the buttons and their setting options.
Button Selection Description
Start/ Pause ¡ Start
¡ Cancel
¡ Pause
Start, cancel or pause
the programme.
3 sec. ¡ Activate
¡ Deactivate
Activate or deactivate the
childproof lock.
Disable the control panel
to prevent unwanted or
accidental operation.
If the childproof lock is
activated and the appli-
ance has been switched
off, the childproof lock
remains activated.
→"Childproof lock",
Page34
Cupboard Dry Plus ¡ Cupboard Dry Plus
¡ +1
¡ +2
¡ +3
¡ Selecting Cup-
board Dry Plus activ-
ates the dryness level.
The dryness level
defines how damp or
dry the laundry is after
the programme ends.
→"Dryness level",
Page25
¡ The dryness level can
be adjusted by select-
ing +1 , +2 or +3 .
→"Adjusting the dry-
ness level", Page25
Buttons en
23
Button Selection Description
Cupboard Dry ¡ Cupboard Dry
¡ +1
¡ +2
¡ +3
¡ Selecting Cupboard
Dry activates the dry-
ness level.
The dryness level
defines how damp or
dry the laundry is after
the programme ends.
→"Dryness level",
Page25
¡ The dryness level can
be adjusted by select-
ing +1 , +2 or +3 .
→"Adjusting the dry-
ness level", Page25
Iron Dry ¡ Iron Dry
¡ +1
¡ +2
¡ +3
¡ Selecting Iron Dry
activates the dryness
level.
The dryness level
defines how damp or
dry the laundry is after
the programme ends.
→"Dryness level",
Page25
¡ The dryness level can
be adjusted by select-
ing +1 , +2 or +3 .
→"Adjusting the dry-
ness level", Page25
Anti Crease ¡ Activate
¡ Deactivate
Activate or deactivate the
crease-reduction func-
tion.
Once the programme
has ended, the drum
moves the laundry at
regular intervals for 120
minutes to prevent
creasing.
Gentle Dry ¡ Activate
¡ Deactivate
Activate or deactivate
gentle drying.
The temperature is re-
duced for delicate fab-
rics, e.g. polyacrylic or
elastane.
The programme duration
is extended.
en Buttons
24
Button Selection Description
Ready In ¡ Programme end time
¡ Programme duration
¡ Set the programme
end time.
The programme dura-
tion is already in-
cluded in the set num-
ber of hours.
Once the programme
has started, the pro-
gramme duration is
displayed.
¡ Set the programme
duration for timed pro-
grammes.
→"Timed pro-
grammes", Page27
Mute ¡ Activate
¡ Deactivate
Activate or deactivate
operating signals and in-
formation signals.
Half Load ¡ Activate
¡ Deactivate
Dry individual items of
laundry or small loads of
laundry.
Dryness level en
25
8 Dryness level
Each automatic programme has a specified dryness level. The dryness level
defines how dry or damp your laundry is after the programme ends.
Dryness level Laundry Drying result
Cupboard
Dry Plus
Multi-layered, thick laundry
that does not dry readily.
The laundry is dry.
Cupboard
Dry
Normal, single-layered
laundry.
The laundry is dry.
Iron Dry Normal, single-layered
laundry.
The laundry is still slightly damp.
To prevent creasing after drying,
iron the laundry or hang it up.
8.1 Changing the dryness
level
For some automatic programmes,
you can change the dryness level so
that your laundry will be drier or more
damp.
1. Set an automatic programme.
→"Automatic programmes",
Page26
a The display shows the specified
dryness level.
2. Press Cupboard Dry , Cup-
board Dry Plus or Iron Dry .
a The display shows ( Cup-
board Dry), ( Cupboard Dry
Plus) or ( Iron Dry).
8.2 Adjusting the dryness
level
If the laundry feels too damp after it
has been dried to a particular dry-
ness level, you can adjust the dry-
ness level.
1. Set an automatic programme.
→"Automatic programmes",
Page26
a The display shows the specified
dryness level.
2. Press Cupboard Dry , Cup-
board Dry Plus or Iron Dry .
a The display shows "+1" , "+2" or
"+3" .
en Programmes
26
9 Programmes
You can dry your fabrics using either an automatic programme or a timed pro-
gramme.
9.1 Automatic programmes
Automatic programmes are pro-
grammes in which humidity sensors
measure the residual moisture in the
laundry during the drying cycle. The
programme only ends once the set
dryness level is reached.
Each automatic programme has a
dryness level →Page25. The dry-
ness level defines how dry or damp
the laundry is after the programme
ends.
Tips
¡ Select the dryness level according
to the type of fabric or the desired
drying result.
→"Dryness level", Page25
¡ The laundry's care labels provide
you with additional information
about programme selection.
Programme Description Max. load
(kg)
Cottons Dry hard-wearing, heat-resistant fabrics
made of cotton or linen.
9.0
Cottons Eco Dry hard-wearing, heat-resistant fabrics
made of cotton or linen.
Energy-saving programme.
9.0
Synthetics Dry items made of synthetic materials or
blended fabrics.
3.5
Mix Load Dry items made of cotton and synthetics. 3.0
Quilt/Blanket Dry clothing, pillows, quilts or bedspreads
filled with synthetic fibres.
Note:Dry large items of laundry, blankets
or pillows individually.
2.5
Hygiene Plus Dry hard-wearing, heat-resistant fabrics
made of cotton or linen.
Note:Particularly suitable for strict hy-
giene requirements.
4.0
Sportswear Dry self-drying sportswear made of per-
formance fibres, microfibres and synthet-
ics.
1.5
Programmes en
27
Programme Description Max. load
(kg)
Shirts/Blouses Suitable for shirts and blouses made of
cotton, linen, synthetics or blended fab-
rics.
Note:For optimal drying results, dry a
maximum of 5 shirts or 5 blouses at the
same time.
Once the laundry is dry, iron it or hang it
up. The residual moisture is then distrib-
uted evenly.
1.5
Quick 40 min Dry items made of synthetics and light
cotton.
2.0
Towels Dry hard-wearing, heat-resistant towels
and dressing gowns made of cotton or
linen.
6.0
9.2 Timed programmes
Timed programmes are programmes with a defined or adjustable programme
duration. The programme ends once this time has elapsed, even if the laundry
is still not dry, for example. Timed programmes are suitable for drying individual
items of laundry or thin fabrics.
Tip:The laundry's care labels provide you with additional information about pro-
gramme selection.
Programme Description Max. load
(kg)
Wool in Basket Dry items made of wool or containing
wool.
Note:Dry these items only using the wool
basket.
→"Wool basket", Page35
One item
of laundry
5 Shirts Reduce creasing and air-borne odours on
shirts and blouses that have been worn
once.
→"Crease-removal function", Page34
2 to 5
items of
laundry
1 Shirt Reduce creasing and air-borne odours on
shirts and blouses that have been worn
once.
→"Crease-removal function", Page34
One item
of laundry
en Programmes
28
Programme Description Max. load
(kg)
Timed Program Warm Dry all types of fabric except for wool and
silk.
Suitable for pre-dried or slightly damp
laundry and for drying off multi-layered,
thick laundry.
Note:This programme is suitable for dry-
ing using the wool basket.
→"Wool basket", Page35
3.0
Accessories en
29
10 Accessories
Use original accessories. These have
been made especially for your appli-
ance.
Note:Some accessories are avail-
able in other colours. Contact
→"Customer Service", Page51.
Use Order number
Connection kit To save space, stack the
appliance on a suitable
washing machine of the
same width and depth
and that is from the
same manufacturer.
WTZ27410
Connection kit with pull-
out worktop
To save space, stack the
appliance on a suitable
washing machine of the
same width and depth
and that is from the
same manufacturer.
The pull-out worktop
makes it easier to load
and unload the appli-
ance.
WTZ27400
Wool basket Dry or air individual
woollen items, sports
shoes and soft toys.
WMZ20600
Y-distributor Connect the water drain
hose of an additional ap-
pliance to the same si-
phon outlet.
15000490
Water drain hose Drain away excess con-
densation directly into
the waste water system,
without having to regu-
larly empty the condens-
ation container.
WTZ1110
Appliance care product Spare part for the intens-
ive appliance care func-
tion.
00311829
en Laundry
30
Use Order number
Platform Install the appliance at a
raised height so that it
can be easily loaded and
unloaded.
WTZPW20D
11 Laundry
11.1 Preparing the laundry
ATTENTION!
Objects remaining in the laundry may
damage the laundry and the drum.
▶ Remove all items from any pock-
ets in your laundry before using
the appliance.
Note
The appliance and fabrics are
protected when you prepare your
laundry.
¡ Brush off sand and soil
¡ Sort the laundry according to col-
our and textiles and observe the
care labels
¡ Close all zips, Velcro fasteners,
hooks and eyes
¡ Remove curtain fittings and lead
strips
¡ Load the laundry unfolded into the
drum
¡ Spin the laundry before drying
¡ Dry woollen items, sports shoes
and soft toys in the wool basket
→"Wool basket", Page35
operation
12 Basic operation
operation
12.1 Switching on the appli-
ance
Requirement:The appliance has
been correctly installed and connec-
ted.
→"Installation and connection",
Page12
▶ Turn the programme selector to a
programme.
12.2 Setting a programme
1. Turn the programme selector and
set the required programme.
→"Programmes", Page26
2. If required, adjust the programme
settings.
12.3 Loading laundry
Note:To prevent creasing, note the
maximum load for the programmes.
→"Programmes", Page26
Requirements
¡ The laundry is prepared and sor-
ted.
→"Laundry", Page30
¡ The drum is empty.
1. Open the door.
2. Place the laundry in the drum.
3. Close the door.
Ensure that there is no laundry
trapped in the door.
operation en
31
12.4 Starting the programme
Requirement:A programme is set.
→"Setting a programme", Page30
▶ Press Start/ Pause .
a The display shows the programme
duration or the programme end
time.
a After the programme has ended,
the display shows: "End" .
Note:If "Hot" appears, the appli-
ance cools the laundry.
When "Hot" goes out, the laundry
has cooled down.
12.5 Adding laundry
After the programme starts, you can
remove or add laundry at any time.
1. Press Start/ Pause .
The cooling process starts auto-
matically after approximately 30
seconds and cools down the laun-
dry while the drum is rotating. If
you want to avoid or cancel the
cooling process, open the door.
→"Display", Page20
2. Open the door.
3. Add or remove laundry.
4. Close the door.
5. Press Start/ Pause .
12.6 Cancelling the pro-
gramme
1. Press Start/ Pause .
2. Open the door.
3. Remove the laundry.
→"Unloading the laundry",
Page31
12.7 Unloading the laundry
1. Open the door.
2. Remove the laundry from the
drum.
12.8 Switching off the appli-
ance
▶ Turn the programme selector to
Off .
12.9 Fluff filter
During drying, fluff from the laundry is
collected in the fluff filter. The fluff fil-
ter protects the appliance from fluff.
Cleaning the fluff filter
If the drying programme has finished
or the display shows a notification
while the appliance is in operation,
clean the fluff filter.
Note:If you do not clean the appli-
ance as described, the appliance's
functionality may be impaired.
Requirements
¡ The display shows the following
after drying: "End"
¡ or the display shows the following
during operation: .
1. Open the door.
2. Remove the fluff from the door.
en operation
32
3. Remove the two-part fluff filter.
4. Remove the fluff from the recess.
Ensure that no fluff falls into the air
channel.
5. Disconnect the two-part fluff filter.
6. Open the two fluff filters.
7. Remove the fluff.
8. Clean the two fluff filters thoroughly
under warm, running water and
then dry them off.
operation en
33
9. Close the two fluff filters and put
them together.
10.Insert the two-part fluff filter.
11.Close the door.
12.10 Condensation con-
tainer
Condensation forms during drying,
which your appliance uses for auto-
matic cleaning. By default, the con-
densation is collected in the appli-
ance's condensation container.
Note:Operate this appliance using
the water drain hose provided. If you
connect the water drain hose
→Page14, you do not have to regu-
larly empty the condensation con-
tainer →Page33.
Emptying the condensation
container
If the drying programme has finished
or the display shows a notification
while the appliance is in operation,
empty the condensation container.
Requirements
¡ The display shows the following
after drying: "End"
¡ or the display shows the following
during operation: .
1. Pull out the condensation con-
tainer, keeping it level.
2. Empty the condensation container.
Check the condensation container
filter →Page43 regularly and
clean the filter if it is dirty.
Make sure that you insert the con-
densation container before operat-
ing the appliance.
→"Inserting the condensation con-
tainer", Page34
en Childproof lock
34
Inserting the condensation
container
▶ Push the condensation container
in as far as it will go.
13 Childproof lock
Secure your appliance against being
operated unintentionally using the
controls.
13.1 Activating the childproof
lock
▶ Press and hold the two 3 sec.
buttons for approx. 3seconds.
a The display shows .
a The control elements are locked.
a The childproof lock remains active
even after the appliance has been
switched off and in the event of a
power cut.
13.2 Deactivating the child-
proof lock
Requirement:To deactivate the
childproof lock, the appliance must
be switched on.
▶ Press and hold the two 3 sec.
buttons for approx. 3seconds.
a goes out in the display.
14 Crease-removal func-
tion
In order to reduce creasing and air-
borne odours, such as cigarette
smoke, you can use a programme
with a crease-removal function for
any laundry that has not been worn
for long.
14.1 Starting a programme
with the crease-removal
function
Note
Wash items of laundry that have
traces of sweat, perfume or deodor-
ant before wearing them again.
Do not use dryer cleaning sets.
Do not use a programme with the
crease-removal function for the
following fabrics:
¡ Wool, leather and viscose
¡ Fabrics with parts made from
metal, wood or plastic
¡ Waxed jackets and oilskin jackets
Requirements
¡ The laundry is prepared.
→"Preparing the laundry", Page30
¡ The laundry is sorted.
¡ The laundry is placed in the appli-
ance.
→"Loading laundry", Page30
1. Set a programme with crease-re-
moval function.
→"Timed programmes", Page27
2. Start the programme.
→"Starting the programme",
Page31
If the water tank is empty, the dis-
play shows: .
→"Filling the water tank",
Page35
Wool basket en
35
The average programme duration
of the crease-removal function is
approx. 45 minutes and may be
longer or shorter depending on the
ambient temperature.
a After the programme has ended,
the display shows: "End" .
3. Remove the laundry.
→"Unloading the laundry",
Page31
The results of the crease-removal
function may vary depending on
the type of fabric, the amount of
laundry and the selected pro-
gramme.
Remove the laundry immediately
after the programme has ended to
prevent creasing.
4. Hang up the items of laundry and
pull them into shape.
14.2 Filling the water tank
Your appliance removes the creases
from rarely worn clothing using cold
drinking water. If the display shows a
notification while the appliance is in
operation, fill the water tank.
ATTENTION!
Operating the appliance with water
that is dirty or too hot may result in
damage to the appliance.
▶ Only fill the water tank with cold
drinking water.
▶ Never use condensed water, dis-
tilled water, additives or descaler
for the crease-removal function.
Requirements
¡ You have started a programme
with the crease-removal function.
→"Starting a programme with the
crease-removal function", Page34
¡ The display shows: .
¡ The condensation container
→Page33 is removed from the
appliance.
1. Add approx. 180ml cold drinking
water through the front opening,
using the water jug provided.
Check the water tank filter regu-
larly and clean the filter if it is dirty.
→"Cleaning the water tank filter",
Page42
If does not go out on the dis-
play, add cold drinking water
through the front opening and
align the appliance correctly.
→"Aligning the appliance",
Page16
a goes out on the display.
2. Insert the condensation container.
→"Inserting the condensation con-
tainer", Page34
3. Start the programme.
→"Starting a programme with the
crease-removal function", Page34
15 Wool basket
Use the wool basket to gently dry
delicate fabrics, soft toys or sports
shoes in a stationary position.
Note:You can order this optional
→"Accessories", Page29 from our
customer service.
15.1 Inserting the wool bas-
ket
1. Open the door.
en Wool basket
36
Make sure that the drum is empty.
2. Insert the feet of the wool basket
into the holes in the fluff filter.
3. Insert the tab on the front of the
wool basket into the upper hooks.
15.2 Starting a programme
with the wool basket
ATTENTION!
If items of laundry in the wool basket
touch the rotating drum or the ribs of
the drum, the laundry may cause ma-
terial damage and damage to the ap-
pliance.
▶ Place the items of laundry in the in-
sert or wool basket such that they
do not touch the drum or the ribs
of the drum.
Requirement:The wool basket is in-
serted into the appliance.
→"Inserting the wool basket",
Page35
1. Place the laundry into the wool
basket, either directly or using the
insert.
→"Examples of how to use the
wool basket", Page37
2. Close the door.
3. Set a programme that is suitable
for drying with the wool basket.
Observe the programme descrip-
tion.
→"Timed programmes", Page27
4. If required, adjust the duration of
the programme.
→"Buttons", Page24
Observe the recommended pro-
gramme duration for items of laun-
dry in the wool basket:
Laundry item Programme
duration in
hours:minutes
Thin woollen
pullover
Approx. 1:20
Thick woollen
pullover
Approx. 1:30 -
3:00
Skirt Approx. 1:00 -
1:30
Trousers Approx. 1:00 -
1:30
Gloves Approx. 0:30
Sports shoes Approx. 1:30/
max. 2:00 with
airing
Wool basket en
37
Tip:Increase the programme dura-
tion for thick or multi-layered items
of laundry.
5.
Start the programme →Page31.
6. Remove the wool basket once the
programme has ended.
15.3 Examples of how to use
the wool basket
ATTENTION!
If items of laundry in the wool basket
touch the rotating drum or the ribs of
the drum, the laundry may cause ma-
terial damage and damage to the ap-
pliance.
▶ Place the items of laundry in the in-
sert or wool basket such that they
do not touch the drum or the ribs
of the drum.
Example Use
Trousers or skirt
1
2
3
Pullover
1
2
3
Place the items
of laundry unfol-
ded into the in-
sert.
Note:Spin the
laundry before
drying.
Example Use
Sports shoes Lift the tongues
of the shoes.
Remove the in-
soles or heel
cushions.
Place a rolled-up
hand towel in the
wool basket to
create an in-
clined surface.
Place the shoes
on the towel with
the heels facing
down.
Note:Do not use
the insert.
Do not dry
leather shoes or
shoes with
leather parts.
Soft toys Place the soft toy
in the wool bas-
ket.
Note:Do not use
the insert.
If you place nu-
merous or small
soft toys in the
wool basket,
make sure they
do not fall out.
en Basic settings
38
16 Basic settings
You can configure the basic settings for your appliance to meet your needs.
16.1 Overview of the basic settings
Basic setting Programme
position
Value Description
End signal 2 0 (off)
1 (quiet)
2 (me-
dium)
3 (loud)
4 (very
loud)
Set the volume of the signal at the
end of the programme.
Button signal 3 0 (off)
1 (quiet)
2 (me-
dium)
3 (loud)
4 (very
loud)
The volume of the audible signal
emitted when the buttons are
pressed.
Programme
counter
5 42
1
Display the number of started pro-
grammes.
1
Example
Appliance care en
39
16.2 Changing the basic set-
tings
1. Set the programme selector to po-
sition 1.
2. Press Iron Dry and, at the
same time, turn the programme
selector to position2.
a The display shows the current
value.
3. Set the programme selector to the
required position.
→"Overview of the basic settings",
Page38
4. To change the value, press
Ready In .
5. To save the changes, switch off
the appliance.
17 Appliance care
The appliance offers cleaning pro-
grammes for basic and intensive ap-
pliance care.
17.1 Preparing for appliance
care
Preparing the appliance for the
appliance care programme
Prepare the appliance before running
the appliance care programme.
Requirements
¡ The drum is empty.
¡ The appliance is switched off.
1. Clean the fluff filter.
→"Cleaning the fluff filter",
Page31
2. Pull out the condensation con-
tainer horizontally and empty it.
→"Emptying the condensation
container", Page33
Preparing the condensation
container for the appliance care
programme
If you are draining the condensation
water from the appliance using the
drain hose, prepare the condensation
container before running the appli-
ance care programme.
1. Remove the stopper from the re-
cess in the top.
2. Insert the stopper on the under-
side.
en Appliance care
40
3. Clean the filter in the condensation
container.
17.2 Calling up the appliance
care programme
Requirement:The appliance care
programme is ready.
→"Preparing for appliance care",
Page39
1. Set the programme to position1.
2. Press and hold Iron Dry and
set the programme to position 4.
3. Release Iron Dry .
a "CP1" and the programme dura-
tion alternate on the display.
17.3 Running the basic appli-
ance care programme
To remove any dirt deposits in the
appliance, you can run the basic ap-
pliance care programme.
Notes
¡ The basic appliance care pro-
gramme runs for approximately
1hour.
¡ After a lengthy period of use, the
appliance reminds you to run the
basic appliance care programme.
Before the programme starts or
after the programme has ended,
the display shows the message
"CrE" .This message appears re-
peatedly until you have run the ba-
sic appliance care programme
through to the end.
Requirements
¡ The appliance care programme is
ready.
→"Preparing for appliance care",
Page39
¡ The appliance care programme is
now called up.
→"Calling up the appliance care
programme", Page40
1. Pour approx. 1.5litres of hot tap
water into the condensation con-
tainer.
Hold the filled condensation con-
tainer level so that no liquid spills
out.
2. Insert the condensation container
so that it locks into place.
3. Press Start/ Pause .
a The appliance care programme
starts and a signal tone sounds.
a "End" appears on the display and
a signal tone sounds once the ap-
pliance care programme has
ended.
4. Pull out the condensation con-
tainer horizontally and empty it.
→"Emptying the condensation
container", Page33
5. If you are draining the condensa-
tion water using the drain hose:
‒ Remove the stopper from the
underside of the condensation
container.
‒ Insert the stopper into the re-
cess on the top of the condens-
ation container.
6. Insert the condensation container
so that it locks into place.
Appliance care en
41
17.4 Running the intensive
appliance care pro-
gramme
You can run the intensive appliance
care programme to remove any stub-
born dirt deposits in the appliance
and odours after a downtime of more
than one month.
Notes
¡ The intensive appliance care pro-
gramme runs for approximately 4
hours and must not be cancelled.
¡ When you run the intensive appli-
ance care programme, you need
the original appliance care
product.
→"Accessories", Page29
WARNING
Risk of injury!
The use of non-original spare parts
and non-original accessories is dan-
gerous.
▶ Only use the manufacturer's ori-
ginal spare parts and original ac-
cessories.
Starting the intensive appliance
care programme
Requirements
¡ The appliance care programme is
ready.
→"Preparing for appliance care",
Page39
¡ The appliance care programme is
now called up.
→"Calling up the appliance care
programme", Page40
1. Press .
a "CP2" and the programme dura-
tion alternate on the display.
2. ATTENTION! The functionality of
the appliance may be impaired if
you use the wrong quantity of fab-
ric softener, detergent, care
product or cleaning agent.
▶ Follow the dosage recommenda-
tions from the manufacturer.
Pour a bottle of the appliance care
product and approx. 1.5 litres of
hot tap water into the condensa-
tion container.
Hold the filled condensation con-
tainer level so that no liquid spills
out.
3. Insert the condensation container
so that it locks into place.
4. Press Start/ Pause .
a The appliance care programme
starts and a signal tone sounds.
a After around 3hours, the appli-
ance pauses the appliance care
programme and the remaining pro-
gramme duration flashes on the
display.
5. Pull out the condensation con-
tainer horizontally and empty it.
6. Pour approx. 1.5litres of hot tap
water into the condensation con-
tainer.
7. Carefully swing the condensation
container horizontally and empty it
to rinse out any remaining appli-
ance care product.
Continuing the intensive
appliance care programme
1. Pour approx. 1.5litres of hot tap
water into the condensation con-
tainer.
Hold the filled condensation con-
tainer level so that no liquid spills
out.
2. Insert the condensation container
so that it locks into place.
3. Press Start/ Pause .
en Cleaning and servicing
42
a The appliance care programme
continues.
a "End" appears on the display and
a signal tone sounds once the ap-
pliance care programme has
ended.
4. Pull out the condensation con-
tainer horizontally and empty it.
5. If you are draining the condensa-
tion water using the drain hose:
‒ Remove the stopper from the
underside of the condensation
container.
‒ Insert the stopper into the re-
cess on the top of the condens-
ation container.
6. Insert the condensation container
so that it locks into place.
18 Cleaning and servi-
cing
To keep your appliance working effi-
ciently for a long time, it is important
to clean and maintain it carefully.
18.1 Tips on cleaning and
care
Wipe down the
housing and the
controls with
nothing but water
and a damp
cloth.
This ensures the
parts of the appli-
ance will remain
clean and hy-
gienic.
Remove all de-
tergent residue,
spray residue or
other residues
immediately.
Fresh deposits
are easier to re-
move without
leaving any
residue.
Leave the appli-
ance door open
after use.
This allows the
residual water to
dry, reducing
odours in the ap-
pliance.
18.2 Water tank filter
The filter in the water tank protects
the appliance from dirt and contamin-
ants.
Cleaning the water tank filter
Check the filter regularly and clean
the filter if it is dirty.
Requirement:The condensation con-
tainer →Page33 is removed from
the appliance.
1. Pull out the filter.
2. Clean the filter under warm, run-
ning water or in the dishwasher.
3. Fit the filter.
4. Insert the condensation container
→Page34.
18.3 Moisture sensor
The moisture sensor in this appliance
measures how damp the laundry is
during the drying cycle. The appli-
Cleaning and servicing en
43
ance changes the duration of the
automatic programme depending on
the residual moisture in the laundry.
Cleaning the moisture sensor
Over time, residue from limescale,
detergents and care products can
build up on the moisture sensor.
Clean the moisture sensor regularly.
ATTENTION!
Hard or rough objects may damage
the moisture sensor.
▶ Do not use hard or rough objects,
abrasive cleaning products or steel
wool for cleaning.
Note:If you do not clean the appli-
ance as described, the appliance's
functionality may be impaired.
1. Open the door.
2. Clean the moisture sensor with a
sponge.
18.4 Condensation container
filter
During drying, fluff from the laundry
gets into the condensation. The filter
in the condensation container pro-
tects the appliance from fluff.
Clean the filter for the
condensation tank.
The filter is cleaned automatically
when the condensation container is
emptied. Check the filter regularly
and clean the filter if it is dirty.
1. Empty the condensation container.
→"Emptying the condensation
container", Page33
2. Remove the filter.
3. Clean the filter under warm, run-
ning water or in the dishwasher.
Troubleshooting en
45
19 Troubleshooting
You can rectify minor faults on your appliance yourself. Read the troubleshoot-
ing information before contacting after-sales service. This will avoid unneces-
sary costs.
WARNING
Risk of electric shock!
Incorrect repairs are dangerous.
▶ Repairs to the appliance should only be carried out by trained specialist
staff.
▶ Only use genuine spare parts when repairing the appliance.
▶ If the power cord of this appliance is damaged, it must be replaced by the
manufacturer, the manufacturer's Customer Service or a similarly qualified
person in order to prevent any risk.
Fault Cause and troubleshooting
"Hot" and the drum
rotates.
Cooling process active.
1. Not a fault.
2. Do not change the programme during the cooling
process.
Note:The cooling process takes up to 10 minutes.
You can continue to operate the appliance.
Humming noise. Compressor active.
▶ Not a fault – normal operating noise.
The display goes out
and Start/ Pause
flashes.
Energy-saving mode is active
▶ Press any button.
a The symbol lights up again.
"CrE" After a period of operation, the appliance automatic-
ally recommends that you run the basic appliance
care programme.
▶ Running the basic appliance care programme on
the appliance.
→"Appliance care", Page39
The crease-removal
function takes too
long.
A low ambient temperature extends the duration of the
crease-removal function.
▶ Not a fault – no action required.
Fluff filter is soiled.
▶
→"Cleaning the fluff filter", Page31
The appliance is not
working.
The mains plug of the power cord is not plugged in.
▶ Connect the appliance to the power supply.
The circuit breaker in the fuse box has tripped.
▶ Check the circuit breaker in the fuse box.
en Troubleshooting
46
Fault Cause and troubleshooting
The appliance is not
working.
There has been a power cut.
▶ Check whether the lighting in your kitchen or other
appliances are working.
Appliance paused, but
the drum is rotating.
Cooling process active.
▶ Not a fault – no action required.
Creasing. The load is too large.
▶ Observe the maximum load capacity of the
→"Programmes", Page26.
The laundry lies in the drum for too long after drying.
1. Remove the laundry from the drum as soon as the
drying programme has finished.
2. Spread the items of laundry for cooling.
Unsuitable programme for the type of fabric.
▶ Set the suitable programme for the type of fabric.
→"Programmes", Page26
Easy-Care fabrics are dried for too long.
▶
→"Changing the dryness level", Page25.
▶
→"Adjusting the dryness level", Page25.
Anti-Creasenot activated.
▶ Activate the Anti-Crease function.
→"Buttons", Page23
and programme
terminated.
Condensation tank filled.
1.
→"Emptying the condensation container", Page33.
2.
→"Inserting the condensation container", Page34.
3.
→"Starting the programme", Page31.
Water drain hose is caught or jammed.
1. Ensure that the water drain hose is not kinked or
trapped.
2. Route the water drain hose without kinks.
Water drain hose is not connected correctly.
▶ Ensure that the water drain hose is connected cor-
rectly.
→"Connecting the water drain hose", Page14
Water drain hose is blocked.
▶ Rinse the water drain hose with tap water.
The filter for the condensation tank is soiled.
▶
→"Clean the filter for the condensation tank.",
Page43.
Troubleshooting en
47
Fault Cause and troubleshooting
Condensation in the
condensation tank
even though the water
drain hose is connec-
ted.
The appliance uses condensation for the automatic
self-cleaning.
▶ Not a fault – no action required.
Water drain hose is not connected correctly.
▶ Ensure that the water drain hose is connected cor-
rectly.
→"Connecting the water drain hose", Page14
The programme does
not start.
Childproof lock is activated.
▶
→"Deactivating the childproof lock", Page34
Start/ Pause has not been pressed.
▶ Press Start/ Pause .
No programme set.
1.
→"Setting a programme", Page30.
2.
→"Starting the programme", Page31.
The length of the pro-
gramme changes dur-
ing the drying cycle.
The programme operation is optimised electronically.
This may change the programme duration.
▶ Not a fault – no action required.
Pumping noise. Condensation pump active.
▶ Not a fault – normal operating noise.
Buzzing noise. Compressor ventilation active.
▶ Not a fault – normal operating noise.
The drying time is too
long.
Fluff filter is soiled.
▶
→"Cleaning the fluff filter", Page31
The ambient temperature is greater than 30 °C.
▶ Ensure that the ambient temperature is below 30
°C.
The ambient temperature is lower than 15 °C.
▶ Ensure that the ambient temperature is above 15
°C.
Insufficient air circulation at the appliance's installation
location.
▶ Ventilate the appliance's installation location.
Insufficient condensation for the automatic self-clean-
ing when permanently using the crease-removal func-
tion.
The appliance's ventilation opening is blocked.
▶ Ensure that the ventilation opening of the appliance
is kept clear.
Heat exchanger is soiled.
en Troubleshooting
48
Fault Cause and troubleshooting
The drying time is too
long.
▶ Running the basic appliance care programme on
the appliance.
→"Appliance care", Page39
Automatic self-cleaning function rinses the appliance's
heat exchanger.
1. Not a fault.
2. Do not pull out the condensation tank.
3. Do not cancel the programme.
Water is leaking from
the appliance.
Appliance is not correctly aligned.
▶
→"Aligning the appliance", Page16
Water drain hose is not connected correctly.
▶ Ensure that the water drain hose is connected cor-
rectly.
→"Connecting the water drain hose", Page14
The water tank for the crease-removal function is
empty.
▶ Fill water tank.
→"Filling the water tank", Page35.
Water overflows when
filling the water tank.
The water tank has been filled.
Note:The overflowing water is harmless.
▶ Do not pour any more water into the water tank.
The water tank filter is soiled.
▶
→"Cleaning the water tank filter", Page42.
The laundry is too
damp.
Unsuitable programme for the type of fabric.
▶ Set a timed programme for the subsequent drying.
→"Programmes", Page26
There has been a power cut.
▶ Check whether the lighting in your kitchen or other
appliances are working.
The load is too large.
▶ Observe the maximum load capacity of the
→"Programmes", Page26.
After the end of the programme, warm laundry feels
damper than it actually is.
1. Remove the laundry from the drum as soon as the
drying programme has finished.
2. Spread the items of laundry for cooling.
Unsuitable dryness level set.
▶
→"Changing the dryness level", Page25.
Troubleshooting en
49
Fault Cause and troubleshooting
The laundry is too
damp.
Drying target not adjusted.
▶
→"Adjusting the dryness level", Page25.
Load too small.
▶ Set a timed programme for the subsequent drying.
→"Programmes", Page26
Moisture sensor dirty.
▶
→"Cleaning the moisture sensor", Page43.
The drying process is interrupted and the condensa-
tion tank has been filled.
1.
→"Emptying the condensation container", Page33.
2.
→"Inserting the condensation container", Page34.
3.
→"Starting the programme", Page31.
Odours have formed
in the appliance.
Stubborn dirt in the appliance or an extended appli-
ance downtime of more than one month.
▶ Run the intensive appliance care programme.
→"Appliance care", Page39
en Transportation, storage and disposal
50
20 Transportation, stor-
age and disposal
20.1 Preparing the appliance
for transportation
ATTENTION!
If the appliance is operated immedi-
ately after transportation, the refriger-
ant contained in the appliance may
result in damage to the appliance.
▶ Immediately after transporting the
appliance, leave it to rest for two
hours before putting it into opera-
tion.
Tip:The appliance may contain re-
sidual water, which may drip out of it
when transported. The appliance
should be transported upright.
Requirements
¡ The condensation container is
emptied. Emptying the condensa-
tion container →Page33
¡ The appliance has been switched
on.
→"Switching on the appliance",
Page30
1.
Set any programme →Page30.
2.
Start the programme →Page31
and wait 5 minutes.
a The condensation is drained.
3. Switch off the appliance.
→"Switching off the appliance",
Page31
4. Remove the water drain hose from
the connection point.
→"Water outlet connection types",
Page15
5. Secure the water drain hose on the
appliance against unintentional
loosening.
Ensure that you do not bend the
water drain hose.
6. Empty the condensation container
→Page33.
7. Insert the condensation container
→Page34.
8. Disconnect the appliance's mains
plug from the power supply.
a The appliance is now ready to be
transported.
20.2 Disposing of old appli-
ance
Valuable raw materials can be re-
used by recycling.
WARNING
Risk of harm to health!
Children can lock themselves in the
appliance, thereby putting their lives
at risk.
▶ Do not install the appliance behind
a door as this may obstruct the ap-
pliance door or prevent it from
opening.
▶ With redundant appliances, unplug
the power cord. Then cut through
the cord and damage the lock on
the appliance door beyond repair
so that the appliance door will no
longer close.
WARNING
Risk of fire!
The refrigerant R290 used in this ap-
pliance is environmentally friendly. It
is however flammable and may ignite
if appliances are not disposed of
properly.
▶ Dispose of the appliance properly.
▶ Do not damage the tubing of the
refrigerant circuit.
1. Unplug the appliance from the
mains.
2. Cut through the power cord.
3. Dispose of the appliance in an en-
vironmentally friendly manner.
Customer Service en
51
Information about current disposal
methods are available from your
specialist dealer or local authority.
This appliance is la-
belled in accordance
with European Directive
2012/19/EU concerning
used electrical and elec-
tronic appliances (waste
electrical and electronic
equipment - WEEE).
The guideline determ-
ines the framework for
the return and recycling
of used appliances as
applicable throughout
the EU.
21 Customer Service
Detailed information on the warranty
period and terms of warranty in your
country is available from our after-
sales service, your retailer or on our
website.
If you contact Customer Service, you
will require the product number (E-
Nr.) and the production number (FD)
of your appliance.
The contact details for Customer Ser-
vice can be found in the enclosed
Customer Service directory or on our
website.
21.1 Product number (E-Nr.)
and production number
(FD)
You can find the product number (E-
Nr.) and the production number (FD)
on the appliance's rating plate.
Depending on the model, the rating
plate is located:
¡ On the inside of the door.
¡ On the inside of the maintenance
flap.
¡ On the rear of the appliance.
Make a note of your appliance's de-
tails and the Customer Service tele-
phone number to find them again
quickly.
en Consumption values
52
22 Consumption values
The specified values are indicative
only and were determined in accord-
ance with the applicable standard
IEC61121.
The actual values may deviate from
the indicated values depending on
the type of fabric, composition of
laundry to be dried, residual moisture
in the fabric, set degree of dryness,
amount of laundry being loaded, en-
vironmental conditions and the activ-
ation of additional functions.
The expected programme dura-
tion/"Ready in" time that is shown in
the appliance display when selecting
the programme is based on the spin
speed in the washing machine of
1000 rpm when the appliance is de-
livered.
Programme Final
mois-
ture
level
(%)
Load
(kg)
Spin
speed
(rpm)
Initial
mois-
ture
level
(%)
Pro-
gramm
e dura-
tion
(h:min)
Energy
con-
sump-
tion
(kWh/
cycle)
Cottons + Cup-
board Dry (
Cupboard Dry)
-1.5 9.0 1400 50 2:59 2.07
Cottons + Cup-
board Dry (
Cupboard Dry)
-1.5 9.0 1000 60 3:19 2.36
Cottons + Cup-
board Dry (
Cupboard Dry)
-1.5 9.0 800 70 3:39 2.65
Cottons + Iron
Dry ( Iron Dry)
12.0 9.0 1400 50 1:47 1.19
Cottons + Iron
Dry ( Iron Dry)
12.0 9.0 1000 60 2:07 1.49
Cottons + Iron
Dry ( Iron Dry)
12.0 9.0 800 70 2:28 1.79
Synthetics +
Cupboard Dry (
Cupboard Dry)
2.0 3.5 800 40 1:00 0.55
Synthetics +
Cupboard Dry (
Cupboard Dry)
2.0 3.5 600 50 1:09 0.67
Technical data en
53
23 Technical data
Appliance height 84.2cm
Appliance width 59.8cm
Appliance depth 61.3cm
Appliance depth
with door closed
64.8cm
Appliance depth
with door open
109.6cm
Weight 56.4kg
Maximum load 9.0kg
Mains voltage 220-240V,
50Hz
Minimum in-
stallation protec-
tion
10A
Nominal power 800W
Ambient temper-
ature
¡ Minimum:
5°C
¡ Maximum:
35°C
Length of the
power cord
145cm
Thank you for buying a
Bosch Home Appliance!
Register your new device on MyBosch now and profit directly from:
• Expert tips & tricks for your appliance
• Warranty extension options
• Discounts for accessories & spare-parts
• Digital manual and all appliance data at hand
• Easy access to Bosch Home Appliances Service
Free and easy registration – also on mobile phones:
www.bosch-home.com/welcome
Looking for help?
You'll find it here.
Expert advice for your Bosch home appliances, help with problems
or a repair from Bosch experts.
Find out everything about the many ways Bosch can support you:
www.bosch-home.com/service
Contact data of all countries are listed in the attached service direct-
ory.
*9001653697*
9001653697 (030112)
en
BSH Hausgeräte GmbH
Carl-Wery-Straße 34
81739 München, GERMANY
www.bosch-home.com
A Bosch Company
