Pyle PSPTR19OR Multi-Function Sports Watch

User Manual

For PSPTR19OR. Also, The document are for others Pyle models: PSPTR19*

PDF File Manual, 16 pages, Read Online | Download pdf file

PSPTR19OR photo
ACTIVITY MODE
Hold the ACT/EL button for 2 seconds to enter the activity mode.
PERSONAL TRAINER
Thank you for choosing X-Tracker as your personal trainer. We want you to
make the most out of your new gadget, so please read the instruction manual
carefully, and keep the manual for future reference.
Important:
Please note that the watch is NOT a medical device and is not to be used as such.
The X-Tracker requires one CR2032 lithium battery. Only the recommended
batteries are to be used.
When replacing the batteries, the following are to be strictly observed.
1. Only the recommended batteries are to be used.
2. Only adults should install and replace the batteries.
3. DO NOT use rechargeable batteries, and DO NOT recharge non-
rechargeable batteries.
INSTALLING THE BATTERY
1. The battery compartments are located at the back of the watch.
2. To install or replace the battery, unscrew the back cover carefully.
3. Take out the old batteries and dispose responsibly.
4. Gently place a new battery into the battery slot of the battery compartment,
making sure that the poles are correctly placed, and screw the back cover on.
3D SENSOR - MEASURES YOUR MOVEMENT ACCURATELY
The 3D technology uses an accelerometer sensor that detects and measures
only count steps after an initial detection of continuous steps.
CONTENTS
Getting Start
Important Battery Information ..
Installing the Battery…..
Using the watch function...
Symbol on LCD...
Mode Flow Chart.
Time Mode .
Setting Time ..........
Alarm Mode.
Setting Alarm ..
Stopwatch Mode ....
Step Counting Mode ..
Sleeping Mode .........

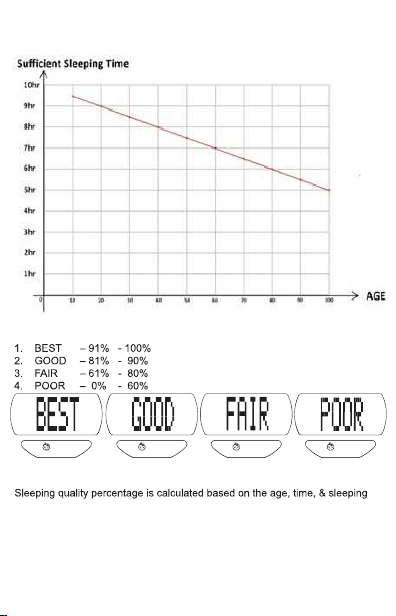

Indication of the sleeping quality......
Memory Mode.....
User Setting Mode..
Activity Mode...
Caution.
2 3 4
65 7 8
SCREW
BACKCOVER
ORing
CR2032
BATTERY
Multi-Function Wrist Watch
Press all 4 buttons at the same time to reset the watch.
SETTING TIME
1. Hold the MODE button for 3 seconds to enter setting mode.
2. Press ST/SP/+ button to toggle 12Hr or 24Hr.
3. Press MODE button to set seconds.
ALARM MODE
1. Press the MODE button to scroll through the menu until you locate the
alarm mode, ALARM .
2. Press ST/SP/+ button to activate or deactivate the alarm.
3. Press RE/ - button to activate or deactivate the hourly chime.
MODE FLOW CHART
Press MODE button to scroll through the different modes.
TIME MODE ALARM MODE STOPWATCH MODE STEP COUNTING
MODE SLEEPING MODE MEMORY MODE USER SETTING MODE
TIME MODE
1. Press the MODE button to scroll through the menu until you locate the time
mode, TIME .
2. Press ST/SP/+ button to view the Date.
3. Press RE/- button to toggle the Day and Seconds.
1 2 3
SETTING ALARM
1. Hold the MODE button for 3 seconds to set the alarm, and the minutes
2. Press or hold either the ST/SP/+ button to increment the minutes digit
or RE/ - button to decrement the value.
and the hours
4. Press or hold either the ST/SP/+ button to increment.
the hours digit or RE/ - button to decrement the value.
5. To save and exit setting mode, hold the
MODE button for 3 seconds or alternatively,
one minute of inactivity will trigger the watch
to return to the default TIME mode.
Notes
- Any changes made in the alarm mode will automatically enable the alarm.
- If the watch is inactive for longer than 1 minute in any modes, the main
screen will automatically return to time mode.
STOPWATCH MODE
1. Press the MODE button to scroll through the menu until you locate the
stopwatch mode, STW .
2. Press ST/SP/+ button to start the stopwatch, and press again to stop the
stopwatch.
3. Hold the RE/ - button for 3 seconds to reset the stopwatch to zero.
USING THE WATCH
IMPORTANT!
f for energy
saving purposes, and you can turn it on by pressing the MODE key.
ff automatically at
midnight (00.00/12.00am). Press the MODE key to turn it on.
The watch comes with 2 major activity function:- PEDOMETER & SLEEPING
MONITOR. Only one function can be used at any one time. Normally, the
watch will operate under the pedometer mode, unless the sleeping monitor
has been activated. It will go back to pedometer function once the sleeping
monitor mode has been deactivated (Saved/Deleted).
There maybe a delay between the start of your walk and the counting of
steps. y, and exclude
movements outside of a normal walking motion. Once the watch has
recognized your walking activity, it will take into account the initial steps
taken during the delay.
screen will automatically return to time mode.
please wear the watch properly as shown in the diagram (strap of the watch
must fasten tightly around the wrist and it must not be loose; display must
also be perpendicular to the forearm and wrist; the watch must only be
worn on the left wrist and not the right to maximize the accuracy of step
counting) as the design and accuracy of the watch for step counting is
based on the positioning of the watch. By wearing the watch correctly, the
steps counted during the walk will be more accurate.
SHAKE IT TO WAKE IT!
Shake the watch to turn on the EL backlight. At default, this function will turn
ON automatically at 18:00 and off at 08:00, and you can hold the ST/SP/+
button for 2 seconds during Time Mode to activate or deactivate this function.
2
3
3
5
6
6
6
6
8
8
8
9
9
11
12
13
15
16
16
REMINDER
GETTING STARTED
Prior to your purchase of the watch, the watch is switched off for energy saving
purposes, and you can turn it on by pressing the MODE key.
For energy saving purposes, the watch unit will switch off automatically at
midnight. Press the MODE key to turn it on.
PEDOMETER & SLEEPING MONITOR
The watch comes with 2 major activity function:- PEDOMETER & SLEEPING
MONITOR. Only one function can be used at any one time. Normally, the
watch will operate under the pedometer mode unless the sleeping monitor
has been activated. It will return to pedometer function once the sleeping
monitor mode has been stopped.
There maybe a delay between the start of your walk and the counting of
steps. y, and exclude
movements outside of a normal walking motion. Once the watch has
recognized your walking activity, it will take into account the initial steps
taken during the delay.
NOTE
If the watch is inactive for longer than 1 minute in any modes, the main screen
will automatically return to time mode.
personal data in user settings mode.
- All functions with the exception of time mode, will be inactive, the sleeping
monitor data must be (saved/deleted), to resume access to all functions.
detection of continuous steps.
- Whilst the sleeping mode is on, all modes cannot be accessed with the
exception of time mode & alarm mode, or until the sleeping record has been
completed (saved/deleted).
SHAKE IT TO WAKE IT!
Shake the watch to turn on the EL backlight. At default, this function will turn
ON automatically at 18:00 and off at 08:00, hold the ST/SP/+ button for 3
seconds during Time Mode to activate or deactivate this function. Frequent
usage of the SHAKE IT TO WAKE function, will shorten the battery life of
the product. We recommend all users to turn off this function whilst undergoing
exercise.
4. Press ST/SP/+ button to reset zero.
5. Press MODE button to set minutes.
6. Press or hold either the ST/SP/+ button to increment the minutes digits or
RE/ - button to decrement the number.
7. Press MODE button to set the hour.
8. Press or hold either the ST/SP/+ button to increment the hours digits or
RE/ - button to decrement the number.
9. Press MODE button to set the date.
10. Press or hold either the ST/SP/+ button to increment the dates digits or
RE/ - button to decrement the number.
11. Press MODE button to set the month.
12. Press or hold either the ST/SP/+ button to increment the months digits or
RE/ - button to decrement the number.
13. Press MODE button to set the year.
14. Press or hold either the ST/SP/+ button to increment the years digits or
RE/ - button to decrement the number.
15. To save and exit setting mode, hold the MODE button for 3 seconds or
alternatively, one minute of inactivity will trigger the watch to return to
the default TIME mode.
Note:
- Any changes in the hour and minute settings will reset the seconds to zero.
- Press the RE/ - button in Time mode to toggle between day and seconds.
- In the 24 Hour Format, the Shake to Wake function automatically activates
at 18:00 and then deactivates at 8:00. Hold the ST/SP/+ button for 3 secs.
during Time Mode to activate/deactivate this feature.
UNDERSTANDING THE SYMBOLS
A - Time from 0:00.00 to 11:59.59
P - Time from12:00.00 to 23:59.59
- Alarm On
- Chime
- Sleeping Mode
- Step Mode (Step you have walked)
- Shake The Watch
- Low Battery Detection
- Key Tone
KM - Kilometers
MI - Miles
CM - Centimeters
KG - Kilograms
LB - Pounds
Kcal - Unit of Calories Burnt
- Exercise Time
THIS DEVICE IS OPERATED BY FOUR KEYS:
MODE / SET
RESET / DOWN
START / STOP / UP
ACT/EL ACTIVITY / EL BACK LIGHT
