www.schweigen.com.au
RANGEHOOD & INSTALLATION GUIDE
CL8912S / CL8912BS
CL8915S / CL8915BS
CL7372S / CL7372BS
CL7375S / CL7375BS
Revision V3 07/08/23
Page 2
Index
1. Welcome 3
Your State Regulatory Authority 3
2. Important Safety Information 4
Before Installation 5
Product Use 6
Electrical Cord 6
3. Description 7
Rangehood 7
4. Operation 8
Touch Button Control Panel 8
Remote Control 8
Using the ON/OFF Button 8
Speed Control 8
5. Cleaning & Maintenance 9
Cleaning the Interior 9
Cleaning the Exterior 9
Baes 10
Replacing the Light 11
6. Installation 12

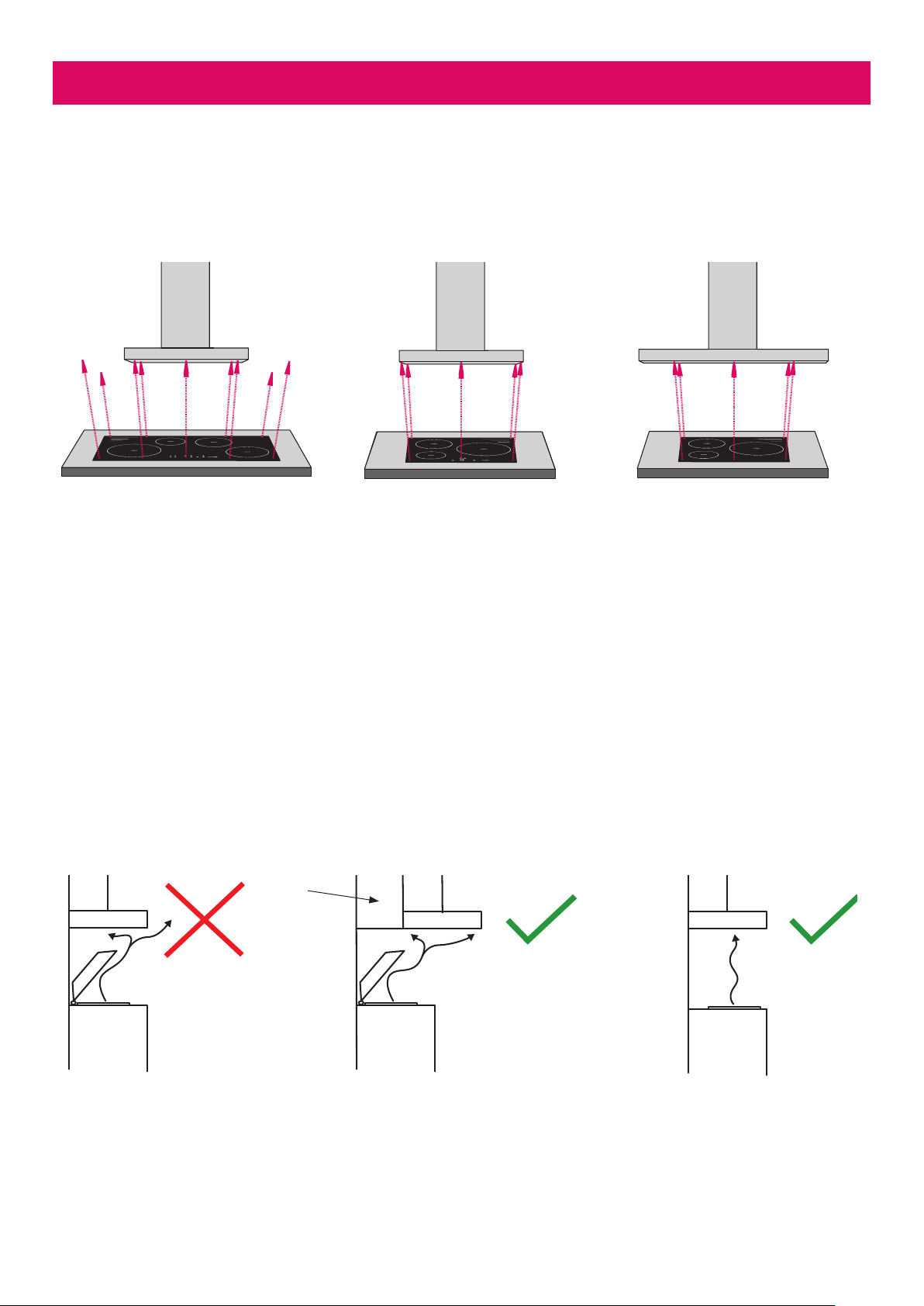

Rangehood Size vs Cooktop Size 12

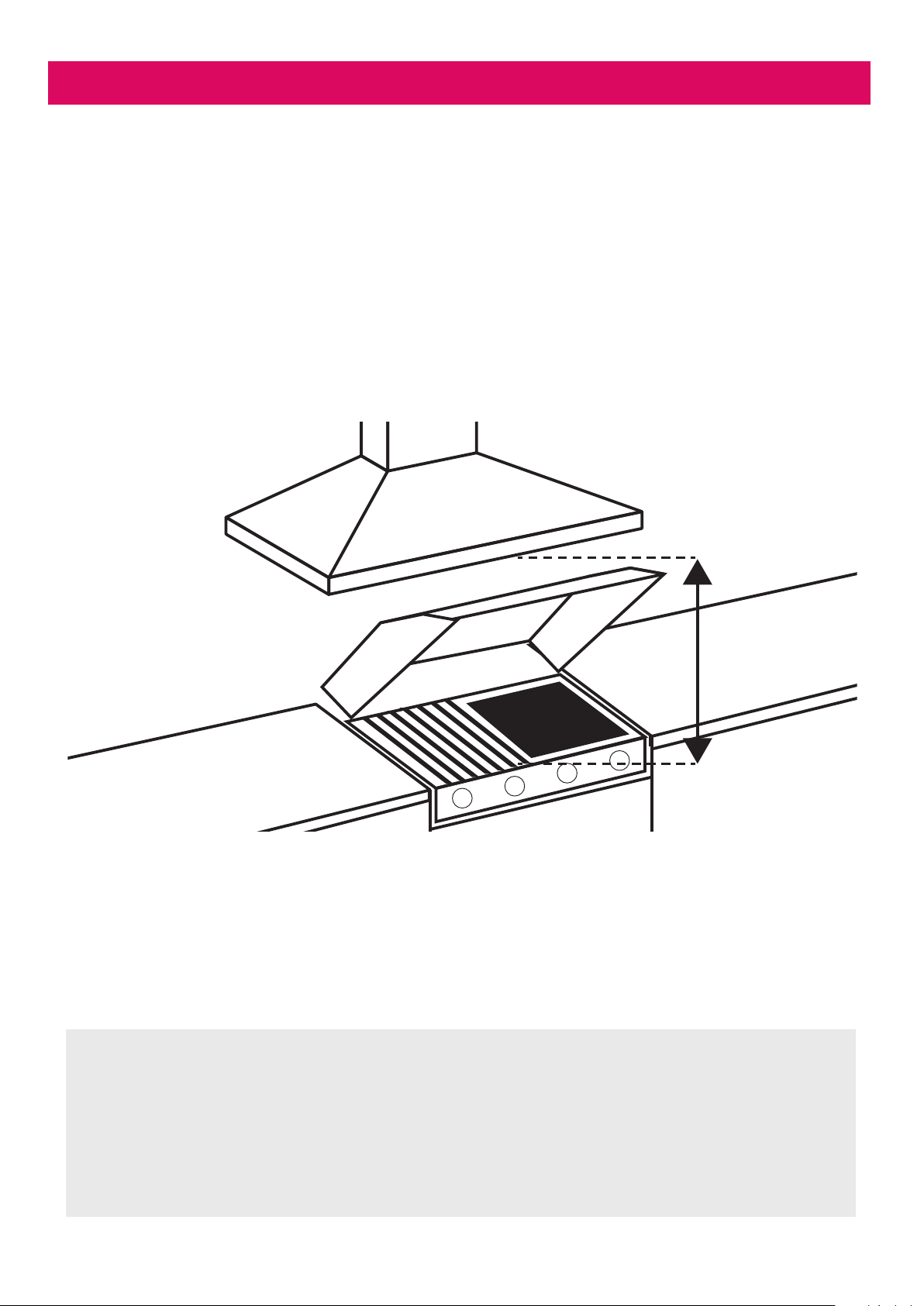

BBQ Installation 12
Mounting Instructions – Outdoor/Alfresco 13

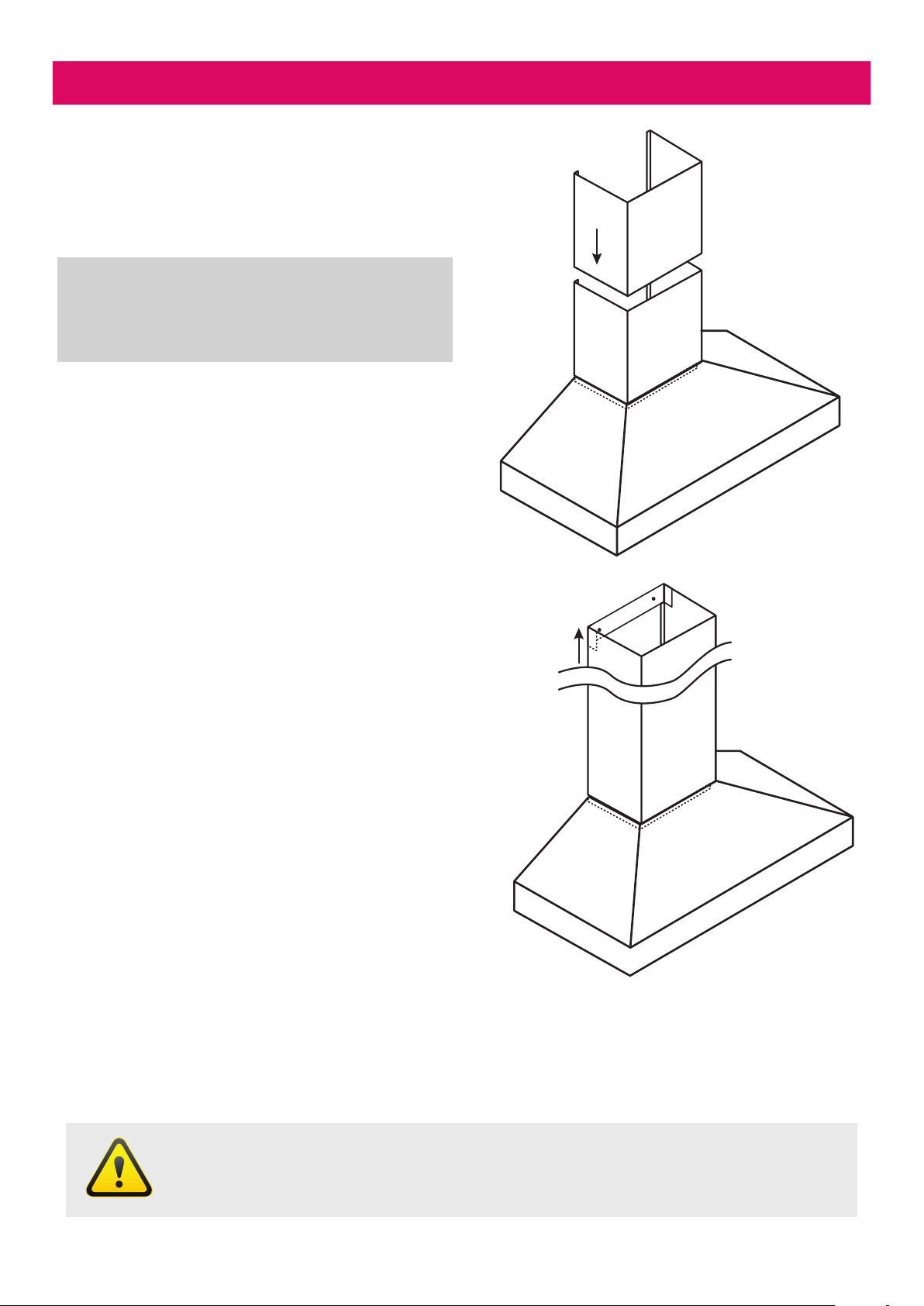

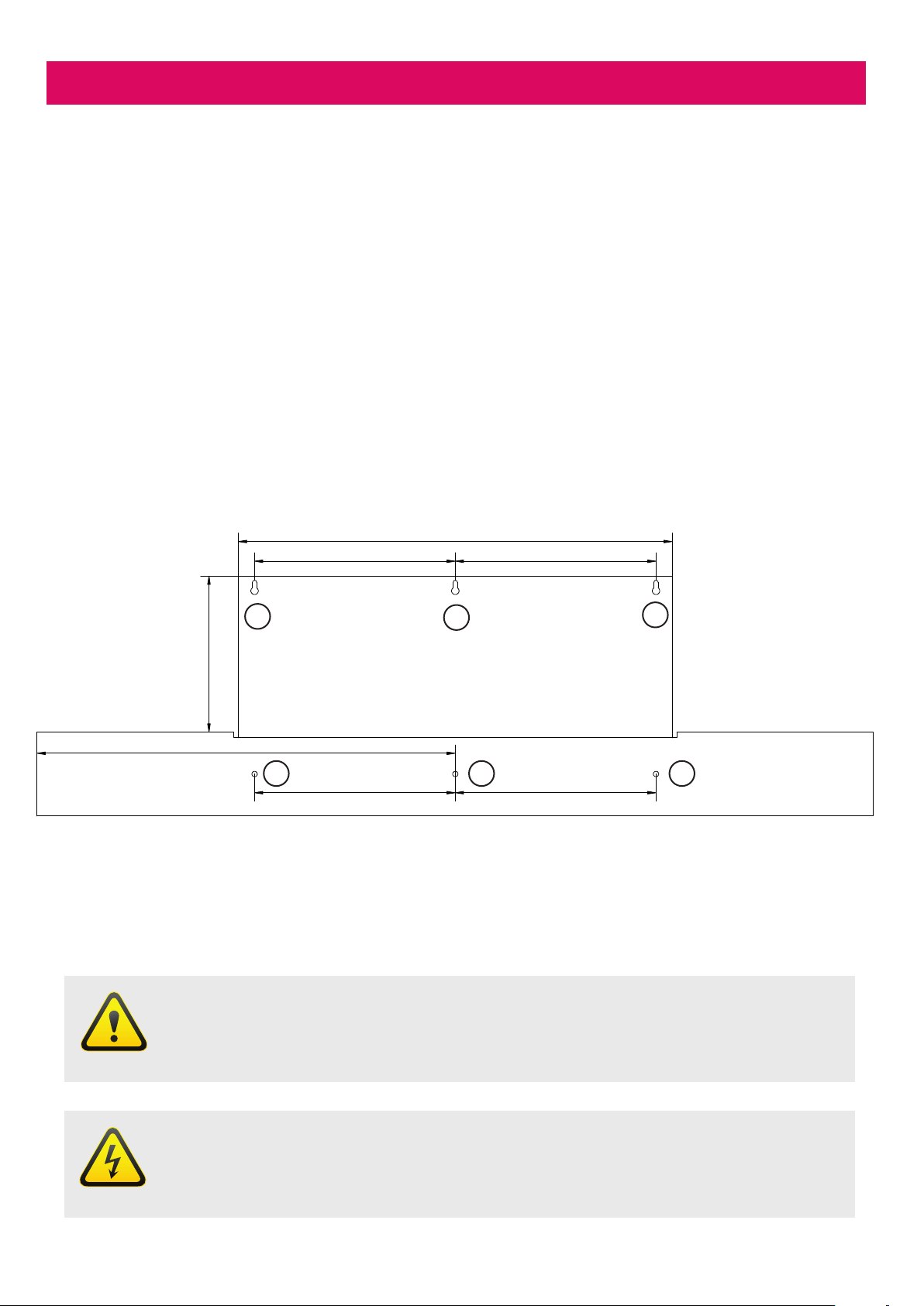

CL8912S and CL8915S Wall Mount Installation 14
Faulty Installation 15

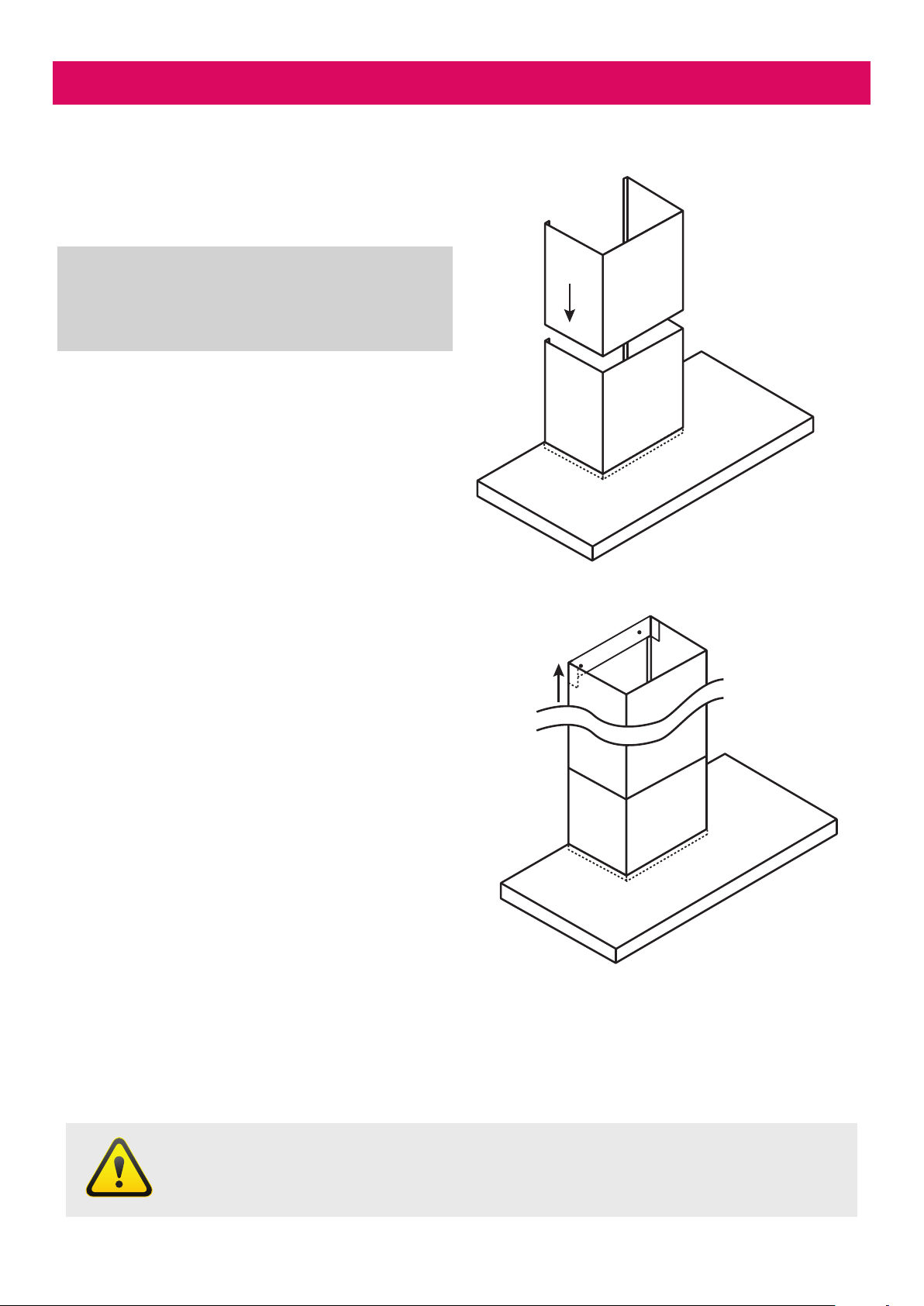

CL7372S and CL7375S Wall Mount Installation 17
Ducting 20
Isodrive® Motor Setup 20

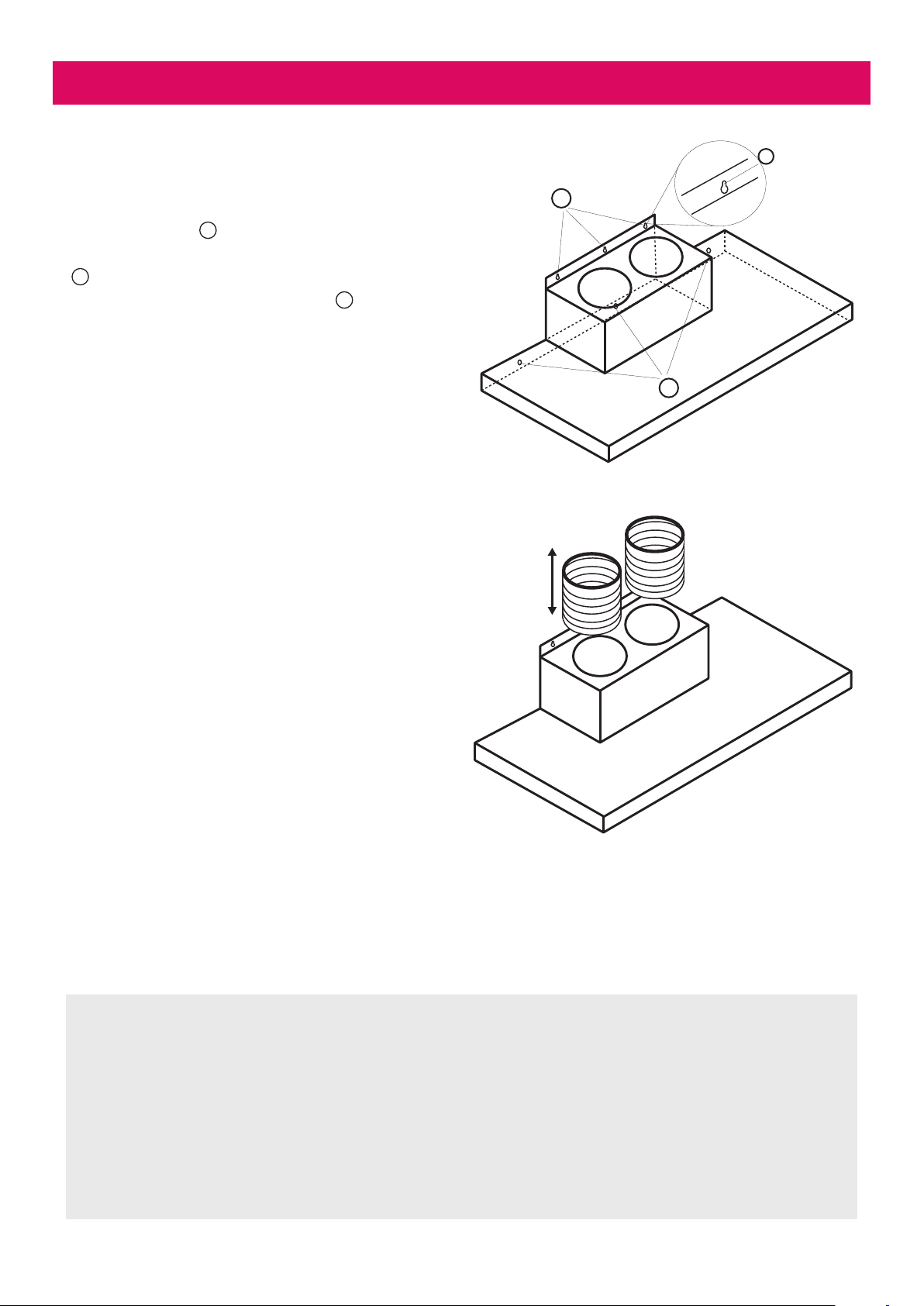

Single Isodrive® Motor Installation 21
Twin Isodrive® Motor Installation 22

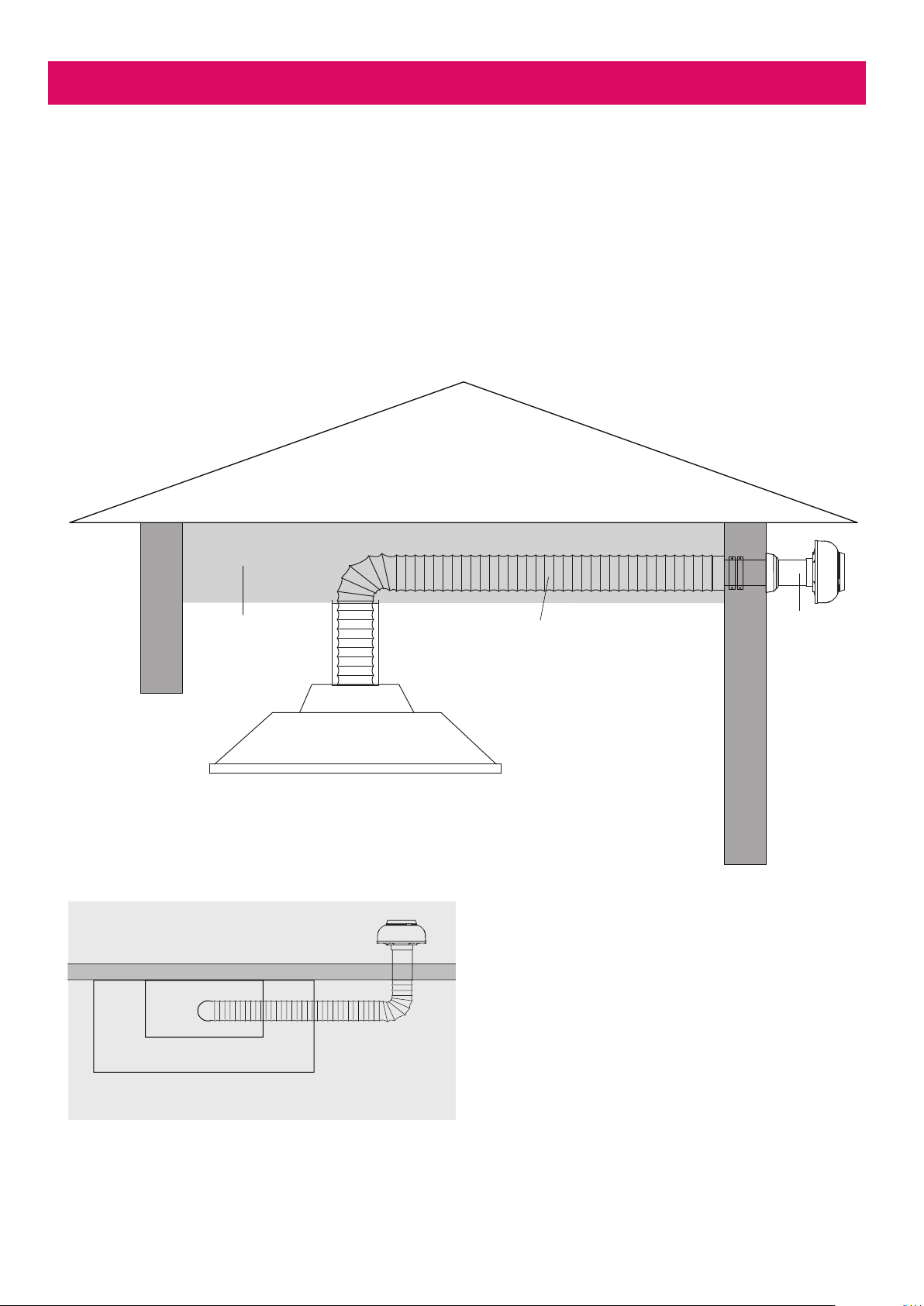

Optional Wall Mounted Motor Installation 23
7. Troubleshooting 24
Troubleshooting 24
Service 24
8. Specications 25
CL8912S and CL8915S Dimensions 25
CL8912S and CL8915S Technical Specications 25

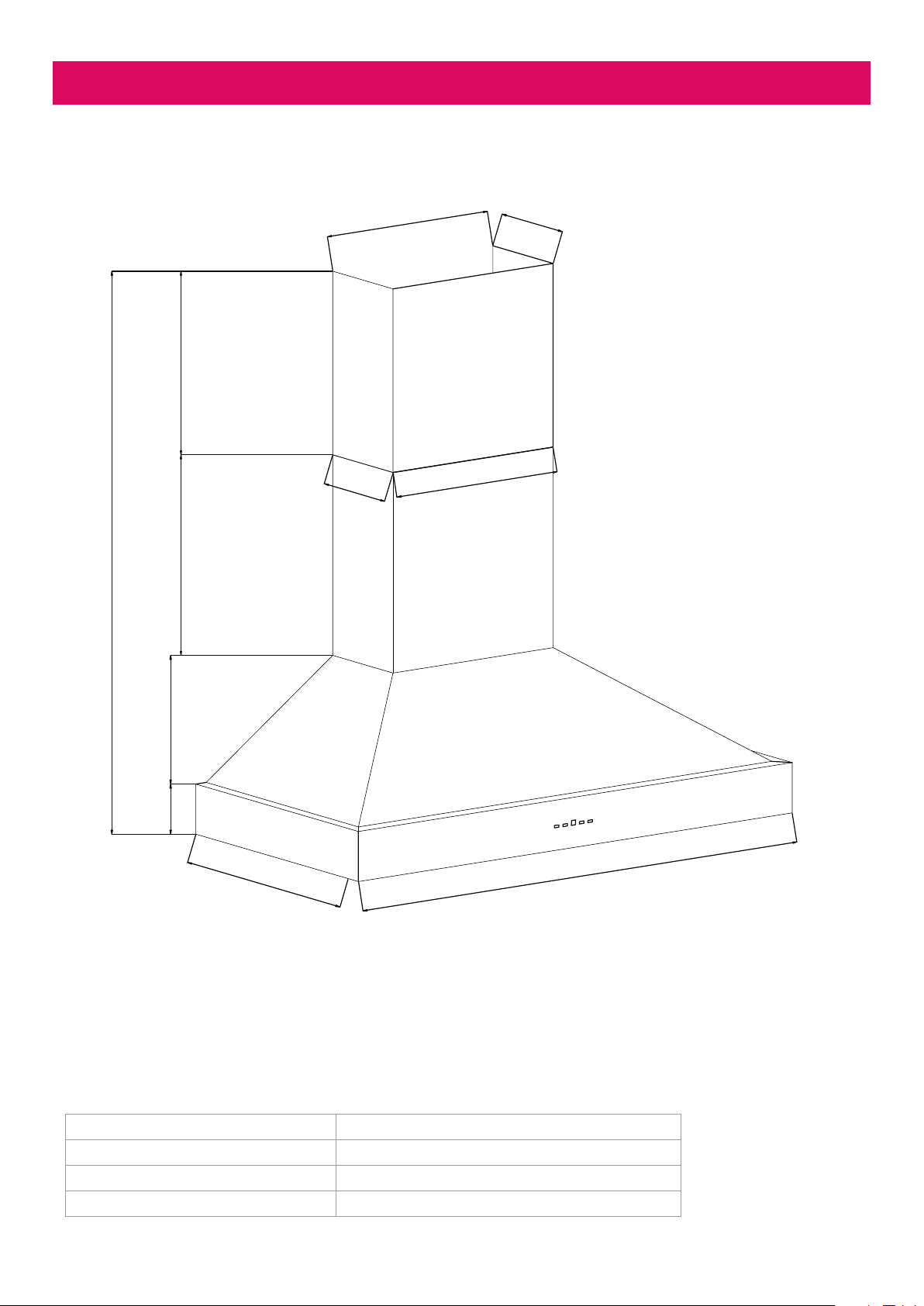

CL7372S and CL7375S Dimensions 26
CL7372S and CL7375S Technical Specications 26
9. Disclaimer 27
Page 3
1. Welcome
Thank you for purchasing your new Schweigen rangehood.
To get the maximum output from this unit, please read through this guide before use.
The guide contains important information on the use and maintenance of the unit, as well as important
safety notes. This will ensure your personal safety and the lasting value of your rangehood.
We trust that you will enjoy your new Schweigen rangehood.
Please always retain your proof of purchase to aid in any warranty queries.
If you are unable to locate your warranty card, one is available to download from our website
www.schweigen.com.au.
This appliance and its packaging are produced by processes that minimise waste and respect
the environment.
Please help us to continue this eort to protect the environment by using the appliance eciently
and dispose of the packaging in a responsible manner.
Your State Regulatory Authority
Dierent Australian states have varying legislative requirements for the installation of rangehood
ducting. Some will insist on ducting being vented externally (i.e. not in to the ceiling cavity); others
will not. It is imperative that you check with your state building authority and/or private certier
to conrm their position.
Page 4
2. Important Safety Information
WARNING
Please read this section thoroughly before attempting to operate the appliance.
Inspect your product upon receipt. Any damage or defects MUST be reported
within 48 hours, or no claim will be recognised.
DO NOT INSTALL THIS APPLIANCE IF YOU FIND IT DAMAGED.
If this product is installed damaged, neither the supplier, nor the retailer, will be
responsible for the costs associated with the repair, replacement, removal or
re-installation of the appliances.
1. To be installed in an undercover alfresco area only.
2. If the unit is not adequately covered or sheltered from the outside elements the warranty
will be null and void.
3. There shall be adequate ventilation in the room when the rangehood is used at the same time
as appliances burning gas or other fuels.
4. There is a re risk if cleaning is not carried out in accordance with the instructions.
5. Do not ambé under the rangehood. This will damage the rangehood and will not be covered by warranty.
6. Do not ignite burners that give o intense, uncontrolled ames beneath the rangehood.
7. Make sure that no ames emerge from the sides of pans.
8. Do not leave packaging materials (bags, corner brackets, etc.) within reach of children.
9. This appliance is not intended for use by person/s (including children) with reduced physical,
sensory or mental capabilities, or lack of experience and/or knowledge. Unless the person has
been given supervision or instruction concerning the use of the appliance by a person responsible
for their safety. Children should be supervised to ensure that they do not play with the appliance,
it is not a toy.
10. Exhaust air must not be discharged into an existing ue that is used for exhausting fumes from
appliances burning gas or other fuels.
11. Air exhaust must be installed in accordance with local laws. Regulations concerning the discharge
of air have to be fullled.
12. Accessible parts may become hot when used with cooking appliances.
13. Before performing any cleaning or maintenance operation, disconnect the rangehood from
the mains using the respective mains or sector switch or by unplugging it.
14. Do not use the rangehood without the grease lters.
15. Keep the grease lters clean and respect the recommended cleaning frequencies.
16. Turn the rangehood motor on before starting to cook.
17. Turn the rangehood motor o about 10-15 minutes after you nish cooking.
18. It is forbidden to use the rangehood as an aspirator.
19. Never cook foodstu directly over the ame or have the gas burners on under the rangehood
without using cookware.
Page 5
2. Important Safety Information
Before Installation
1. We recommend this appliance be installed or repaired by an experienced Home Appliance technician.
2. Please see our website www.schweigen.com.au for experienced installers.
3. It is dangerous to modify any part of this appliance. Modication of any kind, will immediately void the
warranty.
4. The manufacturer declines all responsibility in case of failure to adopt proper safety measures.
5. Ensure that the location in which this appliance is installed, has good and permanent ventilation.
6. Please consult local laws and regulations and install in accordance.
7. Use an electrical connector with earth that is correct for your location.
8. Check that the voltage in your area corresponds to the appliance as indicated on the rating label.
9. This appliance must be connected to an electricity supply with a ground connection.
10. Check that the installation and electrical connections are made by a qualied technician and that the
indicated instructions and local regulations in force are met, using materials that are compliant with
the applicable legislation.
11. The company will not be responsible for installations executed by non-qualied sta and
installations that fail to heed the applicable legislation on electrical safety (with regard to both
modes and materials).
12. The electrical technical data can be found inside the rangehood, after removing the grease lters.
13. The exible power cable supplied is already connected internally and emerges from the rangehood
near the air outlet tube.
14. Before installing the electrical connections, you should:
– Verify that the indicated electrical data coincide with the voltage values and frequency
of the electrical circuit in the house where the rangehood is to be installed;
– Check that the premises has electrical protection against short circuits and electrocution,
pursuant to the applicable legislation;
– Always switch o the current using the double-pole switch before maintenance and turn
the power on again for normal use only when the operation has been completed.
Page 6
2. Important Safety Information
Product Use
This product is designed for household use and should not be used for commercial applications.
After use, always ensure that all controls are in the “OFF” position.
When frying with a gas ame, take particular care not to allow the oil or grease in the pan to catch
re. (Flambé)
Rangehoods and other cooking fume extractors may adversely aect the safe operation of appliances
burning gas or other fuels (including those in other rooms) due to back ow of combustion gases. These
gases can potentially result in carbon monoxide poisoning. After installation of a range hood or other
cooking fume extractor, the operation of ued gas appliances should be tested by a competent person to
ensure that back ow of combustion gases does not occur.
Electrical Cord
Ensure the supply cord is not exposed to heat, chemicals or sharp objects. If the supply cord is damaged,
it must be replaced by the manufacturer.
Page 7

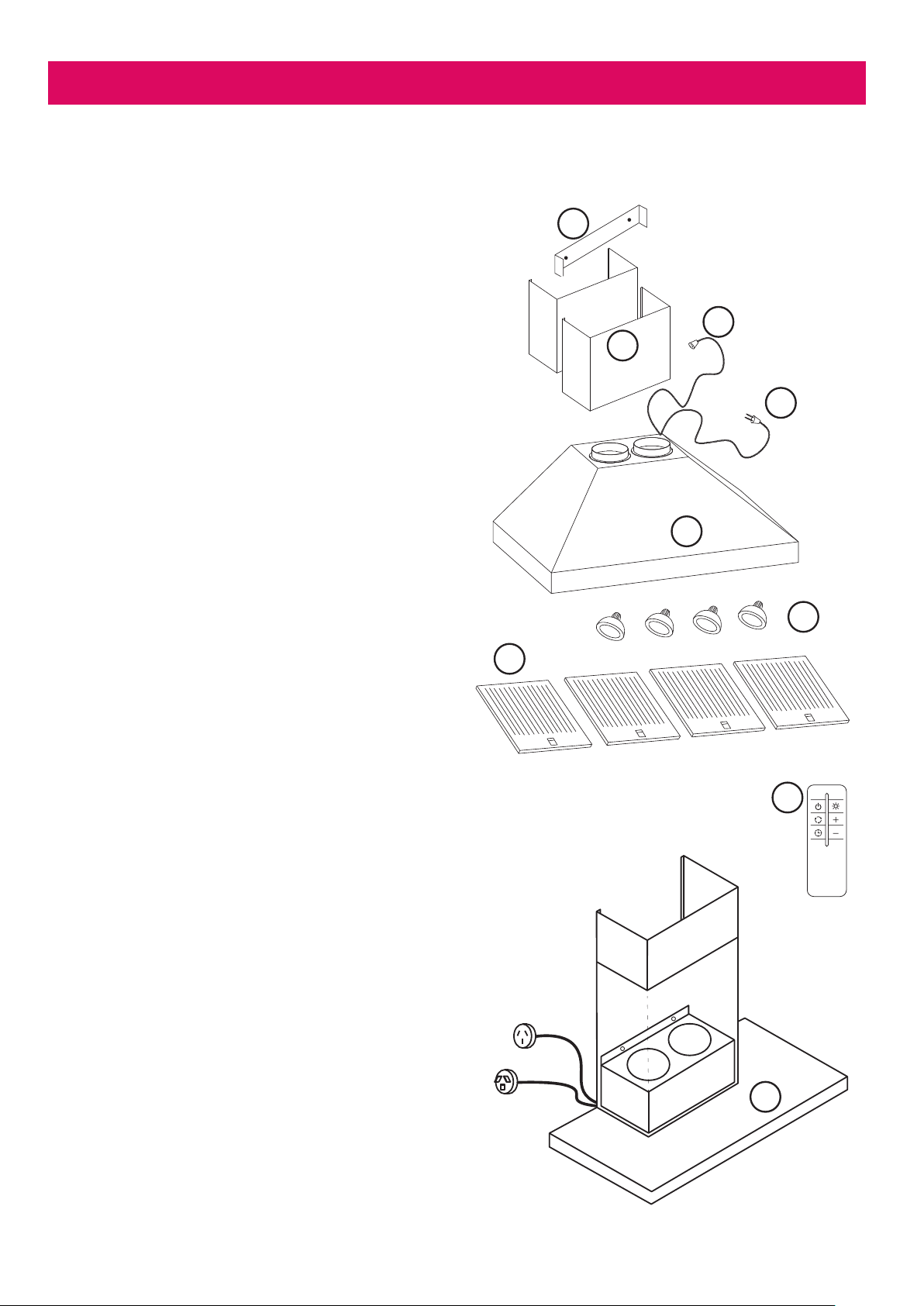

Rangehood (dependent on ranghood chosen)
1. Mounting Bracket
2. Flue
3. Socket lead for Isodrive
®
motor
4. Main Power Cord
5. CL8912S and CL8915S Rangehood Body
(all colour variants)
6. Baes
7. Lights
8. Remote Control
9. CL7372S or CL7375S Rangehood Body
(all colour variants)
NOTE: Dependenet on your rangehodd.
Filter and light quantity may vary from
model to model.
3. Description
1
2
3
4
5
6
7
8
9
Page 8
4. Operation

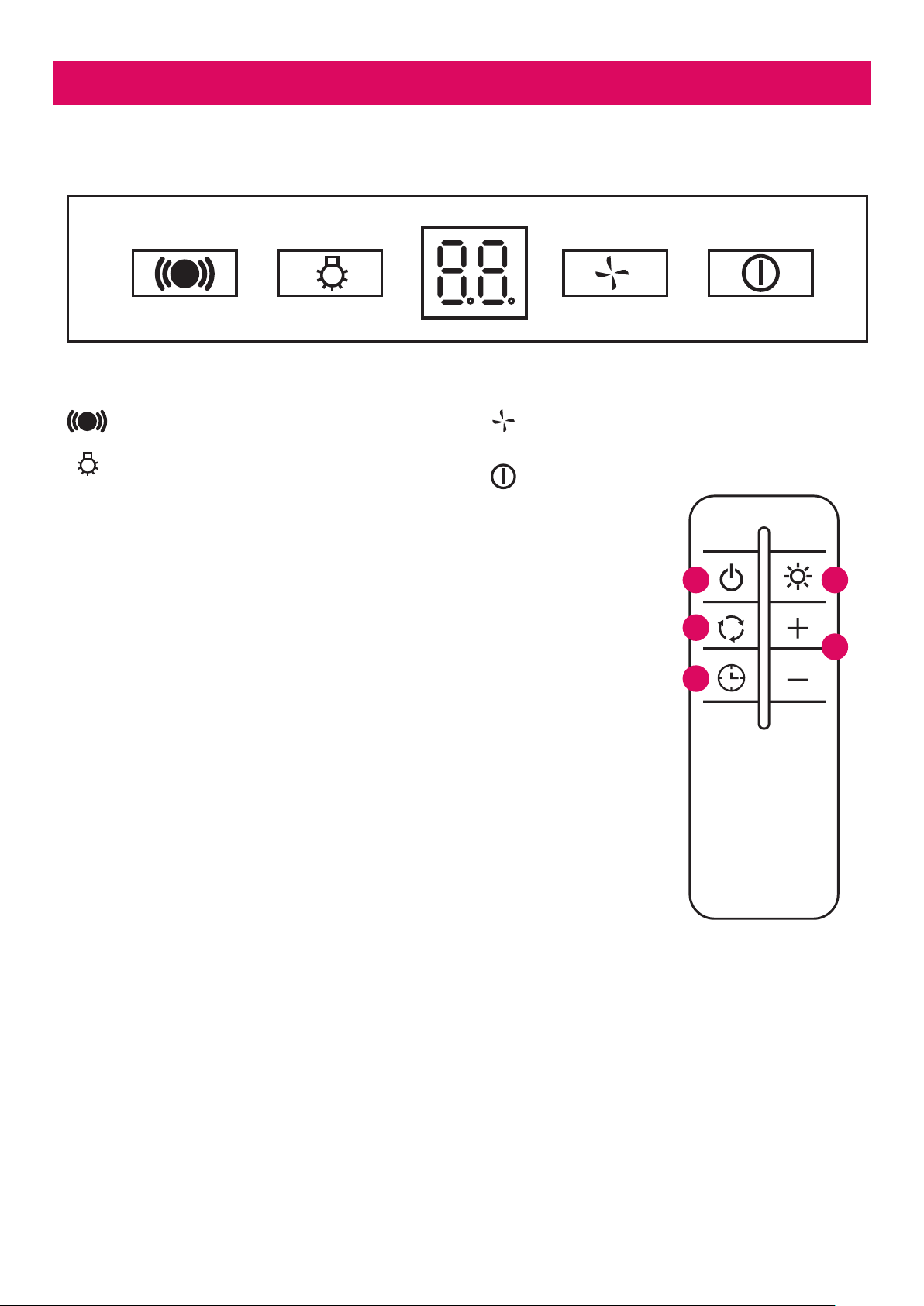

TOUCH BUTTON CONTROL PANEL
Remote control sensor
Turn light on/off
Fan speed setting
Turn rangehood on/off
REMOTE CONTROL
As well as the touch buttons, this rangehood comes with a remote control
to operate the rangehood.
1. Use this button for turning on and off the rangehood.
2. Changes the speed of the motor (minimum level is 1, maximum is 5.)
3. Automatically changes the speed to maximum or minimum speed.
4. Turns the lights on or off.
5. 10 minute timer.
USING THE ON/OFF BUTTON
To turn on the rangehood press the on/off button. Press the on/off button a second time to activate
the 10 min auto-shut off timer. Press the on/off button a third time to turn the rangehood off.
SPEED CONTROL
This rangehood is equipped with a 5 speed touch control.
1
2
3
4
5
Page 9
5. Cleaning & Maintenance
Cleaning the Interior
Clean the interior of the rangehood with a damp cloth and a neutral detergent.
NOTE: Do not use denatured alcohol on the exterior of the rangehood. Do not clean the electric parts or
the motor with liquids or solvents
Cleaning the Exterior
We recommended using a soft cloth, water and a liquid soap, rinsing it well and then drying it thoroughly.
For better results, you can use high quality cleaning and protection products to clean your rangehood.
• The recommended detergent is a solution of water and a neutral
liquid soap.
• It is very important for the liquid soap to not contain granules
that could scratch the surface.

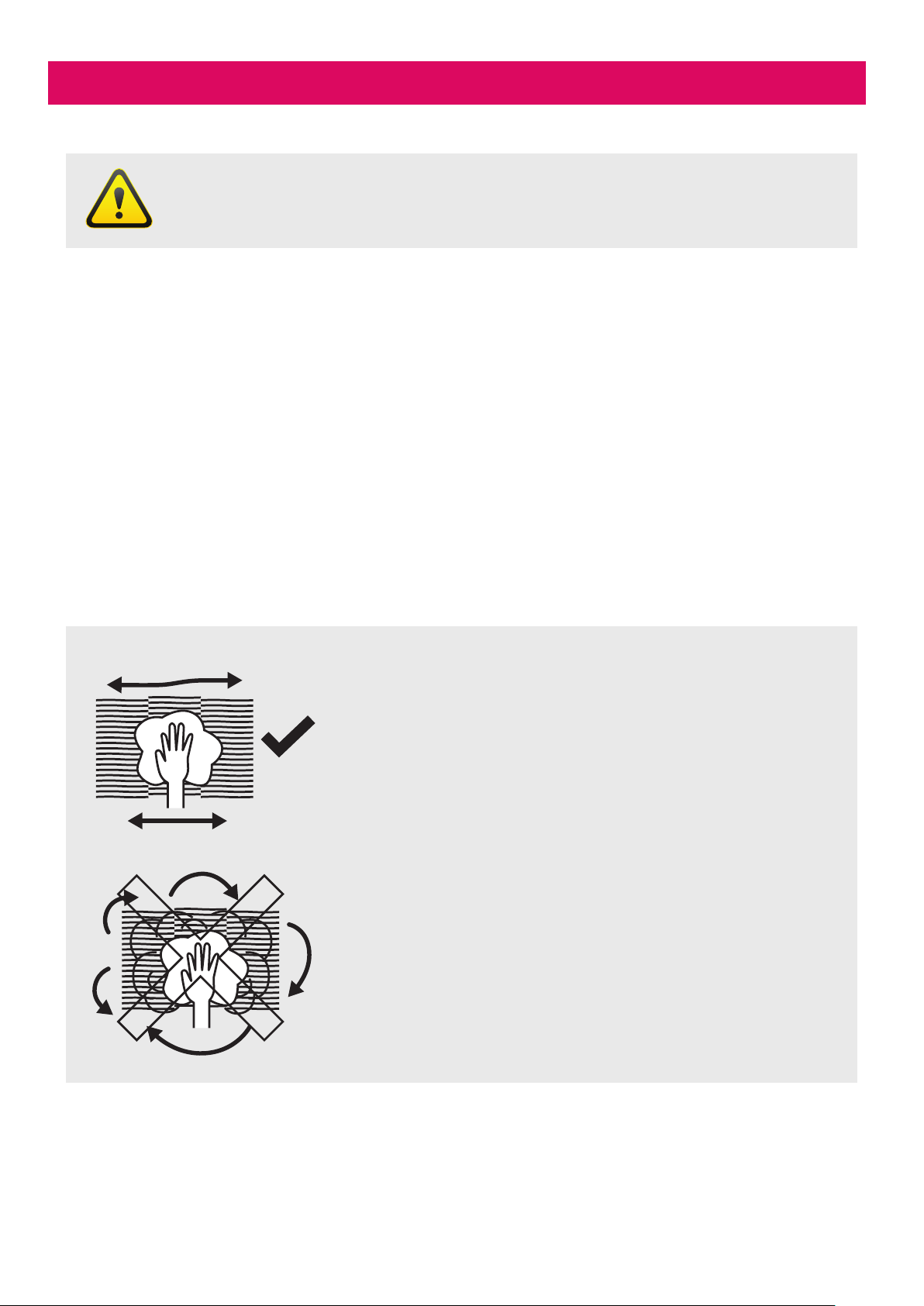

• First apply the solution to a soft cloth and then rub the cloth
over the rangehood. It is important to follow the direction of the
stained surface with the cloth (refer to gure on left).
• Do not pour any liquid directly on to the rangehood.
• The cloth must have no buttons, zips or fasteners that could
scratch the surface.
• It is strictly forbidden to use chemical solvents, aggressive,
grainy or abrasive products, naphtha, alcohol or similar products
that could damage the surface of the rangehood.
• The manufacturer will not be held responsible for functional or
aesthetic damage caused by cleaning with products which are
not suitable or using inadequate cleaning methods.
OK
Warning
Always switch o and disconnect power before cleaning.
Page 10
5. Cleaning & Maintenance
Endure the baes are cool before removing, to
ensure no oil is spilt.

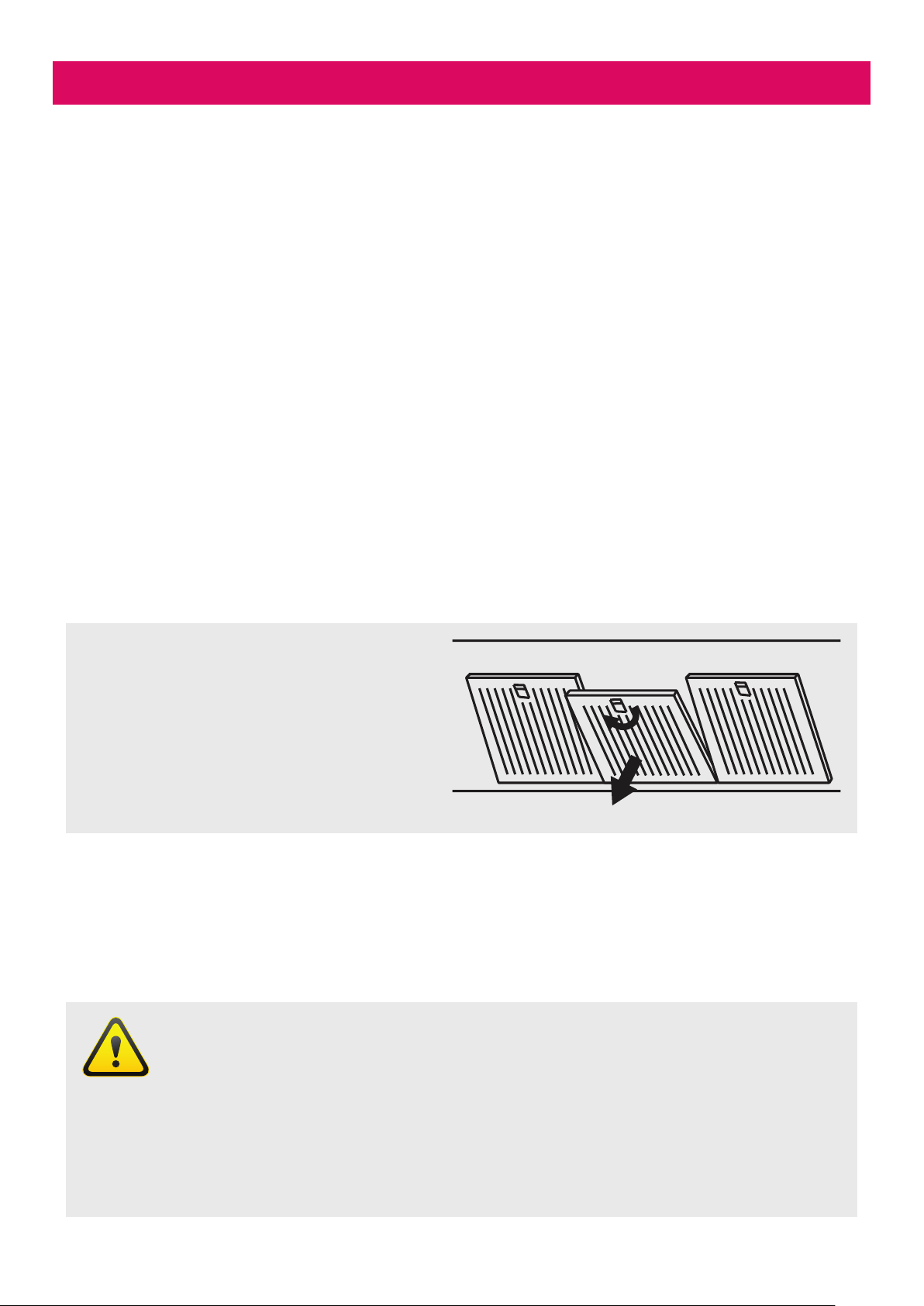

To remove the lter lift up the lever and pull
towards you. Then lower the lter to remove
from the cavity. To replace, perform the same
operation but in reverse.
Baes
For this appliance to function eectively, regular maintenance is a must.
• The function of the bae is to collect the grease particles given o during cooking.
• Clogged heavy oil deposits restrict airow and may cause the motor to overheat
and become a re hazard.
• Baes should be cleaned every 3-6 weeks or after 40 hours of use.
• For induction cooktop, please aim to clean them at least every 10 days, depending on use.
• The baes can be washed by hand or in the dishwasher.
– Washing by hand - Immerse the lter in hot water and a suitable detergent and when clean,
rinse with plenty of hot water.
– Dishwasher - Put the lter in the dishwasher and select a short program at low temperature.
NOTE: The colour of the metal mesh lters may change after several washes. This is normal and
it is not necessary to change the lters.
Please ensure the baes are completely dry before placing them back in position
and operating the rangehood.
Warning
• If the baes are very dirty, the motor will extract only a small quantity of air, which
reduces its eciency;
• The grease deposits that build up on the baes are highly ammable and COULD
EASILY CATCH FIRE.
• The manufacturer is exonerated from all responsibility in the event of re due to poor
maintenance of the grease lters.
Page 11
5. Cleaning & Maintenance
Danger
Always switch o and disconnect the power cord before replacing any lights. Failure to
do so may cause serious injury. Please be aware that the light will retain heat for a short
period of time after being switched o.

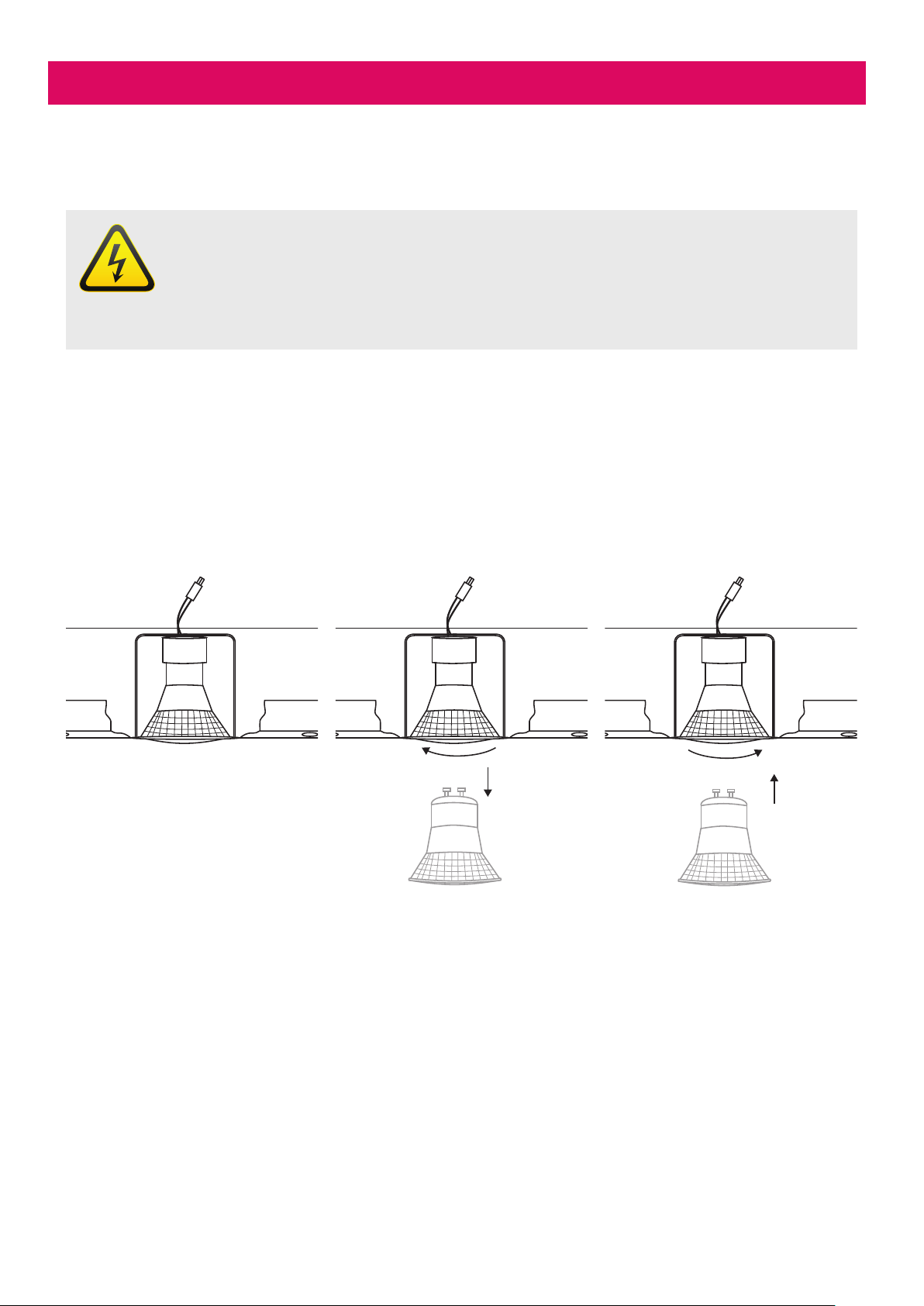

Replacing the Light
Step 2
Gently turn light anti-clockwise,
pull the light down and remove it
from the light holder.
Step 3
Insert a new light by lining up the
pins of the light with the larger
holes inside the light holder.
Once the pins are in place, turn
clockwise to secure the light.
Step 1
Remove the lters from
the rangehood.
Page 12
6. Installation
Rangehood Size vs Cooktop Size
In addition to the size, the height of the rangehood above the cooktop is important to obtain
the best performance.
INADEQUATE
Rangehood smaller than
cooking zone
ADEQUATE
Rangehood same size as
cooking zone
OPTIMAL
Rangehood larger than
cooking zone
BBQ Installation
When installing the rangehood over a BBQ , please be aware that the lid will obstruct the rangehoods
eectiveness to extract smoke, steam and odours. Where possible, remove the lid of the BBQ unit when
in use, so as to allow for eective rangehood extraction. Alternatively, install the rangehood on an
extension, to move the rangehood further out.
Extension
_n_. _RH Section_
Page 13
6. Installation
Mounting Instructions – Outdoor/Alfresco
When installing in an outdoor kitchen or alfresco area,the rangehood MUST NOT be installed
where it is directly exposed to the elements .
It is STRONGLY RECOMMENDED that the rangehood be installed centrally over the cooktop.
This will greatly improve its performance.
Minimum legal height from the BBQ surface to the underside face of the rangehood:
• 1200mm
Any installation above 1200mm will compromise the extraction performance.
Measurements are from the top of the trivets to the lowest part of the rangehood,
including the button controls.
*IMPORTANT: If the user decides to install the rangehood at a distance of less than minimum height
above the cooking surface, Schweigen declines responsibility for damages suered by the rangehood
due to excess heat or damage to objects, people and others caused directly or indirectly by a
malfunction, breakage or re.
* Important: In addition to the information in this manual,
please check all relevant state requirememnts for minimum–
maximum heights, as well as regulations regarding the
expelling of air. Schweigen is not liable if your rangehood is
not installed in accordance with these legal requirements.
_n_. _LH Section_
Page 14
6. Installation

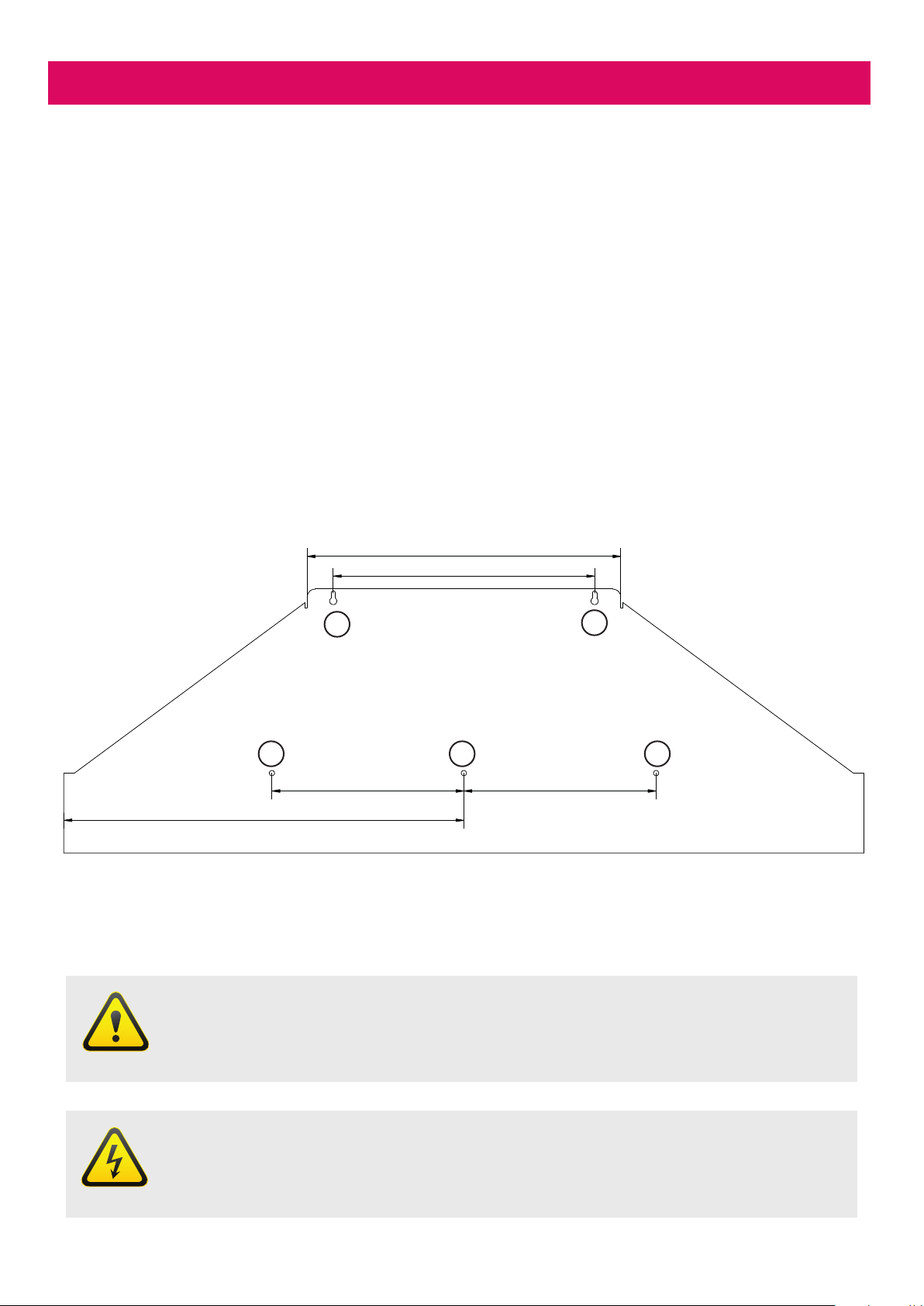

CL8912S and CL8915S Wall Mount Installation
(all colour variants)
There are two primary mounting points and several secondary mounting points to rmly x the
rangehood in place.
Suitable xing screws must be used to mount the appliance on a secure surface.
Please ensure that the holes for the two primary mounting points are level before installation.
1. Primary Mounting Points
2. Secondary Mounting Points
DANGER
Always switch o and disconnect the power supply before installing the rangehood.
Failure to do so may cause serious injury.
WARNING
Please remove lters before installation. Failure to do so may damage the clips.
1
22 2
1
588
600/750
490
360
360
_n_. _RH Section_
Page 15
6. Installation
Faulty Installation
It is not the responsibility of Schweigen to rectify any incorrect installations. A service call out fee
will be charged for any Schweigen technician that attends a call, whereby it is established that
the fault is due to an incorrect installation or non-manufacturing fault. Should the appliance be
installed in such a way that the service agent is unable to gain access to the appliance, the person/s
who own the premises or the property where the appliance resides — will be responsible to provide
access to the appliance at their expense.

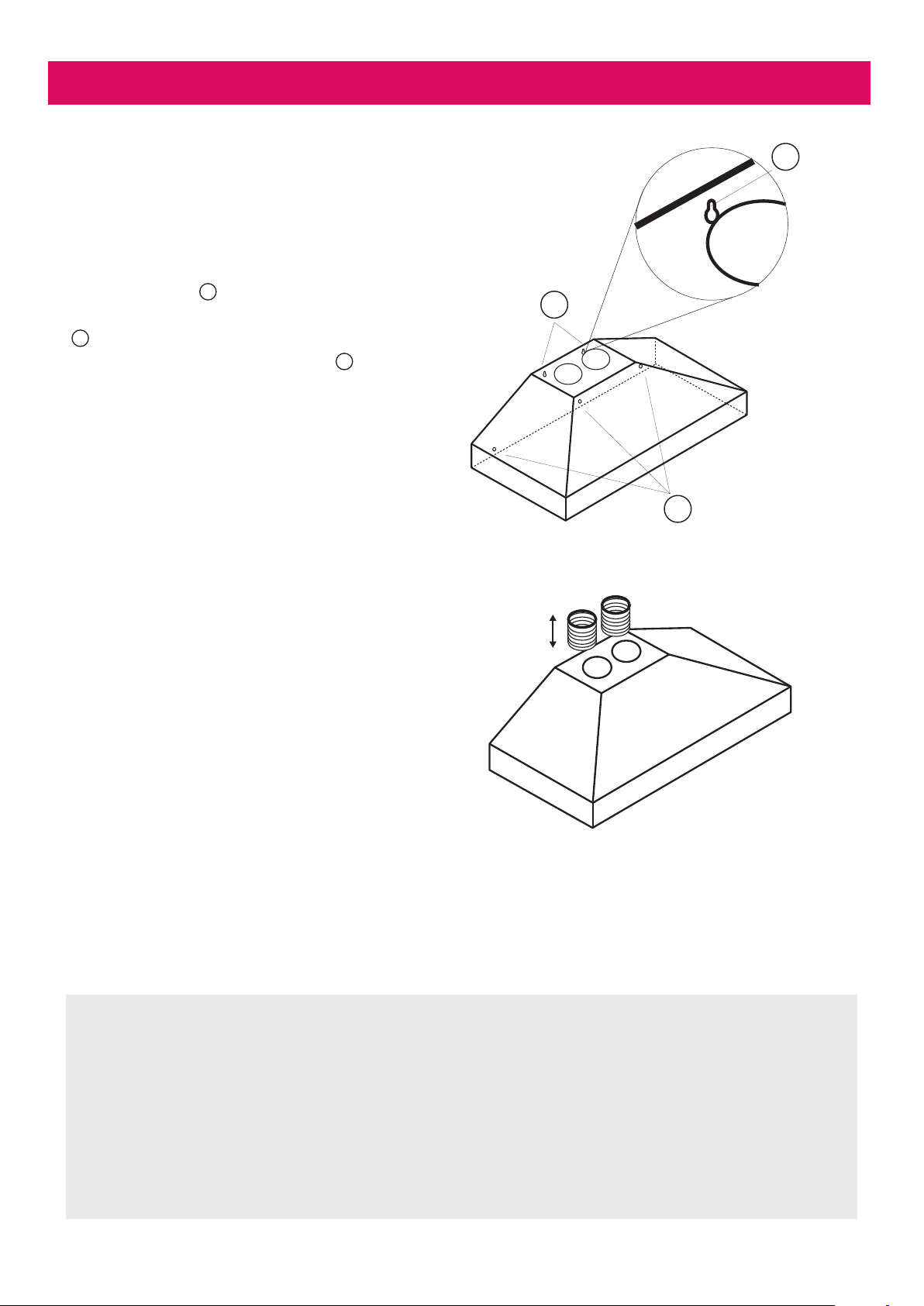

Step 1
Secure rangehood to the wall using only primary
mounting points (
1
). Check the level of the
rangehood and adjust accordingly if necessary
(
2
). Once level, continue to secure the rangehood
via the secondary mounting points (
3
).
Step 2
Feed through and secure the ducting from the
rangehood outlet to the Isodrive motor.
1
2
3
1
2
3
Page 16
6. Installation
IMPORTANT
Please ensure all plastic protection on the rangehood and lters is removed before use.
Step 3
Place ue covers on the rangehood. (Be careful not
to scratch the top of the rangehood).
PLEASE NOTE: Only a standard length of
stainless steel ue is provided. Any additional
length will need to be sourced and manufactured
by a sheet metal fabricator.
Step 4
Attach the ue wall mounting bracket to the
wall. Slide the ue piece up to the wall mounting
bracket and secure.
1
2
3
1
2
3
Page 17
6. Installation6. Installation
CL7372S and CL7375S Wall Mount Installation
(all colour variants)
There are two primary mounting points and several secondary mounting points to rmly x the
rangehood in place.
Suitable xing screws must be used to mount the appliance on a secure surface.
Please ensure that the holes for the two primary mounting points are level before installation.
1. Primary Mounting Points
2. Secondary Mounting Points
DANGER
Always switch o and disconnect the power supply before installing the rangehood.
Failure to do so may cause serious injury.
WARNING
Please remove lters before installation. Failure to do so may damage the clips.
1
1
1
2 2 2
778
360 360
280
600/750
360 360
Page 18
6. Installation
Step 1
Secure rangehood to the wall using only primary
mounting points (
1
). Check the level of the
rangehood and adjust accordingly if necessary
(
2
). Once level, continue to secure the rangehood
via the secondary mounting points (
3
).
Step 2
Feed through and secure the ducting from the
rangehood outlet to the Isodrive motor.
3
1
2
3
1
2
Faulty Installation
It is not the responsibility of Schweigen to rectify any incorrect installations. A service call out fee
will be charged for any Schweigen technician that attends a call, whereby it is established that
the fault is due to an incorrect installation or non-manufacturing fault. Should the appliance be
installed in such a way that the service agent is unable to gain access to the appliance, the person/s
who own the premises or the property where the appliance resides — will be responsible to provide
access to the appliance at their expense.
Page 19
6. Installation
IMPORTANT
Please ensure all plastic protection on the rangehood and lters is removed before use.
Step 3
Place ue covers on the rangehood. (Be careful not
to scratch the top of the rangehood).
PLEASE NOTE: Only a standard length of
stainless steel ue is provided. Any additional
length will need to be sourced and manufactured
by a sheet metal fabricator.
Step 4
Attach the exterior ue wall mounting bracket to
the wall. Slide the inside extension ue piece up
to the wall mounting bracket and secure.
1
2
3
1
2
3
Page 20
6. Installation

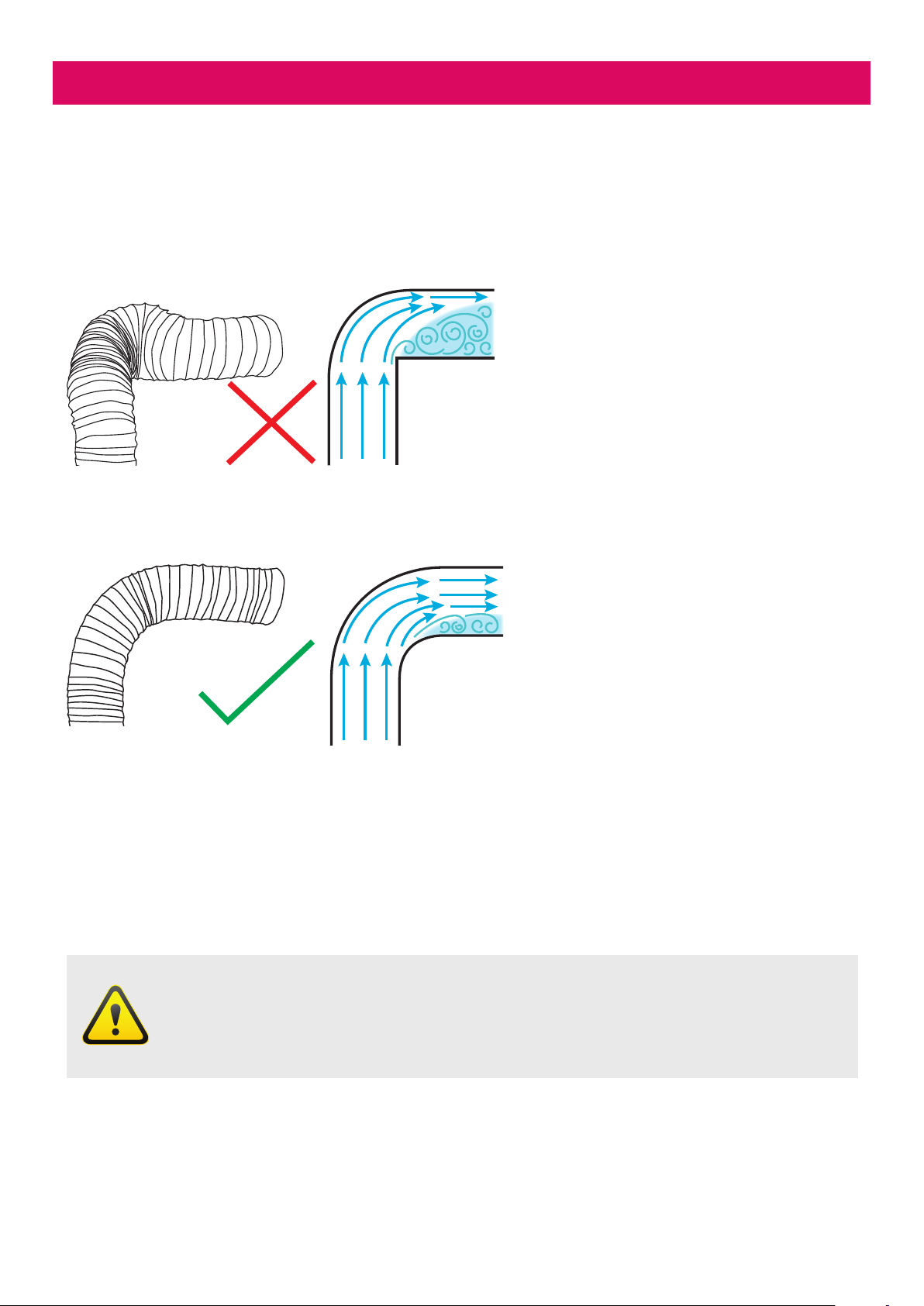

Ducting
Please DO NOT crush or kink the ducting.
1. Crushed or kinked ducting creates
sharp corners that creates turbulence.
This reduces the size and eciency
of the ducting, lowers extraction and
may cause excessive noise.
2. Sweeping curves and taut ducting
reduces resistance and turbulence.
The airow and extraction will be
more ecient and stronger.
Isodrive
®
Motor Setup
Note
Please refer to the Isodrive
®
motor installation guide for more details
on ducting and Isodrive
®
motor installation.
Page 21
6. Installation

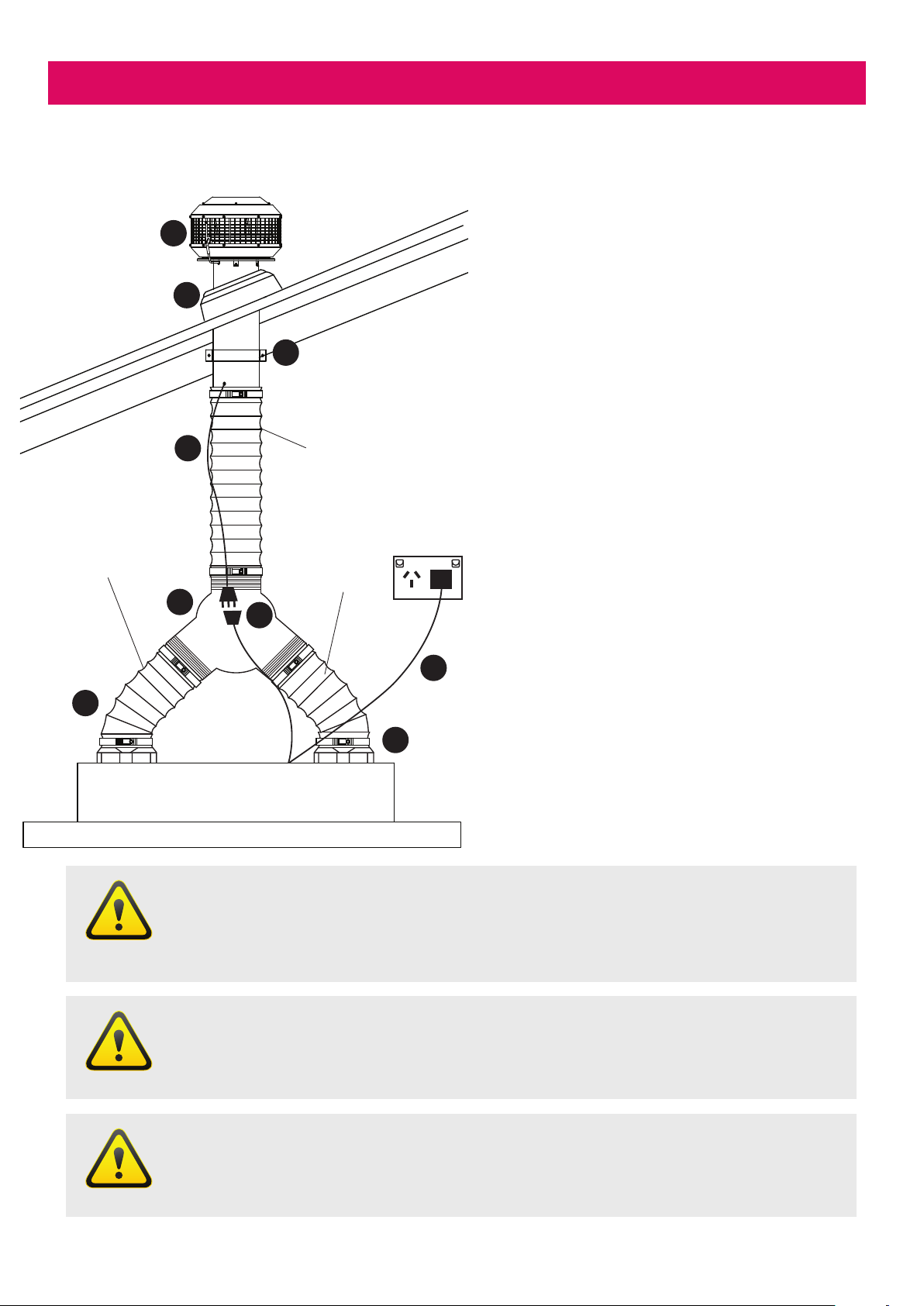

Single Isodrive
®
Motor Installation
1. Isodrive
®
Motor
2. Roof Seal Kit (Dektite) (Not supplied)*
3. Support Straps (Not supplied)*
4. Isodrive
®
Motor Power Lead (Plug)
5. Rangehood to Isodrive
®
Motor Lead (Socket)
6. Multi-t Y-Joint, cut to 250 x 200 x 200mm
7. Mains power
8. Ducting must be pulled taut.
DO NOT crush or kink the ducting.
9. Connect ducting to the outlet on rangehood
using ring clamp.
Please DO NOT rip the ducting.
1
2
3
4
5
6
7
8
9
250mm
200mm
DANGER
All electrical wiring from the motor to the rangehood should be kept inside the roof space.
NOTE
The Isodrive
®
motor system does not include the roof seal kit, cable ties or the support
straps.
NOTE
The general power outlet for the rangehood should be located in an easy to access area.
200mm
Page 22
8
9

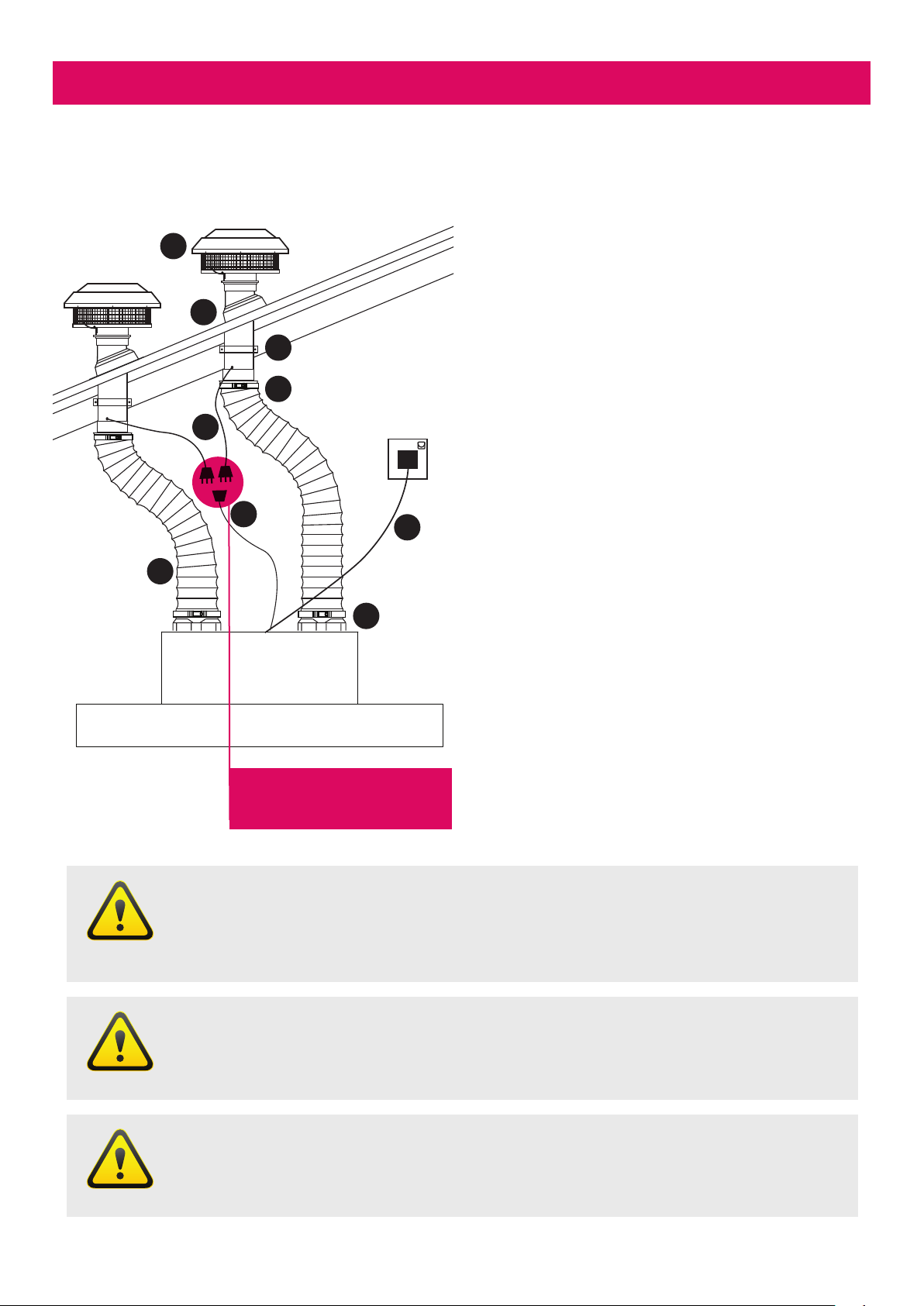

Twin Isodrive
®
Motor Installation
1. Isodrive
®
Motors
2. Roof Seal Kit (Dektite) (Not supplied)*
3. Support Straps (Not supplied)*
4. Attach Duct to Bell-Mouth Adaptor using ring
clamp. Please DO NOT rip the ducting.
5. Isodrive
®
Motor Power Lead (Plug)
6. Rangehood to Isodrive
®
Motor Lead (Socket)
7. Mains power
8. Ducting must be pulled taut.
DO NOT crush or kink the ducting.
9. Connect ducting to the outlet
on rangehood using ring clamp.
Please DO NOT rip the ducting.
1
2
3
4
5
6
7
8
9
DANGER
All electrical wiring from the motor to the rangehood should be kept inside the roof space.
NOTE
The Isodrive
®
motor system does not include the roof seal kit, cable ties or the support
straps.
NOTE
The general power outlet for the rangehood should be located in an easy to access area.
Rangehood to Motor power
leads are to be hard wired
by an electrician.
6. Installation
Page 23
6. Installation
Optional Wall Mounted Motor Installation
Bulkhead
Rangehood
Isodrive
Motor
Ducting
The Isodrive motor can optionally be installed mounted to a wall if a roof mount is not possible. The
construction of a bulkhead is also recommended. The position of the motor can be to an external wall as
shown above, or to the same external wall as the rangehood is mounted, as shown below.
For all wall installation options, please refer to the Isodrive
®
Motor manual. Avoid sharp bends and kinked
ducting as this will aect extraction performance.
Top view for wall mounted installations
on the same wall as the rangehood.
Page 24
7. Troubleshooting
Before you contact the technical service department, make sure that the product is plugged in
and power is supplied.
• Do not take any action that will damage the product.
Check electric connection. Voltage of the electric
network should be between 220 - 240V, rangehood
should be connected to grounded plug and turned on.
Check motor switch. Please ensure that there is
power to the rangehood and the rangehood is
switched on.
Check light switch. Light switch should be at on
position.
Check lters. The lters should be washed regularly,
see lter cleaning.
Lights should be rmly in position.
Check Lights.
Make sure they are not broken or faulty.
Please make sure there is no obstruction in ducting or
with the back draft ns.
Check the outlet, make sure it is not blocked and you
have the correct diameter ducting installed.
Check Isodrive
®
installation manual, make sure the
ducting is installed correctly, e.g. Length of ducting
used, keep the ducting taut.
Check the ducting has not come o the rangehood
outlet or has been eaten through by rodents.
Rangehood does not work
X X
Light does not work
X X X X
Rangehood air exaction is weak
X X X X
Rangehood does not direct air out
(through chimney)
X X
Loud noise from the rangehood
X X
IMPORTANT
Never attempt to repair this appliance by yourself. Always refer to a qualied Service
Technician.
Service
Lodging an Online Service Request
In the event that the failure is not due to the faults mentioned in the Troubleshooting section, you can
lodge an online Service Request. To lodge an online Service Request, visit our website www.schweigen.
com.au/service-and-warranty and click on the link and complete the service request form.
A service request will require the following information:
• The purchase date
• The rangehood model and motor type (e.g. Isodrive
®
1600)
• The serial number or batch number (this number is on a sticker inside the rangehood).
• A copy of the purchase receipt (without a receipt your service request cannot be processed).
Alternatively, you can call Customer Service:
Australia 1300 881 693 or New Zealand 0800 200 510
Page 25

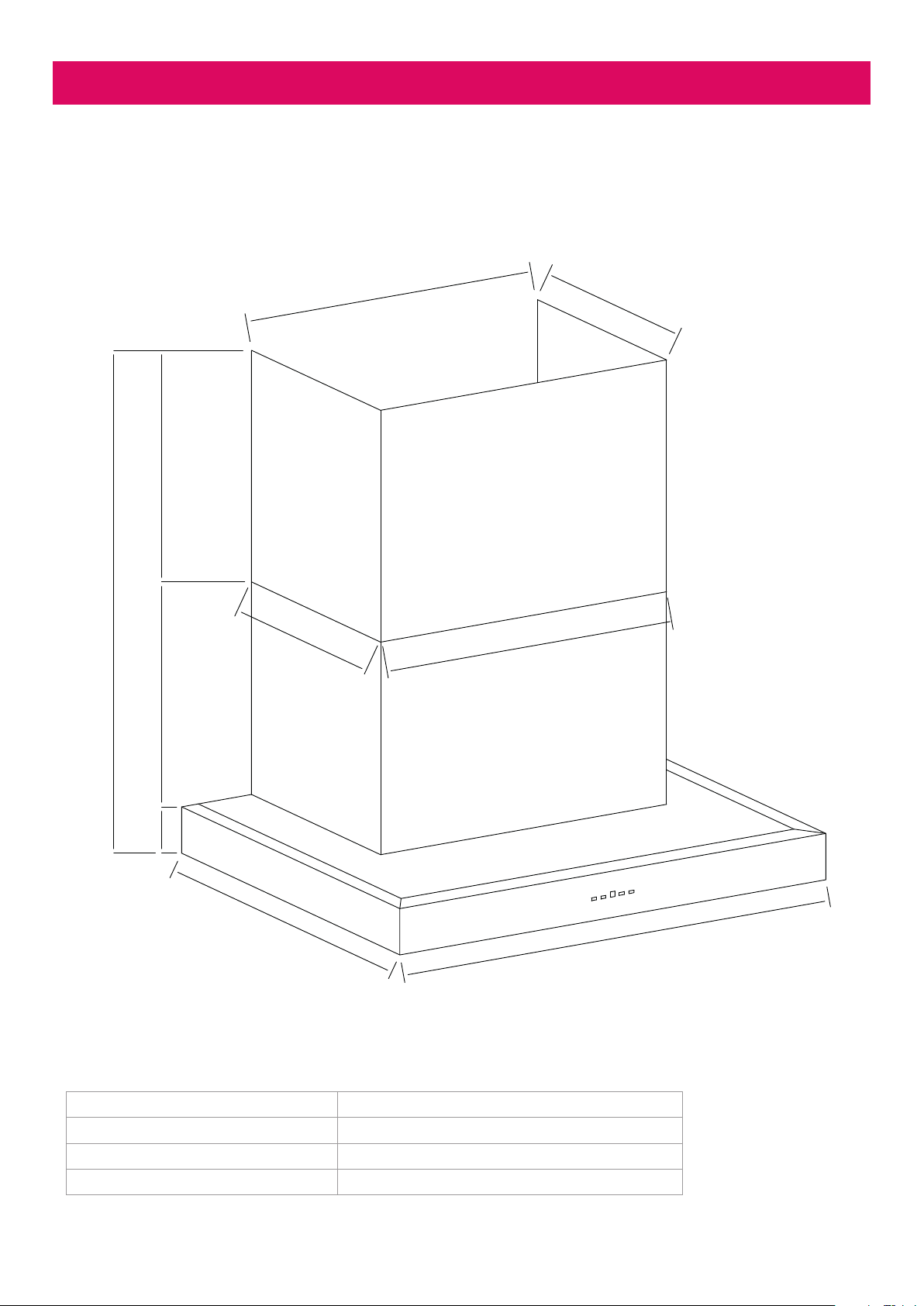

596
591.5
303
307.5
150
MAX 1145
320
350
350
1200 / 1500
800
Technical Specications
Model CL8912S, CL8912BS, CL8915S, CL8915BS
Feeding Voltage 220–240V 50Hz
Lamp Power — LED (W) 4 x 3W
ILCOS Code DRR-3-H-GU10-51/55
CL8912S and CL8915S Dimensions. (all colour variants)
*All dimensions are in millimetres
8. Specications
Page 26
8. Specications
Technical Specications
Model CL7372S, CL7372BS, CL7375S, CL7375BS
Feeding Voltage 220–240V 50Hz
Lamp Power — LED (W) 4 x 3W
ILCOS Code DRR-3-H-GU10-51/55
CL7372S and CL7375S Dimensions (all colour variants)
1200 / 1500
800
150
400
494
497
791
MAX 935
400
788
*All dimensions are in millimetres
Page 27
9. Disclaimer
Disclaimer
Under our policy of continuous product development, product specications may change without notice.
Prospective purchasers should therefore check with the retailer to ensure this publication correctly
describes the products being oered for sale. All information supplied is to be used for general reference
purposes only and is on the understanding that Schweigen Home Appliances will not be liable for any
loss, liability or damage of whatever kind arising as a result of any reliance upon such information.
All pictures used in the guide are for illustrative purposes only.
Although our information and marketing states the term ‘Silent’ for certain models, the following applies
to various models that are sold with certain Isodrive
®
Systems and bae lters. When a model with
the larger motored Isodrive
®
System is operated at the higher speed/s air movement may be heard.
For example, while operating on speed 4 & 5 (For 5 speed models) the rangehood may be audible due
to the large amount of air movement moving through the lter.
* Please make sure that the rangehood and motor have been installed as per the corresponding
instruction guides in order for optimal performance (the Isodrive
®
Motor Manual can be found
with the Isodrive
®
Motor, or online at schweigen.com.au).
Schweigen Home Appliances has presented this information in good faith to all their retailers and
distributors to convey before any/all purchase/s. Information is supplied upon the condition that
the person/s receiving the information will make their own determination as to its suitability for their
purpose/s prior to use. In no event will Schweigen Home Appliances be responsible for damages of
any nature whatsoever resulting from the use of, or reliance upon, information from their website
or the products to which the information refers.
DISPOSAL OF OLD APPLIANCES
Electronic waste (or e-waste) including kitchen appliances are banned from direct disposal
to landll. E-waste contains hazardous materials, which can harm the environment and human
health. Valuable materials contained in e-waste are lost when appliances, computers and other
household electrical goods are sent to landll.
Recycle your e-waste to:
• reduce landll
• protect the air and waterways from harmful materials
• minimise consumption of raw materials to produce electronic products
• reduce greenhouse gases created in the production of new materials.
Kitchen appliances including Rangehoods and Ovens can only be disposed at approved recycling
centres. Visit www.recyclingnearyou.com.au/whitegoods for more information, or contact your
local council or the store you purchased this appliance, for a list of approved recyclers.
Australia Unit 4/1-5 Lake Drive, Dingley Village, Victoria 3172. Phone 1300 881 693
Email sales@schweigen.com.au Web www.schweigen.com.au
New Zealand 5 Tolich Place, Henderson, Auckland 0610. Phone 0800 200 510
Email info.par[email protected] Web www.parex.co.nz
