BOOX NoteAir2 Series
User Manual
Contents
1. Standard Accessories ................................................................3
2. Safety Guide ............................................................................. 4
3. Product Views ........................................................................... 6
4. Main Interface ........................................................................... 9
5. Library .....................................................................................25
6. Reader .................................................................................... 37

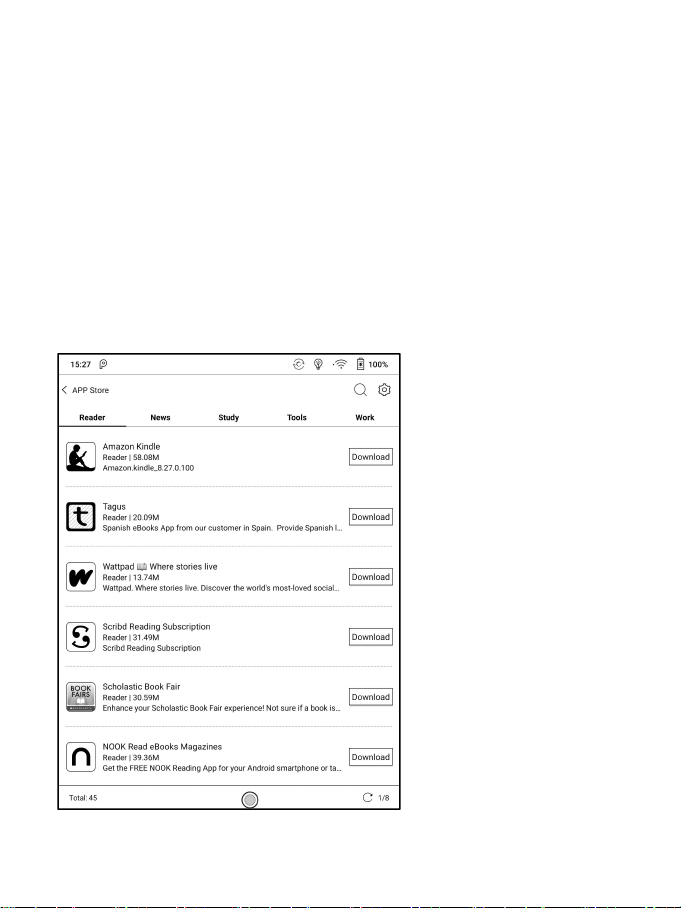

7. Store ....................................................................................... 86

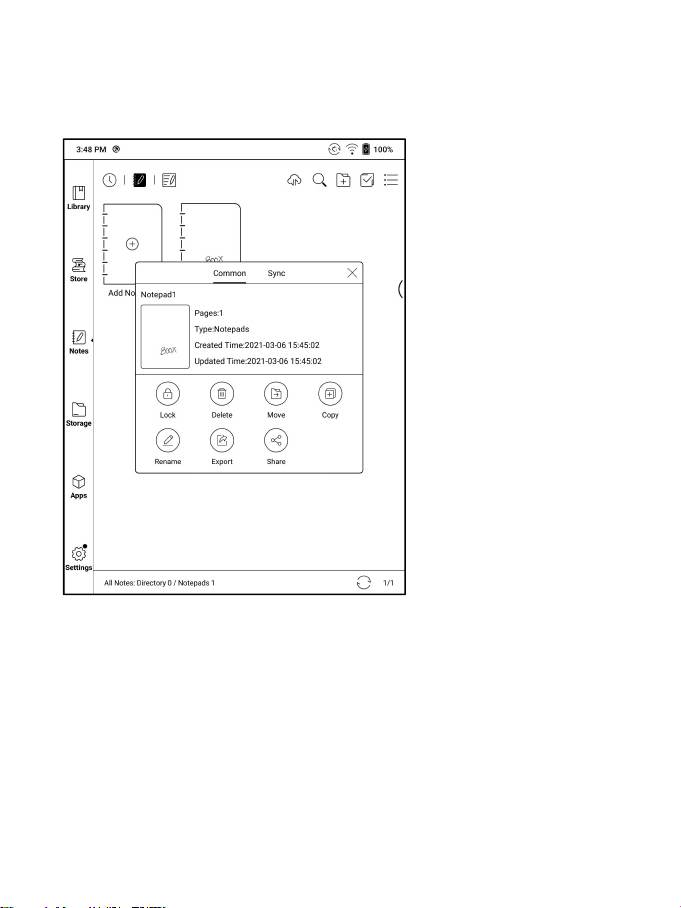

8. Notes ...................................................................................... 89

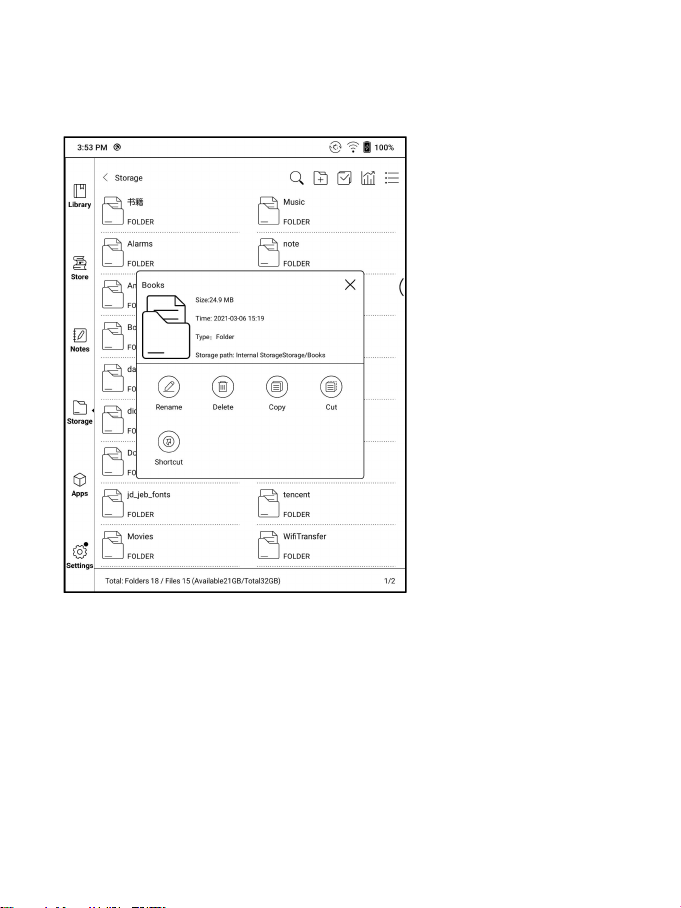

9. Storage ..................................................................................118
10. Apps .................................................................................... 122
11. Settings ................................................................................154
12. Specifications .......................................................................173
13. Declaration .......................................................................... 174

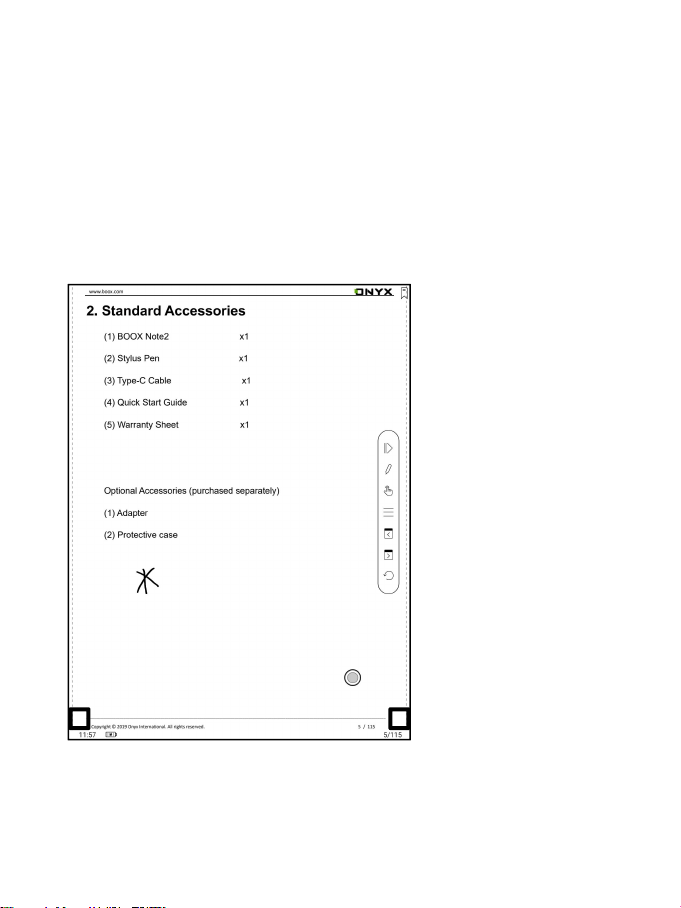

1. Standard Accessories
(1) BOOX Device x1
(2) Stylus Pen x1
(3) Type-C Cable x1
(4) Quick Start Guide x1
(5) Warranty Sheet x1
Optional Accessories (purchased separately)
(1) Adapter
(2) Protective case
(Note: The E-books in the following illustration are not pre-stored)
2. Safety Guide
Please read the Safety Guide carefully before you start to use the
device. Contact your BOOX retailer if you have any technical
problems, or you can dial our official service line at 4008-400-014
or 4008-860-830.
Screen protection
The device is equipped with an E-ink screen, which is very fragile.
Please have no shocking, squeezing, pressing against the screen,
or dropping the device from a higher place. If the screen is already
broken, stop using it and contact a professional or other qualified
staff to replace the screen for you. Please don ’ t dismantle the
device without our permission.
Standard accessories
Only the battery, adapter, and other accessories meeting our
standard safety rules can be used for the device. For details, please
refer to Product Specification. We will not be responsible for any
damage caused by incompatible accessories.
Stay away from liquids
The device is not waterproof. Don’t expose the device to a humid
environment or use it in the rain. Please keep it away from any
corrosive liquids.
Don’t dismantle the device
Please don’t dismantle the device in case of any damage.
Inappropriate battery model may cause explosion. Please contact
official after-sale team for battery replacement if needed. Users
shall undertakes the responsibility and deal with the obsolete
battery if users replace batteries themselves.
Using environment
The using environment of the device is 0°C-50°C.
3. Product Views
Front View
Power
Button
Left-side View
Mic
Speaker
Type-C Port
Power Button
Button Function
Power/
sleep
Button
Press the power button to turn on the device
Long-press the power button for
2
secs, then
select “Power off” in the menu to turn off the
device
Press the power button and release quickly to
let the device goes into sleep mode
Press it again to wake up
Long-press for 10 secs to force shutdown
Mic
Record voice
Recognize speech
Type-C Port
Connect the device with PC to transfer data or
charge device.
Support Type-C earphone
Support OTG USB drive
4. Main Interface
The main interface contains a system bar, content area, and
function area.
The function area contains certain modules.
Double-click icons in function area can return to the main page of
the specific module.
Content Area
Function Area
System Bar
System Bar
This section displays the current state of the device, including: Time,
Notification, Refresh Mode, Wi-Fi Connection, Battery Usage. It is
only for status indication.

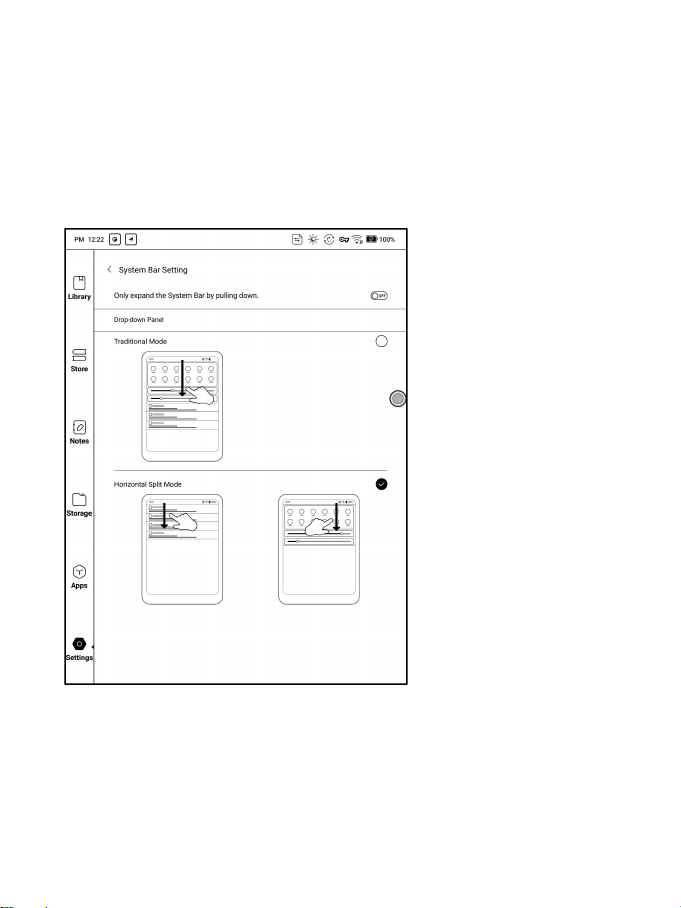

Split Mode (default):
Pull down " Notification Center" from the left side and pull-down
Control Panel from the right side.
Classic Mode:
Pull down both Notification Center and Control Panel in the same
time.

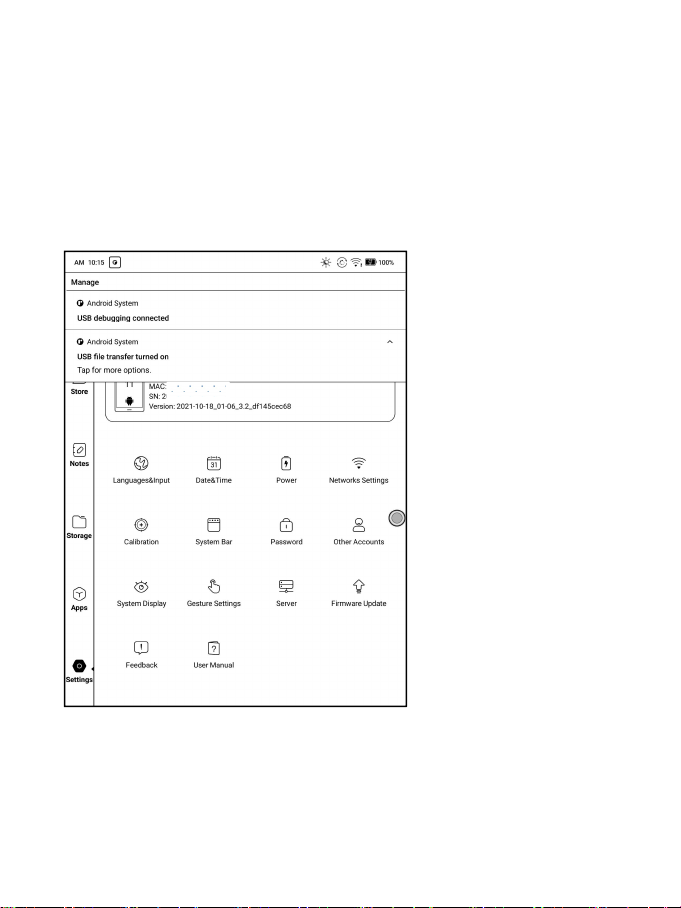

Notification Panel
This center contains information such as USB connection
notification, third-party push notification. Tap the notification to
jump to the corresponding app.

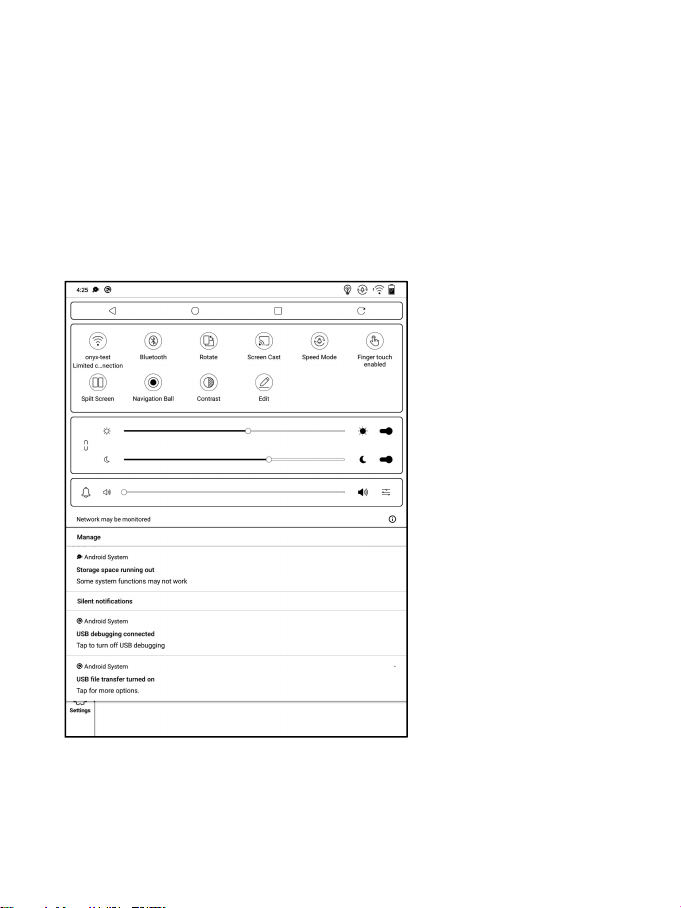

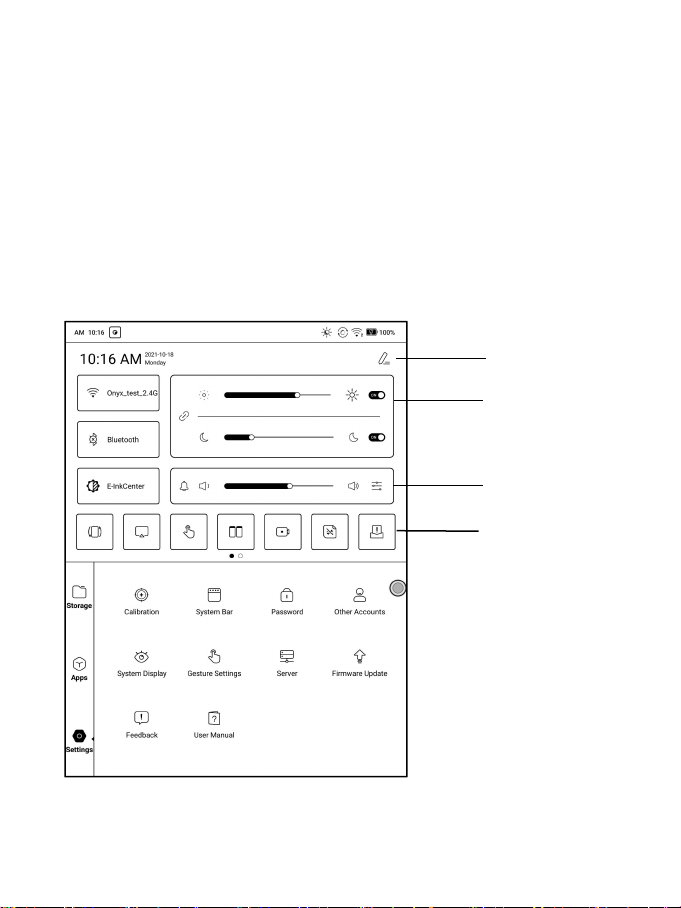

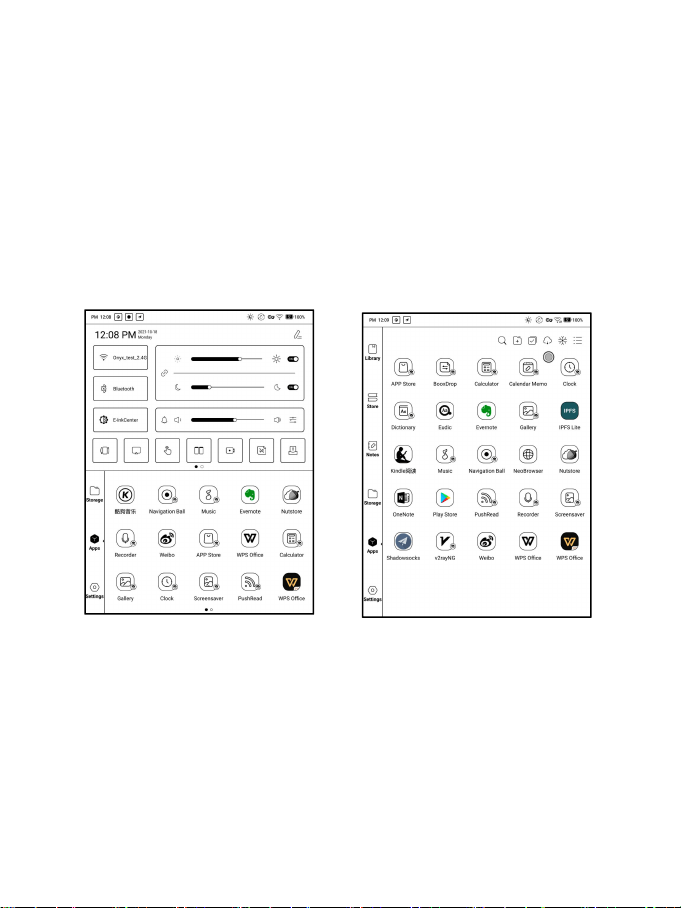

Control Panel
This panel contains Date and Time, Wi-Fi, Bluetooth, E Ink Center
(swipe up from the screen bottom to call out), Brightness
adjustment, Volume adjustment. The above-mentioned items are
permanent and cannot be removed or edited.
Shortcut switch
Edit
Volume adjustment
Brightness adjustment

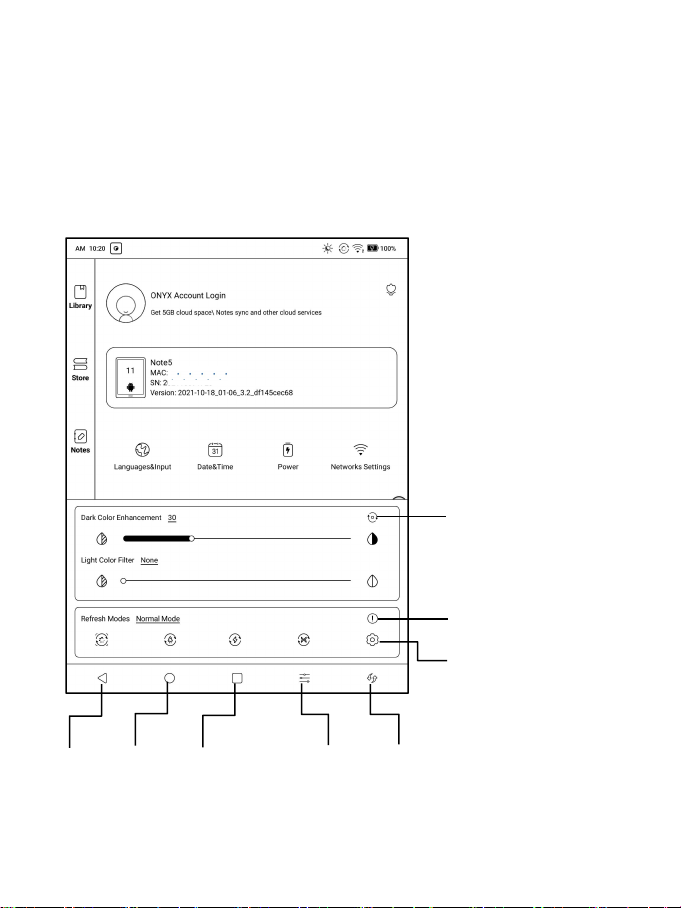

E Ink Center
Open it from Control Panel or swipe up from the bottom to open it.
This section includes Dark Color Enhancement, Light Color Filter,
Refresh Modes (System), Shortcuts...etc.
Back
Homepage
Multitask switcher
Full screen refresh
App Optimization
Reset
Optimization Guidence
More refresh settings

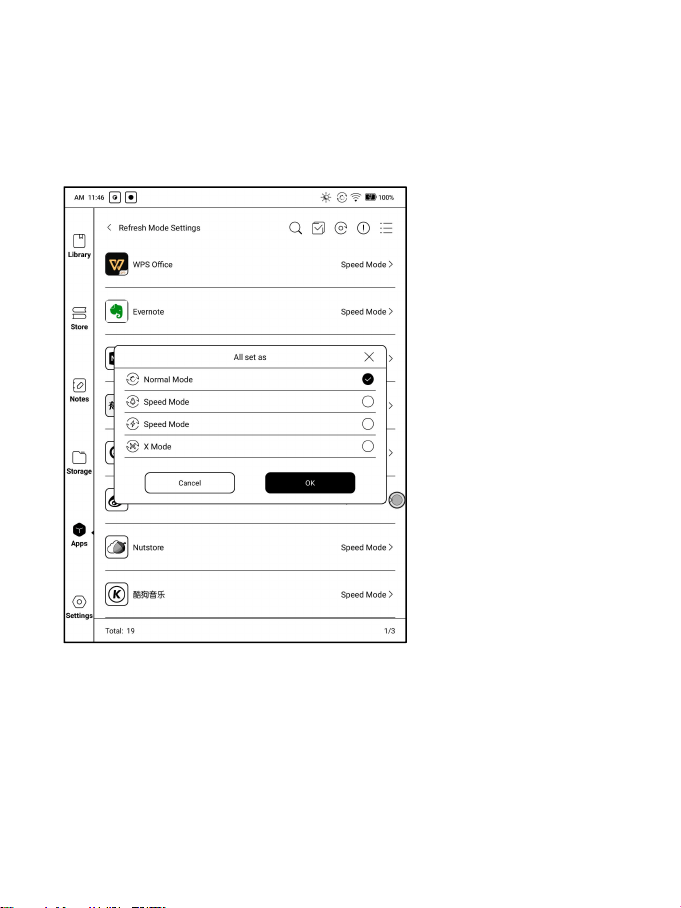

Refresh Modes
The system-level Refresh Mode takes precedence over the
application Refresh Mode. That is: when the system is set to the
Normal Mode, the application uses its own refresh settings; When
the system is set to the other modes, the applications will use the
system's refresh mode.
There are 4 Refresh Modes:
Normal Mode (Default): Good display effect, suitable for
ordinary text reading.
Speed Mode: Slight ghosting and aliasing effect, suitable for
thumbing through eBooks with text and images.
A2 Mode: Slightly heavier ghosting and aliasing effect, suitable
for browsing images and text by quick sliding.
X Mode: Heaviest ghosting and aliasing effect accompanying
detail loss, suitable for browsing websites and video playback.
Use A2 Mode by default for scrolling
After you change the Refresh Mode, you can change contrast for a
better display effect.
The color model does not support X Mode.

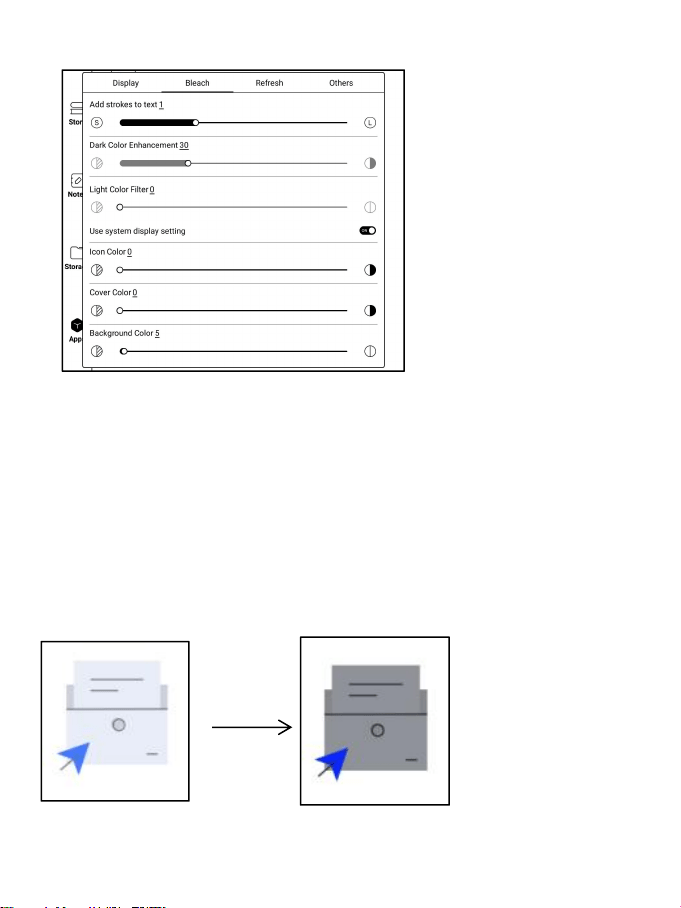

Dark Color Enhancement
You can deepen the darker color of the page to black, which is
generally used to enhance the foreground color, or the light-color
page that needs to be darkened such as color icons, PDFs with poor
scanning quality, etc.;
Light Color Filter
This can dilute the lighter-color page to white. It is generally used to
bleach the background color;
ScreenCast

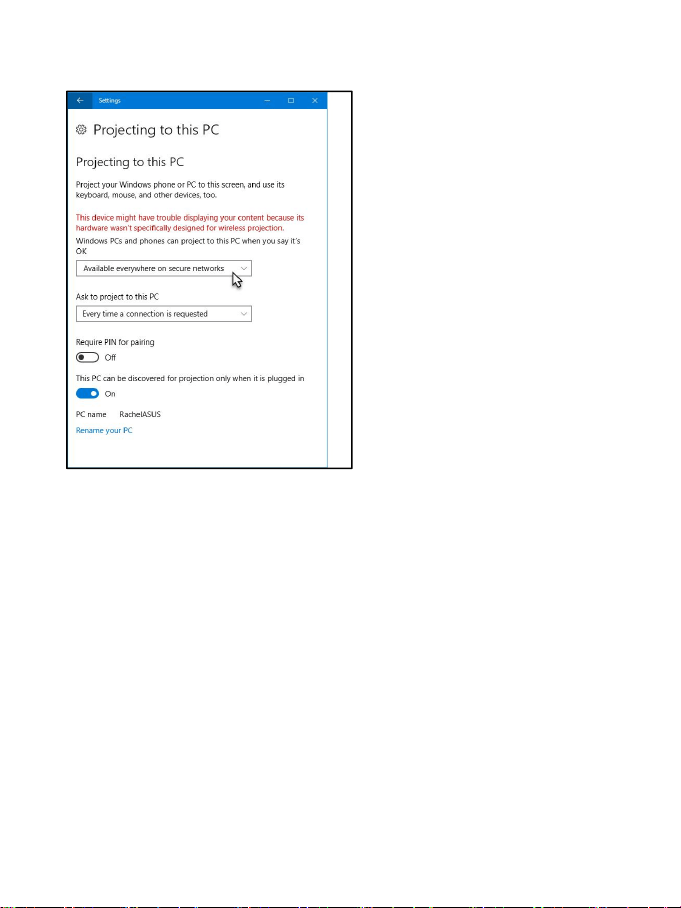

1. This only supports Windows10. Win7/XP and MacOS are not
supported currently.

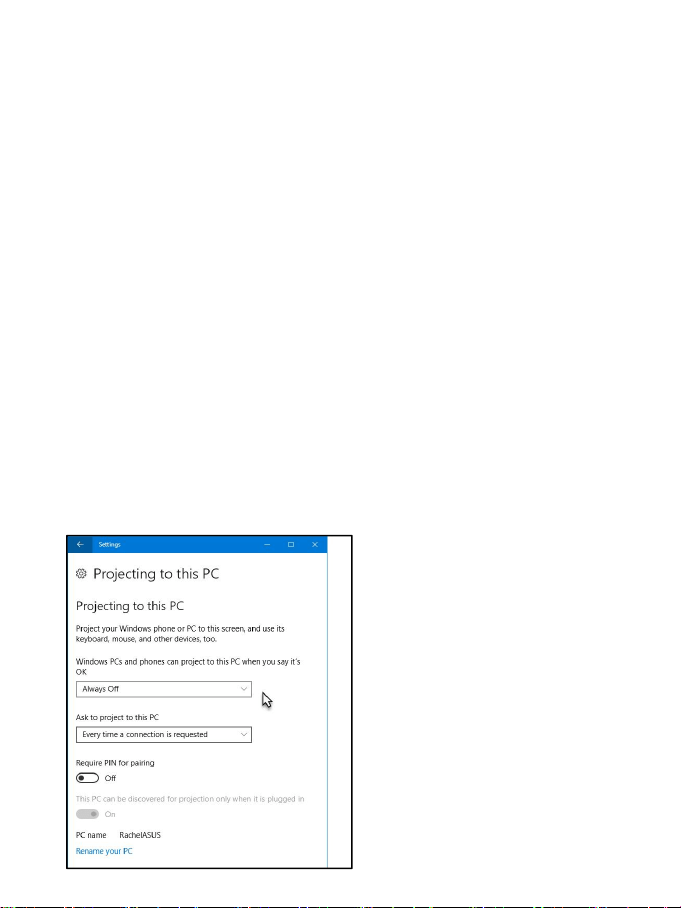

2. Please make sure that the computer itself supports the
screencast function, which can be checked in the computer system
settings: System-Projecting to this PC.
Please pay attention to the 4 related settings, which will affect the
results of searching the computer on the device side and the
confirmation of the connection request;
This computer can support the state of screen projection
This computer does not support screen projection
3. Please make sure that the computer and your BOOX are in the
same Wi-Fi environment.
If a desktop computer is connected to Wi-Fi via wireless network
card, please confirm whether it is supported in step 2.
Some computer configurations and wireless network cards do not
support this function;

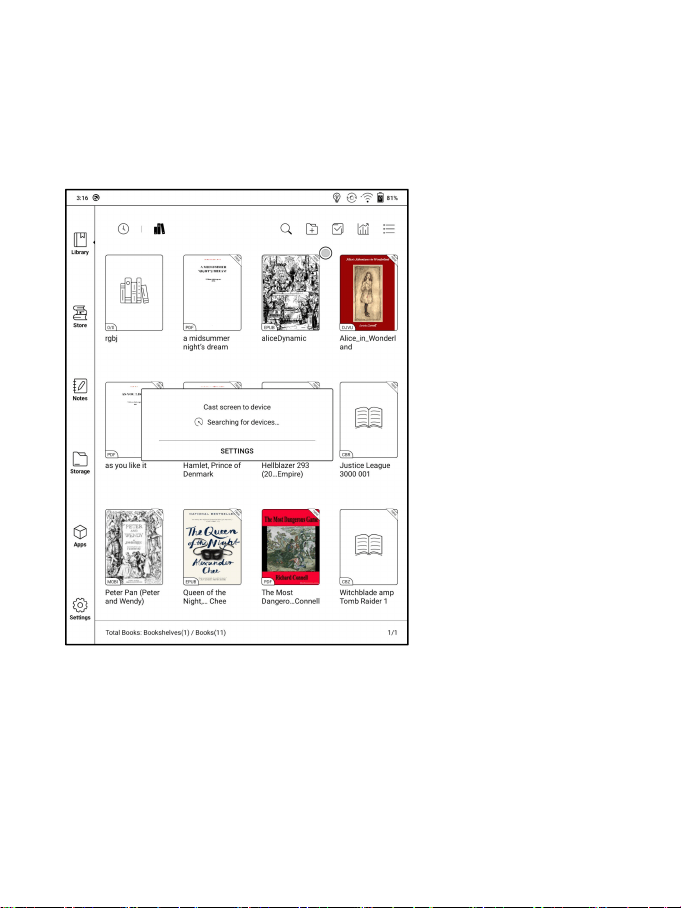

4. On the device side, select screencast from the system
drop-down list. Then the automatic search will start, and the name
of the computer will be shown when found.
5. In the search window, select the found computer. If there are
multiple supported computers, click Settings to enter the list of
supported computers. Then select the computer that you want to
project to from the list.
6. After you select the computer that you want to project to, the
computer will pop up a notice to confirm whether to accept the
projecting request;
7. After you confirm it, it will automatically connect and the screen
will be mirrored successfully;
If the "Unable to view protected content on this device" appears on
the screen, the connection may be unsuccessful. Please
disconnect the device, and request the screencast connection
again.
8. When the devices are connected, please tap the system bar of
the device- Screencast again, and select “ disconnect ” . The
computer cannot disconnect the connection.
If the computer supports screencast but cannot receive the request,
please restart the computer and try to reconnect again and check
whether the computer configuration rejects the request (see step
2).
Screen Record

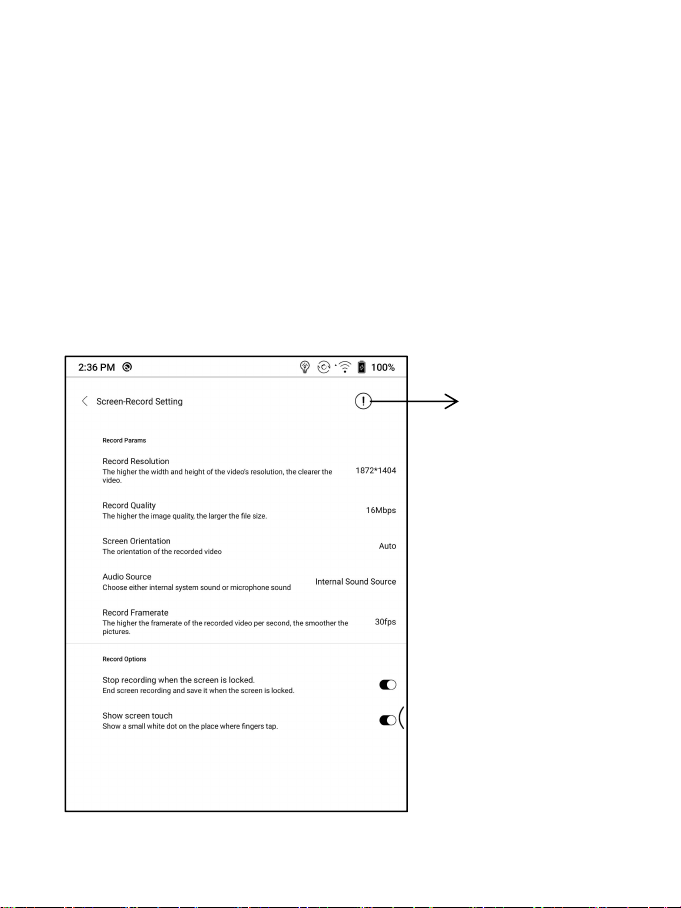

Long press Recording button on the screen to enter the Screen
Recording settings. You can customize Resolution, Image Quality,
Screen Orientation, Sound Source, etc.;
When you use Screen Recording for the first time, you are
recommended to adjust the relevant settings first.

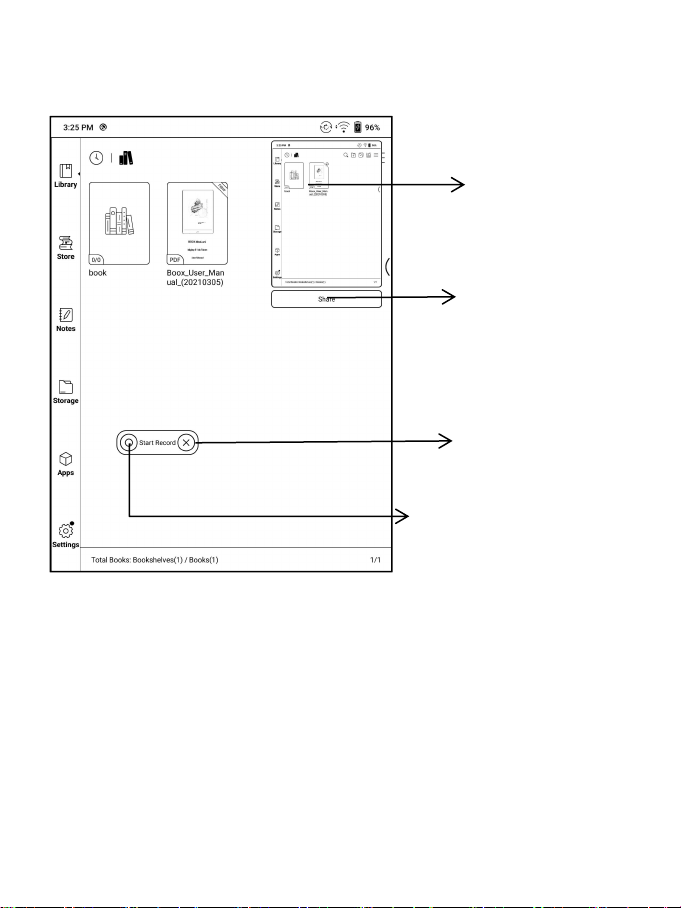

Instructions
Tap the Screen Record icon to open the floating window of screen
recording. Tap the “Start” icon to start recording and tap the Close
icon to stop recording；
After you stop recording, there will a thumbnail displayed in the
upper right corner, and you can tap it to play or share; Long press
the floating window to drag it around on the screen. The floating
window will not be recorded into the video;
After the Screen Record is enabled, the floating window will always
stay on the upper layer of the screen. You can create new screen
recordings continuously. If you need to close it, you can manually
tap X to close it.
The Recordings’ format is MP4 and the save path is:
Storage/Movies/Captures
Preview
Share
Close
Start / Pause

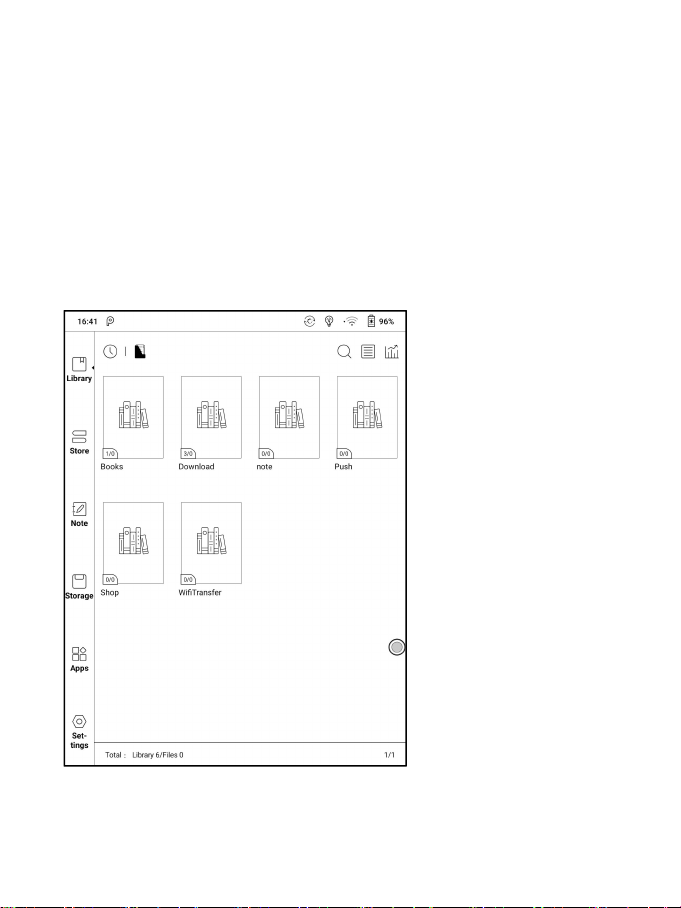

5. Library
The library only displays E-book documents in supported formats in
the storage. Book cover thumbnail is displayed by default. E-books
are sorted by the creation time.

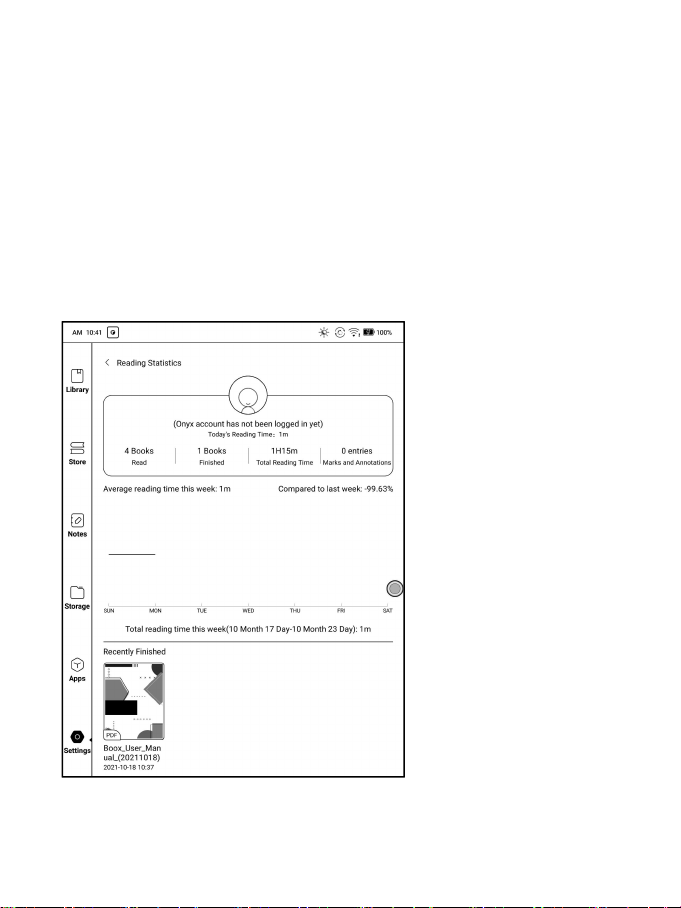

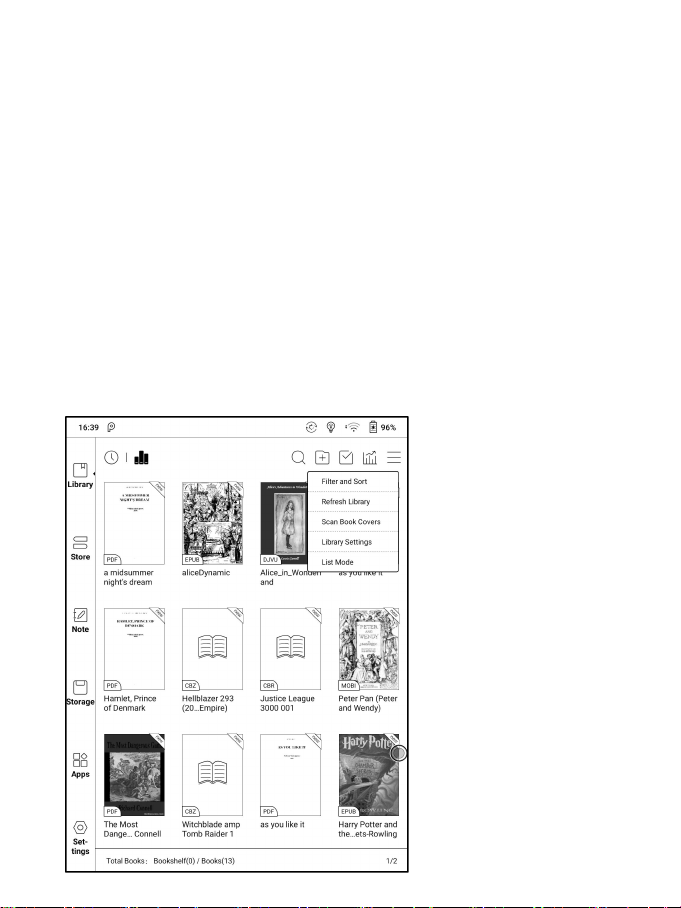

On the upper right working area of the Library, users can search,
create a new bookshelf, manage books in bulk, check Reading
Statistics, pop up the drop-down menu (including Filter, Refresh
Library, Scan Covers, Library Setting, Switch to List View)...etc.
Library Display Switch
Click on these icons to switch the library display. By default, it
auto-scans and loads all the supported documents in specified
paths, sorted by a specified way.
Another one is to display the content based on the structure of
storage. The icons change after clicking on it.

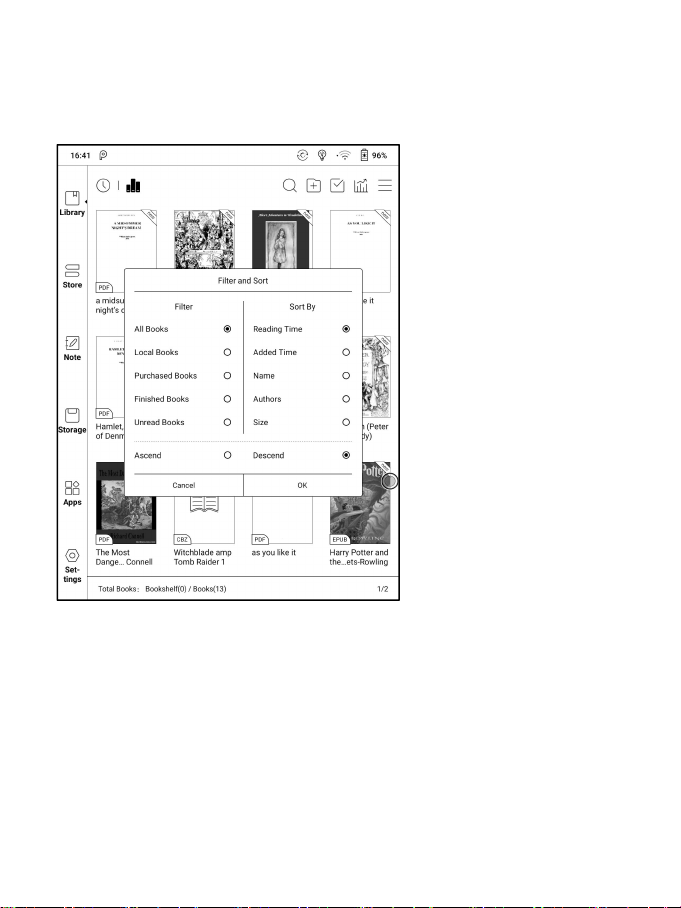

Filter & Sort
By default, it shows all books in descending order.
Refresh Library
“ Refresh Library ” gets all documents in supported formats
scanned and rebuild library list. This function does not delete the
reading history.
Create Sub-library
It helps to manage books by file manager.
Library Settings
It supports custom scan path. You can set certain storing path as
Automatic Scan;
After the scan path is set, the Library will be reloaded. The books
that are not in the scan path will be removed. If you need to read the
books, you can find the original file in the storage;
Sub-library Attribute
Long-press on sub-library cover to view more information about
sub-library. To delete or rename sub-library are allowed. When
deleting sub-library, the containing books will be moved to Library
and will not be deleted with the sub-library.

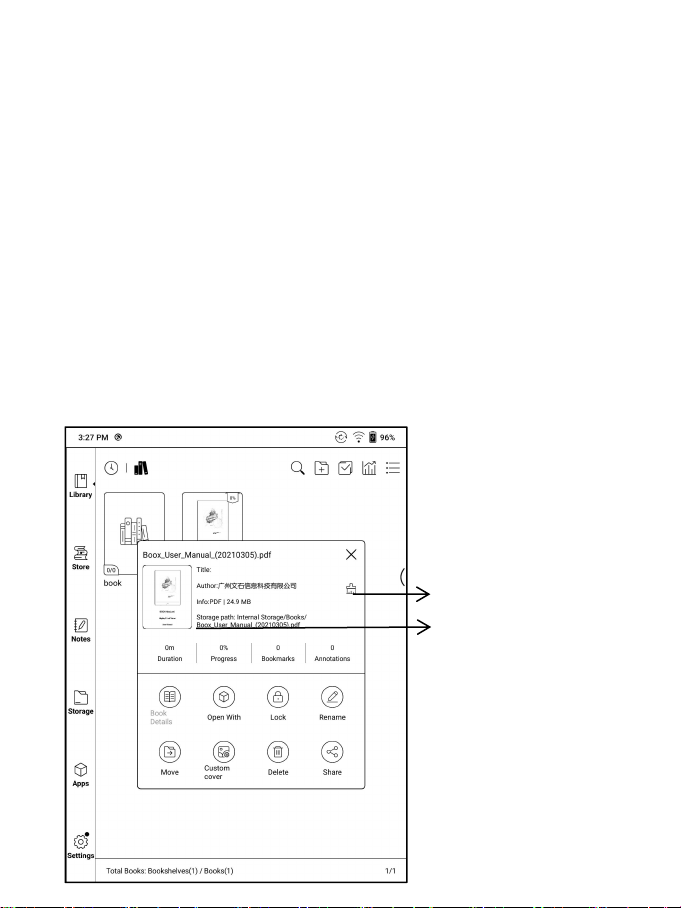

E-book Attribute

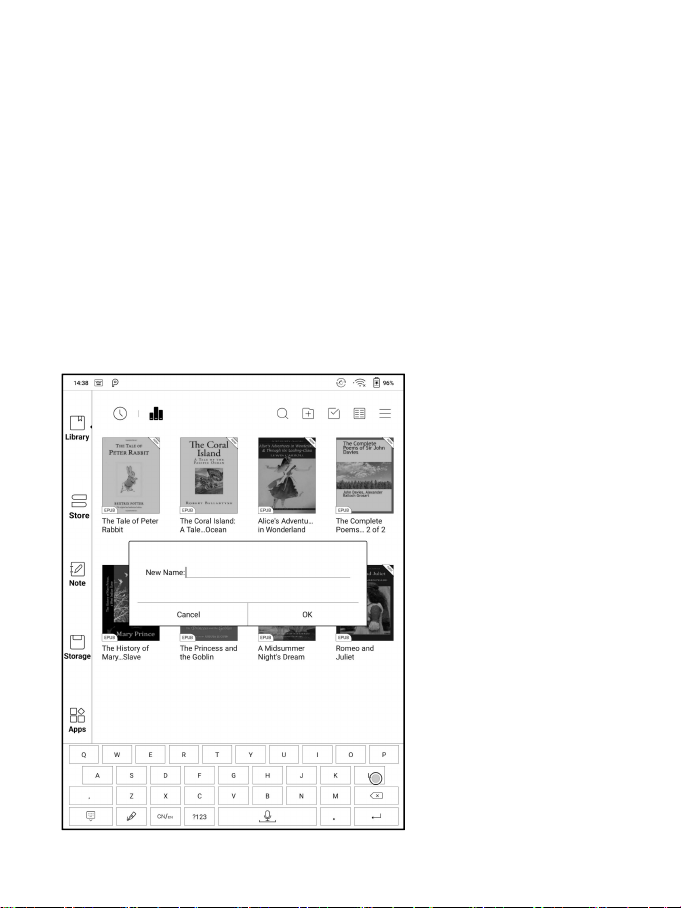

Long-press on book cover to view more information about E-book
name, author, format, size, reading progress, book detail(only
available for the E-books of Store), open way, Lock 、 rename,
move(to sub-library) and delete. One E-book only can be added to
one Sub-library.
As for the books purchased from the Store, is allowed to view book
details by jumping to the Store page.
Clear settings
Jump to Storage

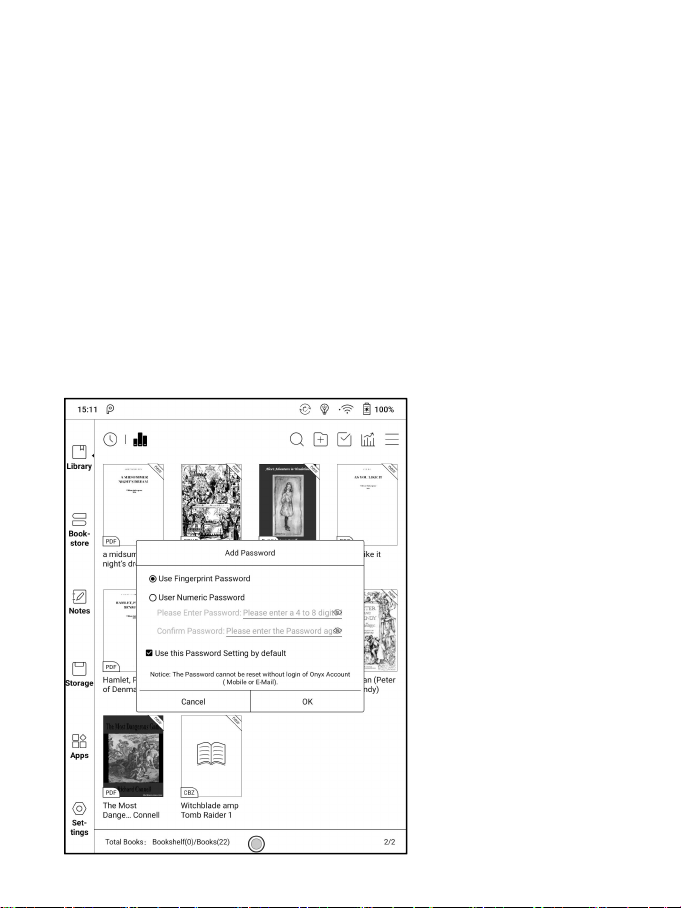

Clear settings including : clear password default settings , clear
reading data , Clear Cache、Clear book Cover；

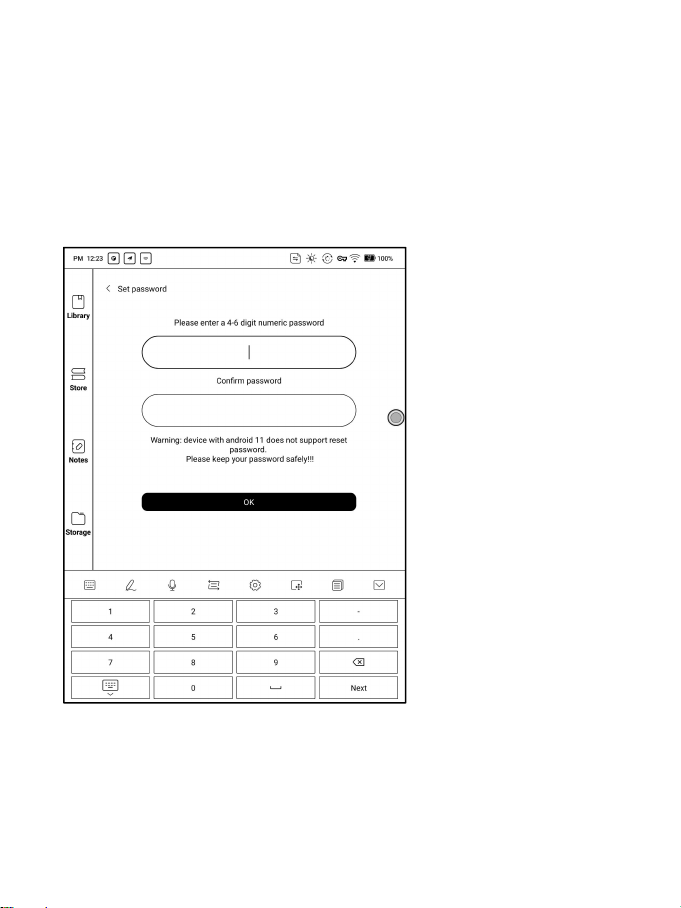

Lock ( Reading Password)
User can add (reading) Password to lock each file in order to protect
personal reading data；
The Password is used to open the file, but it only applies to the same
device and NeoReader. If you copy and export the file to other
devices or Apps, the Password will become invalid.
You can use the same Password as the Screen Lock. Or you can
set a different digits Password.
Digits Password only support one Password. After you have set the
digits Password, you do not need to set another digits Password
and only need to add the Lock.
Reading Password supports individual setting or setting in bulk
(setting in bulk is to add Locks). Currently It does not support to add
Passwords to all files directly.
If you choose to use this Password Setting by default, you can add
Password to other files quickly and do not need to re-select the Add
Lock Option every time after the Password is set for the first time.

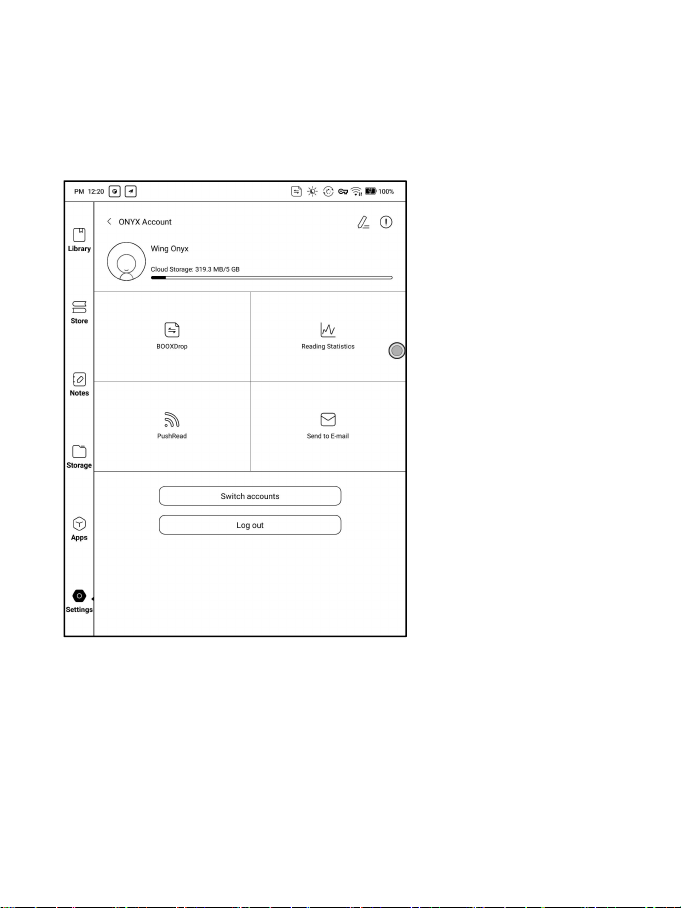

Reading Statistics
This page includes the Reading Time of Today, The Books that
Have Been read, The Books that Have Been Finished, Total Time,
Highlights and Annotations, and Recently Finished Books;
The average reading time this week is based on 7 days and
calculates the average daily reading time during the week;
Average Reading Time Distribution includes the reading time of all
days since Reading Statistics is turned on.
Under Reading Statistics, only highlights and annotations can be
jumped to and the books that recently have been finished can be
opened. Other data is only for analysis purpose.
The reading data of each device can only be available on the same
device. You cannot check the statistics of this device on another
device.

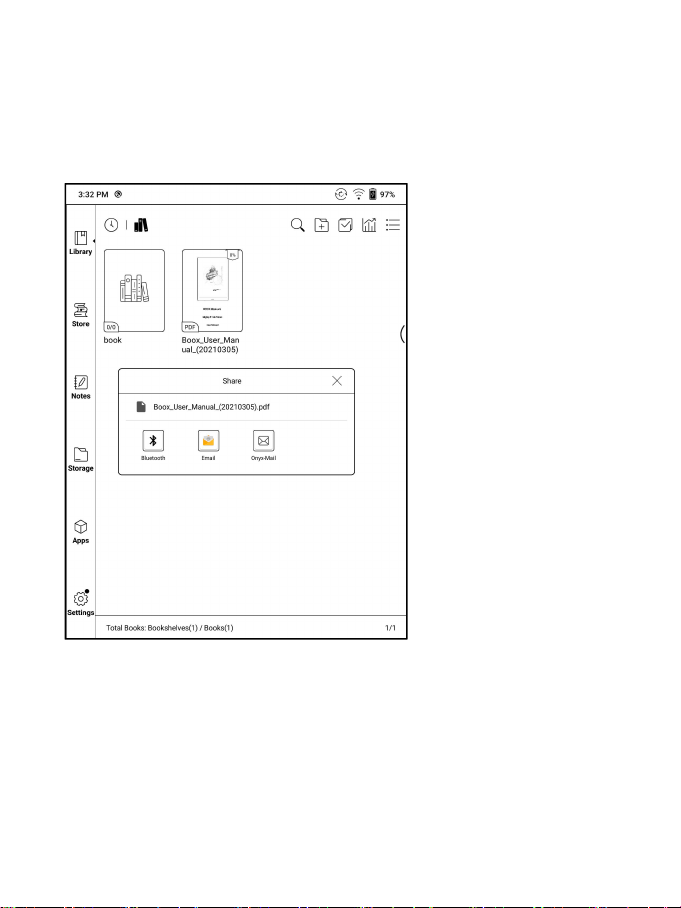

Share (Third-party App)
This supports sharing files through third-party App. The sharing
path is automatically obtained according to the installed Apps.

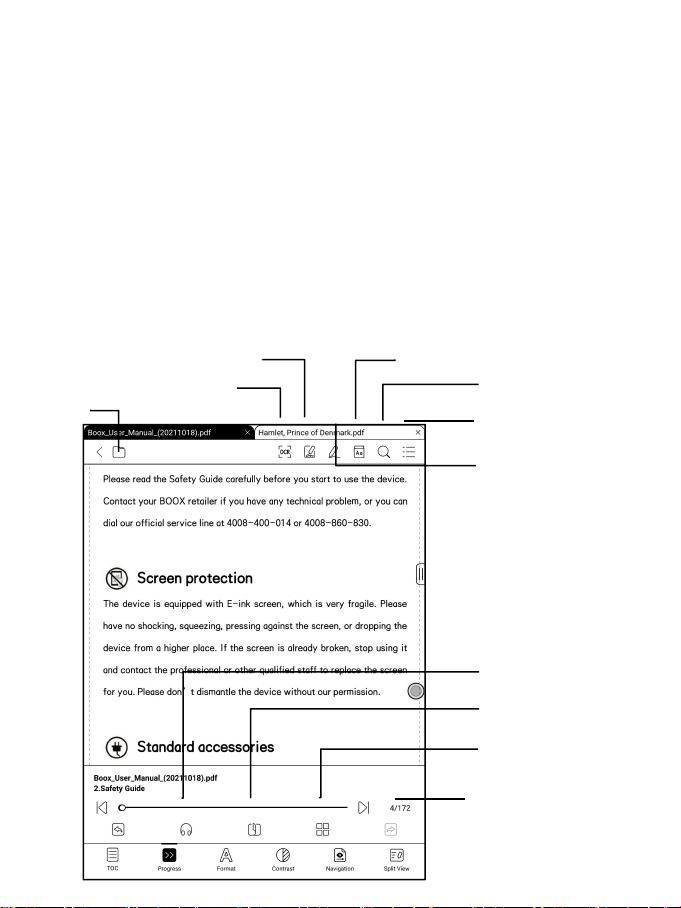

6. Reader
Tap any E-book cover to open an E-book. Full-screen reading
without showing status bar is set by default.
To pull down from the top of the screen can call out the status bar.
To tap on the center of the screen can call out the menu bar for

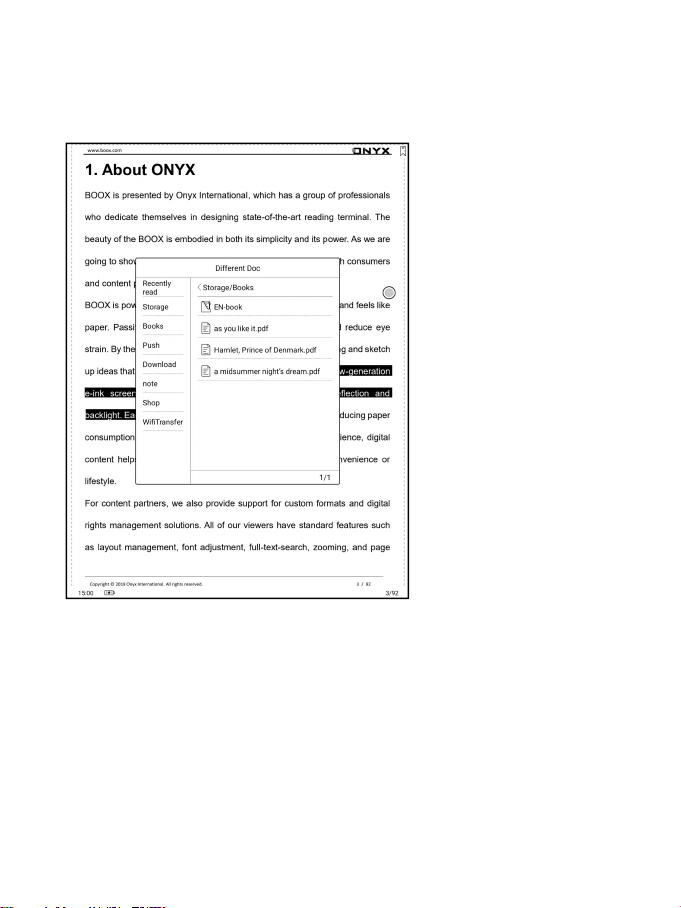

switch among different documents or other functions
Enable/disable stylus
Dictionary
Search
Other functions
TTS
Slideshow
Thumbnail view
Undo, redo
OCR
Open file
Scribble tools

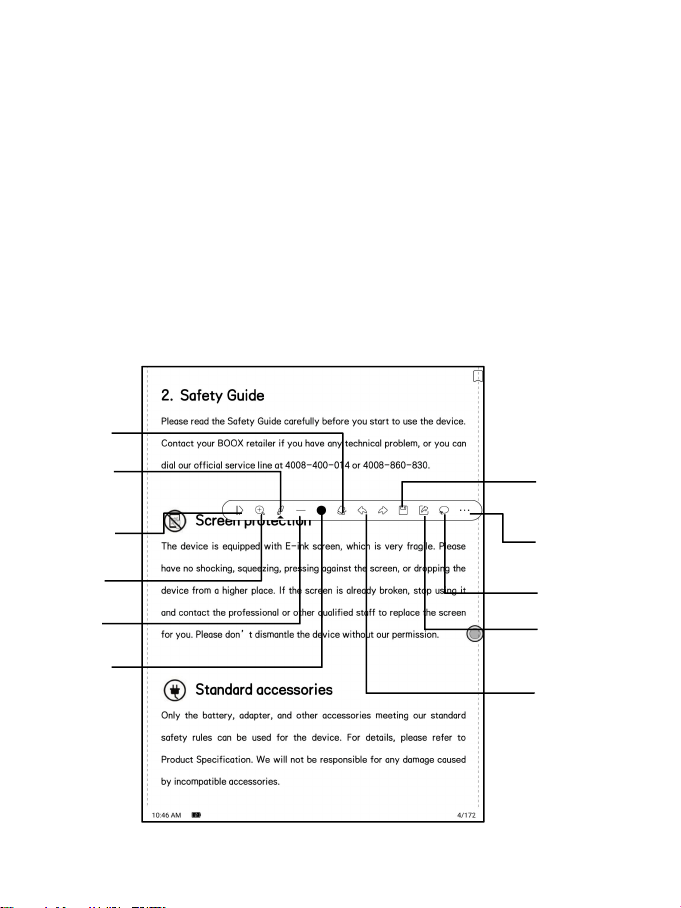

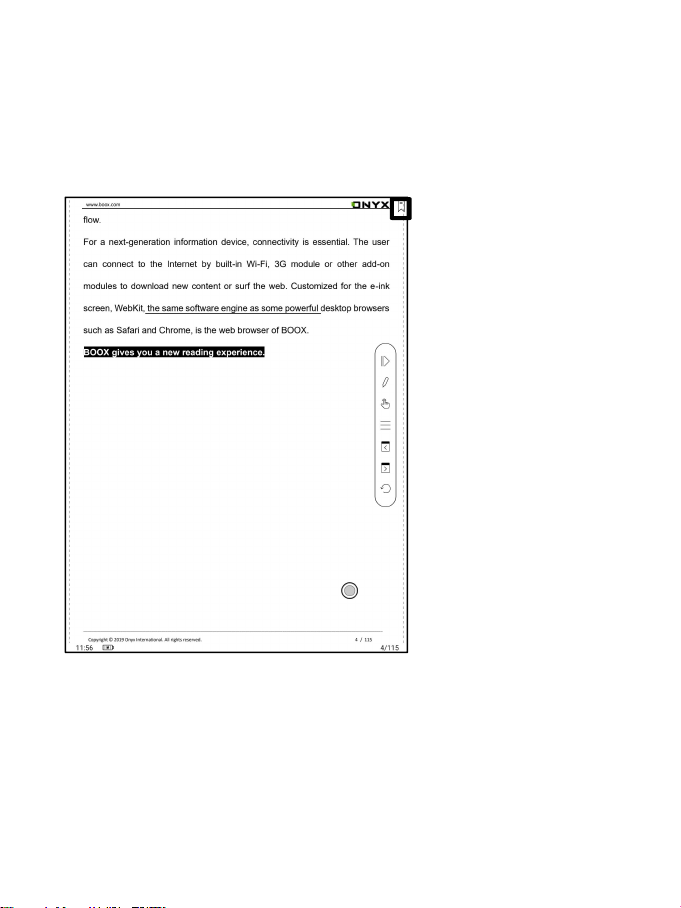

Floating Toolbar

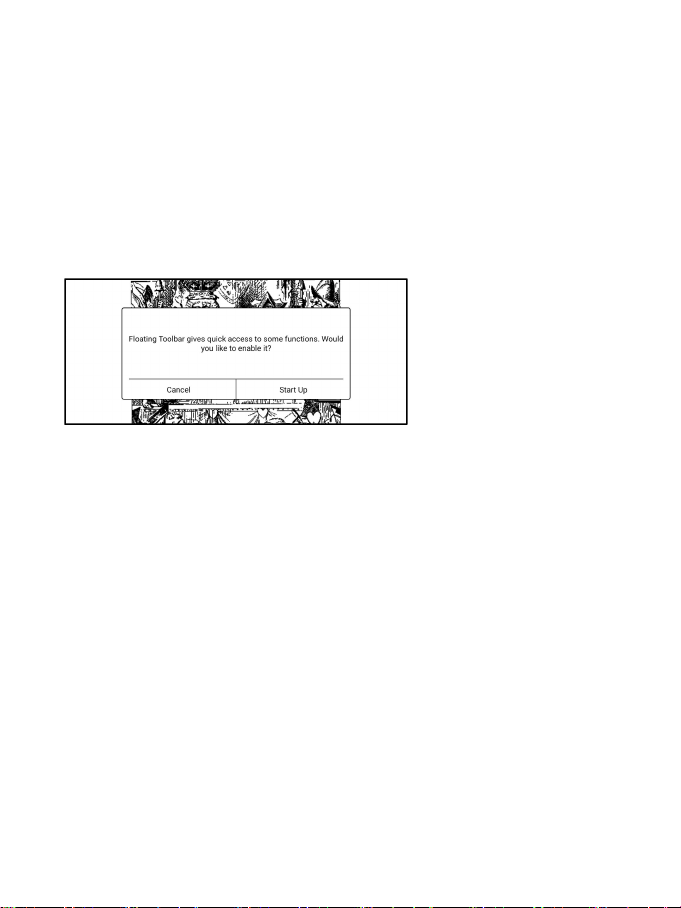

You can choose to activate the Floating Toolbar for the first time
when you open a file. Or you can go to Settings / Floating Toolbar
Settings to enable it and customize the function buttons in the
Floating Toolbar.
The Floating Toolbar includes: Hide, Scribble, Enable Palm
Rejection, Menu, Prev Page, Next Page, Cancel (Progress)
Long press on the Floating Toolbar, you can drag it around on the
screen.
You can expand or contract the Toolbar to the edge to avoid cover
any text on the screen. When you need it, just swipe from either
side of edge to the other side to expand it.
When the page is zoomed in, the Floating Toolbar would
automatically expand proportionally in order to manage the
zoomed-in page better.
Under zooming status, singe tap on the screen is set for turning
sub-pages of each page(each original page will require several
time page-turns to be completed). But tapping the virtue page-turn
buttons on the Floating Toolbar is set for turning the whole original
page.

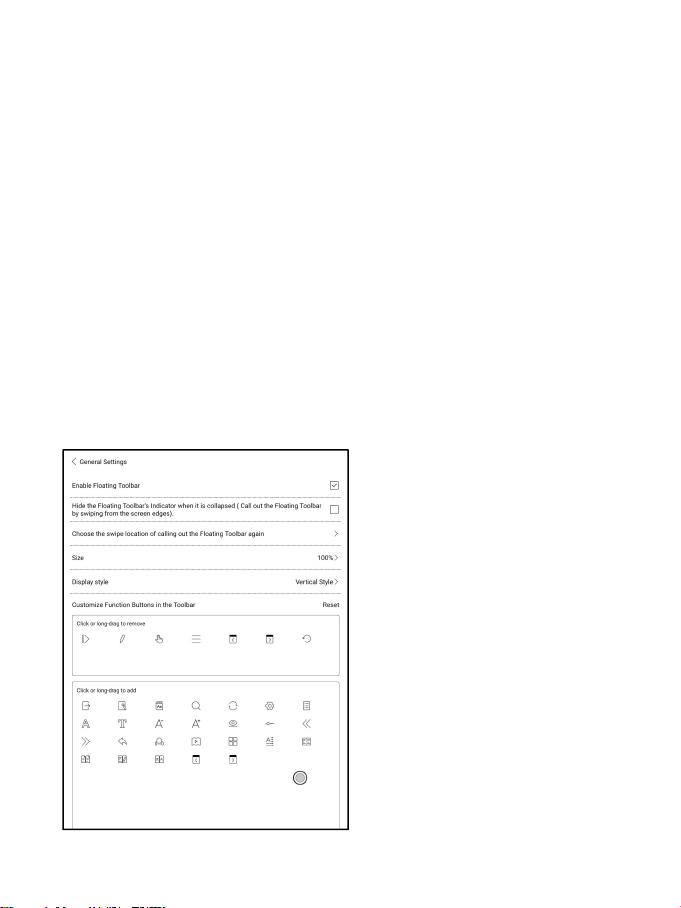

You can disable the Floating Toolbar by going to Setting - General
Setting. When it is contracted to the edge, you can swipe from either
side of edge to the center of the screen to expand it.
When palm rejection is enabled from the Floating Toolbar, it only
applies to the reading document. The Floating Toolbar still supports
hand touch, but it can remove the interference of hand when you
write on the reading document.

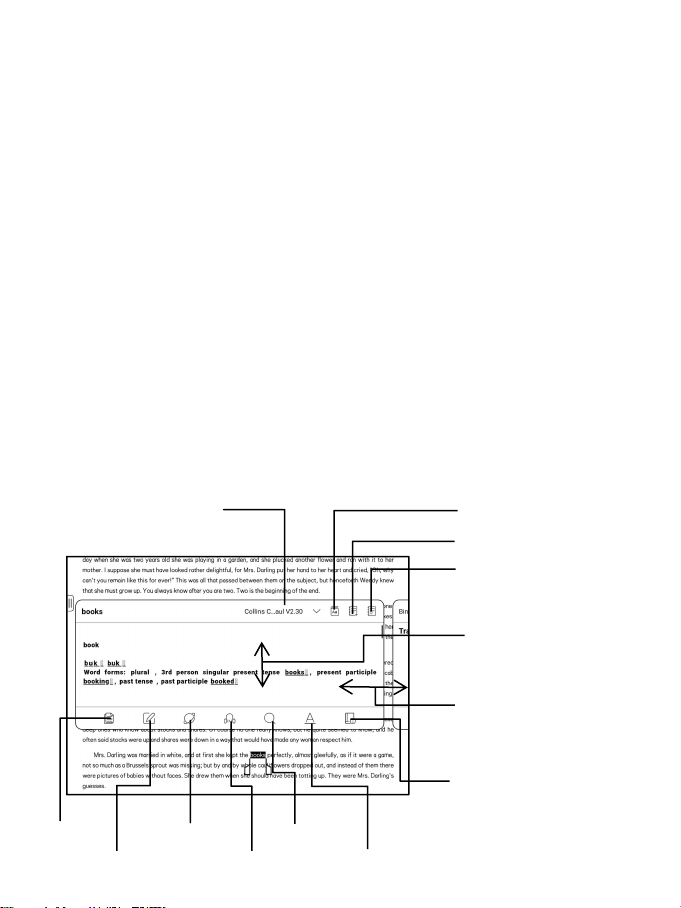

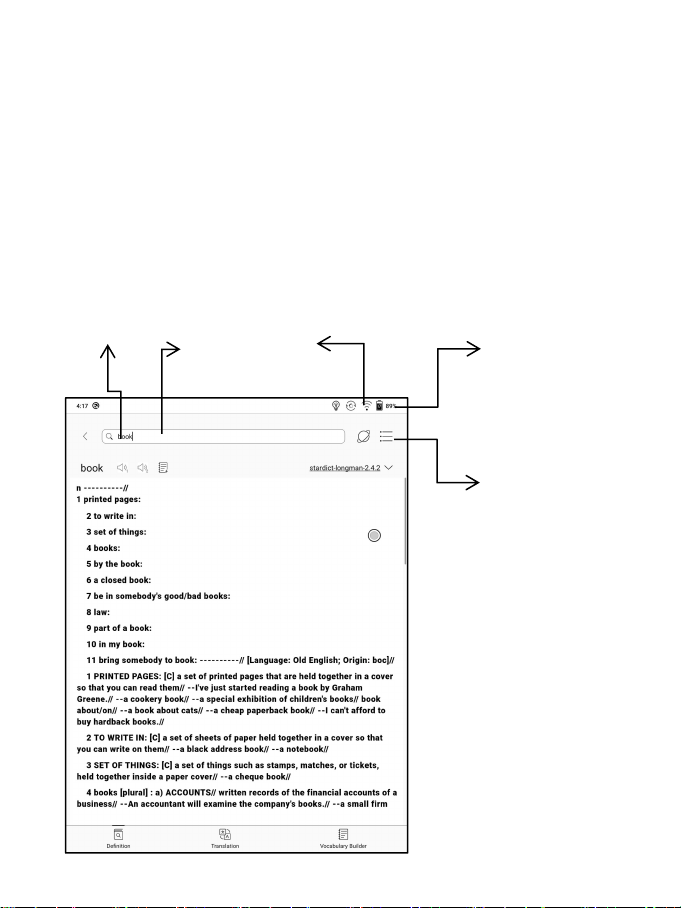

Word Menu
Long-press on the word to pop up dictionary dialog for look-ups.
English word recognition and look-ups are supported.
Through the drop-down list on the top right of the dialog, the
dictionary can be switched to others.

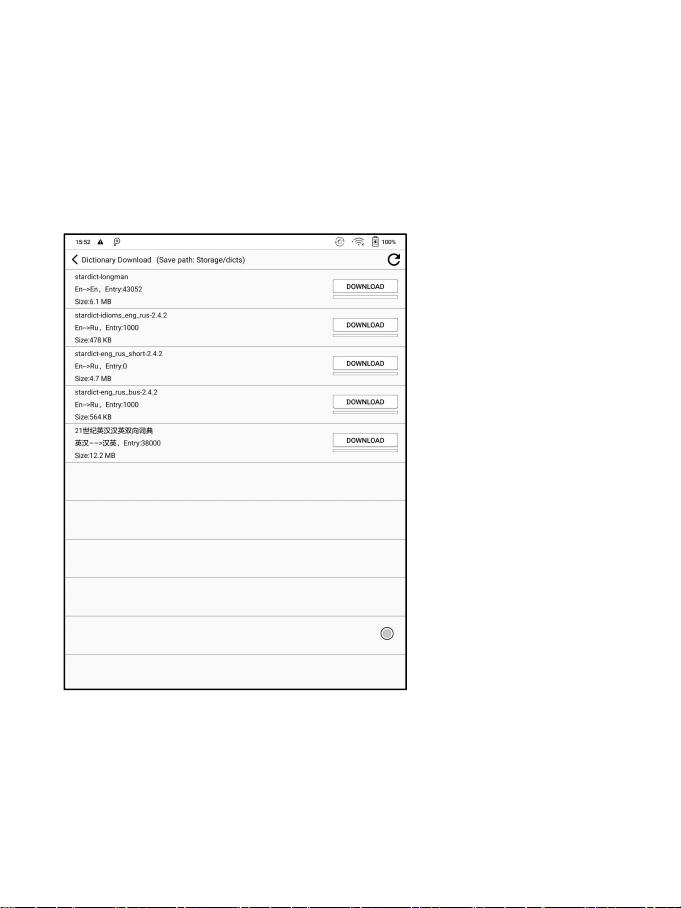

Users can download and install the dictionary themselves. Put
dictionary file on the path root directory\dicts\xxx (e.g
Storage\dicts\English-French), or download dictionary online
directly. Dictionary is available to use after being installed.
Tap on any position out of the dialog to exit the dialog.
Switch Dictionary
Jump to Dict App
Add to Vocabulary Builder
Jump to Vocabulary Builder
Turn page
Swipe to translation window
Third-party Dict
(Required to install separately)
Search
Highlight
Web search
TTS
Copy
Annotation

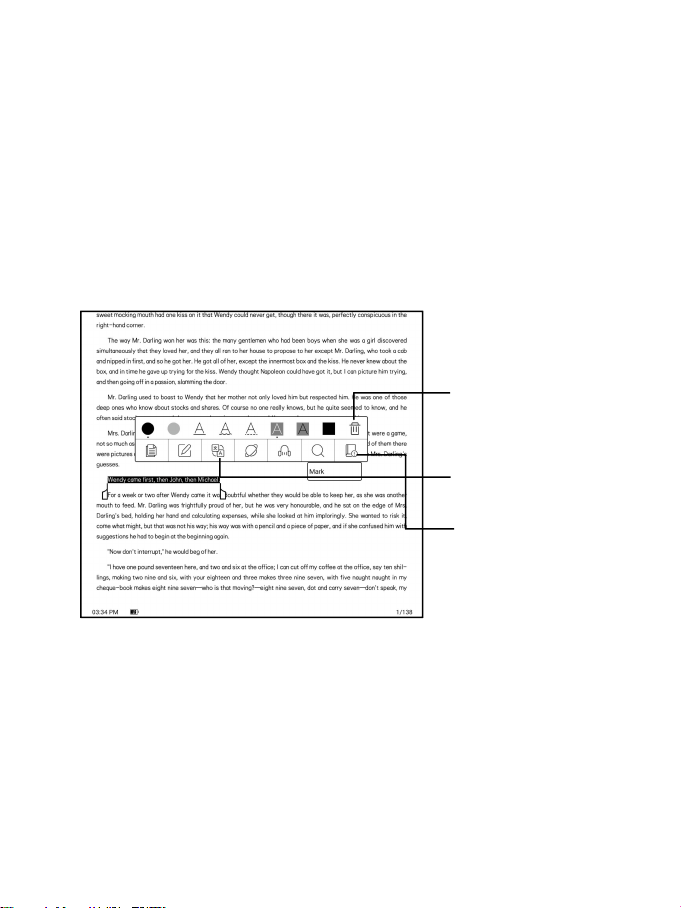

Long press on any word and drag to select the text you want to
mark.
The highlight is set by default for selected text. Users can switch
among highlight, underline and others, the color highlight can be in
black or grey. The mark setting remains after a change. The marks
before the change will not be affected.
Tap on any position out of the dialog to exit the dialog.
Choose “Annotation” to pop out a text box to add notes if needed.
Delete highlight
Switch translation
Third-party Dict
(Required to install
separately)

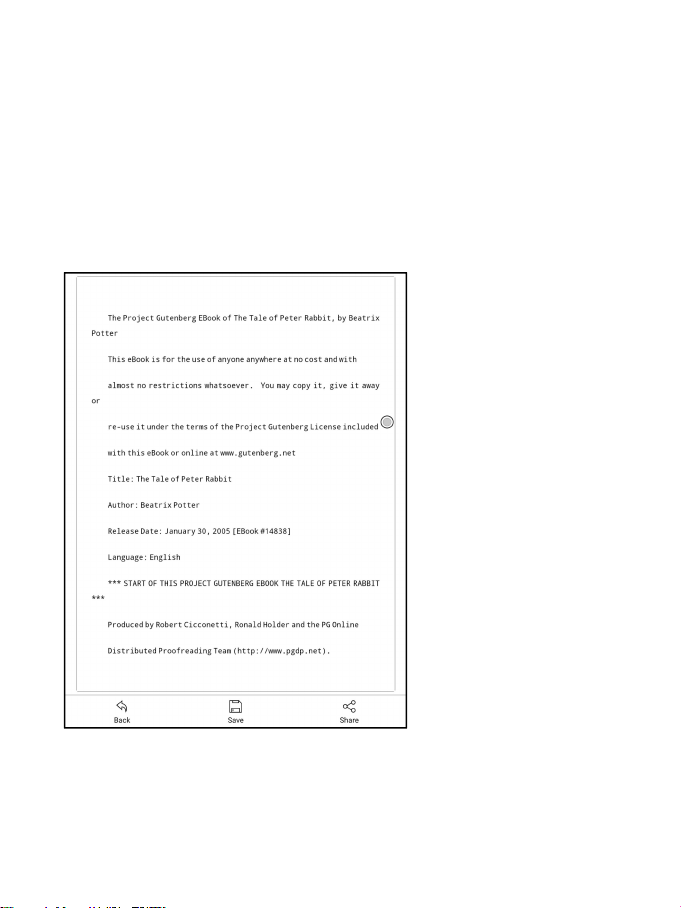

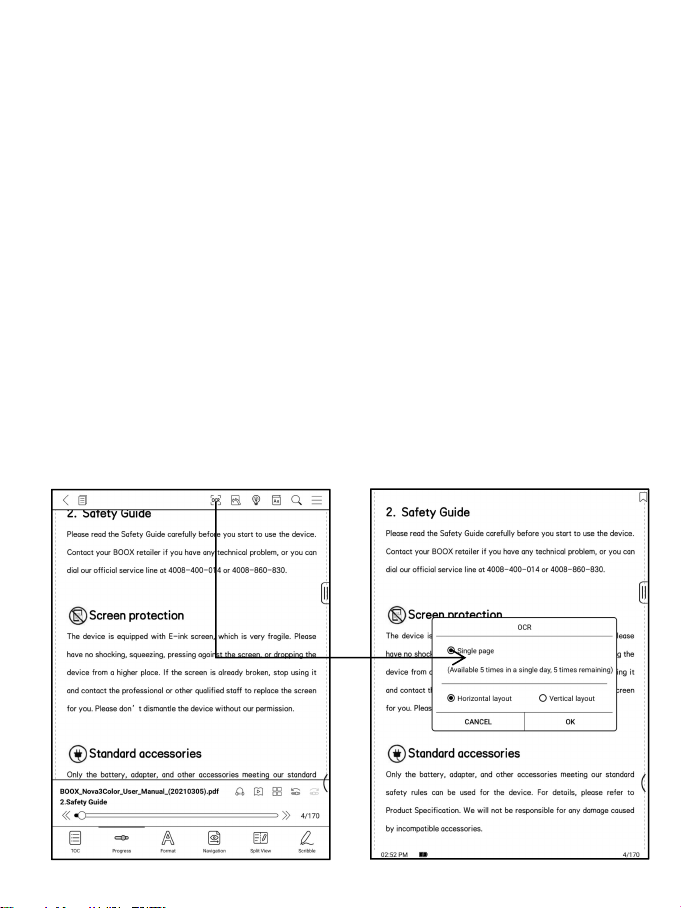

OCR (Beta Version)
Only supports pages in image formats PDF, CBR, CBZ, DJVU, and
PNG. Recognize one page only each time.
Choosing horizontal or vertical according to the document layout
can improve the recognition accuracy.
Recognize 5 times a day when you are not logged in to your ONYX
account.
Recognize 10 times a day when you are logged in to your ONYX
account.
You can long-press text to add annotation and lookup dictionary on
the recognized pages
If some individual characters are not recognized correctly, you can
switch to the original text in the annotation pop-up window to
correct them, and manually modify the recognized text content
(Do not change the original page text);
Pages recognized by OCR show the recognition mark in the upper
right corner, and the recognized pages can be viewed in the
Directory-Bookmark, which is convenient for quick locating and
jumping;
Tapping the recognition icon again will clear the OCR content;
Scribble Toolbar
The Scribble Toolbar is floating on the screen. You can long press it
and drag it around.
The stylus is in handwriting state by default, and you can switch it
On\Off in the top Toolbar;
The Scribble Toolbar needs to be called through the reading menu
on the bottom or called from the collapsible Floating Toolbar.
PDF Embed/Save
as PDF
Collapse
Toolbar
Brushes
Cancel/Redo
Erasers
Colors
Save

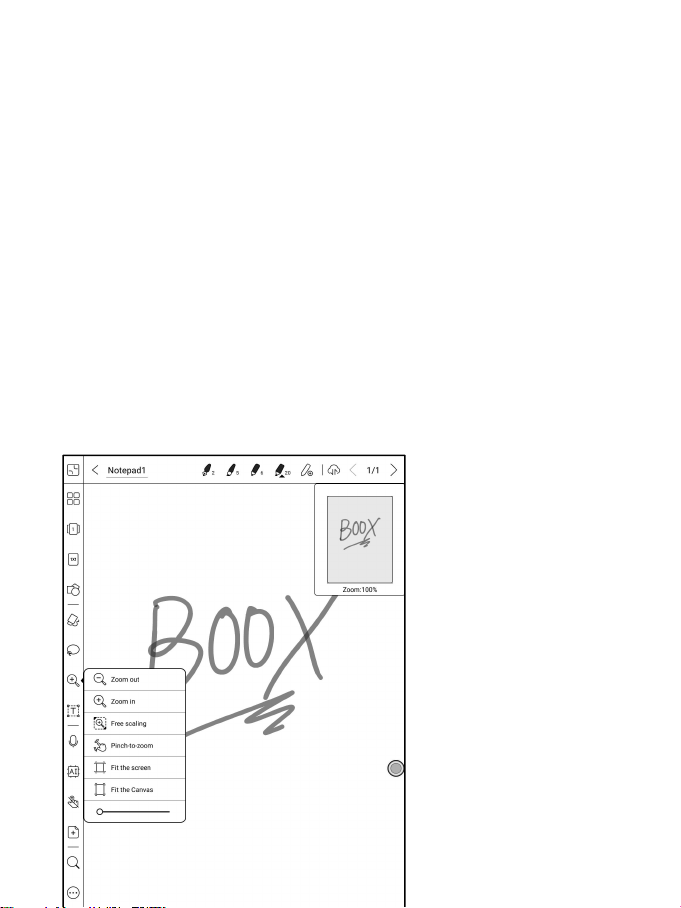

Zooming
Shapes

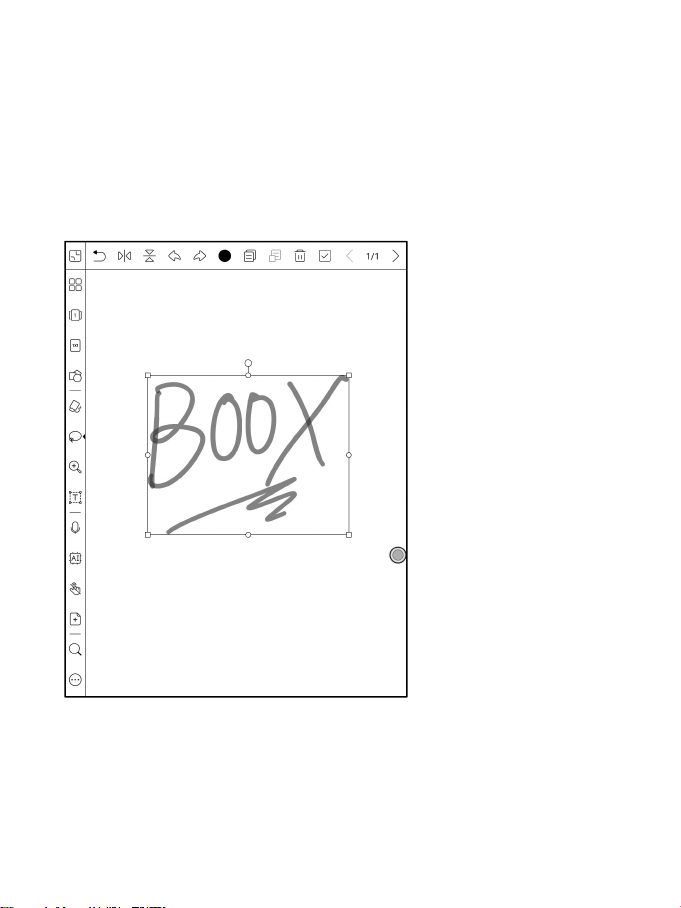

Lasso
More

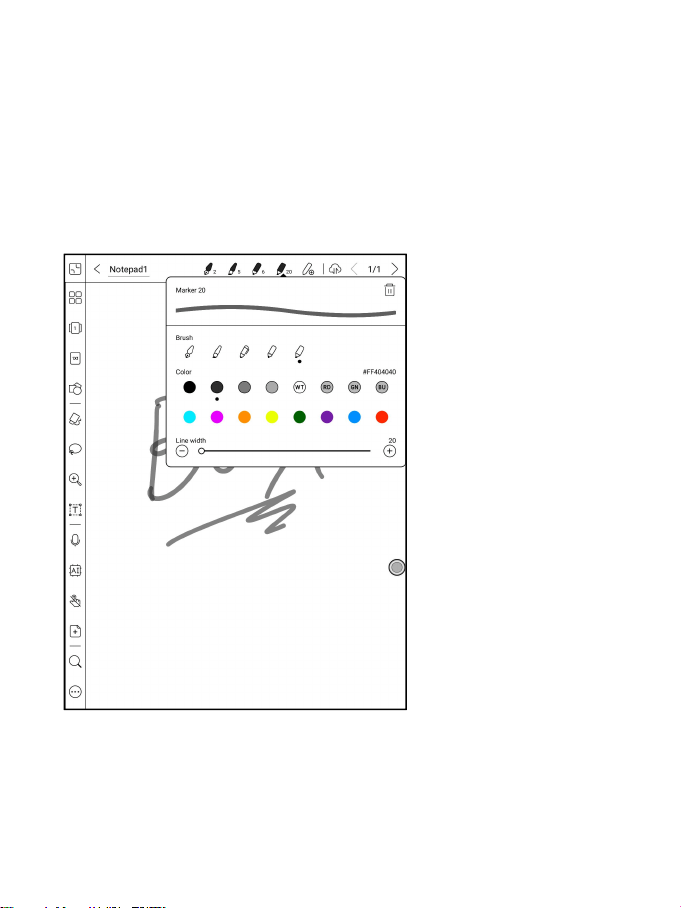

Brushes and Erasers
When in erasing state, you need to manually switch back to
handwriting state to continue writing.
Colors
Only black, gray, and white colors can show their original colors on
BOOX. Other colors are shown in black on BOOX and will be shown
in their original colors when exported to PC.
Embed PDF
The handwritten contents on the PDF will be automatically
embedded into the original file when you exit the PDF file. You can
view and edit them with other apps such as Adobe acrobat, WPS,
and Chrome on PC. When copying the embedded files to other
BOOX, you still can view and edit the files.
Embed PDF:
You can manually save the files in the Scribble Toolbar when the
files are still open.
Save as PDF :
allows you to export in a new PDF file and keep the files with same
handwritten content.
Non-PDF files do not support data embedment. You can only check
relevant data on BOOX devices. When the files are copied or moved
to other locations, they are identified as different files without
relevant data. But changing file names do not impact the existing
data.
PDF files with embedded data
A. Changing file names, copying or moving to a different
location will not impact the recognition of the embedded data.
B. When the PDF files with embedded data are divided into
multiple PDF files using other tools on PC, the new files will be
identified as different files and will not import the embedded data
C. When the PDF files with embedded data are edited and
saved using other tools on PC, the files will identified as different
files and will not import the embedded data.
Note: If your BOOX is in handwriting state when it is connected to
PC via USB, please disconnect USB connection to make sure data
update normal. You can connect BOOX to a PC again via USB when
PDF files are saved.
PDF files without embedded data
When a new PDF document is opened, it will automatically detect
and import the local existing data according to the document ID and
storage path;
For example: after you delete 123.pdf with embedded data from the
local, and put the original 123.pdf file (without data) back, there are
the following situations:
A. If you put the file back to the same saving path, the existing
embedded data will be automatically imported.
B. If you put it back to a different saving path, the existing
embedded data will not be imported.
C. If you change the file name and put it back to the same
saving path, the existing embedded data will not be imported.
D. If you put other file with the name 123.pdf to the same saving
path, the existing embedded data will not be imported.

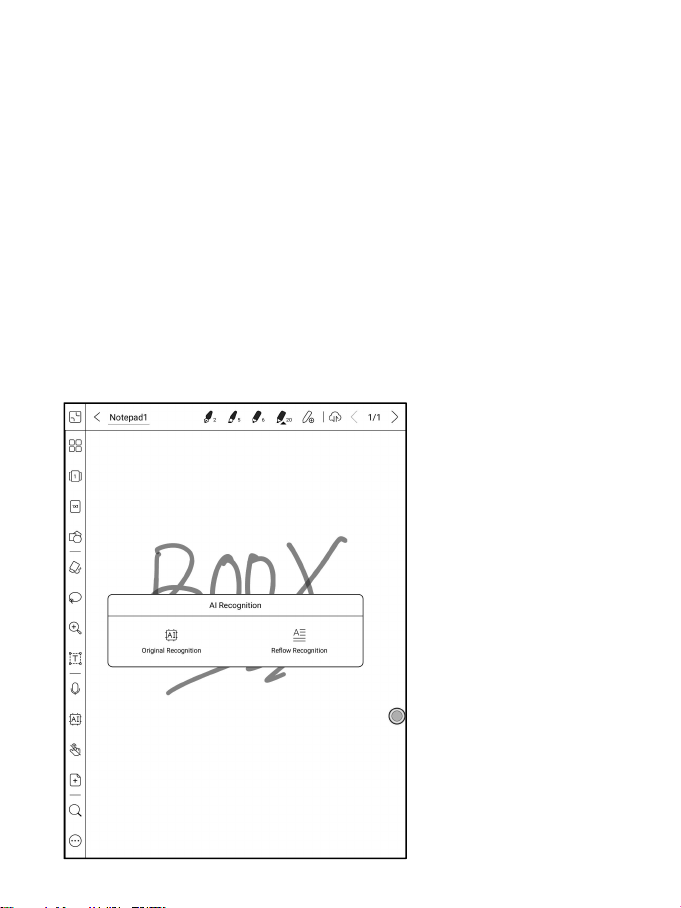

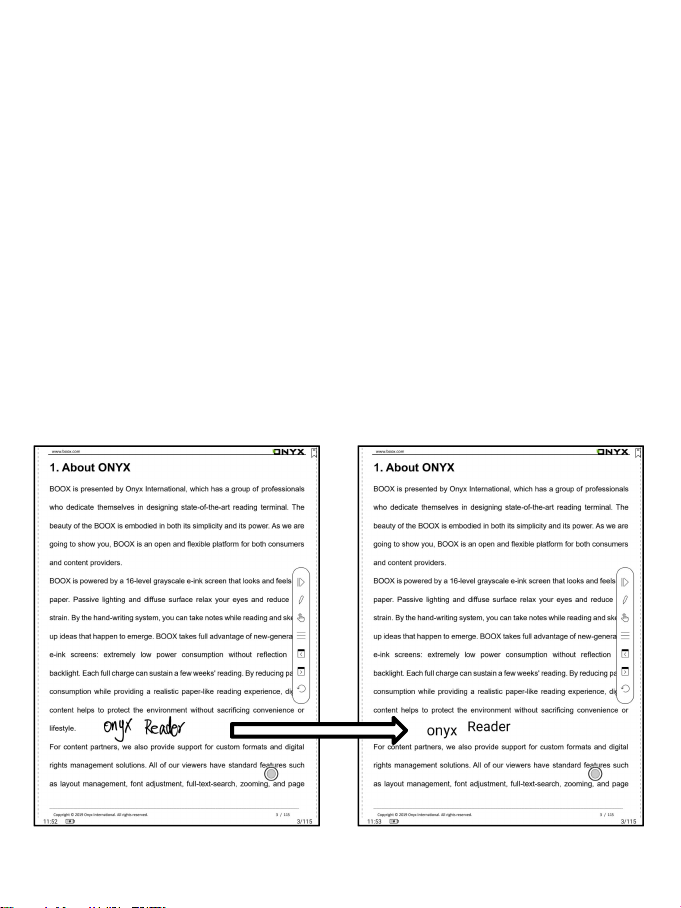

Handwriting recognition
Double-tap the handwritten text or shapes to start AI Recognition.
In the state where hand touch is disabled, double-tap can also be
used to initiate the AI Recognition
The text and shapes with 0.5cm spacing and straight lines with
0.3cm spacing can be recognized as one content area. If the
spacing exceeds either of the two spacings, the content will be
recognized as a different content area.

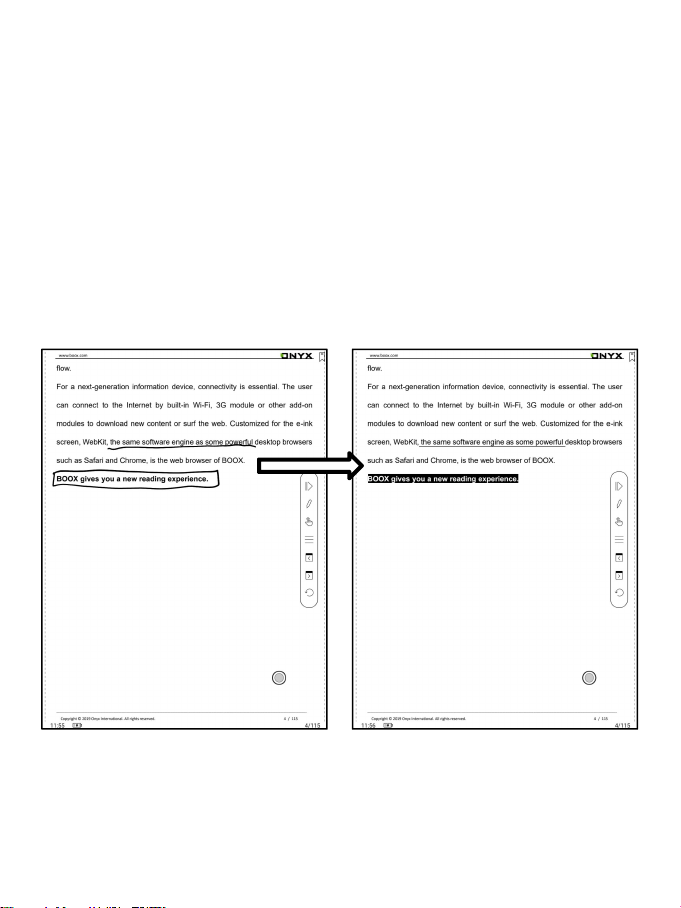

The boxes or lines near the text can be converted into underline and
highlight after being double-tapped. That offers great convenience
to add highlights to the converted content.
If users do not want it to be converted into highlights, you can
disable this function from Handwriting recognition settings. The
handwriting content will be only converted into images.
Converted to adding Bookmarks
Use stylus to click the upper right corner to add a bookmark
This area does not support page-turn by stylus.

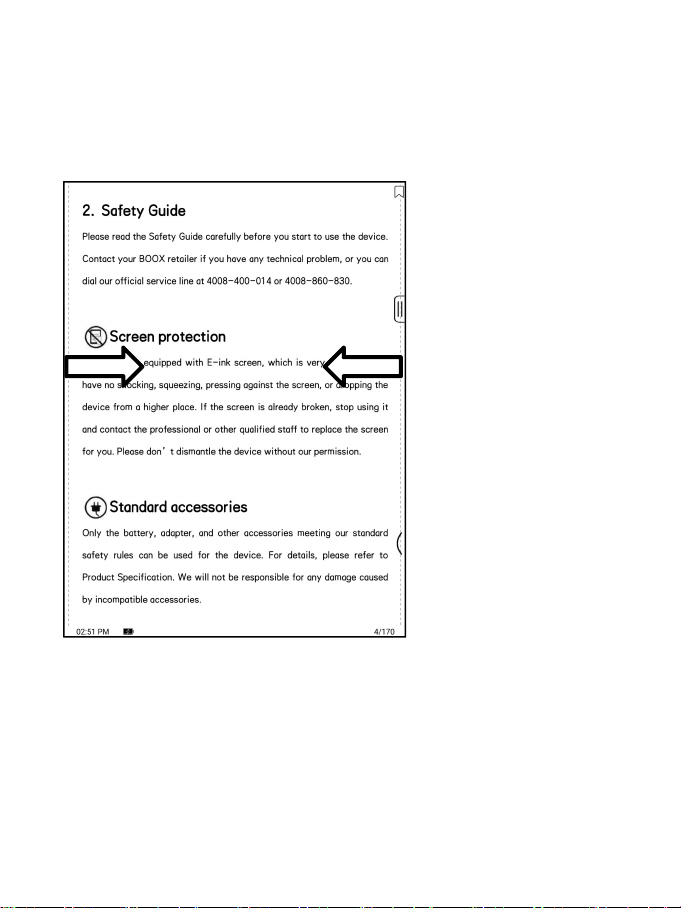

Page-turns
Users can use the stylus to tap the 2 corners of the content area for
turning pages. This offers convenience to page-turn when hand
touch is disabled.
This function is on by default.

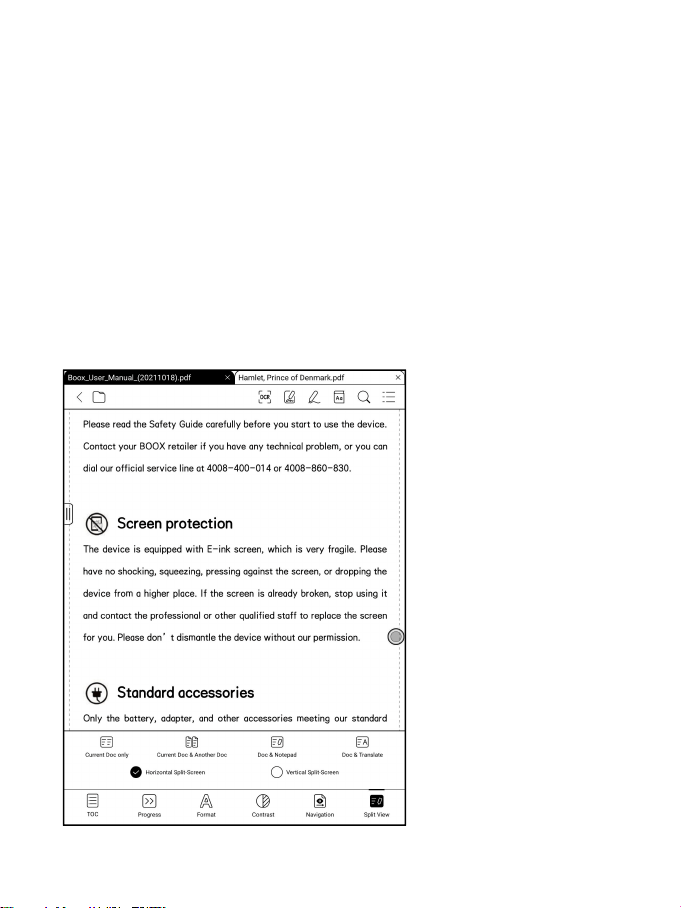

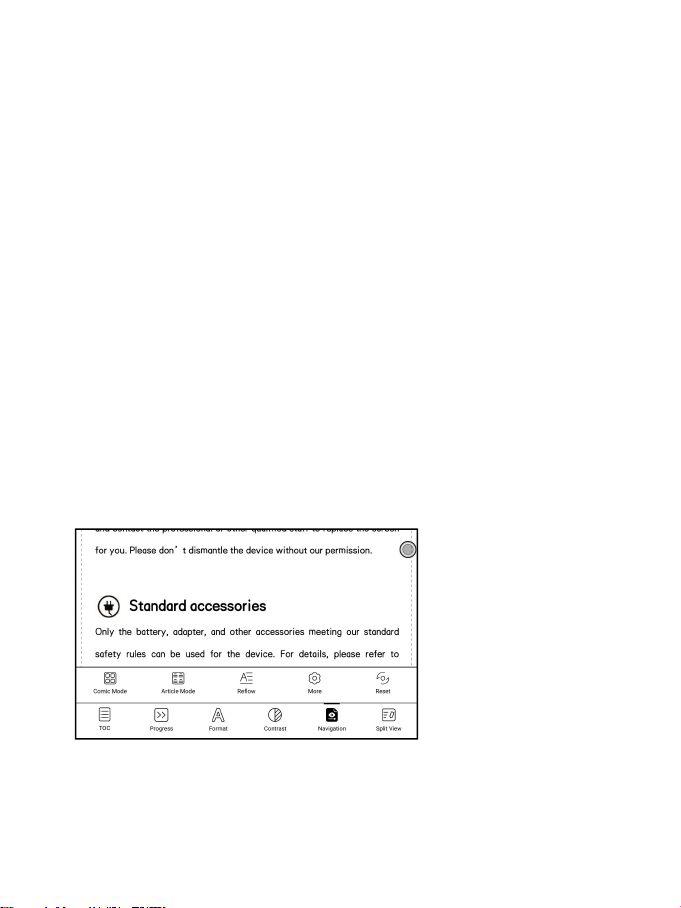

Bottom Menu Bar (PDF format)
This bar includes settings of TOC, Progress, Layout, Contrast,
Navigation, Split-Views.
TOC
TOC contains Table of Content, Bookmark, Annotation, and
Scribble.
TOC supports three-layer hierarchy. The current layer is
underlined. Jump to the corresponding page when tapping any of
the layers.
Tap on any position out of the TOC to exit.
Bookmarks
Without calling out the menu, bookmark the reading page by simply
tapping a tag on the top right corner of the screen. Tap it again to
un-bookmark the page.
The bookmarks can be checked under the path of Doc-Bookmark,
where users can delete bookmarks.
Jump to the corresponding page by tapping any of the bookmarks.
Order
Full screen
Annotation
All highlighted/underlined/annotated content would be listed under
the page of Doc-Notes for further searching, editing and deleting.
Jump to the corresponding page/content by tapping any of the lists.
All contents on the Annotation page can be exported in txt format.
Exported files are saved under the directory folder
Storage\Note\(same name as the source file).
Scribble
All scribble and sidenote can be viewed under the page of
Doc-scribble for further searching and deleting.
Jump to the corresponding page by tapping any of the pages.
All scribble contents can be exported in Png format and saved
under the same directory folder Storage\Note\(same name as the
source file).
Progress
It displays the chapter name (book name if no chapter), page
progress, last/next chapter, page number, slideshow, undo, and
redo.

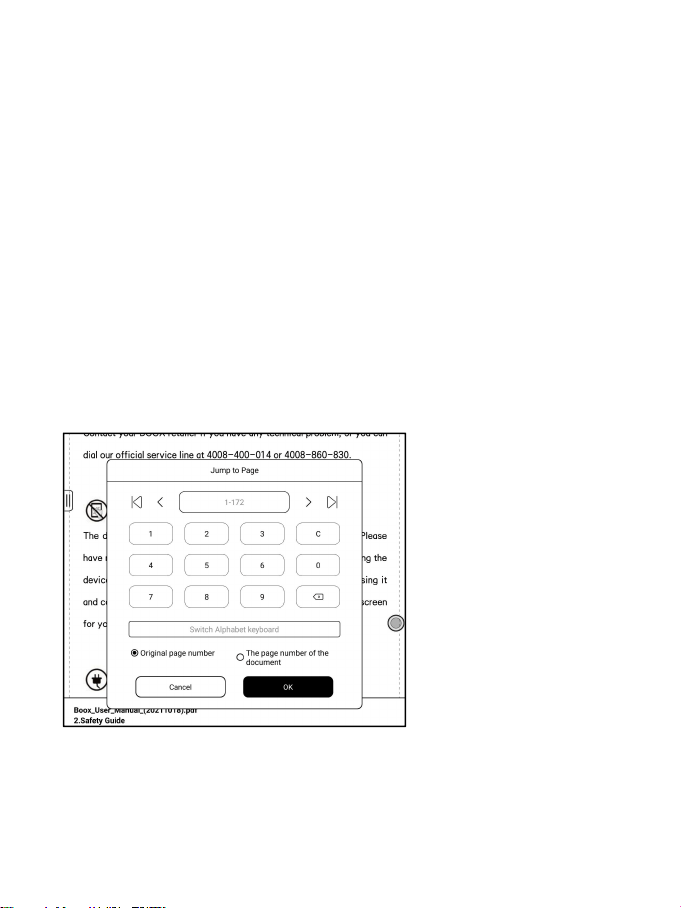

Tap on the page number to enter a quick-flip interface. Click the
page numbers again and input number to jump to the page directly.
PDF files support for searching and using the files ’ own page
number (custom page number type)
Format
This includes settings of Paging, Zoom, Crop, and Margin.
Pagination:

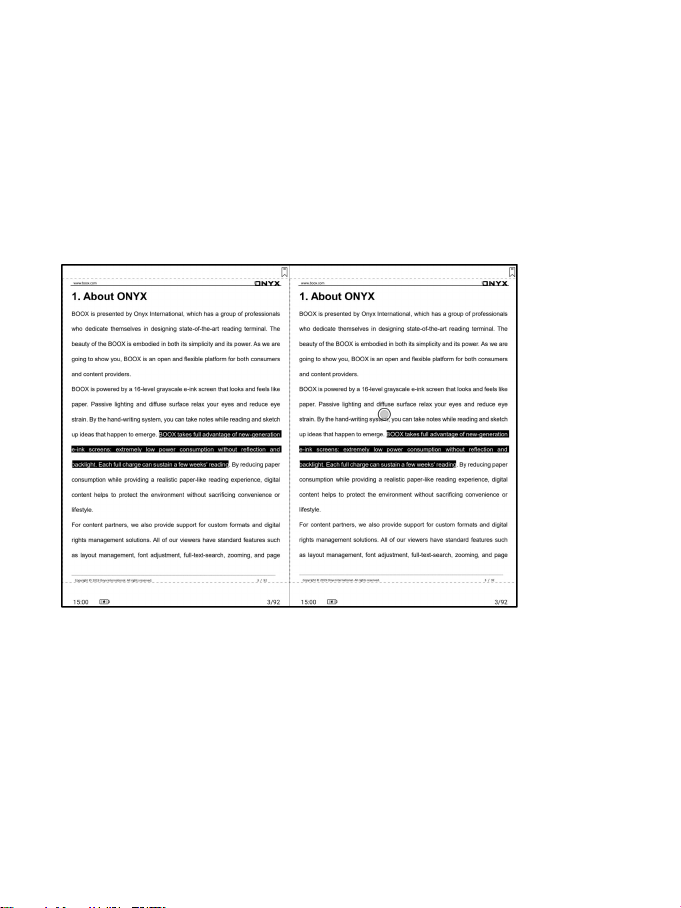

There are options of Single page, Double-page 1, and Double-page
2. Double-page mode only supports horizontal screen.
Zoom:
Zoom in, zoom out, and partial zoom are supported. Users can also
pinch fingers together or apart to zoom out or in on the reading
pages.
When a single page exceeds the display area of the screen after
zooming, you can long press and drag the display area around.
Single tap is to turn sub-pages. You need to use the virtual
page-turn buttons to turn the original whole page;
Crop:
Auto-crop according to the margin set by users.
Margin:
The empty space at the sides of book content for auto crop.
Margin:
The default reserved blank area during automatic cropping. You
can manually modify the automatic cropping area.
Contrast
Embolden only applies to text in PDF.
Sharpen Imag can sharpen the images.
Watermark Whitening can whiten the light-colored images or
background in the pages.
Dark Color Enhancement applies darker display to either the whole
pages or text only.
Navigation
Navigation allows users to have options of Reset, Comic Mode,
Article Mode, and More Settings including Crop, Split, and Subpage
Order.
Comic Mode: the screen will be divided into four subpages and the
reading order is upper right – upper left – bottom right – bottom
left.
Article Mode: the screen will be divided into four subpages and the
reading order is upper left – bottom left – upper right – bottom
right.
More settings
Manually adjust the settings of area cropping, page split, and
subpage order.

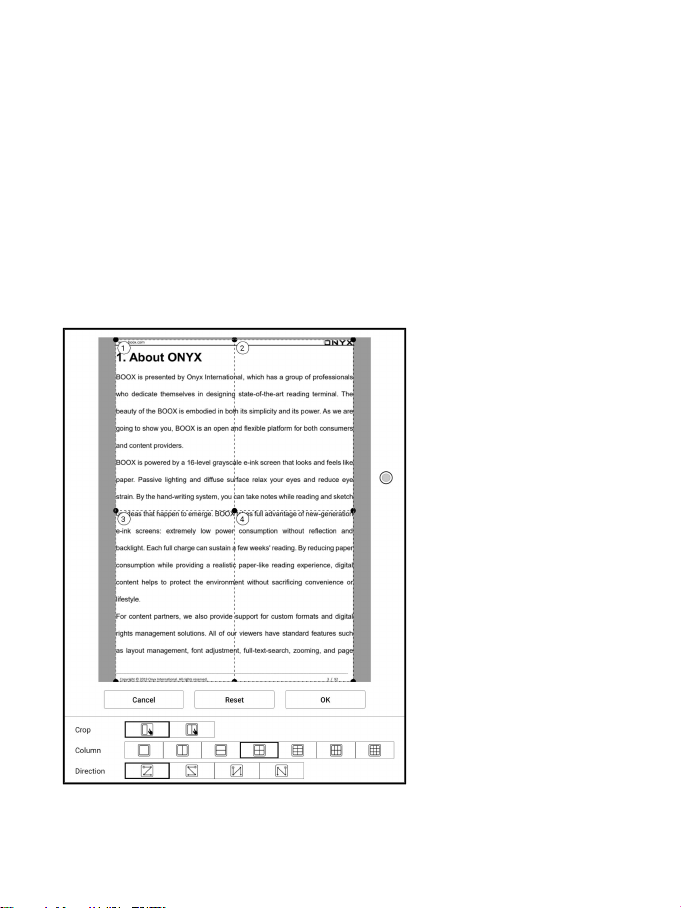

Crop: Manually select the cropping area for single or double pages.
Split: Split the pages into specified subpages in different ways.
Order: Decide the initial position and reading order for subpages.
Reflow
Reflow now supports both scanned and text versions.
Reflow is only available for PDF/DJVU/CBR/CBZ documents.
Scan Type
Reflow allows users to further customize the layout of documents
including: Line Spacing, Margin, Text Direction, Font Size, Columns,
and Skew Correction (for italic documents).
Text Type
Applicable to the digital PDFs or PDFs that have been recognized by
OCR (you can press and hold to look up words) PDF. The reflowed
files can use the features of flow documents.
Split View
It allows to respectively open current document, two different
documents, or one document & Note at the same time、Split-View
( Doc & Translation ) ；
Split-View now supports both Horizontal Mode and Vertical Mode.
You can swap sides of the two windows.
Current Doc (same doc)
The two documents are totally independent. Users can respectively
turn pages and save them.
The scribble, highlight, annotation, bookmark would be
synchronized to each other after page refresh.

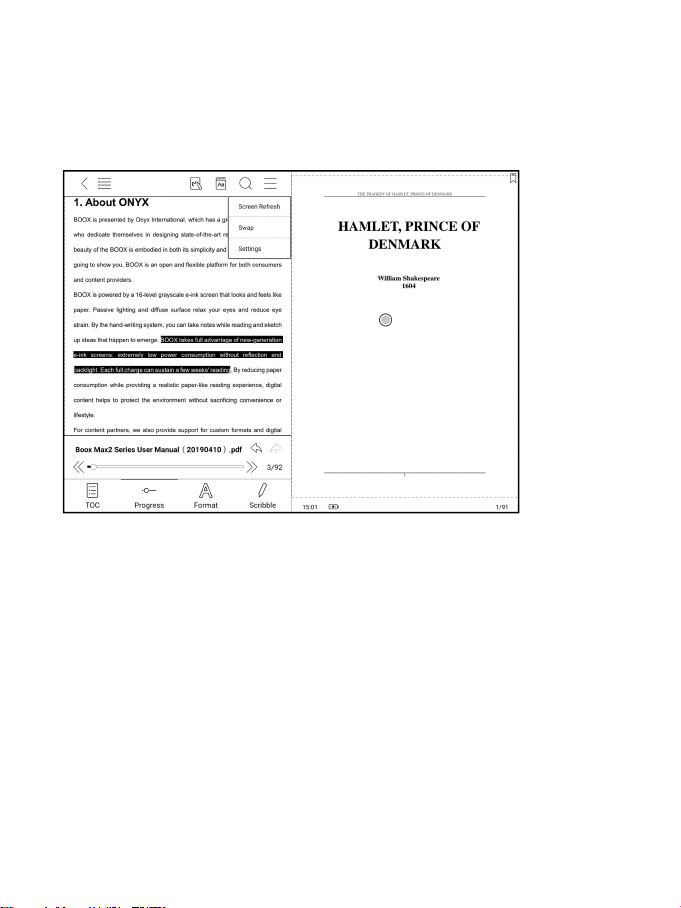

Different Docs
Choose a document different from the current document.
Similar to the Current Doc, these two documents can be
respectively operated. The display is also swappable. For PDF
document, please try to swap them if part of them is not writable.

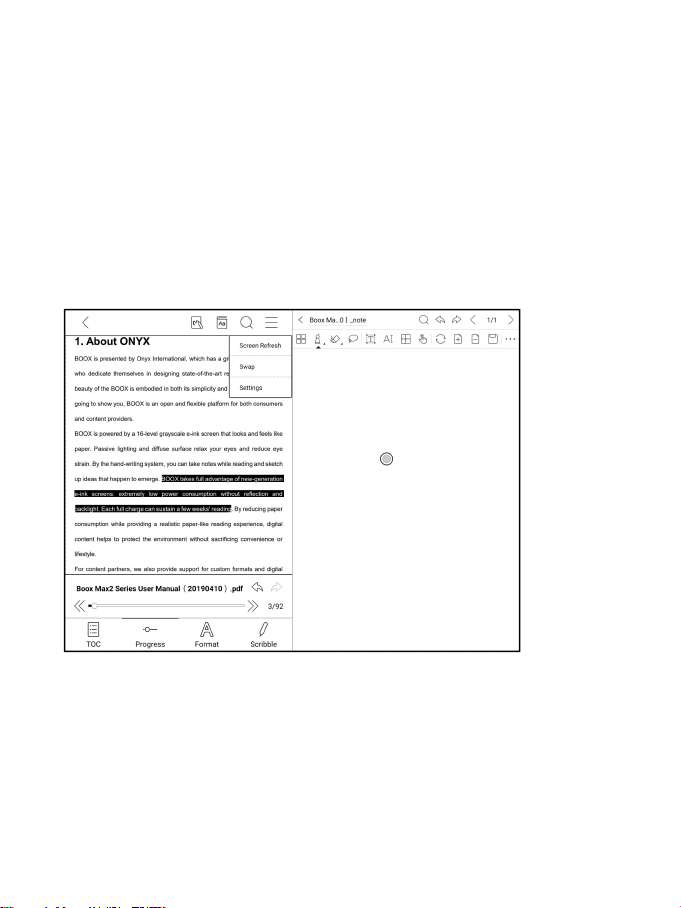

Doc & Note
Likewise, they are swappable.
And the Note will be created with a name same as the document. It
associates with the document and can be edited in Note app.
Every document can only have an associated note. Changing the
name of the note does not affect the association.
Split-View (Doc & Translation)
This supports Baidu Translate and Bing Translate and provides full
page translation.
This also supports multiple target languages;
Your BOOX needs to stay connected with internet;
Some translation engines have a limit on the number of words per
day. Please see the tips on the translation page for details;
Bottom Menu (other formats)
This includes settings of TOC, Progress, Format, Contrast, and Split
View and supports flow formats such as EPUB\TXT\MOBI\AZW3.
V2 Engine
Some flow formats (ePub\mobi\azw3\txt\word\jeb\html) use V2
engine by default. Go to Reading Settings/Other Settings to switch
to NeoReader
V2 engine supports the original layout of the document, including
font, line spacing, margin, graphic typesetting, indentation, etc.;
After being switched the V2 engine, the document will be closed
automatically, and the V2 engine will be used when you reopen the
files; If you need to switch back to NeoReader, you can cancel the
V2 engine and reopen the document;
V2 engine does not support to sync data from NeoReader such as
Bookmarks, Annotations, and Handwritten notes.
Progress
The document needs to be paginated again after switched to V2
engine, or font and spacing adjustment. You can check the
pagination progress in the reading Menu>Progress. After the
progress bar is loaded, it means the pagination is completed. You
can drag the progress bar to jump pages after the pagination is
completed.
Finished loading
Loading
Format
The settings include Font Face, Display and Spacing.
Loading font face in the directory Storage\fronts is supported.
The settings for font size, font face, contrast, bold, spacing work on
all newly opened documents, but not work on the documents before
settings.
First line
indent
Line break
hyphen switch
Screenshot
Diagonally tap on two corners of the screen to capture the screen in
PNG format. The function is only available on the reading page.
The screenshot will be saved to the local, or shared by scanning QR
code. The save path is Storage\Screenshots.

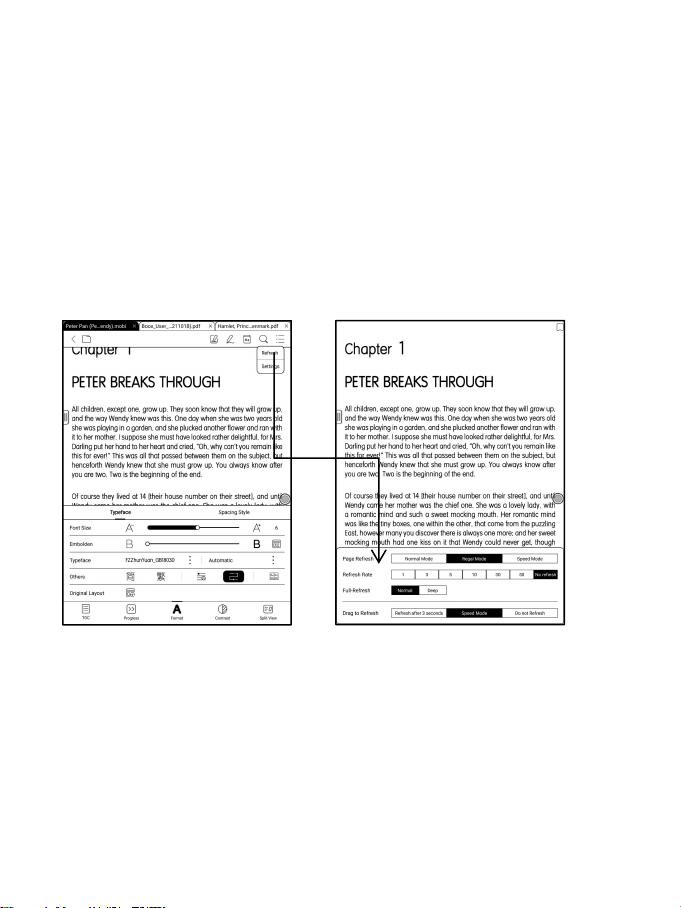

Refresh
Tap the hamburger menu located at the upper right corner to
choose Refresh and other related settings of refresh
Regal refresh and partial refresh are by default
When scrolling the page, speed mode is by default.
Settings
There are General Settings, Touch Settings, TTS Settings, Export
Settings, Screenshot Settings, Floating Toolbar Settings 、 Other
Settings and Version Name.

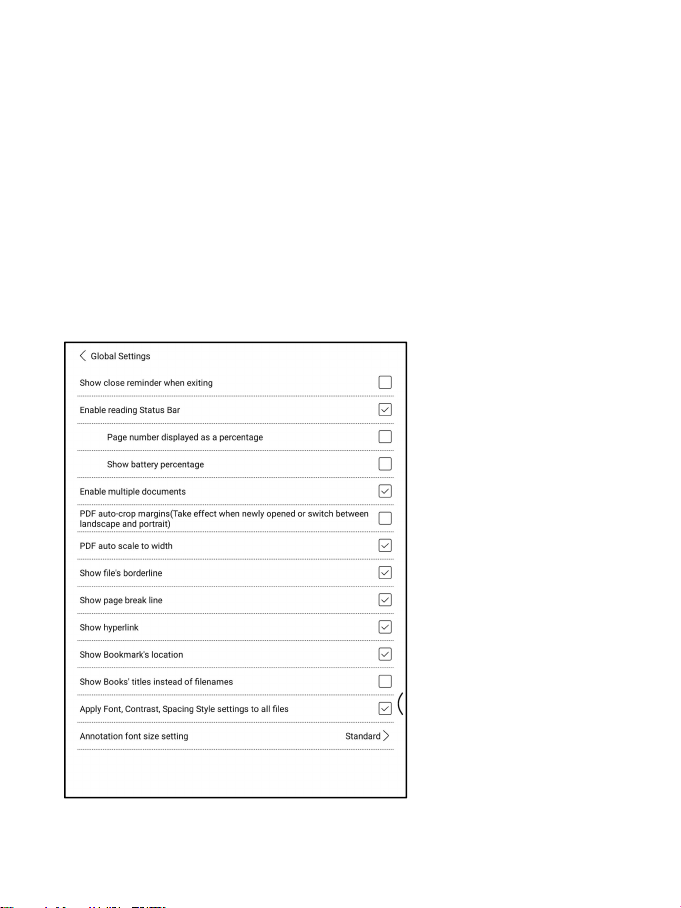

General Settings
There are Enable page close reminder, Enable system status bar,
Enable reader status bar, Enable multiple documents, Show file
borderline, Enable Floating Toolbar, Show hyperlink, Show
bookmark position, Apply certain options to all documents 、
Annotation Font Size Setting；.

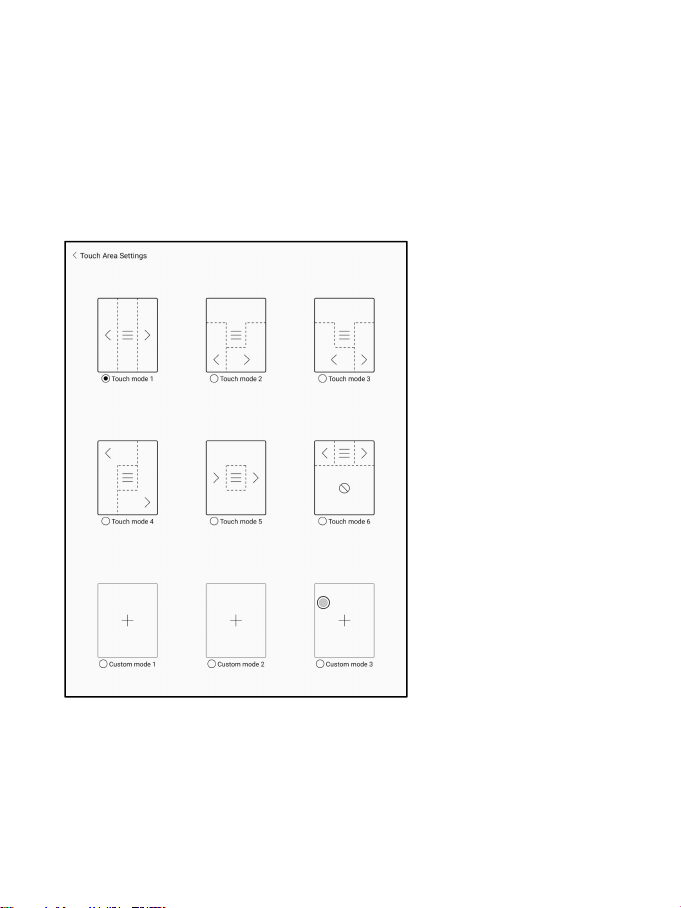

Touch Settings
Users are able to customize the touch settings for different areas.
There are six default touch modes can be chosen and users can
customize three more.
TTS Settings
The built-in Baidu TTS is set by default. English is supported. A
network connection is required at first use.
Switching to third-party TTS system is allowed. The built-in TTS
settings are not synchronized with the system TTS settings. The
system TTS settings work on the third-party TTS by default.
Export Settings
The default storage path is Storage\Note.
The export files can be also saved to the same directory as the
source file.
Floating Toolbar Settings
This page offers General Settings of Floating Toolbar, Scribble
Settings, and Handwriting Recognition Settings;
General Settings
It is enabled by default and can be turned off manually. After
disabled, it can no longer be called out;
It can be customized whether the indicator is displayed after it is
collapsed. Call out the Floating Toolbar by swiping from the screen
edges. The Toolbar’s size, display style and functions buttons are
customizable.
Press and hold the function button icon to display the definition of
the function button;
Scribble Toolbar Settings
The Toolbar ’ s size, display style and function buttons are
customizable.
Handwriting Recognition Settings
It is enabled by default and can be disabled manually. After disabled,
it will no longer support double-tap recognition
The underline can be recognized as highlight first. It is enabled by
default, and it can be turned off. After it is turned off, it is only
recognized as an image;
You can set the recognition of hand-drawn symbols as adding
bookmarks. It is disabled by default and can be manually enabled.
After enabling, double-tap recognition of the symbol will
automatically convert to adding bookmarks;
Other Settings
This setting page includes “ Open ePUB documents with V2
engine”, Enable “Pinch-to-Zoom”, and Enable “Turn pages by
swipes”
When “Turn pages by swipes” is disabled, you can only turn pages
by tapping on the screen. This can avoid accidental page-turnings
when you are taking handwritten notes.

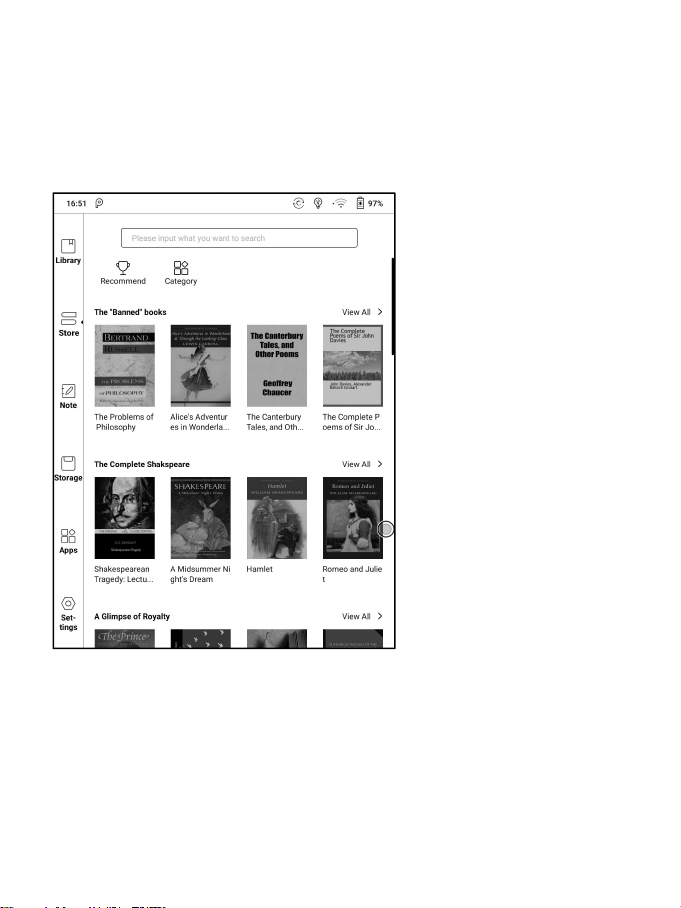

7. Store
In the language of non-Chinese, the Store is offering free
publications E-books from the Internet.

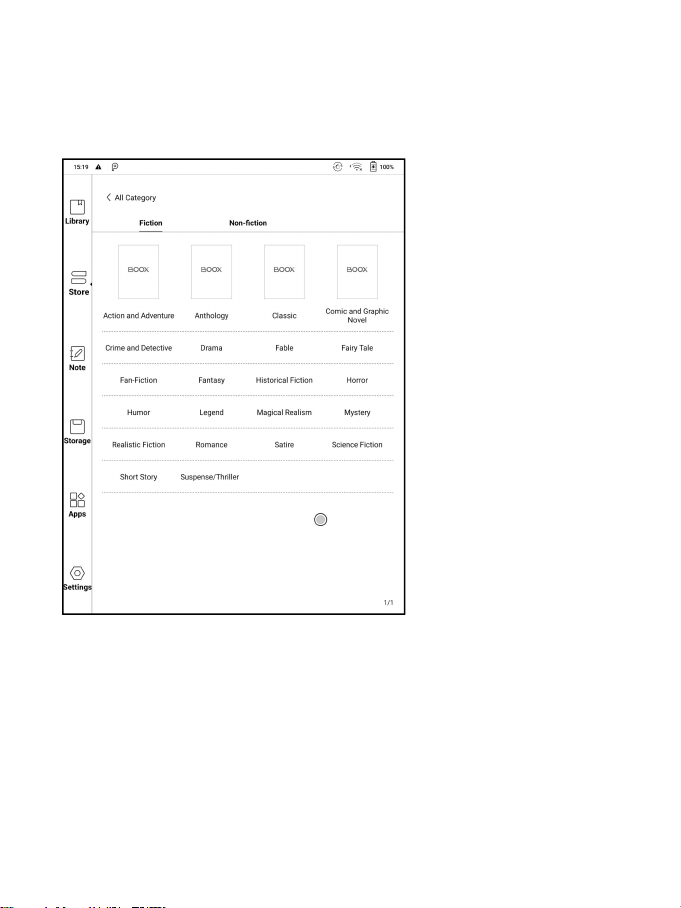

Category
Books can be screened according to different categories.

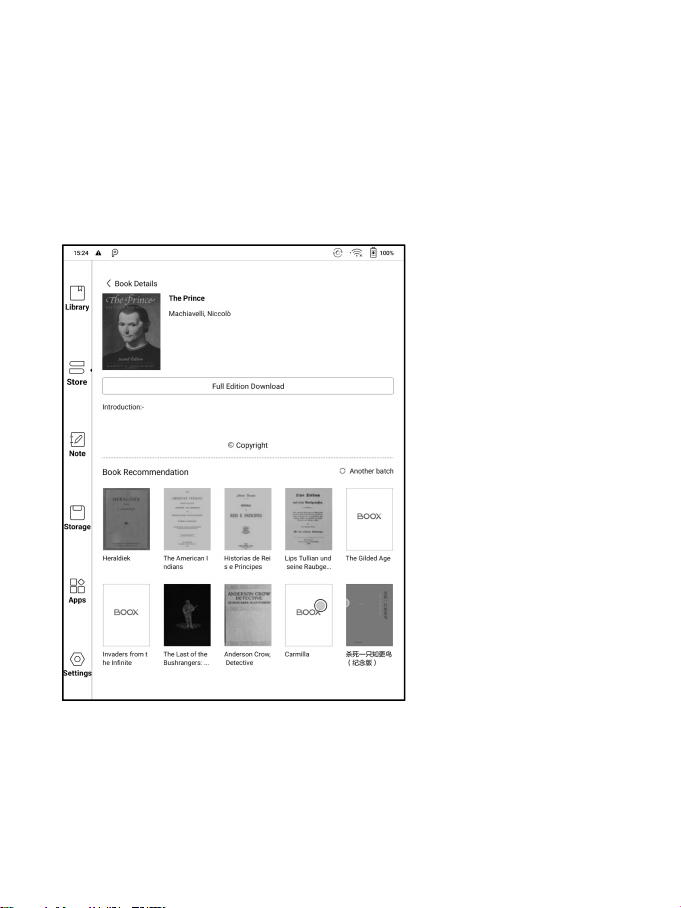

Book Detail
Click a book cover to open up book detail. The specific book
information. Click “Full Edition Download” to download the book,
then you can see this book cover in Library .

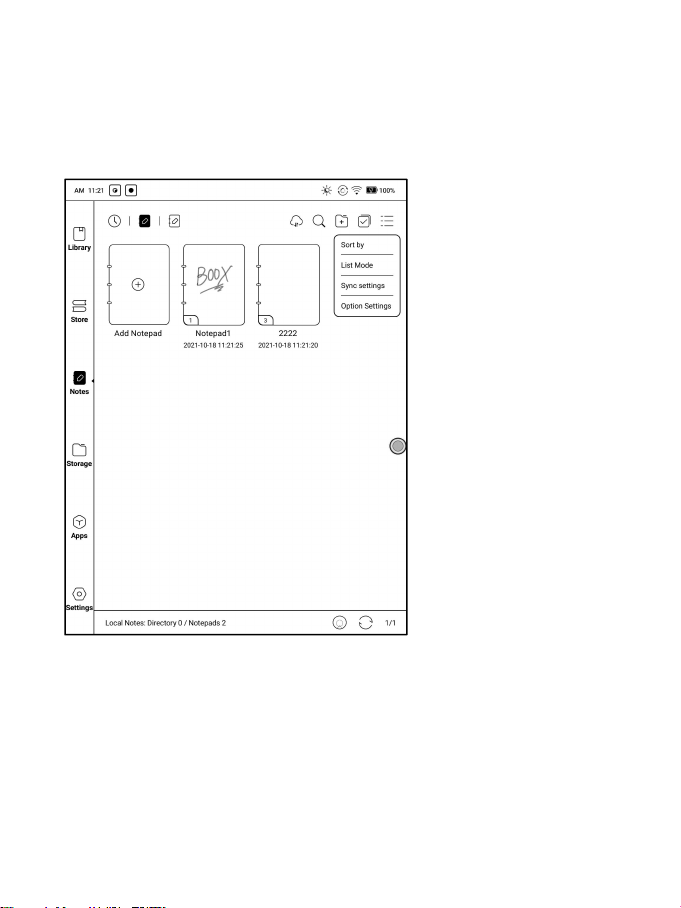

8. Notes
This includes Recent Notepads, Local Notepads, and Reading
Notes.
Recent Notepads include 12 Notepads that have been opened
recently, including local notepads and reading Notes
The Reading Notes include the Notes created under Split View
when users are reading books.
Multiple Selection
More Options
Create new folder
Local Notepads
Reading Notepads
Recent Notepads
Search

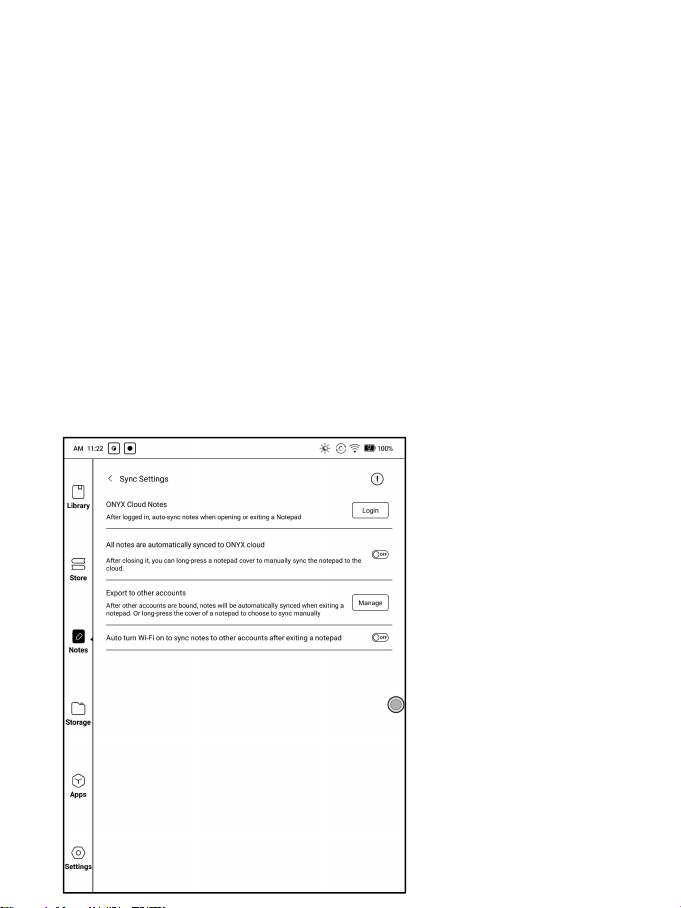

Onyx Cloud Sync
Cloud Sync ( in bulk)
Notes Cloud Sync requires logging in to Onyx Account.
Sync in the background. After you are logged in to ONYX account,
the notes will be automatically synced from and to Cloud when you
exit a Notepad.
Sync in bulk, including Notes list, all Notes. Users can manually
sync all notes in bulks.
Cloud Sync includes two-way sync between Cloud end and BOOX
device. When there is any change to the Notes on either end, the
other end will sync all the changes.
The deleted Notepads can be recovered within 10 days from
website trash bin. If you delete the notepads by mistake, you can
recover them from the trash bin, which will be emptied after 10 days.
After Notes are synced, users can check the synced notes from
push.boox.com
by logging in the same Onyx Account.
Currently PDF templates cannot be synced and only PNG templates
can be synced.
Other accounts Sync
When third-party accounts are bound, the notes will be
automatically synced when you exit a Notepad. Alternatively, you
can sync notes by tapping the Sync icon on the top bar.
Third-party accounts only support one-way sync and do not
support syncing notes back to BOOX devices. You do not need to
log in to ONYX account.
Sync Results
Long press the cover of the Notepad to pop up the Property Window
and check the synced accounts and sync result list.
Tap the sync icon to sync again for the accounts with abnormal
sync.
More Options
This includes Sort By, List Mode, Sync Settings, and Option
Settings.
Notes Sync Setting
This includes ONYX Cloud Notes and export to other accounts.
When you export the Notes to third-party Accounts, the Notepads
will be in PDF format and cannot be edited.
If you export your notes to other bound accounts, the notes will be
automatically synchronized to other bound cloud accounts of yours
when you exit the Note. The sync icon is only applicable for the
ONYX account cloud sync.
Backup and Recover
It supports backup and recovery of notes locally and does not
support Cloud backup.
Note: The action Recovery will recover the backup data, which will
overwrite the current data. Please be careful.
Settings
These are general settings for Stylus Calibration, Account Sync and
Backup, AI recognition, Notepad password settings, Show Erasing
Trace, Auto-turn on Wi-Fi to sync Notes, Auto-generate PDF
documents after exiting Note, Auto refresh after lifting stylus.
If this device is bound with third-party accounts for file sync, and
Wi-Fi is connected, the Note files will be auto-uploaded to the
accounts with a PDF or PNG attachment.
If“auto-turn on Wi-Fi to sync Notes”is enabled for notes sync, the
device will connect with Wi-Fi automatically and sync notes to the
Cloud when exiting the Note app. If it is disabled, users need to sync
to account manually by clicking an upload icon on book covers.
For the “Auto refresh after lifting stylus”, the display would refresh
after users lift stylus away from the screen, making the strokes
smoother.
Notepad Password Settings
This password is only used for protecting files on the device, not
encrypting files. So, the password does not work out of the device.
Now this function does not support multiple passwords for one file.
This function supports specific password, which are available for all
note files. Users can also set a specific password for a single file. To
add, edit and remove password are allowed here.
The specific password can be different from the system password.
Separate numeric password allows you to choose whether to add
locks to new notepads. If you cancel this option, the new notepads
will not be automatically added locks. You need to add them
manually later.
The note file has no cover thumbnail after locked.
Long-press the note file to remove and add password in the dialog.
Scribble Interface
Files can be saved automatically and manually when to quit the
Note.
Tap on the page number to jump to the specified page quickly.
Brushs
Fullscreen
Name
Undo\Redo
Eraser
Page\Thumbnail

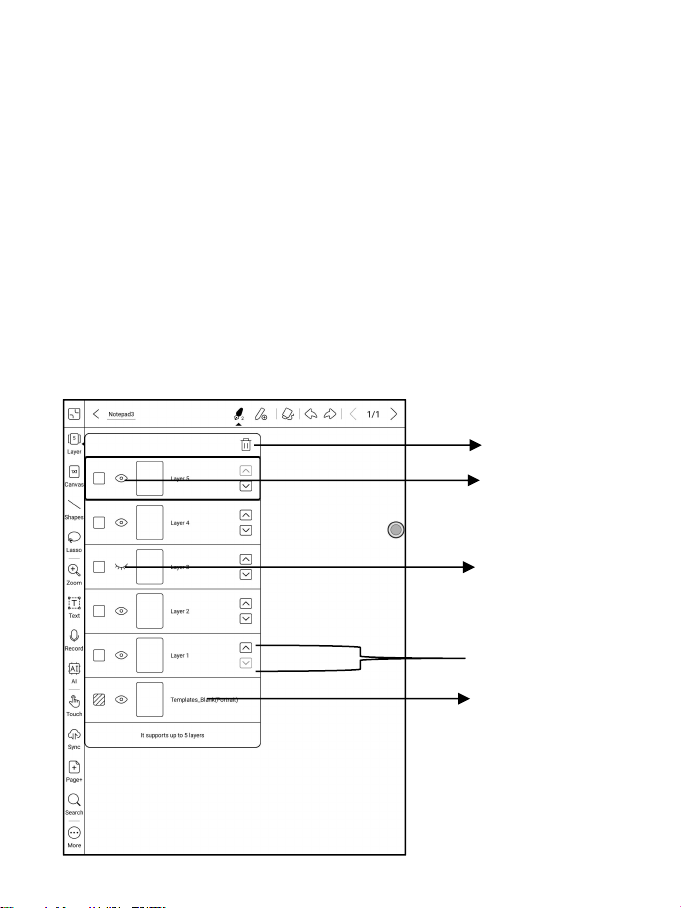

Layers
This supports template layer, 5 custom layers, hiding and adjusting
layer order.
Hidden layers will not be displayed during export and recognition;
Templates can only be added at the template layer, and the
template layer cannot be deleted;
You can add 5 custom layers to the inserted images
Move layer
Show layer
Delete layer
Hide layer
Select template

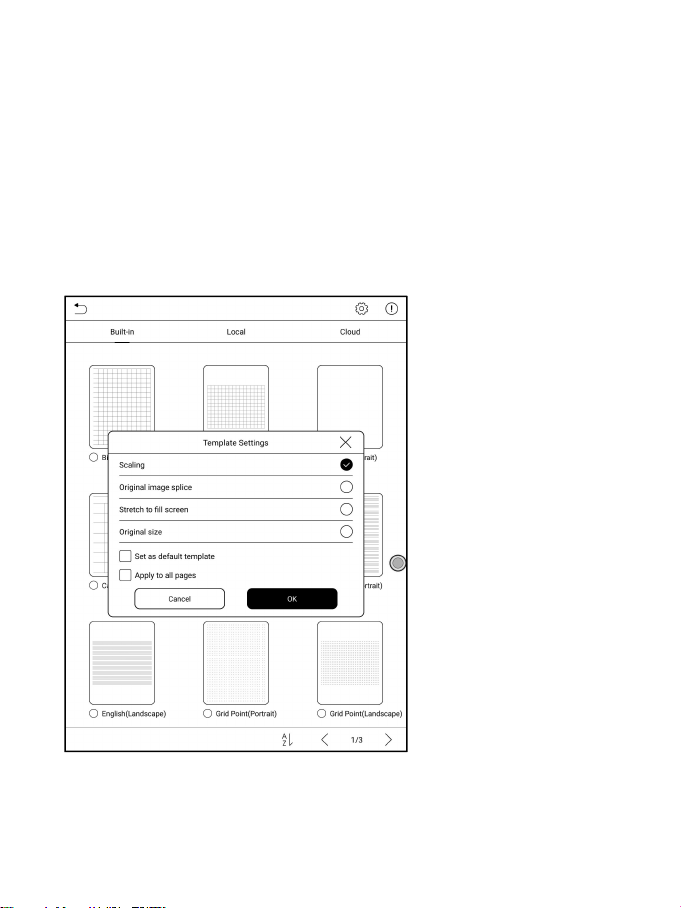

Templates
The settings of Templates include Scaling, Original image splice,
Stretch to cover all, Original size and Fit canvas.
It is recommended to write after the template style is determined to
avoid changes in the templates after writing.

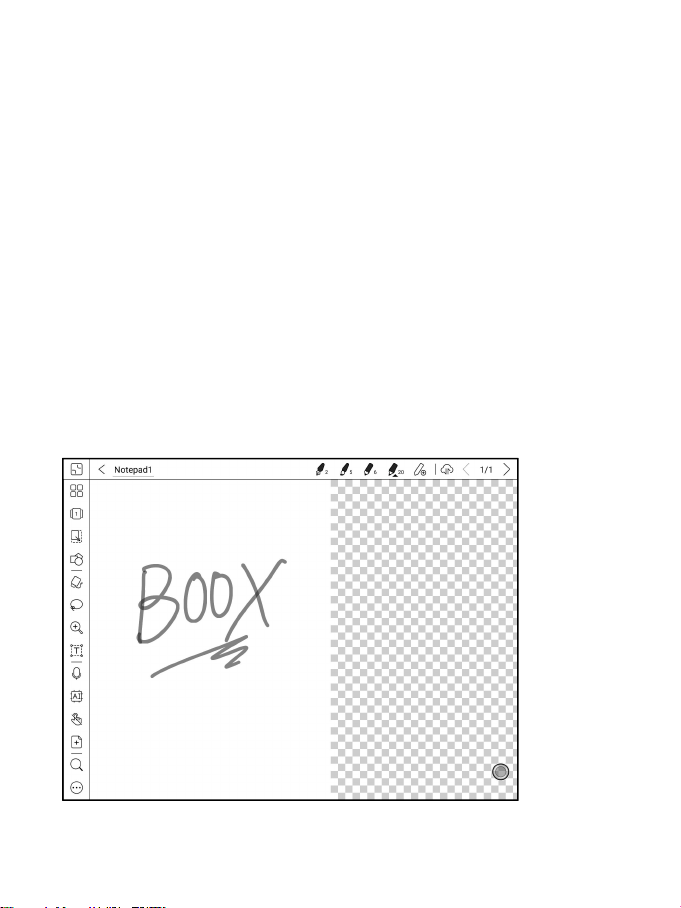

Canvas Editor
The default canvas size is 1x1, same as the screen size.
The canvas size can be adjusted to 1x2, 2x1, 2x2 or custom size.
The max canvas size is 2x2. You can customize the canvas size
within the max size. You can adjust the canvas size by dragging the
canvas.
Canvas adjustment base is located at upper left corner. Drag left or
downwards to expand the canvas.
When you switch from the large canvas to the small canvas, the
strokes outside the canvas range will not be displayed, but will not
be cleared. But the strokes can be redisplayed after you switch
back to the large canvas
Canvas Adjustment will cut the redundant blank part of the canvas
based on the outermost strokes position.
Horizontal Notepad
The notepad orientation is synchronized with the system rotation
direction. When the system is switched to the horizontal screen, the
notepads are synchronized to the horizontal screen. The created
notepad under the vertical mode will retain its vertical size. The
canvas size can be manually adjusted;
The newly created notepad in horizontal mode directly uses the
canvas size 1x1;
Brushes
You can add 5 custom brushes. You can set type, color, and line
width of each brush. Double tap the icon to expand the secondary
menu for more options.
Fit to Canvas and Fit to Screen
When the canvas is larger than the screen(1x1), you can go to
Toolbar / Zoom to adjust the canvas size to “Fit-to-canvas” or
“Fit-to-screen”.
Fit-to-canvas: the canvas will be automatically expanded to fit the
whole screen. When the canvas is larger than screen, you can long
press the canvas to pan it around.
Fit to screen: the canvas will zoom out to fit to screen. You cannot
write on the grey area.
Custom Toolbar
Besides the default tools like scribble, erase, fullscreen, select,
users can add, remove, adjust other tools on the toolbar.
Erase
In the state of stroke erasing, you need to switch to the brush first
and then write.
For the “erase all”, you do not need to switch back to the brush.
Lasso
In the
Lasso
mode, circle an area on the screen, then users can
zoom, move, duplicate and remove the selected area.

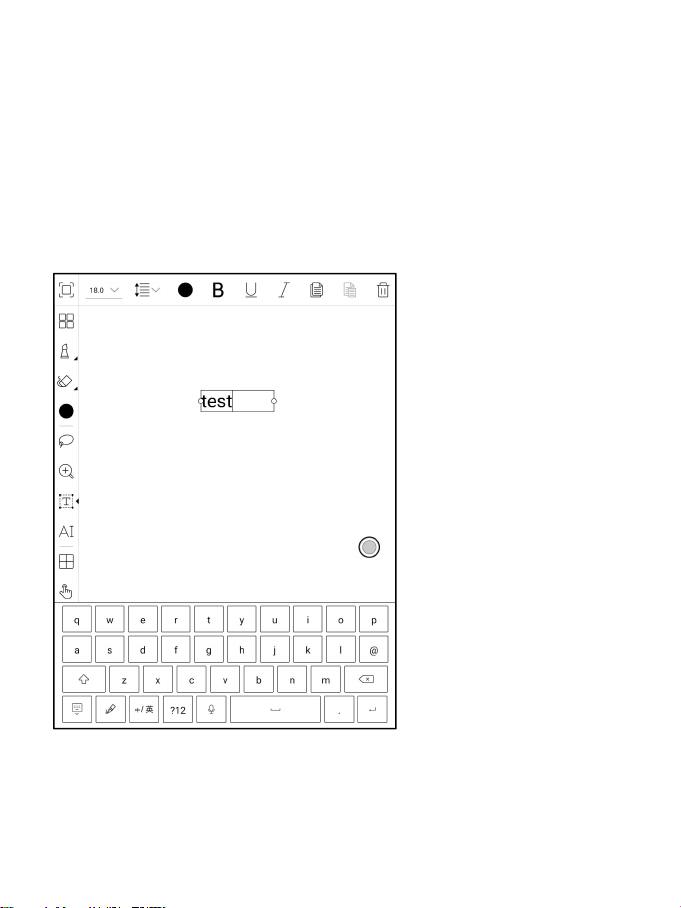

Text Input
Users are allowed to key in words on the note by a Bluetooth
keyboard. The input box can be moved everywhere.
Users can adjust the font, line spacing, bolding, underline, italic,
copy and delete.
stylus touch for icons is desensitized by default, so it is better to use
your fingers to adjust the position of the Navigation Ball;
when using full-screen the square icon to exit full-screen mode.

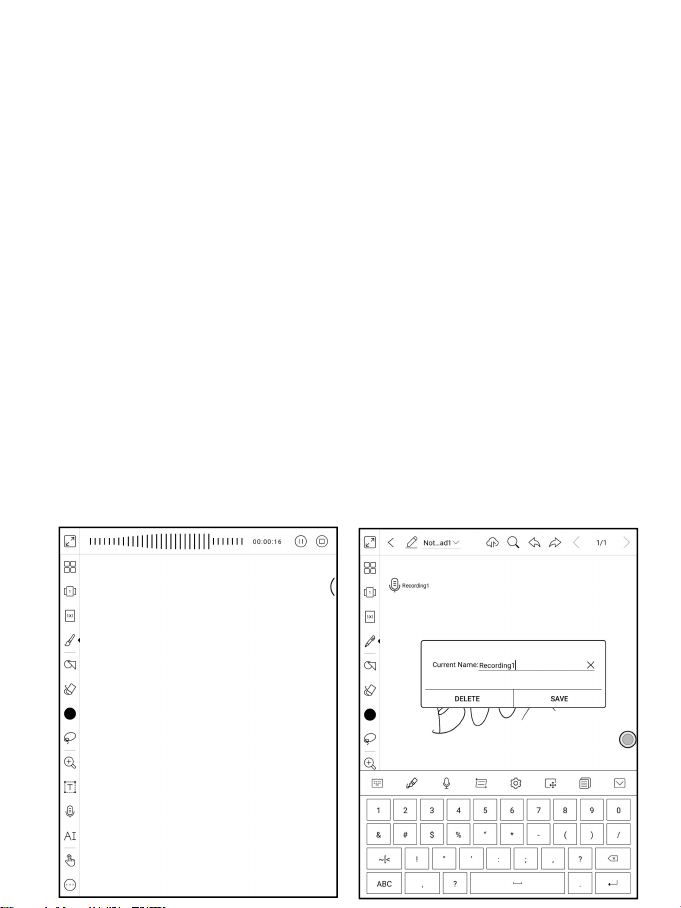

Insert a Recording
After tapping the Recording icon, the Recording will start
immediately. The recording progress bar will be shown on the top
Toolbar. You can pause the recording. You can take notes while
recording.
After stopping the recording, you can save or delete the recording
directly. You cannot restore the recording after you choose to
delete it.
The recording window is floating on the screen. You can long press
it and drag it around on the screen.
You can insert more than 1 recording on one notepad page.
Check all recordings at Toolbar/More/Recordings. You can only
play recordings in current notepad. You cannot export recordings to
PDF to use.
If recordings are saved to local storage, you can export recordings
in MP3.

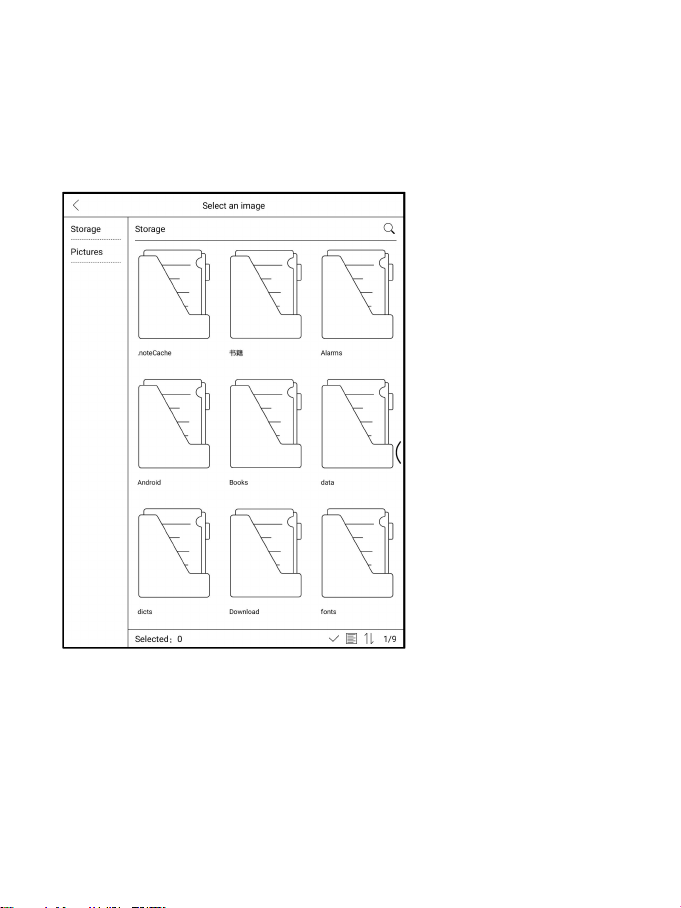

Insert Image
Users can remove, zoom, duplicate the images inserted from the
local. Select the image and then edit.
AI Recognition
Click the icon “ AI ” to switch to recognize the handwriting text.
English is supported. To download the corresponding language
package is required for other language recognition.
This function contains original recognition and reflow recognition.
Original recognition only does conversion but not changes the
position of words, while reflow recognition reflows words after
conversion. Users need to manually add space, line break and font
size.
The text flows automatically after reflow. Users can manually make
space, newline, and font size after that.
The accuracy of recognition depends on how normal the
handwriting is.
AI recognition works based on the handwriting. If the handwriting
content changes, please re-enter the function to let it convert once
again. For saving the converted content, please export it.
Share
This supports to share all pages (PDF format) and current page
(PNG format);
Support scanning code sharing of Onyx account and sharing
through third-party app;
Full screen mode of Notes
When you switch to full-screen mode, you can choose whether to
display the Floating Toolbar.
When it is collapsed, you can call it out by swiping from the screen
edges.
Note: The full-screen mode is an independent note-taking mode. If
you exit, you will exit the Notepad directly. If you need a
non-full-screen mode, you can switch on the Toolbar;
The default Floating Toolbar only includes Fullscreen, Pen, Color,
Eraser, Collapse, and More. You can tap the “ More ” icon to
customize the icons on the Floating Toolbar.
Floating Toolbar Settings
The Toolbar ’ s size, display style and function icons can be
customizable.
9. Storage

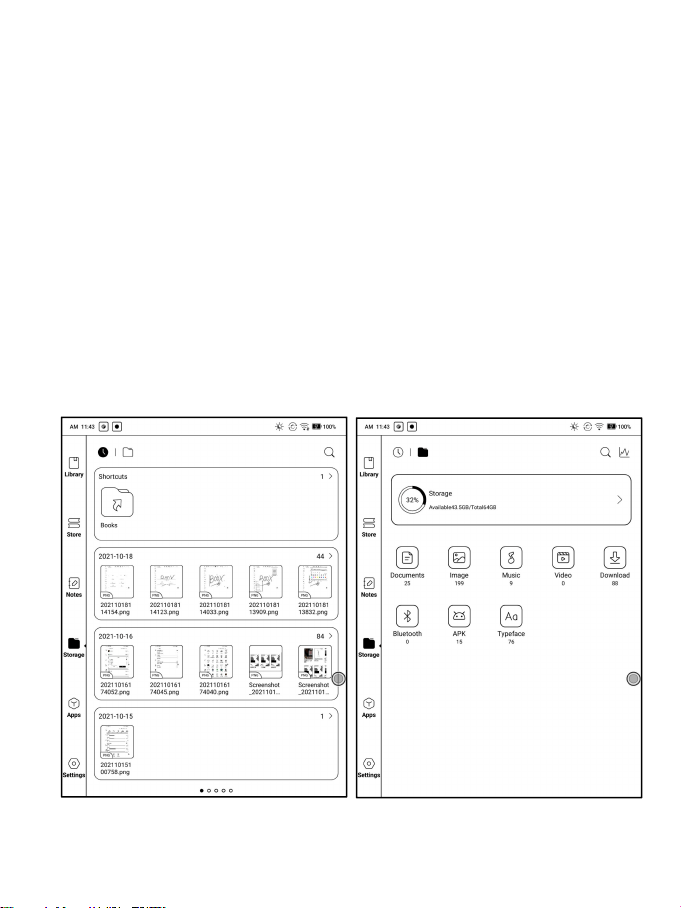

Recent Files
This section includes Shortcuts and Recently Updated Files, which
are sorted in reverse order by time.
All Storage
This section includes Storage path and Categories. files will be
classified according to the file formats, but the original storage
location of the file will not be changed;
Long-press the folder to pop up Property Window and choose “Set
as Shortcut”, which offers quick access to open it.

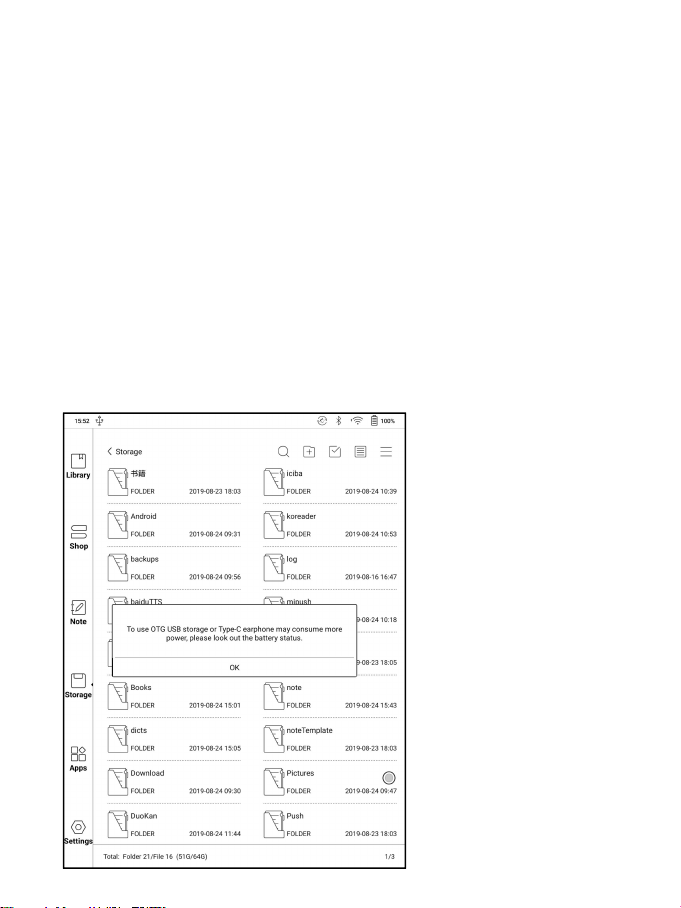

OTG External Disk
OTG is supported. Users can connect the device with USB drive
through a Type-C cable. The device will detect USB drive
afterwards.
The OTG feature would consume more power since it supplies
power to a USB drive.
It supports analog and digital Type-C earphones ( You can use
3.5mm audio jack converter);
Low storage space warning
Please reserve at least 300M of available storage space to ensure
the normal operation of the system and saving related data;
When it is lower than 300M, a warning icon will be displayed in the
system bar, indicating that the storage space is insufficient;
10. Apps

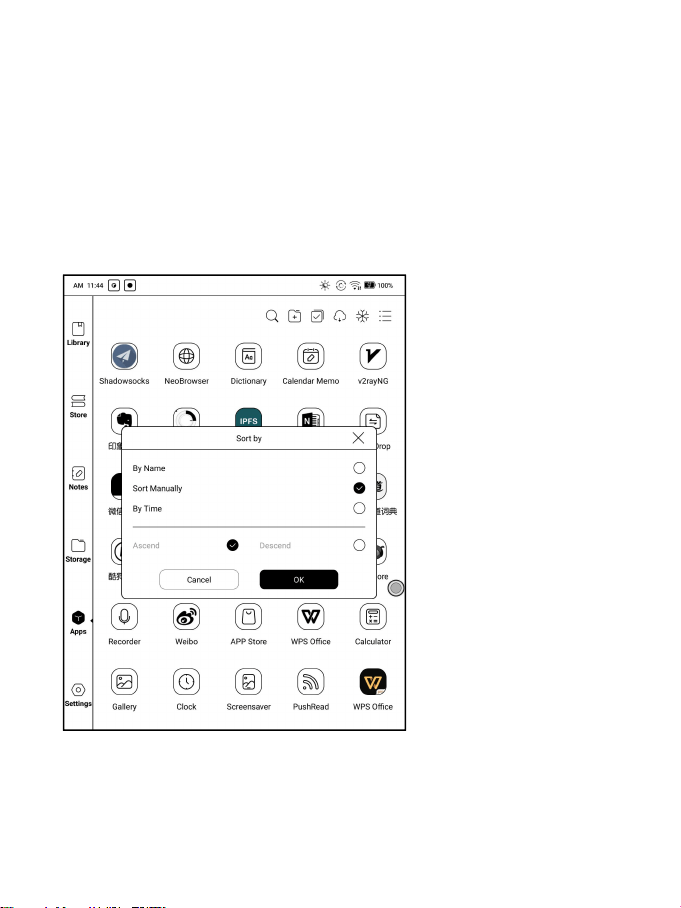

All installed apps are sorted by name by default. You can also sort
them by time and manually.
Long press an app to pop up options of Uninstall, Manage, Optimize,
and Add to a group

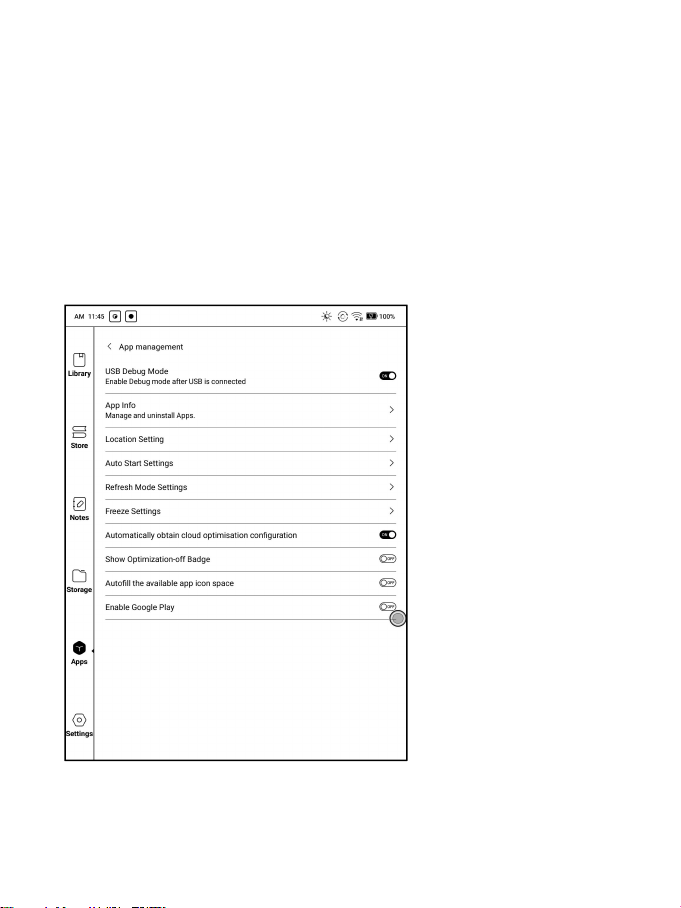

App Management
This page includes USB Debugging Mode, Application Info,
Location Settings, Auto-start Settings, Refresh Mode Settings,
Freeze Settings, Automatically update the Optimization config of
third-party apps, Fill in available space automatically, Enable
Google Play.

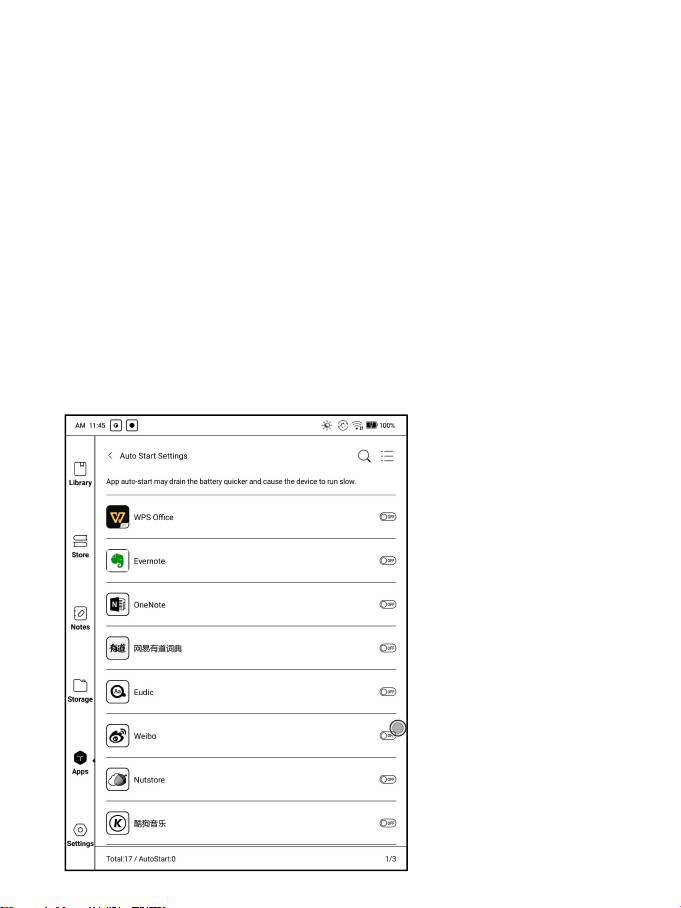

Auto-start Settings
Only applicable to device auto-start. After it is enabled, the
applications may take up more storage space and consumes more
power.
Apps need to monitor the system start. After apks are installed, you
need to tap the app icon to start it once.
After it starts successfully, it only runs in the background and will not
show in recent running tasks.
Refresh Mode Settings
This allows you to set the refresh modes of third-party apps in bulk.

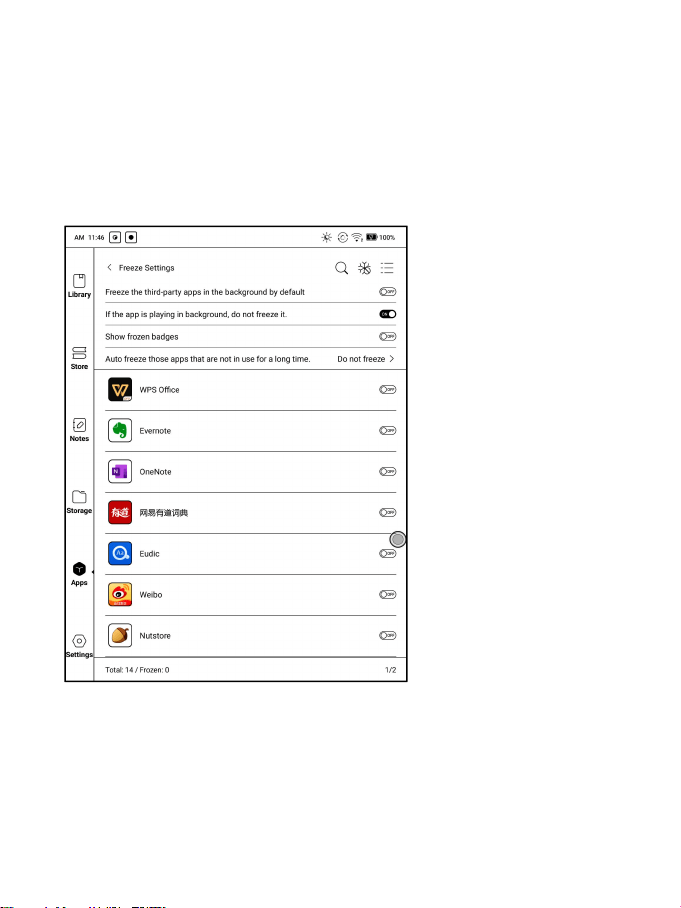

Freeze Settings
You can obtain the optimization settings of third-party apps with
one click and freeze all apps in the background with one click for a
better user experience and saving power.
App Optimization
Display
DPI: Adjust the interface size of the app. The default value is 350,
If some content of the app interface has been cropped, you can
reduce the DPI value.
If the overall interface size of the app is too small, you can increase
the DPI value.
If you've adjusted the DPI value to the minimum, some content of
some app interfaces such as Kobo is still cropped, you can choose
to use the app's default DPI.
Bold Font: Embolden fonts of titles, menus and body text.
Cloud Optimization: Some apps are specifically optimized and you
can retrieve the cloud optimization configuration to obtain better
results than local optimization;
Reset All: Reset all modified configurations to the original
configurations.
Optimization Switch: when it is turned off, some optimization effects
will be canceled, but it won’t reset the configurations.
Bleach
Add strokes to text: The text and background on the same layer will
not be visible after being bleached together. This setting will add
strokes to text and make the text visible.
Icon Color: this darkens the colors of small color icons in the Menu.
Cover Color: This darkens the colors of big cover icons.
Background Color: This bleaches the background colors.
It is recommended to use it along with Font Color Enhancement and
Icon Color. Otherwise, the text and small icons on the background
may be hardly seen.
Refresh
Refresh Mode: This sets the refresh mode for individual apps.
Normally the default refresh mode is Speed Mode.
Only when system's refresh mode is Normal Mode, the app's
refresh mode will take effect.
When system's refresh mode is set to Speed\A2\X Mode, the
system mode has priority. And the app's refresh mode will not take
effect.
Full Refresh Frequency: In app, fully refresh the screen by the
number of tapping in order to reduce ghosting.
The actual number of taps is related to the app's configuration.
Sometimes a single tap may have several consecutive responses.
E.g, you've set 20 times, but full refresh may be initated after 15
taps.
Animation Filter: Filter the animation of turning pages in the app.
Time indicates the duration of the animation effect to be filtered.
Generally, the page animation is about 200 ms;
Others
Full refresh when turning pages. : When the main function bar in the
app is switched, full refresh is performed to reduce ghosting;
Switching some app function bar does not actually switch the pages,
so full refresh would not be performed.
Webpage Font Size: Adjust the font size of the web view embedded
in the app. When adjusting DPI does not work, try to adjust the font
size of the webpage;
Webpage Text Color: When the adjustment of the bleaching does
not work, you can try to adjust the color of the webpage;
Embolden Webpage Text: When Bold Font under Display tab does
not work, try to embolden the text on the webpage;
Allow the app to run in the background:
For apps that need to run continuously in the background, such as
Alarms, Notifications, Downloads, Time statistics and other apps,
you can allow them to run in the background. But the continuous
running in the background may increase power consumption!
Scribble
Only optimize handwriting speed for apps with handwriting function.
Currently, it supports OneNote, Evernote, WPS. More handwriting
apps support will be added in the future;
The time to refresh after lifting stylus: Handwriting will be refreshed
to app's original brush configuration (including brush type, line width,
pressure sensitivity, etc.) within the specified time after the pen is
lifted;
When refreshing the handwriting, you cannot continue writing,
please continue to write after refreshing is complete;
If you need to write continuously to reduce the interruption caused
by refresh, you can set the longer refresh time;
Hand touch may interfere with the writing of the stylus. It is
recommended to enable Palm Rejection to avoid canvas moving or
zooming resulting in interruption of handwriting or abnormal display.
Navigation Ball
Navigation Ball is a circular ball that floats above all the apps on the
screen. 9 buttons can be customized.
Single click on the ball to expand and collapse navigation menu.
It requires to turn off and on again after the new button settings.
The Navigation Ball by fault is in Fan-shaped style. You can choose
other display styles (Horizontal Style, Vertical Style) from
Navigation Setting. You can also adjust the transparency of the
Navigation Ball.
This supports to set as a resident button. After being set as a
resident button, the button will always be floating on the top layer;
The 9 buttons can be set as multiple common functions including
system operation, app switching, app optimization and so on.
The app optimization can be called out in an app through the
Navigation Ball, for real-time review after optimization.
Dictionary
If users use dictionary apps the first time, to download dictionary
package to local will be asked.
This function requires network connection.
Word pronunciation needs a dictionary file comes with voice files,
currently TTS is not supported.
Add to vocabulary
Search Online
Pronunciation
Settings
Switch Dictionary
Users can install dictionaries themselves by putting the dictionary
files to designated directory Storage\dicts\.
Please save the files under a folder, e.g., dicts\English-English
Dictionary.
For the preferred dictionary settings, users can select up to 20
preferred dictionaries. Users will be asked to select again if the
select number is less than 1 or more than 20.
After dictionaries are installed, users can look up new words in the
search bar. Switch between different dictionaries by tapping a
corresponding dictionary title on the bottom.
The search result is in terms of the related dictionary. If the word is
unfound, try to use other dictionaries.
Looked-up words can be added to Vocabulary.
Users can divide the Vocabulary into groups. The words will be
saved into the specified group once the group is selected.
BOOXDrop
Connect your BOOX with PC or mobile phone. You can send files to
your BOOX from PC or BOOX Assistant app, or save files on your
BOOX to PC or mobile phone.
Instruction:
1. Open BooxDrop from Apps page or drop-down Control Panel
2. Open a browser on your PC
2.1 Without login: Make sure your BOOX and PC are in the same
network. Enter the IP address on your BOOX to the browser on your
PC.
BooxDrop does not disconnect automatically. If you want to
disconnect it, please do it manually or switch it off from Control
Panel.
ONYX Account
Records
Disconnect
2.2 Logged in to ONYX Account: log in to push.boox.com. You can
see the connected devices on Push page. Click it to open.
3. When you open the web browser on your PC, it will automatically
confirm whether your PC and BOOX are in the same Wi-Fi network.
If not, the page cannot be opened. Please connect to the same
Wi-Fi.
4. When web end and your BOOX are connected successfully, you
can load files and contents from your BOOX on your PC.
5. Send to BOOX: Select files from your PC and send to BOOX.
The sent files are automatically classified into the corresponding
directory according to the format types.
Recent Files: include all files and are sorted by time
Library: Books/xxx.epub ( This includes all supported eBook formats in the
Library）
Pictures: Pictures/xxx.png
Music: Music/xxxx.mp3
Videos: Movies/xxxx.mp4
Downloads: Download/xxx.xxx
Internal Storage: Transfer the selected directories.
6. Save to Computer: Select the files on BOOX and save them to
computer.
PushRead
From the Subscription section of push.boox.com or BOOX
Assistant, you can enter a webpage address, push it to your BOOX,
and read the page in html format.
To use the PushRead for the first time, you need to bind the same
ONYX account on the website push.boox.com and your BOOX;
You need to connect your BOOX with Wi-Fi to download the pushed
URLs for the first time. After loading once, it can be read offline later;
The layout of the content page defaults to Browsing Mode (the
layout of the original web page), and you can choose to switch
between Browsing Mode and Reading Mode from the More Menu;
The Reading Mode is a single page mode, tap the page to turn the
page directly;
Font size-
Font size+
Switch reading mode
Swith refresh mode
Search
Back to the Top
Full refresh
Refresh website
Prev. Article
Next Article
App Store (E-ink)
There are some usual third-party apps provided here. These apps
are free versions from developers and their compatibility are not
verified as full to the system. Paid apps download is not supported
for now.
Users can choose to delete the installation package automatically
after Apps are installed.
Screensaver
The screensaver and shutdown image can be customizable. The
shutdown image only supports image formats.
Screensaver style
The Image Screensaver is by default.
The screensaver supports Image Screensaver, Poem Screensaver,
Words Screensaver, Calendar Screensaver, Clock Screensaver ，
and Transparent Screensaver.
The clock, text, and Bottom Status Bar can be added to the other
screensavers aside from the Transparent Screensaver.
Clock refresh intervals are customizable. After the clock is added to
a screensaver, a certain frequency of refreshing screen will be
retained in the standby state, and the automatic shutdown timing
cannot be supported.
In Image Screensaver, when a single picture is selected, the
screensaver is a fixed picture. When multiple pictures are selected,
the screensaver will be shown in carousel format;
The Bottom Status Bar can display the battery status and lock
screen status;
Calendar Memo
The calendar Memo can display the notes and reading records
under the current date. You can open the notes or documents
directly by tapping the records;
You can add handwritten notes as a memo, which can be set as a
screensaver. Please go to Screensaver / Calendar Screensaver
Setting for more details.
The content of Calendar Memo temporarily does not support the
synchronization.
After logging in to the ONYX account, you can use the mail function
to send the contents of the Memo to the designated mailbox as a
PDF attachment;
Split Screen
This supports Apps Split-Screen. You can select Split-Screen from
the system drop-down bar when an application is opened, and then
select a document, a notepad or other application that you want to
open on the other side of your screen.
The system interface does not support enabling Split-Screen
directly. You need to start an application before enabling it;
The applications that do not support Split-Screen will prompt "This
application does not support Split-Screen" when split screen is
enabled;
There are 2 modes available: Vertical and Horizontal. You can swap
sides of the apps.
When in split-screen mode, the left screen (or the top screen) will
be the main screen. And the secondly opened app will be on the
right screen (or lower screen). You can swap apps' sides.
In Split-screen mode, exit Split-screen mode from the system
drop-down menu.
Only main screen supports Optimization>Refresh Settings. The
refresh settings of the app on the secondary screen will not take
effect.
The Optimization > Display settings of both apps on both screens
are in effect.
11. Settings
You can manage ONYX accounts, check device model and manage
system global settings.
ONYX Account
You can manage multiple accounts and switch them. Select
accounts from the list. Only account information is kept and login
state is not maintained. After switching to a different account, you
need to log in again.
If you log in to different accounts with different servers, please
change the server as well when switching accounts.
ONYX account included: BooxDrop, Reading Statistics, PushRead,
Send to E-mail.
Account Link: After the main account is logged in, you can associate
two other login methods sharing the same ONYX account. Mobile
and E-mail accounts support unbinding, and WeChat accounts do
not support unbinding.
About Device
It contains model name, Android version, MAC address and
firmware version.
Click the model number for more information, including Capacitive
Touch Version, VCom, Other information, Factory Reset, etc.
Note: To run the function of factory reset would remove all of the
user data. Please make a data backup first.
Languages & Input
Users can set system language, keyboard and input method and
TTS on this page;
Users can set languages of the system and virtue keyboard. The
system has an Android keyboard by default. Users can install
third-party Apps for more input methods.
ONYX Keyboard
Typing, handwriting input and voice input are available for ONYX
keyboard, and network connection is necessary for first time.
English is the default language of the handwriting input and users
need to download the corresponding language package first if they
want to use handwriting input for other languages.
Date & Time
Users can choose either auto setting or manual setting for date and
time. When the device is connected with internet, it will
automatically set date and time according to local time zone.
Manual setting requires to set time zone, date and time, and users
can select their preferred time and date display format;
Power
Users can set screen auto sleep timeout, Power off timeout, Delay
disconnection when the device goes to sleep mode, Battery usage、
Battery percentage、Auto-sleep when closing the cover, etc.
Network
This is for Wi-Fi \VPN\Bluetooth setting. When Wi-Fi is connected,
users can browse webs and download books via the internet on the
device.
Wi-Fi Settings
Slide Wi-Fi On, then available networks will be listed. Users can
choose a network, then input password to connect with internet.
After Wi-Fi is connected successfully at the first time, the device will
save Wi-Fi information automatically. Users only need to turn on
Wi-Fi on notification bar if using the same WIFI next time.
Click the “+” button at the top right of the Wi-Fi page, users could
manually connect to other network which is not listed, such as
802.1xEAP.
Bluetooth Settings
Turn on Bluetooth, you can search for nearby Bluetooth devices
and then send connection requests.
Bluetooth needs to be paired before use. Currently only support the
eReader to receive documents, send documents from Boox
eReader to other devices is not supported.
VPN Setting
When the VPN is turned on for the first time, the system requires
to set a password. This password needs to be used only for
screen unlock or when the factory settings are restored.
System Bar
You can customize the pull-down menu. Pull-down menu from left
and right sides are different.. The left pull-down is the Notification
Center, and the right pull-down is the Control Panel;
Other accounts
You can manage other accounts including Google, DropBox,
OneNote,etc.
These accounts are only used for syncing notes.
Password
You can set 4-16 digital screen-lock password.
The Android 11 models do not support resetting the password,
please keep the password properly by yourself.
System Display
System Font size
Support to adjust the system font size, the default is the standard
font size, you can set a total of 4 sizes: small, standard, large,
extra-large;
Custom Homepage
The default Homepage is Library. You can set any of the other
Function pages as the Homepage. You can return to the Homepage
by tapping the homepage icon from the dropdown notification
center.
System full screen refresh frequency
The system performs one full refresh every 5 operations
The Library and Notes will be automatically refreshed once more
due to the loading list, and the actual number of operations will be
one less than the set number;
Function Area display icons only
The text under the Function icon can be hidden.
Enable Book Store
The built-in book store can be turned off, but cannot be uninstalled
or removed.
Gesture Manager
You can customize 3 gestures for the bottom and 2 gestures for the
sides.
The default functions for the Bottom include: Back, Back Home,
Multitasking Switching…etc. Swipe up from the bottom to use them.
The default functions for the sides are Volume +/-, and Frontlight
+/-. Long press the sides to slide up and down to adjust.
Support modification to other functions;
Server
The server is allocated according to the system language by default.
The Chinese language system uses the Asia server, and the other
language systems use US server;
After manually selecting the server, it will no longer be automatically
matched according to the system language;
Please choose the server in your area. This will avoid the slow
network connection which impacts the use of some specific
functions (including bookstore, synchronization, application market,
OTA detection and other functions that require networking);
Firmware Update
Users can get the Model number, Android version, Build number
and update check. Upgrade checks the local package first then
online package with a network connection. Upgrade pause and
breakpoint download are allowed. Please ensure the device has
more than 30% power and sufficient capacity before the update.
Update History
Check Update History and the changelog of every update.
Feedback
FAQ
If having any problems, you can directly find the questions in the
FAQ, quickly locate and solve the problems.
Submit Feedback
Welcome to submit any technical problem or advice to us.
This function collects system information for problem judgment.
And Onyx shall never disclose users’ device information.
The related logs will be cleared after the device shuts down. If you
need to send feedback after the device is off, please enable Save
Logs to local in Feedback so that you can send related logs after
restarting the device.
12. Specifications
NoteAir2
NoteAir2Plus
Processor
2.0GHz*4 + 1.8GHz*4
RAM
4G LPDDR4X
OS
Android 11
Storage
64G
Screen
E-ink display with Regal refresh
Screen Size
10.3 inch
Resolution
1404*1872
Touch
Stylus + Capacitive touch
Front Light
Support
Wireless
WIFI（2.4G+5G）+ Bluetooth（5.0）
Battery
3000 mAh
USB
Type-C（support USB OTG）
Others
Mic, Dual Speaker
Size
229.4X195.4X5.8mm
Weight
≤420 g (battery included)
Operating
Temperature
0°C- 50°C
Book Formats
PDF, EPUB , TXT, DJVU, HTML, FB2, DOC, MOBI, CHM,
etc.
Image Formats
PNG, JPG, BMP
Audio Formats
WAV , MP3
Apps
Third party APP installation is supported
Browser
Support
Language
Multi-language supported
Firmware
Update
Locally update and OTA update are available
Certification
CE、RoHS、CCC、FCC、SRRC、TELEC
13. Declaration
Onyx International Inc. reserves the right to modify the content of
the Quick Start Guide and User Manual without further notice.
For more information, please visit our website at www.boox.com
.
