Globe
®
Advanced Premium Manual Slicer SG13
Model
o SG13 (Advanced Model)
Standard Features
• Patented anodized aluminum design & construction for quick and
easy cleaning
• Patent-pending indexing system enables accurate and precise
slice thickness adjustment up to 1-1/8"
• 13" steel knife with hardened edge provides quality slices and
higher yield
• Tilting carriage accommodates up to 13.75" H, 8" dia., 11" W
large products, like prosciutto, mortadella and bacon
• Advanced meat grip design for superior product hold
• 1/2 HP continuous use knife motor combined with the high
efficiency knife drive system delivers optimum power
• No Voltage Release prevents inadvertent reactivation of slicer in
the event of interlock or power interruption
• Interlock prevents slicer from operating without the knife cover in
place
• Top mounted, removable sharpening system utilizes long-
lasting synthetic diamond surfaces and enables quick and easy
sharpening and cleaning
• Kickstand to facilitate ease of cleaning
• Home Start – carriage must be in home position to start slicer
• Adjustable timer – shuts off slicer after inactivity
• Close to Stop – closing slicer table shuts off slicer
• Carriage tilt interlock – prevents knife exposure when carriage is
tilted and prevents slicer from operating
• Patent-pending graphic user interface with Clear-Text LCD
display provides operator messages, diagnostics and system
information in English, Spanish and French
Warranty
• Two year parts and labor
Factory Installed Options
• NEW! KNIFE-RMV - Removable Knife includes removal tool
• NEW! CARRIAGE-RMV - Removable Carriage
• MEATROOM - High moisture applications (w/ stainless steel knife)
• SSK - Stainless Steel Knife in lieu of Carbon Steel
Optional Accessories
• S-FENCE - Food Fence
• S-VEGHOP - Vegetable Hopper
• SC-LARGE - Slicer Cover
• S-SLAWTRAY - Slaw Tray
• S-LEGS - Extension Legs
• S-XDSLM - Extended Warranty
To select factory-installed options and accessories, see back
Precise - Powerful -
Premium Construction
The all-new, heavy-duty S-Series line of
premium slicers from Globe delivers pre-
cision, performance, industry-leading
convenience, superior cleanability
and lasting value.
Premium Heavy-Duty
Manual Slicer
SG13
NEW! Removable Knife
makes cleanup easier
while providing more
operator protection
Constructed of anodized aluminum with built-in control panel. 1/2 HP motor with overload protection and 13" hardened steel knife. Patent-pending indexing
system with slice thickness adjustment up to 1-1/8". Top mounted removable sharpener with synthetic diamond stone wheel and plate. Tilting carriage
accommodates up to 13.75" H, 8" dia., 11" W large products. Slicer is ETL listed. No Voltage Release and Knife Cover Interlock. Additional features include Home
Start, Adjustable Timer, Close to Stop, Carriage Tilt Interlock and Clear-Text display with services and operation/diagnostics. Two year parts and labor warranty.
ENG
MFG
QA
NAME
DATE
TITLE
SIZE
D
DWG NO
REV
SCALE:
SHEET: 1 OF 3
2153 Dryden Rd. Dayton, OH 45439
Tel: (937) 299-5493 Fax: (937) 299-4147
Globe Food Equipment Co.
UNLESS OTHERWISE SPECIFIED
PARENTHETICAL INFORMATION IS
FOR REFERENCE ONLY
DIMENSIONS ARE IN INCHES (mm)
REMOVE ALL BURRS & SHARP
EDGES
CURRENT REVISION CHANGES
ARE SHOWN IN CIRCLES
Notice of Confidentiality
THIS DOCUMENT IS THE EXCLUSIVE
PROPERTY OF GLOBE FOOD EQUIPMENT
COMPANY.
NO INFORMATION CONTAINED HEREIN IS TO
BE COPIED, REPRODUCED, DISCLOSED OR
DELIVERED TO OTHERS WITHOUT EXPRESS
WRITTEN PERMISSION. THIS DOCUMENT IS
TO BE RETURNED PROMPTLY UPON
REQUEST.
ACCEPTANCE OF THE DOCUMENT
CONSTITUTES AGREEMENT WITH THESE
TERMS AND CONDITIONS.
TOLERANCES:
.XX +/- .010
.XXX +/- .005
.XXXX +/- .0005
ANGLES +/- .5 DEG
THIRD ANGLE
PROJECTION
Notes: Unless Otherwise Specified:
1. Material:
DRAWN/
CHECK
450104
REV
STATUS
None
Master Assembly - Manual
hdwire
hdwire
Revision History
Rev ECN Description Date Appd
7/14/2016
7/14/2016
SHEET REV
2.34
25.51
28.74
2153 Dryden Rd., Dayton, OH 45439 | 937-299-5493 | 800-347-5423 | Fax: 937-299-4147 | www.globefoodequip.com
7/11/18 Printed in the U.S. © Globe Food Equipment Company Specifications are subject to change without notice.

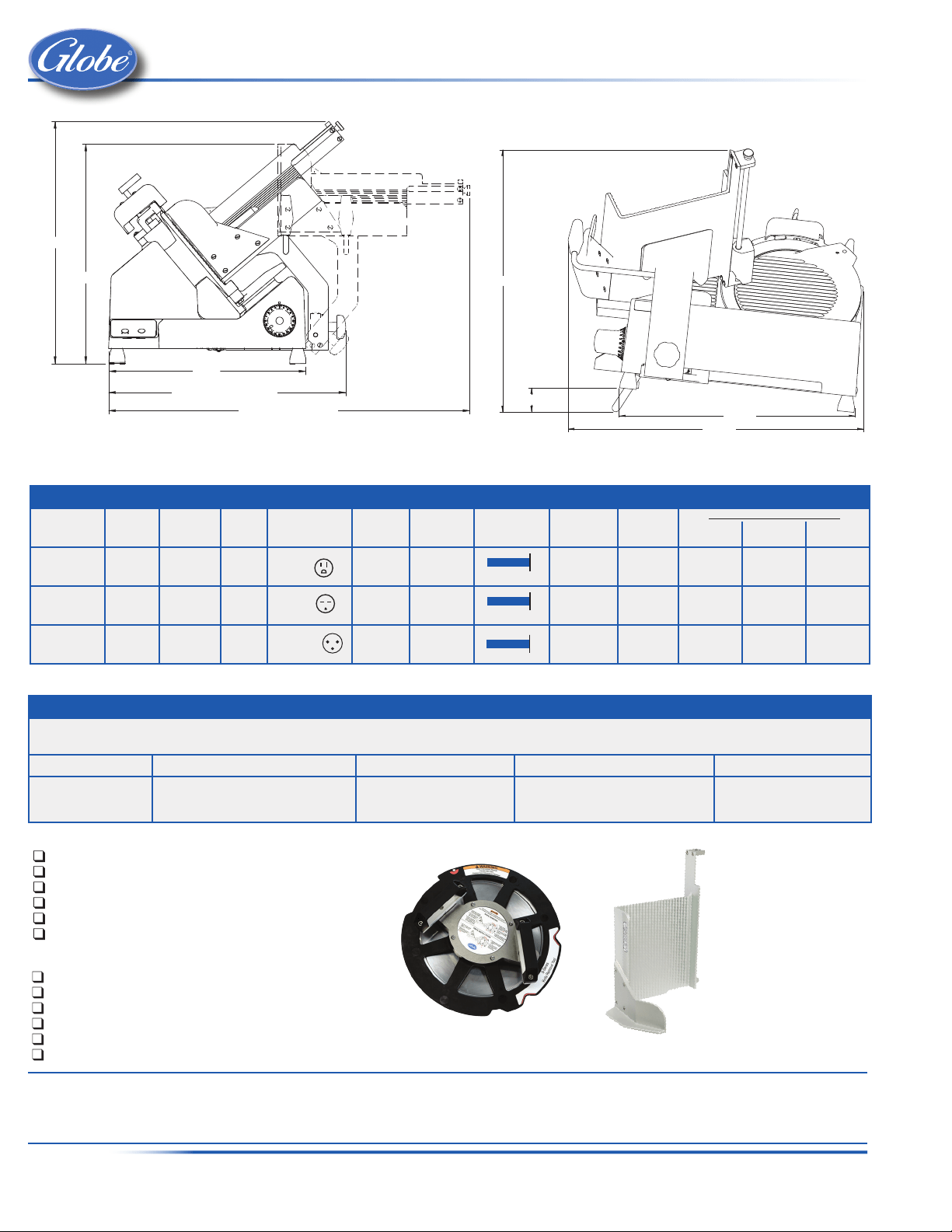

Premium Manual Slicer
SG13
DIMENSIONS | SHIPPING INFORMATION
Reinforced carton for shipping. The weight and dimensions of this reinforced carton are included below and may vary from shipment to shipment.
Shipped on a pallet. Freight class 85.
Model Max Overall Dimensions Net Weight Shipping Dimensions Shipping Weight
SG13
36.47'' W x 29.56" D x 25.51'' H
(92.63 cm x 75.08 cm x 64.8 cm)
114 lbs.
(51.71 kg)
31.5" W x 31.5" D x 31.5" H
(80 cm x 80 cm x 80 cm)
135 lbs.
(61.24 kg)
SPECIFICATIONS
Model Motor Volts Amps
NEMA
Plug Type
Drive
Type
Slicing
Vol. / Day
Cheese
Slicing
Blade
Diameter
Max
Slice
D
(Diameter)
H
(Height)
W
(Width)
SG13 1/2 HP
115-60-1
2 5-15
Poly-V
Belt
All Day
100%0
Time
13''
(33.02 cm)
1-1/8"
(2.857 cm)
8''
(20.32 cm)
13.75"
(35 cm)
11''
(27.94 cm)
SG13-05 1/2 HP
220-60-1
1 6-15P
Poly-V
Belt
All Day
100%0
Time
13"
(33.02 cm)
1-1/8"
(2.857 cm)
8"
(20.32 cm)
13.75"
(35 cm)
11"
(27.94 cm)
SG13-07 1/2 HP
220-50-1
1 CEE7/7
Poly-V
Belt
All Day
13"
(33.02 cm)
1-1/8"
(2.857 cm)
8"
(20.32 cm)
13.75"
(35 cm)
11"
(27.94 cm)
Cord & Plug: Attached 7 ft. flexible 3-wire cord with molded plug fits a grounded receptacle. Please specify desired plug configuration when ordering.
Drawings available through KCL. www.kclcad.com
Product Cutting Capacity
SIZE DWG
NO
REV
SCALE
450104
SHEET 2 OF 3
D
None
19.88
23.94 MAX CLOSED
36.47 MAX OPEN
22.13
24.44
22.94
28.45
2.34
25.51
24.44
22.13
19.88
23.94 MAX CLOSED
36.47 MAX OPEN
UNIT: Inches
100%0
Time
OPTIONAL ACCESSORIES:
S-FENCE - Food Fence
S-VEGHOP - Vegetable Hopper
SC-LARGE - Slicer Cover
S-SLAWTRAY - Slaw Tray
S-LEGS - 2.5" Extension Legs
S-XDSLM - Extended Warranty
FACTORY INSTALLED OPTIONS:
NEW! KNIFE-RMV - Removable Knife includes removal tool
NEW! CARRIAGE-RMV - Removable Carriage
FRZN - Serrated knife in lieu of standard knife and additional modifications
CORR - Correctional Package
MEATROOM - High moisture application (w/ stainless steel knife)
SSK - Stainless steel knife in lieu of Carbon Steel
KNIFE-RMV
CARRIAGE-RMV
