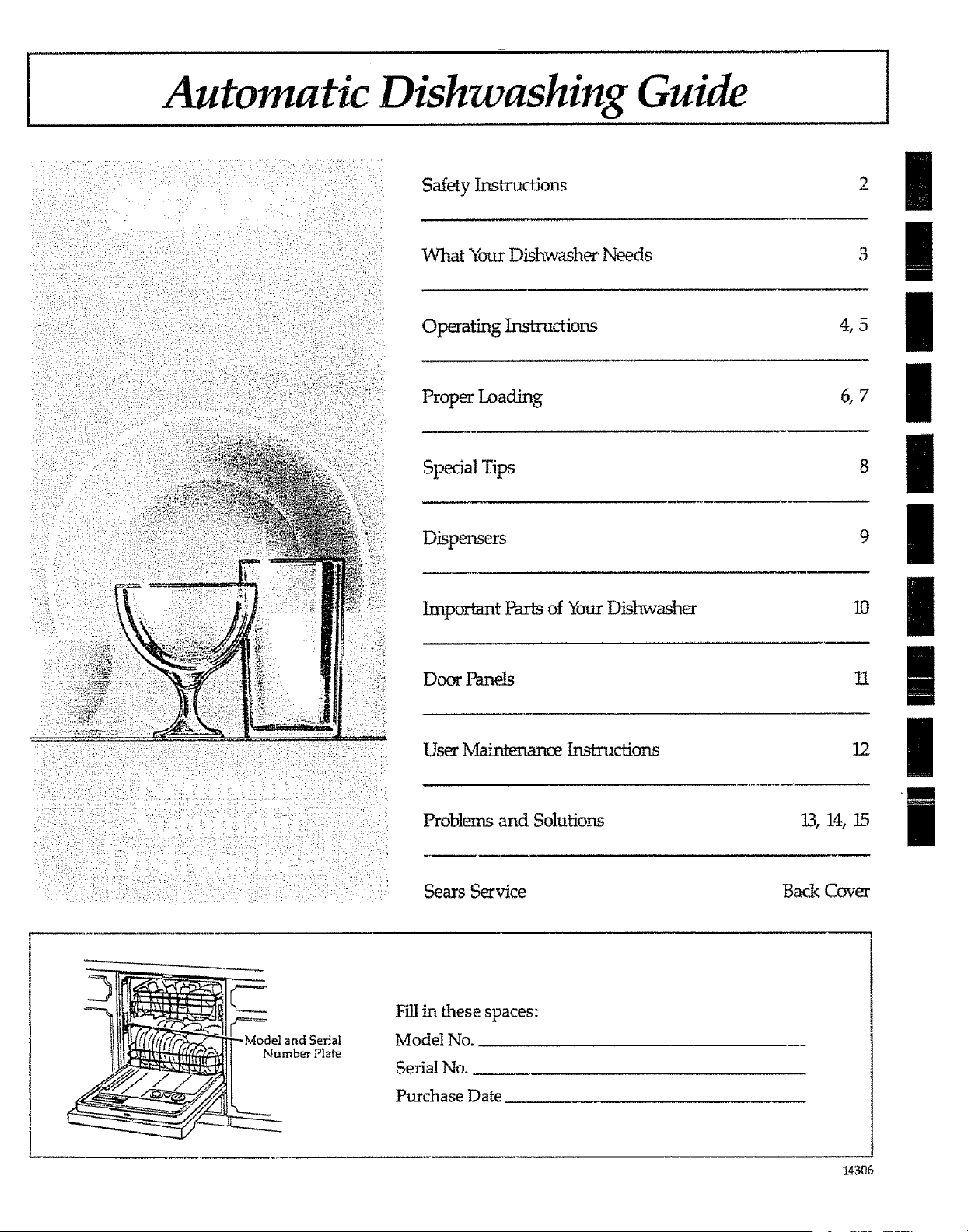

Automatic Dishwashing Guide
Safety Instructions
2
!
What Your Dishwasher Needs
Operating Instnlctions
Proper Loading
SpecialTips
Dispensers

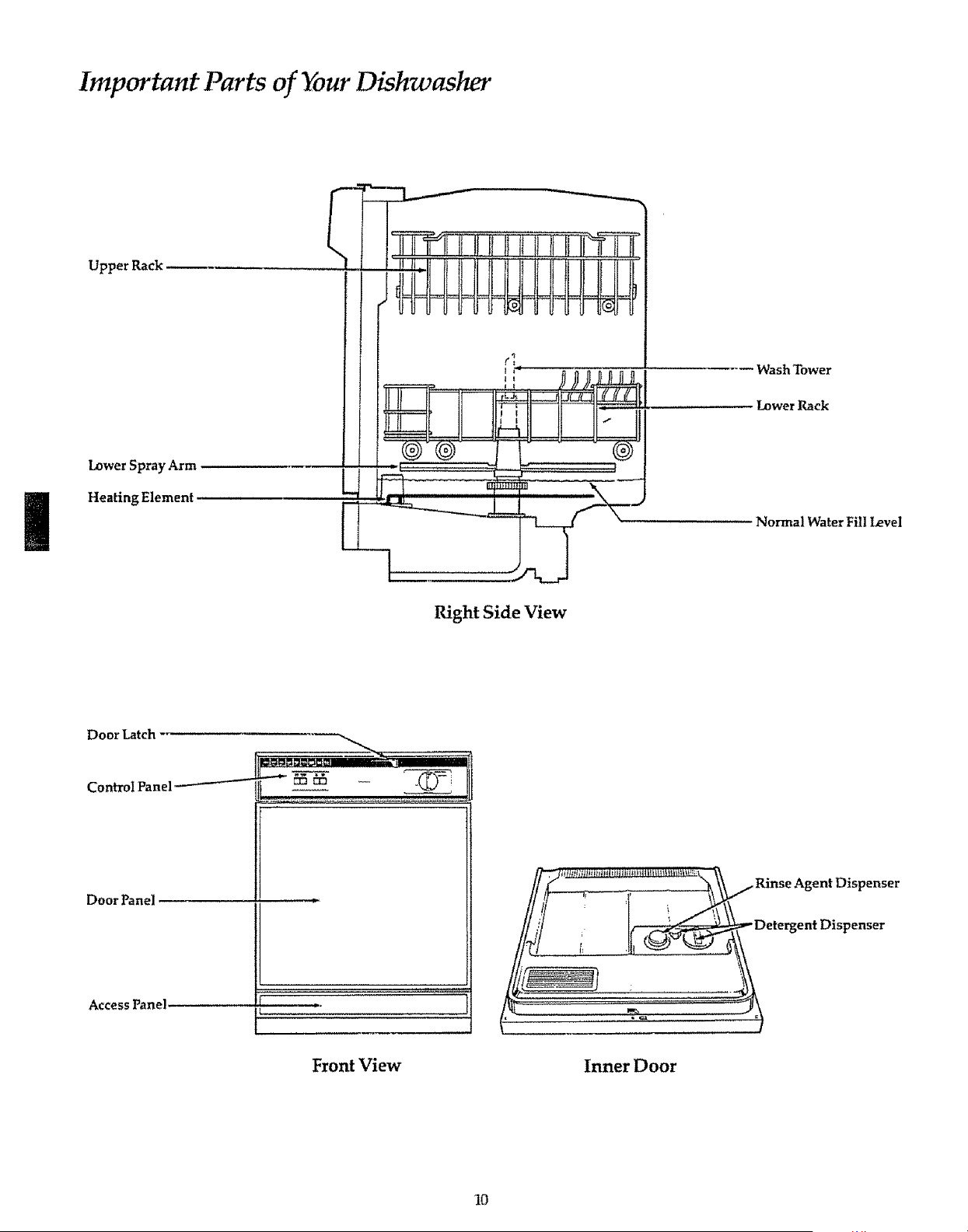

Important Parts of Your Dishwasher

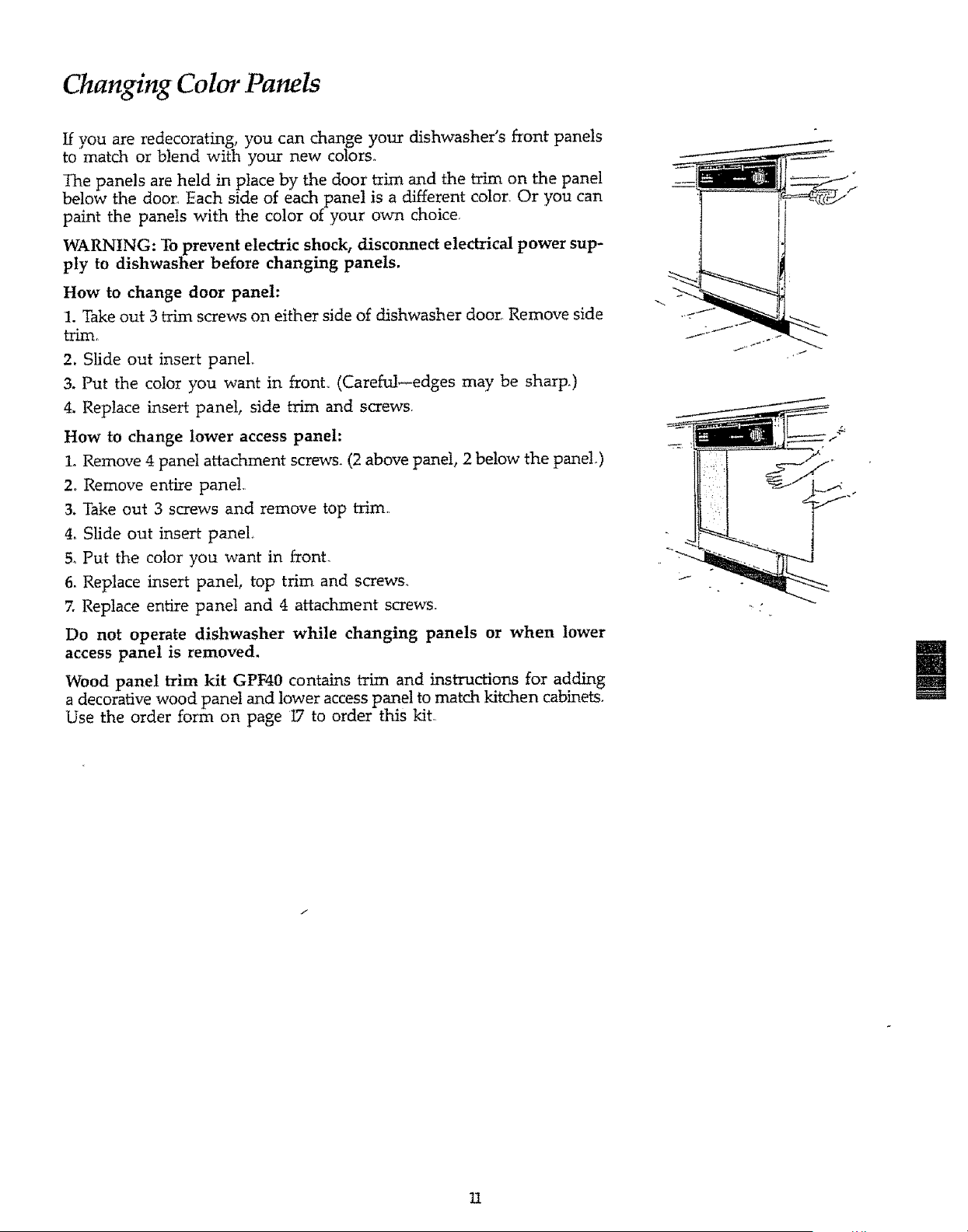

Door I_nels
4,5
6,7
8
9
!
!
!

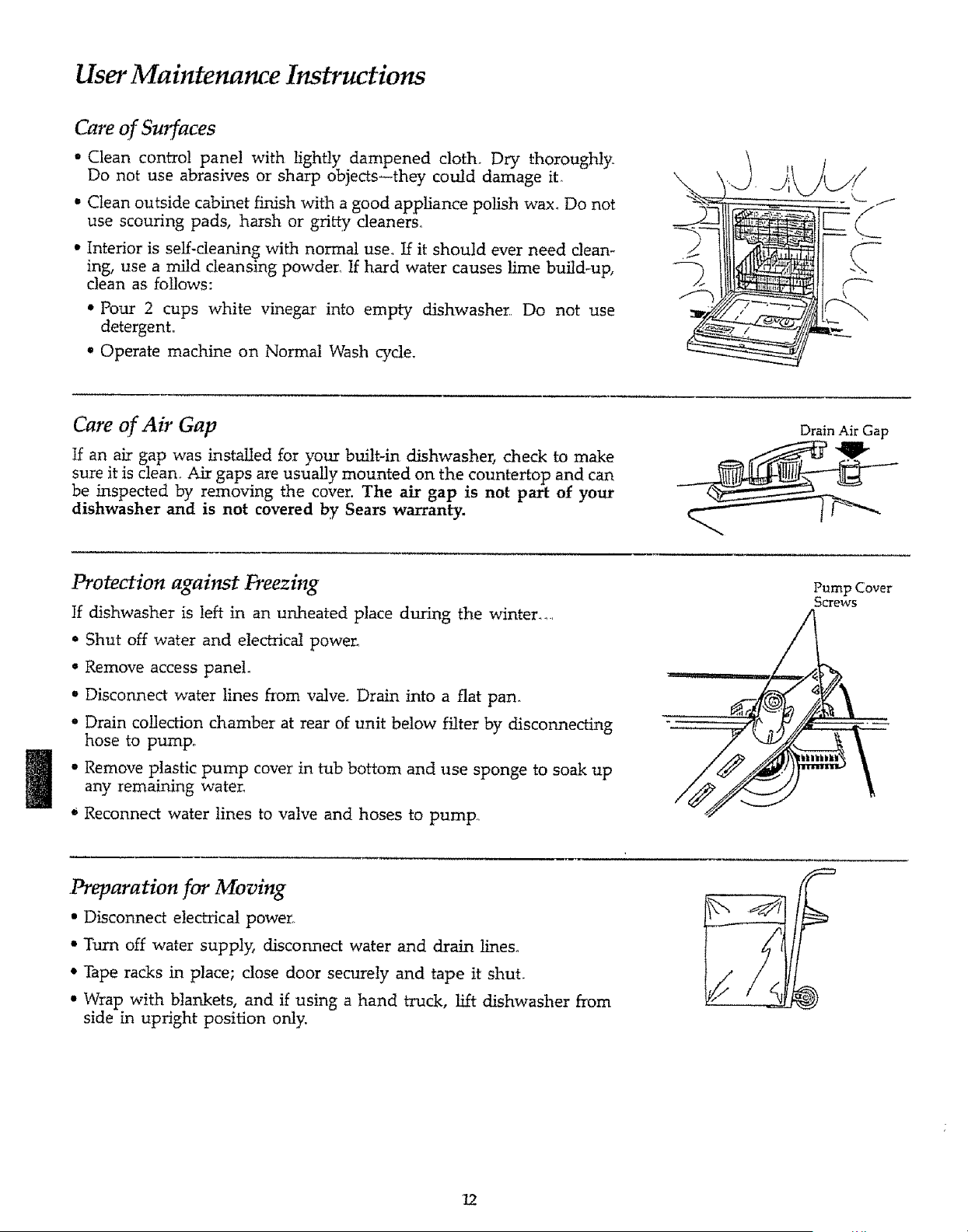

User Maintenance Lnstn_ctions
12

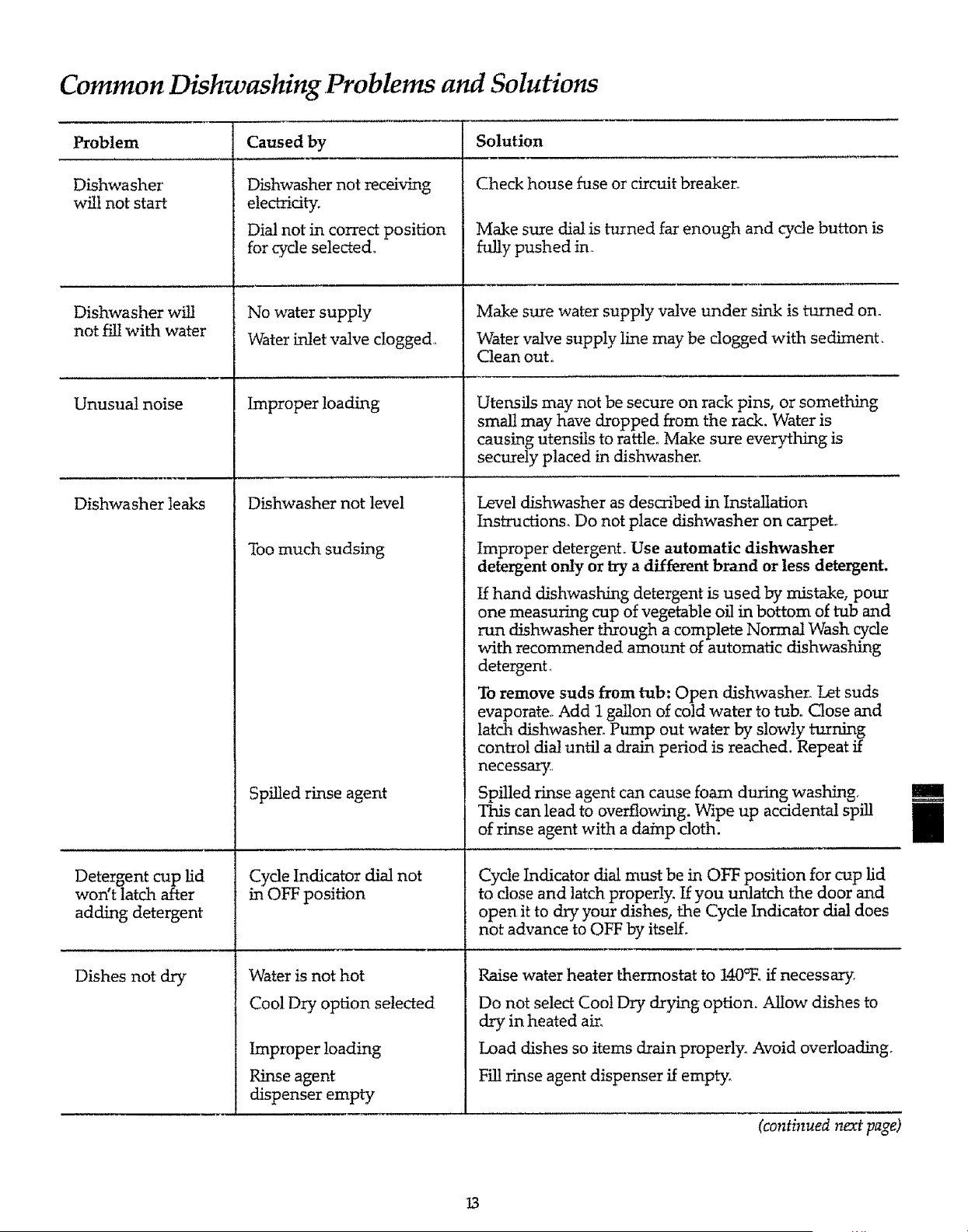

Problems and Solutions
'13,14,15
|
Sears Service Back Cover
Fill in these spaces:
Model No.
Number Plate
Seria! No.
Purchase Date
14306

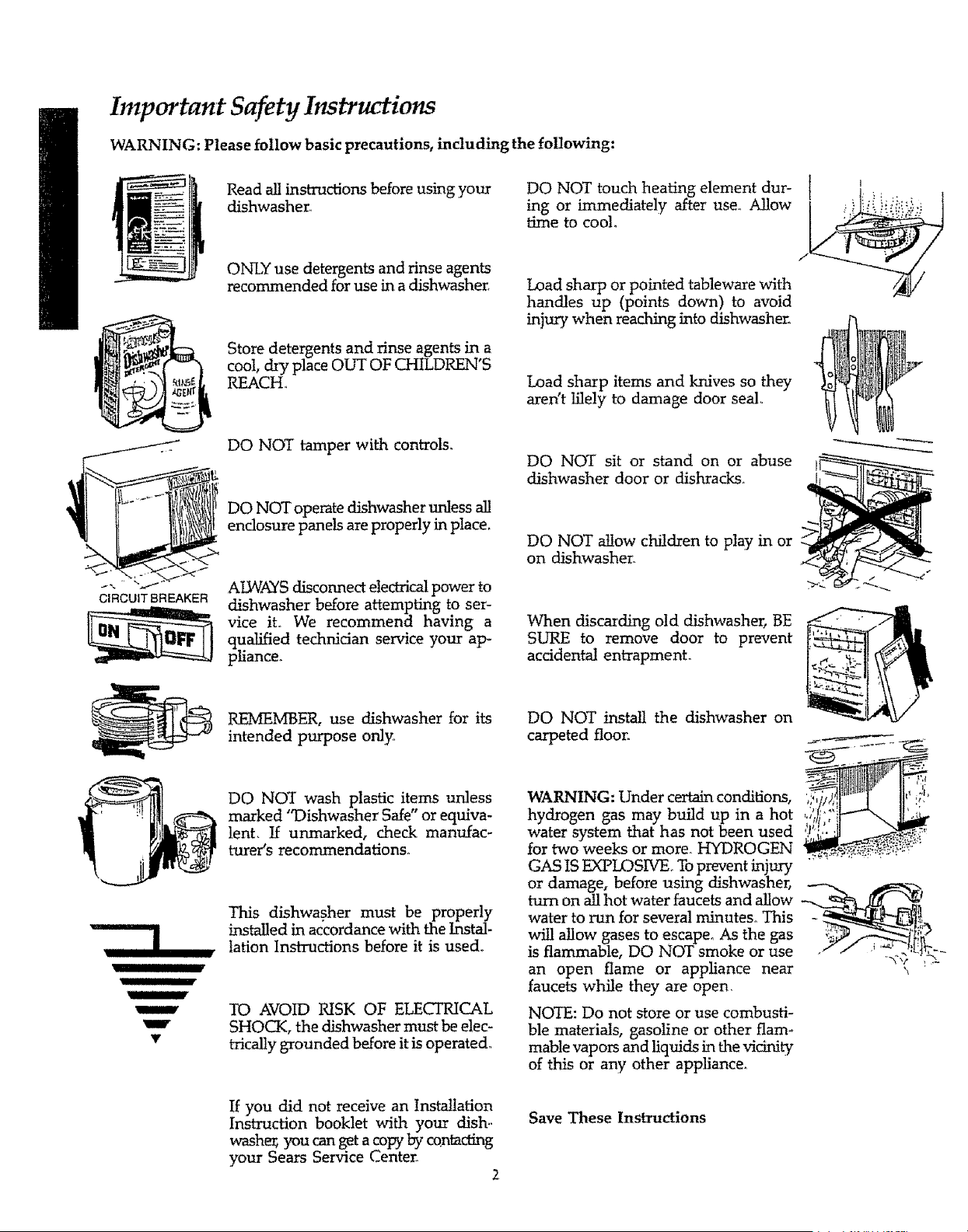

Important Safety Instructions
WARNING: Please follow basic precautions, including the following:
Read all instructions before using your
dishwasher°
ONLY use detergents and rinse agents
recommended for use in a dishwasher,
Store detergents and rinse agents in a
cool, dry place OUT OF CHILDREN'S
REACH°
DO NOT tamper with controls°
DO NOT operate dishwasher unless all
enclosure panels are properly in place.
DO NOT touch heating element dur- l L]:_" -It L'! i ! ': '
ing or immediately after use. Allow I _;:i t
time to coo!.
/
Load sharp or pointed tableware with
handles up (points down) to avoid
injury when reaching into dishwasher.
Load sharp items and knives so they
aren't lilely to damage door seal.
DO NOT sit or stand on or abuse
dishwasher door or dishracks.
DO NOT allow children to play in or
on dishwashen
CIRCUIT BREAKER
ALWAYS disconnect electrical power to
dishwasher before attempting to ser-
vice it,, We recommend having a
qualified technician service your ap-
pliance.
REMEMBER, use dishwasher for its
intended purpose only.
When discarding old dishwasher, BE
SURE to remove door to prevent
accidental entrapment.
DO NOT install the dishwasher on
carpeted floor°
I
V
DO NOT wash plastic items unless
marked "Dishwasher Safe" or equiva-
lent, If unmarked, check manufac-
turer's recommendations.
This dishwasher must be properly
installed in accordance with the Instal-
lation Instructions before it is used.
TO AVOID RISK OF ELECTRICAL
SHOCK, the dishwasher must be elec-
trically grounded before it is operated°
If you did not receive an Installation
Instruction booklet with your dish..
washe_ you can get a copy by cqntac_g
your Sears Service Center.
2
WARNING: Under certain conditions,
hydrogen gas may build up in a hot
water system that has not been used
for two weeks or more. HYDROGEN
GAS IS EXPLOSIVE. Toprevent injury
or damage, before using dishwasher,
turn on all hot water faucets and allow
water to run for several minutes. This
will allow gases to escape_ As the gas
is flammable, DO NOT smoke or use
an open flame or appliance near
faucets while they are open.
NOTE: Do not store or use combusti-
ble materials, gasoline or other flam-
mable vapors and liquids in the vicinity
of this or any other appliance°
Save These Ins!_uctions

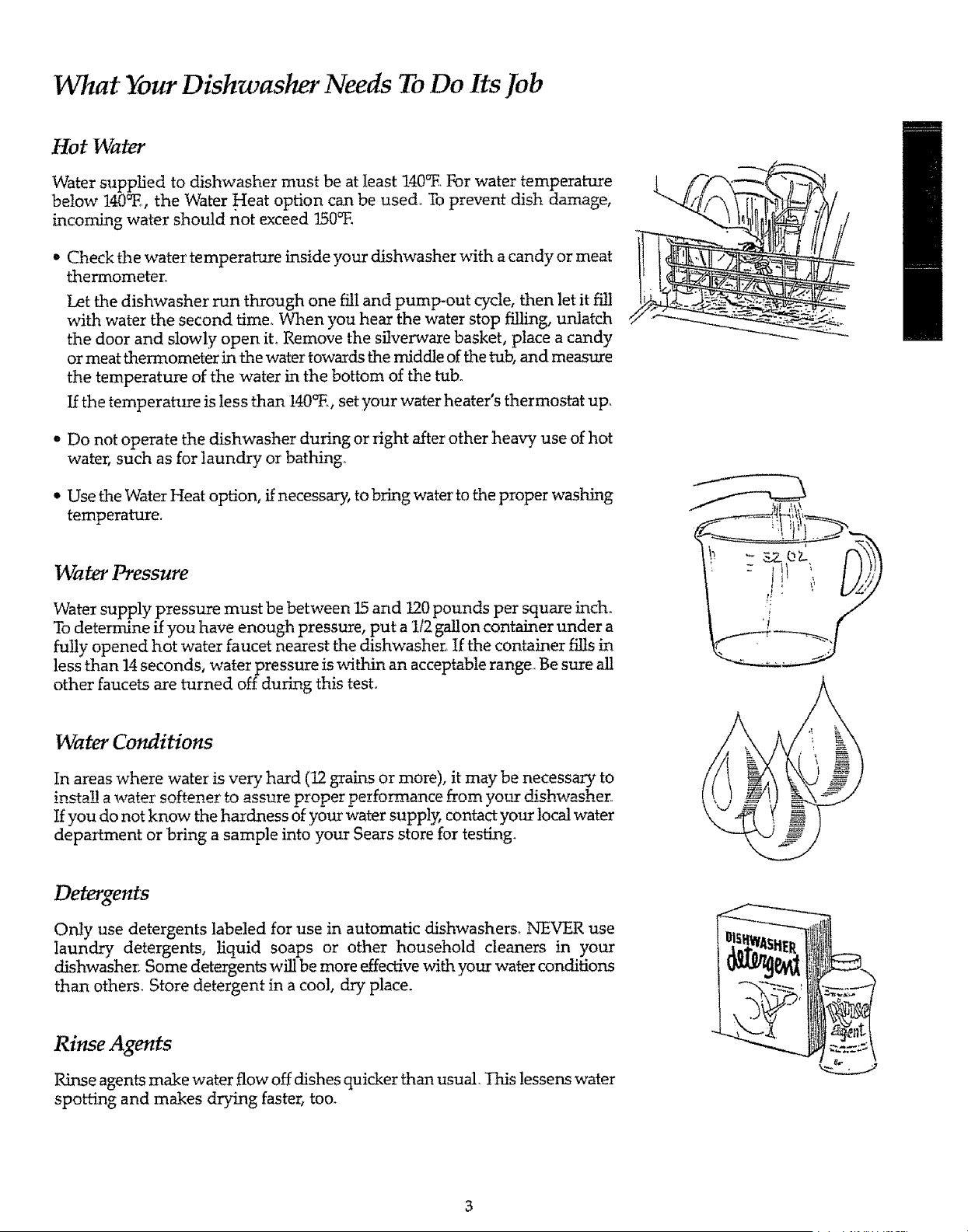

What Your Dishwasher Needs To Do Its Job
Hot Water
Water supplied to dishwasher must be at least 140°E For water temperature
below 140_, the Water Heat option can be used° To prevent dish damage,
incoming water should not exceed 150_.
• Check the water temperature inside your dishwasher wdth a candy or meat
thermometer.
Let the dishwasher run through one fill and pump-out cycle, then let it f!tl
with water the second time° When you hear the water stop filling, unlatch
the door and slowly open it. Remove the silverware basket, place a candy
or meat thermometer in the water towards the middle of the tub, and measure
the temperature of the water in the bottom of the tub°
If the temperature is less than 140°E, set your water heater's thermostat up.
• Do not operate the dishwasher during or right after other heavy use of hot
water, such as for laundry or bathing°
• Use the Water Heat option, if necessary, to bring water to the proper washing
temperature.
Water Pressure
Water supply pressure must be between 15 and 120 pounds per square inch.
To determine if you have enough pressure, put a 1/2 gallon container under a
fully opened hot water faucet nearest the dishwasher. If the container fills in
less than 14 seconds, water pressure is within an acceptable range Be sure all
other faucets are turned off during this test.
/
Water Conditions
In areas where water is very hard (12 grains or more), it may be necessary to
install a water softener to assure proper perfo_r.mance from your dishwasher
If you do not know the hardness of your water supply, contact your local water
department or bring a sample into your Sears store for testing.
Detergents
Only use detergents labeled for use in automatic dishwashers. NEVER use
laundry detergents, liquid soaps or other household deaners in your
dishwasher. Some detergents will be more effective with your water conditions
than others. Store detergent in a cool, dry place.
Rinse Agents
Rinse agents make water flow off dishes quicker than usual This lessens water
spotting and makes drying faster, too.

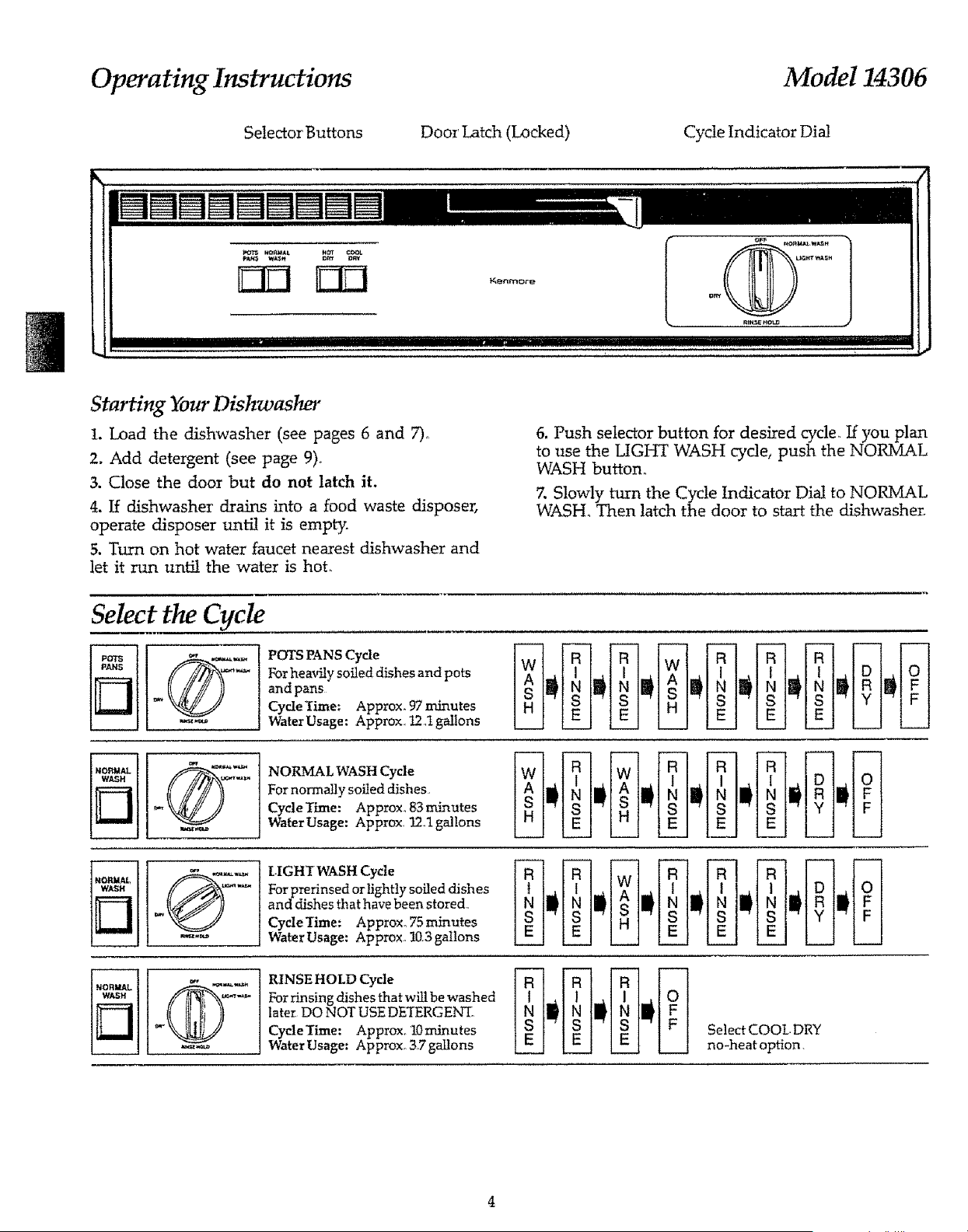

Operating Instructions Model 14306
SelectorButtons
Door Latch (Locked) Cycle Indicator Dial
EI3P
Starting Your Dishwasher
1. Load the dishwasher (see pages 6 and 7)°
2. Add detergent (see page 9)°
3. Close the door but do not latch it.
4. Ifdishwasher drainsinto a food waste disposer,
operate disposer unti! it is empty.
5. Turn on hot water faucet nearest dishwasher and
let it nm until the water is hot
6. Push selector button for desired cycle_ If you plan
to use the LIGHT WASH cycle, push the NORMAL
WASH button°
7. Slowly tuln the Cycle Indicator Dial to NORMAL
WASH° Then latch the door to start the dishwasher°
Select the Cycle
ma _waa.
POTS PANS Cycle
For heavily soiled dishes and pots
and pans
Cycle Time: Approx. 97 minutes
Water Usage: Approx, 12,1 gallons
NORMAL WASH Cycle
For normally soiled dishes,
CycleTime: Approxo 83minutes
WaterUsage: Approx 1Z1 gallons
LIGHT WASH Cycle
For prerinsed or lightly soiled dishes
and dishes that have been stored.
Cycle Time: Approxo 75 minutes
WaterUsage: Approx, 10,3gallons
r_ N,m_ut_,o._a
RINSE HOLD Cyde
FOrrinsing dishes that wiI1be washed
later DO NOT USE DETERGENT,
Cyclelime: Approx, 10minutes
Water Usage: Approxo 3_7gallons
Select COO1, DRY
no-heat option

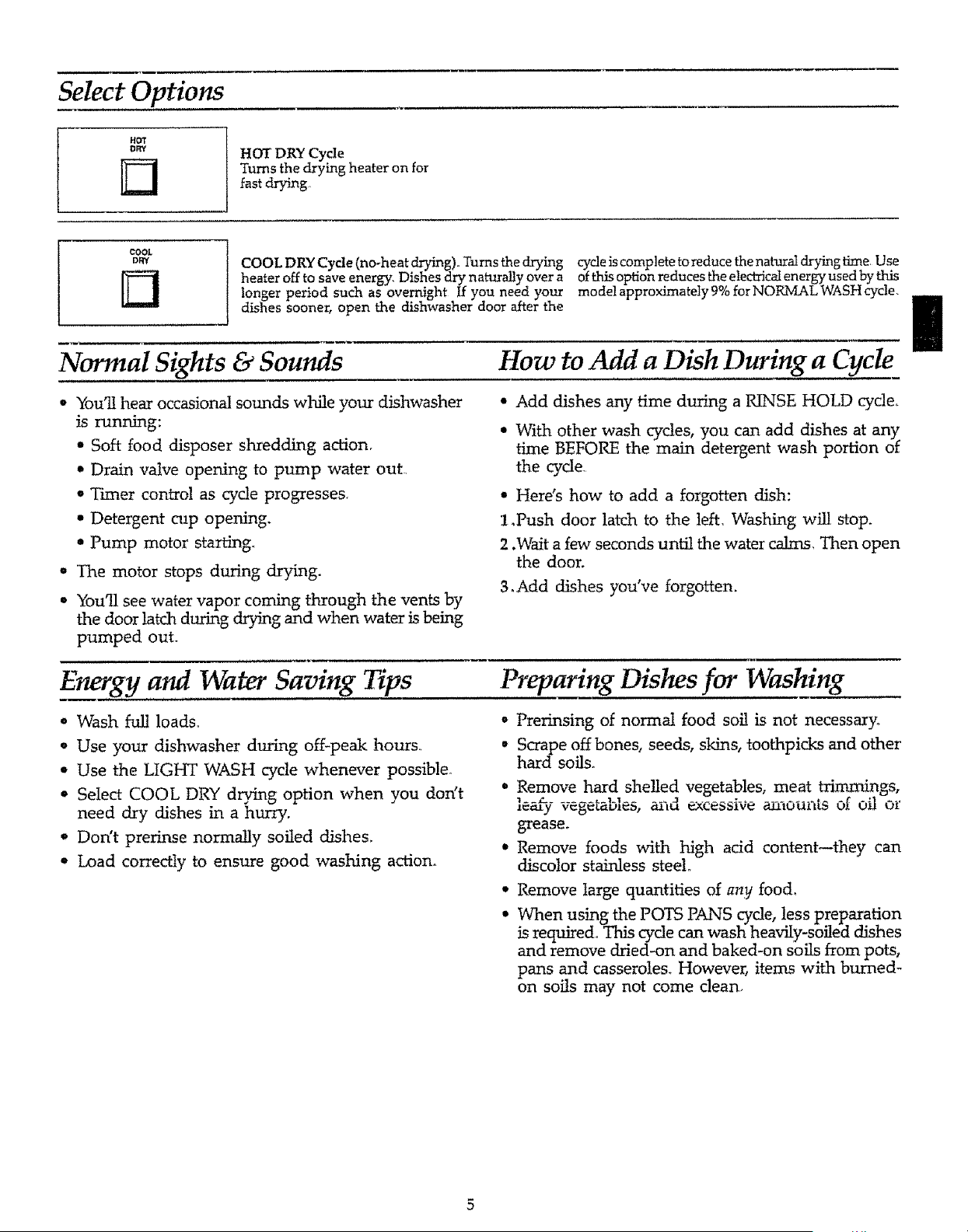

Select Options
HOT
DRY
E]
HOT DRY Cycle
Turns the drying heater on for
fast drying.
COOL
COOL DRY Cycle (no-heat drying).. Turns the drying cycle is complete toreduce the natural drying time. Use
heater off to save energy. Dishes dry naturally over a of this option reduces the electricalenergyused by this
longer period such as overnight If you need your model approximately 9% for NORMAL WASH cycle.
dishes sooner, open the dishwasher door after the
Normal Sights & Sounds
* You'l! hear occasional sounds while your dishwasher
is running:
, Soft food disposer shredding action.
. Drain valve opening to pump water out.
How to Add a Dish During a Cycle
* Add dishes any time during a RINSE HOLD cycle.
. With other wash cycles, you can add dishes at any
time BEFORE the main detergent wash portion of
the cycle.
• Timer control as cycle progresses.
• Detergent alp opening.
• Pump motor starting_
• The motor stops during drying.
• Here's how to add a forgotten dish:
l_Push door latch to the left, Washing will stop.
2 .Wait a few seconds until the water calms, Then open
the door.
3.Add dishes you've forgotten.
• You'll see water vapor coming through the vents by
the door latch during drying and when water is bein'g
pumped out.
_Energyand Water Saving Tips
* Wash full loads°
Preparing Dishes for Washing
° Prerinsing of normal food soil is not necessary°
o Use your dishwasher dl_ing off-peak hours°
o Use the LIGHT WASH cycle whenever possible°
• Select COOL DRY drying option when you don't
need dry dishes in a hurry.
° Don't prerinse normally soiled dishes.
o Load correctly to ensure good washing action,.
B
°
Scrape off bones, seeds, skins, toothpicks and other
hard soils.
Remove hard shelled vegetables, meat trimmings,
lea_- vegetables, and excessive amounts of off or
grease.
Remove foods with high acid content--they can
discolor stainless steel°
Remove large quantities of any food,
When using the POTS PANS cyde, less preparation
is require& This cycle can wash heavily-soiled dishes
and remove dried-on and baked-on soils from pots,
pans and casseroles_ However, items with burned-
on soils may not come dean.
|

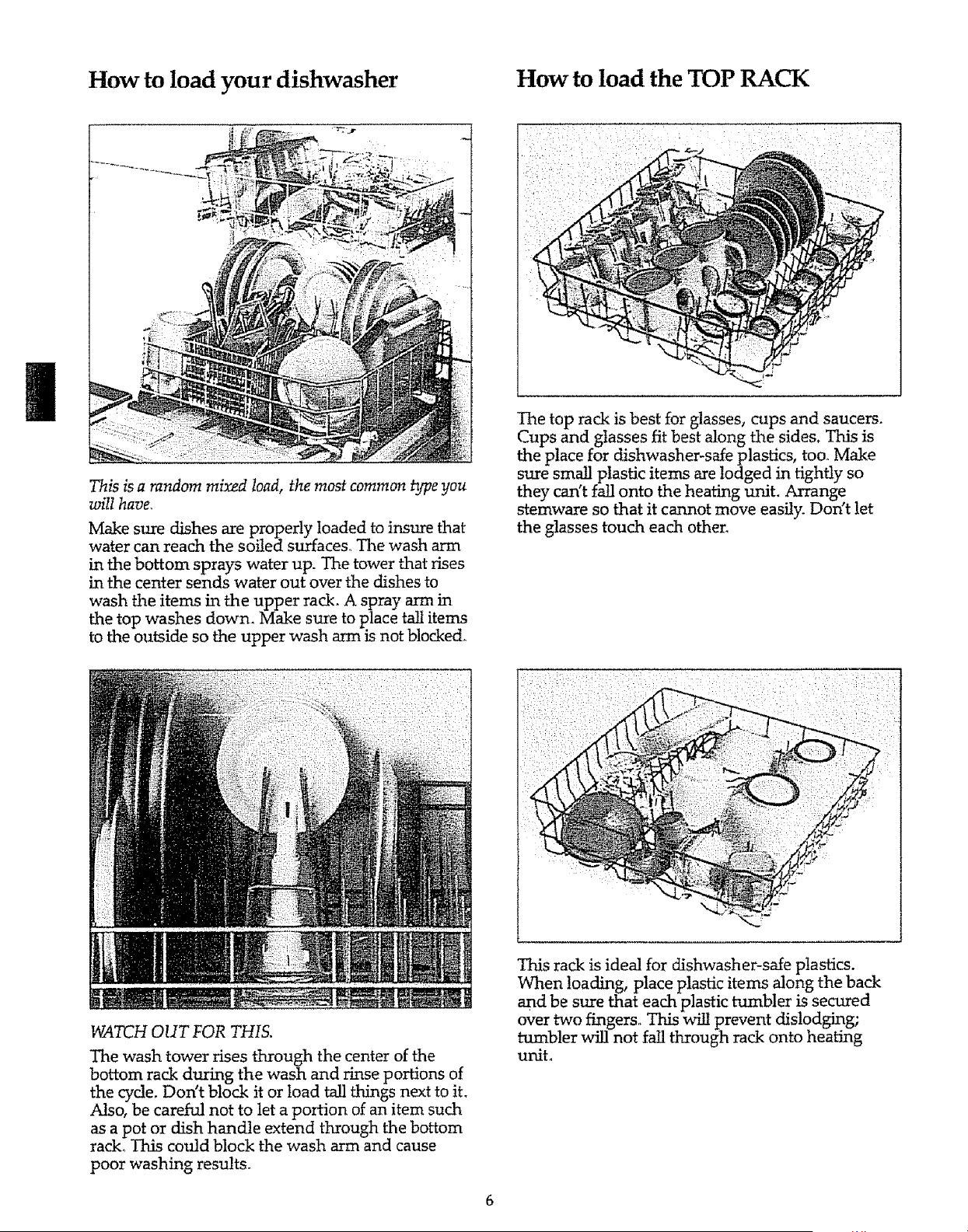

How to load your dishwasher How to load the TOP RACK
This is a random mixed toad, the most common hjpe you
will have_
Make stzre dishes are properly loaded to insure that
water can reach the soiled surfaces° The wash arm
in the bottom sprays water up. The tower that rises
in the center sends water out over the dishes to
wash the items in the upper rack. A spray arm in
the top washes down. Make sure to place tall items
to the outside so the upper wash aim is not blocked_
The top rack is best for glasses, cups and saucers.
Cups and glasses fit best along the sides. This is
the place for dishwasher-safe plastics, too_ Make
sure small plastic items are lodged in tightly so
they can't fall onto the heating unit. Arrange
stemware so that it cannot move easily. Don t let
the glasses touch each other.
WATCH OUT FOR THIS.
The wash tower rises through the center of the
bottom rack during the wash and rinse portions of
the cyde. Don't block it or load tall things next to it,
Also, be careful not to let a portion of an item such
as a pot or dish handle extend through the bottom
rack_ This colfld block the wash arm and cause
poor washing results.
This rack is ideal for dishwasher-safe plastics.
When loading, place plastic items along the back
and be sure that each plastic tumbler is secured
over two fingers_ This w4II prevent dislodging;
_.mbler _ not fall through rack onto heating
unit°

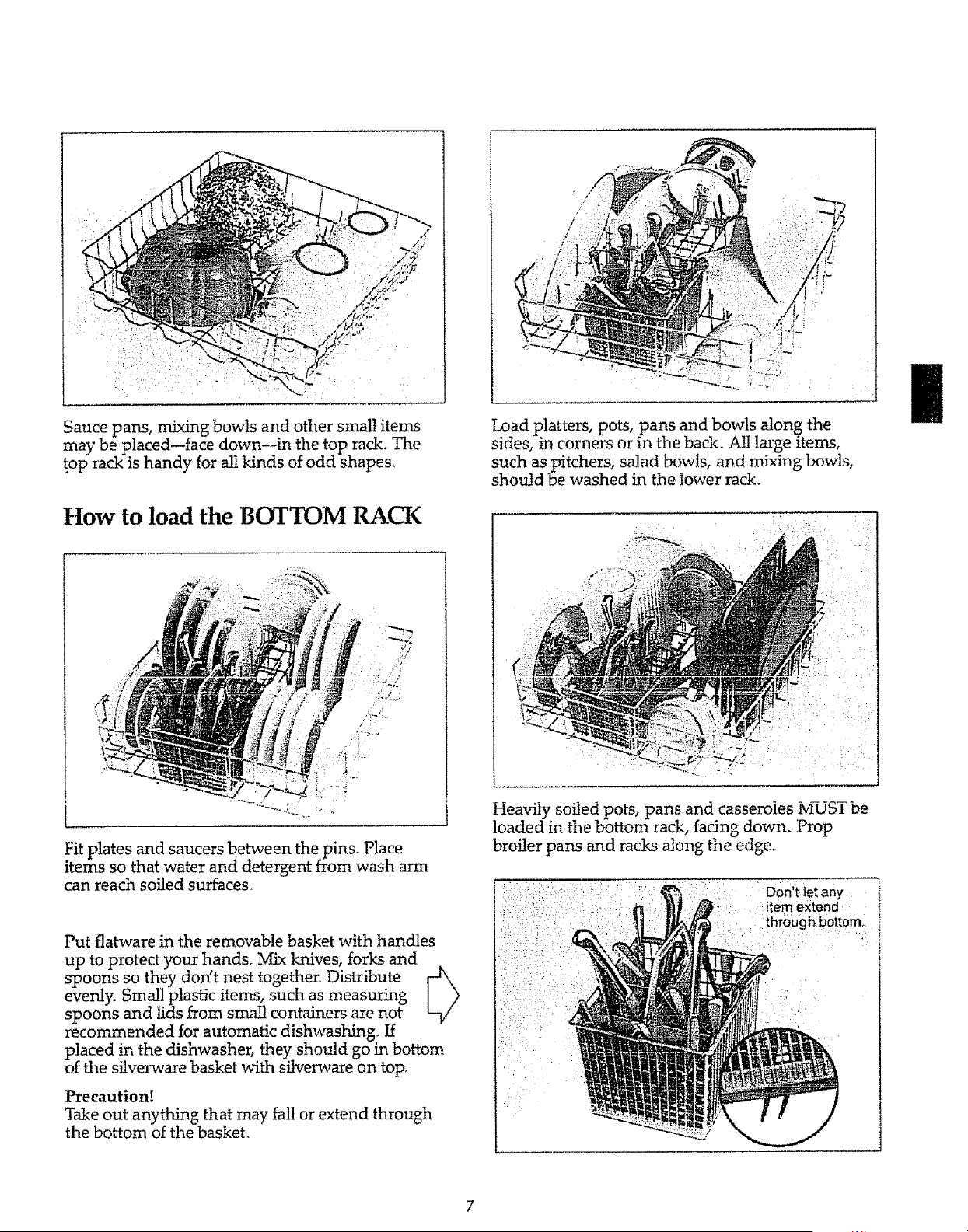

Saucepans,mixingbowlsandothersmallitems
maybeplaced--facedown--in thetoprack. The
top rack is handy for all kinds of odd shapes°
How to load the BOTTOM RACK
i
Fit plates and saucers between the pins° Place
items so that water and detergent from wash arm
can reach soiled surfaces.
Put flatware in the removable basket with handles
up to protect your hands. Mix knives, forks and
spoons so they don't nest together_ Distribute
evenly. Small plastic items, such as measuring
spoons and lids from small containers are not
recommended for automatic dishwashingo If
placed in the dishwasher, they should go in bottom
of the silverware basket with silverware on top_
Precaution!
Take out anything that may fall or extend through
the bottom of the basket.
Load platters, pots, pans and bowls along the
sides, in comers or in the back. All large items,
such as pitchers, salad bowls, and mixing bowls,
should be washed in the lower rack.
Heavily soiled pots, pans and casseroles MUST be
loaded in the bottom rack, facing down. Prop
broiler pans and racks along the edge°
|

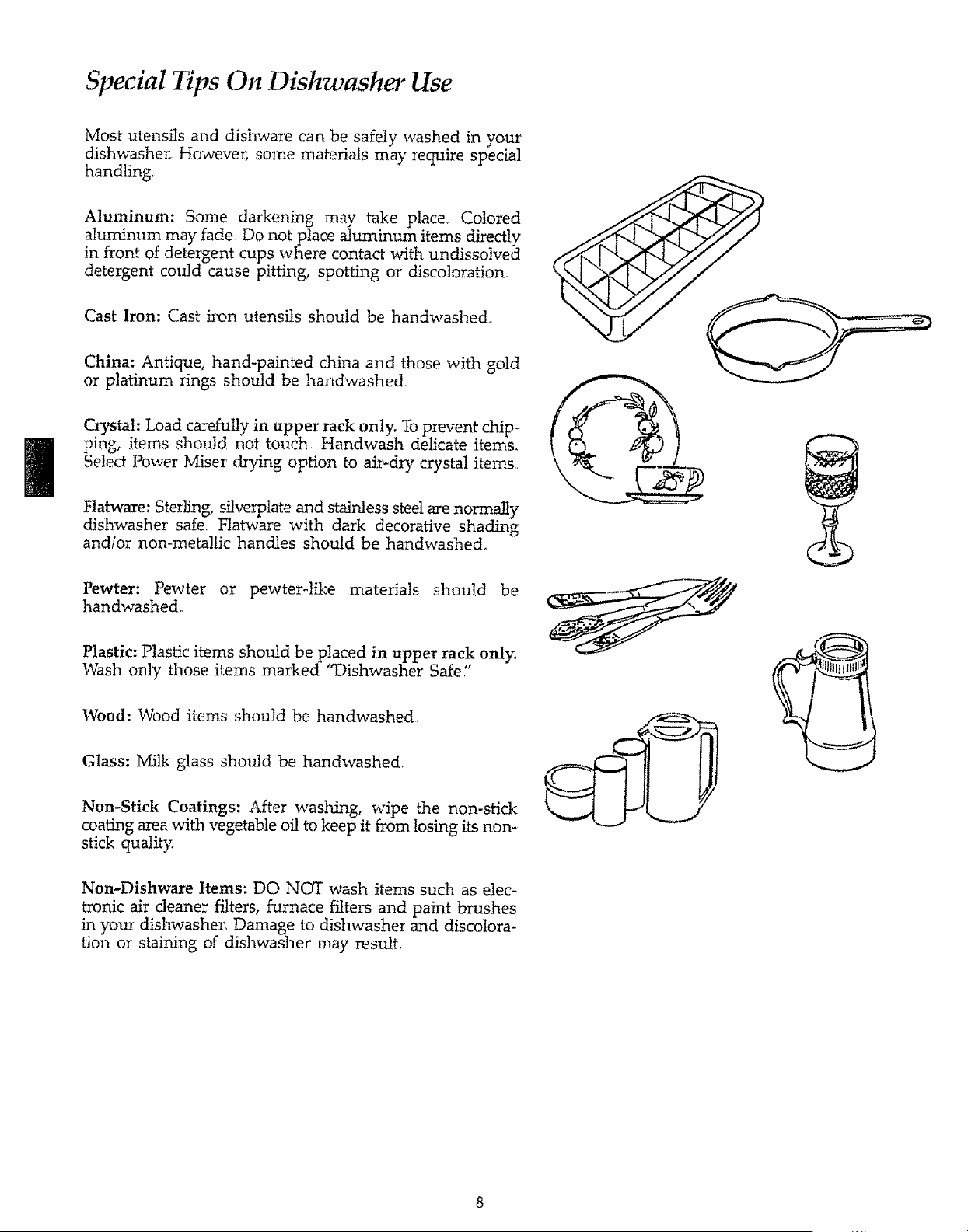

Special Tips On Dishwasher Use
Most utensils and dishware can be safely washed in your
dishwasher_ Howevei; some materials may require special
handling
Aluminum: Some darkening may take place° Colored
aluminum may fade_ Do not place aluminum items directly
in front of detergent cups where contact with undissolved
detergent could cause pitting, spotting or discoloration
Cast Iron: Cast iron utensils should be handwashe&
China: Antique, hand-painted china and those with gold
or platinum rings should be handwashed
Crystal: Load carefully in upper rack only. To prevent chip-
ping, items should not touch Handwash delicate items.
Select Power Miser drying option to air-dry crystal items
Flatware: Sterling, sflverplate and stainless steel are normally
dishwasher safe. Flatware with dark decorative shading
and/or non-metallic handles should be handwashe&
Pewter: Pewter or pewterqike materials should be
handwashed.
Plastic: Plastic items should be p,!aced in upper rack only.
t ' " /t
Wash only hose 1terns marked 'Dishwasher Safe_
Wood: Wood items should be handwashed
Glass: Milk glass should be handwashedo
Non-Stick Coatings: After washing, wipe the non-stick
coating area with vegetable oil to keep it from losing its non-
stick quality.
Non-Dishware Items: DO NOT wash items such as elec-
tronic air cleaner filters, furnace filters and paint brushes
in your dishwasher, Damage to dishwasher and discolora-
tion or staining of dishwasher may result°

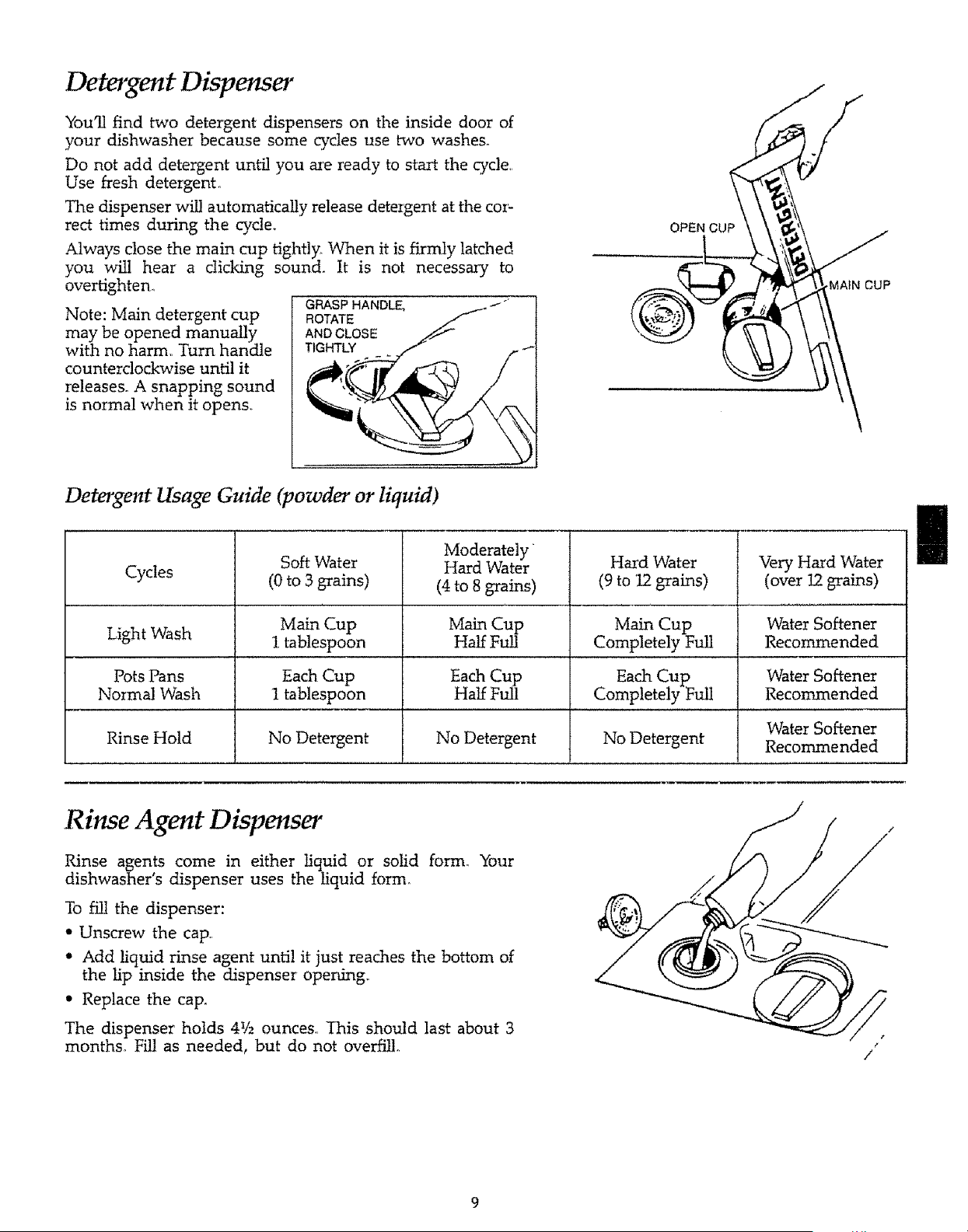

Detergent Dispenser
You'll find two detergent dispensers on the inside door of
your dishwasher because some cycles use two washes°
Do not add detergent unt!l you are ready to star[ the .cycle,,
Use fresh detergent.
The dispenser wffi automatically release deteigent at the cor-
rect times during the cycle,
Always close the main cup tightly, When it is firmly latched
you will hear a clicking sound. It is not necessary to
overtighten,,
Note: Main detergent cup
may be opened manually
with no harm,, Turn han'dle
counterclockwise until it
releases° A snapping sound
is normal when it opens.,
,.dd,osE /f _
Detergent Usage Guide (powder or liquid)
OPEN CUP
.MAIN CUP
Moderately'
Soft Water Hard Water Hard Water Very Hard Water
Cycles (0 to 3 grains) (4 to 8 grains) (9 to 12 grains) (over 12 grains)
Main Cup Main Cup Main Cup Water Softener
Light Wash I tablespoon Half Full Completely Full Recommended
Pots Pans Each Cup Each Cup Each Cup Water Softener
Normal Wash I tablespoon Half Full Completely Full Recommended
Water Softener
Rinse Hold No Detergent No Detergent No Detergent Recommended
|
Rinse Agent Dispenser
Rinse agents come in either liquid or solid form_ Your
dishwasher s dispenser uses the hquid form,
To fill the dispenser:
• Unscrew the cap.,
• Add liquid rinse agent until it just reaches the bottom of
the lip inside the dispenser opening,.
• Replace the cap,
The dispenser holds 4V2 ounces., This should last about 3
months. Fill as needed, but do not overfill.
/
Important Parts of Your Dishwasher
Upper Back
WashTower
Lower Rack
!
Lower Spray Arm
Heating Element
........Normal Water Fill Level
Right Side View
Door Latch
Control Panel
Door Panel
Access Panel
"'" f15_5 --
Front View
_'__\ ._ Rinse Dispenser
Agent
Inner Door
10
Changing Color Panels
tf you are redecorating, you can change your dishwasher's front panels
to match or blend with your new colors_
The panels are held in place by the door trim and the trim on the panel
below the door_ ]Each side of each panel is a different color. Or you can
paint the panels with the color of your own choice,
WARNING: To prevent electric shock, disconnect electrical power sup-
ply to dishwasher before changing panels.
How to change door panel:
1. Take out 3 trim screws on either side of dishwasher door.. Remove side
trim•
2. Slide out insert panel
3, Put the color you want in front, (Careful--edges may be sharp.)
4, Replace insert panel, side trim and screws.
How to change lower access panel:
1o Remove 4 panel attachment screws. (2 above panel, 2 below the panel°)
2. Remove entire panel,
3. Take out 3 screws and remove top trims.
4, Slide out insert panel
5, Put the color you want in front_
6, Replace insert pane!, top trim and screws,
7f Replace entire panel and 4 attachment screws.
Do not operate dishwasher while changing panels or when lower
access panel is removed.
Wood panel trim kit GPF40 contains trim and instructions for adding
a decorative wood panel and lower access panel to match kitchen cabinets_
Use the order form on page I7 to order this kit.
j J
11
User Mah tenance Instructions
CareofSurfaces
° Clean control panel with lightly dampened cloth. Dry thoroughly.
Do not use abrasives or sharp objects--they could damage it,
* Clean outside cabinet finish with a good appliance polish wax. Do not
use scouring pads, harsh or ocn-i_/cleaners°
, Interior is self-cleaning with normal user If it should ever need clean-
ing, use a mild cleansing powder, If hard water causes lime build-up,
clean as follows:
• Pour 2 cups white vinegar into empty dishwasher,. Do not use
detergent.
• Operate machine on Normal Wash cycle.
Care of Air Gap
if an air gap was installed for your built-in dishwasher, check to make
sure it is clean.. Air gaps are usually mounted on the countertop and can
be inspected by removing the cover. The air gap is not part of your
dishwasher and is not covered by Sears warranty.
Drain Air Gap
Protection against Freezh_g
If dishwasher is left in an unheated place during the winter ....
, Shut off water and electrical power,
, Remove access panel,
. Disconnect water lines from valve, Drain into a flat pan_
* Drain collection chamber at rear of unit below filter by disconnecting
hose to pump.
, Remove plastic pump cover in tub bottom and use sponge to soak up
any remaining water,
* Reconnect water lines to valve and hoses to pump,
Pump Cover
Screws
.Preparation for Moving
• Disconnect electrical power,.
• Turn off water supply, disconnect water and drain lines_
• Tape racks in place; close door securely and tape it shut.
• Wrap with blankets, and if using a hand truck, lift dishwasher from
side in upright position only.
12
Common Dishwashing Problems and Solutions
Problem
Dishwasher
will not start
Dishwasher will
not fill with water
Unusual noise
Dishwasher leaks
Detergent cup lid
won't latch after
adding detergent
Dishes not dry
Caused by Solution
Dishwasher not receiving
electricity.
Dia! not in correct position
for cycle selected,
No water supply
Water inlet valve clogged •
Improper loading
Dishwasher not level
Too much sudsing
Spilled rinse agent
Cycle Indicator dial not
in OFF position
Water is not hot
Cool Dry option selected
Improper loading
Rinse agent
dispenser empty
Check house fuse or circuit breaker
Make sure dial is turned far enough and cycle button is
f_flly pushed in_
Make sure water supply valve under sink is _rned Ono
Water valve supply line may be clogged -with sediment,
Clean out,,
Utensils may not be secure on rack pins, or some_&ng
small may have dropped from the rack. Water is
causing utensils to rattle° Make sure everything is
securely placed in dishwasher,
Level dishwasher as described in Installation
Instructions° Do not place dishwasher on carpet,
Improper detergent. Use automatic dishwasher
detergent only or try a different brand or less detergent.
If hand dishwashing detergent is used by mistake, pour
one measuring cup of vegetable off in bottom of tub and
run dishwasher through a complete Normal Wash cycle
with recommended amount of automatic dishwashing
detergent
To remove suds from Dab: Open dishwasher_ Let suds
evaporate_ Add I gallon of cold water to tub. Close and
latch dishwasher Pump out water by slowly turning
contro! dial until a drain period is reached. Repeat if
necessary,,
Svflled rinse agent can cause foam during washing,
This can lead to overflowing, Wipe up accidental spill
of rinse agent with a dainp cloth.
Cycle Indicator dial must be in OFF position for cup lid
to close and latch properly. If you unlatch the door and
open it to dry. your dishes, the Cycle Indicator dial does
not advance'to OFF by itself,
Raise water heater thermostat to t40_E if necessary,
Do not select Cool Dry drying option. Allow dishes to
dry in heated air,
Load dishes so items drain properly, Avoid overloading,
Fill rinse agent dispenser if empty°
(continued next page)
m
t3

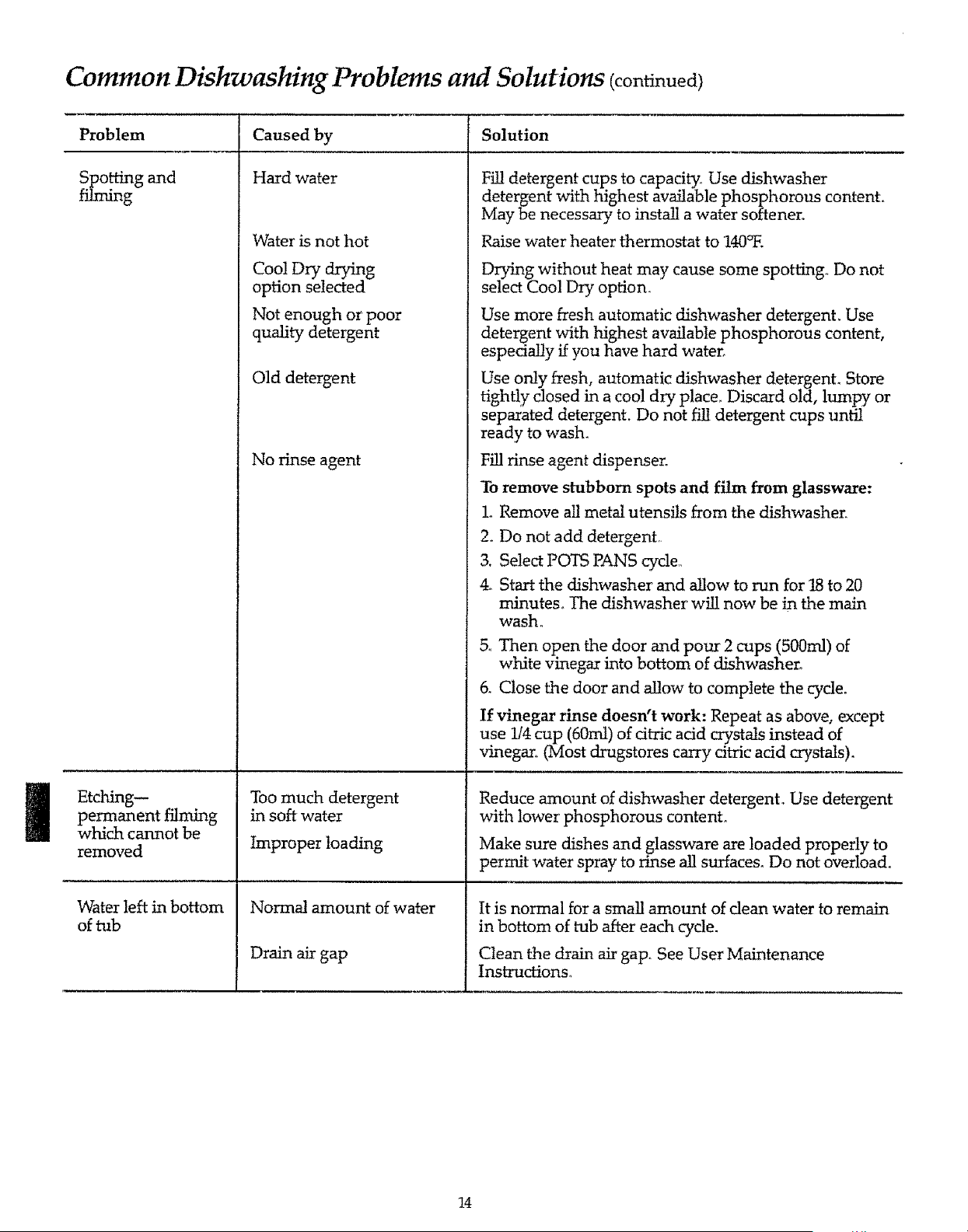

Common Dishwashing Problems and Solutions (continued)
Problem Solution
Spotting and
filming
Etching--
permanent filming
which cannot be
removed
Water left in bottom
of tub
Caused by
Hard water
Water is not hot
Cool Dry drying
option selected
Not enough or' poor
quality detergent
Old detergent
No rinse agent
Too much detergent
in soft water
Improper loading
Normal amount of water
Drain air gap
Fil! detergent cups to capadty, Use dishwasher
detergent with highest available phosphorous contenL
May be necessary to install a water softener°
Raise water heater thermostat to 140_.
Drying without heat may cause some spotting° Do not
select Cool Dry option,
Use more fresh automatic dishwasher detergent, Use
detergent with highest available phosphorous content,
espedally if you have hard water,
Use only fresh, automatic dishwasher detergent, Store
tightly closed in a cool dry place_ Discard old, lumpy or
separated detergent, Do not fill detergent cups until
ready to wash.
Fill rinse agent dispenser,
To remove stubborn spots and film from glassware:
1o Remove all metal utensils from the dishwasher.
2o Do not add detergent,
3, Select POTS PANS .cycle,,
4o Start the dishwasher and allow to run for 18 to 20
minutes° The dishwasher wil! now be in the main
wash°
5o Then open the door and pour 2 cups (500ml) of
white vinegar into bottom of dishwasher°
6. Close the door and allow to complete the cycle°
If vinegar rinse doesn't work: Repeat as above, except
use 1/4 cup (60ml) of citric add crystals instead of
vinegar, (Most drugstores carry citric acid crystals).
Reduce amount of dishwasher detergent° Use detergent
with lower phosphorous content°
Make sure dishes and glassware are loaded properly to
permit water spray to rinse all surfaces, Do not overload.
It is normal for a small amount of clean water to remain
in bottom of tub after each cycle.
Clean the drain air gap, See User Maintenance
Instructions,,
14

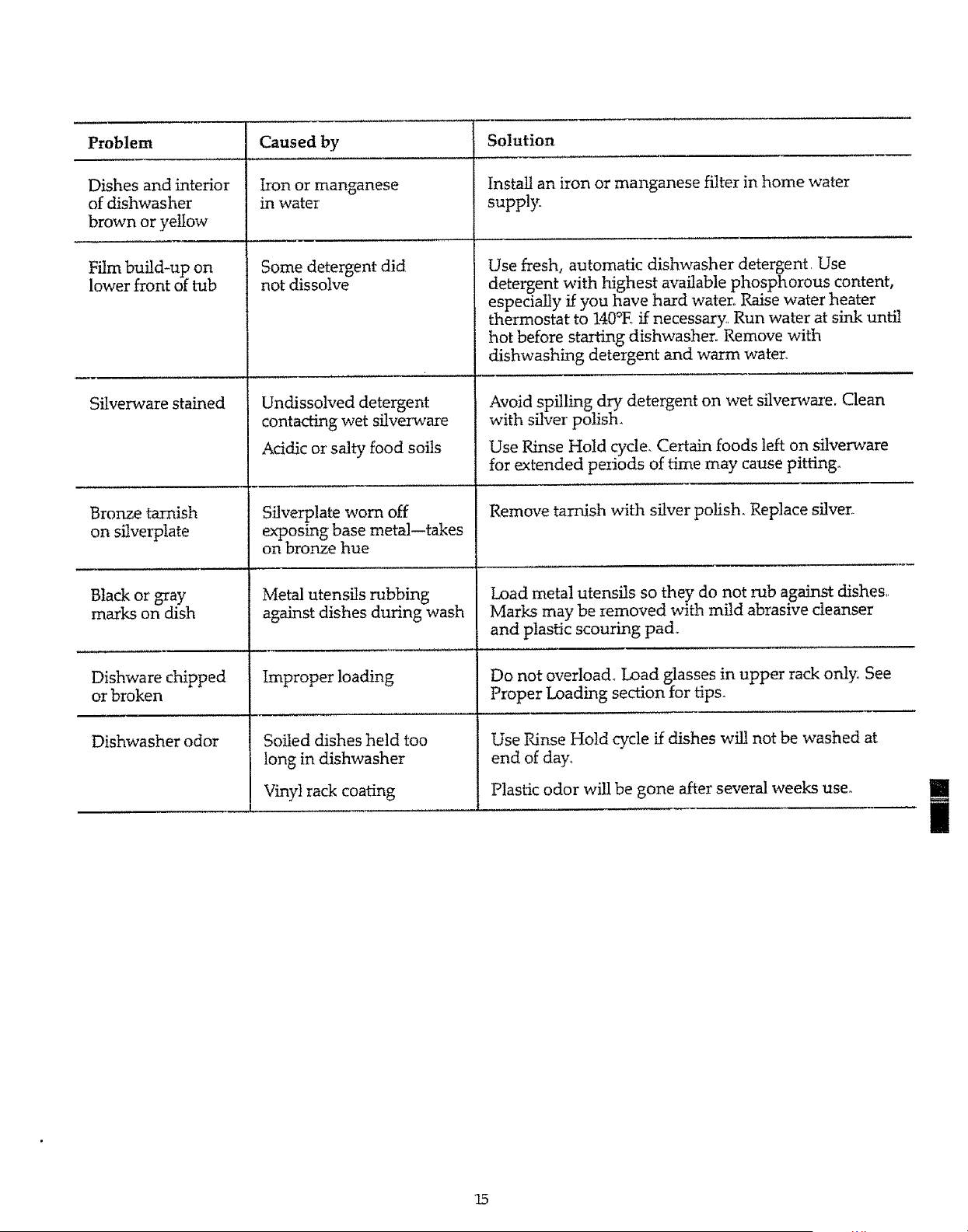

Problem Caused by
Dishes and interior Iron or manganese
of dishwasher in water'
brown or yellow
Film build-up on
lower front of tub
Silverware stained
Bronze tarnish
on silverplate
Black or _ay
marks on dish
Dishware chipped
or broken
Dishwasher odor
Some detergent did
not dissolve
Undissolved detergent
contacting wet silverware
Acidic or salty food soils
Silverplate worn off
exposing base metal--takes
on bronze hue
Metal utensils rubbing
against dishes during wash
Improper loading
Soiled dishes held too
long in dishwasher
Vinyl rack coating
Solution
Install an iron or manganese filter in home water
supply.
Use fresh, automatic dishwasher detergent. Use
detergent with highest available phosphorous content,
especially if you have hard water° Raise water heater
thermostat to 140_E if necessary. Run water at sink until
hot before sta_fing dishwasher.. Remove with
dishwashing detergent and warm water.
Avoid spilling dry detergent on wet silverware. Clean
with silver polish_
Use Rinse Hold cycle. Certain foods left on silverware
for extended peAods of time may cause pitting_
Remove tarnish with silver pohsho Replace silver.
Load metal utensils so they do not rub against dishes..
Marks may be removed with mild abrasive cleanser
and plastic scouring pad..
Do not overloa& Load glasses in upper rack onlyo See
Proper Loading section for tips.
Use Rinse Hold cycle if dishes will not be washed at
end of day.,
Plastic odor will be gone after several weeks use°
|
15
Notes
16
OrderForm
ORDER FORM
Use this form to order, without charge,
a wood panel trim kit.
w
I
r_
[] Kit GPF 40
Wood Panel TrimKit
U2
I
b--
r.9
FOLDHERE
Name:
Address:
City:
State:
Model No.:
Date Purchased:
__ Zip Code:
Serial No.:
17
"[APEHERE
Name
Address
City
Zip
State
Decor Color Panel
c/o Dri-View Mfg.
4706 Allmond Ave.
Louisville, KY 40209
PLACE
STAMP
HERE
Notes
19
We Service What We Sell
"We Service What We Sel!" is our assurance you can depend on Sears
for service. _ and Sears service is nationwide. Your dishwasher has
added value when you consider that Sears has service units nationwide,
staffed with professional technicians spedfically trained on Sears appliances
and having parts, tools and equipment to insure that we meet our pledge
to youo YWe Service What We Se!l."
Sears Maintenance Agreement
Maintain the value of your Kenmore dishwasher with a Sears Maintenance
Agreement° Sears dishwashers are designed, manufactured, and tested
for years of dependable operation.. Yet, any rnodern appliance may
require service from time to time.
The Sears Maintenance Agreement
• Is your way to buy tomorrow's service at today's price°
• Eliminates repair bills resulting from normal use
• Allows for as many service calls as required.
• Provides for service by professional Sears-trained technidanso
• Offers an annual preventive maintenance check-up at your request°
This maintenance agreement does not cover original installation, reinstalla-
tion, or damage resulting from external causes such as acts of abuse,
theft, fire, flood, wind, lightning, freezing, power failure, power reduc-
tion, etc.
Sears Dishwasher Warranty
Full One-Year Warranty on Dishwasher
For one year from the first day of use in your home, Sears will repair, free of charge, defects in material
or workmanship which appear in this dishwasher.
Full Ten-Year Warranty Against Leaks in the Tub and Inner Door Panel
For ten years from the first day of use in your home, if a leak should occur as a result of failure of
the tub or inner door panel due to cracking, chipping, or peeling, Sears will replace, free of charge, the
tub or inner door panel.
If the dishwasher is subjected to other than private family use, the above warranty coverage is effective
for only 90 days.
Warranty service is available by contacting the NEAREST SEARS SERVICE CENTER/DEPARTMENT in the
United States This warranty applies only while this product is in use in the United States_
This warranty _ves you specific legal rights, and you may also have other rights which vary from state to state_
SEARS, ROEBUCK AND CO., Dept. 731CR-W Sears Tower, Chicago, IL 60684
I Part Noo SR5504 J
2_0 CG
Printed in UoS.A,
165D3592P005 14306
