Owner's Manual
I:RRFTSMRN"
8H.P.
CHIPPER VAC
Model No. 486.24515
..:.
CAUTION:
Before using this product,
read this manual and follow
all Safety Rules and
Operating Instructions.
• Safety
•Assembly
• Operation
• Maintenance
• Parts
Sears, Roebuck and Co., Hoffman Estates, IL 60179 U.S.A.
PRINTED IN U.$,A.

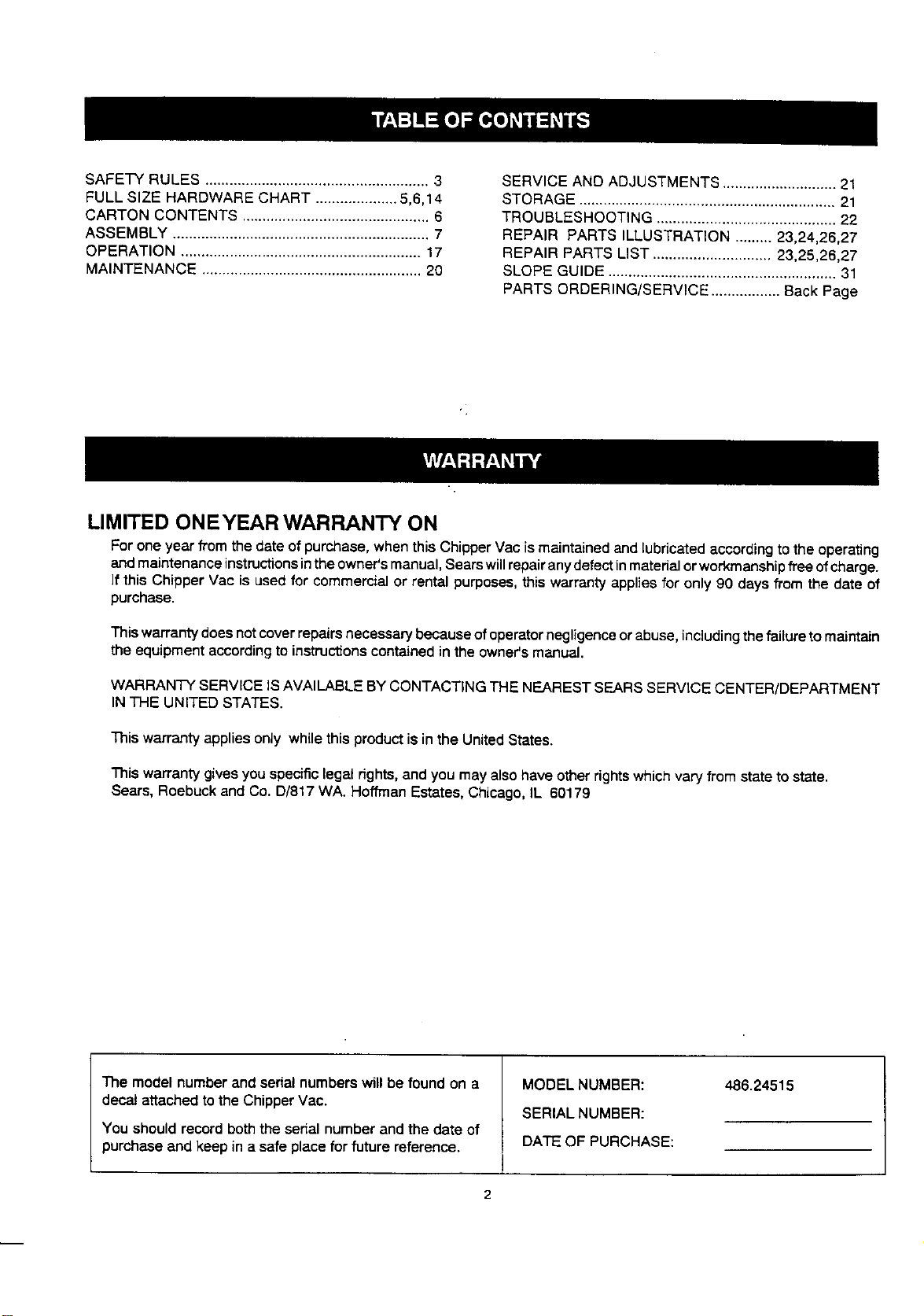

SAFETY RULES ....................................................... 3
FULLSIZE HARDWARE CHART .................... 5,6,14
CARTON CONTENTS .............................................. 6

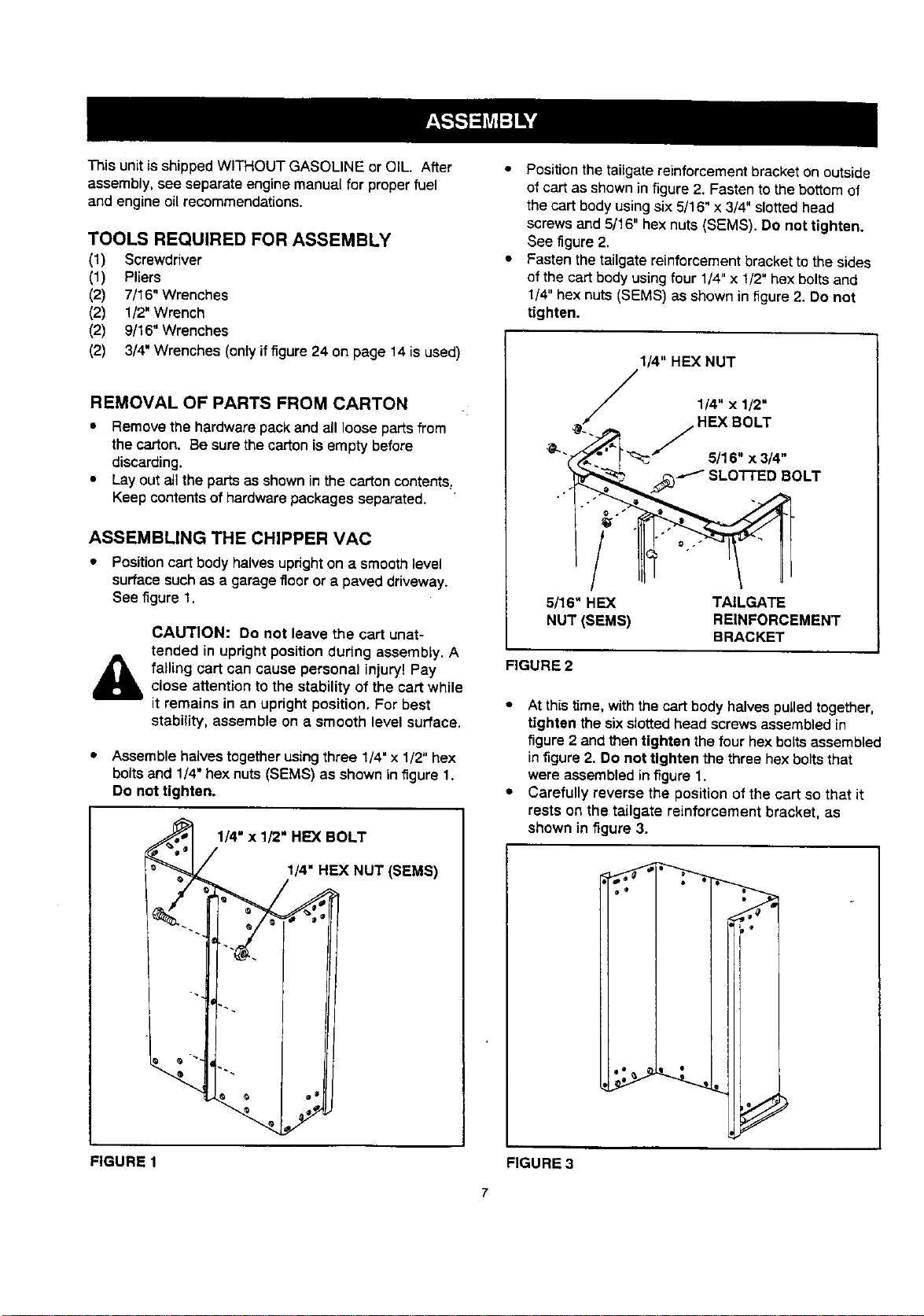

ASSEMBLY ............................................................... 7
OPERATION ........................................................... 17

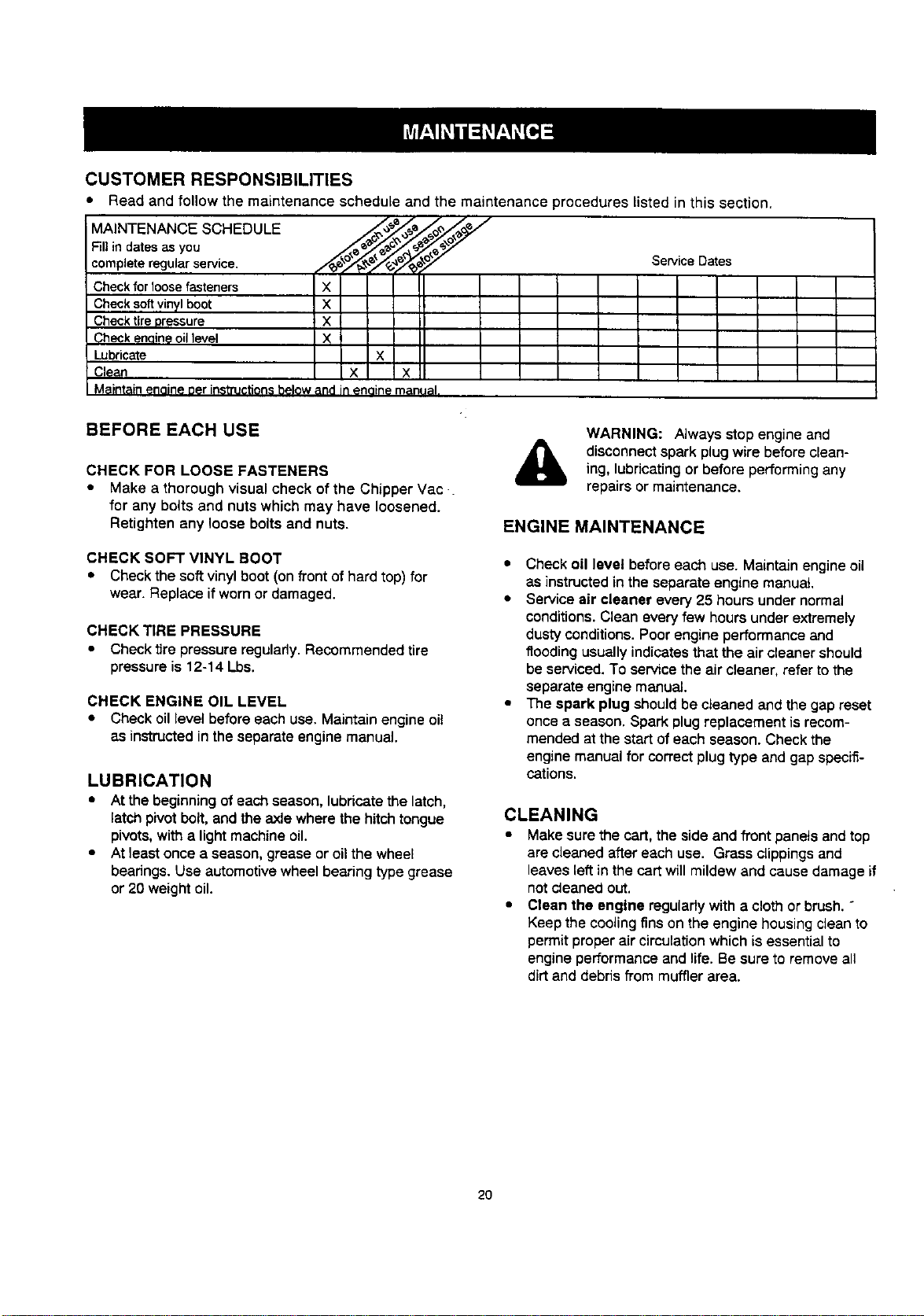

MAINTENANCE ...................................................... 20

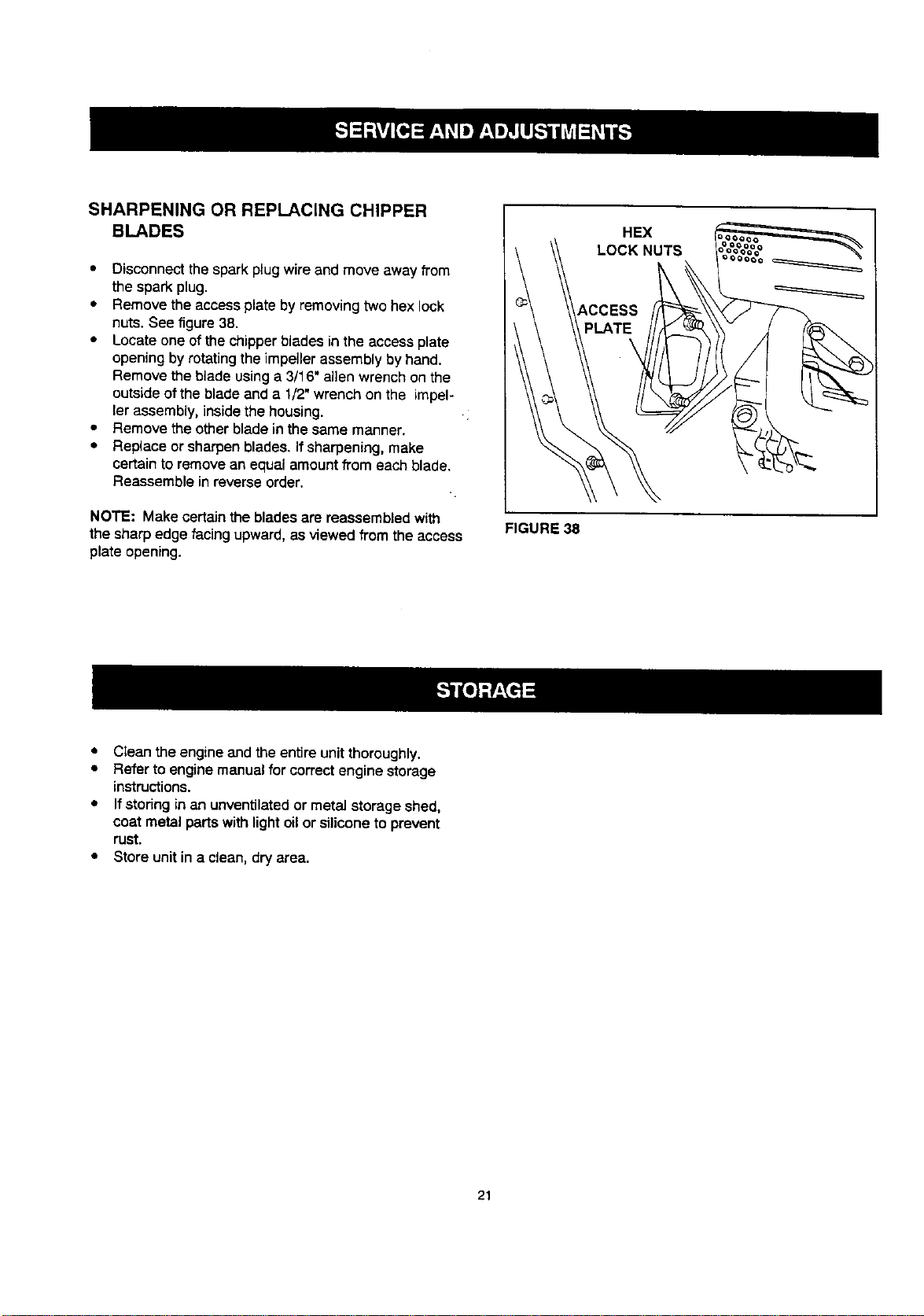

SERVICE AND ADJUSTMENTS ............................ 21
STORAGE ............................................................... 21

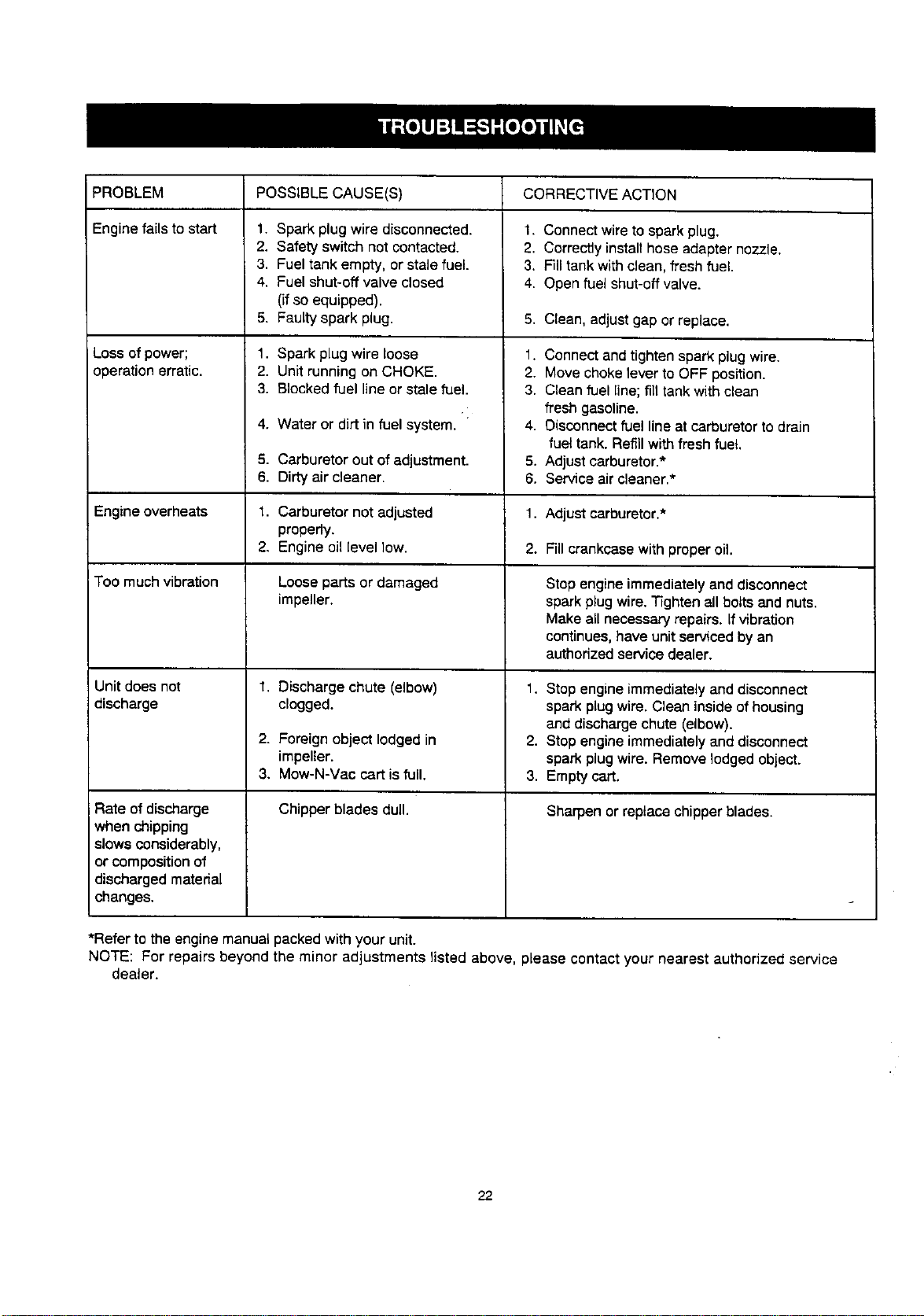

TROUBLESHOOTING ............................................ 22

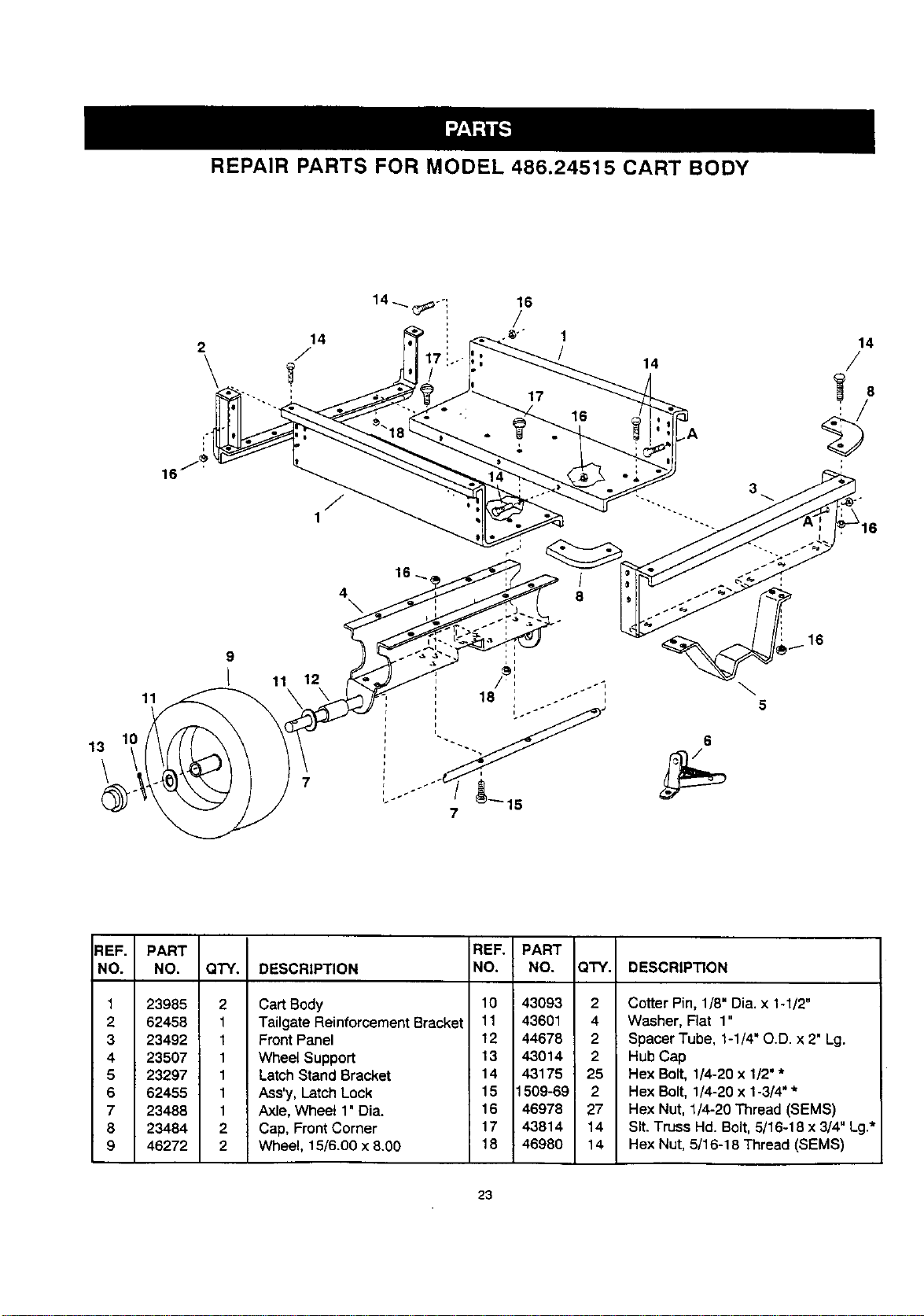

REPAIR PARTS ILLUSTRATION ......... 23,24,26,27
REPAIR PARTS LIST ............................. 23,25,26,27

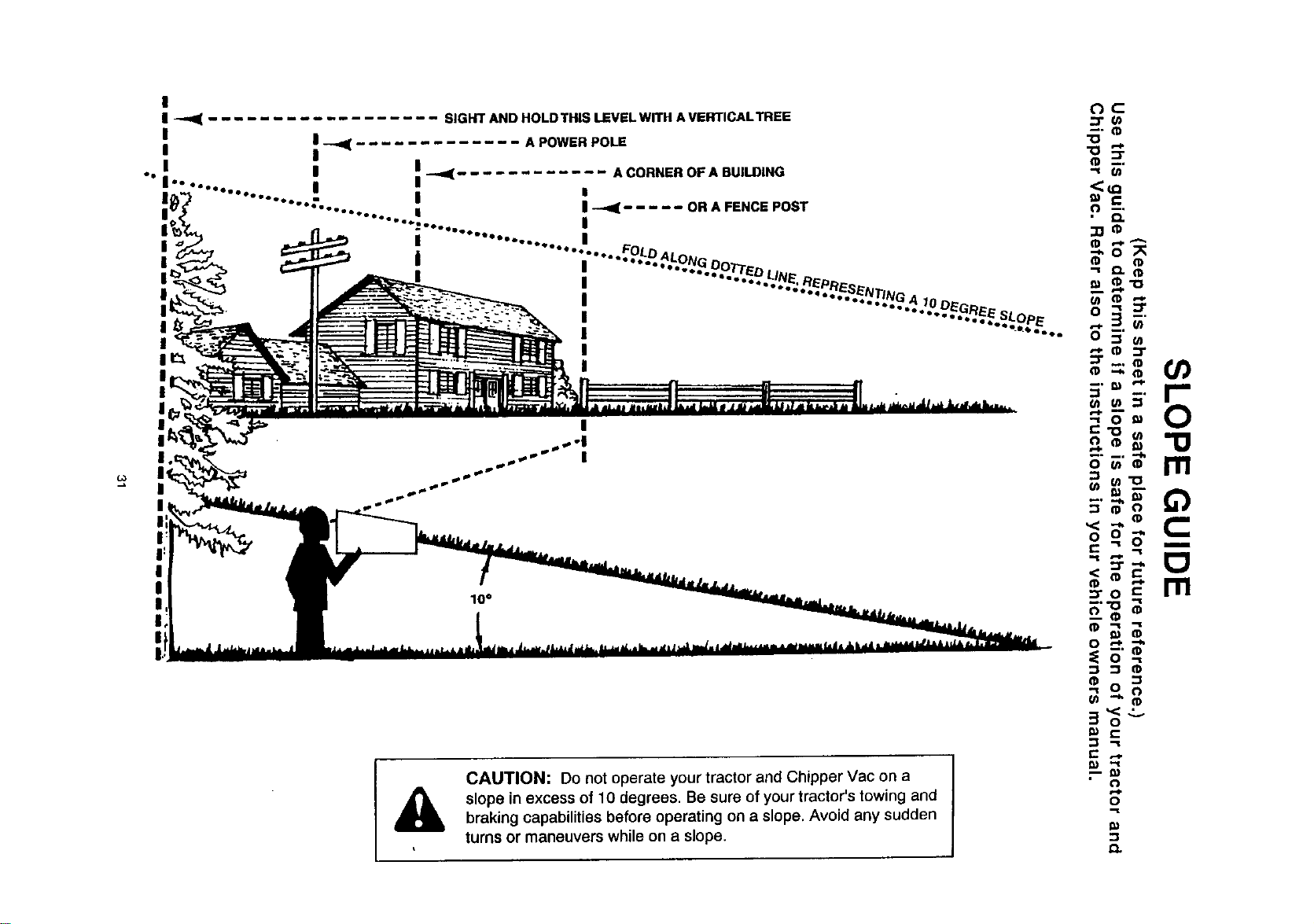

SLOPE GUIDE ........................................................ 31
PARTS ORDERING/SERVICE ................. Back Page
LIMITED ONEYEAR WARRANTY ON
For one year fromthe date of purchase,when this ChipperVac ismaintainedand lubricated accordingtothe operating
andmaintenanceinstructionsinthe owner'smanual, Searswillrepairanydefectinmaterialor workmanshipfree ofcharge.
If this Chipper Vac is used for commercialor rental purposes,thiswarrantyappliesfor only90 days from the date of
purchase.
This warrantydoes notcover repairs necessary because of operator negligence or abuse, including the failure to maintain
the equipment according to instructions contained in the owner's manual.
WARRANTY SERVICE IS AVAILABLE BY CONTACTING THE NEAREST SEARS SERVICE CENTER/DEPARTMENT
IN THE UNITED STATES.
This warranty applies only whilethis productisin the United States.
This warranty gives youspecific legal rights, and you may also have otherrights whichvary from state to state.
Sears, Roebuck and Co. D/817 WA. Hoffman Estates, Chicago, IL 60179
The model number and serialnumbers willbe found on a
decal attached to the Chipper Vac.
You should record both the senal number and the date of
purchase and keep in a safe place for future reference.
MODELNUMBER:
SERIALNUMBER:
DATE OFPURCHASE:
486.24515

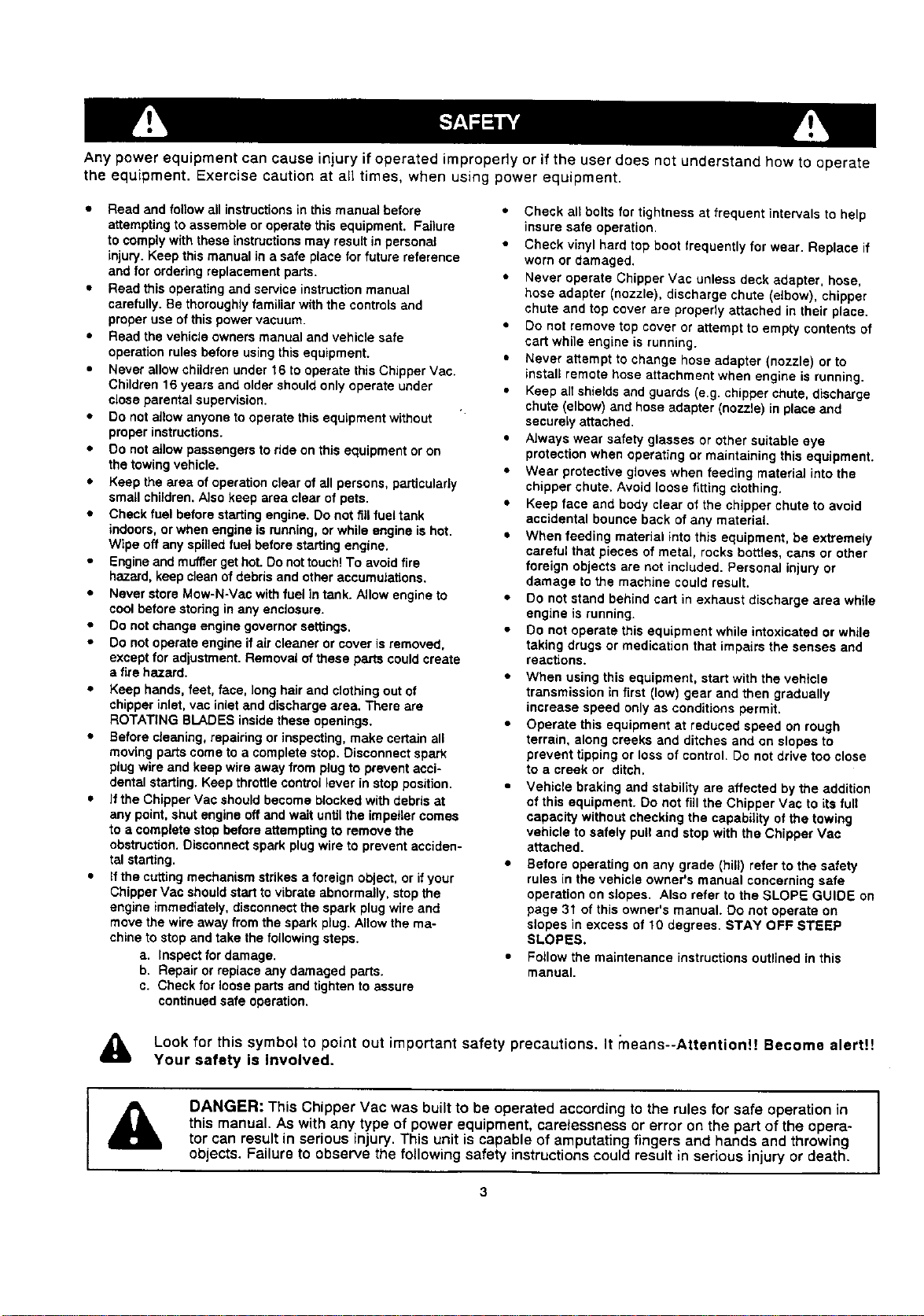

Any power equipment can cause injury if operated improperly or if the user does not understand how to operate
the equipment. Exercise caution at all times, when using power equipment.
• Read and follow all instructionsin this manual before
attempting to assemble or operate this equipment. Failure
to complywith these instructions may result in personal
injury. Keep this manual in a safe place for future reference
and for ordering replacement pads.
•Reed this operating and service instruction manual
carefully.Be thoroughly familiar with the controlsand
proper use of this powervacuum.
• Read the vehicle owners manual and vehicle safe
operation rules before using this equipment.
•Never allowchildren under 16 to operate this Chipper Vac.
Children 16 years and older should only operate under
closeparental supervision.
• Do notallow anyone to operate this equipment without
proper instructions.
• Do notallow passengers to ride onthis equipment or on
the towingvehicle.
•Keep the area of operationclear of all persons, particularly
small children, Also keep area clear of pets.
•Check fuel before starting engine, Do not fillfuel tank
indoors, orwhen engine isrunning,or while engine is hot.
Wipe off any spilledfuel beforestarting engine.
•Engineand muffler gethot. Do nottouch!To avoid fire
hazard, keep cleanof debris and other accumulations,
•Never store Mow-N-Vac with fuel in tank. Allow engine to
cootbefore storingin any enclosure.
• Do not change engine governorsettings.
•Do not operate engine if aircleaner or cover isremoved,
except for adjustment. Removal of these pa,_scould create
afire hazard.
•Keep hands,feet, face, long hair and clothingout of
chipper inlet,vac inlet and dischargearea. There are
ROTATING BLADES inside these openings.
•Before cleaning,repairing or inspecting,make certain all
moving partscome toa complete stop. Disconnect spark
ptugwire and keep wire away from plugto prevent acci-
dental starting.Keep throttlecontrol lever in stopposition.
•If the Chipper Vac should become blocked with debris at
any point,shutengine off and wait untilthe impetlercomes
to a complete stop before attemptingto remove the
obstruction.Disconnectspark plugwire to prevent acciden-
tal starting.
• Ifthe cuttingmechanismstrikesa foreign object, or ifyour
ChipperMac shouldstart to vibrate abnormally, stopthe
engine immediately, disconnectthe spark plug wire and
movethe wire away fromthe spark plug. Allow the ma-
chine to stopand take the followingsteps.
a. Inspect fordamage.
b. Repair or replace any damaged parts.
c. Check for loose parts and tighten to assure
continued safe operation.
• Check all bolts for tightness at frequent intervals to help
insure safe operation.
• Check vinyl hard top boot frequently for wear. Replace if
worn or damaged.
•Never operate Chipper Vac unless deck adapter, hose,
hose adapter (nozzle), discharge chute (elbow), chipper
chute and top cover are properly attached in their place.
• Do not remove top cover or attempt to empty contents of
cart while engine is running.
•Never attempt to change hose adapter (nozzle) or to
install remote hose attachment when engine is running.
•Keep all shields and guards (e.g. chipper chute, discharge
chute (elbow) and hose adapter (nozzle) in place and
securely attached.
• Always wear safety glasses or other suitable eye
protection when operating or maintaining this equipment.
•Wear protective gloves when feeding material into the
chipper chute. Avoid loose fitting clothing.
•Keep face and body clear of the chipper chute to avoid
accidental bounce back of any material.
•When feeding material into this equipment, be extremely
careful that pieces of metal, rocks bottles, cans or other
foreign objects are not incJuded. Personal injury or
damage to the machine could result.
• DO not stand behind cart in exhaust discharge area while
engine is running.
• Do not operate this equipment while intoxicated or while
taking drugs or medication that impairs the senses and
reactions.
•When using this equipment, start with the vehicle
transmission in first (low) gear and then gradually
increase speed only as conditions permit.
• Operate this equipment at reduced speed on rough
terrain, along creeks and ditches and on slopes to
prevent tipping or loss of control. Do not drive too close
to a creek or ditch.
•Vehicle braking and stability are affected by the addition
of this equipment. Do not fill the Chipper Vac to its full
capacity without checking the capability of the towing
vehicle to safely pull and stop with the Chipper Vac
attached.
•Before operating on any grade (hill) refer to the safety
rules in the vehicle owner's manual concerning safe
operation on slopes. Also refer to the SLOPE GUIDE on
page 31 of this owner's manual. Do not operate on
slopes in excess of 10 degrees. STAY OFF STEEP
SLOPES.
•Follow the maintenance instructions outlined in this
manual.
Look for this symbol to point out important safety precautions. It means--Attention!! Become alert!!
Your safety is involved.
&I

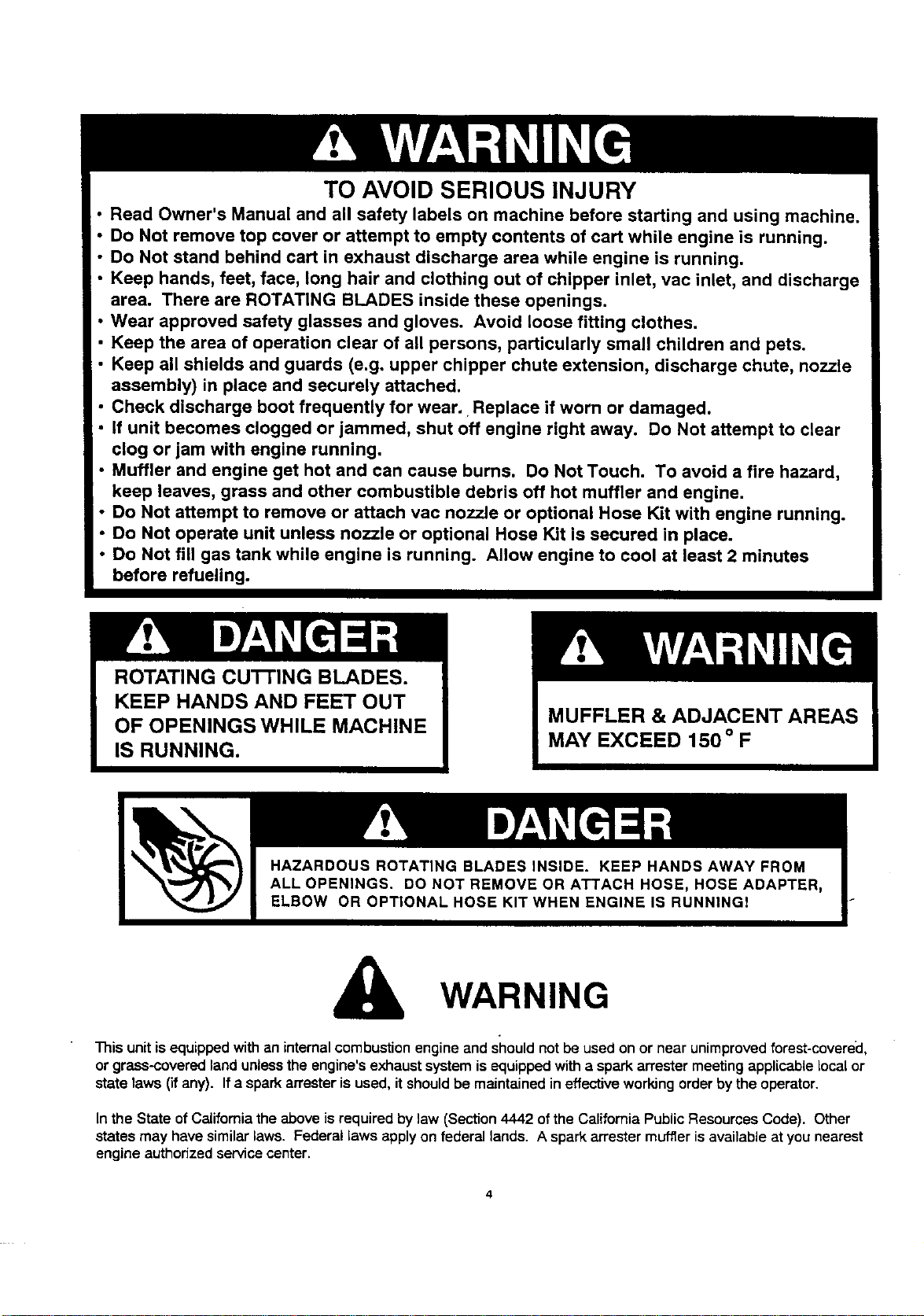

DANGER: This Chipper Vac was built to be operated according to the rules for safe operation in I
this manual. As with any type of power equipment, carelessness or error on the part of the opera- I
tot can result in serious injury. This unit is capable of amputating fingers and hands and throwing
objects. Failure to observe the following safety instructions could result in serious injury or death.
TO AVOID SERIOUS INJURY
Read Owner's Manual and all safety labels on machine before starting and using machine.
Do Not remove top cover or attempt to empty contents of cart while engine is running.
Do Not stand behind cart in exhaust discharge area while engine is running.
Keep hands, feet, face, long hair and clothing out of chipper inlet, vac inlet, and discharge
area. There are ROTATING BLADES inside these openings.
Wear approved safety glasses and gloves. Avoid loose fitting clothes.
Keep the area of operation clear of all persons, particularly small children and pets.
Keep all shields and guards (e.g. upper chipper chute extension, discharge chute, nozzle
assembly) in place and securely attached.
Check discharge boot frequently for wear. Replace if worn or damaged.
If unit becomes clogged or jammed, shut off engine right away. Do Not attempt to clear
clog or jam with engine running.
Muffler and engine get hot and can cause burns. Do Not Touch. To avoid a fire hazard,
keep leaves, grass and other combustible debris off hot muffler and engine.
Do Not attempt to remove or attach vac nozzle or optional Hose Kit with engine running.
Do Not operate unit unless nozzle or optional Hose Kit is secured in place.
Do Not fill gas tank while engine is running. Allow engine to cool at least 2 minutes
before refueling.
ROTATING CU'I-FING BLADES.
KEEP HANDS AND FEET OUT
OF OPENINGS WHILE MACHINE MUFFLER & ADJACENT AREAS
MAY EXCEED 150 o F
&WARNING
This unit isequipped withan internal combustionengine and shouldnotbe used on or near unimproved forest-covered,
or grass-covered land unless the engine's exhaust system is equipped with a spark an'ester meeting applicable local or
state laws (if any). If asparkarrester is used, it should be maintained in effectiveworking order by the operator.
In the State of California the above is required by law (Section 4442 of the California Public Resources Code). Other
states may have similar laws. Federal laws apply on federal lands. A spark arrester muffler is available at you nearest
engine authorized service center.
A
SHOWN FULL SIZE
PQ
NOT SHOWN FULL SIZE
V W _/X
Y
AB
%AC
AD AE AF
G

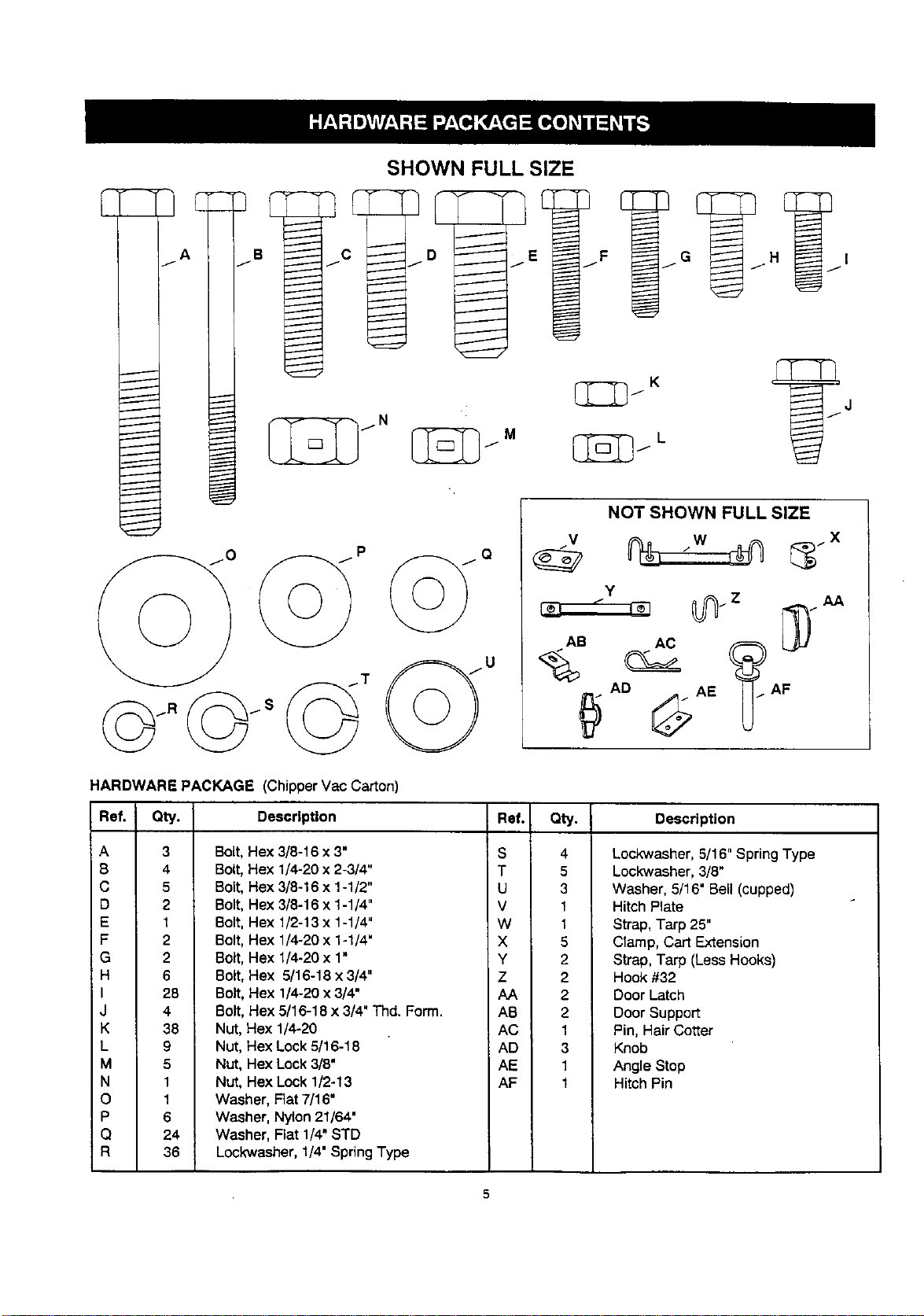

HARDWARE PACKAGE (ChipperVac Carton)
Ref. Qty. Description Ref. Qty. Description
A
E
C
D
E
F
G
H
I
J
K
L
M
N
O
P
Q
R
3
4
5
2
1
2
2
6
28
4
38
9
5
1
1
6
24
36
Bolt, Hex 3/8-16 x 3" S
Bolt, Hex 1/4-20 x 2-3/4" T
Bolt, Hex 3/8-16 x 1-1/2" U
Bolt, Hex 3/8-16 x 1-1/4" V
Bolt, Hex 1/2-13 x 1-1/4" W
Bolt, Hex 1/4-20 x 1-1/4" X
Bolt, Hex 1/4-20 x 1" y
Bolt, Hex 5/16-18 x 3/4" Z
Bolt, Hex 1/4-20 x 3/4" AA
Bolt, Hex 5/16-18 x 3/4" Thd. Form. AB
Nut, Hex 1/4-20 AC
Nut, Hex Lock 5/16-18 AD
Nut, Hex Lock 3/8' AE
Nut, Hex Lock 1/2-13 AF
Washer, Fiat 7/16"
Washer, Nylon 21/64"
Washer, Rat 1/4" STD
Lockwasher, 1/4" Spring Type
4
5
3
1
1
5
2
2
2
2
1
3
1
1
Lockwasher, 5/16" Spring Type
Lockwasher,3/8"
Washer, 5/16" Bell (cupped)
Hitch Plate
Strap, Tarp 25"
Clamp, Cart Extension
Strap, Tarp (Less Hooks)
Hook #32
Door Latch
Door Support
Pin, Hair Cotter
Knob
Angle Stop
Hitch Pin
SHOWN FULL SIZE
j /D
Not Shown Full Size
G
r
i
Ref.
A
FB
C
)°
E
F
G
H
I
Qty. Description
14 Sit. Truss Hd. Bolt, 5/16" x 3/4"
25 Hex Bolt, 1/4" x 1/2"
2 Hex Bolt, 1/4" x1-3/4"
27 Hex Nut, 1/4-20 Thread (SEMS)
14 Hex Nut, 5/16-18 Thread (SEMS)
4 Flat Washer, 1"
2 Cotter Pin, 1/8" x 1-1/2" Lg.
2 Hub Cap
2 Spacer Tube, 2" Lg.
Bag contains extra 1/4" x
1/2" bolts and 1/4" nuts
HARDWARE PACKAGE (Cart Body Carton)
_1 _ _6 9

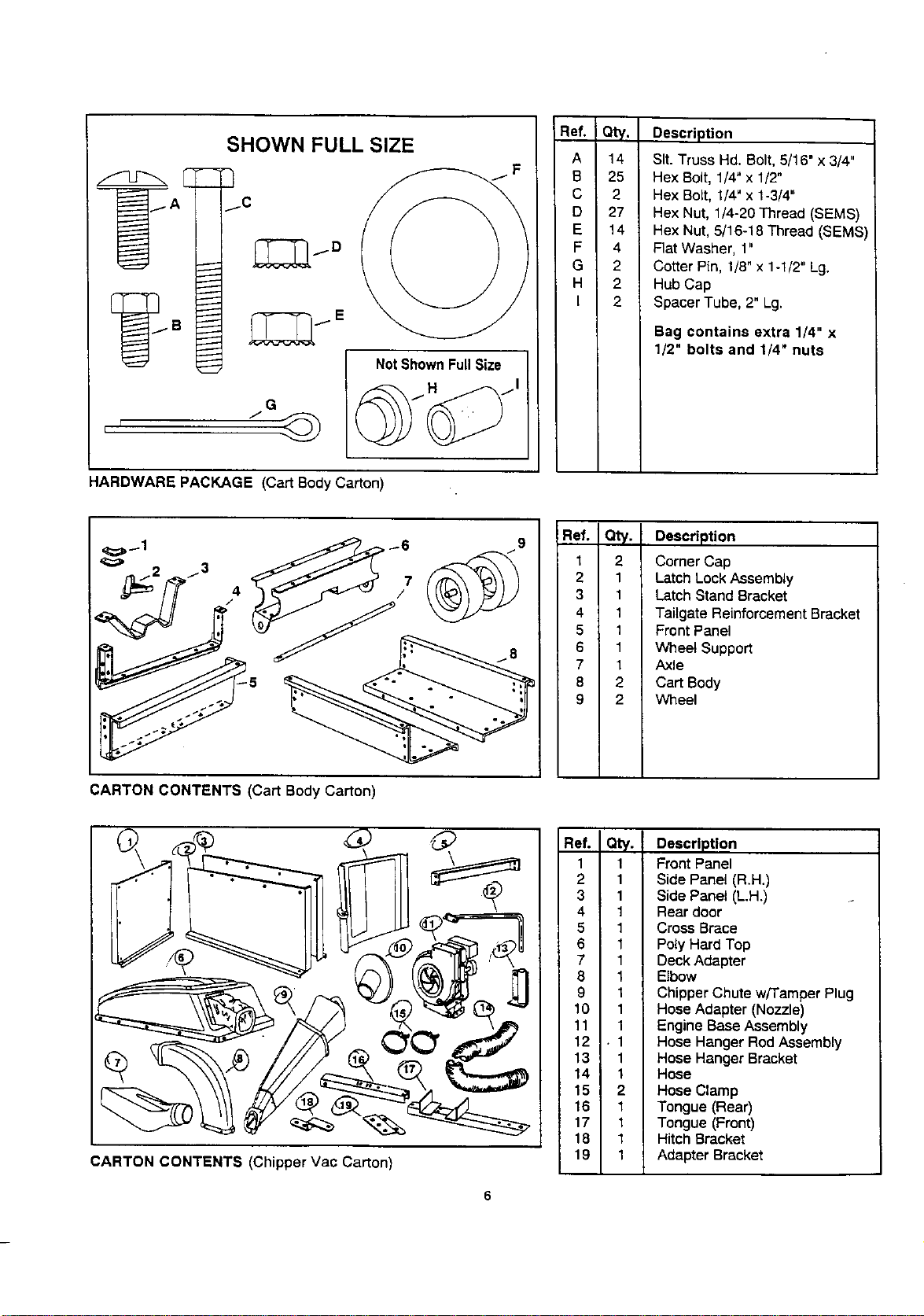

CARTON CONTENTS (Cart Body Carton)
Ref. Qty. Description
12Corner Cap
2 1 Latch Lock Assembly
3 1 Latch Stand Bracket
4 1 Tailgate Reinforcement Bracket
5 1 Front Panel
6 1 Wheel Support
7 1 Axle
8 2 Cart Body
9 2 Wheel
O
CARTON CONTENTS (Chipper Vac Carton)
6
Ref. Qty. Description
11Front Panel
21Side Panel (R.H.)
3 1 Side Panel (L.H.)
4 1 Rear door
5 1 Cross Brace
6 1 Poly Hard Top
7 1 Deck Adapter
8 1 Elbow
9 1 Chipper Chute w/Tamper Plug
10 1 Hose Adapter (Nozzle)
11 1 Engine Base Assembly
12 •1 Hose Hanger Rod Assembly
13 1 Hose Hanger Bracket
14 1 Hose
15 2 Hose Clamp
16 1 Tongue (Rear)
17 1 Tongue (Front)
18 1 HitchBracket
19 1Adapter Bracket
This unit is shipped WITHOUT GASOLINE or OIL. After
assembly, see separate engine manual for proper fuel
and engine oil recommendations.
TOOLS REQUIRED FOR ASSEMBLY
(1) Screwdriver
(1) Pliers
(2) 7/16"Wrenches
(2) 1/2" Wrench
(2) 9/16" Wrenches
(2) 3/4" Wrenches (only if figure 24 on page 14 is used)
REMOVAL OF PARTS FROM CARTON
• Remove the hardwarepack and all loose pars from
the carton. Be sure the carton is empty before
discarding.
•Lay out atlthe pars as shown in the carton contents,
Keep contents of hardware packages separated.
ASSEMBLING THE CHIPPER VAC
•Position cart body halves upright on a smooth level
surface such as a garage floor or a paved driveway.
See figure 1.
&CAUTION: Do not leave the cart unat-
tended in upright position during assembly. A
falling cart can cause personal injury! Pay
close attention to the stability of the cart while
it remains in an upright position. For best
stability, assemble on a smooth level surface.
• Assemble halves together using three 1/4" x1/2" hex
bolts and 1/4" hex nuts (SEMS) as shown in figure 1.
Do not tighten.
1/4" x 1/2" HEX BOLT
1/4" HEX NUT (SEMS)
FIGURE 1
•Position the tailgate reinforcement bracket on outside
of cart as shown in figure 2. Fasten to the bottom of
the cart body using six 5/16" x 3/4" slotted head
screws and 5/16" hex nuts (SEMS). Do not tighten.
See figure 2.
• Fasten the tailgate reinforcement bracket to the sides
of the cart body using four 1/4" x 1/2" hex bolts and
1/4" hex nuts (SEMS) as shown in figure 2. Do not
tighten.
1/4" HEX NUT
1/4" x 1/2"
.HEX BOLT
*_'" "'_'_/ 5116"x3/4"
._-,_" SLO'I-FED BOLT
5/16" HEX TAILGATE
NUT (SEMS) REINFORCEMENT
BRACKET
FIGURE 2
• At this time, withthe cartbody halves pulled together,
tighten the sixslottedhead screws assembled in
figure 2 and then tighten the four hex bolts assembled
infigure 2. Do not tighten the three hex bolts that
were assembled in figure 1.
• Carefully reverse the position of the cart so that it
rests on the tailgate reinforcement bracket, as
shown in figure 3.
o
o • d
)
FIGURE 3

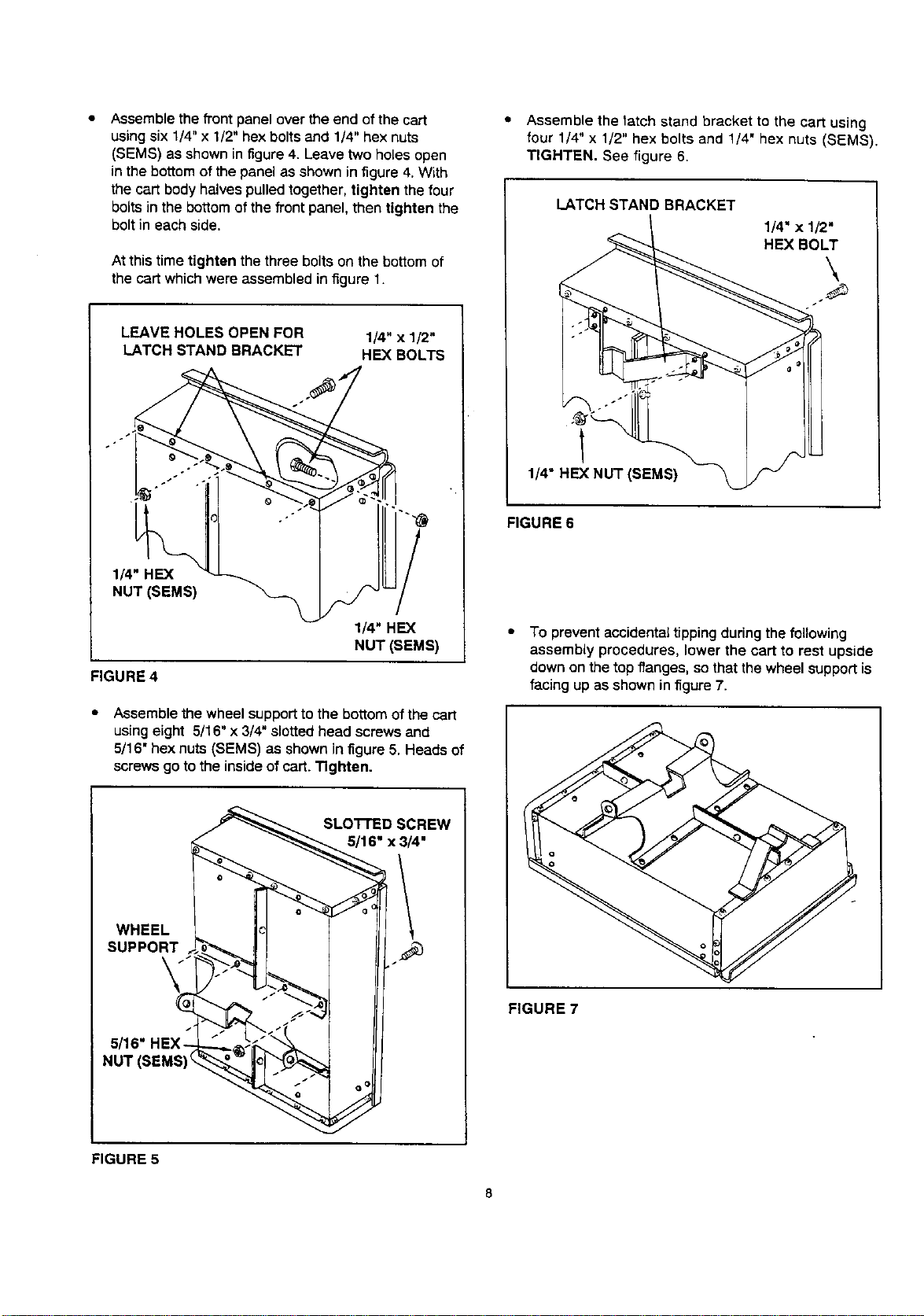

Assemble the front panel over the end of the cart
using six 1/4" x 1/2" hex bolts and 1/4" hex nuts
(SEMS) as shown in figure 4. Leave two holes open
in the bottom of the panel as shown in figure 4. With
the cart body halves pulledtogether, tighten the four
bolts in the bottom of the front panel, then tighten the
bolt in each side.
At this time tighten the three bolts on the bottom of
the cart which were assembled in figure 1.
LEAVE HOLES OPEN FOR
LATCH STAND BRACKET 1/4" x 1/2"
HEX BOLTS
1/4" HE](
NUT (SEMS)
FIGURE 4
1/4" HEX
NUT (SEMS)
Assemble the wheel supportto the bottom of the cart
using eight 5/16" x 3/4" slottedhead screws and
5/16" hex nuts (SEMS) as shown in figure5. Heads of
screws go to the inside of cart. Tighten.
Assemble the latch stand bracket to the cart using
four 1/4" x 1/2" hex bolts and 1/4" hex nuts (SEMS).
TIGHTEN. See figure 6.
LATCH STAND BRACKET
1/4" x 1/2"
HEX BOLT
\
1/4" HEX NUT (SEMS)
FIGURE6
To prevent accidental tipping during the following
assembly procedures, lower the cart to rest upside
down on the top flanges, so that the wheel support is
facing up asshown in figure7.
SLO'n'ED SCREW
5/16" x 3/4"
WHEEL
SUPPORT
\
5/16" HEX-
NUT (SEMS)_
FIGURE 7
FIGURE 5

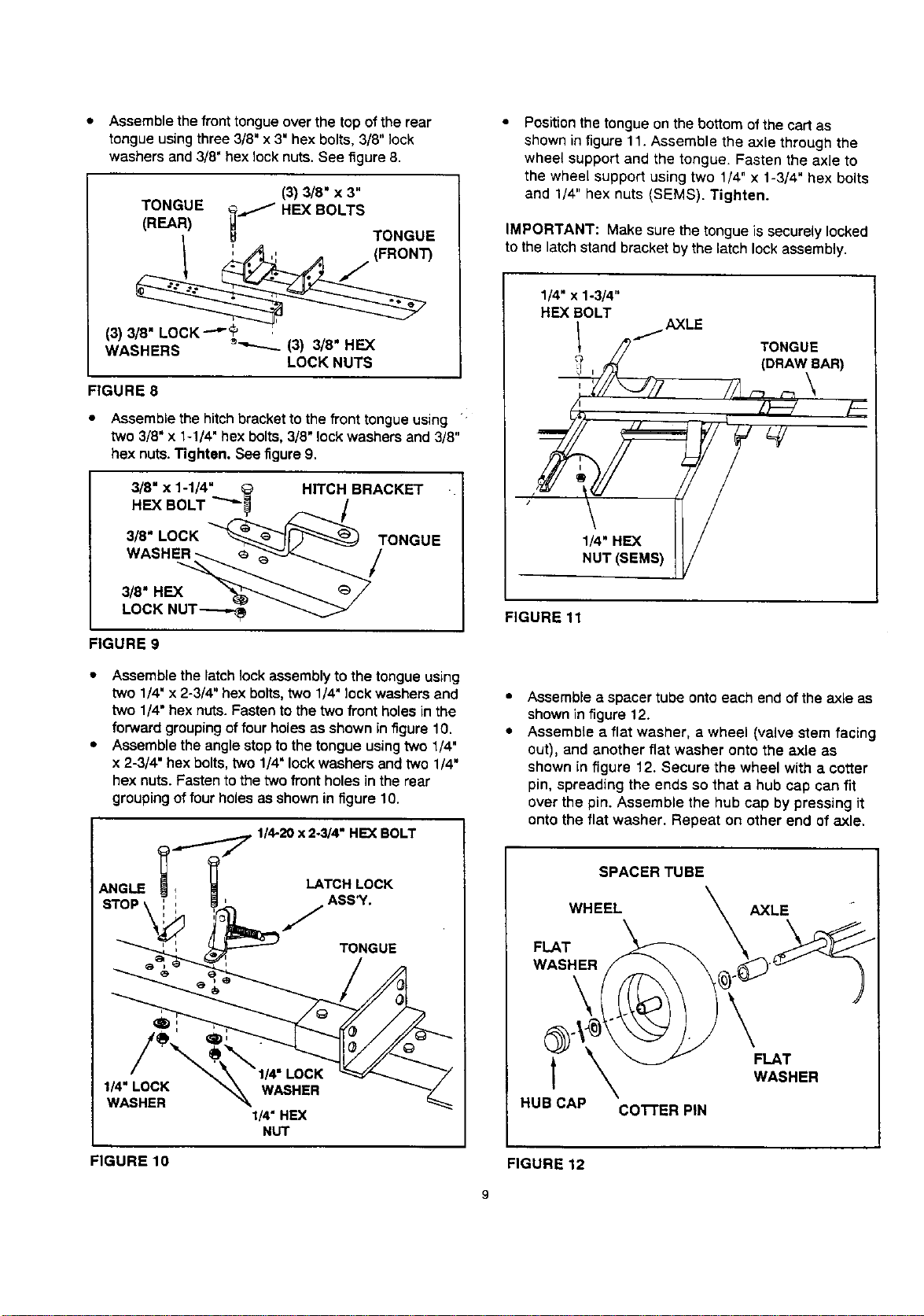

• Assemble the front tongue over the top of the rear
tongue using three 3/8" x 3" hex bolts, 3/8" lock
washers and 3/8" hex lock nuts. See figure 8.
(3)3/8"x 3"
TONGUE _,/HEX BOLTS
(REAR) _TONGUE
(3)
WASHERS _'-_-.-. (3) 3/8" HEX
LOCK NUTS
FIGURE 8
• Assemble the hitch bracket to the front tongue using "'
two 3/8" x 1-1/4" hex bolts, 3/8" lock washers and 3/8"
hex nuts. Tighten. See figure 9.
3/8" x 1-1/4" _ HITCH BRACKET ..
HEX BOLT "'"_1 /
.
3/8 LOCK _"_I_ TONGUE
WAS HER_..._........_ /
LOCK NUT---_
FIGURE 9
• Assemble the latch lock assembly to the tongue using
two 1/4" x 2-3/4" hex bolts, two 1/4" lock washers and
two 1/4" hex nuts. Fasten to the two front holes in the
forward grouping of four holes as shown in figure 10.
• Assemble the angle stop to the tongue using two 1/4"
x 2-3/4" hex bolts, two 1/4" lock washers and two 1/4"
hex nuts. Fasten to the two front holes in the rear
grouping of four holes as shown in figure 10.
HE)( BOLT
ANGLE LATCH LOCK
ASS'Y.
TONGUE
1/4" LOCK WASHER
WASHER 1/4" HEX
NUT
FIGURE 10
Position the tongue on the bottom of the cart as
shown in figure 11. Assemble the axle through the
wheel support and the tongue. Fasten the axle to
the wheel support using two 1/4" x 1-3/4" hex bolts
and 1/4" hex nuts (SEMS). Tighten.
IMPORTANT: Make sure the tongue is securely locked
to the latch stand bracket by the latch lock assembly.
1/4" x1-3/4"
HEX BOLT
AXLE
TONGUE
"_ (DRAW BAR)
114" HEX
NUT (SEMS)
FIGURE 11
• Assemble a spacer tube onto each end of theaxle as
shown infigure 12.
• Assemble a flat washer, a wheel (valve stem facing
out), and another flat washer onto the axle as
shown in figure 12. Secure the wheel with a cotter
pin, spreading the ends so that ahub cap can fit
over the pin. Assemble the hub cap by pressing it
onto the flat washer. Repeat on other end of axle.
SPACER TUBE
WHEEL
FLAT
WASHER
\
t
HUB CAP CoI-rER PIN
FLAT
WASHER
FIGURE 12

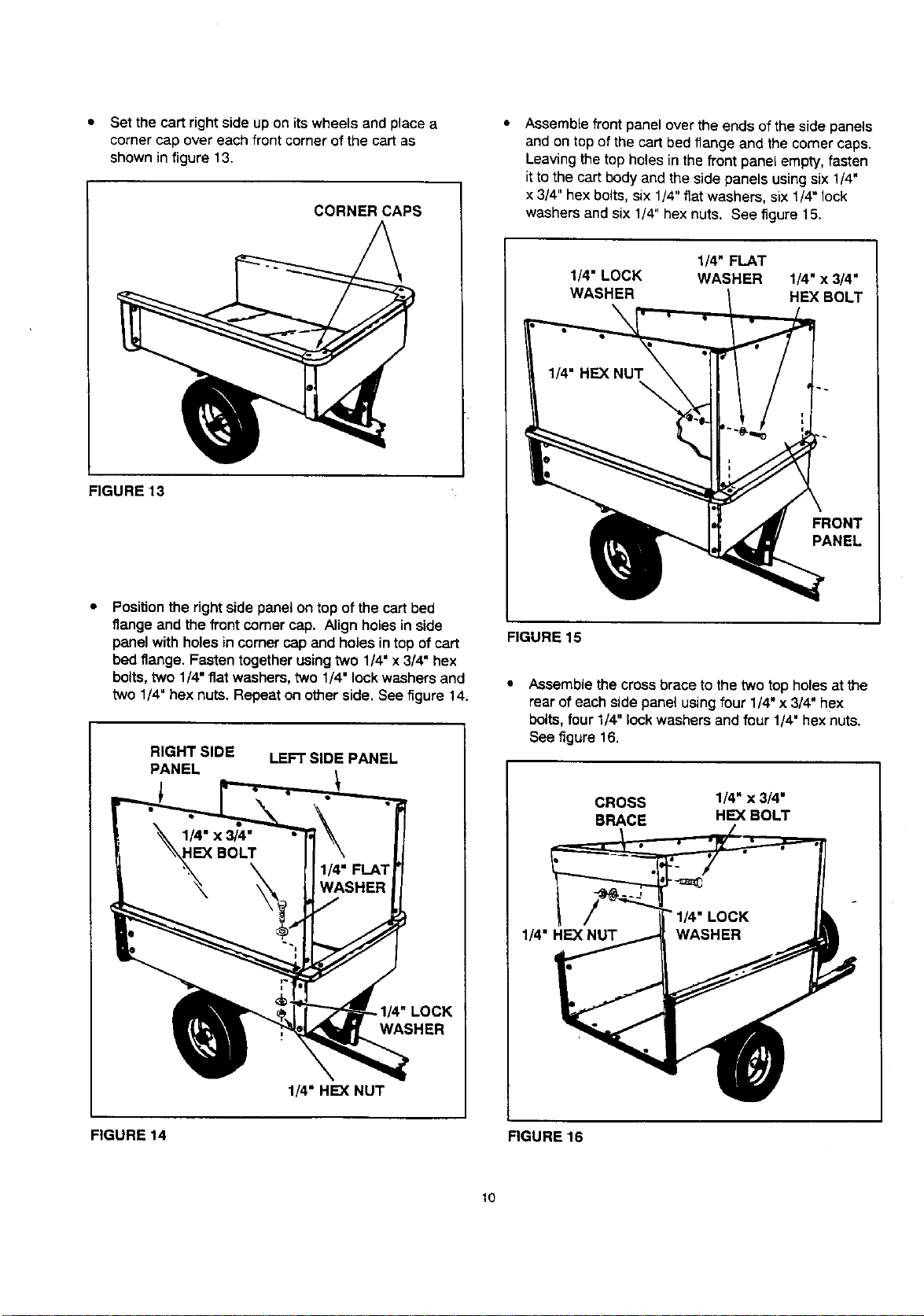

•Set the cart right side up on its wheels and place a
corner cap over each front corner of the cart as
shown in figure 13.
CORNER CAPS
FIGURE 13
Positionthe right side panel ontop ofthe cartbed
flange and the front comer cap. Align holes in side
panel with holes in corner cap and holes in top of cart
bed flange. Fasten together using two 1/4" x 3/4" hex
botts, two 1/4" flat washers, two 1/4" lock washers and
two 1/4" hex nuts. Repeat on other side. See figure 14.
RIGHT SIDE LEFT SIDE PANEL
PANEL 1
1/4" LOCK
WASHER
1/4" HEX NUT
AssembLefront panel over the ends of the side panels
and on top of the cart bed flange and the comer caps.
Leaving the top holes in the front pane{ empty, fasten
it to the cart body and the side panels using six 1/4"
x 3/4" hex bolts, six 1/4" flat washers, six 1/4" lock
washers and six 1/4" hex nuts. See figure 15.
1/4" FLAT
1/4" LOCK WASHER 1/4" x 3/4"
WASHER HEX BOLT
FRONT
PANEL
FIGURE 15
• Assemble the crossbrace to the two top holes atthe
rear of each side panel using four 1/4" x 3/4" hex
bolts, four 1/4" lock washers and four 1/4" hex nuts.
See figure16.
CROSS 1/4" x 3/4"
BRACE HEX BOLT
1/4" HE)( NUT I
FIGURE 14 FIGURE 16
10

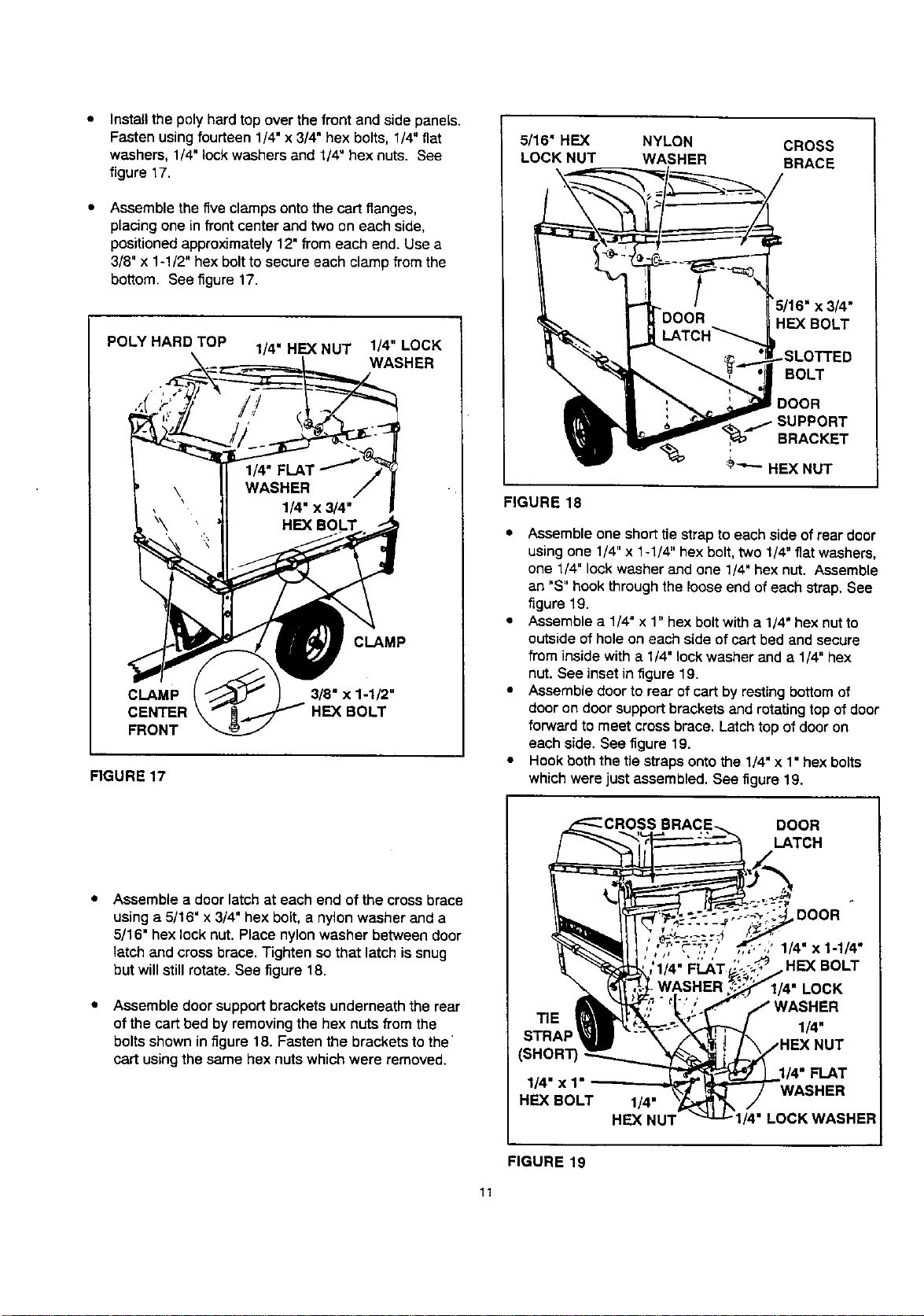

Installthepolyhardtopoverthefrontandsidepanels.
Fastenusingfourteen1/4"x3/4"hexbolts,1/4"flat
washers,1/4"lockwashersand1/4"hexnuts.See
figure17.
Assemble the five clamps onto the cart flanges,
placing one in f_ontcenter and two on each side,
positioned approximately 12"from each end. Use a
3/8" x 1-1/2" hex bolt to secure each clamp from the
bottom. See figure 17.
POLY HARD TOP 1/4" HEXNUT 1/4"LOCK
WASHER
CLAMP
CLAMP
FRONT
3/8" x 1-1/2"
FIGURE 17
5/16" HEX NYLON CROSS
LOCKNUT WASHER BRACE
•5/16" x 3/4•
HE)( BOLT
FIGURE 18
BOLT
DOOR
BRACKET
; -HEXNUT
Assemble one short tie strap to each side of rear door
using one 1/4" x 1-1/4" hex bolt, two 1/4" fiat washers,
one 1/4" lock washer and one 1/4" hex nut. Assemble
an "S" hook through the loose end of each strap. See
figure 19.
• Assemble a 1/4" x 1" hex bolt with a 1/4" hex nut to
outside of hole on each side of cart bed and secure
from inside with a 1/4" lock washer and a 1/4" hex
nut. See inset in figure 19.
•Assemble door to rear of cart by resting bottom of
door on door support brackets and rotaUng top of door
forward to meet cross brace. Latch top of door on
each side. See figure 19.
• Hook both the fie straps onto the 1/4" x 1• hex bolts
which were just assembled. See figure 19.
Assemble adoor latch at each end of the crossbrace
usinga 5/16" x 3/4" hex bolt, anylon washer and a
5/16" hex locknut. Place nylon washer between door
latch and crossbrace. Tightenso that latch issnug
butwillstillrotate.See figure 18.
Assemble door support brackets underneaththe rear
ofthe cart bed by removing the hex nutsfrom the
bolts shown in figure 18. Fasten the brackets to the'
cart using the same hex nuts which were removed.
._CROSS BRACE_. DOOR
,_,, _f t_" _,
"_,;1/4"'FLJ_T_-_'_? HEX BOLT
LOCK
STRAP '--'_ "" 1/4
..... T"'_"-'_I/4 • FLAT
1/4 xl
; ,, WASHOR
HEX NUT ""_u-_1/4" LOCK WASHER
FIGURE 19
11

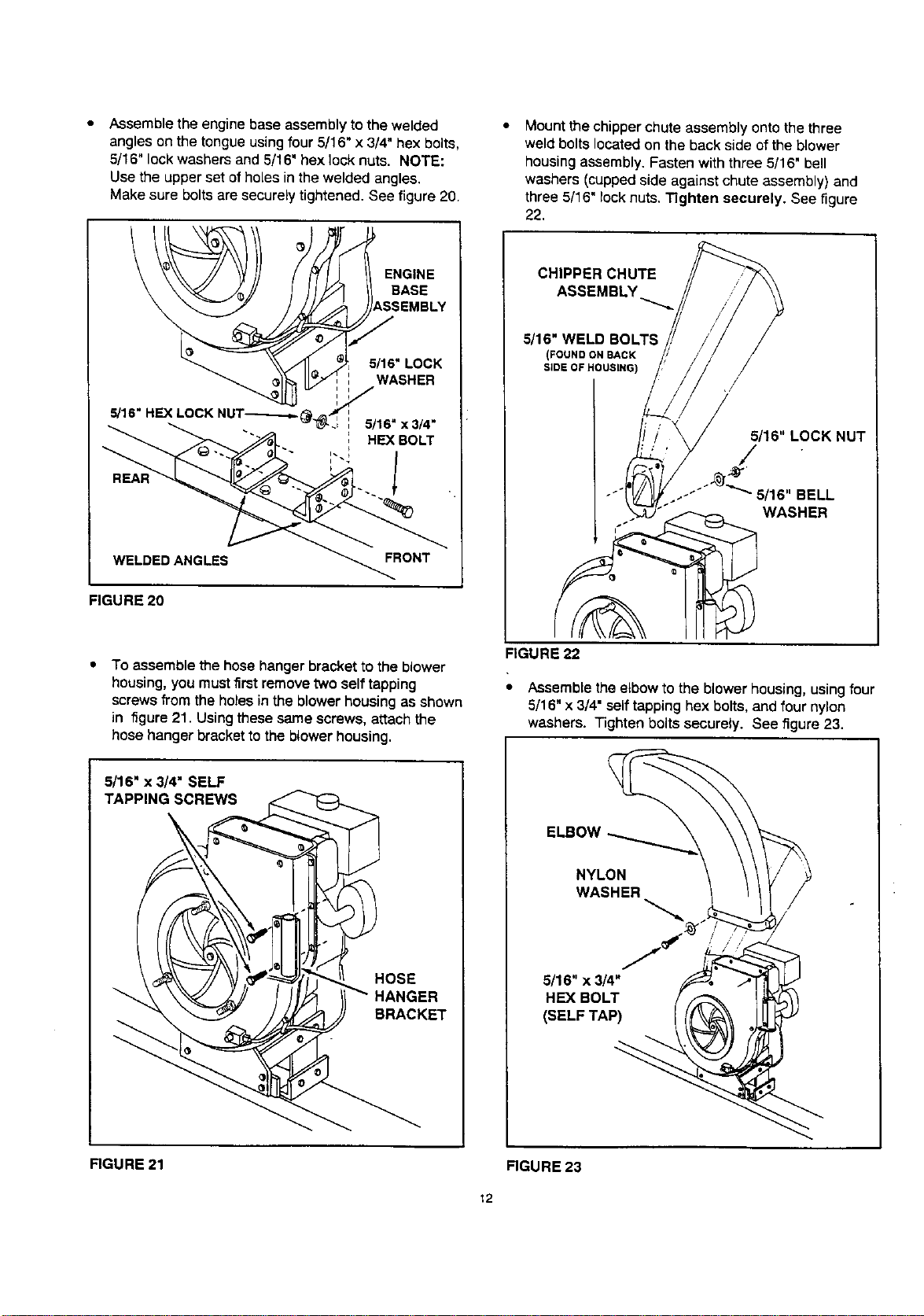

Assemblethe engine base assembly to the welded
angles on the tongue using four 5/16" x 3/4" hex bolts,
5/16" lock washers and 5/16' hex lock nLRs. NOTE:
Use the upper set of holes in the welded angles.
Make sure bolts are securely tightened. See figure 20.
Mount the chipper chute assembly onto the three
weld bolts located on the back side of the blower
housing assembly. Fasten with three 5/16" bell
washers (cupped side against chute assembly) and
three 5/16" locknuts. Tighten securely. See figure
22.
ENGINE
BASE
5EMBLY
5/16"LOCK
,WASHER
I'
5/16" HEX LOCK NUT------.._ 16" x 3/4"
HEX BOLT
l
RF.AR
WELDEDANGLES
i
FIGURE 20
FRONT
To assemble the hosehanger bracket to the blower
housing,you mustfirst remove two selftapping
screws from the holes in the blower housing as shown
in figure 21. Using these same screws, attach the
hose hanger bracket to the blower housing.
5/16" x 3/4" SELF
TAPPING SCREWS
HOSE
HANGER
BRACKET
FIGURE 21
CHIPPER CHUTE
ASSEMBLY
5/16" WELD BOLTS
(FOUND ON BACK
5/16" LOCK NUT
/
.--'"_'_ 5116"BELL
WASHER
'FIGURE22
• Assemble the eibow to the blower housing, using four
5/16" x 3/4' self tapping hex bolts, and four nylon
washers. Tighten bolts securely. See figure 23.
NYLON
WASHER
5/16" x 3/4"_
HEXBOLT [
(SELF TAP)
FIGURE 23
12

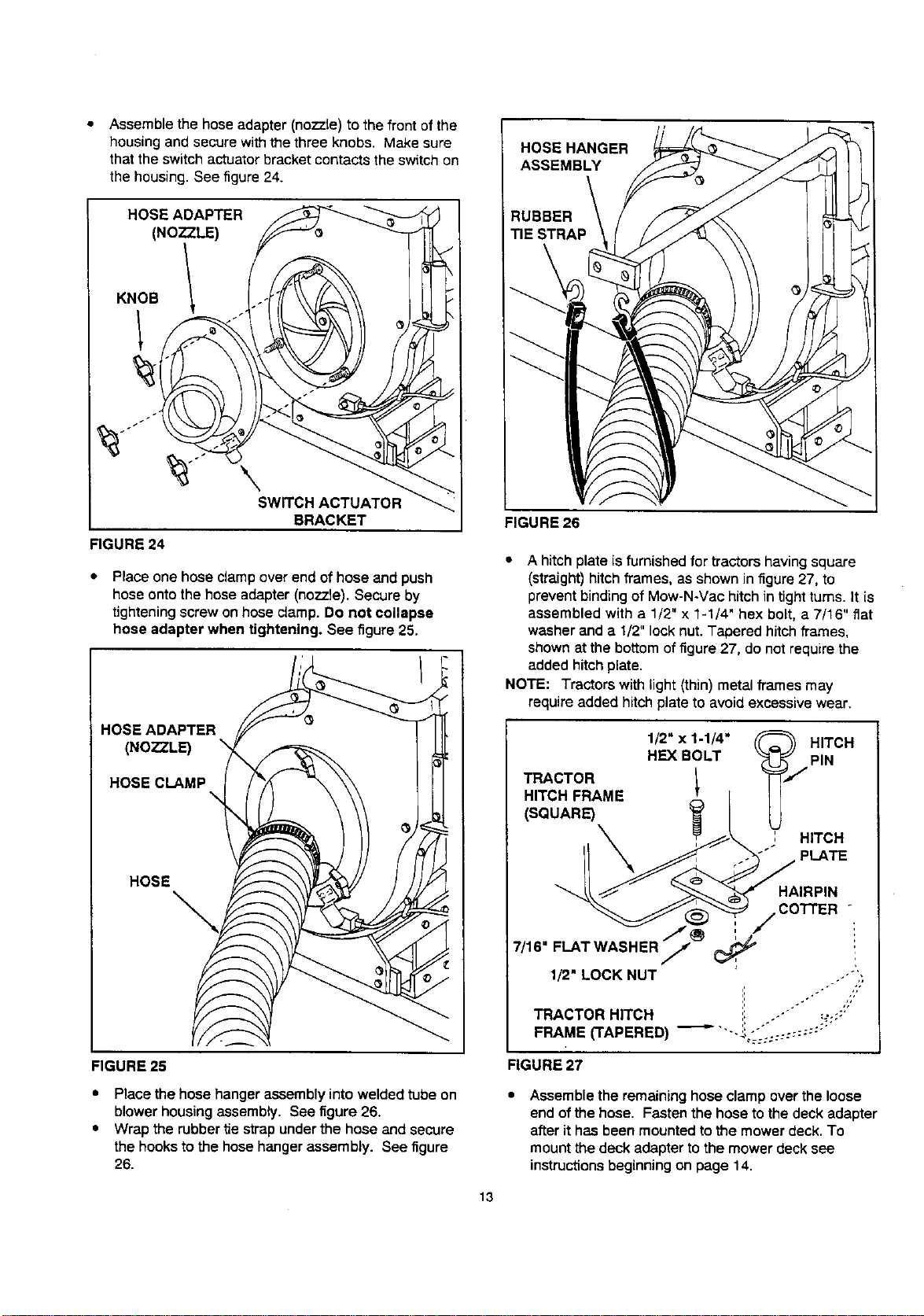

• Assemblethehoseadapter(nozzle) to the front of the
housing and secure with the three knobs, Make sure
that the switch actuator bracket contacts the switch on
the housing. See figure24_HOSEAOAPTER
(NOZZLE) /_F--"-'o
SWITCH ACTUATOR _,
BRACKET
FIGURE 24
Place one hose clamp over end of hose and push
hose onto the hose adapter (nozzle). Secure by
tightening screw on hose clamp. Do not collapse
hose adapter when tightening. See figure 26.
HOSE ADAPTER
(NOZZLE)
HOSE CLAMP
HOSE
FIGURE 25
•Place the hose hanger assembly into welded tube on
blower housing assembly. See figure 26.
•Wrap the rubber tie strap under the hose and secure
the hooks to the hose hanger assembly. See figure
26.
HOSE HANGER
ASSEMBLY
RUBBER
TIE STRAP
FIGURE 26
• A hitch plate is furnished for tractors having square
(straight) hitch frames, as shown in figure 27, to
prevent binding of Mow-N-Vac hitch in tight turns. It is
assembled with a 1/2" x 1-1/4" hex bolt, a 7/16" flat
washer and a 1/2" lock nut. Tapered hitch frames,
shown at the bottom of figure 27, do not require the
added hitch plate.
NOTE: Tractors with light (thin) metal &ames may
require added hitch plateto avoid excessive wear.
1/2" x 1-1/4"
HEX BOLT
TRACTOR 1
HITCH FRAME
(SQUARE)
HITCH
PIN
HITCH
PLATE
HAIRPIN
i/, COTTER "
7/16. FLAT WASHER ,j,,_ _, ,_,I
1/2" LOCK NUT _..- ._
TRACTOR HITCH ", ."" _;.::'
FRAME (TAPERED) _ '
FIGURE 27
Assemble the remaining hose clampover the loose
end of the hose. Fastenthe hose tothe deck adapter
afterit has been mounted to the mower deck. To
mountthe deckadapter tothe mower decksee
instructionsbeginningon page 14.
13

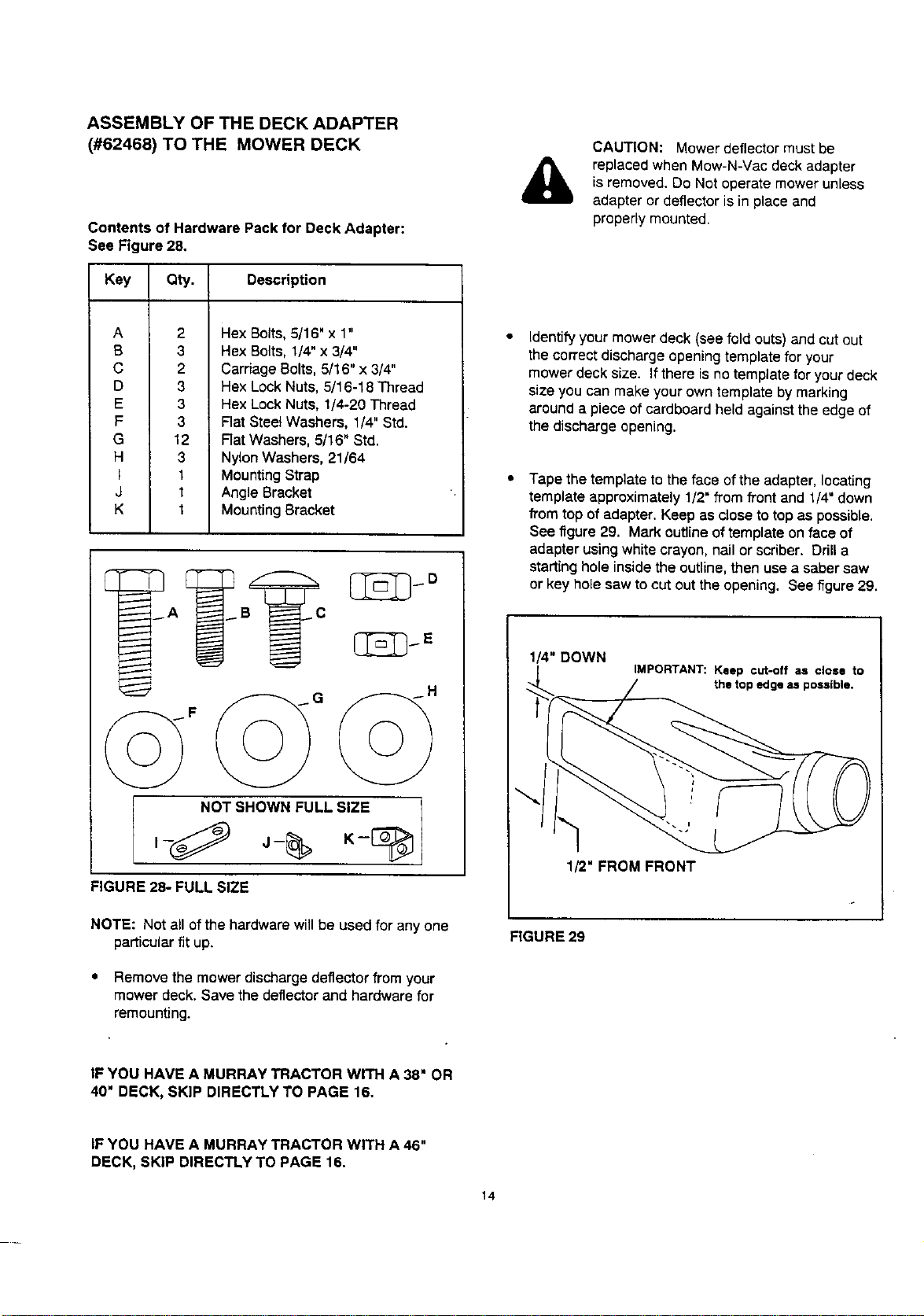

ASSEMBLY OF THE DECK ADAPTER
(#62468) TO THE MOWER DECK
Contents of Hardware Pack for Deck Adapter:
See Figure 28.
Key Qty. Description
A
B
C
D
E
F
G
H
I
d
K
2Hex Bolts, 5/16" x 1"
3 Hex Bolts, 1/4" x 3/4"
2Carriage Bolts, 5/16" x 3/4"
3 Hex Lock Nuts, 5/16-18 Thread
3 Hex Lock Nuts, 1/4-20 Thread
3 Fiat Steel Washers, 1/4" Std.
12 Flat Washers, 5/16" Std.
3 Nylon Washers, 21/64
1 Mounting Strap
1 Angle Bracket
1 Mounting Bracket
F
NOT SHOWN FULL SIZE I
j
FIGURE 28- FULL SIZE
NOTE: Not all of the hardware will be used for any one
particular fit up.
• Remove the mower discharge deflector from your
mower deck. Save the deflector and hardware for
remounting.
&CAUTION: Mower deflector must be
replaced when Mow-N-Vac deck adapter
is removed. Do Not operate mower unless
adapter or deflector is in place and
properly mounted.
Identi_ your mower deck (see fold outs) and cut out
the correct discharge opening template for your
mower deck size. If there is no template for your deck
size you can make your own template by marking
around a piece of cardboard held against the edge of
the discharge opening.
Tape the template tothe face of the adapter, locating
template approximately 1/2" from front and 1/4" down
from top of adapter. Keep as close to top as possible.
See figure29. Mark outline of template on face of
adapter usingwhite crayon, nail or scriber. Drill a
starting hole inside the outline, then use a saber saw
or key hole saw to cut out the opening. See figure 29.
1/4" DOWN IMPORTANT: Keep cut-off as close to
the top edge as possible.
1/2" FROM FRONT
FIGURE 29
IF YOU HAVE A MURRAY TRACTOR WITH A 38" OR
40" DECK, SKIP DIRECTLY TO PAGE 16.
IF YOU HAVE A MURRAY TRACTOR WITH A 46"
DECK, SKIP DIRECTLY TO PAGE 16.
14

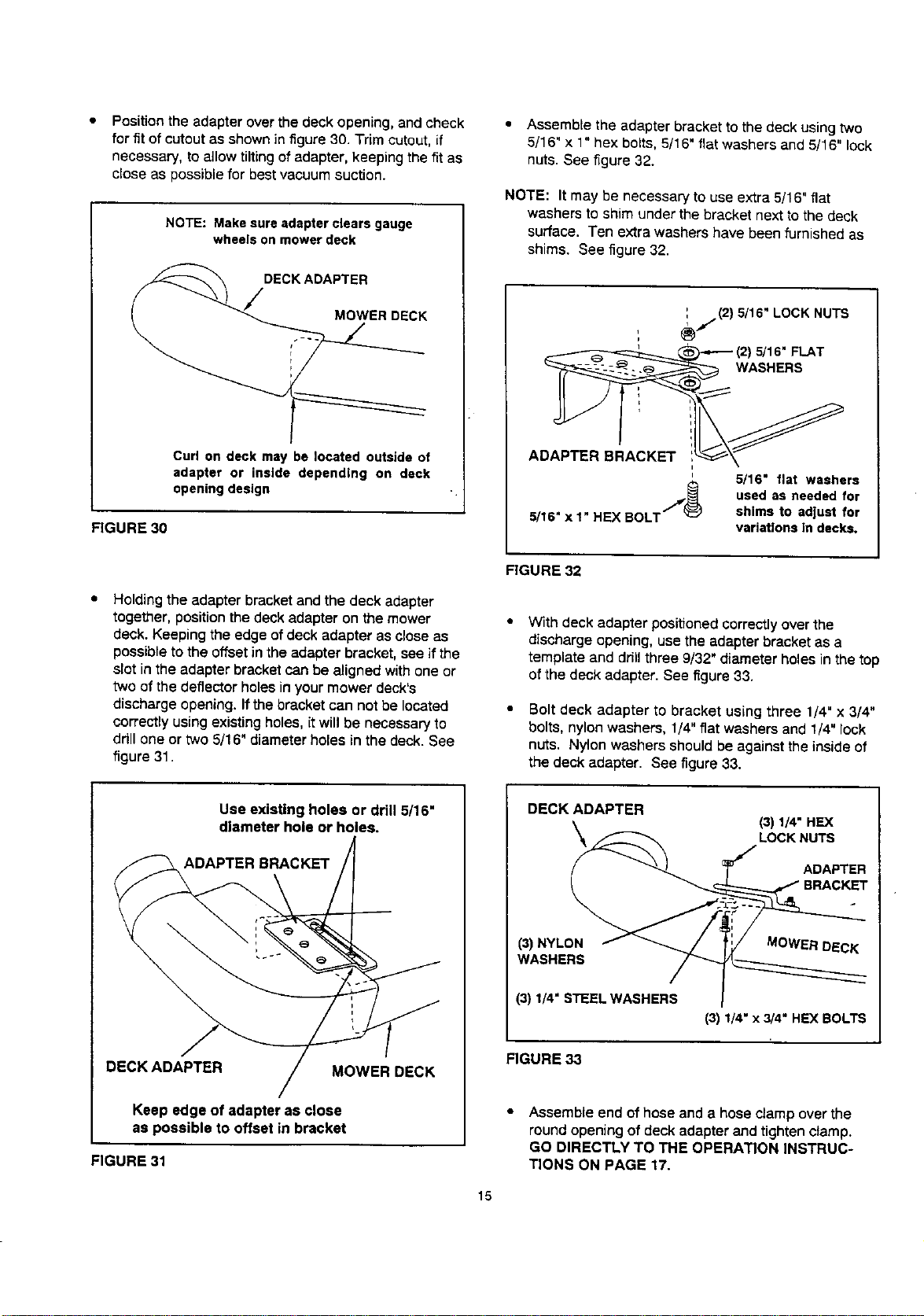

Position the adapter over the deck opening, and check
for fit of cutout as shown in figure 30. Trim cutout, if
necessary, to allow tilting of adapter, keeping the fit as
close as possible for best vacuum suction.
NOTE: Make sure adapter clears gauge
wheels on mower deck °.o,o,
Curl on deck may be located outside of
adapter or inside depending on deck
opening design
FIGURE 30
• Assemble the adapter bracket to the deck using two
5/16" x 1" hex bolts, 5/16" fiat washers and 5/16" lock
nuts. See figure 32.
NOTE: It may be necessary to use extra 5/16" flat
washersto shim under the bracket next to the deck
surface. Ten extra washers have been furnished as
shims, See figure 32.
ADAPTER BRACKET
5/16" x 1' HEX BOLT jf_
'2
,.( )5/16" LOCK NUTS
i®/
'_-_ _(21 5/16" FLAT
-_.._ _ WASHERS
5/16" flat washers
used as needed for
shims to adjust for
variations In decks,
• Holding the adapter bracket and the deck adapter
together, position the deck adapter on the mower
deck. Keeping the edge of deck adapter as close as
possible to the offset in the adapter bracket, see if the
slot in the adapter bracket can be aligned with one or
two of the deflector holes in your mower deck's
discharge opening. If the bracket can not be located
correctly using existing holes, it will be necessary to
drill one or two 5/16" diameter holes in the deck. See
figure 31.
FIGURE 32
With deck adapter positioned correctly over the
discharge opening, use the adapter bracket as a
template and drill three 9/32" diameter holes in the top
of the deck adapter. See figure 33.
Bolt deck adapter to bracket using three 1/4" x 3/4"
bolts, nylon washers, 1/4" flat washers and 1/4" lock
nuts. Nylon washers should be against the inside of
the deck adapter. See figure 33.
Use existing holes or drill 5/16"
diameter hole or holes,
ADAPTER BRACKET
DECK ADAPTER MOWER DECK
Keep edge of adapter as close
as possible to offset in bracket
FIGURE 31
DECK ADAPTER (3) t/4- H£X
LOCK NUTS
ADAPTER
BRACKET
(3) NYLON MOWER DECK
WASHERS
_)I_"STEEL WASHERS _)1_'x3/4" HEXBOLTS
FIGURE 33
• Assemble end of hose and a hose clampover the
round opening of deck adapter and tighten clamp.
GO DIRECTLY TO THE OPERATION INSTRUC-
TIONS ON PAGE 17.
15

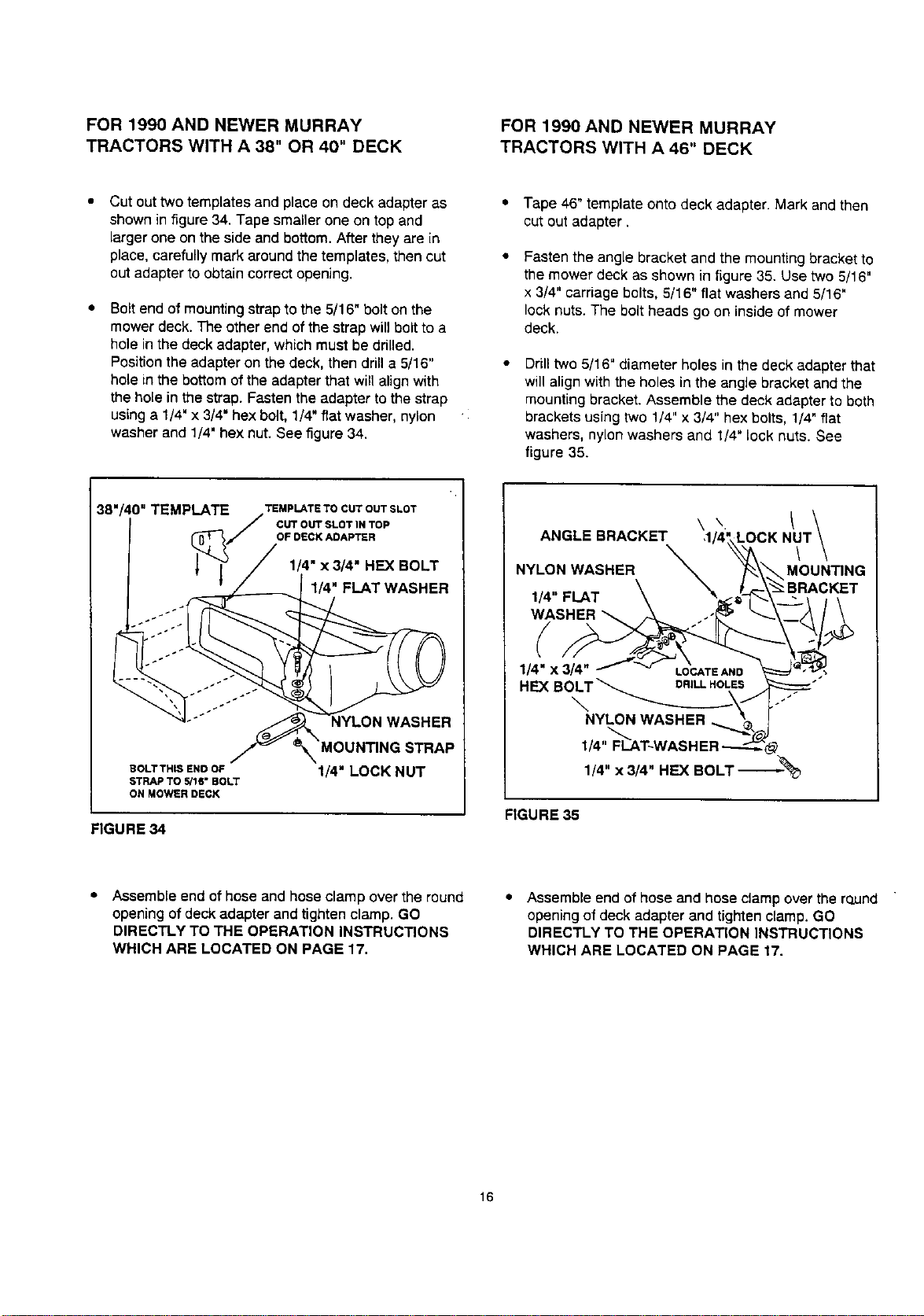

FOR 1990 AND NEWER MURRAY FOR 1990 AND NEWER MURRAY
TRACTORS WITH A 38" OR 40" DECK TRACTORS WITH A 46" DECK
Cut out two templatesand place on deck adapter as
shown in figure 34. Tape smaller one on top and
larger one on the side and bottom. After they are in
place, carefully mark around the templates, then cut
out adapter to obtain correct opening.
Bolt end of mounting strap to the 5/16" bolt onthe
mower deck. The other end of the strap will bolt to a
hole in the deck adapter, which must be drilled.
Position the adapter on the deck, then drill a 5/16"
hole in the bottom of the adapter that will align with
the hole in the strap. Fasten the adapter to the strap
using a 1/4" x 3/4" hex bolt, 1/4" fiat washer, nylon
washer and 1/4" hex nut. See figure 34.
• Tape 46" template onto deck adapter. Mark and then
cut out adapter.
Fasten the angle bracket and the mounting bracket to
the mower deck as shown in figure 35. Use two 5/16"
x 3/4" carriage belts, 5/16" flat washers and 5/16"
lock nuts. The bolt heads go on inside of mower
deck.
Drill two 5/16" diameter holes in the deck adapter that
will align with the holes in the angle bracket and the
mounting bracket. Assemble the deck adapter to both
brackets using two 1/4" x 3/4" hex bolts, 1/4" flat
washers, nylon washers and 1/4" lock nuts. See
figure 35.
38"/40" TEMPLATE TEMPLATE TO CUT OUT SLOT
CUT OUT SLOT IN TOP
OF DECK ADAPTER
1/4" x 3/4" HE_ BOLT
1/4" FLAT WASHER
BOLTTHIS END OF
STRAP TO 5/16" BOLT
ON MOWER DECK
_IYLONWASHER
"MOUNTING STRAP
1/4" LOCK NUT
FIGURE 34
\. /
ANGLE BRACKET
NYLON WASHER _MOUNTING
1/4" FLAT
1/4" x 3/4"
NYLON WASHER
1/
1/4" x 3/4" HEX BOLT-_-,--%_
FIGURE 35
• Assemble end ofhose and hose clamp over the round
opening of deck adapter and tighten clamp. GO
DIRECTLY TO THE OPERATION INSTRUCTIONS
WHICH ARE LOCATED ON PAGE 17,
Assemble end of hose and hose clamp over the round
opening of deck adapter and tighten clamp. GO
DIRECTLY TO THE OPERATION INSTRUCTIONS
WHICH ARE LOCATED ON PAGE 17.
16

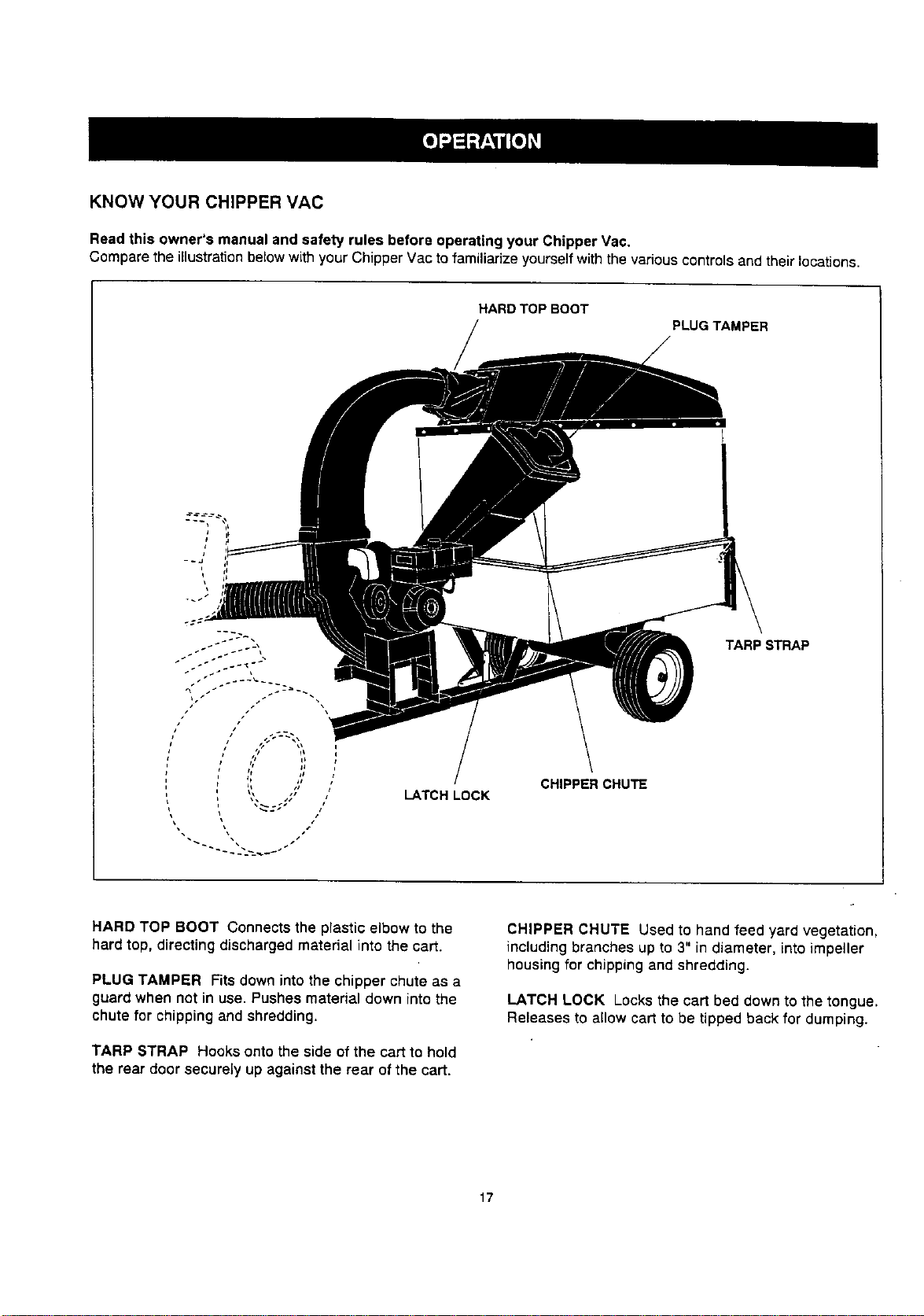

KNOW YOUR CHIPPER VAC
Read this owner's manual and safety rules before operating your Chipper Vac.
Compare the illustrationbelow withyour Chipper Vac tofamiliarizeyourselfwiththe variouscontrolsand theirlocations.
HARD TOP BOOT PLUG TAMPER
LATCH LOCK CHIPPER CHUTE
TARP STRAP
HARD TOP BOOT Connects the plastic elbow to the
hard top, directing dischargedmaterial into the cart.
PLUG TAMPER Fits down intothe chipper chute as a
guard when not in use. Pushes material down into the
chute for chippingand shredding.
TARP STRAP Hooksontothe side of the cart to hold
the rear door securely up against the rear of the cart.
CHIPPER CHUTE Used to hand feed yard vegetation,
including branches up to 3" in diameter, into impeller
housing for chippingand shredding.
LATCH LOCK Locks the cart bed down to the tongue.
Releases to allow cart to be tipped back for dumping.
17

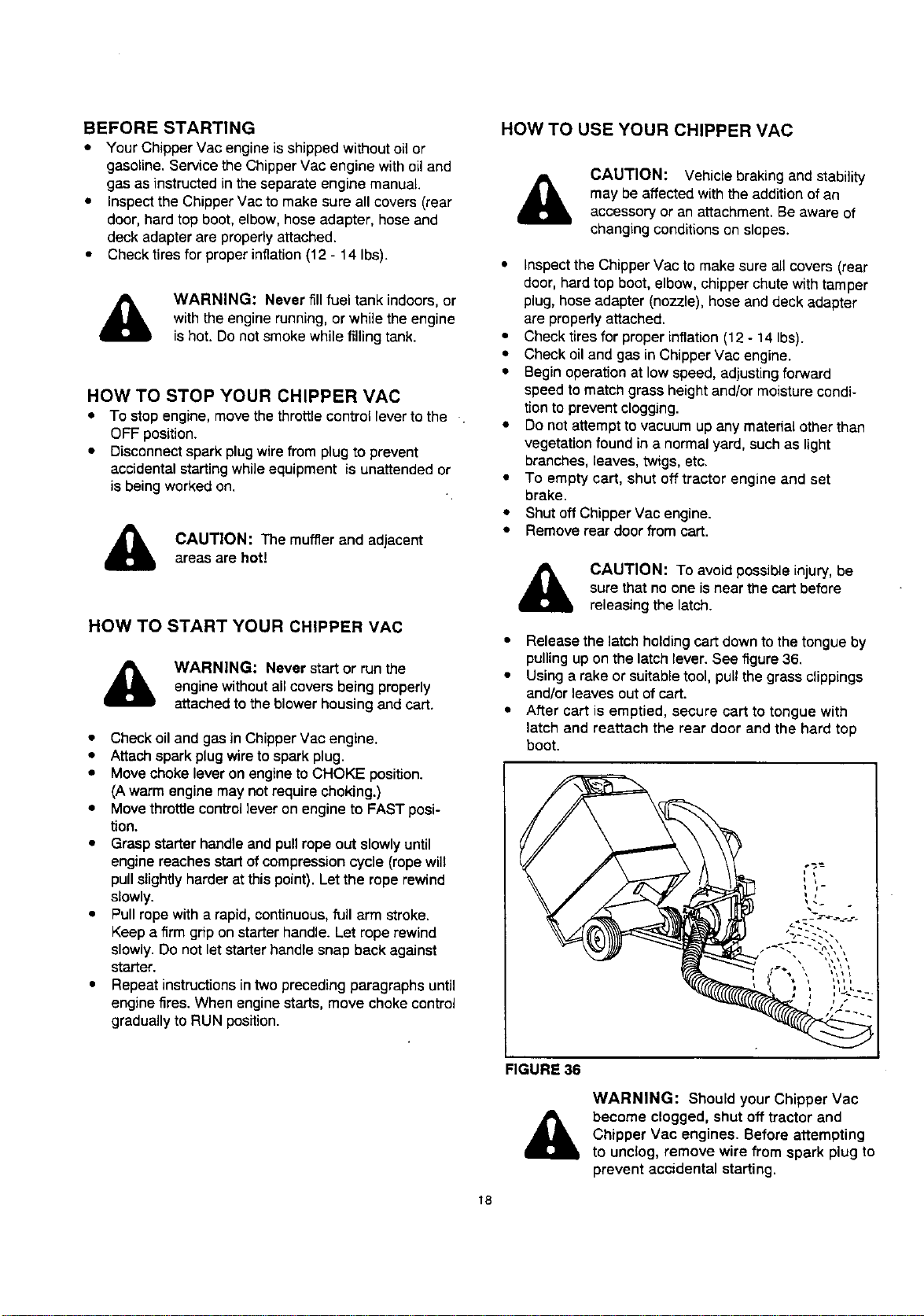

BEFORE STARTING
• Your Chipper Vac engine is shipped withoutoil or
gasoline. Service the Chipper Vac engine with oil and
gas as instructed in the separate engine manual.
• Inspect the Chipper Vac to makesure all covers (rear
door, hard top boot, elbow, hose adapter, hose and
deck adapter are property attached.
• Check tires for proper inflation (12 - 14 Ibs).
WARNING: Never fill fuel tank indoors, or
with the engine running, or while the engine
is hot. Do not smoke while filling tank.
HOW TO STOP YOUR CHIPPER VAC
• To stop engine, move the throttle control lever to the
OFF position.
• Disconnect spark plug wire from plug to prevent
accidental starting while equipment is unattended or
is being worked on.
CAUTION: The muffler and adjacentareas are holt
HOW TO START YOUR CHIPPER VAC
i_ WARNING: Never start or run the
engine without all covers being properly
attached to the blower housing and cart.
• Check oil and gas in Chipper Vac engine.
• Attach sparkplug wire to spark plug.
• Move choke lever on engine to CHOKE position.
(A warm engine may not require choking.)
• Move throffle control lever on engineto FAST posi-
tion.
• Grasp starterhandle and pull rope out slowlyuntil
engine reaches start of compression cycle (rope will
pull stightly harder at this point). Let the rope rewind
slowly.
• Pull rope with a rapid, continuous, full arm stroke.
Keep a firm grip on starter handle. Let rope rewind
slowly. Do not let starter handle snap back against
starter.
• Repeat instructions in two preceding paragraphs until
enginefires. When engine starts, move choke control
gradually to RUN position.
HOW TO USE YOUR CHIPPER VAC
&CAUTION: Vehicle braking and stability
may be affected withthe addition of an
accessory or an attachment. Be aware of
changing conditions on slopes.
• Inspect the Chipper Vac to make sure all covers (rear
door, hard top boot, elbow, chipper chute with tamper
plug, hose adapter (nozzle), hose and deck adapter
are properly attached.
• Check tires for proper inflation(12 - 14 Ibs).
• Check oil and gas inChipper Vac engine.
• Begin operation at low speed, adjusting forward
speed to match grass height and/or moisture condi-
tion to preventclogging.
• Do not attempt to vacuum up any material other than
vegetation found in a normal yard, such as light
branches, leaves, twigs, etc.
• To empty cart, shut off tractor engine and set
brake.
• Shut off Chipper Vac engine.
• Remove rear door from cart.
CAUTION: To avoid possibleinjury, be
sure thatnoone isnear the cartbefore
releasing the latch.
•Release the latch holding cart down to the tongue by
pulling up on the latch lever. See figure 36.
• Using a rake or suitable tool, pull the grass clippings
and/or leaves out of cart.
• After cart is emptied, secure cart to tongue with
latch and reattach the rear door and the hard top
boot. 1
FIGURE 36
&WARNING: Should your Chipper Vac
become clogged, shut offtractor and
Chipper Vac engines. Before attempting
to unclog, remove wire from spark plug to
prevent accidental starting.
18

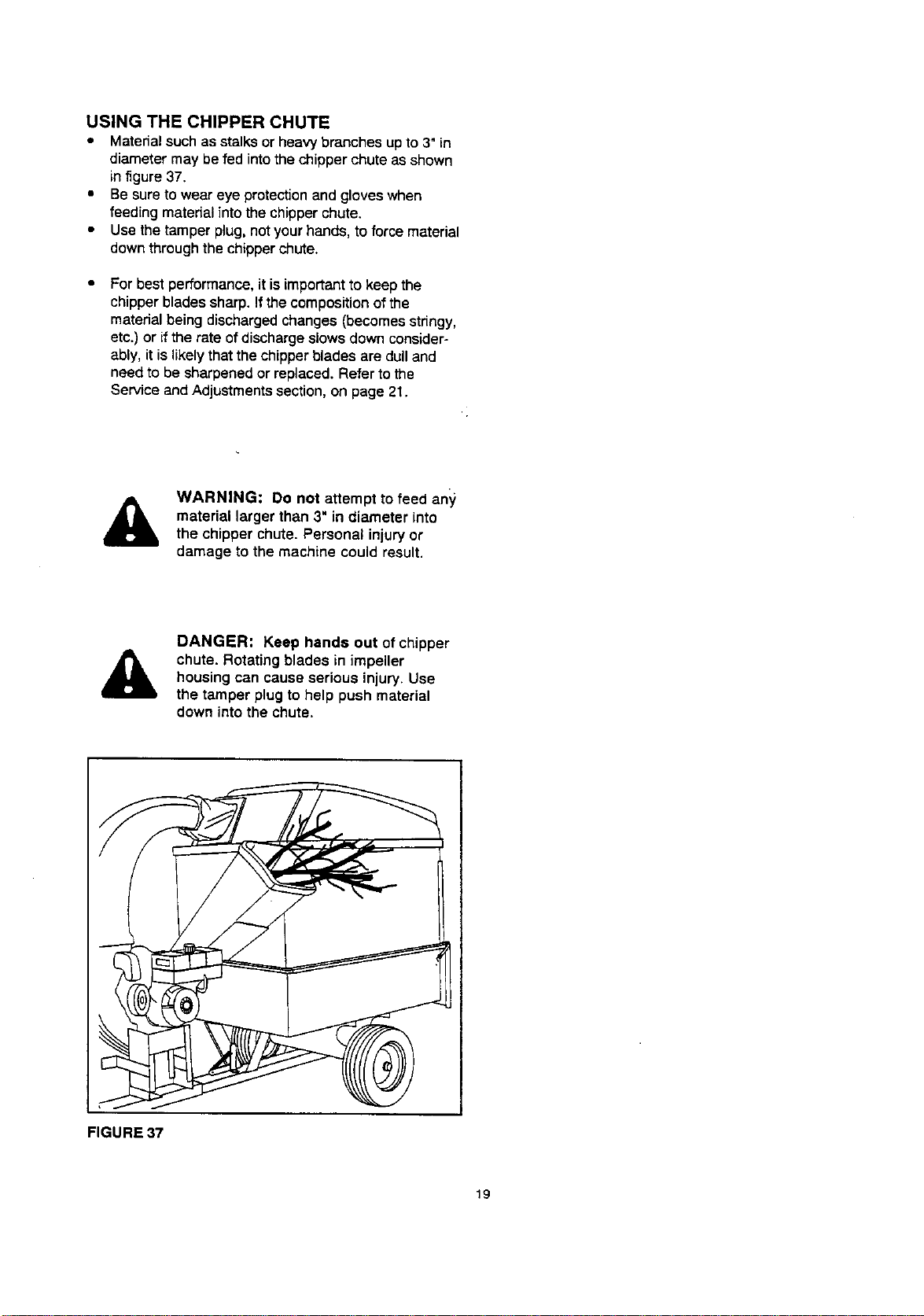

USING THE CHIPPER CHUTE
• Materialsuchas stalksor heavybranchesup to3" in
diameter may befed intothe chipperchute as shown
in figure 37.
• Be sure to wear eye protection and gloves when
feeding material into the chipper chute.
• Use the tamper plug, not your hands, to force material
down through the chipper chute.
For best performance, it is important to keep the
chipper blades sharp. If the compositionof the
material being discharged changes (becomes stnngy,
etc.) or if the rate of discharge slows down consider-
ably, it is likelythat the chipper blades are dull and
need to be sharpened or replaced. Refer to the
Service and Adjustments section, on page 21.
&WARNING: Do not attempt to feed an_i
material larger than 3" in diameter into
the chipper chute. Personal injuryor
damage to the machine could result.
&DANGER: Keep hands out of chipper
chute. Rotating blades in impeller
housing can cause serious injury. Use
the tamper plugto help push material
clownintothe chute.
FIGURE 37
19
CUSTOMER RESPONSIBILITIES
i MAINTEN AN CES CHEDULE _'__o_J
Fillin datesas you _,_'_ _o_ =_
completeregular service. /,"_'_.,_,,,,_
Check for loose fasteners X
Checksoftvinylboot X
Checktirepressure X
Check enoin_oil level X
Lubricate X I
Clean X X
Read and follow the maintenance schedule and the maintenance procedures listed in this section.
ServiceDates
Maintain enoine oer instructions below and in enoine manual.
BEFORE EACH USE
CHECK FOR LOOSE FASTENERS
•Make a thorough visual check of the Chipper Vac
for any bolts and nutswhich may have loosened.
Retighten any loose boltsand nuts.
CHECK SOFT VINYL BOOT
• Check the soft vinylboot (on front of hard top) for
wear. Replace ifwornor damaged.
CHECK T1RE PRESSURE
• Check tire pressure regularly. Recommended tire
pressure is 12-14 Lbs.
CHECK ENGINE OIL LEVEL
• Check oil level before each use. Maintain engine oil
as instructed in the separate engine manual.
LUBRICATION
• At the beginning ofeach season,lubricatethe latch,
latch pivotbolt,and theaxlewhere the hitchtongue
pivots,with a lightmachine oil.
• At least once a season,grease or oilthe wheel
bearings. Use automotive wheel bearing type grease
or 20 weight oil.
&WARNING: Always stop engine and
disconnect spark plug wire before clean-
ing, lubricating or before performing any
repairs or maintenance.
ENGINE MAINTENANCE
• Check oil level before each use. Maintain engine oil
as instructed in the separate engine manual
•Service air cleaner every 25 hours under normal
conditions.Clean everyfew hours under extremely
dustyconditions.Poorengine performanceand
flooding usuallyindicatesthat the air cleanershould
be serviced.To servicetheair cleaner, refer tothe
separate engine manual.
•The spark plug shouldbe cleaned and the gap reset
oncea season. Spark plugreplacementis recom-
mended at the start of each season. Check the
enginemanualfor correctplug type and gap specifi-
cations.
CLEANING
•Make sure the cart, the side and front panelsandtop
are cleaned aftereachuse. Grass clippingsand
leaves leftinthe cart willmildew and causedamage if
not cleanedout.
•Clean the engine regularlywitha clothorbrush. "
Keep the coolingfins on the engine housing cleanto
permitproperair circulationwhichis essentialto
engine performanceand life. Be sure to removeall
dirt and debris from muffler area.
2O
SHARPENING OR REPLACING CHIPPER
BLADES
• Disconnect the spark plug wire and move away from
the sparkplug.
•Removethe accessplate by removingtwohex lock
nuts. See figure 38.
•Locateone ofthechipperblades in the access plate
openingbyrotating the impellerassemblyby hand.
Removethe blade usinga 3/16"alien wrenchonthe
outsideofthe blade and a 1/2"wrenchon the impel-
lerassembly, inside the housing.
• Remove the other blade in the same manner.
• Replace or sharpen blades. If sharpening, make
certain to remove an equal amount from each blade.
Reassemblein reverse order.
NOTE: Make certain the blades are reassembledwith
the sharp edge facing upward, as viewed from the access
plate opening.
FIGURE 38
HEX
LOCK NUTS
• Clean the engine and the entire unit thoroughly.
• Refer to engine manual for correct engine storage
instructions.
• If stohng inan unventilated or metal storage shed,
coat metal parts with light oil or silicone to prevent
rust.
• Store unit in a clean, dry area.
21
PROBLEM POSSIBLE CAUSE(S) CORRECTIVE ACTION
Engine fails to start 1. Spark plug wire disconnected. 1. Connect wire to spark plug.
2. Safe_ switch not contacted. 2. Correctly install hose adapter nozzle.
3. Fuel tank empty, or stale fuel. 3. Fill tank with clean, fresh fuel.
4. Fuel shut-off valve closed 4. Open fuel shut-off valve.
(if so equipped).
5. Faulty spark plug. 5. Clean, adjust gap or replace.
Loss of power; 1. Spark plug wire loose 1.
operation erratic. 2. Unit running on CHOKE. 2.
3. Blocked fuel line or stale fuel. 3.
Engine overheats
Too much vibration
Unit does not
discharge
Rate of discharge
when chipping
slowsconsiderably,
or compositionof
discharged matedal
changes.
4. Water or dirt in fuel system.
5. Carburetor out of adjustment.
6. Dirty air cleaner.
1. Carburetor not adjusted
properly.
2. Engine oil level low.
Looseparts or damaged
impeller.
1. Discharge chute (elbow)
clogged.
2. Foreign object lodged in
impeller.
3. Mow-N-Vac cart is full.
Chipper blades dull.
4.
5.
6.
Connect and tighten spark plug wire.
Move choke lever to OFF position.
Cleanfuel line; fill tank with clean
fresh gasoline.
Disconnect fuel line at carburetor to drain
fuel tank. Refill with fresh fuel
Adjust carburetor.*
Service air cleaner.*
1. Adjust carburetor.*
2. Fill crankcase with proper oil.
Stop engine immediately and disconnect
spark plug wire.Tighten all bolts and nuts.
Make all necessary repairs. Lfvibration
continues, have unit servicedby an
authorized servicedealer.
1. Stop engineimmediately and disconnect
spark plug wire. Clean inside of housing
and discharge chute (elbow).
2. Stop engine immediately and disconnect
spark plug wire. Remove lodgedobject.
3. Empty cart.
Sharpen or replace chipper blades.
*Refer to the engine manual packed with your unit.
NOTE: For repairs beyond the minor adjustments listed above, please contact your nearest authorized service
dealer.
22
2
REPAIR PARTS FOR MODEL 486.24515 CART BODY
16
14
3
\5
6
14
/
REF. PART
NO. NO. QTY.
1
2
3
4
5
6
7
8
9
23985
62458
23492
23507
23297
62455
23488
23484
46272
2
1
1
1
1
1
1
2
2
REF. PART
DESCRIPTION NO. NO. QTY. DESCRIPTION
Cart Body 10 43093
Tailgate Reinforcement Bracket 11 43601
Front Panel 12 44678
Wheel Support 13 43014
Latch Stand Bracket 14 43175
Ass'y, Latch Lock 15 1509-69
Axle, Wheel 1" Dia. 16 46978
Cap, Front Corner 17 43814
Wheel, 15/6.00 x 8.00 18 46980
2Cotter Pin, 1/8" Dia. x 1-1/2"
4 Washer, Fiat 1"
2 Spacer Tube, 1-1/4" O.D. x 2" Lg.
2 Hub Cap
25 Hex Bolt, 1/4-26 x 1/2" *
2 Hex Bolt, 1/4-20 x 1-3/4" *
27 Hex Nut, 1/4-20 Thread (SEMS)
14 Sit. Truss Hd. Bolt, 5/16-18 x 3/4" Lg.*
14 Hex Nut, 5/16-18 Thread (SEMS)
23

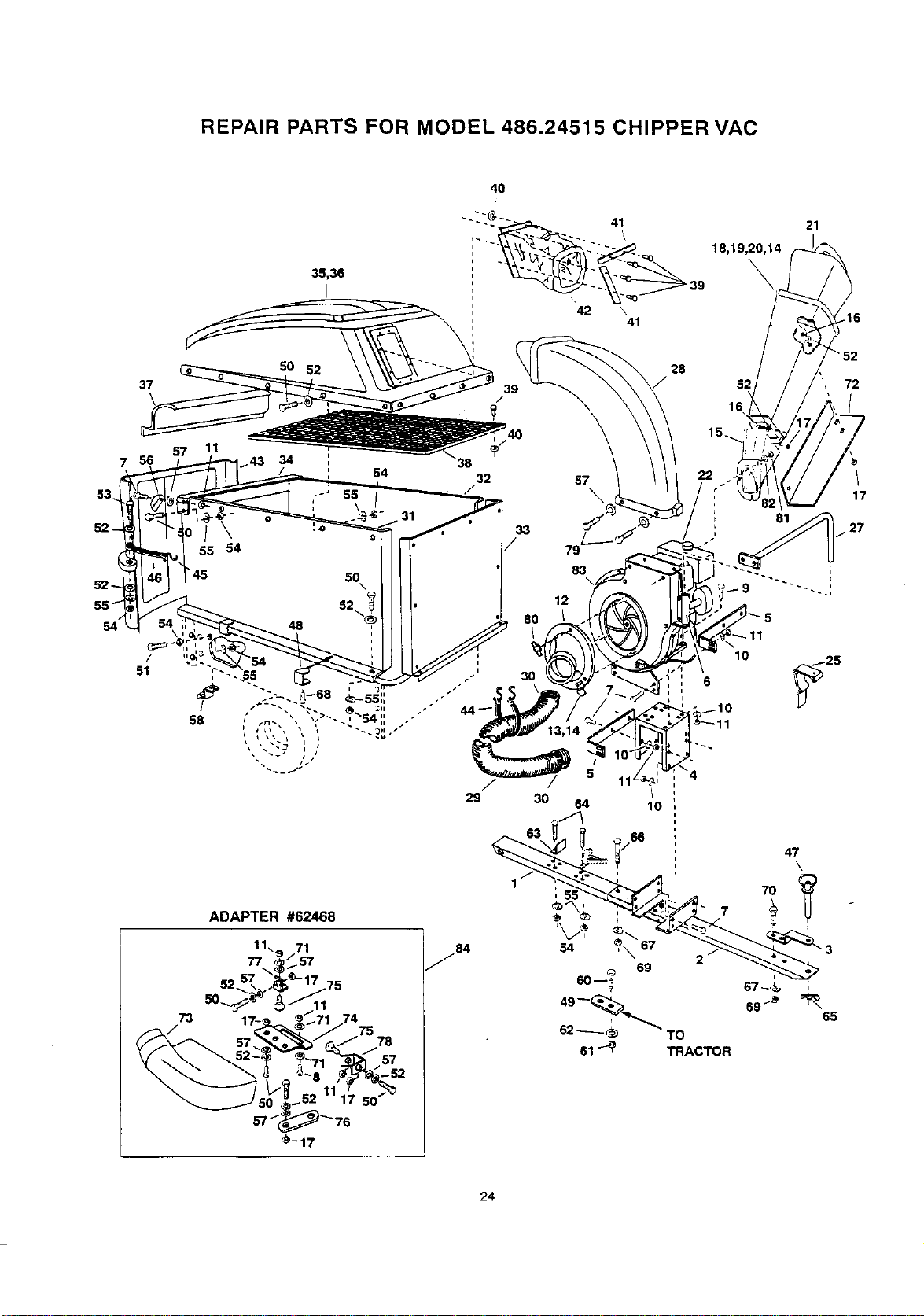

REPAIR PARTS FOR MODEL 486,24515 CHIPPER VAC
37
7
53
52-
35,36
I
54
4O
38 32
/
33
42
57\
79
83
12
41
41
28
18,19,20,14
\
21
72
/
17
/
51 ,#
/
58
ADAPTER #62468
71
7-/ _s'r
73
/84
29
3O
5 11':
30 64 10
66
10
47
\
24

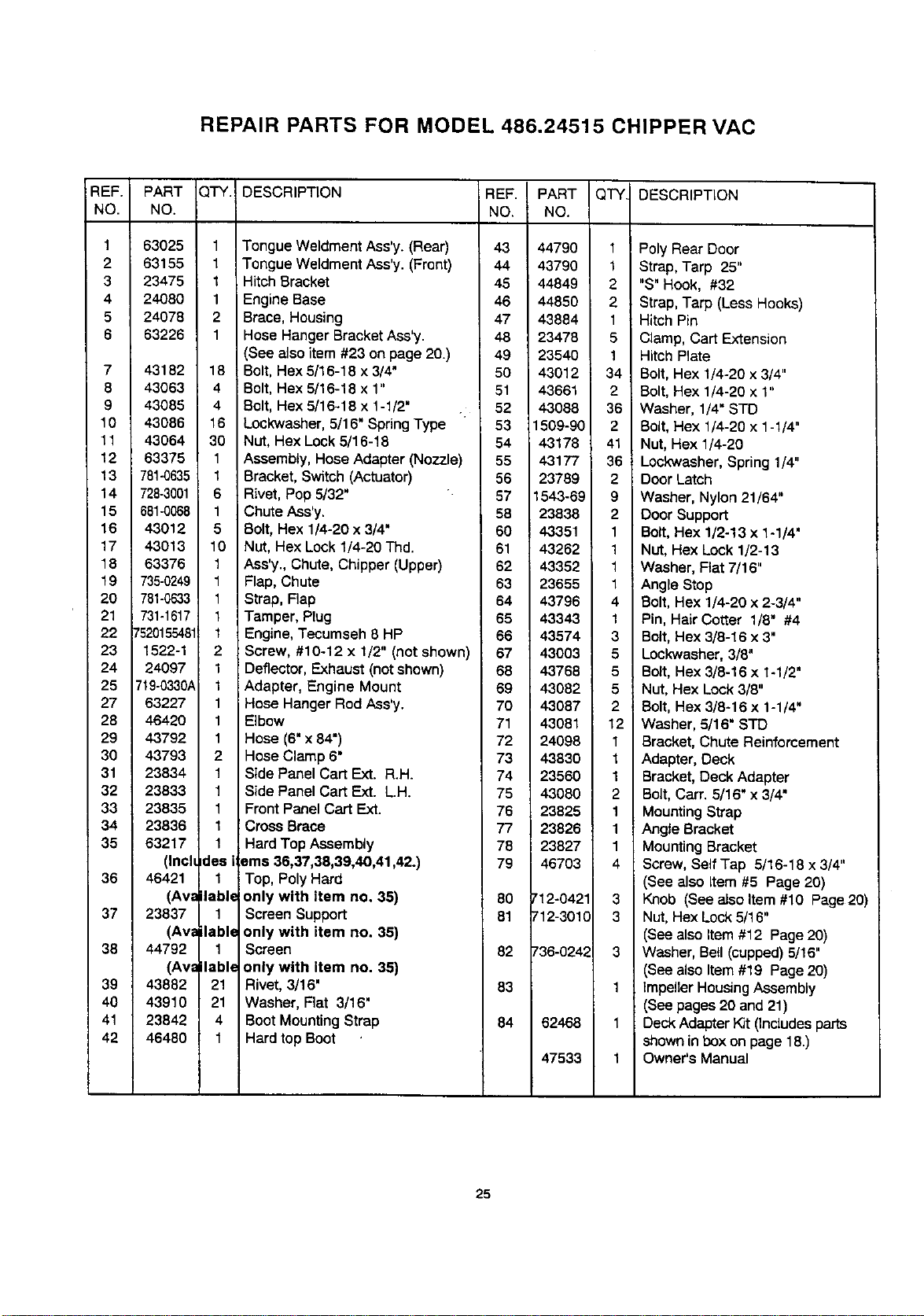

REPAIR PARTS FOR MODEL 486.24515 CHIPPER VAC
REF.
NO.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
2O
21
22
23
24
25
27
28
29
3O
31
32
33
34
35
36
37
38
39
40
41
42
PART
NO.
63025
63155
23475
24080
24078
63226
43182
43063
43085
43086
43064
63375
781-0635
728-3001
681-0068
43012
43013
63376
735-0249
781-0633
731-1617
t520155481
1522-1
24097
719-0330A
63227
46420
43792
43793
23834
23833
23835
23836
63217
(Incll
46421
(Av=
23837
(Av;
44792
(Av=
43882
43910
23842
46480
QTY. DESCRIPTION
1 Tongue Weldment Ass'y. (Rear)
1 Tongue Weldment Ass'y. (Front)
1 Hitch Bracket
1 Engine Base
2 Brace, Housing
1 Hose Hanger Bracket Ass'y.
(See also item #23 on page 20.)
18 Bolt, Hex 5/16-18 x 3/4"
4 Bolt, Hex 5/16-18 x 1"
4Bolt,Hex 5/16-18 x 1-1/2"
16 Lockwasher, 5/16" Spring Type
30 Nut, Hex Lock 5/16-18
1 Assembly, Hose Adapter (Nozzle)
1 Bracket, Switch (Actuator)
6 Rivet, Pop 5/32" "
1 Chute Ass'y.
5 Bolt, Hex 1/4-20 x 3/4"
10 Nut, Hex Lock 1/4-20 Thd.
1 Ass'y, Chute, Chipper (Upper)
1 Flap, Chute
1 Strap, Flap
1 Tamper, Plug
1 Engine, Tecumseh 8 HP
2 Screw, #10-12 x 1/2" (not shown)
1 Deflector, Exhaust (notshown)
1 Adapter, Engine Mount
1 Hose Hanger Rod Ass'y.
1 Elbow
1 Hose (6" x 84")
2 Hose Clamp 6"
1 Side Panel Cart Ext. R.H.
1 Side Panel Cart Ext. L.H.
1 Front Panel Cart Ext.
1CrossBrace
1 Hard Top Assembly
Ides ems 36,37,38,39,40,41,42.)
1 Top, Poly Hard
liable only with item no, 35)
1 Screen Support
liable only with item no. 35)
I 1 Screen
lable only with Item no. 35)
21 Rivet, 3/16"
21 Washer, Fiat 3/16"
4 Boot Mounting Strap
1 Hard top Boot
REF.
NO.
43
44
45
46
47
48
49
5O
51
52
53
54
55
56
57
58
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
8O
81
82
83
84
PART QTY DESCRIPTION
NO.
44790 1
43790 1
44849 2
44850 2
43884 1
23478 5
2354O 1
43012 34
43661 2
43088 36
1509-90 2
43178 41
43177 36
23789 2
1543-69 9
23838 2
43351 1
43262 1
43352 1
23655 1
43796 4
43343 1
43574 3
43003 5
43768 5
43082 5
43087 2
43081 12
24098 1
43830 1
23560 1
43080 2
23825 1
23826 1
23827 1
46703 4
Y12-0421 3
_12-301C 3
F36-024_ 3
1
62468 1
47533 1
Poly Rear Door
Strap, Tarp 25"
"S" Hook, #32
Strap, Tarp (Less Hooks)
Hitch Pin
Clamp, Cart Extension
Hitch Plate
Bolt, Hex 1/4-20 x 3/4"
Bolt, Hex 1/4-20 x 1"
Washer, 1/4" STD
Bolt, Hex 1/4-20 x 1-1/4"
Nut, Hex 1/4-20
Lockwasher, Spring 1/4"
Door Latch
Washer, Nylon 21/64"
Door Support
Bolt, Hex 1/2-13 x 1-1/4"
NUt,Hex Lock1/2-13
Washer, Flat 7/16"
Angle Stop
Bolt,Hex 1/4-20 x 2-3/4"
Pin, Hair Cotter 1/8" #4
Bolt, Hex 3/8-16 x 3"
Lockwasher,3/8"
Bolt, Hex 3/8-16 x 1-1/2"
Nut, Hex Lock 3/8"
Bolt, Hex 3/8-16 x 1-1/4"
Washer, 5/16" STD
Bracket, Chute Reinforcement
Adapter, Deck
Bracket, Deck Adapter
Bolt, Carr. 5/16" x 3/4"
Mounting Strap
Angle Bracket
MountingBracket
Screw, Self Tap 5/16-18 x 3/4"
(See also Item #5 Page 20)
Knob (See also Item#10 Page20)
NUt,Hex Lock5/16"
(See also Item#12 Page20)
Washer, Bell(cupped) 5/16"
(See also Item#19 Page20)
Impeller HousingAssembly
(See pages20 and 21)
Deck Adapter Kit (Includes parts
shown in box on page 18.)
Owner's Manual
25

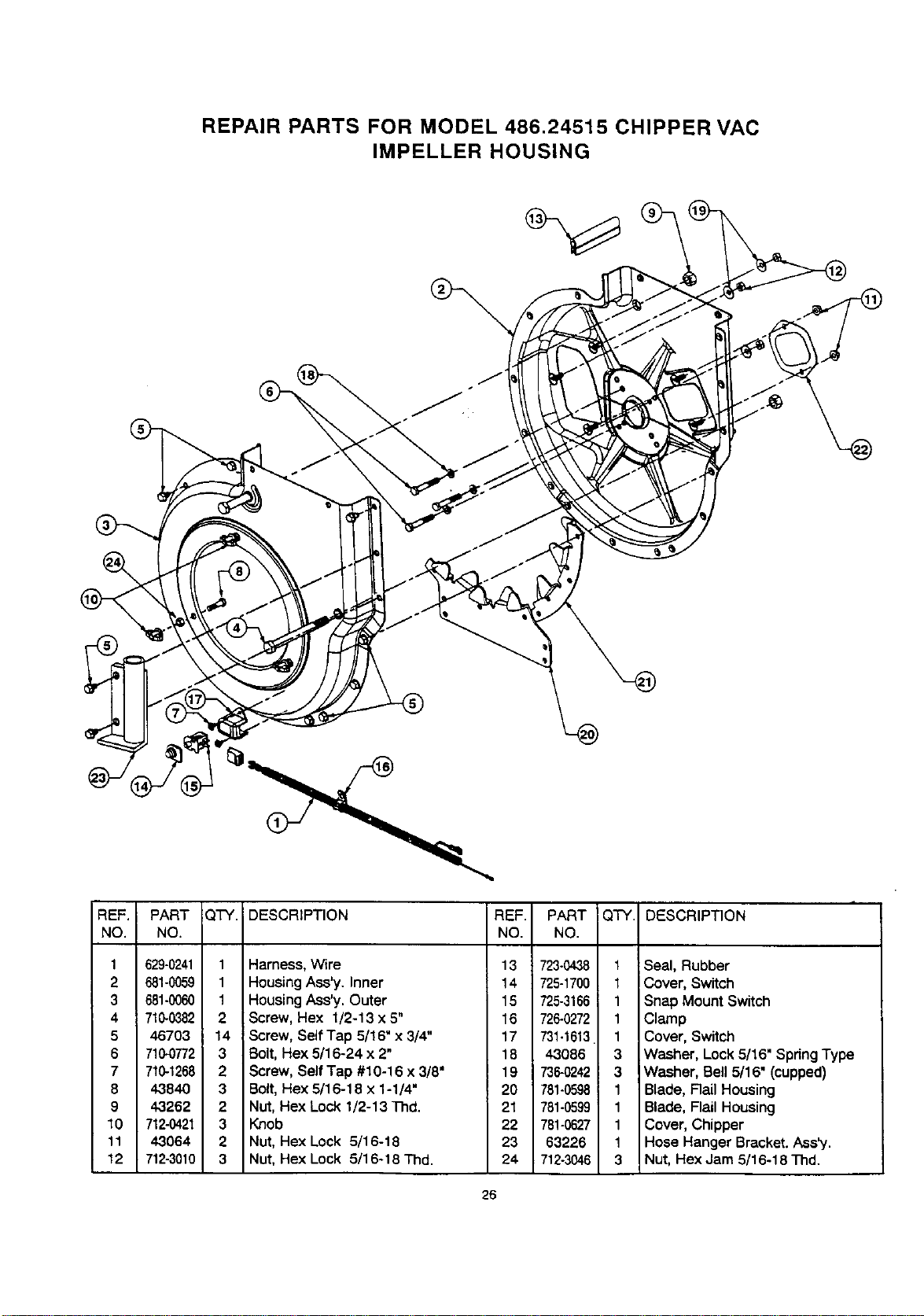

REPAIR PARTS FOR MODEL 486.24515 CHIPPER VAC
IMPELLER HOUSING
REF, PART QTY. DESCRIPTION REF. PART IQTY
NO. NO. NO. NO.
1
2
3
4
5
6
7
8
9
10
11
12
629-0241
681-0059
681-0_60
710-0382
46703
7100772
710-1268
4384O
43262
712-0421
43064
712-3010
1Harness, Wire 13 723-0438
1 Housing Ass'y. Inner 14 725-1700
1 Housing Ass'y. Outer 15 725-3166
2 Screw, Hex 1/2-13 x 5" 16 726-0272
14 Screw, Self Tap 5/16" x 3/4" 17 731-1613
3 Bolt, Hex 5/1 6-24 x 2" 18 43086
2 Screw, Self Tap #10-1 6 x 3/8" 19 736-0242
3Bolt, Hex 5/1 6-1 8 x 1-1/4" 20 781-0598i
2 Nut, Hex Lock 1/2-1 3 Thd. 21 781-0599
3 Knob 22 781-0627
2 Nut, Hex Lock 5/16-18 23 63228
3 Nut, Hex Lock 5/1 6-1 8 Thd. 24 712-3046
1
1
1
1
1
3
3
1
1
1
1
3
DESCRIPTION
Seal, Rubber
Cover, Switch
Snap Mount Switch
Clamp
Cover, Switch
Washer, Lock 5/16" Spring Type
Washer, Bell5/16" (cupped)
Blade, Flail Housing
Blade, Flail Housing
Cover, Chipper
Hose Hanger Bracket. Aas_.
Nut, HexJam 5/16-18 Thd.
26

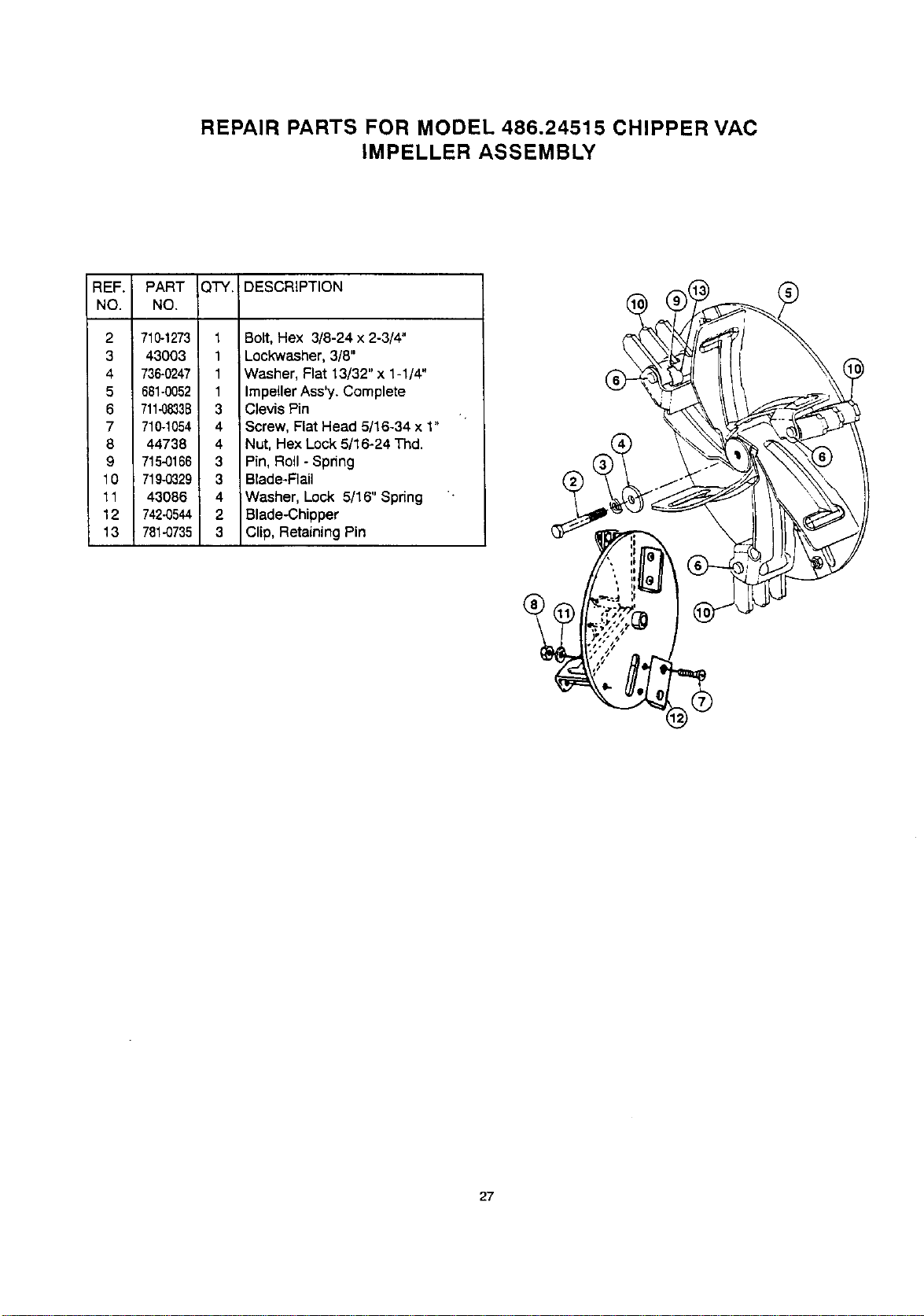

REPAIR PARTS FOR MODEL 486.24515 CHIPPER VAC
IMPELLER ASSEMBLY
REF. PART QTY. DESCRIPTION
NO. NO.
2 710-1273
3 43003
4736-0247
5 681-0052
5 711-0833B
7710-1054
8 44738
9 715-0166
10 719-0329
11 43086
12742-0544
13 781-0735
1
1
1
1
3
4
4
3
3
4
2
3
Bolt, Hex 3/8-24 x2-3/4"
Lockwasher, 3/8"
Washer, Flat 13/32" x 1-1/4"
Impeller Ass'y. Complete
Clevis Pin
i Screw, Flat Head 5/16-34 x 1"
Nut, Hex Lock 5/16-24 Thd.
Pin, Roll - Spring
Blade-Flail
Washer, Lock 5/16" Spring
Blade-Chipper
Clip,RetainingPin
27
NOTES
28
NOTES
29
30
I(_c
I _ .......... SIGI'n" AND HOLDTHIS LEVEL WITH A VERTICALTREE :3"
:.....
•.:... ,:-_ ...... _co..=,o__.u,.n,._ _ =
•...... ...... I I I <'_
:................ :.. ,--< o.AFE.CEPost
eo=eooeeee
I °°°*°e*eo, "11 (D
10°
I
I
I1_
CAUTION: Do not operate your tractor and Chipper Vac on a
slope in excess of 10 degrees. Be sure of your tractor's towing and
braking capabilities before operating on a slope. Avoid any sudden
turns or maneuvers while on a slope.
3o
R_
0
-I
