PSTNDW15
Adjustable Wall Mount Speaker Bracket
User's Manual
www.pyleaudio.com
Thank you for purchasing Pyle's PSTNDW15 Universal Wall Mount
Speaker Bracket.
Specifications:

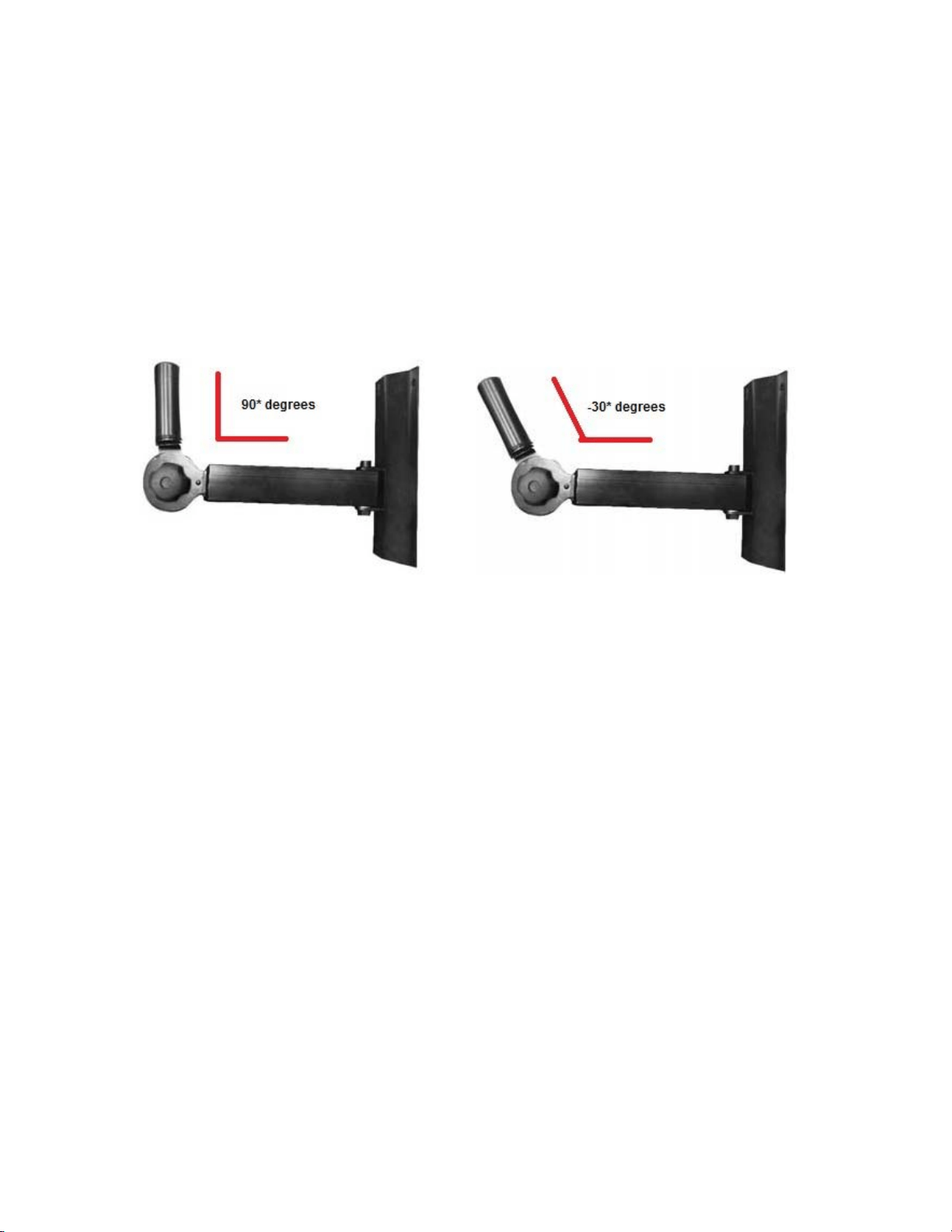

At upright 90° position, you can mount At 30° tilt down position, you can mount
a 22” deep speaker cabinet. a 30” deep speaker cabinet.
Adjustable tilt feature allows you to mount a 30” speaker cabinet
• Distance From Wall: 12.5"
• Weight Capacity: 80 lbs.
• Tilt Angle Adjustment: 90°-30°
• Swivel Angle Adjustment: ±30°
• Standard 1 3/8" insert fits most speaker cabinets
• Added solid-steel pin serves as a safety-stop
• Construction: Steel
Installation Instructions:
• Required Tools: socket or hand wrench, drill,
drill bit, stud finder, pencil, level, tape
measure, (4) 3/8” x 4” lag bolts
Step #1: Remove brackets from box.
Step #2: Check for stud location
with a stud finder and place speaker bracket in
desired location.
Step #3: Test that the bracket plate is level
and mark the hole locations on the wall using
the holes from bracket backer plate as a
template.
Step #4: Drill proper mounting hole (smaller
than outer thread diameter of your lag bolts)
through wall into wood studs or concrete
block. Hole depth should be properly drilled so

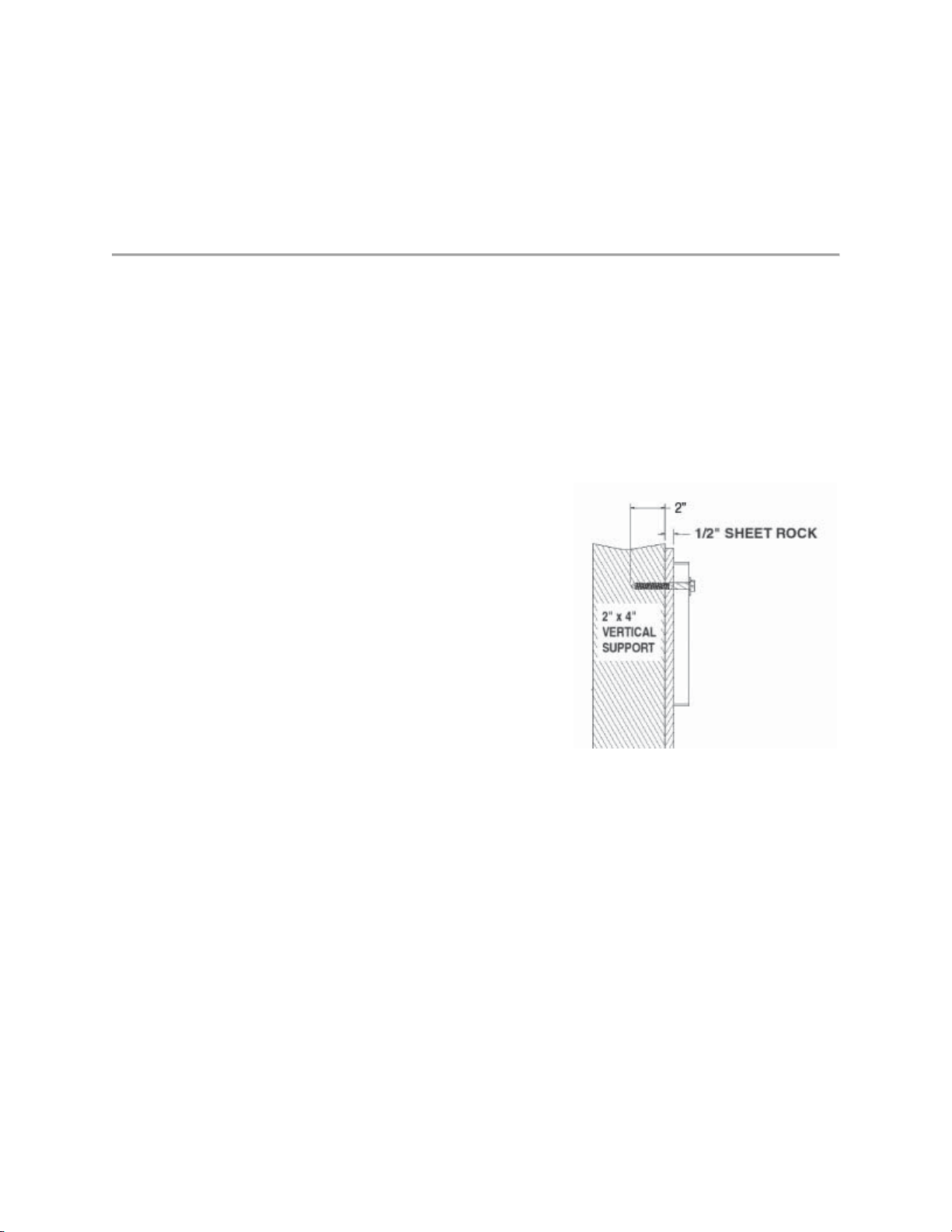

that your lag bolt can go through the sheet
rock and 2” into the stud.
Step #5: Place speaker bracket on wall and
install 3/8” lag bolts (recommended) in the
upper location. Securing tightly until the head
of the lag bolt is firmly against the bracket.
Repeat for bottom location.
Step #6: Before placing the speaker cabinet
on the bracket, test installation by confirming
the bracket will hold the weight of your
speaker. If desired, tilt the angle of the bracket
downward to the desired angle and tighten the
bolts to lock in place.
Step #7: Place the speaker on the cabinet by inserting the vertical sleeve into the
speaker cabinet’s internal adapter. Be sure the speaker is secure before releasing it.
Test installation with speaker in vertical and tilted positions to be sure the bracket stays
firmly against the wall.
