Safe Operation Practices • Set-Up • Operation • Maintenance • Service • Troubleshooting • Warranty
OPER roR's
L
Self Propelled Mower m Model 26M
MTD LLC, P.O. BOX 361131 CLEVELAND, OHiO 44136-0019
PrintedIn USA FormNo.769-034!9A
(October30,2007)

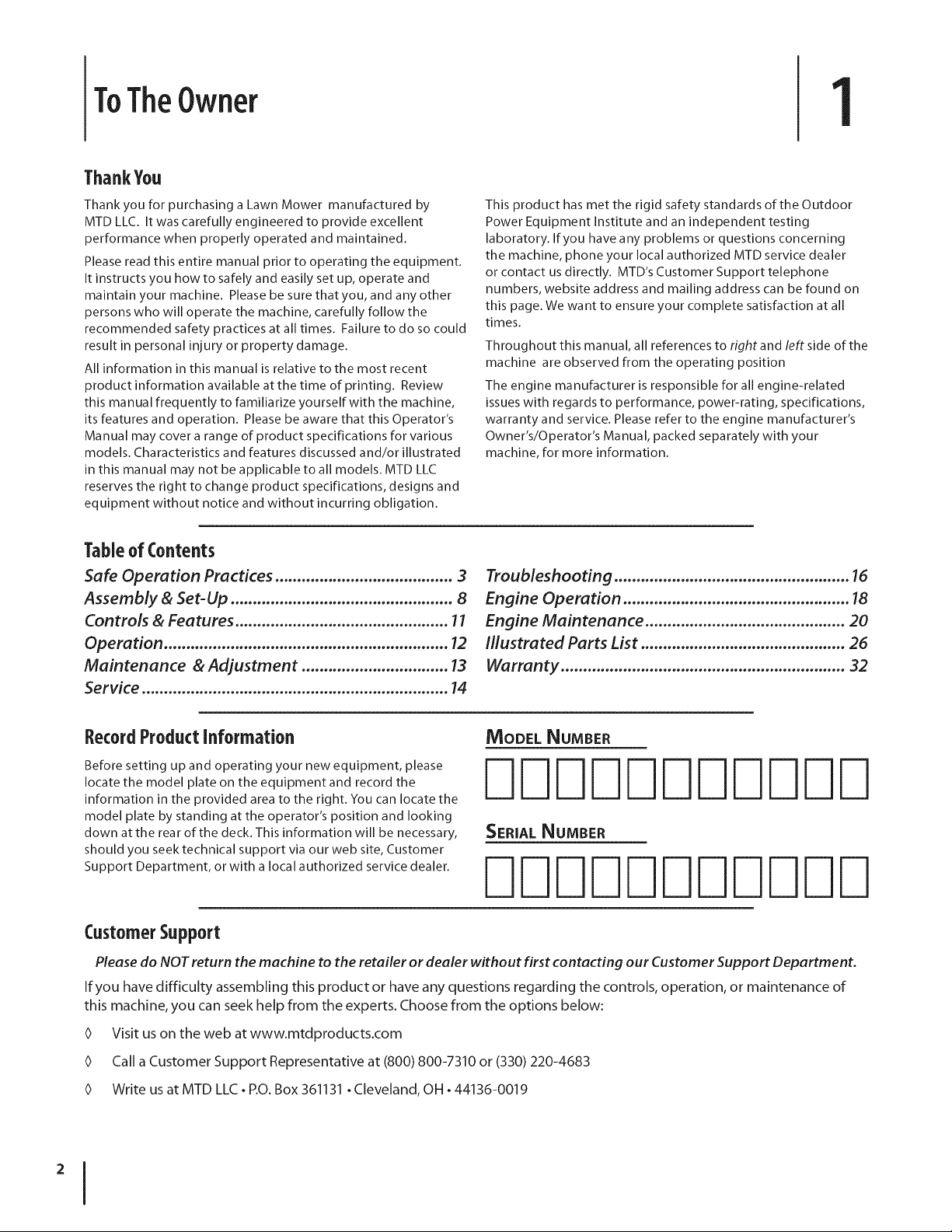

ToTheOwner
1
ThankYou
Thank you for purchasing a Lawn Mower manufactured by
MTD LLC. It was carefully engineered to provide excellent
performance when properly operated and maintained.
Please read this entire manual prior to operating the equipment.
It instructs you how to safely and easily set up, operate and
maintain your machine. Please be sure that you, and any other
persons who will operate the machine, carefully follow the
recommended safety practices at all times. Failure to do so could
result in personal injury or property damage.
All information in this manual is relative to the most recent
product information available at the time of printing. Review
this manual frequently to familiarize yourself with the machine,
its features and operation. Please be aware that this Operator's
Manual may cover a range of product specifications for various
models. Characteristics and features discussed and/or illustrated
in this manual may not be applicable to all models. MTD LLC
reserves the right to change product specifications, designs and
equipment without notice and without incurring obligation.
This product has met the rigid safety standards of the Outdoor
Power Equipment Institute and an independent testing
laboratory. If you have any problems or questions concerning
the machine, phone your local authorized MTD service dealer
or contact us directly. MTD's Customer Support telephone
numbers, website address and mailing address can be found on
this page. We want to ensure your complete satisfaction at all
times.
Throughout this manual, all references to right and left side of the
machine are observed from the operating position
The engine manufacturer is responsible for all engine-related
issues with regards to performance, power-rating, specifications,
warranty and service. Please refer to the engine manufacturer's
Owner's/Operator's Manual, packed separately with your
machine, for more information.
Table of Contents
Safe Operation Practices ........................................ 3

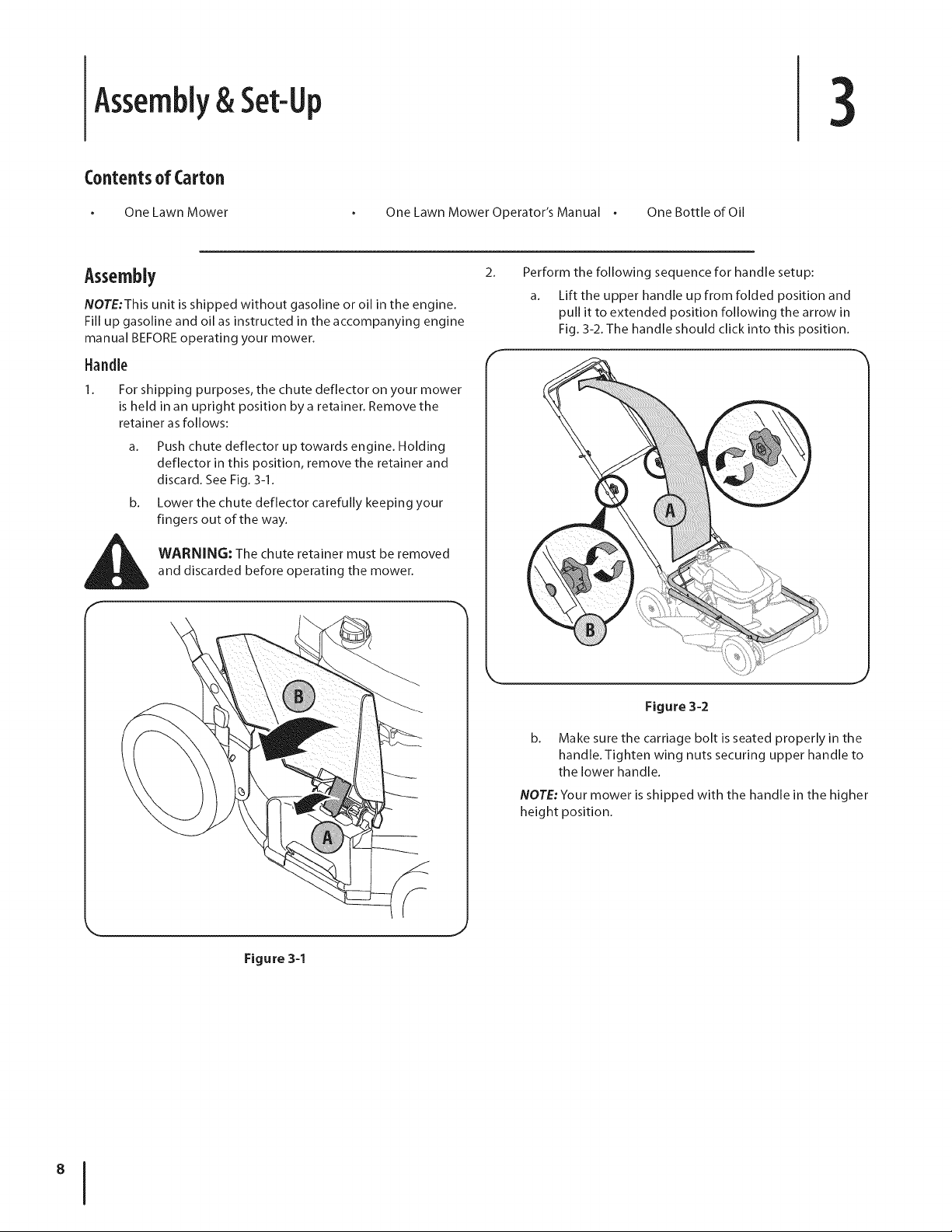

Assembly & Set-Up .................................................. 8

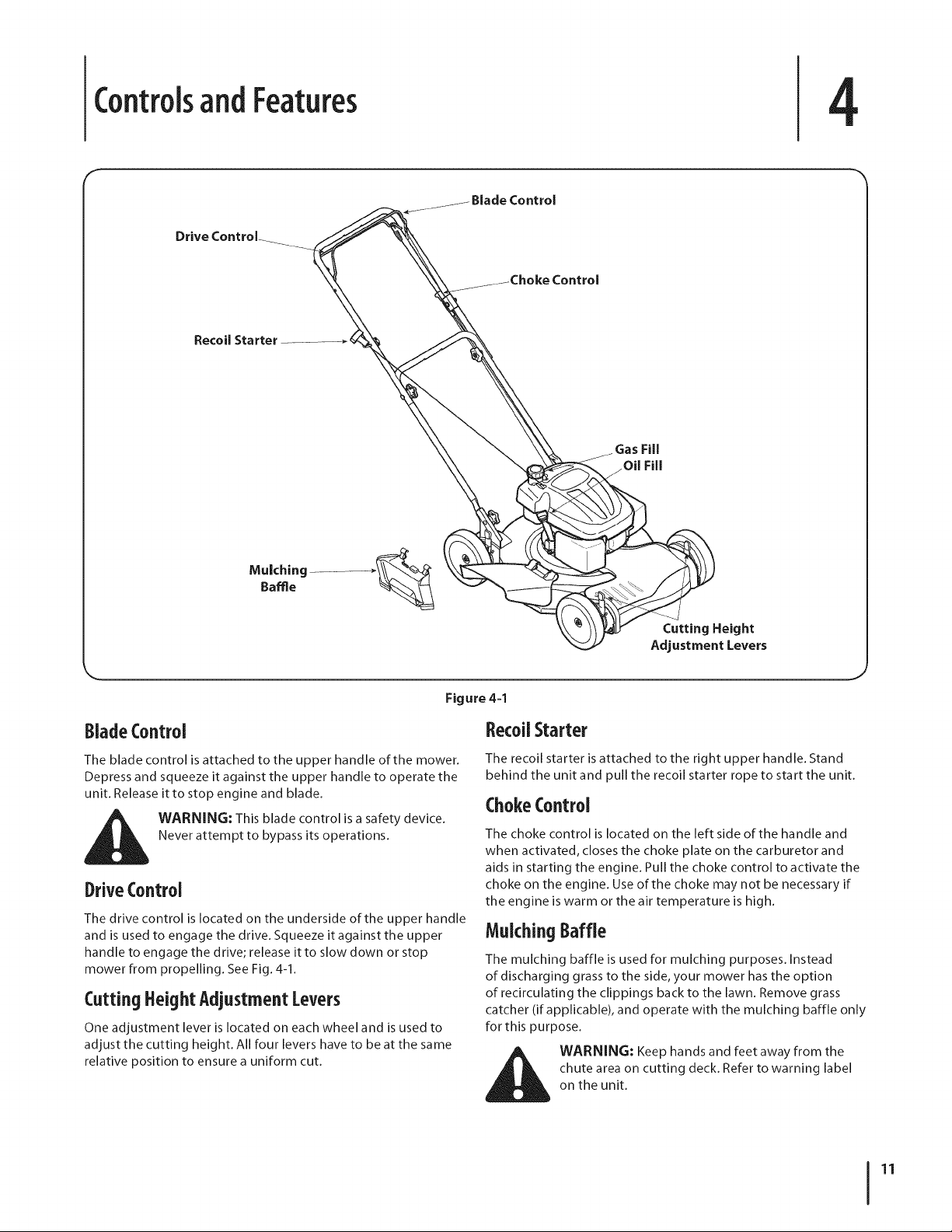

Controls & Features ................................................ 11
Opera tion ................................................................ 12

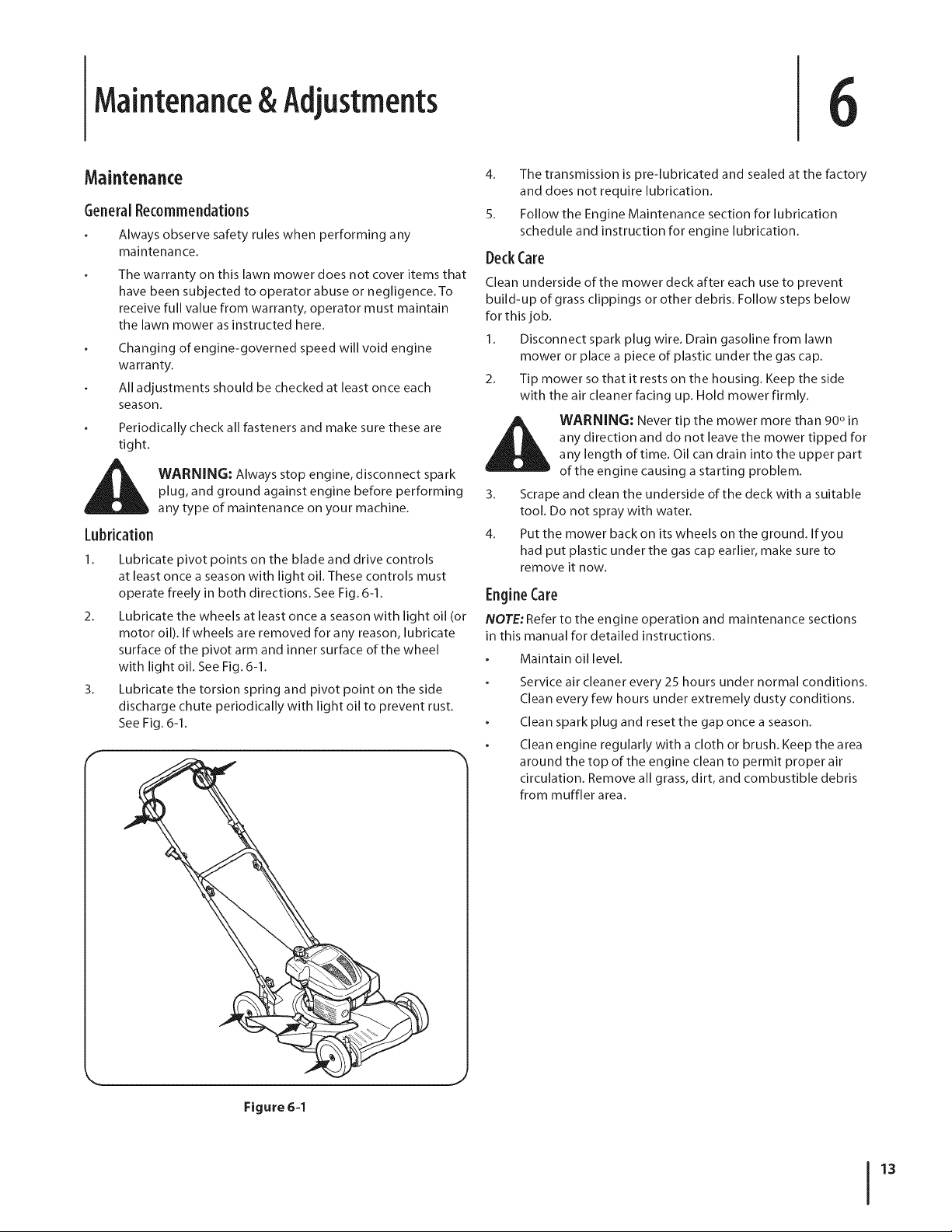

Maintenance & Adjustment ................................. 13

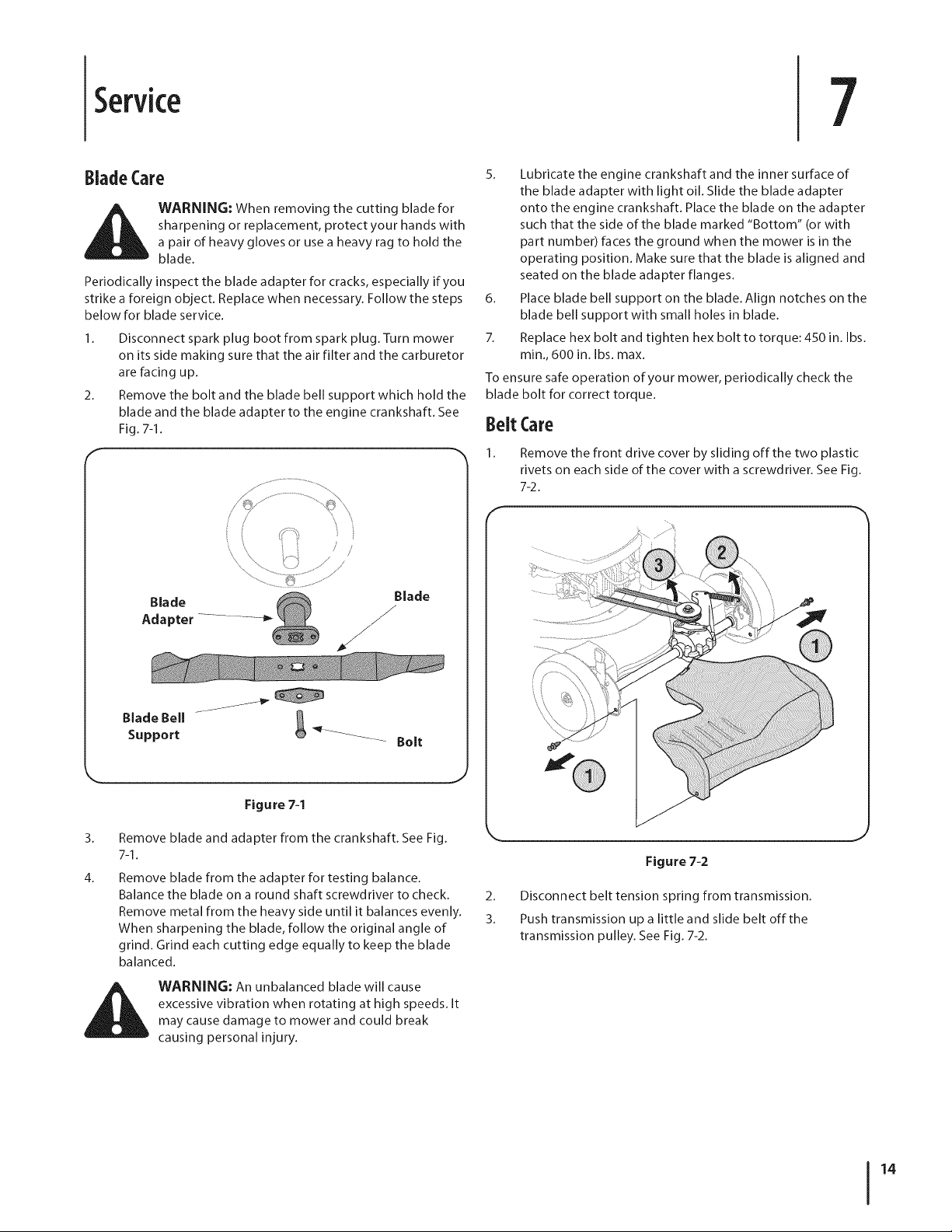

Service ..................................................................... 14

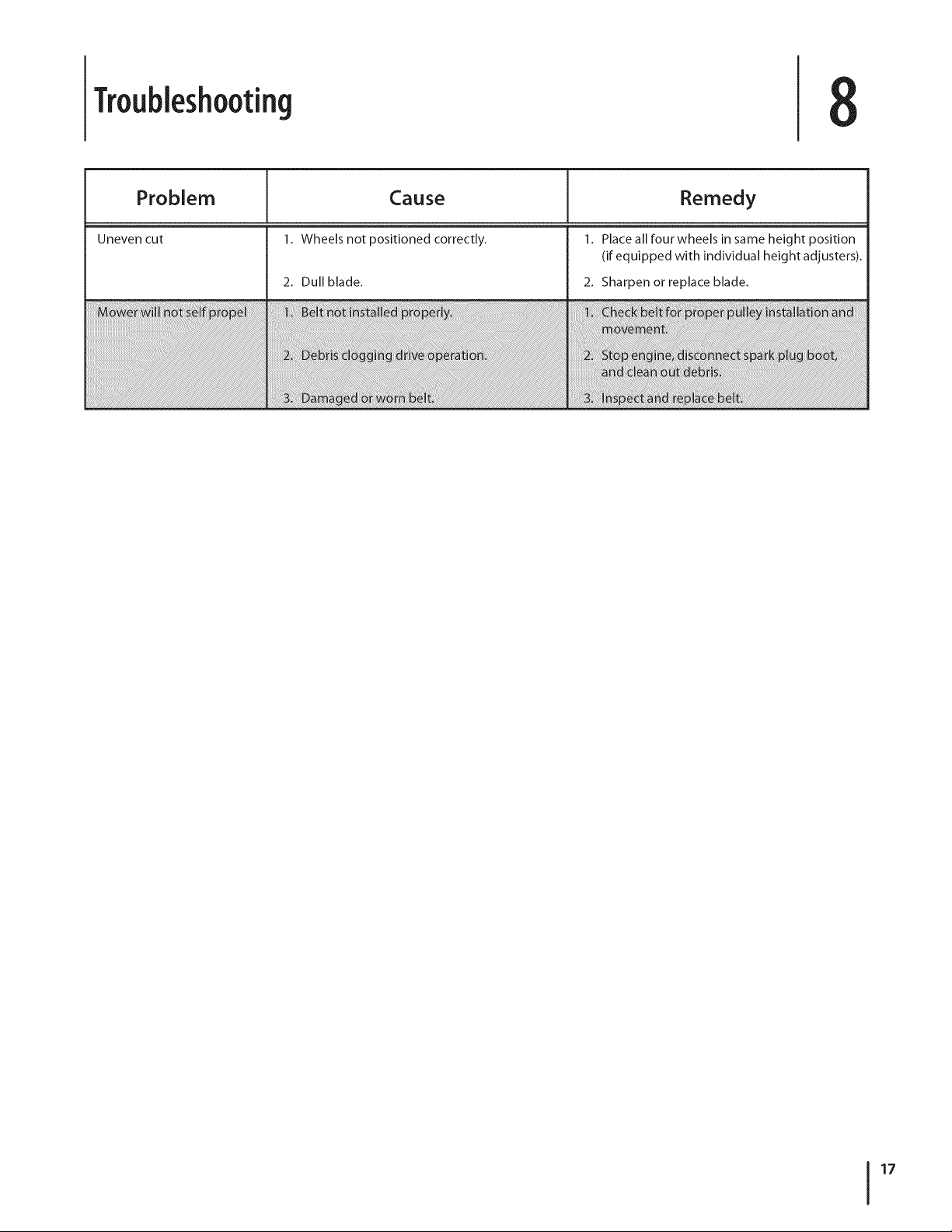

Troubleshooting ..................................................... 16

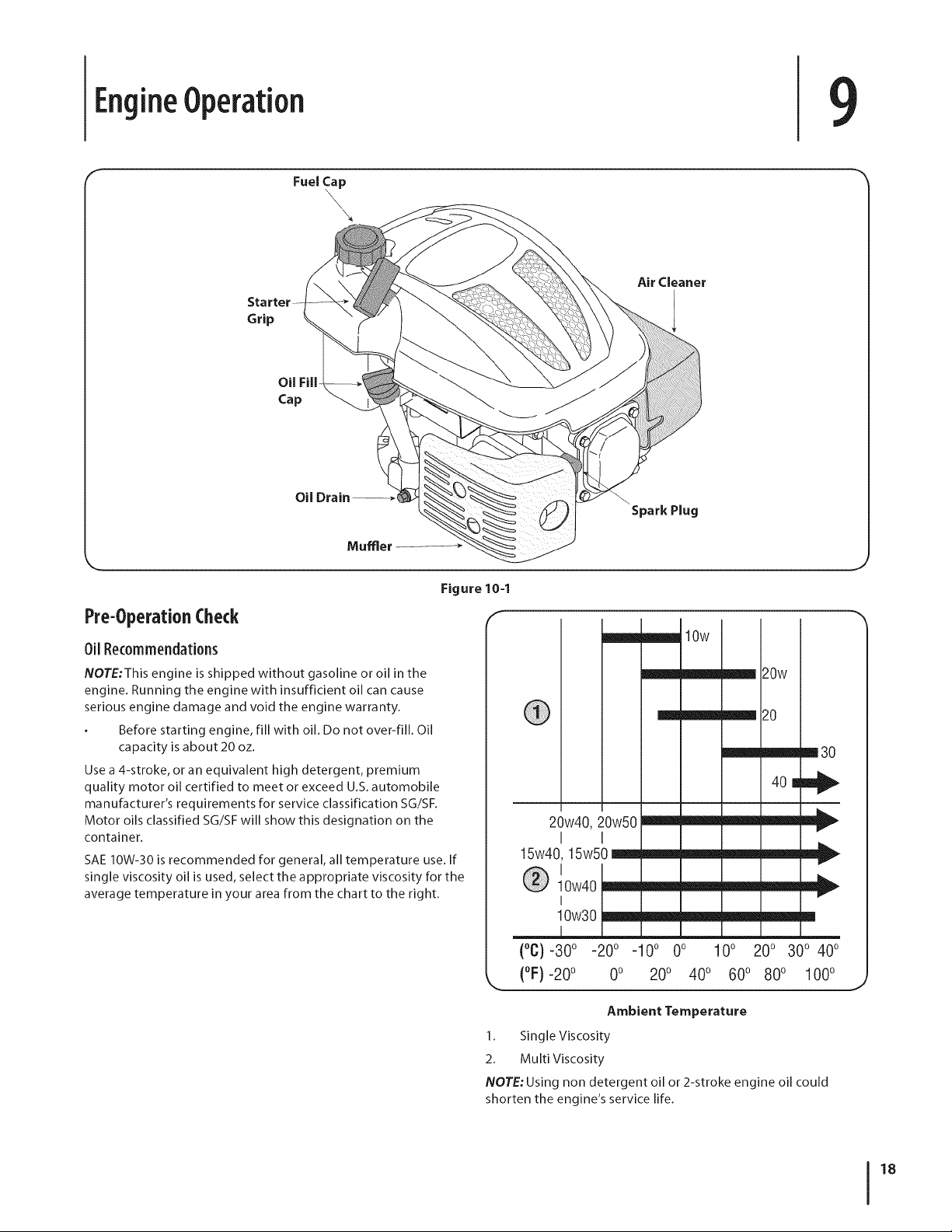

Engine Operation ................................................... 18

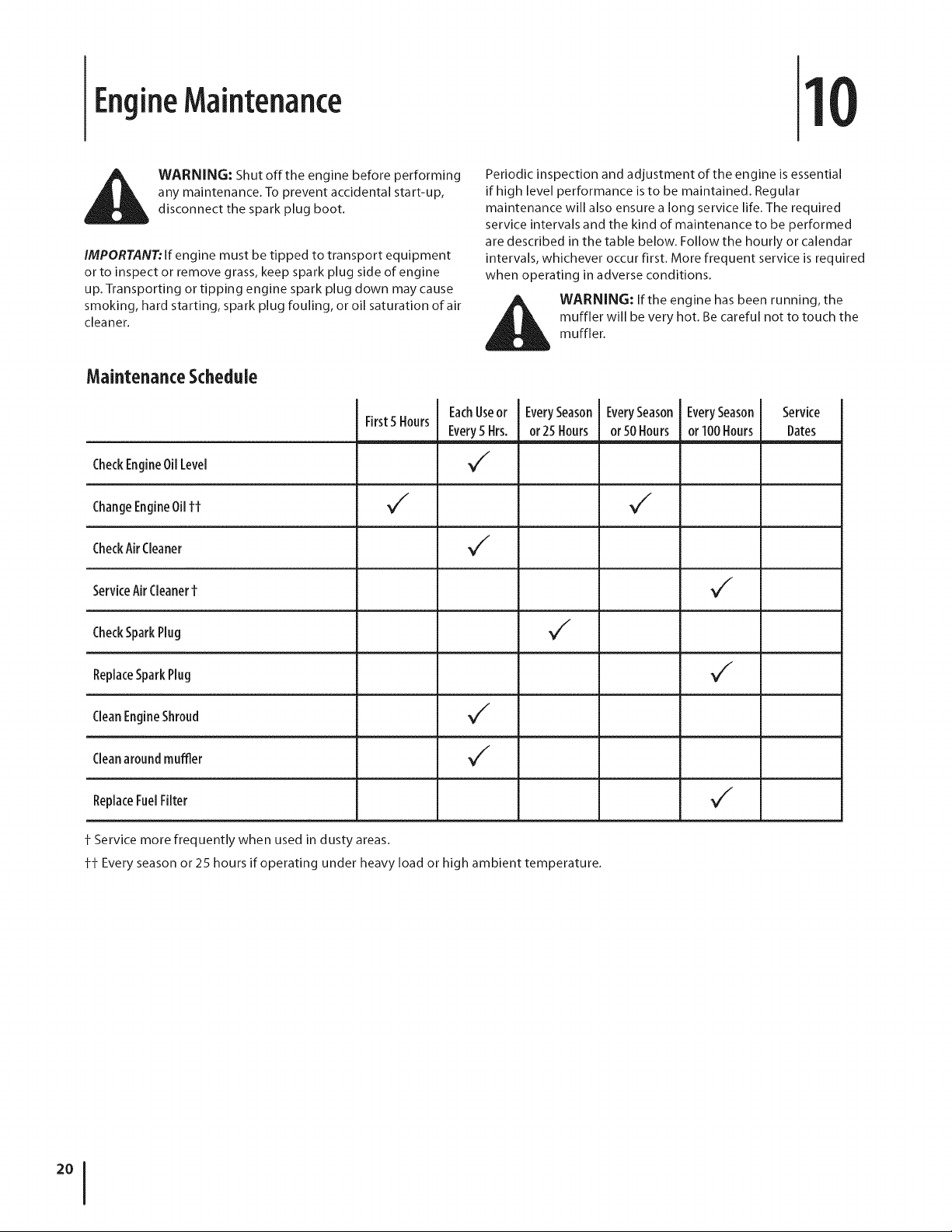

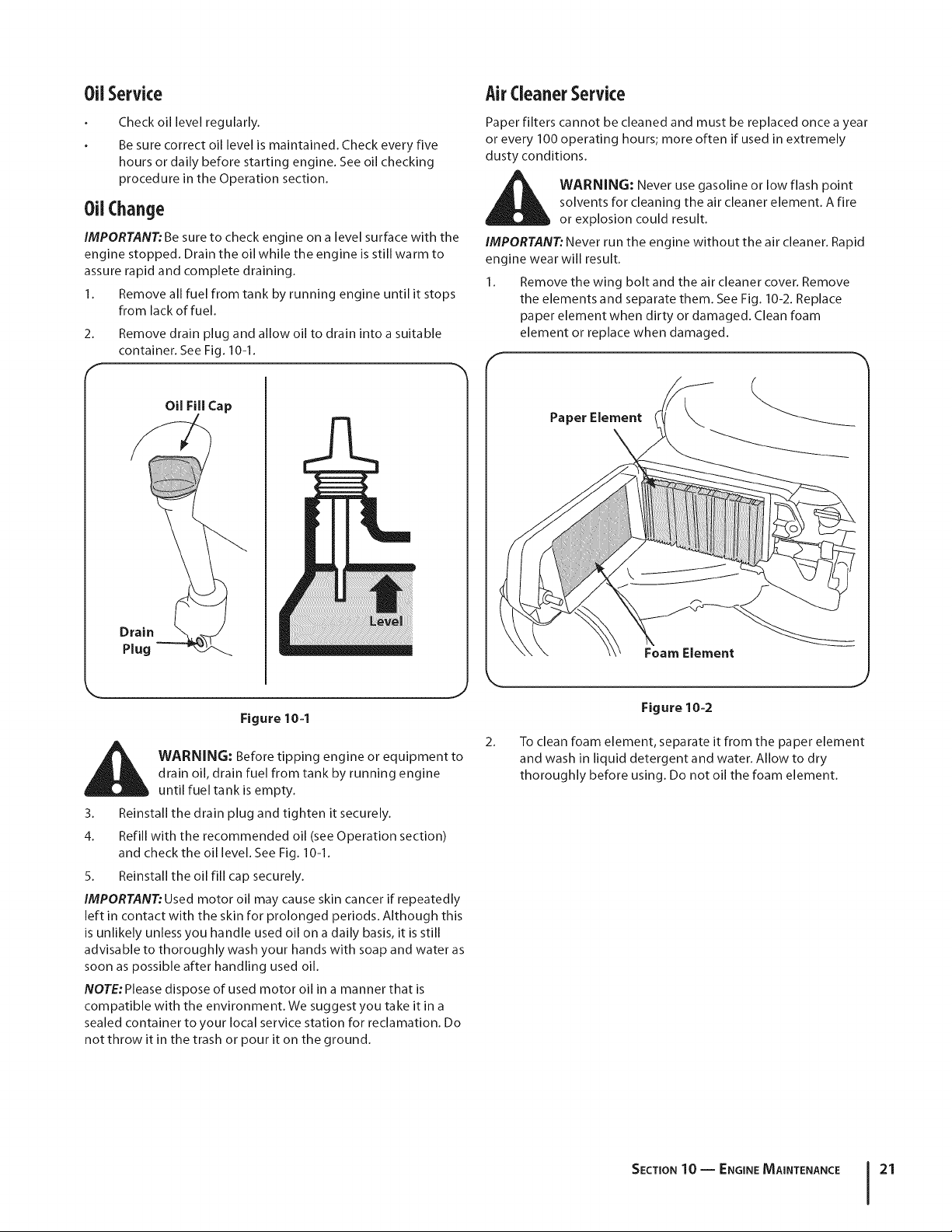

Engine Maintenance ............................................. 20

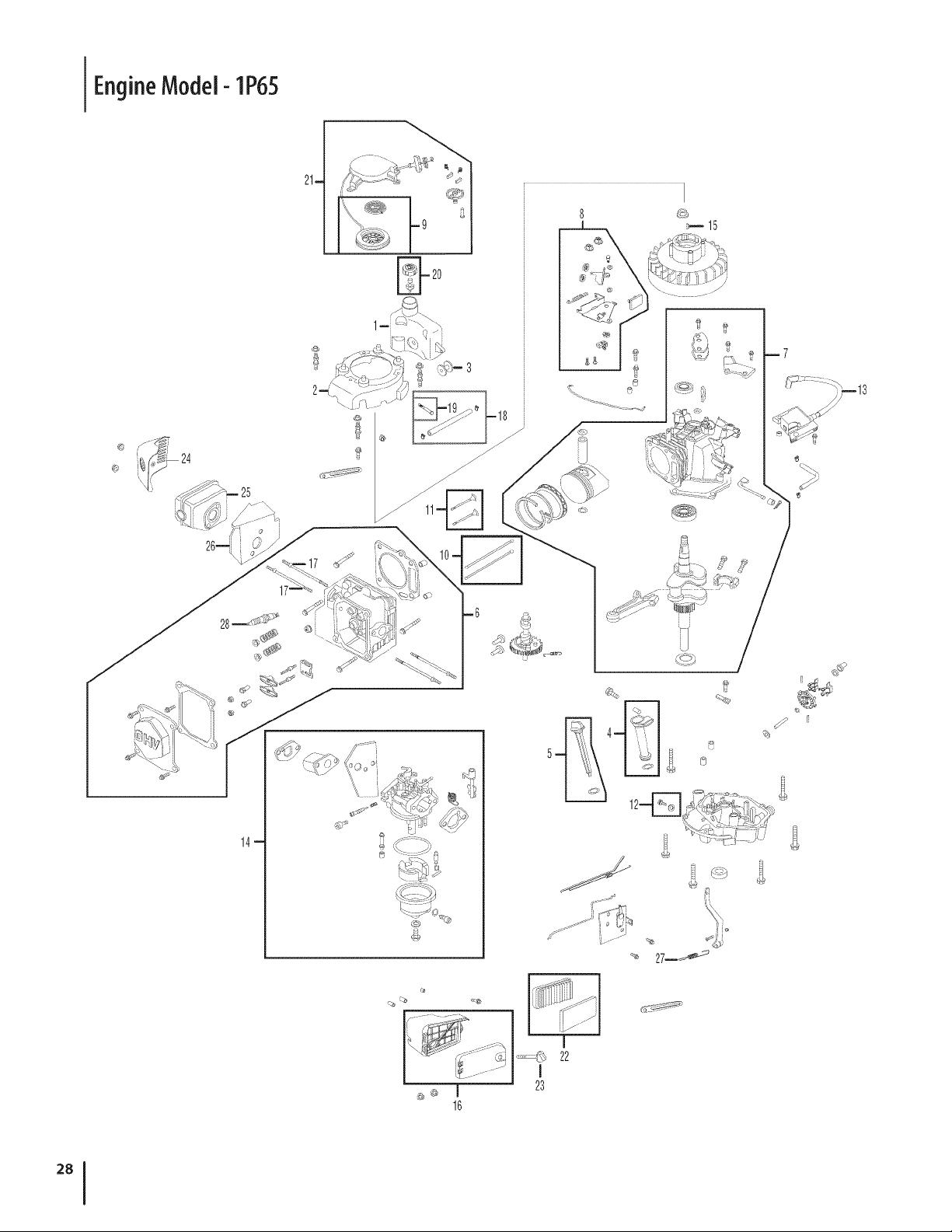

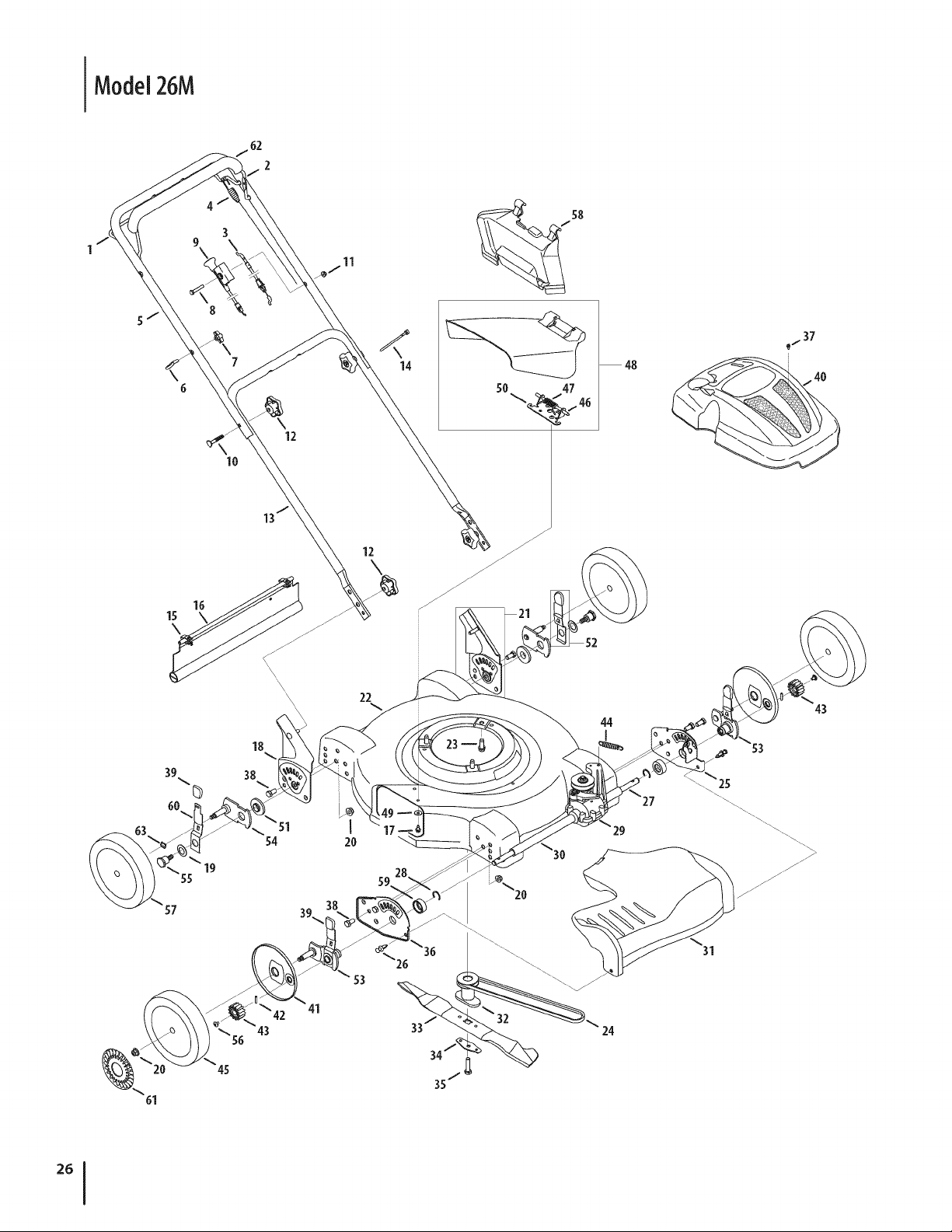

Illustrated Parts List .............................................. 26
Warranty ................................................................ 32
RecordProductinformation
Before setting up and operating your new equipment, please
locate the model plate on the equipment and record the
information in the provided area to the right. You can locate the
model plate by standing at the operator's position and looking
down at the tea r of the deck. This information will be necessary,
should you seek technical support via our web site, Customer
Support Department, or with a local authorized service dealer.
MODEL NUMBER
EFIEFIEFIEFIEFIE
SERIAL NUMBER
71DF1DF1DF1DF1DE
CustomerSupport
Please do NOT return the machine to the retailer or dealer without first contacting our Customer Support Department.
If you have difficulty assembling this product or have any questions regarding the controls, operation, or maintenance of
this machine, you can seek help from the experts. Choose from the options below:
0 Visit us on the web at www.mtdproducts.com
0 Call a Customer Support Representative at (800) 800-7310 or (330) 220-4683
0 Write us at MTD LLC • P.O. Box 361131 • Cleveland, OH • 44136@019

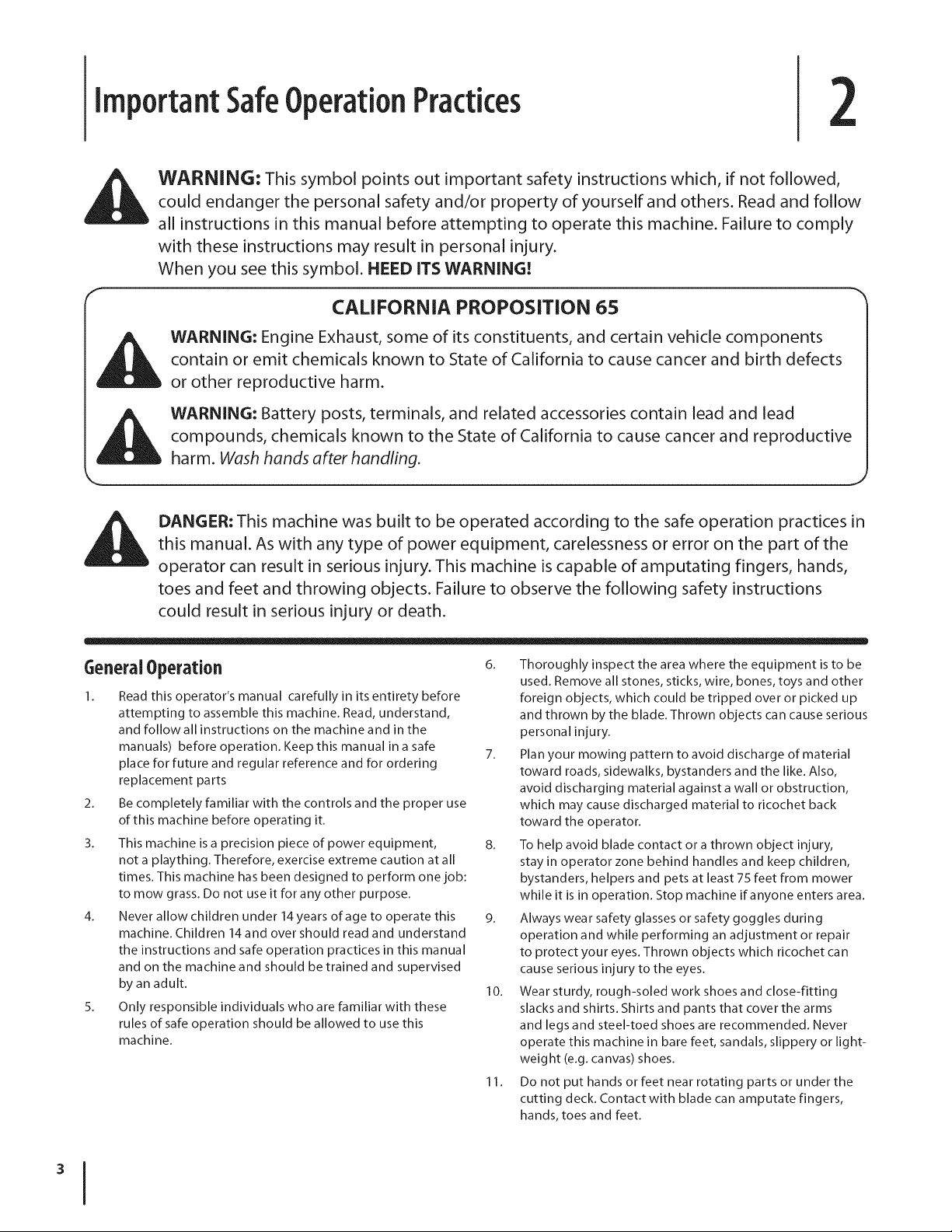

importantSafeOperationPractices
2
,A
WARNING: This symbol points out important safety instructions which, if not followed,
could endanger the personal safety and/or property of yourself and others. Read and follow
all instructions in this manual before attempting to operate this machine. Failure to comply
with these instructions may result in personal injury.
When you see this symbol. HEED ITS WARNING!
CALIFORNIA PROPOSITION 65
WARNING: Engine Exhaust, some of its constituents, and certain vehicle components
contain or emit chemicals known to State of California to cause cancer and birth defects
or other reproductive harm.
WARNING: Battery posts, terminals, and related accessories contain lead and lead
compounds, chemicals known to the State of California to cause cancer and reproductive
harm. Wash hands after handling.
DANGER: This machine was built to be operated according to the safe operation practices in
this manual. As with any type of power equipment, carelessness or error on the part of the
operator can result in serious injury. This machine is capable of amputating fingers, hands,
toes and feet and throwing objects. Failure to observe the following safety instructions
could result in serious injury or death.
GeneralOperation
1. Read this operator's manual carefully in its entirety before
attempting to assemble this machine. Read, understand,
and follow all instructions on the machine and in the
manuals) before operation. Keep this manual in a safe
place for future and regular reference and for ordering
replacement parts
2. Be completely familiar with the controls and the proper use
of this machine before operating it.
3. This machine is a precision piece of power equipment,
not a plaything. Therefore, exercise extreme caution at all
times. This machine has been designed to perform one job:
to mow grass. Do not use it for any other purpose.
4. Never allow children under 14 years of age to operate this
machine. Children 14 and over should read and understand
the instructions and safe operation practices in this manual
and on the machine and should be trained and supervised
by an adult.
5. Only responsible individuals who are familiar with these
rules of safe operation should be allowed to use this
machine.
6. Thoroughly inspect the area where the equipment is to be
used. Remove all stones, sticks, wire, bones, toys and other
foreign objects, which could be tripped over or picked up
and thrown by the blade. Thrown objects can cause serious
personal injury.
7. Plan your mowing pattern to avoid discharge of material
toward roads, sidewalks, bystanders and the like. Also,
avoid discharging material against a wall or obstruction,
which may cause discharged material to ricochet back
toward the operator.
8. To help avoid blade contact or a thrown object injury,
stay in operator zone behind handles and keep children,
bystanders, helpers and pets at least 75 feet from mower
while it is in operation. Stop machine if anyone enters area.
9. Always wear safety glasses or safety goggles during
operation and while performing an adjustment or repair
to protect your eyes. Thrown objects which ricochet can
cause serious injury to the eyes.
10. Wear sturdy, rough-soled work shoes and close-fitting
slacks and shirts. Shirts and pants that cover the arms
and legs and steel-toed shoes are recommended. Never
operate this machine in bare feet, sandals, slippery or light-
weight (e.g. canvas) shoes.
11. Do not put hands or feet near rotating parts or under the
cutting deck. Contact with blade can amputate fingers,
hands, toes and feet.

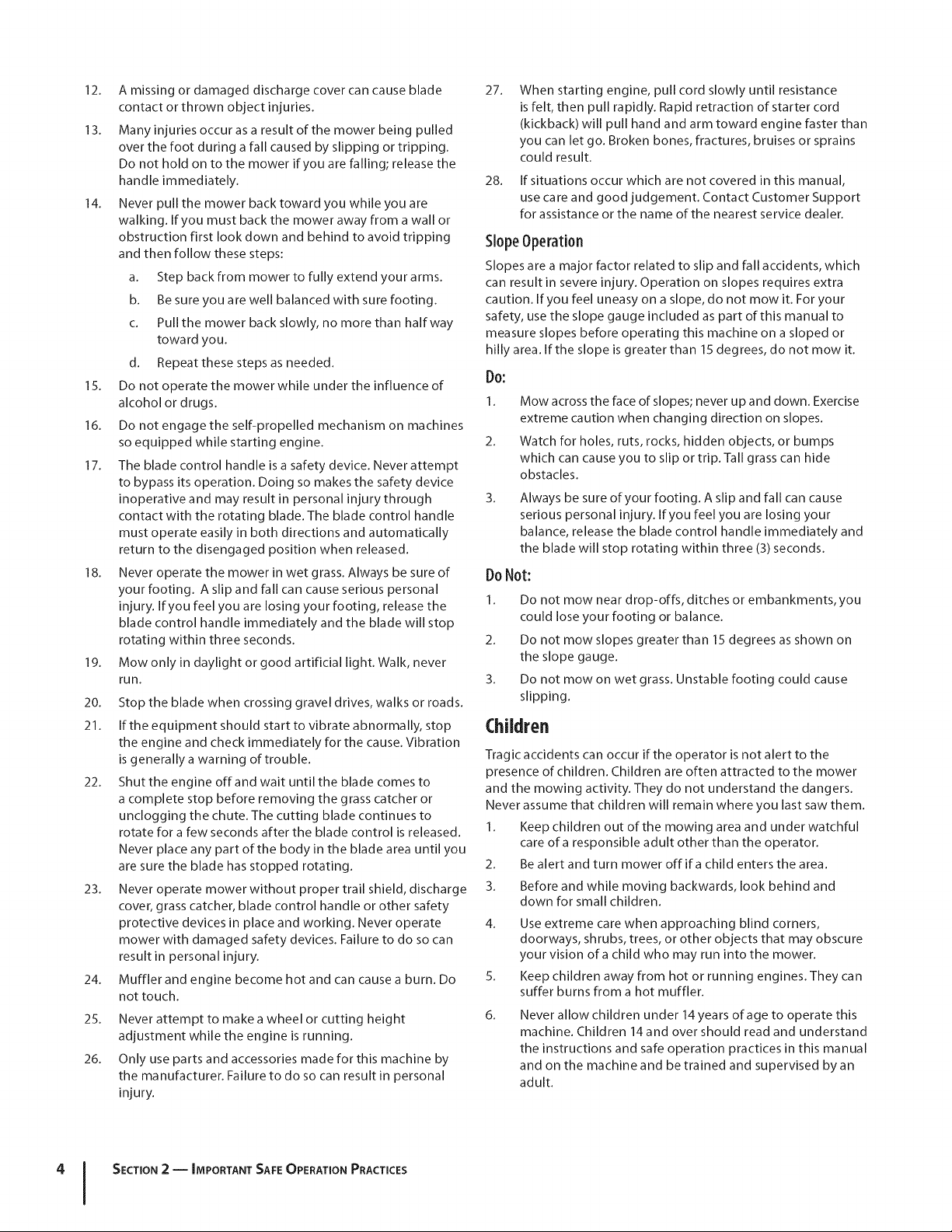

12. Amissingordamageddischargecovercancauseblade 27.
contactorthrownobjectinjuries.
13. Manyinjuriesoccurasaresultofthemowerbeingpulled
overthefootduringafallcausedbyslippingortripping.
Donotholdontothemowerifyouarefalling;releasethe
handleimmediately. 28.
14. Neverpullthemowerbacktowardyouwhileyouare
walking.Ifyoumustbackthemowerawayfromawallor
obstructionfirstlookdownandbehindtoavoidtripping
andthenfollowthesesteps:
a. Stepbackfrommowertofullyextendyourarms.
b. Besureyouarewellbalancedwithsurefooting.
c. Pullthemowerbackslowly,nomorethanhalfway
towardyou.
d. Repeatthesestepsasneeded.
Do:
15. Do not operate the mower while under the influence of
alcohol or drugs. 1.
16. Do not engage the self-propelled mechanism on machines
so equipped while starting engine. 2.
17. The blade control handle is a safety device. Never attempt
to bypass its operation. Doing so makes the safety device
inoperative and may result in personal injury through 3.
contact with the rotating blade. The blade control handle
must operate easily in both directions and automatically
return to the disengaged position when released.
18. Never operate the mower in wet grass. Always be sure of Do Not:
your footing. A slip and fall can cause serious personal
injury. If you feel you are losing your footing, release the
blade control handle immediately and the blade will stop
rotating within three seconds.
Mow only in daylight or good artificial light. Walk, never
run.
19.
20.
21.
22.
23.
24.
25.
26.
Stop the blade when crossing gravel drives, walks or roads.
If the equipment should start to vibrate abnormally, stop
the engine and check immediately for the cause. Vibration
is generally a warning of trouble.
Shut the engine off and wait until the blade comes to
a complete stop before removing the grass catcher or
unclogging the chute. The cutting blade continues to
rotate for a few seconds after the blade control is released.
Never place any part of the body in the blade area until you
are sure the blade has stopped rotating.
Never operate mower without proper trail shield, discharge
cover, grass catcher, blade control handle or other safety
protective devices in place and working. Never operate
mower with damaged safety devices. Failure to do so can
result in personal injury.
Muffler and engine become hot and can cause a burn. Do
not touch.
Never attempt to make a wheel or cutting height
adjustment while the engine is running.
Only use parts and accessories made for this machine by
the manufacturer. Failure to do so can result in personal
injury.
When starting engine, pull cord slowly until resistance
is felt, then pull rapidly. Rapid retraction of starter cord
(kickback) will pull hand and arm toward engine faster than
you can let go. Broken bones, fractures, bruises or sprains
could result.
If situations occur which are not covered in this manual,
use care and good judgement. Contact Customer Support
for assistance or the name of the nearest service dealer.
Slope Operation
Slopes are a major factor related to slip and fall accidents, which
can result in severe injury. Operation on slopes requires extra
caution. If you feel uneasy on a slope, do not mow it. For your
safety, use the slope gauge included as part of this manual to
measure slopes before operating this machine on a sloped or
hilly area. If the slope is greater than 15 degrees, do not mow it.
Mow across the face of slopes; never up and down. Exercise
extreme caution when changing direction on slopes.
Watch for holes, ruts, rocks, hidden objects, or bumps
which can cause you to slip or trip. Tall grass can hide
obstacles.
Always be sure of your footing. A slip and fall can cause
serious personal injury. If you feel you are losing your
balance, release the blade control handle immediately and
the blade will stop rotating within three (3) seconds.
1. Do not mow near drop-offs, ditches or embankments, you
could lose your footing or balance.
2. Do not mow slopes greater than 15 degrees as shown on
the slope gauge.
3. Do not mow on wet grass. Unstable footing could cause
slipping.
Children
Tragic accidents can occur if the operator is not alert to the
presence of children. Children are often attracted to the mower
and the mowing activity. They do not understand the dangers.
Never assume that children will remain where you last saw them.
Keep children out of the mowing area and under watchful
care of a responsible adult other than the operator.
Be alert and turn mower off if a child enters the area.
1.
2.
3.
4.
5.
6.
Before and while moving backwards, look behind and
down for small children.
Use extreme care when approaching blind corners,
doorways, shrubs, trees, or other objects that may obscure
your vision of a child who may run into the mower.
Keep children away from hot or running engines. They can
suffer burns from a hot muffler.
Never allow children under 14 years of age to operate this
machine. Children 14 and over should read and understand
the instructions and safe operation practices in this manual
and on the machine and be trained and supervised byan
adult.
4 I SECTION2 -- IMPORTANT SAFE OPERATION PRACTICES

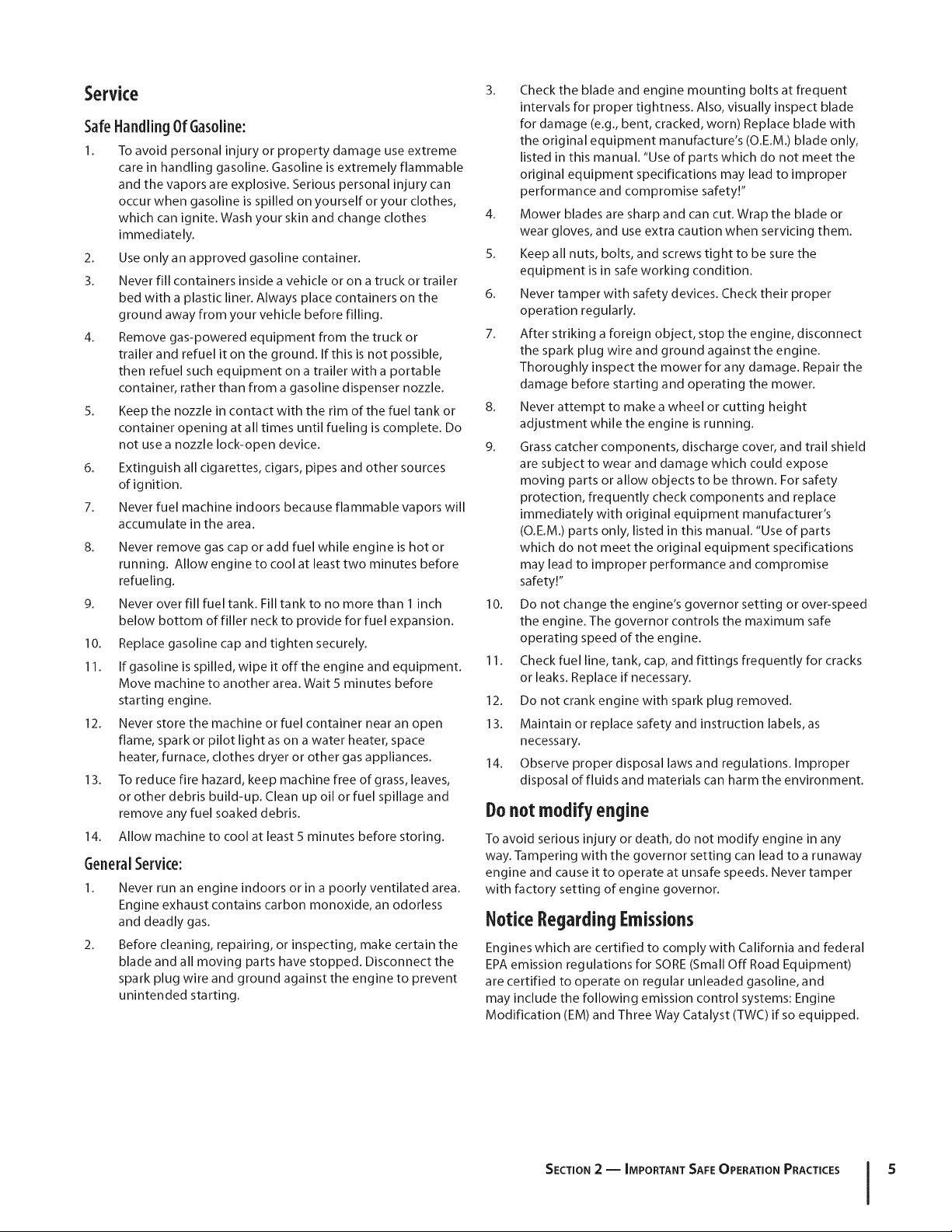

Service
SafeHandling Of Gas01ine:
I. To avoid personal injury or property damage use extreme
care in handling gasoline. Gasoline is extremely flammable
and the vapors are explosive. Serious personal injury can
occur when gasoline is spilled on yourself or your clothes,
which can ignite. Wash your skin and change clothes
immediately.
2. Use only an approved gasoline container.
3. Never fill containers inside a vehicle or on a truck or trailer
bed with a plastic liner. Always place containers on the
ground away from your vehicle before filling.
4. Remove gas-powered equipment from the truck or
trailer and refuel it on the ground. If this is not possible,
then refuel such equipment on a trailer with a portable
container, rather than from a gasoline dispenser nozzle.
5. Keep the nozzle in contact with the rim of the fuel tank or
container opening at all times until fueling is complete. Do
not use a nozzle lock-open device.
Extinguish all cigarettes, cigars, pipes and other sources
of ignition.
Never fuel machine indoors because flammable vapors will
accumulate in the area.
6.
7.
8.
Never remove gas cap or add fuel while engine is hot or
running. Allow engine to cool at least two minutes before
refueling.
9. Never over fill fuel tank. Fill tank to no more than 1 inch
below bottom of filler neck to provide for fuel expansion.
10. Replace gasoline cap and tighten securely.
11. If gasoline is spilled, wipe it off the engine and equipment.
Move machine to another area. Wait 5 minutes before
starting engine.
12. Never store the machine or fuel container near an open
flame, spark or pilot light as on a water heater, space
heater, furnace, clothes dryer or other gas appliances.
13. To reduce fire hazard, keep machine free of grass, leaves,
or other debris build-up. Clean up oil or fuel spillage and
remove any fuel soaked debris.
14. Allow machine to cool at least 5 minutes before storing.
GeneralService:
1. Never run an engine indoors or in a poorly ventilated area.
Engine exhaust contains carbon monoxide, an odorless
and deadly gas.
2. Before cleaning, repairing, or inspecting, make certain the
blade and all moving parts have stopped. Disconnect the
spark plug wire and ground against the engine to prevent
unintended starting.
3. Check the blade and engine mounting bolts at frequent
intervals for proper tightness. Also, visually inspect blade
for damage (e.g., bent, cracked, worn) Replace blade with
the original equipment manufacture's (O.E.M.) blade only,
listed in this manual. "Use of parts which do not meet the
original equipment specifications may lead to improper
performance and compromise safety!"
4. Mower blades are sharp and can cut. Wrap the blade or
wear gloves, and use extra caution when servicing them.
5. Keep all nuts, bolts, and screws tight to be sure the
equipment is in safe working condition.
6. Never ta roper with safety devices. Check their proper
operation regularly.
7. After striking a foreign object, stop the engine, disconnect
the spark plug wire and ground against the engine.
Thoroughly inspect the mower for any damage. Repair the
damage before starting and operating the mower.
8. Never attempt to make a wheel or cutting height
adjustment while the engine is running.
9. Grass catcher components, discharge cover, and trail shield
are subject to wear and damage which could expose
moving parts or allow objects to be thrown. For safety
protection, frequently check components and replace
immediately with original equipment manufacturer's
(O.EM.) parts only, listed in this manual. "Use of parts
which do not meet the original equipment specifications
may lead to improper performance and compromise
safety!"
10. Do not change the engine's governor setting or over-speed
the engine. The governor controls the maximum safe
operating speed of the engine.
11. Check fuel line, tank, cap, and fittings frequently for cracks
or leaks. Replace if necessary.
12. Do not crank engine with spark plug removed.
13. Maintain or replace safety and instruction labels, as
necessary.
14. Observe proper disposal laws and regulations. Improper
disposal of fluids and materials can harm the environment.
Donot modify engine
To avoid serious injury or death, do not modify engine in any
way. Tampering with the governor setting can lead to a runaway
engine and cause it to operate at unsafe speeds. Never tamper
with factory setting of engine governor.
Notice Regarding Emissions
Engines which are certified to comply with California and federal
EPA emission regulations for SORE (Small Off Road Equipment)
are certified to operate on regular unleaded gasoline, and
may include the following emission control systems: Engine
Modification (EM) and Three Way Catalyst (TWC) if so equipped.
SECTION2 -- IMPORTANT SAFE OPERATION PRACTICES S

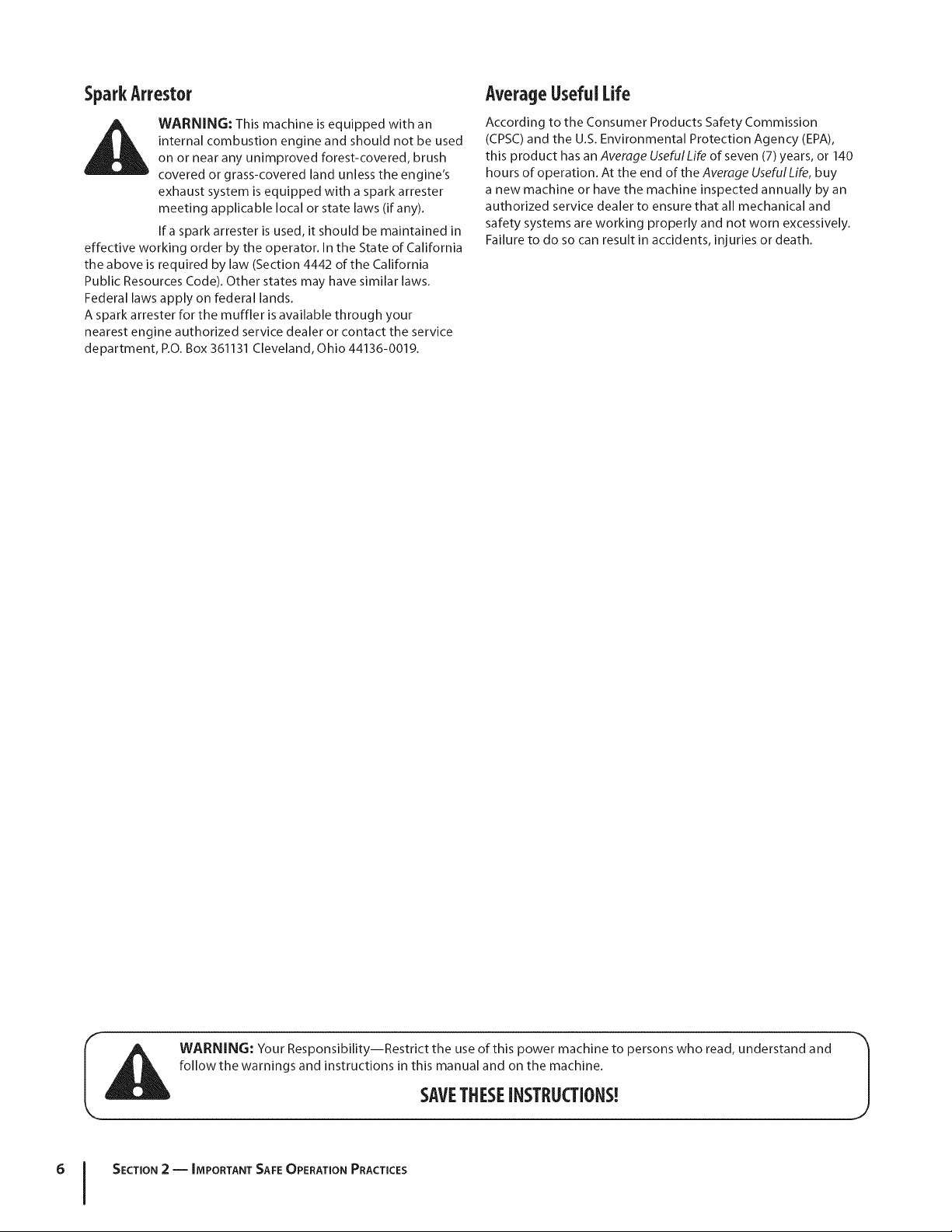

SparkArrestor
_ ARNING: This machine is equipped with an
internal combustion engine and should not be used
on or near any unimproved forest-covered, brush
covered or grass-covered land unless the engine's
exhaust system is equipped with a spark arrester
meeting applicable local or state laws (if any).
Ira spark arrester is used, it should be maintained in
effective working order by the operator. In the State of California
the above is required by law (Section 4442 of the California
Public Resources Code). Other states may have similar laws.
Federal laws apply on federal lands.
A spark attester for the muffler is available through your
nearest engine authorized service dealer or contact the service
department, P.O. Box 361131 Cleveland, Ohio 44136-0019.
AverageUsefulLife
According to the Consumer Products Safety Commission
(CPSC) and the U.S. Environmental Protection Agency (EPA),
this product has an Average Useful Life of seven (7) years, or 140
hours of operation. At the end of the Average Useful Life, buy
a new machine or have the machine inspected annually by an
authorized service dealer to ensure that all mechanical and
safety systems are working properly and not worn excessively.
Failure to do so can result in accidents, injuries or death.
WARNING: Your Responsibility--Restrict the use of this power machine to persons who read, understand and
follow the warnings and instructions in this manual and on the machine.
SAVETHESEiNSTRUCTIONS!
6 I SECTION 2 -- IMPORTANT SAFE OPERATION PRACTICES
01
0
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
I
I
I
I
/
I
I
I
I
I
I
.2..
O
O
CD
j o
r-..
O
¢D
C:)
-C3
O
03
O3
O
O3
¢D
¢D
m.
CD
CD
CD
SECTION 2 = _MPORTANT SAFE OPERATION PRACTICES 7
Assembly& Set-Up
3
Contents of Carton
One Lawn Mower
One Lawn Mower Operator's Manual
One Bottle of Oil
Assembly
NOTE:This unit is shipped without gasoline or oil in the engine.
Fill up gasoline and oil as instructed in the accompanying engine
manual BEFORE operating your mower.
Handle
1.
For shipping purposes, the chute deflector on your mower
is held in an upright position by a retainer. Remove the
retainer as follows:
a.
b.
Push chute deflector up towards engine. Holding
deflector in this position, remove the retainer and
discard. See Fig. 3-1.
Lower the chute deflector carefully keeping your
fingers out of the way.
WARNING: The chute retainer must be removed
and discarded before operating the mower.
Figure 34
2.
Perform the following sequence for handle setup:
a. Lift the upper handle up from folded position and
pull it to extended position following the arrow in
Fig. 3-2. The handle should click into this position.
J
Figure 3=2
b. Make sure the carriage bolt is seated properly in the
handle. Tighten wing nuts securing upper handle to
the lower handle.
NOTE: Your mower is shipped with the handle in the higher
height position.

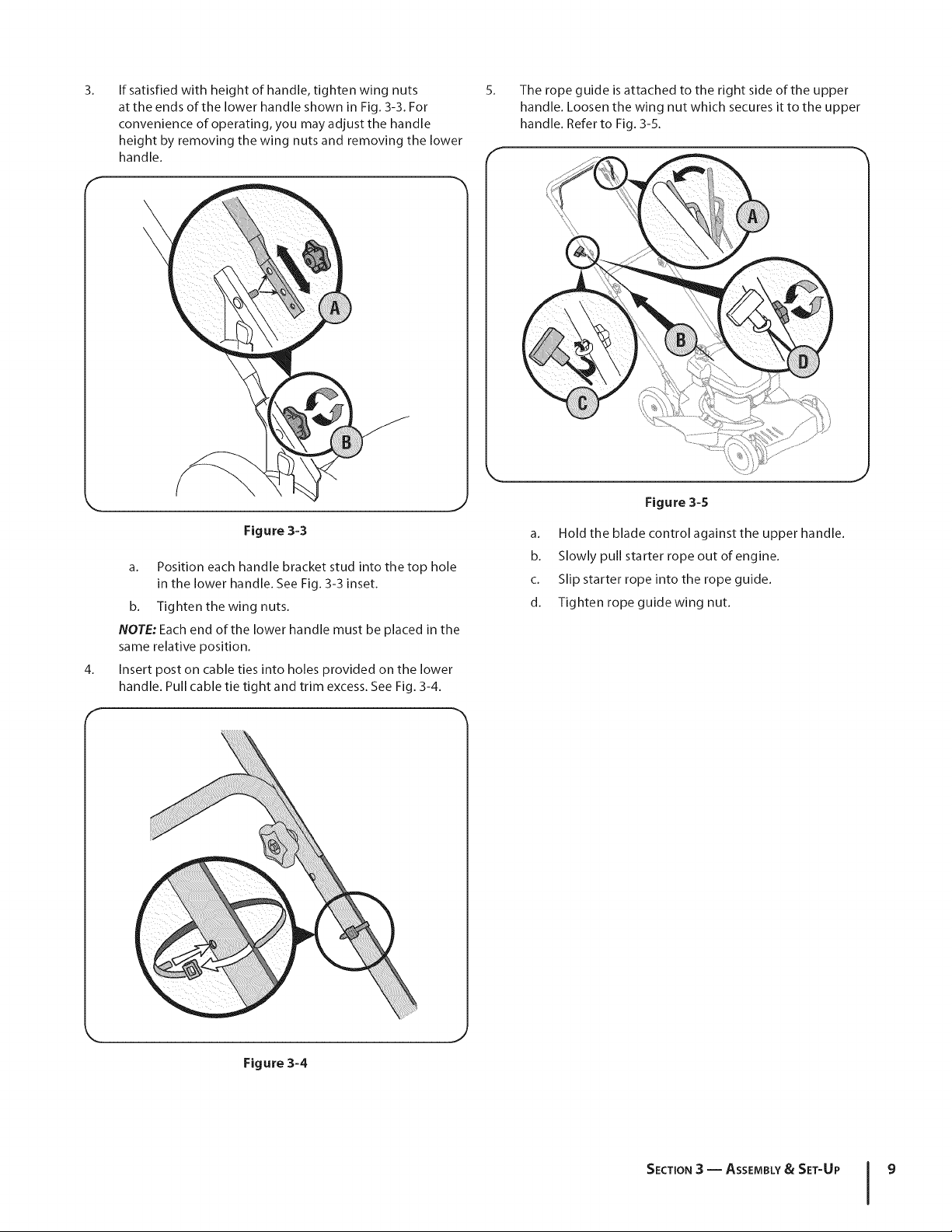

3_
If satisfied with height of handle, tighten wing nuts
atthe ends of the lower handle shown in Fig. 3-3. For
convenience of operating, you may adjust the handle
height by removing the wing nuts and removing the lower
handle.
5_
The rope guide is attached to the right side of the upper
handle. Loosen the wing nut which secures it to the upper
handle. Refer to Fig. 3-5.
Figure 3-3
4_
a. Position each handle bracket stud into the top hole
in the lower handle. See Fig. 3-3 inset.
b. Tighten the wing nuts.
NOTE: Each end of the lower handle must be placed in the
same relative position.
Insert post on cable ties into holes provided on the lower
handle. Pull cable tie tight and trim excess. See Fig. 3-4.
Figure 3-5
a. Hold the blade control against the upper handle.
b, Slowly pull starter rope out of engine.
c, Slip starter rope into the rope guide.
d, Tighten rope guide wing nut,
Figure 3-4
SECTION 3 -- ASSEMBLY& SET-UP 9

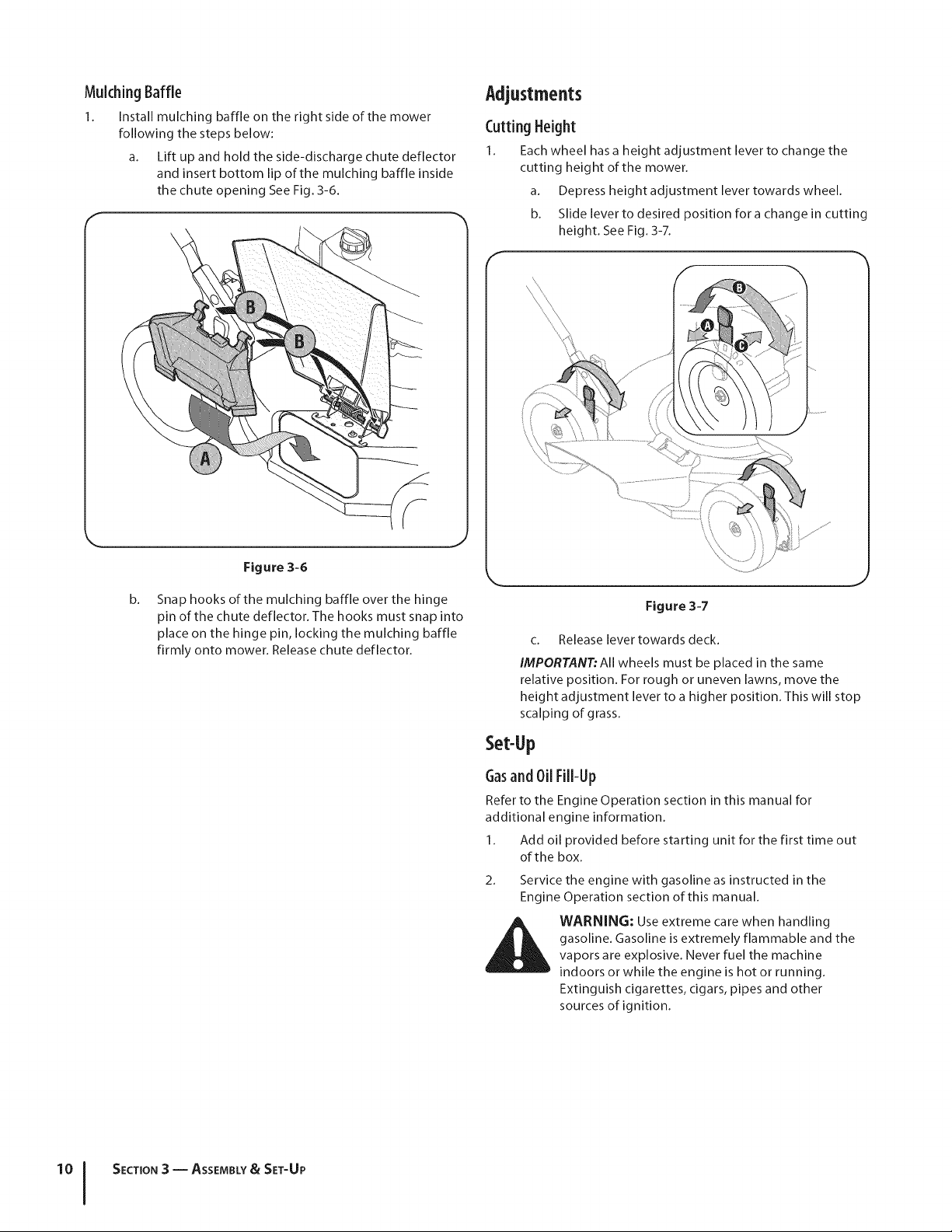

MulchingBaffle
1, Install mulching baffle on the right side of the mower
following the steps below:
a. Lift up and hold the side-discharge chute deflector
and insert bottom lip of the mulching baffle inside
the chute opening See Fig. 3-6.
b.
Snap hooks of the mulching baffle over the hinge
pin of the chute deflector. The hooks must snap into
place on the hinge pin, locking the mulching baffle
firmly onto mower. Releasechute deflector.
Adjustments
CuttingHeight
1. Each wheel has a height adjustment lever to change the
cutting height of the mower.
a. Depress height adjustment lever towards wheel.
b. Slide lever to desired position for a change in cutting
height. See Fig. 3-7.
f
Figure 3-7
c. Release lever towards deck.
IMPORTANT:All wheels must be placed in the same
relative position. For rough or uneven lawns, move the
height adjustment lever to a higher position. This will stop
scalping of grass.
Set-Up
Gasand 0il Fill-Up
Refer to the Engine Operation section in this manual for
additional engine information.
1. Add oil provided before starting unit for the first time out
of the box.
2.
Service the engine with gasoline as instructed in the
Engine Operation section of this manual.
_ WARNING: Use extreme care when handling
gasoline. Gasoline is extremely flammable and the
vapors are explosive. Never fuel the machine
indoors or while the engine is hot or running.
Extinguish cigarettes, cigars, pipes and other
sources of ignition.
SECTION 3 -- ASSEMBLY& SET-UP
Controlsand Features
4
Drive Control
Gas Fill
Cutting Height
Adjustment Levers
Figure 44
J
Blade Control
RecoilStarter
The blade control is attached to the upper handle of the mower.
Depress and squeeze it against the upper handle to operate the
unit. Release itto stop engine and blade.
ll_ll WARNING: This blade control is a safety device.
Never attempt to bypass its operations.
DriveControl
The drive control is located on the underside of the upper handle
and is used to engage the drive. Squeeze it against the upper
handle to engage the drive; release it to slow down or stop
mower from propelling. See Fig. 4-1.
Cutting HeightAdjustmentLevers
One adjustment lever is located on each wheel and is used to
adjust the cutting height. All four levers have to be at the same
relative position to ensure a uniform cut.
The recoil starter is attached to the right upper handle. Stand
behind the unit and pull the recoil starter rope to start the unit.
ChokeControl
The choke control is located on the left side of the handle and
when activated, closes the choke plate on the carburetor and
aids in starting the engine. Pull the choke control to activate the
choke on the engine. Use of the choke may not be necessary if
the engine is warm or the air temperature is high.
MulchingBaffle
The mulching baffle is used for mulching purposes. Instead
of discharging grass to the side, your mower has the option
of recirculating the clippings back to the lawn. Remove grass
catcher (if applicable), and operate with the mulching baffle only
for this purpose.
_ WARNING: Keep hands and feet away from the
chute area on cutting deck. Refer to warning label
on the unit.
11

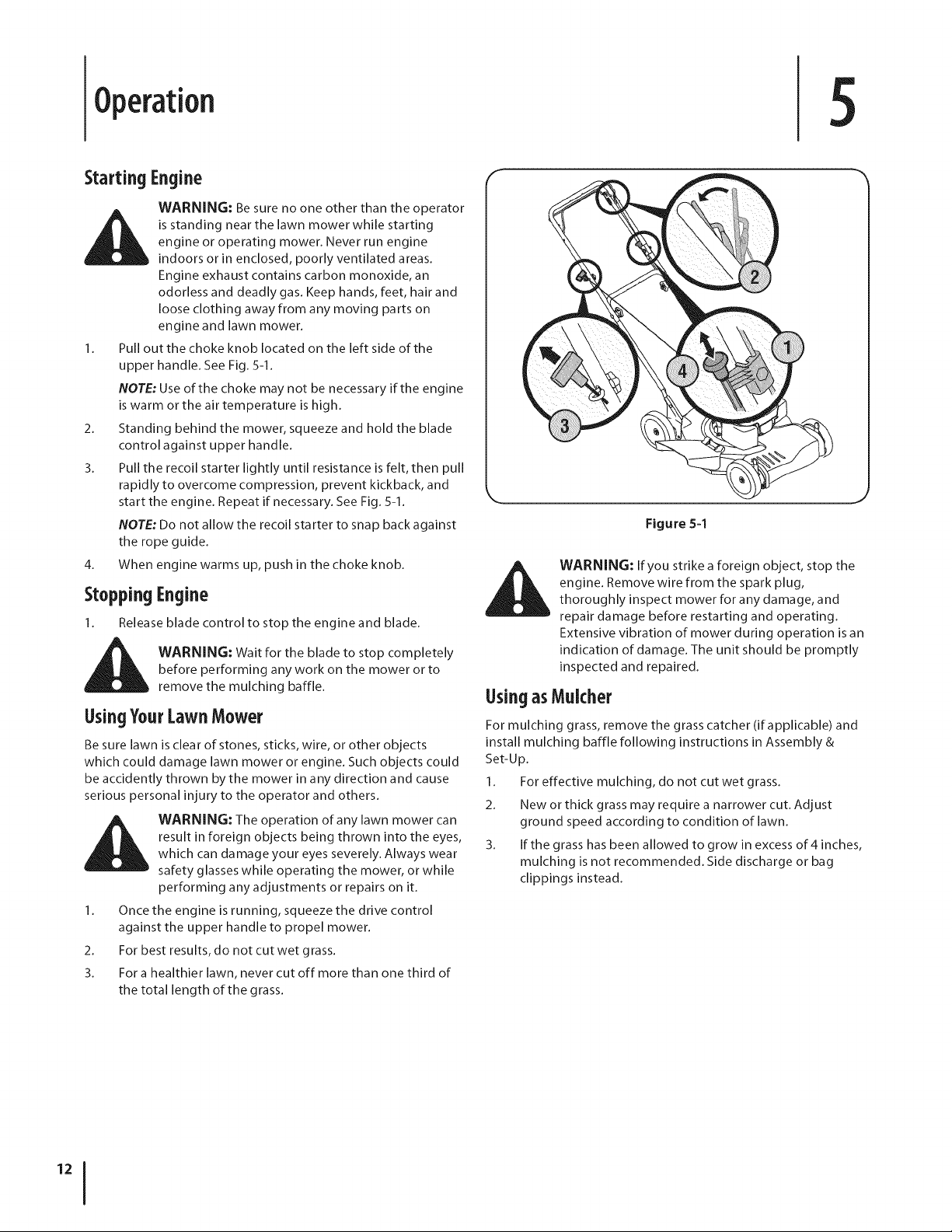

Operation
Starting Engine
WARNING: Be sure no one other than the operator
is standing near the lawn mower while starting
engine or operating mower. Never run engine
indoors or in enclosed, poorly ventilated areas.
Engine exhaust contains carbon monoxide, an
odorless and deadly gas. Keep hands, feet, hair and
loose clothing away from any moving parts on
engine and lawn mower.
1. Pull out the choke knob located on the left side of the
upper handle. See Fig. 5-1.
NOTE.:Use of the choke may not be necessary if the engine
is warm or the air temperature is high.
2. Standing behind the mower, squeeze and hold the blade
control against upper handle.
3. Pull the recoil starter lightly until resistance is felt, then pull
rapidly to overcome compression, prevent kickback, and
start the engine. Repeat if necessary. See Fig. 5-1.
NOTE.;Do not allow the recoil starter to snap back against
the rope guide.
4. When engine warms up, push in the choke knob.
Stopping Engine
1. Release blade control to stop the engine and blade.
_i ARNING: Wait for the blade to stop completely
before performing any work on the mower or to
remove the mulching baffle.
UsingYourLawnMower
Be sure lawn is clear of stones, sticks, wire, or other objects
which could damage lawn mower or engine. Such objects could
be accidently thrown by the mower in any direction and cause
serious personal injury to the operator and others.
2.
3.
WARNING: The operation of any lawn mower can
result in foreign objects being thrown into the eyes,
which can damage your eyes severely. Always wear
safety glasses while operating the mower, or while
performing any adjustments or repairs on it.
Once the engine is running, squeeze the drive control
against the upper handle to propel mower.
For best results, do not cut wet grass.
For a healthier lawn, never cut off more than one third of
the total length of the grass.
Figure 5-1
_IL ARNING: If you strike a foreign object, stop the
engine. Remove wire from the spark plug,
thoroughly inspect mower for any damage, and
repair damage before restarting and operating.
Extensive vibration of mower during operation is an
indication of damage. The unit should be promptly
inspected and repaired.
UsingasMulcher
For mulching grass, remove the grass catcher (if applicable) and
install mulching baffle following instructions in Assembly &
Set-Up.
1. For effective mulching, do not cut wet grass.
2. New or thick grass may require a narrower cut. Adjust
ground speed according to condition of lawn.
3. If the grass has been allowed to grow in excess of 4 inches,
mulching is not recommended. Side discharge or bag
clippings instead.
Maintenance& Adjustments
6
Maintenance
GeneralRecommendations
Always observe safety rules when performing any
maintenance.
The warranty on this lawn mower does not cover items that
have been subjected to operator abuse or negligence. To
receive full value from warranty, operator must maintain
the lawn mower as instructed here.
Changing of engine-governed speed will void engine
warranty.
All adjustments should be checked at least once each
season.
Periodically check all fasteners and make sure these are
tight.
i _llill, i WARNING: Always stop engine, disconnect spark
plug, and ground against engine before performing
any type of maintenance on your machine.
Lubrication
1. Lubricate pivot points on the blade and drive controls
at least once a season with light oil. These controls must
operate freely in both directions. See Fig. 6-1.
2. Lubricate the wheels at least once a season with light oil (or
motor oil). If wheels are removed for any reason, lubricate
surface of the pivot arm and inner surface of the wheel
with light oil. See Fig. 6-1.
3. Lubricate the torsion spring and pivot point on the side
discharge chute periodically with light oil to prevent rust.
See Fig. 6-1.
4. The transmission is pre-lubricated and sealed at the factory
and does not require lubrication.
5. Follow the Engine Maintenance section for lubrication
schedule and instruction for engine lubrication.
DeckCare
Clean underside of the mower deck after each use to prevent
build-up of grass clippings or other debris. Follow steps below
for this job.
1. Disconnect spark plug wire. Drain gasoline from lawn
mower or place a piece of plastic under the gas cap.
2. Tip mower so that it rests on the housing. Keep the side
with the air cleaner facing up. Hold mower firmly.
WARNING: Never tip the mower more than 90 ° in
any direction and do not leave the mower tipped for
any length of time. Oil can drain into the upper part
of the engine causing a starting problem.
3. Scrape and clean the underside of the deck with a suitable
tool. Do not spray with water.
4. Put the mower back on its wheels on the ground. If you
had put plastic under the gas cap earlier, make sure to
remove it now.
EngineCare
NOTE: Refer to the engine operation and maintenance sections
in this manual for detailed instructions.
Maintain oil level.
Service air cleaner every 25 hours under normal conditions.
Clean every few hours under extremely dusty conditions.
Clean spark plug and reset the gap once a season.
Clean engine regularly with a cloth or brush. Keep the area
around the top of the engine clean to permit proper air
circulation. Remove all grass, dirt, and combustible debris
from muffler area.
Figure 6-1
13
Service
7
8lade Care
WARNING: When removing the cutting blade for
sharpening or replacement, protect your hands with
a pair of heavy gloves or use a heavy rag to hold the
blade.
Periodically inspect the blade adapter for cracks, especially if you
strike a foreign object. Replace when necessary. Follow the steps
below for blade service.
1. Disconnect spark plug boot from spark plug. Turn mower
on its side making sure that the air filter and the carburetor
are facing up.
2. Remove the bolt and the blade bell support which hold the
blade and the blade adapter to the engine crankshaft. See
Fig. 7-1.
Blade
Adapter
Blade
F
Blade Bell
Support _ ............. Bolt
Figure 7=1
3. Remove blade and adapter from the crankshaft. See Fig.
7-1.
4.
Remove blade from the adapter for testing balance.
Balance the blade on a round shaft screwdriver to check.
Remove metal from the heavy side until it balances evenly.
When sharpening the blade, follow the original angle of
grind. Grind each cutting edge equally to keep the blade
balanced.
WARNING: An unbalanced blade will cause
excessive vibration when rotating at high speeds. It
may cause damage to mower and could break
causing personal injury.
5. Lubricate the engine crankshaft and the inner surface of
the blade adapter with light oil. Slide the blade adapter
onto the engine crankshaft. Place the blade on the adapter
such that the side of the blade marked "Bottom" (or with
part number) faces the ground when the mower is in the
operating position. Make sure that the blade is aligned and
seated on the blade adapter flanges.
6. Place blade bell support on the blade. Align notches on the
blade bell support with small holes in blade.
7. Replace hex bolt and tighten hex bolt to torque: 450 in. Ibs.
rain., 600 in. Ibs. max.
To ensure safe operation of your mower, periodically check the
blade bolt for correct torque.
Belt Care
Remove the front drive cover by sliding offthe two plastic
rivets on each side of the cover with a screwdriver. See Fig.
7-2.
2.
3.
Figure 7-2
Disconnect belt tension spring from transmission.
Push transmission up a little and slide belt off the
transmission pulley. See Fig. 7-2.
J
14

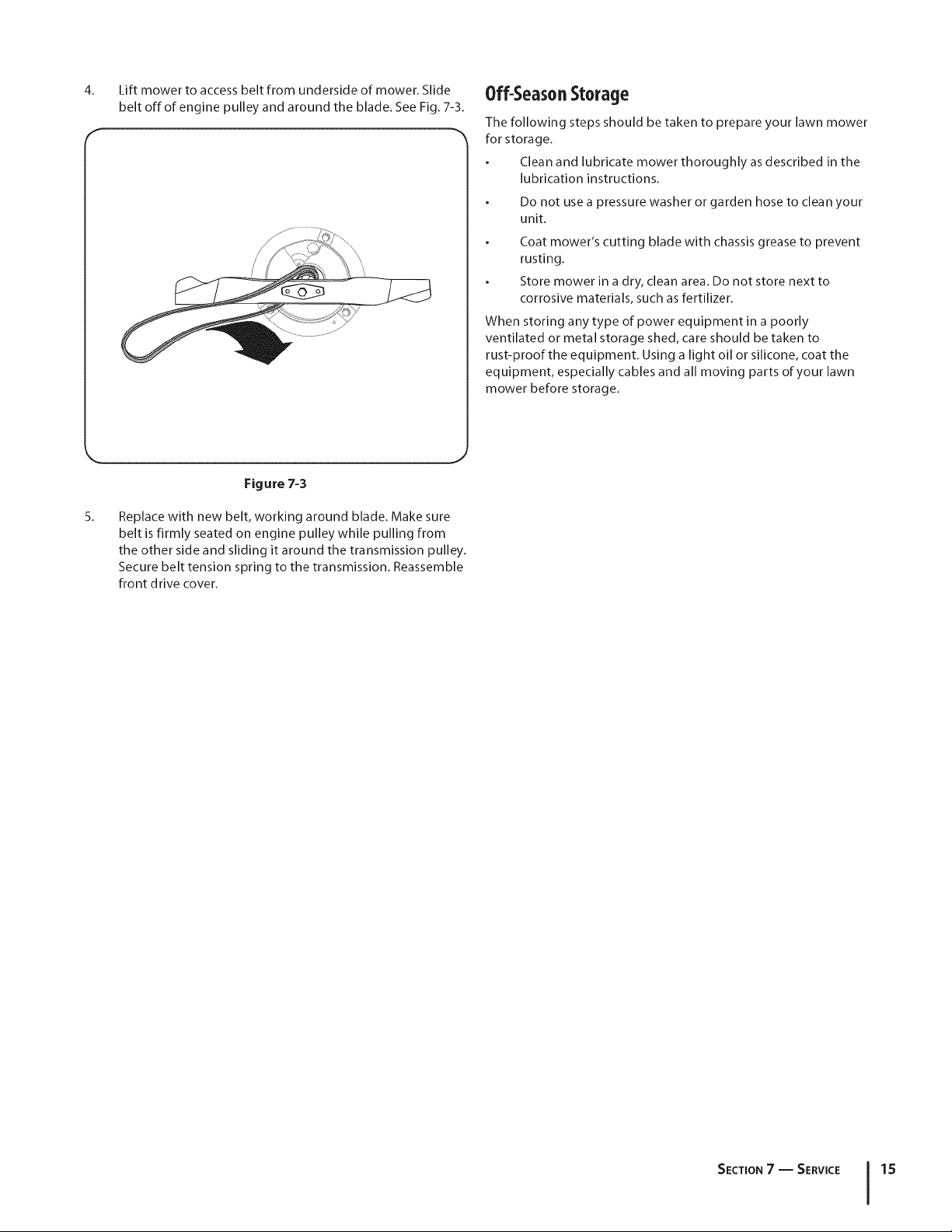

4. Lift mower to access belt from underside of mower. Slide
belt off of engine pulley and around the blade. See Fig. 7-3.
Off-Season Storage
The following steps should be taken to prepare your lawn mower
for storage.
Clean and lubricate mower thoroughly as described in the
lubrication instructions.
Do not use a pressure washer or garden hose to clean your
unit.
Coat mower's cutting blade with chassis grease to prevent
rusting.
Store mower in a dry, clean area. Do not store next to
corrosive materials, such as fertilizer.
When storing any type of power equipment in a poorly
ventilated or metal storage shed, care should be taken to
rust-proof the equipment. Using a light oil or silicone, coat the
equipment, especially cables and all moving parts of your lawn
mower before storage.
Figure 7-3
5.
Replace with new belt, working around blade. Make sure
belt is firmly seated on engine pulley while pulling from
the other side and sliding it around the transmission pulley.
Secure belt tension spring to the transmission. Reassemble
front drive cover.
SECTION7 -- SERVICE 15

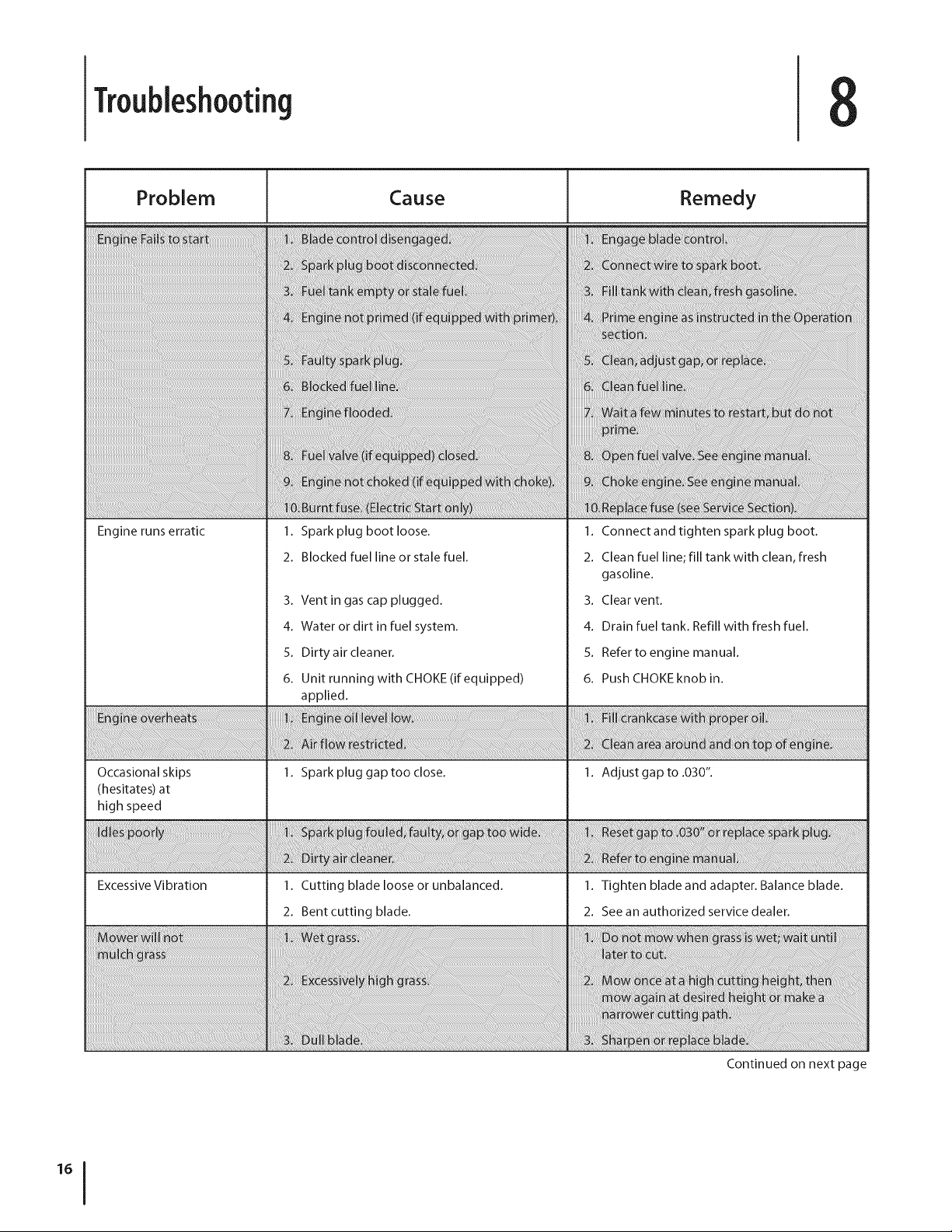

Troubleshooting
Problem Cause l Remedy
Engine runs erratic
Occasional skips
(hesitates) at
high speed
Excessive Vibration
1. Spark plug boot loose.
2. Blocked fuel line or stale fuel.
3. Ventin gas cap plugged.
4. Water or dirt in fuel system.
5. Dirty air cleaner.
6. Unit running with CHOKE (if equipped)
applied.
1. Spark plug gap too close.
1. Cutting blade loose or unbalanced.
2. Bent cutting blade.
1. Connectand tighten spark plug boot.
2. Clean fuel line; fill tank with clean, fresh
gasoline.
3. Clear vent.
4. Drain fuel tank. Refill with fresh fuel.
5. Referto engine manual.
6. Push CHOKE knob in.
1. Adjust gap to .030".
1. Tighten blade and adapter. Balance blade.
2. See an authorized service dealer.
Continued on next page
Troubleshooting
Problem
Cause Remedy
Uneven cut 1. Wheels not positioned correctly. 1. Place all fourwheels in same height position
(if equipped with individual height adjusters).
2. Dull blade. 2. Sharpen or replace blade.
17
EngineOperation
9
Fuel Cap
Air Cleaner
Grip
Oil Drain
Mumer
Spark Plug
Pre-OperationCheck
0il Recommendations
NOTE:This engine is shipped without gasoline or oil in the
engine. Running the engine with insufficient oil can cause
serious engine damage and void the engine warranty.
Before starting engine, fill with oil. Do not over-fill. Oil
capacity is about 20 oz.
Use a 4-stroke, or an equivalent high detergent, premium
quality motor oil certified to meet or exceed U.S. automobile
manufacturer's requirements for service classification SG/SF.
Motor oils classified SG/SF will show this designation on the
container.
SAE 10W-30 is recommended for general, all temperature use. If
single viscosity oil is used, select the appropriate viscosity for the
average temperature in your area from the chart to the right.
Figure 10-1
_ 20w
__ 20
lllmlml Rlmmlll
,,,,30
20w40, _Ow50____mb_
I
15w40, 0______
® low4o-..--...-----
lOw30_____u
(°C)-300 -200 -I0 ° 0 ° I0 ° 200 300 400
(°F)-20o 0° 200 400 600 800 1000
Ambient Temperature
1. Single Viscosity
2. Multi Viscosity
NOTE: Using non detergent oil or 2-stroke engine oil could
shorten the engine's service life.
18

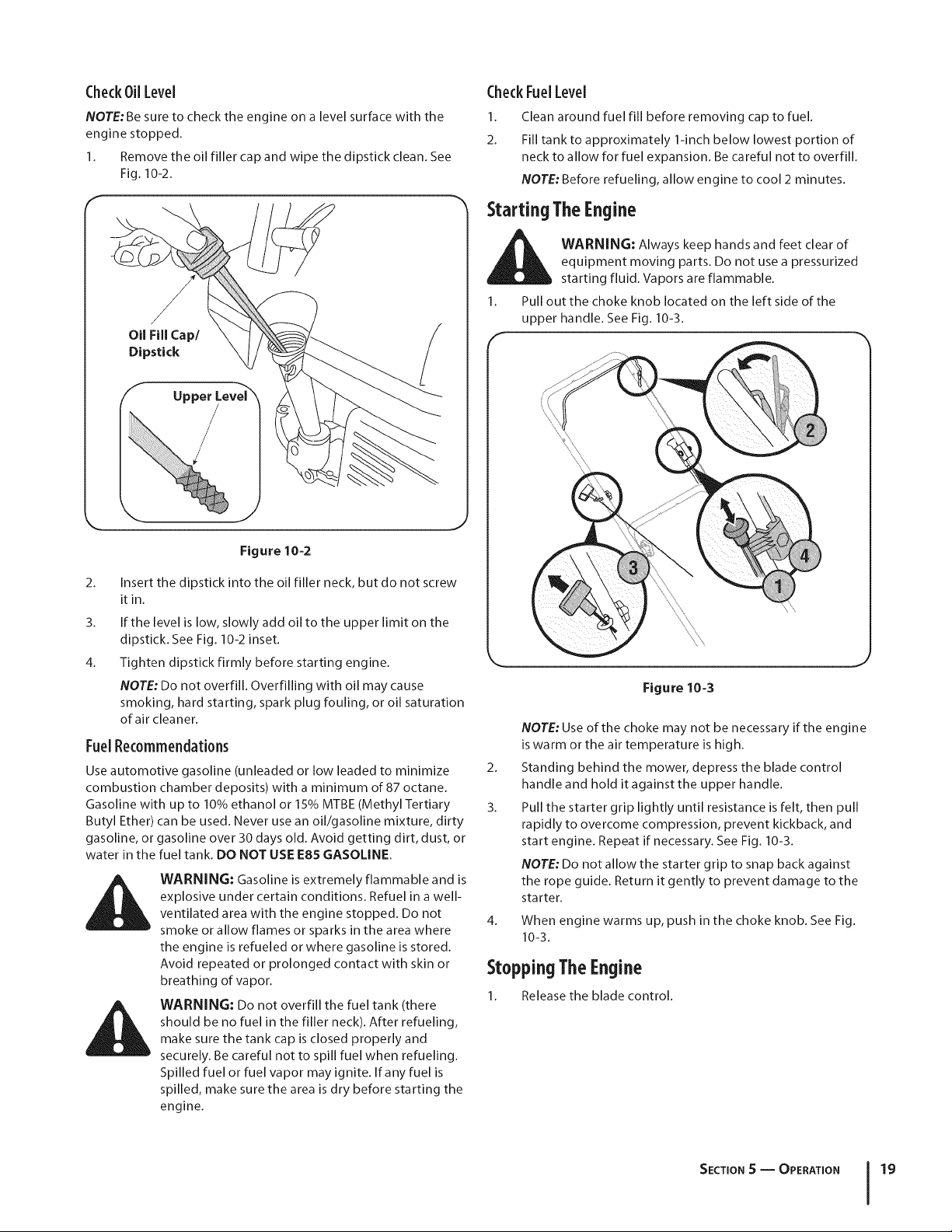

CheckOilLevel
NOTE: Be sure to check the engine on a level surface with the
engine stopped.
1. Remove the oil filler cap and wipe the dipstick clean. See
Fig. 10-2.
Oil Fill Cap/
Dipstick
Figure 10-2
2_
3.
4.
Insert the dipstick into the oil filler neck, but do not screw
itin.
If the level is low, slowly add oil to the upper limit on the
dipstick. See Fig. 10-2 inset.
Tighten dipstick firmly before starting engine.
NOTE: Do not overfill. Overfilling with oil may cause
smoking, hard starting, spark plug fouling, or oil saturation
of air cleaner.
Fuel Recommendations
Use automotive gasoline (unleaded or low leaded to minimize 2.
combustion chamber deposits) with a minimum of 87 octane.
Gasoline with up to 10% ethanol or 15% MTBE (Methyl Tertiary 3.
Butyl Ether) can be used. Never use an oil/gasoline mixture, dirty
gasoline, or gasoline over 30 days old. Avoid getting dirt, dust, or
water in the fuel tank. DO NOT USE E85 GASOLINE,
WARNING: Gasoline is extremely flammable and is
explosive under certain conditions. Refuel in a well-
ventilated area with the engine stopped. Do not
smoke or allow flames or sparks in the area where
the engine is refueled or where gasoline is stored.
Avoid repeated or prolonged contact with skin or
breathing of vapor.
WARNING: Do not overfill the fuel tank (there
should be no fuel in the filler neck). After refueling,
make sure the tank cap is closed properly and
securely. Be careful not to spill fuel when refueling.
Spilled fuel or fuel vapor may ignite. If any fuel is
spilled, make sure the area is dry before starting the
engine.
CheckFuel Level
1. Clean around fuel fill before removing cap to fuel.
2. Fill tank to approximately 1-inch below lowest portion of
neck to allow for fuel expansion. Be careful not to overfill.
NOTE: Before refueling, allow engine to cool 2 minutes.
Starting The Engine
_i ARNING: Always keep hands and feet clear of
equipment moving parts. Do not use a pressurized
starting fluid. Vapors are flammable.
1. Pull out the choke knob located on the left side of the
upper handle. See Fig. 10-3.
\\
\\
\\
\ \
Figure 10-3
4_
NOTE: Use of the choke may not be necessary if the engine
is warm or the air temperature is high.
Standing behind the mower, depress the blade control
handle and hold it against the upper handle.
Pull the starter grip lightly until resistance is felt, then pull
rapidly to overcome compression, prevent kickback, and
start engine. Repeat if necessary. See Fig. 10-3.
NOTE: Do not allow the starter grip to snap back against
the rope guide. Return it gently to prevent damage to the
starter.
When engine warms up, push in the choke knob. See Fig.
10-3.
Stopping TheEngine
1. Release the blade control.
SECTION S -- OPERATION 19
EngineMaintenance
1
_ ARNING: Shut off the engine before performing
any maintenance. To prevent accidental start-up,
disconnect the spark plug boot.
IMPORTANT: If engine must be tipped to transport equipment
or to inspect or remove grass, keep spark plug side of engine
up. Transporting or tipping engine spark plug down may cause
smoking, hard starting, spark plug fouling, or oil saturation of air
cleaner.
MaintenanceSchedule
Periodic inspection and adjustment of the engine is essential
if high level performance is to be maintained. Regular
maintenance will also ensure a long service life. The required
service intervals and the kind of maintenance to be performed
are described in the table below. Follow the hourly or calendar
intervals, whichever occur first. More frequent service is required
when operating in adverse conditions.
_1 ARNING: If the engine has been running, the
muffler will be very hot. Be careful not to touch the
muffler.
Each Useor
EveryS Hrs.
,/
EverySeason
or25 Hours
EverySeason
or SOHours
FirstSHours
CheckEngineOil Level
ChangeEngineOil tt V f V f
CheckAir Cleaner V/"
ServiceAir Cleanert V/"
CheckSparkPlug V/"
ReplaceSparkPlug V/"
CleanEngineShroud V/"
Cleanaround muffler V/"
ReplaceFuelFilter V/"
EverySeason
or 100Hours
Service
Dates
t- Service more frequently when used in dusty areas.
ff Every season or 25 hours if operating under heavy load or high ambient temperature.
Oil Service
Check oil level regularly.
Be sure correct oil level is maintained. Check every five
hours or daily before starting engine. See oil checking
procedure in the Operation section.
OilChange
IMPORTANT: Be sure to check engine on a level surface with the
engine stopped. Drain the oil while the engine is still warm to
assure rapid and complete draining.
1. Remove all fuel from tank by running engine until it stops
from lack of fuel.
2. Remove drain plug and allow oil to drain into a suitable
container. See Fig. 10-1.
Drain
Plug
Oil Fill Cap
Figure 10=1
i_ WARNING: Before tipping engine or equipmentto
drain oil, drain fuel from tank by running engine
until fuel tank is empty.
3. Reinstall the drain plug and tighten it securely.
4. Refill with the recommended oil (see Operation section)
and check the oil level. See Fig. 10-1.
5. Reinstall the oil fill cap securely.
IMPORTANT: Used motor oil may cause skin cancer if repeatedly
left in contact with the skin for prolonged periods. Although this
is unlikely unless you handle used oil on a daily basis, it is still
advisable to thoroughly wash your hands with soap and water as
soon as possible after handling used oil.
NOTE: Please dispose of used motor oil in a manner that is
compatible with the environment. We suggest you take it in a
sealed container to your local service station for reclamation. Do
not throw it in the trash or pour it on the ground.
AirCleanerService
Paper filters cannot be cleaned and must be replaced once a year
or every 100 operating hours; more often if used in extremely
dusty conditions.
_ WARNING: Never use gasoline or low flash point
solvents for cleaning the air cleaner element. A fire
or explosion could result.
IMPORTANT: Never run the engine without the air cleaner. Rapid
engine wear will result.
1. Remove the wing bolt and the air cleaner cover. Remove
the elements and separate them. See Fig. 10-2. Replace
paper element when dirty or damaged. Clean foam
element or replace when damaged.
f
Paper Element
%
Foam Element
Figure 10=2
2. To clean foam element, separate it from the paper element
and wash in liquid detergent and water. Allow to dry
thoroughly before using. Do not oil the foam element.
SECTION10 = ENGINE MAINTENANCE 21

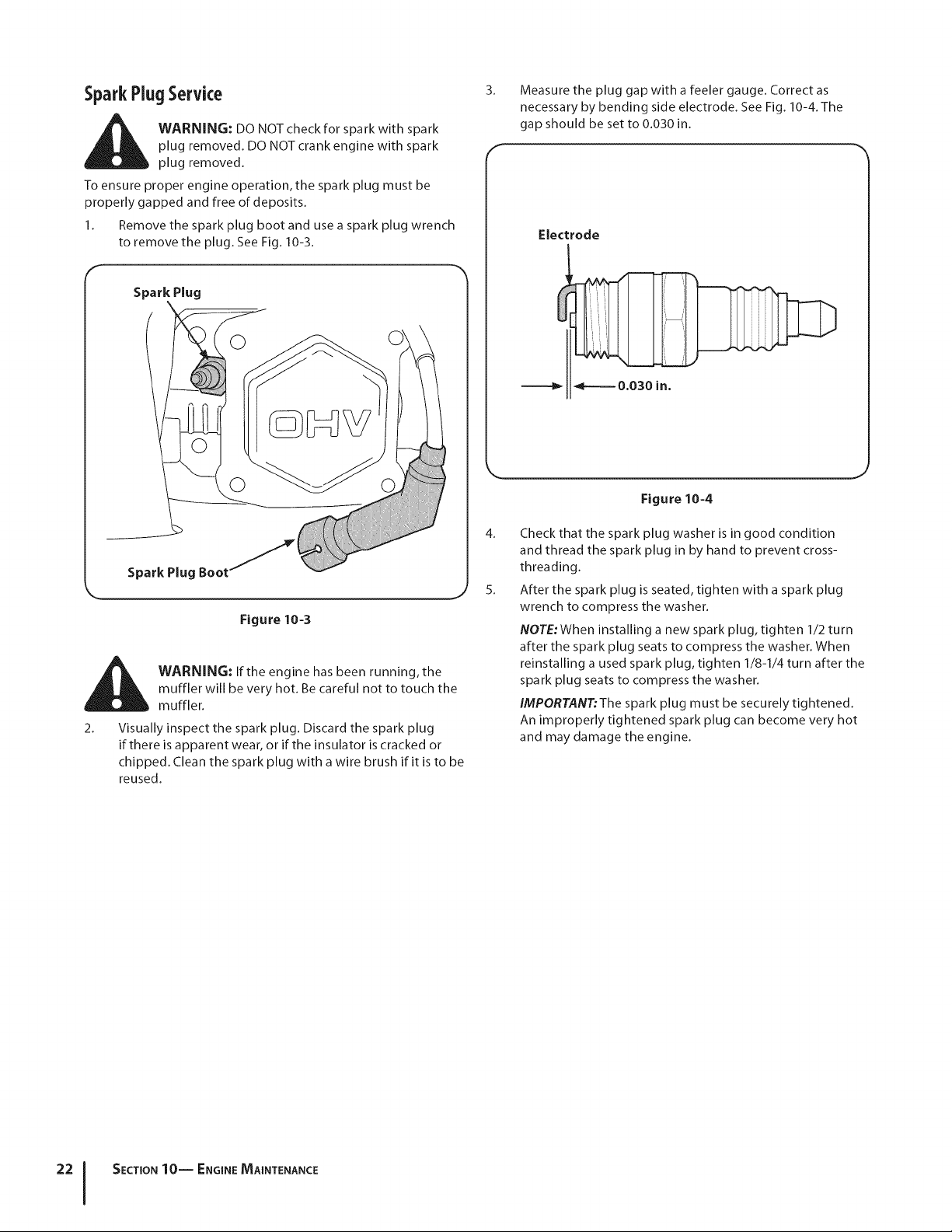

SparkPlugService
_ WARNING: DO NOT check for spark with spark
plug removed. DO NOT crank engine with spark
plug removed.
To ensure proper engine operation, the spark plug must be
properly gapped and free of deposits.
1. Remove the spark plug boot and use a spark plug wrench
to remove the plug. See Fig. 10-3.
Spark Plug
Spark Plug Boot f
Figure 10=3
i_ WARNING: If the engine has been running, the
muffler will be very hot. Be careful not to touch the
muffler.
2. Visually inspect the spark plug. Discard the spark plug
if there is apparent wear, or if the insulator is cracked or
chipped. Clean the spark plug with a wire brush if it is to be
reused.
3.
4.
5.
Measure the plug gap with a feeler gauge. Correct as
necessary by bending side electrode. See Fig. 10-4. The
gap should be set to 0.030 in.
Electrode
0.030 in.
Figure 10=4
Check that the spark plug washer is in good condition
and thread the spark plug in by hand to prevent cross-
threading.
After the spark plug is seated, tighten with a spark plug
wrench to compress the washer.
NOTE:When installing a new spark plug, tighten 1/2 turn
after the spark plug seats to compress the washer. When
reinstalling a used spark plug, tighten 1/8-1/4 turn after the
spark plug seats to compress the washer.
IMPORTANT:The spark plug must be securely tightened.
An improperly tightened spark plug can become very hot
and may damage the engine.
SECTION10-- ENGINE MAINTENANCE

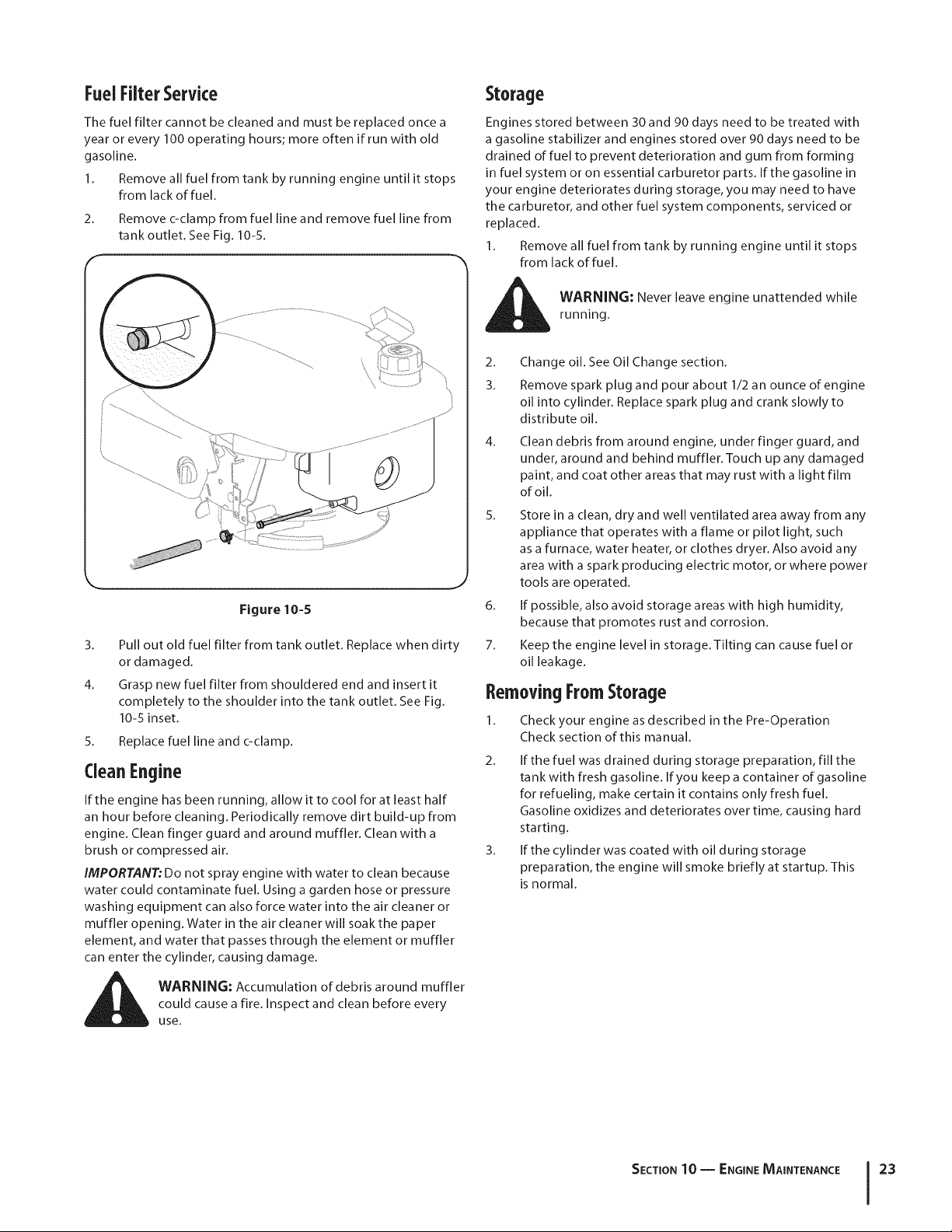

Fuel Filter Service
The fuel filter cannot be cleaned and must be replaced once a
year or every 100 operating hours; more often if run with old
gasoline.
1. Remove all fuel from tank by running engine until it stops
from lack of fuel.
2. Remove c-clamp from fuel line and remove fuel line from
tank outlet. See Fig. 10-5.
Figure 10=5
3. Pull out old fuel filter from tank outlet. Replace when dirty
or damaged.
4. Grasp new fuel filter from shouldered end and insert it
completely to the shoulder into the tank outlet. See Fig.
10-5 inset.
5. Replace fuel line and c-clamp.
CleanEngine
If the engine has been running, allow it to cool for at least half
an hour before cleaning. Periodically remove dirt build-up from
engine. Clean finger guard and around muffler. Clean with a
brush or compressed air.
IMPORTANT; Do not spray engine with water to clean because
water could contaminate fuel. Using a garden hose or pressure
washing equipment can also force water into the air cleaner or
muffler opening. Water in the air cleaner will soak the paper
element, and water that passesthrough the element or muffler
can enter the cylinder, causing damage.
i_ WARNING: Accumulation of debris around muffler
could cause a fire. Inspect and clean before every
use.
Storage
Engines stored between 30 and 90 days need to be treated with
a gasoline stabilizer and engines stored over 90 days need to be
drained of fuel to prevent deterioration and gum from forming
in fuel system or on essential carburetor parts. If the gasoline in
your engine deteriorates during storage, you may need to have
the carburetor, and other fuel system components, serviced or
replaced.
1. Remove all fuel from tank by running engine until it stops
from lack of fuel.
_[_ ARNING: Never leave engine unattended while
running.
2.
3.
4.
Change oil. See Oil Change section.
Remove spark plug and pour about 1/2 an ounce of engine
oil into cylinder. Replace spark plug and crank slowly to
distribute oil.
Clean debris from around engine, under finger guard, and
under, around and behind muffler. Touch up any damaged
paint, and coat other areas that may rust with a light film
of oil.
5. Store in a clean, dry and well ventilated area away from any
appliance that operates with a flame or pilot light, such
as a furnace, water heater, or clothes dryer. Also avoid any
area with a spark producing electric motor, or where power
tools are operated.
6. If possible, also avoid storage areas with high humidity,
because that promotes rust and corrosion.
7. Keep the engine level in storage. Tilting can cause fuel or
oil leakage.
Removing FromStorage
1.
2.
3.
Check your engine as described in the Pre-Operation
Check section of this manual.
If the fuel was drained during storage preparation, fill the
tank with fresh gasoline. If you keep a container of gasoline
for refueling, make certain it contains only fresh fuel.
Gasoline oxidizes and deteriorates over time, causing hard
starting.
If the cylinder was coated with oil during storage
preparation, the engine will smoke briefly at startup. This
is normal.
SECTION10 -- ENGINE MAINTENANCE 23
The EZ Start Promise
Provisions of Your Limited Warranty
In addition to the other terms and conditions of the Limited Warranty
applicable to your new mower, MTD LLC ("MTD") hereby warrants
that your mower's engine will start on the first or second attempt by
an able-bodied adult (subject to the limitations described below) for
the duration of the manufacturer's limited warranty applicable to your .
product. If the engine on your mower fails to conform to this limited
warranty, MTD will cover the cost of parts and labor associated with
e
any adjustments and/or repairs necessary to return your engine
to its warranted condition. In order to make a claim under these
provisions of your warranty, you must bring the product and proof of
purchase to an authorized MTD service provider. In many cases, the
retailer who sold you your mower is not equipped to provide warranty
service, so please locate the authorized service dealer nearest you by
either calling the phone number provided in your Operators Manual or
looking up an authorized service dealer on-line at www.mtdproducts.
com.
Items and Conditions Not Covered
The EZStart Promise does not cover and/or apply to the following:
• Cost of regular maintenance service or parts, such as filters, fuel,
lubricants, oil changes, spark plugs, air filter, blade sharpening,
worn blades, cable/linkage adjustments, or brake and clutch
adjustments
= Transportation costs to and from an authorized MTD service
provider
• Any engine used for commercial, rental, institutional, governmen-
tal, or non-residential applications
= Any product or part that has been altered or misused or required
replacement or repair due to misuse, accidents, or lack of proper
maintenance
• Repairs necessary due to improper battery care, electrical supply
irregularities, or failure to properly prepare the mower prior to any
period of non-use over three months
= Pickup and/or delivery charges
• Operational misuse, neglect, accidents, unauthorized repairs or
attempted repairs of the engine or its components by anyone other
than an authorized MTD service provider.
Repairs or adjustments to correct starting difficulties due to any
of the following: failure to follow proper maintenance procedures
-- rotary mower blade striking an object -- contaminants in the
fuel system -- improper fuel or fuel/oil mixture (consult your
Operator's Manual if in doubt) -- failure to drain the fuel system
prior to any period of non-use over three months
Any starting problem which results from the use of inappropriate
fuels, lubricants, or additives
Special conditions or circumstances that normally require more
than two pulls to start, specifically: 1) First start-up following your
initial purchase, 2) first time starts after extended period(s) of
non-use over one month or seasonal storage, 3) cool temperature
starts such as those found in early spring and late autumn, and 4)
difficult starting that results from the operator's failure to follow
the proper starting procedures identified in the Operator's Manual.
If you are having difficulty starting your unit, please check the
Operator's Manual to ensure that you are using the correct starting
procedures. This can save an unnecessary visit to a Service
Dealer.
Owner Responsibilities
You must maintain your mower (including its engine) by following the
maintenance procedures and starting instructions described in the
Operator's Manual. Such routine maintenance, whether performed by
a dealer or by you, is at your expense. In addition, please retain your
proof of purchase and service receipts as these may be required to
validate a claim.
General Conditions
An authorized MTD service provider using approved replacement
parts must perform all repairs covered by the EZ Start Promise.
Repair by an MTD authorized service dealer is your sole remedy
under this warranty. MTD is not liable for indirect, incidental, or
consequential damages in connection with the use of the products
covered by these warranties, including any cost or expense of
providing substitute equipment or service during reasonable periods
of malfunction or non-use pending completion of repairs under this
warranty.
Some states do not allow exclusions of incidental or consequential
damages, or limitations on how long an implied warranty lasts, so
certain exclusions and limitations may not apply to you.
GDO0-100163 Rev. B
25
Model26M
50 _ 47
_.46
48
37
_f
_40
38
22
I
2O
44
43
24

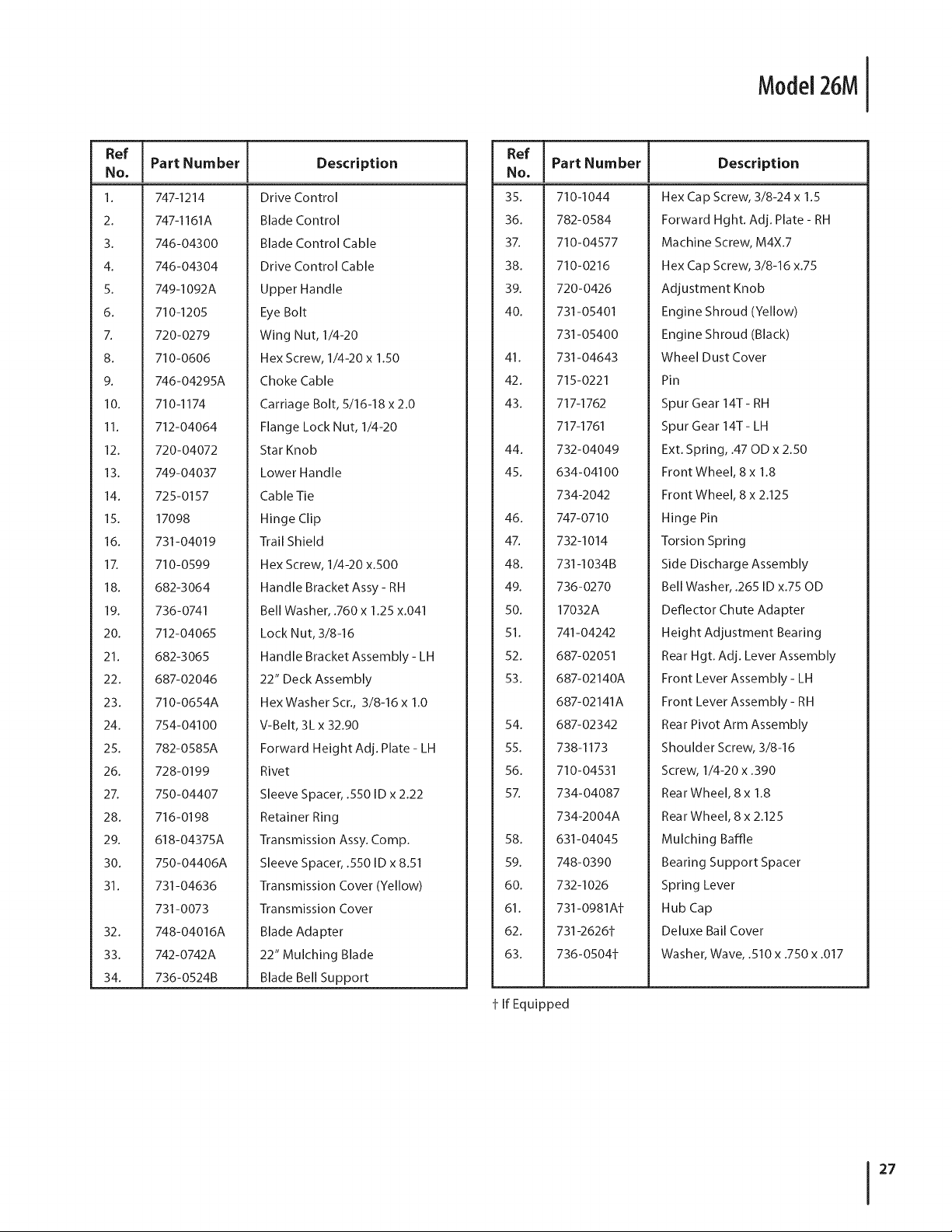

Model26M
Ref I Part Number
NO.
I
1. 747-1214
2. 747-1161A
3. 746-04300
4. 746-04304
5. 749-1092A
6. 710-1205
7. 720-0279
8. 710-0606
9. 746-04295A
10. 710-1174
11. 712-04064
12. 720-04072
13. 749-04037
14. 725-0157
15. 17098
16. 731-04019
1_ 710-0599
18. 682-3064
19. 736-0741
20. 712-04065
21. 682-3065
22. 687-02046
23. 710-0654A
24. 754-04100
25. 782-0585A
26. 728-0199
27. 750-04407
28. 716-0198
29. 618-04375A
30. 750-04406A
31. 731-04636
731-0073
32. 748-04016A
33. 742-0742A
34. 736-0524B
Description
Drive Control
Blade Control
Blade Control Cable
Drive Control Cable
Upper Handle
Eye Bolt
Wing Nut, 1/4-20
Hex Screw, 1/4-20 x 1.50
Choke Cable
Carriage Bolt, 5/16-18 x 2.0
Flange Lock Nut, 1/4-20
Star Knob
Lower Handle
Cable Tie
Hinge Clip
Trail Shield
Hex Screw, 1/4-20 x.500
Handle Bracket Assy - RH
Bell Washer, .760 x 1.25 x.041
Lock Nut, 3/8-16
Handle Bracket Assembly- LH
22" Deck Assembly
HexWasher Scr., 3/8-16 x 1.0
V-Belt, 3L x 32.90
Forward Height Adj. Plate - LH
Rivet
Sleeve Spacer, .550 ID x 2.22
Retainer Ring
Transmission Assy. Comp.
Sleeve Spacer, .550 ID x 8.51
Transmission Cover (Yellow)
Transmission Cover
Blade Adapter
22" Mulching Blade
Blade Bell Support
Ref
No.
35.
36.
37.
38.
39.
40.
41.
42.
43.
44.
45.
46.
47.
48.
49.
50.
51.
52.
53.
54.
55.
56.
57.
58.
59.
60.
61.
62.
63.
I Part Number Description
710-1044
782-0584
710-04577
710-0216
720-0426
731-05401
731-05400
731-04643
715-0221
717-1762
717-1761
732-04049
634-04100
734-2042
747-0710
732-1014
731-1034B
736-0270
17032A
741-04242
687-02051
687-02140A
687-02141A
687-02342
738-1173
710-04531
734-04087
734-2004A
631-04045
748-0390
732-1026
731-0981A±
731_6261
736-0504t
Hex Cap Screw, 3/8-24 x 1.5
Forward Hght. Adj. Plate - RH
Machine Screw, M4X.7
Hex Cap Screw, 3/8-16 x.75
Adjustment Knob
Engine Shroud (Yellow)
Engine Shroud (Black)
Wheel Dust Cover
Pin
Spur Gear 14T- RH
Spur Gear 14T- LH
Ext. Spring, .47 OD x 2.50
Front Wheel, 8 x 1.8
Front Wheel, 8 x 2.125
Hinge Pin
Torsion Spring
Side Discharge Assembly
Bell Washer, .265 ID x.75 OD
Deflector Chute Adapter
Height Adjustment Bearing
Rear Hgt. Adj. Lever Assembly
Front Lever Assembly - LH
Front Lever Assembly - RH
Rear Pivot Arm Assembly
Shoulder Screw, 3/8-16
Screw, 1/4-20 x .390
Rear Wheel, 8 x 1.8
Rear Wheel, 8 x 2.125
Mulching Baffle
Bearing Support Spacer
Spring Lever
Hub Cap
Deluxe Bail Cover
Washer, Wave, .510 x .750 x .017
± If Equipped
27
EngineModel- 1P65
21-
14-
c_
16
22

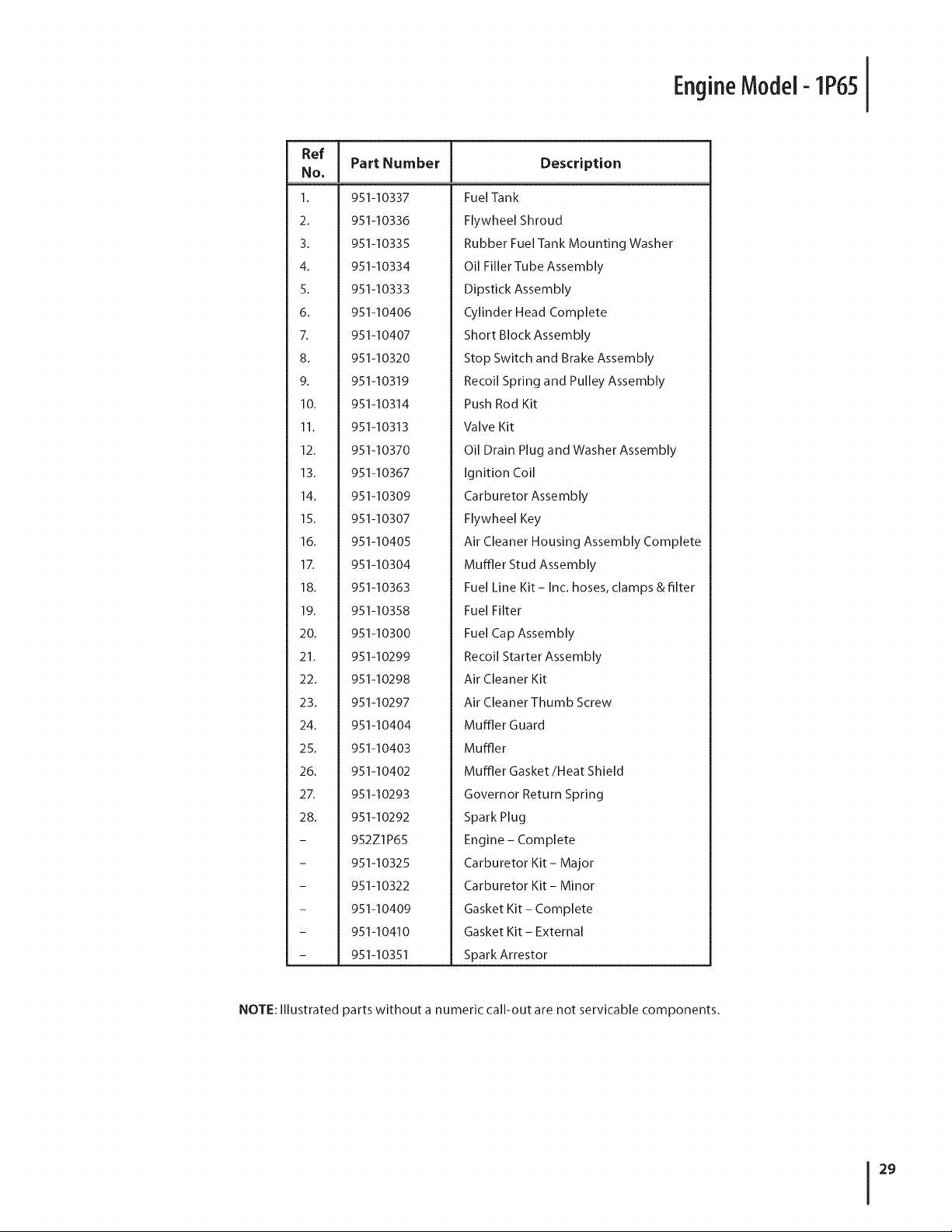

EngineModel- 1P65
Ref
NO.
1. 951-10337
2. 951-10336
3. 951-10335
4. 951-10334
5. 951-10333
6. 951-10406
7. 951-10407
8. 951-10320
9. 951-10319
10. 951-10314
11. 951-10313
12. 951-10370
13. 951-10367
14. 951-10309
15. 951-10307
16. 951-10405
1R 951-10304
18. 951-10363
19. 951-10358
20. 951-10300
21. 951-10299
22. 951-10298
23. 951-10297
24. 951-10404
25. 951-10403
26. 951-10402
27. 951-10293
28. 951-10292
- 952Z1P65
- 951-10325
- 951-10322
- 951-10409
- 951-10410
- 951-10351
I Part Number Description
Fuel Tank
Flywheel Shroud
Rubber Fuel Tank Mounting Washer
Oil Filler Tube Assembly
Dipstick Assembly
Cylinder Head Complete
Short Block Assembly
Stop Switch and Brake Assembly
Recoil Spring and Pulley Assembly
Push Rod Kit
Valve Kit
Oil Drain Plug and Washer Assembly
Ignition Coil
Carburetor Assembly
Flywheel Key
Air Cleaner Housing Assembly Complete
Muffler Stud Assembly
Fuel Line Kit-Inc. hoses, clamps &filter
Fuel Filter
Fuel Cap Assembly
Recoil Starter Assembly
Air Cleaner Kit
Air Cleaner Thumb Screw
Muffler Guard
Muffler
Muffler Gasket/Heat Shield
Governor Return Spring
Spark Plug
Engine - Complete
Carburetor Kit - Major
Carburetor Kit- Minor
Gasket Kit - Complete
Gasket Kit - External
Spark Arrestor
NOTE: Illustrated parts without a numeric call-out are not servicable components.
29
MTD LLC (MTD), The United States Environment Protection Agency (U. S. EPA)
Emission Control System Warranty Statement
(Owner's Defect Warranty Rights and Obligations)
The U.S. EPAand MTDare pleasedto explaintheemissionscontrolsystemwarrantyon your modelyear2005and latersmalloff-roadengine.
Newsmalloff-roadenginesmust bedesigned,built and equippedto meetthe stringentanti-smogstandards.MTDmustwarrantytheemission
controlsystemon your enginefor the periodof timelistedbelow,providedthere hasbeennoabuse,neglector impropermaintenanceof your small
off-roadengine.
Youremissioncontrolsystemmayincludepartssuchas the carburetor,air cleaner,ignitionsystem,exhaustsystem,andotherassociatedemis-
sion-relatedcomponents.
Wherea warrantableconditionexists,MTDwill repairyour smalloff-roadengineat no cost to yourincludingdiagnosis,parts and labor.
MANUFACTURER'S WARRANTY COVERAGE:
Thisemissionscontrolsystemiswarrantedfor twoyears.If anyemission-relatedparton your engineisdefective,the partwill be repairedor
replacedby MTD.
OWNER'S WARRANTY RESPONSIBILITIES:
As the smalloff-roadengineowner,youare responsiblefor the performanceof the requiredmaintenancelistedinyourOwner'sManual.MTD
recommendsthatyou retainall your receiptscoveringmaintenanceson yoursmalloff-roadengine,but MTDcan notdenywarrantysolelyfor the
lackof receiptsor for yourfailureto ensurethe performanceto all scheduledmaintenance.
As the smalloff-roadengineowner,youshouldhoweverbeawarethat MTDmaydenyyour warrantycoverageifyoursmalloff-roadengineor part
hasfaileddue to abuse,neglect,impropermaintenanceor unapprovedmodifications.
Youare responsiblefor presentingyoursmalloff-roadengineto an AuthorizedMTDServiceDealeras soonas a problemexists.The warranted
repairsshouldbe completedin a reasonableamountof time,notto exceed30 days.
If youhaveanyquestionsregardingyour warrantyrightsand responsibilities,you shouldcontacta MTDServiceRepresentativeat 1-800-800-7310
andaddressisMTDLLC, EO. Box361131,ClevelandOH,44136-0019.
DEFECTS WARRANTY REQUIREMENTS FOR 1995 AND LATER SMALL OFF=ROAD ENGINES:
Thissectionappliesto 1995and latersmalloff-roadengines.Thewarrantyperiodbeginson the datetheengine or equipmentisdeliveredto an
ultimatepurchaser.
(a) GeneralEmissionsWarrantyCoveracj#_
MTDmustwarrantto the ultimatepurchaserand eachsubsequentpurchaserthatthe engineis:
(1)Designed,built,andequippedso as to conformwithall applicableregulationsadoptedbythe Air ResourcesBoardpursuantto itsauthorityin
Chapters1 and2,Part5, Division26 of the Healthand SafetyCode;and
(2) Freefrom defectsinmaterialsand workmanshipthatcausethe failureof a warrantedpartto be identicalinall materialrespectsto the part as
describedinthe enginemanufacturer'sapplicationfor certificationfor a periodof two years.
.(b)The warrantyon emissions-relatedpartswill be interpretedas follows:
(1)Anywarrantedpart that isnot scheduledfor replacementas requiredmaintenanceinthe writteninstructionsrequiredby Subsection(c)
mustbewarrantedfor the warrantyperioddefinedinSubsection(a)(2). If anysuch partfailsduringthe periodof warrantycoverage,it mustbe
repairedor replacedby MTDaccordingto Subsection(4)below.Any such partrepairedor replacedunderthewarrantymustbe warrantedfor
the remainingwarrantyperiod.
(2)Any warrantedpartthat isscheduledonlyfor regularinspectionin the writteninstructionsrequiredby Subsection(c) mustbewarrantedfor
thewarrantyperioddefinedin Subsection(a)(2).A statementinsuchwritteninstructionsto the effect of "repairor replaceas necessary"will
not reducethe periodof warrantycoverage.Anysuchpart repairedor replacedunderwarrantymustbe warrantedforthe remainingwarranty
period.
(3) Anywarrantedpartthat whichis scheduledfor replacementas requiredmaintenancein the writteninstructionsrequiredby Subsection(c)
mustbewarrantedfor the periodof time prior to the first scheduledreplacementpointfor thatpart. Ifthe partfailsprior to the first scheduled
replacement,the part mustbe repairedor replacedby MTDaccordingto Subsection(4) below.Any such part repairedor replacedunder
warrantymustbe warrantedfor the remainderof the periodpriorto thefirst scheduledreplacementpointfor the part.
(4) Repairor replacementof any warrantedpart underthe warrantyprovisionsof thisarticlemustbe performedat no chargeto the ownerat a
warrantystation.
(5) Notwithstandingthe provisionsof Subsection(4)above,warrantyservicesor repairsmustbe providedat all MTDdistributioncentersthat
arefranchisedto servicethe subjectengines.
(6) Theownermustnot bechargedfordiagnosticlaborthat leadsto the determinationthata warrantedpart isinfact defective,providedthat
suchdiagnosticwork isperformedat a warrantystation.
EPA-1
(7)The enginemanufactureris liable fordamagesto otherenginecomponentsproximatelycausedbya failureunderwarrantyof anywarranted
part.
(8) Throughoutthe engine'swarrantyperioddefinedin Subsection(a)(2), MTDwill maintaina supplyof warrantedpartssufficientto meetthe
expecteddemandfor suchparts.
(9) Any replacementpart maybe usedin the performanceof any warrantymaintenanceor repairsand mustbe providedwithoutchargetothe
owner.Such usewill not reducethe warrantyobligationsof MTD.
(10)Add-onor modifiedparts thatare not exemptedby theAir ResourcesBoardmaynot beused.The useof anynon-exemptedadd-onor
modifiedpartsshall begroundsfor disallowinga warrantyclaimmade inaccordancewith thisarticle.The enginemanufacturershall notbe
liableunderthis article to warrantfailuresof warrantedpartscausedby the useof non-exemptedadd-onor modifiedpart.
(c) MTDwill includea copy of the followingemissionwarrantypartslist with each newengine,usingthose portionsof the list applicableto the
e__&gine.
(1)FuelMeteringSystem
• Coldstart enrichmentsystem(soft choke)
• Carburetorand internalparts
• Fuel Pump
(2)Air InductionSystem
• Air cleaner
• Intakemanifold
(3) IgnitionSystem
• Sparkplug(s)
• MagnetoIgnitionSystem
(4)ExhaustSystem
(5) MiscellaneousItemsUsedin AboveSystem
• Vacuum,temperature,position,timesensitivevalvesand switches
• Connectorsandassemblies
EPA-1
MANUFACTURER'S LiMiTED WARRANTY FOR
The limited warranty set forth below is given by MTD LLC with
respect to new merchandise purchased and used in the United States
and/or its territories and possessions, and by MTD Products Limited
with respect to new merchandise purchased and used in Canadaand/
or its territories and possessions (either entity respectively, "MTD").
"MTD" warrants this product (excluding its Normal Wear Parts and
Attachments as described below) against defects in material and
workmanship for a period of two (2) years commencing on the date
of original purchase and will, at its option, repair or replace, free of
charge, any part found to be defective in materials or workmanship.
This limited warranty shall only apply if this product has been
operated and maintained in accordance with the Operator's Manual
furnished with the product, and has not been subject to misuse,
abuse, commercial use, neglect, accident, improper maintenance,
alteration, vandalism, theft, fire, water, or damage because of other
peril or natural disaster. Damage resulting from the installation or use
of any part, accessory or attachment not approved by MTD for use
with the product(s) covered by this manual will void your warranty as
to any resulting damage.
Normal Wear Parts are warranted to be free from defects in material
and workmanship for a period of thirty (30) days from the date of
purchase. Normal wear parts include, but are not limited to items
such as: batteries, belts, blades, blade adapters, tines, grass bags,
wheels, rider deck wheels, seats, snow thrower skid shoes, friction
wheels, shave plates, auger spiral rubber, engine oil, air filters, spark
plugs and tires.
Attachments-- MTD warrants attachments for this product against
defects in material and workmanship for a period of one (1) year,
commencing on the date of the attachment's original purchase or
lease. Attachments include, but are not limited to items such as:
grass collectors and mulch kits.
HOWTO OBTAINSERVICE:Warranty service is available, WITH
PROOFOF PURCHASE,through your local authorized service dealer.
To locate the dealer in your area:
In the U.S.A.
Check your Yellow Pages, or contact MTD LLC at RO. Box 361131,
Cleveland, Ohio 44136-0019, or call 1-800-800-7310, 1-330-220-
4683 or log on to our Web site at www.mtdproducts.com.
In Canada
Contact MTD Products Limited, Kitchener, ON N2G4J1, or call 1-800-
668-1238 or log on to our Web site at www.mtdcanada.com.
This limited warranty does not provide coverage in the following
cases:
a.
b.
Log splitter pumps, valves, and cylinders havea separate one-
year warranty.
Routine maintenance items such as lubricants, filters, blade
sharpening, tune-ups, brake adjustments, clutch adjustments,
deck adjustments, and normal deterioration of the exterior finish
due to use or exposure.
c. Service completed by someone other than an authorized service
dealer.
d. MTD does not extend any warranty for products sold or exported
outside of the United States and/or Canada,and their respective
possessions and territories, except those sold through MTD's
authorized channels of export distribution.
e. Replacement parts that are not genuine MTD parts.
f. Transportation charges and service calls.
g. MTD does not warrant this product for commercial use.
No implied warranty, including any implied warranty of
merchantability of fitness for a particular purpose, applies after
the applicable period of express written warranty above as to the
parts as identified. No other express warranty, whether written or
oral, except as mentioned above, given by any person or entity,
including a dealer or retailer, with respect to any product, shall
bind MTD. Duringthe period of the warranty, the exclusiveremedy
is repair or replacement of the product as set forth above.
The provisions as set forth in this warranty provide the sole and
exclusive remedy arising from the sale. MTD shall not be liable
for incidental or consequential loss or damage including, without
limitation, expenses incurred for substitute or replacement lawn
care services or for rental expenses to temporarily replace a
warranted product.
Some states do not allow the exclusion or limitation of incidental
or consequential damages, or limitations on how long an implied
warranty lasts, so the above exclusions or limitations may not apply
to you.
In no event shall recovery of any kind be greater than the amount of
the purchase price of the product sold. Alteration of safety features of
the product shall void this warranty. You assume the risk and liability
for loss, damage, or injury to you and your property and/or to others
and their property arising out of the misuse or inability to use the
product.
This limited warranty shall not extend to anyone other than the
original purchaser or to the person for whom it was purchased as a
gift.
HOWSTATELAW RELATESTOTHIS WARRANTY: This limited
warranty gives you specific legal rights, and you may also have other
rights which vary from state to state.
IMPORTANT: Owner must present Original Proof of Purchase to
obtain warranty coverage.
MTD LLC, P.O. BOX 361131 CLEVELAND, OHIO 44136=0019; Phone: 1=800=800=7310, 1=330=220=4683
MTD Canada Limited = KITCHENER, ON N2G 4J1; Phone 1=800=668=1238
GDOC-100016 REV.B
