DVI Single Link Active Extender
Model:
B120-000-SL
Package Contents:
• B120-000-SL DVI Single Link Active Extender
• External Power Supply
(Input: 100-240V, 50/60Hz, 0.5A Output: 5V, 2A)
• Screwdriver for Equalization Adjustment
• Owner’s Manual

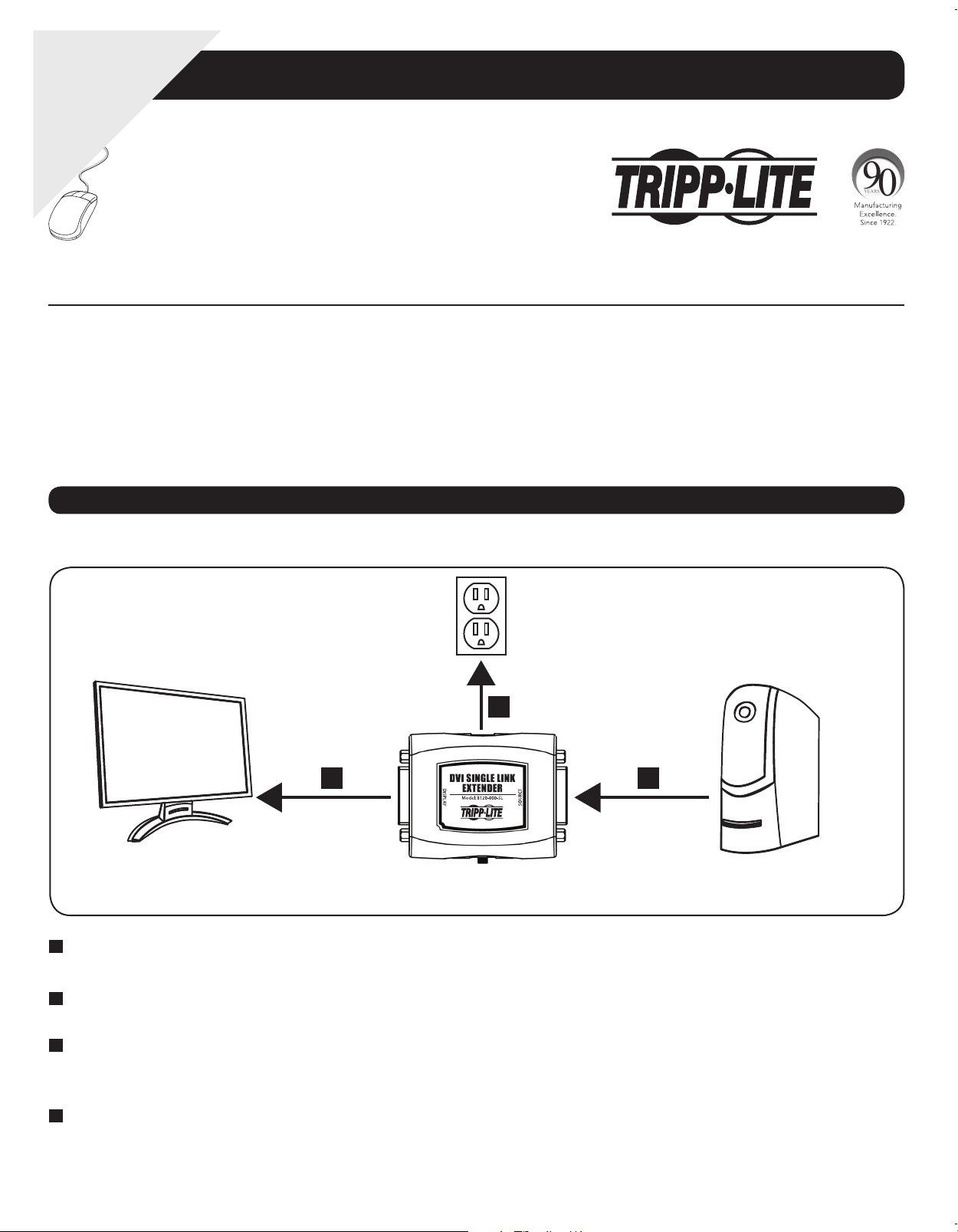

Installation
Note: Test to make sure that the entire installation works properly before pulling cables through ceilings/walls.
1
Connect the longer DVI-D Single Link cable between the source and the connector on the B120-000-SL labeled “Source.”
Note: For extension distances over 75ft., use 24Awg DVI-D Single Link cable.
2
Connect the external power supply to the B120-000-SL, and then plug it into a Tripp Lite Surge Suppressor, Uninterruptible Power Supply
(UPS), or Power Distribution Unit (PDU). The Green LED will illuminate to indicate that the unit is receiving power.
3
Connect the shorter DVI-D Single Link cable between the monitor and the connector on the B120-000-SL labeled “Display.” The Orange LED
will illuminate to indicate that there is an active signal between the source and the monitor.
Note: The DVI-D Single Link cable connecting the monitor to the B120-000-SL must be no longer than 16 ft. (5 m.).
4
If necessary, use the equalization control to adjust the video image.
Note: An improper Equalization setting can result in no image being displayed at all. If no image is displayed on your monitor, try adjusting the equalization
until an acceptable image is displayed.
Product Features:
• Supports a maximum video resolution of 1920 x 1080 @ 60Hz
• Extend a DVI-D video signal up to 150 ft. from the source
• Built-in Equalization control to adjust the video image
• HDCP compliant
COMPUTER
MONITOR
B120-000-SL
Copyright © 2012 Tripp Lite. All rights reserved.
1
2
3
1111 W. 35th Street, Chicago, IL 60609 USA
www.tripplite.com/support
Warranty
Registration:
register online today for a
chance to win a FREE Tripp Lite
product—www.tripplite.com/warranty
Owner’s Manual
