1 Structure
Villa Door Station (Multiple Buttons)

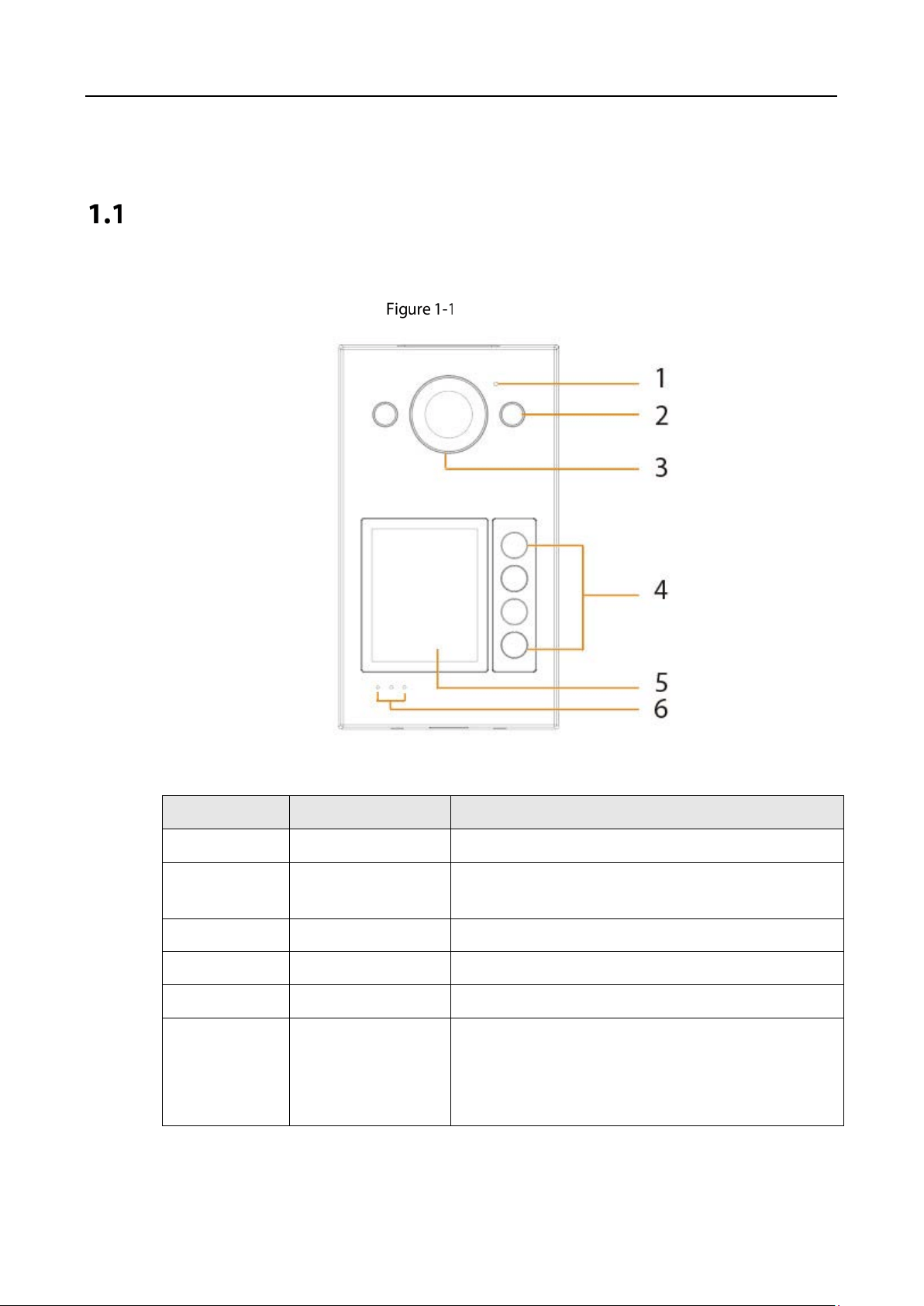

1.1.1 Front Panel
Front panel
Table 1-1 Components
No. Name Function
1 MIC Audio input.
2 Illuminator
Provide a constant light to focus more easily on a
subject in dark surroundings.
3 Camera Capture images or record videos for the VTO.
4 Call buttons Call the VTH.
5 Card swiping area Swipe the registered cards to unlock doors.
6 Indicators
From left to right:
●
Ring: VTO is calling the VTH.
●
Talking: VTO is on the talk with the VTH.
●
Unlocking: VTO unlocking successful.
Quick Start Guide

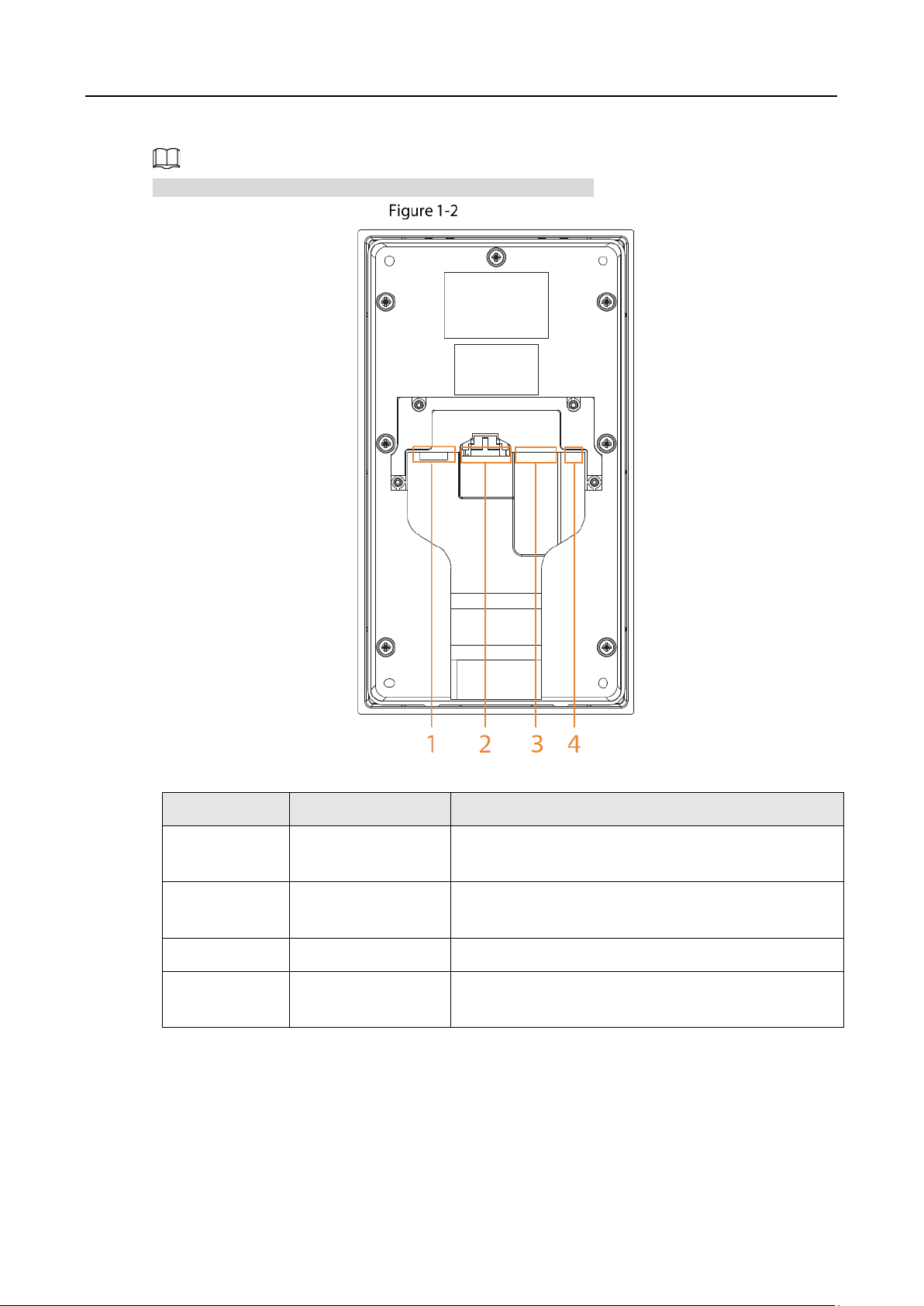

1.1.2 Rear Panel
The function ports might differ depending on the model you use.
Rear panel
Table 1-2 Components
No. Name Function
1 SD card slot
Used to insert SD card so that data information such as
images and videos can be stored.

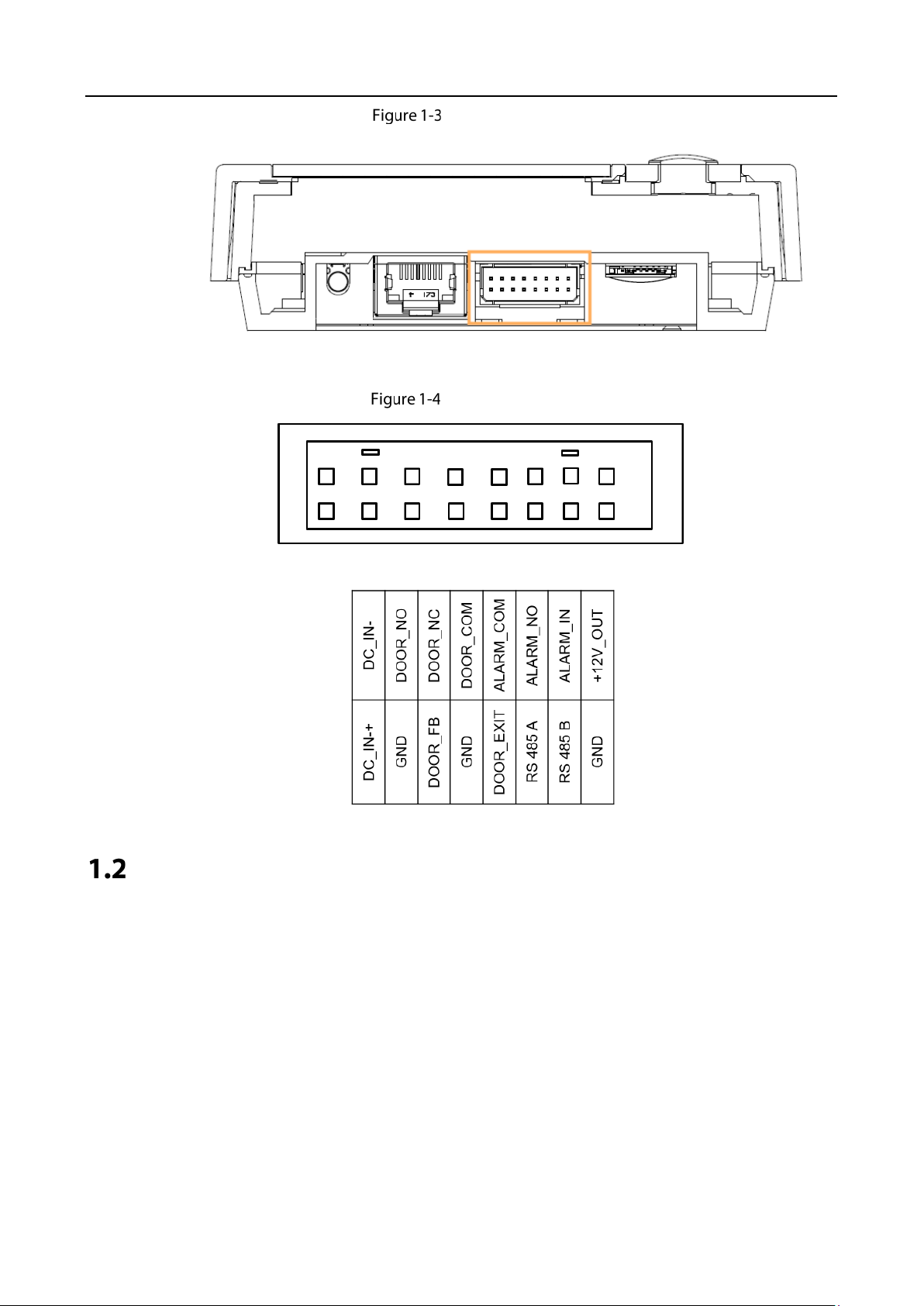

2 Functional ports
Alarm port, door detector port, 485 port, power port
and etc.
3 Network port RJ-485 network port to connect to the network.
4 Reset button
Press and hold the button for several seconds to do
factory reset.
Quick Start Guide

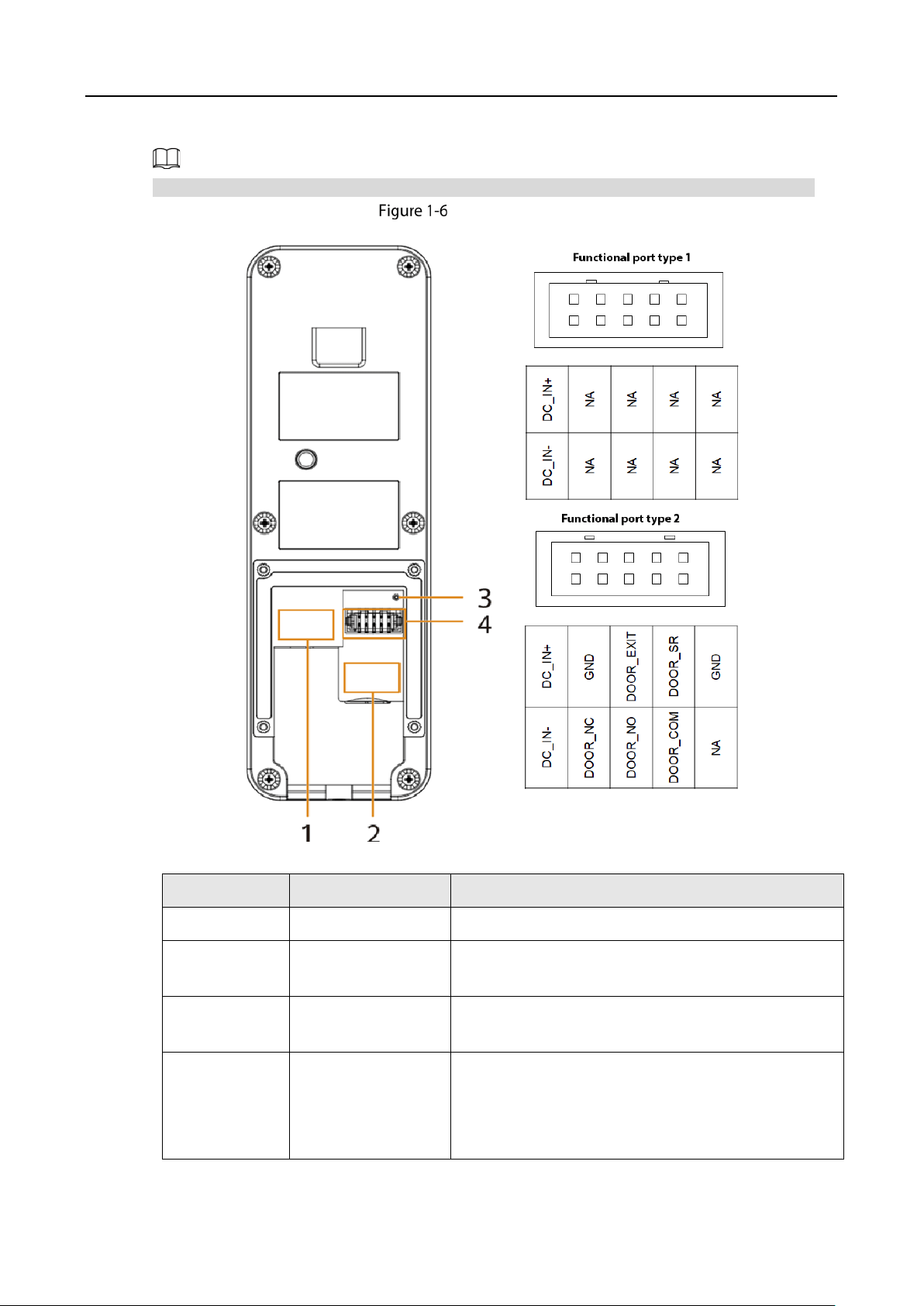

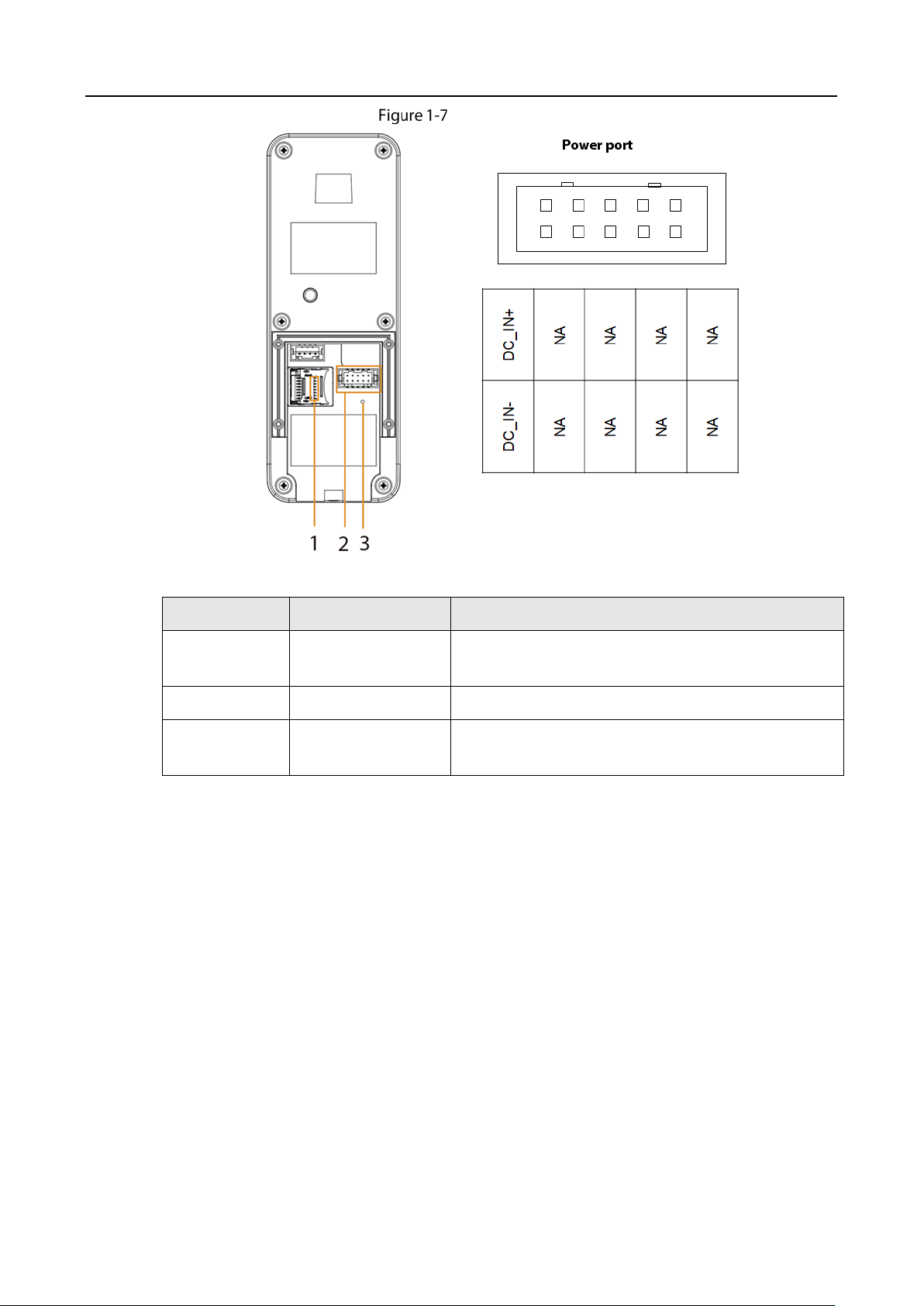

Functional port
Port description
Villa Door Station (Single Button)
1.2.1 Front Panel
There are different models with different front panel. Differences in size and appearance are found
depending on your model.
Quick Start Guide

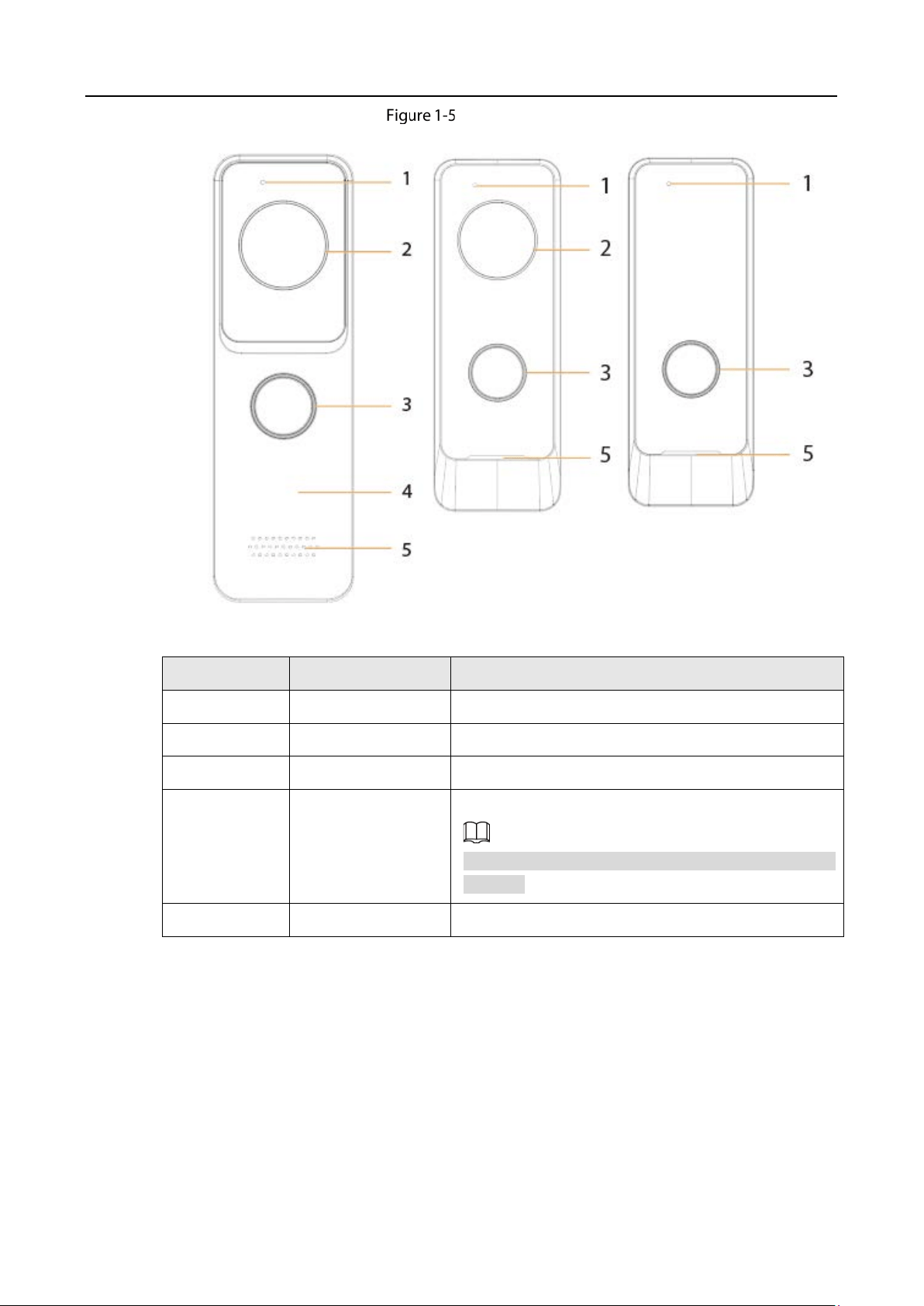

Front panel
Table 1-3 Description of front panels
No. Name Function
1 MIC Audio input.
2 Camera Capture images or record videos for the VTO.
3 Call button Call the VTH.
4 Card swiping area
Swipe the registered cards to unlock doors.
The card swiping function is only supported by some
models.
5 Speaker Audio output.
Quick Start Guide
1.2.2 Rear Panel
The function ports might differ depending on the model. Here are two models used as examples.
Rear panel (1)
Table 1-4 Description of rear panel
No. Name Function
1 Network port Used to connect to the network.
2 SD card slot
Used to insert SD card so that data information such as
images and videos can be stored.
3 Reset button
Press and hold the button for several
seconds to do
factory reset.
4 Functional port
Type 1: The functional port only has a power input
port to connect to power supply.
Type2: The functional port includes a power input
port and a door detector port.
Quick Start Guide
Rear panel (2)
Table 1-5 Description of real panel
No. Name Function
1 SD card slot
Used to insert SD card so that data information such as
images and videos can be stored.
2 Power port Used to connect to the power supply.
3 Reset button
Press and hold the button for several seconds to do
factory reset.
Quick Start Guide
Button Model

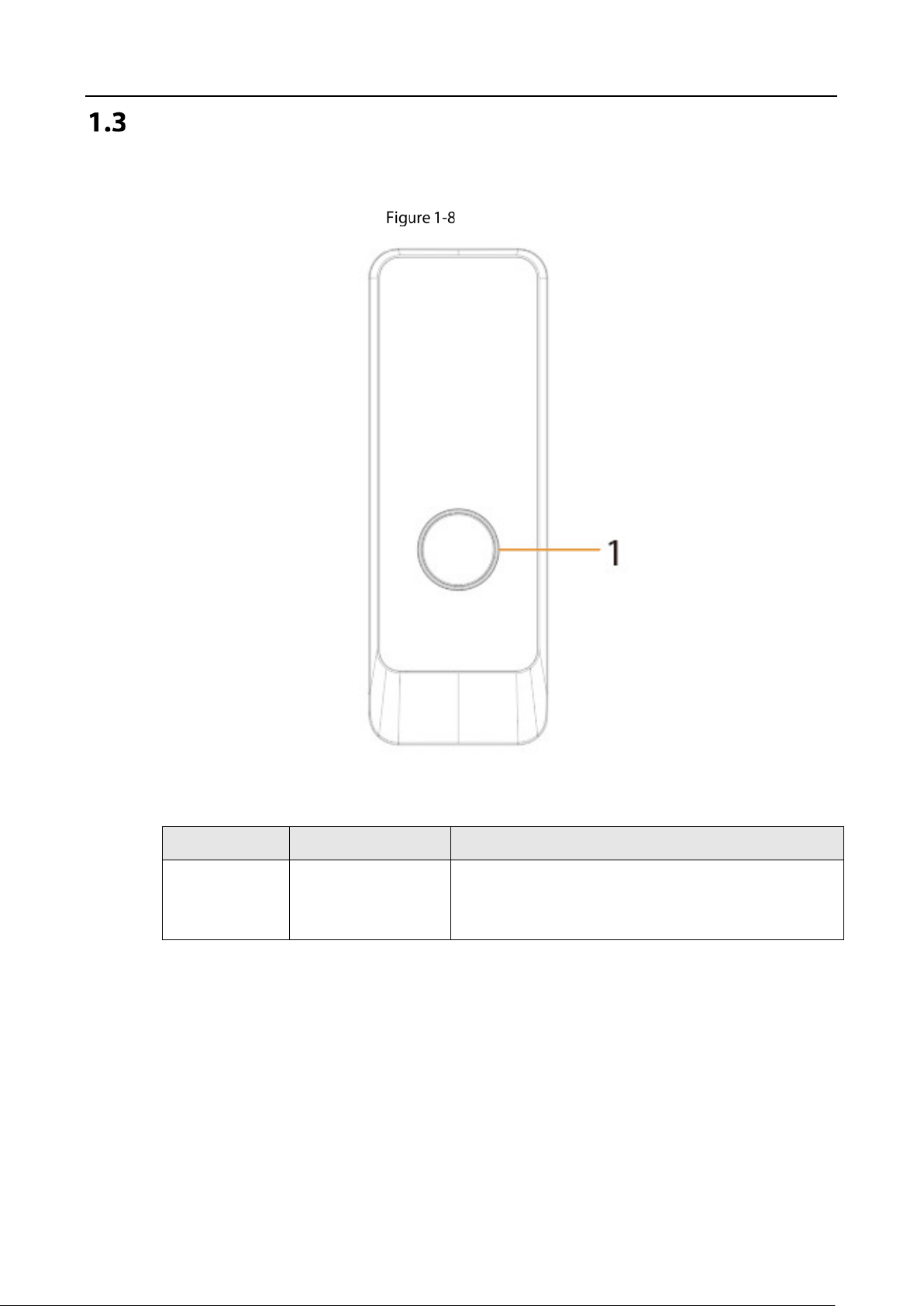

1.3.1 Front Panel
Front panel
Table 1-6 Description of front panel
No. Name Function
1 Press button
The button model can be connected to the VTH. Press
the button on the model and the VTH receives an alarm
signal.
Quick Start Guide
1.3.2 Rear Panel

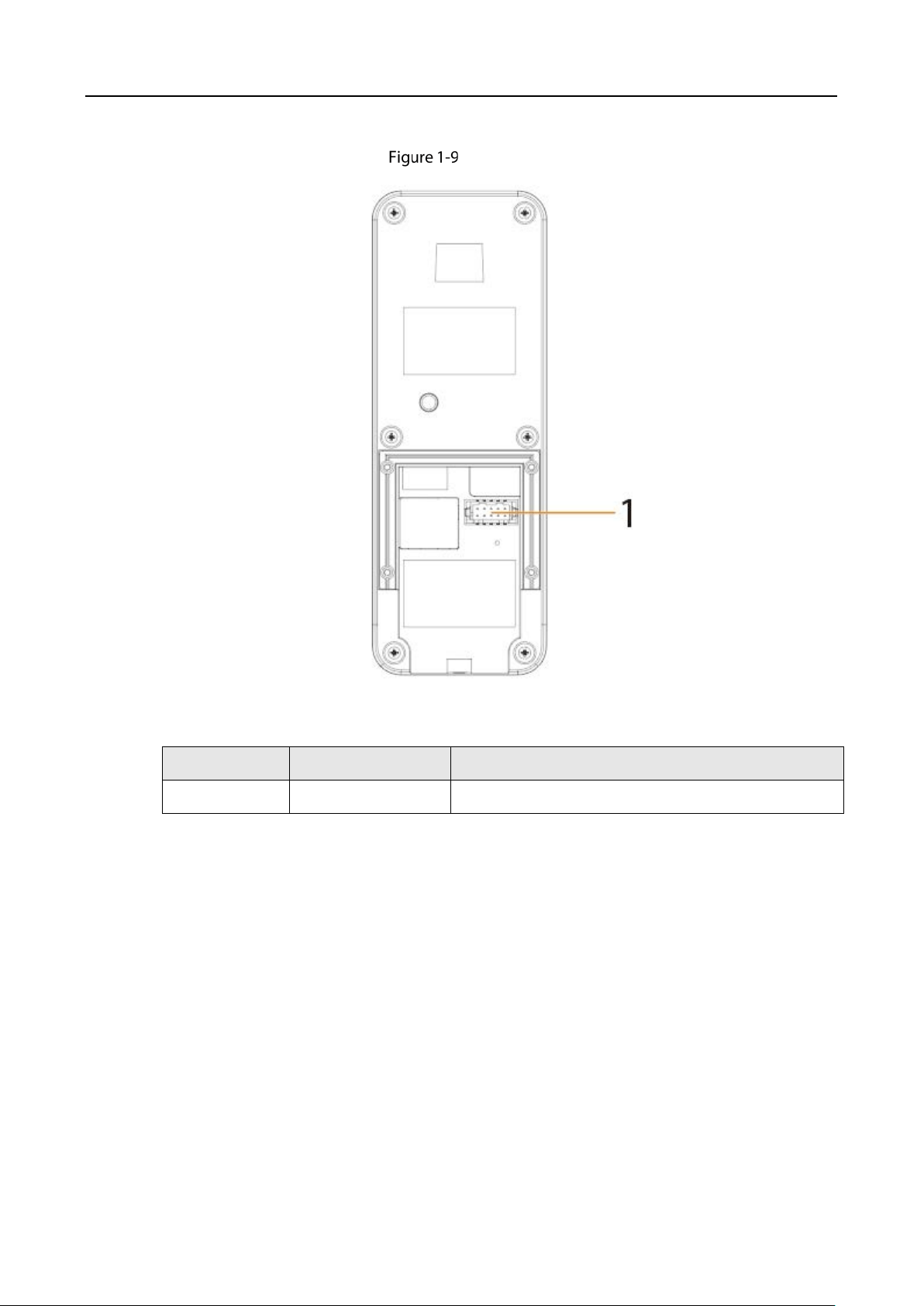

Rear panel
Table 1-7 Description of rear panel
No. Name Function
1 Function port Used for alarm input.
Quick Start Guide
Table 1-8 Cable connection
Connect the KEY port of the button model to any one of the alarm input ports of the indoor monitor
(VTH) with a cable thread. After that, tap Setting > Alarm > Wired Zone on the VTH and set the Type
of the alarm input port you chose to connect to the KEY port as Doorbell.
Quick Start Guide
2 Installation
Preparations
This chapter introduces precautions in installation. For detailed steps, see the corresponding
installation guide.
●
Do not expose the VTO to condensation, high temperature, direct sunlight, stain, dust, and
chemically corrosive substances.
●
Installation should be done by professional teams. Do not dismantle or repair the VTO by yourself
in case of device failure. Contact after-sales service if you need any help.
●
Prepare cross screwdrivers and gloves yourself.
●
The recommended installation height of the VTO should be no more than 2 m from the ground.
Installation Guide
2.2.1 Villa Door Station (Multiple Buttons)

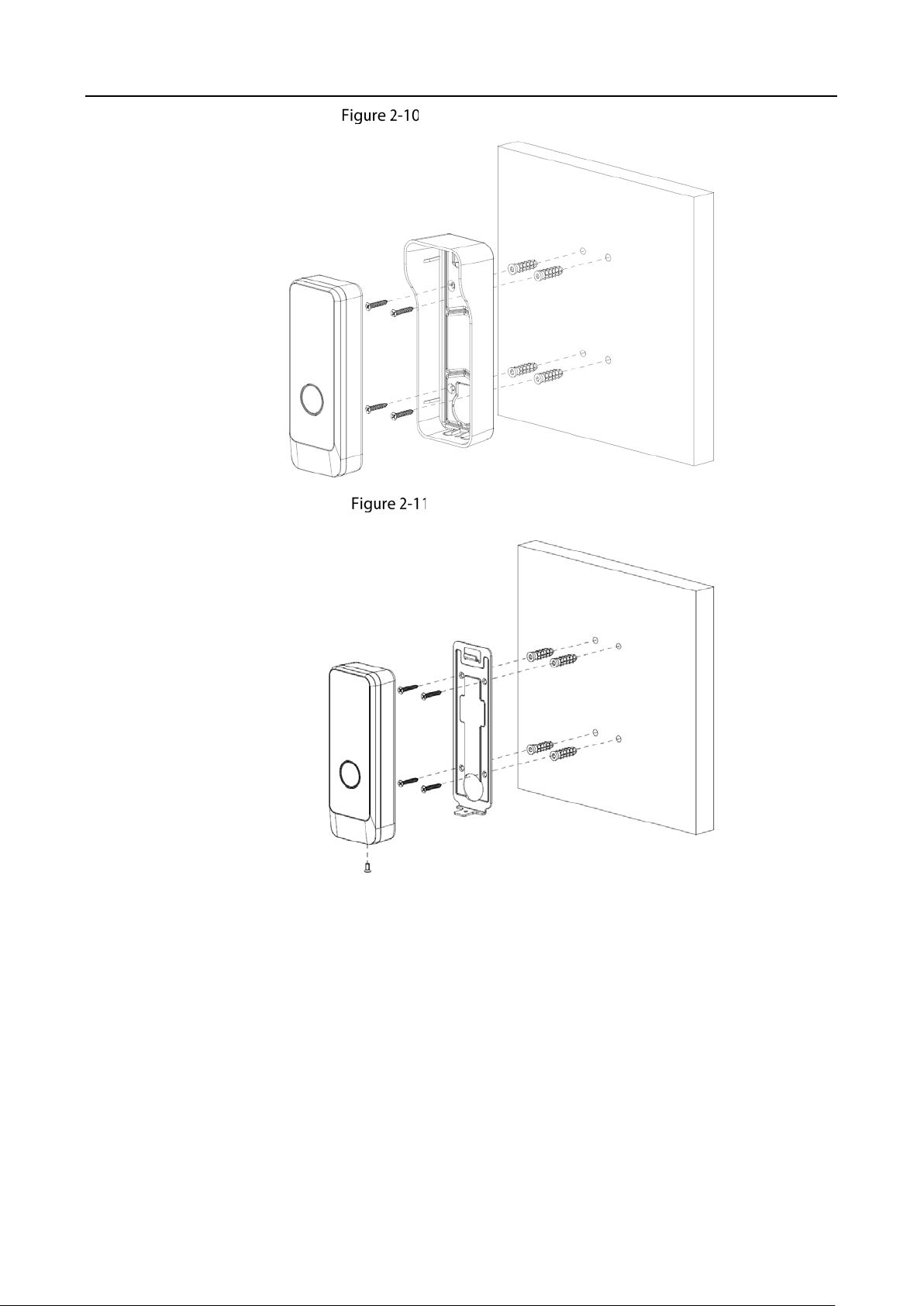

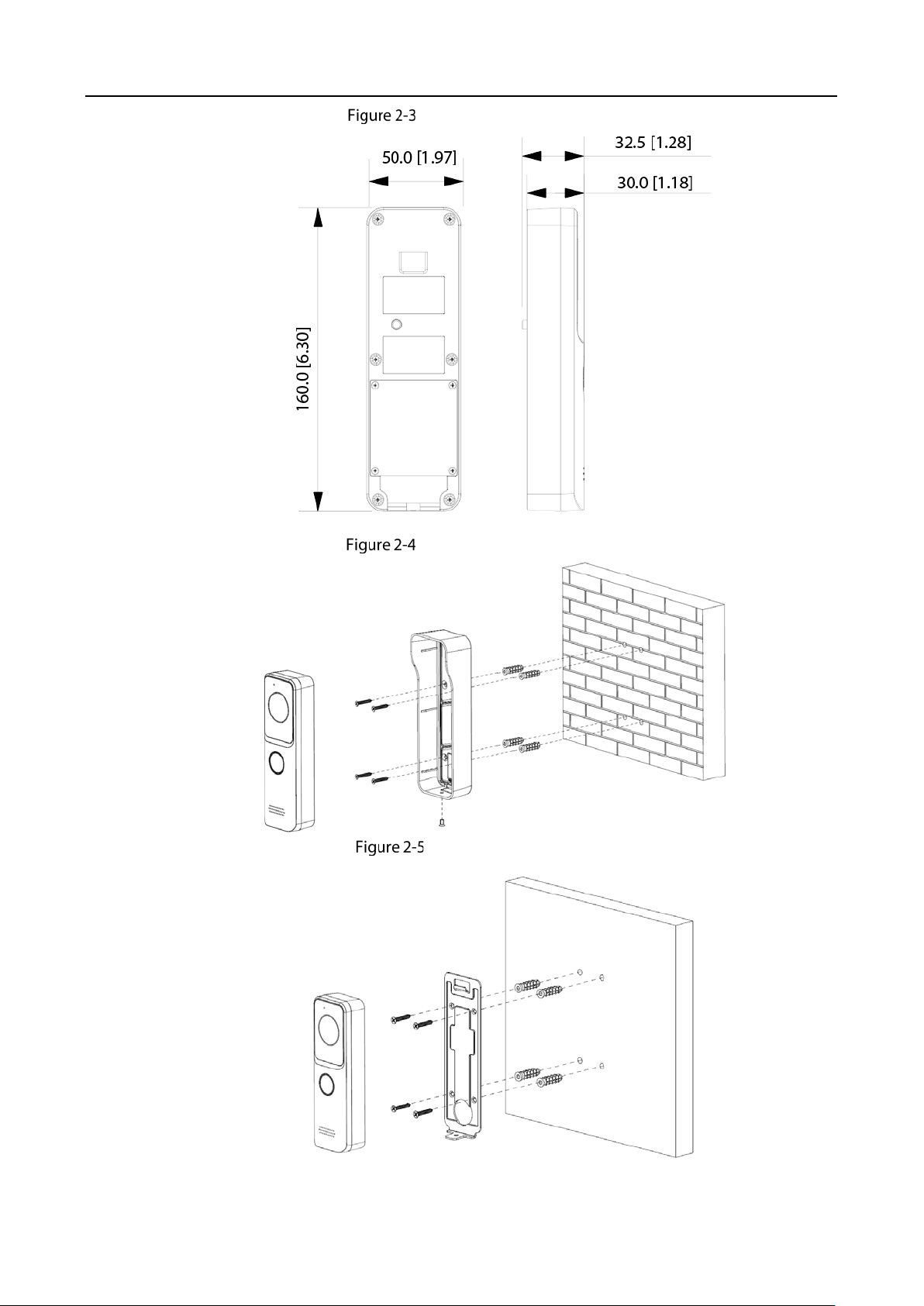

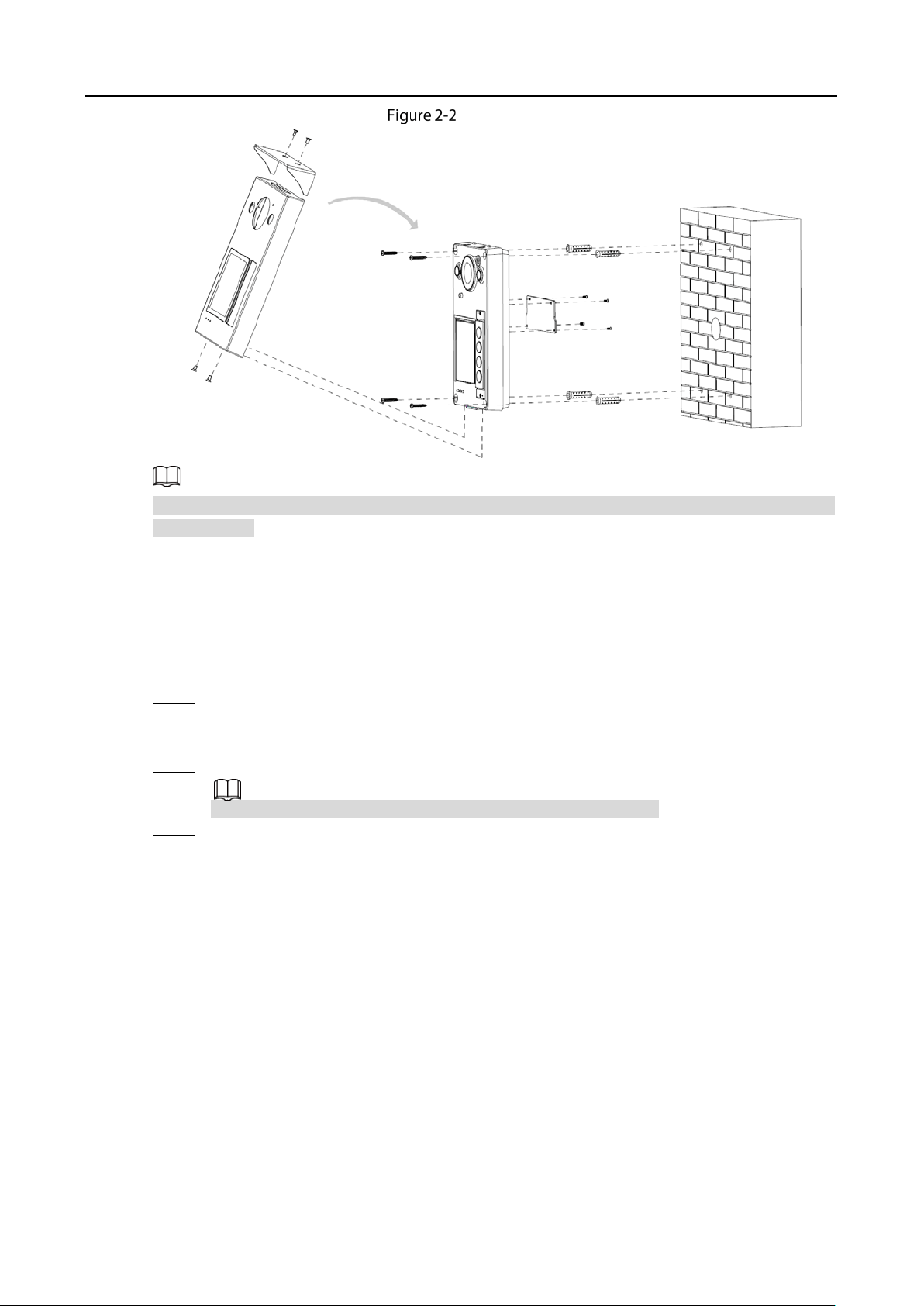

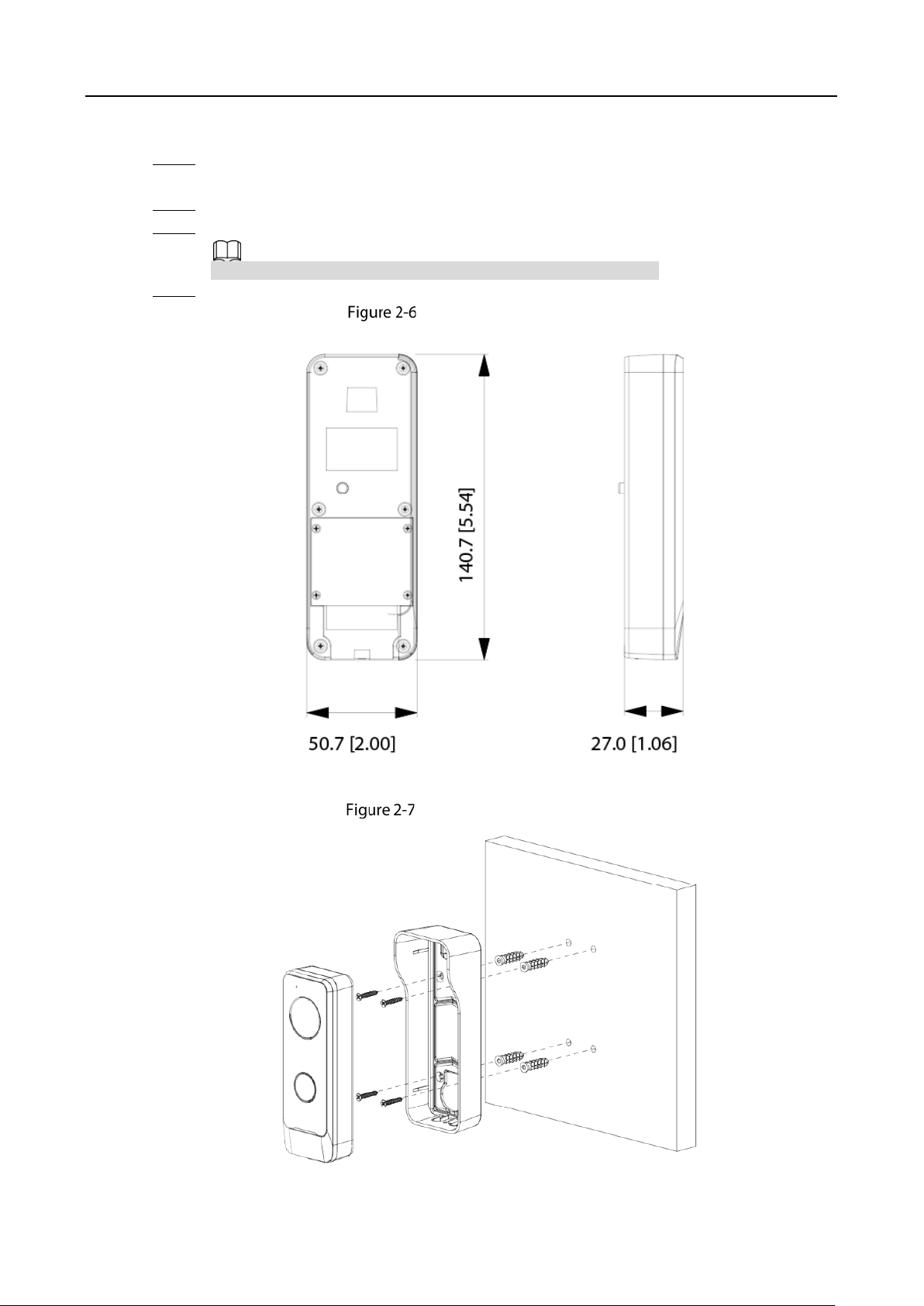

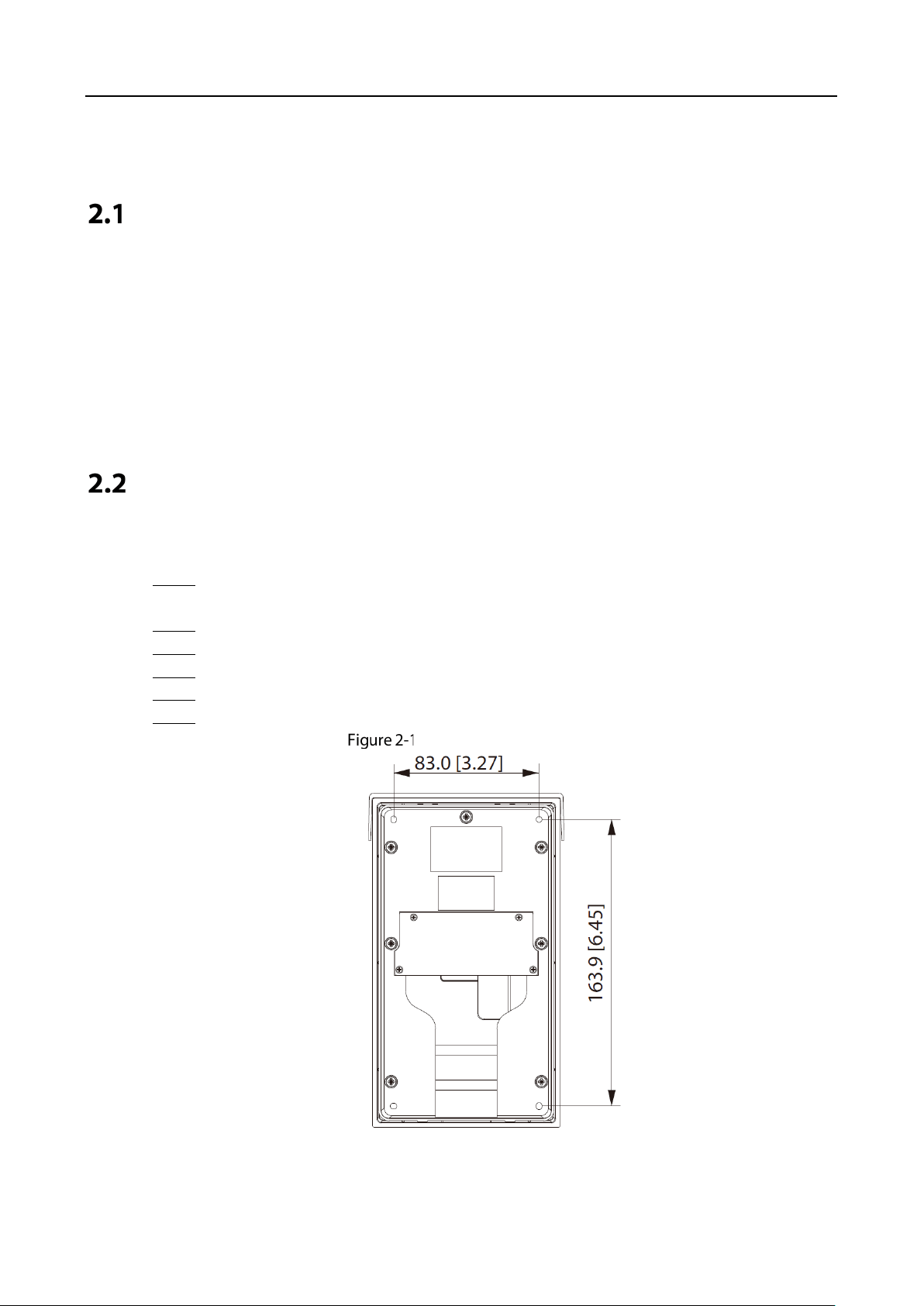

Step 1 Open the port cover of the VTO, drill screw holes on the wall according to the dimension of
the mounting hole on the rear panel of the VTO, and put the expansion bolts into the holes.
Step 2 Complete the cable wiring.
Step 3 Fix the port cover to the rear panel of the VTO with four screws.

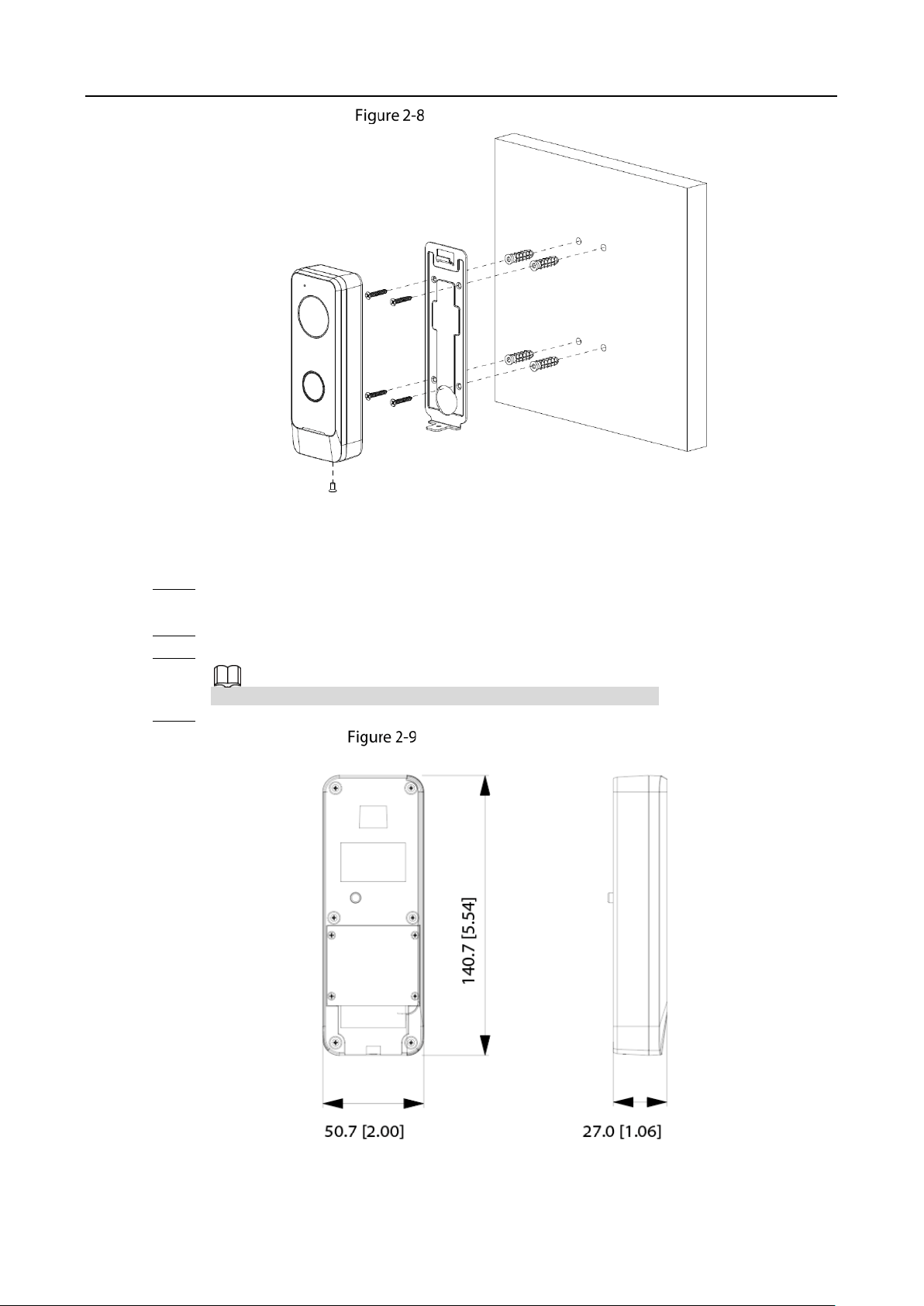

Step 4 Fix the bare VTO on the wall with four screws.
Step 5 Install the mount box on the VTO from top to the bottom, and then fix it with two screws.
Step 6 Fix the rain cover on the top of the VTO with two screws.
Dimension (mm [inch])
Quick Start Guide
Installation
If you do not want to install the rain cover, you could use the sticker included in the package to cover
the screw hole.
2.2.2 Villa Door Station (Single Button)
Here are examples of two model’s installation, depending on differences in model dimensions.
Model Example 1
Step 1 Open the port cover of the VTO, drill screw holes on the wall according to the dimension of
the mounting hole on the rear panel of the VTO.
Step 2 Complete the cable wiring.
Step 3 Fix the port cover or the bracket to the rear panel of the VTO with four screws.
You can use either the port cover or the bracket to mount the VTO.
Step 4 Fix the VTO on the wall with screws.
Quick Start Guide
Dimension (mm [inch])
Installation (cover port)
Installation (bracket)
Quick Start Guide
Model Example 2
Step 1 Open the port cover of the VTO, drill screw holes on the wall according to the dimension of
the mounting hole on the rear panel of the VTO.
Step 2 Complete the cable wiring.
Step 3 Fix the port cover or the bracket to the rear panel of the VTO with four screws.
You can use either the port cover or the bracket to mount the VTO.
Step 4 Fix the VTO on the wall with screws.
Dimension (mm [inch])
Installation (port cover)
Quick Start Guide
Installation (bracket)
2.2.3 Button Model
Step 1 Open the port cover of the button model, drill screw holes on the wall according to the
dimension of the mounting hole on the rear panel of the button model.
Step 2 Complete the cable wiring.
Step 3 Fix the port cover or bracket to the rear panel of the button model with four screws.
You can use either the port cover or the bracket to mount the VTO.
Step 4 Fix the button model on the wall with screws.
Dimension (mm [inch])
Quick Start Guide
Installation (port cover)
Installation (bracket)
Quick Start Guide
3 Configuration
This chapter provides a step-by-step configuration of the VTO, as well as how to register digital indoor
monitors (hereinafter referred to as the "VTH") to the VTO to realize its intercom function. Follow the
instructions below to get started.
●
The snapshots are for reference only and slight differences might be found in the actual web page
of the VTO.
●
You can download the Config Tool and use it to configure and update multiple devices. For details,
see the corresponding user's manual.
Initializing VTO
You can initialize the VTO on the web or through DMSS app, depending on which network connection
your model support.
3.1.1 Web
For the first time login, you could initialize the VTO on the web if the VTO you use supports wired
network function.
Step 1 Power on the VTO.
Step 2 Go to the default IP address (192.168.1.108) of the VTO in the browser address bar, and then
press the Enter key to go to the web page of the VTO.
●
The username is admin by default.
●
Make sure that the IP address of the computer is on the same network segment as the
VTO.
Step 3 On the
Device Init
page, enter and confirm the password, and then click
Next
.
The password must consist of 8–32 non-blank characters and contain at least two types of
the following characters: Uppercase, lowercase, numbers, and special characters (excluding
' " ; : &).
Quick Start Guide

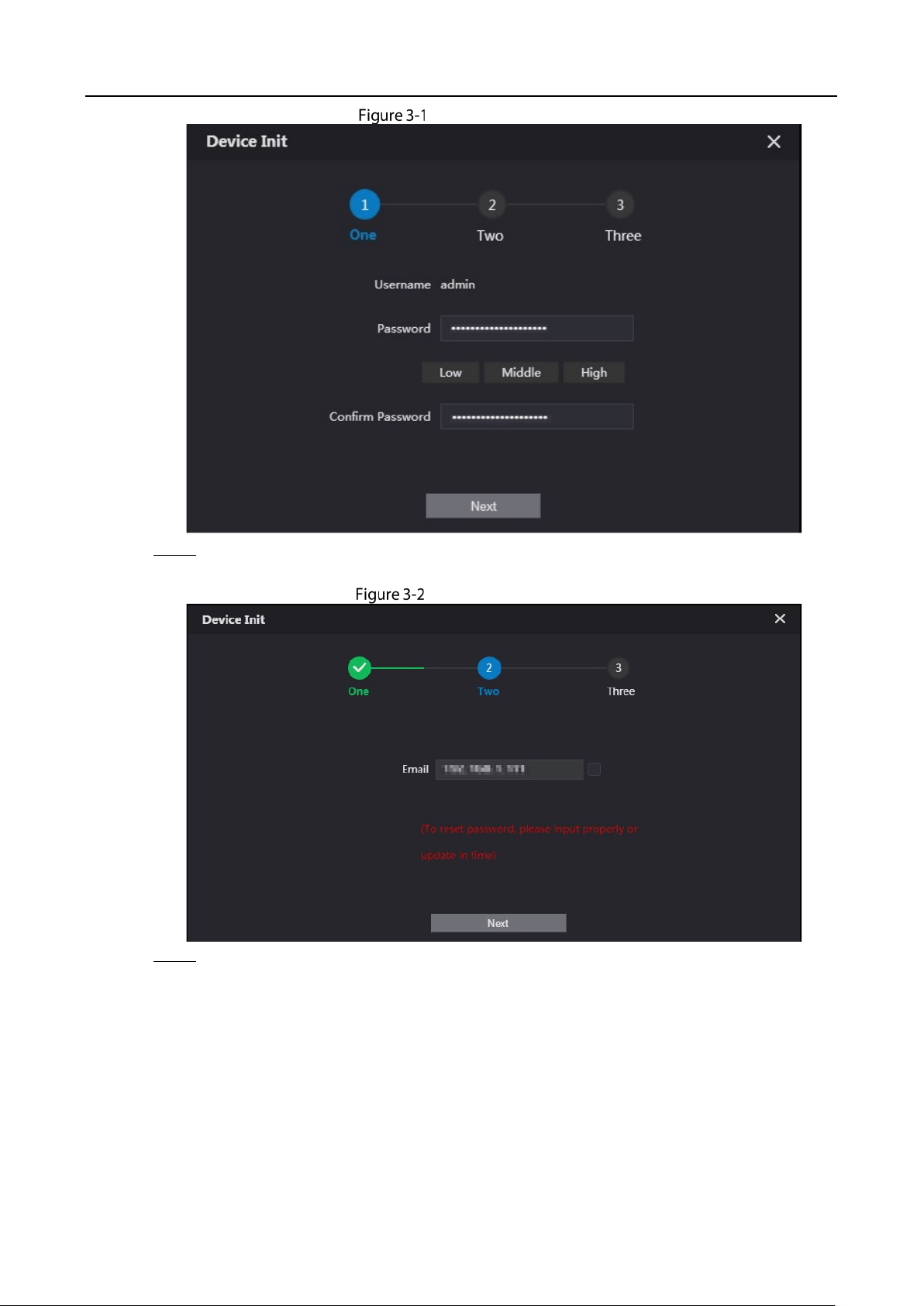

Device initialization
Step 4 Select the
Email
checkbox and enter an email address.
This helps you to reset your password when your password is lost.
Set an email address
Step 5 Click
Next
.
Quick Start Guide

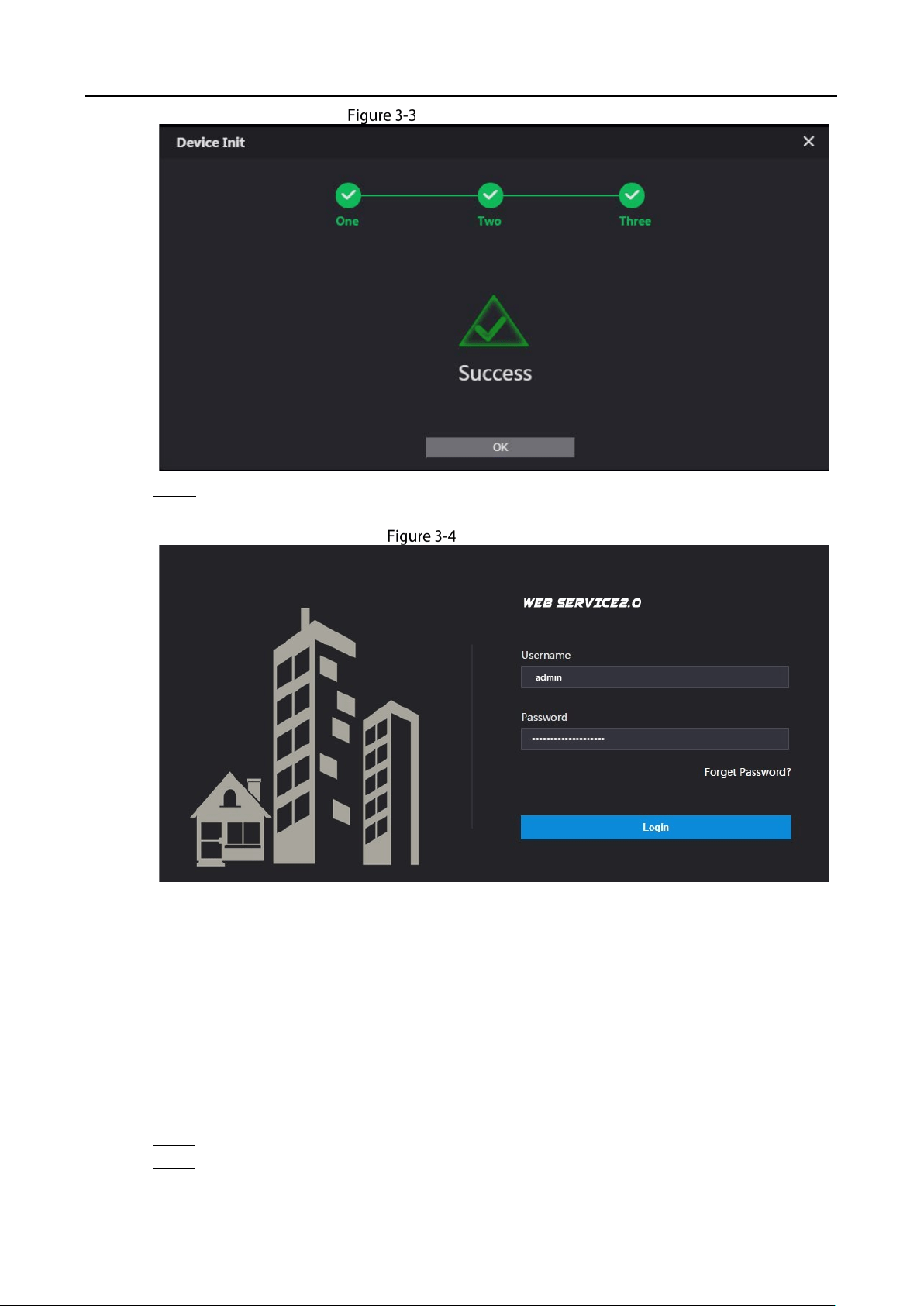

Initialization successful
Step 6 Click
OK
.
Enter the username (admin by default) and the new password to log in to the web page.
Login page
3.1.2 DMSS APP
If your VTO model only supports Wi-Fi connection to the network, you can only initialize the VTO on
the DMSS app. For detailed operation of the app, refer to its user’s manual.
Prerequisites
You have downloaded the DMSS in the APP Store (iOS) or Google Play (Android), and have created an
account and logged in to the app.
Operations
Step 1 Power on the VTO.
Step 2 Enable hotspot on the VTO through pressing and holding the call button on the VTO until you
heard the voice prompt.
Quick Start Guide
The hotspot function is to enable you connect the VTO to the network through AP
configuration on the app.
Step 3 Add the VTO to the DMSS app.
1) On the Home screen, tap , and then select SN/Scan.
2) Add a VTO.
You can add through scanning the QR code at the rear panel of the VTO.
3) The SN number of the VTO appears automatically, and then tap Next.
4) Select device type as VTO, and then the device information appears.
5) Tap View Reasons.

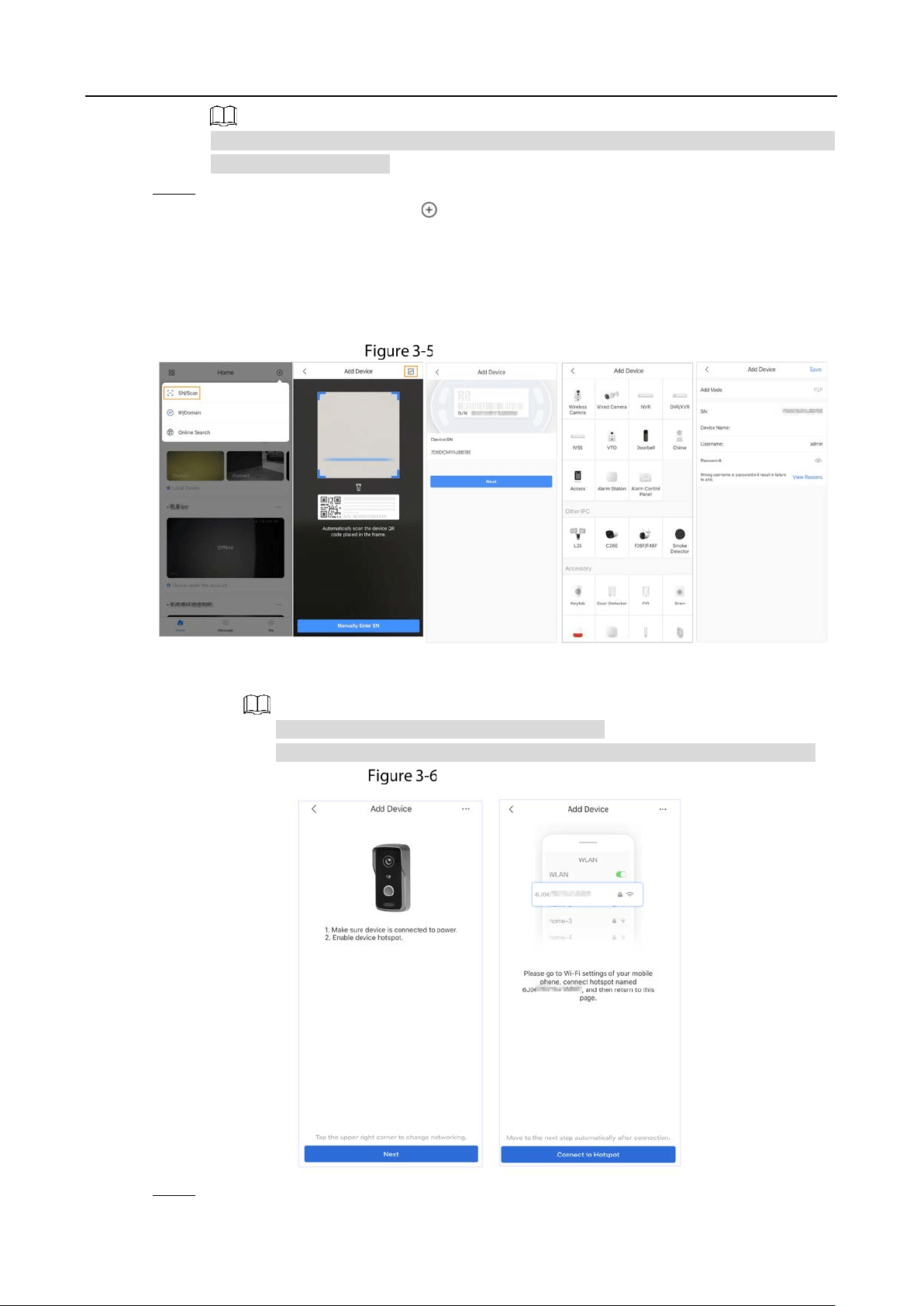

Add VTO to DMSS
6) Configure network by switch networking to AP Configuration, and then tap Next.
7) Connect your phone to the hotspot you just enabled on the VTO.
The hotspot name is the SN number of your VTO.
The current screen will move on to the next step automatically after connection.
AP configuration
Step 4 Complete initialization based on instructions on the app.
Quick Start Guide
1) Enter the password you planned for the VTO, and confirm it, and then tap Next.
2) Select Cloud Access and Auto-check, and then tap OK.
The initialization process is completed.
Initialization
Step 5 Connect the VTO to the network through Wi-Fi.
1) Select an available Wi-Fi.
2) Enter the password and tap Next. Wait for the VTO to connect to the router.
Wi-Fi connection

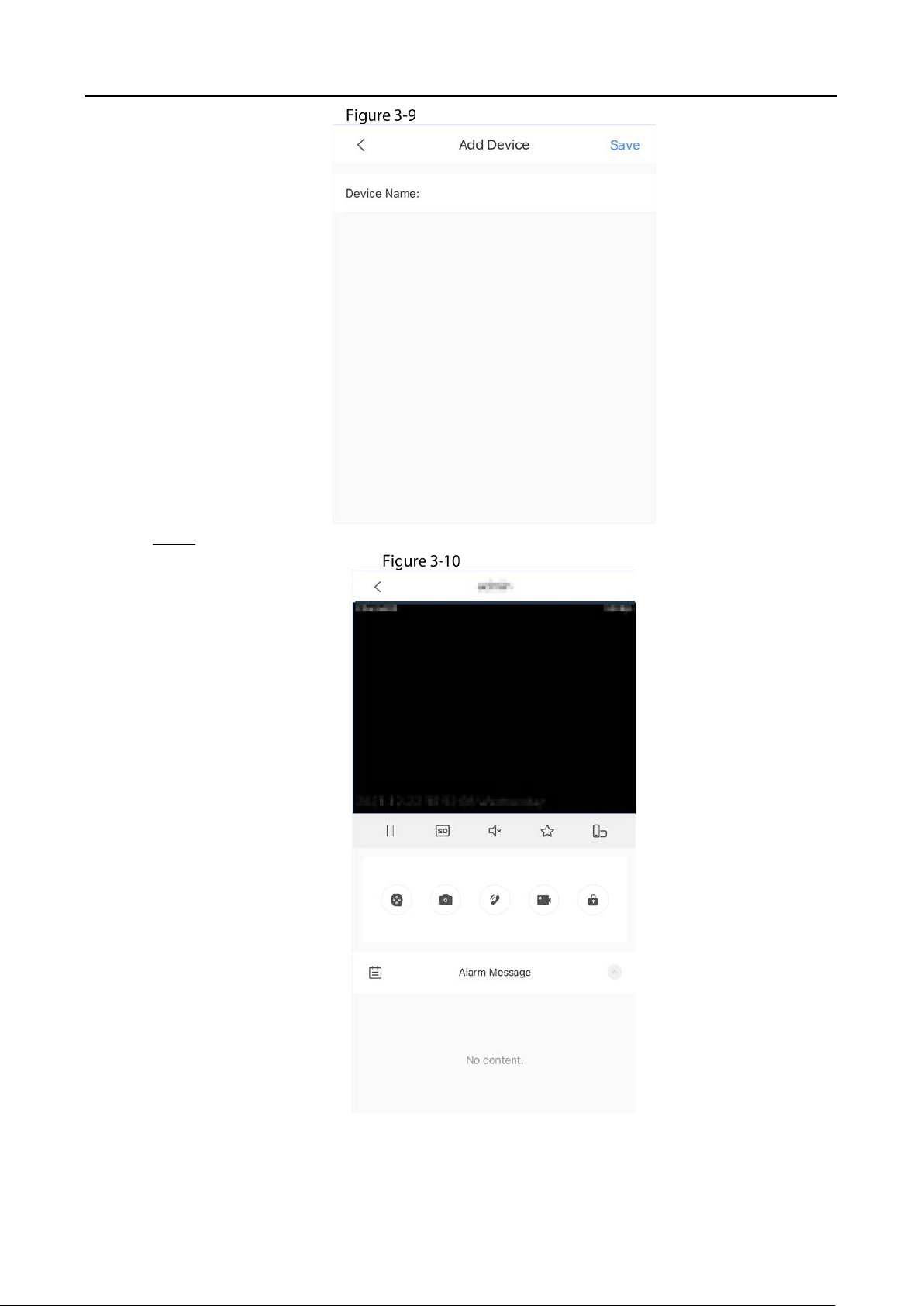

Step 6 Configure device name and tap Save.
Quick Start Guide
Configure device name
Step 7 View monitoring video from the camera on the VTO.
Monitoring
Quick Start Guide
Configuring Network Parameters
You need to configure the TCP/IP information to connect the VTO to the network. The descriptions
below are for models with a Wireless LAN card. A Wireless LAN device is optional.
Wireless LAN
Step 1 Log in to the web page of the VTO.
Step 2 Select Network > Basic.
Step 3 Configure the TCP/IP parameters in the WLAN section.
LAN
Step 1 Log in to the web page of the VTO.
Step 2 Select Network > Basic.
Step 3 Configure the TCP/IP parameters in the LAN section.
Network configuration
Table 3-1 Parameter description
Parameter Description
IP Address Your planned IP address of the VTO.
Preferred DNS It is 8.8.8.8 by default.
Alternate DNS It is 8.8.4.4 by default.
Transmission
Mode
Choose the transmission mode based on your actual needs.
Mode 1: Multicast streaming (UDP).
Mode 2: RTSP streaming (TCP).
Mode 2 is preferred when the switch does not support multicast
function, or when the network connection is not good.
DHCP Enable the function to get the allocated IP address for the VTO.
Configuring SIP Servers
When connected to the same SIP server, VTOs and VTHs can call each other. You can use a VTO or
a platform as the SIP server. We recommend you use a VTO as the SIP server in the villa scenario.
Step 1 Log in to the web page of the VTO.
Step 2 Select
Network
>
SIP Server
.
Quick Start Guide
Step 3 Configure the parameters.

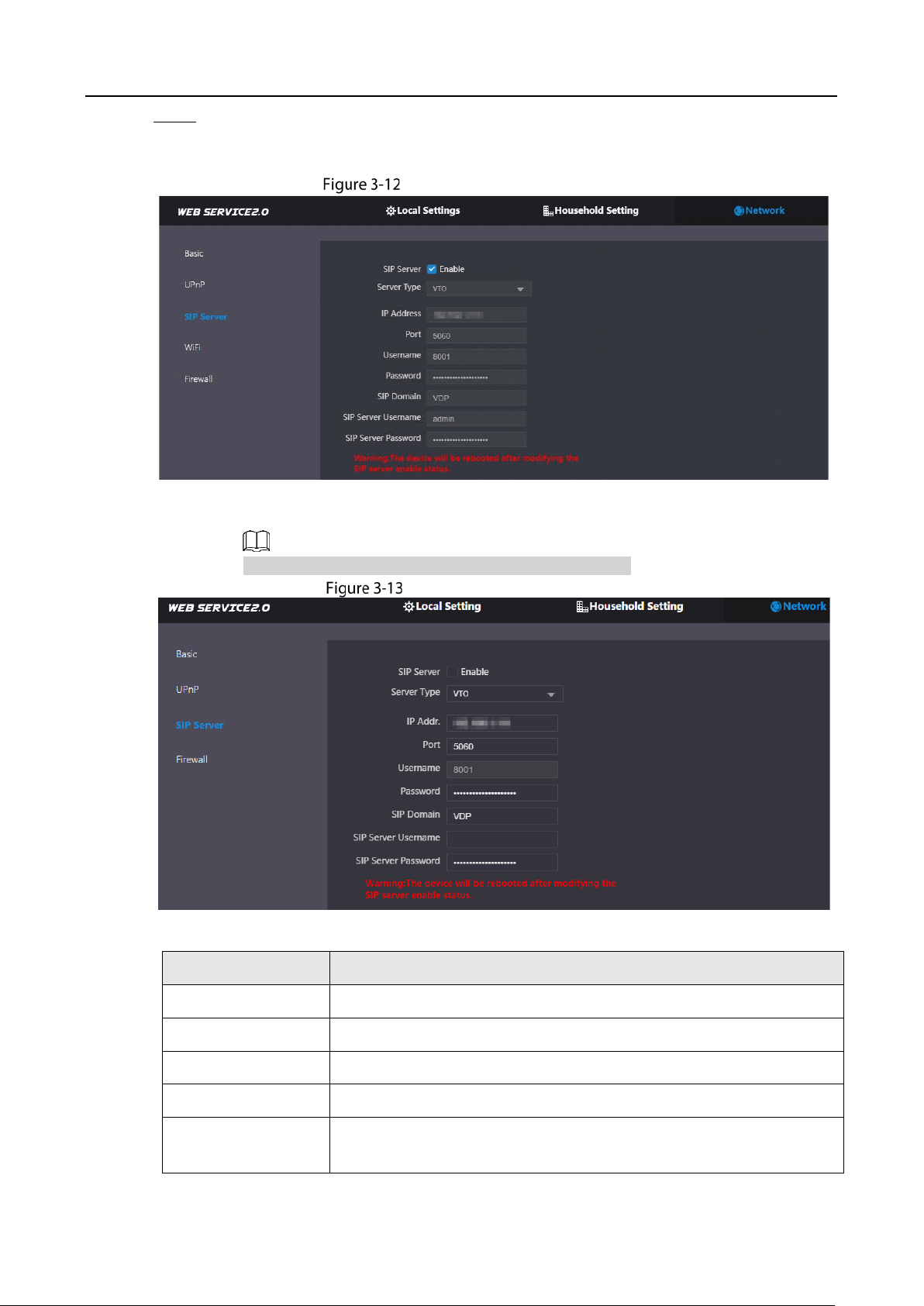

1) If the current VTO you have logged into works as the SIP server, enable SIP Server, and
keep the default values of other parameters.
Current VTO as the SIP server
2) If other VTOs work as the SIP server, set Server Type as VTO, and then configure the
parameters.
Do not enable SIP Server, otherwise the connection fails.
Other VTOs as the SIP server
Table 3-2 Parameter description
Parameter Description
IP Address The IP address that you planned for the VTO.
Port 5060 by default when a VTO works as SIP server.
SIP Domain Leave it as default.
Username/Password Used to log in to the web page of the VTO.
SIP Server Username/
Password
Used to log in to the SIP server.
Quick Start Guide
Configuring VTO Numbers
Numbers can be used to distinguish each VTO. In the villa scenario, we recommend you configure the
VTO numbers based on your needs.
Background Information
●
The VTO number can contain up to 5 numbers, and it must not be the same as other room number
you have already configured.
●
If a VTO serves as the SIP server, its room number is 8001 by default. You cannot change it.
Procedure
Step 1 Log in to the web page of the VTO.
Step 2 Select
Local Settings
>
Basic
.
Step 3 Enter the room number you planned for the VTO in
No.
, and then click
Confirm
.
Configuring VTO Numbers

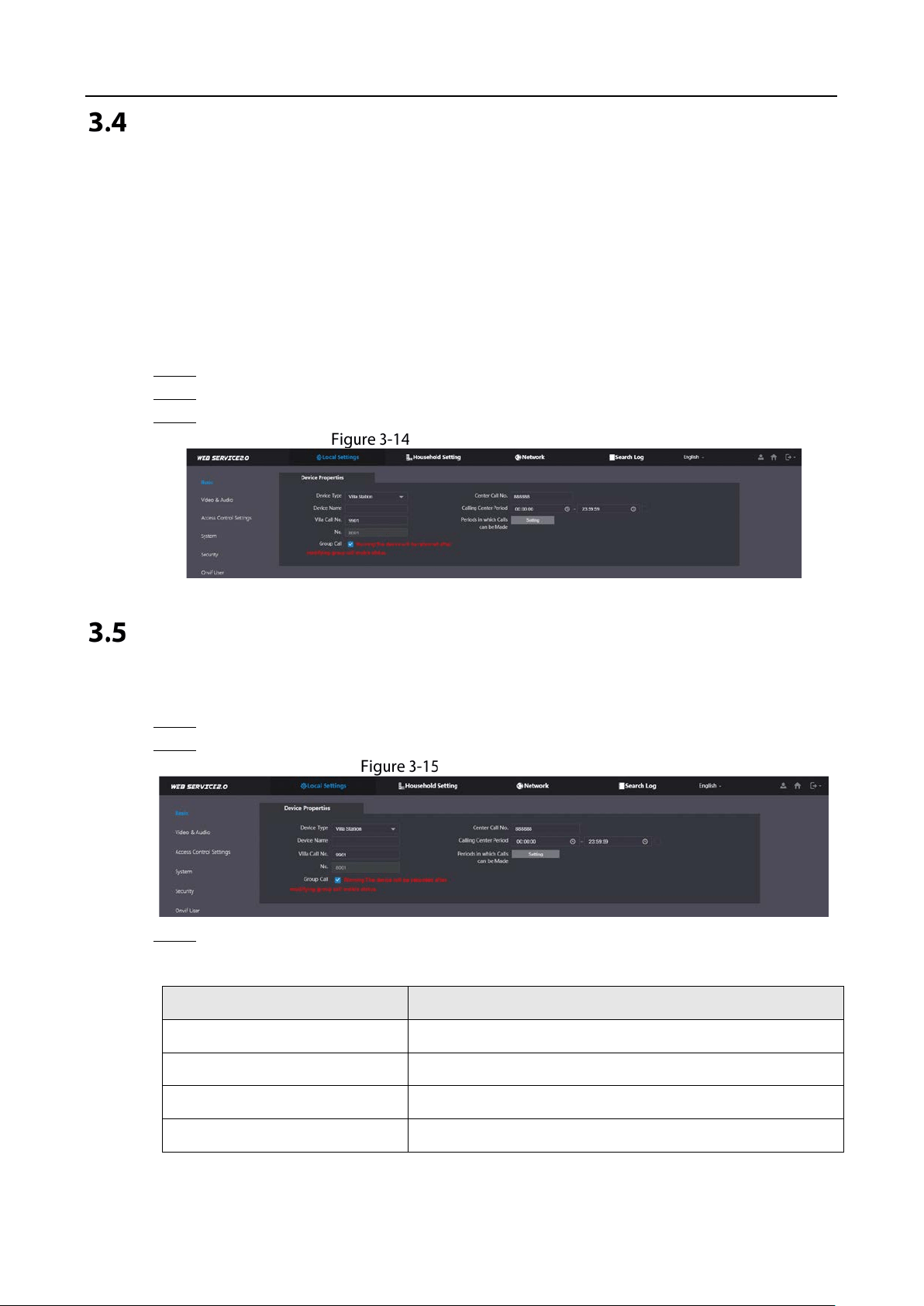

Configuring Call Numbers and Group Call
Configure basic properties for the VTO, including group call functions, center call number and villa call
numbers.
Step 1 Log in to the web page of the VTO.
Step 2 Select
Local Settings
>
Basic
.
Device properties
Step 3 Configure the parameters.
Table 3-3 Parameter description
Parameter Description
Device Type Villa Station.
Device Name The name you planned for your VTO. You could keep it null.
Villa Call No. Used to call VTHs. It should contain no more than 9 numbers.
Center Call No. Used to call the center station. It is 888888 by default.
Quick Start Guide
Parameter Description
No.
VTO number.
8001 by default when the VTO is selected to work as the SIP
server.
Group Call Enable it for group call.
Step 4 Click
Save
.
Adding VTOs
You can add other VTOs to the SIP server (in the Villa scenario a VTO serves as the SIP server), and all
the VTOs connected to the same SIP server can make video call to each other.
Prerequisites
Before you start, make sure that you have already select a VTO to work as the SIP server (VTO number
8001).
Procedure
Step 1 Log in to the web page of the VTO that works as the SIP server.
Step 2 Select
Household Setting
>
VTO No. Management
.
Step 3 Select
Add
.

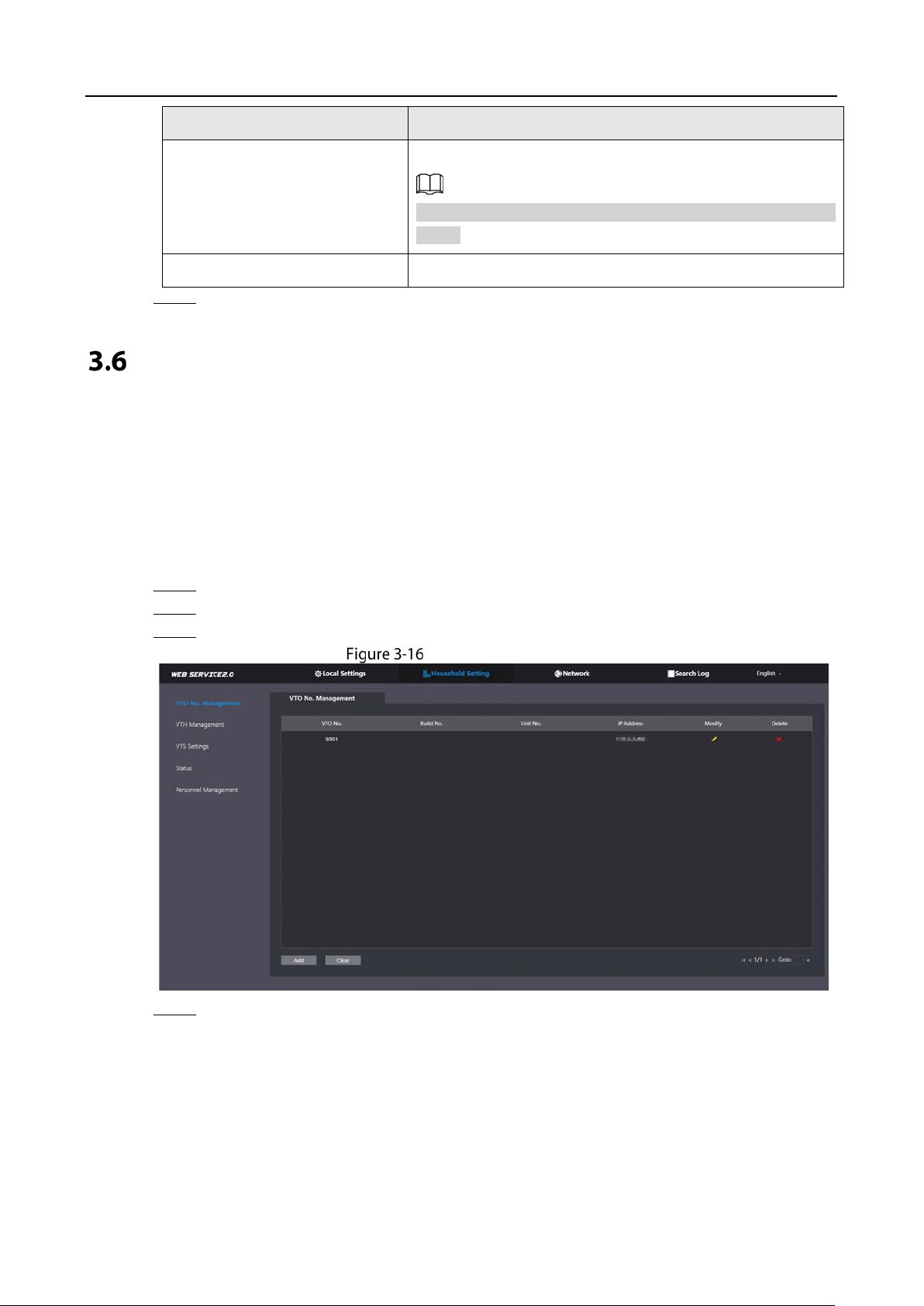

VTO No. Management
Step 4 Configure the parameters.
Quick Start Guide
Add VTOs
Table 3-4 Parameters
Parameter Description
Rec No. The room number of the VTO.
Register Password Keep it by default.
Build No.
Keep them null when the VTO serves as the SIP server. The two parameters
are only applicable when the platform works as the SIP server.
Unit No.
IP Address IP address of the VTO.
Username
The username and password used to log in to the web page of the VTO.
Password
Adding VTH Room Number
When VTO serves as the SIP server, you can add VTH into the main VTO to achieve intercom functions.
Step 1 Log in to the web page of the VTO.
Step 2 Select
Household Setting
>
VTH Management
.
Quick Start Guide
VTH Management
Step 3 Select
Add
to register new VTH onto the main VTO.

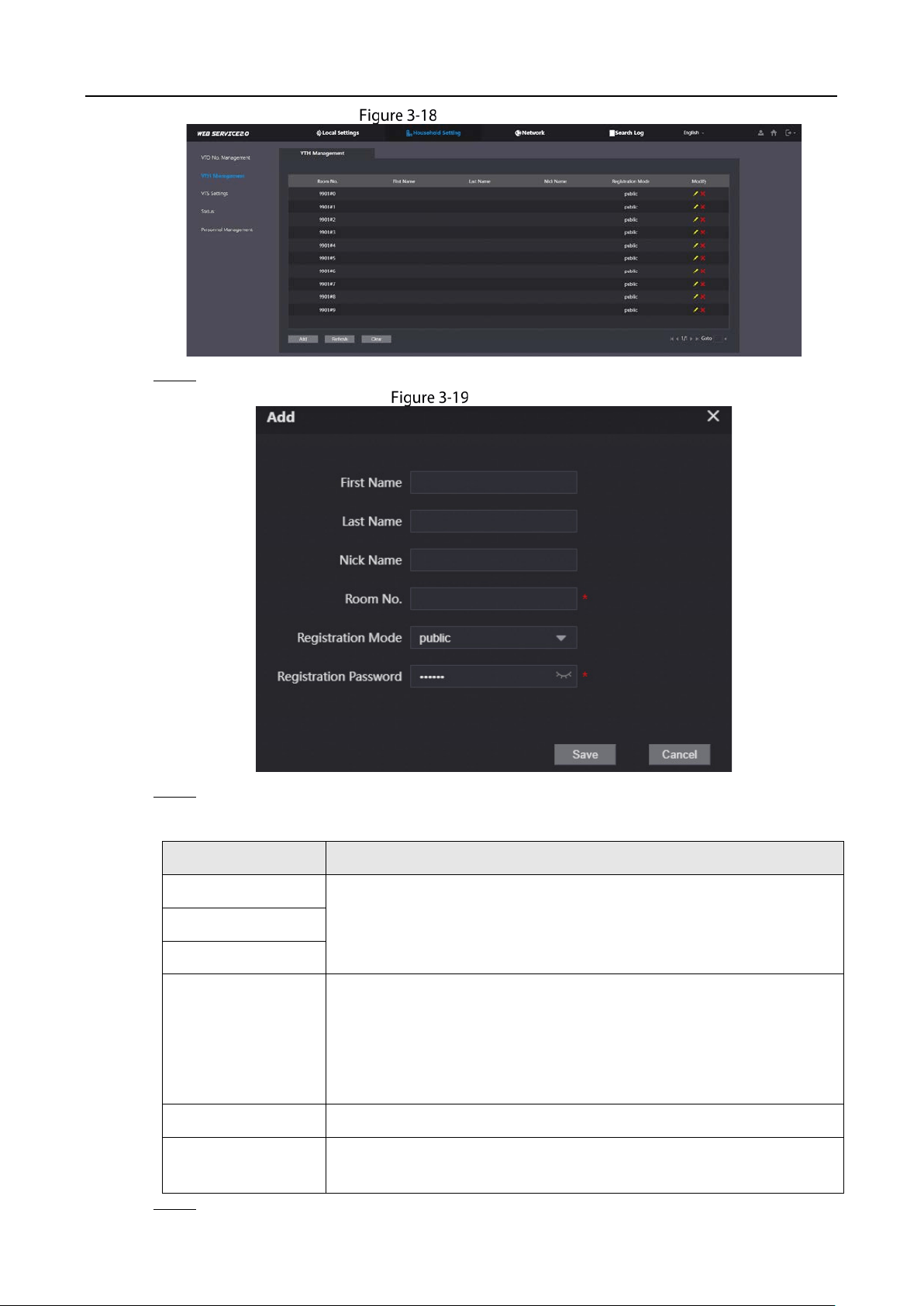

Add VTH
Step 4 Configure the parameters.
Table 3-5 Description
Parameters Description
First Name
Information used to differentiate each room. You can also keep them null.
Last Name
Nick Name
Room No.
The room number can contain 6 digits of numbers of letters or their
combination at most, and it cannot be the same as any VTO number.
When there are multiple VTHs, the room number for the main VTH
should end with #0 and the room numbers for extension VTHs with #1,
#2…
Registration Mode Select
Public
.
Registration
Password
Leave it as default.
Step 5 Click
Save
.
Quick Start Guide
Related Operations
Click to modify room information, and to delete the room.
Binding VTH Room Numbers (For Certain Models Only)
This section only applies to the VTOs that with multiple buttons.
Step 1 Log in to the web page of the VTO.
Step 2 Select Local Settings > Basic.
Step 3 In the Façade Layout section, select Count type.

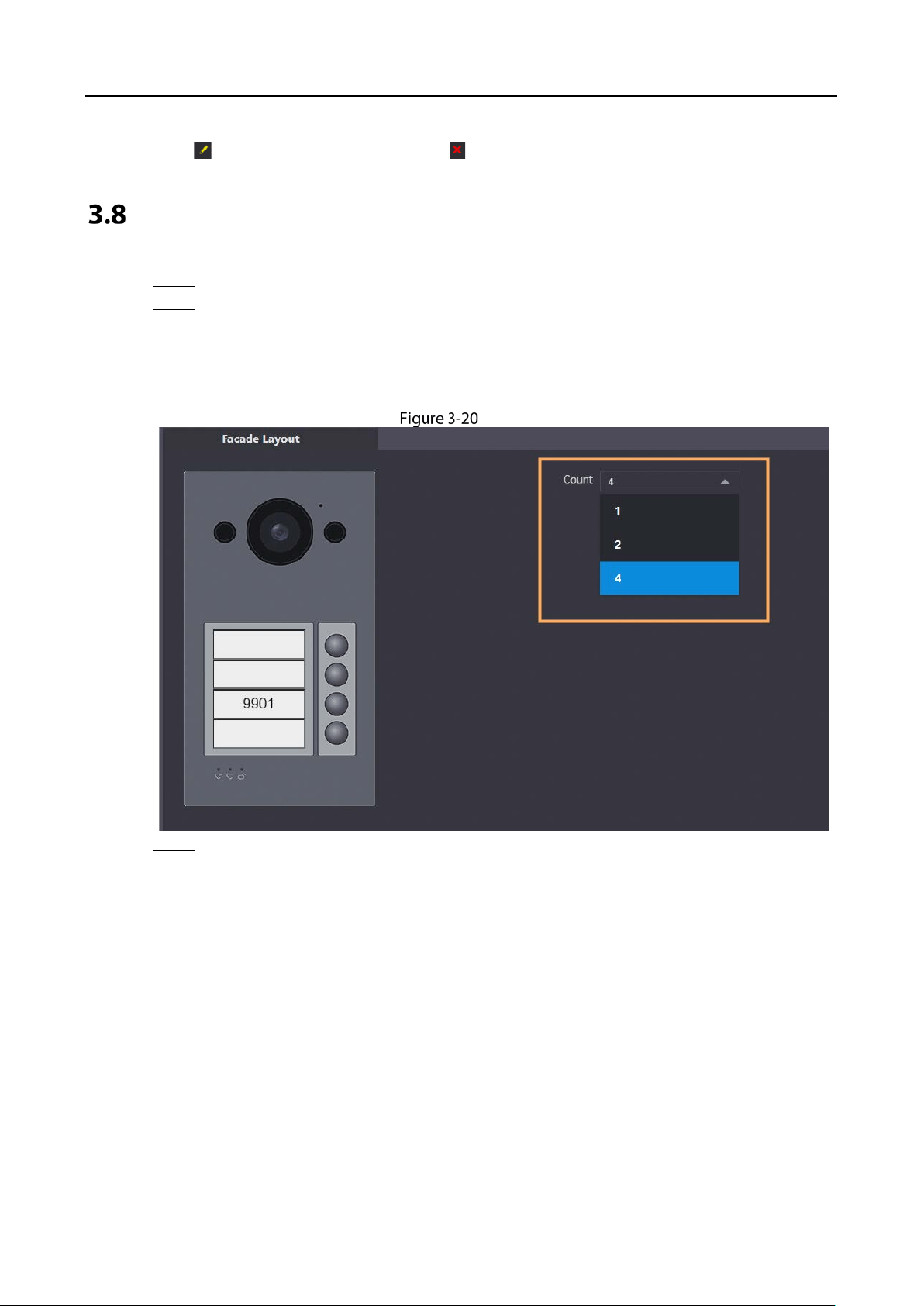

Count 1: Can only bind one room number.
Count 2: Can bind two room numbers.
Count 4: Can bind four room numbers.
Count

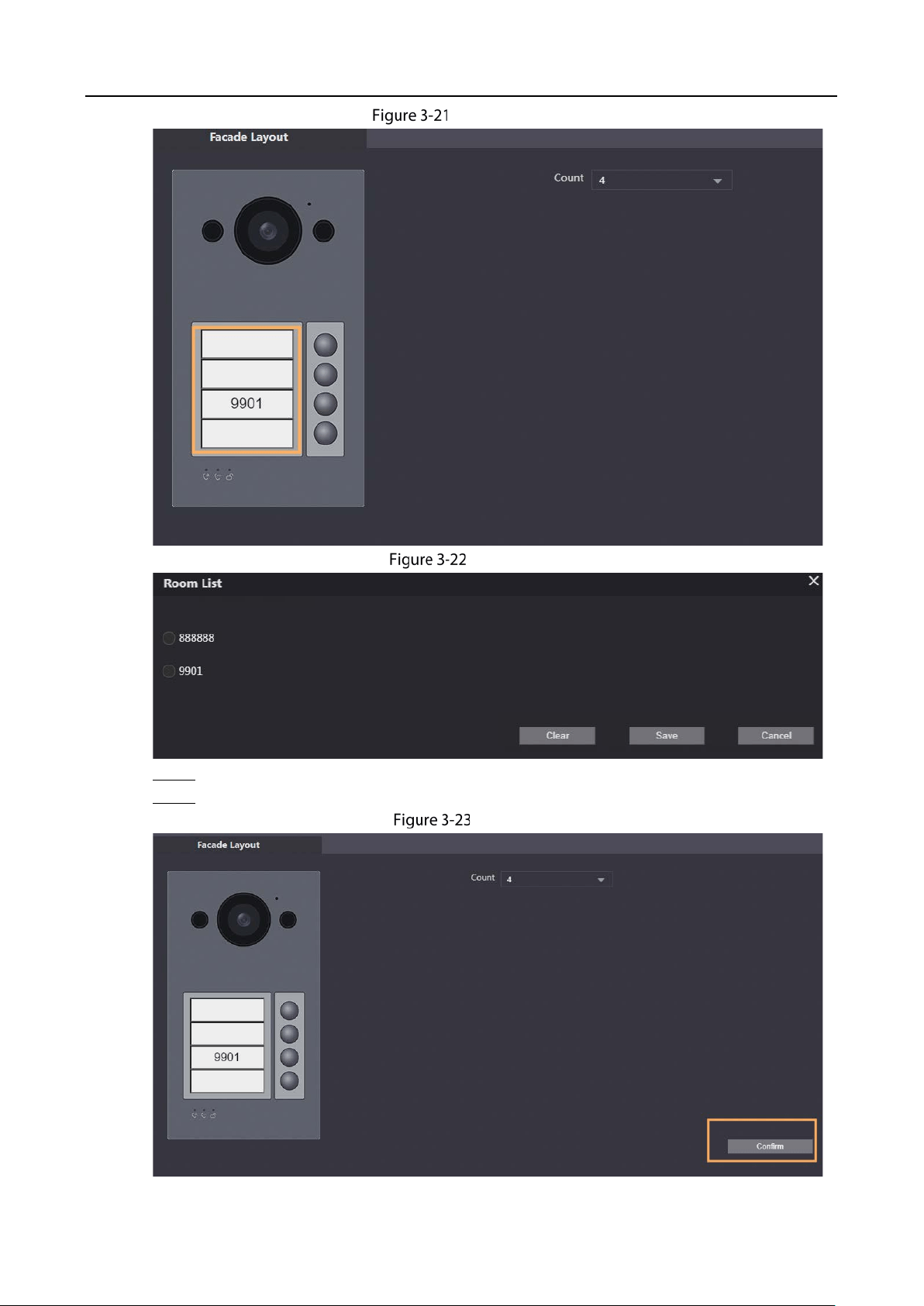

Step 4 Click on the white module, and select the room number from the Room List you want to bind.
Quick Start Guide
White module
Room list
Step 5 Click Save to save the selected room number.
Step 6 Click Confirm to save all the settings.
Confirm
Quick Start Guide

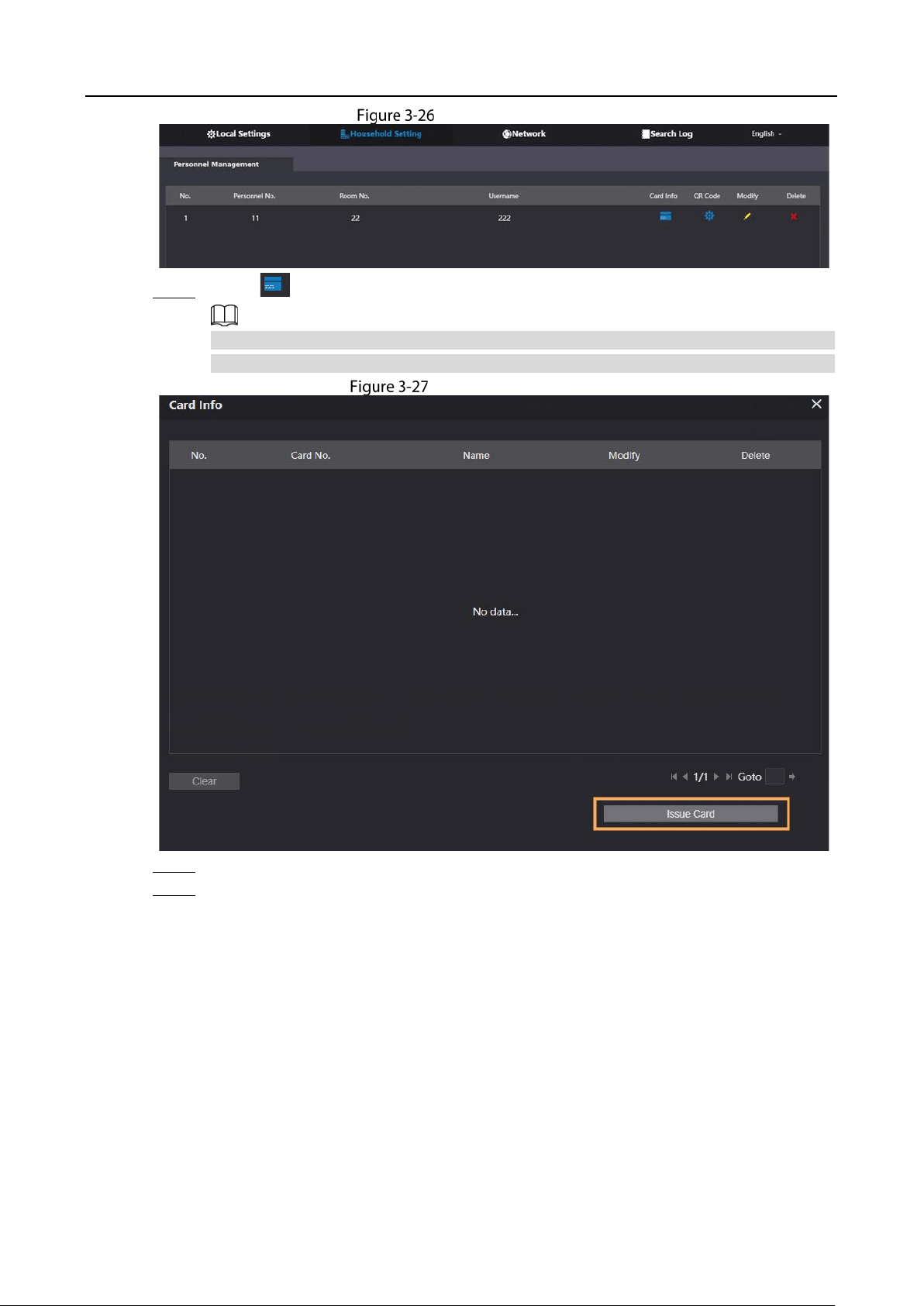

Issuing Cards
Issue an access card to unlock the door of a room.
To use this function, the VTO must have a card reader.
Step 1 Log in to the web page of the VTO.

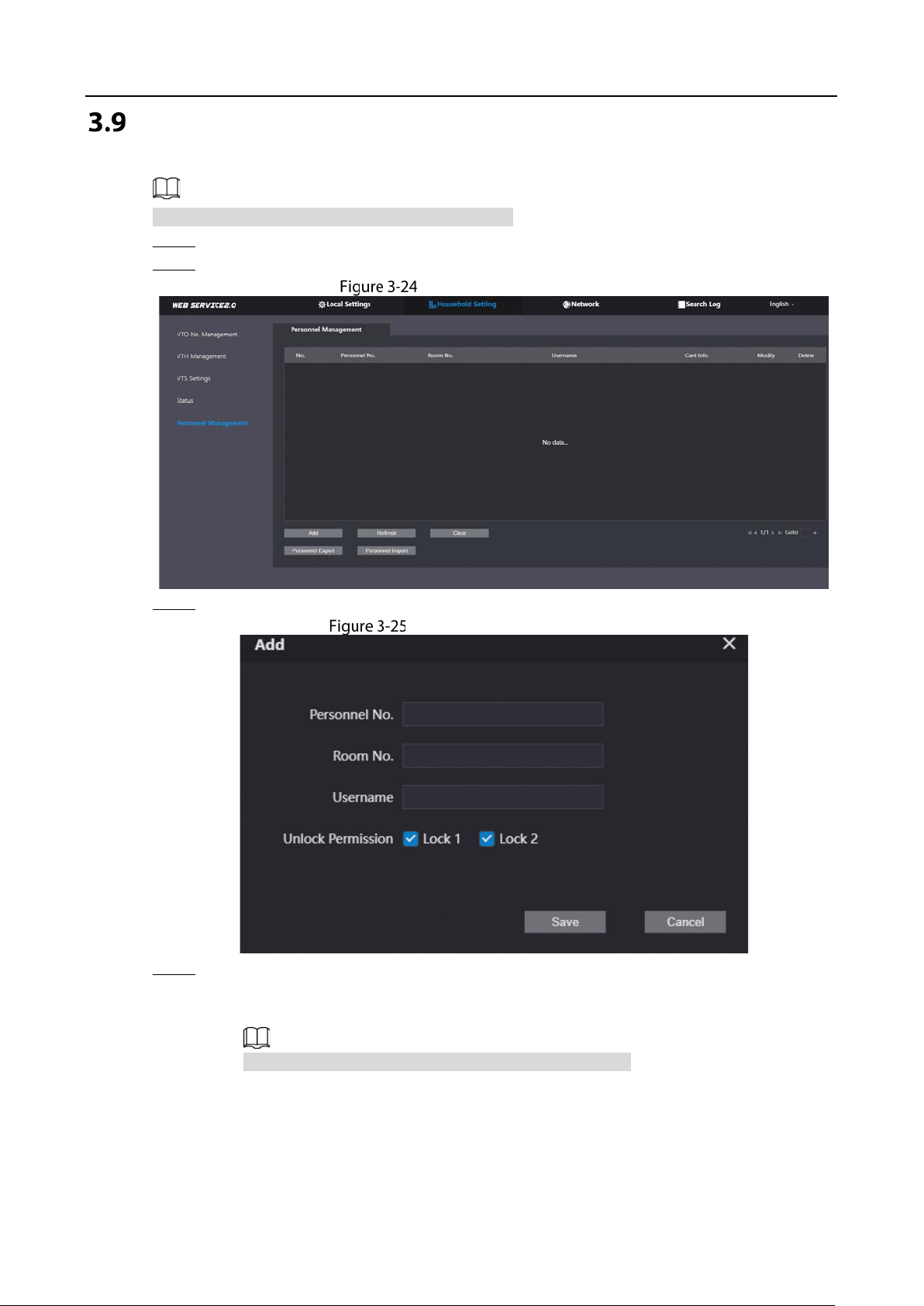

Step 2 Select Household Setting > Personnel Management.
Personnel management
Step 3 Click Add.
Add personnel information

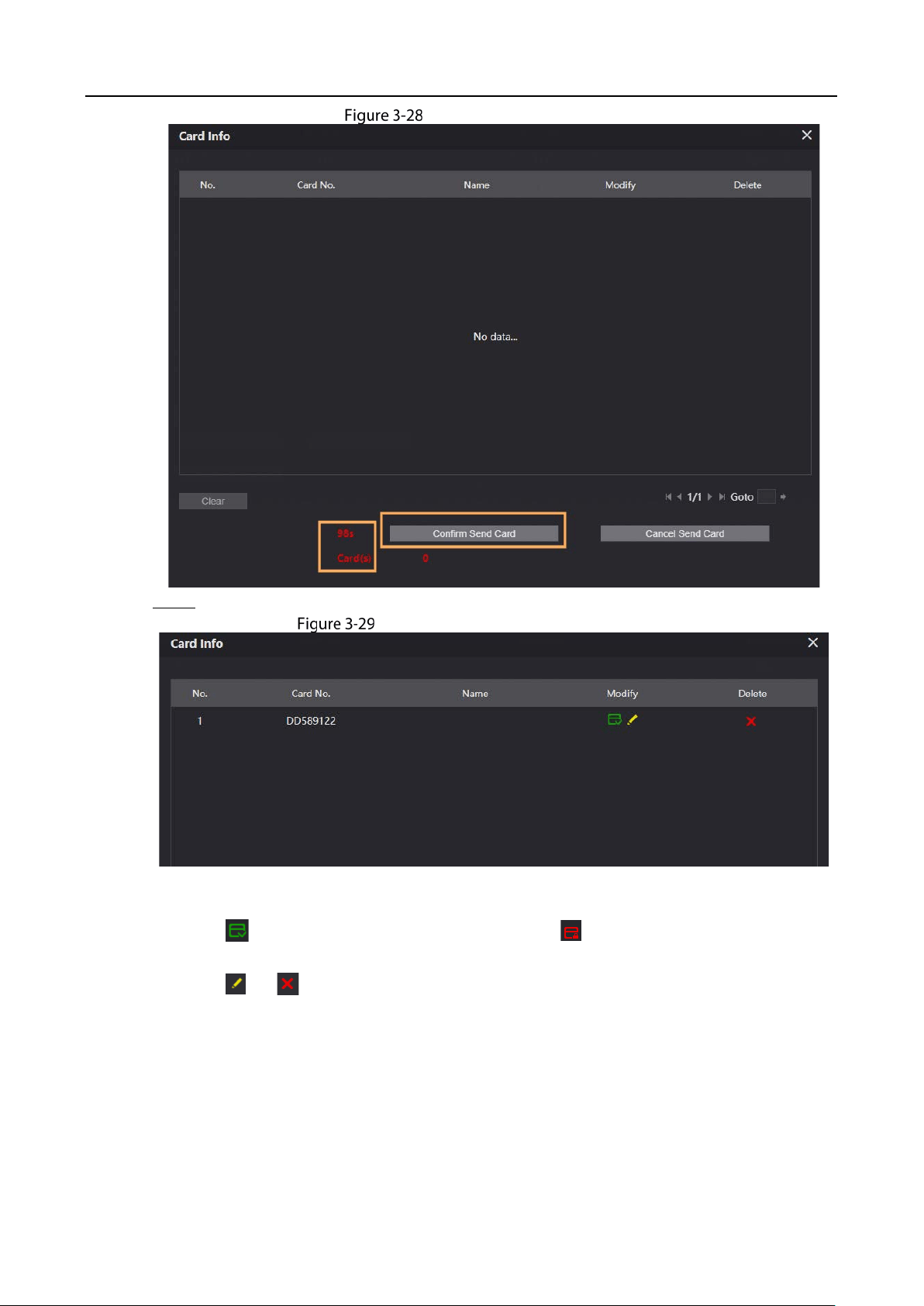

Step 4 Enter the parameters, and then click Save.
Lock1: local lock.
Lock 2: 485 lock.
Only models that have 485 ports support 2 types of locks.
Quick Start Guide
Operation succeed
Step 5 Select to go to the card issuing window.
For some VTO models, the QR code is embedded in the Personnel Management page. Yet
for some models, you need to go to Network > Basic > Cloud Service to check the QR code.
Card issuing window
Step 6 Click Issue Card to issue cards.
Step 7 The web page displays the countdown prompt (120 s). Once the countdown starts, you need
to swipe the card on the card reader of the VTO within this time period. After the swiping, the
card number will be automatically recognized by the VTO.
Quick Start Guide
Countdown in process
Step 8 Click Confirm Send Card after swiping to complete the issuing process.
Information of the newly issued card
Other Operations
Click to set it to loss, and then the icon changes to . The lost card cannot be used to open
the door.
Click or to modify the username or delete the card.
Quick Start Guide
4 Commissioning
After the basic configuration is complete, check whether the intercom communication works.
VTO Calling VTH
Once the VTO and VTH are connected, the duel communication function is enabled.
Step 1 Dial a room number (for example, 9901) on the VTO.
Step 2 Tap to answer the call on the VTH.
Figure 4-1 Call screen
VTH Monitoring VTO
A VTH can monitor the VTO.
Step 1 On the home screen of the VTH, select
Monitor
>
Door
.
Step 2 Set the VTO to go to the monitoring screen.
Step 3 Tap the icon to view the video.
Quick Start Guide

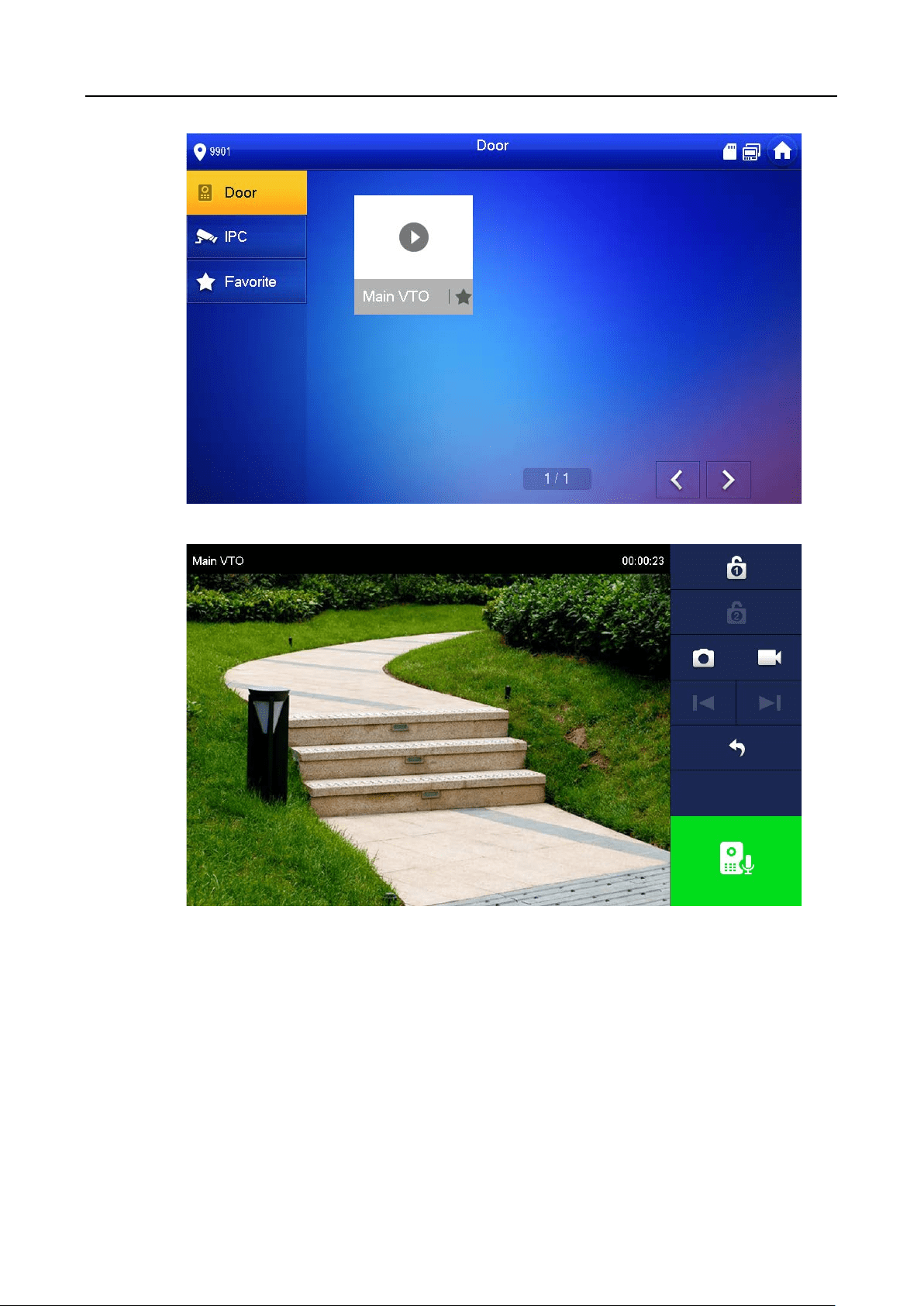

Figure 4-2 Door
Figure 4-3 Monitoring
Quick Start Guide
Cybersecurity Recommendations
Mandatory actions to be taken for basic equipment network security:
1.
Use Strong Passwords
Please refer to the following suggestions to set passwords:
●
The length should not be less than 8 characters.
●
Include at least two types of characters; character types include upper and lower case letters,
numbers and symbols.
●
Do not contain the account name or the account name in reverse order.
●
Do not use continuous characters, such as 123, abc, etc.
●
Do not use overlapped characters, such as 111, aaa, etc.
2.
Update Firmware and Client Software in Time
●
According to the standard procedure in Tech-industry, we recommend to keep your equipment
(such as NVR, DVR, IP camera, etc.) firmware up-to-date to ensure the system is equipped with
the latest security patches and fixes. When the equipment is connected to the public network,
it is recommended to enable the “auto-check for updates” function to obtain timely
information of firmware updates released by the manufacturer.
●
We suggest that you download and use the latest version of client software.
"Nice to have" recommendations to improve your equipment network security:
1.
Physical Protection
We suggest that you perform physical protection to equipment, especially storage devices. For
example, place the equipment in a special computer room and cabinet, and implement well-done
access control permission and key management to prevent unauthorized personnel from carrying
out physical contacts such as damaging hardware, unauthorized connection of removable
equipment (such as USB flash disk, serial port), etc.
2.
Change Passwords Regularly
We suggest that you change passwords regularly to reduce the risk of being guessed or cracked.
3.
Set and Update Passwords Reset Information Timely
The device supports password reset function. Please set up related information for password reset
in time, including the end user’s mailbox and password protection questions. If the information
changes, please modify it in time. When setting password protection questions, it is suggested not
to use those that can be easily guessed.
4.
Enable Account Lock
The account lock feature is enabled by default, and we recommend you to keep it on to guarantee
the account security. If an attacker attempts to log in with the wrong password several times, the
corresponding account and the source IP address will be locked.
5.
Change Default HTTP and Other Service Ports
We suggest you to change default HTTP and other service ports into any set of numbers between
1024–65535, reducing the risk of outsiders being able to guess which ports you are using.
6.
Enable HTTPS
We suggest you to enable HTTPS, so that you visit Web service through a secure communication
channel.
7.
MAC Address Binding
We recommend you to bind the IP and MAC address of the gateway to the equipment, thus
reducing the risk of ARP spoofing.
8.
Assign Accounts and Privileges Reasonably
Quick Start Guide
According to business and management requirements, reasonably add users and assign a
minimum set of permissions to them.
9.
Disable Unnecessary Services and Choose Secure Modes
If not needed, it is recommended to turn off some services such as SNMP, SMTP, UPnP, etc., to
reduce risks.
If necessary, it is highly recommended that you use safe modes, including but not limited to the
following services:
●
SNMP: Choose SNMP v3, and set up strong encryption passwords and authentication
passwords.
●
SMTP: Choose TLS to access mailbox server.
●
FTP: Choose SFTP, and set up strong passwords.
●
AP hotspot: Choose WPA2-PSK encryption mode, and set up strong passwords.
10.
Audio and Video Encrypted Transmission
If your audio and video data contents are very important or sensitive, we recommend that you use
encrypted transmission function, to reduce the risk of audio and video data being stolen during
transmission.
Reminder: encrypted transmission will cause some loss in transmission efficiency.
11.
Secure Auditing
●
Check online users: we suggest that you check online users regularly to see if the device is
logged in without authorization.
●
Check equipment log: By viewing the logs, you can know the IP addresses that were used to
log in to your devices and their key operations.
12.
Network Log
Due to the limited storage capacity of the equipment, the stored log is limited. If you need to save
the log for a long time, it is recommended that you enable the network log function to ensure that
the critical logs are synchronized to the network log server for tracing.
13.
Construct a Safe Network Environment
In order to better ensure the safety of equipment and reduce potential cyber risks, we recommend:
●
Disable the port mapping function of the router to avoid direct access to the intranet devices
from external network.
●
The network should be partitioned and isolated according to the actual network needs. If there
are no communication requirements between two sub networks, it is suggested to use VLAN,
network GAP and other technologies to partition the network, so as to achieve the network
isolation effect.
●
Establish the 802.1x access authentication system to reduce the risk of unauthorized access to
private networks.
●
Enable IP/MAC address filtering function to limit the range of hosts allowed to access the device.
