User’s Manual
MultiSync LCD3215
MultiSync LCD4215
MultiSync LCD4615
Index
Important Information ................................................................................................................................... English-1
Warning, Caution ................................................................................................................................ English-1
Registration Information ............................................................................................................................... English-1
Safety Precautions, Maintenance & Recommended Use ............................................................................ English-3

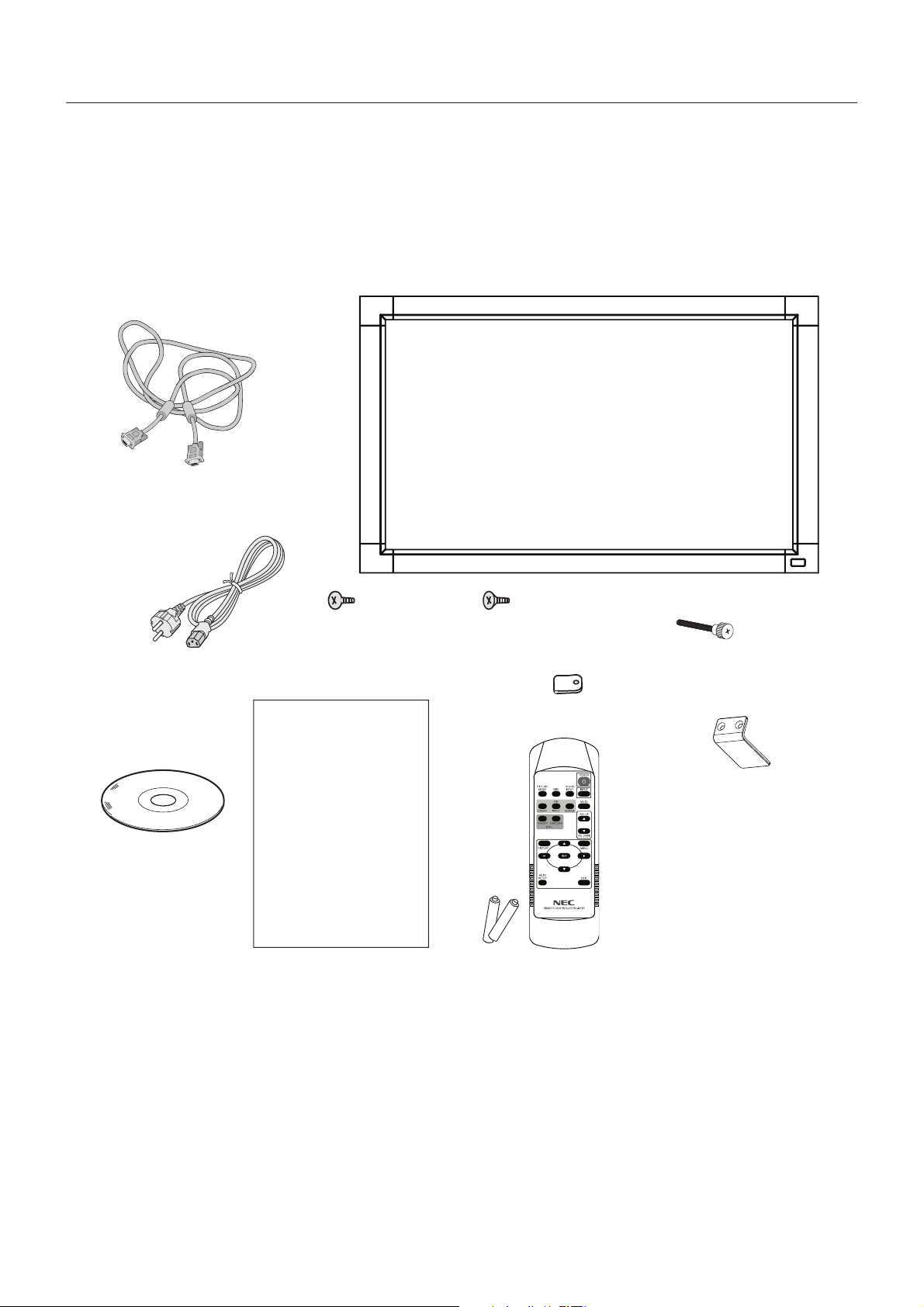

Contents ....................................................................................................................................................... English-4

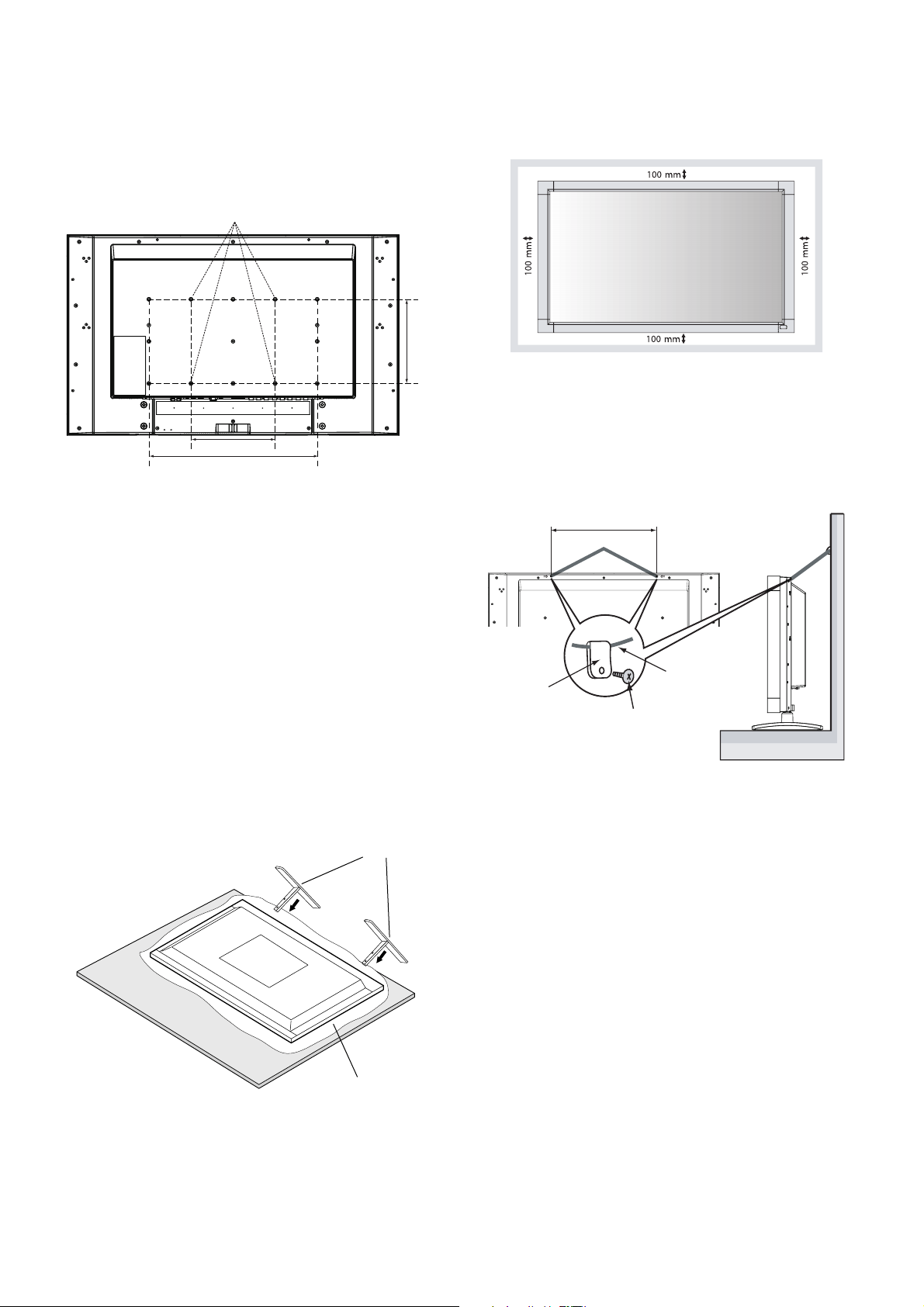

Installation .................................................................................................................................................... English-5
Parts Name and Functions .......................................................................................................................... English-7

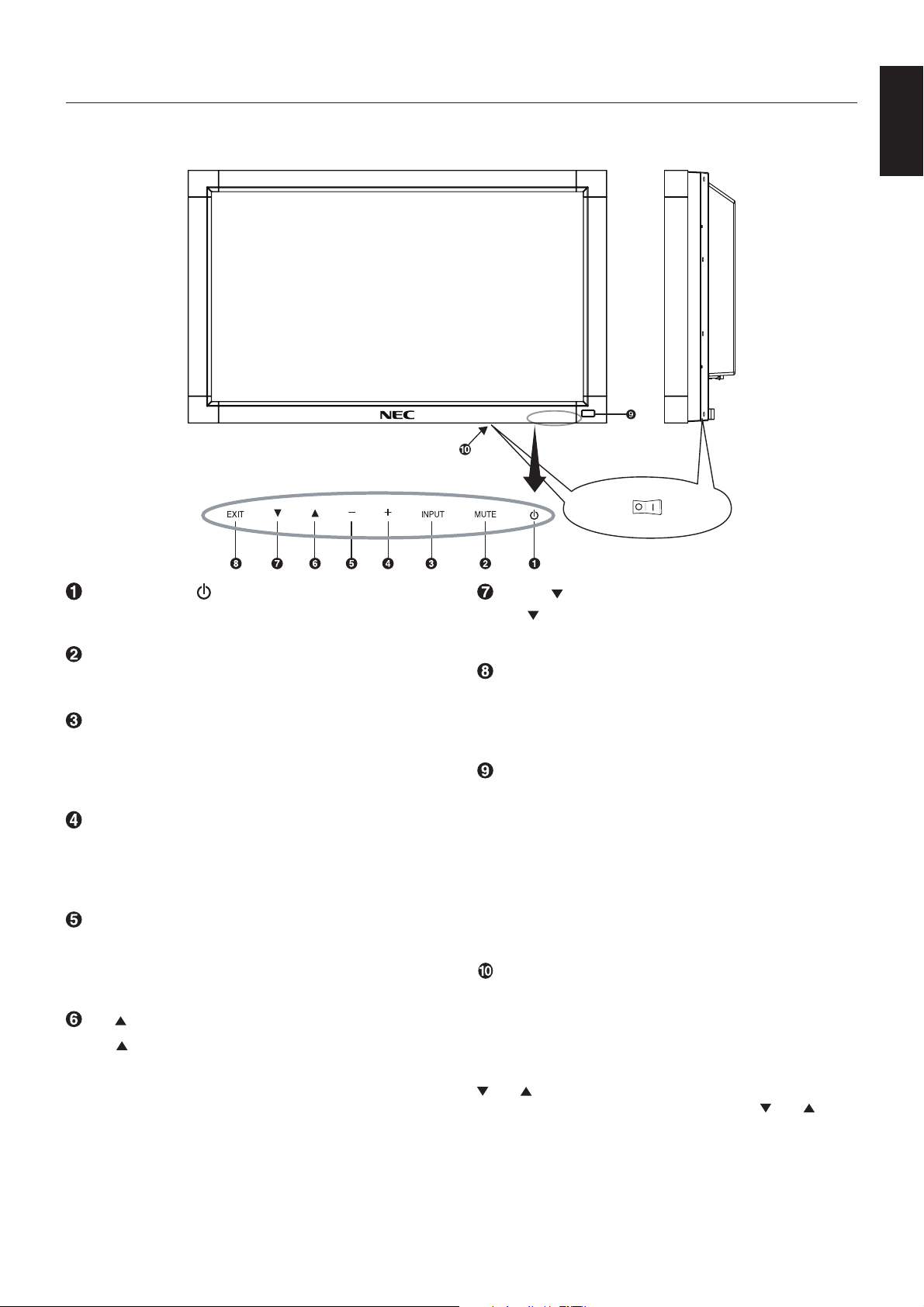

Control Panel...................................................................................................................................... English-7

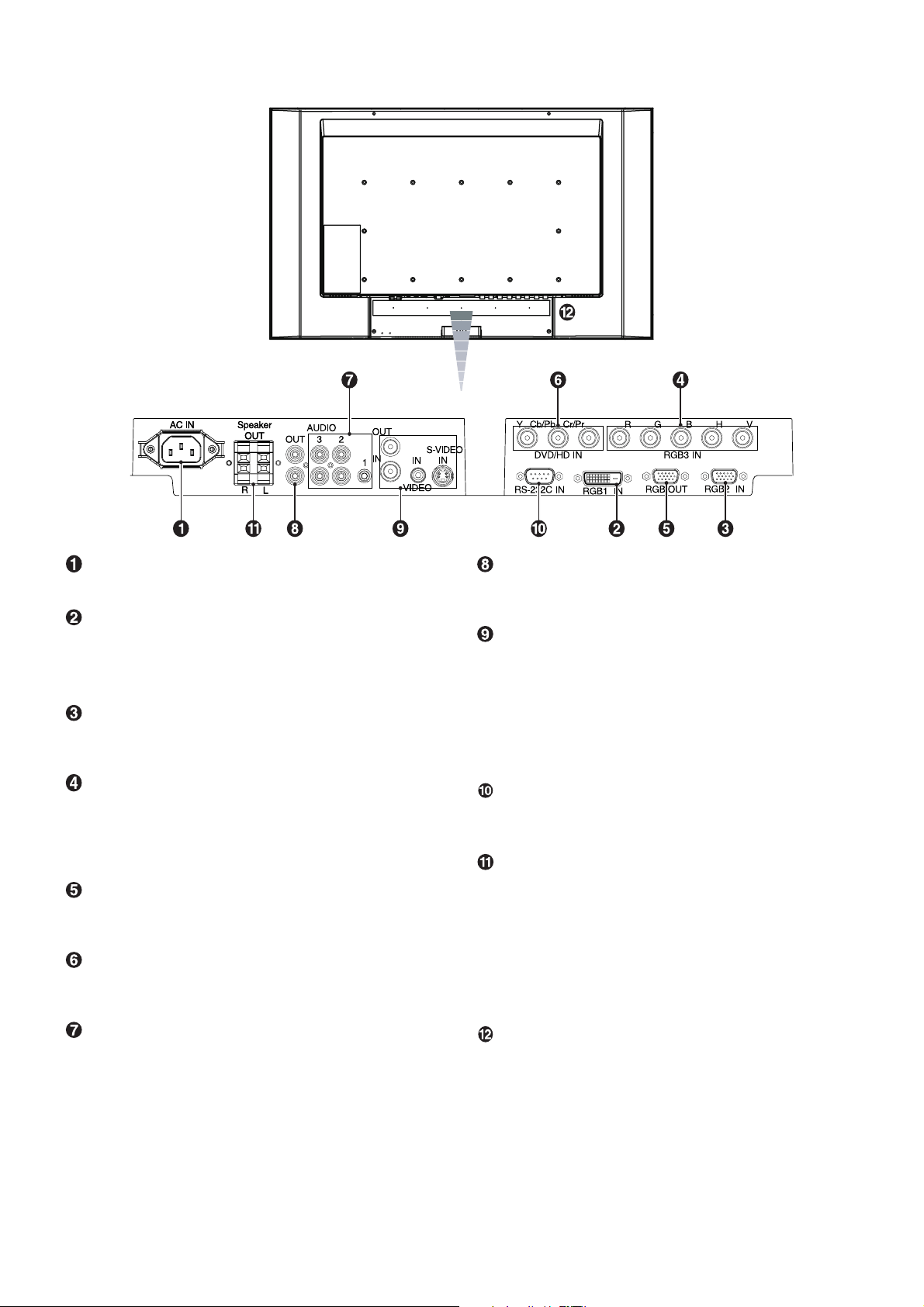

Terminal Panel.................................................................................................................................... English-8

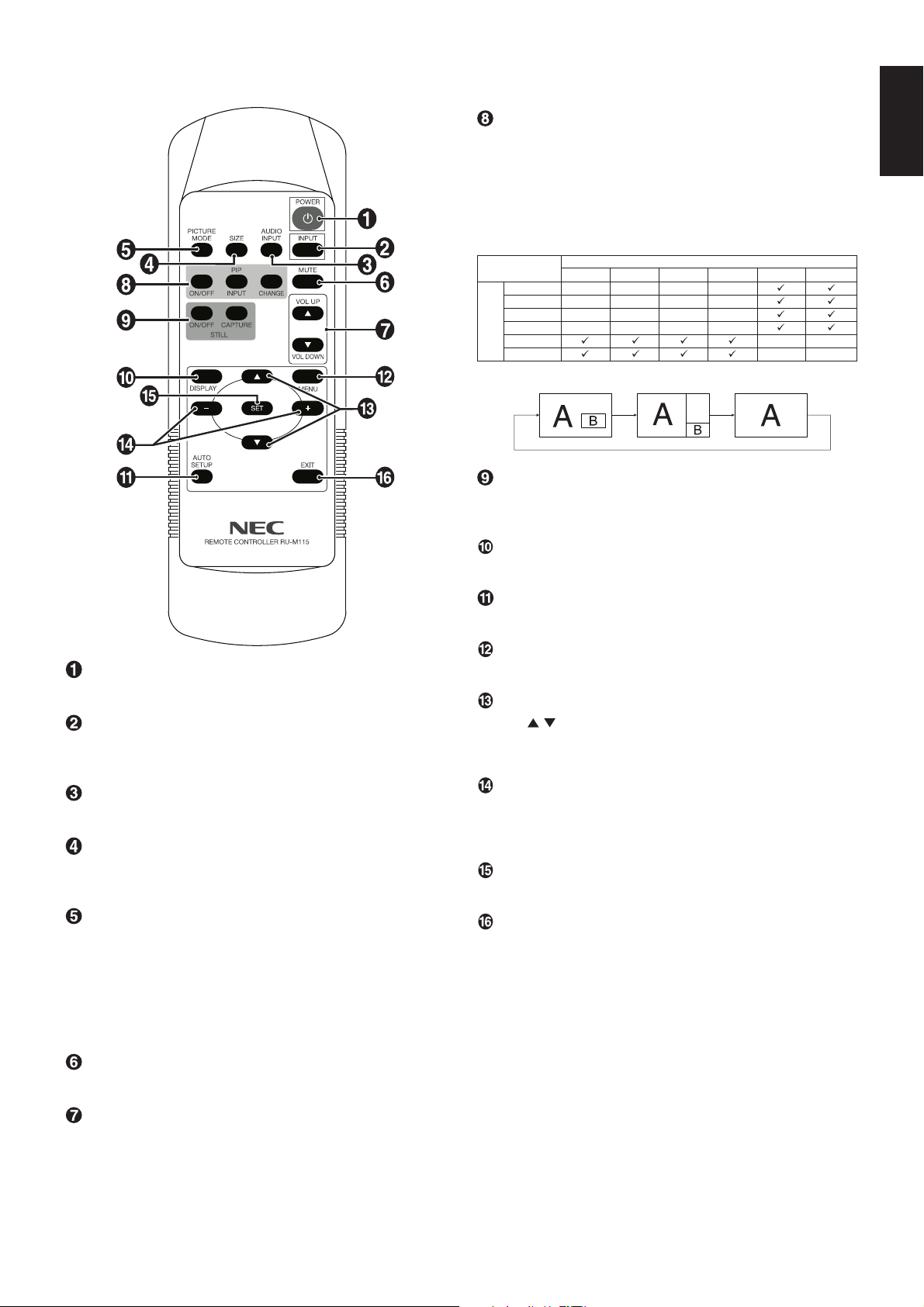

Wireless Remote Control ................................................................................................................... English-9
Operating Range for the Remote Control........................................................................................... English-10
Handling the remote control ........................................................................................................... English-10
Setup.............................................................................................................................................................English-11
Connections ................................................................................................................................................. English-13

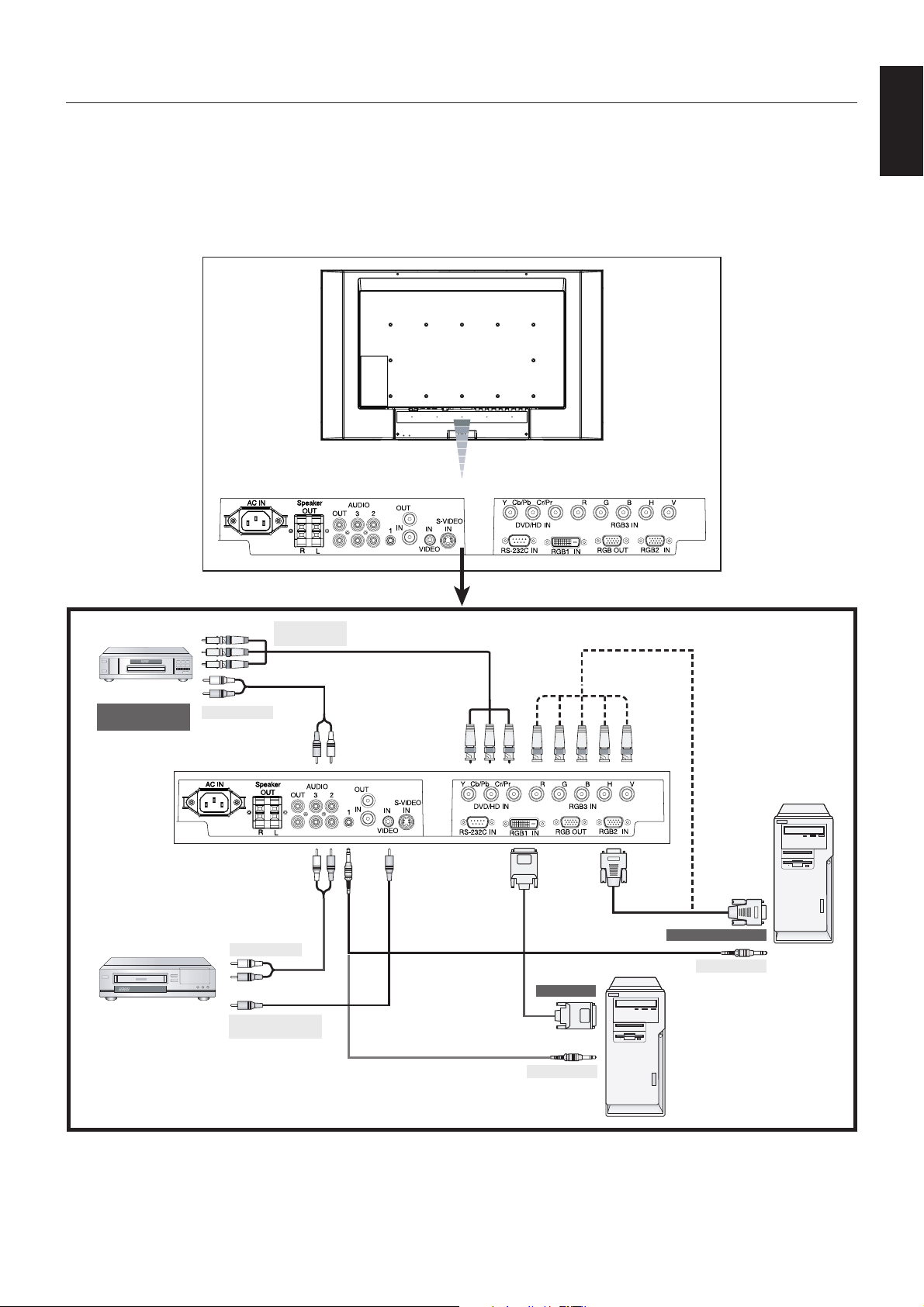

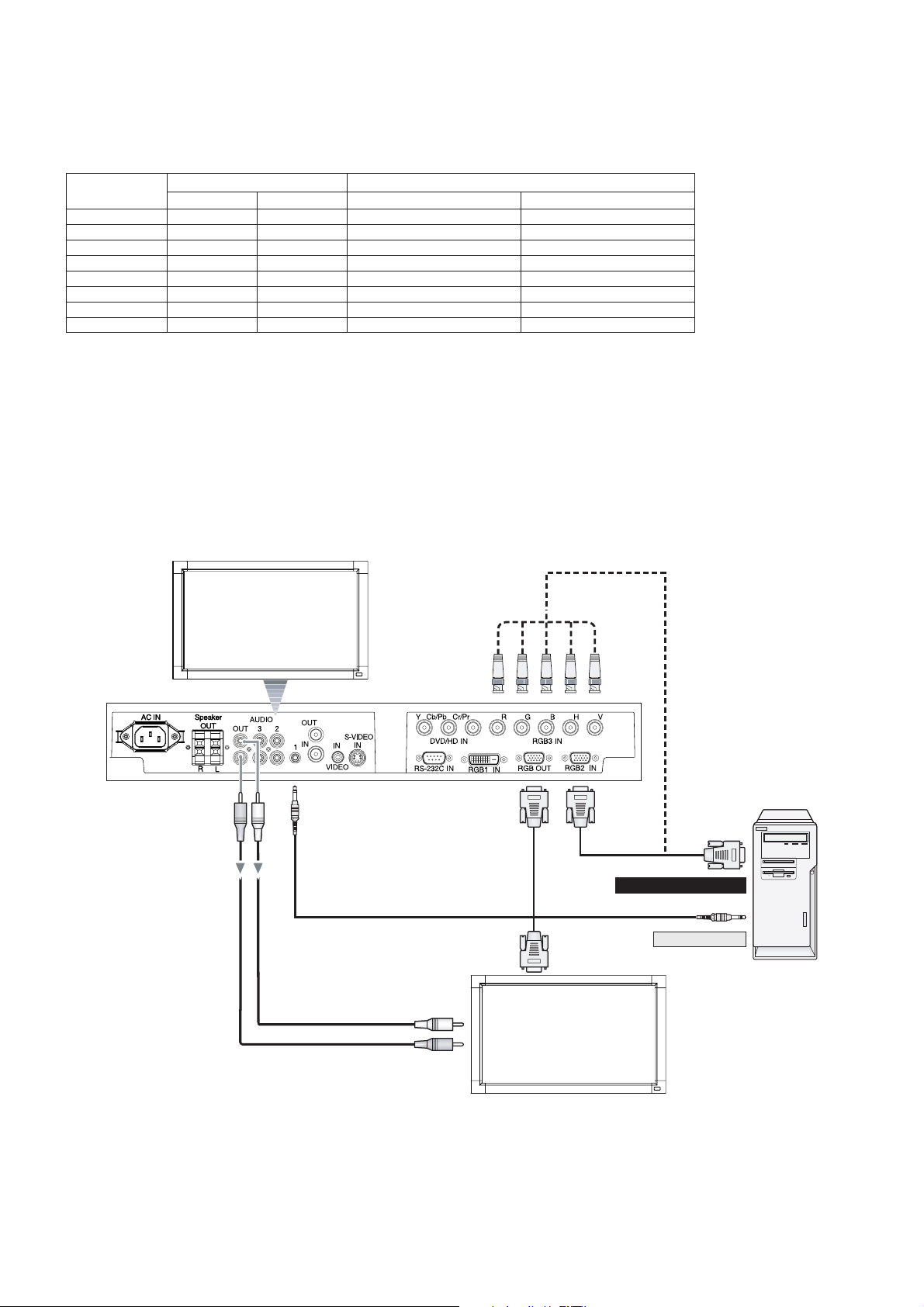

Wiring Diagram................................................................................................................................... English-13
Connecting a Personal Computer ...................................................................................................... English-14

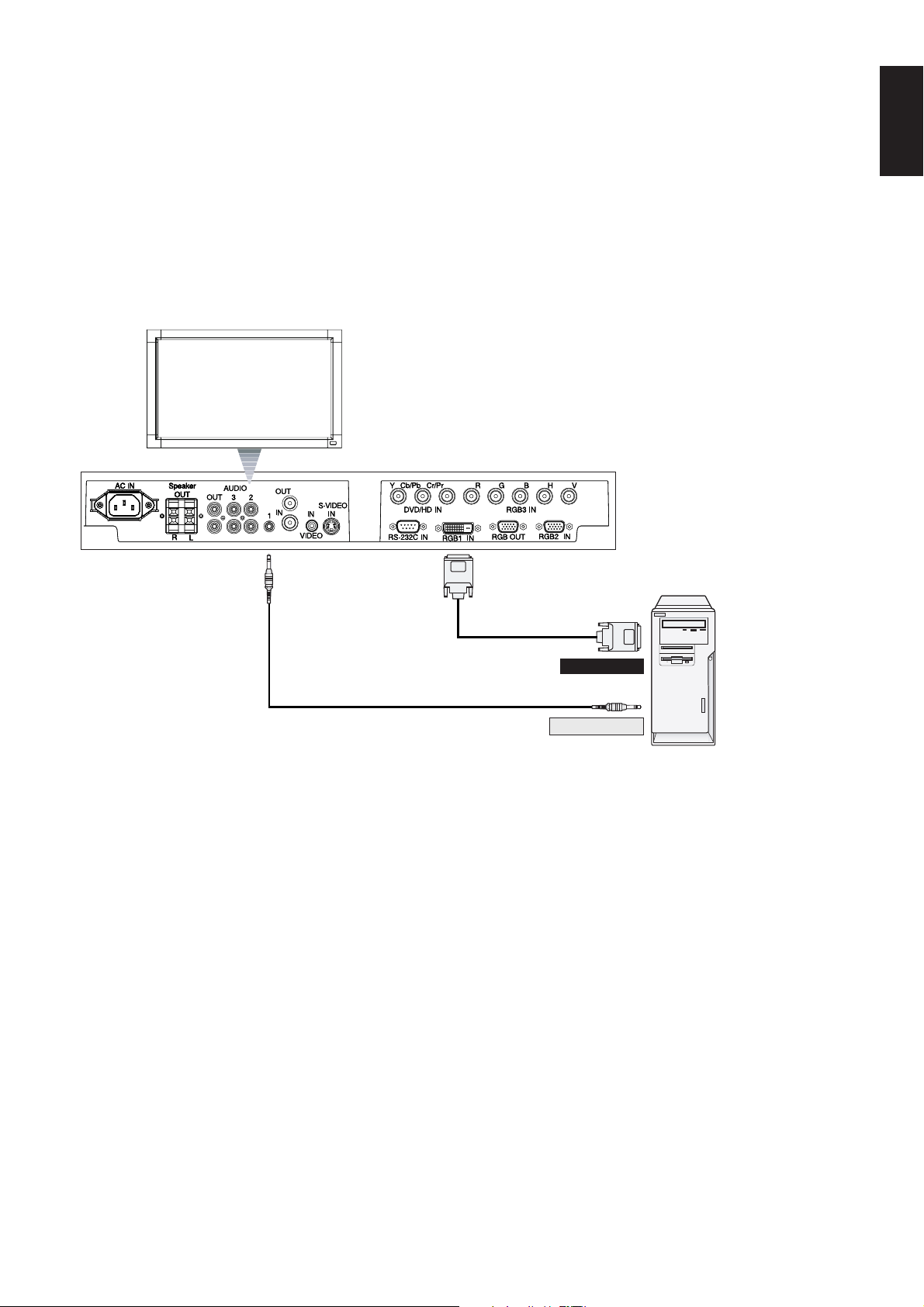

Connect the LCD Monitor to a Personal Computer ........................................................................ English-14
Connecting with Digital Interface Equipment...................................................................................... English-15
Connect the LCD Monitor to a Computer with a Digital Output ...................................................... English-15
Connecting a DVD Player with component out .................................................................................. English-16

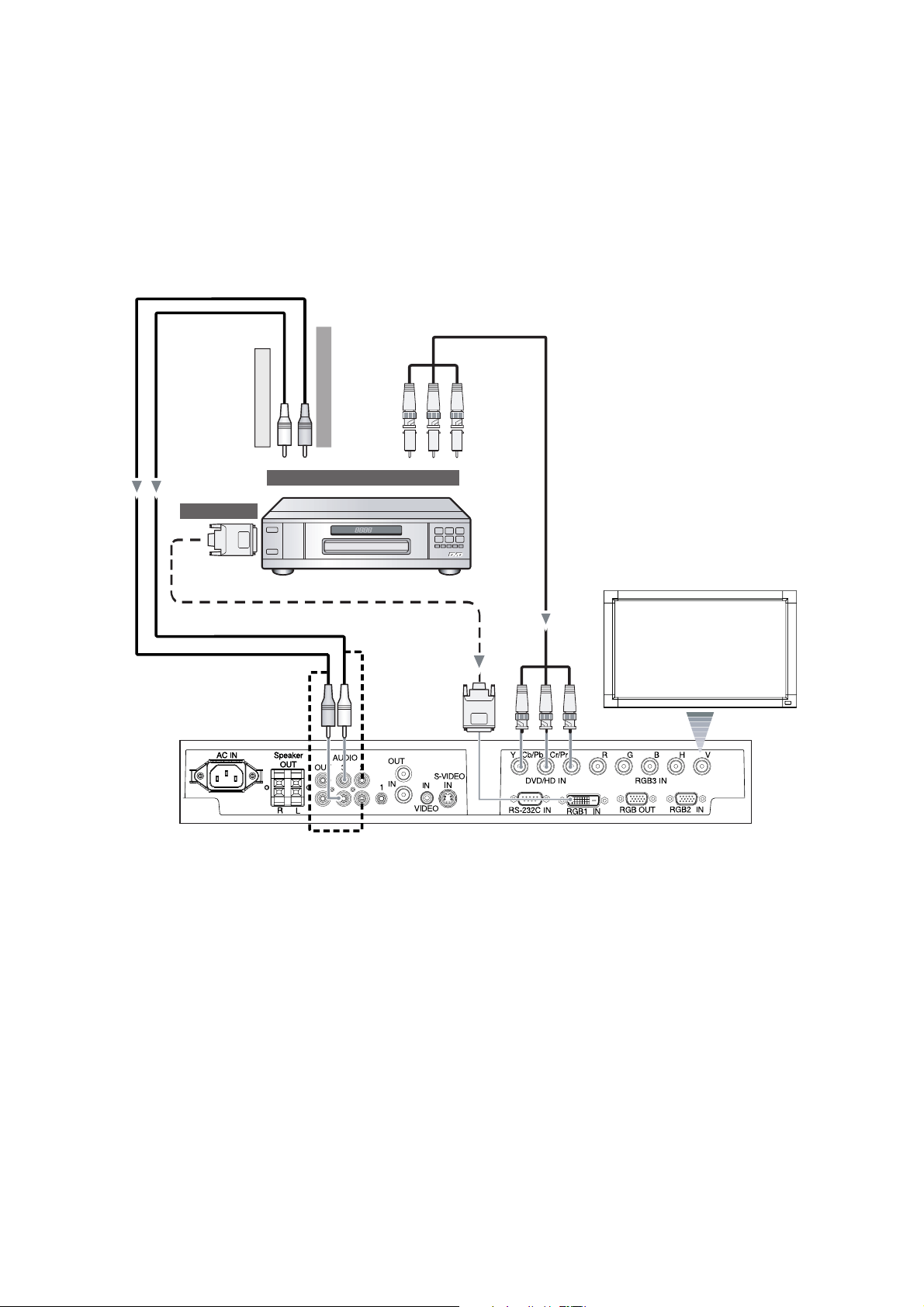

Connect the LCD Monitor to a DVD Player .................................................................................... English-16
Connecting to a Stereo Amplifier ........................................................................................................ English-17

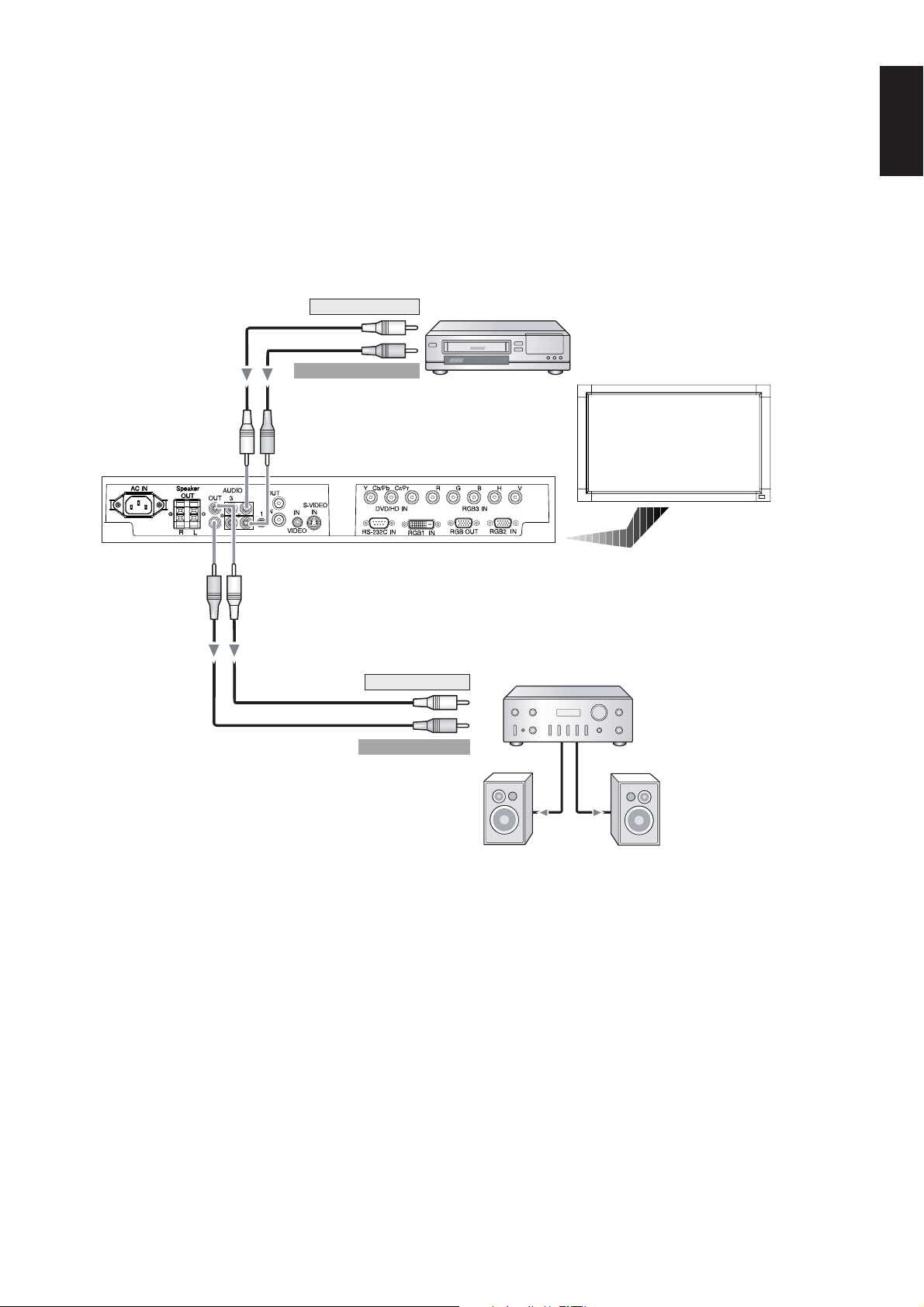

Connect the LCD Monitor to a Stereo Amplifier ............................................................................. English-17
Basic Operation ........................................................................................................................................... English-18

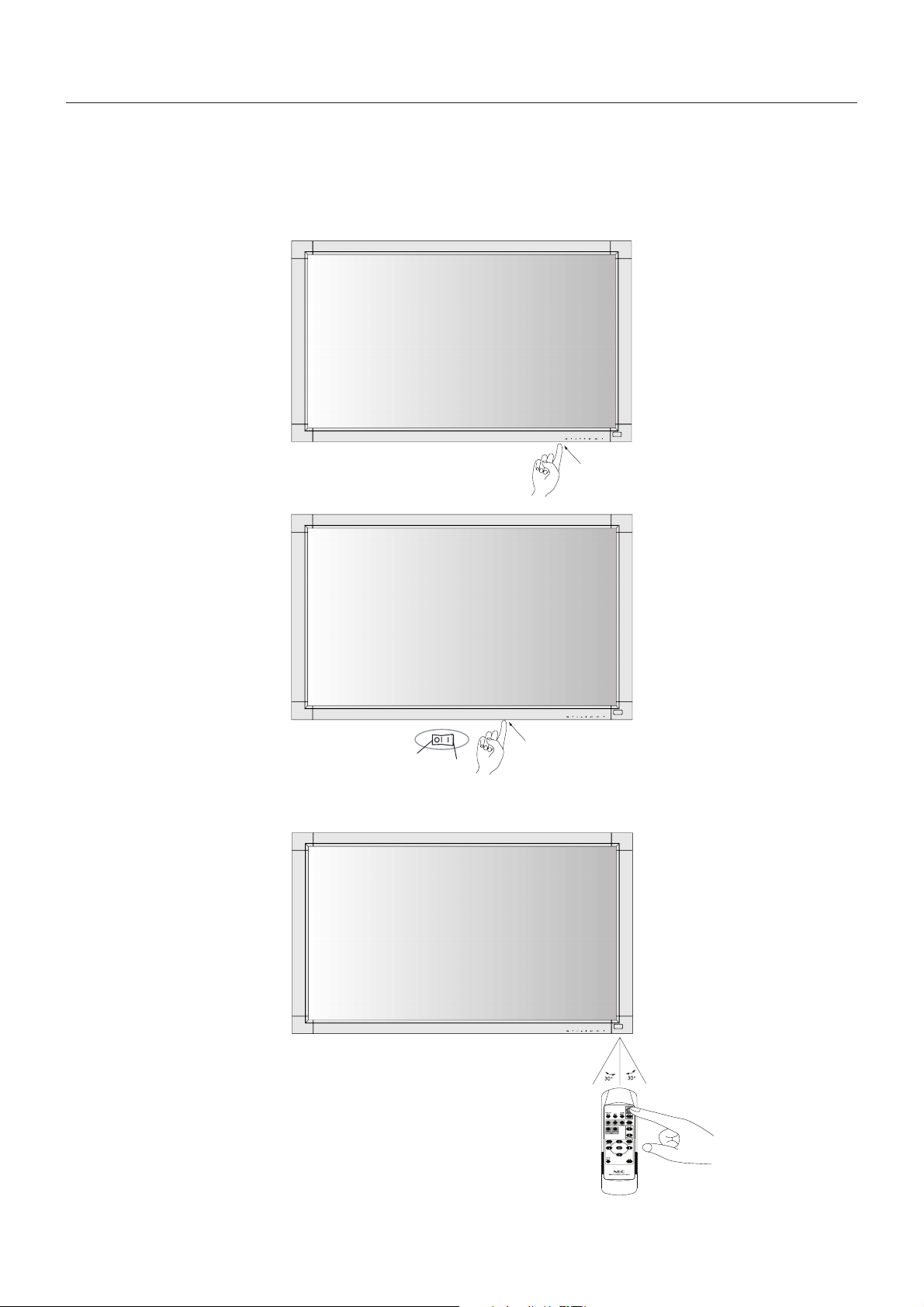

Power ON and OFF Modes ................................................................................................................ English-18
Power Indicator .................................................................................................................................. English-19
Using Power Management ................................................................................................................. English-19
Selecting a video source .................................................................................................................... English-19

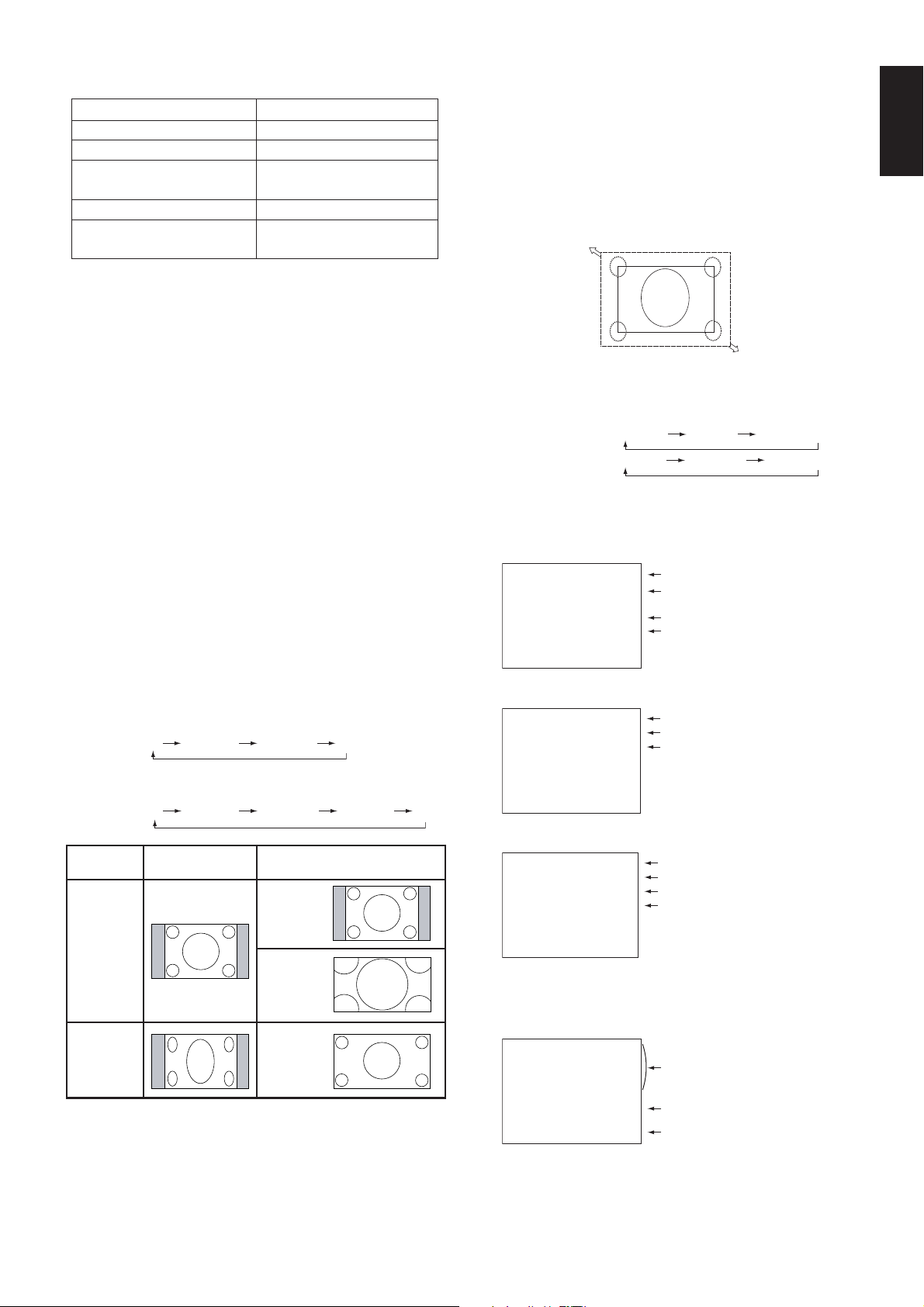

Picture Size ........................................................................................................................................ English-19
Picture Mode ...................................................................................................................................... English-19
Information OSD................................................................................................................................. English-19

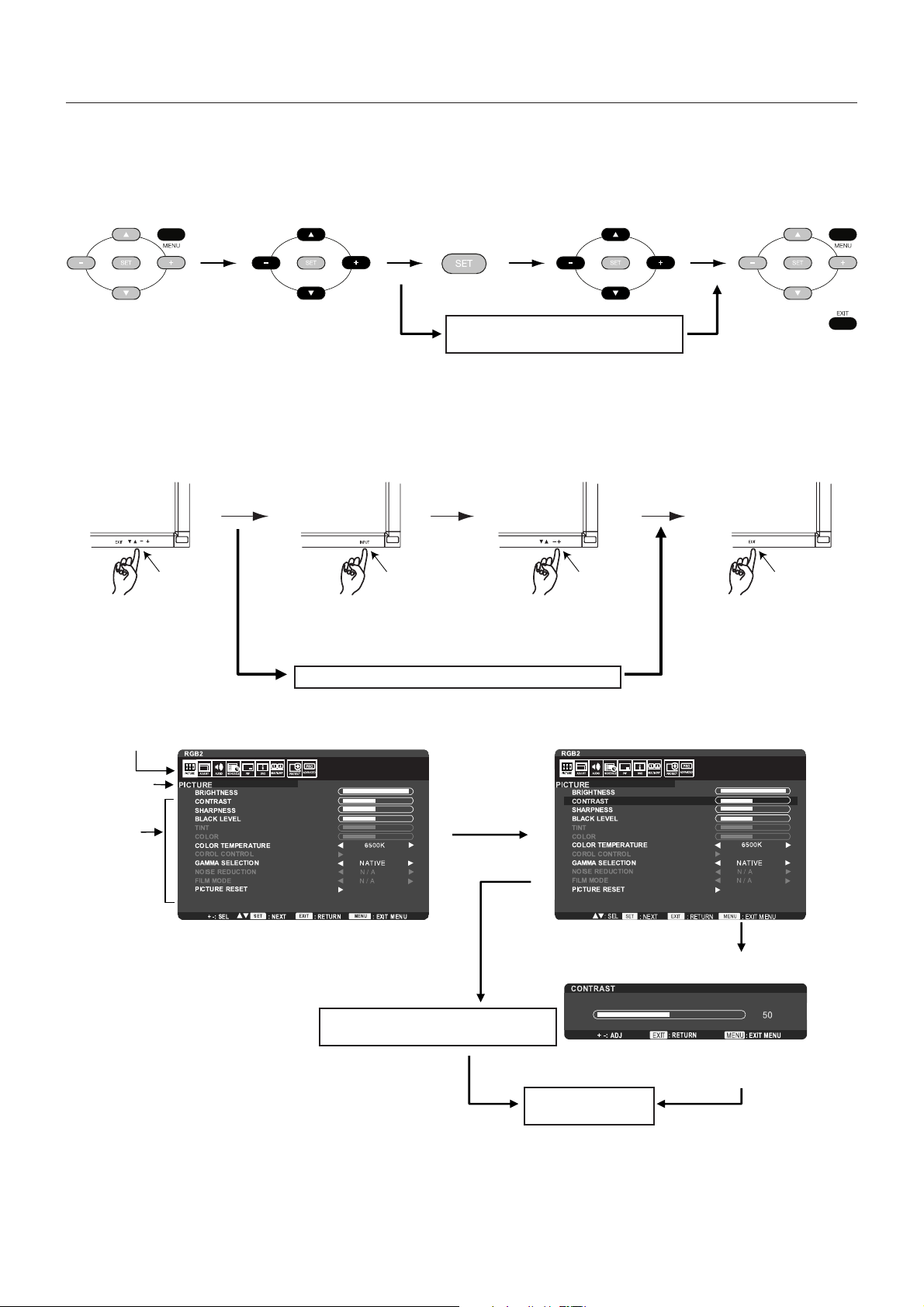

OSD (On-Screen-Display) Controls ............................................................................................................. English-20
PICTURE............................................................................................................................................ English-21
ADJUST ............................................................................................................................................. English-21
AUDIO ................................................................................................................................................ English-22
SCHEDULE ........................................................................................................................................ English-22
PIP...................................................................................................................................................... English-22
OSD.................................................................................................................................................... English-22
MULTI DISPLAY ................................................................................................................................. English-23
DISPLAY PROTECTION .................................................................................................................... English-23
ADVANCED OPTION ......................................................................................................................... English-23

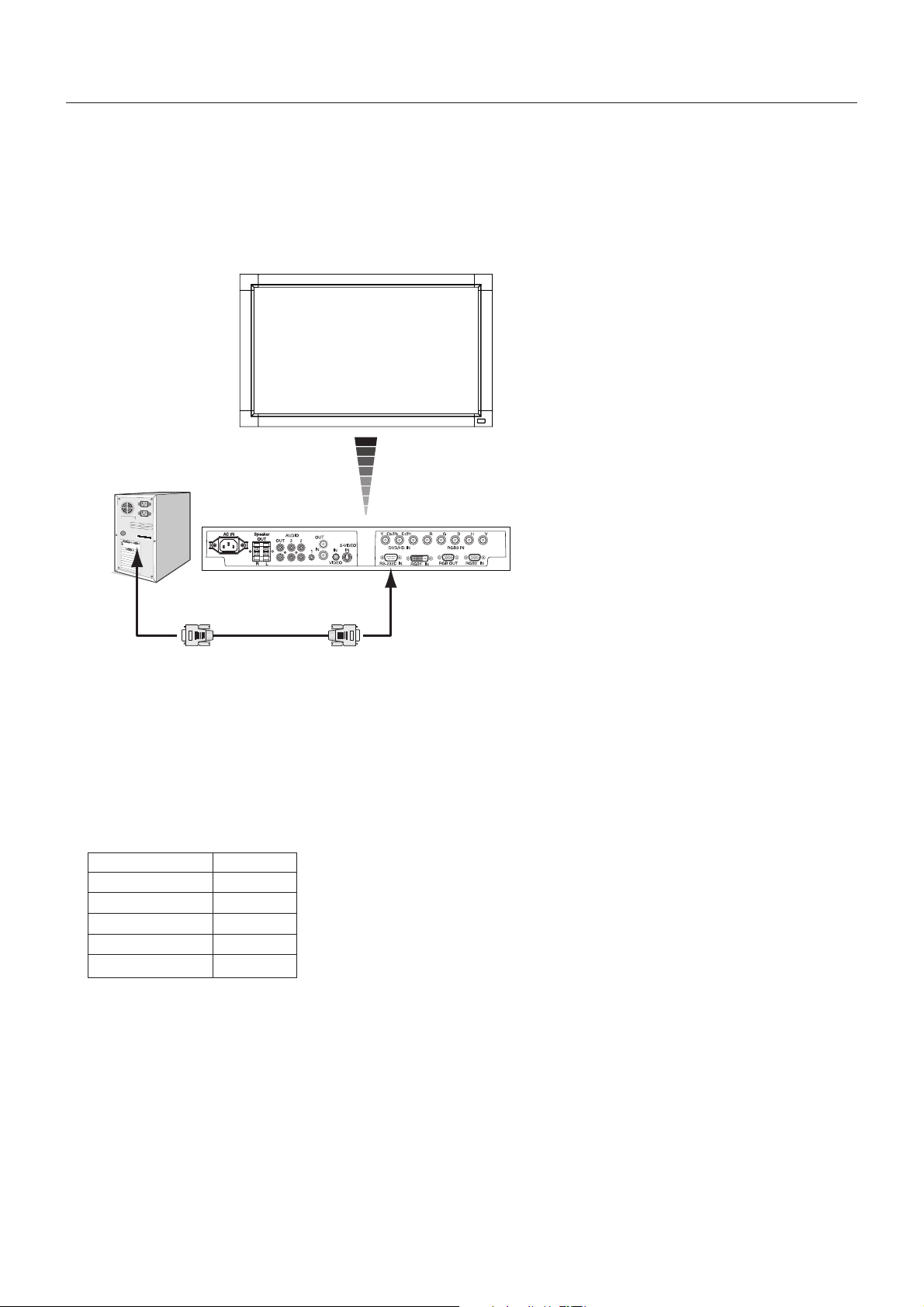

Controlling the LCD monitor via RS-232C Remote Control ......................................................................... English-26
Features ....................................................................................................................................................... English-27
Troubleshooting ........................................................................................................................................... English-28
Specifications - LCD3215 ............................................................................................................................ English-29
Specifications - LCD4215 ............................................................................................................................ English-30
Specifications - LCD4615 ............................................................................................................................ English-31

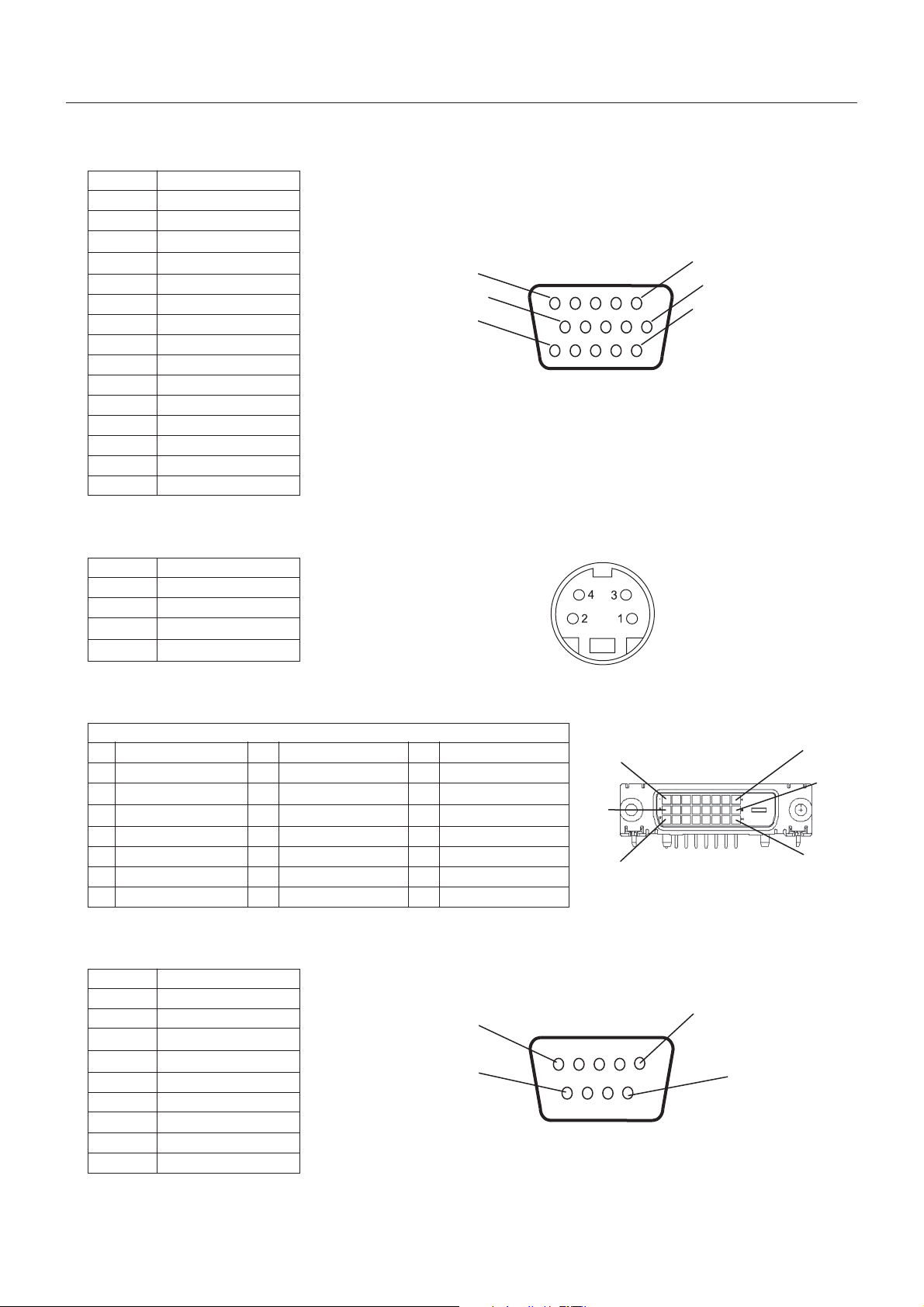

Pin Assignment ............................................................................................................................................ English-32
Manufacturer’s Recycling and Energy Information ...................................................................................... English-33
www.necdisplaysolutions.com
English-1
English

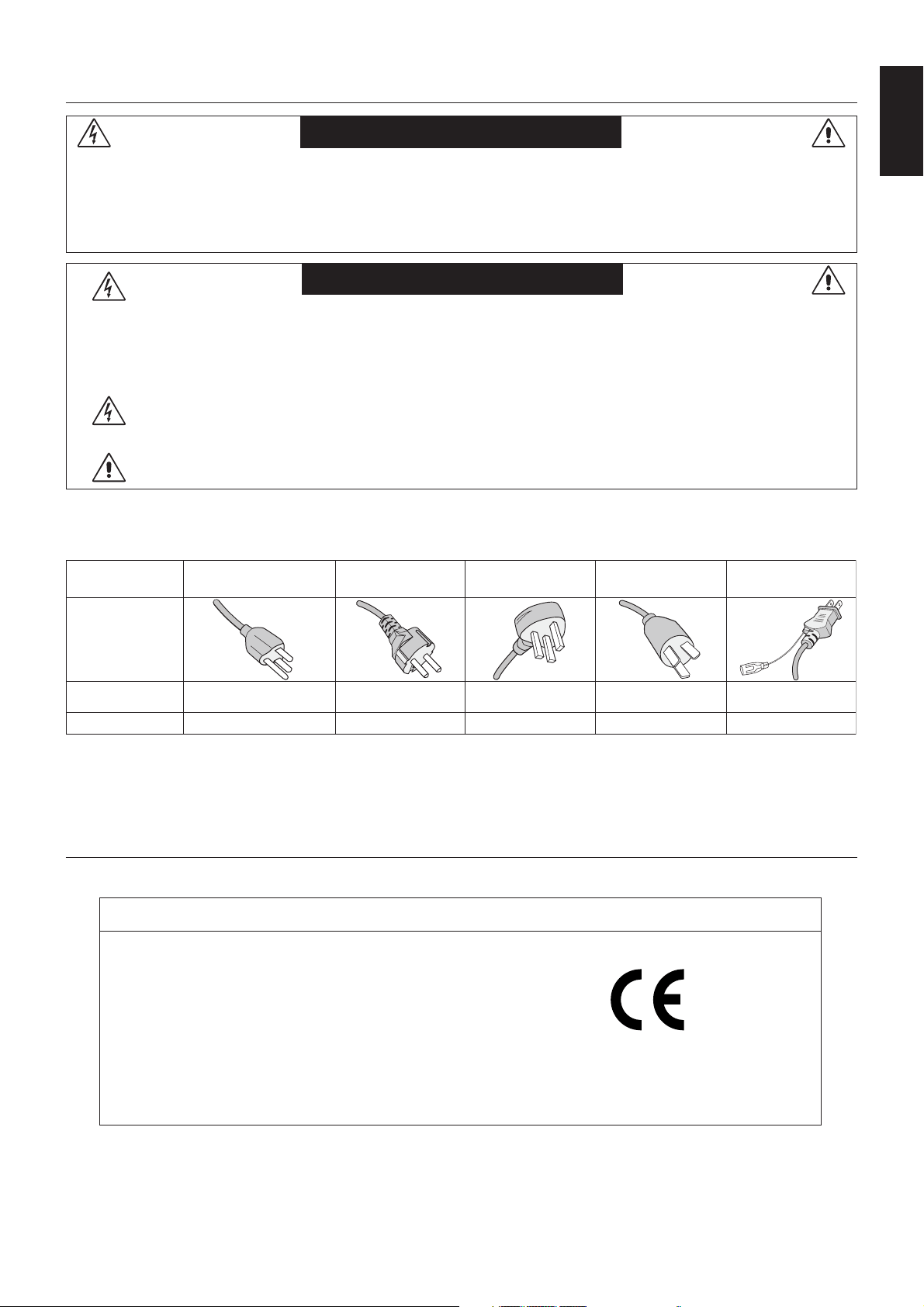

Important Information
TO PREVENT FIRE OR SHOCK HAZARDS, DO NOT EXPOSE THIS UNIT TO RAIN OR MOISTURE. ALSO, DO NOT
USE THIS UNIT’S POLARIZED PLUG WITH AN EXTENSION CORD RECEPTACLE OR OTHER OUTLETS UNLESS
THE PRONGS CAN BE FULLY INSERTED.
REFRAIN FROM OPENING THE CABINET AS THERE ARE HIGH VOLTAGE COMPONENTS INSIDE.
REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.
WARNING
CAUTION
CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, MAKE SURE POWER CORD IS UNPLUGGED FROM
WALL SOCKET. TO FULLY DISENGAGE THE POWER TO THE UNIT, PLEASE DISCONNECT THE
POWER CORD FROM THE AC OUTLET. DO NOT REMOVE COVER (OR BACK). NO USER
SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.
This symbol warns user that uninsulated voltage within the unit may have sufficient magnitude to cause
electric shock. Therefore, it is dangerous to make any kind of contact with any part inside this unit.
This symbol alerts the user that important literature concerning the operation and maintenance of this unit
has been included. Therefore, it should be read carefully in order to avoid any problems.
Declaration of the Manufacturer
We hereby certify that the color monitor MultiSync
LCD3215 (L327HP)/MultiSync LCD4215 (L427HQ)/
MultiSync LCD4615 (L467HZ) are in compliance with
Council Directive 2006/95/EC:
– EN 60950-1
Council Directive 2004/108/EC:
– EN 55022
– EN 61000-3-2
– EN 61000-3-3
– EN 55024
and marked with
NEC Display Solutions, Ltd.
4-13-23, Shibaura,
Minato-Ku
Tokyo 108-0023, Japan
CAUTION: Please use the power cord provided with this display in accordance with the table below. If a power cord is not
supplied with this equipment, please contact your supplier. For all other cases, please use a power cord that matches the
AC voltage of the power outlet and has been approved by and complies with the safety standard of your particular country.
*When operating the MultiSync LCD3215/MultiSync LCD4215/MultiSync LCD4615 monitor with its AC 125-240V power supply,
use a power supply cord that matches the power supply voltage of the AC power outlet being used.
NOTE: This product can only be serviced in the country where it was purchased.
Plug Type North America
European
Continental
U.K. Chinese Japanese
Plug Shape
Region
Voltage
U.S.A./Canada
U.K. China JapanEU (except U.K.)
120* 230 220 100230
Registration Information
Declaration
English-2
Canadian Department of Communications Compliance Statement
DOC: This Class B digital apparatus meets all requirements of the Canadian Interference-Causing Equipment Regulations.
C-UL: Bears the C-UL Mark and is in compliance with Canadian Safety Regulations according to CAN/CSA C22.2 No. 60950-1.
FCC Information
1. Use the attached specified cables with the MultiSync LCD3215 (L327HP)/MultiSync LCD4215 (L427HQ)/MultiSync
LCD4615 (L467HZ) color monitor so as not to interfere with radio and television reception.
(1) Please use the supplied power cord or equivalent to ensure FCC compliance.
(2) Please use the supplied shielded video signal cable, Mini D-SUB 15 pin to Mini D-SUB 15 pin.
2. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the
FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential
installation. This equipment generates, uses, and can radiate radio frequency energy, and, if not installed and used in
accordance with the instructions, may cause harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to
radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try
to correct the interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult your dealer or an experienced radio/TV technician for help.
If necessary, the user should contact the dealer or an experienced radio/television technician for additional suggestions.
The user may find the following booklet, prepared by the Federal Communications Commission, helpful: “How to Identify
and Resolve Radio-TV Interference Problems.” This booklet is available from the U.S. Government Printing Office,
Washington, D.C., 20402, Stock No. 004-000-00345-4.
Declaration of Conformity
This device complies with Part 15 of FCC Rules. Operation is subject to the following two conditions. (1) This device may not
cause harmful interference, and (2) this device must accept any interference received, including interference that may cause
undesired operation.
U.S. Responsible Party: NEC Display Solutions of America, Inc.
Address: 500 Park Boulevard, Suite 1100
Itasca, Illinois 60143
Tel. No.: (630) 467-3000
Type of Product: Computer Monitor
Equipment Classification: Class B Peripheral
Model: MultiSync LCD3215 (L327HP)
MultiSync LCD4215 (L427HQ)
MultiSync LCD4615 (L467HZ)
We hereby declare that the equipment specified above
conforms to the technical standards as specified in the FCC Rules.
Windows is a registered trademark of Microsoft Corporation. NEC is a registered trademark of NEC Corporation.
All other brands and product names are trademarks or registered trademarks of their respective owners.
English-3
English
FOR OPTIMUM PERFORMANCE, PLEASE NOTE THE
FOLLOWING WHEN SETTING UP AND USING
THE MULTI-FUNCTION MONITOR:
• DO NOT OPEN THE MONITOR. There are no user
serviceable parts inside and opening or removing covers
may expose you to dangerous shock hazards or other risks.
Refer all servicing to qualified service personnel.
• Do not spill any liquids into the cabinet or use your monitor
near water.
• Do not insert objects of any kind into the cabinet slots, as
they may touch dangerous voltage points, which can be
harmful or fatal or may cause electric shock, fire or
equipment failure.
• Do not place any heavy objects on the power cord.
Damage to the cord may cause shock or fire.
• Do not place this product on a sloping or unstable cart,
stand or table, as the monitor may fall, causing serious
damage to the monitor.
• The power supply cord you use must have been approved
by and comply with the safety standards of your country.
(Type H05VV-F 3G 1mm
2
should be used in Europe)
• In UK, use a BS-approved power cord with molded plug
having a black (13A) fuse installed for use with this monitor.
• Do not place any objects onto the monitor and do not use
the monitor outdoors.
•
The lamps in this product contain mercury. Please
dispose according to state, local or federal law.
• Do not bend, crimp or otherwise damage the power cord.
• If glass is broken, handle with care.
• Do not cover vent on monitor.
• Do not use monitor in high temperature, humid, dusty, or
oily areas.
• If monitor or glass is broken, do not come in contact with the
liquid crystal and handle with care.
• Allow adequate ventilation around the monitor, so that heat
can properly dissipate. Do not block ventilated openings or
place the monitor near a radiator or other heat sources.
Do not put anything on top of the monitor.
• The power cable connector is the primary means of
detaching the system from the power supply. The monitor
should be installed close to a power outlet, which is easily
accessible.
• Handle with care when transporting. Save packaging for
transporting.
• Do not touch LCD panel surface while transporting,
mounting and setting. Applying pressure on the LCD panel
can cause serious damage.
• Please clean the holes of back cabinet to reject dirt and
dust at least once a year because of set reliability.
• If using the cooling fan continuously, it’s recommended to
wipe holes a minimum of once a month.
Immediately unplug your monitor from the wall outlet and refer
servicing to qualified service personnel under the following
conditions:
• When the power supply cord or plug is damaged.
• If liquid has been spilled, or objects have fallen into the
monitor.
• If the monitor has been exposed to rain or water.
• If the monitor has been dropped or the cabinet damaged.
• If the monitor does not operate normally by following
operating instructions.
Recommended Use
• For optimum performance, allow 20 minutes for warm-up.
• Rest your eyes periodically by focusing on an object at least
5 feet away. Blink often.
• Position the monitor at a 90° angle to windows and other
light sources to minimize glare and reflections.
• Clean the LCD monitor surface with a lint-free, non-abrasive
cloth. Avoid using any cleaning solution or glass cleaner!
• Adjust the monitor’s brightness, contrast and sharpness
controls to enhance readability.
•Avoid displaying fixed patterns on the monitor for long
periods of time to avoid image persistence (after image
effects).
• Get regular eye checkups.
Ergonomics
To realize the maximum ergonomic benefits, we recommend
the following:
• Use the preset Size and Position controls with standard
signals.
• Use the preset Color Setting.
• Use non-interlaced signals.
• Do not use primary color blue on a dark background, as it is
difficult to see and may produce eye fatigue due to
insufficient contrast.
Cleaning the LCD Panel
• When the liquid crystal panel is stained with dust or dirt,
please wipe with soft cloth gently.
• Please do not rub the LCD panel with hard material.
• Please do not apply pressure to the LCD surface.
• Please do not use OA cleaner it will cause deterioration or
discolor on the LCD surface.
Cleaning the Cabinet
• Unplug the power supply
• Gently wipe the cabinet with a soft cloth
•To clean the cabinet, dampen the cloth with a neutral
detergent and water, wipe the cabinet and follow with a dry
cloth.
NOTE: The surface of the cabinet is composed of many types
of plastic. DO NOT clean with benzene thinner, alkaline
detergent, alcoholic system detergent, glass cleaner,
wax, polish cleaner, soap powder, or insecticide.
Rubber or vinyl should not be in contact with the cabinet
for an extended period of time. These types of fluids
and materials can cause the paint to deteriorate, crack
or peel.
Safety Precautions, Maintenance & Recommended Use
English-4
Contents
Power Cord*
1
Setup Manual
Video Signal Cable
(Mini D-SUB 15 pin to
Mini D-SUB 15 pin)
Wireless Remote Control
and AAA Batteries
Clamp x 2
Your new MultiSync monitor box* should contain the following:
• LCD monitor
• Power Cord*
1
•Video Signal Cable
• Setup Manual
•Wireless Remote Control and AAA Batteries
• Main switch cover
• Clamp x 2
• Screw for clamp (M4 x 8) x 2
• Screw for main switch cover (3 x 6) x 2
• CD-ROM
• Thumbscrew for stand x 2 (LCD4215 and LCD4615 only)
CD-ROM
Screw for clamp
(M4 x 8) x 2
*
1
Type and number of power cords included will depend on the where the LCD monitor is to be shipped. When more than
one power cord is included, please use a power cord that matches the AC voltage of the power outlet and has been
approved by and complies with the safety standard of your particular country.
* Remember to save your original box and packing material to transport or ship the monitor.
Thumbscrew for stand x 2
(LCD4215 and LCD4615 only)
Setup Manual
Main switch cover
Screw for main switch
cover (3 x 6) x 2
English-5
English
This device cannot be used or installed without the Tabletop
Stand or other mounting accessory for support. For proper
installation it is strongly recommended to use a trained,
NEC authorized service person. Failure to follow NEC
standard mounting procedures could result in damage to the
equipment or injury to the user or installer. Product warranty
does not cover damage caused by improper installation.
Failure to follow these recommendations could result in
voiding the warranty.
Mounting
DO NOT mount the monitor yourself. Please ask dealer.
For proper installation it is strongly recommended to use a
trained, qualified technician. Please inspect the location
where the unit is to be mounted. Mounting on wall or ceiling
is the customer’s responsibility. Not all walls or ceilings are
capable of supporting the weight of the unit. Product
warranty does not cover damage caused by improper
installation, remodelling, or natural disasters. Failure to
comply with these recommendations could result in voiding
the warranty.
DO NOT block ventilated openings with mounting
accessories or other accessories.
For NEC Qualified Personnel:
To insure safe installation, use two or more brackets to
mount the unit. Mount the unit to at least two points on the
installation location.

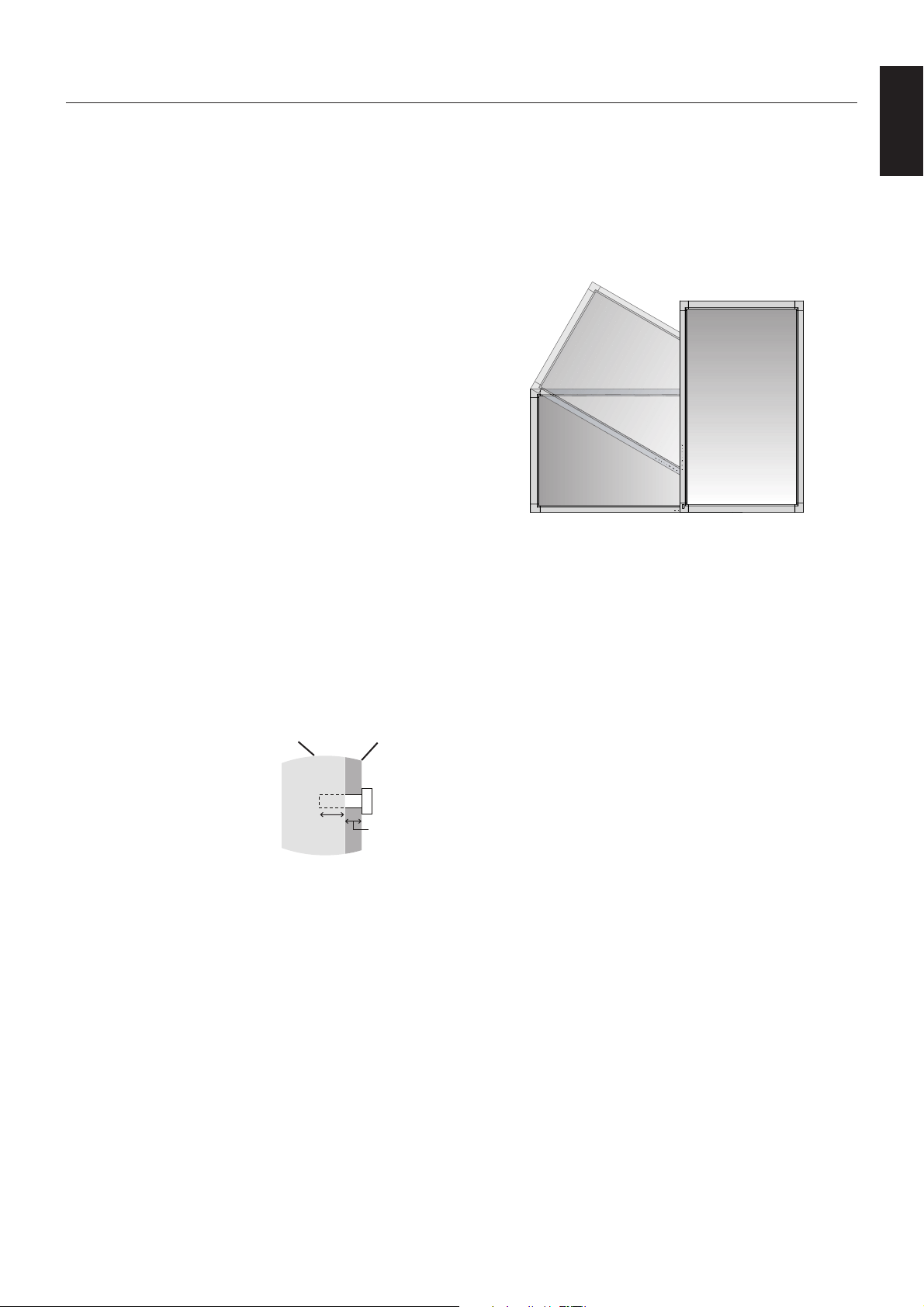

Please note the following when mounting
on wall or ceiling
• When using mounting accessories other than those that
are NEC approved, they must comply with the VESA-
compatible (FDMlv1) mounting method.
• NEC strongly recommends
using size M6 screws
(9 mm + thickness of
bracket in length). If using
screws longer than 9 mm,
check the depth of the hole.
(Recommended Fasten
Force: 310 - 410 N•cm)
NEC recommends mounting
interfaces that comply with
UL1678 standard in North
America.
• Prior to mounting, inspect the installation location to
insure that it is strong enough to support the weight of
the unit so that the unit will be safe from harm.
• Refer to the instructions included with the mounting
equipment for detailed information.
Weight of LCD assembly:
- MultiSync LCD3215: 13.1 Kg (MAX)
- MultiSync LCD4215: 21.6 Kg (MAX)
- MultiSync LCD4615: 23.9 Kg (MAX)
Installation
Unit
Mounting
Bracket
Screw
9 mm
Thickness
of Bracket
Screw length should equal
depth of hole (9 mm) + the
thickness of mounting bracket.
Mounting location
• The ceiling and wall must be strong enough to support
the monitor and mounting accessories.
• DO NOT install in locations where a door or gate can hit
the unit.
• DO NOT install in areas where the unit will be subjected
to strong vibrations and dust.
• DO NOT install near where the main power supply
enters the building.
• Do not install in where people can easily grab and hang
onto the unit or the mounting apparatus.
• When mounting in a recessed area, as in a wall, leave at
least 4 inches (10cm) of space between the monitor and
the wall for proper ventilation.
• Allow adequate ventilation or provide air conditioning
around the monitor, so that heat can properly dissipate
away from the unit and mounting apparatus.
Mounting on ceiling
• Ensure that the ceiling is sturdy enough to support the
weight of the unit and the mounting apparatus over time,
against earthquakes, unexpected vibrations, and other
external forces.
• Be sure the unit is mounted to a solid structure within the
ceiling, such as a support beam. Secure the monitor
using bolts, spring lock washers, washer and nut.
• DO NOT mount to areas that have no supporting internal
structure. DO NOT use wood screws or anchor screws
for mounting. DO NOT mount the unit to trim or to
hanging fixtures.
Maintenance
• Periodically check for loose screws, gaps, distortions, or
other problems that may occur with the mounting
apparatus. If a problem is detected, please refer to
qualified personnel for service.
• Regularly check the mounting location for signs of
damage or weakness that may occur over time.
Orientation
• When using the display in the portrait position, the
monitor should be rotated clockwise so that the left side
is moved to the top and the LED indicator light is on the
bottom. This will allow for proper ventilation and will
extend the lifetime of the monitor. Improper ventilation
may shorten the lifetime of the monitor.
English-6
Attaching Mounting Accessories
The display is designed for use with the VESA mounting
system.
1. Attach Mounting Accessories
Be careful to avoid tipping monitor when attaching
accessories.
Mounting accessories can be attached with the monitor in
the face down position. To avoid damaging the screen face,
place the protective sheet on the table underneath the LCD.
The protective sheet was wrapped around the LCD in the
original packaging. Make sure there is nothing on the table
that can damage the monitor.
When using mounting accessories other than NEC
compliant and approved, they must comply with the VESA-
compatible mounting method.
2. Installing and removing optional table
top stand
CAUTION: Installing and removing the stand must be done
by two or more people.
To install, follow those instructions included with the stand or
mounting apparatus. Use only those devices recommended
by the manufacturer.
Handle with care when mounting LCD monitor stand and
avoid pinching your fingers.
VESA Mounting Interface
3. Ventilation Requirements
When mounting in an enclosed space or recessed area,
leave adequate room between the monitor and the
enclosure to allow heat to disperse, as shown below.
Screw
Cord or chain
Clamp
4. Prevent Tipping
When using the display with the Tabletop Stand fasten the
LCD to a wall using a cord or chain that can support the
weight of the monitor in order to prevent the monitor from
falling. Fasten the cord or chain to the monitor using the
provided clamp and screw.
LCD3215: 360 mm
LCD4215: 475 mm
LCD4615: 490 mm
Before attaching the LCD monitor to the wall, make sure
that the wall can support the weight of the monitor.
Be sure to remove the cord or chain from the wall before
moving the LCD.
Screw Holes
NOTE: ST-3215 is for LCD3215. Use the Thumbscrews
included with ST-3215.
ST-4020 is for LCD4215 and LCD4615. Use the
Thumbscrew included with LCD4215 or LCD4615.
(LCD4215 and LCD4615 are not mentioned in
ST-4020 manual).
200 mm
200 mm
400 mm
Optional table top stand
Table
Protective Sheet
English-7
English
DOWN ( ) button
Acts as button to move the highlighted area down to
select adjustment items within OSD menu.
EXIT button
Activates the OSD menu when the OSD menu is turned-off.
Acts as EXIT button within the OSD to move to previous
menu.
Remote control sensor and Power Indicator
Receives the signal from the remote control (when using the
wireless remote control). See also page 9.
Glows green when the LCD monitor is in active mode.
Glows red when the LCD is in POWER OFF mode.
When the LCD monitor is in POWER SAVE mode, it will
glow both green and red. When SCHEDULE is enabled, it
will blink green and glow red. See page 19. When a
component failure is detected within the monitor, the
indicator will blink red.
Main Power Switch
On/Off switch to turn main power ON/OFF. See also page 18.
Control Key Lock Mode
This control completely locks out access to all Control Key
functions. To activate the control key lock function, press both
and and hold down simultaneously for more than
3 seconds. To resume user mode, press both and and
hold simultaneously for more than 3 seconds.
POWER button ( )
Switches the power on/off. See also page 18.
MUTE button
Switches the audio mute ON/OFF.
INPUT button
Acts as SET button within OSD menu. Toggle switches
between [RGB1], [RGB2], [RGB3], [DVD/HD], [VIDEO(S)],
[VIDEO].
PLUS (+) button
Acts as (+) button to increase the adjustment with OSD menu.
Increases the audio output level when the OSD menu is
turned off.
MINUS (-) button
Acts as (-) button to decrease the adjustment with OSD menu.
Decreases the audio output level when the OSD menu is
turned off.
UP ( ) button
Acts as button to move the highlighted area up to select
adjustment items within OSD menu.
Control Panel
Parts Name and Functions
OFF ON
English-8
Terminal Panel
AUDIO OUT
To output the audio signal from the AUDIO IN 1, 2 and 3
jack to an external device (stereo receiver, amplifier, etc.).
VIDEO INPUT/OUTPUT Connector
VIDEO IN connector (BNC and RCA): To input a
composite video signal. BNC and RCA connectors are not
available at the same time (Use only one input).
VIDEO OUT connector (BNC): To output the composite
video signal from the VIDEO IN connector.
VIDEO(S) IN connector (Mini DIN 4 pin): To input the
VIDEO(S) (Y/C separate signal).
EXTERNAL CONTROL (D-Sub 9 pin)
Connect RS-232C input from external equipment such as a
PC in order to control RS-232C functions.
EXTERNAL SPEAKER TERMINAL
To output the audio signal from AUDIO 1, 2, 3.
Note: This speaker terminal is for optional speaker.
SP-3215 for MultiSync LCD3215, SP4020-4620 for
MultiSync LCD4215, SP-4615 for MultiSync LCD4615.
When you use SP4020-4620 for LCD4215, please use
SP4020-4620 with large extension blocks (included in
speaker), as if being mounted on LCD4620. (LCD4215 is
not mentioned in SP4020-4620 manual).
Kensington Lock (LCD4215 and LCD4615 only)
For security and theft prevention.
AC IN connector
Connects with the supplied power cord.
RGB1 IN (DVI-D)
To input digital RGB signals from a computer or HDTV
device having a digital RGB output.
* This connector does not support analog input.
RGB2 IN (mini D-Sub 15 pin)
To input analog RGB signals from a personal computer or
from other RGB equipment.
RGB3 IN [R, G, B, H, V] (BNC)
To input analog RGB signals or signals from other RGB
equipment.
This is also to connect equipment such as a DVD player,
HDTV device and Set-Top-Box.
RGB OUT (mini D-Sub 15 pin)
To output the signal from the RGB2 and RGB3 IN connector
to an input on a separate device.
DVD/HD IN [Y, Cb/Pb, Cr/Pr] (BNC)
Connecting equipment such as a DVD player, HDTV device,
or Set-Top-Box.
AUDIO IN 1, 2, 3
To input audio signal from external equipment such as a
computer, VCR or DVD player.
English-9
English
PIP (Picture In Picture) button
ON/OFF button: Toggle switches between PIP and POP
(Picture Out Picture). See page 22.
INPUT button: Selects the “picture in picture” input signal.
CHANGE button: Replaces to the main picture and sub
picture.
NOTE: The “PIP” and “POP” modes do not function when
the screen size is “CUSTOM” or “REAL”.
POWER button
Switches the power on/off.
INPUT button
Selects input signal, [RGB1], [RGB2], [RGB3], [DVD/HD],
[VIDEO(S)], [VIDEO].
AUDIO INPUT button
Selects audio input source [AUDIO:1], [AUDIO:2], [AUDIO:3].
SIZE button
Selects picture size, [FULL], [NORMAL], [CUSTOM],
[DYNAMIC] and [REAL]. See page 19.
PICTURE MODE button
Selects picture mode, [HIGHBRIGHT], [STANDARD],
[sRGB], [CINEMA]. See page 19.
HIGHBRIGHT: for moving images such as DVD
STANDARD: for images
sRGB: for text based images
CINEMA: for movies.
MUTE button
Turns on/off mute function.
VOLUME UP/DOWN button
Increases or decreases audio output level.
Wireless Remote Control
RGB1 RGB2 RGB3 DVD/HD VIDEO(S) VIDEO
RGB1 - - - -
RGB2 - - - -
RGB3 - - - -
DVD/HD - - - -
VIDEO(S) --
VIDEO
--
Sub picture
Main picture
STILL button
ON/OFF button: Activates/deactivates still picture mode.
STILL CAPTURE button: Captures still picture.
DISPLAY button
Turns on/off the information OSD. See page 19.
AUTO SETUP button
Enters auto setup menu. See page 21.
MENU button
Turns on/off the menu mode.
UP/DOWN button
Acts as
button to move the highlighted area up or down
to select adjustment items within OSD menu.
Small screen which adjusted “PIP” mode moves up or down.
MINUS/PLUS (+/-) button
Increases or decreases the adjustment level within OSD
menu settings.
Small screen which adjusted “PIP” mode moves left or right.
SET button
Makes selection.
EXIT button
Returns to previous menu within OSD menu.
PIP POP OFF
English-10
Operating Range for the Remote
Control
Point the top of the remote control toward the LCD monitor’s
remote sensor during button operation.
Use the remote control within a distance of about 7 m (23 ft.)
from the front of the LCD monitor’s remote control sensor or
at a horizontal and vertical angle of within 30° within a
distance of about 3.5 m (10 ft.)
Caution: Important, the remote
control system may
not function when
direct sunlight or strong
illumination strikes the remote control
sensor of the LCD monitor, or when there is
an object in the path.
Handling the remote control
• Do not subject to strong shock.
• Do not allow water or other liquid to splash the remote
control. If the remote control gets wet, wipe it dry
immediately.
•Avoid exposure to heat and steam.
• Other than to install the batteries, do not open the
remote control.
English-11
English
1. Determine the installation location
CAUTION: Installing your LCD display must be done by a
qualified technician. Contact your dealer for
more information.
CAUTION:
MOVING OR INSTALLING THE LCD MONITOR
MUST BE DONE BY TWO OR MORE PEOPLE.
Failure to follow this caution may result in injury if
the LCD monitor falls.
CAUTION: Do not mount or operate the display upside
down, face up, or face down.
CAUTION: This LCD has a temperature sensor and cooling
fan. If the LCD becomes too hot, the cooling fan
will turn on automatically. If the LCD becomes
overheated while the cooling fan is running, a
“Caution” warning will appear. If the “Caution”
warning appears, discontinue use and allow the
unit to cool. Using the cooling fan will reduce the
likelihood of early circuit failure and may help
reduce image degradation and “Image
Persistance”.
If the LCD is used in an enclosed area or if the
LCD panel is covered with a protective screen,
please check the inside temperature of the
monitor by using the “HEAT STATUS” control in
the OSD (see page 23). If the temperature is
higher than the normal operating temperature,
please turn the cooling fan to ON within the
SCREEN SAVER menu within the OSD (see
page 23).
IMPORTANT: Lay the protective sheet, which was wrapped
around the LCD monitor when it was
packaged, beneath the LCD monitor so as
not to scratch the panel.

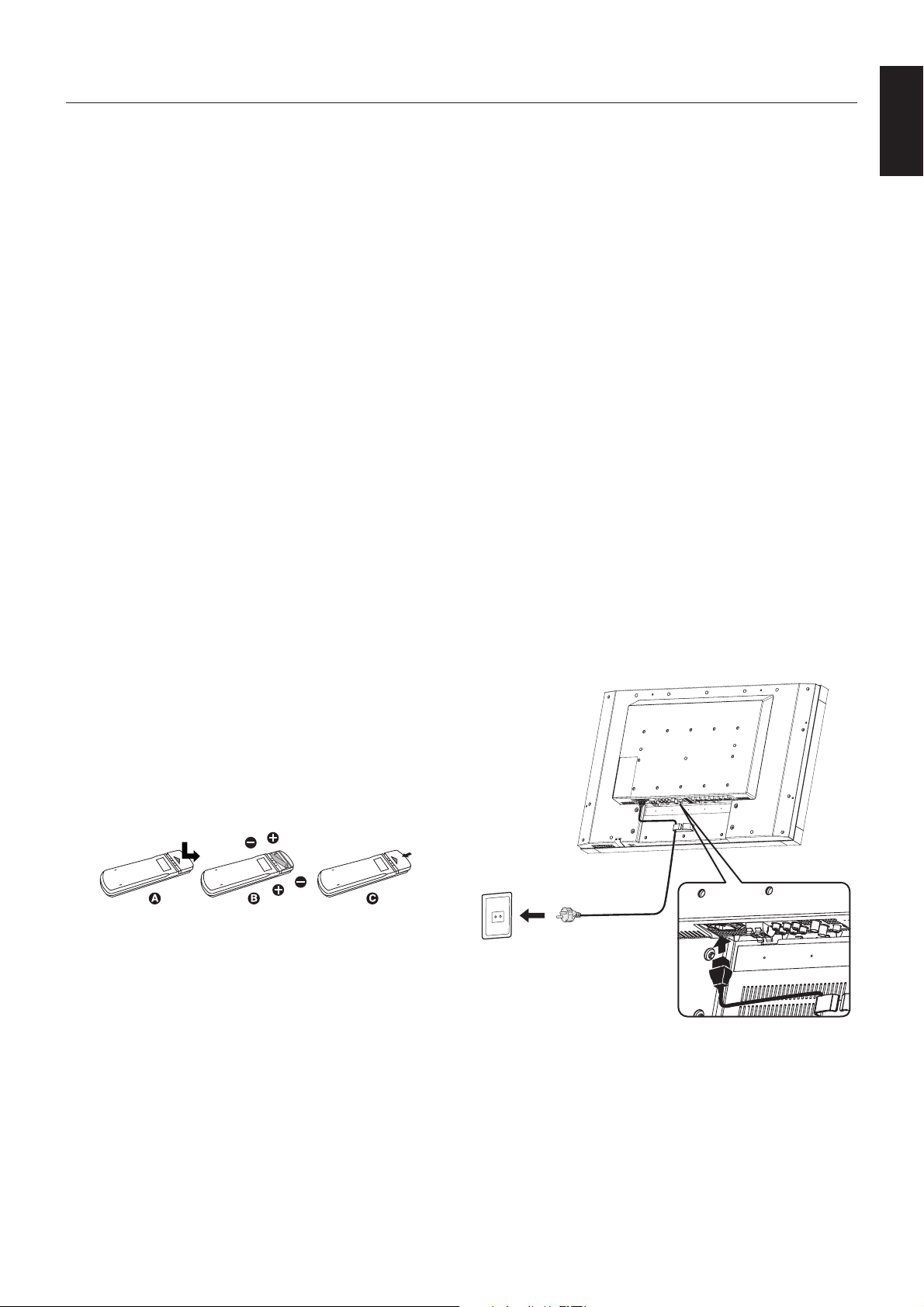

2. Install the remote control batteries
The remote control is powered by two 1.5V AAA batteries.
To install or replace batteries:
NEC recommends the following battery use:
• Place “AAA” size batteries matching the (+) and (-) signs
on each battery to the (+) and (-) signs of the battery
compartment.
• Do not mix battery brands.
• Do not combine new and old batteries. This can shorten
battery life or cause liquid leakage of batteries.
• Remove dead batteries immediately to prevent battery
acid from leaking into the battery compartment.
• Do not touch exposed battery acid, it may injure skin.
NOTE: If you do not intend to use the Remote Control for a
long period of time, remove the batteries.
3. Connect external equipment
(See pages 13-17)
•To protect the external equipment; turn off the main
power before making connections.
• Refer to your equipment user manual for further
information.
4. Connect the supplied power cord
• The equipment should be installed close to an easily
accessible power outlet.
• Fully insert the prongs into the power outlet socket.
A loose connection may cause image degradation.
NOTE: Please refer to the “Safety Precautions and
Maintenance” section of this manual for proper
selection of AC power cord.
Setup
A. Press and slide to open the cover.
B. Align the batteries according to the (+) and (–)
indications inside the case.
C. Replace the cover.
CAUTION: Incorrect usage of batteries can result in leaks
or bursting.
English-12
5. Switch on the power of all the attached
external equipment
When connected with a computer, switch on the power of
the computer first.
6. Operate the attached external
equipment
Display the signal from the desired input source.
7. Adjust the sound
Make volume adjustments when required.
8. Adjust the screen (See pages 21 and 22)
Make adjustments of the screen display position when
necessary.
9. Adjust the image (See page 21)
Make adjustments such as brightness or contrast when
required.
10. Recommended Adjustments
To reduce the risk of the “Image Persistence”, please adjust
the following items based on the application being used:
“POWER SAVE”, “SCREEN SAVER”, “SIDE BORDER
COLOR” (See page 23) “DATE AND TIME”, “SCHEDULE”
(See page 22).

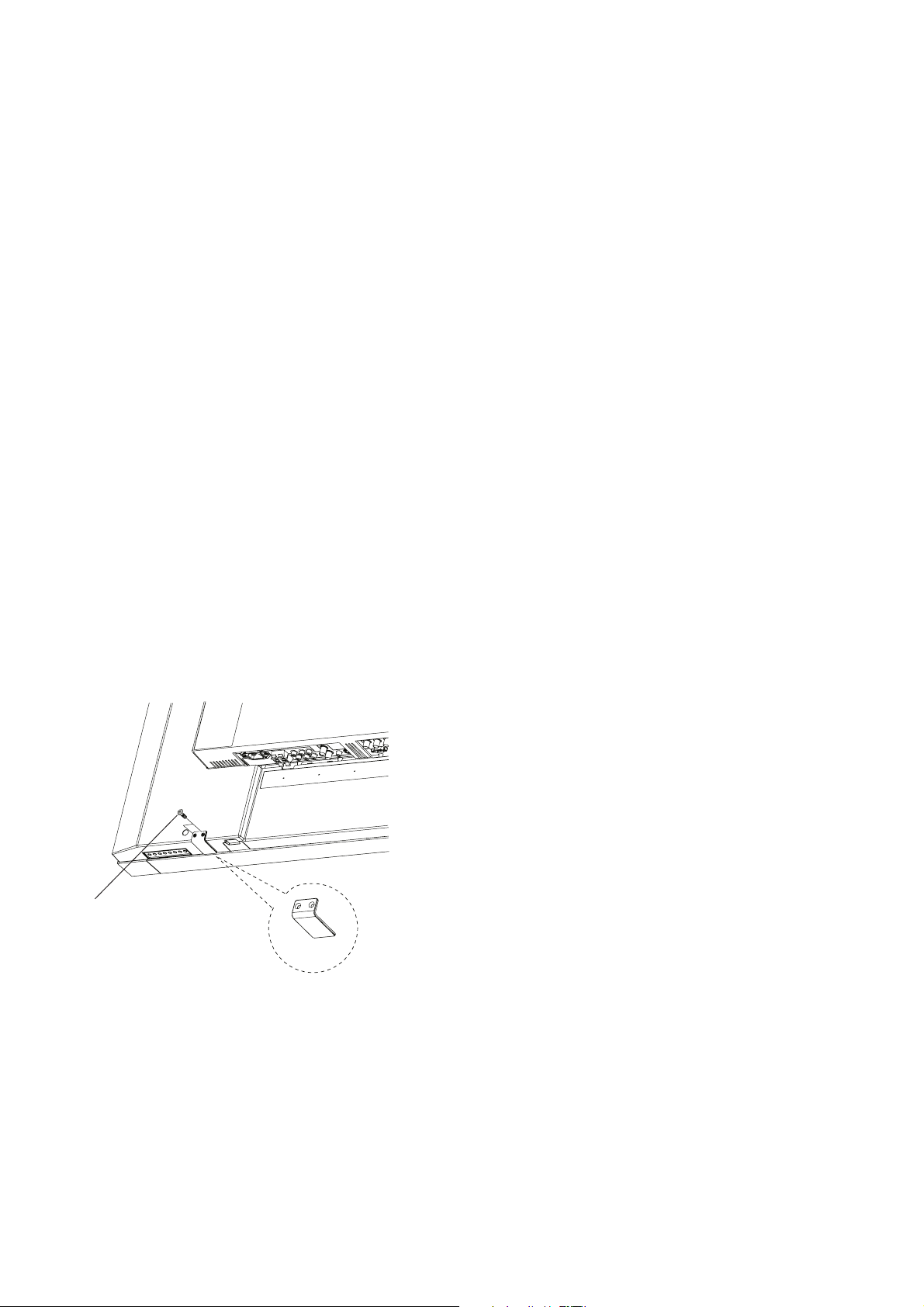

11.To prevent the main power switch from
being changed
To prevent use of the main power switch, please attach the
main switch cover, which is enclosed as an accessory.
NOTE: With the main power switch cover in place, the main
power switch cannot be turned off. Remove main
power switch cover in order to switch off the display.
Main switch cover
Screw
English-13
English
Connections
Before making connections:
* First turn off the power of all the attached equipment and make connections.
* Refer to the user manual included with each separate piece of equipment.
Wiring Diagram
Personal computer
BNC x 5BNC x 3RCA
RCA
RCA
RCA
To DVI output
Mini D-sub 15 pin
To DVD Component
video output
DVD player
To audio output
BNC-to-RCA
adapter BNC x 3
To audio output
VCR
To composite Output
In case of VCR
DVI-D connector
To audio output
To audio output
Equipment with
digital Interface
To analog RGB output
English-14
Connecting a Personal Computer
Connecting your computer to your LCD monitor will enable you to display your computer’s screen image.
Some video cards and a pixel clock over 165MHz may not display an image correctly.
Your LCD monitor displays proper image by adjusting the factory preset timing signal automatically.
<Factory preset signal timing>
Connect the LCD Monitor to a Personal Computer
•To connect the RGB2 connector (mini D-sub 15 pin) on the LCD monitor, use the supplied PC - Video RGB signal cable
(mini D-sub 15 pin to mini D-sub 15 pin).
•To connect the RGB3 connector (BNC) on the LCD monitor, use a mini D-sub 15 pin to BNC x 5 signal cable (sold
separately). Select RGB3 from the INPUT button.
• When connecting one or more LCD monitors, use the RGB OUT connector (mini D-sub 15 pin) (RGB2 and RGB3 INPUT
only).
• AUDIO IN 1, 2 and 3 can be used for audio input. To select audio source [AUDIO:1], [AUDIO:2] or [AUDIO:3] press the
AUDIO INPUT button.
LCD monitor
BNC x 5
Mini D-sub 15 pin
Mini D-sub 15 pin
To analog RGB output
Horizontal Vertical LCD3215/LCD4215 LCD4615
640 x 480 31.5kHz 60Hz
800 x 600 37.9kHz 60Hz
1024 x 768 48.4kHz 60Hz
1280 x 768 48kHz 60Hz
1360 x 768 48kHz 60Hz Recommended resolution
1280 x 1024 64kHz 60Hz Compressed image
1600 x 1200 75kHz 60Hz Compressed image Compressed image
1920 x 1080 66.6kHz 60Hz Compressed image Recommended resolution
Resolution
Remarks
Scanning frequency
To audio output
PC or IBM compatible
LCD monitor (second monitor)
English-15
English
LCD monitor
Equipment with a
digital interface such
as a personal
computer with RGB
output (TMDS)
DVI-D connector
DVI-D connector
To DVI output
To audio output
Connect the LCD Monitor to a Computer with a Digital Output
• The RGB1 connector also accepts a DVI-D cable.
• Input TMDS signals conforming to DVI standards.
•To maintain display quality, use a cable that conforms to DVI standards.
• AUDIO IN 1, 2 and 3 can be used for audio input. To select audio source [AUDIO:1], [AUDIO:2] or [AUDIO:3] press the
AUDIO INPUT button.
• For mode selection, see “DVI MODE” on page 24.
Connecting with Digital Interface Equipment
Connections can be made with equipment that is equipped with a digital interface that complies with the DVI (Digital Visual
Interface) standard.
English-16
Connect the LCD Monitor to a DVD Player
•To connect the DVD/HD IN connector (BNC) on the LCD monitor, use an BNC connector cable (sold separately).
Some DVD players may have different connectors such as DVI-D connector.
Select [DVI-HD] mode from the “DVI MODE” menu. For mode selection, see “DVI MODE” on page 24.
AUDIO IN 1, 2 and 3 can be used for audio input. To select audio source [AUDIO:1], [AUDIO:2] or [AUDIO:3] press the
AUDIO INPUT button.
Connecting a DVD Player with component out
Connecting your DVD player to your LCD monitor will enable you to display DVD video.
Refer to your DVD player user’s manual for more information.
LCD monitor
DVI-D
connector
BNC x 3
To DVI output
To DVD Component video output
To audio left output
To audio right output
BNC-to-RCA
adapter BNC x 3
English-17
English
Connect the LCD Monitor to a Stereo Amplifier
•Turn on the LCD monitor and the amplifier only after all connections have been made.
• Use a stereo Mini-RCA cable to connect the AUDIO OUT connector (Stereo Mini Jack) on the LCD monitor to the audio
input on the amplifier.
• Do not reverse the audio left and right jacks.
• The AUDIO IN is used for audio input.
• The AUDIO OUT jack outputs sound from the selected Audio input.
Connecting to a Stereo Amplifier
You can connect your stereo amplifier to your LCD monitor. Refer to your amplifier owner’s manual for more information.
LCD monitor
RCA
To audio right output
To audio left output
VCR or Laser disc player
To audio right input
To audio left input
Amplifier
External speaker External speaker
RCA
English-18
Basic Operation
Power ON and OFF Modes
The LCD monitor power indicator will turn green while powered on and will turn red while powered off.
NOTE: The Main Power Switch must be in the ON position in order to power up the monitor using the remote control or the
Power Button on the front of the LCD.
Power Button
Main Power Switch
ON
OFF
Using the remote control
English-19
English
Picture Mode
RGB1, RGB2, RGB3
STANDARD sRGB HIGHBRIGHT
DVD/HD, VIDEO(S)
STANDARD CINEMA HIGHBRIGHT
VIDEO
NORMAL: Displays the aspect ratio the same as it is sent
from the source.
FULL: Fills entire screen.
DYNAMIC: Expands a 4:3 pictures to fill the entire screen
with non-linearity. Some of the outside image area will be
cut off due to expansion.
CUSTOM (ZOOM)
The image can be expanded beyond the active display area.
The image which is outside of active display area is not
shown.
ZOOM
ZOOM
Power Indicator
Using Power Management
The LCD monitor follows the VESA approved DPM Power
Management function.
The power management function is an energy saving
function that automatically reduces the power consumption
of the display when the keyboard or the mouse has not been
used for a fixed period.
The power management feature on your new display has
been set to the “ON” mode. This allows your display to enter
a Power Saving Mode when no signal is applied. This could
potentially increase the life and decrease the power
consumption of the display.
Selecting a video source
To view a video source:
Use the input button to set [VIDEO(S)] or [VIDEO].
Use the COLOR SYSTEM menu to set [AUTO], [PAL],
[NTSC], [PAL60], [4.43NTSC], [SECAM], according to your
video format.
Picture Size
RGB1, RGB2, RGB3
FULL NORMAL CUSTOM REAL
DVD/HD, VIDEO(S), VIDEO
FULL NORMAL DYNAMIC CUSTOM REAL
Status
Power ON Green
Power OFF Red
Power Standby when Red On
“SCHEDULE” is enabled Green Blinking
Power Standby Red, Green
Diagnosis (Detecting failure) Red Blinking
* See troubleshooting on page 28
Aspect ratio
of image
NORMAL
DYNAMIC
FULL
4:3
Squeeze
Unchanged view*
1
Recommended selection
for picture size*
1
*
1
Grey areas indicate unused portions of the screen.
RGB1, 2, 3
DVD/HD
VIDEO
PIP or POP
Main:RGB2
Sub:VIDEO(S)
Information OSD
Video Input mode
Input signal Information
Audio input mode
Picture Size mode
RGB2
1024 x 768
48kHz 60Hz
AUDIO : 1
SIZE : FULL
)
Video Input mode
Audio input mode
Picture Size mode
DVD/HD
AUDIO : 2
SIZE : FULL
Video Input mode
Input Signal Colour System mode
Audio input mode
Picture Size mode
VIDEO(S)
NTSC
AUDIO : 3
SIZE : NORMAL
Main picture Information
Sub picture Information
Main picture Information
RGB2
1024 x 768
48kHz 60Hz
AUDIO : 1
VIDEO(S)
NTSC
SIZE : FULL
)
REAL: Image will be displayed 1 by 1 pixel.
English-20
OSD (On-Screen-Display) Controls
Press MENU button to
open Main menu.
Press SET Button
to enter next menu
to adjust.
Press Up, Down or “+”, “-”
button to select function,
or setting to be adjusted.
Press MENU or EXIT
button to exit.
Remote Control
Press EXIT button to open
Main menu and press “+”, “-”
button to select Main menu.
Then press Up, Down button
to enter Sub menu.
Press INPUT button to
enter next menu to
adjust.
Press Up, Down or “+”, “-”
button to select function, or
setting to be adjusted.
Press EXIT button to exit.
Control Panel
Press “+”, “-” button to
select Main menu, and
press Up, Down button
to enter Sub menu.
Press +, - button to make setting to be
adjusted.
OR
EXIT button
Then, “+”, “-”,
Up, Down
button
Press +, - button to make setting to be adjusted.
INPUT button Up, Down or
“+”, “-” button
EXIT button
OSD screen
Main menu icon
Main menu
Sub menu
Press MENU button to open Main menu.
Press +, - button to select Main menu.
Press down or up
button to enter
Sub menu.
OR
Press +, - button to make setting to be
adjusted.
Press MENU or
EXIT button to exit.
Press SET button to enter next menu to adjust.
Press Up, Down or “+”, “-” button to select
function or setting to be adjusted.
OR
English-21
English
Setting Default
BRIGHTNESS Adjusts the overall image and background brightness.
CONTRAST Adjusts the image brightness in relation to the input signal.
NOTE: sRGB picture mode is standard and cannot be changed.
SHARPNESS Adjusts the crispness of the image.
BLACK LEVEL Adjusts the image brightness in relation to the background.
TINT Adjusts the tint of the screen.
INPUT DVD/HD, VIDEO(S), VIDEO only
COLOR Adjusts the color depth of the screen.
INPUT DVD/HD, VIDEO(S), VIDEO only
COLOR TEMPERATURE Color temperature can be selected out of NATIVE (10000K), 9300K, USER, 6500K and 5000K.
When USER is selected, R.G.B can be adjusted individually. (RGB 1,2,3 only)
COLOR CONTROL Adjusts the levels of the Red, Green, Blue and Saturation.
INPUT RGB1, 2, 3 only NOTE: It can be adjusted only when USER is selected by COLOR TEMPERATURE.
USER-R Adjusts the level of RED.
USER-G Adjusts the level of GREEN.
USER-B Adjusts the level of BLUE.
GAMMA SELECTION Select a display gamma for best picture quality.
NATIVE Gamma correction is handled by the LCD panel.
2.2 Typical display gamma for use with a PC.
2.4 Good for video (TV, DVD, etc.)
S GAMMA Special gamma for certain types of movies. Raises the dark parts and lowers the light parts of the image.
NOTE: sRGB picture is standard and cannot be changed.
NOISE REDUCTION Adjusts the amount of noise reduction.
INPUT VIDEO(S), VIDEO only
FILM MODE Selects Film mode function. ( AUTO)
INPUT DVD/HD, VIDEO(S), VIDEO only This mode is better suited for movies, which is converted 24 Frames/sec source to DVD Video.
PICTURE RESET Resets the all settings within the PICTURE menu back to factory setting.
AUTO SETUP Press “SET” button to automatically adjust screen size, horizontal position, vertical position, clock, clock phase,
INPUT RGB2, 3 only white level and black level.
AUTO ADJUST Selecting ON when changing the timing, the horizontal position, vertical position and clock phase will adjust
INPUT RGB2, 3 only automatically.
H POSITION Controls the horizontal position of the image within the Display area of the LCD.
Press + to move right. Press - to move left.
V POSITION Controls the vertical position of the image within the Display area of the LCD.
Press + to move up. Press - to move down.
CLOCK Press + to expand the width of the image on the right of the screen.
INPUT RGB2, 3 only Press - to narrow the width of the image on the left.
CLOCK PHASE Adjusts the visual “noise” on the image.
INPUT RGB2, 3 only
ZOOM MODE You can select “FULL”, “NORMAL”, “DYNAMIC”, “CUSTOM” and “REAL”.
NOTE: DYNAMIC is INPUT DVD/HD, VIDEO(S), VIDEO only.
Selecting DYNAMIC expands 4:3 picture to fill the screen. Some of the image is lost due to expansion.
Selecting “REAL” image will be displayed 1 by 1pixel.
ADJUST
English-22
CUSTOM ZOOM “CUSTOM ZOOM” will be selected when you select “CUSTOM” on the screen “ZOOM” mode.
ZOOM Expands the horizontal and the vertical size simultaneously.
H ZOOM Expands the horizontal size only.
V ZOOM Expands the vertical size only.
H POS Moves to the right with + button. Moves to the left with - button.
V POS Moves up with + button. Moves down with - button.
H RESOLUTION Adjusts the horizontal size of the image.
INPUT RGB1, 2, 3 only Press + button to expand, and press - button to narrow the width of the image on the screen.
V RESOLUTION Adjusts the vertical size of the image.
INPUT RGB1, 2, 3 only Press + button to expand, and press - button to narrow the width of the image on the screen.
INPUT RESOLUTION Selects to decision of input signal timings 1024x768, 1280x768 and 1360x768, if there is a detection problem.
INPUT RGB2, 3 only If no problem is detected, the only available option will be “AUTO”.
ADJUST RESET Resets the all settings within the ADJUST menu back to factory setting.
BALANCE Adjust the balance of L/R volume.
TREBLE To accentuate or reduce the high frequency sound. Press + to increase, press - to decrease.
BASS To accentuate or reduce the low frequency sound. Press + to increase, press - to decrease.
AUDIO RESET Resets the all settings within the AUDIO menu back to factory setting.
OFF TIMER Sets the monitor to power off after a length of time.
A time between 1 to 24 hours is available.
SCHEDULE Creates a working schedule for the monitor to use. This OSD can’t remove except EXIT.
(See “NOTE 1” on page 25 for further information).
DATE AND TIME Sets the date, time, and daylight saving region.
Setting item: YEAR/MONTH/DAY/HOUR/MINUTE/DAYLIGHT SAVING TIME
Date & time must be set in order for the “SCHEDULE” function to operate.
SCHEDULE RESET Resets the all settings within the SCHEDULE menu back to factory setting except DATE AND TIME setting.
PIP SIZE Selects the size of sub-picture used in “Picture-in-Picture” (PIP) mode.
“LARGE”, “MIDDLE” and “SMALL” are available.
PIP AUDIO Selects the sound source in PIP mode.
PIP RESET Resets the all settings within the PIP menu back to factory setting.
LANGUAGE Selects the language used by the OSD from seven languages.
ENGLISH/DEUTSCH/FRANÇAIS/ESPAÑOL/ITALIANO/SVENSKA/
OSD TURN OFF Turns off the OSD after a period of inactivity. The preset choices are 5 - 120 seconds.
OSD H-POSITION Adjusts the horizontal position of the OSD menu.
OSD V-POSITION Adjusts the vertical position of the OSD menu.
INFORMATION OSD Selects the information OSD displays or not. The information OSD will display when input signal or source
change or warning message like as no-signal or out-of range.
A time between 1 to 10 seconds is available.
MONITOR INFORMATION
Indicates the model and serial number of your monitor.
OSD RESET Resets the all settings within the OSD menu back to factory setting.
PIP
OSD
AUDIO
SCHEDULE
English-23
English
IR CONTROL Selects the infrared wireless remote controller mode.
The item in this menu will become effective by pressing “SET” button on the selected item.
NORMAL The monitor will be controlled normally by wireless remote controller.
LOCK Disables the monitor control by infrared wireless remote controller.
Keep pressing “DISPLAY” button during 5 sec or more, this setting will return to “NORMAL”.
TILE MATRIX Allows one image to be expanded and displayed over multiple screens (up to 16) through a distribution
amplifier. When screen size is “Real”, this function does not operate.
H MONITORS Selects number of monitors arranged vertically.
V MONITORS Selects number of monitors arranged horizontally.
POSITION Selects which section of the tiled image to be displayed on the monitor.
TILE COMP Turns the TILE COMP feature on.
ENABLE Enables the Tile Matrix.
PIP and STILL will be disabled when “TILE MATRIX” is activated.
POWER ON DELAY Adjusts the delay time between being in “standby” mode and entering “power on” mode.
“POWER ON DELAY” time is selectable from OFF, 2, 4, 6, 8, 10, 20, 30, 40 and 50 sec.
MULTIDISPLAY RESET Resets the all settings within the MULTI DISPLAY menu back to factory setting.
POWER SAVE Sets how long the monitor waits to go into power save mode after a lost signal.
Note: When connecting DVI, video card might not stop sending digital data even if image has disappeared.
In this case the monitor does not get to power management mode.
RGB Selecting “ON”, the monitor will go to power management mode when RGB1, 2, 3 sync is lost.
VIDEO Selecting “ON”, the monitor will go to power management mode after about 10 minutes when DVD/HD and
VIDEO input signal is lost.
HEAT STATUS Information of status for COOLING FAN, BRIGHTNESS and TEMPERATURE. COOLING FAN runs when
inside temperature is over a guaranteed limit. In this case warning is displayed on the screen.
SCREEN SAVER Use the SCREEN SAVER function to reduce the risk of Image Persistence. See note 2 for this functions.
GAMMA The display gamma is changed and fixed when “ON” is selected.
COOLING FAN The built in cooling fan is always on when set “ON”.
BRIGHTNESS The brightness is decreased when “ON” is selected.
MOTION Image is slightly expanded and moves 4 directions (UP, DOWN, RIGHT, LEFT) periodically (Need setting the
time for movement).
Movement area is approximately +/- 10 mm from original position;
Please locate the important information such as text within 90% area of screen image.
PIP and STILL will be disabled when “MOTION” is active.
SIDE BORDER COLOR Selects the side black bar color white when 4:3 image displayed, you can select OFF, 50 and 100.
DISPLAY PROTECTION Resets the all settings within the DISPLAY PROTECTION menu back to factory setting.
RESET
MULTI DISPLAY
DISPLAY PROTECTION
English-24
DVI MODE Selects the kind of DVI-D equipment which is connected RGB1.
INPUT RGB1 only Selects “DVI-PC” when PC or other computer equipment is connected.
Selects “DVI-HD” when DVD player, which has DVI-D output, is connected.
SCAN CONVERSION Selects IP (Interlace to Progressive) converter function.
INPUT DVD/HD, VIDEO(S), VIDEO only
PROGRESSIVE Enables the IP function, to convert interlace signal to progressive. Normally use this.
INTERLACE Disables the IP function.
NOTE: This mode is better suited for motion pictures, but it is in danger of image retention.
COLOR SYSTEM Selects color system depend on your video format of the input signal.
INPUT VIDEO(S), VIDEO only (AUTO/PAL/NTSC/PAL60/4.43NTSC/SECAM)
AUTO: Selects color system setting automatically base on input signal.
SCAN MODE Changes the display area of the image.
INPUT DVD/HD, VIDEO(S), VIDEO only
OVER SCAN Set to display area about 95%
UNDER SCAN Set to display area about 100%
BLACK LEVEL Selects a level of black expansion.
EXPANSION In case of go under the black cut-off level, please adjust the “Black level” in moderation on OSD menu.
INPUT VIDEO(S), VIDEO only
ADVANCED OPTION Resets the all settings within the ADVANCED OPTION menu back to factory setting.
RESET
FACTORY RESET Selecting “YES” allows you to reset PICTURE, ADJUST, AUDIO, PIP, OSD, MULTI DISPLAY,
DISPLAY PROTECTION and ADVANCED OPTION will be back to factory settings (except LANGUAGE,
DATE AND TIME and SCHEDULE).
Select “YES” and press “SET” button to restore the factory preset data.
Press “EXIT” button to cancel and return the previous menu.
ADVANCED OPTION
English-25
English
NOTE 1: CREATING A SCHEDULE
Using the “SCHEDULE” function allows you to set up to seven different scheduled time intervals when the LCD Monitor will be activated.
You can select the time the monitor turns on and turns off, the day of week the monitor is activated, and which input source the monitor will
use for each scheduled activation period. A check mark in the box next to the number of the schedule indicates that the selected schedule
is in effect.
To select which schedule to set, use the up/down arrows to move the number (1 to 7) of the schedule.
Use the (+) and (-) buttons to move the cursor horizontally within the particular schedule. The “SET” button is used to make a selection.
If you create a schedule but do not want to use a power on time, select “--” in the “ON” time slot.
If you do not want to use a power off time select “--” in the OFF time slot.
If there is no input selected (“--” showing in the input spot) the input from the previous schedule will be used.
The selection of EVERY DAY within a schedule takes priority over other schedules that are set up to operate weekly.
After the schedule is programmed, press the “MENU” button to close the OSD and make the set schedule available.
When schedules are overlapping, scheduled Power ON time has priority over scheduled Power OFF time.
Note: When closing the OSD, be sure to press the “MENU” button. If the “EXIT” button is pressed, the set schedule is unavailable.
If schedules are overlapping then the schedule with the highest number will have priority over the schedule with the lowest number.
For example schedule #7 will have priority over schedule #1.
NOTE 2: IMAGE PERSISTENCE
Please be aware that LCD Technology may experience a phenomenon known as Image Persistence. Image Persistence occurs when a
residual or “ghost” image of a previous image remains visible on the screen. Unlike CRT monitors, LCD monitors’ image persistence is not
permanent, but constant images being displayed for a long period of time should be avoided.
To alleviate image persistence, turn off the monitor for as long as the previous image was displayed. For example, if an image was on the
monitor for one hour and a residual image remains, the monitor should be turned off for one hour to erase the image.
As with all personal display devices, NEC DISPLAY SOLUTIONS recommends displaying moving images and using a moving screen
saver at regular intervals whenever the screen is idle or turning off the monitor when not in use.
Please set “SCREEN SAVER”, “DATE AND TIME” and “SCHEDULE” functions to further reduce the risk of Image persistence.
For long life use as Public Display
< Image Sticking of LCD Panel >
When an LCD panel is operated continuously for long hours, a trace of electric charge remains near the electrode inside LCD, and residual
or “ghost” image of previous image may be observed. (Image Persistence)
Image Persistence is not permanent, but when fixed image is displayed for long period, ionic impurities inside LCD are accumulated along
the displayed image, and may be permanent. (Image Sticking)
< Recommendations >
To prevent Image Sticking, and for longer life usage of LCD, the following are recommended.
1. Fixed image should not be displayed for long period. Change fixed images after short intervals.
2. When not in use, please turn off the monitor by remote control, or use Power Management or use Schedule Functions.
3. Lower environmental temperatures prolong the lifespan of the monitor.
When Protective surface (glass, acrylic) is installed over the LCD surface, the LCD surface is located in an enclosed space, the monitor
are stacked, utilize the temperature sensors inside monitor.
To reduce the environmental temperature, use the Cooling Fan, Screen Saver and Low Brightness.
4. Please use “Screen Saver Mode” of monitor.
English-26
Controlling the LCD monitor via RS-232C Remote Control
This LCD monitor can be controlled by connecting a personal computer with a RS-232C terminal.
Functions that can be controlled by a personal computer are:
• Power ON or OFF
• Switching between input signals
Connection
LCD Monitor + PC
RS-232C Cable
PC (Out)
RS-232C (IN)
MultiSync
NOTE: If your PC (IBM or IBM compatible) is equipped only with a 25-pin serial port connector, a 25-pin serial port adapter is
required. Contact your dealer for details.
* In order to function, the RS-232C OUT terminal can only be connected to another monitor of the same model.
Do not connect to other types of equipment.
To control monitor or multiple monitors that are daisy-chained together please use the control command. Instructions for the
control command can be found on the CD included with the display. The file is called “External_control_****.pdf”.
1) Interface
This LCD monitor uses RXD, TXD and GND lines for RS-232C control.
2) Control command diagram
Please see file “External_Control_****.pdf” on the CD-ROM.
PROTOCOL RS-232C
BAUD RATE 9600 [bps]
DATA LENGTH 8 [bits]
PARITY BIT NONE
STOP BIT 1 [bit]
FLOW CONTROL NONE
English-27
English
Features
Reduced Footprint: Provides the ideal solution for environments requiring superior image quality but with size and weight
limitations.
Color Control Systems: Allows you to adjust the colors on your screen and customize the color accuracy of your monitor to
a variety of standards.
sRGB Color Control: A new optimized color management standard which allows for color matching on computer displays
and other peripherals. The sRGB standard, which is based on a calibrated color space, allows for optimal color representation
and backward compatibility with other common color standards.
OSD (On-Screen-Display) Controls: Allow you to quickly and easily adjust all elements of your screen image via simple to
use on-screen menus.
Plug and Play: The Microsoft
®
solution with the Windows
®
operating system facilitates setup and installation by allowing the
monitor to send its capabilities (such as screen size and resolutions supported) directly to your computer, automatically
optimizing display performance.
IPM (Intelligent Power Manager) System: Provides innovative power-saving methods that allow the monitor to shift to a
lower power consumption level when on but not in use, saving two-thirds of your monitor energy costs, reducing emissions
and lowering the air conditioning costs of the workplace.
FullScan Capability: Allows you to use the entire screen area in most resolutions, significantly expanding image size.
VESA Standard (FDMIv1) Mounting Interface: Allows users to connect their LCD monitor to any VESA standard (FDMIv1)
third party mounting arm or bracket. Allows for the monitor to be mounted on a wall or an arm using any third party compliant
device. NEC recommends using mounting interface that comply with TÜV-GS and/or UL1678 standard in North America.
DVI-D: The digital-only subset of DVI ratified by the Digital Display Working Group (DDWG) for digital connections between
computers and displays. As a digital-only connector, analog support is not provided for a DVI-D connector. As a DVI-based
digital only connection, only a simple adapter is necessary for compatibility between DVI-D and other DVI-based digital
connectors such as DFP and P&D. The DVI interface of this display supports HDCP.
TILE MATRIX, TILE COMP: Shows one image over multiple screens with accuracy while compensating for bezel width.
ZOOM: Expands image size for horizontal and vertical direction.
Self-diagnosis: If an internal error should occur, a failure state will be indicated.
English-28
Troubleshooting
No picture
• The signal cable should be completely connected to the
display card/computer.
• The display card should be completely seated in its slot.
• Front Power Switch and computer power switch should
be in the ON position.
• Check to make sure that a supported mode has been
selected on the display card or system being used.
(Please consult display card or system manual to
change graphics mode.)
• Check the monitor and your display card with respect to
compatibility and recommended settings.
• Check the signal cable connector for bent or pushed-in
pins.
Power Button does not respond
• Unplug the power cord of the monitor from the AC outlet
to turn off and reset the monitor.
Image persistence
• Please be aware that LCD Technology may experience a
phenomenon known as Image Persistence. Image
Persistence occurs when a residual or “ghost” image of a
previous image remains visible on the screen. Unlike
CRT monitors, LCD monitors’ image persistence is not
permanent, but constant images being displayed for a
long period of time should be avoided. To alleviate image
persistence, turn off the monitor for as long as the
previous image was displayed. For example, if an image
was on the monitor for one hour and a residual image
remains, the monitor should be turned off for one hour to
erase the image.
NOTE: As with all personal display devices, NEC DISPLAY
SOLUTIONS recommends displaying moving
images and using a moving screen saver at regular
intervals whenever the screen is idle or turning off
the monitor when not in use.
Image is unstable, unfocused or swimming is apparent
• Signal cable should be completely attached to the
computer.
• Use the OSD Image Adjust controls to focus and adjust
display by increasing or decreasing the fine adjustment.
When the display mode is changed, the OSD Image
Adjust settings may need to be re-adjusted.
• Check the monitor and your display card with respect to
compatibility and recommended signal timings.
• If your text is garbled, change the video mode to non-
interlace and use 60Hz refresh rate.
Image of component signal is greenish
• Check to see if the DVD/HD input connector is selected.
LED on monitor is not lit
(no green or red color can be seen)
• Power Switch should be in the ON position and power
cord should be connected.
• Make certain the computer is not in a power-saving
mode (touch the keyboard or mouse).
RED LED on monitor is blinking
•A certain failure might have occurred, please contact
your nearest authorized NEC DISPLAY SOLUTIONS
service facility.
Display image is not sized properly
• Use the OSD Image Adjust controls to increase or
decrease the coarse adjustment.
• Check to make sure that a supported mode has been
selected on the display card or system being used.
(Please consult display card or system manual to
change graphics mode.)
Selected resolution is not displayed properly
• Use OSD Display Mode to enter Information menu and
confirm that the appropriate resolution has been
selected. If not, select corresponding option.
No Sound
• Check to see if speaker cable is properly connected.
• Check to see if mute is activated.
• Check to see if volume is set at minimum.
Remote Control is not available
• Check the Remote Control’s batteries status.
• Check if batteries are inserted correctly.
• Check if the Remote Control is pointing at the monitor’s
remote sensor.
• Check the Remote Control (IR Control) Mode status.
• The remote control system may not function when direct
sunlight or strong illumination strikes the remote control
sensor of the LCD monitor, or when there is an object in
the path.
“SCHEDULE”/“OFF TIMER” function is not working
properly
• The “SCHEDULE” function will be disabled when the
“OFF TIMER” is set.
• If the “OFF TIMER” function is enabled and the power to
the LCD monitor is turned off when the power supply is
interrupted unexpectedly, then the “OFF TIMER” will be
reset.
Either light vertical or horizontal stripes may appear, depending on the specific display pattern. This is no product fault or
degradation.
English-29
English
Specifications - LCD3215
Product Specifications
LCD Module 32"/80.0 cm diagonal
Pixel Pitch: 0.511 mm
Resolution: 1366 x 768 dots
Color: Over 16 million colors (depending on video card used)
Brightness: 500 cd/m
2
(Typ.)
Contrast Ratio: 800:1
Viewing Angle: 89° (typ) @ CR>10
Design View Distance: 875 mm
Frequency Horizontal: 15.625/15.734 kHz, 31.5 kHz - 91.1 kHz
Vertical: 50.0 - 85.0 Hz
Pixel Clock 25.0 MHz - 165.0 MHz
Viewable Size 697.7 x 392.3 mm
Input Signal
RGB1 DVI-D 24pin Digital RGB DVI (HDCP)
VGA60, SVGA60, XGA60, WXGA60, SXGA60*
1
, UXGA60*
1
, 1920 x 1080*
1
(60Hz)
RGB2 15pin Mini D-sub Analog RGB 0.7 Vp-p/75 ohm
VGA60, SVGA60, XGA60, WXGA60, SXGA60*
1
, UXGA60*
1
, 1920 x 1080*
1
(60Hz)
Sync Separate: TTL level (Pos./Neg.)
RGB3 BNC (R,G,B,H,V) Analog RGB 0.7 Vp-p/75 ohm
VGA60, SVGA60, XGA60, WXGA60, SXGA60*
1
, UXGA60*
1
, 1920 x 1080*
1
(60Hz)
Sync Separate: TTL level (Pos./Neg.)
DVD/HD BNC (Y, Cb/Pb, Cr/Pr) Component Y: 1.0 Vp-p/75ohm, Cb/Cr (Pb/Pr): 0.7 Vp-p/75 ohm
HDTV/DVD: 1080i@60Hz*
1
, 1080p@60Hz*
1
, 720p@50Hz/60Hz, 576p@50Hz, 480p@60Hz, 576i@50Hz, 480i@60Hz
VIDEO(S) Mini DIN 4 pin S-VIDEO Y: 1.0 Vp-p/75 ohm C: 0.286 Vp-p/75 ohm (NTSC), 0.3 Vp-p/75 ohm (PAL/SECAM)
NTSC/PAL/SECAM/4.43NTSC/PAL60
VIDEO BNC Composite 1.0 Vp-p/75 ohm
RCA NTSC/PAL/SECAM/4.43NTSC/PAL60
Output Signal
RGB 15pin Mini D-sub Analog RGB 0.7 Vp-p with 75 ohm terminated
Separate HV sync: TTL level (Pos. / Neg.)
VIDEO BNC Composite 1.0 Vp-p with 75 ohm terminated
AUDIO
AUDIO RCA (L/R) X2 Analog Audio Stereo L/R 0.5 Vrms
Input STEREO Mini Jack
AUDIO RCA (L/R) Analog Audio Stereo L/R 0.5 Vrms
Output
Speaker Output External Speaker Jack 7 W + 7 W (8 ohm)
Control RS-232C In: 9 Pin D-sub
Power Supply 1.4 - 0.6 A @ 100-240VAC, 50/60Hz
Operational Environment Temperature: 5 - 40°C (landscape), 5 - 35°C (portrait)
Humidity: 20 - 80% (without condensation)
Altitude: 0 - 3000 m
Storage Environment Temperature: -20 - 60°C
Humidity: 10 - 90% (without condensation)/ 90% - 3.5% x (Temp - 40°C) regarding over 40°C
Dimension Net: 789 (W) x 476.3 (H) x 133 (D) mm (without stand)
Gross: 926 (W) x 610 (H) x 286 (D) mm
Weight (Without stand) Net: 13.1 Kg
Gross: 17.7 Kg
VESA compatible arm mounting interface 200 mm x 200 mm (4 Holes)
Complied Regulatory and Guidelines UL60950-1/CSA C22.2 No.60950-1/ TUV-GS/EN60950-1
FCC- B/DOC-B/EN55022-B/EN55024/EN61000-3-2/EN61000-3-3/CE/GOST-R
Power Management VESA DPM
Plug & Play VESA DDC2B, DDC/CI
Accessories Setup manual, Power Cord, Video Signal Cable, Remote Control, AAA Battery x 2, Clamp x 2,
Screw for Main switch cover x 2, Screw for Clamp x 2, CD-ROM, Main switch cover
NOTE: Technical specifications are subject to change without notice. *1: Compressed image
English-30
Specifications - LCD4215
Product Specifications
LCD Module 42"/106.7 cm diagonal
Pixel Pitch: 0.681 mm
Resolution: 1366 x 768 dots
Color: Over 16 million colors (depending on video card used)
Brightness: 500 cd/m
2
(Typ.)
Contrast Ratio: 800:1
Viewing Angle: 89° (typ) @ CR>10
Design View Distance: 1100 mm
Frequency Horizontal: 15.625/15.734 kHz, 31.5 kHz - 91.1 kHz
Vertical: 50.0 - 85.0 Hz
Pixel Clock 25.0 MHz - 165.0 MHz
Viewable Size 930.25 x 523.01 mm
Input Signal
RGB1 DVI-D 24pin Digital RGB DVI (HDCP)
VGA60, SVGA60, XGA60, WXGA60, SXGA60*
1
, UXGA60*
1
, 1920 x 1080*
1
(60Hz)
RGB2 15pin Mini D-sub Analog RGB 0.7 Vp-p/75 ohm
VGA60, SVGA60, XGA60, WXGA60, SXGA60*
1
, UXGA60*
1
, 1920 x 1080*
1
(60Hz)
Sync Separate: TTL level (Pos./Neg.)
RGB3 BNC (R,G,B,H,V) Analog RGB 0.7 Vp-p/75 ohm
VGA60, SVGA60, XGA60, WXGA60, SXGA60*
1
, UXGA60*
1
, 1920 x 1080*
1
(60Hz)
Sync Separate: TTL level (Pos./Neg.)
DVD/HD BNC (Y, Cb/Pb, Cr/Pr) Component Y: 1.0 Vp-p/75ohm, Cb/Cr (Pb/Pr): 0.7 Vp-p/75 ohm
HDTV/DVD: 1080i@60Hz*
1
, 1080p@60Hz*
1
, 720p@50Hz/60Hz, 576p@50Hz, 480p@60Hz, 576i@50Hz, 480i@60Hz
VIDEO(S) Mini DIN 4 pin S-VIDEO Y: 1.0 Vp-p/75 ohm C: 0.286 Vp-p/75 ohm (NTSC), 0.3 Vp-p/75 ohm (PAL/SECAM)
NTSC/PAL/SECAM/4.43NTSC/PAL60
VIDEO BNC Composite 1.0 Vp-p/75 ohm
RCA NTSC/PAL/SECAM/4.43NTSC/PAL60
Output Signal
RGB 15pin Mini D-sub Analog RGB 0.7 Vp-p with 75 ohm terminated
Separate HV sync: TTL level (Pos. / Neg.)
VIDEO BNC Composite 1.0 Vp-p with 75 ohm terminated
AUDIO
AUDIO RCA (L/R) X2 Analog Audio Stereo L/R 0.5 Vrms
Input STEREO Mini Jack
AUDIO RCA (L/R) Analog Audio Stereo L/R 0.5 Vrms
Output
Speaker Output External Speaker Jack 7 W + 7 W (8 ohm)
Control RS-232C In: 9 Pin D-sub
Power Supply 2.1 - 0.85 A @ 100-240VAC, 50/60Hz
Operational Environment Temperature: 5 - 40°C (landscape), 5 - 35°C (portrait)
Humidity: 20 - 80% (without condensation)
Altitude: 0 - 3000 m
Storage Environment Temperature: -20 - 60°C
Humidity: 10 - 90% (without condensation)/ 90% - 3.5% x (Temp - 40°C) regarding over 40°C
Dimension Net: 1022.9 (W) x 613.5 (H) x 133 (D) mm (without stand)
Gross: 1140 (W) x 703 (H) x 243 (D) mm
Weight (Without stand) Net: 21.6 Kg
Gross: 27.0 Kg
VESA compatible arm mounting interface 200 mm x 200 mm (4 Holes)
Complied Regulatory and Guidelines UL60950-1/CSA C22.2 No.60950-1/ TUV-GS/EN60950-1
FCC-B/DOC-B/EN55022-B/EN55024/EN61000-3-2/EN61000-3-3/CE/GOST-R
Power Management VESA DPM
Plug & Play VESA DDC2B, DDC/CI
Accessories Setup manual, Power Cord, Video Signal Cable, Remote Control, AAA Battery x 2, Clamp x 2,
Screw for Main switch cover x 2, Screw for Clamp x 2, CD-ROM, Thumbscrew for stand x 2,
Main switch cover
NOTE: Technical specifications are subject to change without notice. *1: Compressed image
English-31
English
Specifications - LCD4615
Product Specifications
LCD Module 46"/116.8 cm diagonal
Pixel Pitch: 0.530 mm
Resolution: 1920 x 1080 dots
Color: Over 16 million colors (depending on video card used)
Brightness: 450 cd/m
2
(Typ.)
Contrast Ratio: 3000:1
Viewing Angle: 89° (typ) @ CR>10
Design View Distance: 1300 mm
Frequency Horizontal: 15.625/15.734 kHz, 31.5 kHz - 91.1 kHz
Vertical: 50.0 - 85.0 Hz
Pixel Clock 25.0 MHz - 165.0 MHz
Viewable Size 1018.08 x 572.67 mm
Input Signal
RGB1 DVI-D 24pin Digital RGB DVI (HDCP)
VGA60, SVGA60, XGA60, WXGA60, SXGA60, UXGA60*
1
, 1920 x 1080*
1
(60Hz)
RGB2 15pin Mini D-sub Analog RGB 0.7 Vp-p/75 ohm
VGA60, SVGA60, XGA60, WXGA60, SXGA60, UXGA60*
1
, 1920 x 1080*
1
(60Hz)
Sync Separate: TTL level (Pos./Neg.)
RGB3 BNC (R,G,B,H,V) Analog RGB 0.7 Vp-p/75 ohm
VGA60, SVGA60, XGA60, WXGA60, SXGA60, UXGA60*
1
, 1920 x 1080*
1
(60Hz)
Sync Separate: TTL level (Pos./Neg.)
DVD/HD BNC (Y, Cb/Pb, Cr/Pr) Component Y: 1.0 Vp-p/75ohm, Cb/Cr (Pb/Pr): 0.7 Vp-p/75 ohm
HDTV/DVD: 1080i@60Hz, 1080p@60Hz, 720p@50Hz/60Hz, 576p@50Hz, 480p@60Hz, 576i@50Hz, 480i@60Hz
VIDEO(S) Mini DIN 4 pin S-VIDEO Y: 1.0 Vp-p/75 ohm C: 0.286 Vp-p/75 ohm (NTSC), 0.3 Vp-p/75 ohm (PAL/SECAM)
NTSC/PAL/SECAM/4.43NTSC/PAL60
VIDEO BNC Composite 1.0 Vp-p/75 ohm
RCA NTSC/PAL/SECAM/4.43NTSC/PAL60
Output Signal
RGB 15pin Mini D-sub Analog RGB 0.7 Vp-p with 75 ohm terminated
Separate HV sync: TTL level (Pos. / Neg.)
VIDEO BNC Composite 1.0 Vp-p with 75 ohm terminated
AUDIO
AUDIO RCA (L/R) X2 Analog Audio Stereo L/R 0.5 Vrms
Input STEREO Mini Jack
AUDIO RCA (L/R) Analog Audio Stereo L/R 0.5 Vrms
Output
Speaker Output External Speaker Jack 7 W + 7 W (8 ohm)
Control RS-232C In: 9 Pin D-sub
Power Supply 2.4 - 1.0 A @ 100-240VAC, 50/60Hz
Operational Environment Temperature: 5 - 40°C (landscape), 5 - 35°C (portrait)
Humidity: 20 - 80% (without condensation)
Altitude: 0 - 3000 m
Storage Environment Temperature: -20 - 60°C
Humidity: 10 - 90% (without condensation)/ 90% - 3.5% x (Temp - 40°C) regarding over 40°C
Dimension Net: 1121.5 (W) x 664.7 (H) x 129.8 (D) mm (without stand)
Gross: 1270 (W) x 769 (H) x 275 (D) mm
Weight (Without stand) Net: 23.9 Kg
Gross: 29.5 Kg
VESA compatible arm mounting interface 200 mm x 200 mm (4 Holes)
Complied Regulatory and Guidelines UL60950-1/CSA C22.2 No.60950-1/ TUV-GS/EN60950-1
FCC-B/DOC-B/EN55022-B/EN55024/EN61000-3-2/EN61000-3-3/CE/GOST-R
Power Management VESA DPM
Plug & Play VESA DDC2B, DDC/CI
Accessories Setup manual, Power Cord, Video Signal Cable, Remote Control, AAA Battery x 2, Clamp x 2,
Screw for Main switch cover x 2, Screw for Clamp x 2, CD-ROM, Thumbscrew for stand x 2,
Main switch cover
NOTE: Technical specifications are subject to change without notice. *1: Compressed image
English-32
Pin Assignment
1) Analog RGB input (MiniDsub15p): VGA
Pin No Name
1 Video Signal Red
2 Video Signal Green
3 Video Signal Blue
4 GND
5 DDC-GND
6 Red-GND
7 Green-GND
8 Blue-GND
9 +5V (DDC)
10 SYNC-GND
11 GND
12 DDC-SDA
13 H-SYNC
14 V-SYNC
15 DDC-SCL
2) VIDEO(S) input: VIDEO
Pin No Name
1 GND
2 GND
3Y (Luminance)
4C (Chroma)
3) Digital RGB input (DVI-D): DVI
4) RS-232C input
Pin No Name
1 connected to 7&8
2 RXD
3 TXD
4 connected to 6
5 GND
6 connected to 4
7 connected to 1&8
8 connected to 1&7
9NC
Pin - Assignment of DVI connector:
1 TX2- 9 TX1- 17 TX0-
2 TX2+ 10 TX1+ 18 TX0+
3 Shield (TX2 / TX4) 11 Shield (TX1 / TX3) 19 Shield (TX0 / TX5)
4NC 12NC20NC
5NC 13NC21NC
6 DDC-Serial Clock 14 +5V power 22 Shield (TXC)
7 DDC-Serial Data 15 Ground 23 TXC+
8NC16Hot plug detect 24 TXC-
5
10
15
1
6
11
1
6
5
9
Mini D-SUB 15P
D-SUB 9P
1
17
24
16
8
9
This LCD monitor uses RXD, TXD and GND lines for RS-232C control.
English-33
English
NEC DISPLAY SOLUTIONS is strongly committed to environmental protection and sees recycling as one of the company’s
top priorities in trying to minimize the burden placed on the environment. We are engaged in developing environmentally-
friendly products, and always strive to help define and comply with the latest independent standards from agencies such as
ISO (International Organisation for Standardization) and TCO (Swedish Trades Union).
Disposing of your old NEC product
The aim of recycling is to gain an environmental benefit by means of re-use, upgrading, reconditioning or reclamation of
material. Dedicated recycling sites ensure that environmentally harmful components are properly handled and securely
disposed. To ensure the best recycling of our products, NEC DISPLAY SOLUTIONS offers a variety of recycling
procedures and gives advice on how to handle the product in an environmentally sensitive way, once it has reached the end
of its life.
All required information concerning the disposal of the product and country-specific information on recycling facilities can be
found on our following websites:
http://www.nec-display-solutions.com/greencompany/ (in Europe),
http://www.nec-display.com (in Japan) or
http://www.necdisplay.com (in USA).
Energy Saving
This monitor features an advanced energy saving capability. When a VESA Display Power Management Signalling (DPMS)
Standard signal is sent to the monitor, the Energy Saving mode is activated. The monitor enters a single Energy Saving mode.
Manufacturer’s Recycling and Energy Information
WEEE Mark (European Directive 2002/96/EC)
Within the European Union
EU-wide legislation, as implemented in each Member State, requires that waste electrical and electronic
products carrying the mark (left) must be disposed of separately from normal household waste. This includes
monitors and electrical accessories, such as signal cables or power cords. When you need to dispose of your
NEC display products, please follow the guidance of your local authority, or ask the shop where you
purchased the product, or if applicable, follow any agreements made between yourself and NEC.
The mark on electrical and electronic products only applies to the current European Union Member States.
Outside the European Union
If you wish to dispose of used electrical and electronic products outside the European Union, please contact your local
authority so as to comply with the correct disposal method.
Max
Normal Operation
Energy Saving Mode
Off Mode
140W (LCD3215)
210W (LCD4215)
240W (LCD4615)
100W (LCD3215)
160W (LCD4215)
185W (LCD4615)
Less than 4W
Less than 2W
LED colour
Green
Green
Red and Green
Red
Power consumption
