MODELS 32129
32125
@
Kenmore
@
]!: ':i_i¸_i!¸¸!i!
FOR YOUR
SAVE THESE INSTRUCTIONS

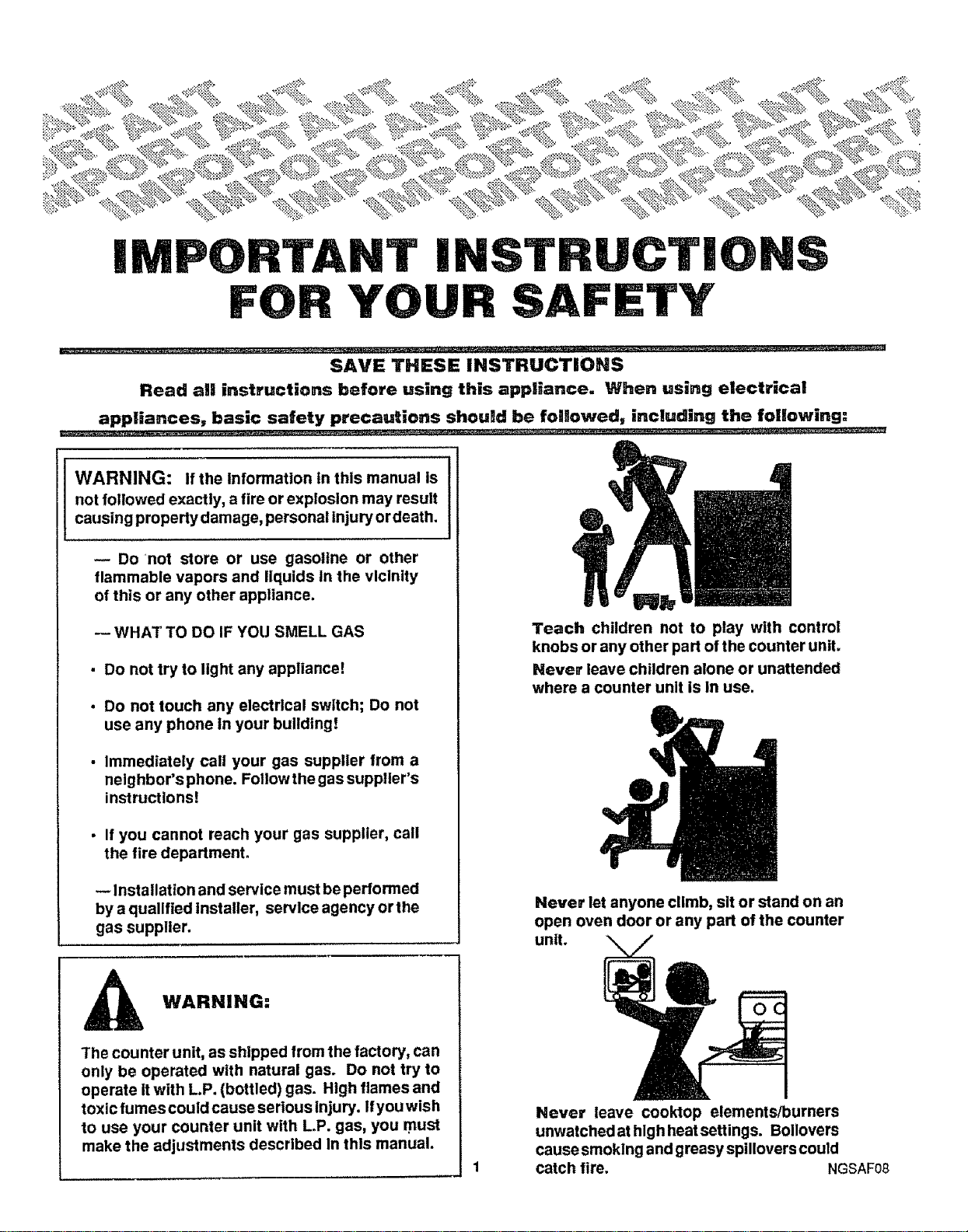

Read aN instructions before using this appliance. When using electrical
appliances, basic safety precautions should be followed, including the foUowing:
WARNING: If the information in this manual is
not followed exactly, a fire or explosion may result
causing property damage, personal injury or death.
Do not store or use gasoline or other
flammable vapors and liquids tn the vicinity
of this or any other appliance.
WHAT TO DO IF YOU SMELL GAS
• Do not try to light any appliance!
• Do not touch any electrical switch; Do not
use any phone In your building!
- Immediately call your gas supplier trom a
neig hbor's phone. Follow the gas supplier's
instructlons!
• If you cannot reach your gas supplier, call
the fire department°
-- Installation and service must be performed
by a quaBfled Installer, servlce agency orthe
gas supplier.
WARNING:
The counter unit, as shipped from the factory, can
only be operated with natural gas. Do not try to
operate itwith LP. (bottled) gas. High flames and
toxic fumes could cause se rlous injury. Ifyou wish
to use your counter unit with LP. gas, you must
make the adjustments described In this manual.
Teach children not to play with control
knobs or any other part of the counter unit.
Never leave children alone or unattended
where a counter unit is In use.
Never let anyone climb, sit or stand on an
open oven door or any part of the counter
unit.
Never leave cooktop elements/burners
unwatched at high heatsettings. Bollovers
cause smoking and greasy spillovers could
catch fire. NGSAFOB
1

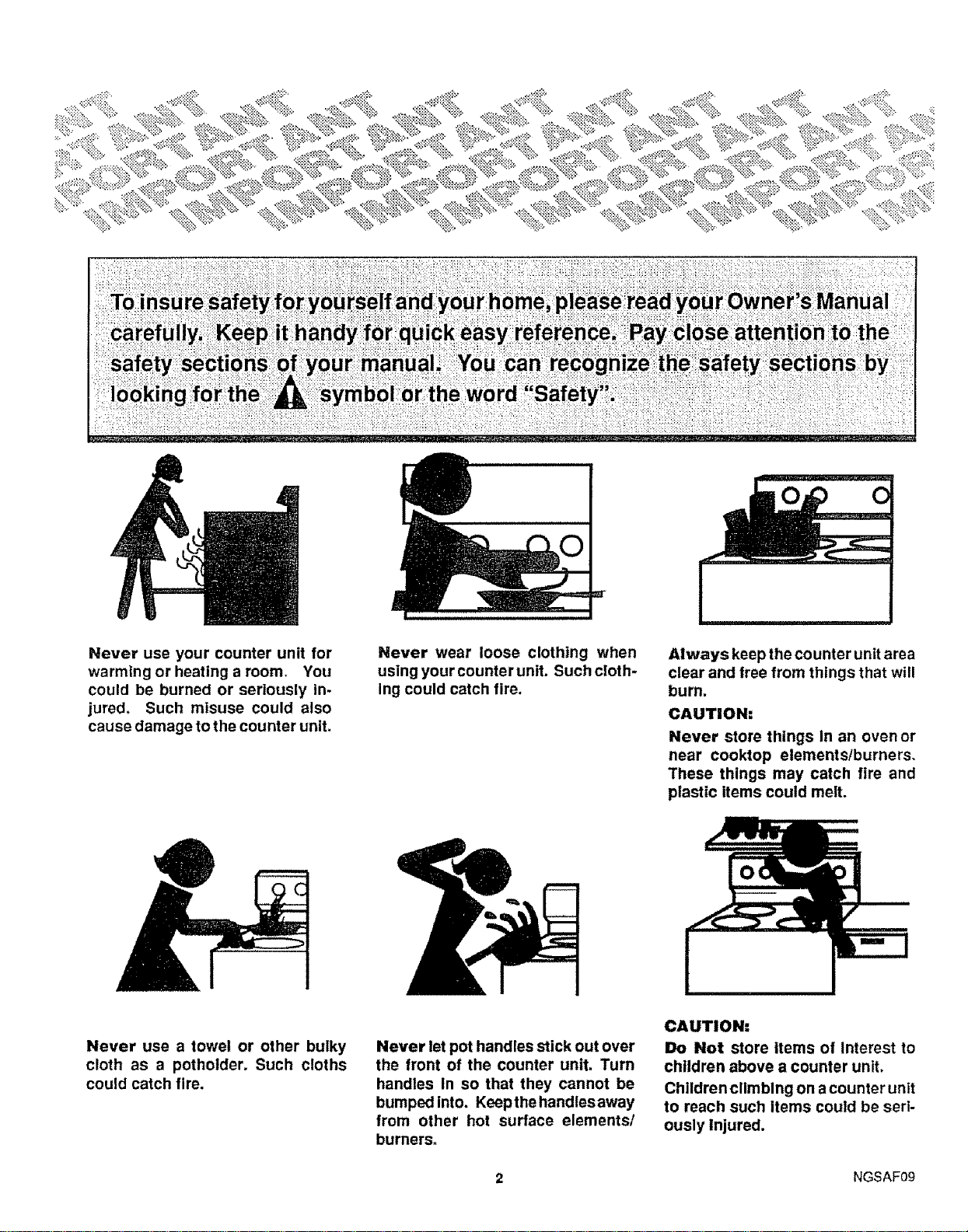

Never use your counter unit for
warming or heating a room, You
could be burned or seriously in-
jured. Such misuse could also
cause damage to the counter unit.
Never wear loose clothing when
using your counter unit. Such cloth-
Ing could catch fire.
Always keep the counter unit area
clear and free from things that will
burn.
CAUTION:
Never store things In an oven or
near cooktop elements/burners.
These things may catch fire and
plastic items could melt.
Never use a towel or other bulky
cloth as a potholder. Such cloths
could catch fire.
Never let pot handles stick out over
the front of the counter unit. Turn
handles In so that they cannot be
bumped into, Keepthe handlesaway
from other hot surface elements/
burners,
CAUTION:
Do Not store Items of Interest to
children above a counter unit,
Children climbing on a counter unit
to reach such items could be seri-
ously Injured.
2 NGSAFOg

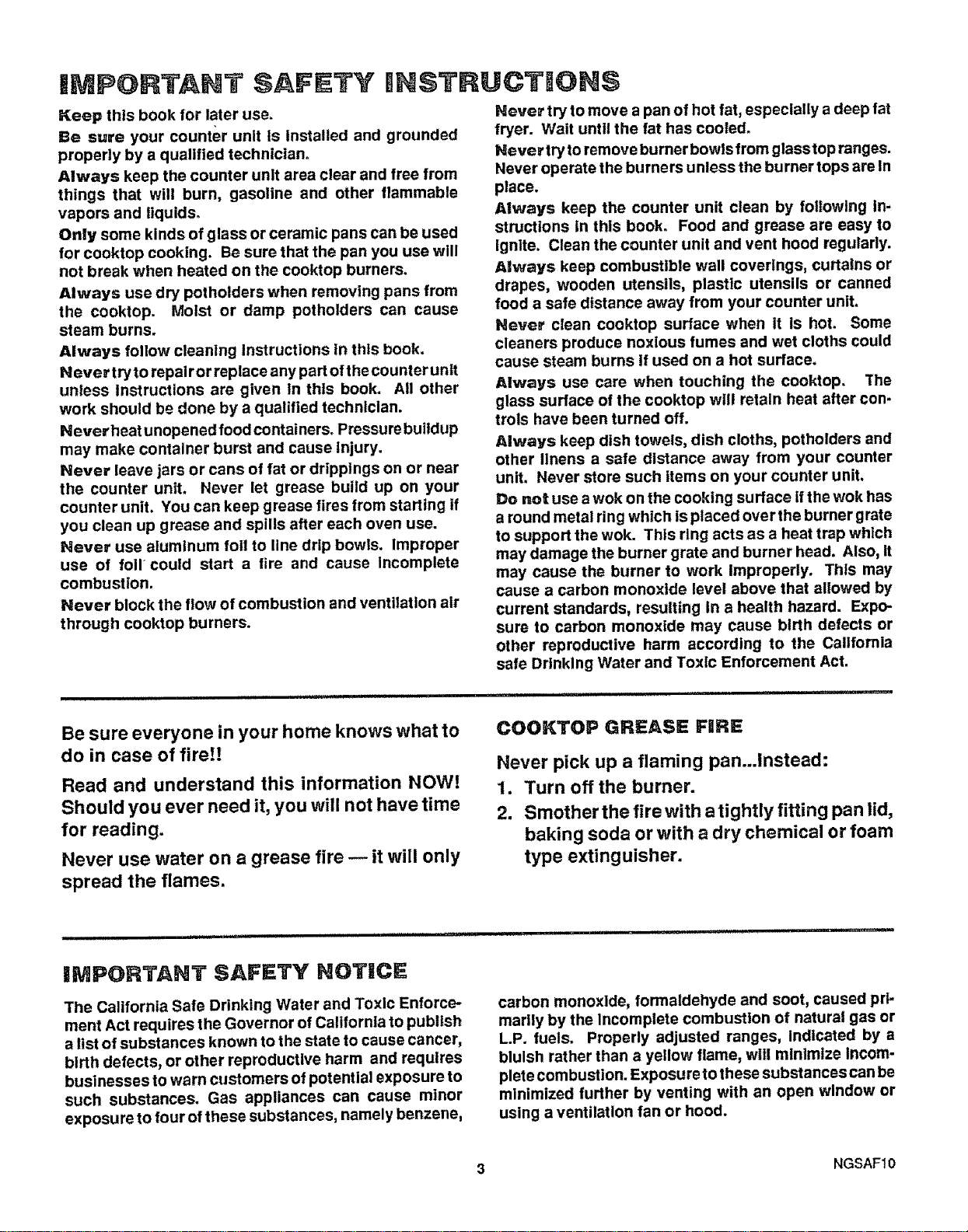

Keep this book for later use.
Be sure your counter unit Is Installed and grounded
properly by a qualified technician°
Always keep the counter unit area clear and free from
things that will burn, gasoline and other flammable
vapors and liquids_
Only some kinds of glass or ceramic pans can be used
for cooktop cooking. Be sure that the pan you use will
not break when heated on the cooktop burners.
Always use dry potholders when removing pans from
the cooktop. Moist or damp potholders can cause
steam burns,
Always follow cleanlng Instructions in thls book.
Never tryto repairor replace any part ofthecounter unit
unless Instructions are given in this book. All other
work should be done by a qualified technician.
Never heat unopened food containerso Pressure buildup
may make container burst and cause Injury.
Never leave jars or cans of fat or drippings on or near
the counter unit. Never let grease build up on your
counter unit. You can keep grease fires from starting if
you clean up grease and spills after each oven use.
Never use aluminum foil to line drip bowls. Improper
use of foil could start a fire and cause Incomplete
combustion.
Never block the flow of combustion and ventilation air
through cooktop burners.
Never try to move a pan of hot fat, especially a deep fat
fryer. Wait until the fat has cooled.
Nevertry to ramove burner bowls from glass top ranges.
Never operate the burners unless the burner tops are In
place.
Always keep the counter unit clean by foUowlng ln-
structlons in this book. Food and grease are easy to
ignite. Clean the counter unit and vent hood regularly.
Always keep combustible wall coverings, curtains or
drapes, wooden utensils, plastic utensils or canned
food a safe distance away from your counter unit.
Never clean cooktop surface when it is hot. Some
cleaners produce noxious fumes and wet cloths could
cause steam burns If used on a hot surface.
Always use care when touching the cooktop. The
glass surface of the cooktop will retain heat after con-
trols have been turned off.
Always keep dish towels, dish cloths, potholders and
other linens a safe distance away from your counter
unit. Never store such items on your counter unit.
Do not use a wok on the cooking surface if the wok has
a round metal ring which is placed over the burner grate
to support the wok. This ring acts as a heat trap which
may damage the burner grate and burner head. Also, it
may cause the burner to work improperly. This may
cause a carbon monoxide level above that allowed by
current standards, resulting in a health hazard. Expo-
sure to carbon monoxide may cause birth defects or
other reproductive harm according to the California
safe Drinking Water and Toxic Enforcement Act.
Be sure everyone in your home knows what to
do in case of fire!!
Read and understand this information NOW!
Should you ever need it, you will not have time
for reading.
Never use water on a grease fire -- it will only
spread the flames.
COOKTOP GREASE FI_RE
Never pick up a flaming pan...lnstead:
1. Turn off the burner.
2. Smother the fire with a tightly fitting pan lid,
baking soda or with a dry chemical or foam
type extinguisher.
iMPORTANT SAFETY NOTICE
The California Safe Drinking Water and Toxic Enforce-
ment Act requires the Governor of California to publish
a list of substances known to the state to cause cancer,
birth defects, or other reproductive harm and requires
businesses to warn customers of potential exposure to
such substances. Gas appliances can cause minor
exposure to four of these substances, namely benzene,
carbon monoxide, formaldehyde and soot, caused prl-
madly by the Incomplete combustion of natural gas or
L.P. fuels. Properly adjusted ranges, Indicated by a
bluish rather than a yellow flame, will mlnimtze Incom-
plete combustion. Exposure to these substances can be
minimized further by venting with an open window or
using a ventilation fan or hood.
3 NGSAF10
iMPORTANT: Leave these instructions
with the appliance.
............. i i,,i, i

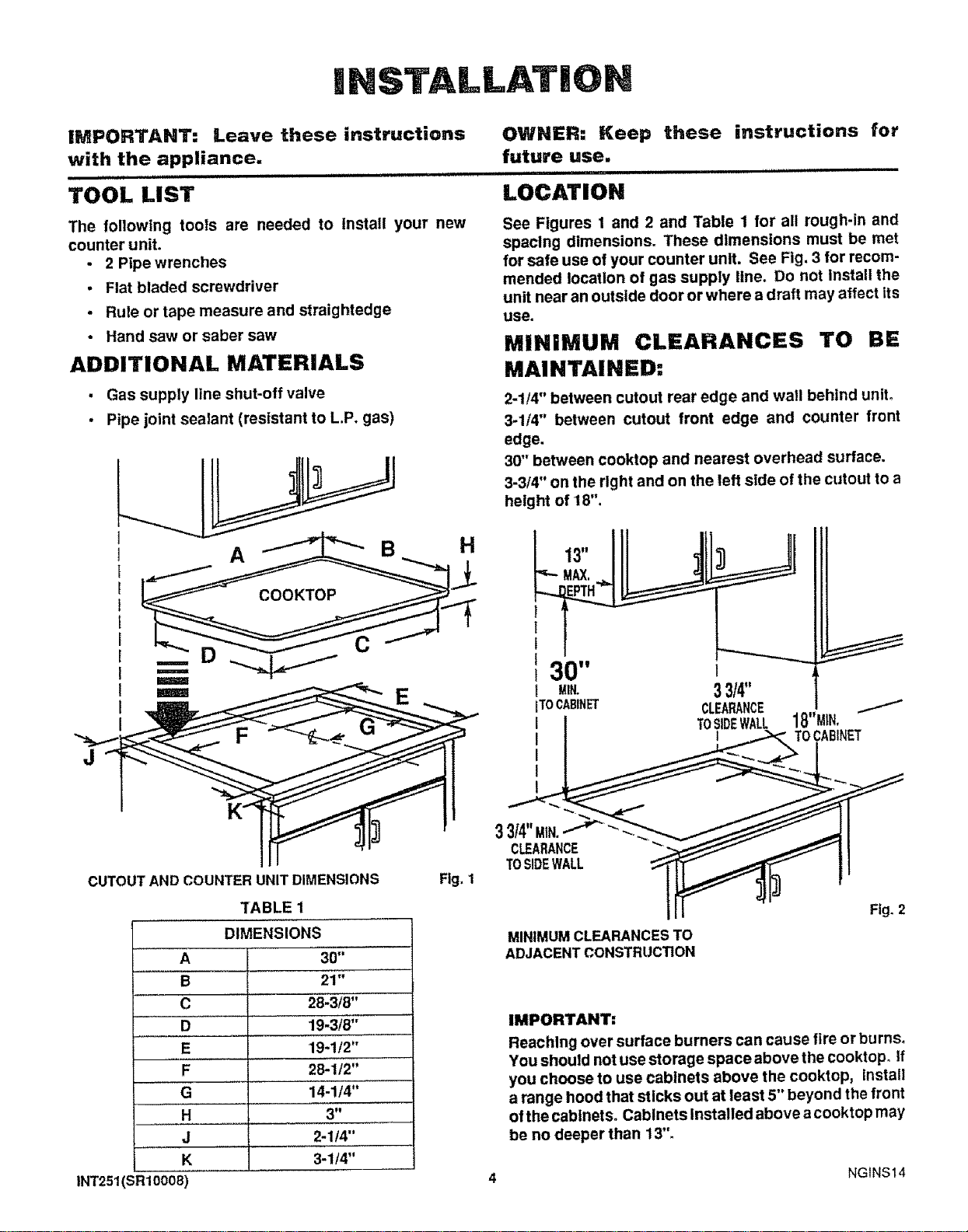

TOOL LIST
The following tools are needed to install your new
counter unit.
OWNER: Keep these instructions for
future use.
iiiii ,iiiiii1.11.1
LOCATION
See Figures 1 and 2 and Table 1 for all rough-in and
spactng dimensions. These dimensions must be met
• 2 Pipe wrenches
• Flat bladed screwdriver
• Rule or tape measure and straightedge
• Hand saw or saber saw
ADDITIONAL MATERIALS
• Gas supply line shut-off valve
• Pipe joint sealant (resistant to LP. gas)
for safe use of your counter unit. See Fig, 3 for recom-
mended location of gas supply line, Do not Install the
unit near an outside door or where a draft may affect its
use.
MINIMUM CLEARANCES TO BE
MAINTAINED:
2-1/4" between cutout rear edge and wall behind unit.
3-1/4" between cutout front edge and counter front
edge.
30" between cooktop and nearest overhead surface.
3-3/4" on the right and on the left side of the cutout to a
height of 18".
13"
MAX,
J
CUTOUT AND COUNTER UNIT DIMENSIONS
A
B
C
D _
E
F
G
H
J
K
INT251(SR10008)
TABLE 1
DIMENSIONS
30"
21"
.......... 28-318"
19-3/8"
19-1/2"
28-1/2"
14-1/4"
3"
2-1/4"
3-1/4"
Fig. 1
30" 1
Mill. 33/4"
ITOCASIHET CLEARANCE
I I TOSDEWALL18"MtN.
I I I TOCABINET
CLEARANCE "_/ //I I
TOSIDEWALL _ I I
III Fig. 2
MINIMUMCLEARANCESTO
ADJACENT CONSTRUCTION
IMPORTANT:
Reaching over surface burners can cause fire or burns°
You should not use storage space above the cooktop. If
you choose to use cablnets above the cooktop, Install
a range hood that sticks out at least 5" beyond the front
ofthe cabinets° Cabinets Installed above a cooktop may
be no deeper than 13".
NGINS14
PREPARATION
Adequate counterspace must be provided for the unit.
The area should be easy to reach and be lighted with
natural light during the day_
See the first page for cutout dimensions. Mark the cutout
on the counter. Use a hand or saber saw to make the cut,
ELECTRICAL CONNECTIONS
Call your Electric Company and ask which codes apply
In your area. If there are no codes, you must follow the
NATIONAL ELECTRICAL CODES, ANSt/NFPA NO. 70-
Latest Edition. You can get a copy by writing:
National Fire Protection Association
Batterymarch Park
Quincy, MA 02269
The counter unit cord has a three prong plug and must
be plugged into a properly grounded three hole outlet.
The outlet must be in a standard 120 Volt, 60 Hertz AC
household circuit.
Improper grounding can spark ignition on models so
equipped.
Do net under any circumstances
cut or remove the grounding prong
from the counter unit cord. Failure
to p_ovide proper polarization may
cause shock and fire hazard.
i
If you do not have a grounded three hole outlet, have an
electrician change your old outlet or Install a new one.
To temporarily use a properly polarized and grounded
two hole outlet until a grounded three hole outlet can be
installed, a grounding adapter plug may be used° Have
an electrician test the outlet to be sure It meets require-
ments.
PLUG W1TH GROUND PRONG
PROPERLY POLARIZED AND
GROUNDED RECEPTACLE
L
Fig. 1
PREFERRED METHOD
POLARIZED RECEPTACLE
PROPERLYGROUNDED
METAL EYELET
GROUND
RECEPTACLE
PLATE
MOUNTING I,ll!
SCREW _
Fig. 2
TEMPORARY METHOD
GAS CONNECTIONS
Call your gas supplterand ask which codes apply in your
area. It there are no codes, you must fOllow the NA-
TIONAL FUEL GAS CODE, ANSIFZ223-Latest Edition.
You can get a copy by writing:
American Gas Association
1515 Wilson Boulevard
Arlington (Rosslyn), VA 22209
This counter unit, as shipped from
the factory, can only be operated
with natura! gas. Do not try to oper-
ate it with L.P. (bottled) gas. High
flames and toxic fumes could cause
serious injury, if you wish to use
L.P, Gas_ the adjustments on the
following pages must be made,
Know where your main gas shut off valve Is.
Shut off gas supply before removing an old range. Leave
it off until hookup of new counter unit Is finished.
See figures on this page for rigid and flexible pipe
hookups. Some local codes do not allow the use of
copper gas pipe. If flexible connectors are allowed_
a new A.G=A. certified flexible connector is rec-
ommended. Never reuse an old connector when
installing a new unit. A manual shut-off valve, for
the purpose of turning on or shutting off the gas
supply to the appliance, must be installed in the
gas supply line at an accessible location in the
cabinet below the counter unit.
We recommend that you use 1/2" gas supply line.
1" FROMBACK WALL
1,
<-12 1/2"_
FROM
_ CUTOUT
CENTER
LINE
LOCATION OF GAS SUPPLY LINE
FIG. 3
5 NG]NS15
GAS CONNECTIONS (continued)
See next page for Information on installing unit in cut-
out. Be sure to read it before making final gas connec-
tions.
A pressure regulator Is supplied and must be installed
in the gas supply line underthe unit. Install the regulator
in the gas supply line between the shut off valve
and the unit connection (see Figure 5). The top ofthe
regulator should face toward the cabinet front and be
easily accessible through the cabinet doors.
If you are using L.P. Gas, see Instructions below:
HAT. _ L.P.
I---r _--_
PRESSURE REGULATOR Fig.4
PRESSURE_
REGULATOR
1/2" PIPE
SHUT OFF._
VALVE
RECOMMENDED PIPE HOOK-UP Fig. 5
Use pipe wrenches to make connections. Do not put
any strain on the connection line assembly.
Any openings around gas and electric outlets must be
sealed at the time of installation. When you are finished
making connections, be sure that control knobs are
turned to OFF before you open the main gas supply
valve.
See next page for information on placing burner tops on
cooktop burners.
L,P. GAS ADJUSTMENTS
NOTE: The pressure regulator is set for natural gas. To
use L.P. Gas, the regulator must be converted.
_ CAUTION: The counter unit, as shipped
from the factory Is set for use with natural
gas. if you wish to use your unit with LIq-
uifled Petroleum (LP.) gas, you must first
replace the orifices and convert the pres-
sure regulator as described below.
To convert for LP. Gas, unscrew the cap and remove the
spring retainer (See Fig.4). Turn the spring retainer over
and put it back into the regulator_ L.Poshould be visible
on the spring retainer. Replace the cap.
Remove natural gas orifices from burners and replace
with LP. gas orifices supplied. (Orifices stamped 98 are
for large burners. Orifices stamped 73 are for small
burners.) BV_
VALVE
SCREW Fig. 6
Turning clockwise, screwthe brass valve by-pass screws
into the valve bodies until completely seated.
See Fig. 6.
TO CHECK FOR LEAKS."
Apply a soap solution to all gas connections. Bubbles
will form where any gas is leaking.
DO NOT use an open flame to look for leaks.
Turn off main gas supply before you try to stop a leak.
Turn main gas supply back on and recheck connections
after stopping any leaks.
Be sure all leaks are stopped before lighting pilots
(some models) or burner.
PRESSURE TEST INFORMATION
The maximum allowable test pressure for the regulator
is 14" W,C. The minimum pressure needed to check the
regulator setting is5"W,C, for natural gas or 11" W.C, for
LP. gas.
CAUTION: The range and its individual shut off
valve must be disconnected from the gas supply
piping system during any pressure testing of the
gas supply system at test pressures in excess of
t/2 psig (pounds per square inch gauge}.
The range must be Isolated from the gas supply piping
system by closing Its individual shut off valve during
any pressure testing of the gas supply system at test
pressures equal to or less than 1/2 psig.
NGINS16-1
IHSTALLDNG UNmT iN COUNTiER
Before installing the unit in the cutout, attach the adhe-
sive backed foam tape (shipped with unit) around the
bottom surface of the glass, near the edge of the main-
top.
To attach the unit to the counter, insert the side retainers
in the slots on each side of the unit.
Use the screws and washers supplied to attach unit to
counter as shown in Figure 6. The unBt must rest on
the metal flange around the burner box and not
on the gllass,
FOAM TAPE
SIDE RETAINER
ASSEMBLING THI COOKTOP
BURNERS
The elect_x_de of the spark igniter is
exposed when the top of the burner is
removed. Be careful not to push any
cooktop co.troRs while the top of the
burner is removed=
Electrical shock might result.
Place the trim ring on the burner body. PosiUon the
burner top on the burner body. To correctly seat the
burner top, examine the two tabs on the underside of the
burner top. The tabs fit Into the slots in the burner body°
Place burner grate over burner assembly and into burner
bowl. The bottoms ofthe four larger burner grate fingers
fit into four corresponding Indentations in the burner
bowl.
WASHER
ATTACHING UNIT TO COUNTER
Fig. 7
COOKTOP BURNER
Assemble the burners as shown on the right. Turn each
burner full on. Flames should be blue in color with no
trace of yellow. Foreign particles In the gas line may
cause an orange flame at first but this will soon disap-
pear. The burner flames should not flutter or blow away
from the burner. The inner cone of the flame should be
between 1/2" and 3/4" long. Burner flames should be
checked frequently.
COOKTOP
BURNER 112"to 3/4"
A
BURNER GRATE
BURNERTOP
BURNER BODY
SPARK
IGN_ER BURNER BOWL
7 NGINS17-1
YO T
iMPORTANT:
The model and serial number of your counter unit can be found on a tag
on the underside of the unit.
T
BURNER
COOKTOPBURNER
/
/
/ i
BURNEF
COOKTOPCONTROLS
GLASS COOKTOP
TO START
THINGS COOKING
COOKTOP SPARK IGNITION -- When you turn the
cooktop knob to LITE, the spark igniters make a series
of electric sparks (ticking sou nds) which llghtthe burner.
Afterthe burnerignites theticklng will stop. Ifthetlcking
sound persists afterthe burner lights, turn the burneroff
and relight. If thetlcking is still present, call for service.
TO OPERATE CONTROLS raThe sign near each cooktop
control knob shows which burner ts turned on by that
knob. Push to turn knobs. Turn knob to LITE. Set
desired flame setting. All four Igniters spark when any
control knob ts pushed In.
OFF
OO
Ln_
@0
j 0
/ \
IMPORTANT: Do not leave the knob on LITE after the
burner lights or the life of the spark Igniter may be
shortened.
Avoid leaving any burner on without a utensil. Doing so
can overheat the grate and cause the enamel finish to
become damaged.
As a safety precaution you should set
controls so flame heats pan bottom only
and does not lick pan sides. Flames licking
pan sides are unsafe and waste heat.
Ifa cooktop burner fails to lightwithin five seconds, turn
the knob to OFF and walt five minutes before trying
again. If the burner still will not light, check the service
section in this manual°
Watch food when heating quickly on HI. As soon as the
food reaches cooking temperature, turn down the heat
to the lowest setting that will keep It cookttng.
NGCUF01
The lowest setting of the burner has a very small flame
to provide good simmering capability. To simmer foods,
set the cooktop control knob to the lowest setting that
will maintain the deslred simmer. If you are using one
burner for simmering and turn on additional burners,
the gas flow of the simmering burner may have to be
adjusted. If your simmering burner goes out when the
other burners are on, turn knob back to LITE. After the
burner lights, set cooktop control knob to the lowest
setting that will retain a flame on the burner.
During burner use, the area of the
glass cooktop around the burners
could get hot.
During a power failure the burners will not light
automatically. In an emergency, a cooktop burner may
be lit with a match by following the steps below.
Lighting gas burners with a match is
dangerous. You should match light
the cooktop burners only in an
emergency,
1. Light a match and hold the flame nearthe burner you
want to light. Wooden matches work best.
2. Push In and turn the control knob slowly. Be sure
you are turning the correct knob for the burner you
are lighting.
NOTE: If the burner does not llght within four seconds,
turn the knob off and wait five minutes before
trying again.
High flame may be used to boil large quantities quickly.
Itis also used to start food cooking quickly in large pans.
Medium flame may be used for even browning with
little spattering. It is also used to maintain a boll with
large quantities of food.
Low flame may be used for melting or warming food.
It is also best for cooking small quantities of food.
WOK COOKING
We recommend that you use only a flat-bottomed wok.
Flat-bottomed woks are available at your local retail
store.
Do not use woks which have support rlngso Use of these
types of woks, with or without the ring in place, can be
dangerous. Placing the ring over theburner gratemay
damage the burner grate and burner head. Also, placing
the ring over the burner grate may cause the burner to
work Improperly resulting In carbon monoxide levels
above allowable current standards. This could be dan-
gerous to your hearth. See the Safety Section of this
manual. Do not try to use such woks without the ring.
You could be seriously burned if the wok tipped over.
LJ,.. ..... --
STOVE TOP GRILLS
Do not use stove top grills on your sealed gas unit. Ifyou
use the stove top grill on your sealed gas range it will
cause incomplete combustion and can result in expo-
sure to carbon monoxide levels above allowable current
standards. This can be hazardous to your health.
9 NGMTC02
CLEANING
Be sure that the controls are turned off and that the unit
Is cool.
Control Knobs= Knobs can be removed for easier
cleaning. Pull straight off the stem. Wash with detergent,
warm water and a soft cloth. Do not scour. When re-
Installing, be sure to push knob down on the stem.
Burner Grates and Burner Top." Clean after each
splllover. Disassemble as shown below. Wash with all-
purpose, non.abrasive cleaner and warm water. Soak
stubborn soil. Rinse and dry completely. Reassemble
as explained in the Installation section.
Glass Surface= Wipe surface clean after each use, If
additional cleaning Is needed to eliminate spotting,
wash with equal parts white vinegar and warm water.
Rinse well and dry.
In cases of burned on spilloven
• Remove excess soil with scraper (single edged razor).
• Scrub cooktop with all-purpose non-abrasive cleaner.
We recommend Sears Cooktop Cleaning Creme®
(Stock No. 40079, available at Sears, Roebuck & Co.).
• NEVER USE ABRASIVE SCOURING PADS OR
POWDERS ON COOKTOP, Plastic mesh pads such
as Doble® may be used.
The electrode of the spark igniter is
exposed when the top of the burner is
removed. Be careful not to push in
any cooktop controls while the top of
the burner is removed. Electrical
shock might result.
BURNER GRATE
BURNER
BODY
SPARK IGNITER
BURNER TOP
BURNERBOWL
BEFORE CALLING FOR SERVICE
To eliminate unnecessary servlce calls, read all the
Instructions In this manual carefully. Then, if you have
a problem, check the table below. If you still have
trouble with your unit call your nearest Sears store or
service center for help. When calling, have thls manual
handy with the model number, serial number and pur-
chase date filled In on the front cover.
PROBLEM SOLUTION
Cooktop knobs wlllnot Push knobs in to turn.
turn
Cooktop burners will Gas supply not connected
not light or not turned on.
Counter unit not properly
grounded or polarized.
This can affect spark Igni-
tion. See Installation sec-
tion.
Noelectrlcitytounit; check

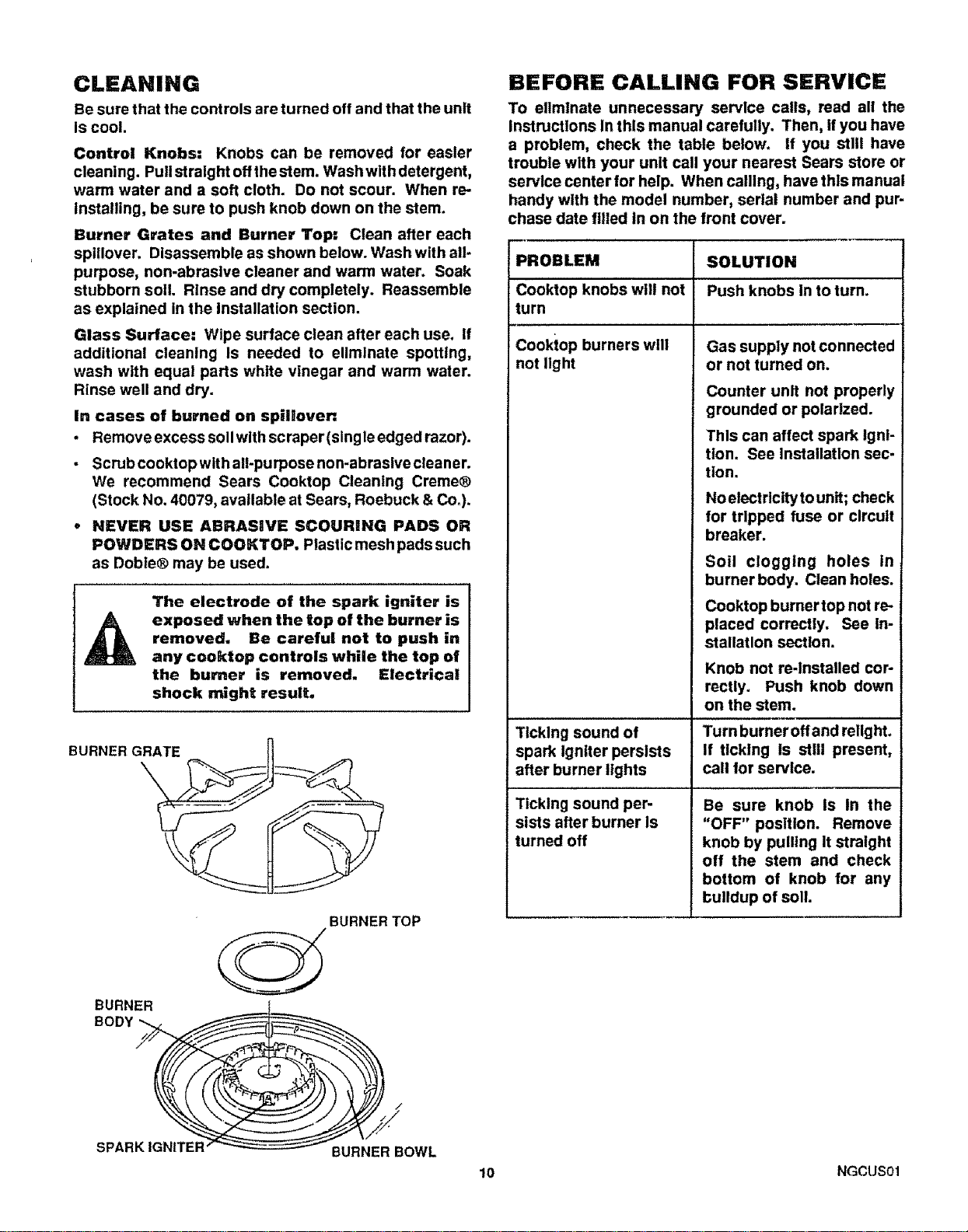

for tripped fuse or clrcutt
breaker.
Soil clogging holes in
burner body. Clean holes.
Cooktop burner top not re-
placed correctly. See In-
stallation section.
Knob not re.installed cor-
rectly. Push knob down
on the stem.
Ticking sound of Turn burneroffand rellght.
spark Igniter persists If ticking is still present,
after burner lights call for service.
Ticking sound per- Be sure knob Is In the
sists after burner Is "OFF" position. Remove
turned off knob by pulling It straight
off the stem and check
bottom of knob for any
buildup of soil.
10
NGCUS01
f

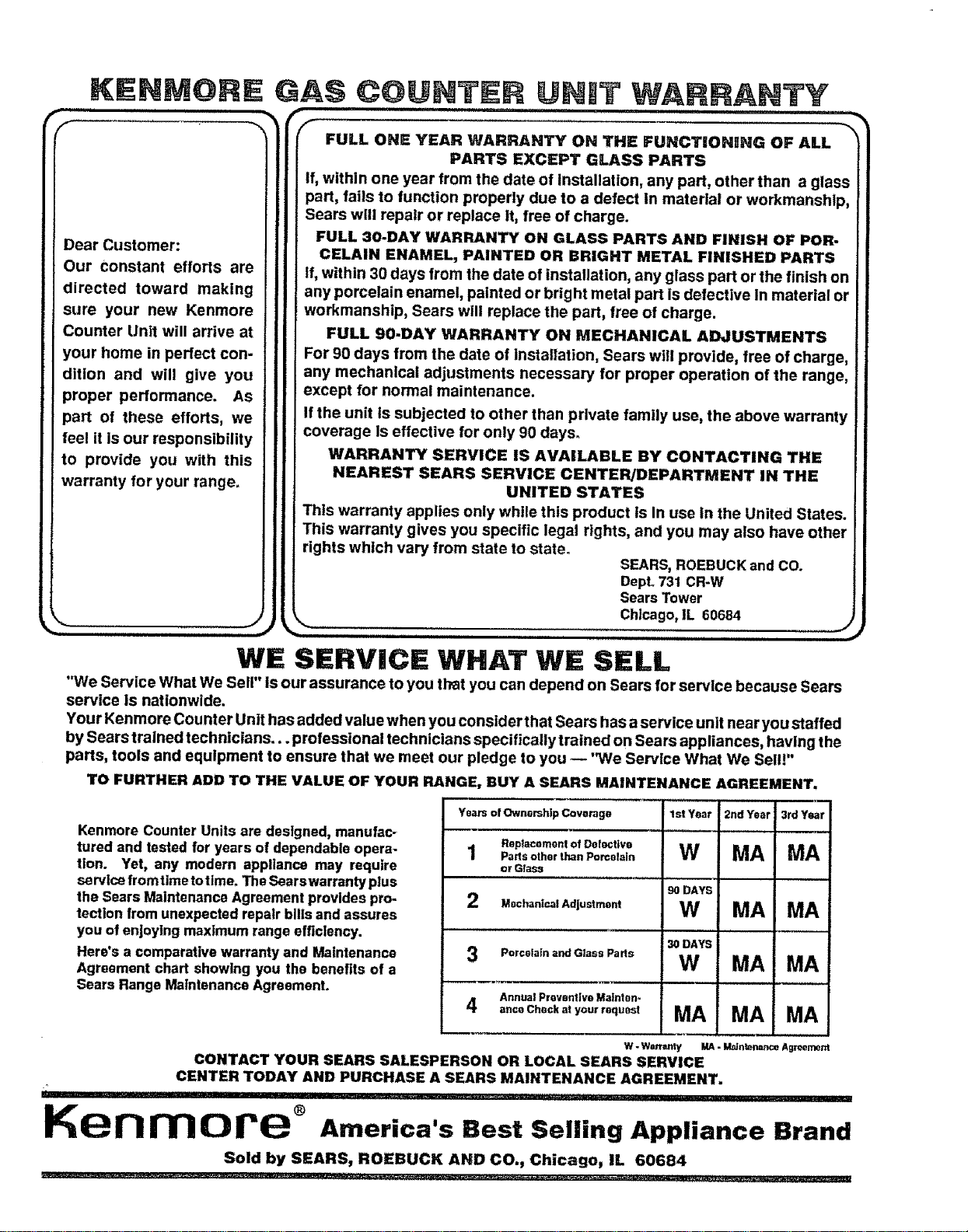

Dear Customer:
Our Constant efforts are
directed toward making
sure your new Kenmore
Counter Unit will arrive at
your home in perfect con-
dition and will give you
proper performance. AS
part of these efforts, we
feel it is our responsibility
to provide you with this
warranty for your range.
KENM@RE GAS COUNTER UNtT WARRANTY
HHHN I I I . Iv "................ 'HHHH'I
FULL ONE YEAR WARRANTY ON THE FUNCTIONnNG OF ALL
PARTS EXCEPT GLASS PARTS
if, within one year from the date of Installation, any part, other than a glass
_art, fails to function properly due to a defect in material or workmanship,
Sears will repair or replace It, free of charge.
FULL 30-DAY WARRANTY ON GLASS PARTS AND FINISH OF POR-
CELAIN ENAMEL, PAINTED OR BRIGHT METAL FINISHED PARTS
if, within 30 days from the date of installation, any glass part or the finish on
any porcelain enamel, painted or bright metal part is defective in material or
workmanship, Sears will replace the part, free of charge.
FULL 90-DAY WARRANTY ON MECHANICAL ADJUSTMENTS
For 90 days from the date of installation, Sears will provide, free of charge,
any mechanical adjustments necessary for proper operation of the range,
except for normal maintenance.
If the unit ts subjected to other than private family use, the above warranty
coverage ls effective for only 90 days.
WARRANTY SERVICE IS AVAILABLE BY CONTACTING THE
NEAREST SEARS SERVICE CENTER/DEPARTMENT IN THE
UNITED STATES
This warranty applies only while this product Is In use in the United States.
This warranty gives you specific legal rights, and you may also have other
rights which vary from state to state.
SEARS, ROEBUCKand CO.
DepL731 CR_W
Sears Tower
,._ Chicago, ]L 60684
%_,, ,, J
WE SERVICE WHAT WE SELL
"We Service What We Sell" is our assurance to you tlmt you can depend on Sears for service because Sears
service is nationwide.
Your Kenmore Counter Unit has added value when you consider that Sears has a service unit near you staffed
by Sears,rained technicians.., professional technicians specifically trained on Sears appliances, having the
parts, tools and equipment to ensure that we meet our pledge to you -- "We Service What We Sell!"
TO FURTHER ADD TO THE VALUE OF YOUR RANGE, BUY A SEARS MAINTENANCE AGREEMENT,
Kenmore Counter Units are designed, manufac-
tured and tested for years of dependable opera-
tion. Yet, any modern appliance may require
service fromtimetotime. TheSearswarranty plus
the Sears MaintenanceAgreement provides pro-
tection from unexpected repair bills and assures
you of enjoying maximum rangeefficiency.
Here's a comparative warranty and Maintenance
Agreement chart showing you the benefits of a
Sears Range MaintenanceAgreement.
Years of Owne_hlp Coverage 1st Year 2ncf Year ',3rd Year
,,,,,,,,,, ,,, L
Replacement of Delective
1 Pa._othe,t_.Po_e,ol. W MA MA
or GTass
,,,,,,,,,, ,,,
90 DAYS
2 Mechanical Adjustment W MA MA
,,,,,,,,, ,,,
30DAYS
Porcela|n and Glass Parts
W MA MA
AnnualPreventiveMalntan_
4 a.oocheo_atyou,ro.uo= MA MA MA
W -Wammty MA - MaJnt_nar;_e Agreement
CONTACT YOUR SEARS SALESPERSON OR LOCAL SEARS SERVICE
CENTER TODAY AND PURCHASE A SEARS MAINTENANCE AGREEMENT.
IIIIII I I1'11'1111111' r= .... .m_ ......... """'" _[...............
Ken more ° America's Best Selling Appliance Brand
Sold by SEARS, ROEBUCK AND CO., Chicago, IL 60684
