AMERICAN PERFORMER TELECASTER® HS (011512XXXX)
Page 2 of 6
Apr 24, 2019 - PR5237 - Rev. A
COPYRIGHT - 2019 - FENDER MUSICAL INSTRUMENTS CORPORATION

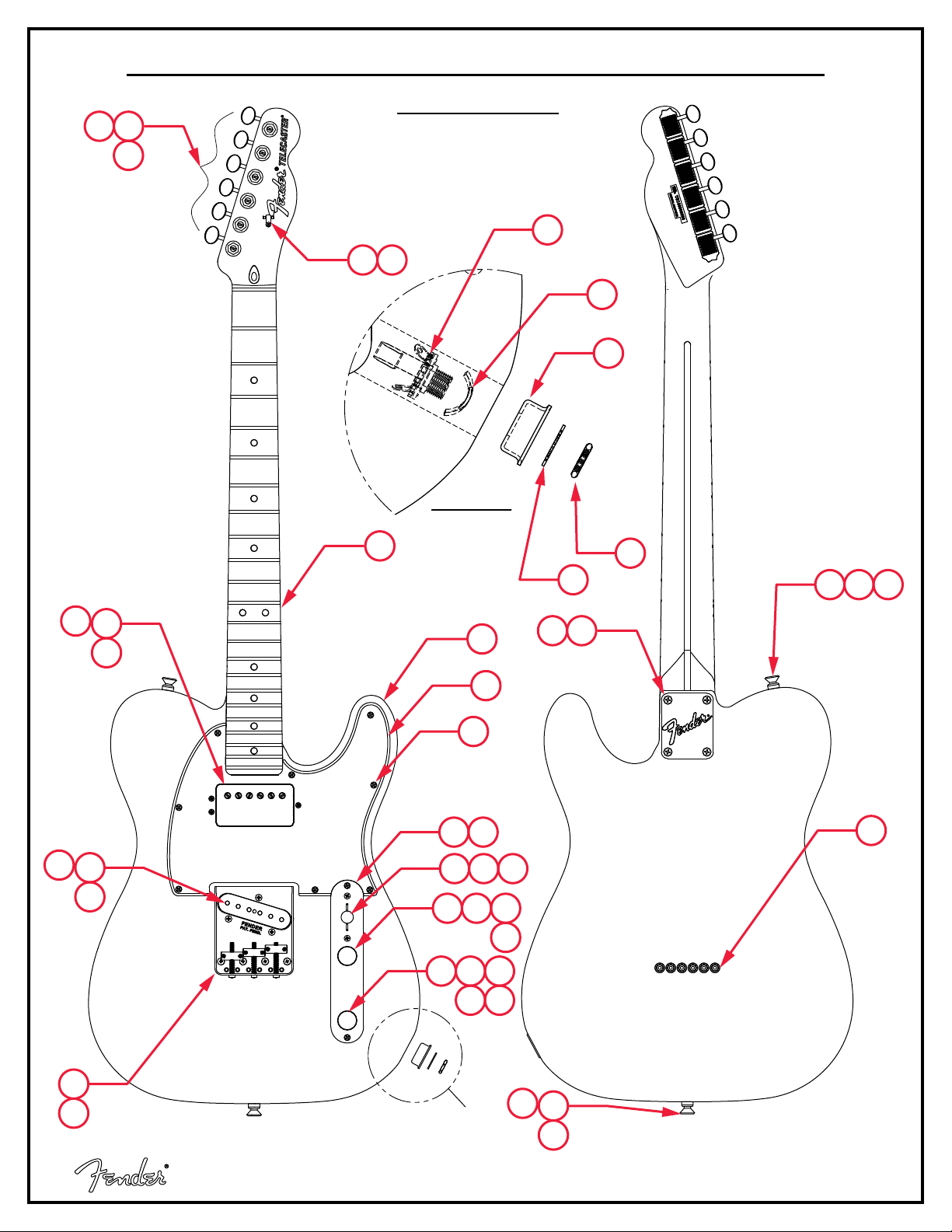

PARTS LIST
REF# DESCRIPTION PART
NUMBER
1 BODY AM PERFORMER TELE GLOSS 3TSB 7713958500
1 BODY AM PERFORMER TELE GLOSS VINTAGE WHITE 7713958541
1 BODY AM PERFORMER TELE GLOSS AUB 7713958545
1 BODY AM PERFOMRER TELE SATIN SFG 7714118557
2 NECK ASSY AM PERFORMER TELE MPL 7713151000
2 NECK ASSY AM PERFORMER TELE RW 7713150000
3 PLATE NECK STD SERIES LOGO NO TILT 0048691000
4 SCREW SMA8 X 1-3/4 OHP NI 0015636049
5 TUNNING KEYS MODERN VINTAGE SET 7713088000
6 WASHERS KEY 0053106049
7 BUSHINGS KEY 0058820049
8 STRING GUIDE TREE AM STD W/HDWR 0994911000
9 SCREW SMAB 3 X 3/8 RHP STL NI 0011357049
10 PICKGUARD AM PERFORMER TELE HS B/W/B 7715034000
10 PICKGUARD AM PERFORMER TELE HS P/B/P 7715035000
11 SCREW SMAB 4 X 1/2 OHP NI 0015578049
12 TELE CONTROL PLATE ALUM CHR 0093823000
13 SWITCH 3-WAY LEVER 0992041000
14 SCREW MACH 6-32 X 5/8 RH NI 0994925000
15 KNOB SWITCH VINT TELE 0994936000
16 KNOBS CONTROL ALUM CHR 0095799049
17 CONTROL 500K A.TAPER .25 x .625 S.SHAFT 0079409000
18 WASHER LOCK INTL 3/8 X .687 0016436049
19 NUT HEX 3/8-32 X 3/32 TK NI 0016352049
20 PCB ASSY GREASE BUCKET TONE CIRCUIT 7713546000
21 SWITCH POT SOLID SHAFT PUSH PULL 250K 7705104000
22 FERRULE JACK STD TELE CHROME 0021452000
23 JACK PHONE OPEN CIRCUIT 11 0021956049
24 RETAINER JACK NI PLT TELE 0010355069
25 BRIDGE ASSY AM PERFORMER TELE 7713385000
25A BRIDGE PLATE VINT TELE 0054162049
25B SCREWS MACH 6-32 X 1-1/4 FLHS NI 0018377049
25C BRIDGE SECTIONS VINT TELE 0990843000
25D SPRING COMPRESSION 1-1/16 #14 0018689049
25E SET SCREWS 6-32 X 7/16 OVPT SL NI 0016105049
25F SET SCREW 6-32 X 3/8 OVPT SL NI 0094038049
NOT PICTURED IN DIAGRAM
*
=
AMERICAN PERFORMER TELECASTER® HS (011512XXXX)
Page 3 of 6
Apr 24, 2019 - PR5237 - Rev. A
COPYRIGHT - 2019 - FENDER MUSICAL INSTRUMENTS CORPORATION
REF# DESCRIPTION PART
NUMBER
26 SCREWS WOOD OV HD 6 X 1 (12) 0016188049
27 PICKUP ASSY AM PERFORMER TELE BRIDGE 7713384000
28 SCREWS MACH 6-32 X 5/8 RHP NI 0015800049
29 TUBING LATEX CUT .375 X 1/8ID X 1/4OD 0036878000
30 PICKUP ASSY AM PERFORMER TELE SHAWBUCKER 7713917000
31 SCREW M #3-48 X 7/8 RHP NI 0058404000
32 SPRING HB MTG 3/4” 0050167049
33 STRAP BUTTONS NICKEL PLATED .156 W/HDWR 0994915000
34 SCREWS SMAB 5 X 1 OHP NI 0015610049
35 WASHERS FELT WHITE 0994930000
35 WASHERS FELT BLACK 0994929000
36 FERRULE STRING RETAINER NI SET 0994918000
* WRENCH HEX KEY 1/8” (TRUSS ROD ADJUSTMENT) 0023811049
NOT PICTURED IN DIAGRAM
*
=
AMERICAN PERFORMER TELECASTER® HS (011512XXXX)
Page 4 of 6
Apr 24, 2019 - PR5237 - Rev. A
COPYRIGHT - 2019 - FENDER MUSICAL INSTRUMENTS CORPORATION

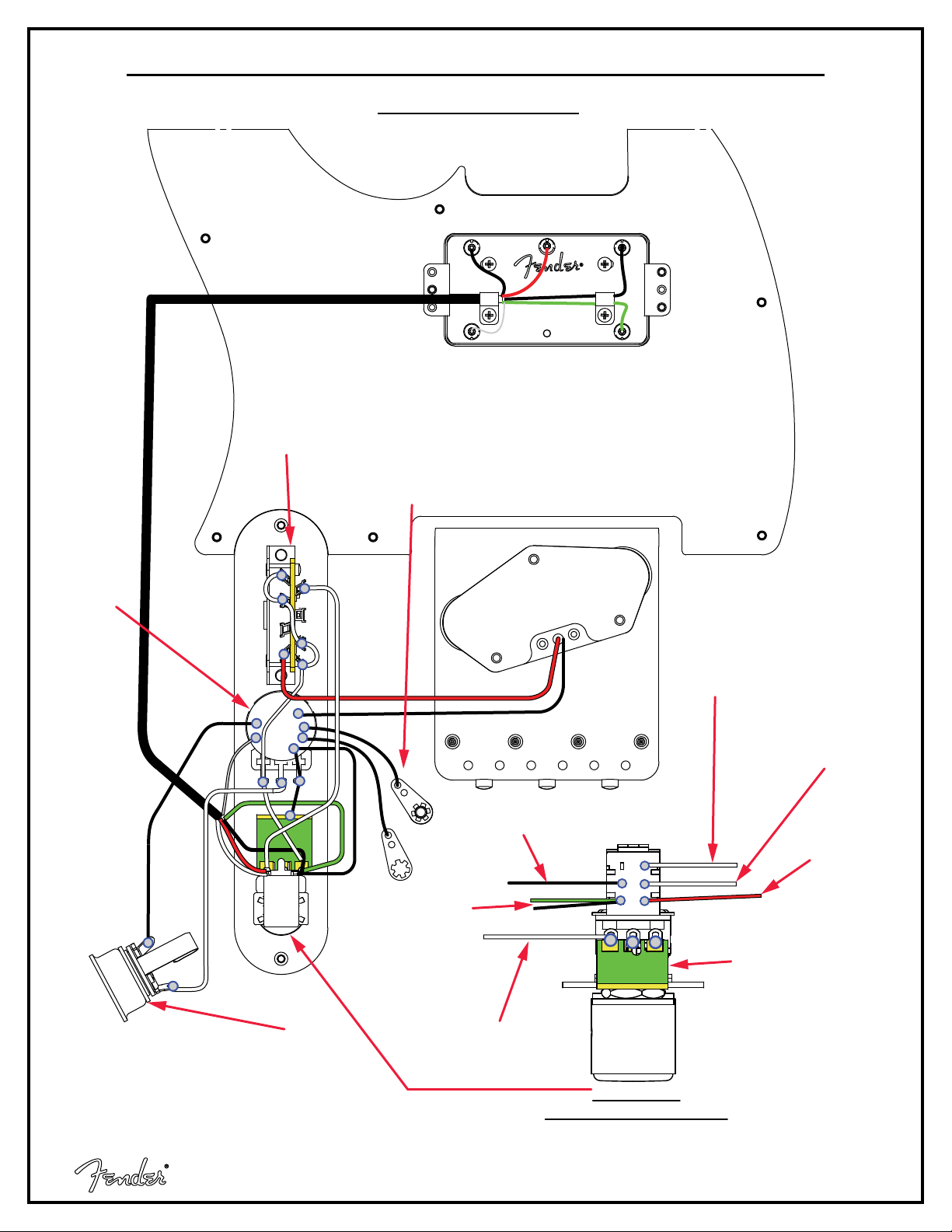

WIRING ASSEMBLY
WHITE WIRE
FROM NECK
PICKUP
BLACK & GREEN
WIRE FROM NECK
PICKUP
WHITE WIRE
FROM VOLUME POT
BLACK WIRE FROM
BACK OF VOLUME POT
GROUND LUGS
TO BODY
RED WIRE
FROM NECK
PICKUP
GREASE BUCKET PCB
SOLDERED UPSIDE
DOWN TO PUSH-PULL
POT TERMINALS
WHITE WIRE
FROM 5-WAY
SWITCH
NECK PICKUP
BRIDGE PICKUP
OUTPUT
JACK
PUSH-PULL
TONE CONTROL DETAIL
3-WAY SWITCH
VOLUME
CONTROL
AMERICAN PERFORMER TELECASTER® HS (011512XXXX)
Page 5 of 6
Apr 24, 2019 - PR5237 - Rev. A
COPYRIGHT - 2019 - FENDER MUSICAL INSTRUMENTS CORPORATION

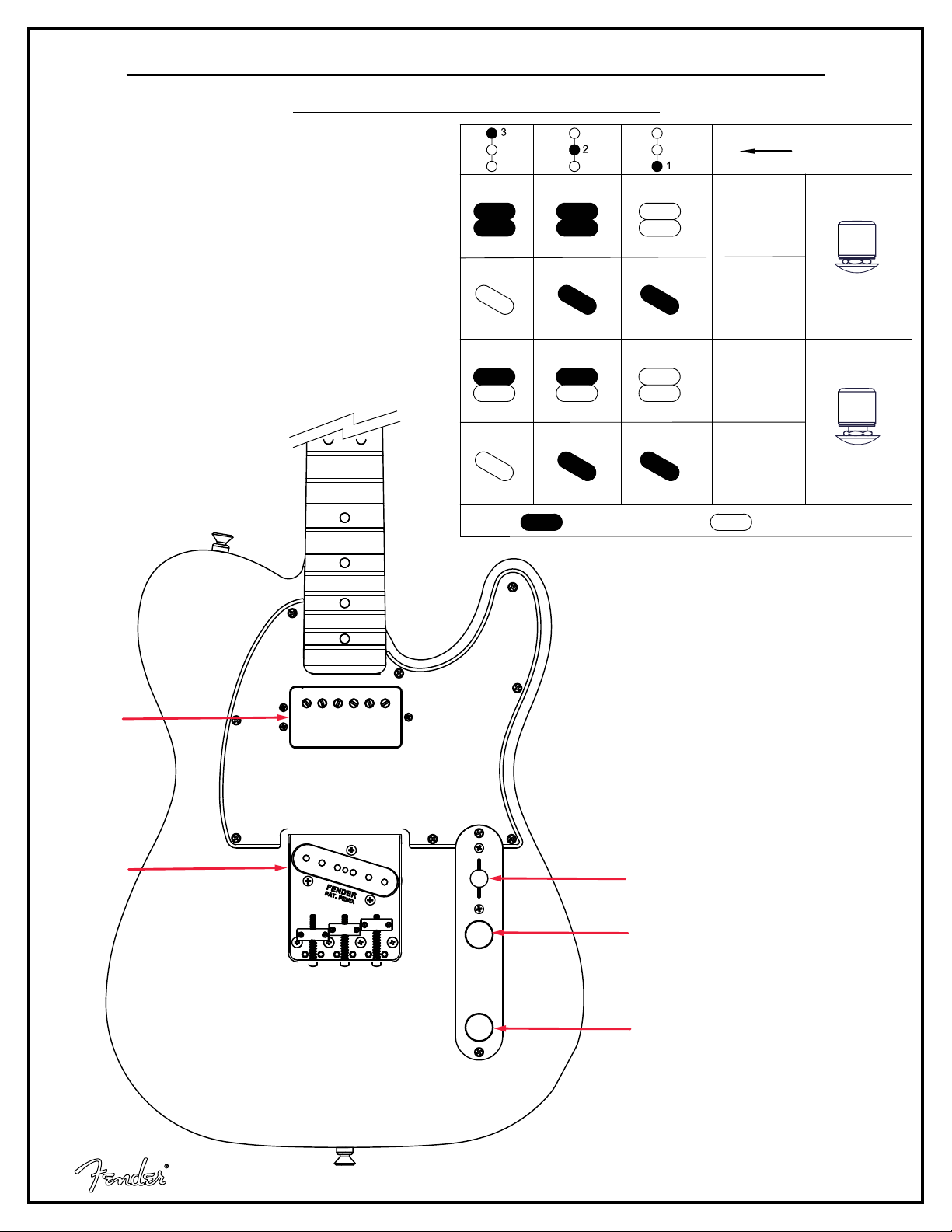

SWITCH AND CONTROL FUNCTION
3 WAY SWITCH
POSITION
PICKUP IS OFF
PICKUP IS ON
PUSH-PULL
SWITCH DOWN
PUSH-PULL
SWITCH UP
NECK
PICKUP
NECK
PICKUP
BRIDGE
PICKUP
BRIDGE
PICKUP
MASTER
VOLUME
MASTER TONE WITH
GREASE BUCKET CIRCUIT
NECK
PICKUP
BRIDGE
PICKUP
3 WAY
SWITCH
AMERICAN PERFORMER TELECASTER® HS (011512XXXX)
Page 6 of 6
Apr 24, 2019 - PR5237 - Rev. A
COPYRIGHT - 2019 - FENDER MUSICAL INSTRUMENTS CORPORATION

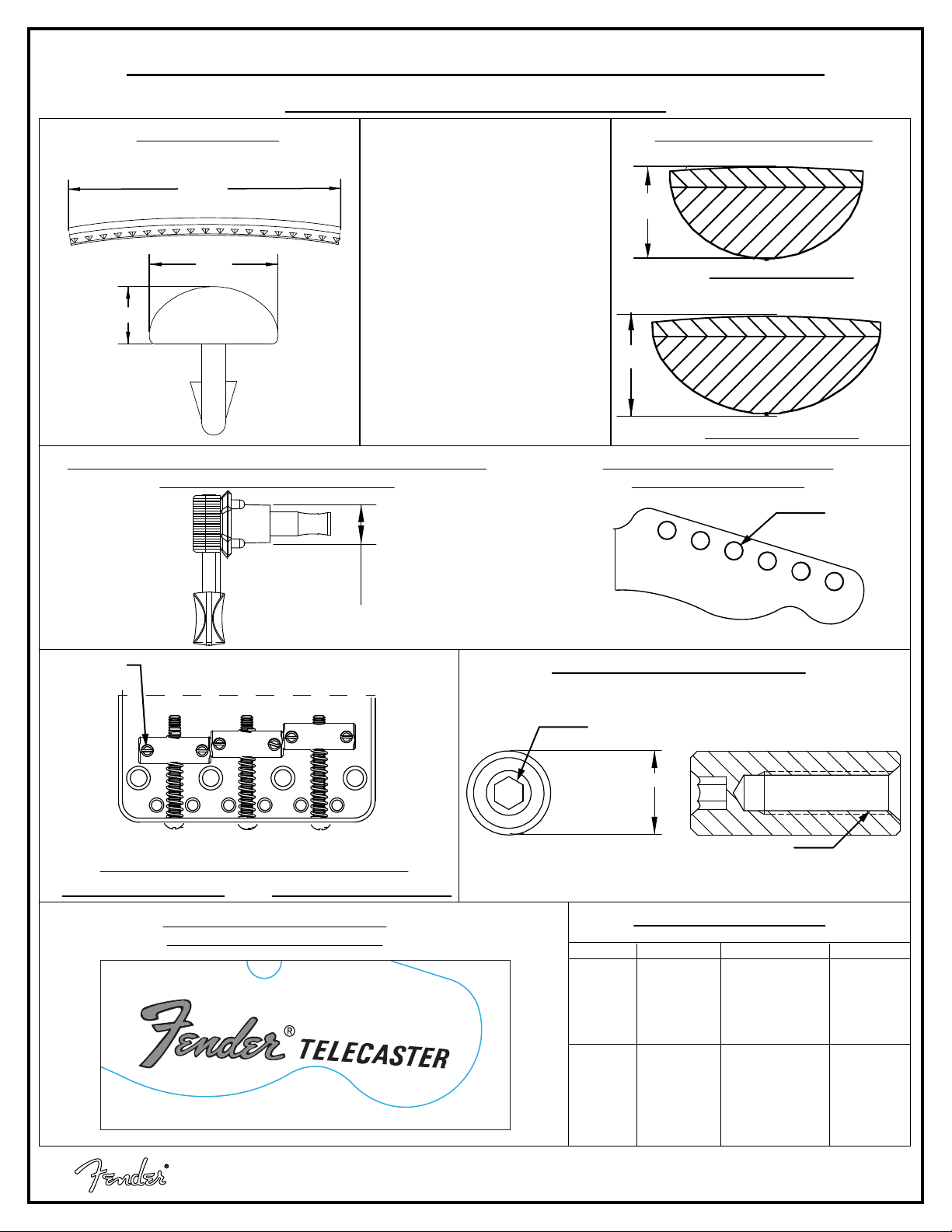

ADDITIONAL SPECIFICATION DETAIL
.055”
.110
2-7/16”
.820”
.870
8-32
THREAD
Ø
.375”
TRUSS ROD NUT: P/N 0994943000
TUNING MACHINE THRU-HOLE
INNER DIAMETER .404”
SHORT: P/N 0094038000TALL: P/N 0016105049
LOGO: AM PERFORMER TELE
APPLIED UNDER THE FINISH
SADDLE HEIGHT SET SCREWS SLOTTED
1ST FRET PROFILE
12TH FRET PROFILE
NECK PROFILE: MODERN “C”FRET SIZE: JUMBO
(FRET DIMENSIONS ARE BEFORE INSTALLATION)
Ø
.404”
PLEASE NOTE: AS EACH NECK
IS SANDED & FINISHED BY
HAND, THICKNESS DIMENSIONS
MAY VARY SLIGHTLY FROM
THOSE SHOWN.
PICKUP SPECIFICATIONS
NECK
BRIDGE
DC RESISTANCE
6.9 - 7.5KΩ
7.6 - 8.2KΩ
MAGNETS
BAR
ALNICO 5
ALNICO 4
BEVELED
POLARITY
SOUTH
NORTH
NORTH
POSITION
SLOTTED
SET SCREW
Ø
.394”.394”
TUNNING KEYS MODERN VINTAGE SET P/N 7713088000
OUTER SHAFT DIAMETER .394”
Ø
1/8” HEX
