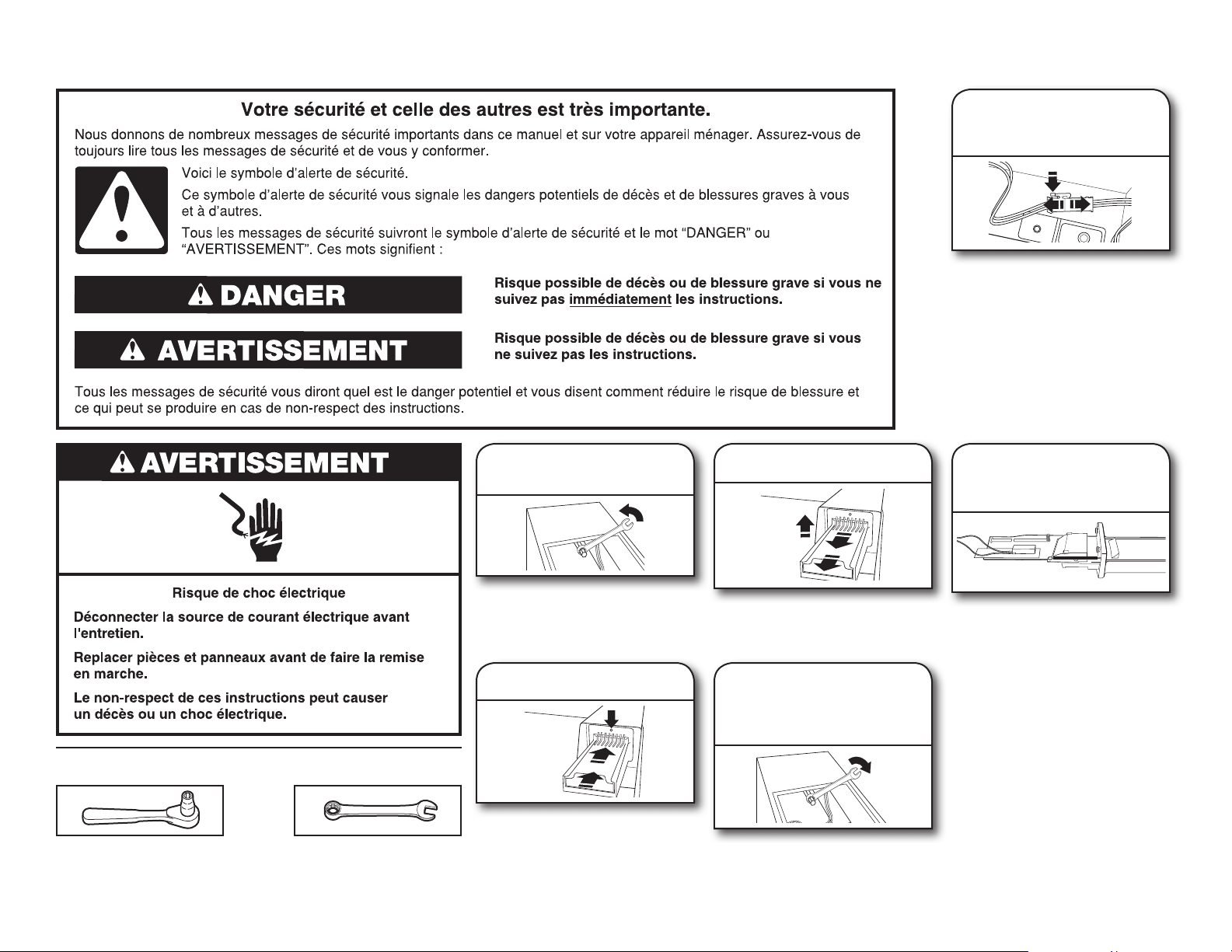

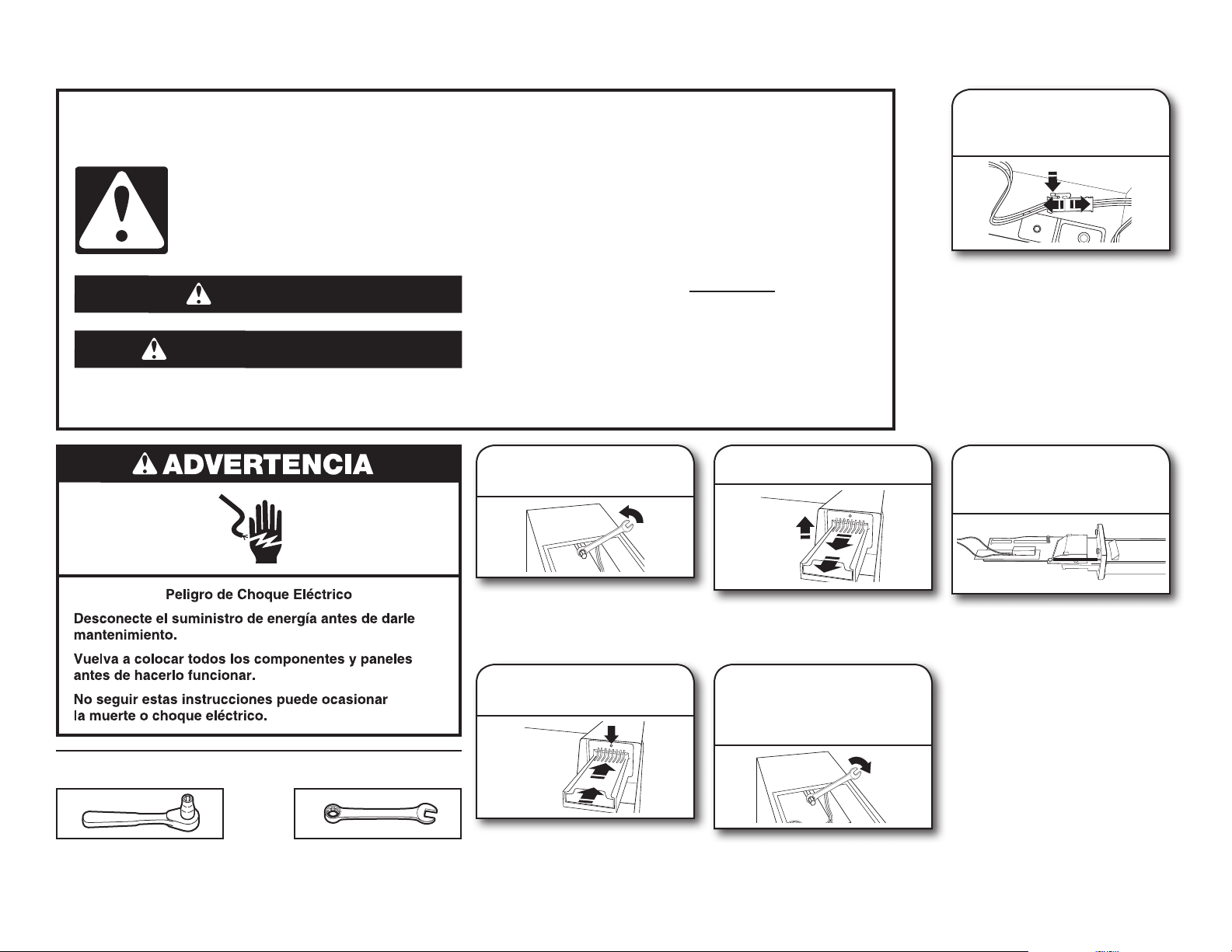

Removing Greenwald Coin Slides from Coin Boxes
Tools Needed
5/16" socket wrench 5/16" open end wrench
1. Disconnect coin slide
harness and ground jumper
With the service door open, disconnect
the coin slide harness by pressing down
on the locking tab and pulling apart. Also
disconnect the ground jumper.
2. Loosen coin slide bolt
Using a 5/16" socket wrench or 5/16" open
end wrench, loosen the coin slide bolt. Set
the bolt aside.
or
W11032801B
3. Remove coin slide
Remove the coin slide by pushing up, then
pulling out (it may require some twisting and
turning).
6. Tighten coin slide bolt,
reattach harness and
ground jumper, and test
Align the long bolt, insert, and tighten using
a 5/16" socket wrench or 5/16" open end
wrench. Reattach the harness and ground
jumper and test.

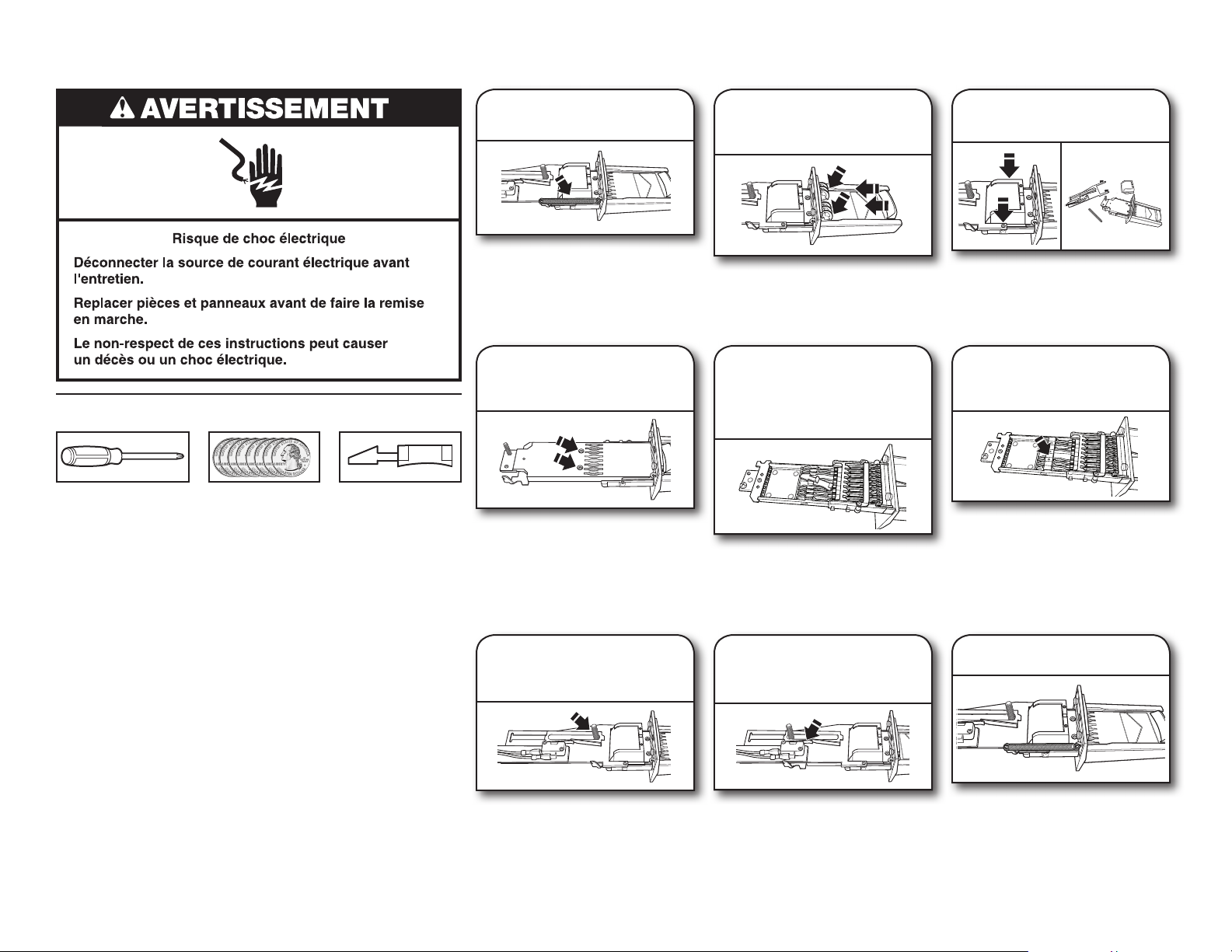

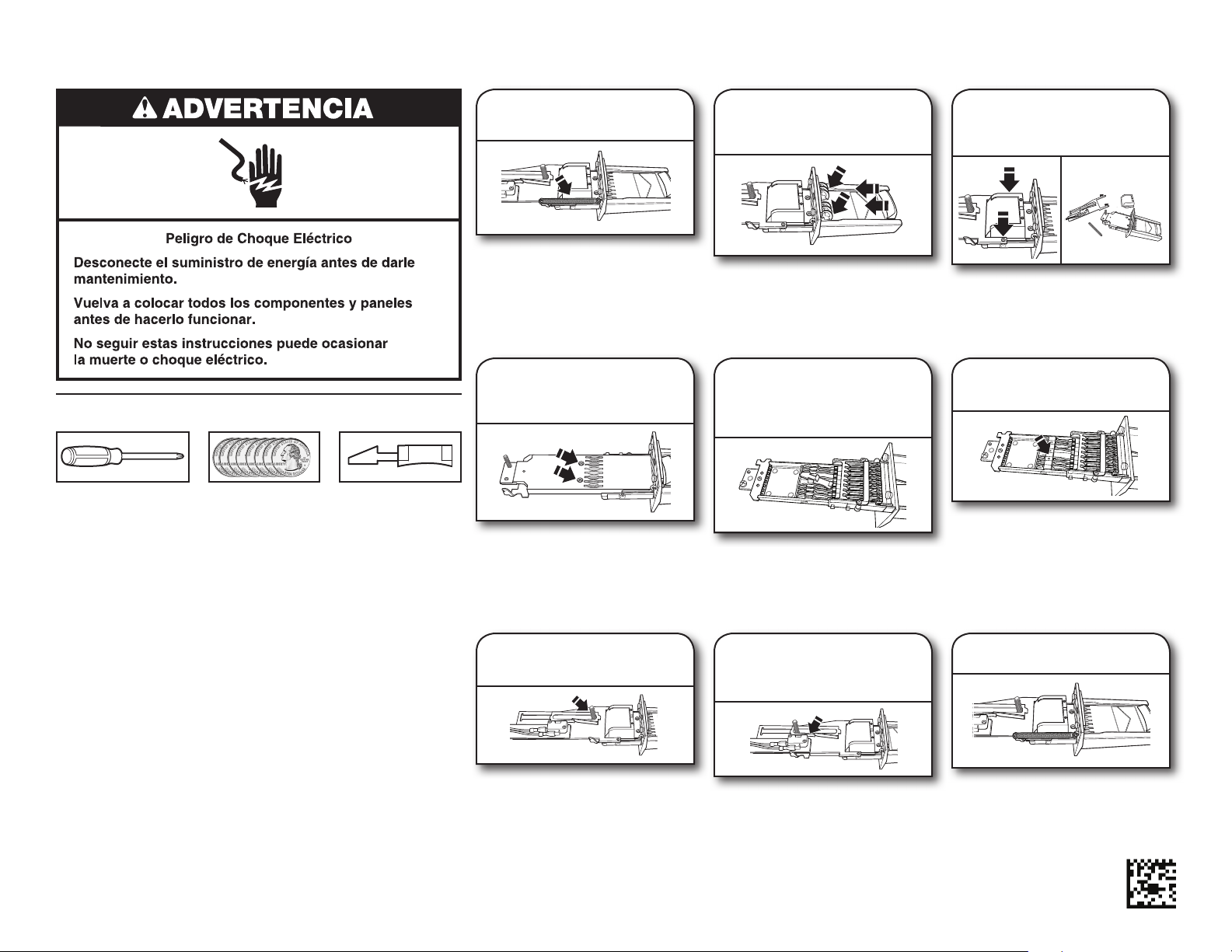

4. Change vend price (see
page 2 of this instruction)
See page 2 of this instruction for information
on how to change the vend price.
5. Reinsert coin slide
Reinsert the coin slide in the coin box by
pushing the slide as far back as possible,
and then pushing down to lock it in place.
Locate the threaded bolt hole.
1
