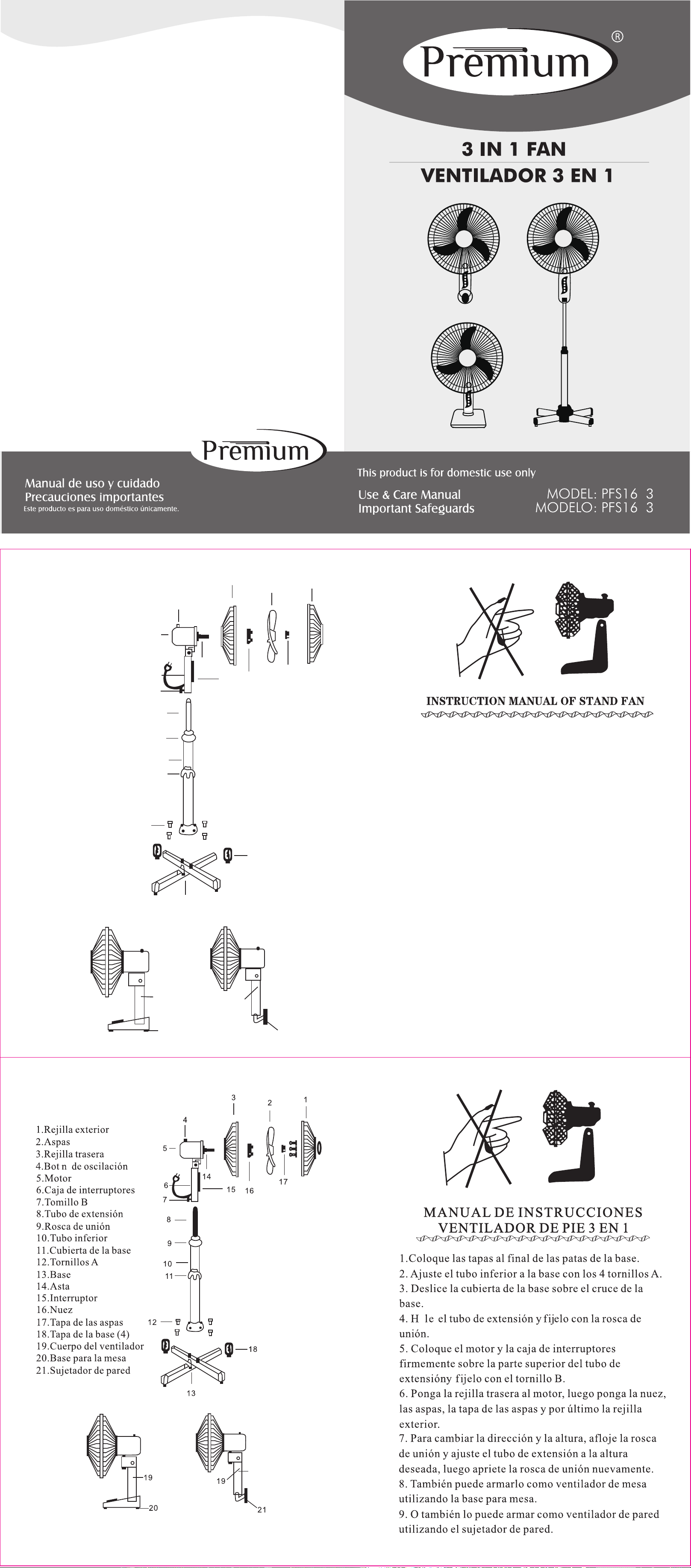

1. Front grill
2. Blade
3. Rear grill
4. Oscillating knob
5. Motor
6. Switch Box
7. Screw B
8. Extension pole
9. Out-joint
10. Lower Pipe
11. Stand Cover
12. Screw A
13. Cross base
14. Shaft
15. Switch
16. Nut
17. Cap
18. End Cap
19. Fan Body
20. Table Plate
21. Wall Firmware
1. Put the end cap at the end of the cross base.
2. Fasten the lower pipe on the cross base with
scrow A (4pcs).
3. Slide the base cover onto the cross basealong
the lower pipe.
4. Pull the extension pole out. and then tighten
the out-joint.
5. Place the motor and switch box fi
rmly on the
top of the extension pole, and tighten screw B.
6. Assemble the guard and blade on the
ftont part of the motor.
7. To change the direction and height, loosen the
out joint and adjust the extension pole at a
suitable position then tighten the out-joint
again
8. Connect Body of the Fan with table plate as
a Desk fan.
9. Connect Body of the Fan with wall firmware
as a Wall fan.
