INSTALLER - PLEASE READ & FOLLOW
THESE INSTALLATION INSTRUCTIONS
Please retain for consumer as care instructions are included

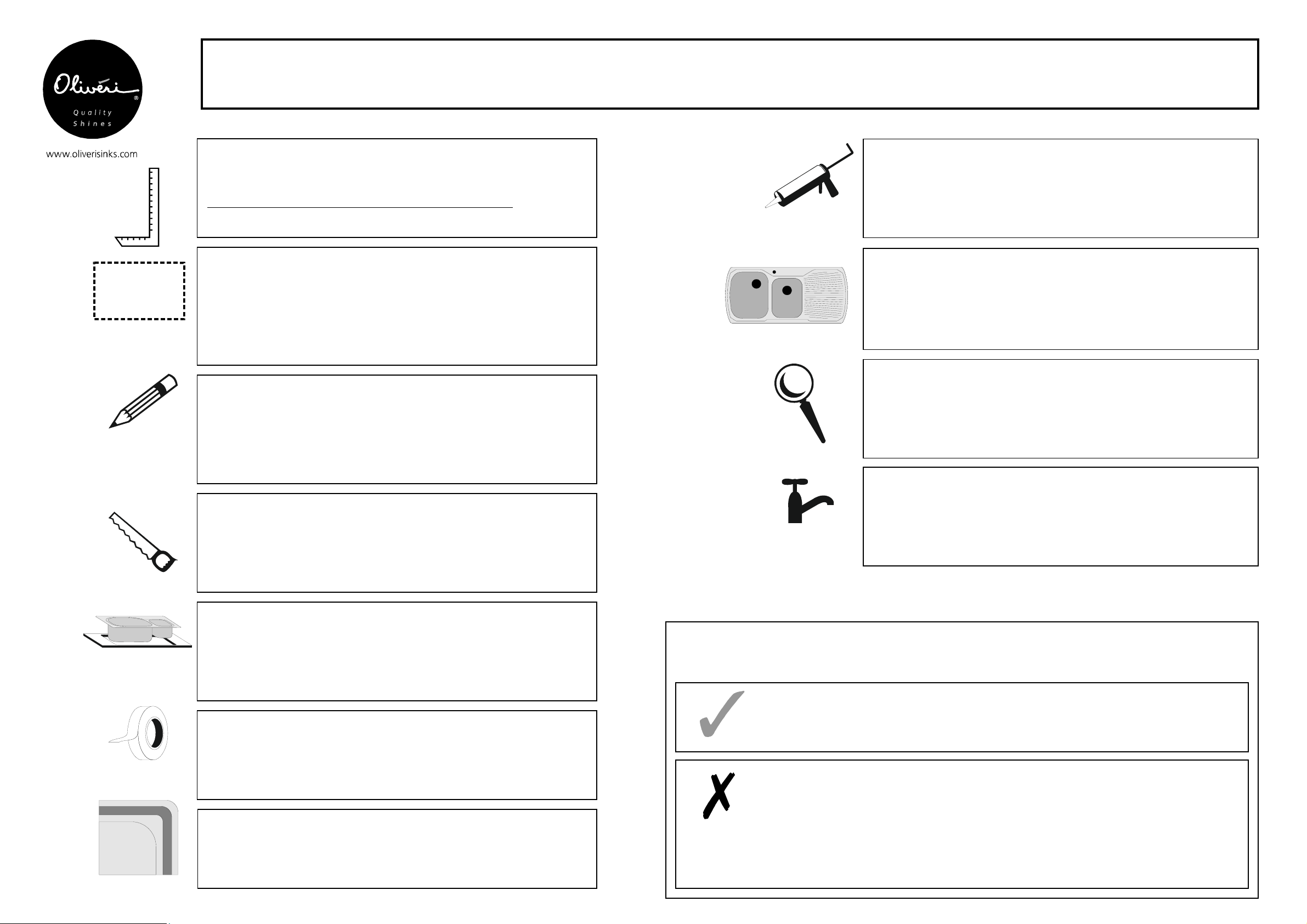

EQUIPMENT REQUIRED for installing your Oliveri top mount sink:
MATERIALS FOR CUTTING COUNTER/BENCHTOP:
• Template for your particular model sink and mounting method (may be inside or printed
on carton depending on model). If not available, the sink itself may be used.
• Marker such as a pencil or similar for tracing the template onto the counter/benchtop
• Tape measure
• Drill with 12mm / ½” diameter bit or larger (wood counter/benchtop)
• Cutting Device (such as a jigsaw) with suitable blade for counter/benchtop material
• Suitable protection such as gloves and goggles to be used while drilling or cutting
MATERIALS FOR FITTING THE TOP MOUNT SINK:
• Oliveri sink (with correct tap holes as ordered) - includes mounting clips, sealing gasket,
basket wastes and other accessories (depending on model).
• These Installation Instructions
• Level to check counter/benchtop & sink is installed level
• Phillips head screwdriver (#2 to tighten mounting clips)
• Flat head screwdriver (large - to tighten basket wastes)
• Suitable sealant (neutral-cure silicone sealant or equivalent)
• Masking material to protect counter/benchtop and sink from excess sealant
• Additional Mounting Hardware if fitting into thinner material. The clamps included
with the sink require a minimum counter/benchtop thickness of 25mm / 1”.
CHECK MODEL & TAP HOLES
The model number on the sink
packaging must match the model
of sink the customer ordered.
Check the number and position of
tap holes is correct.
Do not install if incorrect.
CHECK THE CONDITION
Inspect the sink for any visible
defects. Do not install the sink if
defects are found. Contact your
sink retailer / point of purchase.
AVOID CUTS
The perimeter and punch-outs on
the sink may contain sharp edges.
Handle the sink carefully to avoid
personal injury.
AVOID SCRATCHES
Polished stainless steel can be
scratched if proper care is not
taken during installation.
Topmount sinks may also be known as “drop in” or “inset” sinks.
Sink models with prefix MO, PE, UF, DU, LR, EF, NP, MR, SI & RR.
These sinks will fit into standard 600mm bench tops.
Templates supplied are to assist in achieving the correct shape hole for top mounting the sink.
Careful use of the template is required to achieve the correct cutout shape. If the template is not available, the cut out shape may
be created by carefully inverting the sink onto the counter/benchtop and tracing around the perimeter. Cut the hole 10mm inside the
traced line.
Many Oliveri sinks have waste outlets positioned to the rear of the bowls. Ensure the sink is correctly positioned when fitting.
Unequal bowl depth:
Sinks that combine different sized bowls may also have unequal bowl depth. Waste plumbing will need to accommodate
this variance. MO, PE, NP, SI & RR sinks have a height adaptor included with the sink where needed.
Models UF03D & UF04D have a 60mm height difference in waste connections for the main and smaller bowl. Waste plumbing will
need to accommodate this variance.
Models UF05D & UF06D have a 35mm height difference in waste connections for the main and smaller bowl. Waste plumbing will
need to accommodate this variance.
EF models have a 35mm height difference in waste connections for the main and smaller bowl. Waste plumbing will need to
accommodate this variance.
Solitaire models (LR) - Cut out templates are not supplied with these sinks.
LR510 & LR515 may be top mounted, each using a circular cut out 466mm in diameter. LR515 comes with a 32mm diameter tap
hole pre-cut in the tap landing. Mark the location of this tap hole when trial fitting the sink. Then, drill out the counter/benchtop in the
appropriate location so that the mixer tap can be solidly installed through both the sink and the counter/benchtop.
For other topmount LR models that do not have a template, the cut out shape may be created by carefully inverting the sink onto
the counter/benchtop and tracing around the perimeter. Cut the hole 10mm inside the traced line.
LR510 may also be under mounted in a solid-surface counter/benchtop using a circular cut out 454mm in diameter after
edges are smoothed. Refer Oliveri undermount instructions for recommended installation methods.
MANHATTAN & DALLAS (MH or DA)
THESE SINKS WILL NOT FIT IN A STANDARD 600MM COUNTER/BENCH TOP.
Measure carefully to ensure sufficient room exists (including allowance for a splashback if required). The cutout shape may
be created by carefully inverting the sink onto the counter/benchtop and tracing around the perimeter. Cut the hole 10mm inside the
traced line.
