HY-PTK-100WP20A
User Manual
30m
(1.2 in)
HY-PTK-100WP20A

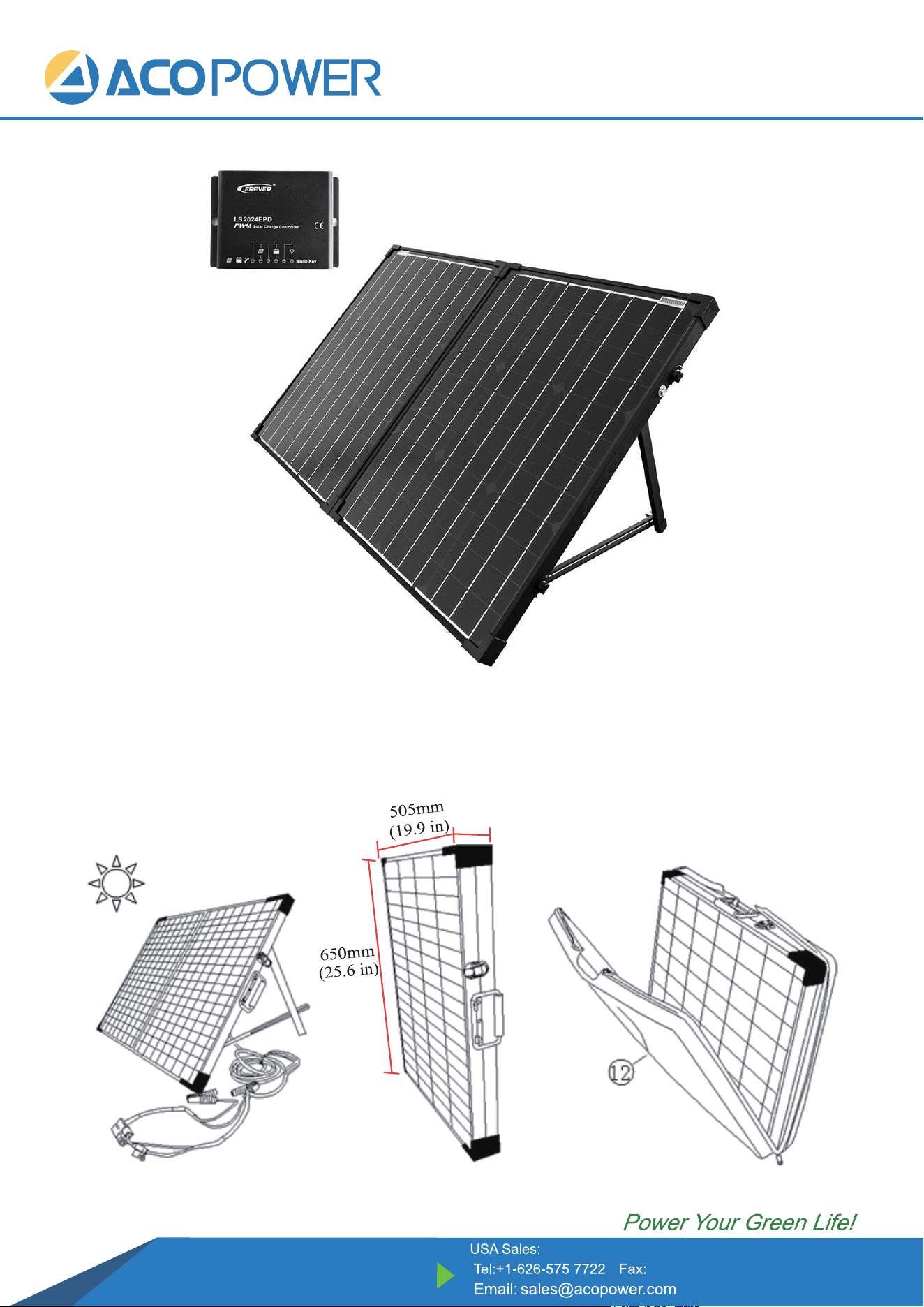

Summary of folding solar panel structure
www.ACOPower.com
4120 Valley Blvd Walnut, CA 91789, USA
+1-626-737 1140
HY-PTK-100WP20A
PV-HX025
2.5mm² 1000V DC IP65
Hong Xin XU
PV-HX025
2.5mm² 1000V DC IP65
-
-
+
9a
9b
13
3
4
2
1
14
5
6
7
8
9
10
11
+
-
+
14a
14b
Accessories:
1. Handle
2. Latches
3. Aluminum frame
9a. Red Positive Battery Clip
9b. Black Negative Battery Clip
10. Anderson Plug
8. Cable
9. Battery Clips
14a. Red Positive MC4 Cable
14b. Black Negative MC4 Cable
11. Fuse
12. Handy carry bag
13. Corner protector
14. MC4 cables
4. Aluminum support legs
5. Solar charge controller
6. Junction box
7. Label
www.ACOPower.com
4120 Valley Blvd Walnut, CA 91789, USA
+1-626-737 1140
HY-PTK-100WP20A
www.ACOPower.com
4120 Valley Blvd Walnut, CA 91789, USA
+1-626-737 1140
、 、
HY-PTK-100WP20A
www.ACOPower.com
4120 Valley Blvd Walnut, CA 91789, USA
+1-626-737 1140
. l
HY-PTK-100WP20A
www.ACOPower.com
4120 Valley Blvd Walnut, CA 91789, USA
+1-626-737 1140
Specifications
100w solar panel
Type Module Size N.W
Specification
Max-
Power
Max-
Power
Voltage
Max-power
Current
Open-
Circuit
Voltage
Short-
circuit
Current
Module mm Kg
W V A V A
2*50w
650*505*30
(25.6*19.9*1.2 in)
15
(33.1 lb)
2*50 17.8 2*1.81 22.3 2*3.03
1 2 3 4 5 6 7 8
9 10
1. Features and Mounting
Charge Controller
HY-PTK-100WP20A
www.ACOPower.com
4120 Valley Blvd Walnut, CA 91789, USA
+1-626-737 1140
①
②
③
④
⑤
2. Indicators Description and Operation
Digital
Key
Tube
2.1 Indicator Status Description
2.2 Operation
The digital tube display the load work mode, please refer to the correspondence table of
Load Work Mode & LED digital tube value. Pressing the key to configure the parameter,
please refer to the below configuration method:
1) After Powering on, disconnect the PV or connect the PV(Voltage<5V) , the light of the digital tube point go on;
Connect the PV(Voltage>6V) ,the light of the digital tube point go off.
2) The key can be used to operate switching on/off the load (Manual control) or clearing the faults
3) Keeping pressing the key button over 5S, It will go to the parameter in browsing mode which can cycle through
the parameter item by clicking the button ,after the light of the digital tube point going on.
4) After the digital tube displaying the value what you want to configure, releasing the key and waiting 15S, Digital
Tube stop flashing, then the configuration is successful.
HY-PTK-100WP20A
Charging Status
LED indicator
Green
On Solid
Green
Fast Flashing
Over voltage
Green
Green
Battery Status LED
indicator
Green
On Solid
Normal
Green
Slowly Flashing
Full
Orange
On Solid
Under voltage
Red
On Solid
Over discharged
Radix Point of Digital
tube
(Load indicator)
Red
On Solid
Load ON
Red
Slowly Flashing
Over Load
Red
Fast Flashing
Short Circuit
PV connection normal
but low voltage(irradiance)
from PV, on charging
NO PV voltage(night time)
or PV connection problem
OFF
Slowly Flashing In Charging
PV
www.ACOPower.com
4120 Valley Blvd Walnut, CA 91789, USA
+1-626-737 1140
www.ACOPower.com
4120 Valley Blvd Walnut, CA 91789, USA
+1-626-737 1140
Value
Working mode
Value
Working mode
Light ON/OFF
Light ON + 8 hours
Light ON + 1 hours
Light ON + 9 hours
Light ON + 2hours
Light ON + 10 hours
Light ON + 3hours
Light ON + 11 hours
Light ON + 4 hours
Light ON + 12 hours
Light ON + 5 hours
Light ON + 13 hours
Light ON + 6 hours
Manual Control
Light ON + 7 hours
Test Mode
HY-PTK-100WP20A
www.ACOPower.com
4120 Valley Blvd Walnut, CA 91789, USA
+1-626-737 1140
3. Troubleshooting
Faults
Possible reasons
Troubleshooting
c
orrect and tight
1
. Disconnect the solar array and measure the battery
voltage whether is too high; 2. Change the controller; 3.
The controller cut off the output automatically. LED indicator
will return to green automatically when fully
，press
t
h
.25-1.5 times, 1.5-2 times and
e
HY-PTK-100WP20A
www.ACOPower.com
4120 Valley Blvd Walnut, CA 91789, USA
+1-626-737 1140
4. Technical Specifications
Item
LS1012EPD
LS1024EPD LS2024EPD
Nominal system voltage 12VDC 12/24VDC Auto 12/24VDC Auto
Max. PV input voltage 30V 50V 50V
Rated current 10A 10A 20A
Equalize Voltage
14.8V(12V);29.6V(24V)
Boost Voltage
14.4V(12V);28.8V(24V)
Float Voltage
13.7V(12V);27.4V(24V)
Low Voltage Reconnect
Voltage
12.6V(12V);25.2V(24V)
Low Voltage Disconnect
Voltage
11.2V(12V);22.4V(24V)
Self-consumption
12V：≤4.58mA；24V：≤6.01mA
Temperature
compensation coefficient
-5mV/℃/2V（25℃）
Working temperature
-35℃～+55℃
Enclosure IP67
Overall dimension 108.5mm×75mm×25.6mm
Mounting dimension 100.5mm
Mounting hole size
Φ5
Power cable PV/BAT/LOAD:4.0mm
2
PV/BAT/LOAD:6.0mm
2
Net weight
408g
410g 435g
HY-PTK-100WP20A
www.ACOPower.com
4120 Valley Blvd Walnut, CA 91789, USA
+1-626-737 1140
HY-PTK-100WP20A
www.ACOPower.com
4120 Valley Blvd Walnut, CA 91789, USA
+1-626-737 1140
HY-PTK-100WP20A
www.ACOPower.com
4120 Valley Blvd Walnut, CA 91789, USA
+1-626-737 1140

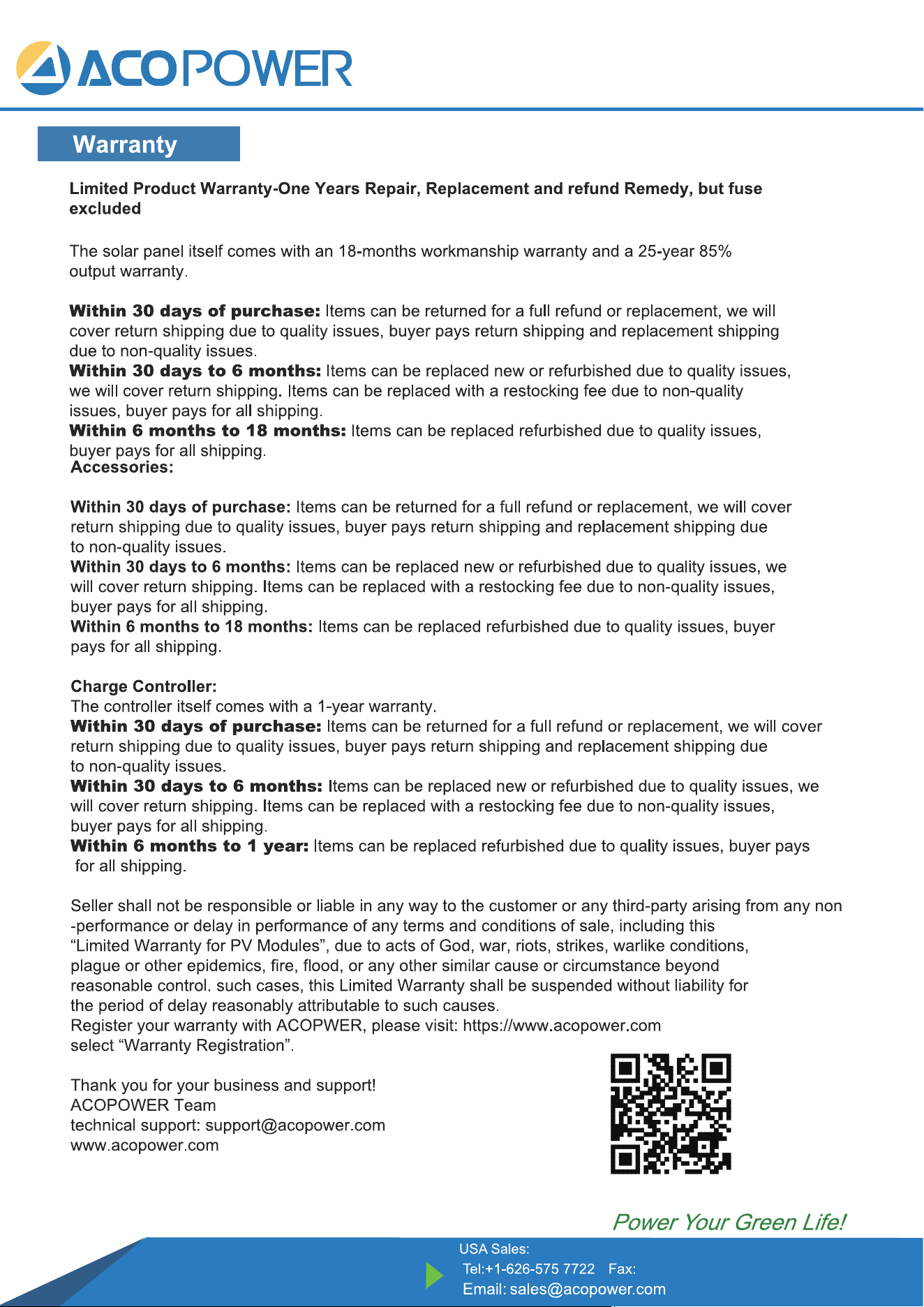

Warranty
Registration
Web
HY-PTK-100WP20A
