240-VOLT
ELECTRICDRYER
Use&CareGuide
For questions about features, operation/performance,
parts, accessories or service, call: 1-800-253-1301.
or visit ourwebsite at...www.whirlpool.corn
Table ofContents ................................................. 2
8565592A

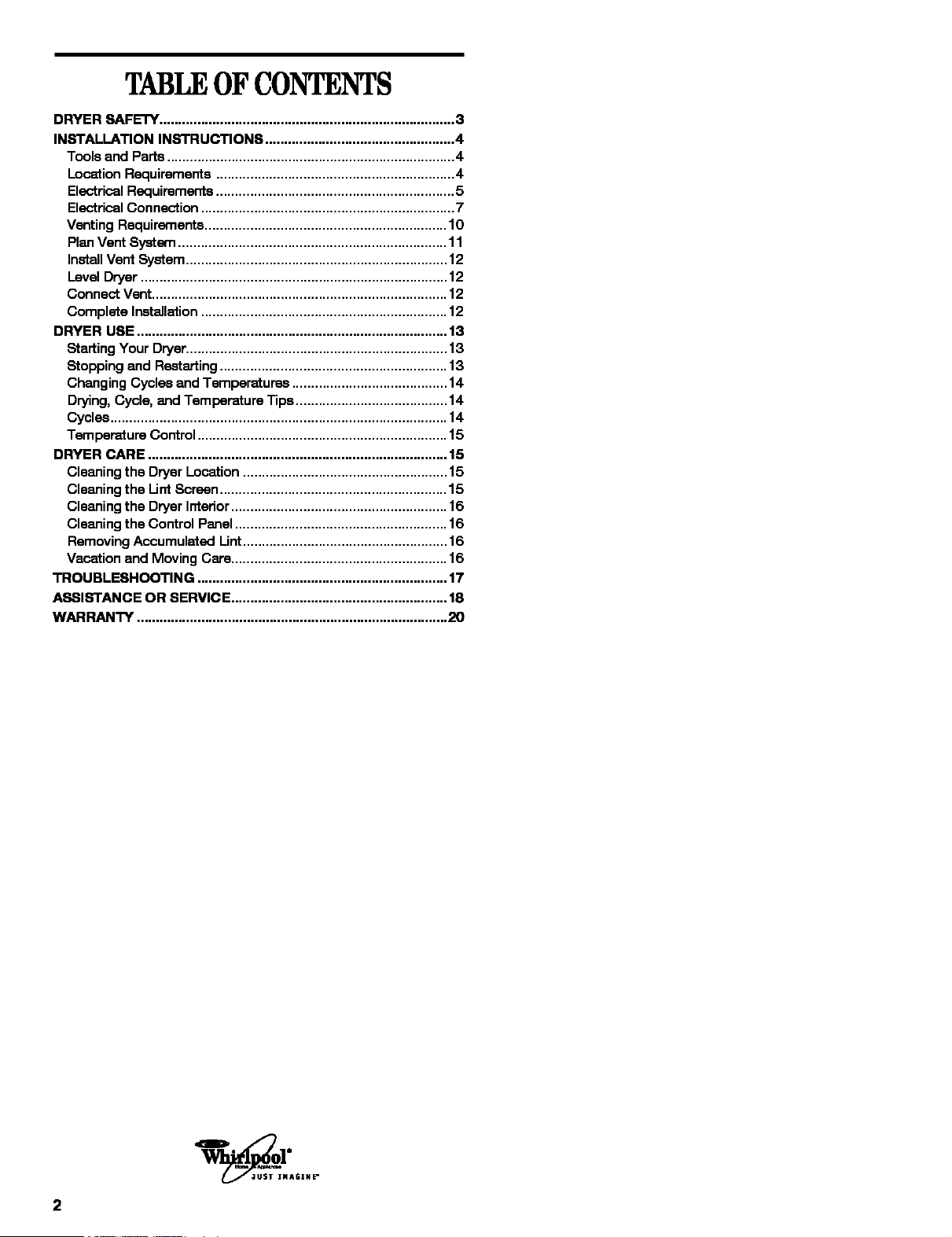

TABLEOFCONTENTS
DRYER SAFETY .............................................................................. 3
INSTALLATION INSTRUCTIONS .................................................. 4
Tools and Parts ............................................................................ 4
Location Requirements ............................................................... 4
Electrical Requirements ............................................................... 5

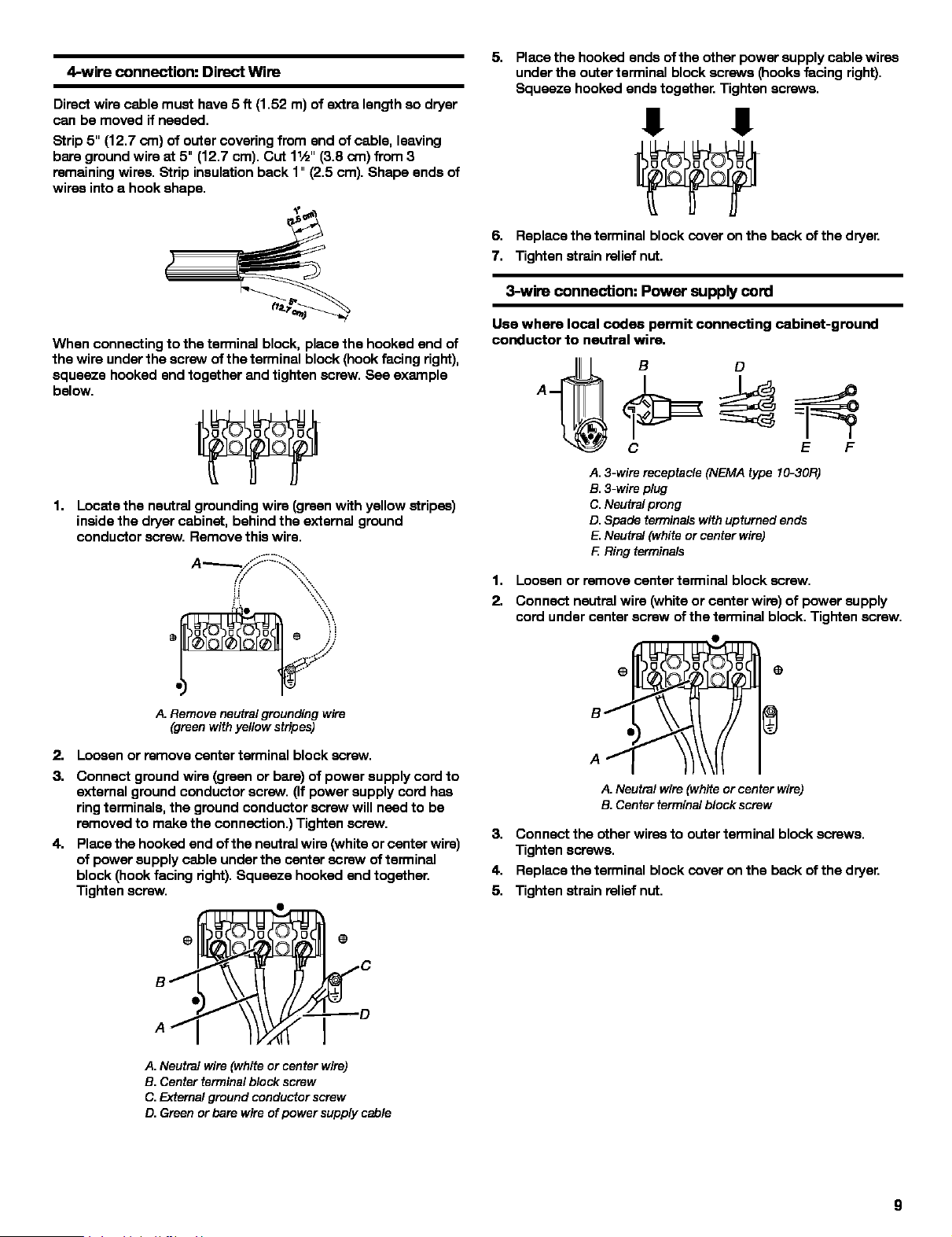

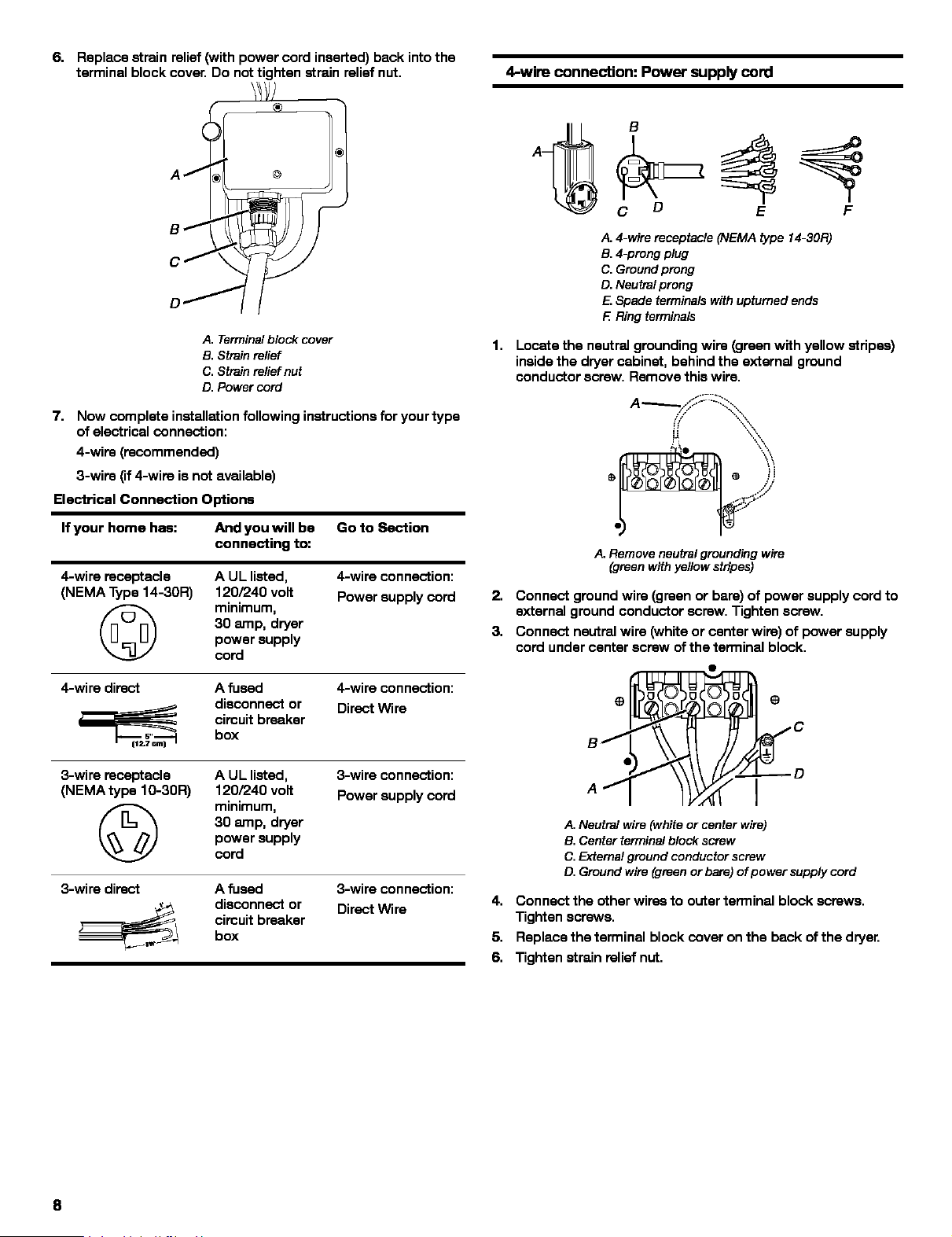

ElectricalConnection ................................................................... 7

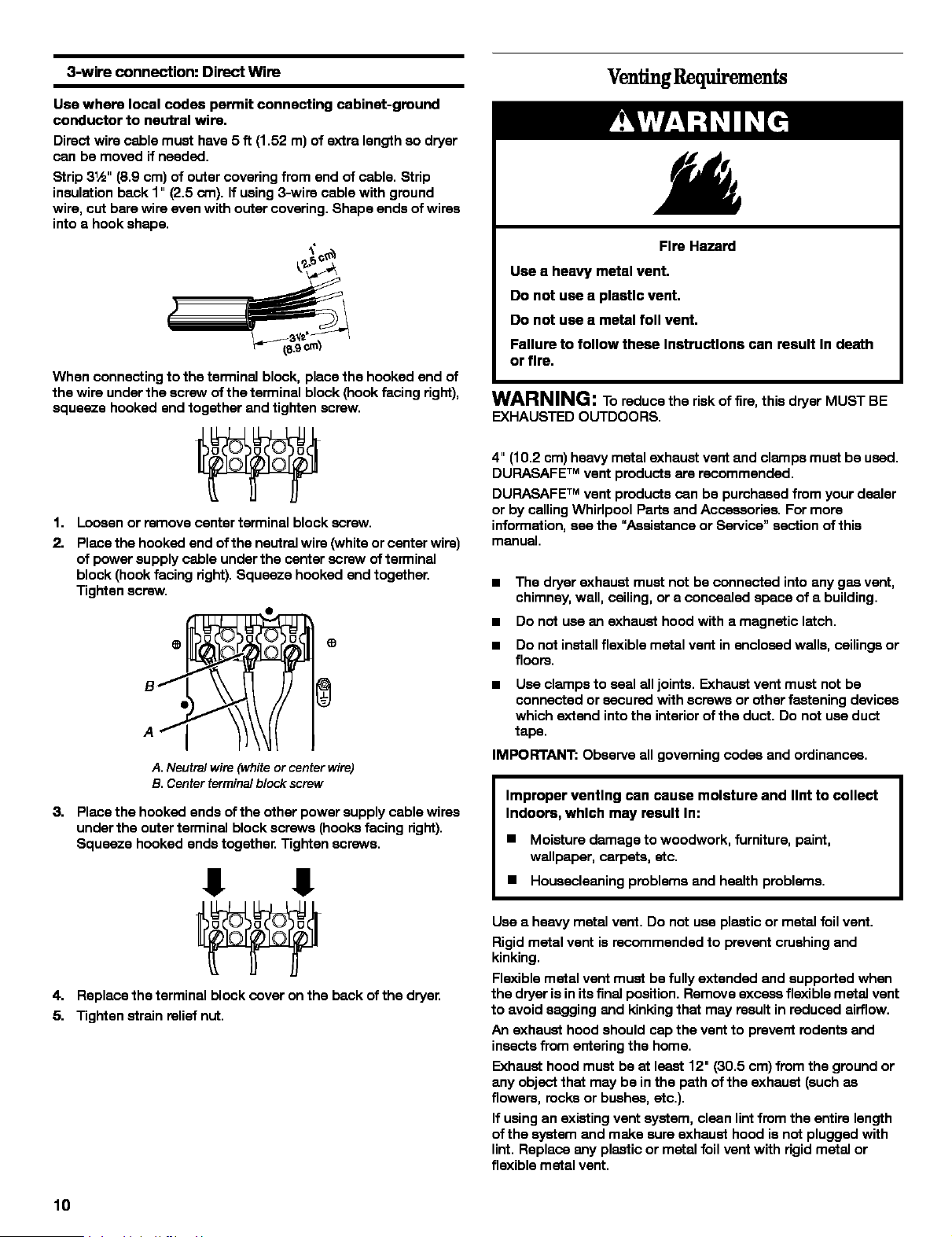

Venting Requirements ................................................................ I0
PlanVent System ....................................................................... 11

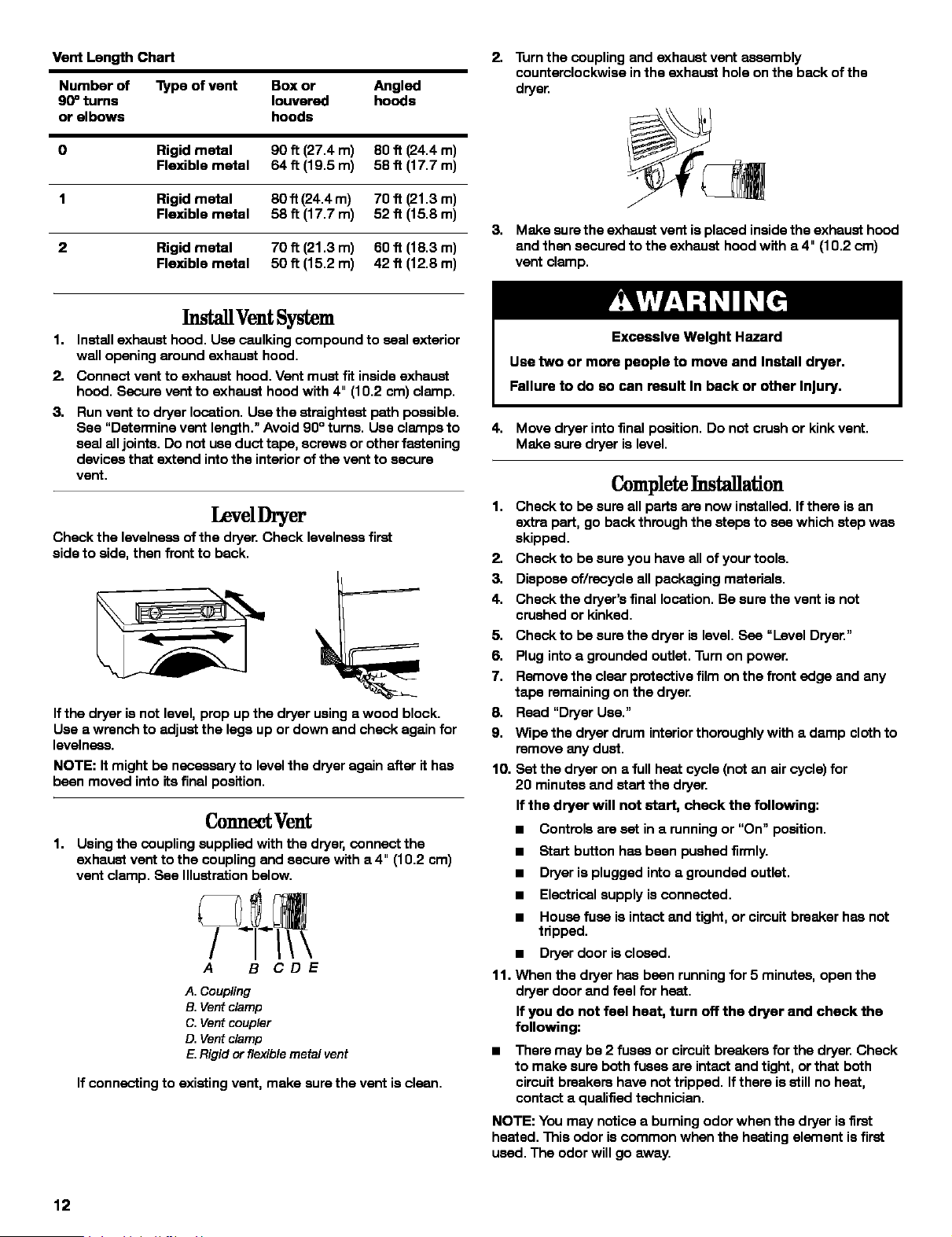

InstallVent System..................................................................... 12
Level Dryer ................................................................................. 12
Connect Vent.............................................................................. 12
Complete Installation ................................................................. 12

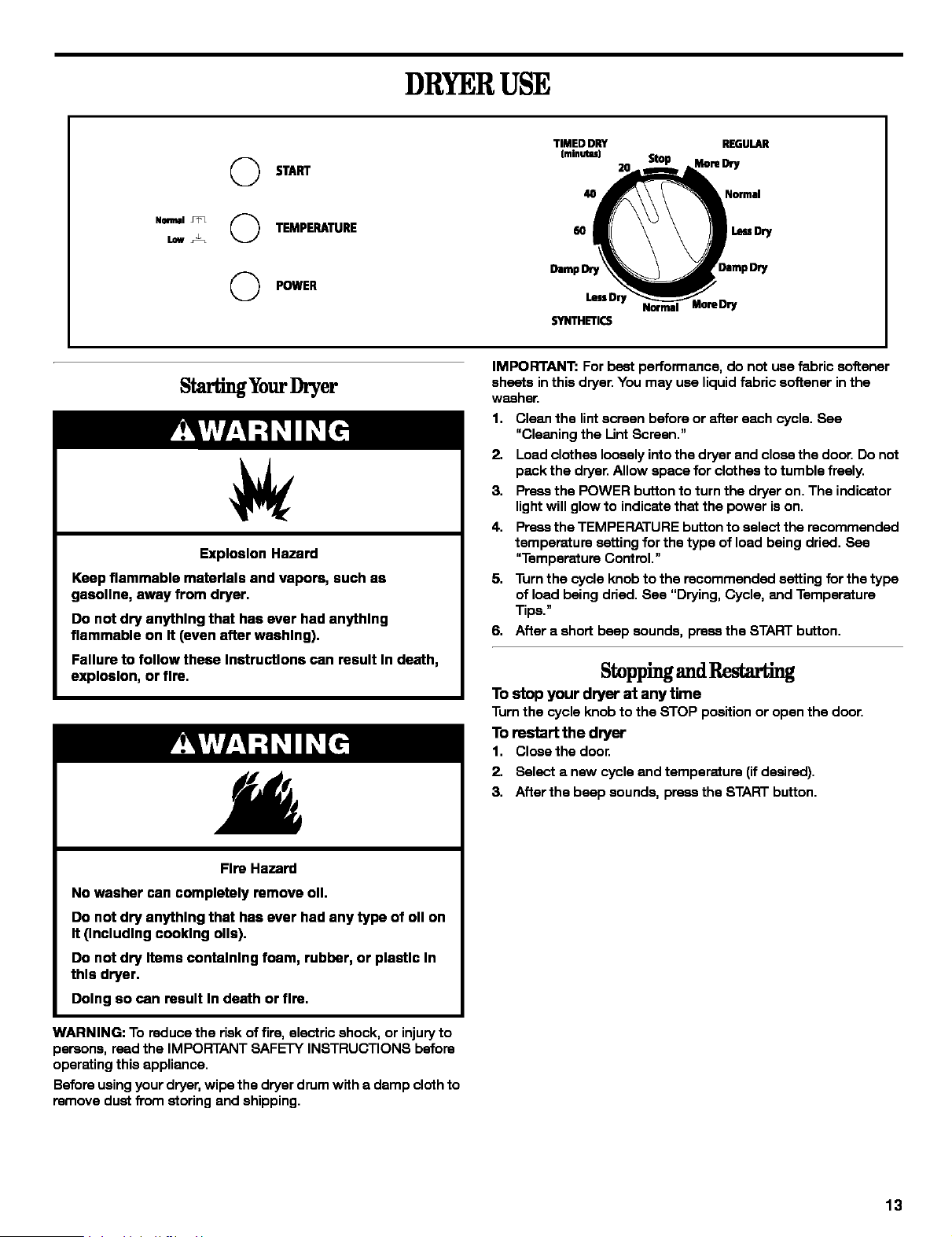

DRYER USE .................................................................................. 13
Starting Your Dryer..................................................................... 13
Stopping and Restarting ............................................................ 13
Changing Cycles and Temperatures ......................................... 14
Drying, Cycle, and Temperature Tips ........................................ 14
Cycles ......................................................................................... 14
Temperature Control .................................................................. 15
DRYER CARE ............................................................................... 15
Cleaning the Dryer Location ...................................................... 15
Cleaning the Lint Screen ............................................................ 15
Cleaning the Dryer Interior......................................................... 16
Cleaning the Control Panel ........................................................ 16
Removing Accumulated Lint...................................................... 16
Vacation and Moving Care......................................................... 16

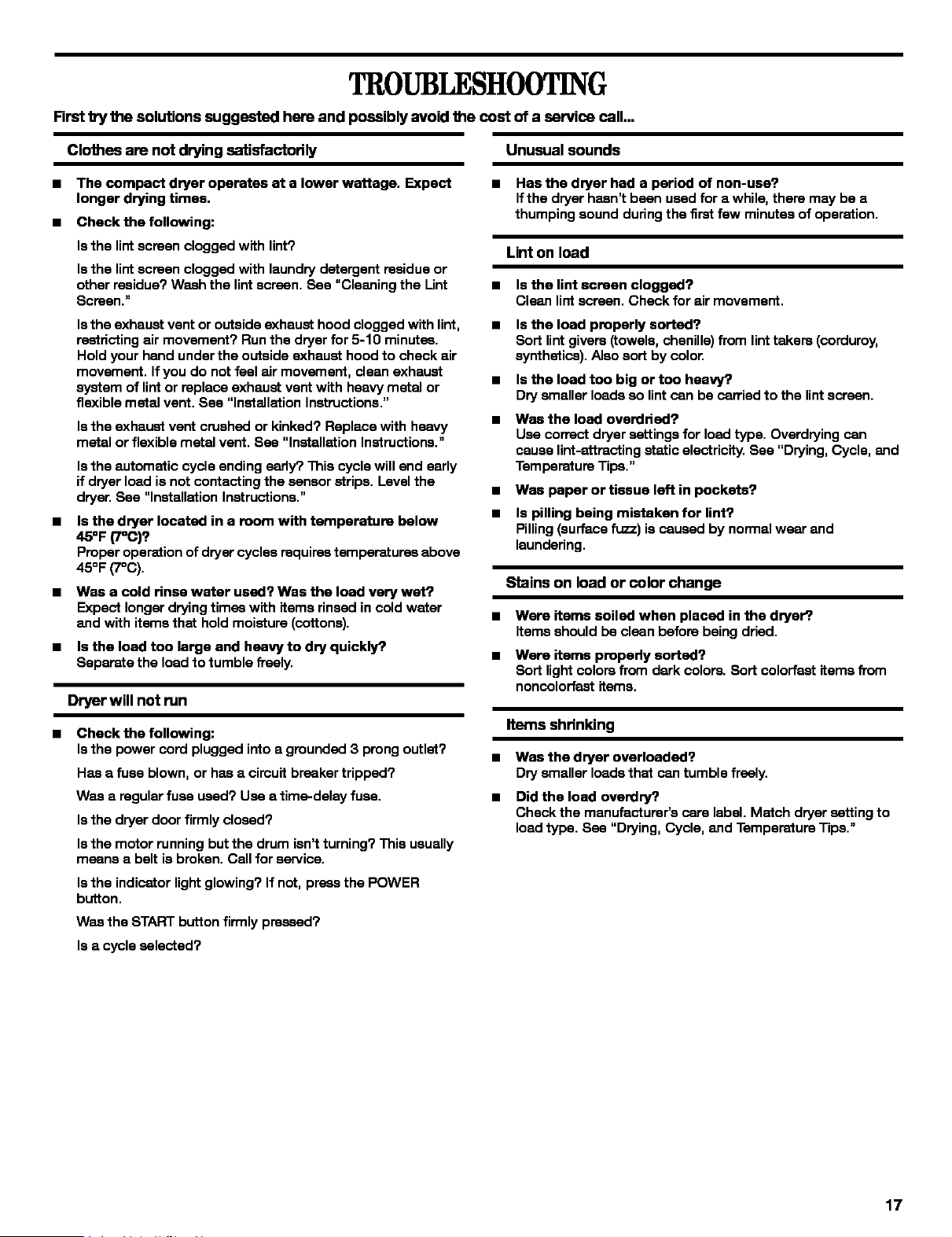

TROUBLESHOOTING .................................................................. 17
ASSISTANCE OR SERVICE ......................................................... 18
WARRANTY .................................................................................. 20
2

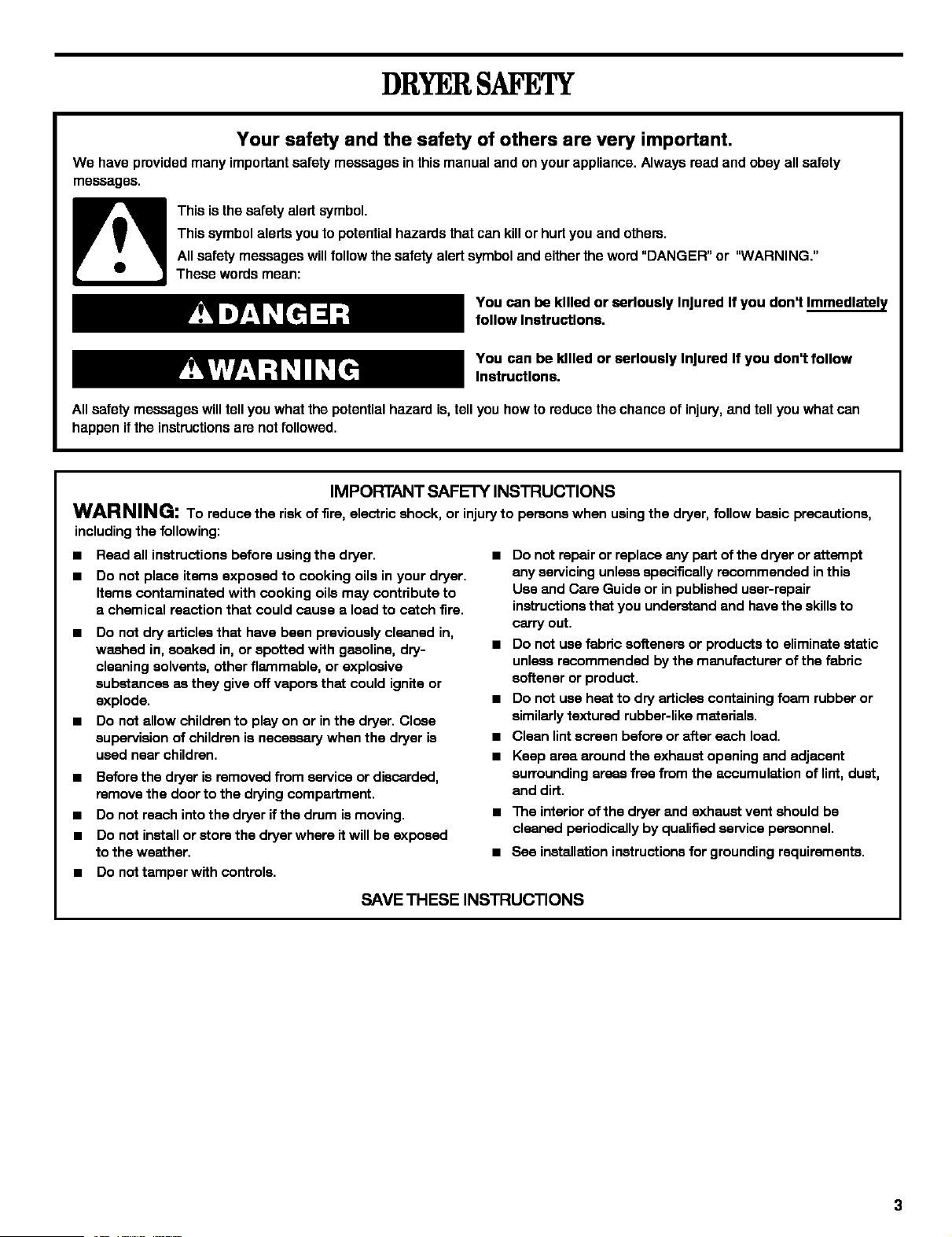

DRYERSAFETY
Your safety and the safety of others are very important.
We have provided many important safety messages in this manual and on your appliance. Always read and obey all safety
messages.
This is the safety alert symbol.
This symbol alerts you to potential hazards that can kill or hurtyou and others.
All safety messages will follow the safety alert symbol and either the word "DANGER" or "WARNING."
These words mean:
You can be killed or serlousty Injured If you don't Immedlatel_
follow Instructions.
You can be killed or seriously Injured If you don't follow
Instructions.
All safety messages will tell you what the potential hazard is, tell you how to reduce the chance of injury, and tell you what can
happen if the instructions are not followed.
IMPORTANT SAFETY INSTRUCTIONS
WARNING: To reducethe riskoffire,electricshock,or injuryto personswhen usingthe dryer,follow basicprecautions,
including the following:
• Read all instructions before using the dryer.
• Do not place items exposed to cooking oils in your dryer.
Items contaminated with cooking oils may contribute to
a chemical reaction that could cause a load to catch fire.
• Do not dry articles that have been previously cleaned in,
washed in, soaked in, or spotted with gasoline, dry-
cleaning solvents, other flammable, or explosive
substances as they give off vapors that could ignite or
explode.
• Do not allow children to play on or in the dryer. Close
supervision of children is necessary when the dryer is
used near children.
• Before the dryer is removed from service or discarded,
remove the door to the drying compartment.
• Do not reach into the dryer ifthe drum ismoving.
• Do not install or store the dryer where it will be exposed
to the weather.
• Do not tamper with controls.
• Do not repair or replace any part of the dryer or attempt
any servicing unless specifically recommended in this
Use and Care Guide or in published user-repair
instructions that you understand and have the skills to
carry out.
• Do not use fabric eoftaners or products to eliminate static
unless recommended by the manufacturer of the fabric
softener or product.
• Do not use heat to dry articles containing foam rubber or
similarly textured rubber-like materials.
• Clean lint screen before or after each load.
• Keep area around the exhaust opening and adjacent
surrounding areas free from the accumulation of lint, dust,
and dirt.
• The interior of the dryer and exhaust vent should be
cleaned periodically by qualified service personnel.
• See installation instructions for grounding requirements.
SAVE THESE INSTRUCTIONS

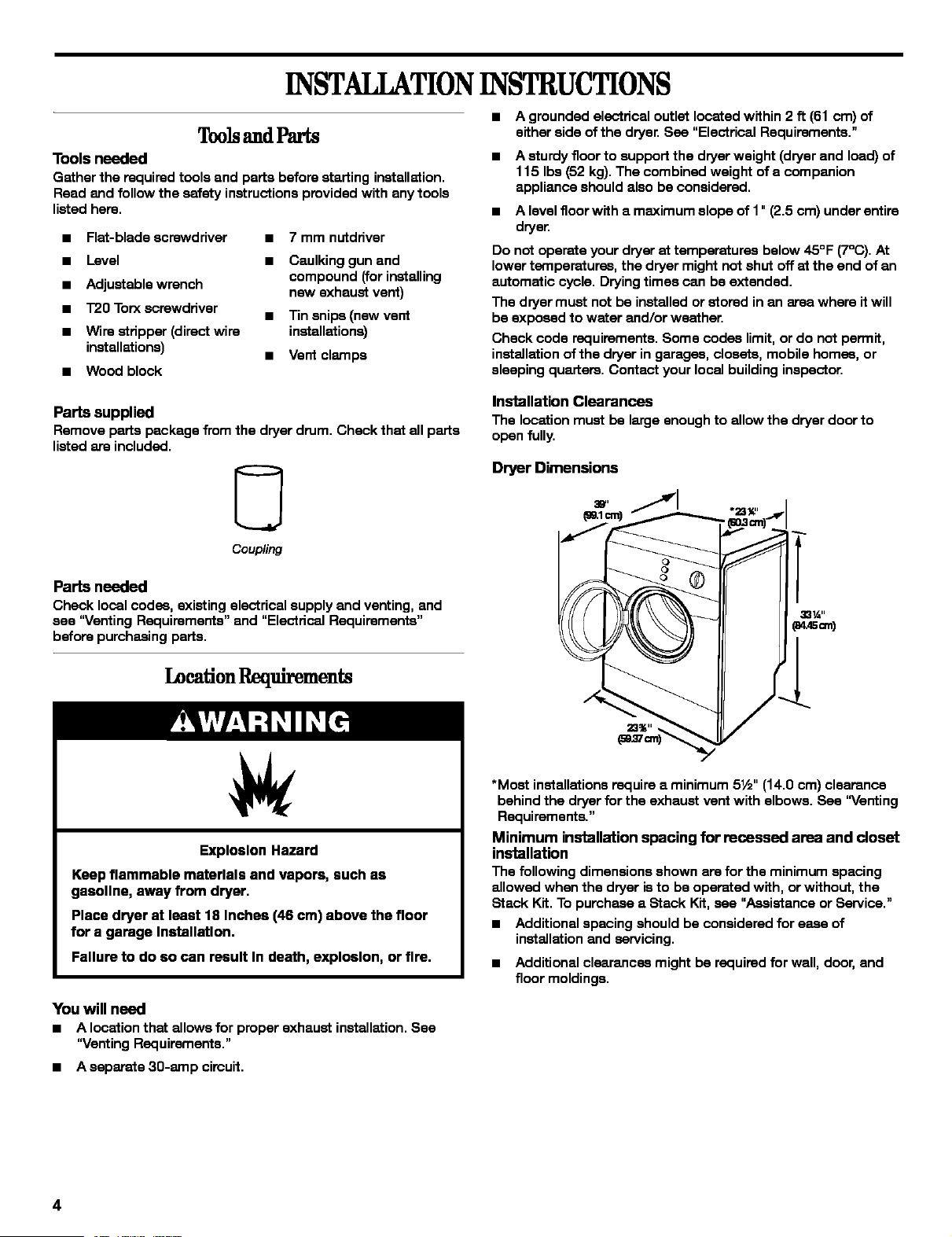

INSTAIJATIONINSTRUCTIONS
ToolsandParts
Tools needed
Gather the required tools and parts before starting installation.
Read and follow the safety instructions provided with any tools
listed here,
m Flat-blade screwdriver
= Level
= Adjustable wrench
m T2O Torx screwdriver
m Wire atripper (direct wire
installations)
= Wood block
m 7 mm nutdriver
m Caulking gun and
compound (for installing
new exhaust vent)
m Tin snips (new vent
installations)
m Vent clamps
= A grounded electrical outlet located within 2 ft (61 cm) of
either side of the dryer, See "Electrical Requirements,"
m A sturdy floor to support the dryer weight (dryer and load) of
115 Ibs (52 kg). The combined weight of a companion
appliance should also be considered.
= A level floor with a maximum slope of 1" (2.5 cm) under entire
dryer.
Do not operate your dryer at temperatures below 4,5°F (7°C). At
lower temperatures, the dryer might not shut off at the end of an
automatic cycle. Drying times can be extended.
The dryer must not be installed or stored in an area where it will
be exposed to water and/or weather.
Check code requirements. Some codes limit, or do not permit,
installation ofthe dryer in garages, closets, mobile homes, or
sleeping quarters. Contact your local building inspector.
Parts supplied
Remove parts package from the dryer drum, Check that all parts
listed are included,
Q
Coupling
Installation Clearances
The location must be large enough to allow the dryer door to
open fully.
Dryer Dimensions
Parts needed
Check local codes, existing electrical supply and venting, and
see "Venting Requirements" and "Electrical Requirements"
before purchasing parts.
Location Requirements
Explosion Hazard
Keep flammable materials and vapors, such as
gasoline, away from dryer,
Place dryer at least 18 Inches (46 cm) above the floor
for a garage Installation,
Fallura to do so can result In death, explosion, or flra,
You will need
a A location that allows for proper exhaust installation. See
"Venting Requirements."
a Aseparate3g-amp circuit.
*Most installations require a minimum 5½" (14.0 cm) clearance
behind the dryer for the exhaust vent with elbows. See "Venting
Requirements."
Minimum installation spacing for recessed area and closet
installation
The following dimensions shown are for the minimum spacing
allowed when the dryer is to be operated with, or without, the
Stack Kit. To purchase a Stack Kit, see "Assistance or Service."
m Additional spacing should be considered for ease of
installation end servicing.
m Additional clearances might be required for wall, door, end
floor moldings.
4

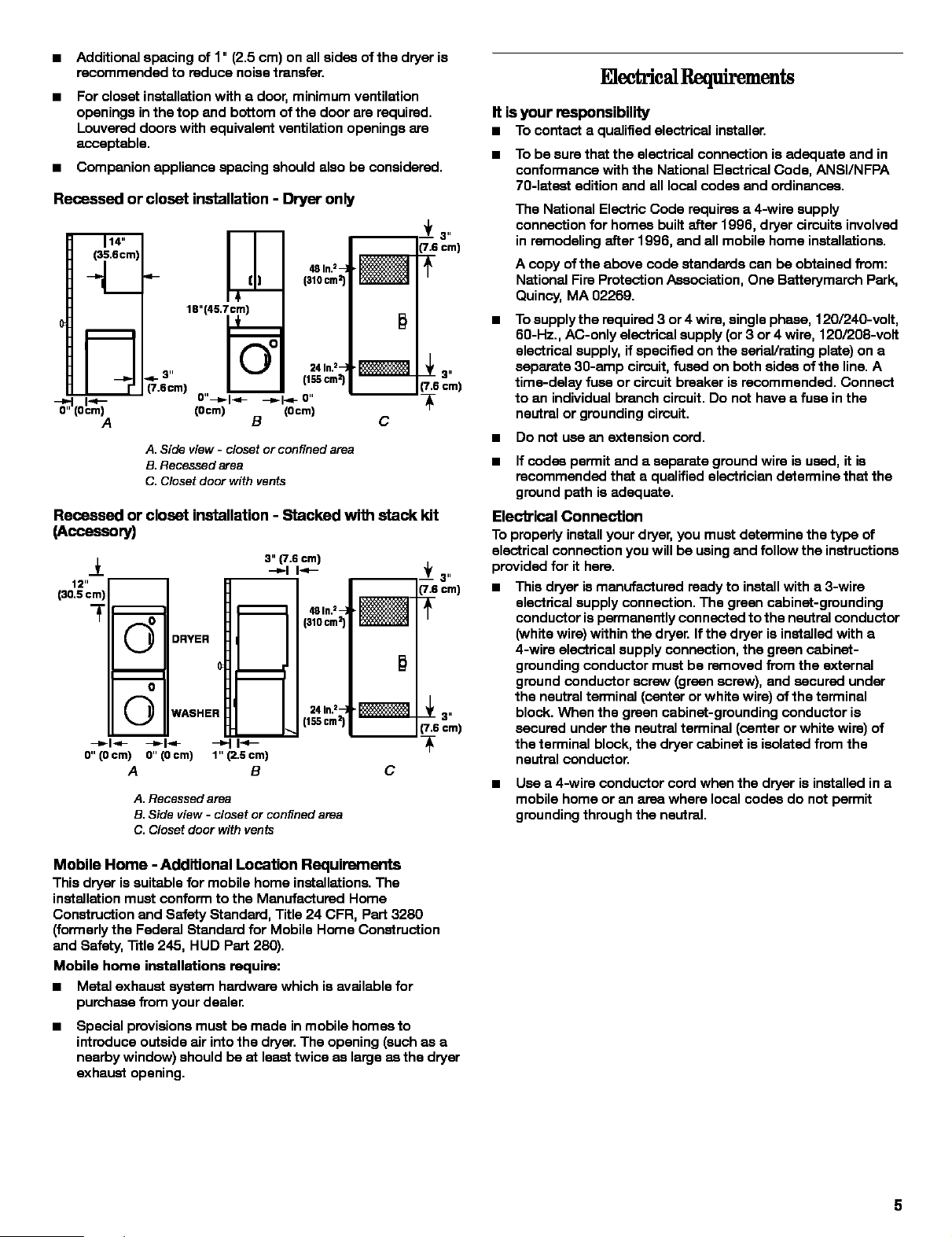

• Additional spacing of 1" (2.5 cm) on all sides of the dryer is
recommended to reduce noise transfer.
For closet installation with a door, minimum ventilation
openings in the top and bottom of the door are required.
Louvered doors with equivalent ventilation openings are
acceptable.
• Companion appliance spacing should also be considered.
Recessed or closet installation - Dryer only
-- _f 3"
7.6 cm)
48 In.2
A. Side view - closet or confined area
B. Recessed area
C. Closet door with vents
Recessed or closet installation - Stacked with stack kit
(Accessorial
±
12"
(30.5 cm}
m
m m
m m
_v
. .. DRYER
o
WASHER
--_-I'.,_- --_-I<- -='I I_'-
0" (0 cm) 0" (0 cm) 1" (2.5 cm)
A B
3" (7.6 cm)
J_
--i=_ I I<-
-- _ 3"
7.3 cm)
48In.=
24 In.2
C
A. Recessed area
B. Side view - closet or confined area
C. Closet door with vents
Mobile Home -Additional Location Requirements
This dryer issuitable for mobile home installations, The
installation must conform to the Manufactured Home
Construction and Safety Standard, Title 24 CFR, Part 3280
(formerly the Federal Standard for Mobile Home Construction
and Safety, "ntis245, HUD Part 280).
Mobile home installations require:
• Metal exhaust system hardware which is available for
purchese from your dealer.
Special provialons must be made in mobile homes to
introduce outside air into the dryer. The opening (such as a
nearby window) should be at least twice as large as the dryer
exhaust opening.
Electrical Requirements
It isyour responsibility
• Tocontacta qualifiedelectricalinstaller.
• To be sure that the electrical connection is adequate and in
conformance with the National Electrical Code, ANSI/NFPA
70-latest edition and all local codes and ordinances.
The National Electric Code requires a 4-wire supply
connection for homes built after 1996, dryer circuits involved
in remodeling after 1996, and all mobile home installations,
A copy of the above code standards can be obtained from:
National Fire Proteotion Association, One Batterymarch Park,
Quincy, MA 02269.
To supply the required 3 or 4 wire, single phase, 120/240-volt,
60-Hz,, AC-only electrical supply (or 3 or 4 wire, 120/208-volt
electrical supply, if specified on the serial/rnting plate) on a
separate 30-amp circuit, fused on both sides of the line, A
time-delay fuse or circuit breaker is recommended, Connect
to an individual branch circuit, Do not have a fuse in the
neutral or grounding circuit,
• Do not use an extension cord.
• If codes permit and a separate ground wire is used, it is
recommended that a qualified electrician determine that the
ground path is adequate.
Electrical Connection
To properly install your dryer, you must determine the type of
electrical connection you will be using and follow the instructions
provided for it here,
• This dryer is manufactured ready to install with a 3-wire
electrical supply connection, The green cabinst-grcunding
conductor ispermanently connected to the neutral conductor
(white wire) within the dryer, If the dryer is installed with a
4-wire electrical supply connection, the green cabinst-
grounding conductor must be removed from the external
ground conductor screw (green screw), and secured under
the neutral terminal (center or white wire) of the terminal
block, When the green cabinst-grounding conductor is
secured under the neutral terminal (center or white wire) of
the terminal block, the dryer cabinet is isolated from the
neutral conductor,
• Use a 4-wire conductor cord when the dryer is installed in a
mobile home or an area where local codes do not permit
grounding through the neutral.

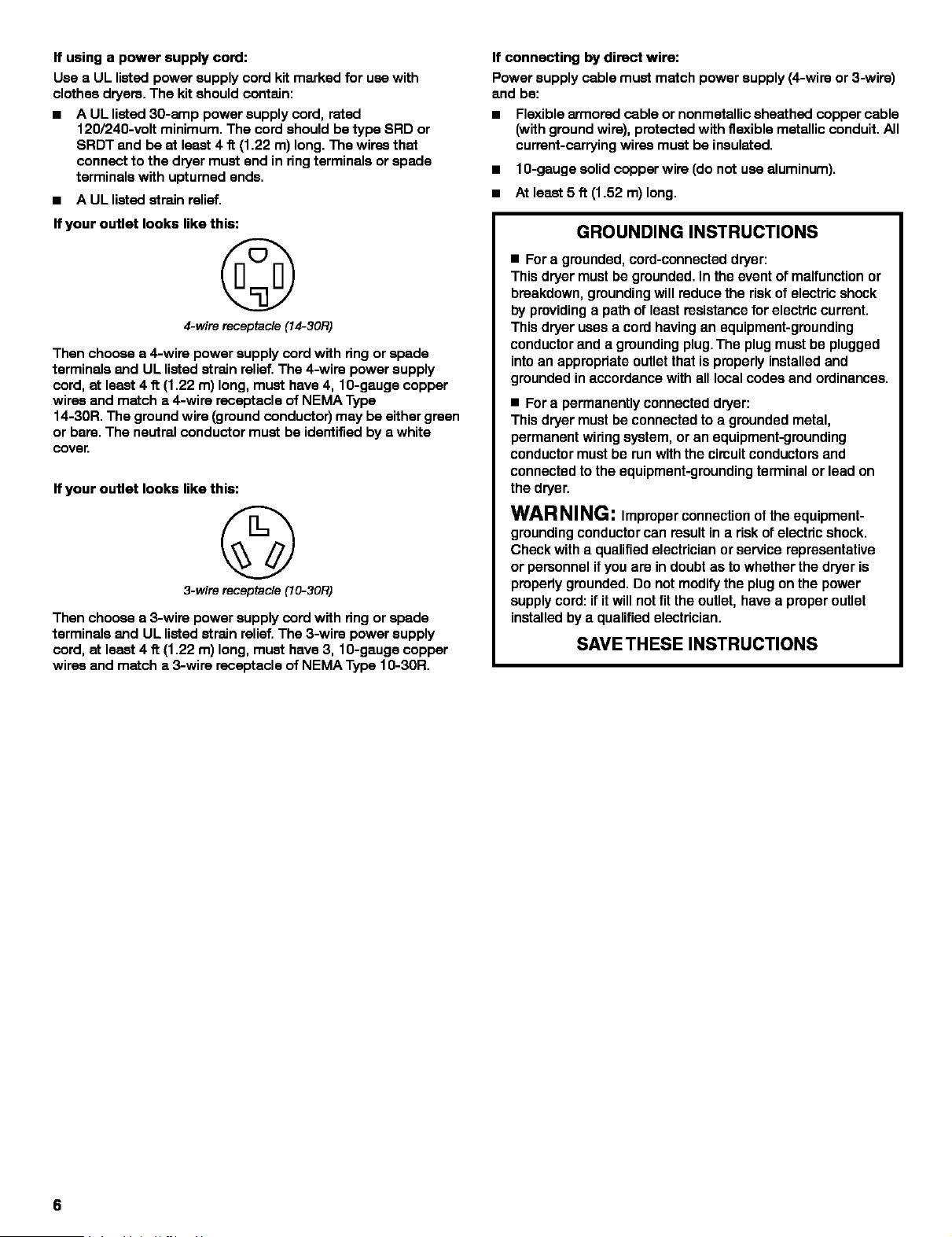

Ifusingapowersupplycord:
Usea UL listed power supply cord kit marked for use with
clothes dryers, The kit should contain:
• A UL listed 30-amp power supply cord, rated
120/240-volt minimum, The cord should be type SRD or
SRDT and be at least 4 fi (1,22 m) long, The wires that
connect to the dryer must end in ring terminals or spade
terminals with upturned ends,
• A UL listed strain relief.
If your outlet looks like this:
©
4-wire receptacle(14-30R)
Then choose a 4-wirs power supply cord with ring or spade
terminals and UL listed strain relief. The 4-wirs power supply
cord, at least 4 fc (1.22 m) long, must have 4, 10-gauge copper
wires and match a 4-wire receptacle of NEMA Type
14-30R. The ground wire (ground conductor) may be either green
or bars. The neutral conductor must be identified by a white
COVSE
If your outlet looks like this:
©
3-wire receptacle (10-30R)
Then choose a 3-wirs power supply cord with ring or spade
terminals and UL listed strain relief. The 3-wirs power supply
cord, at least 4 _ (1.22 m) long, must have 3, 10-gauge copper
wires and match a 3-wire receptacle of NEMA Type 10-30R.
If connecting by direct wire:
Power supply cable must match power supply (4-wire or 3-wirs)
and be:
• Flexible armored cable or nonmetallic sheathed copper cable
(with ground wire), protected with flexible metallic conduit. All
current-carrying wires must be insulated.
• 10-gauge solid copper wire (do not use aluminum).
• At least 5 ft (1.52 m) long.
GROUNDING INSTRUCTIONS
• Fora grounded, cord-connected dryer:
This dryer must be grounded. In the event of malfunction or
breakdown, grounding will reduce the risk of electric shock
by providing a path of least resistance for electric current.
This dryer uses a cord having an equipment-grounding
conductor and a grounding plug. The plug must be plugged
into an appropriate outlet that is properly installed and
grounded in accordance with all local codes and ordinances.
• Fora permanently connected dryer:
This dryer must be connected to a grounded metal,
permanent wiring system, or an equipment-greunding
conductor must be run with the cimuit conductors and
connected to the equipment-grounding terminal or lead on
the dryer.
WARNING: Improper connection of the equipment-
grounding conductor can result in a risk of electric shock.
Check with a qualified electrician or service representative
or personnel if you are in doubt as to whether the dryer is
properly grounded. Do not modify the plug on the power
supply cord: if it will not fit the outlet, have a proper outlet
installed by a qualified electrician.
SAVE THESE INSTRUCTIONS
6

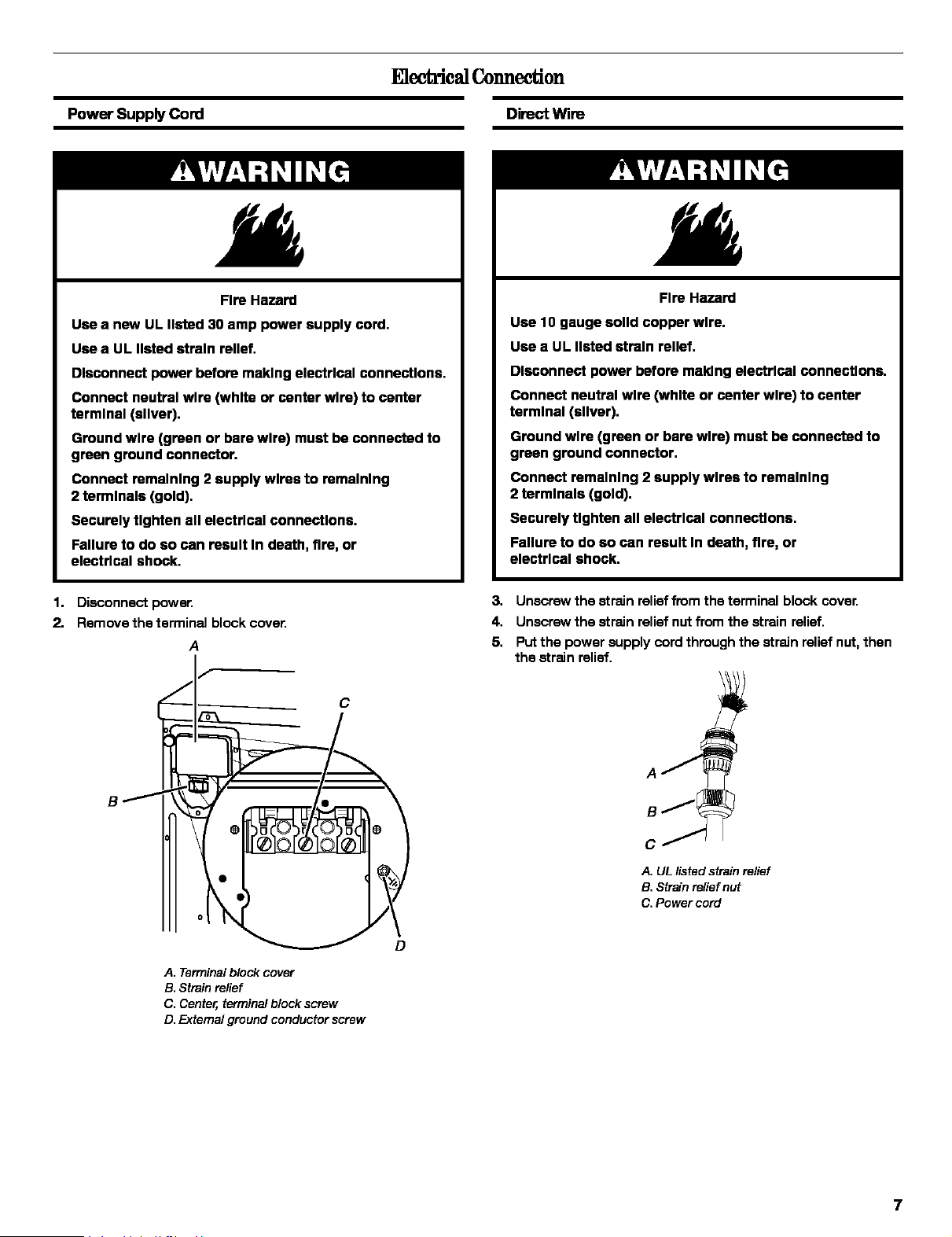

PowerSupplyCord
Electrical Connection
Direct Wire
Fire Hazard
Use a new UL listed 30 amp power supply cord.
Use a UL listed strain relief.
Disconnect power before making electrical connections.
Connect neutral wire (white or center wire) to center
terminal (sliver).
Ground wire (green or bare wire) must be connected to
green ground connector.
Connect remaining 2 supply wires to remaining
2 terminals (gold).
Securely tighten all electrical connections.
Failure to do so can result In death, fire, or
electrical shock.
1. Disconnect power.
2. Remove the terminal block cover.
A
C
B
A. Terminal block cover
B. Strain relief
C. Center, terminal block screw
D. External ground conductor screw
D
Fire Hazard
Use 10 gauge solid copper wire.
Use a UL listed strain relief.
Disconnect power before making electrical connections.
Connect neutral wire (white or center wire) to center
terminal (sliver).
Ground wire (green or bare wire) must be connected to
green ground connector.
Connect remaining 2 supply wires to remaining
2 terminals (gold).
Securely tighten all electrical connections.
Failure to do so can result In death, fire, or
electrical shock.
3. Unscrew the strain relief from the terminal block cover.
4. Unscrew the strain relief nut from the strain relief.
5. Put the power supply cord through the strain relief nut, then
the strain relief.
C
A. UL listed strain relief
B. Strain relief nut
C. Power cord
7
6. Replace strain relief (with power cord inserted) back into the
terminal block cover. Do not tighten strain relief nut.
A. Terminal block cover
B. Strain relief
C. Strain relief nut
D. Power cord
7. Now complete installation following instructions for your type
of electrical connection:
4-wire (recommended)
3-wire (if4-wire is not available)
Electrical Connection Options
If your home has: And you will be Go to Section
connecting to:
4-wira receptacle A UL listed,
(NEMA Type 14-30R) 120/240 volt
minimum,
30 amp, dryer
power supply
cord
4-wira connection:
Power supply cord
4-wira direct A fused
disconnect or
circuit breaker
box
4-wira connection:
Direct Wire
3-wira receptacle A UL listed,
(NEMAtype 10-30R) 120/240 volt
minimum,
30 amp, dryer
power supply
cord
3-wira connection:
Power supply cord
3-wira direct A fused
disconnect or
circuit breaker
box
3-wira connection:
Direct Wire
4-wire connection: Power supply cord
1.
A. 4-wire receptacle (NEMA type 14-30R)
B. 4-prong plug
C. Ground prong
D. Neutral prong
E. Spade terminals with upturned ends
K Ring terminals
Locate the neutral grounding wire (green with yellow stripes)
inside the dryer cabinet, behind the external ground
conductor screw. Remove this wire.
A. Remove neutral grounding w/re
(green with yellow stripes)
2. Connect ground wire (green or bare) of power supply cord to
external ground conductor screw. Tighten screw.
3. Connect neutral wire (white or center wire) of power supply
cord under center screw of the terminal block.
A. Neutral wire (white or center wire)
B. Center terminal block screw
C. External ground conductor screw
D. Ground wire (green or bare) of power supply cord
4. Connect the other wires to outer terminal block screws.
Tighten screws.
5. Replace the terminal block cover on the back of the dryer.
6. Tighten strain relief nut.
8
4-wireconnection:DirectWire
Direct wire cable must have 5 ft (1.52 m) of extra length so dryer
can be moved if needed.
Strip 5" (12.7 crn) of outer covering from end of cable, leaving
bare ground wire at 5" (12.7 cm). Cut 11,_'' (3.8 crn) from 3
remaining wires. Strip insulation back 1" (2.5 cm). Shape ends of
wires into a hook shape.
When connecting to the terminal block, place the hooked end of
the wire under the screw of the terminal block (hook facing right),
squeeze hooked end together and tighten screw. See example
below.
1,
Locate the neutral grounding wire (green with yellow stripes)
inside the dryer cabinet, behind the external ground
conductor screw. Remove this wire.
2,
3.
4,
A. Remove neutral grounding wire
(green with yellow stdpes)
Loosen or remove center terminal block screw.
Connect ground wire (green or bare) of power supply cord to
external ground conductor screw. (If power supply cord has
ring terminals, the ground conductor screw will need to be
removed to make the connection.) Tighten screw.
Place the hooked end of the neutral wire (white or center wire)
of power supply cable under the center screw ofterminal
block (hook facing right). Squeeze hooked end together.
Tighten screw.
A. Neutral wire (white or center wire)
B. Center terminal block screw
C. External ground conductor screw
D. Green or bare wire of power supply cable
S,
Place the hooked ends of the other power supply cable wires
under the outer terminal block screws (hooks facing right).
Squeeze hooked ends together. Tighten screws.
I I
6. Replace the terminal block cover on the back of the dryer.
7. Tighten strain relief nut.
3-wire connection: Power supply cord
Use where local codes permit connecting cabinet-ground
conductor to neutral wire.
A. 3-wire receptacle (NEMA type 10-30R)
B. 3-wire plug
C. Neutral prong
D. Spade terminals with upturned ends
E. Neutral (white or center wire)
K Ring terminals
1. Loosen or remove center terminal block screw.
2. Connect neutral wire (white or center wire) of power supply
cord under center screw of the terminal block. Tighten screw.
A. Neutralwire(white or centerwire)
B. Centerterminal blockscrew
3. Connect the other wires to outer terminal block screws.
Tighten screws,
4. Replace the terminal block cover on the beck of the dryer,
5. Tighten strain relief nut,
3-wire connection: Direct Wire Venting Requirements
Use where local codes permit connecting cabinet-ground
conductor to neutral wire.
Direct wire cable must have 5 ft (1.52 m) of extra length so dryer
can be moved if needed.
Strip 31._'' (8.9 cm) of outer covering from end of cable. Strip
insulation back 1" (2.5 cm). If using 3-wire cable with ground
wire, cut bare wire even with outer covering. Shape ends of wires
into a hook shape.
When connecting to the terminal block, place the hooked end of
the wire under the screw of the terminal block (hook facing right),
squeeze hooked end together and tighten screw.
1,
2.
Loosen or remove center terminal block screw.
Place the hooked end ofthe neutral wire (white or center wire)
of power supply cable under the center screw ofterminal
block (hook facing right). Squeeze hooked end together.
Tighten screw.
A
A. Neutral wire (white or center wire)
B. Center terminal block screw
3. Place the hooked ends of the other power supply cable wires
under the outer terminal block screws (hooks facing right).
Squeeze hooked ends together. Tighten screws.
! !
4. Replace the terminal block cover on the back of the dryen
5. Tighten strain relief nut.
Fire Hazard
Use a heavy metal vent.
Do not use a plaatlc vent.
Do not use a metal foil vent.
Failure to follow these Inatructlons can result In death
or fire.
WARNING: To reduce the risk of fire, this dryer MUST BE
EXHAUSTED OUTDOORS.
4" (10.2 cm) heavy metal exhaust vent and clamps must be used.
DURASAFE TM vent products are recommended.
DURASAFE TM vent products can be purchased from your dealer
or by calling Whirlpool Parts and Accessories. For more
information, see the "Assistance or Service" section ofthis
manual.
• The dryer exhaust must not be connected into any gas vent,
chimney, wall, ceiling, or a concealed space of a building.
• Do not use an exhaust hood with a magnetic latch.
• Do not install flexible metal vent in enclosed walls, ceilings or
floors.
Use clamps to seal all joints. Exhaust vent must not be
connected or secured with screws or other fastening devices
which extend into the interior of the duct. Do not use duct
tape.
IMPORTANT: Observe all governing codes and ordinances.
Improper venting can cause moisture and lint to collect
Indoors, which may result In:
• Moisture damage to woodwork, furniture, paint,
wallpaper, carpets, etc.
• Housecleaning problems and health problems.
Use a heavy metal vent. Do not use plastic or metal foil vent.
Rigid metal vent is recommended to prevent crushing and
kinking.
Flexible metal vent must be fully extended and supported when
the dryer isin its final position. Remove excess flexible metal vent
to avoid sagging and kinking that may result in reduced airflow.
An exhaust hood should cap the vent to prevent rodents and
insects from entering the home.
Exhaust hood must be at least 12" (30.5 cm) from the ground or
any object that may be in the path ofthe exhaust (such as
flowers, rocks or bushes, etc.).
If using an existing vent system, clean lint from the entire length
of the system and make sure exhaust hood is not plugged with
lint. Replace any plastic or metal foil vent with rigid metal or
flexible metal vent.
10

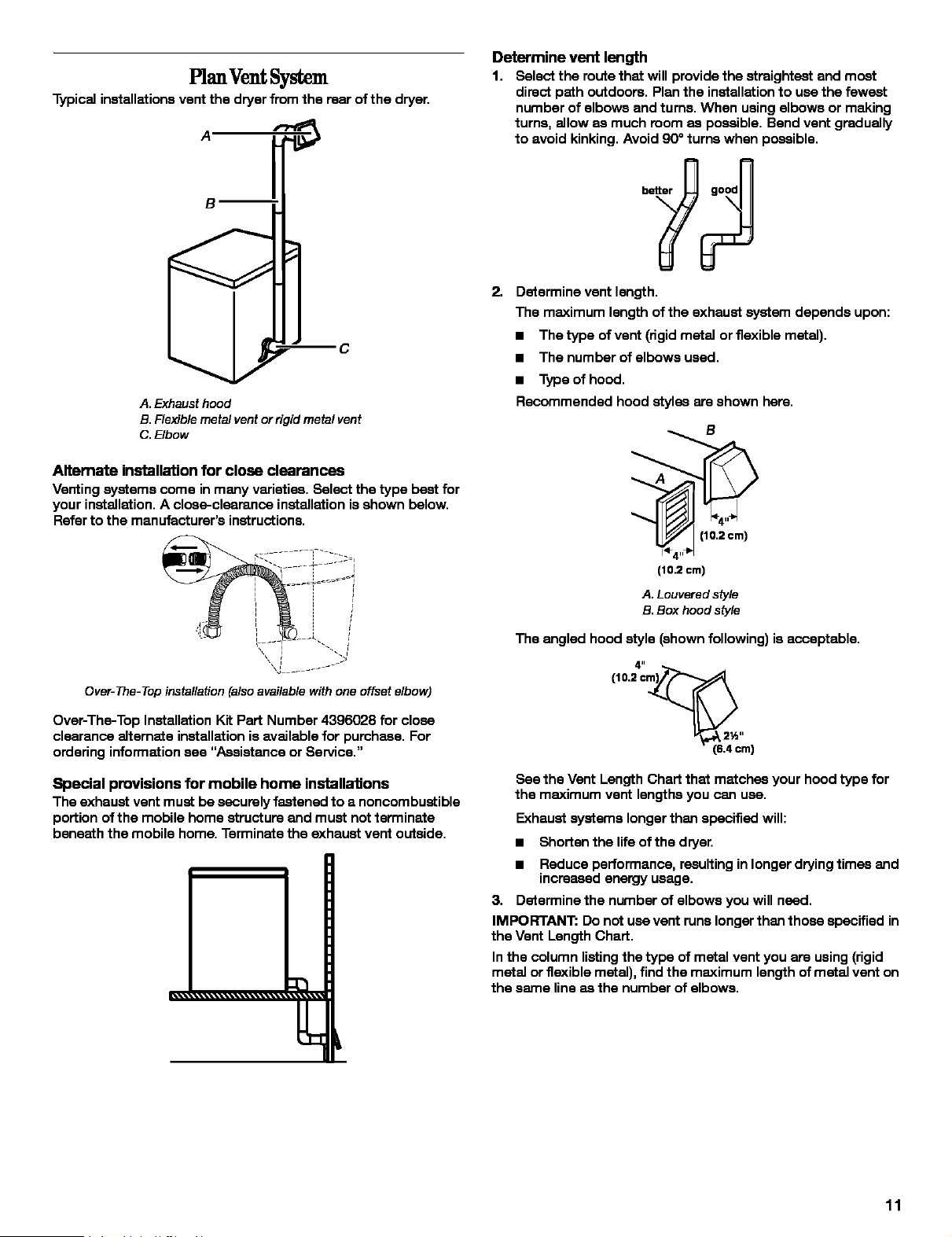

PlanVentSystem
Typical installations vent the dryer from the rear of the dryer.
A
'C
A. Exhaust hood
B. Flexible metal vent or rigid metal vent
C. Elbow
Altemate installation for close clearances
Venting systems come in many varieties. Select the type bast for
your installation. A close-clearance installation isshown below.
Refer to the manufacturer's instructions.
..... " ...... I
Over-The-Top installation (also available with one offset elbow)
Over-The-Top Installation Kit Part Number 4396028 for close
clearance alternate installation is available for purchase. For
ordering information see "Assistance or Service."
Special provisions for mobile home installaffons
The exhaust vent must be securely fastened to a noncombustible
portion of the mobile home structure and must not terminate
beneath the mobile home. Terminate the exhaust vent outside.
Determine vent length
1. Select the route that will provide the straightest and most
direct path outdoors. Plan the installation to use the fewest
number of elbows and turns. When using elbows or making
turns, allow as much room as possible. Bend vent gradually
to avoid kinking. Avoid 90° turns when possible.
2. Determine vent length.
The maximum length of the exhaust system depends upon:
• The type of vent (rigid metal or flexible metal).
• The number of elbows used.
• Type of hood.
Recommended hood styles are shown here.
B
(10.2 cm)
A. Louveredstyle
B.Box hoodstyle
The angled hood style (shown following) is acceptable.
4"
(10.2 c_
(6.4 cm)
See the Vent Length Chart that matches your hood type for
the maximum vent lengths you can use.
Exhaust systems longer than specified will:
• Shorten the life of the dryen
• Reduce performance, resulting in longer dryingtimes and
increased energy usage.
3. Determine the number of elbows you will need.
IMPORTANT: Do not use vent runs longerthan those specified in
the Vent Length Chart.
In the column listing the type of metal vent you are using (rigid
metal or flexible metal), find the maximum length of metal vent on
the same line as the number of elbows.
11
Vent Length Chart
Number of Type of vent Box or Angled
90° turns Iouvered hoods
or elbows hoods
O Rigid metal g0 ft (27.4 m) 80 ft (24.4 m)
Flexible metal 64 ft (19.5 m) 58 ft (17.7 m)
1 Rigid metal 80 ft (24.4 m) 70 ft (21.3 m)
Flexible metal 58 ft (17.7 m) 52 ft (15.8 m)
2 Rigid metal 70 ft (21.3 m) 60 ft (18.3 m)
Flexible metal 50 ft (15.2 m) 42 ft (12.8 m)
2. Turn the coupling and exhaust vent assembly
counterclockwise in the exhaust hole on the back of the
dryer.
3. Make sure the exhaust vent isplaced inside the exhaust hood
and then secured to the exhaust hood with a 4" (10,2 cm)
vent clamp,
1,
2.
3.
InstallVent System
Install exhaust hood. Use caulking compound to seal exterior
wall opening around exhaust hood.
Connect vent to exhaust hood. Vent must fit inside exhaust
hood. Secure vent to exhaust hood with 4" (10.2 cm) clamp.
Run vent to dryer location. Use the straightest path possible.
See "Determine vent length." Avoid 90° turns. Use clamps to
seal all joints. Do not use duct tape, screws or other fastening
devices that extend intothe interior of the vent to secure
vent.
LevelDryer
Check the levelness of the dryer. Check levelness first
side to side, then front to back.
Ifthe dryer is not level, prop upthe dryer using awood block.
Use a wrench to adjust the legs up or down and check again for
levelness.
NOTE: It might be necessary to levelthe dryer again after it has
been moved into its final position.
1,
ConnectVent
Using the coupling supplied with the dryer, connect the
exhaust vent to the coupling and secure with a 4" (10.2 cm)
vent clamp. See Illustration below.
A B CDE
A. Coupling
B. Vent clamp
C. Vent coupler
D. Vent clamp
E.Rigid or flexible metal vent
If connecting to existing vent, make sure the vent is clean.
4. Move dryer into final position. Do not crush or kink vent.
Make sure dryer is level.
Complete Installation
1. Check to be sure all parts are now installed. If there is an
extra part, go back through the steps to see which step was
skipped.
2. Check to be sure you have all of your tools.
3. Dispose of/recycle all packaging materials.
4. Check the dryer's final location. Be sure the vant is not
crushed or kinked.
5. Check to be sure the dryer is level. Sse "Level Dryer."
6. Plug into a grounded outlet. Turn on power.
7. Remove the clear protective film onthe front edge and any
tape remaining on the dryer.
8. Read "Dryer Use."
9. Wipe the dryer drum interior thoroughly with a damp clcth to
remove any dust.
10. Set the dryer on a full heat cycle (not an air cycle) for
20 minutes and start the dryer.
If the dryer will not start, check the following:
• Controls are set in a running or "On" position.
• Start button has been pushed firmly.
• Dryer is plugged into a grounded outlet.
• Electrical supply is connected.
• House fuse is intact and tight, or circuit breaker has not
tripped.
• Dryer door is closed.
11. When the dryer has been running for 5 minutes, open the
dryer door and feel for heat.
If you do not feel heat, turn off the dryer and check the
following:
• There may be 2 fuses or circuit breakers for the dryer. Check
to make sure both fuses are intact and tight, or that both
circuit breakers have not tripped. If there isstill no heat,
contact a qualified technician.
NOTE: You may notice a burning odor when the dryer isfirst
heated. This odor is common when the heating element is first
used. The odor will go away.
12
DRYERUSE
Nml Y_
tow_
O START
Q TEMPERATURE
Q POWER
TIMED DRY REGULAR
(minutes) Stop
40 Normal
60 LessDry
Damp Dry
Less Dry
Normal More Dry
SYNTHETICS
StartingYourDryer
Explosion Hazard
Keep flammable materials and vapors, such as
gasoline, away from dryer,
Do not dry anything that has ever had anything
flammable on It (even after washing),
Failure to follow these Inatructlone can result In death,
explosion, or fire,
Fire Hazard
No washer can completely remove oil.
Do not dry anything that has ever had any type of oll on
It (Including cooking oils).
Do not dry Items cordalnlng foam, rubber, or plaatlc In
this dryer.
Doing so can result In death or fire.
WARNING: To reduce the risk of fire, electric shock, or injuryto
persons, read the IMPORTANT SAFETY INSTRUCTIONS before
operating this appliance.
Before using your dryer, wipe the dryer drum with a damp cloth to
remove dust from storing and shipping.
IMPORTANT: For beat performance, do not use fabric softener
sheets inthis dryer. You may use liquid fabric softener in the
washer.
1. Clean the lintscreen before or after each cycle. See
"Cleaning the Lint Screen."
2. Load clothes loosely intothe dryer and close the door. Do not
pack the dryer. Allow space for clothes to tumble freely.
3. Press the POWER button to turn the dryer on. The indicator
light will glow to indicate that the power is on.
4. Press the TEMPERATURE button to select the recommended
temperature setting for the type of load being dried. See
"Temperature Control."
5. Turn the cycle knob to the recommended setting for the type
of load being dried. See "Drying, Cycle, and Temperature
Tips."
6. After a short beep sounds, press the START button.
StoppingandRestarting
To stop your dryer at any time
Turn the cycle knob to the STOP position or open the door.
To restart the dryer
1. Closethe door.
2. Select a new cycle and temperature (ifdesired).
3. After the beep sounds, press the START button.
13

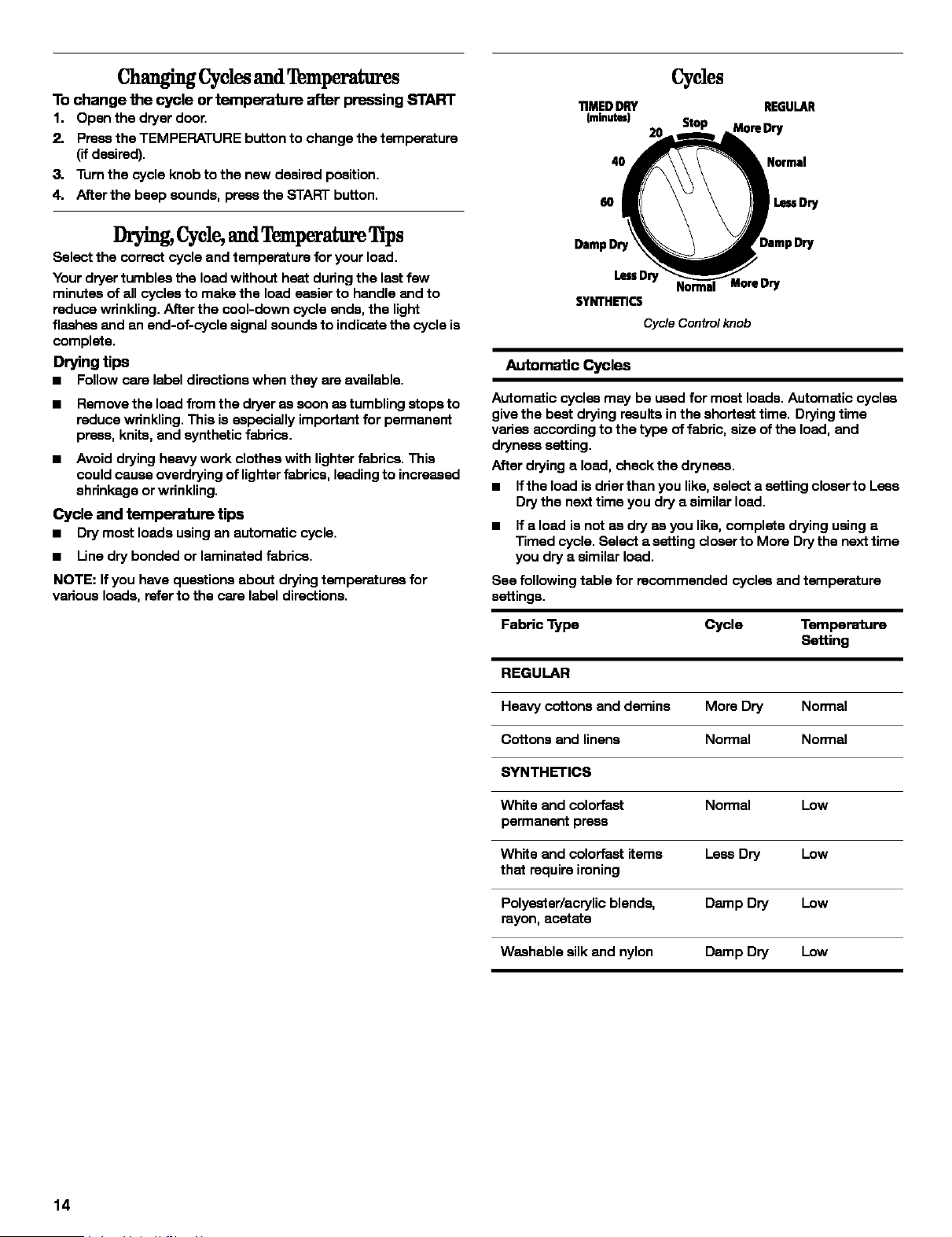

ChangingCyclesandTemperatures
To change the cycle or temperature after pressing START
1. Open the dryer door.
2. Press the TEMPERATURE button to change the temperature
(if desired).
3. Turn the cycle knob to the new desired position.
4. After the beep sounds, press the START button.
Drying,Cycle,andTemperatureTips
Select the correct cycle and temperature for your load.
Your dryer tumblss the load without heat during the last few
minutes of all cycles to make the load easier to handle and to
reduce wrinkling. After the cool-down cycle ends, the light
flashes and an end-of-cycle signal sounds to indicate the cycle is
complete.
Drying tips
• Follow care label directions when they are available.
• Remove the load from the dryer as soon as tumbling stops to
reduce wrinkling. This is especially important for permanent
press, knits, and synthetic fabrics.
• Avoid drying heavy work clothes with lighter fabrics. This
could cause overdrying of lighter fabrics, leading to increased
shrinkage or wrinkling.
Cycle and temperature tips
• Drymostloadsusinganautomatic cycle.
• Line dry bonded or laminated fabrics.
NOTE: Ifyou have questions about drying temperatures for
various loads, refer to the care label directions.
11MEDDRY
(minutes)
Cycles
Stop
_GU_R
40 Normal
5O LessDry
_mpD_
_ssD_
Normal
_HTH_I_
CycleCon_rol_ob
Automatic Cycles
Automatic cycles may be used for most loads. Automatic cycles
give the best drying results in the shortest time. Drying time
varies according to the type of fabric, size of the load, and
dryness setting.
After drying a load, check the dryness.
• Ifthe load is drier than you like, select a setting closer to Less
Dry the next time you dry a similar load.
• If a load is not as dry as you like, complete drying using a
Timed cycle. Select asetting clcser to More Drythe next time
you dry a similar load.
See following table for recommended cycles and temperature
settings.
Fabric Type Cycle Temperature
Setting
REGULAR
Heavy cottons and demine More Dry Normal
Cottons and linens Normal Normal
SYNTHETICS
White and colorfast Normal Low
permanent press
White and colorfast items Less Dry Low
that require ironing
Polyeater/ecrylic blends, Damp Dry Low
rayon, acetate
Washable silk and nylon Damp Dry Low
14

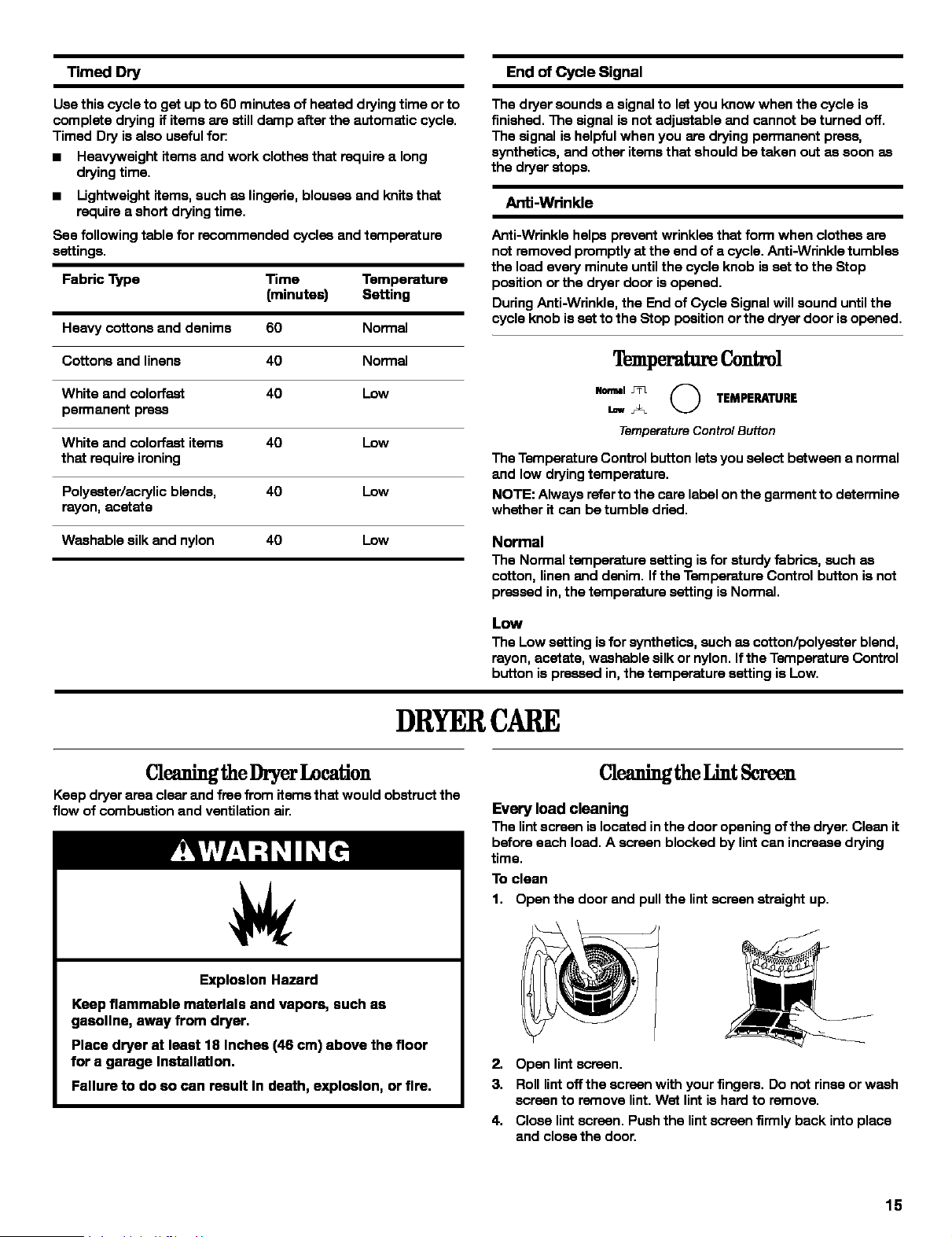

TimedDry
Use this cycle to get up to 60 minutes of heated drying time or to
complete drying if items are still damp after the automatic cycle.
Timed Dry is also useful for:
a Heavyweight items and work clothes that require a long
drying time.
a Lightweight items, such as lingerie, blouses and knits that
require a short drying time,
See following table for recommended cycles and temperature
settings.
Fabric Type Time Temperature
(minutes) Setting
Heavy cottons and denims 60 Normal
Cottons and linens 40 Normal
White and colorfast 40 Low
permanent press
White and colorfast items 40 Low
that require ironing
Polyester/ecrylic blends, 40 Low
rayon, acetate
Washable silk and nylon 40 Low
End of Cycle Signal
The dryer sounds a signal to let you know when the cycle is
finished, The signal is not adjustable and cannot be turned off,
The signal is helpful when you are drying permanent press,
synthetics, and other items that should be taken out as soon as
the dryer stops,
Anti-Wrinkle
Anti-Wrinkle helps prevent wrinkles that form when clothes are
net removed promptly at the end of a cycle. Anti-Wrinkle tumbles
the load every minute until the cycle knob is set to the Stop
position or the dryer door is opened.
During Anti-Wrinkle, the End of Cycle Signal will sound until the
cycle knob is set to the Stop position or the dryer door isopened.
TemperatureControl
N_,ml _ _ TEMPERATURE
unv_
Temperature Control Button
The Temperature Control button letsyou select between a normal
and low drying temperature.
NOTE: Always referto the care label on the garment to determine
whether it can be tumble dried.
Normal
The Normal temperature setting is for sturdy fabrics, such as
cotton, linen and denim. If the Temperature Control button is not
pressed in, the temperature setting is Normal.
Low
The Low setting isfor synthetics, such as cotton/polyeeter blend,
rayon, acetate, washable silk or nylon. If the Temperature Control
button is pressed in, the temperature setting is Low.
DRYERCARE
CleaningtheDryerLocation
Keep dryer area clear and free from items that would obstruct the
flow of combustion and ventilation air.
Explosion Hazard
Keep flammable materials and vapors, such as
geaollne, away from dryer,
Place dryer at least 18 Inches (46 cm) above the floor
for a garage Installation,
Fallura to do so can result In death, explosion, or flra,
Cleaningthe LintScreen
Every load cleaning
The lintscreen is located inthe door opening of the dryer, Clean it
before each load, A screen blocked by lint can increase drying
time,
To clean
1. Open the door and pull the lint screen straight up.
J
2. Open lint screen.
3. Roll lint off the screen with your fingers. Do not rinse or wash
screen to remove lint. Wet lint is hard to remove.
4. Close lint screen. Push the lint screen firmly back into place
and close the door.
15

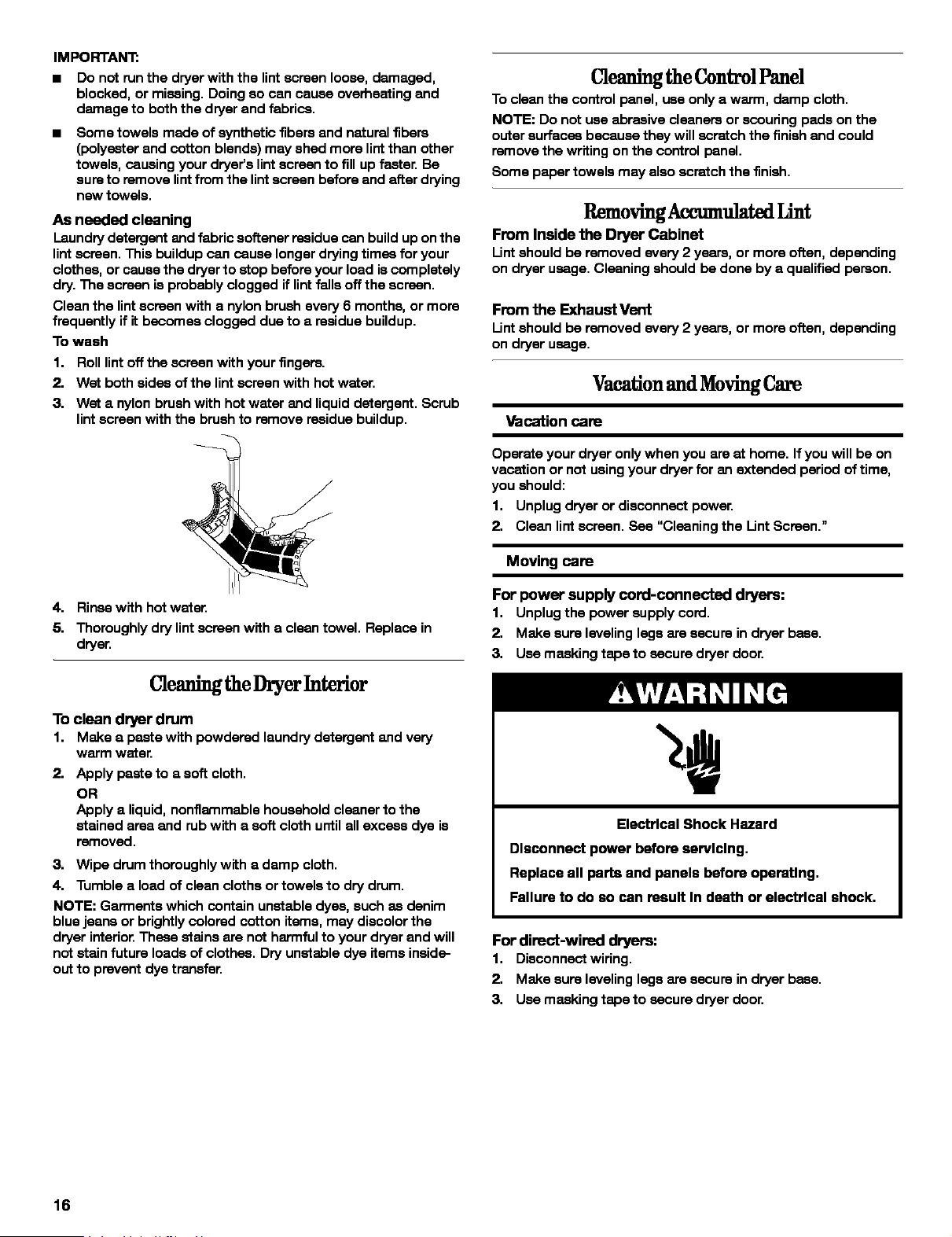

IMPORTANT:
a Do not run the dryer with the lint screen loose, damaged,
blocked, or missing. Doing so can cause overheating end
damage to both the dryer end fabrics.
a
Some towels made of synthetic fibers and natural fibers
(polyester and cotton blends) may shed more lint than other
towels, causing your dryer's lint screen to fill up faster. Be
sure to remove lintfrom the lint screen before end after drying
new towels.
As needed cleaning
Laundry detergent and fabric softener residue can build up on the
lint screen. This buildup can cause longer drying times for your
clothes, or cause the dryer to stop before your load iscompletely
dry. The screen is probably clogged if lint falls off the screen.
Clean the lint screen with s nylon brush every 6 months, or more
frequently if it becomes clogged due to a residue buildup.
To wash
1. Roll lint off the screen with your fingers.
2. Wet both sides ofthe lint screen with hot watec
3. Wet a nylon brush with hot water and liquid detergent. Scrub
lint screen with the brush to remove residue buildup.
4. Rinse with hot watch
5. Thoroughly dry lint screen with a clean towel. Replace in
dryen
Cleaning the Dryer Interior
To clean dryer drum
I. Make a paste with powdered laundry detergent and very
warm water.
2. Apply paste to a soft cloth.
OR
Apply a liquid, nonflammable household cleaner to the
stained area and rub with a soft cloth until all excess dye is
removed.
3. Wipe drum thoroughly with e damp cloth.
4. Tumble a load of clean cloths or towels to dry drum.
NOTE: Garments which contain unstable dyes, such as denim
blue jeans or brightly colored cotton items, may discolor the
dryer interior.These stains are not harmful to your dryer end will
not stain future loads of clothes. Dry unstable dye items inside-
out to prevent dye transfer.
CleaningtheControlPanel
To clean the control panel, use only a warm, damp cloth.
NOTE: Do not use abrasive cleaners or scouring pads on the
outer surfaces because they will scratch the finish end could
remove the writing on the control panel.
Some paper towels may also scratch the finish.
RemovingAccumulatedLint
From Inside the Dryer Cabinet
Lintshould be removed every 2 years, or more often, depending
on dryer usage, Cleaning should be done by a qualified person,
From the Exhaust Vent
Lint should be removed every 2 years, or more often, depending
on dryer usage.
VacationandMovingCare
Vacation care
Operate your dryer only when you are at home. If you will be on
vacation or not using your dryer for an extended period of time,
you should:
1. Unplug dryer or disconnect power.
2. Clean lint screen. See "Cleening the Lint Screan."
Moving care
For power supply cord-connected dryers:
I. Unplug the power supply cord.
2. Make sure leveling legs are secure in dryer base.
3. Use masking tape to secure dryer door.
Electrical Shock Hazard
Disconnect power before servicing.
Replace all parts and panels before oparetlng.
Failure to do so can result In death or electrical shock.
For direct-wirsd dryers:
1. Disconnect wiring.
2. Make sure leveling legs are secure in dryer base.
3. Use masking tape to secure dryer door.
16
TROUBLESHOOTING
FirsttW the solutions suggested here and possibly •void the cost of a service call...
Clothes are not drying satisfactorily
Unusual sounds
• The compact dryer operates at a lower wattage. Expect
longer drying times.
• Check the following:
Isthe lint scman clogged with lint?
Isthe lint screen clogged with laundry detergent residue or
other residue? Wash the lint screen. See "Cleaning the Lint
Screen."
Isthe exhaust vent or outside exhaust hood clogged with lint,
restricting air movement? Run the dryer for 5-10 minutes.
Hold your hand under the outside exhaust hood to check air
movement. If you do not feel air movement, clean exhaust
system of lint or replace exhaust vent with heavy metal or
flexible metal vent. See "Installation Instructions."
Isthe exhaust vent crushed or kinked? Replace with heavy
metal or flexible metal vent. See "Installation Instructions."
Isthe automatic cycle ending early? This cycle will end early
if dryer load is not contacting the sensor strips. Level the
dryer. See "Installation Instructions."
Is the dryer located in a room with temperature below
45°F (70C)?
Proper operation of dryer cycles requires temperatures above
45°F (7°C).
• Was a cold rinse water used? Was the load very wet?
Expect longer drying times with items rinsed in cold water
and with items that hold moisture (cottons).
• Is the load too large and heavy to dry quickly?.
Separate the load to tumble freely.
Dryer will not run
Check the following:
Isthe power cord plugged into a grounded 3 prong outlet?
Has a fuse blown, or has a circuit breaker tripped?
Was a regular fuse used? Use atime-delay fuse.
Isthe dryer door firmly closed?
Isthe motor running but the drum isn't turning? This usually
means a belt is broken. Call for service.
Isthe indicator light glowing? If not, press the POWER
button.
Was the START button firmly pressed?
Is a cycle selected?
• Has the dryer had a period of non-use?
Ifthe dryer hasn't been used for a while, there may be a
thumping sound during the first few minutes of operation.
Lint on load
Is the lint screen clogged?
Clean lint screen. Check for air movement.
Is the load properly sorted?
Sort lint givers (towels, chenille) from lint takers (corduroy,
synthetics). Also sort by color.
Is the load too big or too heavy?.
Dry smaller loads so lint can be carried to the lintscreen.
Was the load overdded?
Use correct dryer settings for load type. Overdrying can
cause lint-ettracting static electricity. See "Drying, Cycle, and
Temperature Tips."
Was paper or tissue left in pockets?
Is pilling being mistaken for lint?
Pilling (surfacs fuzz) is caused by normal wear and
laundering.
Stains on load or color change
• Were items soiled when placed in the dryer?.
Items should be clean before being dried.
• Were items properly sorted?
Sort light colors from dark colors. Sort colorfast items from
noncolorfast items.
Items shrinldng
• Was the dryer overloaded?
Dry smaller loads that can tumble freely.
• Did the load overdry?
Check the manufacturer's care label. Match dryer setting to
load type. See "Drying, Cycle, and Temperature Tips."
17

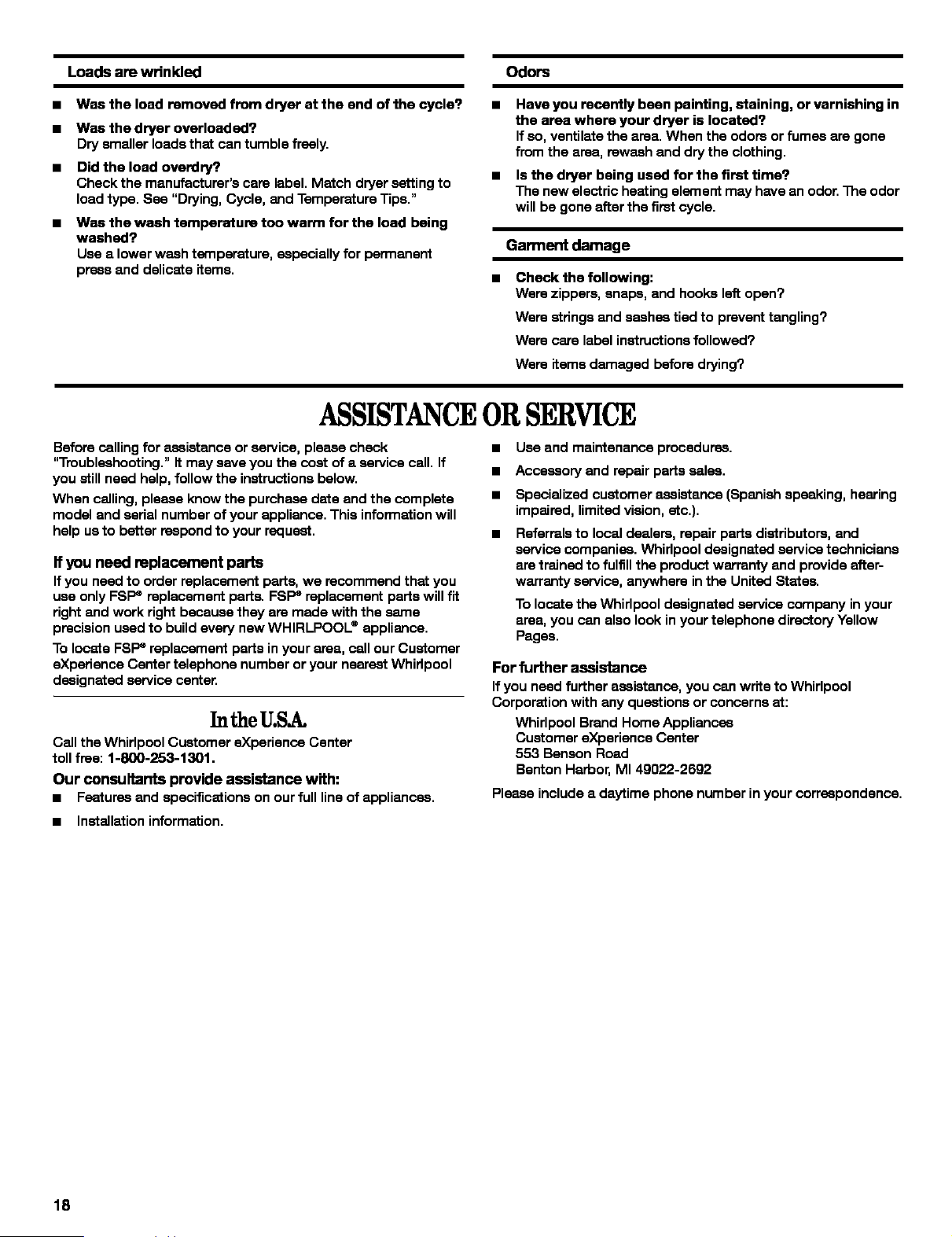

Loadsarewrinkled
a Was the load removed from dryer at the end of the cycle?
s Was the dryer overloaded?
Dry smaller loads that can tumble freely.
s Did the load overdry?
Check the manufacturer's care label. Match dryer setting to
load type. See "Drying, Cycle, and Temperature Tips."
a Was the wash temperature too warm for the load being
washed?
Use a lower wash temperature, especially for permanent
press and delicate items.
Odors
a Have you recently been painting, staining, or varnishing in
the area where your dryer is located?
If so, ventilate the area. When the odors or fumes are gone
from the ares, rewesh and dry the clothing.
a Is the dryer being used for the first time?
The new electric heating element may have an eden The odor
will be gone after the first cycle.
Garment damage
a Check the following:
Were zippers, snaps, and hooks left open?
Were strings and sashes tied to prevent tangling?
Were care label instructions followed?
Were items damaged before drying?
ASSISTANCEORSERVICE
Before ceiling for assistance or service, please check
"Troubleshooting." it may save you the cost of a service call. If
you still need help, follow the instructions below.
When calling, please know the purchase date and the complete
model and serial number of your appliance. This information will
help us to better respond to your request.
If you need replacement parts
If you need to order replacement parts, we recommend that you
use only FSPe replacement parts. FSPe replacement parts will fit
right and work right because they are made with the same
precision used to build every new WHIRLPOOL ®appliance.
To locate FSP" replacement parts in your area, call our Customer
eXperience Center telephone number or your nearest Whirlpool
designated service center.
IntheU.KA.
Call the Whirlpool Customer experience Center
toll free: 1-800-253-1301.
Our consultants provide assistance with:
a Features end specifications on our full line of appliances.
a
a
a
m
Use and maintenance procedures.
Accessory and repair parts sales.
Specialized customer assistance (Spanish speaking, hearing
impaired, limited vision, etc.).
Referrals to local dealers, repair parts distributors, and
service companies. Whirlpool designated service technicians
are trained to fulfillthe product warranty and provide after-
warranty service, anywhere in the United States.
To locate the Whirlpool designated service company in your
area, you can also look in your telephone directory Yellow
Pages.
For further assistance
If you need further assistance, you can write to Whirlpool
Corporation with any questions or concerns at:
Whirlpool Brand Home Appliances
Customer eXperience Center
553 Benson Road
Benton Harbor, MI 49022-2692
Please include a daytime phone number in your correspondence.
a Installation information.
18
Notes
lg
WHIRLPOOL®DRYERWARRANTY
ONE-YEAR FULL WARRANTY
For one year from the date of purchase, when this dryer is operated and maintained according to instructions attached to or furnished
with the product, Whirlpool Corporation will pay for FSP" replacement parts and repair labor costs to correct defects in materials or
workmanship. Service must be provided by a Whirlpool designated service company.
Whirlpool Corporation will not pay for:
1. Service calls to correct the installation of your dryer, including venting. Heavy 4" (I 0.2 cm) metal exhaust vent must be used. Refer
to the venting section of this manual and your Installation Instructions.
2. Service calls to instruct you how to use your dryer, to replace house fuses or correct house wiring or reset circuit breakers, or to
replace owner accessible light bulbs.
3. Repairs when your dryer is used in other than normal, single-family household use.
4. Damage resulting from accident, alteration, misuse, abuse, fire, floods, acts of God, improper installation (including, but not limited
to, venting with plastic or flexible foil), installation not in accordance with local electrical and plumbing codes, or use of products not
approved by Whirlpool Corporation.
5. Replacement parts or repair labor costs for units operated outside the United States.
6. Pickup and delivery. This product is designed to be repaired in the home.
7. Repairs to parts or systems resulting from unauthorized modifications made to the appliance.
WHIRLPOOL CORPORATION SHALL NOT BE LIABLE FOR INCIDENTAL OR CONSEQUENTIAL DAMAGES.
Some states do not allow the exclusion or limitation of incidental or consequential damages, so this exclusion or limitation may not
apply to you. This warranty gives you specific legal rights and you may also have other rights which vary from state to state.
Outside the 50 United States, this warranty does not apply. Contact your authorized Whirlpool dealer to determine if another
warranty applies.
If you need service, first see "Troubleshooting." Additional help can be found by checking "Assistance or Service," or by calling our
Customer eXperience Center at 1-800-253-1301, from anywhere in the U.S.A., or write: Whirlpool Corporation, Customer eXperience
Center, 553 Banson Road, Benton Harbor, M149022-2692. 8/o4
Keep this book and your sales slip together for future
reference. You must provide proof of purchase or installation
date for in-warranty service.
Write down the following information about your dryer to better
help you obtain assistance or service ifyou ever need it. You will
need to know your complete model number and serial number.
You can find this information on the model and serial number
label, located on the inside door well ofyour dryer.
Dealer name
Address
Phone number
Model number
Serial number
Purchase date
8565592A
© 2004WhirlpoolCorporation. 9/04
Allrightsreserved. @ RegisteredTradernarkri-MTrademarkofWhirlpool,U.S.A. Printedin Italy
