CHECK FOR CONCEALED DAMAGE
FILE CLAIM WITH DELIVERING FREIGHT CARRIER
Sinks manufactured by ADVANCE TABCO
®
are designed and constructed for the use of
liquid containment. Suggested applications include Food Preparation, Manufacturing, Cooking,
Laboratory and Service and the like. ADVANCE TABCO
®
does not recommend product use for activities
employing harsh and active chemicals. Please consult factory regarding unusual applications.
Installation Instructions for
FC, FE & FS SERIES SINKS
FE Series
FC Series
FS Series
Step 1
Carefully remove contents of carton/crate. Carefully position
sink upside down on a protected surface so you can access the
underside of the sink. Install leg assembly into gussets at each
end (Figure 1).
Step 2
Tighten each Set Screw using 5/32” Allen Wrench (Figure 2).
THIS CARTON CONTAINS:
• Sink Unit
• Leg Assembly
• Drains (1 For Each Sink Bowl)
TOOLS NEEDED (Not Included):
5/32” Allen Wrench
PLEASE NOTE: Some models may require Set
Screws to be inserted into the Set Screw Holes.
Figure 1
Figure 2
☞

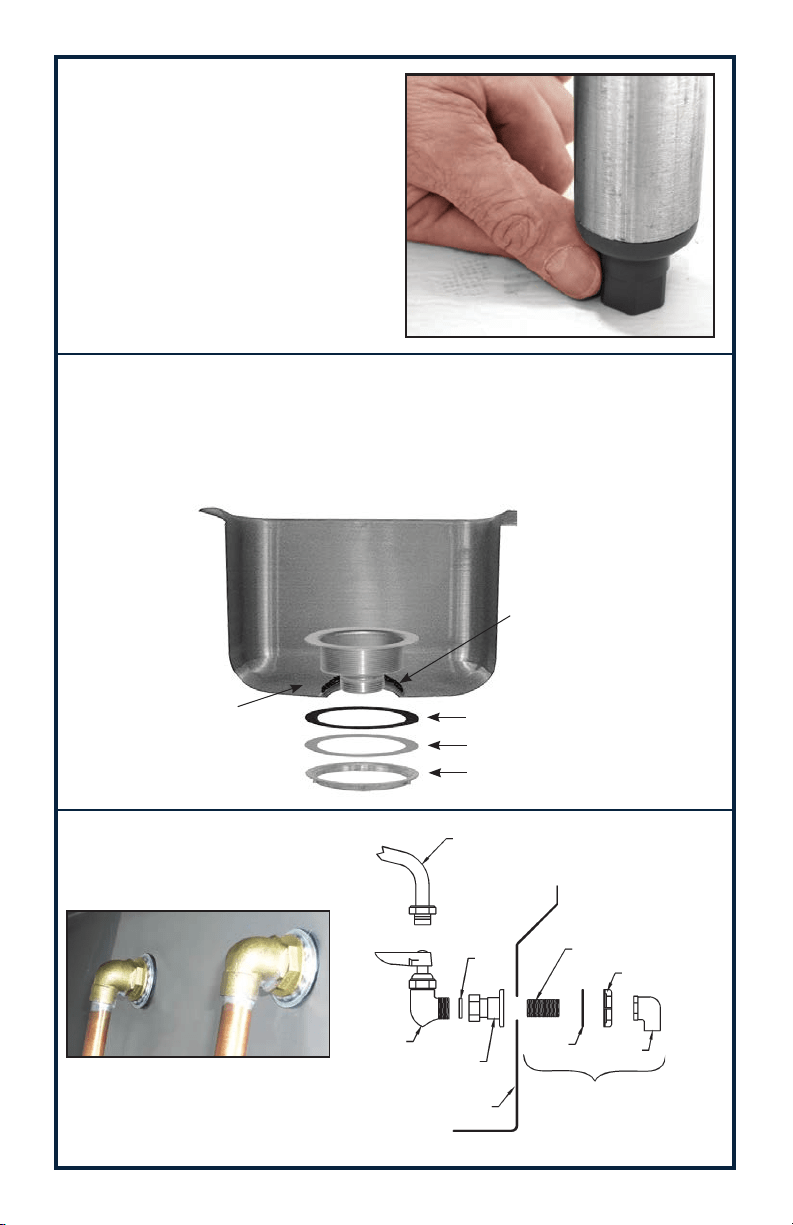

Step 3
Carefully turn sink over onto
its legs. Check for stability and
adjust Bullet Feet as necessary
(Figure 3).
Figure 3
Optional K-06
Faucet Mounting Kit Available
(Not Included)
Sink
Bottom
K-6 Basket
Drain shown
1/4” continuous
bead of Plumber’s
Putty or Silicone
Sealer.
Rubber Washer
Paper Washer
Die Cast Nut
Step 4
Install drain(s) & faucet. Your knowledgeable plumbing contractor
is responsible for local code requirements. You can also visit our
website at advancetabco.com/support for drain & faucet details.
Drain Installation Details
Faucet Installation Details
Spout
Tile Edge
Flanged
Washer
Teflon Tape or Thread
Sealer on 1/2’ x Close
Nipple.
These pieces are supplied
in an optional Mounting Kit
K-06 (Figure 4) or by the
plumber.
Faucet
Body
Faucet Mounting
Flange
Splash
Rubber
Washer 90º Sink
Elbow
Figure 4
EDGEWOOD, NY 11717-8380
© ADVANCE TABCO, MARCH 2016
Splash
Splash
Silicone Sealer
1”
Wall
Wall

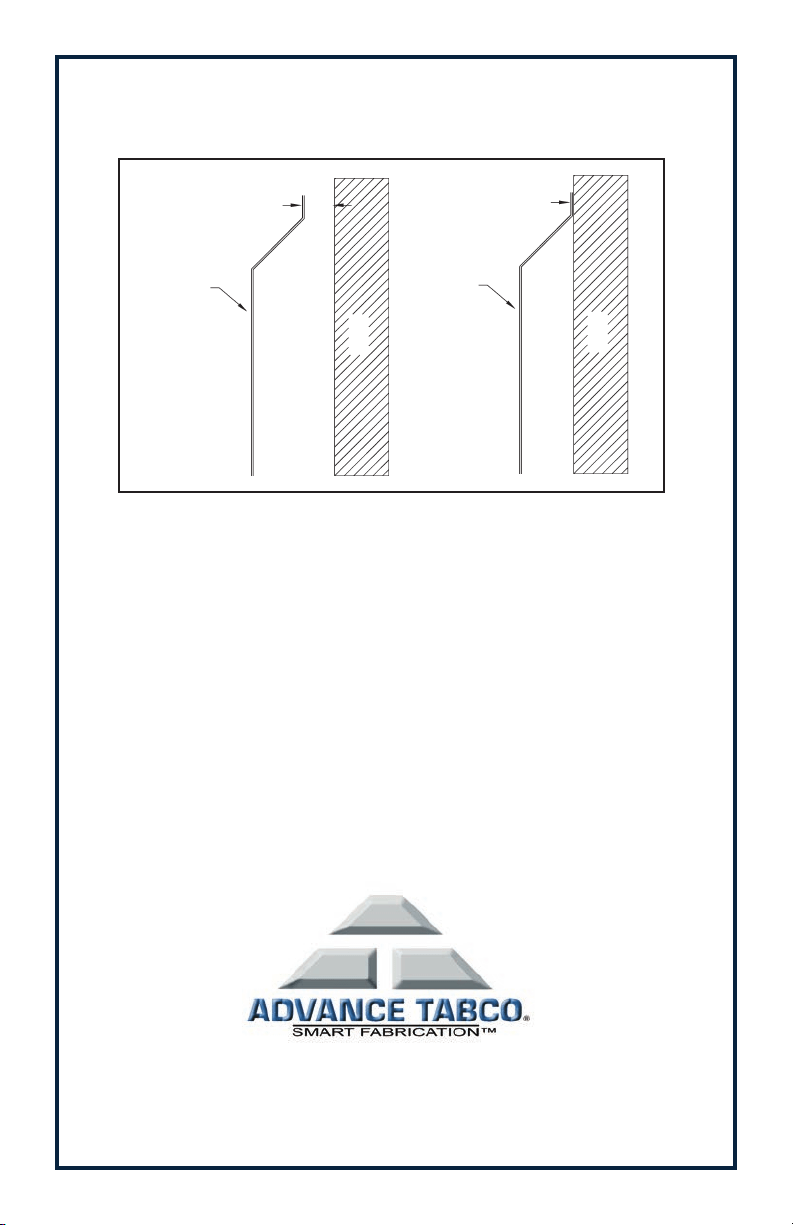

NOTE: NSF installations require sink unit to be installed
to wall or at least 1” of the wall (Figure 5).
Figure 5
For Additional Assistance,
Please call Customer Service at:
1-800-645-3166
