NILE RODGERS HITMAKER STRATOCASTER® (0115922705)
Page 1 of 6
Jun 9, 2021 - PR5914 - Rev. A
COPYRIGHT - 2021 - FENDER MUSICAL INSTRUMENTS CORPORATION

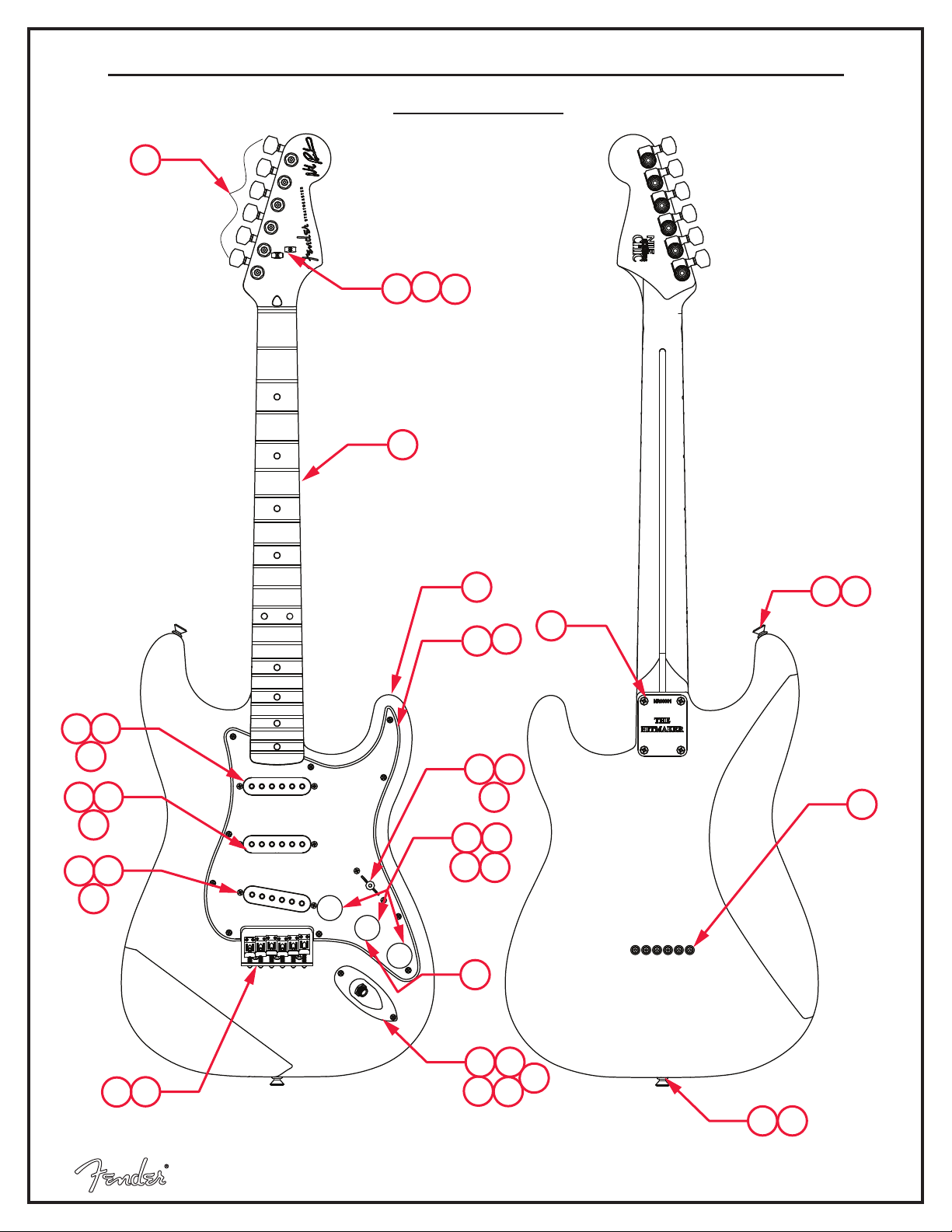

PARTS LAYOUT
11
11
26
3
4
2
5
1
10
12
15
16
17
21
18
19
20
19 20
27 28
27 28
22
23
12
11
13
12
11
25
24
14
6
8
9
9
7
NILE RODGERS HITMAKER STRATOCASTER® (0115922705)
Page 2 of 6
Jun 9, 2021 - PR5914 - Rev. A
COPYRIGHT - 2021 - FENDER MUSICAL INSTRUMENTS CORPORATION
PARTS LIST
REF# DESCRIPTION PART
NUMBER
1 BODY NILE RODGERS HITMAKER STRAT OWT 7719910505
2 NECK ASSY NILE RODGERS HITMAKER STRAT 7719909000
3 SCREW WOOD 8x2 OHP STL BRITE NI 0058060049
4 KEYS SPERZEL TRIM LOK SET 0060153000
5 STRING TREE VINTAGE NI W/HDWR 0992083000
6 SCREW SMAB 3x3/8 RHP NI 0011357049
7 SPACER STR TREE 62 STRAT 0020423000
8 PICKGUARD AM STD STRAT CHROME 0058124000
9 SCREW SMAB 4x1/2 OHP NI 0015578049
10 PICKUP ASSY NILE ROGERS STRAT NECK 7719905000
11 SCRW TF 6-32x3/4 RHP STL NI 0048631049
12 TUBING LATEX CUT .300 x 1/8ID x 1/4OD 0994916000
13 PICKUP ASSY NILE ROGERS STRAT MIDDLE 7719906000
14 PICKUP ASSY NILE ROGERS STRAT BRIDGE 7719907000
15 SWITCH 5-WAY LEVER CRL 0038929049
16 SWITCH TIP STRAT EGG SHL WHT 0093597060
17 KNOB SPEED WHT 0073030000
18 CONTROL 250K 10% TPR SPLIT 0990830000
19 WASHER LOCK INTL 3/8 X .687 0016436049
20 NUT HEX 3/8-32x3/32 TK NI 0016352049
21 CAP CD .05uF 100V 20% 0015552049
22 FERRULE JACK STRAT CHROME 0991940100
23 JACK PHONE OPEN CIRCT 11 0021956049
24 BRIDGE ASSY STRAT VINT NON TREM 0037592049
24A BRIDGE PLATE VINT NON TREM 0010322000
24B BRIDGE SECTION VINT STRAT 0992051000
24C SCRW M 4-40x5/8 RHP NI 0015693049
24D SPRING-BRIDGE 4 COIL 3/8 0019383000
24E SPRING BRIDGE 1933 0019273049
24F SPRING BRIDGE #1932 0019281049
24G SCREW 4-40 X 3/8 STAINLESS STL 0994928000
24H SCREW 4-40 X 5/16 STAINLESS STL 0994928000
25 SCREW WOOD 8x1 OHP NI 0021373049
26 FERRULE STRING RETNR NKL 0994918000
27 BUTTON STRAP NI 0.156 0994915000
28 SCREW WOOD 6x1 OHP NI 0016188049
NOT PICTURED IN DIAGRAM
*
=
NILE RODGERS HITMAKER STRATOCASTER® (0115922705)
Page 3 of 6
Jun 9, 2021 - PR5914 - Rev. A
COPYRIGHT - 2021 - FENDER MUSICAL INSTRUMENTS CORPORATION
REF# DESCRIPTION PART
NUMBER
* CASE NILE RODGERS W/HITMAKER LOGO 7719915000
* WRENCH HEX KEY .050 (SADDLE HEIGHT ADJUST) 0018531049
* WRENCH HEX KEY 1/8 (T-ROD ADJUSTMENT) 0023811049
NOT PICTURED IN DIAGRAM
*
=
NILE RODGERS HITMAKER STRATOCASTER® (0115922705)
Page 4 of 6
Jun 9, 2021 - PR5914 - Rev. A
COPYRIGHT - 2021 - FENDER MUSICAL INSTRUMENTS CORPORATION

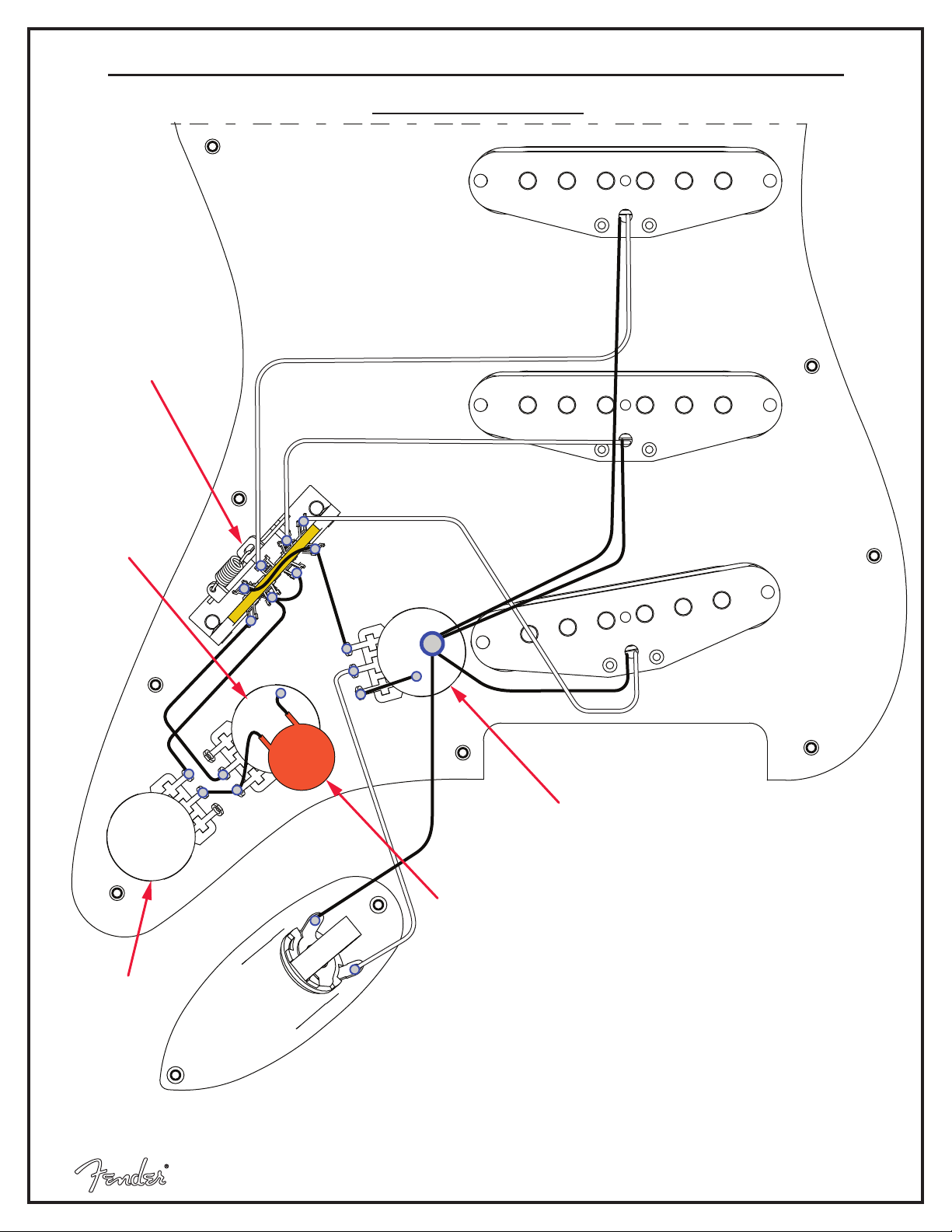

WIRING ASSEMBLY
BRIDGE PICKUP
NECK PICKUP
MIDDLE PICKUP
5-WAY SWITCH
VOLUME CONTROL
CAPACITOR .05µF
TONE 1
CONTROL
TONE 2
CONTROL
OUTPUT JACK
NILE RODGERS HITMAKER STRATOCASTER® (0115922705)
Page 5 of 6
Jun 9, 2021 - PR5914 - Rev. A
COPYRIGHT - 2021 - FENDER MUSICAL INSTRUMENTS CORPORATION

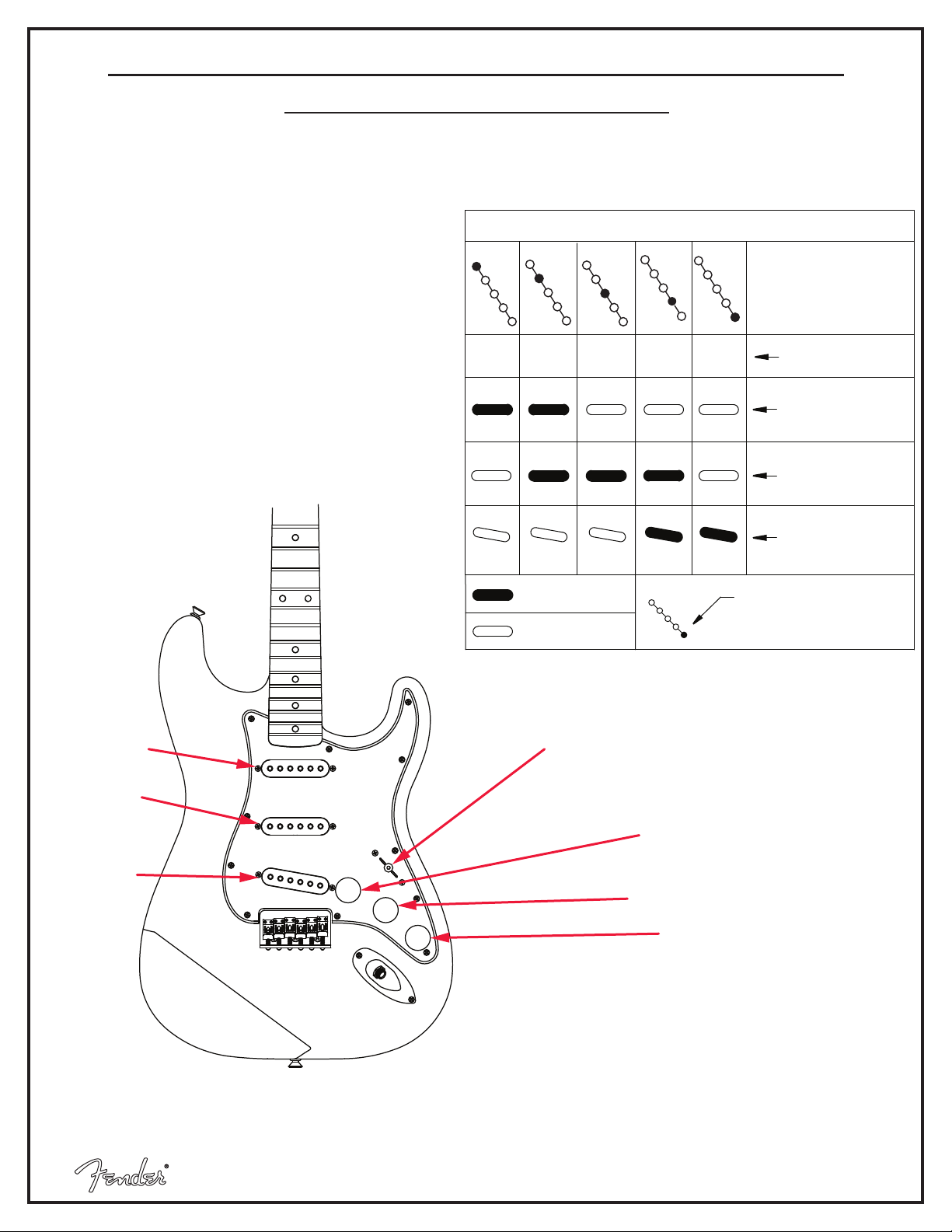

SWITCH AND CONTROL FUNCTION
SWITCH POSITION
4
3
2
1
5
CONTROLCONTROL
OF 5 WAY SWITCH
INDICATES POSITION
PICKUP IS OFF
PICKUP IS ON
1
BRIDGE PICKUP
5 WAY SWITCH POSITION
NECK PICKUP
MIDDLE PICKUP
T1
T1 & T2
T2 T2
T2
5-WAY
SWITCH
NECK
PICKUP
MIDDLE
PICKUP
BRIDGE
PICKUP
MASTER
VOLUME
TONE 1 (T1)
TONE 2 (T2)
NILE RODGERS HITMAKER STRATOCASTER® (0115922705)
Page 6 of 6
Jun 9, 2021 - PR5914 - Rev. A
COPYRIGHT - 2021 - FENDER MUSICAL INSTRUMENTS CORPORATION

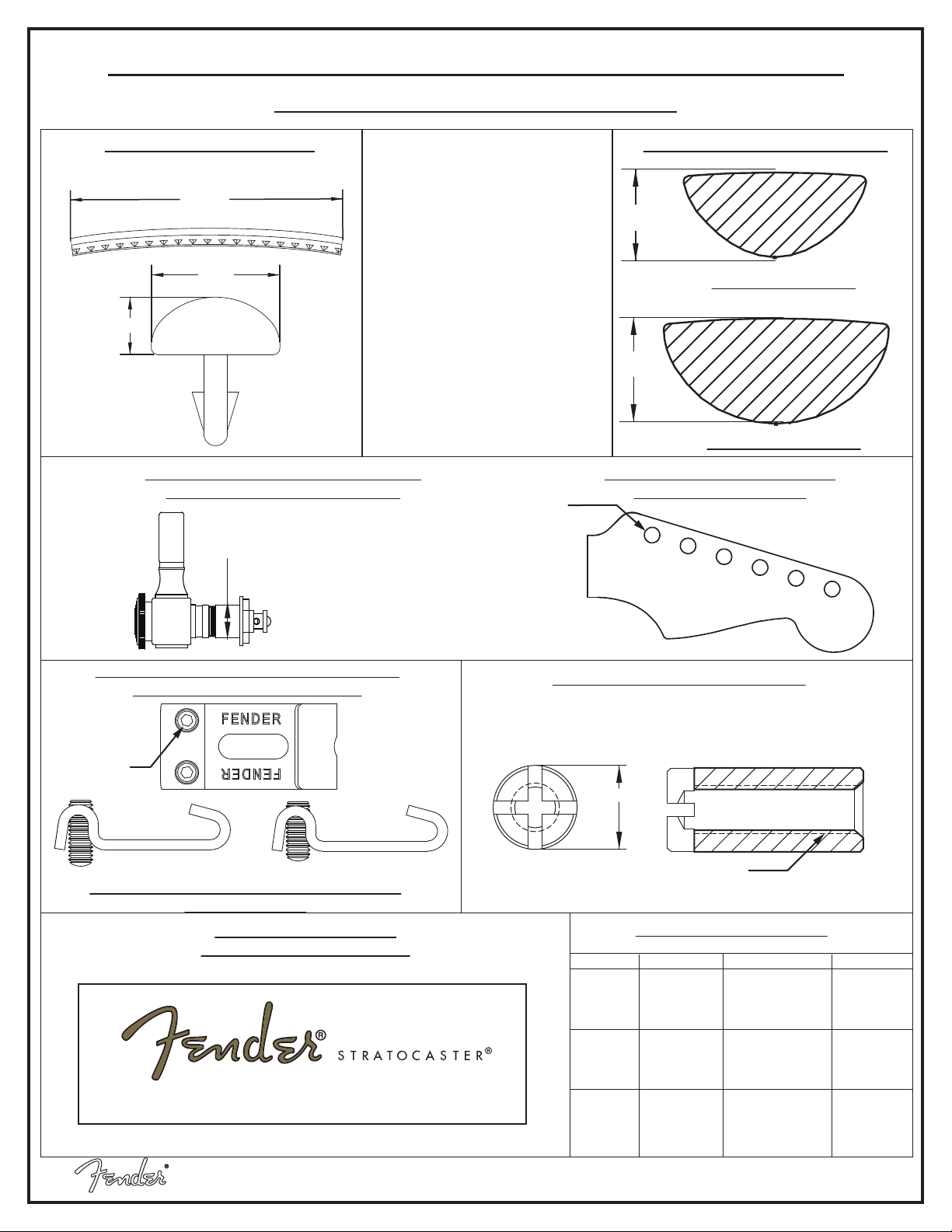

ADDITIONAL SPECIFICATION DETAIL
.046”
.103
2-7/16”
TUNING MACHINES : P/N 0060153000
OUTER SHAFT DIAMETER .380”
TUNING MACHINE THRU-HOLE
INNER DIAMETER .397”
LOGO: VINTAGE STRAT
APPLIED OVER THE FINISH
TRUSS ROD NUT: P/N 0994944000
1ST FRET PROFILE
12TH FRET PROFILE
NECK PROFILE: NILE RODGERS FRET SIZE: MEDIUM JUMBO
(FRET DIMENSIONS ARE BEFORE INSTALLATION)
PLEASE NOTE: AS EACH NECK
IS SANDED & FINISHED BY
HAND, THICKNESS DIMENSIONS
MAY VARY SLIGHTLY FROM
THOSE SHOWN.
PICKUP SPECIFICATIONS
NECK
MIDDLE
BRIDGE
DC RESISTANCE
6.0 - 6.6KΩ
6.1 - 6.7KΩ
5.2 - 5.8KΩ
MAGNETS
ALNICO 5
BEVELED
ALNICO 5
BEVELED
ALNICO 5
BEVELED
POLARITY
SOUTH
NORTH
SOUTH
POSITION
.755”
.940”
Ø
.397”
Ø.380”Ø.380”
.050” HEX
SADDLE HEIGHT ADJUSMENT WRENCH:
.050” HEX KEY P/N 0018531049
SHORT: 5/16”
TALL: 3/8”
SADDLE HEIGHT ADJUSTMENT SCREWS:
P/N 0994928000
10-32
THREAD
Ø
.375”
