Projector
V302X/V302W/
V332X/V332W/
V302H
User’s Manual
Model No.
NP-V302X/NP-V302W/NP-V332X/NP-V332W/NP-V302H
Ver.1 4/15
• DLP, BrilliantColor, and DLP Link are trademarks of Texas Instruments.
• IBM is a trademark or registered trademark of International Business Machines Corporation.
• Macintosh, Mac OS X, iMac, and PowerBook are trademarks of Apple Inc., registered in the U.S. and
other countries.
• Microsoft, Windows, Windows 7, Windows Vista, Internet Explorer, and NET Framework are either
a registered trademark or trademark of Microsoft Corporation in the United States and/or other
countries.
• MicroSaver is a registered trademark of Kensington Computer Products Group, a division of ACCO
Brands in the U.S. and other countries.

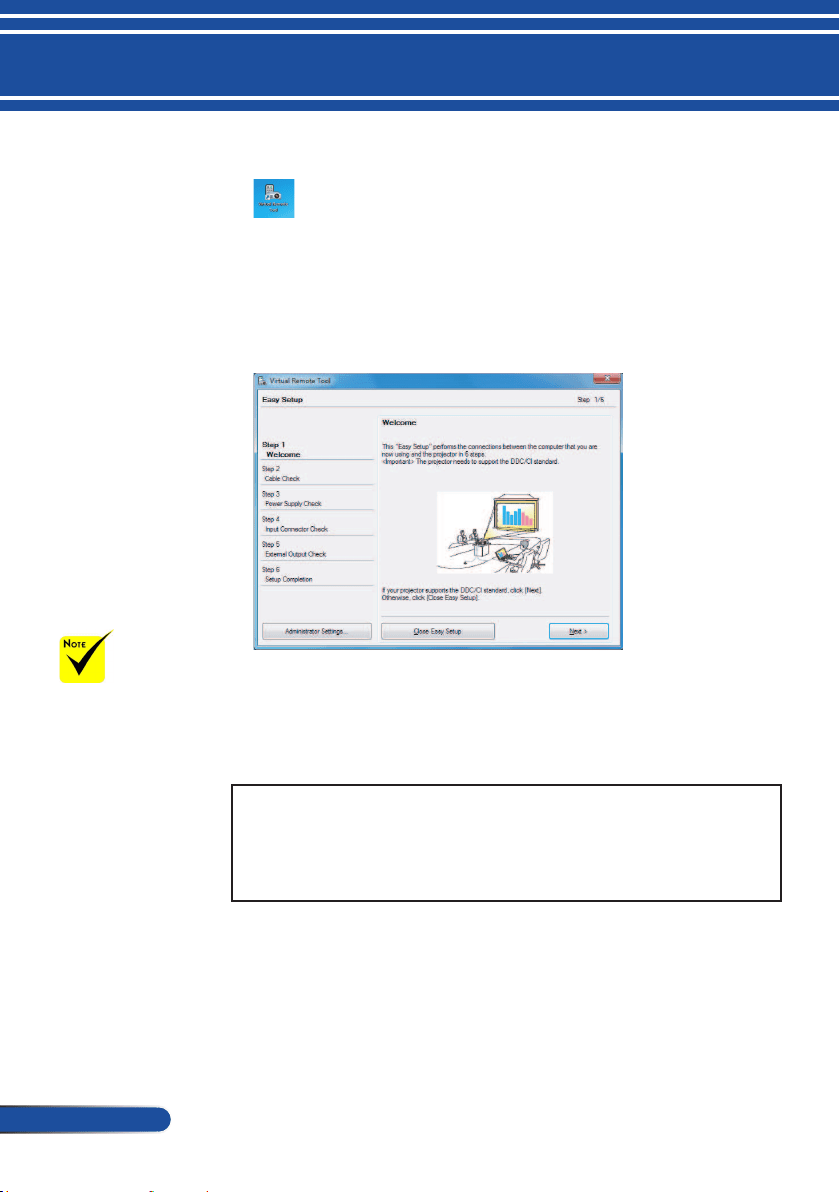

• Virtual Remote Tool uses WinI2C/DDC library, © Nicomsoft Ltd.
• The terms HDMI and HDMI High-Denition Multimedia Interface, and the HDMI Logo are trade-
marks or registered trademarks of HDMI Licensing LLC in the United States and other countries.
• MHL, Mobile High-Denition Link and the MHL Logo are trademarks or registered trademarks of
the MHL, LLC.
• Blu-ray is a trademark of Blu-ray Disc Association.
• Trademark PJLink is a trademark applied for trademark rights in Japan, the United States of
America and other countries and areas.
• CRESTRON and ROOMVIEW are registered trademarks of Crestron Electronics, Inc. in the United
States and other countries.
• Other product names and logos mentioned in this user’s manual may be the trademarks or regis-
tered trademarks of their respective holders.
NOTES
(1) The contents of this user’s manual may not be reprinted in part or whole without permission.
(2) The contents of this user’s manual are subject to change without notice.
(3) Great care has been taken in the preparation of this user’s manual; however, should you notice any
questionable points, errors or omissions, please contact us.
(4) Notwithstanding article (3), NEC will not be responsible for any claims on loss of prot or other
matters deemed to result from using the Projector.
i
English
...
Important Information
Safety Cautions
Precautions
Please read this manual carefully before using your NEC projector and keep the manual handy for future
reference.
CAUTION
To turn off main power, be sure to remove the plug from power outlet.
The power outlet socket should be installed as near to the equipment as possible, and should be
easily accessible.
CAUTION
TO PREVENT SHOCK, DO NOT OPEN THE CABINET.
THERE ARE HIGH-VOLTAGE COMPONENTS INSIDE.
REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.
This symbol warns the user that uninsulated voltage within the unit may be sufcient to cause
electrical shock. Therefore, it is dangerous to make any kind of contact with any part inside of
the unit.
This symbol alerts the user that important information concerning the operation and mainte-
nance of this unit has been provided.
The information should be read carefully to avoid problems.
WARNING: TO PREVENT FIRE OR SHOCK, DO NOT EXPOSE THIS UNIT TO RAIN OR MOISTURE.
DO NOT USE THIS UNIT’S PLUG WITH AN EXTENSION CORD OR IN AN OUTLET UNLESS ALL
THE PRONGS CAN BE FULLY INSERTED.
DOC Compliance Notice (for Canada only)
This Class B digital apparatus complies with Canadian ICES-003.
Machine Noise Information Regulation - 3. GPSGV,
The highest sound pressure level is less than 70 dB (A) in accordance with EN ISO 7779.
Disposing of your used product
EU-wide legislation as implemented in each Member State requires that used electrical and elec-
tronic products carrying the mark (left) must be disposed of separately from normal household
waste. This includes projectors and their electrical accessories or lamps. When you dispose of
such products, please follow the guidance of your local authority and/or ask the shop where you
purchased the product.
After collecting the used products, they are reused and recycled in a proper way. This effort will
help us reduce the wastes as well as the negative impact such as mercury contained in a lamp
to the human health and the environment at the minimum level. The mark on the electrical and
electronic products only applies to the current European Union Member States.
WARNING TO CALIFORNIA RESIDENTS:
Handling the cables supplied with this product will expose you to lead, a chemical known to the State of
California to cause birth defects or other reproductive harm. WASH HANDS AFTER HANDLING.
ii
English
...
Important Information
RF Interference (for USA only)
WARNING
The Federal Communications Commission does not allow any modications or changes to the unit
EXCEPT those specied by NEC Display Solutions of America, Inc. in this manual. Failure to comply with
this government regulation could void your right to operate this equipment. This equipment has been test-
ed and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules.
These limits are designed to provide reasonable protection against harmful interference in a residential
installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed
and used in accordance with the instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular installation.
If this equipment does cause harmful interference to radio or television reception, which can be deter-
mined by turning the equipment off and on, the user is encouraged to try to correct the interference by one
or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio / TV technician for help.
For UK only: In UK, a BS approved power cord with moulded plug has a Black (ve Amps) fuse installed for
use with this equipment. If a power cord is not supplied with this equipment please contact your supplier.
Important Safeguards
These safety instructions are to ensure the long life of your projector and to prevent re and shock. Please
read them carefully and heed all warnings.
Installation
• Do not place the projector in the following conditions:
- on an unstable cart, stand, or table.
- near water, baths, or damp rooms.
- in direct sunlight, near heaters, or heat radiating appliances.
- in a dusty, smoky or steamy environment.
- on a sheet of paper, cloth, rugs, carpets, or any objects which are damaged or affected by heat.

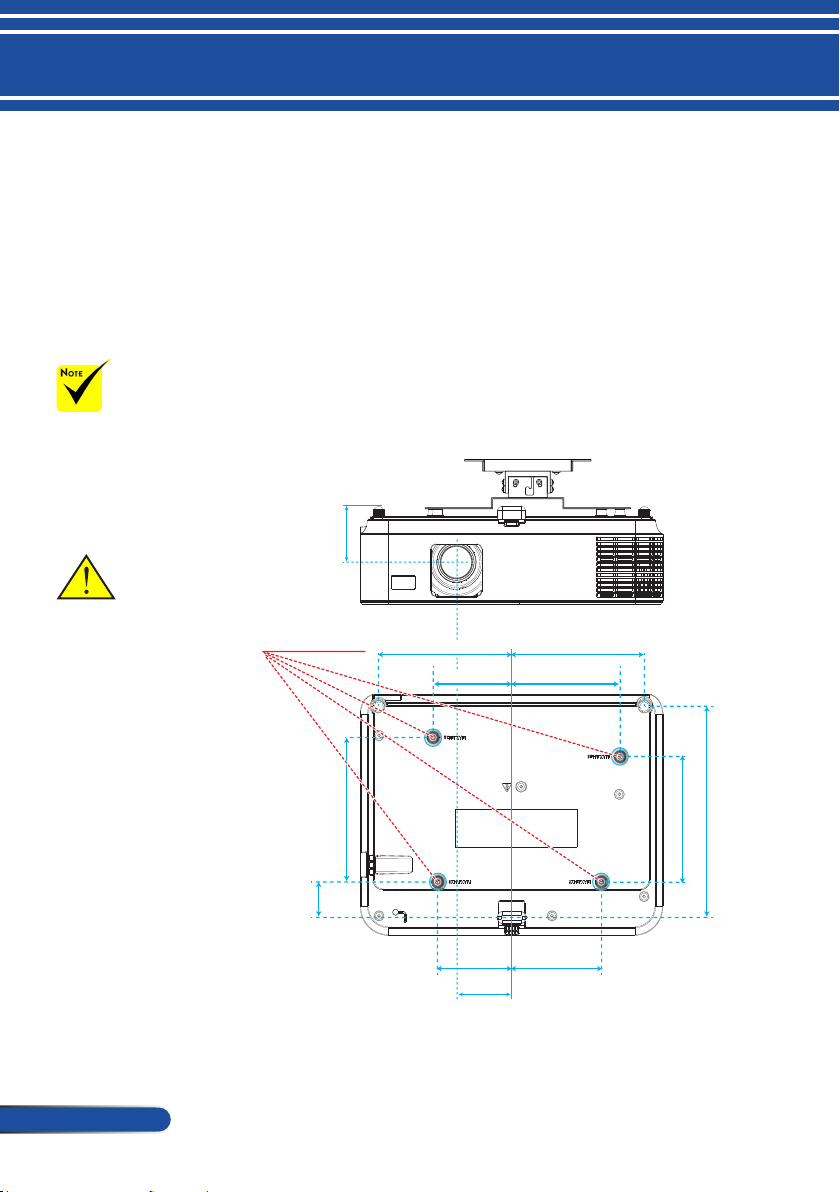

• If you wish to have the projector installed on the ceiling:
- Do not attempt to install the projector yourself.
- The projector must be installed by qualied technicians in order to ensure proper operation and reduce
the risk of bodily injury.
- In addition, the ceiling must be strong enough to support the projector and the installation must be in
accordance with any local building codes.
- Please consult your dealer for more information.
WARNING
• Do not use any other object than the projector’s lens cover to cover
the lens while the projector is on. Doing so can cause the object to
get extremely hot, and possibly resulting in a re or damage due to
the heat emitted from the light output.
• Do not place any objects, which are easily affected by heat, in front
of the projector lens. Doing so could lead to the object melting from
the heat that is emitted from the light output.
iii
English
...
Important Information
Fire and Shock Precautions
• Ensure that there is sufcient ventilation and that vents are unobstructed to prevent the build-up of heat
inside your projector. Allow at least 4 inches (10cm) of space between your projector and a wall.
• Do not try to touch the exhaust vent as it can become heated while the projector is turned on and
immediately after the projector is turned off.
• Prevent foreign objects such as paper clips and bits of paper from falling into your projector. Do not at-
tempt to retrieve any objects that might fall into your projector. Do not insert any metal objects such as a
wire or screwdriver into your projector. If something should fall into your projector, disconnect it immedi-
ately and have the object removed by a qualied service personnel.
• Do not place any objects on top of the projector.
• Do not touch the power plug during a thunderstorm. Doing so can cause electrical shock or re.
• The projector is designed to operate on a power supply of 100-240V AC 50/60 Hz. Ensure that your power
supply ts this requirement before attempting to use your projector.
• Do not look into the lens while the projector is on. Serious damage to your eyes could result.
• Keep any items (magnifying glass etc.) out of the light path of the projector. The light path being projected
from the lamp is extensive, therefore any kind of abnormal objects that can redirect light coming out of the
lamp, can cause unpredictable outcome such as a re or injury to the eyes.
• Do not block the light path between the light source and the lamp with any objects. Doing so could cause
the object to catch on re.
• Do not place any objects, which are easily affected by heat, in front of the projector lamp or a projector
exhaust vent.
Doing so could lead to the object melting or getting your hands burned from the heat that is emitted from
the light output and exhaust.
• Handle the power cord carefully. A damaged or frayed power cord can cause electric shock or re.
- Do not use any power cord other than the one supplied.
- Do not bend or tug the power cord excessively.
- Do not place the power cord under the projector, or any heavy object.
- Do not cover the power cord with other soft materials such as rugs.
- Do not heat the power cord.
- Do not handle the power plug with wet hands.
• Turn off the projector, unplug the power cord and have the projector serviced by a qualied service per-
sonnel under the following conditions:
- When the power cord or plug is damaged or frayed.
- If liquid has been spilled into the projector, or if it has been exposed to rain or water.
Place the projector in a horizontal position
The tilt angle of the projector should not exceed 5 degrees, nor should the projector be installed in any way
other than the desktop and ceiling mount, otherwise lamp life could decrease dramatically.
iv
English
...
Important Information

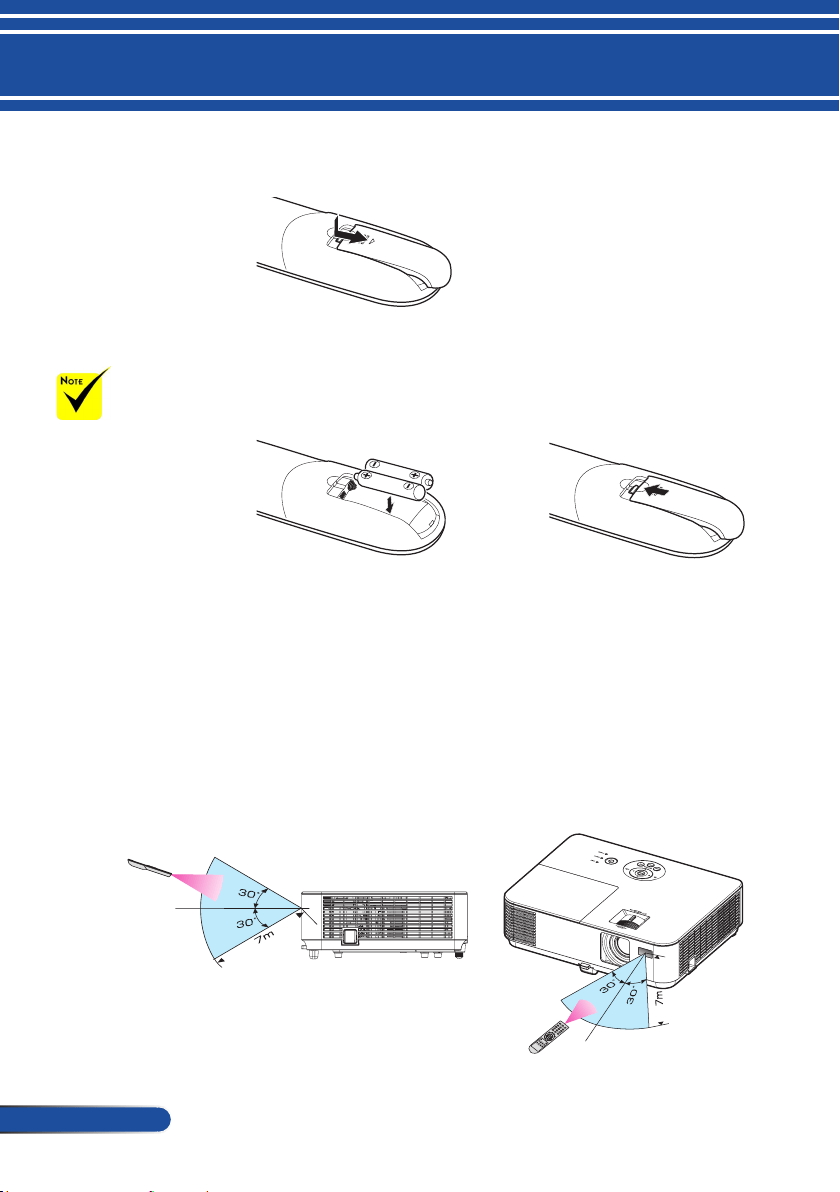

Remote Control Precautions
• Handle the remote control carefully.
• If the remote control gets wet, wipe it dry immediately.
• Avoid excessive heat and humidity.
• Do not short, heat, or take apart batteries.
• Do not throw batteries into re.
• If you will not be using the remote control for a long time, remove the batteries.
• Ensure that you have the batteries’ polarity (+/–) aligned correctly.
• Do not use new and old batteries together, or use different types of batteries together.
• Dispose of used batteries according to your local regulations.

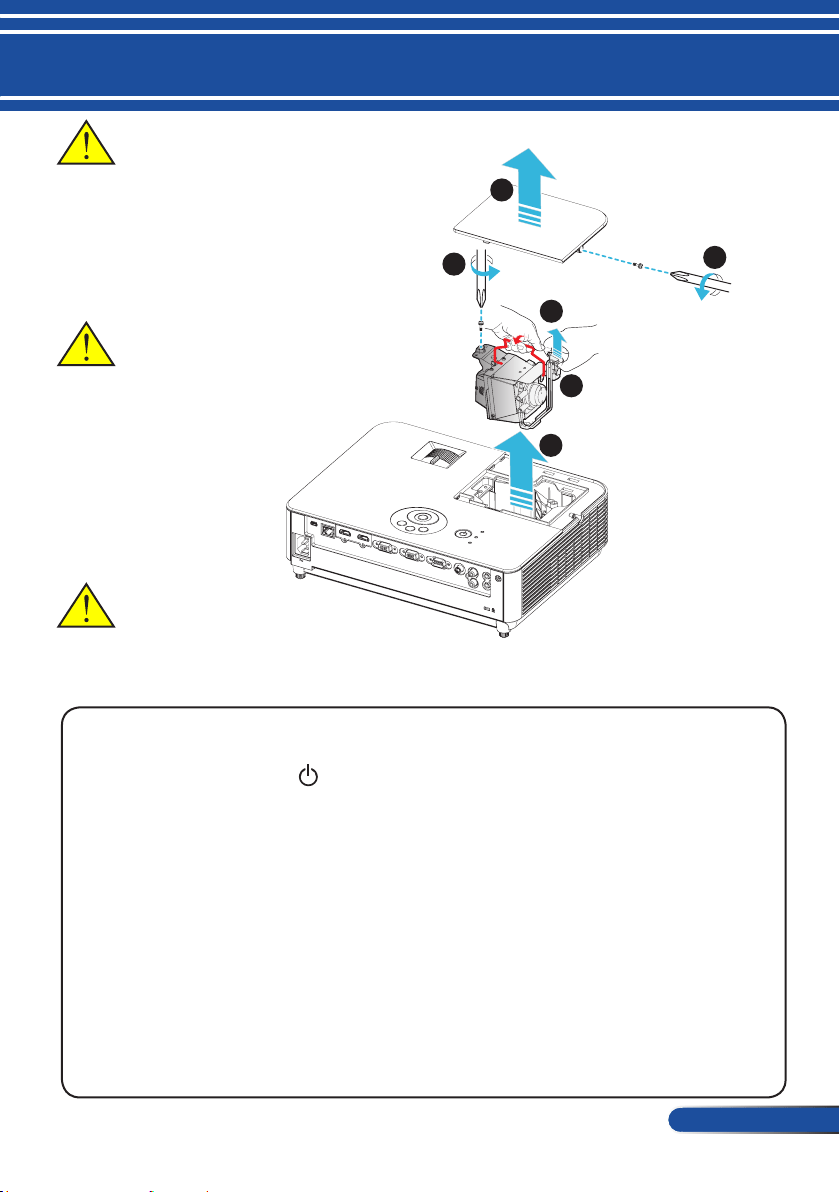

Lamp Replacement
• Use the specied lamp for safety and performance.
• To replace the lamp, follow all instructions provided on pages 84-85.
• Be sure to replace the lamp when the message [THE LAMP LIFE EXCEEDED] appears. If you continue to
use the lamp after the lamp has reached the end of its usable life, the lamp bulb may shatter, and pieces
of glass may be scattered in the lamp case. Do not touch them as the pieces of glass may cause injury.
If this happens, contact your dealer for lamp replacement.
A Lamp Characteristic
The projector has a discharge lamp for special purposes as a light source.
A lamp has a characteristic that its brightness gradually decreases with age. Also repeatedly turning the
lamp on and off will increase the possibility of its lower brightness. The actual lamp life may vary depend-
ing upon the individual lamp, the environmental conditions and usage.
CAUTION:
• DO NOT TOUCH THE LAMP immediately after it has been used. It will be extremely hot. Turn the
projector off and then disconnect the power cord. Allow at least one hour for the lamp to cool before
handling.
• When removing the lamp from a ceiling-mounted projector, make sure that no one is under the projec-
tor. Glass fragments could fall if the lamp has been burned out.
Note for US Residents
The lamp in this product contains mercury. Please dispose according to Local, State or Federal Laws.
- If the projector does not operate normally when you follow the instructions described in this user’s
manual.
- If the projector has been dropped or the cabinet has been damaged.
- If the projector exhibits a distinct change in performance, indicating a need for service.
• Disconnect the power cord and any other cables before carrying the projector.
• Turn off the projector and unplug the power cord before cleaning the cabinet or replacing the lamp.
• Turn off the projector and unplug the power cord if the projector is not to be used for an extended period
of time.
• When using a LAN cable:
For safety, do not connect to the connector for peripheral device wiring that might have excessive voltage.
v
English
...
Important Information
About High Altitude mode
• Set [FAN MODE] to [HIGH ALTITUDE] when using the projector at altitudes approximately 2500
feet/760 meters or higher.
• Using the projector at altitudes approximately 2500 feet/760 meters or higher without setting to [HIGH
ALTITUDE] can cause the projector to overheat and the protector could shut down. If this happens, wait
a couple minutes and turn on the projector.
• Using the projector at altitudes less than approximately 2500 feet/760 meters and setting to [HIGH
ALTITUDE] can cause the lamp to overcool, causing the image to icker. Switch [FAN MODE] to
[AUTO].
• Using the projector at altitudes approximately 2500 feet/760 meters or higher can shorten the life of
optical com ponents such as the lamp.
About Copyright of original projected pictures:
Please note that using this projector for the purpose of commercial gain or the attraction of public attention
in a venue such as a coffee shop or hotel and employing compression or expansion of the screen image with
the following func tions may raise concern about the infringement of copyrights which are protected by
copyright law. [ASPECT RATIO], [KEYSTONE], Magnifying feature and other similar features.
[NOTE] Power management function
The projector has power management functions.
To reduce power consumption, the power management functions (1 and 2) are factory-preset in the
following way. To control the projector via a LAN or serial cable connection, use the on-screen menu to
change the settings for 1 and 2.
1. STANDBY MODE (Factory preset: NORMAL)
To control the projector from an external device, select [NETWORK STANDBY] for [STANDBY MODE].
When [NORMAL] is selected for [STANDBY MODE], the following connectors and functions will not
work:
- PC CONTROL connector, MONITOR OUT connector, AUDIO OUT connector, LAN functions, Mail
Alert function.
2. AUTO POWER OFF (Factory default: 60 minutes)
To control the projector from an external device, select [0] for [AUTO POWER OFF (MIN)].
-When [30] is selected for [AUTO POWER OFF], you can enable the projector to automatically turn off in
30 minutes if there is no signal received by any input or if no operation is performed.
Health precautions to users viewing 3D images
• Before viewing, be sure to read health care precautions that may be found in the user’s manual
included with your LCD shutter eyeglasses or your 3D compatible content such as DVDs, video games,
computer’s video les and the like.
To avoid any adverse symptoms, heed the following:
- Do not use LCD shutter eyeglasses for viewing any material other than 3D images.
- Allow a distance of 2 m/7 feet or greater between the screen and a user. Viewing 3D images from too
close a distance can strain your eyes.
- Avoid viewing 3D images for a prolonged period of time. Take a break of 15 minutes or longer after
every hour of viewing.
- If you or any member of your family has a history of light-sensitive seizures, consult a doctor before
viewing 3D images.
- While viewing 3D images, if you get sick such as nausea, dizziness, queasiness, headache, eyestrain,
blurry vision, convulsions, and numbness, stop viewing them. If symptoms still persist, consult a
doctor.
1
... English
Table of Contents
Table of Contents...............................1
Usage Notice .....................................2
Precautions .........................................2
Introduction ........................................4
Product Features ................................4
Package Overview ..............................5
Product Overview ...............................6
Projector ................................................. 6
Ports ....................................................... 7
Control Panel.......................................... 8

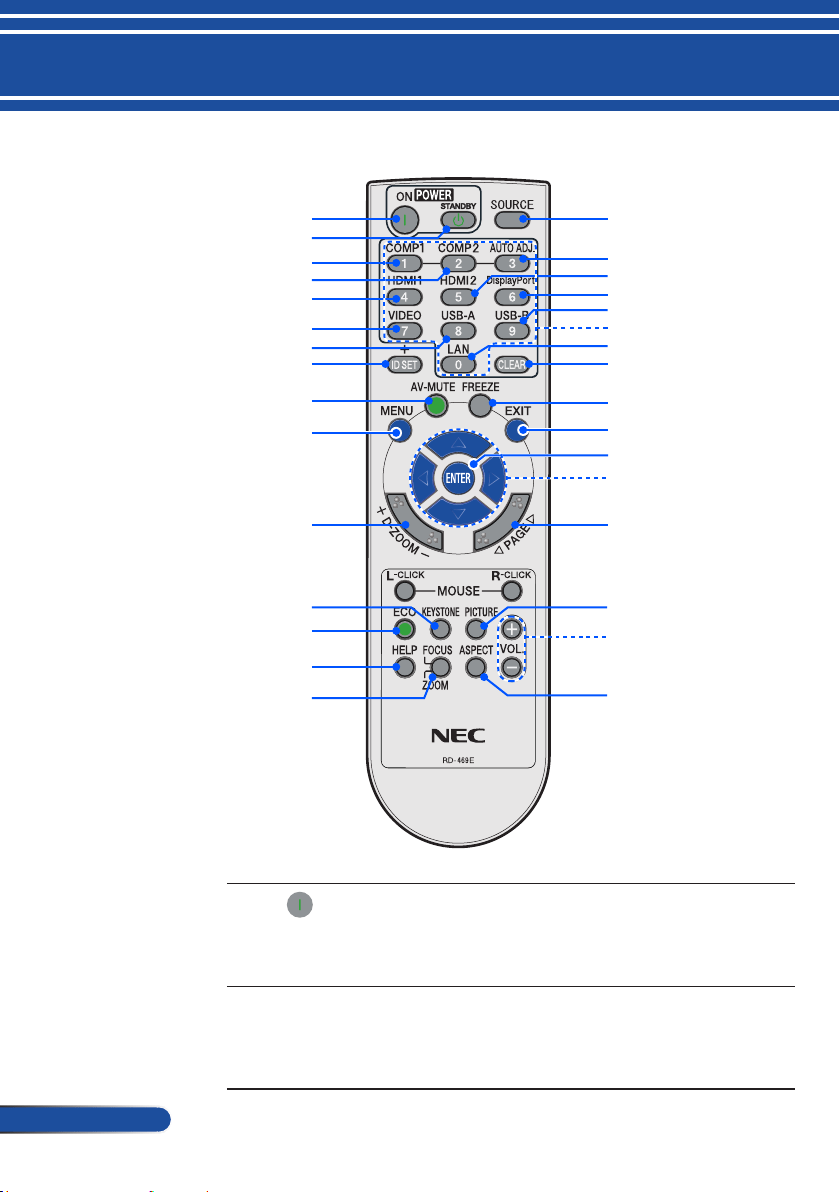

Remote Control .................................... 10
Quick Key Activate Behavior ................ 13
Battery Installation ................................ 14
Using the Downloadable Software ....15
Operating the Projector Via the LAN
(Virtual Remote Tool) ............................ 15
Viewing 3D Images ..............................24
Installation .......................................25
Connecting the Projector ..................25
Connect to Computer/Notebook ........... 25

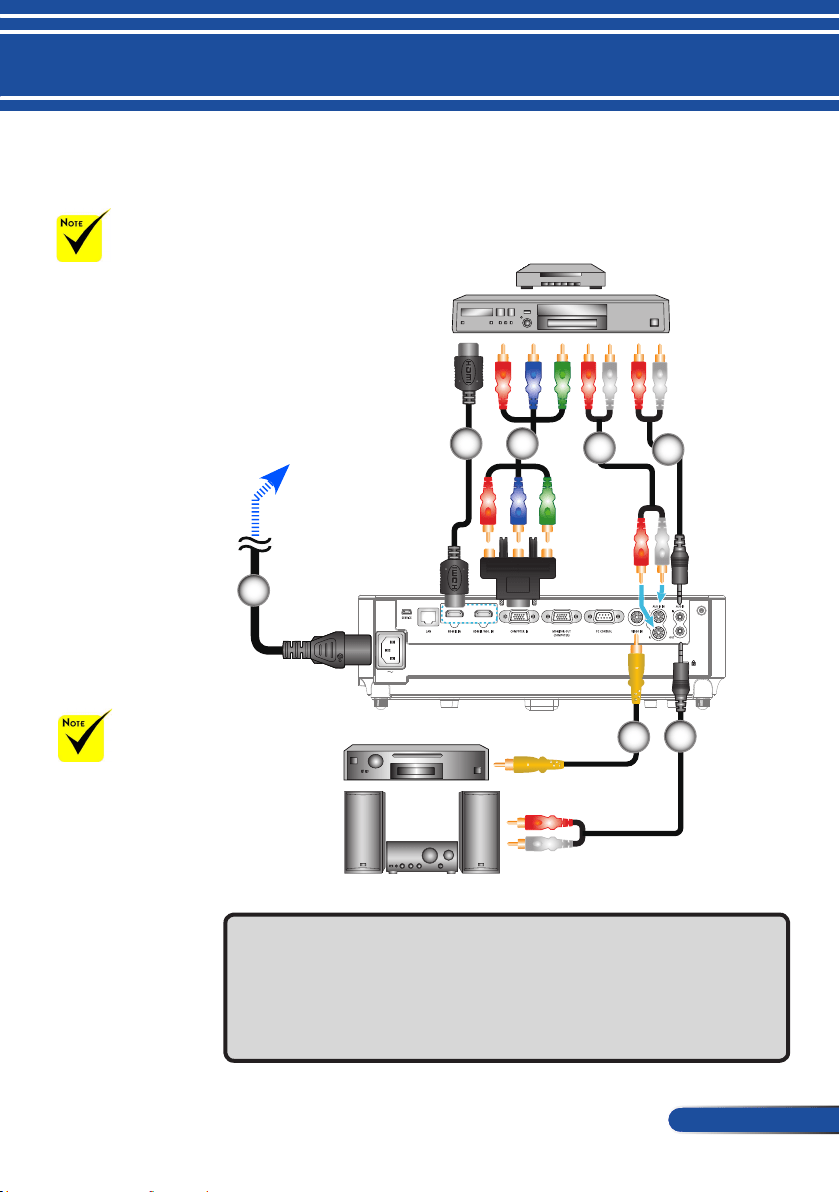

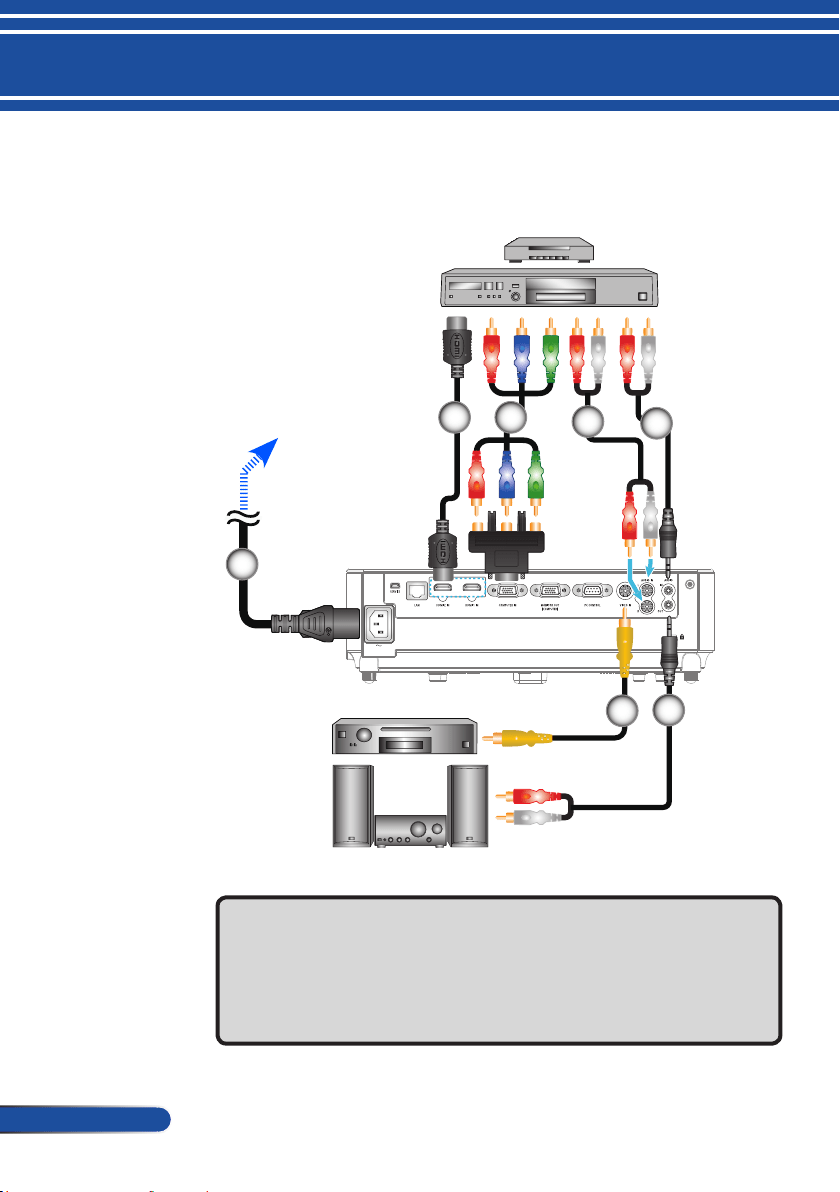

Connect to Video Sources .................... 27

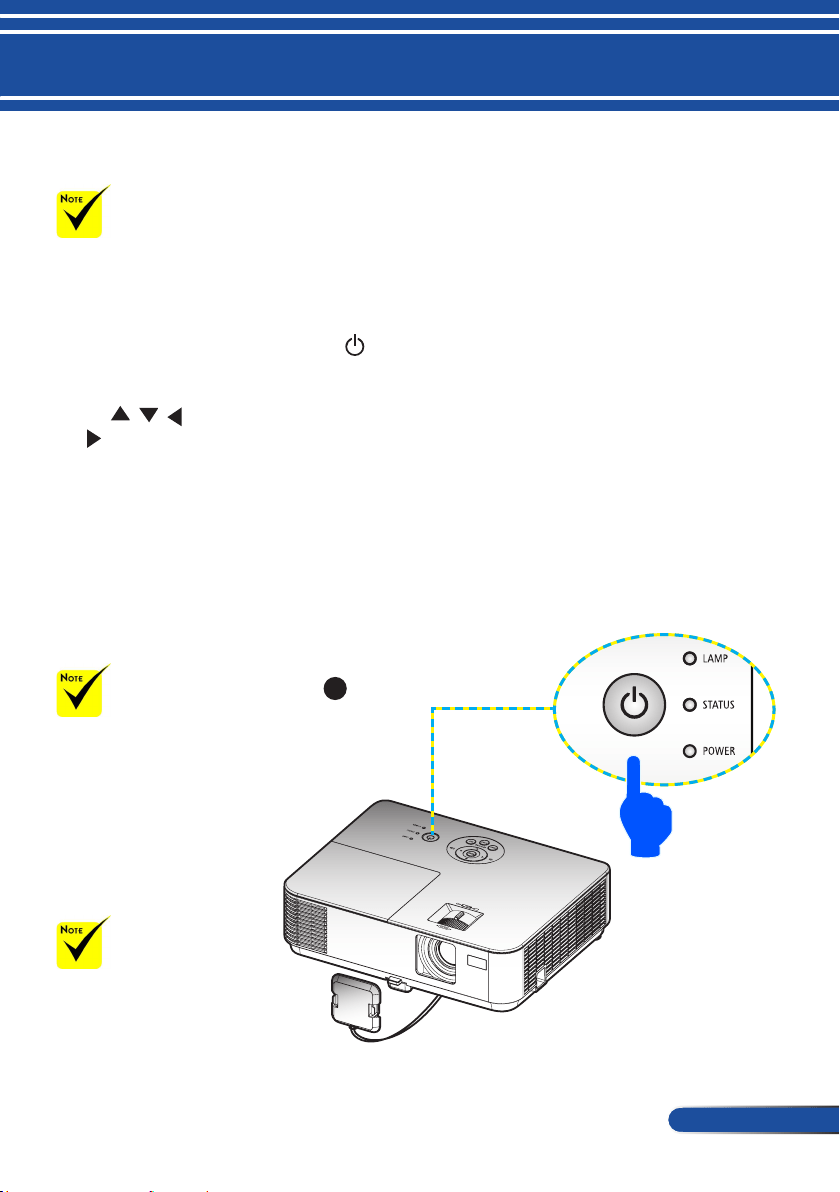

Powering On/Off the Projector ..........29
Powering On the Projector ................... 29
Powering Off the Projector ................... 30
Warning Indicator ................................. 31
Adjusting the Projected Image ..........32
Adjusting the Height of Projection Image . . 32

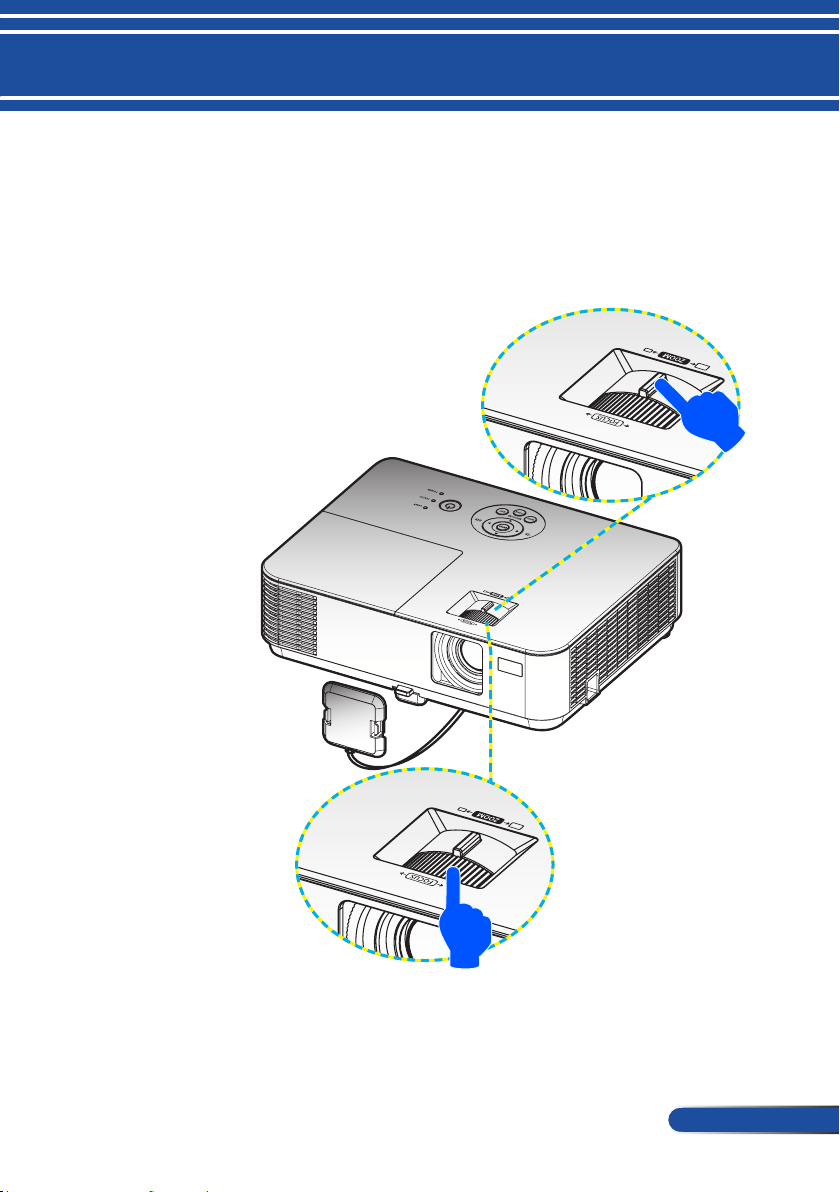

Adjusting the Projector's Focus ............ 33

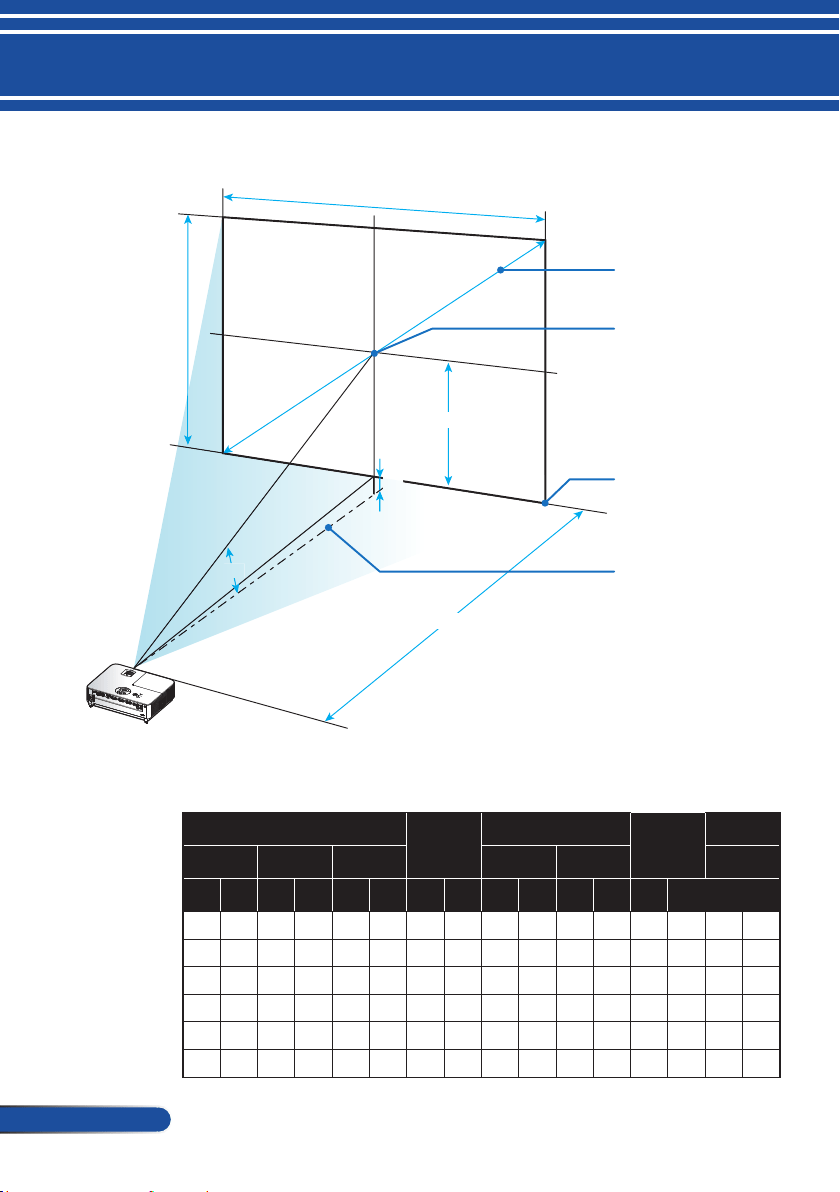

Adjusting Projection Image Size
(Diagonal) ............................................. 34
User Controls...................................37
On Screen Display ............................37
How to operate .................................... 37
Menu Tree ........................................... 38
IMAGE | GENERAL .............................. 41
IMAGE | ADVANCED ........................... 44
SCREEN | GENERAL .......................... 49
SCREEN |3D SETTINGS ..................... 51
SETTING | GENERAL .......................... 53
SETTING | SIGNAL .............................. 56
SETTING | ADVANCED ....................... 58
SETTING | ADVANCED | SECURITY .. 60
SETTING | ADVANCED | NETWORK .. 62
OPTIONS | GENERAL ......................... 69
OPTIONS | LAMP SETTINGS ............. 72
OPTIONS | INFORMATION ................. 74
OPTIONS | ADVANCED ....................... 75
Appendices ......................................78
Troubleshooting ................................78
Replacing the lamp ..........................84
Cleaning procedure for the lens ........86
Specications ....................................87
Compatibility Modes .........................91
VGA Analog .......................................... 91
HDMI Digital ......................................... 93
Ceiling Mount Installation ..................96

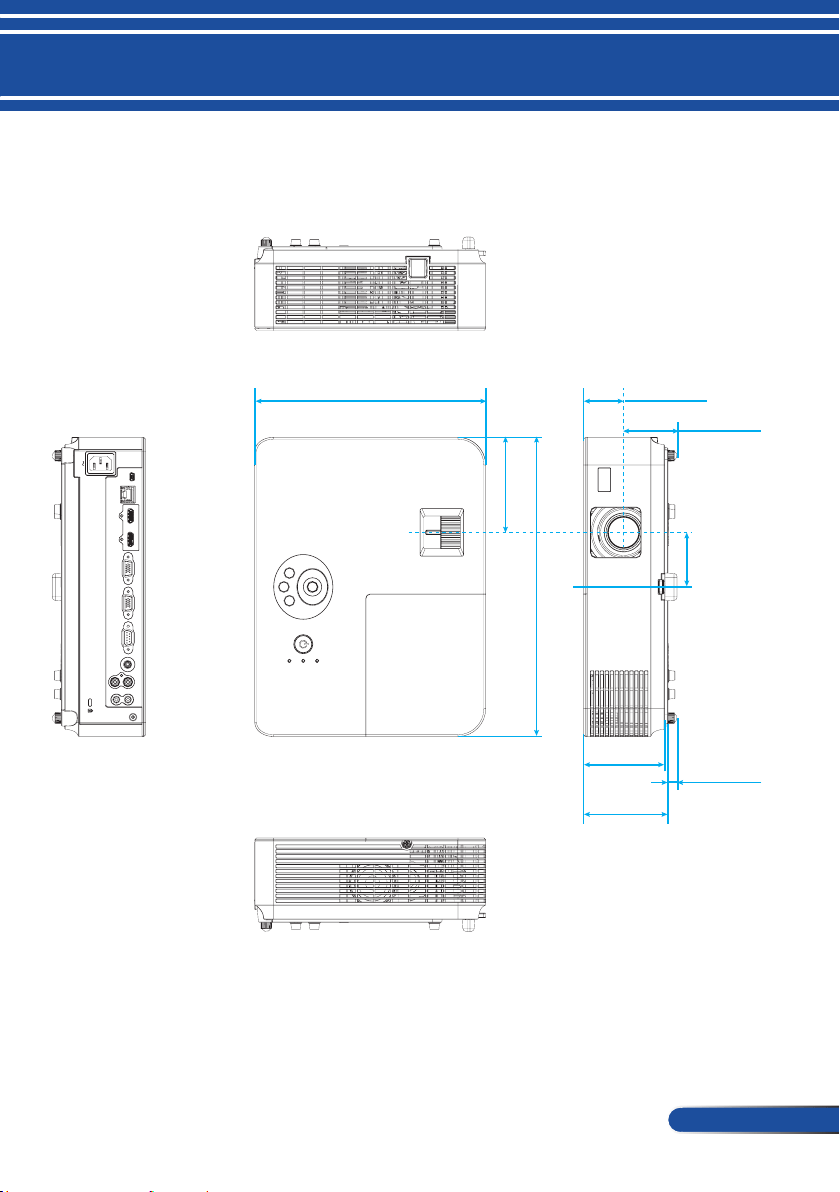

Cabinet Dimensions ..........................97
Pin Assignments of D-Sub
COMPUTER Input Connector ...........98
PC Control Codes and Cable
Connection ........................................99
Troubleshooting Check List ............100
REGISTER YOUR PROJECTOR! . 102
2
English ...
Usage Notice
Precautions
Follow all warnings, precautions and maintenance as
recommended in this user’s guide to maximize the life of your
unit.
■ Warning-
This projector will detect the life of the lamp
itself. Please be sure to change the lamp when it
shows warning messages.
■ Warning-
Reset the “
CLEAR LAMP HOURS” function
from the on-screen display “OPTIONS |LAMP
SETTINGS” menu after replacing the lamp mod-
ule. Please see the page 73.
■ Warning-
When switching the projector off, please ensure
the cooling cycle has been completed before
disconnecting power.
■ Warning-
Turn on the projector rst and then the signal
sources.
■ Warning-
When the lamp reaches the end of its life, it will
burn out and may make a loud popping sound.
If this happens, the projector will not turn back
on until the lamp module has been replaced. To
replace the lamp, follow the procedures listed
under “Replacing the Lamp”.
Turkish RoHS information relevant for Turkish market
EEE Yönetmeliğine Uygundur.
This device is not intended for use in the direct eld of
view at visual display workplaces. To avoid incommoding
reections at visual display workplaces this device must not
be placed in the direct eld of view.
High gain type screens are not optimal for use with this
projector. The lower the screen gain (i.e., screen gain on the
order of 1), the better the appearance of the projected image.
3
... English
Usage Notice
Do:
■ Turn off the product before cleaning.
■ Use a soft cloth moistened with mild detergent to clean the
display housing.
■ Disconnect the power plug from AC outlet if the product is not
being used for a long period of time.
■ If the lens is soiled, use a commercially available cleaning cloth
for lens.
Do not:
■ Use abrasive cleaners, waxes or solvents to clean the unit.
■ Use under the following conditions:
- Extremely heat, cold or humidity.
- In areas susceptible to excessive dust and dirt.
- In direct sunlight.
- Outdoors.
- Move the projector by holding the cable cover.
- Hang from the projector in a ceiling or wall mounted
installation.
- Apply excessively strong pressure against the lens.
- Keep nger prints off the lens surface.
- Bring the projector using the Security Lock Hunger
■ Install and store in the following conditions:
- In powerful magnetic elds.
- In corrosive gas environment.
4
English ...
Introduction
Product Features
■ High resolution
Full HD (1920 x 1080) support.
■ 0.5 W in standby condition with energy saving technology
Selecting [NORMAL] for [STANDBY MODE] from the menu
can put the projector in power-saving mode that consumes
only 0.5 W (typical value).
■ Two HDMI input ports provide digital signal
The two HDMI inputs provide HDCP compatible digital
signals. The HDMI input also supports audio signal.
■ Quick Power Off, Direct Power Off
The projector can be put away immediately after the projector
is powered on. No cool down period is required after the
projector is turned off from the remote control or cabinet
control panel.
The projector has a feature called “Direct Power Off”. This
feature allows the projector to be turned off (even when
projecting an image) by using the Main Power Switch or
disconnecting the AC power supply. To turn off the AC power
supply when the projector is powered on, use a power strip
equipped with a switch and a breaker.
■ 8 W speaker for an integrated audio solution
Powerful 8 watt stereo speakers provide volume need for
large rooms.
■ 3D features supported
The projector can support following format by DLP
®
Link.
- HDMI 3D
- HQFS 3D
■ Integrated RJ-45 connector for wired networking capability
The customer can control the projector by own computer via
Wired LAN.
■ Preventing unauthorized use of the projector
Enhanced smart security settings for keyword protection,
cabinet control panel lock, security slot, and security chain
opening to help prevent unauthorized access, adjustments and
theft deterrence.
5
... English
Introduction
Power Cord x1
Remote Control
(P/N:7N901052)
Projector

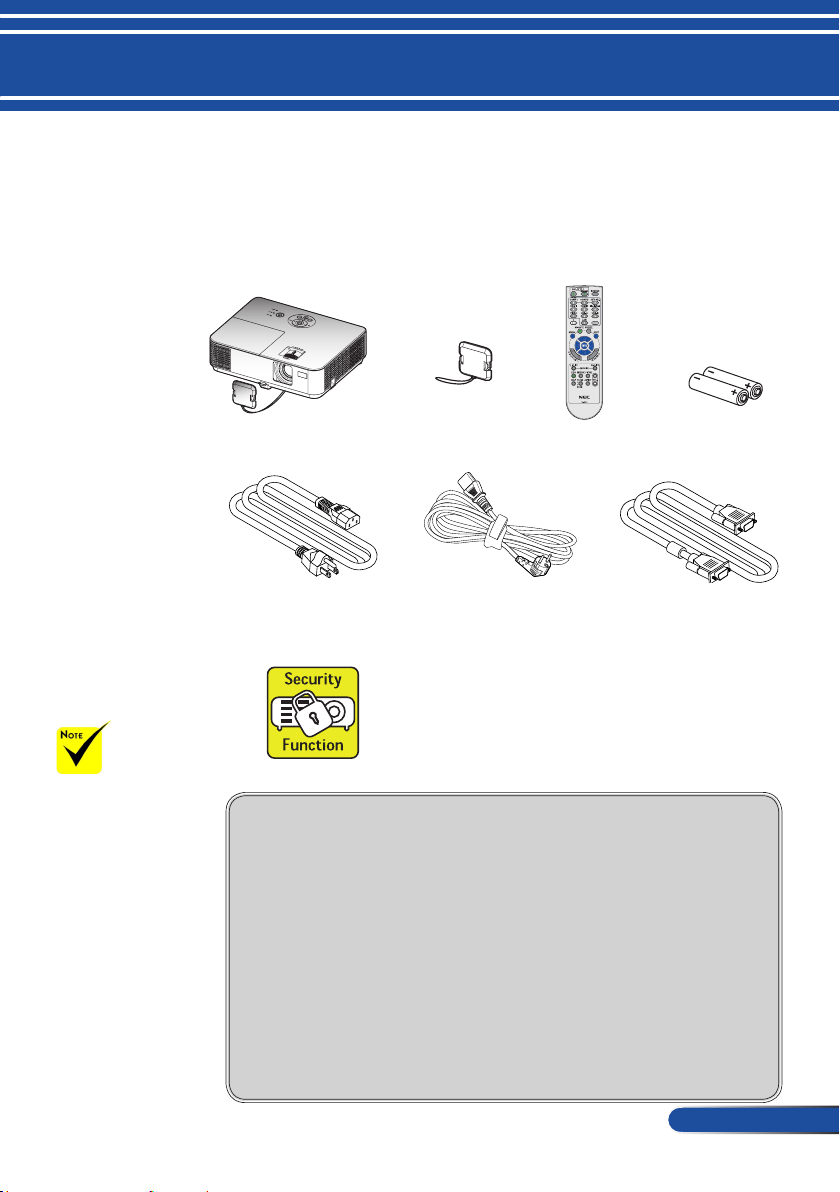

Package Overview
This projector comes with all the items shown below. Check
to make sure your unit is completed. Contact your dealer
immediately if anything is missing.
Due to the
difference in
applications for each
country, some regions
may have different
accessories.
Documentation:
NEC Projector CD-ROM
(P/N: 7M952171)
Quick Setup Guide
(P/N: 7N8N5831)
Important Information (For
North America: 7N8N5811)
(For Other countries than
North America: 7N8N5811
and 7N8N5821)
Batteries (AAAx2)
For North America:
Limited Warranty
For Europe:
Guarantee Policy
For customers in Europe:You will nd our current valid Guarantee
Policy on our Web Site:www.nec-display-solutions.com
Lens Cap
(79TCB121)
Security Label
Computer Cable (VGA)
(P/N:7N520087)
US (P/N: 79TC5021) EU (P/N: 79TC5031)
6
English ...

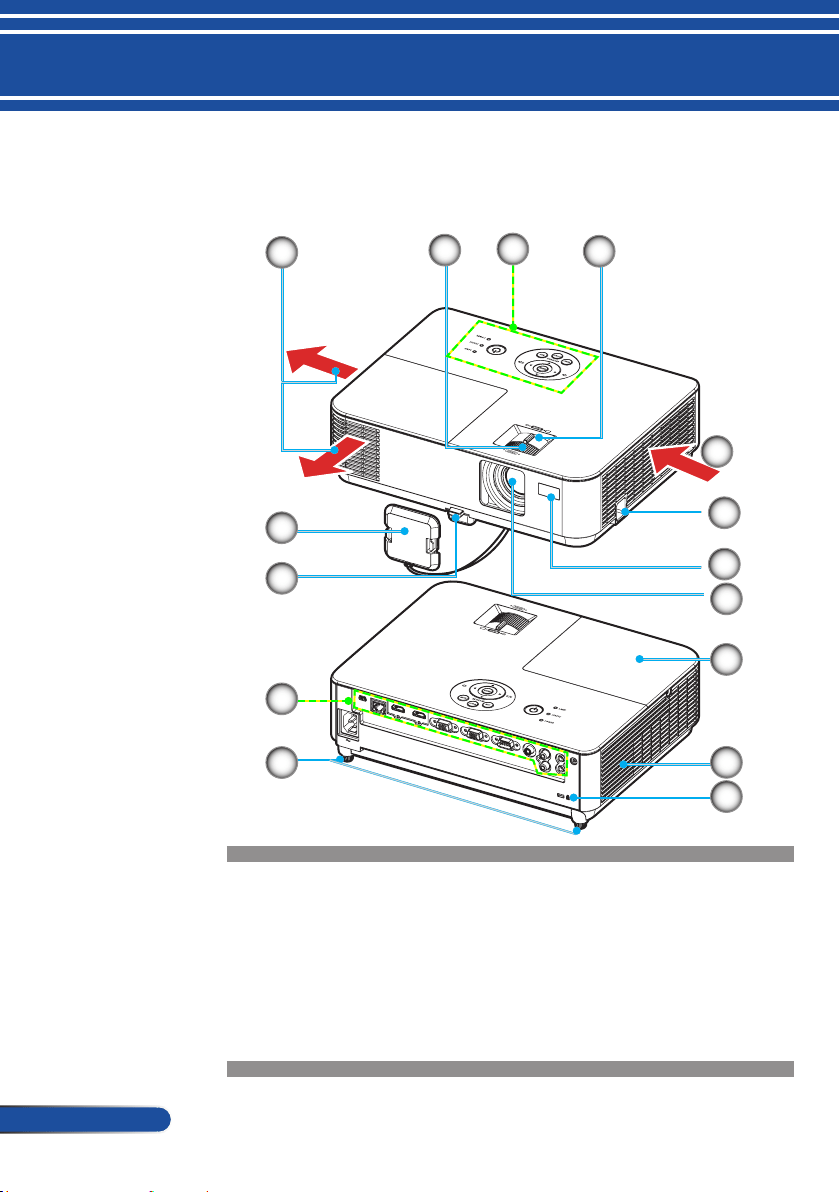

Introduction
1. Exhaust Vent
2. Focus Ring
3. Control Panel
4. Zoom Lever
5. Intake Vent
6.
Security Lock Hunger
7. Remote Control Sensor
8. Lens
Projector
Product Overview
9. Tilt Foot
Release Button
10. Lens Cap
11. Ports
12. Tilt Foot
13. Kensington
TM
Lock Port
14. Monaural Speaker (8W)
15. Lamp Cover
2
3
4
5
1
6
7
8
9
11
12
13
10
14
15
7
... English
Introduction

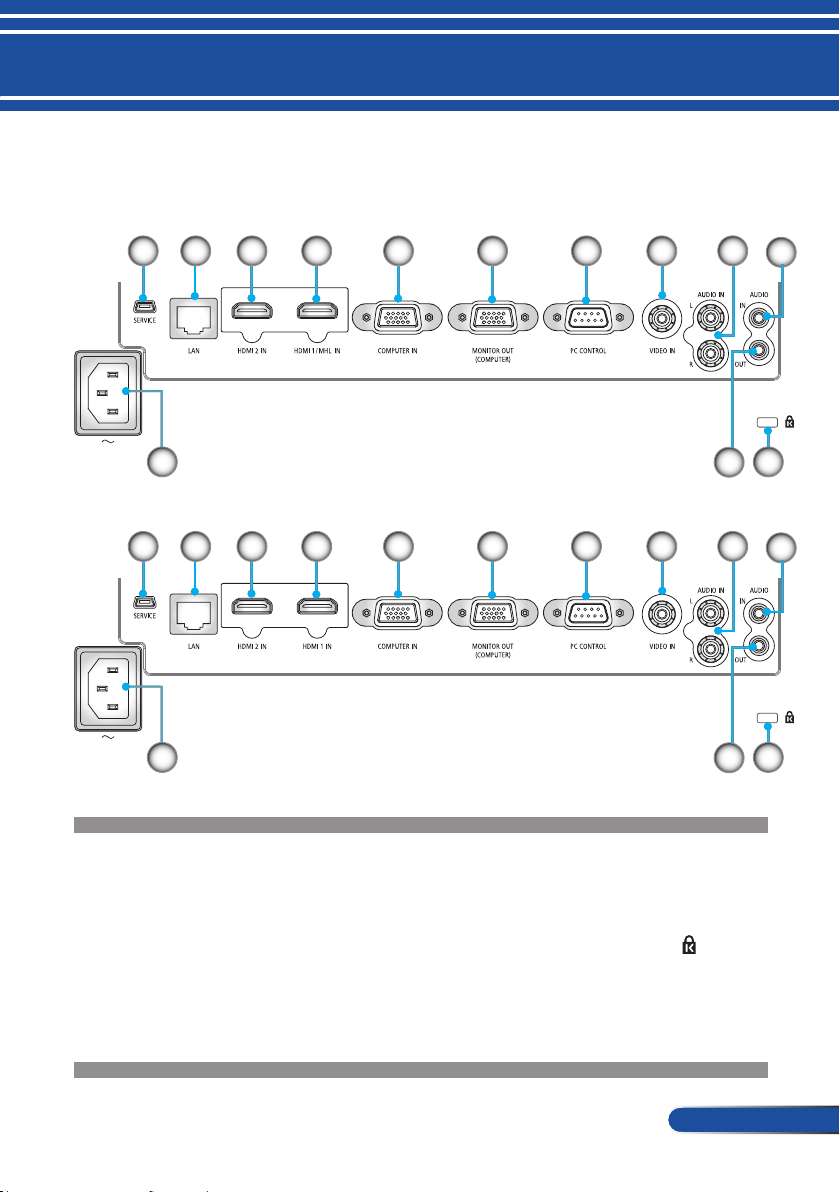

Ports
1. SERVICE Port (for service purpose only)
2. LAN Port (RJ-45)
3. HDMI 2 IN Port
4. HDMI 1/MHL IN or
HDMI 1 Port
5. COMPUTER IN Port
6. MONITOR OUT Port (separate
sync signal only)
7. PC CONTROL Port
8. VIDEO IN Port
9. AUDIO IN L/R Port
10. AUDIO IN Jack (3.5mm
mini jack)
11. Kensington
TM
Lock Port
12. AUDIO OUT Port
(This port does not support
Headphone terminal)
13. AC IN Terminal
1
11
10
2 3 4 5 6 7 8
13
NP-V332X/NP-V332W/NP-V302H
12
9
1
11
10
2 3 4 5 6 7 8
13
NP-V302X/NP-V302W
12
9
8
English ...
Introduction

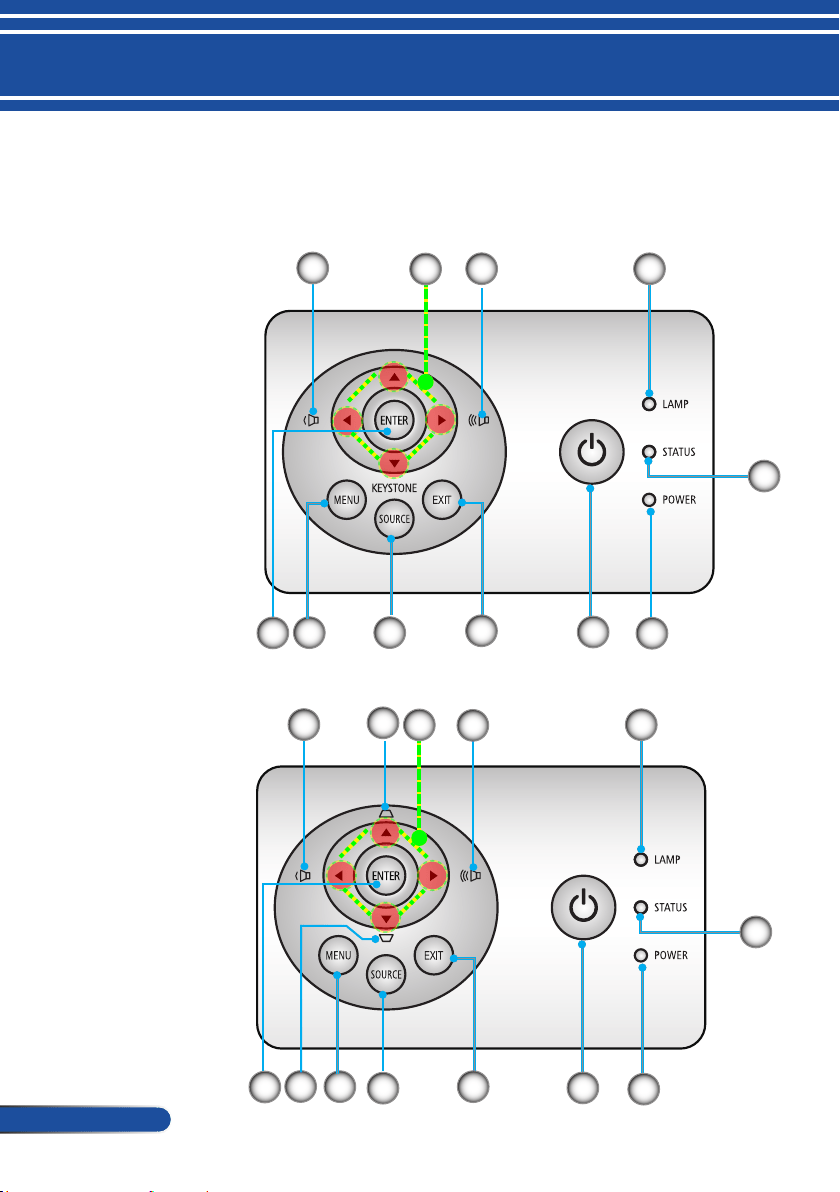

Control Panel
NP-V332X/NP-V332W/NP-V302H
NP-V302X/NP-V302W
10
10
2
4
5
6
7
8
9
1
3
12
10
11
11
2
4
5
6
7
8
9
1
3
12
9
... English
Introduction
1 VOLUME - Decrease speaker volume.
2
Four
Directional
Select Keys
-Use , , or to select items
or make adjustments to your
selection.
-Use as Quick Keys. Please see the
page 13.
3
VOLUME + Increase speaker volume.
4 LAMP LED Indicate the projector’s lamp
status.
5 STATUS LED Indicate the projector’s various
status.
6 POWER LED Indicate the projector’s status.
7
POWER Turn the projector on/off.
Refer to the “Power On/Off the
Projector” section on pages 29-30.
8
EXIT Press to exit the OSD menu.
9 SOURCE Press “SOURCE” to select an
input signal.
10
MENU Press “MENU” to launch the
Onscreen display (OSD), back to
the top level of OSD for the OSD
main menu operation.
11
KEYSTONE
Correction
Adjust the image to compensate
for distortion caused by tilting the
projector (vertical ± 40 degrees).
12
ENTER Conrm your section of items in
sub menu operation.
For controlling the
speaker volume, use
or .
NP-V322X, NP-
332W, and NP-V302H
also support horizontal
keystone correction.
Use button for
adjusting horizontal
keystone.
V332X
11
... English
Introduction
3 COMPUTER 1 Press “1” to choose Computer IN
connector.
4 COMPUTER 2 No function.
5 HDMI 1 Press “4” to choose HDMI 1/
MHL IN connector (*1) or
HDMI1 connector (*2).
6 VIDEO Press “VIDEO” to choose VIDEO
IN connector.
7 USB A No function.
8 ID SET Press ID SET for indicating the
ID number.
9 AV-MUTE Momentarily turn off/on the
audio and video.
10 MENU Press “MENU” to launch the
Onscreen display (OSD), back to
the top level of OSD for the OSD
main menu operation
11 D-ZOOM Zoom in/out the projected
image.
12 KEYSTONE
Correction
Adjust the image to compensate
for distortion caused by tilting
the projector.
13 ECO Dim the projector lamp which
will lower power consumption
and extend the lamp life. Please
see the page 72.
14 HELP This function ensures easy setup
and operation.
15 FOCUS/
ZOOM
No function.
16 SOURCE Press “SOURCE” to select the
desired input source.
17 AUTO ADJ. Automatically synchronize the
projector to the input source.
*1: Supported
in NP-V332X, NP-
V332W, and NP-
V302H models.
*2: Supported in
NP-V302X and NP-
V302W models.
12
English ...
Introduction
18 HDMI 2 Press “5” to choose HDMI 2 IN
connector.
19 DISPLAY
PORT
No function.
20 USB B No function.
21 Number Button No function.
22 LAN No function.
23 CLEAR Clear the password while you
input the password.
24 FREEZE Freeze To pause the screen
image. Press again to resume the
screen image.
25 EXIT
Exit the settings.
26 ENTER Conrm your section of items in
sub menu operation.
27
Four
Directional
Select Buttons
-Use or or or to select
items or make adjustments to
your selection. When the image
is magnied by using the D-
ZOOM + button, the , , or
button moves the image.
- Use as Quick Keys. Please see
the page 13.
28 PAGE
No function.
29 PICTURE
Mode
Select the Picture mode from
PRESENTATION, HIGH-
BRIGHT, VIDEO, MOVIE, sRGB,
BLACKBOARD, USER1, and
USER2.
30 VOL. +/-
Increase/decrease speaker
volume.
31 ASPECT Use this function to choose your
desired aspect ratio. Please see
the page 49.
When the
demagnied image
is displayed, the ,
, or button is
not available to move
the image.
13
... English
Introduction
Quick Key Activate Behavior
Quick keys are available when no OSD is displayed.
The Quick Keys can be accessed on Control Panel or remote control
(
).
The behavior of the Quick Keys is as described in the following tables.
NP-V302X/NP-V302W
Quick Key Function
Activate
Condition
LEFT (
)/
RIGHT ( )
Pop Volume OSD and allow user to adjust.
No OSD Display.
UP (
)/
DOWN (
)
Pop Vertical Keystone OSD and allow user
to adjust.
NP-V332X,/NP-V332W/NP-V302H
Quick Key Function
Activate
Condition
LEFT (
)/
RIGHT ( )
Pop Volume OSD and allow user to adjust.
No OSD Display.
UP (
)
No function.
DOWN (
)
Pop Hrizontal + Vertical Keystone OSD
allow user to choose adjust horizontal or
vertical keystone. Use the button on the
control panel or the KEYSTONE button on
the remote control
14
English ...
Introduction
Battery Installation
Remote Control Precautions
• Handle the remote control carefully.
• If the remote control gets wet, wipe it dry immediately.
• Avoid excessive heat and humidity.
• Do not place the battery upside down.
• Replace only with the same or equivalent type recommended by
the manufacturer.
• Dispose of used batteries according to your local regulations.
1. Press rmly and slide the battery cover off.
2. Install new batteries (AAA).
Ensure that you have the
batteries’ polarity (+/–)
aligned correctly.
3. Slip the cover back over the
batteries until it snaps into
place. Do not mix different
types of batteries or new and
old batteries.
The infrared signal
operates by line-of-
sight up to a distance
of about 22 feet/7 m
and within a 60-degree
angle of the remote
sensor on the projector
cabinet.
The projector will
not respond if there
are objects between
the remote control
and the sensor, or if
strong light falls on the
sensor. Weak batteries
will also prevent the
remote control from
properly operating the
projector.
15
... English
Introduction

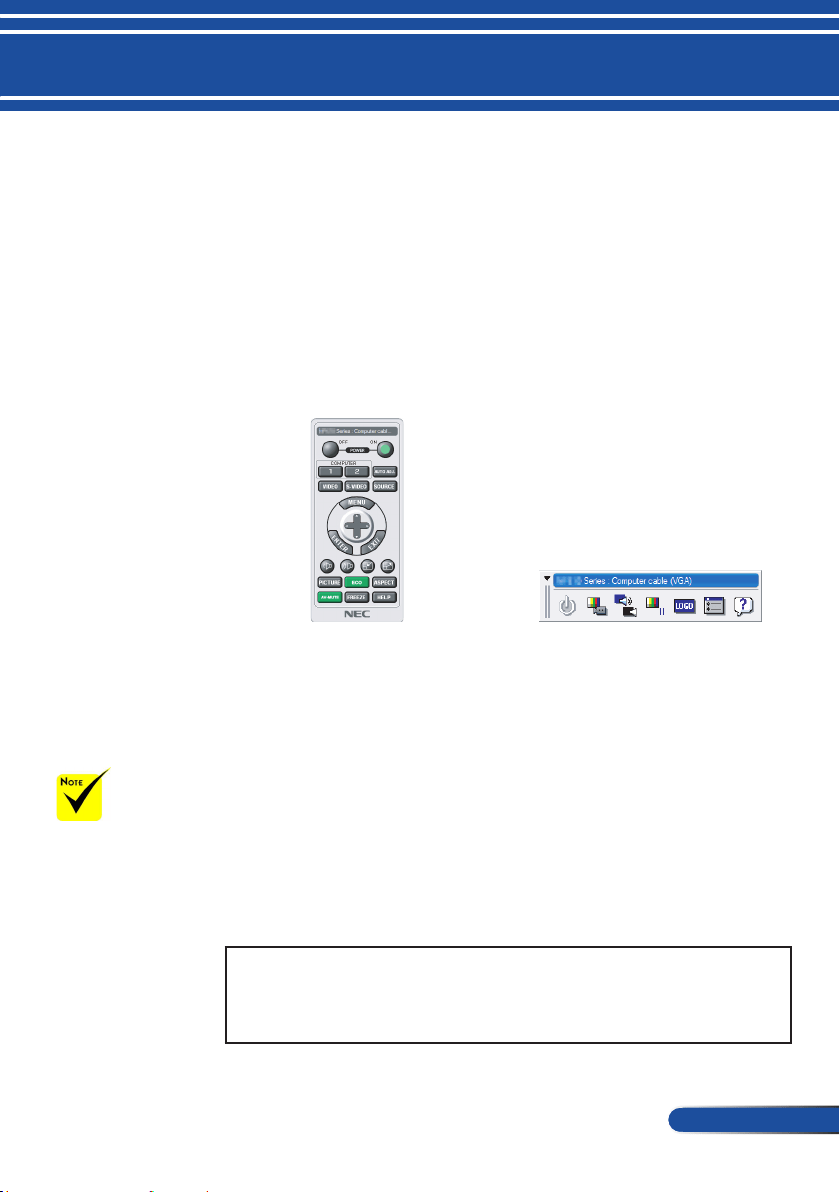

Using the utility software “Virtual Remote Tool” that you can
download from our web site (http://www.nec-display.com/
dl/en/index.html), Virtual Remote screen (or toolbar) can be
displayed on your computer screen.
This will help you perform operations such as projector’s
power on or off and signal selection via a LAN connection.
ToolbarVirtual Remote screen
This section provides an outline of preparation for use of
Virtual Remote Tool.
For information on how to use Virtual Remote Tool, see Help
of Virtual Remote Tool. Please refer to page
19.
Step 1: Install Virtual Remote Tool on the computer. Please
refer to page 16.
Step 2: Connect the projector to a LAN. Please refer to page
17.
Step 3: Start Virtual Remote Tool. Please refer to page
18.
TIP:
• Virtual Remote Tool can be used with a serial connection.
• For update information on Virtual Remote Tool, visit our website:
http://www.nec-display.com/dl/en/index.html
Operating the Projector Via the LAN
(Virtual Remote Tool)
Using the Downloadable Software
The projector does
not support the LAN
automatic search fea-
ture of Virtual Remote
Tool. To connect the
projector, register an
IP address manually.
16
English ...
Introduction

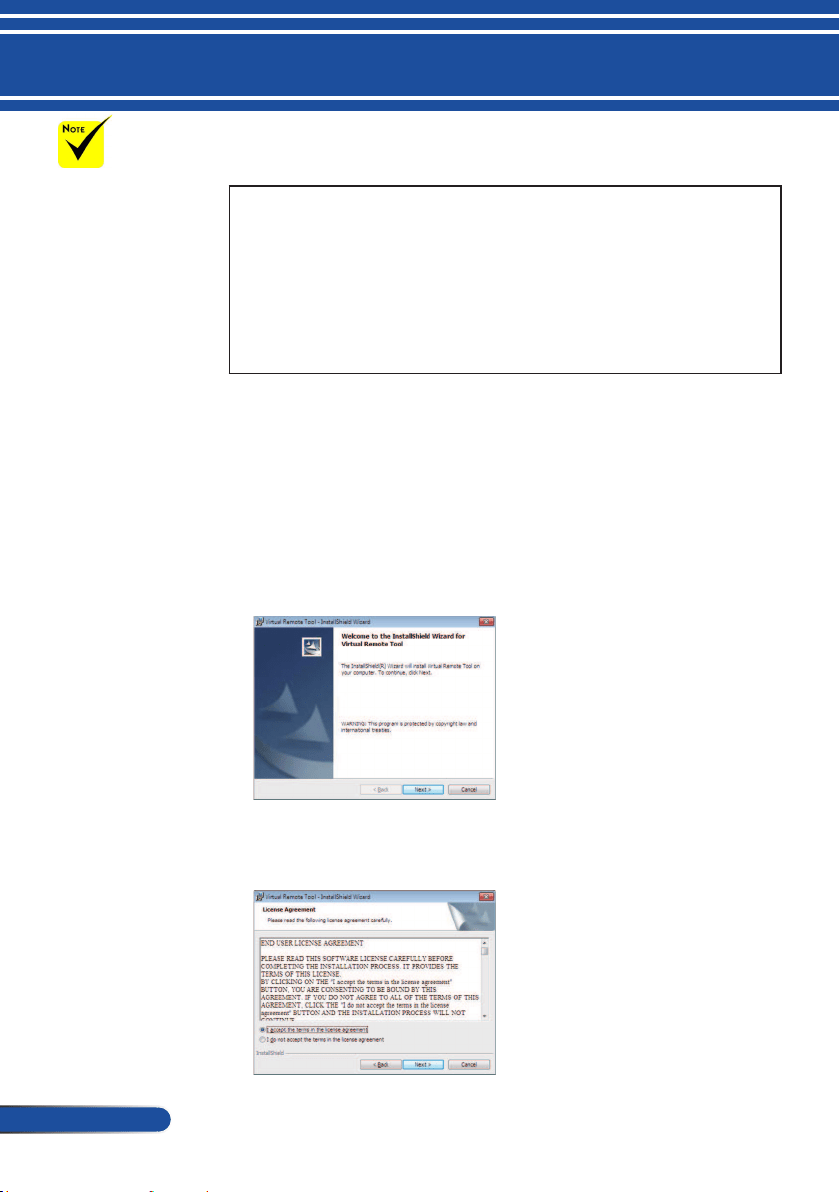

Step 1: Install Virtual Remote Tool on the computer
• Supported OS
Virtual Remote Tool will run on the following operating systems.
Windows 8.1 *1, Windows 8.1 Pro *1, Windows 8.1 Enterprise *1, Windows 8 *1,
Windows 8 Pro *1, Windows 8 Enterprise *1,
Windows 7 Home Basic, Windows 7 Home Premium, Windows 7 Professional,
Windows 7 Enterprise, Windows 7 Ultimate
Windows Vista Home Basic, Windows Vista Home Premium, Windows Vista
Business,
Windows Vista Enterprise, Windows Vista Ultimate
Windows XP Home Edition *1, Windows XP Professional
*1: To run Virtual Remote Tool, “Microsoft .NET Framework Version 2.0” is
required. The Microsoft .NET Framework Version is available from Micro-
soft’s web page. Install the Microsoft .NET Framework Version 2.0, 3.0 or
3.5 on your computer.
1 Download the updated VRT exe le from our web site
(http://www.nec-display.com/dl/en/index.html).
2 Double-click the VRT. exe icon.
The Installer will start and the Wizard screen will appear.
3 Click “Next”.
“END USER LICENSE AGREEMENT” screen will be displayed.
To install or
uninstall the program,
the Windows user
account must have
[Administrator]
privilege (Windows
8.1, Windows 8,
Windows 7, and
Windows Vista).
Exit all running
programs before
installation. If another
program is running,
the installation may
not be completed.
17
... English
Introduction
Read “END USER LICENSE AGREEMENT” carefully.
4 If you agree, click “I accept the terms in the license agreement” and then
click “Next”.
Follow the instructions on the installer screens to complete the
installation.
After the installation is completed, the shortcut icon for Virtual
Remote Tool.
TIP:Uninstalling Virtual Remote Tool
• Preparation
Exit Virtual Remote Tool before uninstalling. To uninstall Virtual Remote
Tool, the Windows user account must have “Administrator” privilege
“(Windows 8.1, Windows 8, Windows 7 and Windows Vista)” or
“Computer Administrator” privilege (Windows XP).
• For Windows 8.1/Windows 8/Windows 7/Windows Vista
1. Click “Start” and then “Control Panel”.
The Control Panel window will be displayed.
2. Click “Uninstall a program” under “Programs”.
The “Programs and Features” window will be displayed.
3. Select Virtual Remote Tool and click it.
4. Click “Uninstall/Change” or “Uninstall”.
When the “User Account Control” window is displayed, click
“Continue”. Follow the instructions on the screens to complete the
uninstallation.
• For Windows XP
1. Click “Start” and then “Control Panel”.
The Control Panel window will be displayed.
2. Double-click “Add / Remove Programs”.
The Add / Remove Programs window will be displayed.
3. Click Virtual Remote Tool from the list and then click “Remove”.
Follow the instructions on the screens to complete the uninstallation.
Step 2: Connect the projector to a LAN
Connect the projector to the LAN by following the instructions in
“Connecting the Projector” on
pages 25-26 and “How to use web
browser to control your projector” in pages 64-68.
18
English ...
Introduction
Step 3: Start Virtual Remote Tool
Start using the shortcut icon
Start from the Start menu
Click [Start] -> [All Programs] or [Programs] -> [NEC Projector
User Supportware] -> [Virtual Remote Tool] -> [Virtual Remote
Tool].
When Virtual Remote Tool starts for the rst time, “Easy Setup”
window will be displayed.
The “Easy Setup” feature is not available on this model. Click
“Close Easy Setup”.
Closing the “Easy Setup” window will display the “Projector
List” window. Click “Close”. This will display the Virtual Remote
screen. To connect the projector, register an IP address manually.
TIP:
• The Virtual Remote Tool screen (or Toolbar) can be displayed without
displaying “Easy Setup” window.
To do so, click to place a check mark for “Do not use Easy Setup next
time” on the screen.
When “NORMAL”
is selected for
“STANDBY MODE”
from the menu, the
projector cannot
be controlled via
the serial cable or
network (wired LAN)
connection..
19
... English
Introduction
Exiting Virtual Remote Tool
1 Click the Virtual Remote Tool icon on the Taskbar.
The pop-up menu will be displayed.
2 Click “Exit”.
The Virtual Remote Tool will be closed.
Viewing the help le of Virtual Remote Tool
Displaying the help le using the taskbar
1 Click the Virtual Remote Tool icon on the taskbar when Virtual Remote
Tool is running.
The pop-up menu will be displayed.
2 Click “Help”.
The Help screen will be displayed.
Displaying the help le using the Start Menu.
Click “Start” -> “All programs” or “Programs” -> “NEC Projector
User Supportware” -> “Virtual Remote Tool” and then “Virtual
Remote Tool Help” in this order.
The Help screen will be displayed.
20
English ...
Introduction
Controlling the Projector over a LAN
[Using on Windows]
Using the utility software “PC Control Utility Pro 4” that you
can download from our web site
(http://www.nec-display.com/dl/en/index.html), the projector
can be controlled from a computer over a LAN.
Control Functions
Power On/Off, signal selection, picture freeze, picture mute,
audio mute, adjusting, error message notication, event
schedule.
Screen of PC Control Utility Pro 4
This section provides an outline of preparation for use of PC Control
Utility Pro 4. For information on how to use PC Control Utility Pro 4,
see Help of PC Control Utility Pro 4.
• Step 1: Install PC Control Utility Pro 4 on the computer. Please see
the page 21.
• Step 2: Connect the projector to a LAN. Please see the page 22.
• Step 3: Start PC Control Utility Pro 4. Please see the page 22.
TIP:
• PC Control Utility Pro 4 can be used with a serial connection.
• For update information on PC Control Utility Pro 4, visit our website:
http://www.nec-display.com/dl/en/index.html
When the projector
is in the standby
condition, the Error
Alert function of PC
Control Utility Pro 4/
PC Control Utility Pro
5 are not available.
To make this function
available even in the
standby condition,
use the E-Mail Alert
function of the
projector.
(PC Control Utility Pro 4 for Windows/PC Control
Utility Pro 5 for Mac OS)
21
... English
Introduction

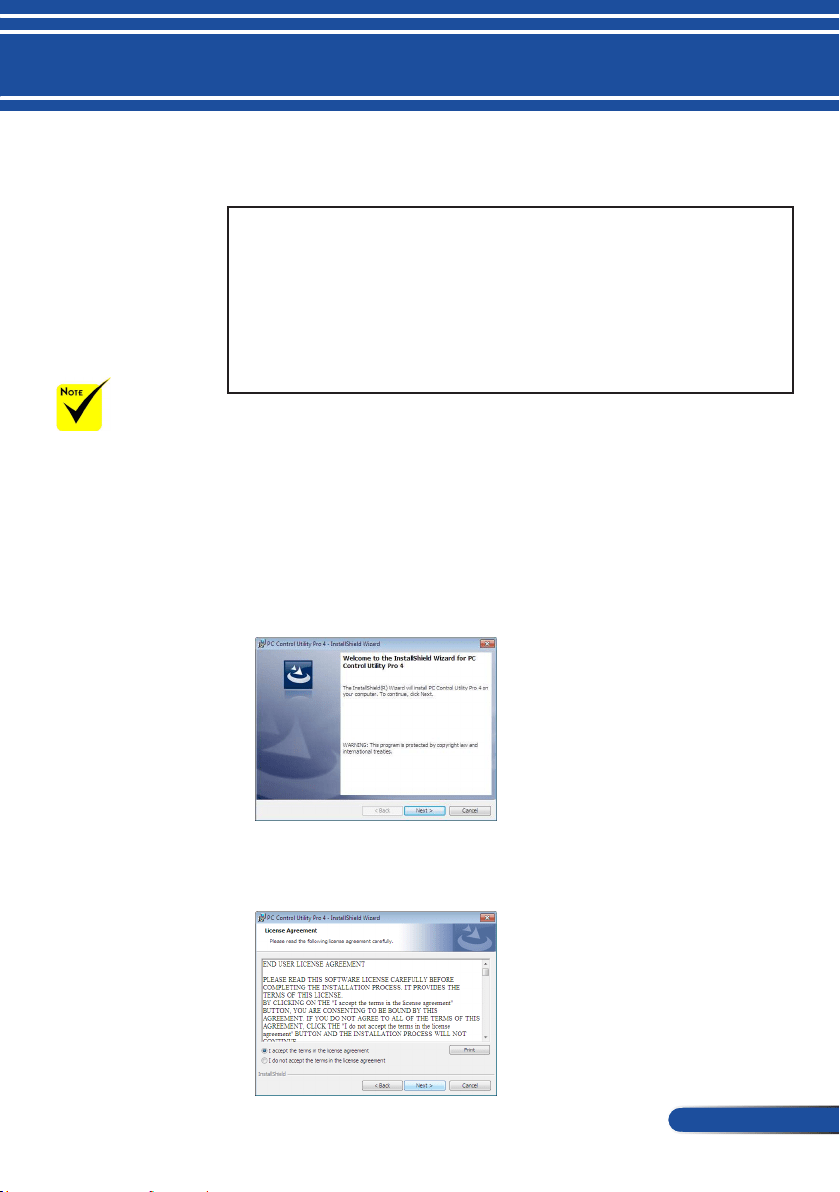

Step 1: Install PC Control Utility Pro 4 on the computer
• Supported OS - PC Control Utility Pro 4 will run on the following
operating systems.
Windows 8.1*1, Windows 8.1 Pro *1, Windows 8.1 Enterprise *1,
Windows 8 *1, Windows 8 Pro *1, Windows 8 Enterprise *1,
Windows 7 Home Basic, Windows 7 Home Premium, Windows 7
Professional, Windows 7 Enterprise, Windows 7 Ultimate
Windows Vista Home Basic, Windows Vista Home Premium,
Windows Vista Business, Windows Vista Enterprise, Windows Vista
Ultimate
Windows XP Home Edition *1, Windows XP Professional *1
*1: To run PC Control Utility Pro 4, “Microsoft .NET Framework Version 2.0” is
required. The Microsoft .NET Framework Version is available from Micro-
soft’s web page. Install the Microsoft .NET Framework Version 2.0, 3.0 or 3.5
on your computer.
1 Connect your computer to the Internet and download the updated PCCUP4
exe le from our web site (http://www.nec-display.com/dl/en/index.html).
2 Double-click the PCCUP4. exe icon.
The Installer will start and the Wizard screen will appear.
3 Click “Next”.
“END USER LICENSE AGREEMENT” screen will be displayed.
To install or
uninstall the program,
the Windows user
account must have
[Administrator]
privilege (Windows
8.1, Windows 8,
Windows 7, and
Windows Vista)
Exit all running
programs before
installation. If another
program is running,
the installation may
not be completed.
22
English ...
Introduction
Read “END USER LICENSE AGREEMENT” carefully.
4 If you agree, click “I accept the terms in the license agreement” and then
click “Next”.
Follow the instructions on the installer screens to complete the
installation.
TIP:Uninstalling PC Control Utility Pro 4
• To uninstall PC Control Utility Pro 4, do the same procedures stated as in
“Uninstalling Virtual Remote Tool”. Read “Virtual Remote Tool” as “PC
Control Utility Pro 4”
Step 2: Connect the projector to a LAN
Connect the projector to the LAN by following the instructions in
“Connecting the Projector” on pages 25-26 and “How to use web
browser to control your projector” in pages 64-65.
Step 3: Start PC Control Utility Pro 4
Click “Start” -> “All programs” or “Programs” -> “NEC Projector
User Supportware” -> “PC Control Utility Pro 4” -> “PC Control
Utility Pro 4”.
TIP: Viewing the Help of PC Control Utility Pro 4
• Displaying the Help le of PC Control Utility Pro 4 while it is running.
Click “Help (H)” -> “Help (H)” of window of PC Control Utility Pro 4 in
this order.
The pop-up menu will be displayed.
• Displaying the help le using the Start Menu.
Click “Start” -> “All programs” or “Programs” -> “NEC Projector User
Supportware” -> “PC Control Utility Pro 4” -> “PC Control Utility Pro 4
Help”.
The Help screen will be displayed.
For the Schedule
function of the PC
Control utility Pro 4 to
work, you must have
your computer run-
ning and not in stand-
by/sleep mode. Select
“Power Options” from
the “Control Panel” in
Windows and disable
its standby/sleep
mode before running
the scheduler.
[Example] For Win-
dows 7:
Select “Control
Panel” -> “System and
Security” -> “Power
Options” -> “Change
when the computer
sleeps” -> “Put the
computer to sleep” ->
”Never”.
When “NORMAL”
is selected for
“STANDBY MODE”
from the menu, the
projector cannot
be controlled via
the serial cable or
network (wired LAN)
connection.
The projector
does not support the
LAN automatic search
feature of PC Control
Utility Pro 4. To con-
nect the projector,
register an IP address
manually.
PC Control Utility Pro 5 for Mac OS
Step 1: Install PC Control Utility Pro 5 on the computer
1 Connect your computer to the Internet and visit our website (http://www.
nec-display.com/dl/en/index.html).
2 Download the updated PC Control Utility Pro 5 from our website.
3 In Finder, control-click (“control” + click) or right click the PC Control
Utility Pro 5.pkg.
4 Select “Open” from the top of contextual menu that appears.
23
... English
Introduction
5 Click “Open” in the dialog box. If prompted, enter an administrator name
and password.
The installer will start.
6 Click “Next”.
“END USER LICENSE AGREEMENT” screen will be displayed.
7 Read “END USER LICENSE AGREEMENT” and click “Next”.
The conrmation window will be displayed.
8 Click “I accept the terms in the license agreement”.
Follow the instructions on the installer screens to complete the installation.
Step 2: Connect the projector to a LAN
Connect the projector to the LAN by following the instructions in
“Connecting the Projector”. Please see pages 25-26.
Step 3: Start PC Control Utility Pro 5
1. Open your Applications folder in Mac OS.
2. Click the “PC Control Utility Pro 5” folder.
3. Click the “PC Control Utility Pro 5” icon.
PC Control Utility Pro 5 will start.
TIP: Viewing the Help of PC Control Utility Pro 5
• Displaying the Help le of PC Control Utility Pro 5 while it is running.
• From the menu bar, click “Help” → “Help” in this order.
The Help screen will be displayed
• Displaying the Help using the Dock
1. Open “Application Folder” in Mac OS.
2. Click the “PC Control Utility Pro 5” folder.
3. Click the “PC Control Utility Pro 5 Help” icon.
The Help screen will be displayed.
TIP: Uninstalling a software program
1. Put the “PC Control Utility Pro 5” folder to the Trash icon.
2. Put the conguration le of PC Control Utility Pro 5 to the Trash icon.
• The conguration le of PC Control Utility Pro 5 is located in “/Users/
<your user name>/Application Data/NEC Projector User Supportware/
PC Control Utility Pro 5”.
For the Schedule
function of the PC
Control utility Pro 5
to work, you must
have your computer
running and not in
sleep mode. Select
“Energy Saver”
from the “System
Preferences” in Mac
and disable its sleep
mode before running
the scheduler.
When [NORMAL]
is selected for
[STANDBY MODE]
from the menu, the
projector cannot be
turned on via the
network.
24
English ...
Introduction
Viewing 3D Images
The projector provides 3D images to a user wearing commercially
available LCD shutter eyeglasses.
CAUTION
Health precautions
Before viewing, be sure to read health care precautions that may be found
in the user’s manual included with your LCD shutter eyeglasses or your 3D
compatible content such as DVDs, video games, computer’s video les and
the like.
To avoid any adverse symptoms, heed the following:
- Do not use LCD shutter eyeglasses for viewing any material other than 3D
images.
- Allow a distance of 2 m/7 feet or greater between the screen and a user.
Viewing 3D images from too close a distance can strain your eyes.
Avoid viewing 3D images for a prolonged period of time. Take a break of 15
minutes or longer after every hour of viewing.
- If you or any member of your family has a history of light-sensitive sei-
zures, consult a doctor before viewing 3D images.
- While viewing 3D images, if you get sick such as nausea, dizziness, queasi-
ness, headache, eyestrain, blurry vision, convulsions, and numbness, stop
viewing them. If symptoms still persist, consult a doctor.
- View 3D images from the front of the screen. Viewing from an angle may
cause fatigue or eyestrain.
LCD shutter eyeglasses
• Use commercially available 3D eyeglasses which meet the following
requirements:
- DLP
®
Link compatible
- Support vertical refresh rate up to 144 Hz.
Steps for viewing 3D images on the projector
1. Connect the projector to your video equipment.
2. Turn on the projector, display the on-screen menu.
3. Select [3D SETTINGS] from [SCREEN] tab and then select [ON] for
[3D].
- Set for [3D INVERT] and [3D STRUCTURE] as necessary. Please see
the page 51
.
4. Play your 3D compatible content and use the projector to display the
image.
5. Put on your LCD shutter eyeglasses to view 3D images.
Also refer to the user’s manual accompanied with your LCD shutter
eyeglasses for more information.
25
... English
Installation

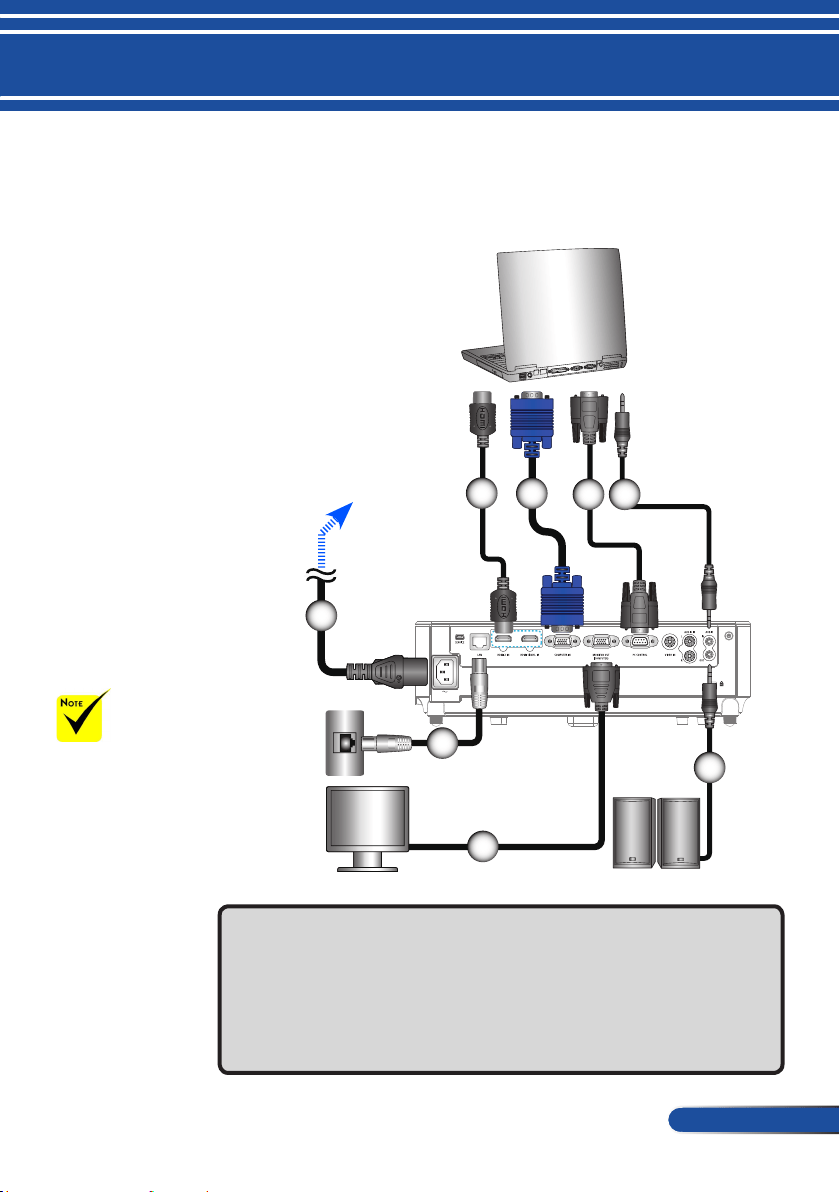

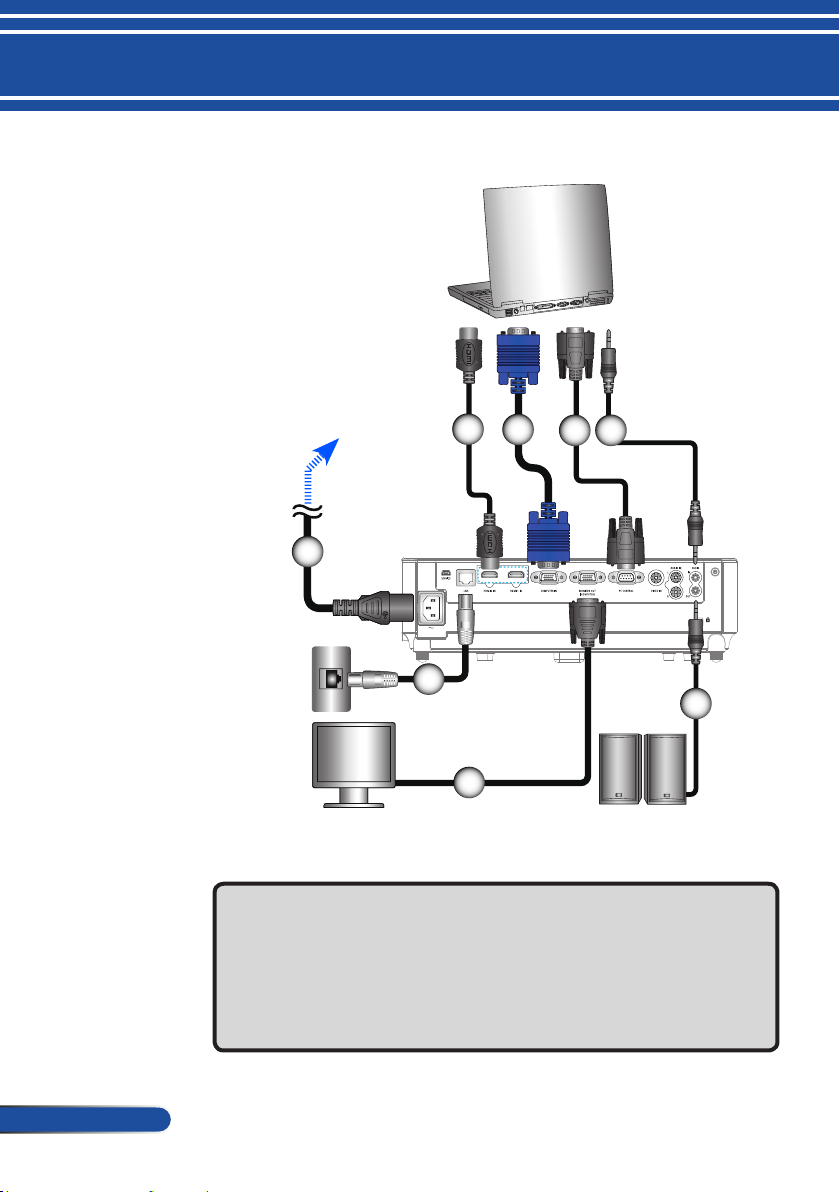

Connecting the Projector
Make sure that the
power plug is fully
inserted into both the
projector AC IN termi-
nal and the wall outlet.
The MONITOR
OUT connector supports
Separate sync signal
only.
Connect to Computer/Notebook
1.............................................................................................Power cord (supplied)
2...............................................................................................................HDMI cable
3........................................................................ Computer cable (VGA) (supplied)
4................................................................................................................RS232 cable
5............................................................................................................... Audio cable
6.................................................................................................. Audio output cable
7.................................................................................................... VGA output cable
8.................................................................................................................. RJ45 cable
To the wall outlet
E62405SP
R
1
3
4 5
2
6
Audio Output
7
8
External
Display
Router / Network Switch
NP-V332X, NP-V332W, NP-V302H
26
English ...
Installation
1.............................................................................................Power cord (supplied)
2...............................................................................................................HDMI cable
3........................................................................ Computer cable (VGA) (supplied)
4................................................................................................................RS232 cable
5............................................................................................................... Audio cable
6.................................................................................................. Audio output cable
7.................................................................................................... VGA output cable
8.................................................................................................................. RJ45 cable
To the wall outlet
E62405SP
R
1
3
4 5
2
6
Audio Output
7
8
External
Display
Router / Network Switch
NP-V302X, NP-V302W
27
... English
Installation
Due to the
difference in
applications for each
country, some regions
may have different
accessories.
When Deep Color
is set to ON on your
HDMI equipment,
video or audio noise
may be generated
depending on the
equipment or cable
being used. Should
this happen, set Deep
Color to OFF (8 bit).
Connect to Video Sources
Make sure that the
power plug is fully
inserted into both the
projector AC IN termi-
nal and the wall outlet.
1.............................................................................................Power cord (supplied)
2............................................................................................................. HDMI cable*
3....................................................15-Pin to 3 RCA Component/HDTV Adaptor
4......................................................................................................................... Audio
5................................................................................................... Audio Cable/RCA
6................................................................................................... Audio Cable/RCA
7............................................................................................ Composite video cable
*HDMI cable: Use High Speed HDMI
®
Cable.
To the wall outlet
E62405SP
R
Composite Video Output
DVD Player, Set-top Box,
HDTV receiver
1
5
6
Audio Output
4
32
7
NP-V332X, NP-V332W, NP-V302H
28
English ...
Installation
1.............................................................................................Power cord (supplied)
2............................................................................................................. HDMI cable*
3....................................................15-Pin to 3 RCA Component/HDTV Adaptor
4......................................................................................................................... Audio
5................................................................................................... Audio Cable/RCA
6................................................................................................... Audio Cable/RCA
7............................................................................................ Composite video cable
*HDMI cable: Use High Speed HDMI
®
Cable.
To the wall outlet
E62405SP
R
Composite Video Output
DVD Player, Set-top Box,
HDTV receiver
1
5
6
Audio Output
4
32
7
NP-V302X, NP-V302W
29
... English
Installation
Powering On/Off the Projector
Turn on the projector
rst and then the signal
sources.
(*)When “Normal” is
selected for “Standby
Mode”, the Power LED
indicator will turn
red; when “Network
standby” is selected for
“Standby Mode”, the
Power LED indicator
will turn orange.
POWER/STANDBY
1
When you rst
turn on the projec-
tor, you will get the
Startup menu. This
menu gives you the
opportunity to select
the menu languages.
To select the language,
use the , ,
, or button on the
remote control. Select
your language. Please
see the page 53.
While the POWER
indicator is blinking
green in short cycles,
the power cannot be
turned off by using the
power button.
Powering On the Projector
1. Securely connect the power cord and signal cable. When
connected, the POWER/STANDBY LED will turn Red or
Orange (*).
2. Turn on the projector by pressing “POWER” on the remote
control or on the control panel. At this moment, the
POWER/STANDBY LED will now turn Green.
The startup screen will display in approximately 10 seconds.
The rst time you use the projector, you will be asked to
select the preferred language and power saving mode.
3. Turn on your source (computer, notebook, video player, etc.)
The projector will detect your source automatically.
If you connect multiple sources at the same time, press the
“SOURCE” button on the control panel or direct source keys
on the remote control to switch between inputs.
30
English ...
Installation
Powering Off the Projector
1. Press the “POWER OFF” button on the remote control or the
button on the control panel to turn off the projector lamp,
you will see a message as below on the on-screen display.
ARE YOU SURE
YES
NO
POWER OFF
2. Press the “POWER OFF” button again to conrm.
3. Disconnect the power cord from the electrical outlet and the
projector. If you disconnect the power cord while viewing
the picture and connect the power cord again, wait for at
least one second until you connect the power cord again.
While the POWER
LED indicator is blink-
ing green in short
cycles, the power
cannot be turned off
by using the power
button.
31
... English
Installation
Warning Indicator
When the “STATUS” LED indicator ashes red, it
indicates the projector has overheated. The projector will
automatically shut itself down.
WARNING! TEMPERATURE TOO HIGH
1. MAKE SURE AIR IN AND OUTLETS ARE NOT BLOCKED.
2. MAKE SURE THE ENVIRONMENT TEMPERATURE IS UNDER 40 DEGREE C
When the “LAMP” LED indicator turns red and the message
below displays on-screen, the projector has detected that
the lamp is approaching its end of life. When you see this
message, change the lamp as soon as possible.
WARNING! LAMP
LAMP WARNING
LAMP LIFE IS ABOVE LIMIT TIME. LAMP OFF!
WARNING! LAMP
LAMP WARNING
LAMP LIFE EXCEEDED.
When the “STATUS” LED indicator ashes red and the
message below displays on-screen, it indicates the fan failed.
Stop using the projector and disconnect the power cord from
the electrical outlet, then contact your local dealer or our
service center.
WARNING! FAN LOCKED
THE PROJECTOR WILL SWITCH OFF AUTOMATICALLY.
For more informa-
tion on STATUS LED
indicator, please see the
page 81-82.
32
English ...
Installation
Adjusting the Projected Image

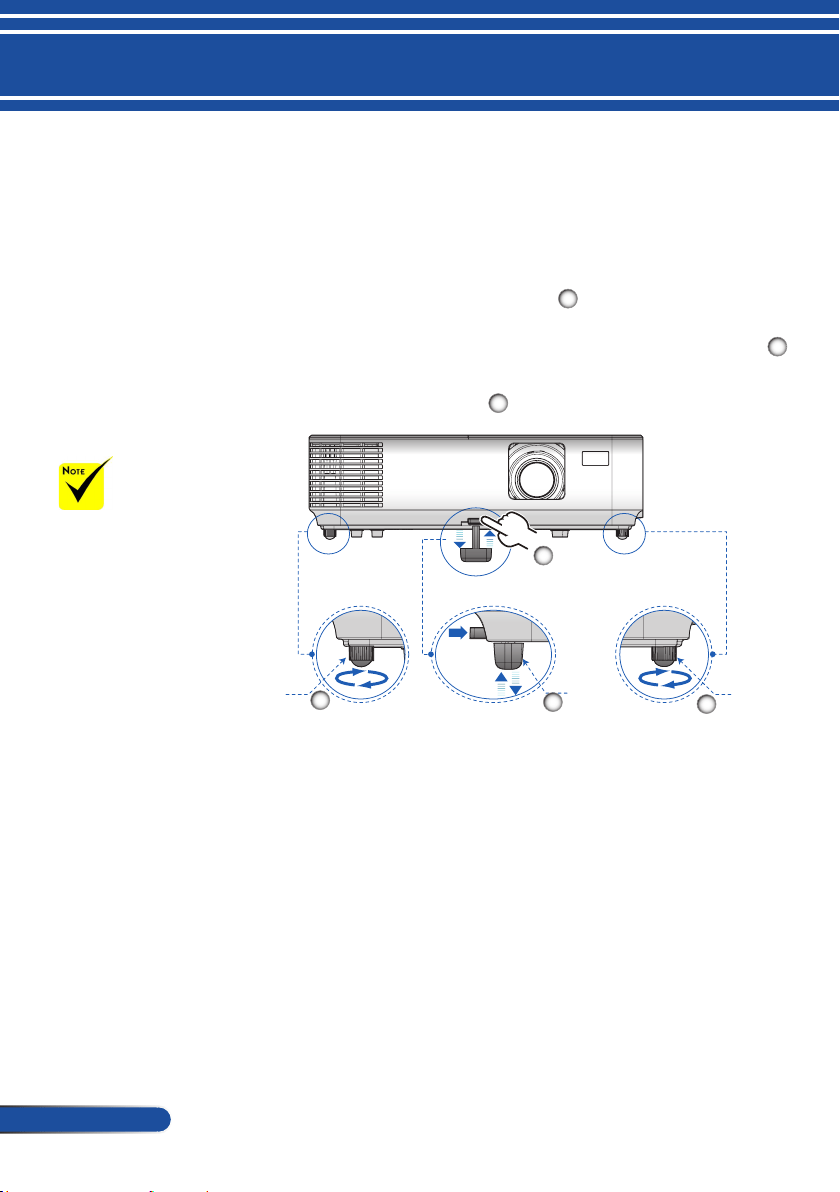

Adjusting the Height of Projection Image
The projector is equipped with the tilt foot for adjusting the
image height.
1. Press the tilt foot release button.
1
Keep to press the tilt foot release button for raising or
lowering the projector, then lock the button by releasing it.
2
2. Rotate the rear feet counter clockwise to raise the projector
or clockwise to lower it.
3
Rear foot Rear foot
Tilt foot
release button
Tilt Foot
3
2
1
3
Two tilt foot at
the rear side will be
screwed off if these are
rotated too much.
33
... English
Installation
Adjusting the Projector’s Focus
To focus the image, rotate the focus ring until the image is clear.
To zoom the image, turn the zoom lever in or out.
Focus Ring
Zoom Lever
34
English ...
Installation
Adjusting Projection Image Size (Diagonal)
Projection Image Size from 30” to 300” (0.76 to 7.62 meters).
Models: NP-V332X, NP-V302X
Screen Size
(B)
(C)
D
(WIDE)
α
α
Diagonal (A) Width Height
Wide
Tele Wide Tele
inch mm inch mm inch mm inch mm inch mm inch mm inch mm degreedegree
30 762 24 610 18 457 12 297 47 1189 52 1311 3 69 14.2 13.0
40 1016 32 813 24 610 16 396 62 1585 69 1747 4 91 14.2 13.0
60 1524 48 1219 36 914 23 594 94 2377 103 2621 5 137 14.2 13.0
70 1778 56 1422 42 1067 27 693 109 2773 120 3058 6 160 14.2 13.0
80 2032 64 1626 48 1219 31 792 125 3169 138 3495 7 183 14.2 13.0
90 2286 72 1829 54 1372 35 891 140 3566 155 3932 8 206 14.2 13.0
(B)
(D)
(C)
(α)
(D)
(α
α
)
Screen Width
Screen Diagonal
Screen Center
Screen Bottom
Lens Center
Screen Height
B = Vertical distance between lens center
and screen center.
C = Throw distance.
D = Vertical distance between lens center
and bottom of screen (top of screen
for ceiling application).
= Throw angle.
α
35
... English
Installation
α
Screen Size
(B)
(C)
D
(WIDE)
α
α
Diagonal (A) Width Height
Wide
Tele Wide Tele
inch mm inch mm inch mm inch mm inch mm inch mm inch mm degreedegree
100 2540 80 2032 60 1524 39 990 156 3962 172 4368 9 228 14.2 13.0
120 3048 96 2438 72 1829 47 1188 187 4754 206 5242 11 274 14.2 13.0
150 3810 120 3048 90 2286 58 1486 234 5943 258 6553 13 343 14.2 13.0
180 4572 144 3658 108 2743 70 1783 281 7131 310 7863 16 411 14.2 13.0
200 5080 160 4064 120 3048 78 1981 312 7923 344 8737 18 457 14.2 13.0
240 6096 192 4877 144 3658 94 2377 374 9508 413 10484 22 548 14.2 13.0
270 6858 216 5486 162 4115 105 2674 421 10697 464 11795 24 617 14.2 13.0
300 7620 240 6096 180 4572 117 2971 468 11885 516 13105 27 685 14.2 13.0
* This table is for user’s reference only.
*The values in the tables are design values and may vary.
Projection Image Size from 30” to 300” (0.76 to 7.62 meters).
Models: NP-V332W, NP-V302W
Screen Size
(B)
(C)
D
(WIDE)
α
α
Diagonal (A) Width Height
Wide
Tele Wide Tele
inch mm inch mm inch mm inch mm inch mm inch mm inch mm degreedegree
30 762 25 646 16 404 10 253 39 1002 43 1099 2 51 14.2 13.0
40 1016 34 862 21 538 13 337 53 1335 58 1465 3 68 14.2 13.0
60 1524 51 1292 32 808 20 506 79 2003 86 2197 4 102 14.2 13.0
70 1778 59 1508 37 942 23 591 92 2337 101 2563 5 119 14.2 13.0
80 2032 68 1723 42 1077 27 675 105 2671 115 2929 5 136 14.2 13.0
90 2286 76 1939 48 1212 30 759 118 3005 130 3296 6 153 14.2 13.0
100 2540 85 2154 53 1346 33 844 131 3339 144 3662 7 171 14.2 13.0
120 3048 102 2585 64 1615 40 1012 158 4006 173 4394 8 205 14.2 13.0
150 3810 127 3231 79 2019 50 1265 197 5008 216 5493 10 256 14.2 13.0
180 4572 153 3877 95 2423 60 1518 237 6009 259 6591 12 307 14.2 13.0
200 5080 170 4308 106 2692 66 1687 263 6677 288 7323 13 341 14.2 13.0
36
English ...
Installation
Screen Size
(B)
(C)
D
(WIDE)
α
α
Diagonal (A) Width Height
Wide
Tele Wide Tele
inch mm inch mm inch mm inch mm inch mm inch mm inch mm degreedegree
240 6096 204 5169 127 3231 80 2025 315 8012 346 8788 16 409 14.2 13.0
270 6858 229 5816 143 3635 90 2278 355 9014 389 9887 18 460 14.2 13.0
300 7620 254 6462 159 4039 100 2531 394 10016 432 10985 20 512 14.2 13.0
* This table is for user’s reference only.
*The values in the tables are design values and may vary.
Projection Image Size from 40” to 300” (1.02 to 7.62 meters).
Model: NP-V302H
Screen Size
(B)
(C)
D
(WIDE)
α
α
Diagonal (A) Width Height
Wide
Tele Wide Tele
inch mm inch mm inch mm inch mm inch mm inch mm inch mm degreedegree
40 1016 35 886 20 498 13 331 52 1328 63 1594 3 82 14.0 11.7
60 1524 52 1328 29 747 20 496 78 1992 94 2391 5 123 14.0 11.7
70 1778 61 1550 34 872 23 579 92 2324 110 2789 6 143 14.0 11.7
80 2032 70 1771 39 996 26 662 105 2657 126 3188 6 164 14.0 11.7
90 2286 78 1992 44 1121 29 745 118 2989 141 3586 7 184 14.0 11.7
100 2540 87 2214 49 1245 33 827 131 3321 157 3985 8 205 14.0 11.7
120 3048 105 2657 59 1494 39 993 157 3985 188 4782 10 246 14.0 11.7
150 3810 131 3321 74 1868 49 1241 196 4981 235 5977 12 307 14.0 11.7
180 4572 157 3985 88 2241 59 1489 235 5977 282 7173 15 368 14.0 11.7
200 5080 174 4428 98 2491 65 1655 261 6641 314 7970 16 409 14.0 11.7
240 6096 209 5313 118 2989 78 1986 314 7970 377 9564 19 491 14.0 11.7
270 6858 235 5977 132 3362 88 2234 353 8966 424 10759 22 553 14.0 11.7
300 7620 261 6641 147 3736 98 2482 392 9962 471 11955 24 614 14.0 11.7
* This table is for user’s reference only.
*The values in the tables are design values and may vary.
37
... English
User Controls
The Projector has a multilingual On Screen Display that
allows you to make image adjustments and change a variety of
settings.
How to operate
1. To open the OSD, press the MENU button on the Remote Control.
2. When OSD is displayed, use the buttons to select any item
in the main menu. While making a selection on a particular page,
press the button to enter sub menu.
3. Use the buttons to select the desired item in the sub menu
and adjust the settings by using the or button.
4. Select the desired item in the sub menu and press the ENTER
button to enter another sub menu. Press the MENU button to close
the sub menu after adjustment.
5. After adjusting the settings, press the MENU or EXIT button go
back to the main menu.
6. To exit, press the MENU button again. The OSD will be closed and
the projector will automatically save the new settings.
On Screen Display
If no button operation
is made for 30 seconds,
the OSD will be closed
automatically.
SCREENIMAGE SETTING OPTIONS
GENERAL ADVANCED
GAMMA
COLOR TEMP.
DYNAMIC CONTRAST
COLOR
COLOR SPACE
FILM
LOW
COMPUTER
SELECT EXIT MOVE MOVE
OFF
AUTO
BrilliantColor™
Main Menu
Sub Menu
Setting
38
English ...
User Controls
Menu Tree
MAIN MENU SUB MENU SETTINGS
GENERAL
PICTURE MODE PRESENTATION/HIGH-BRIGHT/VIDEO/
MOVIE/SRGB/BLACKBOARD/USER1/
USER2
WALL COLOR OFF/RED/GREEN/BLUE/CYAN/
MAGENTA/YELLOW
BRIGHTNESS 0~100
CONTRAST 0~100
SHARPNESS 0~31
SATURATION DEPEND ON SOURCE FORMAT
HUE DEPEND ON SOURCE FORMAT
ADVANCED
GAMMA FILM/VIDEO/GRAPHICS/PC/
BLACKBOARD
BRILLIANTCOL-
OR
TM
0~10
COLOR TEMP. LOW/MEDIUM/HIGH
DYNAMIC CON-
TRAST
ON/OFF
COLOR RED GAIN/GREEN GAIN/BLUE GAIN/
CYAN GAIN/MAGENTA GAIN/YELLOW
GAIN/RED BIAS/GREEN BIAS/BLUE BIAS/
RESET
COLOR SPACE AUTO/RGB/YUV
SCREEN
GENERAL
ASPECT RATIO 4:3/16:9/16:10/15:9/5:4/NATIVE/AUTO
OVERSCAN 0%/5%/10%
V KEYSTONE -30~+30 (NP-V302H, NP-V332W, and
NP-V332X)
-40~+40 (NP-V302W, NP-V302X)
3D SETTINGS
3D ON/OFF
3D INVERT ON/OFF
3D STRUCTURE AUTO/FRAME PACKING/TOP-AND-
BOTTOM/SIDE-BY-SIDE/FRAME
SEQUENTIAL
SETTING GENERAL
LANGUAGE
ENGLISH / DEUTSCH / FRANÇAIS /ITALIANO /
ESPAÑOL / SVENSKA /
ᣣᧄ⺆䎃
/ PORTUGUÊS /
ČEŠTINA / MAGYAR / POLSKI / /
简体中文
/
繁體中文
/ NORSK / TÜRKÇE / РУССКИЙ /
ΕΛΛΗΝΙΚΑ / INDONESIA / 䚐ạ㛨G/ SUOMI /
NEDERLANDS / DANSK / ROMÂNĂ / HRVATSKI /
БЪЛГАРСКИ /
ไทย / / / TIẾNG VIỆT
39
... English
User Controls
MAIN MENU SUB MENU SETTINGS
SETTING
GENERAL
ORIENTATION DESKTOP FRONT/DESKTOP REAR/
CEILING FRONT/CEILING REAR
HDMI SETTINGS (NP-V302H, NP-V332W, and NP-V332X)
-VIDEO LEVEL (AUTO/NORMAL/
ENHANCED)/ AUDIO SELECT
(HDMI1 and MHL/ COMPUTER), OR
HDMI2/ COMPUTER
(NP-V302W and NP-V302X)
-VIDEO LEVEL (AUTO/NORMAL/
ENHANCED)/ AUDIO SELECT
(HDMI1/ COMPUTER), OR HDMI2/
COMPUTER
MUTE ON/OFF
VOLUME 0~20
SIGNAL
PHASE DEPEND ON SOURCE FORMAT
CLOCK DEPEND ON SOURCE FORMAT
H.POSITION DEPEND ON SOURCE FORMAT
V.POSITION DEPEND ON SOURCE FORMAT
ADVANCED
LOGO ON/OFF
NETWORK NETWORK STATUS/DHCP/
IP ADDRESS/SUBNET MASK/GATEWAY/
APPLY
CLOSED CAPTION OFF/CC1/CC2/CC3/CC4/T1/T2/T3/T4
SECURITY SECURITY/SECURITY TIMER/CHANGE
PASSWORD
TEST PATTERN
40
English ...
User Controls
MAIN MENU SUB MENU SETTINGS
OPTIONS
GENERAL
INPUT SEARCH ON/OFF
INPUT (NP-V302H, NP-V332W, and NP-V332X)
- COMPUTER/HDMI1 and MHL/HDMI2,
VIDEO
(NP-V302W and NP-V302X)
- COMPUTER/HDMI1/HDMI2, VIDEO
FAN MODE AUTO/HIGH ALTITUDE
INFORMATION
HIDE
ON/OFF
ID DISPLAY ON/OFF
BACKGROUND
COLOR
BLACK/BLUE
RESET YES/NO
LAMP
SETTINGS
LAMP LIFE RE-
MAINING
LAMP HOURS USED
ECO MODE OFF/ECO
LAMP LIFE RE-
MINDER
ON/OFF
CLEAR LAMP
HOURS
YES/NO
INFORMA-
TION
MODEL NO.
SERIAL NUMBER
SOURCE
RESOLUTION
SOFTWARE VER-
SION
CONTROL ID
ADVANCED
STANDBY MODE NORMAL/NETWORK STANDBY
DIRECT POWER ON ON/OFF
AUTO POWER OFF
(MIN)
0~180
OFF TIMER (MIN) 0~995
CONTROL PANEL
LOCK
ON/OFF
CONTROL ID
41
... English
User Controls
PICTURE MODE
There are many factory presets optimized for various types of
images. Use the or button to select the item.
PICTURE MODE
PRESENTATION
HIGH-BRIGHT
MOVIE
VIDEO
sRGB
BLACKBOARD
USER1
USER2
PRESENTATION: For computer or notebook.
HIGH-BRIGHT: Maximum brightness from PC input.
VIDEO: This mode is recommended for typical TV program
viewing.
MOVIE: For home theater.
sRGB: Standardized accurate color.
BLACKBOARD: This mode should be selected to achieve
optimum color settings when projecting onto a blackboard
(green).
USER1/USER2: Memorize user’s settings.
SCREENIMAGE SETTING OPTIONS
GENERAL ADVANCED
PICTURE MODE
WALL COLOR
BRIGHTNESS
CONTRAST
SHARPNESS
SATURATION
HUE
PRESENTATION
OFF
COMPUTER
SELECT EXIT MOVE MOVE
IMAGE |
GENERAL
42
English ...
User Controls
WALL COLOR
Use this function to choose a proper color according to the wall. It
will compensate the color deviation due to the wall color to show
the correct image tone.
WALL COLOR
OFF
RED
BLUE
GREEN
CYAN
MAGENTA
YELLOW
BRIGHTNESS
Adjust the brightness of the image.
Press the button to darken image.
Press the button to lighten the image.
BRIGHTNESS
EXIT
EXIT
ADJUST
CONTRAST
The contrast controls the degree of difference between the lightest
and darkest parts of the picture. Adjusting the contrast changes the
amount of black and white in the image.
Press the button to decrease the contrast.
Press the button to increase the contrast.
CONTRAST
EXIT
ADJUST
EXIT
43
... English
User Controls
SHARPNESS
Adjust the sharpness of the image.
Press the button to decrease the sharpness.
Press the button to increase the sharpness.
SHARPNESS
EXIT
ADJUST
EXIT
SATURATION
Adjust a video image from black and white to fully saturated color.
Press the button to decrease the amount of saturation in the
image.
Press the button to increase the amount of saturation in the
image.
SATURATION
EXIT
ADJUST
EXIT
HUE
Adjust the color balance of red and green.
Press the button to increase the amount of green in the image.
Press the button to increase the amount of red in the image.
HUE
EXIT
ADJUST
EXIT
Input signal
BRIGHTNESS CONTRAST SHARPNESS SATURATION HUE
COMPUTER/
HDMI (RGB)
YES YES YES NO NO
COMPUTER/
HDMI (COMPONENT)
YES YES YES YES YES
VIDEO YES YES YES YES YES
Yes=Adjustable, No=Not adjustable
44
English ...
User Controls
The Color Temp
is not available
when “HIGH-
BRIGHT” or
“sRGB” is selected
for “PICTURE
MODE”.
SCREENIMAGE SETTING OPTIONS
GENERAL ADVANCED
GAMMA
COLOR TEMP.
DYNAMIC CONTRAST
COLOR
COLOR SPACE
FILM
LOW
COMPUTER
SELECT EXIT MOVE MOVE
OFF
AUTO
BrilliantColor™
GAMMA
This allows you to choose a gamma table that has been ne-tuned
to bring out the best image quality for the input.
FILM: for home theater.
VIDEO: for video or TV source.
GRAPHICS: for image source.
PC: for PC or computer source.
BLACKBOARD: for displaying on the blackboard.
GAMMA
FILM
VIDEO
PC
GRAPHICS
BLACKBOARD
IMAGE |
ADVANCED
45
... English
User Controls
BrilliantColor™
This adjustable item utilizes a new color-processing algorithm
and system level enhancements to enable higher brightness while
providing true, more vibrant colors. The range is from “0” to
“10”. If you prefer a stronger enhanced image, adjust toward the
maximum setting. For a smoother, more natural image, adjust
toward the minimum setting.
BrilliantColor™
EXIT
ADJUST
EXIT
COLOR TEMP.
Adjust the color temperature. At higher temperature, the screen
looks colder; at lower temperature, the screen looks warmer.
COLOR TEMP.
LOW
MEDIUM
HIGH
DYNAMIC CONTRAST
Turning this item on allows the contrast ratio to be adjusted to the
proper level.
DYNAMIC CONTRAST
OFF
ON
46
English ...
User Controls
COLOR
Press ENTER into the next menu as below and then use the
or
button to select item.
COLOR
RED GAIN
GREEN GAIN
BLUE GAIN
CYAN GAIN
MAGENTA GAIN
YELLOW GAIN
RED BIAS
GREEN BIAS
BLUE BIAS
RESET
RED GAIN
RED GAIN
EXIT
ADJUST
EXIT
GREEN GAIN
GREEN GAIN
EXIT
ADJUST
EXIT
BLUE GAIN
BLUE GAIN
EXIT
ADJUST
EXIT
CYAN GAIN
CYAN GAIN
EXIT
ADJUST
EXIT
47
... English
User Controls
MAGENTA GAIN
MAGENTA GAIN
EXIT
ADJUST
EXIT
YELLOW GAIN
YELLOW GAIN
EXIT
ADJUST
EXIT
RED BIAS
RED BIAS
EXIT
ADJUST
EXIT
GREEN BIAS
GREEN BIAS
EXIT
ADJUST
EXIT
BLUE BIAS:
BLUE BIAS
EXIT
ADJUST
EXIT
Use the or button to select RED, GREEN, BLUE, CYAN,
MAGENTA AND YELLOW COLORS.
48
English ...
User Controls
RESET: Choose “YES” to return the factory default settings for
color adjustments.
RESET
NO
YES
COLOR SPACE
Select an appropriate color matrix type from AUTO, RGB or YUV.
COLOR SPACE
AUTO
RGB
YUV
49
... English
User Controls
SCREENIMAGE SETTING OPTIONS
GENERAL 3D SETTINGS
H KEYSTONE
AUTO
COMPUTER
SELECT
EXIT MOVE MOVE
OVERSCAN
ASPECT RATIO
V KEYSTONE
ASPECT RATIO
Use this function to choose your desired aspect ratio.
4:3: This format is for 4×3 input sources.
16:9: This format is for 16×9 input sources, like HDTV and DVD
enhanced for Wide screen TV.
16:10: This format is for 16×10 input sources, like widescreen
laptops.
15:9: This format is for 15×9 input sources.
5:4: This format is for 5×4 input sources.
NATIVE: This format displays the original image without any
scaling.
AUTO: Automatically selects the appropriate display format.
ASPECT RATIO
NATIVE
AUTO
SCREEN |
GENERAL
SCREENIMAGE SETTING OPTIONS
GENERAL 3D SETTINGS
KEYSTONE
AUTO
COMPUTER
SELECT
EXIT MOVE MOVE
OVERSCAN
ASPECT RATIO
50
English ...
User Controls
OVERSCAN
Overscan function removes the noise in a video image. Overscan
the image to remove video encoding noise on the edge of video
source.
OVERSCAN
H KEYSTONE
Press the or button to adjust image distortion horizontally.
(This is not available on NP-V302X and NP-V302W).
H KEYSTONE
EXIT
ADJUST
EXIT
V KEYSTONE
Press the or button to adjust image distortion vertically. If
the image looks trapezoidal, this option can help make the image
rectangular.
V KEYSTONE
EXIT
ADJUST
EXIT
KEYSTONE
Press the or button to adjust image distortion vertically (V
Keystone) or horizontally (H Keystone).
KEYSTONE
EXIT
ADJUST
MOVE
H KEYSTONE
V KEYSTONE
Each I/O has
different setting of
“OVERSCAN”.
Please see more
information on
Keystone and Quick
Keys on page 13.
51
... English
User Controls
SCREENIMAGE SETTING OPTIONS
GENERAL 3D SETTINGS
3D STRUCTURE
OFF
COMPUTER
SELECT EXIT MOVE MOVE
3D INVERT
3D
OFF
FRAME PACKING
3D
Choose “ON” to turn this item on for 3D images.
(default: OFF)
3D
OFF
ON
3D INVERT
Choose “ON” to invert left and right frame contents.
Choose “OFF” for default frame contents.
3D INVERT
OFF
ON
“3D INVERT”
and “3D
STRUCTURE”only
available when 3D
is enabled.
Compatible 3D
source, 3D content
and active shutter
glasses are required
for 3D viewing.
SCREEN |
3D SETTINGS
52
English ...
User Controls
TIP: 3D supported signal
• For PC Signal :
1024x768@60/120Hz
1280x720@60Hz
1280x800@60/120Hz
1920x1080@60Hz
• For Video Signal :
480i@60Hz
• For HDMI Signal :
720p (Frame Packing) 1280 x 720@50/60/59.94
1080p (Frame Packing) 1920 x [email protected]/24
720p (Top and Bottom) 1280 x 720@50/60/59.94* (*Select manually)
1080p (Top and Bottom) 1920 x [email protected]/24
1080i (Side by Side (Half)) 1920 x 1080@50/60/59.94* (*Select manually)
3D STRUCTURE
Adjust the 3D format to display 3D content correctly.
3D STRUCTURE
AUTO
FRAME PACKING
TOP-AND-BOTTOM
SIDE-BY-SIDE
FRAME SEQUENTIAL
53
... English
User Controls
SCREENIMAGE SETTING OPTIONS
GENERAL SIGNAL
LANGUAGE
ORIENTATION
HDMI SETTINGS
MUTE
VOLUME
ENGLISH
DESKTOP REAR
COMPUTER
SELECT EXIT
MOVE
MOVE
ADVANCED
OFF
LANGUAGE
Choose the multilingual OSD menu. Press the
or button into
the sub menu and then use the or button to select your
preferred language. Press ENTER to nalize the selection.
LANGUAGE
SELECT EXIT MOVE MOVE
PLEASE SELECT A MENU LANGUAGE.
ORIENTATION
DESKTOP FRONT:
When selected, the image is projected straight on the screen.
DESKTOP REAR:
When selected, the image will appear reversed.
DESKTOP-REAR
and CEILING-
REAR are to
be used with
a translucent
screen.
SETTING |
GENERAL
54
English ...
User Controls
CEILING FRONT:
When selected, the image will turn upside down.
CEILING REAR
This is the default selection. The image will appear reversed in
upside down position.
ORIENTATION
DESKTOP FRONT
CEILING FRONT
DESKTOP REAR
CEILING REAR
HDMI SETTINGS
Use this feature to set HDMI1/MHL or HDMI2
HDMI SETTINGS
AUTO
COMPUTER
SELECT EXIT MOVE
AUDIO SELECT
VIDEO LEVEL
HDMI1
HDMI1 HDMI2
VIDEO LEVEL: Select “AUTO” to automatically detect
video level. If automatic detection may not work well, select
“NORMAL” to disable the “ENHANCED” feature of your
HDMI equipment or select “ENHANCED” to improve image
contrast and increase detail in the dark areas.
VIDEO LEVEL
AUTO
NORMAL
ENHANCED
“HDMI SETTING”
is only supported
under HDMI
source.
55
... English
User Controls
AUDIO SELECT: Use this function to select the audio souce
from “HDMI1/MHL”, “HDMI2”or “COMPUTER”.
AUDIO SELECT
HDMI1/MHL
COMPUTER
AUDIO SELECT
HDMI2
COMPUTER
MUTE
Choose “ON” to turn mute on.
Choose “OFF” to turn mute off.
MUTE
OFF
ON
VOLUME
Press the button to decrease the volume.
Press the button to increase the volume.
VOLUME
EXIT
ADJUST
EXIT
56
English ...
User Controls
SCREENIMAGE SETTING OPTIONS
GENERAL SIGNAL
PHASE
CLOCK
H. POSITION
V. POSITION
COMPUTER
SELECT EXIT MOVE MOVE
ADVANCED
PHASE
Synchronize the signal timing of the display with the graphic card.
If the image appears to be unstable or ickers, use this function to
correct it.
PHASE
EXIT
ADJUST
EXIT
CLOCK
Change the display data frequency to match the frequency of
your computer’s graphic card. Use this function only if the image
appears to icker vertically.
CLOCK
EXIT
ADJUST
EXIT
“SIGNAL” is
only supported in
Analog VGA (RGB)
signal.
SETTING |
SIGNAL
57
... English
User Controls
H. POSITION
Press the button to move the image left.
Press the button to move the image right.
H. POSITION
EXIT
ADJUST
EXIT
V. POSITION
Press the button to move the image down.
Press the button to move the image up.
V. POSITION
EXIT
ADJUST
EXIT
58
English ...
User Controls
SCREENIMAGE SETTING OPTIONS
GENERAL SIGNAL
LOGO
NETWORK
CLOSED CAPTION
SECURITY
TEST PATTERN
OFF
COMPUTER
SELECT
EXIT
MOVE
MOVE
ADVANCED
OFF
OFF
LOGO
Use this function to display the startup screen (NEC logo).
ON: Displays the NEC logo.
OFF: Not display the NEC logo.
LOGO
OFF
ON
NETWORK
Please see the pages 64-68.
CLOSED CAPTION
Use this function to enable closed caption and activate the closed
caption menu. Select an appropriate closed captions option: OFF,
CC1, CC2, CC3, CC4, T1, T2, T3 and T4.
CLOSED CAPTION
OFF
When “NORMAL”
is selected for
“STANDBY
MODE” from
the menu, the
projector cannot
be controlled in
standby mode
from external
equipment.
SETTING |
ADVANCED
59
... English
User Controls
SECURITY
OFF: Choose “OFF” to be able to switch on the projector
without password verication.
ON: Choose “ON” to use security verication when turning on
the projector.
SECURITY
OFF
ON
ENTER CURRENT SECURITY CODE
SECURITY KEYWORD
EXITENTER
INVALID-KEYWORD TOO SHORT
First Time:
1. The default password : puqt
2. Use the remote to enter your password, and then press
ENTER to conrm your password.
TEST PATTERN
Press ENTER to make the selection. Then press MENU or EXIT to
close the sub menu.
The available test
pattern is GRID.
60
English ...
User Controls
SECURITY
ADJUST
EXIT
SECURITY
OFF
SECURITY TIMER
CHANGE PASSWORD
SELECT
MOVE
SECURITY TIMER
Use this function to set how long (MONTH/DAY/HOUR) the
projector can be used. Once this time has elapsed you will be
requested to enter your password again.
MONTH
EXIT MOVE ADJUST
SECURITY TIMER
DAY
HOUR
EXIT
The “SECURITY TIMER” will restart to count down when the
projector is turned off and then turned back on.
CHANGE PASSWORD
1. Press
ENTER to enter SECURITY KEYWORD setting.
2. The password has to be combination of , , , direc-
tion keys and must include 4 to 10 characters.
Current password
ENTER CURRENT SECURITY CODE
SECURITY KEYWORD
EXITENTER
INVALID-KEYWORD TOO SHORT
3. Use number buttons on the remote control, to enter your
old password and then press ENTER to conrm your
password.
Input new password
ENTER NEW SECURITY CODE
CHANGE PASSWORD
EXITENTER
SETTING |
ADVANCED |
SECURITY
The default
password is
puqt
(rst time).
61
... English
User Controls
4. Use direction keys, to enter your new password and then
press
ENTER to conrm your password.
Conrm new password
CONFIRM NEW SECURITY CODE
CHANGE PASSWORD
EXITENTER
5. Enter the new password again and press ENTER to
conrm.
If the incorrect password is entered 3 times, the projector will
automatically shut down. (When turn on the projector.)
If you have forgotten your password, please contact your local
ofce for support.
62
English ...
User Controls
NETWORK
NETWORK STATUS DISCONNECT
DHCP
IP ADDRESS
SUBNET MASK
GATEWAY
APPLY
OFF
NETWORK STATUS
Display the network connection status. (default: DISCONNECT)
DHCP
Use this function to select your desired startup screen. If you
change the setting from one to another, when you exit the OSD
menu, the new setting will take effect on next open.
ON: Assign an IP address to the projector from an external
DHCP server automatically.
OFF: Assign an IP address manually.
DHCP
OFF
ON
IP ADDRESS
Select an IP address.
IP ADDRESS
EXIT
ADJUST
SELECT
MOVE
SETTING |
ADVANCED |
NETWORK
63
... English
User Controls
SUBNET MASK
Select subnet mask number.
SUBNET MASK
ADJUST
SELECT
MOVE
EXIT
GATEWAY
Select the default gateway of the network connected to the
projector.
GATEWAY
ADJUST
MOVE
SELECT
EXIT
APPLY
Press ENTER to apply the selection.
64
English ...
User Controls

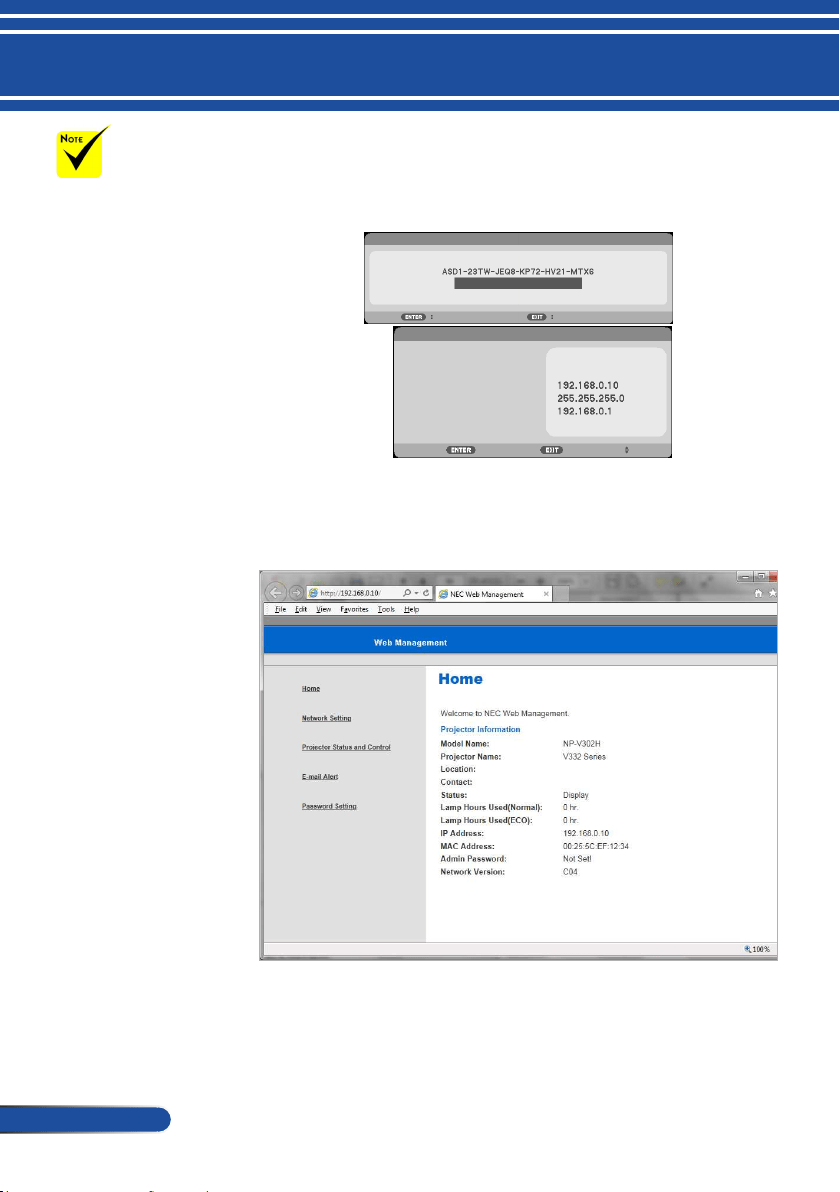

1. Turn on DHCP to allow the DHCP server to automatically assign
an IP, or manually enter the required network information.
ENTER CURRENT SECURITY CODE
SECURITY KEYWORD
EXITENTER
INVALID-KEYWORD TOO SHORT
NETWORK
NETWORK STATUS DISCONNECT
DHCP
IP ADDRESS
SUBNET MASK
GATEWAY
APPLY
OFF
2. Then choose apply and press ENTER button to complete the
conguration process.
3. Open your web browser and type in from the OSD LAN screen
then the web page will display as below:
How to use web browser to control your projector
When you used the
projector IP address,
you can not link to
your service server.
PJLink: Set a
password for PJLink.
PJLink is a
standardization
of protocol used
for controlling
projectors of different
manufacturers. This
standard protocol is
established by Japan
Business Machine and
Information System
Industries Association
(JBMIA) in 2005.
The projector supports
all the commands of
PJLink Class 1.
AMX BEACON:
Turn on or off for
detection from AMX
Device Discovery
when connecting
to the network
supported by AMX's
NetLinx control
system.
CRESTRON ROOM-
VIEW compatibility:
The projector
supports CRESTRON
ROOMVIEW,
allowing multiple
devices connected
in the network to
be managed and
controlled from
a computer or a
controller.
For more information,
visit http://www.
crestron.com
65
... English
User Controls

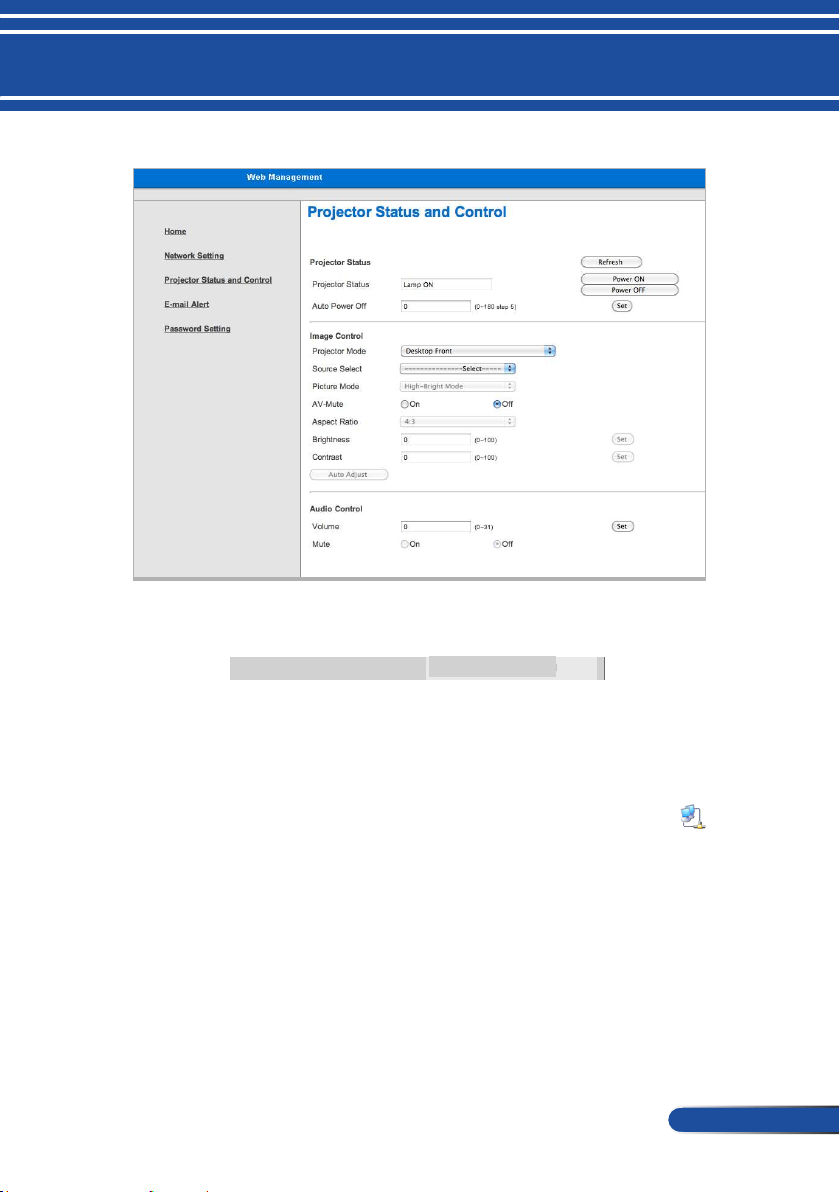

4. Open “Projector Status and Control” to control your projector.
When making a direct connection from your computer to the projector
Step 1: Find an IP Address (default:192.168.0.10) from LAN function of projector.
192.168.0.10
Step 2: Select apply and press the ENTER button on the remote control or the control
panel to submit function or press the MENU button on the remote control or
the control panel to exit.
Step 3: To open Network Connections, click
Start
, click
Control Panel
, click
Network
and Internet Connections
, and then click
Network Connections
. Click the
connection you want to congure, and then, under
Network Tasks
, click
Change settings of this connection
.
66
English ...
User Controls
Step 4: On the
General
tab, under
This connection uses the following items
, click
Internet Protocol (TCP/IP)
, and then click
“Properties.”
Step 5: Click
Use the following IP address
, and type in as below:
1) IP address: 192.168.0.20
2) Subnet mask: 255.255.255.0
3) Default gateway:192.168.0.1

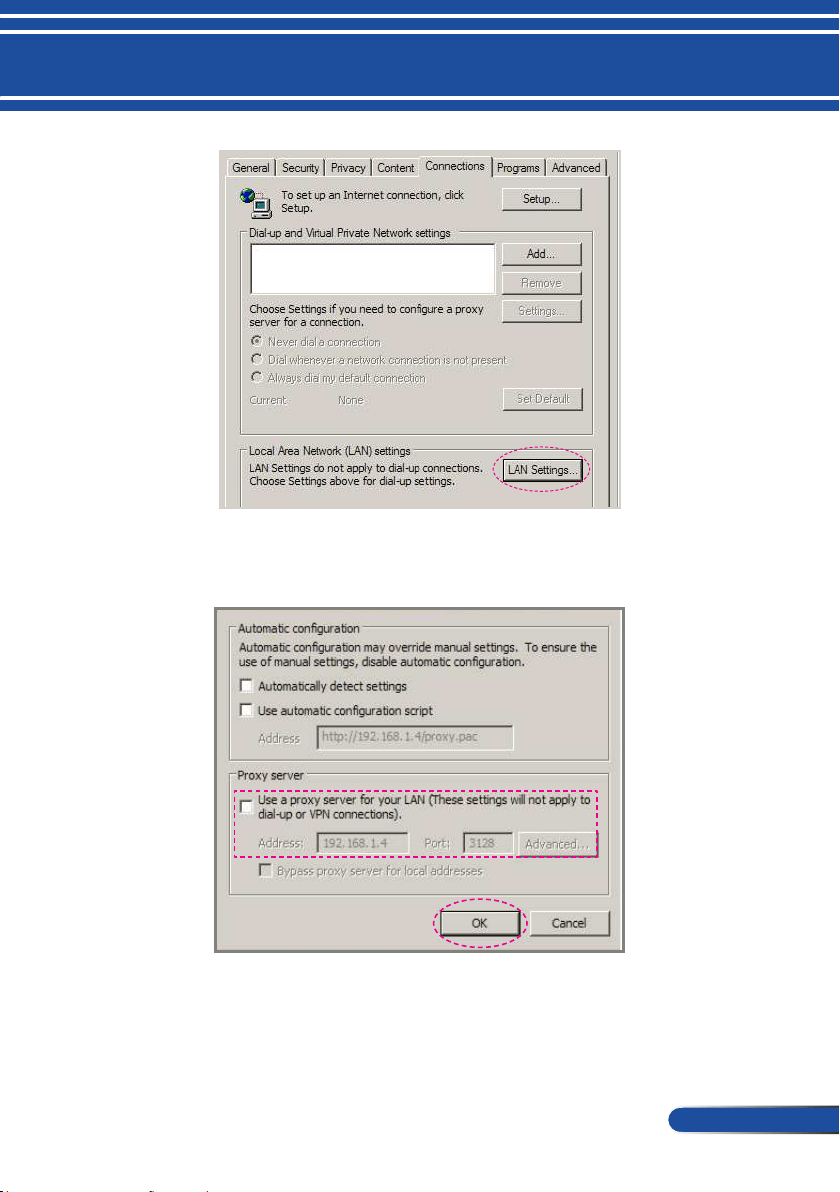

Step 6: To open Internet Options, click IE web browser, click Internet Options, click the
Connections tab
and click
“LAN Settings...”
67
... English
User Controls
Step 7: The
Local Area Network (LAN) Setting
dialog box appears
,
In the
Proxy Server
area
, cancel the
Use a proxy server for your LAN check box
., then click “OK”
button twice.
Step 8: Open your IE and type in the IP address of 192.168.0.10 in the URL then press
the ENTER button key.
68
English ...
User Controls

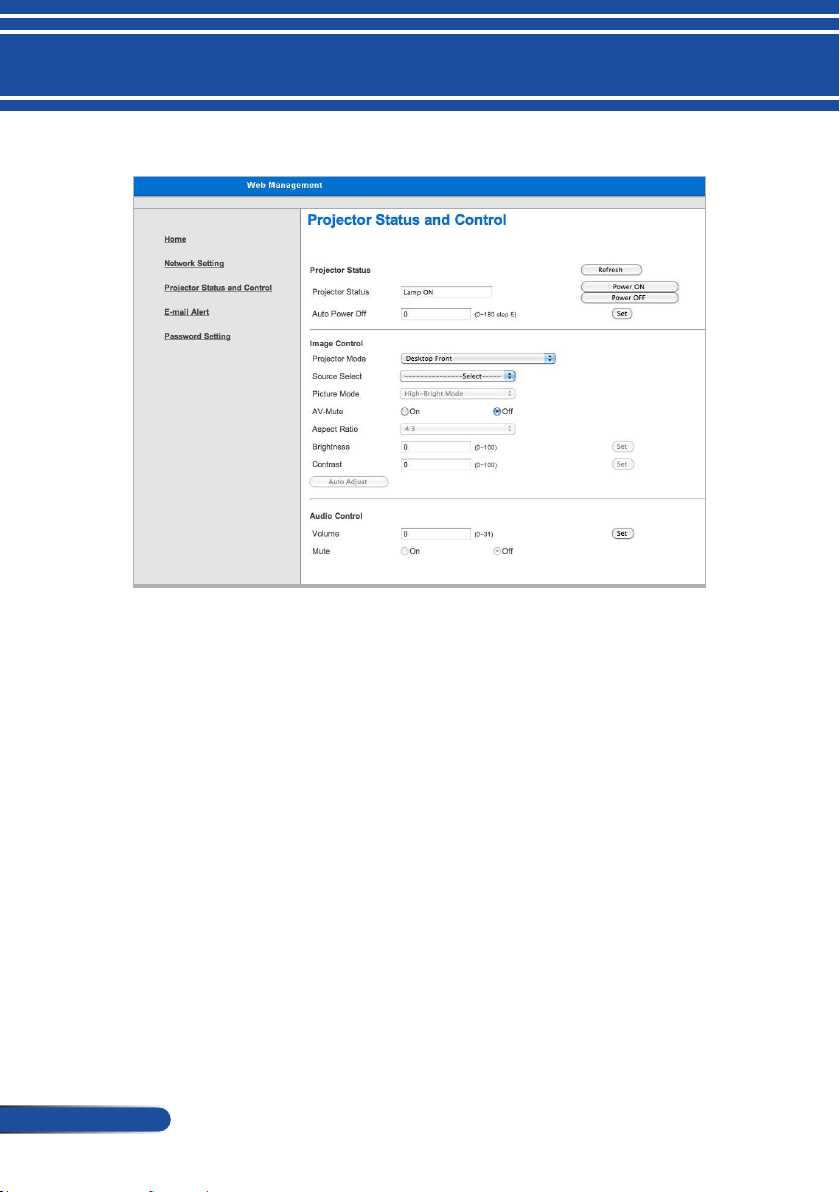

Step 9: Open “Projector Status and Control” to control your projector.
69
... English
User Controls
SCREENIMAGE SETTING OPTIONS
GENERAL LAMP SETTINGS
INPUT SEARCH
INPUT
FAN MODE
INFORMATION HIDE
BACKGROUND COLOR
RESET
COMPUTER
SELECT EXIT MOVE MOVE
BLUE
OFF
OFF
AUTO
ID DISPLAY
OFF
INPUT SEARCH
ON: The projector will search for other signals if the current
input signal is lost.
OFF: The projector will only search current input connection.
INPUT SEARCH
OFF
ON
INPUT
Use this option to enable / disable input sources. Press ENTER to
enter the sub menu and select which sources you require. Press
the ENTER button to finalize the selection. The projector will not
search for inputs that are not selected.
NP-V332X, NP-332W, NP-V302H
INPUT
COMPUTER
HDMI1/MHL
HDMI2
VIDEO
OPTIONS |
GENERAL
70
English ...
User Controls
NP-V302X, NP-302W
INPUT
COMPUTER
HDMI1
HDMI2
VIDEO
FAN MODE
AUTO: The built-in fans automatically run at a variable speed
according to the internal temperature.
HIGH ALTITUDE: The built-in fans run at high speed.
Select this option when using the projector at altitudes
approximately 2500 feet/760 meters or higher.
FAN MODE
AUTO
HIGH ALTITUDE
INFORMATION HIDE
ON: Choose “ON” to hide the info message.
OFF: Choose “OFF” to show the “SEARCHING” message.
INFORMATION HIDE
OFF
ON
ID DISPLAY
Use this feature to display the ID number which is displayed when
the "ID SET" button is pressed on the remote control.
ID DISPLAY
OFF
ON
71
... English
User Controls
(
*
)
Except
“LANGUAGE”,
“LOGO”,
“NETWORK”,
“SECURITY”,
“FAN MODE”,
“BACKGROUND
COLOR”,
“LAMP LIFE
REMAINING”,
“LAMP HOURS
USED”, and
“STANDBY
MODE”.
BACKGROUND COLOR
Use this feature to display a “BLACK”or “BLUE” screen when no
signal is available.
BACKGROUND COLOR
BLACK
BLUE
RESET
Choose “YES” to return the display parameters on all menus to
the factory default settings.
(
*
)
ARE YOU SURE
YES
NO
72
English ...
User Controls
SCREEN
SETTING OPTIONS
GENERAL LAMP SETTINGS
LAMP LIFE REMAINING
LAMP HOURS USED
ECO MODE
LAMP LIFE REMINDER
COMPUTER
SELECT EXIT MOVE MOVE
OFF
OFF
CLEAR LAMP HOURS
LAMP LIFE REMAINING
Showing the Lamp life.
LAMP HOURS USED
Display the projection time.
ECO MODE
Choose “ECO” to dim the projector lamp which will lower power
consumption and extend the lamp life. Choose “OFF” to return to
normal mode.
ECO MODE
OFF
ECO
OPTIONS
| LAMP
SETTINGS
73
... English
User Controls
LAMP LIFE REMINDER
Choose this function to show or to hide the warning message
when the changing lamp message is displayed.
The message will appear when the lamp has reached the end of its
life.
LAMP LIFE REMINDER
OFF
ON
USE THE SPECIFIED LAMP
FOR SAFETY AND PERFORMANCE.
ARE YOU SURE ?
YES
NO
CLEAR LAMP HOURS
Reset the lamp hour counter after replacing the lamp.
74
English ...
User Controls
INFORMATION
To display the projector information for model no., serial number,
source, resolution, and software version on the screen.
COMPUTER
SCREENIMAGE SETTING OPTIONS
INFORMATION ADVANCED
MODEL NO.
SERIAL NUMBER
SOURCE
RESOLUTION
SOFTWARE VERSION
SELECT EXIT MOVE MOVE
COMPUTER
CONTROL ID
OPTIONS |
INFORMATION
75
... English
User Controls
SCREENIMAGE SETTING OPTIONS
INFORMATION ADVANCED
STANDBY MODE
DIRECT POWER ON
AUTO POWER OFF (MIN)
OFF TIMER (MIN)
CONTROL PANEL LOCK
NORMAL
COMPUTER
SELECT EXIT MOVE MOVE
OFF
OFF
CONTROL ID
STANDBY MODE
NETWORK STANDBY: Choose “NETWORK STANDBY” to
save power dissipation further < 0.5W.
NORMAL: Choose “NORMAL” to return to normal standby.
STANDBY MODE
NORMAL
NETWORK STANDBY
DIRECT POWER ON
Choose “ON” to activate Direct Power mode. The projector will
automatically power on when AC power is supplied, without
pressing the
button on the projector control panel or the
POWER ON button on the remote control.
DIRECT POWER ON
OFF
ON
Network Standby
mode will disable
the following
connectors, buttons
or functions when
the projector is in
standby:
- AUDIO OUT
connector
- LAN and Mail
Alert functions
- Buttons other than
POWER button on
the cabinet
- Buttons other than
POWER ON button
on the remote
control
- PC Control
connector
- Virtual Remote
Tool, PC Control
Utility Pro 4/PC
Control Utility
Pro 5.
OPTIONS |
ADVANCED
76
English ...
User Controls
AUTO POWER OFF (MIN)
Sets the countdown timer interval. The countdown timer will start,
when there is no signal being sent to the projector. The projector
will automatically power off when the countdown has nished (in
minutes).
AUTO POWER OFF (MIN)
EXIT
ADJUST
EXIT
OFF TIMER (MIN)
Sets the countdown timer interval. The countdown timer will start,
with or without a signal being sent to the projector. The projector
will automatically power off when the countdown has nished (in
minutes).
OFF TIMER (MIN)
EXIT
ADJUST
EXIT
CONTROL PANEL LOCK
When the keypad lock function is “ON”, the control panel will
be locked however, the projector can be operated by the remote
control. By selecting “OFF”, you will be able to reuse the control
panel. Press and hold the EXIT button on the projector cabinet for
about 10 seconds to turn off “CONTROL PANEL LOCK”.
Even when “NORMAL” mode is selected for “STANDBY MODE”
and “ON” is selected for “CONTROL PANEL LOCK”, the
POWER button on the cabinet can be used to turn on the power.
CONTROL PANEL LOCK
OFF
ON
77
... English
User Controls
CONTROL ID
Use this feature to display the ID number of the projector when
the "ID SET" button is pressed on the remote control.
CONTROL ID
EXIT
MOVE
SELECT
CONTROL ID NUMBER
CONTROL ID
OFF
CONTROL ID NUMBER
ADJUST
EXIT
EXIT
CONTROL ID (ACTIVE)
ADJUST
EXIT
EXIT
CONTROL ID
OFF
ON
CONTROL ID WILL BE ENABLED
ARE YOU SURE ?
YES
NO
CONTROL ID
CONTROL ID IS DISABLED !
CONTROL ID NUMBER
78
English ...
Appendices
Problem: No image appears on screen
Ensure all the cables and power connections are correctly and
securely connected as described in the “Installation” section.
Ensure the pins of connectors are not crooked or broken.
Check if the projection lamp has been securely installed. Please
refer to the “Replacing the lamp” section.
Make sure the projector is switched on.
Ensure that the “AV-MUTE” feature is not turned on.
Problem: Partial, scrolling or incorrectly displayed image
Press “AUTO ADJ.” on the remote control.
If you are using a PC:
For Windows Vista:
1. From the “My Computer” icon, open the “Control Panel” folder,
and double click the “Appearance and Personalization”
2. Select “Personalization”
3. Click “Adjust screen resolution” to display “Display Settings”.
Click on the “Advanced Settings”.
For Windows 7:
1. From “Start” menu, open “Control Panel”.
2. From drop-down menu select “Display”.
3. Click “Adjust resolution”.
If the projector is still not projecting the whole image, you will
also need to change the monitor display you are using. Refer to
the following steps.
4. Verify the resolution setting is less than or equal to 1280 x 1024
resolution.
Troubleshooting
If you experience trouble with the projector, refer to the
following information. If the problem persists, please contact
your local dealer or service center.
79
... English
Appendices
5. Select the “Change” under the “Monitor” tab .
6. Click on “Show all devices”. Next, select “Standard monitor
types” under the SP box; choose the resolution mode you need
under the “Models” box.
If you are using a Notebook:
1. First, follow the steps above to adjust resolution of the
computer.
2. Press the toggle output settings. A combination of function
keys will enable/disable the external display. Usually, the
combination of the “Fn” key along with one of the 12 function
keys gets the external display to come on or off. For example,
NEC notebook PCs use Fn + F3, While Dell notebook PCs use
Fn + F8 key combination to toggle through external display
selection.
If you experience difculty changing resolutions or your monitor
freezes, restart all equipment including the projector.
Problem: The screen of the Notebook or PowerBook
computer is not displaying a presentation
If you are using a Notebook PC:
Some Notebook PCs may deactivate their own screens when a
second display device is in use. Each has a different way to be
reactivated. Refer to your computer’s documentation for detailed
information.
Problem: Image is unstable or ickering
Adjust the “PHASE” to correct it. Refer to the “SETTING” section
for more information.
Change the monitor color setting from your computer.
Problem: Image has vertical ickering bar
Use “CLOCK” to make an adjustment.
Check and recongure the display mode of your graphic card to
make it compatible with the product.
80
English ...
Appendices
Problem: Image is out of focus
Adjust the Focus Lever on the projector lens.
Make sure the projection screen is between the required distance
from the projector. Please see the pages 32-33).
Problem: The image is stretched when displaying 16:9 DVD
The projector automatically detects 16:9 DVD and adjusts the aspect
ratio by digitizing to full screen with 4:3 default setting.
If the image is still stretched, you will also need to adjust the aspect
ratio by referring to the following:
Please select 4:3 aspect ratio type on your DVD player if you are
playing a 16:9 DVD.
If you can’t select 4:3 aspect ratio type on your DVD player,
please select 4:3 aspect ratio in the on screen menu.
Problem: Image is reversed
Select “SETTING|GENERAL-->ORIENTATION” from the OSD
and adjust the projection direction.
Problem: Lamp burns out or makes a popping sound
When the lamp reaches its end of life, it will burn out and may
make a loud popping sound. If this happens, the projector will
not turn on until the lamp module has been replaced. To replace
the lamp, follow the procedures in the “Replacing the Lamp”.
81
... English
Appendices
Problem: LED Indicator message
POWER LED Indicator
Indicator Condition Projector Condition Note
Off The main power is off. Without connecting
power cable.
Blinking
light
GREEN 0.5sec ON / 0.5sec OFF The projector is getting
ready to turn on.
--
GREEN 2.5sec ON / 0.5sec OFF Off Timer is working. --
ORANGE 0.5sec ON / 0.5sec OFF Cooling --
Steady
light
GREEN Power on mode --
ORANGE Network Standby mode
Connecting power cable.
RED Normal Standby mode Connecting power cable.
STATUS LED Indicator
Indicator Condition Projector Condition Note
Off Normal Condition --
Blinking
light
RED 2cycle
(0.5sec ON / 0.5sec OFF)
Temperature error
--
3cycle
(0.5sec ON / 0.5sec OFF)
Power error
Power unit is not
working properly.
Contact your dealer.
4cycle
(0.5sec ON / 0.5sec OFF)
Fan error
--
6cycle
(0.5sec ON / 0.5sec OFF)
Lamp error
--
GREEN 0.5sec ON / 0.5sec OFF Re-ring the lamp
(The projector is cooling
down)
--
Steady
light
ORANGE Control Panel Lock is
working
You have pressed
cabinet button when
Control Panel Lock is on.
CONTROL ID error Remote control ID and
projector ID are not
matched.
82
English ...
Appendices
LAMP LED Indicator
Indicator Condition Projector Condition Note
Off Normal Condition --
Blinking
light
RED 0.5sec ON / 0.5sec OFF Lamp has reached its end
of life.
--
Steady
light
RED Lamp has been used beyond
its limit.
The projector will not
turn on until the lamp is
replaced.
GREEN [ECO MODE] is set to [ECO]
83
... English
Appendices
Problem: Message Reminders
Over temperature - the projector has exceeded its recommended
operating temperature and must be allowed to cool down before it
may be used.
WARNING! TEMPERATURE TOO HIGH
1. MAKE SURE AIR IN AND OUTLETS ARE NOT BLOCKED.
2. MAKE SURE THE ENVIRONMENT TEMPERATURE IS UNDER 40 DEGREE C
Replacing the lamp - the lamp is about to reach its maximum
lifetime. Prepare to replace it soon.
WARNING! LAMP
LAMP WARNING
LAMP LIFE IS ABOVE LIMIT TIME. LAMP OFF!
WARNING! LAMP
LAMP WARNING
LAMP LIFE EXCEEDED.
NOTE: When you continue to use the projector for another 100
hours after the lamp has reached the end of its life, the projector
cannot turn on.
If this happens, after replacing the lamp, connect the power cord
and then press and hold the HELP button on the remote control at
least 10 seconds. This will allow you to turn on the projector. Clear
the lamp hours by selecting “OPTIONS” -> “LAMP SETTINGS” ->
“CLEAR LAMP HOURS” from the menu.
Fan failed - the system fan is not working.
WARNING! FAN LOCKED
THE PROJECTOR WILL SWITCH OFF AUTOMATICALLY.
84
English ...
Appendices
Replacing the lamp
Optional lamp
NP35LP (for NP-V332X / NP-V332W / NP-V302H) NP36LP
(for NP-V302X / NP-V302W)
The time to replace the lamp is differed from models.
On NP-V302X, and NP-V302W, the projectors will detect the
lamp life at 4500 hours in ECO Mode Off (6000 hours in ECO
Mode) On NP-V332X, NP-V332W, and NP-V302H, the projec-
tors will detect the lamp life at 3500 hours in ECO Mode Off
(6000 hours in ECO Mode). When the “POWER” LED indica-
tor ashes red and the message below displays on-screen, the
projector has detected that the lamp is approaching its end
of life. Please see the page 72-73. It will show you a warning
message:
WARNING! LAMP
LAMP WARNING
LAMP LIFE IS ABOVE LIMIT TIME. LAMP OFF!
WARNING! LAMP
LAMP WARNING
LAMP LIFE EXCEEDED.
When you see this message, change the lamp as soon as
possible. Make sure the projector has been cooled down for at
least 60 minutes before changing the lamp.
Warning: To avoid
burns, allow the
projector to cool for
at least 60 minutes
before you replace
the lamp!
85
... English
Appendices
Warning: To reduce the
risk of personal injury,
do not drop the lamp
module or touch the
lamp bulb. The bulb
may shatter and cause
injury if it is dropped.
Lamp Replacing Procedure:
1. Switch off the power to the projector by pressing the POWER OFF button on the
remote control or the
button on the control panel.
2. Allow the projector to cool down at least 60 minutes.
3. Disconnect the power cord.
4. Use a screwdriver to loosen the screw on the lamp cover.
5. Slide and remove the cover.
6. Loosen the screw on the lamp module.
7. Lift the handle. x
8. Pinch the arrow marked positions on the connector housing and pull the housing
upward for removing the connector. y
9. Pull out the lamp module. z
10. Install the new lamp module by reversing the previous steps.
11. After replacing the lamp, turn on the power, and select the [MENU] button ->
OPTIONS |LAMP SETTINGS -> CLEAR LAMP HOURS to reset the lamp usage
hours. Please see page 73.
Do not break the glass
on the lamp module.
Keep nger prints off
the glass surface on the
lamp module. Leaving
nger prints on the
glass surface might
cause an unwanted
shadow and poor
picture quality.
1
2
3
4
Be sure to tighten the
screws after replacing
the lamp module.
5
6
86
English ...
Appendices
Cleaning procedure for the lens
If the projection lens is dusty or blemished, please clean the
lens as following procedure:
1. Turn off the projector and cool projector down for a while.
2. Unplug the power cord from outlet.
3. Blow the dust by blower for cameras which you could buy
from camera shops.Wipe the lens gently using a cleaning
cloth.
CAUTION:
• Always wipe the lens with a cleaning cloth.
• Please do not wipe the lens hard because that may cause serious damage on the
lens surface.
• Wiping might scratch the lens. Optical performance of the projector will thus be
impacted if the lens is scratched after wiping. Optical performance impact will
be dependent on the scratch condition on it.
• Do not use liquid cleaners or chemicals on the cloth because it may contaminate
the cloth and cause serious damage on the surface of lens.
• Do not use a spray containing ammable gas to get rid of accumulated dust on
the lens. It may cause of re.
87
... English
Appendices
Specications
Optical NP-V302X NP-V302W NP-V332X NP-V332W NP-V302H
Projection System
Single DLP
®
chip (0.55",
Aspect ratio
4:3)
Single DLP
®
chip (0.65",
Aspect ratio
16:10)
Single DLP
®
chip (0.55",
Aspect ratio
4:3)
Single DLP
®
chip (0.65",
Aspect ratio
16:10)
Single DLP
®
chip (0.65",
Aspect ratio
16:9)
Resolution (pixels) *1
1024x768
(XGA)
1280x800
(WXGA)
1024x768
(XGA)
1280x800
(WXGA)
1920x1080
(1080P)
Lens
Manual zoom and manual focus
F=2.41-2.55 F=2.50-2.67 F=2.41-2.55 F=2.50-2.67 F=2.55-2.85
f=21.8-
24.0mm
f=21.8-
24.0mm
f=21.8-
24.0mm
f=21.8-
24.0mm
f=22.4-
26.8mm
Lamp
195W AC
(160W in ECO mode)
218W AC
(170W in ECO mode)
Light Output *2 *3
3000 lumens 3000 lumens 3300 lumens 3300 lumens 3000 lumens
Approx. 85% in ECO mode
Contrast Ratio *3
(with DYNAMIC
CONTRAST ON)
10000:1 10000:1 10000:1 10000:1 8000:1
Image Size (Diagonal)
30" to 300" 40" to 300"
0.76 to 7.6 m
(4:3)
0.76 to 7.6 m
(16:10)
0.76 to 7.6 m
(4:3)
0.76 to 7.6 m
(16:10)
1.02 to 7.6 m
(16:9)
Projection
Distance
wide
47"to 468"
(1.90 to
11.9m)
39" to 394"
(1.00 to
10.0m)
47"to 468"
(1.90 to
11.9m)
39" to 394"
(1.00 to
10.0m)
52" to 392"
(1.33 to
9.96m)
tele
52" to 516"
(1.31 to
13.1m)
43" to 432"
(1.10 to
11.0m)
52" to 516"
(1.31 to
13.1m)
43" to 432"
(1.10 to
11.0m)
63" to 471"
(1.59 to
11.9m)
Projection
Angle
wide 14.0° 14.2° 14.0° 14.2° 14.0°
tele 12.8° 13.0° 12.8° 13.0° 11.7°
*1 Effective pixels are more than 99.99%.
*2 This is the light output value (lumens) when [PICTURE MODE] is set to
[HIGH-BRIGHT] in the menu.
If any other mode is selected as [PICTURE MODE], the light output value
may drop slightly.
*3 Compliance with ISO21118-200
88
English ...
Appendices
Electrical NP-V302X NP-V302W NP-V332X NP-V332W NP-V302H
Inputs 1 x VGA and Y/Pb/Pr, 2 x
HDMI *4 (Standard HDMI
connector), 1 x VGA
Audio (Stereo mini jack), 1
x Composite Video (RCA
(yellow)), 2 x Composite
Audio (RCA for both left
and right)
1 x VGA and Y/Pb/Pr, 2 x HDMI *4
(Standard HDMI connector and one with
MHL function support), 1 x VGA Audio
(Stereo mini jack), 1 x Composite Video
(RCA (yellow)), 2 x Composite Audio
(RCA for both left and right)
Outputs 1 x VGA (D-sub female 15 pin connector) (Separate sync signal only), 1
x Audio (Stereo mini jack(green))
PC Control 1 x PC Control Port (D-Sub 9 Pin)
Wired LAN Port 1 x RJ-45 (10/100 BASE-T/100 BASE-TX)
Service Port Mini USB type B (for FW download)
Color Reproduction 1.07 billion colors simultaneously with 10-bit signal processing
Compatible
Signals *5
Analog VGA/SVGA/XGA/XGA+/SXGA/Quad-VGA/SXGA+/UXGA/
PowerBook G4/iMac DV (G3)/WSVGA/WXGA/WXGA+/WSXGA/
WUXGA/480i/480p/576i/576p/720p/1080i/1080p
HDMI VGA/SVGA/XGA/XGA+/SXGA/Quad-VGA/SXGA+/UXGA/
PowerBook G4/iMac DV (G3)/WSVGA/WXGA/WXGA+/WSXGA/
WUXGA/480i/480p/576i/576p/720p/1080i/1080p
Horizontal Resolution 540 TV lines: NTSC/NTSC4.43/PAL/PAL-M/PAL-N/PAL60
300 TV lines: SECAM
Scan Rate Hsync Frequency: 24kHz ~ 102kHz
Vsync Frequency: 48kHz ~ 120 Hz
Sync Compatibility Separate Sync
Built-in Speaker 8W
Power Requirement 100 - 240V AC 50/60Hz
Input Current 2.5-1.0 A 2.5-1.0 A 2.7-1.1 A 2.8-1.1 A 2.8-1.2A
Power Consumption (Typical value)
Eco Mode OFF 251W (*6) /
237W (*7)
249W (*6) /
237W (*7)
275W (*6) /
263W (*7)
277W (*6) /
263W (*7)
280W (*6) /
266W (*7)
Eco Mode 206W (*6) /
198W (*7)
205W (*6) /
194W (*7)
213W (*6) /
204W (*7)
215W (*6) /
204W (*7)
217W (*6) /
207W (*7)
Network Stand-by 1.6W (*6) /
1.8W (*7)
1.5W (*6) /
1.8W (*7)
1.6W (*6) /
1.8W (*7)
1.5W (*6) /
1.8W (*7)
1.6W (*6) /
1.8W (*7)
Normal Stand-by 0.22W (*6) /
0.37W (*7)
0.23W (*6) /
0.38W (*7)
0.23W (*6) /
0.35W (*7)
0.22W (*6) /
0.35W (*7)
0.22W (*6) /
0.35W (*7)
89
... English
Appendices
*4 HDMI
®
(Deep Color, Lip Sync) with HDCP
What is HDCP/HDCP technology?
HDCP is an acronym for High-bandwidth Digital Content Protection. High
bandwidth Digital Content Protection (HDCP) is a system for preventing il-
legal copying of video data sent over a High-Denition Multimedia Interface
(HDMI).
If you are unable to view material via the HDMI input, this does not necessar-
ily mean the projector is not functioning properly. With the implementation
of HDCP, there may be cases in which certain content is protected with HDCP
and might not be displayed due to the decision/intention of the HDCP com-
munity (Digital Content Protection, LLC).
Video: Deep Color; 8/10/12-bit, LipSync
*5 NP-V302X, NP-V332X:
An image with higher or lower resolution than the projector’s native resolu-
tion (1024 × 768) will be displayed with scaling technology.
NP-V302W, NP-V332W:
An image with higher or lower resolution than the projector’s native resolu-
tion (1280 × 800) will be displayed with scaling technology.
NP-V302H:
An image with higher or lower resolution than the projector’s native resolu-
tion (1920 × 1080) will be displayed with scaling technology.
*6 100V - 130VAC
*7 200V - 240VAC
90
English ...
Appendices
Mechanical NP-V302X NP-V302W NP-V332X NP-V332W NP-V302H
Installation
Orientation
Desktop/Front, Desktop/Rear, Ceiling/Front, Ceiling/Rear
Dimensions 12.8"(W) x 3.5" (H) X 9.3" (D) / 324 mm (W) x 88 mm (H) x 237 mm (D)
(not including protrusions)
Weight 2.7 kg/6.0lbs 2.8 kg/6.2lbs 2.9 kg/6.4lbs
Environmental
Conditions *8
Operational Temperatures: 41° to 104° (5°C to 40°C) 20% to 80% humidity (non-
condensing)
Storage Temperatures: 14° to 122° F (-10°C to 50°C) 20% to 80% humidity (non-
condensing)
Regulations UL/C-UL Approved (UL 60950-1, CSA 60950-1)
Meets DOC Canada Class B requirements
Meets FCC Class B requirements
Meets AS/NZS CISPR.22 Class B
Meets EMC Directive (EN55022, EN55024, EN61000-3-2, EN61000-3-3)
Meets Low Voltage Directive (EN60950-1, TÜV Approved)
*8 Operational temperatures
- 0 to 2500 feet/760 m in the range of 41° to 104°F (5°to 40°C)
- 2500 feet/760m to 5000 feet/1500 m in the range of 41°to 95°F (5°to 35°C)
- 5000 feet/1500 m to 10000 feet/3000 m in the range of 41°to 86°F (5°to 30°C)
- Set [FAN MODE] to [HIGH ALTITUDE] when using the projector at altitudes
approx. 2500 feet/760 m or higher.
91
... English
Appendices
Compatibility Modes
Modes Resolution (dots)
V.Frequency
[Hz]
H.Frequency
[KHz]
VGA 640x480
60 31.47
VGA 640x480
72 37.86
VGA 640x480
75 37.5
VGA 640x480
85 43.27
SVGA 800x600
56 35.2
SVGA 800x600
60 37.88
SVGA 800x600
72 48.08
SVGA 800x600
75 46.88
SVGA 800x600
85 53.67
XGA
1024x768
60 48.36
XGA
1024x768
70 56.48
XGA
1024x768
75 60.02
XGA
1024x768
85 68.67
XGA+
1152x864
75 67.5
SXGA
1280x1024
60 63.98
SXGA
1280x1024
72 77.9
SXGA
1280x1024
75 79.98
SXGA
1280x1024
85 91.15
Quad VGA
1280x960
60 60
Quad VGA
1280x960
75 75
SXGA+ 1400x1050
60 65.32
UXGA 1600x1200
60 75
Mac OS X 640x480
60 31.5
Mac OS X 640x480
66.6(67) 35
Mac OS X 800x600
60 37.88
Mac OS X 1024x768
60 48.36
Mac OS X 1152x870
75 68.68
Mac OS X 1280x960
75 75.2
(1) VGA Analog - PC Signal
VGA Analog
92
English ...
Appendices
(2) VGA Analog - Extended Wide timing
Modes Resolution (dots)
V.Frequency
[Hz]
H.Frequency
[KHz]
HD
1280x720 60 44.8
WXGA 1280x768
60 47.78
WXGA 1280x768
75 60.29
WXGA 1280x768
85 68.63
WXGA
1280x800 60 49.6
WXGA
1366x768 60 47.71
WXGA+
1440x900 60 55.9
WSXGA
1680x1050 60 65.3
Full HD 1920x1080 60 67.5
WUXGA
1920x1200 60 74.0
(3) VGA Analog -Component Signal
Modes Resolution (dots)
V.Frequency
[Hz]
H.Frequency
[KHz]
480i
720x480
59.94(29.97) 27
480p
720x480
59.94 31.47
576i
720x576
50(25)
27
576p
720x576
50
31.25
720p
1280x720
60
45
720p
1280x720
50
37.5
1080i
1920x1080
60(30)
33.75
1080i
1920x1080
50(25)
33.75
1080p
1920x1080
60
67.5
1080p
1920x1080 50 56.25
93
... English
Appendices
Signal Resolution (dots) Aspect Ratio
Refresh Rate
[Hz]
VGA 640x480
4:3 59.94/60
SVGA
800x600
4:3 60
XGA
1024x768 *1
4:3 60
XGA
1280x768
15:9 60
WXGA
1280x800 *2
16:10 60
WXGA
1366x768 *4
16:9 60
SXGA
1280x1024
5:4 60
SXGA+
1400x1050
4:3 60
WXGA+
1440x900
16:10 60
WXGA++
1600x900
16:9 60
WSXGA+
1680x1050
16:10 60
UXGA
1600x1200
4:3 60
Full HD
1920x1080 *3
16:9 60
HDTV (1080p)
1920x1080
16:9 23.98/24/50/59.94/60
HDTV(1080i)
1920x1080
16:9 50/59.94/60
HDTV (720p)
1280x720
16:9 50/59.94/60
SDTV (480p)
720x480
4:3/16:9 59.94/60
SDTV (576p)
720x576
4:3/16:9 50
SDTV (480i)
720(1440)x480
4:3/16:9 59.94/60
SDTV (576i)
720(1440)x576
4:3/16:9 50
*1 XGA Model Real Resolution
*2 WXGA Model Real Resolution
*3 1080p Model Real Resolution
*4 The projector may fail to display these signals correctly
when [AUTO] is selected for [ASPECT RATIO] in the
on-screen menu.
The factory default is [AUTO] for [ASPECT RATIO]. To display these
signals, select [16:9] for [ASPECT RATIO].
HDMI Digital
94
English ...
Appendices
(1) HDMI - 3D Timing
Signal
Resolution
(dots)
Aspect
Ratio
Refresh Rate
[Hz]
For PC Signal
XGA
1024x768 *1
4:3 60/120 *5
1280x720
1280x720
16:9 60/120 RB *5
WXGA
1280x800 *2
16:10 60/120 RB *5
Full HD
1920x1080 *3
16:9 60
For Video Signal
SDTV (480i)
720x480
4:3/16:9 60
For HDMI 3D
720p (Frame Packing) 1280x720
16:9 50/60/59.94
1080p (Frame Packing) 1920x1080
16:9 23.98/24
1080i (Side by Side (Half)) 1920x1080
16:9 50/60/59.94
1080P (Side by Side (Half)) 1920x1080
16:9 50/60/59.94 *6
720p (Top and Bottom) 1280x720
16:9 50/60/59.94
1080p (Top and Bottom) 1920x1080
16:9 23.98/24
*1 XGA Model Real Resolution
*2 WXGA Model Real Resolution
*3 1080p Model Real Resolution
*4 The projector may fail to display these signals correctly
when [AUTO] is selected for [ASPECT RATIO] in the
on-screen menu.
The factory default is [AUTO] for [ASPECT RATIO]. To display these
signals, select [16:9] for [ASPECT RATIO].
*5 The 120 Hz signals are support frame sequential format only.
*6 Select manually.
95
... English
Appendices
TIP:
• An image with higher or lower resolution than the projector’s native
resolution will be displayed with scaling technology.
• Sync on Green and Composite sync signals are not supported.
• Signals other than those specied in the table above may not be displayed
correctly. If this should happen, change the refresh rate or resolution on
your PC. Refer to Display Properties help section of your PC for proce-
dures.
(2) MHL Signal
Signal Resolution (dots)
Aspect
Ratio
Refresh Rate (Hz)
VGA 640x480 4:3 59.94/60
HDTV (1080p) 1920x1080 16:9 23.97/24/50/59.94/60
HDTV (1080i) 1920x1080 16:9 50/59.94/60
HDTV (720p) 1280x720 16:9 50/59.94/60
SDTV (480p) 720x480 4:3/16:9 59.94/60
SDTV (576p) 720x576 4:3/16:9 50
SDTV (480i)
720 x 480(1440x480i)
4:3/16:9 59.94/60
SDTV (576i)
720 x 576(1440x576i)
4:3/16:9 50
96
English ...
Appendices
130,00 (5,12”)
219,00 (8,62”)
96,00 (3,78”)79,00 (3,11”)
59,00 (2,32”)
116,00 (4,57”)84,00 (3,31”)
142,00 (5,59”)142,00 (5,59”)
37,00 (1,46”)
150,00 (5,91”)
4-M4*L8 (Max)
for Ceiling Mount
57,89 (2,28”)
Please note that
damage resulting from
incorrect installation
will invalidate the
warranty.
Ceiling Mount Installation
1. To refuse the projector from damage, please use the
ceiling mount kit for ceiling mount installation.
2. If you buy a ceiling mount from another company,
please be sure to use the screw in correct size. Screw
size is vary depending on the thickness of the mount-
ing plate.
Screw type: M4*4
Maximum screw length: 8mm
Minimum screw length: 6mm
Warning:
1. Be sure to keep at
least 10 cm gap
between the ceiling
and the bottom of the
projector.
2. Avoid installing the
projector near a heat
source.
Unit: mm (inch)
97
... English
Appendices
Cabinet Dimensions
103,00 (4,06”)
59,00 (2,32”)
324,00 (12,76”)
250,00 (9,84”) 43,41 (1,71”)
57,89 (2,28”)
91,50 (3.60”)
88,00 (3,46”)
9,80 (0,39”)
Unit: mm (inch)
98
English ...
Appendices
Pin Assignments of D-Sub COMPUTER Input
Connector
Mini D-Sub 15 Pin Connector
1 2 3 4 5
11 12 13 14 15
6 7 8 9 10
Signal Level
Video signal : 0.7Vp-p (Analog)
Sync signal : TTL level
Pin No. RGB Signal (Analog) YCbCr Signal
1 Red Cr
2 Green Y
3 Blue Cb
4 Ground
5 Ground
6 Red Ground
Cr Ground
7 Green Gro Y Ground
8 Blue Ground Cb Ground
9 No Connection
10 Sync Signal Ground
11 No Connection
12 Bi-directional DATA (SDA)
13
Horizontal Sync or Composite
Sync
14 Vertical Sync
15 Data Clock
99
... English
Appendices
PC Control Codes and Cable Connection
PC Control Codes
Function Code Data
POWER ON 02H 00H 00H 00H 00H 02H
POWER OFF 02H 01H 00H 00H 00H 03H
INPUT SELECT COMPUTER 02H 03H 00H 00H 02H 01H 01H 09H
INPUT SELECT HDMI 1 02H 03H 00H 00H 02H 01H A1H A9H
INPUT SELECT HDMI 2 02H 03H 00H 00H 02H 01H A2H AAH
INPUT SELECT VIDEO 02H 03H 00H 00H 02H 01H 06H 0EH
PICTURE MUTE ON 02H 10H 00H 00H 00H 12H
PICTURE MUTE OFF 02H 11H 00H 00H 00H 13H
SOUND MUTE ON 02H 12H 00H 00H 00H 14H
SOUND MUTE OFF 02H 13H 00H 00H 00H 15H
NOTE: Contact your local dealer for a full list of the PC Control Codes if needed.
Cable Connection
Communication Protocol
Baud rate ....................................................38400 bps
Data length .................................................8 bits
Parity ...........................................................No parity
Stop bit ........................................................One bit
X on/off ........................................................None
Communications procedure ....................Full duplex
PC Control Connector (D-SUB 9P)
3 4 521
9876
NOTE 1: Pins 1, 4, 6 and 9 are no used.
NOTE 2: Jumper “Request to Send” and “Clear to Send” together on both ends of the cable to simplify cable connection.
To TxD of PC
To RxD of PC
To GND of PC
To RTS of PC
To CTS of PC
Power
Nopower(POWERindicatordoesnotlightgreen).
Powercable'splugisfullyinsertedintothewalloutlet.
Lampcoverisinstalledcorrectly.
LampHoursUsed(lampoperationhours)wasclearedafter
lampreplacement.
NopowereventhoughyoupressandholdthePOWER
buttonforaminimumof1second.
Shutdownduringoperation.
Powercable'splugisfullyinsertedintothewalloutlet.
Lampcoverisinstalledcorrectly.
PowerManagementisturnedoff(onlymodelswiththe
PowerManagementfunction).
Video and Audio
NoimageisdisplayedfromyourPCorvideoequipmenttothe
projector.
Stillnoimageeventhoughyouconnecttheprojectortothe
PCfirst,thenstartthePC.
EnablingyournotebookPC'ssignaloutputtotheprojector.
Acombinationoffunctionkeyswillenable/disablethe
externaldisplay.Usually,thecombinationofthe"Fn"key
alongwithoneofthe12functionkeysturnstheexternal
displayonoroff.
Noimage(bluebackground).
StillnoimageeventhoughyoupresstheAUTOADJUST
button.
Stillnoimageeventhoughyoucarryout[RESET]inthe
projector'smenu.
Signalcable'splugisfullyinsertedintotheinputconnector
Amessageappearsonthescreen.
(_____________________________________________)
Thesourceconnectedtotheprojectorisactiveand
available.
Stillnoimageeventhoughyouadjustthebrightnessand/or
thecontrast.
Inputsourcesresolutionandfrequencyaresupportedby
theprojector.
Imageistoodark.
Remainsunchangedeventhoughyouadjustthebrightness
and/orthecontrast.
Imageisdistorted.
Imageappearstobetrapezoidal(unchangedeventhough
youcarryoutthe[KEYSTONE]adjustment).
Partsoftheimagearelost.
StillunchangedeventhoughyoupresstheAUTOADJUST
button.
Stillunchangedeventhoughyoucarryout[RESET]inthe
projector'smenu.
Imageisshiftedintheverticalorhorizontaldirection.
Horizontalandverticalpositionsarecorrectlyadjustedona
computersignal.
Inputsource'sresolutionandfrequencyaresupportedby
theprojector.
Somepixelsarelost.
Imageisflickering.
StillunchangedeventhoughyoupresstheAUTOADJUST
button.
Stillunchangedeventhoughyoucarryout[RESET]inthe
projector'smenu.
Imageshowsflickeringorcolordriftonacomputersignal.
Imageappearsblurryoroutoffocus.
Stillunchangedeventhoughyoucheckedthesignal'sreso-
lutiononPCandchangedittoprojector'snativeresolution.
Thethrowdistanceiswithin
47"to516"/1189mmto
13105mm(NP-V332X&NP-V302X),39"to432"/1002
mmto10985mm(NP-V332W&NP-V302W),52"to471"/
1328mmto11955mm(NP-V302H)
Stillunchangedeventhoughyouadjustedthefocus.
Nosound.
Audiocableiscorrectlyconnectedtotheaudioinputofthe
projector.
Stillunchangedeventhoughyouadjustedthevolumelevel.
Other
Remotecontroldoesnotwork.
Noobstaclesbetweenthesensoroftheprojectorandthe
remotecontrol.
Projectorisplacednearafluorescentlightthatcandisturb
theinfraredremotecontrols.
Batteriesarenewandarenotreversedininstallation
Buttonsontheprojectorcabinetdonotwork.
[CONTROLPANELLOCK]isnotturnedoninthemenu.
StillunchangedeventhoughyoupressandholdtheEXIT
buttonforminimumof10seconds.
Troubleshooting Check List
Before contacting your dealer or service personnel, check the following list to be sure repairs are needed also by
referring to the “Troubleshooting” section in your user’s manual. This checklist below will help us solve your
problem more efciently.
* Print the following pages.
Frequency of occurrence
always sometimes(Howoften?_______________________) other(__________________)
In the space below please describe your problem in detail.
Information on application and environment where your projector is used
Projector
Modelnumber:
SerialNo.:
Dateofpurchase:
Lampoperatingtime(hours):
EcoMode:
Off Eco
Informationoninputsignal:
Horizontalsynchfrequency [ ]kHz
Verticalsynchfrequency [ ]Hz
Synchpolarity H
(+) (-)
V
(+) (-)
Synchtype
Separate Composite
SynconGreen
STATUSIndicator:
Steadylight
Orange Green
Blinkinglight [ ]cycles
Remotecontrolmodelnumber:
Installation environment
Screensize: inch
Screentype: Whitematte Beads Polarization
Wideangle Highcontrast
Throwdistance: feet/inch/m
Orientation:
Ceilingmount Desktop
Poweroutletconnection:
Connecteddirectlytowalloutlet
Connectedtopowercordextenderorother(thenumber
ofconnectedequipment______________)
Connectedtoapowercordreelorother(thenumberof
connectedequipment______________)
Computer
Manufacturer:
Modelnumber:
NotebookPC
/Desktop
Nativeresolution:
Refreshrate:
Videoadapter:
Other:
Video equipment
VCR,DVDplayer,Videocamera,Videogameorother
Manufacturer:
Modelnumber:
Signal cable
NECstandardorothermanufacturer'scable?
Modelnumber: Length: inch/m
Distributionamplifier
Modelnumber:
Switcher
Modelnumber:
Adapter
Modelnumber:
Projector
PC
DVD Player
REGISTER YOUR PROJECTOR!
(for residents in the United States, Canada, and Mexico)
Please take time to register your new projector. This will activate your lim-
ited parts and labor warranty and InstaCare service program.
Visit our web site at
www.necdisplay.com, click on support center/register
product and submit your completed form online.
Upon receipt, we will send a conrmation letter with all the details you will
need to take advantage of fast, reliable warranty and service programs from
the industry leader, NEC Display Solutions of America, Inc.
NEC Display Solutions, Ltd. 2015 7N952171
