SHINDAIWA OWNER’S/OPERATOR’S MANUAL
EB633RT BLOWER
Part Number 82050 Rev. 6/08
Minimize the risk of injury to yourself and others!
Read this manual and familiarize yourself with the
contents. Always wear eye and hearing protection
when operating this unit.
WARNING!
SHINDAIWA OWNER’S/OPERATOR’S MANUAL
EB633RT BLOWER
X7531126005
11/19
2
TABLE OF CONTENTS
Introduction ................................................................2
Safety .........................................................................3
- Manual Safety Symbols and
Importan Information .........................................3
- International Symbols ......................................... 3
- Personal Condition and Safety Equipment ......... 3
- Equipment ........................................................... 6
Emission Control .......................................................6
Description ................................................................. 7
Contents ....................................................................8
Assembly....................................................................9
- Install Blower Pipes ............................................ 9
Operation ..................................................................10
- Fuel ...................................................................10
- Starting Cold Engine .........................................13
- Starting Warm Engine ....................................... 13
- Stopping Engine ................................................14
- Operating Blower ..............................................15
Maintenance ............................................................. 15
- Skill Levels .......................................................15
- Maintenance Intervals .......................................15
- Air Filter ...........................................................16
- Fuel Filter ..........................................................17
- Spark Plug .........................................................17
- Cooling System .................................................18
- Exhaust System .................................................19
- Carburetor Adjustment ......................................20
Troubleshooting ....................................................... 22
Storage .....................................................................23
Long Term Storage (Over 30 Days)..................23
Specications ...........................................................24
Warranty Statement ..................................................25
Product Registration .................................................27
Servicing Information ..............................................28
Notes.........................................................................29
INTRODUCTION
Copyright© 2019 By Echo, Incorporated
All Rights Reserved.
WARNING!
Cancer and Reproductive Harm.
www.P65Warnings.ca.gov
Specications, descriptions and illustrative material in this literature are as accurate as known at the time of publica-
tion, but are subject to change without notice. Illustrations may include optional equipment and accessories, and may not
include all standard equipment.
Read and understand all provided literature. Literature contains specications and information for safety, operation,
maintenance, storage and assembly specic to this product. For additional literature, including safety manuals where ap-
plicable, or questions regarding terms used in this manual, visit:
https://www.echo-usa.com/manuals
OR
https://www.shindaiwa-usa.com/manuals
WARNING
Read and understand all provided literature before use.
Failure to do so could result in serious injury
3
SAFETY
Throughout this manual and on the product itself, you will nd safety alerts and helpful, informational messages
preceded by symbols or key words. The following is an explanation of those symbols and key words and what they mean
to you.
WARNING
Users of this product risk injury to themselves and others if the unit is used improperly and/or safety precautions are
not followed. Proper clothing and safety gear must be worn when operating unit.
WARNING
The safety alert symbol accompanied by the word
“WARNING” calls attention to an act or condition
which CAN lead to serious personal injury or
death if not avoided.
CIRCLE AND SLASH SYMBOL
This symbol means the specic action shown
is prohibited. Ignoring these prohibitions can
result in serious or fatal injury.
CAUTION
The safety alert symbol accompanied by the word
“CAUTION” calls attention to an act or condition
which may lead to minor or moderate personal
injury if not avoided.
NOTE
This enclosed message provides tips for use, care and
maintenance of the unit.
IMPORTANT
The enclosed message provides information
necessary for the protection of the unit.
DANGER
The safety alert symbol accompanied by the word
“DANGER” calls attention to an act or condition
which WILL lead to serious personal injury or
death if not avoided.

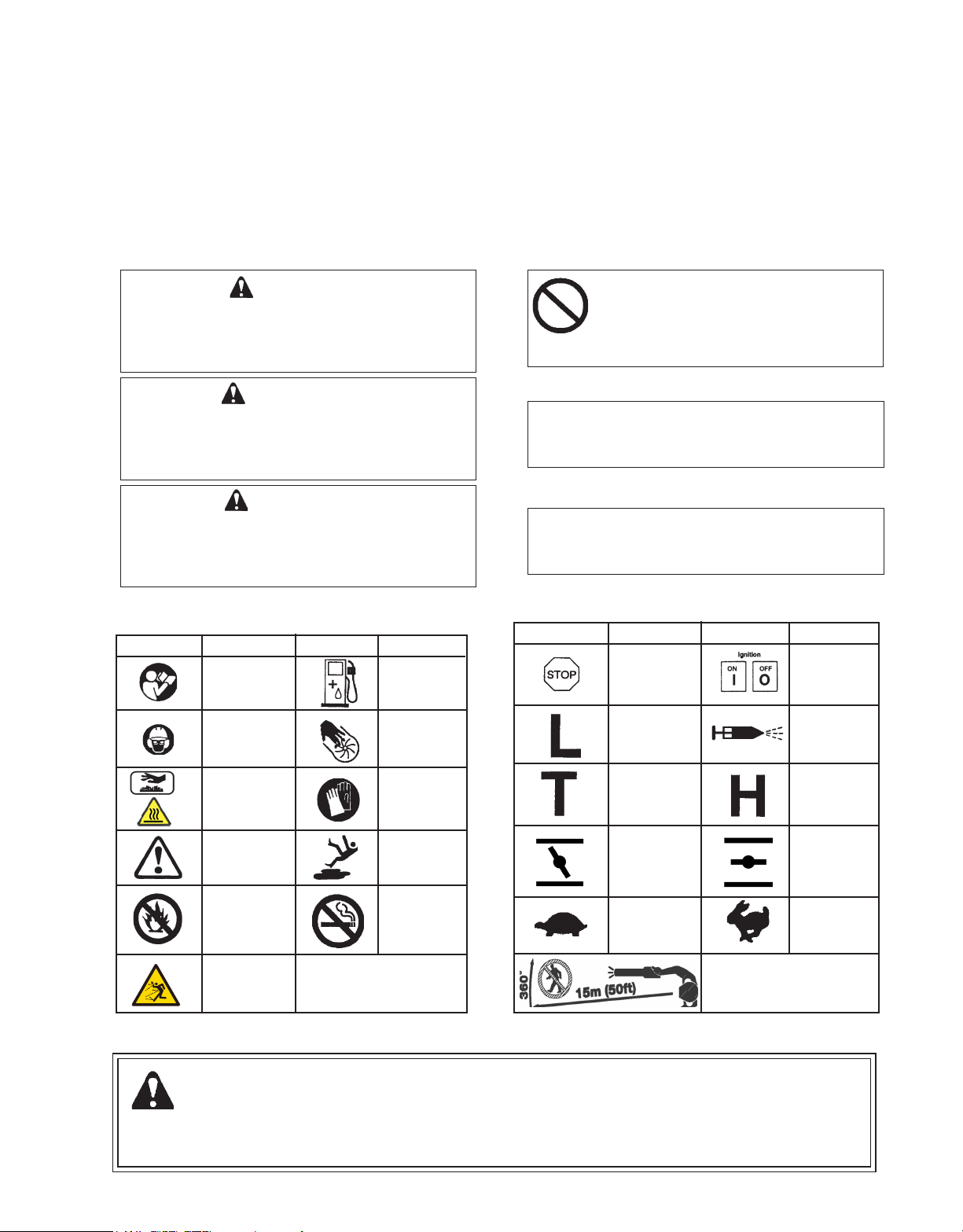

Read and
understand
Operator's
Manual.
Wear eyes,
ears and head
protection
Hot Surface
Safety/Alert
DO NOT allow
sparks near
fuel.
Fuel and oil
Finger
Severing
Wear hand
protection. Use
two handed.
Wear slip
resistant foot
wear.
near fuel.
Description Description
Description
Description
Stop
Low Speed
Idle Speed
Choke Control
"COLD START"
Position
(Choke Closed)
Idle Speed
Ignition
ON/OFF
High Speed
Choke Control
"RUN"
Position
(Choke Open)
Fast Speed
Beware of
Thrown
Keep Bystanders and Helpers
4
Physical Condition
Your judgment and physical dexterity may not be good:
• if you are tired or sick,
• if you are taking medication,
• if you have taken alcohol or drugs.
Operate unit only if you are physically and mentally well.
Eye Protection
Wear eye protection that meets ANSI Z87.1 or CSA Z94.3
requirements whenever you operate the unit.
Hand Protection
Wear no-slip, heavy-duty work gloves to improve your
grip on the blower handle. Gloves also reduce the trans-
mission of machine vibration to your hands.
Breathing Protection
Wear a facemask to protect against dust.
Hearing Protection
Shindaiwa recommends wearing hearing protection when-
ever unit is used.
Vibration and Cold
It is believed that a condition called Raynaud’s Phenomenon, which affects the ngers of certain individuals, may
be brought about by exposure to vibration and cold. Exposure to vibration and cold may cause tingling and burning
sensations, followed by loss of color and numbness in the ngers. The following precautions are strongly recommended,
because the minimum exposure, which might trigger the ailment, is unknown.
• Keep your body warm, especially the head, neck, feet, ankles, hands, and wrists.
• Maintain good blood circulation by performing vigorous arm exercises during frequent work breaks, and also by
not smoking.
• Limit the hours of operation. Try to ll each day with jobs where operating the unit or other hand-held power
equipment is not required.
• If you experience discomfort, redness, and swelling of the ngers followed by whitening and loss of feeling, con-
sult your physician before further exposing yourself to cold and vibration.
Proper Clothing
Wear snug tting, durable clothing;
• Pants should have long legs, shirts with long sleeves.
• DO NOT WEAR SHORTS,
• DO NOT WEAR TIES, SCARVES, JEWELRY,
or clothing with loose or hanging items that could
become entangled in moving parts or surrounding
growth..
Wear sturdy work shoes with nonskid soles;
• DO NOT WEAR OPEN TOED SHOES,
• DO NOT OPERATE UNIT BAREFOOTED.
Wear no-slip, heavy duty work gloves.
Keep long hair away from engine and air intake. Retain
hair with cap or net.
Hot Humid Weather
Heavy protective clothing can increase operator fatigue
which may lead to heat stroke. Schedule heavy work for
early morning or late afternoon hours when temperatures
are cooler.
WARNING
The ignition components of this machine generate an electromagnetic eld during operation which may interfere
with some pacemakers. To reduce the risk of serious or fatal injury, persons with pacemakers should consult
with their physician and the pacemaker manufacturer before operating this machine. In the absence of such
information, Shindaiwa does not recommend the use of Shindaiwa products by anyone who has a pacemaker.
5

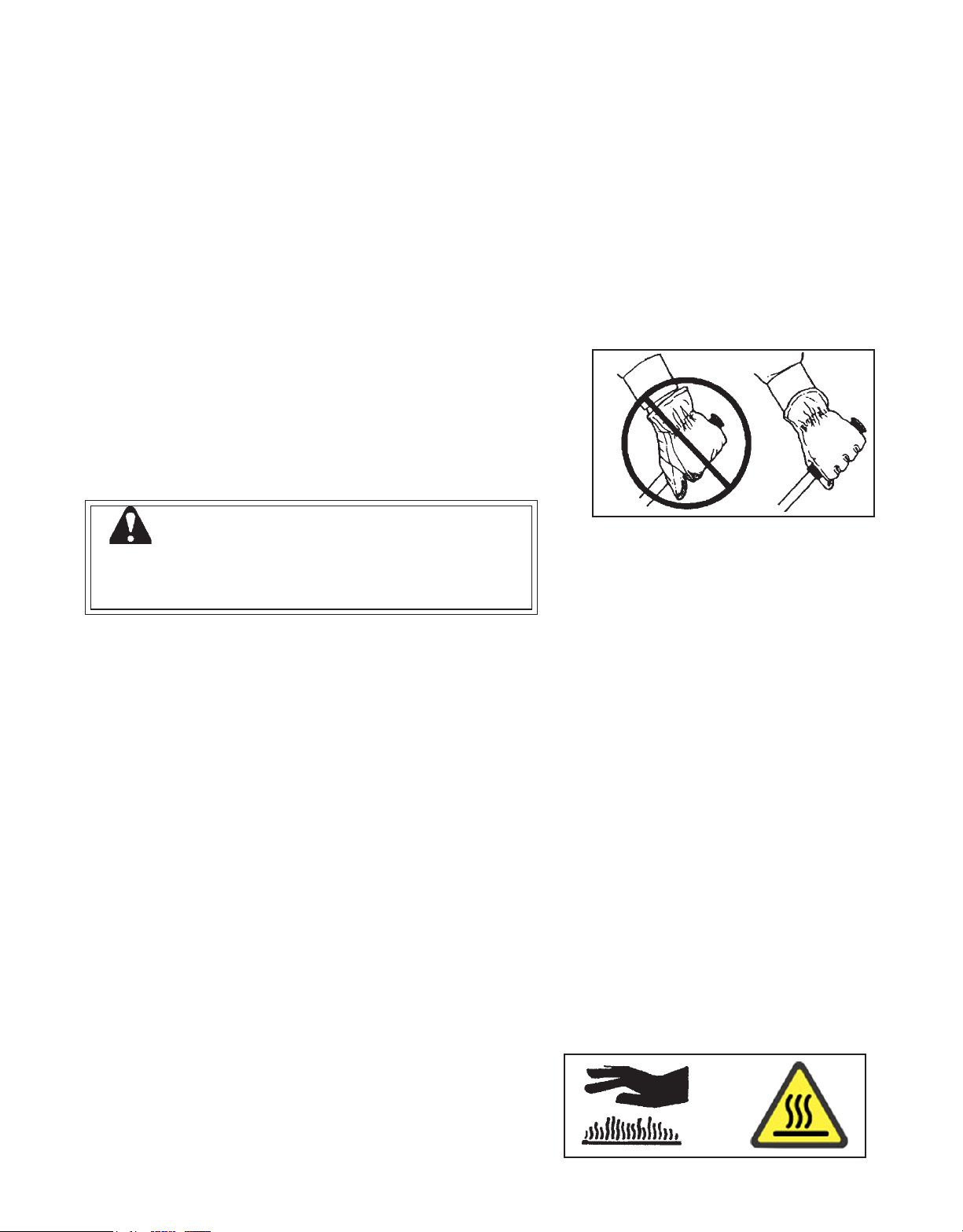

Read the Manuals
• Provide all users of this equipment with the Operator’s Manual
for instructions on Safe Operation.
Clear the Work Area
• Spectators and fellow workers must be warned, and children and
animals prevented from coming nearer than 15 m (50 ft.) while
the unit is in use.
• Take wind conditions into account: avoid open doors and
windows.
• Do not point blower at people or animals.
Keep a Firm Grip
• Hold the front and rear handles with both hands, with thumbs
and ngers encircling the handles.
Keep a Solid Stance
• Maintain footing and balance at all times. Do not stand on
slippery, uneven or unstable surfaces. Do not work in odd
positions or on ladders. Do not over reach.
Avoid Hot Surfaces
• Keep exhaust area clear of ammable debris. Avoid contact
during and immediately after operation.
Repetitive Stress Injuries
It is believed that overusing the muscles and tendons of the ngers, hands, arms, and shoulders may cause soreness, swelling,
numbness, weakness, and extreme pain in those areas. Certain repetitive hand activities may put you at a high risk for developing
a Repetitive Stress Injury (RSI). An extreme RSI condition is Carpal Tunnel Syndrome (CTS), which could occur when your wrist
swells and squeezes a vital nerve that runs through the area.
Some believe that prolonged exposure to vibration may contribute to CTS. CTS can cause severe pain for months or even years.
To reduce the risk of RSI/CTS, do the following:
• Avoid using your wrist in a bent, extended, or twisted position. Instead try to maintain a straight wrist position. Also, when
grasping, use your whole hand, not just the thumb and index
nger.
• Take periodic breaks to minimize repetition and rest your hands.
• Reduce the speed and force with which you do the repetitive
movement.
• Do exercises to strengthen the hand and arm muscles.
• Immediately stop using all power equipment and consult a doctor
if you feel tingling, numbness, or pain in the ngers, hands,
wrists, or arms. The sooner RSI/CTS is diagnosed, the more
likely permanent nerve and muscle damage can be prevented.
DANGER
Do not operate this product indoors or in inadequately ventilated
areas. Engine exhaust contains poisonous emissions and can
cause serious injury or death.
6
WARNING
Use only approved attachments. Serious injury may result from the use of a non-approved attachment combination.
ECHO, INC. will not be responsible for the failure of cutting devices, attachments or accessories which have not been
tested and approved by ECHO. Read and comply with all safety instructions listed in this manual
• Check unit for loose/missing nuts, bolts, and screws. Tighten and/or replace as needed.
• Do not use blower if any part is missing or damaged.
• Have repairs done only by an authorized service dealer.
PRODUCT EMISSION DURABILITY (EMISSION COMPLIANCE PERIOD)
The 50 or 300 hour emission compliance period is the time span selected by the manufacturer certifying the engine
emissions output meets applicable emissions regulations, provided that approved maintenance procedures are followed
as listed in the Maintenance Section of this manual.
CARB And EPA Emissions Control Information
The emission control system for the engine is EM (engine modica-
tion) and, if the second to last character of the Engine Family on the
Emission Control Information label (sample below) is “B”, “C”, “K”,
or “T”, the emission control system is EM and TWC (3-way catalyst).
The fuel tank/fuel line emission control system is EVAP (evaporative
emissions). Evaporative emissions for California models are only ap-
plicable to fuel tanks and fuel feed lines.
An Emission Control Label is located on the engine.
(This is an EXAMPLE ONLY, information on label varies by engine
FAMILY).
EMISSION CONTROL INFORMATION
ENGINE FAMILY: CEHXS.0214KL DISPLACEMENT: 21.2cc
EMISSION COMPLIANCE PERIOD: 50 Hours
THIS ENGINE MEETS 2014 U.S. EPA EXH/EVP & CALIFORNIA
EXH/EVP EMISSION REGULATIONS FOR S.O.R.E. REFER TO OWNER’S
MANUAL FOR MAINTENANCE SPECIFICATIONS AND ADJUSTMENTS.
JAN 2014
EMISSION CONTROL INFORMATION
ENGINE FAMILY: CEHXS.0214KL DISPLACEMENT: 21.2cc
EMISSION COMPLIANCE PERIOD: 300 Hours
THIS ENGINE MEETS 2014 U.S. EPA EXH/EVP & CALIFORNIA
EXH/EVP EMISSION REGULATIONS FOR S.O.R.E. REFER TO OWNER’S
MANUAL FOR MAINTENANCE SPECIFICATIONS AND ADJUSTMENTS.
JAN 2014
WARNING
Moving parts can amputate ngers or cause severe injuries. Keep hands, clothing and loose objects away from all
openings.
• ALWAYS stop engine, disconnect spark plug, and make sure all moving parts have come to a complete stop before
removing obstructions, clearing debris, or servicing unit.
• DO NOT start or operate unit unless all guards and protective covers are properly assembled to unit.
• NEVER reach into any opening while the engine is running. Moving parts may not be visible through openings.
WARNING
Periodically Check fuel system (fuel lines, vent, grommet, fuel tank, and fuel cap) for leaks especially if the unit is
dropped. If damage or leaks are found, do not use unit, otherwise serious personal injury or property damage may oc-
cur. Have unit repaired by an authorized servicing dealer before using.
7
DESCRIPTION
Locate these safety decals on your unit. Make sure the decals are legible and that you understand and follow the instructions
on them. If a decal cannot be read, a new one can be ordered from your dealer. The safety decal is for example only. Your label
may appear slightly different.
6
7
ipsum
11
12
1
2
3
4
5
8
9
10
13
17
14
12
15
16
8
DESCRIPTION

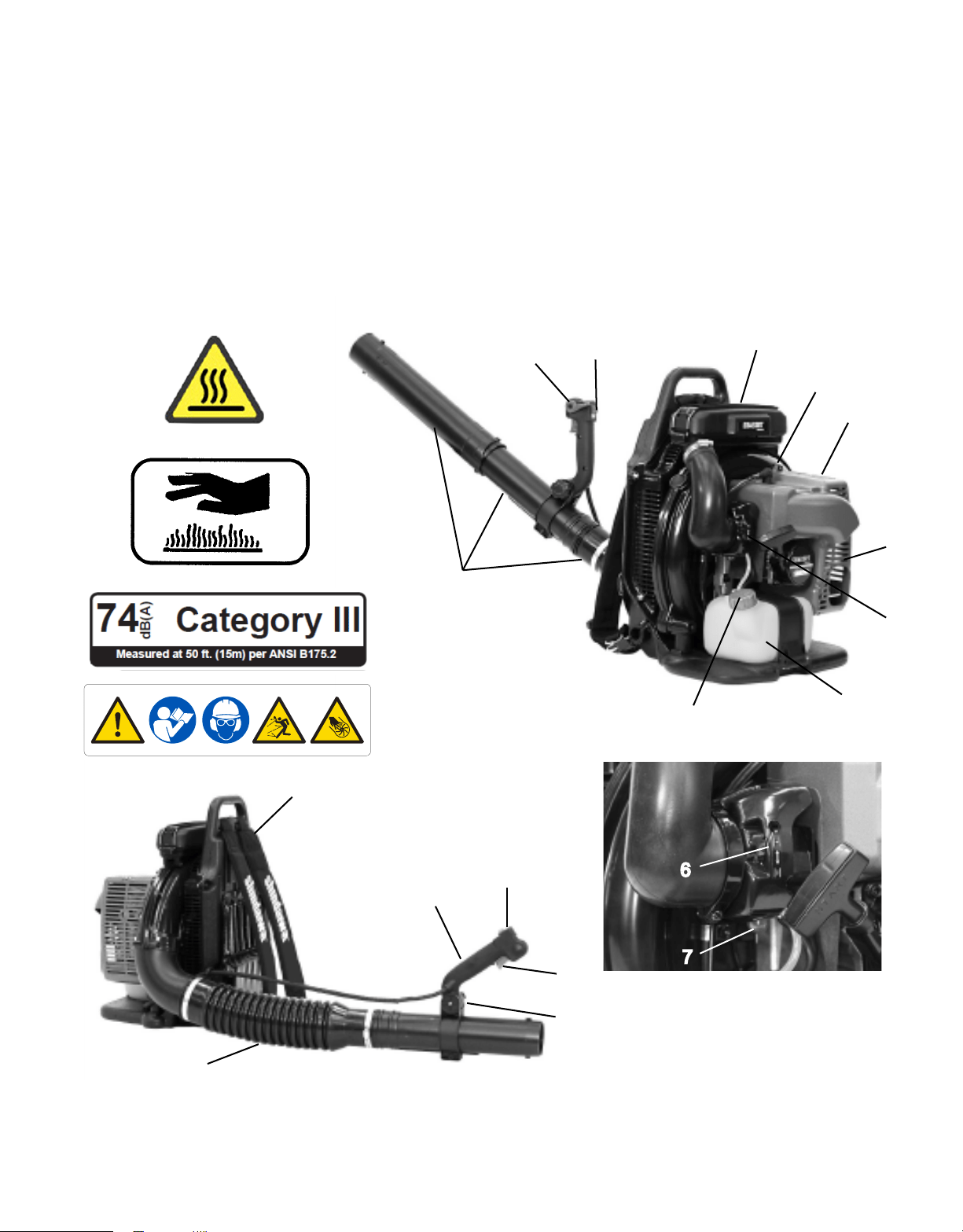

1. Air Cleaner
2. Spark Plug
3. Safety Decal
4. Spark Arrestor Mufer or Spark Arrstor Mufer with Catalyst
5. Recoil Starter Handle
6. Choke
7. Purge Bulb
8. Fuel Tank
9. Fuel Tank Cap
10. Blower Pipes
11. Throttle Position Lever
12. Stop Switch
13. Shoulder Harness
14. Handle
15. Throttle Trigger
16. Locking Knob
17. Flexible Pipe
CONTENTS
1 - Power Head
1 - Flex Pipe
1 - Pipe w/swivel
1 - Straight Pipe
1 - Straight Pipe
1 - Operator's Manual
1 - Emission Control Warranty Statement
1 - Plastic Bag
2 - Clamps w/screws
9
ASSEMBLY
WARNING
Never perform maintenance or assembly procedures with engine running or serious personal injury may result.

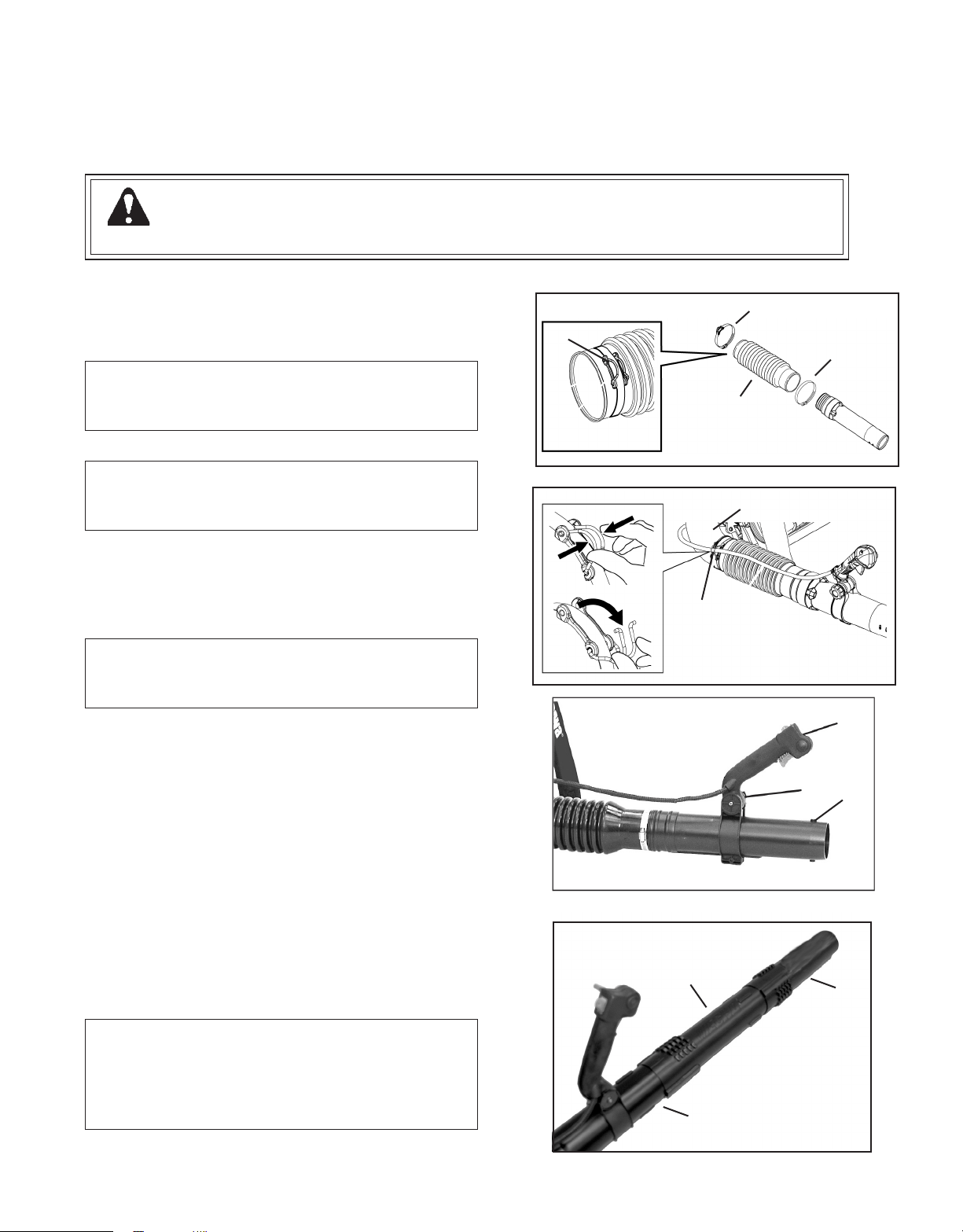

1. Assemble clamps (A) and (G) onto both ends of exible
pipe (B).
2. Assemble exible pipe to elbow (D) on blower. Position
clamp with cable guide loop (G) on outside of exible
pipe and tighten clamp.
3. Position cable along the outside of elbow. Loosen knob
(H) on handle (E). Align notches in handle with tabs (F)
and install onto swivel pipe (C) past long ridges in pipe.
4. Assemble swivel pipe into exible pipe and tighten
clamp (A).
5. Clip throttle cable into throttle cable guide loop.
6. Move handle (E) to desired position. Tighten knob (H)
hand tight.
7. Assemble straight pipe (K) onto swivel pipe, until you
feel light resistance. Do not force connection. Hold
swivel pipe and turn straight pipe clockwise, engaging
positive locking channels, until connection is rm. Do
not force connection.
8. Assemble straight pipe (J) to straight pipe as in step 7.
NOTE
Clamp with cable guide loop (G) ts elbow end of exible
pipe.
NOTE
A light lubricant may be used to ease assembly of exible
pipe to blower elbow.
NOTE
Hang handle freely from blower to assure throttle cable is
not twisted before installing handle (E).
NOTE
Blower use will eventually loosen pipe connections.
Exclusive positive locking system allows pipes to be tight-
ened. If loosening occurs, remove two straight pipes and
install according to instructions 7 & 8.
G
G
G
A
B
H
E
D
F
C
K
J
10
OPERATION
WARNING
Operation of this equipment may create sparks that can start res around dry vegetation. This unit is equipped
with a spark arrestor to prevent discharge of hot particles from the engine. Contact local re authorities for
laws or regulations regarding re prevention requirements.
WARNING
Moving parts can amputate ngers or cause severe injuries. Keep hands, clothing and loose objects away from
all openings. Always stop engine, disconnect spark plug, and make sure all moving parts have come to a com�
plete stop before removing obstructions, clearing debris, or servicing unit. Blower housing may contain shred�
der blades and other sharp edges that can cause serious injuries if touched, even if engine is off and blades are
not moving. Wear gloves to protect hands from sharp edges and hot surfaces.
WARNING
• Always maintain a direct, clear line of site to the unit and the work being performed.
• Always be alert for changes in operation of unit.
• Always shut engine off before transporting unit to new location.
Gasoline - Use 89 Octane [R+M/2] (mid grade or higher) gasoline known to be good quality. Gasoline may contain up to
10% Ethanol (grain alcohol) or 15% MTBE (methyl tertiary-butyl ether). Gasoline containing methanol (wood alco-
hol) is NOT approved. Use of ECHO branded fuel is recommended to extend engine life in all air-cooled 2-stroke and
2/4-stroke hybrid engines.
Two Stroke Oil - A two-stroke engine oil, such as ECHO branded 2-stroke oils, meeting ISO-L-EGD (ISO/CD 13738)
and J.A.S.O. FD Standards must be used. ECHO branded 2-stroke oils meet these standards. Engine problems due to
inadequate lubrication caused by failure to use an ISO-L-EGD (ISO/CD 13738) and J.A.S.O. M345-FD certied oil will
void the two-stroke engine warranty.
Fuel Requirements
WARNING
Engine exhaust IS HOT, and contains Carbon Monoxide (CO), a poison gas. Breathing CO can cause uncon�
sciousness, serious injury, or death. Exhaust can cause serious burns. ALWAYS position unit so that exhaust is
directed away from your face and body.
WARNING
Diesel fuels and alternative fuels, such as E-15 (15% ethanol), E -85 (85% ethanol) or any fuels not meeting
ECHO requirements are NOT approved for use in ECHO 2-stroke gasoline engines. Use of diesel or alternative
fuels may cause performance problems, loss of power, overheating, fuel vapor lock, and unintended machine
operation, including, but not limited to, improper clutch engagement. Diesel or alternative fuels may also cause
premature deterioration of fuel lines, gaskets, carburetors and other engine components
11
Handling Fuel
DANGER
Fuel is VERY ammable. Use extreme care when mixing, storing or handling or serious personal injury may result.
• Use an approved fuel container.
• DO NOT smoke near fuel.
• DO NOT allow ames or sparks near fuel.
• Fuel tanks/cans may be under pressure. Always loosen fuel caps slowly allowing pressure to equalize.
• NEVER refuel a unit when the engine is HOT or RUNNING!
• DO NOT ll fuel tanks indoors. ALWAYS ll fuel tanks outdoors over bare ground.
• DO NOT overll fuel tank. Wipe up spills immediately.
• Securely tighten fuel tank cap and close fuel container after refueling.
• Inspect for fuel leakage. If fuel leakage is found, do not start or operate unit until leakage is repaired.
• Move at least 3 m (10 ft.) from refueling location before starting the engine.
WARNING
2-Stroke engine oil contains petroleum distillates and other additives that may be harmful if swallowed. Heated oil can
release vapors that can cause ash re, or ignite with explosive force. Read and follow the oil manufacturer’s instruc�
tions, and observe all safety warnings and precautions for handling ammable liquids. For more detailed safety and rst
aid information, visit www.echo-usa.com for a copy of the Material Safety Data Sheet.
• KEEP OUT OF REACH OF CHILDREN.
• If swallowed, do not induce vomiting. CALL PHYSICIAN OR A POISON CONTROL CENTER IMMEDIATELY.
• WEAR SAFETY GLASSES when mixing or handling.
• AVOID repeated or prolonged skin contact
• AVOID inhaling oil mists or vapors.
DANGER
Gasoline vapor is heavier than air, and can travel along the ground to nearby sources of ignition such as electrical mo�
tors, pilot lights, and hot or running engines. Vapors ignited by an ignition source can ash back to the fuel container,
resulting in an explosion, re, serious or fatal injuries, and extensive property damage.
NOTICE
ECHO branded 2-stroke oils may be mixed at 50:1 ratio for application in all ECHO engines sold in the past regardless
of ratio specied in those manuals
12

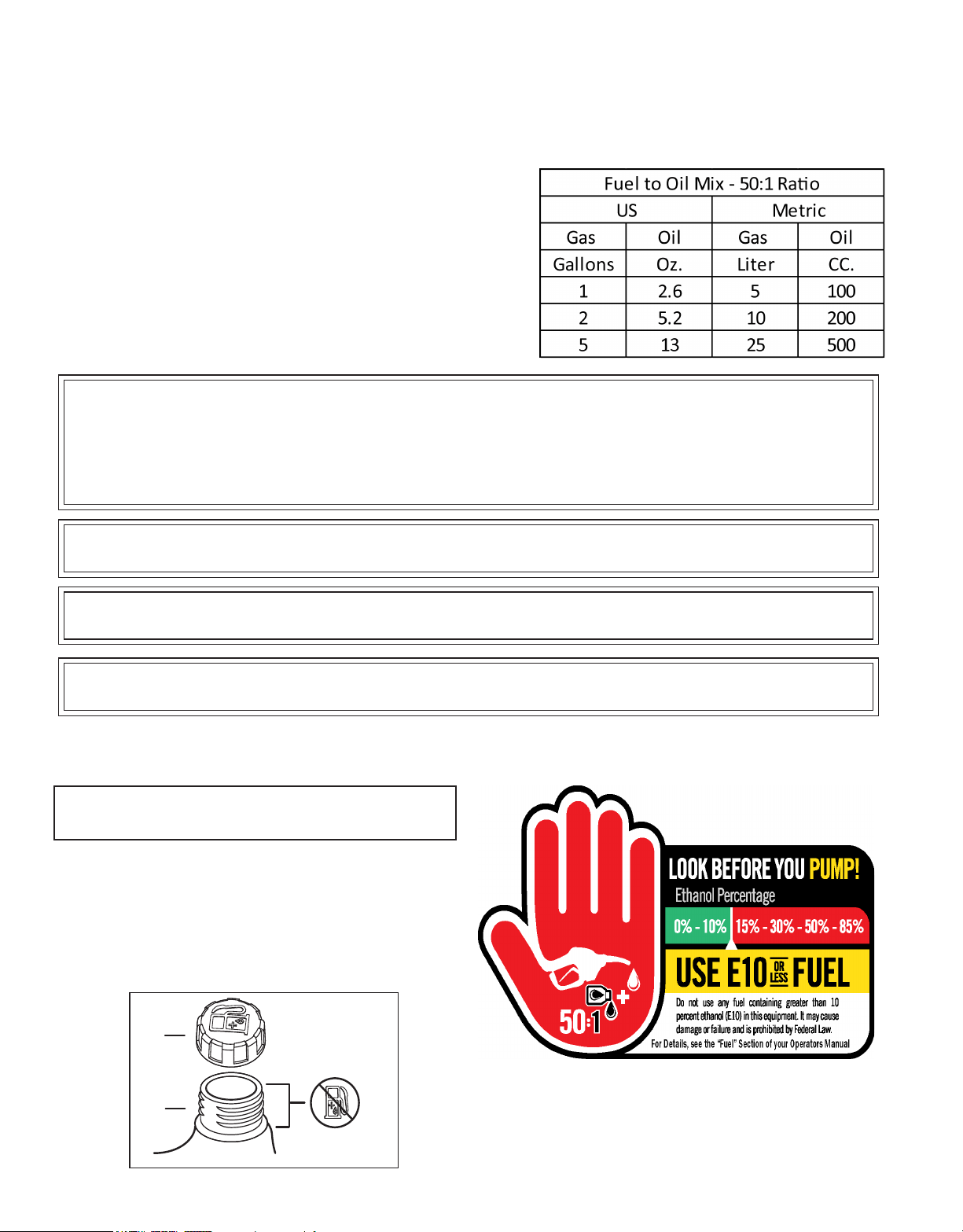

B
A

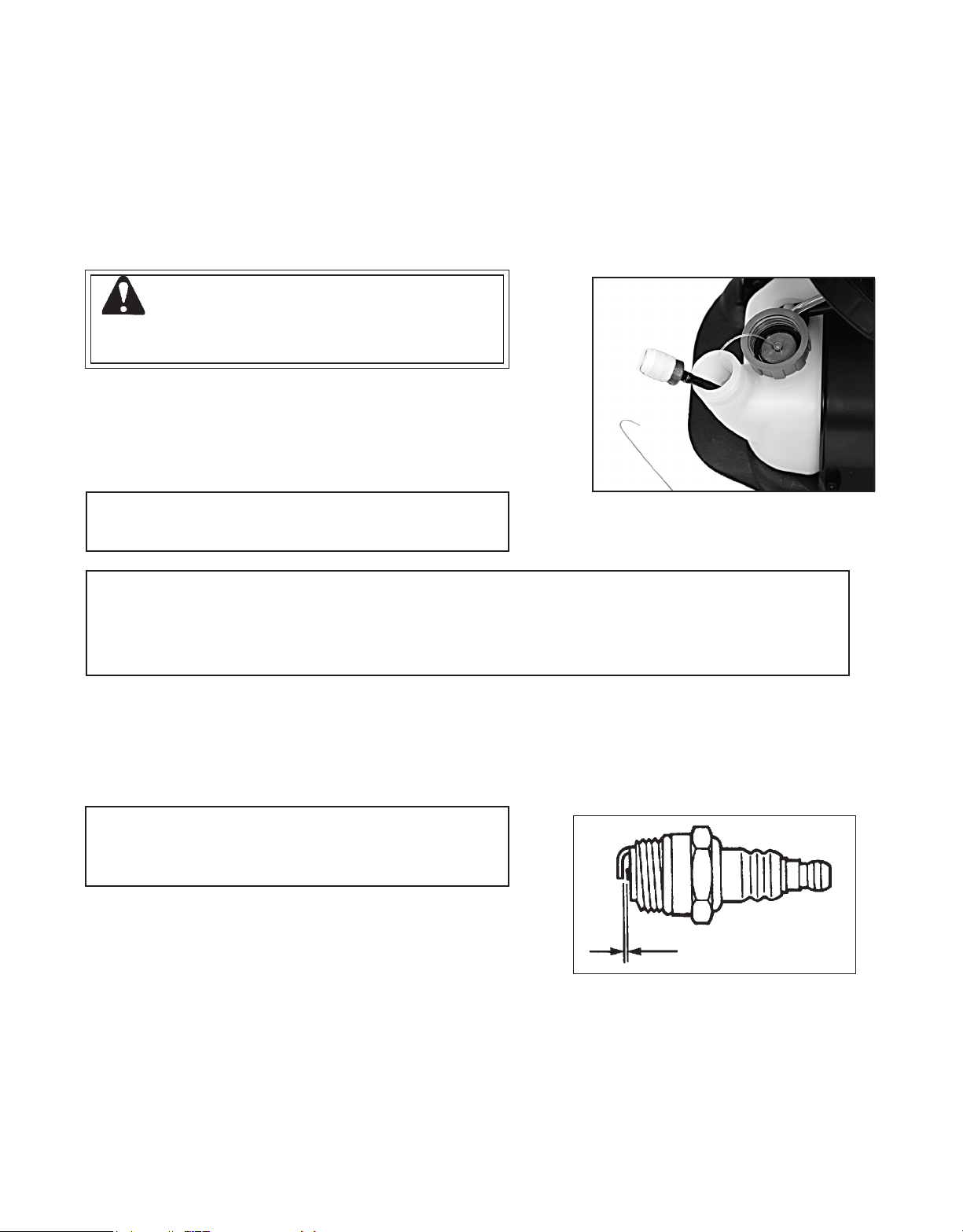

Filling the Fuel Tank
CAUTION!
Slowly remove the fuel cap after stopping the engine.
1. Place the unit on a level surface.
2. Clear any dirt or other debris from around the fuel ller cap.
3. Remove the fuel cap (A), and ll the fuel tank with clean,
fresh fuel. Do not ll above bottom of fuel tank neck (B).
4. Reinstall the fuel tank cap (A) and tighten rmly.
5. Wipe away any spilled fuel before starting engine.
Mixing Instructions
1. Fill an approved fuel container with half of the required amount
of gasoline.
2. Add the proper amount of 2-stroke oil to gasoline.
3. Close container and shake to mix oil with gasoline.
4. Add remaining gasoline, close fuel container, and remix.
NOTICE
Spilled fuel is a leading cause of hydrocarbon emissions. Some states may require the use of automatic fuel shut-off con�
tainers to reduce fuel spillage.
• Empty the fuel tank prior to storing the unit. Return unused fuel to an approved fuel storage container.
Storage - Fuel storage laws vary by locality. Contact your local government for the laws affecting your area. As a precaution,
store fuel in an approved, airtight container. Store in a well-ventilated, unoccupied building, away from sparks and ames.
NOTICE
Stored fuel ages. Do not mix more fuel than you expect to use in 30 days, 90 days when a fuel stabilizer is added.
NOTICE
Stored two-stroke fuel may separate. ALWAYS shake fuel container thoroughly before each use.
NOTICE
Used oil and gasoline, and soiled towels are hazardous waste materials. Disposal laws vary by locality.
13

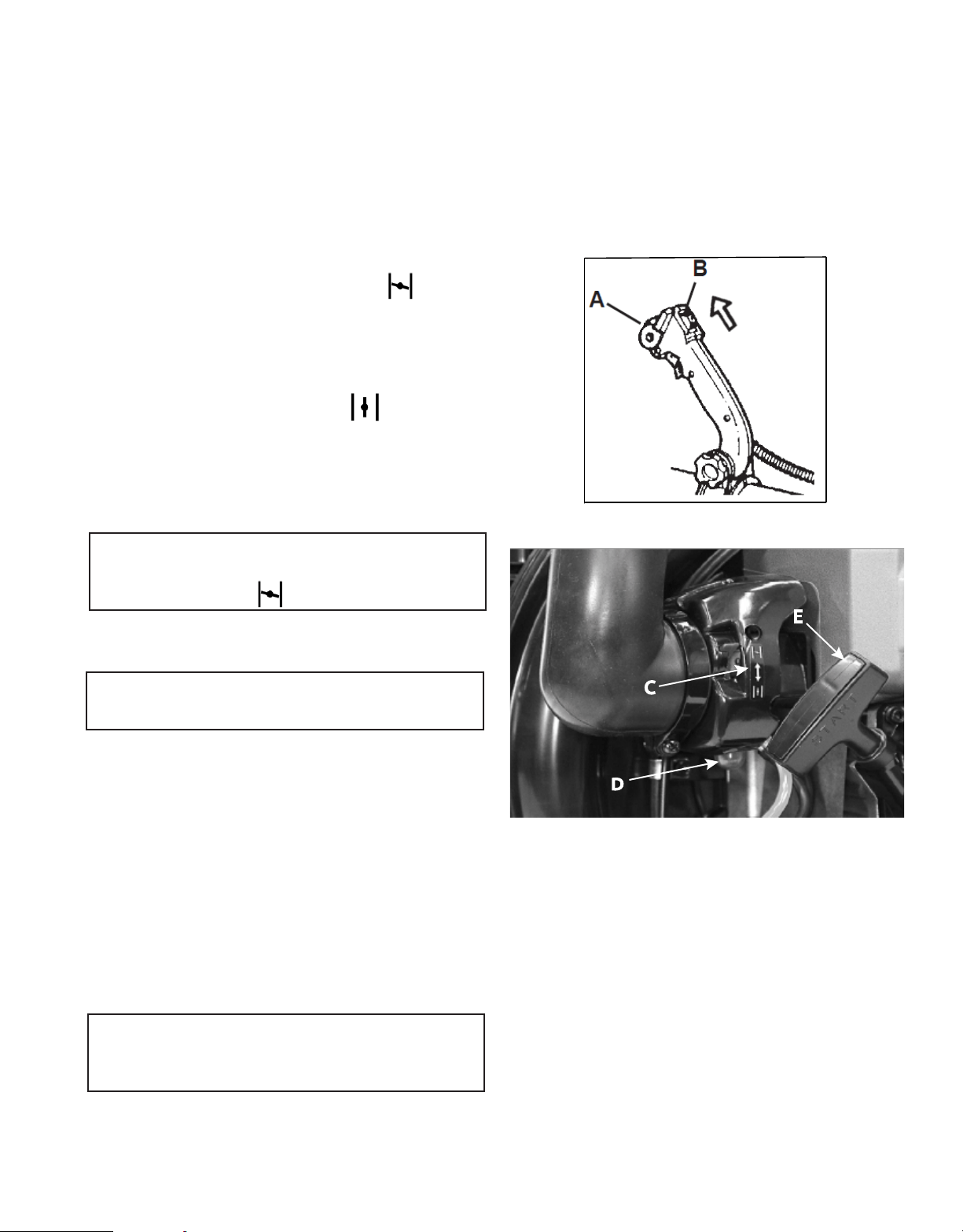

Recoil starter: Use short pulls; only 1/2-2/3 of rope length for
starting. Do not allow the rope to snap back in. Always hold
the unit rmly.
1. Move throttle lever (A) forward to idle position.
2. Slide stop switch (B) forward to run position.
3. Move choke (C) up to "Cold Start" position .
4. Pump purge bulb (D) until fuel is visible and ows freely in
the clear fuel tank return line. Pump bulb an additional 4 or
5 times
5. Pull recoil starter handle (E) until engine res (5 or 6 pulls
maximum).
6. Move choke (C) down to run position . If necessary,
restart engine.
NOTE
If engine does not start after 5 pulls, move choke to
"Cold Start" position and repeat steps 4 & 5.
NOTE
Allow engine to warm up before use.
C
D
E
1. Move throttle lever (A) forward to idle position.
2. Slide stop switch (B) forward to run position.
3. Pull recoil starter handle (E) and engine should start. Do
not use choke (C).
NOTE
If engine does not start after 5 pulls, repeat Cold
Starting Procedure.
14

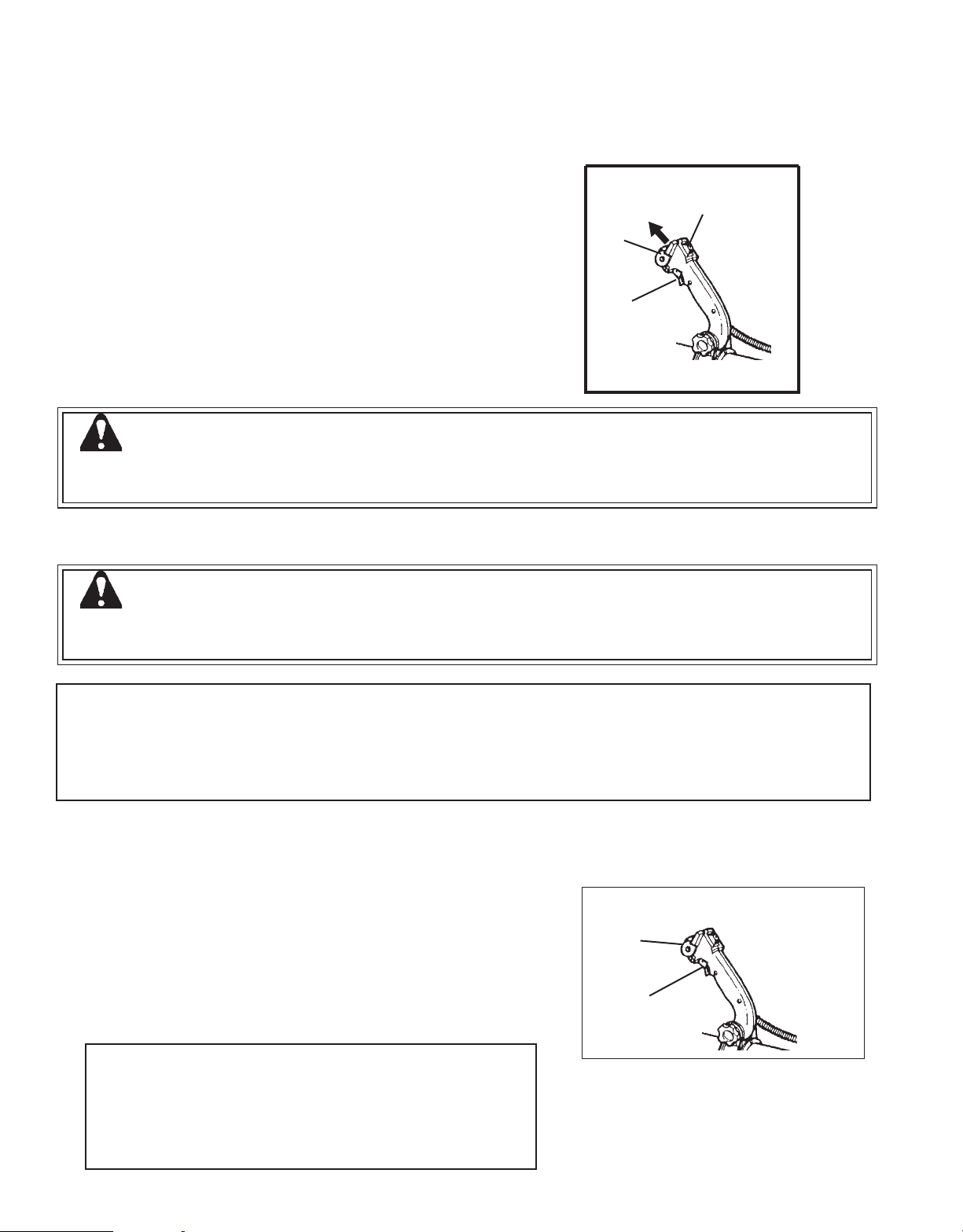

Read the Safety Section carefully.
1. Use only during appropriate hours.
2. Allow the engine to warm up at a fast idle for a few minutes.
3. Control engine speed with throttle trigger (C), or throttle position le-
ver (A). Rotate throttle position lever forward for lower speed, back
for higher speed.
4. Use lower speed to blow dry leaves from walks, patios and drives.
5. Additional speed may be necessary to clean grass and leaves from a
lawn or ower bed.
6. Higher speed may be necessary to move gravel, dirt, snow, bottles or
cans from a driveway, street, parking lot or stadium.
WARNING
Always wear safety glasses, hearing protection, a face lter mask and take all safety precautions or serious personal injury
may result. Do not point the blower pipe in the direction of people or pets.
NOTE
Never use a higher speed setting than necessary to perform a task.
Remember, the higher the engine speed, the louder the blower
noise. Minimize dust by using blower at lower speeds and by
dampening material with water/mist when necessary. Keep debris
on your property. Be Smart - be a good neighbor.
A
C
IMPORTANT
Use reduced speed only when performing light-duty tasks or to comply with local noise regulations. Continuous low speed
operation may allow fuel/oil residue to build-up on the piston and cause rapid build-up of carbon on the spark arrestor
screen, resulting in overheating and engine damage. To reduce harmful build-up, run engine at wide open throttle for at
least 5 minutes every hour, and inspect/clean the spark arrestor screen every 40 hours of operation. To avoid engine damage
due to over-revving, do not block blower pipe opening.
1. Release throttle trigger (C).
2. Move throttle position lever (A) forward to idle position
and allow engine to return to idle before shutting engine
off.
3. Slide stop switch (B) to Stop position.
WARNING
If engine does not stop when switch is moved to STOP position, close choke _ COLD START position - to stall engine.
Have your dealer repair the stop switch before using blower again.
A
B
C
15
WARNING
Moving parts can amputate ngers or cause severe injuries. Keep hands, clothing and loose objects away from all openings.
Always stop engine, disconnect spark plug, and make sure all moving parts have come to a complete stop before removing
obstructions, clearing debris, or servicing unit. Allow unit to cool before performing service. Wear gloves to protect hands
from sharp edges and hot surfaces.
MAINTENANCE
COMPONENT / SYSTEM
MAINTENANCE
PROCEDURE
REQ'D
SKILL
LEVEL
DAILY OR
BEFORE USE
EVERY
REFUEL
3 MONTHS YEARLY
Air Filter Inspect/Clean
1
I / C * R *
Choke Shutter Inspect/Clean
1
I / C
Fuel Filter Inspect/Replace
1
I * I / R *
Fuel Cap Gasket Inspect/Replace
1
I * R *
Fuel System Inspect/Replace
1
I (1) * I (1) *
Spark Plug Inspect/Clean/Replace
1
I / C / R *
Cooling System Inspect/Clean
2
I / C
Muffler Spark Arrestor Inspect/Clean/Replace
2
I / C / R *
Cylinder Exhaust Port Inspect/Clean/Decarbon
2
I / C
Recoil Starter Rope Inspect/Clean
1
I / C *
Screws/Nuts/Bolts Inspect/Tighten/Replace
1
I *
* All recommendations to replace are based on the finding of damage or wear during inspection.
MAINTENANCE PROCEDURE LETTER CODES:
I = INSPECT, R = REPLACE, C = CLEAN
IMPORTANT NOTE
- Time intervals shown are maximum. Actual use and your experience will determine the
frequency of required maintenance.
MAINTENANCE PROCEDURE NOTES:
(1) Low evaporative fuel tanks DO NOT require regular maintenance to maintain emission integrity.
WARNING
Operating a poorly maintained unit can result in serious injuries to operator or bystanders. Always follow all maintenance
instructions as written, otherwise serious personal injury may result.
Your unit is designed to provide many hours of trouble free service. Regular scheduled maintenance will help your unit achieve
that goal. If you are unsure or are not equipped with the necessary tools, we recommend that you take your unit to a Servicing
Dealer for maintenance. To help you decide whether you want to DO-IT-YOURSELF or have the Dealer do it, each maintenance
task has been graded. If the task is not listed, see your Dealer for repairs.
Level 1 = Easy to do. Common tools may be required.
Level 2 = Moderate difculty. Some specialized tools may be required.
Level 3 = See your dealer.
Click HERE or go to http://www.echo-usa.com/products/maintenance-kit
or
HERE https://www.shindaiwa-usa.com/you-can.aspx
For information about maintenance kits.
16
15
English
aIr fIlTer
Level 1.
Tools required: 25 - 50mm (1 - 2 in.) cleaning brush
NOTE
Always brush dirt and debris away from air cleaner area prior to
cleaning air lter.
Brush dirt off air cleaner area. Keep dirt away from engine and air
intake grid.
Remove air lter cover. Brush dirt from inside cover and away from
edges of air lter.

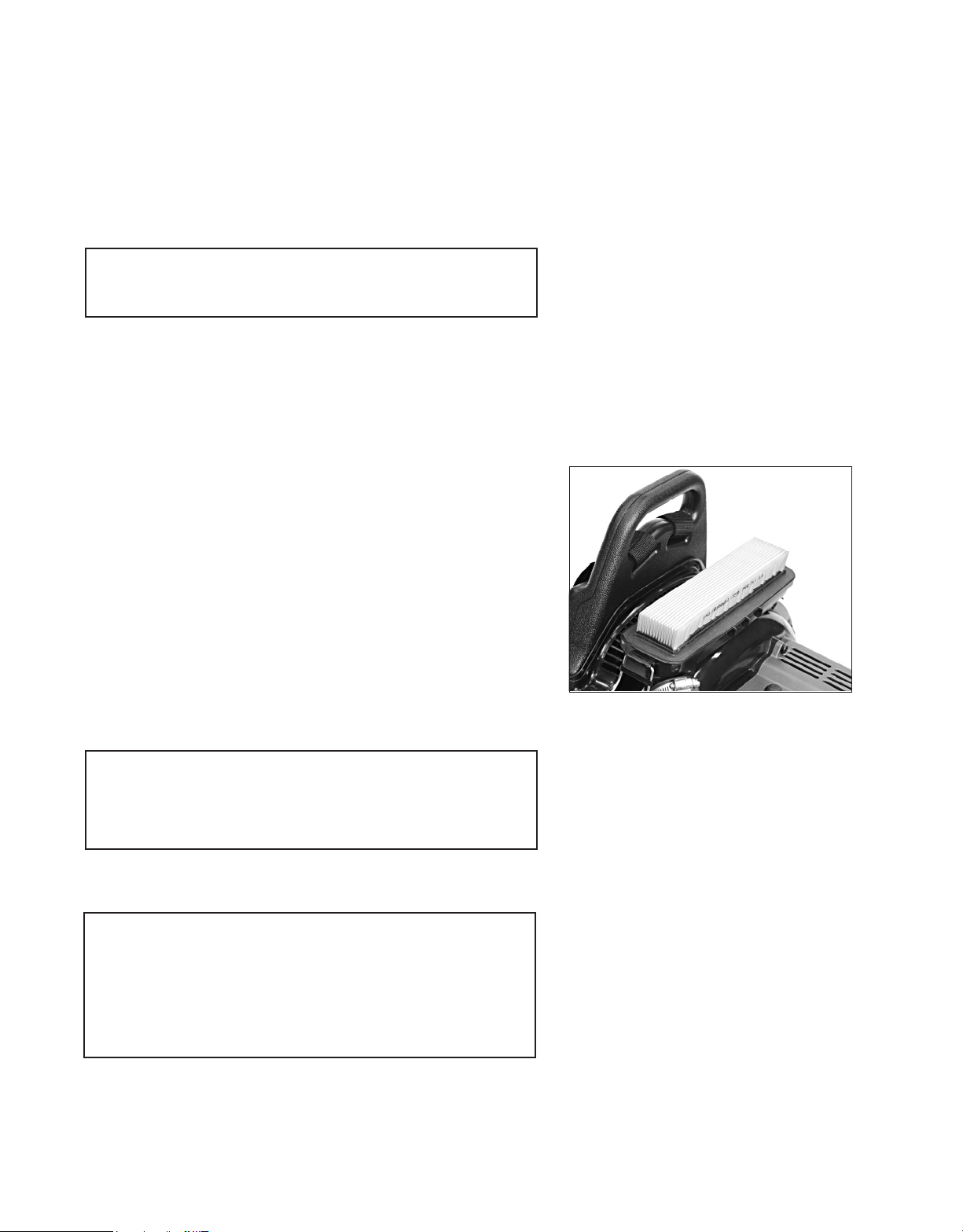

Check air lter seal for tight t with air lter case.
Remove air lter from case. Use care to prevent dirt and debris from
falling into air lter case.
Inspect lter element and seal. Replace lter if any of these problems
are present:
•Air lter seal does not t tightly against case
•Air lter seal is distorted, worn, or damaged
•Air lter element has holes or other damage
•Air lter element is saturated with dirt
•Air lter element is soaked with fuel mix
If air lter is in good condition and can be cleaned and reused, lightly
brush debris from air lter element, or blow lter element clean using
low pressure (40 psi or less) compressed air directed at inside of lter.
IMPORTANT
When using compressed air, always direct air stream at inside sur-
face of lter so dust and debris will be blown out of lter. Keep air
nozzle 6 - 8 inches away from lter to prevent damage to lter.
Install air lter in case, and replace cover.
NOTICE
Actual replacement interval for air lter depends on operating con-
ditions. Operation in dustier applications requires more frequent
cleaning and replacement. Continued operation with a damaged
or excessively dirty lter will allow dirt and debris to enter engine,
and result in poor performance, rapid engine wear, and premature
engine failure.
1.
2.
3.
4.
5.
6.
7.
Level 1.
Parts Required: Tune up kit
1. Brush dirt off air cleaner area. Keep dirt away from engine and air
intake grid.
2. Remove air lter cover. Brush dirt from inside cover and away from
edges of air lter.
3. Check air lter seal for tight t with air lter case.
4. Remove air lter from case. Use care to prevent dirt and debris from
falling into air lter case.
5. Inspect lter element and seal. Replace lter if any of these prob-
lems are present:
• Air lter seal does not t tightly against case
• Air lter seal is distorted, worn, or damaged
• Air lter element has holes or other damage
• Air lter element is saturated with dirt
• Air lter element is soaked with fuel mix
6. If air lter is in good condition and can be cleaned and reused, lightly
brush debris from air lter element, or blow lter element clean us-
ing low pressure (276 kPa [40 psi] or less) compressed air directed
at inside of lter.
7. Install air lter in case, and replace cover.
NOTE
Always brush dirt and debris away from air cleaner area prior to
cleaning air lter.
IMPORTANT
When using compressed air, always direct air stream at inside
surface of lter so dust and debris will be blown out of lter. Keep
air nozzle 15 - 20 cm (6 - 8 inches) away from lter to prevent
damage to lter.
NOTICE
Actual replacement interval for air lter depends on operating
conditions. Operation in dustier applications requires more
frequent cleaning and replacement. Continued operation with a
damaged or excessively dirty lter will allow dirt and debris to
enter engine, and result in poor performance, rapid engine wear,
and premature engine failure.
17
Level 1.
Parts Required: Tune up kit
1. Use a clean rag to remove loose dirt from around fuel cap and
empty fuel tank.
2. Pull the fuel lter from the tank.
3. Remove the lter from the line and install the new lter.
DANGER
Fuel is VERY ammable. Use extreme care when mixing,
storing or handling, or serious personal injury may result.
NOTE
Federal EPA regulations require all model year 2012 and later gasoline powered engines produced for sale in the
United States to be equipped with a special low permeation fuel supply hose between the carburetor and fuel tank.
When servicing model year 2012 and later equipment, only fuel supply hoses certied by EPA can be used to replace
the original equipment supply hose. Fines up to $37,500 may be enforced for using an un-certied replacement part.
16
English
fuel fIlTer
Level 1.
Tools required: 200 - 250 mm (8 - 10 in.) length of wire with one end
bent into a hook, clean rag, funnel, and an approved fuel container
DANGer
Fuel is VERY ammable. Use extreme care when mixing, storing
or handling.
Use a clean rag to remove loose dirt from around fuel cap and
empty fuel tank.
Use the “fuel line hook” to pull the fuel line and lter from the tank.
Remove the lter from the line and install the new lter.
1.
2.
3.
spArk pluG
Level 1.
Tools required: 19mm Spark Plug deep socket, Feeler gauge
IMPORTANT
Use only BPMR-8Y spark plug otherwise severe engine damage
may occur.

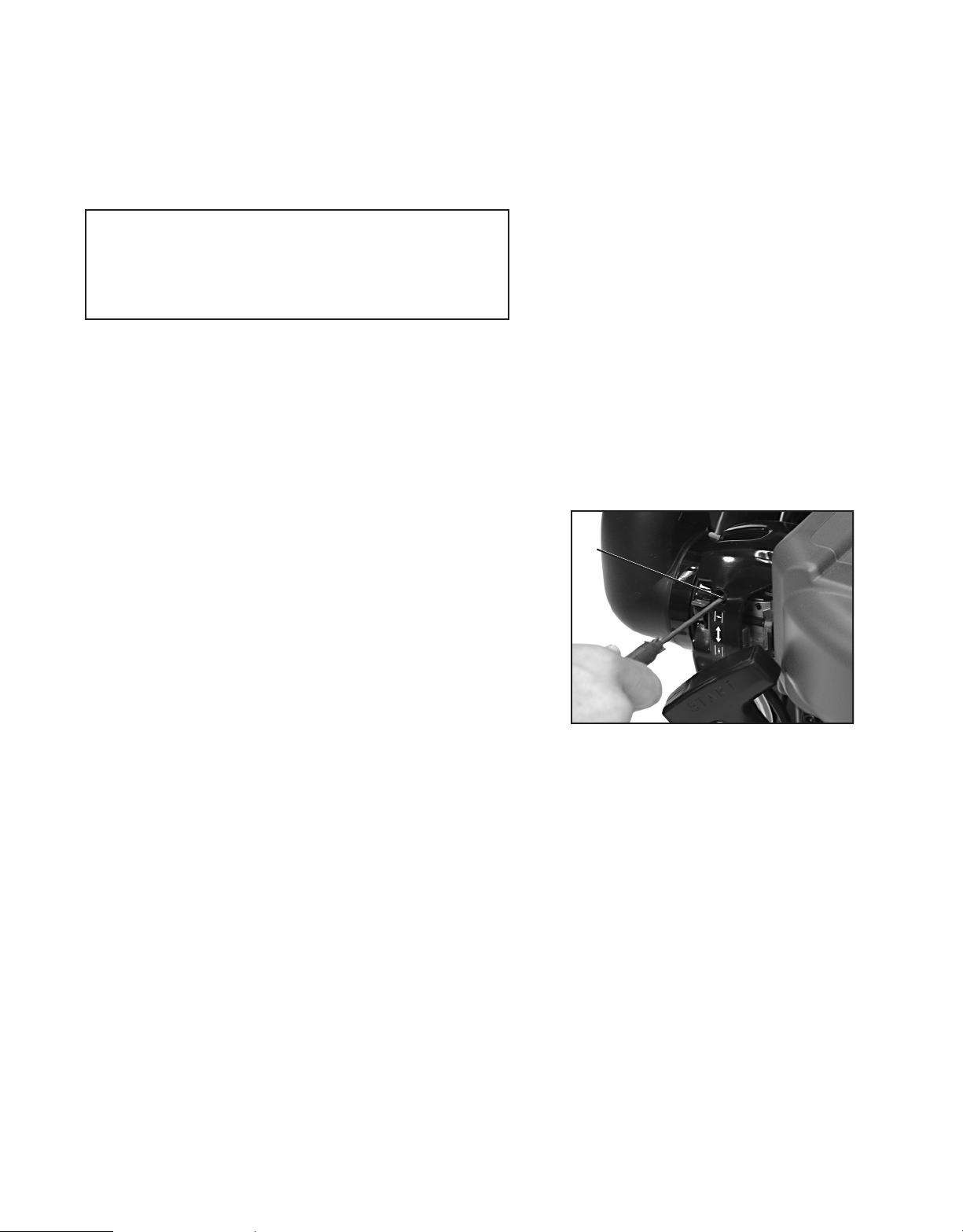

Remove spark plug , and check for fouling, worn and rounded center
electrode.
Clean the plug or replace with a new one. DO NOT sand blast to clean.
Remaining sand will damage engine.
Adjust spark plug gap by bending outer electrode.
Tighten spark plug to 150-170 kg/cm (130-150 in. lb.).
1.
2.
3.
4.
0.65 mm
(0.026 in.)
(0.026 in.)
Level 2.
Parts Required: Tune up kit
1. Remove spark plug and check for fouling, worn and rounded
center electrode.
2. Clean the plug or replace with a new one. DO NOT sand blast to
clean. Remaining sand will damage engine.
3. Adjust spark plug gap by bending outer electrode.
4. Tighten spark plug to 150 - 170 kgf • cm (130 - 150 in • lbf).
IMPORTANT
Use only NGK BPM8Y spark plug (BPMR8Y in Canada)
otherwise severe engine damage may occur.
IMPORTANT
Do not damage fuel line while removing fuel lter from
tank.
18
Level 2.
Overheating and engine seizure can occur when:
• Air intakes are blocked, preventing cooling air from reaching the
cylinder.
• Dust and grass build up on the outside of the cylinder. This build up
insulates the engine and prevents the heat from leaving.
Removal of cooling passage blockages or cleaning of cooling ns is
considered “Normal Maintenance.” Any failure attributed to lack of
maintenance is not warranted.
Cleaning Grill
1. Remove accumulated debris from intake grill between backpack
frame and blower housing.
Cleaning Cylinder Fins

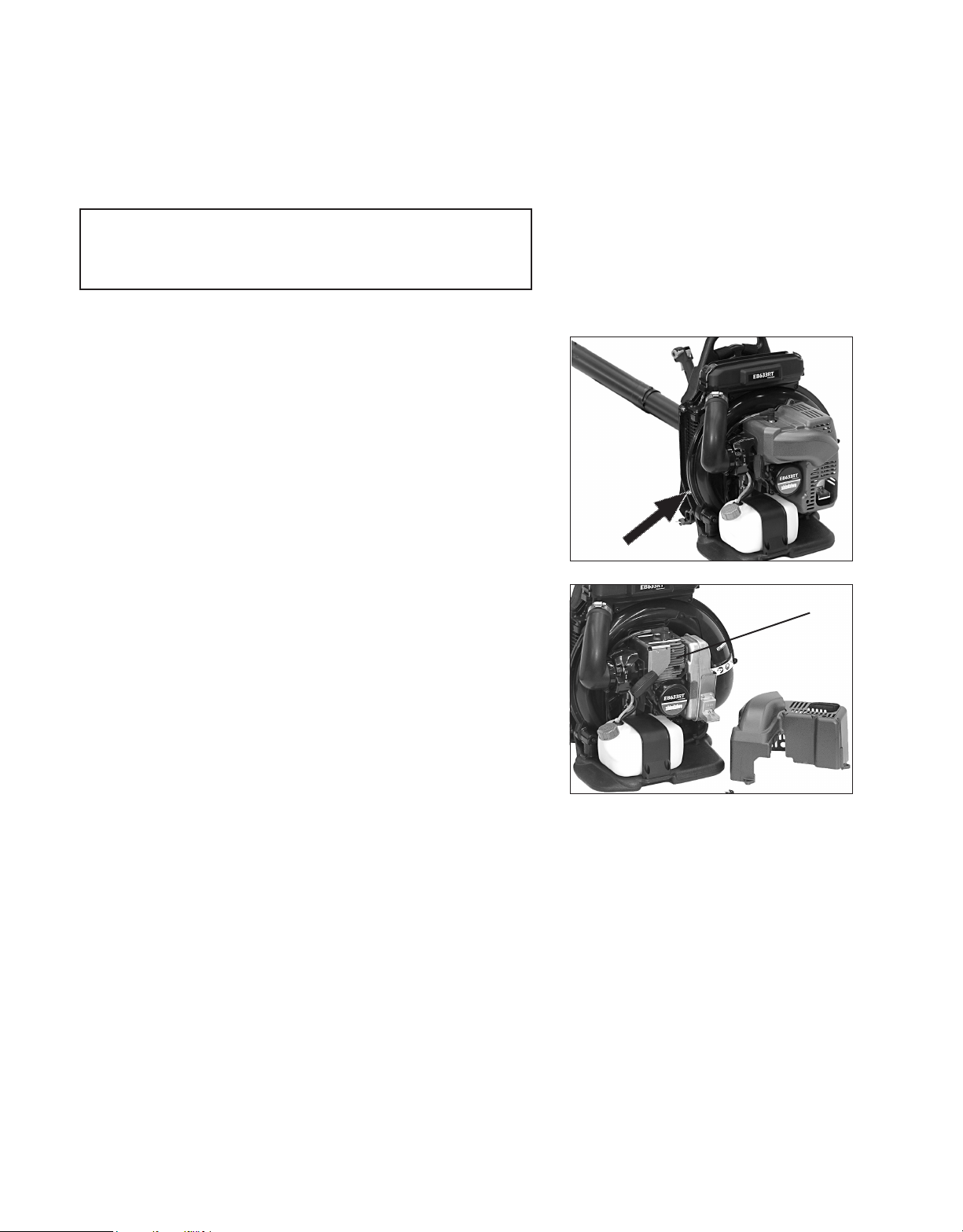

1. Remove spark plug lead from spark plug, and remove engine cover.
2. Clean cylinder ns (A) to allow cooling air to pass freely.
3. Install engine cover and attach spark plug lead.
IMPORTANT
To maintain proper engine operating temperatures, cooling air
must pass freely through the cylinder n area. This ow of air
carries combustion heat away from the engine.
17
English
CoolInG sysTem
Level 2.
Tools required: 25 - 50mm (1 - 2 in.) cleaning brush, Cross Head
Screwdriver
Parts Required: None, if you are careful.
IMPORTANT
To maintain proper engine operating temperatures, cooling air must
pass freely through the cylinder n area. This ow of air carries
combustion heat away from the engine.
Overheating and engine seizure can occur when:
• Air intakes are blocked, preventing cooling air from reaching the
cylinder.
• Dust and grass build up on the outside of the cylinder. This build up
insulates the engine and prevents the heat from leaving.
Removal of cooling passage blockages or cleaning of cooling ns is
considered “Normal Maintenance.” Any failure attributed to lack of
maintenance is not warranted.
Cleaning Grill
Remove accumulated debris from intake grill between backpack frame
and blower housing.
Cleaning Cylinder Fins
Remove spark plug and engine cover (four screws), pull cover away
from engine.
Clean cylinder ns (A) to allow cooling air to pass freely.
Install engine cover and spark plug.
1.
1.
2.
3.
A
19

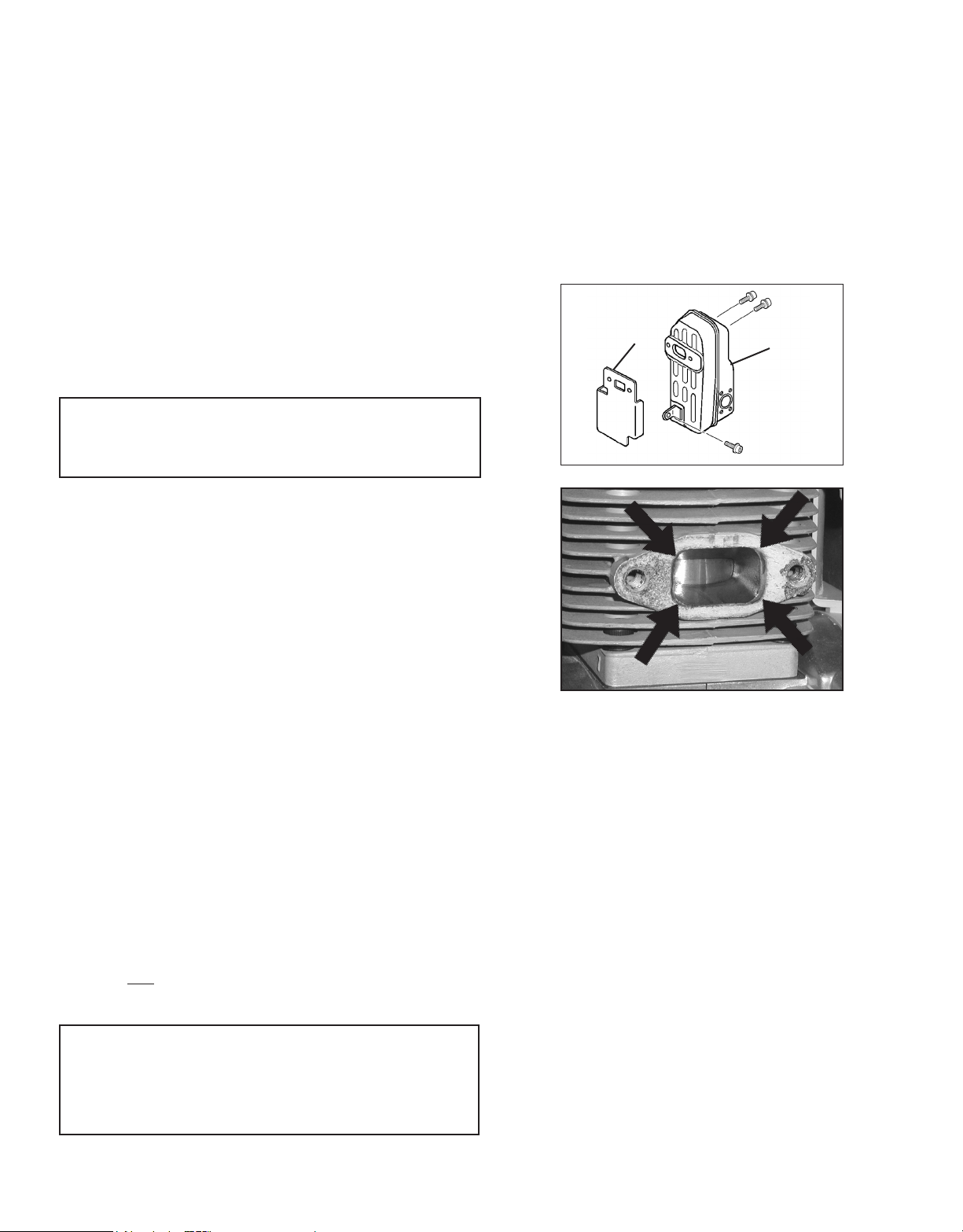

Spark Arrestor Screen
Level 2.
Parts Required: Spark arrestor screen, Gaskets
1. Remove spark plug lead from spark plug, and remove engine cover.

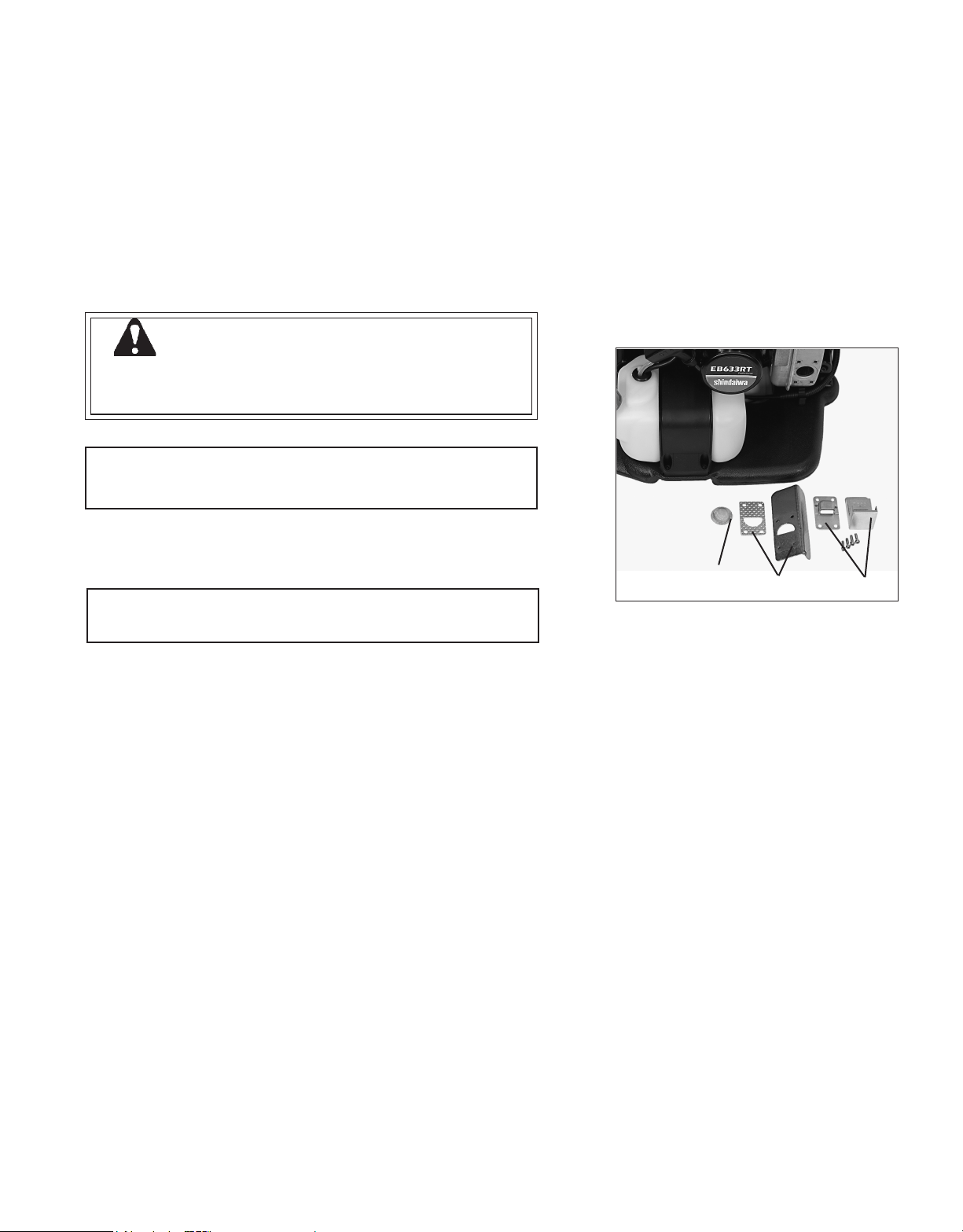

2. Remove spark arrestor covers (A), gaskets (B), and spark arrestor screen
(C) from mufer. Replace screen if plugged with carbon deposits.
3. Install spark arrestor screen, gaskets, and cover.
4. Install engine cover and attach spark plug lead.
IMPORTANT
Carbon deposits in mufer will cause a drop in engine output and
overheating. Spark arrestor screen must be checked periodically.
WARNING
Do not perform maintenance on engine or mufer until engine
and mufer are completely cool, otherwise serious personal
injury may result.
NOTE
When cleaning carbon deposits, be careful not to damage the
catalytic element inside mufer.
18
English
eXhausT sysTem
Spark Arrestor Screen
Level 2.
Tools required: Cross Head Screwdriver
Parts Required: Spark arrestor screen, Gaskets
WaRNING
Do not perform maintenance on engine or mufer until engine
and mufer are completely cool, otherwise serious personal
injury may result.
IMPORTANT
Carbon deposits in mufer will cause a drop in engine output and
overheating. Spark arrestor screen must be checked periodically.
Remove spark plug and engine cover (four screws).
Remove spark arrestor covers (A), gaskets (B), and spark arrestor screen
(C) from mufer. Replace screen if plugged with carbon deposits.
NOTE
When cleaning carbon deposit, be careful not to damage the cata-
lytic element inside mufer.
Install spark arrestor screen and cover.
Install spark plug and engine cover.
Cylinder Exhaust Port
Level 3.
IMPORTANT
The cylinder exhaust port must be inspected and cleaned of excess
carbon every 3 months or 90 hours of operation in order to main-
tain this engine within the emissions durability period. Shindaiwa
strongly recommends that you return your unit to your Shindaiwa
dealer for this important maintenance service.
1.
2.
4.
5.
a
b
C
20
IMPORTANT
Never use a metal tool to scrape carbon from the exhaust port.
Do not scratch the cylinder or piston when cleaning the ex-
haust port. Do not allow carbon particles to enter the cylinder.
Engine Break-In
New engines must be operated a minimum duration of two tanks
of fuel break-in before carburetor adjustments can be made. Dur-
ing the break-in period your engine performance will increase
and exhaust emissions will stabilize. Idle speed can be adjusted as
required.
High Altitude Operation
This engine has been factory adjusted to maintain satisfactory
starting, emission, and durability performance up to 1,100 feet
above sea level (ASL) (96.0 kPa). To maintain proper engine
operation and emission compliance above 1,100 feet ASL the
carburetor may need to be adjusted by an authorized Shindaiwa
service dealer.
IMPORTANT
If the engine is adjusted for operation above 1,100 feet
ASL, the carburetor must be re-adjusted when operating
the engine below 1,100 feet ASL, otherwise severe engine
damage may result.
A
B
Exhaust Port Cleaning
Level 2
Parts Required: As needed: Heat Shield
1. Remove spark plug lead from spark plug, and remove engine cover.
2. Place piston at top dead center. Remove mufer (A) and heat shield
(B).
3. Use a wood or plastic scraping tool to clean deposits from cylinder
exhaust port.
4. Inspect heat shield, and replace if damaged.
5. Install heat shield and mufer.
6. Tighten mufer mounting bolts (or nuts) to 110 - 150 kgf • cm
(95 - 130 in • lbf).
7. Install engine cover and attach spark plug lead.
8. Start engine, and warm to operating temperature.
9. Stop engine, and re-tighten mounting bolts to specications.
21
NOTE
Every unit is run at the factory and the carburetor is set
in compliance with emission regulations. Carburetor
adjustments, other than idle speed, must be performed by an
authorized dealer.
Level 2.
Parts required: None.
Before Adjustment
Check that:
• Air lter is clean and properly installed.
• Spark arrestor screen is free of carbon.
• Blower pipes are installed.
1. Start engine, run at idle for one minute.
2. Complete warm up by running at full throttle for 5 minutes,
operating choke twice to clear air from carburetor chambers.
3. Check idle speed and reset if necessary. If a tachometer is avail-
able, idle speed screw (A) should be set to the specications
found on "Specications page" of this manual. Turn idle screw
(A) clockwise to increase idle speed; counter clockwise to
decrease idle speed.
19
English
CarbureTor adJusTmenT
Engine Break-In
New engines must be operated a minimum duration of two tanks of fuel
break-in before carburetor adjustments can be made. During the break-
in period your engine performance will increase and exhaust emissions
will stabilize. Idle speed can be adjusted as required.
High Altitude Adjustment
This engine has been factory adjusted to maintain satisfactory start-
ing, emission, and durability performance up to 1,000 feet above mean
sea level (MSL). To maintain proper engine operation above 1,000
feet MSL the carburetor must be adjusted by an authorized Shindaiwa
service dealer.
IMPORTANT
If the engine is adjusted for operation above 1,000 feet MSL, the
carburetor must be re-adjusted when operating the engine below
1,000 feet MSL, otherwise severe engine damage can result.
Level 2.
Tools required: Screwdriver, tachometer
Parts required: None.
NOTE
Do not adjust carburetor unless necessary. If you have difculty,
see your Shindaiwa dealer.
Before Adjustment
Check that:
• Air lter is clean and properly installed.
• Spark arrestor screen is free of carbon.
• Blower pipes are installed.
Start engine, run at idle for one minute.
Complete warm up by running at full throttle for 5 minutes, operating
choke twice to clear air from carburetor chambers.
Check idle speed and reset if necessary. If a tachometer is available,
idle speed screw (A) should be set to the specications found on Page
22 "Specications" of this manual. Turn idle screw (A) clockwise to
increase idle speed; counter clockwise to decrease idle speed.
Use a tachometer to adjust idle speed to specications found on page 22.
1.
2.
3.
4.
a
22
TROUBLE SHOOTING
20
DANGER
Fuel vapors are extremely ammable and may cause re and/or explosion. Never test for ignition spark by
grounding spark plug near cylinder plug hole, otherwise serious personal injury may result.
T R AHCGN I T OOH S E L BUOR T
me l b o r kP ceh sC utat eS sua yC d eme R
-skna r cen i gnE
/drahs t rat s
t ' nseod
t ra ts
r o t e r ub r act al eu rF o t e r ub r act al eu fo dN eggo l cr en i a r t s l euF
deggo l cen i l l euF
roterubraC
eca l pe r r onae l C
eca l pe r r onae l C
r edn i l yct al eu rF edn i l yct al eu fo rN oterubraC
See your dealer
leufht iwtewrel f fu hM ci rooterutxiMleuF
Open choke
Clean/replace air filter
Adjust carburetor
See your dealer
dnet ak r apS
e r i wg u l p f o
k r a p so fN f oh c t i w sp o t S
melborplaci r tcelE
hct iwskcol retnI
N Oo t h c t i w s n r u T
r uo yeeS
r uo yeeS
g u l p t ak r a p kS r a p so tN ce r r oc n ipagk r apS
nob r ach t i wde r e voC
l eu fh t i wde l uoF
e v i t c e f e dg u l P
) . n i620 . 0 (mm56 .o t t s u j dA
eca l pe r r onae l C
eca l pe r r onae l C
gu l peca l peR
, snu ren i gnE
r os e i d t u b
t onseod
e t a r e l ecca
y l r epo r p
ret l i fr i yA tridret l ifri rA a ew l am r o eN ca l pe r r onae l C
r e t l i f l eu yF t r idret l i fleu sF eud i se r / s t nan ima t no nC i
l eu f
e c a l p eR
t ne v l eu dF eggu l pt ne v l eu lF eu fn i seud i se r / s t nan ima t no eC ca l pe r r onae l C
g u l Pk r a p nS r o w / y t r i dg u l rP a e w l am r o eN ca l pe r r ot s u j dadnanae l C
roterubra tC nemt s u j dar epo r pm nI oi tarbi tV s u j dA
m e t s y Sg n i l o o mC e t s y sg n i l o oC
deggu l p / y t r i d
n i no i t a r epodedne t xE
s no i t aco l y t s ud / y t r i d
nae l C
nee r cSr o t se r rAk r ap nS eercsrot ser rakrapS
deggu l p
raewl amro eN c a l p eR
seoden i gnE
k na r ct on
A/ AN / mN e l bo r pen i gnel an r e t n I r uo yeeS
, snu ren i gnE
t ' nseodr ewo l b
s irokrow
ne venu / kaew
e p i p r ewo l dB eggo l cep i sP i r bedf opu - d l i u gB o l c nU
esoo lep i nP oi tarbi nV e t hg i T
degamadep i eP s us iM/ r ae eW c a l p eR
dealer
dealer
dealer
See your dealer
23
DANGER
Do not store in enclosure where fuel fumes may accumulate or reach an open ame or spark.
WARNING
During operation the mufer or catalytic mufer and surrounding cover become hot. Always keep exhaust area clear of
ammable debris during transportation or when storing, otherwise serious property damage or personal injury may result.
1. Store unit in a dry, dust free place, out of the reach of children.
2. Place the stop switch in the “OFF” position.
3. Remove accumulation of grease, oil, dirt and debris from exte-
rior of unit.
4. Perform all periodic lubrication and services that are required.
5. Tighten all the screws and nuts.
6. Drain fuel tank completely. Press purge bulb 6 - 7 times to re-
move remaining fuel from carburetor then drain the tank again.
Close choke, start and run the engine until it stops due to lack
of fuel.
7. Allow engine to cool. Remove the spark plug lead from the
spark plug. Remove the spark plug. Pour 7 cc (0.25 oz.) of
fresh, clean, two-stroke engine oil into the cylinder through the
spark plug hole.
8. Pull the recoil starter handle 2 - 3 times to distribute the oil
inside the engine.
9. Observe the piston location through the spark plug hole. Pull the
recoil handle slowly until the piston reaches the top of its travel
and leave it there.
10. Install the spark plug. Connect the spark plug lead to the spark
plug.
STORAGE
24
SPECIFICATIONS
MODEL ���������������������������������������������������� EB633RT
Length ------------------------------------------------------ 375 mm (14.8 in.)
Width -------------------------------------------------------- 485 mm (19.0 in.)
Height ------------------------------------------------------- 527 mm (20.8 in.)
Weight (dry ------------------------------------------------- 11.0 kg (24.9 lb.)
Engine Type ------------------------------------------------ Air cooled, two-stroke, single cylinder gasoline engine
Displacement ----------------------------------------------- 63.3 cc (3.86 cu. in.)
Bore ---------------------------------------------------------- 48.0 mm (1.89 in.)
Stroke -------------------------------------------------------- 35.0 mm (1.38 in.)
Carburetor--------------------------------------------------- Diaphragm type w/purge
Ignition System -------------------------------------------- Flywheel Magneto, capacitor discharge ignition type
Spark Plug -------------------------------------------------- NGK BPM8Y Gap 0.65 mm (0.026 in.)
Exhaust System -------------------------------------------- Spark arrestor mufer or spark arrestor mufer with catalyst
Fuel ---------------------------------------------------------- Mixed (Gasoline and Two-stroke Oil)
Fuel/Oil Ratio ---------------------------------------------- 50:1
Gasoline ----------------------------------------------------- Use 89 Octane unleaded. Do not use fuel containing methyl alcohol, more
than 10% ethyl alcohol or 15% MTBE. Do not use alternative fuels such as
E-15 or E-85.
Oil ------------------------------------------------------------ ISO-L-EGD (ISO/CD 13738) and J.A.S.O. M345- FD, two-stroke, air-
cooled engine oil.
Fuel Tank Capacity ---------------------------------------- 2.0 L (67.7 US . oz.)
Recoil Starter System ------------------------------------- Automatic Recoil Starter Centrifugal Type
Idle Speed -------------------------------------------------- 2,800 RPM
Wide Open Throttle Speed ------------------------------- 7,000 RPM
Maximum Air Speed (Measured at pipe end) ---------- 330 km/h (233 mph)
Average Air Speed (Measured at pipe end) ------------ 314 km/h (195 mph)
Air Volume (Measured at pipe end) --------------------- 18.4 m
3
/min. (651 cu. ft./min.)
Sound Level at 50 ft. dB(A) scale per ANSI B175.2 - 74 dB(A)
25
WARRANTY STATEMENTS
ECHO INCORPORATED LIMITED WARRANTY STATEMENT FOR
ECHO AND SHINDAIWA PRODUCTS SOLD IN USA AND CANADA BEGINNING 01/01/2010
ECHO INCORPORATED'S RESPONSIBILITY
ECHO Incorporated’s (ECHO, Inc.) Limited Warranty, provides to the original purchaser that this ECHO or Shindaiwa product is free from defects
in material and workmanship. Under normal use and maintenance from date of purchase, ECHO Inc. agrees to repair or replace at ECHO Inc.'s
discretion, any defective product free of charge at any authorized ECHO or Shindaiwa servicing dealer (as applicable) within listed below application
time periods, limitations and exclusions. THIS LIMITED WARRANTY IS ONLY APPLICABLE TO ECHO AND SHINDAIWA PRODUCTS SOLD
BY AUTHORIZED DEALERS. IT IS EXTENDED TO THE ORIGINAL PURCHASER ONLY, AND IS NOT TRANSFERABLE TO SUBSEQUENT
OWNERS EXCEPT FOR EMISSION RELATED PARTS. Repair parts and accessories replaced under this warranty are warranted only for the
balance of the original unit or accessory warranty period. Any damage caused by improper installation or improper maintenance is not covered
by this warranty. All parts or products replaced under warranty become the property of ECHO, Inc. This warranty is separate from and does
not exclude or change the Emission control warranty statement that is supplied separately with your new product. Please consult the Emission
Control Warranty Statement for details regarding emission related parts. For a list of Authorized ECHO Dealers refer to www.echo-usa.com or
call 1-800-432-ECHO. For a list of Authorized Shindaiwa Dealers refer to www.shindaiwa-usa.com or call 1-877-986-7783.
OWNER’S RESPONSIBILITY
To ensure trouble free warranty coverage it is important that you register your ECHO or Shindaiwa equipment on-line at www.echo-usa.com
or www.shindaiwa-usa.com, or by lling out the warranty registration card supplied with your unit. Registering your product conrms your
warranty coverage and provides a direct link if we nd it necessary to contact you.
The owner shall demonstrate reasonable care and use, and follow preventative maintenance, storage, fuel and oil usage as prescribed in the
operator’s manual. Should a product difculty occur, you must, at your expense, deliver or ship your ECHO or Shindaiwa unit to an authorized
servicing dealer for warranty repairs (within the applicable warranty period), and arrange for pick-up or return of your unit after the repairs have
been made. For your nearest authorized ECHO servicing dealer, call ECHO’s Dealer Referral Center, at 1-800-432-ECHO or you can locate
an ECHO servicing dealer at www.echo-usa.com. For your nearest authorized Shindaiwa servicing dealer, call Shindaiwa's Dealer Referral
Center, at 1-877-986-7783 or you can locate a Shindaiwa servicing dealer at www.shindaiwa-usa.com. Should you require assistance or have
questions concerning this Warranty Statement, you can contact our Consumer Product Support Department at 1-800-673-1558. Contact us
through the web at www.echo-usa.com, www.shindaiwa-usa.com, or Email us at [email protected].
PRODUCT WARRANTY PERIOD
HOMEOWNER APPLICATION
• 5 YEAR WARRANTY - All units for homeowner, or non-income producing use will be covered by this limited warranty for ve (5) years from
date of purchase.
EXCEPTIONS:
• For two-stroke engine powered products, the electronic ignition module, exible drive cables, trimmer solid drive shafts, and TC tines
are warranted for the life* of the product on parts only.
• Cutting attachments such as, but not limited to, bars, chains, sprockets, blades, tines, belts, PowerBroom
tm
and nylon trimmer heads
for homeowner or non-income producing use will be covered for failures due to defects in material or workmanship for a period of 60
days from original product purchase date. Any misuse from contact with concrete, rocks, or other structures is not covered by this
warranty.
• Rapid Loader String Head carries a lifetime warranty on the line locking system, parts only; no labor. Refer to your operator’s manual
for string head installation and maintenance instructions.
• All SB-Series, Multipurpose Tool attachments, and PRO ATTACHMENT SERIES Split Shaft attachments carry the same warranty
duration as the units they are designed to t.
• HP-43, HP-44, and HP-62 hand pruners are covered by a lifetime warranty. Warranty is handled through Echo's Consumer Support
Department. For specic information, visit www.echo-usa.com.
• All handheld sprayers of 50 ounces or less are covered by a 90-day warranty for homeowner applications.
COMMERCIAL APPLICATION
• 1 YEAR WARRANTY - All Chain Saws and Cut-Off Saws for commercial, institutional, agricultural, industrial, or income producing use will
be covered by this limited warranty for one (1) year from the date of purchase.
• 2 YEAR WARRANTY - All other units for commercial, institutional, agricultural, industrial, or income producing use will be covered by this
limited warranty for two (2) years from the date of purchase.
EXCEPTIONS:
• For two-stroke engine powered products, the electronic ignition module, exible drive cables, trimmer solid drive shafts and TC tines,
are warranted for the life* of the product on parts only.
• Cutting attachments such as, but not limited to, bars, chains, sprockets, blades, tines, belts, PowerBroom
tm
and nylon trimmer heads
for commercial, institutional, agricultural, industrial, rental, or income producing will be covered for failures due to defects in material
or workmanship for a period of 30 days from original product purchase date. Any misuse from contact with concrete, rocks, or other
structures is not covered by this warranty.
• Rapid Loader String Head carries a lifetime warranty on the line locking system, parts only; no labor. Refer to your operator’s manual
for string head installation and maintenance instructions.
• All SB-Series, Multipurpose Tool attachments, and PRO ATTACHMENT SERIES Split Shaft attachments carry the same warranty
duration as the units they are designed to t.
• HP-43, HP-44, and HP-62 hand pruners are covered by a lifetime warranty. Warranty is handled through Echo's Consumer Support
Department. For specic information, visit www.echo-usa.com.
• All handheld sprayers of 50 ounces or less are not covered by warranty for commercial applications.
RENTAL APPLICATION - 90 DAYS WARRANTY
• Units for rental use will be covered against defects in material and workmanship for a period of 90 days from the date of purchase.
EXCEPTIONS:
• HP-43, HP-44, and HP-62 hand pruners are covered by a lifetime warranty. Warranty is handled through Echo's Consumer Support
26
WARRANTY STATEMENTS
Department. For specic information, visit www.echo-usa.com.
• All handheld sprayers, of 50 ounces or less are not covered by warranty for rental applications.
* ECHO Inc.'s liability under the “Lifetime” coverage is limited to furnishing parts specied under the PRODUCT WARRANTY PERIOD section
of this warranty statement for “Life” free of charge for a period of ten (10) years after the date of the complete unit’s nal production.
ECHO Inc. does not offer an over the counter exchange program. Any product re-built or sold through an unauthorized dealer, or an unauthor-
ized outlet store, is sold without ECHO Inc.'s limited warranty coverage. This Limited Warranty coverage is extended to the original purchaser
only, and is not transferable except for emission related parts. Repair parts and accessories replaced under this warranty are warranted only
for the balance of the original unit or accessory warranty period. Any damage caused by improper installation or improper maintenance is not
covered by this warranty. All parts or products replaced under warranty become the property of ECHO Inc.
PURCHASED REPAIR PARTS, SHORT BLOCKS AND ACCESSORIES
• 90-day homeowner, or non-income producing warranty
• 30-day commercial, institutional, agricultural, industrial, income producing, or rental application warranty
ATTENTION TWO-STROKE ENGINE POWER PRODUCT OWNERS
Two-stroke engine power products are quality-engineered and manufactured to exact tolerances to provide superior performance. To help ensure
the performance of the unit, it is required to use two-stroke oil which meets the ISO-L-EGD Standard per ISO/CD 13738 and JASO M345FD
Standards. ECHO Power Blend™ and Red Armor,™ and Shindaiwa Red Armor™ are premium two-stroke oils specically formulated to meet
ISO-L-EGD (ISO/CD 13738) and JASO M345FD Standards. The use of two-stroke oils designed for other applications, such as for outboard
motors or lawnmowers can result in severe engine damage, and will void your two-stroke engine limited warranty.
THIS WARRANTY DOES NOT COVER DAMAGE CAUSED BY:
• Lack of lubrication or engine failure, due to the use of two-stroke oils that do not meet the ISO-L-EGD (ISO/CD 13738) and JASO M345FD
Standards. Engine problems due to inadequate lubrication caused by failure to use an ISO-L-EGD compliant and JASO M345FD registered
oil, will void the two-stroke engine limited warranty. ECHO Power Blend™ and Red Armor,™ and Shindaiwa Red Armor™ meet the ISO-L-
EGD and JASO M345FD Standard. Emission related parts are covered for 5 years homeowner use or 2 years commercial use regardless
of two-stroke oil used, per the statement listed in the EPA or California Emission Defect Warranty Explanation.
• Damage caused by use of gasohol, containing methanol (wood alcohol), or gasoline containing less than 89 octane. Only use gasoline
which contains 89 octane or higher. Gasohol which contains a maximum 10% ethanol (grain alcohol) or 15% MTBE (methyl/tertiary/butyl/
ether) is also approved. The prescribed mixing ratio of gasoline to oil is listed on the oil label and covered in your operator’s manual.
• Engine damage caused by use of ether or any starting uids.
• Damage caused by tampering with engine speed governor or emission components, or running engines above specied and recommended
engine speeds as listed in your operator’s manual.
• Operation of the unit with improperly maintained/removed cutting shield or removed/damaged air lter.
• Damage caused by dirt, pressure or steam cleaning the unit, salt water, corrosion, rust, varnish, abrasives, and moisture.
• Defects, malfunctions or failures resulting from abuse, misuse, neglect, modications, alterations, normal wear, improper servicing, or use
of unauthorized attachments.
• Incorrect storage procedures, stale fuel, including failure to provide or perform required maintenance services as prescribed in the operator's
manual. Preventative maintenance as outlined in the operator's manual is the customer’s responsibility.
• Failures due to improper set-up, pre-delivery service or repair service by anyone other than authorized servicing dealer during the warranty
period.
• Certain parts and other items are not warranted, including but not limited to: lubricants, starter cords, and engine tune-ups.
• Use of spark plugs other than those meeting performance and durability requirements of the OEM spark plug listed in the Operator's
Manuals.
• Overheating or carbon scoring failures due to restricted, clogged exhaust port or combustion chamber, including damage to spark arrester
screen.
• Adjustments after the rst (30) thirty days and beyond, such as carburetor adjustment and throttle cable adjustment.
• Damage to gears or gear cases caused by contaminated grease or oil, use of incorrect type or viscosity of lubricants, and/or failure to comply
with recommended grease or oil change intervals.
• Damage caused by loading SHRED 'N' VAC
®
beyond recommended capacity.
• Damage caused by pump or sprayer running dry, pumping or spraying caustic or ammable materials, or lack of or broken strainers.
• Additional damage to parts or components due to continued use after operational problem or failure occurs. Should operational problem or
failure occur, the product should not be used, but delivered as is to an authorized servicing dealer.
It is a dealer’s and/or customer’s responsibility to complete and return the warranty registration card supplied with your product or by visiting www.
echo-usa.com or www. shindaiwa-usa.com. Your receipt of purchase including date, model and serial number must be maintained and presented
to an authorized servicing dealer for warranty service. Proof of purchase rests solely with the customer. Some states do not allow limitations on
how long an implied warranty lasts, so the above limitations may not apply to you. Some states do not allow the exclusion or limitation of incidental
or consequential damages, so you may also have other specic legal rights which vary from state to state. This limited warranty is given by ECHO
Incorporated, 400 Oakwood Rd., Lake Zurich, IL 60047.
DISCLAIMER OF IMPLIED WARRANTIES
This limited warranty is in lieu of all other expressed or implied warranties, including any warranty of FITNESS FOR A PARTICULAR PURPOSE
OR USE and any implied warranty of MERCHANTABILITY otherwise applicable to this product. ECHO Inc. and its afliated companies shall
not be liable for any special incidental or consequential damage, including lost prots. There are no warranties extended other than as provided
herein, except for the emission control warranty statement that is provided separately with the product when originally purchased. This limited
warranty may be modied only by ECHO Inc.
X7562090702
11/6/2017
27
Thank you for choosing Shindaiwa Power Equipment
Please go to http://www.shindaiwa-usa.com to register your new product on-line. It's FAST and EASY! NOTE: your
information will never be sold or misused by ECHO, Inc. Registering your purchase enables us to contact you in
the unlikely event of a service update or product recall, and veries your ownership for warranty consideration.
If you do not have access to the Internet, you can complete the form below and mail to:
ECHO Inc., Product Registration, PO Box 1139, Lake Zurich IL 60047
PRODUCT REGISTRATION
28
SERVICING INFORMATION
Genuine SHINDAIWA Parts and Assemblies for your SHINDAIWA products are available only from an
Authorized SHINDAIWA Dealer. When you do need to buy parts always have the Model Number and Serial
Number of the unit with you. You can nd these numbers on the engine housing. For future reference, write
them in the space provided below.
Model No. _________________ Serial No. _________________
Service of this product during the warranty period must be performed by an Authorized SHINDAIWA Ser-
vice Dealer. For the name and address of the Authorized SHINDAIWA Service Dealer nearest you, ask your
retailer or call: 1-877-986-7783. Dealer information is also available on WWW.SHINDAIWA-USA.COM.
When presenting your unit for Warranty service/repairs, proof of purchase is required.
If you require assistance or have questions concerning the application, operation or maintenance of this
product you may call the SHINDAIWA Consumer Product Support Department at 1-877-986-7783 from
8:00 am to 5:00 pm (Central Standard Time) Monday through Friday. Before calling, please know the model
and serial number of your unit.
To ensure trouble free warranty coverage it is important that you register your SHINDAIWA equipment
on-line at WWW.SHINDAIWA-USA.COM or by lling out the product registration sheet included in this
manual. Registering your product conrms your warranty coverage and provides a direct link between you
and ECHO if we nd it necessary to contact you.
In addition to nding information online, information is available from your Authorized Shindaiwa Service
Dealer, or by contacting ECHO Inc., 400 Oakwood Road, Lake Zurich, IL 60047 (800-673-1558).
29
30
31
32
ECHO Incorporated.
400 Oakwood Road
Lake Zurich, IL 60047-1564 U.S.A.
Telephone: 1-877-986-7783
Fax: 1-847-540-8416
www.shindaiwa.com
Yamabiko Corporation
7-2 Suehirocho 1-Chome, Ohme,
Tokyo, 198-8760, Japan
Phone: 81-428-32-6118
Fax: 81-428-32-6145
P45314003637-P45314999999
Copyright© 2019 By Echo, Incorporated
All Rights Reserved.
