BOSS FS-7 Dual Foot Switch

Owner’s Manual

For FS-7.

PDF File Manual, 16 pages, Read Online | Download pdf file

FS-7 photo
* 5 1 0 0 0 4 3 5 8 8 - 0 2 *
Before using this unit, carefully read the sections entitled “USING THE UNIT SAFELY” and “IMPORTANT NOTES.
These sections provide important information concerning the proper operation of the unit. Additionally,
in order to feel assured that you have gained a good grasp of every feature of your new unit, read Owner’s
Manual in its entirety. This manual should be saved and kept on hand as a convenient reference.
Main features
This is a footswitch that combines the functionality of both the FS-5L (latch type) and FS-5U (momentary
type).
It can be used with BOSS/Roland products that work with the FS-5L or the FS-5U.
* An AC adaptor (PSA series: sold separately) is required in order to use the FS-7. If you are using only
momentary operation, the FS-7 can be used without connecting an AC adaptor.
[POLARITY] switch setting
To make the FS-7 match the FS-5L or FS-5U
polarity setting that’s given in the owner’s
manual of the connected device, set this switch
as follows.
FS-5L, FS-5U FS-7
Set to the “I”
position
* With this setting, the switch is in the open”
state when on, and closed” when o .
Use without connecting an AC adaptor
You can use the FS-7 with momentary operation
even if no AC adaptor is connected.
It will operate with the following settings
regardless of how each switch is actually set.
[MODE] switch FS-5U (MOMENTARY)
[POLARITY] switch Set to the “I” position
* The indicators do not light.

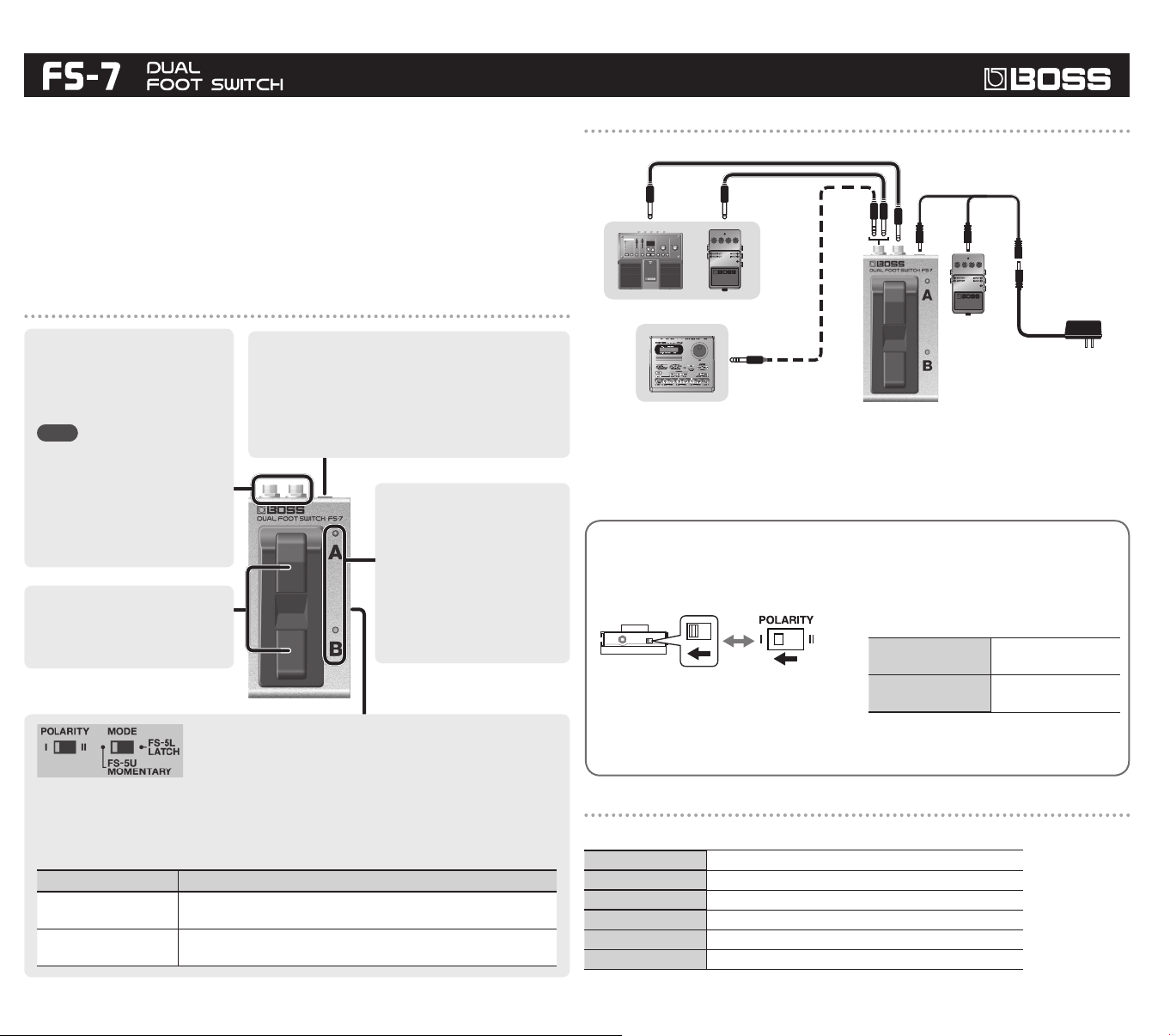

Panel descriptions
Connecting your equipment
AC adaptor
(PSA series)
Parallel DC cable
(Accessory)
Connection cable (1/4” phone plug)
Connection cable
(stereo 1/4” phone plug)
or
* You can use the FS-7 with just one cable (1/4” phone plug) if you like; connect it to either jack A or B.
* If a stereo 1/4” phone plug cable is connected to jack B, don’t connect anything to jack A.
* To prevent malfunction and equipment failure, always turn down the volume, and turn o all the units
before making any connections.
Main speci cations
BOSS FS-7: Dual footswitch
Power Supply AC Adaptor (sold separately)
Current Draw 25 mA
Dimensions
62 (W) x 131 (D) x 60 (H) mm
2-1/2 (W) x 5-3/16 (D) x 2-3/8 (H) inches
Weight 290 g/11 oz
Accessories Parallel DC cable, Owners Manual
Option (sold separately) AC adaptor (PSA series)
* We cannot guarantee operation if this unit is connected to any device other than the speci ed devices.
* In the interest of product improvement, the speci cations and/or appearance of this unit are subject to
change without prior notice.
Copyright © 2014 ROLAND CORPORATION
All rights reserved. No part of this publication may be reproduced in any form without the written permission
of ROLAND CORPORATION.
Pedal switch A (B)
These operate as switches for the
device that’s connected to jack A (B).
A (B) indicators
If the [MODE] switch is set to FS-5L
(LATCH), the indicator lights or
goes dark each time you press the
pedal switch.
If the [MODE] switch is set to FS-5U
(MOMENTARY), the indicator lights
only while you hold down the
pedal switch.
[POLARITY] switch
This switches the polarity of the pedal switches. Refer to the owner’s manual of device that youre
connecting, and set the polarity appropriately.
[MODE] switch
This speci es how the pedal switches will operate.
Setting Explanation
FS-5L (LATCH)
The setting turns on/o each time you press a pedal switch (latch
operation).
FS-5U (MOMENTARY)
The setting is on while you hold down the pedal switch, and o when you
release it (momentary operation).
A (B) jacks
Connect these jacks to the devices
that you want to control using pedal
switch A (B). Use cables with 1/4”
phone plugs.
MEMO
If you connect a 1/4” stereo
phone plug cable to jack B, you
can use it with a device that has a
1/4” TRS phone plug.
* In this case, don’t connect
anything to jack A.
DC IN jack
Connect an AC adaptor (PSA series: sold separately) to this
jack. By using the included parallel DC cable you can branch
the power supply to other e ect units.
* Use only the speci ed AC adaptor (PSA series: sold
separately), and make sure that your AC outlet is the
correct voltage.
English
Owners Manual
本機を正しくお使いいただくために、ご使用前に「安全上のご注意」と「使用上のご注意」をよくお
読みください。また、本機の優れた機能を十分ご理解いただくためにも、取扱説明書をよくお読みく
ださい。取扱説明書は必要なときにすぐに見ることができるよう、手元に置いてください。
特長
• FS-5L(ラッチ・タイプ)と FS-5U(モーメンタリー・タイプ)の両方の機能を兼ね備えたフット
スイッチです。
• FS-5L または FS-5U が使用可能なボス/ローランド製品で使うことができます。
※FS-7 をお使いいただくには、AC アダプター(PSA-100:別売)が必要です。モーメンタリー動
作にかぎり、AC アダプターを接続しなくても使うことができます。
[POLARITY]スイッチの設定
FS-7 と、接続機器の取扱説明書に記載されて
いる FS-5L または FS-5U のポラリティー設
定を合わせるときは、以下のように設定して
ください。
FS-5L、FS-5U FS-7
(I 側に設定)
※この設定では、スイッチをオンしたときが
オープン、オフにしたときがクローズにな
ります。
AC アダプターを接続しなくても使う
ことができます
FS-7 AC アダプターを接続しなくても、
モーメンタリー動作で使うことができます。
各スイッチの設定にかかわらず、以下の設定
で動作します。
[MODE]スイッチ
FS-5U
(MOMENTARY)
[POLARITY]
スイッチ
I 側に設定
※各インジケーターは点灯しません。

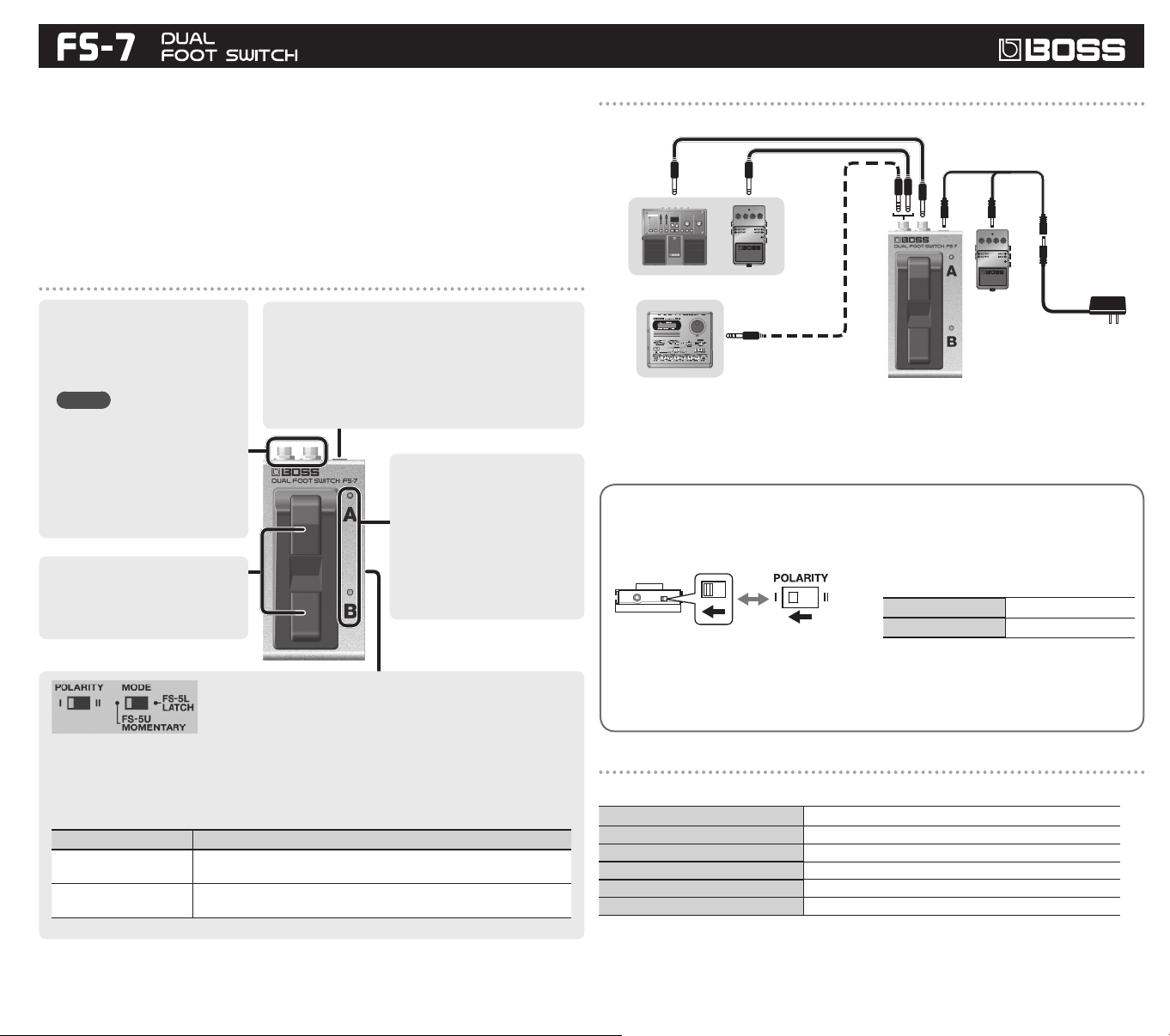

各部名称
接続
AC アダプター
(PSA-100:別売)
パラレル DC ケーブル
(付属品)
接続ケーブル(標準プラグ)
接続ケーブル
(ステレオ標準プラグ)
または
※接続ケーブル(標準プラグ)1 本だけでも使用できます(A または B 端子のどちらかに接続)
※B 端子にステレオ標準プラグの接続ケーブルを接続したときは、A 端子には何も接続しないでくだ
さい。
※他の機器と接続するときは、誤動作や故障を防ぐため、必ずすべての機器の音量を絞り、すべての
機器の電源を切ってください。
仕様
BOSSFS-7:デュアル・フットスイッチ
電源 AC アダプター(別売)
消費電流 25mA
外形寸法 62(幅)×131(奥行)×60(高さ)mm
質量 290g
付属品 パラレル DC ケーブル、取扱説明書、保証書
別売品 AC アダプター:PSA-100
※指定外の機器に接続した場合の動作については、保証いたしかねます。
※製品の仕様や外観は、改良のため予告なく変更することがあります。
©2014ローランド株式会社 本書の一部、もしくは全部を無断で複写・転載することを禁じます。
ペダル・スイッチ A(B)
A(B)端子に接続した機器のスイッ
チとして使用します。
A(B)インジケーター
[MODE]スイッチを FS-5L
(LATCH)に設定しているとき
は、ペダル・スイッチを踏むた
びに消灯/点灯が切り替わり
ます。
[MODE]スイッチを FS-5U
(MOMENTARY)に設定してい
るときは、ペダル・スイッチを
踏んでいる間だけ点灯します。
[POLARITY]スイッチ
ペダルスイッチの極性を切り替えます。接続する機器の取扱説明書を確認し、設定してください。
[MODE]スイッチ
ペダル・スイッチの機能を設定します。
設定 説明
FS-5L(LATCH)
ペダル・スイッチを踏むたびにオン/オフが切り替わります(ラッ
チ)
FS-5U(MOMENTARY)
ペダルスイッチを踏んでいる間がオン(オフ)、離すとオフ(オン)
になります(モーメンタリー)
A(B)端子
ペダル・スイッチ A(B)でコン
トロールする機器を接続します。
標準プラグの接続ケーブルを使い
ます。
B 端子にステレオ標準プラグ
の接続ケーブルを接続すると、
TRS 標準端子のコントロール入
力を持つ機器と使用することが
できます。
※A 端子には何も接続しないで
ください。
AC アダプター端子
AC アダプター(PSA-100別売)を接続する端子です。
付属のパラレル DC ケーブルを使うことで、他のエフェ
クターへ電源を分岐させることができます。
※AC アダプターは、必ず指定のもの(PSA-100別売)
を、AC100V の電源で使用してください。
日本語
取扱説明書
Lesen Sie zuerst die Abschnitte “SICHERER BETRIEB DES GERÄTES und WICHTIGE HINWEISE”. Diese enthalten
wichtige Hinweise für den sicheren Betrieb des Geräts. Lesen Sie diese Anleitung vollständig durch, bevor Sie
das Gerät verwenden, um einen vollständigen Überblick über alle Funktionen zu erhalten. Bewahren Sie die
Anleitung zu Referenzzwecken auf.
Eigenschaften
Kombination der Funktionalität des Fußschalters FS-5L und des Fußtasters FS-5U.
Kann mit BOSS/Roland-Produkten verwendet werden, an die ein FS-5L oder FS-5U anschließbar ist.
* Für die normale Anwendung ist der Anschluss eines AC-Adapters (PSA-Serie; zusätzliches Zubehör)
notwendig. Wenn Sie den FS-7 nur als Fußtaster einsetzen, muss kein AC-Adapter angeschlossen werden.
Der [POLARITY]-Schalter
Damit der FS-7 die gleiche Polarität wie der
Fußschalter FS-5L bzw. Fußtaster FS-5U besitzt,
wählen Sie die folgende Einstellung.
FS-5L, FS-5U FS-7
Position “I
wählen
* Bei dieser Einstellung ist der Schalter bei On
geö net und bei O geschlossen.
Verwendung ohne AC-Adapter
Sie können den FS-7 auch ohne AC-Adapter
als Fußtaster (wie den FS-5U) nutzen. Dabei
werden die folgenden Einstellungen verwendet,
unabhängig davon, wie die Schalter gesetzt sind.
[MODE]-Schalter FS-5U (MOMENTARY)
[POLARITY]-Schalter Position “I
* Die Leucht-Anzeigen sind in diesem Fall
de-aktiviert.
Die Anschlüsse
Anschließen an externes Equipment
AC-Adapter
(PSA-Serie)
Parallel DC-Kabel
(Zubehör)
Kabel (Monoklinke)
Kabel (Stereoklinke)
oder
* Sie können an den FS-7 auch nur ein Kabel (Monoklinke) anschließen. Verwenden Sie nach Bedarf
entweder die Buchse A oder B.
* Wenn an der Buchse B ein Stereoklinkenkabel angeschlossen ist, darf die Buchse A nicht verkabelt werden.
* Bevor Sie neue Kabelverbindungen vornehmen, regeln Sie die Lautstärke auf Minimum, und schalten Sie
die Geräte aus. Dadurch beugen Sie eventuellen Fehlfunktionen bzw. Beschädigungen vor.
Technische Daten
BOSS FS-7: Dual Footswitch
Stromversorgung AC Adapter (zusätzliches Zubehör)
Stromverbrauch 25 mA
Abmessungen 62 (W) x 131 (D) x 60 (H) mm
Gewicht ca. 290 g
Beigefügtes Zubehör Parallel DC-Kabel, Bedienungsanleitung
Zusätzliches Zubehör AC-Adapter (PSA-Serie)
* Eine korrekte Funktionsweise ist nur dann gewährleistet, wenn dieses Gerät mit von BOSS empfohlenen
anderen Geräten verbunden wird.
* Änderungen der technischen Daten und des Designs sind ohne vorherige Ankündigung möglich. Für
Druckfehler wird keine Haftung übernommen.
Copyright © 2014 ROLAND CORPORATION
Alle Rechte vorbehalten. Vervielfältigung, als Print oder Datei, als Ganzes oder in Teilen, bedarf einer
schriftlichen Genehmigung der ROLAND CORPORATION.
Pedalschalter A (B)
Arbeiten als Schalter bzw. Taster für
das Gerät, das an der Buchse A (B)
angeschlossen ist.
A (B)-Anzeigen
Wenn der [MODE]-Schalter auf
FS-5L (LATCH) gestellt ist, leuchtet
bzw. erlischt die Anzeige jedesmal,
wenn Sie das Pedal drücken.
Wenn der [MODE]-Schalter auf
FS-5U (MOMENTARY) gestellt ist,
leuchtet die Anzeige nur dann,
wenn das Pedal gedrückt gehalten
wird.
[POLARITY]-Schalter
Bestimmt die Polarität der Pedale. Lesen Sie zu diesem Thema die Anleitung des Geräts, an welches der
FS-7 angeschlossen werden soll, und stellen Sie die Polarität entsprechend ein.
[MODE]-Schalter
Bestimmt, wie die Pedale arbeiten.
Einstellung Beschreibung
FS-5L (LATCH)
Der FS-7 arbeitet als Schalter (die Funktion wird bei jedem Drücken des
Pedals ausgeführt bzw. wieder aufgehoben).
FS-5U (MOMENTARY)
Der FS-7 arbeitet als Taster (die Funktion wird bei Drücken des Pedals
ausgeführt und bei Loslassen des Pedals wieder aufgehoben).
A (B)-Buchsen
Zur Verbindung mit Geräten, die über
die Pedale A (B) gesteuert werden
sollen. Verwenden Sie Kabel mit
Monoklinken-Anschluss.
HINWEIS
Sie können an die Buchse B
auch ein Stereo-Klinkenkabel
anschließen, wenn das externe
Gerät einen entsprechenden TRS-
Anschluss besitzt.
* In diesem Fall darf die Buchse A
nicht verkabelt werden.
DC IN-Buchse
Zum Anschluss eines AC-Adapters (PSA-Serie; zusätzliches
Zubehör). Mithilfe des beigefügten Parallel DC-Kabels
können Sie weitere E ektgeräte mit Strom versorgen.
* Verwenden Sie nur den empfohlenen AC-Adapter
(PSA-Serie; zusätzliches Zubehör), und stellen Sie sicher,
dass die Stromversorgung den Anforderungen entspricht.
Deutsch
Bedienungsanleitung
Avant d’utiliser cet appareil, veuillez lire attentivement les sections intitulées «CONSIGNES DE SÉCURITÉ»
et «REMARQUES IMPORTANTES». Ces sections fournissent des informations importantes relatives au bon
fonctionnement de lappareil. En outre, pour être sûr davoir bien compris chacune des fonctionnalités
o ertes par votre nouvel appareil, il est nécessaire de lire le mode demploi dans son intégralité. Vous devez
conserver ce mode demploi à portée de main a n de pouvoir vous y reporter au besoin.
Principales fonctionnalités
Ce commutateur au pied combine les fonctionnalités du FS-5L (de type Verrouillage) et du FS-5U (de type
Momentané).
Il peut être utilisé avec les produits BOSS/Roland compatibles avec le FS-5L ou le FS-5U.
* Un adaptateur secteur (série PSA : vendu séparément) est nécessaire pour utiliser le FS-7. Si vous utilisez le
mode temporaire, vous pouvez utiliser le FS-7 sans connecter un adaptateur secteur.
Réglage du commutateur [POLARITY]
Pour que le FS-7 corresponde au réglage de
polarité du FS-5L ou FS-5U indiqué dans le
mode demploi de lappareil connecté, réglez ce
commutateur comme suit.
FS-5L, FS-5U FS-7
Réglez sur la
position « I»
* Avec ce réglage, le commutateur est dans létat
«ouvert», et dans létat «fermé» lorsquil est
éteint.
Utilisation sans connecter un adaptateur
secteur
Vous pouvez utiliser le commutateur FS-7 en
mode momentané même si aucun adaptateur
secteur nest connecté.
Il fonctionnera avec les réglages suivants, quelle
que soit la manière dont chaque commutateur
est réglé.
Commutateur [MODE] FS-5U (MOMENTARY)
Commutateur
[POLARITY]
Réglez sur la position
« I»
* Les témoins ne sallument pas.
Description des panneaux
Connexion de votre équipement
Adaptateur secteur
(série PSA)
Câble parallèle CC
(accessoire)
Câble de connexion (jack 6,5 mm)
Câble de connexion
(jack 6,5 mm stéréo)
ou
* Vous pouvez utiliser le FS-7 avec un seul câble (jack 6,5 mm) si vous le souhaitez. Connectez-le à la prise A
ou B.
* Si un câble avec jack 6,5 mm stéréo est connecté à la prise B, ne connectez rien à la prise A.
* Pour prévenir les dysfonctionnements et les pannes déquipement, mettez toujours le volume à 0 et mettez
hors tension tous les appareils avant de ectuer des branchements.
Principales caractéristiques
BOSS FS-7: Commutateur au pied double
Alimentation Adaptateur secteur (vendu séparément)
Consommation 25 mA
Dimensions 62 (L) x 131 (P) x 60 (H) mm
Poids 290 g
Accessoires Câble parallèle CC, mode demploi
Option (vendue séparément) Adaptateur secteur (série PSA)
* Nous ne pouvons pas garantir le bon fonctionnement si cet appareil est connecté à un autre appareil que
ceux spéci és.
* En vue daméliorer le produit, ses caractéristiques techniques et/ou son aspect peuvent être modi és sans
avis préalable.
Copyright © 2014 ROLAND CORPORATION
Tous droits réservés. Toute reproduction intégrale ou partielle de cette publication est interdite sous quelque
forme que ce soit sans lautorisation écrite de ROLAND CORPORATION.
Commutateur à pédale A (B)
Fonctionnent comme des commu-
tateurs pour lappareil connecté à la
prise A (B).
Témoins A (B)
Si le commutateur [MODE] est
réglé sur FS-5L (LATCH), le témoin
sallume ou séteint chaque
fois que vous appuyez sur le
commutateur à pédale.
Si le commutateur [MODE] est
réglé sur FS-5U (MOMENTARY),
le témoin sallume uniquement
pendant que vous maintenez
enfoncé le commutateur à pédale.
Commutateur [POLARITY]
Change la polarité des commutateurs à pédale. Reportez-vous au mode demploi de lappareil que vous
connectez et réglez la polarité correctement.
Commutateur [MODE]
Spéci e le mode de fonctionnement des commutateurs à pédale.
Réglage Dé nition
FS-5L (LATCH)
Le réglage est activé/désactivé chaque fois que vous appuyez sur un
commutateur à pédale (fonctionnement en mode Verrouillage)
FS-5U (MOMENTARY)
Le réglage est actif tant que vous maintenez enfoncé le commutateur à
pédale, et inactif lorsque vous le relâchez (fonctionnement Momentané).
Prises A (B)
Connectez ces prises aux appareils
que vous souhaitez contrôler à
laide du commutateur à pédale A
(B). Utilisez les câbles avec les jacks
6,5 mm.
MEMO
Si vous connectez un câble avec
jack 6,5 mm à la prise B, vous
pouvez l’utiliser avec un appareil
équipé d’un jack TRS 6,5 mm.
* Dans ce cas, ne connectez rien
à la prise A.
Prise DC IN
Connectez un adaptateur secteur (série PSA; vendu
séparément) à cette prise. Si vous utilisez le câble parallèle
CC fourni, vous pouvez brancher lalimentation sur les autres
dispositifs de ets.
* Utilisez uniquement ladaptateur secteur spéci é (série
PSA; vendu séparément) et branchez-le à une prise
secteur présentant la tension correcte.
Français
Mode demploi
Prima di utilizzare l'unità, leggere attentamente le sezioni intitolate "UTILIZZO SICURO DELL'UNITÀ" e "NOTE
IMPORTANTI", che contengono importanti informazioni sul corretto impiego dell'unità. È inoltre consigliabile
leggere per intero questo manuale, per assicurarsi di aver compreso appieno tutte le funzioni o erte dalla
nuova unità. Conservare il presente manuale e tenerlo a portata di mano per usarlo come riferimento.
Caratteristiche principali
Interruttore a pedale che unisce le funzionalità di entrambi i modelli (FS-5L, di tipo "latch") ed FS-5U (di tipo
"temporaneo").
Utilizzabile con i prodotti BOSS/Roland compatibili con i modelli FS-5L o FS-5U.
* L'unità FS-7 necessita di un adattatore CA per il funzionamento (serie PSA, venduto a parte). Per il
funzionamento di tipo "temporaneo", l'unità FS-7 può essere utilizzata anche senza l'adattatore CA.
Impostazione dell'interruttore [POLARITY]
Per far che la polarità dell'interruttore FS-7
coincida con quella dei modelli FS-5L o FS-5U in
base a quanto descritto nel manuale dell'utente
del dispositivo collegato, e ettuare la seguente
impostazione.
FS-5L, FS-5U FS-7
Impostare in
posizione "I"
* Con questa impostazione, l'interruttore è in
uno stato "aperto" se attivato, e in uno stato
"chiuso" se disattivato.
Utilizzo senza l'adattatore CA
Per operazioni di tipo temporaneo, l'unità FS-7
può essere utilizzata anche senza adattatore CA.
Funzionerà con le seguenti impostazioni,
a prescindere dalla posizione di ciascun
interruttore.
Interruttore [MODE] FS-5U (MOMENTARY)
Interruttore
[POLARITY]
Impostare in posizione
"I"
* Gli indicatori non si illuminano.
Descrizione del pannello
Collegamento della strumentazione
Adattatore CA
(serie PSA)
Cavo CC parallelo
(Accessori)
Cavo di collegamento (con jack phone da 1/4")
Cavo di collegamento
(con jack phone stereo da 1/4")
oppure
* L'unità FS-7 può essere utilizzata anche con un singolo cavo (jack phone da 1/4"); collegare il cavo ai jack A o B.
* Se al jack B è stato collegato un cavo con jack phone stereo da 1/4", non collegare alcun cavo al jack A.
* Per evitare malfunzionamenti e guasti alle apparecchiature, abbassare sempre il volume e spegnere tutte le
unità prima di e ettuare i collegamenti.
Speci che principali
BOSS FS-7: Doppio interruttore a pedale
Alimentazione Adattatore CA (venduto a parte)
Assorbimento di corrente 25 mA
Dimensioni 62 (L) x 131 (P) x 60 (A) mm
Peso 290 g
Accessori Cavo CC parallelo, manuale dell'utente
Accessori opzionali (venduti a parte) Adattatore CA (serie PSA)
* Il funzionamento dell'unità con dispositivi diversi da quanto speci cato non è garantito.
* Allo scopo di migliorare il prodotto, le speci che e/o l'aspetto di questa unità sono soggetti a modi che
senza preavviso.
Copyright © 2014 ROLAND CORPORATION
Tutti i diritti riservati. Nessuna parte di questo documento può essere in alcun modo riprodotta senza
autorizzazione scritta di ROLAND CORPORATION.
Interruttore a pedale A (B)
Interruttori per il controllo del
dispositivo collegato al jack A (B).
Indicatori A (B)
Se l'interruttore [MODE] è
in posizione FS-5L (LATCH),
l'indicatore si illumina o si spegne
a ogni pressione del pedale.
Se l'interruttore [MODE] è in
posizione FS-5U (MOMENTARY),
l'indicatore si illumina solo n
tanto che si mantiene premuto il
pedale.
Interruttore [POLARITY]
Speci ca la polarità degli interruttori a pedale. Per impostare la polarità correttamente, consultare il
manuale dell'utente del dispositivo collegato.
Interruttore [MODE]
Speci ca la modalità di funzionamento degli interruttori a pedale.
Impostazione Spiegazione
FS-5L (LATCH)
Determina uno stato di attivazione/disattivazione a ogni pressione del pedale
(funzionamento "latch").
FS-5U
(MOMENTARY)
Determina uno stato di attivazione n tanto che si mantiene l'interruttore a pedale
premuto, e di disattivazione non appena lo si rilascia (funzionamento "temporaneo").
Jack A (B)
Utilizzare questi jack per collegare i
dispositivi che si desidera controllare
con l'interruttore a pedale A (B).
Utilizzare cavi con jack phone da 1/4".
MEMO
Collegando un cavo con jack
phone stereo da 1/4" al jack B, è
possibile utilizzare un dispositivo
dotato di jack phone TRS da 1/4".
* In questo caso, non collegare
alcun cavo al jack A.
Jack DC IN
Collegare un adattatore CA (serie PSA, venduto a parte)
a questo jack. Utilizzando il cavo CC parallelo, è possibile
alimentare anche un'altra unità e etti.
* Utilizzare solo l'adattatore CA speci cato (serie PSA,
venduto a parte) e collegarlo a una presa CA con tensione
adeguata.
Italiano
Manuale dell'utente
Antes de usar esta unidad, lea atentamente las secciones “UTILIZACIÓN SEGURA DE LA UNIDAD y “NOTAS
IMPORTANTES. En estas secciones encontrará información importante acerca de la utilización correcta de la
unidad. Además, para familiarizarse con todas las funciones de esta nueva unidad, lea el Manual del usuario
en su totalidad. Conserve este manual y téngalo a mano para consultarlo.
Características principales
Este conmutador de pedal combina la funcionalidad de los modelos FS-5L (tipo pestillo) y FS-5U (tipo
momentáneo).
Puede utilizarse con productos BOSS/Roland compatibles con el FS-5L o el FS-5U.
* Para utilizar el FS-7 es necesario un adaptador de CA (serie PSA: se vende por separado). Si solo va a utilizar
el FS-7 momentáneamente, no es necesario conectar el adaptador de CA.
Ajustes del conmutador [POLARITY]
Para que el FS-7 coincida con el ajuste de
polaridad del FS-5L o el FS-5U indicado en el
manual del usuario del dispositivo conectado,
ajuste este conmutador tal y como se indica a
continuación.
FS-5L, FS-5U FS-7
Ajustado en
posición “I
* Con este ajuste, el conmutador queda en estado
abierto al activarse y cerrado al desactivarse.
Uso sin conectar un adaptador de CA
Puede utilizar el FS-7 momentáneamente
aunque no haya conectado un adaptador de CA.
La unidad funcionará con los siguientes ajustes,
independientemente de la con guración
concreta de cada conmutador.
Conmutador [MODE] FS-5U (MOMENTARY)
Conmutador
[POLARITY]
Ajustado en posición “I
* Los indicadores no se iluminan.
Descripciones de los paneles
Conexión del equipo
Adaptador de CA
(serie PSA)
Cable de CC paralelo
(accesorio)
Cable de conexión (enchufe telefónico de 1/4)
Cable de conexión
(enchufe telefónico estéreo de 1/4”)
o
* Si lo desea, puede utilizar el FS-7 con un cable (enchufe telefónico de 1/4”); conéctelo al conector A o B.
* Si se conecta un cable de enchufe telefónico de 1/4” estéreo al conector B, no conecte nada al conector A.
* Para evitar de ciencias de funcionamiento y fallos en los equipos, baje siempre el volumen y desactive
todas las unidades antes de realizar cualquier conexión.
Especi caciones principales
BOSS FS-7: conmutador de pedal dual
Fuente de alimentación Adaptador de CA (se vende por separado)
Consumo eléctrico 25 mA
Dimensiones 62 (ancho) x 131 (fondo) x 60 (alto) mm
Peso 290 g
Accesorios Cable de CC paralelo, manual del usuario
Opciones (de venta por separado) Adaptador de CA (serie PSA)
* No podemos garantizar el funcionamiento si la unidad se conecta a un dispositivo distinto de los
especi cados.
* Con el n de mejorar el producto, las especi caciones y/o el aspecto de la unidad pueden modi carse sin
previo aviso.
Copyright © 2014 ROLAND CORPORATION
Todos los derechos reservados. Se prohíbe la reproducción en cualquier formato de esta publicación, ya sea
parcialmente o en su totalidad, sin la previa autorización por escrito de ROLAND CORPORATION.
Interruptor del pedal A (B)
Funcionan como conmutadores para
el dispositivo conectado al conector
A (B).
Indicadores A (B)
Si el conmutador [MODE] se ajusta
a FS-5L (LATCH), el indicador se
ilumina o se apaga cada vez que se
pisa el conmutador de pedal.
Si el conmutador [MODE] se
ajusta a FS-5U (MOMENTARY),
el indicador se ilumina solo si se
mantiene pisado el conmutador
de pedal.
Conmutador [POLARITY]
Cambia la polaridad de los interruptores de pedal. Consulte el manual del usuario del dispositivo que va
a conectar y ajuste la polaridad adecuada.
Conmutador [MODE]
Especi ca cómo funcionarán los interruptores de pedal.
Ajuste Explicación
FS-5L (LATCH)
El ajuste se activa/desactiva cada vez que se pisa el interruptor del pedal
(funcionamiento de tipo pestillo).
FS-5U (MOMENTARY)
Este ajuste se activa al mantener pisado el interruptor del pedal y se
desactiva al soltarlo (funcionamiento de tipo momentáneo).
Conectores A (B)
Conecte a estos conectores los
dispositivos que desee controlar con
el conmutador de pedal A (B). Utilice
cables con enchufes telefónicos de
1/4”.
RECUERDE
Si conecta un enchufe telefónico
estéreo de 1/4” al conector B,
podrá utilizarlo con un dispositivo
que tenga un enchufe telefónico
TRS de 1/4”.
* En tal caso, no conecte nada al
conector A.
Conector DC IN
Conecte a este conector un adaptador de CA (serie PSA:
se vende por separado). Al utilizar el cable de CC paralelo
incluido, podrá conectar la fuente de alimentación a otras
unidades de efectos.
* Use únicamente el adaptador de CA especi cado (serie
PSA: se vende por separado) y asegúrese de que la salida
de CA tiene el voltaje correcto.
Español
Manual del usuario
Antes de usar esta unidade, leia atentamente as seções intituladas “USO SEGURO DA UNIDADE” e OBSERVA-
ÇÕES IMPORTANTES. Essas seções contêm informações importantes sobre a operação adequada da unidade.
Além desse material, para ter uma boa compreensão de todos os recursos da nova unidade, leia todo o
Manual do Proprietário. Este manual deve ser guardado e mantido em local de fácil acesso para consultas
futuras.
Principais recursos
Este é um pedal que combina a funcionalidade do FS-5L (tipo engate) com o FS-5U (tipo transitório).
Ele pode ser usado com os produtos BOSS/Roland que funcionam com o FS-5L ou FS-5U.
* É necessário um adaptador CA (série PSA: vendido separadamente) para usar o FS-7. Se estiver utilizando
somente operação transitória, o FS-7 pode ser usado sem se conectar a um adaptador CA.
Ajuste da chave [POLARITY]
Para que FS-7 corresponda ao ajuste de polari-
dade de FS-5L ou FS-5U fornecido no manual do
proprietário do dispositivo conectado, con gure
esta chave conforme abaixo.
FS-5L, FS-5U FS-7
Ajuste na
posição “I
* Com este ajuste, a chave ca no estado
aberto quando ligada, e no “fechado quando
desligada.
Use sem conectar ao adaptador CA
Você pode usar o FS-7 com operação transitória
mesmo que não haja adaptador CA conectado.
Ele funcionará com os ajustes seguintes,
independentemente de como cada chave esteja
ajustada.
Chave [MODE] FS-5U (MOMENTARY)
Chave [POLARITY] Ajuste na posição “I
* Os indicadores não acendem.
Descrições do painel
Conexão do equipamento
Adaptador CA
(Série PSA)
Cabo CC paralelo
(Acessório)
Cabo de conexão (plugue para fone de 1/4”)
Cabo de conexão
(plugue estéreo para fone de 1/4”)
ou
*
Você pode usar o FS-7 com apenas um cabo (plugue para fone de 1/4) se preferir; conecte-o ao conector A ou B.
* Se um cabo de plugue para fone estéreo de 1/4” estiver conectado ao conector B, não conecte nada ao
conector A.
* Para evitar mau funcionamento e falhas no equipamento, sempre abaixe o volume e desligue todas as
unidades antes de realizar qualquer conexão.
Principais especi cões
BOSS FS-7: Pedal dual
Fonte de alimentação Adaptador CA (vendido separadamente)
Uso de corrente 25 mA
Dimensões 62 (L) x 131 (P) x 60 (A) mm
Peso 290 g
Acessórios Cabo CC paralelo, Manual do Proprietário
Opcional (vendido separadamente) Adaptador CA (série PSA)
* Não podemos garantir a operação se esta unidade for conectada a dispositivos outros que não os
dispositivos especi cados.
* Com a nalidade de aprimorar o produto, as especi cações e/ou a aparência desta unidade estão sujeitas a
mudanças sem aviso prévio.
Copyright © 2014 ROLAND CORPORATION
Todos os direitos reservados. Nenhuma parte desta publicação poderá ser reproduzida em qualquer formato
sem permissão por escrito da ROLAND CORPORATION.
Chave do pedal A (B)
Funcionam como chaves para o
dispositivo que está conectado ao
conector A (B).
Indicadores A (B)
Se a chave [MODE] estiver ajustada
para FS-5L (LATCH), o indicador
acende ou escurece toda vez que
você pressiona a chave do pedal.
Se a chave [MODE] estiver
ajustada para FS-5U (MOMENTA-
RY), o indicador acende apenas
enquanto você mantém a chave
do pedal pressionada.
Chave [POLARITY]
Muda a polaridade das chaves do pedal. Consulte o manual do proprietário do dispositivo ao qual está
se conectando e ajuste a polaridade como apropriado.
Chave [MODE]
Especi ca como as chaves do pedal irão operar.
Con guração Explicação
FS-5L (LATCH)
O ajuste liga/desliga sempre que você pressionar a chave do pedal
(operação de engate).
FS-5U (MOMENTARY)
O ajuste permanece ligado enquanto você mantém a chave do pedal
pressionada, e desliga quando liberada (operação transitória).
Conectores A (B)
Conecte estes conectores aos
dispositivos que desejar controlar
usando a chave do pedal A (B). Use
cabos com conectores para fone 1/4”.
MEMO
Se conectar um cabo de plugue
para fone estéreo de 1/4” ao
conector B, você poderá utilizá-lo
com um dispositivo que tenha
um plugue para fone TRS de 1/4”.
* Nesse caso, não conecte nada
ao conector A.
Conector DC IN
Conecte um adaptador CA (série PSA: vendido separada-
mente) a este conector. Use o cabo CC paralelo incluído para
estender a fonte de alimentação a outras unidades de efeito.
* Use somente o adaptador CA especi cado (série PSA:
vendido separadamente) e assegure-se de que a tomada
CA tenha a voltagem correta.
Português
Manual do Proprietário
Lees de hoofdstukken HET APPARAAT VEILIG GEBRUIKEN en BELANGRIJKE OPMERKINGEN zorgvuldig alvorens
dit apparaat te gebruiken. Deze hoofdstukken bevatten belangrijke informatie over de juiste bediening van het
apparaat. Om er bovendien zeker van te zijn dat u elke functie van uw nieuwe apparaat goed begrijpt, leest u best
de volledige gebruikershandleiding. Deze handleiding moet als referentie worden bewaard en voorhanden zijn.
Belangrijkste functies
Dit is een voetschakelaar die de functionaliteit van zowel de FS-5L (vergrendelend type) als de FS-5U
(momentaan type) combineert.
Dat kan worden gebruikt met BOSS/Roland-producten die compatibel zijn met de FS-5L of de FS-5U.
* Een netstroomadapter (PSA-reeks: apart verkrijgbaar) is vereist om de FS-7 te gebruiken. Wanneer u alleen de
momentane werking gebruikt, kan de FS-7 zonder aansluiting van een netstroomadapter worden gebruikt.
[POLARITY]-schakelaarinstelling
Stel de schakelaar als volgt in om de FS-7 te doen
overeenstemmen met de polariteitsinstelling
van de FS-5L of FS-5U zoals opgegeven in de
gebruikershandleiding van het aangesloten
apparaat.
FS-5L, FS-5U FS-7
Ingesteld op
positie “I
* Met deze instelling staat de schakelaar in open
toestand indien ingeschakeld, en in gesloten
toestand indien uitgeschakeld.
Gebruik zonder aansluiten van een
netstroomadapter
U kunt de FS-7 met momentane werking
gebruiken zonder dat er een netstroomadapter
is aangesloten.
Het apparaat zal met de volgende instellingen
werken, ongeacht de eigenlijke positie van elke
schakelaar.
[MODE]-schakelaar FS-5U (MOMENTARY)
[POLARITY]-
schakelaar
Ingesteld op positie “I
* De indicatielampjes branden niet.
Paneelbeschrijvingen
Uw apparatuur aansluiten
Netstroomadapter
(PSA-reeks)
Parallelle DC-kabel
(accessoire)
Aansluitkabel (1/4"-jackplug)
Aansluitkabel
(stereo 1/4"-jackplug)
of
* U kunt de FS-7 met slechts één kabel (1/4"-jackplug) gebruiken indien u dit wenst; sluit die aan op
aansluiting A of B.
* Wanneer er een kabel met een stereo 1/4"-jackplug aangesloten is op aansluiting B, sluit dan niets aan op
aansluiting A.
* Zet het volume altijd op nul en schakel alle apparaten uit voordat u aansluitingen maakt om defecten of
storingen aan de apparatuur te voorkomen.
Belangrijkste speci caties
BOSS FS-7: dubbele voetschakelaar
Voeding Netstroomadapter (apart verkrijgbaar)
Stroomverbruik 25 mA
Afmetingen 62 (B) x 131 (D) x 60 (H) mm
Gewicht 290 g
Accessoires Parallelle DC-kabel, gebruikershandleiding
Optie (apart verkrijgbaar) Netstroomadapter (PSA-reeks)
* We kunnen de werking niet garanderen wanneer dit apparaat wordt aangesloten op andere dan de
gespeci eerde apparaten.
* Met het oog op productverbetering kunnen de speci caties en/of het uiterlijk van dit apparaat worden
gewijzigd zonder voorafgaande kennisgeving.
Copyright © 2014 ROLAND CORPORATION
Alle rechten voorbehouden. Niets uit deze uitgave mag op enige manier worden gereproduceerd zonder
schriftelijke toestemming van ROLAND CORPORATION.
Voetschakelaar A (B)
Ze fungeren als schakelaars voor de
apparaten die zijn aangesloten op
aansluiting A, resp. (B).
Indicator A (B)
Wanneer de [MODE]-schakelaar op
FS-5L (LATCH) wordt gezet, licht
het indicatielampje op of dooft
dit telkens u de voetschakelaar
indrukt.
Wanneer de [MODE]-schakelaar op
FS-5U (MOMENTARY) wordt gezet,
licht het indicatielampje alleen
op wanneer u de voetschakelaar
ingedrukt houdt.
[POLARITY]-schakelaar
Die schakelt de polariteit van de voetschakelaars om. Raadpleeg de gebruikershandleiding van het
apparaat dat u aansluit en stel de polariteit overeenkomstig in.
[MODE]-schakelaar
Die speci eert hoe de voetschakelaars zullen werken.
Instelling Uitleg
FS-5L (LATCH)
Met deze instelling schakelt het apparaat in/uit telkens u een voetschakelaar
indrukt (vergrendelende werking).
FS-5U (MOMENTARY)
Met deze instelling is het apparaat ingeschakeld wanneer u de voetschakelaar
ingedrukt houdt en uitgeschakeld wanneer u die loslaat (momentane werking).
Aansluiting A (B)
Sluit deze aansluitingen aan op de
apparaten die u met voetschakelaar A
(B) wenst te bedienen. Maakt gebruik
van kabels met 1/4"-jackpluggen.
MEMO
Wanneer u een kabel met
stereo 1/4"-jackplug aansluit
op aansluiting B, dan kunt u die
gebruiken met een apparaat met
een TRS 1/4"-plug.
* Sluit in dit geval niets aan op
aansluiting A.
DC IN-aansluiting
Sluit een netstroomadapter (PSA-reeks: apart verkrijgbaar) aan
op deze aansluiting. Met behulp van de parallelle DC-kabel
kunt u de voeding doorschakelen naar andere e ectapparaten.
* Gebruik alleen de opgegeven netstroomadapter
(PSA-reeks: apart verkrijgbaar) en zorg dat uw stopcontact
de juiste spanning heeft.
Nederlands
Gebruikershandleiding
Loading ...
Loading ...
Loading ...

Other documents for BOSS FS-7

The following documents are available:
User Manual
  • Owner’s Manual - (English, French, Portuguese, Spanish, German, Dutch - Holland, Italian, Japanese) Read Online | Download pdf
Photos

Specifications

See other models: SD-1 DS-1 TU-30 TU-03 GM-800
