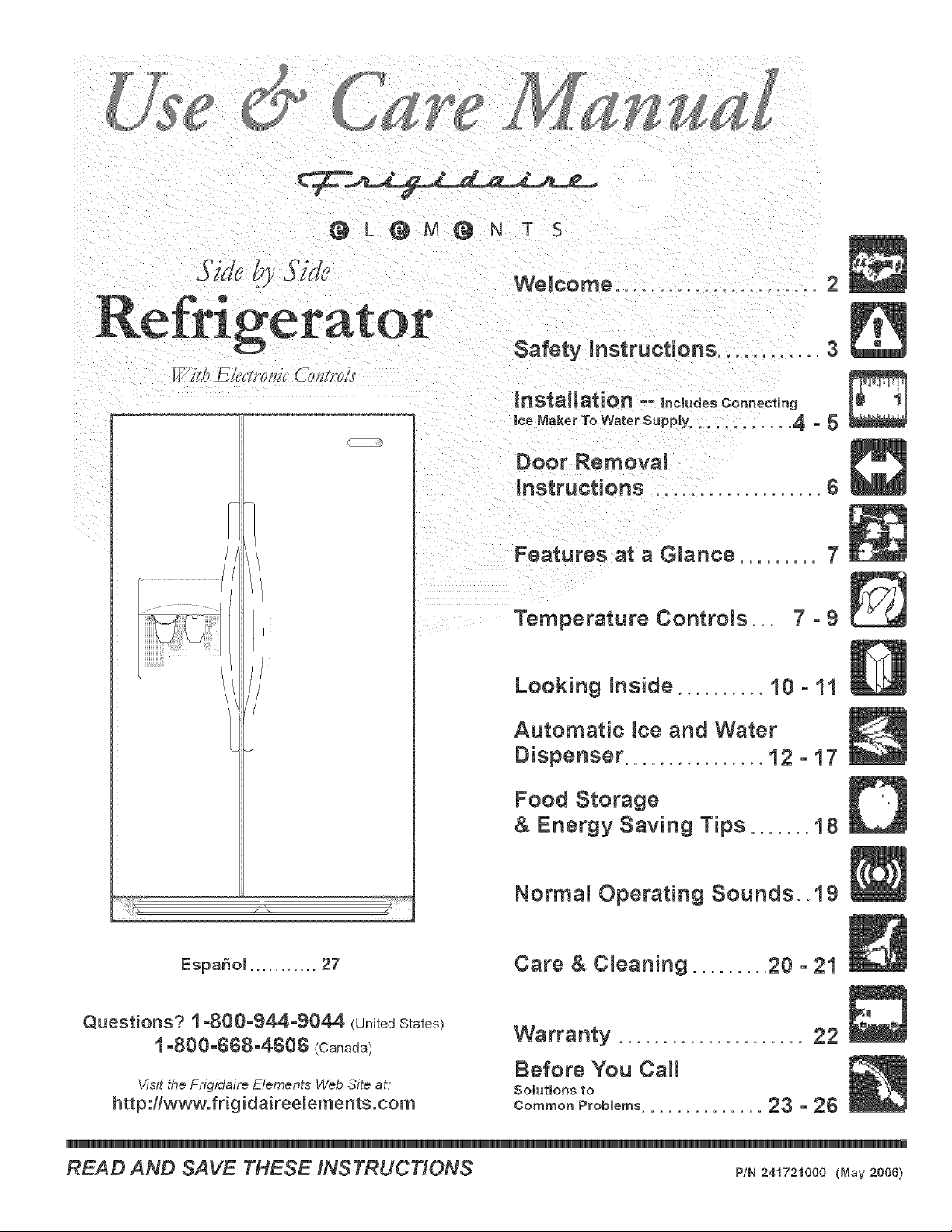

@ L @ M @ N T S
Welcome ....................... 2
_Y/LLL_Eicc/FeHic C-'o/_/ro/J'
Safety instructions...........3
Installation-- _ooJ.deaConnecting
Ice Maker To Water Supply ............ 4 -5
Door Removal
Instructions ...................6
Features at a Glance ......... 7
Temperature Controls... 7oS
Looking inside ..........10 o 11
Automatic ice and Water
Dispenser ................12 o 17
Food Storage
& Energy Saving Tips ....... 18
Normal Operating Sounds.. IS
EspaSol ...........27
Questions? 1-800o944-9044 (United States)
1-800-$68-4606 (Canada)
Visit the Frigidaire Elements Web Site at:
http:i/www.frigidairee_ements.com
Care & Cleaning ......... 20 - 21
Warranty ..................... 22
Before You Call
Solutions to
Commo.Probtema.............. 23 ° 26
READ AND SAVE THESE iNSTRUCTiONS P!.24t72tooo<Moy2oo6)

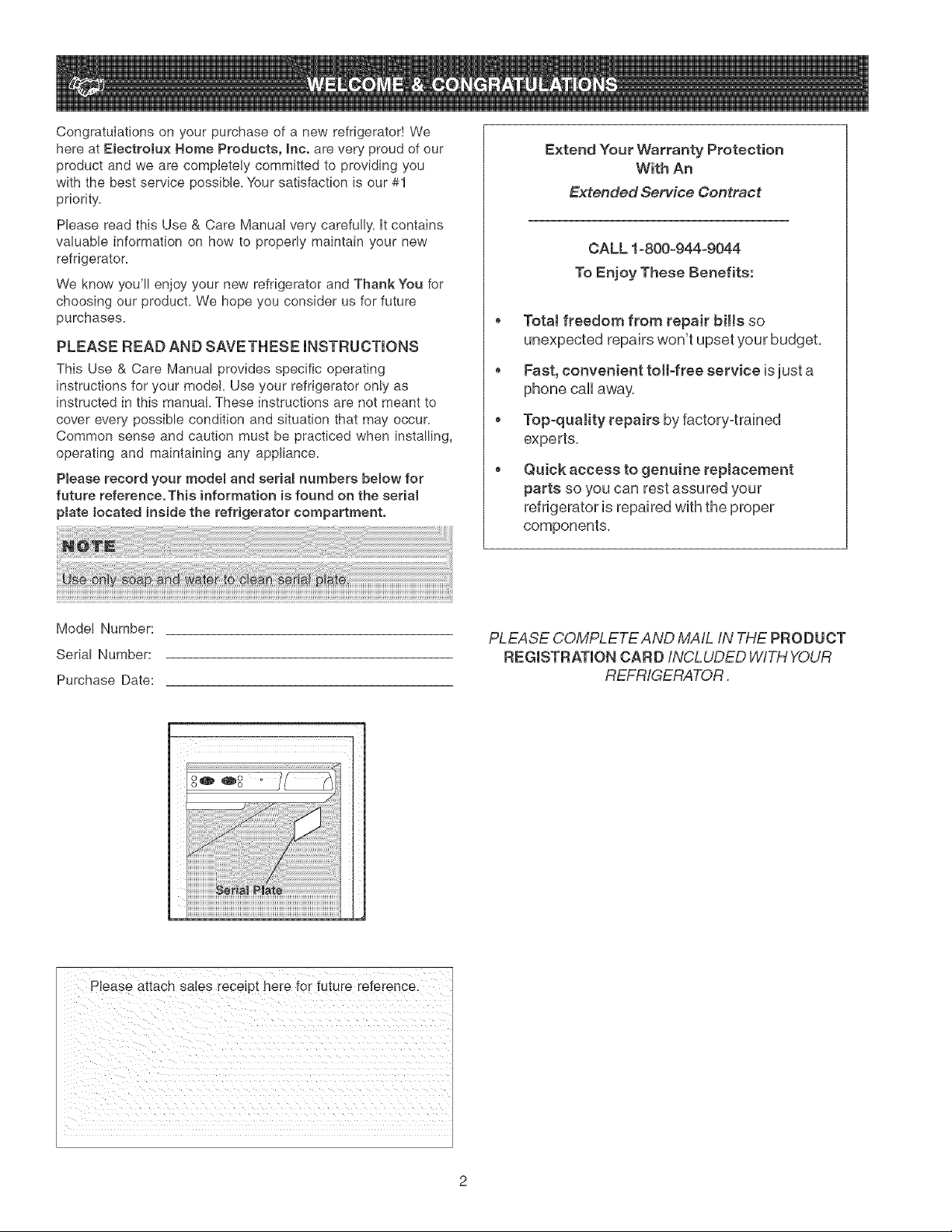

Congratulations on your purchase of a new refrigerator! We
here at Electrolux Nome Products, _nc. are very proud of our
product and we are completely committed to providing you
with the best service possible. Your satisfaction is our #1
priority.
Please read this Use & Care Manual very carefully. It contains
valuable information on how to properly maintain your new
refrigerator.
We know you'll enjoy your new refrigerator and Thank You for
choosing our product. We hope you consider us for future
purchases.
PLEASE READ AND SAVETHESE INSTRUCTIONS
This Use & Care Manual provides specific operating
instructions for your model Use your refrigerator only as
instructed in this manual These instructions are not meant to
cover every possible condition and situation that may occur.
Common sense and caution must be practiced when installing,
operating and maintaining any appliance_
Pmease record your modem and seriam numbers below for
future reference.This information is found on the serial
pBate located inside the refrigerator compartment.
Extend Your Warranty Protection
With An
Extended Service Contract
CALL 1-800-944-9044
To _=njoy These Benefits:
TotaJ freedom from repair bills so
unexpected repairs won't upset your budget,
Fast, convenient toIFfree service is just a
phone call away,
Top-quality repairs by factory-trained
experts,
Quick access to genuine replacement
parts so you can rest assured your
refrigerator is repaired with the proper
components,
Model Number:
Serial Number:
Purchase Date:
PLEASE COMPLETE AND MAIL IN THE PRODUCT
REGISTRATION CARD INCLUDED WITH YOUR
REFRIGERATOR.
Please attach sales receipt here for future reference.

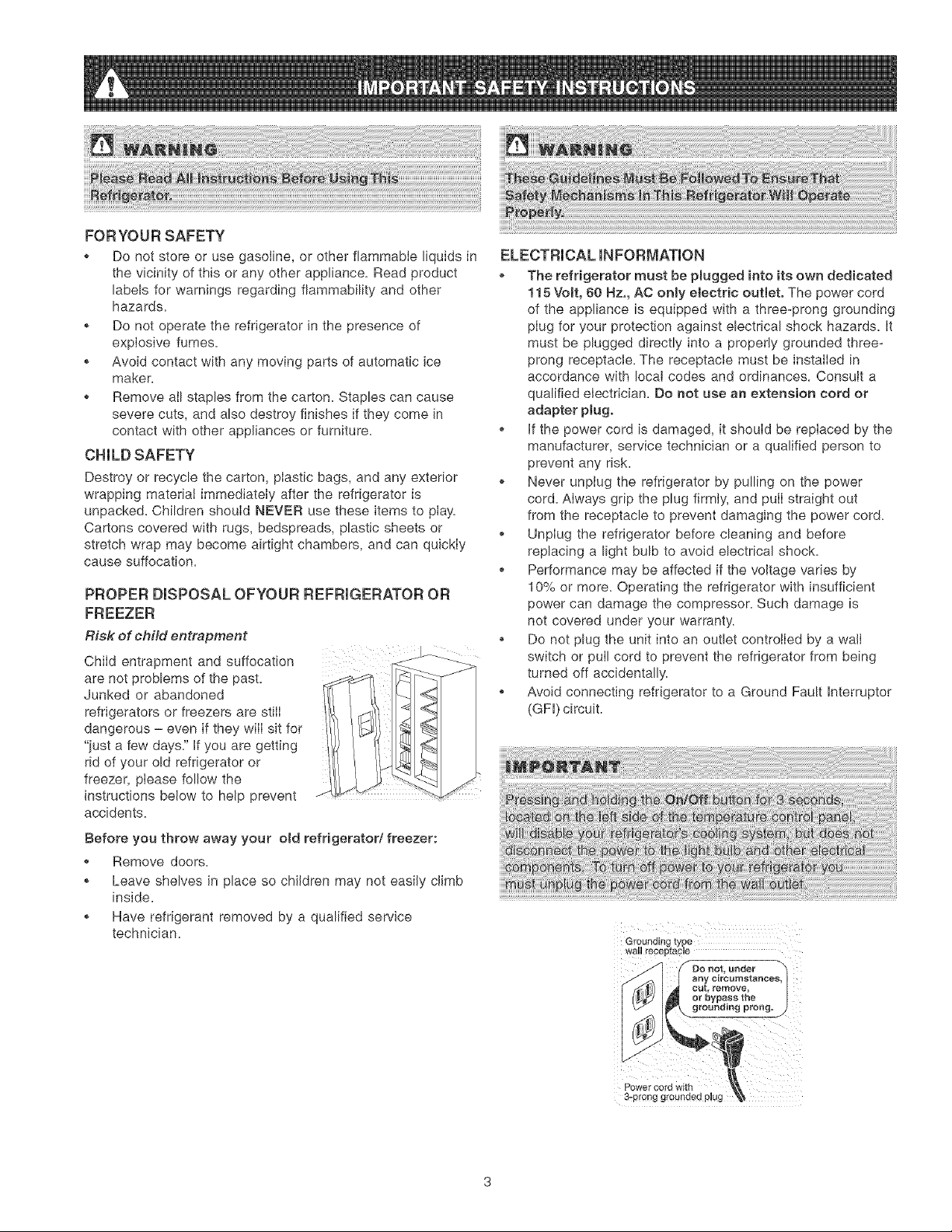

FORYOURSAFETY
°Do not store or use gasoline, or other flammable liquids in
the vicinity of this or any other appliance. Read product
labels for warnings regarding flammability and other
hazards.
,, Do not operate the refrigerator in the presence of
explosive fumes.
,, Avoid contact with any moving parts of automatic ice
maker.
, Remove aII staples from the carton. Staples can cause
severe cuts, and also destroy finishes if they come in
contact with other appliances or furniture.
CHILD SAFETY
Destroy or recycle the carton, plastic bags, and any exterior
wrapping materiat immediately after the refrigerator is
unpacked. Children should NEVER use these items to play.
Cartons covered with rugs, bedspreads, plastic sheets or
stretch wrap may become airtight chambers, and can quickly
cause suffocation.
PROPER DISPOSAL OFYOUR REFRIGERATOR OR
FREEZER
Risk of child entrapment
Child entrapment and suffocation
are not problems of the past.
Junked or abandoned
refrigerators or freezers are still
dangerous - even if they wilI sit for
"just a few days." If you are getting
rid of your old refrigerator or
freezer, ptease follow the
instructions below to help prevent
accidents.
J
Before you throw away your old refrigerator/freezer:
° Remove doors.
,, Leave shelves in place so children may not easily climb
inside,
,. Have refrigerant removed by a qualified service
technician.
ELECTRICAL INFORMATION
,, The refrigerator must be plugged into its own dedicated
115 Volt, 60 Hz., AC only eiectric outlet. The power cord
of the appliance is equipped with a three-prong grounding
plug for your protection against electrical shock hazards. It
must be plugged directly into a properly grounded three-
prong receptacIe. The receptacle must be installed in
accordance with local codes and ordinances. Consult a
qualified electrician. Do not use an extension cord or
adapter plug.
* If the power cord is damaged, it should be replaced by the
manufacturer, service technician or a qualified person to
prevent any risk.
,, Never unplug the refrigerator by pulling on the power
cord. Always grip the plug firmty, and puii straight out
from the receptacle to prevent damaging the power cord.
, Unplug the refrigerator before cleaning and before
replacing a light bulb to avoid electrical shock.
,Performance may be affected if the voltage varies by
10% or more. Operating the refrigerator with insufficient
power can damage the compressor. Such damage is
not covered under your warranty.
,Do not plug the unit into an outlet controlled by a wall
switch or pull cord to prevent the refrigerator from being
turned off accidentally.
Avoid connecting refrigerator to a Ground Fault Interruptor
(GFI) circuit.
Power cord with
r_-prong grounded plug

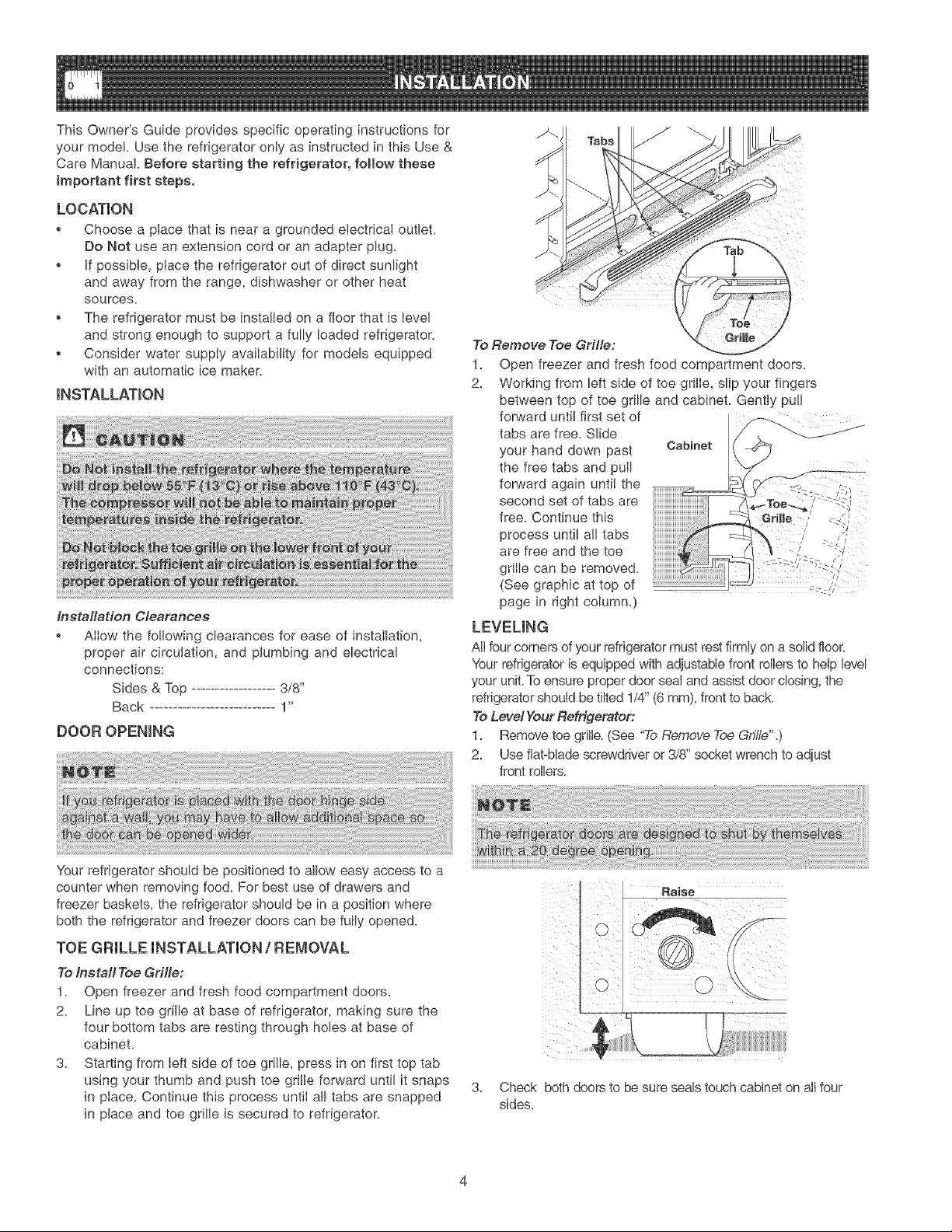

This Owner's Guide provides specific operating instructions for
your model. Use the refrigerator only as instructed in this Use &
Care Manuai+ Before starting the refrigerator, follow these
important first steps.
LOCATION
+ Choose a place that is near a grounded electdcaI outlet.
Do Not use an extension cord or an adapter plug+
+ If possible, ptace the refrigerator out of direct sunlight
and away from the range, dishwasher or other heat
SOUrCeS.
+ The refrigerator must be instalIed on a floor that is Ievel
and strong enough to support a fully loaded refrigerator.
+ Consider water supply availability for models equipped
with an automatic ice maker.
INSTALLATION
lnstMlation Clearances
+ Allow the following clearances for ease of instaIlation,
proper air circulation, and plumbing and electrical
connections:
Sides & Top .................. 3/8"
Back ........................... 1"
DOOR OPENING
To Remove Toe Grille:
1.
2.
Open freezer and fresh food compartment doors.
Working from left side of toe grille, slip your fingers
between top of toe grille and cabinet. Gently pull
forward until first set of
tabs are free. Slide
your hand down past Cabinet
the free tabs and pulI
forward again unti! the
second set of tabs are
free. Continue this _./ .......
"i
process until all tabs /
are free and the toe /
griIle can be removed.
(See graphic at top of __ _L,'/!
page in right column.)
LEVELING
Ait four corners of your refrigerator must rest firmly on a solid floor.
Your refrigerator is equipped with adjustabIe front rollers to help level
your unit. To ensure proper door seal and assist door closing, the
refrigerator should be tilted 1/4" (6 ram), front to back.
To Level Your Refrigerator:
1. Remove toe grille+(See "To Remove Toe Gri/,Pe'+)
2. Use flat-blade screwdriver or 3/8" socket wrench to adjust
front rollers.
Your refrigerator should be positioned to allow easy access to a
counter when removing food. For best use of drawers and
freezer baskets, the refrigerator should be in a position where
both the refrigerator and freezer doors can be fully opened.
TOE GRILLE INSTALLATION/REMOVAL
To Instafl Toe Grille:
1. Open freezer and fresh food compartment doors.
2. Line up toe grille at base of refrigerator, making sure the
four bottom tabs are resting through holes at base of
cabinet.
3. Starting from Ieft side of toe grille, press in on first top tab
using your thumb and push toe grille forward until it snaps
in place. Continue this process until al! tabs are snapped
in place and toe grille is secured to refrigerator.
3.
Raise
Check both doors to be sure seals touch cabinet on atl four
sides.

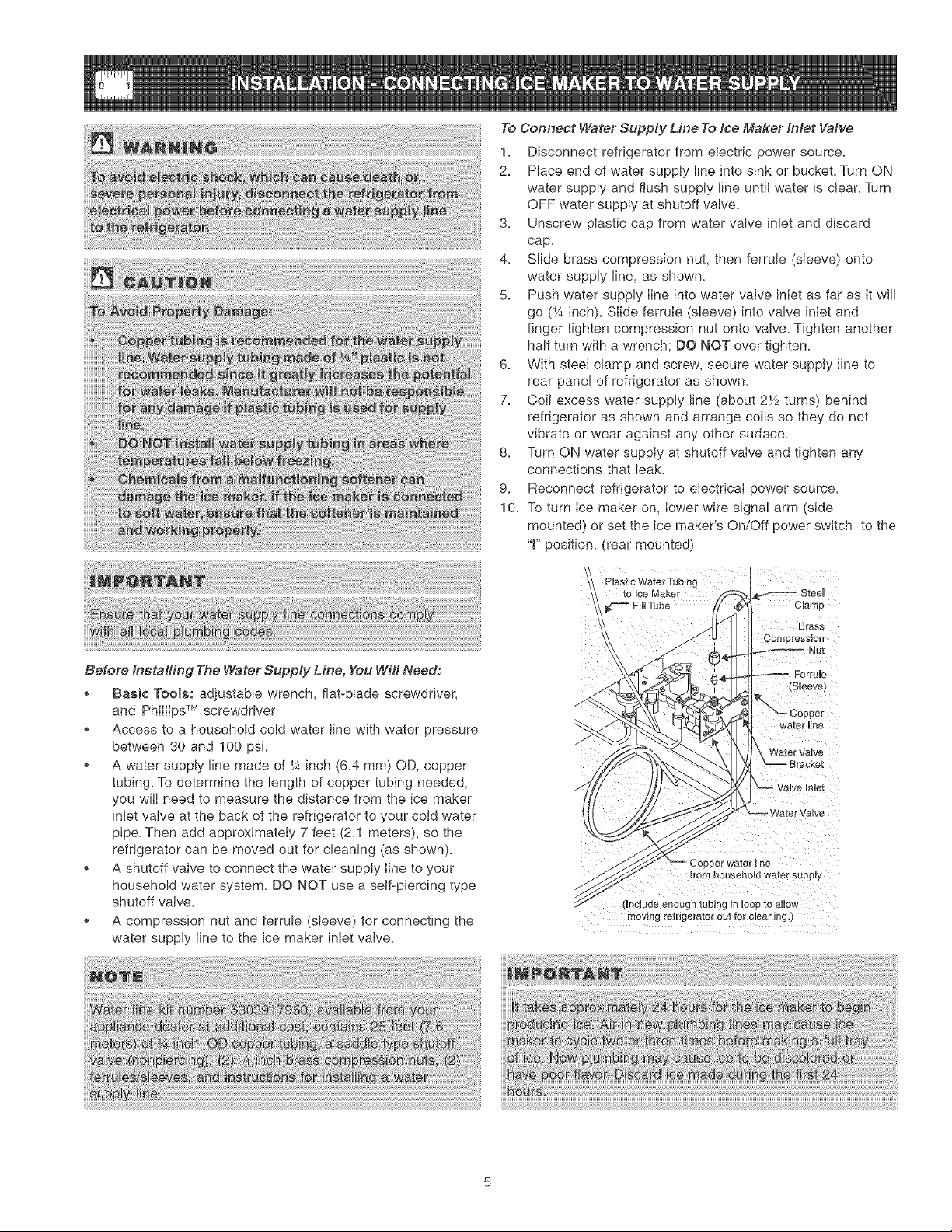

To Connect Water Supply Line To Ice Maker Inlet Valve
1. Disconnect refrigerator from electric power source.
2. Place end of water supply line into sink or bucket. Turn ON
water supply and flush suppty Iine until water is clear. Turn
OFF water supply at shutoff valve.
3. Unscrew pIastic cap from water valve inlet and discard
cap.
4. Slide brass compression nut, then ferrule (sleeve) onto
water supply line, as shown.
5. Push water supply Iine into water valve inIet as far as it will
go (¼ inch). SIide ferruIe (sleeve) into valve inlet and
finger tighten compression nut onto valve. Tighten another
half turn with a wrench; DO NOT over tighten.
6. With steel clamp and screw, secure water supply Iine to
rear panel of refrigerator as shown.
7. Coil excess water suppIy line (about 2Y2 turns) behind
refrigerator as shown and arrange coils so they do not
vibrate or wear against any other surface.
8. Turn ON water suppIy at shutoff vaIve and tighten any
connections that leak.
9. Reconnect refrigerator to electrical power source.
10. To turn ice maker on, Iower wire signal arm (side
mounted) or set the ice maker's On/Off power switch to the
"t" position. (rear mounted)
Before installing The Water Supply Line, You Will Need:
,, Basic Tools: adjustable wrench, flat-blade screwdriver,
and Phillips T_'_screwdriver
,, Access to a household cold water line with water pressure
between 30 and 100 psi.
,, A water supply line made of ¼ inch (6.4 ram) OD, copper
tubing. To determine the length of copper tubing needed,
you wilI need to measure the distance from the ice maker
inlet valve at the back of the refrigerator to your cold water
pipe. Then add approximately 7 feet (2.1 meters), so the
refrigerator can be moved out for cleaning (as shown).
,, A shutoff valve to connect the water supply Iine to your
household water system. DO NOT use a self-piercing type
shutoff valve.
,, A compression nut and ferrule (sleeve) for connecting the
water supply line to the ice maker inlet valve.
to Ice Maker
Fill Tuba
(Sleeve'_
_ater line
from r _usehold water supply
ndude enougn _aalng _ loop to allow
moving refrigerator out for cUaarling
Tools Necessary:
Phillips head Socket
Wlench Set
3/8"
Fixed
Wrench

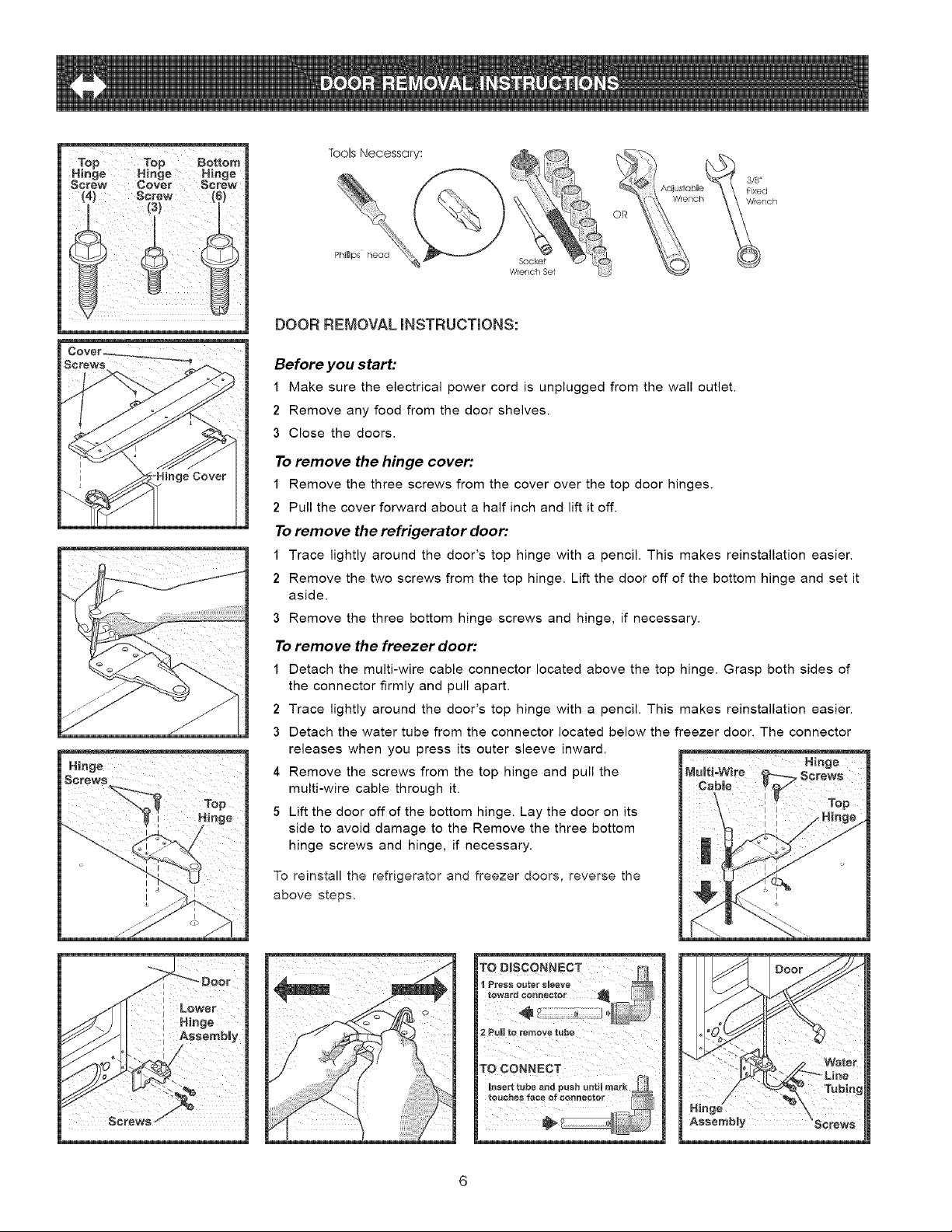

DOOR REMOVAL INSTRUCTIONS:
Before you start:
1 Make sure the electrical power cord is unplugged from the wall outlet.
2 Remove any food from the door shelves.
3 Close the doors.
To remove the hinge cover:
1 Remove the three screws from the cover over the top door hinges.
2 Pull the cover forward about a half inch and lift it off.
To remove the refrigerator door:
I Trace lightly around the door's top hinge with a pencil. This makes reinstallation easier.
2 Remove the two screws from the top hinge. Lift the door off of the bottom hinge and set it
aside.
3 Remove the three bottom hinge screws and hinge, if necessary.
To remove the freezer door:
I Detach the multi-wire cable connector located above the top hinge. Grasp both sides of
the connector firmly and pull apart.
2 Trace lightly around the door's top hinge with a pencil. This makes reinstallation easier.
3 Detach the water tube from the connector located below the freezer door. The connector
releases when you press its outer sleeve inward.
4 Remove the screws from the top hinge and pull the
multi-wire cable through it.
5 Lift the door off of the bottom hinge. Lay the door on its
side to avoid damage to the Remove the three bottom
hinge screws and hinge, if necessary.
To reinstall the refrigerator and freezer doors, reverse the
above steps.
Hinge
Multi=Wire _ Screws
Cable _
ITop
; !i
2Pull _e remove tube
TO CONNECT
Features may vary
according to model
Fixed
Door Bin
Bee Container
SheUf
$heUf
Tilt Out
Boor Bin
$ma[R Basket
Large
GUide Out
Basket
Tilt Out
Door Bin
Large Basket
Door Bin

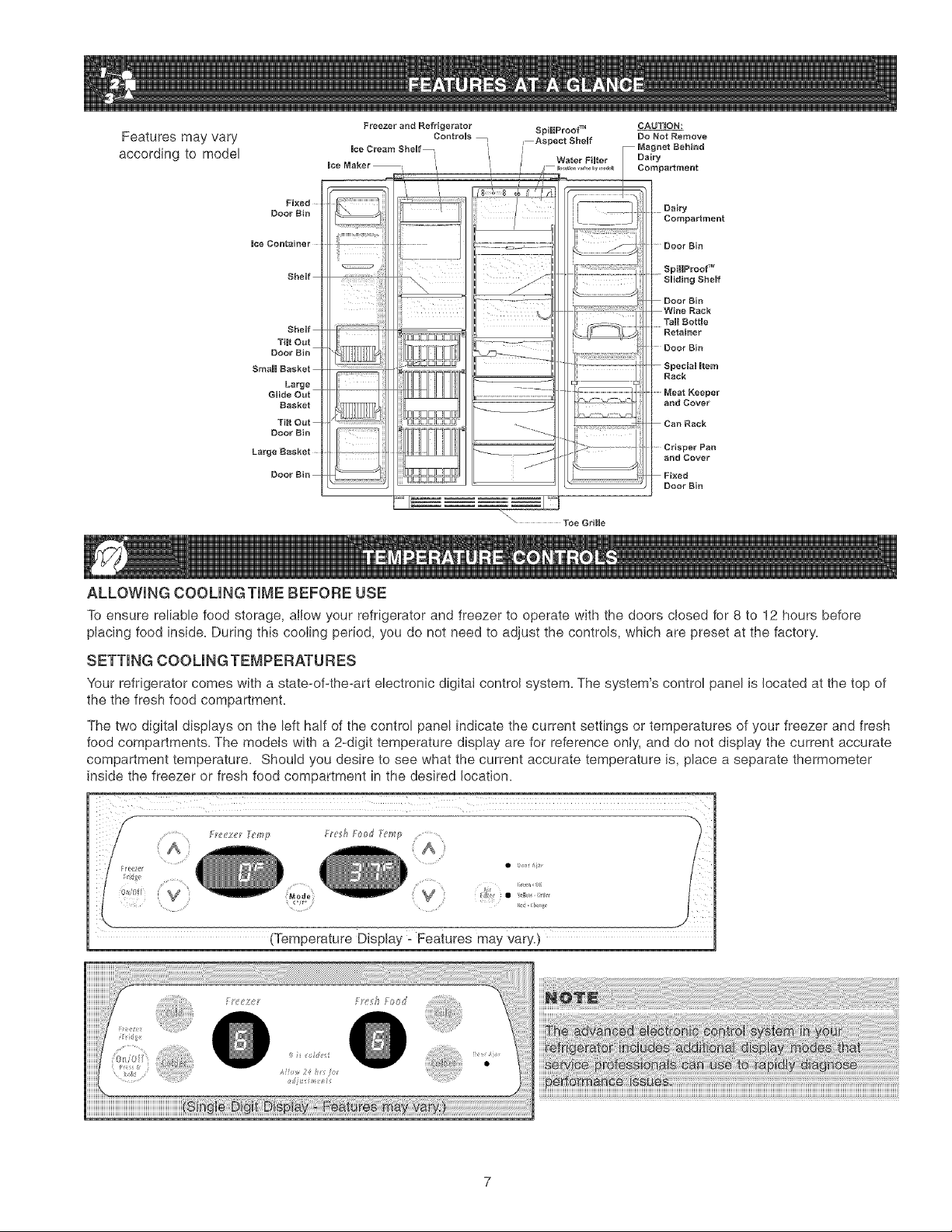

Freezer and Refrigerator
ControUs
raceCream 8heff
race Maker
i Ii
i ! ............
_g
...._H ........
SpiHProofTM CAUTION:
s Aspect Shemf Do Not Remove
I J _Magnet Behind
II J Water_F Uter Dairy
I _ i_o_o _,_o__ m_o_ Compartment
....i .... Dairy
_ Compartment
_-:_:_-J _--:_ _ .j_ .... Door Bin
_SpigProof TM
SUiding Shelf
Door Bin
Wine Rack
Tag Bottle
..... Retainer
Door Bin
-- 8pec[am totem
Back
......................................................_..... Meat Keeper
Can Back
_- ........... Crisper Pan
and Cover
\
\Toe Grige
Fixed
Door Bin
ALLOWING COOLINGTIME BEFORE USE
To ensure reliable food storage, allow your refrigerator and freezer to operate with the doors closed for 8 to 12 hours before
placing food inside= During this cooIing period, you do not need to adjust the controls, which are preset at the factory=
SETTING COOLING TEMPERATURES
Your refrigerator comes with a state-of-the-art electronic digital control system= The system's control panel is located at the top of
the the fresh food compartment=
The two digital displays on the left half of the control panel indicate the current settings or temperatures of your freezer and fresh
food compartments= The models with a 2-digit temperature display are for reference only, and do not display the current accurate
compartment temperature= Should you desire to see what the current accurate temperature is, place a separate thermometer
inside the freezer or fresh food compartment in the desired location=
; V : ..... " ........
(Temperature Display iFeatures may vary.)
Mode
To adiust the temperature to a higher or lower setting, press
the Up (Cold) or Down (Colder) button closest to the display.
The first time you press the button, the display shows current
setting you entered. Each press of the button after that
changes the setting by one degree.
The display shows your new setting momentarily, then
changes back to the current temperature.
CHOOSING FAHRENHEIT OR CENTIGRADE
Depending on which temperature standard you prefer to use,
you can set your control panel to display in fahrenheit or
centigrade= To change between fahrenheit and centigrade,
press the Mode button (located between the two digital
temperature displays)=
=
Press to alternate be'ccveen
Fahrenheit and Centigrade

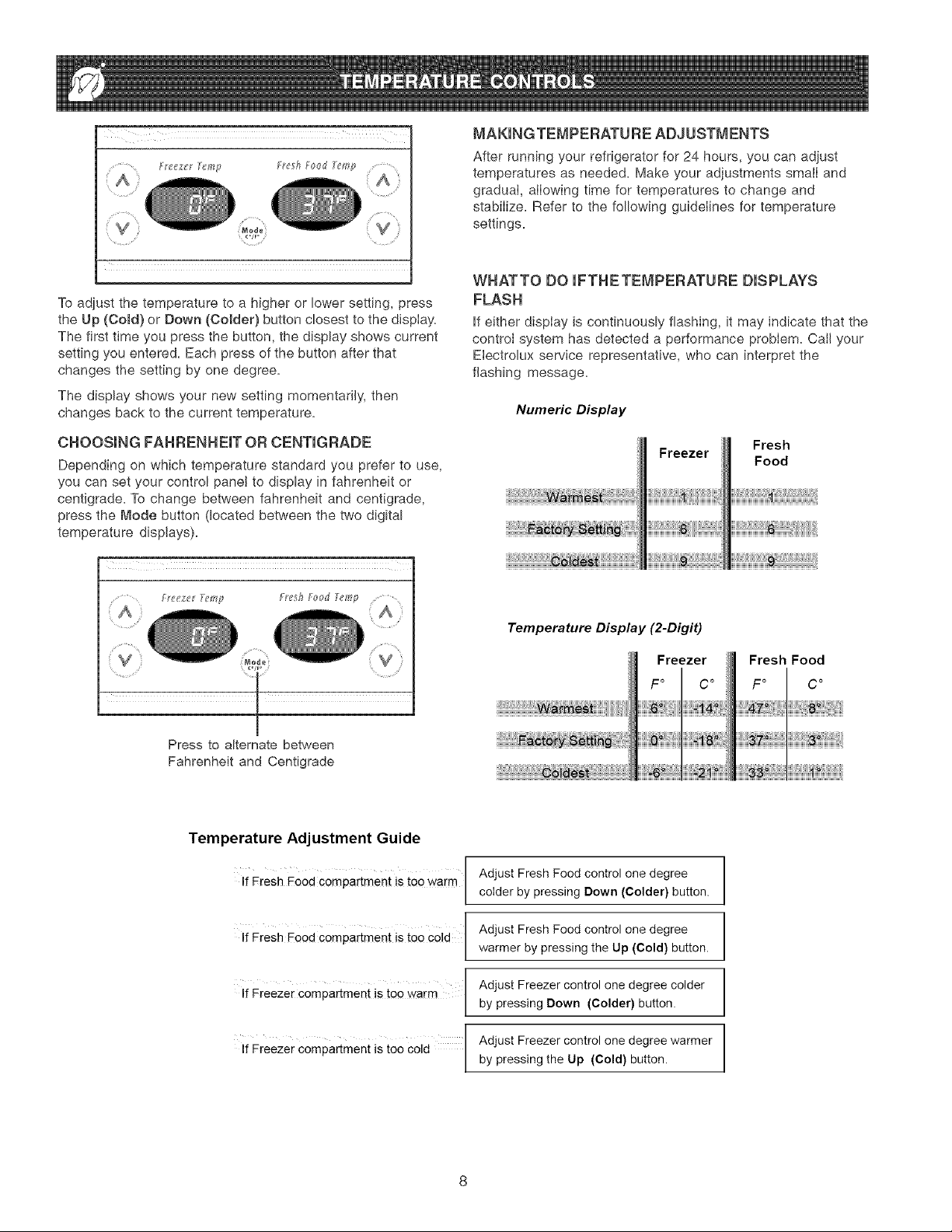

MAKINGTEMPERATURE ADJUSTMENTS
After running your refrigerator for 24 hours, you can adjust
temperatures as needed. Make your adjustments small and
gradual, allowing time for temperatures to change and
stabilize. Refer to the following guidelines for temperature
settings=
WHATTO DO IFTHETEMPERATURE DISPLAYS
FLASH
If either display is continuously flashing, it may indicate that the
contro{ system has detected a performance problem. Call your
E{ectrohx service representative, who can interpret the
flashing message.
Numeric Display
Fresh
Freezer Food
Temperature Display (2-Digit)
Freezer Fresh Food
FoC°FoC°
Temperature Adjustment Guide
IfFresh Food €ompartment is too Warm
If Fresh Food compartment is too Cold
If Freezer Compartmeni is too waim
IfFreezer €ompartment is too co{d
Adjust Fresh Food control one degree
colder by pressing Down (Colder) button.
Adjust Fresh Food control one degree
warmer by pressing the Up (Cold} button.
Adjust Freezer control one degree colder
by pressing Down (Colder) button.
Adjust Freezer control one degree warmer
by pressing the Up (Cold} button.

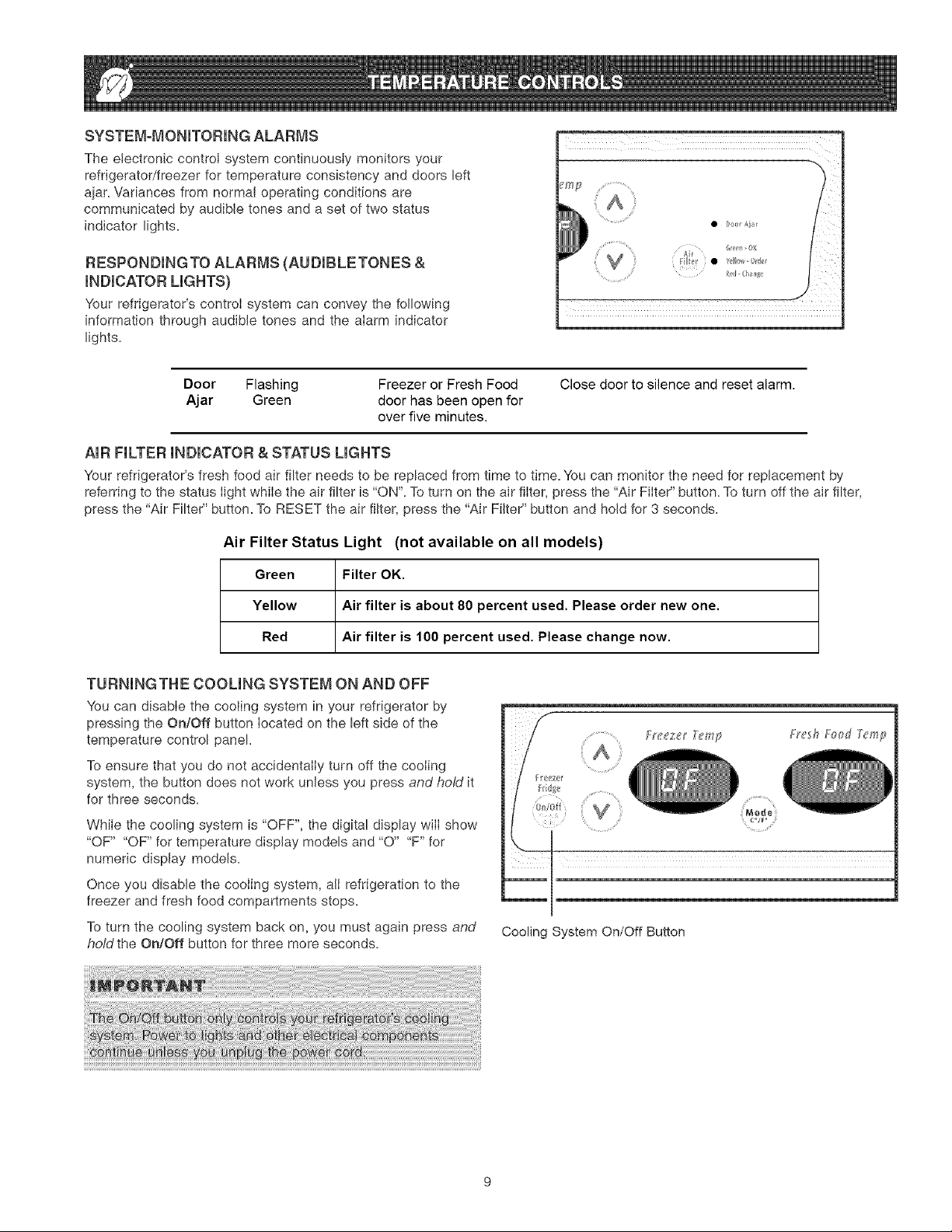

SYSTEM-MONITORING ALARMS
The electronic control system continuously monitors your
refrigerator/freezer for temperature consistency and doors left
ajar. Variances from normal operating conditions are
communicated by audible tones and a set of two status
indicator lights.
RESPONDING TO ALARMS (AUDIBLETONES &
Your refrigerator's controI system can convey the following
information through audible tones and the aIarm indicator
lights.
Door Flashing Freezer or Fresh Food Close door to silence and reset alarm.
Ajar Green door has been open for
over five minutes.
AIR FILTER INDICATOR & STATUS LIGHTS
Your refrigerator's fresh food air filter needs to be replaced from time to time. You can monitor the need for replacement by
referring to the status Iight whiIe the air filter is "ON". To turn on the air fiIter, press the "Air FiIter`' button. To turn off the air filter,
press the "Air Filter" button. To RESET the air filter, press the "Air Filter'' button and hold for 3 seconds.
Air Filter Status Light (not available on all models)
Green Filter OK.
Yellow Air filter is about 80 percent used. Please order new one.
Red Air filter is 100 percent used. Please change now.
TURNINGTHE COOLING SYSTEM ON AND OFF
You can disabIe the cooIing system in your refrigerator by
pressing the On/Off button located on the left side of the
temperature control panel.
To ensure that you do not accidentalIy turn off the cooIing
system, the button does not work unless you press and hold it
for three seconds.
Whiie the cooling system is "OFF", the digital display wilI show
"OF" "OF" for temperature display models and "O" "F" for
numeric display models.
Once you disable the cooling system, ali refrigeration to the
freezer and fresh food compartments stops.
To turn the cooling system back on, you must again press and
ho/dthe On/Off button for three more seconds. Cooling System On/Off Button

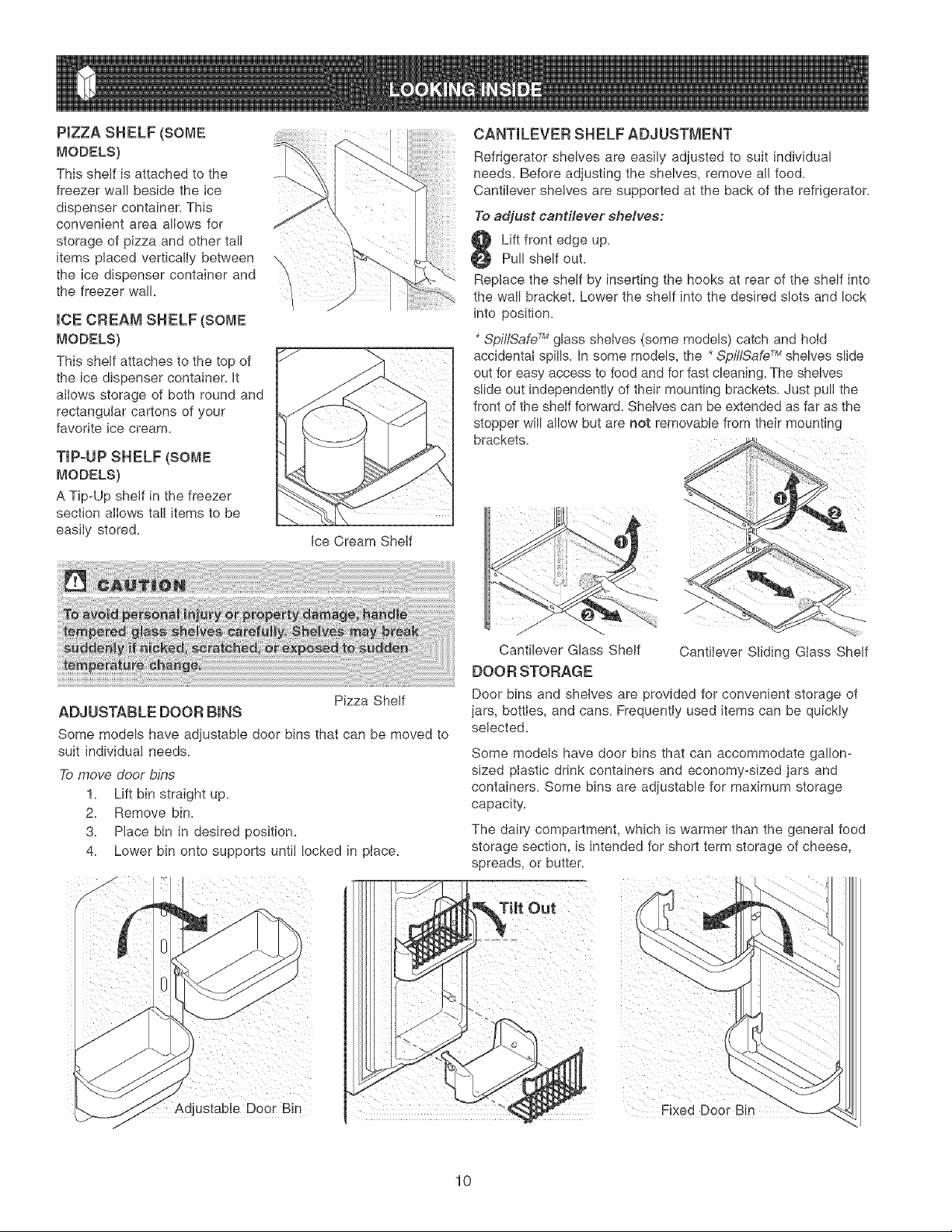

PIZZA SHELF (SOME
MODELS)
This shelf is attached to the
freezer wall beside the ice
dispenser container. This
convenient area allows for ....
storage of pizza and other tall
items placed vertically between \
the ice dispenser container and
the freezer wall.
iCE CREAM SHELF (SOME
MODELS)
This shelf attaches to the top of
the ice dispenser container. It
allows storage of both round and
rectangular cartons of your
favorite ice cream.
TIP-UP SHELF (SOME
MODELS)
A Tip-Up shelf in the freezer
section allows tall items to be
easily stored. Ice Cream Shelf
CANTILEVER SHELF ADJUSTMENT
Refrigerator shelves are easily adjusted to suit individual
needs. Before adjusting the shelves, remove all foe&
Cantilever shelves are supported at the back of the refrigerator.
To adjust cantilever shelves:
Lift front edge up.
Pull shelf out.
Replace the shelf by inserting the hooks at rear of the shelf into
the wail bracket Lower the shelf into the desired slots and lock
into position.
* SpiitSafe rMglass shelves (some models) catch and hold
accidental spills, in some models, the * Spi/,{SafeTM shelves slide
out for easy access to food and for fast cleaning. The shelves
slide out independently of their mounting brackets. Just pull the
front of the shelf forward. Shelves can be extended as far as the
stopper wilI allow but are not removable from their mounting
brackets ..............
Pizza Shelf
ADJUSTABLE DOOR BiNS
Some models have adjustable door bins that can be moved to
suit individual needs.
To move door bins
1. Lift bin straight up.
2. Remove bin.
3. Place bin in desired position.
4. Lower bin onto supports until locked in place.
Cantilever Glass Shelf Cantilever Sliding Giass Shelf
DOOR STORAGE
Door bins and shelves are provided for convenient storage of
iars, bottles, and cans. Frequently used items can be quickly
selected.
Some models have door bins that can accommodate gallon-
sized plastic drink containers and economy-sized jars and
containers. Some bins are adiustable for maximum storage
capacity.
The dairy compartment, which is warmer than the general food
storage section, is intended for short term storage of cheese,
spreads, or butter.
Adjustable Door Bin Fixed Door Bin
10

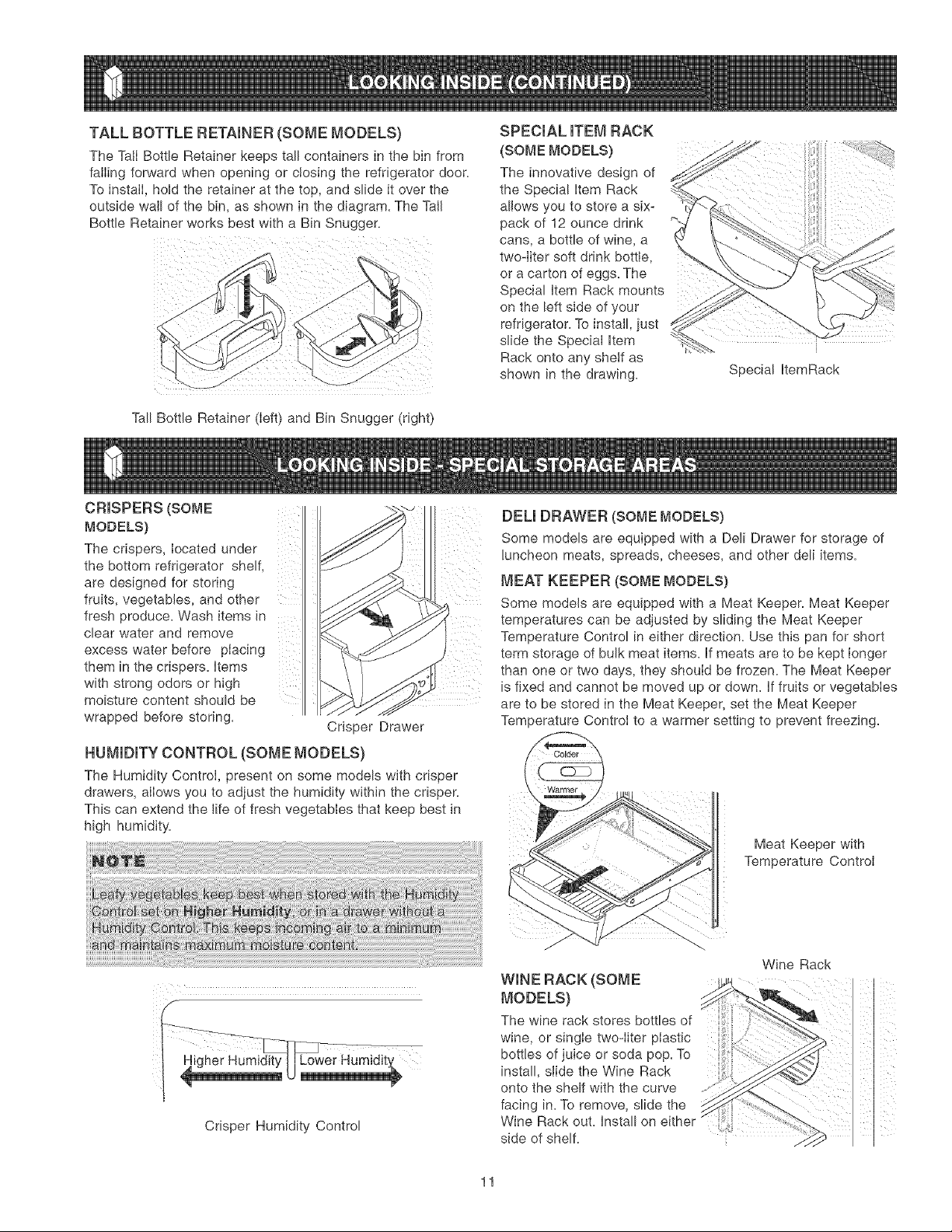

TALL BOTTLE RETAINER (SOME MODELS}
The TaiI Bottle Retainer keeps ta containers in the bin from
falIing torward when Dpen_ng or closing _ne retngeracor (seer.
To install, sold the retainer at the tc 3, and slide it over the
outside wall of the bin. as ShOWnin the diagram. The Tail
Bottle Retainer works best with a Bin Snugger.
SPECIAL ITEM RACK
(SOME MODELS}
The innovative design of
the Special Item Rack
allows you to store a six-
pack of 12 ounce drink
cans, a bottle of wine, a
two-Iiter soft drink bottle,
or a carton of eggs. The
Special Item Rack mounts
on the left side of your
refrigerator. To install, just
slide the Special Item
Rack onto any shelf as
shown in the drawing. Special ItemRack
Tall Bottle Retainer (Ieft) and Bin Snugger (right)
CRISPERS (SOME
MODELS)
The crispers, located under
the bottom refrigerator shelf,
are designed for storing
fruits, vegetables, and other
fresh produce. Wash items in
clear water and remove
excess water before placing
them in the crispers. Items
with strong odors or high
moisture content should be
wrapped before storing. Crisper Drawer
HUMIDITY CONTROL (SOME MODELS}
The Humidity ControI, present on some models with crisper
drawers, allows you to adjust the humidity within the crisper=
This can extend the life of fresh vegetables that keep best in
high humidity.
DELl DRAWER (SOME MODELS)
Some models are equipped with a Deli Drawer for storage of
luncheon meats, spreads, cheeses, and other deli items.
MEAT KEEPER (SOME MODELS)
Some models are equipped with a Meat Keeper= Meat Keeper
temperatures can be adjusted by sliding the Meat Keeper
Temperature Control in either direction. Use this pan for short
term storage of bulk meat items. If meats are to be kept longer
than one or two days, they' should be frozen. The Meat Keeper
is fixed and cannot be moved up or down. If fruits or vegetables
are to be stored in the Meat Keeper, set the Meat Keeper
Temperature Control to a warmer setting to prevent freezing.
Meat Keeper with
Temperature Control
f
_t_
Crisper Humidity Control
WINE RACK (SOME
MODELS}
The wine rack stores bottles of
wine, or single two-Iiter plastic
bottles of juice or soda pop. To
install, slide the Wine Rack
onto the shelf with the curve
facing in. To remove, slide the
Wine Rack out. install on either
side of shelf.
11

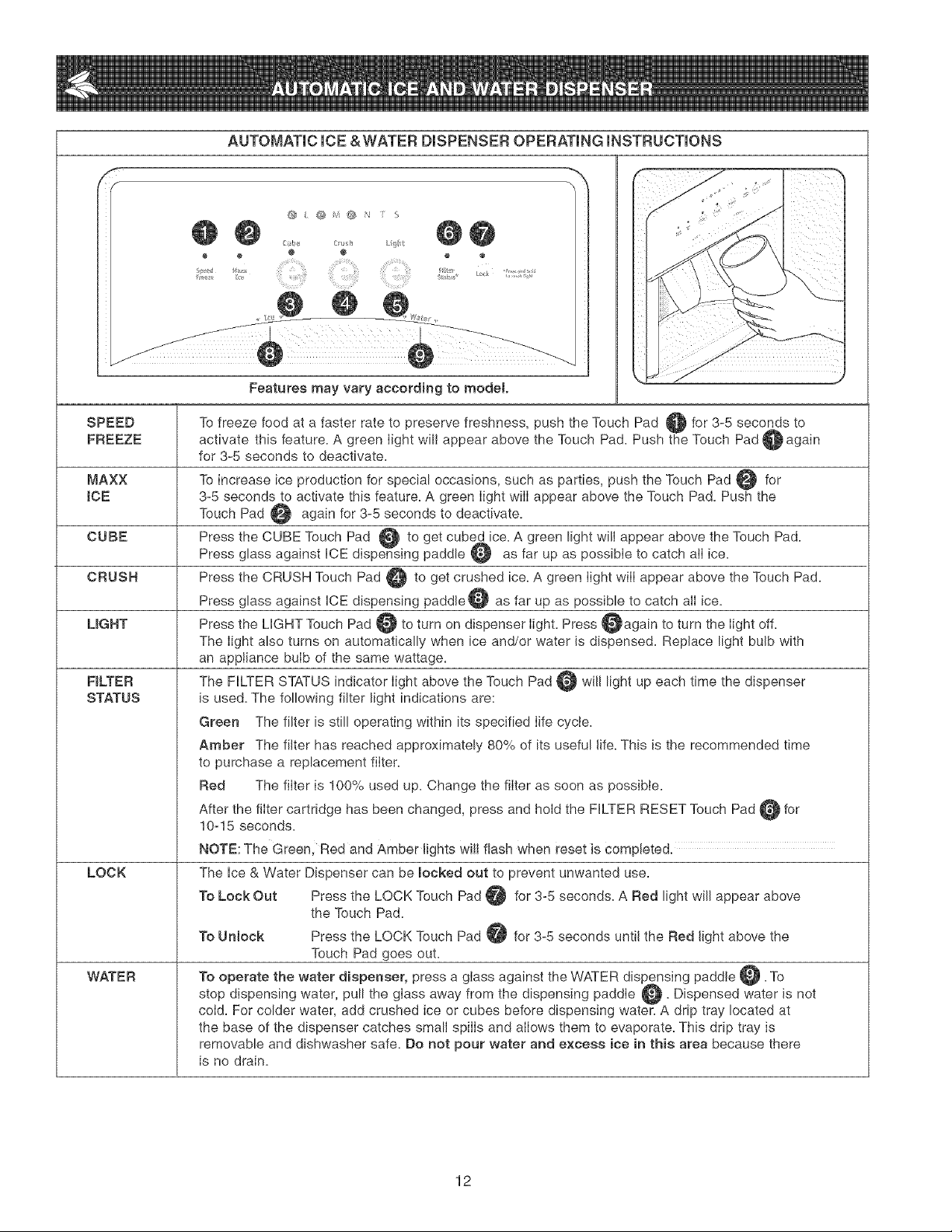

AUTOMATmC raCE&WATER DmSPENSER OPERATING mNSTRUCTmONS
i
i
@ @_4@_\
@ @@
C_ (sb L /!/:
Features may vary according to model
SPEED
FREEZE
MAXX
JOE
CUBE
CRUSH
LIGHT
FILTER
STATUS
LOCK
WATER
To freeze food at a faster rate to preserve freshness, push the Touch Pad _ for 3-5 seconds to
activate this feature. A green light will appear above the Touch Pad. Push 1,theTouch Pad _again
for 3-5 seconds to deactivate.
To increase ice production for special occasions, such as parties, push the Touch Pad @ for
3-5 seconds to activate this feature. A green light wilI appear above the Touch Pad. Push the
Touch Pad _ again for 3-5 seconds to deactivate.
Press the CUBE Touch Pad ,_ to get cubedAice. A green light will appear above the Touch Pad.
Press glass against iCE dispensing paddle _ as far up as possible to catch aiI ice.
Press the CRUSH Touch Pad _ to get crushed ice. A green light wilI appear above the Touch Pad.
Press glass against iCE dispensing paddle_ as far up as possible to catch alI ice.
Press the LIGHT Touch Pad _ to turn on dispenser light. Press _again to turn the light off.
The light also turns on automatically when ice and/or water is dispensed. Replace light bulb with
an appliance bulb of the same wattage.
The FILTER STATUS indicator light above the Touch Pad @ will light up each time the dispenser
is used. The following filter light indications are:
Green The filter is still operating within its specified Iife cycle.
Amber The filter has reached approximately 80% of its useful life. This is the recommended time
to purchase a replacement filter.
Red The filter is 100% used up. Change the filter as soon as possible.
After the filter cartridge has been changed, press and hold the FILTER RESET Touch Pad _ for
10-15 seconds.
NOTE: The Green, Red and Amber lights will flash when reset is completed.
The ice & Water Dispenser can be mocked out to prevent unwanted use.
To Lock Out Press the LOCK Touch Pad @for 3% seconds. A Red light will appear above
the Touch Pad.
To Unlock Press the LOCK Touch Pad _ for 3-5 seconds until the Red light above the
Touch Pad goes out.
To operate the water dispenser, press a glass against the WATER dispensing paddle _. To
stop dispensing water, pull the glass away from the dispensing paddle @. Dispensed water is not
cold. For colder water, add crushed ice or cubes before dispensing water. A drip tray located at
the base of the dispenser catches small spills and allows them to evaporate. This drip tray is
removable and dishwasher safe. Do not pour water and excess ice in this area because there
is no drain.
12

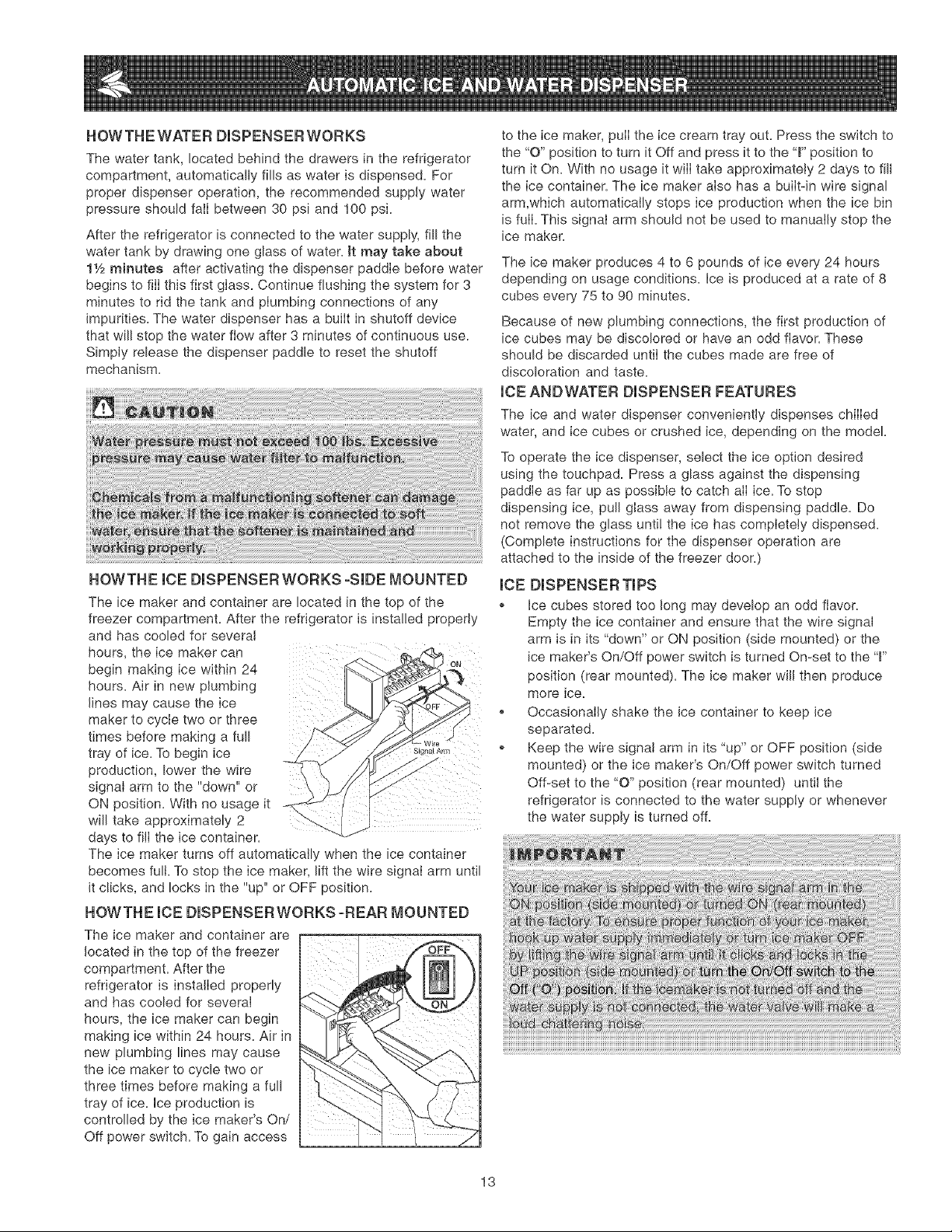

HOWTHEWATER DHSPENSERWORKS
The water tank, located behind the drawers in the refrigerator
compartment, automatically fills as water is dispensed. For
proper dispenser operation, the recommended supply water
pressure should fail between 30 psi and 100 psi.
After the refrigerator is connected to the water supply, fill the
water tank by drawing one glass of water. It may take about
11/2minutes after activating the dispenser paddle before water
begins to filI this first glass. Continue flushing the system for 3
minutes to rid the tank and plumbing connections of any
impurities. The water dispenser has a built in shutoff device
that will stop the water flow after 3 minutes of continuous use.
Simpiy release the dispenser paddle to reset the shutoff
mechanism.
HOWTHE ICE DISPENSER WORKS -SIDE MOUNTED
The ice maker and container are located in the top of the
freezer compartment. After the refrigerator is installed properly
and has cooled for several
hours, the ice maker can _,,,,o,
begin making ice within 24 _._'_ _4_
hours. Air in new plumbing
lines may cause the ice
maker to cycle two or three .j
times before making a full
tray of ice. To begin ice
production, lower the wire
signal arm to the "down" or
ON position. With no usage it
will take approximately 2
days to filI the ice container.
The ice maker turns off automatically when the ice container
becomes full To stop the ice maker, lift the wire signal arm until
it clicks, and locks in the "up" or OFF position.
HOWTHE lOB DISPENSER WORKS -REAR MOUNTED
The ice maker and container are
located in the top of the freezer
compartment. After the
refrigerator is installed properly
and has cooled for several
hours, the ice maker can begin
making ice within 24 hours. Air in
new plumbing lines may cause
the ice maker to cycle two or
three times before making a full
tray of ice. Ice production is
controlled by the ice maker's On/
Off power switch. To gain access
to the ice maker, pull the ice cream tray out. Press the switch to
the "O" position to turn it Off and press it to the "F' position to
turn it On. With no usage it wiII take approximately 2 days to fill
the ice container. The ice maker also has a builtqn wire signal
arm,which automatically stops ice production when the ice bin
is full. This signal arm should not be used to manually stop the
ice maker.
The ice maker produces 4 to 6 pounds of ice every 24 hours
depending on usage conditions. Ice is produced at a rate of 8
cubes every 75 to 90 minutes.
Because of new plumbing connections, the first production of
ice cubes may be discolored or have an odd flavor. These
should be discarded until the cubes made are free of
discoloration and taste.
iCE ANDWATER DISPENSER FEATURES
The ice and water dispenser conveniently dispenses chilled
water, and ice cubes or crushed ice, depending on the model.
To operate the ice dispenser, select the ice option desired
using the touchpad. Press a glass against the dispensing
paddle as far up as possible to catch all ice. To stop
dispensing ice, pull glass away from dispensing paddle. Do
not remove the glass unti! the ice has completely dispensed.
(Complete instructions for the dispenser operation are
attached to the inside of the freezer door.)
lOB DISPENSER TIPS
,, Ice cubes stored too long may develop an odd flavor.
Empty the ice container and ensure that the wire signal
arm is in its "down" or ON position (side mounted) or the
ice maker's On/Off power switch is turned On-set to the "F
position (rear mounted). The ice maker will then produce
more ice.
• Occasionally shake the ice container to keep ice
separated.
,, Keep the wire signal arm in its "up" or OFF position (side
mounted) or the ice maker's On/Off power switch turned
Off-set to the "O" position (rear mounted) until the
refrigerator is connected to the water supply or whenever
the water supply is turned off.
13

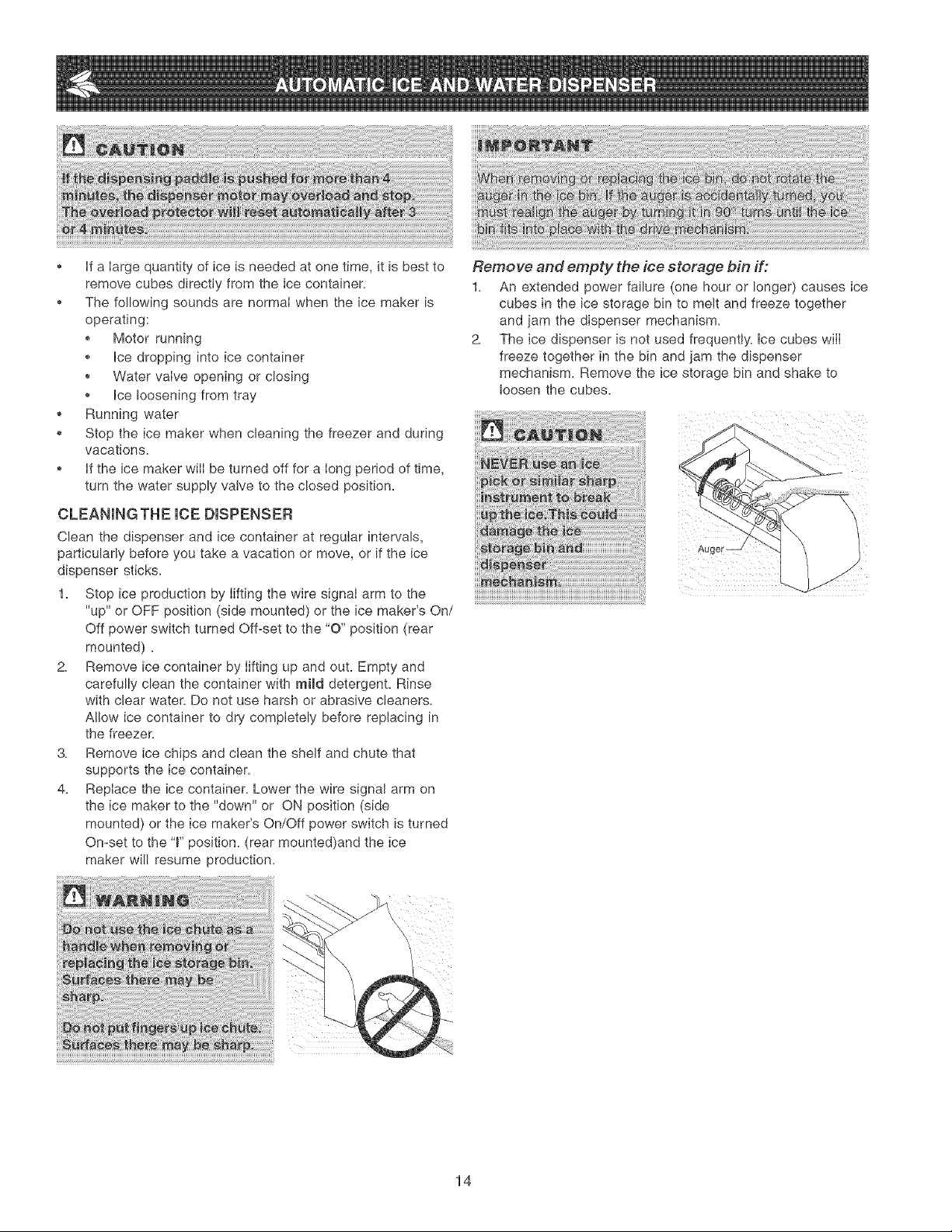

,, ifa largequantityoficeisneededatonetime,itisbestto
removecubesdirectlyfromtheicecontainer.
,, Thefollowingsoundsarenormalwhentheicemakeris
operating:
,, Motorrunning
,, icedroppingintoicecontainer
o Watervalveopeningorclosing
o icelooseningfromtray
_, Runningwater
- Stoptheicemakerwhencleaningthefreezerandduring
vacations.
_, iftheicemakerwillbeturnedoffforaIongperiodoftime,
turnthewatersupplyvalvetotheclosedposition.
CLEANINGTHEICEDISPENSER
Cleanthedispenserandicecontaineratregularintervals,
particularlybeforeyoutakeavacationormove,oriftheice
dispensersticks_
1. StopiceproductionbyliftingthewiresignaIarmtothe
"up"orOFFposition(sidemounted)ortheicemaker'sOn/
OffpowerswitchturnedOff-settothe"O"position(rear
mounted).
2. Removeicecontainerbyliftingupandout.Emptyand
carefullycleanthecontainerwithmilddetergent.Rinse
withclearwater.Donotuseharshorabrasivecleaners.
Allowicecontainertodrycompletelybeforereplacingin
thefreezer.
3. Removeicechipsandcleantheshelfandchutethat
supportstheicecontainer.
4. Replacetheicecontainer.Lowerthewiresignalarmon
theicemakertothe"down"or ONposition(side
mounted)ortheicemaker'sOn/Offpowerswitchisturned
On-settothe"r position.(rearmounted)andtheice
makerwillresumeproduction.
Remove and empty the ice storage bin if:
1. An extended power failure (one hour or longer) causes ice
cubes in the ice storage bin to melt and freeze together
and iam the dispenser mechanism.
2. The ice dispenser is not used frequentiy, ice cubes will
freeze together in the bin and jam the dispenser
mechanism. Remove the ice storage bin and shake to
loosen the cubes.
14

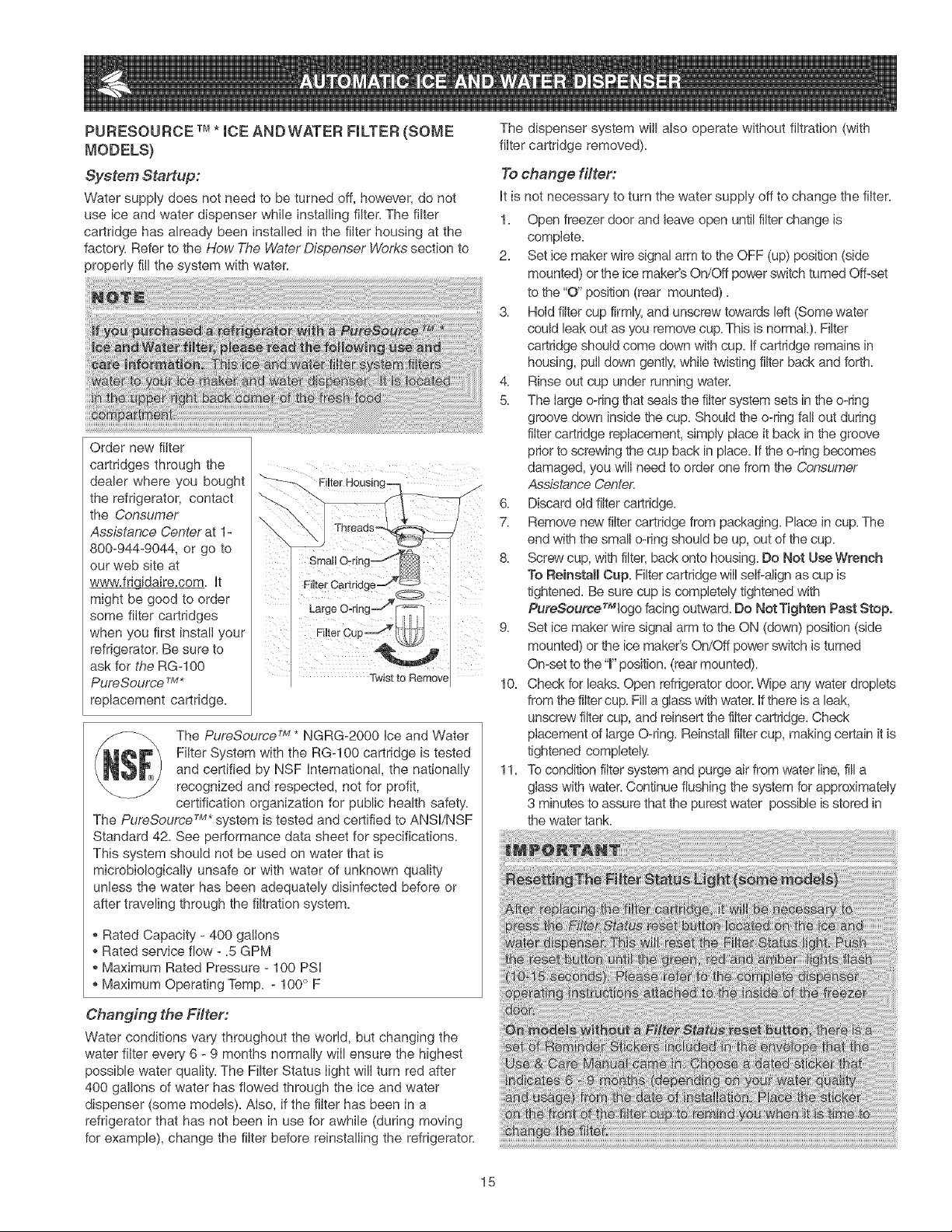

PURESOURCE TM* ICE AND WATER FILTER (SOME
MODELS)
System Startup:
Water supply does not need to be turned off, however, do not
use ice and water dispenser while installing filter. The filter
cartridge has already been installed in the filter housing at the
factor}_ Refer to the How The Water Dispenser Works section to
properly fill the system with water.
Order new filter
cartridges through the
dealer where you bought
the refrigerator, contact
the Consumer
Assistance Center at 1-
800-944-9044, or go to
our web site at
_daire.com. It
might be good to order
some filter cartridges
when you first install your
refrigerator. Be sure to
ask for t,_e RG-100
PureSource TM*
replacement cartridge.
The PureSource TM * NGRG-2000 Ice and Water
Filter System with the RG-100 cartridge is tested
and certified by NSF International, the nationally
recognized and respected, not for profit,
certification organization for public health safety.
The PureSoume TM*system is tested and certified to ANSl/NSF
Standard 42. See performance data sheet for specifications.
This system should not be used on water that is
microbiologically unsafe or with water of unknown quality
unless the water has been adequately disinfected before or
after traveling through the filtration system.
,, Rated Capacity - 400 ga!lons
,, Rated service flow - .5 GPM
,, Maximum Rated Pressure - 100 PSI
,, Maximum Operating Temp. - 100° F
Changing the Filter:
Water conditions vary throughout the world, but changing the
water filter every 6 - 9 months normally will ensure the highest
possible water quality. The Filter Status light will turn red after
400 gallons of water has flowed through the ice and water
dispenser (some models). Also, if the filter has been in a
refrigerator that has not been in use for awhile (during moving
for example), change the filter before reinstalling the refrigerator.
The dispenser system will also operate without filtration (with
filter cartridge removed).
To change filter:
it is not necessary to turn the water supply off to change the filter.
1. Open freezer door and leave open until filter change is
complete.
2. Set ice maker wire signal arm to the OFF (up) position (side
mounted) or the ice maker's On/Off power switch turned Off-set
to the "O" position (rear mounted).
3. Hold filter cup firmly, and unscrew towards left (Some water
could leak out as you remove cup. This is normaL). Filter
cartridge should come down with cup. if cartridge remains in
housing, pull down gently, while twisting filter back and forth.
4. Rinse out cup under running water.
5. The large o-ring that seals the filter system sets in the o-ring
groove down inside the cup. Should the o-ring fall out during
filter cartridge replacement, simply place it back in the groove
prior to screwing the cup back in place, if the o-ring becomes
damaged, you will need to order one from the Consu:mer
Assistance Center.
6. Discard old filter cartridge.
7. Remove new filter cartridge from packaging. Place in cup. The
end with the small o-ring should be up, out of the cup.
8. Screw cup, with filter, back onto housing. Do Not Use Wrench
To Reinstall Cup. Filter cartridge wilI self-align as cup is
tightened. Be sure cup is completely tightened with
PureSourceTMIogo facing outward. Do Not Tighten Past Stop.
9. Set ice maker wire signal arm to the ON (down) position (side
mounted) or the ice maker's On/Off power switch is turned
On-set to the "r' position. (rear mounted).
10. Check for leaks. Open refrigerator door. Wipe any water droplets
from the filter cup. Fill a glass with water. If there is a leak,
unscrew filter cup, and reinsert the filter cartridge. Check
placement of large O-ring. Reinstall filter cup, making certain it is
tightened completely.
11. To condition filter system and purge air from water line, fill a
glass with water. Continue flushing the system for approximately
3 minutes to assure that the purest water possible is stored in
the water tank.
15

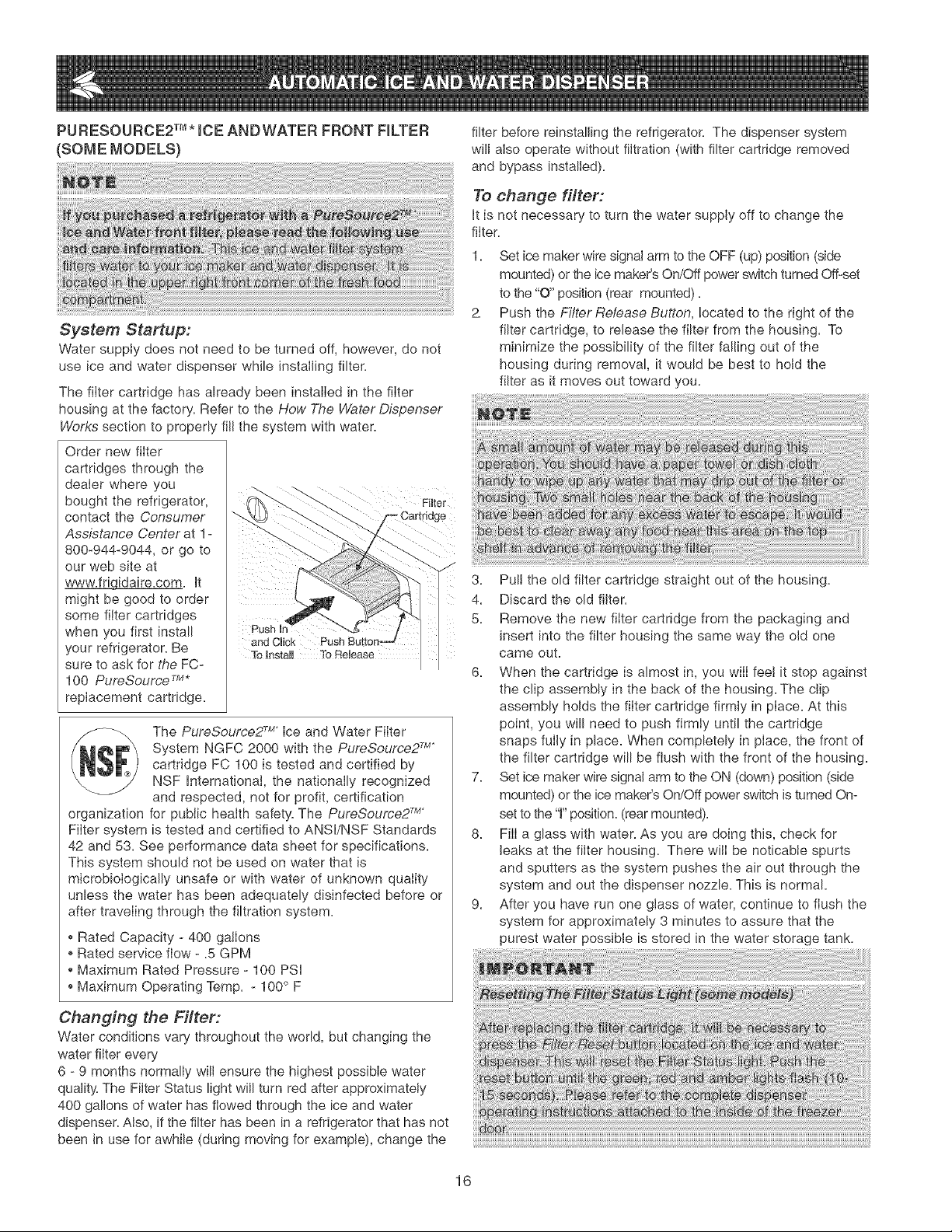

PURESOURCE2 TM*iCE ANDWATER FRONT FILTER
(SOME MODELS)
System Startup:
Water supply does not need to be turned off, however, do not
use ice and water dispenser while installing filter.
The filter cartridge has already been installed in the filter
housing at the factory. Refer to the How The Water Dispenser
Worlds section to properly fill the system with water.
Order new filter
cartridges through the
dealer where you
bought the refrigerator,
contact the Consumer
Assistance Center at 1-
800-944-9044, or go to
our web site at
www.friqidaire.com. It
might be good to order
some fitter cartridges
when you first install ....
your refrigerator. Be
sure to ask for the FC-
100 PureSource TM*
replacement cartridge.
and Click Push
:To Install To RePease
The PureSoume2 rM"Ice and Water Filter
System NGFC 2000 with the PureSoumeS M*
cartridge FC 100 is tested and certified by
NSF International, the nationaIly recognized
and respected, not for profit, certification
organization for public health safety. The PureSource2 rM"
Filter system is tested and certified to ANSI/NSF Standards
42 and 53. See performance data sheet for specifications.
This system should not be used on water that is
microbiotogically unsafe or with water of unknown quality
unless the water has been adequately disinfected before or
after traveling through the fiRration system.
,, Rated Capacity - 400 gallons
,, Rated service flow- .5 GPM
,, Maximum Rated Pressure - 100 PSI
,, Maximum Operating Temp. - 100 ° F
Changing the Filter:
Water conditions vary throughout the world, but changing the
water filter every
6 - 9 months normally will ensure the highest possible water
quality. The Filter Status light will turn red after approximately
400 gallons of water has flowed through the ice and water
dispenser. Also, if the filter has been in a refrigerator that has not
been in use for awhile (during moving for example), change the
filter before reinstalling the refrigerator. The dispenser system
will also operate without filtration (with filter cartridge removed
and bypass installed).
To change filter:
It is not necessary to turn the water supply off to change the
filter.
1. Set ice maker wire signal arm to the OFF (up) position (side
mounted) or the ice maker's On/Off power switch turned Off-set
to the "O" position (rear mounted).
2. Push the Filter Re/ease Button, !ocated to the right of the
fiRer cartridge, to release the filter from the housing. To
minimize the possibility of the filter failing out of the
housing during removal, it would be best to hold the
filter as it moves out toward you.
3. Pull the old filter cartridge straight out of the housing.
4. Discard the old filter.
5. Remove the new fiiter cartridge from the packaging and
insert into the filter housing the same way the old one
came out.
6. When the cartridge is almost in, you wiII fee! it stop against
the clip assembly in the back of the housing. The clip
assembly holds the filter cartridge firmly in place. At this
point, you will need to push firmly until the cartridge
snaps fully in place. When completely in place, the front of
the fiRer cartridge will be flush with the front of the housing.
7. Set ice maker wire signal arm to the ON (down) position (side
mounted) or the ice maker's On/Off power switch is turned On-
set to the '1"position. (rear mounted).
8. Fill a glass with water. As you are doing this, check for
leaks at the filter housing. There wilI be noticabte spurts
and sputters as the system pushes the air out through the
system and out the dispenser nozzle. This is normal.
9. After you have run one glass of water, continue to flush the
system for approximately 3 minutes to assure that the
purest water possible is stored in the water storage tank.
16

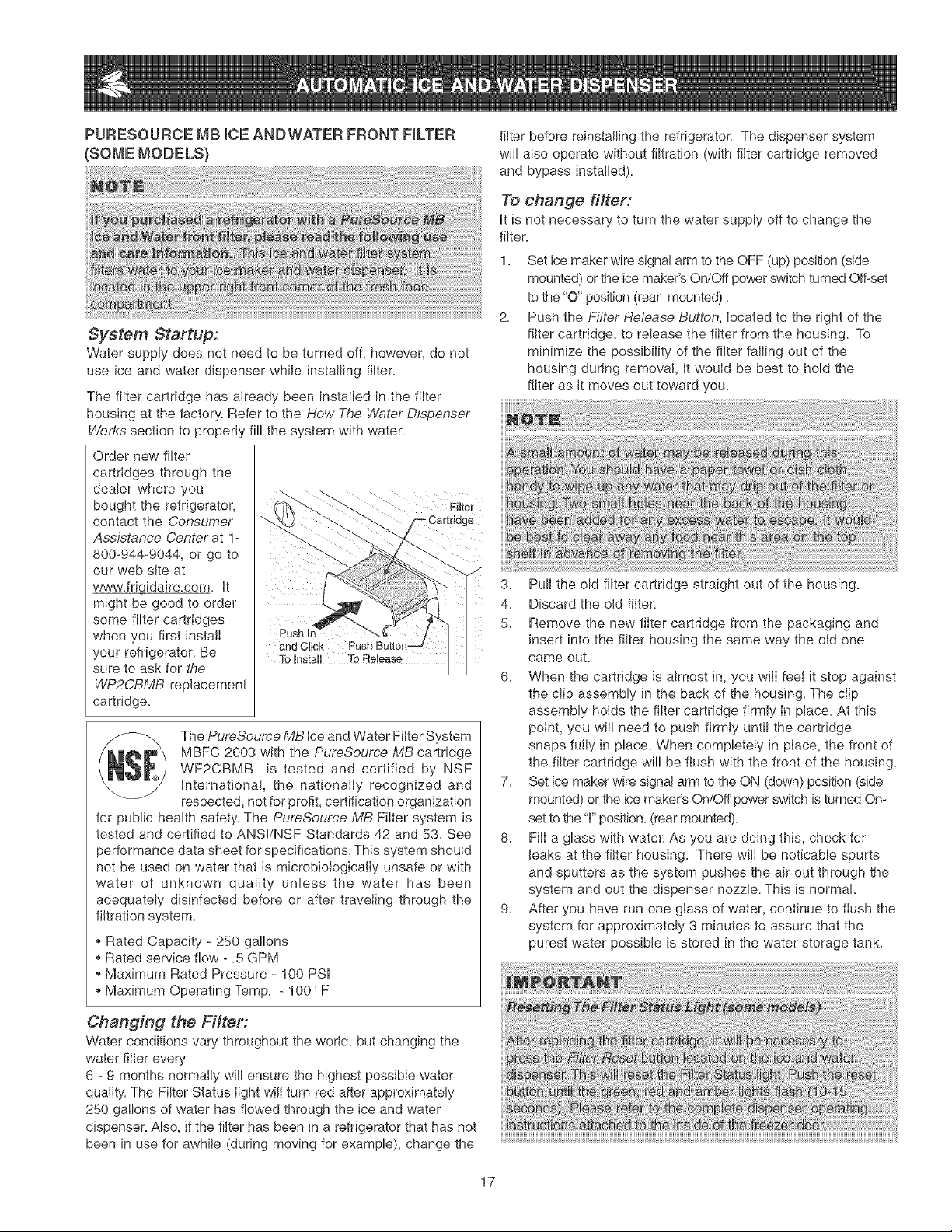

PURESOURCEMBraCEANDWATERFRONTRLTER
(SOMEMODELS)
System Startup:
Water supply does not need to be turned off, however, do not
use ice and water dispenser while installing filter.
The filter cartridge has already been installed in the filter
housing at the factory. Refer to the How The Water Dispenser
Works section to properly fill the system with water.
Order new filter
cartridges through the
dealer where you
bought the refrigerator,
contact the Consumer
Assistance Center at 1-
800-944-9044, or go to
our web site at
www.friqidaire.com. It
might be good to order
some filter cartridges
when you first install
your refrigerator. Be
sure to ask for the
WP2CBMB replacement
cartridge.
and Cmick Push
To install To RePease
3artddge
d
ii
ii
The PureSoume MB ice and Water Filter System
MBFC 2003 with the PureSource MB cartridge
WF2CBMB is tested and certified by NSF
international, the nationally recognized and
respected, not for profit, certification organization
for public health safety. The PureSource MB Filter system is
tested and certified to ANSI/NSF Standards 42 and 53. See
performance data sheet for specifications. This system should
not be used on water that is microbiologicatly unsafe or with
water of unknown quality unless the water has been
adequately disinfected before or after traveling through the
filtration system.
_,Rated Capacity - 250 gallons
,, Rated service flow - .5 GPM
,, Maximum Rated Pressure - 100 PSi
_,Maximum Operating Temp. - 100 ° F
Changing the Fi#er:
Water conditions vary throughout the world, but changing the
water filter every
6 - 9 months normally will ensure the highest possible water
quality. The Filter Status light will turn red after approximately
250 gallons of water has flowed through the ice and water
dispenser. Also, if the filter has been in a refrigerator that has not
been in use for awhile (during moving for example), change the
filter before reinstalling the refrigerator. The dispenser system
wilI also operate without filtration (with filter cartridge removed
and bypass installed).
To change fi#er,
It is not necessary to turn the water supply off to change the
filter.
1. Set ice maker wire signal arm to the OFF (up) position (side
mounted) or the ice maker's On/Off power switch turned Off-set
to the "O" position (rear mounted).
2. Push the Fiiter Re/ease Button, located to the right of the
filter cartridge, to release the filter from the housing. To
minimize the possibility of the filter failing out of the
housing during removal, it would be best to hold the
filter as it moves out toward you.
3. Pull the old filter cartridge straight out of the housing.
4. Discard the old filter.
5. Remove the new filter cartridge from the packaging and
insert into the filter housing the same way the old one
came out.
6. When the cartridge is almost in, you wiII feet it stop against
the clip assembly in the back of the housing. The clip
assembly holds the filter cartridge firmly in place. At this
point, you will need to push firmly until the cartridge
snaps fully in place. When completely in place, the front of
the filter cartridge will be flush with the front of the housing.
7. Set ice maker wire signal arm to the ON (down) position (side
mounted) or the ice maker's On/Off power switch is turned On-
set to the "J"position. (rear mounted).
8. FilI a glass with water. As you are doing this, check for
leaks at the filter housing. There wiII be noticable spurts
and sputters as the system pushes the air out through the
system and out the dispenser nozzle. This is normal.
9. After you have run one glass of water, continue to flush the
system for approximately 3 minutes to assure that the
purest water possible is stored in the water storage tank.
17

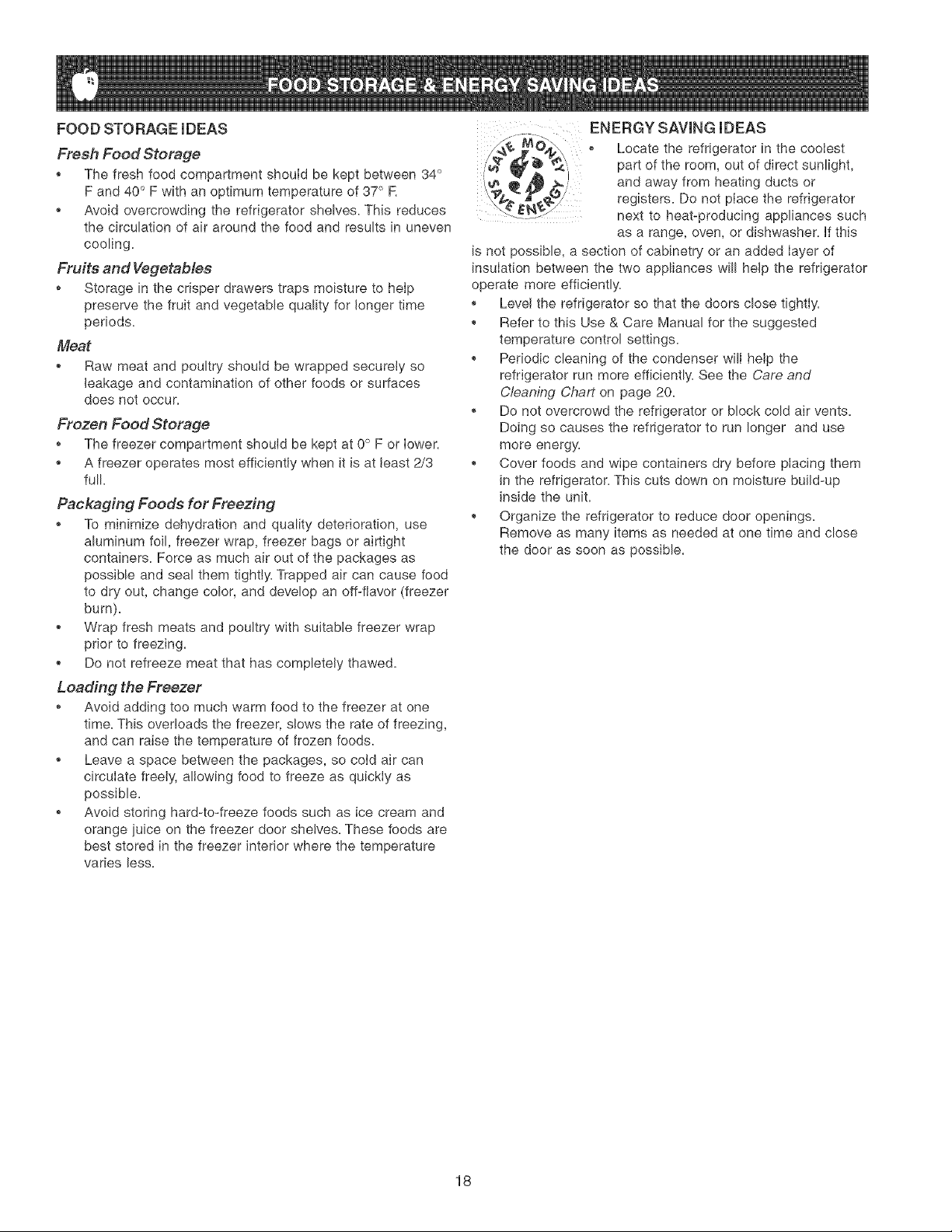

FOO D STO RAG E mDEAS
Fresh Food Storage
_, The fresh food compartment should be kept between 34 °
F and 40 ° F with an optimum temperature of 37 ° R
_, Avoid overcrowding the refrigerator shelves. This reduces
the circulation of air around the food and results in uneven
cooling.
Fruits and Vegetables
,, Storage in the crisper drawers traps moisture to heIp
preserve the fruit and vegetable quality for longer time
periods.
Meat
_, Raw meat and poultry should be wrapped securely so
leakage and contamination of other foods or surfaces
does not occur.
Frozen Food Storage
,, The freezer compartment should be kept at 0 ° F or lower.
_, A freezer operates most efficiently when it is at least 2/3
full.
Packaging Foods for Freezing
_, To minimize dehydration and quality deterioration, use
aluminum foil, freezer wrap, freezer bags or airtight
containers. Force as much air out of the packages as
possible and seal them tightly. Trapped air can cause food
to dry out, change color, and develop an off-flavor (freezer
burn).
_, Wrap fresh meats and poultry with suitable freezer wrap
prior to freezing.
_, Do not refreeze meat that has completely thawed.
Loading the Freezer
,, Avoid adding too much warm food to the freezer at one
time, This overloads the freezer, slows the rate of freezing,
and can raise the temperature of frozen foods.
_, Leave a space between the packages, so cotd air can
circulate freely, allowing food to freeze as quickly as
possible.
_, Avoid storing hard-to-freeze foods such as ice cream and
orange iuice on the freezer door shelves. These foods are
best stored in the freezer interior where the temperature
varies less.
ENERGY SAVING IDEAS
___,#'O4_\ " Locate the refrigerator in the cooiest
_'_r,_q_-_':,/_mw _, ,4'_, part of the room, out of direct sunlight,
_ _ _ ! and away from heating ducts or
\_'_,_ _@/ registers. Do not place the refrigerator
_ _EN_-_ next to heat-producing appliances such
as a range, oven, or dishwasher. If this
is not possible, a section of cabinetry or an added layer of
insulation between the two appliances will help the refrigerator
operate more efficiently.
_, Level the refrigerator so that the doors close tightly.
_, Refer to this Use & Care Manual for the suggested
temperature control settings.
_, Periodic cleaning of the condenser will help the
refrigerator run more efficiently. See the Care and
Cleaning Chart on page 20.
_, Do not overcrowd the refrigerator or block cold air vents.
Doing so causes the refrigerator to run longer and use
more energy.
_, Cover foods and wipe containers dry before placing them
in the refrigerator. This cuts down on moisture build-up
inside the unit.
_, Organize the refrigerator to reduce door openings.
Remove as many items as needed at one time and close
the door as soon as possible.
18

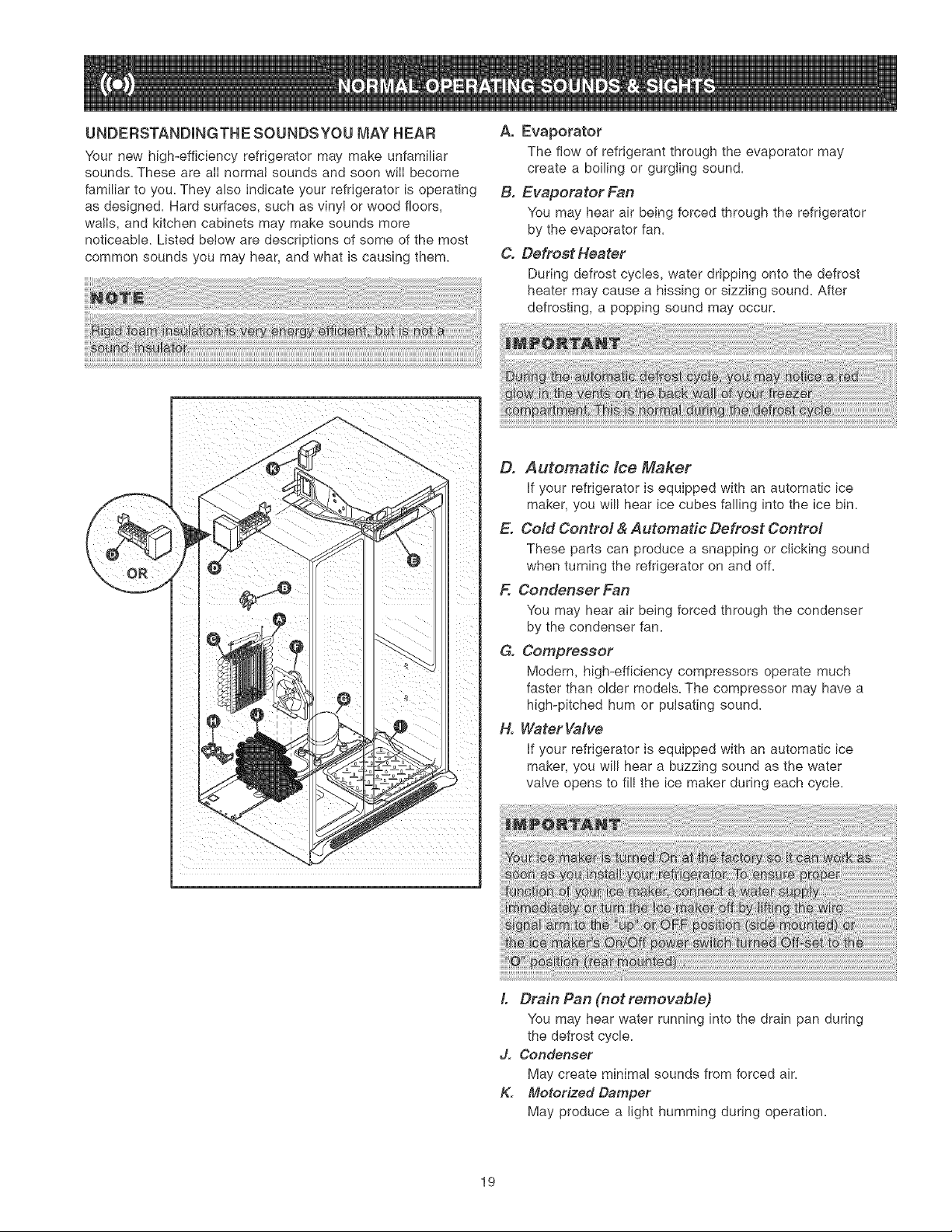

UNDERSTANDmNGTHE SOUNDSYOU MAY HEAR
Your new high-efficiency refrigerator may make unfamiliar
sounds, These are alI normal sounds and soon wilI become
familiar to you, They also indicate your refrigerator is operating
as designed, Hard surfaces, such as vinyl or wood floors,
walls, and kitchen cabinets may make sounds more
noticeable, Listed below are descriptions of some of the most
common sounds you may' hear, and what is causing them,
A. Evaporator
The flow of refrigerant through the evaporator may
create a boiling or gurgling sound,
B. Evaporator Fan
You may hear air being forced through the refrigerator
by the evaporator fan,
C. Defrost Heater
During defrost cycles, water dripping onto the defrost
heater may cause a hissing or sizzling sound, After
defrosting, a popping sound may occur,
D. Automatic ice Maker
If your refrigerator is equipped with an automatic ice
maker, you will hear ice cubes falling into the ice bin,
E. Cold Control & Automatic Defrost Control
These parts can produce a snapping or clicking sound
when turning the refrigerator on and off,
F. Condenser Fan
You may hear air being forced through the condenser
by the condenser fan,
G. Compressor
Modern, high-efficiency compressors operate much
faster than older models, The compressor may have a
high-pitched hum or puisating sound,
H. WaterValve
If your refrigerator is equipped with an automatic ice
maker, you will hear a buzzing sound as the water
valve opens to fill the ice maker during each cycle,
L Drain Pan (not removable)
You may hear water running into the drain pan during
the defrost cycle,
J. Condenser
May create minimal sounds from forced air_
K. Motorized Damper
May produce a light humming during operation_
19

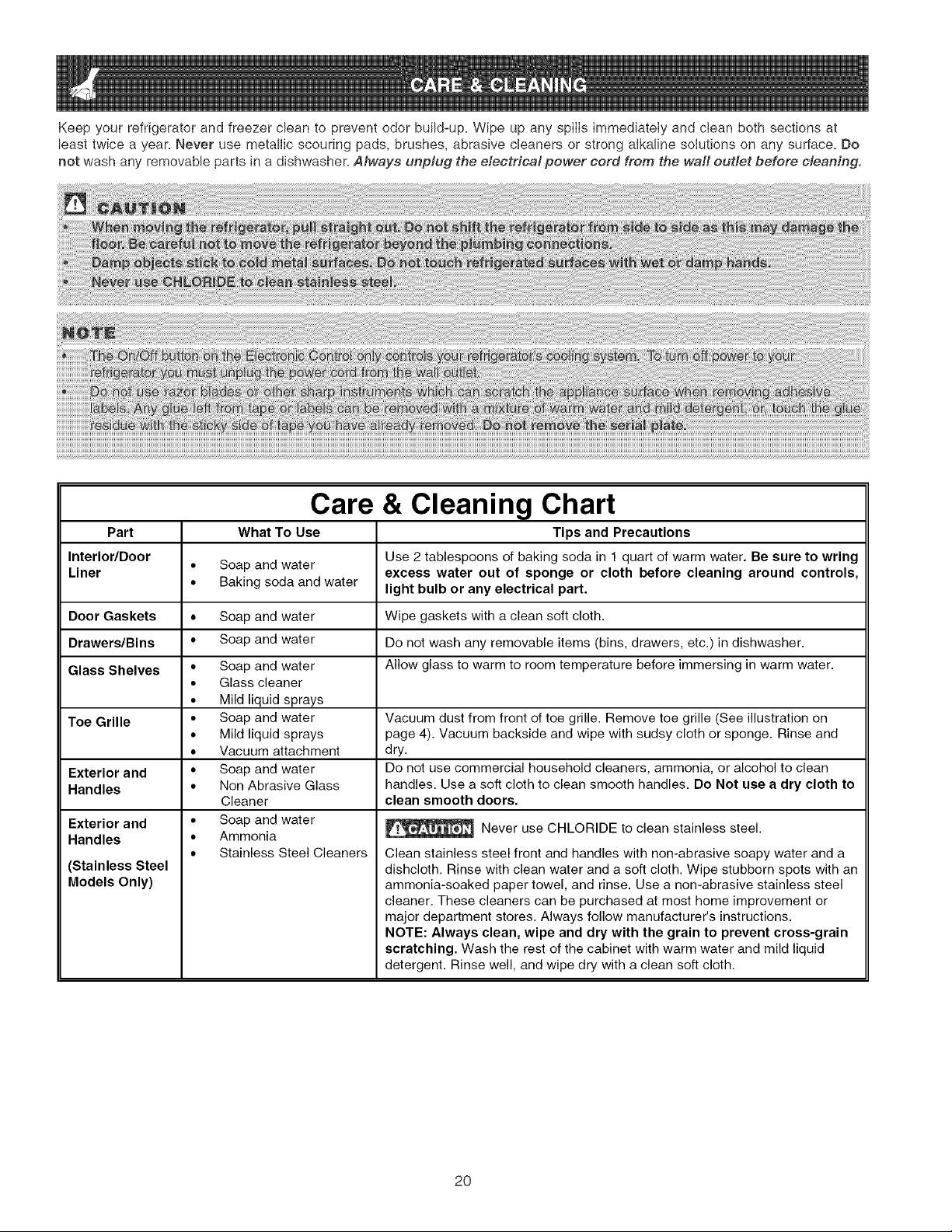

Keepyourrefrigeratorandfreezercleantopreventodorbuild-up.Wipeupanyspillsimmediatelyandcleanbothsectionsat
leasttwiceayear.Neverusemetallicscouringpads,brushes,abrasivecleanersorstrongalkalinesolutionsonanysurface.Do
notwashanyremovablepartsinadishwasher.Always unplug the electrical power cord from the wall oudet before c/eaning,
Care & Cleaning Chart
Part What To Use Tips and Precautions
Interior/Door -Soap and water Use 2 tablespoons of baking soda in 1 quart of warm water. Be sure to wring
Liner excess water out of sponge or cloth before cleaning around controls,
• Baking soda and water light bulb or any electrical part.
Door Gaskets • Soap and water Wipe gaskets with a clean soft cloth.
Drawers/Bins • Soap and water Do not wash any removable items (bins, drawers, etc.) in dishwasher.
Glass Shelves • Allow glass to warm to room temperature before immersing in warm water.
Toe Grille • Vacuum dust from front of toe grille. Remove toe grille (See illustration on
• page 4). Vacuum backside and wipe with sudsy cloth or sponge. Rinse and
• dry.
Exterior and • Do not use commercial household cleaners, ammonia, or alcohol to clean
Handles • handles. Use a soft cloth to clean smooth handles. Do Not use a dry cloth to
clean smooth doors.
Exterior and
Handles
(Stainless Steel
Models Only)
Soap and water
Glass cleaner
Mild liquid sprays
Soap and water
Mild liquid sprays
Vacuum attachment
Soap and water
Non Abrasive Glass
Cleaner
Soap and water
Ammonia
Stainless Steel Cleaners
Never use CHLORIDE to clean stainless steel.
Clean stainless steel front and handles with non-abrasive soapy water and a
dishcloth. Rinse with clean water and a soft cloth. Wipe stubborn spots with an
ammonia-soaked paper towel, and rinse. Use a non-abrasive stainless steel
cleaner. These cleaners can be purchased at most home improvement or
major department stores. Always follow manufacturer's instructions.
NOTE: Always clean, wipe and dry with the grain to prevent cross-grain
scratching. Wash the rest of the cabinet with warm water and mild liquid
detergent. Rinse well, and wipe dry with a clean soft cloth.
2O

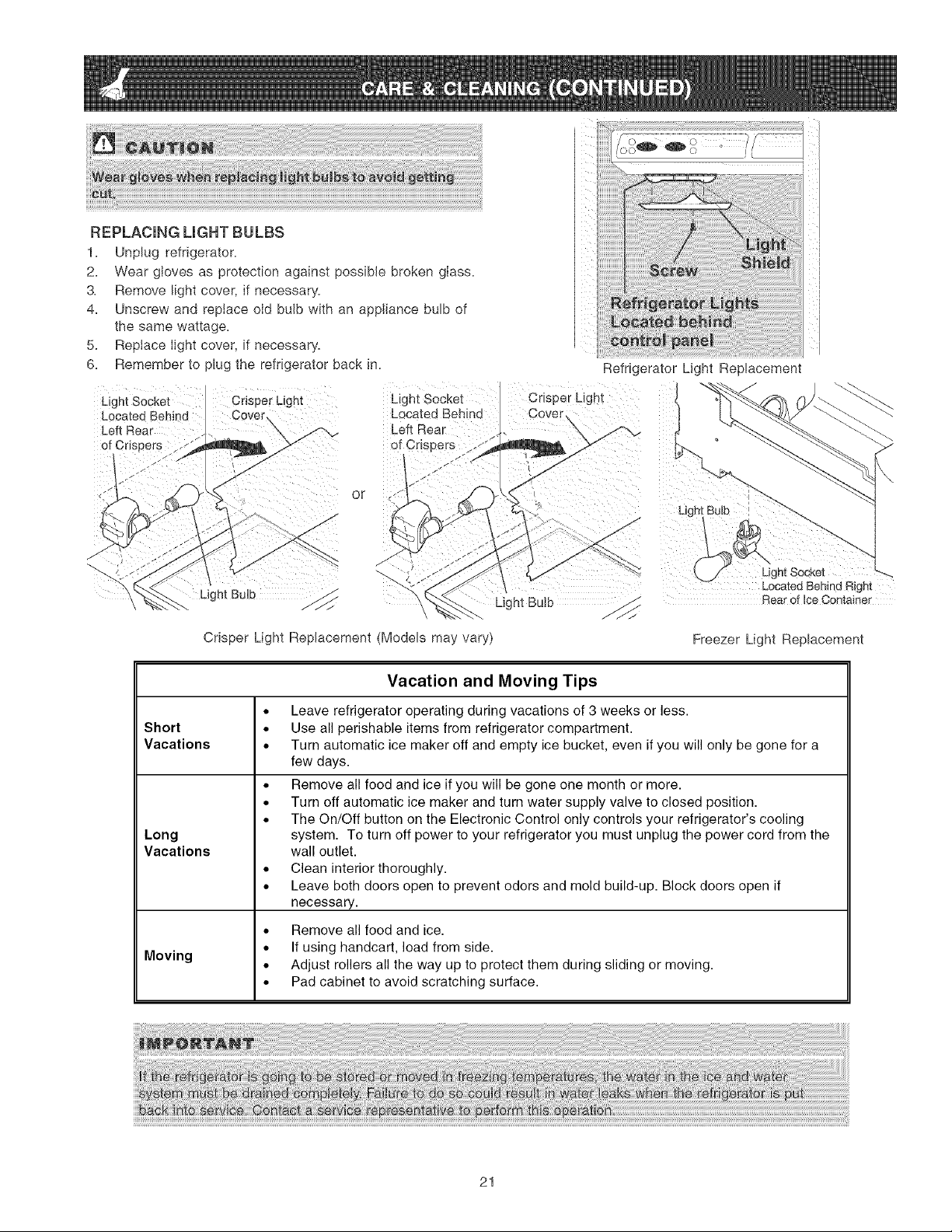

REPLACHNGLHGHTBULBS
1. Unplug refrigerator.
2. Wear gloves as protection against possible broken glass.
3. Remove light cover, if necessary.
4. Unscrew and repiace oId bulb with an appliance bulb of
the same wattage.
5. Repiace light cover, if necessary.
6. Remember to plug the refrigerator back in.
Light Socket Crisper Light L_ghtSocKe_
Located Behind Located Behind
Left Rear _ Left Rear f
of C _ of Crispers jz_,_
_ or
Refrigerator Light Replacement
J
Crisper Light
Crisper Light Replacement (Models may vary)
L_gntBulb
Located Behind Right
Rear of ice Container
Freezer Light Replacement
Vacation and Moving Tips
Short •
Vacations •
Long
Vacations
Leave refrigerator operating during vacations of 3 weeks or less.
Use all perishable items from refrigerator compartment.
Turn automatic ice maker off and empty ice bucket, even if you will only be gone for a
few days.
• Remove all food and ice if you will be gone one month or more.
• Turn off automatic ice maker and turn water supply valve to closed position.
• The On/Off button on the Electronic Control only controls your refrigerator's cooling
system. To turn off power to your refrigerator you must unplug the power cord from the
wall outlet.
• Clean interior thoroughly.
• Leave both doors open to prevent odors and mold build-up. Block doors open if
necessary.
• Remove all food and ice.
• If using handcart, load from side.
Moving • Adjust rollers all the way up to protect them during sliding or moving.
• Pad cabinet to avoid scratching surface.
21
Your appliance is covered by a one year limited warranty. For one year from your original date of
purchase, Electrolux wilt pay all costs for repairing or replacing any parts of this appliance that prove to
be defective in materials or workmanship when such appliance is installed, used and maintained in
accordance with the provided instructions.
E×c[usions This warranty does not cover the following:
1. Products with original serial numbers that have been removed, altered or cannot be readily determined.
2. Product that has been transferred from its original owner to another party or removed outside the USA or
Canada.
3. Rust on the interior or exterior of the unit.
4. Products purchased "as-is" are not covered by this warranty.
5. Food loss due to any refrigerator or freezer failures.
6. Products used in a commercial setting.
7. Service calls which do not involve malfunction or defects in materials or workmanship, or for appliances
not in ordinary household use or used other than in accordance with the provided instructions.
8. Service calls to correct the installation of your appliance or to instruct you how to use your appliance.
9. Expenses for making the appliance accessible for servicing, such as removal of trim, cupboards, shelves,
etc.,which are not a part of the appliance when it is shipped from the factory.
10. Service calls to repair or replace appliance light bulbs, air filters, water filters, other consumables, or
knobs, handles, or other cosmetic parts.
11. Surcharges including, but not limited to, any after hour, weekend, or holiday service calls, tolls, ferry trip
charges, or mileage expense for service calls to remote areas, including the state of Alaska.
12. Damages to the finish of appliance or home incurred during installation, including but not limited to floors,
cabinets, walls, etc.
13. Damages caused by: services performed by unauthorized service companies; use of parts other than
genuine Electrolux parts or parts obtained from persons other than authorized service companies; or
external causes such as abuse, misuse, inadequate power supply, accidents, fires, or acts of God.
DISCLAIMER OF IMPLIED WARRANTIES; LIMITATION OF REMEDIES
CUSTOMER'S SOLE AND EXCLUSIVE REMEDY UNDER THIS LIMITED WARRANTY SHALL BE PRODUCT
REPAIR OR REPLACEMENT AS PROVIDED HEREIN. CLAIMS BASED ON IMPLIED WARRANTIES,
INCLUDING WARRANTIES OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE, ARE
LIMITED TO ONE YEAR OR THE SHORTEST PERIOD ALLOWED BY LAW, BUT NOT LESS THAN ONE YEAR.
ELECTROLUX SHALL NOT BE LIABLE FOR CONSEQUENTIAL OR INCIDENTAL DAMAGES SUCH AS
PROPERTY DAMAGE AND INCIDENTAL EXPENSES RESULTING FROM ANY BREACH OF THIS WRITTEN
LIMITED WARRANTY OR ANY IMPLIED WARRANTY. SOME STATES AND PROVINCES DO NOT ALLOW THE
EXCLUSION OR LIMITATION OF INCIDENTAL OR CONSEQUENTIAL DAMAGES, OR LIMITATIONS ON THE
DURATION OF IMPLIED WARRANTIES, SO THESE LIMITATIONS OR EXCLUSIONS MAY NOT APPLY TO
YOU. THIS WRITTEN WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS. YOU MAY ALSO HAVE OTHER
RIGHTS THAT VARY FROM STATE TO STATE.
If You Need Keep your receipt, delivery slip, or some other appropriate payment record to establish the warranty period
Service should service be required. If service is performed, it is in your best interest to obtain and keep all receipts.
Service under this warranty must be obtained by contacting Electrolux at the addresses or phone
numbers below.
This warranty only applies in the USA and Canada. In the USA, your appliance is warranted by Electrolux Major Appliances
North America, a division of Electrolux Home Products, Inc. In Canada, your appliance is warranted by Electrolux Canada
Corp. Electrolux authorizes no person to change or add to any obligations under this warranty. Obligations for service and
parts under this warranty must be performed by Electrolux or an authorized service company. Product features or
specifications as described or illustrated are subject to change without notice.
USA
1.800.944.9044
Electrolux Major Appliances
North America
RO. Box 212378
Augusta, GA 30907
Electrolu×
Canada
1.800.668.4606
Electrolux Canada Corp.
5855 Terry Fox Way
Mississauga, Ontario, Canada
L5V 3E4
22

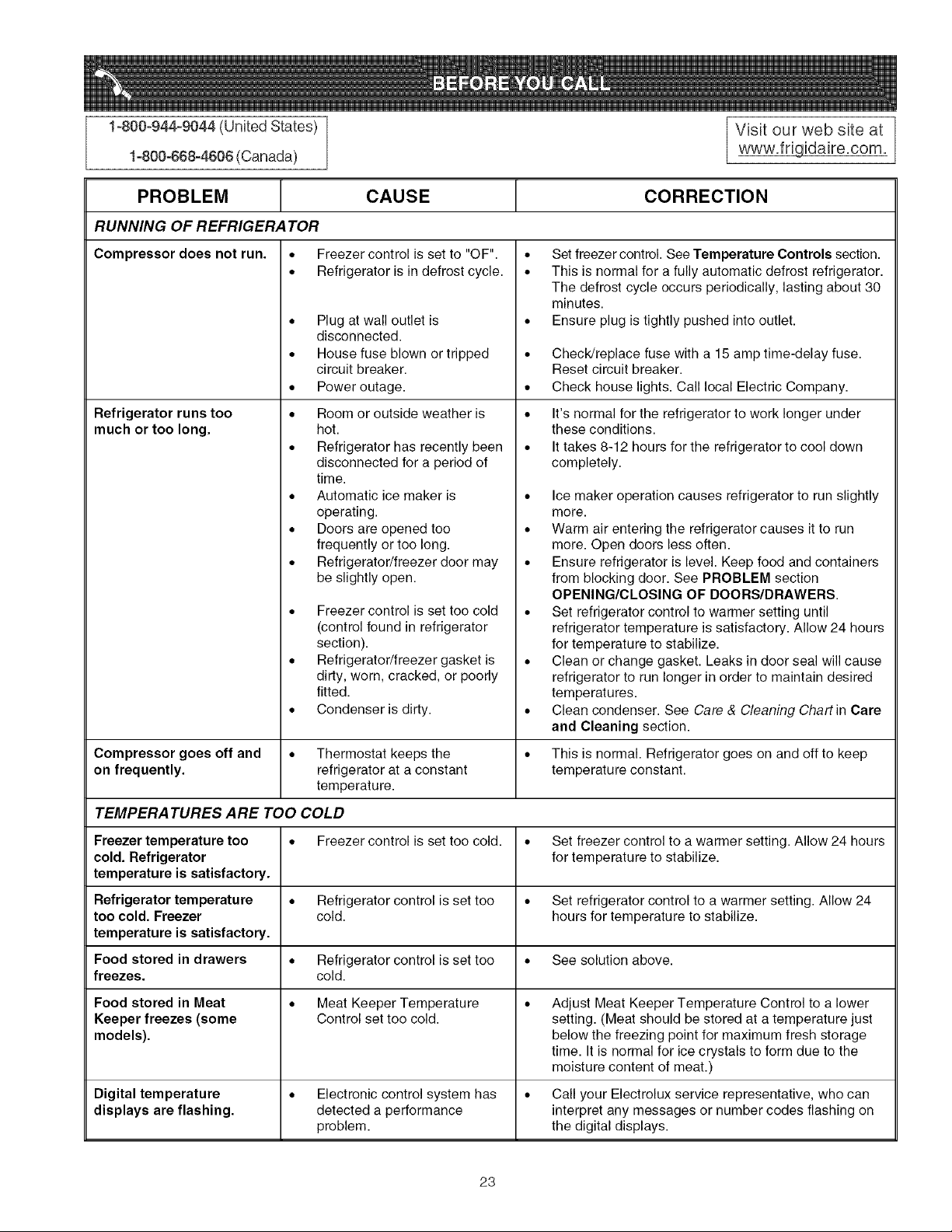

1-800-944-9044(UnitedStates)
1-800-668-4606(Canada)
Visit our web site at
www.frigidaire.com.
PROBLEM [
RUNNING OF REFRIGERATOR
CAUSE 1CORRECTION
Compressor does not run.
Refrigerator runs too
much or too long.
• Freezer control is set to "OF".
• Refrigerator is in defrost cycle.
Plug at wall outlet is
disconnected.
House fuse blown or tripped
circuit breaker.
Power outage.
Room or outside weather is
hot.
Refrigerator has recently been
disconnected for a period of
time.
Automatic ice maker is
operating.
Doors are opened too
frequently or too long.
Refrigerator/freezer door may
be slightly open.
Freezer control is set too cold
(control found in refrigerator
section).
Refrigerator/freezer gasket is
dirty, worn, cracked, or poorly
fitted.
Condenser is dirty.
• Set freezer control. See Temperature Controls section.
• This is normal for a fully automatic defrost refrigerator.
The defrost cycle occurs periodically, lasting about 30
minutes.
• Ensure plug is tightly pushed into outlet.
Check/replace fuse with a 15 amp time-delay fuse.
Reset circuit breaker.
Check house lights. Call local Electric Company.
It's normal for the refrigerator to work longer under
these conditions.
It takes 8-12 hours for the refrigerator to cool down
completely.
• Ice maker operation causes refrigerator to run slightly
more.
• Warm air entering the refrigerator causes it to run
more. Open doors less often.
• Ensure refrigerator is level. Keep food and containers
from blocking door. See PROBLEM section
OPENING/CLOSING OF DOORS/DRAWERS.
• Set refrigerator control to warmer setting until
refrigerator temperature is satisfactory. Allow 24 hours
for temperature to stabilize.
• Clean or change gasket. Leaks in door seal will cause
refrigerator to run longer in order to maintain desired
temperatures.
Clean condenser. See Care & Cleaning Chart in Care
and Cleaning section.
Compressor goes off and • Thermostat keeps the • This is normal. Refrigerator goes on and off to keep
on frequently, refrigerator at a constant temperature constant.
temperature.
TEMPERA TURES ARE TOO COLD
Freezer temperature too • Freezer control is set too cold. • Set freezer control to a warmer setting. Allow 24 hours
cold. Refrigerator for temperature to stabilize.
temperature is satisfactory.
Refrigerator temperature • Refrigerator control is set too • Set refrigerator control to a warmer setting. Allow 24
too cold. Freezer cold. hours for temperature to stabilize.
temperature is satisfactory.
Food stored in drawers • Refrigerator control is set too • See solution above.
freezes, cold.
Food stored in Meat • Meat Keeper Temperature • Adjust Meat Keeper Temperature Control to a lower
Keeper freezes (some Control set too cold. setting. (Meat should be stored at a temperature just
models), below the freezing point for maximum fresh storage
time. It is normal for ice crystals to form due to the
moisture content of meat.)
Digital temperature • Electronic control system has • Call your Electrolux service representative, who can
displays are flashing, detected a performance interpret any messages or number codes flashing on
problem, the digital displays.
23

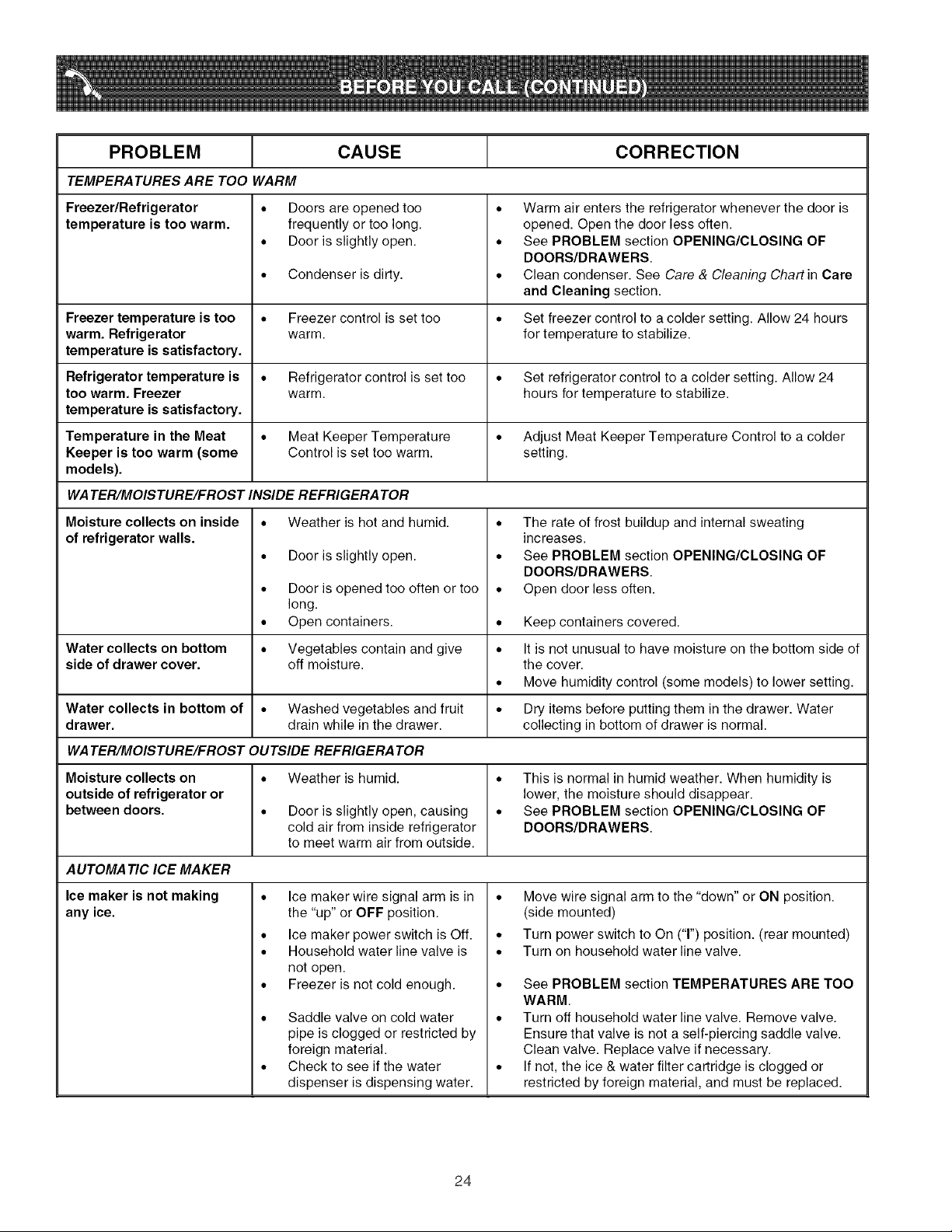

PROBLEM [CAUSE 1CORRECTION
TEMPERATURES ARE TOO WARM
Freezer/Refrigerator
temperature is too warm.
• Doors are opened too
frequently or too long.
• Door is slightly open.
• Condenser is dirty.
• Warm air enters the refrigerator whenever the door is
opened. Open the door less often.
• See PROBLEM section OPENING/CLOSING OF
DOORS/DRAWERS.
• Clean condenser. See Care & Cleaning Chart in Care
and Cleaning section.
Freezer temperature is too . Freezer control is set too . Set freezer control to a colder setting. Allow 24 hours
warm. Refrigerator warm. for temperature to stabilize.
temperature is satisfactory.
Refrigerator temperature is ° Refrigerator control is set too ° Set refrigerator control to a colder setting. Allow 24
too warm. Freezer warm. hours for temperature to stabilize.
temperature is satisfactory.
Temperature in the Meat . Meat Keeper Temperature . Adjust Meat Keeper Temperature Control to a colder
Keeper is too warm (some Control is set too warm. setting.
models).
WA TER/MOIS TURE/FROST INSIDE REFRIGERA TOR
• Weather is hot and humid.Moisture collects on inside
of refrigerator walls.
• Door is slightly open.
• Door is opened too often or too
long.
• Open containers.
• The rate of frost buildup and internal sweating
increases.
° See PROBLEM section OPENING/CLOSING OF
DOORS/DRAWERS.
• Open door less often.
• Keep containers covered.
Water collects on bottom ° Vegetables contain and give ° It is not unusual to have moisture on the bottom side of
side of drawer cover, off moisture, the cover.
• Move humidity control (some models) to lower setting.
Water collects in bottom of . Washed vegetables and fruit . Dry items before putting them in the drawer. Water
drawer, drain while in the drawer, collecting in bottom of drawer is normal.
WA TER/MOISTURE/FROST OUTSIDE REFRIGERATOR
Moisture collects on . Weather is humid. . This is normal in humid weather. When humidity is
outside of refrigerator or lower, the moisture should disappear.
between doors. . Door is slightly open, causing . See PROBLEM section OPENING/CLOSING OF
cold air from inside refrigerator DOORS/DRAWERS.
to meet warm air from outside.
AUTOMA TIC ICE MAKER
Ice maker is not making
any ice.
. Ice maker wire signal arm is in
the "up" or OFF position.
. Ice maker power switch is Off.
. Household water line valve is
not open.
. Freezer is not cold enough.
. Saddle valve on cold water
pipe is clogged or restricted by
foreign material.
Check to see if the water
dispenser is dispensing water.
. Move wire signal arm to the "down" or ON position.
(side mounted)
. Turn power switch to On ('T') position. (rear mounted)
. Turn on household water line valve.
• See PROBLEM section TEMPERATURES ARE TOO
WARM.
• Turn off household water line valve. Remove valve.
Ensure that valve is not a self-piercing saddle valve.
Clean valve. Replace valve if necessary.
• If not, the ice & water filter cartridge is clogged or
restricted by foreign material, and must be replaced.
24

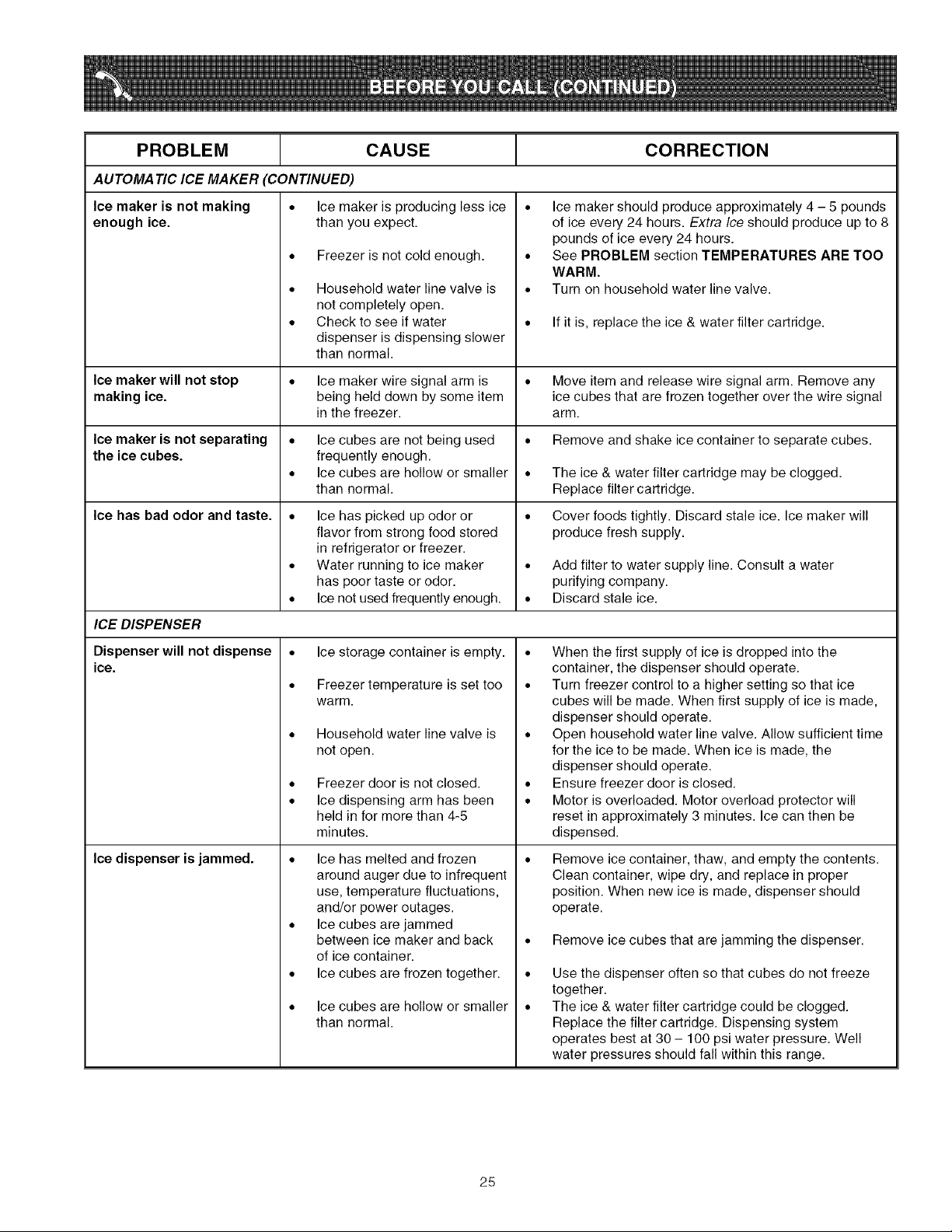

PROBLEM l CAUSE _ CORRECTION
AUTOMA TIC ICE MAKER (CONTINUED)
Ice maker is not making
enough ice.
Ice maker will not stop
making ice.
Ice maker is not separating
the ice cubes.
Ice has bad odor and taste.
• Ice maker is producing less ice
than you expect.
• Freezer is not cold enough.
• Household water line valve is
not completely open.
• Check to see if water
dispenser is dispensing slower
than normal.
Ice maker wire signal arm is
being held down by some item
in the freezer.
• Ice cubes are not being used
frequently enough.
• Ice cubes are hollow or smaller
than normal.
• Ice has picked up odor or
flavor from strong food stored
in refrigerator or freezer.
• Water running to ice maker
has poor taste or odor.
• Ice not used frequently enough.
Ice maker should produce approximately 4 - 5 pounds
of ice every 24 hours. Extra Ice should produce up to 8
pounds of ice every 24 hours.
See PROBLEM section TEMPERATURES ARE TOO
WARM.
Turn on household water line valve.
If it is, replace the ice & water filter cartridge.
Move item and release wire signal arm. Remove any
ice cubes that are frozen together over the wire signal
arm.
Remove and shake ice container to separate cubes.
The ice & water filter cartridge may be clogged.
Replace filter cartridge.
Cover foods tightly. Discard stale ice. Ice maker will
produce fresh supply.
• Add filter to water supply line. Consult a water
purifying company.
• Discard stale ice.
ICE DISPENSER
Dispenser will not dispense
ice.
Ice dispenser is jammed.
• Ice storage container is empty.
• Freezer temperature is set too
warm.
•Household water line valve is
not open.
Freezer door is not closed.
Ice dispensing arm has been
held in for more than 4-5
minutes.
• Ice has melted and frozen
around auger due to infrequent
use, temperature fluctuations,
and/or power outages.
• Ice cubes are jammed
between ice maker and back
of ice container.
• Ice cubes are frozen together.
Ice cubes are hollow or smaller
than normal.
• When the first supply of ice is dropped into the
container, the dispenser should operate.
• Turn freezer control to a higher setting so that ice
cubes will be made. When first supply of ice is made,
dispenser should operate.
• Open household water line valve. Allow sufficient time
for the ice to be made. When ice is made, the
dispenser should operate.
• Ensure freezer door is closed.
• Motor is overloaded. Motor overload protector will
reset in approximately 3 minutes. Ice can then be
dispensed.
Remove ice container, thaw, and empty the contents.
Clean container, wipe dry, and replace in proper
position. When new ice is made, dispenser should
operate.
Remove ice cubes that are jamming the dispenser.
Use the dispenser often so that cubes do not freeze
together.
The ice & water filter cartridge could be clogged.
Replace the filter cartridge. Dispensing system
operates best at 30 - 100 psi water pressure. Well
water pressures should fall within this range.
25

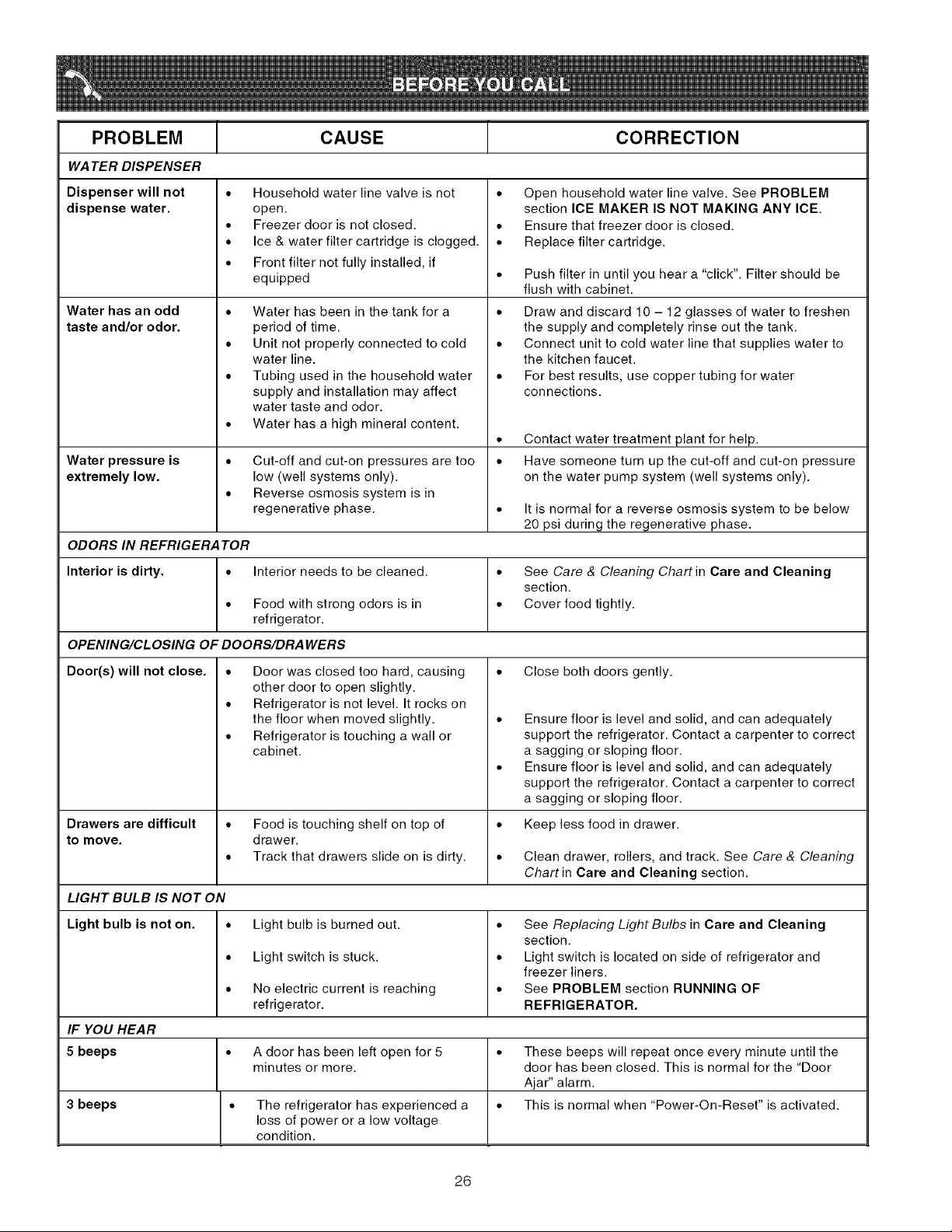

PROBLEM 1 CAUSE T CORRECTION
WATER DISPENSER
Dispenser will not
dispense water.
Water has an odd
taste and/or odor.
• Household water line valve is not
open.
• Freezer door is not closed.
• Ice & water filter cartridge is clogged.
• Front filter not fully installed, if
equipped
• Water has been in the tank for a
period of time.
• Unit not properly connected to cold
water line.
• Tubing used in the household water
supply and installation may affect
water taste and odor.
Water has a high mineral content.
• Open household water line valve. See PROBLEM
section ICE MAKER IS NOT MAKING ANY ICE.
• Ensure that freezer door is closed.
• Replace filter cartridge.
• Push filter in until you hear a "click". Filter should be
flush with cabinet.
• Draw and discard 10 - 12 glasses of water to freshen
the supply and completely rinse out the tank.
• Connect unit to cold water line that supplies water to
the kitchen faucet.
• For best results, use copper tubing for water
connections.
• Contact water treatment plant for help.
Water pressure is • Cut-off and cut-on pressures are too • Have someone turn up the cut-off and cut-on pressure
extremely low. low (well systems only), on the water pump system (well systems only).
• Reverse osmosis system is in
regenerative phase. • It is normal for a reverse osmosis system to be below
20 psi during the regenerative phase.
ODORS IN REFRIGERA TOR
Interior is dirty. • Interior needs to be cleaned. / • See Care & Cleaning Chart in Care and Cleaning
Isection.
• Food with strong odors is in • Cover food tightly.
refrigerator.
OPENING/CL OSING OF DOORS/DRA WERS
Door(s) will not close. • Close both doors gently.• Door was closed too hard, causing
other door to open slightly.
• Refrigerator is not level. It rocks on
the floor when moved slightly.
• Refrigerator is touching a wall or
cabinet.
Ensure floor is level and solid, and can adequately
support the refrigerator. Contact a carpenter to correct
a sagging or sloping floor.
Ensure floor is level and solid, and can adequately
support the refrigerator. Contact a carpenter to correct
a sagging or sloping floor.
Keep less food in drawer.Drawers are difficult • Food is touching shelf on top of •
to move. drawer.
• Track that drawers slide on is dirty. • Clean drawer, rollers, and track. See Care & Cleaning
Chart in Care and Cleaning section.
LIGHT BULB IS NOT ON
Light bulb is not on. • Light bulb is burned out.
• Light switch is stuck.
• No electric current is reaching
refrigerator.
• See Replacing Light Bulbs in Care and Cleaning
section.
• Light switch is located on side of refrigerator and
freezer liners.
• See PROBLEM section RUNNING OF
REFRIGERATOR.
IF YOU HEAR
5 beeps • A door has been left open for 5 • These beeps will repeat once every minute until the
minutes or more. door has been closed. This is normal for the "Door
Ajar" alarm.
3 beeps • The refrigerator has experienced a • This is normal when "Power-On-Reset" is activated.
loss of power or a low voltage
condition.
26
