Distributed by / Distribue par:
Suzhou Cleva Electric Appliance Co., Ltd.
NO.8 Ting Rong Street 215122 Suzhou - China
6 Gallon / 6 gallons / 23 L
Model No. • Référence de modèle
VK609PFR 0201

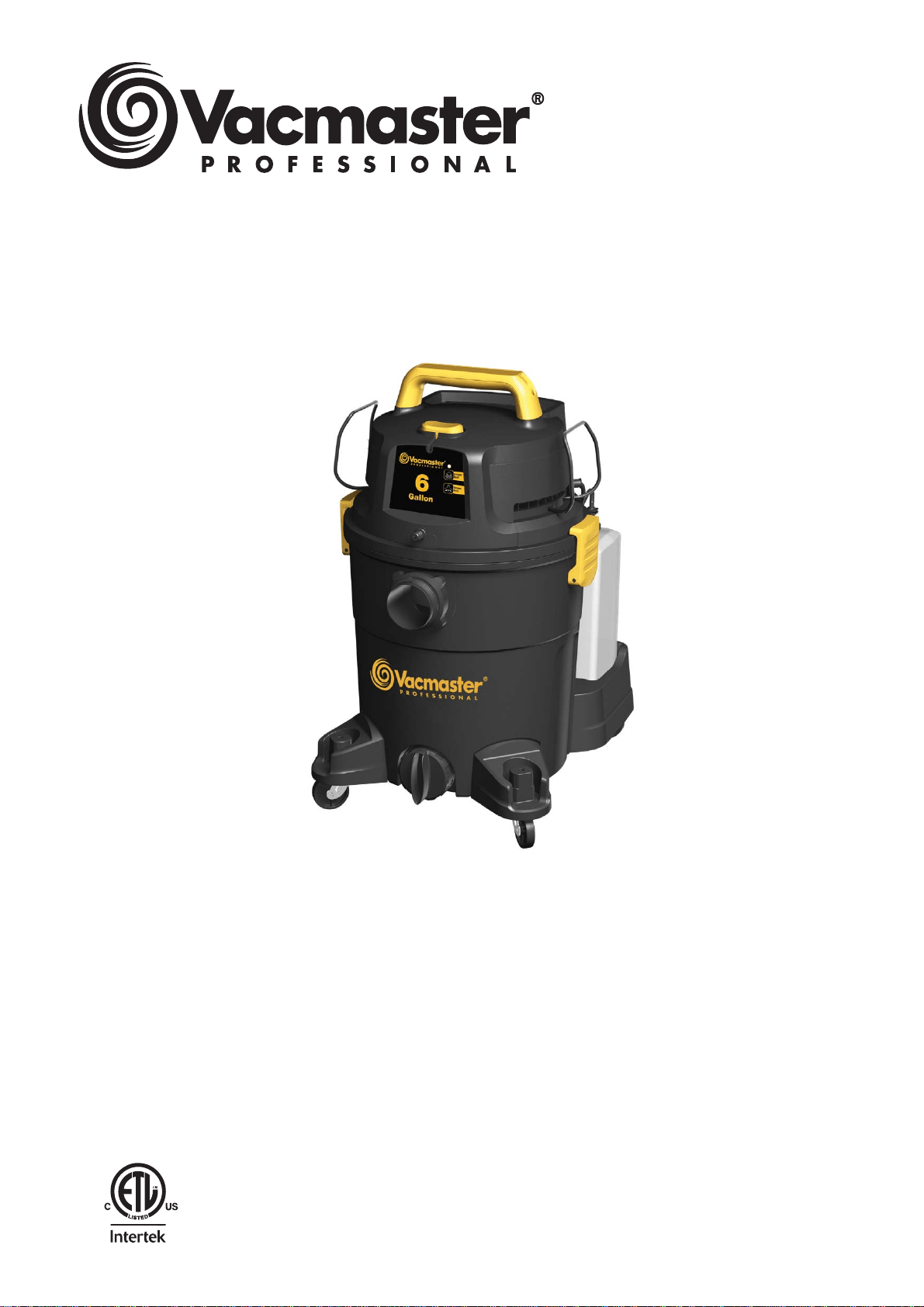

Wet/Dry/Shampoo Vacuum
Aspirateur à shampooing
Sec et Humide
Operator’s Manual
Manuel d’utilisation
FOR YOUR SAFETY
Read and understand this manual before use. Keep this manual for future reference.
POUR GARANTIR VOTRE SÉCURITÉ
Lisez et comprenez ce manuel avant toute utilisation de l’appareil. Conservez le présent manuel
D¿QGHSRXYRLUYRXV\UpIpUHUXOWpULHXUHPHQW
Replacement Filters &
Accessories available at:
www.amazon.com.
Filtres de rechange et
Accessoires disponibles à
l’adresse suivante:
www.amazon.com.
2
Thank you for purchasing this Vacmaster
®
ZHWGU\VKDPSRRYDFXXPFOHDQHU)HHOFRQ¿GHQW
that with Vacmaster
®
you are obtaining a high-quality product engineered for optimal
performance. This vacuum is capable of picking up liquids and dry materials.
FOR YOUR SAFETY: CAREFULLY READ AND UNDERSTAND ALL INSTRUCTIONS.
TABLE OF CONTENTS
SECTION PAGE
Warranty.........................................................................................................................................
Important Safety Instructions..........................................................................................................
Double Insulation Instructions........................................................................................................
Extension Cords.............................................................................................................................
Symbols.........................................................................................................................................
Unpacking & Checking Carton Contents........................................................................................

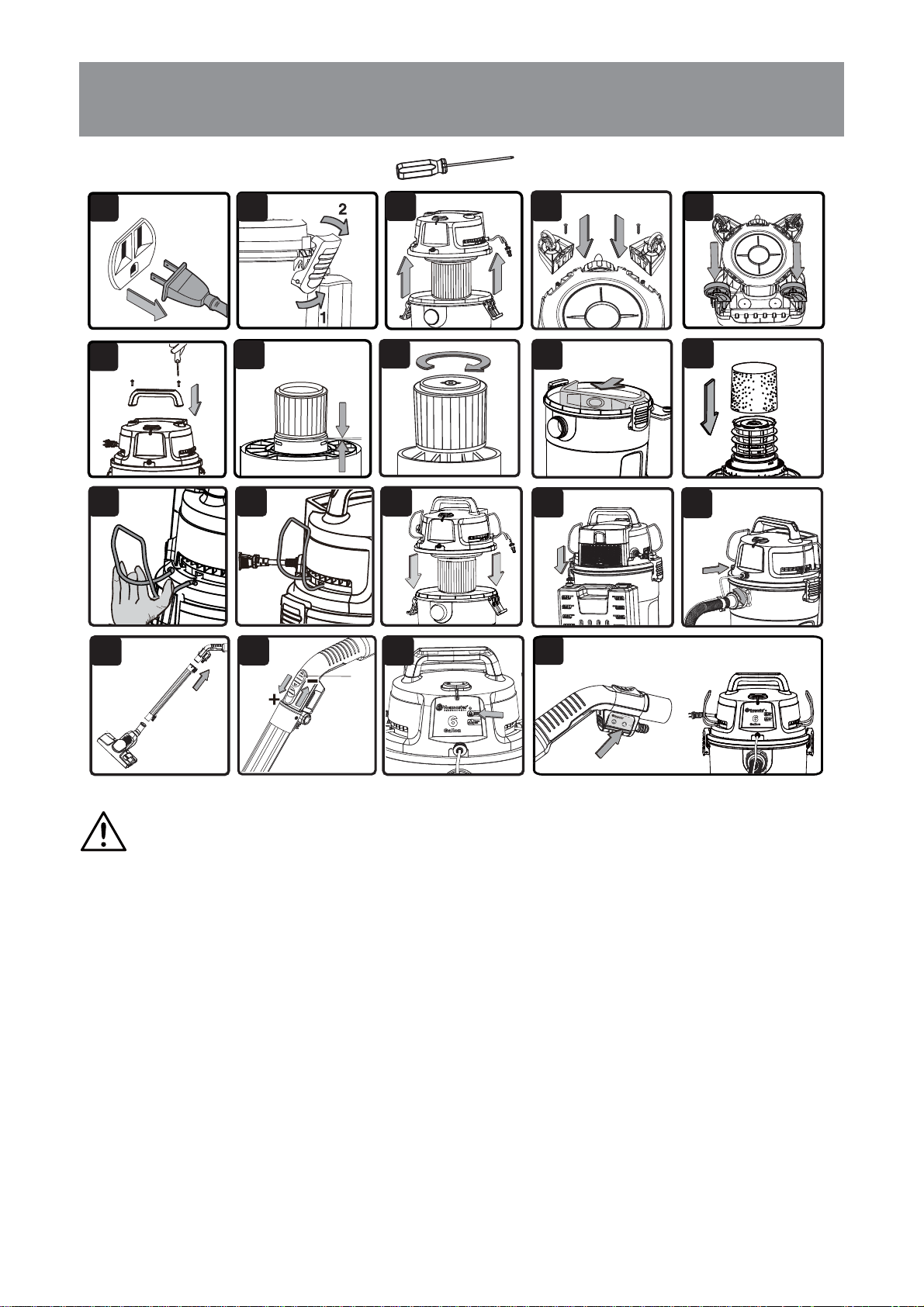

General Assembly Instructions.......................................................................................................

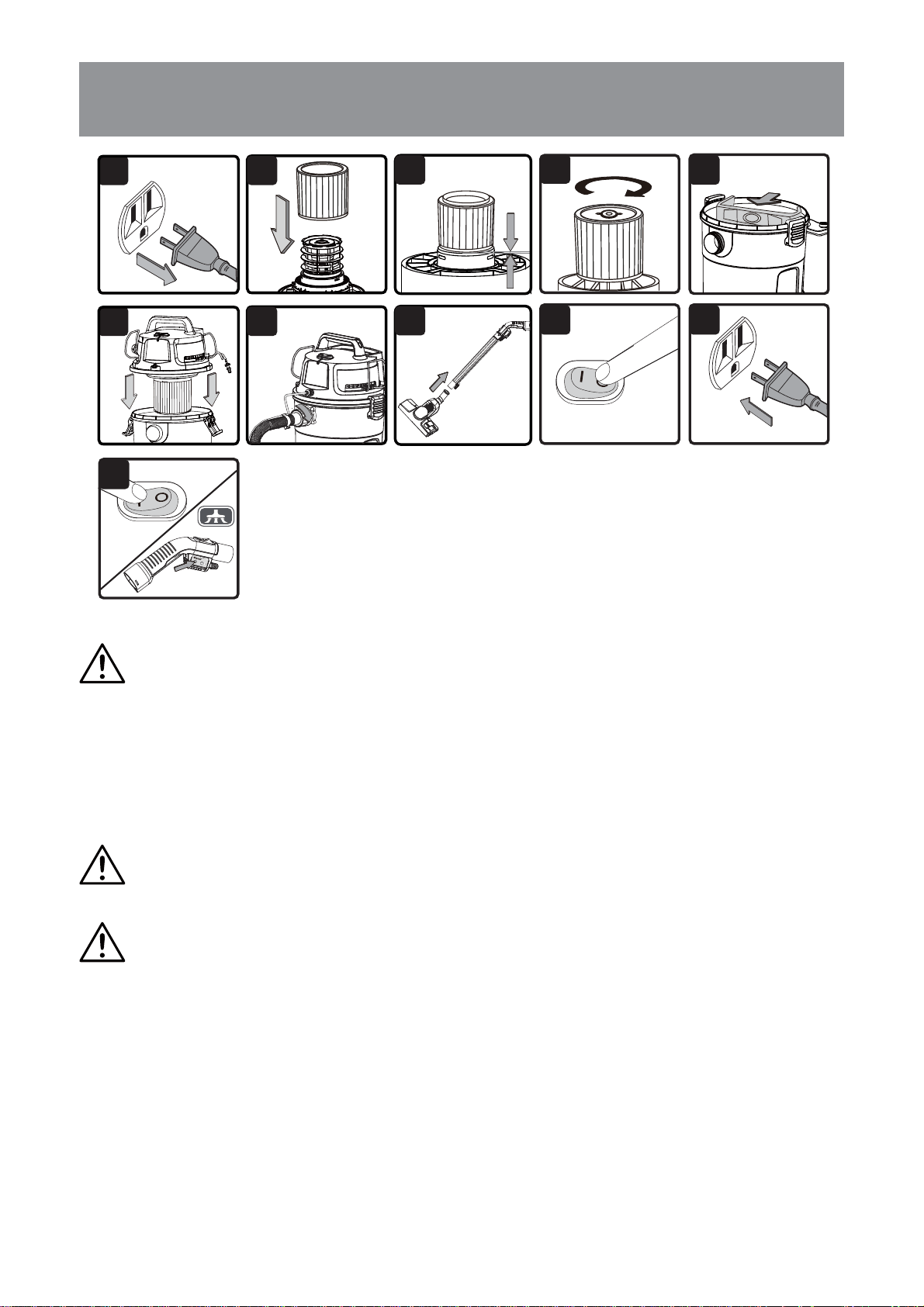

Dry Vacuum Operation...................................................................................................................

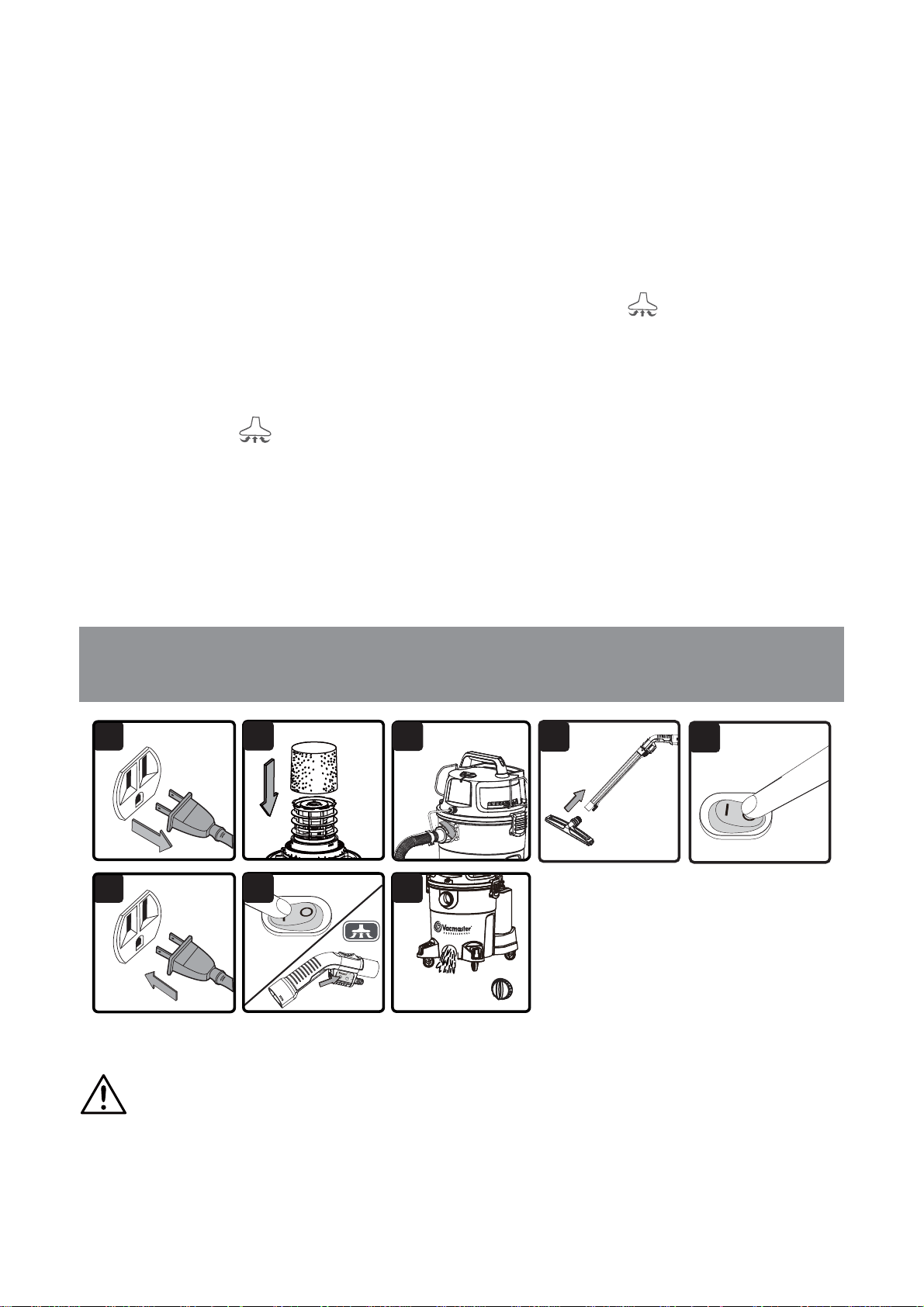

Liquid Vacuum Operation...............................................................................................................

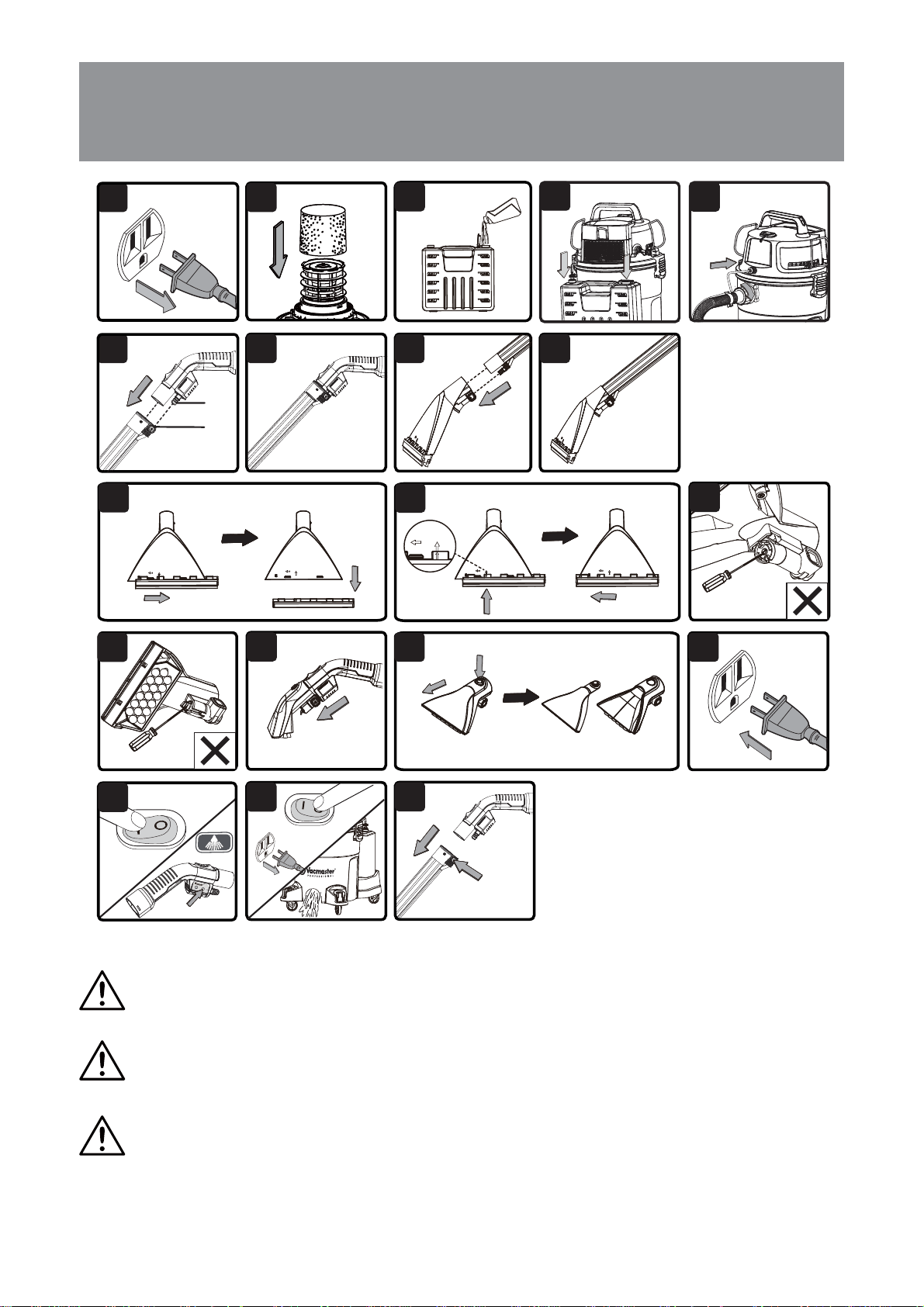

Carpet/Upholstery Operation.........................................................................................................
Maintenance...................................................................................................................................

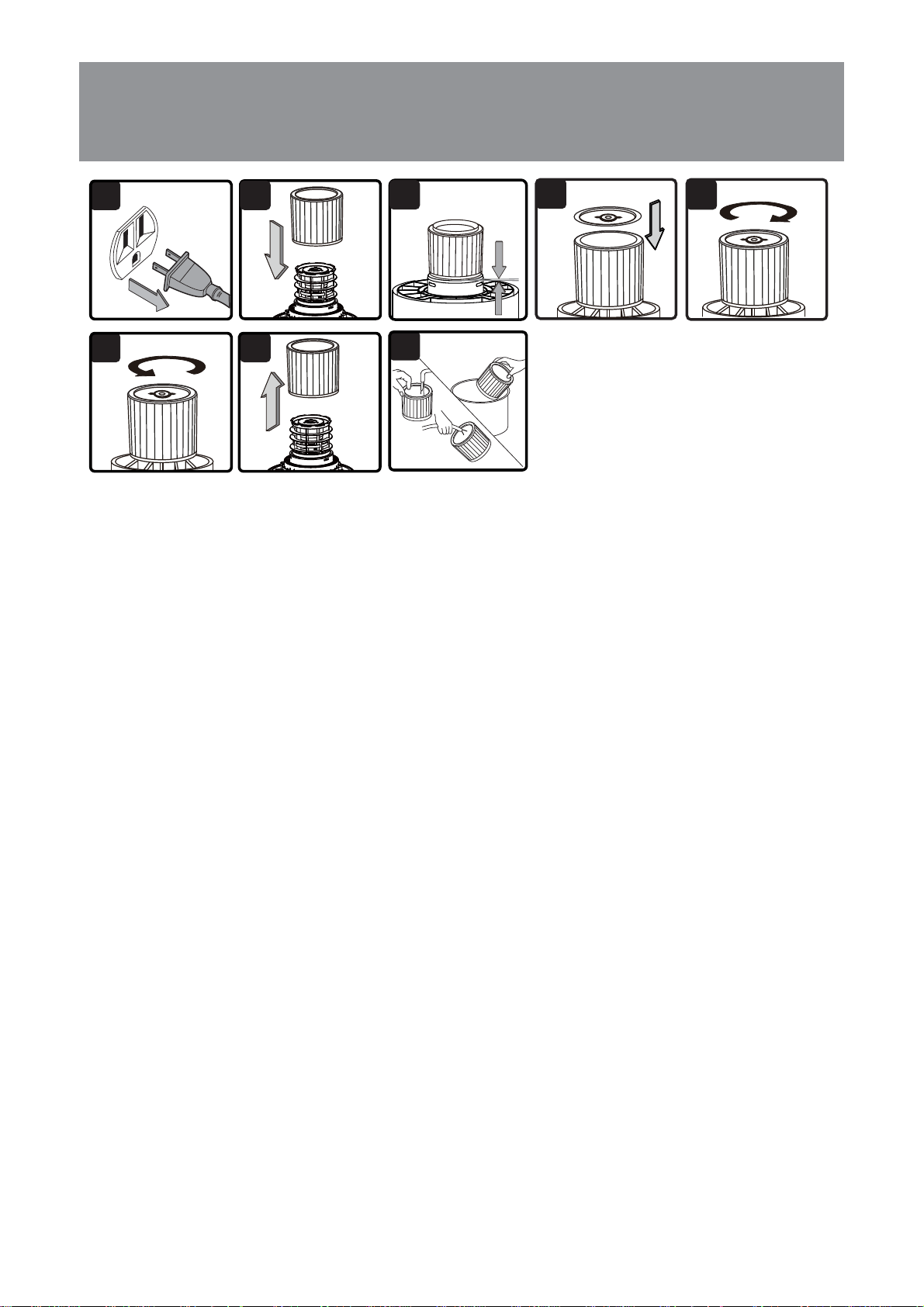

Installing & Cleaning Cartridge Filter..............................................................................................

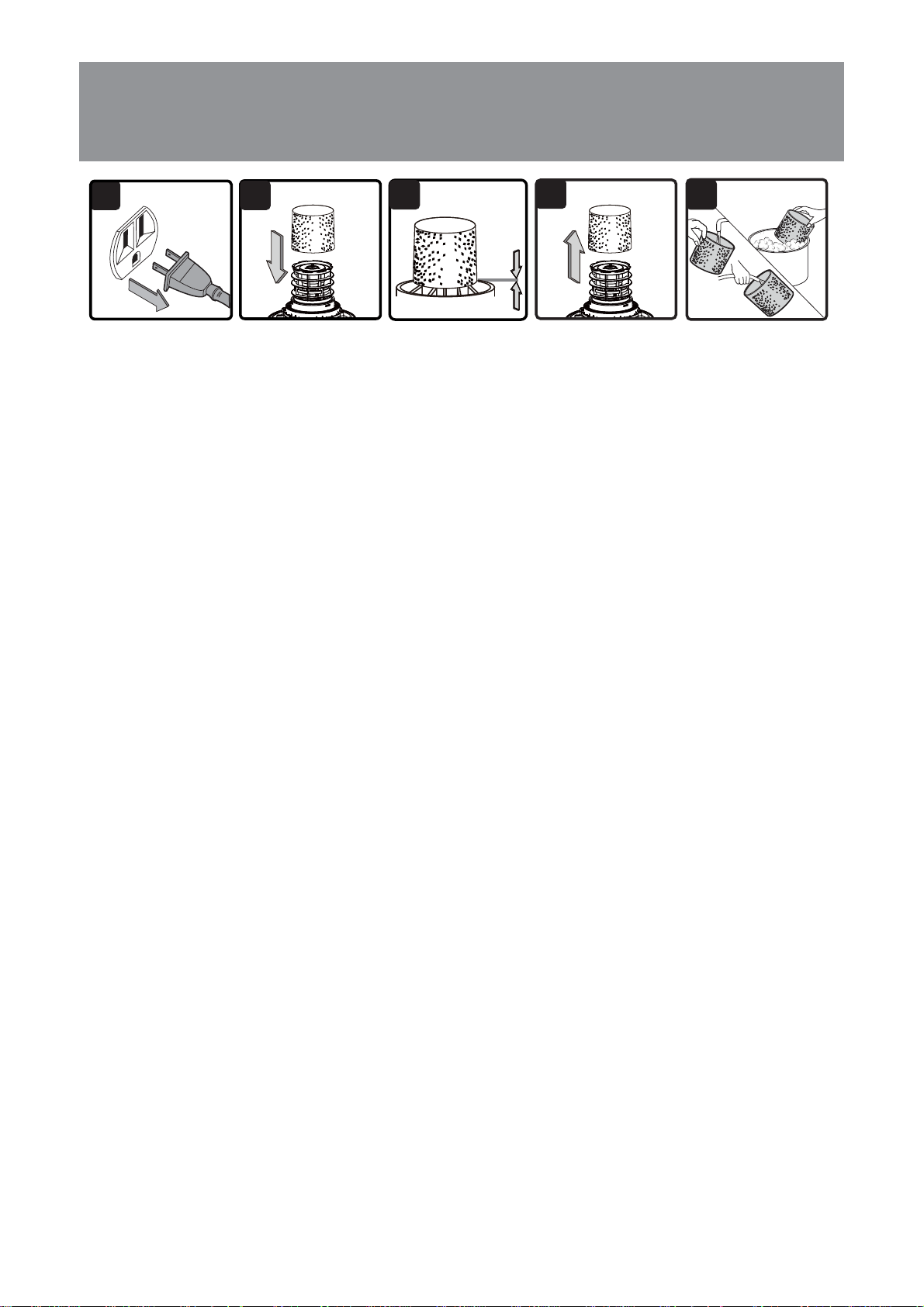

Installing & Cleaning Foam Wet Filter............................................................................................
Cleaning & Replacing Exhaust Filter..............................................................................................
Changing the Battery.....................................................................................................................
Troubleshooting.............................................................................................................................

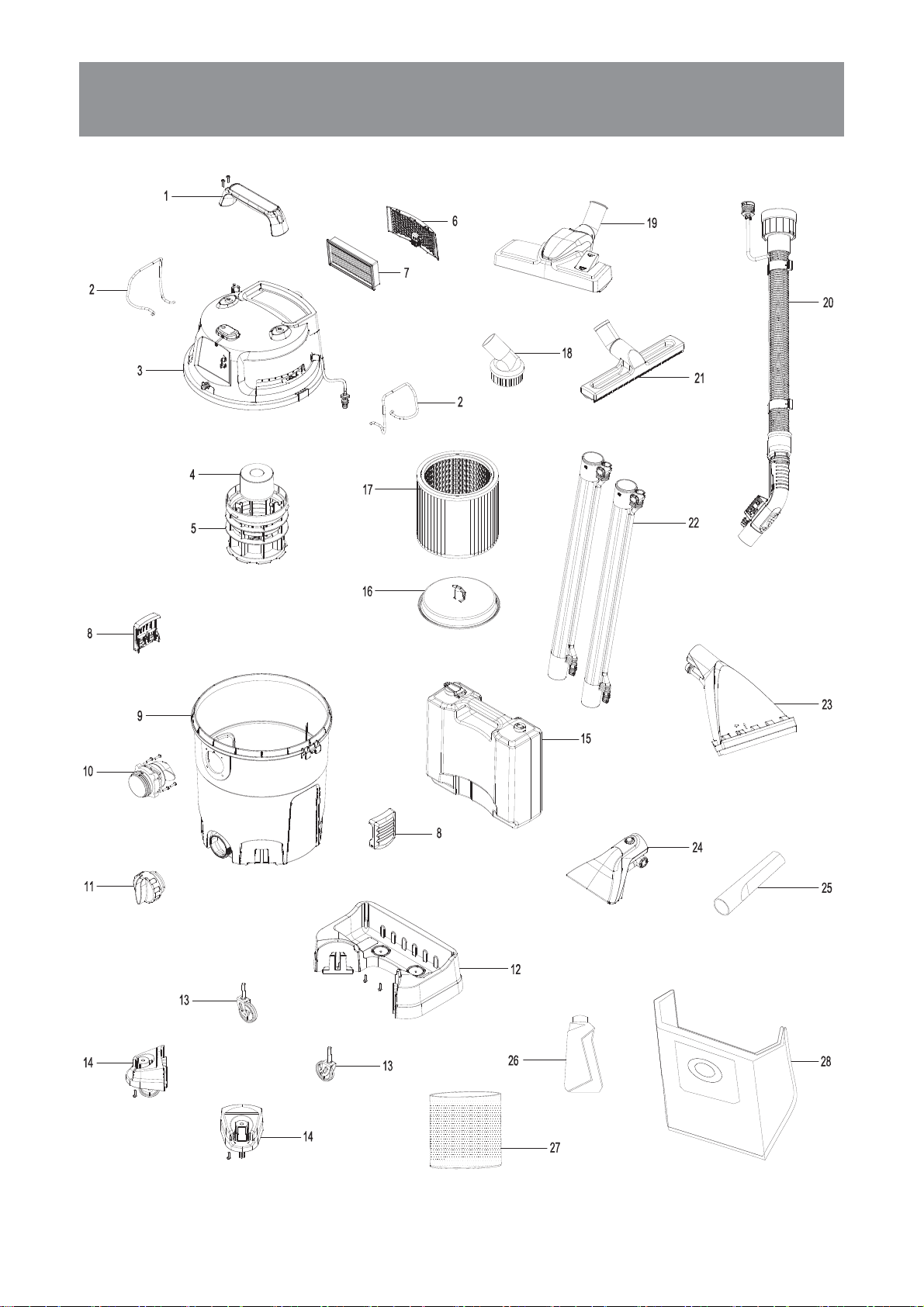

Exploded View...............................................................................................................................
Parts List........................................................................................................................................
3
4
6
7
7
8
10
12
13
15
18
19
20
21
21
22
24
25
IMPORTANT INFORMATION
GALLONS
7DQN6L]HUHIHUVWRWKHDFWXDOWDQNYROXPHDQGGRHVQRWUHÀHFWFDSDFLW\DYDLODEOHGXULQJ
operation.
PEAK HP
"Peak Horsepower" is a term used in the wet-dry vac industry for consumer comparison
purposes. It does not denote the operational horsepower output of a wet-dry vac, but rather the
horsepower output of a motor, including the motor’s inertial contribution, achieved in laboratory
testing. In actual use, motors do not operate at the peak horsepower shown.
3
WARRANTY
We take pride in producing a high quality, durable product. This Vacmaster
®
product carries a
limited two (2) year warranty against defects in workmanship and materials from date of purchase
under normal household use. If product is to be used for commercial, industrial, or rental use, a
90 day limited warranty will apply. Please keep your receipt as proof of purchase. This warranty
JLYHV\RXVSHFL¿FOHJDOULJKWVZKLFKPD\YDU\IURPVWDWHWRVWDWH)RUSURGXFWVHUYLFHFDOO
Customer Service at 1-866-384-8432.
Not Covered by Warranty:
• Any part that has become inoperative due to misuse, negligence, direct/indirect abuse, accidents,
improper maintenance, repairs, or alterations;
&RQVXPDEOHVVXFKDV¿OWHUVDQGDFFHVVRULHV
• Normal wear and tear of parts and attachments, such as hose, nozzles, or casters;
1RUPDOGHWHULRUDWLRQRIWKHH[WHULRU¿QLVKGXHWRXVHRUH[SRVXUH
• Any product where serial number/data label is tampered with or removed;
• Any product purchased from an unauthorized retailer.
4
IMPORTANT SAFETY INSTRUCTIONS
SAVE THIS MANUAL FOR FUTURE REFERENCE.
WARNING:
TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK, OR INJURY:
READ AND UNDERSTAND ALL INSTRUCTIONS BEFORE USING THIS VACUUM.
Read and understand this operator’s manual and all labels on the vacuum cleaner before
operating. Safety is a combination of common sense, staying alert and knowing how your vacuum
works. Use this vacuum only as described in this manual. To reduce the risk of personal injury or
damage to your vacuum, use only manufacturer recommended accessories.
When using a vacuum, basic precautions should always be followed including the
IROORZLQJ)DLOXUHWRIROORZWKHZDUQLQJVDQGLQVWUXFWLRQVPD\UHVXOWLQH[SORVLRQ¿UHDQG
or serious injury.
• Do not run vacuum unattended.
'RQRWXVHWRSLFNXSÀDPPDEOHRUFRPEXVWLEOHOLTXLGVVXFKDVJDVROLQHRUXVHLQDUHDVZKHUH
they may be present.
'RQRWYDFXXPRUXVHWKLVYDFXXPQHDUÀDPPDEOHOLTXLGVJDVHVRUH[SORVLYHYDSRUVOLNH
JDVROLQHRURWKHUIXHOVOLJKWHUÀXLGVFOHDQHUVRLOEDVHGSDLQWVQDWXUDOJDVK\GURJHQRU
explosive dusts like coal dust, magnesium dust, grain dust, or gun powder. Sparks inside the
PRWRUFDQLJQLWHÀDPPDEOHYDSRUVRUGXVW
• To reduce the risk of health hazards from vapors or dusts, do not vacuum toxic materials.
• Do not use or store near hazardous materials.
• Do not pick up anything that is burning or smoking, such as cigarettes, matches, or hot ashes.
• Do not expose to rain. Store indoors.
• If vacuum is not working as it should, has been dropped, damaged, left outdoors, or dropped into
water, return it to a service center.
• Do not unplug by pulling on cord. To unplug, grasp the plug, not the cord.
• Do not use with damaged cord or plug.
• Do not pull or carry by cord, use cord as a handle, close a door on cord, or pull cord around
sharp edges or corners.
• Keep cord away from heated surfaces.
• Do not run the vacuum over cord.
• Do not handle plug or vacuum with wet hands.
'RQRWXVHZLWKRXWGXVWEDJDQGRU¿OWHUVLQSODFH
• Do not allow to be used as a toy. Close attention is necessary when used by or near children.
• To reduce the risk of injury from accidental starting, unplug power cord before changing or
FOHDQLQJ¿OWHU
• Do not leave vacuum when plugged in. Unplug from outlet when not in use and before servicing.
• Turn off all controls before unplugging.
• Unplug before connecting or disconnecting hose, or any other accessories.
• Do not put any object into openings. Do not use with any opening blocked; keep free of dust, lint,
KDLUDQGDQ\WKLQJWKDWPD\UHGXFHDLUÀRZ
.HHSKDLUORRVHFORWKLQJ¿QJHUVDQGDOOSDUWVRIERG\DZD\IURPRSHQLQJVDQGPRYLQJSDUWV
• Use extra care when cleaning on stairs.
• Use only as described in this manual. Use only manufacturer’s recommended attachments.
• Use only manufacturer's recommended cleaning solution with this vacuum. See the Carpet/
Upholstery Cleaning Operation section of this manual.
• This vacuum is provided with double insulation. Use only identical replacement parts. See
DOUBLE INSULATION INSTRUCTIONS.
5
This device complies with part 15 of the FCC Rules. Operation is subject to the following two
conditions:
• This device may not cause harmful interference, and
• This device must accept any interference received, including interference that may cause
undesired operation.
SAVE THESE INSTRUCTIONS
For Household Use Only
WARNING:
To reduce the risk of electric shock - Unplug before cleaning or
servicing.
FCC COMPLIANCE
CAUTION:
To reduce the risk of injury from moving parts - Unplug before servicing.
CAUTION:
$Q\FKDQJHVRUPRGL¿FDWLRQVQRWH[SUHVVO\DSSURYHGE\WKHSDUW\UHVSRQVLEOH
for compliance could void the user’s authority to operate the equipment.
NOTE:
This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to part 15 of the FCC rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation.
This equipment generates, uses, and can radiate radio frequency energy and, if not installed and
used in accordance with the instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular installation.
If this equipment does cause harmful interference to radio or television reception, which can
be determined by turning the equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
• Consult the dealer or an experienced radio/TV technician for help.
6
WARNING:
TO REDUCE THE RISK OF ELECTRIC SHOCK - DO NOT EXPOSE TO
RAIN. STORE INDOORS.
WARNING:
FOR YOUR OWN SAFETY, READ AND UNDERSTAND THE OPERATOR’S
MANUAL. DO NOT RUN UNATTENDED. DO NOT PICK UP HOT ASHES, COALS, TOXIC,
FLAMMABLE OR OTHER HAZARDOUS MATERIALS. DO NOT USE AROUND EXPLOSIVE
LIQUIDS OR VAPORS.
WARNING:
SERVICING OF DOUBLE-INSULATED WET/DRY SHAMPOO VACUUM
WITH A DOUBLE-INSULATED WET/DRY SHAMPOO VACUUM, TWO SYSTEMS OF
INSULATION ARE PROVIDED INSTEAD OF GROUNDING. NO GROUNDING MEANS
IS PROVIDED ON A DOUBLE-INSULATED APPLIANCE, NOR SHOULD A MEANS FOR
GROUNDING BE ADDED. SERVICING A DOUBLE INSULATED WET/DRY SHAMPOO
VACUUM REQUIRES EXTREME CARE AND KNOWLEDGE OF THE SYSTEM, AND SHOULD
BE DONE ONLY BY QUALIFIED SERVICE PERSONNEL. REPLACEMENT PARTS FOR A
DOUBLE-INSULATED WET/DRY SHAMPOO VACUUM MUST BE IDENTICAL TO THE PARTS
THEY REPLACE. YOUR DOUBLE-INSULATED WET/DRY SHAMPOO VAC IS MARKED WITH
THE WORDS ‘DOUBLE INSULATED’ AND THE SYMBOL (SQUARE WITHIN A SQUARE)
MAY ALSO BE MARKED ON THE APPLIANCE.
CAUTION:
DO NOT VACUUM DRYWALL DUST, FIREPLACE SOOT, OR ASH WITH
STANDARD WET/DRY FILTER. THIS TYPE OF DUST IS VERY FINE WHICH MAY NOT BE
CAPTURED BY THE FILTER AND CAUSE DAMAGE TO MOTOR. WHEN VACUUMING FINE
DUST USE A FINE DUST FILTER (SOLD SEPARATELY).
DOUBLE INSULATED - GROUNDING NOT REQUIRED - WHEN SERVICING USE
ONLY IDENTICAL REPLACEMENT PARTS.
DOUBLE INSULATION INSTRUCTIONS
This Wet/Dry Shampoo Vacuum is double insulated, eliminating the need for a separate grounding
system. Use only identical replacements parts. Read the instructions for Servicing Double-
Insulated Wet/Dry Shampoo Vacuums before servicing. Use this vacuum as described in this
manual.
Observe the following warnings that appear on the motor housing of your vacuum.
7
The following signal words and meanings are intended to explain the levels of risk associated with
this product.
SYMBOL SIGNAL MEANING
DANGER
Indicates an imminently hazardous situation, which, if not
avoided, will result in death or serious injury.
WARNING
Indicates a potentially hazardous situation, which, if not avoided,
could result in death or serious injury.
CAUTION
Indicates a potentially hazardous situation, which, if not avoided,
may result in minor or moderate injury.
NOTICE
(Without Safety Alert Symbol) Indicates a situation that may
result in property damage.
SYMBOLS
EXTENSION CORDS
When using an extension cord with your Wet/Dry Shampoo Vacuum refer to the following table
to determine the required A.W.G. wire size. Before using the cleaner make sure the power cord
and extension cord are in good working condition. Make repairs or replacements before using the
vacuum cleaner. Only use extension cords that are rated for outdoor use.
Length of Extension Cord
120V 25ft (7.62m) 50ft (15.24m) 100ft (30.48m) 150ft (45.72m)
Ampere rating
A.W.G. Wire Size
More than Not more than
0 6 18 16 16 14
610 18 161412
10 12 16 16 14 12
12 16 14 12 Not recommended
8

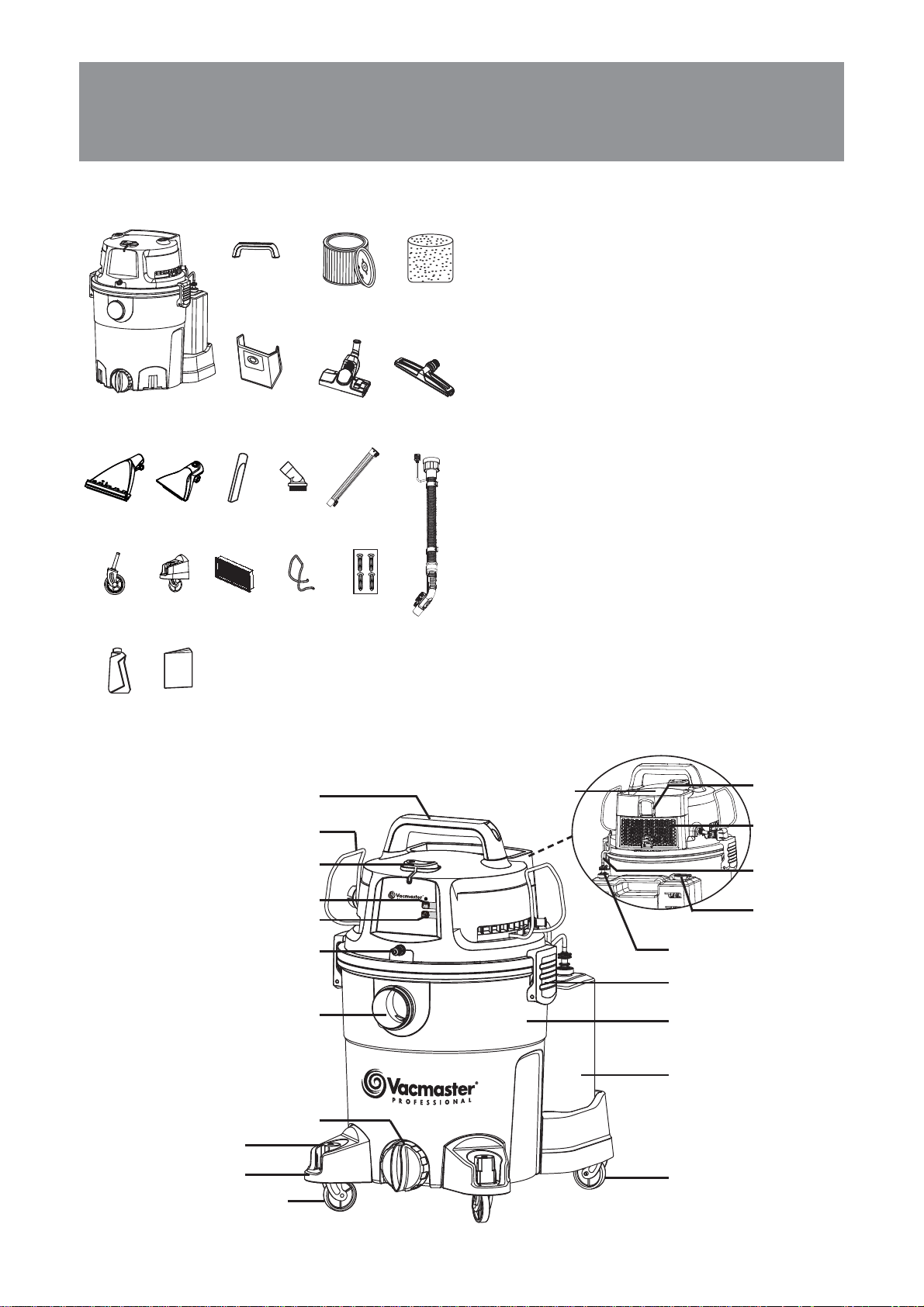

UNPACKING & CHECKING CARTON
CONTENTS
Remove all contents from the box. Remove
the power head and take out any contents
inside the collection tank. Check each item
against the carton contents list.
Carton Contents List:
Key Description ..…………....……….….... Qty.
1
1
1
1
1
1
1
1
1
1
1
1
2
1
2
2
1
2
1
1
1
A
B
C
D
E
F
G
H
I
J
K
L
M
N
O
P
Q
R
S
T
U
Vacuum Assembly…....……….….........
Handle..................................................
Washable Cartridge Filter…....………...
Filter Retainer…....……….….... ...........
Foam Wet Filter....................................
Dust Collection Bag..............................
Multi-Surface Floor Nozzle....................
Floor Brush/Squeegee Nozzle..............
Carpet Shampoo Nozzle.......................
Handheld Shampoo Nozzle..................
Crevice Tool..........................................
Round Dust Brush................................
Extension Wand....................................
Hose and Remote-Control Handle (with
delivery tube attached)..........................
Rear Caster...........................................
Caster Foot Assembly............................
Exhaust Filter.........................................
Hose Storage Rack...............................
4 Screws (Bag)......................................
Carpet Cleaning Solution.......................
Operator’s Manual.................................
A
I
J
E
B
G
H
F
L
MN
K
OP R
S
T
Q
U
D
C
NOTE: The hose and accessories for this
vacuum are 35 mm diameter.
6
Gallon
Detergent
Mode
Vacuum
Mode
Cleaning
Solution Tube
Power Cord
Storage
Exhaust Filter
Door
Collection Tank
Cleaning Solution Tank
Rear Caster
Front Caster
Drain Port
Vacuum Port
Vacuum Mode Button
Detergent Mode Button
On/Off Switch
Cleaning Solution Outlet
Latch
Cleaning Solution
Tube Inlet
Handle
Power Head
Cap of Cleaning
Solution Tank
Hose Storage Rack
Front Caster Foot
Accessory Storage
9

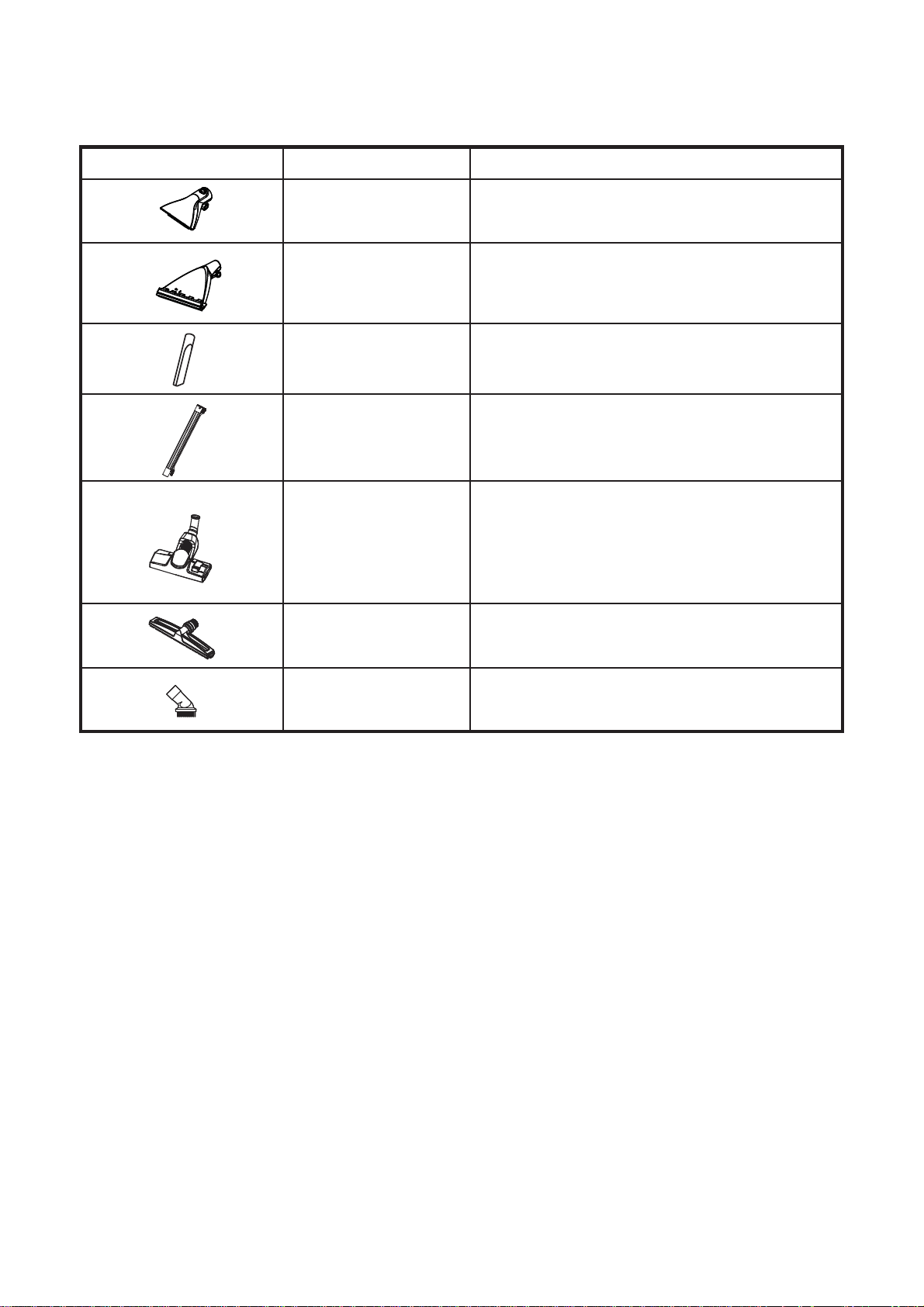

ACCESSORIES
A choice of accessories and attachments are supplied with this product. Refer to below
descriptions for their functions.
Illustration Description Function
Handheld Shampoo
Nozzle
For cleaning sofas, chairs, stairs, and car
interiors.
Carpet Shampoo
Nozzle
Used without brush holder for cleaning carpets.
8VHGZLWKEUXVKKROGHUIRUFOHDQLQJKDUGÀRRUV
Crevice Tool For cleaning edges, gaps, and tight spaces.
Extension Wand
Used to connect accessories to the remote-
control handle and extend the cleaning reach.
Multi-Surface Floor
Nozzle
For cleaning hard surfaces and carpets. Use
the tab on the top of the nozzle to release or
retract the brush. For use on hard surfaces use
the brush setting. For use on carpet, keep the
brush retracted.
NOTE: For dry vacuuming only.
Floor Brush/Squeegee
Nozzle
For cleaning dry and liquid messes on hard
surfaces and low-pile carpets.
Round Dust Brush
For cleaning fragile or easily scratched items,
such as certain furniture or drapes.
10
UNPACKING YOUR WET/DRY SHAMPOO VACUUM & GENERAL ASSEMBLY
1. Verify that the power cord is disconnected from the outlet (Fig. 1).
2. Undo the latches (Fig. 2).
3. Lift the power head off the collection tank (Fig. 3).
4. Remove the contents from inside the collection tank; make sure you have all contents as listed
on page 8.
5. Turn the collection tank upside down and insert the two front caster feet into the slots on the
collection tank and tighten with supplied screws. Verify that the casters are mounted correctly.
Do not over-tighten screws (Fig. 4).
6. Insert the two rear casters into the slots and apply pressure until they click into place (Fig. 5).
7. Insert the handle into the slots located on the top of the power head and secure it with the
screws provided. Do not over-tighten the screws (Fig. 6).
<RXUYDFXXPFRPHVUHDG\IRUGU\YDFXXPFOHDQLQJ,IWKHFDUWULGJH¿OWHULVQRWLQVWDOOHGUHIHUWR
page 19 for installation instructions (Fig. 7 & 8).
GENERAL ASSEMBLY INSTRUCTIONS
WARNING:
DO NOT PLUG THE POWER CORD INTO A POWER OUTLET. MAKE
SURE THE PLUG IS DISCONNECTED BEFORE ASSEMBLING THE WET/DRY SHAMPOO
VACUUM. TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT EXPOSE TO RAIN.
3
1
2
7
8
5
9
6
4
10
11 12
13
14
15
16
19
17
18
①
A Philips head screw driver is required.
11
2SWLRQDO)RULPSURYHGGXVW¿OWUDWLRQ¿WWKHGXVWEDJÀDQJHRQWRWKHLQOHWSRUWWDNLQJFDUHQRW
to damage the bag (Fig. 9).
NOTE: The dust collection bag is for dry pick-up only.
)RUZHWYDFXXPFOHDQLQJUHPRYHWKHFDUWULGJH¿OWHUDQGLQVWDOOWKHVXSSOLHGIRDPZHW¿OWHU
6HHSDJHIRUWKHIRDPZHW¿OWHULQVWDOODWLRQLQVWUXFWLRQV)LJ
11. Position the hose storage rack as illustrated. Squeeze the open sides of the hose storage rack
inward. Insert the hose storage rack into the channel on the front side of the power head just
above the top edge of the tank. Verify that the rack is secured in place as shown in (Fig. 11 &
12). Then squeeze in the other hose storage rack and insert it into the corresponding channel
making sure it is secured.
12.Place the power head back on the collection tank aligning the top section with the latches, and
snap into place (Fig. 13).
(QVXUHWKHHQGRIWKHFOHDQLQJVROXWLRQWXEHLVVHFXUHO\¿WWHGLQWRWKHFOHDQLQJVROXWLRQWDQN)LJ
14).
14. A cleaning solution delivery tube runs along the hose with a threaded connector at the end.
Insert the locking end of the hose into the vacuum port of the collection tank and turn clockwise
to lock into place. Connect the threaded connector on the end of the delivery tube onto the
cleaning solution outlet coupling on the front of the power head (Fig. 15).
15.Choose the desired accessory and/or the extension wand and connect it onto the remote-
FRQWUROKDQGOH)LJ7KHDLUÀRZUHJXODWLRQ
①
) on the remote-control handle allows you
to manually change the amount of vacuum suction (Fig. 17).
NOTE: ,IWKHVXFWLRQSRZHULVWRRKLJKZKHQFOHDQLQJDGMXVWWKHDLUÀRZUHJXODWLRQWRGHFUHDVH
the suction power (Fig. 17).
POLARIZED PLUG
To reduce the risk of electrical shock, this appliance has a polarized plug (one blade wider than the
RWKHU7KLVSOXJZLOO¿WLQDSRODUL]HGRXWOHWRQO\RQHZD\,IWKHSOXJGRHVQRW¿WIXOO\LQWKHRXWOHW
UHYHUVHWKHSOXJ,ILWVWLOOGRHVQRW¿WFRQWDFWDTXDOL¿HGHOHFWULFLDQWRLQVWDOOWKHSURSHURXWOHW
Do not change the plug in any way. Double insulation eliminates the need for the three-wire
grounded power cord and grounded power supply system.
PROGRAMMING THE REMOTE-CONTROL HANDLE
NOTE: The programming of the remote-control handle has been preset and is ready to be used
in both vacuum and detergent mode. Reset the remote-control handle using the steps below if
unable to operate in vacuum mode.
1. Ensure the vacuum is plugged into the power outlet.
2. Switch the on/off switch to the “I” ON position.
3. Locate the detergent mode button on the power head indicated by the following symbol .
4. Press and hold the detergent mode button until the indicator light illuminates continuously
(Fig. 18).
5. While the light is on, press and hold the detergent mode button on the remote-control handle
XQWLOWKHLQGLFDWRUOLJKWRQWKHSRZHUKHDGVWDUWVWRÀDVK7KHUHPRWHFRQWUROKDQGOHLVQRZ
programmed to vacuum, and you should be able to operate in both detergent and vacuum
modes (Fig. 19).
,IWKHLQGLFDWRUOLJKWGRHVQRWÀDVKUHSHDWVWHSVWR
12
3
4
1
2
5
8
9
6
7
10
11
WARNING:
BE SURE TO READ, UNDERSTAND, AND APPLY INFORMATION
ENTITLED “IMPORTANT SAFETY INSTRUCTIONS”. DO NOT VACUUM IN AREAS WITH
FLAMMABLE GASES, VAPORS, OR EXPLOSIVE DUSTS IN THE AIR. FLAMMABLE
GASES OR VAPORS INCLUDE BUT ARE NOT LIMITED TO: LIGHTER FLUID, SOLVENT
TYPE CLEANERS, OIL-BASED PAINTS, GASOLINE, ALCOHOL, OR AEROSOL SPRAYS.
EXPLOSIVE DUSTS INCLUDE BUT ARE NOT LIMITED TO: COAL, MAGNESIUM, GRAIN, OR
GUN POWDER. TO REDUCE THE RISK OF HEALTH HAZARDS FROM VAPORS OR DUST,
DO NOT VACUUM TOXIC MATERIALS.
WARNING:
DO NOT PLUG THE POWER CORD INTO A POWER OUTLET. MAKE
SURE THE PLUG IS DISCONNECTED BEFORE CHANGING THE FILTERS.
CAUTION:
DO NOT VACUUM DRYWALL DUST, FIREPLACE SOOT, OR ASH WITH
STANDARD WET/DRY FILTER. THIS IS A VERY FINE DUST WHICH WILL NOT BE CAPTURED
BY THE FILTER AND MAY CAUSE DAMAGE TO THE MOTOR. WHEN VACUUMING FINE
DUST USE A FINE DUST FILTER (SOLD SEPARATELY).
1. Verify that the power cord is disconnected from the outlet (Fig. 1).
<RXUZHWGU\VKDPSRRYDFXXPFRPHVZLWKWKHFDUWULGJH¿OWHUSUHLQVWDOOHG,QRUGHUWRSUHSDUH
\RXUYDFXXPIRUGU\YDFXXPLQJPDNHVXUHWKHFDUWULGJH¿OWHUFRPSOHWHO\FRYHUVWKH¿OWHUFDJH
against the power head. For installation instructions, see page 19 (Fig. 2 & 3).
3ODFHWKH¿OWHUUHWDLQHURQWKHWRSRIWKHFDUWULGJH¿OWHUDQGWLJKWHQGRZQE\WXUQLQJWKHUHWDLQHU
handle clockwise (Fig. 4).
2SWLRQDO)RULPSURYHGGXVW¿OWUDWLRQ¿WWKHGXVWFROOHFWLRQEDJÀDQJHRQWRWKHLQOHWSRUWWDNLQJ
care not to damage the bag (Fig. 5).
DRY VACUUMING
DRY VACUUM OPERATION
13
5. Place the power head back on the collection tank and secure it in place using the latches (Fig. 6).
OPERATING INSTRUCTIONS: DRY VACUUMING
6. Insert the locking end of the hose into the vacuum port on the collection tank and lock into place
(Fig. 7).
7. Choose the desired accessory and connect onto the remote-control handle or the extension
wand (Fig. 8). The air flow regulation on the remote-control handle allows you to manually
change the amount of vacuum suction.
8. Verify that the switch is in the ‘O’ OFF position before plugging the power cord into the power
outlet. Plug the power cord into the outlet (Fig. 9 & 10).
7XUQWKHPRWRURQE\ÀLSSLQJWKHVZLWFKWRWKHµ,¶21SRVLWLRQDQGWKHPDFKLQHLVUHDG\IRUXVH
Press the vacuum mode button, indicated by the following symbol , on either the remote-
control handle or the power head and operate the vacuum (Fig. 11).
10.Once you have completed vacuuming, switch off the vacuum by pressing the vacuum mode
button on either the remote-control handle or the power head. Switch to the “O” OFF position
and unplug the power cord from the power outlet.
O = OFF I = ON = VACUUM MODE
DO NOT USE THE CARTRIDGE FILTER FOR LIQUID VACUUMING.
DO NOT USE THE DUST BAG FOR LIQUID VACUUMING.
LIQUID VACUUM OPERATION
3
4
1
2
5
6
7
8
WARNING: BE SURE TO READ, UNDERSTAND, AND APPLY INFORMATION
ENTITLED “IMPORTANT SAFETY INSTRUCTIONS”. DO NOT VACUUM IN AREAS WITH
FLAMMABLE GASES, VAPORS, OR EXPLOSIVE DUSTS IN THE AIR. FLAMMABLE
GASES OR VAPORS INCLUDE BUT ARE NOT LIMITED TO: LIGHTER FLUID, SOLVENT
TYPE CLEANERS, OIL-BASED PAINTS, GASOLINE, ALCOHOL, OR AEROSOL SPRAYS.
EXPLOSIVE DUSTS INCLUDE BUT ARE NOT LIMITED TO: COAL, MAGNESIUM, GRAIN, OR
LIQUID VACUUMING
14
WARNING: DO NOT PLUG THE POWER CORD INTO A POWER OUTLET. MAKE SURE
THE PLUG IS DISCONNECTED BEFORE CHANGING THE FILTERS.
1. Verify that the power cord is disconnected from the outlet. Make sure that the collection tank is
clean and free of dust and dirt (Fig. 1).
5HPRYHWKHFDUWULGJH¿OWHUWKHQFDUHIXOO\LQVWDOOWKHIRDPZHW¿OWHURYHUWKH¿OWHUFDJHDQGSODFH
WKHSRZHUKHDGEDFNRQWKHFROOHFWLRQWDQN)RUIRDPZHW¿OWHULQVWDOODWLRQLQVWUXFWLRQVVHHSDJH
20 (Fig. 2).
OPERATING INSTRUCTIONS: WET VACUUMING
3. Insert the locking end of the hose into the vacuum port on the collection tank and lock into place
(Fig. 3).
4. Choose the desired accessory and connect onto the remote-control handle or the extension
ZDQG)LJ7KHDLUÀRZUHJXODWLRQRQWKHUHPRWHFRQWUROKDQGOHDOORZV\RXWRPDQXDOO\
change the amount of vacuum suction.
5. Verify that the switch is in the ‘O’ OFF position before plugging the power cord into the power
outlet. Plug the power cord into the outlet (Fig. 5 & 6).
7XUQWKHPRWRURQE\ÀLSSLQJWKHVZLWFKWRWKHµ,¶21SRVLWLRQDQGWKHPDFKLQHLVUHDG\IRUXVH
Press the vacuum mode button, indicated by the following symbol , on either the remote-
control handle or the power head and operate the vacuum (Fig. 7).
CAUTION: DO NOT SUBMERGE THE REMOTE-CONTROL IN LIQUIDS.
7. Once you have completed vacuuming, switch off the vacuum by pressing the vacuum mode
button on either the remote-control handle or the power head. Switch to the “O” OFF position
and unplug the power cord from the power outlet.
8. After use, empty the collection tank by unscrewing the drain cap. Drain liquids into a suitable
UHFHSWDFOHRUGUDLQ)LJ2QFHWKHFROOHFWLRQWDQNLVFOHDQHGDQGGULHGUH¿WWKHGUDLQFDSWR
the collection tank.
IMPORTANT! When vacuuming large quantities of liquids, do not immerse the nozzle completely
LQWKHOLTXLGOHDYHDJDSDWWKHWLSRIWKHQR]]OHRSHQLQJWRDOORZDLULQÀRZ7KHPDFKLQHLV¿WWHG
ZLWKDÀRDWYDOYHWKDWVWRSVWKHVXFWLRQDFWLRQZKHQWKHFROOHFWLRQWDQNUHDFKHVLWVPD[LPXP
capacity. You will notice an increase in motor speed. When this happens, turn off the machine,
disconnect from power supply, and drain the liquid. To continue vacuuming, replace the drain
cap. After wet vacuuming, turn the machine off and remove plug from power supply. Empty the
collection tank, clean, and dry the inside and outside before storage.
REMEMBER! 7KHIRDPZHW¿OWHUPXVWEHUHPRYHGDIWHUZHWYDFXXPLQJDQGWKHFDUWULGJH¿OWHU
must be installed before dry vacuuming again.
GUN POWDER. TO REDUCE THE RISK OF HEALTH HAZARDS FROM VAPORS OR DUST,
DO NOT VACUUM TOXIC MATERIALS.
15
CARPET/UPHOLSTERY CLEANING
OPERATION
WARNING: DO NOT RUN THE VACUUM IN DETERGENT MODE WITHOUT SOLUTION
IN THE CLEANING SOLUTION TANK.
WARNING: USE ONLY MANUFACTURER RECOMMENDED CLEANING SOLUTION
WITH THIS VACUUM CLEANER.
WARNING: DO NOT REPLACE FURNITURE UNTIL THE CARPET IS COMPLETELY
DRY!
3
4
1
2
5
6
7
8
9
17
②
③
15 16
10
14
I
II
19
I
II
18
12
11
13
6
Gallon
Detergent
M
ode
Vacuum
Mode
16
NOTE: Once depleted, the cleaning solution can be replaced by a high-quality liquid carpet
cleaning solution that can be purchased from a local retailer. Always use the cleaning solution as
directed by the manufacturer.
5. Snap the cap of cleaning solution tank back into place. Then insert the cleaning solution tank
back into the vacuum base. Insert the end of the cleaning solution tube into the cleaning solution
tank (Fig. 4).
6. Insert the locking end of the hose into the vacuum port on the collection tank and turn clockwise
to lock into place. Connect the threaded connector on the end of the cleaning solution delivery
tube onto the cleaning solution outlet coupling (Fig. 5).
7. Insert the remote-control handle and its cleaning solution outlet coupling (
②
) into the larger
end of the extension wand and its cleaning solution inlet connector (
③
) ensuring a "click" is
KHDUG7KHDLUÀRZUHJXODWLRQRQWKHUHPRWHFRQWUROKDQGOHDOORZV\RXWRPDQXDOO\FKDQJHWKH
amount of vacuum suction (Fig. 6 & 7).
8. Attach the carpet shampoo nozzle to the extension wand and make sure it clicks into place (Fig.
8 & 9).
For best performance, it is recommended to remove the brush holder during carpet cleaning.
Follow steps in Fig. 10. to remove the brush holder.
7RUHLQVWDOOWKHEUXVKKROGHUPDNHVXUHWR¿UVWDOLJQWKHDUURZVRQWKHEUXVKKROGHUDQGWKH
nozzle as shown. Then move the brush holder to the left as indicated by the arrow until you hear a
"click" (Fig. 11).
CAUTION: NEVER PRY OR ROTATE THE SPRAY OUTLETS OF THE CARPET
SHAMPOO NOZZLE AND HANDHELD SHAMPOO NOZZLE WITH A SCREWDRIVER OR ANY
OTHER TOOL (FIG. 12 & 13).
1. Verify that the power cord is disconnected from the outlet (Fig. 1).
7RSUHSDUH\RXUYDFXXPFOHDQHUIRUFDUSHWXSKROVWHU\FOHDQLQJUHPRYHWKHFDUWULGJH¿OWHU
&DUHIXOO\LQVWDOOWKHVXSSOLHGIRDPZHW¿OWHURYHUWKH¿OWHUFDJHPDNLQJVXUHWKH¿OWHUFDJHLV
FRPSOHWHO\FRYHUHG)RUIRDPZHW¿OWHULQVWDOODWLRQLQVWUXFWLRQVVHHSDJH)LJ
4. Remove the cleaning solution tank from the vacuum base. Open the cap of cleaning solution
tank and pour the cleaning solution mixture into the tank. To make the cleaning solution mixture,
mix 1.5 oz. of cleaning solution per 0.5 gallon of water (Fig. 3).
NOTE: A 17 oz. (500ml) bottle of cleaning solution is provided with this vacuum cleaner. Ensure
the cleaning solution and water are mixed at the correct ratio. Water must be at room temperature.
NOTE: ALWAYS DRY VACUUM THE AREA BEING CLEANED BEFORE USING THE
SHAMPOO MODE.
CAUTION: BEFORE YOU USE THIS PRODUCT TO SHAMPOO CLEAN AN AREA,
TEST YOUR WET/DRY SHAMPOO VACUUM AND THE CLEANING SOLUTION ON A SMALL
HIDDEN AREA FOR COLORFASTNESS. IF THE COLOR IS AFFECTED, DO NOT USE.
CAUTION: THE CLEANING SOLUTION CONTAINS A CHEMICAL SOLUTION. AVOID
PROLONGED CONTACT AS SOME INDIVIDUALS MAY EXPERIENCE SKIN AND EYE
IRRITATION. FOR SKIN AND EYE IRRITATION, WASH AFFECTED AREA WITH WATER FOR
5-10 MINUTES. IF IRRITATION PERSISTS, SEEK MEDICAL ATTENTION IMMEDIATELY.
INDIVIDUALS WITH SENSITIVE SKIN SHOULD WEAR RUBBER GLOVES. WASH HANDS
THOROUGHLY AFTER USE. DO NOT INGEST. KEEP OUT OF REACH OF CHILDREN. USER
ASSUMES ALL RISK.
17
9. To clean sofas, chairs, stairs, and car interiors, connect the handheld shampoo nozzle onto the
remote-control handle (Fig. 14).
NOTE::KHQFOHDQLQJWKHKHDGOLQHURI\RXUFDUURWDWHWKHDLUÀRZUHJXODWLRQFRXQWHUFORFNZLVHWR
decrease the suction power if the suction power is high.
NOTE: If there is dirt or debris accumulated in the handheld shampoo nozzle, press the release
button and remove the cover from the nozzle for cleaning (Fig. 15).
10.Plug the power cord into a power outlet (Fig. 16).
7XUQRQWKHPRWRUE\ÀLSSLQJWKHVZLWFKWRWKH³,´21SRVLWLRQDQGWKHPDFKLQHLVUHDG\IRU
use. Press the detergent mode button, indicated by the following symbol , on either the
remote-control handle or the power head for cleaning solution application only. Select both the
detergent mode and vacuum mode for simultaneous shampoo and wet vacuum operation (Fig.
17).
WARNING: THE MOTOR NOISE CHANGES TO A HIGHER PITCH WHEN THE
COLLECTION TANK IS FULL OR BLOCKED. STOP THE VACUUM IMMEDIATELY AND EMPTY
THE COLLECTION TANK.
12.Once you have completed cleaning, switch off the vacuum by pressing detergent mode button
on either the remote-control handle or the power head. Flip the switch to the “O” OFF position,
unplug the power cord from the power outlet and drain the liquid (Fig. 18).
O = OFF I = ON = DETERGENT MODE
NOTE: VACUUM THE CARPET/UPHOLSTERY THOROUGHLY BEFORE USING THE
SHAMPOO MODE.
• For carpet cleaning it is recommended to remove all furniture from the room to be cleaned or
move it away from the cleaning area. Clean the whole carpet systematically in squares, using
strokes of approximately 5ft. (1.5m) each. This avoids walking over the cleaned carpet until it is
completely dry.
• Start furthest away from the entrance of the room, extend the hose, and work backwards.
3XOOWKHFDUSHWVKDPSRRQR]]OHEDFNWRZDUGV\RXLQDSSUR[LPDWHO\IWVWURNHV5H¿OOWKH
cleaning solution tank if the solution runs out.
• Select the vacuum mode, indicated by the following symbol , to suck up the dirty solution.
More cleaning solution can be applied to heavily soiled areas. The dirty liquid is visible as it is
sucked up through the carpet shampoo nozzle. Stop vacuuming when the liquid being extracted
is no longer dirty.
• Do not walk over or place furniture on the cleaned area until it is completely dry.
• The handheld shampoo nozzle is ideal for cleaning sofas, chairs, stairs and car interiors.
• The carpet shampoo nozzle is ideal for cleaning carpets.
DISASSEMBLING THE WET/DRY SHAMPOO VAC
NOTE: SOME LIQUID MAY REMAIN IN THE TUBES AFTER USING THE PRODUCT FOR
LIQUID OR SHAMPOO CLEANING. DISASSEMBLE THE VACUUM OUTDOORS OR OVER A
SINK AS THERE MAY BE SOME LEAKAGE.
To disassemble the shampoo vacuum, follow the steps below.
1. Remove the cleaning solution tube from the power head by pressing down on the yellow latch.
Disconnect the hose from the vacuum.
2. Disconnect the accessories and/or extension wand from the remote-control handle by pressing
down on the release button (Fig. 19).
18
MAINTENANCE
WARNING: ALWAYS DISCONNECT THE PLUG FROM THE POWER OUTLET BEFORE
REMOVING THE POWER HEAD FROM COLLECTION TANK.
IMPORTANT! &OHDQRUFKDQJHWKH¿OWHUUHJXODUO\IRUEHVWSHUIRUPDQFHALWAYS USE THE
CARTRIDGE FILTER FOR DRY VACUUMING.,IWKHPDFKLQHLVXVHGZLWKRXWWKHFDUWULGJH¿OWHU
WKHPRWRUZLOOEXUQRXWDQGWKHZDUUDQW\ZLOOEHYRLGHG$OZD\VNHHSVSDUH¿OWHUVRQKDQG
NOTICE!7KH¿OWHUVLQFOXGHGDUHPDGHRIKLJKTXDOLW\PDWHULDOVGHVLJQHGWRVWRSVPDOOGXVW
SDUWLFOHV7KHFDUWULGJH¿OWHUVKRXOGEHXVHGIRUGU\SLFNXSRQO\$GU\FDUWULGJH¿OWHULVQHFHVVDU\
WRSLFNXSGXVW,IWKHFDUWULGJH¿OWHULVZHWLWZLOOFORJTXLFNO\DQGEHYHU\GLI¿FXOWWRFOHDQ+DQGOH
WKH¿OWHUFDUHIXOO\ZKHQUHPRYLQJLWIRUFOHDQLQJDQGUHSODFLQJLW&KHFNWKH¿OWHUVIRUWHDUVRUVPDOO
KROHV$VPDOOKROHFDQOHWGXVWSDVVWKURXJKDQGRXWRIWKH¿OWHU'RQRWXVHD¿OWHUZLWKKROHVRU
tears; replace it immediately.
STORAGE
Before storing your vacuum, the collection tank should be emptied and cleaned. The accessories
should be cleaned and stored so they can be readily available when needed. Store the wet/dry
vacuum indoors.
REPAIRS
5HSDLUVIRUWKLVZHWGU\VKDPSRRYDFXXPVKRXOGEHSHUIRUPHGRQO\E\TXDOL¿HGVHUYLFHSHUVRQQHO
using only identical replacement parts.
1. Verify that the power cord is disconnected from the outlet (Fig. 1).
2. Press down the yellow latch on the cleaning solution delivery tube and unplug the delivery tube
from the vacuum. Then disconnect the hose from the vacuum (Fig. 2).
3. Disconnect the cleaning solution tube from the cleaning solution tank (Fig. 3).
4. Undo the latches and remove the power head from the collection tank (Fig. 4). Place the power
head on a soft, clean surface upside down.
5. Clear all dirt or debris from the collection tank and hose into a proper waste container (Fig. 5).
&OHDQRUUHSODFHWKH¿OWHUV
7. Check the hose, attachments, and power cord to ensure that they have not been damaged.
8. Place the power head back onto the collection tank and secure latches.

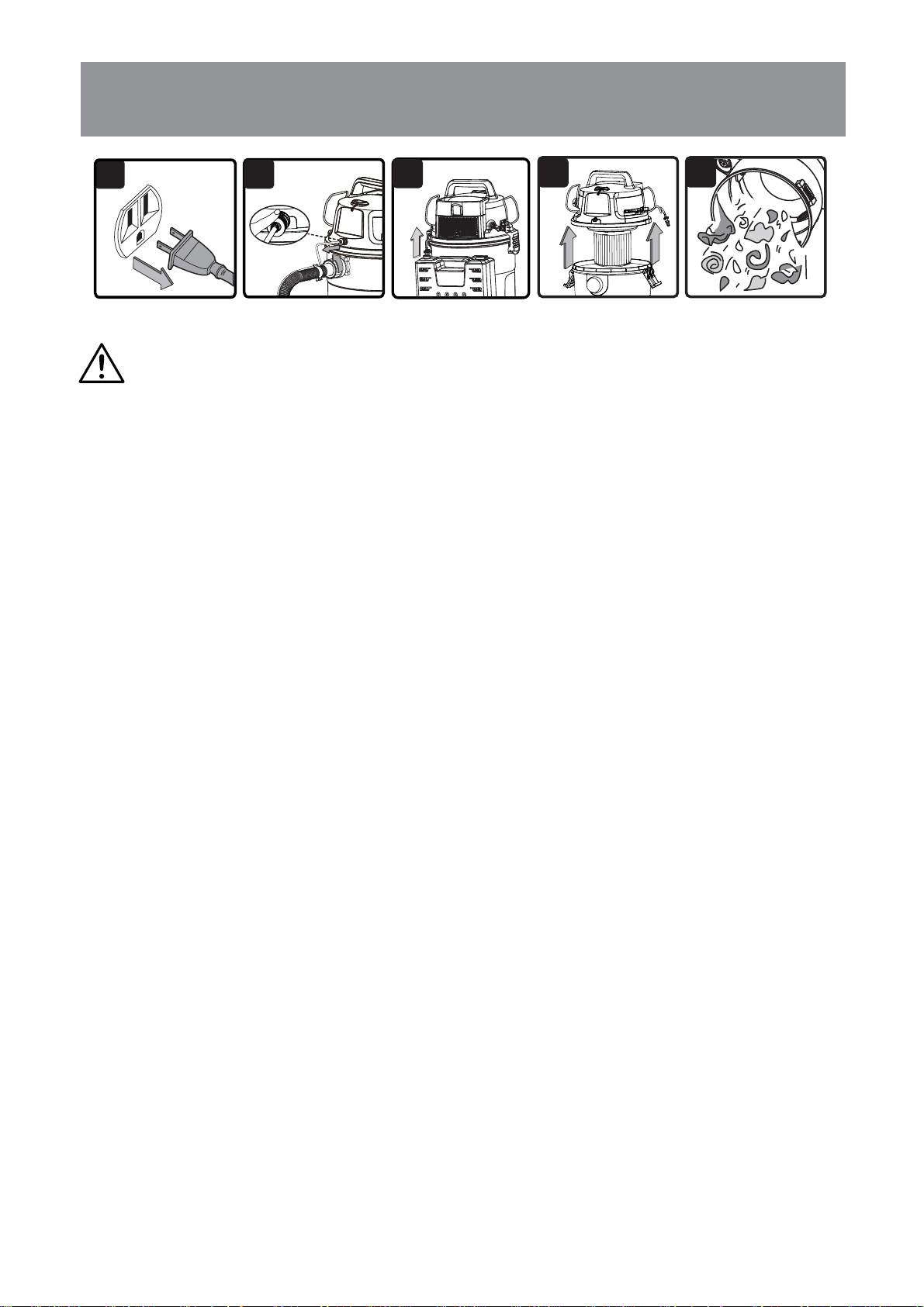

EMPTYING THE COLLECTION TANK
3
4
1
2
5
19
INSTALLING & CLEANING CARTRIDGE
FILTER
3
4
1
2
5
8
6 7
INSTALLING CARTRIDGE FILTER
REMOVING & CLEANING CARTRIDGE FILTER
1. Verify that the power cord is disconnected from the outlet (Fig. 1).
2. Remove the power head and place in an upside-down position.
,QVWDOOWKHFDUWULGJH¿OWHURYHUWKH¿OWHUFDJHPDNLQJVXUHWKHFDJHLVFRPSOHWHO\FRYHUHG)LJ
& 3).
3ODFHWKH¿OWHUUHWDLQHURQWKHWRSRIWKHFDUWULGJH¿OWHURYHUWKHUDLVHGOLSDQGWLJKWHQGRZQE\
turning the retainer clockwise; do not over-tighten (Fig. 4 & 5).
5. Place the power head back onto the collection tank.
8QORFNDQGUHPRYHWKH¿OWHUUHWDLQHUE\WXUQLQJWKHUHWDLQHUKDQGOHFRXQWHUFORFNZLVH)LJ
:LWKWKHUHPRYHGSRZHUKHDGLQDQXSVLGHGRZQSRVLWLRQFDUHIXOO\UHPRYHWKHFDUWULGJH¿OWHU
IURPWKH¿OWHUFDJH)LJ
&OHDQWKHFDUWULGJH¿OWHUE\JHQWO\EUXVKLQJRUULQVLQJRIIWKHGHEULV)LJ&OHDQLQJVKRXOGQRW
EHGRQHLQGRRUVLQOLYLQJDUHDV)RURSWLPDOSHUIRUPDQFHDQHZ¿OWHULVUHFRPPHQGHG
,QVWDOOFOHDQHGRUQHZ¿OWHUDVGHVFULEHGLQVWHSVRI,QVWDOOLQJ&DUWULGJH)LOWHU:HW¿OWHU
VKRXOGEHUHPRYHGDQGDOORZHGWRDLUGU\IRUKRXUVEHIRUHLQVWDOOLQJRQWRWKH¿OWHUFDJH
20
INSTALLING & CLEANING FOAM WET
FILTER
3
4
1
2
5
INSTALLING FOAM WET FILTER
1. Verify that the power cord is disconnected from the outlet (Fig. 1).
2. Remove the power head and place in an upside-down position. Follow instructions to remove
WKHFDUWULGJH¿OWHURQSDJH
&DUHIXOO\VOLGHWKHIRDPZHW¿OWHUGRZQRYHUWKH¿OWHUFDJHPDNLQJVXUHWKHFDJHLVFRPSOHWHO\
covered (Fig. 2 & 3).
4. Place the power head onto the collection tank.
CLEANING FOAM WET FILTER
:LWKWKHUHPRYHGSRZHUKHDGLQDQXSVLGHGRZQSRVLWLRQFDUHIXOO\UHPRYHWKHIRDPZHW¿OWHU
(Fig. 4).
8VHDPLOGVRDSDQGZDWHUVROXWLRQWRZDVKWKHIRDPZHW¿OWHUDQGULQVHZLWKFOHDQZDWHU)LJ
$OORZWKHZHW¿OWHUWRDLUGU\IRUKRXUVEHIRUHLQVWDOOLQJRQWRWKH¿OWHUFDJH
21

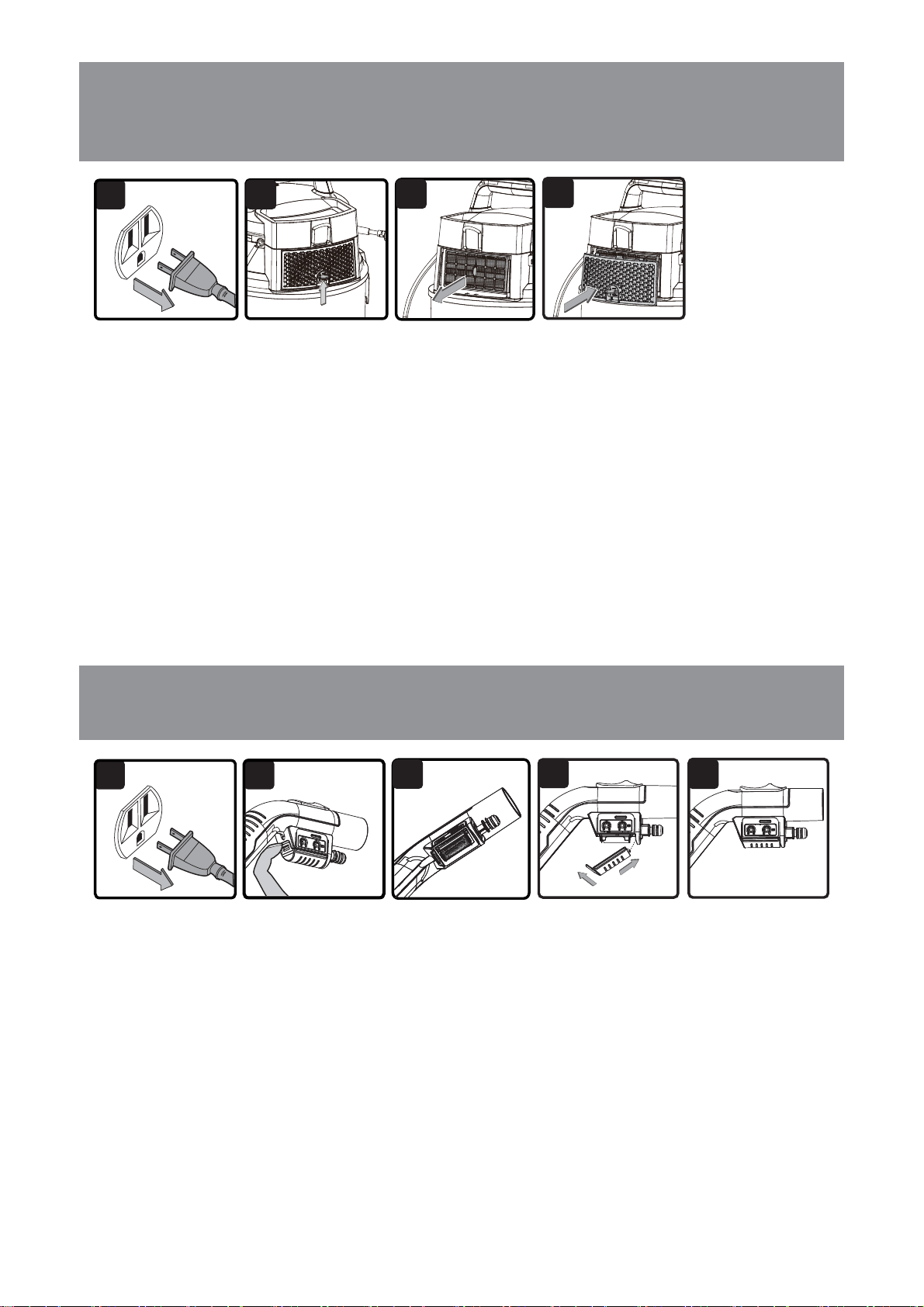

CLEANING & REPLACING EXHAUST
FILTER
1. Verify that the power cord is disconnected from the outlet (Fig. 1).
8QORFNWKHH[KDXVW¿OWHUGRRUE\OLIWLQJWKHORFNLQJWDEXSZDUGVWRWKHUHOHDVH3XOOWKHGRRURXW
(Fig. 2).
5HPRYHWKHH[KDXVW¿OWHUIURPWKHYDFXXPDQGFOHDQE\JHQWO\WDSSLQJRUEUXVKLQJRIIGLUW)RU
RSWLPDOSHUIRUPDQFHLWLVUHFRPPHQGHGWRUHSODFHWKHROG¿OWHUZLWKDQHZ¿OWHUUHJXODUO\)LJ
,QVWDOOWKHFOHDQHGRUQHZ¿OWHU7KHQLQVHUWWKH¿OWHUGRRUWDEVLQWRWKHXSSHUVORWVDQGORFNWKH
¿OWHUGRRULQWRSODFH)LJ
3
4
1
2
CHANGING THE BATTERY
NOTE: Only replace the battery with a 27A 12V Alkaline battery.
1. Verify that the power cord is disconnected from the outlet (Fig. 1).
2. Pry off the battery cover and remove it from the battery compartment (Fig. 2).
3. Remove the battery from the battery compartment. Insert the new battery with the terminals in
the direction as shown (Fig. 3).
4. Position the battery cover in the angle of inclination as shown. Then insert it into the slot on the
battery compartment and press down the battery cover to click into place (Fig. 4 & 5).
3
4
1
2
5
᧧
᧧
I
II
22
TROUBLESHOOTING
PROBLEM POSSIBLE CAUSE SOLUTION
The wet/dry shampoo
vacuum will not operate.
Faulty power cord, switch, or motor.
Unplug and check the power
cord. If damaged, have it
repaired by a professional or
call customer service.
No power supply.
Check the power supply, cord,
breakers, and fuses.
On/Off switch is in the wrong
position. Or the correct mode
button is not selected.
Press the ON ‘I’ button on
the power head and select
desired cleaning mode. Follow
instructions on page 12-17.
Collection tank full. Empty the collection tank.
The dust comes out from
the motor cover.
7KHFDUWULGJH¿OWHULVPLVVLQJRU
damaged.
Attach or replace the cartridge
¿OWHU
,QFRUUHFWXVHRIIRDP¿OWHUZKHQ
dry vacuuming.
5HSODFHWKHIRDPZHW¿OWHUZLWK
WKHFDUWULGJH¿OWHU
7KHH[KDXVW¿OWHULVPLVVLQJRU
damaged.
Attach or replace the exhaust
¿OWHU
Low suction power and high
operating noise / vibrations.
Nozzle, hose, or tank inlet is
blocked.
Check and remove blockage
from the nozzle, hose, and tank
inlet.
&DUWULGJH¿OWHULVFORJJHGE\¿QH
dust.
7DNHRIIWKH¿OWHUDQGFOHDQLWRU
LQVWDOODQHZFDUWULGJH¿OWHU
Float valve has closed.
Empty the collection tank of
any liquid waste and ensure the
ÀRDWYDOYHORFDWHGXQGHUQHDWK
WKH¿OWHULVDEOHWRPRYHIUHHO\
Cleaning solution does not
spray out.
Detergent mode is not selected.
Press the detergent mode
button.
Cleaning solution tank is empty. 5H¿OOWKHFOHDQLQJVROXWLRQWDQN
,QFRUUHFWO\¿WWHGWXEHV
&KHFN¿WWLQJVDQGFRQQHFWLRQV
Ensure there are no kinks in
tubes.
The water pump inside the power
head overheats.
Let the vacuum cool down to
reach a normal temperature,
then re-start the vacuum.
WARNING: TO REDUCE THE RISK OF ELECTRIC SHOCK, UNPLUG BEFORE
TROUBLESHOOTING.
23
PROBLEM POSSIBLE CAUSE SOLUTION
Foam is leaking from the
outlet on the power head.
Incorrect cleaning solution or
incorrect mix ratio is used.
Use manufacturer’s cleaning
solution or high-quality low-
foaming liquid carpet cleaning
solution. Ensure the cleaning
solution is mixed with water at
the correct ratio.
The remote control will not
operate.
The battery has no charge.
Replace the old battery with a
new one.
The remote control is not
programmed.
Reset the remote control using
the instructions on page 11.
The remote control is damaged. Contact customer service.
24
EXPLODED VIEW
25
PARTS LIST
Part Part Number Description Quantity
1 551657101 Handle Assembly 1
2 551657102 Hose Storage Rack 2
3 Power Head Assembly 1
4 551005103 Float 1
5 551437105 Filter Cage 1
6 551324103 Exhaust Filter Door 1
7 551121122 Exhaust Filter Assembly 1
8 551661102 Latch Assembly 2
9 Collection Tank 1
10 551661104 Vacuum Port Assembly 1
11 551002110 Drain Cap Assembly 1
12 551617105 Vacuum Base 1
13 551099105 Rear Caster 2
14 551661105 Caster Foot Assembly 2
15 551657106 Cleaning Solution Tank 1
16 551437107 Filter Retainer 1
17 551324115 Cartridge Filter 1
18 551023139 Round Dust Brush 1
19 551425105 Multi-Surface Floor Nozzle 1
20 551657107 Hose and Remote-Control Handle 1
21 551324122 Floor Brush/Squeegee Nozzle 1
22 551657108 Extension Wand 2
23 551657109 Carpet Shampoo Nozzle(Retail # 519567) 1
24 551657110 HandHeld Shampoo Nozzle (Retail # 519550) 1
25 551051116 Crevice Tool 1
26 Carpet Cleaning Solution 1
27 551008132 Foam Wet Filter 1
28 551188114 Dust Collection Bag 1
