Midea MP07DRWBA3RCM 7,000 SACC 3-in-1 Portable Air User Manual

Free 3 months

extension of the

original limited warranty

period!* Simply text a

picture of your proof of

purchase to:

1-844-224-1614

*The warranty extension is for the three months

immediately following

the completion of the product’s original warranty

period. Individuals do not need to register the

product in order to get all the rights and remedies

of registered owners under the original limited

warranty.

MP05DRWBA3RCM

MP07DRWBA3RCM

Safety Precautions

. ...................................................................................................................

Safety Precautions

Installation Instructions

Operating Instructions

Maintenance

Table of Contents

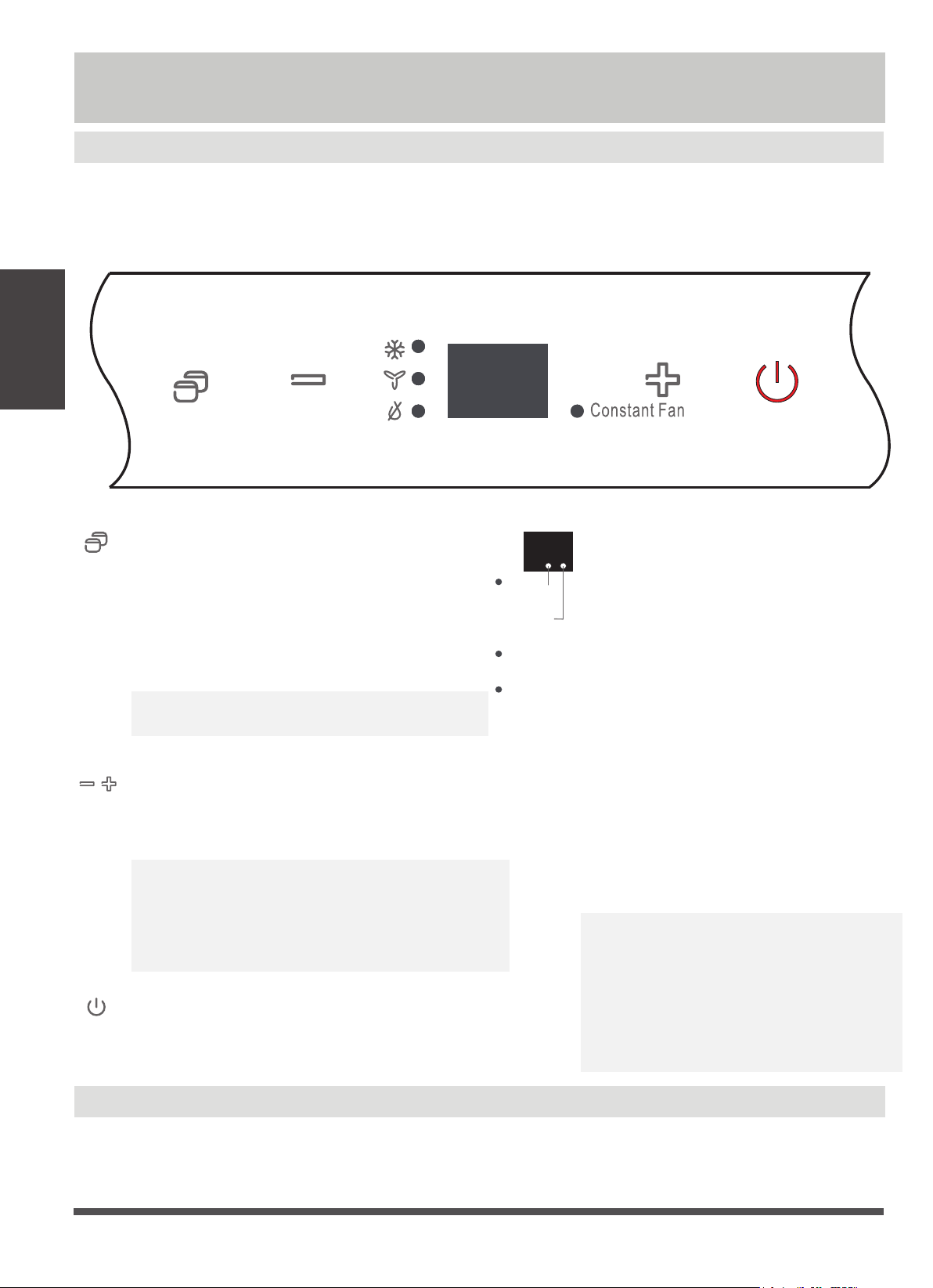

Control Panel Features...............................................................................................................

Operation Instructions...............................................................................................................

Other features...........................................................................................................................

Safety Precautions.....................................................................................................................

Air Filter Cleaning .....................................................................................................................

Troubleshooting Tips ................................................................................................................

Unit Cleaning ...........................................................................................................................

Store the unit when not in use .................................................................................................

Preparation.................................................................................................................................

Design Notice.............................................................................................................................

Energy Rating Information .........................................................................................................

Ambient Temperature Range For Unit Operating........................................................................

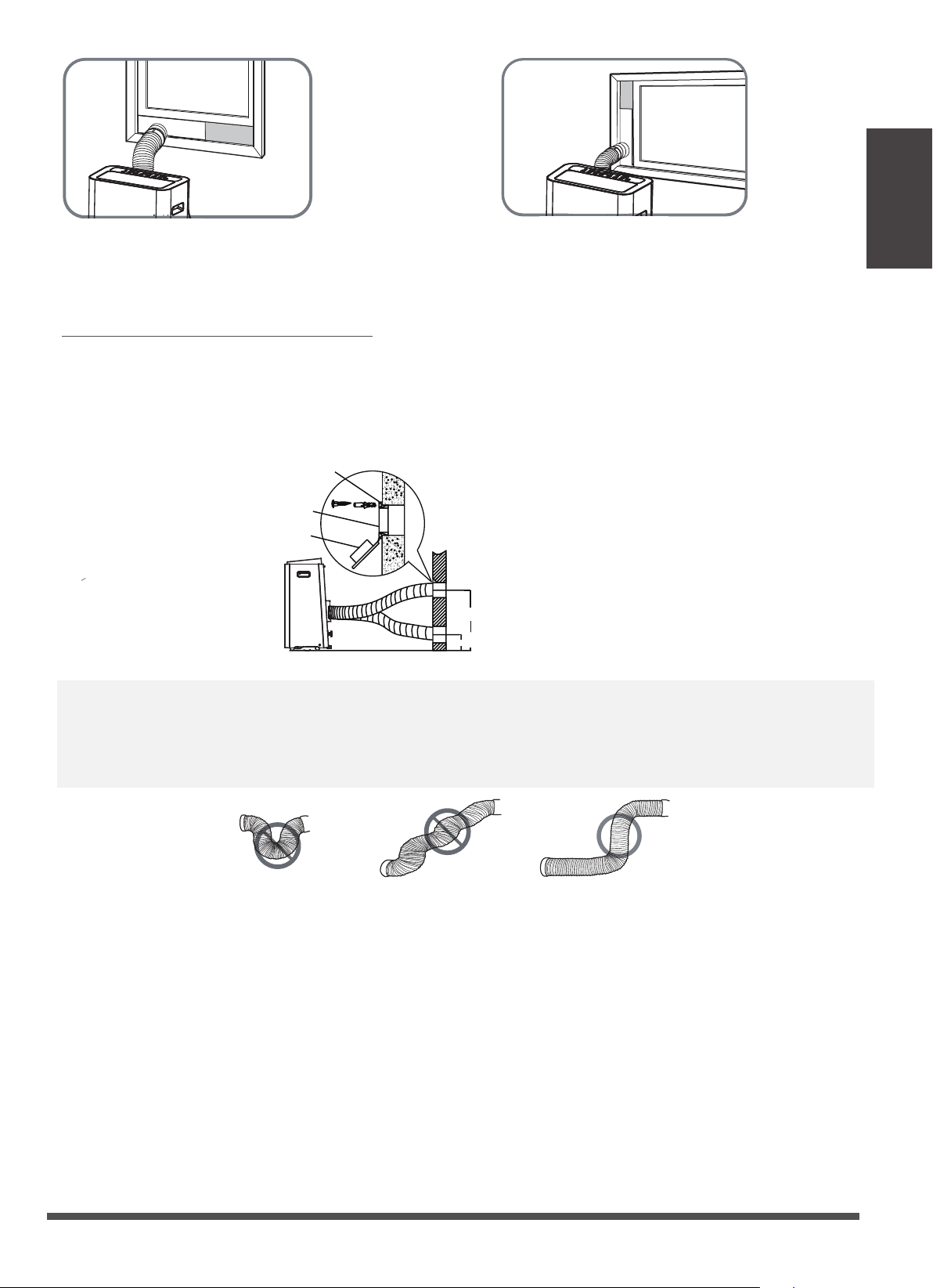

Exhaust Hose Installation............................................................................................................

Choosing The Right Location......................................................................................................

Tools Needed.............................................................................................................................

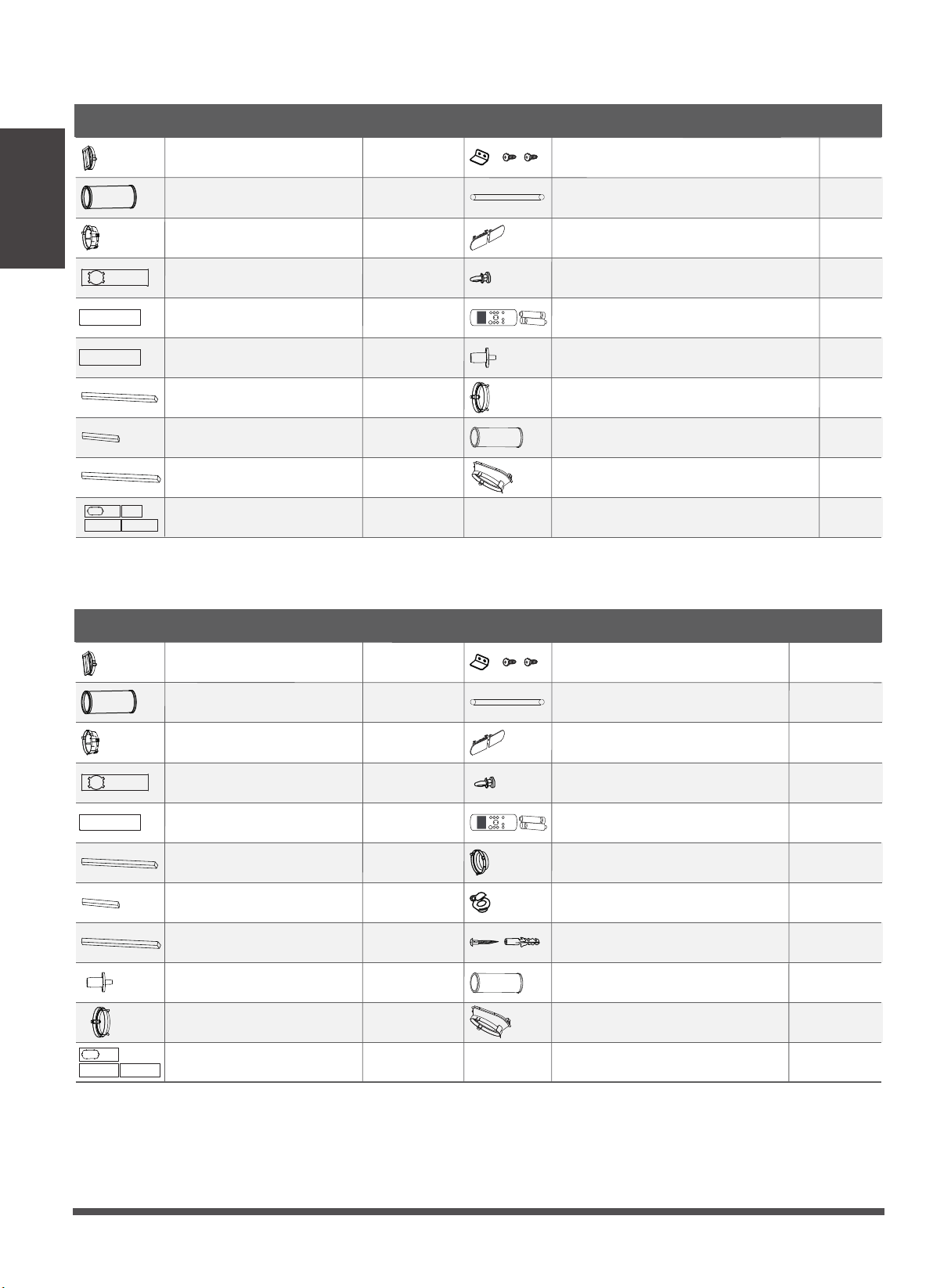

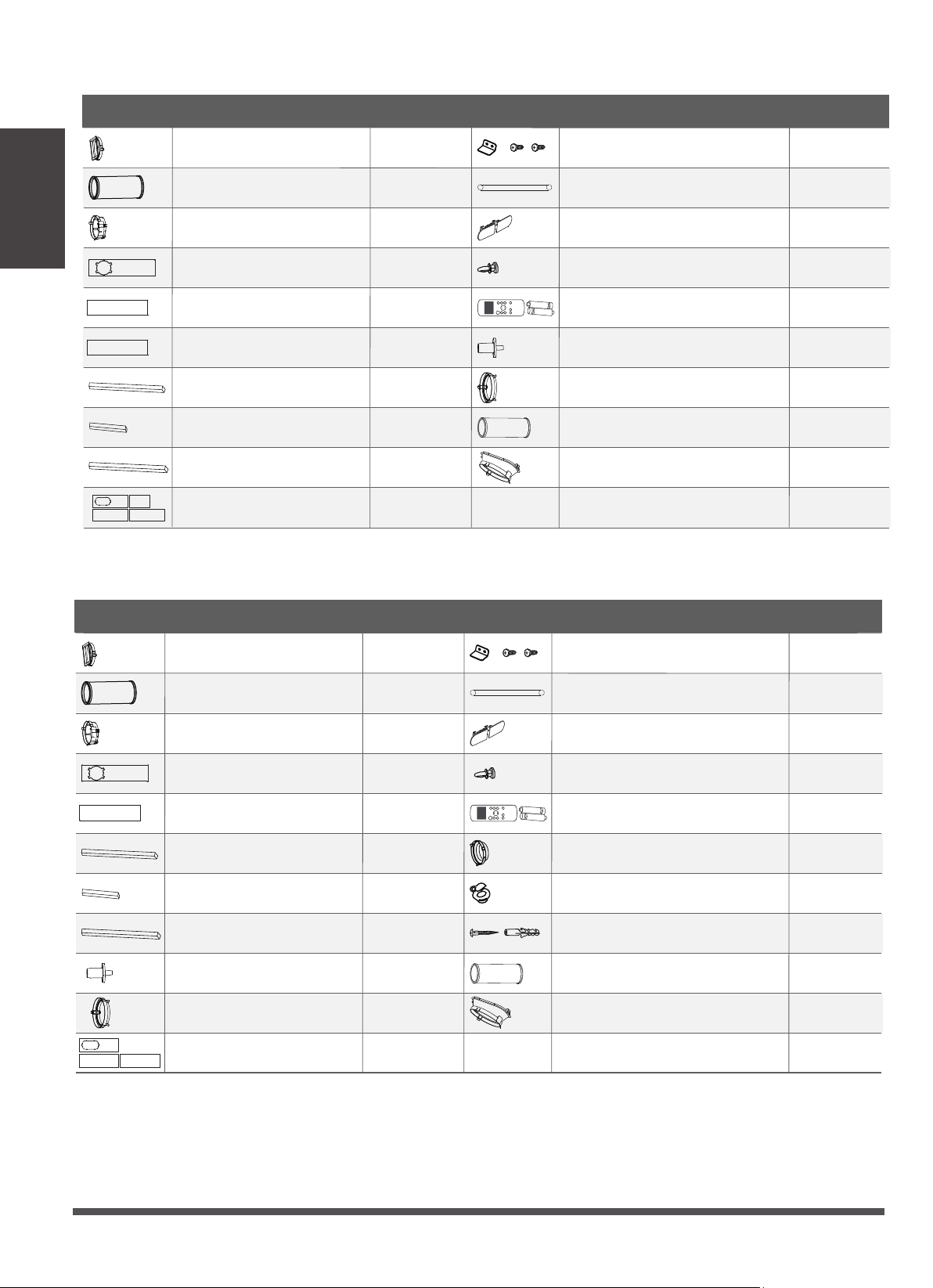

Accessories................................................................................................................................

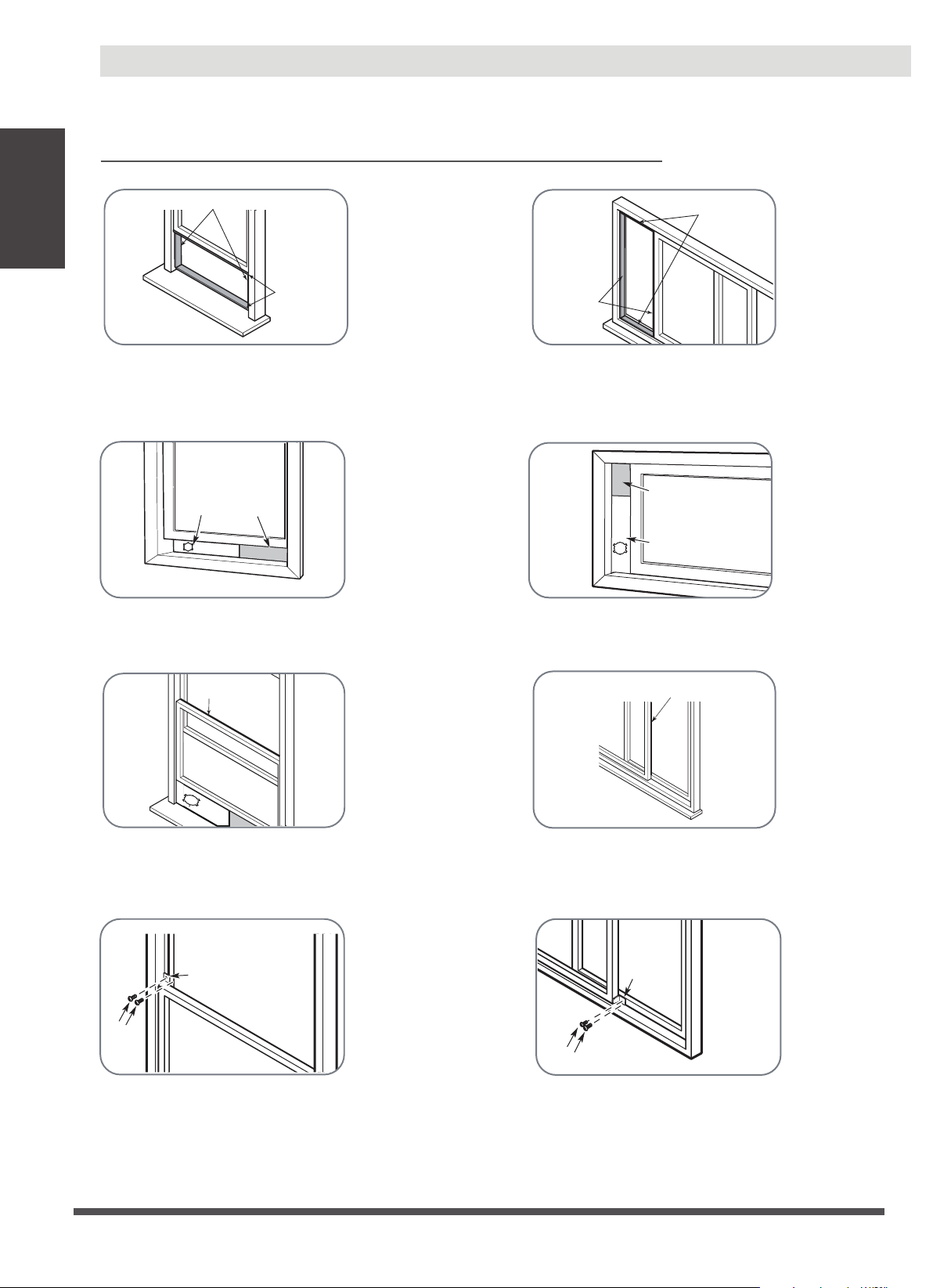

Window Installation Kit..............................................................................................................

Installation..................................................................................................................................

Troubleshooting Tips

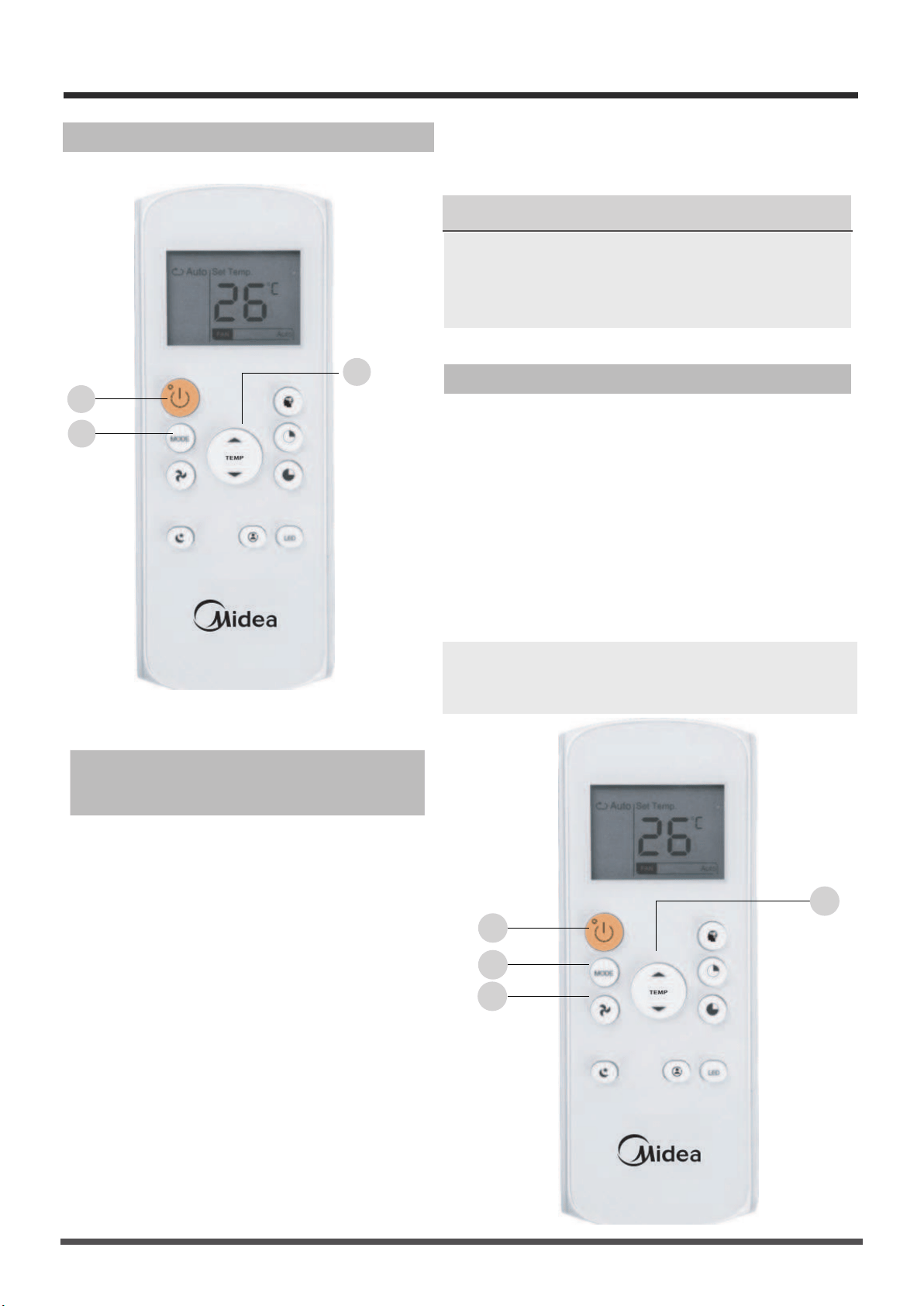

Remote Control Instructions

Air Conditioner Limited Warranty .............................................................................................

Air Conditioner Limited Warranty

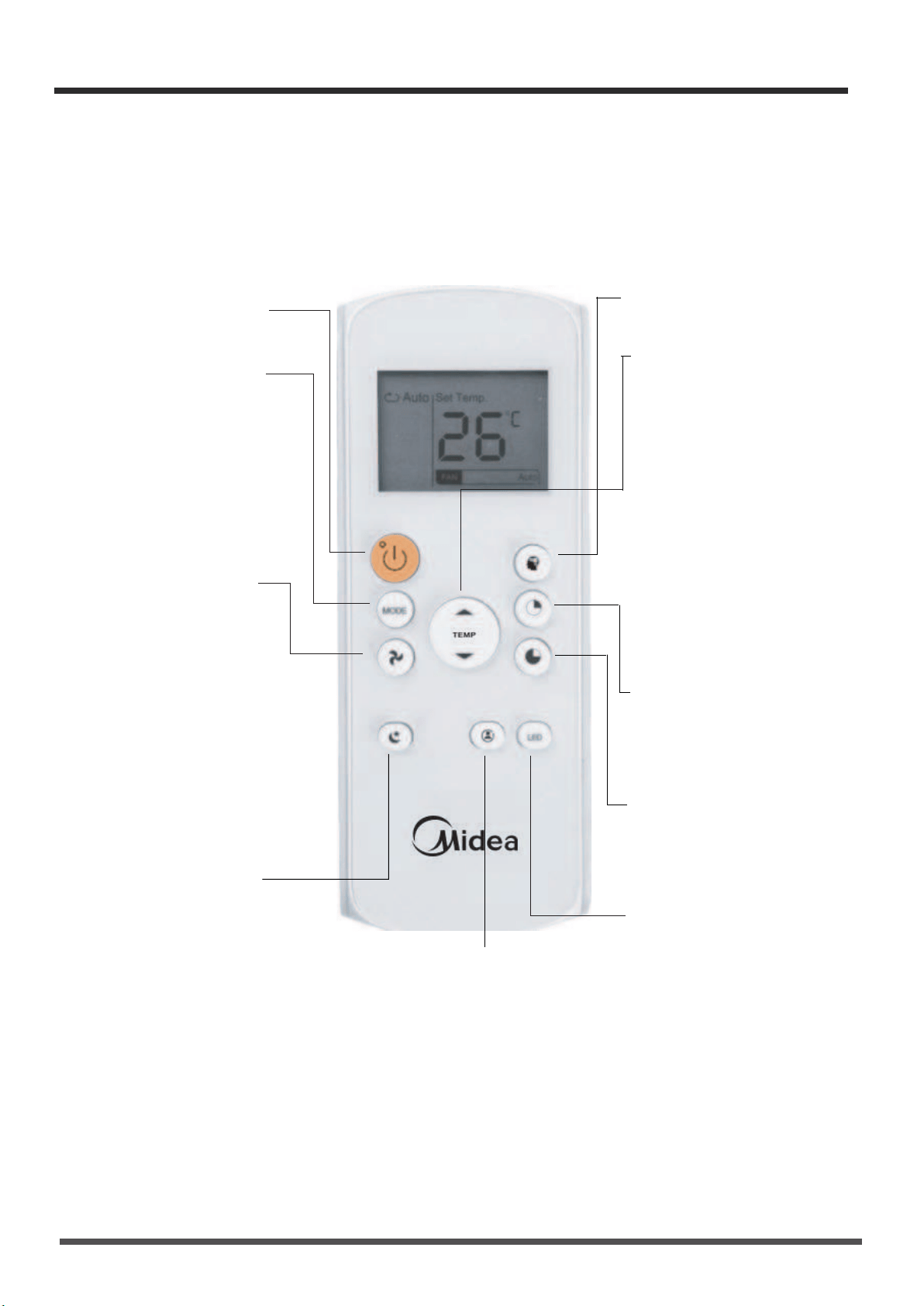

Function buttons ......................................................................................................................23

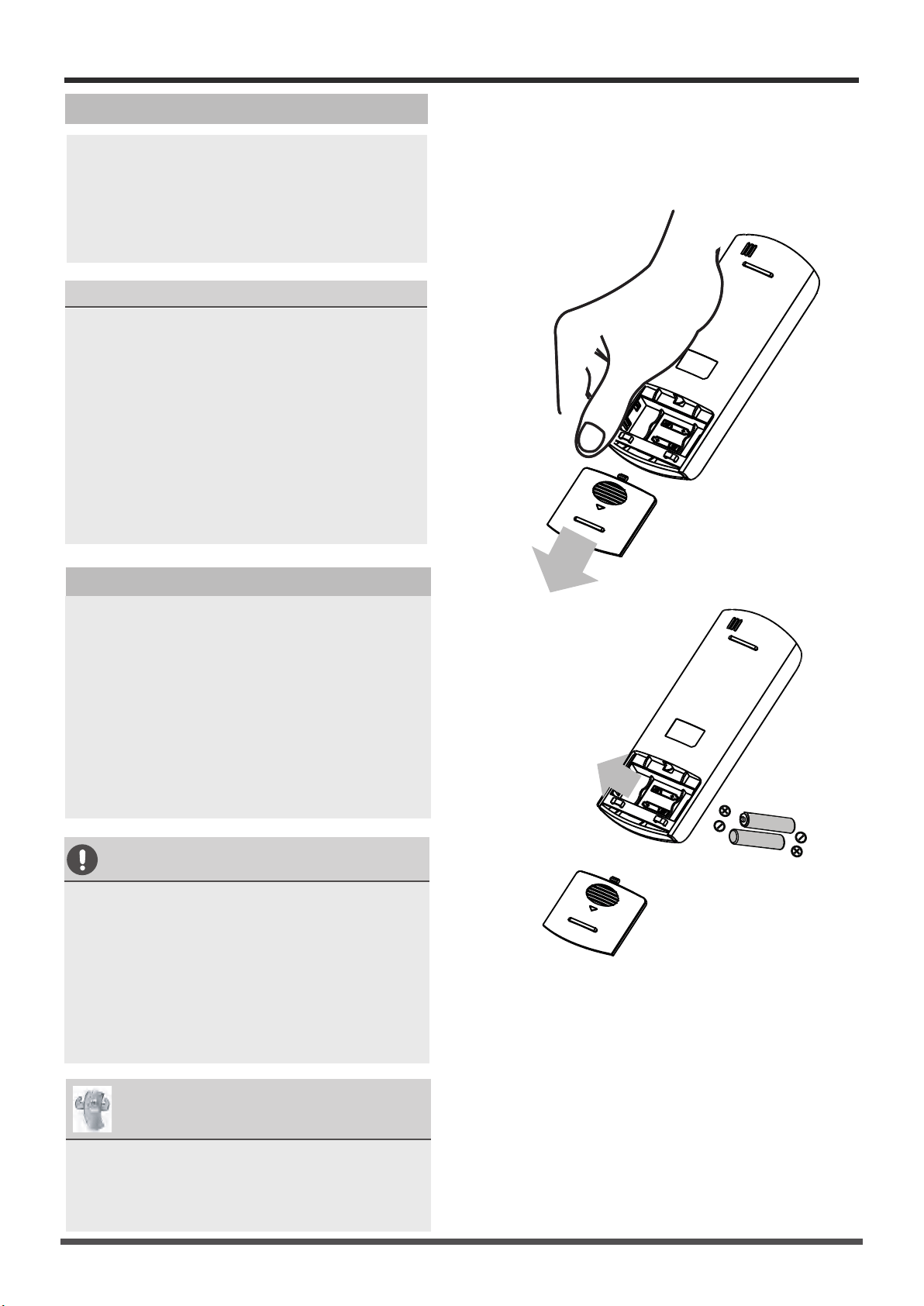

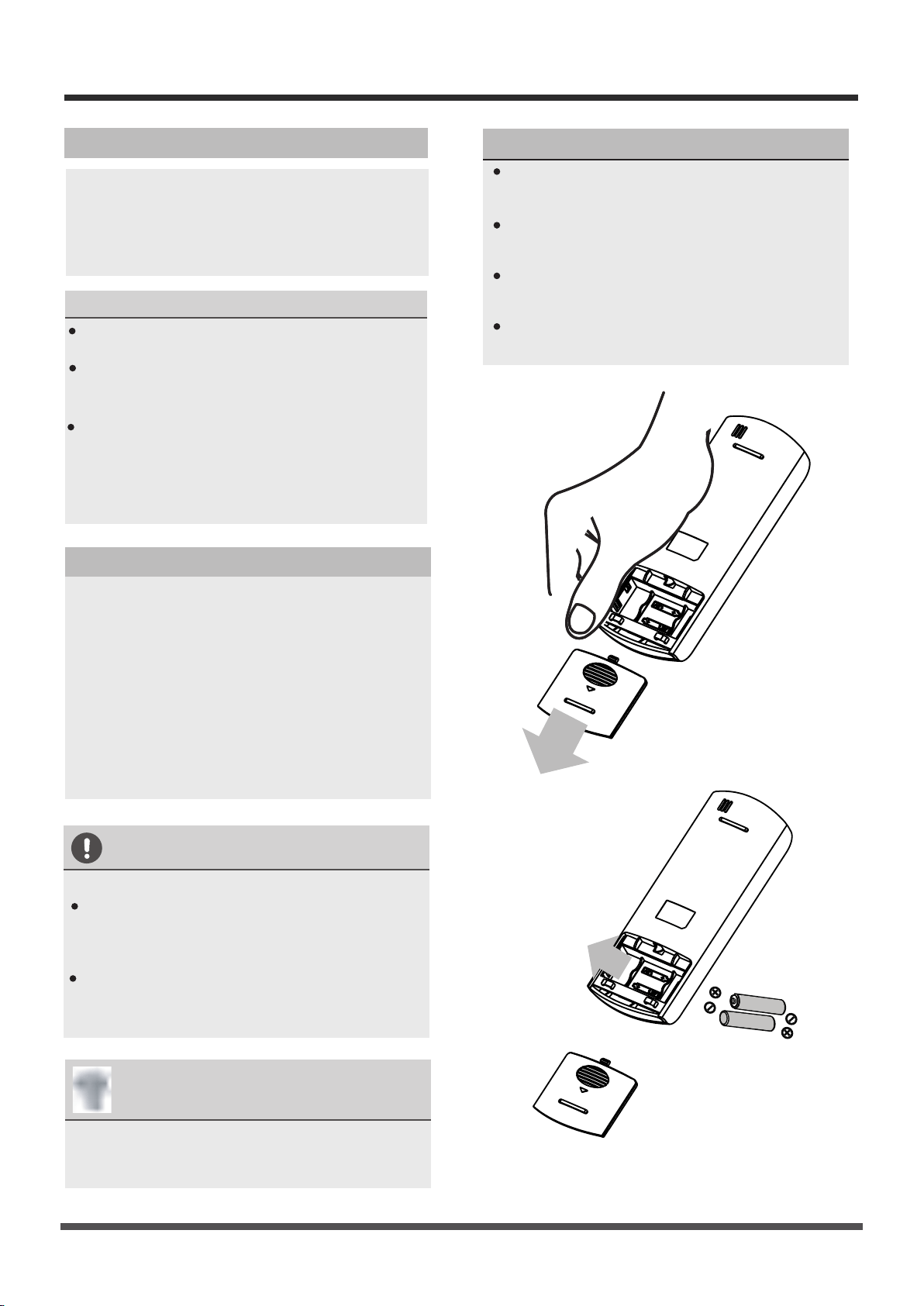

Handling the remote control .................................................................................................... 24

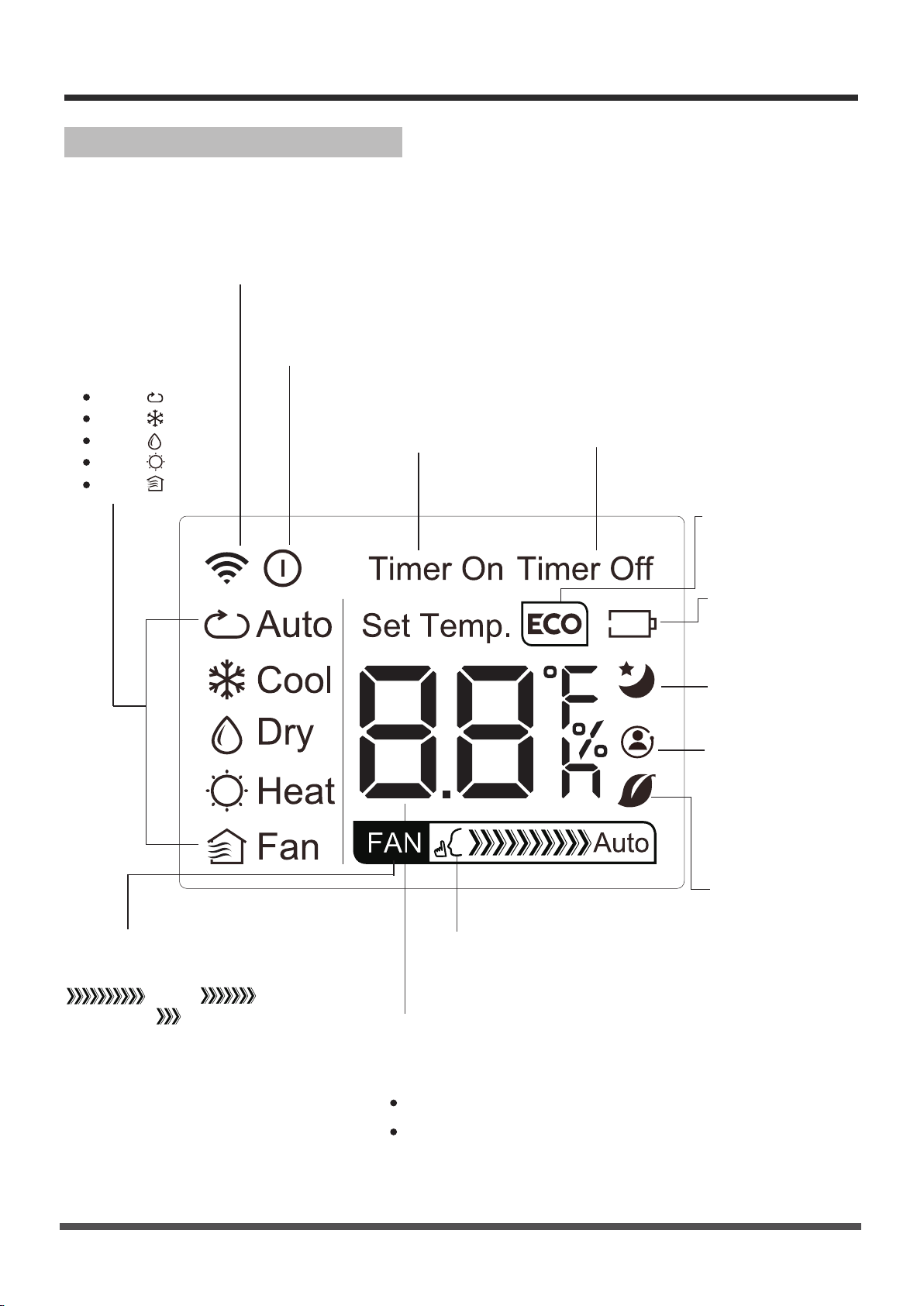

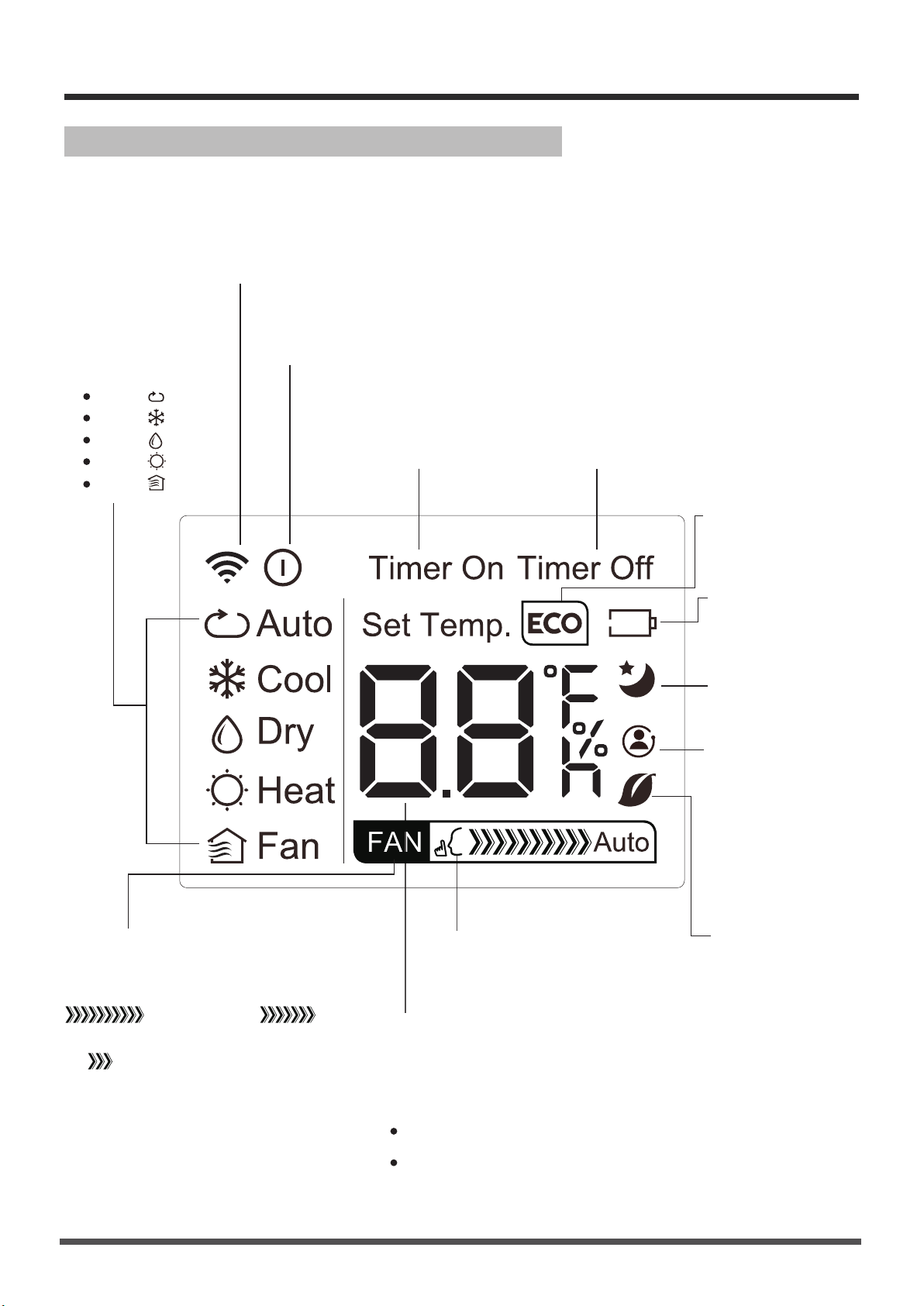

Remote LED screen indicators ...................................................................................................25

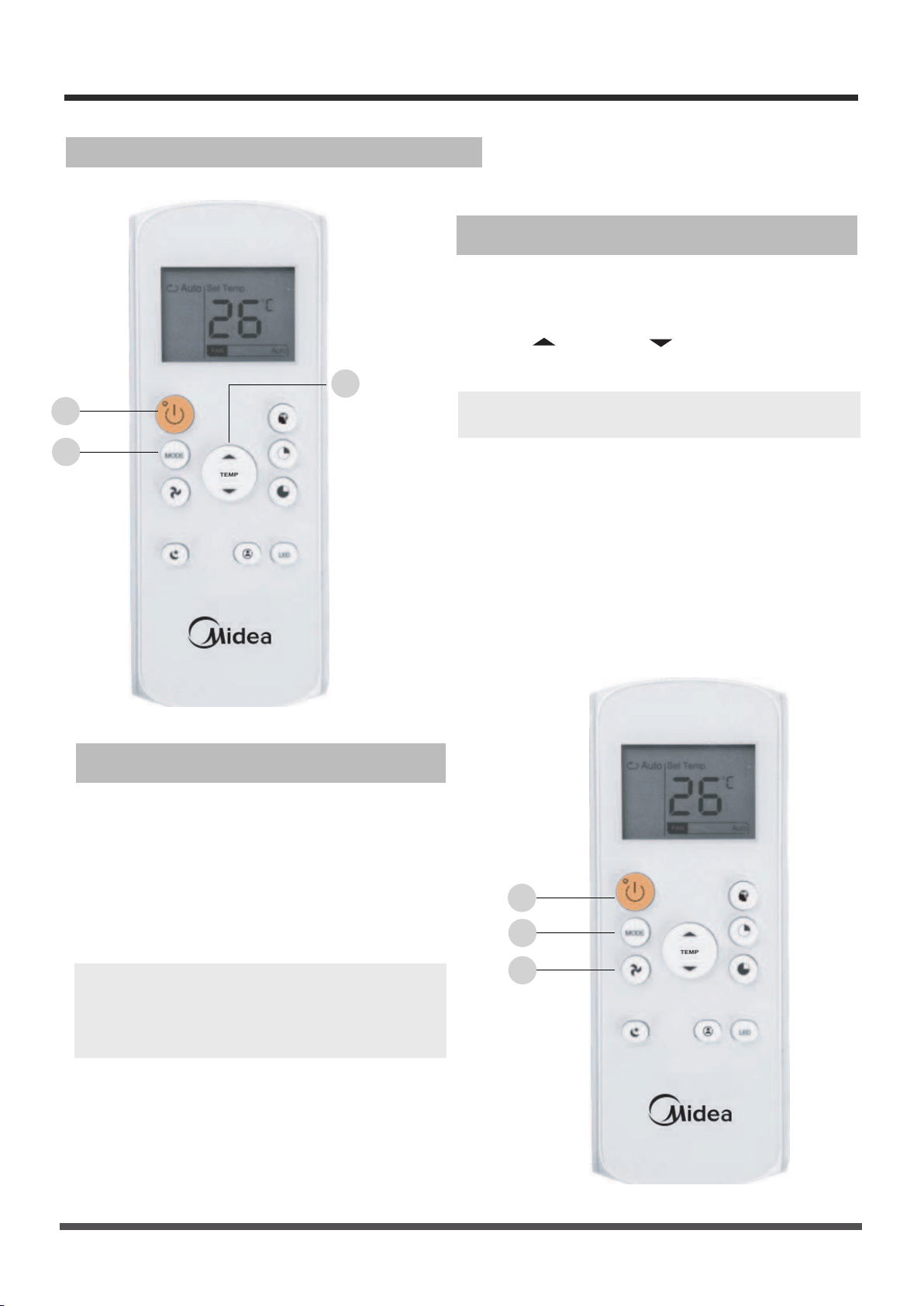

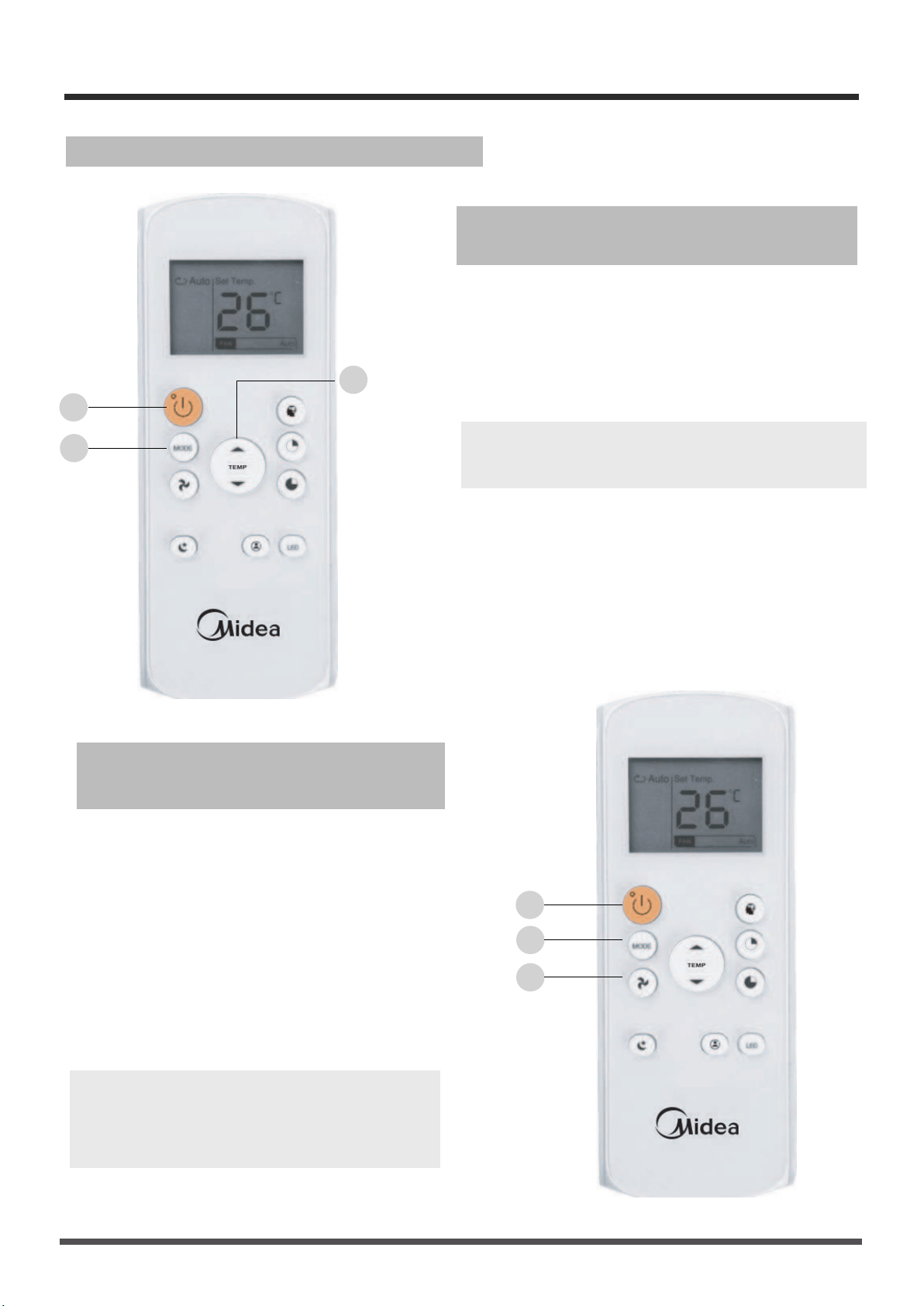

How to use the basic functions .................................................................................................26

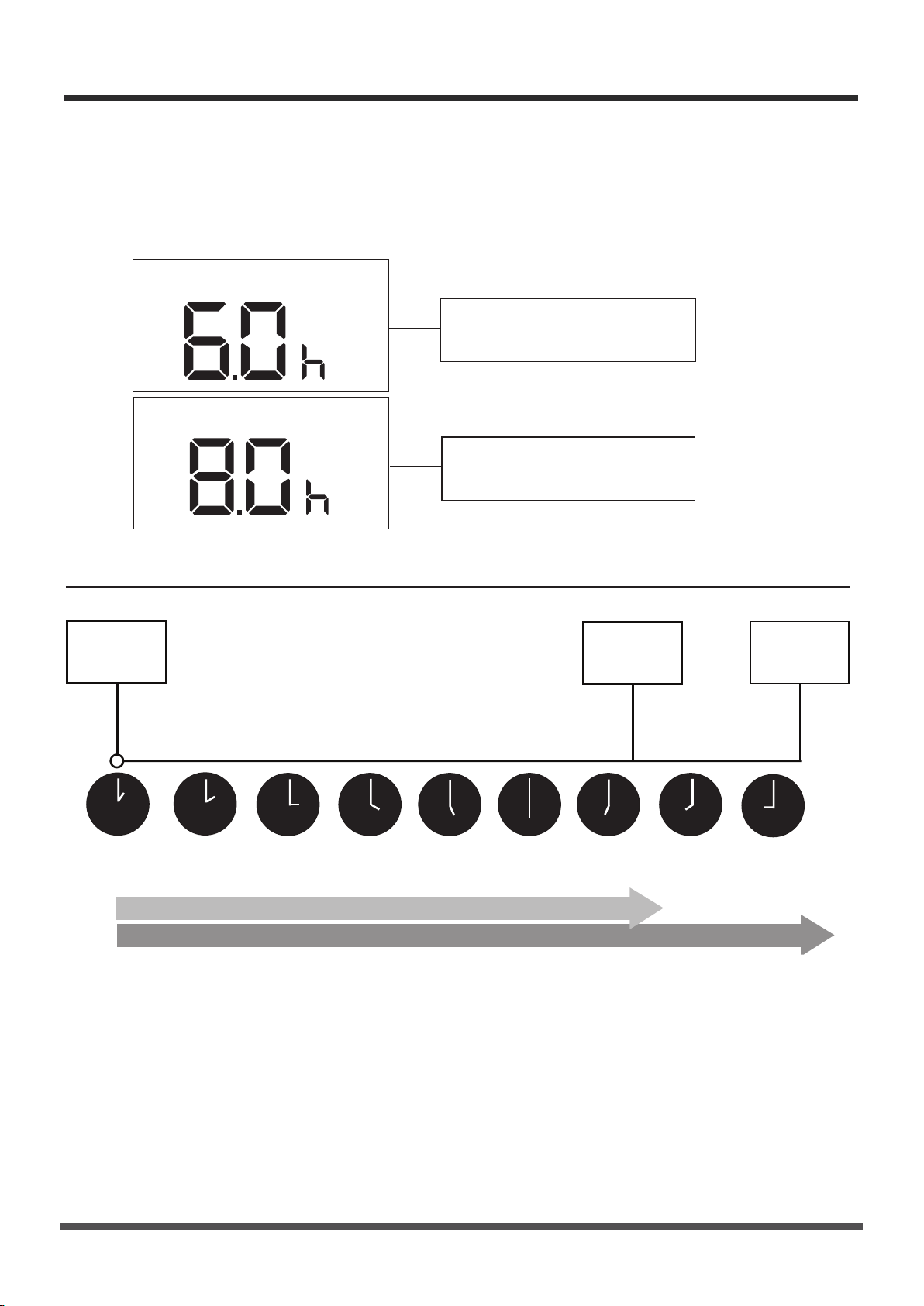

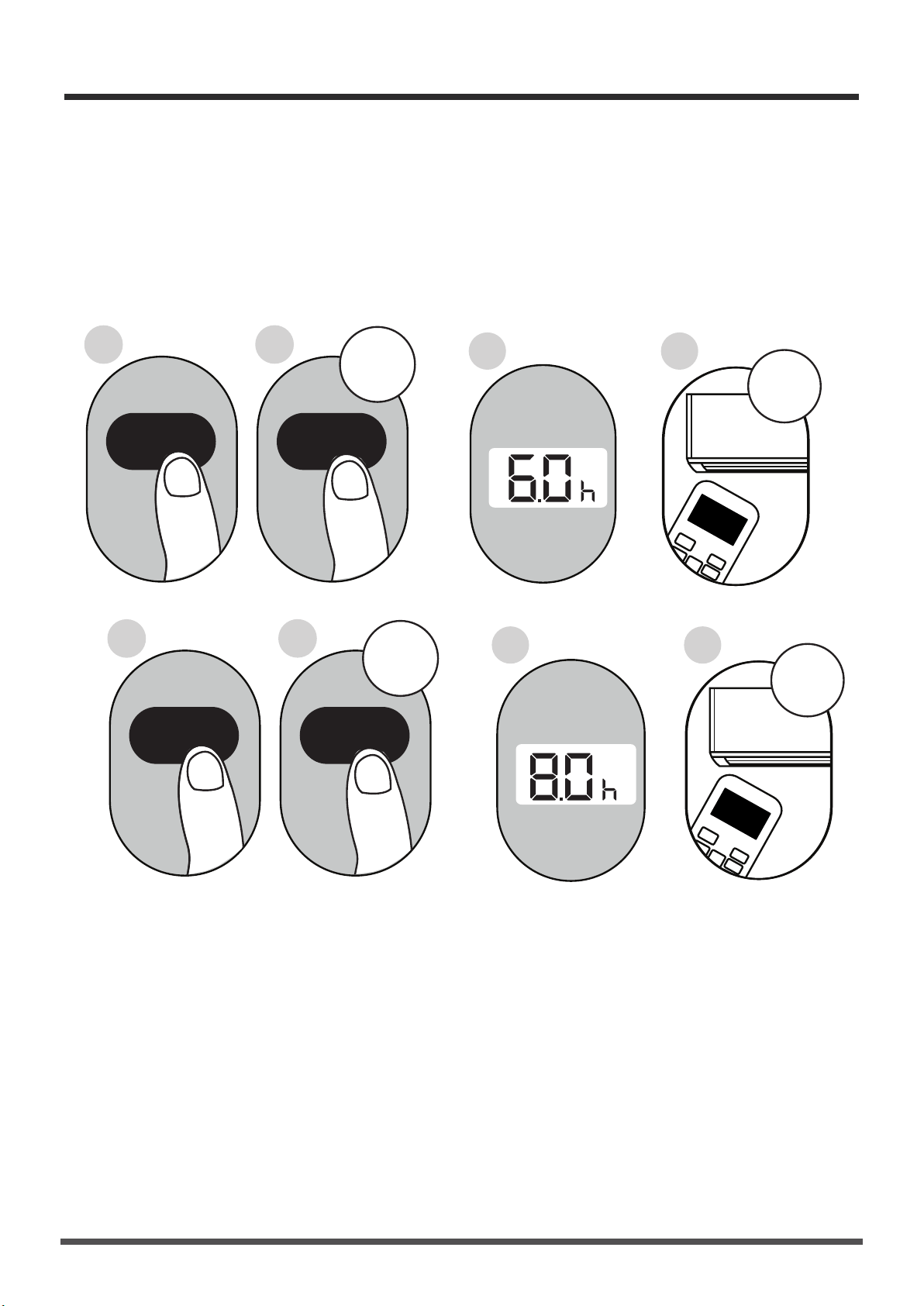

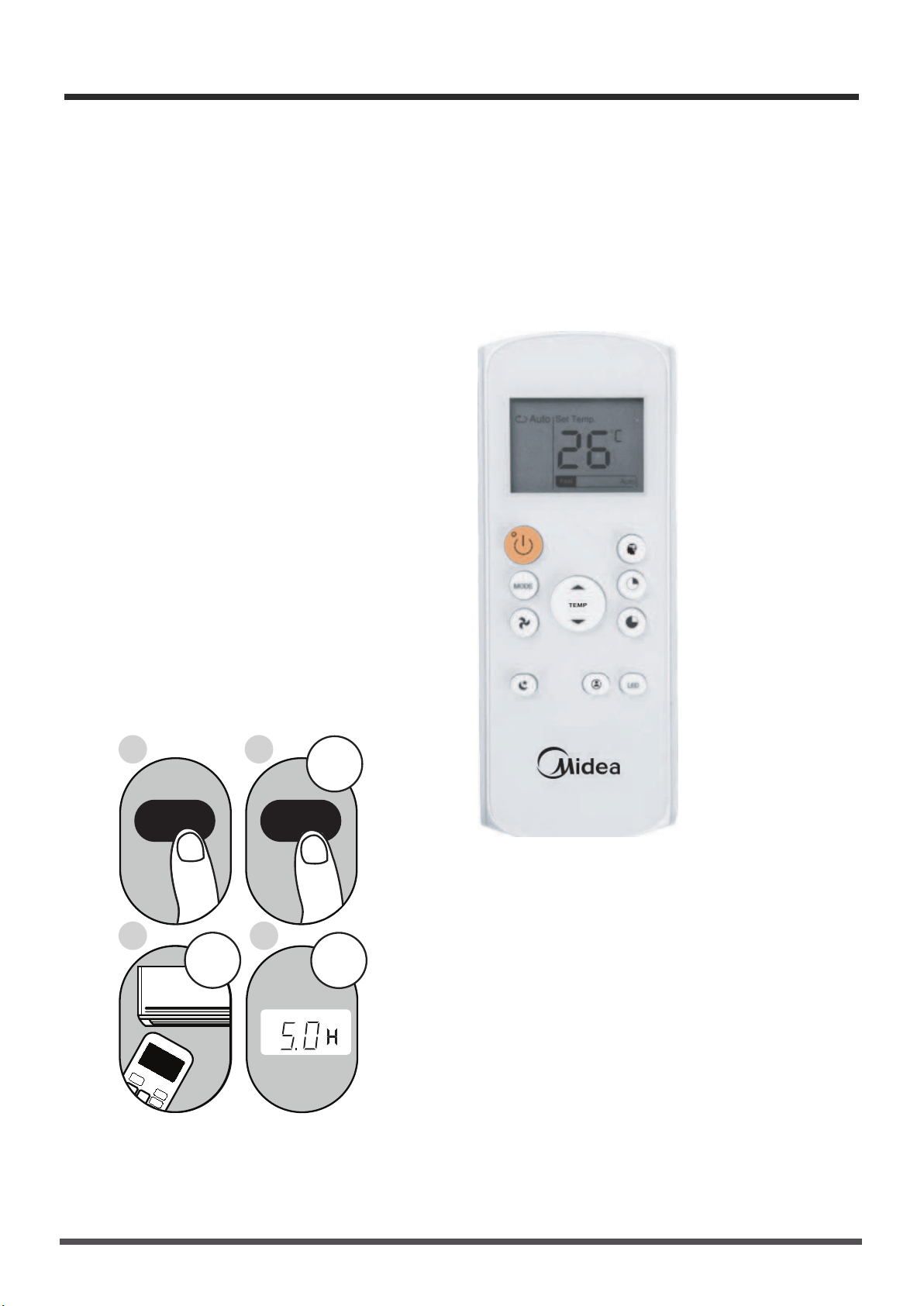

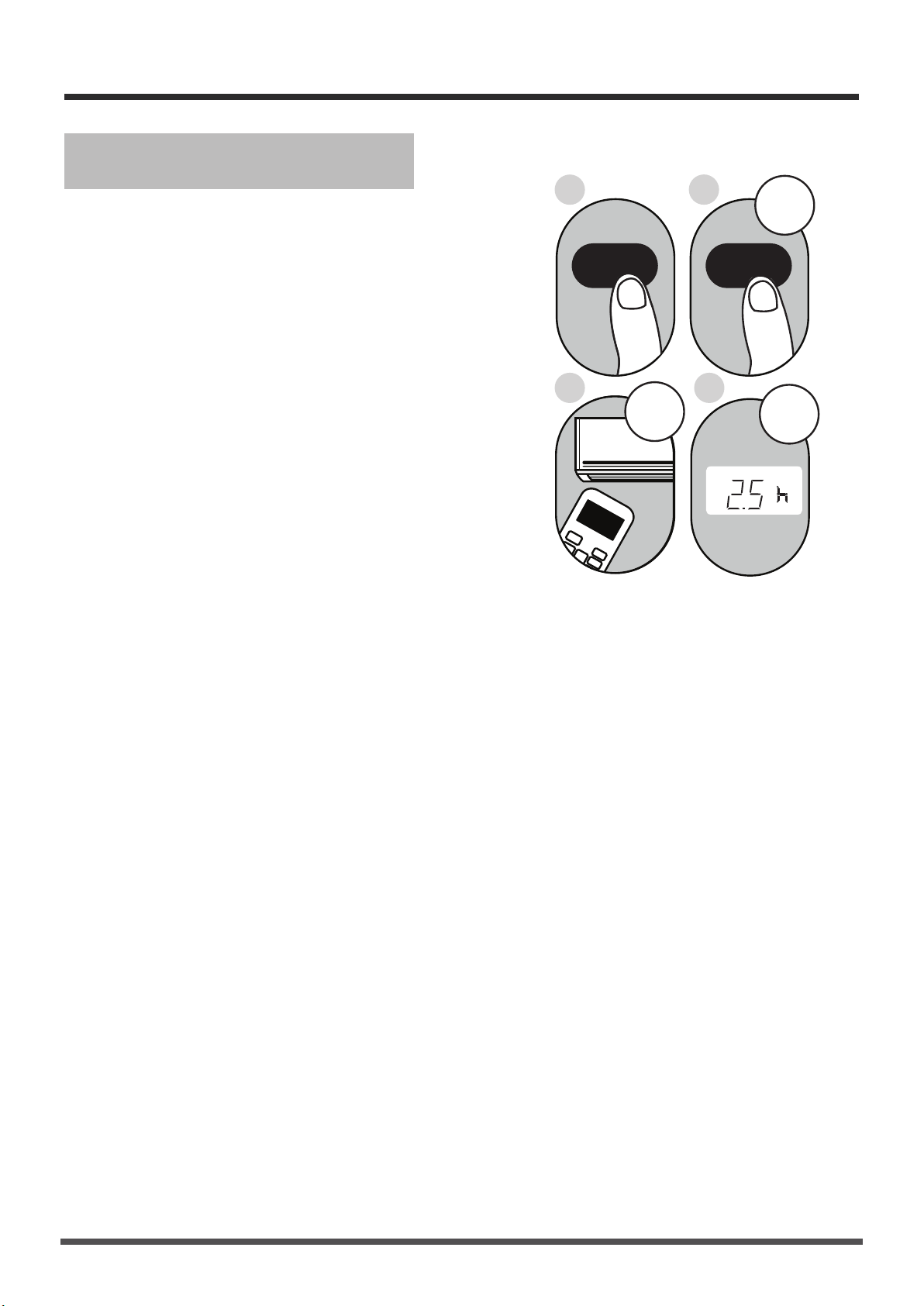

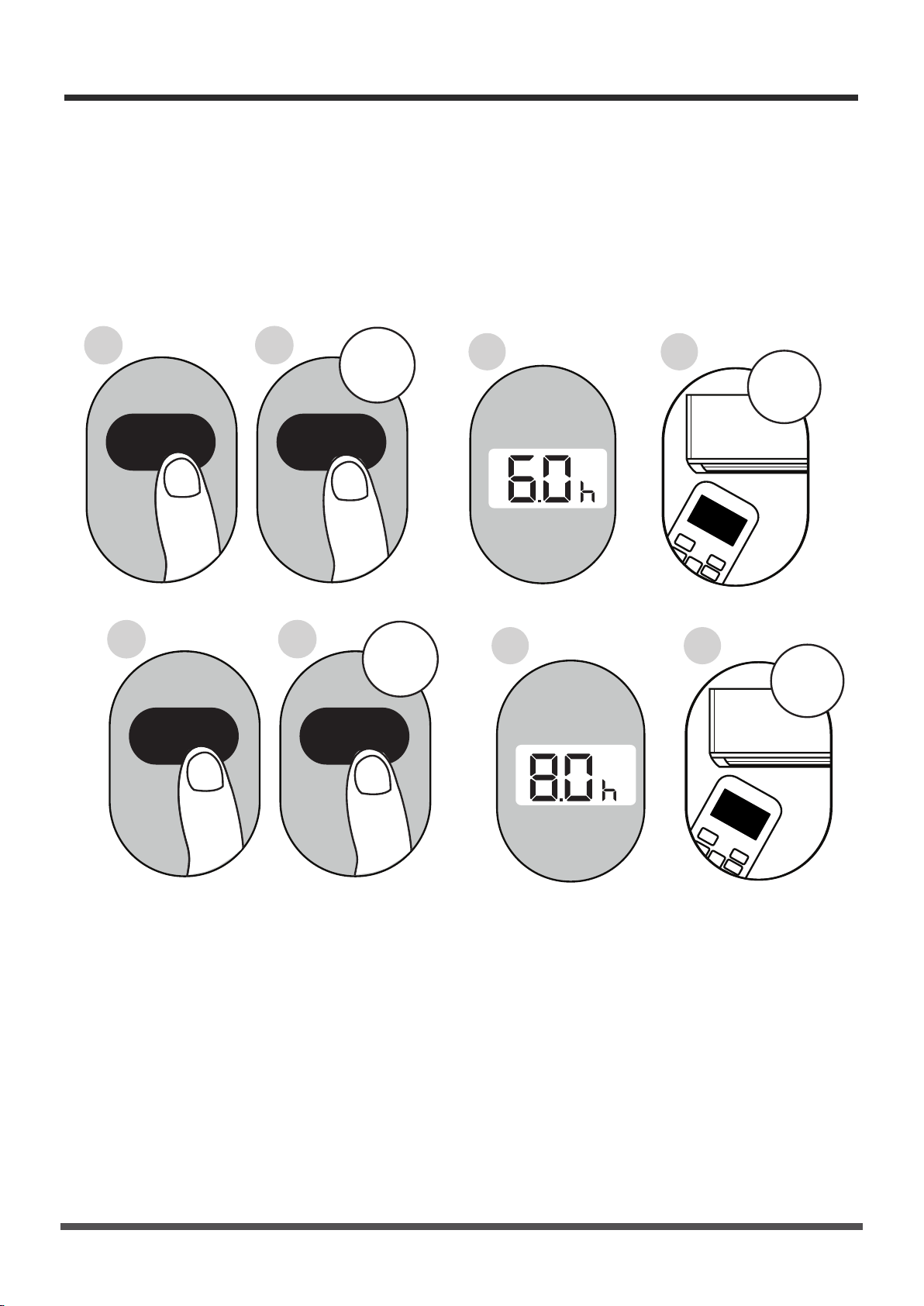

Setting the TIMER function .......................................................................................................29

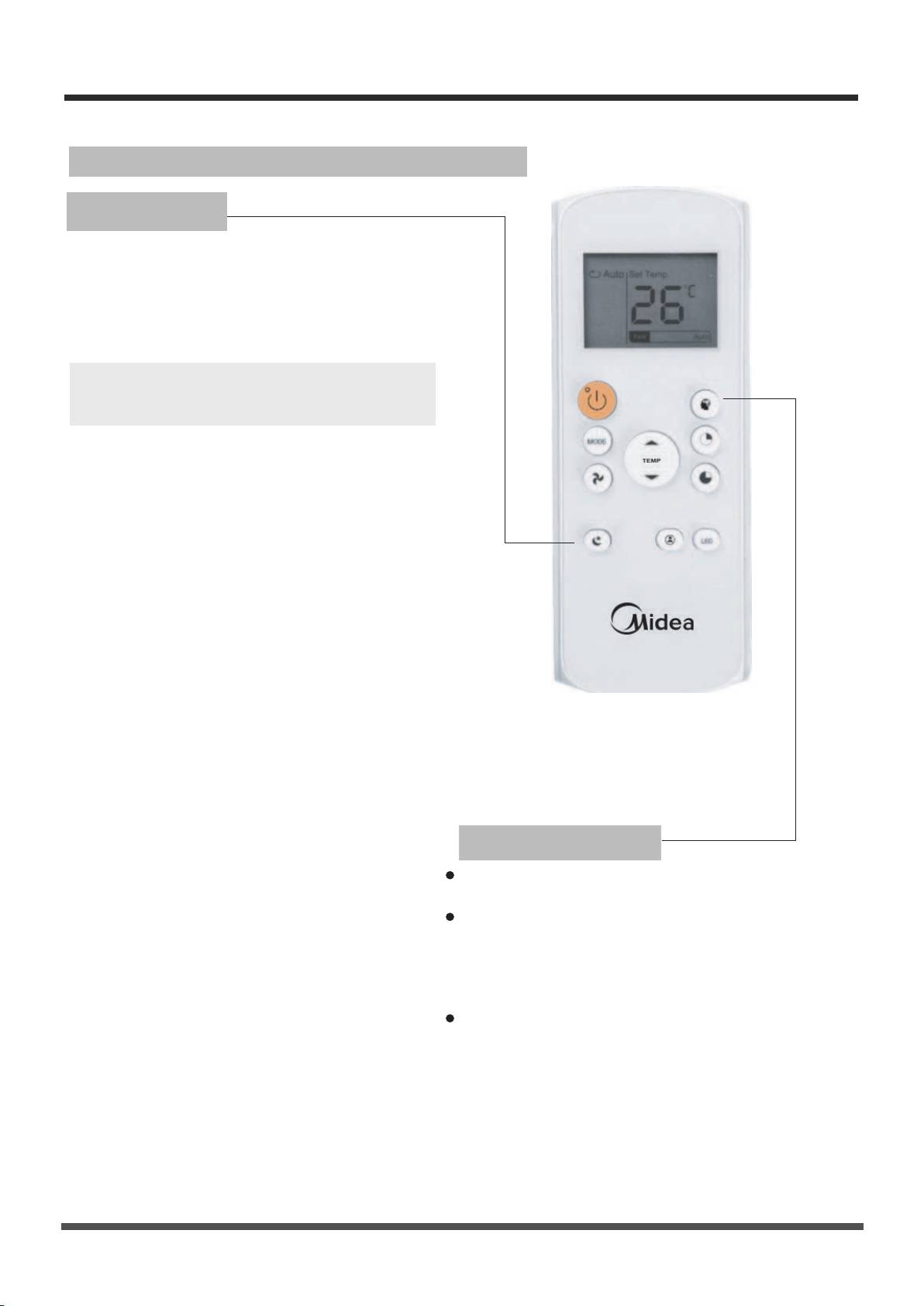

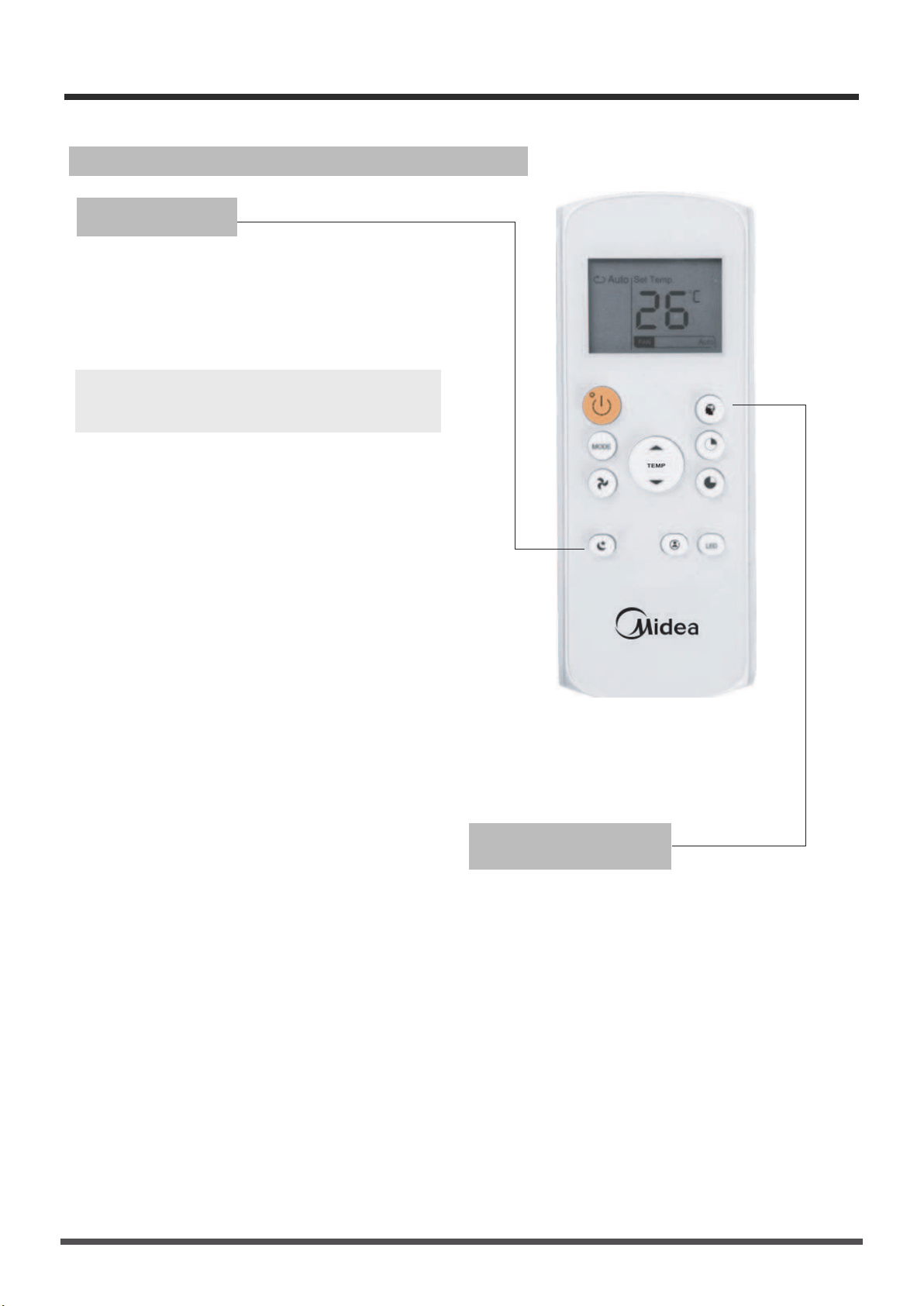

How to use the advanced functions ..........................................................................................33

Safety



Page 3

Safety

Precautions

Read Safety Precautions Before Operation and Installation

To prevent death or injury to the user or other people and property damage, the

following instructions must be followed. Incorrect operation due to ignoring of

instructions may cause death, harm or damage.

WARNING

•

Safety Precautions

Do not operate a unit that it has been dropped or damaged.

The appliance with electric heater shall have at least 1 meter space to the combustible

materials.

Do not touch the unit with wet or damp hands or when barefoot.

If the air conditioner is knocked over during use, turn off the unit and unplug it from the main

power supply immediately. Visually inspect the unit to ensure there is no damage. If you

suspect the unit has been damaged, contact a technician or customer service for assistance.



Page 3

WARNING

CAUTION

This symbol indicates the possibility of

property damage or serious consequences.

Installation must be performed according to the installation instructions. Improper installation

can cause water leakage, electrical shock, or ﬁre.

Use only the included accessories and parts, and speciﬁed tools for the installation. Using non-

standard parts can cause water leakage, electrical shock, ﬁre, and injury or property damage.

Make sure that the outlet you are using is grounded and has the appropriate voltage.

The power cord is equipped with a three-prong grounding plug to protect against shock.

Voltage information can be found on the nameplate of the unit.

Your unit must be used in a properly grounded wall receptacle. If the wall receptacle you

intend to use is not adequately grounded or protected by a time delay fuse or circuit breaker

(the fuse or circuit breaker needed is determined by the maximum current of the unit. The

maximum current is indicated on the nameplate located on unit), have a qualified electrician

install the proper receptacle.

Install the unit on a ﬂat, sturdy surface. Failure to do so could result in damage or excessive

noise and vibration.

The unit must be kept free from obstruction to ensure proper function and to mitigate safety

hazards.

Do not modify the length of the power cord or use an extension cord to power the unit.

Do not share a single outlet with other electrical appliances. Improper power supply can

cause ﬁre or electrical shock.

Do not install your air conditioner in a wet room such as a bathroom or laundry room. Too

much exposure to water can cause electrical components to short circuit.

Do not install the unit in a location that may be exposed to combustible gas, as this could

cause ﬁre.

The unit has wheels to facilitate moving. Make sure not to use the wheels on thick carpet or to

roll over objects, as these could cause tipping.

This symbol indicates the possibility of

personnel injury or loss of life.

Safety

Precautions



Page 4

•

In a thunderstorm, the power must be cut off to avoid damage to the machine due to lightning.

Your air conditioner should be used in such a way that it is protected from moisture.

e.g. condensation, splashed water, etc. Do not place or store your air conditioner where it can

fall or be pulled into water or any other liquid. Unplug immediately if it occurs.

All wiring must be performed strictly in accordance with the wiring diagram located inside of

the unit.

The unit's circuit board(PCB) is designed with a fuse to provide overcurrent protection. The

specifications of the fuse are printed on the circuit board, such as: T 3.15A/250V, etc.

When the water drainage function is not in use, keep the upper and the lower drain plug firmly

to the unit to get rid of choking. When the drain plug is not in use, keep it carefully to prevent

children from choking.

•

This appliance can be used by children aged from 8 years and above and person with reduced

physical, sensory or mental capabilities or lack of experience and knowledge if they have been

given supervision or instruction concerning use of the appliance in a safe way and understand

the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance

shall not be made by children without supervision. (be applicable for the European Countries)

This appliance is not intended for use by persons (including childern) with reduced physical,

sensory or mental capabilities or lack of experience and knowledge, unless they have been

given supervision or instruction concerning use of the appliance by a person responsible for

their safety. Children should be supervised to ensure that they do not play with the appliance.

Children must be supervised around the unit at all times.(be applicable for other countries

except the European Countries )

If the supply cord is damaged, it must be replaced by the manufacturer,its service agent or

similarly qualified persons in order to avoid a hazard.

CAUTION

•

Disconnect the power if strange sounds, smell, or smoke comes from it.

Do not press the buttons on the control panel with anything other than your fingers.

Do not remove any fixed covers. Never use this appliance if it is not working properly, or if it has

been dropped or damaged.

Do not operate or stop the unit by inserting or pulling out the power cord plug.

Do not use this product for functions other than those described in this instruction manual.

Before cleaning, turn off the power and unplug the unit.

Prior to cleaning or other maintenance, the appliance must be disconnected from the supply mains.

Do not remove any fixed covers. Never use this appliance if it is not working properly, or if it has

been dropped or damaged.

Do not run cord under carpeting. Do not cover cord with throw rugs, runners, or similar

coverings. Do not route cord under furniture or appliances. Arrange cord away from traffic area

and where it will not be tripped over.

Do not operate unit with a damaged cord, plug, power fuse or circuit breaker. Discard unit or

return to an authorized service facility for examination and/or repair.

To reduce the risk of fire or electric shock, do not use this fan with any solid-state speed control device.

The appliance shall be installed in accordance with national wiring regulations.

Contact the authorised service technician for repair or maintenance of this unit.

Contact the authorised installer for installation of this unit.

Do not cover or obstruct the inlet or outlet grilles.

Safety

Precautions



Page 5

Note about Fluorinated Gasses(Not applicable to the unit using R290 Refrigerant)

Fluorinated greenhouse gases are contained in hermetically sealed equipment. For specific

information on the type, the amount and the CO2 equivalent in tonnes of the fluorinated

greenhouse gas(on some models), please refer to the relevant label on the unit itself.

Installation, service, maintenance and repair of this unit must be performed by a certified

technician.

Product uninstallation and recycling must be performed by a certified technician.

Sociable Remark

DISPOSAL: Do not dispose this product as unsorted municipal waste.

Collection of such waste separately for special treatment is necessary.

It is prohibited to dispose of this appliance in domestic household waste.

For disposal, there are several possibilities:

When using this dehumidifier in the European countries, the following information must be followed:

· The municipality has established collection systems, where electronic waste can be disposed

of at least free of charge to the user.

· When buying a new product, the retailer will take back the old product at least free of charge.

· The manufacture will take back the old appliance for disposal at least free of charge to the user.

· As old products contain valuable resources, they can be sold to scrap metal dealers. Wild

disposal of waste in forests and landscapes endangers your health when hazar do us

substances leak into the ground-water and find their way into the food chain.

•

Do not use hazardous chemicals to clean or come into contact with the unit. Do not use the unit

in the presence of inflammable substances or vapour such as alcohol, insecticides, petrol,etc.

Always transport your air conditioner in a vertical position and stand on a stable, level surface

during use.

Always contact a qualified person to carry out repairs. If the damaged power supply cord must

be replaced with a new power supply cord obtained from the product manufacturer and not

repaired.

Hold the plug by the head of the power plug when taking it out.

Turn off the product when not in use.

How to fix the appliance to its support, please refer to the installation instructions.

WARNING for Using R32/R290 Refrigerant

Do not use means to accelerate the defrosting process or to clean, other than those recommended by

the manufacturer.

The appliance shall be stored in a room without continuously operating ignition sources (for example:

open flames, an operating gas appliance or an operating electric heater).

Do not pierce or burn.

Be aware that the refrigerants may not contain an odour.

Appliance should be installed, operated and stored in a room with a floor area according to the amount

of refrigerant to be charged. For specific information on the type of gas and the amount, please refer

to the relevant label on the unit itself. When there are differences between the lable and the manual on

the Min. room area description, the description on label shall prevail.

Safety

Precautions



Page 6



Compliance with national gas regulations shall be observed.

Keep ventilation openings clear of obstruction.

The appliance shall be stored so as to prevent mechanical damage from occurring.

A warning that the appliance shall be stored in a well-ventilated area where the room size corresponds

to the room area as specified for operation.

Any person who is involved with working on or breaking into a refrigerant circuit should hold a current

valid certificate from an industry-accredited assessment authority, which authorises their competence

to handle refrigerants safely in accordance with an industry recognised assessment specification.

Servicing shall only be performed as recommended by the equipment manufacturer. Maintenance

and repair requiring the assistance of other skilled personnel shall be carried out under the supervision

of the person competent in the use of flammable refrigerants.

Please follow the instruction carefully to handle, install, clear, service the air conditioner to avoid any

damage or hazard. Flammable Refrigerant R32 is used within air conditioner. When maintaining or

disposing the air conditioner, the refrigerant (R32 or R290) shall be recovered properly, shall not

discharge to air directly.

No any open fire or device like switch which may generate spark/arcing shall be around air conditioner

to avoid causing ignition of the flammable refrigerant used.

Please follow the instruction carefully to store or maintain the air conditioner to prevent

mechanical damage from occurring.

Flammable refrigerant -R32 is used in air conditioner. Please follow the instruction carefully to avoid

any hazard.For speci-c information on the type of gas and the amount,please to the relevant label on

the unit itself.

The appliance shall be stored in a room without continuously operating open flames (for example an

operating gas appliance) and potential ignition sources (for example an operating electric heater).

For R290(Not applicable for North America)

amount of refrigerant (kg)

Min. room area(m²)

0.0836 and 0.1045

≥

0.1045 and 0.1254

≥ <

0.1254 and 0.1463

≥

0.1463 and 0.1672

≥ <

0.1672 and 0.1881

≥

0.1881 and 0.2090

≥

amount of refrigerant (kg)

Min. room area(m²)

0.2090 and 0.2299

≥

0.2299 and 0.2508

≥

0.2508 and 0.2717

≥

0.2717 and 0.2926

≥ <

15 0.2926 and 0.3135

≥

Safety

Precautions



Page 7



precautions shall be complied with prior to conducting work on the system.

2)Work procedure

Work shall be undertaken under a controlled procedure so as to minimise the risk of a flammable gas or

vapour being present while the work is being performed.

6.Information on servicing

1)Checks to the area

Prior to beginning work on systems containing flammable refrigerants, safety checks are necessary to

ensure that the risk of ignition is minimised. For repair to the refrigerating system, the following

1.Transport of equipment containing flammable refrigerants

See transport regulations

2.Marking of equipment using signs

See local regulations

3.Disposal of equipment using flammable refrigerants

See national regulations.

4.Storage of equipment/appliances

The storage of equipment should be in accordance with the manufacturer's instructions.

5.Storage of packed (unsold) equipment

Storage package protection should be constructed such that mechanical damage to the equipment

inside the package will not cause a leak of the refrigerant charge. The maximum number of pieces of

equipment permitted to be stored together will be determined by local regulations.

3)General work area

All maintenance staff and others working in the local area shall be instructed on the nature of work

being carried out. Work in confined spaces shall be avoided. The area around the workspace shall be

sectioned off. Ensure that the conditions within the area have been made safe by control of flammable

material.

4)Checking for presence of refrigerant

Explanation of symbols displayed on the unit(For the unit adopts R32/R290 Refrigerant only):

WARNING

CAUTION

This symbol shows that this appliance used a flammable refrigerant. If the refrigerant

is leaked and exposed to an external ignition source, there is a risk of fire.

This symbol shows that the operation manual should be read carefully.

This symbol shows that a service personnel should be handling this equipment

with reference to the installation manual.

This symbol shows that information is available such as the operating manual or

installation manual.

Caution: Risk of fire/

flammable materials

(Required for R32/R290 units only)

Safety

Precautions



Page 8



7)Ventilated area

Ensure that the area is in the open or that it is adequately ventilated before breaking into the system or

conducting any hot work. A degree of ventilation shall continue during the period that the work is carried

out. The ventilation should safely disperse any released refrigerant and preferably expel it externally into

the atmosphere.

Repair and maintenance to electrical components shall include initial safety checks and component

inspection procedures. If a fault exists that could compromise safety, then no electrical supply shall be

connected to the circuit until it is satisfactorily dealt with. If the fault cannot be corrected immediately

but it is necessary to continue operation, an adequate temporary solution shall be used. This shall be

reported to the owner of the equipment so all parties are advised.

Initial safety checks shall include:

That capacitors are discharged: this shall be done in a safe manner to avoid possibility of sparking;

That there no live electrical components and wiring are exposed while charging, recovering or purging

the system; That there is continuity of earth bonding.

8)Checks to the refrigeration equipment

Where electrical components are being changed, they shall be fit for the purpose and to the correct

specification. At all times the manufacturer's maintenance and service guidelines shall be followed. If in

doubt consult the manufacturer's technical department for assistance. The following checks shall be

applied to installations using flammable refrigerants:

The charge size is in accordance with the room size within which the refrigerant containing parts are

installed;

The ventilation machinery and outlets are operating adequately and are not obstructed;

If an indirect refrigerating circuit is being used, the secondary circuit shall be checked for the presence

of refrigerant; Marking to the equipment continues to be visible and legible. Markings and signs that

are illegible shall be corrected;

Refrigeration pipe or components are installed in a position where they are unlikely to be exposed

1)During repairs to sealed components, all electrical supplies shall be disconnected from the equipment

9)Checks to electrical devices

7.Repairs to sealed components

to any substance which may corrode refrigerant containing components, unless the components are

constructed of materials which are inherently resistant to being corroded or are suitably protected

against being so corroded.

The area shall be checked with an appropriate refrigerant detector prior to and during work, to ensure

the technician is aware of potentially flammable atmospheres. Ensure that the leak detection

equipment being used is suitable for use with flammable refrigerants, i.e. non-sparking, adequately

sealed or intrinsically safe.

5)Presence of fire extinguisher

If any hot work is to be conducted on the refrigeration equipment or any associated parts, appropriate

fire extinguishing equipment shall be available to hand. Have a dry powder or CO2 fire extinguisher

adjacent to the charging area.

6)No ignition sources

No person carrying out work in relation to a refrigeration system which involves exposing any pipe

work that contains or has contained flammable refrigerant shall use any sources of ignition in such a

manner that it may lead to the risk of fire or explosion. All possible ignition sources, including cigarette

smoking, should be kept sufficiently far away from the site of installation, repairing, removing and

disposal, during which flammable refrigerant can possibly be released to the surrounding space. Prior

to work taking place, the area around the equipment is to be surveyed to make sure that there are no

flammable hazards or ignition risks. No Smoking signs shall be displayed.

Safety

Precautions



Page 9



Do not apply any permanent inductive or capacitance loads to the circuit without ensuring that this will

not exceed the permissible voltage and current permitted for the equipment in use. Intrinsically safe

components are the only types that can be worked on while live in the presence of a flammable

atmosphere. The test apparatus shall be at the correct rating. Replace components only with parts

specified by the manufacturer. Other parts may result in the ignition of refrigerant in the atmosphere

from a leak.

8.Repair to intrinsically safe components

and shall be calibrated to the refrigerant employed and the appropriate percentage of gas (25 %

maximum) is confirmed. Leak detection fluids are suitable for use with most refrigerants but the use of

detergents containing chlorine shall be avoided as the chlorine may react with the refrigerant and

corrode the copper pipe-work. If a leak is suspected, all naked flames shall be removed/ extinguished.

If a leakage of refrigerant is found which requires brazing, all of the refrigerant shall be recovered from

the system, or isolated (by means of shut off valves) in a part of the system remote from the leak.

Oxygen free nitrogen (OFN) shall then be purged through the system both before and during the

brazing process.

When breaking into the refrigerant circuit to make repairs or for any other purpose conventional

procedures shall be used. However, it is important that best practice is followed since flammability is a

consideration. The following procedure shall be adhered to:

Remove refrigerant; Purge the circuit with inert gas; Evacuate; Purge again with inert gas; Open the

circuit by cutting or brazing.

The refrigerant charge shall be recovered into the correct recovery cylinders. The system shall be flushed

with OFN to render the unit safe. This process may need to be repeated several times. Compressed air or

10.Detection of flammable refrigerants

The following leak detection methods are deemed acceptable for systems containing flammable

refrigerants. Electronic leak detectors shall be used to detect flammable refrigerants, but the sensitivity

may not be adequate, or may need re-calibration. (Detection equipment shall be calibrated in a

refrigerant-free area.) Ensure that the detector is not a potential source of ignition and is suitable for

the refrigerant used. Leak detection equipment shall be set at a percentage of the LFL of the refrigerant

11.Leak detection methods

Check that cabling will not be subject to wear, corrosion, excessive pressure, vibration, sharp edges or

any other adverse environmental effects. The check shall also take into account the effects of aging or

continual vibration from sources such as compressors or fans.

9.Cabling

12.Removal and evacuation

Under no circumstances shall potential sources of ignition be used in the searching for or detection

of refrigerant leaks. A halide torch (or any other detector using a naked flame) shall not be used.

being worked upon prior to any removal of sealed covers, etc. If it is absolutely necessary to have an

electrical supply to equipment during servicing, then a permanently operating form of leak detection

shall be located at the most critical point to warn of a potentially hazardous situation.

2)Particular attention shall be paid to the following to ensure that by working on electrical components,

the casing is not altered in such a way that the level of protection is affected. This shall include damage

to cables, excessive number of connections, terminals not made to original specification, damage to

seals, incorrect fitting of glands, etc. Ensure that apparatus is mounted securely. Ensure that seals or

sealing materials have not degraded such that they no longer serve the purpose of preventing the

ingress of flammable atmospheres. Replacement parts shall be in accordance with the manufacturer's

specifications.

NOTE: The use of silicon sealant may inhibit the effectiveness of some types of leak detection

equipment. Intrinsically safe components do not have to be isolated prior to working on them.

Safety

Precautions



Page 10



cylinders. (No more than 80 % volume liquid charge). i) Do not exceed the maximum working

pressure of thecylinder, even temporarily. j) When the cylinders have been filled correctly and the

process completed, make sure that the cylinders and the equipment are removed from site promptly

and all isolation valves on the equipment are closed off. k) Recovered refrigerant shall not be charged

into another refrigeration system unless it has been cleaned and checked.

15.Labelling

Equipment shall be labelled stating that it has been de-commissioned and emptied of refrigerant. The

label shall be dated and signed. Ensure that there are labels on the equipment stating the equipment

contains flammable refrigerant.

16.Recovery

When removing refrigerant from a system, either for servicing or decommissioning, it is recommended

good practice that all refrigerants are removed safely. When transferring refrigerant into cylinders,

ensure that only appropriate refrigerant recovery cylinders are employed. Ensure that the correct

number of cylinders for holding the total system charge is available. All cylinders to be used are

designated for the recovered refrigerant and labelled for that refrigerant (i.e. special cylinders for the

recovery of refrigerant). Cylinders shall be complete with pressure relief valve and associated shut-off

valves in good working order. Empty recovery cylinders are evacuated and, if possible, cooled before

Before carrying out this procedure, it is essential that the technician is completely familiar with the

equipment and all its detail. It is recommended good practice that all refrigerants are recovered safely.

Prior to the task being carried out, an oil and refrigerant sample shall be taken in case analysis is

required prior to re-use of reclaimed refrigerant. It is essential that electrical power is available before

the task is commenced.

14.Decommissioning

a) Become familiar with the equipment and its operation. b) Isolate system electrically. c) Before

attempting the procedure ensure that: Mechanical handling equipment is available, if required, for

handling refrigerant cylinders;All personal protective equipment is available and being used correctly;

The recovery process is supervised at all times by a competent person; Recovery equipment and

cylinders conform to the appropriate standards. d) Pump down refrigerant system, if possible. e) If a

vacuum is not possible, make a manifold so that refrigerant can be removed from various parts of the

system. f) Make sure that cylinder is situated on the scales before recovery takes place. g) Start the

recovery machine and operate in accordance with manufacturer's instructions. h) Do not overfill

13.Charging procedures

In addition to conventional charging procedures, the following requirements shall be followed. Ensure

that contamination of different refrigerants does not occur when using charging equipment. Hoses or

lines shall be as short as possible to minimise the amount of refrigerant contained in them.

Cylinders shall be kept upright.

Ensure that the refrigeration system is earthed prior to charging the system with refrigerant.

Label the system when charging is complete (if not already).

Extreme care shall be taken not to overfill the refrigeration system. Prior to recharging the system it

shall be pressure tested with OFN. The system shall be leak tested on completion of charging but prior

to commissioning. A follow up leak test shall be carried out prior to leaving the site.

oxygen shall not be used for this task. Flushing shall be achieved by breaking the vacuum in the system

with OFN and continuing to fill until the working pressure is achieved, then venting to atmosphere, and

finally pulling down to a vacuum. This process shall be repeated until no refrigerant is within the system.

When the final OFN charge is used, the system shall be vented down to atmospheric pressure to enable

work to take place. This operation is absolutely vital if brazing operations on the pipe-work are to take

place. Ensure that the outlet for the vacuum pump is not close to any ignition sources and there is

ventilation available.



Page 11



Installation

Instructions

Installation Instructions

Preparation

NOTE:

All the illustrations in the manual are for explanation purpose only. Your machine may be slightly different.

The actual shape shall prevail. The unit can be controlled by the unit control panel alone or with the remote

controller. This manual does not include Remote Controller Operations, see the <<Remote Controller

Instruction>> packed with the unit for details.

recovery occurs. The recovery equipment shall be in good working order with a set of instructions

concerning the equipment that is at hand and shall be suitable for the recovery of flammable refrigerants.

In addition, a set of calibrated weighing scales shall be available and in good working order. Hoses shall

be complete with leak-free disconnect couplings and in good condition. Before using the recovery

machine, check that it is in satisfactory working order, has been properly maintained and that any

associated electrical components are sealed to prevent ignition in the event of a refrigerant release.

Consult manufacturer if in doubt. The recovered refrigerant shall be returned to the refrigerant supplier

in the correct recovery cylinder, and the relevant Waste Transfer Note arranged. Do not mix refrigerants

in recovery units and especially not in cylinders. If compressors or compressor oils are to be removed,

ensure that they have been evacuated to an acceptable level to make certain that flammable refrigerant

does not remain within the lubricant. The evacuation process shall be carried out prior to returning the

compressor to the suppliers. Only electric heating to the compressor body shall be employed to

accelerate this process. When oil is drained from a system, it shall be carried out safely.

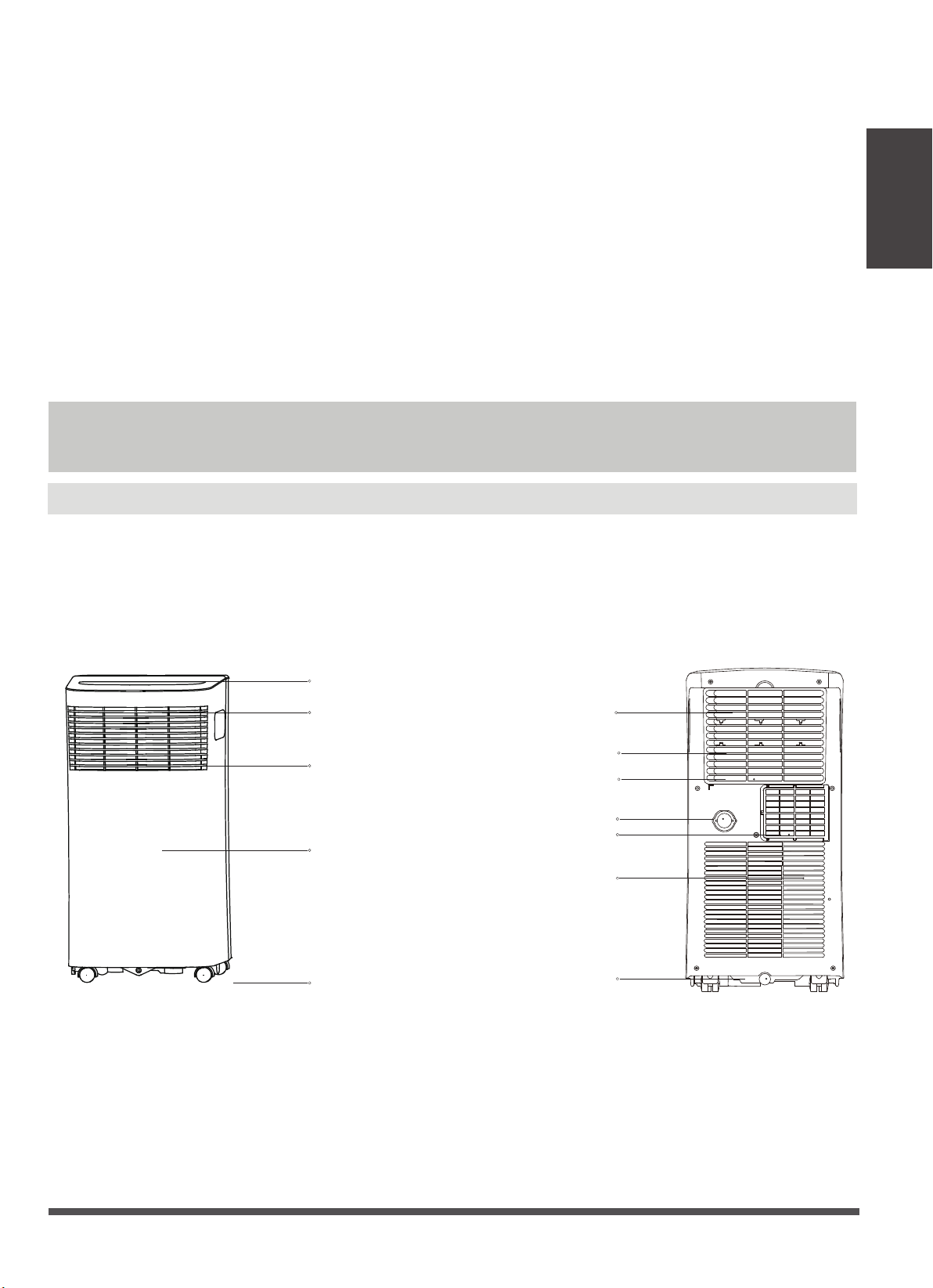

rear

bottom tray

drain outlet

handle

(both sides)

air filter

(behind the grille)

upper air intake

air outlet

lower air intake

drain outlet

front

control panel

horizontal louver control

lever

NOTE: can not be adjusted.

vertical louver control

lever

NOTE:can not be adjusted.

panel

Caster



Page 12



Installation

Instructions

50cm

19.7inch

50cm

19.7inch

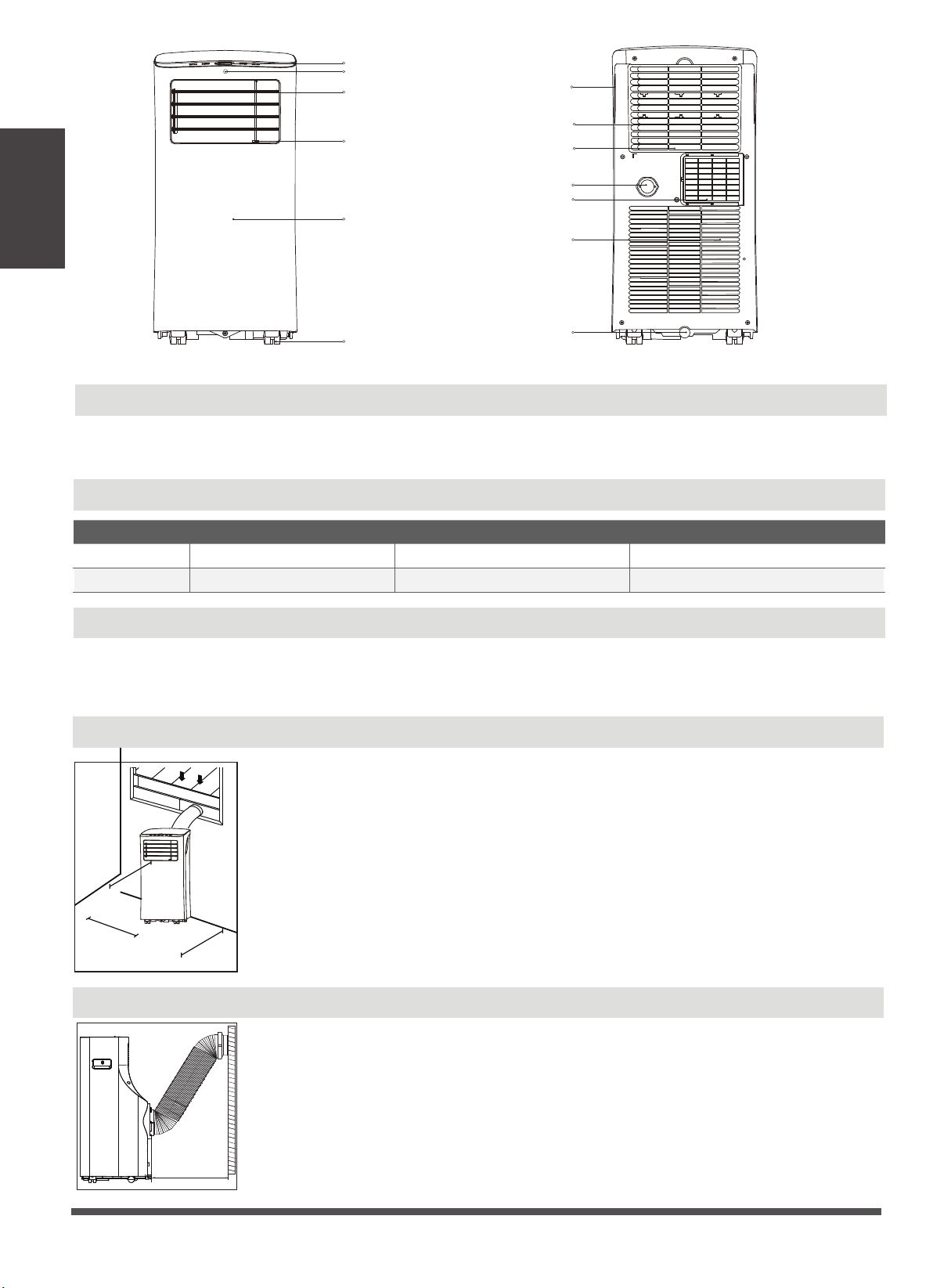

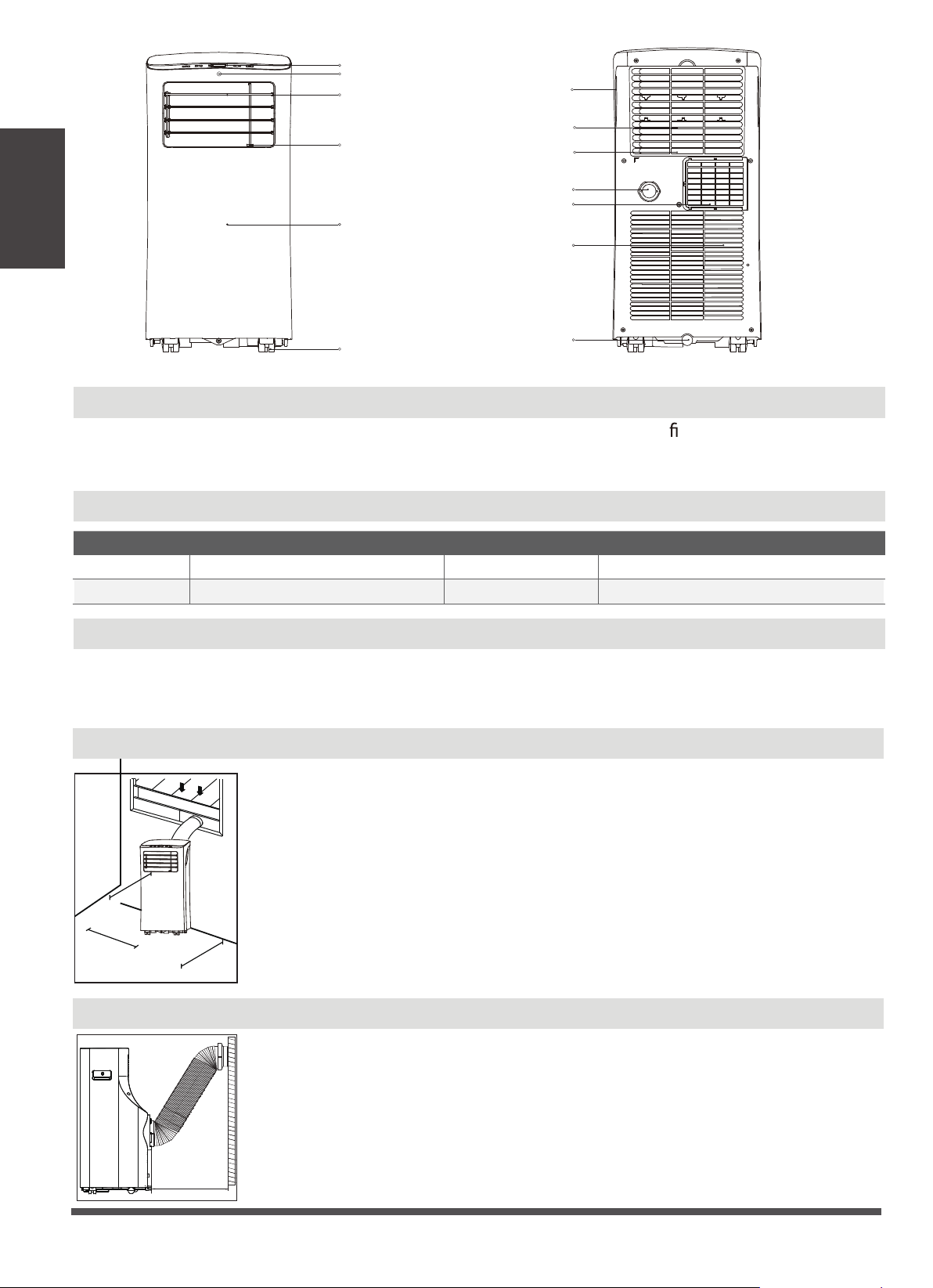

Choosing The Right Location

Recommend Installation

Your installation location should meet the following requirements:

-Make sure that you install your unit on an even surface to minimize noise and

vibration.

-The unit must be installed near a grounded plug, and the Collection Tray Drain

(found on the back of the unit) must be accessible.

-The unit should be located at least 50cm (19.7”) from the nearest wall to ensure

proper air conditioning. The horizontal louver blade should be at least 50cm

(19.7”) away from obstacles.

-DO NOT cover the Intakes, Outlets or Remote Signal Receptor of the unit, as this

could cause damage to the unit.

50cm

19.7 inch

MODE Temperature Range MODE Temperature Range

Ambient Temperature Range For Unit Operating

Cool 17-35°C (62-95°F)

Dry

Heat(pump heat mode)

Heat(electrical heat mode) 13-35°C (55-95°F)

5-30°C (41-86°F)

Exhaust Hose Installation

The exhaust hose and adaptor must be installed or removed in accordance with the usage mode. For

COOL,HEAT(heat pump type) or AUTO mode must be installed exhaust hose. For FAN, DRY or HEAT

(electrical heat type) mode must be removed exhaust hose.

30°C (86°F)

≥

front

control panel

remote signal receptor

horizontal louver control

lever(adjust manually)

vertical louver control

lever(adjust manually)

panel

Caster

NOTE: PHA can not be

adjusted.

NOTE: PHA can not be

adjusted.

rear

handle

(both sides)

bottom tray

drain outlet

air filter

upper air intake

air outlet

lower air intake

drain outlet

Design Notice

In order to ensure the optimal performance of our products, the design speci cations of the unit and

remote control are subject to change without prior notice.



Page 13



Installation

Instructions

Accessories

Tools Needed

-Medium Philips screwdriver; -Tape measure or ruler; -Knife or scissors;

-Saw (optional, to shorten window adaptor for narrow windows)

NOTE: Items with (*) are on some models. Slight variations in design may occur.

What should I look for ﬁrst when purchasing a portable air conditioner?

The right air conditioner helps you cool a room efficiently. An undersized unit won't cool adequately while

one that's too large will not remove enough humidity, leaving the air feeling damp. To find the proper air

conditioner, determine the square footage of the room you want to cool by multiplying the room length by

its width. You also need to know the air conditioner's BTU (British Thermal Unit) rating, which indicates the

amount of heat it can remove from a room. A higher

Why is the cooling capacity lower on newer models than on older units?

number means more cooling power for a larger room. (Be sure you are comparing only newer models to each

other- older models may appear to have a higher capacity, but are actually the same). Be sure to “size up” if

your portable air conditioner will be placed in a very sunny room, in a kitchen, or in a room with high ceilings.

After you’ve found the right cooling capacity or your room, you can look at other features.

Federal regulations require manufacturers to calculate cooling capacity based on a specific test procedure, which

was changed just this year. Models manufactured before 2017 were tested under a different procedure and

cooling capacity is measured differently than in prior years’models. So, while the BTUs may be lower, the actual

cooling capacity of the air conditioners has not changed.

What is SACC ?

SACC is the representative value of Seasonally Adjusted Cooling Capacity, in Btu/h, as determined in accordance

with the DOE test procedure at title 10 Code of Federal Regulations (CFR) 430, subpart B, appendix CC and

applicable sampling plans.

Energy Rating Information

How to Stay Cool with a New Portable Air Conditioner(For the models comply with the

requirements of Department Of Energy in US)

Because of a new federal test procedure for Portable Air Conditioners, you may notice that the cooling capacity

claims on portable air conditioner packaging are significantly lower than that of models produced prior to 2017.

This is due to changes in the test procedure, not to the portable air conditioners themselves.

The unit with 3 meters extended exhaust duct is running by using 2 exhaust ducts(Diameter:150mm, Length:1.5m

+ Diameter: 130mm, Length: 1.5m) .The Energy rating and noise information for unit with 3 meters extended

exhaust duct is not assessed.(For some models)

NOTE：

We recommend that operating the unit at room temperature below 35

°C

. Since there is a risk that the unit with 3

meters extended exhaust duct would not work at room temperature above 35

°C

under some extreme conditions,

such as the lower air intake be blocked for 50%.

The energy rating and noise information for this unit is based on the standard installation using an un-extended

exhaust duct without window slider adaptor (as shown in the Installation section of this manual). At the

same time, the unit must be operate on the COOL MODE and HIGH FAN SPEED by remote controller.



Page 14



Installation

Instructions

Other Regions

Name of Accessories

Qty.

Shape

Name of Accessories

Qty.

Shape

1 pc(*)Window Slider A Bolt

1 pc 1 set(*)Unit Adaptor Security Bracket and 2 Screws

1 pc 1 pcExhaust Hose Drain Hose

1 pc(*) 1 pc

Window Slider Adaptor Power Cord Buckle

/OFF

TEMP

CUT

TIMER

FAN

SLE

SWING

LED

1 set(*)1 pc(*)Window Slider B

Remote Controller and Battery

(only for remote control models)

1 pc(*)

Wall Exhaust Adaptor A

(only for wall installation models)

2 pc(*)Foam Seal A (Adhesive)

1 pc(*)

Wall Exhaust Adaptor B(with cap)

(only for wall installation models)

2 pc(*)Foam Seal B (Adhesive)

4 set(*)

Screw and anchor

(only for wall installation models)

1 pc(*)

Foam Seal C (Non-adhesive)

1 pc(*)

Drain Hose Adaptor

(only for heat pump mode)

1 pc(*)

Exhaust Hose Adaptor

Extended Exhaust Hose

1 set(*)Window Sliders

1 pc(*)Air exhaust passage

North America

Name of Accessories

Qty.

Shape

Name of Accessories

Qty.

Shape

1 pcWindow Slider A Bolt

1 pc 1 setUnit Adaptor Security Bracket and 2 Screws

1 pc 1 pcExhaust Hose Drain Hose

1 pc

(on some models)

(on some models) (on some models)

(on some models)

1 pc

Window Slider Adaptor Power Cord Buckle

ON/OFF

ORT

TIMER

OFF

ODE

LED

1 set(*)1 pcWindow Slider B

Remote Controller and Battery

(only for remote control models)

1 pc(*)Window Slider C

2 pc/4 pc(*)

1 pc/2 pc(*)

Foam Seal A (Adhesive)

2 pc Foam Seal B (Adhesive)

1 pc/2 pc(*)

Foam Seal C (Non-adhesive)

1 pc(*)

Drain Hose Adaptor

(only for heat pump mode)

1 pc(*)

Exhaust Hose Adaptor

Extended Exhaust Hose

1 pc(*)Air exhaust passage

1 set(*)Window Sliders



Page 15



Installation

Instructions

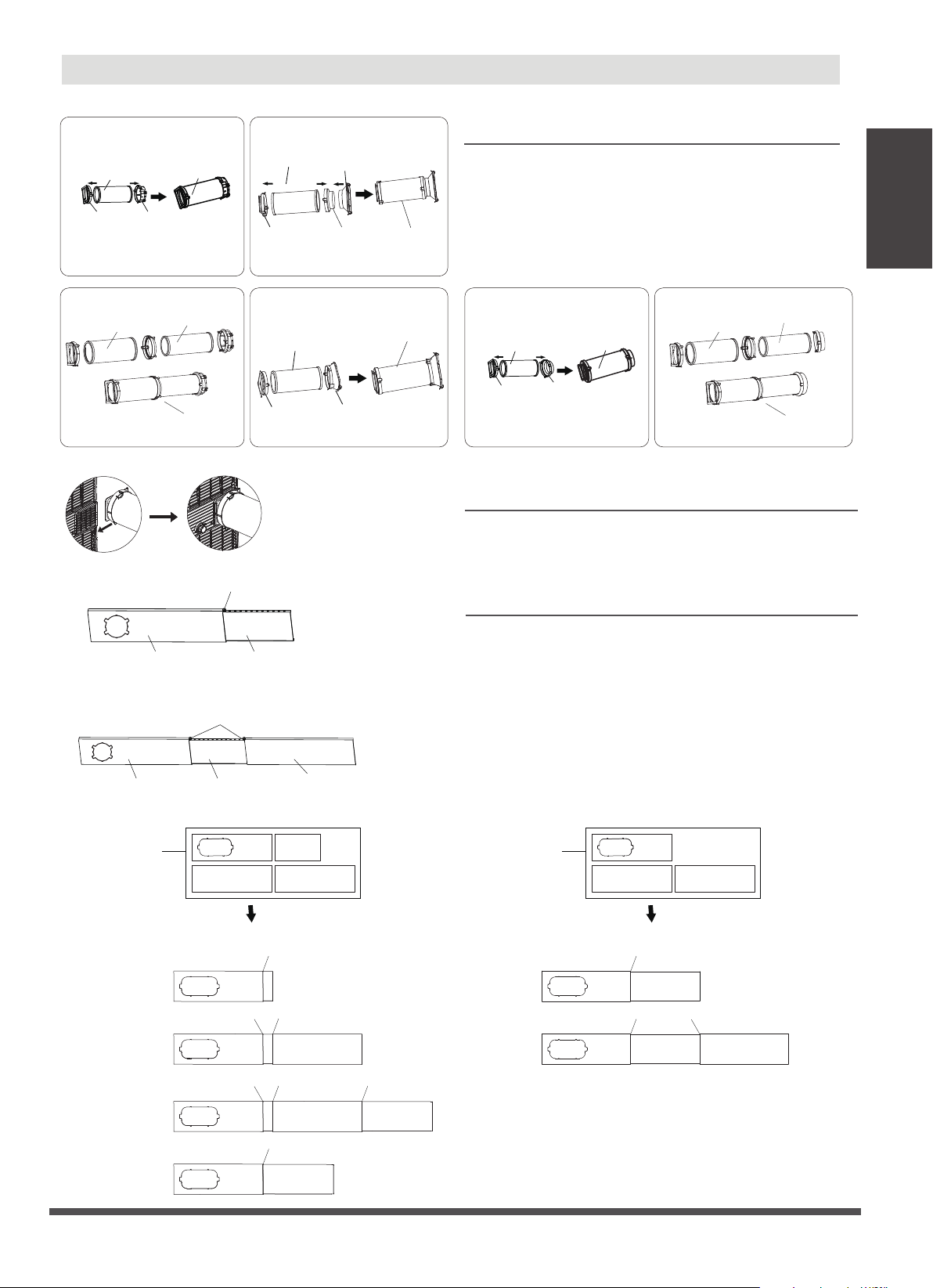

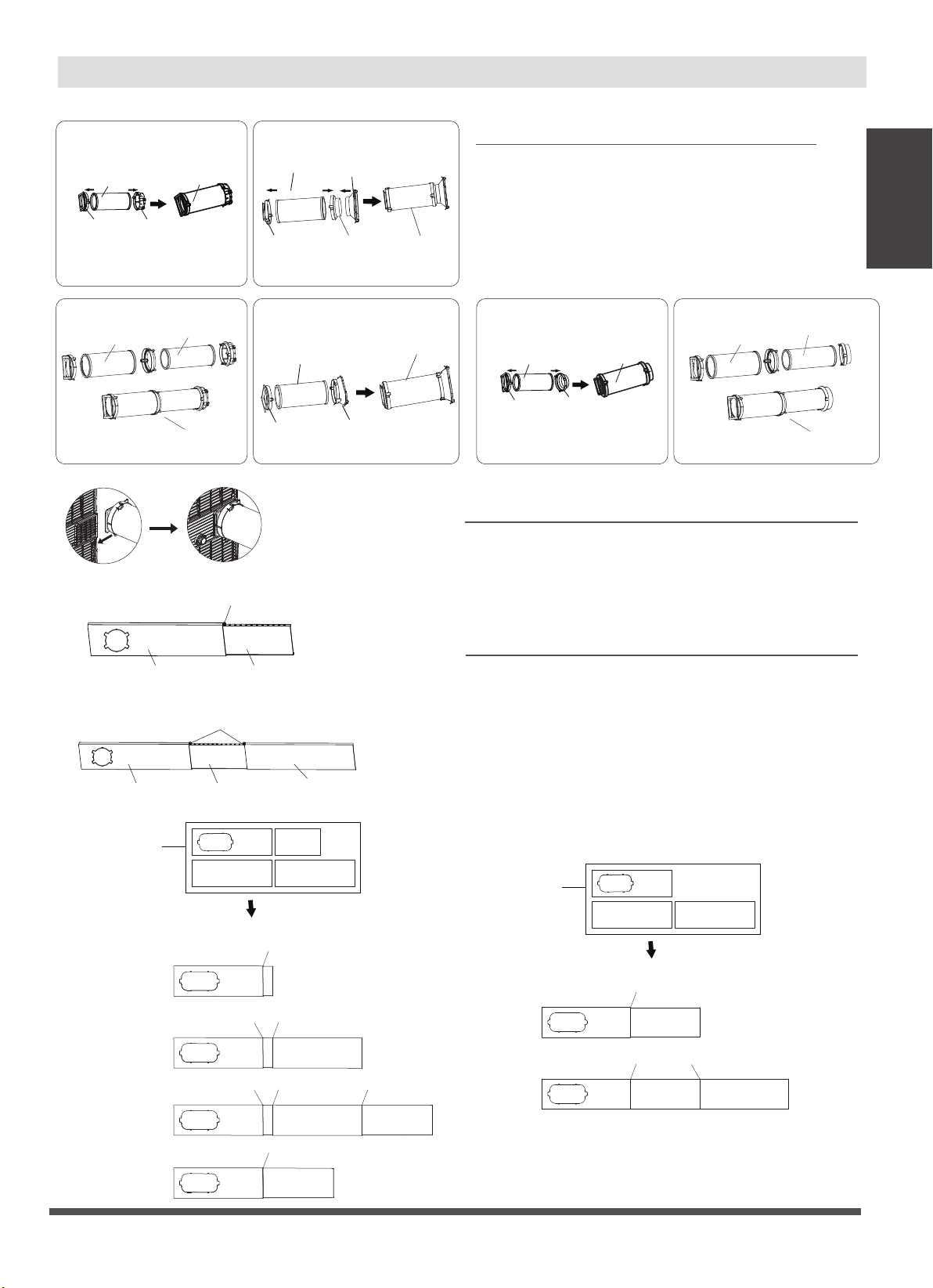

Step Three: Preparing the Adjustable Window Slider

1. Choose the window sliders according the size of

your window. Sometimes, it needs to be cut short

to meet the window size, please take extra care to

cut it properly.

2. Use bolts to fasten the window sliders once they

are adjusted to the Proper length.

Window slider A Window slider B

Bolt

Window slider A Window slider B

Window slider C

Bolts

Step Two: Install the Exhaust hose assembly to the unit

Push the Exhaust hose into the airoutlet opening of

the unit along the arrow direction.

MODEL A

MODEL B MODEL C

1+2：

Bolt

1+2+3：

1+2：

1+2+3：

Bolt

1+2+3+4：

Bolt

BoltBolt

1+4：

Bolt

Window Sliders

After assembly

Before assembly

Window Sliders

After assembly

Before assembly

Window Installation Kit

Press the exhaust hose(or extended exhaust hose)

into the window slider adaptor(or wall exhaust

adaptor) and unit adaptor, clamp automatically by

elastic buckles of the adaptors.

Step One: Preparing the Exhaust Hose assembly

Unit adaptor

Window slider

adaptor

Exhaust hose

assembly

Exhaust hose

Extended Exhaust

hose

Exhaust hose assembly

Model D

Type window installation:

Model C

Model A Model B

Window slider

adaptor

Exhaust hose

assembly

Exhaust hose

Air exhaust

passage

Unit adaptor

Exhaust hose

assembly

Exhaust hose

Unit adaptor

Air exhaust

passage

Exhaust hose

assembly

Unit adaptor Wall exhaust

adaptor A

Exhaust hose

Extended Exhaust

hose

Exhaust hose assembly

Type wall installation:

Model A Model B



Page 16



Installation

Instructions

Installation

NOTE: Once the Exhaust Hose assembly and Adjustable Window Slider are prepared, choose from one of

the following two installation methods.

Foam seal B

(Adhesive type-shorter)

Foam seal A

(Adhesive type)

Type 1: Hung Window or Sliding Window Installation(For some models)

1. Cut the adhesive foam seal A and B strips to the proper lengths, and attach them to the window sash

and frame as shown.

Foam seal B

(Adhesive type-shorter)

Foam seal A

(Adhesive type)

Window

slider A

Window slider

B(if required)

Foam seal C

(Non-adhesive type)

3. Cut the non-adhesive foam seal C strip to match the width(or height) of the window. Insert the seal

between the glass and the window frame to prevent air and insects from getting into the room.

2. Insert the window slider assembly into the window opening.

Window slider A

Window slider B

(if required)

Foam seal C

(Non-adhesive type)

2 Screws

Security Bracket

4. If desired, install the security bracket with 2 screws as shown.

2 Screws

Security

Bracket



Page 17



Installation

Instructions

NOTE: To ensure proper function, DO NOT overextend or bend the hose. Make sure that there is no obstacle

around the air outlet of the exhaust hose (in the range of 500mm) in order to the exhaust system works

properly. All the illustrations in this manual are for explanation purpose only. Your air conditioner may be

slightly different. The actual shape shall prevail.

NOTE: Cover the hole using the

adaptor cap when not in use.

max 120cm or 47 inch

min 30cm or 12 inch

Expansion anchor

position

Adaptor cap

Wall Exhaust

Adaptor B

5. Insert the window slider adaptor into the hole of the window slider.

Type 2: Wall Installation(For some models)

1. Cut a 125mm (4.9inch) hole into the wall for the Wall Exhaust Adaptor B.

2. Secure the Wall Exhaust Adaptor B to the wall using the four Anchors and Screws provided in the kit.

3. Connect the Exhaust Hose Assembly(with Wall Exhaust Adaptor A) to the Wall Exhaust Adaptor B.

Operating Instructions

Control Panel Features

MODE button

Selects the appropriate operating mode. Each

time you press the button, a mode is selected in a

sequence that goes from COOL, FAN, DRY, HEAT

(on some models), and AUTO(on some models).

The mode indicator light illuminates under the

different mode setting.

NOTE: On above modes, the unit operates the auto

fan speed automatically.

Used to adjust (increasing/decreasing) temperature

settings in 1°C/2°F(or 1°F) increments in a range of

17°C/62°F to 30°C/88°F (or 86°F).

NOTE: The control is capable of displaying

temperature in degrees Fahrenheit or degrees

Celsius. To convert from one to the other, press and

hold the Up and Down buttons at the same time for

3 seconds.

Up (+) and Down (-) buttons

Power button

Power switch on/off.

Power

indicator light

Timer indicator

light(only set by

remote controller)

LED display

Shows the set temperature while on cool,

heat or auto mode. While on DRY and FAN

modes, it shows the room temperature.

Shows Error codes:

E0-EEPROM error.

E1-Room temperature sensor error.

E2-Evaporator temperature sensor error.

E3-Condenser temperature sensor error

(on some models).

E4-Display panel communication error.

EC-Refrigerant leakage detection

malfunction(on some models).

Shows protection code:

P1-Bottom tray is full--Connect the drain

hose and drain the collected water away.

If protection repeats,call for service.

NOTE: When one of the above malfunctions

occurs, turn off the unit, and check for any

obstructions. Restart the unit, if the

malfunction is still present, turn off the unit

and unplug the power cord. Contact the

manufacturer or its service agents or a

similar qualified person for service.

NOTE: The following control panels

are for explanation purpose only. The control panel of the unit you

purchased may be slightly different according to the models. Your machine may not contain some indicators or

buttons. The actual shape shall prevail.



Page 18



Operating

Instructions

Operation Instructions

COOL operation

· Press the "MODE" button until the "COOL" indicator

light comes on.

· Press the ADJUST buttons "+" or "-" to select your

desired room temperature. The temperature can be

set within a range of 17°C~30°C/62°F~88°F(or 86°F).

· Press the "FAN SPEED" button to choose the

fanspeed. (on some models)

Wireless indicator

light(only for the

unit with wireless

controll feature)

Either Timer

or Wireless

indicator light

Vent Constant

CONSTANT FAN(Press 3s)

VENT CONSTANT(Presse 3s)

CONSTANT FAN(Press 3s)

VENT CONSTANT(Presse 3s)

Other features

DRY operation

· Press the "MODE" button until the "DRY" indicator

light comes on.

· The fan speed or the temperature cannot be

adjusted. The fan motor operates at LOW speed.

(on some models)

NOTE:Keep windows and doors closed for the best

dehumidifying effect.

FAN operation

· Press the "MODE" button until the"FAN " indicator

light comes on.

· Press the "FAN SPEED" button

the remote

controller to choose the fan speed. The temperature

can not be adjusted.

· Do not put the duct to window.

AUTO operation(on some models)

· When you set the air conditioner in AUTO mode, it

will automatically select cooling, heating(cooling

only models without), or fan only operation

depending on what temperature you have selected

and the room temperature.

· The air conditioner will control room temperature

automatically round the temperature point set by

you.

· Under AUTO mode, you can not select the fan speed.

HEAT operation(cooling only models without)

· Press the "MODE" button until the "HEAT" indicator

light comes on.

· Press the ADJUST buttons "+" or " - " to select your

desired room temperature. The temperature can be

set within a range of 17°C~30°C/62°F~88°F (or 86°F).

· Press the "FAN SPEED" button on the remote

controller to choose the fan speed.

Wireless operation(on some models)

Used to initiate the wireless connection mode. For the

first time to use wireless function, press the POWER

button for 3 seconds to initiate the wireless connection

mode . The LED DISPLAY shows 'AP' to indicate you can

set wireless connection. If connection(router) is successful

within 8 minutes, the unit will exit wireless connection

mode automatically and the wireless indicator illuminates.

If connection is failure within 8 minutes, the unit exits

wireless connection mode automatically. After Wireless

connection is successful, for some models you can

press MODE and UP (+) buttons at the same time

for 3 seconds to turn off Wireless function and the LED

DISPLAY shows 'OF' for 3 seconds, press MODE button

and UP(+) to turn on Wireless function and the LED

DISPLAY shows 'On' for 3 seconds.

NOTE: When you restart the wireless function, it may

take a period of time to connect to the network

automatically.

NOTE: Under AUTO mode, both the AUTO mode and

the actual operation mode indicator lights illuminate

for some models.

SLEEP/ECO operation

This feature can be activated from the remote control

ONLY. To activate SLEEP feature, the set temperature

will increase(cooling) or decrease(heating) by 1°C/2°F

(or 1°F) in 30 minutes. The set temperature will then

increase(cooling) or decrease(heating) by another 1°C

/2°F (or 1°F) after an additional 30 minutes. This new

temperature will be maintained for 7 hours before it

returns to the originally selected temperature. This

ends the Sleep mode and the unit will continue to

operate as originally programmed.

NOTE: This feature is unavailabe under FAN or DRY

mode.

FOLLOW ME/TEMP SENSING feature(on some models)

NOTE:This feature can be activated from the remote

control ONLY. The remote control serves as a remote

Constatnt Fan button(On some models)

In cooling or Dry mode, press the button for

3 seconds to turn on or off the constant fan

function. When the function is turned on, the

constant fan light will illuminate, identifying

the fan continuous run for cooling. When the

function is turned off, the constant fan light

will go out, identifying the fan cycle run with

compressor stop.



Page 19



Operating

Instructions

FRESH operation(on some models)

Press MODE and DOWN (-) buttons at the same time

for 3 seconds to initiate FRESH feature and the FRESH

light illumiantes on some models, the LED DISPLAY

shows '

' for 3 seconds. The ion generatoris energized

and will help to purify the air inside. Press it for 3

seconds again to stop the FRESH feature and the FRESH

light turn dark on some models, the LED DISPLAY shows

'OF' for 3 seconds for some units.

CONSTANT FAN(Press 3s)

VENT CONSTANT(Presse 3s)

thermostat allowing for the precise temperature

control at its location. To activate the Follow Me/Temp

Sensing feature, point the remote control towards the

unit and press the Follow Me/Temp Sensing button.

The remote control will send this signal to the air

conditioner until press the Follow Me/Temp Sensing

button again. If the unit does not receive the Follow

Me/Temp Sensing signal during any 7 minutes interval,

the unit will exit the Follow Me/Temp Sensing mode.

NOTE: This feature is unavailabe under FAN or DRY

mode.

AUTO-RESTART

If the unit breaks off unexpectedly due to the power

cut, it will restart with the previous function setting

automatically when the power resumes.

WAIT 3 MINUTES BEFORE RESUMING OPERATION

After the unit has stopped, it can not be restarted

operation in the first 3 minutes. This is to protect the

unit. Operation will automatically start after 3

minutes.

AIR FLOW DIRECTION ADJUSTMENT

Adjust the air flow direction manually:

· The louver can be set to the desired position manually.

· Do not place any heavy objects or other loads on the

louver, doing so will cause damage to the unit.

· Ensure the louver is fully opened under heating

operation.

· Keep the louver fully opened during operation.

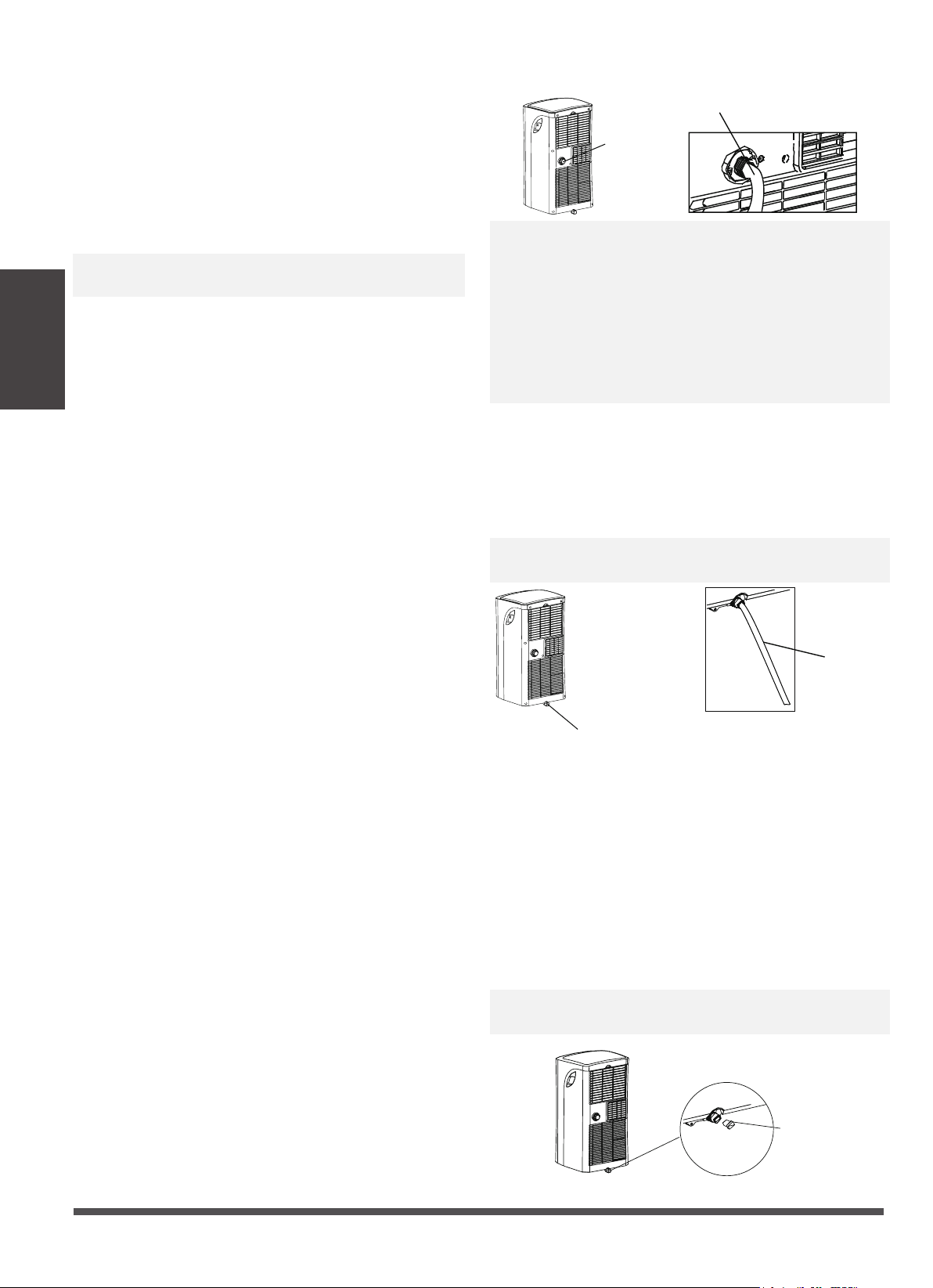

WATER DRAINAGE

· During dehumidifying modes, remove the drain plug

from the back of the unit, install the drain connector

(5/8" universal female mender) with 3/4" hose(locally

purchased). For the models without drain connector,

just attach the drain hose to the hole. Place the open

end of the hose directly over the drain area in your

basement floor.

Remove the

drain plug

Continuous

drain hose

NOTE: Make sure the hose is secure so there are no

leaks. Direct the hose toward the drain, making sure

that there are no kinks that will stop the warter

flowing. Place the end of the hose into the drain and

make sure the end of the hose is down to let the water

flow smoothly. When the continuous drain hose is not

used, ensure that the drain plug and knob are installed

firmly to prevent leakage.

Continuous

drain hose

Remove the drain plug

· During heating pump mode, remove the lower drain

plug from the back of the unit, install the drain

connector(5/8" universal female mender) with 3/4"

hose(locally purchased). Carefully move the unit to a

drain location, and let the water drain away.

NOTE: Make sure the drain hose is lower than the

bottom tray drain outlet.

· When the water level of the bottom tray reaches a

predetermined level, the unit beeps 8 times, the

digital display area shows "P1" . At this time the air

conditioning/dehumidification process will

immediately stop. However, the fan motor will

continue to operate(this is normal). Carefully move

the unit to a drain location, remove the bottom drain

plug and let the water drain away. Reinstall the

bottom drain plug and restart the machine until the

"P1" symbol disappears. If the error repeats, call for

service.

NOTE: Be sure to reinstall the bottom drain plug firmly

to revent leakage before using the unit.

Bottom drain

plug

POWER MANAGEMENT feature(On some models)

Under cooling operation, when the ambient

temperature is lower than the setting temperature for

a period of time, the unit will be automatically operate

power management feature. The compressor and fan

motor stop. When the ambient temperature is higher

than the setting temperature, the unit will be

automatically quit the power management feature.

The compressor and (or) fan motor run.



Page 20



Operating

Instructions

Safety Precautions

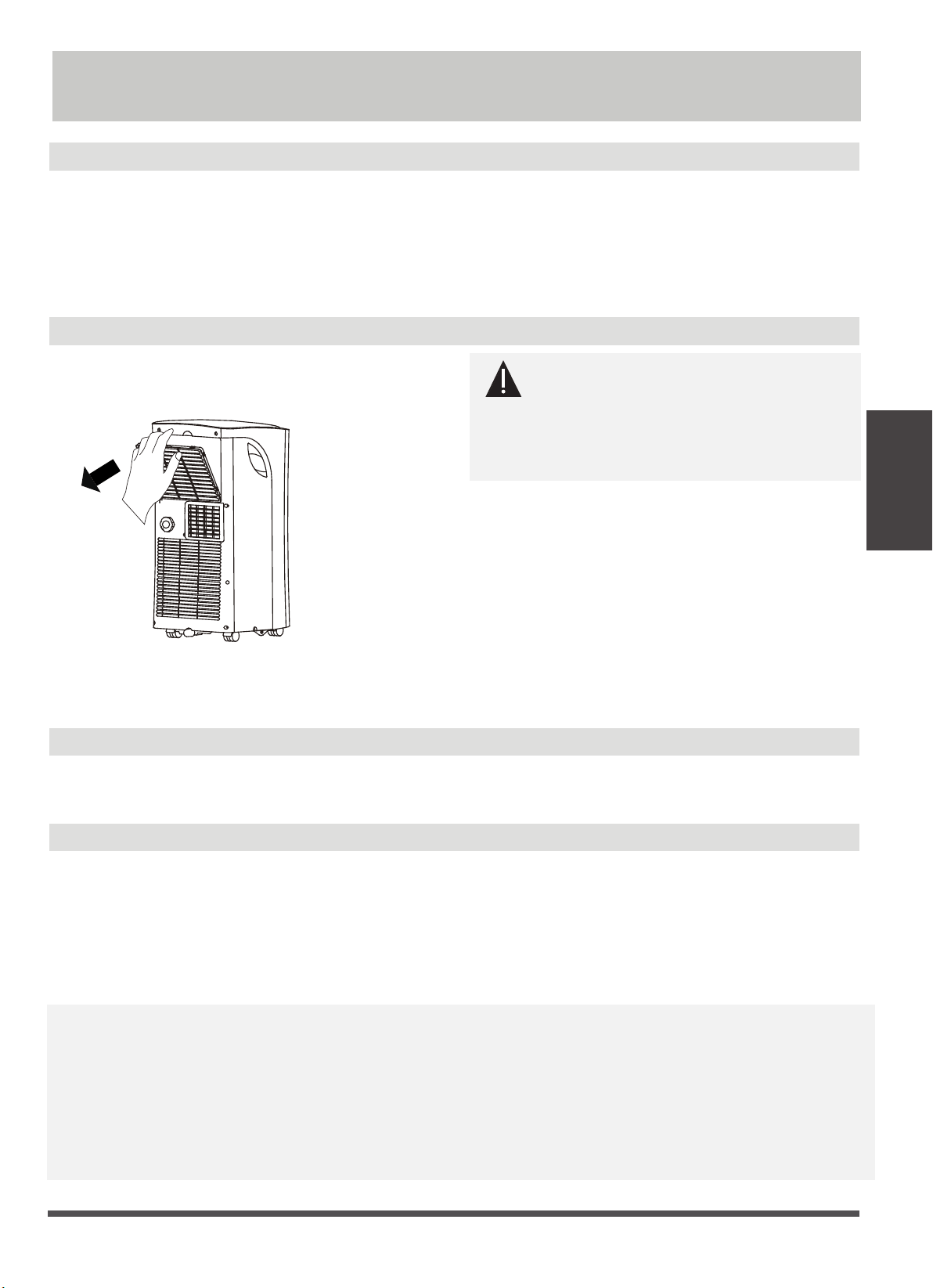

Air Filter Cleaning

Unit Cleaning

Store the unit when not in use

Maintenance

· Always unplug the unit before cleaning or servicing.

· DO NOT use flammable liquids or chemicals to clean the unit.

· DO NOT wash the unit under running water. Doing so causes electrical danger.

· DO NOT operate the machine if the power supply was damaged during cleaning. A damaged

power cord must be replaced with a new cord from the manufacturer.

CAUTION

DO NOT operate the unit without filter

because dirt and lint will clog it and reduce

performance.

Maintenance Tips

· Be sure to clean the air filter every 2 weeks for

optimal performance.

· The water collection tray should be drained

immediately after P1 error occurs, and before

storage to prevent mold.

· In households with animals, you will have to

periodically wipe down the grill to prevent

blocked airflow due to animal hair.

Clean the unit using a damp, lint-free cloth and mild detergent. Dry the unit with a dry, lint-free

cloth.

· Drain the unit’s water collection tray according to the instructions in the following section.

· Run the appliance on FAN mode for 12 hours in a warm room to dry it and prevent mold.

· Turn off the appliance and unplug it.

· Clean the air filter according to the instructions in the previous section. Reinstall the clean, dry

filter before storing.

· Remove the batteries from the remote control.

NOTE: Be sure to store the unit in a cool, dark place. Exposure to direct sunshine or extreme heat

can shorten the lifespan of the unit.

Maintenance

Remove the air filter

Air filter

(take out)

NOTE: The cabinet and front may be dusted with an oil-free cloth or washed with a cloth

dampened in a solution of warm water and mildliquid dishwashing detergent. Rinse thoroughly

and wipe dry. Never use harsh cleansers, wax or polish on the cabinet front. Be sure to wring excess

water from the cloth before wiping around the controls. Excess water in or around the controls may

cause damage to the unit.



Page 21



Troubleshooting Tips

Troubleshooting

Tips

Problem Possible Causes Solution

Unit does not turn

on when pressing

ON/OFF button

P1 Protection Code

E0 EEPROM error

Contact the manufacturer or its service agents or a

similar qualified person for service.

In COOL mode: room

temperature is lower than

the set temperature

Reset the temperature

The Water Collection Tray is full. Turn off the

unit, drain the water from the Water Collection

Tray and restart the unit.

The air filter is blocked with

dust or animal hair

The unit is low on

refrigerant

Temperature setting is too

high

The windows and doors in

the room are open

The room area is too large

Unit does not cool

well

Exhaust hose is not

connected or is blocked

There are heat sources

inside the room

Turn off the unit and clean the filter according

to instructions

Call a service technician to inspect

the unit and top off refrigerant

Decrease the set temperature

Make sure all windows and doors are closed

Double-check the cooling area

Turn off the unit, disconnect the hose, check for

blockage and reconnect the hose

Remove the heat sources if possible

The unit is noisy

and vibrates too

much

The unit makes a

gurgling sound

The ground is not level Place the unit on a flat, level

surface

The air filter is blocked with

dust or animal hair

Turn off the unit and clean the filter according

to instructions

This sound is caused by the

flow of refrigerant inside

the unit

This is normal

Impedance Information

To be in compliance EN 61000-3-11, the product MPPH-08CRN7-QB6 shall be connected only to

a supply of the system impedance: | Zsys|=0.451 ohms or less, the product MPPH-09CRN7-QB6G1

shall be connected only to a supply of the system impedance: | Zsys|=0.437 ohms or less, Before

connect the product to public power network, please consult your local power supply authority

to ensure the power network meet above requirement.



Page 22





Page 23



Remote Controller Illustration

Model

Rated voltage

8 m

3.0 V (dry batteries R03/LR03×2)

Environment

Signal receiving range

RG57H3(B)/BGCEF-M and RG57H1(B)/BGCE-M

Remote Control Specifications

CAUTION:

INGESTION HAZARD - Contains small batteries, Keep out of reach of small

children. If swallowed, seek immediate medical attention.

O O O O

-5 C~60 C (23 F~140 F)

TEMP SENSING

(on some models)

Temperature

sensing and

room temperature

display button.



Page 24



Remote Controller Illustration

Function Buttons

Before using your new air conditioner, make sure to familiarize yourself with the remote

controller. The following is a brief introduction to the remote controller. For instructions on how to

operate your air conditioner, refer to the How to Use the Basic Functions" section of this manual.

ON/OFF

Turns the unit on or off.

MODE

Scrolls through operation

modes as follows:

AUTO

COOL DRY FAN

FAN SPEED

Selects fan speeds in

the following order:

AUTO

LOW

MED HIGH

SLEEP

Saves energy during

sleeping hours.

SHORT CUT

Sets and activates your

favourite presettings.

TEMP

Increases the temperature in

O O

1 C (1 F) increments.

Max. temperature is

O O

30 C (86 F).

O O

17 C (62 F).

TEMP

Decreases temperature in

O O

Min. temperature is

TIMER ON

Sets the timer to turn the unit

on refer to "How to Use

Basic Functions" for

instructions).

TIMER OFF

Sets the timer to turn the unit

off refer to "How to Use

Basic Functions" for

instructions).

LED

Turns on off indoor unit s LED

NOTE: If you are sensitive

to light when you go to

sleep, you can press the

LED button to turn off

the LED display on the

unit. Press the button

again to turn it back on.

display.

NOTE: Press and hold the

and buttons together for

3 seconds to switch the

temperature display

O O

between the C & F scale.

(on some models)



Page 25



Remote Controller Illustration

UNSURE ABOUTAFUNCTION

Refer to the "How to Use Basic Functions" and

"How to Use Advanced Functions" sections

of this manual foradetailed description of

how to use your air conditioner.

SPECIAL NOTE

Button designs on your unit may differ

slightly from the example shown.

If the unit does not have a particular

function, pressing that function button

on the remote controller will have no effect.

If the function description in the

OPERATOR'S MANUAL and "Remote

Controller Illustration" is significantly different,

the description in the OPERATOR'S MANUAL

shall prevail.

TIPS FOR USING THE REMOTE CONTROLLER

The remote controller must be used within 8

meters of the unit.

The unit will beep when the remote signal is

received.

Curtains, other materials, and direct sunlight

can interfere with the infrared signal receiver.

Remove batteries if the remote will not be

used for more than2months.

Inserting and Replacing Batteries

Your air conditioning unit comes with two AAA

batteries. Put the batteries in the remote

controller before use.

1. Slide the back cover from the remote

controller downward, to expose the battery

compartment.

2. Insert the batteries, making sure to match

up the (+) and (-) ends of the batteries with

the symbols inside the battery compartment.

3. Slide the battery cover back into place.

BATTERY NOTES

For optimum product performance:

Do not mix old and new batteries. Do not

mix alkaline, standard(carbon-zinc),or

rechargeable(ni-cad,-ni-mh,etc) batteries.

BATTERY DISPOSAL

Do not dispose of batteries as unsorted

municipal waste. Refer to local laws for

proper disposal of batteries.

Do not leave batteries in the remote

controller if not planning to use device for

more than 2 months.

Handling the Remote Controller



Page 26



Remote Controller Illustration

MODE display

Displays the current

mode, including:

AUTO

COOL

DRY

HEAT

FAN

Transmission indicator

Lights up when the remote sends

asignal to the unit.

ON/OFF display

Appears when the unit is turned on

and disappears when it is turned off.

TIMER ON display

Displays when TIMER

ON is set.

TIMER OFF display

Displays when TIMER

OFF is set.

SLEEP display

Battery display

SILENT display

ECO display

Displays when

the SLEEP function

is activated

FAN SPEED display

Displays the selected FAN SPEED:

HIGH, MED(on some

models), or LOW.

This display is blank when

set to AUTO speed.

Temperature/Timer display

Displays the set temperature by default or timer setting

when using TIMER ON/OFF functions:

o O O

Temperature range: 17-30 C (62 F-86 F)

Timer setting range: 0-24 hours.

This display is blank when operating in FAN mode.

Not available for this unit.

Not available for

this unit.

Not available for

this unit.

Low battery

detection.

Remote LED Screen Indicators

TEMP SENSING

Temperature

sensing and

room temperature

display button.

(on some models)



Page 27



Remote Controller Illustration

1. Press the MODE button to select the

COOL mode.

2. Set your desired temperature using

the Temp or Temp button.

3. Press the FAN button to select the

fan speed: AUTO, LOW, MED(on

some models),or HIGH.

4. Press the ON/OFF button to start the

unit.

In Auto mode, the unit will automatically

select the COOL, FAN, HEAT(on some models),

or DRY mode based on the set temperature.

1. Pr

mode.

ess the MODE button to select Auto THE

2. Set your desired temperature using the

Temp or Temp button.

3. Press the ON/OFF button to start the unit.

NOTE: FAN SPEED cannot be set in Auto mode.

SETTING THE TEMPERATURE

The operating temperature range for units is

O O O

17-30 C (62 F-86 F).

You can increase or

O O

decrease the set temperature in 1 C (1 F)

increments.

How to Use the Basic Functions

COOL Operation

AUTO Operation



Page 28



Remote Controller Illustration

1. Press the MODE button to select the DRY

mode.

2. Set your desired temperature using the

Temp or Temp button.

3. Press the ON/OFF button to start the unit.

NOTE: FAN SPEED cannot be changed in

DRY mode.

1. Press the MODE button to select the FAN

mode.

2. Press the FAN button to select the fan

speed: AUTO, LOW, MED(on some models),

or HIGH.

3. Press the ON/OFF button to start the

unit.

NOTE: The temperature cannot be set in

FAN mode. Asaresult, your remote

controller’ sLCD screen will not display

the temperature.

How to Use the Basic Functions

FAN Operation

DRY Operation (dehumidifying)



Page 29



Remote Controller Illustration

2. Press the TIMER ON button repeatedly

to set the time when you want the unit to

turn on.

3. Wait 2 seconds, then the TIMER ON

function will be activated. Your remote

controller digital display will then go back

to the temperature display.

Example

hours.

: Unit set to turn on after 2.5

ON/OFF

MODE

FAN

SHORT

CUT

TIMER ON

TIMER OF

TEMP

This number indicates the

amount of time after the current time

that you want the unit to turn on.

For example, if you set TIMER ON for

2 hours

(2.0 h) will appear on the

screen and the unit will turn on after

2 hours.

Press the TIMER ON button. By

default, the last time period that you

set and an "h" (indicating hours) will

appear on the display.

Note:

TIMER ON Function

The TIMER ON function allows you to set

a period of time after which the unit will

automatically turn on, for instance when

you come home from work.

Your air conditioning unit has two

timer-related functions:

TIM

ER ON- sets the amount of time after

which the unit will automatically turn on.

TIMER OFF- sets the amount of time after

which the unit will automatically turn off.

TIMER ON TIMER ON

Setting the TIMER Function



Page 30



Remote Controller Illustration

NOTE: When setting the TIMER ON or

TIMER OFF functions up to 10 hours,

the time will increase in 30-minute

increments with each press. After 10

hours and up to 24 hours, it will increase

in 1-hour increments. The timer will revert

to zero after 24 hours.

You can turn off either function by

setting the timer to

0.0h.

Press the TIMER OFF button repeatedly

to set the time when you want the unit to

turn off.

3. Wait 2 seconds, then the TIMER OFF

function will be activated. Your remote

controller digital display will then go back

to the temperature display.

Example

hours.

: Unit set to turn off after 5

TIMER OFF Function

The TIMER OFF function allows you to

set a period of time after which the unit

will automatically turn off for instance when

you wake up.

This number indicates the

amount of time after the current time

that you want the unit to turn off.

For example, if you set TIMER OFF for

2 hours

(2.0 h) will appear on the screen

and the unit will turn off after 2 hours.

Press the TIMER OFF button. By

default, the last time period that you

set and an "h" (indicating hours) will

appear on the display.

Note:

x10

ON/OFF

MODE

SHORT

CUT

TIMER ON

TIMER OF

TEMP

EEP

TIMER OFF

Continue to press

TIMER ON

TIMER OFF until

the desired time is

reached.



Page 31



Remote Controller Illustration

Setting TIMER ON and TIMER OFF at the Same Time

Keep in mind that the time periods you set for both functions refer to hours after the

current time.

For example, if the current time is 1:00 PM and you want the unit

to turn on automatically at 7 PM, operate for 2 hours, and automa-tically turn off at

9 PM, do the following:

ON/OFF

MODE

SHORT

CUT

TIMER ON

TEMP

sec

X12

X16

TIMER ON

TIMER OFF



Page 32



Remote Controller Illustration

Example: Setting the unit to turn on after 6 hours, operate for 2 hours, then turn off

(see the figure below).

Your remote display

Timer is set to turn ON

6 hours from the current time

Timer is set to turn OFF

8 hours from the current time

Current

time 1PM

2PM 3PM

4PM 5PM

6PM 7PM 8PM 9PM

Timer starts

Unit turns Unit turns

OFF

6 hours later

8 hours later

Timer on

Timer off



Page 33



Remote Controller Illustration

How to Use the Advanced Functions

SHORTCUT function

The SLEEP function is used to decrease

energy use while you sleep (and don t need

the same temperature settings to stay

comfortable). This function can only be

activated via remote control.

Note: The SLEEP function is not available

in FAN or DRY mode.

Used to restore the current settings or resume

previous settings.

Push this button when remote controller is on,

the system will automatically revert back to

the previous settings including operating mode,

setting temperature, fan speed level and sleep

feature (if activated).

If pushing more than 2 seconds, the system

will automatically restore the current operation

settings including operating mode, setting

temperature, fan speed level and sleep

feature(if activated ).

SLEEP Function



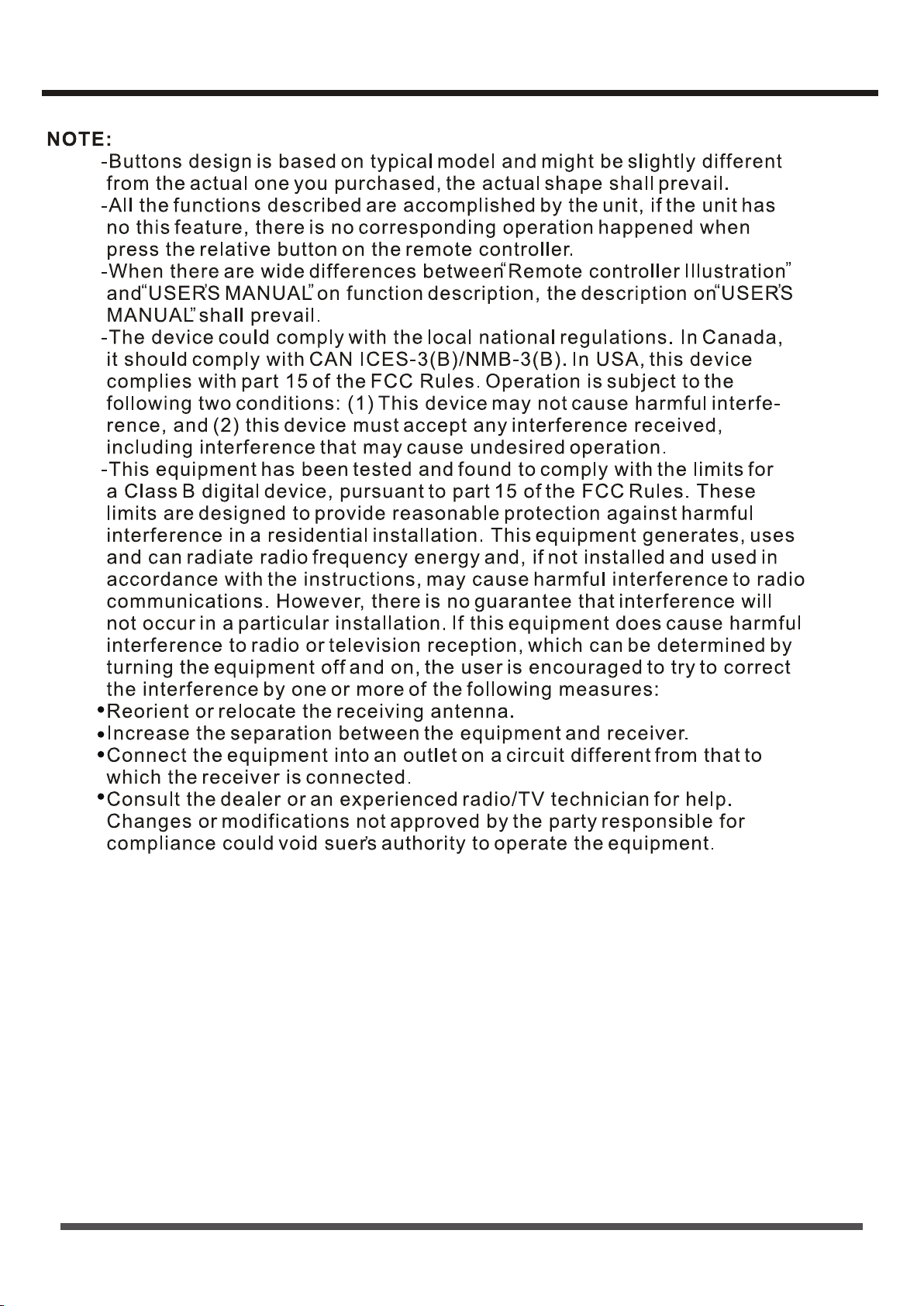

Page 34





Page 35



Extension gratuite

de 3 mois de la période

de garantie limitée initiale!*

Envoyez simplement une

photo de votre preuve d’achat

par message texte au :

1-844-224-1614

*L’extension de garantie porte sur les trois mois

suivant immédiatement

la ﬁn de la période de garantie initiale du produit.

Les particuliers n'ont pas besoin d'enregistrer le

produit pour obtenir tous les droits et recours des

propriétaires enregistrés en vertu de la garantie

limitée d'origine.

MP05DRWBA3RCM

MP07DRWBA3RCM

Précautions de sécurité...........................................................................................................03

Précautions de sécurité

Instructions d'installation

Mode d'emploi

Maintenance

Table des matières

Conseils de dépannage

Instructions de commande à distance

Garantie limitée des climatiseurs

Préparation..............................................................................................................................11

Avis de dessin ou modèle .......................................................................................................11

Plage de température ambiante pour le fonctionnement de l'appareil ....................................12

Installation de tuyaux d'échappement .....................................................................................12

Choisir le bon emplacement....................................................................................................12

Informations sur la cote énergétique .......................................................................................12

Outils nécessaires ...................................................................................................................13

Accessoires .............................................................................................................................13

Kit d'installation des fenêtres...................................................................................................14

Installation ...............................................................................................................................16

Conseils de dépannage...........................................................................................................22

Boutons de fonction.................................................................................................................23

Manipulation de la télécommande...........................................................................................24

Indicateurs d'écran LED à distance.........................................................................................25

Mode d’utilisation des fonctions de base.................................................................................26

Réglage de la fonction MINUTERIE........................................................................................29

Comment utiliser les fonctions avancées ................................................................................33

Garantie limitée des climatiseurs ............................................................................................35

Caractéristiques du panneau de contrôle................................................................................18

Instructions d'utilisation ...........................................................................................................18

Autres fonctions.......................................................................................................................19

Précautions de sécurité...........................................................................................................21

Nettoyage du filtre à air ...........................................................................................................21

Nettoyage de l'unité.................................................................................................................21

Ranger l'appareil lorsqu'il n'est pas utilisé...............................................................................21



Page 3

Précautions

de sécurité

AVERTISSEMENT

Précautions de sécurité



Page 3

AVERTISSEMENT

ATTENTION

Lire les précautions de sécurité avant l'utilisation et l'installation Pour éviter la mort ou les

blessures de l'utilisateur ou d'autres personnes et les dommages matériels, les instructions

suivantes doivent être suivies. Une utilisation incorrecte due à l'ignorance des instructions

peut entraîner la mort, des blessures ou des dommages.

Ce symbole indique la possibilité de

blessures ou de pertes de vies humaines.

Ce symbole indique la possibilité de dommages

matériels ou de conséquences graves.

• L'installation doit être effectuée conformément aux instructions d'installation. Une installation incorrecte

peut provoquer une fuite d'eau, un choc électrique ou un incendie.

• Utilisez uniquement les accessoires et les pièces fournies, ainsi que les outils spécifiés pour

l'installation. L'utilisation de pièces non standard peut provoquer une fuite d'eau, un choc électrique, un

incendie, des blessures ou des dommages matériels.

• Assurez-vous que la prise de courant que vous utilisez est mise à la terre et a la tension appropriée. Le

cordon d'alimentation est équipé d'une fiche de terre à trois broches pour protéger contre les chocs.

Les informations relatives à la tension se trouvent sur la plaque signalétique de l'appareil.

• Votre appareil doit être utilisé dans une prise murale correctement mise à la terre. Si la prise murale

que vous comptez utiliser n'est pas correctement mise à la terre ou protégée par un fusible à

retardement ou un disjoncteur (le fusible ou le disjoncteur nécessaire est déterminé par le courant

maximum de l'appareil. Le courant maximum est indiqué sur la plaque signalétique de l'appareil),

demandez à un électricien qualifié d'installer la prise appropriée.

• Installez l'appareil sur une surface plane et solide. À défaut, il pourrait en résulter des dommages ou un

bruit et des vibrations excessifs.

• L'appareil doit être maintenu libre de toute obstruction afin d'assurer son bon fonctionnement et

d'atténuer les risques pour la sécurité.

• Ne modifiez pas la longueur du cordon d'alimentation ou n'utilisez pas de rallonge pour alimenter

l'appareil.

• Ne partagez pas une seule prise de courant avec d'autres appareils électriques. Une alimentation

électrique incorrecte peut provoquer un incendie ou un choc électrique.

• N'installez pas votre climatiseur dans une pièce humide comme une salle de bain ou une buanderie.

Une trop grande exposition à l'eau peut provoquer un court-circuit des composants électriques.

• N'installez pas l'appareil dans un endroit qui peut être exposé à un gaz combustible, car cela pourrait

provoquer un incendie.

L'appareil est équipé de roues pour faciliter son déplacement. Veillez à ne pas utiliser les roulettes sur

un tapis épais ou à ne pas faire rouler d'objets, car ceux-ci pourraient faire basculer l'appareil.

• N'utilisez pas un appareil qui est tombé ou qui a été endommagé.

• L'appareil avec chauffage électrique doit avoir un espace d'au moins 1 mètre par rapport aux matériaux

combustibles.

• Ne touchez pas l'appareil avec des mains mouillées ou humides ou lorsque vous êtes pieds nus.

• Si le climatiseur est renversé pendant l'utilisation, arrêtez l'appareil et débranchez-le immédiatement de

l'alimentation électrique principale. Inspectez visuellement l'appareil pour vous assurer qu'il n'est pas

endommagé. Si vous pensez que l'appareil a été endommagé, contactez un technicien ou le service

clientèle pour obtenir de l'aide.

• En cas d'orage, l'alimentation électrique doit être arrêtée pour éviter que l'appareil ne soit endommagé

par la foudre.

• Votre climatiseur doit être utilisé de manière à être protégé de l'humidité, par exemple de la
