MAKE THE MOST OF YOUR
CARE & USE/INSTALLATION
LN15ICE
OUTDOOR CLEAR ICE MACHINE
2
CONTENTS
Figure 1
Contents:
Warranty registration ..........................................................2
Safety information ...............................................................3
Unpacking your appliance ..................................................3
Installing your appliance ......................................................4
Installing the drain plumbing ...............................................8
Gravity drain ...................................................................8
Drain pump .....................................................................9

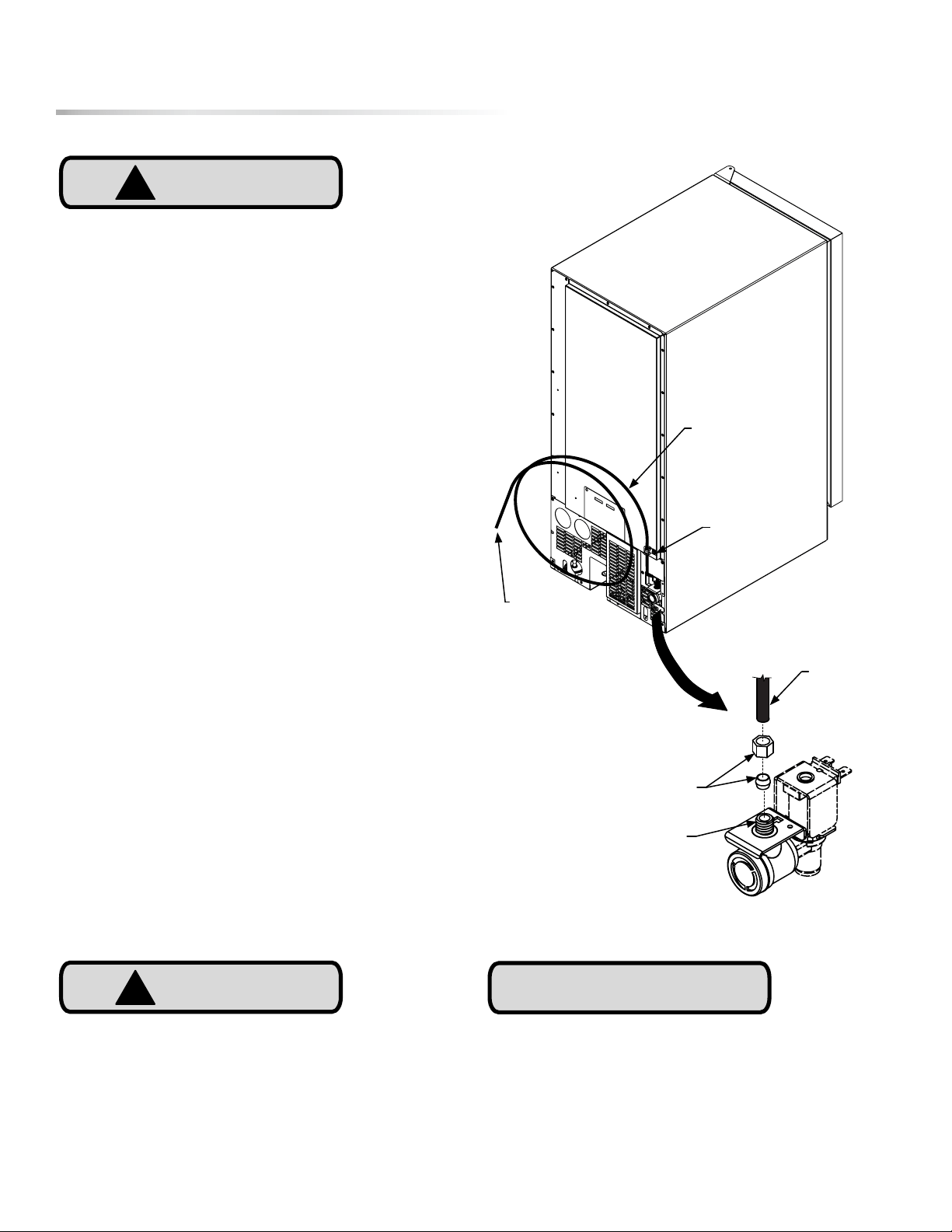

Installing the water supply .................................................10
Drain System Test ...............................................................11

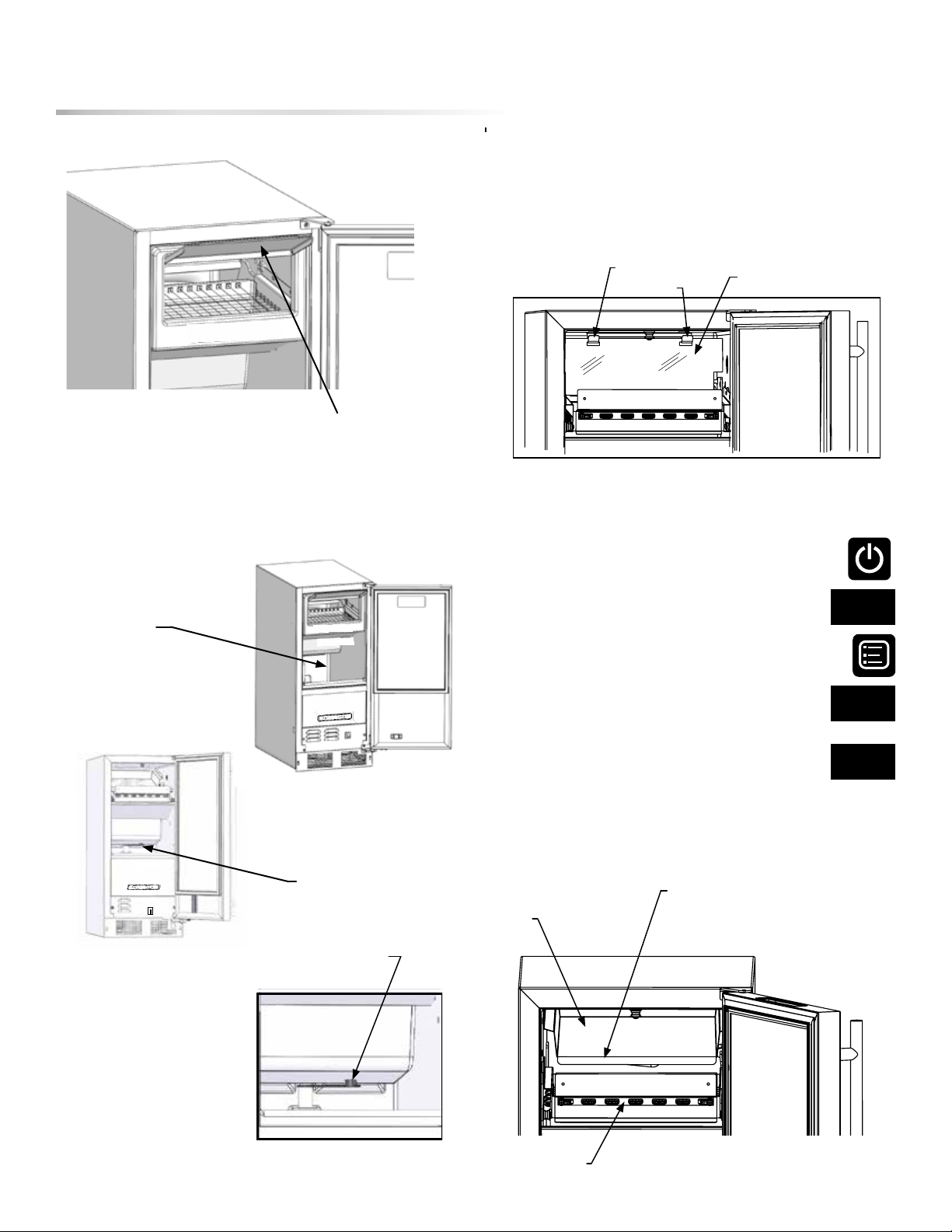

Ice maker operation ..........................................................12

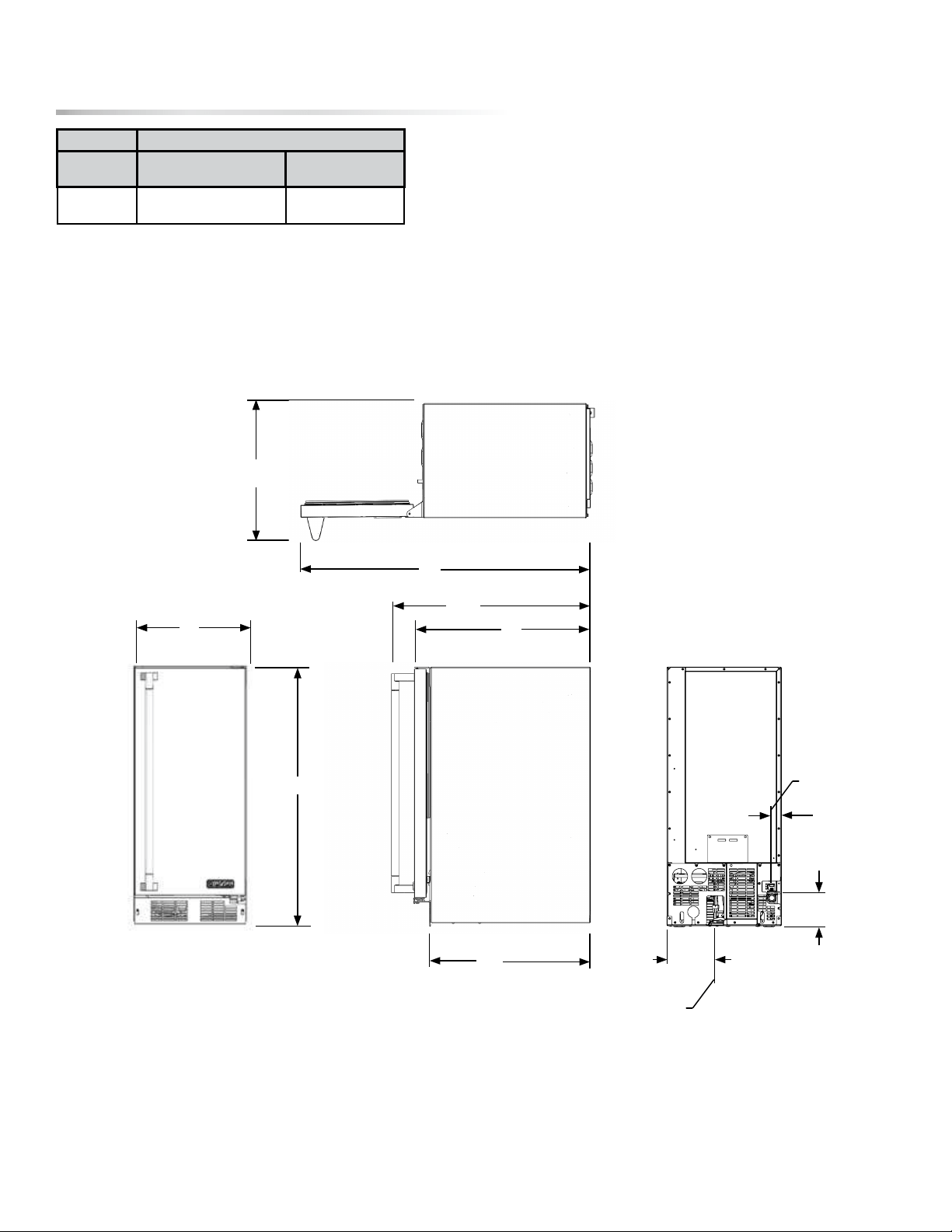

Product dimensions ..........................................................14
Using your Electronic control ............................................16
Cleaning your ice machine ..............................................17
Care and cleaning .............................................................19
Energy saving tips ............................................................19
Obtaining service .............................................................19
Troubleshooting the ice machine .....................................20
Preparing the ice machine for storage ...........................22

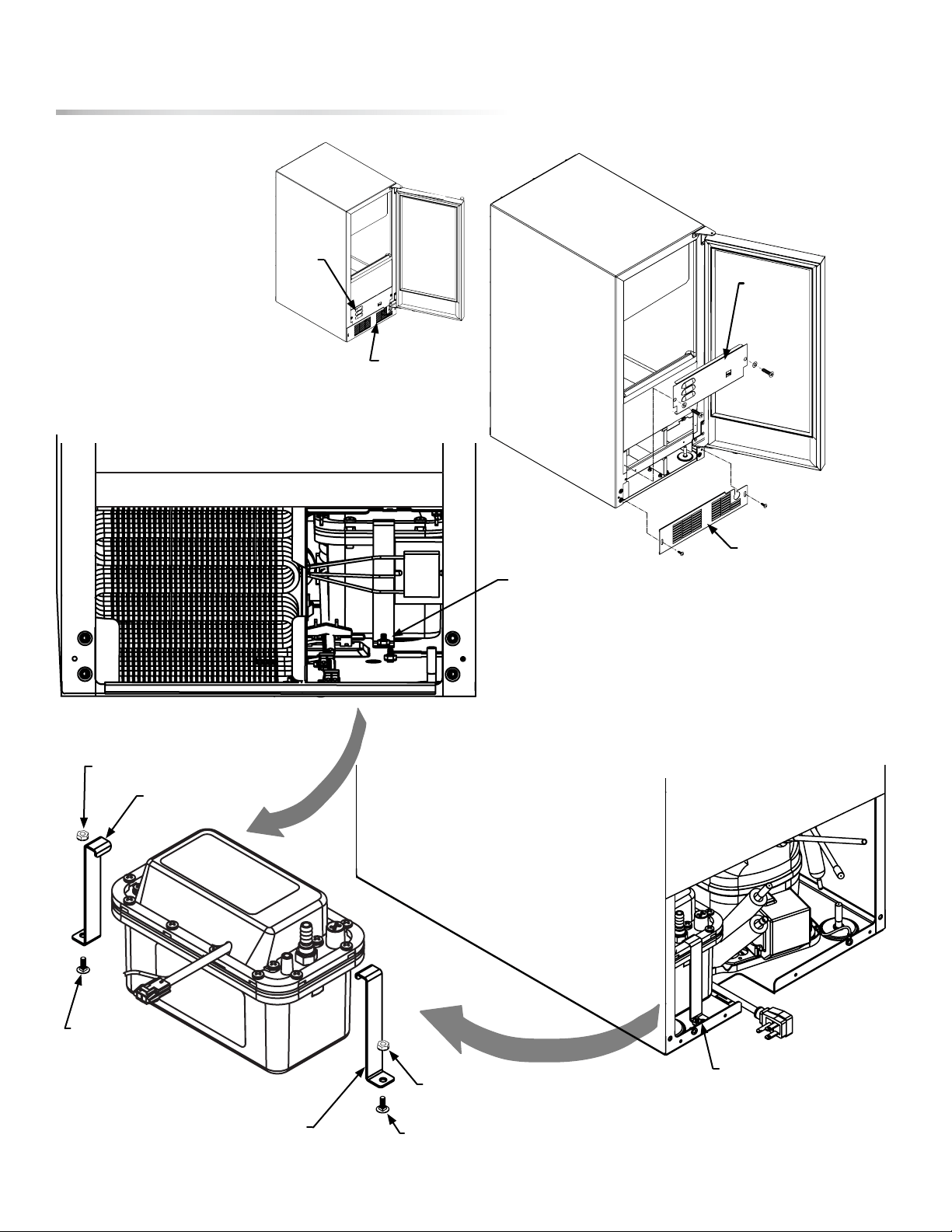

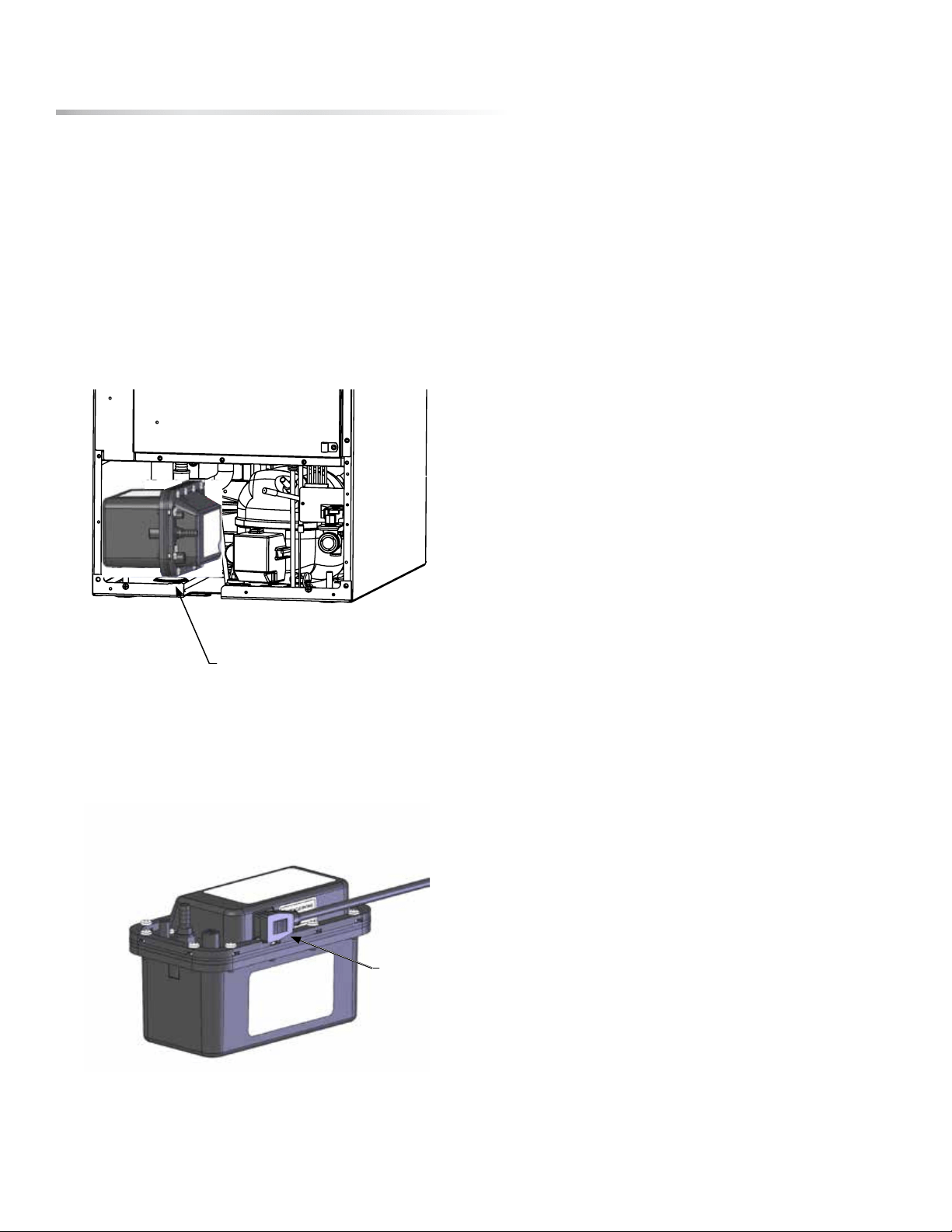

Drain pump removal .........................................................25
Warranty .........................................................27
Warranty Registration:
It is important you send in your warranty registration card
immediately after taking delivery of your appliance or you
can register online at:
www.lynxgrills.com/support/registration
The following information will be required when registering
your appliance.
Model Number
Serial Number
Date of Purchase
Dealer’s name and address

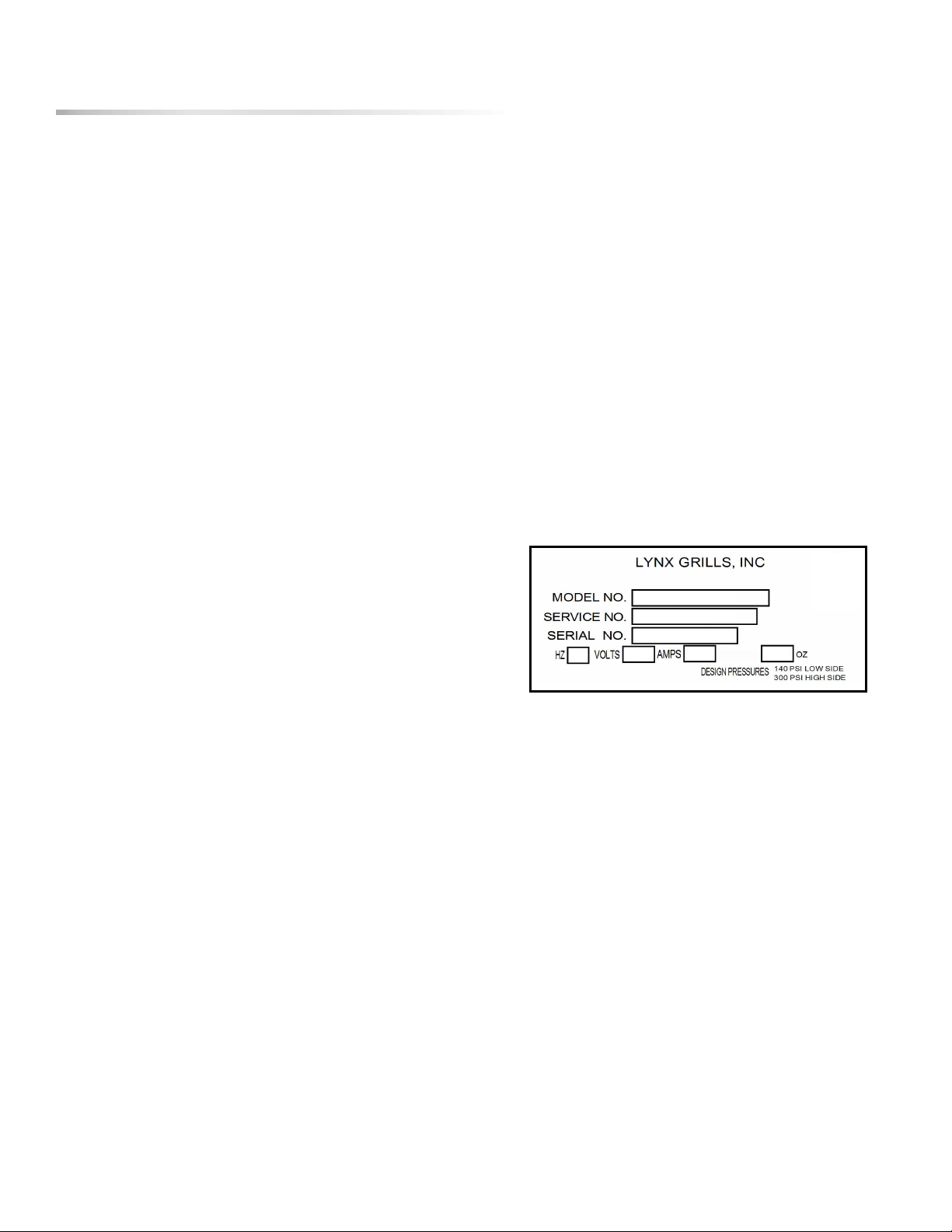

The service/model number and serial number can be found
on the serial plate which is located inside the cabinet on the
left side near the top. (See Figure 1).
Greenwood, MS 38930
XXXXXXXXXXX
R600A
Warranty registration ..........................................................2
Door Reversal .....................................................................7
NOTE
NOTE
!
CAUTION
Important Safety Instructions
Warnings and safety instructions appearing in this guide are not meant to cover all possible conditions and situations that
may occur. Common sense, caution, and care must be exercised when installing, maintaining, or operating this appliance.
Recognize Safety Symbols,
Words, and Labels.
CAUTION-Hazards or unsafe practices which could
result in personal injury or property / product damage.
NOTE-Important information to help assure a problem
free installation and operation.
!
WARNING
EXCESSIVE WEIGHT HAZARD
Use two or more people to move product.
Failure to do so can result in personal injury.
Remove Interior Packaging
Your appliance has been packed for shipment with all parts
that could be damaged by movement securely fastened.
Remove internal packing materials and any tape holding
internal components in place. The owners manual is
shipped inside the product in a plastic bag along with the
warranty registration card, and other accessory items.
Important
Keep your carton and packaging until your appliance
has been thoroughly inspected and found to be in good
condition. If there is damage, the packaging will be needed
as proof of damage in transit. Afterwards please dispose of
all items responsibly.
Note to Customer
This merchandise was carefully packed and thoroughly
inspected before leaving our plant. Responsibility for its
safe delivery was assumed by the retailer upon acceptance
of the shipment. Claims for loss or damage sustained in
transit must be made to the retailer.
DO NOT RETURN DAMAGED MERCHANDISE TO THE
MANUFACTURER - FILE THE CLAIM WITH THE
RETAILER.
SAFETY INFORMATION AND UNPACKING YOUR APPLIANCE
!
WARNING
WARNING - You can be killed or seriously injured
if you do not follow these instructions.
!
WARNING
WARNING - Dispose of the plastic bags which can
be a suffocation hazard.
!
WARNING
State of California Proposition 65 Warning:
This product contains one or more chemicals known
to the State of California to cause cancer.
!
WARNING
State of California Proposition 65 Warning:
This product contains one or more chemicals known
to the State of California to cause birth defects or
other reproductive harm.
If the appliance was shipped, handled, or stored in
other than an upright position for any period of time,
allow the appliance to sit upright for a period of at
least 24 hours before plugging in. This will assure oil
returns to the compressor. Plugging the appliance in
immediately may cause damage to internal parts.
3
INSTALLING YOUR APPLIANCE

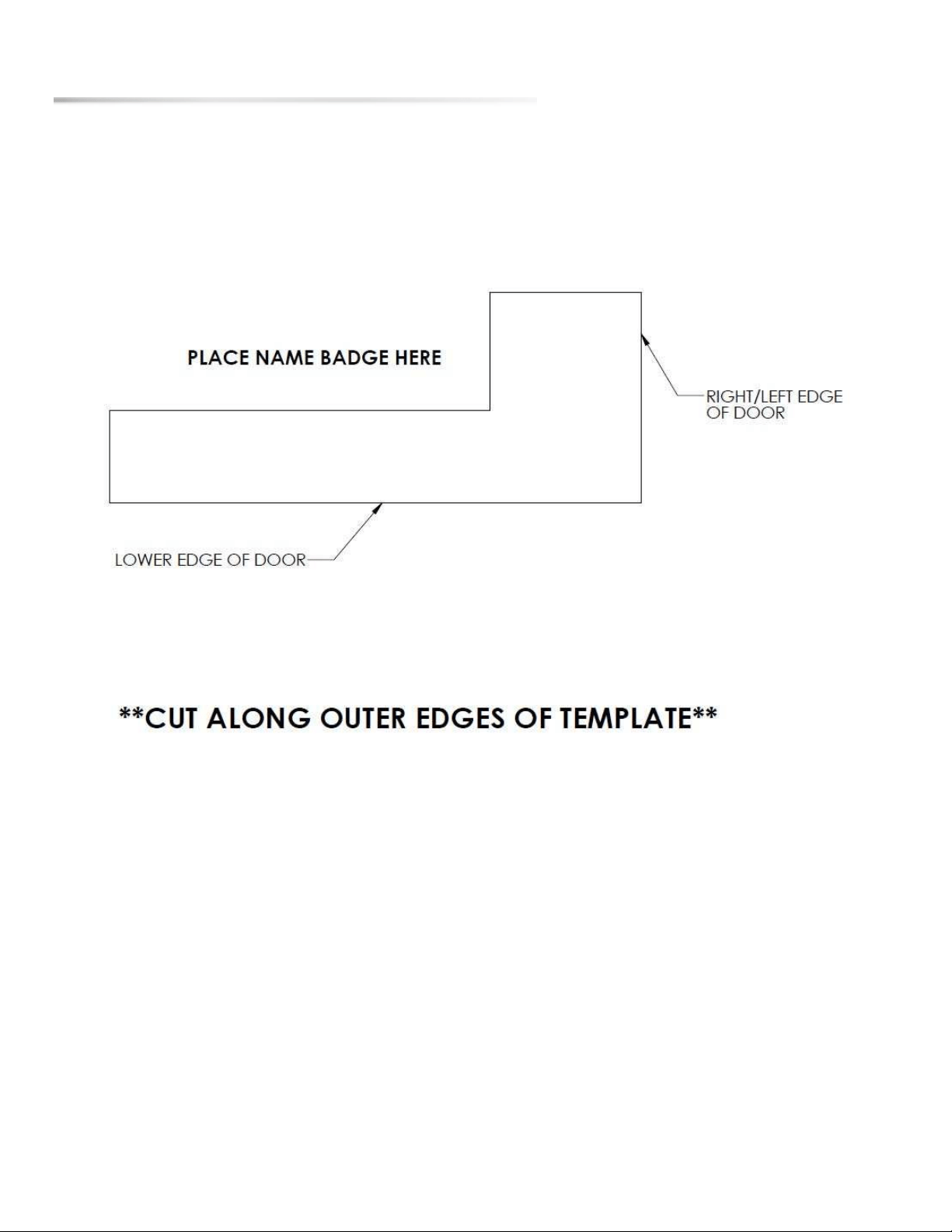

Template For Installing the Name Badge
To Install, use the template below to locate the name badge on the door. Remove the adhesive and apply the name
badge to the door.
4
!
CAUTION
Outdoor Installation
Do not install in a location where the ice machine will
be exposed to direct sun exposure as this may result in
unsatisfactory performance.
Select Location
The proper location will ensure peak performance of
your appliance. We recommend a location where the ice
machine will be out of direct sunlight and away from heat
sources. To ensure your product performs to specifications,
the recommended installation location temperature range
is from 55 to 90°F (13 to 32°C) for built in ice machines and
55 to 100°F (13 to 38°C) for freestanding ice machines. Ice
machines will not perform correctly in ambient tempera-
tures less than 55°F (13°C).
Cabinet Clearance
Ventilation is required from the bottom front of the appli-
ance. Keep this area open and clear of any obstructions.
Adjacent cabinets and counter top can be installed around
the appliance as long as the front grille remains unob-
structed. Overlay door models with articulated hinges are
intended for built-in applications only
Front Leveling
Legs
Figure 3
Rear
Leveling
Legs
Front Grille,
keep this area
open.
INSTALLING YOUR APPLIANCE
!
WARNING
WARNING - Help Prevent Tragedies
Child entrapment and suffocation are not problems of
the past. Junked or abandoned refrigerators are still
dangerous - even if they sit out for "just a few hours".
If you are getting rid of your old refrigerator, please
follow the instructions below to help prevent acci-
dents.
Before you throw away your old refrigerator or
freezer:
• Take off the doors or remove the drawers.
• Leave the shelves in place so children may not
easily climb inside.
Front grille
Front grille screw
Leveling Legs
Adjustable legs at the front and rear corners of the appli-
ance should be set so the unit is firmly positioned on the
floor and level from side to side and front to back. The over-
all height of your Lynx appliance may be adjusted between
the minimum, 33
3
⁄4" (85.7 cm), by turning the leveling leg in
(CW P) and the maximum, 34
3
⁄4" (88.3 cm) by turning the
leveling leg out (CCW Q).
To adjust the leveling legs, place the appliance on a solid
surface and protect the floor beneath the legs to avoid
scratching the floor. With the assistance of another person,
lean the appliance back to access the front leveling legs.
Raise or lower the legs to the required dimension by turning
the legs. Repeat this process for the rear by tilting the appli-
ance forward using caution. On a level surface check the
appliance for levelness and adjust accordingly.
The front grille screws may be loosened and the grille ad-
justed to the desired height. When adjustment is complete
tighten the two front grille screws. (See Figure 3).
Figure 2
Front Grille
Do not obstruct the front grille. The openings within
the front grille allow air to flow through the
condenser heat exchanger. Restrictions to this air
flow will result in increased energy usage, loss of
cooling capacity and low ice production. For this
reason it is important this area not be obstructed and
the grille openings kept clean. Lynx Grills does not
recommend the use of a custom made grille as air
flow may be restricted. (See Figure 2).
5
NOTE
Figure 6

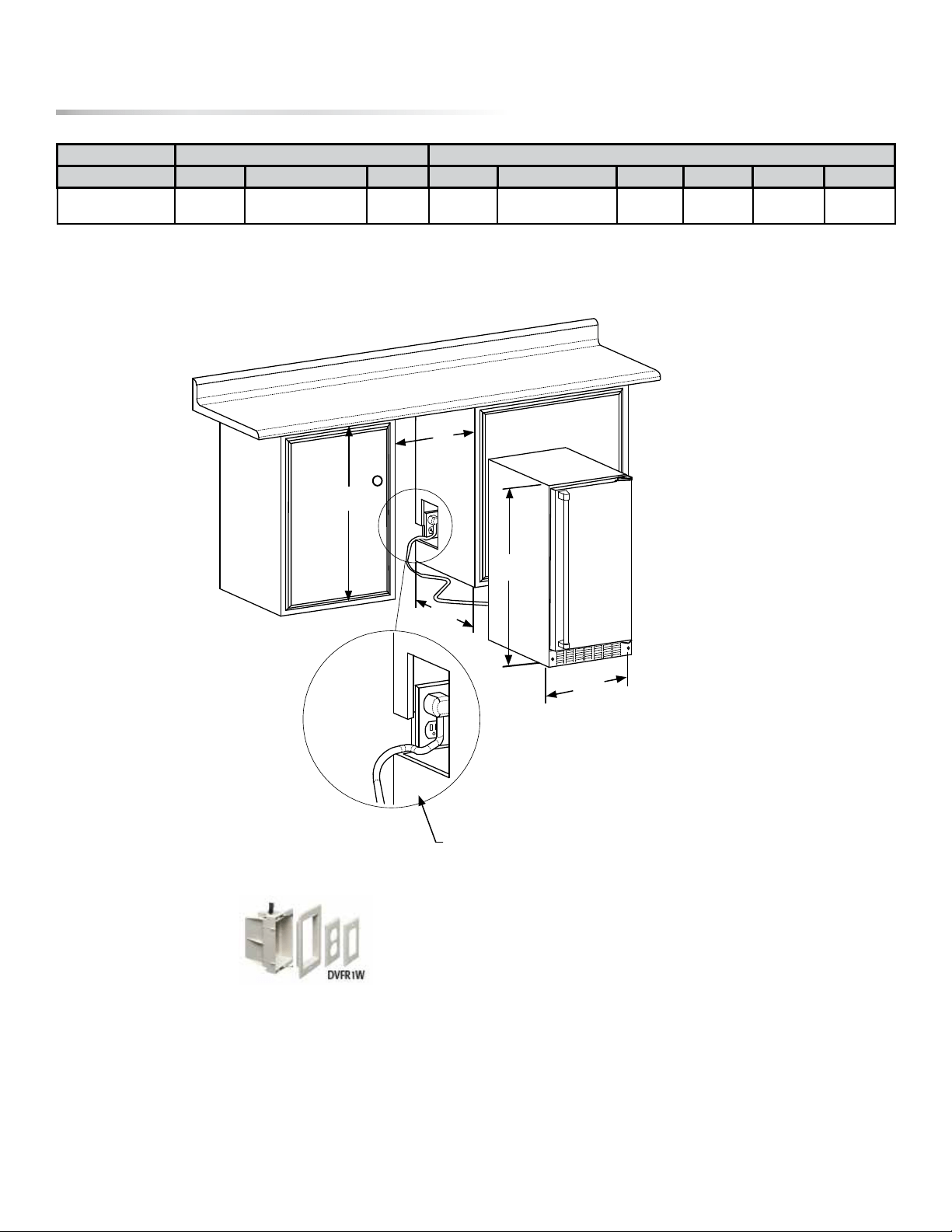

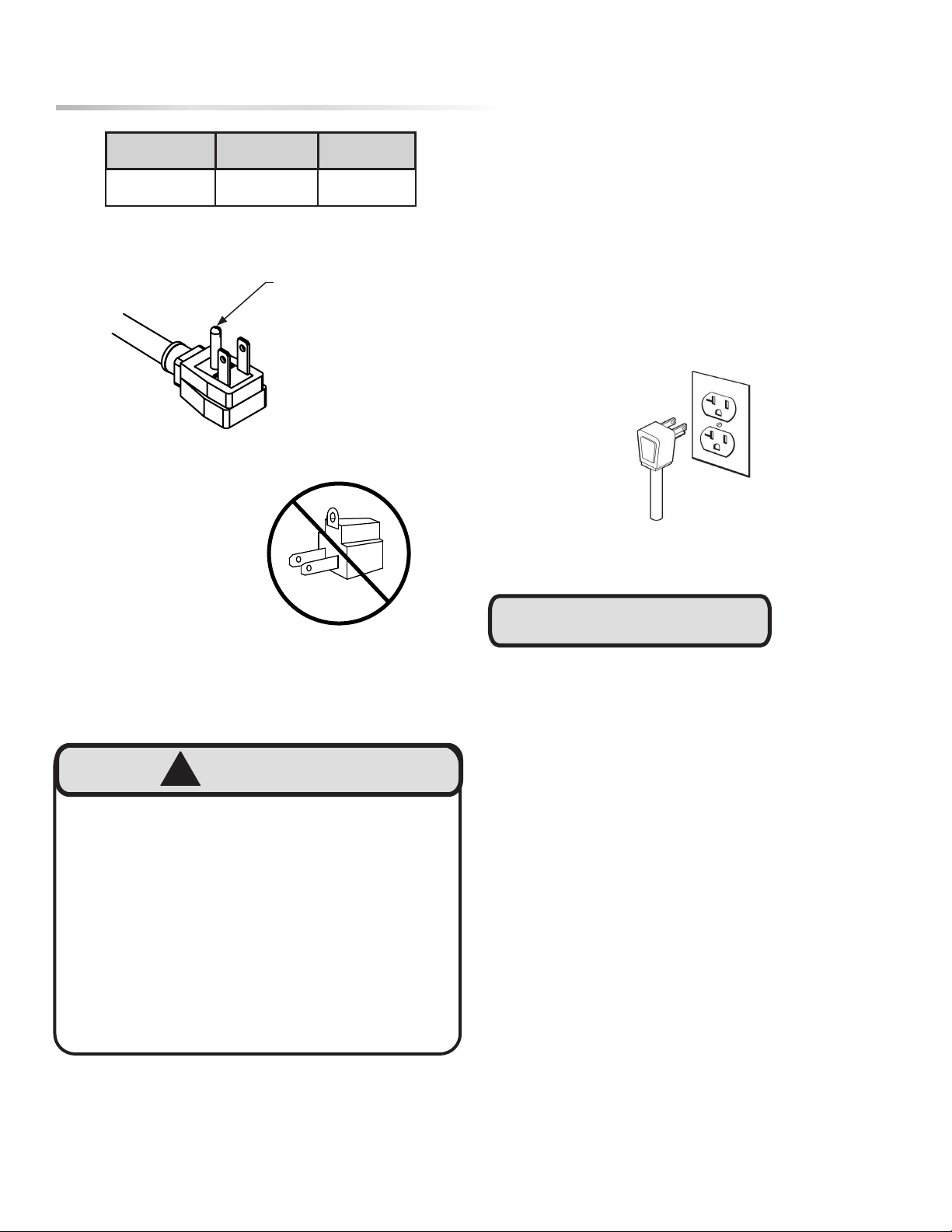

Electrical Connection
Model
Minimum
Height
Maximum
Height
LN15ICE
33 3⁄4"
(85.7 cm)
34 3⁄4"
(88.3 cm)
Electrical Shock Hazard
• Do not use an extension cord with this appliance.
They can be hazardous and can degrade product
performance.
• This appliance should not, under any circumstanc-
es, be installed to an un-grounded electrical supply.
• Do not remove the grounding prong from the power
cord. (See Figure 4.)
• Do not use an adapter. (See Figure 5).
• Do not splash or spray water from a hose on the
appliance. Doing so may cause an electrical shock,
which may result in severe injury or death.
!
WARNING
A grounded 115 volt, 15 amp dedicated circuit is required.
This product is factory equipped with a power supply
cord that has a three-pronged, grounded plug. It must be
plugged into a mating grounding type receptacle in accor-
dance with the National Electrical Code and applicable lo-
cal codes and ordinances (see Figure 6). If the circuit does
not have a grounding type receptacle, it is the responsibility
and obligation of the customer to provide the proper power
supply. The third ground prong should not, under any cir-
cumstances, be cut or removed.
Ground Fault Circuit Interrupters (GFCI) are prone to nui-
sance tripping which will cause the appliance to shut down.
GFCI’s are generally not used on circuits with power equip-
ment that must run unattended for long periods of time, un-
less required to meet local building codes and ordinances.
INSTALLING YOUR APPLIANCE
Figure 4
Figure 5
Do not remove
ground prong
6

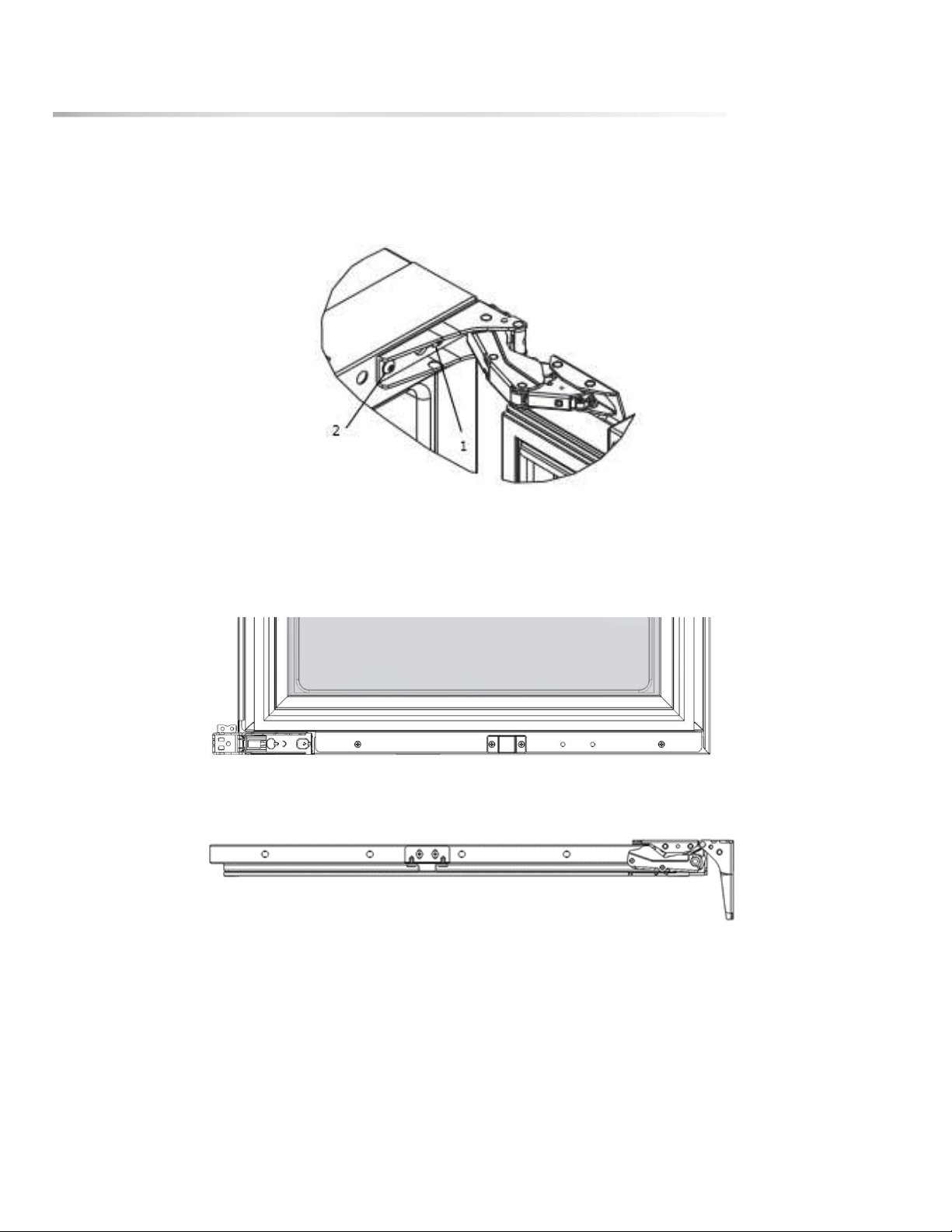

Door Reversing Instructions
1. Open door.
2. Loosen screw #1 and #2 using a Philips Screwdriver on top and bottom hinge. Slide door and remove the door from the
unit.
Figure 7
3. Once door is removed, using a Philips Screwdriver remove screws from magnet actuator located on inside and bottom
of door. (On Integrated Models magnet actuator will be located on bottom of door.
Figure 8
Figure 9
DOOR REVERSAL
"V" notches
in bracket
4. Remove caps from top of door. Using a Philips Screwdriver, install magnet actuator on opposite side. Install caps into
opposite side.
5. Remove caps from screw holes on opposite side (2 on top and bottom). Using a Philips Screwdriver remove the 4
screws that you previously loosened.
6. Reinstall screws and caps on opposite side.
7. Once screws are partially installed, rotate the door 180°, align the hinge over screw #1 and slide into position. Tighten
screws on top and bottom.
8. Door is now reversed.
7

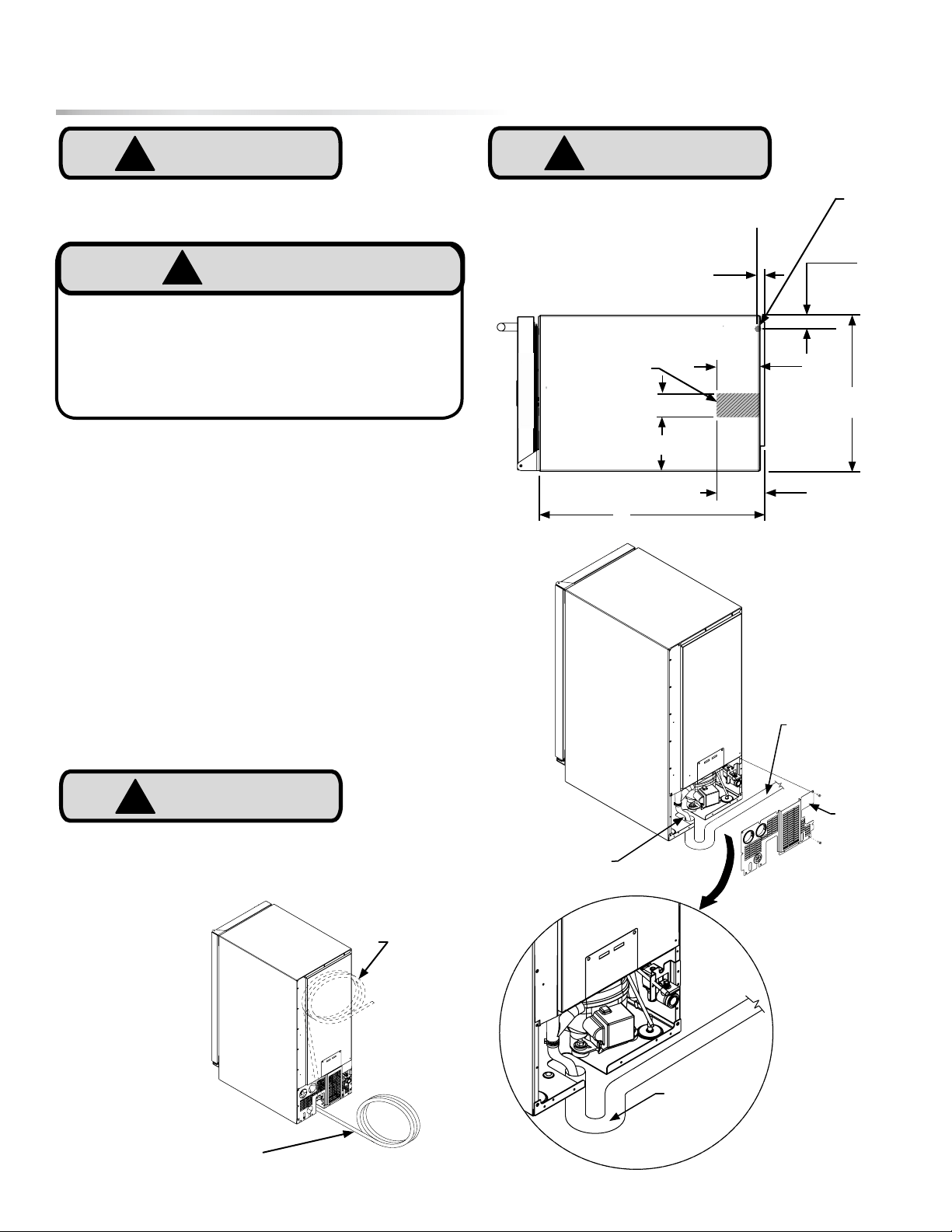

INSTALLING THE DRAIN PLUMBING
Access
panel
Drain pipe, (not
provided)
Drain tubing, cut
to length and in-
stall in the drain
C
L
C
L
14
7
⁄8"
(37.8 cm)
11
⁄16"
(17mm)
1
1
⁄4"
(3.2 cm)
4
17
⁄32"
(11.5 cm)
21
1
⁄2"
(54.6 cm)
Figure 12
Figure 11

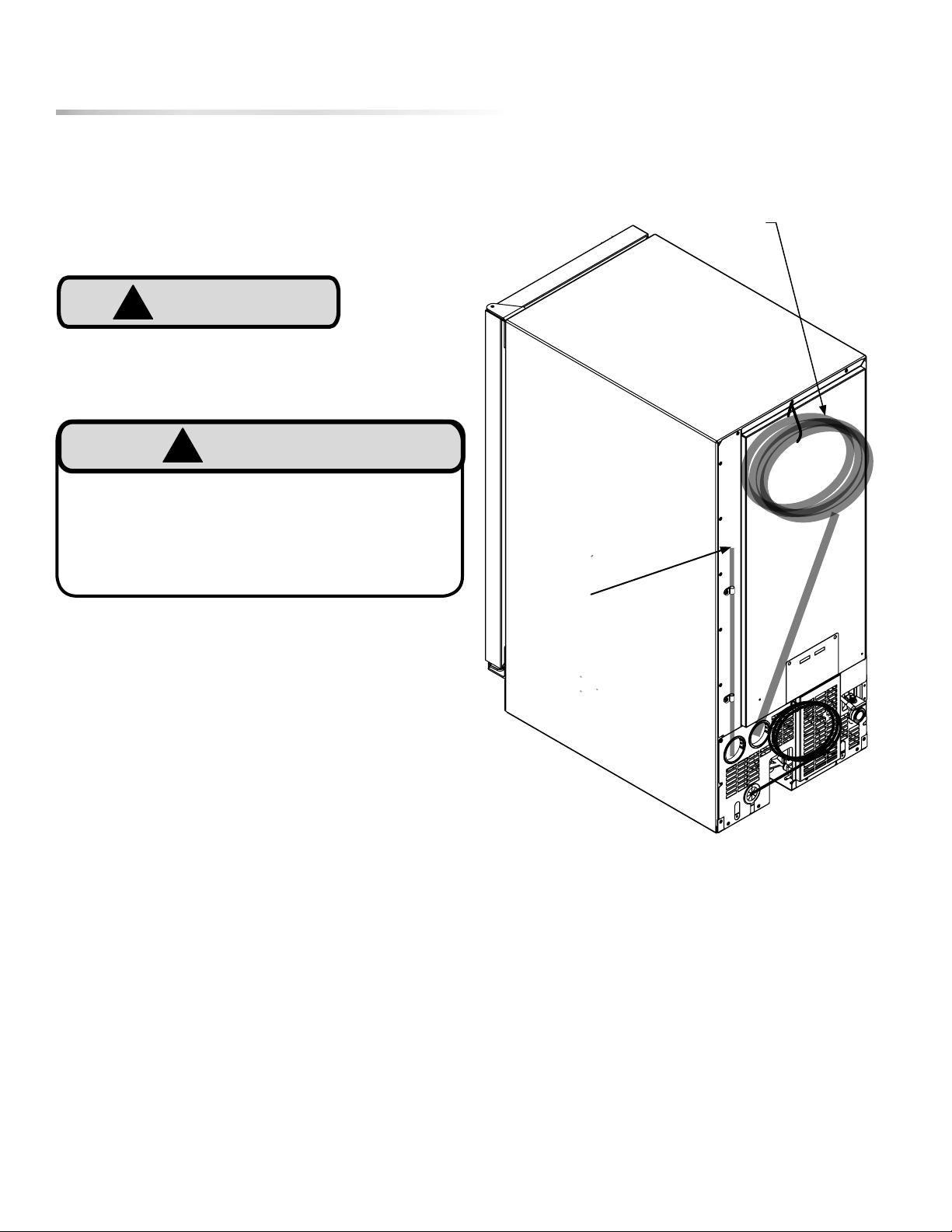

Drain line coiled
and secured to
the back of the
unit
Uncoil the drain line, route
to an appropriate drain and
cut to the required length
Electrical Shock Hazard
Reasonable care and safe methods should be prac-
ticed. Do NOT work with energized electrical equip-
ment in a wet area. Read and follow the installation
instructions listed in this manual.
!
WARNING
!
CAUTION
Failure to use an adequate drainage system, will result in
surrounding water damage and/or poor ice production.

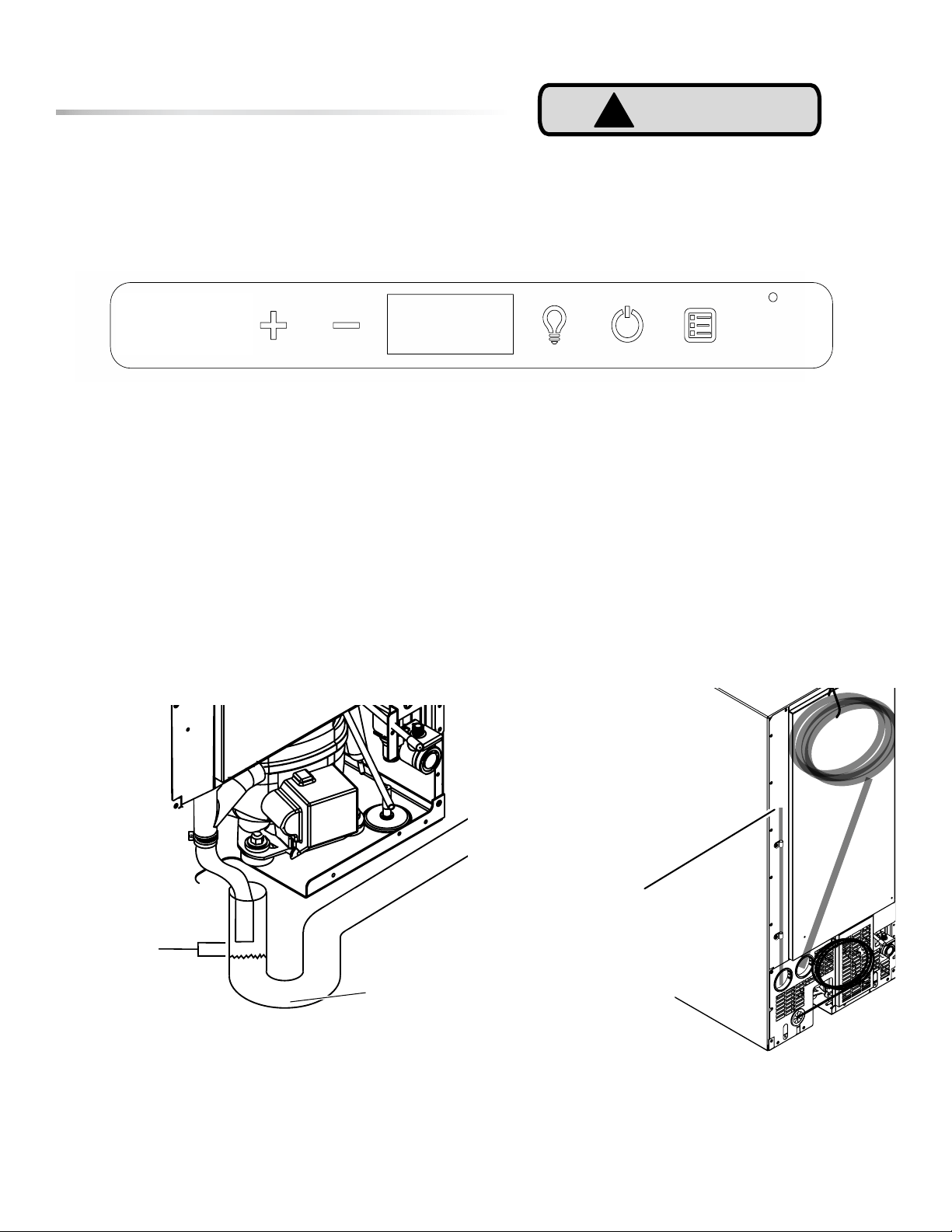

Figure 10
!
CAUTION
Observe and follow all local building codes
when installing this ice machine and drain
lines.
Water
supply
inlet
Drain access in
bottom of unit
4
3
⁄32"
(10.4 cm)
Sanitary
trap
2
1
⁄4"(5.7 cm)
5
1
⁄8" (13 cm)
Drain Plumbing
Your ice machine requires drain plumbing. If drain is above
6 inches it will require a drain pump. See optional drain
pump section below.
Gravity Drain (no drain pump):
The ice machine is shipped with the drain line installed,
coiled and secured to the back of the cabinet as shown in
Figure 10. It can be uncoiled, routed to an appropriate
drain and cut to length as required. Additionally there is
the provision of drain routing through the cut-out in the
bottom of the unit, (see the gray area in Figure 11). A drain
can be installed in this gray area with the drain line cut to a
short length and positioned into the drain as shown in
Figure 12, or if the ice machine is to be built-in, the drain
tube could be routed through a hole in the floor in this gray
area to a drain below.
The gravity drain line must be routed no higher than 6"
(15.2 cm) off the floor to assure proper drainage.
!
CAUTION
8
INSTALLING THE DRAIN PLUMBING
This drain pump is designed to be installed in Lynx ice
machines only and approved for use with water only.
!
CAUTION
Figure 13
Drain pump
vent tube.
Keep this
open to
assure air
flows freely
as water
enters
the pump
reservoir.
Drain line coiled and
secured to the back of the
cabinet. Uncoil, route to
an appropriate drain and
cut to length.
Optional Drain Pump.
An optional drain pump is available if you have purchased
an ice machine without one and do not have access to a
gravity drain. Installation instructions are provided with the
optional drain pump. Contact Lynx Grills Customer Service
at 888.289.5969 or your dealer for ordering.
Electrical Shock Hazard
Risk of electrical shock or personal injury could occur
due to moving components, if the machine compartment
access cover is removed before unplugging the ice
machine power cord.
!
WARNING
9
Reverse osmosis, (RO), water, softened water, and de-
ionized water are not recommended as they can adversely
affect the quality and quantity of the ice.
Water
Supply
Line
Clamp and
Screw
Figure 14
Back view of
ice machine
NOTE
!
CAUTION
INSTALLING THE WATER SUPPLY
Compression
fitting
Water
supply
line
Water supply
service loop
to shut off
valve
Water valve
inlet
Water Supply
Observe and follow all local building codes when installing
this appliance.
This ice machine must be connected to a potable cold
water supply line. delivering water pressure between a
minimum of 20 psi and a maximum of 120 psi.
Use
1
⁄4" copper tubing for your water supply which is available
at any local hardware or plumbing supply store. Route the
1
⁄4" copper tubing to suit your installation being sure not
to kink the tubing. Purchase enough copper tubing length
to allow a coil to be formed behind the unit for a "service
loop" which will allow the appliance to be pulled out from
the installation for servicing or cleaning. (See Figure 14).
Connect the copper tubing to the "top side" of a cold water
pipe to prevent the ice-maker from plugging with sediment.
A shutoff valve is recommended on the water supply line to
ease servicing the appliance. NOTE: A SELF-PIERCING
TYPE VALVE IS NOT RECOMMENDED as they are prone
to clogging with sediment which will create pressure drop
reducing the water supply to the unit.
Connect the copper tubing water supply to the water valve
inlet with a 1/4" compression nut fitting.
IMPORTANT: Secure the water supply line to the back of
the cabinet with the screw and strain relief clamp provided
in the corner of the back panel. (See Figure 14).
Make certain all connections are watertight after
installation. Form the tubing so that it will not vibrate
against the cabinet body or kink when your appliance is
moved in and out of position.
This ice machine is designed to make clear ice from the
majority of water sources on a daily basis. If your results
are unsatisfactory, your water may need to be filtered or
treated. A water specialist can recommend proper water
treatment.
!
CAUTION
To prevent water leaks:
• The water line fitting is to be used with copper tubing
only. Do not use with plastic tubing.
• Do not use any thread sealers on this water line fitting.
10
DRAIN SYSTEM TEST
Procedure for Testing Drain System
(both gravity and drain pump models)
Drain pump models have a safety feature that will interrupt power to the unit if a high-limit condition occurs to prevent
flooding. This safety feature can be initiated by a restriction in the drain system and will continue until high-limit condition
is corrected, at which time power will be restored to the unit. Power interruption can be detected when no icons are
visible in the display area of the user interface (Figure 15). Once power is returned, a startup chime will sound followed
by a self-test, and "OFF" should be visible in the display area.
Drain pump vent
tube. Keep this
open to assure
air flows freely as
water enters the
pump reservoir.
Figure 17: Location of vent tube.
Figure 16: Example of an open drain.
Sanitary trap
!
CAUTION
hours
ICE
1 4 6 8
OFF CLEAN
DOOR
ECO
days
On/off Menu Delay timer Lock
Once the drain line is plumbed, perform the following:
1. Plug the ice machine into 115v power supply.
2. Place unit in the final installation location.
3. Turn the unit off via the user interface (display will indicate “OFF”). The drain pump will still be operational during off
mode if the unit has one.
4. Slowly pour 3-qts of water into the ice storage bin. All water should drain completely.
5. If water drains fully and without power interruption, the drain system has been successfully tested and further
installation of the ice machine can be continued.
6. If the water does not drain or a power interrupt occurs, check the following:
a. There are no kinks or restrictions in the drain line. (Note: Drain line needs to be cut to the required length and any
excess tubing should be removed to prevent possible restrictions).
b. Your drain line is plumbed into an open drain (Figure 16).
c. The vent tube on the back of the unit is open (Figure 17).
Figure 15: User interface display during power interruption.
7. After checking the above requirements, repeat step 4 and verify the water drains completely without power
interruption. If problems persist call a qualified service technician and/or plumber.
Air gap
between
end of
drain line
and top of
water level
11

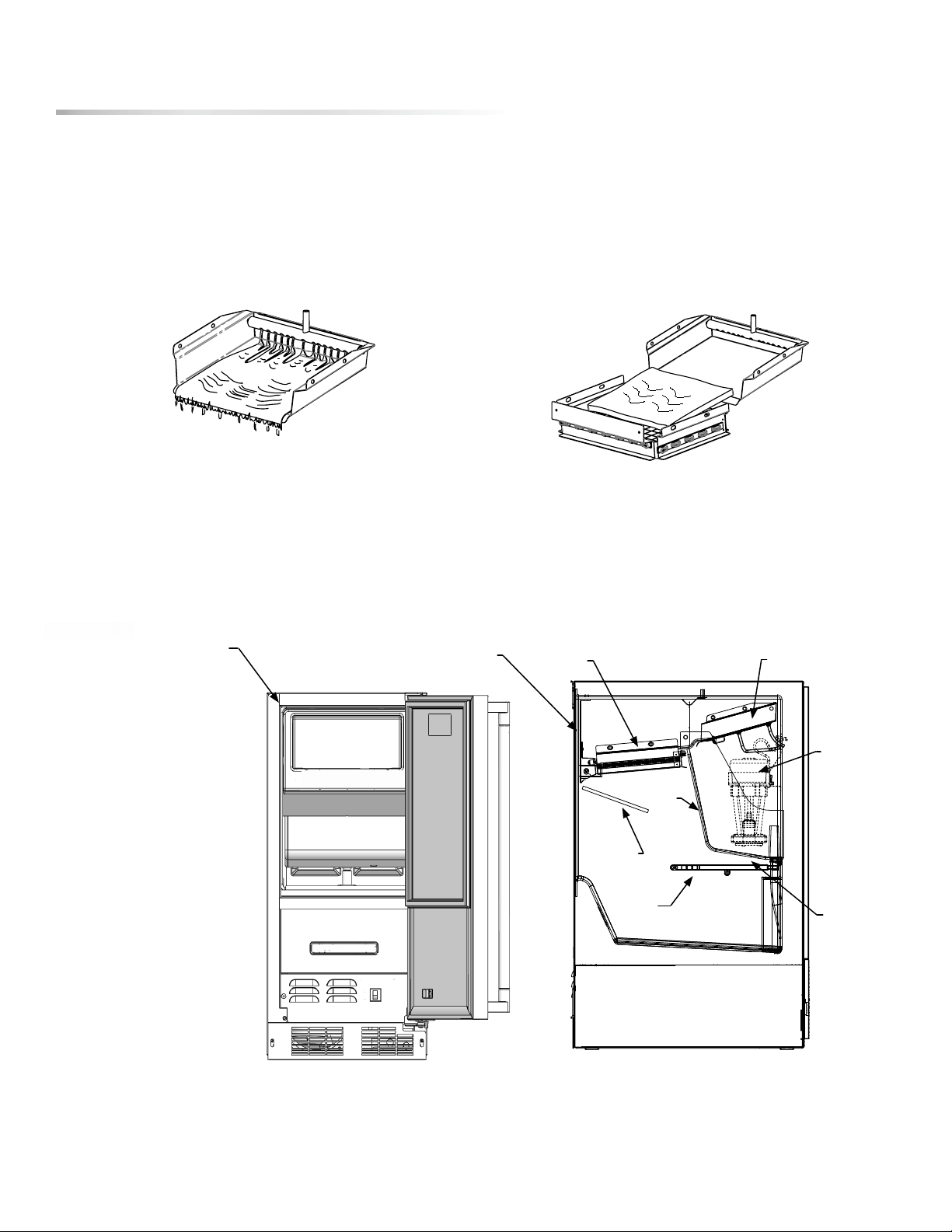

Figure 18
When the ice slab reaches the correct thickness, the ice
sheet is released and slides onto the grid cutter (see
Figure 18). Here, the ice slab is cut into squares by the grid
cut-ter’s heated wires (see Figure 21). The water
containing the dissolved minerals is drained after each
freezing cycle. Fresh water enters the machine for the next
ice making cycle.
Figure 19
Figure 20
OPERATION OF THE ICE MACHINE
The Ice Making Process
Your ice machine is unique in how it forms ice with fraction-
al freezing to form a slab of ice that is clear and has less
dissolved solids than the water it is produced from. This is
accomplished by running water over the cold evaporator
plate (see Figure 18) which gradually freezes the water to
produce the ice slab. Pure water freezes first, leaving the
dissolved solids in the residual reservoir water to provide
clear ice.
Water
reservoir
Evaporator
Circulation
Pump
Reservoir
drain plug
Front
panel
Bin Level
Sensor
Ice
Deflector
Grid Cutter
Water distributor
12
The bin level sensor is located in the ice bin, it senses
when the ice supply is low or full and starts or stops the ice
making process accordingly.
If the water supply is turned off to the ice machine be sure
to set the electronic control to the “OFF” position or remove
power to the unit.
New Sounds
The ice machine will make sounds that are different than
your household refrigerator. Because these sounds are
new to you they may be of a concern but are most likely
normal. The ice production process will make noises that
are not typical in a refrigeration product, ice falling onto
hard surfaces, water cascading across the evaporator, and
valves opening and closing. Following are some of the
sounds that you may hear:
A buzzing sound will be heard when the water valve
opens to fill the water reservoir.
A rattling noise which could be water flowing through the
water line.
A splashing sound when water is flowing over the
evaporator plate and into the water reservoir.
A "thud" when the ice slab is released from the
evaporator plate and slides onto the grid cutter.
"Clicks" when the cubes fall into the ice storage bin.
A gurgling sound which is refrigerant flowing in the ice
machine.
An air noise from the condenser fan.
Ice Production
In normal mode the ice machine will produce up to 39
pounds (17.7 kg) of clear ice in a 24-hour period when
installed in a 72°F ambient with a 55°F water supply. In
"ECO" mode (see page 16) the ice machine will produce up
to 29 pounds (13.2 kg) of clear ice in the 24 hour period.
“Initial” ice production and ice accumulated in the storage
bin will vary significantly. This is normal. During the first
24-hours of operation the unit will produce up to 39 lbs of
ice at the above ambient and water temperature conditions,
but when starting with an empty ice storage bin, the storage
bin may only accumulate up to 18 lbs of ice. By design,
the ice storage bin is maintained at a temperature slightly
above freezing to allow the stored ice to slowly melt, to
preserve the ice quality and clarity and assure a constant
supply of fresh ice. As ice is accumulated in the bin, the ice
production rate will overcome the ice melt and the storage
bin will fill to capacity.
NOTE
NOTE
OPERATION OF ICE MACHINE
The ice machine will keep producing ice until the ice
machine’s bin is full and will restart automatically when
ice needs to be replenished in the bin. The ice bin is
not refrigerated, and some melting will occur by design
to preserve the ice quality and clarity. Allow your ice
machine to run for 24-48 hours to accumulate ice in the ice
machine’s bin.

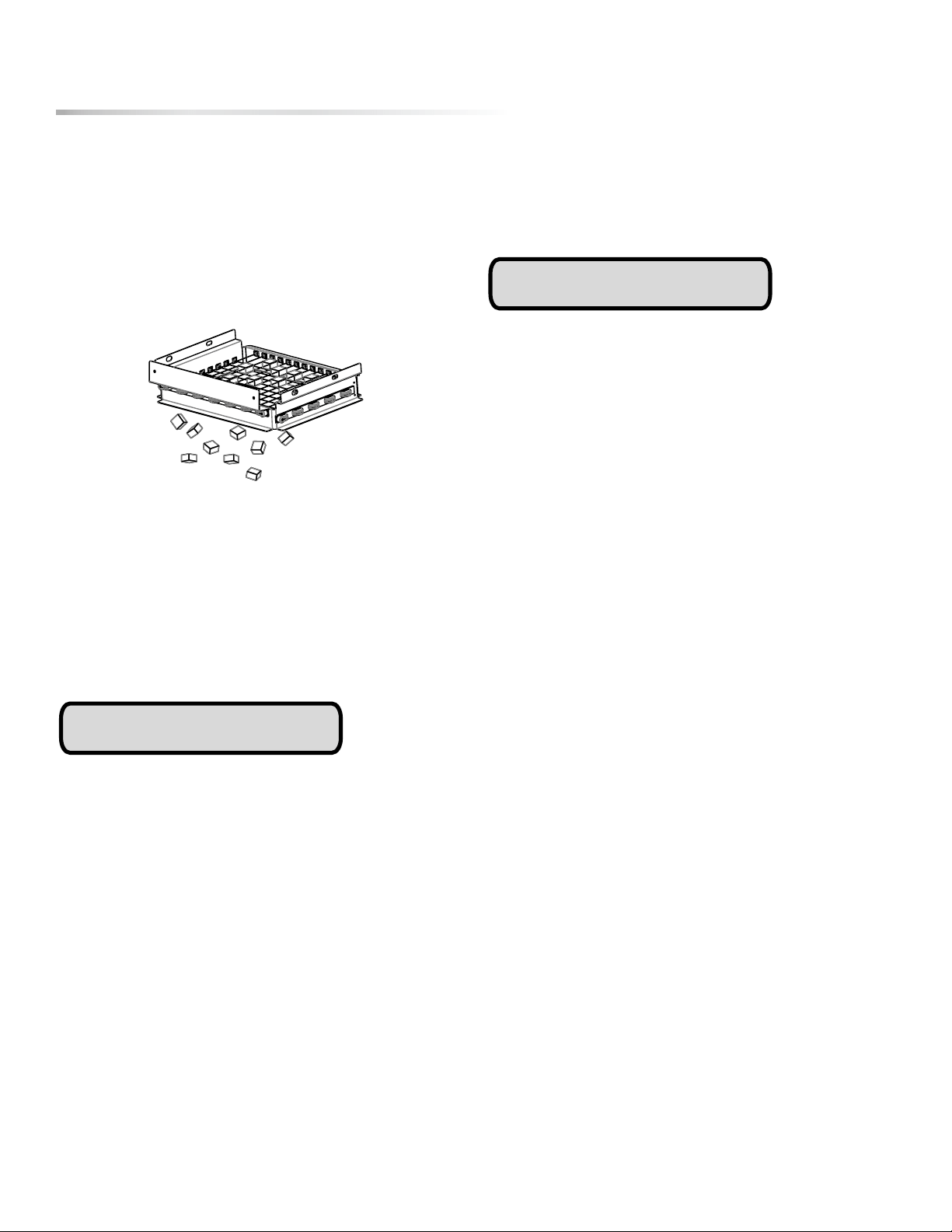

Figure 21
13
PRODUCT DIMENSIONS
ROUGH-IN OPENING DIMENSIONS CABINET DIMENSIONS
MODEL "A" "B" "C" "D" "E" "F" "G" "H" "J"
LN15ICE
15"
(38.1 cm)
**34" to 35"
(86.4 to 88.9 cm)
24"
(61 cm)
14
7
⁄8"
(37.8 cm)
33
3
⁄4" to 34
3
⁄4"
(85.7 to 88.3 cm)
23
5
⁄8"
(60 cm)
25
9
⁄16"
(64.9 cm)
37
13
⁄32"
(95 cm)
16
11
⁄16"
(42.4 cm)
"A"
"B"
"C"
"D"
"E"
Figure 22
Figure 22a
Figure 23
If necessary to gain clearance inside the rough-in
opening a hole can be cut through the adjacent cabi-
net and the power cord routed through this hole to a
power outlet. Another way to increase the available
opening depth is to recess the power outlet into the
rear wall to gain the thickness of the power cord plug.
Not all recessed outlet boxes will work for this applica-
tion as they are too narrow, but a recessed outlet box
equivalent to Arlington #DVFR1W is recommended
for this application, (see Figure 23).
14
PRODUCT DIMENSIONS
PRODUCT DATA
MODEL
ELECTRICAL
REQUIREMENTS #
PRODUCT
WEIGHT
LN15ICE 115V/60Hz/15A
105 lbs
(47.7 kg)
** Minimum rough-in opening required is to be larger than
the adjusted height of the cabinet.
# A grounded 15 amp dedicated circuit is required. Follow
all local building codes when installing electrical and
appliance.
"F"
"D"
"E"
"H"
"J"
"G"
CL
Water
inlet
4
7
⁄8"
(12.4 cm)
1
1
⁄4"
(3.2 cm)
CL Gravity
drain
Figure 24
(S) solid
door shown
21
1
⁄2"
(54.6cm)
6
15
⁄16"
(17.6 cm)
15
USING YOUR ELECTRONIC CONTROL
Control Function Guide
Function Command Notes
ON/OFF Press and release. Unit will immediately turn ON or OFF.
Enable Sabbath Mode Press and hold for 5 seconds and release
The
o
F /
o
C symbol will flash briefly after 5 seconds. Interior light
and display will go dark and remain so until user resets mode -
unit continues to operate
Disable Sabbath Mode Press and release Display and interior light return to normal operation
Silent Mode (ice production
suspended for 3 hours)
Hold and . Display will countdown the hours:
Clean Mode See “Cleaning” section
Showroom Mode Hold and for 5 seconds
The
º
F /
º
C symbol will flash. Display will be lit and interior light
will function. Unit will not cool. Repeat command to return to
normal operation
Figure 25 - Electronic control
16
!
CAUTION
CLEANING YOUR ICE MACHINE
Forcing ice through the grid cutter will break the grid cutter
wires.
!
CAUTION
Remove all ice
from the evaporator
plate and grid cutter
area that is not
embedded in wires
Figure 26
Figure 27
Clean mode:
To ensure maximum performance and ice quality, it is
recommended to clean your ice machine once every six
months. This simple cleaning routine will also ensure water
and energy use continues at optimum efficiency.
Clean reminder:
A "CLEAN" reminder will occur every 6 months
to remind you that it may be time to clean your
appliance. Over time mineral build up on the cold
evaporator plate can occur which can adversely
affect the quality of your ice. This build-up is
dependent on your water source and usage. Normal
ice production will continue while the "CLEAN" reminder
is displayed. You may clear the "CLEAN" reminder at any
time by momentarily pressing the "ON/OFF" icon. When
reset, the "CLEAN" reminder will reset and not occur for
another 6 months. If you choose to clean the appliance at
this time, see the options menu section below.
CLEAN
NOTE
Homes with poor water quality or high clear ice usage
might require more frequent cleaning.
To clean your ice machine you will need to purchase a
"nickel safe" ice maker cleaner (#36684). Cleaner can be
obtained by contacting Lynx Grills Customer Service at
888.289.5969.
Once you have your cleaner:
Turn the ice machine off by pressing and holding
the "ON/OFF" icon for 3 seconds. "OFF" will be
displayed on the control.
OFF
Remove all ice from the ice bin (see Figure 26).
Drain the water from the water reservoir by removing the
black plug from the bottom of the fresh water reservoir (see
Figure 26). After the water is drained, replace the plug in
the bottom of the reservoir.

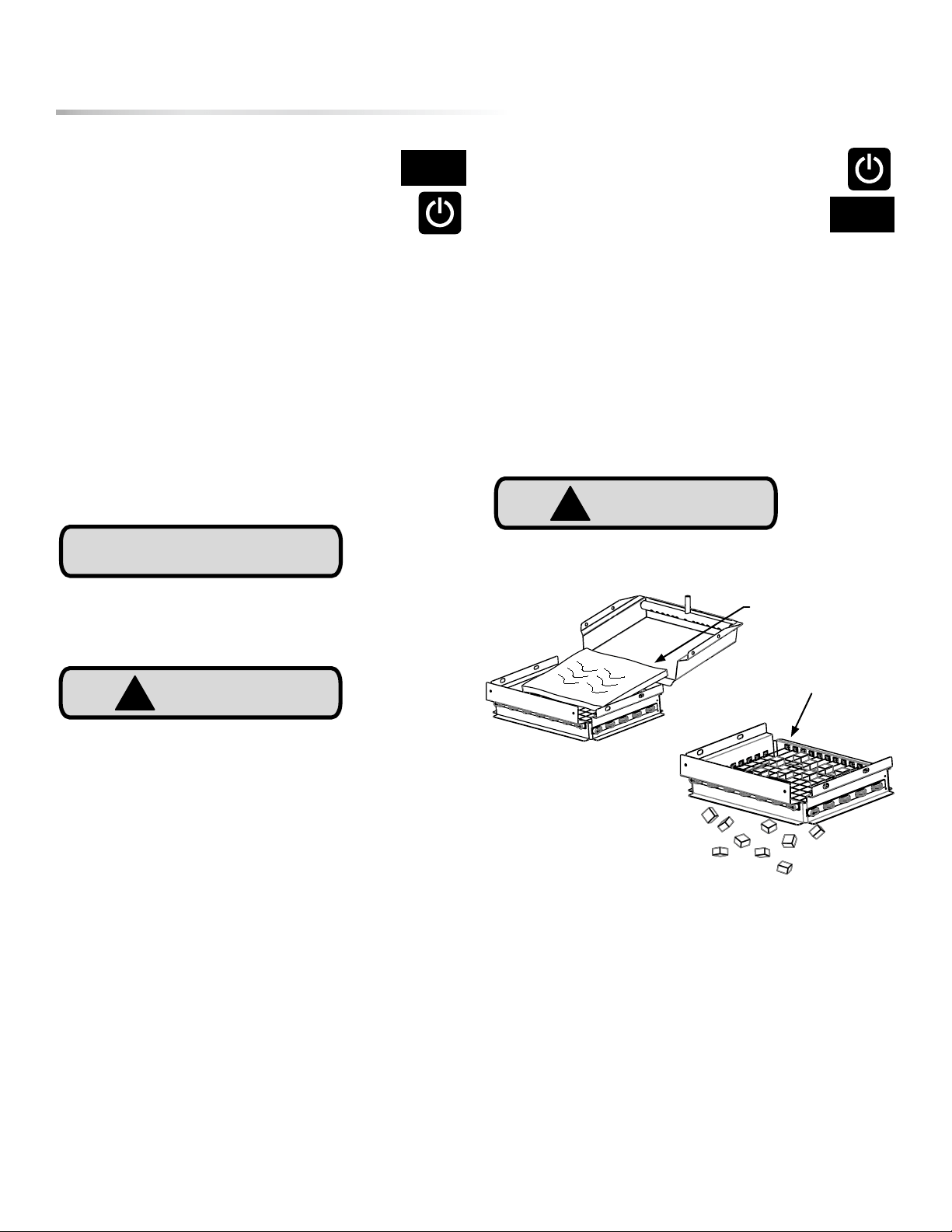

Allow all of the ice to fall from the evaporator plate
and remove any ice from the grid cutter. If there is ice
embedded in the grid cutter wires, wait for it to melt and
fall out. Do not try to remove ice that is embedded in
the grid cutter wires as that may break the wires. (See
Figures 19 and 20).
17
CLEANING YOUR ICE MACHINE
Figure 29
Figure 28
Remove all of
the ice from
the ice bin
Figure 30
Remove the
black reservoir
drain plug from
the bottom of
the reservoir.
Figure 31
Turn the ice machine back on by pressing and
holding the "ON/OFF" icon for 3 seconds. The
display will indicate "ICE" mode. Press and hold the
"MENU" icon until a flashing "CLEAN" is dis-
played. Press the "ON/OFF" icon until "CLEAN"
stops flashing. Your ice machine will now enter
the clean cycle.
The clean and rinse cycle will take about 49 min-
utes.
After the clean cycle is complete the ice machine
will return to the "OFF" position.
After the cleaning cycle is completed, verify that all build-up
has been removed. If not repeat the clean cycle procedure.
ICE
CLEAN
OFF
Refer to your cleaning solution instructions to determine
the proper amount of cleaning solution to add based on
2 quarts (1.9 liters) of water. Lift fascia door up to
access evaporator plate (See Figure 29). Pour the
cleaning solution slowly on the evaporator plate so it
flows down into the fresh water reservoir. (See Figure
30).
Figure 30b
Splash shield
brackets
Replace the splash shield if removed.
Pour cleaning solution slowly
onto the front edge of evaporator
plate behind the grid cutter.
Figure 32
Evaporator
plate
Grid cutter
Splash shield
Lift fascia door up to
access evaporator plate
18
!
CAUTION
CARE AND CLEANING AND ENERGY SAVING TIPS
OBTAINING SERVICE
Front Grille
Be sure that nothing obstructs the required air ow openings
in front of the cabinet. At least once or twice a year, brush or
vacuum lint and dirt from the front grille area (see page 4).
SHOCK HAZARD: Disconnect electrical power from the
appliance before cleaning with soap and water.
Cabinet
The painted cabinet can be washed with either a mild soap
and water and thoroughly rinsed with clear water. NEVER
use abrasive scouring cleaners.
Cleaning
Routine cleaning of the stainless steel surfaces will serve
to greatly extend the life of your product by removing
contaminants. This is especially important in coastal areas
which can expose the stainless to sever contaminants such
as halide salts (sodium chloride).
It is strongly recommended to periodically inspect and
thoroughly clean crevices, weld points, under gaskets,
rivets, bolt heads, and any locations where small amounts
of liquid could collect, become stagnant, and concentrate
contaminants. Additionally, any mounting hardware that is
showing signs of corrosion should be replaced.
Interior
Wash interior compartment with mild soap and water. Do
NOT use an abrasive cleaner, solvent, polish cleaner, undi-
luted detergent or chlorine based cleaners.
Care of Appliance
1. Avoid leaning on the door, you may bend the door
hinges or tip the appliance.
2. Exercise caution when sweeping, vacuuming or
mopping near the front of the appliance. Damage to the
grille can occur.
3. Periodically clean the interior of the appliance as
needed.
4. Periodically check and/or clean the front grille as
needed.
In the Event of a Power Failure
If a power failure occurs, try to correct it as soon as
possible. Minimize the number of door openings while the
power is off so as not to adversely affect the appliance's
temperature.
Light assembly replacement
All models use LED lamps to illuminate the interior of the
appliance. This component is very reliable, but should
one fail, contact the Lynx Grills Customer Service at
888.289.5969 for replacement of the LED.
Energy Saving Tips
The following suggestions will minimize the cost of
operating your ice machine appliance.
1. Do not install your appliance next to a hot appliance,
(stove, dishwasher, etc.). heating air duct, or other heat
sources.
2. Install product out of direct sunlight.
3. Assure the front grille vents at front of the ice machine
beneath the door are not obstructed and kept clean to
allow ventilation for the refrigeration system to expel
heat.
4. Plug your appliance into a dedicated power circuit. (Not
shared with other appliances).
5. Minimize door openings and duration of door openings.
6. Set the control to the “off” position if accessing the
interior to spot clean or remove large quantities of ice
requires the door to be open for an extended period of
time.
7. Use ECO mode if maximum ice production quantities
are not required.
8. Use the delay start function if the ice machine will not
be used for long periods of time.
If Service is Required:
• If the product is within the rst year warranty period
please contact your dealer or call Lynx Grills Customer
Service at 888.289.5969 for directions on how to obtain
warranty coverage in your area.
• If the product is outside the rst year warranty period,
Lynx Grills Customer Service can provide recommen-
dations of service centers in your area.
• In all correspondence regarding service, be sure to
give the service number, serial number, and proof of
purchase.
• Try to have information or description of nature of the
problem, how long the appliance has been running, the
room temperature, and any additional information that
may be helpful in quickly solving the problem.
• Table "C" is provided for recording pertinent information
regarding your product for future reference.
For Your Records
Date of Purchase
Dealer’s name
Dealer’s Address
Dealer’s City
Dealer’s State
Dealer’s Zip Code
Appliance Serial Number
Appliance Service Number
Date Warranty Card Sent (Must be
within 10 days of purchase).
Table C
19
• Never attempt to repair or perform maintenance on
the appliance until the main electrical power has been
disconnected. Turning the appliance control "OFF"
does not remove electrical power from the unit's wiring.
• Replace all parts and panels before operating.
!
WARNING
Electrocution Hazard
TROUBLESHOOTING THE ICE MACHINE
Before You Call for Service
If the appliance appears to be malfunctioning, read through
this manual first. If the problem persists, check the trouble-
shooting guide below. Locate the problem in the guide and
refer to the cause and its remedy before calling for service.
The problem may be something very simple that can be
solved without a service call. However, it may be required
to contact your dealer or a qualified service technician.
Troubleshooting guide:
Ice Machine Operation
Ice machine does not operate
Is the ice machine’s power cord plugged in? Plug the
power cord into a grounded 3 prong outlet.
Is the electronic control showing the "ICE" position?
Check the control to be sure it is in the "ICE" position.
Is a fuse blown or a circuit breaker been tripped? Re-
place a blown fuse or reset a tripped circuit breaker.
Is the temperature of the room cooler than it normally
is? The minimum room temperature is 55°F (13°C). The
bin thermistor may be sensing the room temperature and
shut off before the bin is full of ice. If the room temperature
remains low the ice machine may not restart.

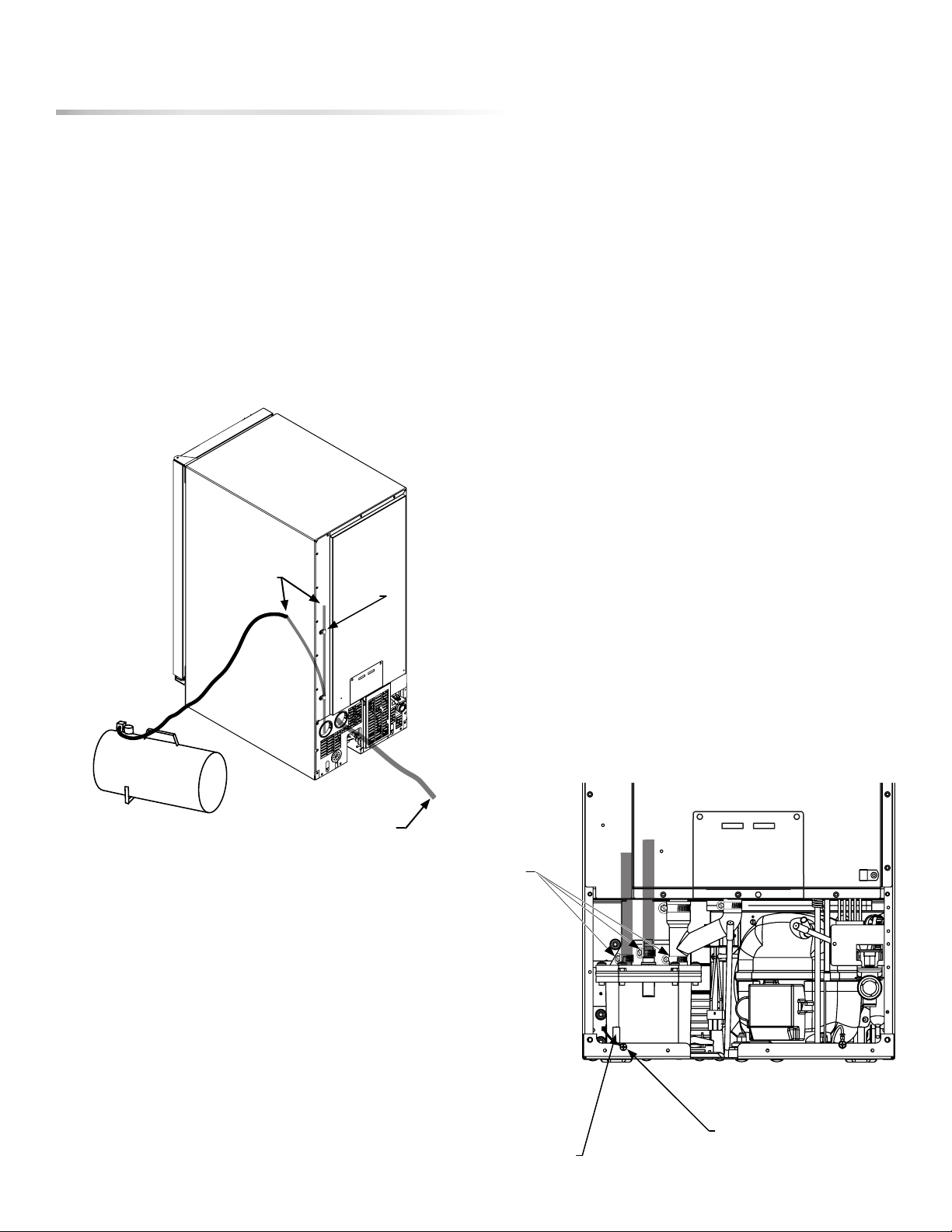

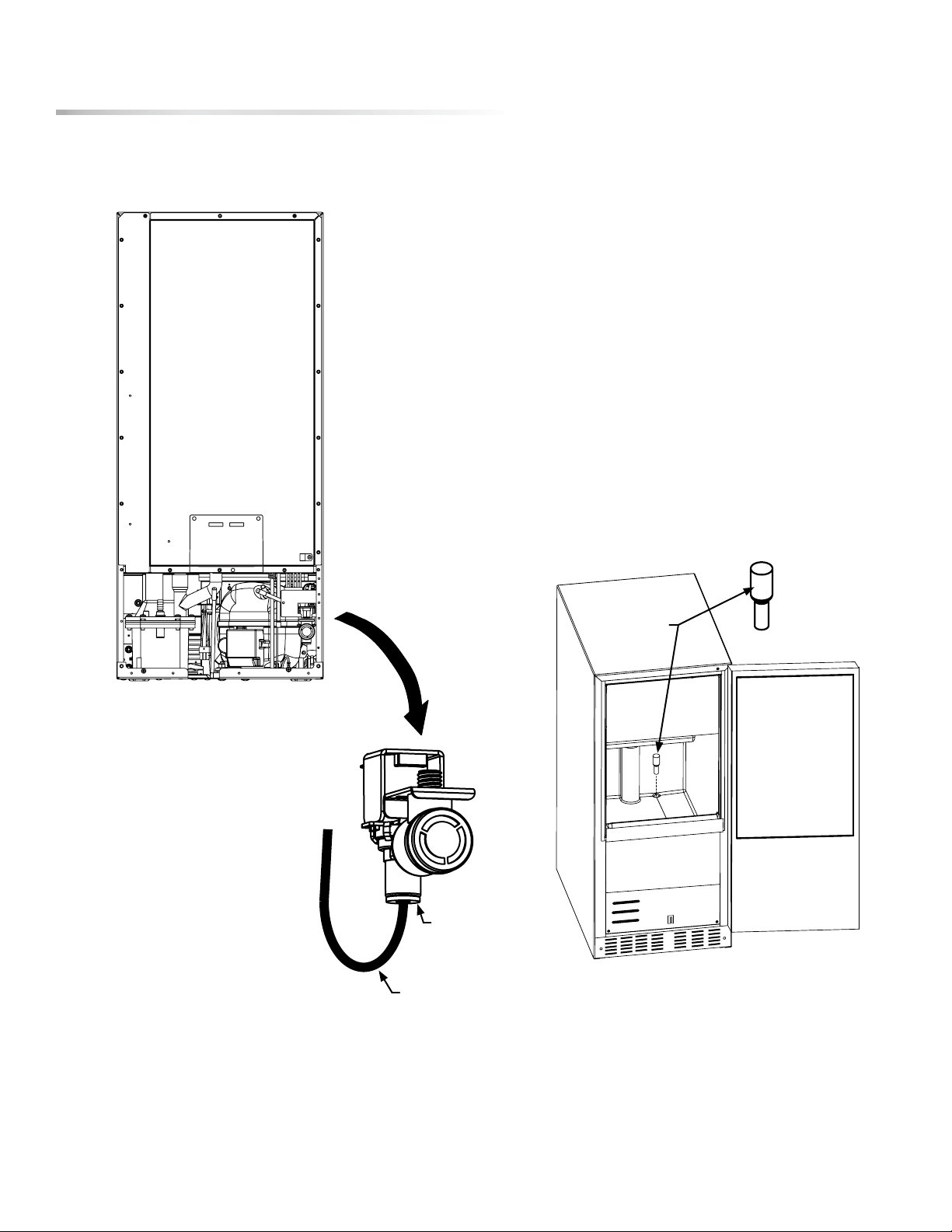

Is there a drain pump in the ice machine? The drain
pump is designed to temporarily shut the unit off when
large quantities of water create a high-limit condition. Wait
a few minutes as the drain pump will continue to operate
to dispose of the excess water. If there is still water in the
ice bin check the drain pump vent line and drain line for
obstructions or kinking.
The ice machine is noisy
Many sounds of an ice machine are different than your
household refrigerator. This subject is discussed on page
11, but check the following:
Do you hear water being circulated in the ice ma-
chine? This is a normal sound as water is added once
every ice making cycle.
Is there a “whoosing” sound? Make sure water is get-
ting to the ice machine. Also check to make sure the drain
plug is fully seated in the water reservoir.
Is there an ice slab caught between the evaporator
plate and the grid cutter? First check to see if the ice
machine is level. If the ice machine is level run a cleaning
cycle.
Ice Production
Little or no ice production from the ice machine
Is the electronic control set to the "ICE" position?
Check the control to be sure it is in the "ICE" position.
Is water getting to the ice machine? Make sure nothing
is restricting the water supply such as a closed water valve
or a blown fuse or tripped circuit breaker, or a kinked sup-
ply line, or low water pressure.
Has the ice machine just been started? A typical ice
production cycle can take up to 1
1
⁄2 hours. Initial start up
cycles can take longer. Check the ice machine after 24
hours for ice accumulation in the bin.
Is the reservoir drain plug in place? Check that the
reservoir drain plug is properly seated.
Is the water distributor tube restricted? Run a cleaning
cycle to clean the ice machine. Also check any filters to
make sure they are not restricted.
Is the condenser fan air ow restricted? Make sure the
grille in the front of the ice machine is open for proper air
circulation.
Is the room and/or water temperature to warm? Move
the ice machine to an area where the ambient temperature
is below 90°F (32°C) for built-in ice machines or below
100°F (38°C) for freestanding ice machines. The ice ma-
chine should not be placed next to a heat source such as
an oven. Check the cold water connection.
Is there scale build up in the ice machine? If there is
scale build up on the evaporator, the ice machine needs to
be cleaned. See “Cleaning the Ice machine”.
20
TROUBLESHOOTING THE ICE MACHINE
Plumbing Problems
Is the drain hose aligned over the drain? Move the ice
machine to align the drain.
Is the ice machine draining properly? Check that there
are no kinks or restrictions in the drain lines; this can
cause water to back up in the ice bin. Check that foreign
material is not blocking the ice bin drain located at the
right rear corner of the ice bin. Check the drain pump
discharge and vent line or any restrictions or kinks. Check
that the drain pump is level.
If there are plumbing issues outside of the ice machine,
they cannot be repaired by the service technician. A
qualified plumber will have to be called.
Ice Quality
Odor, grey color, or off taste in the ice
Is there mineral scale build up on the evaporator
plate? The ice machine needs cleaning. See “Cleaning
the Ice Machine”.
Is there a high mineral content in the water? The water
may need to be filtered.
Are food items being stored in the ice bin? Remove
food from the ice bin.
Unpleasant Odors may require the use of a charcoal filter
on the water supply line.
Clumps of ice
Are there clumps of ice in the bin? If the ice isn’t used
on a regular basis it will melt and form into clumps. Break
up the ice clumps with the ice scoop.
Ice cubes are too big or too small
Is there low ice consumption? Ice is slowly melting in
the ice bin which will affect the size of the cubes. This is
normal. When the ice bin needs to be replenished, cubes
will return to the regular size.
Is the ice slab releasing? Clean the evaporator. See
“Cleaning the Ice Machine”.
Is the distributor tube restricted? Check the water line
to the ice machine to make sure there are no restrictions
or kinks in the line. Check all filters to make sure they
are not restricted. Check that the water flows evenly out
of the distributor tube, if not, clean the ice machine. See
“Cleaning the Ice Machine”.
Troubleshooting the Drain Pump
If the drain pump reservoir (not the ice machine bin)
reaches overfill condition, the power to the ice machine will
be shut off.
If the ice machine is not working, check the following:
• Make sure there is power at the receptacle.
• Make sure the ice machine is turned on.
• Make sure the ice bin is not full.
Then check the drain pump:
The pump does not run:
• Make sure the pump is plugged in and there is power
to the receptacle.
• Check the inlet to the drain pump for debris and clean
as needed. Remove clamps and inlet tube from drain
pump to check for and remove debris.
• Make certain the vent line is free of kinks/sharp bends
or restrictions.
• Make certain there is enough water to activate the
drain pump. It will take at least one (1) quart (.95 liters)
of water to activate the drain pump.
The pump runs, but no water is pumped out:
• Check that the vent is clear and free of restrictions.
• Check the discharge line to make certain there are no
restrictions.
• Make sure that the discharge tubing has not exceeded
the maximum lift of eight (8) feet (2.44 meters) and the
horizontal run is not greater than twenty (20) feet (6.1
meters).
The pump runs and then quickly turns off repeatedly:
• Check to make certain the drain pump is level.
• Check that the vent is clear and free of restrictions.
The ice machine is running but not producing ice:
• Check to make sure water is not backing up in the ice
bin.
NOTE
NOTE
21
PREPARING THE ICE MACHINE FOR STORAGE
Draining and Removing Water from the Ice-Making
System with a Gravity Drain.
1. Turn off the water supply to the ice machine.
2. Disconnect the water supply fitting at the inlet of the
water valve. (See Figure 33a).
3. Change the electronic control to the "CLEAN" position
for approximately one (1) minute. This will energize and
open the water valve and remove most of the water
from the water valve and the water valve’s outlet water
line to the reservoir.
4. Change the electronic control to the "OFF" position.
This will energize and open the drain valve to drain the
reservoir and the ice machine drain system.
5. Unplug the ice machine from the electrical outlet.
6. Remove the access cover from the rear of the ice
machine. (See Figure 34).
If the ice machine is moved, not used for an extended
period of time, or will be in an area that will be near freezing
temperatures, it is necessary to remove any remaining
water in the ice-making system.
This ice machine must have all water drained and removed
to prevent ice machine damage as well as possible water
damage to the surrounding area in freezing conditions.
These damages are not covered under warranty.
Do not use any type of anti-freeze or other solution as a
substitution for properly draining the ice machine.
Clean the Ice Machine
Cleaning the ice machine will help prevent mold and mildew
growth as well as sanitize the ice machine for storage or
when it is put back into service. See page 16 for
instructions for cleaning the ice machine.
!
CAUTION
!
CAUTION
Risk of electrical shock or personal injury could occur
due to moving components, if machine compartment
access cover is removed before unplugging the ice
machine.
!
WARNING
Electrocution Hazard

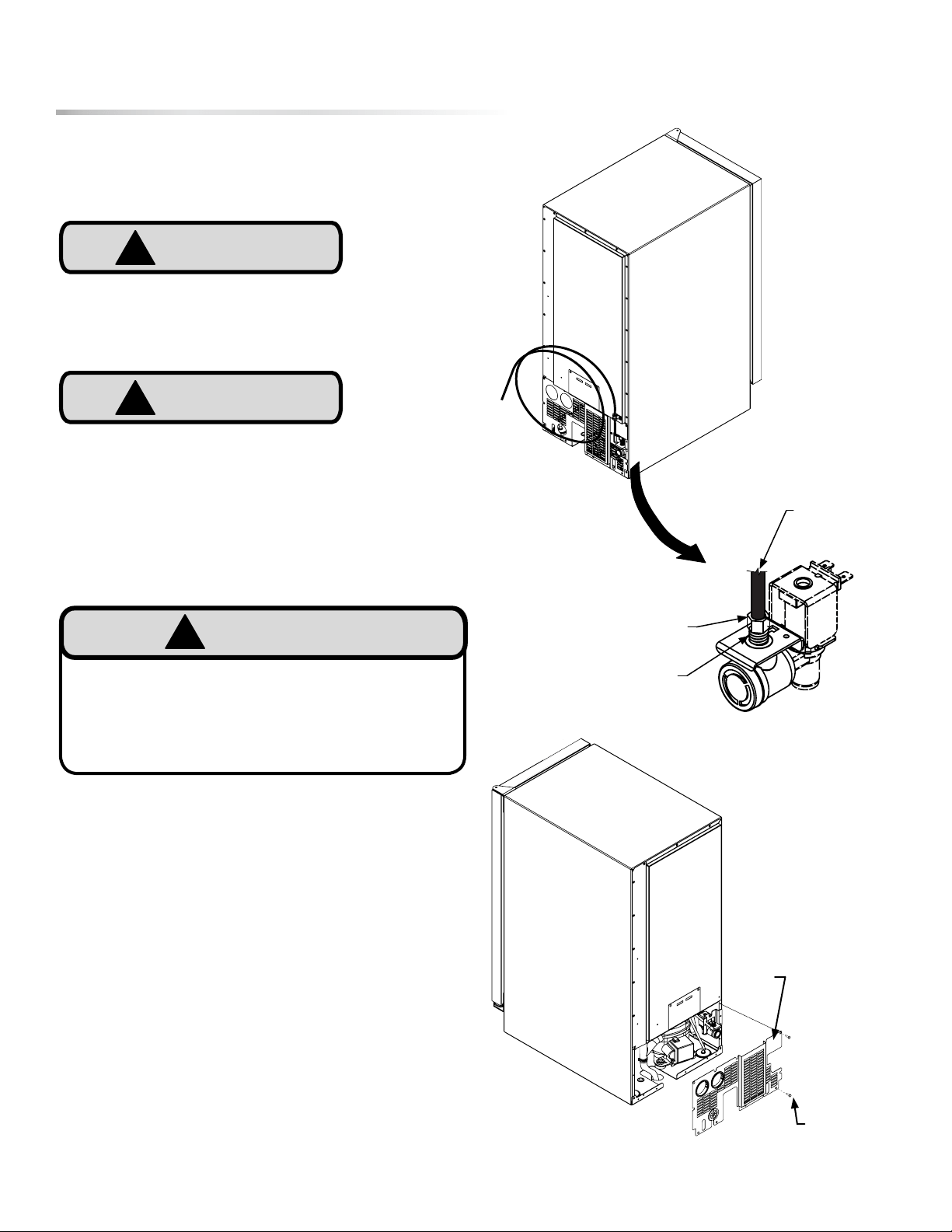

Figure 33
Back view of
ice machine
Water supply
fitting
Water
supply
line
Water valve
inlet
Access
cover
Screw
Figure 33a
Figure 34
22
PREPARING THE ICE MACHINE FOR STORAGE
8. Reconnect the water valve outlet water line.
(See Figure 35 and 35a).
9. Reinstall the ice machine’s access cover.
10. Clean and dry the ice machine’s storage bin.
11. Prop the door open for air circulation to prevent mold
and mildew.
12. Leave the water supply line disconnected or
reconnect the supply line and leave it shut off. Do NOT
turn the water on and allow water to enter back into the
water valve.
White
collar
Plastic outlet
water line
7. Disconnect the water valve’s outlet water line to the
reservoir and drain the remaining water left in the water
line trap area. (See Figure 35 and 35a).
Figure 35
To disconnect the water outlet
line: Push up on the white collar
and pull the plastic water line
from the bottom of the water
valve.
To reconnect the water outlet
line: Simply insert the plastic
tubing into the white collar and
push until it stops (about
1
⁄2", 12
mm, of water line will enter the
valve).
Figure 35a
Draining Water for Factory Installed Drain Pump
Applications
Follow steps 1 through 12 for the gravity drain then do the
following:
13. Install the winterization plug in the water drain hole
inside the ice bin. (See Figure 36).
Figure 36
Winterization
plug
23
Drain Pump Removal Instructions:
1. Unplug the ice machine from the electrical supply and
remove the rear access cover from the ice machine.
2.
3.
Remove the front panel and the toe grille from the front
of the ice machine. See Figures 38 and 38a.
Remove the front and rear drain pump brackets. See
Figures 40, 40a and 41.
4. Unscrew the 3 hose clamps and remove the 3 hoses
from the front of the drain pump. (See Figure 42).
5. Unscrew the leveling leg in the back corner until the
end of the threaded portion is flush with the threaded
nut insert in the base. (see Figure 38).
To Restart the Ice Machine
1. Reconnect or turn on the water supply line.
2. Reconnect drain tubing if removed.
3. Plug in the power cord to a wall outlet and turn the ice
machine on, (refer to page 15 for turning the ice ma-
chine on and off).
4. Check the water inlet, drain lines, and fittings for any
water leaks.
5. Check drain pump (if equipped) operation by pouring
approximately two (2) quarts of water into the ice stor-
age bin. The drain pump should activate and discharge
water (refer to Drain Pump on page 6). Check for water
leaks at all hose connections.
14. Remove the top clamp from the vent tube, for easier
access for the air hose.
15. Apply air pressure (approximately 10 psi) to the end of
the vent tube which will purge the remainder of the
water from the drain pump and the drain line. (See
Figure 37).
16. Reinstall the vent tube and clamp to the back of the ice
machine and remove the winterization plug from the ice
bin and save it for future use.
Figure 37
Vent
tube
Remove
clamp
screw
Drain
line
PREPARING THE ICE MACHINE FOR STORAGE
Unscrew the
leveling leg so
the end of the
threads is flush
with the top of
the nut insert.
Remove
these 3 hose
clamps, then
remove the
3 tubes from
the drain
pump
Drain pump ground
wire connection
Figure 38
24
DRAIN PUMP REMOVAL INSTRUCTIONS
Rear of ice machine
Front of ice machine
Remove the
hex nut on
front drain
pump bracket
with the
3
⁄8"
socket then
remove the
bracket.
Remove the hex nut on
rear drain pump bracket
with the
3
⁄8" socket then
remove the bracket.
carriage bolt
carriage bolt
#10-24 hex nut
#10-24 hex nut
Rear drain
pump bracket
Front drain
pump bracket
Figure 40
Figure 40a
Figure 41
Figure 39
Figure 39a
Toe grille
Toe grille
Front
panel
Front
panel
25
DRAIN PUMP REMOVAL INSTRUCTIONS
Additional issues to be inspected by the installer
upon service replacement:
1. The drain pump must be level.
2. No pinched water lines.
3. No interference with electrical cords or wiring.
4. The drain pump should not set on any obstacles,
wiring, etc.
5. Secure all hose clamps leading to and from the
drain pump.
6. Insure that the vent tube height is adequate - 18
inches minimum.
7. Insure that drain height is adequate - maximum
of 8 feet.
8. Insure that drain length is adequate - maximum
of 20 feet.
9. Checked for water leaks after installation of the
drain pump.
10. Check for vibrations caused by improper
installation.
11. Insure that there is no interference with back
access cover.
12. Insure that the hole grommets are in place at
each location so that any vent or drain tubes do
not rub on any sharp surfaces.
Ice machine
power cord
Figure 43
Rotate drain pump and
remove from back of
ice machine.
Figure 42
6. Rotate the drain pump and remove from the ice
machine, (See Figure 42). It may be necessary to
disconnect the ground wire connection in the back
flange of the cabinet. (See Figure 38).
7. Disconnect the ice machine power cord from the drain
pump (See Figure 43).
8. Drain the water in the drain pump’s reservoir by turning
the pump upside down and allowing water to drain
through the pump’s inlet and vent tube fittings.
9. Installation of drain pump is reverse of this procedure.
26
HOUSEHOLD PRODUCT WARRANTY
UNDERCOUNTER ICE MACHINE
TWO YEAR FULL WARRANTY
Undercounter ice machines and all of their component parts, except as detailed below*†, are warranted to be free from defective materials or workmanship in
normal residential use for a period of two (2) years from the date of original retail purchase. Lynx, warrantor, agrees to repair or replace, at its option, any part
which fails or is found to be defective during the warranty period.
*FULL NINETY (90) DAY COSMETIC WARRANTY:
Product is warranted to be free from cosmetic defects in materials or workmanship (such as scratches on
stainless steel, paint/porcelain blemishes, etc.) for a period of ninety (90) days from the date of original retail purchase or closing date for new
construction, whichever period is longer. Any defects must be reported to the selling dealer within ninety (90) days from date of original retail purchase.
Lynx uses high quality processes and materials available to produce all color finishes. However, slight color variation may be noticed because of the
inherent differences in painted parts and porcelain parts as well as differences in kitchen lighting, product locations, and other factors. Therefore, this
warranty does not apply to color variation attributable to such factors.
†FULL NINETY (90) DAY WARRANTY IN “RESIDENTIAL PLUS” APPLICATIONS: Lynx products are designed and certified for residential use only. They are
not intended for use in commercial applications. Lynx products should only be used in accordance to national and local codes. Lynx is not responsible
for property damage or injury resulting from use in a commercial application. To support the manufacturing quality of its appliance’s Lynx will provide a
full 90 day warranty for products used in “Residential Plus “applications. This “Residential Plus” warranty applies to applications where use of the product
extends beyond residential use but is in compliance with national and local code. In some jurisdictions these applications are zoned as residential.
Examples of, but not limited to, such applications covered by this warranty are bed and breakfasts, fire stations, private clubs, churches, condominium/
apartment common areas etc. Under this "Residential Plus" warranty, the product, its components and accessories are warranted to be free from
defective material or workmanship for a period of ninety (90) days from the date of original retail purchase. Lynx warranter, agrees to repair or replace, at
its option, any part which fails or is found to be defective during the warranty period. This warranty covers parts and labor. This warranty excludes use of
the product in all commercial locations such as restaurants, food service locations and institutional food service locations.
SIX YEAR FULL WARRANTY ON SEALED REFRIGERATION PARTS AS LISTED
Any sealed refrigeration system component, as listed below, is warranted to be free from defective materials or workmanship in normal household use during the
third through the sixth year from the date of original retail purchase. Lynx, warranter, agrees to repair or replace, at its option, any part which fails or is found to be
defective during the warranty period.
Sealed Refrigeration System Components: Compressor, Evaporator, Condenser, Connecting Tubing, Dryer/Strainer
TWELVE YEAR LIMITED WARRANTY ON SEALED REFRIGERATION PARTS AS LISTED
Any sealed refrigeration system component, as listed above, which fails due to defective materials or workmanship in normal household use during the seventh
through the twelfth year from the date of original retail purchase will be repaired or replaced, free of charge for the part itself, with the owner paying all other costs,
including labor.
WARRANTY TERMS
This warranty extends to the original retail purchaser of the product warranted hereunder and to each transferee owner of the product during the term of the
original purchaser's warranty. the warranty is transferable by the original retail purchaser via home sale only. If a transferee owner is unable to provide proof of
purchase from the original purchaser and the product has not been previously registered, the production date of the product, located in the serial number of the
product, will serve as the effective warranty start date.
The activation date of the warranty begins from the date of original retail purchase. In the case of new product purchase via building development sales, activation
begins from the earlier date of either certificate of occupancy or 24 months from date of manufacture. Note date of manufacture is identified by serial tag on
product.
This warranty does not cover units purchased as b-stock, liquidation, salvage, seconds, refurbished, as-is, used products.
This warranty shall apply to products purchased in the United States and Canada. Products must be purchased in the country where service is requested. Warranty
service must be performed by a Lynx authorized service agency or representative. Warranty shall not apply to damage resulting from abuse, accident, natural
disaster, loss of electrical power to the product for any reason, alteration, improper installation, improper operation, or repair service of the product by anyone
other than a Lynx authorized service agency or representative. This warranty does not apply to commercial usage. Warrantor is not responsible for consequential or
incidental damage whether arising out of breach of warranty, breach of contract or otherwise. Some jurisdictions do not allow the exclusion or limitation of
incidental or consequential damages, so the above limitations do not apply to you.
Owner shall be responsible for proper installation, providing normal care and maintenance, providing proof of purchase upon request, and making the product
reasonably accessible for service. If the product or one of its component parts contains a defect or malfunction during the warranty period, after a reasonable
number of attempts by the warrantor to remedy the defects or malfunctions, the owner is entitled to either a refund or replacement, at the warrantor’s discretion of
the product or its component part or parts. Warrantor’s liability on any claim of any kind, with respect to the goods or services covered hereunder, shall in no case
exceed the price of the goods or service or part thereof which gives rise to the claim.
WARRANTY SERVICE
Under the terms of this warranty, service must be performed by a Lynx authorized service agent or representative. Service will be provided during normal business
hours Labor performed at overtime or premium rates shall not be covered by the warranty. To obtain warranty service contact Lynx Customer Care at
1-888-289-5969. Please have model number, serial number, and date of original purchase available when calling. IMPORTANT: Retain proof of original purchase to
establish warranty period. The return of the owner registration card is not a condition of warranty coverage. You should, however, return the owner registration card
so Lynx can contact you should any question of safety arise which could affect you. Any implied warranties of merchantability and fitness applicable to the above
described burner assemblies, infrared rotisserie burners, grill grates, and stainless steel parts are limited in duration to the period of coverage of the applicable
express written limited warranties set forth above. Some jurisdictions do not allow limitations on how long an implied warranty lasts, so the above limitations may
not apply to you. This warranty gives you specific legal rights, and you may also have other rights which may vary from jurisdiction to jurisdiction.
Specifications subject to change without notice.
27
41016411 Rev B
4/14/2022
All specifications and product designs subject to change without notice. Such revisions do not entitle
the buyer to corresponding changes, improvements, additions, replacements or compensation for
previously purchased products.
The best outdoor kitchen products come from:
Lynx Grills
62201 Highway 82 West Greenwood, MS 38930
Service: (888)-289-5969
www.lynxgrills.com
