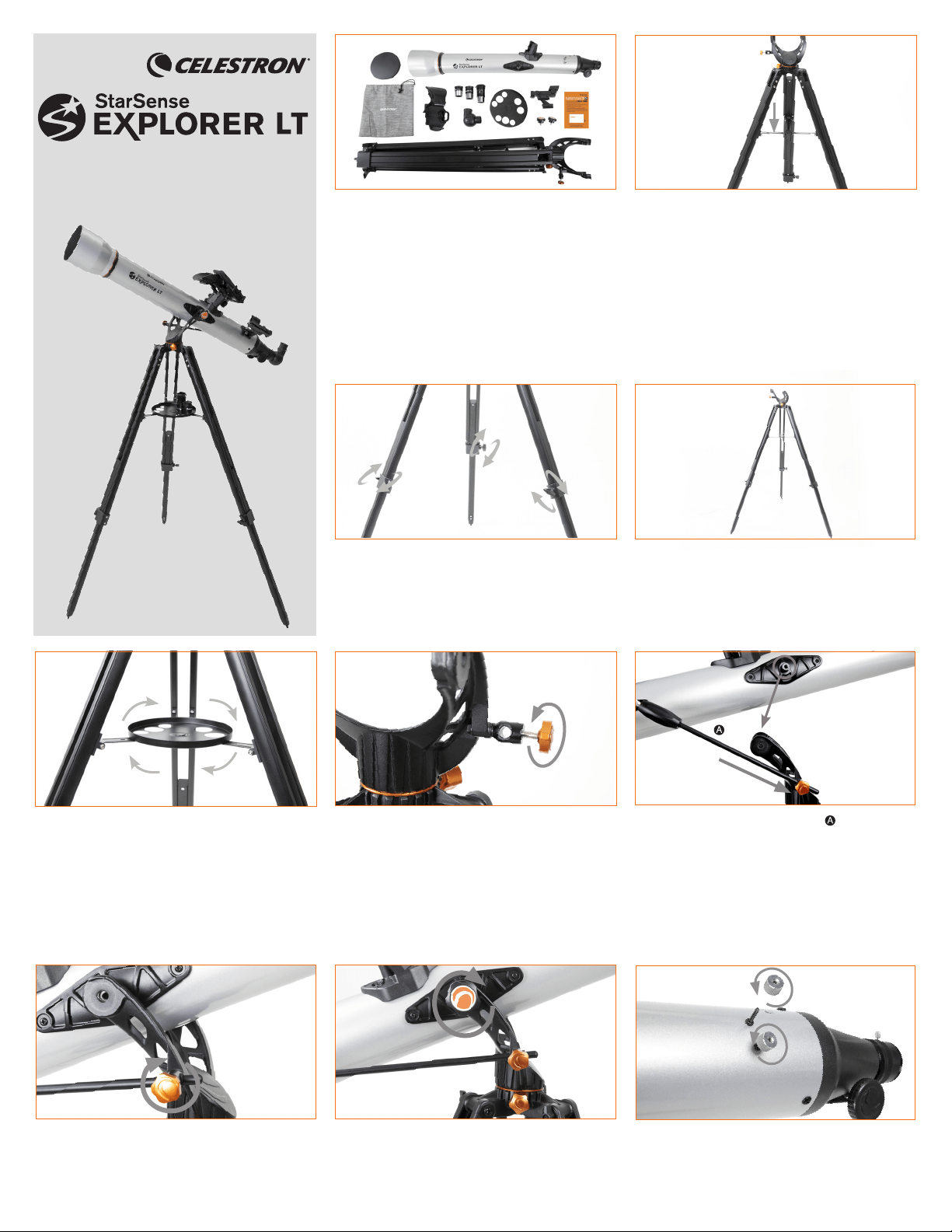

Unpack your telescope and verify that all parts
are present. Your StarSense Explorer LT includes:
a telescope tube with altitude slow motion rod
attached, a lens cap, an accessory bag, a tripod with
alt-azimuth yoke mount and center leg brace attached,
a StarSense smartphone dock, two eyepieces, a 2x
Barlow lens, two tube mounting screws, an erect
image diagonal, an eyepiece accessory tray, a
StarPointer finderscope and StarSense Explorer
app code card.
To set up the tripod, spread the legs outward until
they are fully extended and push down the center
leg brace.
ITEM #22451
Extend the center portion of each of the three tripod
legs down about 6 to 12 inches. Use the tightening
screw on each leg to secure the extended leg in place.
ENGLISH
80AZ
Quick Setup Guide
Check to ensure that all three legs are the same
height once extended to provide a level platform for
the telescope.
Place the eyepiece accessory tray on top of the
tripod’s center leg brace. Thread the tray into the
threaded hole in the center of the leg brace until it
is fully seated.
NOTE: If necessary, rotate the accessory tray
counterclockwise until the accessory holes
are not covered by the leg brace arms as
shown here.

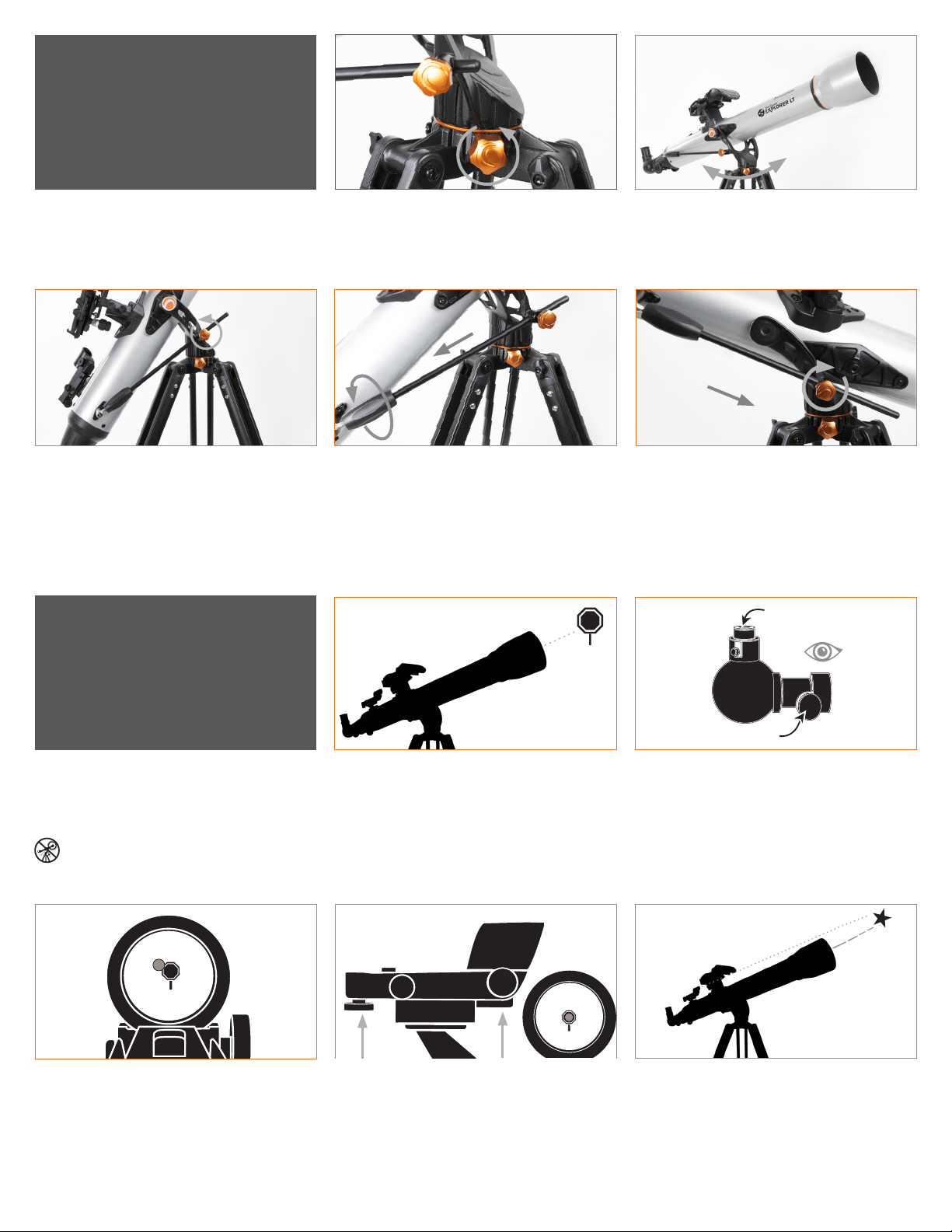

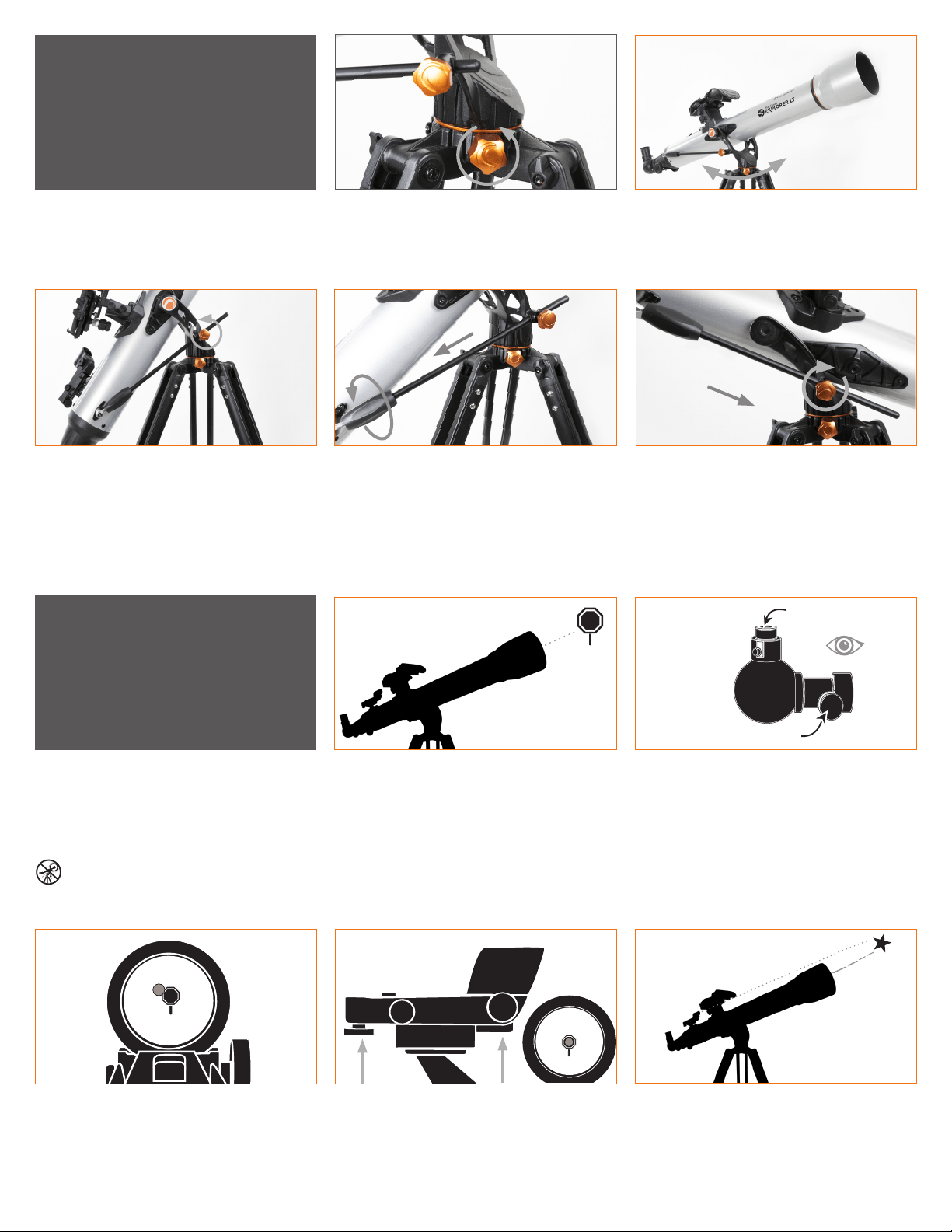

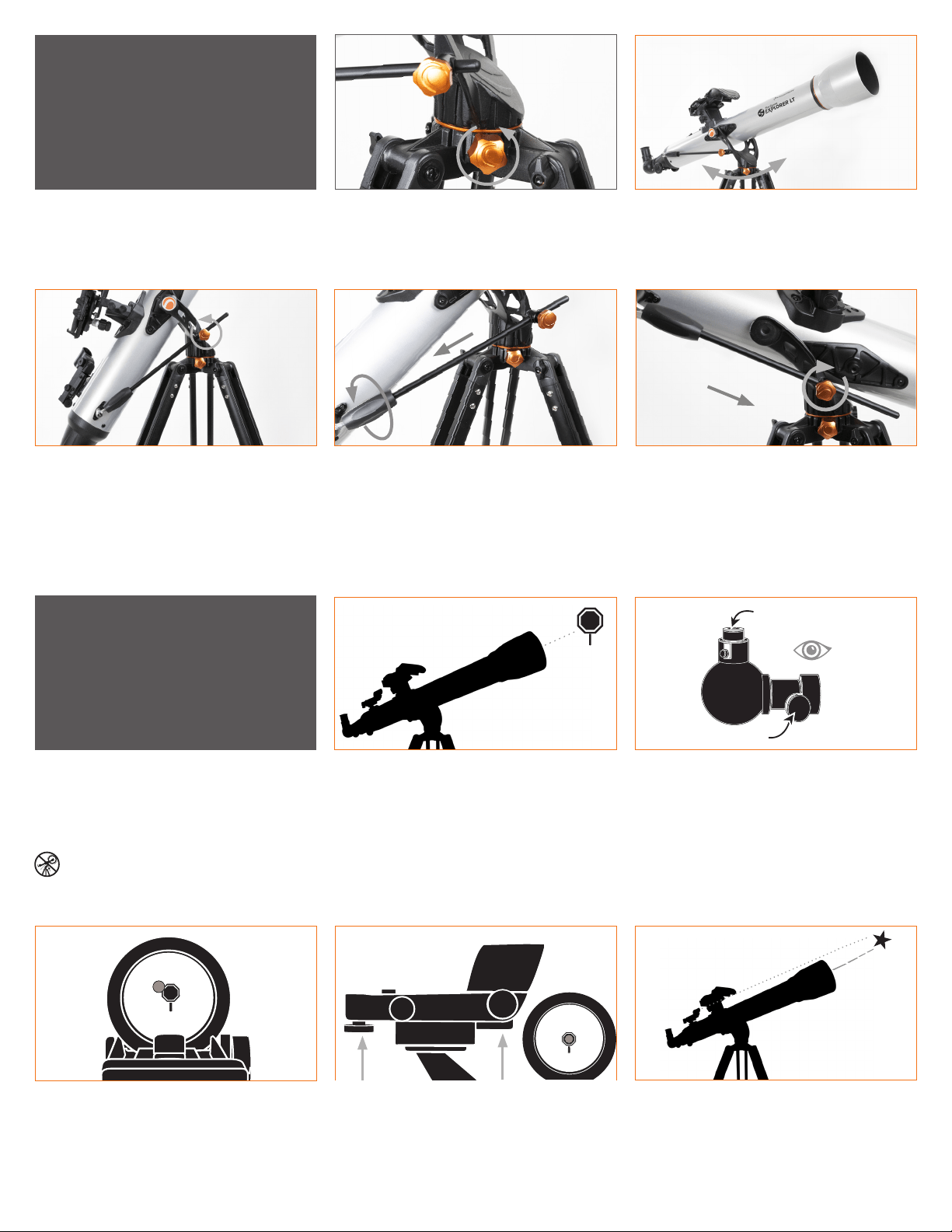

Loosen the knob on the altitude rod guide on the
side of the yoke mount so the hole is unobstructed.
Slide the altitude rod into the rod guide on the
mount and lower the altitude hubs on the telescope
tube into the cradles on the top of each yoke arm.
Tighten the altitude rod guide screw to hold the
telescope in place.
Insert the two tube mounting screws through the
yoke mount and into the hubs on the telescope tube
to secure it in place.

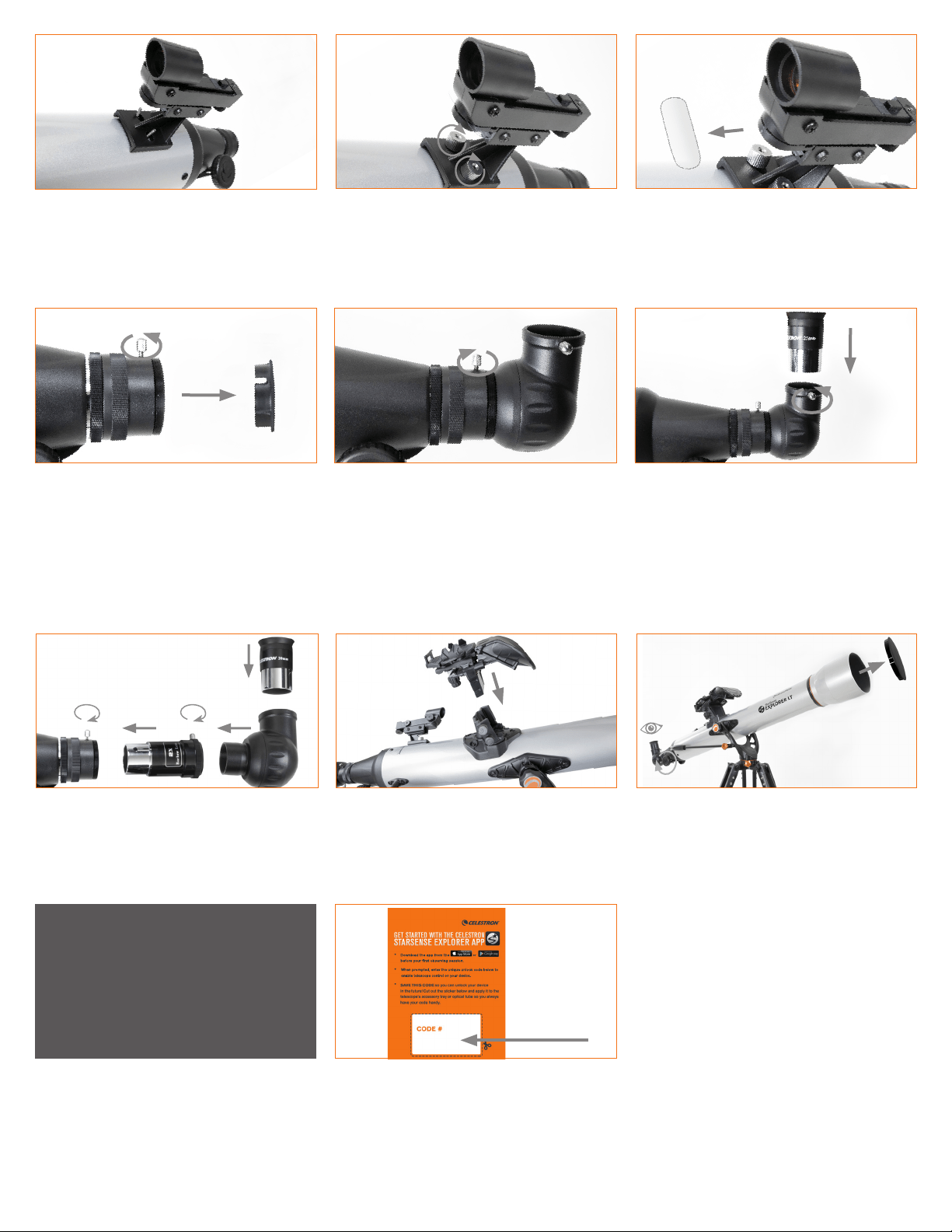

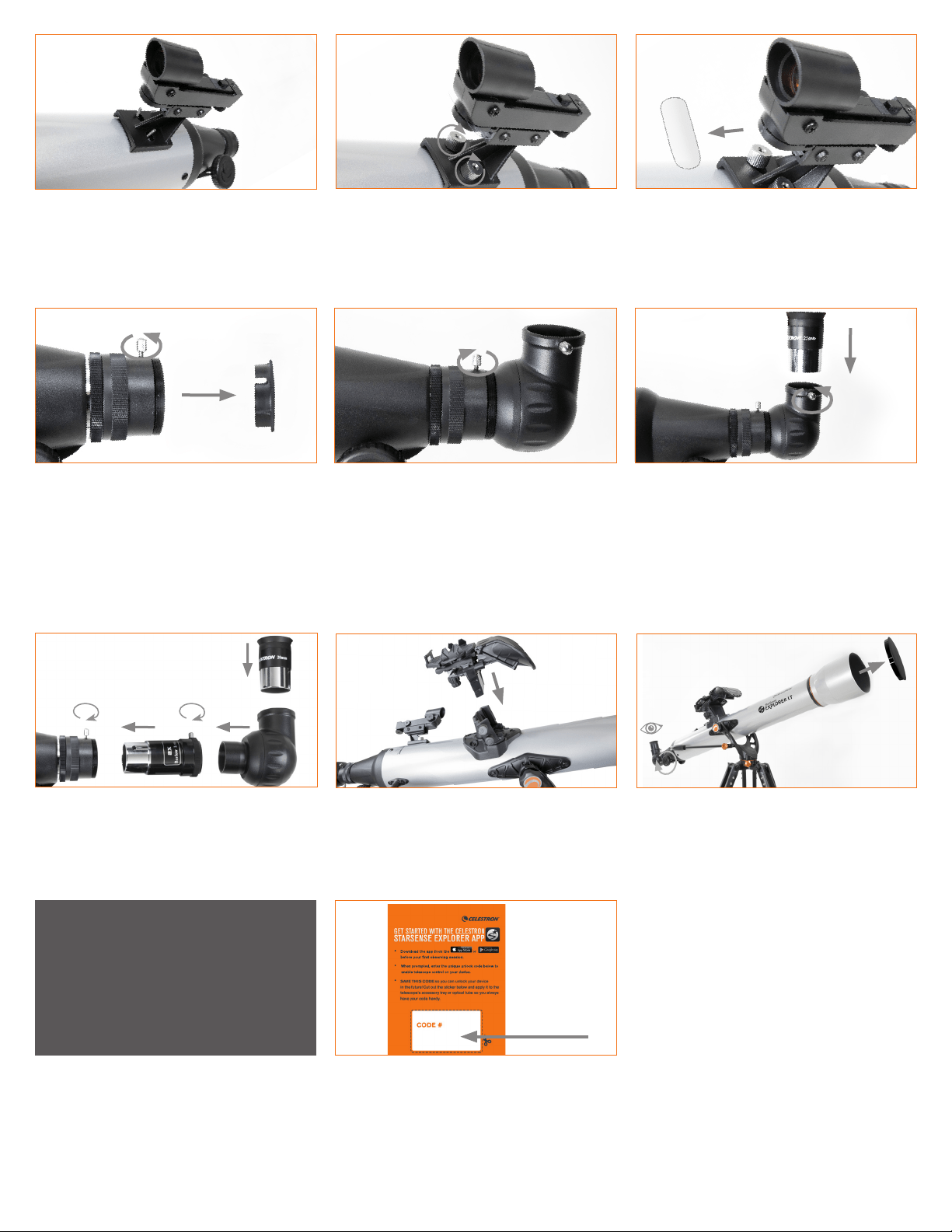

To install the finderscope, remove the two silver nuts
from the threaded posts on the top of the tube, near
the focuser.
