TABLE OF CONTENTS
Important Safety Instructions ................... 3-6 Setting Oven Controls ................................. 13-23
Features at a Glance ........................................ 7 Keep Warm Drawer .................................... 24-25
Before Setting Oven Controls .......................... 8-9 Self-Cleaning. ............................................. 26-27
• 2
D 28-
Before Setting Surface Controls ........................ 10 Care & Cleaning (EC/W) ............................
SettingSurfaceControls..................................II BeforeYou Call...................................._'."_:'_ "I
Oven Control Functions (540C) ........................ 12 Major Appliance Warranty ...................... oacK ore
www fr g da re com USA 1-800-944-9044 www frigidaire.ca Canada 1-800-265-8352
_a

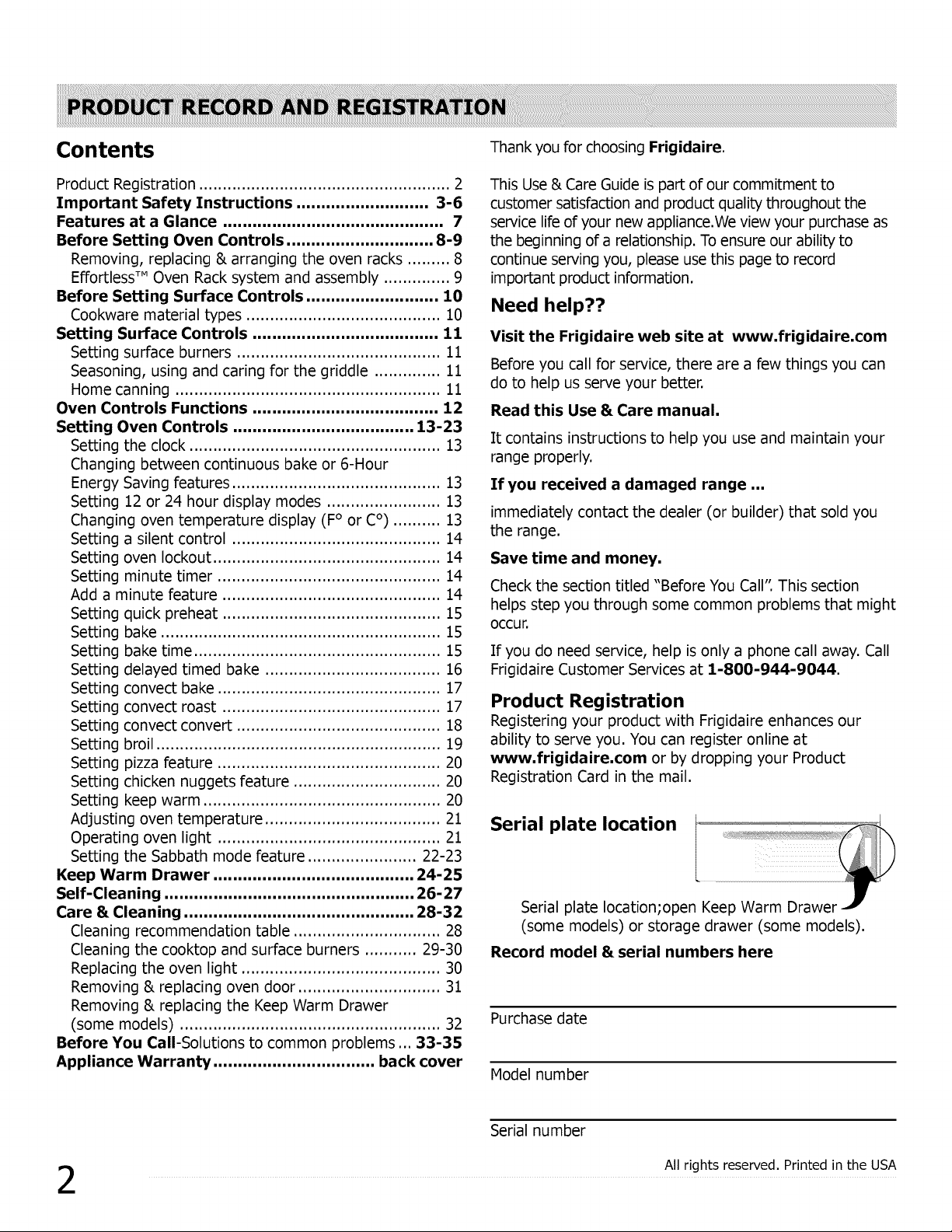

Contents
Product Registration ..................................................... 2
Important Safety Instructions ........................... 3-6
Features at a Glance ............................................. 7
Before Setting Oven Controls .............................. 8-9
Removing, replacing & arranging the oven racks ......... 8
Effortless TM Oven Rack system and assembly .............. 9
Before Setting Surface Controls ........................... 10
Cookware material types ......................................... 10
Setting Surface Controls ...................................... 11
Setting surface burners ........................................... 11
Seasoning, using and caring for the griddle .............. 11
Home canning ........................................................ 11
Oven Controls Functions ...................................... 12
Setting Oven Controls ..................................... 13-23
Setting the clock ..................................................... 13
Changing between continuous bake or 6-Hour
Energy Saving features ............................................ 13
Setting 12 or 24 hour display modes ........................ 13
Changing oven temperature display (F° or C°) .......... 13
Setting a silent control ............................................ 14
Setting oven lockout ................................................ 14
Setting minute timer ............................................... 14
Add a minute feature .............................................. 14
Setting quick preheat .............................................. 15
Setting bake ........................................................... 15
Setting bake time .................................................... 15
Setting delayed timed bake ..................................... 16
Setting convect bake ............................................... 17
Setting convect roast .............................................. 17
Setting convect convert ........................................... 18
Setting broil ............................................................ 19
Setting pizza feature ............................................... 20
Setting chicken nuggets feature ............................... 20
Setting keep warm .................................................. 20
Adjusting oven temperature ..................................... 21
Operating oven light ............................................... 21
Setting the Sabbath mode feature ....................... 22-23
Keep Warm Drawer ......................................... 24-25
Self-Cleaning ................................................... 26-27
Care & Cleaning ............................................... 28-32
Cleaning recommendation table ............................... 28
Cleaning the cooktop and surface burners ........... 29-30
Replacing the oven light .......................................... 30
Removing & replacing oven door .............................. 31
Removing & replacing the Keep Warm Drawer
(some models) ....................................................... 32
Before You Call-Solutions to common problems... 33-35
Appliance Warranty ................................. back cover
Thank you for choosing Frigidaire.
This Use & Care Guide is part of our commitment to
customer satisfaction and product quality throughout the
service life of your new appliance.We view your purchase as
the beginning of a relationship. To ensure our ability to
continue serving you, please use this page to record
important product information.
Need help??
Visit the Frigidaire web site at www.frigidaire.com
Before you call for service, there are a few things you can
do to help us serve your better.
Read this Use & Care manual.
It contains instructions to help you use and maintain your
range properly.
If you received a damaged range ...
immediately contact the dealer (or builder) that sold you
the range.
Save time and money.
Check the section titled "Before You Call". This section
helps step you through some common problems that might
occur.
If you do need service, help is only a phone call away. Call
Frigidaire Customer Services at 1-800-944-9044.
Product Registration
Registering your product with Frigidaire enhances our
ability to serve you. You can register online at
www.frigidaire.com or by dropping your Product
Registration Card in the mail.
Serial plate location ..............
Y
Serial plate location,open Keep Warm
(some models) or storage drawer (some models).
Record model & serial numbers here
Purchase date
Model number
2
Serial number
All rights reserved. Printed in the USA
Read all instructions before using this appliance.
Do not attempt to install or operate your appliance until
you have read the safety precautions in this manual.
Safety items throughout this manual are labeled with a
WARNING or CAUTION statement based on the risk type.
Definitions
This is the safety alert symbol. It is used to alert you
to potential personal injury hazards. Obey all safety
messages that follow this symbol to avoid possible injury
or death.
WARNING indicates a potentially hazardous
situation which, if not avoided, may result in
death or serious injury.
CAUTION indicates a potentially hazardous
situation which, if not avoided, may result in
minor or moderate injury. .............................................................................................................................................................................
IMPORTANT indicates installation, operation,
maintenance or valuable information that is not hazard
related.
_!!i i!i _iii!i ii!iii!i!iiiii!ii
• Remove all tape and packaging before using the
range. Destroy the carton and plastic bags after
unpacking the range. Never allow children to play with
packaging material.
• Proper Installation--Be sure your appliance is
properly installed and grounded by a qualified
technician in accordance with the National Fuel
Gas Code ANSI Z223.- latest edition, or in Canada
CAN/CGA B149.1, and CAN/CGA B149.2, and the
National Electrical Code ANSI/NFPA No.70-1atest
edition, or in Canada CSA Standard C22.1,
Canadian Electrical Code, Part 1, and local code
requirements. Install only per installation instructions
provided in the literature package for this range. Ask
your dealer to recommend a qualified technician and an
authorized repair service. Know how to disconnect the
power to the range at the circuit breaker or fuse box in
case of an emergency.
• Never modify or alter the construction of a range
by removing the leveling legs, panels, wire covers,
anti-tip brackets/screws, or any other part of the
range.
If the information in this manual is not followed
exactly, a fire or explosion may result causing
property damage, personal injury or death.
FOR YOUR SAFETY:
-- Do not store or use gasoline or other
flammable vapors and liquids in the vicinity
of this or any other appliance.
-- WHAT TO DO IF YOU SMELL GAS:
• Do not try to light any appliance.
• Do not touch any electrical switch; do not
use any phone in your building.
• Immediately call your gas supplier from a
neighbor's phone. Follow the gas supplier's
instructions.
• If you cannot reach your gas supplier, call
the fire department.
-- Installation and service must be performed
by a qualified installer, servicer or the gas
ii
supplier.
Tip Over Hazard
• A child or adult can tip the
range and be killed,
• Verify the anti-tip device has
been installed to floor or wall,
• Ensure the anti-tip device is re-engaged when
the range is moved to floor or wail.
• Do not operate the range without the anti-tip
device in place and engaged.
• Failure to follow these instructions can result in
death or serious burns to children and adults.
/f_ Rancje_
leveling leg Y,',_'TT_
\_/'_'_') I_---Anti-Tip
,_ bracket
To check if the anti-tip bracket is installed properly, use
both arms and grasp the rear edge of range back.
Carefully attempt to tilt range forward. When properly
installed, the range should not tilt forward.
Refer to the anti-tip bracket installation instructions
supplied with your range for proper installation.
Save these instructions for future reference.
3
NEVER use this appliance as a space heater to
heat or warm the room. Doing so may result in
carbon monoxide poisoning.
NEVER cover any slots, holes or passages in the
oven bottom or cover an entire rack with materials
such as aluminum foil. Doing so blocks air flow
through the oven and may cause carbon monoxide
poisoning. Aluminum foil linings may trap heat,
causing a fire hazard.
Stepping, leaning or sitting on the door or
drawers of a range can result in serious injuries
and also cause damage to the appliance. DO NOT
allow children to climb or play around the range. The
weight of a child on an open oven door may cause the
range to tip, resulting in serious burns or other injury.
Storage in or on appliance--flammable materials
should not be stored in an oven, near surface
units or in the storage drawer, warmer drawer or
lower oven. This includes paper, plastic and cloth
items, such as cookbooks, plasticware and towels, as
well as flammable liquids. Do not store explosives, such
as aerosol cans, on or near the range.
DO NOT LEAVE CHILDREN ALONE -- children
should not be left alone or unattended in the
area where appliance is in use. They should never
be allowed to sit or stand on any part of the appliance,
including the storage drawer, lower broiler drawer,
warmer drawer or lower double oven.
Do not store items of interest to children in the
cabinets above a range or on the backguard of
the range. Children climbing on the range to reach
items could be seriously injured.
• Remove the oven door from any unused range if
it is to be stored or discarded.
• User servicing--Do not repair or replace any part
of the appliance unless specifically recommended
in the manuals. All other servicing should be done
only by a qualified technician, This may reduce the risk
of personal injury and damage to the range.
For electric ignition models only: Do not attempt
to operate the range during a power failure. If the
power fails, always turn off the range. If the range is
not turned off and the power resumes, the range will
begin to operate again. Once the power resumes, reset
the clock and oven function.
!i!iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii___!!!iiii
DO NOT TOUCH SURFACE BURNERS, AREAS
NEAR THESE BURNERS, OVEN BURNERS OR
INTERIOR SURFACES OF THE OVEN. Both
surface and oven burners may be hot even though
flames are not visible. Areas near surface burners
may become hot enough to cause burns. During
and after use, do not touch, or let clothing or other
flammable materials touch these areas until they
have had sufficient time to cool. Among these areas
are the cook top, surfaces facing the cook top, the
oven vent openings and surfaces near these
openings, oven door and window.
Wear proper apparel--loose-fitting or hanging
garments should never be worn while using
the appliance. Do not let clothing or other
flammable materials contact hot surfaces.
Do not use water or flour on grease fires--
smother the fire with a pan lid, or use baking
soda, a dry chemical or foam-type extinguisher.
When heating fat or grease, watch it closely.
Fat or grease may catch fire if allowed to become too
hot.
• Use dry potholders - moist or damp potholders
on hot surfaces may result in burns from steam.
Do not let potholders touch hot heating elements. Do
not use a towel or other bulky cloth instead of a
potholder.
• Do not heat unopened food containers -
buildup of pressure may cause container to
burst and result in injury.
4

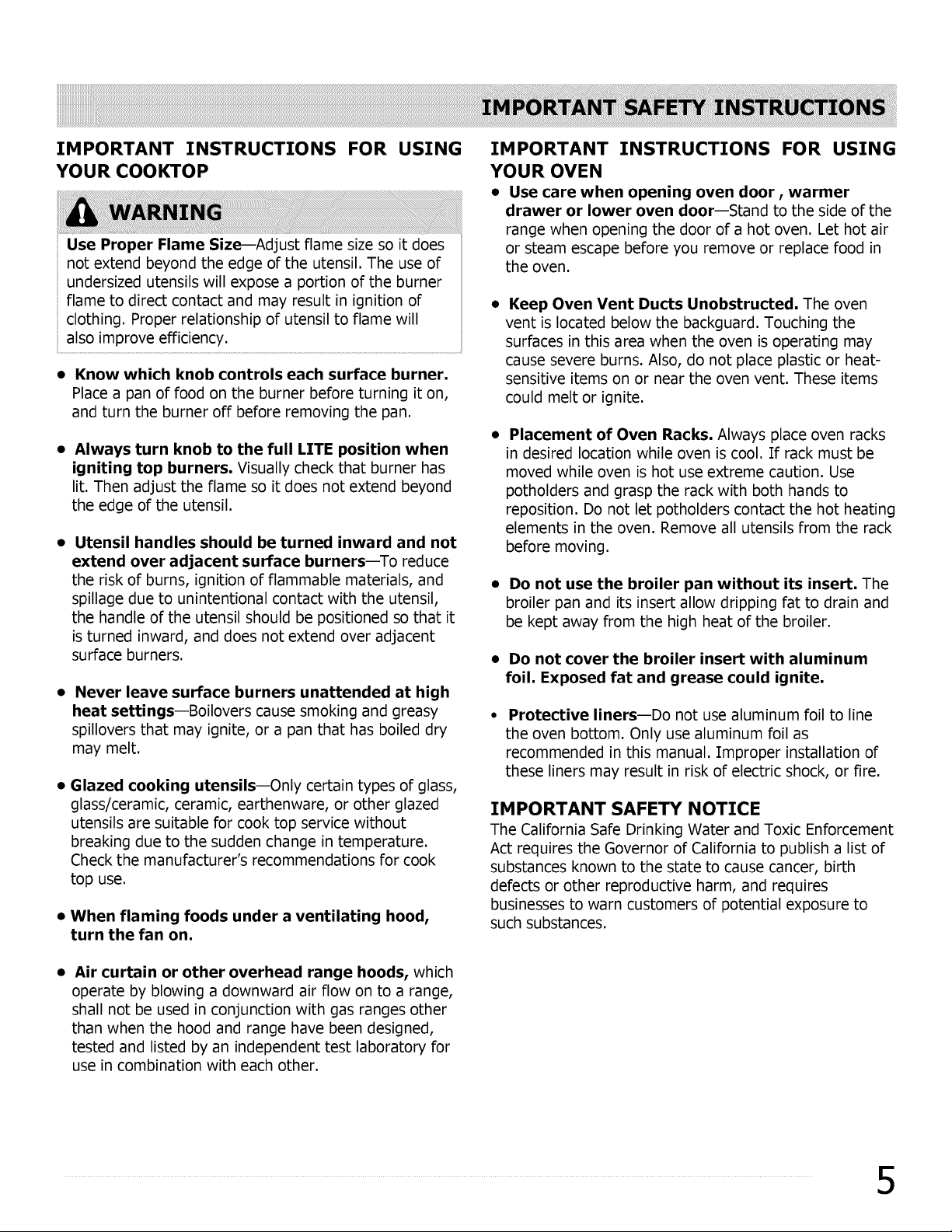

IMPORTANT INSTRUCTIONS FOR USING
YOUR COOKTOP
Use Proper Flame Size--Adjustflame sizeso itdoes
notextend beyond theedge of the utensil.The use of
undersizedutensilswillexpose a portionof the burner
flame to directcontactand may resultinignitionof
clothing.Properrelationshipof utensilto flame will
alsoimprove efficiency.
• Know which knob controls each surface burner.
Place a pan of food on the burner before turning it on,
and turn the burner off before removing the pan.
Always turn knob to the full LITE position when
igniting top burners. Visually check that burner has
lit. Then adjust the flame so it does not extend beyond
the edge of the utensil.
Utensil handles should be turned inward and not
extend over adjacent surface burners--To reduce
the risk of burns, ignition of flammable materials, and
spillage due to unintentional contact with the utensil,
the handle of the utensil should be positioned so that it
is turned inward, and does not extend over adjacent
surface burners.
Never leave surface burners unattended at high
heat settings--Boilovers cause smoking and greasy
spillovers that may ignite, or a pan that has boiled dry
may melt.
• Glazed cooking utensils--Only certain types of glass,
glass/ceramic, ceramic, earthenware, or other glazed
utensils are suitable for cook top service without
breaking due to the sudden change in temperature.
Check the manufacturer's recommendations for cook
top use.
• When flaming foods under a ventilating hood,
turn the fan on.
Air curtain or other overhead range hoods, which
operate by blowing a downward air flow on to a range,
shall not be used in conjunction with gas ranges other
than when the hood and range have been designed,
tested and listed by an independent test laboratory for
use in combination with each other.
IMPORTANT INSTRUCTIONS FOR USING
YOUR OVEN
• Use care when opening oven door, warmer
drawer or lower oven door--Stand to the side of the
range when opening the door of a hot oven. Let hot air
or steam escape before you remove or replace food in
the oven.
Keep Oven Vent Ducts Unobstructed. The oven
vent is located below the backguard. Touching the
surfaces in this area when the oven is operating may
cause severe burns. Also, do not place plastic or heat-
sensitive items on or near the oven vent. These items
could melt or ignite.
Placement of Oven Racks. Always place oven racks
in desired location while oven is cool. If rack must be
moved while oven is hot use extreme caution. Use
potholders and grasp the rack with both hands to
reposition. Do not let potholders contact the hot heating
elements in the oven. Remove all utensils from the rack
before moving.
• Do not use the broiler pan without its insert. The
broiler pan and its insert allow dripping fat to drain and
be kept away from the high heat of the broiler.
• Do not cover the broiler insert with aluminum
foil. Exposed fat and grease could ignite.
Protective liners--Do not use aluminum foil to line
the oven bottom. Only use aluminum foil as
recommended in this manual. Improper installation of
these liners may result in risk of electric shock, or fire.
IMPORTANT SAFETY NOTICE
The California Safe Drinking Water and Toxic Enforcement
Act requires the Governor of California to publish a list of
substances known to the state to cause cancer, birth
defects or other reproductive harm, and requires
businesses to warn customers of potential exposure to
such substances.
5

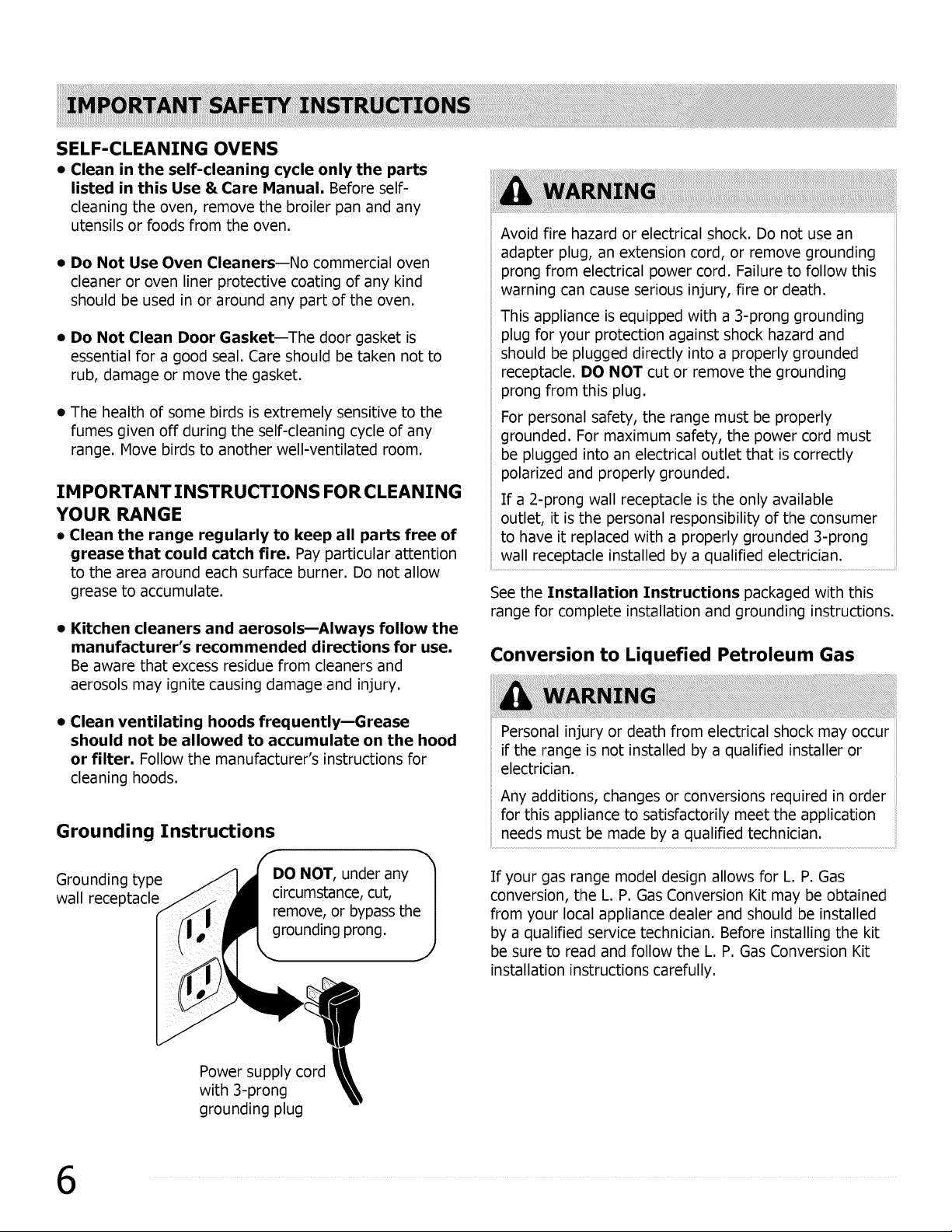

SELF-CLEANING OVENS
• Clean in the self-cleaning cycle only the parts
listed in this Use & Care Manual. Before self-
cleaning the oven, remove the broiler pan and any
utensils or foods from the oven.
• Do Not Use Oven Cleaners--No commercial oven
cleaner or oven liner protective coating of any kind
should be used in or around any part of the oven.
• Do Not Clean Door Gasket--The door gasket is
essential for a good seal. Care should be taken not to
rub, damage or move the gasket.
• The health of some birds is extremely sensitive to the
fumes given off during the self-cleaning cycle of any
range. Move birds to another well-ventilated room.
IM PORTANT INSTRUCTIONS FORCLEANING
YOUR RANGE
• Clean the range regularly to keep all parts free of
grease that could catch fire. Pay particular attention
to the area around each surface burner. Do not allow
grease to accumulate.
• Kitchen cleaners and aerosols--Always follow the
manufacturer's recommended directions for use.
Be aware that excess residue from cleaners and
aerosols may ignite causing damage and injury.
• Clean ventilating hoods frequently--Grease
should not be allowed to accumulate on the hood
or filter. Follow the manufacturer's instructions for
cleaning hoods.
Grounding Instructions
Grounding type
wall receptacle
Avoid fire hazard or electrical shock. Do not use an
adapter plug, an extension cord, or remove grounding
prong from electrical power cord. Failure to follow this
warning can cause serious injury, fire or death.
This appliance is equipped with a 3-prong grounding
plug for your protection against shock hazard and
should be plugged directly into a properly grounded
receptacle. DO NOT cut or remove the grounding
prong from this plug.
For personal safety, the range must be properly
grounded. For maximum safety, the power cord must
be plugged into an electrical outlet that is correctly
polarized and properly grounded.
If a 2-prong wall receptacle is the only available
outlet, it is the personal responsibility of the consumer
to have it replaced with a properly grounded 3-prong
wall receptacle installed by a qualified electrician.
See the Installation Instructions packaged with this
range for complete installation and grounding instructions.
Conversion to Liquefied Petroleum Gas
Personal injury or death from electrical shock may occur
if the range is not installed by a qualified installer or
electrician.
Any additions, changes or conversions required in order
for this appliance to satisfactorily meet the application
needs must be made by a qualified technician.
If your gas range model design allows for L. P. Gas
conversion, the L. P. Gas Conversion Kit may be obtained
from your local appliance dealer and should be installed
by a qualified service technician. Before installing the kit
be sure to read and follow the L. P. Gas Conversion Kit
installation instructions carefully.
Power supply cord
with 3-prong
grounding plug
6
O
©
OFF
0
keep warm
drawer
1 2 3
Your gas range features include:
1. Electronic oven control with kitchen timer.
2. Convect (convection) cooking control included (some models).
3. Keep Warm Drawer control knob.
4. Keep Warm Drawer indicator light.
5. Left front burner valve and control knob.
6. Left rear burner valve and control knob.
7. Center burner valve and control knob (some models).
8. Right front burner valve and control knob.
9. Right rear burner valve and control knob.
10. Burner grates (colors vary with model).
11. Center burner grate (some models).
12. Oven interior light with removable cover.
13. Automatic oven door light switch (some models).
14. Self-cleaning oven interior.
15. Self-clean door latch.
16. Adjustable interior oven rack(s) including
Effortless Oven Rack TMsystem (not shown-some
models).
17. Convect fan (some models).
18. Large 1-piece oven door handle.
19. Full width oven door with window.
20. Keep Warm Drawer (some models) or storage
drawer (some models) with large 1-piece handle.
21. Easy to clean upswept cooktop.
22. 5,000 BTU simmer burner (some models).
23. 9,000 BTU standard burner (some models).
24. Center burner (some models).
25. 12,000 BTU Quick Boil burner (some models).
26. 14,000 (some models) or 17,000 BTU Quick Boil
burner (some models).
27. Broil pan (some models).
28. Broil pan insert (some models).
29. Roasting rack (some models).
30. Cast-iron center griddle grate (some
models).
31. Leveling legs and anti-tip bracket
(included).
Note: The features shown for your
appliance may vary according to the
model type & color.
Be sure to visit us online at
for a complete line of accessories.
7

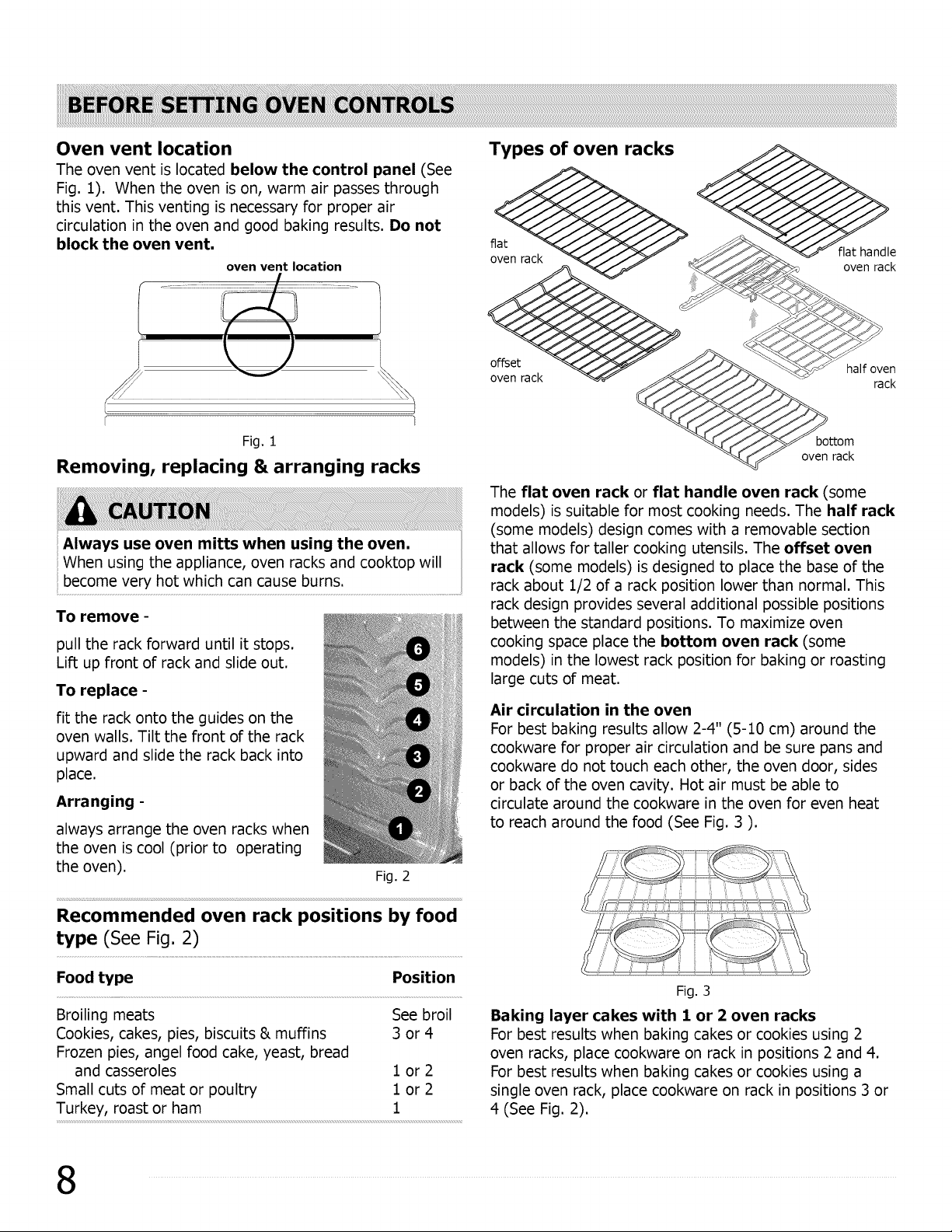

Oven vent location
The oven vent is located below the control panel (See
Fig. 1). When the oven is on, warm air passes through
this vent. This venting is necessary for proper air
circulation in the oven and good baking results. Do not
block the oven vent.
oven vent location
Fig. 1
Removing, replacing & arranging racks
Always use oven mitts when using the oven.
When using the appliance, oven racks and cooktop will
become very hot which can cause burns.
To remove -
pull the rack forward until it stops.
Lift up front of rack and slide out.
To replace -
fit the rack onto the guides on the
oven walls. Tilt the front of the rack
upward and slide the rack back into
place.
Arranging -
always arrange the oven racks when
the oven is cool (prior to operating
the oven).
Fig. 2
Recommended oven rack positions by food
type (See Fig. 2)
Food type Position
Broiling meats
Cookies, cakes, pies, biscuits & muffins
Frozen pies, angel food cake, yeast, bread
and casseroles
Small cuts of meat or poultry
Turkey, roast or ham
See broil
3 or4
lor2
lor2
1
Types of oven racks
flat
oven rack
flat handle
oven rack
offset
oven rack
half oven
rack
bottom
oven rack
The flat oven rack or flat handle oven rack (some
models) is suitable for most cooking needs. The half rack
(some models) design comes with a removable section
that allows for taller cooking utensils. The offset oven
rack (some models) is designed to place the base of the
rack about 1/2 of a rack position lower than normal. This
rack design provides several additional possible positions
between the standard positions. To maximize oven
cooking space place the bottom oven rack (some
models) in the lowest rack position for baking or roasting
large cuts of meat.
Air circulation in the oven
For best baking results allow 2-4" (5-10 cm) around the
cookware for proper air circulation and be sure pans and
cookware do not touch each other, the oven door, sides
or back of the oven cavity. Hot air must be able to
circulate around the cookware in the oven for even heat
to reach around the food (See Fig. 3 ).
Fig. 3
Baking layer cakes with 1 or 2 oven racks
For best results when baking cakes or cookies using 2
oven racks, place cookware on rack in positions 2 and 4.
For best results when baking cakes or cookies using a
single oven rack, place cookware on rack in positions 3 or
4 (See Fig. 2).
8

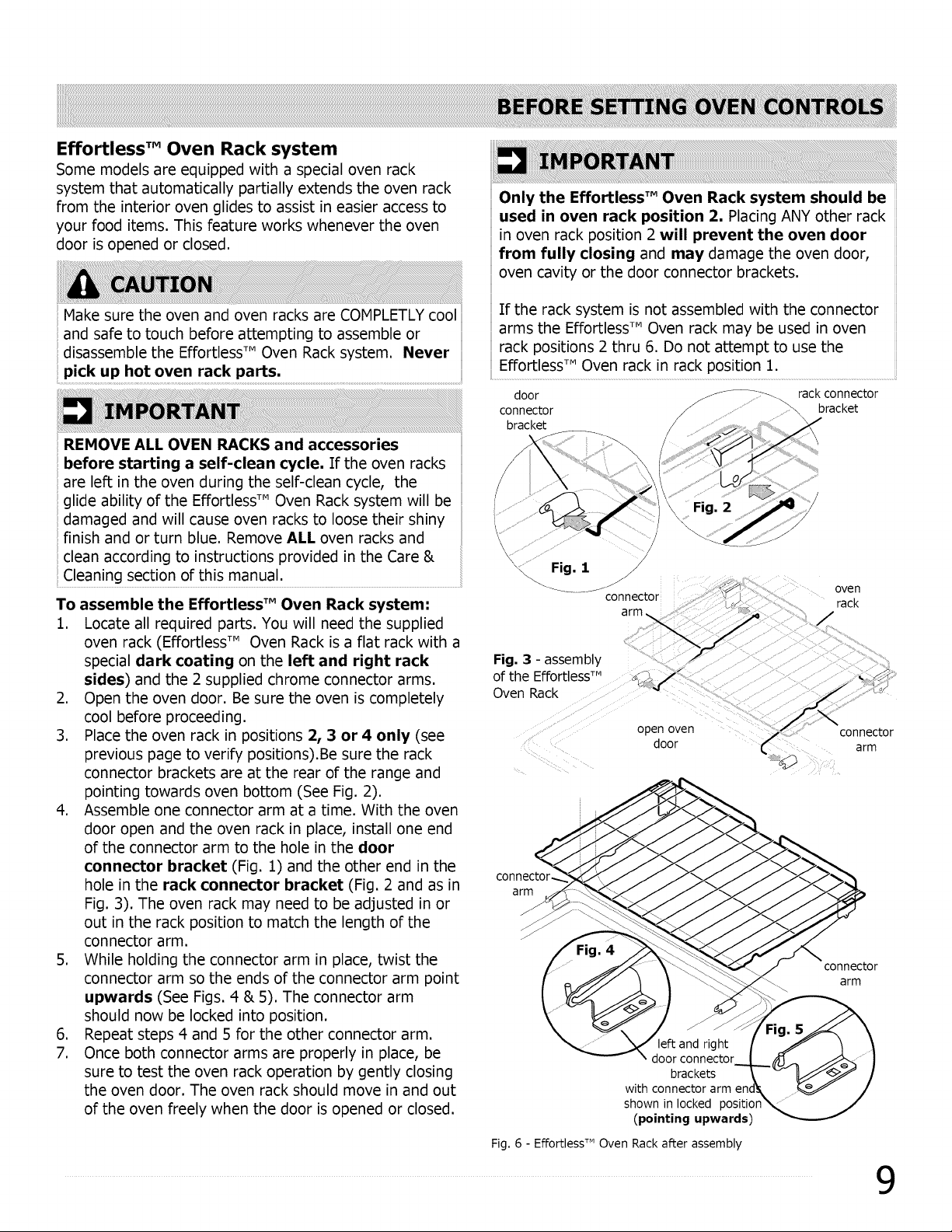

Effortless TM Oven Rack system
Some models are equipped with a special oven rack
system that automatically partially extends the oven rack
from the interior oven glides to assist in easier access to
your food items. This feature works whenever the oven
door is opened or closed.
Make sure the oven and oven racks are COMPLETLY cool
and safe to touch before attempting to assemble or
disassemble the Effortless TMOven Rack system. Never
REMOVE ALL OVEN RACKS and accessories
before starting a self-clean cycle. If the oven racks
are left in the oven during the self-clean cycle, the
glide ability of the Effortless TMOven Rack system will be
damaged and will cause oven racks to loose their shiny
finish and or turn blue. Remove ALL oven racks and
clean according to instructions provided in the Care &
Cleaning section of this manual.
To assemble the Effortless TMOven Rack system:
1. Locate all required parts. You will need the supplied
oven rack (Effortless T" Oven Rack is a flat rack with a
special dark coating on the left and right rack
sides) and the 2 supplied chrome connector arms.
2. Open the oven door. Be sure the oven is completely
cool before proceeding.
3. Place the oven rack in positions 2, 3 or 4 only (see
previous page to verify positions).Be sure the rack
connector brackets are at the rear of the range and
pointing towards oven bottom (See Fig. 2).
4. Assemble one connector arm at a time. With the oven
door open and the oven rack in place, install one end
of the connector arm to the hole in the door
connector bracket (Fig. 1) and the other end in the
hole in the rack connector bracket (Fig. 2 and as in
Fig. 3). The oven rack may need to be adjusted in or
out in the rack position to match the length of the
connector arm.
5. While holding the connector arm in place, twist the
connector arm so the ends of the connector arm point
upwards (See Figs. 4 & 5). The connector arm
should now be locked into position.
6. Repeat steps 4 and 5 for the other connector arm.
7. Once both connector arms are properly in place, be
sure to test the oven rack operation by gently closing
the oven door. The oven rack should move in and out
of the oven freely when the door is opened or closed.
Only the Effortless TMOven Rack system should be
used in oven rack position 2. Placing ANY other rack
in oven rack position 2 will prevent the oven door
from fully closing and may damage the oven door,
oven cavity or the door connector brackets.
If the rack system is not assembled with the connector
arms the Effortless T" Oven rack may be used in oven
rack positions 2 thru 6. Do not attempt to use the
Effortless TMOven rack in rack position 1.
door rack connector
connector bracket
bracket
Fig. 3 - assembly
of the Effortless TM
Oven Rack
open oven
door
C
oven
rack
arm
connector.
arm
connector
arm
left and right
brackets
with connector arm en,
shown in locked positior
(pointing upwards)
Fig. 6 - Effortless _MOven Rack after assembly
9
Using proper cookware
For best cooking results,
cookware should have flat
bottoms that rest level on
the burner grate. Before
using cookware, check for
flatness by rotating a
ruler across the bottom of
the cookware (Fig. 1).
Fig. 1
i
Do not place flammable items such as plastic salt
and pepper shakers, spoon holders or plastic wrappings
on cooktop when it is in use. These items could melt or
ignite. Potholders, towels or wooden spoons could
placed t00 c!ose to the range cooktop.
i
Do not place aluminum foil, or ANY material
that can melt on the range cooktop. If these
items melt they may damage the co0ktop. ....................................
The size and type of utensil used, and the amount and
type of food being cooked will influence the settings
needed forbestcookingresults.
Cookware material types
The most popular materials available are:
Aluminum - Excellent heat conductor. Some types of
food will cause it to darken (Anodized aluminum cookware
resists staining & pitting).
Copper - Excellent heat conductor but discolors easily.
Stainless - Slow heat conductor with uneven cooking
results. Is durable, easy to clean and resists staining.
Cast Iron - A slow heat conductor however will retain
heat very well. Cooks evenly once cooking temperature is
reached.
Porcelain-enamel on metal - Heating characteristics
will vary depending on base material.
Glass - Slow heat conductor.
Set proper burner flame size
The color of the flame is the key to proper burner adjustment.
A good flame is clear, blue and hardly visible in a well-lighted
room. Each cone of flame should be steady and sharp. Adjust
or clean burner if flame is yellow-orange.
For most cooking; start on the highest setting and then
turn to a lower setting to complete the process. Use the
recommendations below as a guide for determining
proper flame size for various types of cooking (Fig. 2)
For deep fat frying; use a thermometer and adjust the
surface knob accordingly. If the fat is too cool, the food
will absorb the fat and be greasy. If the fat is too hot, the
food will brown so quickly that the center will be
undercooked. Do not attempt to deep fat fry too much
food at once as the food will neither brown or cook
properly.
Flame Size* Type of Cooking
High Flame Start most foods; bring water to a boil;
pan broiling.
Medium Flame Maintain a slow boil; thicken sauces,
gravies; steaming.
Low Flame Keep foods cooking; poach; stewing.
*These settings are based for medium-weight metal or
aluminum pans with lids. Settings may vary when using
other types of pans. Fig. 2
Never operate a surface burner with the gas flame
setting beyond the outer edge of a cooking utensil. A
high flame wastes energy, and increases your risk of
being burned by the flame (Fig. 3).
W
_iilliiiillilliiillilii!i!iiill !!ii!J
setting
Incorrect
flame setting
Fig. 3
10
Setting surface controls
Your gas range may be
equipped with many
different sized surface
burners. The ability to heat
food quicker and in larger
volumes increases as the
burner size increases. It is
important to select
cookware that is suitable
for the amount and type of
food being prepared.
Select a burner and flame
size appropriate for the
cookware size.
Fig. 1
The smaller simmer burner (some models) is ideal for
simmering delicate sauces, etc. The standard size (9,500
BTU) burners may be used for most surface cooking
needs.
The larger quick boil burner or burners (some models)
are best used for bringing large quantities of liquid to
temperature or when preparing larger quantities of food.
Setting surface burners
1. Place cooking utensil on top of surface burner grate.
Make sure the cooking utensil is centered and stable
on the grate.
2. Push the desired surface control knob in and turn
counterclockwise out of the OFF position (Fig. 1).
3. Release the knob and rotate to the lite position.
Visually check that the gas burner has lit.
4. Push the control knob in and turn counterclockwise
to the desired flame size. Use the control knob
markings and adjust the flame as needed.
Do not place flammable items such as plastic salt
and pepper shakers, spoon holders or plastic wrappings
on cooktop when it is in use. These items could melt or
ignite. Potholders, towels or wooden spoons could
catch fi!e if placed t0o close t0 the !ange cooktop. .................................
In the event of an electrical power outage, the surface
burners may be lit manually. To light a surface burner,
hold a lit match to the burner head, then slowly turn
the surface control knob to lite. After burner lights push
in and turn knob to desired setting. Use caution when
lighting surface burners manually.
DO NOT operate a surface burner with the knob left in
the LITE position. The electronic ignitor will continue to
spark if a surface control knob is left in the LITE
position. When setting any surface control knob to the
LITE position, all electronic ignitors will spark at the
same time. However, only the surface burner you are
setting will ignite.
Using the griddle grate (some models)
When cool remove the center burner grate and carefully
replace with the center griddle grate (if equipped).
Preheat the griddle for 5 minutes using a medium to
medium low center burner setting. Slow preheat ensures
even heat distribution later during the cooking process.
DO NOT preheat the griddle using a hi (high) setting.
Preheating on high may warp the griddle and prevent
even heat distribution.
After each use:
• To prevent rusting, store griddle grate in a dry place
and keep uncovered.
• After each use, clean griddle grate with a stiff brush and
hot water only.
• Dry immediately and apply a light coating of vegetable
oil to griddle before storing.
• Do not clean griddle grate in the dishwasher.
Home Canning
Be sure to read and observe all the following points when
home canning with your appliance. Check with the USDA
(United States Department of Agriculture) website and be
sure to read all the information they have available as well
as follow their recommendations for canning procedures.
Use only quality flat bottom canners when home
canning. Use a straight-edge to check canner bottom
(see "Cookware material types" in the Before setting
surface controls section).
Start with hot tap water to bring water to boil more
quickly.
Use the highest heat seating when first bringing the
water to a boil. Once boiling is achieved, reduce heat to
lowest possible setting to maintain that boil.
11
READ THE INSTRUCTIONS CAREFULLY BEFORE USING THE OVEN.
For satisfactory use of your oven, become familiar with the various pad functions of the oven as described below.
bake time I Use
to enter the length
of baking time
needed.
delay start -- Use with
bake, convection,
convect convert and
self-clean features to
program a delayed timed
de[ay bake
bake or delayed self- start time
cleaning cycle.
timer on / bake--Use to broil -- convect-- Use to convect convert-- 0 thr 9
off-- Useto enter the Use to set set the convection Useto convert a number pads
set or cancel normal Bake broil bake or roast standard bake recipe I Useto enter
the minute feature, feature, features, to a convection bake temperature
recipe, and times.
timer. .....
1 2 3
timer
.... ff 4 6
self-clean -- Use to serf set
set a 2, 3 or 4 hour dean dock
self-cleancycle. ............
set clock pad-- ...... --
Useto set the .....
time of day.
oven light-
oven lockout
Use to turn
the oven light -- Use to
ON and OFF. activate oven
lockout setting.
convect
add bake broi[ convect convert
a min 0--0--0--0 7 8 9
quick
preheat
quick preheat
-- Use to quickly
preheat the oven.
start cance[
keep chicken
warm pizza nuggets 0
pizza -- Use
to set the
pizza
features.
s
keep warm -- chicken nuggets --
Useto set the Use to set the
keep warm chickennuggets
features, feature.
start -- cancel -- Use to
Use to start cancel any oven
all oven mode previously
features entered except the
(not used oven lockout, time
with oven of day & minute
light), timer. Press cancel
to stop cooking.

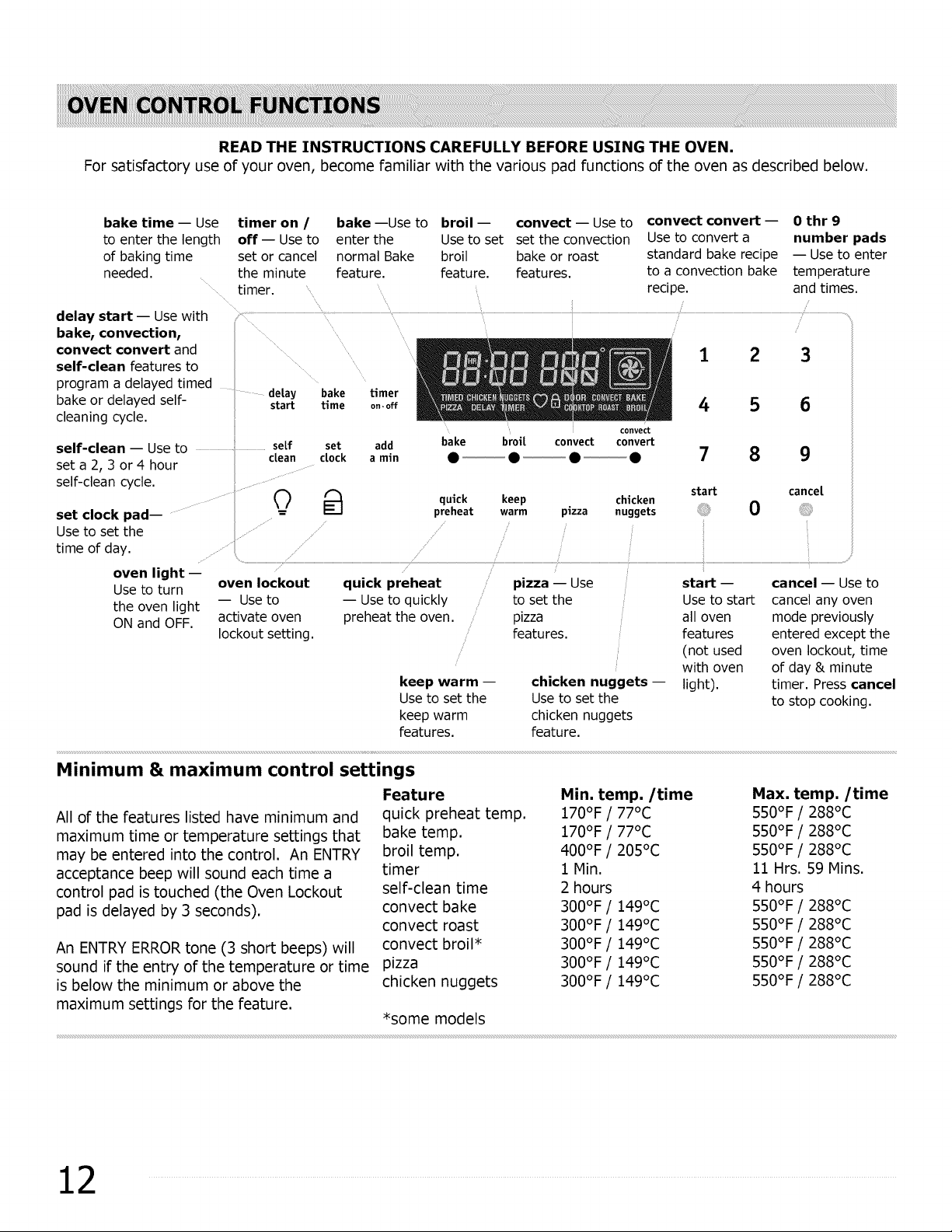

Minimum & maximum control settings
All of the features listed have minimum and
maximum time or temperature settings that
may be entered into the control. An ENTRY
acceptance beep will sound each time a
control pad is touched (the Oven Lockout
pad is delayed by 3 seconds).
An ENTRY ERROR tone (3 short beeps) will
sound if the entry of the temperature or time
is below the minimum or above the
maximum settings for the feature.
Feature Min. temp./time Max. temp./time
quick preheat temp. 170°F / 77°C 550°F / 288°C
bake temp. 170°F / 77°C 550°F / 288°C
broil temp. 400°F / 205°C 550°F / 288°C
timer 1 Min. 11 Hrs. 59 Mins.
self-clean time 2 hours 4 hours
convect bake 300°F / 149°C 550°F / 288°C
convect roast 300°F / 149°C 550°F / 288°C
convect broil* 300°F / 149°C 550°F / 288°C
pizza 300°F / 149°C 550°F / 288°C
chicken nuggets 300°F / 149°C 550°F / 288°C
*some models
12
Setting the clock
When the range is first powered up,"12:00"will flash in the
display (See Fig. 1).
To set the clock to 1:30:
Step Press
1. Press set clock, set
clock
2. Enter1:30. 3 0
3. Press start, start
It is recommended to always set the clock for the
correct time of day before using the appliance. The
clock cannot be changed whenever any timed or
delayed time feature is active.
_IIilj
Fig. 1
Changing between continuous bake
setting or 6-Hour Energy Saving feature
The oven control has a factory preset built-in 6 Hour
Energy Saving feature that will turn off the oven if the
oven is left on for more than 6 hours. The control may be
programmed to override this feature to continuously bake.
To turn off 6-Hour Energy saving mode:
.
Step
Press and hold timer onooff
for 6 seconds.
2. Press self-clean self
clean
to toggle between "6 Hr OFF"
(Fig. 2) or "STAY On" (Fig. 3).
Select "STAY On" to turn off
6-Hour Energy Saving mode.
Press
timer
on. off
3. Press start to accept, start
Fig. 2 Fig. 3
Setting 12 or 24 hour display modes
The clock display mode allows you to choose between 12
or 24 hr mode. The factory pre-set clock display mode is
12 hr. See the example below to change the default
mode to 24 hr display.
To set 12 or 24 hour mode:
Step Press
1. Press and hold set clock set
clock
for 6 seconds.
2. Press self-clean self
clean
to toggle between "12 Hr dAY"
or "24 Hr dAY" display modes
(See Figs. 4 & 5).
3. Press start to accept, start
Fig. 4 Fig. 5
Changing oven temperature display
The oven control is preset to display °F (Fahrenheit) when
shipped from the factory.
To change the temperature to display °C (Celsius)
(oven should not have bake or self-clean active
when setting this feature):
Step Press
1. Press and hold broil for
6 seconds, broil
2. Press self-clean to toggle se|f
clean
between "FAhrn ht" or
"CELSIUS" temperature display
modes (Figs. 6 & 7).
If Celsius display is needed, select
"CELSIUS".
3. Press start to accept, start
Fig. 6 Fig. 7
13
Setting a silent control
Silent mode allows the oven control to operate without
sounds. The control may be programmed for silent
operation and later returned to operating with all the
normal sounds.
To set silent mode:
Step Press
1. Press and hold delay
start
delay start for 6 seconds.
2. Press self-clean self
clean
to toggle between "bEEP On" or
"bEEP OFF". Select "bEEP OFF" for
silent mode. (Figs. 1 & 2)
3. Press start to accept start
Fig. 1 Fig. 2
r_
Setting oven lockout I_1
The control may be programmed to lock the oven door
and lockout the oven control pads.
To set the oven lockout feature:
Step Press
Press and hold lock pad for 3 seconds.
"door Loc" will appear in the display until
the oven door is completely locked.
To unlock the oven lockout feature:
Step
Press and hold lock pad for
3 seconds. Once the oven door has
unlocked the "door Loc" message will
no longer display (See Fig. 3).
Press
DO NOT attempt to open the oven door while the
"door Loc" (door lock) message is visible. Allow 15
seconds for the oven door to completely lock. Once the
oven door has locked, the current time of day will
reappear in the display. If a control pad is pressed
when the oven lockout feature is active the control may
triple beep which indicates the keypad action is not
available when the oven lockout is active.
Fig. 3
Setting the minute timer
The timer allows you to track your cooking times without
interferring with the cooking process. The timer may be set
from 1 minute up to 11 hours and 59 minutes.
To set the timer for 5 minutes:
Step Press
1. Press timer on*off, timer
on. off
2. Enter 5 minutes. 5
3. Press start.
Press timer on-off to turn
the minute timer off.
start
The minute timer will display hours and minutes until 1
hour remains on the timer. Once less than 1 hour
remains, the display will count down in minutes and
seconds. Once the timer has less than 1 minute
remaining only seconds will display.
The minute timer does not start or stop the cooking
process. It serves as an extra timer in the kitchen that
will beep when the set time has run out. The minute
timer can be used alone or while using any of the other
oven features.
When the minute timer is in use during a cooking
process, the minute timer will be shown in the display.
To view the status of other features, press the pad once
for the other feature to view the status of that feature.
Add a minute feature
Use the add 1 minute feature to set additional minutes to
the timer. Each press of the key pad will add 1 additional
minute. If add a minute key pad is pressed when the
timer is not active, the timer will begin counting down
from 1 minute.
To add 2 additional minutes to the active timer:
Step Press
Press add a minute twice, add
a rain
14
Setting quick preheat
Use the quick preheat feature when usingsingle rack
baking to quickly heat the oven to bake temperatures. A
reminder tone will sound indicating when to place the food
in the oven.
For batter and dough-based baked goods such as cakes,
pastries, and breads, use the standard bake function for
best results.
When the oven is finished preheating quick preheat will
become just like the bake feature and continue to bake
until cancelled.
To set quick preheat with a default oven set
temperature of 350°F:
Step Press
quick
1. Press quick preheat, preheat
2. Press start (See Fig. 1). start
Setting bake
Use the bake feature to cook most food items that require
normal cooking temperatures. A reminder tone will sound
once the oven reaches the set temperature. Bake can be
set at any temperature from 170°F to 550°F.
To set bake using a default temperature of 350°F:
Step Press
1. Press bake. bake
2. Press start start
To set bake for oven temperature of 425°F:
Step Press
1. Press bake. bake
2. Enter425. 4 2 5
3. Press start start
Dark or dull pans absorb more heat than shiny
bakeware resulting in dark or overbrowning of foods. It
may be necessary to reduce the oven temperature or
cook time to prevent overbrowning of some foods. Dark
pans are recommended for pies. Shiny pans are
recommended for cakes, cookies and muffins.
The oven will bake no longer than 6 hours from the last
time the oven door was opened.
If you wish to continuously bake, see "Changing
between continuous bake setting or 6-Hour Energy
Saving feature" for further information.
Setting bake time
Use the timed bake feature to automatically turn the oven off
after a desired length of time.
FOOD POISONING HAZARD. Do not let food sit for
more than one hour before or after cooking. Doing so
can result in food poisoning or sickness.
To set bake to end after 30 minutes:
Step Press
1. Press bake time. bake
time
2. Enter 3O minutes. 3 0
3. Press start, start
4. Press bake. bake
5. Press start, start
When the set bake time runs out:
1. "END" will appear in the display window and the oven
will shut-off automatically.
2. The control will beep 3 times every 30 seconds as a
reminder until the cancel key pad is pressed,
The default maximum bake time setting is 6 hours.
After the bake time feature has been activated, press
the bake time pad to display the bake time remaining.
The bake time feature may be set with the convect
bake and convect roast features. Bake time will not
operate with the broil feature.
15
To program oven for delay start time and
to shut-off automatically
FOOD POISONING HAZARD. Do not let food sit for
more than one hour before or after cooking. Doing so
can result in food poisoning or sickness.
The delay start feature allows you to set a start and end
time to the cooking process. Prior to setting a delay start,
be sure the time of day is set correctly.
If the delay start needs to be set more than 12 hours in
advance (12-24 hours), the control must first be
programmed for 24 hour display mode. See "Setting 12 or
24 hour display modes" section.
To program the oven for a delay start and to shut-
off automatically (example for baking at 375°F for
50 minutes and starting at 5:30):
Step Press
1. Press baketime, bake
time
2. Enter 50 mintues. 5 0
3. Press start, start
4. Press delay start (See Fig. i). delay
start
S. Enter530, 5 3 0
6. Press start, start
7. Press bake, bake
8. Enter375, 3 7 5
9. Press start, start
When the set bake time runs out:
1. "END" will appear in the display window and the oven
will shut-off automatically (See Fig. 2).
2. The control will beep 3 times every 30 seconds as a
reminder until the cancel key pad is pressed.
Fig. 1 Fig. 2
• Once the delay start feature has reached the
set delayed start time (started cooking), press
the bake time keypad once to display the bake
time remaining.
• The delay start feature may be used with the
convect or convect convert cooking features.
Bake time or delay start cannot be set with the
broil feature.
16
Convect (all models)
Benefits of the convect features
-- Foods will cook faster, saving time and energy
-- Multiple oven rack baking
-- No special pans or bakeware needed
Convect uses a fan to circulate the oven's heat uniformly
and continuously around the oven. Heated air flows
around the food from all sides, sealing in juices and
flavors. Breads and pastries brown more evenly. This
improved heat distribution allows for fast, even cooking
and browning results. It also provides better results when
baking using multiple oven racks. Compared to most foods
prepared in a standard oven, the convect feature will cook
foods faster and more evenly.
Suggestions for convect baking
• For optimum cooking results it is recommended to
preheat the oven when baking foods such as cookies,
biscuits and breads.
Reduce oven temperature 25°F from recipe's
recommended oven temperature. Follow the remainder
of the recipe's instructions using the minimum
recommended cook time.
• When using 2 oven racks at the same time, place in
positions 2 & 5 for best results (Fig. 1).
• Layer cakes will have better results using the normal
bake feature.
Convect bake (all models)
To set convect (convection bake) with a default oven
set temperature of 350°F:
Step Press
1. Press convect, convect
2. Press start (See Fig. 2). start
Fig. 2
• When using the convect bake feature cook time
reductions may vary depending on the amount and
type of food being cooked.
• The convection fan will take 6 minutes to begin
rotating once convect bake or convect roast has
been activated.
When choosing between the convect features, use the
convect key pad to toggle between the convect
bake or convect roast choices.
Convect roast (all models)
Meats cooked with convect roast will be juicer and
poultry will be crisp on the outside while staying tender
and moist on the inside.
Suggestion for convect roasting
1. Preheating is not necessary when roasting foods using
convect roast.
2. Since convect roast cooks food faster, reduce the
cook time by 25% from the recommended cook time
of your recipe (check the food at this time). If
necessary, increase cook time until the desired
doneness is obtained.
3. Do not cover foods when dry roasting - this will
prevent the meat from browning properly.
To set convect roast (convection roast) with a
default oven set temperature of 350°F:
Step Press
1. Press convect, convect
2. Press convect again, convect
3. Press start (See Fig. 3). start
Fig. 3
17
Setting convect (convection) convert
The convect convert feature allows you to convert any
baking recipe usingthe convect (convection) feature. The
control uses the normal recipe settings and adjusts to a
lower temperature for convection baking.
Convect convert can only be used with the convect bake
feature.
To set convect using default oven set temperature
of 350°F and adding the convect convert:
Step Press
1. Press convect, convect
convect
2. Press convect convert, convert
Fig. 1
When convect convert is used with a cook time
or a delay start setting, the convect convert
feature will display a "CF" for check food
when the bake time is 75% complete (See Fig.
1). At this time the oven control will sound 1
long beep at regular intervals until the set cook
time has finished.
• The convection fan will take 6 minutes to
begin rotating once the convect convert
feature has been activated.
• When using convect convert cook time
reductions may vary depending on the oven set
temperature.
• The minimum amount of cook time allowed using
the convect convert feature with a bake time or a
delay time bake setting is 20 minutes.
• Layer cakes will have better results using the
normal bake feature.
i!
18

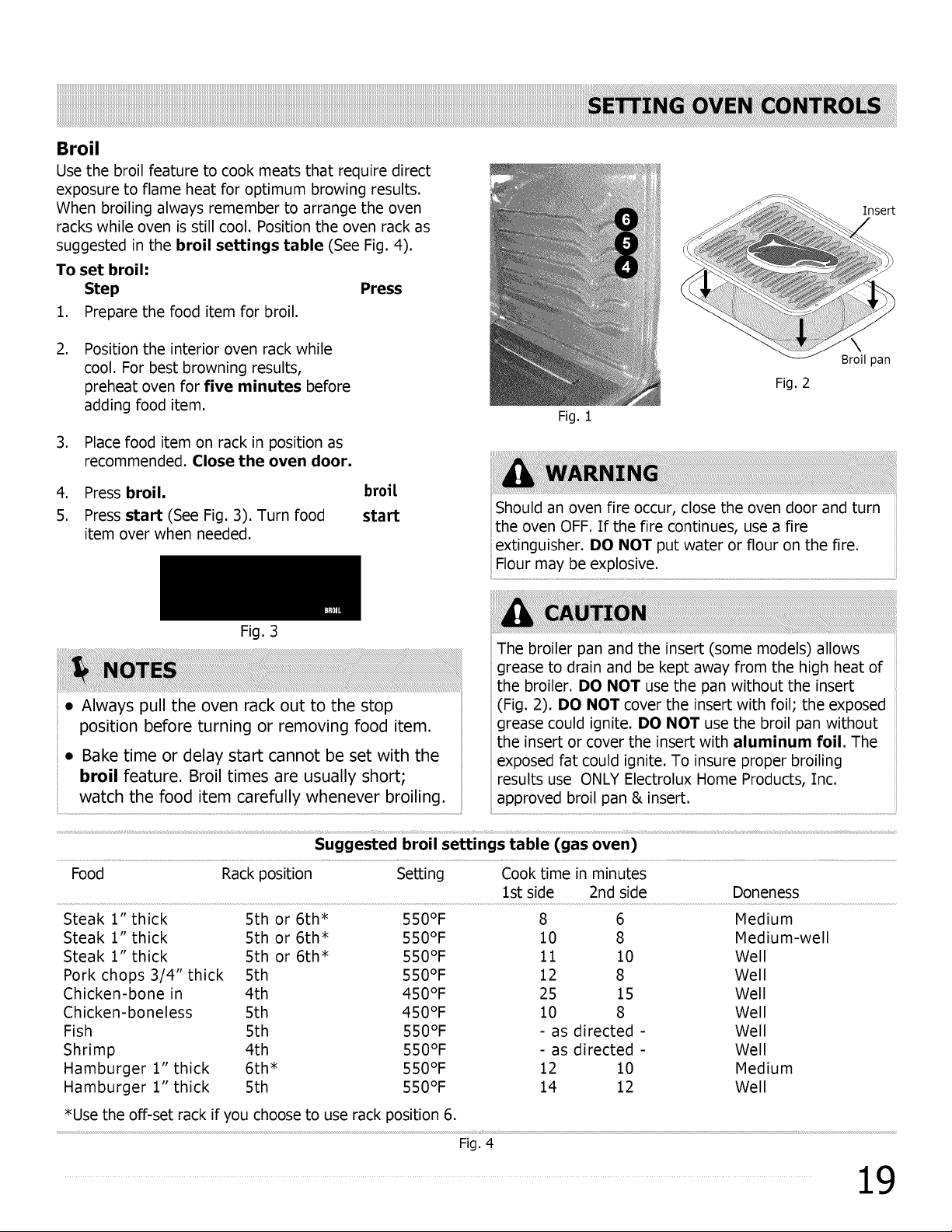

Broil
Use the broil feature to cook meats that require direct
exposure to flame heat for optimum browing results.
When broiling always remember to arrange the oven
racks while oven is still cool. Position the oven rack as
suggested in the broil settings table (See Fig. 4).
To set broil:
Step Press
1. Prepare the food item for broil.
.
Position the interior oven rack while
cool. For best browning results,
preheat oven for five minutes before
adding food item.
.
Place food item on rack in position as
recommended. Close the oven door.
4. Press broil, broi[
5. Press start (See Fig. 3). Turn food start
item over when needed.
Fig. 3
Fig. 1
Insert
Broil pan
Fig. 2
Should an oven fire occur, close the oven door and turn
the oven OFF. If the fire continues, use a fire
extinguisher. DO NOT put water or flour on the fire.
Flour may be explosive.
• Always pull the oven rack out to the stop
position before turning or removing food item.
• Bake time or delay start cannot be set with the
broil feature. Broil times are usually short;
watch the food item carefully whenever broiling.
The broiler pan and the insert (some models) allows
grease to drain and be kept away from the high heat of
the broiler. DO NOT use the pan without the insert
(Fig. 2). DO NOT cover the insert with foil; the exposed
grease could ignite. DO NOT use the broil pan without
the insert or cover the insert with aluminum foil. The
exposed fat could ignite. To insure proper broiling
results use ONLY Electrolux Home Products, Inc.
approved broil pan & insert.
Suggested broil settings table (gas oven)
Food Rack position Setting Cook time in minutes
1st side 2nd side Doneness
Steak 1" thick 5th or 6th* 550°F 8 6 Medium
Steak 1" thick 5th or 6th* 550°F 10 8 Medium-well
Steak 1" thick 5th or 6th* 550°F 11 10 Well
Pork chops 3/4" thick 5th 550°F 12 8 Well
Chicken-bone in 4th 450°F 25 15 Well
Chicken-boneless 5th 450°F 10 8 Well
Fish 5th 550°F - as directed - Well
Shrimp 4th 550°F - as directed - Well
Hamburger 1" thick 6th* 550°F 12 10 Medium
Hamburger 1" thick 5th 550°F 14 12 Well
*Use the off-set rack if you choose to use rack position 6.
Fig. 4
19

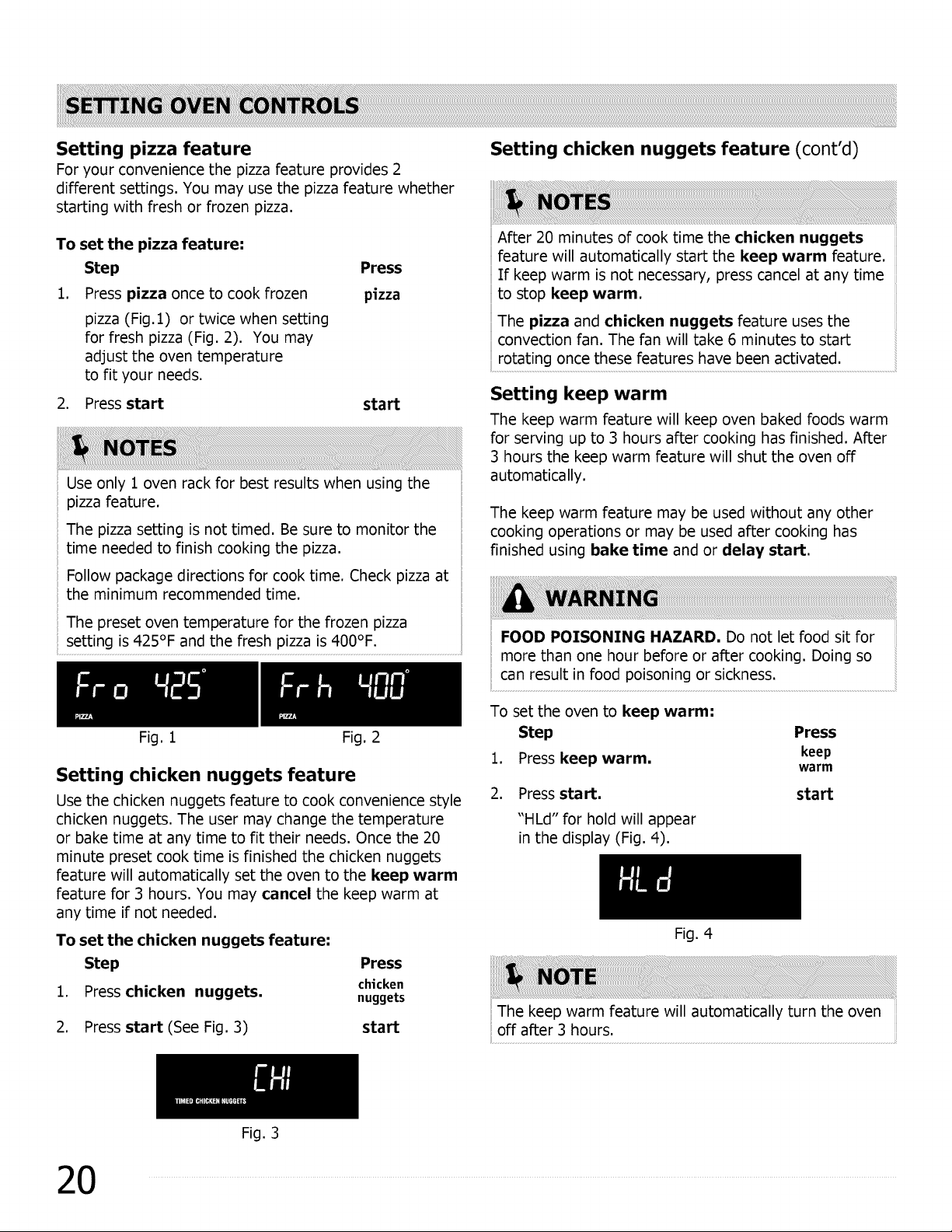

Setting pizza feature
For your convenience the pizza feature provides 2
different settings. You may use the pizza feature whether
starting with fresh or frozen pizza.
To set the pizza feature:
Step Press
1. Press pizza once to cook frozen pizza
pizza (Fig.l) or twice when setting
for fresh pizza (Fig. 2). You may
adjust the oven temperature
to fit your needs.
2. Press start start
Use only 1 oven rack for best results when using the
pizza feature.
The pizza setting is not timed. Be sure to monitor the
time needed to finish cooking the pizza.
Follow package directions for cook time. Check pizza at
the minimum recommended time.
The preset oven temperature for the frozen pizza
setting is 425°F and the fresh pizza is 400°F.
Fig. 1 Fig. 2
Setting chicken nuggets feature
Use the chicken nuggets feature to cook convenience style
chicken nuggets. The user may change the temperature
or bake time at any time to fit their needs. Once the 20
minute preset cook time is finished the chicken nuggets
feature will automatically set the oven to the keep warm
feature for 3 hours. You may cancel the keep warm at
any time if not needed.
To set the chicken nuggets feature:
Step
1. Press chicken nuggets.
Press
chicken
nuggets
2. Press start (See Fig. 3) start
Fig. 3
Setting chicken nuggets feature (cont'd)
After 20 minutes of cook time the chicken nuggets
feature will automatically start the keep warm feature.
If keep warm is not necessary, press cancel at any time
to stop keep warm.
The pizza and chicken nuggets feature uses the
convection fan. The fan will take 6 minutes to start
rotating once these features have been activated.
Setting keep warm
The keep warm feature will keep oven baked foods warm
for serving up to 3 hours after cooking has finished. After
3 hours the keep warm feature will shut the oven off
automatica Ily.
The keep warm feature may be used without any other
cooking operations or may be used after cooking has
finished using bake time and or delay start.
FOOD POISONING HAZARD. Do not let food sit for
more than one hour before or after cooking. Doing so
can result in food poisoning or sickness.
To set the oven to keep warm:
Step Press
1. Press keep warm. keep
warm
2. Press start.
"HLd" for hold will appear
in the display (Fig. 4).
Fig. 4
start
2O
The keep warm feature will automatically turn the oven
offafter3hours.
Adjusting oven temperature
Your appliance has been factory calibrated and tested to
ensure an accurate baking temperature. For the first few
uses, follow your recipe times and temperature
recommendations carefully. If you think the oven is
cooking too hot or too cool for your recipe times, you can
adjust the control so the oven cooks hotter or cooler than
the temperature displayed.
The oven temperature my be increased +35°F (+19°C) or
decreased -35°F (-19°C) from the factory settings.
Example: increase the oven temperature by 30°F:
Step Press
1. Press and hold bake bake
for 6 seconds.
2. Enter3O. 3 0
3. Press start, start
Operating the oven light
The interior oven light will automatically turn ON when the
oven door is opened.
Press _-_ to turn the interior oven light ON and OFF
whenever the oven door is closed.
The interior oven light is located at the upper left rear wall
of the oven interior and is covered with a glass shield held
by a wire holder. The glass shield must be in place
whenever the oven is in use.
To change the interior oven light, see "Changing the oven
light" in the Care & Cleaning section.
Example: decrease the oven temperature by 30°F:
Step Press
1. Press and hold bake bake
for 6 seconds.
2. Enter3O. 3 0
3. Press self-clean, se|f
dean
4. Press start, start
Oven temperature adjustments made will not affect the
broil or self-cleaning feature temperatures.
If the temperature shows an adjustment of -30°F, and
a +30°F adjustment is needed, you can toggle between
the (-) or (+) in the display by pressing self clean.
Do not use oven thermometers such as those found in
a grocery store to check temperature settings inside
your oven. These oven thermometers may vary as
much as 20 to 40°F from actual temperatures.
21
To Set the Sabbath Feature (for use on the
Jewish Sabbath & Holidays)
For further assistance, guidelines for proper
usage and a complete list of models with the
Sabbath feature, please vist the web at
http: \\www.star-k.org.
U
FOOD POISONING HAZARD. Do not let food sit for
more than one hour before or after cooking. Doing so
can result in food poisoning or sickness.
The bake time and delay start pads are used to set the
Sabbath feature. The Sabbath feature may only be used
with the bake feature. The oven temperature may be set
higher or lower after setting the Sabbath feature (the
oven temperature adjustment feature should be used only
during Jewish Holidays), however the display will not be
visible and no audible tones will be provided when a
change occurs.
Once the oven is properly set using the bake feature with
the Sabbath mode active, the oven will remain
continuously ON until cancelled. The Sabbath mode will
override the factory preset 6-Hour Energy Saving feature.
If the oven light(s) are needed during the Sabbath, press
the oven light pad before activating the Sabbath
feature. Once the oven light is turned on and the Sabbath
feature is active, the oven light will remain on until the
Sabbath feature is turned OFF. If the oven light needs to
be off, be sure to turn the oven light off before activating
the Sabbath feature.
It is recommended that any oven temperature change
with the Sabbath feature active be followed with 2
presses of the start pad. This will insure the oven
remains ON even if the attempt to set the oven
temperature was lower or higher than the oven control
can accept. If the oven temperature is set incorrectly, the
oven temperature will default to 170°F or 550°F. Try to
set the desired oven temperature again.
To program the oven for 350°F bake and activate
the Sabbath feature"
Step Press
1. Be sure that the clock is set with
the correct time of day.
2. Arrange the oven racks and place
the food in the oven and close door.
3. Press bake. bake
4. Press start, start
.
If a timed bake or delayed
timed bake is needed
then enter the times in this step.
If not, skip this step and continue
to step 6. Refer to the bake time
or delay start instructions.
Remember the oven will shut-off
after completing a
timed bake or delay start and
therefore may only be used once
during the Sabbath/Jewish Holidays.
The maximum delay start time
is 11 hours & 59 minutes.
6. Press and hold both the
bake time and delay start
keypads at the together for at
least 3 seconds. The control will
beep and SAb will appear in
the display (See Fig. 1). The oven
is properly set for the Sabbath
once SAb appears in the display.
Fig. 1
bake + delay
time start
22

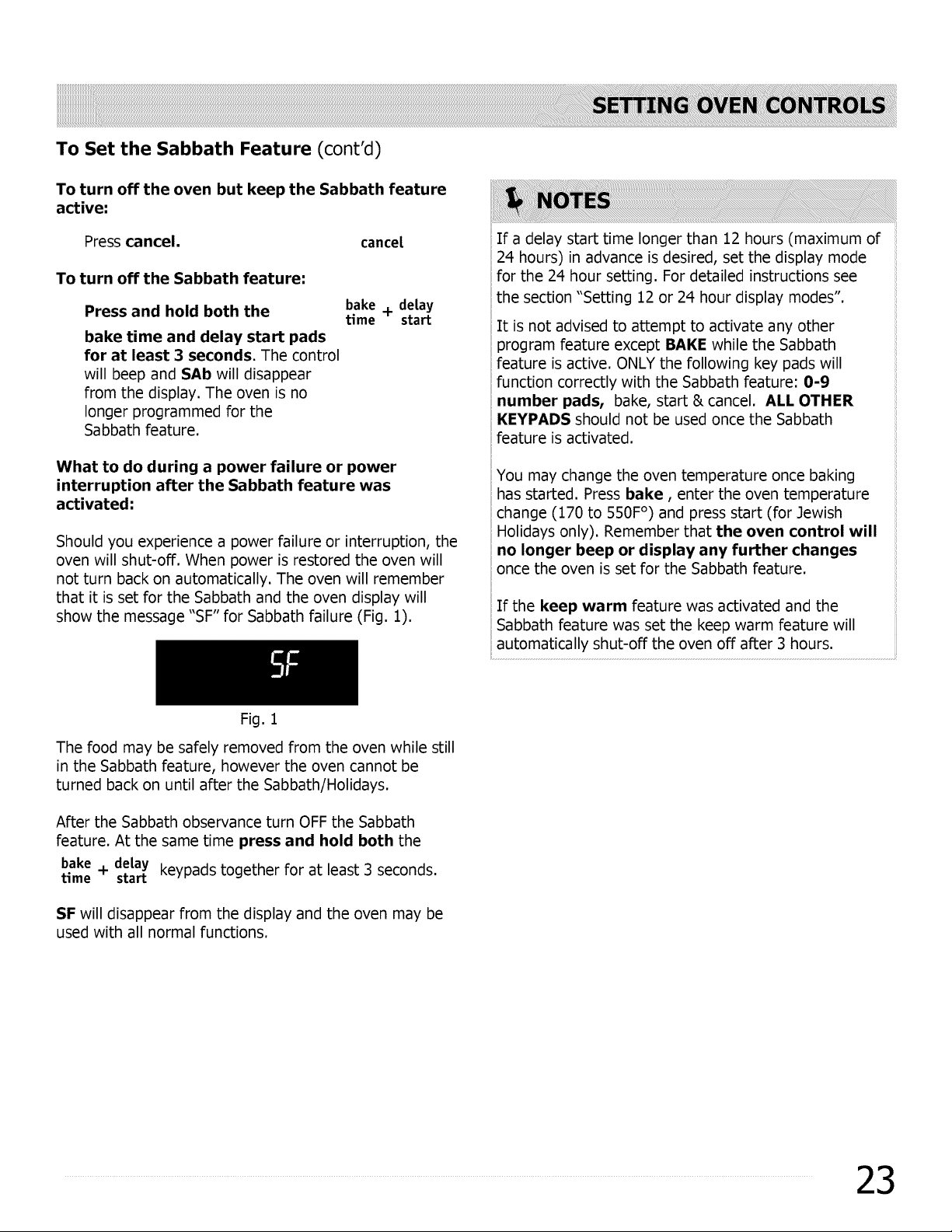

To Set the Sabbath Feature (cont'd)
To turn off the oven but keep the Sabbath feature
active:
Press cancel, cance[
To turn off the Sabbath feature:
Press and hold both the
bake time and delay start pads
for at least 3 seconds. The control
will beep and SAb will disappear
from the display. The oven is no
longer programmed for the
Sabbath feature.
bake
time
+ delay
start
What to do during a power failure or power
interruption after the Sabbath feature was
activated:
Should you experience a power failure or interruption, the
oven will shut-off. When power is restored the oven will
not turn back on automatically. The oven will remember
that it is set for the Sabbath and the oven display will
show the message "SF" for Sabbath failure (Fig. 1).
Fig. 1
If a delay start time longer than 12 hours (maximum of
24 hours) in advance is desired, set the display mode
for the 24 hour setting. For detailed instructions see
the section "Setting 12 or 24 hour display modes".
It is not advised to attempt to activate any other
program feature except BAKE while the Sabbath
feature is active. ONLY the following key pads will
function correctly with the Sabbath feature: 0-9
number pads, bake, start & cancel. ALL OTHER
KEYPADS should not be used once the Sabbath
feature is activated.
You may change the oven temperature once baking
has started. Press bake, enter the oven temperature
change (170 to 550F °) and press start (for Jewish
Holidays only). Remember that the oven control will
no longer beep or display any further changes
once the oven is set for the Sabbath feature.
If the keep warm feature was activated and the
Sabbath feature was set the keep warm feature will
automatically shut-off the oven off after 3 hours.
The food may be safely removed from the oven while still
in the Sabbath feature, however the oven cannot be
turned back on until after the Sabbath/Holidays.
After the Sabbath observance turn OFF the Sabbath
feature. At the same time press and hold both the
bake + delay keypads together for at least 3 seconds.
time start
SF will disappear from the display and the oven may be
used with all normal functions.
23
Setting Keep Warm Drawer (some models)
The purpose of the Keep Warm Drawer is to keep hot
cooked foods at serving temperatures. Examples are
vegetables, gravies, meats, casseroles, biscuits, rolls and
pastries. It is not recommended to heat cold food in the
warmer drawer; always start with hot food.
The Keep Warm Drawer may also be used to warm dinner
plates. All food placed in the Keep Warm Drawer should
be covered with a lid or aluminum foil to maintain quality.
......._;i!iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii_!!!iii
• DO NOT LEAVE CHILDREN ALONE --children
should not be left alone or unattended in the
area where appliance is in use, They should
never be allowed to sit or stand on any part of the
appliance, including the warmer drawer.
• FOOD POISONING HAZARD. Do not let food sit
for more than one hour before or after cooking.
Doing so can result in food poisoning or sickness.
• Storage in or on appliance--flammable
materials should not be stored in an oven,
warmer drawer, near surface units. This
includes paper, plastic and cloth items, such as
cookbooks, plasticware and towels, as well as
flammable liquids. Do not store explosives, such as
aerosol cans, on or near the range.
Always use potholders or oven mitts when removing
food or plates from the warmer drawer as cookware
and plates will be hot and you can be burned.
Do not use plastic wrap to cover food. Plastic
wrap can melt onto the drawer surfaces and be
very difficult to clean up afterwards. Use only
cooking utensils and cookware recommended by the
manufacturer for use in a warmer drawer.
• Always start with hot food when using the Keep
Warm Drawer. Do not heat cold food in the Keep
Warm Drawer.
• The Keep Warm Drawer is equipped with a catch
that may require extra force when opening or
closing the drawer.
• Self clean can not be set when the Keep Warm
Drawer is turned on.
Keep Warm Drawer rack positions
The Keep Warm Drawer rack may be positioned in the
drawer two ways:
In the upright position (See Fig. 1) to allow low
profile food items to be placed both under and on top of
the rack (for example, rolls or biscuits on top of rack
and a casserole dish underneath).
• In the downward position (See Fig. 2) to allow for
light weight food items and empty cookware on rack
(for example, rolls or pastries and dinner plates).
Fig. 1
Fig. 2
24
Keep Warm Drawer recommended food settings
The recommended food settings for the Keep Warm
Drawer are provided below. The heat settings provided
should be used for recommendations only. If a particular
food item is not listed, start with a medium setting. If
more crispness is desired, remove the lid or aluminum foil
from the food item.
Most food items may be maintained at serving
temperatures using the medium setting (midway between
hi and Io - See Fig. 2). When a combination of foods are
to be kept warm (for example, a meat with 2 vegetables
and rolls) use the hi (high) setting.
Keep Warm Drawer control knob
Use the thermostat control knob to select the desired
temperature setting for the Keep Warm Drawer. It is
located on the control panel. The heat settings are
marked OFF, Io and hi. Please note that the approximate
medium setting is shown on illustration (See Fig. 2).
OFF
Keep Warmer Drawer recommended food
heat settings table
Food item Setting
Bacon hi (high)
Hamburger patties hi (high)
Poultry hi (high)
Pork chops hi (high)
Fried foods hi (high)
Pizza hi (high)
Gravies medium
Casseroles medium
Eggs medium
Roasts (beef, pork or lamb) medium
Vegetables medium
Biscuits medium
Rolls (hard) medium
Pastries medium
Rolls (soft) Io (low)
Empty dinner plates Io (low)
Fig. 1
For better results, limit the number of times the Keep
Warm Drawer is opened when active. This will help
minimize heat and moisture loss.
keep warm
drawer
Fig. 2
To set Keep Warm Drawer:
1. Open Keep Warm Drawer when cool and arrange Keep
Warm Drawer rack as needed.
.
.
.
.
For best results, close the Keep Warm Drawer and
preheat the drawer before adding food items. An
empty Keep Warm Drawer will fully preheat in
approximately 15 minutes.
Push in and turn the Keep Warm Drawer control knob
in either direction to the desired heat setting and
release (See Fig. 2).
Only hot food that has already reached serving
temperature should be placed in the Keep Warm
Drawer. Position on rack and close Keep Warm Drawer.
Dinner plates may be warmed also.
When finished, turn the Keep Warm Drawer heat
setting knob to OFF position. Carefully remove items
and close Keep Warm Drawer.
Keep Warm Drawer indicator light
The indicator light is located above the Warmer Drawer
thermostat control knob (See Fig. 2). The indicator turns
on when the control is set, and stays on until the heat
setting is turned OFF.
Always use potholders or oven mitts when removing
food or plates from the warmer drawer as cookware
and plates will be hot and you can be burned.
25
Before starting self-clean
A self-cleaning oven cleans itself with high temperatures
(well above normal cooking temperatures) which
eliminate soils completely or reduces them to a fine
powdered ash you can wipe away with a damp cloth.
Your oven allows you to set 3 different self-cleaning cycle
durations. A 3-hour cleaning time is best used for normal
cleaning; 2-hour time for light soils and a 4-hour time
option for heavier burnt-on soils.
Adhere to the following self-clean precautions:
• DO NOT use oven cleaners or oven protective
coatings in or around any part of the oven interior.
DO NOT clean the oven door gasket. The glass
woven material of the oven door gasket is essential
for a good seal. Care should be taken not to rub,
damage or remove the gasket.
• DO NOT use any cleaning agents on the oven door
gasket. Doing so could damage the gasket (Fig. 1).
U
io
iiii•
_o
Completely remove all utensils, accessories
and ANY ALUMINUM FOIL from oven. These
items cannot withstand high self-clean
temperatures and can melt. Remove broil pan
and insert (some models).
Remove ALL OVEN RACKS. If the oven racks
are not removed they will lose their special
coating properties and no longer slide in and
out of the oven cavity effortlessly.
Remove any excessive spillovers. Any spills,
especially those on the oven bottom, should be
wiped-up and removed before starting the self-
clean cycle. To clean, use hot, soapy water and a
cloth. Large spillovers can cause heavy smoke or
fire when subjected to high temperatures. DO NOT
allow food spills with a high sugar or acid content
(such as milk, tomatoes, sauerkraut, fruit juices or
pie filling) to remain on the surface as they may
leave a dull spot even after cleaning.
Clean any soil from the oven frame, the door liner
outside the oven door gasket and the small area at
the front center of the oven bottom (See Fig. 1;
areas shown in white). These areas heat sufficiently
to burn soil on. Clean with soap and water.
During the self-cleaning cycle, the outside of the
range can become very hot to the touch. DO NOT
leave small children unattended near the
appliance.
During the self-clean cycle, DO NOT force the
oven door open. This can damage the automatic
door locking system. Use caution when opening the
door after the self-cleaning cycle is complete. The
oven may still be VERY HOT.
• The health of some birds is extremely sensitive to
the fumes given off during the self-clean cycle of
ii
any range. Move birds to another well-ventilated
room.
ii
Fig. 1
26
Setting a self-clean cycle or a delayed start
self-clean cycle
Examples: To start an immediate self-cleaning cycle
and/or how to add a delay start time of 9:00 o'clock
and shut-off self-clean automatically:
Step Press
1. Be sure the control is set with the correct
time of day, ALL the oven racks are
removed and the oven door is closed.
Go to step 5 if you wish to start the
self-clean immediately.
Finish steps 2 thru 6 if setting a
delay start self-clean.
2. Press delay start.
de[ay
start
3. Enter 900. 9 0 0
4. Press start, start
5. Press self clean once for a 3-hour self
clean
clean time, press self clean twice for
4-hour clean and press 3 times
for a 2-hour self-clean cycle time.
6. Press start, start
As soon as the controls are set, the motor driven door
lock will begin to close automatically. "door Loc" will
appear in the display (See Fig. 1). DO NOT open the
oven door while "door Loc" is on (allow about 15
seconds for the oven door to lock). Once the door has
locked "CLn" will appear in the display indicating the
oven will begin the self-clean process (Fig. 2).
Fig. 1 Fig. 2
When the self-clean cycle has completed:
1. The time of day and "Hot" will appear in the display
window (See Fig.3).
2. Once the oven has cooled down for about 1 hour and
"Hot" is no longer displayed the "door OPn"
message should appear (Fig. 4). When this message
turns off the oven door may be opened.
Fig. 3 Fig. 4
During the self-clean cycle, DO NOT force the oven
door open. This can damage the automatic door
locking system. Use caution when opening the door
after the self-cleaning cycle is complete. The oven
may still be VERY HOT.
• To avoid possible burns use care when opening the
oven door after the self-cleaning cycle. Stand to
the side of the oven when opening the door to
allow hot air or steam to escape.
If it becomes necessary to stop a self-clean cycle
once it has been activated:
1. Press cancel.
2. If the self-clean cycle has heated the oven to a high
temperature, allow enough time for the oven to cool
and for the "door OPn" message to appear (Fig. 4).
When this message turns off the oven door may be
opened.
3. Restart the self-clean cycle once all conditions have
been corrected.
Whenever the self-clean feature is active you may check
amount of time remaining in the self-clean cycle by
pressing the self pad once. The oven door will be
clean
locked until the range has cooled sufficiently. You will
need to allow about 1 additional hour to the time
displayed before you can open the oven door.
When the oven is cool, wipe away any residue or
_owdered ash with a damp cloth or paper towel.
27
Cleaning recommendation table
Surface type Recommendation
• Control knobs For general cleaning, use hot, soapy water and a cloth. For more
• Painted body parts difficult soils and built-up grease, apply a liquid detergent directly
• Painted decorative trim onto the soil. Leave on soil for 30 to 60 minutes. Rinse with a damp
• Aluminum (trim pieces) & vinyl cloth and dry. Do not use abrasive cleaners on any of these
materials; they can scratch. To remove control knobs, turn to the OFF
position; grasp firmly and pull straight off the shaft. To replace knobs
after cleaning, line up the flat sides of both the knob and the shaft;
then push the knob into place.
• Control panel Before cleaning the control panel, turn all controls OFF and if needed
• Decorative trim (some models) remove any knobs from the panel. Clean using hot, soapy water and
a dishcloth. Be sure to squeeze excess water from the dishcloth
before wiping the control panel; especially when wiping around
the controls area. Excess water in or around the controls may cause
damage to the appliance. When rinsing, use clean water and a
dishcloth and be sure to squeeze excess water from dishcloth before
wiping the control panel.
• Easy Care _ Stainless Steel If your range finish is Easy Care _ Stainless Steel (some models),
(some models) clean the coated surface with warm soapy water using a clean sponge
or cloth. Rinse with clean water and dry with a soft clean cloth. DO
NOT use ANY store bought cleaners like Stainless Steel cleaners or
any other types of cleaners containing any abrasives, chlorides,
chlorine or ammonia. It is recommended to use mild dish soap and
water or a 50/50 solution of water and vinegar.
• Oven interior (see Self-Cleaning section) Gentle scouring with a soapy non-abrasive scouring pad will remove
most spots. Rinse with a 1:1 solution of clear water and ammonia. If
• Keep Warm Drawer porcelain surfaces
necessary, cover difficult spots with an ammonia-soaked paper towel
• Porcelain enamel broil pan & for 30 to 40 minutes. Rinse with clean water and a damp cloth, and
broil pan insert (if equipped) then scrub with a soap-filled non-abrasive scouring pad. Rinse and
wipe dry with a clean cloth. Remove all cleaners or the porcelain may
• Door liner & porcelain enamel parts become damaged during future heating.
• Oven racks Oven racks must be removed from oven before starting a
self-clean cycle. Clean using a mild, abrasive cleaner following the
manufacturer's instructions. Rinse with clean water and let dry.
• Oven door exterior surfaces Use soap & water to thoroughly clean the top, sides and front of the
oven door. Rinse well. You may use a glass cleaner on the outside
glass of the oven door. Do not immerse the door in water. Do not
spray or allow water or the glass cleaner to enter the door
vents. Do not use oven cleaners, cleaning powders or any harsh
abrasive cleaning materials on the outside of the oven door. Do not
clean the oven door gasket. On self-cleaning models the oven door
gasket is made of glass woven material which is essential for a good
seal. Care should be taken not to rub, damage or remove this gasket.
• Cooktop surface and contoured well See Cleaning the cooktop and surface burners instructions provided in
areas, surface burner heads, caps and the following Care & Cleaning section.
burner grates
28

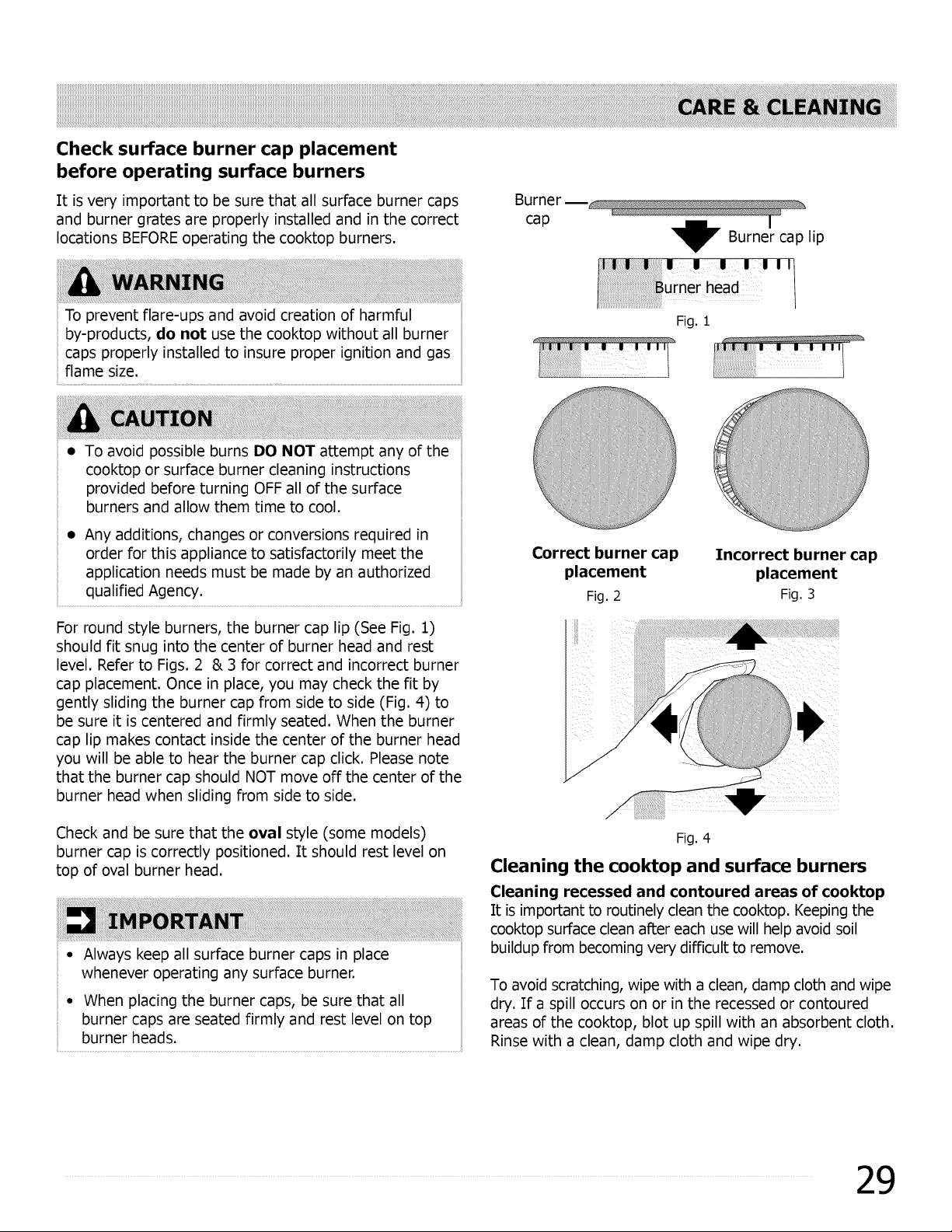

Check surface burner cap placement
before operating surface burners
It is very important to be sure that all surface burner caps
and burner grates are properly installed and in the correct
locations BEFORE operating the cooktop burners.
To prevent flare-ups and avoid creation of harmful
by-products, do not use the cooktop without all burner
caps properly installed to insure proper ignition and gas
Burner m
cap ,_ I
Burner cap lip
Fig. 1
II
• To avoid possible burns DO NOT attempt any of the
cooktop or surface burner cleaning instructions
provided before turning OFF all of the surface
burners and allow them time to cool.
• Any additions, changes or conversions required in
order for this appliance to satisfactorily meet the
application needs must be made by an authorized
qualified Agency.
For round style burners, the burner cap lip (See Fig. 1)
should fit snug into the center of burner head and rest
level. Refer to Figs. 2 & 3 for correct and incorrect burner
cap placement. Once in place, you may check the fit by
gently sliding the burner cap from side to side (Fig. 4) to
be sure it is centered and firmly seated. When the burner
cap lip makes contact inside the center of the burner head
you will be able to hear the burner cap click. Please note
that the burner cap should NOT move off the center of the
burner head when sliding from side to side.
Check and be sure that the oval style (some models)
burner cap is correctly positioned. It should rest level on
top of oval burner head.
• Always keep all surface burner caps in place
whenever operating any surface burner.
• When placing the burner caps, be sure that all
burner caps are seated firmly and rest level on top
burnerheads.
Correct burner cap
placement
Fig. 2
Incorrect burner cap
placement
Fig. 3
Fig. 4
Cleaning the cooktop and surface burners
Cleaning recessed and contoured areas of cooktop
It is important to routinely clean the cooktop. Keeping the
cooktop surface clean afLer each use will help avoid soil
buildup from becoming very difficult to remove.
To avoid scratching, wipe with a clean, damp cloth and wipe
dry. If a spill occurs on or in the recessed or contoured
areas of the cooktop, blot up spill with an absorbent cloth.
Rinse with a clean, damp cloth and wipe dry.
29

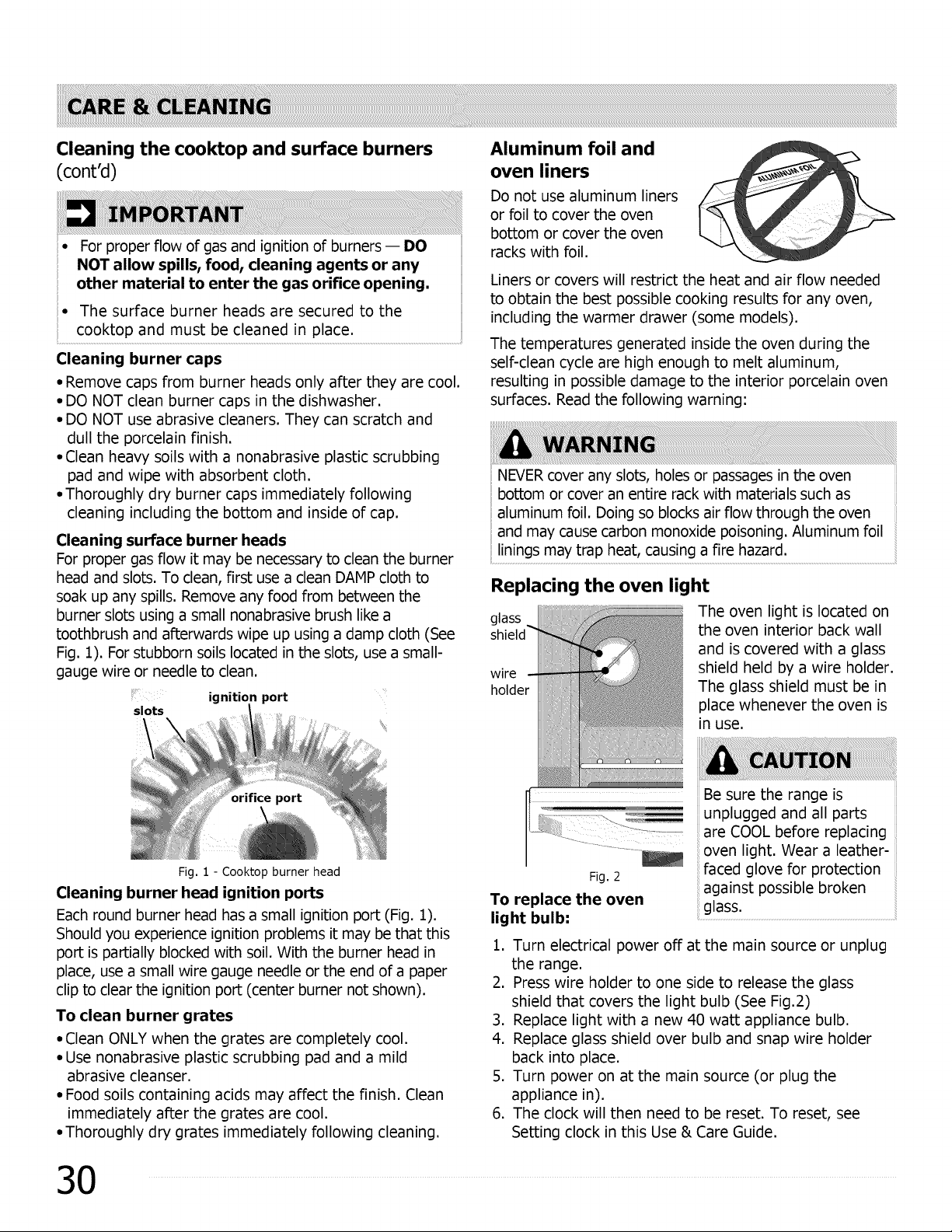

Cleaning the cooktop and surface burners
(cont'd)
For proper flow of gas and ignition of burners -- DO
NOT allow spills, food, cleaning agents or any
other material to enter the gas orifice opening.
• The surface burner heads are secured to the
cooktop and must be cleaned in place.
Cleaning burner caps
• Remove caps from burner heads only after they are cool.
• DO NOT clean burner caps in the dishwasher.
• DO NOT use abrasive cleaners. They can scratch and
dull the porcelain finish.
• Clean heavy soils with a nonabrasive plastic scrubbing
pad and wipe with absorbent cloth.
• Thoroughly dry burner caps immediately following
cleaning including the bottom and inside of cap.
Cleaning surface burner heads
For proper gas flow it may be necessary to clean the burner
head and slots. To clean, first use a clean DAMP cloth to
soak up any spills. Remove any food from between the
burner slots using a small nonabrasive brush like a
toothbrush and afterwards wipe up using a damp cloth (See
Fig. 1). For stubborn soils located in the slots, use a small-
gauge wire or needle to clean.
slots
Aluminum foil and
oven liners
Do not use aluminum liners
or foil to cover the oven
bottom or cover the oven
racks with foil.
Liners or covers will restrict the heat and air flow needed
to obtain the best possible cooking results for any oven,
including the warmer drawer (some models).
The temperatures generated inside the oven during the
self-clean cycle are high enough to melt aluminum,
resulting in possible damage to the interior porcelain oven
surfaces. Read the following warning:
NEVERcover any slots, holes or passages in the oven
bottom or cover an entire rack with materials such as
aluminum foil. Doing so blocks air flow through the oven
and may cause carbon monoxide poisoning. Aluminum foil
linings may trap heat, causing a fire hazard.
Replacing the oven light
glass The oven light is located on
the oven interior back wall
and is covered with a glass
wire shield held by a wire holder.
holder The glass shield must be in
place whenever the oven is
in use.
Fig. 1 - Cooktop burner head
Cleaning burner head ignition ports
Each round burner head has a small ignition port (Fig. 1).
Should you experience ignition problems it may be that this
port is partially blocked with soil. With the burner head in
place, use a small wire gauge needle or the end of a paper
clip to clear the ignition port (center burner not shown).
To clean burner grates
• Clean ONLY when the grates are completely cool.
• Use nonabrasive plastic scrubbing pad and a mild
abrasive cleanser.
• Food soils containing acids may affect the finish. Clean
immediately after the grates are cool.
• Thoroughly dry grates immediately following cleaning.
Fig. 2
To replace the oven
light bulb:
Be sure the range is
unplugged and all parts
are COOL before replacing
oven light. Wear a leather-
faced glove for protection
against possible broken
glass.
1. Turn electrical power off at the main source or unplug
the range.
2. Press wire holder to one side to release the glass
shield that covers the light bulb (See Fig.2)
3. Replace light with a new 40 watt appliance bulb.
4. Replace glass shield over bulb and snap wire holder
back into place.
5. Turn power on at the main source (or plug the
appliance in).
6. The clock will then need to be reset. To reset, see
Setting clock in this Use & Care Guide.
3O

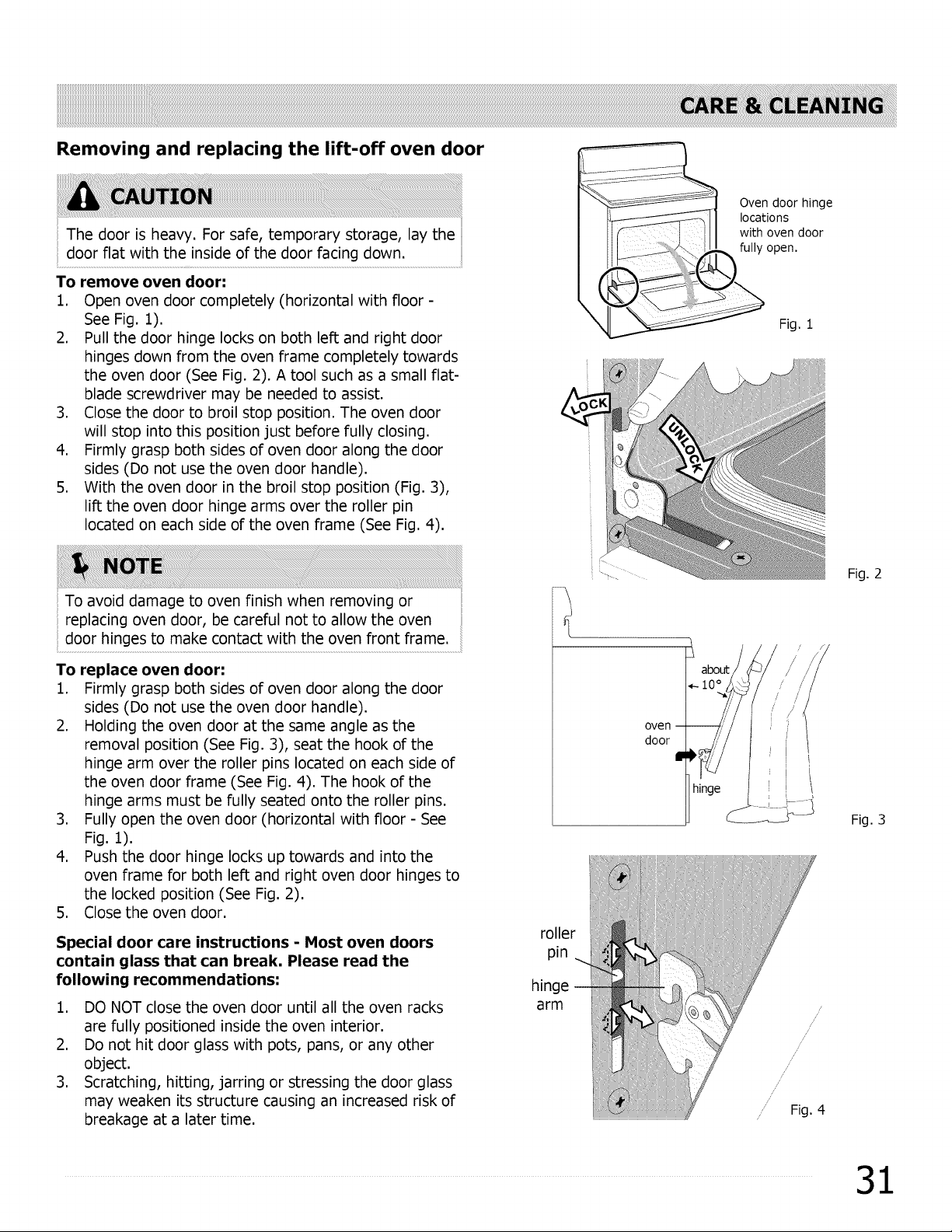

Removing and replacing the lift-off oven door
i
The door is heavy. For safe, temporary storage, lay the
door flat with the inside of the door facing down.
To remove oven door:
1. Open oven door completely (horizontal with floor -
See Fig. 1).
2. Pull the door hinge locks on both left and right door
hinges down from the oven frame completely towards
the oven door (See Fig. 2). A tool such as a small flat-
blade screwdriver may be needed to assist.
3. Close the door to broil stop position. The oven door
will stop into this position just before fully closing.
4. Firmly grasp both sides of oven door along the door
sides (Do not use the oven door handle).
5. With the oven door in the broil stop position (Fig. 3),
lift the oven door hinge arms over the roller pin
located on each side of the oven frame (See Fig. 4).
To avoid damage to oven finish when removing or
replacing oven door, be careful not to allow the oven
door hinges to make contact with the oven front frame.
To replace oven door:
1. Firmly grasp both sides of oven door along the door
sides (Do not use the oven door handle).
2. Holding the oven door at the same angle as the
removal position (See Fig. 3), seat the hook of the
hinge arm over the roller pins located on each side of
the oven door frame (See Fig. 4). The hook of the
hinge arms must be fully seated onto the roller pins.
3. Fully open the oven door (horizontal with floor - See
Fig. 1).
4. Push the door hinge locks up towards and into the
oven frame for both left and right oven door hinges to
the locked position (See Fig. 2).
5. Close the oven door.
Special door care instructions - Most oven doors
contain glass that can break. Please read the
following recommendations:
1. DO NOT close the oven door until all the oven racks
are fully positioned inside the oven interior.
2. Do not hit door glass with pots, pans, or any other
object.
3. Scratching, hitting, jarring or stressing the door glass
may weaken its structure causing an increased risk of
breakage at a later time.
Oven door hinge
locations
with oven door
fully open.
Fig. 1
oven -
door
roller
pin
hinge
arm
.0o///i:ii"
-ioo./x '5/ ,, /"/
"/
l_nge_
//
///
/
/
/
Fig. 4
Fig. 2
Fig. 3
31
Removing and replacing the Keep Warm
Drawer
You may remove the Keep Warm Drawer from the range
should it be necessary for cleaning. Carefully follow the
steps below when removing or replacing the Keep Warm
Drawer.
I
I
Left-hand rail and release
EectrcaShockHazarcanoccr
and result in serious injury or death.
Disconnect appliance from electric
power before cleaning and servicing
the warmer drawer.
To remove Keep Warm Drawer:
1. Turn power OFF before removing the drawer.
2. Open the Keep Warm Drawer completely.
3. On left drawer rail, locate black release lever and press
up with finger while pulling out slightly on the drawer
handle. On right drawer rail, locate black release lever
and press down with finger while pulling out slightly on
the drawer handle (See Fig. 1).
4. The drawer should now be released from the rails.
Carefully remove the Keep Warm Drawer (using level &
square motion) completely away from the appliance.
To replace Keep Warm Drawer:
1. Pull the bearing glides to the front of the outer
compartment glide channels until they snap into place
(refer to Fig. 3).
2. Carefully line up both sides of the Keep Warm Drawer
glide rails to the outer compartment glide channels
located inside the empty drawer compartment (Refer
to Fig. 2).
3. While holding the drawer level and square using the
Keep Warm Drawer handle, push (DO NOT FORCE)
the drawer all the way into the outer compartment
glide channels all the way into the range. Pull the
drawer open again to verify the glides have seated.
4. If you do not hear the levers "click" or the bearing
glides do not feel seated remove the Keep Warm
Drawer and repeat steps "1" through "3". This will
minimize possible damage to the bearing glides.
Keep Warm
Drawer
& handle
Right-hand rail and release
Fig. 1
Fig. 2
bearing glide
I
Fig. 3
32
Problem Solution
Poor baking results. • Allow oven to preheat to the set temperature before placing food in oven.
• Make sure the proper oven rack position is used.
• Center food in the oven and space pans to allow air to circulate.
• Try adjusting the recipe's recommended temperature or baking time.
• If you feel the oven is too hot or cool, see Adjusting oven
temperature in Setting Oven Controls section.
Appliance is not level. • Poor installation. To correct, place oven rack in center of oven. Place a
level on the oven rack. Adjust by turning leveling legs at base of
appliance until the oven rack is level.
• Be sure floor is level, strong & stable enough to adequately support the
appliance. If floor is sagging or sloping, contact a carpenter to correct the
situation.
Cannot move appliance easily.
Appliance must be accessible for
service.
• Kitchen cabinet alignment may make range appear not level. Be sure
cabinets are square & have sufficient room for appliance clearance.
• Cabinets not square or are built in too tightly to appliance sides. Contact
builder or installer to make appliance accessible.
• Carpet interferes with appliance. Provide sufficient space so appliance
may be lifted over carpet.
• Gas line is hard-plumbed. Have a flexible CSA International approved
metal appliance connector installed.
Oven portion of appliance does not
operate.
• Be sure gas valve on regulator is turned to ON position. See installation
instructions for more details.
• Be sure the oven controls are set properly for the desired cooking
feature. See "Setting Oven Controls" in this manual or see "Entire
appliance does not operate" in this checklist.
Entire appliance does not operate. • The time of day is not set. The time of day must first be set in order to
properly operate the oven. See "Setting the clock" in "Setting oven
controls" section.
• Make sure power cord is plugged correctly into outlet.
• Service wiring is not complete. Contact your dealer, installing agent or
authorized service agent.
• Electrical power outage. Check house lights to be sure. Call your local
electric company for service.
Oven control panel beeps and displays
F code error (for example, F10).
The oven control has detected a fault or error condition. Press cancel to
clear the display & stop beeping. Try the bake or broil feature again. If
the F code error repeats, remove electric power from appliance, wait 5
minutes and then repower appliance and set clock for the time of day.
Try the bake or broil feature again. If the fault recurs, record fault and
call your authorized service agent.
33
Problem Solution
Flames inside oven or smoking from • Excessive spillovers in oven. For example this will happen for pie
oven vent. spillovers or large amounts of grease left on the oven bottom. Wipe up
excessive spillovers before starting oven. If flames or excessive smoke
are present see "Broiling" in the Setting Oven Controls section for
additional recommendations.
Oven smokes excessively when broiling. • Incorrect setting or food preparation. Follow broiling instructions in
Setting Oven Controls section.
• Make sure oven door closed when broiling.
• Food positioned too close to upper broil burner. Reposition the food
item lower if necessary to provide proper clearance between the food &
the broil burner. Try preheating the oven before boiling.
• Food not properly prepared. Remove excess fat from meat. Cut
remaining fatty edges to prevent curling.
• Broil pan and insert (some models) wrong side up and grease not
draining. Always place insert on top of broil pan with ribs up & slots
down to allow excess grease to drip into broil pan.
• DO NOT USE ALUMINUM FOIL. Aluminum foil will trap grease, expose
grease to high temperatures and increase smoking.
• Grease has built up on interior oven surfaces. Regular cleaning is
necessary if broiling frequently. Old grease or food spatters cause
excessive smoking.
Convection does not work • Oven control not set properly. Review instructions for"Convect" in
(some models) "Setting Oven Controls" section.
• Allow 6 minutes for the convection fan to start rotating after setting a
convection feature.
• See "Convection fan does not rotate" in this checklist.
Convection fan does not rotate • Allow 6 minutes for the convection fan to start rotating after setting a
(some models), convect feature.
• Oven door is open. The convection fan will turn off if oven door is opened
when any convect feature is active. Close oven door.
Self-cleaning cycle does not work. • Oven control not set properly. Follow the instructions provided in the
"Self-cleaning" section of this manual.
• Self-clean cycle was interrupted. Refer to the "Self-Cleaning" section for
more detailed information.
Soil not completely removed after • Dirty front oven frame outside oven door gasket area. These areas are
running a self-cleaning cycle, not within the self-clean area, but get hot enough to burn on residue.
Manually clean these areas before starting a self-clean cycle. Burned-on
residue can be cleaned using a stiff nylon brush, or a nonabrasive nylon
scrubber and water. Be careful not to damage the oven door gasket.
34
Problem Solution
Surface burner does not ignite. • Surface control knob was not completely turned to LITE. Push in & turn
the surface control knob to LITE until burner ignites and then turn control
knob to adjust flame size.
Burner ports are clogged. With all the surface burners turned OFF, use a
small-gauge wire or needle to clear soils from burner head slots and
ignition ports. See "Cleaning the cooktop and surface burners" in the
"Care & Cleaning" section for detailed cleaning information.
Burner cap or caps are missing. Check that all burner caps are seated
correctly and rest level on burner heads. Read "Check surface burner cap
placement before operating surface burners" in the "Care & Cleaning"
section.
Surface burner flame uneven or lit only
part way around burner.
• Range power cord is disconnected from outlet (electric ignition models
only). Be sure power cord is securely plugged into power outlet.
• Electrical power outage. Burners may be lit manually. See section on
"Setting Surface Controls".
• Burner ports are clogged. With all the surface burners turned OFF, use a
small-gauge wire or needle to clear soils from burner head slots and
ignition ports. See "Cleaning the cooktop and surface burners" in the
"Care & Cleaning" section for additional cleaning information.
• Moisture is present after cleaning. Lightly fan the flame and allow burner
to operate until flame is full.
Surface burner flame is too high. • Surface control knob setting is too high. Adjust flame to a lower setting.
• Burner caps are not seated properly. Check that all surface burner caps
are level and seated correctly on surface burner heads. See "Cleaning the
cooktop and surface burners" in the Care & Cleaning section.
• If appliance was converted for L. P.Gas, be sure conversion settings and
orifices are correct. Refer to L. P. Gas Conversion Kit instructions to verify
and correct if necessary.
Surface burner flame is orange. • Dust particles in main gas line. Allow the burner to operate a few minutes
until flame turns blue. Along coastal areas, a slightly orange flame is
unavoidable due to high salt content in air.
Oven light does not work. • Be sure the interior oven light is secure in the socket. Also see"Changing &
replacing the oven light" section.
35
Your appliance is covered by a one year limited warranty. For one year from your original date of
purchase, Electrolux will pay all costs for repairing or replacing any parts of this appliance that prove
to be defective in materials or workmanship when such appliance is installed, used and maintained in
accordance with the provided instructions.
Exclusions
This warranty does not cover the following:
1. Products with original serial numbers that have been removed, altered or cannot be readily determined.
2. Product that has been transferred from its original owner to another party or removed outside the USAor
Canada.
3. Rust on the interior or exterior of the unit.
4. Products purchased "as-is" are not covered by this warranty.
5. Food loss due to any refrigerator or freezer failures.
6. Products used in a commercialsetting.
7. Service calls which do not involve malfunction or defects in materials or workmanship, or for appliances
not in ordinary household use or used other than in accordance with the provided instructions.
8. Service callsto correct the installation of your appliance or to instruct you how to use your appliance.
9. Expenses for making the appliance accessible for servicing, such as removal of trim, cupboards,shelves,
etc., which are not a part of the appliance when it is shipped from the factory.
10. Service callsto repair or replace appliance light bulbs, air filters, water filters, other consumables,or
knobs, handles, or other cosmetic parts.
11. Surcharges including, but not limited to, any after hour, weekend, or holiday service calls, tolls, ferry trip
charges,or mileage expense for service callsto remote areas, including the state of Alaska.
12. Damages to the finish of appliance or home incurred during installation, including but not limited to floors,
cabinets, walls, etc.
13. Damages causedby: services performed by unauthorized service companies;use of parts other than
genuine Electrotux parts or parts obtained from persons other than authorized service companies;or
external causessuch as abuse, misuse, inadequate power supply, accidents, fires, or acts of God.
DISCLAIMER OF IMPLIED WARRANTIES; LIMITATION OF REMEDIES
CUSTOMER'S SOLE AND EXCLUSIVE REMEDY UNDER THIS LIMITED WARRANTY SHALL BE PRODUCT
REPAIR OR REPLACEMENT AS PROVIDED HEREIN. CLAIMS BASED ON IMPLIED WARRANTIES, INCLUDING
WARRANTIES OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE, ARE LIMITED TO ONE
YEAR
OR THE SHORTEST PERIOD ALLOWED BY LAW, BUT NOT LESS THAN ONE YEAR. ELECTROLUX SHALL NOT
BE LIABLE FOR CONSEQUENTIAL OR INCIDENTAL DAMAGES SUCH AS PROPERTY DAMAGE AND INCIDENTAL
EXPENSES RESULTING FROM ANY BREACH OF THIS WRI'Fi-EN LIMITED WARRANTY OR ANY IMPLIED
WARRANTY. SOME STATES AND PROVINCES DO NOT ALLOW THE EXCLUSION OR LIMITATION OF
INCIDENTAL
OR CONSEQUENTIAL DAMAGES, OR LIMITATIONS ON THE DURATION OF IMPLIED WARRANTIES, SO THESE
LIMITATIONS OR EXCLUSIONS MAY NOT APPLY TO YOU. THIS WRIFi-EN WARRANTY GIVES YOU SPECIFIC
LEGAL RIGHTS. YOU MAY ALSO HAVE OTHER RIGHTS THAT VARY FROM STATE TO STATE.
If You Need
Service
Keep your receipt, delivery slip, or some other appropriate payment record to establish the warranty period
should service be required. If service is performed, it is in your best interest to obtain and keep all receipts.
Service under this warranty must be obtained by contacting Electrotux at the addresses or phone
numbers below.
This warranty only applies in the USA and Canada. In the USA, your appliance is warranted by Electrotux Major Appliances
North America, a division of Electrotux Home Products, Inc. In Canada, your appliance is warranted by Electrotux Canada Corp.
Electrotux authorizes no person to change or add to any obligations under this warranty. Obligations for service and parts under
this warranty must be performed by Electrotux or an authorized service company. Product features or specifications as described
or illustrated are subject to change without notice.
USA
1.800.944.9044
Electrolux Home Products, Inc.
10200 David Taylor Drive
Charlotte, NC 28262
Electrolux
Canada
1,800.265,8352
Electrolux Canada Corp.
5855 Terry Fox Way
Mississauga, Ontario, Canada
L5V 3E4
