ELECTRICRANGE
{I: !ii-_' ........... [ ii]'iii i!,)1( I:_
For questions about features, operation/performance
parts, accessories or service, call: 1-800-253-1301.
_ or visit our website at...
www.whirlpool.com
Table of Contents ................................................. 2
Model GR450LXL
9782655

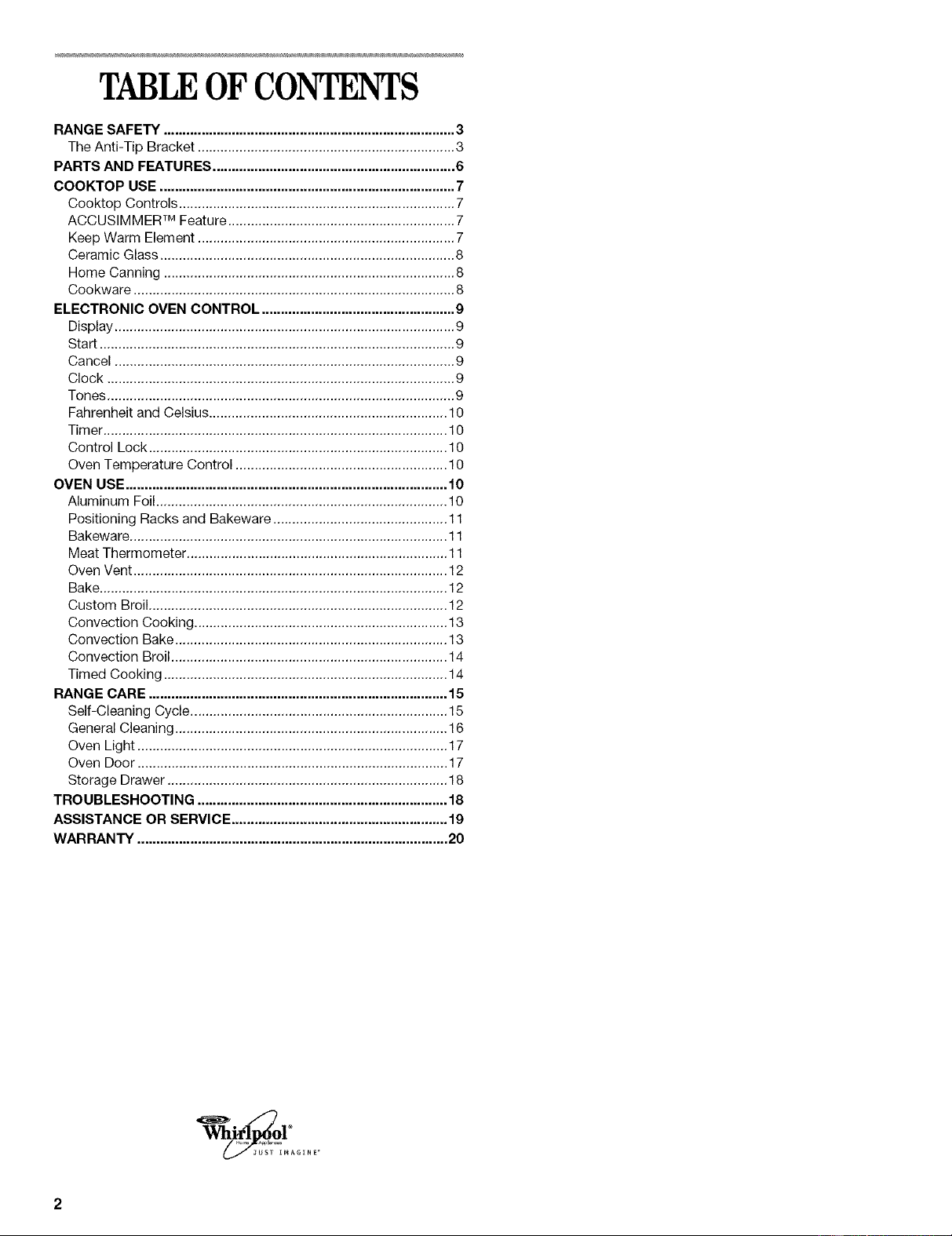

TABLEOF CONTENTS
RANG E SAFETY ............................................................................. 3
The Anti-Tip Bracket .................................................................... 3
PARTS AND FEATURES ................................................................ 6
COOKTOP USE .............................................................................. 7
Cooktop Controls ......................................................................... 7
ACCUSIMMER TM Feature ............................................................ 7
Keep Warm Element .................................................................... 7
Ceramic Glass .............................................................................. 8
Home Canning ............................................................................. 8
Cookware ..................................................................................... 8
ELECTRONIC OVEN CONTROL ................................................... 9
Display .......................................................................................... 9
Start .............................................................................................. 9
Cancel .......................................................................................... 9
Clock ............................................................................................ 9
Tones ............................................................................................ 9
Fahrenheit and Celsius ............................................................... 10
Timer ........................................................................................... 10
Control Lock ............................................................................... 10
Oven Temperature Control ........................................................ 10
OVEN USE ..................................................................................... 10
Aluminum Foil............................................................................. 10
Positioning Racks and Bakeware .............................................. 11
Bakeware .................................................................................... 11
Meat Thermometer ..................................................................... 11
Oven Vent ................................................................................... 12
Bake ............................................................................................ 12
Custom Broil ............................................................................... 12
Convection Cooking ................................................................... 13
Convection Bake ........................................................................ 13
Convection Broil ......................................................................... 14
Timed Cooking ........................................................................... 14
RANGE CARE ............................................................................... 15
Self-Cleaning Cycle .................................................................... t 5
General Cleaning ........................................................................ t 6
Oven Light .................................................................................. 17
Oven Door .................................................................................. 17
Storage Drawer .......................................................................... 18
TROUBLESHOOTING .................................................................. 18
ASSISTANCE OR SERVICE ......................................................... 19
WARRANTY .................................................................................. 20

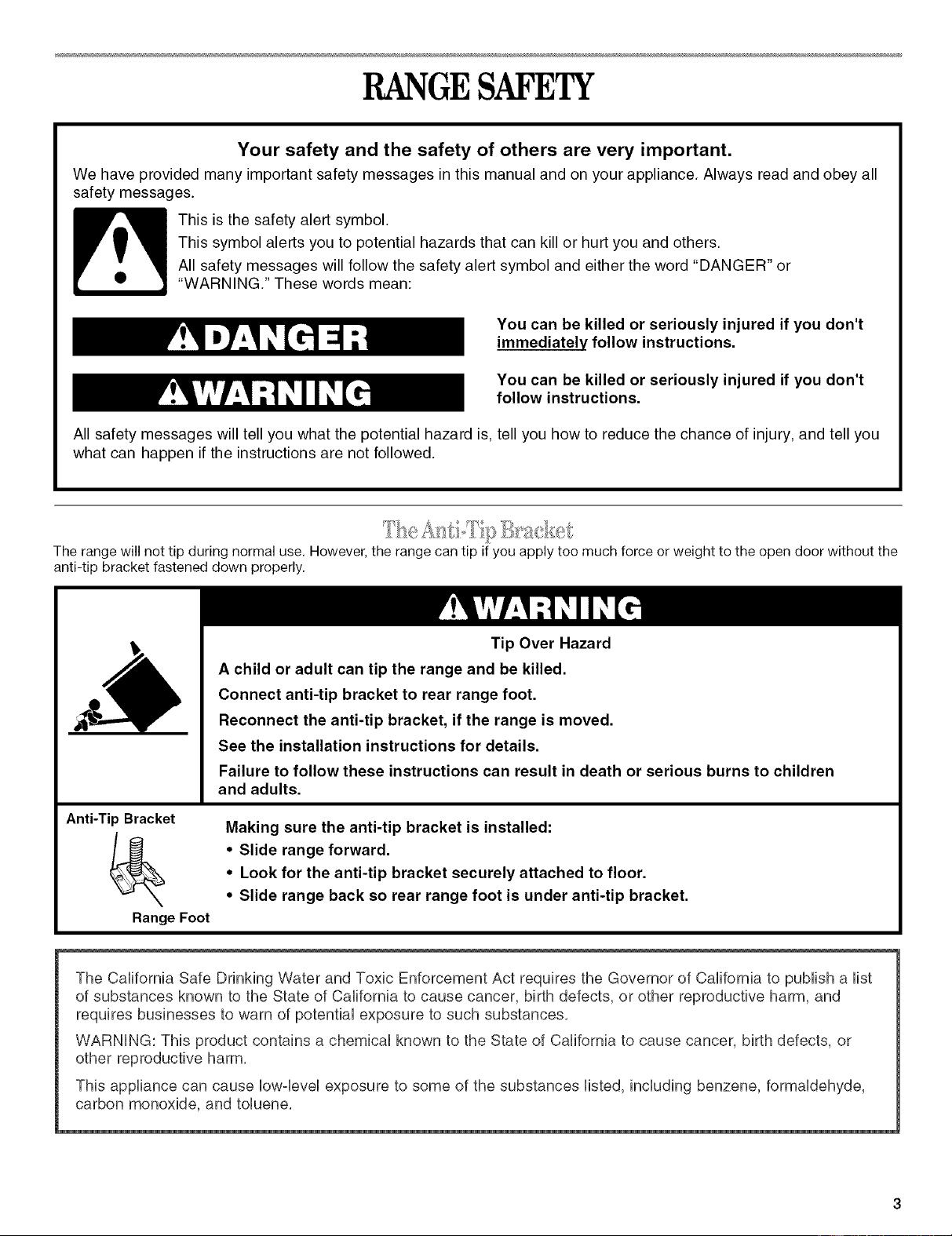

RANGESAFETY
Your safety and the safety of others are very important.
We have provided many important safety messages in this manual and on your appliance. Always read and obey all
safety messages.
This is the safety alert symbol.
This symbol alerts you to potential hazards that can kill or hurt you and others.
All safety messages will follow the safety alert symbol and either the word "DANGER" or
"WARNING." These words mean:
You can be killed or seriously injured if you don't
immediately follow instructions.
You can be killed or seriously injured if you don't
follow instructions.
All safety messages will tell you what the potential hazard is, tell you how to reduce the chance of injury, and tell you
what can happen if the instructions are not followed.
The range will not tip during normal use. However, the range can tip if you apply too much force or weight to the open door without the
anti-tip bracket fastened down properly.
Tip Over Hazard
A child or adult can tip the range and be killed.
Connect anti-tip bracket to rear range foot.
Reconnect the anti-tip bracket, if the range is moved.
See the installation instructions for details.
Failure to follow these instructions can result in death or serious burns to children
and adults.
Anti-Tip Bracket
Range Foot
Making sure the anti-tip bracket is installed:
• Slide range forward.
• Look for the anti-tip bracket securely attached to floor.
• Slide range back so rear range foot is under anti-tip bracket.
The California Safe Drinking Water and Toxic Enforcement Act requires the Governor of California to publish a Hst
of substances known to the State of California to cause cancer, birth defects, or other reproductive harm, and
requires businesses to warn of potentiaU exposure to such substances,
WARNUNG: This product contains a chemicaU known to the State of California to cause cancer, birth defects, or
other reproductive harm,
This appliance can cause low=level exposure to some of the substances listed, including benzene, formaldehyde,
carbon monoxide, and toluene,

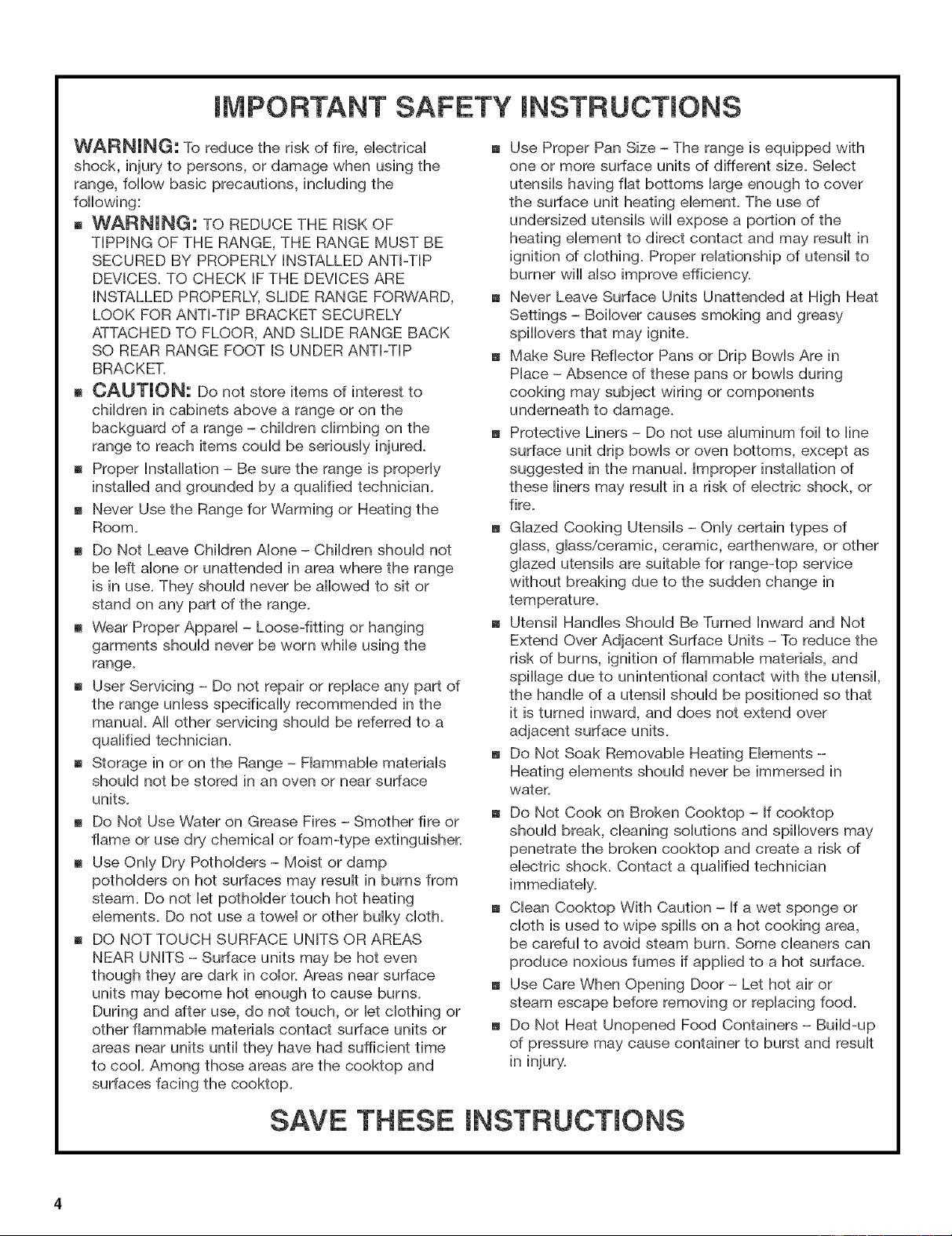

iMPORTANT SAFETY iNSTRUCTiONS
WARNUNG: To reduce the risk of fire, ebctrbaI
shock, injury to persons, or damage when using the
range, follow basic precautions, including the
following:
•, WARNING: TO REDUCE THE RISK OF
TIPPING OF THE RANGE, THE RANGE MUST BE
SECURED BY PROPERLY INSTALLED ANTPTIP
DEVICES. TO CHECK IF THE DEVICES ARE
INSTALLED PROPERLY SLIDE RANGE FORWARD,
LOOK FOR ANTPTIP BRACKET SECURELY
ATTACHED TO FLOOR, AND SLIDE RANGE BACK
SO REAR RANGE FOOT IS UNDER ANTFTIP
BRACKET.
•, CAUTUON: Do not store items of interest to
cNdren in cabinets above a range or on the
backguard of a range - children climbing on the
range to reach items could be seriously injured.
Proper Installation - Be sure the range is properly
installed and grounded by a qualified technician.
Never Use the Range for Warming or Heating the
Room.
Do Not Leave Children Alone - Children should not
be left alone or unattended in area where the range
is in use. They should never be allowed to sit or
stand on any part of the range.
Wear Proper Apparel - Loose-fitting or hanging
garments should never be worn while using the
range.
User Servicing - Do not repair or replace any part of
the range unless specifically recommended in the
manual. All other servicing should be referred to a
qualified technician.
Storage in or on the Range - Flammable materials
should not be stored in an oven or near surface
units.
Do Not Use Water on Grease Fires - Smother fire or
flame or use dry,chemical or foam-type extinguisher.
Use Only Dry Pothdders - Moist or damp
potholders on hot surfaces may result in burns from
steam. Do not let potholder touch hot heating
ebments. Do not use a towel or other bulky doth.
DO NOT TOUCH SURFACE UNITS OR AREAS
NEAR UNITS - Surface units may be hot even
though they are dark in color. Areas near surface
units may become hot enough to cause burns.
During and after use, do not touch, or let clothing or
other flammable materials contact surface units or
areas near units until they have had sufficient time
to cool. Among those areas are the cooktop and
surfaces facing the cooktop.
Use Proper Pan Size - The range is equipped with
one or more surface units of different size. Select
utensils having flat bottoms large enough to cover
the surface unit heating ebmenL The use of
undersized utensils will expose a portion of the
heating element to direct contact and may result in
ignition of clothing. Proper relationship of utensil to
burner will also improve efficiency.
Never Leave Surface Units Unattended at High Heat
Settings - Boilover causes smoking and greasy
spillovers that may ignite.
Make Sure Reflector Pans or Drip Bowls Are in
Place - Absence of these pans or bowls during
cooking may subject wiring or components
underneath to damage.
Protective Liners - Do not use aluminum foil to line
surface unit drip bowls or oven bottoms, except as
suggested in the manual. Improper installation of
these liners may result in a risk of electric shock, or
fire.
Glazed Cooking Utensils - Only certain types of
glass, glass/ceramic, ceramic, earthenware, or other
glazed utensils are suitable for range-top service
without breaking due to the sudden change in
temperature.
Utensil Handles Should Be Turned Inward and Not
Extend Over Adjacent Surface Units - To reduce the
risk of burns, ignition of flammable materials, and
spillage due to unintentional contact with the utensil,
the handle of a utensil should be positioned so that
it is turned inward, and does not extend over
adjacent surface units.
Do Not Soak Removable Heating Elements -
Heating elements should never be immersed in
water.
Do Not Cook on Broken Cooktop - If cooktop
should break, cleaning solutions and spillovers may
penetrate the broken cooktop and create a risk of
electric shock. Contact a qualified technician
immediately.
Clean Cooktop With Caution - If a wet sponge or
cloth is used to wipe spills on a hot cooking area,
be careful to avoid steam burn. Some cleaners can
produce noxious fumes if applied to a hot surface.
Use Care When Opening Door - Let hot air or
steam escape before removing or replacing food.
Do Not Heat Unopened Food Containers - Build-up
of pressure may cause container to burst and result
in injury.
SAVE THESE INSTRUCTIONS

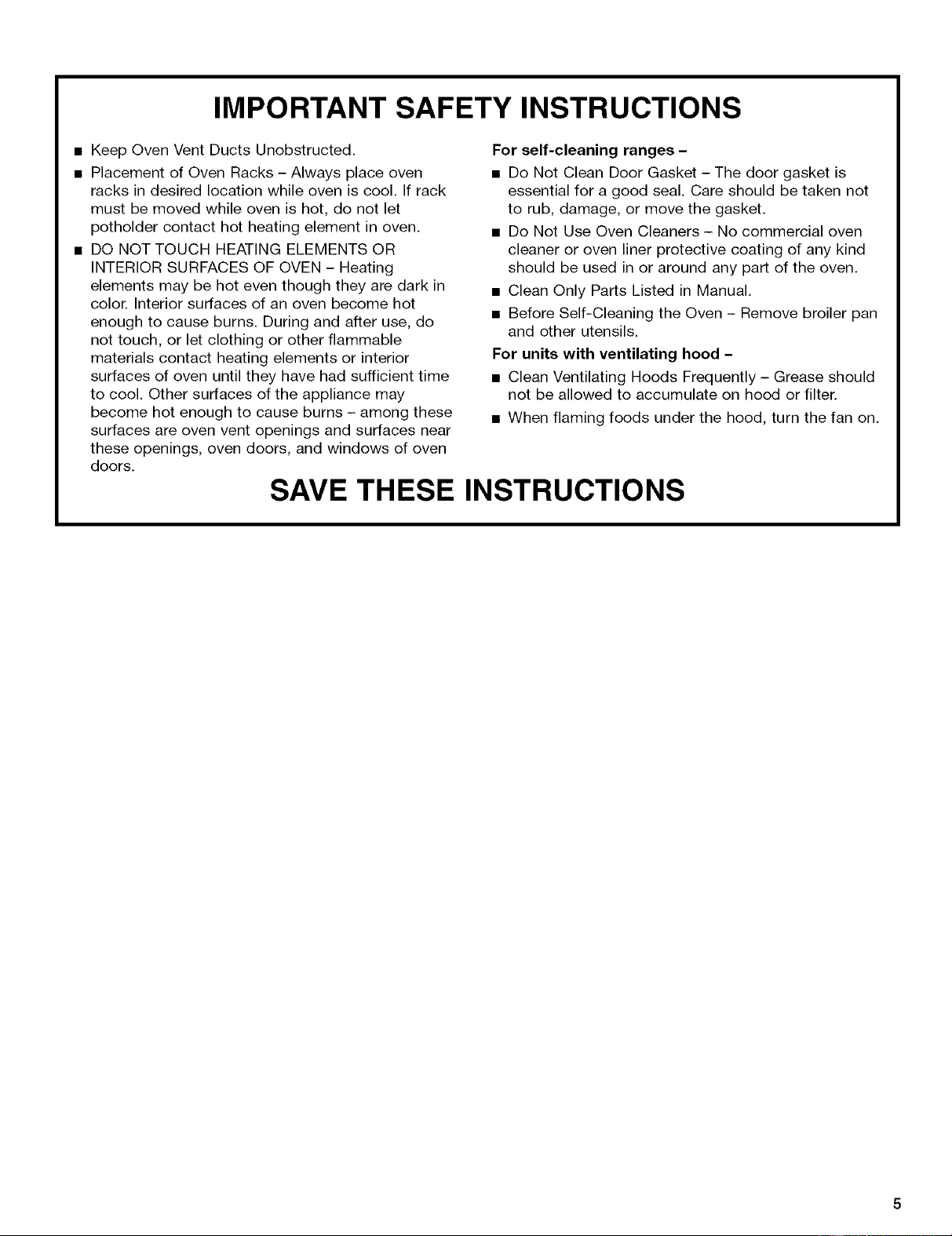

IMPORTANT SAFETY INSTRUCTIONS
• Keep Oven Vent Ducts Unobstructed.
• Placement of Oven Racks - Always place oven
racks in desired location while oven is cool. If rack
must be moved while oven is hot, do not let
potholder contact hot heating element in oven.
• DO NOT TOUCH HEATING ELEMENTS OR
INTERIOR SURFACES OF OVEN - Heating
elements may be hot even though they are dark in
color. Interior surfaces of an oven become hot
enough to cause burns. During and after use, do
not touch, or let clothing or other flammable
materials contact heating elements or interior
surfaces of oven until they have had sufficient time
to cool. Other surfaces of the appliance may
become hot enough to cause burns - among these
surfaces are oven vent openings and surfaces near
these openings, oven doors, and windows of oven
doors.
For self-cleaning ranges -
• Do Not Clean Door Gasket - The door gasket is
essential for a good seal. Care should be taken not
to rub, damage, or move the gasket.
• Do Not Use Oven Cleaners - No commercial oven
cleaner or oven liner protective coating of any kind
should be used in or around any part of the oven.
• Clean Only Parts Listed in Manual.
• Before Self-Cleaning the Oven - Remove broiler pan
and other utensils.
For units with ventilating hood -
• Clean Ventilating Hoods Frequently - Grease should
not be allowed to accumulate on hood or filter.
• When flaming foods under the hood, turn the fan on.
SAVE THESE INSTRUCTIONS

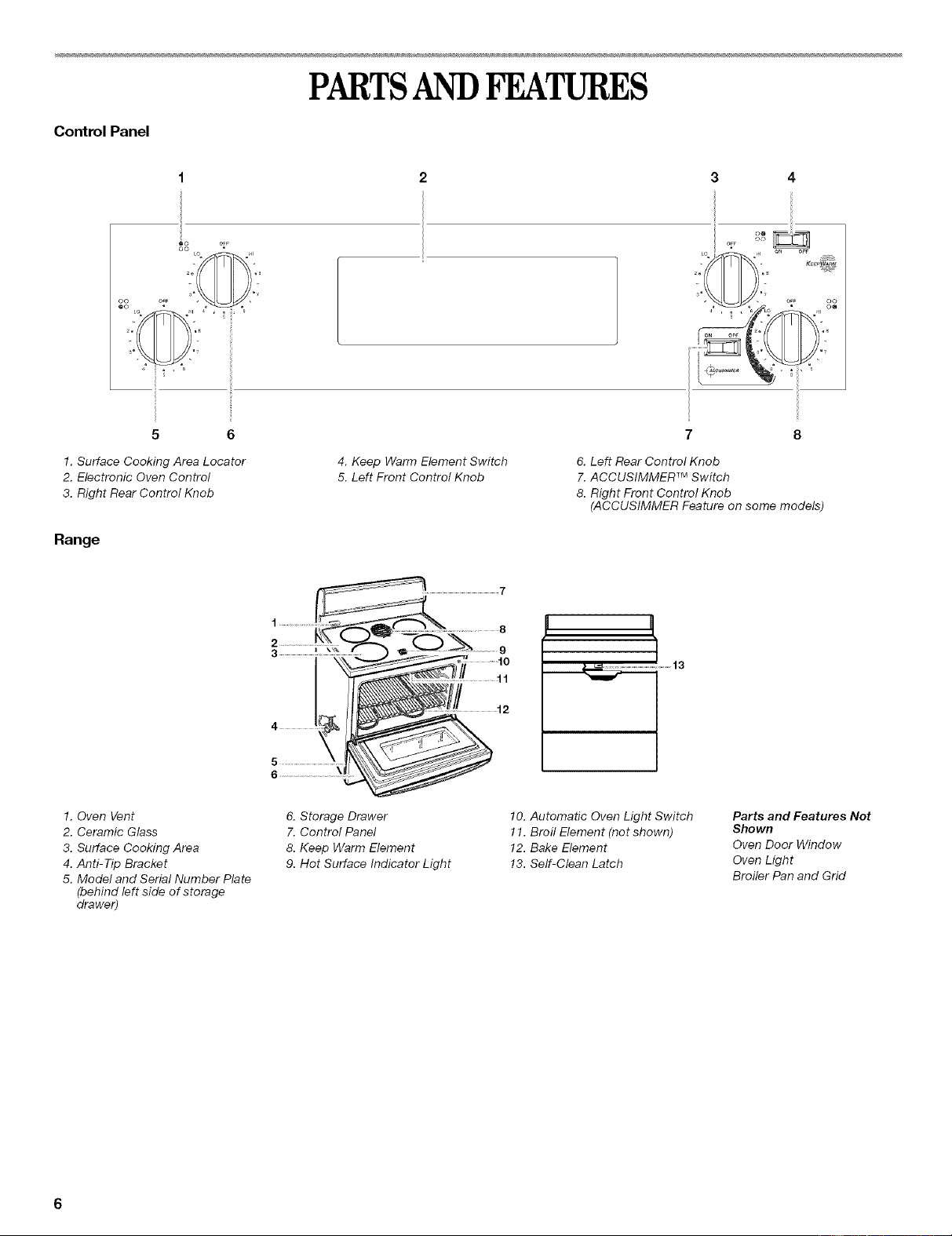

PARTSANDFFATURES
Control Panel
oo
eo
oo
5 6
1. Surface Cooking Area Locator
2. Electronic Oven Control
3. Right Rear Control Knob
Range
4. Keep Warm Element Switch
5. Left Front Control Knob
7 8
6. Left Rear Control Knob
7. ACCUSIMMER TM Switch
8. Right Front Control Knob
(ACCUSIMMER Feature on some models)
7
8
9
12
1. Oven Vent
2. Ceramic Glass
3. Surface Cooking Area
4. Anti-Tip Bracket
5. Model and Serial Number Plate
(behind left side of storage
drawer)
6. Storage Drawer
7. Control Panel
8. Keep Warm Element
9. Hot Surface Indicator Light
!0. Automatic Oven Light Switch
11. Broil Element (not shown)
12. Bake Element
13. Self-Clean Latch
Parts and Features Not
Shown
Oven Door Window
Oven Light
Broiler Pan and Grid

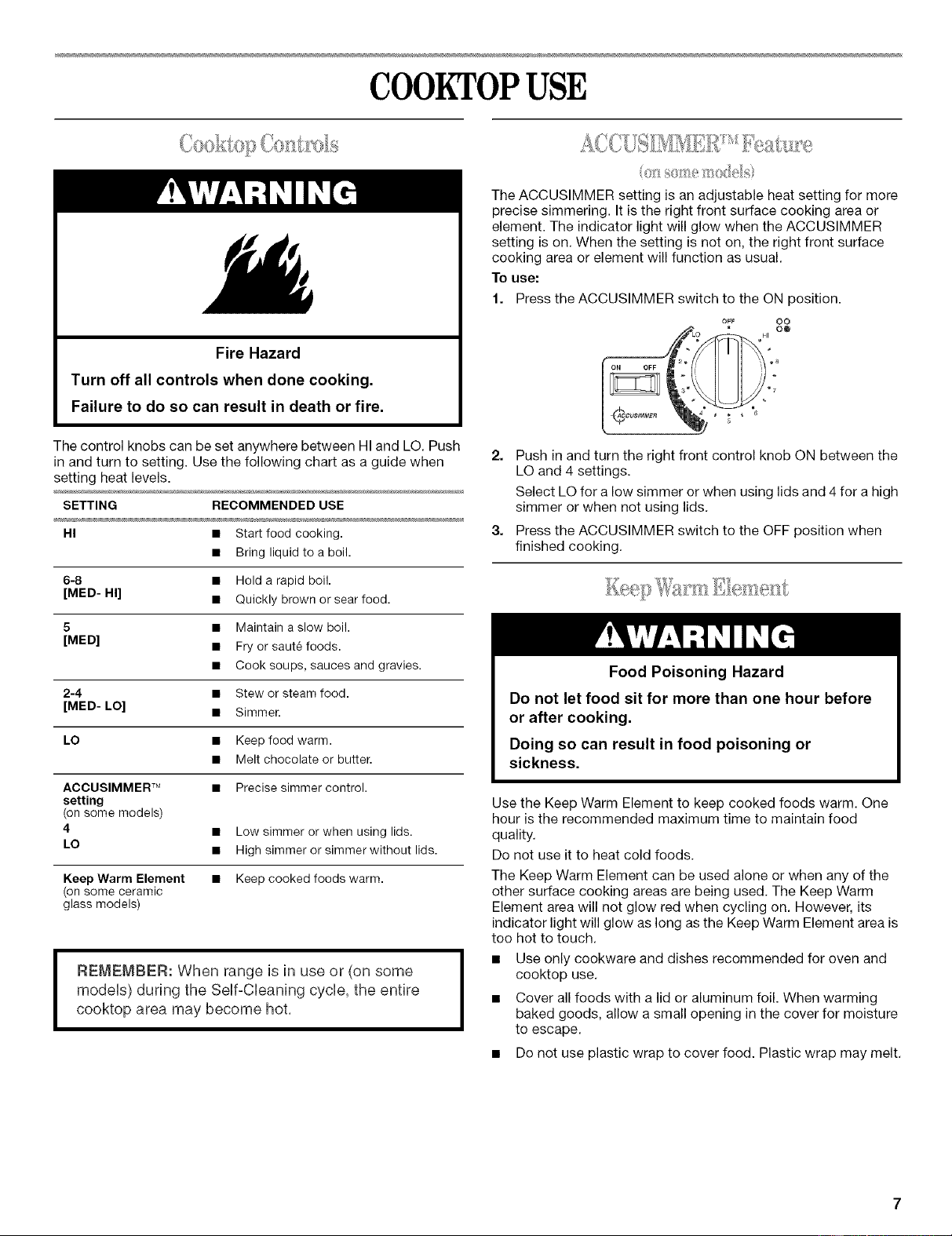

COOKTOPUSE
{k}kt(I}i}{ {,:
Fire Hazard
Turn off all controls when done cooking.
Failure to do so can result in death or fire.
The control knobs can be set anywhere between HI and LO. Push
in and turn to setting. Use the following chart as a guide when 2.
setting heat levels.
SETTING RECOMMENDED USE
HI • Start food cooking. 3.
• Bring liquid to a boil.
6-8 • Hold a rapid boil.
[MED- HI] • Quickly brown or sear food.
5 • Maintain a slow boil.
[MED] • Fry or saut_ foods.
• Cook soups, sauces and gravies.
2-4 • Stew or steam food.
[MED- LO] • Simmer.
LO • Keep food warm.
• Melt chocolate or butter.
ACCUSIMMER TM • Precise simmer control.
setting
(on some models)
4 • Low simmer or when using lids.
LO
• High simmer or simmer without lids.
Keep Warm Element • Keep cooked foods warm.
(on some ceramic
glass models)
REMEMBER: When range is in use or (on some
models) during the Self=Cleaning cycle, the entire
cooktop area may become hot,
The ACCUSIMMER setting is an adjustable heat setting for more
precise simmering. It is the right front surface cooking area or
element. The indicator light will glow when the ACCUSIMMER
setting is on. When the setting is not on, the right front surface
cooking area or element will function as usual.
To use:
1. Press the ACCUSlMMER switch to the ON position.
OFF OO
00
HI
Push in and turn the right front control knob ON between the
LO and 4 settings.
Select LO for a low simmer or when using lids and 4 for a high
simmer or when not using lids.
Press the ACCUSlMMER switch to the OFF position when
finished cooking.
Food Poisoning Hazard
Do not let food sit for more than one hour before
or after cooking.
Doing so can result in food poisoning or
sickness.
Use the Keep Warm Element to keep cooked foods warm. One
hour is the recommended maximum time to maintain food
quality.
Do not use it to heat cold foods.
The Keep Warm Element can be used alone or when any of the
other surface cooking areas are being used. The Keep Warm
Element area will not glow red when cycling on. However, its
indicator light will glow as long as the Keep Warm Element area is
too hot to touch.
• Use only cookware and dishes recommended for oven and
cooktop use.
• Cover all foods with a lid or aluminum foil. When warming
baked goods, allow a small opening in the cover for moisture
to escape.
• Do not use plastic wrap to cover food. Plastic wrap may melt.

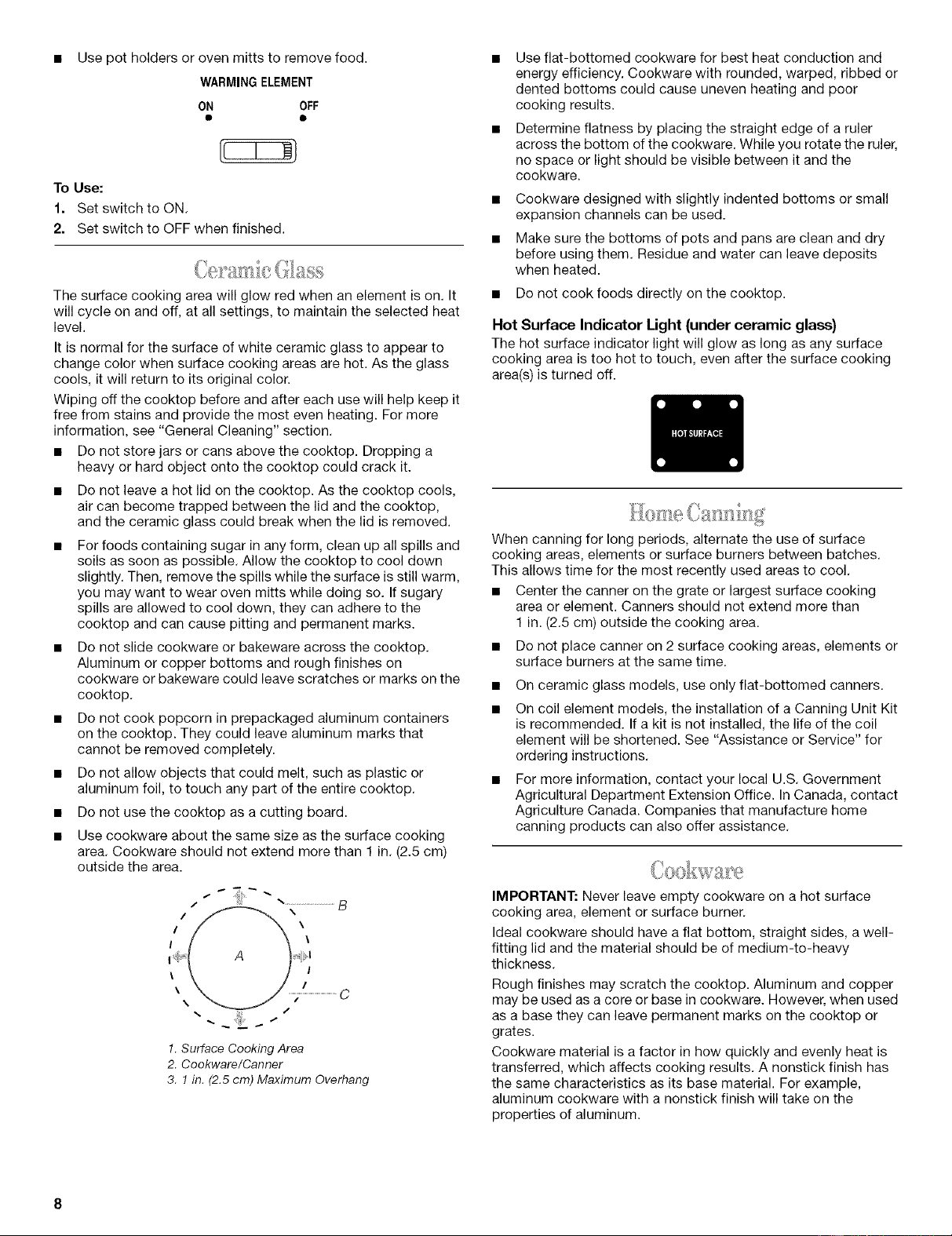

Usepotholdersorovenmittstoremovefood.
WARMINGELEMENT
ON OFF
To Use:
1. Set switch to ON.
2. Set switch to OFF when finished.
The surface cooking area will glow red when an element is on. It
will cycle on and off, at all settings, to maintain the selected heat
level.
It is normal for the surface of white ceramic glass to appear to
change color when surface cooking areas are hot. As the glass
cools, it will return to its original color.
Wiping off the cooktop before and after each use will help keep it
free from stains and provide the most even heating. For more
information, see "General Cleaning" section.
• Do not store jars or cans above the cooktop. Dropping a
heavy or hard object onto the cooktop could crack it.
Do not leave a hot lid on the cooktop. As the cooktop cools,
air can become trapped between the lid and the cooktop,
and the ceramic glass could break when the lid is removed.
For foods containing sugar in any form, clean up all spills and
soils as soon as possible. Allow the cooktop to cool down
slightly. Then, remove the spills while the surface is still warm,
you may want to wear oven mitts while doing so. If sugary
spills are allowed to cool down, they can adhere to the
cooktop and can cause pitting and permanent marks.
Do not slide cookware or bakeware across the cooktop.
Aluminum or copper bottoms and rough finishes on
cookware or bakeware could leave scratches or marks on the
cooktop.
Do not cook popcorn in prepackaged aluminum containers
on the cooktop. They could leave aluminum marks that
cannot be removed completely.
Do not allow objects that could melt, such as plastic or
aluminum foil, to touch any part of the entire cooktop.
Do not use the cooktop as a cutting board.
Use cookware about the same size as the surface cooking
area. Cookware should not extend more than 1 in. (2.5 cm)
outside the area.
f _ ..................................B
/ \
I \
I |
\ I
; C
.... ,,
1. Surface Cooking Area
2. Cookware/Canner
3. 1 in. (2.5 cm) Maximum Overhang
Use flat-bottomed cookware for best heat conduction and
energy efficiency. Cookware with rounded, warped, ribbed or
dented bottoms could cause uneven heating and poor
cooking results.
Determine flatness by placing the straight edge of a ruler
across the bottom of the cookware. While you rotate the ruler,
no space or light should be visible between it and the
cookware.
Cookware designed with slightly indented bottoms or small
expansion channels can be used.
Make sure the bottoms of pots and pans are clean and dry
before using them. Residue and water can leave deposits
when heated.
• Do not cook foods directly on the cooktop.
Hot Surface Indicator Light (under ceramic glass)
The hot surface indicator light will glow as long as any surface
cooking area is too hot to touch, even after the surface cooking
area(s) is turned off.
When canning for long periods, alternate the use of surface
cooking areas, elements or surface burners between batches.
This allows time for the most recently used areas to cool.
• Center the canner on the grate or largest surface cooking
area or element. Canners should not extend more than
1 in. (2.5 cm) outside the cooking area.
• Do not place canner on 2 surface cooking areas, elements or
surface burners at the same time.
• On ceramic glass models, use only flat-bottomed canners.
On coil element models, the installation of a Canning Unit Kit
is recommended. If a kit is not installed, the life of the coil
element will be shortened. See "Assistance or Service" for
ordering instructions.
For more information, contact your local U.S. Government
Agricultural Department Extension Office. In Canada, contact
Agriculture Canada. Companies that manufacture home
canning products can also offer assistance.
IMPORTANT: Never leave empty cookware on a hot surface
cooking area, element or surface burner.
Ideal cookware should have a flat bottom, straight sides, a well-
fitting lid and the material should be of medium-to-heavy
thickness.
Rough finishes may scratch the cooktop. Aluminum and copper
may be used as a core or base in cookware. However, when used
as a base they can leave permanent marks on the cooktop or
grates.
Cookware material is a factor in how quickly and evenly heat is
transferred, which affects cooking results. A nonstick finish has
the same characteristics as its base material. For example,
aluminum cookware with a nonstick finish will take on the
properties of aluminum.

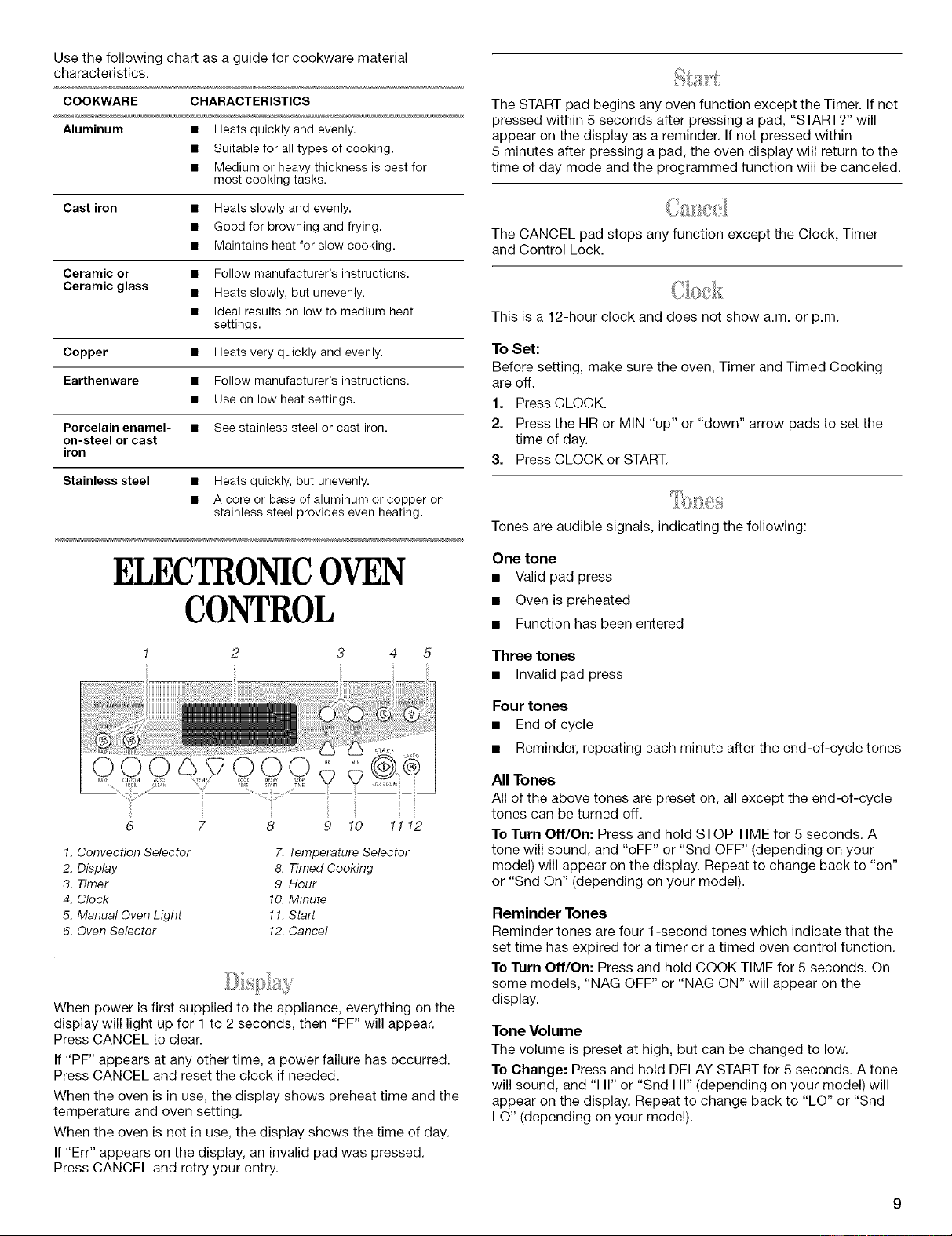

Use the following chart as a guide for cookware material
characteristics.
COOKWARE CHARACTERISTICS
Aluminum • Heats quickly and evenly.
• Suitable for all types of cooking.
• Medium or heaw thickness is best for
most cooking tasks.
Cast iron • Heats slowly and evenly.
• Good for browning and frying.
• Maintains heat for slow cooking.
Ceramic or • Follow manufacturer's instructions.
Ceramic glass • Heats slowly, but unevenly.
• Ideal results on low to medium heat
settings.
Copper • Heats very quickly and evenly.
Earthenware • Follow manufacturer's instructions.
• Use on low heat settings.
• See stainless steel or cast iron.Porcelain enamel-
on-steel or cast
iron
Stainless steel
• Heats quickly, but unevenly.
• A core or base of aluminum or copper on
stainless steel provides even heating.
ELECTRONICOVEN
CONTROL
The START pad begins any oven function except the Timer. If not
pressed within 5 seconds after pressing a pad, "START?" will
appear on the display as a reminder. If not pressed within
5 minutes after pressing a pad, the oven display will return to the
time of day mode and the programmed function will be canceled.
The CANCEL pad stops any function except the Clock, Timer
and Control Lock.
This is a 12-hour clock and does not show a.m. or p.m.
To Set:
Before setting, make sure the oven, Timer and Timed Cooking
are off.
1. Press CLOCK.
2. Press the HR or MIN "up" or "down" arrow pads to set the
time of day.
3. Press CLOCK or START.
Tones are audible signals, indicating the following:
One tone
• Valid pad press
• Oven is preheated
• Function has been entered
3 4 5
Three tones
• Invalid pad press
co ooo @
6 7 8 9 10 11 12
1. Convection Selector 7. Temperature Selector
2. Display 8. Timed Cooking
3. Timer 9. Hour
4. Clock 10. Minute
5. Manual Oven Light 11. Start
6. Oven Selector 12. Cancel
When power is first supplied to the appliance, everything on the
display will light up for 1 to 2 seconds, then "PF" will appear.
Press CANCEL to clear.
If "PF" appears at any other time, a power failure has occurred.
Press CANCEL and reset the clock if needed.
When the oven is in use, the display shows preheat time and the
temperature and oven setting.
When the oven is not in use, the display shows the time of day.
If "Err" appears on the display, an invalid pad was pressed.
Press CANCEL and retry your entry.
Four tones
• End of cycle
• Reminder, repeating each minute after the end-of-cycle tones
All Tones
All of the above tones are preset on, all except the end-of-cycle
tones can be turned off.
To Turn Off/On: Press and hold STOP TIME for 5 seconds. A
tone will sound, and "oFF" or "Snd OFF" (depending on your
model) will appear on the display. Repeat to change back to "on"
or "Snd On" (depending on your model).
Reminder Tones
Reminder tones are four 1-second tones which indicate that the
set time has expired for a timer or atimed oven control function.
To Turn Off/On: Press and hold COOK TIME for 5 seconds. On
some models, "NAG OFF" or "NAG ON" will appear on the
display.
Tone Volume
The volume is preset at high, but can be changed to low.
To Change: Press and hold DELAY START for 5 seconds. A tone
will sound, and "HI" or "Snd HI" (depending on your model) will
appear on the display. Repeat to change back to "LO" or "Snd
LO" (depending on your model).

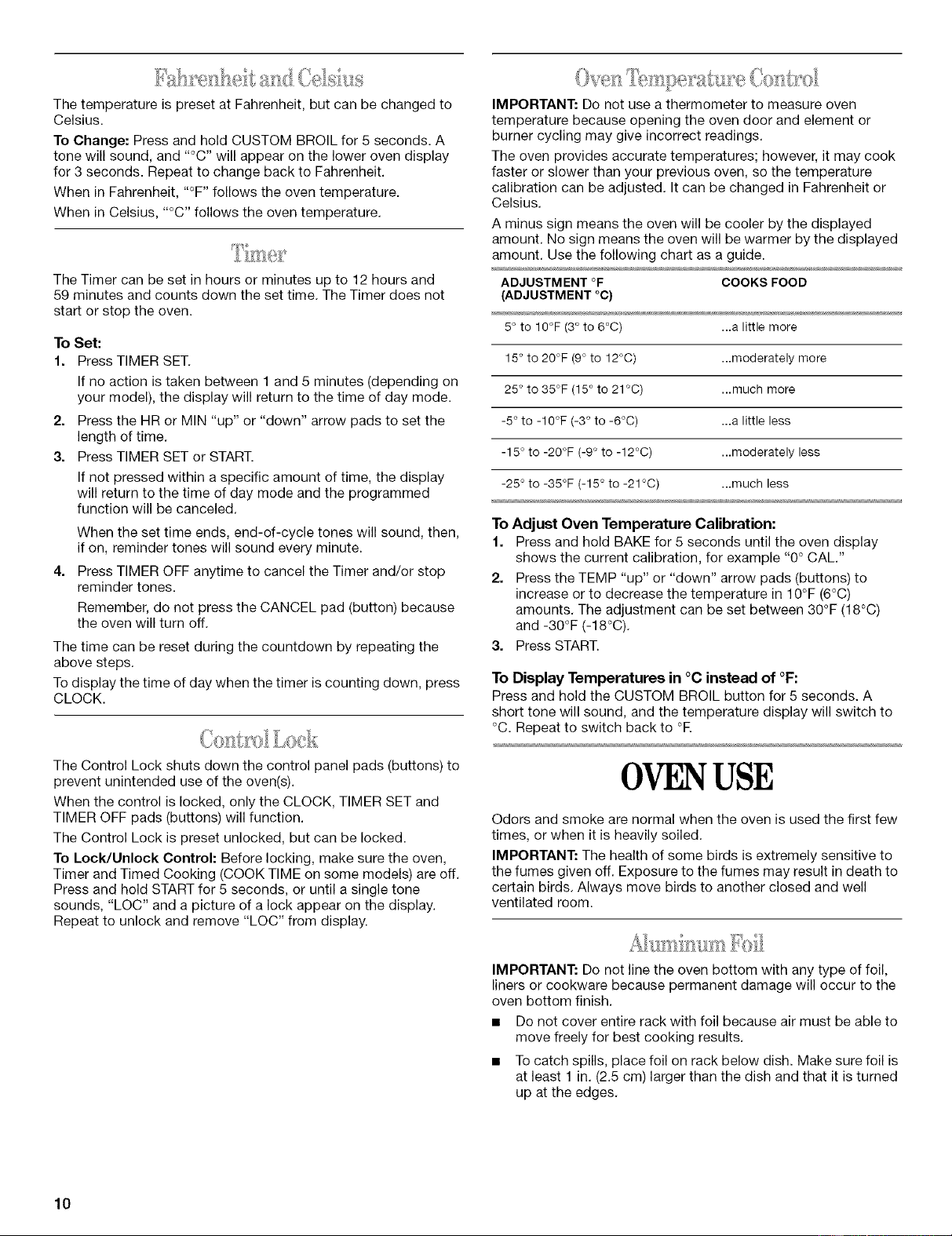

ThetemperatureispresetatFahrenheit,butcanbechangedto
Celsius.
ToChange:PressandholdCUSTOMBROILfor5seconds.A
tonewillsound,and"°C"willappearonthelowerovendisplay
for3seconds.RepeattochangebacktoFahrenheit.
WheninFahrenheit,"°F"followstheoventemperature.
WheninCelsius,"°C"followstheoventemperature.
TheTimercanbesetinhoursorminutesupto12hoursand
59minutesandcountsdownthesettime.TheTimerdoesnot
startorstoptheoven.
ToSet:
1. Press TIMER SET.
If no action is taken between 1 and 5 minutes (depending on
your model), the display will return to the time of day mode.
2.
3.
Press the HR or MIN "up" or "down" arrow pads to set the
length of time.
Press TIMER SET or START.
If not pressed within a specific amount of time, the display
will return to the time of day mode and the programmed
function will be canceled.
When the set time ends, end-of-cycle tones will sound, then,
if on, reminder tones will sound every minute.
4.
Press TIMER OFF anytime to cancel the Timer and/or stop
reminder tones.
Remember, do not press the CANCEL pad (button) because
the oven will turn off.
The time can be reset during the countdown by repeating the
above steps.
To display the time of day when the timer is counting down, press
CLOCK.
The Control Lock shuts down the control panel pads (buttons) to
prevent unintended use of the oven(s).
When the control is locked, only the CLOCK, TIMER SET and
TIMER OFF pads (buttons) will function.
The Control Lock is preset unlocked, but can be locked.
To Lock/Unlock Control: Before locking, make sure the oven,
Timer and Timed Cooking (COOK TIME on some models) are off.
Press and hold START for 5 seconds, or until a single tone
sounds, "LOC" and a picture of a lock appear on the display.
Repeat to unlock and remove "LOC" from display.
(
IMPORTANT: Do not use athermometer to measure oven
temperature because opening the oven door and element or
burner cycling may give incorrect readings.
The oven provides accurate temperatures; however, it may cook
faster or slower than your previous oven, so the temperature
calibration can be adjusted. It can be changed in Fahrenheit or
Celsius.
A minus sign means the oven will be cooler by the displayed
amount. No sign means the oven will be warmer by the displayed
amount. Use the following chart as a guide.
ADJUSTMENT °F COOKS FOOD
(ADJUSTMENT °C)
5° to 10°F(3°to 6°C) ...a little more
15° to 200F (9° to 120C) ...moderately more
25° to 350F (15° to 21°C) ...much more
-5° to -10°F (-3 ° to -6°C) ...a little less
-15 ° to -200F (-9° to -12°C) ...moderately less
-25 ° to -350F (-15 ° to -21 °C) ...much less
To Adjust Oven Temperature Calibration:
1. Press and hold BAKE for 5 seconds until the oven display
shows the current calibration, for example "0 ° CAL."
2. Press the TEMP "up" or "down" arrow pads (buttons) to
increase or to decrease the temperature in 10°F (6°C)
amounts. The adjustment can be set between 30°F (18°C)
and -30°F (-18°C).
3. Press START.
To Display Temperatures in °C instead of °F:
Press and hold the CUSTOM BROIL button for 5 seconds. A
short tone will sound, and the temperature display will switch to
°C. Repeat to switch back to °R
OVENUSE
Odors and smoke are normal when the oven is used the first few
times, or when it is heavily soiled.
IMPORTANT: The health of some birds is extremely sensitive to
the fumes given off. Exposure to the fumes may result in death to
certain birds. Always move birds to another closed and well
ventilated room.
IMPORTANT: Do not line the oven bottom with any type of foil,
liners or cookware because permanent damage will occur to the
oven bottom finish.
• Do not cover entire rack with foil because air must be able to
move freely for best cooking results.
• To catch spills, place foil on rack below dish. Make sure foil is
at least 1 in. (2.5 cm) larger than the dish and that it is turned
up at the edges.
10
IMPORTANT: Never place food or bakeware directly on the oven
door or bottom. Permanent damage will occur to the porcelain
finish.

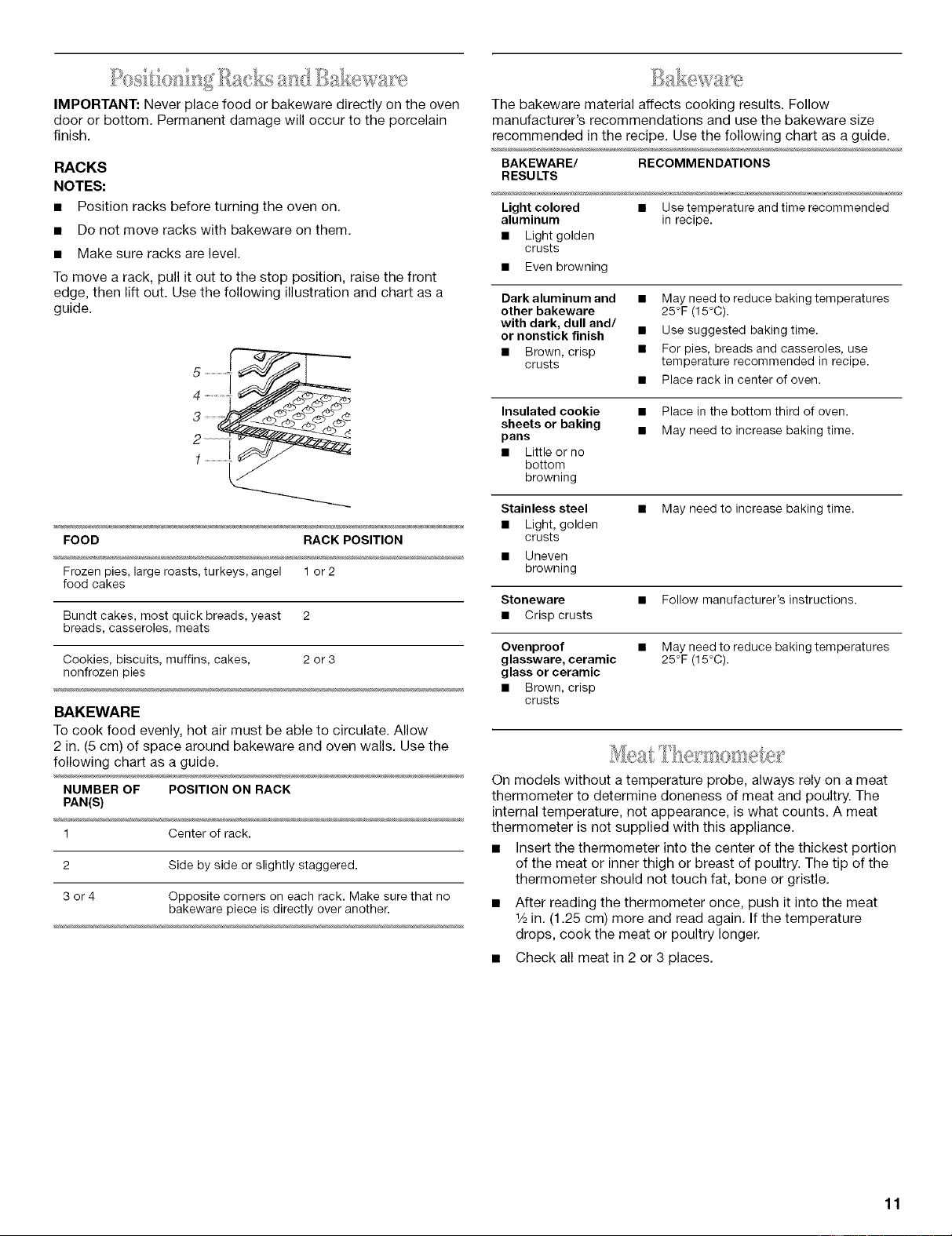

RACKS
NOTES:
• Position racks before turning the oven on.
• Do not move racks with bakeware on them.
• Make sure racks are level.
To move a rack, pull it out to the stop position, raise the front
edge, then lift out. Use the following illustration and chart as a
guide.
4 ......................
2
1..........................J
J
FOOD RACK POSITION
Frozen pies, large roasts, turkeys, angel 1 or 2
food cakes
Bundt cakes, most quick breads, yeast 2
breads, casseroles, meats
Cookies, biscuits, muffins, cakes, 2or 3
nonfrozen pies
BAKEWARE
To cook food evenly, hot air must be able to circulate. Allow
2 in. (5 cm) of space around bakeware and oven walls. Use the
following chart as a guide.
NUMBER OF POSITION ON RACK
PAN(S)
1 Center of rack.
2 Side by side or slightly staggered.
3 or 4 Opposite corners on each rack. Make sure that no
bakeware piece is directly over another.
The bakeware material affects cooking results. Follow
manufacturer's recommendations and use the bakeware size
recommended in the recipe. Use the following chart as a guide.
BAKEWARE/ RECOMMENDATIONS
RESULTS
Light colored • Usetemperature and time recommended
aluminum in recipe.
• Light golden
crusts
• Even browning
Darkaluminum and
other bakeware
with dark, dull and/
or nonstick finish
• Brown, crisp
Crusts
Insulated cookie
sheets or baking
pans
• Little or no
bottom
browning
• May need to reduce baking temperatures
25°F (15°C).
• Use suggested baking time.
• For pies, breads and casseroles, use
temperature recommended in recipe.
• Place rack in center of oven.
• Place in the bottom third of oven.
• May need to increase baking time.
Stainless steel
• Light, golden
crusts
• Uneven
browning
• May need to increase baking time.
Stoneware
• Crisp crusts
• Follow manufacturer's instructions.
Ovenproof
glassware, ceramic
glassor ceramic
• Brown, crisp
Crusts
• May need to reduce baking temperatures
25°F (15°C).
On models without a temperature probe, always rely on a meat
thermometer to determine doneness of meat and poultry. The
internal temperature, not appearance, is what counts. A meat
thermometer is not supplied with this appliance.
• Insert the thermometer into the center of the thickest portion
of the meat or inner thigh or breast of poultry. The tip of the
thermometer should not touch fat, bone or gristle.
• After reading the thermometer once, push it into the meat
1/2in. (1.25 cm) more and read again. If the temperature
drops, cook the meat or poultry longer.
• Check all meat in 2 or 3 places.
11

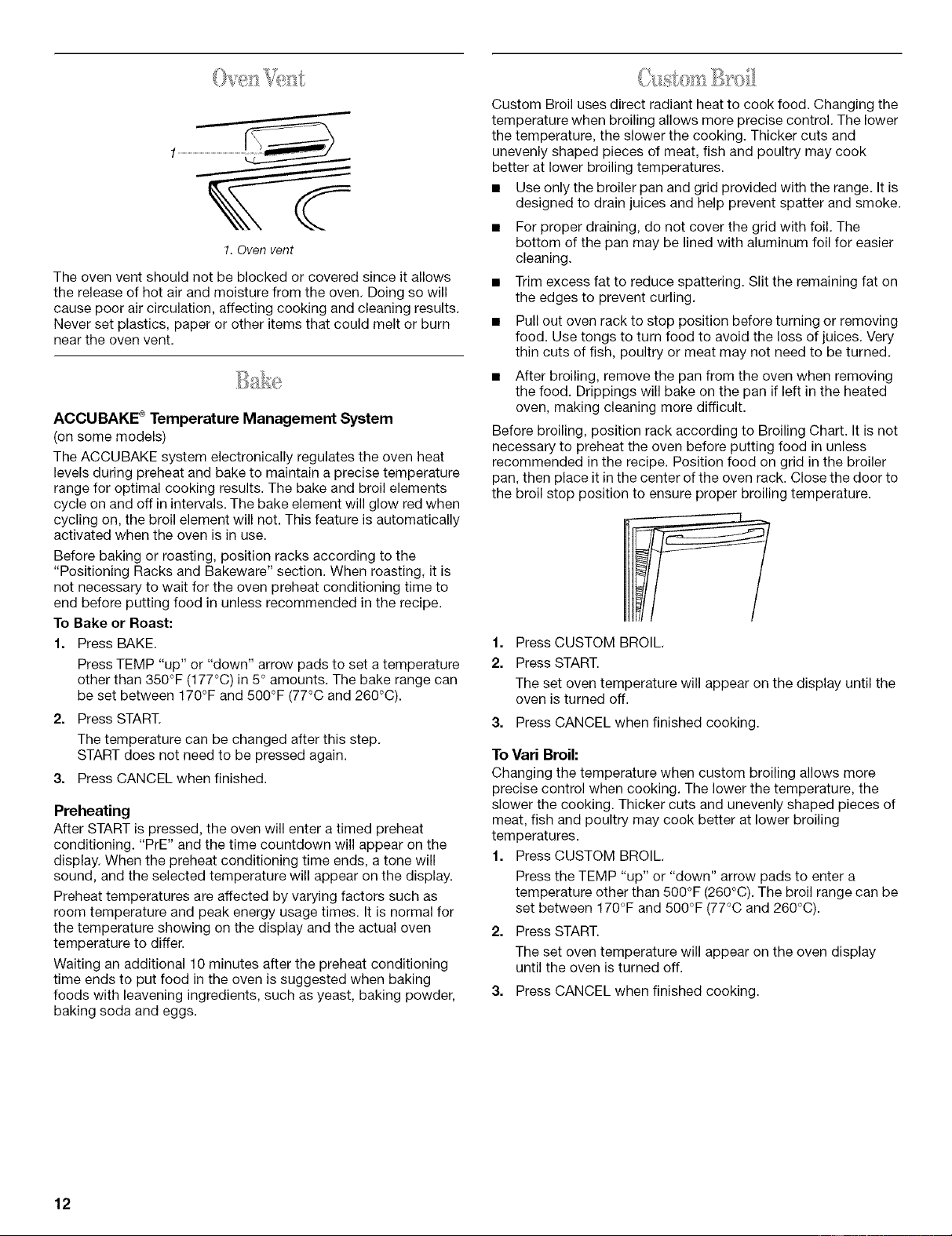

1. Oven vent
The oven vent should not be blocked or covered since it allows
the release of hot air and moisture from the oven. Doing so will
cause poor air circulation, affecting cooking and cleaning results.
Never set plastics, paper or other items that could melt or burn
near the oven vent.
ACCUBAKE ®Temperature Management System
(on some models)
The ACCUBAKE system electronically regulates the oven heat
levels during preheat and bake to maintain a precise temperature
range for optimal cooking results. The bake and broil elements
cycle on and off in intervals. The bake element will glow red when
cycling on, the broil element will not. This feature is automatically
activated when the oven is in use.
Before baking or roasting, position racks according to the
"Positioning Racks and Bakeware" section. When roasting, it is
not necessary to wait for the oven preheat conditioning time to
end before putting food in unless recommended in the recipe.
To Bake or Roast:
1. Press BAKE.
Press TEMP "up" or "down" arrow pads to set atemperature
other than 350°F (177°C) in 5° amounts. The bake range can
be set between 170°F and 500°F (77°C and 260°C).
2. Press START.
The temperature can be changed after this step.
START does not need to be pressed again.
3. Press CANCEL when finished.
Preheating
After START is pressed, the oven will enter a timed preheat
conditioning. "PrE" and the time countdown will appear on the
display. When the preheat conditioning time ends, a tone will
sound, and the selected temperature will appear on the display.
Preheat temperatures are affected by varying factors such as
room temperature and peak energy usage times. It is normal for
the temperature showing on the display and the actual oven
temperature to differ.
Waiting an additional 10 minutes after the preheat conditioning
time ends to put food in the oven is suggested when baking
foods with leavening ingredients, such as yeast, baking powder,
baking soda and eggs.
Custom Broil uses direct radiant heat to cook food. Changing the
temperature when broiling allows more precise control. The lower
the temperature, the slower the cooking. Thicker cuts and
unevenly shaped pieces of meat, fish and poultry may cook
better at lower broiling temperatures.
• Use only the broiler pan and grid provided with the range. It is
designed to drain juices and help prevent spatter and smoke.
• For proper draining, do not cover the grid with foil. The
bottom of the pan may be lined with aluminum foil for easier
cleaning.
• Trim excess fat to reduce spattering. Slit the remaining fat on
the edges to prevent curling.
• Pull out oven rack to stop position before turning or removing
food. Use tongs to turn food to avoid the loss of juices. Very
thin cuts of fish, poultry or meat may not need to be turned.
• After broiling, remove the pan from the oven when removing
the food. Drippings will bake on the pan if left in the heated
oven, making cleaning more difficult.
Before broiling, position rack according to Broiling Chart. It is not
necessary to preheat the oven before putting food in unless
recommended in the recipe. Position food on grid in the broiler
pan, then place it inthe center of the oven rack. Close the door to
the broil stop position to ensure proper broiling temperature.
1. Press CUSTOM BROIL.
2. Press START.
The set oven temperature will appear on the display until the
oven is turned off.
3. Press CANCEL when finished cooking.
To Vari Broil:
Changing the temperature when custom broiling allows more
precise control when cooking. The lower the temperature, the
slower the cooking. Thicker cuts and unevenly shaped pieces of
meat, fish and poultry may cook better at lower broiling
temperatures.
1. Press CUSTOM BROIL.
Press the TEMP "up" or "down" arrow pads to enter a
temperature other than 500°F (260°C). The broil range can be
set between 170°F and 500°F (77°C and 260°C).
2. Press START.
The set oven temperature will appear on the oven display
until the oven is turned off.
3. Press CANCEL when finished cooking.
12
BROILING CHART
For best results, place food 3 in. (7 cm) or more from the broil
burner• Times are guidelines only and may need to be adjusted
for individual foods and tastes• Recommended rack positions are
numbered from the bottom (1)to the top (4). Do not use position
5. For diagram, see the "Positioning Racks and Bakeware"
section.
COOK TIME
RACK minutes
FOOD POSITION
SIDE 1 SIDE 2
Chicken
bone-in pieces 3 17-20 17-20
boneless breasts 4 11-16 11-16
Fish
Fillets V4-V, in. 4 8-10 4-5
(.6-1.25 cm) thick
Steaks 3/4-1 in. 4 16-18 8-9
(2-2•5 cm) thick
Frankfurters 4 5-7 3-4
Ground meat patties*
s/4in. (2 cm) thick
well done 4 13-14 7-8
Ham slice, precooked
V2in. (1.25 cm) thick 4 8-10 4-5
Lamb chops
1 in. (2.5 cm) thick 4 14-17 8-9
Pork chops
1 in. (2.5 cm) thick 4 20-22 10-11
Steak
1 in. (2.5 cm) thick
medium rare 4 14-15 7-8
medium 4 15-16 8-9
well done 4 18-19 9-10
*Place up to 12 patties, equally spaced, on broiler grid.

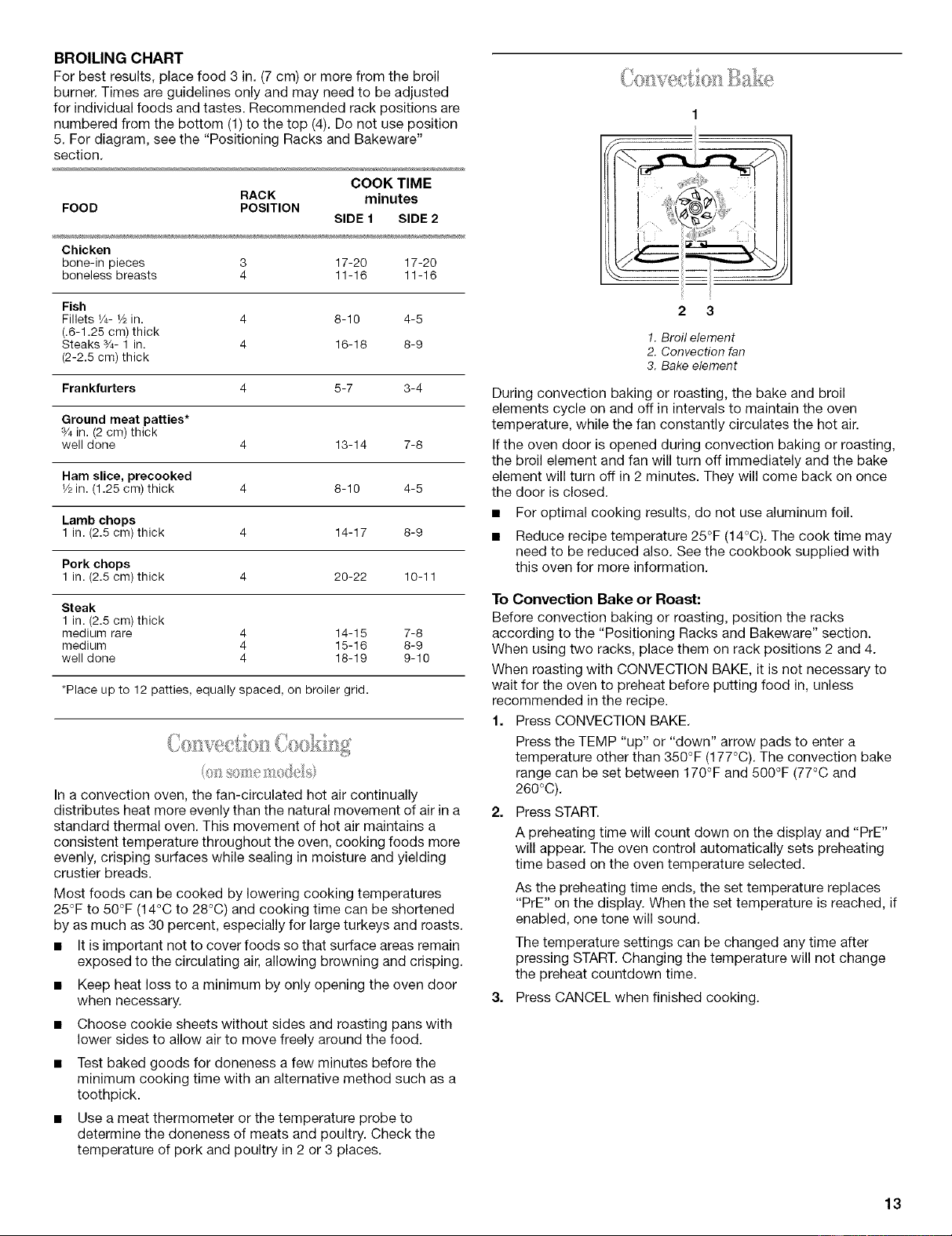

In a convection oven, the fan-circulated hot air continually
distributes heat more evenly than the natural movement of air in a
standard thermal oven. This movement of hot air maintains a
consistent temperature throughout the oven, cooking foods more
evenly, crisping surfaces while sealing in moisture and yielding
crustier breads.
Most foods can be cooked by lowering cooking temperatures
25°F to 50°F (14°C to 28°C) and cooking time can be shortened
by as much as 30 percent, especially for large turkeys and roasts.
• It is important not to cover foods so that surface areas remain
exposed to the circulating air, allowing browning and crisping.
• Keep heat loss to a minimum by only opening the oven door
when necessary.
• Choose cookie sheets without sides and roasting pans with
lower sides to allow air to move freely around the food.
• Test baked goods for doneness a few minutes before the
minimum cooking time with an alternative method such as a
toothpick.
• Use a meat thermometer or the temperature probe to
determine the doneness of meats and poultry. Check the
temperature of pork and poultry in 2 or 3 places.
t
!. Broil element
2. Convection fan
3. Bake element
During convection baking or roasting, the bake and broil
elements cycle on and off in intervals to maintain the oven
temperature, while the fan constantly circulates the hot air.
If the oven door is opened during convection baking or roasting,
the broil element and fan will turn off immediately and the bake
element will turn off in 2 minutes. They will come back on once
the door is closed.
• For optimal cooking results, do not use aluminum foil.
• Reduce recipe temperature 25°F (14°C). The cook time may
need to be reduced also. See the cookbook supplied with
this oven for more information.
To Convection Bake or Roast:
Before convection baking or roasting, position the racks
according to the "Positioning Racks and Bakeware" section.
When using two racks, place them on rack positions 2 and 4.
When roasting with CONVECTION BAKE, it is not necessary to
wait for the oven to preheat before putting food in, unless
recommended in the recipe•
1. Press CONVECTION BAKE.
Press the TEMP "up" or "down" arrow pads to enter a
temperature other than 350°F (177°C). The convection bake
range can be set between 170°F and 500°F (77°C and
260°0).
Press START.
A preheating time will count down on the display and "PrE"
will appear. The oven control automatically sets preheating
time based on the oven temperature selected.
As the preheating time ends, the set temperature replaces
"PrE" on the display. When the set temperature is reached, if
enabled, one tone will sound.
The temperature settings can be changed any time after
pressing START. Changing the temperature will not change
the preheat countdown time.
3. Press CANCEL when finished cooking.
13

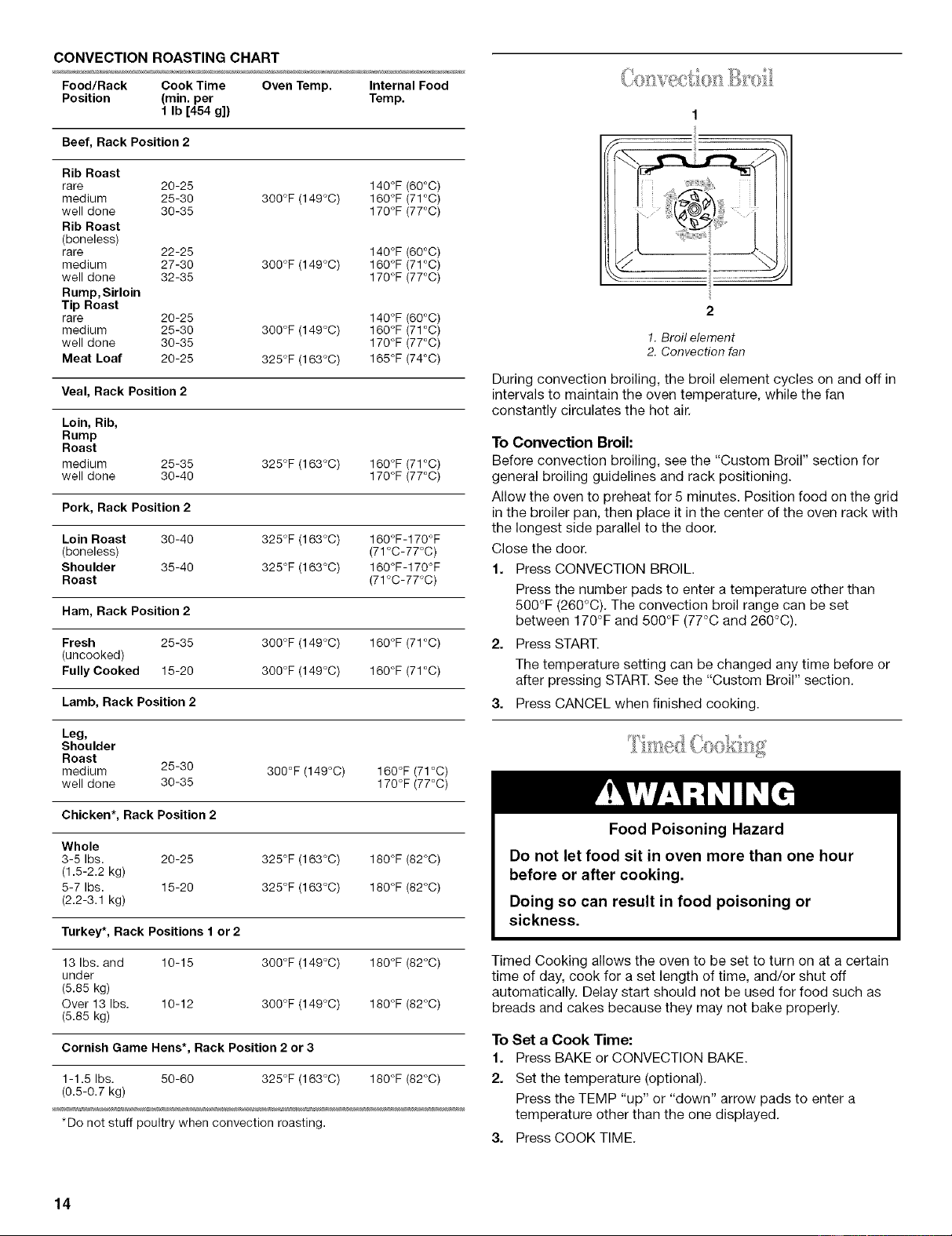

CONVECTION ROASTING CHART
Food/Rack Cook Time Oven Temp. Internal Food
Position (rain. per Temp.
1 Ib [454 g])
Beef, Rack Position 2
Rib Roast
rare 20-25
medium 25-30 300°F (149°C)
well done 30-35
Rib Roast
(boneless)
rare 22-25
medium 27-30 300°F (149°C)
well done 32-35
Rump, Sirloin
Tip Roast
rare 20-25
medium 25-30 300°F (149°C)
well done 30-35
Meat Loaf 20-25 325°F (163°C)
140°F (60°C)
160°F (71°C)
170°F (77°C)
140°F (60°C)
160°F (71°C)
170°F (77°C)
140°F (60°C)
160°F (71°C)
170°F (77°0)
165°F (74°0)
Veal, Rack Position 2
Loin, Rib,
Rump
Roast
medium 25-35 325°F (163°C) 160°F (71°C)
well done 30-40 170°F (77°C)
Pork, Rack Position 2
Loin Roast 30-40 325°F (163°C) 160°F-170°F
(boneless) (71°C-77°C)
Shoulder 35-40 325°F (163°C) 160°F-170°F
Roast (71°C-77°C)
Ham, Rack Position 2
Fresh 25-35 300°F (149°C) 160°F (71°C)
(uncooked)
Fully Cooked 15-20 300°F (149°C) 160°F (71°C)
Lamb, Rack Position 2
Leg,
Shoulder
Roast
medium 25-30 300OF (149oc) 160OF (71oc)
well done 30-35 170°F (77°C)
Chicken*, Rack Position 2
Whole
3-5 Ibs. 20-25 325°F (163°C) 1800F (820C)
(1.5-2.2 kg)
5-7 Ibs. 15-20 325°F (163°C) 1800F (820C)
(2.2-3.1 kg)
Turkey*, Rack Positions 1 or 2
13 Ibs. and 10-15 300°F (149°C) 180°F (82°C)
under
(5.85 kg)
Over 13 Ibs. 10-12 300°F (149°C) 1800F (820C)
(5.85 kg)
Cornish Game Hens*, Rack Position 2 or 3
1-1.5 Ibs. 50-60 325°F (163°C) 1800F (820C)
(0.5-0.7 kg)
*Do not stuff poultry when convection roasting.
!. Broil element
2. Convection fan
During convection broiling, the broil element cycles on and off in
intervals to maintain the oven temperature, while the fan
constantly circulates the hot air.
To Convection Broil:
Before convection broiling, see the "Custom Broil" section for
general broiling guidelines and rack positioning.
Allow the oven to preheat for 5 minutes. Position food on the grid
in the broiler pan, then place it in the center of the oven rack with
the longest side parallel to the door.
Close the door.
1. Press CONVECTION BROIL.
Press the number pads to enter a temperature other than
500°F (260°C). The convection broil range can be set
between 170°F and 500°F (77°C and 260°C).
2. Press START.
The temperature setting can be changed any time before or
after pressing START. See the "Custom Broil" section.
3. Press CANCEL when finished cooking.
Food Poisoning Hazard
Do not let food sit in oven more than one hour
before or after cooking.
Doing so can result in food poisoning or
sickness.
Timed Cooking allows the oven to be set to turn on at a certain
time of day, cook for a set length of time, and/or shut off
automatically. Delay start should not be used for food such as
breads and cakes because they may not bake properly.
To Set a Cook Time:
1. Press BAKE or CONVECTION BAKE.
2. Set the temperature (optional).
Press the TEMP "up" or "down" arrow pads to enter a
temperature other than the one displayed.
3. Press COOK TIME.
14

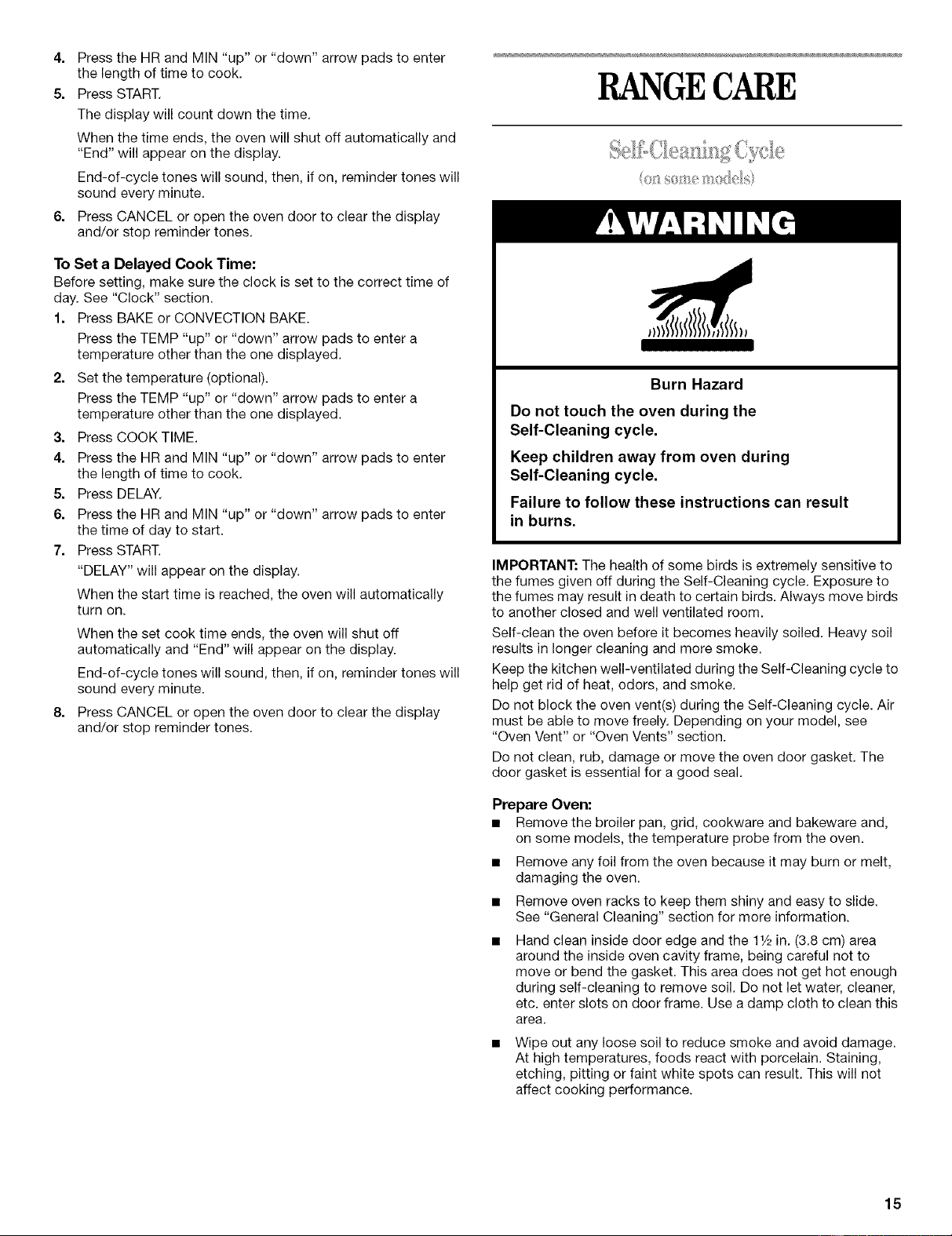

4. Press the HR and MIN "up" or "down" arrow pads to enter
the length of time to cook.
5. Press START.
The display will count down the time.
6.
When the time ends, the oven will shut off automatically and
"End" will appear on the display.
End-of-cycle tones will sound, then, if on, reminder tones will
sound every minute.
Press CANCEL or open the oven door to clear the display
and/or stop reminder tones.
To Set a Delayed Cook Time:
Before setting, make sure the clock is set to the correct time of
day. See "Clock" section.
1. Press BAKE or CONVECTION BAKE.
Press the TEMP "up" or "down" arrow pads to enter a
temperature other than the one displayed.
2. Set the temperature (optional).
Press the TEMP "up" or "down" arrow pads to enter a
temperature other than the one displayed.
3. Press COOK TIME.
4. Press the HR and MIN "up" or "down" arrow pads to enter
the length of time to cook.
5. Press DELAY.
6. Press the HR and MIN "up" or "down" arrow pads to enter
the time of day to start.
7. Press START.
"DELAY" will appear on the display.
When the start time is reached, the oven will automatically
turn on.
When the set cook time ends, the oven will shut off
automatically and "End" will appear on the display.
End-of-cycle tones will sound, then, if on, reminder tones will
sound every minute.
8. Press CANCEL or open the oven door to clear the display
and/or stop reminder tones.
RANGECARE
Burn Hazard
Do not touch the oven during the
Self-Cleaning cycle.
Keep children away from oven during
Self-Cleaning cycle.
Failure to follow these instructions can result
in burns.
IMPORTANT: The health of some birds is extremely sensitive to
the fumes given off during the Self-Cleaning cycle. Exposure to
the fumes may result in death to certain birds. Always move birds
to another closed and well ventilated room.
Self-clean the oven before it becomes heavily soiled. Heavy soil
results in longer cleaning and more smoke.
Keep the kitchen well-ventilated during the Self-Cleaning cycle to
help get rid of heat, odors, and smoke.
Do not block the oven vent(s) during the Self-Cleaning cycle. Air
must be able to move freely. Depending on your model, see
"Oven Vent" or "Oven Vents" section.
Do not clean, rub, damage or move the oven door gasket. The
door gasket is essential for a good seal.
Prepare Oven:
• Remove the broiler pan, grid, cookware and bakeware and,
on some models, the temperature probe from the oven.
• Remove any foil from the oven because it may burn or melt,
damaging the oven.
• Remove oven racks to keep them shiny and easy to slide.
See "General Cleaning" section for more information.
Hand clean inside door edge and the 11/2in. (3.8 cm) area
around the inside oven cavity frame, being careful not to
move or bend the gasket. This area does not get hot enough
during self-cleaning to remove soil. Do not let water, cleaner,
etc. enter slots on door frame. Use a damp cloth to clean this
area.
Wipe out any loose soil to reduce smoke and avoid damage.
At high temperatures, foods react with porcelain. Staining,
etching, pitting or faint white spots can result. This will not
affect cooking performance.
15

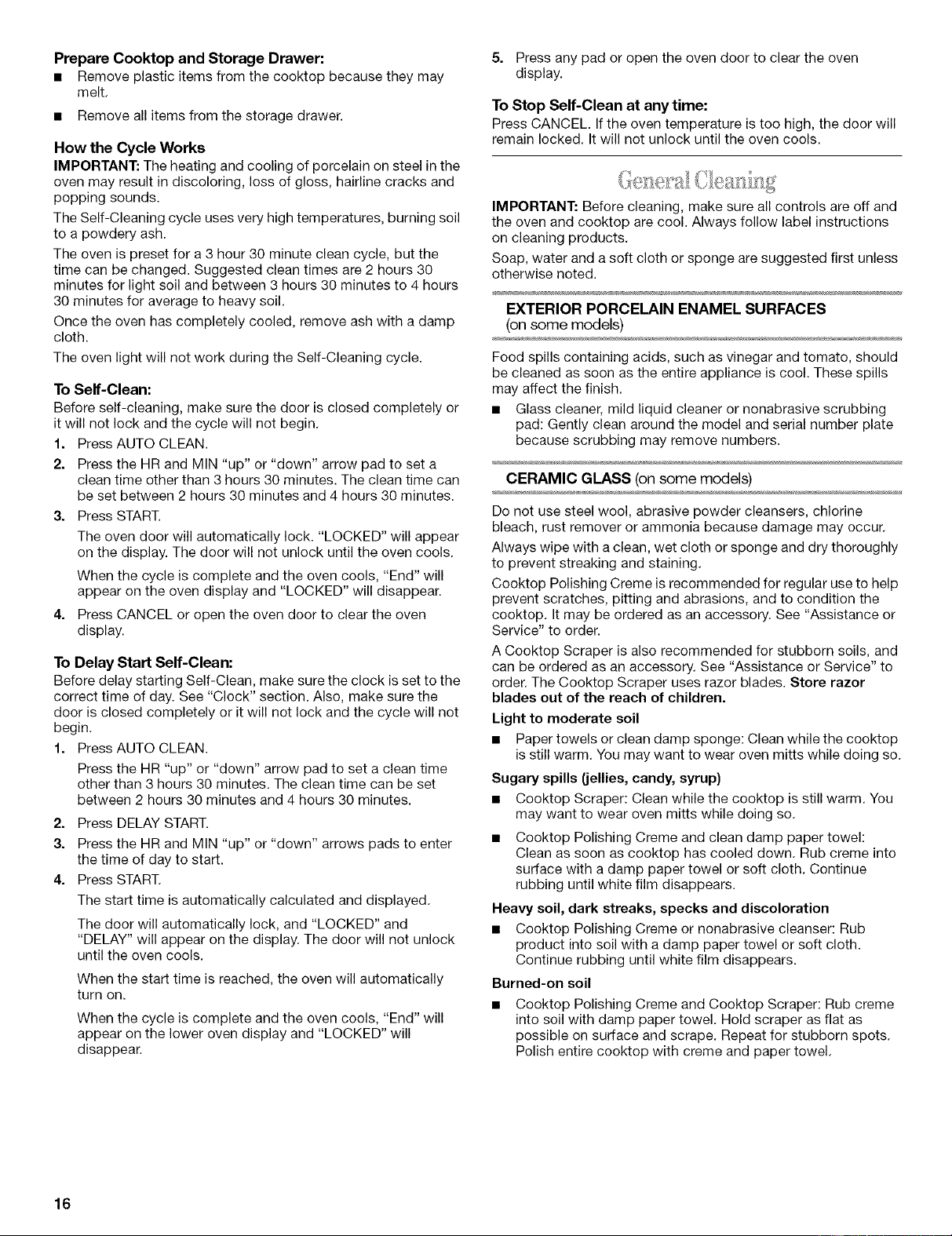

Prepare Cooktop and Storage Drawer:
• Remove plastic items from the cooktop because they may
melt.
• Remove all items from the storage drawer.
How the Cycle Works
IMPORTANT: The heating and cooling of porcelain on steel in the
oven may result in discoloring, loss of gloss, hairline cracks and
popping sounds.
The Self-Cleaning cycle uses very high temperatures, burning soil
to a powdery ash.
The oven is preset for a 3 hour 30 minute clean cycle, but the
time can be changed. Suggested clean times are 2 hours 30
minutes for light soil and between 3 hours 30 minutes to 4 hours
30 minutes for average to heavy soil.
Once the oven has completely cooled, remove ash with a damp
cloth.
The oven light will not work during the Self-Cleaning cycle.
To Serf-Clean:
Before self-cleaning, make sure the door is closed completely or
it will not lock and the cycle will not begin.
1. Press AUTO CLEAN.
2. Press the HR and MIN "up" or "down" arrow pad to set a
clean time other than 3 hours 30 minutes. The clean time can
be set between 2 hours 30 minutes and 4 hours 30 minutes.
3. Press START.
The oven door will automatically lock. "LOCKED" will appear
on the display. The door will not unlock until the oven cools.
When the cycle is complete and the oven cools, "End" will
appear on the oven display and "LOCKED" will disappear.
4. Press CANCEL or open the oven door to clear the oven
display.
To Delay Start Self-Clean:
Before delay starting Self-Clean, make sure the clock is set to the
correct time of day. See "Clock" section. Also, make sure the
door is closed completely or it will not lock and the cycle will not
begin.
1. Press AUTO CLEAN.
Press the HR "up" or "down" arrow pad to set a clean time
other than 3 hours 30 minutes. The clean time can be set
between 2 hours 30 minutes and 4 hours 30 minutes.
2. Press DELAY START.
3. Press the HR and MIN "up" or "down" arrows pads to enter
the time of day to start.
4. Press START.
The start time is automatically calculated and displayed.
The door will automatically lock, and "LOCKED" and
"DELAY" will appear on the display. The door will not unlock
until the oven cools.
When the start time is reached, the oven will automatically
turn on.
When the cycle is complete and the oven cools, "End" will
appear on the lower oven display and "LOCKED" will
disappear.
5. Press any pad or open the oven door to clear the oven
display.
To Stop Self-Clean at any time:
Press CANCEL. If the oven temperature is too high, the door will
remain locked. It will not unlock until the oven cools.
IMPORTANT: Before cleaning, make sure all controls are off and
the oven and cooktop are cool. Always follow label instructions
on cleaning products.
Soap, water and a soft cloth or sponge are suggested first unless
otherwise noted.
EXTERIOR PORCELAIN ENAMEL SURFACES
(on some models)
Food spills containing acids, such as vinegar and tomato, should
be cleaned as soon as the entire appliance is cool. These spills
may affect the finish.
• Glass cleaner, mild liquid cleaner or nonabrasive scrubbing
pad: Gently clean around the model and serial number plate
because scrubbing may remove numbers.
CERAMIC GLASS (on some models)
Do not use steel wool, abrasive powder cleansers, chlorine
bleach, rust remover or ammonia because damage may occur.
Always wipe with a clean, wet cloth or sponge and dry thoroughly
to prevent streaking and staining.
Cooktop Polishing Creme is recommended for regular use to help
prevent scratches, pitting and abrasions, and to condition the
cooktop. It may be ordered as an accessory. See "Assistance or
Service" to order.
A Cooktop Scraper is also recommended for stubborn soils, and
can be ordered as an accessory. See "Assistance or Service" to
order. The Cooktop Scraper uses razor blades. Store razor
blades out of the reach of children.
Light to moderate soil
• Paper towels or clean damp sponge: Clean while the cooktop
is still warm. You may want to wear oven mitts while doing so.
Sugary spills (jellies, candy, syrup)
• Cooktop Scraper: Clean while the cooktop is still warm. You
may want to wear oven mitts while doing so.
Cooktop Polishing Creme and clean damp paper towel:
Clean as soon as cooktop has cooled down. Rub creme into
surface with a damp paper towel or soft cloth. Continue
rubbing until white film disappears.
Heavy soil, dark streaks, specks and discoloration
• Ceoktop Polishing Creme or nonabrasive cleanser: Rub
product into soil with a damp paper towel or soft cloth.
Continue rubbing until white film disappears.
Burned-on soil
Cooktop Polishing Creme and Cooktop Scraper: Rub creme
into soil with damp paper towel. Hold scraper as flat as
possible on surface and scrape. Repeat for stubborn spots.
Polish entire cooktop with creme and paper towel.
16

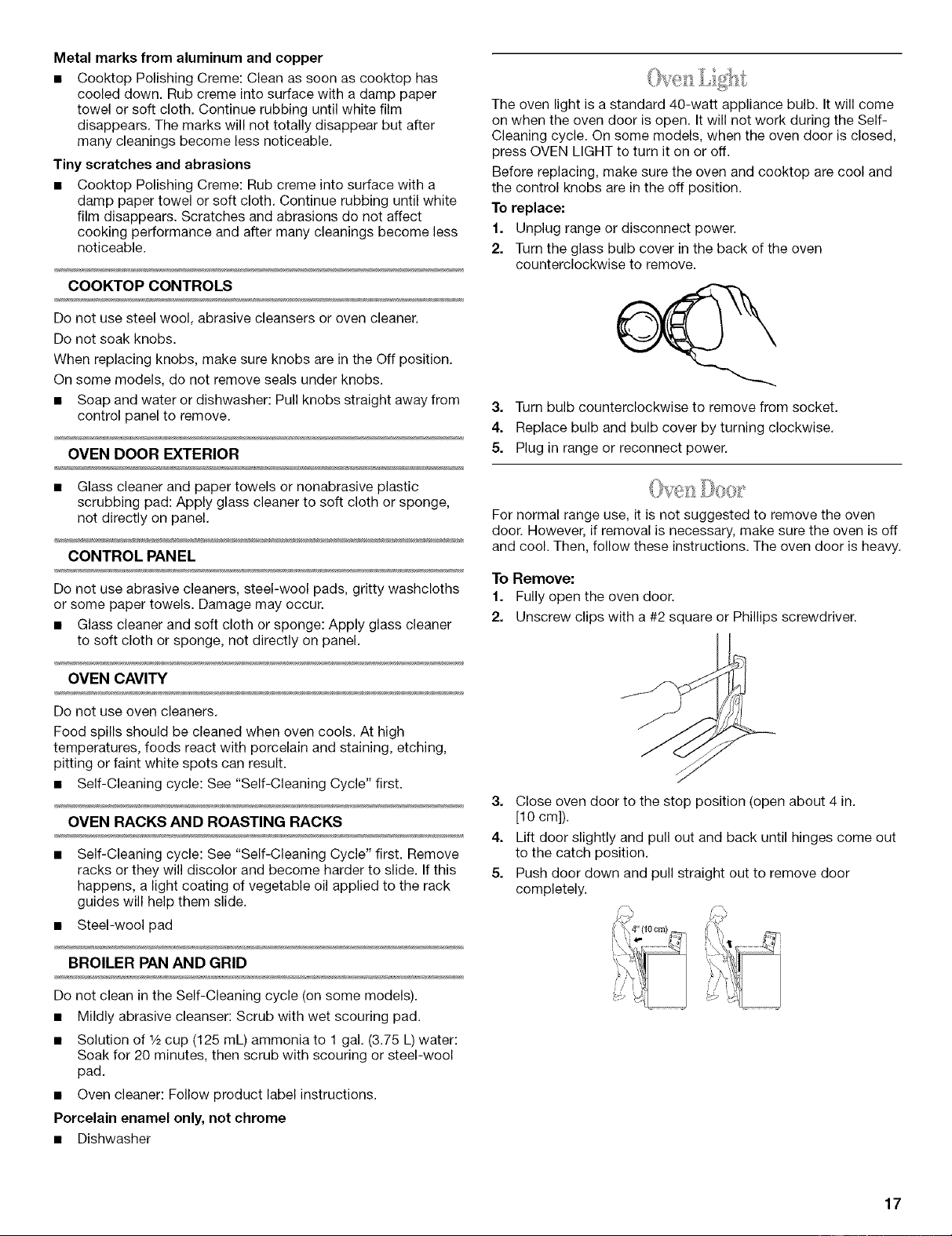

Metal marks from aluminum and copper
• Cooktop Polishing Creme: Clean as soon as cooktop has
cooled down, Rub creme into surface with a damp paper
towel or soft cloth. Continue rubbing until white film
disappears, The marks will not totally disappear but after
many cleanings become less noticeable,
Tiny scratches and abrasions
• Cooktop Polishing Creme: Rub creme into surface with a
damp paper towel or soft cloth. Continue rubbing until white
film disappears. Scratches and abrasions do not affect
cooking performance and after many cleanings become less
noticeable.
COOKTOP CONTROLS
Do not use steel wool, abrasive cleansers or oven cleaner.
Do not soak knobs.
When replacing knobs, make sure knobs are in the Off position,
On some models, do not remove seals under knobs.
• Soap and water or dishwasher: Pull knobs straight away from
control panel to remove.
OVEN DOOR EXTERIOR
• Glass cleaner and paper towels or nonabrasive plastic
scrubbing pad: Apply glass cleaner to soft cloth or sponge,
not directly on panel.
CONTROL PAN EL
Do not use abrasive cleaners, steel-wool pads, gritty washcloths
or some paper towels. Damage may occur.
• Glass cleaner and soft cloth or sponge: Apply glass cleaner
to soft cloth or sponge, not directly on panel.
OVEN CAVITY
Do not use oven cleaners.
Food spills should be cleaned when oven cools. At high
temperatures, foods react with porcelain and staining, etching,
pitting or faint white spots can result.
• Self-Cleaning cycle: See "Self-Cleaning Cycle" first.
OVEN RACKS AND ROASTING RACKS
• Self-Cleaning cycle: See "Self-Cleaning Cycle" first. Remove
racks or they will discolor and become harder to slide. If this
happens, a light coating of vegetable oil applied to the rack
guides will help them slide.
• Steel-wool pad
BROILER PAN AND GRID
Do not clean in the Self-Cleaning cycle (on some models).
• Mildly abrasive cleanser: Scrub with wet scouring pad.
• Solution of 1/2cup (125 mL) ammonia to 1 gal. (3.75 L) water:
Soak for 20 minutes, then scrub with scouring or steel-wool
pad.
• Oven cleaner: Follow product label instructions.
Porcelain enamel only, not chrome
• Dishwasher
The oven light is a standard 40-watt appliance bulb. It will come
on when the oven door is open. It will not work during the Self-
Cleaning cycle. On some models when the oven door is closed,
press OVEN LIGHT to turn it on or off.
Before replacing, make sure the oven and cooktop are cool and
the control knobs are in the off position.
To replace:
1. Unplug range or disconnect power.
2. Turn the glass bulb cover in the back of the oven
counterclockwise to remove.
3. Turn bulb counterclockwise to remove from socket.
4. Replace bulb and bulb cover by turning clockwise,
5. Plug in range or reconnect power.
For normal range use, it is not suggested to remove the oven
door. However, if removal is necessary, make sure the oven is off
and cool. Then, follow these instructions. The oven door is heavy.
To Remove:
1. Fully open the oven door.
2. Unscrew clips with a #2 square or Phillips screwdriver.
3. Close oven door to the stop position (open about 4 in.
[10cm]).
4. Lift door slightly and pull out and back until hinges come out
to the catch position.
5. Push door down and pull straight out to remove door
completely.
\ /-N
17

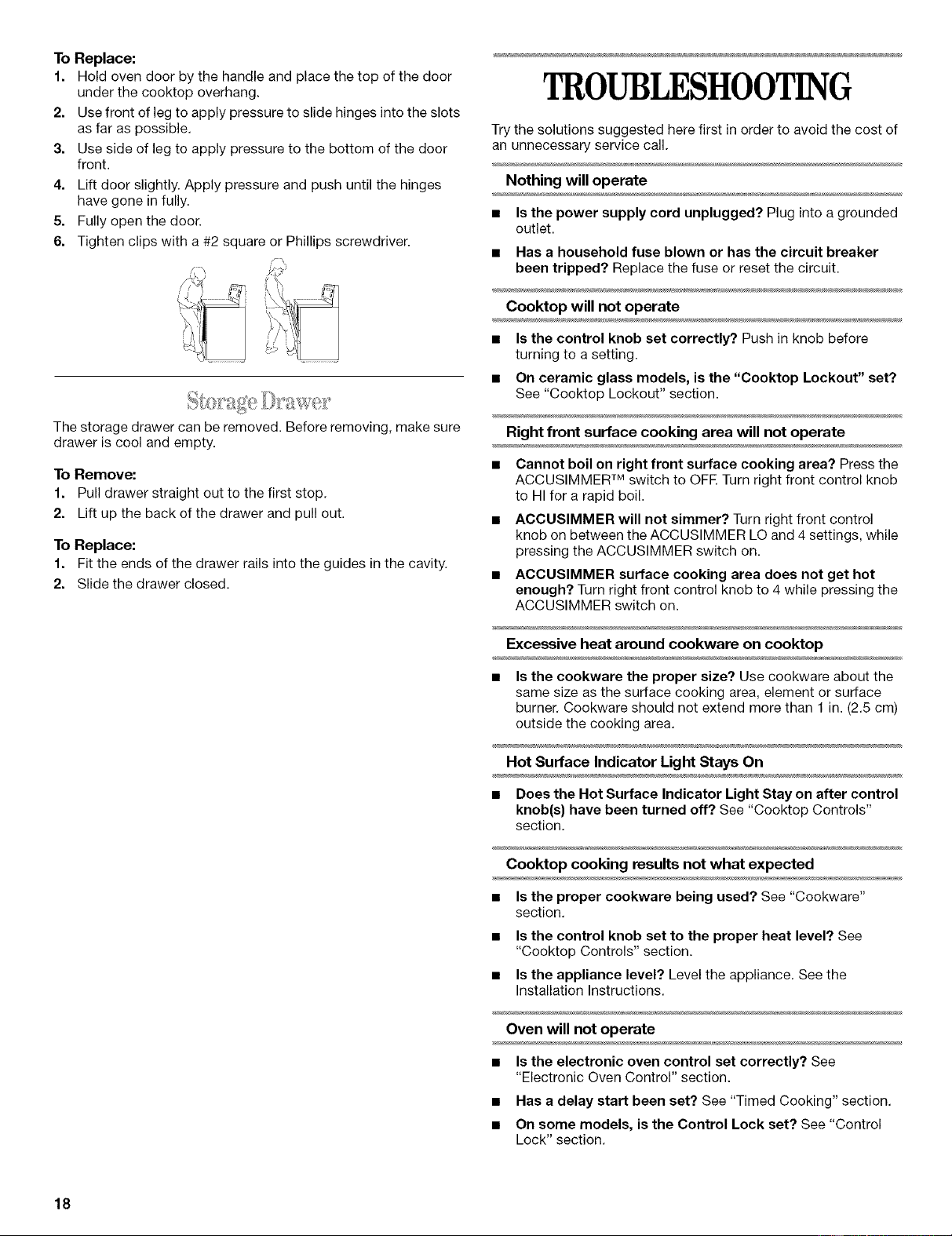

To Replace:
1. Hold oven door by the handle and place the top of the door
under the cooktop overhang.
2. Use front of leg to apply pressure to slide hinges into the slots
as far as possible,
3. Use side of leg to apply pressure to the bottom of the door
front.
4. Lift door slightly. Apply pressure and push until the hinges
have gone in fully.
5. Fully open the door.
6. Tighten clips with a #2 square or Phillips screwdriver.
D,ItJ ,0,,:,
The storage drawer can be removed. Before removing, make sure
drawer is cool and empty.
To Remove:
1. Pull drawer straight out to the first stop,
2. Lift up the back of the drawer and pull out.
To Replace:
1. Fit the ends of the drawer rails into the guides in the cavity.
2. Slide the drawer closed.
TROUBLESHOOTING
Try the solutions suggested here first in order to avoid the cost of
an unnecessary service call.
Nothing will operate
• Is the power supply cord unplugged? Plug into a grounded
outlet.
• Has a household fuse blown or has the circuit breaker
been tripped? Replace the fuse or reset the circuit.
Cooktop will not operate
• Is the control knob set correctly? Push in knob before
turning to a setting.
• On ceramic glass models, is the "Cooktop Lockout" set?
See "Cooktop Lockout" section.
Right front surface cooking area will not operate
• Cannot boil on right front surface cooking area? Press the
ACCUSlMMER TM switch to OFR Turn right front control knob
to HI for a rapid boil.
• ACCUSIMMER will not simmer? Turn right front control
knob on between the ACCUSIMMER LO and 4 settings, while
pressing the ACCUSIMMER switch on.
• ACCUSlMMER surface cooking area does not get hot
enough? Turn right front control knob to 4 while pressing the
ACCUSlMMER switch on.
Excessive heat around cookware on cooktop
Is the cookware the proper size? Use cookware about the
same size as the surface cooking area, element or surface
burner. Cookware should not extend more than 1 in. (2.5 cm)
outside the cooking area.
Hot Surface Indicator Light Stays On
• Does the Hot Surface Indicator Light Stay on after control
knob(s) have been turned off? See "Cooktop Controls"
section.
Cooktop cooking results not what expected
• Is the proper cookware being used? See "Cookware"
section.
• Is the control knob set to the proper heat level? See
"Cooktop Controls" section.
• Is the appliance level? Level the appliance. See the
Installation Instructions.
Oven will not operate
• Is the electronic oven control set correctly? See
"Electronic Oven Control" section.
• Has a delay start been set? See "Timed Cooking" section,
• On some models, is the Control Lock set? See "Control
Lock" section,
18

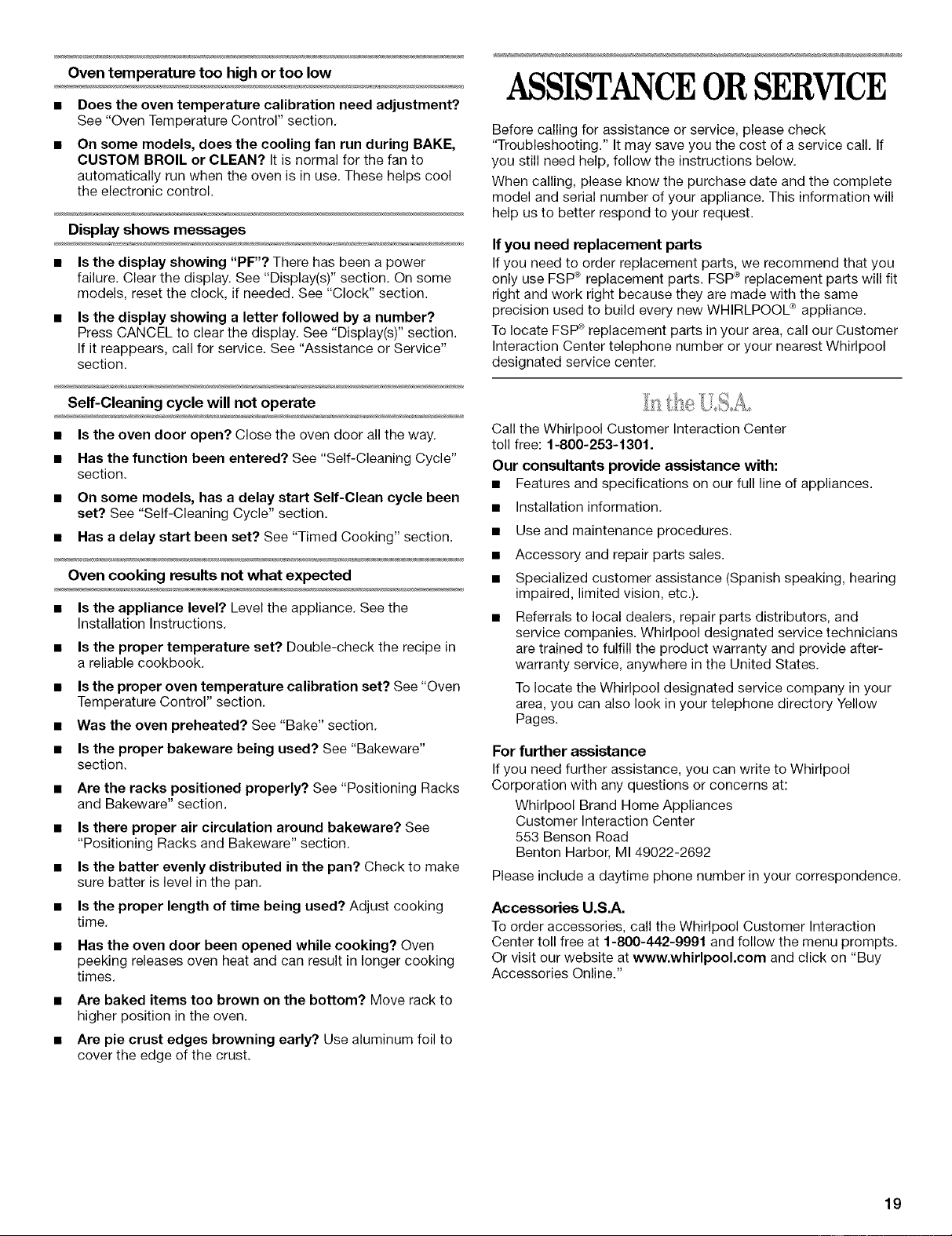

Oven temperature too high or too low
• Does the oven temperature calibration need adjustment?
See "Oven Temperature Control" section.
• On some models, does the cooling fan run during BAKE,
CUSTOM BROIL or CLEAN? It is normal for the fan to
automatically run when the oven is in use. These helps cool
the electronic control.
Display shows messages
• Is the display showing "PF"? There has been a power
failure. Clear the display. See "Display(s)" section. On some
models, reset the clock, if needed. See "Clock" section.
• Is the display showing a letter followed by a number?
Press CANCEL to clear the display. See "Display(s)" section.
If it reappears, call for service. See "Assistance or Service"
section.
Self-Cleaning cycle will not operate
• Is the oven door open? Close the oven door all the way.
• Has the function been entered? See "Self-Cleaning Cycle"
section.
• On some models, has a delay start Self-Clean cycle been
set? See "Self-Cleaning Cycle" section.
• Has a delay start been set? See "Timed Cooking" section.
Oven cooking results not what expected
• Is the appliance level? Level the appliance. See the
Installation Instructions.
• Is the proper temperature set? Double-check the recipe in
a reliable cookbook.
• Is the proper oven temperature calibration set? See "Oven
Temperature Control" section.
• Was the oven preheated? See "Bake" section.
• Is the proper bakeware being used? See "Bakeware"
section.
• Are the racks positioned properly? See "Positioning Racks
and Bakeware" section.
• Is there proper air circulation around bakeware? See
"Positioning Racks and Bakeware" section.
• Is the batter evenly distributed in the pan? Check to make
sure batter is level in the pan.
• Is the proper length of time being used? Adjust cooking
time.
• Has the oven door been opened while cooking? Oven
peeking releases oven heat and can result in longer cooking
times.
• Are baked items too brown on the bottom? Move rack to
higher position in the oven.
• Are pie crust edges browning early? Use aluminum foil to
cover the edge of the crust.
ASSISTANCEORSERVICE
Before calling for assistance or service, please check
"Troubleshooting." It may save you the cost of a service call. If
you still need help, follow the instructions below.
When calling, please know the purchase date and the complete
model and serial number of your appliance. This information will
help us to better respond to your request.
If you need replacement parts
If you need to order replacement parts, we recommend that you
only use FSP® replacement parts. FSP®replacement parts will fit
right and work right because they are made with the same
precision used to build every new WHIRLPOOL ® appliance.
To locate FSP®replacement parts in your area, call our Customer
Interaction Center telephone number or your nearest Whirlpool
designated service center.
Call the Whirlpool Customer Interaction Center
toll free: 1-800-253-1301.
Our consultants provide assistance with:
• Features and specifications on our full line of appliances.
• Installation information.
• Use and maintenance procedures.
• Accessory and repair parts sales.
• Specialized customer assistance (Spanish speaking, hearing
impaired, limited vision, etc.).
• Referrals to local dealers, repair parts distributors, and
service companies. Whirlpool designated service technicians
are trained to fulfill the product warranty and provide after-
warranty service, anywhere in the United States.
To locate the Whirlpool designated service company in your
area, you can also look in your telephone directory Yellow
Pages.
For further assistance
If you need further assistance, you can write to Whirlpool
Corporation with any questions or concerns at:
Whirlpool Brand Home Appliances
Customer Interaction Center
553 Benson Road
Benton Harbor, MI 49022-2692
Please include a daytime phone number in your correspondence.
Accessories U.S.A.
To order accessories, call the Whirlpool Customer Interaction
Center toll free at 1-800-442-9991 and follow the menu prompts.
Or visit our website at www.whirlpool.com and click on "Buy
Accessories Online."
19
Wtt[RLPOOL®COOKTOP,BUILT.INOVENANDRANGEWARRANTY
ONE-YEAR FULL WARRANTY
For one year from the date of purchase, when this appliance is operated and maintained according to instructions attached to or
furnished with the product, Whirlpool Corporation will pay for FSP®replacement parts and repair labor costs to correct defects in
materials or workmanship. Service must be provided by a Whirlpool Corporation designated service company.
SECOND THROUGH FIFTH YEAR LIMITED WARRANTY ON CLEANTOP ®COOKTOP
On ceramic glass ranges and ceramic glass cooktops, in the second through fifth years from the date of purchase, when this appliance
is operated and maintained according to instructions attached to or furnished with the product, Whirlpool Corporation will pay for FSP®
replacement parts for the CLEANTOP ®ceramic glass cooktop.
Whirlpool Corporation warrants that the ceramic glass cooktop will not discolor, the cooktop pattern will not wear off, the rubber seal
between the ceramic glass cooktop and porcelain edge will not crack, the ceramic glass cooktop will not crack due to thermal shock
and the surface unit elements will not burn out.
Whirlpool Corporation will not pay for:
1. Service calls to correct the installation of your appliance, to instruct you how to use your appliance, to replace house fuses or
correct house wiring, or to replace owner-accessible light bulbs.
2. Repairs when your appliance is used in other than normal, single-family household use.
3. Pickup and delivery. Your appliance is designed to be repaired in the home.
4. Damage resulting from accident, alteration, misuse, abuse, fire, flood, improper installation, acts of God or use of products not
approved by Whirlpool Corporation.
5. Repairs to CLEANTOP ® ceramic glass cooktop or other surfaces if they have not been cared for as recommended in the Use and
Care Guide.
6. Repairs to parts or systems resulting from unauthorized modifications made to the appliance.
7. Replacement parts or repair labor costs for units operated outside the United States.
8. Any labor costs during the limited warranty period.
WHIRLPOOL CORPORATION SHALL NOT BE LIABLE FOR INCIDENTAL OR CONSEQUENTIAL DAMAGES.
Some states do not allow the exclusion or limitation of incidental or consequential damages, so this exclusion or limitation may not
apply to you. This warranty gives you specific legal rights and you may also have other rights which may vary from state to state.
Outside the 50 United States, this warranty does not apply. Contact your authorized Whirlpool dealer to determine if another
warranty applies.
If you need service, first see the "Troubleshooting" section of this book. After checking "Troubleshooting," additional help can be found
by checking the "Assistance or Service" section or by calling the Whirlpool Customer Interaction Center, 1-800-253-1301 (toll-free),
from anywhere in the U.S.A. 5/00
Keep this book and your sales slip together for future
reference. You must provide proof of purchase or installation
date for in-warranty service.
Write down the following information about your appliance to
better help you obtain assistance or service if you ever need it.
You will need to know your complete model number and serial
number. You can find this information on the model and serial
number label/plate, located on your appliance as shown in the
"Parts and Features" section.
Dealer name
Address
Phone number
Model number
Serial number
Purchase date
9782655
© 2004 Whirlpool Corporation.
All rights reserved. ® Registered Trademark/TM Trademark of Whirlpool, U.S.A.
1/04
Printed in U.S.A.
