Dishwasher
User manual
LDF42240W
LDF42240B
LDF42240G
Dishwasher
User manual
LDF42240W
LDF42240B
LDF42240G
Explanation of symbols
Throughout this User Manual the following symbols are used:
C
Important information or
useful hints about usage.
A
Warning for hazardous
situations with regard to life
and property.
B
Warning for electric shock.
Packaging materials of the
product are manufactured
from recyclable materials
in accordance with our
National Environment
Regulations.
Do not dispose of the packaging materials together with the domestic or other
wastes. Take them to the packaging material collection points designated by
the local authorities.
Please read this user manual rst!
Dear Customer,
We hope that you get the best results from your product which has been
manufactured with high quality and state-of-the-art technology. Therefore,
please read this entire user manual and all other accompanying documents
carefully before using the product and keep it as a reference for future use.
If you handover the product to someone else, give the user manual as well.
Follow all warnings and information in the user manual.
Remember that this user manual is also applicable for several other models.
Differences between models will be identied in the manual.
CONTENTS
1 INSTRUCTIONS FOR SAFETY
AND ENVIRONMENT 4
General safety ....................................4
Intended use ....................................... 5
Children’s safety .................................5
Disposing of packaging material.........5
Transportation of the product .............5
Compliance with WEEE Directive and
Disposing of the Waste Product .........6
Compliance with RoHS Directive........6
Package information ........................... 6
2 DISHWASHER 7
Overview.............................................7
Fan drying system ..............................8
Technical specications ......................8
3 INSTALLATION 9
Appropriate installation location..........9
Connecting water supply ....................9
Connection to the drain ....................10
Adjusting the feet .............................. 10
Electrical connection.........................10
This appliance must be earthed ....... 11
Fitting a different plug ....................... 11
Initial use .......................................... 11
4 PREPARATION 12
Tips for energy saving ......................12
Water softening system ....................12
Adjusting the water softening system 13
Detergent .......................................... 15
Tablet detergents ..............................16
Rinse aid...........................................17
Items not suitable for washing in the
dishwasher .......................................18
Placing the dishes into the
dishwasher .......................................18
Adjusting the height of the upper
basket ...............................................21
Collapsible upper basket wires ......... 22
Upper basket multipurpose service
rack ................................................... 22
Collapsible lower basket tines ..........23
Cutlery basket ..................................23
Upper basket height adjustable rack 24
Tray Wash Supports .........................24
5 OPERATING THE PRODUCT 25
Keys..................................................26
Preparing the machine .....................26
Programme selection........................26
Auxiliary functions.............................28
Programming the washing time ........29
Cancelling the programme ...............31
Adjusting the amount of rinse aid .....31
ProClean...........................................32
End of programme ............................ 32
Overowing warning .........................32
6 MAINTENANCE AND
CLEANING 33
Cleaning the outer surface of the
product..............................................33
Cleaning the interior of the machine . 33
Cleaning the lters ............................ 33
Cleaning the hose lter ..................... 34
Cleaning the impellers ......................35
Lower impeller ..................................35
Upper impeller .................................35
7 TROUBLESHOOTING 36
8 GUARANTEE 41
Guarantee Details.............................41
4
Dishwasher / User manual
/44 EN
Instructions for safety and envIronment
1
This section contains safety
instructions that will help to
give protection from risk of
personal injury or property
damage. Failure to follow
these instructions shall void
all warranties.
General safety
• Never place the product
on a carpet-covered oor;
otherwise, lack of airow
beneath the product will
cause electrical parts
to overheat. This will
cause problems with your
product.
• Do not operate the product
if the power cable / plug
is damaged! Call the
Authorised Service Agent.
• Connect the product to a
grounded outlet protected
by a fuse complying
with the values in the
“Technical specications”
table. Do not neglect
to have the grounding
installation made by a
qualied electrician. Our
company shall not be
liable for any damages
that will arise when the
product is used without
grounding in accordance
with the local regulations.
• The water supply and
draining hoses must be
securely fastened and
remain undamaged.
• Unplug the product when
not in use.
• Never wash the product by
spreading or pouring water
onto it! There is the risk of
electric shock!
• Never touch the plug
with wet hands! Never
unplug by pulling on the
cable, always pull out by
grabbing the plug.
• The product must
be unplugged during
installation, maintenance,
cleaning and repairing
procedures.
• Always have the repair
procedures carried out by
the Authorised Service
Agent. Manufacturer
shall not be held liable for
damages that may arise
from procedures carried
out by unauthorised
persons.
• Never use chemical
solvents in the product.
They bring forth the risk of
explosion.
• When you pull the upper
and lower baskets out
completely, the door of
the product will bear all
the weight of the baskets.
Do not put other loads on
the door; otherwise, the
product may tilt.
• Never leave the door
of the product open
apart from loading and
unloading procedures.
• Do not to open the door
of the product when it is
running unless necessary.
Be careful for the rush of
hot steam when you need
to open the door.
Dishwasher / User manual
5 / 44
EN
Instructions for safety and envIronment
Intended use
• This product has been
designed for domestic
use.
• It must be used to do the
domestic type dishes only.
• This appliance is intended
to be used in household
and similar applications
such as:
- Staff kitchen areas in shops,
ofces and other working
environments.
• Only dishwasher safe
detergents, rinse aids and
additives must be used.
• The manufacturer waives
any responsibility arisen
from incorrect usage or
transportation.
• This appliance can be
used by children aged
from 8 years and above
and persons with reduced
physical,sensory or
mental capabilities or
lack of experience and
knowledge if they have
been given supervision or
instruction concerning use
of the appliance in a safe
way and understand the
hazards involved. Children
shall not play with the
appliance. Cleaning and
user maintenance shall
not be made by children
without supervision.
Children’s safety
• Electrical products are
dangerous for the children.
Keep children away from
the product when it is in
use. Do not let them to
tamper with the product.
• Do not forget to close the
door of the product when
leaving the room where it
is located.
• Store all detergents and
additives in a safe place
away from the reach of the
children.
Disposing of packaging
material
Packaging materials are
dangerous to children. Keep
packaging materials in a safe
place away from reach of the
children.
Packaging materials of the
product are manufactured
from recyclable materials.
Dispose of them properly
and sort in accordance with
recycled waste instructions.
Do not dispose of them with
normal domestic waste.
Transportation of the
product
A
If you need to move
the product, do it
in upright position
and hold from the
rear side. Tilting
the product onto its
front side may cause
the electronic parts
in it get wet and
damaged.
6
Dishwasher / User manual
/44 EN
Instructions for safety and envIronment
1. Unplug the product before
transporting it.
2. Remove water drainage
and water supply
connections.
3. Drain the remaining water
in the product completely.
Compliance with WEEE
Directive and Disposing
of the Waste Product
This product complies
with EU WEEE Directive
(2012/19/EU). This
product bears a
classication symbol for
waste electrical and electronic
equipment (WEEE).This
product has been
manufactured with high
quality parts and materials
which can be reused and are
suitable for recycling. Do not
dispose of the waste product
with normal domestic and
other wastes at the end of its
service life. Take it to the
collection center for the
recycling of electrical and
electronic equipment. Please
consult your local authorities
to learn about these collection
centers.
Compliance with RoHS
Directive
The product you have
purchased complies with EU
RoHS Directive (2011/65/EU).
It does not contain harmful
and prohibited materials
specied in the Directive.
Package information
Packaging materials of the
product are manufactured
from recyclable materials in
accordance with our National
Environment Regulations. Do
not dispose of the packaging
materials together with the
domestic or other wastes.
Take them to the packaging
material collection points
designated by the local
authorities.
Dishwasher / User manual
7 / 44
EN
Dishwasher
2

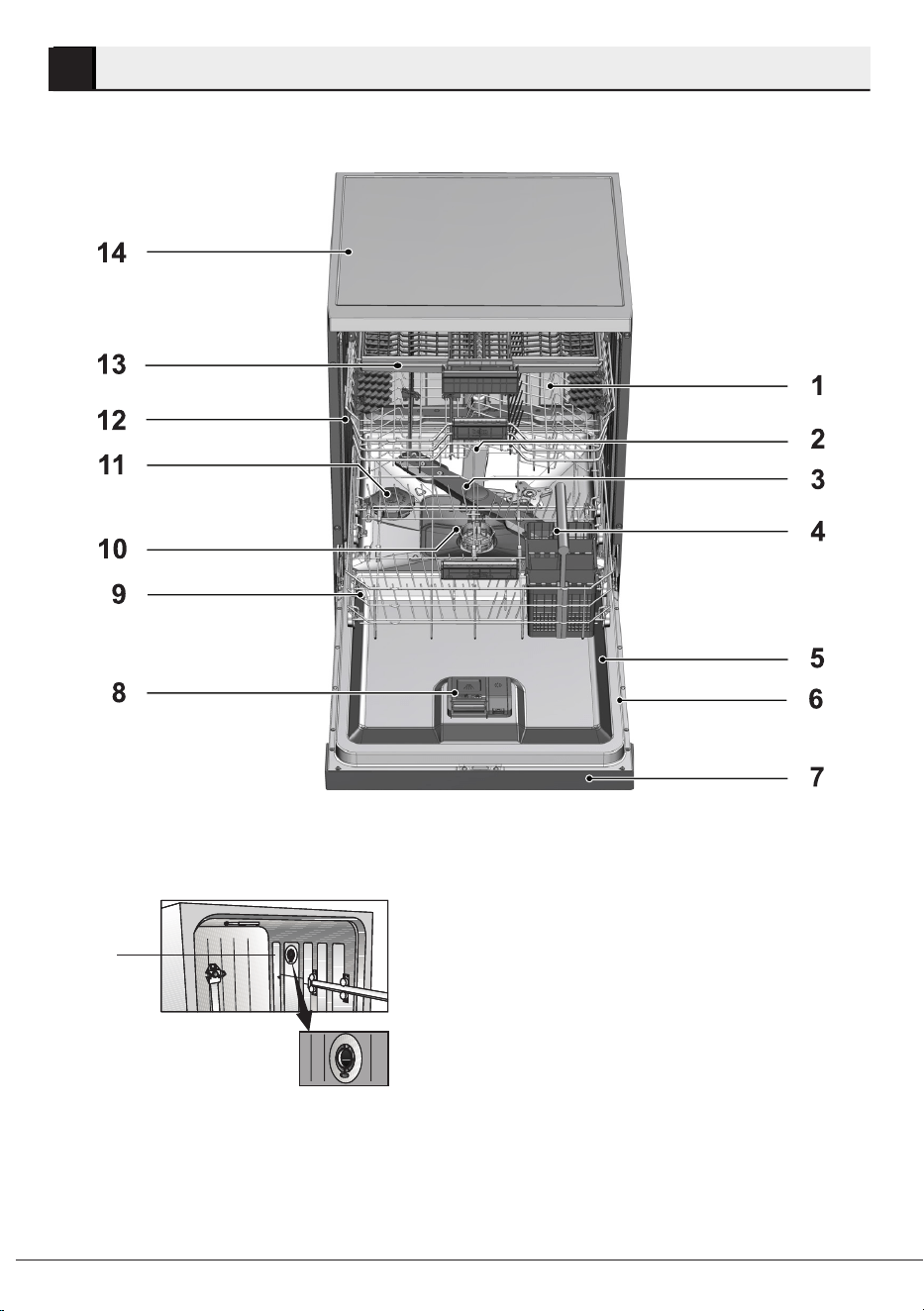

Overview
1. Upper basket
2. Upper impeller
3. Lower impeller
4. Silverware basket
5. Door
6. Rating Label
7. Control panel
8. Detergent dispenser
9. Lower basket
10. Filters
11. Salt reservoir lid
12. Upper basket rail
13. Upper cutlery basket (depends on
model)
14. Tabletop (depends on model)
15. Fan drying system (depends on
model)
15
8
Dishwasher / User manual
/44 EN
Dishwasher
Technical specifications
Compliance to standards and test data / EC declaration of conformity
This product complies with the following EU directives;
Development, production and sales stages of this product comply with the
safety rules included in all pertaining European Community regulations.
2014/35/EU, 2014/30/EU, 93/68/EC, IEC 60436/DIN 44990, EN 50242
Power input 220-240 V, 50 Hz (see rating label)
Total power consumption 1800-2100 W (see rating label)
Heater power consumption 1800 W (see rating label)
Total current (depends on the model) 10 A (see rating label)
Drain pump power consumption 30 W (see rating label)
Water pressure 0.3 –10 bar (= 3 – 100 N/cm² = 0.01-
1.0 Mpa)
C
Technical specications may be changed without prior notice to
improve the quality of the product.
C
Figures in this manual are schematic and may not match the product
exactly.
C
Values stated on the markings of the product or in the printed
documents accompanying the product are obtained in the laboratory
on basis of the relevant standards. Depending on operational and
environmental conditions of the product, these values may vary.
Note for test institutions:
Data required for performance tests shall be provided upon request. Requests
can be e-mailed to the following address:
Do not forget to provide the code, stock and serial numbers of the product to be
tested in your request e-mail along with your contact information. Code, stock and
serial numbers of the product may be found on the type label attached to the side
wall of the door.
Fan drying system
Fan drying system ensures efcient drying of your dishes.
It is normal to hear a different sound than that of washing cycle during fan
operation.
Dishwasher / User manual
9 / 44
EN
3
Installation
To make the product ready for use,
make sure that the electricity, tap
water supply and water drainage
systems are appropriate before calling
the Authorised Service Agent. If they
are not, call a qualied technician
and plumber to have any necessary
arrangements carried out.
C
Preparation of the location
and electrical, tap water and
waste water installations
at the place of installation
is under customer's
responsibility.
B
Manufacturer shall not
be held responsible for
damages arising from
processes carried out by
unauthorised persons.
A
Prior to installation, visually
check if the product has any
defects on it. If so, do not
have it installed. Damaged
products cause risks for
your safety.
C
Make sure that the water
inlet and discharge hoses
are not folded, pinched or
crushed while pushing the
product into its place after
installation or cleaning
procedures.
When placing the product, pay
attention not to damage the oor, walls,
piping, etc. Do not hold the product
from its door or panel to move it.
Appropriate installation
location
• Place the product on a solid and
at oor that has sufcient load
carrying capacity! The product
must be installed on a at surface
in order for the door to be closed
comfortably and securely.
• Do not install the product at places
where temperature may fall below
0ºC.
• Place the product on a rigid oor.
Do not place it on a long pile rug
or similar surfaces.
B
Ensure the power cable
does not get trapped under
the product.
• Make sure that you select a
location that will allow you to load
and unload the dishes in a fast
and comfortable manner.
• Install the product in a place close
to the tap and the drain. Select the
installation location by considering
that it will not be changed after the
connections are made.
Connecting water supply
• Do not use old or used water inlet
hose on the new product. Use the
new water inlet hose supplied with
the product.
• Connect the water inlet hose
directly to the cold water tap.
Permitted water temperature up
to 25°C. Pressure coming from
the tap should be minimum 0.3
and maximum 10 bars. If the
water pressure exceeds 10 bars,
a pressure relief valve should be
installed in between.
• Open the tap completely after
making the connections to check
for water leaks.
10
Dishwasher / User manual
/44 EN
Installation
A
For your safety, close the
water inlet tap completely
after the washing
programme is over.
Connection to the drain
Water discharge hose can directly be
connected to the drain hole or sink’s
drainage. The length of this connection
must be min. 50 cm and max. 100 cm
from the oor. A discharge hose longer
than 4 meters will cause washing
performance to be affected.Attach the
water discharge hose to the drainpipe
without bending it. Tightly x the water
discharge hose to the drainpipe in
order to prevent any dislocation of the
water discharge hose during operation
of the product.
min
300
min
120
max 1000
min 500
C
Drainpipe must be
connected to the foul water
system and it should not be
connected to any surface
water drain.
Adjusting the feet
If the door of the product cannot
be closed properly or if the product
wobbles when you push it slightly,
then you need to adjust the feet of the
product. Adjust the feet of the product
as illustrated in the relevant section.
A
Diswashers door must be
aligned properly otherwise
hot steam can escape!
Danger of serious burns,
other injury or may damage
furniture.
Electrical connection
Before you insert the plug into the wall
socket make sure that the voltage and
the frequency shown in the rating label
corresponds to your electricity supply.
We recommend that this appliance be
connected to the mains supply via a
suitable switched and fused socket in a
readily accessible position.
If the supply cord or the mains lead
is damaged please do not replace it
yourself. The supply cord or the mains
lead must be replaced by a Authorised
Service Agent or a similarly qualied
person.
Dishwasher / User manual
11 / 44
EN
Installation
2. Connect the blue (neutral) wire to
the terminal in the plug marked ‘N’ or
coloured black.
3. Connect the brown (live) wire to the
terminal in the plug marked ‘L’ or
coloured red.
With the alternative plugs a 13A fuse must
be tted either in the plug or adaptor or
in the main fuse box. If in doubt contact a
qualied electrician.
Initial use
Before starting to use the product, make
sure that all preparations are made
in accordance with the instructions in
sections “Important safety instructions”
and “Installation”.
• Before using the product, ll the salt
reservoir with 1 litre of water, add salt
(see next page) and stir to dissolve.
Run the Dishwasher without dishes
on a short programme with a small
amount of detergent.
A
There might be a small
amount of water left in the
product after factory quality
control tests. This causes no
harm to the product.
A
This appliance must
be earthed
If the tted moulded plug is
not suitable for your socket,
then the plug should be cut
off and an appropriate plug
tted.
Destroy the old plug, which
is cut off as a plug with a
bared cord could cause a
shock hazard if inserted into
a socket elsewhere in the
house.
The moulded plug on this
appliance incorporates a
13A fuse. Should the fuse
need to be replaced an
ASTA approved BS1362
fuse of the same rating must
be used. Do not forget to
ret the fuse cover. In the
event of losing the fuse
cover, the plug must not be
used until a replacement
fuse cover has been tted.
Colour of the replacement
fuse cover must be the
same colour as that visible
on the pin face of the plug.
Fuse covers are available
from any good electrical
store.
Fitting a different plug
As the colours of the wires in the
mains lead of this appliance may not
correspond with the coloured markings
identifying the terminals on your plug,
proceed as follows:
1. Connect the green - yellow or
green (earth) wire to the terminal
in the plug marked ‘E’ or with the
symbol
or coloured green
and yellow or green.
12
Dishwasher / User manual
/44 EN
Preparation
4
Tips for energy saving
Following information will help you
use the product in an ecological and
energy-efcient manner.
Wipe away any coarse food remnants
on the dishes before putting them in
the product.
Operate the product after lling it
completely.
When selecting a programme, consider
the table of "Programme data and
average consumption values".
Do not put more detergent than
suggested on the detergent package.
Water softening system
The product is equipped with a water
softening system which reduces the
hardness of incoming water. This
system softens the supply water to a
level that will allow washing the dishes
with the required quality.
C
The mains water hardness
must be softened if it is over
7°dH. Otherwise, hardness
ions will accumulate
on the dishes that are
washed and may affect
the washing, rinsing and
drying performances of the
machine.
Dishwasher / User manual
13 / 44
EN
Preparation
Adjusting the water softening system
Cleaning, rinsing and drying performance of your dishwasher will increase when
water softening system is adjusted properly.
Adjust the new water hardness level according to the Water hardness level
instruction in this booklet.
Use the test strip supplied with the product according to the steps given below to
determine hardness level of your supply water.
Remove the test
strip from the
packet.
Turn on the tap and
let the water run for
about a minute.
Hold the test strip in
the water for about
a second.
Remove the test
strip from the water
and shake it.
Wait for 1 minute. The test strip shows
you the hardness
level.
After determining hardness level of the supply water:
1. Turn on the machine, press Time Delay and P+/P keys simultaneously. After the
countdown (3,2,1) is displayed keep the keys pressed for a while.
2. Press P+/P key to activate the (r..) position.
3. Using Time Delay key, adjust water hardness level according to the hardness of
the supply water. See “Water hardness level adjustment table” for correct setting.
4. Press On / Off key to save the setting.
Water hardness level adjustment table
Hardness
Level
English Water
Hardness °dE
German Water
Hardness °dH
French Water
Hardness °dF
Water Hardness Level Indicator
0th Level
0-5 0-4 0-8
Press the Time Delay key to switch the water hardness level
to position 1. (r1)
1st Level
6-9 5-7 9-13
2nd Level
10-15 8-12 14-22
Press the Time Delay key to switch the water hardness level
to position 2. (r2)
3rd Level
16-19 13-15 23-27
Press the Time Delay key to switch the water hardness level
to position 3. (r3)
4th Level
20-24 16-19 28-34
Press the Time Delay key to switch the water hardness level
to position 4. (r4)
5th Level
25-62 20-50 35-90
Press the Time Delay key to switch the water hardness level
to position 5. (r5)
If the hardness level of the supply water is above 90 °dF or if you are using well
water, then it is recommended to use water purication devices and special lters.
If the hardness level of the supply water is below 13°dF, there is no need to use
salt in your dishwasher. If this is the case, “No Salt Warning Indicator” (if any)
illuminates continuously on the panel of your machine.
If the water hardness level adjustment is set to level 1, the “No salt warning
indicator” will illuminate continuously although it is not necessary to use salt. If you
14
Dishwasher / User manual
/44 EN
Preparation
Adding salt
Water softening system needs to be
regenerated in order for the product
operates with the same performance
continuously. Dishwasher salt is used
for this purpose.
C
Use only special softening
salts produced particularly
for the dishwashers in your
machine.
C
It is recommended to use
granule- or powder-formed
softening salts in the
water softening system.
Do not use salts that do
not completely dissolve in
water such as table salt or
rock salt. Otherwise the
performance of the system
may deteriorate in time.
C
Salt reservoir will be lled
with water when you start
the product. For this reason,
add salt before operating the
machine.
use salt under this condition, salt will
not be consumed and the Salt indicator
will not illuminate.
C
If you move your house,
it is necessary to readjust
water hardness level of your
machine by considering the
information given above
according to the hardness
level of the supply water
in your new location. Your
machine will display the
most recently adjusted water
hardness level.
1. Firstly, take the lower basket out to
add softening salt.
2. Turn the salt reservoir lid counter-
clockwise to open it (A).
3. Add 1 litre of water to salt reservoir
of your machine only in initial use.
4. Fill the salt reservoir with salt by
using the salt funnel (D). To speed
up dissolution rate of salt in water,
stir it with a spoon.
C
You can put about 2 kg of
softening salt into the salt
reservoir.
5. Replace the lid and tighten it when
the reservoir is full.
Dishwasher / User manual
15 / 44
EN
Preparation
A
Do not put solvents into the
detergent dispenser. There
is the risk of explosion!
Put the detergent into the detergent
dispenser just before operating the
machine as illustrated below.
1. Push the latch to right to open the
detergent dispenser lid (A).
2. Put suggested amount of powder,
liquid/gel or tablet detergent in the
reservoir.
C
Inside the detergent
dispenser there are level
markings that help you
use appropriate amount of
powder detergent. When
brimful, detergent dispenser
will contain 45 cm³ of
detergent. Fill detergent up
to 15 cm³ or 25 cm³ level
marks in the detergent
dispenser according to
fullness of the machine and/
or soiling degree of the
dishes. One tablet is enough
if you are using detergent
tablets.
C
You need to add salt right
before starting the machine.
Thus, the overowing
salty water will be ushed
immediately, preventing
the risk of corrosion in
machine. In cases where
you would not start washing
immediately, run your
machine empty in the
shortest program.
C
Since different salt brands
in the market have different
particle sizes and since the
water hardness may vary,
dissolution of the salt in
water may take a couple
of hours. Therefore, Salt
Indicator remains on for a
while after adding salt into
the machine.
Detergent
You can use powder, liquid/gel or tablet
detergents in the machine.
A
Only use in the machine
the detergents produced
particularly for use
with dishwashers. We
recommend you not to use
detergents that contain
chlorine and phosphate
as they are harmful for the
environment.
Adding detergent
C
Pay attention to the
warnings on the detergent
packaging to get better
washing and drying results.
Contact the manufacturer
of the detergent for further
questions.
16
Dishwasher / User manual
/44 EN
Preparation
Water softening salt and rinse aid
must also be used together with the
detergent if the water hardness level is
above the mentioned level.
C
The best washing
performance in dishwashers
is obtained by using
detergent, rinse aid and
water softening salt
individually.
C
Observe the instructions of
the detergent manufacturer
on the package when using
tablet detergents.
C
Contact the detergent
manufacturer if your dishes
are wet and/or if you notice
limescale spots particularly
on your glasses after the
washing programme is
over when using a tablet
detergent.
When you switch to powder
detergent from tablet detergent:
1. Make sure that salt and rinse aid
reservoirs are full.
2. Set the water hardness to the
highest level and perform an empty
run.
3. After the empty washing cycle,
review the user manual and
3. Push the lid of the detergent
dispenser to close it. A "click" will
be heard when the lid is closed.
1
2
3
C
Use powder or liquid/
gel detergent in short
programmes without
prewash since the solubility
of the tablet detergent
changes depending on the
temperature and time.
Tablet detergents
In addition to the conventional
tablet detergents, there are also
commercially available detergent
tablets that show water softening salt
and/or rinse aid effect. Some types
of these detergents contain special-
purpose components such as glass
and stainless steel protectors. These
tablets show their effects up to a
certain water hardness level (21°dH).
Dishwasher / User manual
17 / 44
EN
Preparation
4. If there are stains on tableware
items after washing, level must
be increased and if there is a blue
trace after wiping them by hand, it
must be decreased. This is set to
position 3 as factory default.
C
The rinse aid adjustment is
described under "Adjusting
the amount of rinse aid" in
the section for operating the
machine.
C
Wipe clean any spilled
rinse aid outside the
reservoir. Rinse aid that
spilled accidentally will
cause foaming and it will
eventually decrease washing
performance.
Items not suitable for washing
in the dishwasher
• Never wash dishes soiled by
cigarette ash, candle remnants,
polish, dyestuff, chemicals, etc. in
your dishwasher.
• Do not wash silverware and
cutlery with wooden or bone
stems, glued pieces, or pieces that
are not resistant to heat, as well as
copper and tin-plated containers in
the dishwasher.
readjust the water hardness level
so as to suit the water supply.
4. Make the appropriate rinse aid
settings.
Rinse aid
C
The rinse aid used in
dishwashers is a special
combination that aims to
increase drying efciency
and prevent water or lime
stains on the washed items.
For this reason, care must
be paid to have rinse aid in
the rinse aid reservoir and
to use rinse aids produced
specially for dishwashers
only.
1. Open the lid of the rinse aid
reservoir with the help of the latch.
2. Fill the reservoir until “MAX” level.
3. Slightly press the point (B) of the
reservoir lid to close it.
18
Dishwasher / User manual
/44 EN
Preparation
C
Decorative prints of
chinaware as well as
aluminum and silver items
may get discoloured or
tarnished after washing in
the dishwasher just as it
happens in handwashing as
well. Some delicate glass
types and crystals may
become dull in time. We
strongly recommend you
to check if the tableware
you are going to purchase
is suitable for washing
especially in the dishwasher.
Placing the dishes into the
dishwasher
You can use your dishwasher in the
optimum way with respect to energy
consumption and washing and drying
performance only if you place the
dishes in an orderly way.
• Wipe away any coarse food
remnants (bones, seeds, etc.) on
the dishes before placing them in
the dishwasher.
• Place thin, narrow pieces in the
middle sections of baskets if
possible.
• Place the heavily soiled and bigger
items in the lower basket and
smaller, delicate and light items in
the upper basket.
• Place the hollowed dishes such as
bowls, glasses and pans upside
down in the dishwasher. Thus,
accumulation of water in deep
hollows is prevented.
A
To prevent possible injuries,
always place the sharp and
pointed dishes such as
service fork, bread knife,
etc. upside down so as their
pointed ends will face down
or they will lie horizontally in
the dish basket.
Unload dishes in the lower basket
rst and then the dishes in the upper
basket.
Dishwasher / User manual
19 / 44
EN
Preparation
Suggestions for loading the dishwasher
Lower basket
Upper basket
Improper Loading Of Dishware
Improper Loading Of Dishware
20
Dishwasher / User manual
/44 EN
Preparation
Adjusting the height of the
upper basket
The upper basket height adjustment
mechanism has been designed for
you to create large spaces in the lower
or upper sections of your machine
depending on your needs by adjusting
the height in the upper or lower
direction while your basket is empty or
loaded.
Thanks to this mechanism, you can
use your basket in three different
positions, namely lower, middle and
upper positions (1, 2, 3).
1. To raise your basket, hold the
upper basket wires with both hands
while the basket is in the lowermost
position and pull them up (A).
2. You will hear a "Click" from
the right and left mechanisms,
indicating that the basket has
reached the next level. Release the
basket.
Repeat the process if the height is not
sufcient.
1
2
3
To lower the basket, while it is in the
uppermost position;
1. Hold the upper basket wires with
both hands, slightly lift up the
basket and simultaneously push
and release the latches shown in
the figure (B).
2. Lower the basket from its current
position to the lower one.
3. Release the basket after it has
reached one level down.
Repeat the process if the height is not
sufcient.
C
The movement mechanism
may not function properly
if the upper basket is
overloaded or if the weight
distribution is not balanced.
In heavier conditions, there
is the risk of falling one level
down.
C
Make sure that the
adjustment mechanism has
the same positions on the
right and left sides of the
upper basket.
Dishwasher / User manual
21 / 44
EN
Preparation
Collapsible upper basket
wires
You can use collapsible wires when
you need a larger space for your
dishes in the upper basket of your
machine.
To bring the collapsible wires into
horizontal position, grab the wire from
the middle position and push them
in the direction of arrow in the gure.
Place your larger dishes into the area
created. To bring the wires back to
vertical position, just lift them up.
C
Bringing the wires to the
horizontal position by
holding them from the
tips may cause them to
bend. Therefore, hold the
wires from their stems
while bringing them to
the horizontal or vertical
positions.
Upper basket multipurpose
service rack
This accessory located at the upper
basket of your machine allows you to
easily wash pieces such as extra long
ladles and bread knives.
You can lift up the upper basket
multipurpose service rack to remove it
if you do not want to use it.
If you want to use the upper basket
multipurpose service rack again, you
can easily attach it to the side section
of your upper basket.
22
Dishwasher / User manual
/44 EN
Preparation
Collapsible lower basket tines
There are foldable tines (A) located
at the lower basket of the machine
are designed for an easier placement
of large pieces such as pans, bowls,
etc. You can create larger spaces by
folding each tines individually or all of
them at once.
To bring the collapsible tines into
horizontal position, grab the tines from
mid position and push them in the
directions of arrows (B). To bring the
tines back to vertical position, just lift
them up. Collapsible tines will click into
the latch again (C).
Cutlery basket
Cutlery basket is designed to wash
your dishes such as knife, fork, spoon,
etc. in an efcient manner.
Since the cutlery basket can be moved
(A, B), you can create more space
while placing your dishes in the lower
basket and free up space for your
dishes of different sizes.
C
Bringing the tines to the
horizontal position by
holding them from the
tips may cause them to
bend. Therefore, it will be
appropriate to bring the tines
in the middle to horizontal or
vertical position by holding
them from their stems and
pushing in the direction of
arrow.
Dishwasher / User manual
23 / 44
EN
Preparation
Upper basket height
adjustable rack
Use the lower and upper parts of the
height adjustable racks in the upper
basket of the machine by sliding them
down or up according to the heights of
the glasses, cups or etc. (A, B, C).
Tray Wash Supports
Use the supports to wash trays in the
bottom basket.
See the Auxiliary functions section for
appropriate programme and function
selection.
24
Dishwasher / User manual
/44 EN
5
5
Operating the product
1. Display
2. On/Off key
3. Start/Pause/Cancel key
4. Time Delay key
7. Programme indicator
8. Salt (
) indicator
9.
10. Start ( ) / Pause ( ) indicator
11. Time Delay indicator
5
5. Function keys
a)
b)
c)
d)
6. Programme Selection keys
12. End of Programme indicator
13. Screen information line
14. Child Lock indicator
15. Rinse aid (
) indicator
16.
1 2
34
5
6
a b c
d
7 8 9 10
111213141516
Half Load function
Not in use
Not in use
Rapid Clean Function
Super Gloss Function
IntenseWash Function
Dishwasher / User manual
25 / 44
EN
Operating the product
Keys
On / Off key
It is used to turn on or off the machine.
Press On / Off Key to switch ON.
Machine will turn on with economy
programme in On mode and the
number of the economy programme
will appear on the programme
indicator. In Off position, indicators on
the display will turn off.
Start / Pause / Cancel key
It is used to start, pause or cancel a
selected programme or function.
Programme Selection keys
They are used to select the washing
programme you determined from the
table of “Programme data and average
consumption values”.
Delayed Start key
It should be pressed to make the time
delay settings.
Preparing the machine
1. Open the door of the dishwasher.
2. Place the dishes in accordance
with the instructions in the user
manual.
3. Make sure that the upper and lower
impellers rotate freely.
4. Put adequate amount of detergent
into the detergent dispenser.
5. Check if the Salt and Rinse Aid
indicators light and add salt and/or
rinse aid if needed.
6. Close the door of the dishwasher.
Programme selection
1. Press the On/Off button to turn on
your machine.
2. Refer to the table of "Programme
data and average consumption
values" to determine a washing
programme suitable for your
dishes.
3. Press Programme Selection keys
until the number of the programme
you selected appears on the
Programme indicator. Use P+ to
switch to the next programme, and
P- to switch to the previous one.
26
Dishwasher / User manual
/44 EN
Operating the product
012345678
ProClean Eco * Auto Hygiene+ Intensive ExpressDry 58’ Glass Care Mini 30' Prewash
-
50 ºC 40-65 ºC 70 ºC 70 ºC 60 ºC 40 ºC 35 ºC -
This programme is
recommended to be
operated on every 1-
2
months for machine
cleaning and
necessary hygiene.
The programme
should be operated
while the machine is
empty.
In order to achieve
an efficient result
use together with
special machine
cleaning agents
Most economical
washing
programme for the
medium soiled daily
dishes that are kept
waiting.
Determines the
soiling degree of
the dishes and sets
the temperature
and amount of the
washing water as
well as the washing
time automatically.
Suitable for all
types of dishes.
Suitable for the
dishes which
require extra
hygiene such as
articles for babies.
Also suitable for
heavily soiled
dishes.
Suitable for heavily
soiled dishes, pots
and pans.
Daily washing
programme for
normally soiled
dishes in the fastest
way.
Special programme
for gentle cleaning
of delicate
glassware.
Suitable for lightly
soiled daily dishes
that are scraped or
pre-cleaned.
Suitable for
removing the
remnants on the
soiled dishes that
will be kept waiting
in the machine for a
few days, and thus,
for preventing the
bad odour buildup.
- Medium Medium to high High High Medium Low Low -
-++++-+- +
-+++++++-
-++++++- -
75 223 100-180 160 148 58 120 30 15
15,2 11 11,6-15,8 20,2 17,6 11,4 15,6 11,8 4,2
0,70 0,93 0,90-1,45 1,86 1,65 1,18 1,26 0,80 -
Degree of Soiling
Energy (kWh)
Prewash
Wash
Dry
Duration (min)
Water (I)
Programme Table
The consumption values shown in the table were determined under standard conditions. Differences may therefore occur under practical conditions. * Reference programme for testing
institutes. The tests in accordance with EN 50242 must be carried out with a full water softener salt dispenser and a full rinse aid reservoir, and using the test programme.
Programme number
Programme name
Cleaning temperature
Dishwasher / User manual
27 / 44
EN
Operating the product
Rapid Clean Function
It shortens the time of the washing
cycle selected and decreases water
consumption by enabling washing
under higher pressure.
Super Gloss Function
It provides superior drying
performance.
Half Load function
It is used to operate the machine
without loading it completely.
1. Load your dishes in the machine as
you like.
2. Turn the machine on with On/Off
key.
3. Select the desired programme and
press the Half Load key.
While the function is enabled, the Half
Load indicator will become on in the
function selection indicator and on the
display.
4. Start the programme by pressing
Start / Pause / Cancel key.
C
With the Half Load function
you can save both water and
power while using the lower
and upper baskets of the
machine.
Auxiliary functions
Washing programmes of your
dishwasher are designed to obtain
the best cleaning effect, considering
the type of the soil, soiling degree and
properties of the dishes to be washed.
Auxiliary functions are provided in
order to enable you to save time, water
and energy and to perform a more
comfortable washing with conditions
specic to you.
C
Auxiliary functions may
cause changes in the
programme duration.
C
Auxiliary functions are not
suitable for all washing
programmes. Indicator of
the auxiliary function that
is not compatible with the
programme will not be
active.
To add auxiliary function to the
programme:
1. Select the desired washing
programme by pressing the
programme selection key.
2. In the selected washing
programme, if auxiliary function
is selected, its symbol will be
displayed on the screen. If the
function button is pressed again
the symbol will disappear and
selection is cancelled.
3. Selection will be cancelled when
you press the function key again.
IntenseWash Function
This function operates the lower
impeller with a higher pressure and
higher speed to enable a better
washing for dishes such as pans and
trays with stubborn, dried soiling.
28
Dishwasher / User manual
/44 EN
Operating the product
1. Press the Time Delay function
key after selecting the washing
programme and other auxiliary
functions.
2. Once you press the Time Delay
key, Display Information Line
will show "0:30" and Time Delay
indicator will start flashing.
3. Set the desired time by pressing
the Time Delay key. Time will
increase with increments of 30
minutes up to 6 hours and after
that in 1 hour increments up to 24
hours every time you press the key.
4. Press Start / Pause / Cancel key
to start countdown for the Time
Delay. Time Delay indicator and
Start / Pause indicator will light
continuously until the end of the
period. Time Delay is displayed
on the Display Information Line.
Selected programme will start as
soon as the countdown is over.
Changing the settings while Time
Delay function is enabled
While the Time Delay function is
activated, you cannot make changes
in the washing programme, auxiliary
functions or the duration of delay time.
C
Programme and auxiliary
functions cannot be
set/changed after the
programme has started.
To cancel the Time Delay function
1. Press and hold Start / Pause /
Cancel key for 3 seconds.
2. When the Start / Pause / Cancel
key is pressed and hold, "3",
"2", "1" appear on the Display
Information Line. Time Delay
indicator will turn off at the end
Auto Tablet Feature
Auto Tablet is a feature which detects
the use of combined tablet detergents
automatically.
C
Drying performance of
these type of detergents
is improved by adjusting
temperature and duration
accordingly.
Owing to this feature, there is no need
to press any button in case of a tablet
detergent use.
Feature can be activated if automatic
detection is desired.
To activate / to deactivate:
1. After turning on the machine,
press Time Delay and P+ keys
simultaneously. Keep them
pressed until the countdown 3, 2, 1
is completed on the display.
2. Press P+ key to activate the
a: option. Automatic detergent
detection feature is disabled at
“a:0” option and enabled at "a:1"
option. Set the desired option by
pressing the Time Delay key.
3. Turn off the machine with On/Off
key to save the changes.
Programming the washing
time
Time Delay
If an economical electricity tariff is
applied in your region, you can use
the Time Delay function to wash your
dishes during appropriate hours.
You can delay the start of the selected
programme until 24 hours. Time Delay
cannot be set after the programme
starts.
Dishwasher / User manual
29 / 44
EN
Operating the product
of the cancellation process and
delaying process is cancelled.
C
You can select and start a
new programme following
the cancellation of Time
Delay function.
C
Time Delay function can not
be set after the programme
starts.
Starting the programme
To start your machine after selecting
the programme and auxiliary functions,
press Start / Pause / Cancel key.
Once the programme starts a tune
is played and the estimated time
remained to the end of the programme
will appear on the Display Information
Line. Start / Pause / Cancel indicator
starts lighting continuously.
C
Your machine performs
water softening depending
on the hardness level of the
supply water. Remaining
time displayed towards the
end in some programmes
can be different from
the time indicated at the
beginning due to this
process. The total time
can also change while
the programme is running
depending on the ambient
temperature where your
machine is installed,
temperature of the supply
water and amount of the
dishes.
C
Pay attention not to open the
door of the machine when it
is running. Stop the machine
by pressing Start / Pause /
Cancel key if you have to
open the door. Then, open
the door of the machine.
There may be a rush of
vapour when you open the
door of your machine; be
careful. Close the door of
your machine and press
Start/Pause/Cancel key
again. Programme will
resume running.
C
The machine will remain
silent in pause mode for
some time in order to
remove the water in the
machine and on the dishes
completely and to have the
water softener cleaned, and
then it will resume running in
drying mode.
Child (Key) Lock
You may prevent other people
from interrupting and changing the
programme cycle and time delay while
the machine is running.
To activate the Child Lock:
1. Pres Child (Key) Lock keys
simultaneously and hold for 3
seconds.
2. "3", "2", "1" is displayed on Display
Information Line and key lock is
activated.
30
Dishwasher / User manual
/44 EN
Operating the product
C
Child Lock prevents the
selected programme
or functions from being
changed and disables the
Start / Pause / Cancel key.
C
Child Lock does not lock the
door of the machine.
C
If you turn your machine
off by using On/Off key at
the end of the programme,
the Child Lock will be
deactivated automatically.
C
For energy saving, the
product is automatically
turned off following
the completion of the
programme or if the
programme is not started.
To deactivate the Child Lock:
1. Pres Child (Key) Lock keys
simultaneously and hold for 3
seconds.
2. "3", "2", "1" is displayed on Display
Information Line and key lock is
cancelled.
Cancelling the programme
1. Press Start/Pause/Cancel key for 3
seconds to cancel the programme.
2. Release the key when the Start /
Pause indicator starts flashing. For
a couple of minutes the machine
will fulfill the necessary operations
required to cancel the programme.
C
There might be residues of
detergent or rinse aid left
in the machine and / or on
the pieces being washed
depending on the step
the programme you have
cancelled was in.
Salt indicator (
)
Please check the salt indicator on
the display to see whether there is
adequate amount of softening salt
in the dishwasher or not. You need
to rell the salt reservoir with salt
whenever salt warning indicator
appears on the display of your
machine.
C
Adjusting the water hardness
level is explained in Water
Softening System section.
Rinse Aid indicator ( )
Please check the rinse aid indicator
on the display to see whether there is
adequate amount of rinse aid in the
dishwasher or not. You need to rell
the rinse aid reservoir with rinse aid
whenever rinse aid warning indicator
appears on the display of your
machine.
Adjusting the amount of rinse
aid
1. After turning on the machine,
press Time Delay and P+ keys
simultaneously. Keep them
pressed until the countdown 3, 2, 1
is completed on the display.
2. Press P+ to move to position P on
the display.
3. Set to the appropriate level with the
Time Delay key.
4. Turn off the machine with On/Off
key to save the changes.
No rinse aid dispensed in P:0 wash
position.
1 dose of rinse aid is dispensed in P:1
position.
2 doses of rinse aid are dispensed in
P:2 position.
Dishwasher / User manual
31 / 44
EN
Operating the product
ProCare
This programme is recommended
to be operated on each 1-2 months
for machine cleaning and necessary
hygiene. The programme should be
operated while the machine is empty.
In order to achieve an efcient result,
it is recommended to use together with
special machine cleaning agents.
C
Do not use this programme
to clean dishes. As
it operates in high
temperatures, it is harmful
for the dishes.
End of programme
End of Programme indicator will light
up once the washing programme is
over.
1. Press the On/Off button to turn off
your machine.
2. Close the tap.
3. Unplug the machine from the
socket.
C
For energy saving, the
product is automatically
turned off following
the completion of the
programme or if the
programme is not started.
C
Leave your dishes in
the machine for about
15 minutes to cool down
after they are washed.
Your dishes will dry in a
shorter time if you leave
the door of your machine
ajar during this period. This
process will increase the
drying effectiveness of your
machine.
Water cut-off warning
If mains water is cut or water inlet
tap is turned off the machine cannot
take water in and E:02 icon will ash
on the programme indicator. As long
as the problem continues, washing
programme is paused and the water
inlet is checked regularly by the
machine; when the water is restored
3 doses of rinse aid are dispensed in
P:3 position.
4 doses of rinse aid are dispensed in
P:4 position.
E:02 icon will disappear after a while
and the washing programme resumes.
Overowing warning
If the machine intakes too much
water or there is leakage at any of
the components then the machine
will detect this and E:01 icon will ash
on the Programme indicator. As long
as the overowing continues safety
algorithm will be active and try to
discharge the water. If overowing
stops and safety is assured, E:01
icon will disappear. If E:01 does not
disappear, there is a permanent fault.
In this case the authorised service
should be contacted.
32
Dishwasher / User manual
/44 EN
Maintenance and cleaning
6
Cleaning the filters
Clean the lters at least once a week
in order for the machine operates
efciently. Check if food residues are
left on the lters. If there are food
residues on lters, take them out and
clean well under running water.
1. Turn the micro filter (1) and
coarse filter (2) assembly counter
clockwise and pull it out from its
seating.
2. Pull out the metal/plastic filter (3)
from the seating.
3. Press the two pawls on the coarse
filter inwards and separate the
coarse filter from the assembly.
Service life of the product extends and
frequently faced problems decrease if
it is cleaned at regular intervals.
A
Unplug the product and turn
off the tap before attempting
any cleaning procedures.
C
Do not use abrasive
substances for cleaning.
C
Clean the lter and impellers
at least once a week in order
for the machine operates
efciently.
Cleaning the outer surface of
the product
Wipe the outer surface and door
gaskets of the product gently with a
mild cleaning material and damp cloth.
Wipe the "Control panel" only with a
slightly damp cloth.
Cleaning the interior of the
machine
• Clean the interior of the machine
and the tank by running a
programme with or without
detergent based on the degree of
soil.
• If water has remained in the
machine, drain the water by
performing the procedures
under the topic "Canceling a
programme". If the water cannot
be discharged, remove the lters
as specied in the "Cleaning the
lters" section and check if there
are any leftover deposits that have
accumulated at the bottom of the
machine, blocking the water path.
Clean if necessary.
Dishwasher / User manual
33 / 44
EN
Maintenance and cleaning
4. Clean all three filters under tap
water by means of a brush.
5. Place the metal/plastic filter.
6. Place the coarse filter into the
micro filter. Make sure that it is
properly seated. Turn the coarse
filter clockwise until a "click" sound
is heard.
C
Do not use the dishwasher
without lter.
C
Incorrect placement of the
lters will reduce washing
efciency.
Cleaning the hose filter
Damages on the machine that may be
caused by impurities coming from the
urban supply water or your own water
installation (such as sand, dirt, rust,
etc.) can be prevented by means of the
lter attached to the water inlet hose.
Check the lter and the hose regularly
and clean them if necessary.
1. Turn off the tap and remove the
hose.
2. After taking out the filter, clean it
under running tap water.
3. Place the cleaned filter back to its
seat in the hose.
4. Install the hose to tap.
(depends on model)
34
Dishwasher / User manual
/44 EN
Maintenance and cleaning
Cleaning the impellers
Clean the impellers at least once a
week in order for the machine operates
efciently.
Lower impeller
Check if the holes on the lower impeller
(1) are clogged. If they are clogged,
remove and clean the impeller. You can
pull the lower impeller up to remove it.
Upper impeller
Check if the holes on the upper
impeller (1) are clogged. If they
are clogged, remove and clean the
impeller. Turn its nut to left to remove
the upper impeller.
Make sure that the nut is tightened well
when installing the upper impeller.
Dishwasher / User manual
35 / 44
EN
7
Troubleshooting
Machine does not start.
• Power cable is unplugged. >>> Check if the power cable is plugged in.
• Fuse is blown. >>> Check the fuses in your house.
• Water is cut. >>> Make sure that the water inlet tap is open.
• Door of the machine is open. >>> Make sure that you have closed the door of
the machine.
• On / Off button is not pressed. >>> Make sure that you have turned on the
machine by pressing the On / Off button.
Dishes are not washed clean
• Dishes are not placed orderly in the machine. >>> Load the dishes as
described in the user manual.
• Selected programme is unsuitable. >>> Select a programme with a higher
temperature and cycle time.
• Impellers are stuck. >>> Prior to starting the programme, turn the lower and
upper impellers by hand to make sure that they rotate freely.
• Impeller holes are clogged. >>> Lower and upper impeller holes might be
clogged with food remnants such as lemon pips. Clean the impellers regularly
as illustrated in section “Cleaning and Care”.
• Filters are clogged. >>> Check if the filter system is clean. Clean the filter
system regularly as illustrated in section “Cleaning and Care”.
• Filters are installed incorrectly. >>> Check the filter system and make sure
that it is installed correctly.
• Baskets are overloaded. >>> Do not overload the baskets in excess of their
capacity.
• Detergent is stored under unsuitable conditions. >>> If you are using powder
detergent, do not store the detergent package in humid places. Keep it in a
closed container if possible. For ease-of-storing, we recommend you to use
tablet detergents.
• Detergent is not sufficient. >>> If you are using powder detergent, adjust
the amount of detergent according to the soiling degree of your dishes and/
or programme definitions. We recommend you to use tablet detergents for
optimum results.
• Rinse aid is not sufficient. >>> Check the rinse aid indicator and add rinse aid
if necessary. Increase the rinse aid setting if there is enough amount of rinse
aid in the machine.
• Detergent dispenser lid is left open. >>> Make sure that the detergent
dispenser lid is closed tightly after adding detergent.
36
Dishwasher / User manual
/44 EN
Troubleshooting
Dishes are not dry at the end of cycle
• Dishes are not placed orderly in the machine. >>> Place your dishes in a way
that no water will accumulate in them.
• Rinse aid is not sufficient. >>> Check the rinse aid indicator and add rinse aid
if necessary. Increase the rinse aid setting if there is enough amount of rinse
aid in the machine.
• Machine is unloaded right after the programme is over. >>> Do not unload
your machine right after washing process is completed. Slightly open the door
and wait for evacuation of the steam inside for a while. Unload the dishes
after the pieces cool down to a touchable level. Start unloading process from
the lower basket. Thus, dropping of water remained on a piece at upper
basket onto the pieces at lower basket is prevented.
• Selected programme is unsuitable. >>> Since rinsing temperature is low at
programmes with short duration, drying performance will also be low. Select
programmes with longer duration for a higher drying performance.
• Surface quality of the kitchen utensils is deteriorated. >>> Desired washing
performance can not be obtained on kitchen utensils with deteriorated
surfaces and it is not suitable to use such utensils in terms of hygiene
as well. Also, water can not flow easily on deteriorated surfaces. It is not
recommended to wash such kitchen utensils in dishwasher.
C
It is normal that drying complaints can be experienced with Teon
kitchen utensils. It is associated with the structure of Teon. Since the
surface tensions of Teon and water are different, water droplets will
remain as beads on the Teon surface.
Tea, cafe or lipstick stains remain on dishes.
• Selected programme is unsuitable. >>> Select a programme with a higher
temperature and cycle time.
• Surface quality of the kitchen utensils is deteriorated. >>> Tea and cafe
stains or other dye spots may not be cleaned in dishwasher when they have
penetrated in deteriorated surfaces. Desired washing performance can not be
obtained on kitchen utensils with deteriorated surfaces and it is not suitable to
use such utensils in terms of hygiene as well. It is not recommended to wash
such kitchen utensils in dishwasher.
• Detergent is stored under unsuitable conditions. >>> If you are using powder
detergent, do not store the detergent package in humid places. Keep it in a
closed container if possible. For ease-of-storing, we recommend you to use
tablet detergents.
Lime traces remain on dishes and glassware gains a misty appearance
• Rinse aid is not sufficient. >>> Check the rinse aid indicator and add rinse aid
if necessary. Increase the rinse aid setting if there is enough amount of rinse
aid in the machine.
Dishwasher / User manual
37 / 44
EN
Troubleshooting
• Water hardness setting is low or salt level is insufficient >>> Measure the
hardness of the supply water appropriately and check the water hardness
setting.
• Salt leakage exists. >>> Pay attention not to spill salt around the salt filling
hole while adding salt. Make sure that the salt reservoir lid is tightly closed
after finishing the filling process. Run the prewash programme to remove the
salt that spilled inside the machine. Since the salt granules that will remain
under the lid will dissolve during prewash, causing the lid loosen, check the lid
once again at the end of the programme.
There is a different odour in the machine
C
A new machine has a peculiar odour. It will fade out after a couple of
washes.
• Filters are clogged. >>> Check if the filter system is clean. Clean the filter
system regularly as illustrated in section “Cleaning and Care”.
• Dirty dishes are kept in dishwasher for 2-3 days. >>> If you are not going
to start the machine right after you have put the dishes into it, remove the
remnants on the dishes and run the Prewash programme without detergent
every 2 days. In such cases, do not close the door of the machine completely
in order to avoid odour build up in machine. You can also use commercially
available odour removers or machine cleaners.
Rust, discoloration or surface deterioration occurs on dishes
• Salt leakage exists. >>> Salt may cause deterioration and oxidation on metal
surfaces. Pay attention not to spill salt around the salt filling hole while adding
salt. Make sure that the salt reservoir lid is tightly closed after finishing the
filling process. Run the prewash programme to remove the salt that spilled
inside the machine. Since the salt granules that will remain under the lid will
dissolve during prewash, causing the lid loosen, check the lid once again at
the end of the programme.
• Salty food remnants have remained on dishes for a long time. >>> If cutlery
soiled with such foods will be kept waiting in machine, dirt must be removed
by prewash or dishes must be washed without being kept waiting.
• Electric installation is not grounded. >>>Check if your machine is connected
to the actual grounding line. Otherwise, the static electric created in the
product causes arcs on the surfaces of metal items creating pores, removing
the protective cover on the surface and causing discoloration.
• Intensive cleansers such as bleaches are used. >>> Protective cover on
metal surfaces gets damaged and looses its efficiency in time when it gets in
contact with cleansers such as bleach. Do not wash your dishes with bleach.
• Metal items particularly such as knives are used for purposes other then
their intended uses. >>> Protective cover on the edges of knives may get
38
Dishwasher / User manual
/44 EN
Troubleshooting
damaged when they are used for purposes such as opening cans. Do not use
metal kitchen utensils out of their intended uses.
• Cutlery are made of low quality stainless steel. >>> Corrosion on such items
is inevitable; they should not be washed in dishwashers.
• Kitchen utensils that are already corroded are washed in dishwasher. >>>
Rust on a corroded item can migrate to other stainless steel surfaces and
cause corrosion on those surfaces as well. Such items should not be washed
in dishwashers.
Detergent remains in detergent dispenser.
• Detergent dispenser was damp when adding detergent. >>> Make sure that
the detergent dispenser is dried well prior to filling it with detergent.
• Detergent is added long before the washing process. >>> Pay attention to
add detergent shortly before start-up of the washing.
• Opening of the detergent dispenser lid is prevented during washing. >>>
Place the dishes in a way that will not prevent the detergent dispenser lid from
opening and the water going into the machine from impellers.
• Detergent is stored under unsuitable conditions. >>> If you are using powder
detergent, do not store the detergent package in humid places. Keep it in a
closed container if possible. For ease-of-storing, we recommend you to use
tablet detergents.
• Impeller holes are clogged. >>> Lower and upper impeller holes might be
clogged with food remnants such as lemon pips. Clean the impellers regularly
as illustrated in section “Cleaning and Care”.
Decorations and ornaments on kitchen utensils are being erased.
C
Decorated glasses and decorated lustre porcelains are not suitable
for washing in the dishwasher. Manufacturers of some glassware and
porcelain tableware items do not recommend washing such kitchen
utensils in the dishwashers either.
Dishes are scratched.
C
Kitchen utensils that contains or are made of aluminum should not be
washed in dishwasher.
• Salt leakage exists. >>> Pay attention not to spill salt around the salt filling
hole while adding salt. Spilled salt can cause scratches. Make sure that the
salt reservoir lid is tightly closed after finishing the filling process. Run the
prewash programme to remove the salt that spilled inside the machine. Since
the salt granules that will remain under the lid will dissolve during prewash,
causing the lid loosen, check the lid once again at the end of the programme.
• Water hardness setting is low or salt level is insufficient >>> Measure the
hardness of the supply water appropriately and check the water hardness
setting.
Dishwasher / User manual
39 / 44
EN
Troubleshooting
• Dishes are not placed orderly in the machine. >>> When placing the glasses
and other glassware into the basket lean them not against other dishes but
the edges or racks of the basket or the glass support tines. Striking of the
glasses to each other or to other dishes due to the impact of water during
washing can cause breaks, or scratches on their surfaces.
A smear remains on glasses that resembles milk stain which can not be
removed when wiped by hand. A bluish / rainbow appearance occurs when
the glass is pointed to light.
• Excessive rinse aid is used. >>>Lower rinse aid setting. Clean the spilled
rinse aid when adding rinse aid.
• Corrosion has occurred on glass due to soft water. >>> Measure the hardness
of the supply water appropriately and check the water hardness setting. If
your supply water is soft (<5 dH), do not use salt. Choose programmes that
wash in higher temperatures (e.g. 60-65°C). You can also use glass protective
detergents that are commercially available.
Foam forms in the machine.
• Dishes are washed with hand-wash detergent by hand but not rinsed before
placing them into the machine. >>> Hand-wash detergents do not contain
antifoam. There is no need to hand-wash the dishes before placing them into
the machine. Removing the coarse soil on the dishes under tap water, with a
tissue paper or fork will be sufficient.
• Rinse aid has spilled into the machine when adding rinse aid. >>> Take care
that rinse aid is not spilled in the machine when you are filling it. Clean any
spilled rinse ait with the help of a tissue paper/towel.
• Lid of the rinse aid reservoir is left open. >>> Make sure that the lid of the
rinse aid reservoir is closed after adding rinse aid.
Kitchen utensils are broken.
• Dishes are not placed orderly in the machine. >>> Load the dishes as
described in the user manual.
• Baskets are overloaded. >>> Do not overload the baskets in excess of their
capacity.
Water remains in the dishwasher at the end of the programme.
• Filters are clogged. >>> Check if the filter system is clean. Clean the filter
system regularly as illustrated in section “Cleaning and Care”.
• Discharge hose is clogged/blocked. >>> Check the discharge hose. If
necessary, remove the discharge hose, clear the blockage and insert is as
illustrated in the user manual.
C
If you cannot eliminate the problem although you follow the instructions
in this section, consult your dealer or the Authorised Service Agent.
Never try to repair a nonfunctional product yourself.
40
Dishwasher / User manual
/44 EN
Guarantee Details
Your new Blomberg product is
guaranteed against faulty materials,
defective components or manufacturing
defects. The guarantee starts from the
date of original purchase of the product
for a period of three (3) years, unless
Beko plc (the “Manufacturer”) agrees
to extend the guarantee for the product
in writing. If you have any questions
about the guarantee on your product
(including how long it is valid), please
contact your retailer or our Call Centre
on 0333 207 9870.
This guarantee does not in any way
diminish or affect your statutory
rights in connection with the product.
This guarantee is in addition to your
statutory rights as a consumer. If you
have any questions about these rights,
please contact the retailer from which
you purchased the product. In certain
circumstances, it is possible that your
statutory rights may offer additional
or higher levels of protection than
those offered under the terms of this
guarantee.
What is covered by this guarantee?
• Repairs to the product required
as a result of faulty materials,
defective components or
manufacturing defects.
• Functional replacement parts to
repair a product.
• The costs of a Blomberg Approved
Engineer to carry out the repair.
8
Guarantee
What is not covered?
• Transit and delivery damage.
• Cabinet or appearance parts,
including but not limited to control
knobs, flaps and handles.
• Accessories and/or consumable
items including but not limited to
ice trays, scrapers, cutlery baskets,
filters and light bulbs.
• Repairs necessary as a direct or
indirect result of:
- Accidental damage, misuse or
abuse of a product.
- An attempted repair of a
product by anyone other than a
Blomberg Approved Engineer (the
“Engineer”).
- Installation or use of a product
where such installation or use fails
to meet the requirements contained
in this guarantee or the User
Instructions Booklet.
• Repairs to a product operated at
any time on commercial or non-
residential household premises
(unless we have previously agreed
to the installation environment).
This guarantee is limited to the cost
of repairing the product. To the extent
permitted by law, Beko plc (the
“Manufacturer”) does not accept and
will not be held liable for any nancial
loss incurred in connection with the
failure of any product to operate
in accordance with the expected
standards. Such nancial loss includes
but is not limited to loss arising from:
Dishwasher / User manual
41 / 44
EN
Guarantee
• Time taken off work.
• Damaged food, clothing or other
items.
• Meals taken at restaurants or from
takeaways.
• General compensation for
inconvenience.
Important Notes
• Your product is designed and built
for domestic household use only.
• The guarantee will automatically
be void if the product is installed
or is used in commercial or non-
residential domestic household
premises, unless we have
previously agreed to the installation
environment.
• The product must be correctly
installed, located and operated in
accordance with the instructions
contained in the User Instructions
Booklet provided with your product.
• Professional installation
by a qualified Electrical
Domestic Appliance Installer is
recommended for all Washing
Machines, Dishwashers and
Electric Cookers (as incorrect
installation may result in you
having to pay for the cost of
repairing the product).
• Gas Cookers must be
professionally installed by a Gas
Safe (or Gas Networks Ireland for
Republic of Ireland) registered gas
installer.
• This guarantee is given in respect
of products purchased and used
within the United Kingdom and the
Republic of Ireland.
• This guarantee is effective from the
initial date of purchase of a new
product from an authorised retailer
and will be void if the product is
resold.
• This guarantee does not apply to
graded sales (where the product is
purchased as a “second”).
• Possession of a copy of these
terms and conditions does not
necessarily mean that a product
has the benefit of this guarantee.
If you have any questions, please
call our Call Centre on the number
set out above.
• The Manufacturer reserves the
right to terminate the guarantee
if its staff or representatives are
subjected to physical or verbal
abuse in the course of carrying out
their duties.
• Optional extras, where available
(i.e. extendable feet) are supplied
on a chargeable basis only.
Does Blomberg offer replacements?
This is a repair-only guarantee. On
occasion the Manufacturer may
at its sole discretion, replace your
product with a new product instead
of carrying out a repair. Where a
replacement is offered, this would
normally be an identical model, but
when this is not possible, a model of
similar specication will be provided.
The Manufacturer will cover the costs
and arrange for the delivery of the
new product and for the return of
the old product. Any costs related to
disconnecting the faulty product and
installing the replacement product
42
Dishwasher / User manual
/44 EN
Guarantee
will not be borne by the Manufacturer
unless previously agreed to in writing.
The original guarantee will continue to
apply to the replacement product; the
new product will not come with a new
guarantee.
When will the repair take place?
Our engineers work Monday to Friday
9.00am to 5.00pm. Appointments
outside these hours may be possible at
the sole discretion of the Manufacturer
but cannot be guaranteed. Whilst our
Engineers will endeavour to minimize
inconvenience and to meet requests
for specic timed appointments,
this cannot be guaranteed. The
Manufacturer will not be liable for
delays or if it is unable to carry
out a repair because a convenient
appointment cannot be arranged.
Will there be any charge for the
repairs?
It is your responsibility to provide
evidence to the Engineer that your
product is covered by this guarantee
with a proof of purchase. The
Manufacturer reserves the right to
charge for the reasonable cost of any
service call if:
• You cannot provide evidence that
your product is covered by this
guarantee.
• Where a service call has been
made and the engineer finds that
there is no fault with your product.
• That your product has not been
installed or operated in accordance
with the User Instructions Booklet.
• That the fault was caused by
something other than faulty
materials, defective components or
manufacturing defects.
• For missed appointments.
Payment of these costs are due
immediately upon the Engineer
providing you with an invoice. If you
fail to pay the costs for the service call
in a timely manner, the Manufacturer
reserves the right to terminate the
guarantee.
If you are a resident of the United
Kingdom, this guarantee will be
governed by English law and subject
to the English Courts, save where
you live in another part of the United
Kingdom, in which case the law and
courts of that location will apply.
15 9558 0100_AC_BLOMBERG_D1_EN/ 29-03-18.(10:10)
If you are resident in the Republic of Ireland, this guarantee will be governed by
Irish law and the Irish courts will have jurisdiction.
HOW TO OBTAIN SERVICE
Please keep your purchase receipt or other proof of purchase in a safe place; you
will need to have it should the product require attention under guarantee.
It will be useful if you complete the details below, as it will help us assist you
when requesting service. (The model number is printed on the Instruction Booklet
and the serial number is printed on the Rating Label afxed to the appliance).
Recording of these details alone will not count as proof of purchase. A valid proof
of purchase is required for under guarantee service.
The area around the product must be easily accessible to the Engineer without
the need for cabinets or furniture being removed.
It is your responsibility to ensure our Engineers have a clean and safe
environment to carry out any repairs.
………...……………………………………………………………………………………
Model No:
Serial No:
Retailer:
Date of purchase:
…………………………………………….………………………………………………..
For service under guarantee simply telephone the appropriate number
below
UK Mainland & Northern Ireland: 0333 207 9870.
Republic of Ireland: 01 691 0160
Register your appliance at www.blomberguk.com/register
Before requesting service please check the troubleshooting guide in the
Operating Instructions as a charge may be levied where no fault is found even
though your product may still be under guarantee.
Service once the manufacturers guarantee has expired
If you have purchased an extended guarantee please refer to the instructions
contained within the extended guarantee agreement document, otherwise please
call the appropriate number above where service can be obtained at a charge.
Should you experience any difculty in obtaining service contact the Blomberg
Customer Helpline on Tel: 0333 207 9870 or e-mail: customerservice@support.
Blomberguk.com
……………………………………………….................................................................
This guarantee is provided by Beko plc. Beko House, 1 Greenhill Crescent,
Watford, Herts, WD18 8QU. Beko plc is registered in England and Wales with
company registration number 02415578.
