en Instruction Manual and Installation Instructions
Washing machine
Your new washing machine
Display rules
: Warning!
Caution!
Note/tip
1. 2. 3. / a) b) c)
Contentsen Instruction Manual and Installation Instructions
8 Intended use 4
( Safety instructions 5
7 Environmental protection 11
5 Positioning and connecting 11
* Familiarising yourself with your appliance 19
Z Laundry 21
C Detergent 23
0 Programme default settings 24
\ Additional programme settings 25
1 Operating the appliance 26
H Sensors 30
M Setting the signal 31
2 Cleaning and maintenance 31
3 Faults and what to do about them. 34
4 After-sales service 37
J Technical data 38
r Aqua-Stop warranty 38
8 Intended use
Intended use
( Safety instructions
Safety instructions
Children/people/pets
: Warning
Risk of death!
: Warning
Risk of death!
: Warning
Risk of suffocation!
: Warning
Risk of poisoning!
: Warning
Risk of burns!
: Warning
Eye/skin irritation!
Installation
: Warning
Risk of electric shock/fire/ material damage/damage to the appliance!
: Warning
Risk of electric shock/fire/ material damage/damage to the appliance!
: Warning
Risk of fire/material damage/ damage to the appliance!
: Warning
Risk of injury/material damage/damage to the appliance!
: Warning
Risk of injury!
Caution!
Material damage/damage to the appliance
Operation
: Warning
Risk of explosions/fire!
: Warning
Risk of poisoning!
: Warning
Risk of injury!
: Warning
Risk of scalding!
: Warning
Eye/skin irritation!
Caution!
Material damage/damage to the appliance
Cleaning/Maintenance
: Warning
Risk of death!
: Warning
Risk of poisoning!
: Warning
Risk of electric shock/material damage/damage to the appliance!
: Warning
Risk of injury/material damage/damage to the appliance!
Caution!
Material damage/damage to the appliance
7 Environmental protection
Environmental protection
Packaging/used appliance
Tips on economical use
5 Positioning and connecting
Positioning and connecting

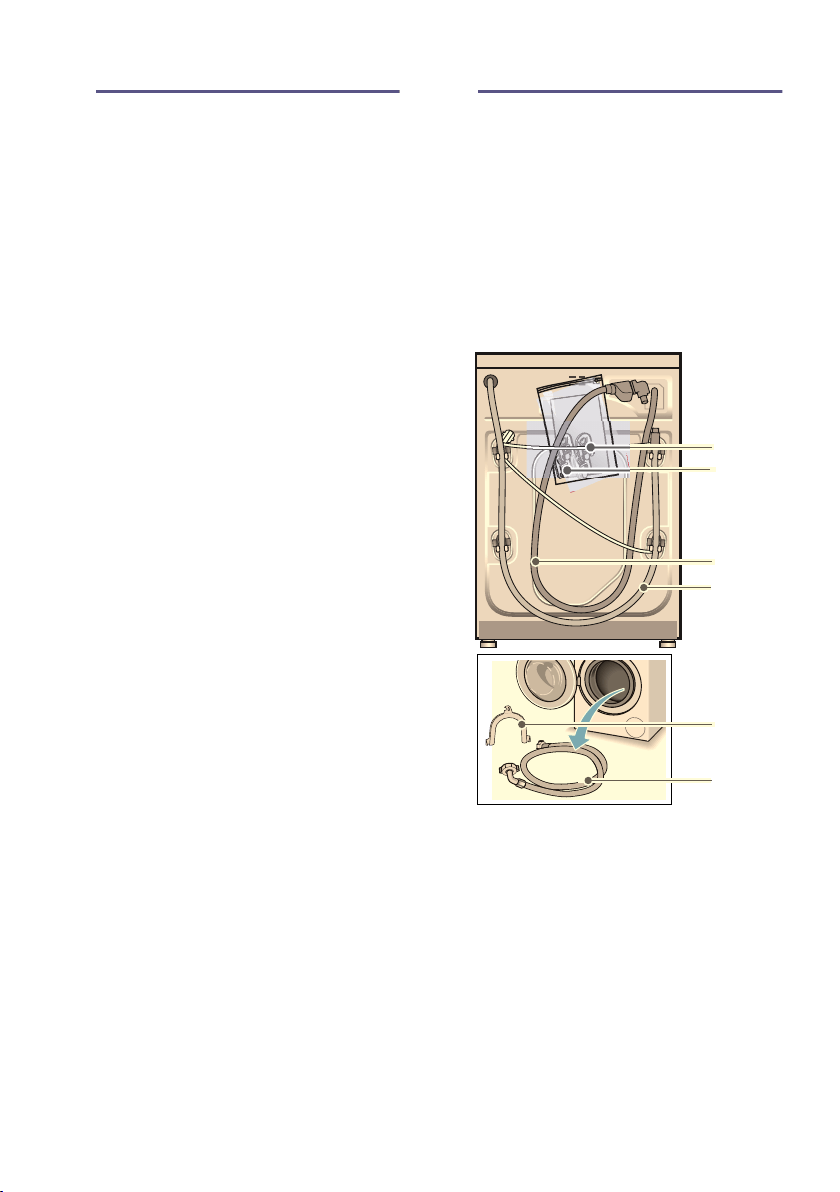

Included with the appliance
Note:
Safety instructions
: Warning
Risk of injury!
Caution!
Damage to the appliance
Caution!
Water damage
Notes
Installation surface
Note:
Installation on a base or a wooden joist floor
Caution!
Damage to the appliance
Note:
Removing the transport locks
Caution!
Damage to the appliance
1. Take the hoses out of the holders.

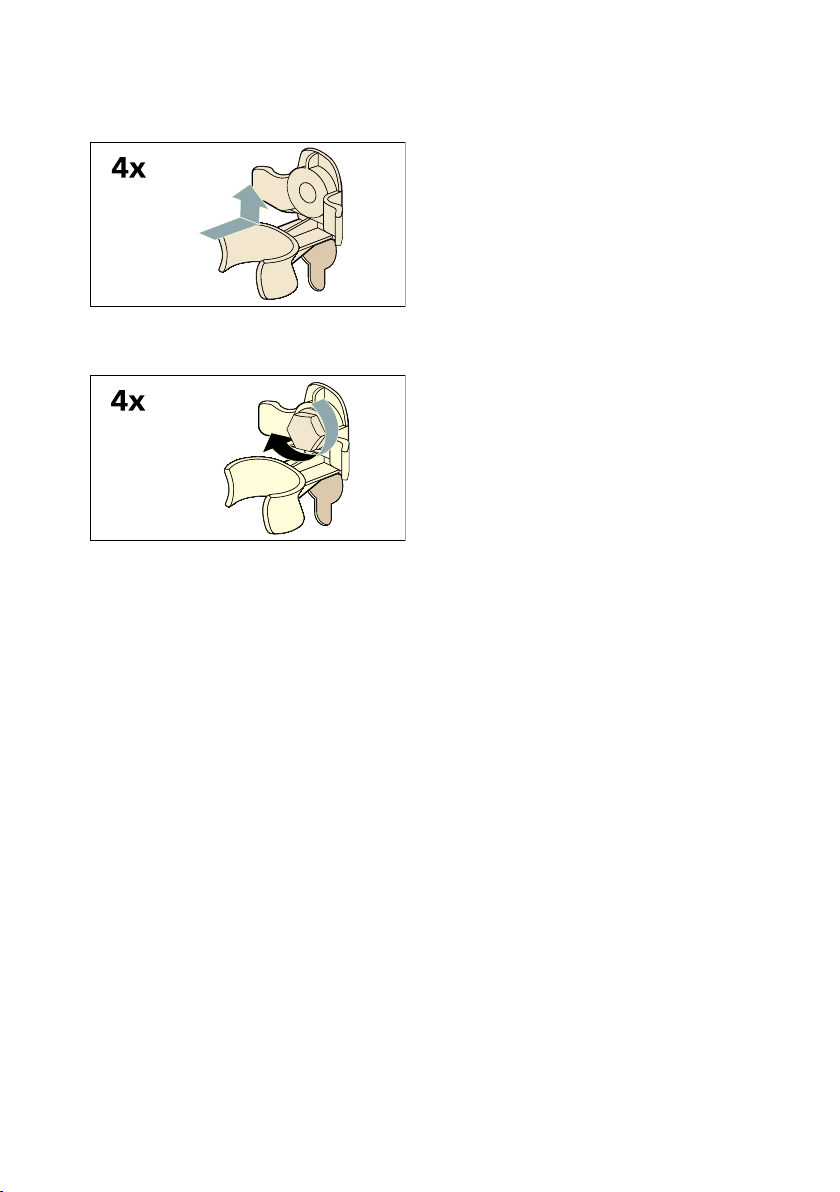

2. Use a WAF13 spanner to undo and remove all four transport lock bolts.
3. Remove the sleeves. Remove the mains cable from the holders.
4. Put on the cover caps.
5. Press the cover cap down firmly at the top, while at the same time pushing it downwards until you hear the hooks clicking into place.

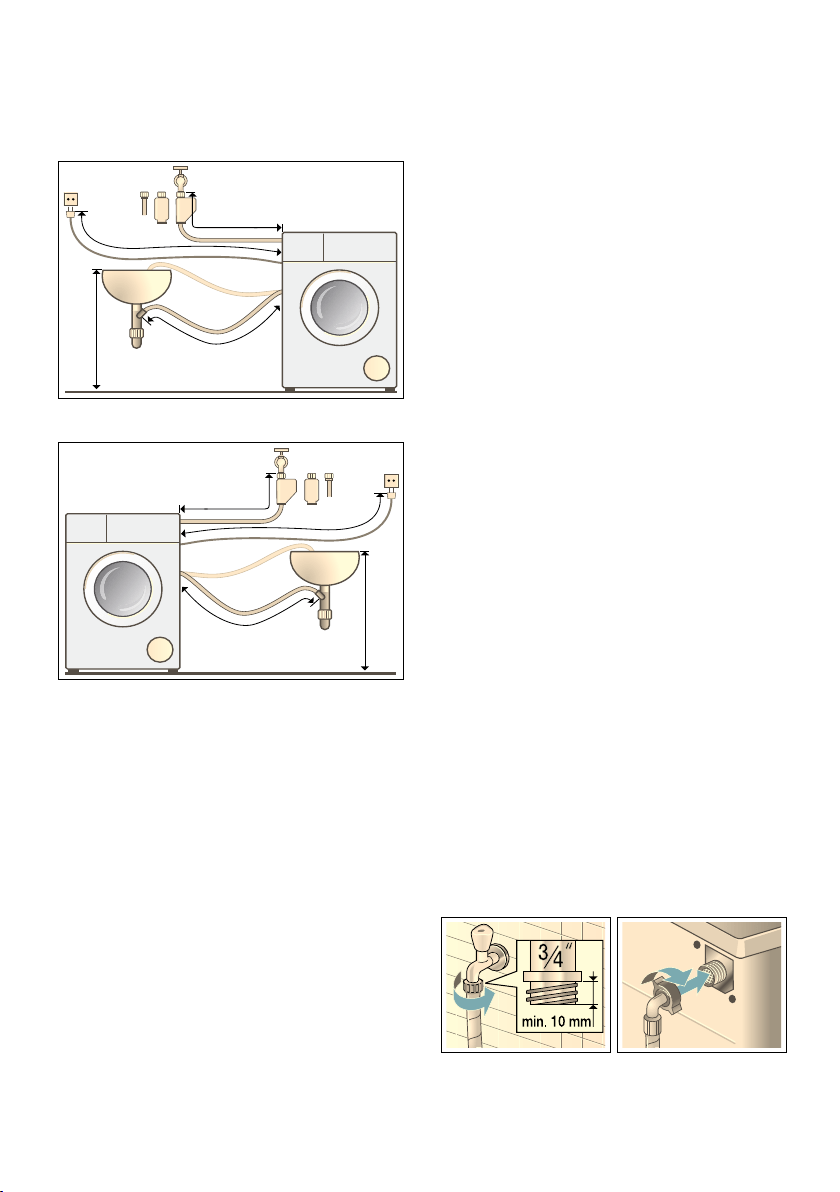

Hose and cable lengths
Tip:
Water inlet
: Warning
Danger of death!
Notes
Note:
Water outlet
Caution!
Water damage
Note:
: Warning
Risk of scalding!
Caution!
Damage to the appliance/fabrics

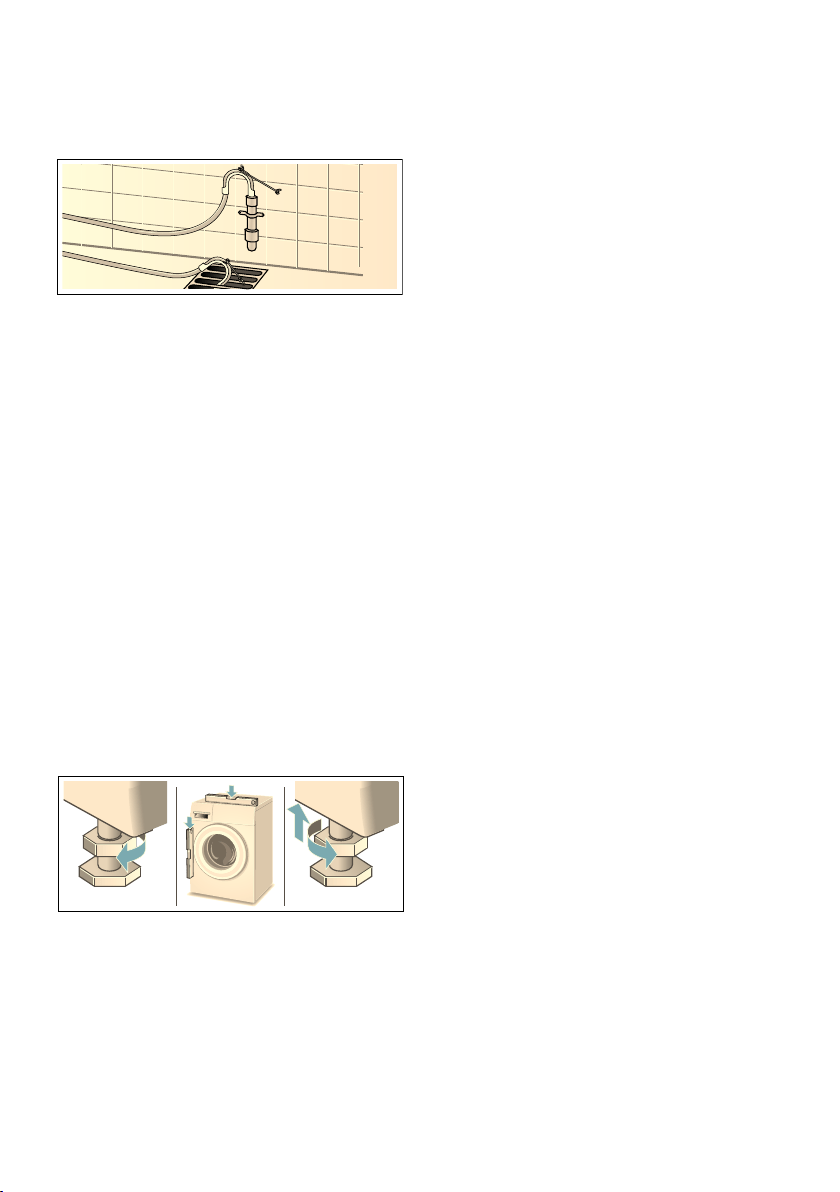

Levelling
1. Loosen the lock nuts using a wrench, by turning it in a clockwise direction.
2. Check the alignment of the washing machine with a spirit level, and adjust it if necessary. Change the height by turning the appliance feet.
3. Tighten the lock nut against the housing.
Electrical connection
: Warning
Danger of death!
Notes
Before washing for the first time
Notes
1. Check the machine.
2. Connect the mains plug.
3. Turn on the tap.

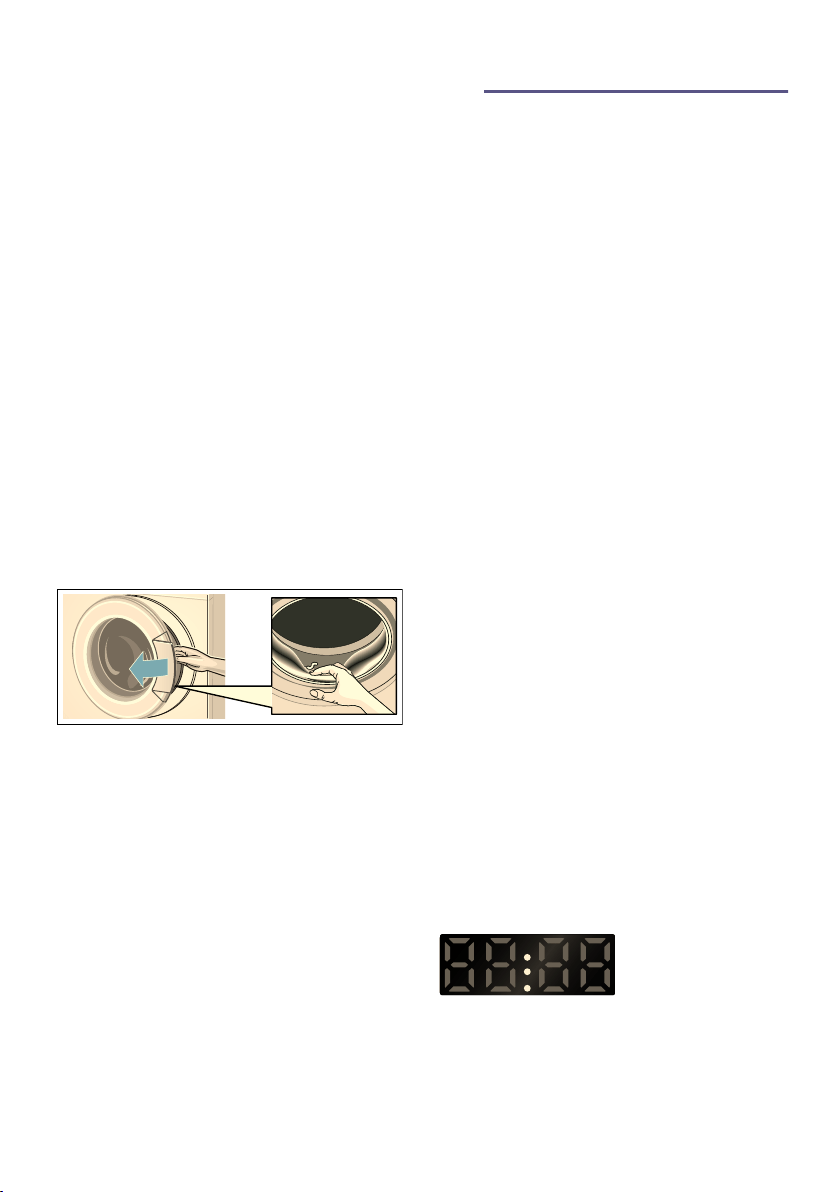

4. Close the door (do not load any laundry).
5. Depending on the model, set the Drum clean 90 °C or Cottons 90 °C programme.
6. Open the detergent drawer.
7. Pour approximately 1 litre of water into compartment II.
8. Pour standard detergent into compartment II.
Note:
9. Close the detergent drawer.
10. Press the Start button.
11. When the programme ends, switch off the appliance.
Transportation
Preparatory work:
1. Turn off the tap.
2. Reduce the water pressure in the supply hose: ~ Page 33; Cleaning and maintenance â filter in the water supply blocked
3. Disconnect the washing machine from the mains.
4. Drain the remaining water: ~ Page 32; cleaning and maintenance â the drain pump is blocked, emergency draining
5. Remove the hoses.
Attach the transport locks:

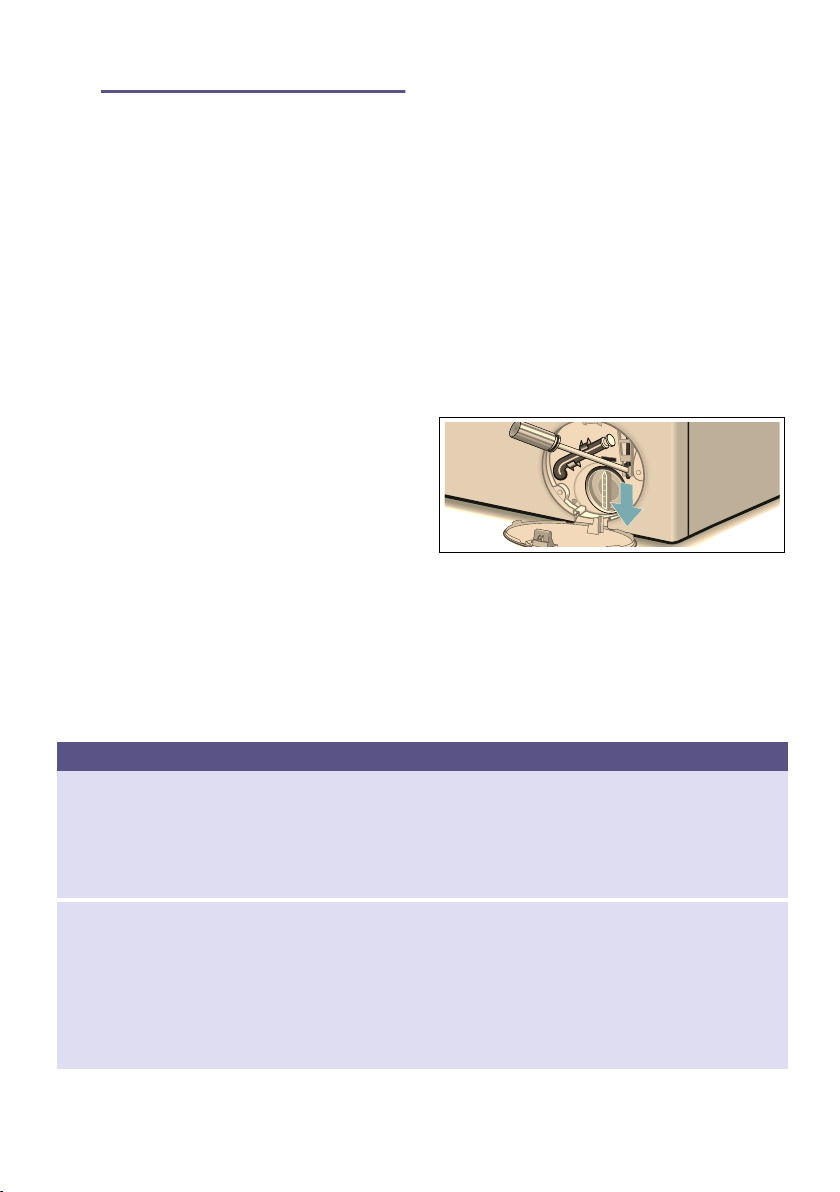

1. Use a screwdriver to remove the covers and then keep them in a safe place.
2. Insert all four sleeves.
3. Insert the transport lock bolts and tighten them with a WAF13 spanner.
Notes
* Familiarising yourself with your appliance
Familiarising yourself with your appliance
Washing machine

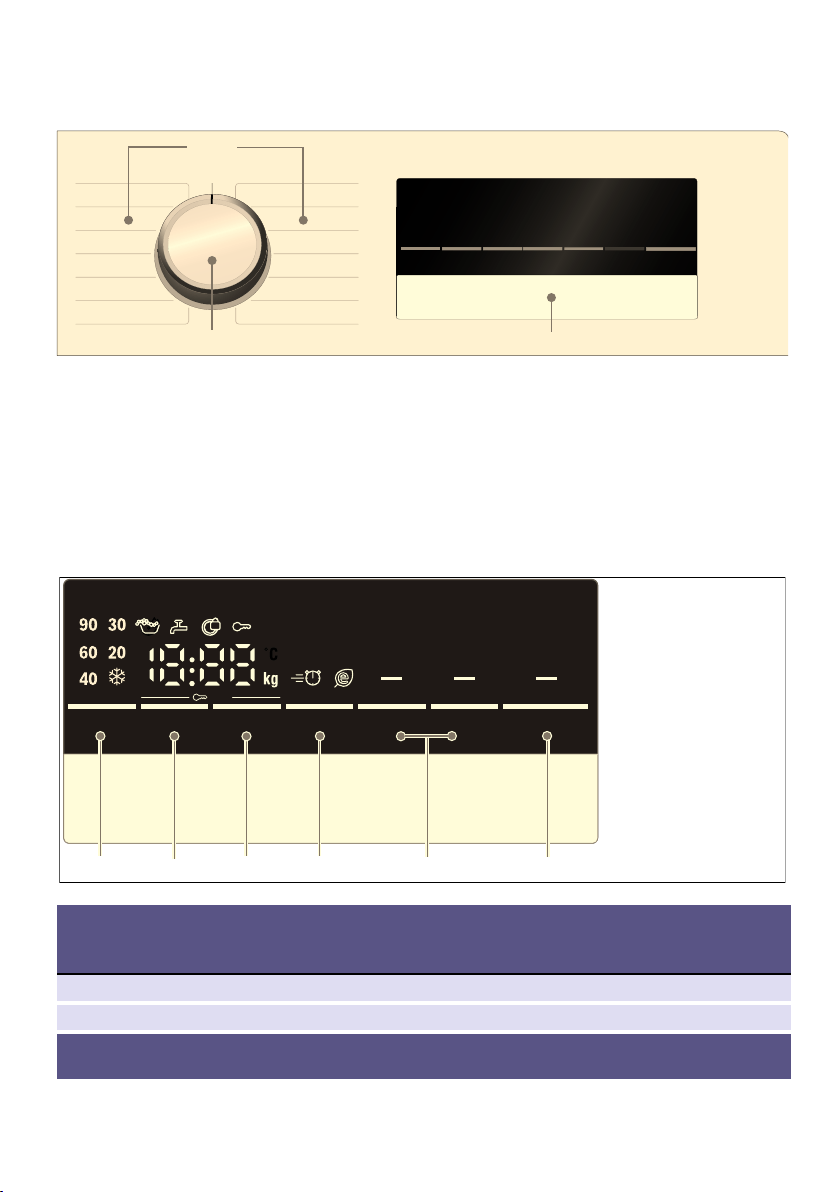

Control panel
Display panel
Buttons
Indicators and symbols for setting values
Setting
Other indicators and symbols
Information on:
Z Laundry
Laundry
Prepare the laundry
Caution!
Damage to the appliance/laundry
Sorting laundry
Note:
Note:
Starching
Note:
Dyeing/bleaching
Soaking
1. Pour soaking agent/detergent into compartment II in accordance with the manufacturer's instructions.
2. Select the desired programme.
3. Press the Start button to start the programme.
4. After approx. ten minutes, press the Start button to pause the programme.
5. After the desired soaking time, press the Start button again to continue or change the programme.
Notes
C Detergent
Detergent
Correct selection of detergent
Saving energy and detergent
Saving
Soiling/note
Note:
0 Programme default settings
Programme default settings
Note:
Temperature
Spin speed
Ready in
1. Select a program.
2. Press the Ready in button repeatedly until the required number of hours is displayed.
3. Press the Start button.
Note:
1. Press the Start button.
2. Use the Ready in button to change the number of hours.
3. Press the Start button.
\ Additional programme settings
Additional programme settings
Speed Eco Perfect
Note:
Easy-Iron
Note:
Water&Rinse+
Prewash
Note:
1 Operating the appliance
Operating the appliance
Preparing the washing machine
Note:
1. Connect the mains plug.
2. Turn on the water tap.
3. Open the door.
4. Check that the drum is completely drained. Drain if necessary.
Select programme/switch on the appliance
Note:
Change the programme default settings
Select additional programme settings
Placing laundry into the drum
: Warning
Danger of death!
Notes
1. Unfold presorted laundry items and place them in the drum.
2. Make sure that no items of laundry are trapped between the door and the rubber seal, and close the door.
Measure and add detergent and care products
Caution!
Damage to the appliance
: Warning
Eye/skin irritation!
Note:
1. Pull out the detergent drawer as far as possible.
2. Add detergent and/or care products.
3. Close the detergent drawer.
1. Pull out the detergent drawer.Press down the insert and fully remove the drawer.
2. Slide the measuring aid forwards, fold it down and click it into place.
3. Reinsert the drawer.
Note:
Start the programme
Note:
Childlock
Note:
Note:
Adding laundry
Notes
Changing the programme
1. Press the Start button.
2. Select a different program.
3. Press the Start button.This starts the new program from the beginning.
Cancel the programme
1. Press the Start button.
2. To cool down laundry: Select Rinse.
3. Press the Start button.
1. Press the Start button.
2. Select Spin.
3. Press the Start button.
Programme end during rinse hold
Programme end
Removing laundry/switching off the appliance
1. Open the door and remove the laundry.
2. Turn the program selector to Off . The appliance is switched off.
3. Turn off the tap.
Note:
Notes
H Sensors
Sensors
Automatic load sensing
Unbalanced load detection system
Note:
VoltCheck
Note:
M Setting the signal
Setting the signal
Activating setting mode
1. Set the programme selector to the Cottons programme at position 1. The washing machine is switched on.
2. Press the Start button while turning the programme selector clockwise to position 2. Release the button.
2 Cleaning and maintenance
Cleaning and maintenance
: Warning
Danger of death!
: Warning
Risk of poisoning!
Caution!
Damage to the appliance
Notes
Machine housing/control panel
Drum
Descaling
Detergent drawer and housing

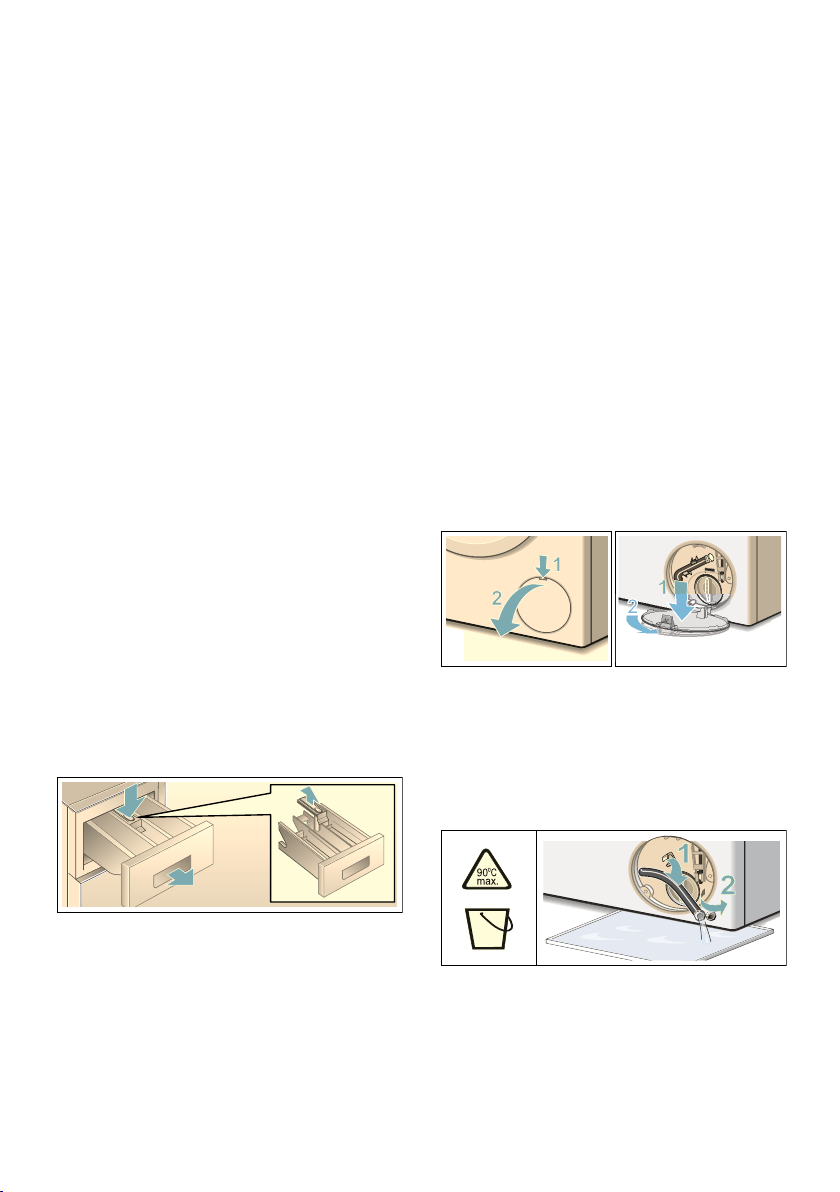

1. Pull out the detergent drawer. Press down the insert and fully remove the drawer.
2. To remove the insert: Push the insert upwards from below with your finger.
3. Clean the detergent dispenser tray and insert with water and a brush, and dry it. Clean the inside of the housing as well.
4. Fit the insert and lock it in place (push the cylinder onto the guide pin).
5. Push in the detergent drawer.
Note:
The drain pump is blocked, emergency draining
: Warning
Risk of scalding!
1. Turn off the water tap so that no more water can flow in and has to be drained via the drain pump.
2. Switch off the appliance. Disconnect the mains plug.
3. Open and remove the service flap.
4. Take the drain hose out of the retainer.
5. Carefully unscrew the pump cover, residual water may leak out.
6. Place the service flap back on, lock it into place, and close it.
Note:
The drain hose at the siphon is blocked
1. Switch off the appliance. Disconnect the mains plug.
2. Loosen the hose clamp. Carefully remove the drain hose, residual water may leak out.
3. Clean the drainage hose and siphon connecting piece.
4. Reattach the drainage hose and secure the connection using the hose clamp.
Filter in the water supply blocked
1. Turn off the tap.
2. Select any program (except Rinse// Spin/Empty).
3. Press the Start button.Allow the program to run for approximately 40 seconds.
4. Turn the program selector to Off. Pull out the mains plug.
5. Clean the filter on the tap:
6. For standard and Aqua-Secure models, clean the filter on the rear of the appliance:
7. Connect the hose and check for leaks.
3 Faults and what to do about them.
Faults and what to do about them.
Emergency release
: Warning
Risk of scalding!
: Warning
Risk of injury!
Caution!
Water damage
1. Switch off the appliance. Disconnect the mains plug.
2. Drain the detergent solution.
3. Pull the emergency release downwards with a tool and release.
Information on the display panel
Symbol
Cause/remedy
Faults and what to do about them.
Faults
Cause/remedy
Note:
4 After-sales service
After-sales service
J Technical data
Technical data
r Aqua-Stop warranty
Aqua-Stop warranty
1. If water damage is caused due to a fault in our Aqua-Stop system, we will compensate domestic customers for the damage caused.
2. The liability guarantee is valid for the service life of the appliance.
3. It is a prerequisite of all warranty claims that the appliance with Aqua- Stop must have been installed and connected correctly in accordance with our instructions; this also includes a correctly fitted Aqua-Stop extension (genuine accessories).
4. Appliances with Aqua-Stop do not need to be supervised during operation, nor secured afterwards by turning off the tap.
*9001316684*
Thank you for buying a Bosch Home Appliance!
Looking for help? You´ll find it here.
Page 1/40
Page 1
Page 2
Page 3
Page 4
Page 5
Page 6
Page 7
Page 8
Page 9
Page 10
Page 11
Page 12
Page 13
Page 14
Page 15
Page 16
Page 17
Page 18
Page 19
Page 20
Page 21
Page 22
Page 23
Page 24
Page 25
Page 26
Page 27
Page 28
Page 29
Page 30
Page 31
Page 32
Page 33
Page 34
Page 35
Page 36
Page 37
Page 38
Page 39
Page 40
Contents
Table of Contents
Search
Previous
Next
Bookmarks
3FHJTUFS
\RXU
QHZGH
YLFHRQ
0\%RVFKQR
ZDQG
JHWIU
HHEHQHILWV
CPTDIIPNFDPN
XFMDPNF
en
Instruction Manual and Installation Instructions
Washing machine
WAK ...
Loading ...
Loading ...
Loading ...
File type: PDF
File name: 91827059_wak24260eg.pdf
File size: 3.18 MB
File Language: English
Pages: 40
Author: Bosch
File created: 2019-03-25
Published:
2023-10-23
Updated: 2023-10-23
Download File
Other documents for Bosch WAK24260EG
The following documents are available:
User Manual
Use and Care Manuals - (English)
Read Online
|
Download pdf
Photos
Photos:
View Photos
Specifications
Brand:
Bosch
Model: WAK24260EG
Category:
Washers & Dryers
View in the file:
Full Specifications
See other models:
SME46MX23E/60
MBS133BR0B/25
KAN56V10AU/05
HRS578BS6B/38
HGK90VQ50M/04
Related Products
Bosch WAK24260GC/51
Bosch WAK24160AU
Bosch WAK20060ID/02
Bosch WAK20060ID/03
Bosch WAV28K42
Bosch WAJ24060
Bosch WAK282E1
Bosch WAK28248
Bosch WAWH8660GB
Bosch WAW28460AU
Bosch WAT24261AU
Bosch WAT24220AU
Bosch WAK24162AU
Bosch WAS24460UC
Bosch WAP24202UC
Table of Contents
×
en Instruction Manual and Installation Instructions
1
Washing machine
1
Your new washing machine
2
Display rules
2
: Warning!
2
Caution!
2
Note/tip
2
1. 2. 3. / a) b) c)
2
Contentsen Instruction Manual and Installation Instructions
3
8 Intended use 4
3
( Safety instructions 5
3
7 Environmental protection 11
3
5 Positioning and connecting 11
3
* Familiarising yourself with your appliance 19
3
Z Laundry 21
3
C Detergent 23
3
0 Programme default settings 24
3
\ Additional programme settings 25
3
1 Operating the appliance 26
3
H Sensors 30
3
M Setting the signal 31
3
2 Cleaning and maintenance 31
3
3 Faults and what to do about them. 34
4
4 After-sales service 37
4
J Technical data 38
4
r Aqua-Stop warranty 38
4
8 Intended use
4
Intended use
4
( Safety instructions
5
Safety instructions
5
Children/people/pets
5
: Warning
5
Risk of death!
5
: Warning
5
Risk of death!
5
: Warning
5
Risk of suffocation!
5
: Warning
6
Risk of poisoning!
6
: Warning
6
Risk of burns!
6
: Warning
6
Eye/skin irritation!
6
Installation
6
: Warning
6
Risk of electric shock/fire/ material damage/damage to the appliance!
6
: Warning
7
Risk of electric shock/fire/ material damage/damage to the appliance!
7
: Warning
7
Risk of fire/material damage/ damage to the appliance!
7
: Warning
7
Risk of injury/material damage/damage to the appliance!
7
: Warning
7
Risk of injury!
7
Caution!
8
Material damage/damage to the appliance
8
Operation
8
: Warning
8
Risk of explosions/fire!
8
: Warning
8
Risk of poisoning!
8
: Warning
9
Risk of injury!
9
: Warning
9
Risk of scalding!
9
: Warning
9
Eye/skin irritation!
9
Caution!
9
Material damage/damage to the appliance
9
Cleaning/Maintenance
10
: Warning
10
Risk of death!
10
: Warning
10
Risk of poisoning!
10
: Warning
10
Risk of electric shock/material damage/damage to the appliance!
10
: Warning
10
Risk of injury/material damage/damage to the appliance!
10
Caution!
10
Material damage/damage to the appliance
10
7 Environmental protection
11
Environmental protection
11
Packaging/used appliance
11
Tips on economical use
11
5 Positioning and connecting
11
Positioning and connecting
11
Included with the appliance
11
Note:
11
Safety instructions
12
: Warning
12
Risk of injury!
12
Caution!
12
Damage to the appliance
12
Caution!
12
Water damage
12
Notes
12
Installation surface
12
Note:
12
Installation on a base or a wooden joist floor
12
Caution!
12
Damage to the appliance
12
Note:
12
Removing the transport locks
13
Caution!
13
Damage to the appliance
13
1. Take the hoses out of the holders.
13
2. Use a WAF13 spanner to undo and remove all four transport lock bolts.
13
3. Remove the sleeves. Remove the mains cable from the holders.
13
4. Put on the cover caps.
13
5. Press the cover cap down firmly at the top, while at the same time pushing it downwards until you hear the hooks clicking into place.
13
Hose and cable lengths
14
Tip:
14
Water inlet
14
: Warning
14
Danger of death!
14
Notes
14
Note:
15
Water outlet
15
Caution!
15
Water damage
15
Note:
15
: Warning
15
Risk of scalding!
15
Caution!
15
Damage to the appliance/fabrics
15
Levelling
16
1. Loosen the lock nuts using a wrench, by turning it in a clockwise direction.
16
2. Check the alignment of the washing machine with a spirit level, and adjust it if necessary. Change the height by turning the appliance feet.
16
3. Tighten the lock nut against the housing.
16
Electrical connection
16
: Warning
16
Danger of death!
16
Notes
16
Before washing for the first time
17
Notes
17
1. Check the machine.
17
2. Connect the mains plug.
17
3. Turn on the tap.
17
4. Close the door (do not load any laundry).
17
5. Depending on the model, set the Drum clean 90 °C or Cottons 90 °C programme.
17
6. Open the detergent drawer.
17
7. Pour approximately 1 litre of water into compartment II.
17
8. Pour standard detergent into compartment II.
17
Note:
17
9. Close the detergent drawer.
17
10. Press the Start button.
17
11. When the programme ends, switch off the appliance.
17
Transportation
17
Preparatory work:
17
1. Turn off the tap.
17
2. Reduce the water pressure in the supply hose: ~ Page 33; Cleaning and maintenance â filter in the water supply blocked
17
3. Disconnect the washing machine from the mains.
17
4. Drain the remaining water: ~ Page 32; cleaning and maintenance â the drain pump is blocked, emergency draining
17
5. Remove the hoses.
17
Attach the transport locks:
17
1. Use a screwdriver to remove the covers and then keep them in a safe place.
17
2. Insert all four sleeves.
17
3. Insert the transport lock bolts and tighten them with a WAF13 spanner.
18
Notes
18
* Familiarising yourself with your appliance
19
Familiarising yourself with your appliance
19
Washing machine
19
Control panel
20
Display panel
20
Buttons
20
Indicators and symbols for setting values
20
Setting
20
Other indicators and symbols
21
Information on:
21
Z Laundry
21
Laundry
21
Prepare the laundry
21
Caution!
21
Damage to the appliance/laundry
21
Sorting laundry
22
Note:
22
Note:
22
Starching
22
Note:
22
Dyeing/bleaching
22
Soaking
22
1. Pour soaking agent/detergent into compartment II in accordance with the manufacturer's instructions.
22
2. Select the desired programme.
22
3. Press the Start button to start the programme.
22
4. After approx. ten minutes, press the Start button to pause the programme.
22
5. After the desired soaking time, press the Start button again to continue or change the programme.
22
Notes
22
C Detergent
23
Detergent
23
Correct selection of detergent
23
Saving energy and detergent
23
Saving
23
Soiling/note
23
Note:
23
0 Programme default settings
24
Programme default settings
24
Note:
24
Temperature
24
Spin speed
24
Ready in
25
1. Select a program.
25
2. Press the Ready in button repeatedly until the required number of hours is displayed.
25
3. Press the Start button.
25
Note:
25
1. Press the Start button.
25
2. Use the Ready in button to change the number of hours.
25
3. Press the Start button.
25
\ Additional programme settings
25
Additional programme settings
25
Speed Eco Perfect
25
Note:
25
Easy-Iron
26
Note:
26
Water&Rinse+
26
Prewash
26
Note:
26
1 Operating the appliance
26
Operating the appliance
26
Preparing the washing machine
26
Note:
26
1. Connect the mains plug.
26
2. Turn on the water tap.
26
3. Open the door.
26
4. Check that the drum is completely drained. Drain if necessary.
26
Select programme/switch on the appliance
26
Note:
26
Change the programme default settings
27
Select additional programme settings
27
Placing laundry into the drum
27
: Warning
27
Danger of death!
27
Notes
27
1. Unfold presorted laundry items and place them in the drum.
27
2. Make sure that no items of laundry are trapped between the door and the rubber seal, and close the door.
27
Measure and add detergent and care products
27
Caution!
27
Damage to the appliance
27
: Warning
28
Eye/skin irritation!
28
Note:
28
1. Pull out the detergent drawer as far as possible.
28
2. Add detergent and/or care products.
28
3. Close the detergent drawer.
28
1. Pull out the detergent drawer.Press down the insert and fully remove the drawer.
28
2. Slide the measuring aid forwards, fold it down and click it into place.
28
3. Reinsert the drawer.
28
Note:
28
Start the programme
28
Note:
28
Childlock
28
Note:
29
Note:
29
Adding laundry
29
Notes
29
Changing the programme
29
1. Press the Start button.
29
2. Select a different program.
29
3. Press the Start button.This starts the new program from the beginning.
29
Cancel the programme
29
1. Press the Start button.
29
2. To cool down laundry: Select Rinse.
29
3. Press the Start button.
29
1. Press the Start button.
29
2. Select Spin.
29
3. Press the Start button.
29
Programme end during rinse hold
29
Programme end
30
Removing laundry/switching off the appliance
30
1. Open the door and remove the laundry.
30
2. Turn the program selector to Off . The appliance is switched off.
30
3. Turn off the tap.
30
Note:
30
Notes
30
H Sensors
30
Sensors
30
Automatic load sensing
30
Unbalanced load detection system
30
Note:
30
VoltCheck
30
Note:
30
M Setting the signal
31
Setting the signal
31
Activating setting mode
31
1. Set the programme selector to the Cottons programme at position 1. The washing machine is switched on.
31
2. Press the Start button while turning the programme selector clockwise to position 2. Release the button.
31
2 Cleaning and maintenance
31
Cleaning and maintenance
31
: Warning
31
Danger of death!
31
: Warning
31
Risk of poisoning!
31
Caution!
31
Damage to the appliance
31
Notes
31
Machine housing/control panel
31
Drum
32
Descaling
32
Detergent drawer and housing
32
1. Pull out the detergent drawer. Press down the insert and fully remove the drawer.
32
2. To remove the insert: Push the insert upwards from below with your finger.
32
3. Clean the detergent dispenser tray and insert with water and a brush, and dry it. Clean the inside of the housing as well.
32
4. Fit the insert and lock it in place (push the cylinder onto the guide pin).
32
5. Push in the detergent drawer.
32
Note:
32
The drain pump is blocked, emergency draining
32
: Warning
32
Risk of scalding!
32
1. Turn off the water tap so that no more water can flow in and has to be drained via the drain pump.
32
2. Switch off the appliance. Disconnect the mains plug.
32
3. Open and remove the service flap.
32
4. Take the drain hose out of the retainer.
32
5. Carefully unscrew the pump cover, residual water may leak out.
32
6. Place the service flap back on, lock it into place, and close it.
33
Note:
33
The drain hose at the siphon is blocked
33
1. Switch off the appliance. Disconnect the mains plug.
33
2. Loosen the hose clamp. Carefully remove the drain hose, residual water may leak out.
33
3. Clean the drainage hose and siphon connecting piece.
33
4. Reattach the drainage hose and secure the connection using the hose clamp.
33
Filter in the water supply blocked
33
1. Turn off the tap.
33
2. Select any program (except Rinse// Spin/Empty).
33
3. Press the Start button.Allow the program to run for approximately 40 seconds.
33
4. Turn the program selector to Off. Pull out the mains plug.
33
5. Clean the filter on the tap:
33
6. For standard and Aqua-Secure models, clean the filter on the rear of the appliance:
33
7. Connect the hose and check for leaks.
33
3 Faults and what to do about them.
34
Faults and what to do about them.
34
Emergency release
34
: Warning
34
Risk of scalding!
34
: Warning
34
Risk of injury!
34
Caution!
34
Water damage
34
1. Switch off the appliance. Disconnect the mains plug.
34
2. Drain the detergent solution.
34
3. Pull the emergency release downwards with a tool and release.
34
Information on the display panel
34
Symbol
34
Cause/remedy
34
Faults and what to do about them.
35
Faults
35
Cause/remedy
35
Note:
36
4 After-sales service
37
After-sales service
37
J Technical data
38
Technical data
38
r Aqua-Stop warranty
38
Aqua-Stop warranty
38
1. If water damage is caused due to a fault in our Aqua-Stop system, we will compensate domestic customers for the damage caused.
38
2. The liability guarantee is valid for the service life of the appliance.
38
3. It is a prerequisite of all warranty claims that the appliance with Aqua- Stop must have been installed and connected correctly in accordance with our instructions; this also includes a correctly fitted Aqua-Stop extension (genuine accessories).
38
4. Appliances with Aqua-Stop do not need to be supervised during operation, nor secured afterwards by turning off the tap.
38
*9001316684*
40
Thank you for buying a Bosch Home Appliance!
40
Looking for help? You´ll find it here.
40
Search:
×
Search
