User Guide

English ( 2 – 48 )

Appendix

English ( 49 - 52 )

User Guide (English)

Introduction

Box Contents

Oxygen Pro Mini

USB Cable

Software Download Card

Quickstart Guide

Safety & Warranty Manual

Support

For the latest information about this product (system requirements, compatibility information,

etc.) and product registration, visit m-audio.com.

For additional product support, visit m-audio.com/support.

Setup

Connection

To start using your Oxygen Pro Mini keyboard, you need to connect your equipment, get your

software properly configured, and then set the keyboard’s operation Mode.

To connect your Oxygen Pro Mini keyboard to your computer, use the included USB

cable. Plug the USB-B end of the cable into the keyboard and the USB-A end of the cable into

your computer (or into a USB hub connected to your computer).

Note: In addition to sending data, the USB cable powers the keyboard. If you will be

connecting your Oxygen Pro Mini keyboard to a USB hub that has other devices connected to

it, then we recommend using a powered USB hub.

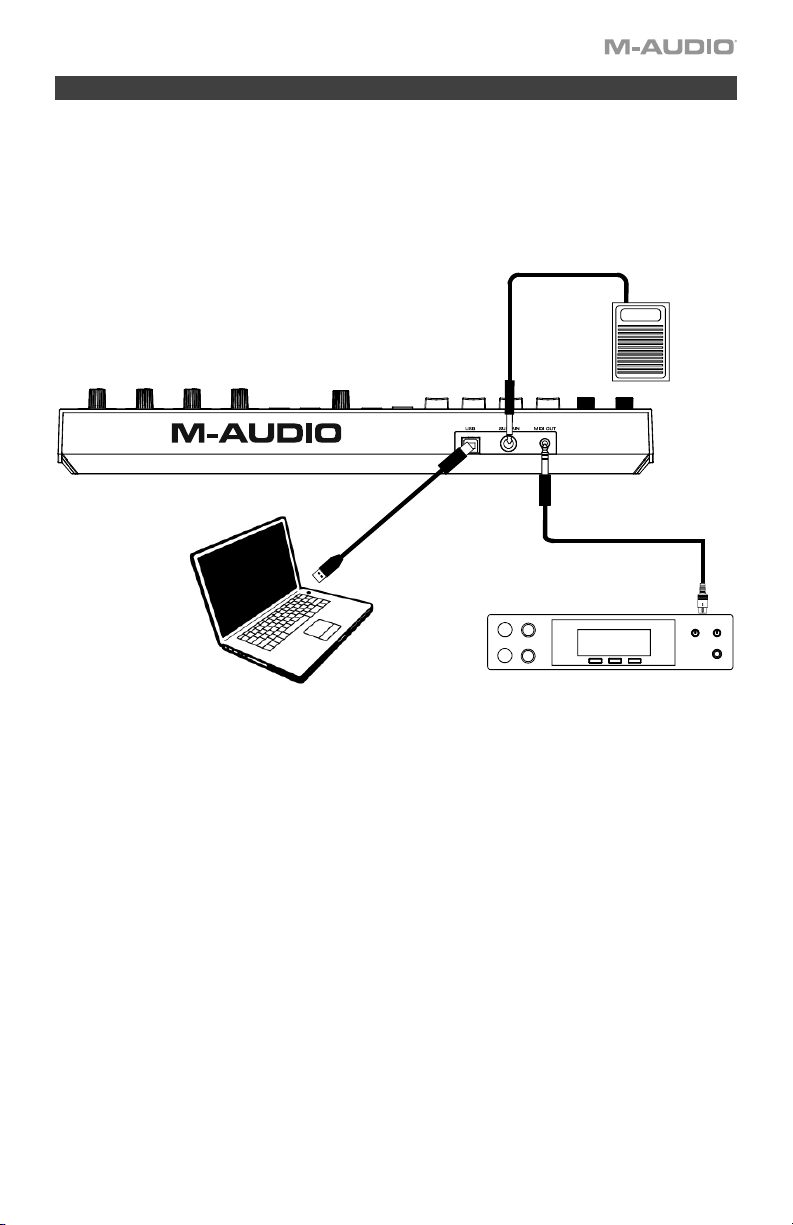

Connection Diagram

Items not listed under Introduction > Box Contents are sold separately.

Compute

Rear Panel

Sustain Pedal

Sound Module

Initial Setup

Initial Setup - DAW Setup

Your Oxygen Pro Mini has the ability to control all of your DAW's faders, buttons, knobs, and

pads, as well as all of your virtual instrument controls. In order to have these controls set

properly, we'll first need to get your Oxygen Pro Mini to set to the correct DAW.

1. Press and hold the DAW Button to open the DAW Select menu on the Display.

2. Turn the Select/Scroll Encoder to cycle through the available DAWs on the Display. As

you turn the Encoder, the currently selected DAW will update on the Display. The User

option enables you to map custom DAW controls to the keyboard, as described in the

Basic Concepts section.

3. When the DAW you want is shown on the Display, press the Select/Scroll Encoder to

confirm your selection.

Note: To exit out of DAW Selection Mode without changing the currently selected DAW,

press the Back Button.

Most DAWs will automatically recognize the Oxygen Pro Mini keyboard, and automatically

configure your Oxygen Pro Mini’s controls as a control surface in DAW mode, and virtual

instrument controller in Preset mode.

If your DAW does not automatically configure your Oxygen Pro Mini keyboard, please follow

the setup steps listed in the Oxygen Pro Mini DAW Setup Guides.

Initial Setup – Virtual Instrument/Plugin Setup

Now that you've selected the correct DAW, we'll set your Oxygen Pro Mini to work with all of

the Virtual Instrument plugins included with your Oxygen Pro Mini, and any other Virtual

Instrument plugins you may have.

1. Press and hold the PRESET Button to open the PRESET Select menu on the Display.

2. Turn the Select/Scroll Encoder to cycle through the available Presets on the Display. As

you turn the Encoder, the currently selected Preset will appear on the Display. You can

create your own custom virtual instrument presets, as described in the Basic Concepts

section.

3. When the Preset you want is shown on the Display, press the Select/Scroll Encoder to

confirm your selection.

Note: To exit out of Preset Selection Mode without changing the currently selected Preset,

press the Back Button.

There are Presets for all of the Virtual Instruments included with your Oxygen Pro Mini. For

Virtual Instruments that aren’t included with your Oxygen Pro Mini, we suggest using MPC

Beats as a plugin wrapper in your favorite DAW, and the Oxygen Pro Mini’s MPC PI preset.

MPC Beats opens as a plugin in all mainstream DAWs to merge the best of all DAW worlds.

This gives you the freedom to use MPC Beats as a soft synth/Virtual Instrument plugin

wrapper, enabling you to have all of your Oxygen Pro Mini’s controls auto-mapped to your

favorite soft synth/Virtual Instrument plugin.

To download the included MPC Beats software, follow the instructions on the included

software download card.

Initial Setup – Hardware Synth

If you will be using your Oxygen Pro Mini keyboard with a hardware synth rather than your

computer, connect the keyboard’s MIDI Out port to a TRS 3.5 mm to 5 Pin DIN Female - Type

A cable, and connect that to a synth with a standard 5-pin MIDI cable. Then make sure that

your keyboard is set to operate with one of its custom presets selected (as instructed in the

Basic Concepts section) and that the keyboard is set to send MIDI data from the 5-pin MIDI

out port in the Global Settings. In order to use an external hardware synth, you will need to

connect the keyboard to a computer, laptop, or to a powered USB hub.

Your Oxygen Pro Mini gives you the option select what messages will be sent from its 5-pin

MIDI output. You can choose USB to send only messages from your connected PC to an

external hardware synth, KEYS to send only messages from your Oxygen Pro Mini to an

external hardware synth, or KEYS/USB to send messages from your connected PC and the

keyboard to an external hardware synth. In order to have these controls set properly please

use the following steps:

1. Press and hold the SHIFT button and press the MODE/GLOBAL button entering into the

GLOBAL EDIT mode

2. In the GLOBAL EDIT menu use the ENCODER to scroll to MIDI OUT. Once you have

MIDI OUT highlighted, press the ENCODER to enter into MIDI OUT selection. Then use

the ENCODER to select what messages you want sent from your Oxygen Pro Mini’s 5-pin

MIDI Out.

a. OFF: No messages sent from the 5-pin output.

b. KEYS: All controls, keys, and pad messages from the Oxygen Pro Mini will be sent

from the 5-pin output.

c. USB: Only messages received on the Oxygen Pro Mini’s MIDI Port 2 from a connected

PC will be sent from the 5-pin MIDI out.

d. KEYS/USB: Messages from the Oxygen Pro Mini and the Oxygen Pro Mini’s MIDI Port

2 from a connected PC will be sent from the 5-pin output.

3. Once you have selected your MIDI OUT setting, press the BACK button to exit out of the

GLOBAL EDIT menu.

Installing Your Included Software

We recommend registering your Oxygen Pro Mini on m-audio.com and downloading the Oxygen

Pro Software Manager. Follow the instructions on your included Software Download Card to

access the Oxygen Pro Software Manager

DAWs and Virtual Instruments

In the Software Manager you'll have access to all of your included software.

We've included 3 DAWs, MPC Beats, Pro Tools | First M-Audio Edition, and Ableton Live Lite

with your Oxygen Pro Mini keyboard so you can get started making music with professional software

right out of the box. Additionally, we’ve included a set of MPC Beats Expansion Packs and AIR

virtual instrument plugins for you to use with your DAW.

To download the included MPC Beats, Pro Tools | First M-Audio Edition, or Ableton Live Lite

DAW software, AIR virtual instrument plugins, and MPC Beats Expansion Packs, register your

Oxygen Pro Mini on m-audio.com and download the Oxygen Pro Mini Software Manager. The

Oxygen Pro Mini Software Manager will gude you step-by-step on downloading and installing all

of your included software.

Preset Editor

To download the included Preset Editor software, follow the instructions in the Oxygen Pro Mini

Software Manager. The Preset Editor software can be used to create custom DAW and Preset

mappings for you to load onto your Oxygen Pro Mini keyboard. For more information on operating

the keyboard with one of the custom DAW or Presets, see the following section and the Basic

Concepts section. The Preset Editor also comes with its own Editor User Guide.

MPC Beats

To download the included MPC Beats software, follow the instructions in the Oxygen Pro

Software Manager. MPC Beats is an intuitive to use DAW and soft synth/Virtual Instrument plugin

wrapper built on the legacy of the legendary AKAI Pro MPC hardware and innovative MPC2 desktop

software, MPC Beats empowers new beat makers with all the tools to create excellent sounding

beats and more.

For complete integration with existing DAWs, MPC Beats opens as a plugin in all mainstream DAWs

to merge the best of all DAW worlds. This gives you the freedom to use MPC Beats as a soft

synth/Virtual Instrument plugin wrapper, enabling you to have all of your Oxygen Pro Mini controls

auto-mapped to your favorite soft synth/Virtual Instrument plugin.

Setting the Keyboard’s Operation Mode

Once you’ve set up Oxygen Pro Mini to work with your DAW, it’s time to set the keyboard’s

operation Mode. By choosing the operation Mode, you can set the keyboard to automatically

coordinate with your DAW’s features or set it to work as a personally customized controller. With

these two Modes, Oxygen Pro Mini gives you the option to quickly switch between controlling a

plugin to controlling your DAW with just the touch of a button.

The two operation Modes determine the function of the MIDI keyboard’s editable controls:

• DAW: In DAW Mode, the keyboard’s controls will be automatically mapped to faders, buttons,

knobs, and pads in your DAW.

• Preset: In Preset Mode, the keyboard’s editable controls can be set to functions that you design

yourself. A number of individual preset mappings can be created and then saved to the

keyboard’s internal memory for you to load at a later time.

To set the keyboard to operate in DAW Mode, press the DAW/Preset Button. The button will be

lit to show that DAW Mode is selected.

To change which DAW your keyboard is set to control:

1. Press and hold the DAW/Preset Button to open the DAW Select menu on the Display.

2. Turn the Select/Scroll Encoder to cycle through the available DAWs on the Display. As you turn

the encoder, the currently selected DAW will update on the Display. The User option enables

you to map custom DAW controls to the keyboard, as described in the Basic Concepts section.

3. When the DAW you want is shown on the Display, press the Select/Scroll Encoder to confirm

your selection.

Note: To exit out of DAW Mode without changing the currently selected DAW, press the Back

Button.

To set the keyboard to operate in Preset Mode, press the DAW/Preset Button. The button will be

lit to show that Preset Mode is selected.

To change the currently selected preset:

1. Press and hold the DAW/Preset Button to open the Preset Select menu on the Display.

2. Turn the Select/Scroll Encoder to cycle through the available Presets on the Display. As you

turn the encoder, the currently selected Preset will update on the Display.

3. When the preset you want is shown on the Display, press the Select/Scroll Encoder to confirm

your selection. See the Basic Concepts section for more information on mapping Presets.

Features

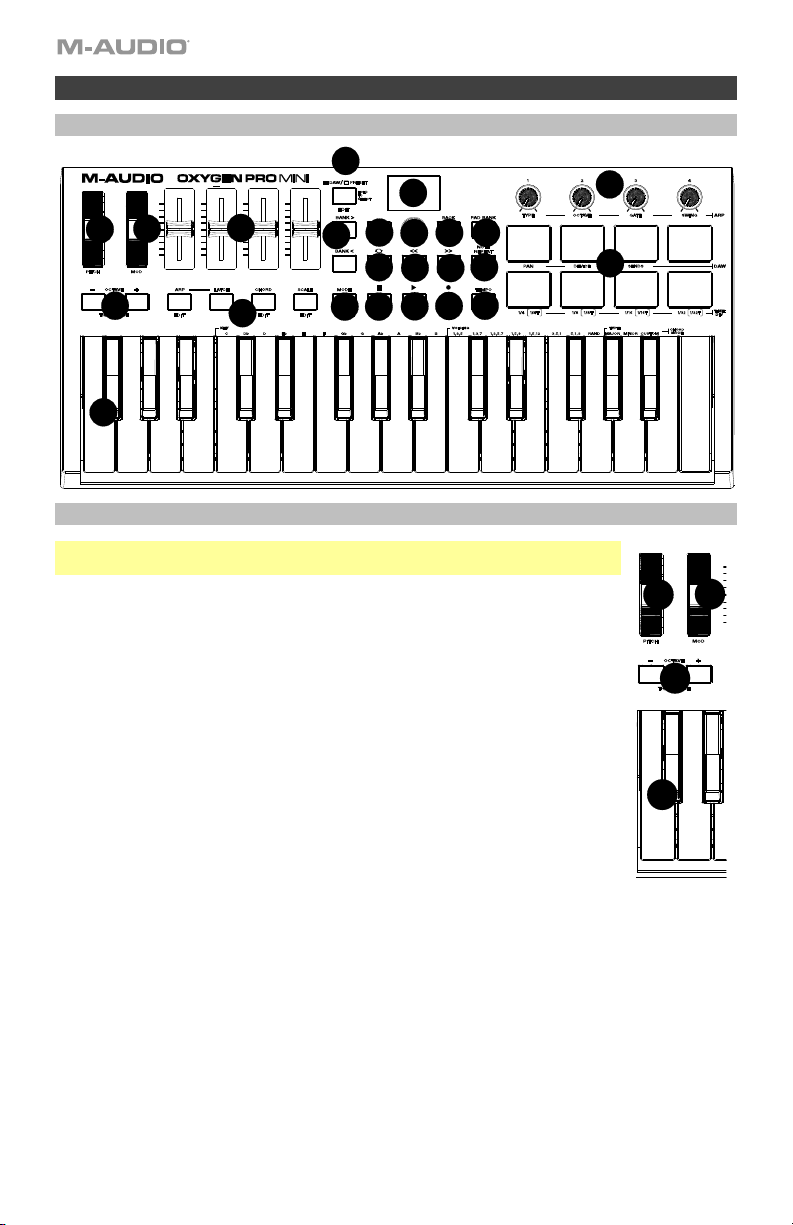

Top Panel

Keybed/Octave/Wheels

Note: Text below accompanying keyboard controls indicates secondary functions that

can be accessed by pressing SHIFT while using the control.

1. Keybed: This velocity-sensitive keybed is the primary method of sending Note

On/Off MIDI data.

Hold Shift and press keys C2–Bb3 to edit Chord Mode settings. See Basic

Concepts to learn more about this feature.

2. OCTAVE: Press these buttons to adjust the pitch range of the keys up or down

one octave. Hold Shift and press these buttons to adjust the pitch range of the

keys up or down one semitone. The keyboard can be raised up to four octaves

or lowered down to three octaves from its default octave range and a total of

twelve semitones from its default transposition.

To reset Oxygen Pro Mini to its default octave range and transposition (F2–C5

on the keybed), press the Octave - and Octave + Buttons simultaneously.

3. PITCH: Roll this wheel up and down from the center position to bend the pitch

of the keyboard while playing. The default range of the pitch-bend will vary

between software synths. The wheel is spring mounted and will return to the

center position when released.

4. MOD: Move this wheel to send continuous controller data—MIDI CC #01

(modulation), by default.

Central Functions

5. DAW / PRESET [EDIT] Button: Press this button to

set Oxygen Pro Mini to operate in DAW Mode or Preset

Mode. When in DAW Mode, this button’s LED will be

brightly lit. When in Preset Mode, this button’s LED will

will be off. Hold Shift and press this button to edit a

Preset or User DAW. After editing the Preset or User

DAW, press this button again to save your changes to the

User DAW or Preset. Press and hold the button to open

the DAW/Preset Select menu on the Display.

See Setting the Keyboard’s Operation Mode for more information on DAW/Preset Mode. See

the Basic Concepts section for information on mapping presets.

6. Display: The main Display screen shows the status of the last used control. Use this screen to

monitor parameter levels as you adjust controls on the keyboard. Also, use the Display along

with the Select/Scroll Encoder to view and edit keyboard settings.

7. Select/Scroll Encoder: If you are entered into one of the Display’s Edit menus, turn this

encoder to change settings/parameters and press the encoder to confirm a selection.

If you are not viewing any of the edit menus, turning the encoder and pressing the encoder will

each function as separate MIDI controls. When operating with a DAW, the assigned controls will

be predetermined. When operating with a preset or the User DAW selected, the controls can be

edited.

8. BACK: If entered into one of the Display’s Edit menus, press this button to go back to the main

Display screen. To delete a character while editing the Display name, hold Shift and press this

button.

If you are not viewing one of the Edit menus, this button will be assigned to control. When

operating with a DAW, the assigned control will be predetermined. When operating with a preset

or the User DAW selected, the control can be edited.

When editing a Preset or DAW name press the Shift button and the Back button to delete a

letter.

9. SHIFT: Hold the Shift Button while moving or pressing controls or buttons on the keyboard to

access their secondary functions.

10. <<: Depending on what screen is selected in your DAW, this button will either rewind the open

song or move down in the active window. Some DAWs may require pressing the SHIFT button and

<< Button to move down in the active window.

11. >>: Depending on what screen is selected in your DAW, this button will either fast forward the

open song or move up in the active window. Some DAWs may require pressing the SHIFT button

and >> Button to move up in the active window.

12. Loop: Press this button to activate/deactivate the loop function in your DAW.

13. Stop: Press this button to stop the open song in your DAW.

Double-press this button to stop the open song and return the playhead to the beginning of the

song.

Press Shift and this button to send a MIDI panic message to turn off all Note messages and

return all controls to zero.

14. Play: Press this button to play the song in your DAW.

15. Record: Press this button to activate recording in your DAW.

16. BANK >, BANK <: If operating in DAW Mode or one of the custom presets, use these buttons to

switch the currently selected bank for the Faders, Knobs, Pads, and Function Buttons. There

is a total of 8 banks in DAW Mode and 2 banks in Preset Mode. Press Shift and the Bank >

button to lock the Shift modifier ARP knob controls. This is useful for changing ARP parameters

during a live performance. To return the knobs or pads to their normal mode, press the Shift

button and the Bank >.

17. TEMPO: Tap this button to set Oxygen Pro Mini’s tempo or press and hold it to pull up the

Tempo Edit menu on the Display, where you can use the Select/Scroll Encoder to manually

enter the tempo and choose to sync Oxygen Pro Mini’s tempo with your DAW. The tempo

setting affects the keyboard’s arpeggiator and note repeat functions. See the Basic Concepts

section for more details.

18. NOTE REPEAT [LATCH]: Press this button to activate the note repeat function for the Pads. To

latch or unlatch the note repeat function, hold Shift and then press this button. See the Basic

Concepts section for more details on note repeat.

19. Pad Bank: Press this button to switch to a different pad bank. There are two pad banks

available.

Pads/Knobs

20. Pads (8): Use these velocity-sensitive pads to send MIDI

Note On/Off messages or perform other MIDI

assignments (if using a preset or the User DAW). While

Note Repeat is active, use the Select/Scroll Encoder to

change the current Time Division setting of the

Arpeggiator and pad Note Repeat.

21. Knobs: Turn these knobs left/right to perform their

assigned controls. When operating with a DAW, the

assigned controls will be predetermined. When operating

with a preset or the User DAW selected, the controls can

be edited.

See the Basic Concepts section to learn how to change the predetermined assignments of the

Knobs when operating in DAW Mode with a DAW selected.

Hold Shift while turning Knobs 1–4 to edit arpeggiator settings.

Important: Both the Faders and Knobs are enabled with “soft takeover.” This means that if you

switch banks, a fader or knob will not work until it is positioned at the current value of the newly

selected software control. For example, if you move Fader 1 in Bank 1 and then switch to Bank

2, physical Fader 1 will not affect software Fader 5 until the physical fader is positioned at the

current value of software Fader 5. This feature allows you to make changes in one bank and then

switch banks without making unwanted changes to the new bank’s controls. The Display will

show a checkered value meter if a Fader or Knob needs to be moved before it can “take over”

its assigned control.

Faders/Buttons

22. Faders (4): Push these faders up/down to perform

their assigned controls. When operating with a DAW,

the assigned controls will be predetermined. When

operating with a preset or DAW selected, the controls

can be edited.

23. MODE: Press the Mode Button to activate one of the

secondary Modes for the Function Buttons. When

the Mode Button is lit it will activate the DAW or MIDI

functionality of the Function buttons. When the Mode

Button is not lit it will enable the silkscreened

functions of the Function Buttons. When the

keyboard is set to operate in DAW Mode, the available

secondary Modes for the Function Buttons are Rec,

Select, Mute, and Solo; in these Modes, the buttons

perform predetermined DAW channel Record Arm,

Track Select, Mute, and Solo functions. When the

keyboard is set to operate in Preset Mode, the

available secondary Mode for the Function Buttons is

MIDI, in which the buttons perform MIDI controls that

are predetermined in one of the custom presets.

The Mode Button LED indicates which Mode the Function Buttons are in.

Hold Shift and press the Mode Button to access the keyboard’s Global Settings menu (see

Global Settings Menu. In the Global Settings menu, by changing the BUTTON selection, you

can change what the Function Buttons control in DAW mode (Rec, Select, Mute, or Solo).

24. Function Buttons (1–4): When the Function Buttons are set to their primary Mode, they will

control the keyboard’s internal functions, as described below:

ARP: Press this button to activate the arpeggiator. Hold Shift and press this button to edit the

arpeggiator’s settings.

LATCH: Press this button to toggle the arpeggiator between momentary and latch Mode.

CHORD: Press this button to activate Chord Mode. Hold Shift and press this button to edit

the Chord Mode settings.

SCALE: Press this button to activate Scale Mode. Hold Shift and press this button to edit the

Scale Mode settings.

Rear Panel

1. USB: When connected to a computer, the USB

port delivers power to the keyboard and transmits

MIDI data.

2. SUSTAIN: This input accepts a momentary-

contact foot pedal (not included). When pressed,

the pedal by default will sustain the sound you

are playing without you having to keep your

fingers pressed down on the keys. The sustain

pedal input can be remapped to perform a

custom MIDI assignment.

Note: The polarity of the sustain pedal is determined by the keyboard upon startup. When an

Oxygen Pro Mini keyboard is powering up, the sustain pedal is assumed to be in the "up" (Off)

position. It is important that the sustain pedal is not in the down position before starting up the

keyboard, as the pedal will then operate in reverse, and notes will sustain when the pedal is not

pressed.

3. MIDI OUT: Use a 1/8” TRS to 5-pin MIDI cable (sold separately) to connect this port to a

hardware synth or other MIDI device.

Note: The MIDI output port can send MIDI from the Oxygen Pro Mini, your connected computer,

or both. Go into the Global Settings (see Global Settings Menu) to set what is sent to the MIDI

Out.

Note: Please use a TRS 3.5 mm to 5 Pins DIN Female - Type A cable

Basic Concepts

This section gives an overview of some fundamental concepts that will help you understand

and use your Oxygen Pro Mini keyboard.

Keyboard

Octaves and Transposition

Tempo Control

Note Repeat/Latch Button

Presets

DAW and Preset Mode

SHIFT

Back Button

Encoder and Encoder Button

Mode Button

ARP and Latch Control

Smart Chord Control

Smart Scale Control

DAW Knob Control

ARP Knob Control

Each section contains links to other relevant sections of this guide, which we recommend

reading, as well.

Keyboard

The keyboard is velocity-sensitive and can access the full range of 127 available MIDI notes

across 10 octaves.

Pressing SHIFT and one of the labeled keys allows users to quickly edit chord functionality or

change the global channel.

Octaves and Transposition

By using the Key Octave –/+ buttons, the keyboard can access the full range of 127 available

MIDI notes (10 octaves). Additionally, you can transpose the keyboard up to 12 semitones (1

octave) in either direction.

To change the octave of the keyboard, use the Key Octave –/+ buttons to lower or raise the

octave, respectively. The display will temporarily show OCT and the current octave shift.

Oxygen Pro Mini’s keyboard can be shifted 4 octaves down or 5 octaves up.

To change the transposition of the keyboard, press and hold Shift, and then use the Key

Octave –/+ buttons to lower or raise the keybed by one one, respectively. The display will

temporarily show TRANS and the current transposition (-12 to 12).

Tempo Control

To edit the Tempo button, press the Tempo button. You can either repeatedly tap the TEMPO

button to enter in the tempo, or press and hold the TEMPO button to enter into the TEMPO

EDIT mode. Once in the TEMPO EDIT mode you can scroll through the available parameter

values using the Encoder. Select what parameter you would like to edit by pressing the

Encoder.

Clock Source “CLOCK”: Selects whether the tempo is sent from the keyboard’s internal

tempo or synced to an external DAW.

Available Values: Internal, External

BPM ###.: 20.00 – 240.00

BPM .#: .0 – .9

Note: Clock messages are sent and received on Oxygen Pro Mini’s Port 1 (Oxygen Pro

##/USB MIDI).

Note Repeat/Latch Button

When this button is pressed and held it will activate the Pad’s Note Repeat/Roll functionality.

If SHIFT and this button are pressed together, then that will activate the Note Repeat button’s

Latch feature.

While Note Repeat is active, the Select/Scroll Encoder can be used to change the current

Time Division setting of the Arpeggiator and pad Note Repeat:

• 1/4

• 1/4T

• 1/8

• 1/8T

• 1/16

• 1/16T

• 1/32

• 1/32T

Note: You can also use SHIFT and the 1/4, 1/8, 1/16, and 1/32 Pads to change tempos. To

access the triplet functionality of a Time Division Pad, double press the desired Time Division

Pad.

Presets

A preset is a saved collection of assignments for your Oxygen Pro Mini’s controls, channel

settings, etc. You can store up to 14 Preset presets in Oxygen Pro Mini’s internal memory,

enabling you to use a dedicated preset for each virtual instrument, or project/session.

Along with the included DAW presets you can store your own DAW preset in Oxygen Pro

Mini’s internal memory, enabling you to create and use your own dedicated DAW preset for

your digital audio workstation (DAW).

We recommend registering your Oxygen Pro Mini’s on m-audio.com and downloading the

Oxygen Pro Software Manager.

In the Software Manager you'll have access to all of your included software as well as the

Oxygen Pro Mini Preset Editor. The Preset Editor gives you a visual and intuitive way to edit

the various messages that Oxygen Pro Mini’s controls send to your computer without having

to use the hardware interface. The Preset Editor enables you to save and load custom

presets from your computer.

To select a Preset preset on the Oxygen Pro Mini, press and hold the DAW/PRESET

button when the button is in Preset Mode (button unlit) until the Preset Selection screen

appears on the OLED, then turn the Encoder to scroll to a preset, and then press the Encoder

to select your desired preset.

To select a DAW preset on the Oxygen Pro Mini, press and hold the DAW/PRESET button

when the button is in DAW Mode (button lit) until the DAW preset Selection screen appears on

the OLED, then turn the Encoder to scroll to a DAW preset, and then press the Encoder to

select your desired preset.

Important: If you power off your Oxygen Pro Mini keyboard without saving/storing your

preset, you will lose any assignments or changes you have made.

DAW and Preset Mode

Once you’ve set up your Oxygen Pro Mini keyboard to work with your DAW, it’s time to set the

keyboard’s operation Mode, Preset or DAW. By choosing the operation Mode, you can quickly

switch between the Oxygen Pro Mini controlling your DAW’s controls when DAW mode is

active to controlling a soft synth/Virtual Instrument when Preset mode is active.

These two operation Modes determine the function of the MIDI keyboard’s editable controls:

• DAW: In DAW Mode, the keyboard’s controls will be mapped to faders, buttons, knobs,

and in some cases pads in your DAW.

• Preset: In Preset Mode, the keyboard’s controls will be mapped to faders, buttons, knobs,

and pads in your selected Virtual Instrument. The keyboard’s editable controls can be set

to functions that you design yourself. A number of individual preset mappings can be

created and then saved to the keyboard’s internal memory for you to load at a later time.

To set the keyboard to operate in DAW Mode, press the DAW/Preset Button. The button

LED will be lit to show that DAW Mode is selected.

To change which DAW your keyboard is set to control:

1. Press and hold the DAW Button to open the DAW Select menu on the Display.

2. Turn the Select/Scroll Encoder to cycle through the available DAWs on the Display. As

you turn the Encoder, the currently selected DAW will update on the Display. The User

option enables you to map custom DAW controls to the keyboard, as described in the

Basic Concepts section.

3. When the DAW you want is shown on the Display, press the Select/Scroll Encoder to

confirm your selection.

Note: To exit out of DAW Mode without changing the currently selected DAW, press the

Back Button.

Most DAWs will automatically recognize the Oxygen Pro Mini keyboard, and automatically

configure your Oxygen Pro Mini’s ontrols as a control surface in DAW mode, and virtual

instrument controller in Preset mode.

If your DAW does not automatically configure your Oxygen Pro Mini keyboard, please follow

the setup steps listed in the Oxygen Pro Mini DAW Setup Guides.

To set the keyboard to operate in Preset Mode, press the DAW/Preset Button. The LED

will be off to show that Preset Mode is selected.

To change the currently selected preset:

1. Press and hold the Preset Button to open the Preset Select menu on the Display.

2. Turn the Select/Scroll Encoder to cycle through the available Presets on the Display. As

you turn the Encoder, the currently selected Preset will update on the Display.

3. When the preset you want is shown on the Display, press the Select/Scroll Encoder to

confirm your selection.

There are Presets for all of the Virtual Instruments included with your Oxygen Pro Mini. For

Virtual Instruments that are not included with your Oxygen Pro Mini, we suggest using MPC

Beats as a plugin wrapper in your favorite DAW, and the Oxygen Pro Mini’s MPC PI preset.

MPC Beats opens as a plugin wrapper in all mainstream DAWs to merge the best of all DAW

worlds. This gives you the freedom to use MPC Beats as a soft synth/Virtual Instrument plugin

wrapper, enabling you to have all of your Oxygen Pro Mini’s controls auto-mapped to your

favorite soft synth/Virtual Instrument plugin.

To download the included MPC Beats software, follow the instructions on the included

software download card.

SHIFT Button

When this button is pressed and held it will enable you to select SHIFT modifier functions of

the keyboard.

Back Button

When in any of the keyboard’s available editing modes, this button will send a message to go

back to a previous menu. When not in any of the edit modes, this button will send a separate

MIDI, Mackie or Mackie/HUI message in DAW mode. When in PRESET mode, this button will

send a separate user editable MIDI message when preset 1-14 is selected.

When SHIFT is pressed and held with this button it will delete the currently selected letter

when saving a User Preset Name, or User DAW Name.

Encoder and Encoder Button

When in any of the keyboard’s available editing modes this Encoder is used for scrolling

through selections when turned left and right and will enter when pressed. When in DAW

Mode this Encoder will send separate Up/Down or Left/Right messages (depending on the

DAW), and Enter messages. In Preset mode this Encoder will either send the same message

as the DAW Encoder assignment or send Program or CC messages.

When NOTE REPEAT is active the Encoder will be used for selecting NOTE REPEAT and

ARP time division settings.

Mode Button

The Mode button’s LED will be lit to show that the Fader Buttons secondary function is active.

The secondary function is dependent on what mode the keyboard is in, DAW or Preset, and

what “Button” selection is active in the Global functions, Record, Solo, Mute, or Select. In

Preset and DAW mode, the fader buttons silkscreened options will always be available for

selection. In DAW mode, the fader buttons silkscreened options will be available for selection,

as well as track Record (Record arm), Select, Mute, and Solo. In Preset mode, the fader

buttons silkscreened options will be available for selection, as well as user editable MIDI

messages.

DAW Mode

• Off/No LED: Fader Buttons will activate the following options:

o ARP On/Off, ARP Edit Enter/Exit

o ARP Latch On/Off

o Smart Chord On/Off, Chord Edit Enter/Exit

o Smart Scale On/Off, Scales Edit Enter/Exit

• Rec/Mode LED lit: Fader Buttons will activate Record Arm MIDI, Mackie, or Mackie/HUI

messages for the associated button’s current channel in your DAW.

• Select/Mode LED lit: Fader Buttons will activate Track Select MIDI, Mackie, or

Mackie/HUI messages for the associated button’s current channel in your DAW.

• Mute/Mode LED lit: Fader Buttons will activate Mute MIDI, Mackie, or Mackie/HUI

messages for the associated button’s current channel in your DAW.

• Solo/Mode LED lit: Fader Buttons will activate Solo MIDI, Mackie, or Mackie/HUI

messages for the associated button’s current channel in your DAW.

Preset Mode

• Off/No LED: Fader Buttons will activate the following options:

o ARP On/Off, ARP Edit Enter/Exit

o ARP Latch On/Off

o Chord On/Off, Chord Edit Enter/Exit

o Scales On/Off, Scales Edit Enter/Exit

• MIDI/Mode LED lit: Fader Buttons will send predetermined MIDI messages when in a

factory preset, or any user assignable MIDI message when in the user presets.

ARP and ARP LATCH Control

On the Oxygen Pro Mini, when this button is pressed, it will activate the keyboard’s internal

arpeggiator. The arpeggiator’s rate is based on the current Tempo and Time Division settings

– Tempo settings are editable using the Tempo button. Time Division settings can be

accessed by pressing and holding the Note Repeat button and turning the Encoder or by

pressing and holding the Shift button, and pressing Pads 5 - 8.

To activate the ARP Latch functionality on the Oxygen Pro Mini, press the ARP Latch button.

If the ARP button is active, then the ARP button will be lit to show that the ARP is active. If

ARP Latch is active the ARP Latch button will be lit.

Note: You can also sync the Arpeggiator to either the current Tempo’s BPM setting, or an

external MIDI Clock source. The clock source can be edited in Preset Edit Mode and

selecting/pressing the Tempo button. Arpeggiator functionality is available in the 2 keyboard

modes, DAW, PRESET.

Smart Chord Control

On the Oxygen Pro Mini, when this button is pressed, it will activate the keyboard’s internal

Smart Chord functionality. The Smart Chord functionality can function on notes being played

on the keyboard or pads depending on the selection in the GLOBAL SETTINGS menu. When

Smart Chord mode is active a single key press will play a chord as selected in the current

Smart Chord Edit options. This functionality is available in the 2 keyboard modes, DAW,

PRESET.

Smart Scale Control

On the Oxygen Pro Mini, when this button is pressed, it will activate the keyboard’s internal

Smart Scale functionality. The current scale is based on the current Smart Scale settings (in

the Smart Scale Edit menu). The Smart Scale functionality will only function on notes being

played on the keyboard only. When Smart Scale Mode is active, keys will only play notes in

the key of the current key and scale selection. This functionality is available in the 2 keyboard

modes, DAW, PRESET.

DAW Knob Control

Using the SHIFT button and Pads 1-3 will enable you to change the function of knobs in DAW

mode.

DAW Mode

• Pan: Will change the knobs function to control the channel pan knobs in your DAW.

• Device: Will change the knobs function to control the currently selected channel’s plugin

controls in your DAW.

Note: Not all DAWs support Device control.

• Sends: Will change the knobs function to control the currently selected channel’s send

controls in your DAW.

Note: Not all DAWs support Sends control.

ARP Knob Control

Using the SHIFT button and Knobs 1-4 will enable you to change the function of knobs to

control the functions of the Arpeggiator.

Arp Knob Controls

• Type: Will change what order the notes will be played back in the ARP.

• Octave: Will change the octave range of the ARP.

• Gate: Will change the length of the ARP’s notes.

• Swing: Will change how much the ARPs Tempo will swing.

Note: You can lock and unlock your ARP knob controls to always be active by pressing SHIFT

and BANK >.

Preset Edit Mode

When SHIFT is pressed and held and the DAW/PRESET button is pressed, it will enter into

editing the Preset or User DAW. Press the Encoder on “Preset” and the preset controls will be

available for editing.

The default parameter to be edited will be the current Preset’s Pitch Wheel assignment.

However, once a different control is moved, or pressed, for example Knob 1, it will activate

that selected control for editing.

Storing a Preset

To store a Preset:

1. Press SHIFT and the DAW/Preset button to enter Edit Mode. The OLED will display

“EDIT” in the top row, and depending on the current DAW/Preset mode selection, will have

Preset or DAW highlighted in the second row.

Note: When Preset or DAW is highlighted you can turn the Encoder to change from

editing DAW or Preset mode, changing the current selection.

2. Press the Encoder to enter into either DAW or Preset edit mode.

3. Edit a control.

4. Press the DAW/Preset button.

5. The display will show “SAVE?” with the following selections available:

• Cancel: Selecting Cancel will revert any changes made.

• Replace: Selecting Replace will write over the currently selected preset.

• Save As: Selecting “Yes” to Save As enable you to choose what number

“LOCATION” the preset will be and edit/change what the preset’s name “NAME” is.

The last available selection in the Save As screen is Save. Pressing “Yes” on the Save

screen will save your new preset.

Note: When editing a preset name, use the Shift button and the Encoder to scroll to a letter

you want to edit and release Shift to select the current letter. To erase a letter in a preset

name, press SHIFT and the Back button.

Channel Definitions

Channel:

Select the global channel (Global) to use the channel assigned in the GLOBAL SETTING

menu, or a specific channel (Channel 1–16).

• Global: Will send on the global MIDI channel. The Global MIDI channel is assigned in the

GLOBAL EDIT SETTINGS menu.

• Channel 1–16: Will send on a specific MIDI channel.

Editable Preset Controls

Pitch Wheel

To edit the Pitch Wheel control when in Preset Edit Mode, move the Pitch Wheel. You can

scroll through the available parameter values using the Encoder. Select what parameter you

would like to edit by pressing the Encoder.

Channel: The Pitch Wheel will send its messages over this channel. Select the global channel

(Global), or a specific channel (Channel 1–16).

Available Values: Global, 1-16

Minimum Value: The wheel’s minimum position will correspond with this value. You can

reverse the wheel’s polarity by making this value larger than the Max value.

Available Values: 0-127

Maximum Value: The wheel’s maximum position will correspond with this value. You can

reverse the wheel’s polarity by making this value smaller than the Min value.

Available Values: 0-127

Modulation Wheel

To edit the Modulation Wheel control when in Preset Edit Mode, move the Modulation Wheel.

You can scroll through the available parameter values using the Encoder. Select what

parameter you would like to edit by pressing the Encoder.

Channel: The Mod Wheel will send its messages over this channel. Select the global channel

(Global), or a specific channel (Channel 1–16).

Available Values: Global, 1-16

CC: The Mod wheel will send its MIDI messages using this CC number.

Available Values: 0-127

Minimum Value: The wheel’s minimum position will correspond with this value. You can

reverse the wheel’s polarity by making this value larger than the Max value.

Available Values: 0-127

Maximum Value: The wheel’s maximum position will correspond with this value. You can

reverse the wheel’s polarity by making this value smaller than the Min value.

Available Values: 0-127

Fader

To edit the Fader control when in Preset Edit Mode, move the Fader. You can scroll through

the available parameter values using the Encoder. Select what parameter you would like to

edit by pressing the Encoder.

Channel: The Fader will send its messages over this channel. Select the global channel

(Global), or a specific channel (Channel 1–16).

Available Values: Global, 1-16

CC: The fader will send its MIDI messages using this CC number.

Available Values: 0-127

Minimum Value: The fader’s minimum position will correspond with this value. You can

reverse the fader’s polarity by making this value larger than the Maximum value.

Available Values: 0-127

Maximum Value: The fader’s maximum position will correspond with this value. You can

reverse the fader’s polarity by making this value smaller than the Minimum value.

Available Values: 0-127

Knobs

To edit one of the Knobs when in Preset Edit Mode, move a Knob. You can scroll through the

available parameter values using the Encoder. Select what parameter you would like to edit by

pressing the Encoder.

Channel: The knob will send its messages over this channel. Select the global channel

(Global), or a specific channel (Channel 1–16).

Available Values: Global, 1-16

CC: The knob will send its MIDI messages using this CC number.

Available Values: 0-127

Minimum Value: The knob’s minimum position will correspond with this value. You can

reverse the knob’s polarity by making this value larger than the Maximum value.

Available Values: 0-127

Maximum Value: The knob’s maximum position will correspond with this value. You can

reverse the knob’s polarity by making this value smaller than the Minimum value.

Available Values: 0-127

Fader Buttons

To edit one of the Fader Buttons when in Preset Edit Mode, press a fader button. You can

scroll through the available parameter values using the Encoder. Select what parameter you

would like to edit by pressing the Encoder.

Channel: The fader button will send its messages over this channel. Select the global channel

(Global), or a specific channel (Channel 1–16).

Available Values: Global, 1-16

Mode “MODE”:

• CC

“CC”: The fader button will send its MIDI messages using this CC number.

• CC Cycle

“CC CYCLE”: The fader button will send the value with this CC number when

you press it, one at a time, cycling through them with each press.

• CC Inc/Dec

“CC INC/DC”: The fader button will send the next (Increment) or previous

(Decrement) value number in the range of values when you press it.

• Program

“PROGRAM”: The fader button will send this program number when you press

it.

• Program Cycle

“PRG CYCL”: The fader button will send the value with this Program

number when you press it, one at a time, cycling through them with each press.

• Program Inc/Dec

“PG IN/DC”: The fader button will send the next (Increment) or previous

(Decrement) program number in the range of programs when you press it.

• Note

“NOTE”: The fader button will send its MIDI messages using this Note number.

When set to CC, these are the available parameters:

CC: The fader button will send its MIDI messages using this CC number.

Available Values: 0-127

Press: The fader button will send the MIDI CC number with this value when you press it.

Available Values: 0-127

Release: The fader button will send the MIDI CC number with this value when you release it.

Available Values: 0-127

When set to CC Cycle, these are the available parameters:

CC: The fader button will send its MIDI messages using this CC number.

Available Values: 0-127

Press: The fader button will send the MIDI CC number with this value when you press it.

Available Values: 0-127

Release: The fader button will send the MIDI CC number with this value when you release it.

Available Values: 0-127

Values: The fader button will send the value with this CC number when you press it, one at a

time, cycling through them with each press.

Available Values:

• 2 Values

• 3 Values

• 4 Values

First Value:

Available Values: 0-127

Second Value:

Available Values: 0-127

Third Value:

Available Values: 0-127

Last:

Available Values: 0-127

When set to CC IN/DC, these are the available parameters:

CC: The fader button will send its MIDI messages using this CC number.

Available Values: 0-127

Type: The fader button will send the next (Increment) or previous (Decrement) value number

in the range of values when you press it.

Min: The lowest value in the range of values will correspond with this setting.

Available Values: 0-127

Max: The highest value in the range of values will correspond with this setting.

Available Values: 0-127

When set to Program, these are the available parameters:

Program: The fader button will send this program number when you press it.

Available Values: 0-127

MSB: The fader button will send this Bank MSB (Most Significant Byte) number when you

press it.

Available Values: 0-127

LSB: The fader button will send this Bank LSB (Least Significant Byte) number when you press

it.

Available Values: 0-127

When set to Program Cycle, these are the available parameters:

Values: The fader button will cycle through this many Program values (one at a time) when you

press it: 2 Values, 3 Values, or 4 Values.

Available Values:

• 2 Values

• 3 Values

• 4 Values

First: The fader button will send this Program message first when you press it.

Available Values: 0-127

Second: The fader button will send this Program message second when you press it.

Available Values: 0-127

Third: The fader button will send this Program message third when you press it.

Available Values: 0-127

Last: The fader button will send this Program message last when you press it.

Available Values: 0 – 127

When set to Program IN/DC (PG IN/DC), these are the available parameters:

Type: The fader button will send the next (Increment) or previous (Decrement) value number

in the range of values when you press it.

Min: The lowest Program value in the range of values will correspond with this setting.

Available Values: 0-127

Max: The highest Program value in the range of values will correspond with this setting.

Available Values: 0-127

When set to Note, these are the available parameters:

Note: The fader button will send its MIDI messages using this Note number.

Available Values: C-2 – G8

Latch: When set to Latch On, the fader button will send one value when pressed and a

different value when pressed a second time, alternating between the two values with each

press. When set to Latch Off, the fader buttons will send one value when pressed and one

value when released.

Available Values: On/Off

Note On: When Latch is active, the fader button will send the MIDI note number with this

velocity when you press it to turn it on.

Available Values: 0-127

Note Off: When Latch is active, the fader button will send the MIDI note number with this

velocity when you press it to turn it off.

Available Values: 0-127

Sustain Pedal

To edit the Sustain Pedal when in Preset Edit Mode, press a connected Sustain Pedal. You

can scroll through the available parameter values using the Encoder. Select what parameter

you would like to edit by pressing the Encoder.

Channel: The Sustain Pedal will send its messages over this channel. Select the global

channel (Global), or a specific channel (Channel 1–16).

Available Values: Global, 1-16

CC: The Sustain Pedal will send its MIDI messages using this CC number.

Available Values: 0-127

Press: The Sustain Pedal will send the MIDI CC number with this value when you press it.

Available Values: 0-127

Release: The Sustain Pedal will send the MIDI CC number with this value when you release it.

Available Values: 0-127

Latch: When set to Latch On, the Sustain Pedal will send one value when pressed and a

different value when pressed a second time, alternating between the two values with each

press. When set to Latch Off, the Sustain Pedal will send one value when pressed and one

value when released.

Available Values: On/Off

Pads

To edit one of the Pads when in Preset Edit Mode, press a Pad. You can scroll through the

available parameter values using the Encoder. Select what parameter you would like to edit by

pressing the Encoder.

Channel: The pad will send its messages over this channel. Select the global channel (Global),

or a specific channel (Channel 1–16).

Available Values: Global, 1-16

Color 1: Select the primary color that you want to assign to the pad.

Available Values: Off “OFF”, Chartreuse “CHAR.”, Green “GREEN”, Aquamarine “AQUA”,

Cyan “CYAN”, Azure “AZURE”, Blue “BLUE”, Violet “VIOLET”, Magenta “MAGENTA”, Rose

“ROSE”, Red “RED”, Orange “ORANGE”, Yellow “YELLOW”, White “WHITE”.

Color 2: Select the secondary color that you want to assign to the pad.

Available Values: Off “OFF”, Chartreuse “CHAR.”, Green “GREEN”, Aquamarine “AQUA”,

Cyan “CYAN”, Azure “AZURE”, Blue “BLUE”, Violet “VIOLET”, Magenta “MAGENTA”, Rose

“ROSE”, Red “RED”, Orange “ORANGE”, Yellow “YELLOW”, White “WHITE”.

Mode “MODE”:

• Note

“NOTE”: The pad will send its MIDI messages using this Note number.

• CC

“CC”: The pad will send its MIDI messages using this CC number.

• CC Cycle

“CC CYCLE”: The pad will send the value with this CC number when you press

it, one at a time, cycling through them with each press.

• CC Inc/Dec

“CC INC/DC”: The pad will send the next (Increment) or previous

(Decrement) value number in the range of values when you press it.

• Program

“PROGRAM”: The pad will send this program number when you press it.

• Program Cycle

“PRG CYCL”: The pad will send the value with this Program number

when you press it, one at a time, cycling through them with each press.

• Program Inc/Dec

“PG IN/DC”: The pad will send the next (Increment) or previous

(Decrement) program number in the range of programs when you press it.

When set to Note, these are the available parameters:

Note: The pad will send its MIDI messages using this Note number.

Available Values: C-1 – G9

Latch: When set to Latch On, the pad will send one value when pressed and a different value

when pressed a second time, alternating between the two values with each press. When set to

Latch Off, the pads will send one value when pressed and one value when released.

Available Values: On/Off

Note On: When Latch is active, the pad will send the MIDI note number with this velocity when

you press it to turn it on.

Available Values: 0-127

Note Off: When Latch is active, the pad will send the MIDI note number with this velocity

when you press it to turn it off.

Available Values: 0-127

When set to CC, these are the available parameters:

CC: The pad will send its MIDI messages using this CC number.

Available Values: 0-127

Press: The pad will send the MIDI CC number with this value when you press it.

Available Values: 0-127

Release: The pad will send the MIDI CC number with this value when you release it.

Available Values: 0-127

When set to CC Cycle, these are the available parameters:

CC: The pad will send its MIDI messages using this CC number.

Available Values: 0-127

Press: The pad will send the MIDI CC number with this value when you press it.

Available Values: 0-127

Release: The pad will send the MIDI CC number with this value when you release it.

Available Values: 0-127

Values: The pad will send the value with this CC number when you press it, one at a time,

cycling through them with each press.

Available Values:

• 2 Values

• 3 Values

• 4 Values

First Value:

Available Values: 0-127

Second Value:

Available Values: 0-127

Third Value:

Available Values: 0-127

Last:

Available Values: 0-127

When set to CC IN/DC, these are the available parameters:

CC: The pad will send its MIDI messages using this CC number.

Available Values: 0-127

Type: The pad will send the next (Increment) or previous (Decrement) value number in the

range of values when you press it.

Min: The lowest value in the range of values will correspond with this setting.

Available Values: 0-127

Max: The highest value in the range of values will correspond with this setting.

Available Values: 0-127

When set to Program, these are the available parameters:

Program: The pad will send this program number when you press it.

Available Values: 0-127

MSB: The pad will send this Bank MSB (Most Significant Byte) number when you press it.

Available Values: 0-127

LSB: The pad will send this Bank LSB (Least Significant Byte) number when you press it.

Available Values: 0-127

When set to Program Cycle, these are the available parameters:

Values: The pad will cycle through this many Program values (one at a time) when you press

it: 2 Values, 3 Values, or 4 Values.

Available Values:

• 2 Values

• 3 Values

• 4 Values

First: The pad will send this Program message first when you press it.

Available Values: 0-127

Second: The pad will send this Program message second when you press it.

Available Values: 0-127

Third: The pad will send this Program message third when you press it.

Available Values: 0-127

Last: The pad will send this Program message last when you press it.

Available Values: 0-127

When set to Program IN/DC (PG IN/DC), these are the available parameters:

Type: The pad will send the next (Increment) or previous (Decrement) value number in the

range of values when you press it.

Min: The lowest Program value in the range of values will correspond with this setting.

Available Values: 0-127

Max: The highest Program value in the range of values will correspond with this setting.

Available Values: 0-127

Encoder Turn

To edit the turn functionality of the Encoder when in Preset Edit Mode, press and hold the

SHIFT button and move the ENCODER. You can scroll through the available parameter values

using the Encoder. Select what parameter you would like to edit by pressing the Encoder.

Channel: The Encoder will send its messages over this channel. Select the global channel

(Global), or a specific channel (Channel 1–16).

Available Values: Global, 1-16

Message:

• Same as DAW “DAW”: This assignment will match the message assigned to the Oxygen

Pro Mini’s current DAW selection's Encoder.

• Program Cycle “PRG CYCL”: This is useful for selecting between different presets in

software or external MIDI hardware. Select from 2-4 program messages.

• Program Inc/Dec

“PG IN/DC”: This is useful to scroll through multiple program

messages.

• CC Cycle

“CC CYCLE”: This useful for controlling from 2 - 4 CC values, as seen on a

button or virtual instrument control with 2-4 parameters. Select from 2-4 values.

• CC Inc/Dec

“CC IN/DC”: This is useful for scrolling through several CC values.

• CC Relative

“CC RELTV”: This is useful for controlling endless Encoders in software.

Select from Right 65, Left 63; Right 63, Left 65; Right 127, Left 01; Right 01, Left 127.

When set to Program Cycle, these are the available parameters:

Values: The Encoder will cycle through this many Program values (one at a time) when you

turn it: 2 Values, 3 Values, or 4 Values.

Available Values:

• 2 Values

• 3 Values

• 4 Values

First: The Encoder will send this Program message first when you press it.

Available Values: 0-127

Second: The Encoder will send this Program message second when you press it.

Available Values: 0-127

Third: The Encoder will send this Program message third when you press it.

Available Values: 0-127

Last: The Encoder will send this Program message last when you press it.

Available Values: 0-127

When set to Program IN/DC (PG IN/DC), these are the available parameters:

Type: The Encoder will send the next (Increment) or previous (Decrement) value number in

the range of values when you turn it.

Minimum: The lowest Program value in the range of values will correspond with this setting.

Available Values: 0-127

Maximum: The highest Program value in the range of values will correspond with this setting.

Available Values: 0-127

When set to CC Cycle, these are the available parameters:

CC: The Encoder will send its MIDI messages using this CC number.

Available Values: 0-127

Values: The Encoder will send the value with this CC number when you turn it, one at a time,

cycling through them with each notch.

Available Values:

• 2 Values

• 3 Values

• 4 Values

First: The Encoder will send the MIDI CC number with this value when you first turn it.

Available Values: 0-127

Second: The Encoder will send the MIDI CC number with this value at the second notch of the

turn.

Available Values: 0-127

Third: The Encoder will send the MIDI CC number with this value at the third notch of the turn.

Available Values: 0-127

Last: The Encoder will send the MIDI CC number with this value at the final notch of the turn.

Available Values: 0-127

When set to CC IN/DC, these are the available parameters:

CC: The Encoder will send its MIDI messages using this CC number.

Available Values: 0-127

Min: The lowest value in the range of values will correspond with this setting.

Available Values: 0-127

Max: The highest value in the range of values will correspond with this setting.

Available Values: 0-127

When set to CC Relative, these are the available parameters:

CC: The Encoder will send its MIDI messages using this CC number.

Available Values: 0-127

Type: The Encoder will send a value number in the range of values when you turn it left or

right.

Available Values:

• Right 65, Left 63

• Right 63, Left 65

• Right 127, Left 01

• Right 01, Left 127

Encoder Press

To edit the press functionality of the Encoder when in Preset Edit Mode, press and hold the

SHIFT button and press the ENCODER. You can scroll through the available parameter values

using the Encoder. Select what parameter you would like to edit by pressing the Encoder.

Channel: The Encoder will send its messages over this channel. Select the global channel

(Global), or a specific channel (Channel 1–16).

Available Values: Global, 1-16

Assign:

• Same as DAW “DAW”: This assignment will match the message assigned to the Oxygen

Pro Mini’s current DAW selection's Encoder press.

• CC: When set to CC, the Encoder press will send standard MIDI CC messages to your

virtual instrument.

• Program: The Encoder will send its MIDI messages using the selected Program number

and MSB and LSB values.

When set to CC, these are the available parameters:

CC: The Encoder will send its MIDI messages using this CC number.

Available Values: 0-127

Press: The Encoder will send the MIDI CC number with this value when you press it.

Available Values: 0-127

Release: The Encoder will send the MIDI CC number with this value when you release it.

Available Values: 0-127

When set to Program, these are the available parameters:

Program: The Encoder will send this program number when you press it.

Available Values: 0-127

MSB: The Encoder will send this Bank MSB (Most Significant Byte) number when you press it.

Available Values: 0-127

LSB: The Encoder will send this Bank LSB (Least Significant Byte) number when you press it.

Available Values: 0-127

Back Button

To edit the functionality of the Back button when in Preset Edit Mode, press and hold the

SHIFT button and press the Back button. You can scroll through the available parameter

values using the Encoder. Select what parameter you would like to edit by pressing the

Encoder.

Channel: The Back button will send its messages over this channel. Select the global channel

(Global), or a specific channel (Channel 1–16).

Available Values: Global, 1-16

Assign:

• Same as DAW “DAW”: This assignment will match the message assigned to the Oxygen

Pro Mini’s current DAW selection's Back button.

• CC: When set to CC, the Back button will send standard MIDI CC messages to your

virtual instrument.

• Program: The Back button will send its MIDI messages using the selected Program

number and MSB and LSB values.

When set to CC, these are the available parameters:

CC: The Back buton will send its MIDI messages using this CC number.

Available Values: 0-127

Press: The Back button will send the MIDI CC number with this value when you press it.

Available Values: 0-127

Release: The Back button will send the MIDI CC number with this value when you release it.

Available Values: 0-127

When set to Program, these are the available parameters:

Program: The Back button will send this program number when you press it.

Available Values: 0-127

MSB: The Back button will send this Bank MSB (Most Significant Byte) number when you

press it.

Available Values: 0-127

LSB: The Back button will send this Bank LSB (Least Significant Byte) number when you press

it.

Available Values: 0-127

Saving a Preset

To store a Preset:

1. Press SHIFT and the DAW/Preset button to enter Edit Mode. The OLED will display

“EDIT” in the top row, and depending on the current DAW/Preset mode selection, will have

Preset or DAW highlighted in the second row.

Note: When Preset or DAW is highlighted you can turn the Encoder to change from

editing DAW or Preset mode, changing the current selection.

2. Press the Encoder to enter into either DAW or Preset edit mode.

3. Edit a control.

4. Press the DAW/Preset button.

5. The display will show “SAVE?” with the following selections available.

• Cancel: Selecting Cancel will revert any changes made.

• Replace: Selecting Replace will write over the currently selected preset.

• Save As: Selecting “Yes” to Save As enable you to choose what number

“LOCATION” the preset will be and edit/change what the preset’s name “NAME” is.

The last available selection in the Save As screen is Save. Pressing “Yes” on the

Save screen will save your new preset.

Note: When editing a preset name, use the Encoder to scroll to a letter you want to edit and

press the Encoder to select the current letter. To erase a letter in a preset name, press SHIFT

and the Back button.

DAW Edit Mode

When SHIFT is pressed and held and the DAW/PRESET button is pressed, it will enter into

editing the Preset or User DAW. Press the Encoder on “DAW” and the DAW controls will be

available for editing.

The default parameter to be edited will be the current User DAW’s Fader 1 assignment.

However, once a different control is moved, or pressed, for example Knob 1, it will activate

that selected control for editing.

Storing a User DAW

To store a User DAW:

1. Press SHIFT and the DAW/Preset button to enter Edit Mode. The OLED will display

“EDIT” in the top row, and depending on the current DAW/Preset mode selection, will have

Preset or DAW highlighted in the second row.

Note: When Preset or DAW is highlighted you can turn the Encoder to change from

editing DAW or Preset mode, changing the current selection.

2. Press the Encoder to enter into either DAW or Preset edit mode.

3. Edit a control.

4. Press the DAW/Preset button.

5. The display will show “SAVE?” with the following selections available.

• Cancel: Selecting Cancel will revert any changes made.

• Replace: Selecting Replace will write over the currently selected preset.

• Save As: Selecting “Yes” to Save As enable you to edit/change what the DAW’s

name “NAME” is. The last available selection in the Save As screen is Save. Pressing

“Yes” on the Save screen will save your new User DAW.

Note: When editing a DAW name, use the Shift button and the Encoder to scroll to the letter

you want to edit and release the Shift button to select the current letter. To erase a letter in a

DAW name, press SHIFT and the Back button.

Fader

To edit the Fader control when in DAW Edit Mode, move the Fader. You can scroll through the

available parameter values using the Encoder. Select what parameter you would like to edit by

pressing the Encoder.

Channel: The Fader will send its messages over this channel. Select the global channel

(Global), or a specific channel (Channel 1–16).

Available Values: Global, 1-16

Message “MESSAGE”:

• Mackie

“Mackie”: When set to Mackie Control, you can use the fader with a DAW that

responds to Mackie Control mode.

• Mackie/HUI

“MACK/HUI”: When set to Mackie/HUI, you can use the fader with a DAW

that responds to HUI mode.

• CC “CC”: The fader will send its MIDI messages using this CC number.

CC: The fader will send its MIDI messages using this CC number.

Available Values: 0-127

Knobs

To edit one of the Knobs when in Preset Edit Mode, move a Knob. You can scroll through the

available parameter values using the Encoder. Select what parameter you would like to edit by

pressing the Encoder.

Channel: The Knob will send its messages over this channel. Select the global channel

(Global), or a specific channel (Channel 1–16).

Available Values: Global, 1-16

Message “MESSAGE”:

• Mackie

“Mackie”: When set to Mackie Control, you can use the knob with a DAW that

responds to Mackie Control mode.

• Mackie/HUI

“MACK/HUI”: When set to Mackie/HUI, you can use the knob with a DAW

that responds to HUI mode.

• CC “CC”: The fader will send its MIDI messages using this CC number.

CC: The knob will send its MIDI messages using this CC number.

Available Values: 0-127

Pads

To edit one of the Pads when in DAW Edit Mode, press a Pad. You can scroll through the
