OWNER'SMANUAL&COOKINGGUIDE
PLEASEREAD THIS OWNEWS MANUAL THOROUGHLY BEFORE OPERATING,,
LTM9020W/LTM9020B

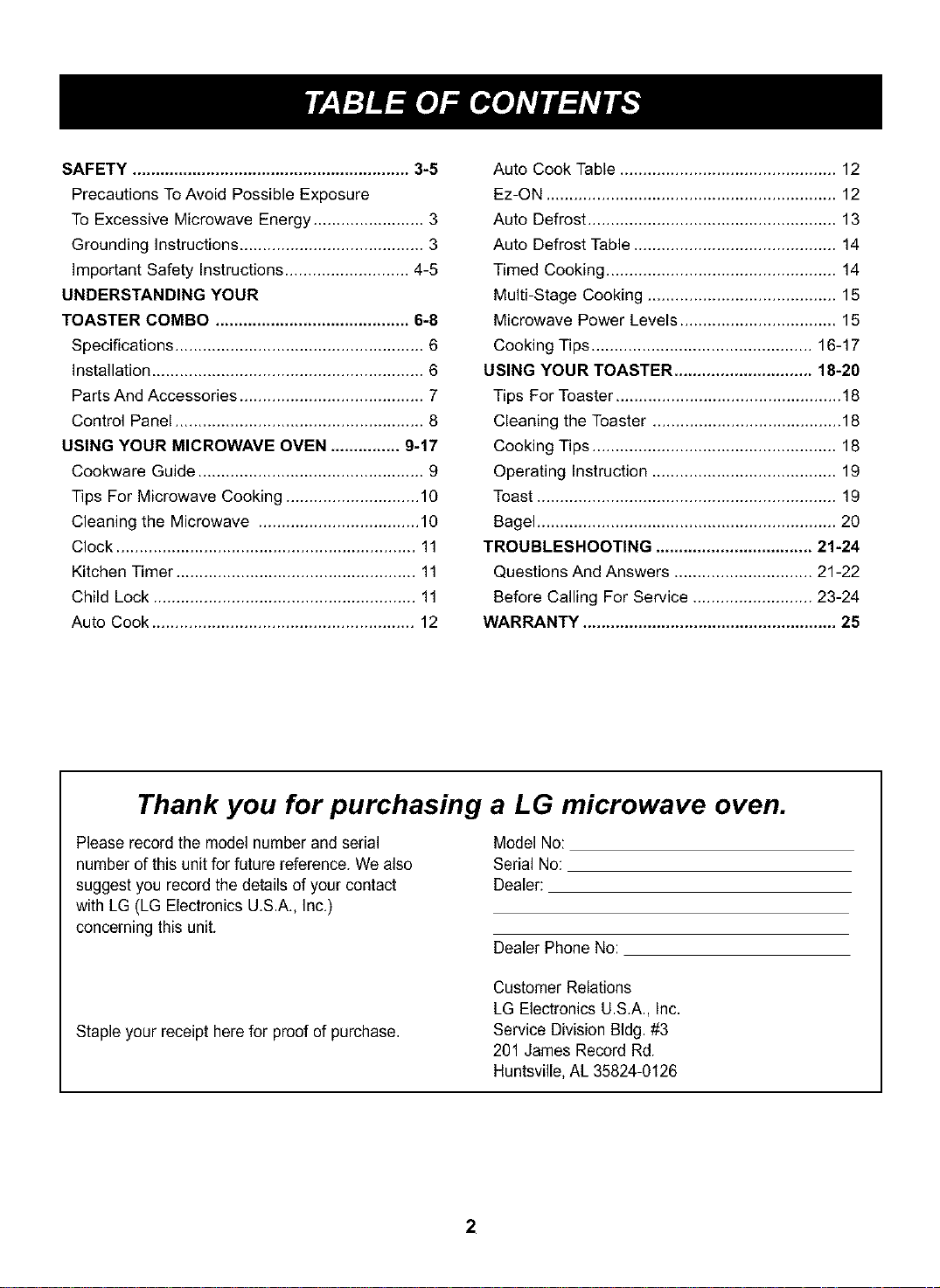

SAFETY ............................................................ 3-5
Precautions To Avoid Possible Exposure
To Excessive Microwave Energy ........................ 3
Grounding Instructions ........................................ 3
Important Safety Instructions ........................... 4-5
UNDERSTANDING YOUR
TOASTER COMBO .......................................... 6-8
Specifications ...................................................... 6
Installation ........................................................... 6

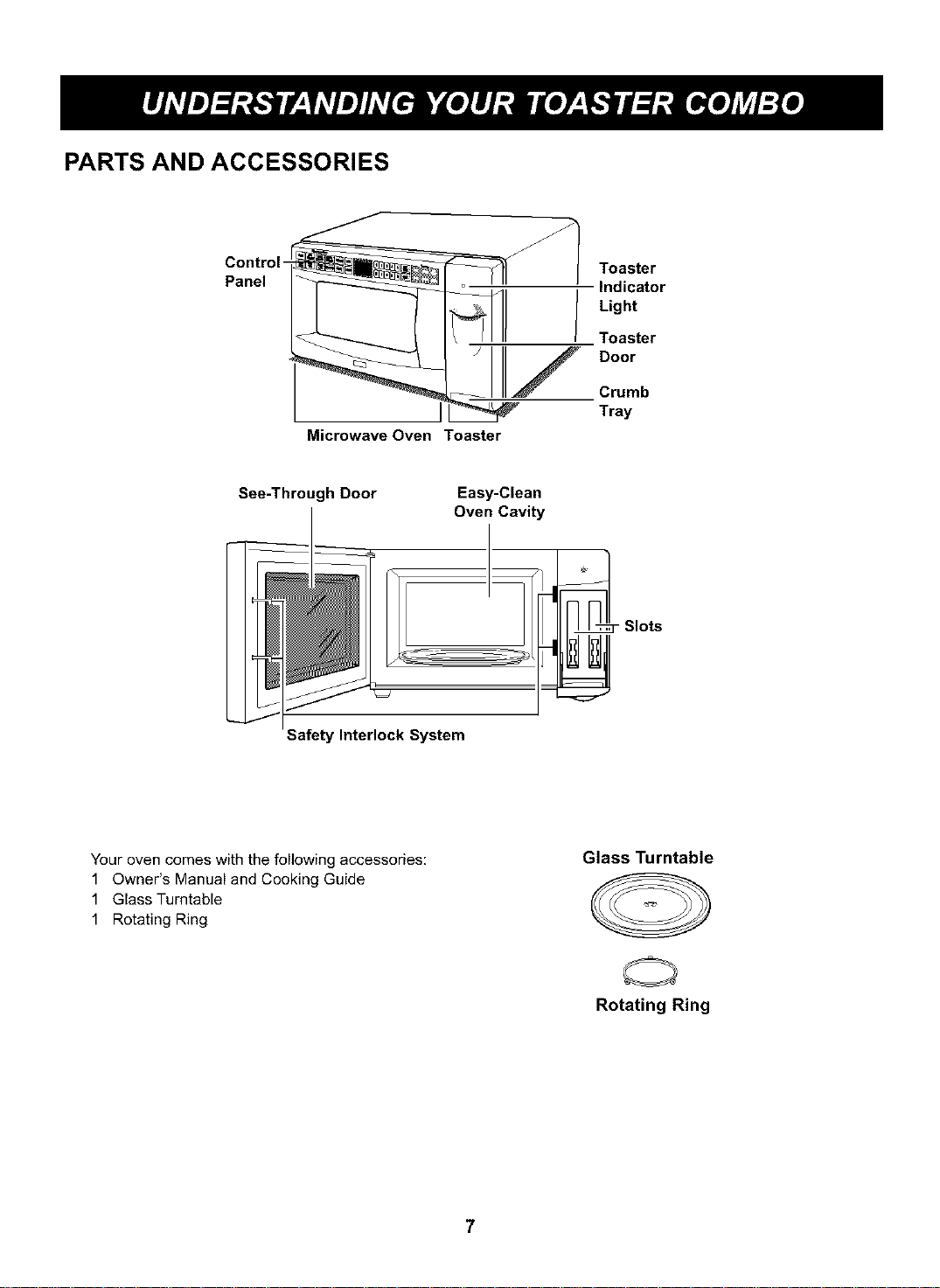

Parts And Accessories ........................................ 7
Control Panel ...................................................... 8
USING YOUR MICROWAVE OVEN ............... 9-17

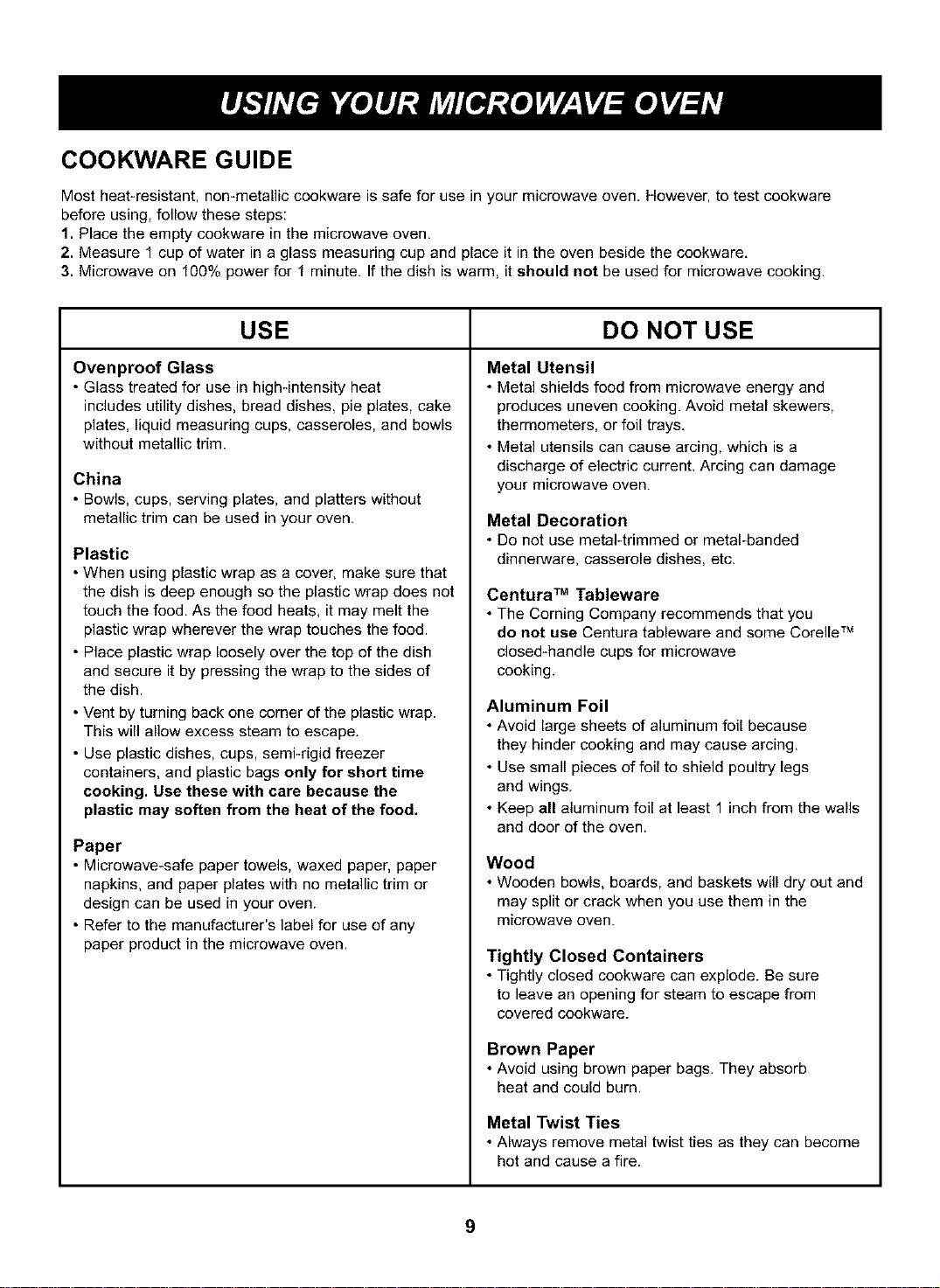

Cookware Guide ................................................. 9
Tips For Microwave Cooking ............................. 10
Cleaning the Microwave ................................... 10

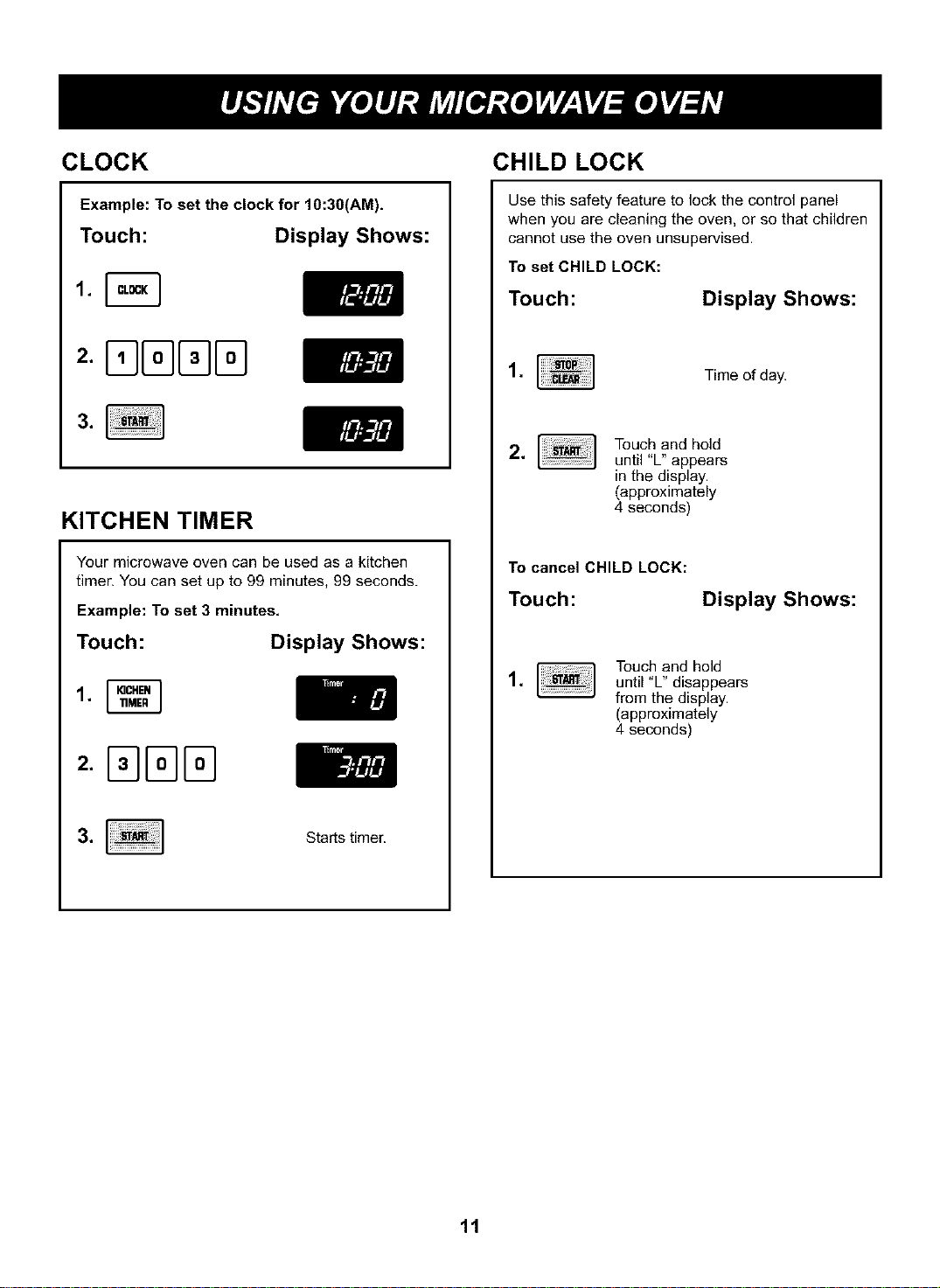

Clock ................................................................. 11
Kitchen Timer .................................................... 11
Child Lock ......................................................... 11

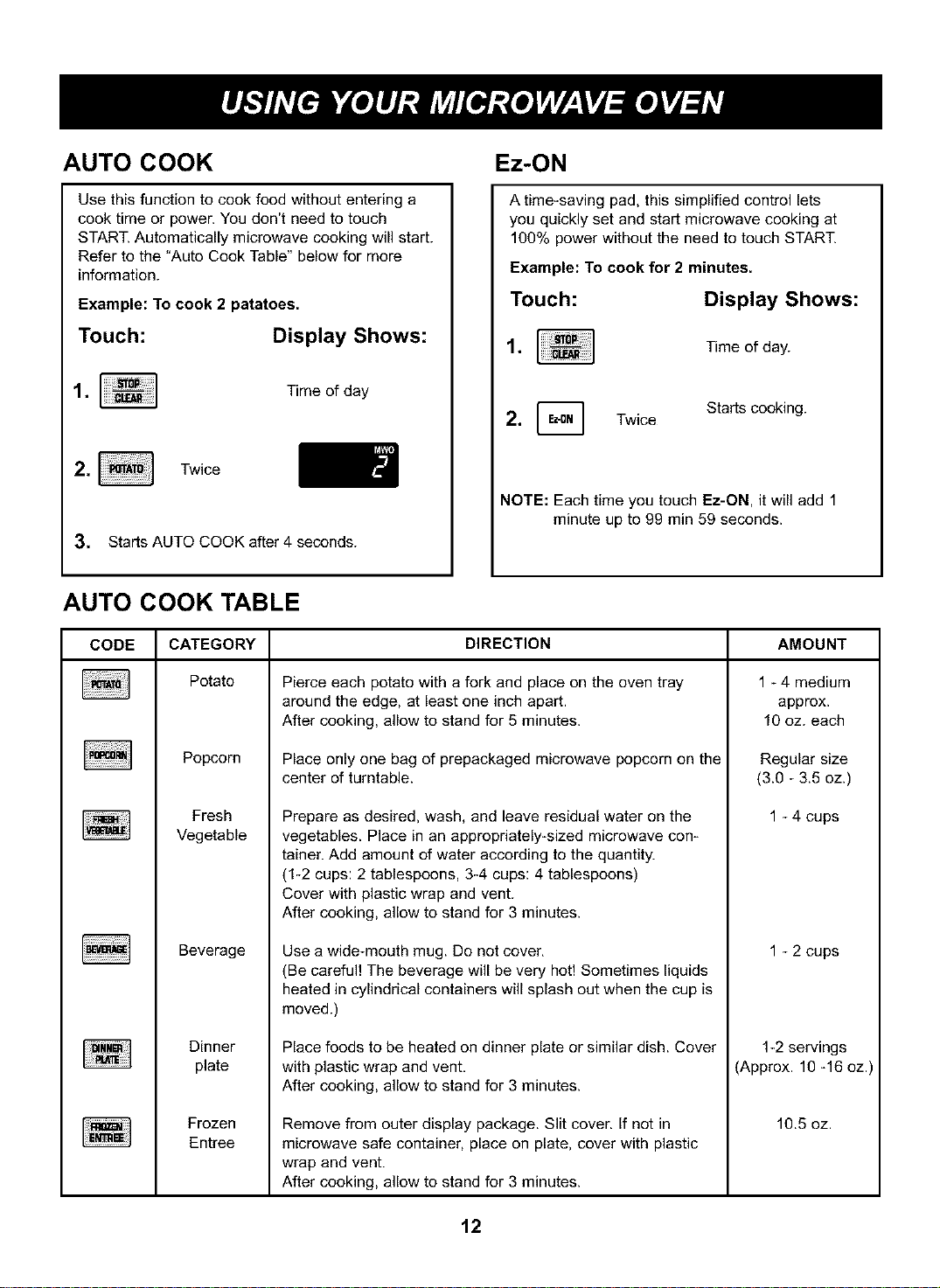

Auto Cook ......................................................... 12
Auto Cook Table ............................................... 12
Ez-ON ............................................................... 12

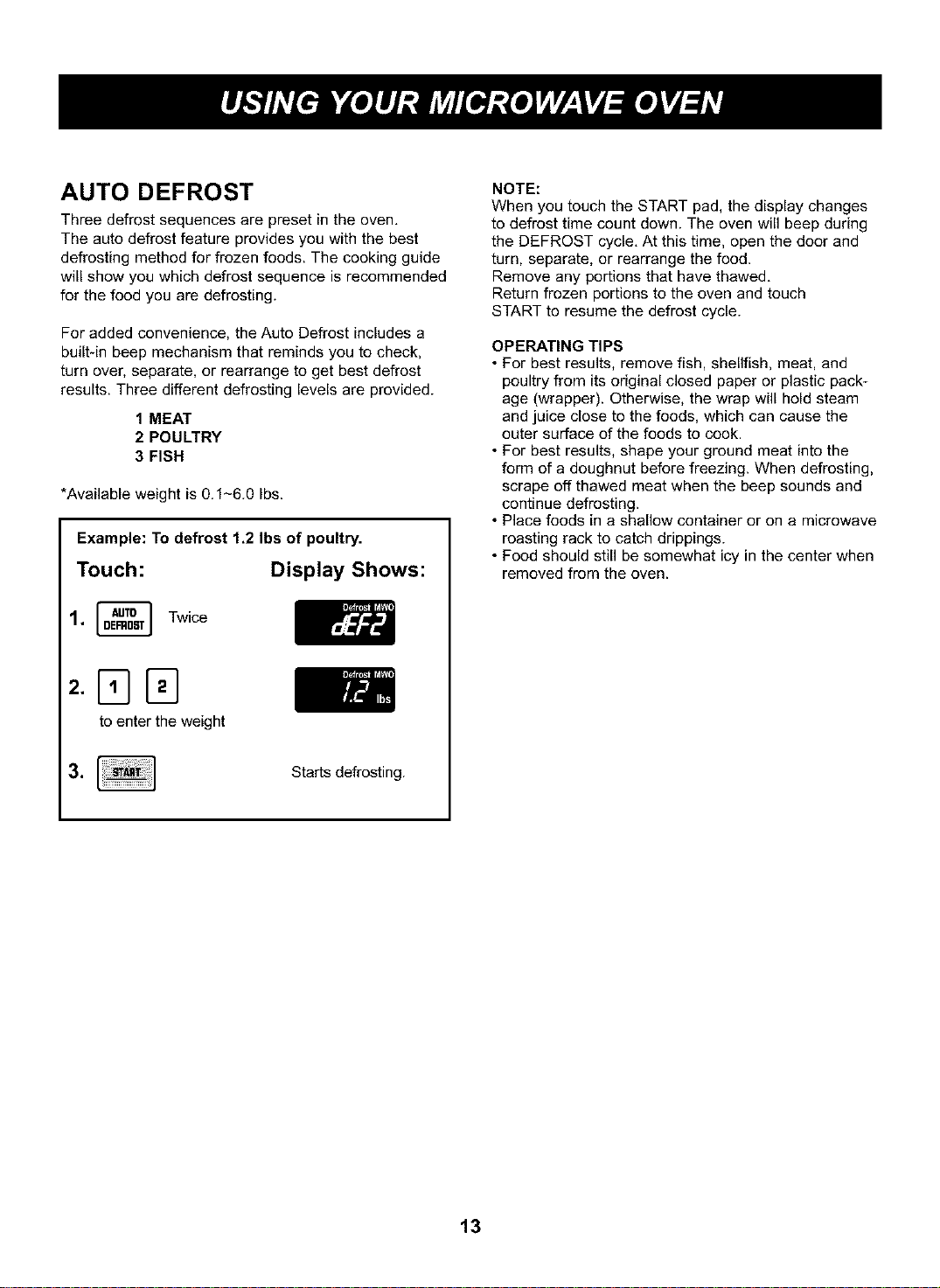

Auto Defrost ...................................................... 13
Auto Defrost Table............................................ 14
Timed Cooking .................................................. 14
Multi-Stage Cooking ......................................... 15
Microwave Power Levels .................................. 15
Cooking Tips ................................................ 16-17
USING YOUR TOASTER .............................. 18-20
Tips ForToaster................................................. 18
Cleaning the Toaster ......................................... 18
Cooking Tips ..................................................... 18

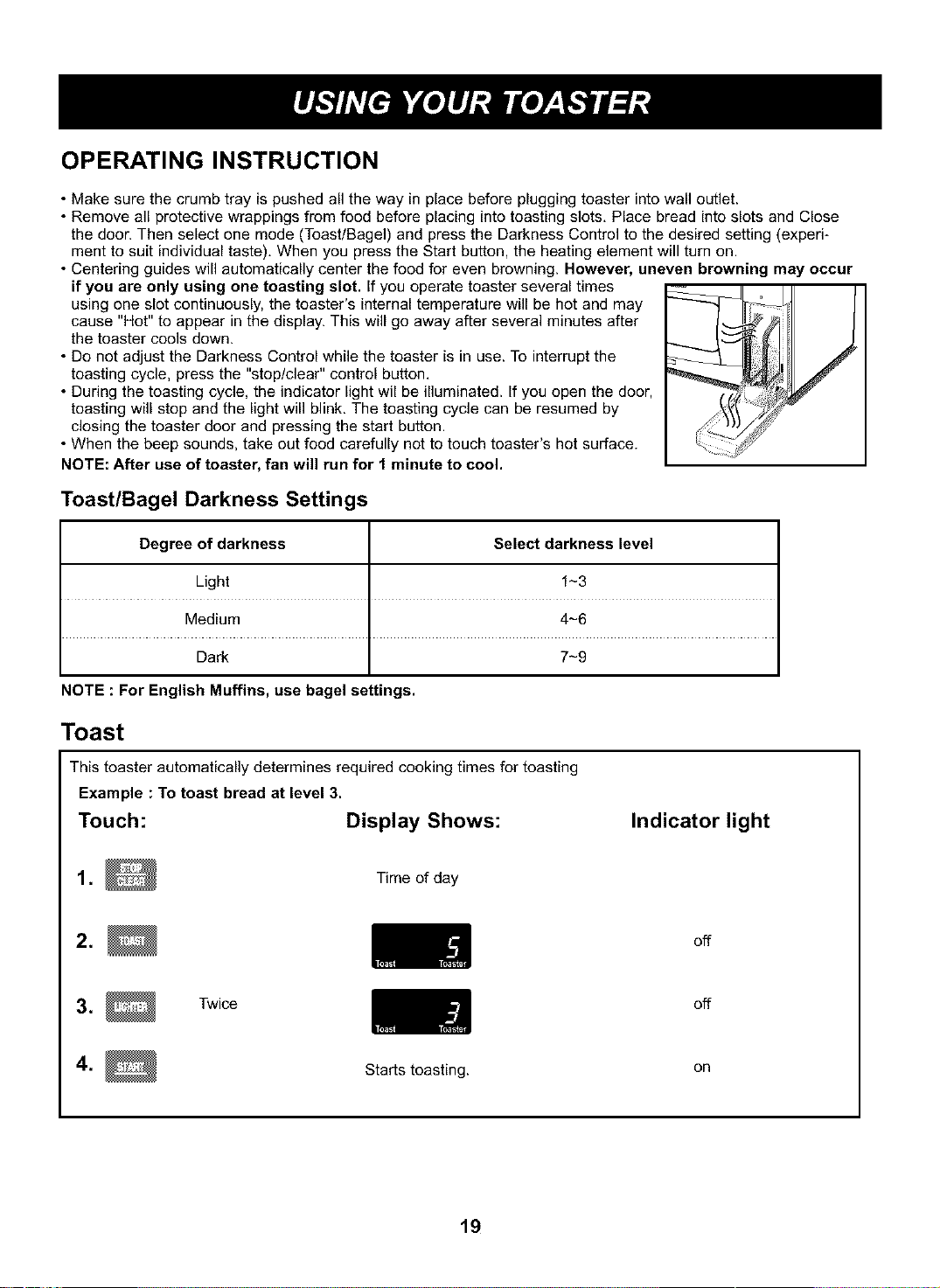

Operating Instruction ........................................ 19
Toast ................................................................. 19
Bagel ................................................................. 20
TROUBLESHOOTING .................................. 21-24

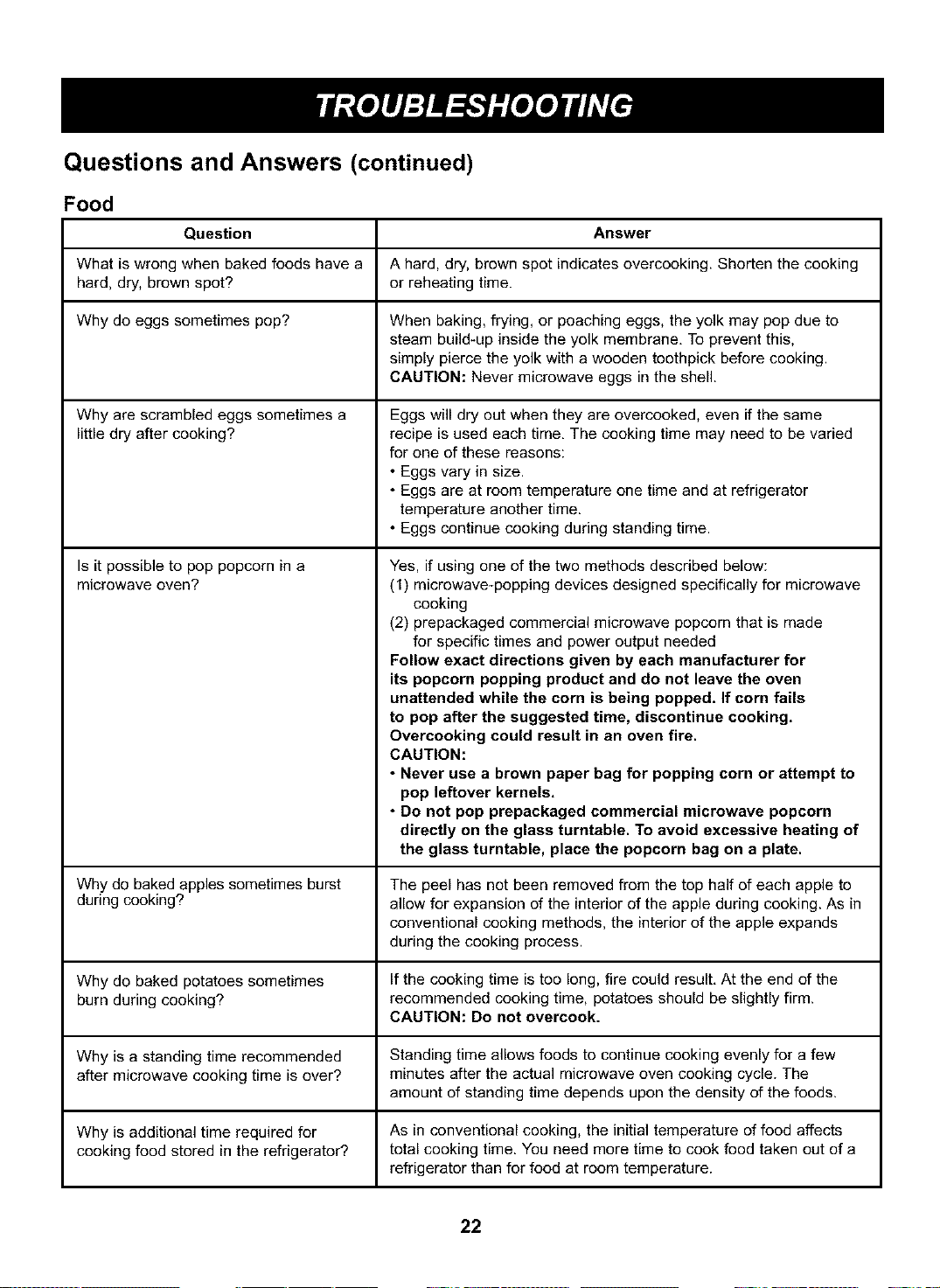

Questions And Answers .............................. 21-22

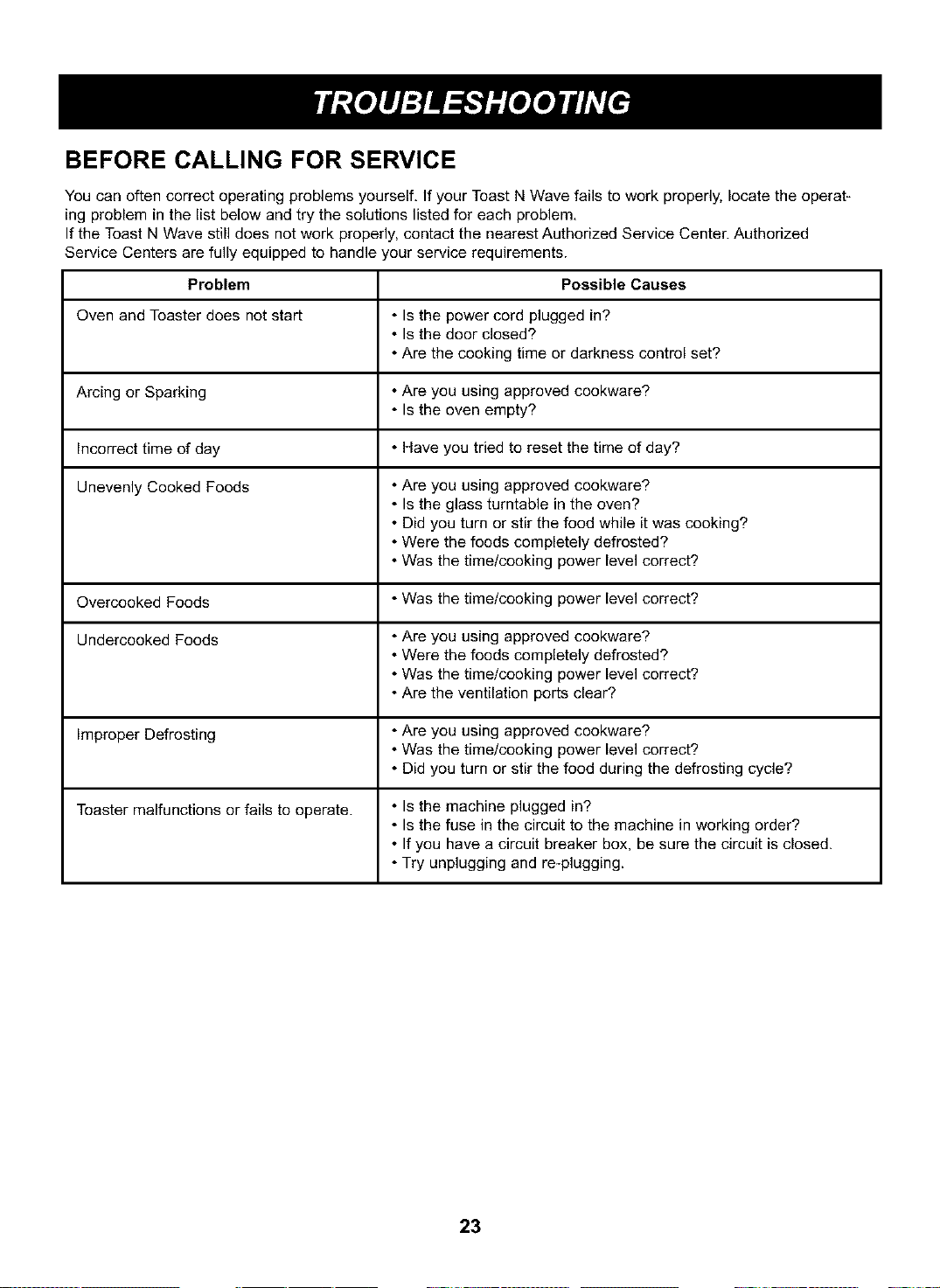

Before Calling For Service .......................... 23-24

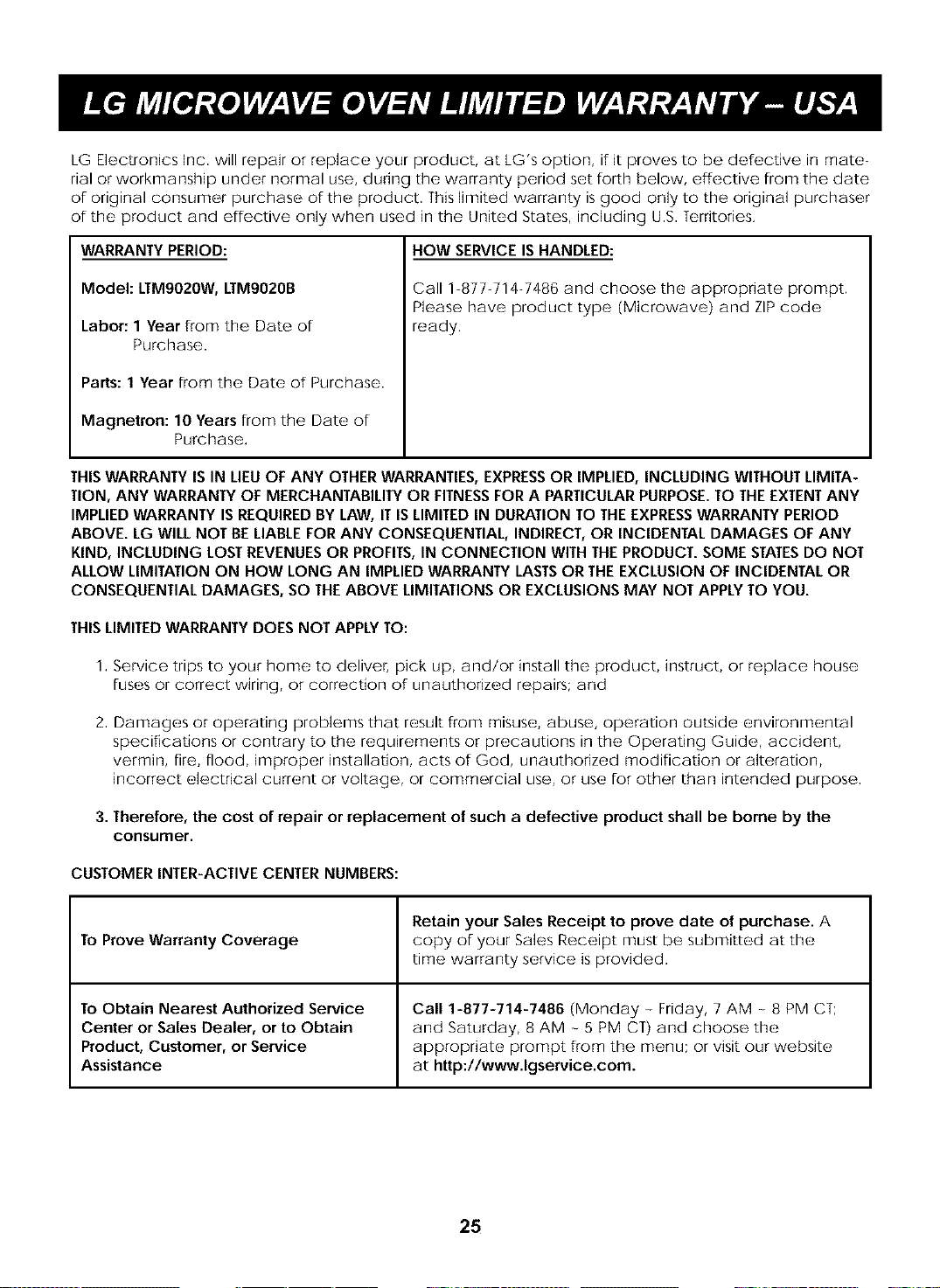

WARRANTY ....................................................... 25
Thank you for purchasing a LG microwave oven.
Please recordthe model numberand serial
number of this unitfor future reference. We also
suggest you record the details of your contact
with LG (LG Electronics U.S.A., Inc.)
concerning this unit.
Model No:
Serial No:
Dealer:
Dealer Phone No:
Staple your receipt here for proof of purchase.
Customer Relations
LG Electronics U.S.A., Inc.
Service Division Bldg. #3
201 James Record Rd.
Huntsville,AL 35824-0126
2

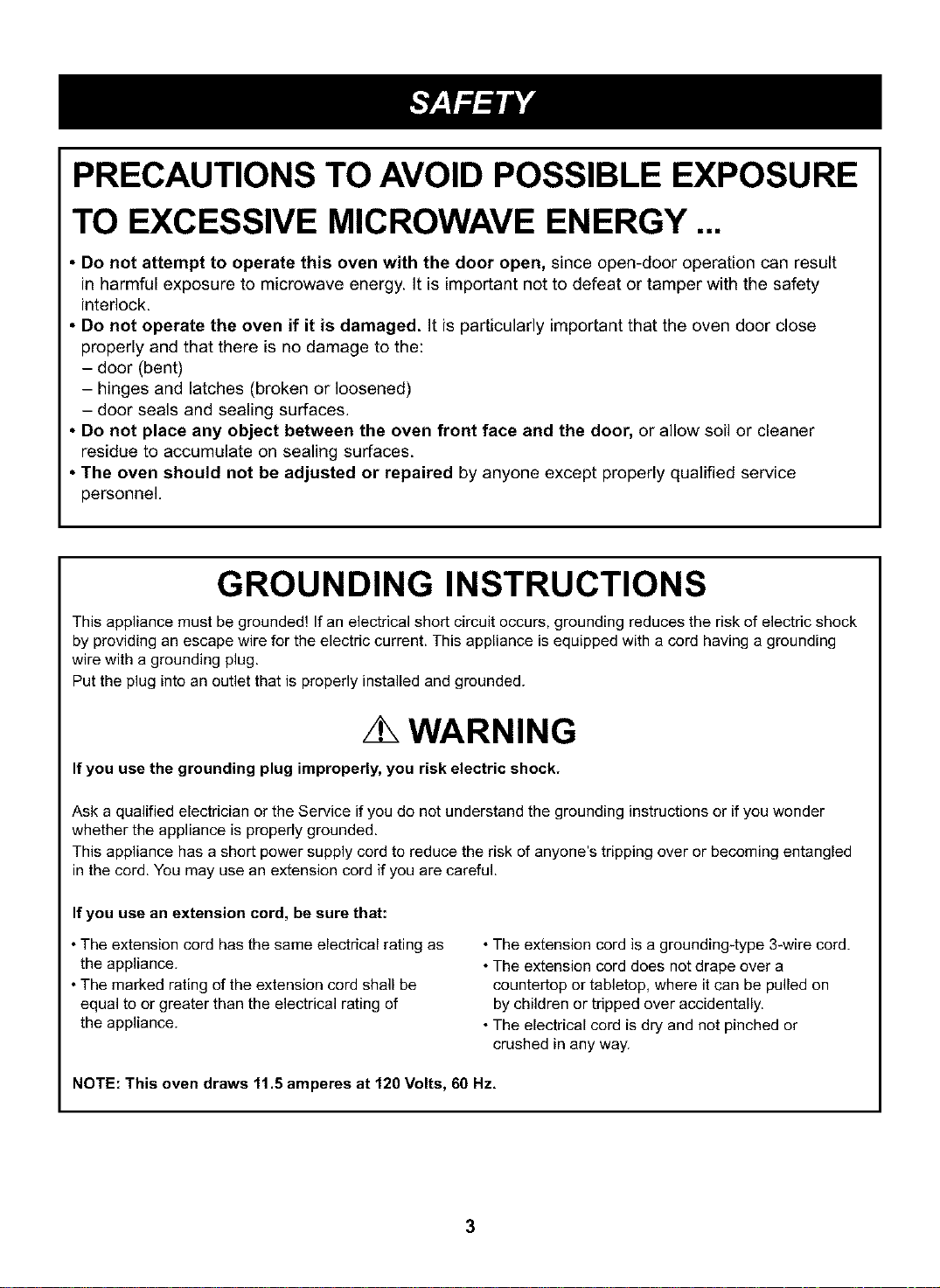

PRECAUTIONS TO AVOID POSSIBLE EXPOSURE
TO EXCESSIVE MICROWAVE ENERGY ...
• Do not attempt to operate this oven with the door open, since open-door operation can result
in harmful exposure to microwave energy. It is important not to defeat or tamper with the safety
interlock.
• Do not operate the oven if it is damaged. It is particularly important that the oven door close
properly and that there is no damage to the:
- door (bent)
- hinges and latches (broken or loosened)
- door seals and sealing surfaces.
• Do not place any object between the oven front face and the door, or allow soil or cleaner
residue to accumulate on sealing surfaces.
• The oven should not be adjusted or repaired by anyone except properly qualified service
personnel.
GROUNDING INSTRUCTIONS
This appliance must be grounded! Ifan electrical short circuit occurs, grounding reduces the risk of electric shock
by providing an escape wire for the electric current. This appliance is equipped with a cord having a grounding
wire with a grounding plug.
Put the plug into an outlet that is properly installed and grounded.
WARNING
If you use the grounding plug improperly, you risk electric shock.
Ask a qualified electrician or the Service if you do not understand the grounding instructions or if you wonder
whether the appliance is properly grounded.
This appliance has a short power supply cord to reduce the risk of anyone's tripping over or becoming entangled
in the cord. You may use an extension cord if you are careful.
If you use an extension cord, be sure that:
• The extension cord has the same electrical rating as
the appliance.
• The marked rating of the extension cord shall be
equal to or greater than the electrical rating of
the appliance.
• The extension cord is a grounding-type 3-wire cord.
• The extension cord does not drape over a
countertop or tabletop, where it can be pulled on
by children or tripped over accidentally.
• The electrical cord is dry and not pinched or
crushed in any way.
NOTE: This oven draws 11.5 amperes at 120 Volts, 60 Hz.
3

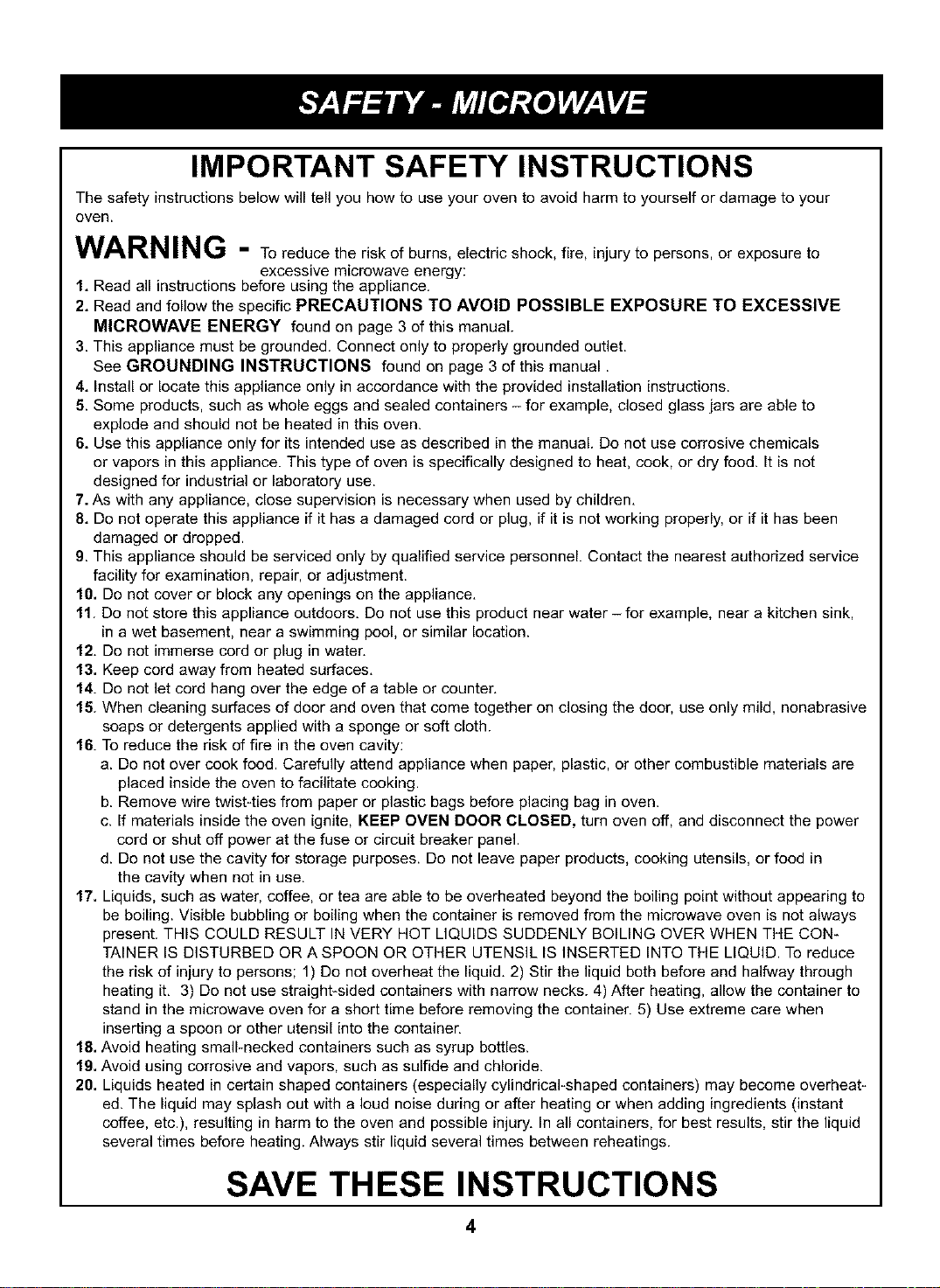

IMPORTANT SAFETY INSTRUCTIONS
The safety instructions below will tell you how to use your oven to avoid harm to yourself or damage to your
oven.
WARN ING - To reduce the risk of burns, electric shock, fire, injury to persons, or exposure to
excessive microwave energy:
1, Read all instructions before using the appliance.
2. Read and follow the specific PRECAUTIONS TO AVOID POSSIBLE EXPOSURE TO EXCESSIVE
MICROWAVE ENERGY found on page 3 of this manual.
3. This appliance must be grounded. Connect only to properly grounded outlet.
See GROUNDING INSTRUCTIONS found on page 3 of this manual.
4. Install or locate this appliance only in accordance with the provided installation instructions.
5. Some products, such as whole eggs and sealed containers - for example, closed glass jars are able to
explode and should net be heated in this oven.
6. Use this appliance only for its intended use as described in the manual, De not use corrosive chemicals
or vapors in this appliance. This type of oven is specifically designed to heat, cook, or dry food. It is not
designed for industrial or laboratory use.
7. As with any appliance, close supervision is necessary when used by children,
8. Do net operate this appliance if it has a damaged cord or plug, if it is not working properly, or if it has been
damaged or dropped.
9. This appliance should be serviced only by qualified service personnel. Contact the nearest authorized service
facility for examination, repair, or adjustment.
10. Do net cover or block any openings on the appliance,
11. De not store this appliance outdoors, De not use this product near water - for example, near a kitchen sink,
in a wet basement, near a swimming pool, or similar location.
12, Do net immerse cord or plug in water,
13. Keep cord away from heated surfaces,
14. Do net let cord hang over the edge of a table or counter,
15. When cleaning surfaces of door and oven that come together on closing the door, use only mild, nonabrasive
soaps or detergents applied with a sponge or soft cloth.
16. To reduce the risk of fire in the oven cavity:
a. Do net over cook food. Carefully attend appliance when paper, plastic, or other combustible materials are
placed inside the oven to facilitate cooking.
b. Remove wire twist-ties from paper or plastic bags before placing bag in oven.
c. If materials inside the oven ignite, KEEP OVEN DOOR CLOSED, turn oven off, and disconnect the power
cord or shut off power at the fuse or circuit breaker panel.
d. Do net use the cavity for storage purposes. Do not leave paper products, cooking utensils, or food in
the cavity when net in use,
17. Liquids, such as water, coffee, or tea are able to be overheated beyond the boiling point without appearing to
be boiling. Visible bubbling or boiling when the container is removed from the microwave oven is not always
present. THIS COULD RESULT IN VERY HOT LIQUIDS SUDDENLY BOILING OVER WHEN THE CON-
TAINER IS DISTURBED OR A SPOON OR OTHER UTENSIL IS INSERTED INTO THE LIQUID. To reduce
the risk of injury to persons; 1) De not overheat the liquid, 2) Stir the liquid both before and halfway through
heating it, 3) Do net use straight-sided containers with narrow necks. 4) After heating, allow the container to
stand in the microwave oven for a short time before removing the container. 5) Use extreme care when
inserting a spoon or other utensil into the container,
18. Avoid heating small-necked containers such as syrup bottles.
19. Avoid using corrosive and vapors, such as sulfide and chloride.
20. Liquids heated in certain shaped containers (especially cylindrical-shaped containers) may become overheat-
ed. The liquid may splash out with a loud noise during or after heating or when adding ingredients (instant
coffee, etc.), resulting in harm to the oven and possible injury, In all containers, for best results, stir the liquid
several times before heating, Always stir liquid several times between reheatings.
SAVE THESE INSTRUCTIONS
4

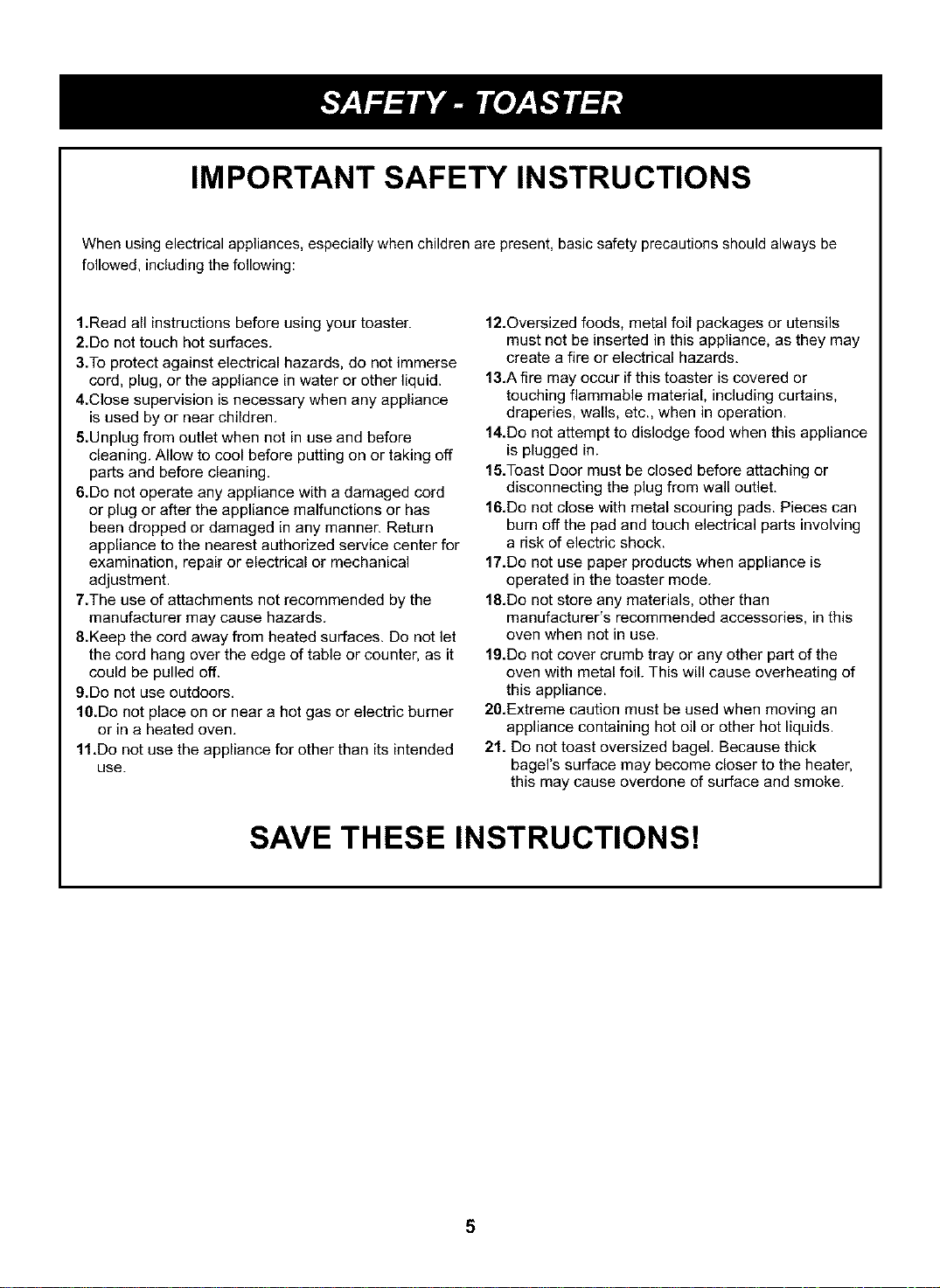

IMPORTANT SAFETY INSTRUCTIONS
When using electrical appliances, especially when children are present, basic safety precautions should always be
followed, including the following:
1.Read all instructions before using your toaster.
2.Do not touch hot surfaces,
3.To protect against electrical hazards, do not immerse
cord, plug, or the appliance in water or other liquid.
4.Close supervision is necessary when any appliance
is used by or near children,
&Unplug from outlet when not in use and before
cleaning, Allow to cool before putting on or taking off
parts and before cleaning,
6.Do not operate any appliance with a damaged cord
or plug or after the appliance malfunctions or has
been dropped or damaged in any manner. Return
appliance to the nearest authorized service center for
examination, repair or electrical or mechanical
adjustment.
7.The use of attachments not recommended by the
manufacturer may cause hazards.
8.Keep the cord away from heated surfaces. Do not let
the cord hang over the edge of table or counter, as it
could be pulled off.
9.Do not use outdoors,
10.Do not place on or near a hot gas or electric burner
or in a heated oven,
11,Do not use the appliance for other than its intended
use.
12.Oversized foods, metal foil packages or utensils
must not be inserted in this appliance, as they may
create a fire or electrical hazards,
13,A fire may occur if this toaster is covered or
touching flammable material, including curtains,
draperies, walls, etc., when in operation.
14,Do not attempt to dislodge food when this appliance
is plugged in,
15,Toast Door must be closed before attaching or
disconnecting the plug from wall outlet,
16,Do not close with metal scouring pads. Pieces can
burn off the pad and touch electrical parts involving
a risk of electric shock.
17,Do not use paper products when appliance is
operated in the toaster mode.
18,Do not store any materials, other than
manufacturer's recommended accessories, inthis
oven when not in use.
19,Do not cover crumb tray or any other part of the
oven with metal foil. This will cause overheating of
this appliance.
20,Extreme caution must be used when moving an
appliance containing hot oil or other hot liquids.
21, Do not toast oversized bagel, Because thick
bagel's surface may become closer to the heater,
this may cause overdone of surface and smoke.
SAVE THESE INSTRUCTIONS!
5

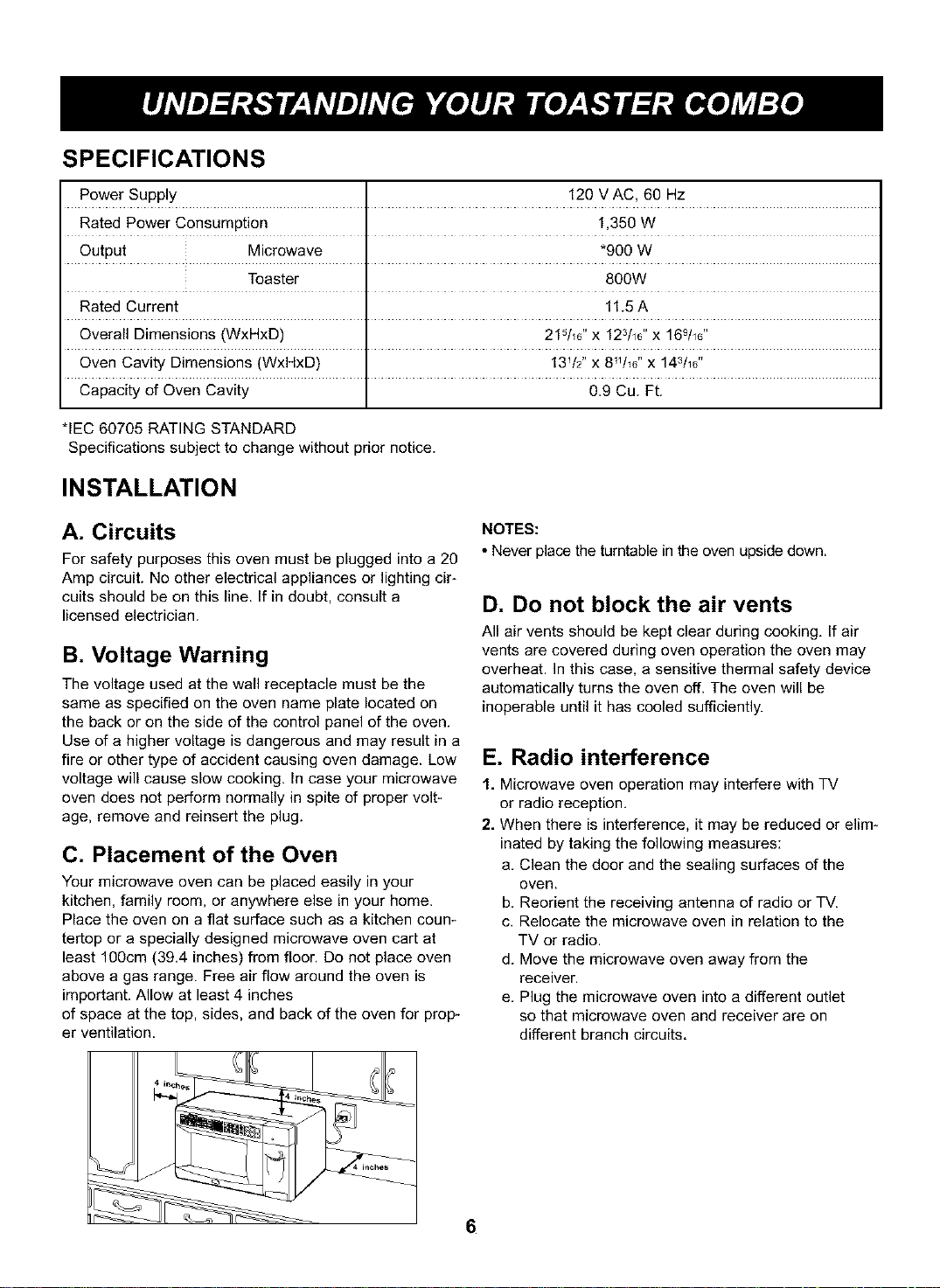

SPECIFICATIONS
Power Supply 120 V AC, 60 Hz
Rated Power Consumption 1,350 W
Output Microwave *900 W
Toaster 800W
Rated Current 11.5 A
Overall Dimensions (WxHxD) 215h6" x 123h6" x 16°h6"
Oven Cavity Dimensions (WxHxD) 13V2"x 8_V_6" x 143h6"
Capacity of Oven Cavity 0.9 Cu. Ft.
*IEC 60705 RATING STANDARD
Specifications subject to change without prior notice.
INSTALLATION
A. Circuits
For safety purposes this oven must be plugged into a 20
Amp circuit. No other electrical appliances or lighting cir-
cuits should be on this line. If in doubt, consult a
licensed electrician.
B. Voltage Warning
The voltage used at the wall receptacle must be the
same as specified on the oven name plate located on
the back or on the side of the control panel of the oven.
Use of a higher voltage is dangerous and may result in a
fire or other type of accident causing oven damage. Low
voltage will cause slow cooking. In case your microwave
oven does not perform normally in spite of proper volt-
age, remove and reinsert the plug.
C. Placement of the Oven
Your microwave oven can be placed easily in your
kitchen, family room, or anywhere else in your home.
Place the oven on a flat surface such as a kitchen coun-
tertop or a specially designed microwave oven cart at
least 100cm (39.4 inches) from floor. Do not place oven
above a gas range. Free air flow around the oven is
important. Allow at least 4 inches
of space at the top, sides, and back of the oven for prop-
er ventilation.
NOTES:
• Never place the turntable in the oven upside down.
D. Do not block the air vents
All air vents should be kept clear during cooking. If air
vents are covered during oven operation the oven may
overheat. In this case, a sensitive thermal safety device
automatically turns the oven off. The oven will be
inoperable until it has cooled sufficiently.
E. Radio interference
1. Microwave oven operation may interfere with TV
or radio reception.
2. When there is interference, it may be reduced or elim-
inated by taking the following measures:
a. Clean the door and the sealing surfaces of the
oven.
b. Reorient the receiving antenna of radio or TV.
c. Relocate the microwave oven in relation to the
TV or radio.
d. Move the microwave oven away from the
receiver.
e. Plug the microwave oven into a different outlet
so that microwave oven and receiver are on
different branch circuits.
6
PARTS AND ACCESSORIES
Control-
Panel
Microwave Oven Toaster
Toaster
Indicator
Light
Toaster
Door
Crumb
Tray
See-Through Door
Easy-Clean
Oven Cavity
Safety Interlock System
Slots
Your oven comes with the following accessories:
1 Owner's Manual and Cooking Guide
1 Glass Turntable
1 Rotating Ring
Glass Turntable
C)
Rotating Ring
7
CONTROLPANEL
MICROWAVE CONTROL AREA
® ® ® ® ®
I
I
@ ® ® ® @ ®
1. DISPLAY. The Display includes a clock and indicators that tell you time of day, cooking time settings, and cooking
functions selected.
2, STOP/CLEAR. Touch this pad to stop the oven or clear entries.
3. START. Touch this pad to start all entries (except the Auto Cook and Add Minute function which start automatically)
and to turn Child Lock on or off.
4. AUTO COOK. Touch this pad to select programming food items,
5. Ez-ON, Touch this pad to cook at 100% cook power for 1 minute to 99 minutes 59 seconds.
6. AUTO DEFROST, This pad is an accurate defrosting method for frozen meat, poultry and fish up to 6.0 Ibs.
7. COOK TIME. Touch this pad to set a cooking time.
8. POWER. Touch this pad to set a cooking power.
9. CLOCK. Touch this pad to set the time of day.
10. KITCHEN TIMER. Touch this pad to use your microwave oven as a kitchen timer.
11. NUMBER PADS. Touch Number Pads to enter cooking time, power level, quantities, or weights.
TOASTER CONTROL AREA
® ® ®
® ® ® ®
1, Toast. Toast bread
2. Bagel, Toasts Bagels
3, Stop/Clear. Touch this pad to stop the toaster or clear entries.
4, Start. Touch this pad to start the toasting process.
5, Darkness Control. Adjust darkness control to desired setting before cooking foods.
(Default : 5, "1" is the lightest and "9" is the darkest)
6, Indicator Light. When operating toaster with door closed, this will be illuminated. If you open the door during
toasting, this will blink.
8
COOKWARE GUIDE
Most heat-resistant, non-metallic cookware is safe for use in your microwave oven. However, to test cookware
before using, follow these steps:
1. Place the empty cookware in the microwave oven.
2. Measure 1 cup of water in a glass measuring cup and place it in the oven beside the cookware,
3. Microwave on 100% power for 1 minute. If the dish is warm, it should not be used for microwave cooking.
USE DO NOT USE
Ovenproof Glass
• Glass treated for use in high-intensity heat
includes utility dishes, bread dishes, pie plates, cake
plates, liquid measuring cups, casseroles, and bowls
without metallic trim.
China
• Bowls, cups, serving plates, and platters without
metallic trim can be used in your oven.
Plastic
• When using plastic wrap as a cover, make sure that
the dish is deep enough so the plastic wrap does not
touch the food. As the food heats, it may melt the
plastic wrap wherever the wrap touches the food.
• Place plastic wrap loosely over the top of the dish
and secure it by pressing the wrap to the sides of
the dish.
• Vent by turning back one corner of the plastic wrap.
This will allow excess steam to escape,
• Use plastic dishes, cups, semi-rigid freezer
containers, and plastic bags only for short time
cooking, Use these with care because the
plastic may soften from the heat of the food,
Paper
• Microwave_safe paper towels, waxed paper, paper
napkins, and paper plates with no metallic trim or
design can be used in your oven.
• Refer to the manufacturer's label for use of any
paper product in the microwave oven.
Metal Utensil
• Metal shields food from microwave energy and
produces uneven cooking. Avoid metal skewers,
thermometers, or foil trays,
• Metal utensils can cause arcing, which is a
discharge of electric current. Arcing can damage
your microwave oven.
Metal Decoration
• Do not use metal-trimmed or metal-banded
dinnerware, casserole dishes, etc.
Centura TM Tableware
• The Coming Company recommends that you
do not use Centura tableware and some Corelle TM
closed-handle cups for microwave
cooking.
Aluminum Foil
• Avoid large sheets of aluminum foil because
they hinder cooking and may cause arcing,
• Use small pieces of foil to shield poultry legs
and wings.
• Keep all aluminum foil at least 1 inch from the walls
and door of the oven.
Wood
• Wooden bowls, boards, and baskets will dry out and
may split or crack when you use them in the
microwave oven.
Tightly Closed Containers
• Tightly closed cookware can explode. Be sure
to leave an opening for steam to escape from
covered cookware.
Brown Paper
• Avoid using brown paper bags. They absorb
heat and could burn.
Metal Twist Ties
• Always remove metal twist ties as they can become
hot and cause a fire.
9
TIPS FOR MICROWAVE COOKING
BROWNING
Meat and poultry with high fat content that are cooked
for 10 or 15 minutes or longer will brown lightly. Foods
cooked a shorter time can be brushed with a browning
agent, such as Worcestershire sauce, soy sauce, or
barbecue sauce.
COVERING
A cover traps heat and steam and causes the food to
cook more quickly. Use a lid or microwave-safe plastic
wrap with one corner folded back to vent the excess
steam. Lids on glass casseroles can become hot
during cooking. Handle carefully. Waxed paper will
prevent the food from splattering in the oven and help
retain heat. When warming bread items, use waxed
paper, napkins, or paper towels. To absorb extra
moisture, wrap sandwiches and fatty foods in paper
towels.
SPACING
Arrange individual foods, such as baked potatoes,
cupcakes, and hers d'oeuvres in a circle and at least
1 inch apart. This will help the food cook more evenly.
STIRRING
Stirring blends flavors and redistributes the heat in
foods. Always stir from the outside toward the center
of the dish. Food at the outside of the dish heats first.
TURNING
Large foods, such as roasts and whole poultry, should
be turned so that the top and bottom cook evenly. Also
turn over chicken pieces and chops.
CLEANING THE MICROWAVE
Wipe the oven inside and outside with a soft cloth and
a mild detergent solution. Then rinse and wipe dry.
This should be done weekly or more often, if needed.
Never use cleaning powders or rough pads.
Excessive oil splatters on the inside top will be difficult
to remove if left for many days. Wipe splatters with a
wet paper towel, especially after cooking chicken or
bacon.
REMOVABLE PARTS
The turntable and turntable roller rest are removable.
They should be hand-washed in warm (not hot) water
with a mild detergent and a soft cloth. Once they are
clean, rinse well and dry with a soft cloth. Never use
cleaning powders, steel wool, or rough pads.
ARRANGEMENT
Do not stack food. Arrange in a single layer in the dish
for more even cooking. Because dense foods cook
more slowly, place thicker portions of meat, poultry, fish,
and vegetables toward the outside of the dish.
TESTING FOR DONENESS
Because foods cook quickly in a microwave oven, you
need to test frequently for doneness.
STANDING TIME
Depending on density, food often needs to stand from 2
to 15 minutes after you remove it from the oven.
Usually, you need to cover food during standing time to
retain heat. Remove most foods when they are slightly
undercooked and they will finish cooking during stand-
ing time. The internal temperature of food will rise about
10 °F during standing time.
SHIELDING
To prevent some portions of rectangular or square dish-
es from overcooking, you may need to shield
them with small strips of aluminum foil to block the
microwaves. You can also cover poultry legs and
wing tips with foil to keep them from overcooking.
Always keep foil at least 1 inch from oven walls
to prevent arcing.
PIERCING
Pierce the shell, skin, or membrane of foods before
cooking to prevent them from bursting. Foods that
require piercing include yolks and whites of eggs, hot
dogs, clams, oysters, and whole vegetables, such as
potatoes and squash.
• The turntable may be cleaned at the sink. Be careful
not to chip or scratch the edges as this may cause
the turntable to break during use.
• The turntable roller rest should be cleaned regularly.
SPECIAL CARE
For best performance and safety, the inner door panel
and the oven front frame should be free of food or
grease buildup. Wipe often with a mild detergent; then
rinse and wipe dry. Never use cleaning powders or
rough pads.
After cleaning the control panel, touch STOP/CLEAR
to clear any entries that might have been entered
accidentally while cleaning the panel.
10
CLOCK
Example: To set the clock for 10:30(AM).
Touch:
1. [-2g]
2.I-q[]DD
3.
Display Shows:
KITCHEN TIMER
Your microwave oven can be used as a kitchen
timer. You can set up to 99 minutes, 99 seconds.
Example: To set 3 minutes,
Touch: Display Shows:
Starts timer.
;HILD LOCK
Use this safety feature to lock the control panel
when you are cleaning the oven, or so that children
cannot use the oven unsupervised.
To set CHILD LOCK:
Touch:
Display Shows:
1. Time of day.
2. Touch and hold
until "L" appears
in the display.
(approximately
4 seconds)
To cancel CHILD LOCK:
Touch: Display Shows:
Touch and hold
1. until "L" disappears
from the display.
(approximately
4 seconds)
11
AUTO COOK
Use this function to cook food without entering a
cook time or power. You don't need to touch
START. Automatically microwave cooking will start.
Refer to the "Auto Cook Table" below for more
information.
Example: To cook 2 patatoes.
Touch:
Display Shows:
1. Time of day
2. Twice
3. Starts AUTO COOK after 4 seconds.
Ez-ON
A time-saving pad, this simplified control lets
you quickly set and start microwave cooking at
100% power without the need to touch START.
Example: To cook for 2 minutes.
Touch: Display Shows:
1. Time of day.
2. [-_ Twice Starts cooking.
NOTE: Each time you touch Ez-ON, it will add 1
minute up to 99 min 59 seconds.
AUTO COOK TABLE
CODE DIRECTIONCATEGORY
Potato
Popcorn
Fresh
Vegetable
Beverage
Dinner
plate
Frozen
Entree
Pierce each potato with a fork and place on the oven tray
around the edge, at least one inch apart.
After cooking, allow to stand for 5 minutes.
Place only one bag of prepackaged microwave popcorn on the
center of turntable.
Prepare as desired, wash, and leave residual water on the
vegetables. Place in an appropriately-sized microwave con-
tainer. Add amount of water according to the quantity.
(1_2 cups: 2 tablespoons, 3-4 cups: 4 tablespoons)
Cover with plastic wrap and vent.
After cooking, allow to stand for 3 minutes.
Use a wide-mouth mug. Do not cover,
(Be careful! The beverage will be very hot! Sometimes liquids
heated in cylindrical containers will splash out when the cup is
moved.)
Place foods to be heated on dinner plate or similar dish. Cover
with plastic wrap and vent,
After cooking, allow to stand for 3 minutes.
Remove from outer display package. Slit cover. If not in
microwave safe container, place on plate, cover with plastic
wrap and vent.
After cooking, allow to stand for 3 minutes.
AMOUNT
1 _4 medium
approx.
10 oz. each
Regular size
(3.0 - 3.5 oz.)
1 - 4 cups
1 - 2 cups
1-2 servings
(Approx. 10 -16 oz.)
10.5 oz.
12
AUTO DEFROST
Three defrost sequences are preset in the oven.
The auto defrost feature provides you with the best
defrosting method for frozen foods. The cooking guide
will show you which defrost sequence is recommended
for the food you are defrosting.
For added convenience, the Auto Defrost includes a
built-in beep mechanism that reminds you to check,
turn over, separate, or rearrange to get best defrost
results. Three different defrosting levels are provided.
1 MEAT
2 POULTRY
3 FISH
*Available weight is 0.1-6.0 Ibs.
Example: To defrost 1,2 Ibs of poultry.
Touch: Display Shows:
1. _ Twice
2.I-qI-q
to enter the weight
Starts defrosting.
NOTE:
When you touch the START pad, the display changes
to defrost time count down. The oven will beep during
the DEFROST cycle. At this time, open the door and
turn, separate, or rearrange the food.
Remove any portions that have thawed.
Return frozen portions to the oven and touch
START to resume the defrost cycle.
OPERATING TIPS
• For best results, remove fish, shellfish, meat, and
poultry from its original closed paper or plastic pack_
age (wrapper). Otherwise, the wrap will hold steam
and juice close to the foods, which can cause the
outer surface of the foods to cook.
• For best results, shape your ground meat into the
form of a doughnut before freezing. When defrosting,
scrape off thawed meat when the beep sounds and
continue defrosting.
• Place foods in a shallow container or on a microwave
roasting rack to catch drippings.
• Food should still be somewhat icy in the center when
removed from the oven.
13
AUTO DEFROST TABLE
Category Food to be Defrosted
Beef
Ground beef, Round steak,
Cubes for stew, Tenderloin steak,
Pot roast, Rib roast, Rump roast,
clef-1 Chuck roast, Hamburger patty
Lamb
(MEAT) Chops (1 inch thick), Rolled roast
Pork
Chops ( _½inch thick), Hot dogs,
Spareribs, Country-style ribs.
Rolled roast, Sausage
Veal
Cutlets (1 lb., _½ inch thick)
Poultry
Whole (under 4 Ibs.), Cut-up, Breasts
def-2 (boneless)
Cornish Hens
Whole
(POULTRY) Turkey
Breast
Steaks/Chops
Round beef steak, Tenderloin steak
Lamb chops (1 inch thick)
clef-3 Pork chops (1/2 inch thick)
Veal cutlets (1 Ibs, 1/2 inch thick)
Fish and
(FISH) Fillets, Whole Steaks
Shellfish
Crab meat, Lobster tails, Shrimp,
Scallops
TIMED COOKING
This feature lets you program a specific cook time
and power. For best results, there are 10 power
level settings in addition to HIGH power (100%),
Refer to the "Microwave Power Level Table" on
page 15 for more information.
NOTE: If you do not select a power level, the oven
will automatically cook at HIGH (100%) power.
Example: To cook for 5 minutes, 30 seconds
at 80% power.
Touch: Display Shows:
enter cooking time
2.I-qD[]
,.@
5. Starts cooking.
14
MULTI-STAGE COOKING
For best results, some recipes call for different cook
powers during different stages of a cook cycle. You
can program your oven to switch from one power
level to another for up to 2 stages.
Example: To set 2-stage cook cycle.
Touch:
Display Shows:
2.I-q@l-q
To set 3 minute cook
time for first stage.
3.
To set 80%
4. I 8m cook power for
I I
the first stage.
0.l-q[][]
To set 7 minute cook
time for second stage.
To set 50%
t_t
8. 151 cook power
for
the second
stage.
9. Starts cooking.
10. When the first stage is over, you will hear two
short tones as the oven begins the second
cook stage.
MICROWAVE POWER LEVELS
Your microwave oven has 10 cook power levels to let
you cook or heat a wide variety of foods. Refer to the
table below for suggestions:
Microwave Power Level Table
Power
Use
Level
• Boiling water.
10 • Making candy.
(High} • Cooking poultry pieces, fish, & vegetables.
• Cooking tender cuts of meat.
• Whole poultry.
9 • Reheating rice, pasta, & vegetables.
8 • Reheating prepared foods quickly.
• Reheating sandwiches.
• Cooking egg, milk, & cheese dishes.
7 • Cooking cakes, breads.
• Melting chocolate.
• Cooking veal.
6 • Cooking whole fish.
• Cooking puddings & custard.
5 • Cooking ham, whole poultry, & lamb.
• Cooking rib roast, sirloin tip.
4 • Thawing meat, poultry, & seafood.
3 • Cooking less tender cuts of meat.
• Cooking pork chops, roast.
2 • Taking chill out of fruit.
• Softening butter.
1 • Keeping casseroles & main dishes warm.
• Softening butter & cream cheese.
0 • Standing time.
15

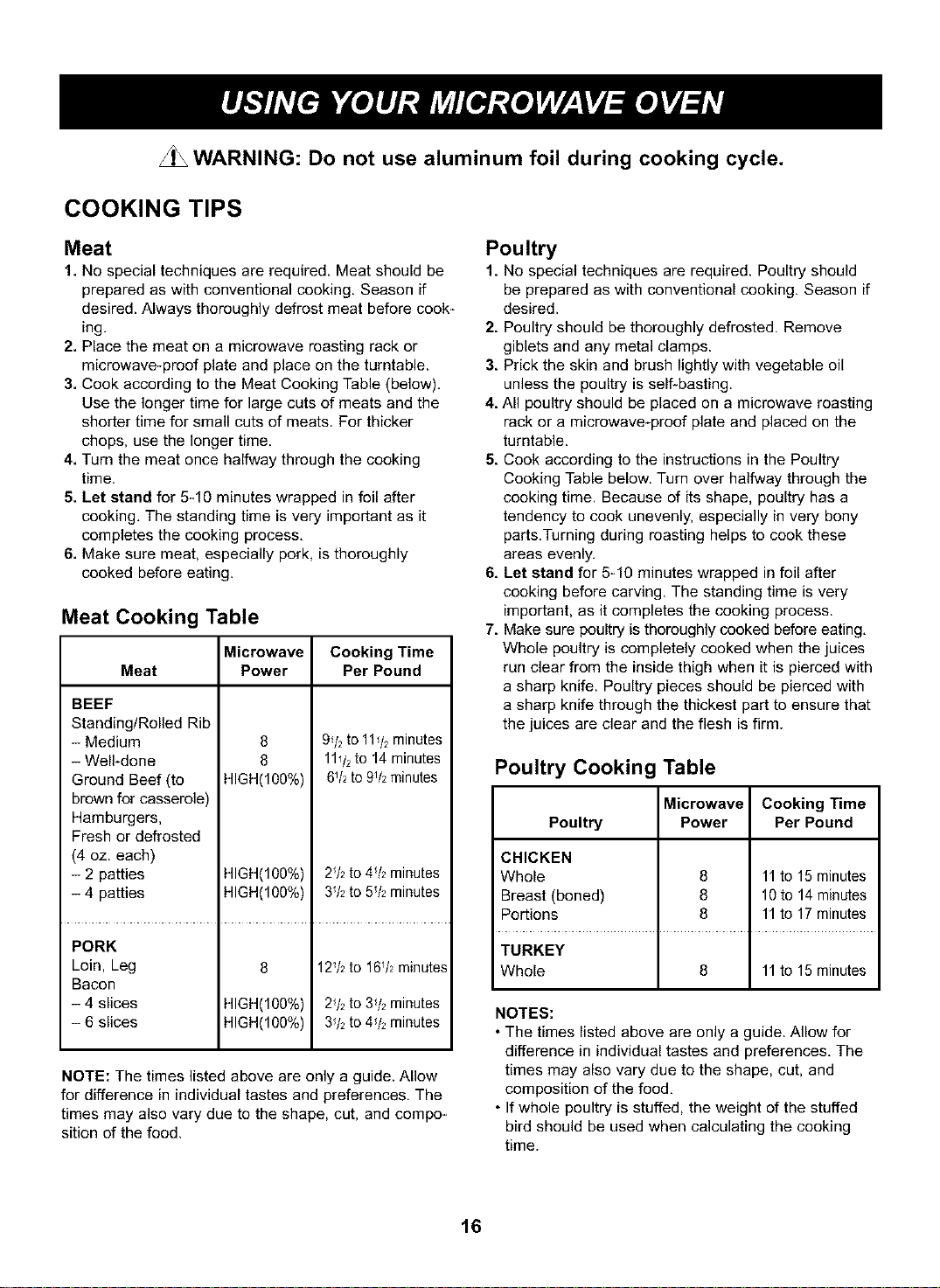

WARNING: Do not use aluminum foil during cooking cycle.
COOKING TIPS
Meat
1. No special techniques are required. Meat should be
prepared as with conventional cooking. Season if
desired. Always thoroughly defrost meat before cook-
ing,
2. Place the meat on a microwave roasting rack or
microwave-proof plate and place on the turntable.
3. Cook according to the Meat Cooking Table (below),
Use the longer time for large cuts of meats and the
shorter time for small cuts of meats. For thicker
chops, use the longer time.
4. Turn the meat once halfway through the cooking
time.
5. Let stand for 5_10 minutes wrapped in foil after
cooking, The standing time is very important as it
completes the cooking process,
6. Make sure meat, especially pork, is thoroughly
cooked before eating.
Meat Cooking Table
Microwave Cooking Time
Meat Power Per Pound
BEEF
Standing/Rolled Rib
- Medium 8 9/2 to 11_/2minutes
- Well-done 8 11_h to 14 minutes
Ground Beef (to HIGH(100%) 61/2to 91/2minutes
brown for casserole)
Hamburgers,
Fresh or defrosted
(4 oz. each)
- 2 patties HIGH(100%) 2_/2to 4_/2minutes
- 4 patties HIGH(100%) 3_/2to 5_/2minutes
PORK
Loin, Leg 8 12/2 to 16_/_minutes
Bacon
- 4 slices HIGH(100%) 2_/2to 3_/2minutes
- 6 slices HIGH(100%) 3_/2to 4_/2minutes
NOTE: The times listed above are only a guide. Allow
for difference in individual tastes and preferences, The
times may also vary due to the shape, cut, and compo-
sition of the food.
Poultry
1, No special techniques are required. Poultry should
be prepared as with conventional cooking. Season if
desired.
2, Poultry should be thoroughly defrosted. Remove
giblets and any metal clamps.
3, Prick the skin and brush lightly with vegetable oil
unless the poultry is self-basting.
4, All poultry should be placed on a microwave roasting
rack or a microwave_proof plate and placed on the
turntable.
5, Cook according to the instructions in the Poultry
Cooking Table below. Turn over halfway through the
cooking time. Because of its shape, poultry has a
tendency to cook unevenly, especially in very bony
parts,Turning during roasting helps to cook these
areas evenly,
6, Let stand for 5-10 minutes wrapped in foil after
cooking before carving, The standing time is very
important, as it completes the cooking process.
7, Make sure poultry is thoroughly cooked before eating,
Whole poultry is completely cooked when the juices
run clear from the inside thigh when it is pierced with
a sharp knife. Poultry pieces should be pierced with
a sharp knife through the thickest part to ensure that
the juices are clear and the flesh is firm.
Poultry Cooking Table
Microwave Cooking Time
Poultry Power Per Pound
CHICKEN
Whole
Breast (boned)
Portions
8
8
8
11to 15 minutes
10 to 14 minutes
11to 17 minutes
TURKEY
Whole 8 11to 15 minutes
NOTES:
• The times listed above are only a guide. Allow for
difference in individual tastes and preferences, The
times may also vary due to the shape, cut, and
composition of the food,
• If whole poultry is stuffed, the weight of the stuffed
bird should be used when calculating the cooking
time.
16

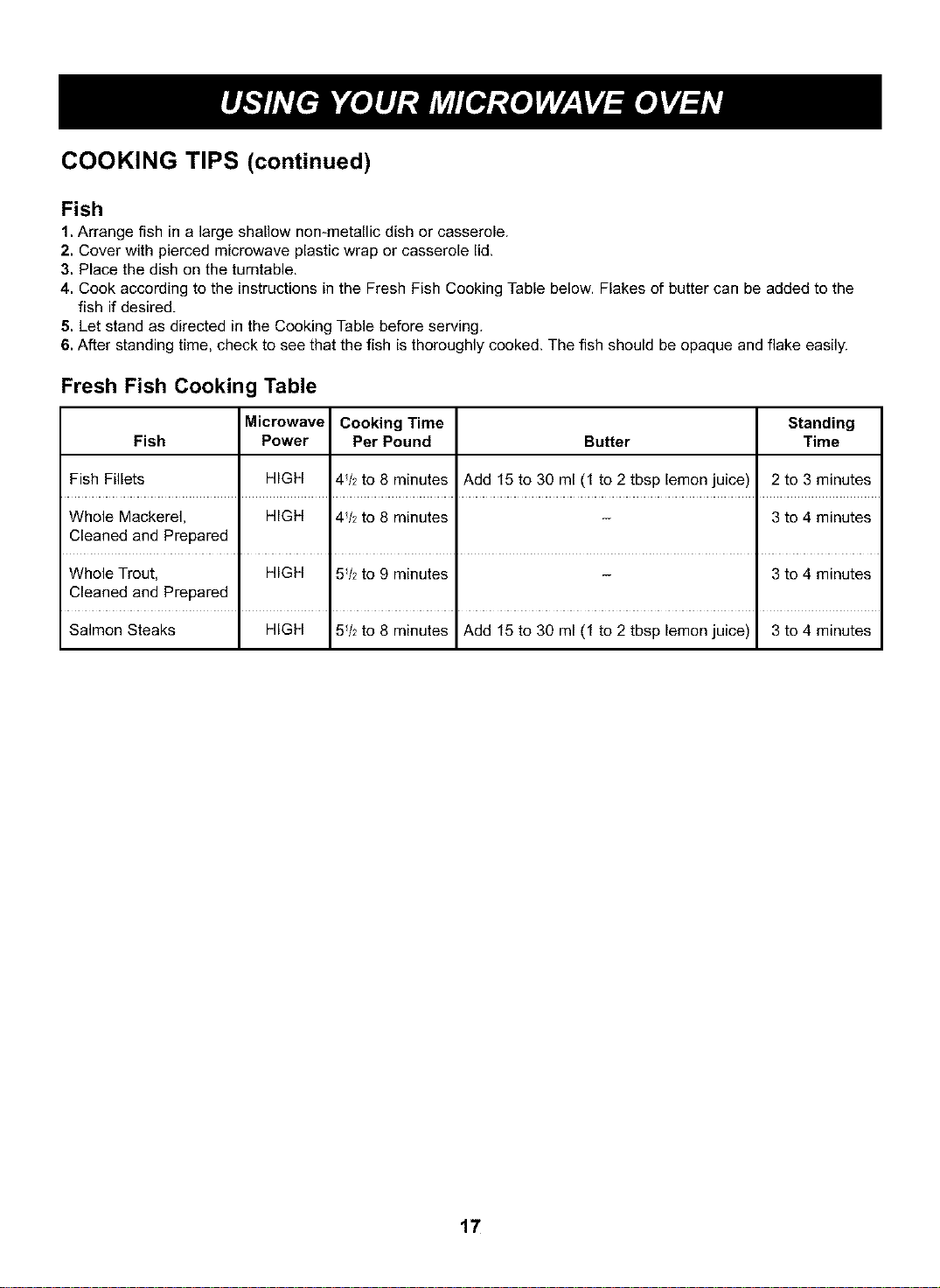

COOKING TIPS (continued)
Fish
1. Arrange fish in a large shallow non-metallic dish or casserole.
2, Cover with pierced microwave plastic wrap or casserole lid.
3, Place the dish on the turntable.
4, Cook according to the instructions in the Fresh Fish Cooking Table below. Flakes of butter can be added to the
fish if desired.
5, Let stand as directed in the Cooking Table before serving.
6, After standing time, check to see that the fish is thoroughly cooked. The fish should be opaque and flake easily.
Fresh Fish Cooking Table
Microwave Cooking Time Standing
Fish Power Per Pound Butter Time
Fish Fillets HIGH 4V2 to 8 minutes Add 15 to 30 ml (1 to 2 tbsp lemon juice) 2 to 3 minutes
Whole Mackerel, HIGH 4V2 to 8 minutes - 3 to 4 minutes
Cleaned and Prepared
Whole Trout, HIGH 5V2to 9 minutes - 3 to 4 minutes
Cleaned and Prepared
Salmon Steaks HIGH 5V2to 8 minutes Add 15 to 30 ml (1 to 2 tbsp lemon juice) 3 to 4 minutes
17

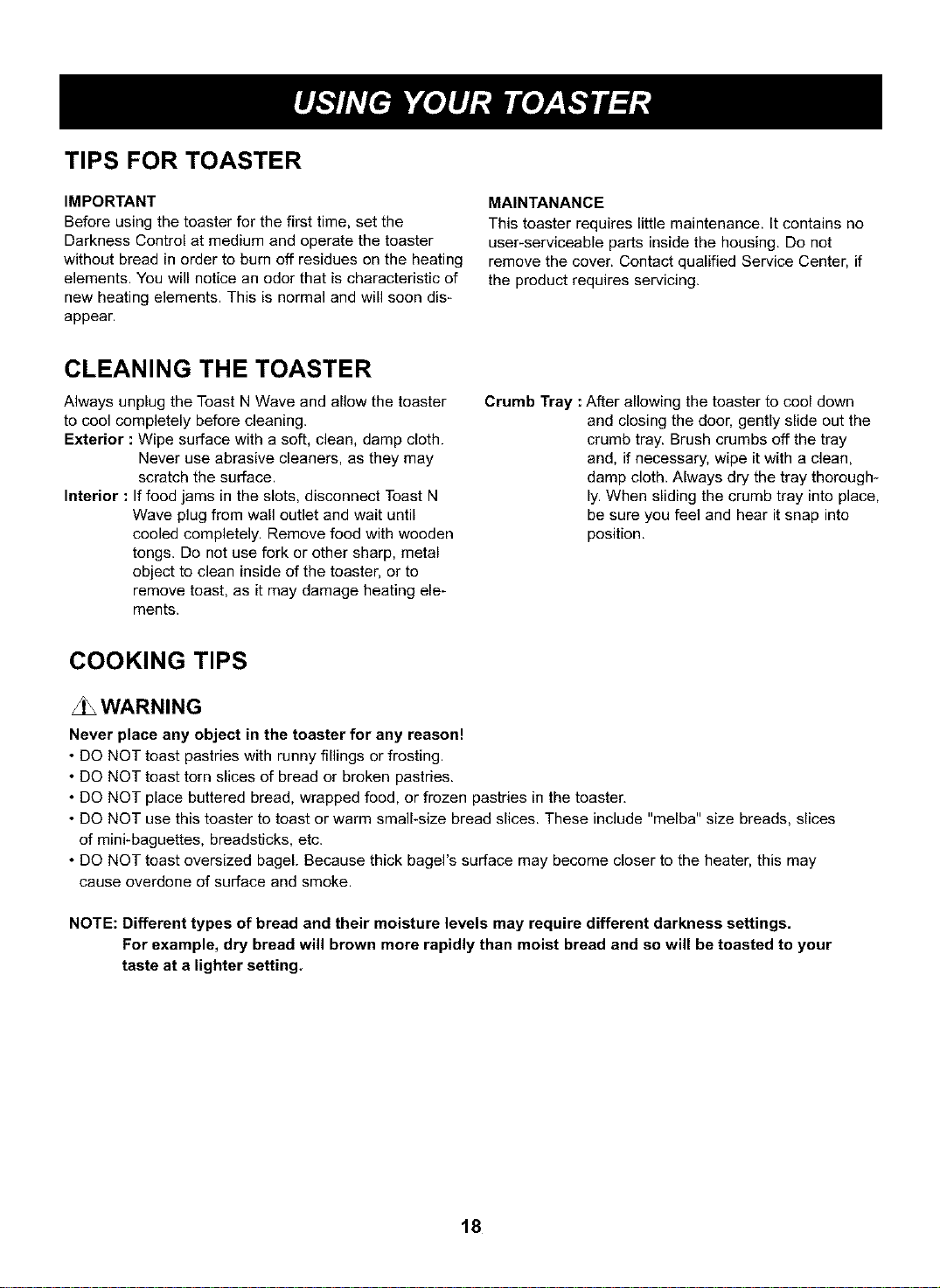

TIPS FOR TOASTER
IMPORTANT
Before using the toaster for the first time, set the
Darkness Control at medium and operate the toaster
without bread in order to burn off residues on the heating
elements. You will notice an odor that is characteristic of
new heating elements. This is normal and will soon dis-
appear.
MAINTANANCE
This toaster requires little maintenance. It contains no
user-serviceable parts inside the housing. Do not
remove the cover. Contact qualified Service Center, if
the product requires servicing.
CLEANING THE TOASTER
Always unplug the Toast N Wave and allow the toaster
to cool completely before cleaning.
Exterior : Wipe surface with a soft, clean, damp cloth.
Never use abrasive cleaners, as they may
scratch the surface.
Interior : If food jams in the slots, disconnect Toast N
Wave plug from wall outlet and wait until
cooled completely. Remove food with wooden
tongs. Do not use fork or other sharp, metal
object to clean inside of the toaster, or to
remove toast, as it may damage heating ele-
ments.
Crumb Tray : After allowing the toaster to cool down
and closing the door, gently slide out the
crumb tray. Brush crumbs off the tray
and, if necessary, wipe it with a clean,
damp cloth. Always dry the tray thorough-
ly. When sliding the crumb tray into place,
be sure you feel and hear it snap into
position.
COOKING TIPS
t WARNING
Never place any object in the toaster for any reason!
• DO NOT toast pastries with runny fillings or frosting.
• DO NOT toast torn slices of bread or broken pastries.
• DO NOT place buttered bread, wrapped food, or frozen pastries in the toaster,
• DO NOT use this toaster to toast or warm small-size bread slices. These include "melba" size breads, slices
of mini-baguettes, breadsticks, etc.
• DO NOT toast oversized bagel. Because thick bagel's surface may become closer to the heater, this may
cause overdone of surface and smoke.
NOTE: Different types of bread and their moisture levels may require different darkness settings.
For example, dry bread will brown more rapidly than moist bread and so will be toasted to your
taste at a lighter setting.
18
OPERATING INSTRUCTION
• Make sure the crumb tray is pushed all the way in place before plugging toaster into wall outlet
• Remove all protective wrappings from food before placing into toasting slots Place bread into slots and Close
the door Then select one mode (Toast/Bagel) and press the Darkness Control to the desired setting (experi-
ment to suit individual taste) When you press the Start button, the heating element will turn on
• Centering guides will automatically center the food for even browning However, uneven browning may occur
if you are only using one toasting slot. If you operate toaster several times
using one slot continuously, the toaster's internal temperature will be hot and may
cause "Hot" to appear in the display This will go away after several minutes after
the toaster cools down
• Do not adjust the Darkness Control while the toaster is in use To interrupt the
toasting cycle, press the "stop/clear" control button
f
• During the toasting cycle, the indicator light wil be illuminated If you open the door,
toasting will stop and the light will blink The toasting cycle can be resumed by
closing the toaster door and pressing the start button
• When the beep sounds, take out food carefully not to touch toaster's hot surface
NOTE: After use of toaster, fan will run for I minute to cool.
Toast/Bagel Darkness Settings
Degree of darkness Select darkness level
Light 1-3
Medium 4-6
Dark 7-9
NOTE : For English Muffins, use bagel settings.
Toast
This toaster automatically determines required cooking times for toasting
Example : To toast bread at level 3.
Touch: Display Shows: Indicator light
1,
Time of day
2,
off
3,
Twice off
4,
Starts toasting, on
19

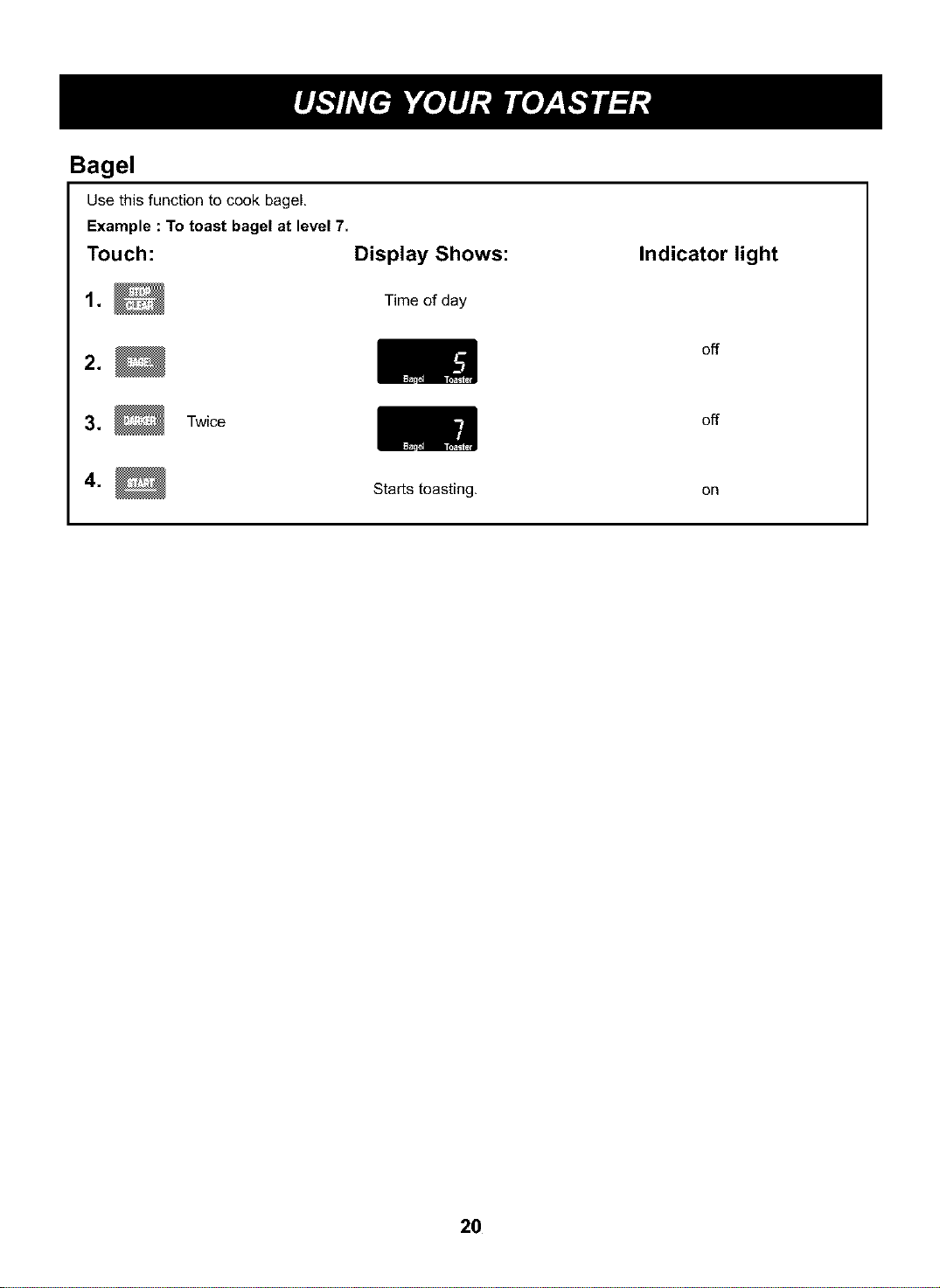

Bagel
Use this function to cook bagel,
Example : To toast bagel at level 7.
Touch:
Display Shows: Indicator light
,
Time of day
.
off
.
Twice
off
4.
Starts toasting.
on
20
Questions and Answers
Operation
Question Answer
Why is the oven light not on during There may be several reasons why the oven light is not on.
cooking? Have you:
• Set a cooking time?
• Touched START?
Why does steam come out of the air Steam is normally produced during cooking. The microwave oven
exhaust vent? has been designed to vent this steam.
Will the Toast N Wave be damaged if it Yes. Never operate the oven and toaster empty or without the glass
operates empty? turntable.
Does microwave energy pass through the No. The metal screen bounces the energy back to the oven cavity.
viewing screen in the door? The holes (or ports) allow only light to pass through. They do not
let microwave energy pass through.
Why does a tone sound when a pad on The tone tells you that the setting has been entered.
the control panel is touched?
Can my Toast N Wave be damaged if food Like any other cooking appliance, it is possible to overcook food
is cooked for too long? to the point that the food creates smoke and even possibly fire,
and damage to the inside of the oven. It is always best to be near
the oven while you are cooking.
When the oven is plugged into wall outlet The microcomputer controlling your oven may temporarily
for the first time, it does not work properly, become scrambled and fail to function as programmed when you
What is wrong? plug in for the first time or when power resumes after a power
interruption. Unplug the oven from the 120 volt household outlet
and then plug it back in to reset the microcomputer.
Why do I see light reflection around the This light is from the oven light which is located between the
outer case? oven cavity and the outer wall of the oven.
What are the various sounds I hear when The clicking sound is caused by a mechanical switch turning the
the microwave oven is operating? microwave oven's magnetron ON and OFF.
The heavy hum and clunk is from the change in power the
magnetron draws as it is turned ON and OFF by a mechanical
switch.The change in blower speed is from the change in line
voltage caused by the magnetron being turned ON and OFF.
Why does a fan sound for some time after The fan blowing cools the toaster heater for about 1 minute after
toasting? toasting. This is normal.
What does "HOT" code on the display That means internal temperature is irregularly high. Check you
mean? operated toaster without bread. At this time, fan blows for about 3
minutes to cool down the toaster. After cooling stops, you can oper-
ate toaster again.
CAUTION: Do not operate toaster without bread.
What does "F_I" and "F_2" code on the That means failure mode. Contact the nearest Authorized Service
display mean? Center.
21
Questions and Answers (continued)
Food
Question Answer
What is wrong when baked foods have a A hard, dry, brown spot indicates overcooking. Shorten the cooking
hard, dry, brown spot? or reheating time.
Why do eggs sometimes pop? When baking, frying, or poaching eggs, the yolk may pop due to
steam build-up inside the yolk membrane, To prevent this,
simply pierce the yolk with a wooden toothpick before cooking.
CAUTION: Never microwave eggs in the shell.
Why are scrambled eggs sometimes a
little dry after cooking?
Is it possible to pop popcorn in a
microwave OVER?
Eggs will dry out when they are overcooked, even if the same
recipe is used each time, The cooking time may need to be varied
for one of these reasons:
• Eggs vary in size.
• Eggs are at room temperature one time and at refrigerator
temperature another time.
• Eggs continue cooking during standing time.
Yes, if using one of the two methods described below:
(1) microwave-popping devices designed specifically for microwave
cooking
(2) prepackaged commercial microwave popcorn that is made
for specific times and power output needed
Follow exact directions given by each manufacturer for
its popcorn popping product and do not leave the oven
unattended while the corn is being popped. If corn fails
to pop after the suggested time, discontinue cooking.
Overcooking could result in an oven fire.
CAUTION:
• Never use a brown paper bag for popping corn or attempt to
pop leftover kernels,
• Do not pop prepackaged commercial microwave popcorn
directly on the glass turntable. To avoid excessive heating of
the glass turntable, place the popcorn bag on a plate.
Why do baked apples sometimes burst The peel has not been removed from the top half of each apple to
during cooking? allow for expansion of the interior of the apple during cooking. As in
conventional cooking methods, the interior of the apple expands
during the cooking process.
Why do baked potatoes sometimes If the cooking time is too long, fire could result, At the end of the
burn during cooking? recommended cooking time, potatoes should be slightly firm.
CAUTION: Do not overcook.
Why is a standing time recommended Standing time allows foods to continue cooking evenly for a few
after microwave cooking time is over? minutes after the actual microwave oven cooking cycle. The
amount of standing time depends upon the density of the foods.
Why is additional time required for As in conventional cooking, the initial temperature of food affects
cooking food stored in the refrigerator? total cooking time. You need more time to cook food taken out of a
refrigerator than for food at room temperature.
22
BEFORE CALLING FOR SERVICE
You can often correct operating problems yourself, If your Toast N Wave falls to work properly, locate the operat-
ing problem in the list below and try the solutions listed for each problem,
If the Toast N Wave still does not work properly, contact the nearest Authorized Service Center. Authorized
Service Centers are fully equipped to handle "our service requirements.
Problem Possible Causes
Oven and Toaster does not start • Is the power cord plugged in?
• Is the door closed?
• Are the cooking time or darkness control set?
Arcing or Sparking • Are you using approved cookware?
• Is the oven empty?
Incorrect time of day • Have you tried to reset the time of day?
Unevenly Cooked Foods • Are you using approved cookware?
• Is the glass turntable in the oven?
• Did you turn or stir the food while it was cooking?
• Were the foods completely defrosted?
• Was the time/cooking power level correct?
Overcooked Foods • Was the time/cooking power level correct?
Undercooked Foods • Are you using approved cookware?
• Were the foods completely defrosted?
• Was the time/cooking power level correct?
• Are the ventilation ports clear?
Improper Defrosting • Are you using approved cookware?
• Was the time/cooking power level correct?
• Did you turn or stir the food during the defrosting cycle?
Toaster malfunctions or fails to operate. • Is the machine plugged in?
• Is the fuse in the circuit to the machine in working order?
• If you have a circuit breaker box, be sure the circuit is closed.
• Try unplugging and re-plugging.
23
FEDERAL COMMUNICATIONS COMMISSION RADIO FREQUENCY INTERFERENCE
STATEMENT (U.S.A. ONLY)
WARNING:
This equipment generates and uses ISM frequency
energy and if not installed and used properly, that is
in strict accordance with the manufacturer's instruc-
tions, may cause interference to radio and television
reception. It has been type tested and found to
comply with limits for ISM Equipment pursuant to
part 18 of FCC Rules, which are designed to provide
reasonable protection against such interference in a
residential installation
However, there is no guarantee that interference will
not occur in a particular installation If this equipment
does cause interference to radio or television recep-
tion, which can be determined by turning the equip-
ment off and on, the user is encouraged to try to cor-
rect the interference by one or more of the following:
• Reorient the receiving antenna of the radio or televi-
sion.
• Relocate the Microwave Oven with respect to the
receiver
• Move the microwave oven away from the receiver.
• Plug the microwave oven into a different outlet so
that the microwave oven and the receiver are on dif-
ferent branch circuits
The manufacturer is not responsible for any radio
or TV interference caused by unauthorized modifi-
cation to this microwave oven It is the responsibility
of the user to correct such interference
24
LG Electronics Inc. will repair or replace your product, at LG's option, if it proves to be defective in mate-
rial or workmanship under normal use, during the warranty period set forth below, effective from the date
of original consumer purchase of the product. ThB limited warranty is good only to the original purchaser
of the product and effective only when used in the United States, including U.S.Territories,
WARRANTY PERIOD:
Model: LTM902OW, LTM9020B
Labor: 1 Year from the Date of
Purchase.
Parts: 1 Year from the Date of Purchase.
Magnetron: 10 Years from the Date of
Purchase.
HOW SERVICE IS HANDLED:
Call 1-877-714-7486 and choose the appropriate prompt,
Please have product type (Microwave) and ZIP code
ready.
THIS WARRANTY IS IN LIEUOF ANY OTHER WARRANTIES, EXPRESSOR IMPLIED, INCLUDING WITHOUT LIMITA-
TION, ANY WARRANTY OF MERCHANTABILITY OR FITNESSFOR A PARTICULARPURPOSE. TO THEEXTENTANY
IMPLIED WARRANTY IS REQUIRED BY LAW, IT IS LIMITED IN DURATION TO THE EXPRESSWARRANTY PERIOD
ABOVE. LG WILLNOT BE LIABLE FOR ANY CONSEQUENTIAL, INDIRECT, OR INCIDENTAL DAMAGES OF ANY
KIND, INCLUDING LOST REVENUESOR PROFITS, IN CONNECTION WITH THE PRODUCT. SOME STATESDO NOT
ALLOW LIMITATION ON HOW LONG AN IMPLIED WARRANTY LASTSOR THE EXCLUSION OF INCIDENTAL OR
CONSEQUENTIAL DAMAGES, SO THEABOVE LIMITATIONS OR EXCLUSIONS MAY NOT APPLYTO YOU.
THIS LIMITED WARRANTY DOES NOT APPLYTO:
1, Service trips to your home to deliver, pick up, and/or install the product, instruct, or replace house
fuses or correct wiring, or correction of unauthorized repairs; and
2, Damages or operating problems that result from misuse, abuse, operation outside environmental
specifications or contrary to the requirements or precautions in the Operating Guide, accident,
vermin, fire, flood, improper installation, acts of God, unauthorized modification or alteration,
incorrect electrical current or voltage, or commercial use, or use for other than intended purpose,
3. Therefore, the cost of repair or replacement of such a defective product shall be borne by the
consumer.
CUSTOMER INTER-ACTIVE CENTER NUMBERS:
To Prove Warranty Coverage
To Obtain Nearest Authorized Service
Center or Sales Dealer, or to Obtain
Product, Customer, or Service
Assistance
Retain your Sales Receipt to prove date of purchase. A
copy of your Sales Receipt must be submitted at the
time warranty service is provided.
Call 1-877-714-7486 (Monday -- Friday, 7 AM - 8 PM CT;
and Saturday, 8 AM - 5 PM CT) and choose the
appropriate prompt from the menu; or visit our website
at http://www.Igservice.com.
25
O L@Ele¢_ni_ In¢o
P/NO.: 3828W5A3193 Printed in Korea
