USER MANUAL
READ AND SAVE THESE INSTRUCTIONS
Evenfall EVF6BL/EVF6YL
Portable Propane Tankless
Water Heater for Outdoor
1
CONTENTS
2
5
5
6
10
12
13
14
IMPORTANT SAFETY INSTRUCTIONS
SPECIFICATIONS
COMPONENTS
INSTALLATION INSTRUCTIONS
USE AND STARTING
COMMON ISSUES WITH SOLUTIONS
CARE AND MAINTENANCE
LIMITED WARRANTY
IMPORTANT SAFETY INSTRUCTIONS
Read All Instructions Before Using
Be sure to read and understand the entire user manual before attempting to install or operate this
water heater. Pay particular attention to the Safety Instructions. Failure to follow these warnings could
result in serious bodily injury or death. Should you have problems understanding the instructions in
this manual, or have any questions, STOP, and get help from a qualified service technician or the
local gas utility provider.

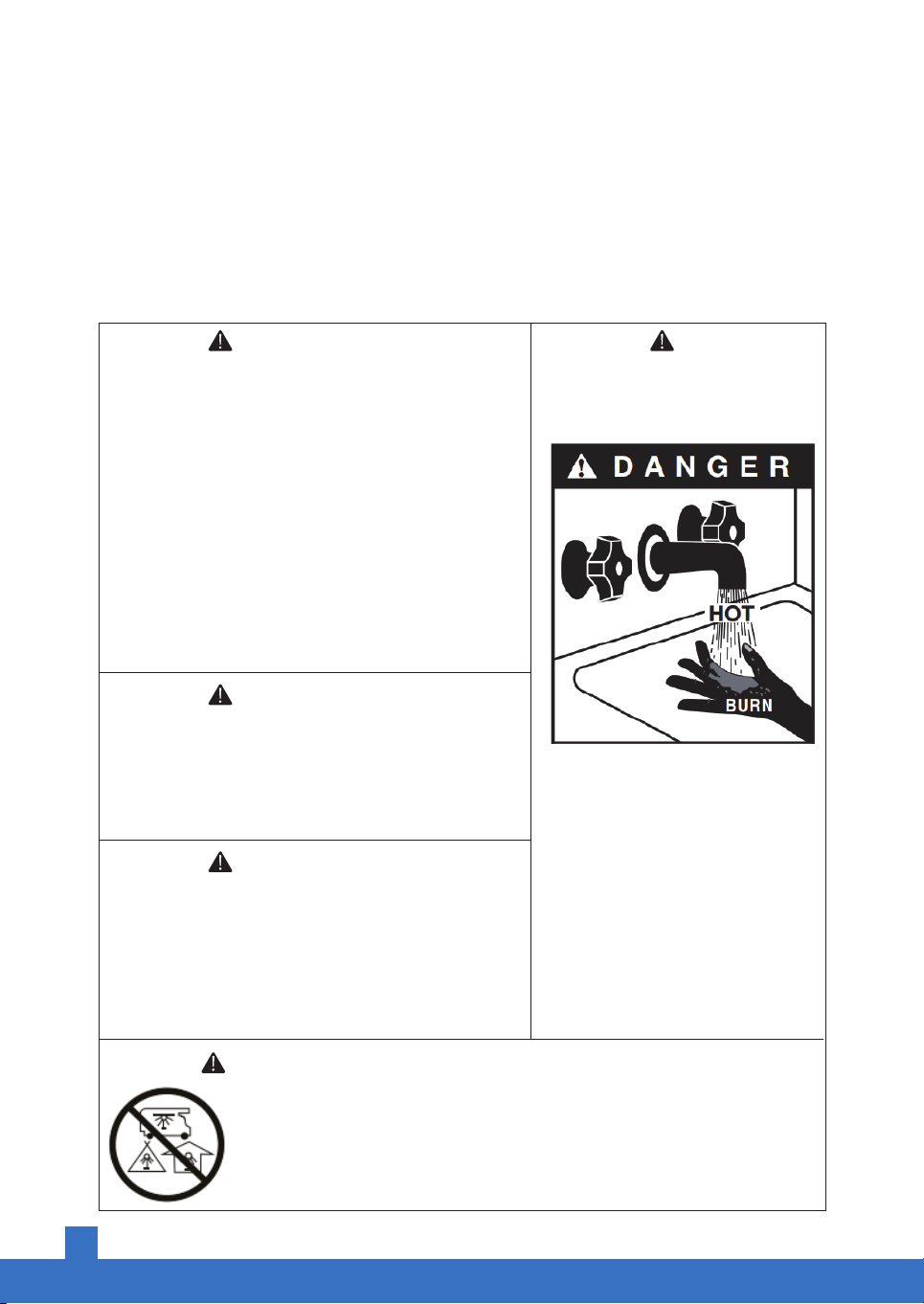

FIRE OR EXPLOSION HAZARD
WARNING WARNING
WARNING
DANGER
If you smell gas:
1. Do not attempt to light appliance and make sure
appliance is in the OFF position.
2. Extinguish any nearby flame(s).
3. Shut off cylinder fuel supply valve if so equiped, or if
equipment with a disposable fuel cylinder, disconnect
the cylinder.
4. Leave the area immediately.
5. Allow gas to dissipate for 5 minutes.
Failure to follow these instructions could result in fire
or explosion, which could cause property damage,
personal injury, or death.
Do not store or use gasline or other
flammable vapors and liguids in the
vicinity of this or any other appliance
Water temperature over 125°F
(52°C) can cause severe burns
instantly or death from scalds.
Children, disabled and elderly are at
highest risk of being scalded.
See instruction manual before
setting temperature at water heater.
Feel water before bathing or
showering.
This appliance can produce carbon monoxide which has no odor.
Using it in an enclosed space with no ventilation can kill you.
Never use this appliance in an enclosed space such as a camper, tent, car or
home.
Improper installation, use, adjustment, aleration,
service,or maintenance can cause injury or property
damage. Refer to this manual. For assistance or
additional information, consult a qualified installer,
service agency, or gas supplier.
WARNING
Keep this appliance away from all combustible material.
Minmum clearances rear at 20 inch, two sides at 40 inch,
top at 40 inch. Turn gas off at cylinder valve after use.
Disconnect and remove cylinder before storing this
appliance indoors.
* Please retain the instruction manual for future reference.
2
3
Do not leave unattended.
The exhaust gas and top of the portable tankless water heater is HOT! Do not place hands or any
object near the top of the heater.
This water heater is only intended for use with non-potable water (such as a portable shower). Do
not connect to potable water. There are health risks and/or consequences if it is used for heating
water for human consumption.
This water heater is for point of use (dishwashing, washing, showering, etc)temporary water
heating and not for connection to a permanent inlet water connection or for a water distribution
system to supply multiple outlets. Not suitable for drinking and cooking. Do not use in high wind
conditions
If the smell of gas is detected, turn off the gas valve at the cylinder immediately! Do not use flame
for leak detection.
Use only Propane gas with this heater.
Use only outdoors.
The minimum environmental temperature for safe storage and operation of the water heater must
be above 33°F, if not, may cause water heater damage and dangerous conditions.
Installation:
Do not Install water heater where flammable products will be stored or used unless the main
burner flame Is at least 18" above the floor. This will reduce, but not eliminate, the risk of vapors
being ignited by the main burner flame.

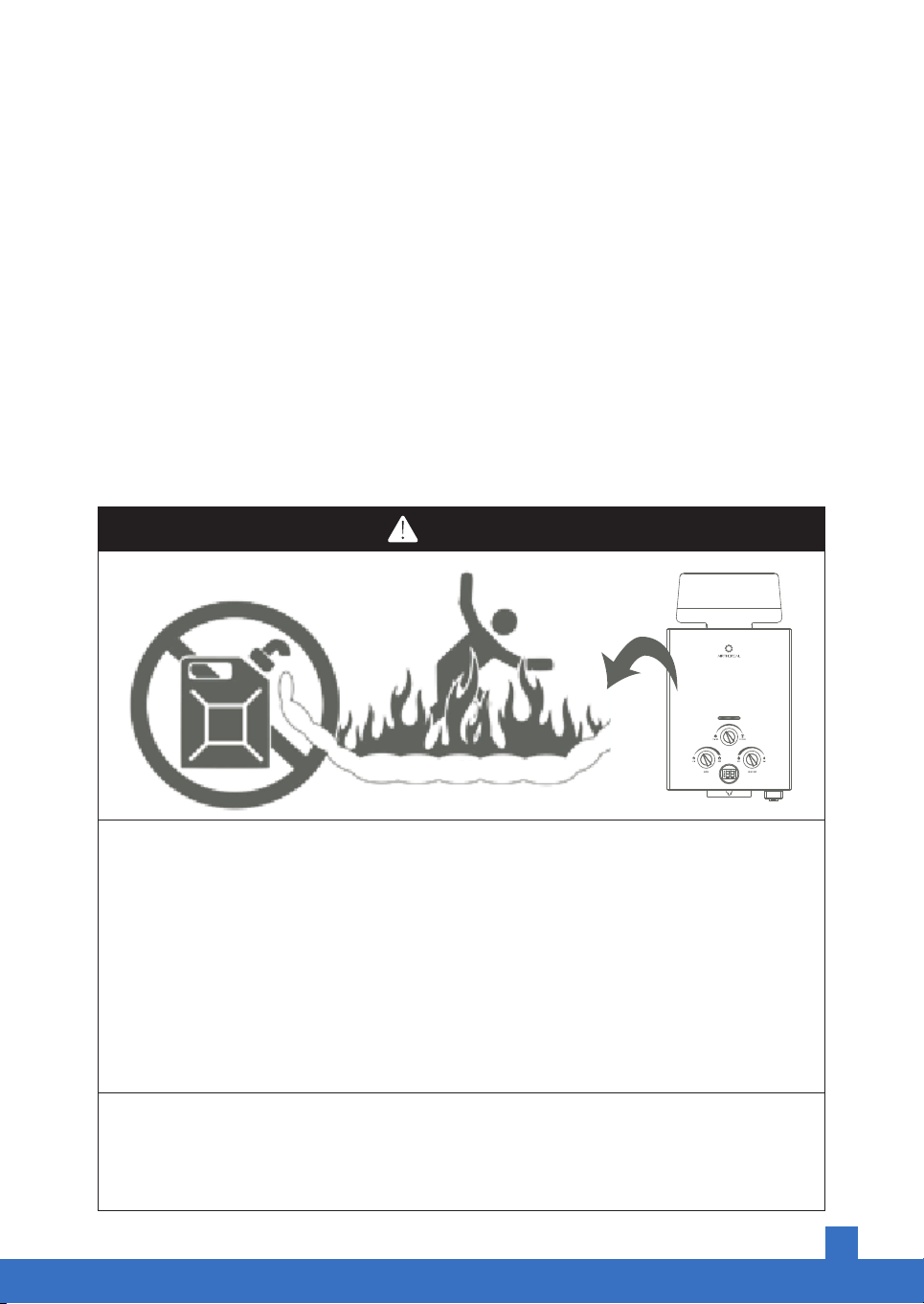

Vapors from flammable liquids will
explode and catch fire causing death or
severe burns.
Do not use or store flammable products such
as gasoline, solvents or adhesives in the same
room or area near the water heater.
Keep flammable products:
1. Far away from heater
2. In approved containers
3. Tightly closed
4. Out of children‘s reach
Water heater has a main burner flame.
The main burner flame
1. Can come on at any time and
2. Will ignite flammable vapors
Vapors:
1. Cannot be seen
2. Are heavier than air
3. Go a long way on the floor
4. Can be carried from other rooms to the
main burner flame by air currents
●
●
●
●
●
●
●
●
Flammable Vapor
DANGER
Properly install water heater
DANGER
Failure to properly install the water heater outdoors as outlined in the Installation Instructions in
this manual can result in unsafe operation of the water heater.
To avoid the risk of fire, explosion, or asphyxiation from carbon monoxide, never operate this
water heater unless it is installed properly and has an adequate air supply for proper operation.
Be sure to inspect the flue terminal for proper installation at initial start-up and at least annually
thereafter. Refer to the Care and Cleaning section of this manual for more information regarding
flue terminal inspection.
●
●
●
Liquefied petroleum gas models
Gas detectors are recommended in propane gas applications and their installation should be in
accordance with the detector manufacturer's recommendations and/or local laws, rules,
regulations or customs.
To avoid possible equipment damage, personal injury, or fire, do not connect the water heater to
a fuel type not in accordance with the portable tankless water heater data plate. These portable
tankless water heaters are only for propane gas, not certified for any other fuel type.
Propane appliances should not be installed in an unventilated place (for example, in a basement)
if such installation is prohibited by federal, state and/or local laws, rules, regulations or customs.
Propane gas must be used with great caution. It is heavier than air and will collect first in lower
areas making it hard to detect at nose level.
Before attempting to light the water heater, make sure to look and smell for gas leaks. Use a
soapy solution to check all gas fittings and connections. Bubbling at a connection indicates a leak
that must be corrected.
It is recommended that more than one method, such as soapy solution, gas detectors, etc., be
used to detect leaks in gas applications.
Gasoline, as well as other flammable materials and liquids (adhesives, solvents, paint thinners
etc.), and the vapors they produce are extremely dangerous. DO NOT handle, use or store
gasoline or other flammable or combustible materials any where near or in the vicinity of a water
heater or any other appliance.
●
Notice: If a gas leak is present or suspected:
DO NOT attempt to find the cause yourself.
DO NOT try to light the water heater.
DO NOT touch any electrical switch.
●
●
●
●
●
●
●
●
●
4
5
SPECIFICATIONS
COMPONENTS
EVF6BL/EVF6YL
LPG PROPANE
41,000 Btu/hr
1.58 GPM
2.2 - 116 PSI (15 - 800 kPa)
11” w.c. (2.74 kPa)
Electric pulse, size D battery powered
(No electrical connection required)
20 Minutes (Automatically shut off after 20 minutes)
1/2” BSP for gas inlet, water inlet and water outlet
16.2 x 11.2 x 5.7 Inch
11.9 Lbs
Model
Fuel Type
Max Input Rating
Flow Rate
Water Pressure Range
Inlet Gas Pressure
Ignition
Time Setting
Pipe Fittings
Item Dimensions
Item Weight
Note: In order to protect the safety of the guests, the water heater will automatically turn off after 20
minutes of use. Note that this is not a fault, and it only needs to be restarted after it is turned off.
WARNING: For your safety, DO NOT attempt to disassemble, repair, or replace any portion of this
unit. Refer all repairs, service, and/or adjustment to qualified servicemen.

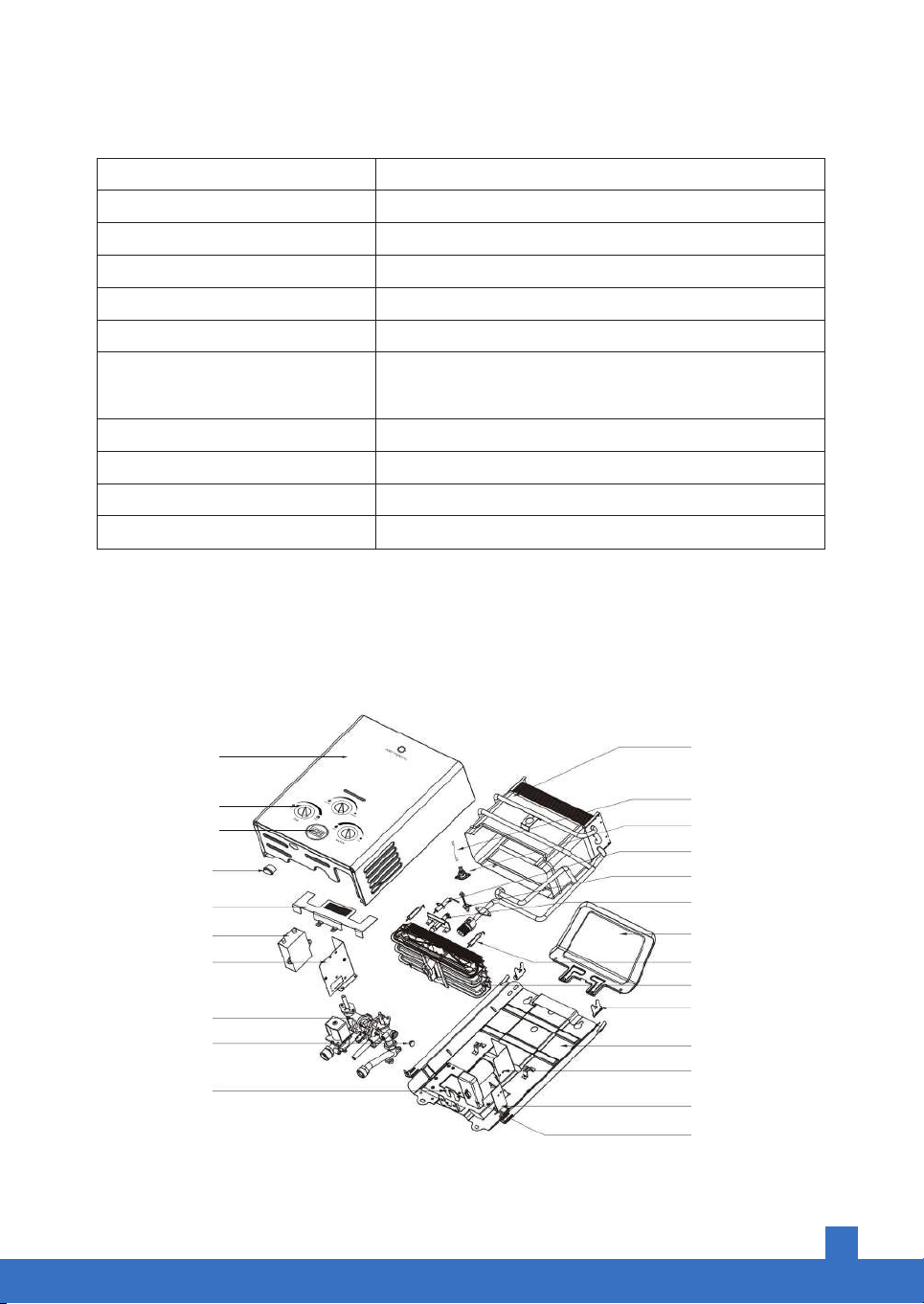

Front Shell Panel ×1
Fire Shield ×1
Pulse Igniter
Support ×1
Valve ×1
Heat Exchanger
Plastic Ring ×1
Water Outlet
Support ×1
Knob ×3
LED Screen ×1
Battery Box ×1
Rear Panel ×1
Heat Exchanger
Support ×2
Burner ×1
Ignition Pin ×2
Smoke Block ×1
Temperature
Sensor ×1
Pointer Sensor ×1
Thermastat ×1
Thermostat Connection
Cable ×1
Heat Exchanger ×1
Battery Installation
Board ×1
Battery Box
Bracket ×1
6
INSTALLATION INSTRUCTIONS
Check the carton box for damage. Damages caused in shipment must be reported immediately.
Make sure you have all the parts.
NOTE: Included parts and accessories may vary depending on country and regulations.

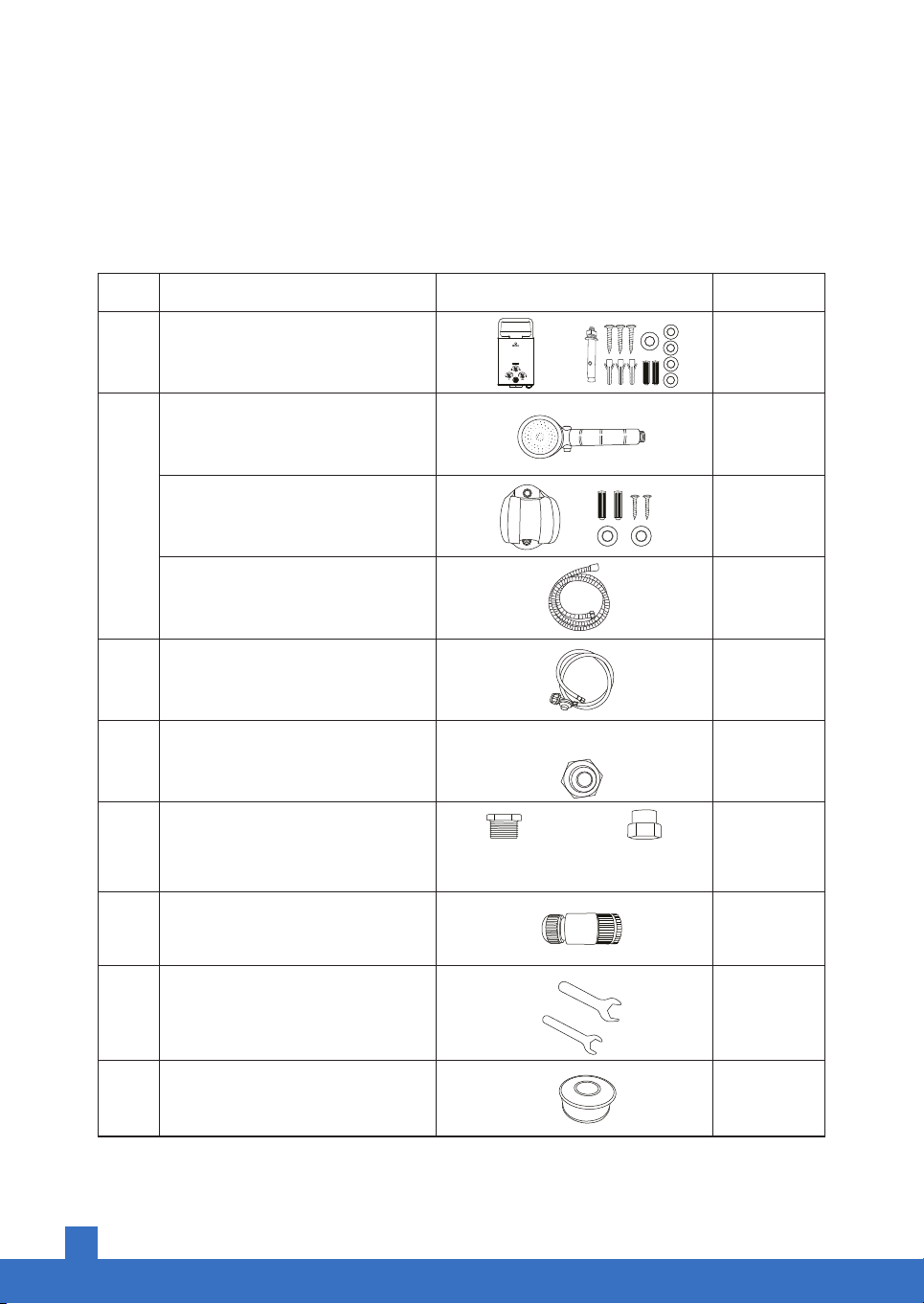

In The Box
Item
A
B
C
D
E
F
G
H
1 piece
1 set
1 set
1 set
1 set
1 piece
1 set
1 set
2 piece
1 piece
Description Identification Quantity
Outdoor portable tankless gas
water heater with hardware
pack
CSA certified gas regulator with
5’hose
*1/2" BSP female to
5/8"-18UNF male Flare
*1/2" BSP female to
3/4" GHT male
*1/2" BSP female to
3/4" GHT female
Gas compression fitting
*fixed to gas inlet already
Head hold with hardware pack
5’hose
Garden hose adapter
Quick Connector
Wrench set
Waterproof tape
ON/OFF switch shower head
7
Preparation
ONLY USE IN OUTDOOR AREAS. CARBON MONOXIDE HAZARD-USING THIS APPLIANCE IN
AN ENCLOSED SPACE WILL CAUSE DEATH-DO NOT USE IN CARAVANS, TENTS, MARINE
CRAFT, CARS, MOBILE HOMES OR SIMILAR LOCATIONS.
1. Use appliance only with LP (propane) gas and the regulator valve assembly supplied.
Note:
LP gas supply cylinders to be used must be:
2. Reinforcement of the wall is required where the unit is installed so the wall will be strong enough
to hold the water heater. The mounting location for the water heater should allow for easy access
and operation.
3. Take the appliance out from the carton box and remove the foam and plastic bag, position the
upper mounting bracket and partially install the center mounting screw. Hang the upper bracket
on the screw or hang it by handle for temporary fixed.
Constructed and marked in accordance with the specifications for LP gas cylinders of the Tubes
for Transportation of Dangerous Goods and Commission, CAN/CSA-B339, as applicable.
Provided with a listed overfilling prevention device.
Provided with a cylinder connection device compatible with the connection Installation must
conform with local codes or in the absence with National Fuel Gas Code, ANSI Z223.1/NFPA 54,
or the Propane Installation Code, CSA B149.1, or the Propane Storage and Handling Code, CSA
B149.2.
●
●
●
Wall Mount:
Note: Keep this appliance away from all combustible material. Minmum clearances rear at 20 inch,
two sides at 40 inch, top at 40 inch.
Measure all distances to ensure the proper position, mark the position of 3 pilot holes (1 mounting
hole for the top mounting hook; 2 pilot holes for the bottom hook)
Use a hammer drill to drill those three holes. Always use eye and ear protection when using a
hammer drill.
Insert the sleeve anchor into the mounting hole and two expansion bolts into the bottom two
holes. Fix the sleeve anchor bolt and two expansion bolts with a hammer
Hang and attach the water heater through the sleeve anchor
Use a wrench to turn the nut until snug. This will pull the stud up through the sleeve expanding it
against the wall of the base material
Screw down two 4*30 screws into the bottom two pilot holes to fix the water heater in place.
●
●
●
●
●
●
8
4. Install 2 size D batteries (NOT included) in the battery box on the bottom of the appliance. Make
sure the batteries are facing the correct direction.
Water Supply Installation
1. Before attaching the water line to the water heater, run the water until it has purged all
contaminants (sand, debris, air, caulking, etc).

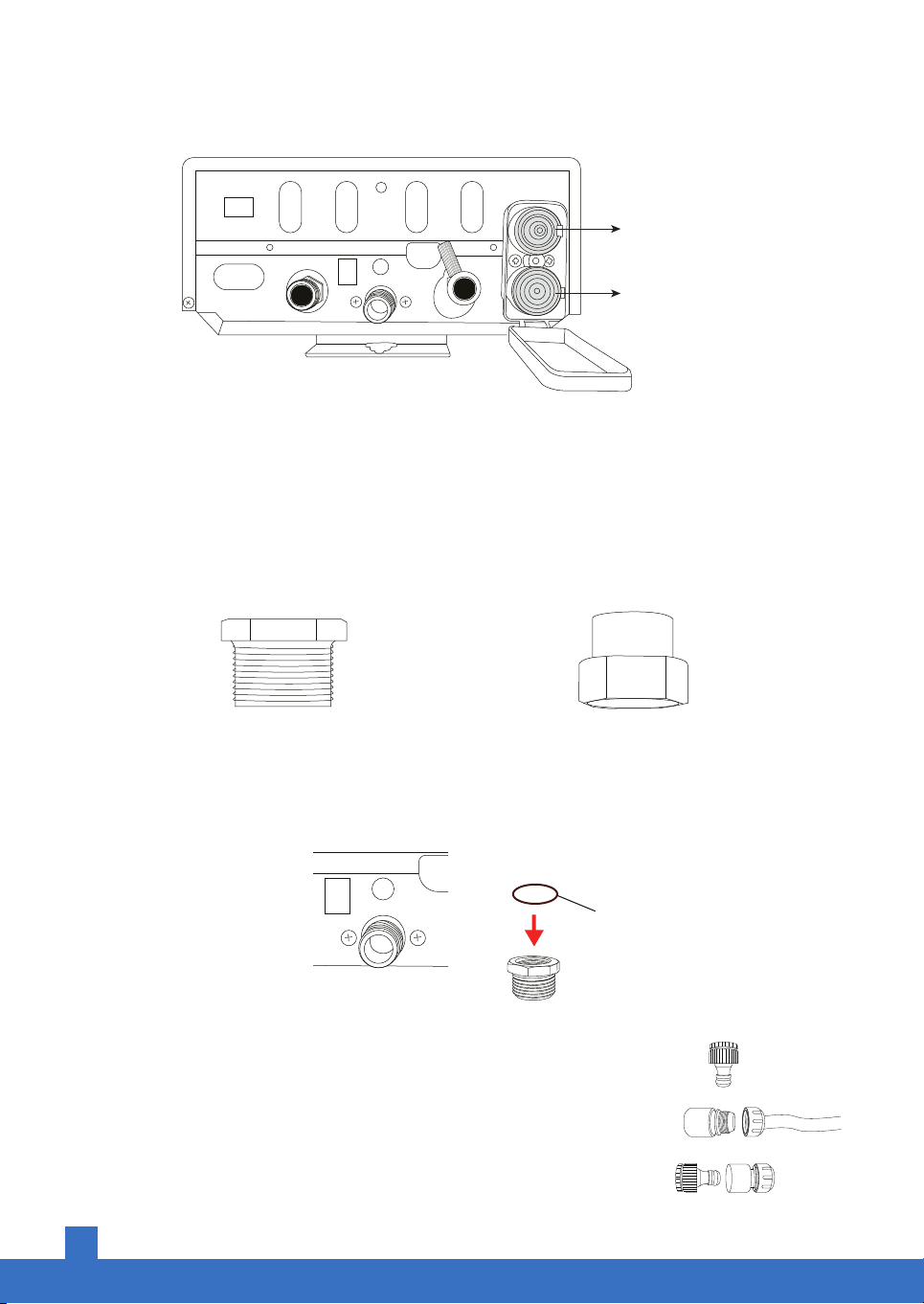

2. Water inlet :
A. Screw the tap connector onto the gas water heater water inlet.
B. Insert the hose into the end of the connector.
C. Slide the nut onto the end of the hose and tighten.
D. Push the hose end connector into the tap connector.
E. To disconnect, hold the soft touch pads and pull the connector
downwards.
NOTICE: MAKE SURE TO PUT THE RUBBER GASKET IN ALL FITTINGS BEFORE
CONNECTION.
If using a standard garden hose, attach the 3/4” GHT garden hose adapter to the fitting marked
“Water Inlet”. Check to make sure the filter inside the water inlet is in place and clean. Then
attach your water inlet/garden hose.
●
If using a quick connector :
●
GARDEN HOSE FEMALE
1/2”BSP FEMALE X3/4”GHT FEMALE
GARDEN HOSE MALE
1/2”BSP FEMALE X 3/4”GHT MALE
Negative Outward
Positive Outward
Rubber Gasket
Water Inlet
Hose
9

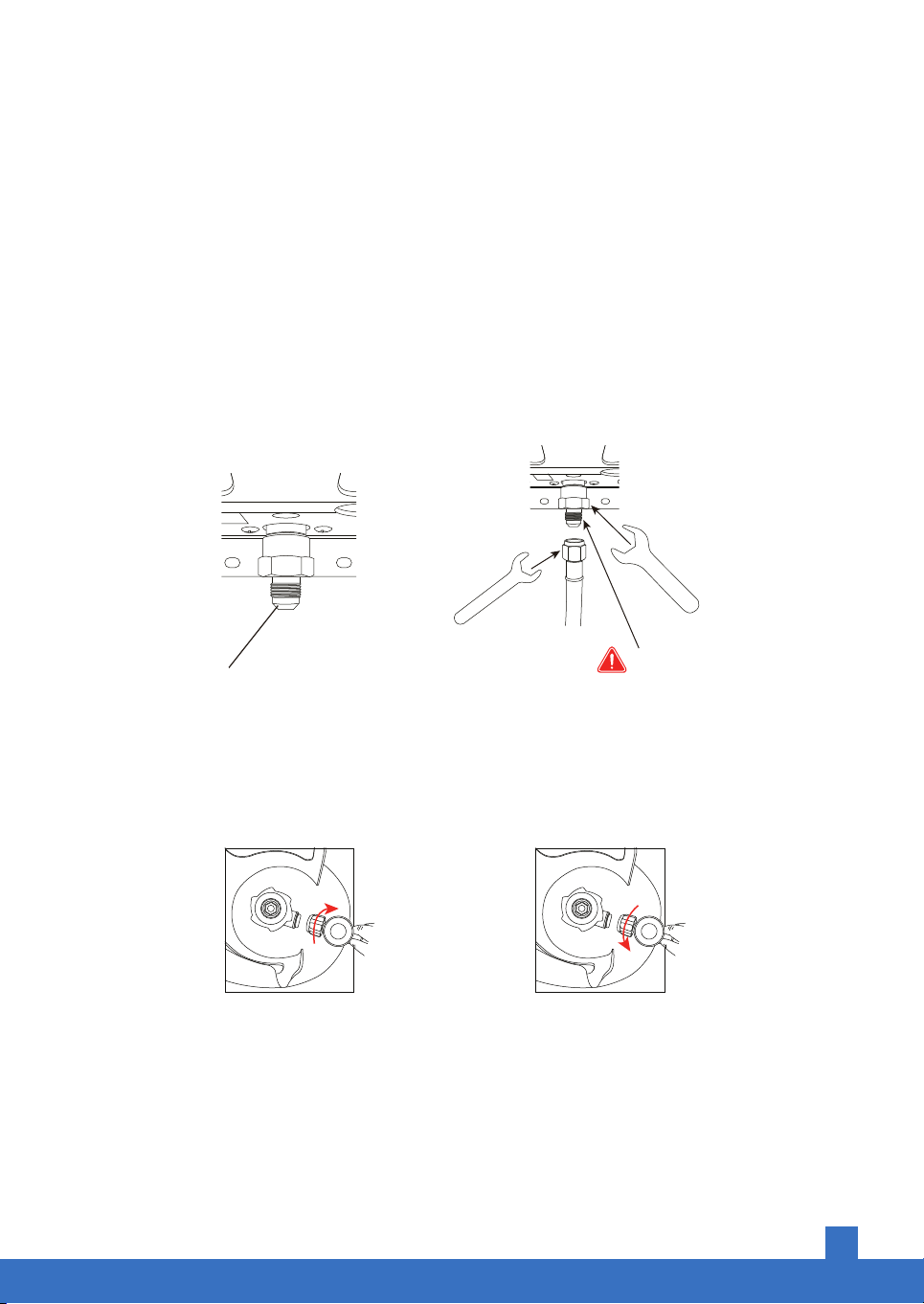

Gas Connecting
WARNING: Never use an open flame to test for gas leaks, because death, personal injury
and/or property damage can result. The water heater and its gas connections MUST be leak
tested at normal operating pressures before the uint is placed in operation.
1. Use shifting wrenches to attach supplied gas regulator (with brass connector already attached) to
the appliance and connect to the bottom of the appliance marked “Gas inlet”. Do not over tighten.
Over tightening may causing a gas leak! Ensure that you use supplied washers on all connectors
and check for any gas smell. Please connect with torque force between 20-28N/m.
2. Please always use the cylinder at an upright position for vapor withdrawal. Connect the certified
gas regulator with LP gas supply cylinder by hand. Connect the regulator hose to the heater gas
inlet fitting by wrench.
Connecting to cylinder:
Connect the gas regulator to the
gas cylinder, tightening using
two fingers support posts.
Connecting to cylinder:
Disconnect the gas regulator
from the gas cylinder, tightening
using two fingers support posts.
Already attached
to the gas inlet
Don’t around any
sealing tapes on
the thread
3. Water outlet :
Attach the water output device (shower head) to the fitting marked “Water outlet”. DO NOT OVER
TIGHTEN! Tighten by hand only. (The shower hose already comes with gaskets inside, extra
gaskets are available as a spare.)
●
10
USE AND STARTING
Note:
This appliance shall only be connected to a 20lb (Size 1: φ12 5/16″ *H17 5/16″;
Size 2: φ11 13/16″ *H17 7/16″;) cylinder with a POL cylinder valve certified to
CAN/CSA-B339. The LP-gas cylinder(s) must be constructed and marked in accordance with the
specifications for Cylinders, Spheres, and Tubes for the Transportation of Dangerous Goods,
CSA B339.
Please inspect the hose before each use of the appliance. If it is evident there is excessive
abrasion or wear, or the hose is cut, it must be replaced prior to the appliance being put into
operation. The replacement hose assembly shall be that specified by the manufacturer.
Check: Turn on the gas shut-off valve to the water heater. Use a soapy water solution to test for
leaks at all the connections and fittings. If bubbles are seen, it indicates a gas leak that must be
corrected and contact a qualified service technician.
The gas must be turned off at the LP gas supply cylinder when the water heater is not in use.
When the LP-gas supply cylinder is not disconnected from the water heater, the water heater and
cylinder must be stored outdoors, in a well ventilated space, out of the reach of children, and
must not be stored in a building, garage or any other enclosed area.
Storage of the water heater indoors is permissible only if the cylinder is disconnected and
removed from the water heater.
Cylinders must be stored outdoors, in a well ventilated space, out of the reach of children, and
must not be stored in a building, garage or any other enclosed area.
Do not store a spare LP gas cylinder under or near this appliance. Never fill the cylinder beyond
80 percent full. If not followed exactly, it may lead to a fire.
Check around the area for flammables, especially gasoline, or other vapors which may ignite. The
exhaust and top of the portable tankless water heater will get HOT! Make sure there are no foreign
objects around the portable tankless water heater or have fallen into the top.
WARNING: The water heater must not be exposed to flammable vapors or liquids during lighting.
1. Turn on incoming water supply. Ensure that you have abundant water pressure between 2.2-116
PSI/15-800 kPa for ideal operation.
2. Turn your water output device to its “off ” position.
3. Turn the gas valve on the cylinder all the way open.
4. IF THE SMELL OF GAS IS DETECTED, TURN OFF THE GAS VALVE IMMEDIATELY!!
5. Set the burner power switch knob to position. (In winter this knob can be switched to ）
6. Set the water control knob to Maximum.
7. Set the gas control knob on to Minimum.
●
●
●
●
●
●
●
●

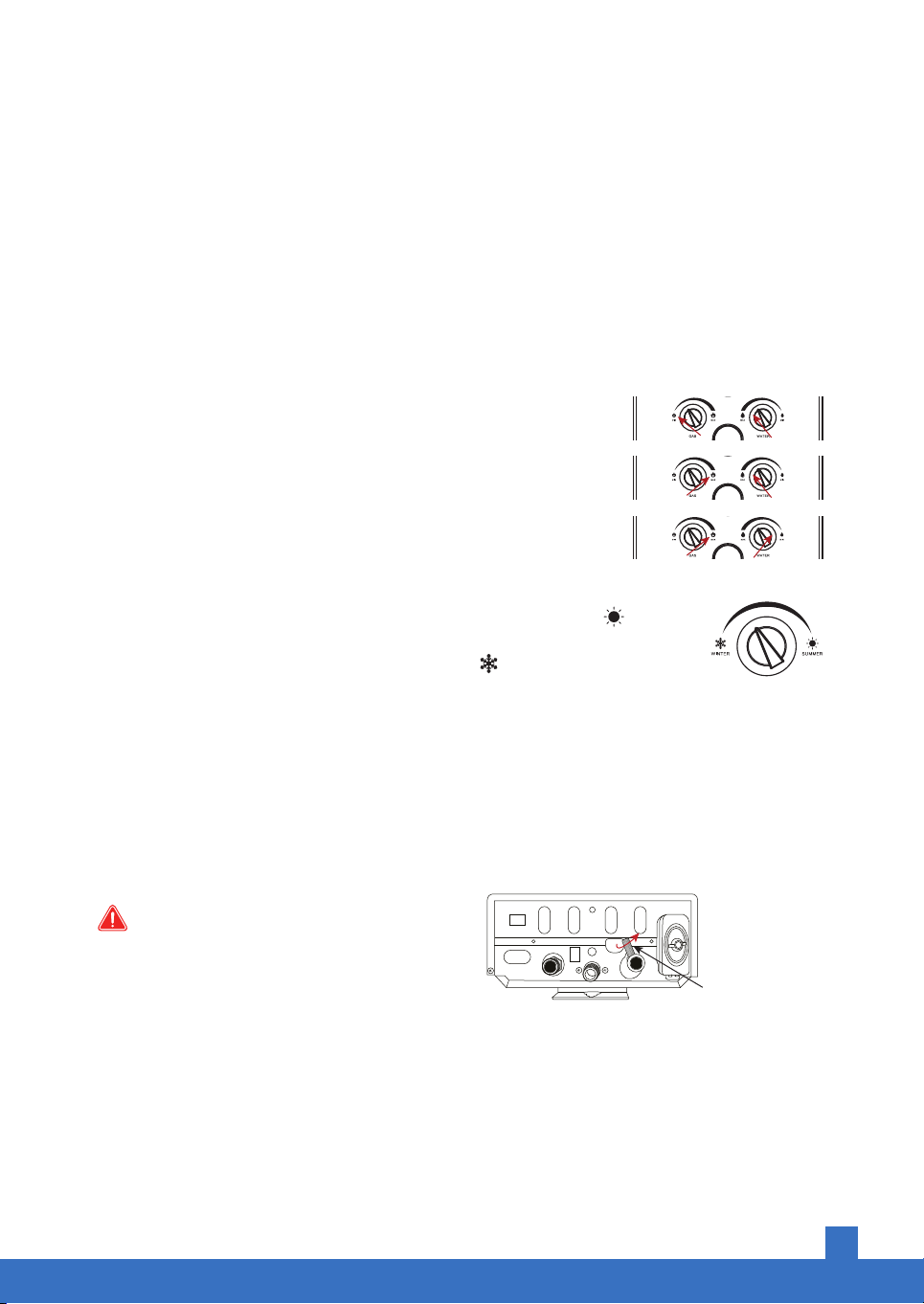

Burner power switch knob
( position is full power)
Gas flow adjustment knob
( position is lowest
temperature Water temperature display
Water flow adjustment
knob ( position is
maximum flow)
11
8. Turn your water output device to the “on” position and adjust to the desired water flow.
9. There will be a series of audible clicks and the burner will ignite. Please take note the water heater
must not be exposed to flammable vapors or liquids during lighting. Should the burner not ignite
after 5 seconds, shut off and go to the “Troubleshooting” section.
10. Upon completion of use or storage, open the drain valve (ribbed cylindrical stem next to the
water inlet valve) to ensure draining of water.
11. Please turn off the gas supply when not in use.
Before Operate The Drain Plug, Must be
1. Ensure that the water heater is disconnected from the water supply (turn off cold water inlet
switch).
2. Turn the shower switch to “ON”.
3. Ensure that the shower hose is disconnected from the water heater.
To drain the residual water totally,
please keep the water heater in vertical
statue when draining water.
Drain Plug
Water Temperature Adjusting
The temperature of the outgoing water is dependent on the temperature of the incoming water
balanced with the amount of heat applied. Use extreme caution in setting the outlet water
temperature.
Please Protect Your Water Heater From Freeze Damage!
WARNING: If the outside temperature is around or below freezing (32 °F/0°F), ensure that the
drain plug is opened and water drained from the portable tankless water heater after each
use to avoid internal damage to the heat exchanger. You will also need to unhook the
outgoing water line to ensure that any water in the heat exchanger is drained. Failure to
properly drain your portable tankless water heater will cause water damage which may or
may not be repairable.
1. The water flow knob in position max and the gas knob in position
min is the lowest temperature setting available.
2. To raise the water temperature, adjust the gas knob up (toward
max);
3. After step 2, if you still need water temperature higher, adjust
the flow rate knob down(toward min) until you have the desired
temperature.
4. The middle knob is for adjusting the amount of propane burned per unit time.
When the initial water is too hot in summer, you could turn it to the position.
One burner work to lower the temperature and save propane. When the initial
water is too cold in winter, you could turn it to the position so all of the
burners will work to raise the temperature.
12
COMMON ISSUES WITH SOLUTIONS
Indication SolutionIssue
Turn water knob counter clockwise.
Turn water knob counter clockwise.
Service call.
Service call.
Open windows and vents.
Service call.
Restart water heater later when
water becomes cooler.
The first thing to check is to ensure
that the incoming water on the
“right” side of the portable tankless
water heater. If the incoming and
outgoing are reversed, the portable
tankless water heater will not work.
The incoming is on the far right and
the outgoing is in the middle.
Check to make sure you have fresh
batteries and they are installed in
the correct position.
Ensure that you have adequate
water pressure of at least 2.2
PSI/15 kPa, sustained.
The valve on the propane tank
should be all the way “Open”.
Cycle the portable tankless
water heater on and off by using
the shower head switch several
times to purge the air from the gas.
The water heater emits
a loud sound on ignition
Noisy upon ignition
Over heat protection
Flame is yellow and
smoke is visible
Water knob is restricted
Water knob is restricted
Gas pressure high
Blocked burner
Not adequate centration
Blocked burner
Water heater automatically
shuts off
When water temperature is
167ºF (75ºC)
Incoming and outgoing are
reversed
Do not fire up upon
opening water tap
Batteries is not fresh or
installed incorrect
Not enough water pressure
Gas valve is closed
Air in gas line
13
CARE AND MAINTENANCE
Properly maintained your water heater will provide years of dependable trouble-free service. It is
recommended that a periodic inspection of the burner, water filter and top exhaust should be made
by service personnel qualified in gas appliances.
1. It is suggested that a routine preventive maintenance program be established and followed by the
user.
2.* It is recommended to do maintenance once a year.
3. Inspect the area around the water heater to ensure a safe operating environment.
Keep water heater area clear and free from combustible materials, gasoline, and other flammable
vapors and liquids. Do not obstructing the flow of combustion and ventilation air. Ensure the unit
has not been damaged. If damage or denting is present, contact a service personnel to verify
proper operation.
4. Check for any abnormal sounds during normal operation of the water heater.
5. Check the burner flames through the visible flame window to make sure the combustion is normal
during operation of the water heater.
Indication Solution
Issue
The portable tankless water heater
requires a minimum flow of about
2.2 PSI/15 kPa.
The valve on the propane tank
should be all the way “Open”.
Cycle the portable tankless
water heater on and off by using
the shower head switch several
times to purge the air from the gas.
Fresh batteries are required for
ignition spark. Make sure batteries
are aligned in the proper polarity
(+/-).
Heater turns off after
igniting
Water pressure is low
Out of, or low on gas
Batteries is not fresh
Burner with pure blue flame, means well ventilation and combustion adequacy.
Burner with yellow/red flame, means combustion insufficiency, air intake is not enough, or
appliance bottom block.
Burner with a lift-flame, over gas pressure, high wind condition.
Max gas but small flame, gas pressure is not enough.
●
●
●
●
LIMITED WARRANTY
LIMITED WARRANTY
Airthereal warrants all Gas Water Heaters for 1 year. For more information please visit
www.airthereal.com/warranty .
What’s covered?
Defects due to faulty materials and/or workmanship of the product.
What’s NOT covered?
1.Damage caused by the owner when attempting to fix or altering the product by himself or herself.
2.Damage caused by misuse, abuse, neglect, alterations or unauthorized repair.
3.Natural depreciation.
Warranty Period
Warranty becomes effective from the date of original purchase and will last for 1 year.
Who’s covered?
This limited warranty is only effective for the original purchaser. It is non-transferable.
How to request warranty services?
To obtain the benefit of this warranty, please email [email protected].Our customer service
team will address your issue as soon as possible!
14
6. All piping should be checked for gas and/or water leaks.
The air intake and cold water supply filters should be cleaned monthly. For clean panel surface,
dust off and use kitchen cleaner to clean when you feel it is dirty.
7. DO NOT operate the water heater if you feel something is wrong with the unit.
8. DO NOT allow children to operate or otherwise handle the unit.
DANGER
Before disconnecting the water supply, make certain no one will be exposed to the danger of the hot
water released by disconnecting.
The water may be hot enough to create a scald hazard. The water should be released into a suitable
drain to prevent injury or property damage.
Hotter water increases the potential for hot water scalds.
Failure to perform the recommended routine preventative maintenance can harm the proper
operation of this water heater, which can cause carbon monoxide dangers, excessive hot water
temperatures and other potentially hazardous conditions.
www.airthereal.com
Always here to help you
FOR THE AIR WE CARE
V 20220315
Keep Out Of Reach Of Children
Produced for: West Ryder Technology LLC
2330 Paseo Del Prado STE C304
Las Vegas, NV 89102
