Product No. GLD2160SCB0 GLD2160SCC0 GLD2160SCQ0 GLD2160SCS0
Series Built-in 24" Built-in 24" Built-in 24" Built-in 24"
Color black stainless bisque white
Owner's Guide 154482801 154482801 154482801 154482801
Service Data Sheet 154484801 154484801 154484801 184484801
Energy Guide 154485214 154485214 154485214 154485214
Installation Instructions 154427301 154427301 154427301 154427301
Market North America North America North America North America
P30L0056.eps P30C0141.eps P30B0032.eps P30U0018.eps P30M0035.eps P30F0022.eps
P30R0066.eps
ELECTROLUX HOME PRODUCTS, INC.
P.O. Box 212378, Augusta, GA 30917
Publication No.
5995401360
04/01/13
(EN/SERVICE/ECL)
821
24-INCH BUILT-IN
DISHWASHER
Model No.
GLD2160SC
Copyright © 2004 Electrolux Home Products, Inc.
All rights reserved.
Downloaded from www.ManualsFile.com manuals search engine
GLD2160SC Publication No: 5995401360
# Functional Parts
3 01/04
* Non-Ilustrated Parts

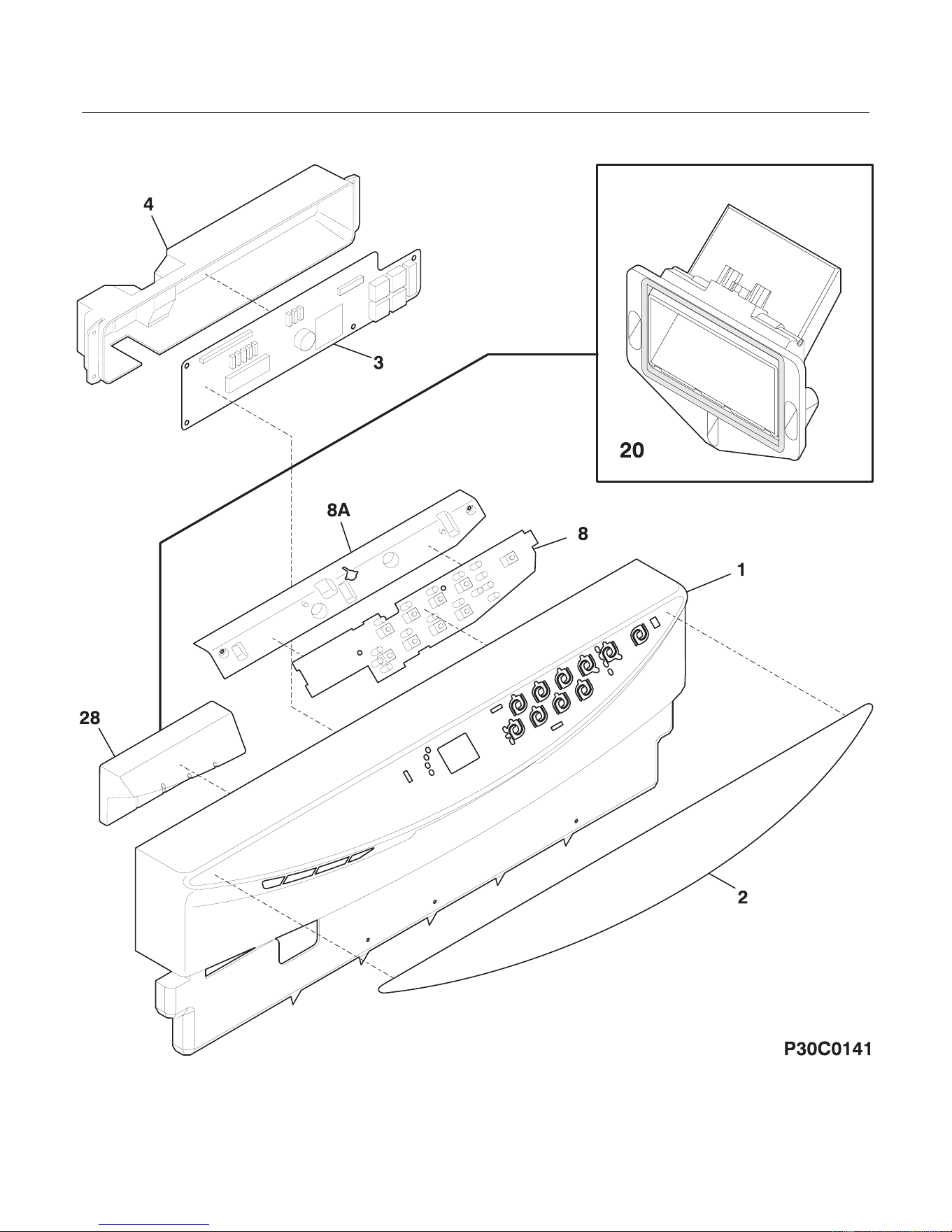

CONTROL PANEL
Model Index: A GLD2160SC (GLD2160SCB0)
B GLD2160SC (GLD2160SCC0)
C GLD2160SC (GLD2160SCQ0)
D GLD2160SC (GLD2160SCS0)
POS. NO PART NO. DESCRIPTION
1 154454403 A B - - Panel, control, black
1 154454404 - - C - Panel, control, bisque
1 # 154486001 - - - D Panel, control, white
2 154484503 A B - - Insert, control panel, black
2 154484504 - - C - Insert, control panel, bisque
2 154484501 - - - D Insert, control panel, white
3 # 154484601 A B C D Control, w/sensor
3* 154200401 A B C D Screw, 6-10 x 3/8, pan plask
4 154460601 A B C D Cover, control
4* 154478901 A B C D Gasket, cover
8 # 154474701 A B C D Switch, selector, 9 pad
8A 154477601 A B C - Cover, switch
8A 154486201 - - - D Shield, tactile switch
20 154433001 A B C D Vent assy, static dry
20* 154436201 A B C D Screw, dry duct, (3)
28 154474401 A B C D Adapter, vent
* 154484701 A B C D Harness, wiring
* 154485214 A B C D Energy Guide
Downloaded from www.ManualsFile.com manuals search engine
GLD2160SC Publication No: 5995401360
# Functional Parts
5 01/04
* Non-Ilustrated Parts

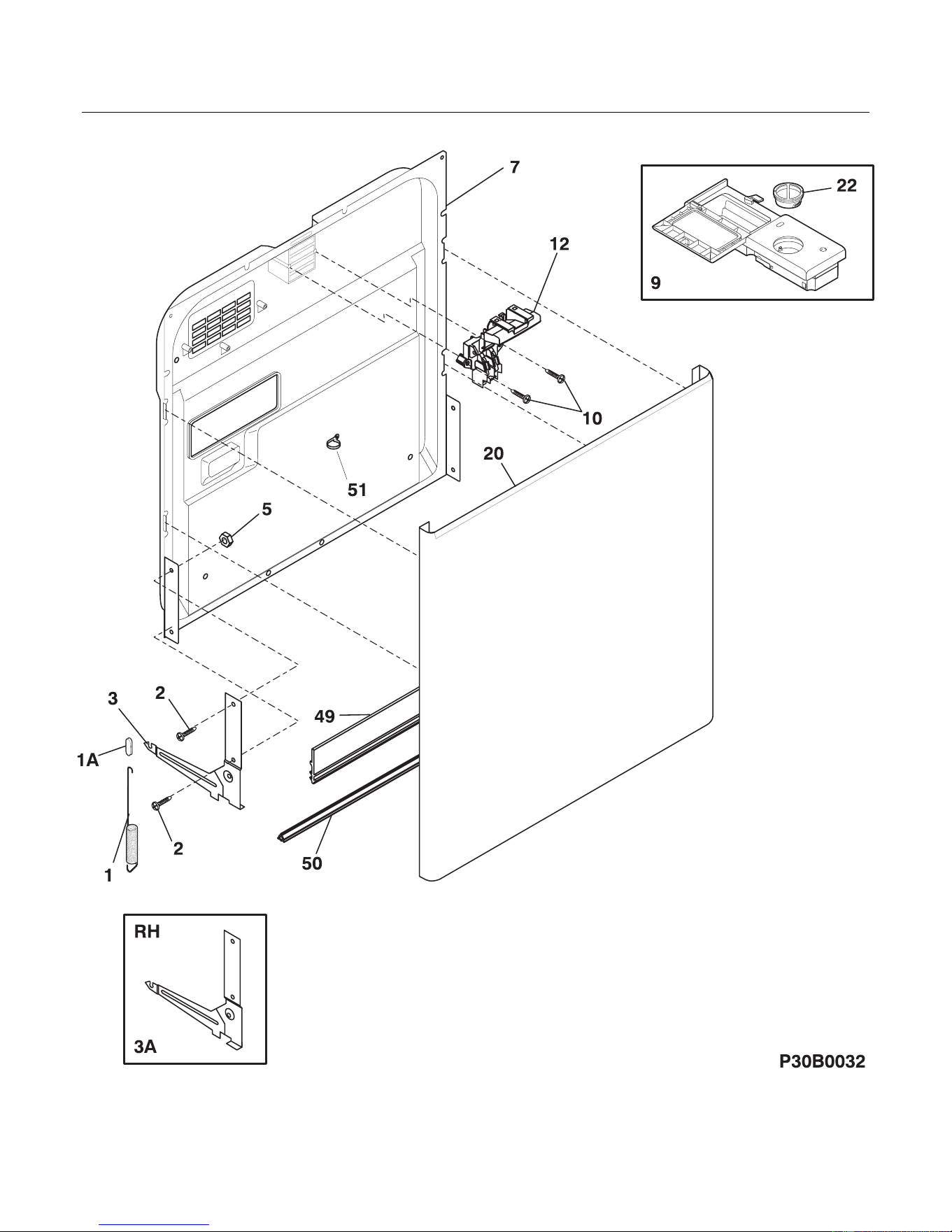

DOOR
Model Index: A GLD2160SC (GLD2160SCB0)
B GLD2160SC (GLD2160SCC0)
C GLD2160SC (GLD2160SCQ0)
D GLD2160SC (GLD2160SCS0)
POS. NO PART NO. DESCRIPTION
1 154430501 A B C D Spring, door, (2)
1A 154325201 A B C D Linkage, door spring, (2)
2 154093301 A B C D Screw, arm assy, (4)
3 154325304 A B C D Arm Assy, LH
3A 154325303 A B C D Arm Assy, RH
* 154400601 A B C D Pin, arm assy
5 154079601 A B C D Nut, arm assy, and handle mtg.
7 154299004 A B C D Door, inner assy
9 154230103 A B C D Dispenser, det/rinse aid, includes #22
9* 154294701 A B C D Screw, #7 plas .375, (6), disp. assy.
10 154103702 A B C D Screw, latch mtg, (2)
12 # 154475103 A B - - Latch assy, black
12 # 154475104 - - C - Latch assy, bisque
12 # 154475101 - - - D Latch assy, white
20 154359007 A - - - Door, black
20 154481101 - B - - Door, stainless
20 154359008 - - C - Door, bisque
20 154359006 - - - D Door, white
20* 154253201 - B - - Insulation, door
20* 5304428306 A B C D Screw, door mtg., (2)
22 154388801 A B C D Cap, Rinse aid
49 154297603 A B C D Gasket, door, bottom
50 154211401 A B C D Support, door hinge
51 154320301 A B C D Clamp, drip loop, wire
Downloaded from www.ManualsFile.com manuals search engine
GLD2160SC Publication No: 5995401360
# Functional Parts
7 01/04
* Non-Ilustrated Parts

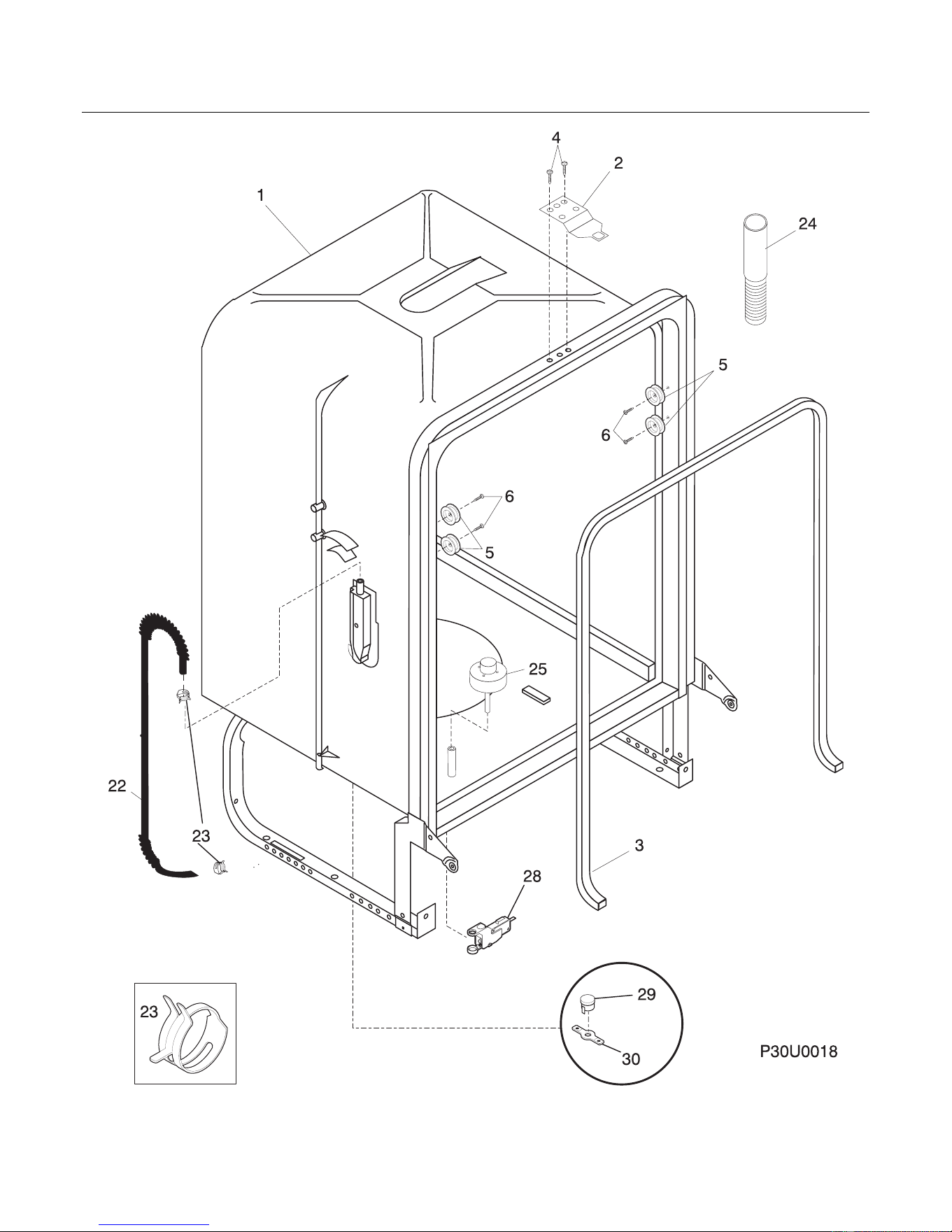

TUB
Model Index: A GLD2160SC (GLD2160SCB0)
B GLD2160SC (GLD2160SCC0)
C GLD2160SC (GLD2160SCQ0)
D GLD2160SC (GLD2160SCS0)
POS. NO PART NO. DESCRIPTION
1 # 154209301 A B C D Tub assy, w/frame parts
2 154429101 A B C D Strike, door
3 # 154211801 A B C D Gasket, tub
4 154200602 A B C D Screw, 10-16 x 3/8, hex
5 154333902 A B C D Roller, tub
6 5303943103 A B C D Screw, w/washer, (8)
22 154239801 A B C D Tubing, water inlet
23 5303318539 A B C D Clamp, tubing, (2)
24 # 154411003 A B C D Hose, drain
25 # 154209701 A B C D Float
28 154408701 A B C D Switch assy, float
29 # 154290204 A B C D Thermostat, re-settable
30 154241101 A B C D Retainer, thermostat
30* 154297701 A B C D Screw, retainer-thermo
* 154447102 A B C D Insulation, blanket
* 154041001 A B C D Screw, plask #1, 10-10 x 9/16
* 5300807270 A B C D Screw, (2), countertop mtg.
Downloaded from www.ManualsFile.com manuals search engine
GLD2160SC Publication No: 5995401360
# Functional Parts
9 01/04
* Non-Ilustrated Parts

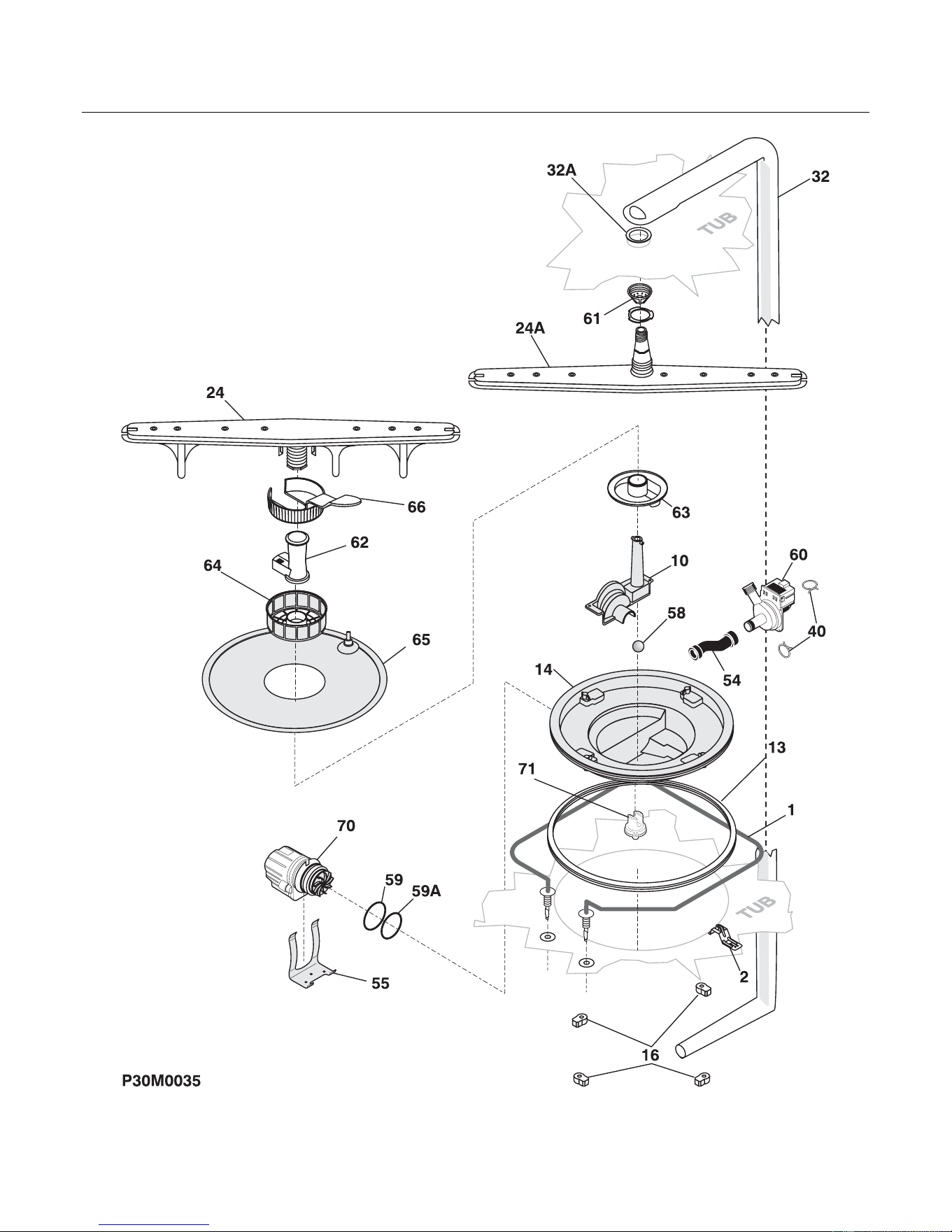

MOTOR & PUMP
Model Index: A GLD2160SC (GLD2160SCB0)
B GLD2160SC (GLD2160SCC0)
C GLD2160SC (GLD2160SCQ0)
D GLD2160SC (GLD2160SCS0)
POS. NO PART NO. DESCRIPTION
1 # 154247601 A B C D Heater
1* 154106201 A B C D Nut, heater, (2)
1* 154289801 A B C D Shield, heater terminal
2 154359701 A B C D Bracket, heater, (2)
10 154245501 A B C D Cover, volute
13 154246801 A B C D Gasket, sump
14 154365901 A B C D Housing, sump
16 154246502 A B C D Retainer, sump
24 154414101 A B C D Spray arm, lower, w/heat shield
24A 154313601 A B C D Spray arm, center
24A* 154252001 A B C D Nut, spray arm, center
32 154406601 A B C D Tube, delivery
32A 154406401 A B C D Gasket, delivery tube
40 154348401 A B C D Clamp, red, pump
40 154348501 A B C D Clamp, silver, pump
40* 154106801 A B C D Clamp, hose, (2)
40* 154380601 A B C D Clamp, hose, (1)
54 154234401 A B C D Hose, connector
55 154362301 A B C D Bracket, motor, askoll
55* 5303316032 A B C D Screw, truss ss, 8 .625
58 154246402 A B C D Check ball
59 154246901 A B C D O-ring, rear
59A 154247001 A B C D O-ring, front
60 154474101 A B C D Drain Pump Assy
60* 154426201 A B C D Bracket, motor, drain
61 154406501 A B C D Nozzle, 3rd level, spray arm
62 154294101 A B C D Support, spray arm, lower
63 154252201 A B C D Base, soil director
64 154252301 A B C D Filter, soil director
65 154252401 A B C D Filter, polypro
66 154252701 A B C D Trap, glass
70 # 154395403 A B C D Motor assembly, circulation, w/o o'rings
71 # 154473901 A B C D Sensor, turbidity
71* 154376001 A B C D O-ring, turbidity
* 154200601 A B C D Screw, #10-16 x 3/8
Downloaded from www.ManualsFile.com manuals search engine
GLD2160SC Publication No: 5995401360
# Functional Parts
11 01/04
* Non-Ilustrated Parts

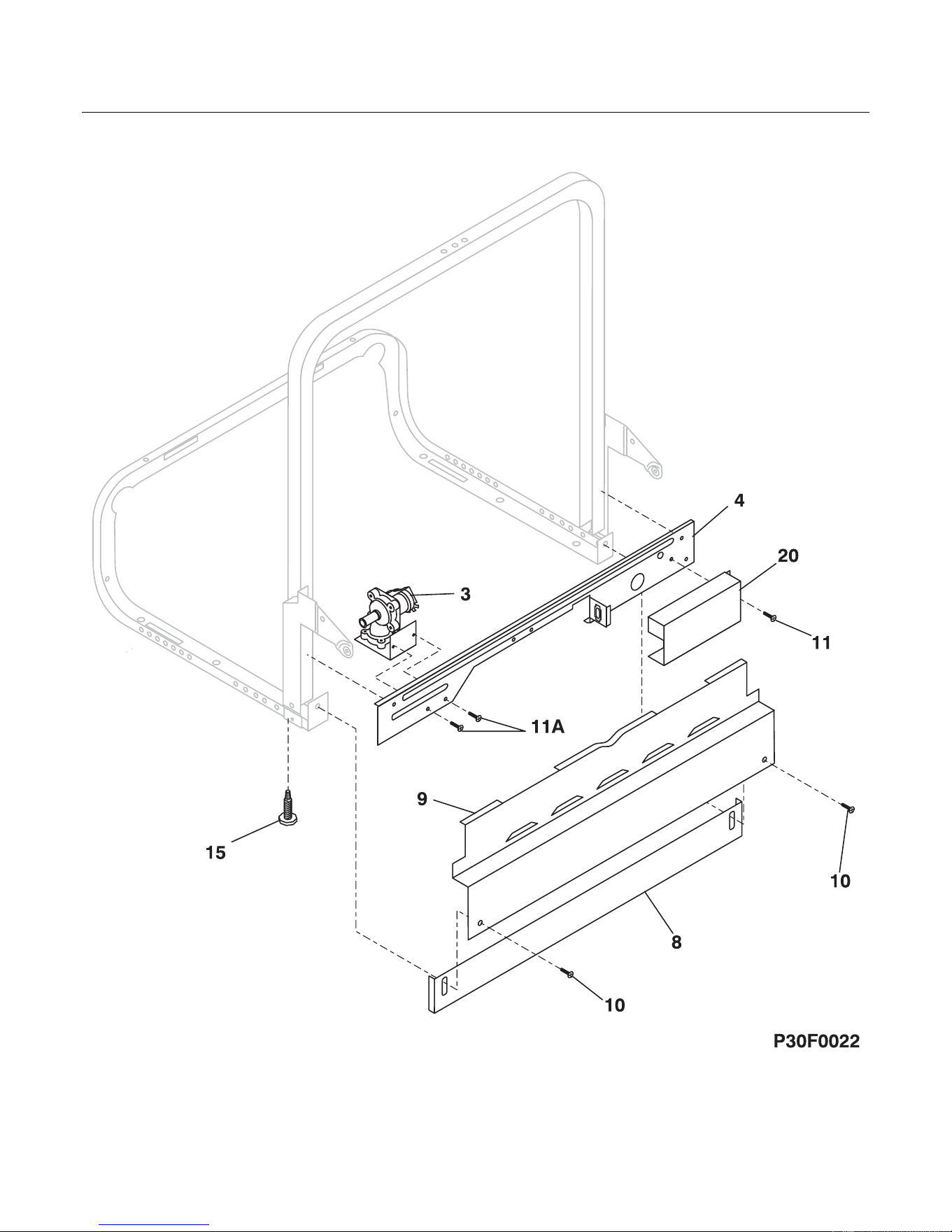

FRAME
Model Index: A GLD2160SC (GLD2160SCB0)
B GLD2160SC (GLD2160SCC0)
C GLD2160SC (GLD2160SCQ0)
D GLD2160SC (GLD2160SCS0)
POS. NO PART NO. DESCRIPTION
3 # 154445901 A B C D Valve, water
4 154208701 A B C D Brace, front frame
8 154322903 A B - - Toeplate, adjustable, black
8 154322905 - - C - Toeplate, adjustable, bisque
8 154322901 - - - D Toeplate, adjustable, white
9 154397203 A B - - Kickplate Assy, black, w/foam
9 154397204 - - C - Kickplate Assy, bisque, w/foam
9 154397201 - - - D Kickplate Assy, white, w/foam
10 5300808658 A B - - Screw, #8A x .375", black
10 154371303 - - C - Screw, phillips head, bisque
10 154371301 - - - D Screw, phillips head, white
11 154409401 A B C D Screw, #8-18 x .375
11A 154200601 A B C D Screw, #10-16 x 3/8
15 154419301 A B C D Screw, leveling
20 154209601 A B C D Cover, junction box
* 154041001 A B C D Screw, plask #1, 10-10 x 9/16
* 154200602 A B C D Screw, 10-16 x 3/8, hex
Downloaded from www.ManualsFile.com manuals search engine
GLD2160SC Publication No: 5995401360
# Functional Parts
13 01/04
* Non-Ilustrated Parts

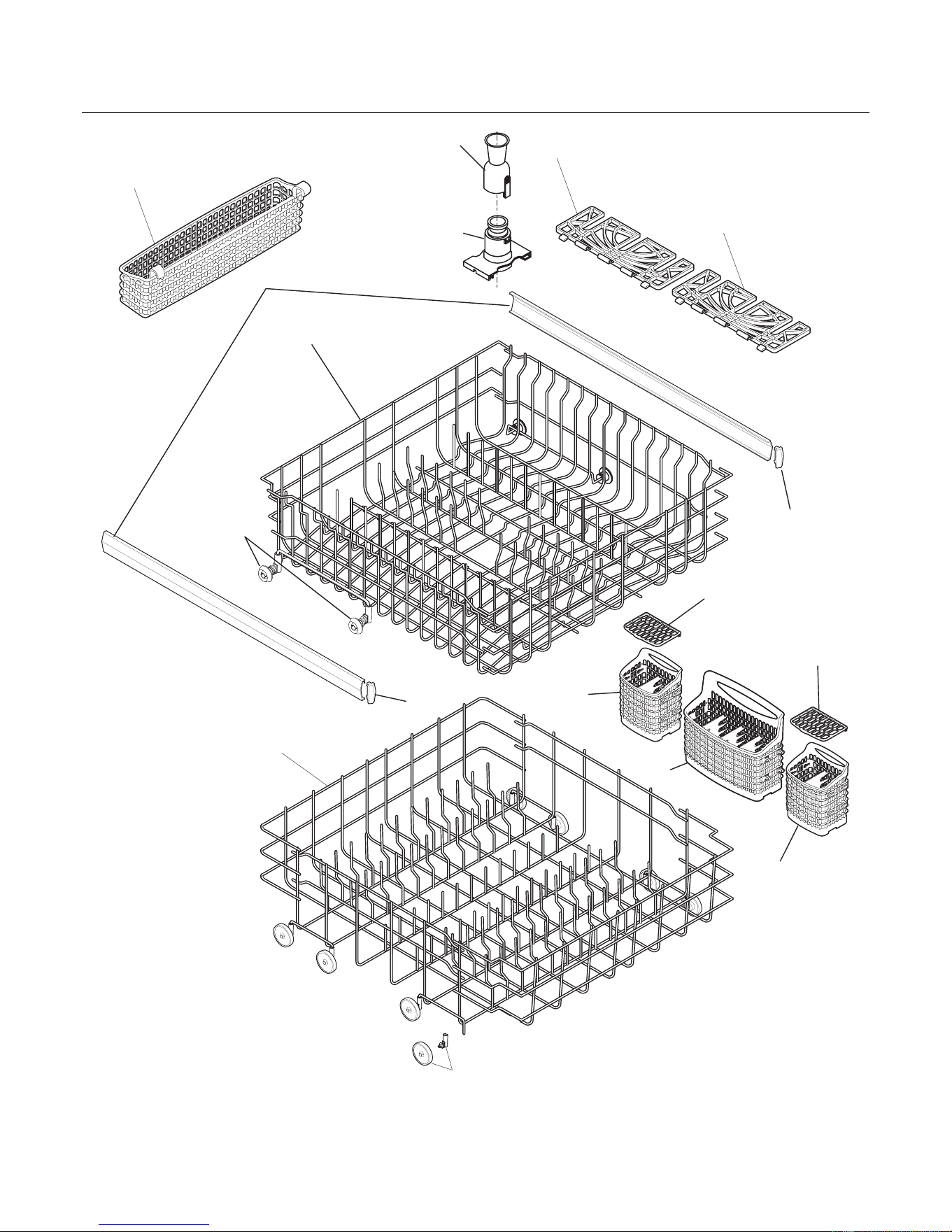

RACKS
Model Index: A GLD2160SC (GLD2160SCB0)
B GLD2160SC (GLD2160SCC0)
C GLD2160SC (GLD2160SCQ0)
D GLD2160SC (GLD2160SCS0)
POS. NO PART NO. DESCRIPTION
1 154336014 A B C D Rack assy, lower, w/rollers
2 154424001 A B C D Basket, silverware, main
2A 154424101 A B C D Basket, silverware, (2), side
3 154319525 A B C D Rack assy, upper
4 5304407064 A B C D Wheel & bushing assy, upper rack
5 5300809927 A B C D Cap, slide, (4)
6 154232701 A B C D Slide, rack, (2)
7 154174502 A B C D Wheel & bracket assy, lower rack
8 154304001 A B C D Base, funnel
9 154251801 A B C D Funnel
10 154466901 A B C D Basket, utility, white
11 154436101 A B C D Shelf, cup, half width, white
16A 154424301 A B C D Cover, side basket, (2), silverware
