Save These Instructions
Wall Mount Oscillating Fan
WMF16R Series
with Remote
3 Speed
Wind
Remote
Control
Adjustable
Tilt Up/Down
Wide
Oscillation
Quiet &
Efficient
Easy
Assembly
Safety
Grill
Safety
Plug
Sleep
Mode
Timer
Function
2
2
INTENDED USE:
This product is intended for indoor residential and ofce use only,
not for industrial or other commercial applications. Use only with
electrical wiring that is in good working order and that meets
applicable codes and ordinances. If you have any questions
whether your wiring is adequate, consult a qualied electrician.
While using your fan, you should follow the IMPORTANT
INSTRUCTIONS listed below. As part of those instructions, we
have used the word "WARNING" to indicate the level of hazard:
WARNING indicates a hazard which, if not avoided, could result
in injury or death.
IMPORTANT INSTRUCTIONS
As with all electrical appliances, basic safety precautions should
always be followed to reduce the risk of electric shock, re, or
injury to persons, including the following precautions:
• Read all the instructions before using this fan.
• Use this fan only as described in this manual. Any other use not
recommended by the manufacturer may cause electrical shock,
re or injury to persons.
• Do not operate the fan with a damaged power cord or after the
fan malfunctions or has been dropped in any manner.
• Use of extreme caution is necessary when any fan is used by or
near children, disabled persons or pets and whenever the fan is
left operating unattended.
• Do not place the fan on a small, unlevel, uneven or any surface
which might allow fan to tip or fall.
• For proper operation, fan should be placed on a smooth,
non-combustible, level surface.
• Always unplug fan when not in use, when moving from place
to place, when assembling or disassembling parts, and before
cleaning.
• The use of attachments, not recommended or sold by the
manufacturer, may cause hazards.
• Do not use outdoors.
• Do not use fan in window. Rain may cause electrical hazard
(for non-window models).
• Do not operate the fan with blade guards or any safety device
removed.
• Avoid the use of extension cords due to risk of re. If an
extension cord must be used, the cord must be minimum
14 AWG and rated not less then 1875 watts.
• Do not run power cord under carpeting. Do not cover cord with
throw rugs, runners or the like. Arrange cord away from trafc
area where it will not be tripped over.
• Do not insert or allow any object to enter any openings on the
fan. Doing so may cause electric shock and/or re hazard.
Avoid contact with moving parts.
• This appliance is not intended for use by persons (including
children) with reduced physical, sensory or mental capabilities
or lack of experience and knowledge, unless they have
been given supervision or instruction concerning use of the
appliance by a person responsible for their safety.
• Children should be supervised to ensure they do not play with
the appliance.
READ & SAVE THESE
INSTRUCTIONS !
WARNING: SHOCK HAZARD
Use your fan only in dry environments. This fan is not intended
for use in a bathroom, laundry area, or similar locations, or near
sinks, washing machines, swimming pools or other sources of
water. Never locate fan where it may fall into a bathtub or other
water receptacle. Do not use in damp environments such as
ooded basements.
WARNING: HOT SURFACES
Do not touch fan motor when in use. This motor is hot when in
use, to avoid burns, do not let bare skin touch hot surfaces.
WARNING: FIRE HAZARD
Fans have arcing or sparking parts inside. Do not use near
combustible materials or ammable gases or sources of heat. Do
not use in areas where gasoline, paint or ammable materials are
used or stored. To prevent a possible re, do not block air intakes
or exhaust in any manner. Do not insert or allow foreign objects
to enter any ventilation or exhaust opening as this may cause an
electric shock, re, or damage the fan.
WARNING: ELECTRICAL SHOCK HAZARD
Do not use with damaged cord or plug. Use with adequate
electrical system that is up to code.
CAUTION: TO PREVENT ELECTRIC SHOCK,
this product has a polarized two prong plug (one blade is wider
than the other) that must be fully inserted in to a matching
properly grounded outlet. This plug is designed to t a polarized
outlet only one way. If the plug does not t fully into the outlet,
reverse the plug. If the plug still does not t, contact a qualied
electrician. Do not attempt to defeat this safety feature.
CAUTION: TO REDUCE THE RISK OF FIRE OR
ELECTRIC SHOCK, do not use this product with any
solid-state speed control device.
DO NOT run power cord under carpeting. Do not cover cord
with throw rugs, runners or the like. Arrange cord away from
trafc area where it will not be tripped over. Avoid the use of
extension cords due to risk of re. If an extension cord must
be used, the cord must be minimum 14 AWG and rated not
less then 1875 watts. Do not use an extension cord unless the
plug can be completely inserted into its receptacle. Unplug
the fan when not in use. Do not operate fan with its ventilation
DO NOT operate any fan with a damaged cord or plug or after
fan malfunctions, has been dropped or damaged in any manner.
Do not operate fan with a broken blade, safety cage or any visual
imperfections. Disconnect power before servicing. For repairs
covered under warranty, see warranty statement. For all other
repairs contact
Customer Service by telephone or
mail for
information and assistance.
obstructed.
3
3
3. SLEEP – Fan will vary the fan speed like pulse mode but it
is timed to slow down after a period of time. The speed will
change as follows:
FAN HIGH SPEED – When fan speed is set to HIGH, the fan
will run varying from HIGH speed to very slow speed for 30
minutes, then run from MEDIUM to very slow speed for 30
minutes, then run from LOW speed to very slow speed for the
duration of use.
FAN MEDIUM SPEED – When fan speed is set to Medium, the
fan will run varying from MEDIUM speed to very slow speed
for 30 minutes, then run from LOW speed to very slow speed
for the duration of use.
FAN LOW SPEED –
When fan speed is set to LOW, the fan will
vary from LOW speed to very low speed for the duration of use.
USAGE
FAN OPERATION: Always operate the fan in the upright
position following all instructions and recommendations listed
in this manual. FAN LOCATION: Place the fan in the area of the
room that will provide proper fan cooling. FAN CONNECTION:
Plug fan directly into 120 Volt A.C., 60Hz wall outlet. Be sure plug
ts tightly in outlet. A loose connection may cause overheating
and damage to the plug or fan. NOTE: To prevent overloading
a circuit, do not plug the fan into a circuit that is servicing other
electrical needs.
TURNING FAN ON: With fan mounted to a stable wall surface,
plug fan into properly functioning outlet. To start the fan, press
SPEED/ON button. Press SPEED/ON repeatedly to desired
fan speed - HIGH, MID, LOW. Press OFF button to discontinue
use. Unplug fan when not in use.
OSCILLATION: To start fan oscillation, press OSC button on
the control panel or remote control while fan is at any speed or
mode. To discontinue oscillation, press the OSC button on
control panel or remote control again.
ADJUSTING FAN TILT: To adjust the tilt angle simply tilt the fan
to desired position. Ratcheting effect should hold the fan at the
desired angle.
REMOTE CONTROL: Place 2 ea. AAA size batteries (not
included) in the remote control. Use the buttons on the remote
as you would with the control panel. Point the remote control
towards the control panel for the sensor to receive a signal.
NOTE: All batteries should be replaced at the same time, do not
mix with old batteries. Do not mix alkaline, standard (carbon-zinc)
or rechargeable (nickel-cadmium) batteries. Properly dispose of
used batteries.
TIMER FEATURE: Accessed using the remote control, the timer
function is designed to work during oscillation or any fan mode
or speed. Press the TIMER button, each time it is pressed, time
duration indicator lights illuminate. (0.5, 1, 2 or 4 hours). Simply
add up the time value of the lights to see timer setting up to
7.5 hours maximum time. To turn the TIMER function off, press
the TIMER button continuously until all the timer indicator lights
are off.
FAN MODES: Accessed using the remote control, this fan has
three operating modes that will work with oscillation control
ON or OFF.
1. NORMAL – Fan speed is consistent with the speed chosen
and operates like a standard fan.
2. PULSE – Fan will vary the speed from the highest fan speed
chosen to very slow speed.
ASSEMBLY
INSTRUCTIONS
Images may vary slightly from
actual product.

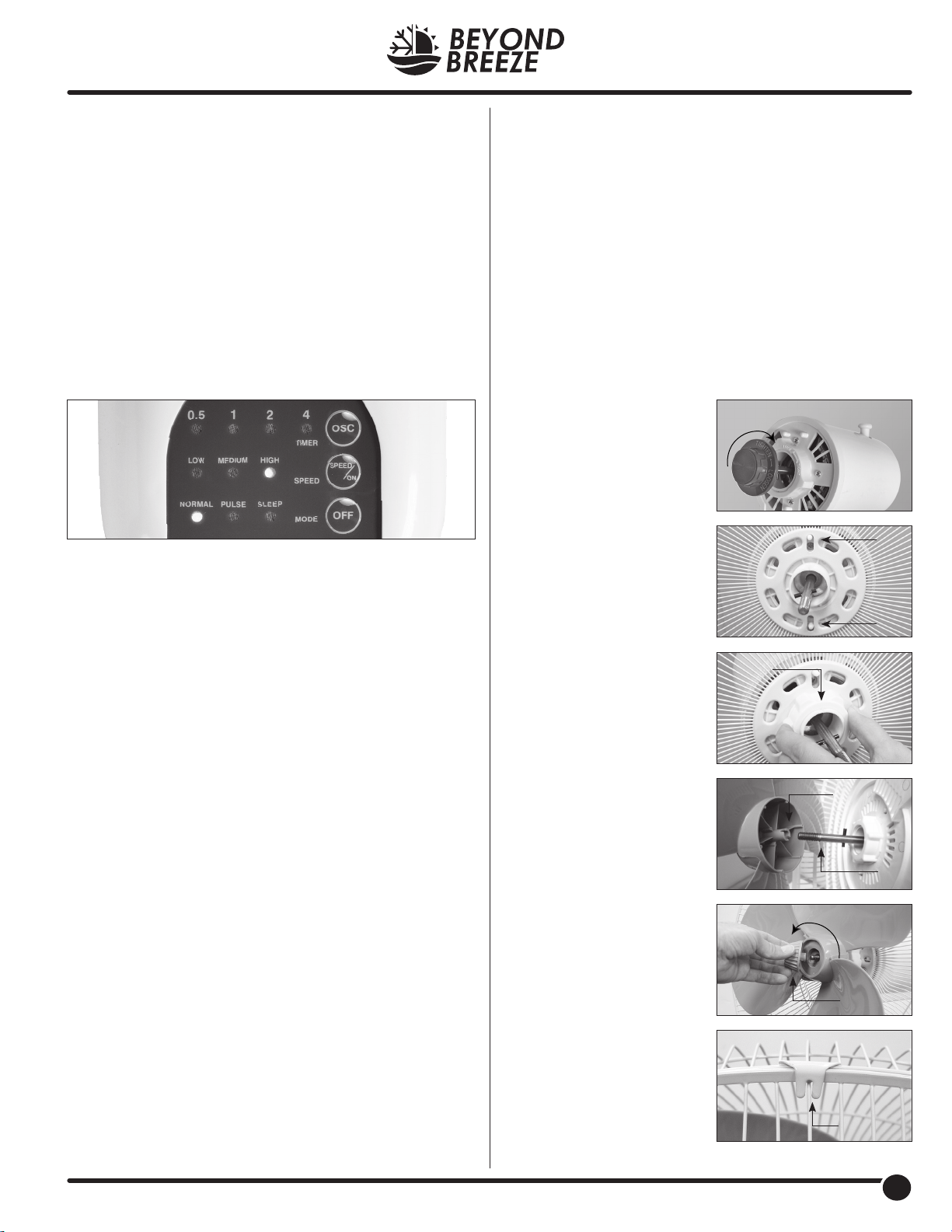

STEP 1:
Remove the Blade Cap by
twisting it CLOCKWISE while
holding the metal shaft tightly.
NOTE: Threads are reversed.
Unscrew = Clockwise.
STEP 2:
Assemble Rear Grille onto
Motor Housing. Rear Grille
should t into pins on fan
motor housing as shown.
STEP 3:
Thread Locknut onto Motor
Housing to lock Rear Grille
in place.
STEP 4:
Remove any protective
covering over shaft before Fan
Blade installation. Place Fan
Blade onto Motor Shaft. Notice
the pin on Motor Shaft should
t into slots of Fan Blade.
STEP 5:
Thread Blade Cap onto
threaded end of Motor Shaft.
NOTE: Threads are reversed.
Tighten = Counter-clockwise.
STEP 6:
Attach Front Grille to Rear
Grille with Hook Clip centered
on the top above Wire Handle.
Pin
Pin
Pin
Slot
Hook Clip
Loosen
Blade Cap
Tighten
Locknut
Control Panel
4
4
CARE AND MAINTENANCE:
Cleaning: CAUTION-Before cleaning the fan be sure to
disconnect power cord from the plug. Clean the grille surface
with a clean damp cloth. Do not use harsh chemical or abrasive
cleaners. DO NOT IMMERSE THE FAN OR ANY WIRES IN
WATER. Allow fan to dry completely before use. Periodic grille
cleaning with a vacuum will prevent dust build up. The motor is
sealed and does not require any interior maintenance, cleaning or
lubrication.
Maintenance: The Internal motor bearings are permanently
lubricated at the factory and do not require any additional
lubrication.
Repair: DO NOT OPERATE THE FAN WITHOUT THE GRILLE IN
PLACE. DO NOT USE THE FAN IF IT HAS MALFUNCTIONED OR
BECOME DAMAGED IN ANY WAY.
Storage: Keep original carton for storage of the fan. Coil and tie
the power cord to avoid damage during storage.

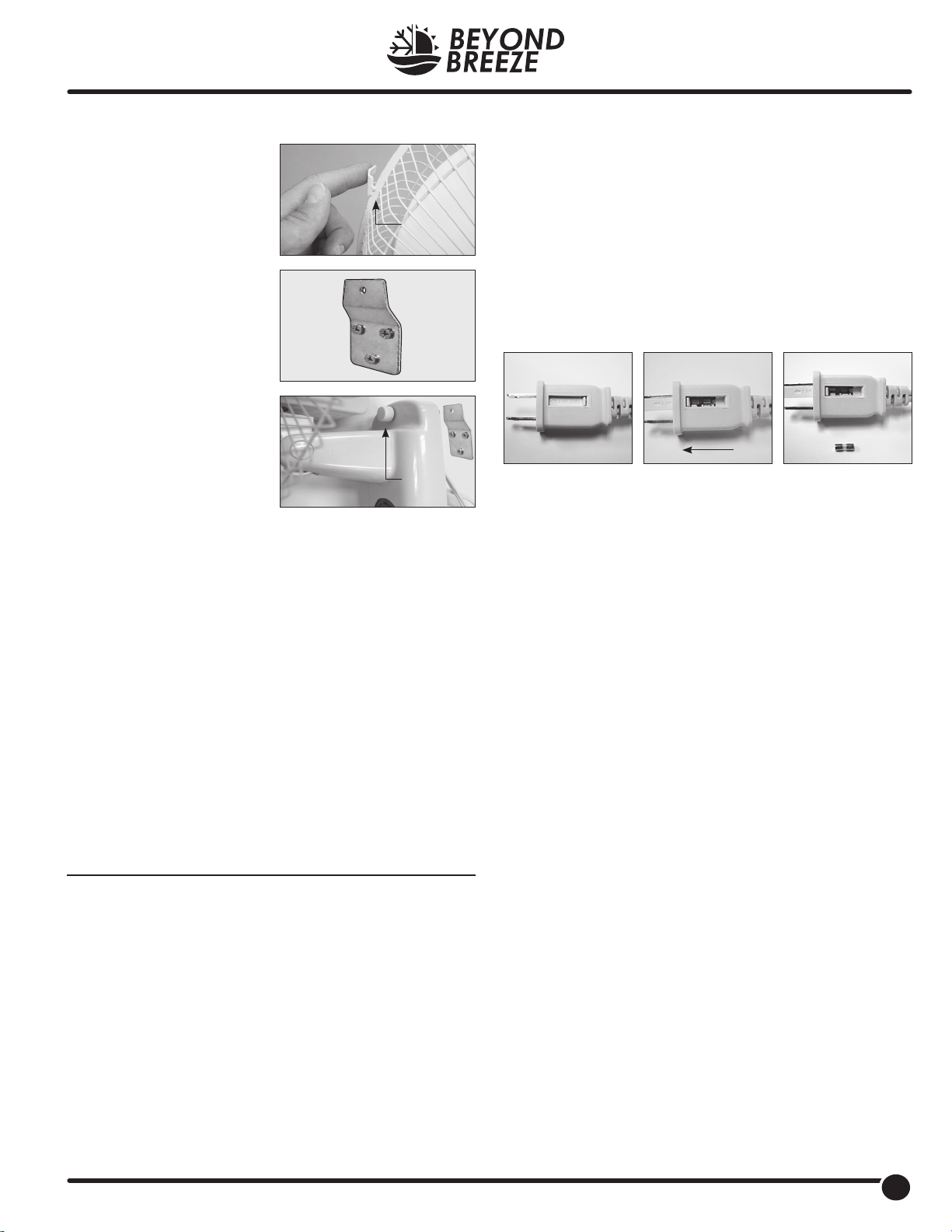

2. Open fuse cover by sliding open fuse access cover on
top of attachment plug towards blades. See Fig. 2
3. Remove fuse carefully. Use a small tool to pry the end
of the fuse from holder cavity. Be careful not to break
glass window.
4. Replace fuse.
WARNING: Risk of re. Replace fuse only with identical
2.5 or 5.0 Amp, 125 Volt fuse (3.6mm x 10mm). Be sure
fuse is properly seated within its cavity.
5. Close fuse cover by sliding it back to its original closed
position.
LIMITED WARRANTY
Note: Some models come with a plug where you can replace
a fuse. If your model has this, please read and follow the below
This unit is guaranteed to the original retail purchaser against
defects in quality or workmanship for a period of one year from the
date of original purchase. If this unit fails because of a
manufacturing defect within 30 days of purchase, return the unit,
with your receipt, to the retailer. After 30 days, but within the
warranty period, if the unit was purchased within the continental
United States, return it, freight prepaid, to Albatross Industry.INC
for repair or replacement. If the unit was purchased outside the
continental United States, return the unit to the place of purchase.
This warranty does not cover damage caused by misuse, abuse,
overheating or alteration. Repairs made by anyone other than
Albatross Industry.INC are not covered in this warranty. Albatross
Industry.INC will not be held liable for any losses due to neglectful
operation. All implied warranties, including the warranties of
merchantability and of fitness of purpose, if applicable, are hereby
limited in duration to the period of one
year from the date of original retail purchase. Some states do not
allow limitations on how long an implied warranty lasts, so the
above limitations may not apply to you. Incidental or
consequential damages arising from a breach of either express or
implied warranties are hereby disclaimed and excluded. Some
states do not allow the exclusion of limitation of incidental or
consequential damages,so this limitation or exclusion may not
apply to you. Upon the expiration of this warranty all such liability
will terminate. No other warranties are expressed or implied.
This warranty gives you specific legal rights, and you may also
have other rights which vary from state to state. No informal
dispute settlement mechanisms are available. This limited
warranty is given in lieu of all other warranties.
Manufactured for:
Albatross Industry, Inc.
5818 Sycamore Glen Road, Greensboro, NC 27405
instructions to replace the fuse.
This product employs overload protection (fuse). A blown fuse
indicates an overload or short-circuit situation. If the fuse blows,
unplug the product from the outlet. Replace the fuse as per the
user servicing instructions (follow product marking for proper
fuse rating) and check the product. If the replacement fuse
blows, a short-circuit may be present and the product should
be discarded or returned to an authorized service facility for
examination and/or repair.
Fuse Replacement:
1. Grasp plug and remove from the receptacle or other
outlet device. Do not unplug by pulling on cord.
Slide Cover to
Figure 1 Figure 3Figure 2
Slide Cover to Open
ASSEMBLY INSTRUCTIONS: (cont.)
STEP 7:
Press remaining Grille Clips
onto Rear Grille to securely
attach Front Grille. Do not
operate fan without Grille in
place.
STEP 8:
Secure Wall Bracket to the
wall in the desired location.
Use proper anchors for the wall
material selected, following the
manufacturers instructions.
Mounting bracket to wall studs
is recommended.
STEP 9:
Hang fan on wall bracket.
Place Bracket Screw through
fan and thread screw onto
bracket.
Grille
Clip
Mount
Securely
to Wall
Bracket
Screw
