©2016 Hestan Commercial Corporation
1
EN

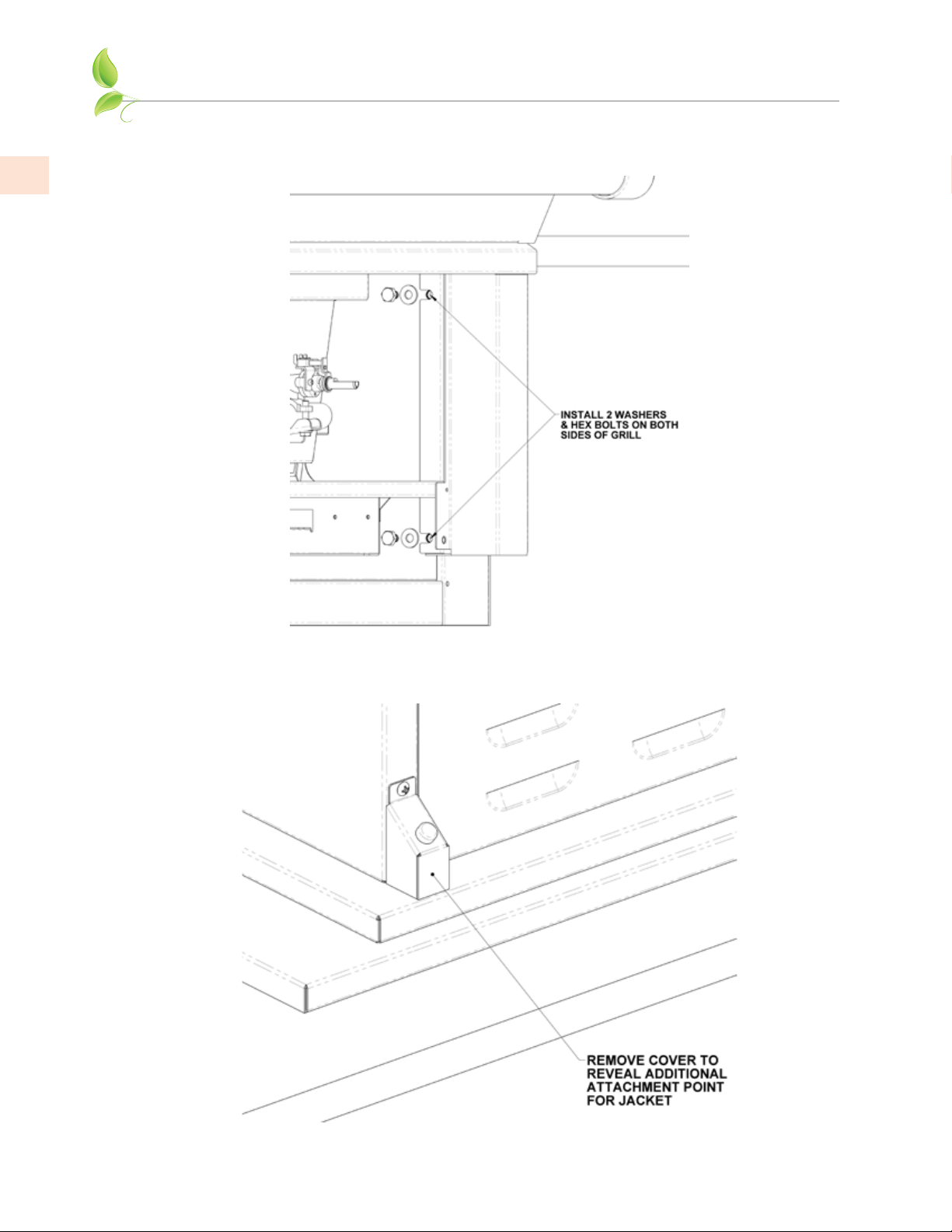

INSULATED JACKET
Installation Instructions
AGIJ30 / AGIJ36 / AGIJ42
IMPORTANT - READ ALL INSTRUCTIONS BEFORE YOU BEGIN
INSTALLER SHOULD LEAVE THESE INSTRUCTIONS WITH THE HOMEOWNER
Some parts have sharp edges. Care must be taken when handling the various components to avoid
personal injury. Wear gloves when handling.
TOOLS REQUIRED:
Work gloves
Safety glasses
Electric drill with assorted bits for mounting hardware, masonry anchors, etc. where needed
Phillips screwdriver
Flat-blade screwdriver
Level
Tape measure
Inspect the product to verify that there is no shipping damage. If any damage is detected, call the shipper
and initiate a damage claim. Hestan Commercial Corp. is not responsible for shipping damage. DO NOT
discard any packing material (box, pallet, straps) until the unit has been inspected.
Remove all exterior packaging materials, banding, tape, etc. Remove all protective film from the inside of
your cabinets. You may leave any exterior protective film on until after installation is complete.
ATTENTION
THIS APPLIANCE SHOULD NOT BE INSTALLED OVER, UNDER, OR NEXT TO UNPROTECTED

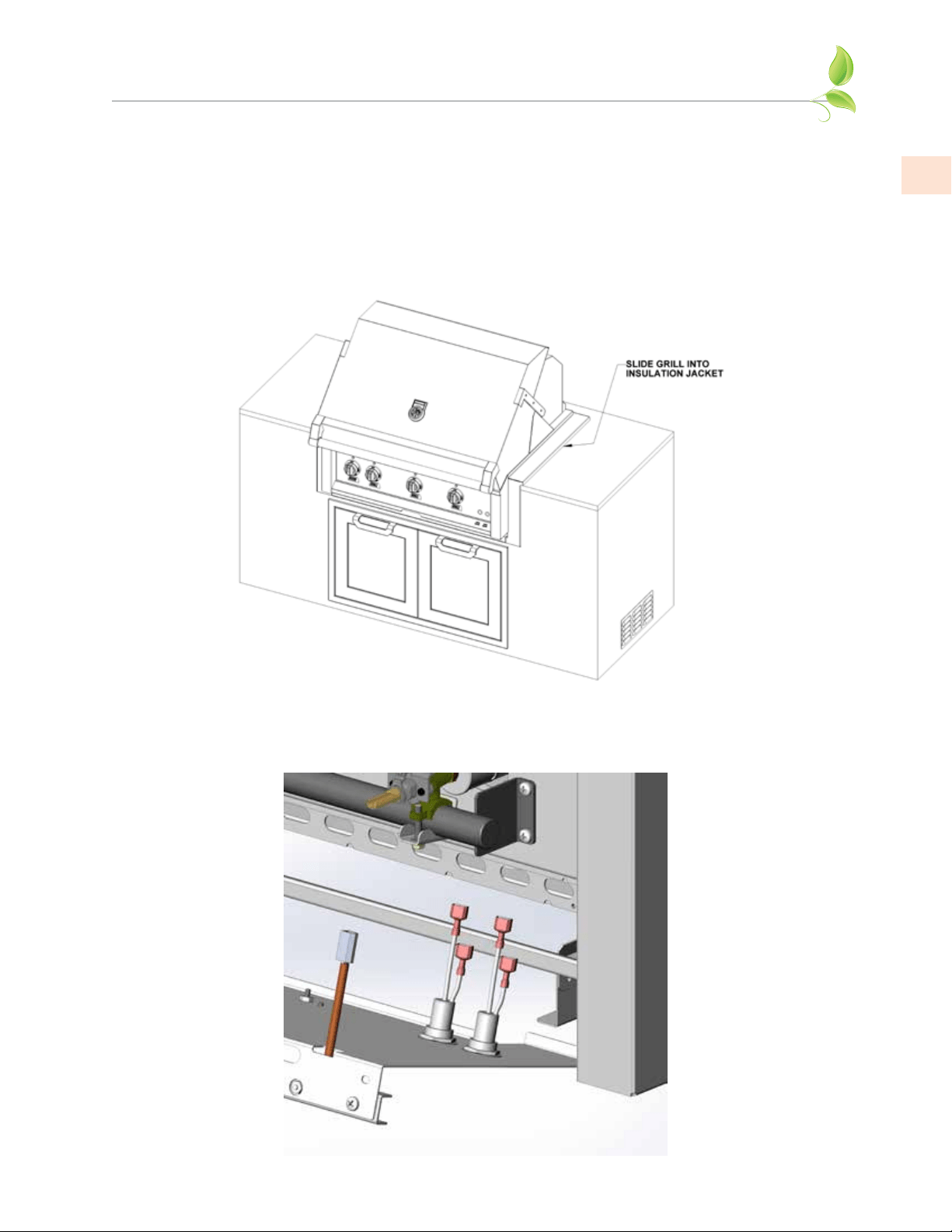

COMBUSTIBLE CONSTRUCTION. An Insulation Jacket is required when installing your Hestan grill
in an enclosure (island) made of combustible materials (such as wood). Hestan does not recommend
construction of your island using such materials. If your island is constructed of these materails, see the
INSTALLATION section of your Hestan Use & Care manual for cutout dimensions and allowances in your
island. A minimum clearance to vertical combustible material is 12” (30 cm) on the sides and the rear of the
grill is also required.
The minimum vertical clearance to combustible materials means that ALL combustible materials must be
outside this 12” (30 cm) zone. As an example, if you have an island with a stucco or tiled surface and wood-
frame construction beneath, the wood is considered combustible, even though the grill is touching the stucco
or tile surface, which is non-combustible. In extreme circumstances, the wood could potentially get hot
enough to burn. In this case, an Insulation Jacket is required.
VENTILATION OPENINGS
A minimum of three 10 in² (65 cm²) of ventilation openings must be provided for both left and right sides of
your enclosure (island), as well as the back. These openings are required to safely dissipate gas vapors if there
is a leak in your enclosure.
