Perfekt Glass-24, Perfekt Glass-30, Perfekt Glass-36
Range Hood Instruction Manual
Thank you for the purchase of this product. Please read the
manual carefully before operating the appliance.
1 | P a g e
Contents
Important Safety Instructions
2
Introduction
3
Features
3
Installation
4
How to Use
5
Grounding Instructions
6
Safety Information
7
Trouble Shooting
8
Electrical Diagram
9
Specifications
9
Cleaning & Maintenance
10
Installation Diagram
11
Warranty
12
2 | P a g e
Important Safety Instructions
○ Read and save these instructions
○ Warning - To reduce the risk of fire or electric shock, do
not use this fan with any solid-state speed control device.
○ CAUTION: For general ventilating use only. Do not use
to exhaust hazardous or explosive materials and vapors.
○ Warning - To reduce the risk of a range top grease fire:
Never leave surface units unattended at high settings.
Boil overs cause smoking and greasy spillovers that
may ignite. Heat oils slowly on low or medium settings.
Always turn hood ON when cooking at high heat or
when flambéing food (i.e. Crepes Suzette, Cherries
Jubilee, Peppercorn Beef Flambé)
Clean ventilating fans frequently. Grease should not be
allowed to accumulate on fan or filter.
Use proper pan size. Always use cookware appropriate
for the size of the surface element.
○ Warning - To reduce the risk of injury to persons in the
event of a range top grease fire, observe the following:
Smother flames with a close-fitting lid, baking sheet, or
metal tray, and then turn off the burner. Be careful to
prevent burns. If the flames do not go out immediately,
evacuate and call the fire department.
Never pick up a flaming pan - you may be burned.
Do not use water, including wet dishcloths or towels a
violent steam explosion may result.
Use an extinguisher ONLY if: A) You know you have a
class ABC extinguisher, and you already know how to
operate it. B) The fire is small and contained in the
area where it started. C) The fire department is being
called. D) You can fight the fire with your back to an
exit.
3 | P a g e
Introduction
o This appliance has been manufactured with materials
and processes that respect the environment. We hope
that you will continue this important consideration in
the operation of this appliance and the disposal of the
packaging materials – thank you.
o The installation work must be undertaken by a
qualified technician experienced in range hood
installation. Please connect the correct power rating
(see page 7)
o The manufacturer disclaims all liability for any damage
or injury caused as a result of not following
instructions for installation contained in the following
text
o The appliance is not intended for use by young
children or infirm persons without supervision
o Young children should be supervised to ensure that
they do not play with the appliance
o The maximum number of burners covered by a range
hood should not exceed 5
o Any modifications to the appliance, electric wire and
plug is dangerous and voids the warranty
Features
o This appliance is manufactured from top quality
materials, and offers superb streamlined effects
o With high suction power and low noise, it is designed
to remove cooking fumes from your kitchen quietly
and effectively
4 | P a g e
Pic 1
Pic 2
Installation (duct is not supplied)
1. The range hood should be mounted at a
distance of 650mm from an electric or
induction cooktop, and 700mm above a
gas cooktop for safety and optimum
performance. If the instructions for
installation of the gas cooktop specify a
greater distance, this has to be taken into
account. (see pic 1) The exhaust air must not
be discharged into a flue which is used for
exhausting fumes from other appliances burning gas or
other fuels
2. Ensure that the ceiling the hood is to be mounted on is
sufficiently sturdy to handle the weight of the hood
3. Check that the hood is level and that it does not vibrate
excessively when in operation
4. Do not connect to a common vent with other appliance
such as gas heater, water heater, laundry dryer etc.
5. Make sure that the electric cord is not in contact with
sharp edges of the appliance
6. Be sure that the plug is
accessible after installation
7. The chimney should be fixed
on the main body by screws
(see pic 2)
5 | P a g e

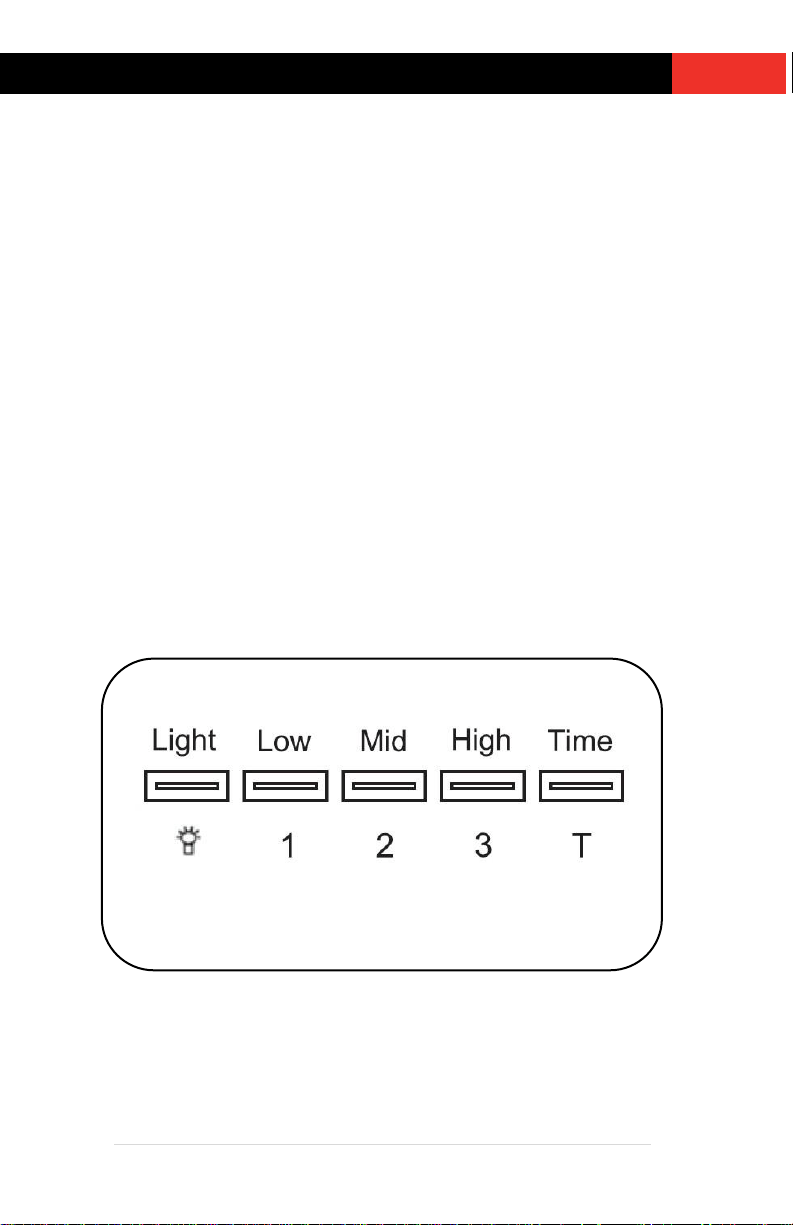

How to Use
3 speed adjustment (see pic 6)
o Push the 1 button, and the motor will run at the lowest
speed
o Push the 2 button, and the motor will run at medium
speed
o Push the 3 button, and the motor will run at the
highest speed
o Push the Light button, and the lighting lamps will
illuminate. Push it again and the lights will turn off
o On any speed, the “T” and the delay timer will switch
off after 5 minutes
o To turn off the motor, push “T” button twice.
Pic 6
6 | P a g e
Grounding Instructions
o This appliance must be grounded. In the event of an
electrical short circuit, grounding reduces the risk of
electric shock by providing an escape wire for the
electric current. This appliance is equipped with a cord
having a grounding wire with a grounding plug. The
plug must be plugged into an outlet that is properly
installed and grounded.
o Warning - Improper grounding can result in a risk of
electric shock.
o Consult a qualified electrician if the grounding
instructions are not completely understood, or if doubt
exists as to whether the appliance is properly
grounded.
o Do not use an extension cord. If the power supply cord
is too short, having a qualified electrician install an
outlet near the appliance.
WARNING: TO REDUCE THE RISK OF FIRE, USE ONLY METAL
DUCTWORK.
7 | P a g e
Safety Information
o There must be permanent and adequate ventilation of the
room when operating the range hood with appliances
burning gas or other fuels
o Do not check the status of the filters when the range hood
is operating – wait at least 30 minutes after switching off
to avoid scalding
o Do not touch the LED light within 30 minutes after
appliance use
o Avoid operating a gas cooktop when there is no pan on the
stove. It is a fire hazard and may cause damage to the
hood filters
o Disconnect the electrical plug prior to any maintenance
o This appliance is not intended for use by young children
unless they have been adequately supervised by a
reasonable person to ensure that they can use the
appliance safely
o The range hood is for home use only and is not suitable for
outdoor, barbeque, and other commercial applications
o The range hood and its filter should be cleaned regularly
for best performance
o Before cleaning, please confirm that the power is switched
off
o Building regulations concerning the discharge of exhaust
air have to be fulfilled
o Don’t cook with an open flame under the range hood
o For any technical issues ensure that a suitably qualified
person handles any repairs or inspections
8 | P a g e
Trouble Shooting
If any problem occurs, please detach the plug from the
socket and contact Euro-Parts or a similarly qualified
person in order to avoid a hazard.
Problem
Cause
Solution
Light on, but
motor does not
work
The outlet valve is
blocked
Detach flue and duct
then turn on the hood
to check if the valves
open
The capacitor has
failed
Call for technical
service
The control switch
has broken
Call for technical
service
Light does not
work, motor
does not work
No power supply
Plug another appliance
into the socket to
confirm there is power
supply
Fuse has blown
Open up the plug and
replace he 13A fuse
Vibration
The propeller is
damaged or
unbalanced
Call for technical
service
The hood is not
installed correctly
Review the installation
instructions and check
the installation again
for loose screws,
brackets or
connections
Insufficient
suction effect
The distance
between the hood
and cooktop is too
great
Check that the
distance is between
600mm and 762mm
The filters are
saturated
Clean the filters from
grease residue and
replace after cleaning
9 | P a g e
Electrical Diagrams
Perfekt Glass-24, Perfekt Glass-30, Perfekt Glass-36
Specifications
Perfekt Glass-24, Perfekt Glass-30, Perfekt Glass-36
Power Supply
115V, 60Hz
Rated Input Power
99W
Lighting Power
2 x 2W
Motor Power
95W
Airflow
500 CFM
Outlet Diameter
150mm
115V, 60Hz
L2
10 | P a g e
Cleaning & Maintenance
1. Clean the surface of the hood every week with mild
soap or detergent. Avoid solvents, acid, alkali, scouring
pads or powder that could irreparably damage the
stainless steel surface
2. The grease filters may be washed using mild soap,
detergent or degreasing agents
3. The charcoal filters cannot be cleaned and bust be
generally replaced after 6 months of use
11 | P a g e
Installation Diagram
12 | P a g e
Warranty
AEG Appliances are imported and distributed in North
America by Euro-Line Appliances Inc.
For more information visit www.euro-line-appliances.com
or contact:
2278 Speers Road
Oakville, ON L6L 2X8
Canada
1-800-421-6332 – Euro-Line Appliances Inc.
1-800-ELA-WEST – Euro-Line Appliances West
marketing@euro-line-appliances.com
All AEG Appliances are backed by a comprehensive 2-year
part and labour warranty. Information on service and parts
available from Euro-Parts at 1-800-678-8352
