WARNING
It is the owner and/or operators’ responsibility to study all WARNINGS, operating, and maintenance
instructions contained on the product label and instruction manual prior to operation of this product. The
owner/operator shall retain product instructions for future reference.
The owner and/or operator are responsible for maintenance, maintaining all decals or warning labels and
while in use, maintaining the unit in good working order. If the owner and/or operator are not fluent in English,
the product warnings and instructions shall be read and discussed with the operators’ native language by the
purchaser/owner or his designee. Make sure that the operator comprehends its contents. Safety information
shall be emphasized and understood prior to usage. The product shall be inspected per the operating
instructions.
Users of this product must fully understand these instructions. Each person operating this product must also
be of sound mind and body and must not be under the influence of any substance that might impair their
vision, dexterity, or judgment.
Protect yourself and others by observing all safety information.
Failure to comply with instructions could result in personal injury and/or property damage!
If you encounter any problems or difficulties, please contact our customer service department at:
1-800-426-1262 between 6:30 a.m. and 4:30 p.m. Pacific time.

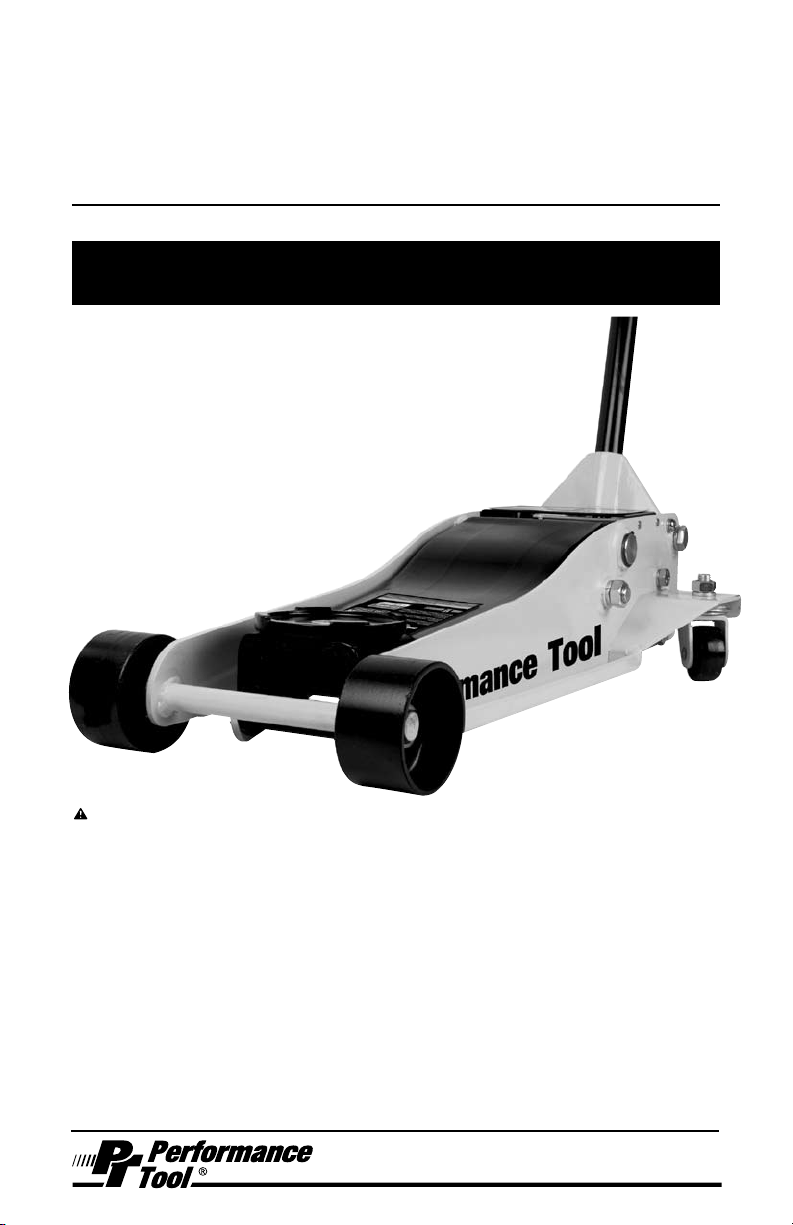

3 1/2 TON LOW PROFILE
SERVICE JACK
OWNER’S MANUAL
Item Number W1627
2
SAFETY GUIDELINES / DEFINITIONS
UNPACKING AND INSPECTION
SPECIFICATIONS
IMPORTANT SAFETY INFORMATION
Specifications are subject to change without notice.
WARNING
READ, UNDERSTAND AND FOLLOW ALL INSTRUCTIONS AND WARNINGS BEFORE OPERATING THIS
TOOL. FAILURE TO DO SO MAY RESULT IN PERSONAL INJURY AND/OR PROPERTY DAMAGE AND WILL
VOID WARRANTY.
1. Study, understand and follow all instructions before operating
this device.
2. DO NOT exceed rated capacity. Overloading can cause dam-
age to or failure of this product.
3. Use only on hard, level surface capable of sustaining the load.
Use of jack on other than hard level surfaces can result in jack
instability and possible loss of load.
4. Lifting device only. Immediately after lifting, support the vehicle
with appropriate means. Ensure that no personnel pass under-
neath load until load is securely supported by jack stands.
5. DO NOT adjust safety valve.
6. Wear ANSI approved safety goggles and heavy duty work
gloves during use.
7. Keep clear of load while lifting and lowering.
8. Lower load slowly.
9. DO NOT use for aircraft purposes.
10. Apply parking brake and chock tires before lifting vehicle.
11. Lift vehicle only at vehicle manufacturer recommended lift
locations.
12. Inspect before every use; do not use if parts are loose or
damaged.
13. Do not alter this product in any way.
14. Keep your work area clean and well lit. Cluttered work areas
invite accidents.
15. Keep bystanders, children, and visitors away while operating
this product. Distractions can cause you to lose control.
16. Stay alert. Watch what you are doing, and use common sense
Warning: This is a lifting device only. Load must be supported immediately by Jack Stands.
WARNING: Read and understand this entire instruction manual before attempting to assemble, install, operate or
maintain this product. Failure to comply with the instructions may result in serious personal injury
and/or property damage!
The following signal words are used to emphasize safety warnings that must be followed when using this
product:
This instruction manual is intended for your benefit. Please read and follow the safety, installation, maintenance and troubleshooting steps
described within to ensure your safety and satisfaction. The contents of this instruction manual are based upon the latest product information
available at the time of publication. The manufacturer reserves the right to make product changes at any time without notice.
DANGER Indicates an imminently hazardous situation that, if
not avoided, WILL result in death or serious injury.
WARNING Indicates a potentially hazardous situation that, if
not avoided, COULD result in death or serious injury.
CAUTION Indicates a potentially hazardous situation that, if
not avoided, MAY result in minor or moderate injury.
NOTICE Indicates important information, which if not followed,
MAY cause damage to equipment.
After opening the carton, unpack your new product and related parts & accessories. Please inspect it carefully for
any damage that may have occurred during transit. Please check it against the photograph on carton. If any parts
are missing, please call customer service at 1-800-426-1262 between 6 a.m. and 5 p.m. Pacific time.
WARNING DO NOT operate this product if damaged during shipment, handling or misuse. Do not operate the product until the parts
have been replaced or the fault rectified. Failure to do so may result in serious personal injury or property damage. All damaged parts
must be repaired or replaced as needed prior to operating this product. Check to see that all nuts, bolts and fittings are secure before
putting this product into service. If you have any questions, or require assistance with damaged or missing parts, please contact our
factory customer service department at: 1-800-426-1262.
Please have the serial number, model number, and date of purchase available for reference when calling.
Capacity: ............................................................................................................. 7,000 lbs.
Minimum Lift Height: ................................................................................................... 4 in.
Maximum Lift Height: .......................................................................................... 20 1/2 in.
Base Length: .............................................................................................................. 28 in.
Base Width: .......................................................................................................... 14 1/4 in.
3
NOTICE During shipment or handling, air in the jack can become trapped in the hydraulic system
causing the jack to malfunction.
IMPORTANT SAFETY INFORMATION
OPERATION
BEFORE USE
when operating this product. Do not use this product while
tired or under the inuence of drugs, alcohol or medication. A
moment of inattention while operating this product may result
in serious personal injury.
17. Store idle jacks out of reach of children and other untrained
persons. Jacks are dangerous in the hands of untrained
users.
18. Tool/equipment service must be performed only by qualied
repair personnel. Service or maintenance performed by
unqualied personnel could result in a risk of injury.
19. When servicing this product, use only identical replacement

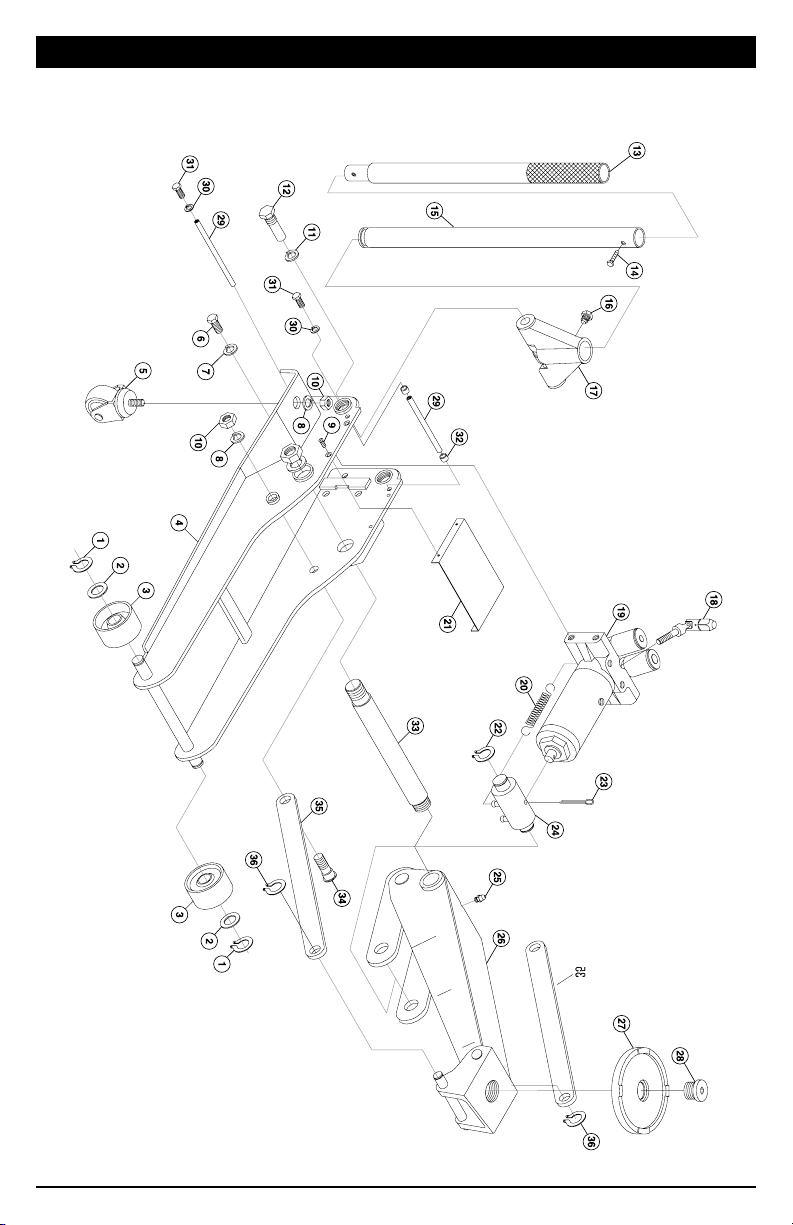

parts - refer to attached, product-specic parts list and dia-
gram. Follow instructions in the Care & Maintenance section
of this manual. Use of unauthorized parts or failure to follow
maintenance instructions may create a risk of injury and may
void any applicable warranty.
20. Maintain labels and nameplates on this product. These carry
important information. If unreadable or missing, contact
Performance Tool for a replacement.
21. Before use, read manufacturer’s instruction manual for the
vehicle (or object) you will lift.
22. When lifting only one wheel, support the load immediately
with one jack stand (not included) placed under the side of the
vehicle being lifted. Align the saddle of the jack stand directly
under the vehicle’s frame or recommended lifting point.
23. When lifting the entire front end or rear end of a vehicle,
support the load immediately with two jack stands. Align the
saddles of the jack stands directly under the vehicle’s frame
or recommended lifting points. Also, adjust the jack stands to
the same height.
24. Do not work under the vehicle without properly supporting the
vehicle with jack stands.
25. Avoid dangerous oncoming trafc. Use the Jack as far away
from the roadside as possible.
26. Industrial applications must follow OSHA requirements.
27. Do not allow anyone inside the vehicle while using the Jack.
Keep all bystanders a safe distance away from the vehicle.
28. Do not support both ends of the vehicle at the same time.
29. Before lowering the jack, remove all tools and equipment from
under the vehicle.
30. The warnings, precautions, and instructions discussed in this
manual cannot cover all possible conditions and situations
that may occur. The operator must understand that common
sense and caution are factors, which cannot be built into this
product, but must be supplied by the operator.
WARNING: This product and its packaging contain a chemical
known to the State of California to cause cancer, birth defects, or
other reproductive harm.

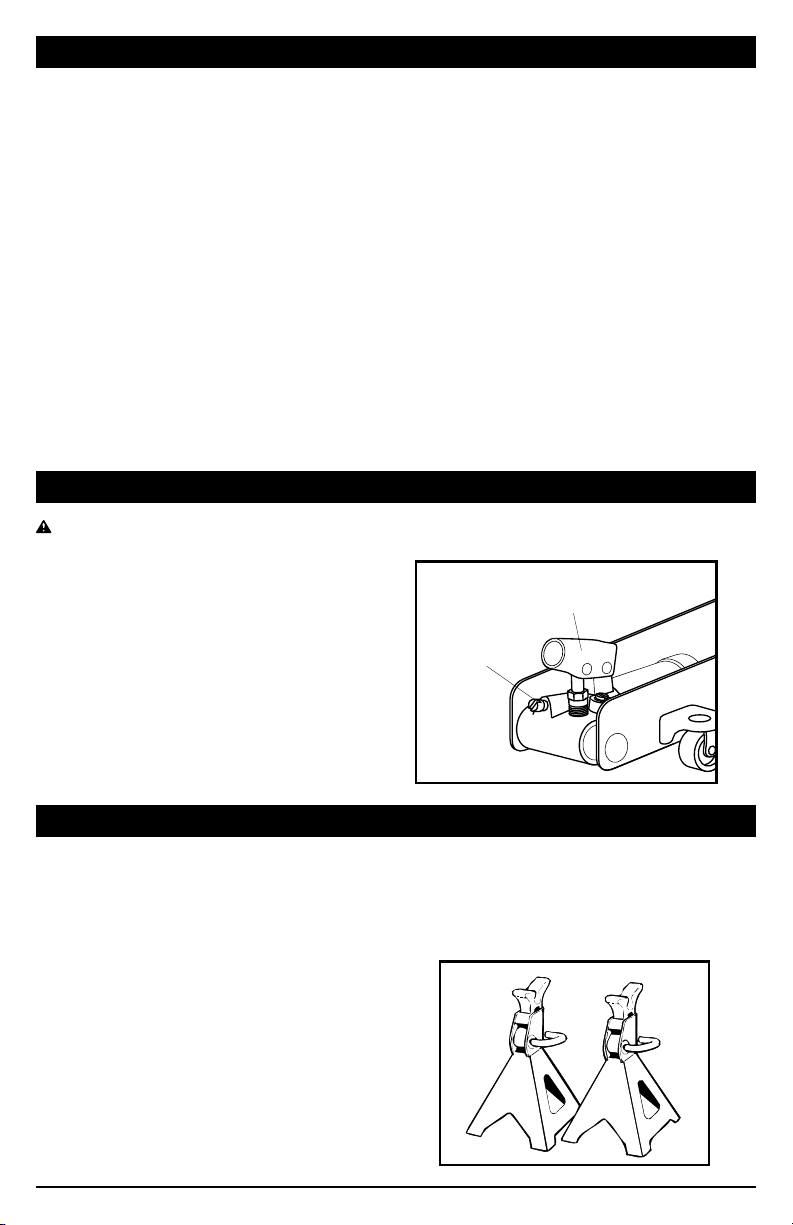

To raise:
1. Park vehicle on a hard level surface safely
away from oncoming trafc.
2. Turn off the vehicle’s engine.
3. Place the vehicle’s transmission in PARK, if
equipped with an automatic, or in its lowest
gear, if equipped with a manual transmission.
4. Set the vehicle’s emergency brake and block
the wheels that are not being lifted.
5. Refer to vehicle owner’s manual for proper
jacking procedures. Lift only on areas of
vehicle as specied by manufacturer.
6. Make certain that load is centered on saddle.
7. Place pump handle over release valve and turn
clockwise to close.
8. Insert handle into handle socket and pump to
raise load to desired height.
9. ALWAYS support load with jack
stands. (See gure 2) Place jack
Release
Valve
Pump Handle Sleeve
Figure 1
Figure 2
Before using your jack:
1. Place pump handle over release valve and
turn counter-clockwise no more than two turns
to open.
2. Pump jack about 6 full strokes to ensure
complete distribution of hydraulic uid.
(See Figure 1)
3. Repeat above steps as needed.
4
1. Before each use, inspect the general condi-
tion of the jack. Check for broken, cracked,
or bent parts, loose or missing parts, and
any condition that may affect the proper
operation of the product. Any jack that ap-
pears damaged in anyway must be removed
from service. Have the problem corrected
before further use. DO NOT use damaged
equipment.
2. Replace worn or damaged parts with Perfor-
mance Tool replacement parts. Be sure that
only qualied personnel perform repairs.
3. Before each use, thoroughly test the jack
for proper operation prior to its actual use. If
the jack appears not to be working properly,
follow bleeding instructions on page 3.
4. When jack is not in use, ram and pump pis-
ton should be in fully down position to keep
their machined surfaces free from corrosion.
5. Keep jack clean and well lubricated at points
illustrated in gure 3.
6. For best results, use only hydraulic uid with
a rating of SAE 20 for rells. Check uid level
with jack in fully down position. Fluid level
should be up to bottom of oil ll port. (See
gure 5)
7. Change the hydraulic oil at least once every
three years:
a. With the jack fully lowered, remove the oil
ller plug on the side of the Housing.
b. Tip the jack to allow the old hydraulic oil
to drain out of the Housing completely, and
dispose of the old hydraulic oil in accordance
with local regulations.
c. With the jack upright, completely ll the
housing with a high quality hydraulic oil (not
included) until the oil just begins to run out
of the oil ll hole. Be VERY CAREFUL not to
allow dirt or foreign matter into the system.
d. Then, reinstall the oil ller plug.
e. Clean with a clean cloth using a detergent
or mild solvent. Then, store the jack in a safe,
dry location with the ram and pump piston
in fully down position. Keep out of reach of
children and other non-authorized people.
1
2
3
4
Figure 3
OPERATION
CARE & MAINTENANCE
stands of appropriate capacity (not included)
beneath the vehicle at locations recommend-
ed by the vehicle manufacturer. DO NOT Get
under the vehicle without jack stands. jacks
are not designed to maintain heavy loads for
long periods of time. DO NOT attempt to put
jack stands simultaneously under both ends
of vehicle or under one side of vehicle. NOTE:
When using two jack stands, they must be at
the same height.
10. SLOWLY turn the release valve counterclock-
wise to lower vehicle onto jack stands and
remove jack.
IMPORTANT: NEVER MOVE JACK WHEN THE
HANDLE IS IN OPERATING LEVER OR THE
VALVE SLEEVE. DAMAGE TO THE PUMPING
UNIT MAY OCCUR.
To lower:
1.
Remove all tools, parts, etc. from under the vehicle.
2. Position the saddle under the lifting point. Turn
the Handle rmly clockwise to close the valve
release screw, and pump the upper/lower
handle to raise the vehicle slightly above the
saddle(s) of the jack stands. Then, collapse
and remove jack stand(s).
3. SLOWLY turn the release valve counterclock-
wise with the handle just enough to allow
controlled descent of the vehicle onto the
ground. (Never more than two full turns).
4. Lower the jack completely. Then, store in a
safe, dry location out of reach of children.
Monthly maintenance is recommended. Lubrication is critical to jacks as they support
heavy loads. Any restriction due to dirt, rust, etc. can cause either slow movement or
cause extremely rapid jerks, damaging the internal components. The following steps are
designed to keep the jack maintained and operational.
5
WARNING: Remove jack from service before making adjustments
NOTE:
Problems listed above with more than one solution may have a combination of causes. Please be sure
that all solutions listed for each problem have been checked to eliminate possibility of further trouble.
Sometimes solutions may need to be repeated for best results.
● ● ●
●
● ●
● ●
●
●
Power unit may
be low in fluid.
With jack on level
surface and in
down position,
remove filler plug
and add clean
hydraulic jack fluid
to level of filler.
Power unit may
be air bound.
Open the release
valve a minimum
of 2 full turns.
Pump the handle
a minimum of 20
full strokes to
purge air from the
system.
Valve may not be
closing
completely.
To seat valves:
a.) Close release
valve.
b.) With jack in
fully lowered
position,
manually raise
lifting arm as
high as
possible.
c.) Open release
valve and
allow jack to
descend to
lowered
position
Will not lift load
Will not hold load
Will not lift to full height
Pump feels "spongy" under load
Handle raises under load
Handle lowers under load
TROUBLESHOOTING
Your Performance Tool® product was constructed with quality materials and workmanship
and will give you many years of trouble free use when cared for as described in the "Care
& Maintenance" section on page 4. However, as with any mechanical device, periodic
adjustments are necessary to maintain a peak level of performance. Should your jack be
displaying any of the following symptoms, the simple procedures shown below will correct
the problem.
6
REPLACEMENT PARTS LIST
7
REPLACEMENT PARTS LIST
1 Retaining Ring 20 2
2 Washer 20 2
3 Front Wheel 2
4 Frame 1
5 Rear Caster Assembly 2
6 Screw 12X22 4
7 Washer 12 4
8 Washer 16 2
9 Screw 4X15 4
10 Nut M16 2
11 Washer 18 2
12 Handle Yoke Bolt 2
13 Handle, Lower Section 1
14 Screw 6X32 1
15 Handle, Upper Section 1
16 Handle Set Screw 1
17 Handle Yoke 1
18 U-Joint 1
19 Hydraulic Power Unit 1
20 Return Spring 2
21 Cover Plate 1
22 Retaining Ring 25 2
23 Pin A4X55 1
24 Hydraulic Power Unit Adaptor 1
25 Zerk 1
26 Lift Arm Assembly 1
27 Saddle 1
28 Saddle Screw 1
29 Tie Rod 2
30 Washer 8 4
31 Screw M8X20 4
32 Rubber Bumper 2
33 Lift Arm Shaft 1
34 Screw 2
35 Radius Linkage 2
36 Retaining Ring 16 2
# Description Quantity
1 YEAR LIMITED WARRANTY
PERFORMANCE TOOL® extends only the following warranties, and only to original retail purchasers. These warranties give specific legal
rights. Except where prohibited by local law, the law of the State of Washington governs all warranties and all exclusions and limitations of
warranties and remedies. There may be other rights which vary from state to state.
PERFORMANCE TOOL® warrants the product to be free from defects in materials and workmanship under normal use and service. A
defective product may be returned for a free replacement within 90 days from the date of purchase, provided that product is returned to
place of purchase immediately after discovery of defect. After 90 days and up to one year from date of purchase, PERFORMANCE TOOL®
will replace at no charge any parts which our examination shall disclose to be defective and under warranty. These warranties shall be valid
only when a sales receipt showing the date of purchase accompanies the defective product or defective part(s) being returned. For part(s)
after 90 days, please remit your request, postage prepaid to:
PERFORMANCE TOOL, P.O. Box 88259 Tukwila, WA 98138
These warranties exclude blades, bits, punches, dies, bulbs, fuses, hoses, and other consumables which must be replaced under normal
use and service. These warranties shall not apply to any product or part which is used for a purpose for which it is not designed, or which
has been repaired or altered in any way so as to affect adversely its performance or reliability, nor shall these warranties apply to any
product or part which has been subject to misuse, neglect, accident or wear and tear incident to normal use and service.
PERFORMANCE TOOL® does not authorize any other person to make any warranty or to assume any liability in connection with its
products.
Except for warranties of title and the limited express warranties set forth above, PERFORMANCE TOOL® makes no express or implied
warranties of any kind with respect to its products. In particular, PERFORMANCE TOOL® makes no implied warranty of merchantability
and no implied warranty of fitness for any particular purpose, except that for goods purchased primarily for personal, family or household
use and not for commercial or business use, PERFORMANCE TOOL® makes an implied warranty of merchantability (and, if otherwise
applicable, an implied warranty of fitness for a particular purpose), but only for the particular qualities or characteristics, and for the
duration, expressly warranted above. The laws on limitation of implied warranties may differ from state to state, so the above limitations
may not apply in all cases.
PERFORMANCE TOOL® shall not be liable for consequential, incidental or special damages resulting from or in any manner related to any
product, or to the design, use, or any inability to use the product. The sole and exclusive remedy for a defective product or part shall be the
repair, or replacement thereof as provided above. The laws on limitation of remedies or on consequential, incidental or special damages
may vary from state to state, so the above limitations may not apply in all cases.
© Copyright 2011 WILMAR CORPORATION, P.O. Box 88259 Tukwila, WA 98138
