540MM UPRIGHT COOKERS
User Manual
CFE532WA, CFE536WA, CFE536SA, CFE535WA, CFE537WA,
CFE547WA, CFE547SA, CFG504WA, CFG504SA, CFG503WA,
CFG515WA, CFG517WA, CFG517SA
cooking
The Chef in Aussie kitchens
for over 70 years
The symbols you will see in this booklet have these meanings:
WARNING
warning
This symbol indicates information concerning your personal safety
WARNING
caution
This symbol indicates information on how to avoid damaging
the appliance
TIPS & INFORMATION
tips and information
This symbol indicates tips and information about use of
the appliance
ENVIRONMENTAL TIPS
environmental tips
This symbol indicates tips and information about economical
and ecological use of the appliance
CONGRATULATIONS
Congratulations and thank you for choosing your Chef upright
cooker. We are sure you will find your new appliance a
pleasure to use and a great asset to your cooking. Before
you use the appliance, we recommend that you read through
the whole user manual which provides a description of the
product and its functions. For future reference, please store this
booklet in a safe place.
To avoid the risks that are always present when you use a
gas appliance, it is important that the appliance is installed
correctly and that you read the safety instructions carefully
to avoid misuse and hazards.
Contents
Important safety instructions ...........................................3
Operating for the first time ............................................. 4
Installing your oven accessories ......................................5
Using the gas cooker ...................................................6
Using the electric cooker ............................................... 8
Using the Grill ...........................................................10
General hints and tips ................................................10
Cleaning the cooker ..................................................11
Getting to know your oven ..........................................13
Oven guide ..............................................................14
Trouble shooting ........................................................15
Installation ................................................................ 17
Warranty .................................................................27
TIPS & INFORMATION
Important – check for any damage or marks
If you find the appliance is damaged or marked, you must
report it within 7 days if you wish to claim for damage/
marks under the manufacturer’s warranty. This does not
affect your statutory rights.
ENVIRONMENTAL TIPS
Information on disposal for users
• Mostofthepackingmaterialsarerecyclable.Pleasedispose
of those materials through your local recycling depot or
by placing them in appropriate collection containers
• Ifyouwishtodiscardthisproduct,pleasecontactyour
local authorities and ask for the correct method of disposal.
Record model and serial number here:
Model: ..................................................................
Serial number: ........................................................
2 CONTENTS Chef 540 Upright Cooker
CONDITIONS OF USE
This appliance is intended to be used in household and
similar applications such as:
•Staffkitchenareasinshops,ofcesandother
working environments
•Farmhouses
•Byclientsinhotels,motelsandotherresidential
type environments
•Bedandbreakfasttypeenvironments.
important safety instructions
Chef 540 Upright Cooker GENERAL SAFETY 3
WARNING
To avoid an electric shock or fire
This appliance is NOT intended for use by persons
(including children) with reduced physical, sensory or
mental capabilitie, or lack of experience and knowledge,
unless they have been given supervision
or instruction concerning use of the appliance by a person
responsible for their safety.
WARNING - Accessible parts may become hot during use.
To avoid burns, young children should be kept away.
Young children should be supervised to ensure they
do not play with this appliance.
DO NOT operate the hotplates with external timers or separate
remote control system.
During use this appliance becomes hot. Care should be
taken to avoid touching hot external, internal surfaces and
hot elements when in use. Use oven gloves.
This appliance must NOT be used as a space heater.
Do NOT install gas models in marine craft, caravans or
mobile homes because these products are not fitted with a
flame safeguard on each burner.
DO NOT install an after market lid or cover over this appliance.
DO NOT spray aerosols in the vicinity of this appliance
while it is in operation.
DO NOT store flammable materials in the appliance
storage drawer or near this appliance.
Ensure all specified vents, openings and airspaces are not
blocked
Install cooker, shelving and fittings in accordance with
the Guide and Installation Instructions, to avoid accidents.
DO NOT operate the gas appliance if the smell of
gas persists.
DO NOT MODIFY THIS APPLIANCE.
WARNING
Grill warnings
DO NOT leave grill on unattended.
Fat left on a grill dish is a fire hazard! Keep grill clean and
turn off grill immediately after use.
If gas burner does not light in 15 seconds, allow
one minute for gas to clear before trying again.
Placing thick portions of food under grill can be
a fire hazard.
DO NOT cover the grill dish insert with foil.
TIPS & INFORMATION
Separate grill model: Grill with door open
Grill in oven model: Grill with door closed
WARNING
Oven warnings
DO NOT use oven door as a shelf.
DO NOT push down on open oven door.
If the gas oven does not light in 8 seconds, allow
1 minute for gas to clear before trying again.
DO NOT line oven with foil or place anything on the
bottom of the oven while baking, as trapped heat will
crack or craze the floor of the oven cavity liner.
DO NOT use poly-unsaturated oils (vegetable oils) as
this type of oil can cause black spots or deposits inside
the oven. This residue is very difficult to remove.
WARNING
Hotplate and burner warnings
DO NOT allow pots to boil dry, as damage to hotplate
(and pan) may result.
DO NOT operate without a pot, fry pan etc on hotplates.
DO NOT allow cookware to overhang hob onto adjacent
bench tops, this will cause scorching to
the bench top surface.
Gas models: Ensure burner caps and crowns are in their
correct position.
General appliance description
Electric Separate Grill Oven depicted
operating for the first time
Choosing utensils for gas and electric hotplates
Refer to diagram below
WARNING
Installation and service warning
• Onlyanauthorisedpersonmustinstallandservicethis
appliance (Certificate of Compliance to be retained)
• Inordertoavoidtippingofappliancetheanti-tiltplate
MUST be installed
• Appliancesrequiringconnectionto230–240VMUST
be earthed
• Anauthorisedpersonshouldinspectthisappliance
every 5 years
• ThisappliancemustNOTbeinstalledonabase,boxor
in a closed cupboard
• Iftheelectricalsupplycordisdamaged,aqualied
person MUST replace the cord to avoid a hazard or
void your warranty
•
WARNING
Surrounding kitchen cabinets MUST
WITHSTAND 85°C
• Inordertoavoidahazardtheinstallationinstructions
MUST be followed.
TIPS & INFORMATION
Before operating first time
1. Read all the Warning and Safety information
2. Remove all internal boxes and bags from oven
3. Clean out the oven interior with detergent and hot water
and polish with a soft cloth. DO NOT close oven door
until the oven is completely dry
4. New appliances can have an odour during first
operation. It is recommended to ‘run in’ the oven before
youcook.Runtheovenat180°Cfor2–4hoursand
ensure that the room is well ventilated
5. If your appliance is fitted with solid hotplates, turn
heat setting to high for 3 minutes to fully harden the
hotplate coating.
GOOD BAD
(moisture on hotplate)
BAD
(convex base)
BAD
(oversize)
BAD
(recessed base)
BAD
(undersize)
BAD
(no utensil)
GOOD BAD
(recessed base)
BAD
(convex base)
BAD
(undersize)
BAD
(oversize)
BAD
(moisture on hotplate)
BAD
(no utensil)
4 OPERATING FOR THE FIRST TIME Chef 540 Upright Cooker
installing your oven accessories

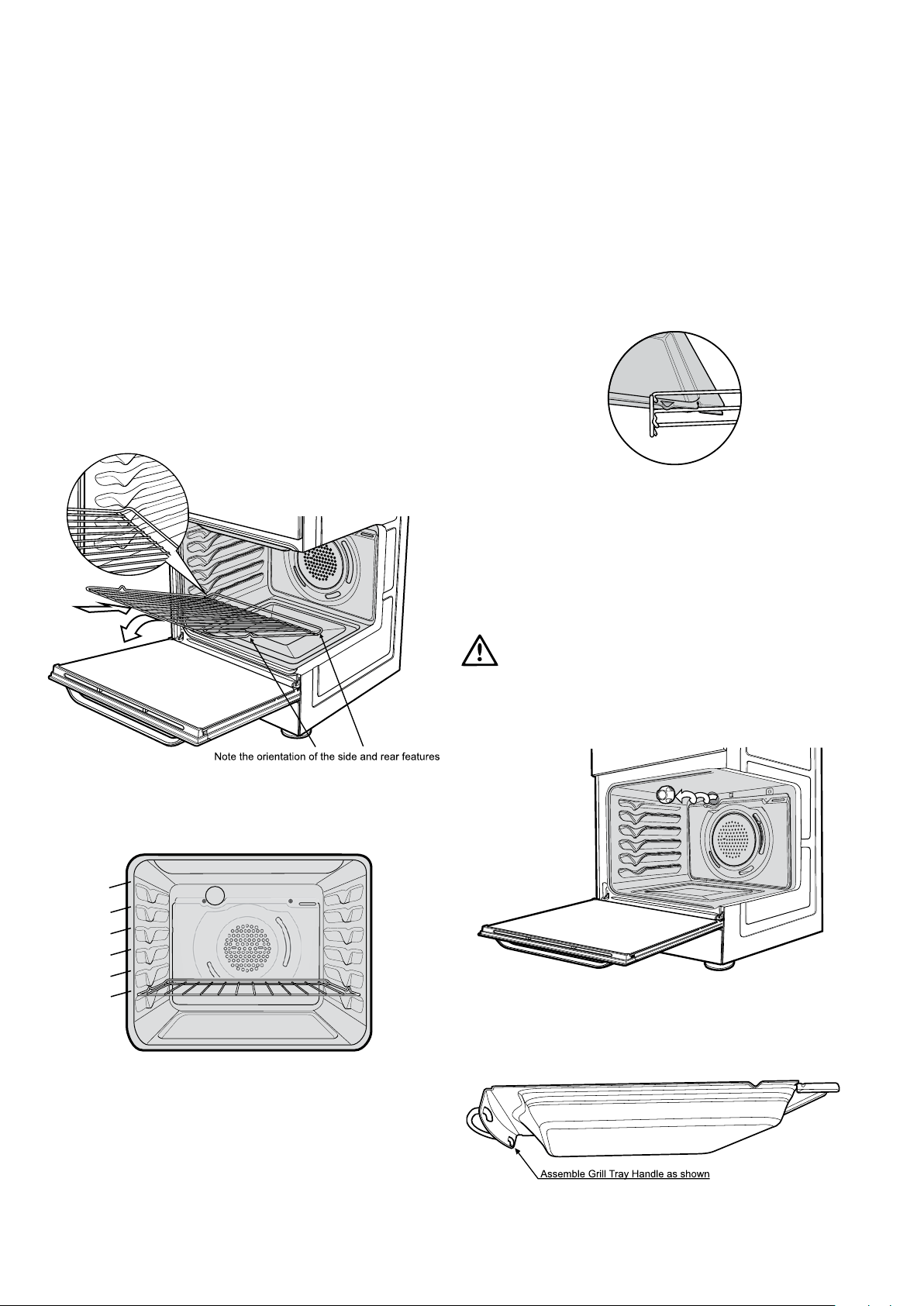

Fitting oven shelves
1. Ensure shelf orientation is correct (refer to diagram below)
2. Slide oven shelves onto oven supports (side runners) at an
angle until raised back of shelf is past the stop on oven
supports (side runners)
3. Lower front of shelf and push in until stop is reached
4. To remove oven shelves, withdraw to the stop and raise
the front of shelf to clear the stop.
Oven shelf location
NOTE: the top ledge is not a shelf position.
There are no stops for shelf withdrawal.
Fitting the grill dish
Separate Grill: Ensure rear of the dish is engaged with the
side support before sliding backwards. To remove, simply
pull forwards and upwards.
Engagement of
rear of dish
Engagement of rear of dish
Grill in Oven: see Fitting Oven Shelves
The grill dish with wire insert can be used in any of the two upper
height positions (shelf positions 4 and 5) between the runners.
NOTE: You must remove the grill dish when baking in the oven.
Replacing the oven light
WARNING
warning
Ensure the appliance is switched off at power supply (not just
the control knobs) before replacing the light globe to avoid
possibility of electric shock.
Chef540UprightCookerINSTALLINGYOUROVENACCESSORIES5
5
4
3
2
1
Not a shelf
position
5 shelf positions
Assemble grill tray handle
CFG504SA
CFG517SA
CFG504SA
CFG517SA
CFG504SA
CFG517SA
CFG504SA
CFG517SA
using the gas cooker
Gas oven features and descriptions
1. Burner Control Knob–setsburnertemperature
2. Grill Control Knob –setsgrillingtemperature
3. Oven Control Knob –setsoventemperature
4. Timer 60 Minute(wheretted)–setsremindertime.
When timer returns to zero, timer gives a short ring
NOTE: for any time below 15 minutes, turn knob past
15minutes,thenbacktorequiredtimesetting
5. Manual Grill or Oven Igniter–ignitesgrillburneror
oven burner when appropriate control knobs are set
6. Light Switch(wheretted)–turnsovenlighton/off
7. Fan Switch –turnsovenfanon/off.
Gas oven conventional baking
The heat comes from the bottom oven burner. The temperature
at the centre of oven is the same temperature set on the
control knob. When oven is used on this mode, shelf position
is important, (refer to ‘Oven Guide’). As hot air naturally rises,
the upper half of the oven will be approximately 10°C
higher and the lower half approximately 10°C cooler than
the set temperature.
For best results from your gas oven use dark coloured trays
and baking dishes on a single shelf. Refer to ‘General Hints
and Tips’ section for more information.
For best baking results preheat oven for 30 minutes
Gas oven fan forced baking
FanForcedbakinggenerallyrequireslowertemperaturesthan
conventional baking. Most recipe books, unless stated, are for
conventional oven temperatures. It is recommended when using
the fan forced mode to reduce the oven temperature by 10°C.
In a fan forced gas oven the heat comes from the bottom burner.
Hot air is distributed by an electrically operated fan located
behind the rear wall of the compartment, providing an even
temperature on all shelf levels. This means batches of the same
food can be baked using multiple shelf positions simultaneously.
Fan Forced operation can be used for single shelf baking
withequalsuccess.
For best baking results preheat oven for 30 minutes before
turning on the fan.
6 USING THE GAS COOKER Chef 540 Upright Cooker
using the gas cooker
Gas hotplate
Ensure burner caps, crowns and trivets are properly assembled.
For wok ONLY use the trivet and burner dedicated for
wok cooking.
Flame Port
Burner Cup
Spark Plug Hole
Spark Plug
Burner Crown
Gas oven burner flame
From a cold start the oven burner flame will be higher
on the left hand-side. This does not affect cooking results.
Lighting gas hotplate, grill and oven
Hotplate Ignition – (Electronic)
Turn appropriate Burner Control Knob onto maximum and
at the same time press the Electronic Igniter Switch.
Hotplate Ignition – (Manual)
Need to be ignited by hand igniters (not supplied).
Grill Ignition – Electronic
Turn Grill Control Knob onto maximum and at the same time
press Electronic Igniter Switch.
Grill Ignition – Manual (Piezo)
Turn the Grill Control Knob on to Maximum and at the same
time press the igniter button (several times if necessary)
It will make a loud ‘clack’ noise as the piezo mechanism
creates a spark
Grill – in Oven
Grill is electric and is operated by control knob only.
Oven Ignition – Electronic
Push and hold Oven Control Knob onto desired temperature
and at the same time press the Electronic Igniter Switch.
Hold control knob in for 15 seconds after ignition.
Oven Ignition – Manual (Piezo)
With the left hand push and hold the Oven Control Knob in
andturnitaquarterofthewayanti-clockwise.Keeptheoven
Control Knob pushed in firmly and at the same time push
the Oven Piezo Ignition button on the right hand side of the
control panel (several times if necessary). It will make a loud
‘clack’ noise as the piezo mechanism creates a spark.
Hold control knob in for 15 seconds after ignition.
IMPORTANT: If hotplates, grill or oven do not light within
15 seconds, allow 1 minute for gas to clear before trying again.
Chef 540 Upright Cooker USING THE GAS COOKER 7
using the electric cooker
Electric features and descriptions
Grill in Oven Models
CFE536SA
CFE547SA
CFE536SA
CFE547SA
Separate Grill Models
CFE536SA
CFE547SA
CFE536SA
CFE547SA
1. Solid/Ceramic Hotplate Control Knob
–setshotplatetemperature
2. Grill Control Knob–setsgrillingtemperature
3. Oven Control Knob–setsoventemperature
4. Grill/Oven Indicator Light(s)–Comesonwhengrill/
oven temperature knob is operated. Oven indicator light
cycles on and off when temperature is reached
5. Timer 60 Minute–(wheretted)setsremindertime.
–Whentimerreturnstozero,timergivesashortring.
NOTE: For any time below 15 minutes, turn knob past
15 minutes, then back to required time setting.
Solid hotplates
If present, the red dot in the centre of hotplate changes colour
when heated.
When necessary to keep element looking good, apply
coating of ‘hot plate protection’ onto solid hot plates.
Ceramic Hotplates
WARNING
warning
If the surface is cracked, switch off the appliance to
avoid the possibility of electric shock.
• Theceramiccooktopismadefromceramicglass,a
tough, durable material that withstands heating and
cooling without breaking. However, it must be noted that
as it is glass, it may break, and must therefore be treated
withcare.Shouldyouhaveanyquestionsabout
the glass in your new appliance, please contact the
service centre by dialling 13 13 49
• Thesmoothglasssurfacehasapatterntoshow
where the elements under the glass are located
• Whenahotplateison,thehotsurfacewarninglight
will come on. After switching off, this light will continue
to glow until the temperature of the hotplate drops
below 60°C.
TIPS & INFORMATION
Electric oven conventional baking
Heat comes from two elements, one above and one below
the food. The bottom element is hidden below the floor of the
oven. As hot air rises naturally, the upper part of the oven will
be approximately 10°C higher than the set temperature and
the lower part of the oven approximately 10°C cooler.
For Grill in Oven Models, the grill dish must be removed
when baking.
For best baking results, preheat oven for 30 minutes, also
refer to ‘General Hints and Tips”
8 USING THE ELECTRIC COOKER Chef 540 Upright Cooker
Electric oven fan forced baking
In a fan forced electric oven the heat comes from the rear
oven element. Hot air is distributed by a fan behind the rear
wall of the compartment, providing an even temperature on
all shelf levels. This means, batches of food can be baked
using multiple shelf positions simultaneously.
Fan forced operation can be used for single food baking
withequalsuccess.
FanForcedbakinggenerallyrequireslowertemperaturesthan
conventional baking. Most recipe books, unless stated, are
typically for conventional oven temperatures. It is recommended
that when using the fan forced mode, reduce the oven
temperature by 10 degrees (refer to ‘Oven Guide’).
For best baking results preheat oven for 30 minutes
using the electric cooker
Chef 540 Upright Cooker USING THE ELECTRIC COOKER 9
general hints and tips
WARNING
Using the Grill
• Separate Grill: Grill with door open.
Grill dish must be fully inserted.
• Grill in oven: Grill with door closed.
Hints general
• For best baking results preheat oven for 30 minutes
• The material and finish of baking trays and dishes used will
affect the way foods are baked, especially base browning.
• Enamelware,anodisedaluminium,darkbakewareornon-
stick interiors and coloured exteriors will assist in maintaining
or reducing the baking time and increase base browning
• Ovenproofglasswareorceramicsarepoorconductors
of heat. The shiny surface of aluminium or polished steel
utensils and trays also reflects the heat rather then passing
it through to the food being baked
• Alwaysplacedishescentrallyontheshelftoensure
even browning
• Standcasserolesdishesorsimilar-typedishesonsuitably
sized baking trays to prevent spillage onto the base of
oven to make cleaning of oven easier
• DONOTplacedishes,traysorbakingpans
directly on the oven base as they become very hot and
will crack and craze the oven liner
• Useovenproofcookware,whichwillwithstand
temperatures of 250°C
• DONOTusebakingtrayslargerthan30x35cm
(12 x 14 inches) as they will restrict the circulation of the
heat and may affect cooking performance of the oven
• Useshallowcasseroledishesinpreferencetodeeper
ones as this shortens cooking time in the oven
Conventional Oven
• Theshelfpositioniscritical.Thetemperatureincentre
of the oven is the temperature shown on the oven control
knob. Single shelf baking gives optimal cooking results.
• DONOTplacebakingtrays,ovendishesorfoildirectly
on the base of oven, as trapped heat will crack and
craze the floor of the oven liner
Fan Forced
• DONOTplacebakingtraysandovendishesdirectly
against the grid covering the fan at the back of the oven
• DO NOT Place oven dishes directly on the oven base
• Makesureshelvesareevenlyspaced
• Whenbakingmorethanonedishinfanforcedoven,
place dishes centrally on shelves rather than several
dishes on one shelf
• Whentheovenisfullyoumayneedtoallowaslightly
longer baking time
• Whenusingdifferentsizetraysorcookingdifferenttypes
of food, cooking times may vary for each dish
TIPS & INFORMATION
General tips
Condensation and Steam
• Alwaysstandbackfromheatedovenwhenopeningoven
door to allow any build-up of steam or heat to release
• Duringcookingsteammaybeproducedwhichcanbe
releasedwhenopeningtheovendoor.Thisisquitenormal
• Ifthereisanybuild-upofcondensationontheovendoor
it is recommended that it be carefully wiped away either
during or after cooking
Cleaning the cooker
Ovens and hotplates are made from steel and enamel. Do not
use abrasives and harsh scourers as they may scratch the surface
Stainless Steel
• All grades of stainless steel can stain, discolour or become
greasy. You must clean these areas regularly by following
the procedures below if you want your appliance to look
its best, perform well and have a long life
• Care must be taken when wiping exposed stainless
steel edges as they can be sharp
• The front frame around the oven can be cleaned with
stainless steel cleaners if it comes soiled or discoloured
• A suitable cleaner can be purchased from Electrolux
Customer Care Centres
• Make sure you follow the polish or brushing lines in the steel
General
• Alwayscleanapplianceafteruse,especiallyfood
spillage. DO NOT use steel wool, wax polishes or
caustic based commercial cleaners as these will
damage your oven
• DO NOT use steam cleaners, as this may cause moisture
build-up especially in the glass door

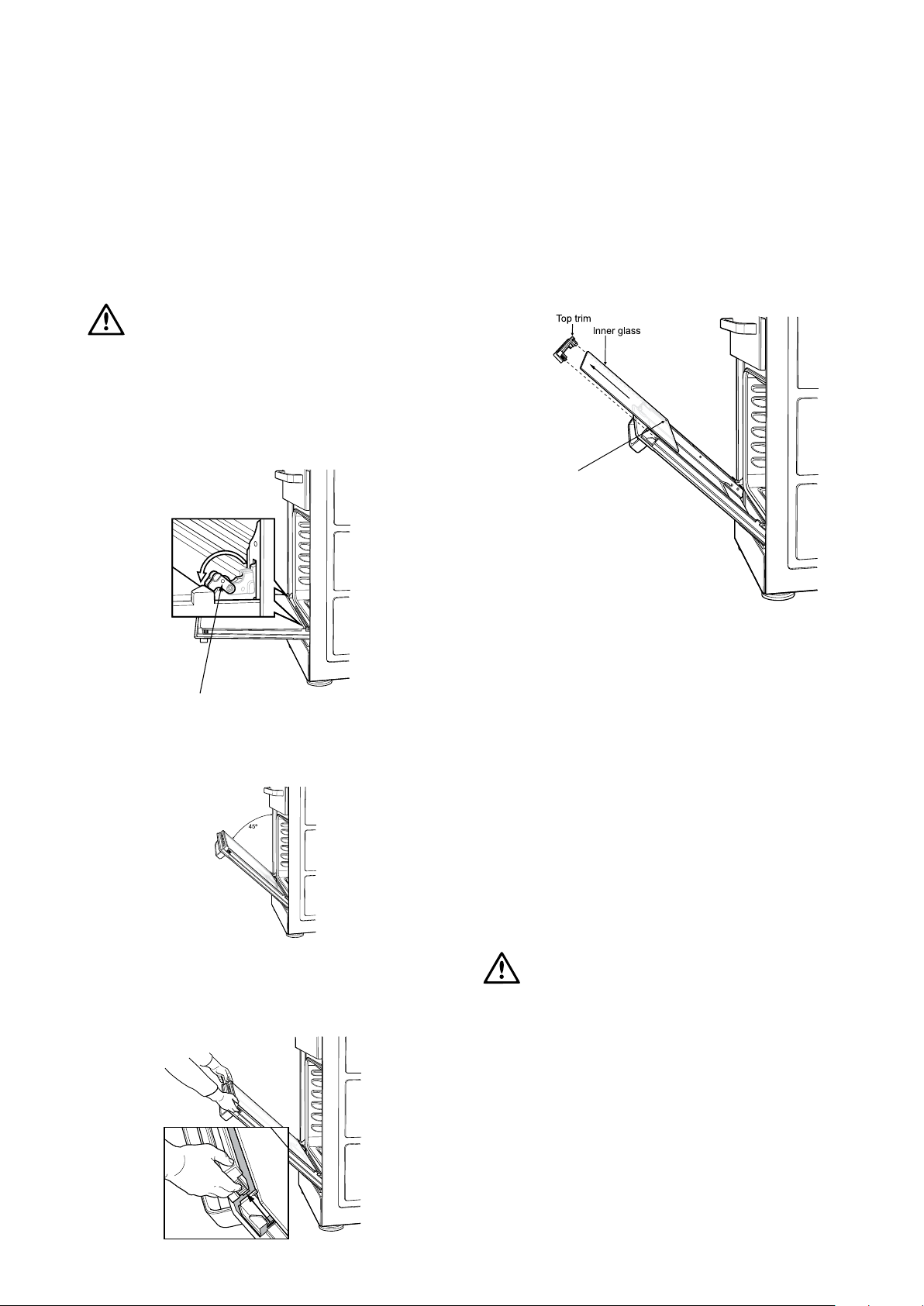

• DoorGlass–DO NOT use harsh abrasive cleaners or
sharp metal scrapers to clean glass since they can scratch
the surface, which may result in shattering of the glass.
WARNING
Door glass is a tough and durable material designed to
withstand heating and cooling without breaking. However it
must be remembered that it is glass and may break, therefore
must be treated with care. If you have any questions about
the glass in the oven please contact the Service centre on
13 13 49.
10 GENERAL HINTS AND TIPS Chef 540 Upright Cooker
WARNING
Oven
•
WARNING

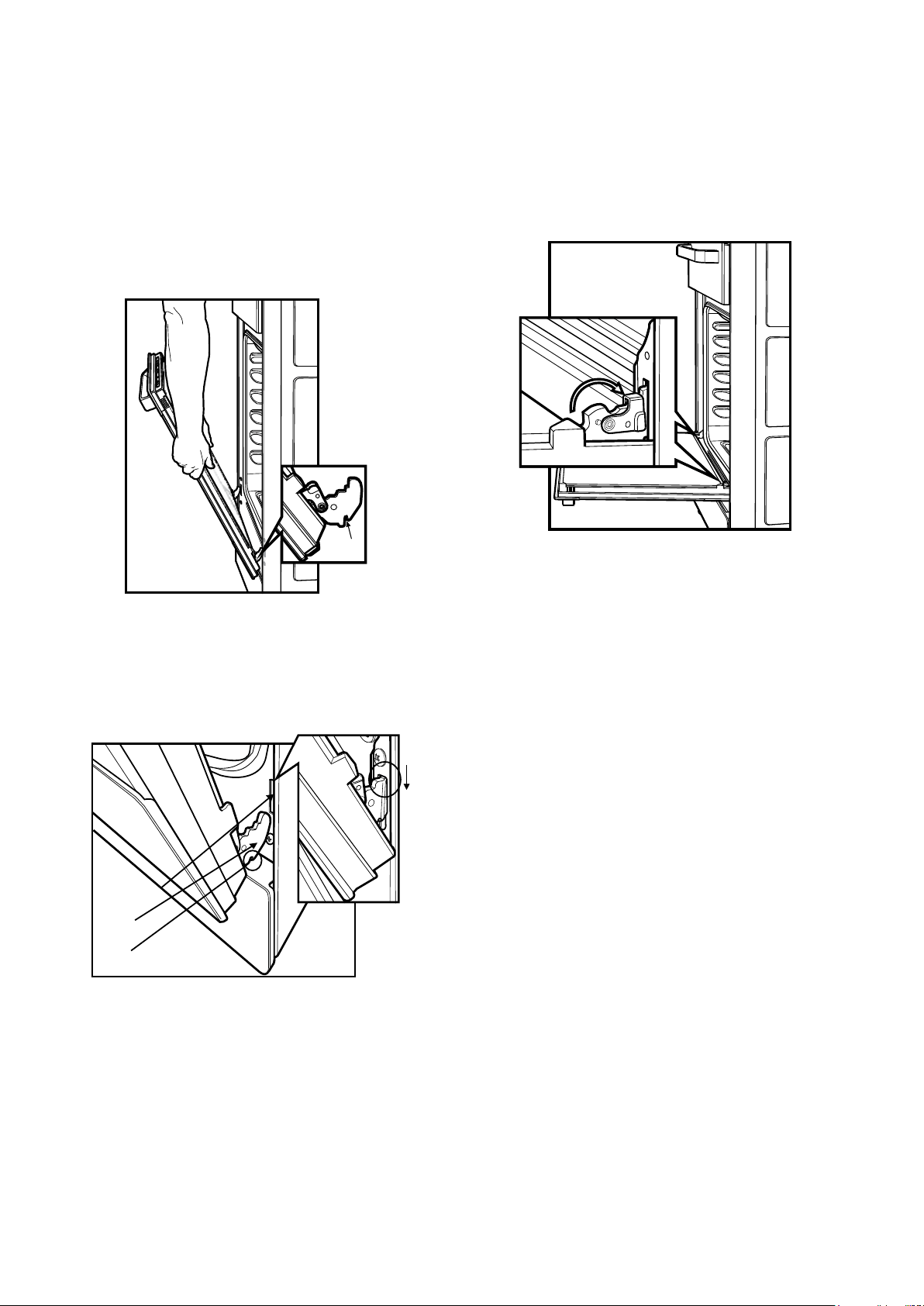

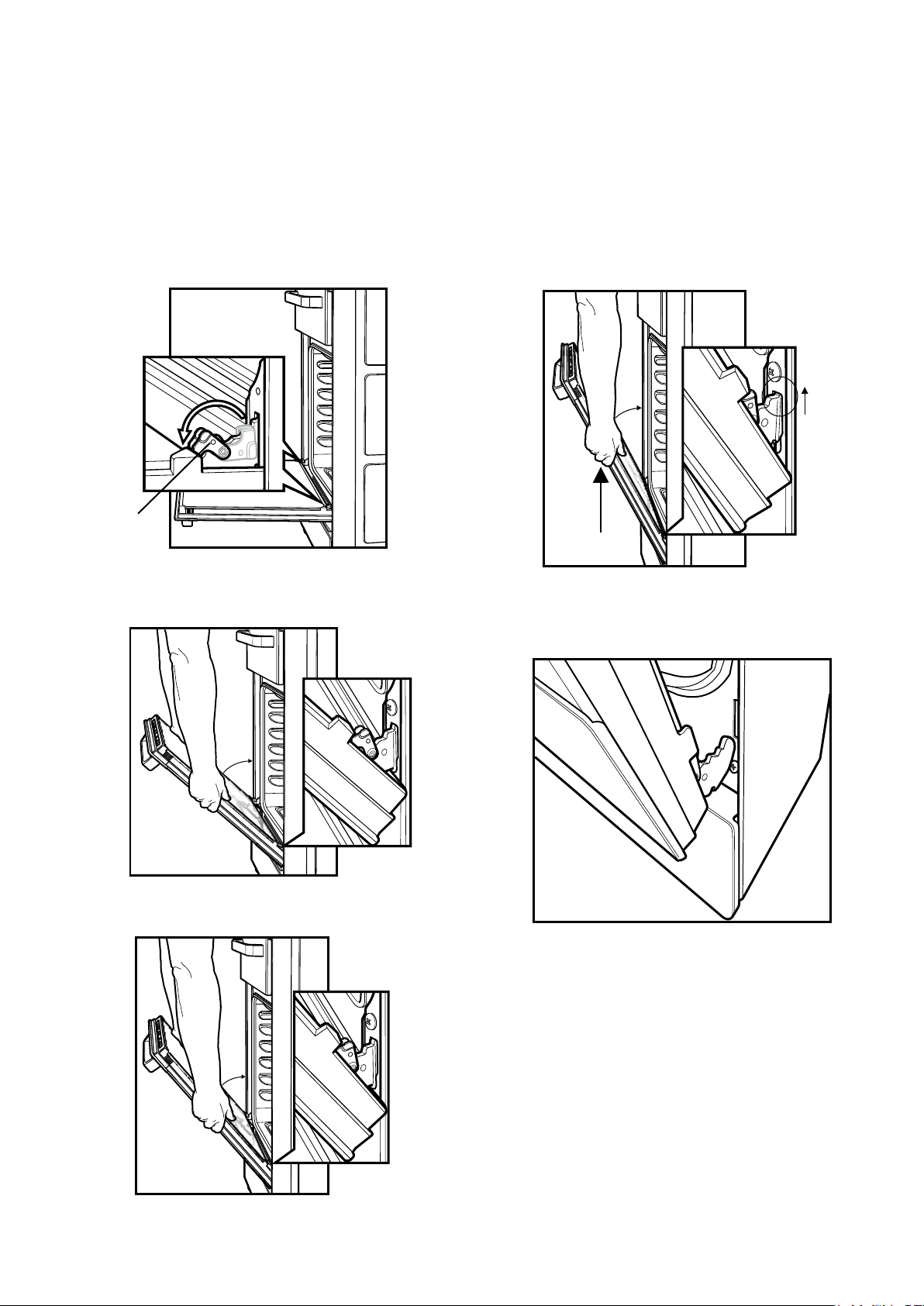

Do not remove the oven door
• Makesureovenknobsareintheoffposition
• Cleanimmediatelyafteruseasawarmoveniseasiertoclean
• Usedetergent,hotwater(andhouseholdammonia/
cloudy ammonia if necessary) and a soft cloth. Dry thoroughly.
• Removeshelveswhencleaningoven
• Ifthereisabuild-upofgrease,placeasmallovenproof
dish containing ¼ cup (62mL) household ammonia/cloudy
ammonia and ¾ cup (187mL) water in the oven. Heat
oven to 110 degrees and turn oven off when 110 degrees
is reached. Leave over-night. The fumes will loosen stubborn
grease and stains. Remove bowl, wash with hot, soapy
water and dry well before closing oven door again.
Oven Shelves
• Chromeshelves:usedetergentandhotwater.Ifvery
dirty use a non-abrasive nylon scourer
• Enameldishesandtray:usedetergentandhotwater.
If very dirty a non-abrasive nylon scourer
• DONOTcleanovenpartswithabrasiveor
caustic-type cleaners.
Oven – Grill Dish and Insert
• Aftereveryuse,andwhilestillwarm,sprinklegrillinsert
with detergent and cover with wet paper towel as this will
loosen food particles and grease
• Washpanandgridwithhot,soapywaterwithalittle
household ammonia/cloudy ammonia added. Rinse and
dry before replacing in position.
Ceramic Hotplates
• Cleanwithdetergentandhotwaterandpolishwith
a soft cloth
• Forhardertocleanspillsabladescraperissupplied
• Aluminiumfoil,plasticandhighsugarcontentfoodcan
cause pitting if not removed before the hotplate has cooled.
cleaning the cooker
Chef 540 Upright Cooker CLEANING THE COOKER 11
Solid Hotplates
• Solidhotplatesarettedwithstainlesssteeltrimrings,
which after initial use, change colour to light brown.
This is a normal characteristic of stainless steel and will
not affect the operation or performance of your hotplates
• Cleanoffanyspillageafterhotplatehascooleddown
• Atregularintervals,cleanhotplatewithanylonscouring
pad and soapy water. Wipe clean then warm hotplate
for 30 seconds to dry the surface
• Apply‘hotplateprotector’’.Sethotplateonhighfor3
minutes to allow coating to harden.
Gas Burners
• Flameportblockagesshouldberemovedwithasmall
metal cake skewer or nylon brush.
• Cleandirtysparkplugsverygentlywithanylonscourer.
DO NOT use steel wool. DO NOT bend spark plug as
it may break.
general hints and tips
Cleaning the Oven Door
Cool air circulates through the door to lower the surface
temperature on the outside of the oven door.
•
WARNING
Do not remove the oven door
• Thisproducthasaremovableinnerdoorglass.
To remove the inner door glass for cleaning
• Open the door fully to access the hinges then rotate
the “stirrups” on both hinges fully towards the door.
Stirrup
• Slowly close the door until it stops against the ‘stirrups’
(about 45°)
• To remove the top trim, press the ribbed release clips at
each end and lift top trim away from the door
• Using both hands, gently remove the inner glass by
sliding out and lifting away from the door
The black dot to be
located on the lower
left hand corner
where applicable
• Wipe inner and outer glass gently with detergent and
warm water
• Wipe clean and dry thoroughly.
DoorInnerGlass–Theblackdottobelocatedonthe
lower left hand corner
Re-Assembling the oven door inner glass
• Replace the inner glass back to the door with the black
dot located on the lower left hand corner where applicable
• Replace the top trim ensuring the clips snap back
into position
• Fully open the door, rotate the stirrups back to their
original position and close the door.
WARNING
warning
DO NOT use the oven without the inner door glass fitted.
DO NOT use harsh abrasives on glass as this may damage
the glass
DO NOT place glass in dishwasher.
Hand wash only with a soft cloth and warm soapy water.
When dry, polish with a soft cloth and ensure the glass is dry
before re-assembly.
12 GENERAL HINTS AND TIPS Chef 540 Upright Cooker
getting to know your oven
Getting to know your new oven with this
‘Simple Test Cake’
When baking, it is possible that there will be some variation
in colour. Therefore, we suggest to make this simple, easy
and delicious test cake to help you understand your new oven.
All ovens do sometimes have hot or cold spots, therefore it is
important to judge with your eye as you may need to rotate your
dishes during baking.
‘Simple Test Cake’
125g butter, softened to room temperature
1 cup caster sugar
1 teaspoon pure vanilla essence
4 large eggs
2 cups self-raising flour
pinch of salt
4 tablespoons (80mL) full-cream milk
Method:
1. Butter base and sides of two, 20cm straight-sided round
orsquarecakepans.Thenlinethebasewithgrease
proof paper or baking paper
2. Preheat oven to moderate ‘180ºC’ (170ºC fan forced) for
30m and ensure oven shelf is in position 2 of the oven
3. Cream softened butter and sugar until light in colour
4. Add vanilla essence
5. Add eggs one at a time, beating well after each addition
6. Sift flour and salt into the mixture and beat until
well combined
7. Add milk and beat or stir to combine
8. Spoonmixtureequallybetweenpreparedcakepans
9. Bake in preheated oven, position 2 for about 25 to 35
minutes. Tip: Insert a fine cake skewer into the cake mix.
If it comes out clean, or if the edges of the cake have
come away slightly from the sides of the cake pan, the
cake is ready.
10. Remove from oven and place on wire cake rack and rest for
5 minutes before removing from cake pans. Cool completely.
To Serve: sandwich together with your favourite jam or
conserve, and dust top with pure icing sugar.
FOOT NOTE: if desired, substitute butter for either margarine
or olive oil spread.
Recipe is based on the Australian standard metric 250mL cup
and 20mL tablespoon sets.
Chef540UprightCookerGETTINGTOKNOWYOUROVEN13
oven guide
Thefollowingisintendedasaguideandexperiencemayshowsomeslightvariationinordertomeetindividualrequirements.
Where the gas models vary from the electric models, details for gas cooking is shown in brackets. For best results when
baking, preheat your oven for 30 minutes.
Food Conventional Oven Fan forced oven Time in minutes
Temperature
0
C Oven shelf position* Temperature
0
C Oven shelf position*
Plain or fruit scones 220 2 (3) 210 Any 10–15
Rolled biscuits
Spooned biscuits
Shortbread biscuits
170 (180) 2 150 (170) Any 10–15
190 2 180 Any 12–15
160 1 or 2 150 Any 30–35
Hard individual meringues
Soft individual meringues
Pavlova–6eggs
110 2 100 Any 90
180 2 165 Any 15–20
110 (120) 1 100 Any 75
Patty cakes
Sponge–4eggs
Plain butter cake
Rich fruit cake
190 2 180 Any 15–20
180 2 170 Any 20–30
180 2 170 Any 25–40
140 (150) 2 130 Any 180
Shortcrust cornish pasty
#
200 (200/180) 2 180 (180/160) Any 40–45(10/35)
Shortcrust custard tart
200/180 (220/180)
1(3) 190/170 (200/180) Any 20–30(10/25)
Cream puffs 210 2 200 Any 25–30
Yeast bread 210 1 200 Any 25–30
Pizza 220 2 220 Any 15–25
* Shelf position is counted from the bottom shelf up. Bottom shelf position is 1.
# Turn down temperatures shown.
Meat/Poultry/Fish Recommended temperature
0
C Minutes per kilogram
Beef –Rare 200 35 - 40
–Medium 200 45 - 50
–Welldone 200 55 - 60
Lamb –Medium 200 40
–Welldone 200 60
Veal 180 60
Pork 200 60
Chicken 180 - 200
45
– 50
Duck 180 - 200
60
– 70
Turkey 180
40
– 45 (less than10kg)
35
– 40 (more than10kg)
Fish 180 20
14OVENGUIDEChef540UprightCooker
trouble shooting
Problem Causes What to do
Uneven cooking Incorrect shelf position Select shelf that puts food in centre of oven
Oven tray too large Try other trays or dishes
Trays not in centre Put trays in centre
Air flow in oven uneven Rotate food during cooking
Grill tray affecting thermostat Remove grill tray from oven on bake modes
Baked products too brown on top Oven not preheated Preheat the oven
Baking tins too large for recipe Use correct size tins
Baking tins not evenly spaced Stagger baking tins at least 3cm between tins and
the oven walls
Products not evenly sized or spaced on tray
s
Make into same size and shape and spread
evenly over trays
Baked products too brown
on bottom
Baking tins too large Use correct size tins
Baking tins are dark metal or glass Change to shiny, light tins or lower the
temperature by 10°C
Food too low in oven Cook one shelf higher
Ovendooropenedtoofrequentlyduring
baking
Don’t open the oven door until at least half the
cooking time has passed
Baking temperature too high Lower the temperature
Grill tray affecting thermostat Remove grill tray from oven on bake modes
Cakes have a cracked thick crust Baking temperature too high Lower the temperature
Food too low in oven Cook one shelf higher
Cake batter over mixed Mix just long enough to combine the ingredients
Baking tin too deep Check size of tin and use recommended size
Baking tins dark Change to shiny light tins
Baked products are pale,
flat and undercooked
Baking temperature too low Raise the temperature
Food too low in oven Cook one shelf higher
Baking time too short Increase cooking time
Incorrect baking tin size Use correct size tin
Cakes fallen in centre Baking temperature too low Raise the temperature
Baking time too short Increase cooking time
Proportions of ingredients incorrect for recipe Check recipe
Opening door too early during baking Donotopendooruntilthelastquarterof
cooking time
Roast meat and potatoes not brown
in fan oven
Poor hot air circulation Elevate food onto a rack to allow air circulation
Grill tray affecting thermostat Remove grill tray from oven on bake modes
Juices running out of meat Do not pierce meat with fork, turn with tongs
Grilled meats overcooked on
outside and raw in the centre
Grill at lower insert position
Grilled chops and steaks curling Cut into fat every 2cm (¾")
Chef 540 Upright Cooker TROUBLE SHOOTING 15
Problem What to do
Operational problems
ie: Oven, grill or hob not working
Check the electricity is turned on
Check your fuses. If the fuse continues to blow, call the Service Centre
Check the circuit breaker
Ensure correct knob is turned
Gasonly–Dryorcleanignitionelectrodes
Gasonly–Makesureameportsandignitionareasarecleananddry
Gasonly–Checkgassupplyison
Gasonly–Ensurecap/crowncorrectlytted.
Replace or tighten light globes (where fitted)
Heat up problems Ovennotpre-heated–Pre-heatovenfor30minutes
Check oven door is closed properly
Remove foil or trays from bottom of oven
Change set oven temperature
Preheat your oven/grill before you put the food in to be cooked
Unit smoking odours Turn oven/grill on high to remove protective oils
Persistentgassmell–donotoperateappliance.Callservice131349
Condensation
Note: some condensation is normal and
is to be expected during cooking
Reduce the amount of water used for cooking
Leave the door open after cooking if food remains in cooker for warming
Timer not audible TurnTimerknobpast15-minutemarkthentotherequirednumberofminutes
Oven shelf tight Remove shelf and insert as per diagram
If you have a problem with your appliance check the following before you ring the service line.
Whenyouneedinformation,serviceorreplacementspleasequote:
1. Model Number
2. Serial Number: You can find these on the data plate, which can be seen when the oven door is open. If you need more information, please contact the
CustomerCareCentreon1300363640(Australia–Centreisopen8.00amto5.00pmMondaytoFridayEST)Or095732384(NewZealand–
Centre is open 8.00am to 5.00pm Monday to Friday). Only authorised service centres should carry out servicing. Otherwise warranty may be void.
Ifyouhaveawarrantyorsparepartsenquiry,youshouldcallthenumberslistedonthebackpage.
trouble shooting
16 TROUBLE SHOOTING Chef 540 Upright Cooker
installation
Location
The appliance has been designed to fit in a 550mm wide gap
in kitchen cabinets or free space either side. Make sure the top of
the cooker is at least 10mm higher than the level of the bench top.
WARNING
warning
In order to avoid accidental tipping of the appliance (for
example, by a child climbing onto the open oven door), the
anti tilt plate and stabilising bolt MUST be installed.
Position anti-tilt plate to the rear wall and 25mm from side of
cupboard. Securely fix anti-tilt plate to the floor with fasteners.
Adjustlevellingfeetoncookerasrequired.
Chef 540 Upright Cooker INSTALLATION 17
Splash back must be fitted to the rear using two screws provided
Stabilising bolt
1. Removeovendoor-tobedonebyqualiedpersonnelonly.
(Refer to procedure).
2. Remove screws from kick panel. To remove kick panel lift
kick panel upwards to release the two Location Tabs from
the holes in the bottom of the panel
3. Position cooker into the ant-tilt plate and then mark the
position for the Stability Bolt hole on the floor
4. Pull cooker out and drill the bolt hole, using a 6.5mm
masonry or wood drill. Minimum 30mm deep for concrete
5. Reposition cooker back into place and fit the Stability
Bolt through the slot and into the drilled hole
6. If the cooker is placed on a base, measures must be
taken to prevent the appliance slipping from the base.
Front
Adjustable
Feet
Stability
Bolt
6.5mm
Drilled
Location Hole
Kick-panel
WARNING
For your safety this cooker is designed to be moved out of
positionbyaqualiedpersononly.
Procedure to remove the door
(tobedonebyqualiedpersonnelonly)
18 INSTALLATION Chef 540 Upright Cooker
1. With door fully open, rotate the two stirrups
to its rest position (to engage the stirrups).
3. Close the door further.
5. Remove the door by lowering gently and pull
away from the frame of the oven. Care should
be taken not to damage kick panel and other
parts of the cooker.
2. Close the door until it stops against the stirrups.
4. Lift the door slightly and evenly while continuing
to slowly close the door.
installation
Stirrup
installation
Procedure to assemble the door
(tobedonebyqualiedpersonnelonly)
Procedure to assemble the door (to be done by qualified personnel only).
3. Open door fully and rotate
the stirrups away from you,
back to their original position.
1. Hold door with both
hands and locate both
hinges into the frame slots
at the same time.
Frame slot
Hinge
Notch
4. Close the door fully.
2. Ensure that the location notch drops into the
frame slot.
Care should be taken not to damage other
parts of the cooker.
Notch
Frame slot
Hinge
Notch
Frame slot
Hinge
Notch
1. Hold door with both hands.
2. Locate both hinges into the frame slots at the
same time.
3. Ensure that the location notch drops into frame
slot. Care should be taken not to damage other
parts of the cooker.
4. Open door fully and rotate stirrups away from
you back to their original position.
5. Close the door fully.
Chef 540 Upright Cooker INSTALLATION 19
Electric wiring requirements
The cooker MUST be installed in compliance with
• WiringconnectionsinAS/NZS3000WiringRules
• Localregulations,municipalbuildingcodesandother
statutory regulations
• DataPlate–Givesinformationabouttheratingand
is located behind the bottom of the oven door
• Circuitdiagram–Islocatedonthebackpanelofthe
appliance
• AfunctionalswitchMUSTbeprovidedneartheappliancein
anaccessibleposition(AS/NZS3000–Clause4.7.1)
• WiringMUSTbeprotectedagainstmechanicalfailure(AS/
NZS3000–Clause3.9)
• Thecookerrequiresameansofallpoledisconnection
incorporated into the fixed wiring. This MUST have a
disconnection gap of 3mm
• ThecookerMUSTbeproperlyearthed
• Whenconnectionsaremadetoamultiphase230/240V
supply, the bridge piece MUST be removed from between
the active connections
• If the supply cord is damaged, it must be replaced by
themanufacturer,itsserviceagentorsimilarlyqualied
persons in order to avoid a hazard.

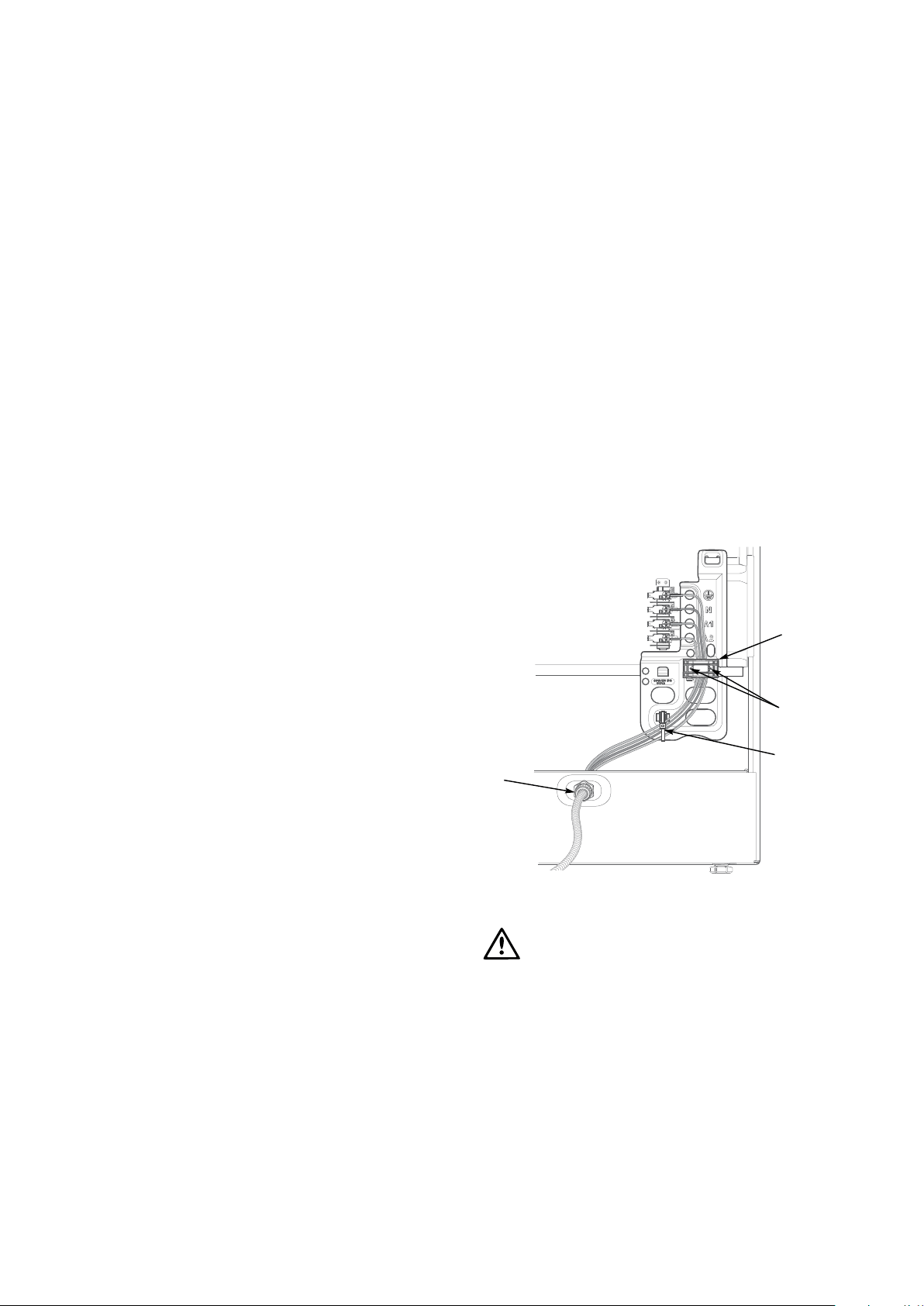

Cable Tie
Plastic clip scre w
securing points
Gland
Plastic Clip
Hard wiring
1. Remove rear panel
2. Fit wires through hole at bottom centre using the appropriate
gland to protect insulation of wires from the hole edge. Note
that the secondary insulation of the wires will probably need
to be removed to fit through gland. If the conduit to appliance
isrequiredtobendduetorearwallanelbowmaybe
requiredtoachievethis
3. Set the length of wiring from the gland to terminal block,
ensuring length is sufficient but not excessive
4. Make connections to terminals and engage wires into plastic
clip. Cable tie as per diagram and secure plastic clip with
two long screws supplied
5. Replace rear cover.
WARNING
warning
Warning! Ensure wires cannot contact hot element ends
or sharp edges.
installation
20 INSTALLATION Chef 540 Upright Cooker

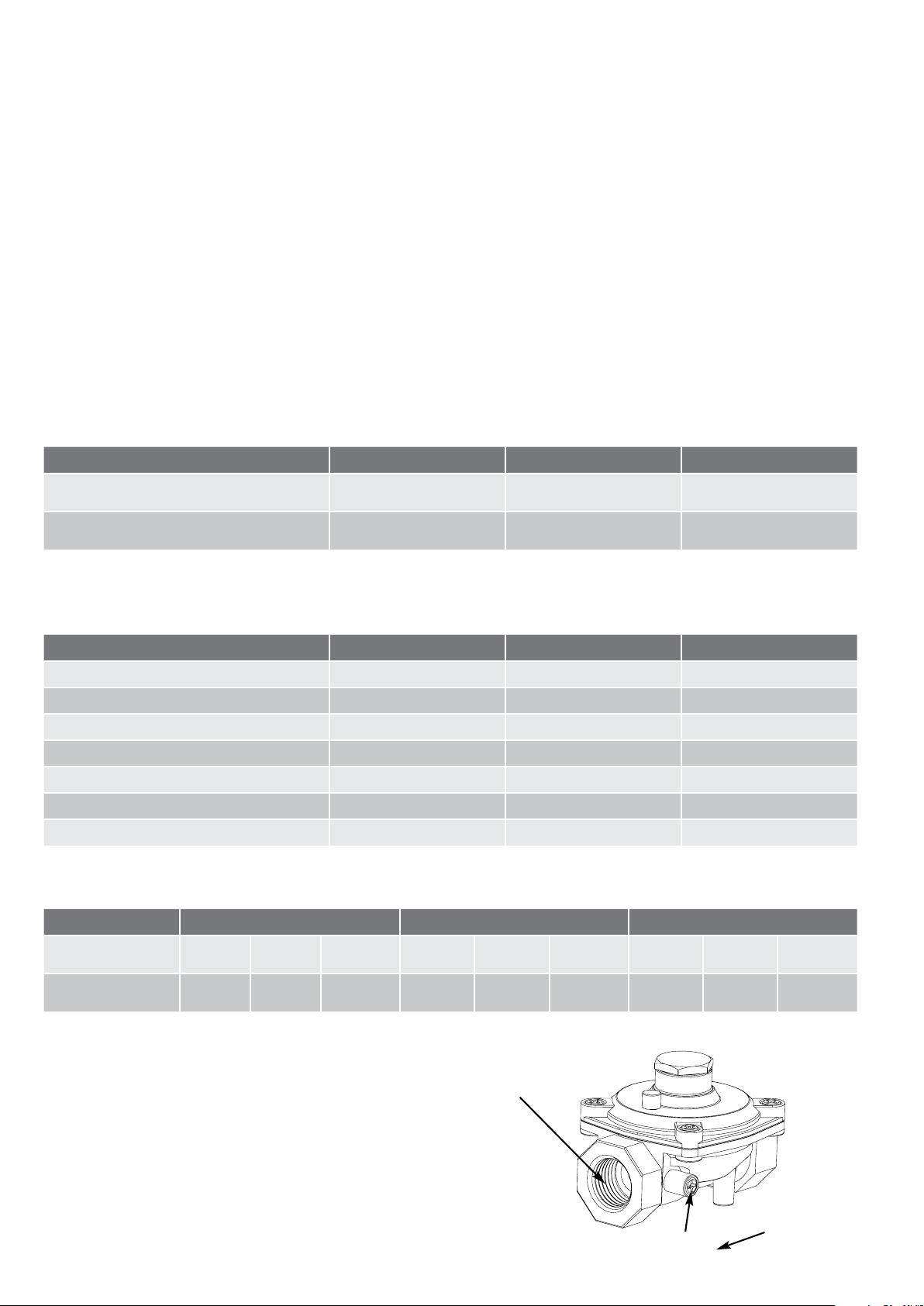

Restraining Device
Anchor Points
Grill Shutter
Pressure test point
NG Regulator
1/2” BSP
Internal Thread
Connection
Gas
Point
150mm
650mm
Gas Flo
w
The following table shows the supply and operating pressures for various supplies.
Gas type Natural gas Universal LPG Propane
Supply pressure at inlet to appliance regulator
(if fitted)
1.13 (kPa)
Minimum
2.75* (kPa) 2.75* (kPa)
Operate pressure at
appliance test point
1.00 (kPa) 2.75 (kPa) 2.75 (kPa)
* If the regulator is placed upstream of the cooker inlet, as is normal for cookers operating on LPG, then the supply pressure
and operating pressure are the same. The following table shows the injector sizes for each burner.
The following table shows the injector sizes for each burner.
Injector Natural gas Universal LPG Propane
Low heat burner 1.00 mm 0.55 mm 0.62 mm
Medium heat burner 1.35 mm 0.70 mm 0.82 mm
High heat burner 1.60 mm 0.90 mm 0.95 mm
Intense heat wok burner 1.75 mm 1.00 mm 1.00 mm
Grill–maininjector 1.50 mm 0.82 mm 0.82 mm
Oven–maininjector 1.60 mm 0.82 mm 0.95 mm
Oven–bypassscrew 0.73 mm 0.45 mm 0.45 mm
Checking pipe size
To work out a suitable pipe size for connection use the information in this table.
Natural gas Universal LPG Propane
Configuration
STD
Hob
WOK
Hob
Electric Grill
in Oven
STD
Hob
WOK
Hob
Electric Grill
in Oven
STD
Hob
WOK
Hob
Electric Grill
in Oven
Hourly gas
consumption for cooker
58.7MJ 60.4MJ 47.6MJ 45.9MJ 49.2MJ
36.9MJ
56.5MJ 58.3MJ
47.5MJ
Also use information about the length of the run, number of elbows,
tees and bends, the available service pressure and the supply
requirements.AS/NZS5601.1willhelpyouwiththismatter.
Operation on NG
• TheapplianceregulatorMUSTbeorientatedsothatthe
pressure nipple is accessible
• ThearrowshowingthedirectionofowMUSTbe
pointed correctly
• Theregulatorhasa½”BSPinternalthreadattheinletandoutlet.
Gas requirements
This appliance must be installed by an authorised person, according to all codes and regulations of:
• AS/NZS5601.1(particularattentiontoclause6.10.1andgure6.3onpage97,andclause6.10.1.11)
• Localgasttingregulations,municipalbuildingcodesandotherstatutoryregulations.
The cookers come in three gas types:
Naturalgas,PropaneandUniversalLPG.IfthecookerisrequiredtouseULPG,aconversionkitcanbeobtainedby
contacting the Customer Care Centre for details. Before installation, check that the cooker is suitable for the gas supply by looking
at the data plate behind the bottom of the oven door.
installation
Chef 540 Upright Cooker INSTALLATION 21
Wiring connection for gas cooker
To allow for disconnection of the appliance after installation,
the plug must be accessible after installation, or a functional switch
must be provided near the appliance in an accessible position.
If the supply cord is damaged, it must be replaced by the
manufacturer,itsserviceagentorsimilarlyqualiedpersons
in order to avoid a hazard.
Gas connection
Read these points before connecting to the gas supply:
• Thecookerinletconnectionpointhasa½”BSPexternal
thread. See Diagram below
• ANGregulatororaLPGtestpointttingissupplied
• Itisrecommendedtottheregulatorortestpointttingto
the appliance connection point, then fit either hard piping
orahighlevelexibleconnection(AS/NZS5601.1
clauses 5.9 and 6.10.1.9) which is then attached to the
consumer hard piping
• Ensureinstallationallowswithdrawalofappliance.
Restraining Device
Anchor Points
Gas
Connection Point
150mm
650mm
Operation on universal LPG/propane
1. The appliance inlet fitting provided MUST be orientated
so that the pressure nipple is accessible
2.Theinletttinghas½”BSPinternalthreadattheinlet
and outlet.
Operation on SNG
• IfthecookeristobeusedwithSNG,thenthegrillburner
MUST be modified by the replacement of the shutter,
which fits into the throat of the grill burner
• Aconversionkitcanbeobtainedbycontactingthe
Customer Care Centre
Restraining Device
Anchor Points
Grill Shutter
Pressure test point
NG Regulator
1/2” BSP
Internal Thread
Connection
Gas
Point
150mm
650mm
Gas Flo
w
WARNING
1. Disconnect electric power before removing control panel
2. Remove the control panel
3. Remove the existing NG shutter securing screw (refer to
diagram above) and slide upwards to disengage from
grill burner
4. Slide the SNG shutter into position and secure with screws.
Testing the gas cooker
WARNING
warning
You MUST test the cooker after installation, before you hand
it over to the customer.
You MUST have a manometer and a connecting tube.
installation
22 INSTALLATION Chef 540 Upright Cooker
Checking the gas supply
1. Check the manometer zero point is correct
2. Connect the manometer to the cooker pressure test point.
This is located on the regulator or LPG inlet fitting
3. Turn on the gas supply and the electricity (if applicable)
and try to ignite the gas. Note: It will take additional time
to light the gas for the first time, as air needs to be purged
from the pipes
4. Check the operating pressure for the particular gas type
(see 'Gas Type' table)
• ForLPGcookers:Adjusttheregulatorifnecessary
(this may be remote from the cooker)
• ForNaturalGascookers:Regulatorsaresuppliedpre-
adjusted and configured by the component maker for use
withNaturalGas.Theapplianceinstallerisnotrequired
to make an adjustment to obtain the correct outlet pressure
setting. An arrow on the base of the regulator indicates
the direction of the gas flow when the inlet and outlet
of the regulator are orientated correctly.
5. When the regulator has been fitted check for leaks from
the connections with soapy water.
Checking regulator function
With the appliance operating, check the outlet pressure:
1. When all the burners of the appliance are operating
at maximum
2. When the smallest burner of the appliance is operating
at minimum, Under these conditions the outlet pressure
should not vary from nominal operating pressure of 1.0kPa
by more then ± 20% (ie ±0.20kPa for Natural Gas).
If the regulator appears to not be performing satisfactorily
then check the following points:
1. If the outlet pressure is consistently too low then
• theinletpressuremaybetoolowandadjustment
of an upstream regulator may be needed, or
• anupstreamregulatororvalvewithinsufcientow
capacity may be present in the gas supply line. It may be
necessary to repeat the checks whilst measuring both the
inlet and outlet pressure to determine if the inlet pressure
is in the range 1.13-5kPa.
2. Check that the regulator has been fitted to the gas supply
line in the correct orientation
3. Replace the regulator if it fails to perform after the checks.
Testing cooker features
• Observetheameappearanceoneachburner.Ifitis
smaller or larger than expected, then the injector size
needs checking
• Iftheameisunsatisfactory,thenrefertotheElectrolux
Technical Publications and correct the fault if possible
• Whenmaximumameappearanceiscorrect,checktheturn
down setting on each burner. If incorrect, proceed as follows:
WARNING
1. Disconnect electric power
2. Remove the control panel and adjust the bypass screw
mounted on the body of each hotplate control cock
3. Check the ignition on all burners both separately and
in combination
4. Check the operation of the electrical components,
if applicable
5. When operating correctly, show customer how to use
the cooker
6. If not operating correctly, advise the customer to ring
Electrolux service. Place a warning sign on cooker or
if dangerous, disconnect cooker.
installation
Chef 540 Upright Cooker INSTALLATION 23
notes
24 NOTES Chef 540 Upright Cooker
notes
Chef 540 Upright Cooker NOTES 25
notes
26 NOTES Chef 540 Upright Cooker
1. In this warranty
(a) ‘acceptable quality’ as referred to in clause 10 of this warranty has
the same meaning referred to in the ACL;
(b) ‘ACL’ means Trade Practices Amendment (Australian Consumer
Law) Act (No.2) 2010;
(c) ‘Appliance’ means any Electrolux product purchased by you
accompanied by this document;
(d) ‘ASC’ means Electrolux’ authorised serviced centres;
(e) ‘Electrolux’ means Electrolux Home Products Pty Ltd of 163
O’Riordan Street, Mascot, NSW 2020, ABN 51 004 762 341 in
respect of Appliances purchased in Australia and Electrolux (NZ)
Limited of 3-5 Niall Burgess Road, Mount Wellington, in respect
of Appliances purchased in New Zealand;
(f) ‘major failure’ as referred to in clause 10 of this warranty has the
same meaning referred to in the ACL and includes a situation when
an Appliance cannot be repaired or it is uneconomic for Electrolux, at
its discretion, to repair an Appliance during the Warranty Period;
(g) ‘Warranty Period’ means:
(i) where the Appliance is used for personal, domestic or household
use (i.e. normal single family use) as set out in the instruction
manual, the Appliance is warranted against manufacturing
defects in Australia for 24 months and in New Zealand for 24
months, following the date of original purchase of the Appliance;
(ii) where the Appliance is used for commercial purposes (including
being used to directly assist a business or where the Appliance is
used in a multi-family communal or share type environment), the
Appliance will then be warranted against manufacturing defects
in Australia for 3 months and in New Zealand for 3 months,
following the date of original purchase of the Appliance.
(h) ‘you’ means the purchaser of the Appliance not having purchased
the Appliance for re-sale, and ‘your’ has a corresponding meaning.
2. This warranty only applies to Appliances purchased and used in Australia
or New Zealand and is in addition to (and does not exclude, restrict, or
modify in any way) any non-excludable statutory warranties in Australia
or New Zealand.
3. During the Warranty Period Electrolux or its ASC will, at no extra charge
if your Appliance is readily accessible for service, without special
equipment and subject to these terms and conditions, repair or replace
any parts which it considers to be defective. Electrolux or its ASC may
use remanufactured parts to repair your Appliance. You agree that
any replaced Appliances or parts become the property of Electrolux.
This warranty does not apply to light globes, batteries, lters or similar
perishable parts.
4. Parts and Appliances not supplied by Electrolux are not covered by
this warranty.
5. You will bear the cost of transportation, travel and delivery of the
Appliance to and from Electrolux or its ASC. If you reside outside of the
service area, you will bear the cost of:
(a) travel of an authorised representative;
(b) transportation and delivery of the Appliance to and from Electrolux or
its ASC,
In all instances, unless the Appliance is transported by Electrolux or an
Electrolux authorised representative, the Appliance is transported at the
owner’s cost and risk while in transit to and from Electrolux or its ASC.
6. Proof of purchase is required before you can make a claim under
this warranty.
7. You may not make a claim under this warranty unless the defect claimed
is due to faulty or defective parts or workmanship. Electrolux is not liable
in the following situations (which are not exhaustive):
(a) the Appliance is damaged by:
(i) accident
(ii) misuse or abuse, including failure to properly maintain or service
(iii) normal wear and tear
(iv) power surges, electrical storm damage or incorrect power supply
(v) incomplete or improper installation
(vi) incorrect, improper or inappropriate operation
(vii) insect or vermin infestation
(viii) failure to comply with any additional instructions supplied with
the Appliance;
(b) the Appliance is modied without authority from Electrolux in writing;
(c) the Appliance’s serial number or warranty seal has been removed
or defaced;
(d) the Appliance was serviced or repaired by anyone other than
Electrolux, an authorised repairer or ASC.
8. This warranty, the contract to which it relates and the relationship
between you and Electrolux are governed by the law applicable where
the Appliance was purchased. Where the Appliance was purchased in
New Zealand for business purposes the Consumer Guarantee Act does
not apply.
9. To the extent permitted by law, Electrolux excludes all warranties and
liabilities (other than as contained in this document) including liability for
any loss or damage whether direct or indirect arising from your purchase,
use or non use of the Appliance.
10. For Appliances and services provided by Electrolux in Australia,
the Appliances come with a guarantee by Electrolux that cannot be
excluded under the Australian Consumer Law. You are entitled to a
replacement or refund for a major failure and for compensation for any
other reasonably foreseeable loss or damage. You are also entitled to
have the Appliance repaired or replaced if the Appliance fails to be of
acceptable quality and the failure does not amount to a major failure.
The benets to you given by this warranty are in addition to your other
rights and remedies under a law in relation to the Appliances or services
to which the warranty relates.
11. At all times during the Warranty Period, Electrolux shall, at its discretion,
determine whether repair, replacement or refund will apply if an
Appliance has a valid warranty claim applicable to it.
12. For Appliances and services provided by Electrolux in New Zealand,
the Appliances come with a guarantee by Electrolux pursuant to the
provisions of the Consumer Guarantees Act, the Sale of Goods Act and
the Fair Trading Act.
13. To enquire about claiming under this warranty, please follow these steps:
(a) carefully check the operating instructions, user manual and the terms
of this warranty;
(b) have the model and serial number of the Appliance available;
(c) have the proof of purchase (eg an invoice) available;
(d) telephone the numbers shown below.
14. You accept that if you make a warranty claim, Electrolux and its ASC
may exchange information in relation to you to enable Electrolux to meet
its obligations under this warranty.
Warranty
FOR SALES IN AUSTRALIA AND NEW ZEALAND
APPLIANCE: BUILT-IN OVEN, COOKTOP
AND FREESTANDING COOKER
Before calling for service, please ensure that the steps listed in point 13 above have been followed.
or to nd the address of your nearest
state service centre in Australia
For the cost of a local call (Australia only)
ELECTROLUX HOME PRODUCTS
www.electrolux.com.au
or to nd the address of your nearest
state spare parts centre in Australia
For the cost of a local call (Australia only)
or to nd the address of your nearest
authorised service centre in New Zealand
(New Zealand only)
ELECTROLUX HOME PRODUCTS
www.electrolux.co.nz
or to nd the address of your nearest
state spare parts centre in New Zealand
(New Zealand only)
GOV_Warr_Apr11
Chef. We are part of the Electrolux family.
Share more of our thinking at www.electrolux.com
Part No. 0342 001 562 12A002A
© 2012 Electrolux Home Products Pty Ltd
ABN 51 004 762 341
Print code: CMAN_Upright_UM_Jan12
For further information on all Chef appliances, or to obtain
detailed dimension and installation information, call into
your Retailer, phone or email our Customer Care team or
visit our website:
Australia
phone: ..................................................1300 363 640
fax:.......................................................1800 350 067
email: ............................. [email protected]
web: .................................... www.chefappliances.com.au
Top service
Top Service encompasses the after sales service provided by
The Electrolux Group to consumers including delivery, home
service and spare parts.
like to know more?
