PRECAUTIONS
PLEASE READ CAREFULLY BEFORE
PROCEEDING
Please keep this manual in a safe place for
future reference.
WARNING
Always follow the basic precautions listed
below to avoid the possibility of serious
injury or even death from electrical shock,
short-circuiting, damages, fire or other
hazards. These precautions include, but
are not limited to, the following:
Fire warning
• Do not place any burning items or open
flames near the product, since they may
cause a fire.
Hearing loss
• Before turning the power of all devices on or
off, make sure that all volume levels are set
to the minimum. Failing to do so may result
in hearing loss, electric shock, or device
damage.
• When turning on the AC power in your
audio system, always turn on the power
amplifier LAST, to avoid hearing loss and
speaker damage. When turning the power
off, the power amplifier should be turned off
FIRST for the same reason.
Location and connection
• Always consult a professional installer if the
product installation requires construction
work, and make sure to observe the
following precautions.
- Choose mounting hardware and an
installation location that can support the
weight of the product.
- Avoid locations that are exposed to
constant vibration.
- Use the required tools to install the product.
- Inspect the product periodically.
CAUTION
Always follow the basic precautions listed
below to avoid the possibility of physical
injury to you or others, or damage to the
device or other property. These
precautions include, but are not limited to,
the following:
If you notice any abnormality
• If any of the following problems occur,
immediately turn off the PoE injector or the
PoE network switch and disconnect the
cable.
- The LAN cable damaged.
- Unusual smells or smoke are emitted.
- Some object, or water has been dropped
into the product.
- There is a sudden loss of sound during
use of the product.
- Cracks or other visible damage appear on
the product.
Then have the product inspected or
repaired by qualified Yamaha service
personnel.
Location and connection
• When connecting this product with a PoE
injector or the PoE network switch, use a
CAT5e or higher LAN cable, which supports
the maximum power supply voltage (57 V)
of the IEEE 802.3at standard. If you connect
a cable that does not comply with
specifications, or connect a flat type or slim
type cable, fire or malfunctions might occur.
• Do not damage the LAN cable. Failure to
observe this precaution could result in fire,
electric shock, or damage to the product.
- Do not place heavy objects on the cable.
- Do not process the cable in any way.
- Do not use staples to fix the cable in
place.
- Do not apply excessive force to the cable.
- Be sure to keep the cable away from
anything hot.
• Do not place the product in an unstable
position or a location with excessive
vibration, where it might accidental fall and
cause injury.
• Keep this product out of reach of children.
This product is not suitable for use in
locations where children are likely to be
present.
• When installing the product:
- Do not cover it with any cloth.
- Make sure the top surface faces up; do
not install on its sides or upside down.
- Do not use the product in a confined,
poorly-ventilated location.
Inadequate ventilation can result in
overheating, possibly causing damage to
the product(s), or even fire.
• Do not place the product in a location
where it may come into contact with
corrosive gases or salt air. Doing so may
result in malfunction.
• Before moving the product, remove all
connected cables.
• Do not route cables where someone might
trip over them, such as in a location where
people pass. Tripping on a cable may
cause a person or this product to fall down,
resulting in personal injury or damage to the
product.
Do not open
• This product contains no user-serviceable
parts. Do not attempt to disassemble the
internal parts or modify them in any way.
Water warning
• Do not expose the product to rain, use it
near water or in damp or wet conditions, or
place on it any containers (such as vases,
bottles or glasses) containing liquids which
might spill into any openings.
• Never insert or remove a cable with wet
hands.
Yamaha cannot be held responsible for
damage caused by improper use or
modifications to the product, or data that
is lost or destroyed.
NOTICE
To avoid the possibility of malfunction/damage to the product or
damage to other property, follow the notices below.
Handling and maintenance
• Do not connect this product to public Wi-Fi and/or Internet directly.
Only connect this product to the Internet through a router with strong
password-protections. Consult your router manufacturer for
information on security best practices.
• Do not use the product in the vicinity of a TV, radio, or other electric
products. Otherwise, the product, TV, or radio may generate noise.
• Do not expose the product to excessive dust or vibration, or extreme
cold or heat, in order to prevent the possibility of disfiguration,
unstable operation, or damage to the internal components.
• Do not install in locations where temperature changes are severe.
Otherwise, condensation may form on the inside or the surface of the
product, causing it to break.
• If there is reason to believe that condensation might have occurred,
leave the product for several hours without turning on the power until
the condensation has completely dried out, in order to prevent
possible damage.
• Do not place vinyl, plastic or rubber objects on the product, since
this might cause alteration or discoloration.
• When cleaning the product, use a dry and soft cloth. Do not use
paint thinners, solvents, cleaning fluids, or chemical-impregnated
wiping cloths, since this might cause alteration or discoloration.
• Do not place the face down with the grille attached, as deformation
of the grille may result.
INFORMATION
About functions/data bundled with the product
• This is a class A product. Operation of this product in a residential
environment could cause radio interference.
• Refer to the website below for the licensing terms of the open source
software used in this product.
U.S.A. and Canada
https://uc.yamaha.com/support/
Other Countries
https://download.yamaha.com/
• This product uses Dante Ultimo.
Refer to the Audinate website (English) for details on the open
source licenses for the particular software.
https://www.audinate.com/software-licensing
About this manual
• The illustrations as shown in this manual are for instructional
purposes only.
• The company names and product names in this manual are the
trademarks or registered trademarks of their respective companies.
• Software may be revised and updated without prior notice.
• The contents of this manual apply to the latest specifications as of
the publishing date. To obtain the latest manual, access the Yamaha
website then download the manual file.
About disposal
• This product contains recyclable components. When disposing of
this product, please contact the appropriate local authorities.
SPECIFICATION
General
Network
Audio
ACCESSORIES
(For details on the shapes, refer to the back page.)
• Installation Manual (this manual) (1)
•Grille (1)
• Mounting screw for grille (M3 × 8 mm) (5*)
• Screw cover (4)
• Cable tie (1)
• Terminal cover (1)
• Safety wire (1)
• U-shaped bracket (1)
• Mounting screw for U-shaped bracket (M4 × 20 mm) (5*)
• C-ring (1)
• Mounting screw for C-ring (2)
• Cutout template (1)
• Temporary mounting bracket (2)
* Includes one spare.
Description Ceiling Microphone
Color Black, White
Dimensions (W × D × H)
W560 mm × D560 mm × H90 mm (including
protrusions/microphone panel: H22 mm)
Weight 5.6 kg (including grille)
Power requirements PoE (IEEE802.3af), DC 48 V
Maximum Power Consumption 7.2 W
In Operation
Temperature 0°C – 40°C
Humidity 30% – 90% (No condensation)
Storage
Temperature −20 °C – 60 °C
Humidity 20% – 90% (No condensation)
Indicator
• Front Indicator (Mute/Unmute & Status)
• Network Port Indicator
Mount
• Ceiling Mount (*can’t replace a grid ceiling
panel.)
• Wire mount
• VESA mount
Maximum device number with
RM-CR
2
Dust Protection IP5X for dust protection (with Terminal cover)
Plenum Rating UL2043 (with Terminal cover)
[Dante/PoE] port
Dante, Remote Control, WebUI, PoE
Cable Requirements: CAT5e or higher, STP
Frequency response 160 Hz – 16 kHz (−10 dB)
Sampling Rate 48 kHz
Bit depth 24 bit
Latency 58 [ms] (including signal processing)
Audio I/O Dante
1in × 2out
In1=AEC reference signal/
Out1=output of beam mix,
Out2= output of beam mix (simple processed)
Maximum input level of SPL
(0 dBFS)
117.8 dB SPL
Self Noise −0.8 dBA SPL
SNR (Ref. 94 dB SPL at 1 kHz) 94.8 dBA
Sensitivity −23.8 dBFS/Pa
Dynamic Range 118.6 dBA
Signal Processing
Multi beam tracking,
Adaptive Echo Canceler, Noise Reduction,
Dereverberation, Auto Mixer, Auto Gain Control,
Parametric EQ, Output Gain
Installation

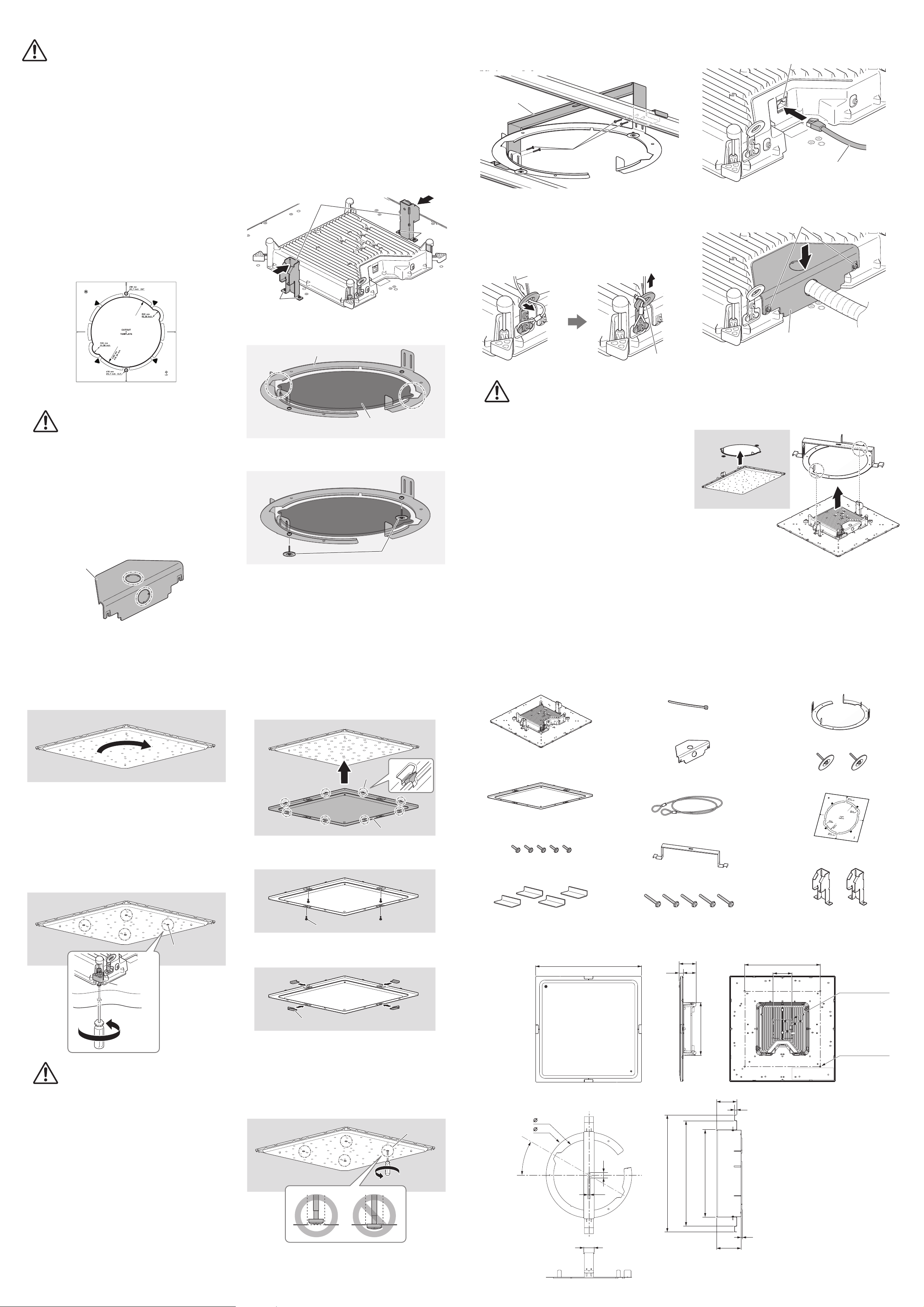

For recessing into the ceiling, refer to the procedure on the back page.
WARNING:
• Before installing, confirm that the locations where the unit and the safety wire are to be installed are strong enough.
• For the following work, use a safety wire, and be careful not to fall or cause the unit or surrounding structures to be dropped
or damaged.
NOTICE:
• To supply power, confirm that the unit is securely installed, and then connect the LAN cable to a PoE injector or PoE network switch that
complies with IEEE802.3af.
• Cables up to a maximum length of 100 m can be used.
• In order to prevent electromagnetic interference, use STP (shielded twisted pair) cables.
When using a VESA mounting bracket for
ceiling mounting
Prepare a VESA100-compatible mounting bracket and mounting
screws.
For details on attaching the VESA mounting bracket, refer to its
manual. The following is an example.
If the terminal cover will not be used, skip steps
1 and 2–1, 8
and
10
on the back side. However, the dustproofness and plenum
ratings will not be met.
1. Make a hole in the terminal cover to pass the conduit
through.
Make a cable hole in the terminal cover according to the
orientation of the conduit. The cable hole can be made in the
terminal cover horizontally or vertically.
We recommend using nippers. The terminal cover may
become deformed if you try to make the hole by hitting or
prying the cover with a flathead screwdriver, etc.
2. Attach the VESA mounting bracket to the unit by
using the screw holes shown below.
3. Attach the VESA mounting bracket to the ceiling.
For the remainder of the procedure, continue with steps 2–6 to
2–
10
and step 4 on the back side.
When hanging with wires
Prepare wires and eyebolts (M6 × 13 mm or less) with sufficient
load capacity for hanging.
NOTE:
Use eyebolts that meet local regulations and safety standards.
NOTICE:
The strength of an eyebolt depends on its installation angle. Install
an eyebolt within a range of 0° to 45° from vertical.
If the terminal cover will not be used, skip steps 1 and 2–1, 8
and
10
on the back side. However, the dustproofness and plenum
ratings will not be met.
1. Make a hole in the terminal cover to pass the conduit
through.
Make a cable hole in the terminal cover according to the
orientation of the conduit. The cable hole can be made in the
terminal cover horizontally or vertically.
We recommend using nippers. The terminal cover may
become deformed if you try to make the hole by hitting or
prying the cover with a flathead screwdriver, etc.
2. Install the eyebolts into the unit by using the screw
holes shown below.
3. Install the unit by attaching it to the wires hanging
from the ceiling, making sure that the unit is
horizontal.
For the remainder of the procedure, continue with steps 2–6 to
2–
10
and step 4 on the back side.
0°
45°
(bottom_en_01)
1. IMPORTANT NOTICE: DO NOT MODIFY THIS UNIT!
This product, when installed as indicated in the instructions contained in this manual, meets FCC requirements. Modifications not expressly
approved by Yamaha may void your authority, granted by the FCC, to use the product.
2. IMPORTANT: When connecting this product to accessories and/or another product use only high quality shielded cables. Cable/s supplied with
this product MUST be used. Follow all installation instructions. Failure to follow instructions could void your FCC authorization to use this product in
the USA.
3. NOTE: This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC rules. These
limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment.
This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual,
may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference in
which case the user will be required to correct the interference at his own expense.
FCC INFORMATION (U.S.A.)
This device complies with Part 15 of the FCC Rules.
Operation is subject to the following conditions:
1) this device may not cause harmful interference, and
2) this device must accept any interference received including interference that may cause undesired operation.
COMPLIANCE INFORMATION STATEMENT
(Supplierʼs declaration of conformity procedure)
Responsible Party: Yamaha Unified Communications, Inc.
Address: 144 North Rd, Suite 3250 Sudbury, MA 01776
Telephone: 800-326-1088
Type of Equipment: Ceiling Microphone
Model Name: RM-CG
(class A)
(SDoc)
Information for users on collection and disposal of old
equipment:
This symbol on the products, packaging, and/or
accompanying documents means that used electrical
and electronic products should not be mixed with general
household waste.
For proper treatment, recovery and recycling of old
products, please take them to applicable collection
points, in accordance with your national legislation.
By disposing of these products correctly, you will help to
save valuable resources and prevent any potential
negative effects on human health and the environment
which could otherwise arise from inappropriate waste
handling.
For more information about collection and recycling of
old products, please contact your local municipality, your
waste disposal service or the point of sale where you
purchased the items.
For business users in the European Union:
If you wish to discard electrical and electronic equipment,
please contact your dealer or supplier for further
information.
Information on Disposal in other Countries outside
the European Union:
This symbol is only valid in the European Union. If you
wish to discard these items, please contact your local
authorities or dealer and ask for the correct method of
disposal.
The model number, serial number, power requirements, etc., may be
found on or near the name plate, which is at the bottom of the unit. You
should note this serial number in the space provided below and retain this
manual as a permanent record of your purchase to aid identification in the
event of theft.
Model No.
Serial No.
CEILING MICROPHONE
RM-CG
Installation Manual
EN
English
VEZ3880
Loading ...
