Tripp Lite OMNISMART550MX 550VA 340W 120V Line-Interactive UPS - 12 NEMA 5-15R Outlets, Double-Boost AVR, USB, Desktop/Wall-Mount

Owner's Manual

For OMNISMART550MX. Also, The document are for others Tripp Lite models: OMNISMART750MX, OMNISMART1050MX

PDF File Manual, 24 pages, Read Online | Download pdf file

OmniSmart

Ultra-Compact UPS Systems

OMNISMART550MX, OMNISMART750MX, OMNISMART1050MX

Important Safety Instructions .... 2

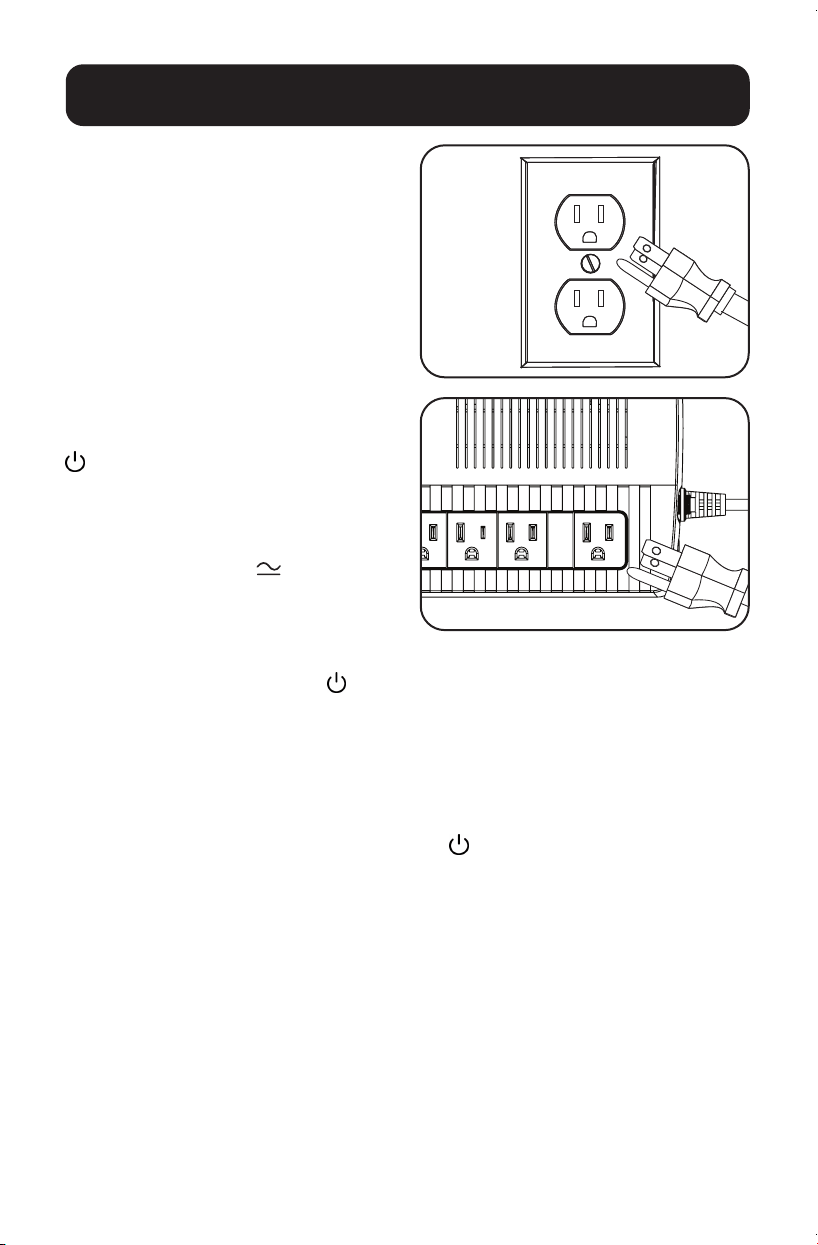

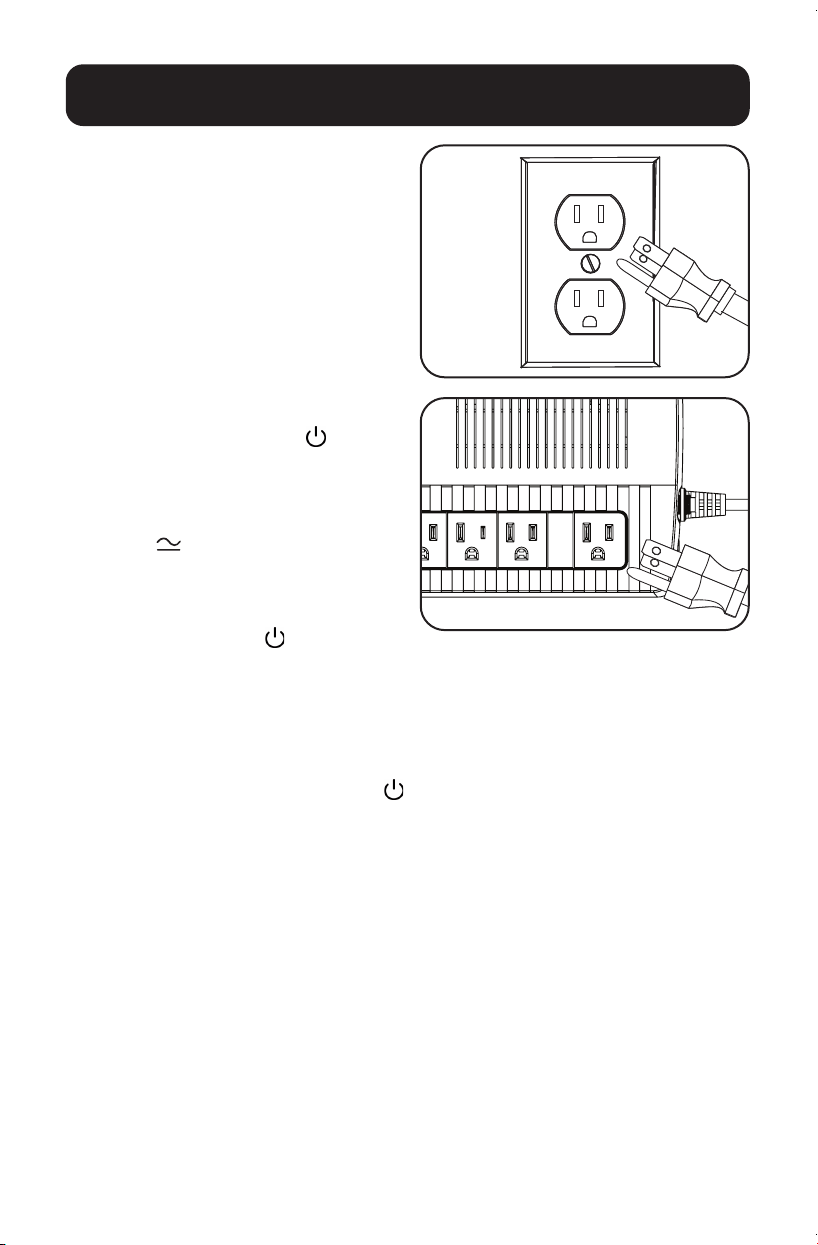

Installation and Operation ......... 4

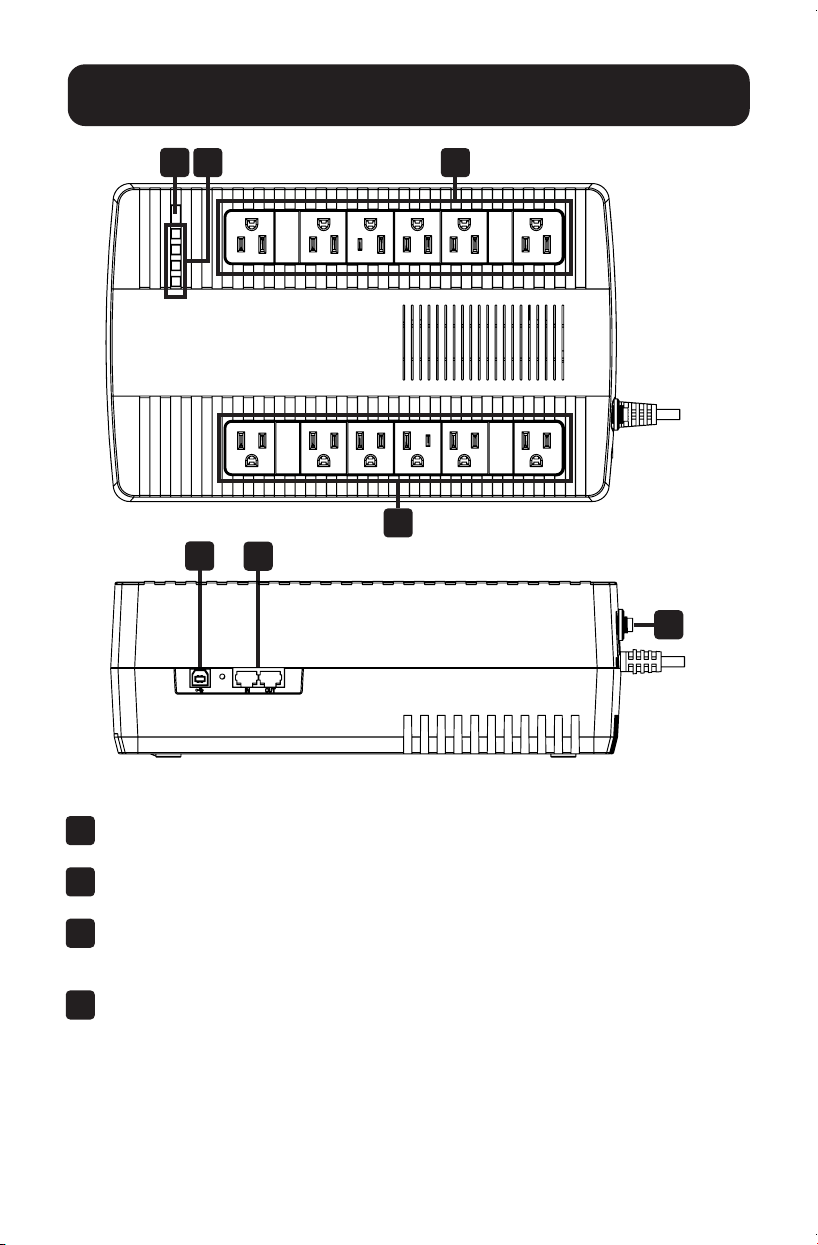

Features ................................... 6

Battery Replacement ............... 7

Storage and Service ................. 8

Speciﬁcations .......................... 9

Product Registration and......... 10

Regulatory Compliance

Español................................... 11

Français

Warnings and Safety Instructions.... 21

Owner’s Manual

1111 W. 35th Street, Chicago, IL 60609 USA • tripplite.com/support

WARRANTY REGISTRATION

automatically entered to win an ISOBAR

surge protector in our monthly drawing!

tripplite.com/warranty

(Series Number AG-0552) (Series Number AG-0553) (Series Number AG-0554)

Not suitable for mobile applications.

Loading ...

File type: PDF

File name: 18034967_omnismart550mx.pdf

File size: 1.11 MB

File Language: English, French, Spanish

Pages: 24

Author: Tripp Lite

File created: 2021-04-05

Published: 2023-11-24

Updated: 2023-12-11

Download File

Specifications

Brand: Tripp Lite

Model: OMNISMART550MX

Category: Computing

Nominal Input Voltage(s) Supported: 120V AC

Input Frequency: 60 Hz (±3%)

Power Factor: 0.6

Nominal Voltage Details: 120v nominal output in AC and battery modes

Frequency Compatibility: 60 Hz

Frequency Compatibility Details: 60 Hz (±3%) tolerance

Output Voltage Regulation (Line Mode): 120V~ (+8% / -15%)

Output Voltage Regulation (Battery Mode): 120V (±5%)

Output AC Waveform (Battery Mode): PWM sine wave

Nominal Output Voltage(s) Supported: 120V

Battery Type: Valve Regulated Lead Acid (VRLA)

DC System Voltage (VDC): 12

Battery Recharge Rate (Included Batteries): 5 hours to 90%

Battery Access: Battery access door

Battery Replacement Description: Replaceable internal batteries (see manual)

Overvoltage Correction: Input voltages between 128 and 152 are cut by 16%

UPS Power Module Dimensions (hwd, in.): 4.14 x 7.48 x 12

UPS Power Module Weight (kg): 5.50

UPS Power Module Weight (lbs.): 12.13

Low Voltage Transfer to Battery Power (Setpoint): 78

High Voltage Transfer to Battery Power (Setpoint): 152

UPS Input Connection Type: 5-15P; Right-Angled

UPS Input Cord Length (ft.): 7

Output Capacity (VA): 550

Output Capacity (kVA): 0.55

Output Capacity (Watts): 340

Output Capacity (kW): 0.34

Output Amp Capacity: 4.6A @ 120V~

Rack Height: 0U

Primary UPS Depth (mm): 305

Primary UPS Height (mm): 105

Primary UPS Width (mm): 190

Shipping Dimensions (hwd / in.): 10.71 x 6.30 x 15.00

Unit Dimensions (hwd / in.): 4.140 x 7.480 x 12.000

Unit Weight (lbs.): 12.130

Runtime Full Load (min.): 3.6 min. (340W)

Runtime Half Load (min.): 10 min. (170W)

Alarm Cancel Operation: Manual alarm-cancel supported

UPS AC Suppression Response Time: Instantaneous

EMI / RFI AC Noise Suppression: Yes

Operating Temperature Range: 32° to 104°F (0° to 40°C)

Storage Temperature Range: 5° to 113°F (-15° to 45°C )

Relative Humidity: 0 to 90%, non-condensing

AC Mode Efficiency Rating (100% Load): >98.3%

AC Economy Mode Efficiency Rating (100% Load): ≥98.3%

Operating Elevation (ft.): 3,000 m above the sea level

Operating Elevation (m): Up to 3000m

Transfer Time: 2-6 milliseconds (typical), 10 milliseconds (max)

Green Energy-Saving Features: Greater than 95% efficiency - GREEN UPS

View in the file: Full Specifications

See other models: OMNISMART500TU OMNISMART500 OMNISMART350HG OMNISMART1050MX OMNI900LCD
