Visit the Frigidaire Web Site at- http://www.frigidaire.com
Over-the-Range
Microwave Oven
with Convenience Pad
Welcome .......................................... 2
Important Safety Instructions ..... 3-6

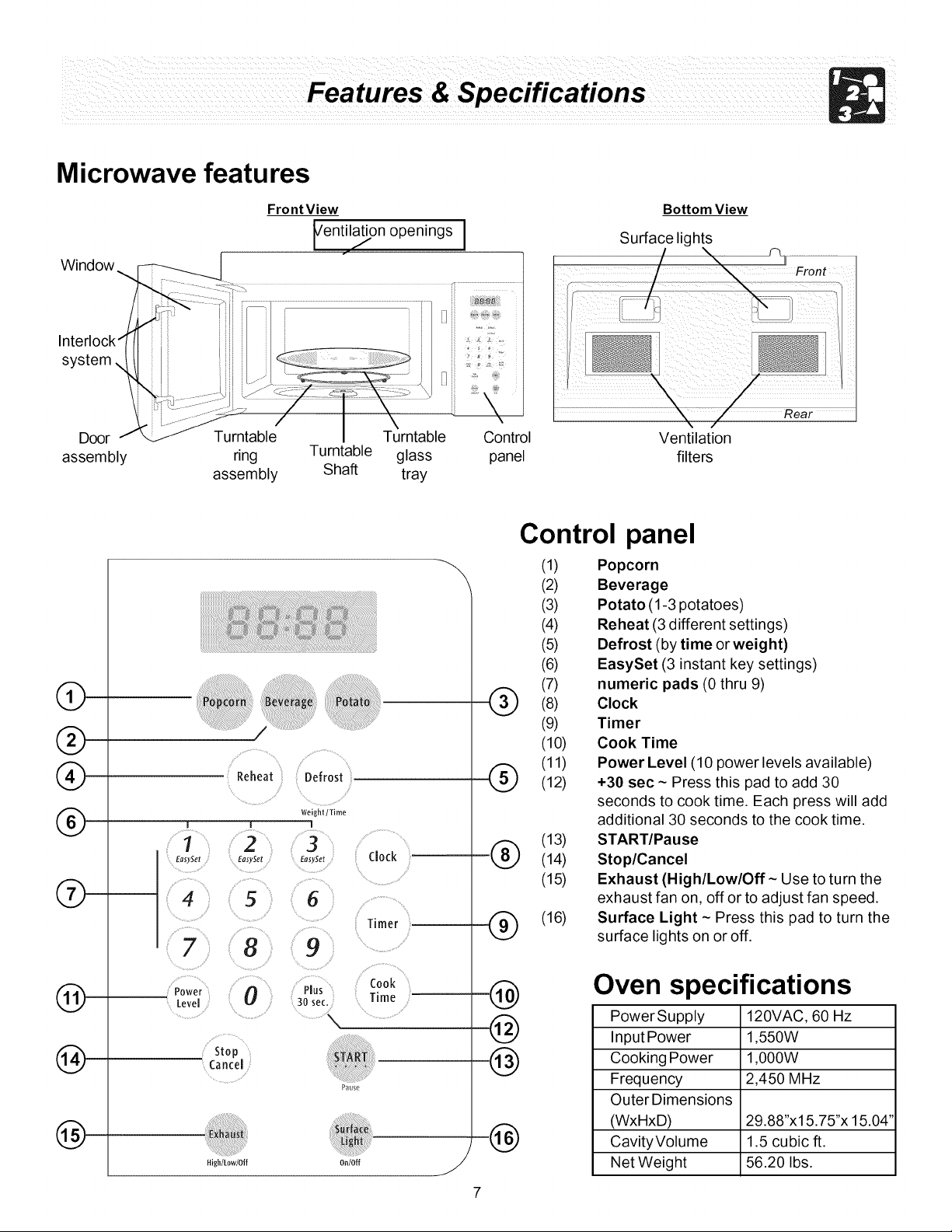

Features and Specifications .......... 7

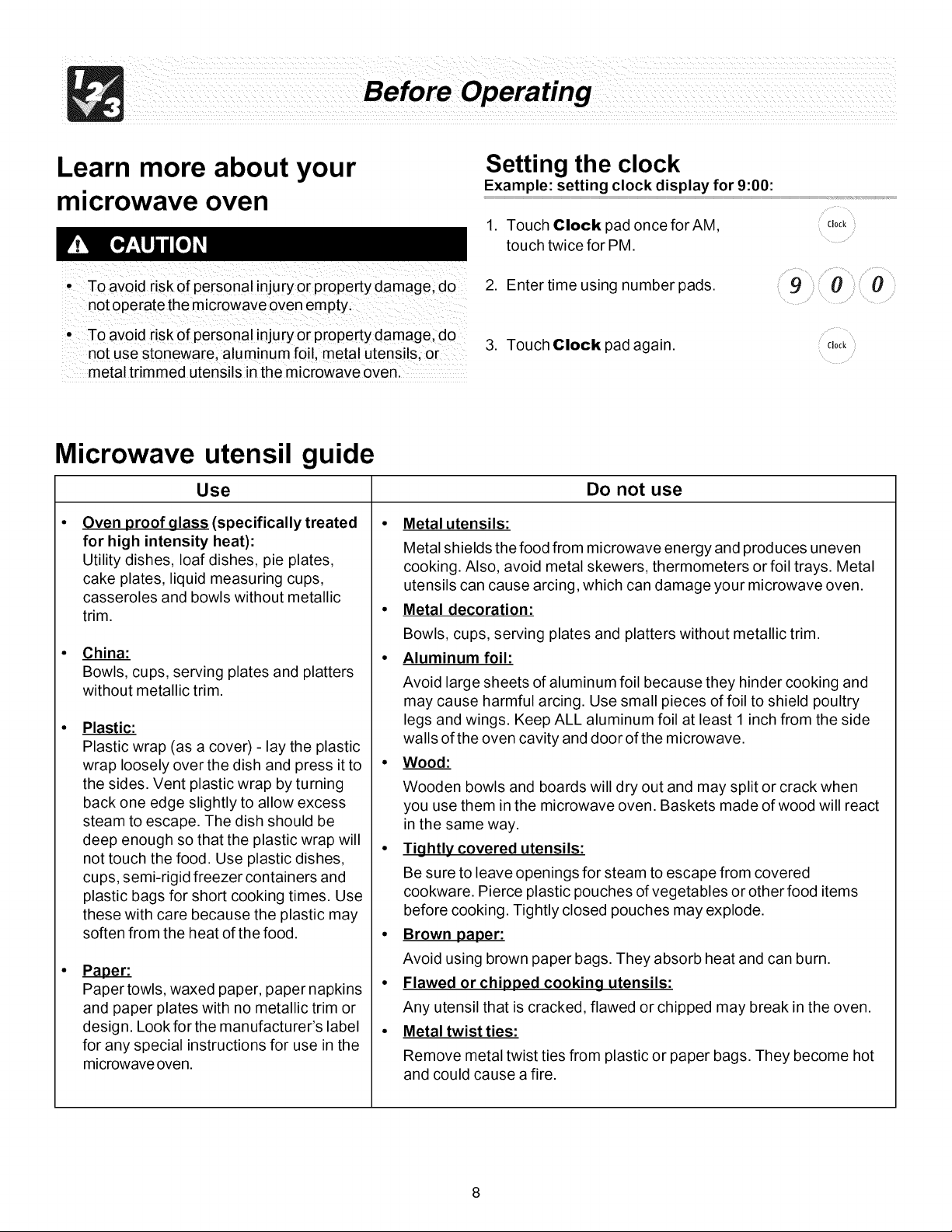

Before Operating ............................ 8

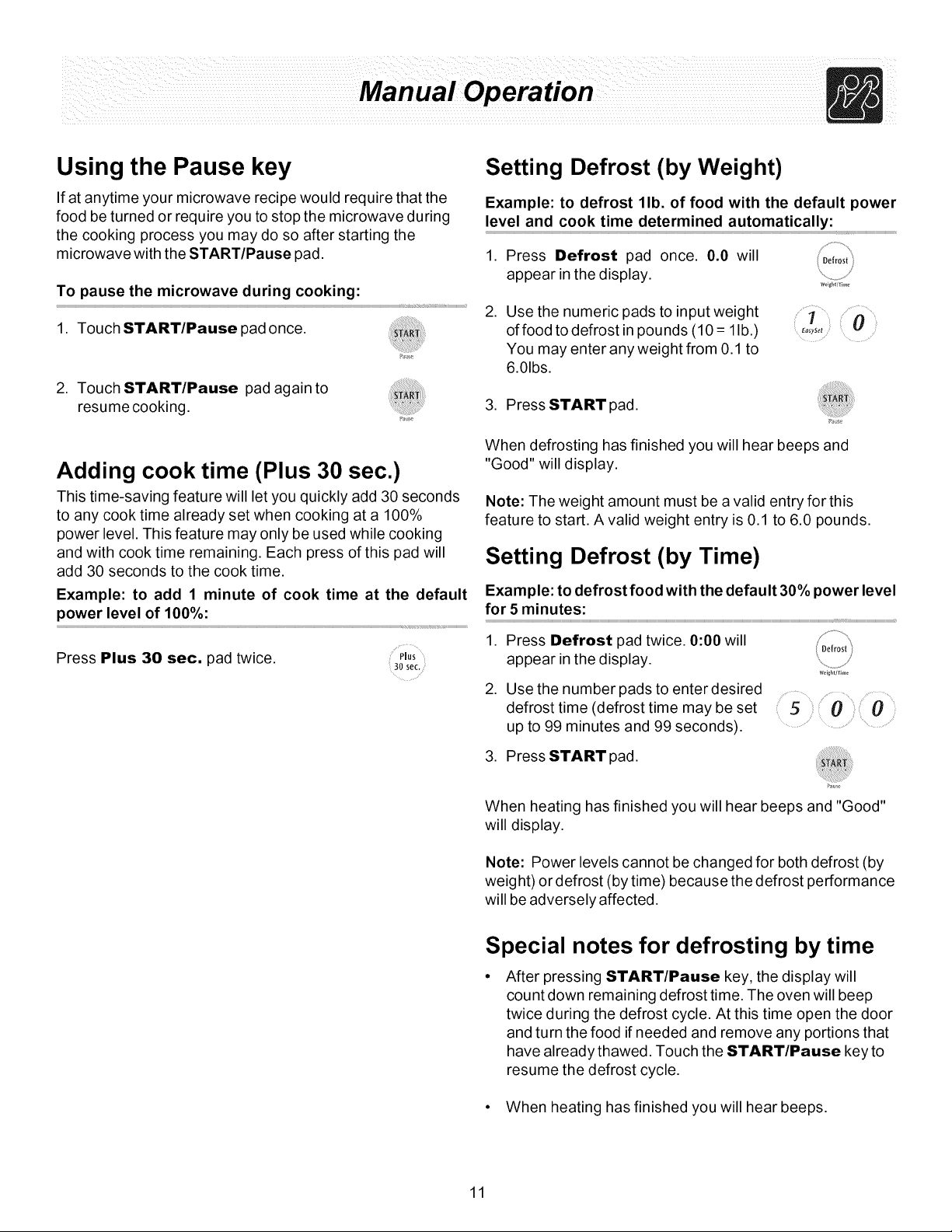

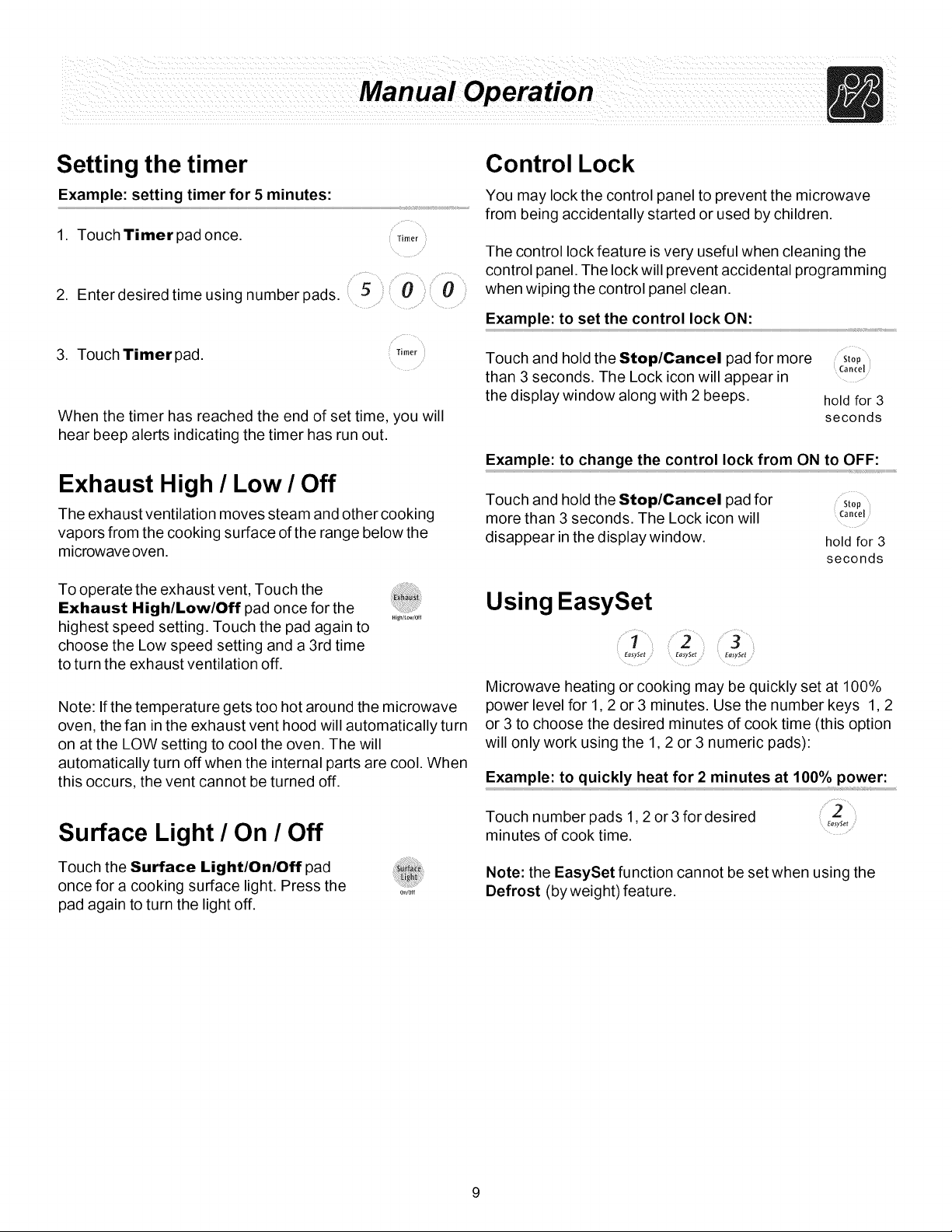

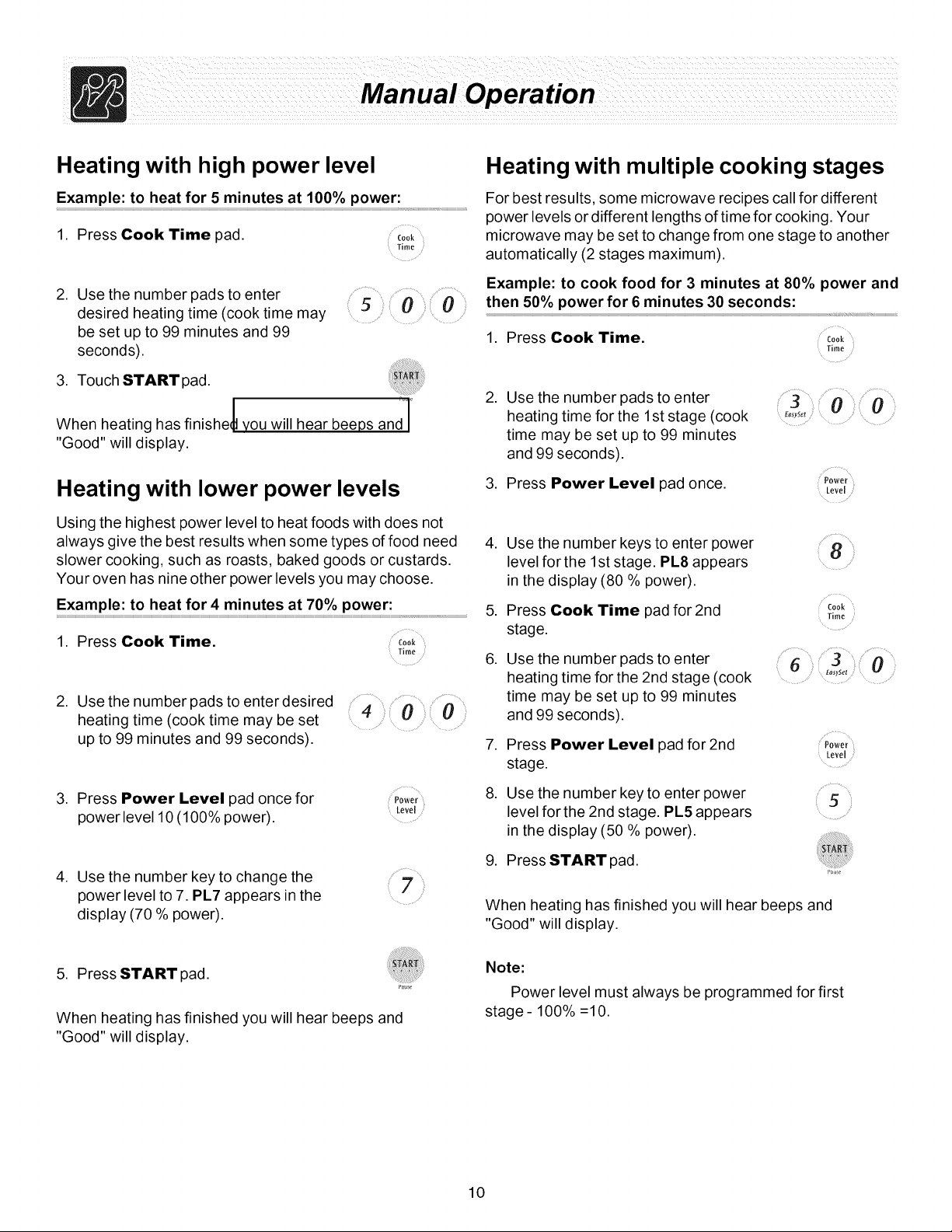

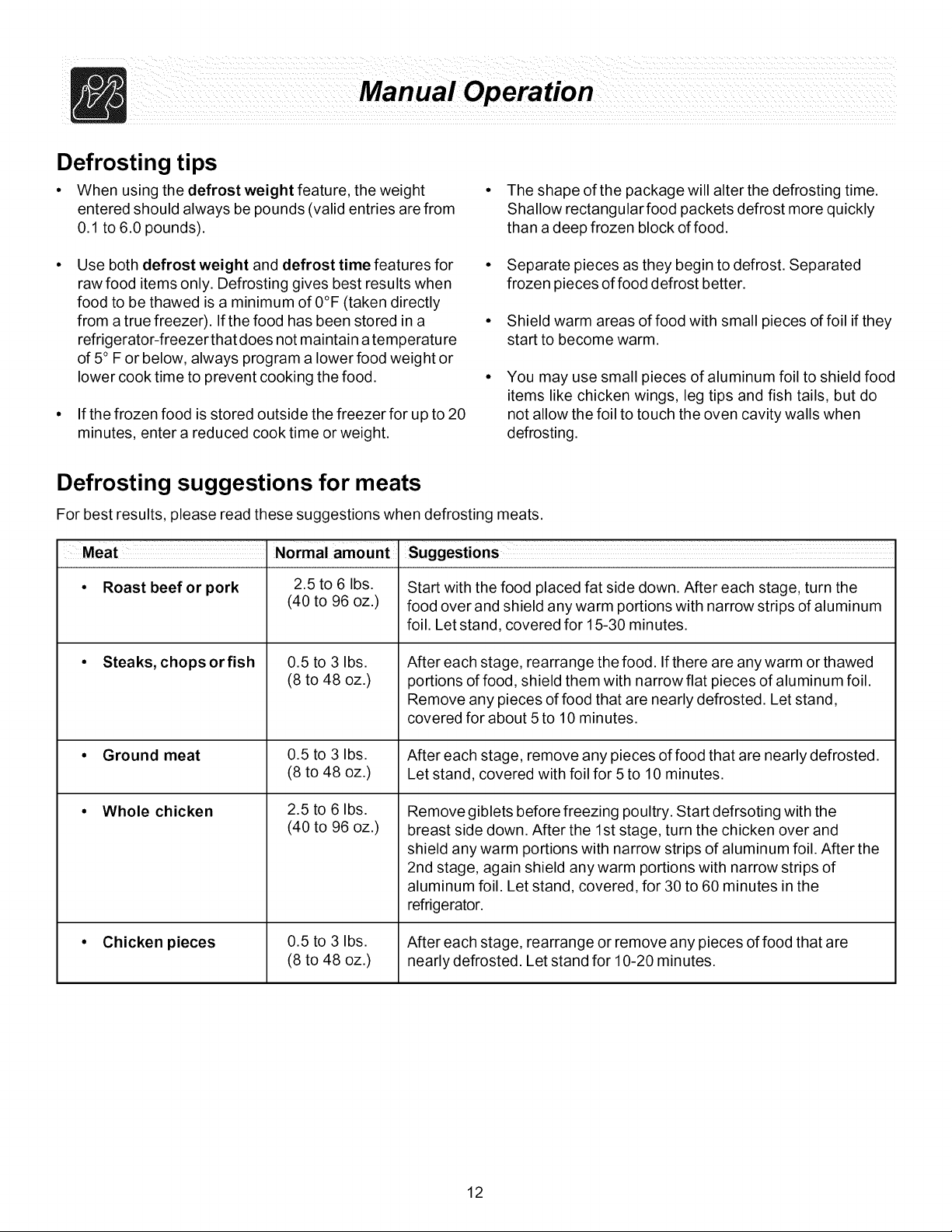

Manual Operation ..................... 9-14

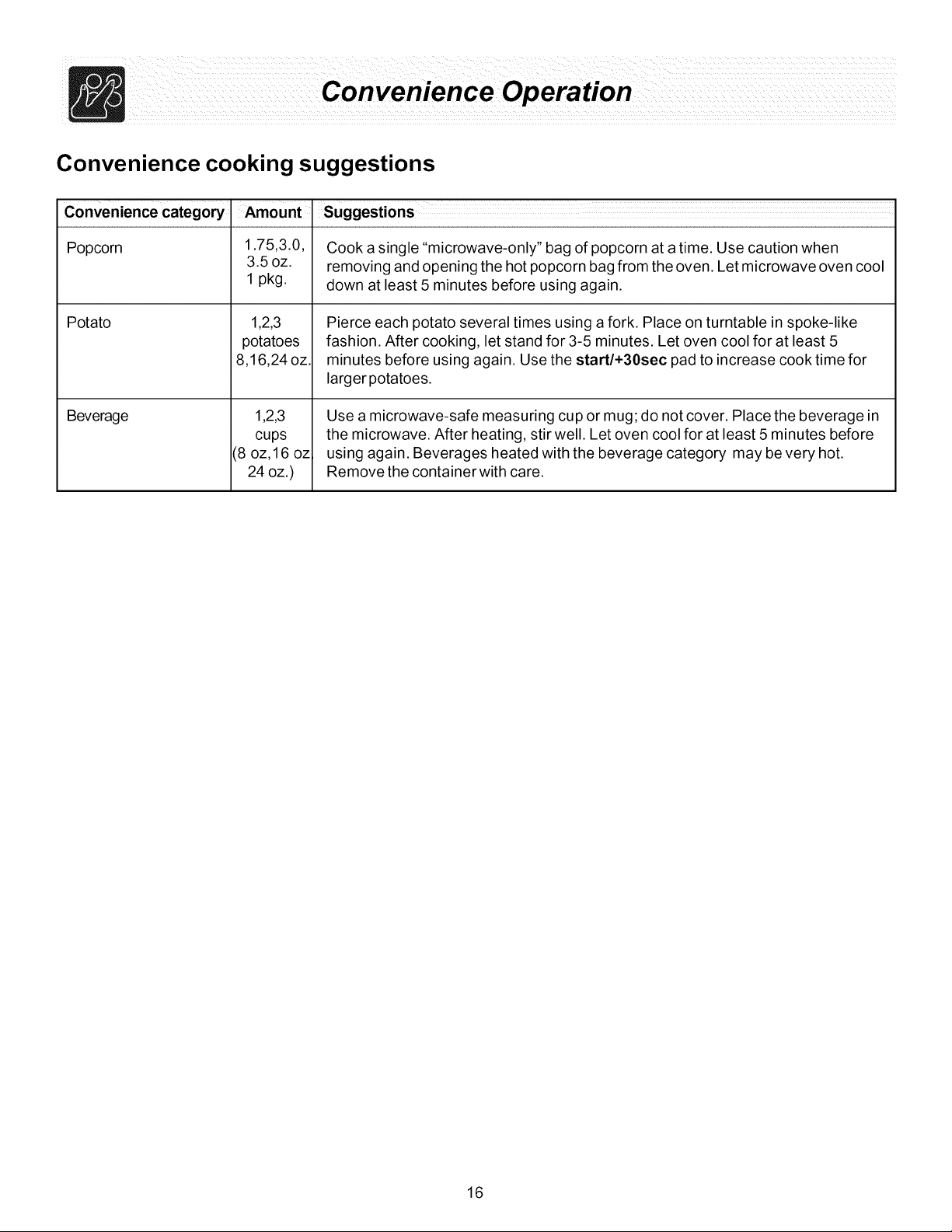

Convenience Operation ......... 15-16

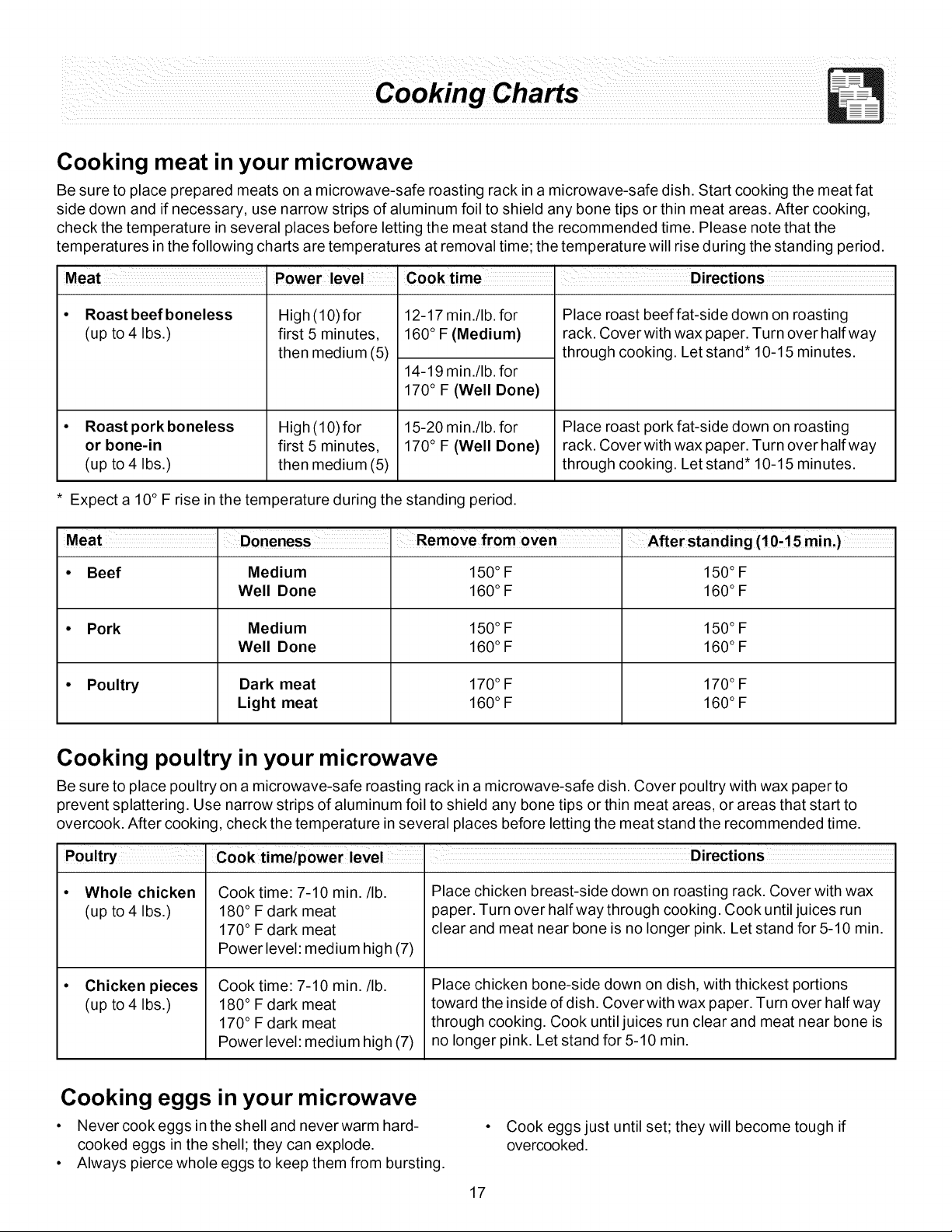

Cooking Charts ...................... 17-18

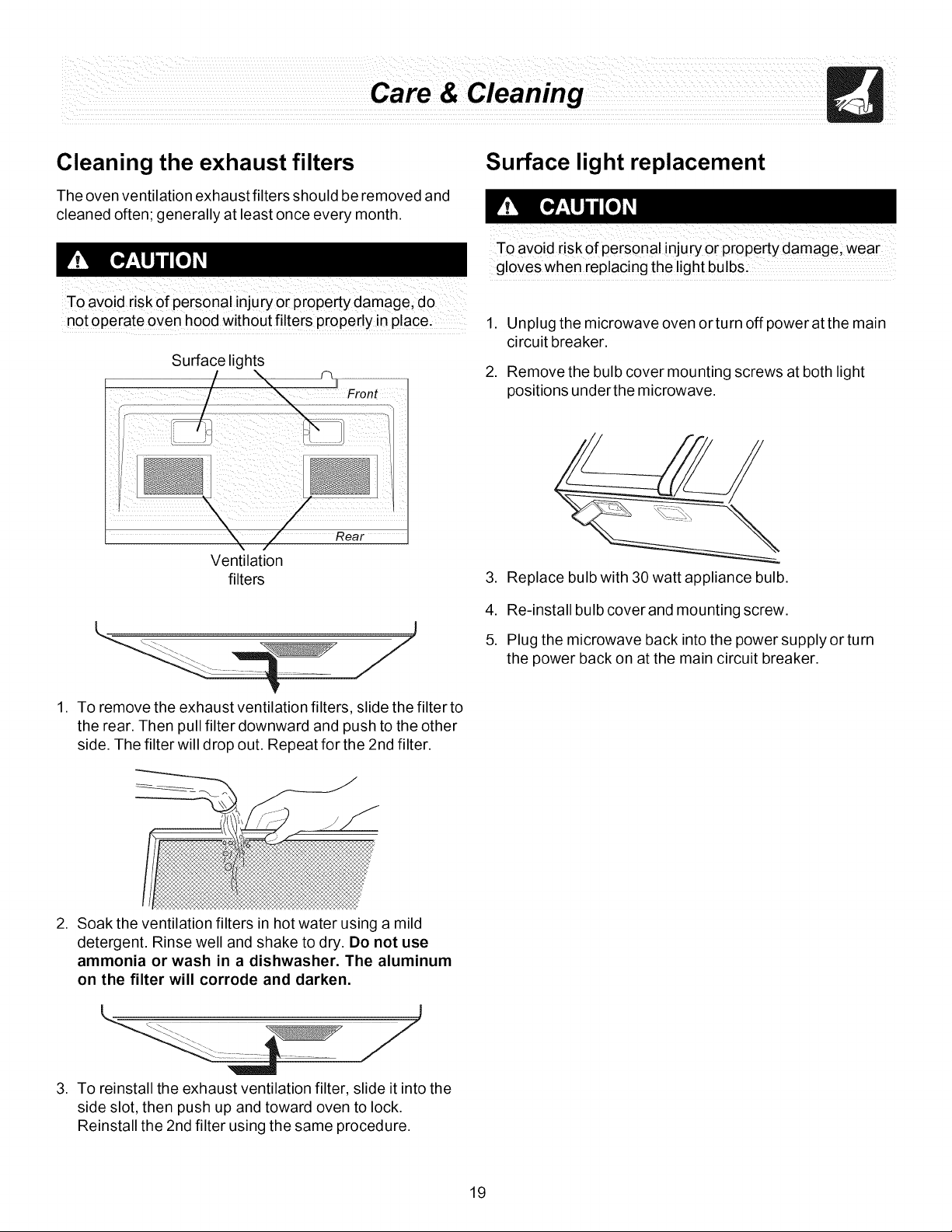

Care & Cleaning ..................... 19-21
Before You Call
Solutions to Common Problems ........................ 22

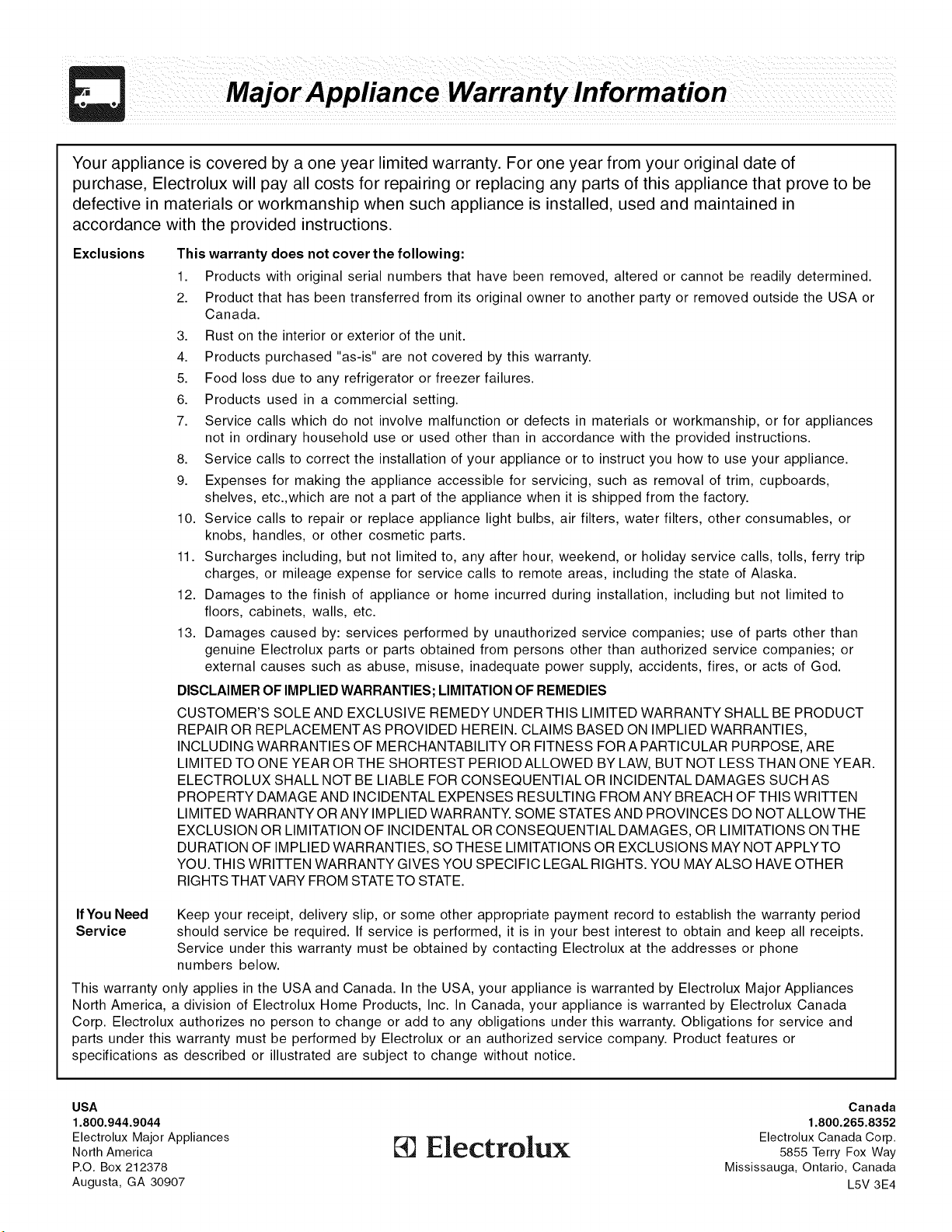

Warranty ......................... Back Page
READ AND SAVE THESE INSTRUCTIONS pin 316495057

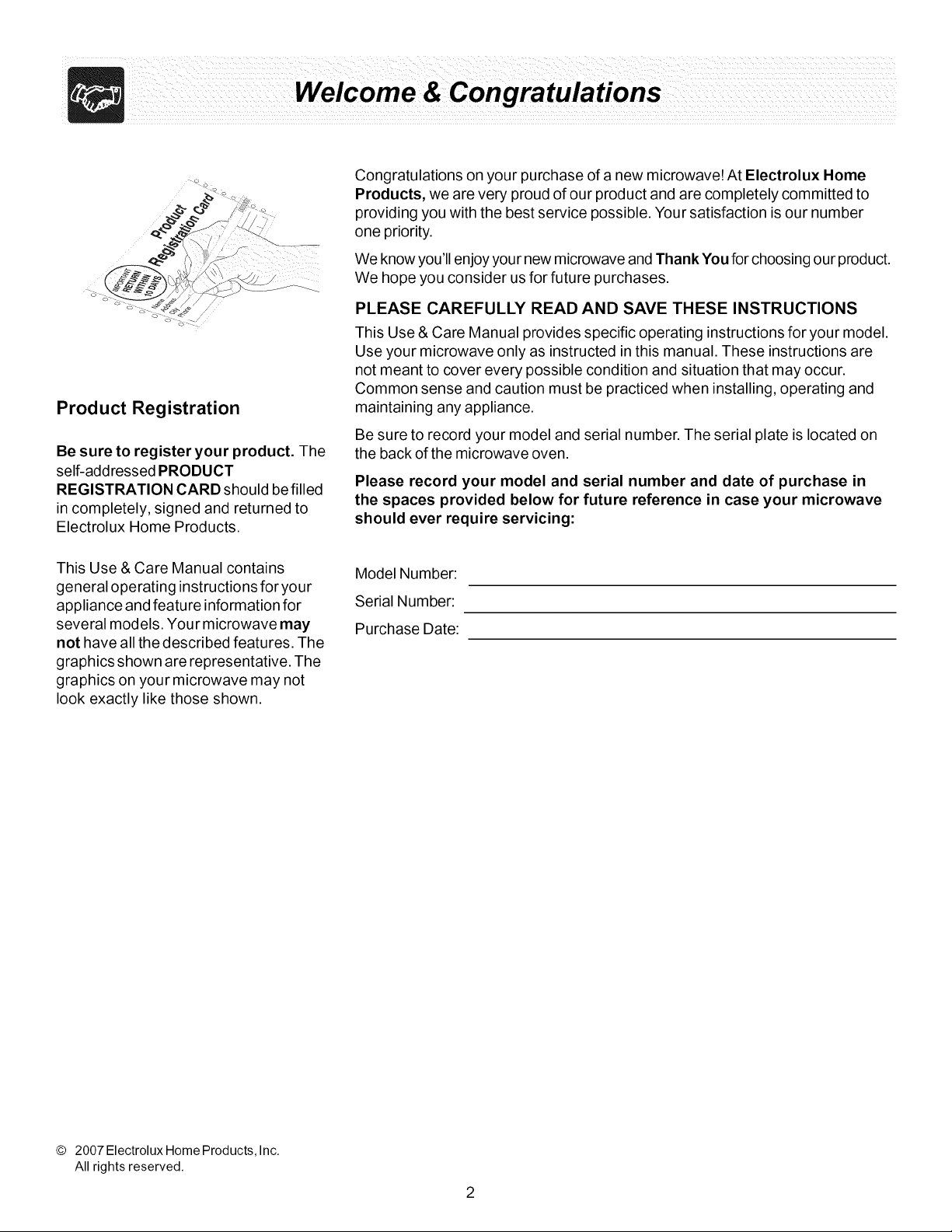

Product Registration
Be sure to register your product. The
self-addressed PRODUCT
REGISTRATION CARD should befilled
in completely, signed and returned to
Electrolux Home Products.
Congratulations on your purchase of anew microwave! At Electrolux Home
Products, we are very proud of our product and are completely committed to
providing you with the best service possible. Your satisfaction is our number
one priority.
We know you'll enjoy your new microwave and Thank You for choosing our product.
We hope you consider us for future purchases.
PLEASE CAREFULLY READ AND SAVE THESE INSTRUCTIONS
This Use & Care Manual provides specific operating instructions for your model.
Use your microwave only as instructed in this manual. These instructions are
not meant to cover every possible condition and situation that may occur.
Common sense and caution must be practiced when installing, operating and
maintaining any appliance.
Be sure to record your model and serial number. The serial plate is located on
the back of the microwave oven.
Please record your model and serial number and date of purchase in
the spaces provided below for future reference in case your microwave
should ever require servicing:
This Use & Care Manual contains
general operating instructions for your
appliance and feature information for
several models. You r microwave may
not have all the described features. The
graphics shown are representative. The
graphics on your microwave may not
look exactly like those shown.
Model Number:
Serial Number:
Purchase Date:
© 2007 Electrolux Home Products, Inc.
All rights reserved,

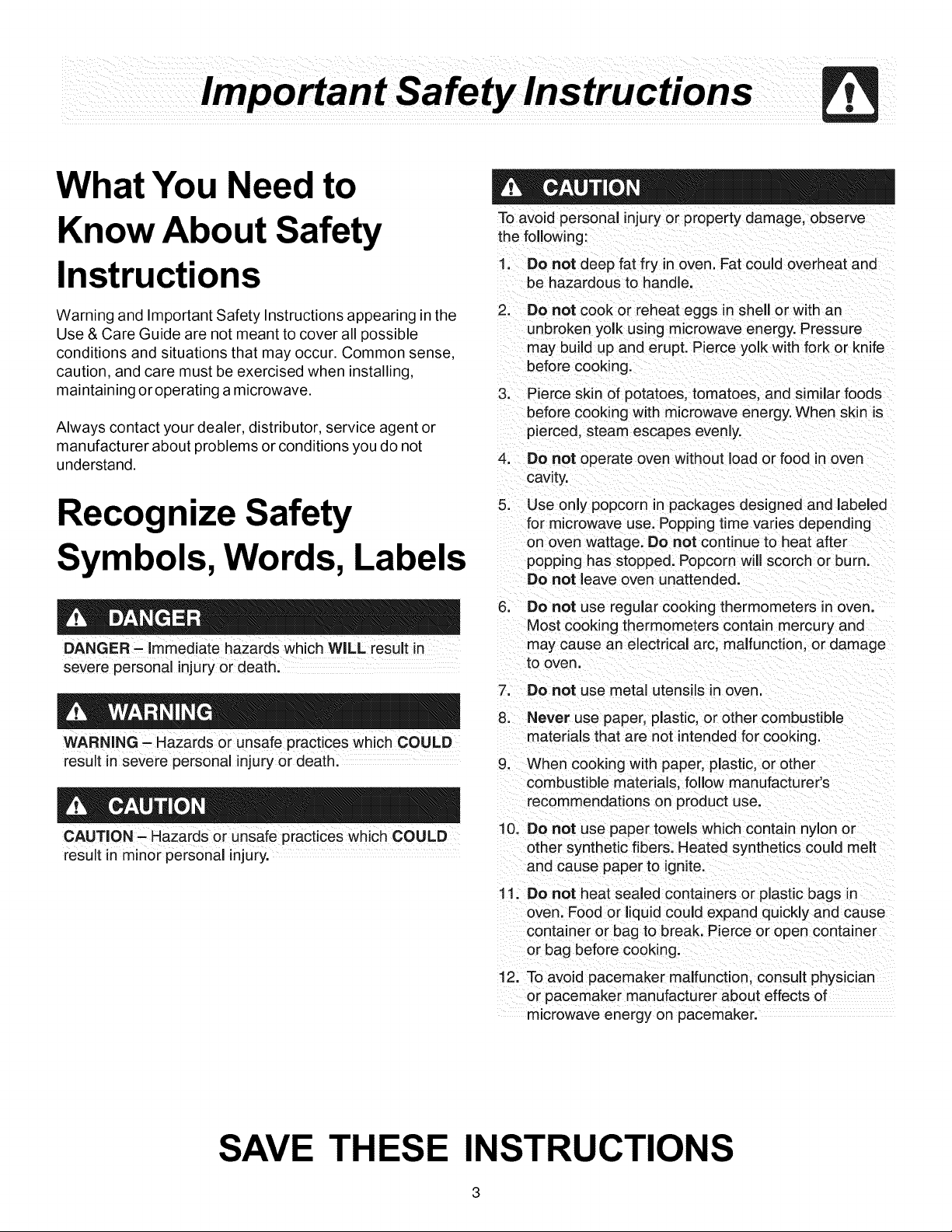

What You Need to
Know About Safety
Instructions
Warning and Important Safety Instructions appeanng in the
Use & Care Guide are not meant to cover all possible
conditions and situations that may occur. Common sense.
caution, and care must be exercised when installing,
maintaining oroperating a m_crowave.
Always contact your dealer, distributor, service agent or
manufacturer about problems or conditions you do not
understand.
Recognize Safety
Symbols, Words, Labels
DANGER - Immediate hazards which WiLL result in
severe personal injury or death.
WARNING - Hazards or unsafe practices which COULD
result in severe personal injury or death.
CAUTION - Hazards or unsafe practices which COULD
result in minor personal injury.
To avoid personal injuryor property damage, observe
the following:
1. Do not deep fat fry inoven. Fat could overheat and
be hazardous to handle.
2. Do not cook or reheat eggs in shell or with an
unbroken yolk using microwave energy. Pressure
may build up and erupt. Pierce yolk with fork or knife
before cooking.
3. Pierce skin of potatoes, tomatoes, and similar foods
efore cooking with microwave energy. When skin is
ierced, steam escapes evenly.
4. Do not operate oven without load or food in oven
cavity.
.
Use only popcorn =npackages designed and labeled
for microwave use. Popping time varies depending
on oven wattage. Do not continue to heat after
popping has stopped. Popcorn will scorch or burn.
Do not leave oven unattended.
6. Do not use regular cooking thermometers in oven.
Most cooking thermometers contain mercury and
may cause an electrical arc, malfunction, or damage
to oven.
7. Do not use metal utensils in oven.
8. Never use paper, plastic, or other combustible
materials that are not intended for cooking.
9. When cooking with paper, plastic, or other
combustible materials, follow manufacturer's
recommendations on product use.
10. Do not use paper towels which contain nylon or
other synthetic fibers. Heated synthetics could melt
and cause paper to ignite.
11.
12.
Do not heat sealed containers or plastic bags in
oven. Food or liquidcould expand quickly and cause
container or bag to break. Pierce or open container
or bag before cooking.
To avoid pacemaker malfunction, consult physician
or pacemaker manufacturer about effects of
microwave energy on pacemaker.
SAVE THESE INSTRUCTIONS

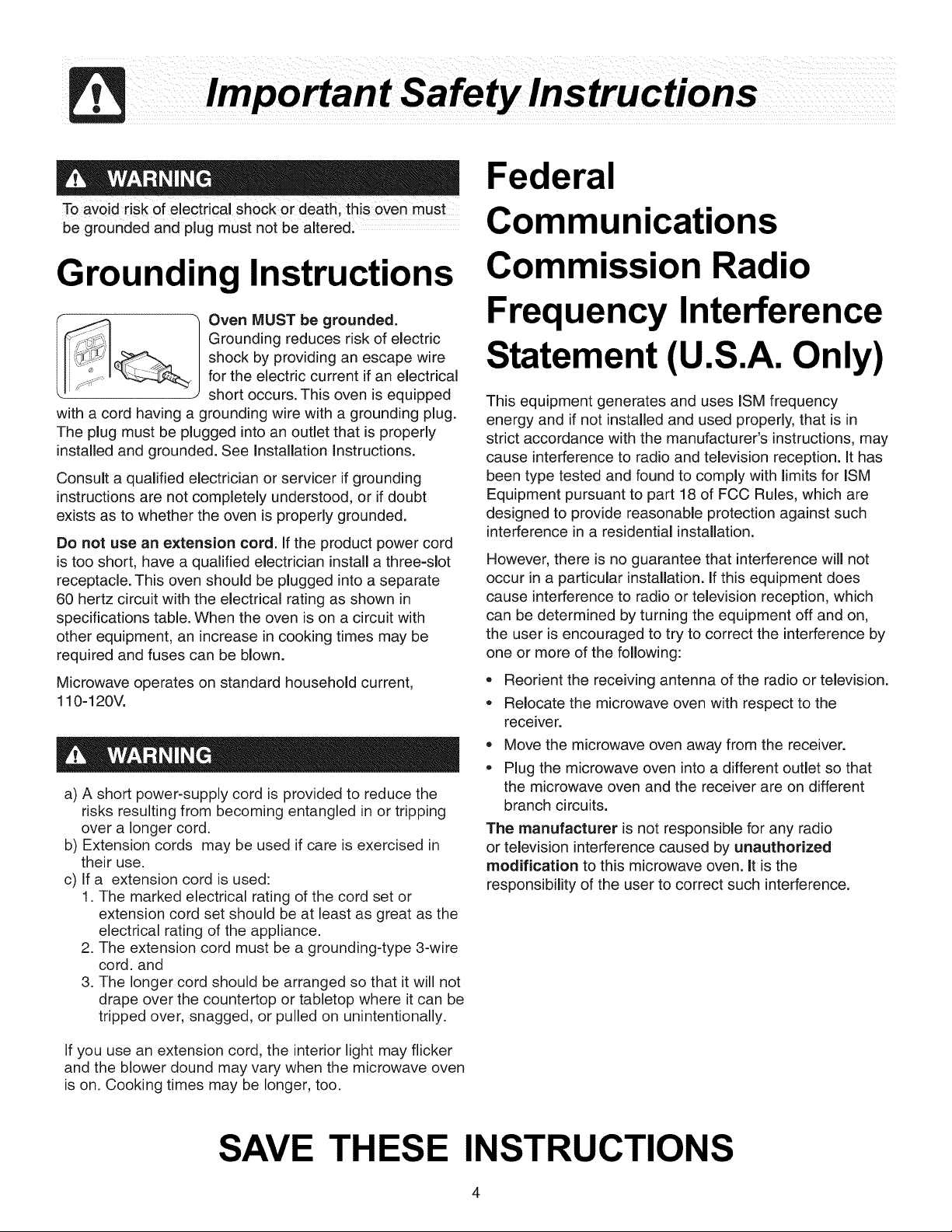

To avoid risk of eJectrical shock or deathl this 0yen must
be grounded and plug must not be aJtered, .........
Grounding Instructions
__ ven MUST be grounded.
Grounding reduces risk of eJectric
shock by providing an escape wire
for the electric current if an eJectricaJ
short occurs. This oven is equipped
with a cord having a grounding wire with a grounding plug.
The pJug must be pJugged intoan outlet that is properly
instalJedand grounded. See JnstalJationinstructions.
Consult a quaJified eJectrician or servicer if grounding
instructions are not completeJy understood, or if doubt
exists as to whether the oven is properJy grounded.
Do not use an extension cord. If the product power cord
is too short, have a qualified eJectrician instalJa three=sJot
receptacle. This oven shouJd be pJugged intoa separate
60 hertz circuit with the eJectrical rating as shown in
specifications table. When the oven ison a circuit with
other equipment, an increase in cooking times may be
required and fuses can be bJown.
Microwave operates on standard househoJd current,
110=120V.
Federal
Communications
Commission Radio
Frequency Interference
Statement (U.S.A. Only)
This equipment generates and uses JSMfrequency
energy and if not installed and used properly, that is in
strict accordance with the manufacturer's instructions, may
cause interference to radio and teJevision reception. Jthas
been type tested and found to comply with Jimitsfor JSM
Equipment pursuant to part 18 of FCC Rules, which are
designed to provide reasonable protection against such
interference in a residential instaJJation.
However, there is no guarantee that interference will not
occur in a particular installation, if this equipment does
cause interference to radio or teJevision reception, which
can be determined by turning the equipment off and on,
the user isencouraged to try to correct the interference by
one or more of the foJJowing:
. Reorient the receiving antenna of the radio or teJevision.
* ReJocate the microwave oven with respect to the
receiver.
o
a) A short power-supply cord is provided to reduce the
risks resulting from becoming entangled in or tripping
over a longer cord.
b) Extension cords may be used ifcare isexercised in
their use.
c) Ifa extension cord is used:
1. The marked electrical rating of the cord set or
extension cord set should be at least as great as the
electrical rating of the appliance.
2. The extension cord must be a grounding-type 3-wire
cord. and
3. The longer cord should be arranged so that itwill not
drape over the countertop or tabletop where itcan be
tripped over, snagged, or pulled on unintentionally.
Ifyou use an extension cord, the interior light may flicker
and the blower dound may vary when the microwave oven
is on. Cooking times may be longer, too.
Move the microwave oven away from the receiver.
Plug the microwave oven into a different outlet so that
the microwave oven and the receiver are on different
branch circuits.
The manufacturer is not responsibJe for any radio
or teJevision interference caused by unauthorized
modification to this microwave oven. it isthe
responsibiJity of the user to correct such interference.
SAVE THESE INSTRUCTIONS

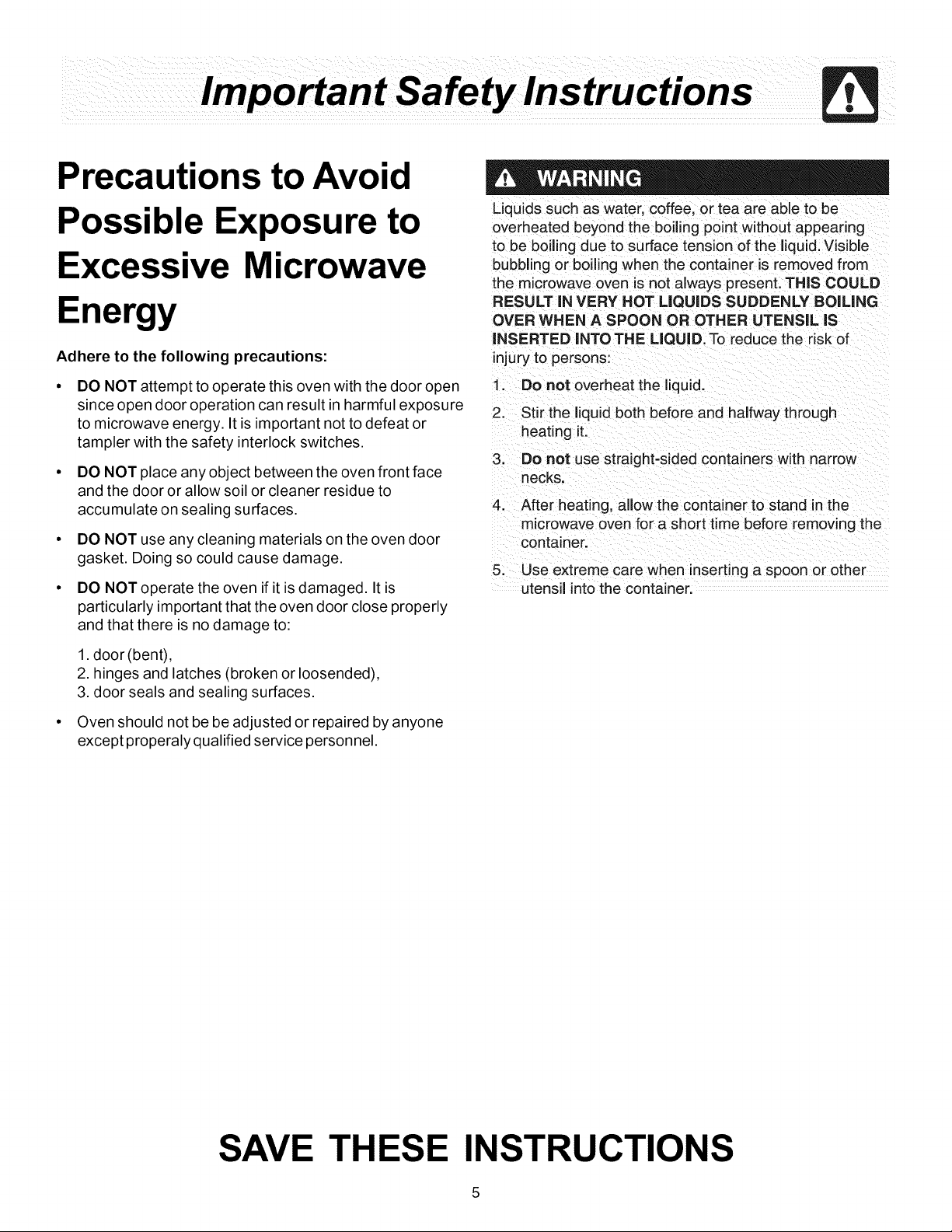

Precautions to Avoid
Possible Exposure to
Excessive Microwave
Energy
Adhere to the following precautions:
DO NOT attempt to operate this oven with the door open
since open door o#eration can result in harmful exposu re
to microwave energy. It is important not to defeat or
tampler with the safety interlock switches.
DO NOT place any object between the oven front face
and the door or allow soil or cleaner residue to
accumulate on sealing surfaces.
DO NOT use any cleaning materials on the oven door
gasket. Doing so could cause damage.
DO NOT operate the oven if it is damaged. It is
particularly important that the oven door close properly
and that there is no damage to:
1. door(bent),
2. hinges and latches (broken or Ioosended),
3. door seals and sealing surfaces.
Oven should not be be adjusted or repaired by anyone
except properaly qualified service personnel.
Liquids such as water, coffee, or tea are able to be
overheated beyond the boiling point without appearing
to be boiling due to surface tension of the liquid.Visible
bubbling or boiling when the container is removed from
the microwave oven is nol always present. THIS COULD
RESULT IN VERY HOT LIQUIDS SUDDENLY BOILING
OVER WHEN A SPOON OR OTHER UTENSIL iS
INSERTED iNTO THE LIQUID. To reduce the risk of
injury to persons:
1. Do not overheat the liquid.
2. Stir the liquid both before and halfway through
heating it.
3. Do not use straight-sided containers with narrow
necks.
4. After heating, allow the container to stand in the
microwave oven for a short time before removing the
container.
5. Use extreme care when inserting a spoon or other
utensil into the container.
SAVE THESE INSTRUCTIONS

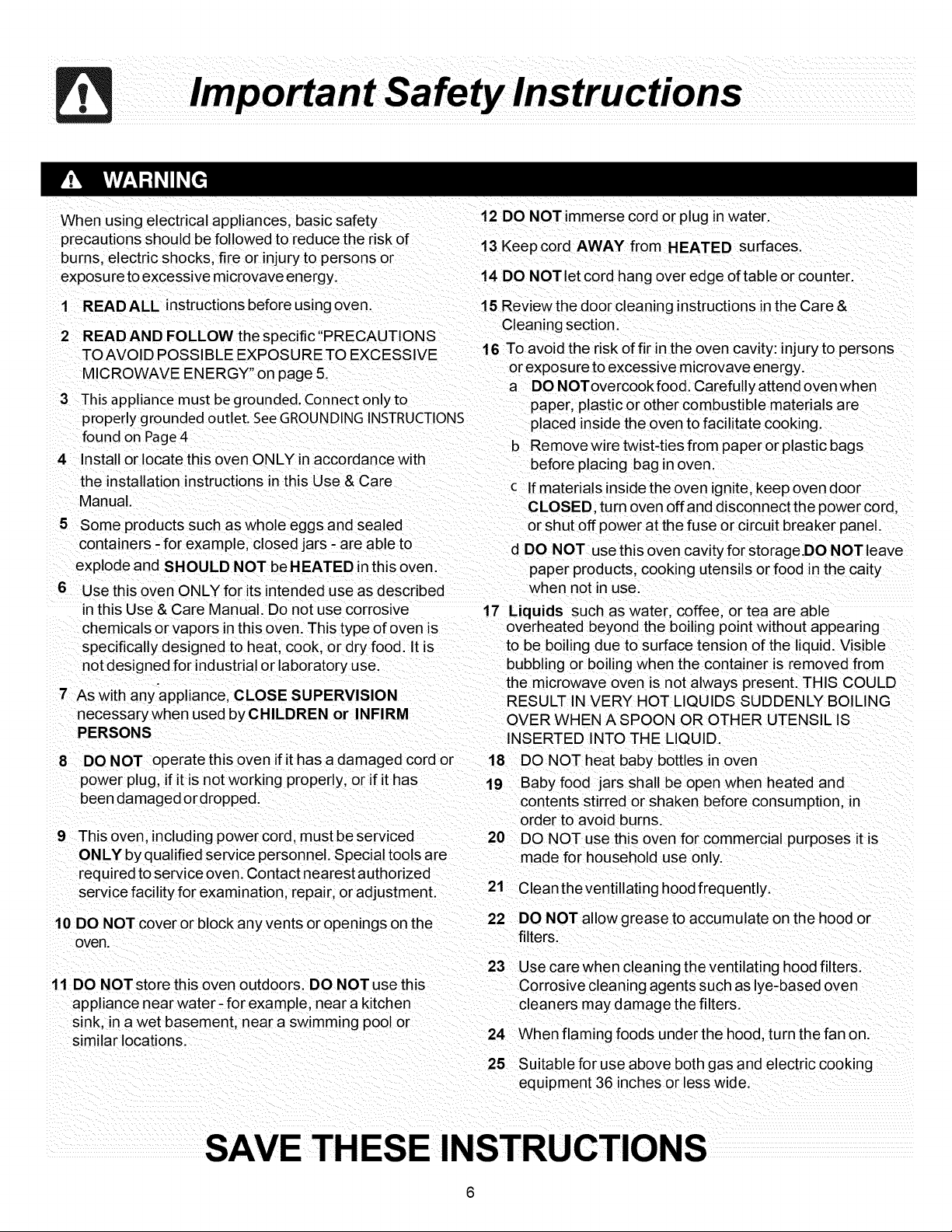

When using electrical appliances, basic safety
precautions should be followed to reduce the risk of
burns, electric shocks, fire or injury to persons or
exposure to excessive microvave energy.
12 DO NOT immerse cord or plug in water.
13 Keepcord AWAY from HEATED surfaces.
14 DO NOT let cord hang over edge of table or counter.
1 READ ALL instructions before using oven. 15 Review the door cleanin g instructions inthe Care &
Cleaning section.
2 READ AND FOLLOW the specific"PRECAUTION S
TO AVOID POSSIBLE EXPOSURETO EXCESSIVE 16 To avoid the risk of fir in the oven cavity: injury to persons
MICROWAVE ENERGY" on page 5.
3 This appliance must be grounded. Connect only to
properly grounded outlet. See GROUNDINGINSTRUCTIONS
found on Page4
4 Install or locate this oven ONLY in accordance with
the installation instructions in this Use & Care
Manual.
5 Some products such as whole eggs and sealed
containers -for example, closed jars - are able to
explode and SHOULD NOT beHEATED in this oven.
6 Use this oven ONLY for its intended use as described
in this Use & Care Manual. Do not use corrosive
chemicals or vapors in this oven. This type of oven is
specifically designed to heat, cook, or dry food. It is
not designed for industrial or laboratory use.
7 As with anyappliance, CLOSE SUPERVISION
necessary when used by CHILDREN or INFIRM
PERSONS
8 DO NOT operate this oven if it has a damaged cord or
power plug, if it is not working properly, or if it has
been damaged or dropped.
or exposure to excessive microvave energy.
a DONOTovercookfood.Carefullyattendovenwhen
paper, plastic or other combustible materials are
placed inside the oven to facilitate cooking.
b Remove wire twist-ties from paper or plastic bags
before placing bag in oven.
c If materials inside the oven ignite, keep oven door
CLOSED, turn oven off and disconnect the power cord,
or shut off power at the fuse or circuit breaker panel.
d DO NOT use this oven cavity for storage.DO NOT leave
paper products, cooking utensils or food in the caity
when not in use.
17 Liquids such as water, coffee, or tea are able
overheated beyond the boiling point without appearing
to be boiling due to surface tension of the liquid. Visible
bubbling or boiling when the container is removed from
the microwave oven is not always present. THIS COULD
RESULT IN VERY HOT LIQUIDS SUDDENLY BOILING
OVER WHEN A SPOON OR OTHER UTENSIL IS
INSERTED INTO THE LIQUID.
18 DO NOT heat baby bottles in oven
19 Baby food jars shall be open when heated and
contents stirred or shaken before consumption, in
order to avoid burns.
This oven, including power cord, must be serviced 20 DO NOT use this oven for commercial purposes it is
NLY by qualified service personnel. Special tools are made for household use only.
required to service oven. Contact nearest authorized
service facility for examination, repair, or adjustment. 21 Clean the ventillating hood frequently.
10 DO NOT cover or block any vents or openings on the
oven.
22 DO NOT allow grease to accumulate on the hood or
filters.
11 DO NOT store this oven outdoors. DO NOT use this
appliance near water -for example, near a kitchen
sink, in a wet basement, near a swimming pool or
similar locations.
23 Use care when cleaning the ventilating hood filters.
Corrosive cleaning agents such as lye-based oven
cleaners may damage the filters.
24 When flaming foods underthe hood, turn the fan on.
25 Suitable for use above both gas and electric cooking
equipment 36 inches or less wide.
SAVE THESE INSTRUCTIONS
Microwave features
Window
FrontView
Ven_, _'°n °penings I
system ,,
BottomView
Surface lights
Front
Door Turntable Turntable Control Ventilation
assembly ring Turntable glass panel filters
assembly Shaft tray
d>-
®
®
®
Q
®
@
Reheat Defrost
9
Weight/Time
i I
Power
Level
/. ....
PII,Is
30 sec.
Stop
Cancel
Clock
Timer
Cook
Tirne
x ..... ,/'
Pause
High/Low/0ff
On/Off
./
®
®
®
-@
@
-@
@
Control panel
(1)
(2)
(3)
(4)
(5)
(6)
(7)
(8)
(9)
(10)
(11)
(12)
(13)
(14)
(15)
(16)
Popcorn
Beverage
Potato (1-3 potatoes)
Reheat (3 different settings)
Defrost (by time or weight)
EasySet (3 instant key settings)
numeric pads (0 thru 9)
Clock
Timer
Cook Time
Power Level (10 power levels available)
+30 sec ~ Press this pad to add 30
seconds to cook time. Each press will add
additional 30 seconds to the cook time.
START/Pause
Stop/Cancel
Exhaust (High/Low/Off ~ Use to turn the
exhaust fan on, off or to adjust fan speed.
Surface Light ~ Press this pad to turn the
surface lights on oroff.
Oven specifications
PowerSupply 120VAC, 60 Hz
Input Power 1,550W
Cooking Power 1,000W
Frequency 2,450 MHz
Outer Dimensions
(WxHxD) 29.88"xl 5.75"x 15.04"
CavityVolume 1.5 cubic ft.
Net Weight 56.20 Ibs.
Be ore Operating
Learn more about your
microwave oven
Setting the clock
Example: setting clock display for 9:00:
Clock
I. Touch Clock pad onceforAM,
touch twice for PM.
,To avoid risk of personal injury or property damage do
not operate the microwaVe oven empty
To avoid risk of personal injury or property damage, do
not use stoneware, a uminum foil, metal utensils, or
metal trimmed utensils in the microwave ovenl
2. Enter time using number pads.
3. Touch Clock pad again.
Clock
Microwave utensil guide
Use
Oven Droof glass (specifically treated
for high intensity heat):
Utility dishes, loaf dishes, pie plates,
cake plates, liquid measuring cups,
casseroles and bowls without metallic
trim.
China:
Bowls, cups, serving plates and platters
without metallic trim.
Plastic:
Plastic wrap (as a cover) - lay the plastic
wrap loosely over the dish and press it to
the sides. Vent plastic wrap by turning
back one edge slightly to allow excess
steam to escape. The dish should be
deep enough so that the plastic wrap will
not touch the food. Use plastic dishes,
cups, semi-rigid freezer containers and
plastic bags for short cooking times. Use
these with care because the plastic may
soften from the heat of the food.
P___per:
Paper towls, waxed paper, paper napkins
and paper plates with no metallic trim or
desig n. Look for the manufacturer's label
for any special instructions for use in the
microwave oven.
Do not use
* Metal utensils:
Metal shields the food from microwave energy and produces uneven
cooking. Also, avoid metal skewers, thermometers or foil trays. Metal
utensils can cause arcing, which can damage your microwave oven.
* Metal decoration:
Bowls, cups, serving plates and platters without metallic trim.
* Aluminum foil:
Avoid large sheets of aluminum foil because they hinder cooking and
may cause harmful arcing. Use small pieces of foil to shield poultry
legs and wings. Keep ALL aluminum foil at least 1 inch from the side
walls of the oven cavity and doorofthe microwave.
* Wood:
Wooden bowls and boards will dry out and may split or crack when
you use them in the microwave oven. Baskets made of wood will react
in the same way.
* Tightly covered utensils:
Be sure to leave openings for steam to escape from covered
cookware. Pierce plastic pouches of vegetables or other food items
before cooking. Tightly closed pouches may explode.
* Brown _DaDer:
Avoid using brown paper bags. They absorb heat and can burn.
* Flawed or chiDDed cooking utensils:
Any utensil that is cracked, flawed or chipped may break in the oven.
. Metal twist ties:
Remove metal twist ties from plastic or paper bags. They become hot
and could cause a fire.
Setting the timer
Example: setting timer for 5 minutes:
1. Touch Timer pad once. Timer
//
2. Enter desired time using number pads. ( .5 / .0 0
3. Touch Timer pad.
Timer
When the timer has reached the end of set time, you will
hear beep alerts indicating the timer has run out.
Exhaust High / Low / Off
The exhaust ventilation moves steam and other cooking
vapors from the cooking surface ofthe range below the
microwave oven.
To operate the exhaust vent, Touch the
Exhaust High/Low/Off pad once for the
highest speed setting. Touch the pad again to
choose the Low speed setting and a 3rd time
to turn the exhaust ventilation off.
Note: If the temperature gets too hot around the microwave
oven, the fan in the exhaust vent hood will automatically turn
on at the LOW setting to cool the oven. The will
automatically turn off when the internal parts are cool. When
this occurs, the vent cannot be turned off.
Surface Light / On / Off
Touch the Surface Light/On/Off pad
once for a cooking surface light. Press the
pad again to turn the light off.
Control Lock
You may lock the control panel to prevent the microwave
from being accidentally started or used by children.
The control lock feature isvery useful when cleaning the
control panel. The lock will prevent accidental programming
when wiping the control panel clean.
Example: to set the control lock ON:
Touch and hold the Stop/Cancel pad for more stop
Cancel
than 3 seconds. The Lock icon will appear in
the display window along with 2 beeps.
hold for 3
seconds
Example: to change the control lock from ON to OFF:
Touch and hold the Stop/Cancel pad for stop
more than 3 seconds. The Lock icon will c..ce=
disappear inthe display window.
hold for 3
seconds
Using EasySet
-2 "3
" r.asvSetj Ea_ySet /
Microwave heating or cooking may be quickly set at 100%
power level for 1,2 or 3 minutes. Use the number keys 1,2
or 3 to choose the desired minutes of cook time (this option
will only work using the 1,2 or 3 numeric pads):
Example: to quickly heat for 2 minutes at 100% power:
Touch number pads 1,2 or 3 for desired 2
minutes of cook time. _°'_<
Note: the EasySet function cannot be set when using the
Defrost (by weight) feature.
Heating with high power level
Example: to heat for 5 minutes at 100% power:
1. Press Cook Time pad. Cook
Time
,
Use the number pads to enter
desired heating time (cook time may
be set up to 99 minutes and 99
seconds).
3. Touch STARTpad.
/ -1
When heating has finishe_ you will hear beeps and i
"Good" will display.

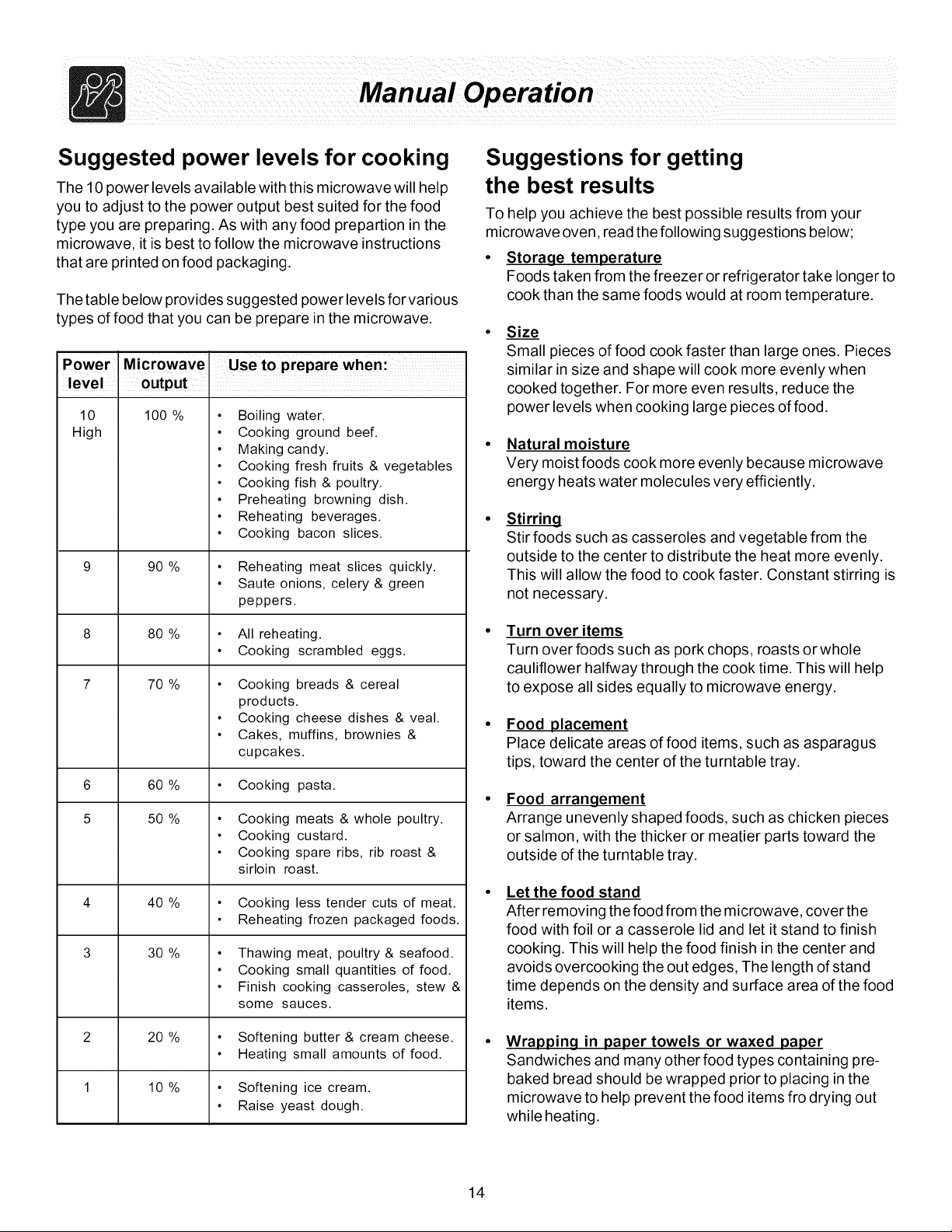

Heating with lower power levels
Using the highest power level to heat foods with does not
always give the best results when some types of food need
slower cooking, such as roasts, baked goods or custards.
Your oven has nine other power levels you may choose.
Heating with multiple cooking stages
For best results, some microwave recipes call for different
power levels or different lengths of time for cooking. Your
microwave may be set to change from one stage to another
automatically (2 stages maximum).
Example: to cook food for 3 minutes at 80% power and
1. Press Cook Time.
/
Cook
Time
2. Use the number pads to enter 3 0
heating time for the 1st stage (cook
EasySet
time may be set up to 99 minutes
and 99 seconds).
3. Press Power Level pad once. PoWerLeve_
,
,
Cook
Time
1. Press Cook Time.
2. Use the number pads to enter desired
heating time (cook time may be set
up to 99 minutes and 99 seconds). 7.
Power
Level
,
3. Press Power Level pad once for
power level 10 (100% power).
,
/,
Use the number key to change the
power level to 7. PL7 appears in the
display (70 % power).
Use the number keys to enter power 8
level for the 1st stage. PL8 appears .....
in the display (80 % power).
Press Cook Time pad for 2nd cook
Time
stage,
Use the number pads to enter
heating time for the 2nd stage (cook
time may be set up to 99 minutes
and 99 seconds).
Press Power Level pad for 2nd
stage.
Use the number key to enter power
level for the 2nd stage. PL5 appears
in the display (50 % power).
9. Press START pad.
Power
Level
P_L_se
When heating has finished you will hear beeps and
"Good" will display.
5. Press START pad.
When heating has finished you will hear beeps and
"Good" will display.
Note:
Power level must always be programmed for first
stage- 100% =10.
10
Using the Pause key
If at anytime your microwave recipe would require that the
food be turned or require you to stop the microwave during
the cooking process you may do so after starting the
microwave with the START/Pause pad.
To pause the microwave during cooking:
1. Touch START/Pause pad once. ,:,:i'ii!ii!ii_i!i_:ii:ii:ii:i_:_
P,,_se
2. Touch START/Pause pad again to
resume cooking. _
Adding cook time (Plus 30 sec.)
This time-saving feature will let you quickly add 30 seconds
to any cook time already set when cooking at a 100%
power level. This feature may only be used while cooking
and with cook time remaining. Each press of this pad will
add 30 seconds to the cook time.
Example: to add 1 minute of cook time at the default
power level of 100%:
Press Plus 30 sec. pad twice.
Plus
30 sec.
Setting Defrost (by Weight)
Example: to defrost lib. of food with the default power
level and cook time determined automatically:
1. Press Defrost pad once. 0.0 will
appear in the display.
weight ITime
,
Use the numeric pads to input weight
of food to defrost in pounds (10 = 1lb.)
You may enter any weight from 0.1 to
6.01bs.
3. Press START pad.
When defrosting has finished you will hear beeps and
"Good" will display.
Note: The weight amount must be a valid entry for this
feature to start. A valid weight entry is 0.1 to 6.0 pounds.
Setting Defrost (by Time)
Example: to defrost food with the default 30% power level
for 5 minutes:
1. Press Defrost pad twice. 0:00 will
appear in the display.
weight ITime
2. Use the number pads to enter desired ......
defrost time (defrost time may be set 5 0 0
up to 99 minutes and 99 seconds). ....
3. Press START pad.
When heating has finished you will hear beeps and "Good"
will display.
Note: Power levels cannot be changed for both defrost (by
weight) or defrost (by time) because the defrost performance
will be adversely affected.
Special notes for defrosting by time
After pressing START/Pause key, the display will
count down remaining defrost time. The oven will beep
twice during the defrost cycle. At this time open the door
and turn the food ifneeded and remove any portions that
have already thawed. Touch the STARTIPause key to
resume the defrost cycle.
• When heating has finished you will hear beeps.
11
Defrosti ng tips
• When using the defrost weight feature, the weight
entered should always be pounds (valid entries are from
0.1 to 6.0 pounds).
Use both defrost weight and defrost time features for •
raw food items only. Defrosting gives best results when
food to be thawed is a minimum of 0°F (taken directly
from a true freezer). If the food has been stored in a •
refrigerator-freezer that does not maintain a temperature
of 5° F or below, always program a lower food weight or
lower cook time to prevent cooking the food. °
• If the frozen food is stored outside the freezer for up to 20
minutes, enter a reduced cook time or weight.
The shape of the package will alter the defrosting time.
Shallow rectangular food packets defrost more quickly
than a deep frozen block of food.
Separate pieces as they begin to defrost. Separated
frozen pieces of food defrost better.
Shield warm areas of food with small pieces of foil if they
start to become warm.
You may use small pieces of aluminum foil to shield food
items like chicken wings, leg tips and fish tails, but do
not allow the foil to touch the oven cavity walls when
defrosting.
Defrosting suggestions for meats
For best results, please read these suggestions when defrosting meats.
Meat Normal amount
• Roast beef or pork 2.5 to 6 Ibs.
(40 to 96 oz.)
• Steaks, chopsorfish
0.5 to 3 Ibs.
(8 to 48 oz.)
Start with the food placed fat side down. After each stage, turn the
food over and shield any warm portions with narrow strips of aluminum
foil. Let stand, covered for 15-30 minutes.
After each stage, rearrange the food. If there are any warm or thawed
portions of food, shield them with narrow flat pieces of aluminum foil.
Remove any pieces of food that are nearly defrosted. Let stand,
covered for about 5 to 10 minutes.
• Ground meat 0.5 to 3 Ibs. After each stage, remove any pieces of food that are nearly defrosted.
(8 to 48 oz.) Let stand, covered with foil for 5 to 10 minutes.
° Whole chicken
2.5 to 6 Ibs.
(40 to 96 oz.)
0.5 to 3 Ibs.
(8 to 48 oz.)
Chicken pieces
Remove giblets before freezing poultry. Start defrsoting with the
breast side down. After the 1st stage, turn the chicken over and
shield any warm portions with narrow strips of aluminum foil. After the
2nd stage, again shield any warm portions with narrow strips of
aluminum foil. Let stand, covered, for 30 to 60 minutes in the
refrigerator.
After each stage, rearrange or remove any pieces of food that are
nearly defrosted. Let stand for 10-20 minutes.
12
Reheat
The reheat feature provides 3 quick preset settings based
on serving size to reheat food for your cooking convenience.
Example: to reheat 24 ounces of food.
,
Press Reheat pad 3 times to reheat
Reheat
24oz. of food. 24oz will appear in the
display (see reheat category table).
8 ounces of food once 8 oz
16 ounces of food twice 16 oz
24 ounces of food 3 times 24 oz
2. Press START pad.
P_use
Reheat cooking suggestions
I J
Reheat 'Directions ' Amount
Dinner plate
Casserole
Pasta
Use only pre-cooked, refrigerated foods. Cover plate with vented plastic wrap or
waxed paper, tucked under plate. Iffood is not as hot as you prefer after heating
with Reheat, continue heating using manual time and power level settings.
Contents:
• 3-4 oz. met, poultry or fish (up to 6 oz. with bone)
• ½ cup starch (potatoes, pasta, rice, etc.)
• ½ cup of vegetables (about 3-4 oz.)
Cover plate with lid or vented plastic wrap. If food is not as hot as you prefer after
heating with Reheat, continue heating using manual time and power level settings.
Stir foods once before serving.
Contents:
• Casserole-refrigerated foods (for example beef stewor lasagna)
• Pasta-Canned spaghetti and ravioli, refrigerated foods.
1 serving
(1 plate)
1 to 4 servings
13
Suggested power levels for cooking
The 10 power levels available with this microwave will help
you to adjust to the power output best suited for the food
type you are preparing. As with any food prepartion in the
microwave, it is best to follow the microwave instructions
that are printed on food packaging.
The table below provides suggested power levels for various
types of food that you can be prepare in the microwave.
Power Microwave Use to prepare when:
level output I
10 100 %
High
• Boiling water.
• Cooking ground beef.
• Making candy.
• Cooking fresh fruits & vegetables
• Cooking fish & poultry.
• Preheating browning dish.
• Reheating beverages.
• Cooking bacon slices.
90 %
• Reheating meat slices quickly.
• Saute onions, celery & green
peppers.
8O %
• All reheating.
• Cooking scrambled eggs.
70 %
• Cooking breads & cereal
products.
• Cooking cheese dishes & veal.
• Cakes, muffins, brownies &
cupcakes.
60 % • Cooking pasta.
5O %
• Cooking meats & whole poultry.
• Cooking custard.
• Cooking spare ribs, rib roast &
sirloin roast.
4 4O %
• Cooking less tender cuts of meat.
• Reheating frozen packaged foods.
30 %
• Thawing meat, poultry & seafood.
• Cooking small quantities of food.
• Finish cooking casseroles, stew &
some sauces.
Suggestions for getting
the best results
To help you achieve the best possible results from your
microwave oven, read the following suggestions below;
• Storage temperature
Foods taken from the freezer or refrigerator take longer to
cook than the same foods would at room temperature.
Size
Small pieces of food cook faster than large ones. Pieces
similar in size and shape will cook more evenly when
cooked together. For more even results, reduce the
power levels when cooking large pieces of food.
• Natural moisture
Very moist foods cook more evenly because microwave
energy heats water molecules very efficiently.
Stirring
Stir foods such as casseroles and vegetable from the
outside to the center to distribute the heat more evenly.
This will allow the food to cook faster. Constant stirring is
not necessary.
Turn over items
Turn over foods such as pork chops, roasts or whole
cauliflower halfway through the cook time. This will help
to expose all sides equally to microwave energy.
• Food placement
Place delicate areas of food items, such as asparagus
tips, toward the center of the turntable tray.
Food arrangement
Arrange unevenly shaped foods, such as chicken pieces
or salmon, with the thicker or meatier parts toward the
outside of the turntable tray.
Let the food stand
After removing the food from the microwave, cover the
food with foil or a casserole lid and let it stand to finish
cooking. This will help the food finish in the center and
avoids overcooking the out edges, The length of stand
time depends on the density and surface area of the food
items.
2 20 %
• Softening butter & cream cheese.
• Heating small amounts of food.
10%
• Softening ice cream.
• Raise yeast dough.
Wrapping in paper towels or waxed paper
Sandwiches and many other food types containing pre-
baked bread should be wrapped prior to placing in the
microwave to help prevent the food items fro drying out
while heating.
14
Popcorn
• DO NOT leave micowave oven unattended while
popping corn.
The popcorn feature lets you pop 3 different commercially
packaged microwave popcorn sized bags. Use the table
below to determine the setting to use.
Amount : Press popcorn pad
1.75 oz. (default setting) once
3.0 oz. 2 times
3.5 oz. 3 times
Beverage
The beverage feature heats 1,2 or 3 cups of beverage. Use
the table below to determine the setting to use.
Amount I Press beverage pad
1 cup ( about 8 oz.) once(defaultsetting)
2 cups (about 16 oz.) 2 times
3 cups (about 24 oz.) 3 times
Example: to heat 1 cup of a beverage.
1. Press Beverage pad (1,2 or 3 times -
refer to table above to change number of
servings).
Example: to pop a 3.0 oz. bag of popcorn automatically.
1. Press Popcorn pad (1,2 or 3 times - refer
to table above to change for bag size).
2. Press START pad.
The microwave will beep when finished.
Pa_
2. Press START pad.
The microwave will beep when finished.
Potato
The potato feature cooks 1,2 or 3 (cooking times based on
8 to 24 oz.) potatoes automatically. Use the table below to
determine the setting to use.
1 potato (default setting) once
2 potatoes 2 times
3 potatoes 3 times
Example: to cook 1 potato automatically.
1. Press Potato pad (1,2 or 3 times - refer
to table above to change quantity).
2. Press START pad.
The microwave will beep when finished.
Notes:
° Before cooking, pierce potatoes with fork several times.
° After cookings, let potatoes stand for 5 minutes.
15
Convenience cooking suggestions
Popcorn
Potato
Beverage
1.75,3.0,
3.5 oz.
1 pkg.
1,2,3
potatoes
8,16,24oz.
1,2,3
cups
8 oz,16 oz
24 oz.)
Cook a single "microwave-only" bag of popcorn at a time. Use caution when
removing and opening the hot popcorn bag from the oven. Let microwave oven cool
down at least 5 minutes before using again.
Pierce each potato several times using a fork. Place on turntable in spoke-like
fashion. After cooking, let stand for 3-5 minutes. Let oven cool for at least 5
minutes before using again. Use the start/+30sec pad to increase cook time for
larger potatoes.
Use a microwave-safe measuring cup or mug; do not cover. Place the beverage in
the microwave. After heating, stir well. Let oven cool for at least 5 minutes before
using again. Beverages heated with the beverage category may be very hot.
Remove the container with care.
16
Cooking meat in your microwave
Be sure to place prepared meats on a microwave-safe roasting rack in a microwave-safe dish. Start cooking the meat fat
side down and if necessary, use narrow strips of aluminum foil to shield any bone tips or thin meat areas. After cooking,
check the temperature in several places before letting the meat stand the recommended time. Please note that the
temperatures in the following charts are temperatures at removal time; the temperature will rise during the standing period.
Meat. Power level . Cooktime' Directions
• Roast beef boneless
(up to 4 Ibs.)
• Roast pork boneless
or bone-in
(up to 4 Ibs.)
High (10)for
first 5 minutes,
then medium (5)
High (10)for
first 5 minutes,
then medium (5)
12-17 min./Ib, for
160° F (Medium)
14-19 min./Ib, for
170° F (Well Done)
15-20 min./Ib, for
170° F (Well Done)
Place roast beef fat-side down on roasting
rack. Cover with wax paper. Turn over halfway
through cooking. Let stand* 10-15 minutes.
Place roast pork fat-side down on roasting
rack. Cover with wax paper. Turn over halfway
through cooking. Let stand* 10-15 minutes.
* Expect a 10° F rise in the temperature during the standing period.
• Beef Medium 150°F 150 °F
Well Done 160° F 160 °F
• Pork Medium 150°F 150°F
Well Done 160° F 160 °F
• Poultry Dark meat 170° F 170 °F
Light meat 160° F 160 °F
Cooking poultry in your microwave
Be sure to place poultry on a microwave-safe roasting rack in a microwave-safe dish. Cover poultry with wax paper to
prevent splattering. Use narrow strips of aluminum foil to shield any bone tips or thin meat areas, or areas that start to
overcook. After cooking, check the temperature in several places before letting the meat stand the recommended time.
Whole chicken
(up to 4 Ibs.)
Chicken pieces
(up to 4 Ibs.)
Cook time: 7-10 min./lb.
180° F dark meat
170° F dark meat
Power level: medium high (7)
Cook time: 7-10 min./lb.
180° F dark meat
170° F dark meat
Power level: medium high (7)
Place chicken breast-side down on roasting rack. Cover with wax
paper. Turn over halfway through cooking. Cook until juices run
clear and meat near bone is no longer pink. Let stand for 5-10 min.
Place chicken bone-side down on dish, with thickest portions
toward the inside of dish. Cover with wax paper. Turn over halfway
through cooking. Cook until juices run clear and meat near bone is
no longer pink. Let stand for 5-10 min.
Cooking eggs in your microwave
• Never cook eggs in the shell and never warm hard-
cooked eggs in the shell; they can explode.
• Always pierce whole eggs to keep them from bursting.
• Cook eggs just until set; they will become tough if
overcooked.
17

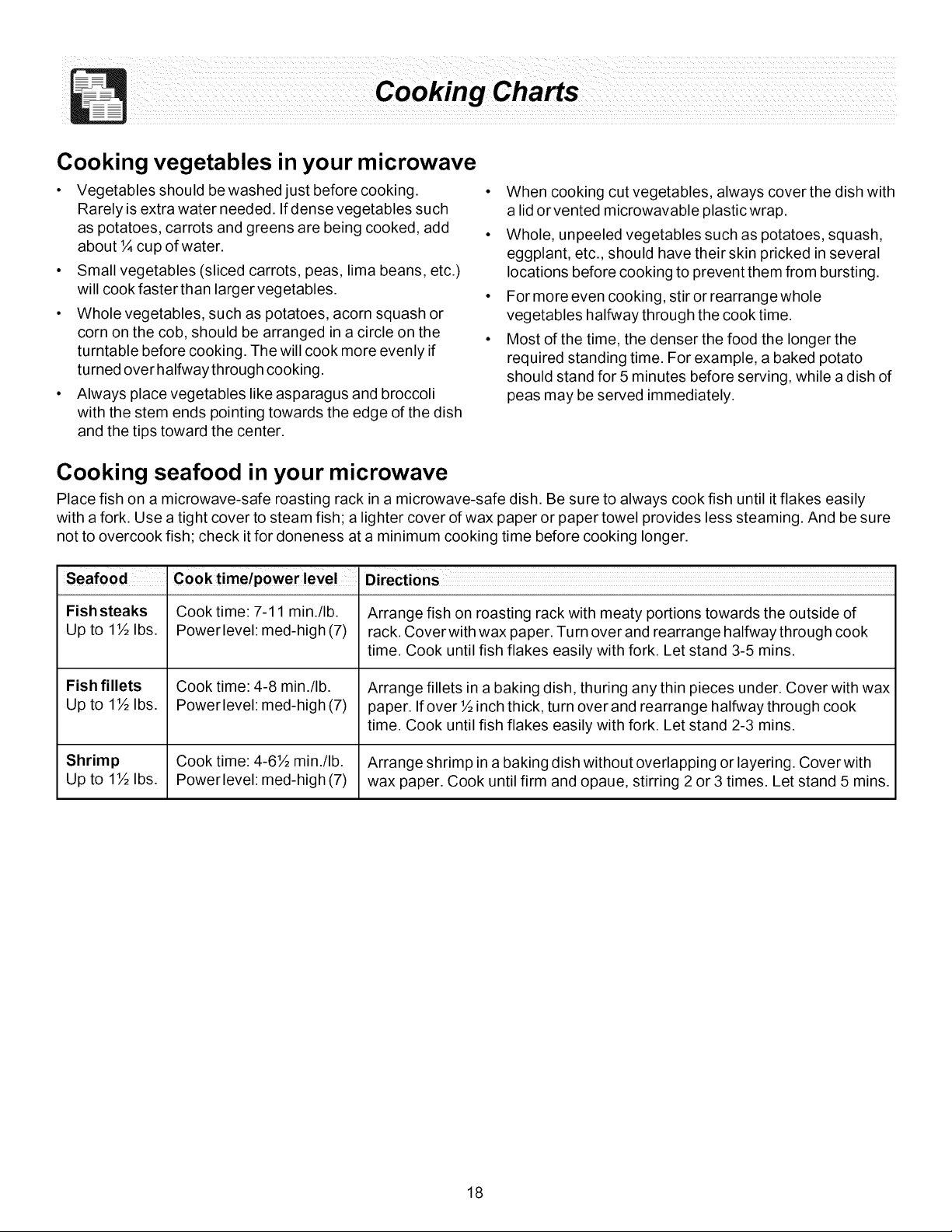

Cooking Charts
Cooking vegetables in your microwave
• Vegetables should be washed just before cooking.
Rarely is extra water needed. Ifdense vegetables such
as potatoes, carrots and greens are being cooked, add
about ¼ cup of water.
• Small vegetables (sliced carrots, peas, lima beans, etc.)
will cook faster than larger vegetables.
• Whole vegetables, such as potatoes, acorn squash or
corn on the cob, should be arranged in a circle on the
turntable before cooking. The will cook more evenly if
turned over halfway through cooking.
• Always place vegetables like asparagus and broccoli
with the stem ends pointing towards the edge of the dish
and the tips toward the center.
• When cooking cut vegetables, always cover the dish with
a lid orvented microwavable plastic wrap.
• Whole, unpeeled vegetables such as potatoes, squash,
eggplant, etc., should have their skin pricked in several
locations before cooking to prevent them from bursting.
• For more even cooking, stir or rearrange whole
vegetables halfway through the cook time.
• Most of the time, the denser the food the longer the
required standing time. For example, a baked potato
should stand for 5 minutes before serving, while a dish of
peas may be served immediately.
Cooking seafood in your microwave
Place fish on a microwave-safe roasting rack in a microwave-safe dish. Be sure to always cook fish until it flakes easily
with a fork. Use a tight cover to steam fish; a lighter cover of wax paper or paper towel provides less steaming. And be sure
not to overcook fish; check it for doneness at a minimum cooking time before cooking longer.
Fish steaks
Up to 1½ Ibs.
Fish fillets
Up to 1½ Ibs.
Cook time: 7-11 min./Ib.
Powerlevel: med-high (7)
Cook time: 4-8 min./Ib.
Powerlevel: med-high (7)
Arrange fish on roasting rack with meaty portions towards the outside of
rack. Cover with wax paper. Turn over and rearrange halfway through cook
time. Cook until fish flakes easily with fork. Let stand 3-5 mins.
Arrange fillets in a baking dish, thuring any thin pieces under. Cover with wax
paper. If over ½ inch thick, turn over and rearrange halfway through cook
time. Cook until fish flakes easily with fork. Let stand 2-3 mins.
Shrimp Cook time: 4-6½ min./Ib. Arrange shrimp in a baking dish without overlapping or layering. Cover with
Up to 1½ Ibs. Powerlevel: med-high (7) wax paper. Cook until firm and opaue, stirring 2 or 3 times. Let stand 5 mins.
18
Cleaning the exhaust filters
The oven ventilation exhaust filters should be removed and
cleaned often; generally at least once every month.
Surface light replacement
TOavoid risk of personal injury or property damage, wear
gloves when replacing the light bulbs_
To avoid risk of personal injury or property damage, do
not operate oven hood without filters properly in place.
Surface lights
F'L
!1
Front
z
Ventilation
filters
,
,
Unplug the microwave oven or turn off power at the main
circuit breaker.
Remove the bulb cover mounting screws at both light
positions under the microwave.
,
4.
5.
Replace bulb with 30 watt appliance bulb.
Re-install bulb cover and mounting screw.
Plug the microwave back into the power supply or turn
the power back on at the main circuit breaker.
1. To remove the exhaust ventilation filters, slide the filter to
the rear. Then pull filter downward and push to the other
side. The filter will drop out. Repeat for the 2nd filter.
,
Soak the ventilation filters in hot water using a mild
detergent. Rinse well and shake to dry. Do not use
ammonia or wash in a dishwasher. The aluminum
on the filter will corrode and darken.
J
J
3. To reinstall the exhaust ventilation filter, slide it into the
side slot, then push up and toward oven to lock.
Reinstall the 2nd filter using the same procedure.
19
Over light replacement
1. To relace light bulb, first disconnect power to the
microwave oven at the circuit breaker panel or by
unplugging
2. Remove the vent grill mounting screws.
3. Pull the vent grill away from the unit.
t
5. Open light cover located behind filter mounting by
carefully pulling up on the front edge.
4.Remove the charcoal filter by pushing it inwards,
then turn and pull it away from the unit.
6. Remove old light bulb and replace only with
equivalent 30 watt bulb available from parts
distributor. Bulbs are also available at most
hardware stores or lighting centers.
Note: DO NOT USE BULB LARGER THAN
30 WATTS.
7. Replace the microwave oven light cover by
carefully pushing into place. Replace the
charcoal filter. Push the vent grill back into
place (engaging both the bottom and top tabs)
and replace the vent grill mouting screws.
20

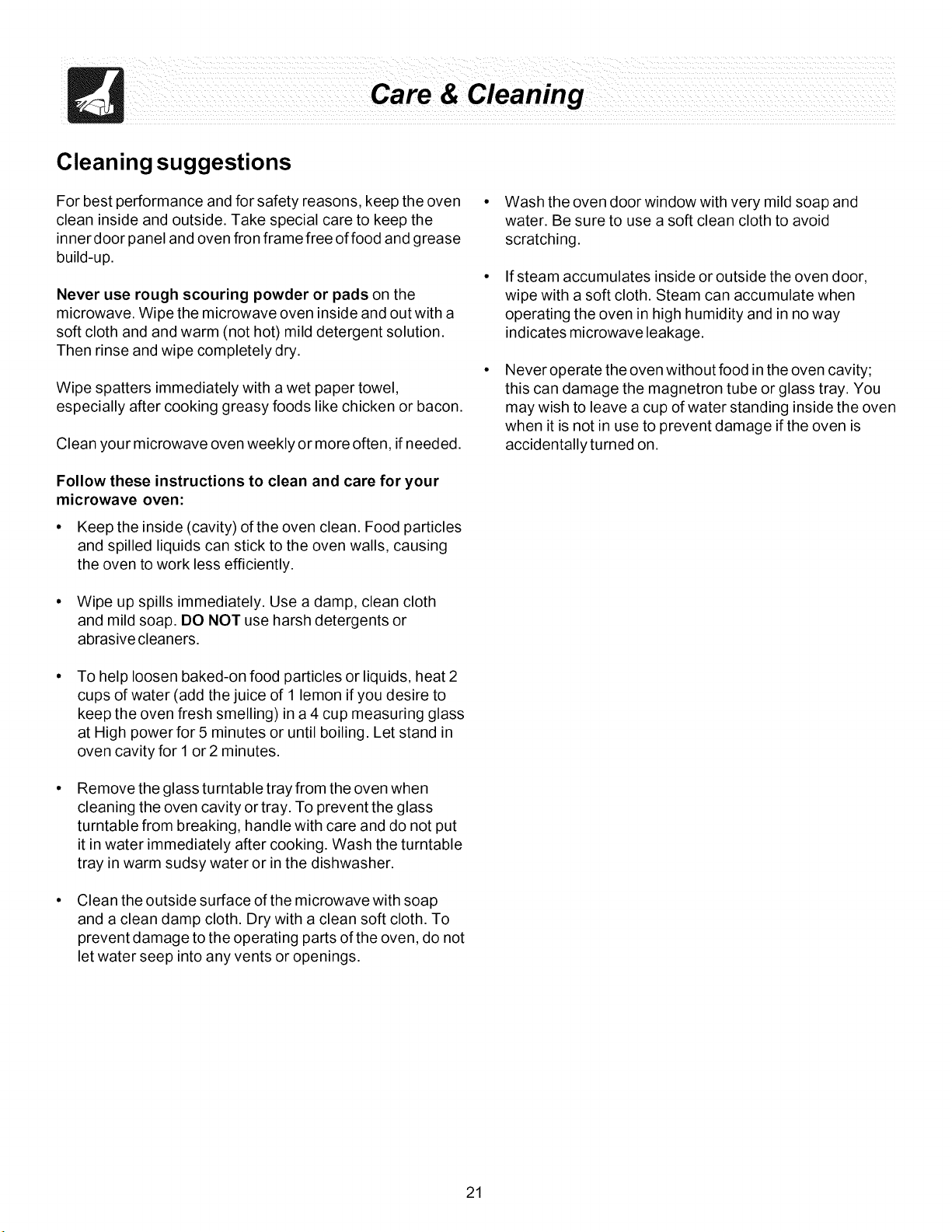

Cleaning suggestions
For best performance and for safety reasons, keep the oven
clean inside and outside. Take special care to keep the
innerdoor panel and oven fron frame free of food and grease
build-up.
Never use rough scouring powder or pads on the
microwave. Wipe the microwave oven inside and out with a
soft cloth and and warm (not hot) mild detergent solution.
Then rinse and wipe completely dry.
Wipe spatters immediately with a wet paper towel,
especially after cooking greasy foods like chicken or bacon.
Clean your microwave oven weekly or more often, if needed.
Follow these instructions to clean and care for your
microwave oven:
• Keep the inside (cavity) of the oven clean. Food particles
and spilled liquids can stick to the oven walls, causing
the oven to work less efficiently.
° Wipe up spills immediately. Use a damp, clean cloth
and mild soap. DO NOT use harsh detergents or
abrasive cleaners.
• Wash the oven door window with very mild soap and
water. Be sure to use a soft clean cloth to avoid
scratching.
If steam accumulates inside or outside the oven door,
wipe with a soft cloth. Steam can accumulate when
operating the oven in high humidity and in no way
indicates microwave leakage.
Never operate the oven without food in the oven cavity;
this can damage the magnetron tube or glass tray. You
may wish to leave a cup of water standing inside the oven
when it is not in use to prevent damage if the oven is
accidentally turned on.
To help loosen baked-on food particles or liquids, heat 2
cups of water (add the juice of 1 lemon if you desire to
keep the oven fresh smelling) in a 4 cup measuring glass
at High power for 5 minutes or until boiling. Let stand in
oven cavity for 1 or 2 minutes.
Remove the glass turntable tray from the oven when
cleaning the oven cavity or tray. To prevent the glass
turntable from breaking, handle with care and do not put
it in water immediately after cooking. Wash the turntable
tray in warm sudsy water or in the dishwasher.
Clean the outside surface of the microwave with soap
and a clean damp cloth. Dry with a clean soft cloth. To
prevent damage to the operating parts of the oven, do not
let water seep into any vents or openings.
21
Solutions to Common Problems
Troubleshooting guide
If you have a problem you cannot solve, please do not
hesitate to call our service line:
Before you call a repair person for your microwave, check
the list below for possible easy solutions to some common
problems.
Neither the microwave's display or oven operates -
• Properly insert the plug into a grounded power outlet.
• If the outlet is controlled by a wall switch, make sure the
wall switch is turned on.
Remove the plug from the outlet, wait 10 seconds, then
plug the microwave in again.
Reset the household circuit breaker or replace any blown
fuses.
Plug a different appliance into the power outlet. If the
other appliance will not operate, have a qualified
electrician repair the outlet.
Plug the microwave into adifferent power outlet.
The oven display works, but the oven will not operate -
• Make sure the oven door is closed securely and
completely.
• Check to see if packing material or other materials are
stuck to the door seal.
Check for damage to the oven door.
Press the STOP/cancel pad twice and attempt to re-
enter cooking instructions.
Plug a different appliance into the power outlet. If the
other appliance will not operate, have a qualified
electrician repair the outlet.
Plug the microwave into adifferent power outlet.
The power goes off before the cook time has elapsed -
• Ifthere has been a power interruption, remove the plug
from the outlet; wait 10 seconds, then plug the
microwave in again. If there was a power outage, the
time indicator in the display will show 00:00.
° Reset the clock and any cooking instructions.
° Reset the household circuit breaker or replace any blown
fuses.
• Press the STOP/cancel pad twice and attempt to re-
enter cooking instructions.
• Plug a different appliance into the power outlet. If the
other appliance will not operate, have a qualified
electrician repair the outlet.
• Plug the microwave into adifferent poweroutlet.
Food is cooking too slowy -
• Make sure the oven is on a seper_e 15 amp _;ircuit line.
Operating another appliance on the same circuit can
cause a voltage drop. If necessary, move the microwave
to its own circuit.
You see sparks or arcing -
• Remove any metallic utensils, cookware or metal ties
from the oven cavity. If using aluminum foil, use only
narrow strips and allow at least one inch between the foil
and the interior oven walls.
The turntable makes noises or sticks -
• Clean the turntable, roller ring and oven cavity bottom.
• Make sure the turntable and roller ring are positioned
correctly.
Using your microwave causes TV or radio interference -
• This is similar to the interference caused by other small
appliances, such as hair dryers. Move your microwave
further away from other appliances, like your TV or radio.
Please note : If the oven is set to cook for more than 25
minutes at 100% power level, it will automatically adjust
itself to a 70% power level after 25 minutes to avoid
overcooking.
22
23
/
Your appliance is covered by a one year limited warranty. For one year from your original date of
purchase, Electrolux will pay all costs for repairing or replacing any parts of this appliance that prove to be
defective in materials or workmanship when such appliance is installed, used and maintained in
accordance with the provided instructions.
Exclusions
This warranty does not cover the following:
1. Products with original serial numbers that have been removed, altered or cannot be readily determined.
2. Product that has been transferred from its original owner to another party or removed outside the USA or
Canada.
3. Rust on the interior or exterior of the unit.
4. Products purchased "as-is" are not covered by this warranty.
5. Food loss due to any refrigerator or freezer failures.
6. Products used in a commercial setting.
7. Service calls which do not involve malfunction or defects in materials or workmanship, or for appliances
not in ordinary household use or used other than in accordance with the provided instructions.
8. Service calls to correct the installation of your appliance or to instruct you how to use your appliance.
9. Expenses for making the appliance accessible for servicing, such as removal of trim, cupboards,
shelves, etc.,which are not a part of the appliance when it is shipped from the factory.
10. Service calls to repair or replace appliance light bulbs, air filters, water filters, other consumables, or
knobs, handles, or other cosmetic parts.
11. Surcharges including, but not limited to, any after hour, weekend, or holiday service calls, tolls, ferry trip
charges, or mileage expense for service calls to remote areas, including the state of Alaska.
12. Damages to the finish of appliance or home incurred during installation, including but not limited to
floors, cabinets, walls, etc.
13. Damages caused by: services performed by unauthorized service companies; use of parts other than
genuine Electrolux parts or parts obtained from persons other than authorized service companies; or
external causes such as abuse, misuse, inadequate power supply, accidents, fires, or acts of God.
DISCLAIMER OF IMPLIED WARRANTIES; LIMITATION OF REMEDIES
CUSTOMER'S SOLE AND EXCLUSIVE REMEDY UNDER THIS LIMITED WARRANTY SHALL BE PRODUCT
REPAIR OR REPLACEMENTAS PROVIDED HEREIN. CLAIMS BASED ON IMPLIED WARRANTIES,
INCLUDING WARRANTIES OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE, ARE
LIMITED TO ONE YEAR OR THE SHORTEST PERIOD ALLOWED BY LAW, BUT NOT LESS THAN ONE YEAR.
ELECTROLUX SHALL NOT BE LIABLE FOR CONSEQUENTIAL OR INCIDENTAL DAMAGES SUCH AS
PROPERTY DAMAGE AND INCIDENTAL EXPENSES RESULTING FROM ANY BREACH OF THIS WRITTEN
LIMITED WARRANTY OR ANY IMPLIED WARRANTY. SOME STATES AND PROVINCES DO NOTALLOWTHE
EXCLUSION OR LIMITATION OF INCIDENTAL OR CONSEQUENTIAL DAMAGES, OR LIMITATIONS ON THE
DURATION OF IMPLIED WARRANTIES, SO THESE LIMITATIONS OR EXCLUSIONS MAY NOTAPPLYTO
YOU. THIS WRITTEN WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS. YOU MAY ALSO HAVE OTHER
RIGHTS THAT VARY FROM STATE TO STATE.
IfYou Need
Service
Keep your receipt, delivery slip, or some other appropriate payment record to establish the warranty period
should service be required. If service is performed, it is in your best interest to obtain and keep all receipts.
Service under this warranty must be obtained by contacting Electrolux at the addresses or phone
numbers below.
This warranty only applies in the USA and Canada. In the USA, your appliance is warranted by Electrolux Major Appliances
North America, a division of Electrolux Home Products, Inc. In Canada, your appliance is warranted by Electrolux Canada
Corp. Electrolux authorizes no person to change or add to any obligations under this warranty. Obligations for service and
parts under this warranty must be performed by Electrolux or an authorized service company. Product features or
specifications as described or illustrated are subject to change without notice.
USA
1.800.944.9044
Electrolux Major Appliances
North America
P.O. Box 212378
Augusta, GA 30907
Electrolux
Canada
1.800.265.8352
Electrolux Canada Corp.
5855 Terry Fox Way
Mississauga, Ontario, Canada
L5V 3E4
