Portable Air Conditioner
Owner’s Manual
Original instructions
OX-14KH 14,000 BTU
READ AND SAVE THESE INSTRUCTIONS
Wiytamo
Wiytamo service@wiytamo.com
service@wiytamo.com Wiytamo
2
TABLE OF CONTENTS
1. BEFORE YOU BEGIN ................................................................................................3
1.1. CUSTOMER SERVICE ........................................................................................... 3
1.2. BEFORE REQUESTING SERVICE ........................................................................4
1.3. PRODUCT DESCRIPTION .................................................................................... 8
1.4. SYMBOLS FROM THE UNIT AND USER MANUAL ............................................9
1.5. PRODUCT DIAGRAM
........................................................................................11
1.6. PRODUCT FEATURES
.......................................................................................12
2. FOR YOUR SAFETY ................................................................................................13
2.1. OPERATIONAL PRECAUTIONS .........................................................................13
2.2. SAFETY PRECAUTIONS ON SERVICING .........................................................15
3. INSTALLATION .......................................................................................................19
3.1. UNPACKING .........................................................................................................19
3.2. CHOOSE YOUR LOCATION ............................................................................... 20
3.3. ATTACH THE EXHAUST HOSE ......................................................................... 21
4. OPERATION ............................................................................................................ 24
4.1. CONTROL PANEL AND DISPLAY ...................................................................... 24
4.2. FUNCTION KEYS AND INDICATORS ............................................................... 25
4.3. SETTINGS ............................................................................................................ 26
4.4. DRAINAGE ........................................................................................................... 29
5. CLEANING AND CARE ........................................................................................... 31
5.1. CLEANING THE AIR FILTER..............................................................................32
5.2. CLEANING UP OF REFRIGERANT .................................................................... 32
6. OPERATION ............................................................................................................ 33
7. DECOMMISSIONING ............................................................................................. 34
7.1. STORAGE ............................................................................................................. 34
7.2. DISPOSAL ............................................................................................................ 34
Wiytamo service@wiytamo.com
service@wiytamo.com Wiytamo
3
1. BEFORE YOU BEGIN
WELCOME
Thank you for purchasing this Wiytamo product. All Wiytamo products are
manufactured with great care and are DOE、ETL certified. In addition, our
products are tested and inspected strictly prior to shipment to ensure product
quality and safety.
At Wiytamo we are very proud of our products and are completely committed
to providing you with the best products and service possible. Your satisfaction
is our number one priority.
To ensure optimal and safe use, please read the following installation
carefully before attempting to install or use your product. If you have any
questions, Please contact our Technical Service Department at:
1.1. CUSTOMER SERVICE
Wiytamo is committed to providing customers with premium Portable Air
Conditioner.
In order to provide you with more effective services, if there is any
problem with the unit you purchased, please contact us and be ready to
provide information as listed in "REQUIRED INFORMATION” below, and
our professional after-sales personnel will give you an answer as soon as
possible. Do not just enter “no good”, “it didn't work” or “defective part.”
Our Tech Personnel will ask for more details. Failure to include specific
Wiytamo service@wiytamo.com
service@wiytamo.com Wiytamo
4
information will delay the processing of the problem.
Required Information
① Nature of malfunction(as
accurately as possible)
Damaged: includes picture and video about
damage parts
Quality Problem: includes picture about damage
parts
Please follow the direction at “ BEFORE
REQUESTINGSERVICE” below.
② Serial number/Model
number
On the rating label
On the carton
③ Record of Purchase
Screenshot / Pictures
1.2. BEFORE REQUESTING SERVICE
1.2.1 Receiving and Inspection
Please check the appearance of outer packaging box and the inner
contents when receiving the goods to protect your right and
interest.
If there is any damaged outer packaging, defect and damage
product, missing parts or received the wrong item, please kindly
take photos from all aspect or angle immediately and contact our
customer service for verification and processing.
We need these photos as evidence to ask claims to the FedEx / UPS
Carrier for their bad shipping service. It also very vital for us to
Wiytamo service@wiytamo.com
service@wiytamo.com Wiytamo
5
improve the shipping box's strength from your information.
1.2.2 The Process of Receiving and Inspection
Step 1 Please check the outer shipping box and product carefully.
Step 2 If there is any problem, please take some photos and

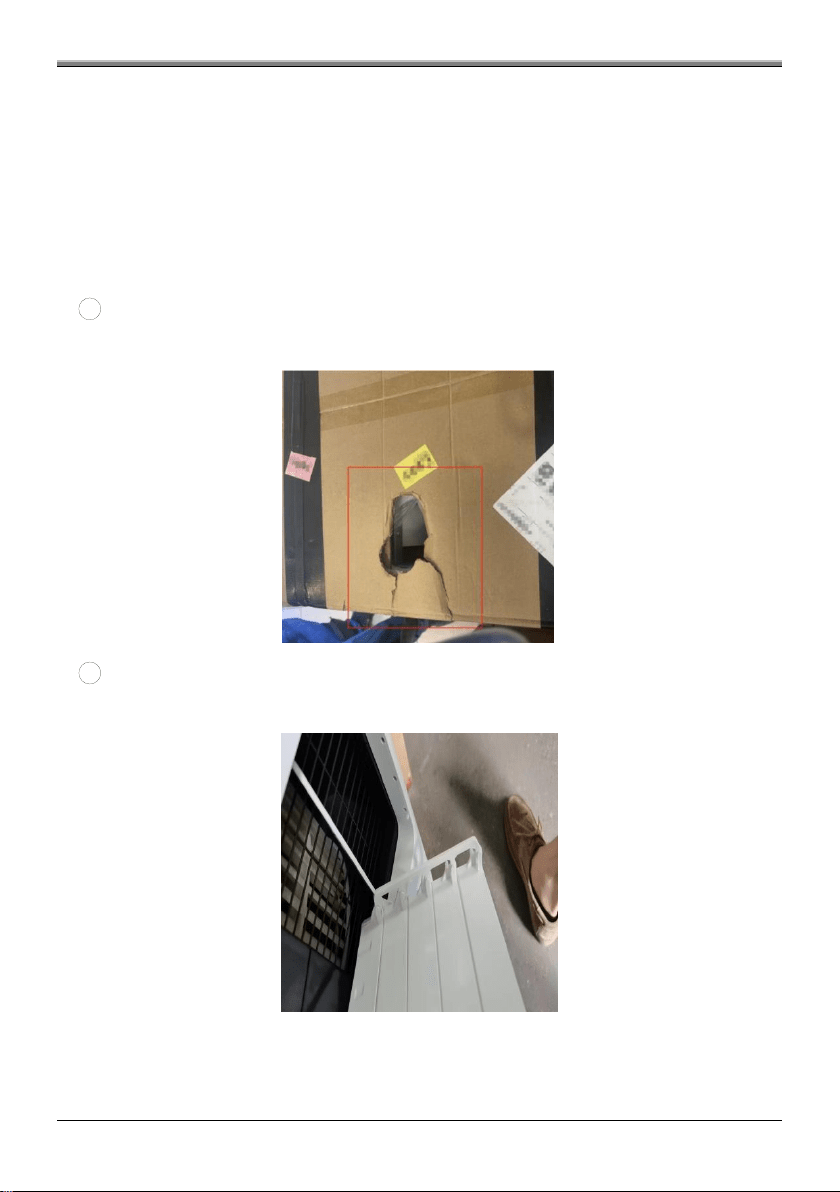

videos for evidence and contact us. Pictures or videos are required:
1
Take some pictures about the damage parts of outer package box and
the whole image of theshipping box. e.g.
2
Take some pictures about the damage parts of the product and the whole
image of theproduct(include parts all parts that have been received).
Wiytamo service@wiytamo.com
service@wiytamo.com Wiytamo
6
3
Take some pictures about all the labels on the shipping box.
4
Take some videos to show the condition of the shipping box and inner
product more intuitively.
How to take a useful video:
To show the outer packaging box is damaged but not unpacked;
To show the process of unpacking and the conditions of the
inner content.
5
If the unit is delivered by a truck, please take the receipt with
signature ( it must be noted:damaged / lost )
Step 3 Contact us with upon information, including serial number
or model number, original order number, photos and videos of the
damage parts, and we will provide satisfactory solution for you in
time.
1.2.3 Quality Problem
Provide lifetime technical service and troubleshooting support for
any quality question.
Please check the following items first if you encounter problems
with the unit.
Wiytamo service@wiytamo.com
service@wiytamo.com Wiytamo
7
CAUTION
To prevent any electrical shock hazards, do not disconnect
the power cord plug from the wall outlet with wet hands.
① The unit is not
operating.
Check the power connection in securely.
Check if the water level indicator lights up?
Check the room temperature.
②
The unit works
with reduced
capacity.
Check the air filter for dirt.
Check if the air duct is blocked.
Check if the room door or window is open.
Check if the desired operating mode is selected and the
temperature is properly set.
The exhaust hose is detached.
③ Water Leakage
Overflow while moving the unit.
Check if the drain hose is kinked or bends.
④ Excessive Noise
Check if the unit is securely positioned.
Check if any loose, vibrating parts.
Noise sounds like water flowing.
If the problem persists after taking appropriate remedial measures,
please unplug the power cord from the wall outlet and please
contact us with follows information(service@wiytamo.com) :
Wiytamo service@wiytamo.com
service@wiytamo.com Wiytamo
8
1 Photos and videos of the trouble part.
2 Take some videos to show the working status and the specific problem.
The contents of this video should include, such as:
The outer situation or environment around the machine;
To show the working status of the control panel;
To show the working status of the cooling fan;
You will also need your model number and original order number to
make an inquiry or help. Including photos, videos, and a description
of problem, will help to expedite solve processing time.
1.3. PRODUCT DESCRIPTION
Our powerful portable air conditioners are great cooling solutions for
single rooms, creating a comfortable atmosphere in your space. It also
has ventilation and dehumidifying function for circulating air and removal
of moisture. They're self-contained systems that do not require any
permanent installation allowing you to move to the space in which it is
most needed. They're commonly used in kitchen, temporary-resided,
computer rooms, garages, and many other places where installation of
Air-conditioner Outdoor Unit is limited.
The environmentally friendly R32 is used as the refrigerant. R32 has
no damaging influence on the ozone layer (ODP), a negligible greenhouse
effect (GWP) and is available worldwide. Because of its efficient energy
properties, R32 is highly suitable as a coolant for this application. Special
precautions must be taken into consideration due to the coolant's high
flammability.
Wiytamo service@wiytamo.com
service@wiytamo.com Wiytamo
9
1.4. SYMBOLS FROM THE UNIT AND USER MANUAL
warning
This unit uses a flammable refrigerant.
If refrigerant leaks and comes in contact with fire or heating
part, it will create harmful gas and there is risk of fire.
Read the USER MANUAL carefully before operation.
Further information is available in the USER MANUAL, SERVICE
MANUAL, and the like.
Service personnel are required to carefully read the USER
MANUAL and SERVICE MANUAL before operation.
THE FOLLOWING SHOULD ALWAYS BE OBSERVED FOR SAFETY
This appliance is intended to be used by expert or trained users in
shops, in light industry and on farms, or for commercial use by lay
persons.
This appliance can be used by children aged from 8 years and
above and persons with reduced physical, sensory or mental
capabilities or lack of experience and knowledge if they have been
given supervision or instruction concerning use of the appliance in a
safe way and understand the hazards involved. Children shall not
play with the appliance. Cleaning and user maintenance shall not
be made by children without supervision.
The unit is designed only for use with R32(propane) gas as
the designated refrigerant.
The refrigerant loop is sealed. Only a qualified technician
should attempt to service!
Do not discharge the refrigerant into the atmosphere.
R32 (propane) is flammable and heavier than air.
Wiytamo service@wiytamo.com
service@wiytamo.com Wiytamo
10
It collects first in low areas but can be circulated by the fans.
If propane gas is present or even suspected, do not allow
untrained personnel to attempt to find the cause.
The propane gas used in the unit has no odor.
The lack of smell does not indicate a lack of escaped gas.
If a leak is detected, immediately evacuate all persons from
the store, ventilate the room and contact the local fire
department to advise them that a propane leak has occurred.
Do not let any persons back into the room until the qualified
service technician has arrived and that technician advises that
it is safe to return to the room.
No open flames, cigarettes or other possible sources of
ignition should be used inside or in the vicinity of the units.
Component parts are designed for propane and non-incentive and
non-sparking. Component parts shall only be replaced with identical
repair parts.
FAILURE TO ABIDE BY THIS WARNING COULD RESULT IN AN
EXPLOSION, DEATH, INJURY AND PROPERTY DAMAGE.
Wiytamo service@wiytamo.com
service@wiytamo.com Wiytamo
11

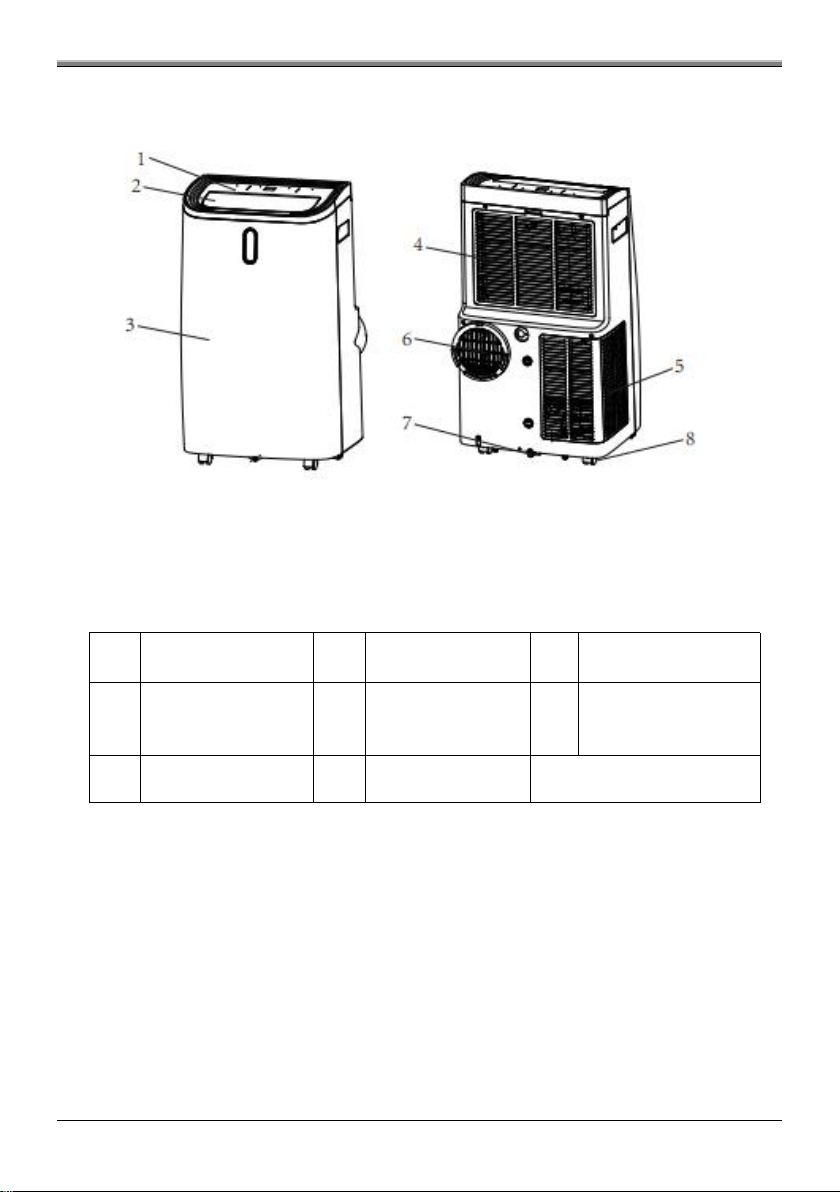

1.5. PRODUCT DIAGRAM
1
Control panel
4
Air inlet with
air filter
7
Drain opening
with sealing plug
2
Air outlet with
adjustable
louver
5
Recessed
handle
8
Castor
3
Front Panel
6
Air Exhaust
Note: The appearance is only for reference. Please see the real product
for detailed information.
Wiytamo service@wiytamo.com
service@wiytamo.com Wiytamo
12
1.6. PRODUCT FEATURES
High Capacity in a compact size with cooling, dehumidifying,
heating and ventilating function.
Temperature setting and display
LED Digital display
Electronic control with built-in timer, sleep mode
Self-evaporating system for better efficient
Auto shut off when water tank is full
Automatic restart in the event of power outage
Auto defrosting function at low ambient temperatures
3- speed fan
Casters for easy mobility
Wiytamo service@wiytamo.com
service@wiytamo.com Wiytamo
13
2. FOR YOUR SAFETY
Your safety is the most important thing we concerned!
2.1. OPERATIONAL PRECAUTIONS
WARNING- to reduce the risk of fire, electric shock or injury to
persons or property:
If the supply cord is damaged, it must be replaced by the
manufacturer, its service agent or similarly qualified persons in order to
avoid a hazard.
The appliance shall be disconnected from its power source during
service.
Always operate the unit from a power source of equal voltage,
frequency and rating as indicated on the product identification plate.
Always use a power outlet that is grounded.
Unplug the power cord when cleaning or when not in use.
Do not operate with wet hands. Prevent water from spilling onto the
unit.
Do not immerse or expose the unit to rain, moisture or any other
liquid.
Do not leave the unit running unattended. Do not tilt or turn over the
unit.
Do not unplug while the unit is operating.
WARNING
Please read this manual carefully and fully
understand before operating your appliance.
Wiytamo service@wiytamo.com
service@wiytamo.com Wiytamo
14
Do not unplug by pulling on the power cord.
Do not use an extension cord or an adapter plug.
Do not put objects on the unit.
Do not climb or sit on the unit.
Do not insert fingers or other objects into the air outlet.
Do not touch the air inlet or the aluminum fins of the unit.
Do not operate the unit if it is dropped, damaged or showing signs of
product malfunction.
Do not clean the appliance with any chemicals.
Ensure the unit is far away from fire, inflammable, or explosive
objects.
The unit shall be installed in accordance with national wiring
regulations.
Do not use means to accelerate the defrosting process or to clean,
other than those recommended by the manufacture.
The appliance shall be stored in a room without continuously operation
sources (for example: open flames, an operating gas appliance or an
operating electric heater).
The appliance shall be stored so as to prevent mechanical damage
from occurring.
Do not piece or burn, even after use.
Be aware that refrigerants may not contain an odour.
Pipe-work shall be protected from physical damage and shall not be
installed in an unventilated space, if that space is smaller than 9m².
Compliance with national gas regulations shall be observed.
Wiytamo service@wiytamo.com
service@wiytamo.com Wiytamo
15
Keep any required ventilation openings clear of obstruction.
The appliance shall be stored in a well-ventilated area where the room
size corresponds to the room area as specified for operation.
WARNING
Any person who is involved with working on or breaking
into a refrigerant circuit should hold a current valid
certificate from an industry-accredited assessment
authority, which authorizes their competence to handle
refrigerants safely in accordance with an industry,
recognized assessment specification.
WARNING
Servicing shall only be performed as recommended by
the equipment manufacturer. Maintenance and repair
requiring the assistance of other skilled personnel shall
be carried out under the supervision of the person
competent in the use of flammable refrigerants.
Note: If you don't understand something or need help, please
contact the dealer services.
2.2. SAFETY PRECAUTIONS ON SERVICING
Please follow these warnings when to undertake the following when
servicing an appliance with R32.
2.2.1 Checks to the area
Prior to beginning work on systems containing flammable refrigerants,
safety checks are necessary to ensure that the risk of ignition is minimized.
For repair to the refrigerating system, the following precautions shall be
complied with prior to conducting work on the system.
Wiytamo service@wiytamo.com
service@wiytamo.com Wiytamo
16
2.2.2 Work procedure
Work shall be undertaken under a controlled procedure so as to minimize
the risk of a flammable gas or vapor being present while the work is being
performed.
2.2.3 General work area
All maintenance staff and others working in the local area shall be
instructed on the nature of work being carried out. Work in confined
spaces shall be avoided. The area around the work space shall be
sectioned off. Ensure that the conditions within the area have been made
safe by control of flammable material.
2.2.4 Checking for presence of refrigerant
The area shall be checked with an appropriate refrigerant detector prior to
and during work, to ensure the technician is aware of potentially
flammable atmospheres. Ensure that the leak detection equipment being
used is suitable for use with flammable refrigerants, i.e. no sparking,
adequately sealed or intrinsically safe.
2.2.5 Presence of fire extinguisher
If any hot work is to be conducted on the refrigeration equipment or any
associated parts, appropriate fire extinguishing equipment shall be
available to hand. Have a dry powder or CO2 fire extinguisher adjacent to
the charging area.
2.2.6 No ignition sources
No person carrying out work in relation to a refrigeration system which
involves exposing any pipe work that contains or has contained flammable
refrigerant shall use any sources of ignition in such a manner that it may
lead to the risk of fire or explosion. All possible ignition sources, including
cigarette smoking, should be kept sufficiently far away from the site of
installation, repairing, removing and disposal, during which flammable
Wiytamo service@wiytamo.com
service@wiytamo.com Wiytamo
17
refrigerant can possibly be released to the surrounding space. Prior to
work taking place, the area around the equipment is to be surveyed to
make sure that there are no flammable hazards or ignition risks. “No
Smoking” signs shall be displayed.
2.2.7 Ventilated area
Ensure that the area is in the open or that it is adequately ventilated
before breaking into the system or conducting any hot work. A degree of
ventilation shall continue during the period that the work is carried out.
The ventilation should safely disperse any released refrigerant and
preferably expel it externally into the atmosphere.
2.2.8 Checks to the refrigeration equipment
Where electrical components are being changed, they shall be fit for the
purpose and to the correct specification. At all times the manufacturer’s
maintenance and service guidelines shall be followed. If in doubt consult
the manufacturer’s technical department for assistance.
The following checks shall be applied to installations using flammable
refrigerants:
– The charge size is in accordance with the room size within which the
refrigerant containing parts are installed;
– The ventilation machinery and outlets are operating adequately and are
not obstructed;
– If an indirect refrigerating circuit is being used, the secondary circuit
shall be checked for the presence of refrigerant;
– Marking to the equipment continues to be visible and legible. Markings
and signs that are illegible shall be corrected;
– refrigeration pipe or components are installed in a position where they
are unlikely to be exposed to any substance which may corrode
refrigerant containing components, unless the components are
Wiytamo service@wiytamo.com
service@wiytamo.com Wiytamo
18
constructed of materials which are inherently resistant to being corroded
or are suitably protected against being so corroded.
2.2.9 Checks to electrical devices
Repair and maintenance to electrical components shall include initial
safety checks and component inspection procedures. If a fault exists that
could compromise safety, then no electrical supply shall be connected to
the circuit until it is satisfactorily dealt with. If the fault cannot be
corrected immediately but it is necessary to continue operation, an
adequate temporary solution shall be used. This shall be reported to the
owner of the equipment so all parties are advised.
Initial safety checks shall include:
-those capacitors are discharged: this shall be done in a safe manner to
avoid possibility of sparking;
-that there no live electrical components and wiring are exposed while
charging, recovering or purging the system;
-that there is continuity of earth bonding.
WARNING!
Install the unit in rooms which exceed 4 m².
Do not install the unit in a place where inflammable gas
may leak.
NOTE!
The manufacture may provide other suitable example or
may provide additional information about the refrigerant
odour.
Wiytamo service@wiytamo.com
service@wiytamo.com Wiytamo
19
3. INSTALLATION
3.1. UNPACKING
Unpack the carton and take the appliance and accessories out.
Check the device after unpacking for any damage or scratches on
it.

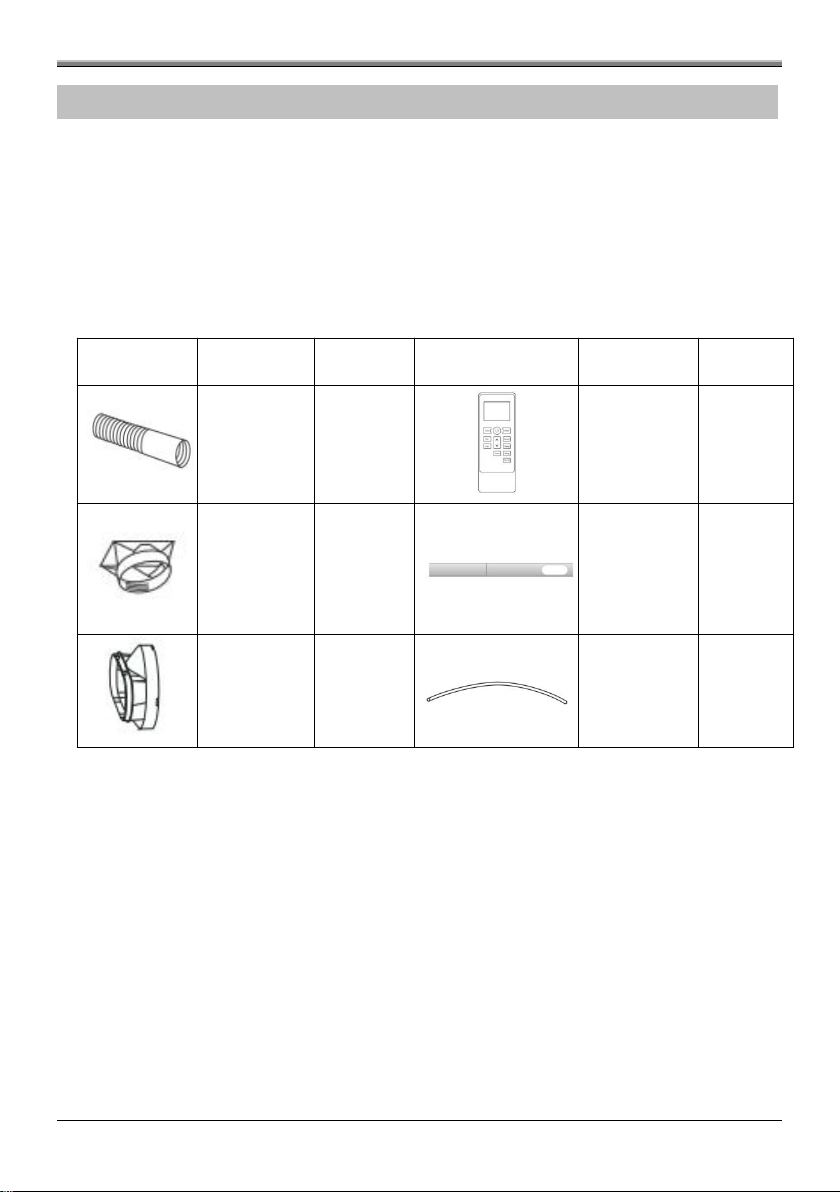

Accessories:
Part
Description
Quantity
Part
Description
Quantity
Exhaust
hose
1
Remote
control
1
Hose
connector
1
Window
kit
1
Window
kit
adapter
1
Drain
Hose
1
Note: If there are any problems or missing parts, please contact us
after-sales promptly and we will try our best to help you solve the
problem (service@wiytamo.com)
Wiytamo service@wiytamo.com
service@wiytamo.com Wiytamo
20
3.2. CHOOSE YOUR LOCATION

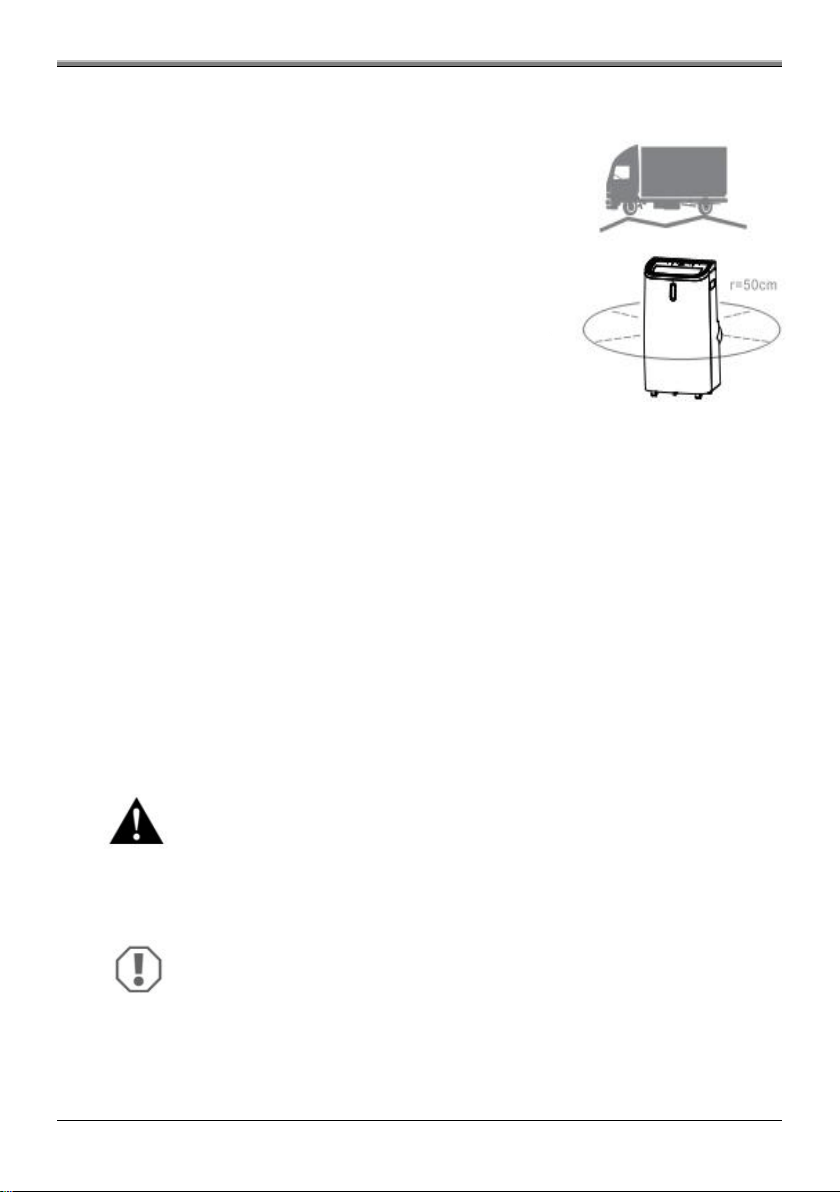

If tipped more than 45°, allow
the unit to set upright for at least
24 hours before start up.
Place the unit on a firm, level surface
in an area with at least 70cm of free
space around it to allow for proper air
circulation.
Do not operate in close proximity to
walls, curtains, or other objects that
may block air inlet and outlet. Keep
the air inlet and outlet free of obstacles.
Never install the unit where it could be subject to：
Heat sources such as radiators, heat registers, stoves or other
products that products that produce heat.
Direct sunlight
Mechanical vibration or shock
Excessive dust
Lack of ventilation, such as cabinet or bookcase
Uneven surface
WARNING!
Install the unit in rooms which exceed 4 m².
Do not install the unit in a place where inflammable gas
may leak.
NOTE!
The manufacture may provide other suitable example or
may provide additional information about the refrigerant
odour.
Wiytamo service@wiytamo.com
service@wiytamo.com Wiytamo
21

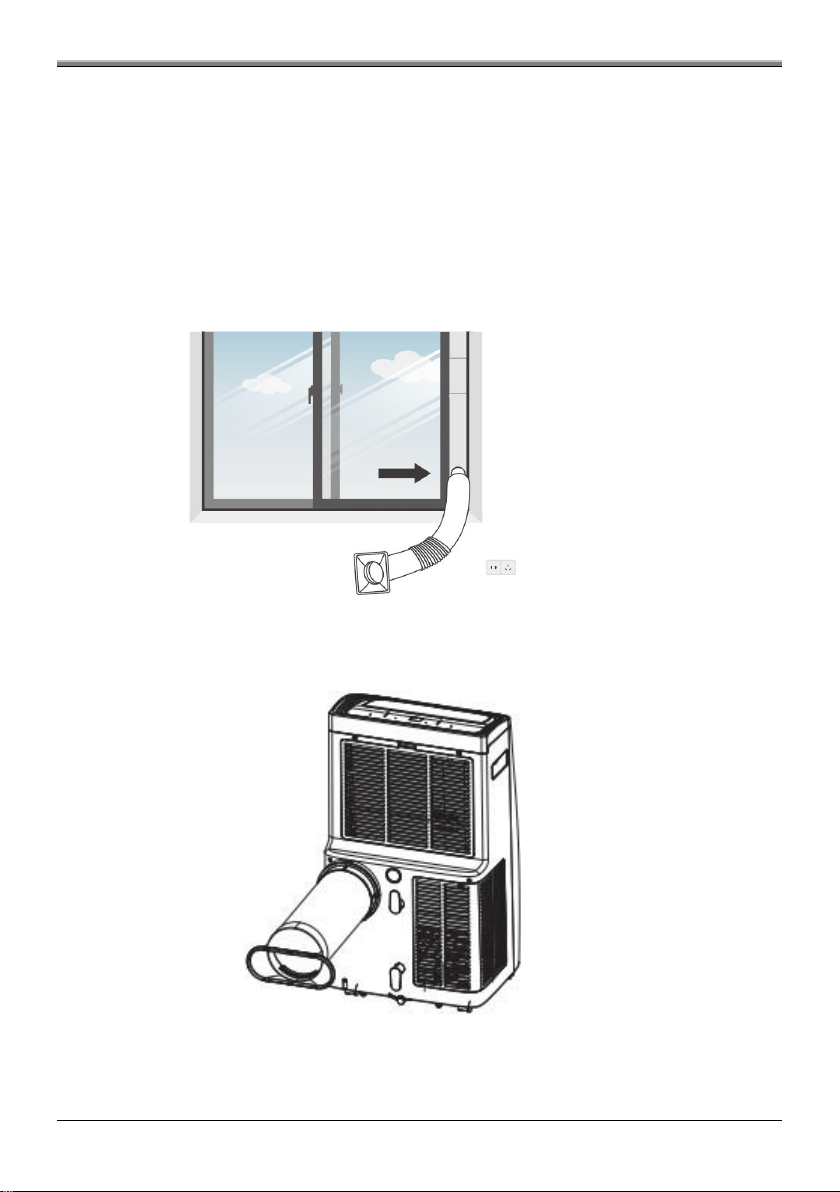

3.3. ATTACH THE EXHAUST HOSE

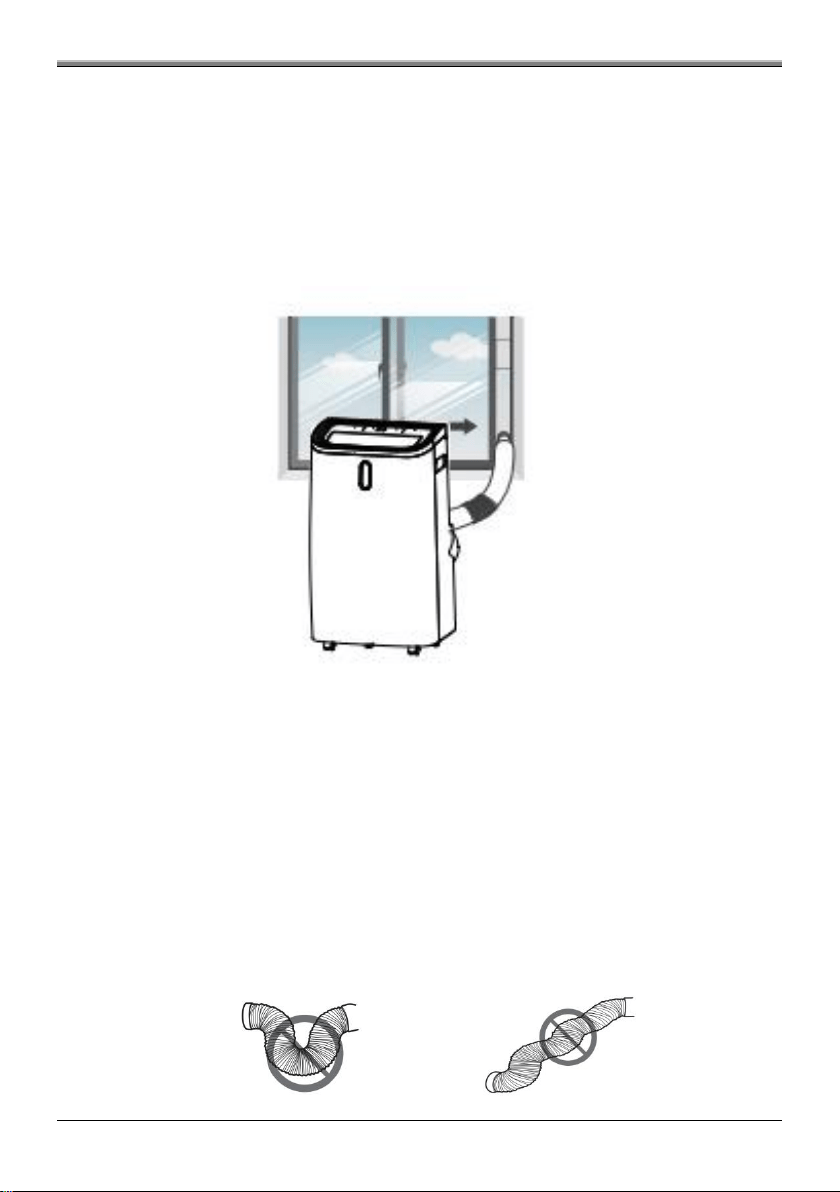

The air conditioner requires being vented outside so that the exhaust air
can escape the room which coming from the appliance contains waste heat
and moisture.
Do not replace or extend exhaust hose which will result in decreased
efficiency, even worse shut down the unit due to low backpressure.

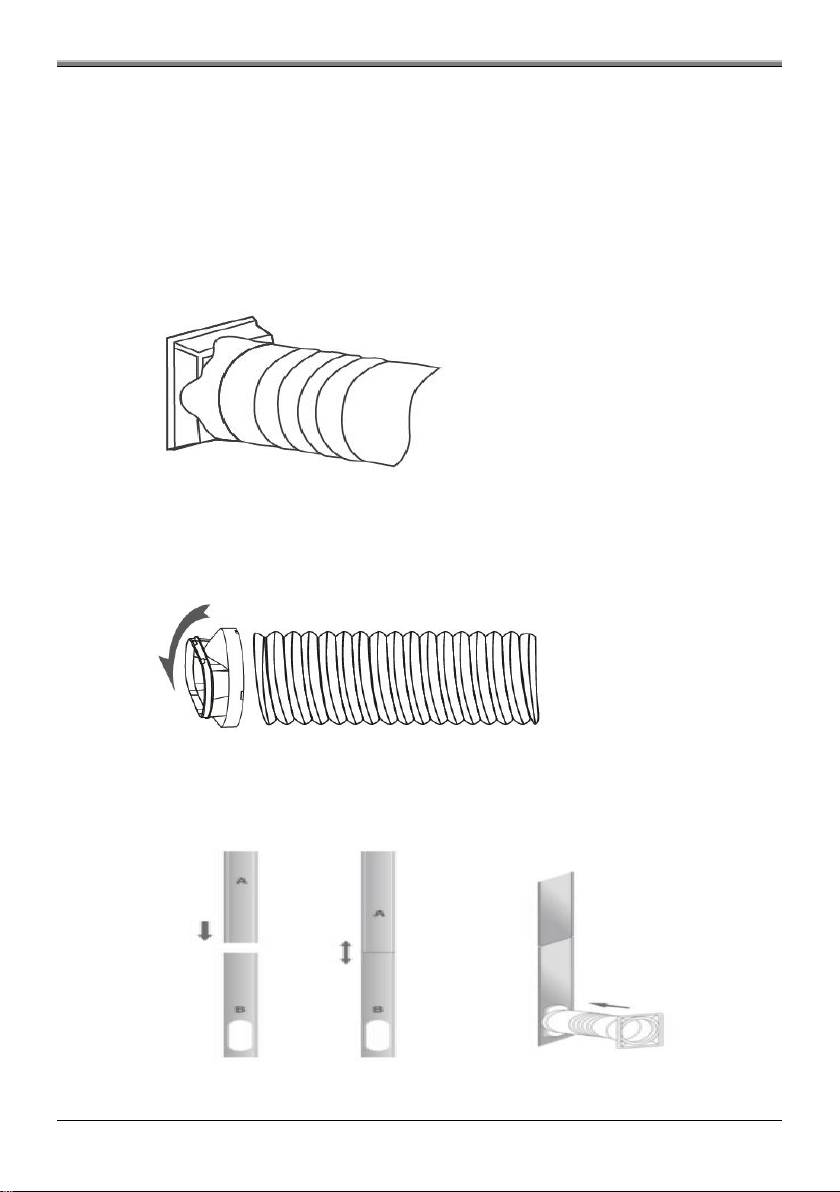

Step 1: Connect the hose connector to one end of the exhaust hose.
Step 2: Connect the windows kit adapter to the other end of the
exhaust hose.
Step 3: Extend the adjustable window kit the length of your window.
Connect the exhaust hose to the window kit.
Wiytamo service@wiytamo.com
service@wiytamo.com Wiytamo
22
Step 4: Close your window to secure the kit in place. It needs to hold
the windows kit firmly in place, secure the window kit with duct tape if
required. It is recommended that the gap between the adapter and the
sides of the window should be sealed off for maximum efficiency.
Step 5: Attach the hose connector to the exhaust air outlet of unit.
Wiytamo service@wiytamo.com
service@wiytamo.com Wiytamo
23
Step 6: Adjusting the length of the flexible exhaust hose, to make
sure the distance between the unit and the window will be
more than 70cm, height from exhaust hose to the floor will be
more than 90cm. And avoid bends in the hose. Then place AC
near an electrical outlet.
Step 7: Adjust the louver at the air outlet, and then switch on the
unit.
Note: To ensure proper function, DO NOT overextend or bend the hose.
Make sure that there is no obstacle around the air outlet of the
exhaust hose (in the range of 500mm) in order to the exhaust system
works properly. All the illustrations in this manual are for explanation
purpose only. Your air conditioner may be slightly different. The actual
shape shall prevail.
Wiytamo service@wiytamo.com
service@wiytamo.com Wiytamo
24
4. OPERATION

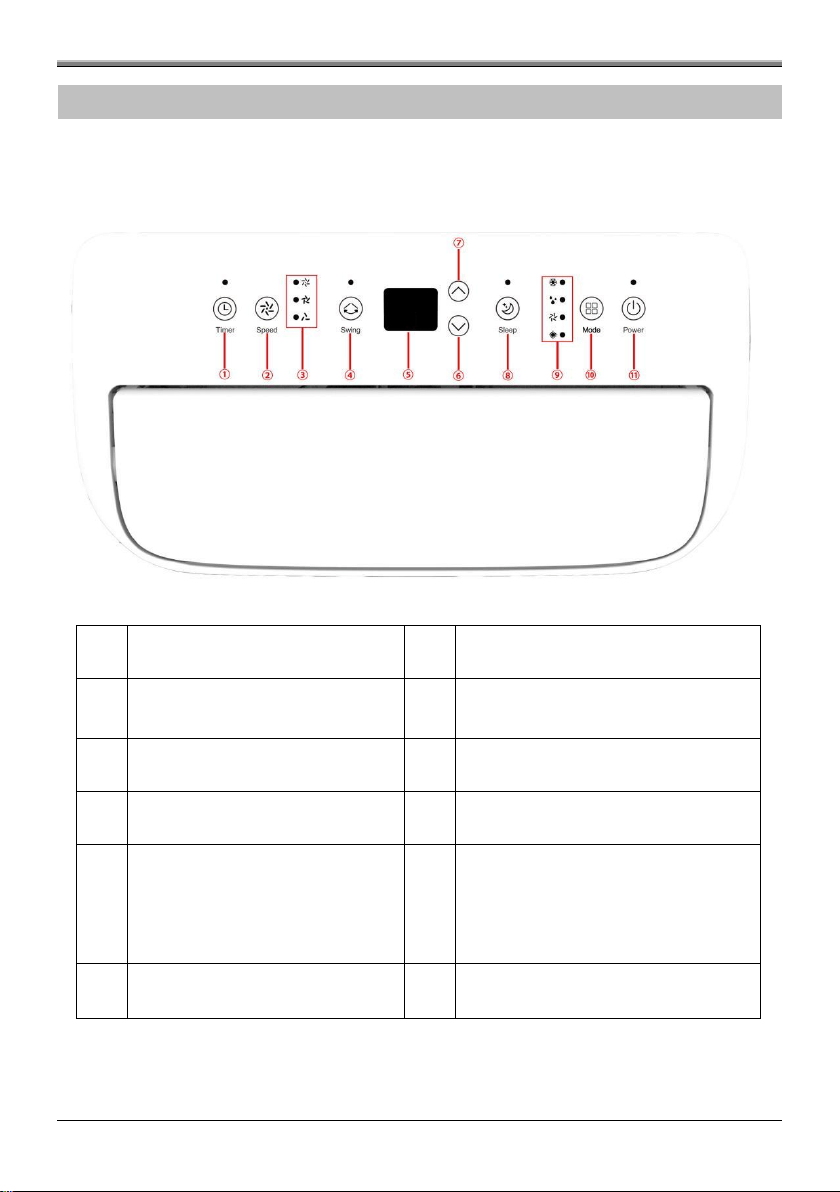

4.1. CONTROL PANEL AND DISPLAY
①
Press the key to set timing
value.
②
Toggle between high, medium,
and low fan speeds.
③
LED for fan speed (high,
medium, low)
④
Automatic swing mode of air
outlet plate
⑤
Displays timer setting and
room temperature.
⑥
Decreasing the desired
temperature or timer setting.
⑦
Increase the desired
temperature or timer setting.
⑧
Turn on sleep mode
⑨
LED for four operation modes
selecting by press mode
button.
⑩
Mode button When pressed, the
operation mode can be switched
between cooling, drying, fan and
heating.
⑪
Press to switch the machine
on or off.
Wiytamo service@wiytamo.com
service@wiytamo.com Wiytamo
25

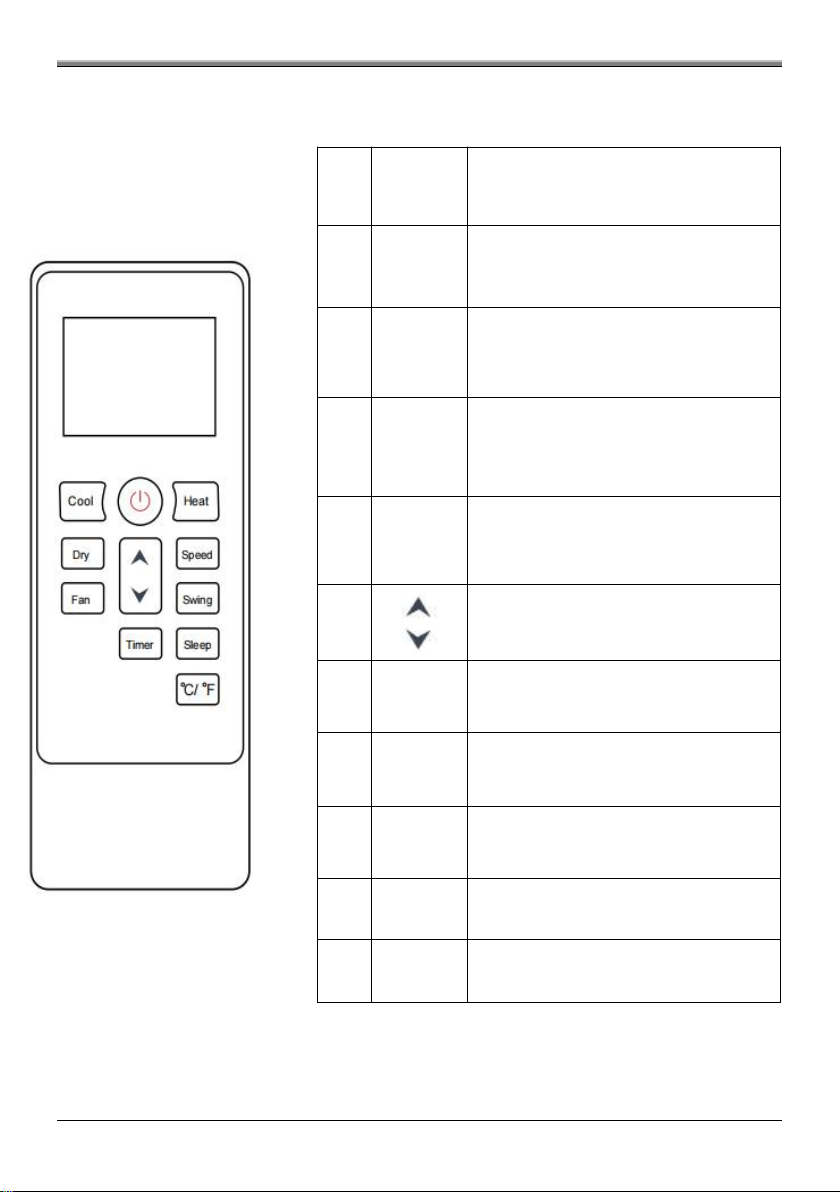

4.2. FUNCTION KEYS AND INDICATORS
1
POWER
Press to switch the machine on
or off.
2
Timer
Press the key to set timing
value.
3
COOL
Press the button to set the cool
mode
4
Dry
Press the button to set the dry
mode
5
Fan
Press the button to set the room
air to be circulated, but not
cooled.
6
Adjust the temperature range or
adjust the timing time range
7
Heat
Press the button to set the
heating mode
8
Speed
Press to switch the fan speed in
HIGH、middle and LOW.
9
Swing
Adjust the air flow direction
vertically.
10
Sleep
Press the button to set the sleep
mode
11
℃/℉
Press the button to toggle
between Celsius and Fahrenheit.
Wiytamo service@wiytamo.com
service@wiytamo.com Wiytamo
26
4.3. SETTINGS
4.3.1. Start-up and Shutdown
Press the to turn the unit on.
The unit runs in in FAN as default.
Press MODE button to select the desired operation mode.
Press the again to turn off the power.
4.3.2. Operation mode
The unit has four operation modes: Cool, fan, dry, sleep, heat.
The ambient temperature required for the unit to work is 16-35℃ in the
cooling mode and 5-27℃ in the heating mode.
A. Cooling your room
Select the cool mode to lower the temperature in your room.
Press the button until the LED of COOL operation lights up.
Press the button to adjust the temperature which is
displayed on the screen. The temperature can be set between
61
℉
- 90
℉
(16
–
32
℃
)
.
Press the button until the desired fan speed indicator lights up.
To control the direction of the air flow horizontally, please press the
SWING button on.
Note：The air conditioner stops if the room temperature is lower than
selected temperature.
B. Ventilating your room
Press the button repeatedly until the LED of FAN operation lights
up.
In ventilation mode the room air is circulated, but not cooled.
Wiytamo service@wiytamo.com
service@wiytamo.com Wiytamo
27
Press the button repeatedly to select the fan speed as desired.
C. Drying your room
Press the button on the control panel or remote control, the LED
of DRY operation lights up. The fan speed is unable to select.
The user should connect a hose to the drainage port at the bottom of
the unit to facilitate continuous drainage of the unit.
Note: In this mode, the fan speed switches over to low speed and the
temperature cannot be selected.
D. Heating your room
Press button repeatedly until the LED of HEAT operation lights up.
Press button to set the temperature higher than the room
temperature.
Note: The user should connect a hose to the drainage port at the bottom
of the unit to facilitate continuous drainage of the unit.
E. Sleep mode
The sleep mode can be activated when in cool mode and heat mode.
In cool mode :
After 1 hour the preset temperature is increased by 1 ℃, after another
hour the preset temperature will again be increased by 1 ℃.
In heat mode :
After 1 hour the preset temperature is decreased by 1 ℃, after another
hour the preset temperature will again be decreased by 1
℃
.
Then the temperature is kept constant for 10 hours. And all the indicators
dim to dark. The fan speed may switch over to low speed for silent
operating and cannot be selected.
Wiytamo service@wiytamo.com
service@wiytamo.com Wiytamo
28
4.3.3. TIMER SETTING（1hour-24hours）:
The timer has two ways of operation:
To turn off
(When power on)
To turn on
(When power off)
Cancel timer
4.3.4. Automatic Defrost
At low room temperatures, frost may buildup at the evaporator during operation.
The unit will automatically start defrosting and the POWER LED blinking. The
defrost control sequence is as follows:
A. When the unit operates in the cooling operation, drying operation, the
ambient temperature sensor senses the evaporator coil temperature is below
-1°C, after the compressor will stop operating for 10 minutes or the coil
temperature up to 7℃, the unit restart to cool operating mode.
B. When the unit operates in the heating operation, drying operation, once the
coil temperature sensor senses the temperature of the evaporator is below
40
℃
and the differential temperature between coil temperature and room
temperature is below 19
℃
after the compressor operation for 20minutes, the
unit start defrosting for 5 minutes and the power indicator blinking.
4.4.5. Overload Protection
In the event of a power loss, to protect the compressor there is a 3-
minute delay until the compressor restarting.
Press key
to turn on the timer
on.
Press key
to turn on the timer
function.
Press UP/Down
repeatedly to set the
delay OFF time.
Press
UP/Down
repeatedly to set the
delay ON time.
Press key ,then press
UP/Down
repeatedly
until the LED shows ‘00’.
Note: when press POWER will also exit the timer setting.
Wiytamo service@wiytamo.com
service@wiytamo.com Wiytamo
29
4.4. DRAINAGE

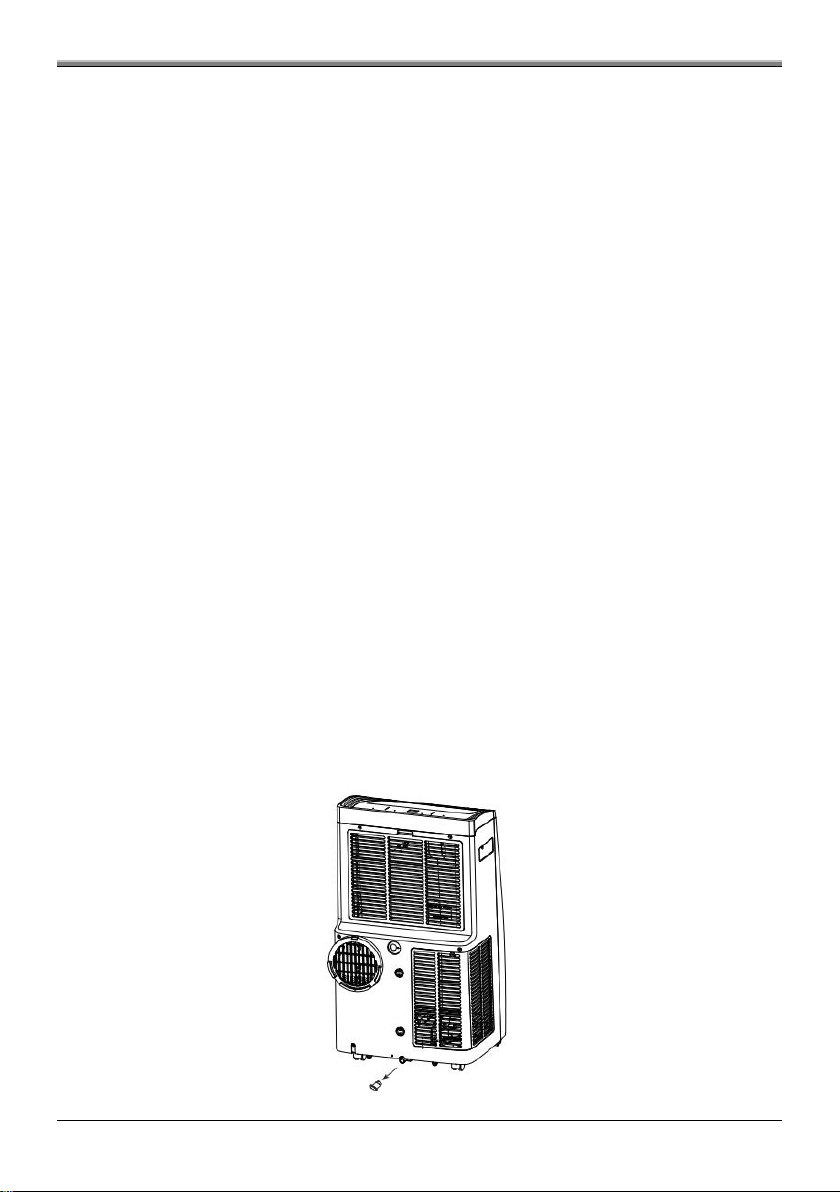

Manual drainage:
1）When the machine stops after the water is full, please unplug the
power plug.
Notes: Please move the machine carefully, so as not to spill the water in
the water pan at the bottom of the body.
2）Place the water container below the side water outlet behind the
body.
3）Unplug the water plug, the water will automatically flow into the
water container.
Notes:
1. Keep the water plug properly.
2. During drainage, the body can be tilted slightly backwards.
3. If the water container cannot hold all the water, before the water
container is full, stuff the water outlet with the water plug as soon as
possible to prevent water from flowing to the floor or the carpet.
4）When the water is discharged, stuff the water plug.
Notes: 1. Restart the machine after the water plug and drainage cover
are installed, otherwise condensate water of the machine will flow to
the floor or the carpet.
Wiytamo service@wiytamo.com
service@wiytamo.com Wiytamo
30

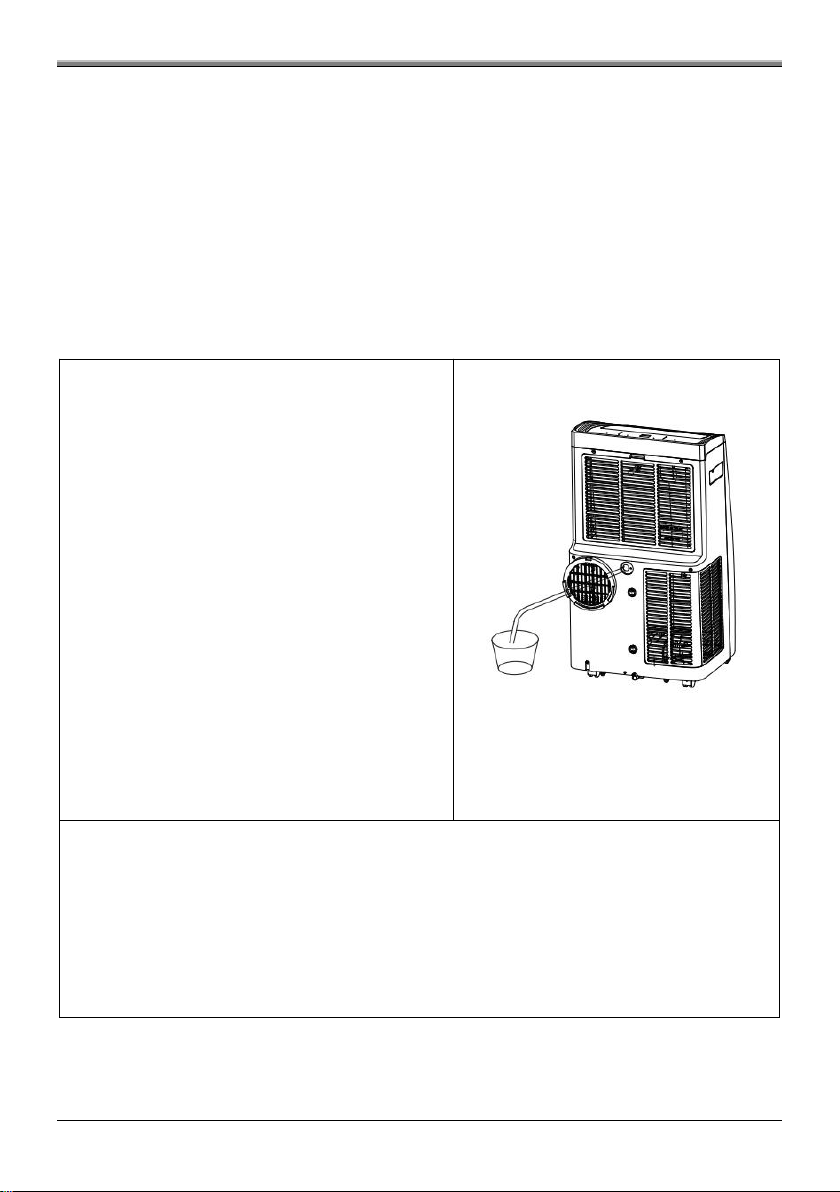

Continuous drainage
The self-evaporating system uses the collected water to cool the
condenser coils for better efficient performance. It is no need to empty
the drainage tank in cooling operation except in heating operation,
drying operation and high humidity conditions. The condensate water
evaporates at the condenser and evacuated through the exhaust hose.
For continuous operation or unattended operating in drying operation,
please connect the attached drain hose to the unit. Condensate water
can be automatically flow into a bucket or drain by gravity.
Switch off the unit before
operating.
Remove the plug of the water
outlet opening, and keep it in
safe area.
Securely and properly connect
the drain hose and make sure it
is not kinked and clear of
obstruction.
Place the outlet of hose over a
drain or bucket and ensure that
water could freely flow out of the
unit.
Do not submerge the end of hose
into water; otherwise it can cause
"Air Lock" in the hose.
To avoid water spillage:
•
As the negative pressure of condensate drain pan is large, tilt the
drain hose downward toward the floor. It is appropriate that the
degree of inclination should exceed 20 degrees.
• Straighten the hose to avoid a trap existing in the hose.
Wiytamo service@wiytamo.com
service@wiytamo.com Wiytamo
31
5. CLEANING AND CARE
5.1. CLEANING THE AIR FILTER (every two weeks)
Dust collects on the filter and restricts the airflow. The restricted airflow
reduces the efficiency of the system and if it becomes blocked it can
cause damage to the unit.
The air filter requires regular cleaning. The air filter is removable for
easy cleaning. Do not operate the unit without an air filter, or the
evaporator may be contaminated.
1.
Press POWER button to switch off the unit and unplug the power cord.
2.
Remove the filter mesh from the unit.
3.
Use a vacuum cleaner to suck dust from the filter.
4.
Turn the filter over and rinse the air filter under running water. Let the
water run through the filter in the opposite direction of air flow. Set aside
and allow the filter to air dry completely before reinstalling.

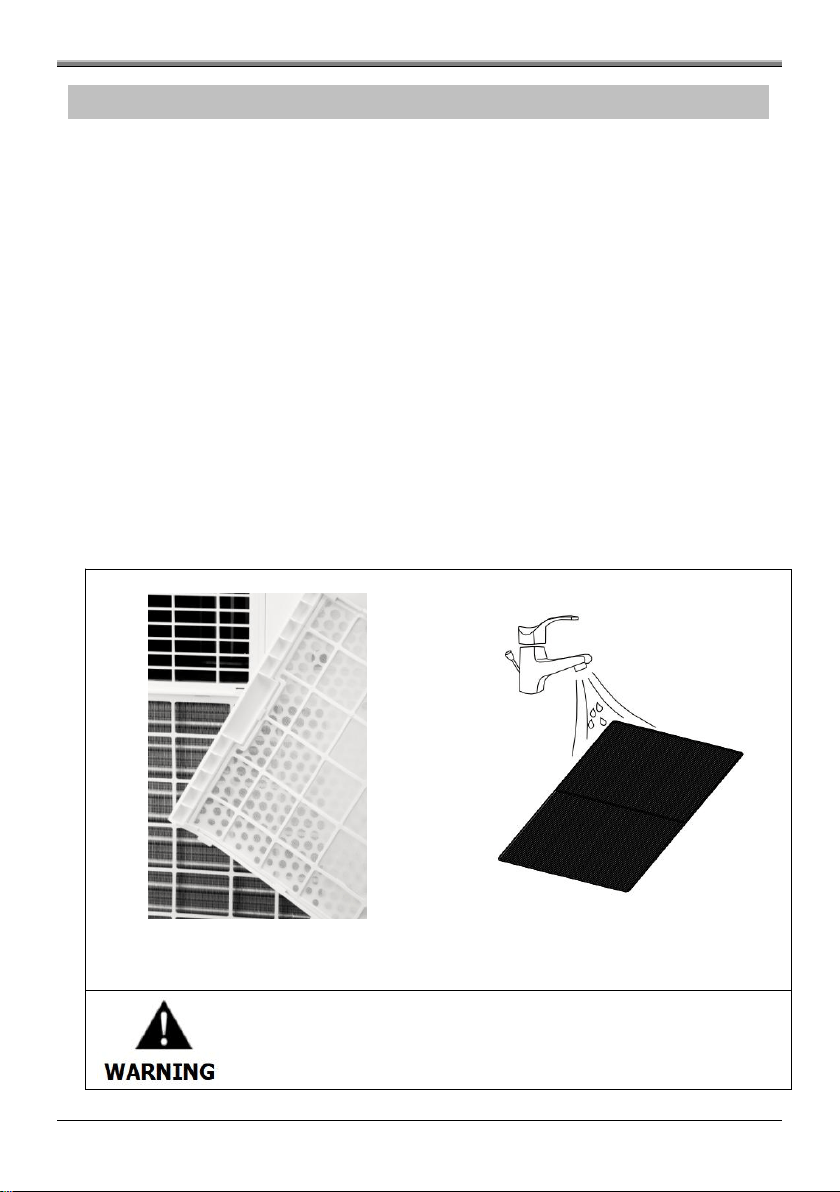

Pic1. Switch off the unit and remove
the two air filters.
Pic2. Rinse the air filter under
running water.
Do not touch the evaporator surface with bare-hand, or
could cause injury of your fingers.
Wiytamo service@wiytamo.com
service@wiytamo.com Wiytamo
32
5.2. CLEANING UP OF REFRIGERANT
General Measures:
1. Gas/vapor heavier than air. May accumulate in confined spaces,
particularly at or below ground level.
2. Eliminate every possible source of ignition.
3. Use appropriate personal protection equipment (PPE).
4. Evacuate unnecessary personnel, isolate, and ventilate area.
5. Do not get in eyes, on skin, or on clothing. Do not breathe vapors or
gas.
6. Prevent entry to sewers and public waters.
7. Stop the source of the release, if safe to do so. Consider the use of
water spray to disperse vapors.
8. Isolate the area until gas has dispersed. Ventilate and gas test area
before entering. Contact competent authorities after a spill.
Wiytamo service@wiytamo.com
service@wiytamo.com Wiytamo
33
6. OPERATION
Symptom
Inspection
Solution
The unit is
not
operating.
Check the power
connection in securely.
Insert the power cord
securely into the wallOutlet.
Check if the water level
indicator lights up?
Empty the drain pan by
remove the rubber plug.
Check the room
temperature.
The range of operating
temperature is 5-35℃.
The unit
works with
reduced
capacity.
Check the air filter for dirt.
Clean the air filter as
necessary.
Check if the air duct is
blocked.
To clear the obstacle.
Check if the room door or
window is open.
Keep the door and windows
closed.
Check if the desired
operating mode is selected
and the temperature is
properly set.
Set the mode and
temperature at proper set-
point according the manual.
(refer to page16)
The exhaust hose is
detached.
Make sure the exhaust hose
is securely attached.
Water
Leakage
Overflow while moving the
unit.
Empty the water tank
before transport.
Check if the drain hose is
kinked or bends.
Straighten the hose to avoid
a trap existing.
Excessive
Noise
Check if the unit is
securely positioned.
Place the unit on horizontal
and firm ground.
Check if any loose,
vibrating parts.
Secure and tight the parts.
Noise sounds like water
flowing.
Noise comes from flowing
refrigerant. This is normal.
Error
Codes
E0
Communication faults
between main PCB and
display PCB.
Check the wire harness of
the display PCB for damage.
E1
Ambient temperature
sensor failure
Check connection or replace
it. To clean or replace the
temperature sensor.
E2
Coil temperature sensor
failures.
Check connection or replace
it. To clean or replace the
temperature sensor.
Ft
Condensate water high
level alarm.
Empty the drain pan by
removal the rubber plug.
Wiytamo service@wiytamo.com
service@wiytamo.com Wiytamo
34
7. DECOMMISSIONING
7.1. STORAGE
Long-Term Storage - If you will not be using the unit for an extended
period of time (more than a few weeks) it is best to clean the unit
and dry it out completely. Please store the unit per the following
steps:
7.2. DISPOSAL
WARNING!!!
Releasing refrigerant into atmosphere is strictly
forbidden!
Do not dispose of electrical appliances as
unsorted municipal waste, use separate
collection facilities. Contact your local
government for information regarding the
collection systems available. If electrical
appliances are disposed of in landfills or
dumps, hazardous substances can leak into
the groundwater and get into the food chain,
damaging your health and well-being.
1.
Unplug the unit and
remove exhaust hose and window kit store with the
unit.
2. Drain the remaining water from the unit.
3.
Clean the filter and let the filter dry completely in a shaded area.
4. Collect the power cord at the water tank.
5.
Re-install the filter at its position.
6.
The unit must be kept in upright position when in storage.
7.
Preserving the machine in ventilating, dry, non- corrosive gas and safe
place indoor.
ATTENTION:
The evaporator inside the machine has to be dried out before the unit is
packed to avoid component damage and molds. Unplug the unit and place
it in a dry open area for days to dry it out. Another way to dry the unit is
to set the humidity point more than 5% higher than the ambient humidity
to force the fan to dry the evaporator for a couple of hours.
