ELECTRIC RANGE
Use & Care Guide
ESTUFA ELECTRICA
Manual del Usuario
Model Nos.
790.95922
790.95923
790.95924
790.95929
Sears Roebuck and Co., Hoffman Estates, IL 60179 U.S.A. PIN 316257930(0301)
www.sears.com

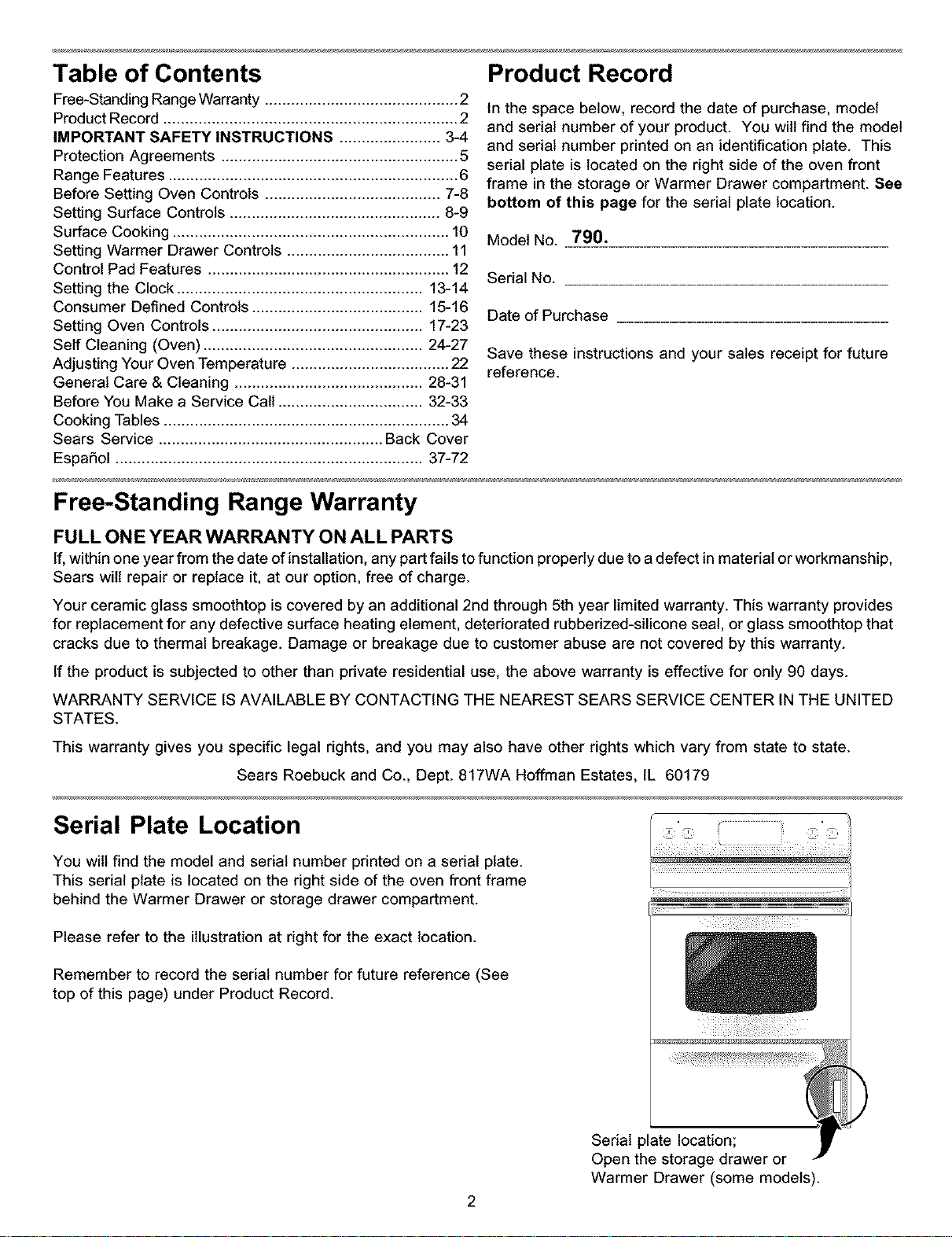

Table of Contents Product Record
Free-Standing Range Warranty ............................................ 2
Product Record ................................................................... 2
IMPORTANT SAFETY INSTRUCTIONS ....................... 3-4
Protection Agreements ...................................................... 5
Range Features .................................................................. 6
Before Setting Oven Controls ........................................ 7-8
Setting Surface Controls ................................................ 8-9
Surface Cooking ............................................................... 10 Model No. 7__9_0_.............................
Setting Warmer Drawer Controls ..................................... 11
Control Pad Features ....................................................... 12
Serial No..................................
Setting the Clock ........................................................ 13-14
Consumer Defined Controls ....................................... 15-16 Date of Purchase
Setting Oven Controls ................................................ 17-23
Self Cleaning (Oven) .................................................. 24-27
Save these instructions and your sales receipt for future
Adjusting Your Oven Temperature .................................... 22
reference.
General Care & Cleaning ........................................... 28-31
Before You Make a Service Call ................................. 32-33
Cooking Tables ................................................................. 34
Sears Service ................................................... Back Cover
EspaSol ...................................................................... 37-72
Free-Standing Range Warranty
In the space below, record the date of purchase, model
and serial number of your product. You wilt find the model
and serial number printed on an identification plate. This
serial plate is located on the right side of the oven front
frame in the storage or Warmer Drawer compartment. See
bottom of this page for the serial plate location.
FULL ONE YEAR WARRANTY ON ALL PARTS
If,within one year from the date of installation, any part fails to function properly due to a defect in material or workmanship,
Sears wilt repair or replace it, at our option, free of charge.
Your ceramic glass smoothtop is covered by an additional 2nd through 5th year limited warranty. This warranty provides
for replacement for any defective surface heating element, deteriorated rubberized-silicone seal, or glass smoothtop that
cracks due to thermal breakage. Damage or breakage due to customer abuse are not covered by this warranty.
If the product is subjected to other than private residential use, the above warranty is effective for only 90 days.
WARRANTY SERVICE IS AVAILABLE BY CONTACTING THE NEAREST SEARS SERVICE CENTER IN THE UNITED
STATES.
This warranty gives you specific legal rights, and you may also have other rights which vary from state to state.
Sears Roebuck and Co., Dept. 817WA Hoffman Estates, IL 60179
Serial Plate Location
You wilt find the model and serial number printed on a serial plate.
This serial plate is located on the right side of the oven front frame
behind the Warmer Drawer or storage drawer compartment.
Please refer to the illustration at right for the exact location.
Remember to record the serial number for future reference (See
top of this page) under Product Record.
Serial plate location;
Open the storage drawer or
Warmer Drawer (some models).

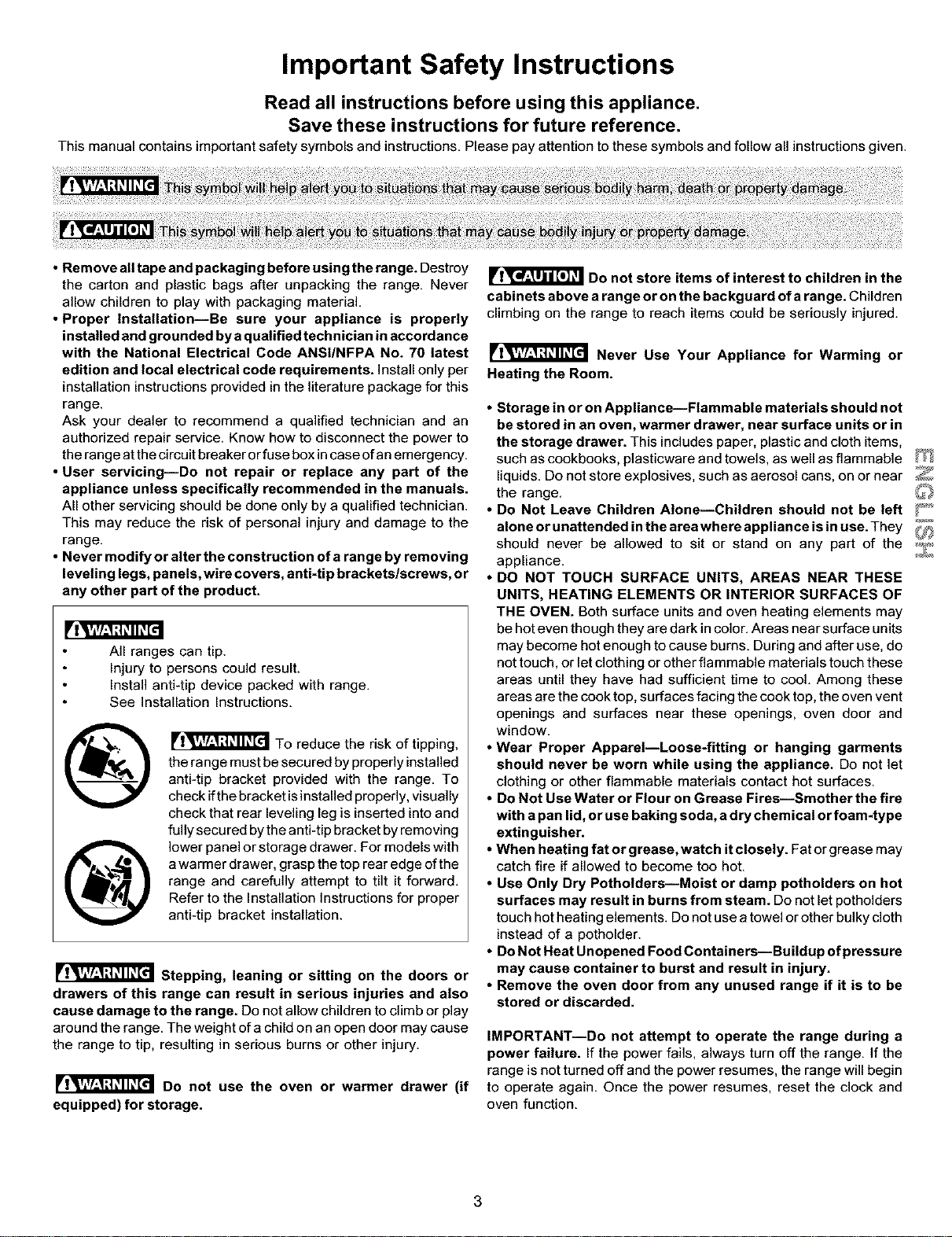

Important Safety Instructions
Read all instructions before using this appliance.
Save these instructions for future reference.
This manual contains important safety symbols and instructions. Please pay attention to these symbols and follow all instructions given.
• Remove all tape and packaging before using the range. Destroy
the carton and plastic bags after unpacking the range. Never
allow children to play with packaging material.
• Proper Installation]Be sure your appliance is properly
installed and grounded by a qualified technician in accordance
with the National Electrical Code ANSI/NFPA No. 70 latest
edition and local electrical code requirements. Install only per
installation instructions provided in the literature package for this
range.
Ask your dealer to recommend a qualified technician and an
authorized repair service. Know how to disconnect the power to
the range atthe circuit breaker orfuse box in case of an emergency.
• User servicing--Do not repair or replace any part of the
appliance unless specifically recommended in the manuals.
All other servicing should be done only by a qualified technician.
This may reduce the risk of personal injury and damage to the
range.
• Never modify or alter the construction of a range by removing
leveling legs, panels,wire covers, anti-tip bracketslscrews, or
any other part of the product.
All ranges can tip.
Injury to persons could result.
Install anti-tip device packed with range.
See installation Instructions.
_!_iW-'I:I_II_[L1 TO reduce the risk of tipping,
the range must be secured by properly installed
anti-tip bracket provided with the range. To
check ifthe bracket isinstalled properly, visually
check that rear leveling leg is inserted into and
fully secured by the anti-tip bracket by removing
lower panel or storage drawer. For models with
awarmer drawer, grasp the top rear edge of the
range and carefully attempt to tilt it forward.
Refer to the Installation instructions for proper
antFtip bracket installation.
r!,',V-'1:t,'ll_[qStepping, leaning or sitting on the doors or
drawers of this range can result in serious injuries and also
cause damage to the range. Do not allow children to climb or play
around the range. The weight of a child on an open door may cause
the range to tip, resulting in serious burns or other injury.
FIVJV_'I:I_II_[ell DO not use the oven or warmer drawer (if
equipped) for storage.
r_!_,l,_,_l Do not store items of interest to children in the
cabinets above a range or on the backguard of a range. Children
climbing on the range to reach items could be seriously injured.
Never Use Your Appliance for Warming or
Heating the Room.
• Storage in or on Appliance]Flammable materials should not
be stored in an oven, warmer drawer, near surface units or in
the storage drawer. This includes paper, plastic and cloth items,
such as cookbooks, plasticware and towels, as well as flammable
liquids. Do not store explosives, such as aerosol cans, on or near _
the range.
• Do Not Leave Children Alone--Children should not be left V_*_
alone or unattended in the areawhere appliance ]sin use.They _
should never be allowed to sit or stand on any part of the
appliance.
• DO NOT TOUCH SURFACE UNITS, AREAS NEAR THESE
UNITS, HEATING ELEMENTS OR INTERIOR SURFACES OF
THE OVEN. Both surface units and oven heating elements may
be hot even though they are dark in color. Areas near surface units
may become hot enough to cause burns. During and after use, do
not touch, or let clothing or other flammable materials touch these
areas until they have had sufficient time to cool. Among these
areas are the cook top, surfaces facing the cook top, the oven vent
openings and surfaces near these openings, oven door and
window.
• Wear Proper Apparel--Loose-fitting or hanging garments
should never be worn while using the appliance. Do not let
clothing or other flammable materials contact hot surfaces.
• Do Not Use Water or Flour on Grease Fires--Smother the fire
with a pan lid, or use baking soda, adry chemical or foam-type
extinguisher.
• When heating fat or grease, watch it closely. Fat or grease may
catch fire if allowed to become too hot.
• Use Only Dry Potholders--Moist or damp pothelders on hot
surfaces may result in burns from steam. Do not let potholders
touch hot heating elements. Do not use a towel or other bulky cloth
instead of a potholder.
• Do Not Heat Unopened Food Containers--Buildup of pressure
may cause container to burst and result in injury.
• Remove the oven door from any unused range if it is to be
stored or discarded.
IMPORTANT]Do not attempt to operate the range during a
power failure. If the power fails, always turn off the range. If the
range is not turned off and the power resumes, the range will begin
to operate again. Once the power resumes, reset the clock and
oven function.
3
Important Safety Instructions
IMPORTANT INSTRUCTIONS FOR USING YOUR
COOKTOP
• Know which knob controls each surface heating unit, Place a
pan of food on the unit before turning it on, and turn the unit off
before removing the pan.
• Use Proper Pan Size--This appliance is equipped with one or
more surface units of different sizes. Select utensils having flat
bottoms large enough to cover the surface unit heating element.
The use of undersized utensils will expose a portion of the heating
element to direct contact and may result in ignition of clothing.
Proper relationship of utensil to element will also improve efficiency.
• Utensil Handles Should Be Turned Inward and Not Extend Over
Adjacent Surface Elements--To reduce the risk of burns, ignition
of flammable materials, and spillage due to unintentional contact
with the utensil, the handle of the utensil should be positioned so
that it is turned inward, and does not extend over adjacent surface
units.
• Never Leave Surface Elements Unattended at High Heat
Settings--Boilovers cause smoking and greasy spillovers that
may ignite, or a pan that has boiled dry may melt.
• Do Not Immerse or Soak Removable Heating Elements i
Heating elements should never be immersed in water. Heating
elements clean themselves during normal operation.
• Glazed Cooking Utensils--Only certain types of glass, glass/
ceramic, ceramic, earthenware, or other glazed utensils are
suitable for cook top service without breaking due to the sudden
change in temperature. Check the manufacturer's
recommendations for cook top use.
• When flaming foods under a ventilating hood, turn the fan on.
IMPORTANT INSTRUCTIONS FOR USING YOUR
OVEN
• Use Care When Opening Oven Door or Warmer Drawer (if
equipped)--Stand to the side ofthe range when opening the door
of a hot oven. Let hot air or steam escape before you remove or
replace food in the oven.
• Keep Oven Vent Ducts Unobstructed. The oven vent is located
under the left rear surface element if your model is equipped with
coil elements. The oven vent is located below the backguard for
models equipped with ceramic-glass cook tops. Touching the
surfaces in this area when the oven is operating may cause
severe burns. Also, do not place plastic or heat-sensitive items on
or near the oven vent. These items could melt or ignite.
• Placement of Oven Racks. Always place oven racks in desired
location while oven is cool. If rack must be moved while oven is
hot use extreme caution. Use potholders and grasp the rack with
both hands to reposition. Do not let potholders contact the hot
heating elements in the oven. Remove all utensils from the rack
before moving.
• Do not use the broiler pan without its insert. The broiler pan and
its insert allow dripping fat to drain and be kept away from the high
heat of the broiler.
• Do not cover the broiler insert with aluminum foil. Exposed fat
and grease could ignite.
• Protective Liners--Do not use aluminum foil to line the oven
bottom. Only use aluminum foil as recommended in this manual.
improper installation of these liners may result in risk of electric
shock, or fire.
SELF CLEANING OVENS
• Clean in the self*cleaning cycle only the parts listed in this Use & Care Manual. Before self cleaning the oven, remove the broiler
pan and any utensils or foods from the oven.

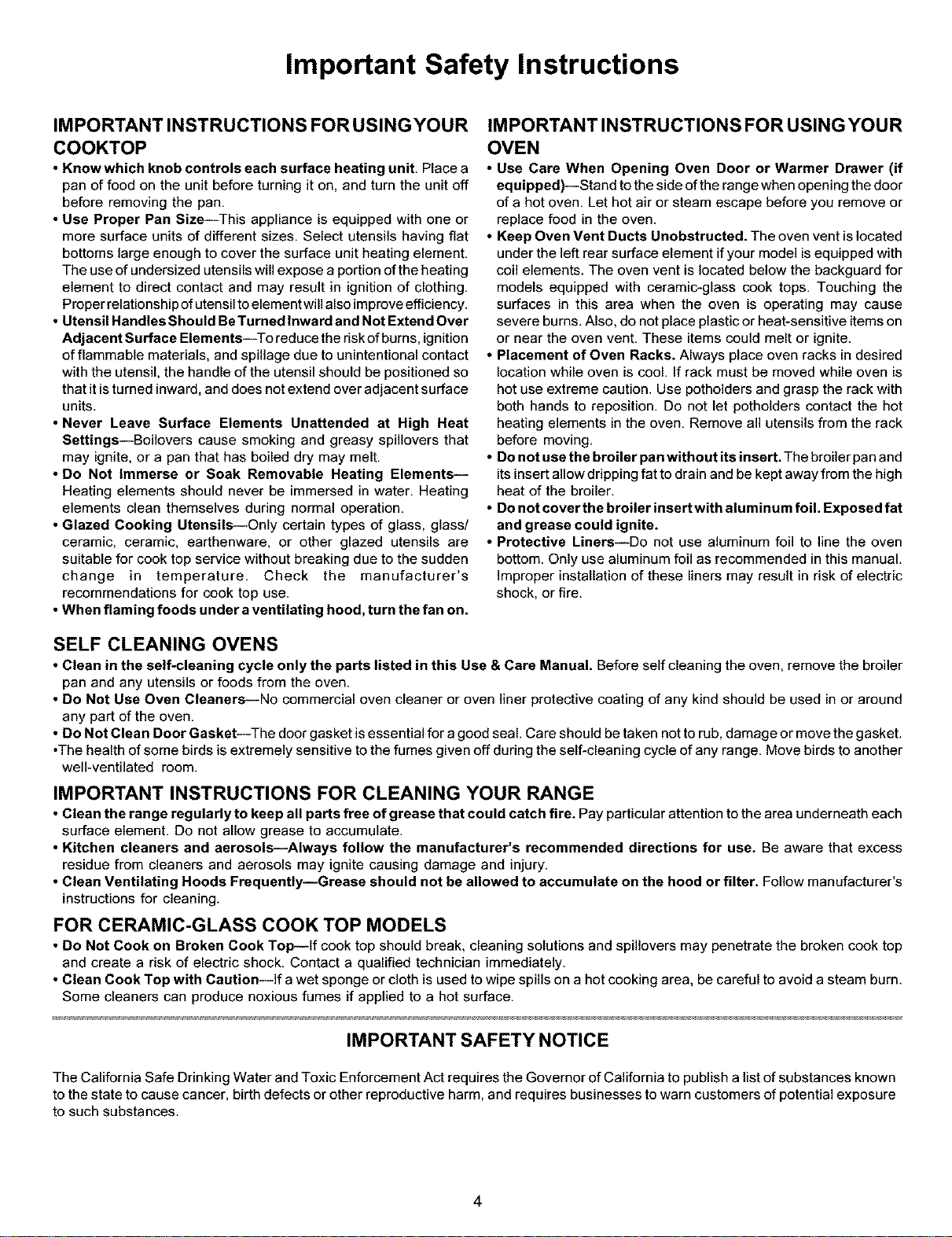

• Do Not Use Oven Cleaners--No commercial oven cleaner or oven liner protective coating of any kind should be used in or around
any part of the oven.
• Do Not Clean Door Gasket--The door gasket is essential for agood seal. Care should be taken not to rub, damage or move the gasket.
*The health of some birds is extremely sensitive to the fumes given off during the self-cleaning cycle of any range. Move birds to another
well-ventilated room.
IMPORTANT INSTRUCTIONS FOR CLEANING YOUR RANGE
• Clean the range regularly to keep all parts free of grease that could catch fire. Pay particular attention to the area underneath each
surface element. Do not allow grease to accumulate.
• Kitchen cleaners and aerosols--Always follow the manufacturer's recommended directions for use. Be aware that excess
residue from cleaners and aerosols may ignite causing damage and injury.
• Clean Ventilating Hoods Frequently--Grease should not be allowed to accumulate on the hood or filter. Follow manufacturer's
instructions for cleaning.
FOR CERAMIC-GLASS COOK TOP MODELS
• Do Not Cook on Broken Cook Top--If cook top should break, cleaning solutions and spiliovers may penetrate the broken cook top
and create a risk of electric shock. Contact a qualified technician immediately.
• Clean Cook Top with Caution--If a wet sponge or cloth is used to wipe spills on a hot cooking area, be careful to avoid a steam burn.
Some cleaners can produce noxious fumes if applied to a hot surface.
IMPORTANT SAFETY NOTICE
The California Safe Drinking Water and Toxic Enforcement Act requires the Governor of California to publish a listof substances known
to the state to cause cancer, birth defects or other reproductive harm, and requires businesses to warn customers of potential exposure
to such substances.
4

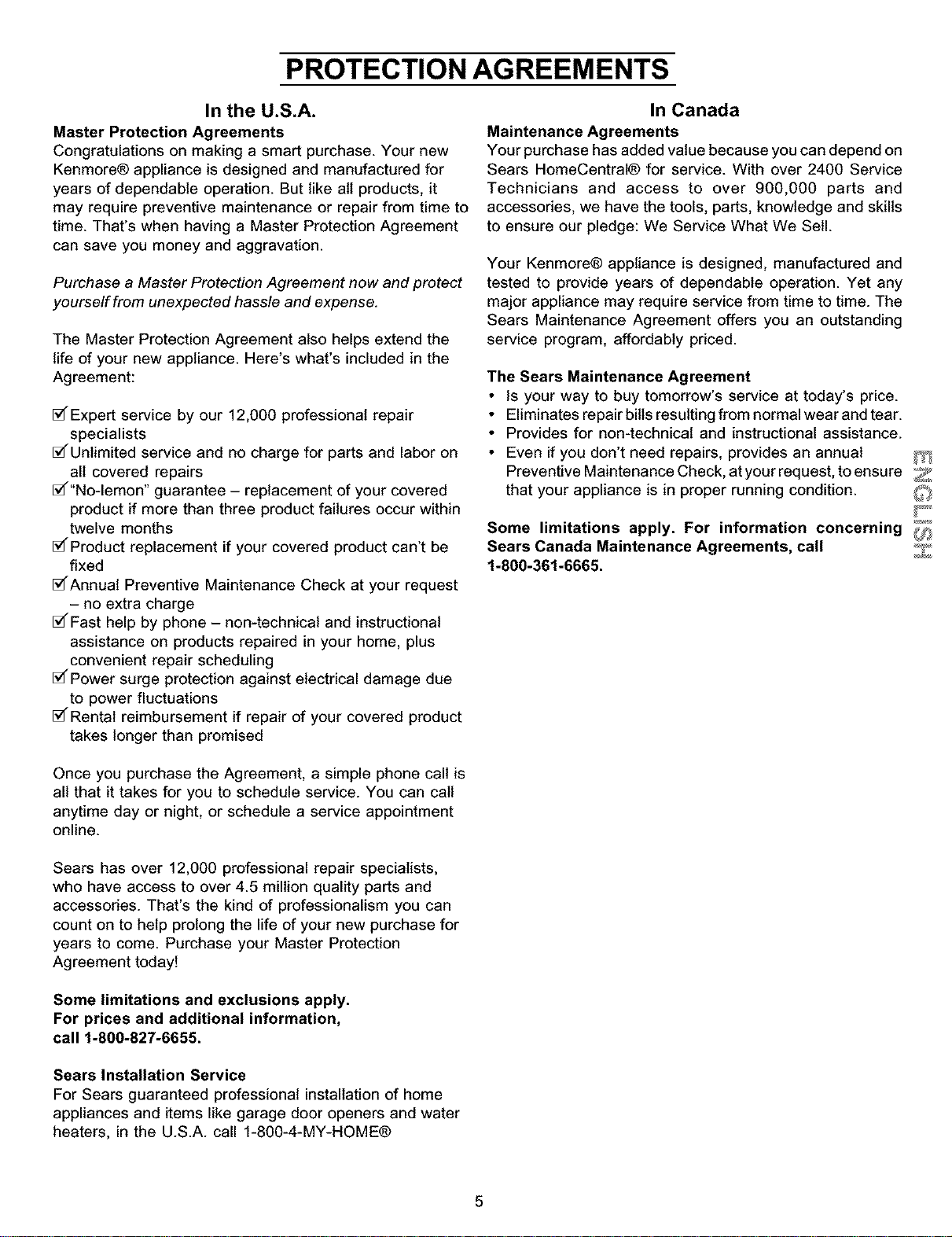

PROTECTION AGREEMENTS
In the U.S.A.
Master Protection Agreements
Congratulations on making a smart purchase. Your new
Kenmore® appliance is designed and manufactured for
years of dependable operation. But like all products, it
may require preventive maintenance or repair from time to
time. That's when having a Master Protection Agreement
can save you money and aggravation.
Purchase a Master Protection Agreement now and protect
yourself from unexpected hassle and expense.
The Master Protection Agreement also helps extend the
life of your new appliance. Here's what's included in the
Agreement:
_Expert service by our 12,000 professional repair
specialists
5/(Unlimited service and no charge for parts and labor on
all covered repairs
5/("No-lemon" guarantee - replacement of your covered
product if more than three product failures occur within
twelve months
5_Product replacement if your covered product can't be
fixed
_Annual Preventive Maintenance Check at your request
- no extra charge
_Fast help by phone -non-technical and instructional
assistance on products repaired in your home, plus
convenient repair scheduling
_Power surge protection against electrical damage due
to power fluctuations
_Rental reimbursement if repair of your covered product
takes longer than promised
In Canada
Maintenance Agreements
Your purchase has added value because you can depend on
Sears HomeCentral® for service. With over 2400 Service
Technicians and access to over 900,000 parts and
accessories, we have the tools, parts, knowledge and skills
to ensure our pledge: We Service What We Sell.
Your Kenmore® appliance is designed, manufactured and
tested to provide years of dependable operation. Yet any
major appliance may require service from time to time. The
Sears Maintenance Agreement offers you an outstanding
service program, affordably priced.
The Sears Maintenance Agreement
• is your way to buy tomorrow's service at today's price.
• Eliminates repair biits resulting from normal wear and tear.
• Provides for non-technical and instructional assistance.
• Even if you don't need repairs, provides an annual
Preventive Maintenance Check, at your request, to ensure _}_
that your appliance is in proper running condition.
Some limitations apply. For information concerning U_
Sears Canada Maintenance Agreements, call
1-800-361-6665.
Once you purchase the Agreement, a simple phone call is
all that it takes for you to schedule service. You can call
anytime day or night, or schedule a service appointment
online.
Sears has over 12,000 professional repair specialists,
who have access to over 4.5 million quality parts and
accessories. That's the kind of professionalism you can
count on to help prolong the life of your new purchase for
years to come. Purchase your Master Protection
Agreement today!
Some limitations and exclusions apply.
For prices and additional information,
call 1-800-827-6655.
Sears Installation Service
For Sears guaranteed professional installation of home
appliances and items like garage door openers and water
heaters, in the U.S.A. call 1-800-4-MY-HOME®
5

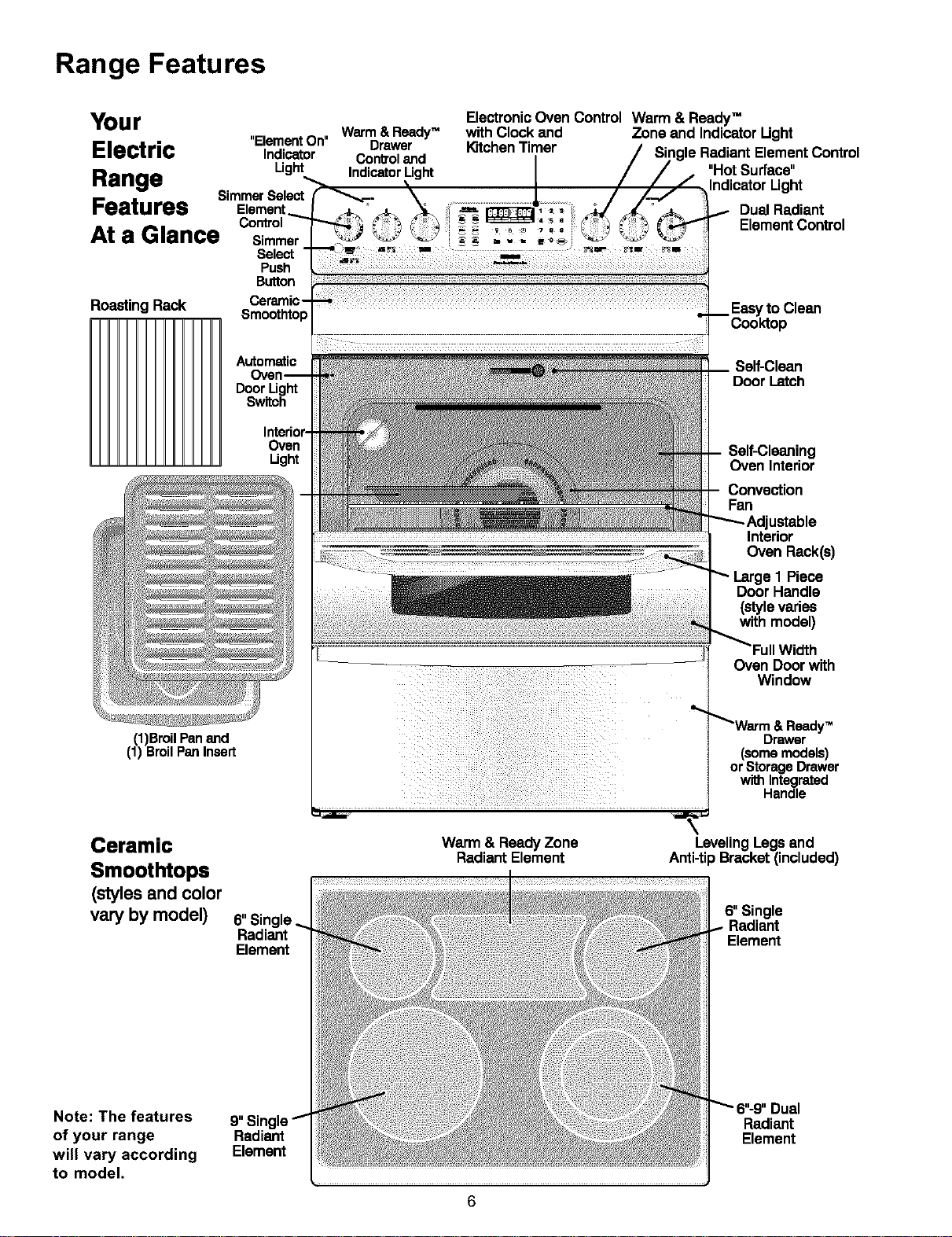

Range Features
Your
Electric
Range
Features
At a Glance
RoastingRack
"Element On"
Indicator
Light
Simmer Select
Element
Control
Simmer
Select
Push
Button
Ceramic
Smoothtop
Automatic
Door Light
Switch
Oven
light
(t)Broi! Pan and
(1) BroilPan Insert
Warm & ReadyTM
Drawer
Controland
Indictor Light
ElectronicOven Control Warm & ReadyTM
with Clockand Zone and IndicatorUght
I<]tchenTimer
"HotSurface_
IndicatorLight
DualRadiant
ElementControl
to Clean
Cook-top
Self-Clean
Door Latch
Oven Interior
Fan
ustable
Interior
Oven Rack(s)
Piece
Door Handle
(stylevaries
with model)
_/idth
Oven Door with
Window
e,.
_Warm &ReadyTM
Drawer
(somemodels)
or StorageDrawer
withIntegrated
Handle
Ceramic
Smoothtops
(styles and color
varyby model)
Note: The features
of your range
will vary according
to model.
6" Sin
Radiant
Element
9"Sir
Radiant
Element
Warm & Ready Zone
RadiantElement
6
LevelingLegsand
Anti-tip Bracket(included)
6"Single
Radiant
!lement
Radiant
Element

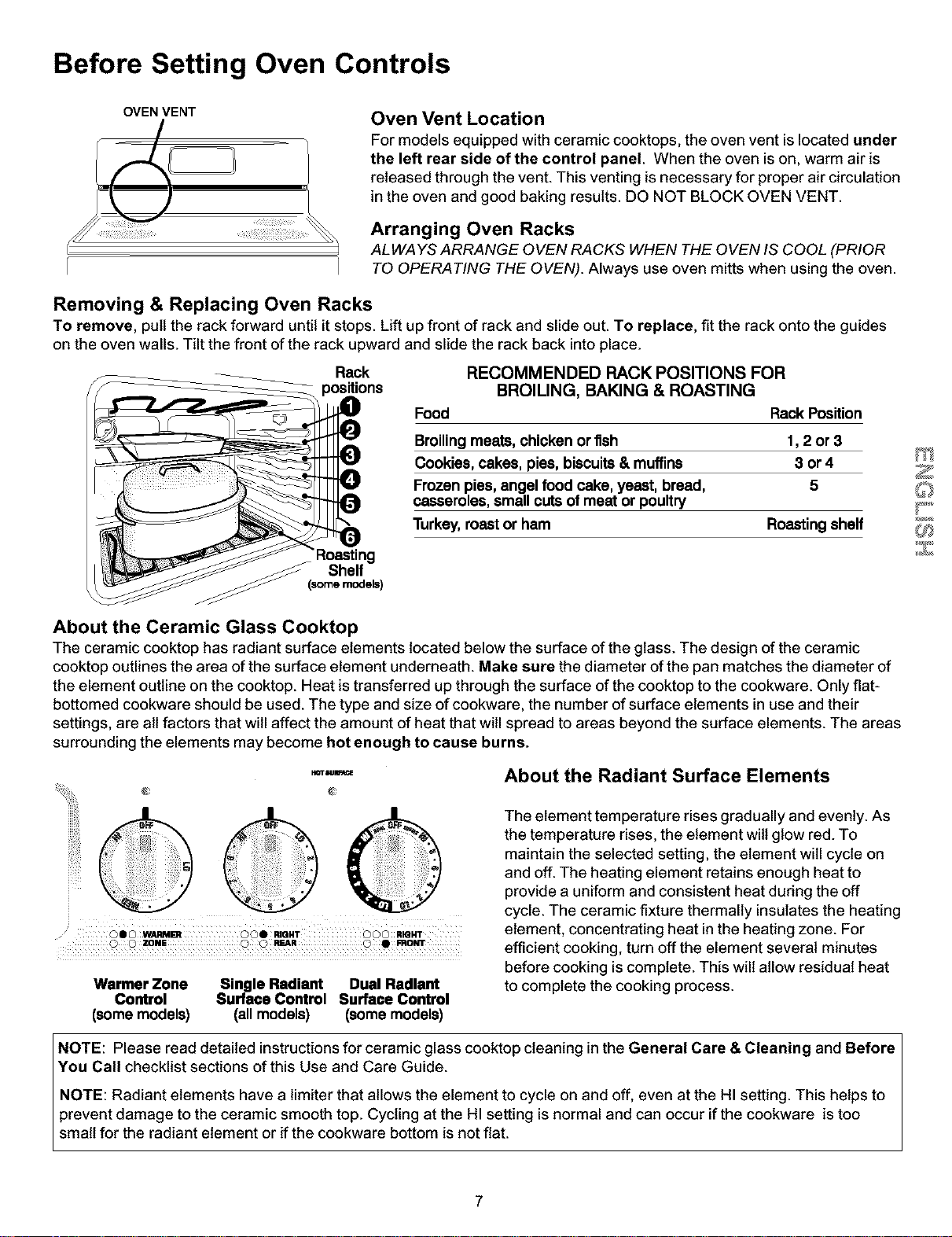

Before Setting Oven Controls
OVEN VENT
Oven Vent Location
For models equipped with ceramic cooktops, the oven vent is located under
the left rear side of the control panel. When the oven is on, warm air is
released through the vent. This venting isnecessary for proper air circulation
in the oven and good baking results. DO NOT BLOCK OVEN VENT.
Arranging Oven Racks
AL WAYS ARRANGE OVEN RACKS WHEN THE OVEN IS COOL (PRIOR
TO OPERATING THE OVEN). Always use oven mitts when using the oven.
Removing & Replacing Oven Racks
To remove, pull the rack forward until it stops. Lift up front of rack and slide out. To replace, fit the rack onto the guides
on the oven walls. Tilt the front ofthe rack upward and slide the rack back into place.
Rack
RECOMMENDED RACK POSITIONS FOR
BROILING, BAKING & ROASTING
Food Rack Position
Broiling meats, chicken or fish 1,2 or 3
Cookies, cakes, pies, biscuits& muffins 3 or 4
Frozen pies, angel food cake, yeast, bread, 5
casseroles, small cuts of meat or poultry
Turkey,roast or ham Roasting shelf
Shelf
(somemodels)
About the Ceramic Glass Cooktop
The ceramic cooktop has radiant surface elements located below the surface of the glass. The design of the ceramic
cooktop outlines the area of the surface element underneath. Make sure the diameter of the pan matches the diameter of
the element outline on the cooktop. Heat istransferred up through the surface of the cooktop to the cookware. Only flat-
bottomed cookware should be used. The type and size of cookware, the number of surface elements in use and their
settings, are all factors that will affect the amount of heat that will spread to areas beyond the surface elements. The areas
surrounding the elements may become hot enough to cause burns.
HOTt,UN
@
About the Radiant Surface Elements
' OOe maHT ©©0 RIOHT
O O ZONE © O REAR © O FRONT
Warmer Zone Single Radiant Dual Radiant
Control Surface Control Surface Control
(some models) (all models) (some models)
The element temperature rises gradually and evenly. As
the temperature rises, the element wilt glow red. To
maintain the selected setting, the element will cycle on
and off. The heating element retains enough heat to
provide a uniform and consistent heat during the off
cycle. The ceramic fixture thermally insulates the heating
element, concentrating heat in the heating zone. For
efficient cooking, turn off the element several minutes
before cooking is complete. This will allow residual heat
to complete the cooking process.
NOTE: Please read detailed instructionsfor ceramic glass cooktop cleaning in the General Care & Cleaning and Before
You Call checklist sections of this Use and Care Guide.
NOTE: Radiant elements have a limiter that allows the element to cycle on and off, even at the HI setting. This helps to
prevent damage to the ceramic smooth top. Cycling at the HI setting is normal and can occur if the cookware is too
small for the radiant element or if the cookware bottom is not flat.
7
Before Setting Oven Controls (cont'd)
O
H_ _LJ_
O

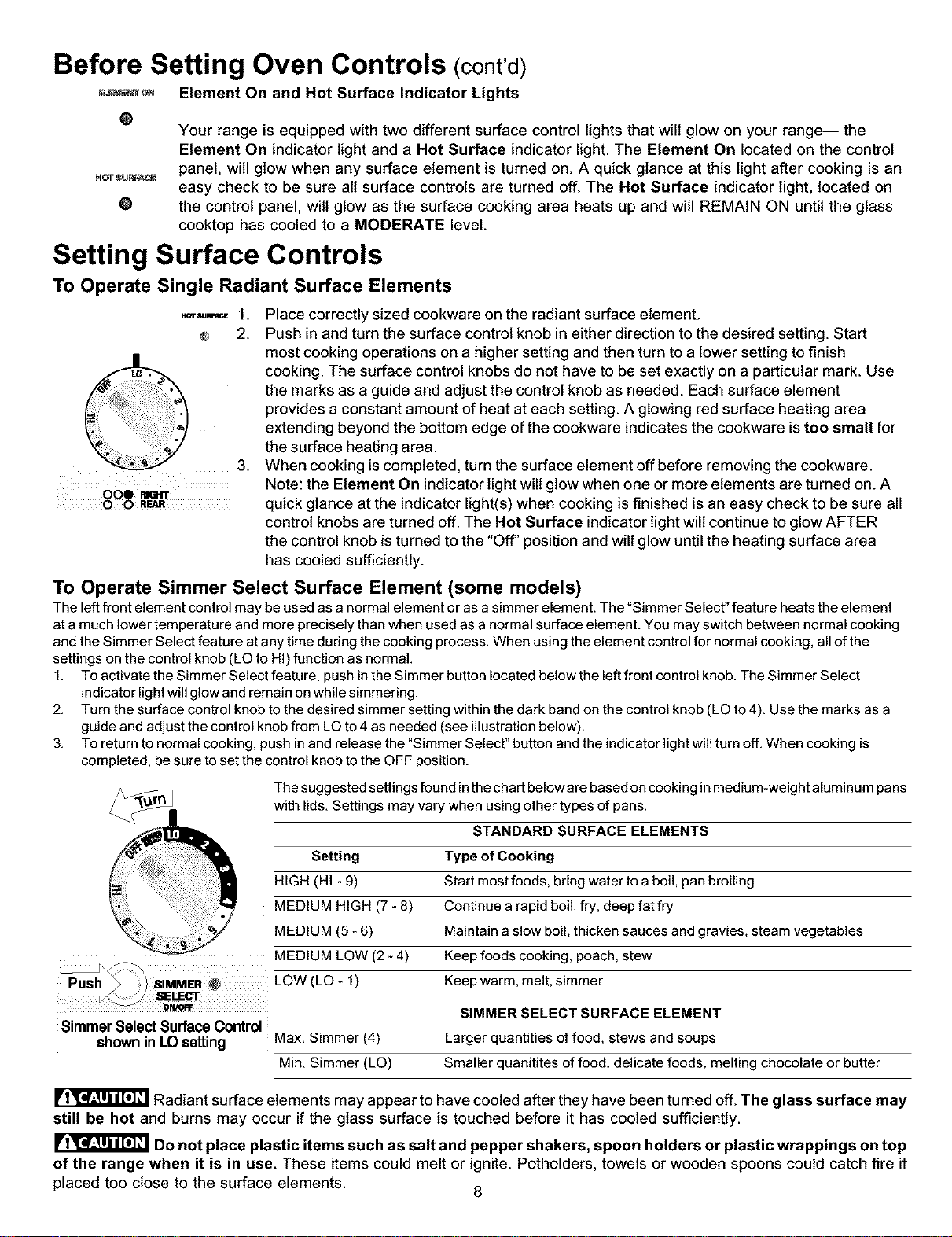

Element On and Hot Surface Indicator Lights
Your range is equipped with two different surface control lights that will glow on your range-- the
Element On indicator light and a Hot Surface indicator light. The Element On located on the control
panel, will glow when any surface element is turned on. A quick glance at this light after cooking is an
easy check to be sure ait surface controls are turned off. The Hot Surface indicator light, located on
the control panel, wilt glow as the surface cooking area heats up and will REMAIN ON until the glass
cooktop has cooled to a MODERATE level.
Setting Surface Controls
To Operate Single Radiant Surface Elements
HOTmJ_ea_E 3,
2.
3.
000 RIGHT
O O REAR
Place correctly sized cookware on the radiant surface element.
Push in and turn the surface control knob in either direction to the desired setting. Start
most cooking operations on a higher setting and then turn to a lower setting to finish
cooking. The surface control knobs do not have to be set exactly on a particular mark. Use
the marks as a guide and adjust the control knob as needed. Each surface element
provides a constant amount of heat at each setting. A glowing red surface heating area
extending beyond the bottom edge of the cookware indicates the cookware is too small for
the surface heating area.
When cooking is completed, turn the surface element off before removing the cookware.
Note: the Element On indicator light will glow when one or more elements are turned on. A
quick glance at the indicator light(s) when cooking is finished is an easy check to be sure all
control knobs are turned off. The Hot Surface indicator light will continue to glow AFTER
the control knob is turned to the "Off" position and will glow until the heating surface area
has cooled sufficiently.
To Operate Simmer Select Surface Element (some models)
The left front element control may be usedas a normal element or as asimmer element. The"Simmer Select" feature heatsthe element
at a much lowertemperature and more precisely thanwhen used asa normalsurface element, You mayswitch between normal cooking
and the Simmer Select feature atany time during the cooking process. When usingthe element control for normal cooking, all of the
settings on the control knob (LO to Hi) function as normal.
1, To activate the Simmer Select feature, push inthe Simmer button located belowthe leftfront control knob, The Simmer Select
indicator lightwillglow and remainon whilesimmering.
2, Turn the surface control knobto the desired simmer setting withinthe dark band on the control knob (LO to 4). Use the marks asa
guide and adjust thecontrol knobfrom LO to4 as needed (seeillustration below),
3, To return tonormal cooking, push inand releasethe "Simmer Select" button and the indicator lightwill turn off, Whencooking is
completed, be sureto set the control knobto the OFF position,
Setting
_ MEDIUM LOW(2 -4)
elMMER_ LOW (LO - 1)
HIGH (HI - 9)
MEDIUM HIGH (7 - 8)
MEDIUM (5 - 6)
The suggested settings found inthe chart below are based on cooking in medium-weight aluminum pans
with lids. Settings may vary when using other types of pans.
STANDARD SURFACE ELEMENTS
Type of Cooking
Start most foods, bring water to a boil, pan broiling
Continue a rapid boil, fry, deep fat fry
Maintain a slow boil, thicken sauces and gravies, steam vegetables
Keep foods cooking, poach, stew
Keep warm, melt, simmer
Simmer Select Surface Control
shownin LOsetting Max. Simmer (4)
Min. Simmer (LO)
SIMMER SELECT SURFACE ELEMENT
Larger quantities of food, stews and soups
Smaller quanitites of food, delicate foods, melting chocolate or butter
Radiant surface elements may appear to have cooled after they have been turned off. The glass surface may
still be hot and burns may occur if the glass surface is touched before it has cooled sufficiently.
Ir_"=!l_l'_ Do not place plastic items such as salt and pepper shakers, spoon holders or plastic wrappings on top
of the range when it is in use. These items could melt or ignite. Potholders, towels or wooden spoons could catch fire if
placed too close to the surface elements.
8

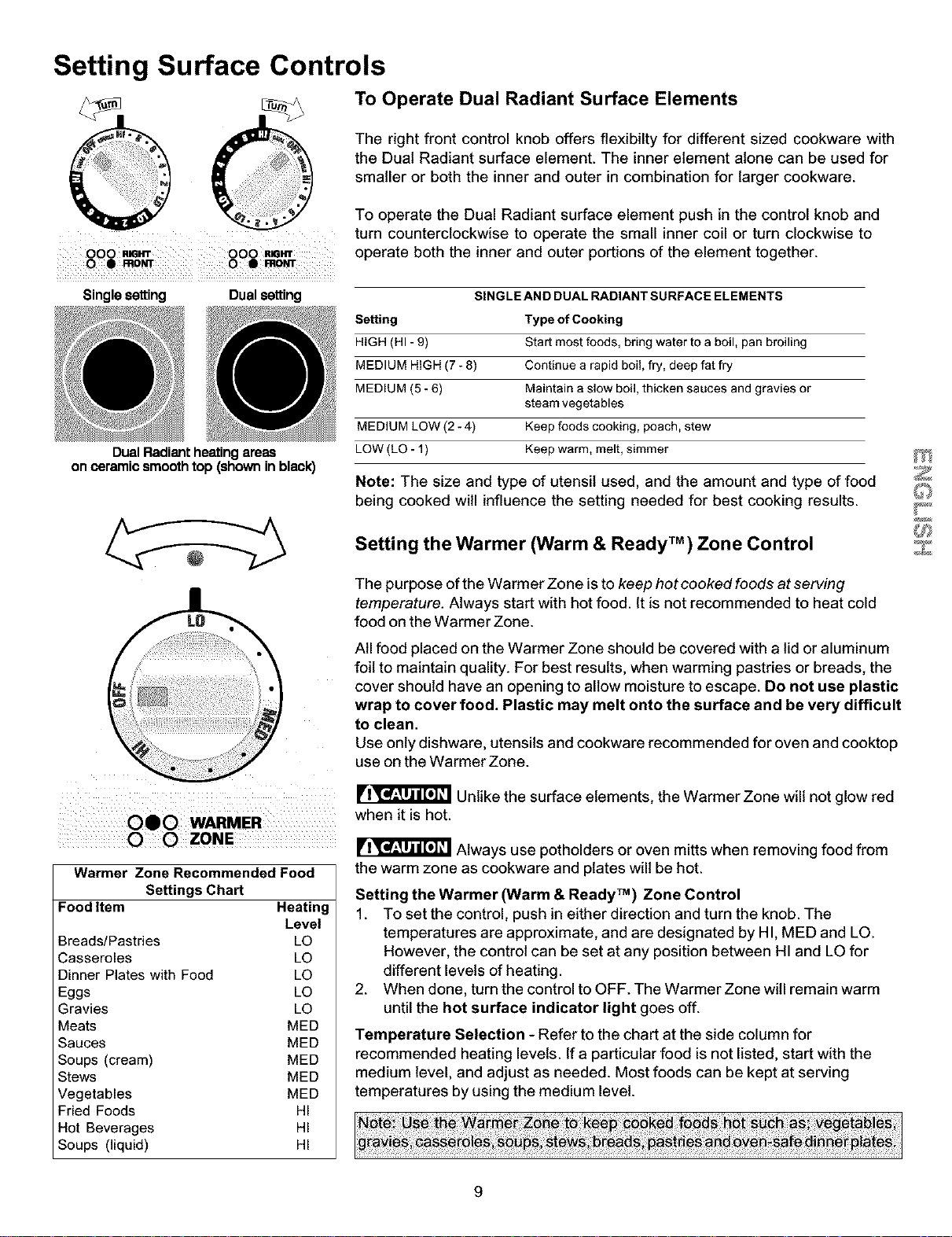

Setting Surface Controls
OOO RIGHT OOO RIGHT
O FRONT 00 FRONT
Singlesetting Dualsetting
To Operate Dual Radiant Surface Elements
The right front control knob offers flexibilty for different sized cookware with
the Dual Radiant surface element. The inner element alone can be used for
smaller or both the inner and outer in combination for larger cookware.
To operate the Dual Radiant surface element push in the control knob and
turn counterclockwise to operate the small inner coil or turn clockwise to
operate both the inner and outer portions of the element together.
SINGLE AND DUAL RADIANT SURFACE ELEMENTS
Setting Type of Cooking
HIGH (HI - 9) Start most foods, bring water to a boil, pan broiling
MEDIUM HIGH (7 - 8) Continue a rapid boil, fry, deep fat fry
MEDIUM (5 - 6) Maintain a slow boil, thicken sauces and gravies or
steam vegetables
MEDIUM LOW (2 - 4) Keep foods cooking, poach, stew
DualRadiantheatingareas
onceramicsmoothtop(showninblack)
LOW(LO -1) Keepwarm, melt, simmer
Note: The size and type of utensil used, and the amount and type of food
being cooked will influence the setting needed for best cooking results.
Warmer Zone Recommended Food
Settings Chart
Food Item Heating
Level
Breads/Pastries LO
Casseroles LO
Dinner Plates with Food LO
Eggs LO
Gravies LO
Meats MED
Sauces MED
Soups (cream) MED
Stews MED
Vegetables MED
Fried Foods HI
Hot Beverages HI
Soups (liquid) HI
Setting the Warmer (Warm & Ready TM) Zone Control
The purpose of the Warmer Zone is to keep hot cooked foods at serving
temperature. Always start with hot food. It is not recommended to heat cold
food on the Warmer Zone.
All food placed on the Warmer Zone should be covered with a lid or aluminum
foil to maintain quality. For best results, when warming pastries or breads, the
cover should have an opening to allow moisture to escape. Do not use plastic
wrap to cover food. Plastic may melt onto the surface and be very difficult
to clean.
Use only dishware, utensils and cookware recommended for oven and cooktop
use on theWarmer Zone.
Unlike the surface elements, the Warmer Zone will not glow red
when it is hot.
Always use potholders or oven mitts when removing food from
the warm zone as cookware and plates will be hot.
Setting the Warmer (Warm & Ready TM) Zone Control
1. To set the control, push in either direction and turn the knob. The
temperatures are approximate, and are designated by HI, MED and LO.
However, the control can be set at any position between HI and LO for
different levels of heating.
2. When done, turn the control to OFF. The Warmer Zone will remain warm
until the hot surface indicator light goes off.
Temperature Selection - Refer to the chart at the side column for
recommended heating levels. If a particular food is not listed, start with the
medium level, and adjust as needed. Most foods can be kept at serving
temperatures by using the medium level.
9

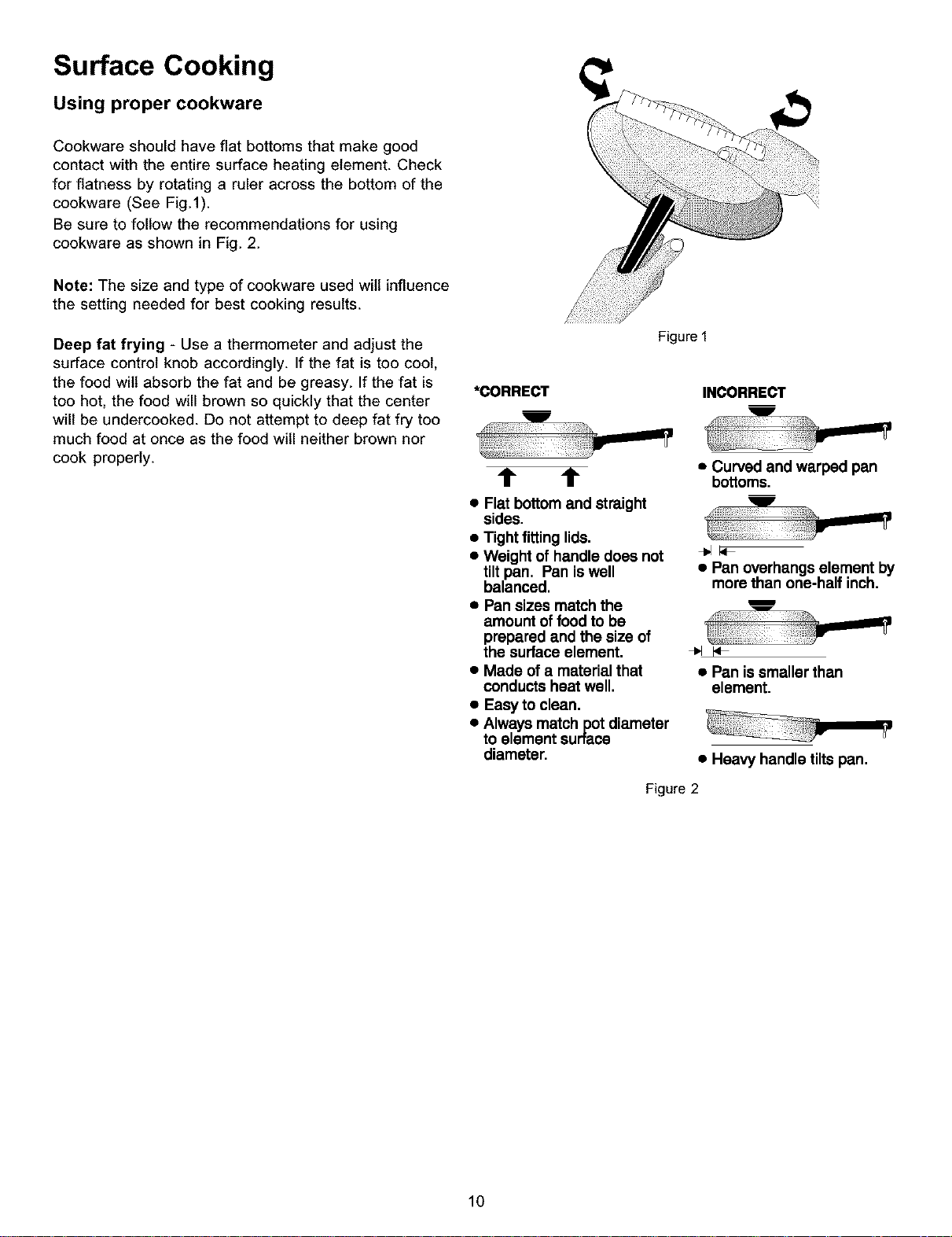

Surface Cooking
Using proper cookware
Cookware should have flat bottoms that make good
contact with the entire surface heating element. Check
for flatness by rotating a ruler across the bottom of the
cookware (See Fig.l).
Be sure to follow the recommendations for using
cookware as shown in Fig. 2.
Note: The size and type of cookware used wilt influence
the setting needed for best cooking results.
Deep fat frying - Use a thermometer and adjust the
surface control knob accordingly. If the fat is too cool,
the food wilt absorb the fat and be greasy. If the fat is
too hot, the food will brown so quickly that the center
will be undercooked. Do not attempt to deep fat fry too
much food at once as the food will neither brown nor
cook properly.
Figure 1
*CORRECT
t 1=
• Flat bottom and straight
sides.
• Tight fitting lids.
• Weight of handle does not
tilt pan. Pan is well
balanced.
• Pan sizes match the
amount offood to be
prepared and the size of
the surface element.
• Made ofa material that
conducts heat well.
• Easy to clean.
• Always match pot diameter
to element surface
diameter.
INCORRECT
U
• Curved and warped pan
bottoms.
U
• Pan overhangs element by
more than one-half inch.
m
• Pan is smaller than
element.
• Heavy handle tilts pan.
Figure 2
10

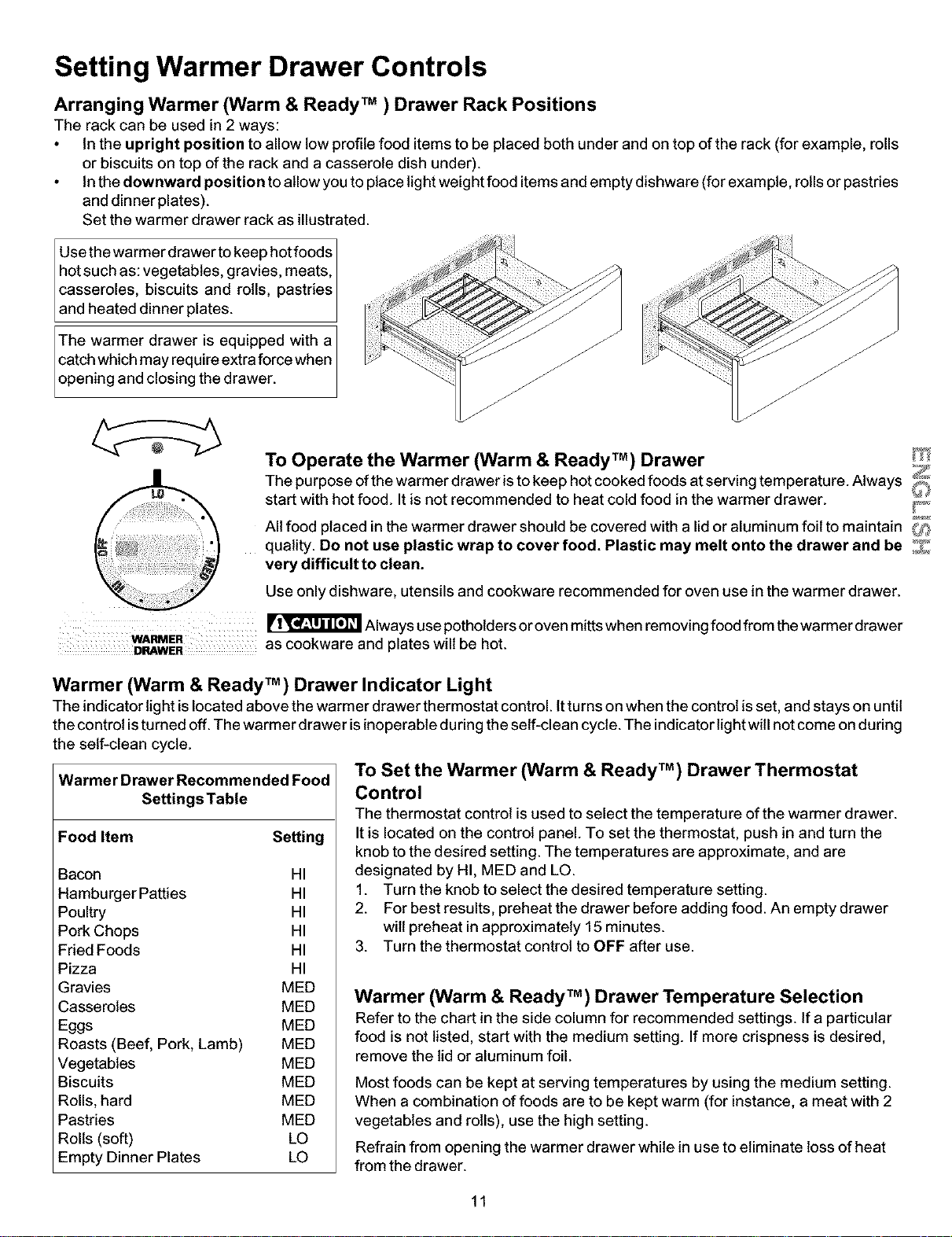

Setting Warmer Drawer Controls
Arranging Warmer (Warm & Ready TM ) Drawer Rack Positions
The rack can be used in 2 ways:
In the upright position to allow low profilefood items to be placed both under and on top ofthe rack (for example, rolls
or biscuits on top of the rack and a casserole dish under).
In the downward position to allow you to place light weight food items and empty dishware (for example, rolls or pastries
and dinner plates).
Set the warmer drawer rack as illustrated.
Use the warmer drawer to keep hotfoods 1
hot such as: vegetables, gravies, meats, /
casseroles, biscuits and rolls, pastries
and heated d nner pates.
The warmer drawer is equipped with a I
catch which may require extra force when
open ng and cos ng the drawer.
To Operate the Warmer (Warm & Ready TM) Drawer Z
The purpose ofthe warmer drawer is to keep hot cooked foods at serving temperature. Always _
start with hot food. It is not recommended to heat cold food in the warmer drawer. /_
All food placed in the warmer drawer should be covered with a lid or aluminum foil to maintain (_
quality. Do not use plastic wrap to cover food. Plastic may melt onto the drawer and be _,_,_
very difficult to clean.
Use only dishware, utensils and cookware recommended for oven use in the warmer drawer.
Always use potholders or oven mitts when removing food from the warmer drawer
WARMER
DRAWEn as cookware and plates will be hot.
Warmer (Warm & Ready TM) Drawer Indicator Light
The indicator light islocated above the warmer drawer thermostat control. It turnson when the controlisset, and stays on until
the controlisturned off.The warmer drawer isinoperable du ringtheself-clean cycle. The indicatorlight willnot come onduring
the self-clean cycle.
Warmer Drawer Recommended Food
Settings Table
Food Item Setting
Bacon HI
Hamburger Patties HI
Poultry HI
Pork Chops HI
Fried Foods HI
Pizza HI
Gravies MED
Casseroles MED
Eggs MED
Roasts (Beef, Pork, Lamb) MED
Vegetables MED
Biscuits MED
Rolls, hard MED
Pastries MED
Roils (soft) LO
Empty Dinner Plates LO
To Set the Warmer (Warm & Ready TM) Drawer Thermostat
Control
The thermostat control isused to select the temperature ofthe warmer drawer.
It is located on the control panel. To set the thermostat, push in and turn the
knobto the desired setting. The temperatures are approximate, and are
designated by HI, MED and LO.
1. Turn the knob to select the desired temperature setting.
2. For best results, preheat the drawer before adding food. An empty drawer
wilt preheat in approximately 15 minutes.
3. Turn the thermostat control to OFF after use.
Warmer (Warm & Ready TM) Drawer Temperature Selection
Refer to the chart in the side column for recommended settings. If a particular
food is not listed, start with the medium setting. If more crispness is desired,
remove the lid or aluminum foil.
Most foods can be kept at serving temperatures by using the medium setting.
When a combination of foods are to be kept warm (for instance, a meat with 2
vegetables and rolls), use the high setting.
Refrain from opening the warmer drawer while in use to eliminate loss of heat
from the drawer.
11

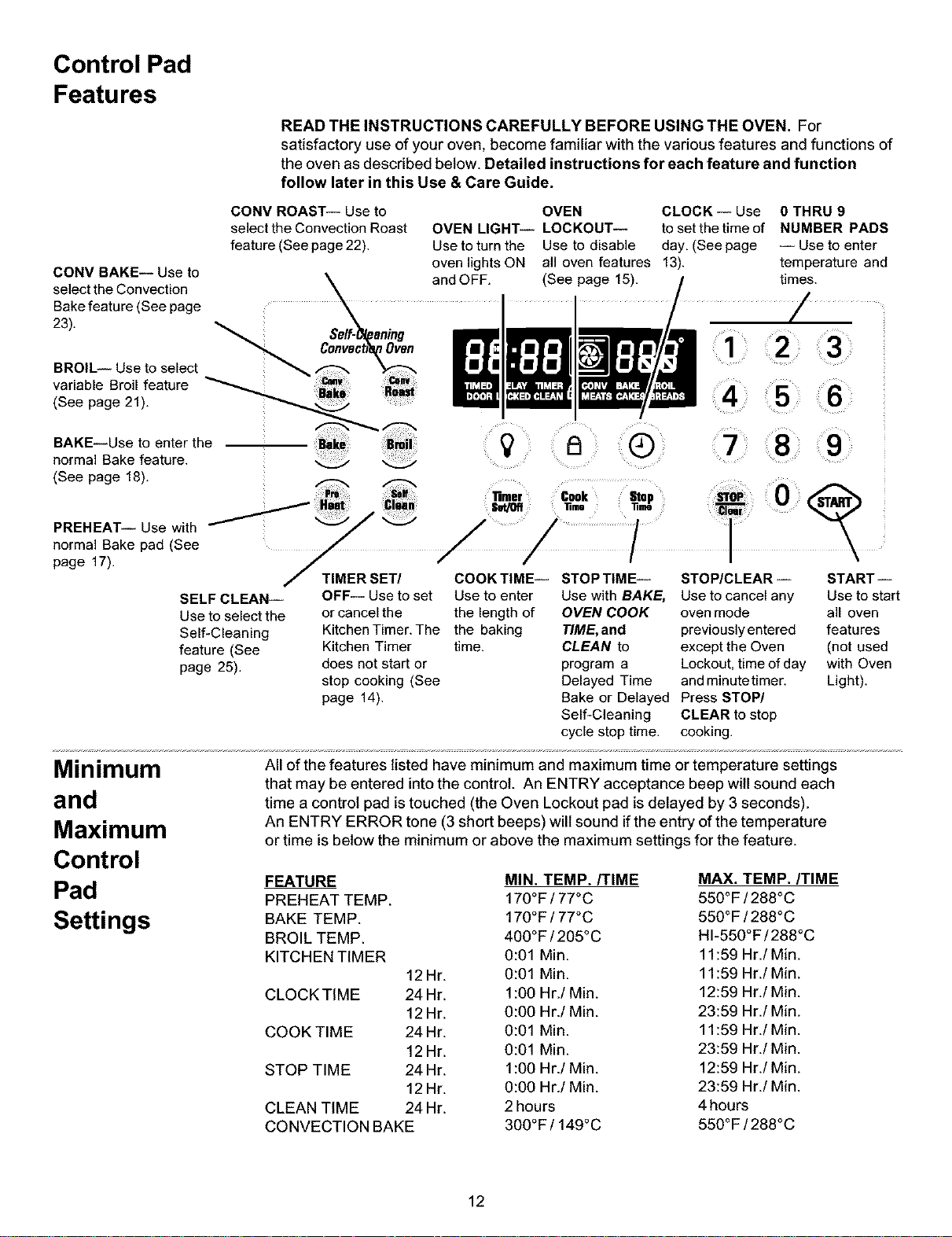

Control Pad
Features
READ THE INSTRUCTIONS CAREFULLY BEFORE USING THE OVEN. For
satisfactory use of your oven, become familiar with the various features and functions of
the oven as described below. Detailed instructions for each feature and function
follow later in this Use & Care Guide.
CONV ROAST-- Use to OVEN CLOCK -- Use
select the Convection Roast OVEN LIGHT-- LOCKOUT-- to setthe time ef
feature (See page22). Use toturn the Use to disable day. (See page
oven lights ON all oven features 13).
CONV BAKE-- Use to
and OFF. (See page 15).
select the
Convection
Bakefeature (See page
23)
Convectl_Oven
BROIL-- Use to select _ _
var abe Bro feature
,_ _ Bake nOOSl
the
(See page 18).
'nmer Cook Stop
_!e_ll Set_ff "nine "lime
PREHEAT-- Use with _ 7_ _ _ /
normal Bake pad (See
page 17).
J TIMERSET/ COOKTIME-- STOPTIME--
SELF CLEAN-- OFF-- Use to set Use to enter Use with BAKE,
Use to select the or cancel the the length of OVEN COOK
Self-Cleaning KitchenTimer.The the baking TIME,and
feature (See Kitchen Timer time. CLEAN to
page 25), does not start or program a
stop cooking (See Delayed Time
0 THRU 9
NUMBER PADS
-- Use to enter
temperature and
times.
/
i 2
\
STOP/CLEAR -- START--
Use to cancel any Use to start
ovenmode all oven
previouslyentered features
except the Oven (net used
Lockout, time ofday with Oven
and minutetimer. Light).
page 14). Bake or Delayed Press STOP/
Self-Cleaning CLEAR to stop
cycle stop time. cooking.
Minimum All of the features listed have minimum and maximum time or temperature settings
that may be entered into the control. An ENTRY acceptance beep will sound each
time a control pad is touched (the Oven Lockout pad is delayed by 3 seconds).
An ENTRY ERROR tone (3 short beeps) will sound ifthe entry of the temperature
or time is below the minimum or above the maximum settings for the feature.
and
Maximum
Control
Pad
Settings
FEATURE MIN. TEMP./TIME
PREHEAT TEMP. 170°F / 77°C
BAKE TEMP. 170°F / 77°C
BROIL TEMP. 400°F / 205°C
KITCHEN TIMER 0:01 Min.
12Hr. 0:01 Min.
CLOCK TIME 24 Hr. 1:00 Hr./Min.
12 Hr. 0:00 Hr./Min.
COOK TIME 24 Hr. 0:01 Min.
12Hr. 0:01 Min.
STOP TIME 24 Hr. 1:00 Hr./Min.
12 Hr. 0:00 Hr./Min.
CLEAN TIME 24 Hr. 2 hours
CONVECTION BAKE 300°F/149°C
MAX. TEMP./TIME
550 °F / 288°C
550 °F / 288°C
HI-550°F/288°C
11:59 Hr./Min.
11:59 Hr./Min.
12:59 Hr./Min.
23:59 Hr./Min.
11:59 Hr./Min.
23:59 Hr./Min.
12:59 Hr./Min.
23:59 Hr./Min.
4 hours
550 °F / 288°C
12

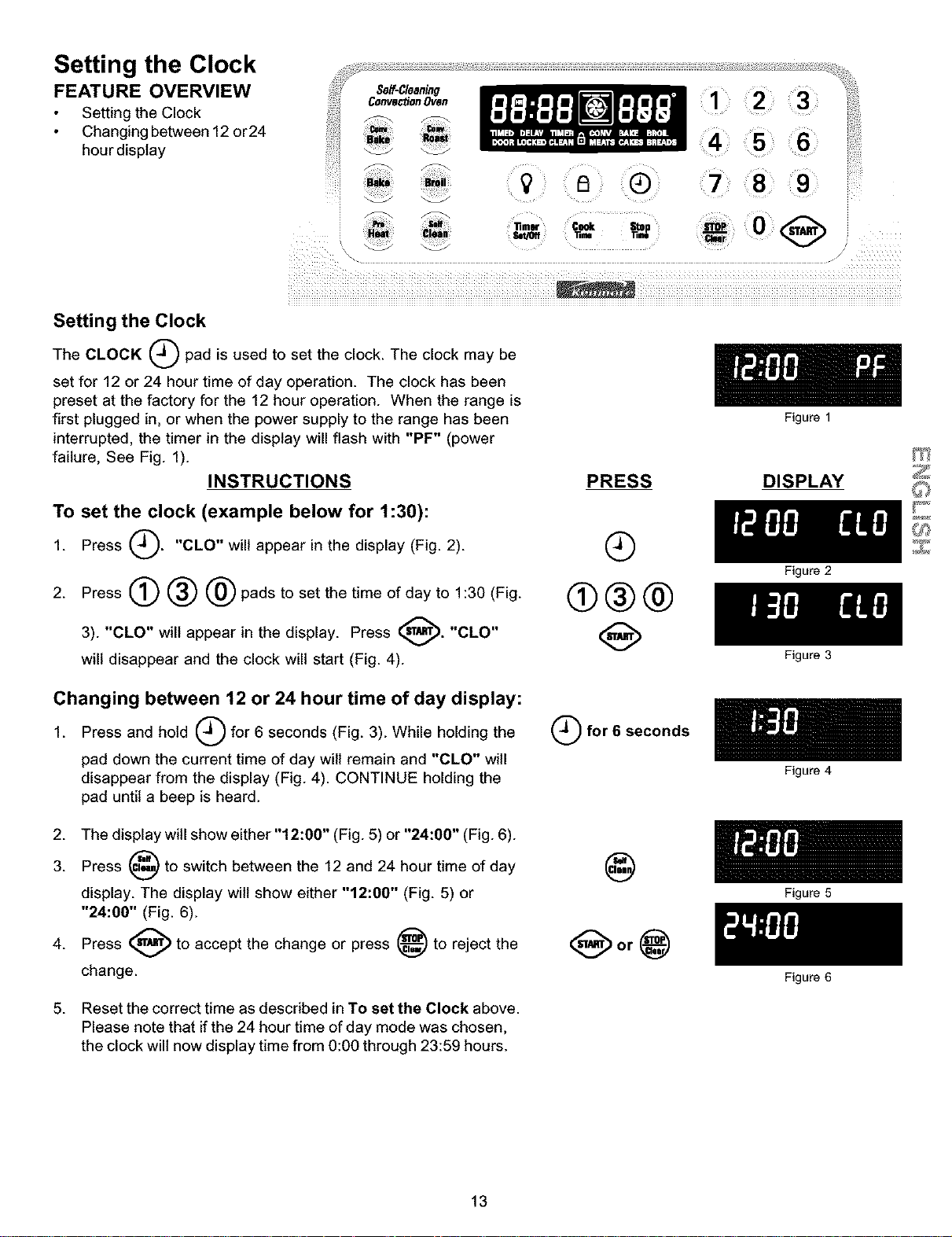

Setting the Clock
FEATURE OVERVIEW
Setting the Clock
Changing between 12 0r24
hour display
"lim_ Cook Sto=_
Set_ "tim
Setting the Clock
The CLOCK Q pad is used to set the clock. The clock may be
set for 12 or 24 hour time of day operation. The clock has been
preset at the factory for the 12 hour operation. When the range is
first plugged in, or when the power supply to the range has been
interrupted, the timer in the display will flash with "PF" (power
failure, See Fig. 1).
INSTRUCTIONS PRESS
To set the clock (example below for 1:30):
1. Press Q. "CLO" will appear in the display (Fig. 2).
®
2.
Press (_ @ @ pads to set the fime of day to 1:30 (Fig.
3). "CLO" will appear in the display. Press _). "CLO"
will disappear and the clock will start (Fig. 4).
®®®
Changing between 12 or 24 hour time of day display:
1. Press and hold Q for 6 seconds (Fig. 3). While holding the
pad down the current time of day wilt remain and "CLO" will
disappear from the display (Fig. 4). CONTINUE holding the
pad until a beep is heard.
Q for 6 seconds
2. The display will show either "12:00" (Fig. 5) or "24:00" (Fig. 6).
3. Press _ to switch between the 12 and 24 hour time of day
display. The display wilt show either "12:00" (Fig. 5) or
"24:00" (Fig. 6).
4. Press (_) to accept the change or press @ to reject the
change.
@
or@
5. Reset the correct time as described in To set the Clock above.
Please note that if the 24 hour time of day mode was chosen,
the clock will now display time from 0:00 through 23:59 hours.
0
Figure 1
DISPLAY
13
Figure 2
Figure 3
Figure 4
Figure 5
Figure 6
Setting the Clock
FEATURE OVERVIEW
Continuous Bake orTwelve
Hour Energy Saving Mode
Kitchen Timer
Setting Continuous Bake or 12 Hour Energy Saving
The TIMER SET/OFF @ and SELF CLEAN @ pads control the Continuous
Bake or 12 Hour Energy Saving features. The oven control has a factory preset
built-in 12 Hour Energy Saving feature that will shut off the oven if the oven control
is left on for more than 11 hours and 59 minutes. The oven can be programmed to
override this feature for Continuous Baking.
INSTRUCTIONS PRESS DISPLAY
To set the control for Continuous Bake or 12 Hour
Energy Saving features:
1. Press and hold for 7 seconds (Fig.l). ":12" or .- - will
appear in the display and the control will beep once.
2. Press @ to switch between the 12 Hour Energy Saving and
continuous bake features. Note: ":12" in the display indicates
the control is set for the 12 Hour Energy Saving mode and ":-
-" indicates the control is set for the Continuous Bake feature
(Figures 2 and 3).
3. Press (_ to accept the change (Fig. 4; display will return
to time of day) or press (_ to reject the change.
for 7 seconds
@
Figure 1
Figure 2
(_or _ Figure 3
Figure 4
Setting Kitchen Timer
The TIMER SET/OFF @ pad controls the Kitchen Timer feature. The Kitchen Timer serves as an extra timer in the
kitchen that will beep when the set time has run out. It does not start or stop cooking. The Kitchen Timer feature can
be used during any of the other oven control functions. Refer to "Minumum and Maximum Control Pad Settings" on
page 12 for time amount settings.
INSTRUCTIONS PRESS DISPLAY
To set the Kitchen Timer (example for 5 minutes):
1. Press @. "0:00" will appear and "TIMER" will flash in the
display (Fig. 5).
@
2. Press the number pads to set the desired time in the display
(example (_)). Press 1_. The time will begin to count
down (Fig. 6) and "TIMER" will appear in the display. Note: If
(_)is not pressed the timer will return to the time of day.
3. When the set time has run out, "End" will show in the display
(Fig. 7), and 3 beeps every 60 seconds wilt sound until @
is pressed.
@
To cancel the Kitchen Timer before the set time has
run out:
Press @. The display wilt return to the time of day.
@
14
Figure 5
Figure 6
Figure 7

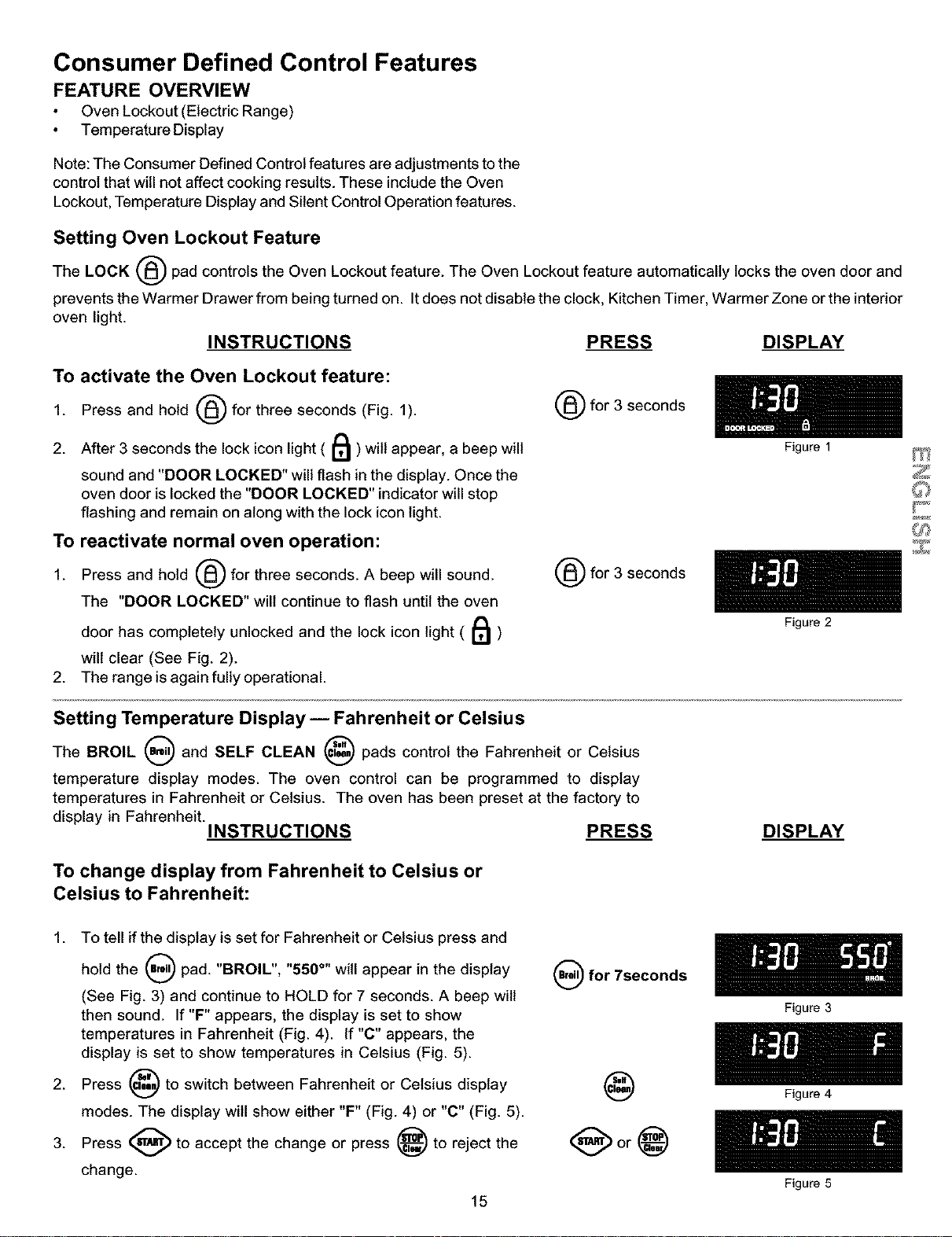

Consumer Defined Control Features
FEATURE OVERVIEW
Oven Lockout (Electric Range)
Temperature Display
Note: The Consumer Defined Control features are adjustments to the
control that will not affect cooking results. These include the Oven
Lockout, Temperature Display and Silent Control Operation features.
Setting Oven Lockout Feature
The LOCK (_ pad controls the Oven Lockout feature. The Oven Lockout feature automatically locks the oven door and
prevents the Warmer Drawer from being turned on. It does not disable the clock, Kitchen Timer, Warmer Zone or the interior
oven light.
INSTRUCTIONS PRESS DISPLAY
To activate the Oven Lockout feature:
1. Press and hold (_ for three seconds (Fig. 1).
2. After 3 seconds the lock icon light ( I1_ ) wilt appear, a beep will
sound and "DOOR LOCKED" will flash in the display. Once the
oven door is locked the "DOOR LOCKED" indicator will stop
flashing and remain on along with the lock icon light.
To reactivate normal oven operation:
1. Press and hold (_ for three seconds. A beep will sound.
The "DOOR LOCKED" will continue to flash until the oven
door has completely unlocked and the lock icon light ( I1_ )
will clear (See Fig. 2).
2. The range isagain fully operational.
(_for 3 seconds
(_for 3 seconds
Figure 1
Figure 2
Setting Temperature Display i Fahrenheit or Celsius
The BROIL (_ and SELF CLEAN _ pads control the Fahrenheit or Celsius
temperature display modes. The oven control can be programmed to display
temperatures in Fahrenheit or Celsius. The oven has been preset at the factory to
display in Fahrenheit.
INSTRUCTIONS PRESS DISPLAY
To change display from Fahrenheit to Celsius or
Celsius to Fahrenheit:
1. To tell if the display is set for Fahrenheit or Celsius press and
hold the _ pad. "BROIL", "550°" will appear in the display
(See Fig. 3) and continue to HOLD for 7 seconds. A beep wilt
then sound. If "F" appears, the display is set to show
temperatures in Fahrenheit (Fig. 4). If "C" appears, the
display is set to show temperatures in Celsius (Fig. 5).
2. Press _ to switch between Fahrenheit or Celsius display
modes. The display will show either "F" (Fig. 4) or "C" (Fig. 5).
3. Press (_ to accept the change or press _ to reject the
change.
_for 7seconds
15
Figure 3
Figure 4
Figure 5
Consumer
Defined Control
Features
FEATURE OVERVIEW
Silent Control Operation
"fim_ Cook Sto=_
Set_ "tim

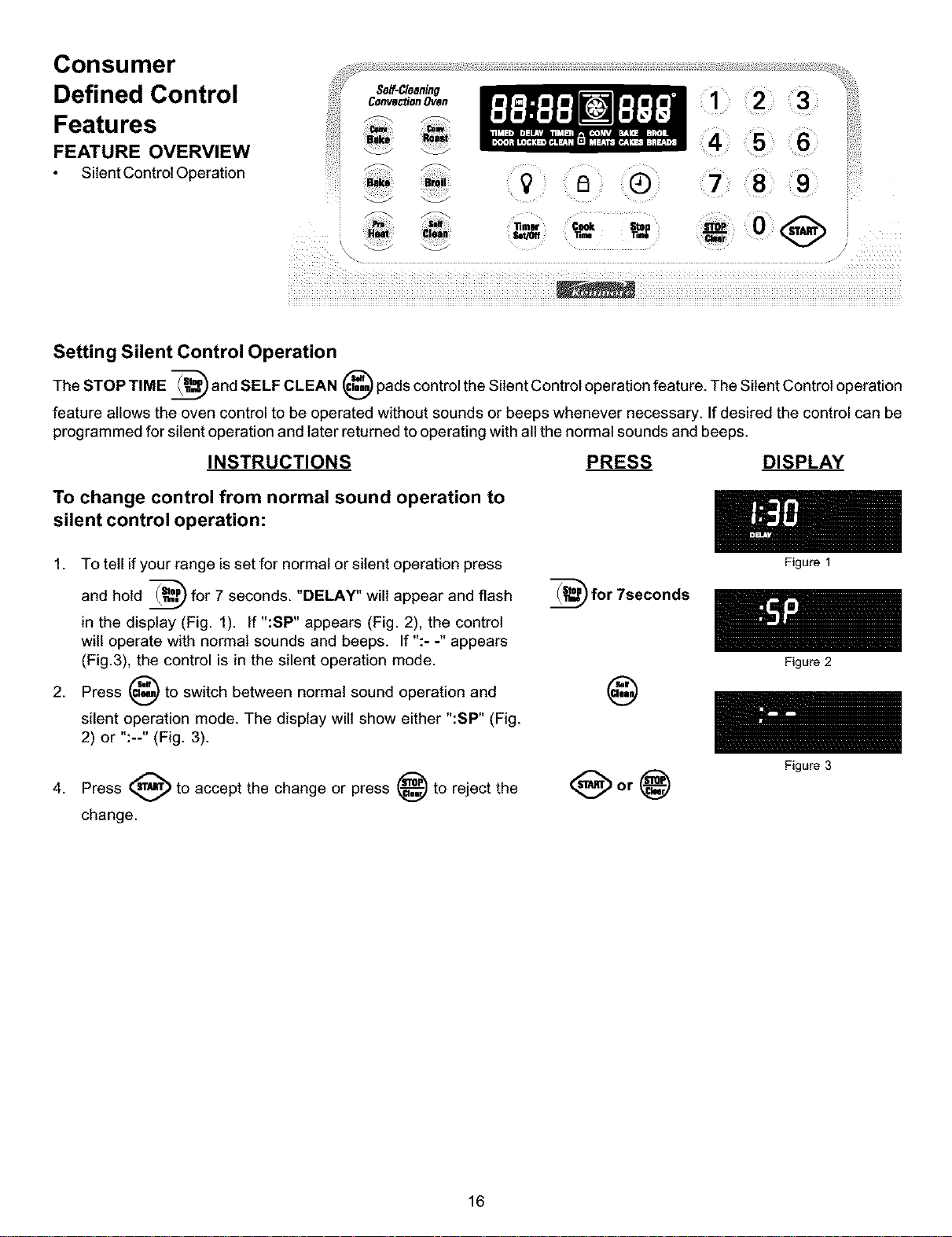

Setting Silent Control Operation
The STOP TIME _ and SELF CLEAN _ pads controlthe Silent Control operation feature. The Silent Control operation
feature allows the oven control to be operated without sounds or beeps whenever necessary. Ifdesired the control can be
programmed for silent operation and later returned to operating with all the normal sounds and beeps.
INSTRUCTIONS PRESS DISPLAY
To change control from normal sound operation to
silent control operation:
1. To tell ifyour range is set for normal or silent operation press
and hold _ for 7 seconds. "DELAY" will appear and flash
in the display (Fig. 1). If ":SP" appears (Fig. 2), the control
will operate with normal sounds and beeps. If ":- -" appears
(Fig.3), the control is in the silent operation mode.
2. Press _ to switch between normal sound operation and
silent operation mode. The display will show either ":SP" (Fig.
2) or ":--" (Fig. 3).
_for 7seconds
A
4. Press _ to accept the change or press _ to reject the
change.
16
Figure 1
Figure 2
Figure 3
Setting Oven Controls
FEATURE OVERVIEW
Preheat (Electric Range)

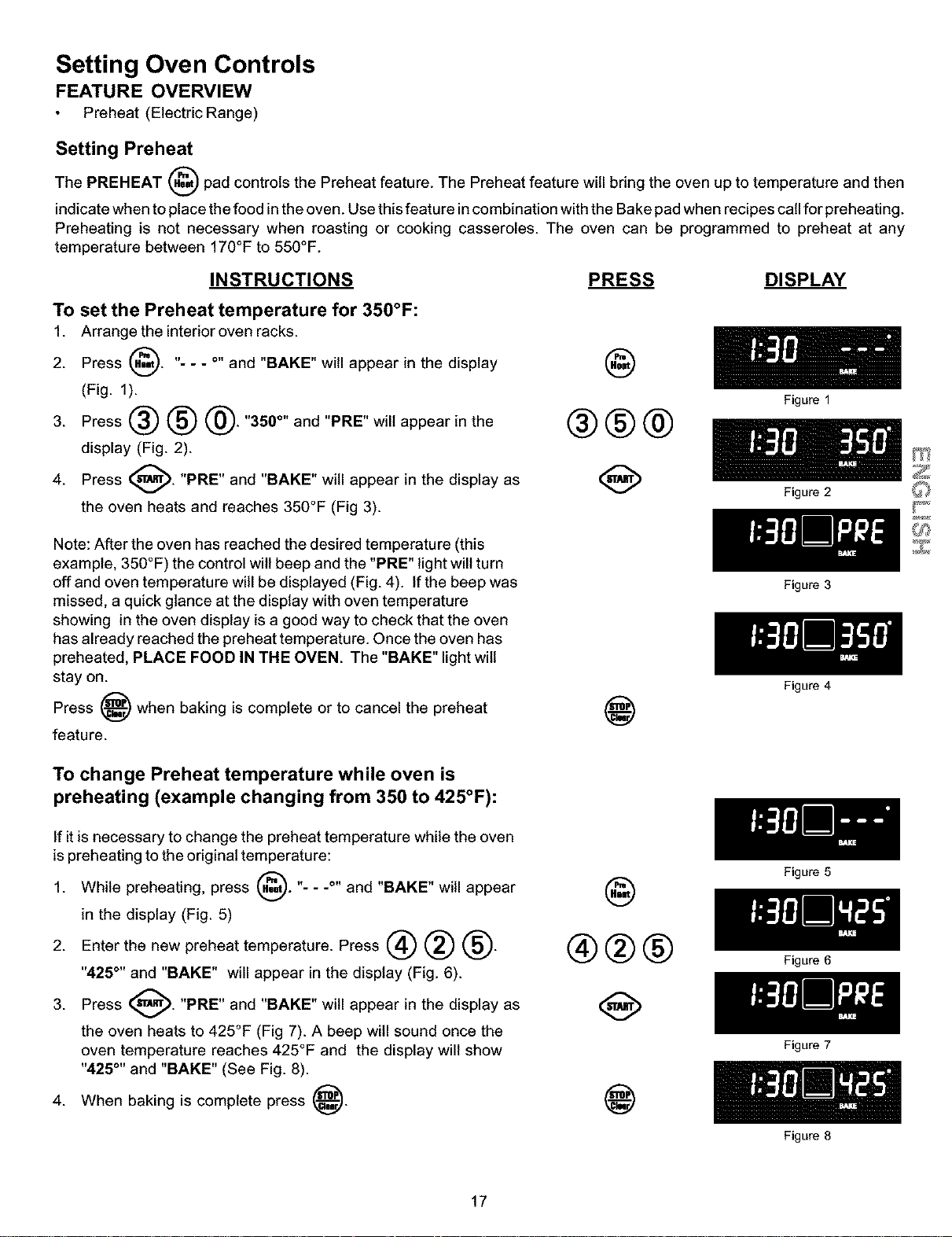

Setting Preheat
The PREHEAT _ pad controlsthe Preheat feature. The Preheat feature will bring the oven up to temperature and then
indicate when to place the food inthe oven. Use thisfeature incombination withthe Bake pad when recipes callfor preheating.
Preheating is not necessary when roasting or cooking casseroles. The oven can be programmed to preheat at any
temperature between 170°F to 550°F.
INSTRUCTIONS PRESS DISPLAY
To set the Preheat temperature for 350°F:
1. Arrange the interioroven racks.
2. Press a,_. "- - - °" and "BAKE" will appear in the display
(Fig. 1).
3. Press _ (_ @. "350°" and "PRE" will appear in the _(_)@
display (Fig. 2).
4. Press (_). "PRE" and "BAKE" will appear in the display as (_
the oven heats and reaches 350°F (Fig 3).
Note: After the oven has reached the desired temperature (this
example, 350°F) the control wilt beep and the "PRE" light will turn
off and oven temperature will be displayed (Fig. 4). If the beep was
missed, a quick glance at the display with oven temperature
showing in the oven display is a good way to check that the oven
has already reached the preheat temperature. Once the oven has
preheated, PLACE FOOD IN THE OVEN. The "BAKE" light wilt
stay on.
Press _ when baking is complete or to cancel the preheat
feature.
®
To change Preheat temperature while oven is
preheating (example changing from 350 to 425°F):
If it is necessary to change the preheat temperature while the oven
is preheating to the original temperature:
1. While preheating, press (_. "- - -°" and "BAKE" will appear
in the display (Fig. 5)
2. Enter the new preheat temperature. Press @ _ (_).
"425 °" and "BAKE" will appear in the display (Fig. 6).
3. Press (_. "PRE" and "BAKE" will appear in the display as
the oven heats to 425°F (Fig 7). A beep will sound once the
oven temperature reaches 425°F and the display will show
"425 °" and "BAKE" (See Fig. 8).
4. When baking is complete press _,.
@
®®®
®
17
Figure 1
Figure 2
Figure 3
Figure 4
Figure 5
Figure 6
Figure 7
Figure 8
Setting Oven
Controls
FEATURE
OVERVIEW
Bake
"lim_ Cook Sto=_
Set_ "tim

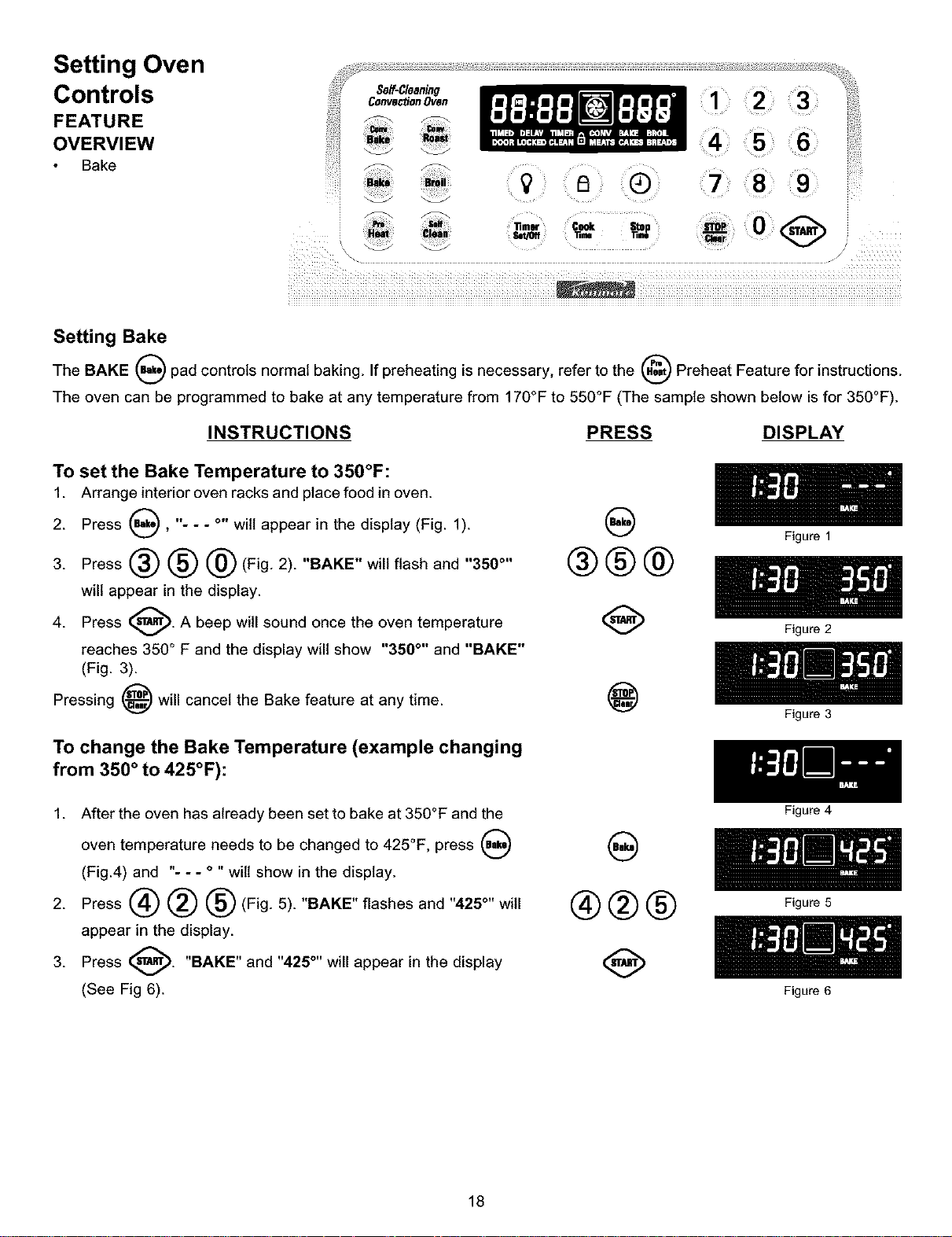

Setting Bake
The BAKE (_) pad controls normal baking. If preheating is necessary, refer to the (_ Preheat Feature for instructions.
The oven can be programmed to bake at any temperature from 170°F to 550°F (The sample shown below is for 350°F).
INSTRUCTIONS PRESS DISPLAY
To set the Bake Temperature to 350°F:
1. Arrange interior oven racks and place food in oven.
2. Press (_), % - - °" wilt appear in the display (Fig. 1).
3. Press _ (_ @ (Fig. 2). "BAKE" will flash and "350 °''
will appear in the display.
4. Press (_). A beep will sound once the oven temperature
reaches 350 ° F and the display will show "350 °'' and "BAKE"
(Fig. 3).
Pressing (_) will cancel the Bake feature at any time.
@
®®®
Figure 1
(_ Figure 2
To change the Bake Temperature (example changing
from 350 ° to 425°F):
1. After the oven has already been set to bake at 350°F and the
oven temperature needs to be changed to 425°F, press (_
(Fig.4) and "- - - ° " wilt show in the display.
2. Press @ _ ® (Fig. 5). "BAKE" flashes and "425°" will
appear in the display.
3. Press (_). "BAKE" and "425 °" will appear in the display
(See Fig 6).
®
18
®®®
Figure 3
Figure 4
Figure 5
Figure 6
Setting Oven Controls
FEATURE OVERVIEW
Timed Bake

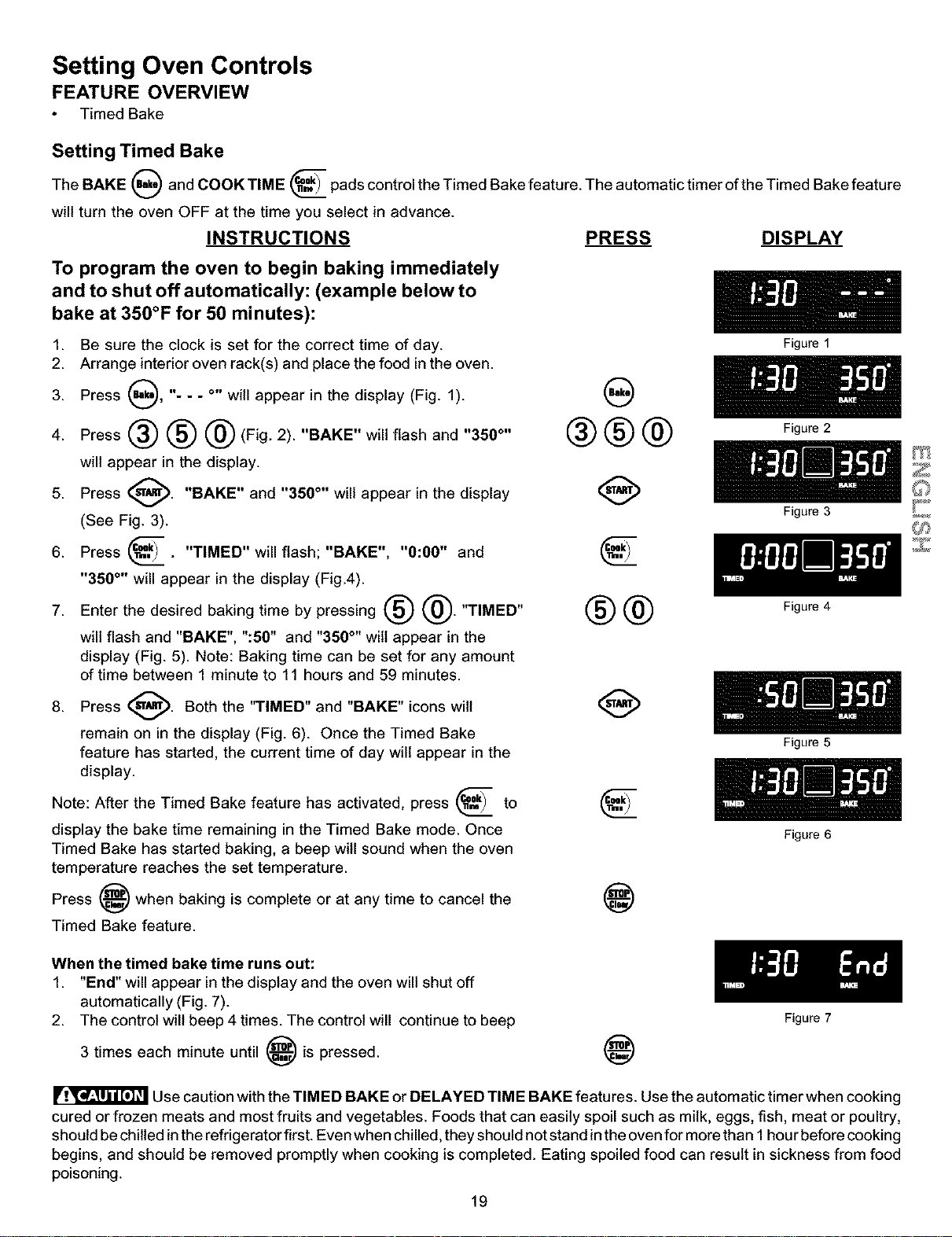

Setting Timed Bake
The BAKE (_ and COOK TIM E _ pads control the Timed Bake feature. The automatic timer of the Timed Bake feature
will turn the oven OFF at the time you select in advance.
INSTRUCTIONS PRESS DISPLAY
To program the oven to begin baking immediately
and to shut off automatically: (example below to
bake at 350°F for 50 minutes):
1. Be sure the clock is set for the correct time of day.
2. Arrange interior oven rack(s) and place the food in the oven.
3. Press (_, "- - - °" will appear in the display (Fig. 1).
4. Press _ (_ @ (Fig. 2). "BAKE" will flash and "350 °''
will appear in the display.
5. Press (_). "BAKE" and "350 °" will appear in the display
(See Fig. 3).
6. Press _c'k . "TIMED" will flash; "BAKE", "0:00" and
"350°" will appear in the display (Fig.4).
7. Enter the desired baking time by pressing (_ @. "TIMED"
will flash and "BAKE", ":50" and "350°'' wilt appear in the
display (Fig. 5). Note: Baking time can be set for any amount
of time between 1 minute to 11 hours and 59 minutes.
8. Press (_. Both the "TIMED" and "BAKE" icons wilt
remain on in the display (Fig. 6). Once the Timed Bake
feature has started, the current time of day will appear in the
display.
Note: After the Timed Bake feature has activated, press _ to
display the bake time remaining in the Timed Bake mode. Once
Timed Bake has started baking, a beep will sound when the oven
temperature reaches the set temperature.
Press _ when baking is complete or at any time to cancel the
Timed Bake feature.
@
®®®
®®
®
Figure 1
Figure 2
Figure 3
Figure 4
Figure 5
Figure 6
When the timed bake time runs out:
1. "End" will appear in the display and the oven will shut off
automatically (Fig. 7).
2. The control will beep 4 times. The control will continue to beep
3 times each minute until _, is pressed.
®
Figure 7
_lr_['==
Setting Oven Controls
FEATURE OVERVIEW
Delayed Time Bake

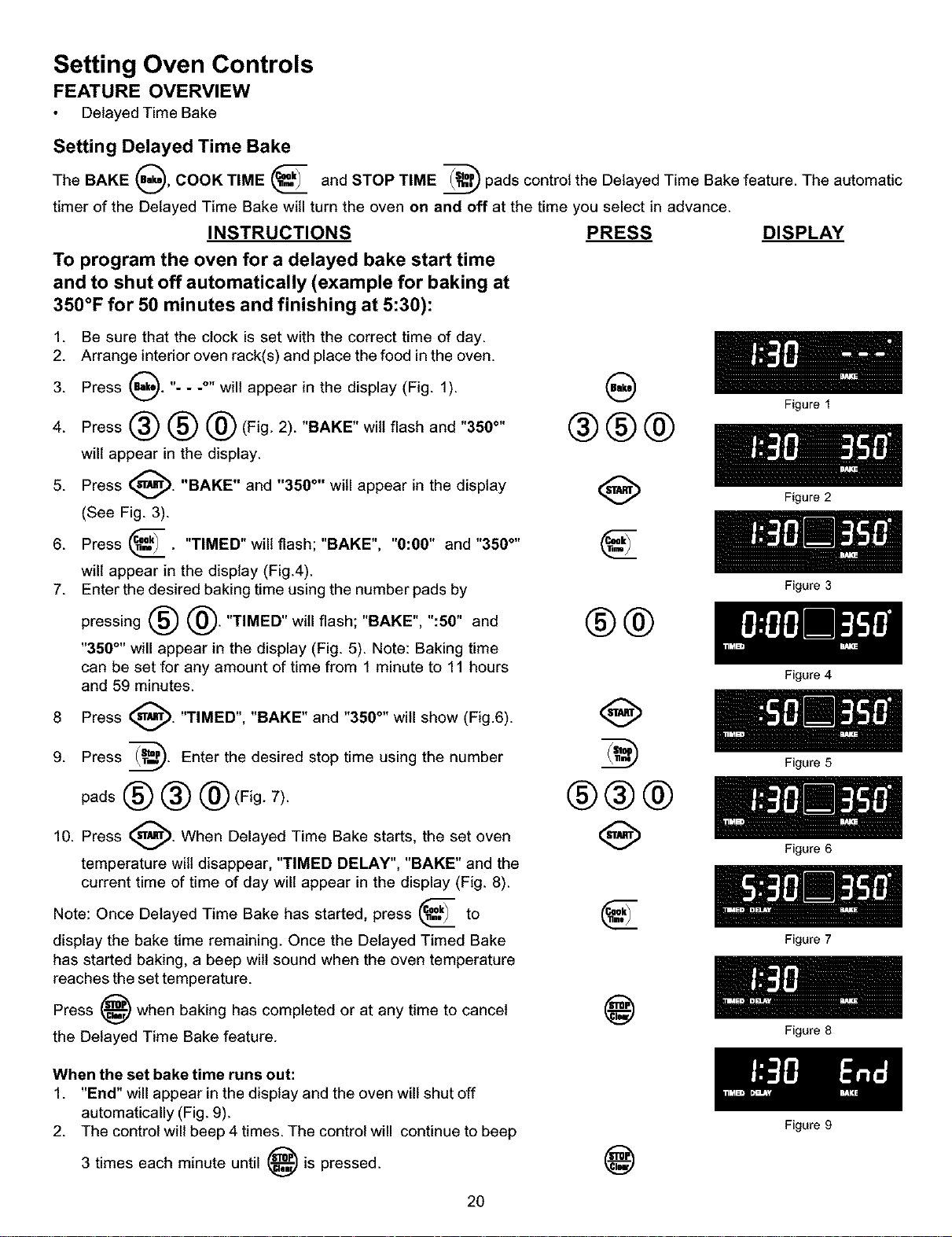

Setting Delayed Time Bake
The BAKE (_, COOK TIME _ and STOP TIME _ pads control the Delayed Time Bake feature. The automatic
J
timer of the Delayed Time Bake will turn the oven on and off at the time you select in advance.
INSTRUCTIONS PRESS DISPLAY
To program the oven for a delayed bake start time
and to shut off automatically (example for baking at
350°F for 50 minutes and finishing at 5:30):
1. Be sure that the clock is set with the correct time of day.
2. Arrange interior oven rack(s) and place the food in the oven.
3. Press (_). %..o. will appear in the display (Fig. 1). (_
4. Press _ (_ @ (Fig. 2). "BAKE" wilt flash and "350°" _(_
will appear in the display.
5. Press (_). "BAKE" and "350 °" will appear in the display
(See Fig. 3).
6. Press _r_"k . "TIMED" will flash; "BAKE", "0:00" and "350 °" r=_
will appear in the display (Fig.4).
7. Enter the desired baking time using the number pads by
pressing (_ @. "TIMED" witl flash; "BAKE", ":50" and (_)_
"350 °" will appear in the display (Fig. 5). Note: Baking time
can be set for any amount of time from 1 minute to 11 hours
and 59 minutes.
8 Press (_. "TIMED", "BAKE" and "350 °" will show (Fig.6).
9. Press _. Enter the desired stop time using the number
pads (_ (_) @ (Fig. 7). (_ (_) (_
10. Press _. When Delayed Time Bake starts, the set oven (_)
temperature wilt disappear, "TIMED DELAY", "BAKE" and the
current time of time of day will appear in the display (Fig. 8).
Cook
Note: Once Delayed Time Bake has started, press _ to _=';_
display the bake time remaining. Once the Delayed Timed Bake
has started baking, a beep wilt sound when the oven temperature
reaches the set temperature.
Press _ when baking has completed or at any time to cancel (_)
the Delayed Time Bake feature.
When the set bake time runs out:
1. "End" will appear in the display and the oven will shut off
automatically (Fig. 9).
2. The control will beep 4 times. The control will continue to beep
3 times each minute until _. is pressed.
®
2O
Figure 1
Figure 2
Figure 3
Figure 4
Figure 5
Figure 6
Figure 7
Figure 8
Figure 9

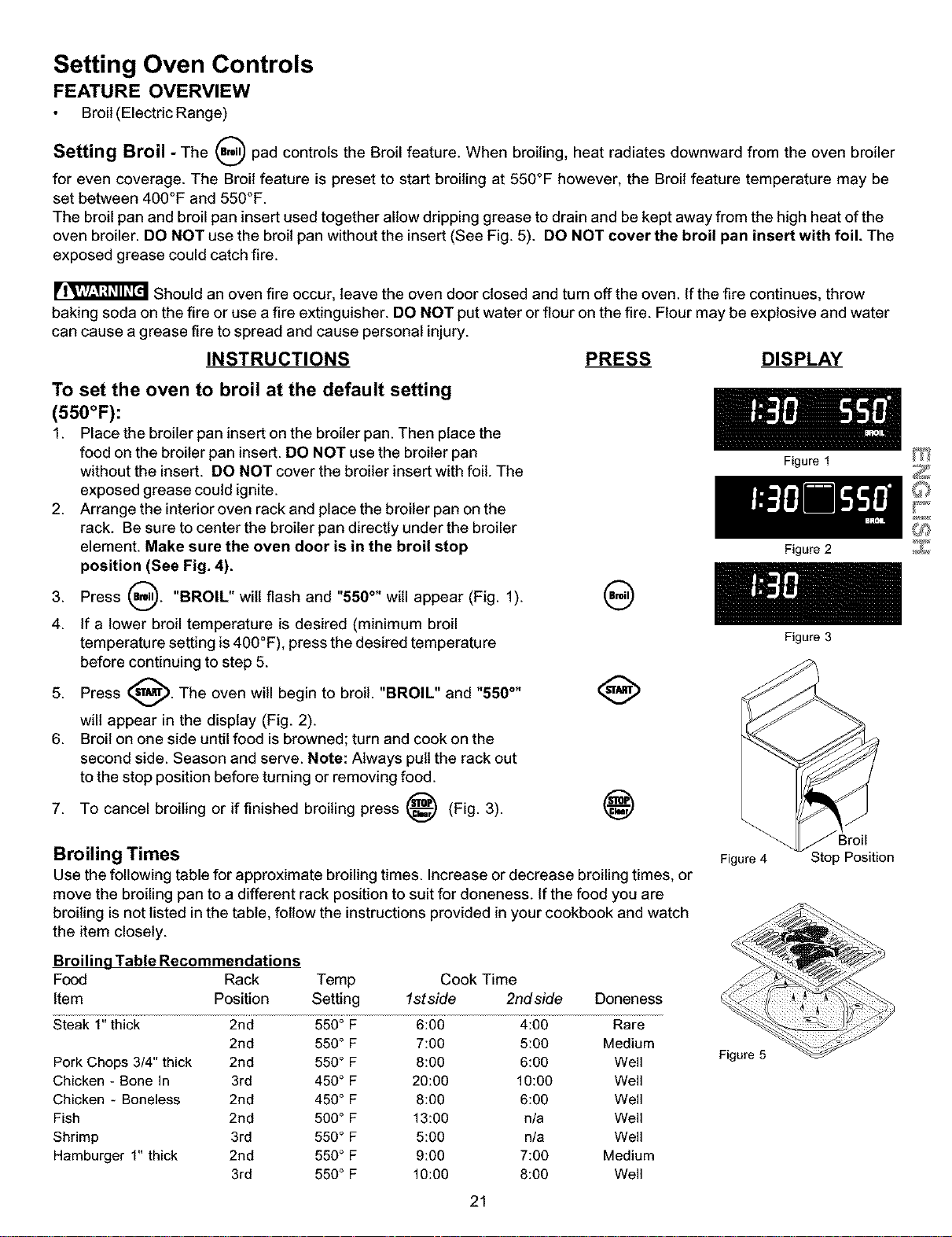

Setting Oven Controls
FEATURE OVERVIEW
Broil (Electric Range)
Setting Broil - The _ pad controls the Broil feature. When broiling, heat radiates downward from the oven broiler
for even coverage. The Broil feature is preset to start broiling at 550°F however, the Broil feature temperature may be
set between 400°F and 550°F.
The broil pan and broil pan insert used together allow dripping grease to drain and be kept away from the high heat of the
oven broiler. DO NOT use the broil pan without the insert (See Fig. 5). DO NOT cover the broil pan insert with foil. The
exposed grease could catch fire.
_IV_V-'_:t#II_[€'IIShould an oven fire occur, leave the oven door closed and turn off the oven. If the fire continues, throw
baking soda on the fire or use a fire extinguisher. DO NOT put water or flour on the fire. Flour may be explosive and water
can cause a grease fire to spread and cause personal injury.
INSTRUCTIONS PRESS DISPLAY
To set the oven to broil at the default setting
(550°F):
1. Place the broiler pan insert on the broiler pan. Then place the
food on the broiler pan insert. DO NOT use the broiler pan
without the insert. DO NOT cover the broiler insert with foil. The
exposed grease could ignite.
2. Arrange the interior oven rack and place the broiler pan on the
rack. Be sure to center the broiler pan directly under the broiler
element. Make sure the oven door is in the broil stop
position (See Fig. 4).
3. Press (_). "BROIL" wilt flash and "550 °" will appear (Fig. 1).
4. If a lower broil temperature is desired (minimum broil
temperature setting is 400°F), press the desired temperature
before continuing to step 5.
5. Press (_. The oven will begin to broil. "BROIL" and "550 °"
will appear in the display (Fig. 2).
6. Broil on one side until food is browned; turn and cook on the
second side. Season and serve. Note: Always pull the rack out
to the stop position before turning or removing food.
7. To cancel broiling or if finished broiling press (_) (Fig. 3).
@
®
Broiling Times
Use the following table for approximate broiling times. Increase or decrease broiling times, or
move the broiling pan to a different rack position to suit for doneness. If the food you are
broiling isnot listed in the table, follow the instructions provided in your cookbook and watch
the item closely.
Broiling Table Recommendations
Food Rack Temp Cook Time
Item Position Setting lstside 2ndside Doneness
Steak 1" thick 2rid 550 ° F 6:00 4:00 Rare
2rid 550° F 7:00 5:00 Medium
Pork Chops 3/4" thick 2rid 550 ° F 8:00 6:00 Well
Chicken - Bone In 3rd 450° F 20:00 lO:OO Well
Chicken - Boneless 2nd 450 ° F 8:00 6:00 Well
Fish 2nd 500° F 13:00 n/a Well
Shrimp 3rd 550° F 5:00 n/a Well
Hamburger 1" thick 2nd 550° F 9:00 7:00 Medium
3rd 550° F 10:00 8:00 Well
Figure 1
Figure 2
Figure 3
Broil
Figure4 Stop Position
Figure 5
21

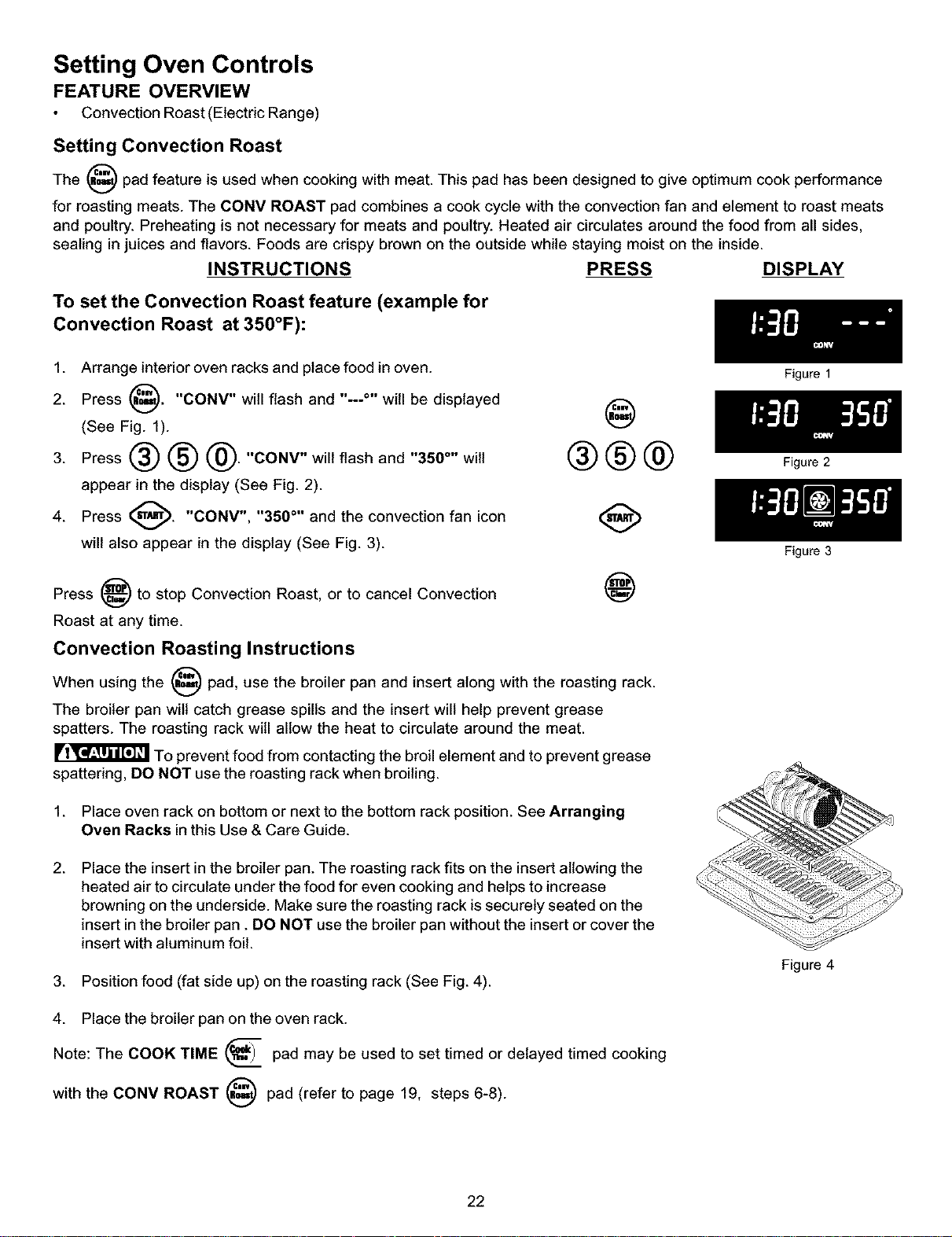

Setting Oven Controls
FEATURE OVERVIEW
Convection Roast (Electric Range)
Setting Convection Roast
The _) pad feature is used when cooking with meat. This pad has been designed to give optimum cook performance
for roasting meats. The CONV ROAST pad combines a cook cycle with the convection fan and element to roast meats
and poultry. Preheating is not necessary for meats and poultry. Heated air circulates around the food from all sides,
sealing in juices and flavors. Foods are crispy brown on the outside while staying moist on the inside.
INSTRUCTIONS PRESS DISPLAY
To set the Convection Roast feature (example for
Convection Roast at 350°F):
1. Arrange interior oven racks and place food in oven.
2. Press _). "CONV" will flash and "---°" will be displayed
(See Fig. 1).
3. Press @ (_) @. "CONV" will flash and "350°" wilt
appear in the display (See Fig. 2).
4. Press _. "CONV", "350 °'' and the convection fan icon
will also appear in the display (See Fig. 3).
@
®®®
Press _ to stop Convection Roast, or to cancel Convection
Roast at any time.
Convection Roasting Instructions
When using the _) pad, use the broiler pan and insert along with the roasting rack.
The broiler pan wilt catch grease spills and the insert will help prevent grease
spatters. The roasting rack will allow the heat to circulate around the meat.
To prevent food from contacting the broil element and to prevent grease
spattering, DO NOT use the roasting rack when broiling.
1. Place oven rack on bottom or next to the bottom rack position. See Arranging
Oven Racks in this Use & Care Guide.
2.
Place the insert in the broiler pan. The roasting rack fits on the insert allowing the
heated air to circulate under the food for even cooking and helps to increase
browning on the underside. Make sure the roasting rack is securely seated on the
insert in the broiler pan. DO NOT use the broiler pan without the insert or cover the
insert with aluminum foil.
3. Position food (fat side up) on the roasting rack (See Fig. 4).
Figure 1
Figure 2
Figure 3
Figure 4
4. Place the broiler pan on the oven rack.
Note: The COOK TIME _ pad may be used to set timed or delayed timed cooking
with the CONV ROAST _) pad (refer to page 19, steps 6-8).
22

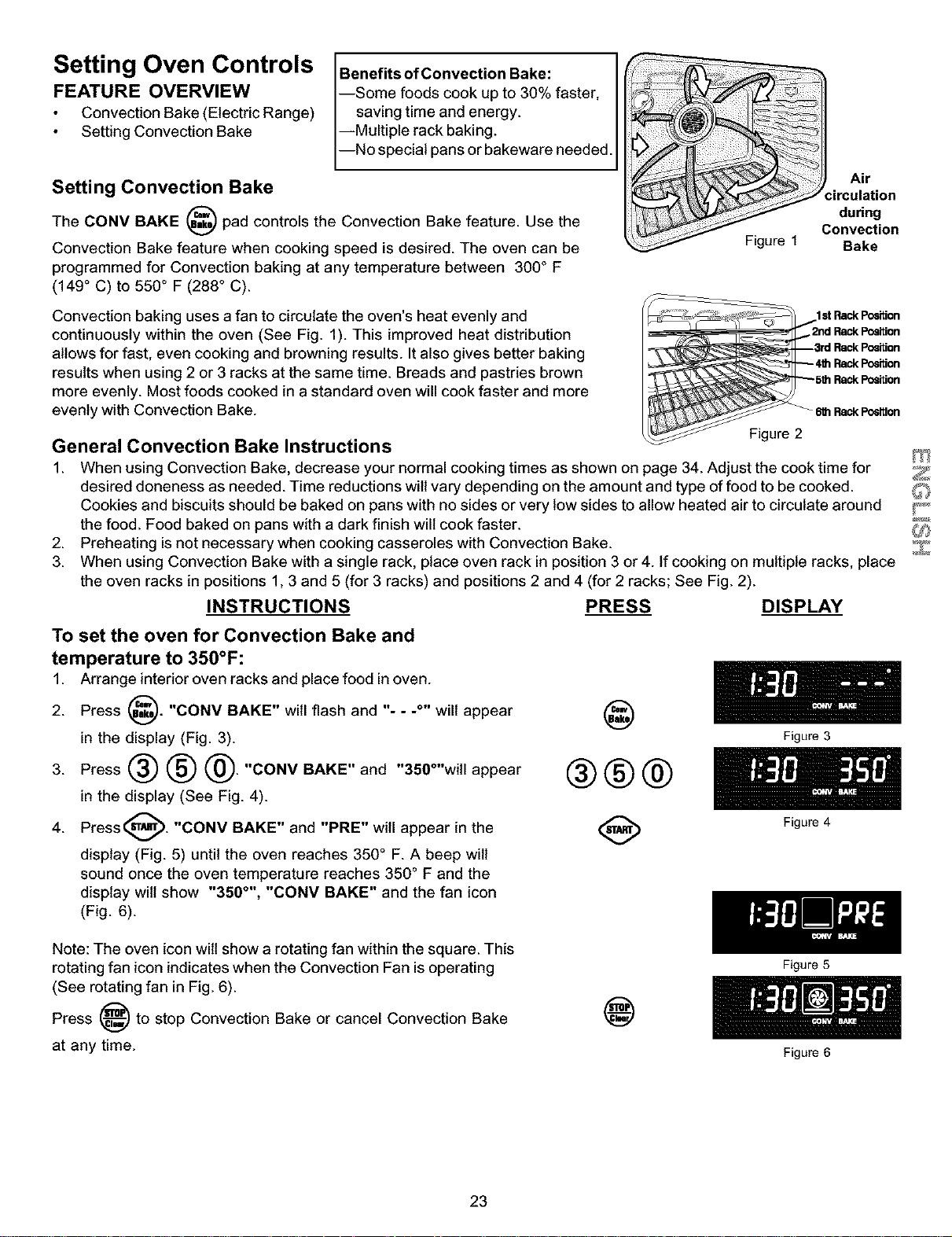

Setting Oven Controls
FEATURE OVERVIEW
Convection Bake (Electric Range)
Setting Convection Bake
Benefits of Convection Bake:
--Some foods cook up to 30% faster,
saving time and energy.
--Multiple rack baking.
--No special pans or bakeware needed.
Setting Convection Bake
The CONV BAKE _ pad controls the Convection Bake feature. Use the
Convection Bake feature when cooking speed is desired. The oven can be
programmed for Convection baking at any temperature between 300 ° F
(149 ° C) to 550° F (288 ° C).
Figure 1
Air
;irculation
during
Convection
Bake
Convection baking uses a fan to circulate the oven's heat evenly and
continuously within the oven (See Fig. 1). This improved heat distribution
allows for fast, even cooking and browning results. It also gives better baking
results when using 2 or 3 racks at the same time. Breads and pastries brown
more evenly. Most foods cooked in a standard oven will cook faster and more
evenly with Convection Bake.
General Convection Bake Instructions
1.
2.
3.
st RackPosition
2nd RackPoeition
6_ RackPosttlon
Figure 2
When using Convection Bake, decrease your normal cooking times as shown on page 34. Adjust the cook time for
desired doneness as needed. Time reductions wilt vary depending on the amount and type of food to be cooked.
Cookies and biscuits should be baked on pans with no sides or very low sides to allow heated air to circulate around
the food. Food baked on pans with a dark finish will cook faster.
Preheating is not necessary when cooking casseroles with Convection Bake.
When using Convection Bake with a single rack, place oven rack in position 3 or 4. If cooking on multiple racks, place
the oven racks in positions 1,3 and 5 (for 3 racks) and positions 2 and 4 (for 2 racks; See Fig. 2).
INSTRUCTIONS PRESS DISPLAY
To set the oven for Convection Bake and
temperature to 350°F:
1. Arrange interior oven racks and place food in oven.
2. Press @. "CONV BAKE*' will flash and "- - -°" will appear
in the display (Fig. 3).
3. Press _ (_ @. "CONV BAKE" and "350°"will appear
in the display (See Fig. 4).
4. Press(_. "CONV BAKE" and "PRE" will appear in the
display (Fig. 5) until the oven reaches 350 ° F. A beep wilt
sound once the oven temperature reaches 350 ° F and the
display wilt show *'350°'', "CONV BAKE" and the fan icon
(Fig. 6).
@
®®®
Note: The oven icon wilt show a rotating fan within the square. This
rotating fan icon indicates when the Convection Fan is operating
(See rotating fan in Fig. 6).
Press _ to stop Convection Bake or cancel Convection Bake
at any time.
®
Figure 3
Figure 4
Figure 5
Figure 6
23

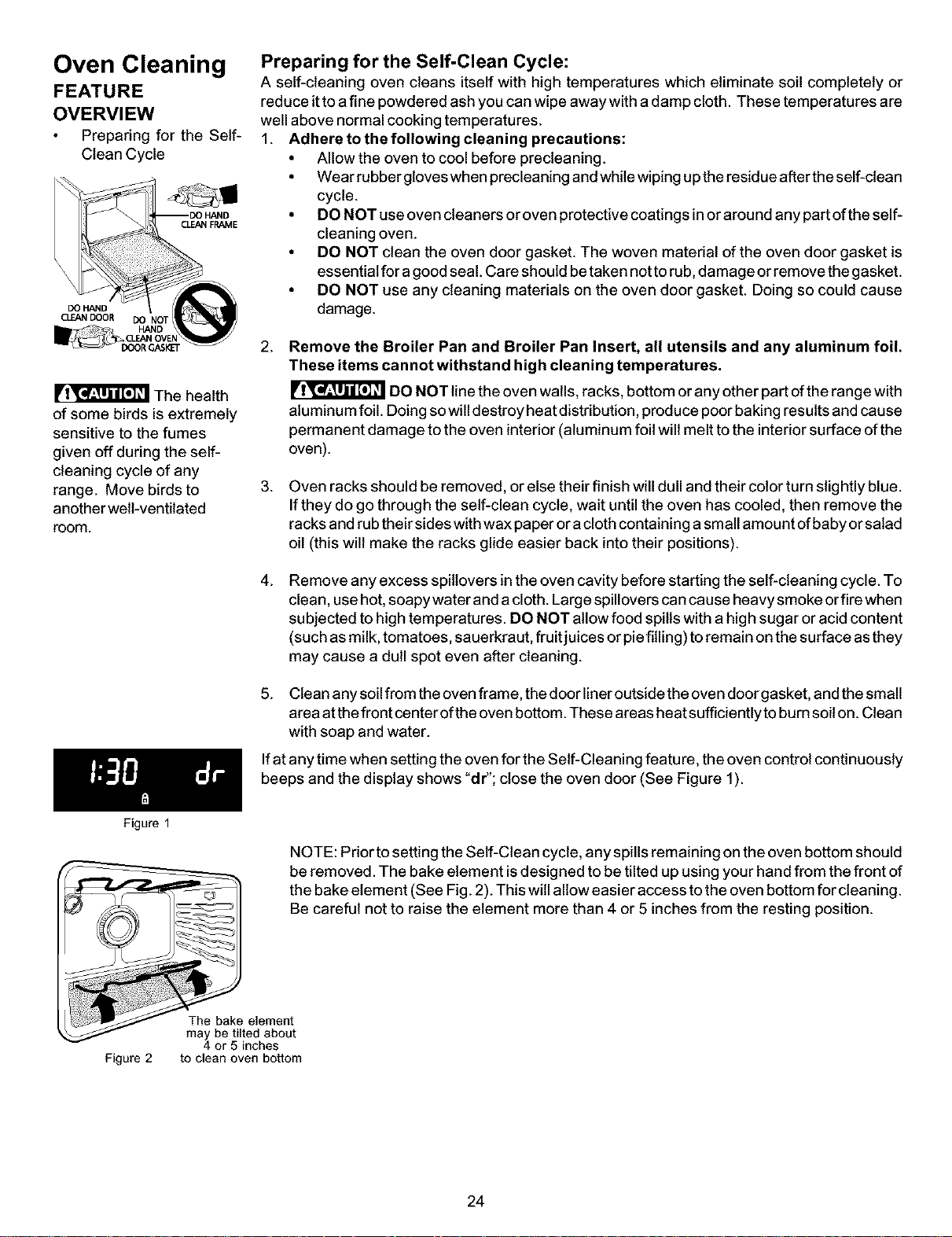

Oven Cleaning
FEATURE
OVERVIEW
Preparing for the Self-
Clean Cycle
The health
of some birds isextremely
sensitive to the fumes
given off during the self-
cleaning cycle of any
range. Move birds to
another well-ventilated
room.
Figure 1
Preparing for the Self-Clean Cycle:
A self-cleaning oven cleans itself with high temperatures which eliminate soil completely or
reduce ittoa fine powdered ashyou can wipe away witha damp cloth. These temperatures are
well above normal cookingtemperatures.
1. Adhere to the following cleaning precautions:
Allow the oven to coolbefore precteaning.
Wear rubbergloves when precleaning and whilewipinguptheresid ueafterthe self-ctea n
cycle.
DO NOT use oven cleaners or oven protective coatings inoraround any part ofthe self-
cleaning oven.
DO NOT clean the oven door gasket. The woven material of the oven door gasket is
essential for a good seal. Care should be taken notto rub,damage orremove thegasket.
DO NOT use any cleaning materials on the oven door gasket. Doing so could cause
damage.
2.
Remove the Broiler Pan and Broiler Pan Insert, all utensils and any aluminum foil.
These items cannot withstand high cleaning temperatures.
DO NOT line the oven walls, racks, bottom or any other partofthe range with
aluminum foil. Doing sowill destroyheat distribution,produce poorbaking resultsand cause
permanent damage to the oven interior(aluminum foil willmelt tothe interiorsurface ofthe
oven).
.
Oven racks should be removed, or else their finish will dull and their color turn slightly blue.
If they do go through the self-clean cycle, wait until the oven has cooled, then remove the
racks and rub their sides with wax paper or a cloth containing a small amount of baby or salad
oil (this will make the racks glide easier back into their positions).
4.
Remove any excess spiltovers inthe oven cavity before starting the self-cleaning cycle. To
clean, use hot, soapy water and a cloth. Large spillovers can cause heavy smoke orfire when
subjected to high temperatures. DO NOT allow food spills with a high sugar or acid content
(such as milk, tomatoes, sauerkraut, fruit juices or pie filling) to remain on the surface as they
may cause a dull spot even after cleaning.
5. Clean any soil from the oven frame, the door liner outside the oven door gasket, and the small
area at the front centerofthe oven bottom. These areas heat sufficientlyto burn soiton. Clean
with soap and water.
If at any time when setting the oven for the Self-Cleaning featu re, the oven control continuously
beeps and the display shows "dr"; close the oven door (See Figure 1).
Figure 2
The bake element
may be tilted about
4 or 5 inches
to clean oven bottom
NOTE: Prior to setting the Self-Clean cycle, any spills remaining on the oven bottom should
be removed. The bake element isdesigned to be tilted up using your hand from the front of
the bake element (See Fig. 2). This will allow easier access to the oven bottom for cleaning.
Be careful not to raise the element more than 4 or 5 inches from the resting position.
24

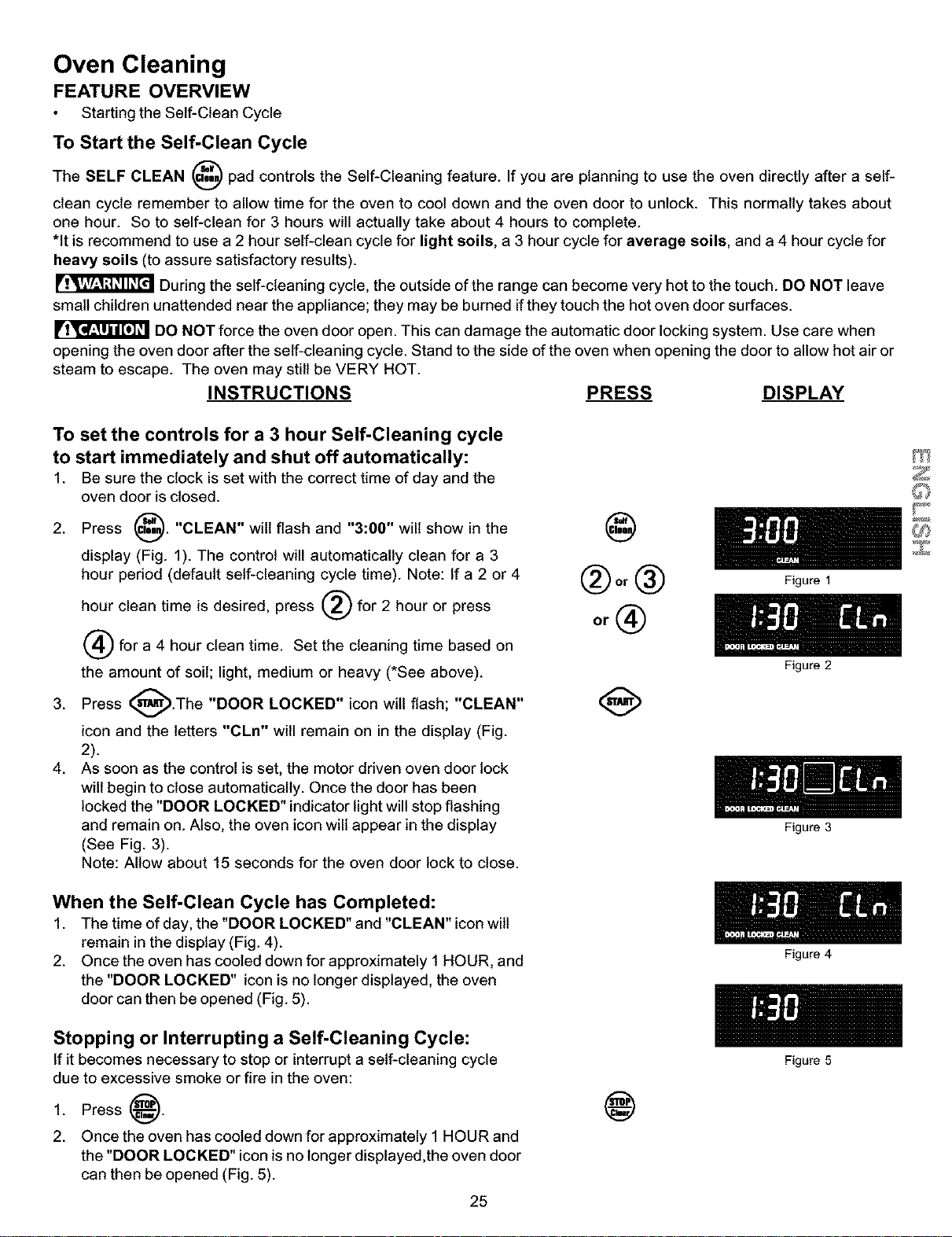

Oven Cleaning
FEATURE OVERVIEW
Starting the Self-Clean Cycle
To Start the Self-Clean Cycle
The SELF CLEAN _ pad controls the Self-Cleaning feature. If you are planning to use the oven directly after a self-
clean cycle remember to allow time for the oven to cool down and the oven door to unlock. This normally takes about
one hour. So to self-clean for 3 hours will actually take about 4 hours to complete.
*It is recommend to use a 2 hour self-clean cycle for light soils, a 3 hour cycle for average soils, and a 4 hour cycle for
heavy soils (to assure satisfactory results).
During the self-cleaning cycle, the outside ofthe range can become very hot to the touch. DO NOT leave
small children unattended near the appliance; they may be burned ifthey touch the hot oven door surfaces.
DO NOT force the oven door open. This can damage the automatic door locking system. Use care when
opening the oven door after the self-cleaning cycle. Stand to the side of the oven when opening the door to allow hot air or
steam to escape. The oven may still be VERY HOT.
INSTRUCTIONS PRESS DISPLAY
To set the controls for a 3 hour Self-Cleaning cycle
to start immediately and shut off automatically:
1. Be sure the clock isset with the correct time of day and the
oven door is closed.
2. Press @. "CLEAN" will flash and "3:00" will show in the
display (Fig. 1). The control will automatically clean for a 3
hour period (default self-cleaning cycle time). Note: If a 2 or 4
hour clean time is desired, press (_ for 2 hour or press
for a 4 hour clean time. Set the cleaning time based on
the amount of soil; light, medium or heavy (*See above).
3. Press (_).The "DOOR LOCKED" icon will flash; "CLEAN"
icon and the letters "CLn" will remain on in the display (Fig.
2).
4. As soon as the control is set, the motor driven oven door lock
will begin to close automatically. Once the door has been
locked the "DOOR LOCKED" indicator light will stop flashing
and remain on. Also, the oven icon will appear in the display
(See Fig. 3).
Note: Allow about 15 seconds for the oven door lock to close.
®o,®
or
When the Self-Clean Cycle has Completed:
1. The time of day, the "DOOR LOCKED" and "CLEAN" iconwilt
remain in the display (Fig. 4).
2. Once the oven has cooled down for approximately 1 HOUR, and
the "DOOR LOCKED" icon isno longer displayed, the oven
door can then be opened (Fig. 5).
Stopping or Interrupting a Self-Cleaning Cycle:
If it becomes necessary to stop or interrupt a self-cleaning cycle
due to excessive smoke or fire in the oven:
1. Press _.
2. Once the oven has cooled down for approximately 1HOUR and
the "DOOR LOCKED" icon is no longer displayed,the oven door
can then be opened (Fig. 5).
25
®
Figure 1
Figure 2
Figure 3
Figure 4
Figure 5
Oven Cleaning
FEATURE OVERVIEW
Delayed Self-Clean Cycle
To Start the Delayed Self-Clean Cycle
The SELF CLEAN _, STOP TIME _ pads and length of clean cycle, controls the Delayed Self-Clean operation.
The automatic timer will turn the oven on and off at the time you select in advance. Be sure to review TO START THE
SELF-CLEAN CYCLE for recommended clean times.
_'lvJv,-1,'t_ll_[_llDuring the self-cleaning cycle, the outside of the range can become very hot to the touch. DO NOT leave
small children unattended near the appliance.
DO NOT force the oven door open. This can damage the automatic door locking system. Use care when
opening the oven door after the self-cleaning cycle. Stand to the side of the oven when opening the door to allow hot air or
steam to escape. The oven may still be VERY HOT.
INSTRUCTIONS PRESS DISPLAY
To set the control for the Self-Cleaning Cycle to start at a
delayed time and shut off automatically: (example 3 hour self-
clean cycle to finish at 9:00):
1. Be sure the clock isset with the correct time of day and the
oven door is closed.
2. Press @. "CLEAN" wilt flash and "3:00" wilt show in the
display (Fig. 1). The control will automatically clean for a 3
hour period (default self-cleaning cycle time). Note: If a 2 or 4
hour clean time is desired, press (_ for 2 hour or press
_for a 4 hour clean time. Set the cleaning time based on
the amount of soil -- light, medium or heavy (*See page 27).
3. Press _). The "DOOR LOCKED" icon will flash;
"CLEAN" icon and the letters "CLn" will remain on in the
display (Fig. 2).
4. Press _ (Fig. 3). Enter the desired stop time using the
num0erpads® ® ®(F,g
5. Press (_. The "CLn" icon will turn off; "DELAY",
'_DOOR
LOCKED" and "CLEAN" icons will remain on.
6. As soon as the control is set, the motor driven oven door lock
will begin to close automatically and once the door has been
locked the "DOOR LOCKED" indicator light will quit flashing
and remain on. The oven icon will appear in the display (Fig. 5).
7. The control will calculate backward from the set stop time to
determine when the self-cleaning cycle should begin. The self-
cleaning cycle will come on automatically at the calculated
time. At that time, the icon "DELAY" will go out; "CLEAN" and
"CLn" will appear in the display (Fig. 6).
@
( )or
or
®®®
Figure 1
Figure 2
Figure 3
Figure 4
Figure 5
Figure 6
Figure 7
When the Self-Clean Cycle has Completed:
1. The time of day, the "DOOR LOCKED" and "CLEAN" iconwilt
remain in the display (Fig. 7).
2. Once the oven has cooled down for approximately 1 HOUR, and
the "DOOR LOCKED" icon isno longer displayed, the oven
door can then be opened (Fig. 8).
26
Figure 8
Oven Cleaning
FEATURE OVERVIEW
Delayed Self-Clean Cycle (Cont'd)
INSTRUCTIONS
Stopping or Interrupting a Self-Cleaning Cycle:
If it becomes necessary to stop or interrupt a self-cleaning cycle
due to excessive smoke or fire in the oven:
1. Press _.
2. Once the oven has cooled down for approximately 1 HOUR and
the "DOOR LOCKED" icon is no longer displayed, the oven
door can then be opened (Fig. 2-1).
PRESS
®
DISPLAY
Adjusting Oven Temperature
FEATURE OVERVIEW
The temperature in the oven has been pre-set at the factory. When first using the oven, be
sure to follow recipe times and temperatures. If you think the oven is too hot or too cool, the
temperature in the oven can be adjusted. Before adjusting, test a recipe by using a
temperature setting that is higher or lower than the recommended temperature. The baking
results should help you to decide how much of an adjustment is needed.
INSTRUCTIONS PRESS
To adjust the oven temperature higher:
1. Press (_ for 6 seconds (Fig. 1). (_
2. To increase the temperature use the number pads to enter the
desired change. (Example 30°F) _ @ (Fig. 2). The _ @
temperature may be increased as much as 35°F (17°C).
3. Press I_) to accept the temperature change and the (_)
display will return to the time of day (Fig. 3). Press _ to
reject the change if necessary.
To adjust the oven temperature lower:
Press (_ for 6 seconds (Fig. 4).
1.
2. To decrease the temperature use the number pads to enter the
desired change. (Example-30°F)_@ and then press _@_
(_) (Fig. 5). The temperature may be decreased as much
as 35°F (17°C).
Press I_) to accept the temperature change and the (_)
3.
display will return to the time of day (Fig. 6). Press I_ to
reject the change if necessary.
Figure 2-1
Note: The oven
temperature adjustments
made with this feature wilt
not change the Self-Clean
cycle temperature.
DISPLAY
Figure 1
Figure 2
Figure 3
Figure 4
Figure 5
Figure 6
27

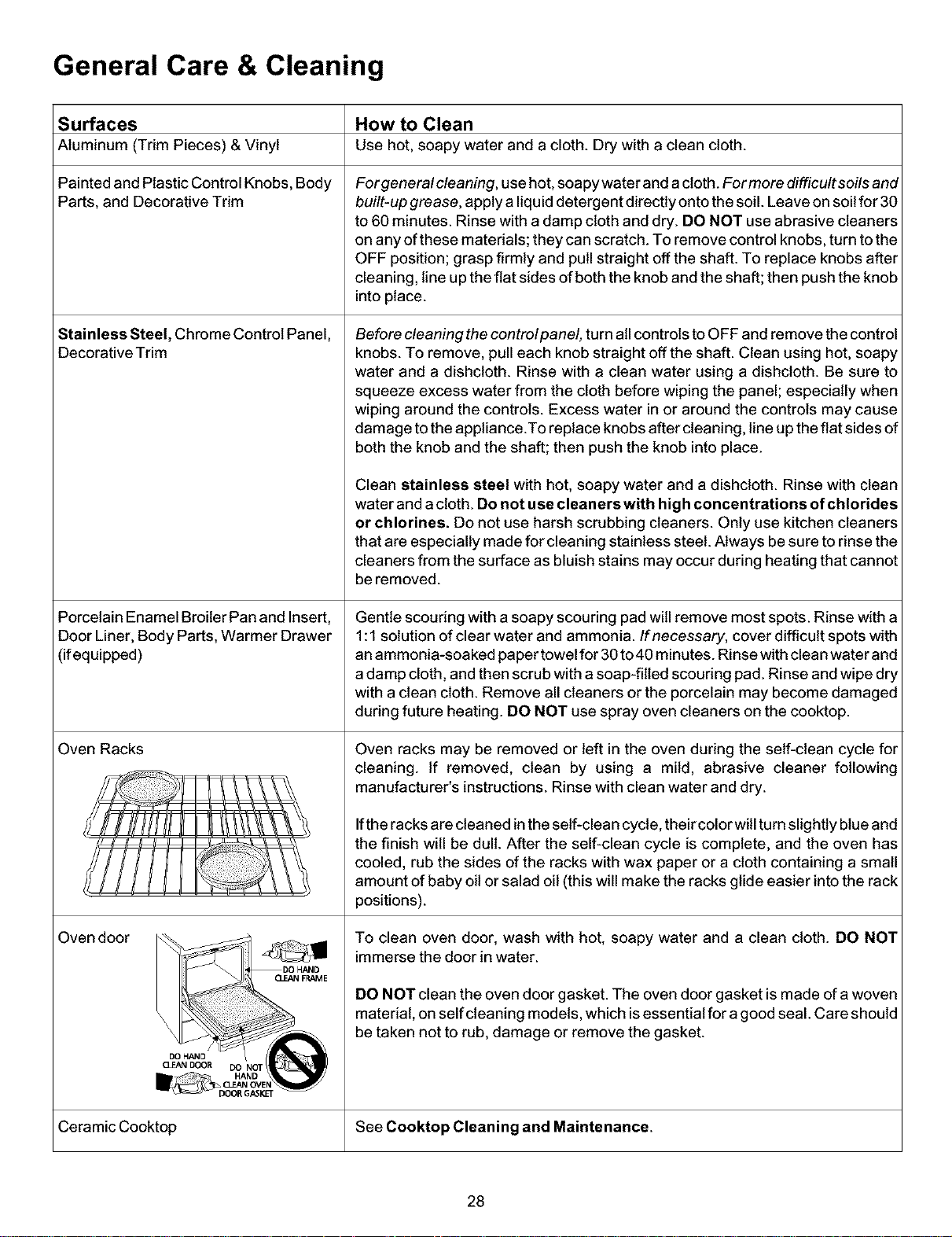

General Care & Cleaning
Surfaces How to Clean
Aluminum (Trim Pieces) & Vinyl Use hot, soapy water and a cloth. Dry with a clean cloth.
Painted and Plastic Control Knobs, Body
Parts, and Decorative Trim
Stainless Steel, Chrome Control Panel,
Decorative Trim
Porcelain Enamel Broiler Pan and Insert,
Door Liner, Body Parts, Warmer Drawer
(ifequipped)
Oven Racks
Oven door
Forgeneralcleaning, use hot, soapy water and a cloth. Formore difficultsoils and
built-up grease, apply a liquid detergent directly onto the soil. Leave on soil for 30
to 60 minutes. Rinse with a damp cloth and dry. DO NOT use abrasive cleaners
on any of these materials; they can scratch. To remove control knobs, turn to the
OFF position; grasp firmly and pull straight off the shaft. To replace knobs after
cleaning, line up the fiat sides of both the knob and the shaft; then push the knob
into place.
Before cleaning the controlpanel, turn all controls to OFF and remove the control
knobs. To remove, pull each knob straight off the shaft. Clean using hot, soapy
water and a dishcloth. Rinse with a clean water using a dishcloth. Be sure to
squeeze excess water from the cloth before wiping the panel; especially when
wiping around the controls. Excess water in or around the controls may cause
damage to the appliance .To replace knobs after cleaning, line up the fiat sides of
both the knob and the shaft; then push the knob into place.
Clean stainless steel with hot, soapy water and a dishcloth. Rinse with clean
water and a cloth. Do not use cleaners with high concentrations of chlorides
or chlorines. Do not use harsh scrubbing cleaners. Only use kitchen cleaners
that are especially made for cleaning stainless steel. Always be sure to rinse the
cleaners from the surface as bluish stains may occur during heating that cannot
be removed.
Gentle scouring with a soapy scouring pad will remove most spots. Rinse with a
1:1solution of clear water and ammonia. If necessary, cover difficult spots with
an ammonia-soaked paper towel for 30 to40 minutes. Rinse with clean water and
a damp cloth, and then scrub with a soap-filled scouring pad. Rinse and wipe dry
with a clean cloth. Remove all cleaners or the porcelain may become damaged
during future heating. DO NOT use spray oven cleaners on the cooktop.
Oven racks may be removed or left in the oven during the self-clean cycle for
cleaning. If removed, clean by using a mild, abrasive cleaner following
manufacturer's instructions. Rinse with clean water and dry.
Ifthe racks are cleaned in the self-clean cycle, their color will turn slightly blue and
the finish will be dull. After the self-clean cycle is complete, and the oven has
cooled, rub the sides of the racks with wax paper or a cloth containing a small
amount of baby oil or salad oil (this will make the racks glide easier into the rack
positions).
To clean oven door, wash with hot, soapy water and a clean cloth. DO NOT
immerse the door in water.
DO NOT clean the oven door gasket. The oven door gasket is made of a woven
material, on self cleaning models, which is essential for agood seal. Care should
be taken not to rub, damage or remove the gasket.
Ceramic Cooktop See Cooktop Cleaning and Maintenance.
28

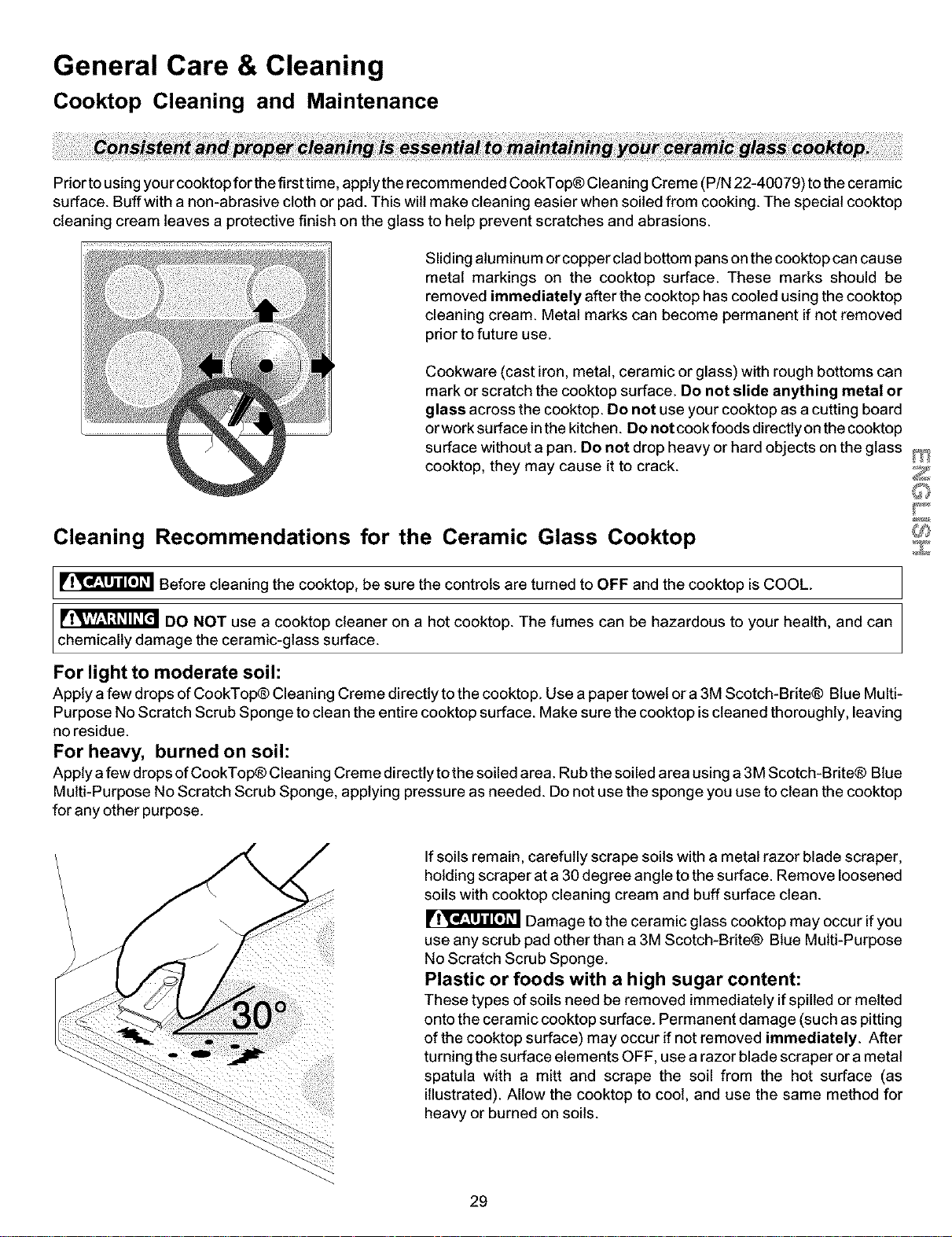

General Care & Cleaning
Cooktop Cleaning and Maintenance
Prior to using yourcooktopfor the firsttime, applythe recommended CookTop® Cleaning Creme (P/N 22-40079) to the ceramic
surface. Buff with a non-abrasive cloth or pad. This wilt make cleaning easier when soiled from cooking. The special cooktop
cleaning cream leaves a protective finish on the glass to help prevent scratches and abrasions.
Sliding aluminum or copper clad bottom pans on the cooktop can cause
metal markings on the cooktop surface. These marks should be
removed immediately after the cooktop has cooled using the cooktop
cleaning cream. Metal marks can become permanent if not removed
prior to future use.
Cookware (cast iron, metal, ceramic or glass) with rough bottoms can
mark or scratch the cooktop surface. Do not slide anything metal or
glass across the cooktop. Do not use your cooktop as a cutting board
or work surface inthe kitchen. Do not cook foods directly on the cooktop
surface without a pan. Do not drop heavy or hard objects on the glass V_
cooktop, they may cause it to crack.
Cleaning Recommendations for the Ceramic Glass Cooktop
Before cleaning the cooktop, be sure the controls are turned to OFF and the cooktop is COOL.
_'!_,v*','-lq#ll`'[cllDO NOT use a cooktop cleaner on a hot cooktop. The fumes can be hazardous to your health, and can
chemically damage the ceramic-glass surface.
For light to moderate soil:
Apply a few drops of CookTop@ Cleaning Creme directly to the cooktop. Use a paper towel or a 3M Scotch-Brite@ Blue Multi-
Purpose No Scratch Scrub Sponge to clean the entire cooktop surface. Make sure the cooktop iscleaned thoroughly, leaving
no residue.
For heavy, burned on soil:
Apply a few drops ofCookTop@ Cleaning Creme directly to thesoiled area. Rub thesoiled area usinga 3M Scotch-Brite@ Blue
Multi-Purpose No Scratch Scrub Sponge, applying pressure as needed. Do not use the sponge you use to clean the cooktop
for any other purpose.
If soils remain, carefully scrape soils with a metal razor blade scraper,
holding scraper at a 30 degree angle to the surface. Remove loosened
soils with cooktop cleaning cream and buff surface clean.
_lrt_"_'_l"J"_'_ Damage to the ceramic glass cooktop may occur if you
use any scrub pad other than a 3M Scotch-Brite® Blue Multi-Purpose
No Scratch Scrub Sponge.
Plastic or foods with a high sugar content:
These types of soils need be removed immediately if spilled or melted
onto the ceramic cooktop surface. Permanent damage (such as pitting
of the cooktop surface) may occur if not removed immediately. After
turning the surface elements OFF, use a razor blade scraper or a metal
spatula with a mitt and scrape the soil from the hot surface (as
illustrated). Allow the cooktop to cool, and use the same method for
heavy or burned on soils.
29
General Care & Cleaning
Cleaning Recommendations for Ceramic Glass Cooktops (cont'd)
Do not use the following on the ceramic glass cooktop:
• Do not use abrasive cleaners and scouring pads, such as metal and some
nylon pads. They may scratch the cooktop, making it more difficult to clean.
• Do not use harsh cleaners, such as chlorine bleach, ammonia or oven
cleaners, as they may etch or discolor the cooktop.
• Do not use dirty sponges, cloths or paper towels, as they can leave soil or
lint on the cooktop which can burn and cause discoloration.
or
a
Fig. 1
Na
Fig, 2
about45
Hinge
Fig, 3
Removing and Replacing the Oven Door
The door is heavy. For safe, temporary storage, lay the door flat with
the inside of the door facing down.
To Remove Oven Door:
1. Open oven door completely (horizontal with floor - See Fig. 1).
2. Remove 2 screws located on the inside of the oven door liner (See A Fig. 2)
3. insert the 2 screws into the door hinge holes located on the side of the hinge
arm, one into each hinge (See B Fig. 2).
4. Close oven door until the door stops, (Do not force the door to close any
further). The placement of these screws should keep door open in about a 45
degree position.
5. Grasp oven door firmly on both sides and slide door up and off hinges at the
same angle. (See Fig. 3)
6. To clean oven door, follow the instructions in the General Care & Cleaning
table.
To Replace Oven Door:
1. Be sure the hinge arms remain at the 45 degree angle position. Be sure the
screws are still locking the hinge arms from moving. If the screws fall out of
the hinge holes, the hinge(s) may snap back against the oven frame and could
pinch fingers or chip the porcelain finish on the oven front frame.
2. Hold door at the sides near the top while resting the lower front of door on your
knee. insert the door channels at the bottom of door over the door hinges, (See
Fig. 3).
3. Allow the door to slide down into the door hinges evenly at the same 45 degree
angle. The hinge arms should be inserted into the bottom corners as far as
they can go.
4. Open door completely (horizontal with floor) and remove both screws from
holes in door hinges.
5. Reinstall the 2 screws into the door liner (See C Fig. 2).
6. if the door is not in alignment with the oven frame, remove door and repeat
the above steps.
3O

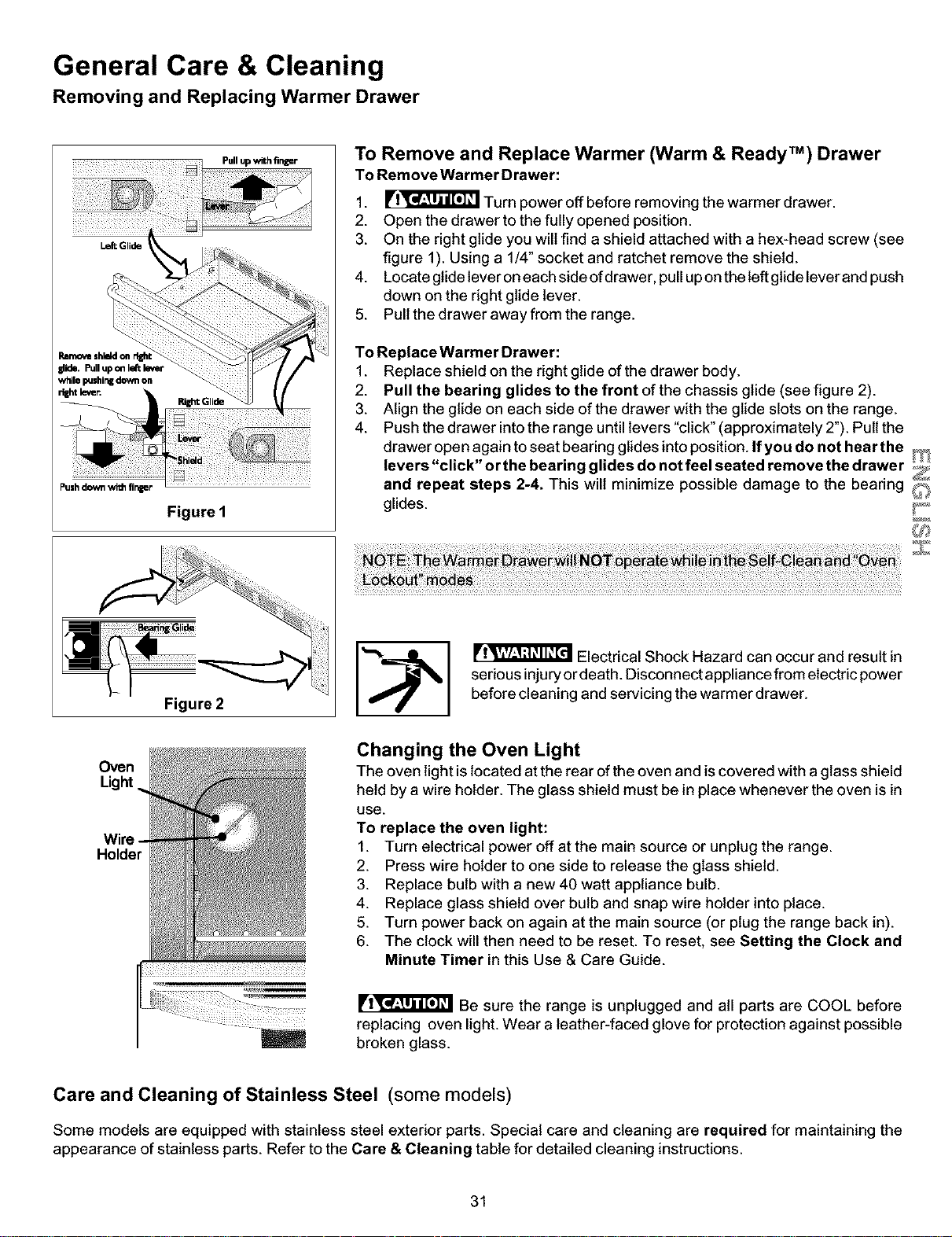

General Care & Cleaning
Removing and Replacing Warmer Drawer
Pullupwithfinger
hmow shlddon r¥
glide. Pullupoll lel_lever
whilepushir_down on
r_ht levee
Pushdown _ finger
Figure I
Figure 2
Oven
Wire •
Holder
To Remove and Replace Warmer (Warm & Ready TM) Drawer
To Remove Warmer Drawer:
1. _ Turn power off before removing the warmer drawer.
2. Open the drawer to the fully opened position.
3. On the right glide you will find a shield attached with a hex-head screw (see
figure 1). Using a 1/4" socket and ratchet remove the shield.
4. Locate glide lever oneach side of drawer, pull up on the left glide lever and push
down on the right glide lever.
5. Pull the drawer away from the range.
To Replace Warmer Drawer:
1. Replace shield on the right glide of the drawer body.
2. Pull the bearing glides to the front of the chassis glide (see figure 2).
3. Align the glide on each side of the drawer with the glide slots on the range.
4. Push the drawer intothe range untillevers "click" (approximately 2"). Pullthe
drawer open again toseat bearing glides intoposition. Ifyou do not hear the _
levers "click" or the bearing glides do not feel seated remove the drawe r _
and repeat steps 2-4. This will minimize possible damage to the bearing G_
glides. _
F'!v"/'J:t#II_[I Electrical Shock Hazard can occur and result in
serious injury or death. Disconnect appliance from electric power
before cleaning and servicing the warmer drawer.
Changing the Oven Light
The oven light islocated at the rear ofthe oven and is covered with a glass shield
held by a wire holder. The glass shield must be in place whenever the oven isin
use.
To replace the oven light:
1. Turn electrical power off at the main source or unplug the range.
2. Press wire holder to one side to release the glass shield.
3. Replace bulb with a new 40 watt appliance bulb.
4. Replace glass shield over bulb and snap wire holder into place.
5. Turn power back on again at the main source (or plug the range back in).
6. The clock will then need to be reset. To reset, see Setting the Clock and
Minute Timer in this Use & Care Guide.
Be sure the range is unplugged and all parts are COOL before
replacing oven light. Wear a leather-faced glove for protection against possible
broken glass.
Care and Cleaning of Stainless Steel (some models)
Some models are equipped with stainless steel exterior parts. Special care and cleaning are required for maintaining the
appearance of stainless parts. Refer to the Care & Cleaning table for detailed cleaning instructions.
31

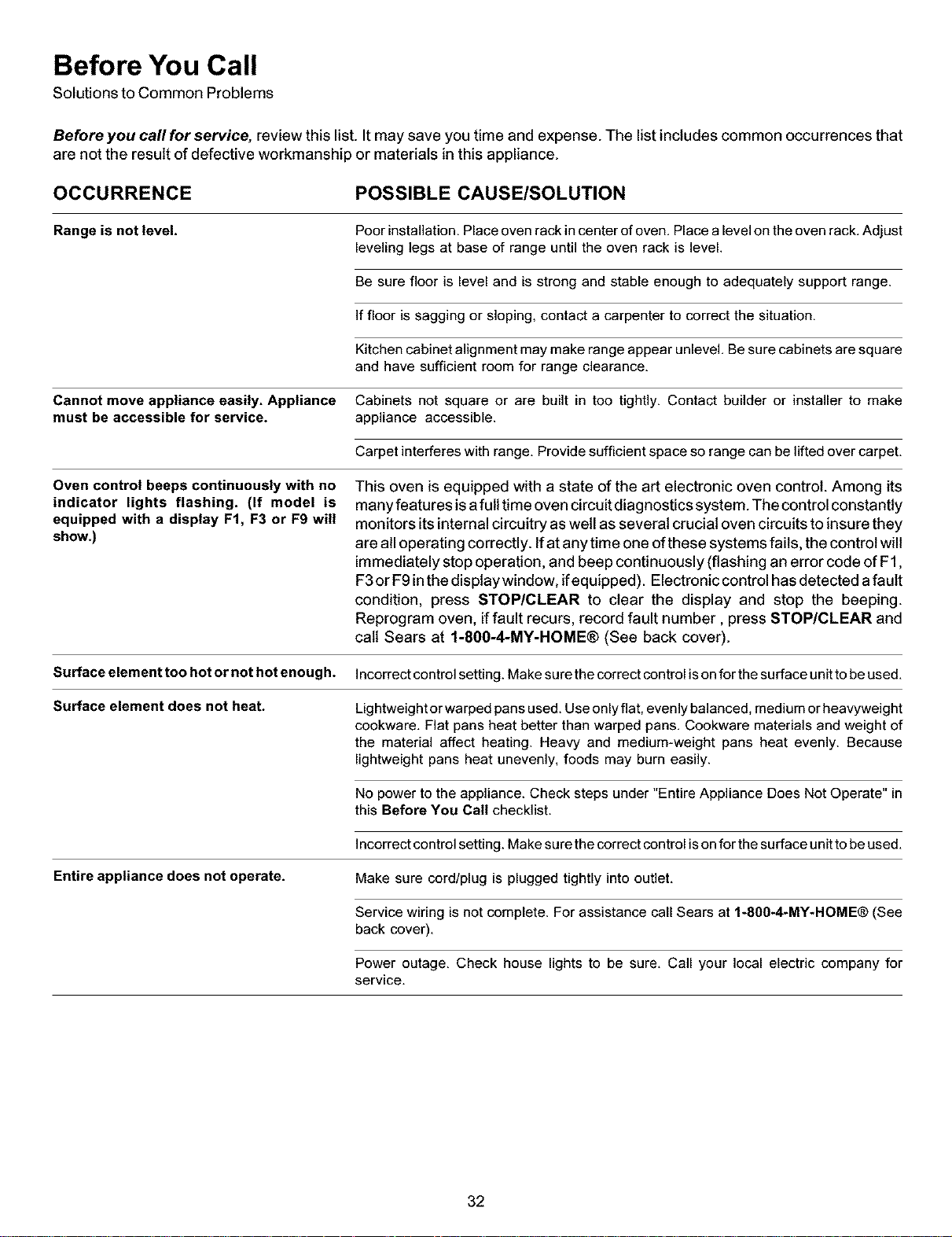

Before You Call
Solutions to Common Problems
Before you call for service, review this list. It may save you time and expense. The list includes common occurrences that
are not the result of defective workmanship or materials in this appliance.
OCCURRENCE POSSIBLE CAUSE/SOLUTION
Range is not level. Poor installation. Place oven rack in center of oven. Place a level on the oven rack. Adjust
leveling legs at base of range until the oven rack is level.
Be sure floor is level and is strong and stable enough to adequately support range.
If floor is sagging or sloping, contact a carpenter to correct the situation.
Kitchen cabinet alignment may make range appear unlevel. Be sure cabinets are square
and have sufficient room for range clearance.
Cannot move appliance easily. Appliance Cabinets not square or are built in too tightly. Contact builder or installer to make
must be accessible for service, appliance accessible.
Carpet interferes with range. Provide sufficient space so range can be lifted over carpet.
Oven control beeps continuously with no
indicator lights flashing. (If model is
equipped with a display F1, F3 or F9 will
show.)
This oven is equipped with a state of the art electronic oven control. Among its
many features is afull time oven circuit diagnostics system. The control constantly
monitors its internal circuitry as well as several crucial oven circuits to insure they
are all operating correctly. If at any time one of these systems fails, the control will
immediately stop operation, and beep continuously (flashing an error code of F1,
F3or F9 in the display window, ifequipped). Electronic control has detected a fault
condition, press STOP/CLEAR to clear the display and stop the beeping.
Reprogram oven, iffault recurs, record fault number, press STOP/CLEAR and
call Sears at 1-800-4-MY-HOME® (See back cover).
Surface element too hot or not hot enough. Incorrect control setting. Make surethe correct controlis on for the surface unit to be used.
Surface element does not heat. Lightweight orwarped pans used. Use onlyflat, evenlybalanced, medium or heavyweight
cookware. Flat pans heat better than warped pans. Cookware materials and weight of
the material affect heating. Heavy and medium-weight pans heat evenly. Because
lightweight pans heat unevenly, foods may burn easily.
No power to the appliance. Check steps under "Entire Appliance Does Not Operate" in
this Before You Call checklist.
Incorrect control setting. Make sure the correct control is on for the surface unit to be used.
Entire appliance does not operate.
Make sure cord/plug is plugged tightly into outlet.
Service wiring is not complete. For assistance call Sears at 1-800-4-MY-HOME® (See
back cover).
Power outage. Check house lights to be sure. Call your local electric company for
service.
32

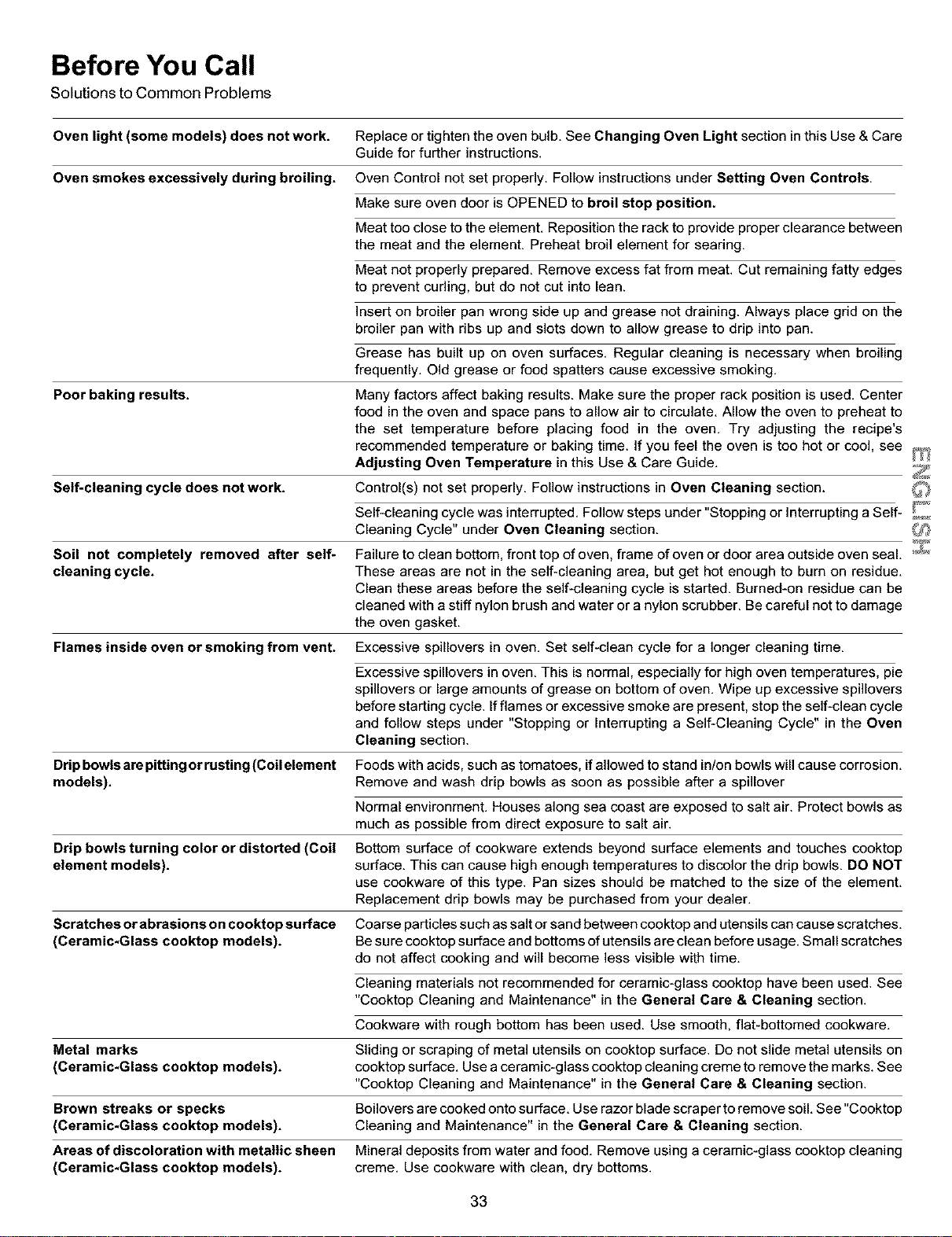

Before You Call
Solutions to Common Problems
Oven light (some models) does not work. Replace or tighten the oven bulb. See Changing Oven Light section in this Use & Care
Guide for further instructions.
Oven smokes excessively during broiling. Oven Control not set properly. Follow instructions under Setting Oven Controls.
Poor baking results.
Make sure oven door is OPENED to broil stop position.
Meat too close to the element. Reposition the rack to provide proper clearance between
the meat and the element. Preheat broil element for searing.
Meat not properly prepared. Remove excess fat from meat. Cut remaining fatty edges
to prevent curling, but do not cut into lean.
Insert on broiler pan wrong side up and grease not draining. Always place grid on the
broiler pan with ribs up and slots down to allow grease to drip into pan.
Grease has built up on oven surfaces. Regular cleaning is necessary when broiling
frequently. Old grease or food spatters cause excessive smoking.
Many factors affect baking results. Make sure the proper rack position is used. Center
food in the oven and space pans to allow air to circulate. Allow the oven to preheat to
the set temperature before placing food in the oven. Try adjusting the recipe's
recommended temperature or baking time. If you feel the oven is too hot or cool, see _
Adjusting Oven Temperature in this Use & Care Guide.
Self-cleaning cycle does not work.
Soil not completely removed after self-
cleaning cycle.
Control(s) not set properly. Follow instructions in Oven Cleaning section.
Self-cleaning cycle was interrupted. Followstepsunder"StoppingorlnterruptingaSelf- _,_,,_,./_
Cleaning Cycle" under Oven Cleaning section.
Failure to clean bottom, front top of oven, frame of oven or door area outside oven seal. _
These areas are not in the self-cleaning area, but get hot enough to burn on residue.
Clean these areas before the self-cleaning cycle is started. Burned-on residue can be
cleaned with a stiff nylon brush and water or a nylon scrubber. Be careful not to damage
the oven gasket.
Flames inside oven or smoking from vent. Excessive spillovers in oven. Set self-clean cycle for a longer cleaning time.
Excessive spillovers in oven. This is normal, especially for high oven temperatures, pie
spillovers or large amounts of grease on bottom of oven. Wipe up excessive spillovers
before starting cycle. Ifflames or excessive smoke are present, stop the self-clean cycle
and follow steps under "Stopping or Interrupting a Self-Cleaning Cycle" in the Oven
Cleaning section.
Drip bowlsare pittingor rusting(Coilelement Foods with acids, such as tomatoes, if allowed to stand in/on bowls will cause corrosion.
models). Remove and wash drip bowls as soon as possible after a spillover
Normal environment. Houses along sea coast are exposed to salt air. Protect bowls as
much as possible from direct exposure to salt air.
Drip bowls turning color or distorted (Coil Bottom surface of cookware extends beyond surface elements and touches cooktop
element models), surface. This can cause high enough temperatures to discolor the drip bowls. DO NOT
use cookware of this type. Pan sizes should be matched to the size of the element.
Replacement drip bowls may be purchased from your dealer.
Scratches or abrasions on cooktop surface Coarse particles such as salt or sand between cooktop and utensils can cause scratches.
(Ceramic.Glass cooktop models). Be sure cooktop surface and bottoms of utensils are clean before usage. Small scratches
do not affect cooking and will become less visible with time.
Cleaning materials not recommended for ceramic-glass cooktop have been used. See
"Cooktop Cleaning and Maintenance" in the General Care & Cleaning section.
Cookware with rough bottom has been used. Use smooth, flat-bottomed cookware.
Metal marks
(Ceramic*Glass cooktop models).
Sliding or scraping of metal utensils on cooktop surface. Do not slide metal utensils on
cooktop surface. Use a ceramic-glass cooktop cleaning creme to remove the marks. See
"Cooktop Cleaning and Maintenance" in the General Care & Cleaning section.
Brown streaks or specks Boilovers are cooked onto surface. Use razor blade scraper to remove soil. See"Cooktop
(Ceramic-Glass cooktop models). Cleaning and Maintenance" in the General Care & Cleaning section.
Areas of discoloration with metallic sheen Mineral deposits from water and food. Remove using a ceramic-glass cooktop cleaning
(Ceramic.Glass cooktop models), creme. Use cookware with clean, dry bottoms.
33

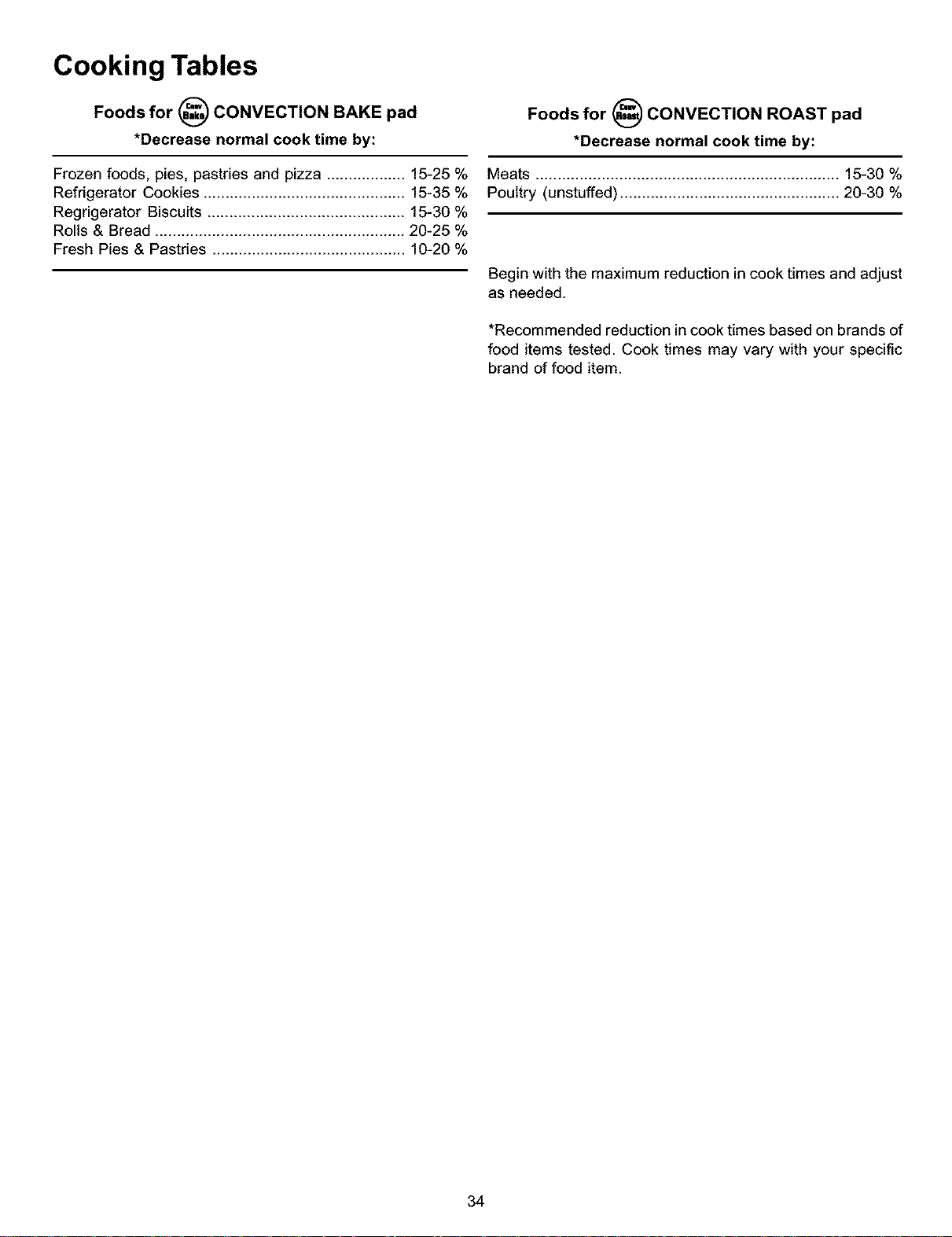

Cooking Tables
Foods for @ CONVECTION BAKE pad
*Decrease normal cook time by:
Frozen foods, pies, pastries and pizza .................. 15-25 %
Refrigerator Cookies .............................................. 15-35 %
Regrigerator Biscuits ............................................. 15-30 %
Rolls & Bread ......................................................... 20-25 %
Fresh Pies & Pastries ............................................ 10-20 %
Foods for (_ CONVECTION ROAST pad
*Decrease normal cook time by:
Meats ..................................................................... 15-30 %
Poultry (unstuffed) .................................................. 20-30 %
Begin with the maximum reduction in cook times and adjust
as needed.
*Recommended reduction incook times based on brands of
food items tested. Cook times may vary with your specific
brand of food item.
34
Notes
35
Get it fixed, atyour home or ours!
Your Home
For repair-in your home-of all major brand appliances,
lawn and garden equipment, or heating and cooling systems,
no matter who made it, no matter who sold it!
For the replacement parts,accessories and
owner's manuals that you need to do-it-yourself,
For Sears professional installationof home appliances
and items like garage door openers and water heaters,
1-800-4-MY-HOME ® (1-800-469-4663)
Call anytime, day or night(U,S,A, and Canada)
www.sears,com www.sears.ca
Our Home
For repair of carry-in items likevacuums, lawn equipment,
and electronics, call or go on-linefor the locationof your nearest
Sears Parts & Repair Center.
1-800-488-1222
Call anytime, day or night (U.S.A. only)
www,sears,com
To purchase a protection agreement (U.S.A.)
or maintenance agreement (Canada) on a product serviced by Sears:
1-800-827-6655 (U.S.A,) 1-800-361-6665 (Canada)
Para pedir servicio de reparacibn
a domicilio, y para ordenar piezas:
1-888-SU-HOGAR s"
(1-888-784-6427)
Au Canada pour service en fran_ais:
1-800-LE-FOYER "c
(1-800-533-6937)
www.sears.ca
3M SM
® Registered Trademark / Trademark / Service Mark of Sears, Roebuck andCo
TM SM
® Mama Regmrada / Marca de Fdbnca / Marca de Servlclo de Sears, Roebuck and Co
MC MD
Marque de commeme / Marque d6_ de Seam, Roebuck and Co © Sears, RoebuCk and Co.
