Table of Contents
Free-Standing Range Warranty ........................................... 2
Product Record ................................................................... 2
iMPORTANT SAFETY iNSTRUCTIONS .......................... 3-4
Protection Agreements ........................................................ 5
Range Features .................................................................. 6
Before Setting Oven Controls ........................................... 7-8
Setting Surface Controls ................................................ 9-10
Surface Cooking ................................................................ 11
Oven Control Functions ..................................................... 12
Setting Oven Controls .................................................. 13-20
Setting Warmer Drawer Controls .................................. 20-21
Self Cleaning ................................................................ 22-23
General Care & Cleaning .............................................. 24-27
Adjusting Your Oven Temperature ...................................... 27
Before You Make a Service Call ........................................ 28
Slow Cook Recipes ........................................................... 29
Sears Service ...................................................... Back Page
Product Record
In this space below, record the date of purchase, model and
serial number of your product. You will find the model and
serial number printed on an identification plate. This serial
plate is located on the right side of the oven front frame in
the storage or warmer drawer compartment. See bottom of
this page for the serial plate location.
Model No. 790.
Serial No.
Date of Purchase
Save these instructions and your sales receipt for future
reference.
Kenmore Appliance Warranty
One Year Limited Warranty
When installed, operated and maintained according to all instructions supplied with the product, if this appliance fails due to a defect
in material or workmanship within one year from the date of purchase, call 1=800-4=MY-HOME ® to arrange for free repair. If this
appliance is used for other than private family purposes, this warranty applies for only 90 days from the date of purchase.
This warranty covers only defects in material and workmanship. Sears will NOT pay for:
1. Expendable items that can wear out from normal use, including but not limited to filters, belts, light bulbs, and bags.
2. A service technician to instruct the user in correct product installation, operation or maintenance.
3. A service technician to clean or maintain this product.
4. Damage to or failure of this product if it is not installed, operated or maintained according to all instructions supplied with the
product.
5. Damage to or failure of this product resulting from accident, abuse, misuse or use for other than its intended purpose.
6. Damage to or failure of this product caused by the use of detergents, cleaners, chemicals or utensils other than those
recommended in all instructions supplied with the product.
7. Damage to or failure of parts or systems resulting from unauthorized modifications made to this product.
Disclaimer of implied warranties; limitation of remedies
Customer's sole and exclusive remedy under this limited warranty shall be product repair as provided herein. Implied warranties,
including warranties of merchantability or fitness for a particular purpose, are limited to one year or the shortest period allowed by
law. Sears shall not be liable for incidental or consequential damages. Some states and provinces do not allow the exclusion or
limitation of incidental or consequential damages, or limitations on the duration of implied warranties of merchantability or fitness,
so these exclusions or limitation may not apply to you.
This warranty applies only while this appliance is used in the United States and Canada.
This warranty gives you specific legal rights, and you may also have other rights which vary from state to state.
Sears, Roebuck and Co., Dept. 817WA, Hoffman Estates, IL 60179
Sears Canada Inc., Toronto, Ontario, Canada M5B 2B8
Serial Plate Location
You will find the model and serial number printed on the serial plate.
The serial plate is located on the right side of the oven front frame in
the storage or warmer drawer compartment.
Remeber to record the serial number for future reference (See top of
page under Product Record).
Serial plate location; Open the Warmer Drawer
(some models) or storage drawer (some models)
important Safety instructions
Read aii instructions before using this appliance. Save these instructions for future reference.
This manual contains important safety symbols and instructions. Please pay attention to these symbols and follow all instructions given,
This symbol Wil! help alert you to situations that may Cause serioUs b0dilY harml death or pr0perty damagel
This symb01 will help alert you to situations that may cause bodily injury or pr0perty damagel
Remove aii tape and packaging before using the range.
Destroy the carton and plastic bags after unpacking the
range. Never allow children to play with packaging material.
• Proper Installation--Be sure your appliance is properly
installed and grounded by a qualified technician in
accordance with the National Electrical Code ANSI/
NFPA No. 70 latest edition and local electrical code
requirements. Install only perinstallation instructions provided
in the literature package for this range.
Ask your dealer to recommend a qualified technician and an
authorized repair service. Know how to disconnect the power
to the range at the circuit breaker or fuse box in case of an
emergency.
• User servicing--Do not repair or replace any part of the
appliance unless specifically recommended in the
manuals. All other servicing should be done only by a
qualified technician. This may reduce the risk of personal
injury and damage to the range.
• Never modify or alter the construction of a range by
removing leveling legs, panels, wire covers, anti-tip
brackets/screws, or any other part of the product.
= All ranges can tip,
o Injury to persons could result,
• Install anti-tip device packed with range.
See Installation Instructions,
_To reduce the risk of
tipping, the rangemust be secured by
properly installedanti-tip bracket provided
with the range. To check ifthe bracket is
installed properly, visually check that rear
leveling leg is inserted into and fully
secured by the anti-tip bracket by
removing lower panel or storage drawer,
For models with a warmer drawer, grasp
the top rear edge of the range and
carefully attempt to tilt itforward, Refer to
the installation instructions for proper anti-
tip bracket installation,
Stepping, leaning or sitting on the doors or
drawers of this range can result in serious injuries and
also cause damage to the range. Do not allow children to
climb or play around the range. The weight era child on an open
door may cause the range to tip, resulting in serious burns or
other injury.
Do not store items of interest to children in
the cabinets above a range or on the backguard of a
range. Children climbing on the range to reach items could be
seriously injured.
Do not use the oven or warmer drawer (if
equipped) for storage.
Never Use Your Appliance for Warming or
Heating the Room.
Storage in or on Appliance--Flammable materials
should not be stored in an oven, warmer drawer, near
surface units or in the storage drawer. This includes
paper, plasticand cloth items, such as cookbooks, plasticware
and towels, as well as flammable liquids. Do not store
explosives, such as aerosol cans, on or near the range.
..........rr
* Do Not Leave Children Alone--Children should not be
left alone or unattended in the area where appliance is.,
in use. They should never be allowed to sit or stand on any
part of theappliance.
DO NOT TOUCH SURFACE UNITS, AREAS NEAR THESE
UNITS, HEATING ELEMENTS OR INTERIOR SURFACES
OF THE OVEN. Both surface units and oven heating elements
may be hot even though they are dark in color. Areas near
surface units may become hot enough to cause burns. During
and after use, do not touch, or let clothing or otherfiammable
materials touch these areas until they have had sufficient time
to cool. Among these areas are the cook top, surfaces facing
the cook top, the oven vent openings and surfaces near these
openings, oven door and window.
. Wear Proper Apparel--Loose-fitting or hanging garments
should never be worn while using the appliance. Do not
let clothing or otherflammable materials contact hotsurfaces.
Do Not Use Water or Flour on Grease Fires--Smother
the fire with a pan lid, or use baking soda, a dry
chemical or foam-type extinguisher.
, When heating fat or grease, watch it closely. Fat or
grease may catch fire if allowed to become too hot.
. Use Only Dry Potholders - Moist or damp potholders on
hot surfaces may result in burns from steam. Do not let
potholders touch hot heating elements. Do not use a towel or
other bulky cloth instead era potholder.
* Do Not Heat Unopened Food Containers - Buildup of
pressure may cause container to burst and result in
injury.
Remove the oven door from any unused range if it is to
be stored or discarded.
IMPORTANT--Do not attempt to operate the range during
a power failure. If the power fails, always turn off the range.
If the range is not turned offand the power resumes, the range
will begin to operate again. Once the power resumes, reset the
clock and oven function.
important Safety instructions
iMPORTANT iNSTRUCTiONS FOR USINGYOUR
COOKTOP
Know which knob controls each surface heating unit. Place a
pan of food on the unit before turning it on, and turn the unit off
before removing the pan.
• Use Proper Pan Size--This appliance is equipped with one or
more surface units of different sizes. Select utensils having flat
bottoms large enough to cover the surface unit heating element.
The use of undersized utensils will expose a portion of the
heating element to direct contact and may result in ignition of
clothing. Proper relationship of utensil to element will also
improve efficiency.
• Utensil Handles Should Be Turned Inward and Not Extend Over
Adjacent Surface Elements--To reduce the risk of burns, ignition
of flammable materials, and spillage due to unintentional contact
with the utensil, the handle of the utensil should be positioned so
that it is turned inward, and does not extend over adjacent surface
units.
• Never Leave Surface Elements Unattended at High Heat
Settings--Boilovers cause smoking and greasy spillovers that
may ignite, or a pan that has boiled dry may melt.
• Do Not Immerse or Soak Removable Heating Elements--
Heating elements should never be immersed in water. Heating
elements clean themselves during normal operation.
• Glazed Cooking UtensilsiOnly certain types of glass, glass/
ceramic, ceramic, earthenware, or other glazed utensils are
suitable for cook top service without breaking due to the sudden
change in temperature. Check the manufacturer's
recommendations for cook top use.
• When flaming foods under a ventilating hood, turn the fan on.
IMPORTANT INSTRUCTIONS FOR USINGYOUR
OVEN
• Use Care When Opening Oven Door or Warmer Drawer (if
equipped)--Stand to the side of the range when opening the door
of a hot oven. Let hot air or steam escape before you remove or
replace food in the oven.
• Keep Oven Vent Ducts Unobstructed. The oven vent is located
under the left rear surface element if your model is equipped with
coil elements. The oven vent is located below the backguard for
models equipped with ceramic-glass cook tops. Touching the
surfaces in this area when the oven is operating may cause
severe burns. Also, do not place plastic or heat-sensitive items
on or near the oven vent. These items could melt or ignite.
• Placement of Oven Racks. Always place oven racks in desired
location while oven is cool. If rack must be moved while oven is
hot use extreme caution. Use potholders and grasp the rack with
both hands to reposition. Do not let potholders contact the hot
heating elements in the oven. Remove all utensils from the rack
before moving.
• Do not use the broiler pan without its insert. The broiler pan and
its insert allow dripping fat to drain and be kept away from the high
heat of the broiler.
• Do not cover the broiler insert with aluminum foil. Exposed fat
and grease could ignite.
• Protective Liners--Do not use aluminum foil to line the oven
bottom. Only use aluminum foil as recommended in this manual.
Improper installation of these liners may result in risk of electric
shock, or fire.
SELF CLEANING OVENS
• Clean in the self-cleaning cycle only the parts listed in this Use & Care Manual. Before self cleaning the oven, remove the broiler
pan and any utensils or foods from the oven.
• Do Not Use Oven Cleaners--No commercial oven cleaner or oven liner protective coating of any kind should be used in or around
any part of the oven.
• Do Not Clean Door Gasket--The door gasket is essential for a good seal. Care should be taken not to rub, damage or move the gasket.
•The health of some birds is extremely sensitive to the fumes given off during the self-cleaning cycle of any range. Move birds to another
well-ventilated room.
IMPORTANT INSTRUCTIONS FOR CLEANING YOUR RANGE
• Clean the range regularly to keep al! parts free of grease that could catch fire. Pay particular attention to the area underneath each
surface element. Do not allow grease to accumulate.
• Kitchen cleaners and aerosols--Always follow the manufacturer's recommended directions for use. Be aware that excess
residue from cleaners and aerosols may ignite causing damage and injury.
• Clean Ventilating Hoods Frequently--Grease should not be allowed to accumulate on the hood or filter. Follow manufacturer's
instructions for cleaning.
FOR CERAMIC=GLASS COOK TOP MODELS
• Do Not Cook on Broken Cook Top--If cook top should break, cleaning solutions and spillovers may penetrate the broken cook top
and create a risk of electric shock. Contact a qualified technician immediately.
Clean Cook Top with Caution--If a wet sponge or cloth is used to wipe spills on a hot cooking area, be careful to avoid a steam burn.
Some cleaners can produce noxious fumes if applied to a hot surface.
important Safety Notice
The California Safe Drinking Water and Toxic Enforcement Act requires the Governor of California to publish a list of
substances known to the state to cause cancer, birth defects or other reproductive harm, and requires businesses to warn
customers of potential exposure to such substances.
PROTECTION AGREEMENTS ACUERDOS DE PROTECCION
In the U.S.A.
Master Protection Agreements
Congratulations on making a smart purchase. Your new
Kenmore ®product isdesigned and manufactured for years
of dependable operation. But like all products, it may require
preventive maintenance or repair from time to time. That's
when having a Master Protection Agreement can save you
money and aggravation.
Purchase a Master Protection Agreement now and protect
yourseff from unexpected hassle and expense.
The Master Protection Agreement also helps extend the life
of your new product. Here's what's included in the
Agreement:
5_ Expert service by our 12,000 professional repair
specialists.
5_ Unlimited service and no charge for parts and labor
on all covered repairs.
5_ "No-lemon" guarantee- replacement
of your covered product iffour or more product failures
occurwithin twelve months.
5_ Product replacement if your covered product can't be
fixed.
5_ Annual Preventive Maintenance Check at your
request - no extra charge.
5_ Fast help by phone - phone support from a Sears
technician on products requiring in-home repair, plus
convenient repairscheduling.
5_ Power surge protection against electrical damage
due to power fluctuations.
5_ Rental reimbursement if repair of your covered
product takes longer than promised.
Once you purchase the Agreement, a simple phone call is
all that it takes for you to schedule service. You can call
anytime day or night, or schedule a service appointment
online.
Sears has over 12,000 professional repair specialists, who
have access to over 4.5 million quality parts and
accessories. That's the kind of professionalism you can
count on to help prolong the life of your new purchase for
years to come. Purchase your Master Protection
Agreement today!
Some limitations and exclusions apply.
For prices and additional information call
1-800-827-6655.
Sears Installation Service
For Sears professional installation of home
appliances, garage door openers, water heaters,
and other major home items, in the U.S.A. call
1-800-4-MY-HOME ®.
En los EE.UU.
Acuerdos maestros de protecci6n
Lo felicitamos por haber hecho una compra inteligente. Su
nuevo producto Kenmore®fue disefiado y fabricado para
ofrecer muchos afios de servicio confiable. Sin embargo,
como todo producto, el mismo podria requerir mantenimiento
preventivo o reparaciones ocasionales. Es por eso que el
tener un Acuerdo maestro de protecci6n podria ahorrarle
dinero y molestias.
Adquiera ya un Acuerdo maestro de protecciOn y protejase de
gastos y frustraciones inesperados.
El Acuerdo maestro de protecci6n tambien ayuda a extender
la vida de su producto nuevo. El Acuerdo incluye Io siguiente:
Servicio profesional por nuestros 12.000 profesionales
especialistas en reparaci6n.
5_ Servicio ilimitado sin cargos adicionales por piezas
y servicio en todas las reparaciones cubiertas.
5_ Garantia de "no-lim6n" - reemplaza su producto
cubierto si ocurren cuatro o mas desperfectos en los
primeros doce meses.
5_ Reemplazo del producto si el mismo no puede ser
reparado.
5_ Verificaci6n de mantenimiento preventivo anual a
su petici6n y sin cargos adicionales.
5_ Pronta ayuda por tel_fono - apoyo por telefono por un
tecnico de Sears en los productos que requieran
reparaci6n en casa, ademas de la conveniencia de hacer
una cita para la reparaci6n.
5_ Protecci6n contra picos de energia o dafios
electricos causados por fluctuaciones de la corriente
electrica.
Reembolso del alquiler si la reparaci6n de su producto
cubierto toma mas del tiempo prometido.
Una vez que adquiera este Acuerdo, una simple Ilamada
telef6nica es todo Io que necesita para hacer una cita de
servicio. Usted puede Ilamar a cualquier hora del dia o de la
noche para programar una cita de servicio por Internet.
Sears cuenta con mas de 12.000 profesionales especialistas
de reparaci6n con acceso a mas de 4,5 millones de piezas y
accesorios de calidad. Esa es la clase de profesionalismo
con la que puede contar para extender la vida Qtilde su nueva
adquisici6n por muchos aSos. iAdquiera su Acuerdo maestro
de protecci6n hoy!
Algunas limitaciones y exclusiones podrian aplicarse.
Para precios e informaci6n adicional, Ilame al
1-800-827-6655.
Servicio de instalaci6n Sears
Para una instalaci6n profesional de Sears en
electrodomesticos, abridores de puertas de garaje,
calentadores de agua y otros articulos mayores del hogar,
Ilame al 1-888-SU-HOGAR®,
REV.030509
Range Features
Your Electric Range Features Include:
1. Electronic Oven Control with Kitchen Timer.
2. Simmer Select Element Control (some models) or
Single Radiant Element Control (some models) or Single
Radiant Power Boil Control (some models).
3. Single Radiant Element Control.
4. Warm & Ready Drawer Control & indicator Light (some
models).
5. Warm & Ready Zone & Surface indicator Light (some models).
6. Single Radiant Element Control.
7. Single Radiant Element Control (some models) or Dual
Element Radiant Control (some models).
8. Simmer Select Push Button & indicator Light (some models).
9. HOT SURFACE indicator Lights.
10. "ELEMENT ON" indicator Light.
11. Oven interiorLight with removable Cover.
12. Automatic Oven Door Light Switch (some models).
13. Self-Cleaning Oven interior.
14. Self-Clean Door Latch.
15. Adjustable Oven Rack(s).
16. Large 1 piece Oven Door Handle.
17. Full width Oven Door with Window.
18. Warm & Ready Drawer (some models) or Storage Drawer with
Drawer Handle.
19. Easy to clean upswept Cooktop.
20. Ceramic Smoothtop.
21. 6" Single Radiant Element(s).
22. 9" Single Radiant Element (some models).
23. 9" Single Radiant "Power Element" (some models).
24. 6-9" Dual Radiant Element (some models).
25. 9-12" Dual Radiant Element (some models).
26. Warm & Ready Zone Radiant Element (some models).
27. Broil Pan (some models).
28. Broil Pan insert (some models).
29. Leveling Legs and Anti-tip Bracket
(included).
NOTE: The features of your range may
vary according to model type & color.
i
Before Setting Oven Controls
OVEN VENT
Oven Vent Location
The oven vent is located under the left side of the control panel (See Fig.
1). When the oven is on, warm air passes through the vent. This venting is
necessary for proper air circulation in the oven and good baking results. DO
NOT BLOCK OVEN VENT.
Fig. 1
Oven with visible
Bake Element - Fig. 2
Removing & Replacing Oven Racks
To remove, pull the rack forward until it stops. Lift up front of rack and slide out.
To replace, fit the rack onto the guides on the oven walls. Tilt the front of the rack
upward and slide the rack back into place.
Arranging Oven Racks
ALWAYS ARRANGE OVEN RACKS WHEN THE OVEN IS COOL
(PRIOR TO OPERATING THE OVEN). Always use oven mitts when
using the oven.
For models with a visible Bake Element (Refer to Fig. 2)
For models with a hidden Bake Element* (Refer to Fig. 3)
Recommended Rack Positions for Broiling, Baking & Roasting:
Food Rack Position Rack Position*
Broiling hamburgers & steaks See Broil section See Broil section
Broiling meats, chicken or fish 4, 5 or 6 4, 5, or 6
Cookies, cakes, pies, biscuits 3or4 3or4
& Muffins
Frozen pies, angel food cake, 1 or 2 1
yeast, bread, casseroles, small
cuts of meat or poultry
Turkey, roast or ham 1 Roasting Shelf
Oven with hidden
Bake Element- Fig. 3*
Types of Oven Racks
Flat Oven Rack Flat Half Rack
Fig. 4 Fig. 5
Always use pot holders or oven
mitts when adjusting the oven racks, Wait until
the oven has completely cooled if possible, Oven
racks may be HOT and may cause burns,
Your range may be equipped with one or more of
the oven rack types shown; Flat Rack (Fig. 4),
Flat Half Rack (Fig. 5) and Offset Rack (Fig. 6).
To maximize cooking space the Offset Rack can
be used in the lowest rack position to roast large
cuts of meat and poultry.
Fig. 7
Offset Oven Rack
Fig. 6
Fig. 8
The Flat Half Rack has a removable insert that can provide extra space for larger food items. The right half rack portion
may still be used for other food items like a casserole dish (See Fig. 5). To remove the insert, squeeze on the left front
insert side (See Fig. 7) of the rack and tilt out clockwise. To reinstall insert rear hooks at back of insert (See 1-Fig. 8) and
lay insert down. Make sure both insert front hooks snap into rack (See 2-Fig. 8).
Do not use cookware that extends beyond the edge of the Flat Half Rack. For best results, allow 2 inches between the pan
placed on the rack and oven side or rear walls.
7
Before Setting Oven Controls (cont'd)
Baking Layer Cakes with 1 or 2 Oven Racks
For best results when baking cakes using 2 oven racks, place cookware on rack positions 2 & 5 as shown (for models with a
visible bake element). For models with a hidden bake element place oven racks in positions 3(Fiat rack) &6 with the Offset rack
ifequipped (Refer to Fig. 1).For best results when using asingle oven rack, place cookware on rack positions 3or4 (for all models
- Refer to Fig. 2).
Air Circulation in the Oven
For best air circulation and baking
results allow 2-4" (5-10 cm) around
the cookware for proper air circulation
and be sure pans and cookware do not
touch each other, the oven door, sides
or back of the oven cavity. The hot air
must be able to circulate around the
pans and cookware in the oven for
even heat to reach around the food.
Fig. 1 Fig. 2
About the Ceramic Glass Cooktop
The ceramic cooktop has radiant surface elements located below the surface of the glass. The design of the ceramic
cooktop outlines the area of the surface element underneath. Be sure to match the pan size with the diameter of the
element outline on the cooktop. Heat is transferred up through the surface of the cooktop to the cookware. Only fiat-
bottomed cookware should be used.
The type and size of cookware, the number of surface elements in use and their settings, are all factors that will affect the
amount of heat that will spread to areas beyond the surface elements. The areas surrounding the elements may become
hot enough to cause burns.
000 000 000
0 0 0 0 0 ®
WARMER ZONE RIGHT REAR RIGHT FRONT
@ ¢;, _;
About the Radiant Surface Elements
The element temperature rises gradually and evenly.
As the temperature rises, the element will glow red.
To maintain the selected setting, the element will
cycle on and off. The heating element retains
enough heat to provide a uniform and consistent
heat during the off cycle.
Warmer Zone
Surface ControJ
(some models)
Single Radiant
Surface Control
(some models)
Single Radiant (some models)
Dua! Radiant (some models)
Surface Control
For efficient cooking, turn off the element several
minutes before cooking is complete. This will allow
residual heat to complete the cooking process.
NOTE: Please read detailed instructions for ceramic glass cooktop cleaning in the General Care & Cleaning and Before
You Call checklist sections of this Use & Care Guide.
NOTE: Radiant elements have a limiter that allows the element to cycle ON and OFF, even at the HI setting. This helps to
prevent damage to the ceramic smooth top. Cycling at the HI setting is normal and will occur more often if the cookware
is too small for the radiant element or if the cookware bottom is not fiat.
ooo
o O
INDICATOR LIGHTS]
ELEMENT ON and Hot Surface Indicator Lights
Your range is equipped with two different types of radiant surface control indicator lights that
will glow on your range-- the ELEMENT ON indicator light and the Hot Surface indicator
lights (See illustration at left).
E_ENT ON
ELEMENT ON
The ELEMENT ON located on the control panel and will glow when a surface element is turned
ON. A quick glance at this indicator light after cooking is an easy check to be sure ALL
surface controls are turned OFF.
The Hot Surface indicator lights located above each surface radiant control knob will
glow as the surface cooking area heats up and will REMAIN ON until the glass cooktop has
cooled to a MODERATE level.
8
Setting Surface Controls
To Operate Single Radiant Surface Elements (all models)
To Operate a Single Radiant Element:
1. Place correctly sized cookware on the radiant surface element.
2. Push in and turn the surface control knob in either direction to the desired setting (See
Fig= 1). Start most cooking operations on a higher setting and then turn to a lower
setting to finish cooking. The surface control knobs do not have to be set exactly on a
particular mark. Use the marks as a guide and adjust the control knob as needed. Each
surface element provides a constant amount of heat at each setting. A glowing red
surface heating area extending beyond the bottom edge of the cookware indicates the
cookware is too small for the surface heating area.
3. When cooking is complete, turn the surface element OFF before removing the
cookware. Note: The ELEMENT ON indicator light will glow when one or more elements
are turned ON. A quick glance at this indicator light when cooking is finished is an easy
check to be sure all control knobs are turned OFF. The Hot Surface indicator lightwill
continue to glow AFTER the control knob is turned to the "OFF" position and will glow
until the heating surface area has cooled sufficiently.
oo@
o o
HOT SURFACE
ND CATOR L GHTS|
J
Fig. 1
To Operate Simmer Select Surface Element (some models)
The left front element control may be used as a normal element or as a simmer element. The "Simmer Select" feature heats
the element at a much lower temperature than when used as a normal surface element. You may switch between normal
cooking and the Simmer Select feature at any time during the cooking process. When using the element control for normal .....
cooking all of the settings on the control knob (LO to HI) function as normal.
To Start Simmer Select:
1. Place correctly sized cookware on the radiant surface element.
2. Push in the Simmer button located below the left front control knob. The Simmer Select indicator light will glow and
remain ON while simmering (See Fig. 2).
3. Turn the surface control knob to the desired simmer setting within the dark band on the control knob (LO to 4). Use the
marks as a guide and adjust the control knob from LO to 4 as needed (see illustration below).
4. To return to normal cooking, push in and release the "Simmer Select" button and the indicator light will turn OFF. When
cooking is complete, be sure to set the control knob to the OFF position.
SELECT
ON/OFF
Simmer Select Surface Control
shown in LO setting
Fig. 2
The suggested settings found in the table below are based on cooking in medium-weight
aluminum pans with lids. Settings may vary when using other types of pans.
STANDARD SETTING FORSURFACE ELEMENTS
Setting Type of Cooking
HIGH (HI - 9) Start most foods, bring water to a boil, pan broiling
MEDIUM HIGH (7 - 8) Continue a rapid boil, fry, deep fat fry
MEDIUM (5- 6) Maintain a slow boil, thicken sauces and gravies, steam vegetables
MEDIUM LOW (2- 4) Keep foods cooking, poach, stew
LOW (LO - 1) Keep warm, melt, simmer
SIMMERSELECTSURFACE ELEMENT
Max. Simmer (4) Larger quantities of food, stews and soups
Min. Simmer (LO) Smaller quanitites of food, delicate foods, melting chocolate or
butter
Radiant surface elements may appear to have cooled after they have been turned off. The glass surface may
still be hot and burns may occur if the glass surface is touched before it has cooled sufficiently.
Do not place plastic items such as salt and pepper shakers, spoon holders or plastic wrappings on top
of the range when it is in use. These items could melt or ignite. Potholders, towels or wooden spoons could catch fire if placed
too close to the surface elements.
9
Setting Surface Controls (cont'd)
O
Single setting
6
Dual setting
To Operate Dual Radiant Surface Element (some models)
The right front control knob offers flexibilty for different sized cookware with the
Dual Radiant surface element. The inner element alone can be used for smaller
or both the inner and outer in combination for larger cookware.
To operate the Dual Radiant surface element push in the control knob and turn
counterclockwise to operate the small inner coil or turn clockwise to operate
both the inner and outer portions of the element together (See Fig 1).
Dua! Radiant heating areas
on ceramic smooth top (shown in black)
Fig. 1
0®0
0 0
WARMER ZONE
Fig. 2
Warmer Zone Recommended Food
Settings Table
Food Item Heating
Level
Breads/Pastries LO
Casseroles LO
Dinner Plates with Food LO
Eggs LO
Gravies LO
Meats MED
Sauces MED
Soups (cream) MED
Stews MED
Vegetables MED
Fried Foods HI
Hot Beverages HI
Soups (liquid) HI
SINGLE AN DDUAL RADIANT SURFACE ELEMENTS
Setting Type of Cooking
HIGH (HI-9) Start most foods, bring water to a boit, pan broiling
MEDIUM HIGH (7-8) Continue a rapid boi!, fry, deep fat fry
MEDIUM (5-6) Maintain a slow boil, thicken sauces and gravies or
steam vegetables
MEDIUM LOW (2- 4) Keep foods cooking, poach, stew
LOW (LO - I) Keep warm, melt, simmer
Note: The size and type of utensil used, and the amount and type of food being
cooked will influence the setting needed for best cooking results.
Setting the Warmer (Warm & Ready TM) Zone (some models)
The purpose of the Warmer Zone is to keep hot cooked foods at serving
temperature. Always start with hot food. It is not recommended to heat cold
food on the Warmer Zone.
All food placed on the Warmer Zone should be covered with a lid or aluminum
foil to maintain quality. For best results, when warming pastries or breads, the
cover should have an opening to allow moisture to escape. Do not use plastic
wrap to cover food. Plastic may melt onto the surface and be very
difficult to clean.
Use only dishware, utensils and cookware recommended for oven and cooktop
use on the Warmer Zone.
Unlike the surface elements, the Warmer Zone will not glow red
when it is hot.
Always use potholders or oven mitts when removing food from
the warm zone as cookware and plates will be hot.
Setting the Warmer (Warm & Ready TM) Zone Control
1. To set the control, push in either direction and turn the knob (See Fig 2).
The temperatures are approximate, and are designated by HI, MED and
LO. However, the control can be set at any position between HI and LO for
different levels of heating.
2. When ready to serve, turn the control to OFF. The Warmer Zone will remain
warm until the indicator light goes OFF.
Temperature Selection - Refer to the chart at the side column for
recommended heating levels. If a particular food is not listed, start with the
medium level, and adjust as needed. Most foods can be kept at serving
temperatures by using the medium level.
N0te:Use the warmer Zone to keep cooked foods hot Such as; vegetables:
gravies,cassero!es; soups,stews, breadsl pastries and oven:safe dinne[ Plates.
10
Surface Cooking
To Set the Cooktop Lockout Feature (some models) _ Cooktop
L2JLockout
The _ pad is used to activate the Cooktop Lockout feature which will lock aHsurface elements from being accidentally
turned ON. This feature will only lock the cooktop.
To turn the Cooktop Lockout Feature ON:
1. BE SURE ALL surface element controls are set to the OFF position.
2. Press and hold _? until one beep is heard (after 3 seconds). Ifa triple beep sounds instead, check all surface
elements and turn them to the OFF position and repeat this step. The Cooktop Locked indicator lightwill turn ON and the
cooktop controls and functions are locked out until the cooktop is unlocked.
To turn the Cooktop Lockout Feature OFF:
1. BE SURE ALL surface element controls are set to the OFF position.
2. Press and hold _ until one beep is heard (after 3 seconds). Ifa triple beep sounds instead, check all surface
elements and turn them to the OFF position and repeat this step. The Cooktop Locked indicator lightwill turn OFF and the
cooktop may be used normally. Note: Starting a Self-Clean cycle will also turn ON the Cooktop Lockout feature. The
cooktop will remain locked until the Self-Clean cycle has completed and the oven door has unlocked. Ifa power failure
occurs after the Cooktop Lockout has been activated, you must turn OFF the Cooktop Lockout feature before being able to
use the cooktop features again.
Using Power Element (some models)
The "Power Element" feature uses a higher wattage surface radiant element which
can bring food items to boil much quicker. The left front radiant element will be f _._ E L E _0_ _
clearly marked ifthisfeature is available on your range (See Fig. 1). Ifequipped _,_ '_
with the "Power Element" feature, place the cookware to boil on the left front
surface element and follow the instructions "To Operate a Single Radiant Element"
in the Settings Surface Controls section. Fig. 1
Using proper cookware
The size and type of cookware used will influence the setting
needed for best cooking results. Cookware should have flat
bottoms that make good contact with the entire surface heating
element (See Fig. 2). Check for flatness by rotating a ruler across
the bottom of the cookware (See Fig. 3).
Cookware Material Types
The cookware material determines how evenly and quickly heat is
transferred from the surface element to the pan bottom. The most
popular materials available are:
ALUMINUM - Excellent heat conductor. Some types of food will
cause it to darken (Anodized aluminum cookware resists staining
& pitting). If aluminum pans slide across the ceramic cooktop,
they may leave metal marks which will resemble scratches.
Remove these marks immediately.
COPPER - Excellent heat conductor but discolors easily. May
leave metal marks on ceramic glass (see Aluminum above).
STAINLESS STEEL - Slow heat conductor with uneven cooking
results. Is durable, easy to clean and resists staining.
CAST IRON -A poor heat conductor however will retain heat very
well. Cooks evenly once cooking temperature is reached. Not
recommended for use on ceramic cooktops.
PORCELAIN-ENAMEL on METAL - Heating characteristics will
vary depending on base material. Porcelain-enamel coating must
be smooth to avoid scratching ceramic cooktops.
GLASS - Slow heat conductor. Not recommended for ceramic
cooktop surfaces because it may scratch the glass.
*CORRECT
t t
• Flat bottom and straight
sides.
• Tight fitting lids.
e Weight ofhandledoesnot
tilt pan. Pan iswell
balanced.
• Pansizesmatchthe
amountoffoodto be
prepared andthe sizeof
the surfaceelement.
®Madeofa materialthat
conductsheatwell.
• Easy to clean.
®Alwaysmatchpotdiameter
to elementsurface
diameter. Fig. 2
iNCORRECT
* Curved and warped pan
bottoms.
44 I_
® Pan overhangs element b
morethan one-halfinch.
i
÷1 I'_
®Pan is smaller than
element.
® Heavy handle tilts pan.
Be sure to follow the
recommendations for using
proper cookware as illustrated in
Figs. 2 & 3. For more information
about the ceramic cooktop see
"Cooktop Cleaning &
Maintenance" in the General
Care & Cleaning section.
Fig. 3
11
Oven Control Functions
READ THE INSTRUCTIONS CAREFU LLY BEFORE USING THE OVEN. Forsatisfactory use ofyour oven, become familiar with
the various pad functions of the oven as described below.
CLOCK SET COOK TIME FEATURE UP & DOWN ARROW PADS ADD 1 MINUTE PAD
PAD Used PAD Used to INDICATOR Used along with the function pads Used to add
to set the enter the length of LIGHTS These to select oven temperature, cook additional minutes to
time of day. \ the baking time, light to show time, start time (when programming the Kitchen Timer
_ which feature is an automatic start time), time of / //
OVEN INTERIOR _ _ in use. _ day, clean time & minute timer. / /
LIGHT PAD-- Used to _ \ I
turn oven interior light _. _ /
ON or OFF. This pad is _\ \ /
also used to activate _ \
/
the Cooktop Lockoul _ :!,_,_\ • \ ®
feature _some mouels
SELECT SELF-CLEAN
o o 0 o
PAD useo _o selec_
me Self-Cleaning ®
e
cycle. A 2.3 or 4 qour f
Self-Clean lime may be / / ® ....._ _ _%--_:_
selectea /
/
/- /
/
/
TIMER SET/OFF PAD DELAY START OVEN, PREHEAT & DOOR LOCKED LIGHTS* The "OVEN" lig
Used to set or cancel the
minute timer, The minute
timer does not start or stop
cooking. Also,
TIMER SET/OFF pad is
used to set the Continuous
Bake feature.
BAKE PAD--
Used to select
the bake
function,
BROIL PAD-- Used to
select the variable broil
function.
SLOW COOK PAD--
Used to set the Slow Cook
feature.
WARM & HOLD PAD--
Used to set the Warm &
Hold feature,
RECIPE RECALL PAD--
Used to set the Recipe
Recall feature.
PAD-- Used to set wilt glow each time the oven turns on to maintain the set oven to clear any function
the desired start temperature. The "PREHEAT" light will glow when the oven is first previously entered except
time for baking & set to operate, or if the desired temperature is reset higher than the the time of day and minute
Self-Clean. May actual oven temperature, The "DOOR LOCKED" light wilt flash timer. Press STOP/CLEAR
be used with when the oven door locks and unlocks or when using the Self- to stop cooking. Also the
COOK TIME to Clean cycle or the oven door lockout is activated. The indicator light STOP/CLEAR pad is used
program a delayed will glow constantly after the door locks, COOKTOP LOCKED light to activate oven door
bake cycle, wilt glow when the cooktop has been locked (some models), lockout setting.
*Note: The OVEN indicator light on the electronic display wi!! turn ON and OFF when using the Bake feature and during
preheat: This iS norma Iand indicates that the oven is cycling to maintain the selected baking temperature, When the
preheat indicator light turns OFF, your oven is ready.
For a silent control panel
When choosing a function, a beep will sound each time a pad is pressed. If desired, the control can be programmed for
silent operation. To switch back and forth between normal sound or silent operation:
Press & hold _. After 7 seconds, the control will beep once. :SP should appear in the display indicating that it will
change to the silent mode, Press either J% or V to accept the change. The silent mode will block the controls from
sounding when a pad is pressed.
To return to normal sound operation, press & hold @. After 7 seconds, the control will beep once. :- - should appear in
the display indicating that the control will change to the normal sound mode. Press either A or V to accept the
change.
Temperature conversion
The electronic oven control is set to operate in °F (Fahrenheit) when shipped from the factory. The oven can be programmed
for any temperature from 170°F to 550°F (77°C to 287°C).
To change the temperature to °C (Celsius) or from °C to °F (control should not be in a Bake or Clean mode):
1. Press B,o_.... appears in the display.
2. Press and hold the J% until "HI" appears in the display.
3. Press and hold B,o,until °F or appears in the display.
4. Press the A or V to change °F to °C or °C to °F.
12
Setting Oven Controls
\
Warm & Ready Drawer
Note: The time of day must first be Set in order to Operate the oven.
To Set the Clock
When the range is first plugged in, or when the power supply to the range has been interrupted, the display will flash
"12:00".
(_ once (do not hold pad down).
1. Press
2. Within 5 seconds, press and hold the A or V until the correct time of day appears in the display.
Note: The clock cannot be changed during any timed bake or Self-Clean cycle.
To Set the Minute Timer:
1. Press @.
2. Press the A to increase the time in one minute increments. Press and hold the A to increase the time in 10
minute increments. The timer can be set for any amount of time from 1 minute to 11 hours and 59 minutes.
Note: If the V pad is pressed first, the timer will advance to 11 hours and 59 minutes.
3. The display shows the timer countdown in minutes until 1 minute remains. Then the display will countdown in seconds.
4. When the set time has run out, the timer will beep 3 times and will continue to beep 3 times every 60 seconds until
is pressed,
Note: The indicator light located above the _ pad will glow while the minute timer is active.
Note: The minute timer does not start or stop cooking. It serves as an extra timer in the kitchen that will beep when the set
time has run out. The minute timer can be used alone or during any of the other oven functions. When the minute timer is in
use with any other function, the minute timer will be shown in the display. To view other functions, press the pad for that
function.
To Change the Minute Timer while it is in use:
While the timer is active and shows in the display, press and hold the ,/% or V to increase or decrease the time.
To Cancel the Minute Timer before the set time has run out: Press @.
Note: To turn the time of day display OFF 0r ON in the display press _ and h01d for15 SecondS(the Control wiii beep
once) and then release. Thi sfeature does not remove the set time of day from the memory of the control. When the display
is turned OFE the time of daY wi!llre:appeal foia few seconds any time the _ Pad is touched,
13
Setting Oven Controls (cont'd)
To Set or Change the Temperature for Baking
The oven can be programmed to bake at any temperature from 170°F to 550°F (77°C to 287°C).
To Set the Controls for Baking:
1. Press B,ke." "appears in the display.
2. Within 5 seconds, press the A or V. The display will show "350°F (177°C). '' By pressing and holding the J% or
V, the temperature can then be adjusted in 5°F increments (1°C if the control is set to display Celsius).
3. As soon as the A or V pad is released, the oven will begin heating to the selected temperature. When the
displayed temperature reaches the desired baking temperature, the preheat indicator light will turn OFF and the control
will beep 3 times.
4. To cancel baking, press _.
To Change the Oven Temperature after Baking has Started:
1. Press Bakeand make sure the bake temperature is displayed.
2. Press the iX. or V pad to increase or decrease the set temperature.
To Set Control for Continuous Bake or 12 Hour Energy Saving
The oven control has a built-in 12 Hour Energy Saving feature that will shut off the oven if the control is left on for more than
11 hours and 59 minutes. The oven can be programmed to override this feature for continuous baking.
To set control for continuous baking:
1. Press and hold @ down for 5 seconds until tone is heard, "---- hr" will appear in display for continuous cooking.
The current time of day will return to the display.
2. To cancel the Continuous Bake function, press @ and hold for 5 seconds until tone is heard. "12hr" will appear in
display indicating that the control has returned to the 12 Hour Energy Saving feature.
Oven
To Set Control for Oven Lockout t_
Lockout
The control can be programmed to lock the oven door and lockout the oven control pads.
To set Control for Oven Lockout feature:
1. Press _ and hold for 3 seconds. "Loc" will appear in display, the "Door Locked" indicator light will flash and the
motor driven door lock will begin to close automatically. DO NOT open the oven door while the indicator light is
flashing. Allow about 15 seconds for the oven door to lock. Once the oven door is locked, the current time of day will
appear in the display.
2. To cancel the Oven Lockout feature, press _ and hold for 3 seconds. The control will unlock the oven door and
resume normal operation.
Note: !fany control pad is pressed while in the Oven Lockout m0de, ilLocll will appear in
control pad is released,
14
Setting Oven Controls (cont'd)
To Set the Timed Bake and Delay Start Features (Delayed Timed Bake)
The @ COOK TiME and @ DELAY START pads operate the features that will turn the oven ON and OFF at the times
you select in advance. The oven can be programmed to start immediately and shut off automatically (Timed Bake) or to
begin baking at a later time with a delayed start time (Delay Timed Bake).
Note: During Timed Bake the preheat indicatorlight will not function:
To Program the Oven to Begin Baking immediately and To Shut Off Automatically (Timed Bake):
1. Be sure that the clock shows the correct time of day.
2. Place the food in the oven,
3. Press B,ke.'.... appears in the display.
_J
4. Within 5 seconds, press the J_. or V. The display will show "350°F (177°C). '' By holding the A or "_, the
temperature can then be adjusted in 5°F increments (1°C if the control is set to display Celsius).
5. Press @. "0:00" will flash in the display (HR:MIN).
6. Press the A or V until the desired baking time appears in the display.
7. The oven will turn ON and begin heating.
To Program Oven for a Delayed Start Time and to Shut-Off Automatically (Delayed Timed Bake):
1. Be sure that the clock shows the correct time of day.
2. Place the food in the oven,
3. Press B.ke.'.... appears in the display.
4. Within 5 seconds, press the/_, or V. The display will show "350°F (177°C). '' By holding the/%, or V, the
temperature can then be adjusted in 5°F increments (1°C if the control is set to display Celsius).
5. Press _,t,._,_.,"."0:00" will flash in the display (HR:MIN).
6. Press the _ or V until the desired baking time appears.
7. Press @. The earliest possible start time will appear in the display.
8. Press the _ or V until the desired start time appears in the display.
9. Once the controls are set, the control calculates the time when baking will stop in order to start at the time you have
set.
10. The oven will turn ON at the delayed start time and begin heating.
When the Set Bake Time Runs Out:
a. "END" will appear in the display window and the oven will shut-off automatically.
b. The control will beep 3 times every 60 seconds until _ is pressed.
To Change the Oven Temperature or Bake Time after Baking has Started:
1. Press the function pad you want to change.
2. Press the A or V to adjust the setting.
Use caution with the Timed Bake and Delayed Start (Delayed Timed Bake) features. Foods that can easily
spoil such as milk, eggs, fish, meat or poultry, should be chilled in the refrigerator first. Even when chilled, they should not
stand in the oven for more than 1 hour before cooking begins, and should be removed promptly when cooking is completed.
15
Setting Oven Controls (cont'd)

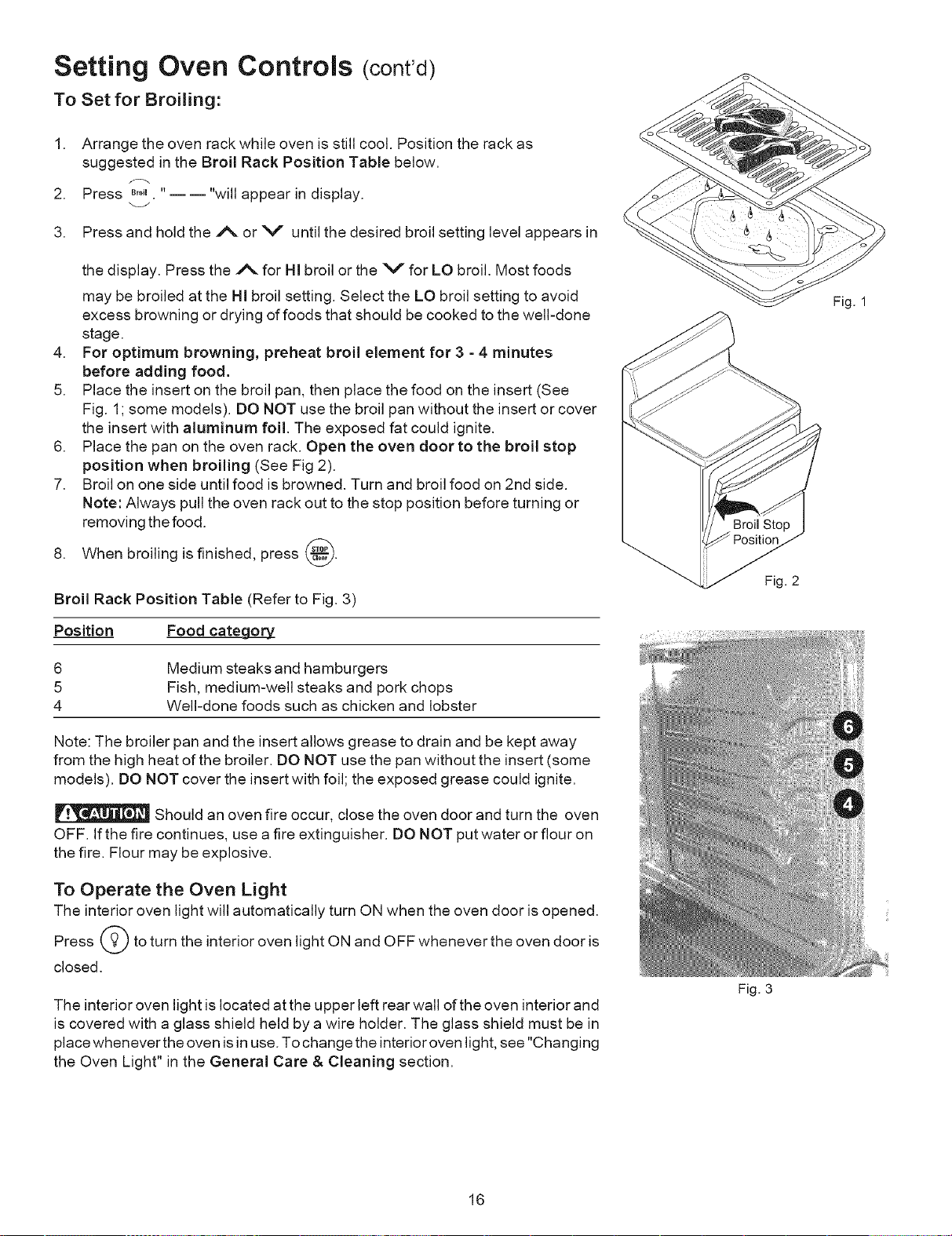

To Set for Broiling:
,
2.
3.
Arrange the oven rack while oven is still cool. Position the rack as
suggested in the Broil Rack Position Table below.
Press B,o_,,__ "will appear in display.
Press and hold the _N. or V until the desired broil setting level appears in
the display. Press the A for HI broil or the V for LO broil. Most foods
may be broiled at the HI broil setting. Select the LO broil setting to avoid
excess browning or drying of foods that should be cooked to the well-done
stage.
4. For optimum browning, preheat broil element for 3 - 4 minutes
before adding food.
5. Place the insert on the broil pan, then place the food on the insert (See
Fig. 1; some models). DO NOT use the broil pan without the insert or cover
the insert with aluminum foil. The exposed fat could ignite.
6. Place the pan on the oven rack. Open the oven door to the broil stop
position when broiling (See Fig 2).
7. Broil on one side until food is browned. Turn and broil food on 2nd side.
Note: Always pull the oven rack out to the stop position before turning or
removing the food.
8. When broiling is finished, press _.
Broil Rack Position Table (Refer to Fig. 3)
Position Food cate og#J3L
6
5
4
Medium steaks and hamburgers
Fish, medium-well steaks and pork chops
Well-done foods such as chicken and lobster
Note: The broiler pan and the insert allows grease to drain and be kept away
from the high heat of the broiler. DO NOT use the pan without the insert (some
models). DO NOT cover the insert with foil; the exposed grease could ignite.
Should an oven fire occur, close the oven door and turn the oven
OFF. If the fire continues, use a fire extinguisher. DO NOT put water or flour on
the fire. Flour may be explosive.
To Operate the Oven Light
The interior oven light will automatically turn ON when the oven door is opened.
Press __. to turn the interior oven light ON and OFF whenever the oven door is
closed.
The interior oven light is located at the upper left rear wall of the oven interior and
is covered with a glass shield held by a wire holder. The glass shield must be in
place whenever the oven isin use. To change the interior oven light, see "Changing
the Oven Light" in the General Care & Cleaning section.
Fig. 2
Fig. 3
Fig. 1
16
Setting Oven Controls (cont'd)
To Set Add I Minute Feature
The _ ADD 1 MINUTE pad is used to set additional minutes to the Minute Timer. Each time the _ pad is pressed,
another minute is added to the Minute Timer if the Minute Timer is already active. Ifthe Minute Timer is not active and the
pad is pressed, the Minute Timer feature will become active and will begin counting down from 1 minute. For further
information on how to set the Minute Timer feature see To Set the Minute Timer instructions in the Setting Oven Controls
section.
To Set the Recipe Recall Feature
The .....
,,,, RECIPE RECALL pad is used to set the Recipe Recall feature. This feature will ONLY recall a previous Bake,
Timed Bake or a Timed Bake with a Warm & Hold added setting. This feature will not work with any other function
including a Delayed Timed Bake setting.
To Program the Oven to Begin Baking immediately and record a Recipe:
1. Place the food in the oven.
2. Press B,ke '.... appears in the display.
3. Within 5 seconds, press the A or V. The display will show "350°F (1770C)." By holding the A or V, the
temperature can then be adjusted in 5OFincrements (1°C if the control is set to display Celsius).
4. The oven will turn ON and begin heating.
5. Press and hold Re_a..... pad for at least 3 seconds or until a beep sounds. The beep indicates that this recipe has been
recorded for future recall.
To Program the Oven to Begin Baking with a stored Recipe:
1. Place the food in the oven.
2. Press "°°+°Rec_ll .
3. Within 5 seconds, press the A or V .The oven will begin to immediately cook with the previously recorded recipe.
The Temperature is recalled and ira Timed Bake was recorded this feature will also recall the cooking time.
....._++i+ii!+....
17
Setting Oven Controls (cont'd)
(-_ e e
Using the Slow Cook Feature
The =,°w
coo,SLOW COOK pad is used to activate this feature. The Slow Cook feature may be used to cook foods more slowly,
at lower oven temperatures and provides cooking results much the same way as a Slow Cooker or Crock-Pot. The Slow
Cook feature is ideal for roasting beef, pork & poultry. Slow Cooking meats may result in the exterior of meats becoming
dark but not burnt. This is normal.
There are 2 settings available, high (HI) or low (LO). The maximum cook time for the Slow Cook feature is 12 hours unless
the oven control has been changed to the Continuous Bake mode or the Sabbath mode has been activated.This feature
may be used with the additional settings of a Timed Bake Slow Cook (see Timed Bake beginning with step 5-7) or a
Delayed Start Bake Slow Cook (see Delayed Start Bake steps 5-10).
Below is a list of preparation and cooking tips you should review for best possible results using Slow Cook:
e
e
e
e
e
e
e
Completely thaw all frozen foods before cooking with the Slow Cook feature.
When using a single rack, place in position 2 or 3.
Position multiple racks to accommodate size of cooking utensils when cooking multiple food item.
Do not open the oven door often or leave the door open when checking foods. If the oven heat escapes often, the
Slow Cook time may need to extended.
Cover the foods to keep them moist or use a loose or vented type cover to allow foods to turn crisp or brown.
Roasts may be left uncovered so browning can occur. Cook times will vary; depending on the weight, fat content, bone &
the shape of the roast.
Use the recipe's recommended food temperature and a food thermometer to determine when the food is done.
Preheating the oven will not be necessary when using the Slow Cook feature.
Add any cream or cheese sauces during the last hour of cooking.
See the suggested Slow Cook feature recipes provided in the back of this Use & Care Guide.
To Program the Oven to begin baking with the Slow Cook feature:
1. Place the food in the oven.
2. Press co0,....... - -" will appear in the display (if no arrow keypad is touched within 10-15 seconds the request for Slow
Cook will be clear).
Press and release the A to set the Slow Cook feature with a high setting (HI will appear in the display), This setting
is best for cooking foods from a 4 to 5 hour time period, The oven indicator light will turn ON below the time display
indicating the oven has turned ON with the settings you choose,
4. or press and release the V to set the Slow Cook feature with a low setting (Lo will appear in the display). This
setting is best for cooking foods from a 8 to 9 hour time period. The oven indicator light will turn ON below the time
display indicating the oven has turned ON with the settings you choose.
5. If desired, add any Timed Bake or Delayed Start Bake settings at this time.
6. To cancel the Slow Cook feature press _ at anytime.
18
Setting Oven Controls (cont'd)
To Set the Sabbath Feature (for use on the Jewish Sabbath & Holidays)
The _ COOK TiME and _ DELAY START pads are used to set the Sabbath feature. The Sabbath feature may only
be used with the 8,,e pad. The oven temperature may be set higher or lower after setting the Sabbath feature (the oven
temperature adjustment feature should be used only during Jewish Holidays), however the display will not visibly show or
provide any audible tones indicating whether the change occurred correctly. Once the oven is properly set using Bake with
the Sabbath feature active, the oven will remain continuously O N until cancelled. This will override the factory preset 12-
Hour Energy Saving feature.
If the oven light will be needed during the Sabbath, press _ before activating the Sabbath feature. Once the oven light is
turned ON and the Sabbath feature is active, the oven light will remain ON until the Sabbath feature is turned OFF. If the
oven light needs to be OFF, be sure to turn the oven light OFF before activating the Sabbath feature.
iMPORTANT NOTES: It is not advised to attempt to activate any other program feature other than BAKE while the Sabbath
feature is active. ONLY the following key pads will function after setting the Sabbath feature; A, V _,ke& .ALL
OTHER KEYPADS will not function once the Sabbath feature is properly activated.
To Program the Oven to Begin Baking immediately & activate the Sabbath feature:
1. Be sure that the clock is set with the correct time of day.
2. Place the food in the oven.
3. Press Bake.'.... appears in the display.
4. Within 5 seconds, press the A or V. The display will show "350°F (177°C). '' By holding the J% or V, the
temperature can then be adjusted in 5°F increments (1°C if the control is set to display Celsius).
5. If you desire to set the oven control for a Timed Bake or Delayed Start Bake do so at this time. If not, skip this step
and continue to step 6. Refer to the Timed Bake (complete steps 5-6) / Delayed Start Bake (complete steps 5-9)
section on page 15 for complete instructions. Remember the oven will shut down after using Timed Bake or Delay
Start Bake and therefore may only be used once during the Sabbath/Jewish Holidays. The maximum Delayed Start
Bake time is 11 hours & 59 minutes.
6. The oven will turn ON and begin heating.
7. Press and hold both the @ and @ pads for at least 3 seconds. SAb will appear in the display. Once SAb appears
in the display the oven control will no longer beep or display any further changes and the oven is properly set for the
Sabbath feature.
Note: You may change the oven temperature once baking has started by holding the _ or V (for Jewish Holidays
only). The oven temperature will be adjusted in 5°F increments with each press of these pads (1°C if the control is set
to display Celsius). Remember that the oven control will no longer beep or display any further changes once the
oven is set for the Sabbath feature.
The oven may be turned OFF at any time by first pressing _ pad (this will turn the oven OFF only). To turn OFF the
Sabbath feature press and hold both the @ and @ pads for at least 3 seconds. SAb will disappear from the
display.
Should you experience a power failure or interruption, the oven will shut off. When power is returned the oven will not turn
back on automatically. The oven will remember that it is set for the Sabbath and the food may be safely removed from the
oven while still in the Sabbath feature, however the oven cannot be turned back on until after the Sabbath. After the Sabbath
observance turn OFF the Sabbath feature. Press and hold both the @ and @ pads for at least 3 seconds. SAb will
disappear from the display and the oven may be used with all normal functions. For further assistance, guidelines for proper
usage, and a complete list of models with the Sabbath feature, please visit the web at http:\\www.star-k.org.
19
Setting Oven Controls (cont'd)
Setting the Warm & Hold TM Feature
The _;_"padturns_NtheServeWarm&H__dfeatureandwi__maintainan_ventemperature_f17_°F.TheWa_m&H_idfeature
will keep oven baked foods warm for serving up to 3 hours after cooking has finished. After 3 hours the Warm & Hold feature will
shut the oven OFF automatically. The Warm & Hold feature may be used without any other cooking operations or can be used
after cooking has finished using TIMED BAKE or DELAY START BAKE,
To set Warm & Hold:
1. Arrange interior oven racks and place baked food in oven. if the food is already in the oven go to step 2.
2. Press _0_'3' . "-- --" will appear in the display and the Warm & Hold indicator light above the pad will turn ON.
Note: Ifno further pads are touched within 6 seconds the request to turn ON Warm & Hold will be cleared.
3. Press Aor V to start.
4. To turn Warm & Hold OFF at any time press _. The Warm & Hold indicator light above the pad will turn OFF.
To set Warm & Hold to turn ON automatically:
1. Arrange interior oven racks and place food in oven. Set the oven properly for Timed Bake or Delay Start Bake.
2. Press ......,o_a. ....---- will appear in the display and the Warm & Hold indicator light above the pad will turn ON.
3. Press J%or V t_start.Warm&H__dissett_turn_Naut_matica__yafterTimedBake_rDe_ayedStartBakehasfinished.
4. To turn Warm & Hold OFF at any time press _. The Warm & Hold indicator light above the pad will turn OFF.
Setting Warmer Drawer Controls
Arranging Warmer Drawer (Warm & Ready TM Drawer) Rack Positions (some models)
Note: Use the warmer drawer to keep hot foods hot such as: vegetables, gravies, meats, casseroles, biscuits and rolls, pastries
and heated dinner plates.
The rack can be used in 2 ways:
• In the upright position to allow low profile food items to be placed both under and on top of the rack (for example, rolls
or biscuits on top of the rack and a casserole dish under - See Fig. 1).
• In the downward position to allow you to place light weight food items and empty dishware (for example, rolls or
pastries and dinner plates - See Fig. 2).
The warmer drawer is equipped with a catch which may require extra force when opening and closing the drawer.
To Operate the Warmer (Warm &
Ready TM) Drawer
Always start with hot food. It is not recommended to
heat cold food in the warmer drawer.
All food placed in the warmer drawer should be
covered with a lid or aluminum foil to maintain
quality. Do not use plastic wrap to cover food.
Plastic may melt onto the drawer and be very
difficult to clean.
Use only dishes, utensils and cookware
recommended for oven use in the warmer drawer.
Always use pot holders or oven mitts
when removing food from the warmer drawer as
cookware and plates will be HOT.
i, J/
.f
///
j"
Fig. 2
WARMER DRAWER
2O
Fig. 3
Setting Warmer Drawer Controls (cont'd)
Warmer Drawer Recommended
Food Settings Table
Food item Setting
Bacon HI
Hamburger Patties HI
Poultry HI
Pork Chops HI
Fried Foods HI
Pizza HI
Gravies MED
Casseroles MED
Eggs MED
Roasts (Beef, Pork, Lamb) MED
Vegetables MED
Biscuits MED
Rolls, hard MED
Pastries MED
Rolls (soft) LO
Empty Dinner Plates LO
i Pull up with finger
Left Glide
To Set the Warmer (Warm & Ready TM) Drawer Thermostat
Control (some models)
The thermostat control is used to select the temperature of the warmer drawer.
It is located on the control panel (See Fig. 3 on previous page). To set the
thermostat, push in and turn the knob to the desired setting. The temperatures
are approximate, and are designated by HI, MED and LO.
1. Turn the knob to select the desired temperature setting.
2. For best results, preheat the drawer before adding food. An empty drawer
will preheat in approximately 15 minutes.
3. Turn the thermostat control to OFF after use.
Warmer (Warm & Ready TM) Drawer Temperature Selection
(some models)
Refer to the table in the side column for recommended settings. If a particular
food is not listed, start with the medium setting. If more crispness is desired,
remove the lid or aluminum foil.
Most foods can be kept at serving temperatures by using the medium setting.
When a combination of foods are to be kept warm (for instance, a meat with 2
vegetables and rolls), use the high setting.
Refrain from opening the warmer drawer while in use to eliminate loss of heat
from the drawer.
Warmer (Warm & Ready TM) Drawer Indicator Light (some models)
The indicator light is located above the Warmer Drawer thermostat control. {t
turns on when the control is set, and stays on until the control is turned OFF.
The warmer drawer is inoperable during the Self-Clean cycle. The indicator light
will not come on during the Self-Clean cycle.
Remove shield on righ
glide. Pull up on left lever
while pushing down on
right lever.
Fig. 1
Fig. 2
To Remove and Replace Warmer (Warm & Ready TM) Drawer
(some models)
To Remove Warmer Drawer:
1. _ Turn power OFF before removing thewarmerdrawer.
2. Open the drawer to the fully opened position.
3. On the right glide you will find a shield attached with a hex-head screw (see
figure 1). Using a 1/4" socket and ratchet remove the shield.
4. Locateglide {everon each side ofdrawer, pull upon the left glide {everand push
down on the right glide lever.
5. Pull the drawer away from the range.
To Replace Warmer Drawer:
1. Replace shield on the right glide of the drawer body.
2. Pull the bearing glides to the front of the chassis glide (see figure 2).
3. Align the glide on each side of the drawer with the glide slots on the range.
4. Push the drawer into the range until levers "click" (approximately 2"). Pull the
drawer open again to seat bearing glides into position. If you do not hearthe
levers "click" or the bearing glides do not feel seated remove the
drawer and repeat steps 2-4. This will minimize possible damage to the
bearing glides.
NOTE: The Warmer drawer will NOT V"_!_II,
operatewhi!e inthe Self-clean and oven
Lockout modes
Electrical Shock Hazard can occur and result in
serious injury or death. Disconnect appliance from electric power
before cleaning and servicing the warmer drawer.
21
Self-Cleaning
During the Self-Cleaning
cycle, the outside of the range can
become very hot to the touch. DO NOT
leave small children unattended near the
appliance.
The health of some birds
is extremely sensitive to the fumes given
off during the Self-Cleaning cycle of any
range. Move birds to anotherwell-
ventilated room.
DO NOT line the oven
walls, racks, bottom or any other part of
the range with aluminum foil, Doing so
will destroy heat distribution, produce
poor baking results and cause
permanent damage to the oven interior
(aluminum foil will melt to the interior
surface of the oven).
DO NOT force the oven
door open. This can damage the
automatic door locking system. Use
caution when opening the door after the
Self-Cleaning cycle is completed. The
oven may still be VERY HOT.
CLEAN FRAME
DO HAND
CLEAN DOOR DO NOT
HAND
OVE
DOOR GASKET
Note: See additional cleaning information
for the oven door in the General Care &
Cleaning section.
f
............ O .....
?
2g aa;
Self-Cleaning Oven
A Self-Cleaning oven cleans itself with high temperatures (well above cooking
temperatures) which eliminate soils completely or reduces them to a fine
powdered ash you can wipe away with a damp cloth.
Adhere to the following cleaning precautions:
DO NOT use oven cleaners or oven protective coatings in or around any
part of the Self-Cleaning oven.
DO NOT clean the oven door gasket. The woven material of the oven door
gasket is essential for a good seal. Care should be taken not to rub,
damage or remove the gasket.
DO NOT use any cleaning materials on the oven door gasket. Doing so
could cause damage.
* Remove the broiler pan and insert, all utensils and any aluminum
foil. These items cannot withstand high cleaning temperatures.
, Remove the oven racks. If the racks are left in the oven during the Self-
Clean cycle their color will turn slightly blue & the finish will be dull. After
the cycle is complete and the oven has cooled, rub the sides of the oven
racks with wax paper or a cloth containing a small amount of salad oil (this
will make the oven racks glide easier into the oven rack positions).
* Remove any excessive spillovers in the oven cavity before starting the
Self-Cleaning cycle. To clean, use hot, soapy water and a cloth. Large
spillovers can cause heavy smoke or fire when subjected to high
temperatures. DO NOT allow food spills with a high sugar or acid content
(such as milk, tomatoes, sauerkraut, fruit juices or pie filling) to remain on
the surface as they may leave a dull spot even after cleaning.
Clean any soil from the oven frame, the door liner outside the oven door
gasket and the small area at the front center of the oven bottom. These
areas heat sufficiently to burn soil on. Clean with soap and water.
i!!i!!ii!iiiiiiiiiiiiiiiiiiiiiiii
Baking element
may be tilted about
4 or 5 inches
to clean oven bottom
NOTE: Prior to setting the Self-Clean cycle, any spills remaining on the oven
bottom should be removed.
Some models have an exposed Bake element in the lower oven cavity (See
illustration at left).On these models the bake element is designed to be tilted up
using your hand from the front of the bake element. This will allow easier
access to the oven bottom for cleaning. Be careful not to raise the element
more than 4 or 5 inches from the resting position.
The oven bake and broil elements may appear to have cooled after
they have been turned OFF. The elements may still be hot and burns may occur
if these elements are touched before they have cooled sufficiently.
22
Self-Cleaning (cont'd)
Starting the Select Self=Clean Cycle or a Delayed Start Self=Clean Cycle
For satisfactory results, use a 2 hour Self-Clean cycle for light soils and a 3 hour cycle for average or a 4 hour cycle for
heavy soils. NOTE: The kitchen area should be well ventilated using an open window, ventitlation fan or exhaust hood
during the 1st Self-Clean cycle. This will help eliminate the normal odors associated with the 1st Self-Clean cycle.
To Set the Controls for a Self-Clean Cycle or a Delayed Start Self=Clean Cycle:
(Note: If you do not want to start a Delayed Self-Clean Cycle, skips steps 2 & 3.)
1. Be sure the clock shows the correct time of day.
2. Press _. The " : " in the time of day will flash.
3. Press and hold the A pad to scroll to the time to start the delayed Self-Clean cycle. Release the pad when the
desired time is displayed.
4. Press _. " "appears in the display.
5. Press the A or V once. "3:00" appears in the display for a 3 hour cycle. To change to a 2 hour cycle press V.
.
"2:00" appears in the display or to select a 4 hour cycle press _. "4:00" appears in the display.
As soon as the controls are set, the motor driven lock will begin to close automatically and the "LOCK" indicator light
will flash. DO NOT open the oven door while the light is flashing (it takes about 15 seconds for the oven door to lock).
"CLn" will appear in the display during the Self-Clean cycle and the "LOCK" light will glow until the Self-Cleaning cycle
is complete or cancelled and the oven temperature has cooled.
When the Self-Clean Cycle is Completed:
1. Thetimeofday _r__End__wi__appearinthedisp_aywind_wandthe"__ean__and__L_CK___ightwi__c_ntinuet_g__w.
2. Once the oven has cooled down for about l HOUR and the "LOCK" light has gone out, the oven door can be opened.
3. If "End" is in the display and the Select Clean indicator light remains ON, press _. The time of day will appear in the
display.
NOTE: When the oven is cool, wipe away any residue or powdered ash with a damp cloth or paper towel.
Stopping or Interrupting a Select Self=Cleaning Cycle
If it becomes necessary to stop or interrupt a Self-Cleaning cycle:
1. Press @.
2. Once the oven has cooled down for about l HOUR and the "LOCK" light has gone out, the oven door can be opened.
3. Restart the Self-Clean cycle once all conditions have been corrected.
To avoid possible burns use care when opening the oven door after the Self-Cleaning cycle. Stand to the side of
the oven when opening the door to allow hot air or steam to escape.
DO NOT force the oven door open. This can damage the automatic door locking system. Use caution and avoid
possible burns when opening the door after the Self-Cleaning cycle has completed, The oven may still be VERY HOT.
23
General Care & Cleaning
Cleaning Table
Surfaces How to Clean
Glass, Painted
Plastic Body Parts &
Control Knobs
For general cleaning, use a soft cloth, clean with mild dish detergent & water or a 50/50 solution
of vinegar & water. Follow by rinsing the area with clean water; dry & polish with a soft cloth.
Glass cleaners may be used if sprayed on a soft cloth. DO NOT spray liquids directly on the
control pad and display areas. DO NOT use large amounts of water on the control panel - excess
water on the control area may cause damage to the appliance. DO NOT use other liquid
cleaners, abrasive cleaners, scouring pads, or some paper towels - they will damage the finish.
Painted Control
Panels & Display
areas
Before cleaning the control panel, turn all controls to OFF & remove the control knobs. To
remove, pull each knob straight off the shaft. Use the general cleaning instructions provided in the
paragraph above.
Porcelain Enamel
Burner Grates,
Cooktop Surface,
Below Cooktop,
Broiler Pan & Insert,
Broiler Drawer, Door
Liner & Oven Bottom
Oven Racks
Clean burner grates, broiler pan & insert in the dishwasher and dry upon removal. If soils are not
removed, follow the cooktop cleaning instructions below.
Gentle scouring with a soapy scouring pad will remove most spots. Rinse with a 1:1 solution of
clean water & ammonia. If necessary, cover difficult spots with an ammonia-soaked paper towel
for 30 to 40 minutes. Rinse with clean water and a damp cloth, then scrub with a soap-filled
scouring pad. Rinse & wipe dry with a clean cloth. Remove all cleaners or the porcelain may
become damaged during future heating. DO NOT use spray oven cleaners on the range top.
Remove oven racks. See "Removing & Replacing Oven Racks" under Before Setting Oven
Controls. Use a mild, abrasive cleaner, following the cleaner's recommendations. Rinse with
clean water & let dry. After cleaning the racks, rub the sides of the racks with wax paper or a
cloth containing a small amount of baby oil or salad oil (this will make the racks glide easier into
the oven rack positions).
Oven Door
Use soap & water to thoroughly clean the top, sides & front of the oven door. Rinse well. You
may use a glass cleaner on the outside glass of the oven door. DO NOT immerse the door in
water. DO NOT spray or allow water or the glass cleaner to enter the door vents. DO NOT
use oven cleaners, cleaning powders or any harsh abrasive cleaning materials on the outside of
the oven door. DO NOT clean the oven door gasket. The oven door gasket is made of a woven
material, on Self-Cleaning models, which is essential for a good seal. Care should be taken not
to rub, damage or remove this gasket.
Stainless
Steel
Clean stainless steel with hot soapy water & a dishcloth. Rinse with clean water and a cloth.
DO NOT use cleaners with high conecentrations of chlorides or chlorines. DO NOT use harsh
scrubbing cleaners. Only use kitchen cleaners that are especially made for cleaning stainless
steel. Always be sure to rinse the cleaners form the surface as bluish stains may occur during
heating that cannot be removed."
Ceramic Cooktop See "Cooktop Cleaning & Maintenance" in this section for complete instructions.
24

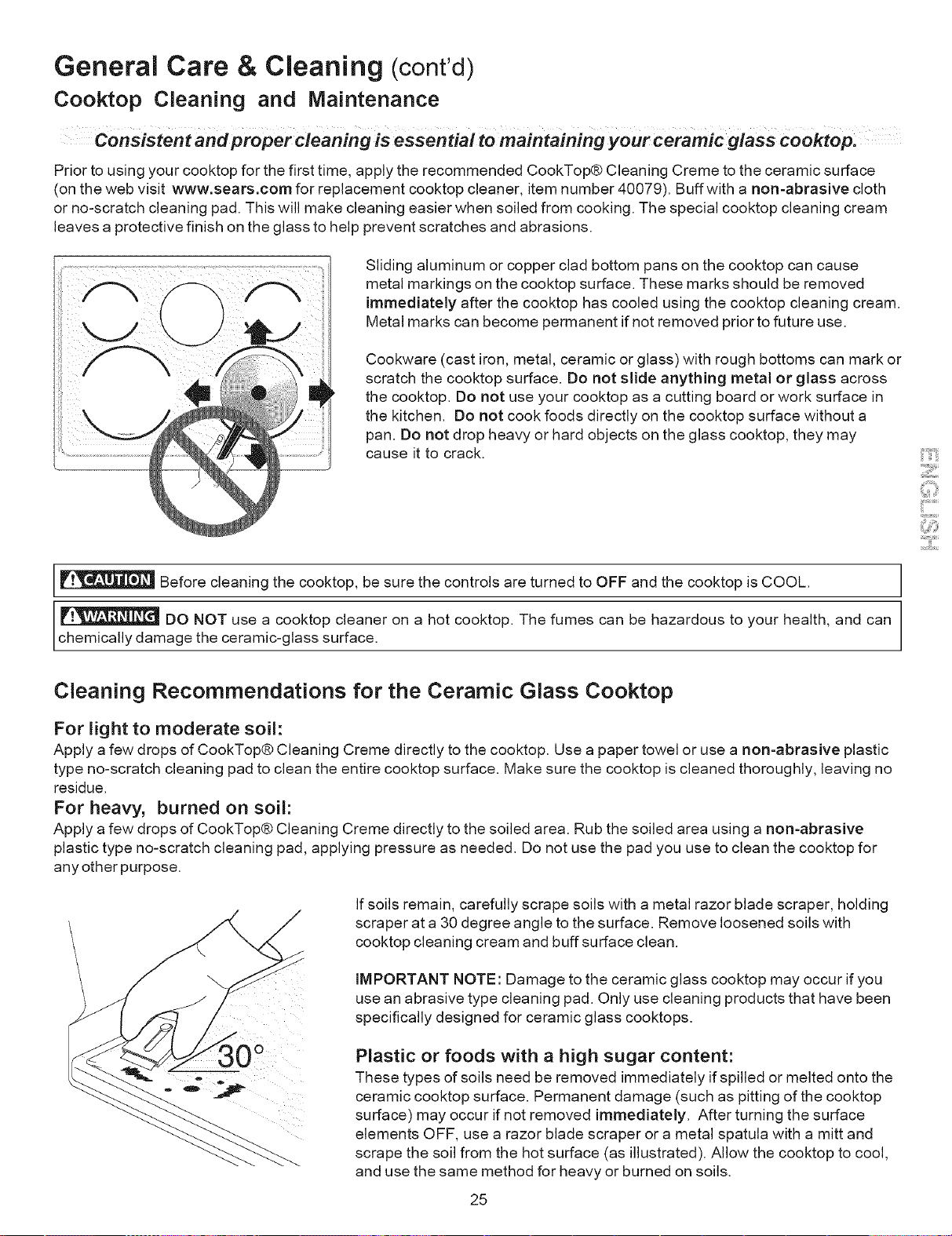

General Care & Cleaning (cont'd)
Cooktop Cleaning and Maintenance
Consistent and proper cleaning is essential to maintaining your Ceramic glasS cooktop:
Prior to using your cooktop for the first time, apply the recommended CookTop® Cleaning Creme to the ceramic surface
(on the web visit www.sears.com for replacement cooktop cleaner, item number 40079). Buffwith a non-abrasive cloth
or no-scratch cleaning pad. This will make cleaning easier when soiled from cooking. The special cooktop cleaning cream
leaves a protective finish on the glass to help prevent scratches and abrasions.
i
Sliding aluminum or copper clad bottom pans on the cooktop can cause
metal markings on the cooktop surface. These marks should be removed
immediately after the cooktop has cooled using the cooktop cleaning cream.
Metal marks can become permanent if not removed prior to future use.
Cookware (cast iron, metal, ceramic or glass) with rough bottoms can mark or
scratch the cooktop surface. Do not slide anything metal or glass across
the cooktop. Do not use your cooktop as a cutting board or work surface in
the kitchen. Do not cook foods directly on the cooktop surface without a
pan. Do not drop heavy or hard objects on the glass cooktop, they may
cause it to crack.
Before cleaning the cooktop, be sure the controls are turned to OFF and the cooktop is COOL.
DO NOT use a cooktop cleaner on a hot cooktop. The fumes can be hazardous to your health, and can
chemically damage the ceramic-glass surface.
Cleaning Recommendations for the Ceramic Glass Cooktop
For light to moderate soil:
Apply a few drops of CookTop® Cleaning Creme directly to the cooktop. Use a paper towel or use a non-abrasive plastic
type no-scratch cleaning pad to clean the entire cooktop surface. Make sure the cooktop is cleaned thoroughly, leaving no
residue.
For heavy, burned on soil:
Apply a few drops of CookTop® Cleaning Creme directly to the soiled area. Rub the soiled area using a non-abrasive
plastic type no-scratch cleaning pad, applying pressure as needed. Do not use the pad you use to clean the cooktop for
any other purpose.
/
If soils remain, carefully scrape soils with a metal razor blade scraper, holding
scraper at a 30 degree angle to the surface. Remove loosened soils with
cooktop cleaning cream and buff surface clean.
IMPORTANT NOTE: Damage to the ceramic glass cooktop may occur if you
use an abrasive type cleaning pad. Only use cleaning products that have been
specifically designed for ceramic glass cooktops.
Plastic or foods with a high sugar content:
These types of soils need be removed immediately if spilled or melted onto the
ceramic cooktop surface. Permanent damage (such as pitting of the cooktop
surface) may occur if not removed immediately. After turning the surface
elements OFF, use a razor blade scraper or a metal spatula with a mitt and
scrape the soil from the hot surface (as illustrated). Allow the cooktop to cool,
and use the same method for heavy or burned on soils.
25
General Care & Cleaning (cont'd)
Cleaning Recommendations
Door Hinge
locations
with oven door
fully open
for Ceramic Glass Cooktops (cont'd)
Do not use the following on the ceramic glass cooktop:
• Do not use abrasive cleaners and scouring pads, such as metal and some
nylon pads. They may scratch the cooktop, making itmore difficult to clean.
, Do not use harsh cleaners, such as chlorine bleach, ammonia or oven
cleaners, as they may etch or discolor the cooktop.
• Do not use dirty sponges, cloths or paper towels, as they can leave soil or
lint on the cooktop which can burn and cause discoloration.
Special Caution for Aluminum Use on the Ceramic Cooktop:
• Aluminum Foil - Use of aluminum foil on a hot cooktopwill damage the ceramic
cooktop. Do not use thin aluminum cooking utensils or allow aluminum foil to
touch the ceramic cooktop under ANY circumstances.
, Aluminum utensils -The melting point of aluminum is much lower than that of
other metals. Care must be taken when aluminum pots or pans are used on the
cooktop. If allowed to boil dry, not only will the utensil be destroyed, but it may
fuse to, break or mark the ceramic glass surface, permanently damaging the
cooktop surface.
Fig. 1
Fig. 2
Removing and Replacing the Lift=Off Oven Door
The door is heavy. For safe, temporary storage, lay the door flat with
the inside of the door facing down.
To Remove Oven Door:
1. Open oven door completely (horizontal with floor- See Fig. 1).
2. Pull the door hinge locks on both left and right door hinges down from the oven
frame completely towards the oven door (See Fig. 2). A tool such as a small
flat-blade screwdriver may be required.
3. Firmly grasp both sides of oven door along the door sides (Do not use the
oven door handle - See Fig. 3).
4. Close the door to the broil stop position (the oven door will stop into this
position just before fully closing).
5. With the oven door in the broil stop position, lift the oven door hinge arms over
the roller pins located on each side of the oven frame (See Fig. 4).
Oven
Door
Fig. 3
Fig. 4
To Replace Oven Door:
1. Firmly grasp both sides of oven door along the door sides (Do not use the
oven door handle - See Fig. 3).
2. Holding the oven door at the same angle as the removal position, seat the
hook of the hinge arm over the roller pins located on each side of the oven
door frame (See Fig. 4). The hook of the hinge arms must be fully seated onto
the roller pins.
3. Fully open the oven door (horizontal with floor- See Fig. 1).
4. Push the door hinge locks up towards and into the oven frame on both left and
right oven door hinges (See Fig. 2) to the locked position.
5. Closetheoven door.
Special Door Care Instructions - Most oven doors contain glass that can break.
Read the following recommendations:
1. Do not close the oven door until all the oven racks are fully in place.
2. Do not hit the glass with pots, pans, or any other object.
3. Scratching, hitting, jarring or stressing the glass may weaken its structure
causing an increased risk of breakage at a later time.
26
General Care & Cleaning (cont'd)
Changing the Oven Light
Oven
Light
Wire
Holder
!ii ! i iiii!" ii_iiiiiiii • i i _
The oven light automatically turns ON when the door is opened. The oven light
may also be manually operated by pressing the _ pad.
The oven light bulb is located at the rear of the oven and is covered with a glass
shield held by a wire holder. The glass shield must be in place whenever the
oven is in use.
To replace the oven light bulb:
1. Turn electrical power off at the main source or unplug the range.
2. Press wire holder to one side to release the glass shield.
3. Replace bulb with a new 40 watt appliance bulb.
4. Replace glass shield over bulb and snap wire holder into place.
5. Turn power back on again at the main source (or plug the range back in).
6. The clock will then need to be reset. To reset, see Setting the Clock and
Minute Timer in this Use & Care Guide.
Be sure the range is unplugged and all parts are COOL before
replacing oven light. Wear a leather-faced glove for protection against possible
broken glass.
Care and Cleaning of Stainless Steel (some models)
Some models are equipped with stainless steel exterior parts. Special care and cleaning are required for maintaining the
appearance of stainless parts. Refer to the Care & Cleaning Table for detailed cleaning instructions.
Adjusting the Oven Temperature
Your oven control has been precisely set at the factory. This setting may differ from your previous oven however, so your recipe
times may not give you the results you expect. If you think that the oven is cooking too hot or too cool for your recipe times,
you can adjust the control so that the oven cooks hotter or cooler than the temperature displayed.
To Adjust Oven Temperature:
1. Press Bake.
2. Set the temperature to 550°F (287°C) by pressing and holding the A.
3. Within 2 seconds, press and hold -_-Bakeuntil the 2 digit display appears. Release _. The display now indicates the amount
of degrees offset between the original factory temperature setting and the current temperature setting. If the oven control
has the original factory calibration, the display will read "0."
4. Thetemperaturecann_Wbeadjustedup_rd_wn35°F(17°C)_in5°Fstepsbypressingandh__dingthe A or V. Adjust
until the desired amount of offset appears in the display. When lowering the oven temperature, a minus sign (-) will appear
before the number to indicate that the oven will be cooler by the displayed amount of degrees.
5. When you have made the desired adjustment, press _ to go back to the time of day display.
Note: Oven temperature adjustments made will not change the Self-Cleaning feature temperature.
27
Before You Call
Solutions to Common Problems
Before you call for service, review the following list. It may save you time & expense. The list includes common occurrences
(shown in bold) that are not the result of defective workmanship or materials in this appliance. The possible corrections to these
problems are provided with the problem listed:
Range is not level - (1) Poor installation. Place oven rack in
center of oven. Place a level on the oven rack. Adjust leveling
legs at base of range until the oven rack is level. (2) Be sure
floor is level, strong & stable enough to adequately support
range. (3) If floor is sagging or sloping, contact a carpenter to
correct the situation. (4) Kitchen cabinet alignment may make
range appear not level. Be sure cabinets are square & have
sufficient room for range clearance.
Cannot move appliance easily, Appliance must be accessible
for service - (1) Cabinets not square or are built in too tightly.
Contact builder or installer to make appliance accessible. (2)
Carpet interferes with range. Provide sufficient space so range
can be lifted over carpet.
Surface element too hot or not hot enoucLb_h- Incorrect control
setting. Be sure the correct control is ON for the element to be
used.
Surface element does not heat - (1) Lightweight or warped
pans used. Use only flat, evenly balanced, medium or
heavyweight cookware. Flat pans heat better than warped
pans. Cookware materials and weight of the material affect
heating. Heavy & medium-weight pans heat evenly. Because
lightweight pans heat unevenly, foods may burn easily. (2) No
power to the appliance. Check steps under "Entire Appliance
Does Not Operate" in this checklist. (3) Incorrect control
setting. Make sure the correct control is ON for the surface
element to be used.
Entire appliance does not operate =(1) The time of day is not
set. The time of day must first be set in order to operate the
oven. See "To Set the Clock" in the Setting Oven Controls
section.(2) Make sure cord/plug is plugged correctly into outlet.
(3) Service wiring is not complete. Call 1-800=4=MY=HOME®
for assistance (See back cover). (4) Electrical power outage.
Check house lights to be sure. Call your local electric company
for service.
Oven does not operate - Be sure the oven controls are set
properly for the desired function. See Setting Oven Controls in
this Use & Care Manual or read the instructions "Entire
appliance does not operate" in this checklist.
Oven light does not work (some models) - Replace or tighten
bulb. See Changing Oven Light section in this Use & Care Manual.
Oven control beeps and displays any "F" code error (_for
example FII) - Electronic control has detected a fault
condition. Press CLEAR/OFF to clear the display & stop
beeping. Reprogram oven. If fault recurs, record fault number.
Press CLEAR/OFF & call 1-800-4=MY-HOME® for assistance
(See back cover).
Flames inside oven or smoking from oven vent =Excessive
spillovers in oven. For example this will happen for pie
spillovers or large amounts of grease left on the oven bottom.
Wipe up excessive spillovers before starting oven. If flames or
excessive smoke are present see "Broiling" in the Setting
Oven Controls section.
Oven smokes excessively during broiling - (1) Control(s) not
set properly. Follow Broil instructions under Setting Oven
Controls. (2) Make sure oven door is opened to broil stop
position. (3) Meat too close to the broil element. Reposition the
broil rack to provide proper clearance between the meat & the
element. Preheat the broil element for searing. (4) Meat not
properly prepared. Remove excess fat from meat. Cut fatty
edges to prevent curling, but do not cut into lean. (5) Insert on
broiler pan wrong side up & grease not draining. Always place
grid on the broiler pan with ribs up & slots down to allow grease
to drip into pan (some models). (6) Grease has built up on oven
surfaces. Regular cleaning is necessary when broiling
frequently. Old grease or food spatters cause excessive
smoking.
Poor baking results - Many factors affect baking results. Make
sure the proper oven rack position is used. Center food in the
oven & space pans to allow air to circulate. Allow the oven to
preheat to the set temperature before placing food in the oven.
Try adjusting the recipe's recommended temperature or baking
time. If you feel the oven is too hot or cool, see Adjusting Your
Oven Temperature in this Use & Care Manual.
Soil not completely removed after Self-Cleaning cycle -
Failure to clean bottom, front top of oven, frame of oven or door
area outside oven seal. These areas are not in the Self-
Cleaning area, but get hot enough to burn on residue. Clean
these areas before the Self-Cleaning cycle is started. Burned-
on residue can be cleaned with a stiff nylon brush and water or
a nylon scrubber. Be careful not to damage the oven gasket.
Self-Cleaning cycle does not work - (1) Oven control not set
properly. Follow instructions under Self-Cleaning. (2) Self-
Cleaning cycle was interrupted. Follow steps under "Stopping
or Interrupting a Self-Cleaning Cycle" under Self-Cleaning.
Metal marks (Ceramic Cooktop models) - Sliding or scraping
of metal utensils on cooktop surface. Do not slide metal
utensils on cooktop surface. Use a ceramic-glass cooktop
cleaning creme to remove the marks. See "Cooktop Cleaning
and Maintenance" in the Care & Cleaning section.
Scratches or abrasions on cooktop surface (Ceramic
Cooktop models) - (1) Coarse particles such as salt or sand
between cooktop and utensils can cause scratches. Be sure
cooktop surface and bottoms of utensils are clean before
usage. Small scratches do not affect cooking and will become
less visible with time. (2) Cleaning materials not recommended
for ceramic-glass cooktop have been used. See "Cooktop
Cleaning & Maintenance." (3) Cookware with rough bottom has
been used. Use smooth, flat-bottomed cookware.
Brown streaks or specks on cooktop surface (Ceramic
Cooktop models) - Boilovers are cooked onto surface. Use
razor blade scraper to remove soil. See "Cooktop Cleaning and
Maintenance" in the Care & Cleaning section.
Areas of discoloration with metallic sheen (Ceramic Cooktop
models) - Mineral deposits from water and food. Remove using
a ceramic-glass cooktop cleaning creme. Use cookware with
clean, dry bottoms.
28
Recipes for Slow Cook
Slow Cook Turkey Breast
1 turkey breast
2 cups chicken broth
1 medium onion, sliced
2 teaspoons minced garlic
1 teaspoon salt
½ teaspoon pepper
In a roasting pan, place turkey breast meat-side up. Rub salt
and pepper under the skin, and inside the cavity. Pour chicken
broth around turkey breast, adding the onions and garlic. Cover
roasting pan with lid or foil. Using the Slow Cook feature pad,
set control on "Lo" setting for 7 to 8 hours, or the "Hi" setting for
4 to 5 hours. 4 to 6 servings.
Parmesan Green Beans and Potatoes
32oz frozen whole green beans
6 medium red potatoes, sliced
1 large onion, sliced
1 tablespoon seasoning salt
½ cup margarine
1 cup parmesan cheese, grated
Combine green beans, potatoes, onions, seasoning salt,
margarine and parmesan cheese in large casserole dish.
Cover with lid or aluminum foil.
Using the Slow Cook feature pad, set control on "Lo" setting for
7 to 8 hours, or the "Hi" setting for 4 to 5 hours. 4 to 6 servings.
Orange Surprise Cake
1 - pkg. orange cake mix
1 - 3.3oz pkg. white chocolate instant pudding
1 - 16oz. container sour cream
¾ cup vegetable oil
1 cup orange juice
4 eggs
1 - 9oz pkg. white chocolate pieces
Combine all ingredients, except white chocolate pieces. Blend
well; then add white chocolate pieces. Pour mixture into a 5
quart oven safe dish coated with nonstick cooking spray.
Using the Slow Cook feature pad, set control on "Lo" setting for
5 to 6 hours, or the "Hi" setting for 3 to 4 hours. Spoon into bowl
while still warm and serve with vanilla bean ice cream, or
whipped cream.
4 to 6 servings.
Pork Chops with Potatoes
1 can (10 ¾ oz) cream of mushroom soup
¼ cup dry white wine
t/4 cup Dijon mustard
1 teaspoon dry thyme, crushed
1 teaspoon garlic, minced
6 pork chops, cut ¾" thick
1 teaspoon pepper seasoning
1 teaspoon salt seasoning
1 tablespoon parsley
6 medium potatoes, sliced
1 medium onion, sliced
In a large mixing bowl, combine first 5 ingredients; blend well.
In a roasting pan, spread potatoes and onions over the bottom
of the pan. Pour soup mixture over potatoes and onions;
topping with the pork chops. Sprinkle pepper seasoning and
parsley on top of pork chops. Cover pan with lid or aluminum
foil and place on rack in the oven.
Using the Slow Cook feature pad, set control on "Lo" setting for
5 to 6 hours, or the "Hi" setting for 3 to 4 hours. 4 to 6 servings.
Apple Bread Pudding
5 cups sour dough bread cubes ( ½ ")
½ cup butter, melted
¾ cup brown sugar
½ teaspoon cinnamon
% teaspoon nutmeg
pinch of salt
4 to 5 cups apples, peeled and sliced thickly
1 cup raisins
1 cup walnuts, chopped
In large mixing bowl, combine all ingredients; blend well. Pour
mixture into a 5quart oven safe dish. Cover with lid or
aluminum foil and place on rack in oven.
Using the Slow Cook feature pad, set control on "Lo" setting for
5 to 6 hours, or the "Hi" setting for 3 to 4 hours. 4 to 6 servings.
Roast Beef with Vegetables
3 to 3 ½ Ib sirloin tip roast
2 cups water
4 to 5 medium potatoes, quartered
1 lb. small carrots
2 large onion, quartered
4 garlic cloves
¼ cup worstershire sauce
salt
pepper
Center roast in large roasting pan. Add water. Spread potatoes,
carrots, onions and garlic cloves evenly around roast. Pour
worstershire sauce on top of roast. Sprinkle all with salt and
pepper to taste. Cover with lid or aluminum foil.
Using the Slow Cook feature pad, set control on "Lo" setting for
5 to 6 hours, or the "Hi" setting for 3 to 4 hours. 4 to 6 servings.
Peach Cobbler
1 cup self rising flour
1 cup sugar
1 cup milk
½ cup butter, melted
1 lb. frozen peaches
In 5 quart oven safe dish, combine first four ingredients. Blend
well. Stir in peaches. Place on rack in oven.
Using the Slow Cook feature pad, set control on "Lo" setting for
5 to 6 hours, or the "Hi" setting for 3 to 4 hours. 4 to 6 servings.
29
iiiiiiiiiiiiiiiii¸
iiiiiiiiiiiiiiiii:
iiiiiiiiiiiiiiiii:
iiiiiiiiiiiiiiiii_
iiiiiiiiiiiiiiiii:
iiiiiiiiiiiiiiiii_
iiiiiiiiiiiiiiiii:
iiiiiiiiiiiiiiiii:
iiiiiiiiiiiiiiiii_
iiiiiiiiiiiiiiiii:
iiiiiiiiiiiiiiiii_
iiiiiiiiiiiiiiiii:
iiiiiiiiiiiiiiiii:
iiiiiiiiiiiiiiii_
i_i!ililililililililililililililili
Your Home
For repair-in your home-of all major brand appliances,
lawn and garden equipment, or heating and cooling systems,
no matter who made it, no matter who sold it!
For the replacement parts, accessories and
owner's manuals that you need to do-it-yourself.
For Sears professional installation of home appliances
and items like garage door openers and water heaters.
1-800-4-MY-HOME ® (1-800-469-4663)
Call anytime, day or night (U.S.A. and Canada)
www.sears.com www.sears.ca
Our Home
For repair of carry=in items like vacuums, lawn equipment,
and electronics, call or go on-line for the location of your nearest
////////////////_
iiiiiiiiiiiiiiiii_
................. iiiiiiiiiiiiiiiii
iiiiiililililililililililililili!!iiParapedirserviciodereparaci6n Au Canada pourserviceenfrangais: iiiiiiiiiiiiiiiii
adomicilio, yparaordenarpiezas: 1-800-LE-FOYER Mc iiiiiiiiiiiiiiiii
l=888"SU'HOGAR® (1=800-533-6937) iiiiiiiiiii;iiii!_!i_!i_!ili
]::::::::::::, (1-888W84-6427) www.sears.ca
TM SM
® Registered Trademark / Trademark / Service Mark of Sears Brands, LLC
® Marca Registrada / TMMama de F_brica / SMMarca de Servicio de Sears Brands, LLC
MCMarque de commerce / MDMarque d_pos@e de Sears Brands, LLC © Sears Brands, LLC
