AN-1000X TECHNICAL SPECIFICATIONS
Rated Power Output 50 watt continuous/90 watt dynamic
Max SPL @ Rated Power 103 dB @ 1 meter
Frequency Response 65 Hz – 20 kHz ±3dB
Speaker Type 4.5” woofer w/ shielded magnet,
10mm dome tweeter,
ferro-fluid cooled
AC Power Reqs. 110 - 125 VAC, 50/60 Hz
Export Model 208 - 240 VAC, 50/60 Hz (90W max)
Dimensions (HWD) 5.25 x 8.4 x 9” / 13 x 21 x 23 cm
Weight 9.5 lbs / 3.3 Kg
Tone Controls
Bass +8/-12 dB @ 100 Hz
Treble +10/-12 dB @ 10 kHz
Inputs

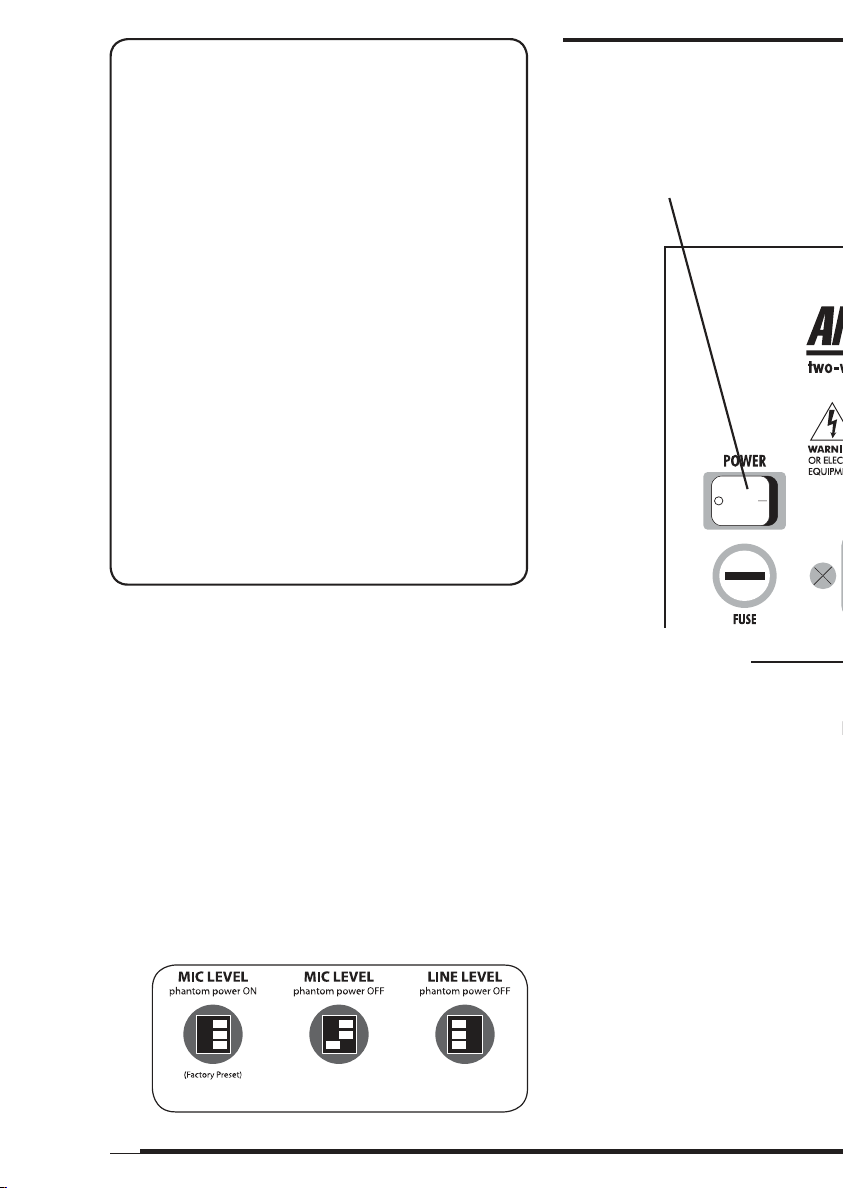

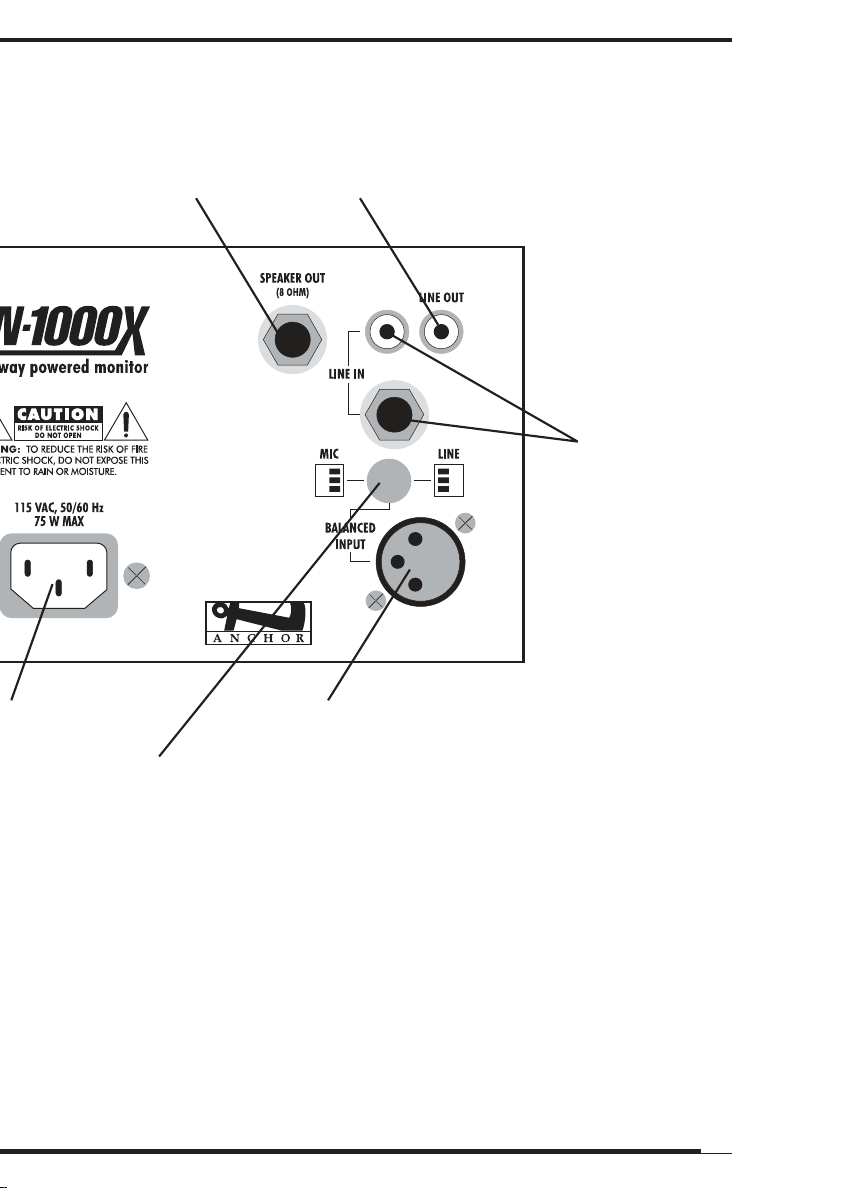

Balanced female XLR, switchable phantom
power, 15 volts DC @ 6.8 k ohm
Mic-Level Setting Lo-Z
Line-Level Setting Bridging (10 k ohm)
Line Hi-Z, unbalanced, 1/4”-phone & RCA
Outputs
Line (post fader) Lo-Z, buffered, RCA
Speaker 8 ohm, unswitched, 1/4”-phone
Sensitivity For Rated Output
Line balanced -18 dBv (125 mVrms)
Microphone balanced -56 dBv (1.5 mVrms)
Line -18 dBv (125 mVrms)
CONTENTS
GETTING STARTED ................................................................................................................................................. 2
FEEDBACK ............................................................................................................................................................... 3
BASIC SYSTEM OPERATION .................................................................................................................................... 4
BALANCED INPUT JACK .......................................................................................................................................... 4
AN-1000X ACCESSORIES ........................................................................................................................................ 6
IMPORTANT SAFEGUARDS ..................................................................................................................................... 7
HAVING TROUBLE W/ YOUR SOUND SYSTEM? ...................................................................................................... 8
AN-1000X TECHNICAL SPECIFICATIONS ................................................................................................................ 8
HAVING TROUBLE W/ YOUR SOUND SYSTEM?
CONDITION POSSIBLE CAUSE
No Sound (Power LED Not Lit) • turn POWER switch on
• plug in power cord
• check for blown fuse
No Sound (Power LED Lights) • check for output from source
• make sure all cables are completely plugged in
• increase volume control
Distorted Sound • check input cable connection
• lower input signal level
Excessive Hum / Noise • use shielded input cable
Mic Volume Too Low • set balanced input to mic-level
Blows Fuse w/ Auxiliary Speaker • shorted speaker cable
Anchor Audio, Inc.
Portable Sound Systems • Torrance, California
100-0026-000/G - 9/06
OWNER’S MANUAL
AN-1000X
Portable Sound System
Anchor Audio Customer Service
888-444-6077
www.anchoraudio.com
